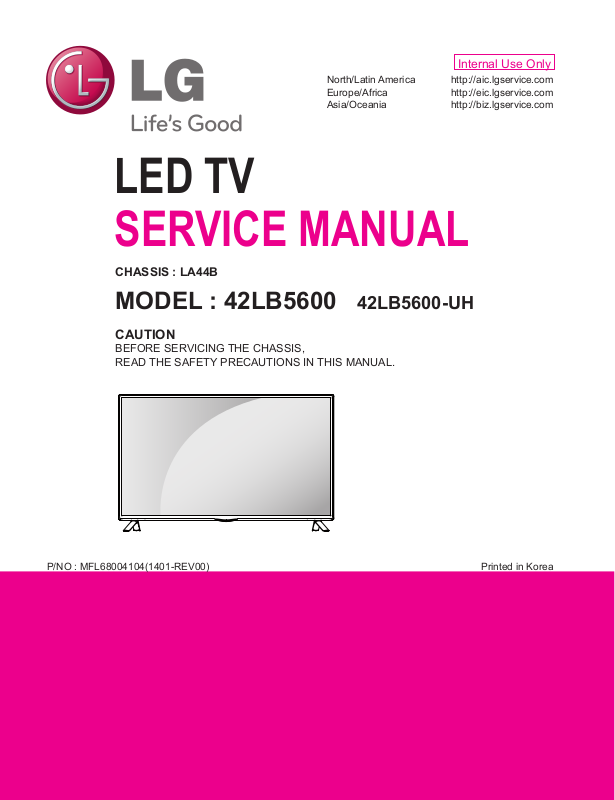

LG 42LB5600 Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LA44B

MODEL : 42LB5600 42LB5600-UH

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL68004104(1401-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 9

TROUBLE SHOOTING ............................................................................ 16

BLOCK DIAGRAM .................................................................................. 22

EXPLODED VIEW .................................................................................. 23

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of th e cir cuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exp ose d metallic par t. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied LED TV with LA44Bchassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage

Market Input voltage Frequency Remark

USA 110~240V 50/60Hz Standard Voltage of each

product is marked by models

4) Specification and performance of each parts are followed ea ch drawing and s pe cificatio n b y p art number in accordance with BOM

5) The receiver must be operated for about 20 minutes prior to the adjustment

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : UL, CSA, IEC specification

- EMC: FCC, ICES, IEC specification

4. General Specification

No Item Specication Result Remark

1. Receiving System 1) ATSC / NTSC-M / 64 QAM / 256 QAM

1) ATSC / NTSC-M / 64 QAM / 256 QAM PAL-M / PAL-N /

2. Available Channel 1) VHF : 02~13

2) UHF : 14~69

3) DTV : 02-69

4) CATV : 01~135

5) CADTV : 01~135

3. Input Voltage AC 100 ~ 240V 50/60Hz Mark : 110V, 60Hz (N.America)

4. Market NORTH AMERICA

5. Screen Size 32/39/42/47/50/55inch Wide (1920 × 1080) FHD + 60Hz 32LB5600-UH

32/37inch Wide (1366 × 768) HD + 60Hz 32LB560B-UH

6. Aspect Ratio 16:9

7. Tuning System FS

ATSC Sufx (“WD”) only model

39LB5600-UH 42LB5600-UH 55LB5500-UC 49LB5500-UC 42LB5500-UC

32LB550B-UC

Only for training and service purposes

- 6 -

No Item Specication Result Remark

8. Module DIRECT L TBD LGD 32LB5600-UH

DIRECT L LC420DUE-FGA3 LGD 42LB5600-UH

DIRECT L T420HVF07.0 AUO 42LB5600-UH

DIRECT L NC390DUN-VXBP1 INX 39LB5600-UH

DIRECT L LC320DUE-FGA3 LGD 32LB5600-UH

DIRECT L NC320DXN-VSBP1 Sharp 32LB560B-UH

DIRECT L HC320DXN-VSHS1 CSOT 32LB560B-UH

DIRECT L LC320DXE-FGA3 LGD 32LB560B-UH

DIRECT L HC550DUN-ABHR1 BOE 55LB5500-UC

DIRECT L LC550DUE-FGA5 LGD 55LB5500-UC

DIRECT L LC490DUE-FGA5 LGD 49LB5500-UC

DIRECT L LC420DUE-FGA5 LGD 42LB5500-UC

DIRECT L NC320DXN-VSBP2 Sharp 32LB550B-UC

DIRECT L LC320DXE-FGA5 LGD 32LB550B-UC

9. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : ~ 80 %

10. Storage Environment 1) Temp : -20 ~ 60 deg

2) Humidity : ~ 85 %

5. Supported video resolutions

5.1. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60.00 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.50 SDTV ,DVD 480I

3. 720*480 31.50 60.00 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.00 SDTV 480P

5. 1280*720 45.00 60.00 74.25 HDTV 720P

6. 1280*720 44.96 59.94 74.176 HDTV 720P

7. 1920*1080 33.75 60.00 74.25 HDTV 1080I

8. 1920*1080 33.72 59.94 74.176 HDTV 1080I

9. 1920*1080 67.50 60.00 148.50 HDTV 1080P

10. 1920*1080 67.432 59.94 148.352 HDTV 1080P

11. 1920*1080 27.00 24.00 74.25 HDTV 1080P

12. 1920*1080 26.97 23.94 74.176 HDTV 1080P

13. 1920*1080 33.75 30.00 74.25 HDTV 1080P

14. 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 7 -

5.2. HDMI Input (DTV/PC)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remark

DTV

1. 720*480 31.47 60.00 27.027 SDTV 480P

2. 720*480 31.47 59.94 27.00 SDTV 480P

3. 1280*720 45.00 60.00 74.25 HDTV 720P

4. 1280*720 44.96 59.94 74.176 HDTV 720P

5. 1920*1080 33.75 60.00 74.25 HDTV 1080I

6. 1920*1080 33.72 59.94 74.176 HDTV 1080I

7. 1920*1080 67.50 60.00 148.50 HDTV 1080P

8. 1920*1080 67.432 59.94 148.352 HDTV 1080P

9. 1920*1080 27.00 24.00 74.25 HDTV 1080P

10. 1920*1080 26.97 23.976 74.176 HDTV 1080P

11. 1920*1080 33.75 30.00 74.25 HDTV 1080P

12. 1920*1080 33.71 29.97 74.176 HDTV 1080P

PC DDC

1 640*350 31.468 70.09 25.17 EGA X

2 720*400 31.469 70.08 28.32 DOS O

3 640*480 31.469 59.94 25.17 VESA(VGA) O

4 800*600 37.879 60.31 40.00 VESA(SVGA) O

5 1024*768 48.363 60.00 65.00 VESA(XGA) O

6 1152*864 54.348 60.053 VESA O

7 1280*1024 63.981 60.020 108.0 VESA (SXGA) O Full HD model Only

8 1360*768 47.712 60.015 85.50 VESA (WXGA) O

9 1920*1080 67.50 60.00 148.5 HDTV 1080P O Full HD model Only

Only for training and service purposes

- 8 -

ADJUSTMENT INSTRUCTION

1. Application

This spec. sheet applies to LA44B Chassis applied LED TV all models manufactured in TV factory

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5 ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) At first Worker must turn on the SET by using Power Only

key. (6) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15

ºC

In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2

hours In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above

15°C for 3 hours.

※ Caution When still image is displayed for a period of 20 minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area

3. Adjustment items

3.1. Main PCBA Adjustments

(1) ADC adjustment : ADC adjustment is OTP (Auto ADC) (2) EDID download : HDMI

4. MAIN PCBA Adjustments

* Download (1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

(2) Set as below, and then click “Auto Detect” and check “OK”

message If display “Error”, Check connect computer, jig, and set. (3) Click “Connect” tab. If display “Can’t ”, Check connect

computer, jig, and set.

(3)

(1)

(2)

(4) Click “Read” tab, and then load download file(XXXX.bin) by

clicking “Read”

OK

Please Check the Speed : To use speed between from 200KHz to 400KHz

(4)

filexxx.bin

■ Above adjustment items can be also performed in Final

Assembly if needed.

Both Board-level and Final assembly adjustment items can

be check using In-Start Menu (1.Adjust Check).

3.2. Final assembly adjustment

(1) White Balance adjustment (2) RS-232C functionality check (3) Factory Option setting per destination (4) Shipment mode setting (In-Stop) (5) GND and HI-POT test

3.3. Appendix

(1) Shipment conditions (2) Tool option menu (3) USB Download (S/W Update, Option and Service only) (4) Preset CH Information

Only for training and service purposes

(5) Click “Auto” tab and set as below. (6) Click “Run”. (7) After downloading, check “OK” message.

(5)

(6)

- 9 -

(7) ……….OK

4.1. ADC Adjustment

4.1.1. Overview

▪ ADC adjustment is needed to find the optimum black level

and gain in Analog-to-Digital device and to compensate RGB deviation.

▪ ADC adjustment is OTP (Auto ADC)

4.2.5. EDID DATA

4.2.5.1. North America (PCM)

4.2.5.1.1. FHD Model

■ HDMI 1-FHD-8BIT (C/S : E708)

EDID Block 0, Bytes 0-127 [00H-7FH]

4.2. EDID Download

4.2.1. Overview

▪ It is a VESA regulation. A PC or a MNT will display an

optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

4.2.2. Equipment

(1) Since EDID data is embedded, EDID download JIG, HDMI

cable is not need.

(2) Adjust by using remote controller

4.2.3. Download method (using DFT)

※ PC(for communication through RS-232C), UART baud rate:

115200 bps Command : aa 00 00 (Start Factory mode) Command : ae 00 10 (Download All EDID) Command : aa 00 90 (End of Factory mode)

4.2.4. Download method (using Service Remocon)

(1) Press Adj. key on the Adj. R/C. (2) Select EDID D/L menu. (3) By pressing Enter key, EDID download will begin (4) If Download is successful, OK is display, but If Download is

failure, NG is displayed. (5) If Download is failure, Re-try downloads. ※Caution : Wh en EDID Download, must remove HDMI

Cable.

(6) EDID Write confirmation

EDID D/L (PCM) HDMI1 : OK HDMI2 : OK

4.2.5. Models for EDID Data

2D

North

America

(PCM)

i

HD / 8bit

HDMI 2ea

32LB560B-UH 32LB550B-UC

FHD / 8bit HDMI 2ea

32LB5600-UH 39LB5600-UH 42LB5600-UH 55LB5500-UC 49LB5500-UC 42LB5500-UC

HD / 8bit

HDMI 1ea

FHD / 8bit HDMI 1ea

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 19 F1 48 90 22 20 05 04 03 02 01 23 09 57 10 | 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 71 38 2D 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 08

■ HDMI 2-FHD-8BIT (C/S : E7F8)

EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 19 F1 48 90 22 20 05 04 03 02 01 23 09 57 10 | 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 71 38 2D 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F8

Only for training and service purposes

- 10 -

4.2.5.1.2. HD Model

■ HDMI 1-HD (C/S : 6F08)

EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 19 F1 48 10 22 20 05 84 03 02 01 23 09 57 10 | 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 71 38 2D 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 08

■ HDMI 2-HD (C/S : 6FF8)

EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 19 F1 48 10 22 20 05 84 03 02 01 23 09 57 10 | 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 71 38 2D 20 | 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 80 18 71 30 | 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D 00 40 | 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E 8C 50 | 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 63 00 00 60 | 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F8

4.2.5.2. AC3 EDID Data

4.2.5.2.1. FHD Model

■ HDMI 1-FHD-8BIT (C/S : E796)

EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 1C F1 48 90 22 20 05 04 03 02 01 26 15 07 10 | 50 09 57 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96

■ HDMI 2-FHD-8BIT (C/S : E786)

EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 | 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C 40 | 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30 50 | 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 E7

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 1C F1 48 90 22 20 05 04 03 02 01 26 15 07 10 | 50 09 57 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 86

Only for training and service purposes

- 11 -

4.2.5.2.2. HD Model

■ HDMI 1-HD (C/S : 6F96)

EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F

EDID Block 1, Bytes 128-255 [80H-FFH]

5. Final Assembly Adjustment

5.1. White Balance Adjustment

5.1.1. Overview

5.1.1.1. W/B adj. Objective & How-it-works (1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 ºC

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

- Before White balance adjustment, Keep power on status,

don’t power off

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 1C F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 57 07 67 03 0C 00 10 00 80 1E 02 3A 80 18 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96

■ HDMI 2-HD (C/S : 6F86)

EDID Block 0, Bytes 0-127 [00H-7FH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 | 01 18 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 | 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 01 01 30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70 40 | 36 00 40 84 63 00 00 1E 64 19 00 40 41 00 26 30 50 | 18 88 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 | 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC 70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 6F

EDID Block 1, Bytes 128-255 [80H-FFH]

0 1 2 3 4 5 6 7 8 9 A B C D E F

---------------------------------------------------------------------------- 0 | 02 03 1C F1 48 10 22 20 05 84 03 02 01 26 15 07 10 | 50 09 57 07 67 03 0C 00 20 00 80 1E 02 3A 80 18 20 | 71 38 2D 40 58 2C 04 05 40 84 63 00 00 1E 01 1D 30 | 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 40 | 01 1D 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 50 | 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 96 00 40 84 60 | 63 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00 70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 86

5.1.1.2. Adj. condition and cautionary items (1) Lighting condition in surrounding area surrounding lighting

should be lower 10 lux. Try to isolate adj. area into dark surrounding.

(2) Probe location: Color Analyzer (CA-210) probe should be

within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

- After Aging Start, Keep the Power ON sta tus during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

5.1.2. Equipment

(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:

CH14)

(2) Adj. Computer(D uring auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Vi deo Signal Generat or MS PG-925F 720p/ 204-Gray

(Model:217, Pattern:49)

→ Only when internal pattern is not available

※ Color Anal yzer Ma trix sh ould be calibrate d using

CS-1000

4.3. Tool Option Input

- Input Model Tool Option according to BOM

Only for training and service purposes

- 12 -

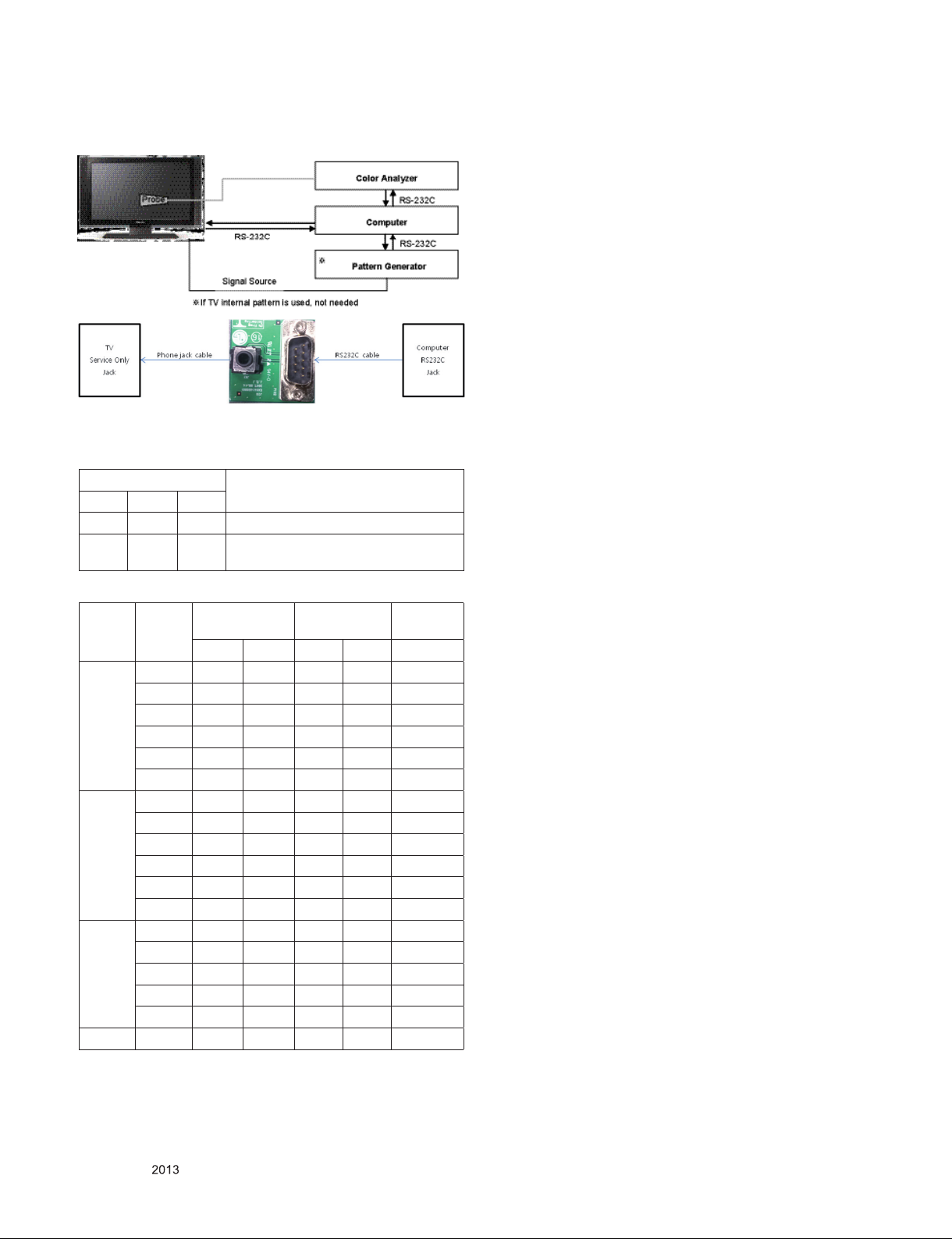

5.1.3. Equipment connection

5.1.4. Adjustment Command (Protocol)

(1) RS-232C Command used during auto-adj

RS-232C COMMAND

CMD DATA ID

Wb 00 00 Begin White Balance adj.

Wb 00 ff End White Balance adj.

(internal pattern disappears )

(2) Adjustment Map

Command

Adj. item

Cool R Gain j g 00 C0 172

G Gain j h 00 C0 172

B Gain j i 00 C0 192

R Cut 128

G Cut 128

B Cut 128

Medium R Gain j a 00 C0 192

G Gain j b 00 C0 192

B Gain j c 00 C0 192

R Cut 128

G Cut 128

B Cut 128

Warm R Gain j d 00 C0 192

G Gain j e 00 C0 192

B Gain j f 00 C0 172

R Cut 128

G Cut 128

B Cut 128

(lower case ASCII)

CMD1 CMD2 MIN MAX

Explanation

Data Range

(Hex.)

Default

(Decimal)

5.1.5. Adjustment method

5.1.5.1. Auto WB calibration (1) Set TV in ADJ mode using P-ONLY key (or POWER ON

key)

(2) Place optical probe on the center of the display

- It need to check probe condition of zero calibration before

adjustment. (3) Connect RS-232C Cable (4) Select mode in ADJ Program and begin a adjustment. (5) When WB adjustment is completed with OK message,

check adjustment status of pre-set mode (Cool, Medium,

Warm) (6) Remove probe and RS-232C cable. ※ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

5.1.5.2. Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 204 Gray(80IRE) internal

pattern will be displayed)

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

※ CASE First adjust the coordinate far away from the target value(x, y). (1) x, y > target i) Decrease the R, G. (2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others. (3) x >target , y < target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y > target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

► How to adjust

(1) Fix G gain at least 172 Adjust R, B Gain (In Case of Mostly Blue Gain Saturation) (2) When R or B Gain > 255, Release Fixed G Gain and

Readjust

※ CASE Medium / Warm First adjust the coordinate far away from the target value(x, y). (1) x, y > target i) Decrease the R, G. (2) x, y < target i) First decrease the B gain, ii) Decrease the one of the others. (3) x > target , y < target i) First decrease B, so make y a little more than the target. ii) Adjust x value by decreasing the R (4) x < target , y > target i) First decrease B, so make x a little more than the target. ii) Adjust x value by decreasing the G

Only for training and service purposes

- 13 -

5.1.6. Reference (White Balance Adj. coordinate and color

temperature)

▪ Luminance: 204 Gray, 80IRE

**(normal line) Model : For LGD (LB56xx, LB55xx)

▪ S tan d ard col o r co ord i nat e an d te m per a tur e us i ng

CA-210(CH-14) – by aging time

Cool Medium Warm

H/R Time(Min)

1 0-2 281 285 295 308 323 344

2 3-5 280 284 294 307 322 343

3 6-9 279 282 293 305 321 341

4 10-19 277 279 291 302 319 338

5 20-35 275 275 289 298 317 334

6 36-49 273 273 287 296 315 332

7 50-79 272 272 286 295 314 331

8 80-119 271 270 285 293 313 329

9 Over 120 271 270 285 293 313 329

x y x x y x

271 270 285 293 313 329

5.2. Option selection per country

5.2.1. Overview

(1) Tool option selection is only done for models in Non-USA

North America due to rating

(2) Applied model: LA32B Chassis applied to CANADA and

MEXICO

5.2.2. Country Group selection

(1) Press ADJ key on the Adj. R/C, and then select Country

Group Menu

(2) Depending on destination, select US, then on the lower

Country option, select US, CA, MX. Selection is done using +, - KEY (3) Using DFT(Auto) ※ PC (for communication through RS-232C) -> UART Baud

rate : 115200 bps

Command : ah 00 00 DATA(Area Number(hexadecimal))

ITEM DATA(Area Number) AREA

AREA OPTION1 0 USA

1 CANADA

2 MEXICO

**(aging chamber) Model : For LGD (LB56xx, LB55xx)

▪ Sta nda rd col or c oo r di n ate a nd t emp era tur e usi ng

CA-210(CH-14) – by aging time

Cool Medium Warm

H/R Time(Min)

1 0-5 280 285 294 308 319 340

2 6-10 276 280 290 303 315 335

3 11-20 272 275 286 298 311 330

4 21-30 269 272 283 295 308 327

5 31-40 267 268 281 291 306 323

6 41-50 266 265 280 288 305 320

7 51-80 265 263 279 286 304 318

8 81-119 264 261 278 284 303 316

9 Over 120 264 260 278 283 303 315

x y x x y x

271 270 285 293 313 329

5.2.3. Tool Option inspection

▪ Press Adj. key on the Adj. R/C, then select Tool option

Model Module

32LB5600-UH LGD 00529 01030 24716 20544

32LB550B-UC LGD 00529 13314 24716 20544

42LB5600-UH LGD 01297 01030 24716 20544

42LB5600-UH AUO 09488 01030 24716 20544

39LB5600-UH INX

32LB560B-UH

32LB560B-UH LGD 00529 09218 24716 20544

55LB5500-UC BOE 22800 05126 24716 20544

55LB5500-UC LGD 02321 05126 24716 20544

49LB5500-UC LGD 01809 05126 24716 20544

42LB5500-UC LGD 01297 05126 24716 20544

32LB550B-UC SHARP 12816 13314 24716 20544

SHARP

BOE

Tool

option1

17426 01030 24716 20544

12816

(MIRROR?)

21008

(MIRROR?)

Tool

option2

09218 24716 20544

Tool

option3

option4

※ Tool option can be reconstructed by Software

5.3. Ship-out mode check (In-stop)

- After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode

Tool

Only for training and service purposes

- 14 -

6. GND and HI-POT Test

6.1. GND & HI-POT auto-check preparation

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

6.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester. (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test).

(Remove A/V CORD from A/V JACK BOX)

(5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next

process automatically

6.3. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA (2) TEST time: 1 second (3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5mArms

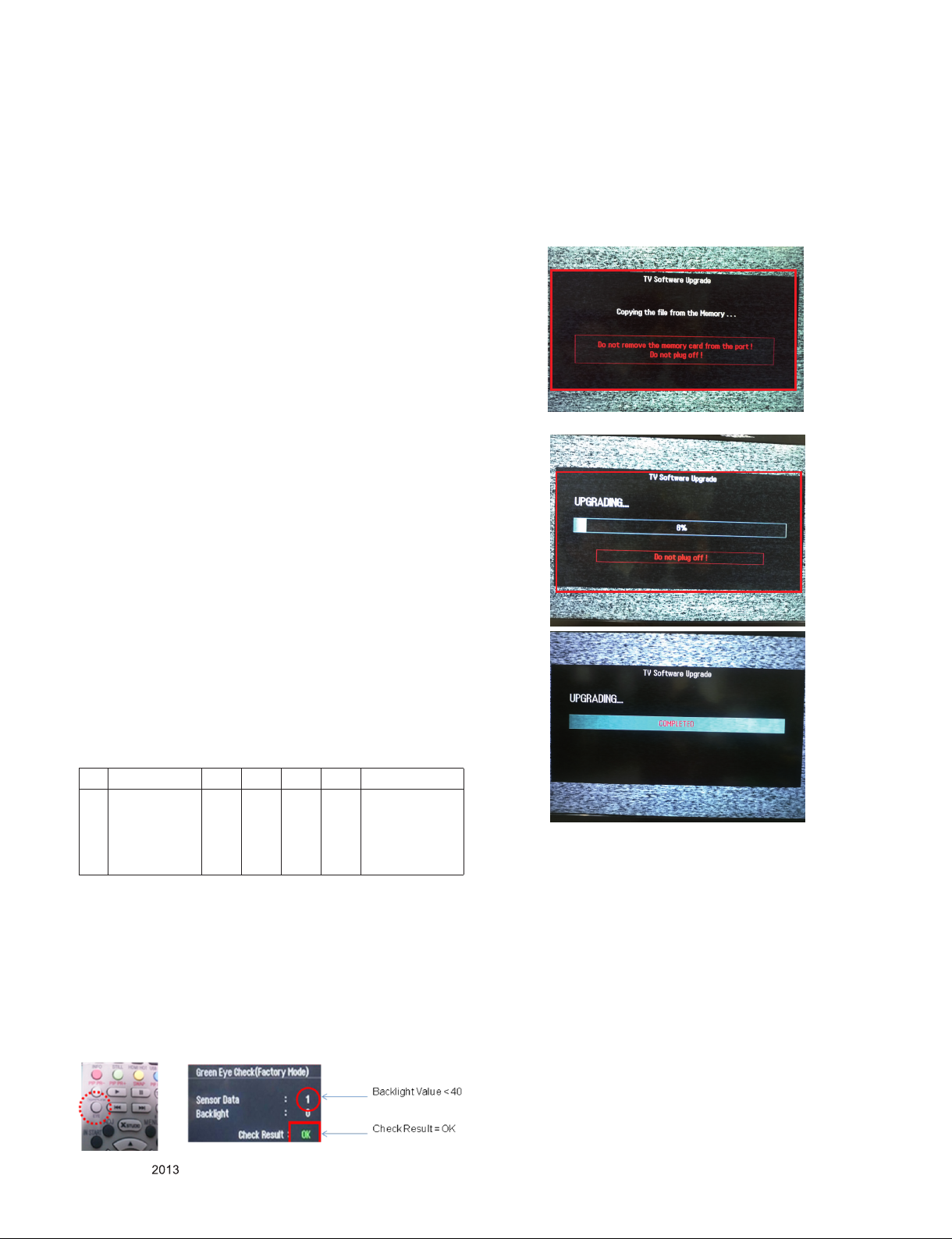

* USB S/W Download (option, Service only)

(1) Put the USB Stick to the USB socket. (2) Automatically detecting update file in USB Stick.

- If your downloaded program version in USB Stick is Low, it didn't work. But your downloaded version is High, USB data is automatically detecting

(3) Show the message "Copying files from memory"

(4) Updating is staring.

7. AUDIO output check

7.1. Audio input condition

(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)

7.2. Specification

No Item Min Typ Max Unit Remark

1 Audio practical

max Output, L/R (Distortion=10% max Output)

9.0

8.5

10.9

9.3

12.0

9.8WVrms

(1) Measurement condition

- EQ/AVL/Clear Voice: Off (2) Speaker

(8Ω Impedance)

8. Eye Sensor Function check

(1) Press EYE key of Adj. R/C in dark room (2) Check below two conditions in dark room i) Check if Check Result is OK. ii) Check if the Backlight value is lower than 40

-> When Check Result is OK and Backlight value is lower than 40, Eye Sensor operates normally.

(3) After coming out of Darkroom, check if Sensor Data value

and Backlight value rise

(5) After updating is complete, The TV will restart automatically. (6) If TV turns on, check your updated version and Tool option.

(refer to the next page about tool option)

* If downloading version is higher than your TV have, TV

can lost all channel data. In thi s case, you have to channel recover. If all channel data is cleared, you didn't have a DTV/ATV test on production line.

※After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 15 -

TROUBLE SHOOTING

1. Power-up boot check

Check stand-by Voltage.

P401 3, 5, 6pin : +3.5V_ST

Check 18pin Power connector

Main B/D 3.5V Line

Short Check

Check X201 clock

24 M Hz

Replace X201

Check P401 PWR_ON.

1pin : 3.3V

Replace Ms tar(IC101) or Main board

Check Multi Voltage

P401 9, 10pin : 24V

/ 13, 14, 15pin:12V

Replace Power Board

Check DRV ON Control

P401 2 pin : High

Check Power Board

Check IC402/3/4 Output Voltage

IC402 : 2.5V IC403 : 1.5V

IC404 : 1.15V

Q403 : 3.3V

Replace IC402, IC403, IC404, Q403

Re-download software.

Check stand-by Voltage

L401, L404 : +3.5V

Replace L401, L404

Check LVDS Power Voltage

Q409 : 12V

Replace Q409

Check Ms tar LVDS Output

Replace Ms tar(IC101) or Main Board

Change Module

ok

okNo

No

ok

Replace Power board.

ok

No

Only for training and service purposes

- 16 -

2. Digital/Analog TV Video

Check RF Cable & Signal

Check Tuner 3.3V Power

L3703

Replace L3703

Check Tuner 1.8V Power

IC3703 2 pin : 1.8V

Check IF_P/ N Signal

TU3700 10/11 Pin

Replace IC3703

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

ok

No

Bad Tuner. Replace Tuner.

3. AV Video

Check input signal form at.

Is it supported?

Check AV Cable for damage

for damage or open conductor

Check JK1701, CVBS Signal Line

R1707

ok

No

Replace Jack

ok

Check CVBS_DET Signal

Replace R1713

No

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

No

Only for training and service purposes

- 17 -

4. Component Video

Check input signal form at.

Is it supported?

Check Component Cable

for damage or open conductor.

Check JK1701

Y/ PB/PR signal Line

ok

No

Replace Jack

Check COMP_DET Signa l

Replace R1712 or R1713

No

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

ok

No

5. HDMI V ideo

Check input signal form at.

Is it supported?

Check HDMI Cable conductors for damage or open conductor.

Check EDID

R810, R811, R815, R816 I2C Signal

Check JK800, JK801

ok

No

Replace the def ective IC or re-download EDID data

ok

Replace Jack

Check HDMI Signal

Check other set If no problem, check s ignal line

ok

No

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

ok

No

Replace Main Board

No

Check HDMI_DET (HPD)

No

Replace R808, R809, Q800, R803, R814

Only for training and service purposes

- 18 -

6. MHL Video

Check input signal form at.

Is it supported?

Check MHL Cable conductors

for damage or open conductor.

Check MHL Signal (R214, R215)

Check JK801

ok

No

Replace the def ective IC or re-download EDID data

ok

Replace Jack

Check MHL Signal

Check other set If no problem, check s ignal line

ok

No

Check Mstar LVDS Output

Replace Mstar(IC101) or Main Board.

ok

No

Replace Main Board

No

Check CD_Sense, Cbus, Vb us

No

Replace R817, C800

Only for training and service purposes

- 19 -

7. All Source Audio

Check the TV Speaker Menu

(M enu -> Audio -> TV Speaker)

On

ok

Check Output Signal P5600

1, 2, 3, 4 pin .

Replace Audio AMP IC(IC5600)

ok

No

Check Connector & P5600

Replace connector if found to be dam aged.

ok

No

Check speaker resistance

and connector damage.

Replace speaker.

ok

No

Off

Toggle the Men u

Check AMP IC(IC5600) Power

24V, 3.3V

No

Replace Amp IC(IC5600)

Check Mstar I2S Output

IC5600 20,21,22 Pin

No

Check signal line. Or replace Mstar(IC101)

Check Mstar AUDIO_MASTER_CLK

R148

No

Replace Mstar(IC101) or Main Board.

ok

Check AMP I2C Line

R140, R141

No

Check signal line. Or replace Mstar(IC101)

Only for training and service purposes

- 20 -

8. Digital/Analog TV Audio

Check RF Cable & Signal

Follow procedure

‘7. All source audio’

trouble shooting guide.

ok

Check Tuner 3.3V Power

L3703

Replace L3703

Check Tuner 1.8V Power

IC3703 2 pin : 1.8V

Check IF_P/ N Signal

TU3700 10/11 Pin

Replace IC3703

ok

No

Bad Tuner. Replace Tuner.

9. AV Audio

Check AV Cable for dam age

for damage or open conductor

Check JK1702 Signal Line

R1714,R1715

ok

No

Replace Jack

Follow procedure

‘7. All source audio’

trouble shooting guide.

10. Component Audio

Check Component Cable

for damage or open conductor.

Check JK1702 Signal Line

R1714,R1715

ok

No

Replace Jack

Follow procedure

‘7. All source audio’

trouble shooting guide.

Only for training and service purposes

- 21 -

BLOCK DIAGRAM

SPDIF

Component

HDMI

D_IF

M1

SERIAL FL ASH

MXIC 8MB(64M b)

MX25L6406EMI

LVDS

(FHD/HD 60z)

USB2.0

DP/D M

SPK L/R

X-tal

24MHz

FPC(51P/FHD)

I2S

SPDIF

L/R

Y/Pb/Pr, L/R

Rear

TMDS

DDR 3 Add.

DDR 3 Data

SPI

AV

Side

TMDS

HDMI

MHL

CVBS, L/R

CONT ROL

IR & LED

KEY1

KEY2

IR

LED_R

I2C

RS-232C

FPC(30P/HD)

MAX3232

RS232C

CLK 667MHz

Internal

Micom

(PM)

I2C

DDR3 128MB(1Gb)

Hynic

H5TQ1G63DFR

AT24C512C-SSHD-T

512k bit

Half NIM

(SI2158B_ATSC_1INPUT)

A_IF

AMP

STA380BWE

(CLK 800MHz)

Only for training and service purposes

- 22 -

400

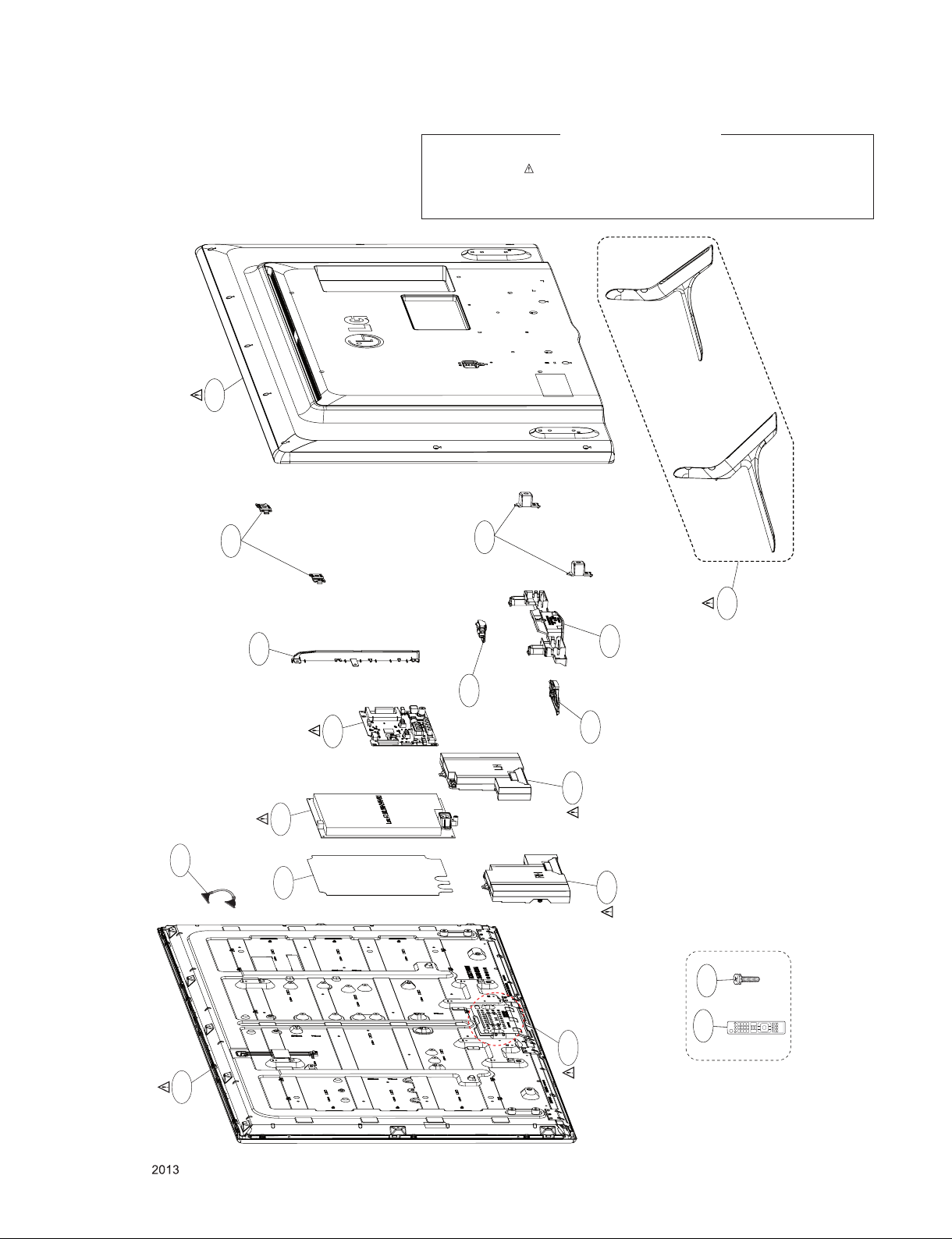

EXPLODED VIEW

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essenti al that these special safet y parts shoul d be replac ed with the same compo nents as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

410

420

900

521

310

500

540

501

121

530

LV1

820

120

A10

Set + Stand

200

Only for training and service purposes

- 23 -

A2

200T

Only LGD Module

L13 POWER BLOCK (POWER DETECT 2)

FROM LIPS & POWER B/D

PANEL_POWER

+12V

Power_DET

+3.5V_ST --> 3.375V --> 3.46V +24V --> 3.78V --> 3.92V (3.79V) +12V --> 3.58V --> 3.82V (3.68V)

RL_ON

+3.5V_ST

+24V

+12V

+3.5V_ST

R461 10K

C401 10uF

2012

10V

OPT

R462 10K

CB2012PK501T

R401

10K

B

+3.5V_POWER_DET

L401

C402

1uF 10V

1005

C404

4.7uF 50V

3216

C405

4.7uF

16V

C

Q401 MMBT3904(NXP)

E

D401

5V

C406

0.1uF 50V

C407

0.1uF 16V

+3.5V_ST

R416 10K

R406

4.7K

R404

0

OPT

L404

CB2012PK501T

L407

MLB-201209-0120P-N2

L402

MLB-201209-0120P-N2

MMBT3906(NXP)

Q402

1

2

D403

5V

R444

8.2K

OPT

C424

0.1uF 16V

+24V

OPT

1%

C422

0.1uF 16V

R448 27K

R449

5.1K

R446

2.7K

R447

1.2K

L412

UBW2012-121F

120OHM

R430 10K

R439

33K

R440 12K

B

AZ1117EH-ADJTRG1

C438

0.1uF 25V

OPT

R489 10K

L406

BLM18PG121SN1D

C417 10uF

+3.3V_Normal

10V

R415 100

+3.3V_Normal

R419

1K

C

E

MMBT3904(NXP)

R428

3.9K

B

Q405

R408 100

R421 10K

+3.5V_ST

R426 10K

INV_CTL

PWM_DIM

PWM1

PANEL_CTL

051:AL22

+1.5V_DDR

3

OPT

R411

33K

R414 0

P401

SMAW200-H18S5

PWR ON

3.5V

3.5V GND 24V GND 12V 12V GND

DRV ON

1

2

PDIM#1

3

4

3.5V

5

6

PDIM#2

7

8

24V

10

9

GND

11

12

12V

13

14

N.C

15

16

GND

17

18

19

.

C

Q407 MMBT3904(NXP)

E

IC403

OUTIN

ADJ/GND

C443 10uF

1.3A

Q409

DMP2130L

D

S

16V

R437 1K 1/16W 1%

R441 200 1/16W 1%

G

R1

R2

+1.5V_DDR

L408

CB2012PK501T

R442

0

C418 10uF

10V

R405

5.6K

2.5V

D404

PANEL_VCC

R407

5.6K

C420

1uF 10V

1005

OPT

C419

1uF 10V

1005

OPT

+3.3V_Normal

Vout=1.25*(1+R2/R1)+Iadj*R2

+3.5V_POWER_DET

+12V

OPT

R450

1%

+24V

OPT

1%

OPT

1%

5%

+3.5V_POWER_DET

OPT

R451

5%

+3.5V_ST

R434

10K

0

VCC

R455 100K

IC405

APX803D29

3

1

GND

OPT

R456

100K

OPT

IC406

APX803D29

3

1

GND

R438 22K

2

C423

2.2uF 10V

RESET

DMP2130L Q403

S

R457 100

POWER_DET_RESET

OPT R458 100

D

G

+3.5V_ST

OPT R459

4.7K

C433

0.1uF

+3.3V_Normal

L403

PZ1608U121-2R0TF

C425

0.1uF 16V

C437 22uF 10V

POWER_DET

D405 5V SD05

+5V_Normal & +5V_USB with OCP

+12V

C411

C410

10uF

16V

R412 100K

OPT

MHL_5V_EN

USB1_CTL

+3.3V_Normal

OPT R402

4.7K

R403

4.7K

C408

100pF

50V

C409

4700pF

50V

OPT R409 0

+3.3V_Normal

R410

R413

10K

COMP

ROSC

EN_SW2

EN_SW1

[EP]GND

EN

1

2

SS

3

4

TPS65282REGR

5

6

V7V

24

THERMAL

25

7

FAULT2

FAULT1

/MHL_OCP_DET

VIN_223PGOOD

22

IC401

4A

9

8

SW_OUT2

USB1_OCD

PGND_2

VIN_1

21

10

RLIM11AGND

R420 15K

OPT R422 100K

PGND_1

19

20

18

17

16

15

14

13

12

SW_OUT1

MBR230LSFT1G

BST

LX_2

LX_1

FB

SW_IN_2

SW_IN_1

+5V_USB

D407

30V

C412 10uF

10V

L405

C413

0.047uF

4.7uH

25V

5V_HDMI_4

AVDD5V_MHL

R424

10

C414 10uF 10V

R427

3.3K

R1

R425

18K

R2

C415 82pF 50V

1%

Vout=0.8*(1+R1/R2)

+5V_Normal

C416 22uF 16V

MHL_CD_SENSE

/VBUS_EN

(Active Low)

MHL_OCP_EN

(Active High)

+2.5V_Normal

+3.3V_Normal

R433

R432

10K

2.7K OPT

OPT

Q404

OPT

C

B

E

OPT

Q406

EBC

B

C

E

R435 10K OPT

Q408

R464 10K

OPT

R429 10K

OPT

R431 10K

OPT

TJ1118S-2.5

IN

3

OPT

IC402

R445

2.2K

R1

R2

L410

3.6uH

B

C

Q400 MMBT3904(NXP)

E

R454

0

C431

0.1uF 16V

TPS5432DDAR

BOOT

VIN

PH

GND

IC404

1

2

3

4

3A

9

THERMAL

8

7

6

5

[EP]GND

SS

EN

COMP

VSENSE

C432

0.01uF

R460

2.7K

C434

0.039uF 50V

C435

390pF

50V

+3.3V_Normal

R463

10K

C436

0.33uF 16V

L409

C428

50V

270pF

C429 10uF

10V

R45 2

R45 3

R443 10K

C430

0.1uF 16V

13K

1%

30K

1%

POWER_ON/OFF_1

+2.5V_Normal

OUT

2

1

GND

CHANGE TO 10UF/10V/X5R

C403

10uF

10V

85C

C440

0.1uF 16V

D402 SD05 5V

OPT

S7LR core 1.15V volt

+1.10V_VDDC

D406

2.5V

+3.5V_ST

OPT

C421

0.1uF 16V

C439

0.1uF 16V

C426 22uF 10V

C441 10uF

10V

CB2012PK501T

OPT

C427 22uF 10V

+3.3V_Normal

IC5601

74LVC1G08GW

R436 20K

MHL_5V_EN

MHL_CD_SENSE

MHL_OCP_EN

B

1

A

2

GND

3

VCC

5

Y

4

MHL_5V_EN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

Power_PD2

2013/05/07

4_CI

USB (SIDE)

+5V_USB

3AU 04S-3 05-Z C-(LG )

JK700

USB DOWN STR EAM

C701 5pF 50V OPT

C703 22uF 10V

C702 5pF 50V OPT

SIDE_USB1_DM

SIDE_USB1_DP

C700

OPT

22uF

ZD700

10V

5V

1234

5

D700 RCLAMP0502BA

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

USB

13/03/27

7

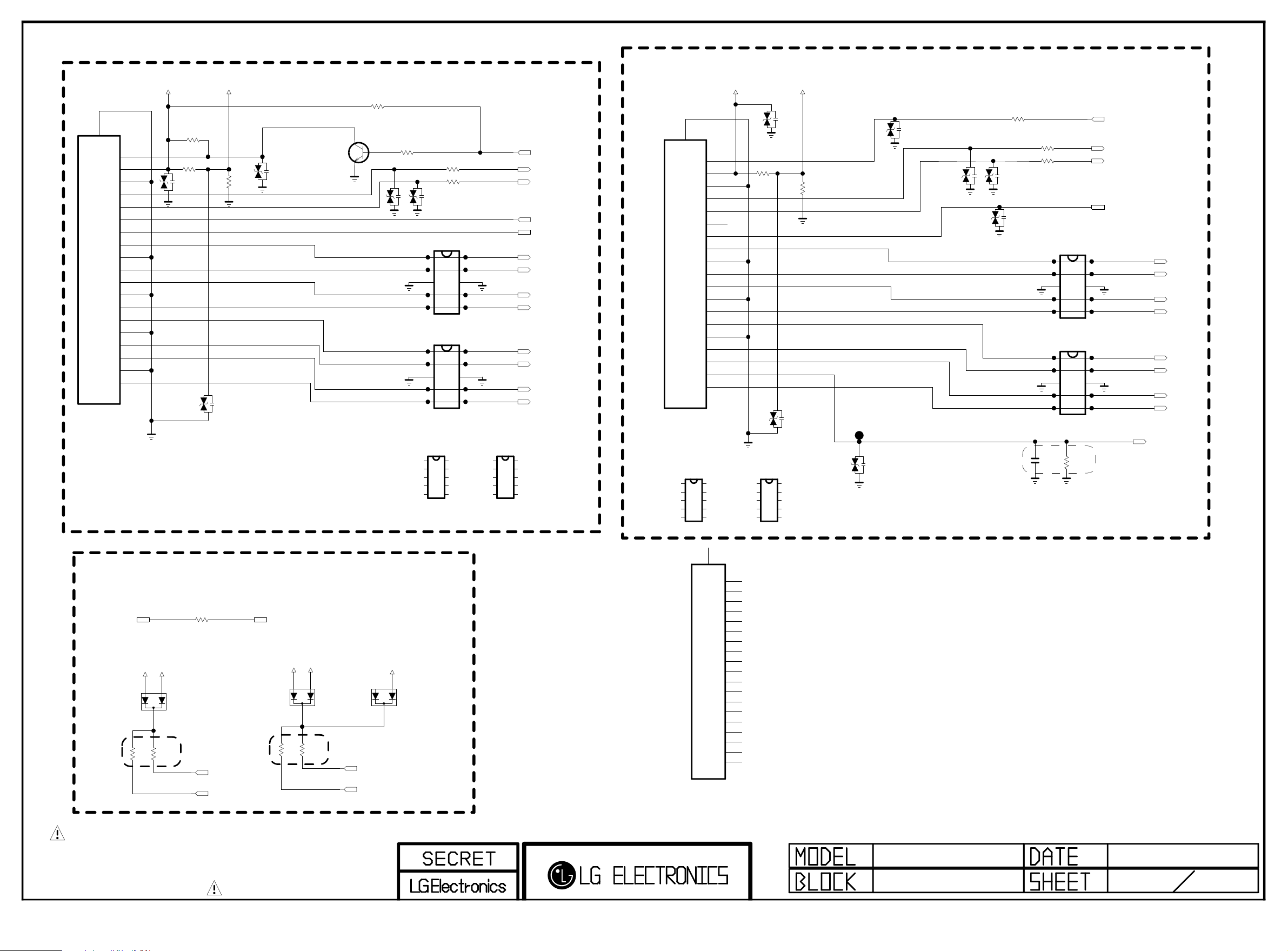

HDMI (REAR 1 / SIDE 1 MHL)

HDMI_1

SHIELD

20

19

18

17

16

15

14

13

12

11

CK+

10

EAG59023302

JK800

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R803

1K

R802

1.8K VA800 ESD_HDMI1

5V_DET_HDMI_2

R805

3.3K

VA801

ESD_HDMI1

VA802

ESD_HDMI1

MMBT3904(NXP)

Q800

C

E

VA803

ESD_HDMI1

R808

10K

B

R809

10K

R810 100

R811 100

VA804

ESD_HDMI1

D803

IP4294CZ10-TBR

1 2 3 4 5

ESD_HDMI1_NXP

D804

IP4294CZ10-TBR

1 2 3 4 5

ESD_HDMI1_NXP

RCLAMP0524PA

D803-*1

1

10

2

9 8

3

7

4

6

5

ESD_HDMI1_SEMTECH

10 9 8 7 6

RCLAMP0524PA

D804-*1

1 2 3 4 5

ESD_HDMI1_SEMTECH

10 9 8 7 6

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_ARC HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI_2 MHL

GND

20

HP_DET

19

5V

18

GND

17

DDC_DATA

16

DDC_CLK

15

NC

14

CE_REMOTE

13

CK-

12

CK_GND

11

CK+

10

EAG63530101

JK801

SIDE_HDMI_EMI

RCLAMP0524PA

1 2 3 4 5

ESD_HDMI2_SEMTECH

D805-*1

9

8

7

6

5

4

3

2

1

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

10 9 8 7 6

5V_HDMI_4

VA805

ESD_HDMI2

R812

1.8K

ESD_HDMI2

VA806

RCLAMP0524PA

D806-*1

1

10

2

9 8

3

7

4

6

5

ESD_HDMI2_SEMTECH

5V_DET_HDMI_4

R813

3.3K

VA807

5.6V OPT

ESD_HDMI2

VA808

ESD_HDMI2

VA809

R814

100

VA810

ESD_HDMI2

VA811

ESD_HDMI2

R815 100

R816 100

D805

IP4294CZ10-TBR

1 2 3 4 5

ESD_HDMI2_NXP

D806

IP4294CZ10-TBR

1 2 3 4 5

ESD_HDMI2_NXP

C800

0.047uF 25V

R817 300K

MHL Spec

10 9 8 7 6

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

MHL_CD_SENSE

CEC

R804

A2CA1

MMBD6100 D800

100

DDC_SDA_2

DDC_SCL_2

HDMI_CEC

5V_HDMI_2

R800

2.7K

+5V_Normal

R801

2.7K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

CEC_REMOTE_S7

5V_HDMI_4

R806

2.7K

+5V_Normal

A2CA1 MMBD6100 D801

R807

2.7K

+3.5V_ST

DDC_SDA_4

DDC_SCL_4

A2CA1

MMBD6100 D802

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

51U019S-312HFN-E-R-B-LG

JK801-*1

SIDE_HDMI_NON_EMI

HOT_PLUG_DETECT

VDD[+5V]

DDC/CEC_GND

SDA

SCL

RESERVED

CEC

TMDS_CLK-

TMDS_CLK_SHIELD

TMDS_CLK+

TMDS_DATA0-

TMDS_DATA0_SHIELD

TMDS_DATA0+

TMDS_DATA1-

TMDS_DATA1_SHIELD

TMDS_DATA1+

TMDS_DATA2-

TMDS_DATA2_SHIELD

TMDS_DATA2+

NC4_S7LRM

2013/05/07

HDMI_R1_S1 8_CI

SPDIF

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

+3.3V_Normal

C1001 1uF 10V OPT

VINPUT

C1002 68pF 50V SPDIF-68pF

C1002-*1 47pF 50V SPDIF-47pF

C1002-*2 18pF 50V SPDIF-18pF

JST1223-001

GND

VCC

SPDIF

JK1001

1

2

3

Fiber Optic

4

FIX_POLE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

SPDIF

2012/06/12

10

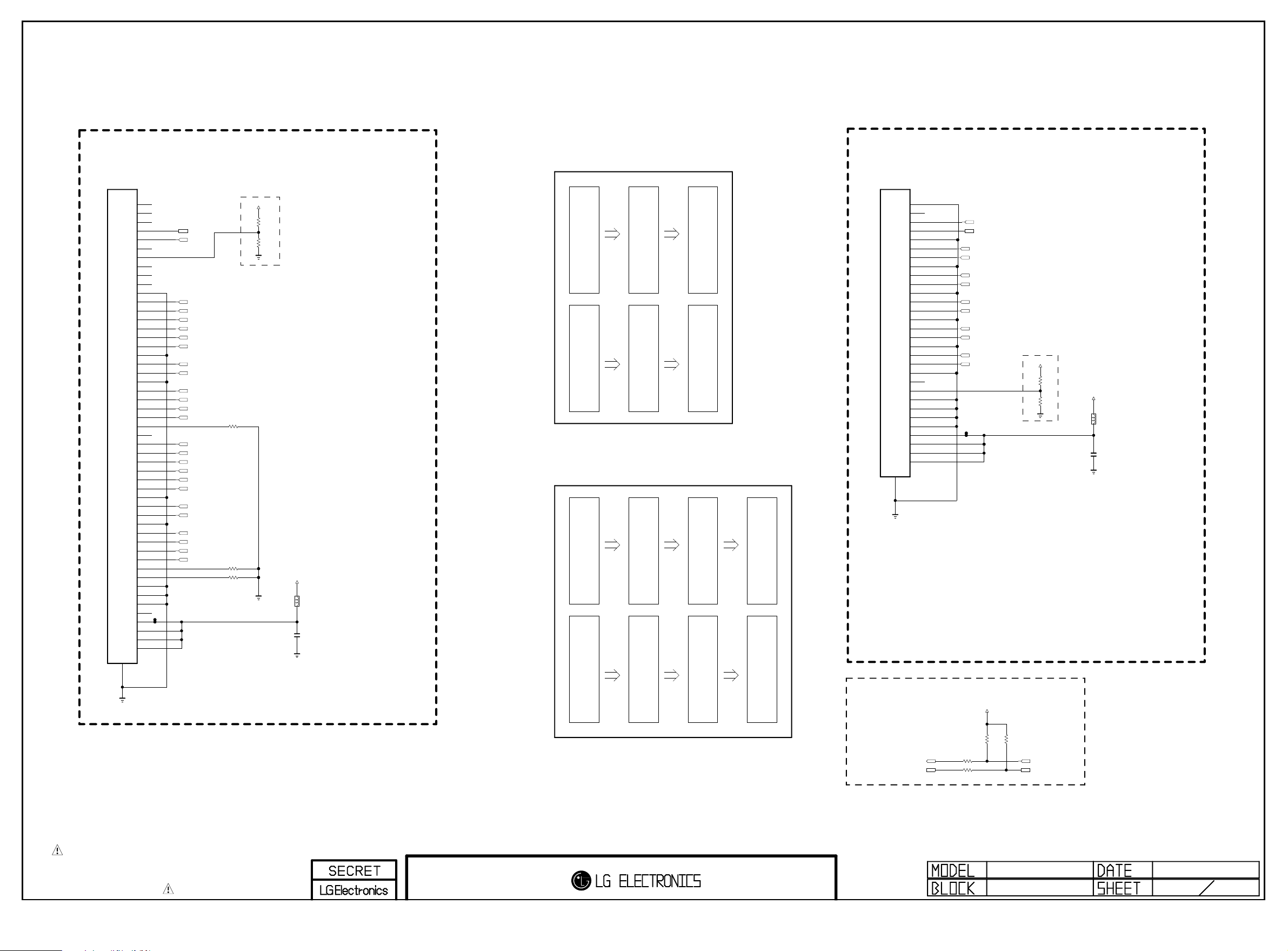

LVDS (NON EU)

[51Pin LVDS Connector] (For FHD 60Hz)

FHD

P1100

FI-RE51S-HF-J-R1500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

VCOM_SDA

VCOM_SCL

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

FHD

R1111 0

FHD

R1112 0

R1113 0

FHD

LVDS_SEL

+3.3V_Normal

OPT R1100

3.3K

OPT R1101

10K

PANEL_VCC

FHD

L1100 120OHM UBW2012-121F

FHD

C1100

0.1uF

16V

FOR FHD REVERSE(10bit) Change in S7LR

MIRROR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2- RXBCK-

RXB1+

RXB1-

RXB0+

RXB0-

Pol-change

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXA4+

RXA4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXB3+

RXB3-

RXB4+

RXB4-

FOR FHD REVERSE(8bit) Change in S7LR

RXA4+

RXA4-

RXA3+

RXA3-

RXACK+

RXACK-

RXA2+

RXA2-

RXA1+

RXA1-

RXA0+

RXA0-

RXB4+

RXB4-

RXB3+

RXB3-

RXBCK+

RXBCK-

RXB2+

RXB2-

RXB1+

RXB1-

RXB0+

RXB0-

MIRROR

Pol-change

RXA4+

RXA4-

RXA0+

RXA0-

RXA1+

RXA1-

RXA2+

RXA2-

RXACK+

RXACK-

RXA3+

RXA3-

RXB4+

RXB4-

RXB0+

RXB0-

RXB1+

RXB1-

RXB2+

RXB2-

RXBCK+

RXBCK-

RXB3+

RXB3-

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

Shift

RXA4-

RXA4+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2- RXACK-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

RXB4-

RXB4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK+

RXA3-

RXA3+

RXA4-

RXA4+

RXB0-

RXB0+

RXB1-

RXB1+

RXB2-

RXB2+

RXBCK-

RXBCK+

RXB3-

RXB3+

RXB4-

RXB4+

[30Pin LVDS Connector] (For HD 60Hz_Normal)

HD

P1101

10031HR-30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

VCOM_SCL

VCOM_SDA

RXA0-

RXA0+

RXA1-

RXA1+

RXA2-

RXA2+

RXACK-

RXACK+

RXA3-

RXA3+

LVDS_SEL

+3.3V_Normal

OPT R1103

3.3K

OPT R1104 10K

EU pin assign is different from NON EU. Because of position of HD wafer.

V-COM I2C

: For FHD 60Hz M+S module - 42LN54(M+S)

+3.3V_Normal

OPT

R1114

R1109

OPT

VCOM_SCL

VCOM_SDA

0

R1108

OPT

0

OPT

R1115

2K

V-COM_SCL

V-COM_SDA

PANEL_VCC

120OHM

HD L1101

UBW2012-121F

HD

C1101

0.1uF 16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

LVDS_NON_EU

2013/03/21

11

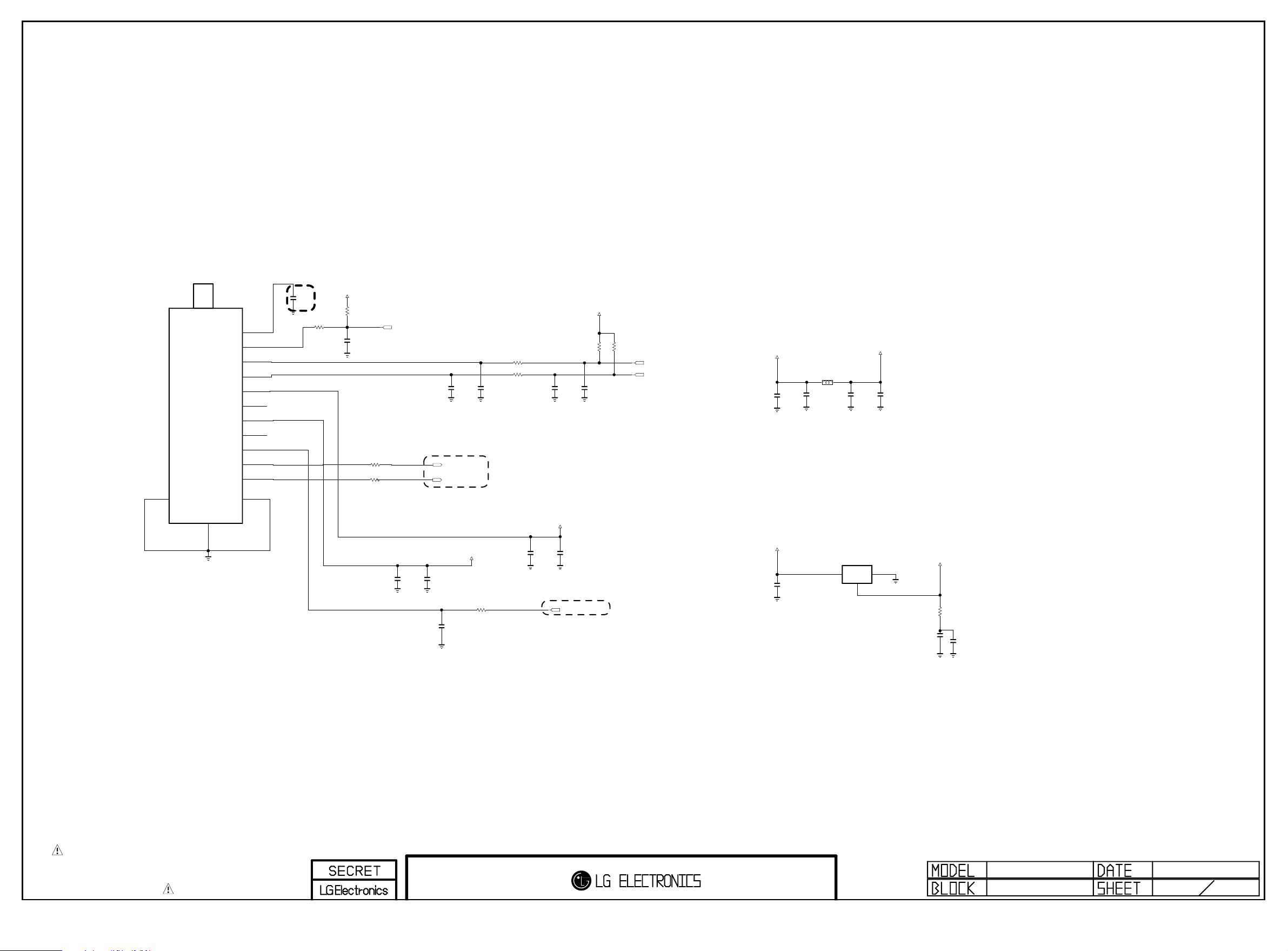

ATSC tuner block

TU3700

TDSS-H501F(B)

B1

12

10

11

A1

SHIELD

NC_1

1

RESET

2

SCL

3

SDA

4

+B1[3.3V]

5

NC_2

6

+B2[1.8]

7

NC_3

8

IF_AGC

9

DIF[P]

DIF[N]

A1

Close to the tuner

C3701

0.1uF 16V

R3732 100

+3.3V_TU

R3733 100K

C3710

0.1uF 16V

R3761 0

R3760 0

Close to the tuner

TUNER_RESET

IF_P_MSTAR

IF_N_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils Signal to Signal Width = 12mils Ground Width >= 24mils

C3738

C3737

0.1uF

100pF

16V

50V

C3716

0.1uF 16V

C3711

C3713

18pF

50V

+1.8V_TU

R3704 100

should be guarded by ground

R3735 33

R3736 33

C3707 100pF 50V

OPT C3742 20pF 50V

+3.3V_TU

IF_AGC_MAIN

C3708

0.1uF 16V

+3.3V_TU

R3740

1.8K

OPT C3743 20pF 50V

R3741

1.8K

TU_SCL

TU_SDA

+3.3V_TU

C3717

0.1uF 16V

C3723 22uF

6.3V

L3703

UBW2012-121F

C3725

0.1uF 16V

+3.3V_Normal

C3715 22uF

6.3V

IC3703

AP1117E18G-13

3

IN1ADJ/GND

OUT 2

C3727

0.1uF 16V

+1.8V_TU

C3740

0.1uF 16V

R3766 1

C3741 10uF

10V

85C

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TUNER_NON_EU

2012.06.21NC4_S7LRM 14

COMPONENT & AV(COMMON)

JK1701

PPJ245N2-01

[RD2]E-LUG

6E

[RD2]O-SPRING

5E

[RD2]CONTACT

4E

[WH]O-SPRING

5D

[RD1]CONTACT

4C

[RD1]O-SPRING

5C

[RD1]E-LUG-S

7C

[BL]O-SPRING

5B

[GN/YL]CONTACT

4A

[GN/YL]O-SPRING

5A

[GN/YL]E-LUG

6A

D1707

D1710

D1704

D1705

D1706

5.6V OPT

D1703

D1708

D1709

5.6V OPT

R1703 470K

R1704

470K

+3.3V_Normal

R1709 10K

R1705 75

R1706

75

R1712

1K

+3.3V_Normal

R1710 10K

C1704 1000pF 50V OPT

C1705 1000pF 50V OPT

R1714 10K

R1715 10K

COMP2_DET

R1713

1K

R1720 12K

R1721 12K

COMP2_R_IN

COMP2_L_IN

COMP2_Pr+

COMP2_Pb+

AV_CVBS_DET

D1712

D1711

R1707 75

R1708 75

OPT

+3.3V_Normal

OPT

R1723

75

COMP2_Y+/AV_CVBS_IN

OPT

IC1700

MM1756DURE

VCC

6

PS

5

OUT

4

IN

1

GND

2

BIAS

3

OPT

C1706

0.1uF

C1708

4.7uF OPT

C1707

0.1uF OPT

DTV/MNT_VOUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2013.05.07NC4_S7LRM

REAR_NON_EU_L 17_CI

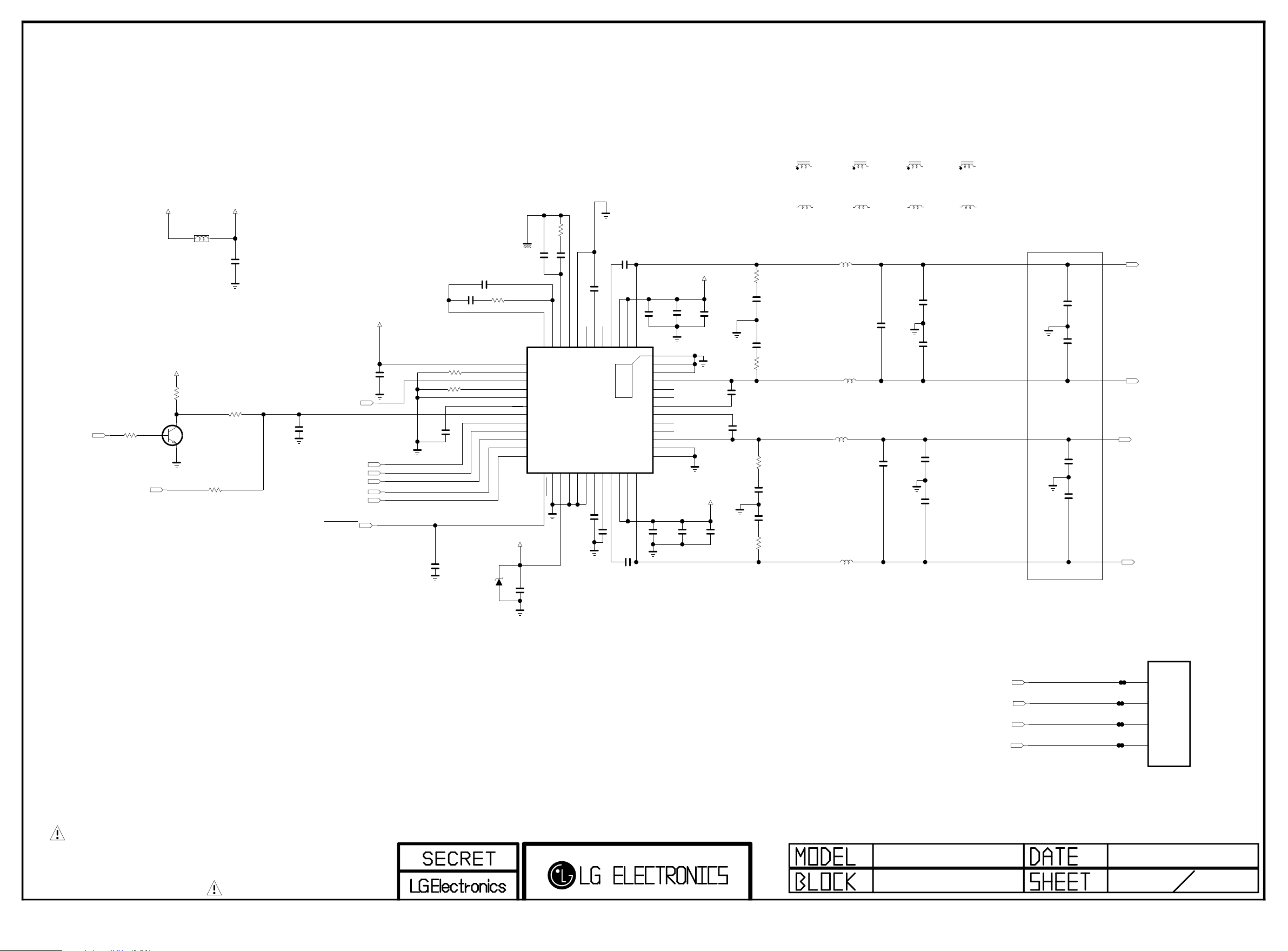

AUDIO AMP(TI)

AMP_MUTE

R5600

10K

POWER_DET

+24V

+3.5V_ST

B

L5600

UBW2012-121F

R5601

10K

C

Q5600

MMBT3904(NXP)

E

OPT

R3405

0

+24V_AMP

C5601

0.1uF 50V

R5603

100

C5602

1000pF

50V

AUD_MASTER_CLK

AUD_LRCK

AUD_SCK

AUD_LRCH AMP_SDA

AMP_SCL

AMP_RESET

+3.3V_Normal

C5604

0.1uF 16V

This parts are Located on AVSS area.

4700pF

PDN

SDA SCL

13 14 15 16 17 18 19 20 21 22 23 24

C5610

0.1uF 16V

C5611

0.047uF

R5608 2K

18K

R5607

C5607

0.1uF

C5606

0.1uF 16V

C5609

C5608

1%

4700pF

R5609

470

AVDD

A_SEL_FAULT

MCLK

OSC_RES

DVSSO

VR_DIG

LRCLK

SCLK SDIN

+3.3V_Normal

5V

ZD5600

OPT

R5610

470

C5612

PLL_FLTP

VR_ANA

11

12

25

RESET26STEST

0.047uF

PBTL

AVSS

PLL_FLTM

8

9

10

27

29

GND

DVDD28DVSS

C5614

0.1uF

50V

C5613 2200pF

SSTIMER

NC_2

5

6

7

TAS5733

30

32

AGND31VREG

C5617

C5616

0.033uF

PVDD_AB_2

BST_A

NC_1

3

4

THERMA L

49

IC5600

33

34

BST_D

GVDD_OUT

PVDD_CD_1

25V

1uF

C5615

50V

OUT_A

PVDD_AB_1

1

2

48 47 46 45 44 43 42 41 40 39 38 37

35

36

OUT_D

PVDD_CD_2

0.033uF 50V

C5618

0.1uF 50V

[EP] PGND_AB_2 PGND_AB_1 OUT_B NC_6 NC_5 BST_B BST_C NC_4 NC_3 OUT_C PGND_CD_2 PGND_CD_1

C5619

0.1uF 50V

+24V_AMP

C5620 10uF 35V

C5621 10uF 35V

C5640

4.7uF 50V

OPT

+24V_AMP

C5641

4.7uF 50V

OPT

50V

0.033uF

C5624

50V

0.033uF C5625

AMP_COIL_GET

AMP_COIL_TAIYO

R5611 18

C5626 330pF 50V

C5627 330pF 50V

R5612 18

R5613 18

C5628 330pF 50V

C5629 330pF 50V

R5614 18

L5603-*1

10.0uH

L5603-*2

10.0uH

AMP_COIL_GET

L5604-*1

10.0uH

AMP_COIL_TAIYO

L5604-*2

10.0uH

AMP_COIL_ABCO

LPH6045T-100M

L5605 10uH

L5606

LPH6045T-100M

10uH

AMP_COIL_ABCO

LPH6045T-100M

L5604

10uH

L5603

LPH6045T-100M

10uH

AMP_COIL_ABCO

AMP_COIL_GET

L5605-*1

10.0uH

AMP_COIL_TAIYO

L5605-*2

10.0uH

C5630

0.47uF 50V

C5631

0.47uF 50V

AMP_COIL_GET

L5606-*1

AMP_COIL_TAIYO

L5606-*2

C5632

0.1uF 50V

C5633

0.1uF 50V

C5634

0.1uF 50V

C5635

0.1uF 50V

10.0uH

Close to Speaker

OPT C5636 2200pF

50V

OPT C5637 2200pF

50V

OPT C5638 2200pF

50V

OPT C5639 2200pF

50V

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SPK_L+

SPK_L-

SPK_R+

SPK_R-

NC4_S7LRM

AMP_TI 34_CI

WAFER-ANGLE

4

3

2

1

P5600

2013/05/07

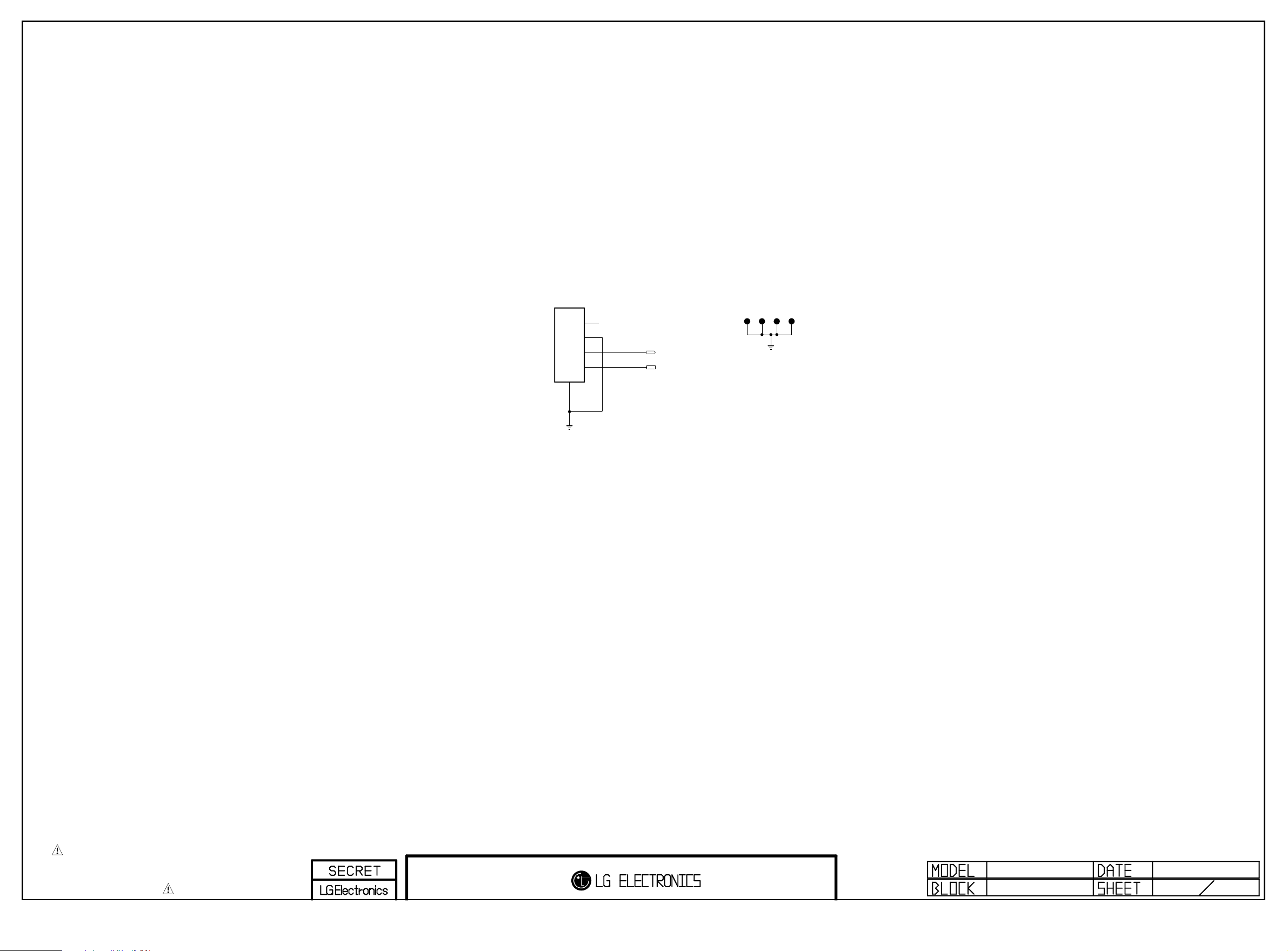

MSTART DEBUG_4PIN

P3900

12507WS-04L

5

JP_GND2

JP_GND3

1

2

3

4

RGB_DDC_SCL

RGB_DDC_SDA

JP_GND1

JP_GND4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

2012/06/20

MSTAR DEBUG_4PIN 39

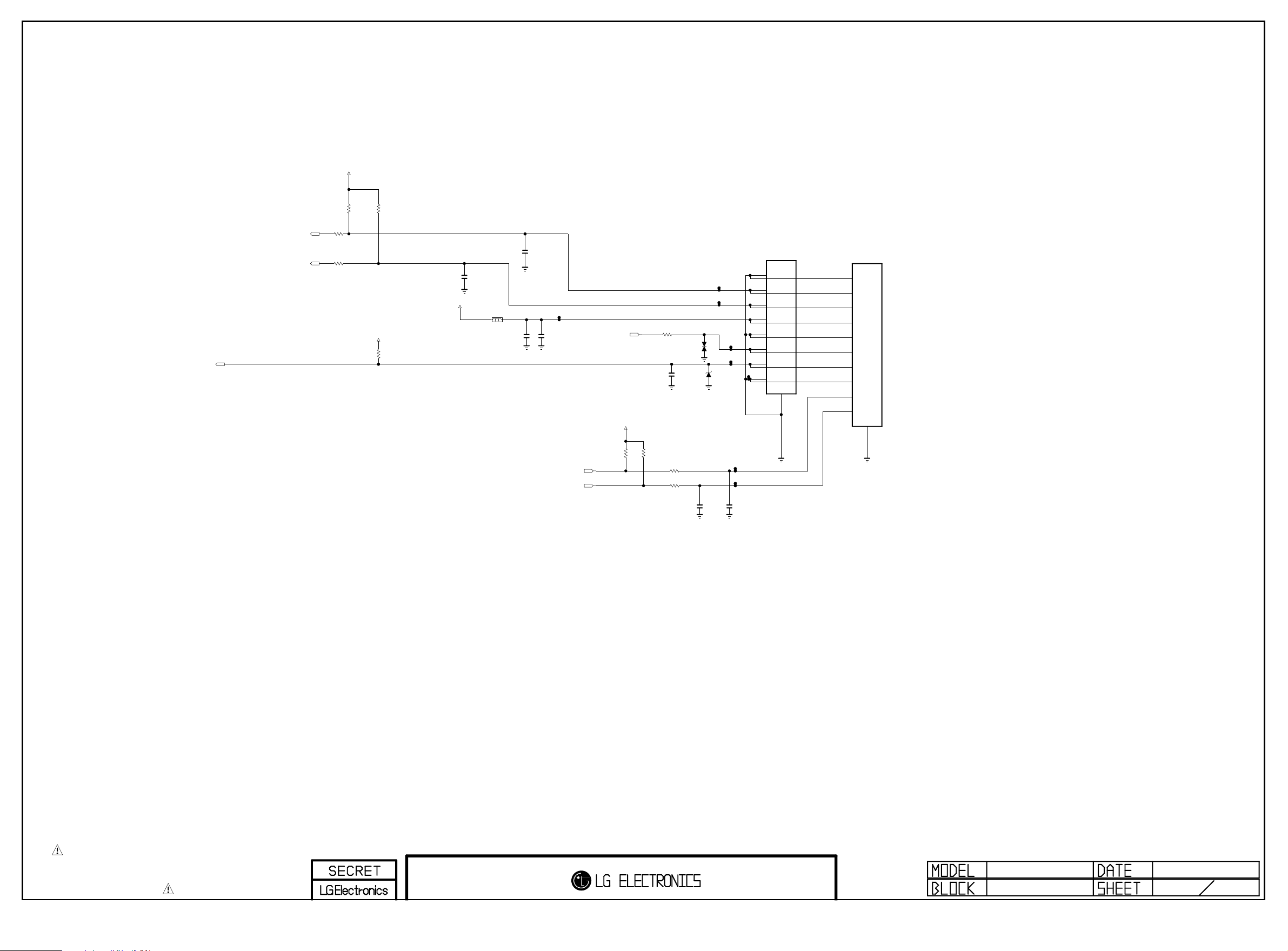

IR/LED and Control

+3.5V_ST

10K

R600 100

R601 100

R603

10K 1%

1%

+3.5V_ST

R607

3.3K

+3.5V_ST

OPT C609

0.1uF 16V

L600

PZ1608U121-2R0TF

C602

0.1uF

OPT C608

0.1uF 16V

R610

C603 1000pF 50V

16V

SENSOR_SCL

SENSOR_SDA

LED_R/BUZZ

+3.3V_Normal

Digital Eye

R608 1K

1.8K

C604

100pF

50V

R609 1K

Digital Eye

R604 100

Digital Eye

R605 100

Digital Eye

D601

C606 18pF 50V

OPT

D602 OPT

C605 18pF 50V OPT

OPT

P600

12507WR-08L

1

2

3

4

5

6

7

8

9

P601

12507WR-10L

1

2

3

4

5

6

7

8

9

10

11

R602

KEY1

KEY2

IR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

IR/CONTROL

2013/05/07

46_CI

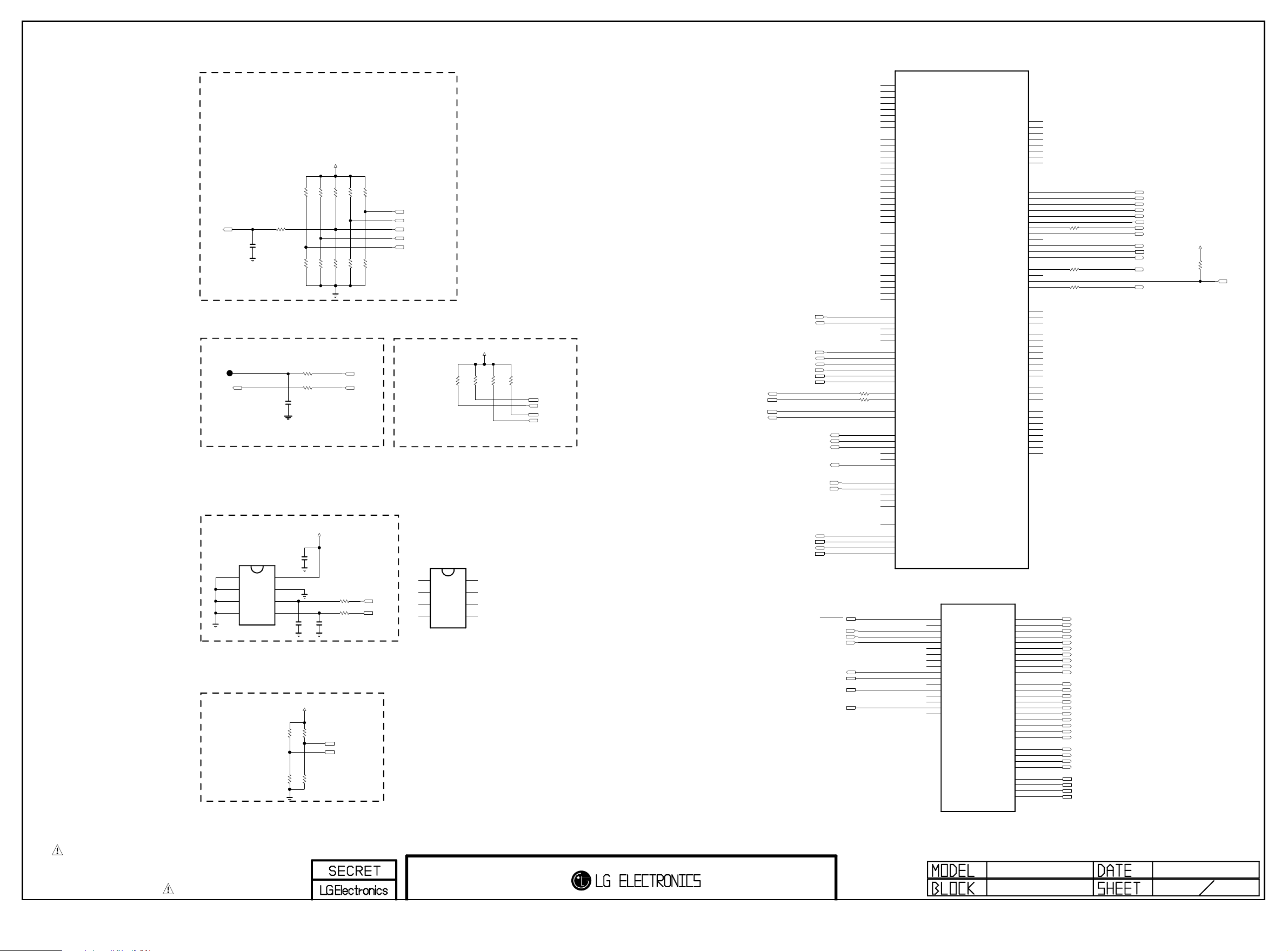

Boot from SPI CS1N(EXT_FLASH) 1’b0 Boot from SPI_CS0N(INT_FLASH) 1’b1

<CHIP Config> (I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0)

B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash SB51_WOS : 4’b0001 Secure B51 without scramble SB51_WS : 4’b0010 Secure B51 with scramble MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash MIPS_WOS : 4’b1001 Secure MIPS without scramble MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE

OPT

C112 100pF 50V

R148

56

AUD_MASTER_CLK

OPT

R115 1K

R116 1K

+3.3V_Normal

OPT

R165 1K

R117 1K

R121 1K

R118 1K

DIMMING

OPT

R156

10K

R157

C105

0.1uF

+3.3V_Normal

C104 8pF OPT

+3.5V_ST

R177 10K OPT

R176 10K OPT

100

R111 22

R112 22

C106 8pF

OPT

PM_MODEL_OPT_0

PM_MODEL_OPT_1

PWM_DIM

EEPROM

NVRAM_ATMEL

IC104

AT24C512C-SSHD-T

A0

1

A1

2

A0’h

A2

3

GND

4

PM MODEL OPTION

OPT

C111

2.2uF

8

7

6

5

R174

R175

VCC

WP

SCL

SDA

10K OPT

IC101

MSD804KKX

W21

PCMDATA[0]/GPIO129

AA18

PCMDATA[1]/GPIO130

AB22

PCMDATA[2]/GPIO131

AE20

PCMDATA[3]/GPIO123

AA15

PCMDATA[4]/GPIO122

AE21

PCMDATA[5]/GPIO121

AB21

PCMDATA[6]/GPIO120

Y15

PCMDATA[7]/GPIO119

W20

PCMADR[0]/GPIO128

V20

PCMADR[1]/GPIO127

W22

PCMADR[2]/GPIO125

AB18

PCMADR[3]/GPIO124

AA20

PCMADR[4]/GPIO102

AA21

PCMADR[5]/GPIO104

Y19

PCMADR[6]/GPIO105

AB17

PCMADR[7]/GPIO106

Y16

PCMADR[8]/GPIO111

AB19

PCMADR[9]/GPIO113

OPT

R123 1K

R152 1K

R124 1K

R153 1K

PWM0

PWM2

I2C_SCL

I2C_SDA

LED_R/BUZZ

AUD_SCK

AUD_MASTER_CLK_0

PWM1

PWM0

I2C

NVRAM_ROHM

IC104-*1

BR24G512FJ-3

A0

1

A1

2

A2

3

GND

4

EAN43349005

R140 1K

+3.3V_Normal

R141

1K

VCC

8

WP

7

SCL

6

SDA

5

R144

2.2K

R145

2.2K

AMP_SDA AMP_SCL

I2C_SDA I2C_SCL

I2C_SCL I2C_SDA

RGB_DDC_SDA RGB_DDC_SCL

USB1_OCD USB1_CTL

/MHL_OCP_DET

MHL_OCP_EN

PM_TXD

PM_RXD MODEL_OPT_6 MODEL_OPT_7

LED_R/BUZZ

V-COM_SCL

V-COM_SDA SENSOR_SCL SENSOR_SDA

PWM0 PWM1 PWM2

KEY1 KEY2

AMP_RESET

5V_DET_HDMI_2 5V_DET_HDMI_4

AV_CVBS_DET

TUNER_RESET MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

R136 22 R137 22

AB20

PCMADR[10]/GPIO117

AA16

PCMADR[11]/GPIO115

AA19

PCMADR[12]/GPIO107

AC21

PCMADR[13]/GPIO110

AA17

PCMADR[14]/GPIO109

Y20

PCMREG_N/GPIO126

AB15

PCMOE_N/GPIO116

AA22

PCMWE_N/GPIO195

AD22

PCMIORD_N/GPIO114

AD20

PCMIOWR_N/GPIO112

AD21

PCMCE_N/GPIO118

AC20

PCMIRQA_N/GPIO108

Y18

PCMCD_N/GPIO133

Y21

PCMWAIT_N/GPIO103

Y22

PCM_RESET/GPIO132

U21

PCM2_CE_N/GPIO134

V21

PCM2_IRQA_N/GPIO135

R20

PCM2_CD_N/GPIO138

T20

PCM2_WAIT_N/GPIO136

U22

PCM2_RESET/GPIO137

D4

UART1_TX/GPIO46

E4

UART1_RX/GPIO47

N25

UART2_TX/GPIO68

N24

UART2_RX/GPIO67

B8

UART3_TX/GPIO50

A8

UART3_RX/GPIO51

P23

I2C_SCKM2/DDCR_CK/GPIO75

P24

I2C_SDAM2/DDCR_DA/GPIO74

D2

DDCA_DA/UART0_TX

D1

DDCA_CK/UART0_RX

P21

PWM0/GPIO69

N23

PWM1/GPIO70

P22

PWM2/GPIO71

R21

PWM3/GPIO72

P20

PWM4/GPIO73

F6

PWM_PM/GPIO197

H6

SAR0/GPIO34

G5

SAR1/GPIO35

G4

SAR2/GPIO36

J5

SAR3/GPIO37

J4

SAR4/GPIO38

R23

VSYNC_LIKE/GPIO146

R24

SPI1_CK/GPIO199

R25

SPI1_DI/GPIO200

T21

SPI2_CK/GPIO201

T22

SPI2_DI/GPIO202

C7 E6 F5 B6 E5 D5 B7 E7

F7 AB5 AB3

A9

F4 AB1

N6 AB2 AC2

SYM.D

NF_CE1Z/GPIO141

NF_WPZ/GPIO196 NF_CEZ/GPIO140 NF_CLE/GPIO139 NF_REZ/GPIO142 NF_WEZ/GPIO143 NF_ALE/GPIO144 NF_RBZ/GPIO145

GPIO_PM[0]/GPIO6

PM_UART_TX/GPIO_PM[1]/GPIO7

GPIO_PM[2]/GPIO8 GPIO_PM[3]/GPIO9

GPIO_PM[4]/GPIO10

PM_UART_RX/GPIO_PM[5]/GPIO11

PM_SPI_SCZ1/GPIO_PM[6]/GPIO12

GPIO_PM[7]/GPIO13 GPIO_PM[8]/GPIO14

PM_SPI_SCZ2/GPIO_PM[10]/GPIO16

GPIO39 GPIO40 GPIO41 GPIO42 GPIO43 GPIO44 GPIO45 GPIO48 GPIO49 GPIO52 GPIO53 GPIO54 GPIO55 I2C_SCKM0/GPIO56 I2C_SDAM0/GPIO57 GPIO76 GPIO77

GPIO_PM[9]/GPIO15

GPIO_PM[11]/GPIO17

PM_SPI_SCK/GPIO1

PM_SPI_CZ0/GPIO_PM[12]/GPIO0

PM_SPI_SDI/GPIO2 PM_SPI_SDO/GPIO3

TS0CLK/GPIO90

TS0VALID/GPIO88

TS0SYNC/GPIO89

TS0DATA_[0]/GPIO80 TS0DATA_[1]/GPIO81 TS0DATA_[2]/GPIO82 TS0DATA_[3]/GPIO83 TS0DATA_[4]/GPIO84 TS0DATA_[5]/GPIO85 TS0DATA_[6]/GPIO86 TS0DATA_[7]/GPIO87

TS1CLK/GPIO101 TS1VALID/GPI99

TS1SYNC/GPIO100

TS1DATA_[0]/GPIO91 TS1DATA_[1]/GPIO92 TS1DATA_[2]/GPIO93 TS1DATA_[3]/GPIO94 TS1DATA_[4]/GPIO95 TS1DATA_[5]/GPIO96 TS1DATA_[6]/GPIO97 TS1DATA_[7]/GPIO98

IC101

MSD804KKX

SYM.A

LVA0P LVA0N LVA1P LVA1N LVA2P LVA2N LVA3P LVA3N LVA4P LVA4N

LVB0P LVB0N LVB1P LVB1N LVB2P LVB2N LVB3P LVB3N LVB4P LVB4N

LVACLKP LVACLKN LVBCLKP LVBCLKN

GPIO194 GPIO191 GPIO192 GPIO193

AB25 AB23 AC25 AB24 AD25 AC24 AE23 AC23 AC22 AD23

V23 U24 V25 V24 W25 W23 AA23 Y24 AA25 AA24

AE24 AD24 Y23 W24

T25 U23 T24 T23

AE18 AC17 AD18 AC18 AC19 AD17 AE17 AD19

H5 K6 K5 J6 K4 L6 C2 L5 M6 M5 C1 M4

A2 D3 B2 B1

Y14 AA10 Y12

Y13 Y11 AA12 AB12 AA14 AB14 AA13 AB11

AC15 AD15 AC16

AD16 AE15 AE14 AC13 AC14 AD12 AD13 AD14

R147 33

R151 33

RXA0+ RXA0RXA1+ RXA1RXA2+ RXA2RXA3+ RXA3RXA4+ RXA4-

RXB0+ RXB0RXB1+ RXB1RXB2+ RXB2RXB3+ RXB3RXB4+ RXB4-

RXACK+ RXACKRXBCK+ RXBCK-

MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_8

R146 33

POWER_DET PM_TXD INV_CTL RL_ON POWER_ON/OFF_1 PM_RXD /SPI_CS /FLASH_WP

PANEL_CTL PM_MODEL_OPT_0 AMP_MUTE

SPI_SCK

SPI_SDO

+3.5V_ST

R180

4.7K

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

2012/09/19

MAIN1_NON_EU 51

MODEL OPTION

+2.5V_Normal

OPT

R204 100

OPT

R225 100

OPT

R228 100

OPT

R230 100

OPT

R229 100

OPT

R213 100

PM_MODEL_OPT_1

CK+_HDMI4

HDMI

CK-_HDMI4 D0+_HDMI4 D0-_HDMI4 D1+_HDMI4 D1-_HDMI4 D2+_HDMI4 D2-_HDMI4 DDC_SDA_4 DDC_SCL_4 HPD4

CK+_HDMI2 CK-_HDMI2 D0+_HDMI2 D0-_HDMI2 D1+_HDMI2 D1-_HDMI2 D2+_HDMI2 D2-_HDMI2 DDC_SDA_2 DDC_SCL_2 HPD2

CEC_REMOTE_S7

COMP2

COMP2_Pr+

COMP2_Y+/AV_CVBS_IN

COMP2_Pb+

CVBS In/OUT

COMP2_Y+/AV_CVBS_IN

DTV/MNT_VOUT

+3.3V_Normal

1K

OPT

R290

R298

1K

OPT

R293

R297

MODEL OPTION

+2.5V_Normal

+3.3V_Normal

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

HD

OPT

R291 1K

R294 1K

R206 1K

R221 1K

R222 1K

R224 1K

R207 1K

R223 1K

OPT

R208 1K

R226 1K

R211 1K

R209 1K

R212 1K

R227 1K

MODEL_OPT_0 MODEL_OPT_1 MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5 MODEL_OPT_6 MODEL_OPT_7 MODEL_OPT_8

FHD

MODEL_OPT_2 MODEL_OPT_3 MODEL_OPT_4 MODEL_OPT_5

MODEL_OPT_6

MODEL_OPT_7

* Dual Stream is only Korea 3D spec

MODEL_OPT_4

MSD804KKX

R214 10 R215 10

R237 33 R238 68 R239

33

R240

68 R241 33 R242 68

R246 33

R252 68

Close to MSTAR

C218 0.047uF C219 0.047uF C220 0.047uF C221 0.047uF C222 0.047uF C223 0.047uF C224 1000pF

C227 0.047uF

C233 0.047uF

AC10

AC11 AD10 AE11 AD11

J2 J3 K3 J1 K2 K1 L2 L3 T5 T4 V5

R5

AE9 AC9

AD9

AE8 AD8 AC8

F2 F3 G3 F1 G2 G1 H2 H3 R6 U6 P5 R4

P2 R3 N2 P3 N3 N1 M3 M2 M1

V2 V3 U3 U2 T1 T2 R2 R1 T3

AA2

Y2

AA3

W2 Y3 V1 W3 W1

AA8

Y4 W4

AA5

Y5

AA4

Y6

AA1

AB4

RXACKP RXACKN RXA0P RXA0N RXA1P RXA1N RXA2P RXA2N DDCDA_DA/GPIO27 DDCDA_CK/GPIO26 HOTPLUGA/GPIO22

HOTPLUGD/GPIO25

RXCCKP RXCCKN RXC0P RXC0N RXC1P RXC1N RXC2P RXC2N DDCDC_DA/GPIO31 DDCDC_CK/GPIO30 HOTPLUGC/GPIO24

RXBCKP RXBCKN RXB0P RXB0N RXB1P RXB1N RXB2P RXB2N DDCDB_DA/GPIO29 DDCDB_CK/GPIO28 HOTPLUGB/GPIO23 CEC/GPIO5

HSYNC0 VSYNC0 RIN0P RIN0M GIN0P GIN0M BIN0P BIN0M SOGIN0

HSYNC1 VSYNC1 RIN1P RIN1M GIN1P GIN1M BIN1P BIN1M SOGIN1

HSYNC2 RIN2P RIN2M GIN2P GIN2M BIN2P BIN2M SOGIN2

CVBS0 CVBS1 CVBS2 CVBS3 NC_5 NC_7 NC_6 CVBSOUT1

VCOM

SYM.C

IC101

PIN NO.

AB3

S/W_NON_AJ

F4

AB2

NON_DVB_T2

T25

NON_M120

MIU0-128M

U23

NON_DVB_S

T24

MIU1-NO_DDR

B8

A8

NON_DUALSTREAM

MODEL_OPT_6

NC_8 NC_9

SIFP SIFM

IF_AGC RF_AGC

I2C_SCKM1/GPIO78 I2C_SDAM1/GPIO79

XOUT

SPDIF_IN/GPIO150

SPDIF_OUT/GPIO151

USB0_DM USB0_DP

USB1_DM USB1_DP

I2S_IN_BCK/GPIO148

I2S_IN_SD/GPIO149 I2S_IN_WS/GPIO147

I2S_OUT_BCK/GPIO154 I2S_OUT_MCK/GPIO152

I2S_OUT_SD/GPIO155

I2S_OUT_WS/GPIO153

AUL0 AUR0 AUL1 AUR1 AUL2 AUR2 AUL3 AUR3 AUL4 AUR4

GPIO_PM[13]/GPIO19

AUOUTL2

AVDD5V_MHL

GPIO_PM[14]/GPIO20

AUOUTR2

GPIO_PM[15]/GPIO21

AUVRM

AUVAG AUVRP

EARPHONE_OUTL EARPHONE_OUTR

RP/GPIO63 TP/GPIO60

RN/GPIO66

LED1/GPIO59

TN/GPIO62

GPIO61 GPIO64 GPIO65

LED0/GPIO58

LOW

FHD

XIN

HIGH

HD

S/W_AJ

DVB_T2

M120 MIU0-256M

DVB_S MIU1-128M

DUALSTREAM

Close to MSTAR

L227 PZ1608U121-2R0TF

C282

0.1uF

TU_SCL TU_SDA

C261 15pF

C262 15pF

MHL_CD_SENSE

AVDD5V_MHL

/VBUS_EN

C256

0.1uF

C257 0.1uF

C258 0.1uF

R220 10K

SPDIF_OUT

AMP_SCL AMP_SDA COMP2_DET

PZ1608U121-2R0TF

C263 10uF

R288 100

R289 100

AC4 AD3

AC3

IP

AE3

IM

AD4 AC5

AD2 AE2

AE6 AD6

AD1 AC1

R287

D7 D6

E3 E2

AC12 AE12

C8 D8 D9

B10 C9 B9

C10

AB9 AA11 Y9 AA9 AA7 AB8 Y8

C242 2.2uF

Y10

C243 2.2uF

AC7 AD7

CHANGE TO X5R

W6 V6 V4 Y7 W5 U5

AD5

C249

4.7uF

AE5

125C

AC6

AA6 AB6

C6 C5

A6 C4

B5 C3 A3 B3 B4

TUNER_I2C

1M

(CL=12pF)

R296 100

SPDIF

TP209

cDMS : X7R

C253

1uF

125C

+3.3V_Normal

X201 24MHz

Memory OPTION

Memory

MODEL_OPT_4

PIN NO. PIN NO.

128M

128M+128M

256M+128M

C287

100pF

C288

OPT

33pF OPT

R219

0

C285

0.047uF 25V

Close to MSTAR

SIDE USB

SIDE_USB1_DM SIDE_USB1_DP

COMP2_L_IN COMP2_R_IN

AUDIO IN

L202

U23

0

1256M

1

DTV_IF

IF_P_MSTAR

IF_N_MSTAR

OPT C289 33pF

POWER_DET_RESET

MODEL_OPT_6

IF_AGC_MAIN

SOC_RESET

OPT R266 470

C202

4.7uF 10V

OPT

B8

0

1

0

1

AUD_SCK

AUD_MASTER_CLK_0 AUD_LRCH

I2S_I/F

AUD_LRCK

+3.5V_ST

C200

4.7uF 10V

R200

Note

Ginga

SWITCH

SW200

JTP-1127WEM

1 2

62K

43

0.1uF

SWITCH

R205 100

C201

SOC_RESET

+1.10V_VDDC

C275

C228

10uF 10V

+3.3V_Normal

PZ1608U121-2R0TF

0.1uF

C255

C259 0.1uF

PZ1608U121-2R0TF

Normal 2.5V

+2.5V_Normal

L211

PZ1608U121-2R0TF

C269 10uF 10V 85C

AVDD2P5_MOD

L229

PZ1608U121-2R0TF

DDR3 1.5V

+1.5V_DDR

C266

0.1uF

STby 3.5V

+3.5V_ST

PZ1608U121-2R0TF

L204

L208

AVDD2P5

L206

L207

C283 0.1uF

C277 1uF

C280 1uF

Normal Power 3.3V

VDD33

85C

10uF 10V

C204

10uF 10V

C284

AVDD_AU33

AVDD2P5:172mA

AVDD25_PGA:13mA

C291

0.1uF 16V

AVDD_DMPLL

C205

0.1uF

C240

0.1uF

C273

0.1uF

C278

AVDD_NODIE

C286

0.1uF

C241

0.1uF

C206 10uF

C209 0.1uF

10uF 10V

C252 1uF

C235 0.1uF

C208 10uF

C274

0.1uF

AVDD_DDR0:55mA

AVDD_DDR1:55mA

C210 10uF

VDDC 1.05V

C245 0.1uF

C207

C248

0.1uF

C203 1uF

1uF

C254

+1.10V_VDDC

C296

10uF

10V

FB_CORE

C279

0.1uF

VDDC : 2026mA

+1.10V_VDDC

AVDD2P5

AVDD2P5_MOD

AVDD_NODIE

AVDD_DMPLL

AVDD_AU33

VDD33

+1.5V_DDR

C211

0.1uF

+1.10V_VDDC

C260 1uF

K12

G9

H9 K10 K11 L10 M12 M13 N12 P14 P15 R10 R14 R15 T10

P10 P19 R16 L11 M14

W9 W10 W11 W12

Y17

V18 U19

W14 W15

U7

L7

M7

P7

R7

M19

V7

W7

R19 T19

W18 W19

V19

J17 K15 K16 L15

K17 L17 M17 L16

E9

A23 B17 C23

A5 C11 C19 C22 D14 D18 D19 E17 E18 E19 E22

F8 F17 F18 F19

G8

H8 N22 N21 N20 M22 M21 M20 F10 V15 W16

V8 T18

IC101

MSD804KKX

AVDDLV_USB

VDDC_1 VDDC_2 VDDC_3 VDDC_4 VDDC_5 VDDC_6 VDDC_7 VDDC_8 VDDC_9 VDDC_10 VDDC_11 VDDC_12 VDDC_13 VDDC_14

NC_2 FB_CORE AVDDL_MOD NC_1 DVDD_DDR

AVDD2P5_ADC_1 AVDD2P5_ADC_2 AVDD2P5_ADC_3 AVDD2P5_ADC_4

AVDD25_LAN

AVDD_MOD_1 AVDD_MOD_2

NC_3 NC_4

AVDD_NODIE

AVDD_DVI_USB_1 AVDD_DVI_USB_2 AVDD3P3_MPLL AVDD_DMPLL

DVDD_NODIE

AVDD_AU33 AVDD_EAR33

VDDP_1 VDDP_2

AVDD_LPLL_1 AVDD_LPLL_2

VDDP_NAND

AVDD_DDR0_D_1 AVDD_DDR0_D_2 AVDD_DDR0_D_3 AVDD_DDR0_C

AVDD_DDR1_D_1 AVDD_DDR1_D_2 AVDD_DDR1_D_3 AVDD_DDR1_C

GND_EFUSE

GND_1 GND_2 GND_3 GND_4 GND_5 GND_6 GND_7 GND_8 GND_9 GND_10 GND_11 GND_12 GND_13 GND_14 GND_15 GND_16 GND_17 GND_18 GND_19 GND_20 GND_21 GND_22 GND_23 GND_24 GND_25 GND_26 GND_27 GND_28 GND_29 GND_30 GND_31

GND_32 GND_33 GND_34 GND_35 GND_36 GND_37 GND_38 GND_39 GND_40 GND_41 GND_42 GND_43 GND_44 GND_45 GND_46 GND_47 GND_48 GND_49 GND_50 GND_51 GND_52 GND_53 GND_54 GND_55 GND_56 GND_57 GND_58 GND_59 GND_60 GND_61 GND_62 GND_63 GND_64 GND_65 GND_66 GND_67 GND_68 GND_69 GND_70 GND_71 GND_72 GND_73 GND_74 GND_75 GND_76 GND_77 GND_78 GND_79 GND_80 GND_81 GND_82 GND_83 GND_84 GND_85 GND_86 GND_87 GND_88 GND_89 GND_90 GND_91 GND_92 GND_93 GND_94 GND_95 GND_96 GND_97 GND_98

GND_99 GND_100 GND_101 GND_102 GND_103 GND_104 GND_105 GND_106 GND_107 GND_108 GND_109 GND_110 GND_111 GND_112 GND_113 GND_114 GND_115 GND_116 GND_117 GND_118 GND_119 GND_120 GND_121 GND_122 GND_123 GND_124 GND_125 GND_126 GND_127 GND_128 GND_129 GND_130 GND_131 GND_132 GND_133 GND_134 GND_135 GND_136

SYM.E

G10 G11 G12 G13 G14 G17 G18 G19 G24 H11 H12 H13 H14 H15 H16 H17 H18 H19 J9 J10 J11 J12 J13 J14 J15 J16 J18 J19 J25 K9 K13 K14 H10 K18 K19 K22 L8 L9 J8 L12 L13 L18 L19 M8 K8 M10 M11 L14 M15 M16 M18 M25 N10 N11 N13 N14 N15 N16 N17 N19 K7 P8 P9 M9 P11 P13 P16 P17 P18 P12 R8 R9 R11 R12 R13 R17 T8 T9 N7 T11 T12 T13 T14 T15 T16 T17 U8 U9 U10 U11 U12 U13 U14 U15 U16 U17 R18 V9 V10 V11 V12 V14 V17 T7 E8

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

IRIN/GPIO4

ARC0

HWRESET

N4 T6 N5

R210 0

OPT

C231 1uF

OPT

IR HDMI_ARC SOC_RESET

NC4_S7LRM

MAIN2_NON_EU

2013/05/07

52_CI

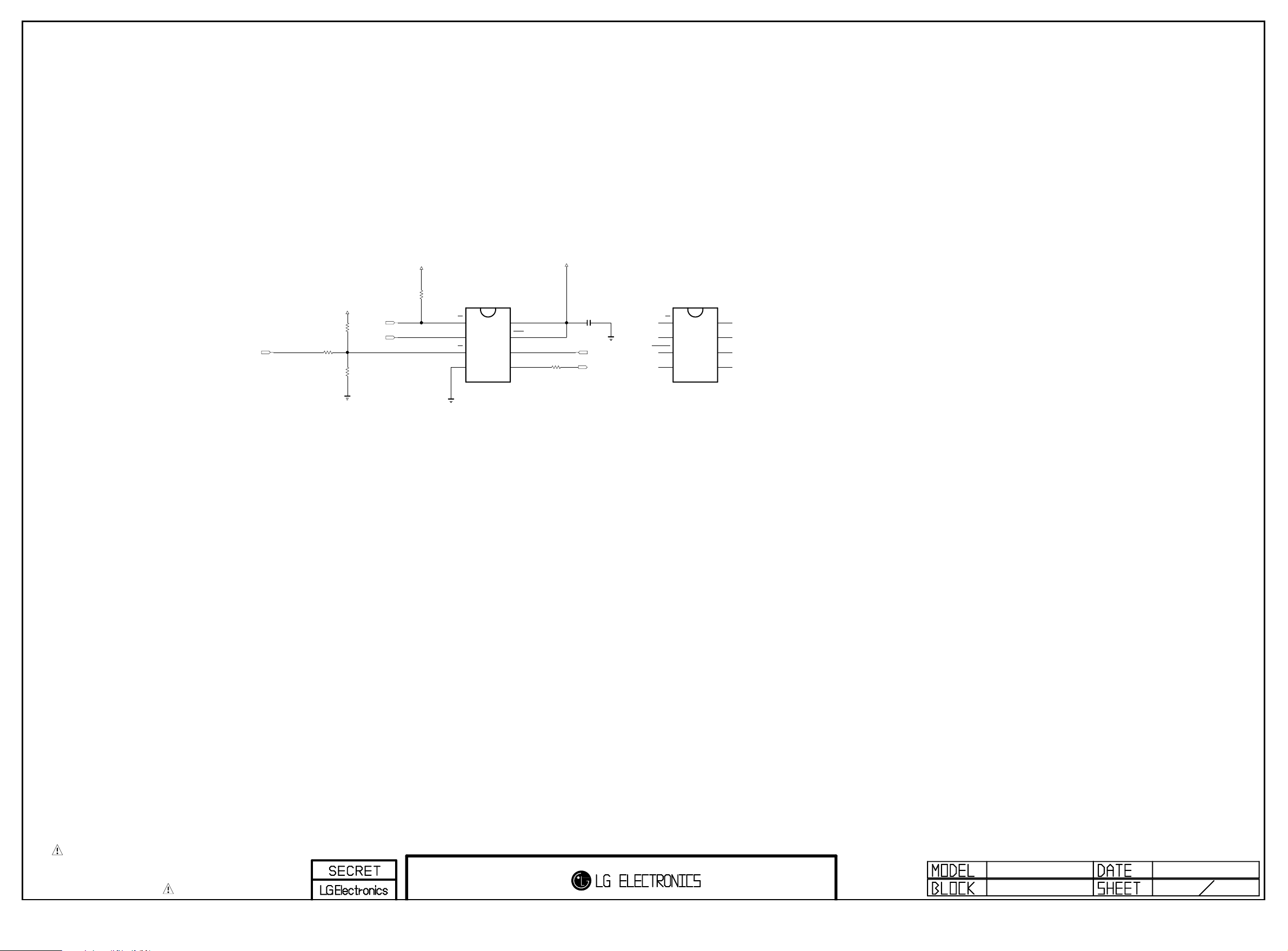

RS-232C

C5302

0.1uF

C5303

0.1uF

C5304

0.1uF

C5305

0.1uF DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC5301

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

OPT R5309

R5302

+3.5V_ST

OPT D5301 ADUC 20S 02 010L

C5306

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

PM_RXD

PM_TXD

20V

100

R5301 100

OPT D5302 ADUC 20S 02 010L 20V

0

6M6

1M1

3M3_DETECT

4M4

5M5_GND KJA-PH-1-0177

JK5301

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

RS232C_PHONE

2012/06/21

53

+1.5V_DDR +1.5V_DDR

+1.5V_DDR

DDR_SAMSUNG

IC1201-*1

K4B1G1646G-BCK0

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

R1201

1K 1%

R1202

1K 1%

C1201

CLose to DDR3

0.1uF

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

C1202

ZQ

1000pF

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

A-MVREFDQ

R1204

1K 1%

0.1uF

R1205

1000pF

1K 1%

C1204

C1203

CLose to Saturn7M IC

+1.5V_DDR

A-MVREFCA

C120510uF10V C122710uF10V C1207 0.1uF C1208 0.1uF C1210 0.1uF C1211 0.1uF C1212 0.1uF C1213 0.1uF C1214 0.1uF C1215 0.1uF

A-MVREFCA

A-MVREFDQ

A-MA14

R1203

240

1%

DDR_HYNIX

IC1201

H5TQ1G63EFR-PBC

EAN61829003

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

C1251

10uF10V

A10/AP

A12/BC

RESET

C1206

A11

NC_7

NC_5

BA0 BA1 BA2

CKE

ODT RAS CAS

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

0.1uF

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9

CK CK

CS

WE

C1239

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

0.1uF

1uF

C1217

C1218

C1219

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8

A-MA10 A-MA10 A-MA11 A-MA12 A-MA13

A-MBA0 A-MBA1 A-MBA2

A-MCKE

A-MODT A-MRASB A-MCASB A-MWEB

A-MRESETB

A-MDQSL A-MDQSLB

A-MDQSU A-MDQSUB

A-MDML A-MDMU

A-MDQL0 A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

C1238

R1235

56

R1236

56

R1231 10K

1uF

C1241

1%

C1209

0.01uF 50V

1%

+1.5V_DDR

A-MCK

A-MCKB

A-MA0 A-MA1 A-MA2 A-MA3 A-MA4 A-MA5 A-MA6 A-MA7 A-MA8 A-MA9A-MA9

A-MA11 A-MA12 A-MA13

A-MA14

A-MBA0 A-MBA1 A-MBA2

A-MCK A-MCKB A-MCKE

A-MODT

A-MRASB A-MCASB

A-MWEB

A-MRESETB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDML A-MDMU

A-MDQL0

A-MDQL1 A-MDQL2 A-MDQL3 A-MDQL4 A-MDQL5 A-MDQL6 A-MDQL7

A-MDQU0 A-MDQU1 A-MDQU2 A-MDQU3 A-MDQU4 A-MDQU5 A-MDQU6 A-MDQU7

A11 C14 B11 F12 C15 E12 A14 D11 B14 D12 C16 C13 A15 E11 B13

F13 B15 E13

C17 A17 B16

E14 B12 A12 C12

F11

B19 C18

B18 A18

E15 A21

D17 G15 B21 F15 B22 F14 A22 D15

G16 B20 F16 C21 E16 A20 D16 C20

A_DDR3_A[0] A_DDR3_A[1] A_DDR3_A[2] A_DDR3_A[3] A_DDR3_A[4] A_DDR3_A[5] A_DDR3_A[6] A_DDR3_A[7] A_DDR3_A[8] A_DDR3_A[9] A_DDR3_A[10] A_DDR3_A[11] A_DDR3_A[12] A_DDR3_A[13] A_DDR3_A[14]

A_DDR3_BA[0] A_DDR3_BA[1] A_DDR3_BA[2]

A_DDR3_MCLK A_DDR3_MCLKZ A_DDR3_MCLKE

A_DDR3_ODT A_DDR3_RASZ A_DDR3_CASZ A_DDR3_WEZ

A_DDR3_RESET

A_DDR3_DQSL A_DDR3_DQSLB

A_DDR3_DQSU A_DDR3_DQSUB

A_DDR3_DQML A_DDR3_DQMU

A_DDR3_DQL[0] A_DDR3_DQL[1] A_DDR3_DQL[2] A_DDR3_DQL[3] A_DDR3_DQL[4] A_DDR3_DQL[5] A_DDR3_DQL[6] A_DDR3_DQL[7]

A_DDR3_DQU[0] A_DDR3_DQU[1] A_DDR3_DQU[2] A_DDR3_DQU[3] A_DDR3_DQU[4] A_DDR3_DQU[5] A_DDR3_DQU[6] A_DDR3_DQU[7]

IC101

MSD804KKX

SYMBOL.B

B_DDR3_A[0] B_DDR3_A[1] B_DDR3_A[2] B_DDR3_A[3] B_DDR3_A[4] B_DDR3_A[5] B_DDR3_A[6] B_DDR3_A[7] B_DDR3_A[8]

B_DDR3_A[9] B_DDR3_A[10] B_DDR3_A[11] B_DDR3_A[12] B_DDR3_A[13] B_DDR3_A[14]

B_DDR3_BA[0] B_DDR3_BA[1] B_DDR3_BA[2]

B_DDR3_MCLK B_DDR3_MCLKZ B_DDR3_MCLKE

B_DDR3_ODT B_DDR3_RASZ B_DDR3_CASZ

B_DDR3_WEZ

B_DDR3_RESET

B_DDR3_DQSL

B_DDR3_DQSLB

B_DDR3_DQSU

B_DDR3_DQSUB

B_DDR3_DQML B_DDR3_DQMU

B_DDR3_DQL[0] B_DDR3_DQL[1] B_DDR3_DQL[2] B_DDR3_DQL[3] B_DDR3_DQL[4] B_DDR3_DQL[5] B_DDR3_DQL[6] B_DDR3_DQL[7]

B_DDR3_DQU[0] B_DDR3_DQU[1] B_DDR3_DQU[2] B_DDR3_DQU[3] B_DDR3_DQU[4] B_DDR3_DQU[5] B_DDR3_DQU[6] B_DDR3_DQU[7]

B23 D25 F22 G22 E24 F21 E23 D22 D24 D21 C24 C25 F23 E21 D23

G20 F24 F20

G25 G23 F25

D20 B25 B24 A24

E20

K24 K25

J21 J20

H24 L20

L23 J24 L24 J23 M24 H23 M23 K23

G21 L22 H22 K20 H20 L21 H21 K21

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

M1_DDR (1DDR)

2012/06/21

54

Serial Flash for SPI boot_NON_OS

/FLASH_WP

R5505 0

OPT

R5507 10K

R5508 10K

OPT

+3.5V_ST

/SPI_CS

SPI_SDO

+3.5V_ST

OPT R5503

4.7K

SFLASH_MX

IC1300

MX25L6406EM2I-12G

CS

1

SO/SIO1

2

WP

3

GND

4

8

7

6

5

VCC

HOLD

SCLK

SI/SIO0

+3.5V_ST

R5504 33

0.1uF

C5501

SPI_SCK

SPI_SDI

DO[IO1]

WP[IO2]

GND

SFLASH_WINBOND

IC1300-*1

W25Q64FVSSIG

CS

1

2

3

4

8

7

6

5

VCC

%HOLD[IO3]

CLK

DI[IO0]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

NC4_S7LRM

S_FLASH_NON_OS

2013/05/07

55_CI

LG 42LB5600 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
