LG 42LA46230 Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com

LED TV

SERVICE MANUAL

CHASSIS : LT33B

MODEL : 42LA6200/6230 42LA6200/6230-DA/DB

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in KoreaP/NO : MFL67686918 (1302-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 17

BLOCK DIAGRAM .................................................................................. 25

EXPLODED VIEW .................................................................................. 35

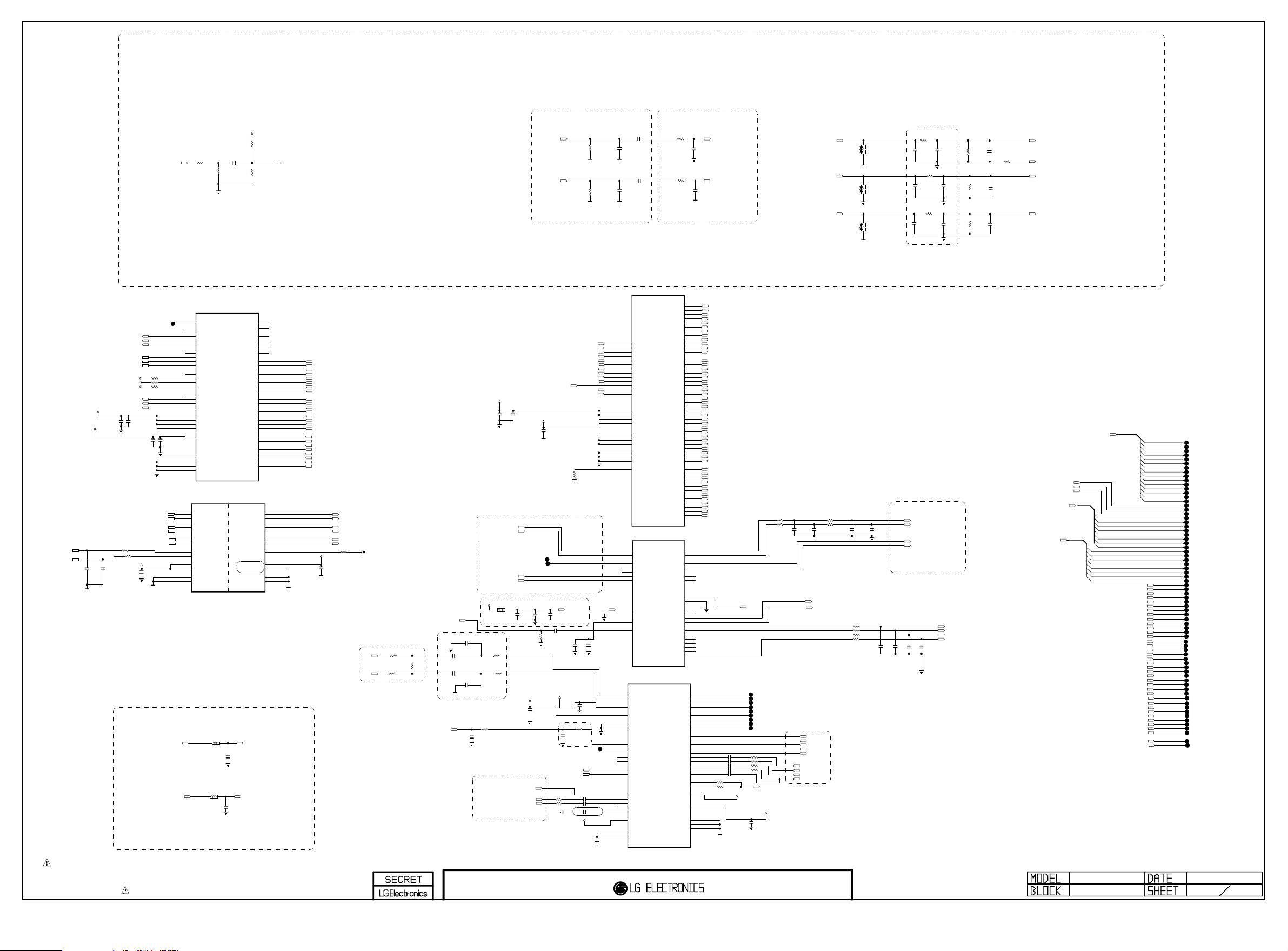

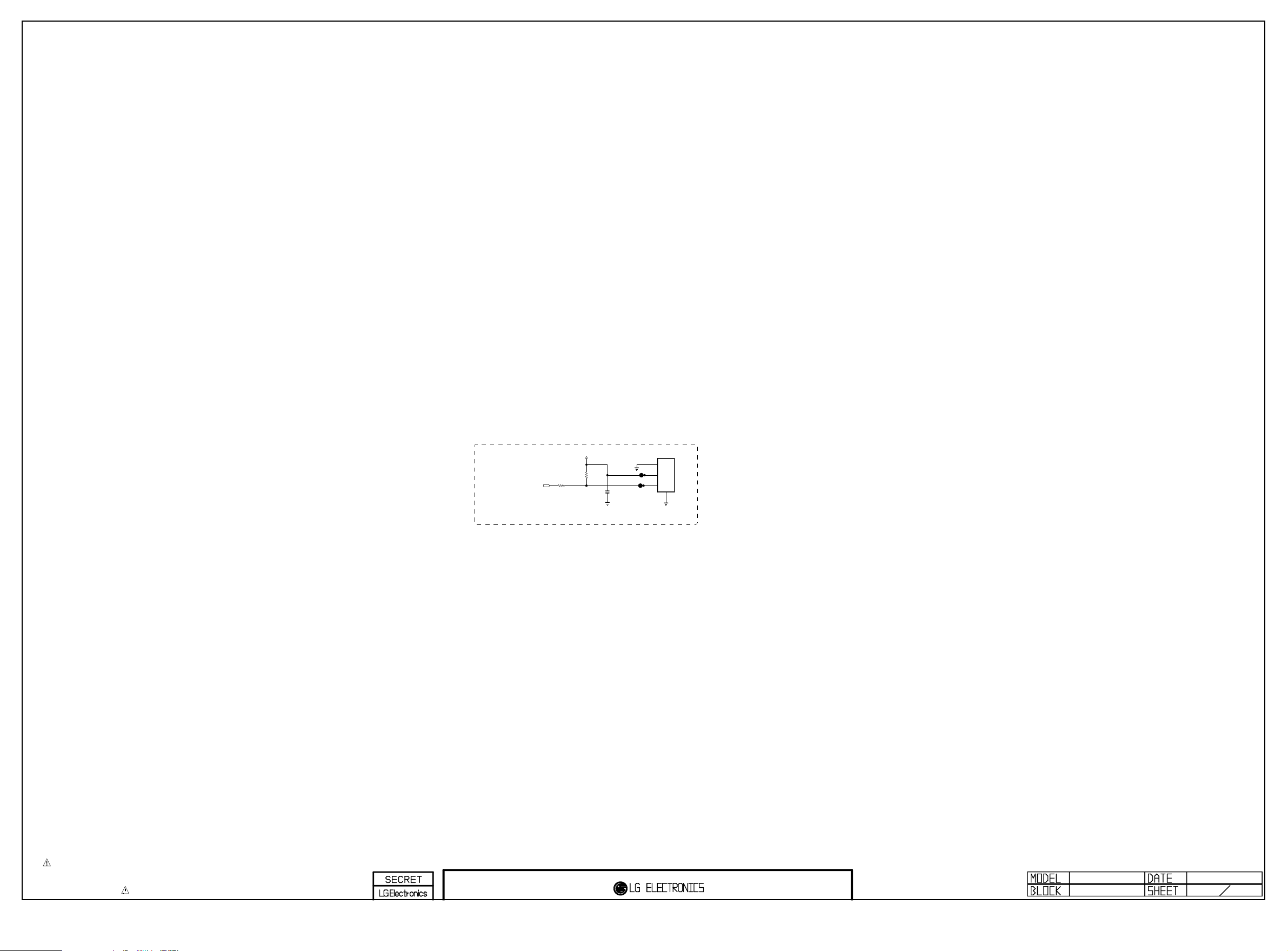

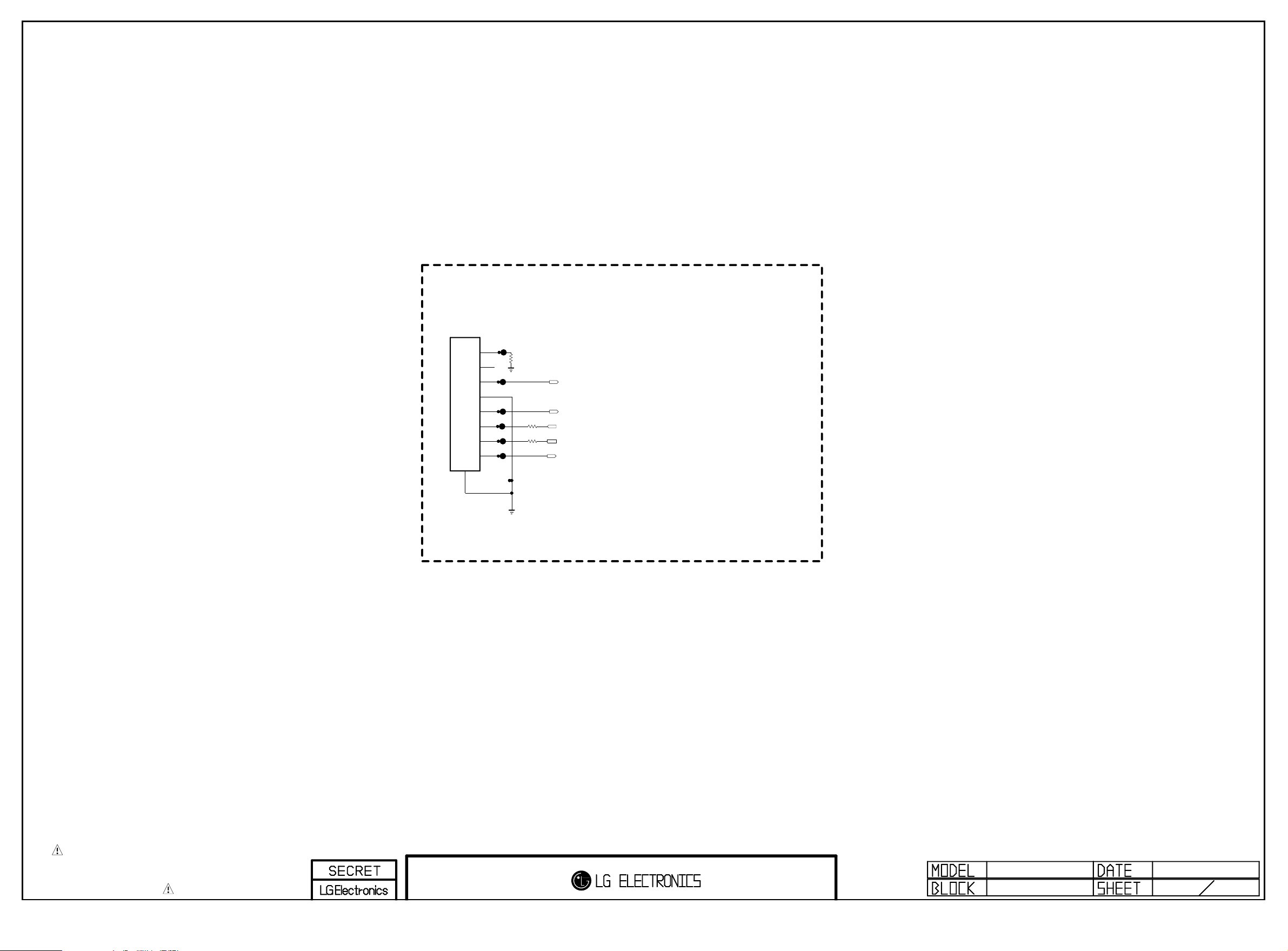

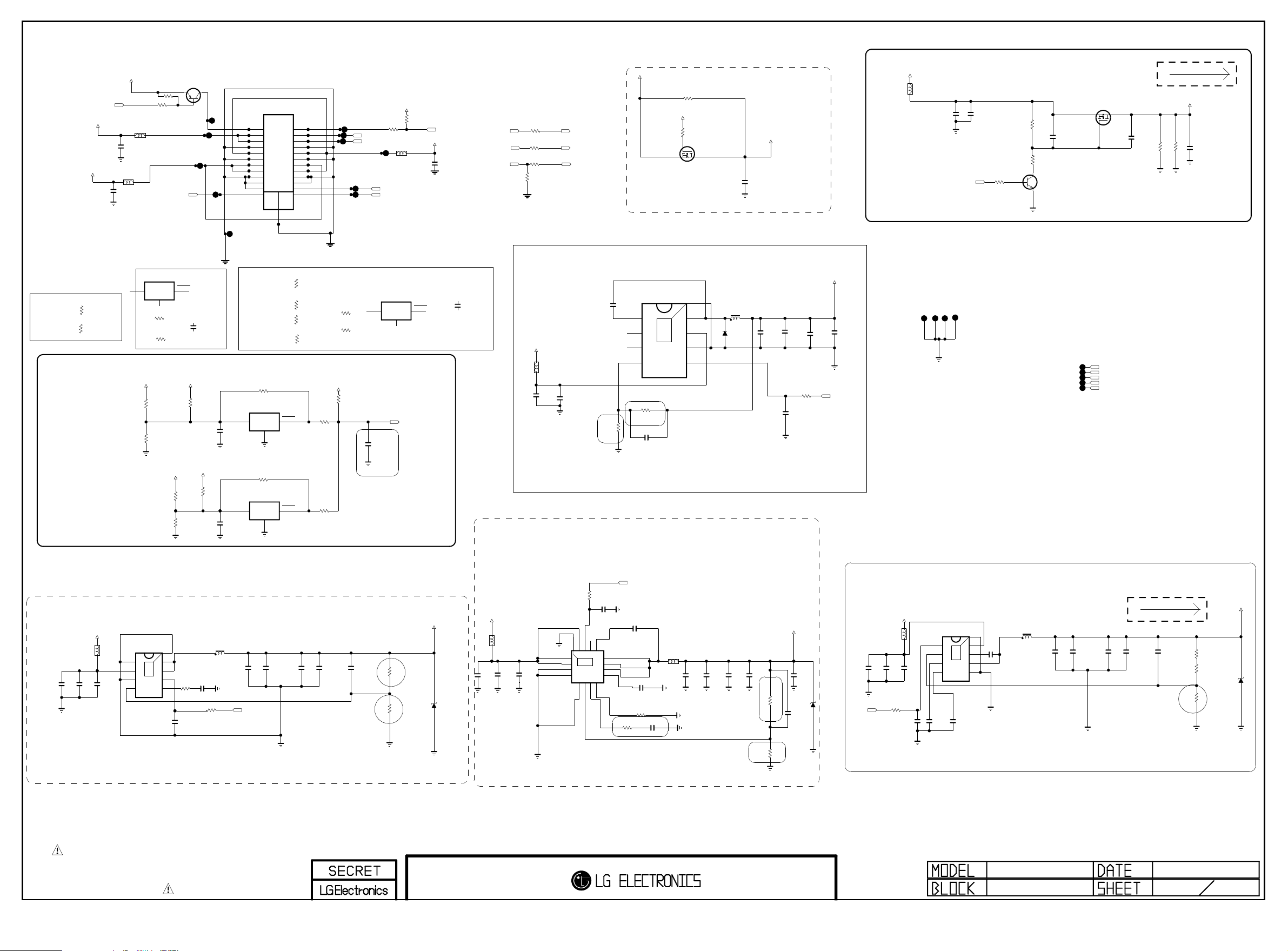

SCHEMATIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of th e cir cuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exp ose d metallic par t. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

1. Application range

This spec sheet is applied all of the 32”,42”,47”,55”,60”, 65” LED TV with LT33B chassis

2. Test condition

Each part is tested as below without special notice.

1) Temperature : 25 ºC ± 5 ºC, CST : 40 ºC±5 ºC

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage Standard input voltage (100~240V@ 50/60Hz) * Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed

ea ch drawing and s pe cificatio n b y p art number in accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to

the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC: CE, IEC

Only for training and service purposes

- 6 -

4. General Specification

No Item Specication Remark

1. Display Screen Device 32” wide Color Display Module Resolution: 1366*768 (32LN570)

32” wide Color Display Module Resolution: 1920*1080

39” wide Color Display Module Resolution: 1920*1080

42” wide Color Display Module Resolution: 1920*1080

47” wide Color Display Module Resolution: 1920*1080

50” wide Color Display Module Resolution: 1920*1080

55” wide Color Display Module Resolution: 1920*1080

60” wide Color Display Module Resolution: 1920*1080

2. Aspect Ratio 16:9 All

3. LCD Module 32" TFT WUXGA LCD

32" TFT WXGA LCD Only 32LN570B

42" TFT WUXGA LCD

47” TFT WUXGA LCD

50” TFT WUXGA LCD

55” TFT WUXGA LCD

60” TFT WUXGA LCD

4. Operating Environment TFT 1) Temp. : 0 ~ 40 deg

5. Storage Environment TFT 1) Temp. : -20 ~ 60 deg

6. Input Voltage AC100 ~ 240V, 50/60Hz

7. Power Consumption(Max) = LCD(Module) + Backlight(LED)

FHD T240Hz POLA

FHD T120Hz POLA

FHD 60Hz POLA

FHD T120Hz CINEMA

FHD T120Hz Edge

FHD T120Hz Direct

HD (32” only) FHD 60Hz Direct (32/42/47”) POLA (55”)

2) Humidity : 0 ~ 85%

2) Humidity : 10 ~ 90%

60 TBD W

55 TBD W FPR : LC550EUJ-SEK1 [55LA6200-DA]

55 TBD W Normal : LC550EUJ-SEE1 [55LN5700-DC]

42” 56.4 W

47” 62.4 W FPR: LC470EUG-KFF1 [47LA66/68 6900-DA]

55” 74.3 W FPR: LC550EUG-KFF1 [55LA66/68/6900-DA]

42” 57 W FPR: LC420EUN-SFF2 [42LA6400-DA]

47” 68 W FPR: LC470EUN-SFF2 [47LA6400-DA]

50” 76 W FPR: LC500EUN-SFF1 [50LA6400-DA]

55” 88 W FPR: LC550EUN-SFF1 [55LA6400-DA]

42” 77 W FPR : LC420DUE-SFU1 [42LA6200-DA]

77 W Normal : LC420DUE-SFR1 [42LN5700]

47” 91 W FPR : LC470DUE-SFU1 [47LA6200-DA]

91 W Normal : LC470DUE-SFR1 [47LN5700]

50” 108 W FPR : LC500DUE-SFU1 [50LA6200-DA]

42” 62.34 W Normal : LC420DUE-SFR1 [42LN5700]

47” 91 W Normal : LC470DUE-SFR1 [47LN5700-DH]

55” Normal : LC550DUK-SEE1 [55LN5700-DC]

32” 39.2 W LC320DXE-SFR1 [32LN570B (HD)]

38 W LC320DUE-SFR1 [32LN5700(FHD)]

LGE SPEC

FPR : LC600DUK-SEF1 [60LA7450/LA6200-DA]

FPR: LC420EUG-KFF1 [42LA65/66/68/6900-DA]

Only for training and service purposes

- 7 -

8. LCD Module Size Maker Inch (H) × (V) × (D)

32” TBD LC320EUA-KFF1 [32LA6900-DA]

947.7 x 546.65 x 9.7 LC420EUG-KFF1 [42LA6600 / 6900-DA]

42” 958 x 559.1 x 9.9 LC420EUN-SFF2 [42LA6400-DA]

956.4 x 555.0 x 37.4 LC420DUE-SFU1 [42LA6200-DA]

958.2 x 555.8 x 35.0 LC420DUE-SFR1 [42LN5700]

47” 1059.5 x 609.5 x 9.7 LC470EUG-KFF1 [47LA66/68/6900-DA]

1070.6 x 622.0 x 9.9 LC470EUN-SFF2 [47LA6400-DA]

1068.0 x 617.8 x 38.8 LC470DUE-SFU1 [47LA6200-DA]

1067.6 x 617.4 x 36.5 LC470DUE-SFR1 [47LN5700-DH]

50” 1121.6 x 644.3 x 10.8 LC500EUN-SFF1 [50LA6400-DA]

1123.0 x 648.2 x 40.3 LC500DUE-SFU1 [50LA6200-DA]

55” 1229.4 x 706.3 x 13.2 LC550EUG-KFF1 [55LA66/68/6900-DA]

1244.6 x 720.9 x 9.9 LC550EUN-SFF1 [55LA6400-DA]

1232.0 x 704.0 x 1.94 LC550EUJ-SEK1 [55LA6200-DA]

1232.0 x 704.0 x 1.94 LC550EUJ-SEE1 [55LN5700-DC]

60” 1333.0 x 758.94 x 1.42 LC600DUK-SEF1 [60LA6200-DA]

Pixel Pitch Maker Inch (H) × (V) × (D)

32” TBD LC320EUA-KFF1 [32LA6900-DA]

170.25 x 510.75 LC320DUE-SFR1 [32LN570B]

42” 483.3 x 483.3 LC420EUG-KFF1 [42LA6600 / 6900-DA]

483.3 x 483.3 LC420EUN-SFF2 [42LA6400-DA]

483.3 x 483.3 LC420DUE-SFU1 [42LA6200-DA]

483.3 x 483.3 LC420DUE-SFR1 [42LN56/5700-DA]

47” 541.5 x 541.5 LC470EUG-KFF1 [47LA66/68/6900-DA]

541.5 x 541.5 LC470EUN-SFF2 [47LA6400-DA]

541.5 x 541.5 LC470DUE-SFU1 [47LA6200-DA]

541.5 x 541.5 LC470DUE-SFR1 [47LN5700]

50” 570.75 x 570.75 LC500EUN-SFF1 [50LA6400-DA]

570.75 x 570.75 LC500DUE-SFU1 [50LA6200-DA]

55” 630 x 630 LC550EUG-KFF1 [55LA66/68/6900-DA]

630 x 630 LC550EUN-SFF1 [55LA6400-DA]

630 x 630 LC550EUJ-SEK1 [55LA6200-DA]

630 x 630 LC550EUJ-SEE1 [55LM5700-DC]

60” 687 x 687 LC600DUK-SEF1 [60LA6200-DA]

Only for training and service purposes

- 8 -

8. Back Light Maker Inch TYPE Module Name

LGD 32” CINEMA FPR : LC320EUA-KFF1 [32LA6900-DA]

42” FPR: LC420EUG-KFF1 [42LA6600 /

47” FPR: LC470EUG-KFF1 [47LA6600 /

55” FPR: LC550EUG-KFF1 [47LA6600 /

42” Edge FPR: LC420EUN-SFF2 [42LA6400-DA]

47” FPR: LC470EUN-SFF2 [47LA6400-DA]

50” FPR: LC500EUN-SFF1 [50LA6400-DA]

55” FPR: LC550EUN-SFF1 [55LA6400-DA]

55” POLA FPR: LC550EUJ-SEK1 [55LA6200-DA]

60” FPR: LC600DUK-SEF1 [60LA6200-DA]

32 Direct LC320DXE-SFR1 [32LN570B-DH]

42 FPR : LC420DUE-SFU1 [42LA6200-DA]

47 FPR : LC470DUE-SFU1 [47LA6200-DA]

50 FPR : LC500DUE-SFU1 [50LA6200-DA]

Display Colors 1.06 B (10-bit) Except FHD 60Hz models

16.7 M (8-bit) FHD/HD 60Hz models

Coating 3H(Hard coating), Anti-glare

6900-DA]

Normal : LC420DUE-SFR1 [42LN 5700]

Normal : LC470DUE-SFR1 [47LN5700-DH]

Only for training and service purposes

- 9 -

5. External Input Support Format

5.1. Component input(Y, CB/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed

1. 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2. 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3. 720*480 31.50 60 27.027 SDTV 480P

4. 720*480 31.47 59.94 27.00 SDTV 480P

5. 720*576 15.625 50* 13.5 SDTV 576I

6. 720*576 31.25 50* 13.5 SDTV 576P

7. 1280*720 37.5 50* 74.25 HDTV 720P

8. 1280*720 45.00 60.00 74.25 HDTV 720P

9. 1280*720 44.96 59.94 74.176 HDTV 720P

10. 1929*1080 28.125 50* 74.25 HDTV 1080I

11. 1920*1080 33.75 60.00 74.25 HDTV 1080I

12. 1920*1080 33.72 59.94 74.176 HDTV 1080I

13. 1920*1080 56.25 50* 148.5 HDTV 1080P

14. 1920*1080 67.50 60 148.50 HDTV 1080P

15. 1920*1080 67.432 59.94 148.352 HDTV 1080P

16. 1920*1080 27.00 24.00 74.25 HDTV 1080P

17. 1920*1080 26.97 23.976 74.176 HDTV 1080P

18. 1920*1080 33.75 30.00 74.25 HDTV 1080P

19. 1920*1080 33.71 29.97 74.176 HDTV 1080P

Only for training and service purposes

- 10 -

5.2. HDMI : EDID DATA : Refer to adjust specification

5.2.1. DTV mode

No Resolution H-freq(kHz) V-freq.(Hz)

1 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I) Spec. out but display

2 15.75 60.00 13.514 SDTV, DVD 480I(525I)

3 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz

4 720*480 31.47 59.94 27 SDTV 480P

5 31.5 60.00 27.027 SDTV 480P

6 720*576 31.25 50.00 27 SDTV 576P

7 1280*720 44.96 59.94 74.176 HDTV 720P

8 45 60.00 74.25 HDTV 720P

9 37.5 50.00 74.25 HDTV 720P

10 1920*1080 28.125 50.00 74.25 HDTV 1080I

11 33.72 59.94 74.176 HDTV 1080I

12 33.75 60.00 74.25 HDTV 1080I

13 26.97 23.976 63.296 HDTV 1080P

14 27.00 24.000 63.36 HDTV 1080P

15 33.71 29.97 79.120 HDTV 1080P

16 33.75 30.00 79.20 HDTV 1080P

17 56.25 50.00 148.5 HDTV 1080P

18 67.432 59.94 148.350 HDTV 1080P

19 67.5 60.00 148.5 HDTV 1080P

Pixel

clock(MHz)

Proposed Remark

5.2.2. PC mode

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock Proposed Remarks

1 640*350 31.468 70.09 25.17 EGA

2 720*400 31.469 70.09 28.32 DOS

3 640*480 31.469 59.94 25.17 VESA(VGA)

4 800*600 37.879 60.31 40 VESA(SVGA)

5 1024*768 48.363 60.00 65 VESA(XGA)

6 1152*864 54.348 60.053 80.002 VESA(VGA)

7 1360*768 47.712 60.015 84.75 VESA(WXGA)

8 1280*1024 63.981 60.020 109.00 SXGA

9 1920*1080 67.5 60 158.40 WUXGA (Reduced Blanking) Only FHD Model

Only FHD Model (Support to HDMI-PC)

Only for training and service purposes

- 11 -

5.3. 3D mode

5.3.1. RF Input

No Resolution Proposed 3D input proposed mode

1 HD 1080I

720P

2 SD 576P

576I

5.3.2. RF Input (3D supported mode automatically)

No Signal 3D input proposed mode

1 Frame Compatible Side by Side(Half), Top & Bottom

5.3.3. HDMI Input 1.3(3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 1280*720 45.00 60.00 74.25 HDTV 720P 2D to 3D

2 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D

3 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D

4 1920*1080 28.125 50.00 74.25 HDTV 1080I 2D to 3D

5 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D

6 1920*1080 28.12 25 74.25 HDTV 1080P 2D to 3D

7 1920*1080 33.75 30.00 74.25 HDTV 1080P 2D to 3D

8 1920*1080 56.25 50 148.5 HDTV 1080P 2D to 3D

9 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D

2D to 3D Side by Side(Half) Top & Bottom

2D to 3D

Side by Side(half), Top & Bottom, Single Frame Sequential

Side by Side(half), Top & Bottom

Side by Side(half), Top & Bottom, Checkerboard

Side by Side(half), Top & Bottom, Checkerboard, Single Frame Sequential, Row Interleaving, Column Interleaving

Only for training and service purposes

- 12 -

5.3.4. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed

mode

1 640*480 31.469 / 31.5 59.94/ 60 25.175/25.2 Top-and-Bottom

Side-by-side(half)

2 62.938 / 63 59.94/ 60 50.35/50.4 Frame packing

Line alternative

3 31.469 / 31.5 59.94/ 60 50.35/50.4 Side-by-side(Full) (SDTV 480P)

4 720*480 31.25 50 27 Top-and-Bottom

Side-by-side(half)

5 62.5 50 54 Frame packing

Line alternative

6 31.25 50 54 Side-by-side(Full) (SDTV 480P)

7 720*576

(576p)

8 62.5 50 54 Frame packing

9 31.25 50 54 Side-by-side(Full) (SDTV 576P)

720 (1440)*576

10 15.625 50 27 Top-and-Bottom

(576i)

11 31.25 50 54 Frame packing

12 15.625 50 54 Side-by-side(Full) (SDTV 576I)

13 1280*720 37.5 50 74.25 Top-and-Bottom

14 75 50 148.5 Frame packing

15 37.5 50 148.5 Side-by-side(Full) (HDTV 720P)

16 44.96 / 45 59.94 / 60 74.18/74.25 Top-and-Bottom

17 89.91 / 90 59.94 / 60 148.35/148.5 Frame packing

18 44.96 / 45 59.94 / 60 148.35/148.5 Side-by-side(Full) (HDTV 720P)

31.25 50 27 Top-and-Bottom Side-by-side(half)

Line alternative

Side-by-side(half)

Field alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 576P) Secondary(SDTV 576P)

Secondary(SDTV 576P) (SDTV 576P)

Secondary(SDTV 576I) Secondary(SDTV 576I)

Secondary(SDTV 576I) (SDTV 576I)

Primary(HDTV 720P) Primary(HDTV 720P)

Primary(HDTV 720P) (HDTV 720P)

Primary(HDTV 720P) Primary(HDTV 720P)

Primary(HDTV 720P) (HDTV 720P)

Proposed

Only for training and service purposes

- 13 -

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed

mode

19 1920*1080 33.72 / 33.75 59.94 / 60 74.18/74.25 Top-and-Bottom

Side-by-side(half)

20 67.432 / 67.5 59.94 / 60 148.35/148.5 Frame packing

Field alternative

21 33.72 / 33.75 59.94 / 60 148.35/148.5 Side-by-side(Full) (HDTV 1080I)

22 28.125 50.00 74.25 Top-and-Bottom

Side-by-side(half)

23 56.25 50.00 148.5 Frame packing

Field alternative

24 28.125 50.00 148.5 Side-by-side(Full) (HDTV 1080I)

25 26.97 / 27 23.97 / 24 74.18/74.25 Top-and-Bottom

Side-by-side(half)

26 43.94 / 54 23.97 / 24 148.35/148.5 Frame packing

Line alternative

27 26.97 / 27 23.97 / 24 148.35/148.5 Side-by-side(Full) (HDTV 1080P)

28 28.12 25 74.25 Top-and-Bottom

Side-by-side(half)

29 56.25 25 148.5 Frame packing

Line alternative

30 28.125 25 148.5 Side-by-side(Full) (HDTV 1080P)

31 33.716 / 33.75 29.976 / 30.00 74.18/74.25 Top-and-Bottom

Side-by-side(half)

32 67.432 / 67.5 29.976 / 30.00 148.35/148.5 Frame packing

Line alternative

33 33.716 / 33.75 29.976 / 30.00 148.35/148.5 Side-by-side(Full) (HDTV 1080P)

34 56.25 50 148.5 Top-and-Bottom

Side-by-side(half)

35 67.43 / 67.5 59.94 / 60 148.35/148.50 Top-and-Bottom

Side-by-side(half)

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080I) (HDTV 1080I)

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080I) (HDTV 1080I)

Primary(HDTV 1080P) Primary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Secondary(HDTV 1080P) Secondary(HDTV 1080P)

Secondary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Proposed

5.3.5. HDMI-PC 3D Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1024*768 48.36 60 65 2D to 3D,

Side by Side(half) Top & Bottom

2 1360*768 47.71 60 85.5 2D to 3D,

Side by Side(half) Top & Bottom

3 1920*1080 67.500 60 148.50 2D to 3D,

Side by Side(half) Top & Bottom, Checker Board, Single Frame Sequential Row Interleaving, Column Interleaving

4 Others - - - 2D to 3D 640*350

- 14 -

Only for training and service purposes

HDTV 768P

HDTV 1080P

720*400 640*480 800*600 1152*864

5.3.6. Component 3D Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1280*720 37.5 50 74.25 2D to 3D,

Side by Side(half), Top & Bottom

2 1280*720 45.00 60.00 74.25 2D to 3D,

Side by Side(half), Top & Bottom

3 1280*720 44.96 59.94 74.176 2D to 3D,

Side by Side(half) Top & Bottom

4 1920*1080 33.75 60.00 74.25 2D to 3D,

Side by Side(half) Top & Bottom

5 1920*1080 33.72 59.94 74.176 2D to 3D,

Side by Side(half) Top & Bottom

6 1920*1080 28.12 50 74.25 2D to 3D,

Side by Side(half) Top & Bottom

7 1920*1080 67.500 60 148.50 2D to 3D,

Side by Side(half) Top & Bottom

8 1920*1080 67.432 59.94 148.352 2D to 3D,

Side by Side(half) Top & Bottom

9 1920*1080 27.000 24.000 74.25 2D to 3D,

Side by Side(half) Top & Bottom

10 1920*1080 28.12 25 74.25 2D to 3D,

Side by Side(half) Top & Bottom

11 1920*1080 56.25 50 74.25 2D to 3D,

Side by Side(half) Top & Bottom

12 1920*1080 26.97 23.976 74.176 2D to 3D,

Side by Side(half) Top & Bottom

13 1920*1080 33.75 30.000 74.25 2D to 3D,

Side by Side(half) Top & Bottom

14 1920*1080 33.71 29.97 74.176 2D to 3D,

Side by Side(half) Top & Bottom

HDTV 720P

HDTV 1080I

HDTV 1080P

Only for training and service purposes

- 15 -

5.3.7. USB Input (3D) (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1920*1080 33.75 30 74.25 2D to 3D

Side by Side(Half)*, Top & Bottom*, Checkerboard* Row Interleaving, Column Interleaving (Photo : side by Side(half), Top & Bottom)

HDTV 1080P

5.2.8. DLNA Input (3D)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed

1 1920*1080 33.75 30 74.25 2D to 3D

Side by Side(Half)*, Top & Bottom*, Checkerboard* Row Interleaving, Column Interleaving (Photo : side by Side(half), Top & Bottom)

HDTV 1080P

Only for training and service purposes

- 16 -

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied all of the LT33B LED TV models, which produced in manufacture department or similar LG TV factory

2. Specification

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation transformer will help protect test instrument.

(2) Adjustment must be done in the correct order. But it is

flexible when its factory local problem occurs.

(3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if there is no specific designation.

(4) The input voltage of the receiver must keep 100~220V,

50/60Hz.

(5) Before adjustment, execute Heat-Run for 5 minutes.

▪ After Receive 100% Full white pattern (06CH) then process

Heat-run

(or “8. Test pattern” condition of Ez-Adjust status)

▪ How to make set white pattern

1) Press Power ON button of Service Remocon

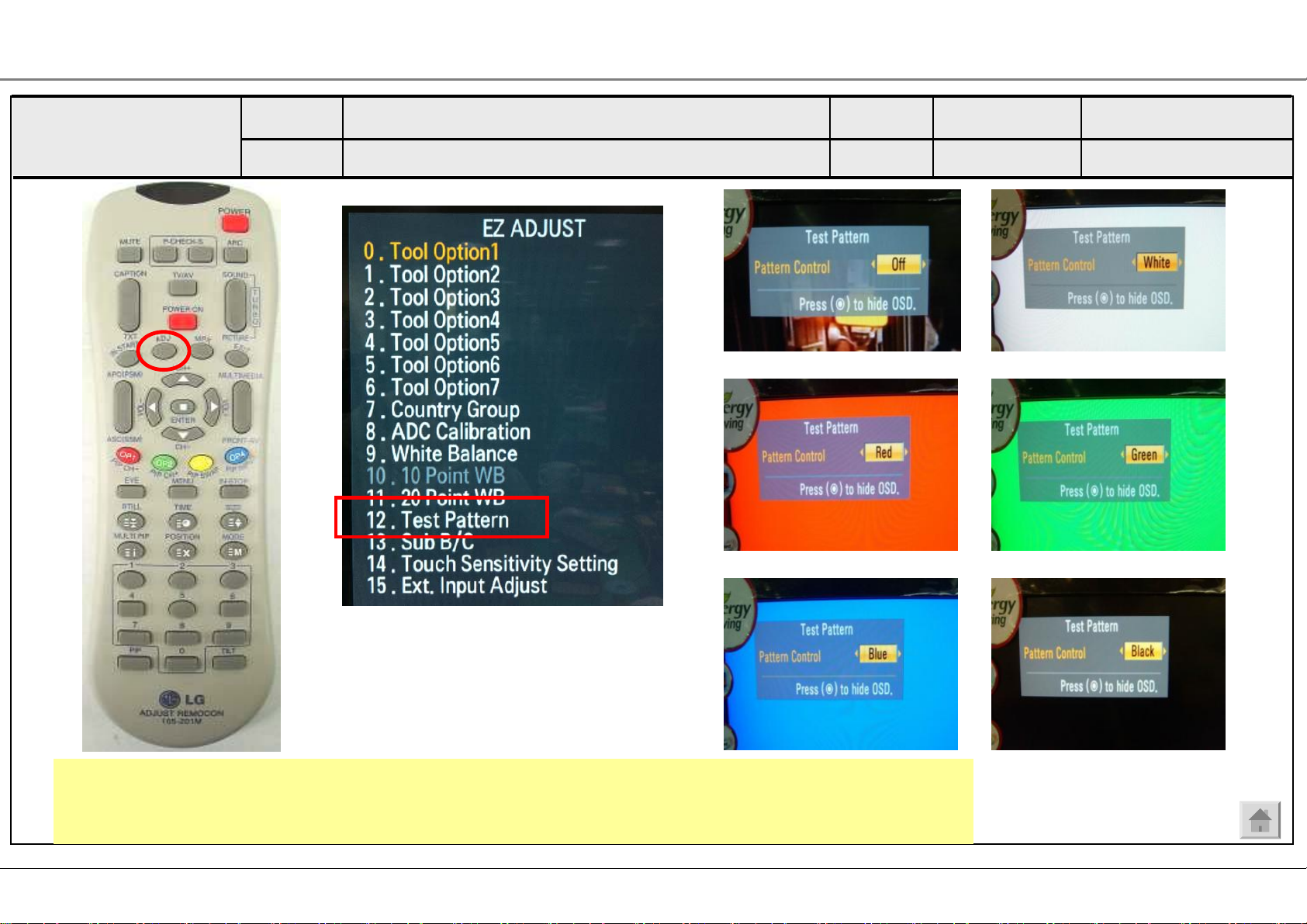

2) Pr ess ADJ button of Service remocon. Select “8. Test pattern” and, after select “White” using navigation button, and then you can see 100% Full White pattern.

* In this status you can maintain Heat-Run useless any pattern

generator

* Notice : if you mai nt ain one pictu re ov er 20 minutes

(Especially sharp distinction black with white pattern

-13Ch, or Cross hatch pattern – 09Ch) then it can appear image stick near black level.

4. PCB Assembly Adjustment

4.1. MAC Address, ESN Key and Widevine Key download

4.1.1. Equipment & Condition

1) Play file: keydownload.exe

4.1.2. Communication Port connection

1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)

2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.1.3. Download process

1) Select the download items.

2) Mode check: Online Only

3) Check the test process

- DETECT -> MAC_WRITE -> ESN_WRITE -> WIDEVINE_ WRITE

4) Play : START

5) Check of result: Ready, Test, OK or NG

4.1.4. Communication Port connection

1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

3. Adjustment items

3.1. PCB Assembly Adjustment

▪ MAC Address / ESN / Widevine Download ▪ EDID (The Extended Display Identification Data)/D DC

(Display Data Channel) download * If it is necessary, it can adjustment at Manufacture Line You can see set adjustment status at “1. ADJUST CHECK”

of the “In-start menu”

3.2. Set Assembly Adjustment

▪ Color Temperature (White Balance) Adjustment ▪ Using RS-232C ▪ PING Test ▪ Selection Factory output option

Only for training and service purposes

4.1.5. Download

1) 13Y LCD TV+MAC+Widevine+ESN Key+ HDCP1.4 and HDCP2.0

4.1.6. Inspection

- In INSTART menu, check these keys.

- 17 -

4.2. LAN PORT INSPECTION(PING TEST)

4.2.1. Equipment setting

1) Play the LAN Port Test PROGRAM.

2) Input IP set up for an inspection to Test Program.

*IP Number : 12.12.2.2.

4.2.2. LAN PORT inspection (PING TEST)

1) Play the LAN Port Test Program.

2) connect each other LAN Port Jack.

3) Play Test (F9) button and confirm OK Message.

4) remove LAN CABLE

4.3. ADC Adjust => No need at Assembly line because of OPT type

* OTP mode Automatic ADC Calibration. (Internal ADC Calibration) On the manufacture line, OTP is used for ADC Calibration automatically.

* External mode Manual ADC Calibration. When OTP mode is failed, ADC calibration should be “OK” by using External mode.

- If you want re-adjust for ADC.

■ Enter Service Mode by pushing “ADJ” key,

■ Enter Internal ADC mode by pushing “►” key at “6. ADC

Calibration”

■

Adjustment protocol

Order Command Set response

(1) Inter the Adjustment mode aa 00 00 a 00 OK00x

(2) Change the Source xb 00 40

xb 00 60

(3) Start Adjustment ad 00 10

(4) Return the Response OKx ( Success condition )

(5) Read Adjustment data ( main)

ad 00 20 ( main ) ad 00 30

(6) Conrm Adjustment ad 00 99 NG 03 00x (Failed condition)

(7) End of Adjustment ad 00 90 d 00 OK90x

b 00 OK40x (Adjust 480i Comp1 ) (Adjust 1080p Comp1) b 00 OK60x (Adjust 1080p RGB)

NGx ( Failed condition )

(main : component1 480i, RGB 1080p) 000000000000000000000000007c007b006dx (main : component1 1080p) 000000070000000000000000007c0083 0077x

NG 03 01x (Failed condition) NG 03 02x (Failed condition) OK 03 03x (Success condition)

Only for training and service purposes

- 18 -

5. Factory Adjustment

5.1. EDID (The Extended Display Identification Data)/DDC (Display Data Channel) Download

● Summary

▪ It is established in VESA, for communication between PC

and Monitor without order from user for building user condition. It helps to make easily use realize “Plug and Play” function. For EDID data write, we use DDC2B protocol.

● Auto Download (No need Writing EDID data in Assembly line)

▪ After Set Tool Option, then TV turn off and on finish auto

download

* EDID data for 3DTV (LA62/64/66/68/69/74 Seriese) (Model

name = LG TV ) .

*Rev. 15xxx to confirm that, Rev. up subject to change

- HDMI EDID table

* EDID data for Non-3DTV (LN56/57 Seriese) (Model name =

LG TV )

*Rev. 15xxx to confirm that, Rev. up subject to change

- HDMI EDID table

- HDMI-1 EDID table (0X43, 0x8A)

(1) HDMI 1 Check sum : 0x43, 0X8A (CEA Block 0x21 :10) (2) HDMI 2 Check sum : 0x43, 0X7A (CEA Block 0x21 :20) (3) HDMI 3 Check sum : 0x43, 0X6A (CEA Block 0x21 :30)

- HDMI-1 EDID table (0xE8, 0xCC)

(1) HDMI 1 Check sum : 0xE8, 0XCC (CEA Block 0x21 :10) (2) HDMI 2 Check sum : 0xE8, 0XBC (CEA Block 0x21 :20) (3) HDMI 3 Check sum : 0xE8, 0XAC (CEA Block 0x21 :30)

Only for training and service purposes

- 19 -

5.2. Adjustment White balance

● W/B Equipment condition

CA210 : CH 9, Test signal : Inner pattern (80IRE) – LAMP

Module

CH14 , Test signal : Inner pattern (80IRE) – LED Module

● Above 5 minutes H/run in the inner pattern. (“power on” key of

adjust remote control)

※ The spec of color temperature and coordinate.

X=0.269

Cool (C50) 13,000k K

All

Medium (0) 9,300k K

Warm (W50) 6,500k K

※ LA6xxx, LA7xxx, LA8xxx, LN5x Series (Normal Line)

Cool Medium Warm

H/R Time(Min)

1 0-2 281 287 295 310 320 342

2 3-5 280 285 294 308 319 340

3 6-9 278 284 292 307 317 339

4 10-19 276 281 290 304 315 336

5 20-35 275 277 289 300 314 332

6 36-49 274 274 288 297 313 329

7 50-79 273 272 287 295 312 327

8 80-119 272 271 286 294 311 326

9 Over 120 271 270 285 293 310 325

x y x x y x

271 270 285 293 313 329

※ LA6xxx, LA7xxx, LA8xxx, LN5x Series (Aging Chamber)

Cool Medium Warm

H/R Time(Min)

1 0-5 280 285 294 308 319 340

2 6-10 276 280 290 303 315 335

3 11-20 272 275 286 298 311 330

4 21-30 269 272 283 295 308 327

5 31-40 267 268 281 291 306 323

6 41-50 266 265 280 288 305 320

7 51-80 265 263 279 286 304 318

8 81-119 264 261 278 284 303 316

9 Over 120 264 260 278 283 303 315

x y x x y x

271 270 285 293 313 329

(±0.002) Y=0.273 (±0.002)

X=0.285 (±0.002) Y=0.293 (±0.002)

X=0.313 (±0.002) Y=0.329 (±0.002)

- Inner pattern for W/B adjust

- External white

pattern (80IRE, 204gray)

※ Connecting picture of the measuring instrument (On Automatic

control)

Inside PATTERN is used when W/B is controlled. Connect to auto controller or push Adjustment R/C POWER-ON -> Enter the mode of White-Balance, the pattern will come out

● Auto-control interface and directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (Illumination is less than 10ux).

(2) Adhere closely the Color Analyzer ( CA210 ) to the module

less than 10cm distance, keep it with the surface of the Module and Color Analyzer’s Prove vertically.(80~100°).

(3) Aging time

- After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

- Using ‘no signal’ or ‘full white pattern’ or the others, check the back light on.

● Auto adjustment Map(RS-232C)

RS-232C COMMAND [ CMD ID DATA ] Wb 00 00 White Balance Start Wb 00 ff White Balance End

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm 00 Cool Mid Warm

R Gain Jg ja jd 00 172 192 192 192

G Gain Jh jb je 00 172 192 192 192

B Gain Ji jc jf 192 192 172 192

R Gain 64 64 64 128

G Gain 64 64 64 128

B Gain 64 64 64 128

MIN CENTER

(DEFAULT)

MAX

Only for training and service purposes

- 20 -

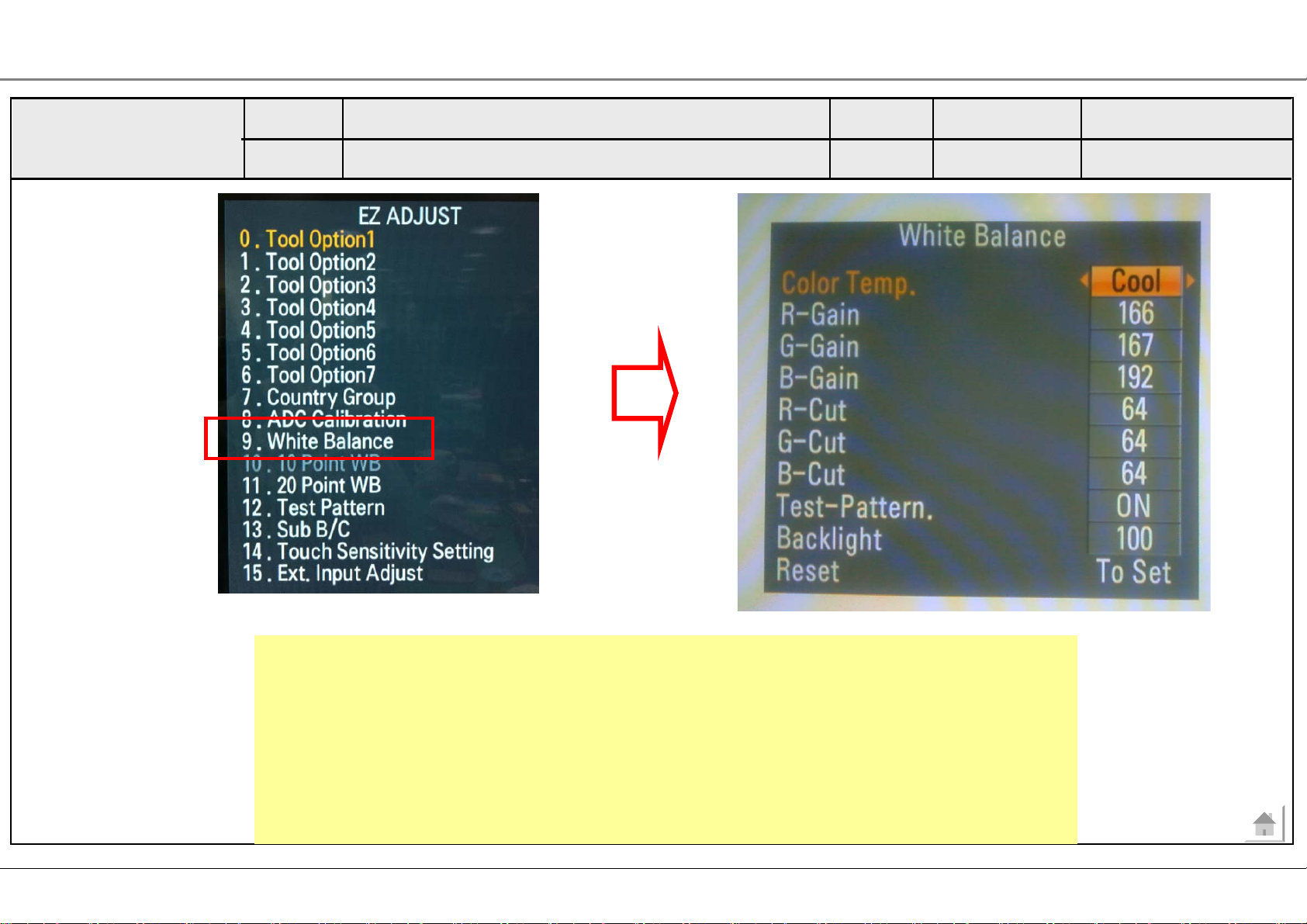

● Manual W/B process using adjusts Remote control.(TBD)

- Co lor analyzer(CA100+, CA210) should be used in the calibrated ch by CS-1000

- Operate the zero-calibration of the CA100+ or CA-210, then stick sensor to the module when adjusting.

- After enter Service Mode by pushing “ADJ” key,

- Enter White Balance by pushing “►” key at “8. White

Balance”

● For manual adjustment, it is also possible by the following

sequence

(1) Set TV in Adj. mode using “P-ONLY” key on remote controller

and then operate heat run longer than 15 minutes.

(I f not executed this step, the condition for W/B may be

different.) (2) Push “Exit” key. (3) Enter White Balance mode by pushing the ADJ key and select

“8. White Balance”. When KEY (►) is pressed, 206 Gray

internal pattern will be displayed.

(4) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface

(5) Select each items (Red/Green/Blue Gain) using ▲/▼(CH +/-)

key on R/C..

(6) Adjust R/ G/ B Gain using ◄/►(VOL +/-) key on R/C.

(7) Adjust three modes all (Cool / Medium / Warm) -Fix the one of

R/G/B gain and change the others

(8) When adjustment is completed, exit adjustment mode using

EXIT key on R/C.

※ CASE Cool

- First adjust the coordinate far away from the target value(x, y). (1) x, y > target (i) Decrease the R, G. (2) x, y < target (i) First decrease the B gain, (ii) Decrease the one of the others. (3) x > target , y < target (i) First decrease B, so make y a little more than the target. (ii) Adjust x value by decreasing the R (4) x < target , y > target (i) First decrease B, so make x a little more than the target. (ii) Adjust x value by decreasing the G

● RS-232C Command (Commonly apply)

RS-232C COMMAND

CMD DATA ID

wb 00 00 White Balance adjustment start

Wb 00 10

wb 00 1f End of gain adjust

wb 00 20

wb 00 2f End of offset adjust

wb 00 ff End of White Balance adjust

▪ “wb 00 00”: Start Auto-adjustment of white balance. ▪ “wb 00 10”: Start Gain Adjustment (Inner pattern) ▪ “jb 00 c0” : ▪ … ▪ “wb 00 1f”: End of Adjustment

* If it needs, offset adjustment (wb 00 20-start, wb 00 2f-end)

▪ “wb 00 ff”: End of white balance adjustment (inner pattern

disappear)

※ Notice) Adjustment Mapping information

RS-232C COMMAND

[CMD ID DATA]

Cool Mid Warm 00 Cool Mid Warm

R Gain Jg ja jd 00 172 192 192 192

G Gain Jh jb je 00 172 192 192 192

B Gain Ji jc jf 192 192 172 192

R Gain 64 64 64 128

G Gain 64 64 64 128

B Gain 64 64 64 128

Start of adjust gain (Inner white pattern)

Start of offset adjust(Inner white pattern)

(Inner pattern disappeared)

Explanation

MIN CENTER

(DEFAULT)

MAX

5.3. Magic Motion remote controller Check

5.3.1 Test equipment

- RF-remote controller for check, IR-KEY-CODE remote controller.

- Check AA battery before test. A recommendation is that a tester change battery every lots.

5.3.2. Test

(1) Make pairing with TV set by pressing “Mute (START) key”

on RCU.

(2) Check a cursor on screen by pressing ‘ENTER” or “OK”

key of RCU

(3) Stop paring with TV set by pressing “VOL+ (STOP) key.

※ After You finish all adjustments, Press “In-start” button and

compare Tool option and Area option value with its BOM, if it is correctly same then unplug the AC cable.

If it is not same, then correct it same with BOM and unplug AC

cable. For correct it to the model’s module from factory JIG model.

※ Push The “I N STOP KEY” after completing the functi on

inspection.

Only for training and service purposes

- 21 -

5.4. 3D pattern test

5.4.1. Test equipment

(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4

support)

(2) Pattern: HDMI mode (model No. 872, pattern No. 83)

5.5. HDMI ARC Function Inspection

5.5.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.4.2. Test method

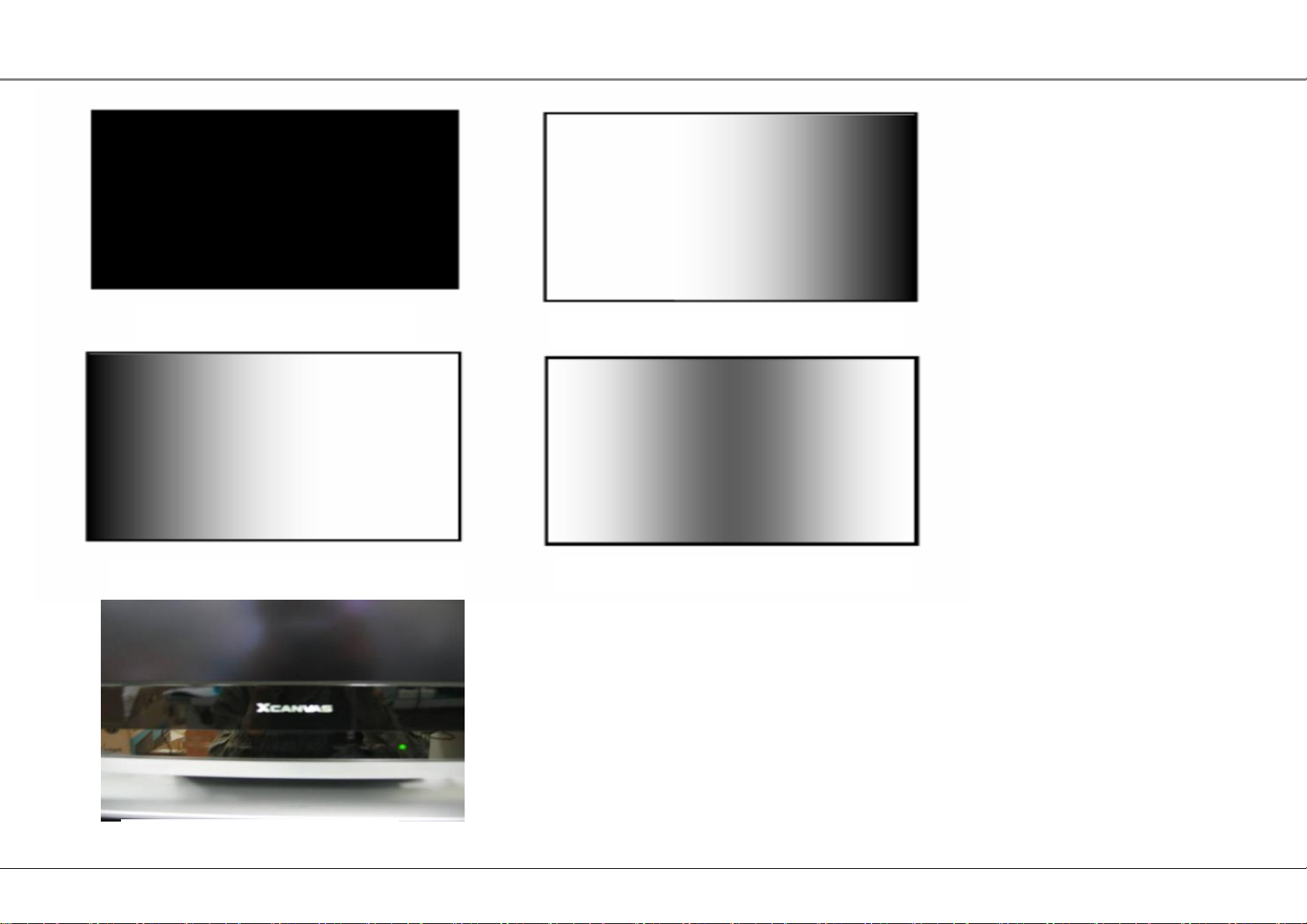

(1) Input 3D test signal as Fig.1.

(2) Press ‘OK” key as a 3D input OSD is shown. (3) Check pattern as Fig2 without 3D glasses. (3D mode

without 3D glasses)

Fig.2 Fig.3

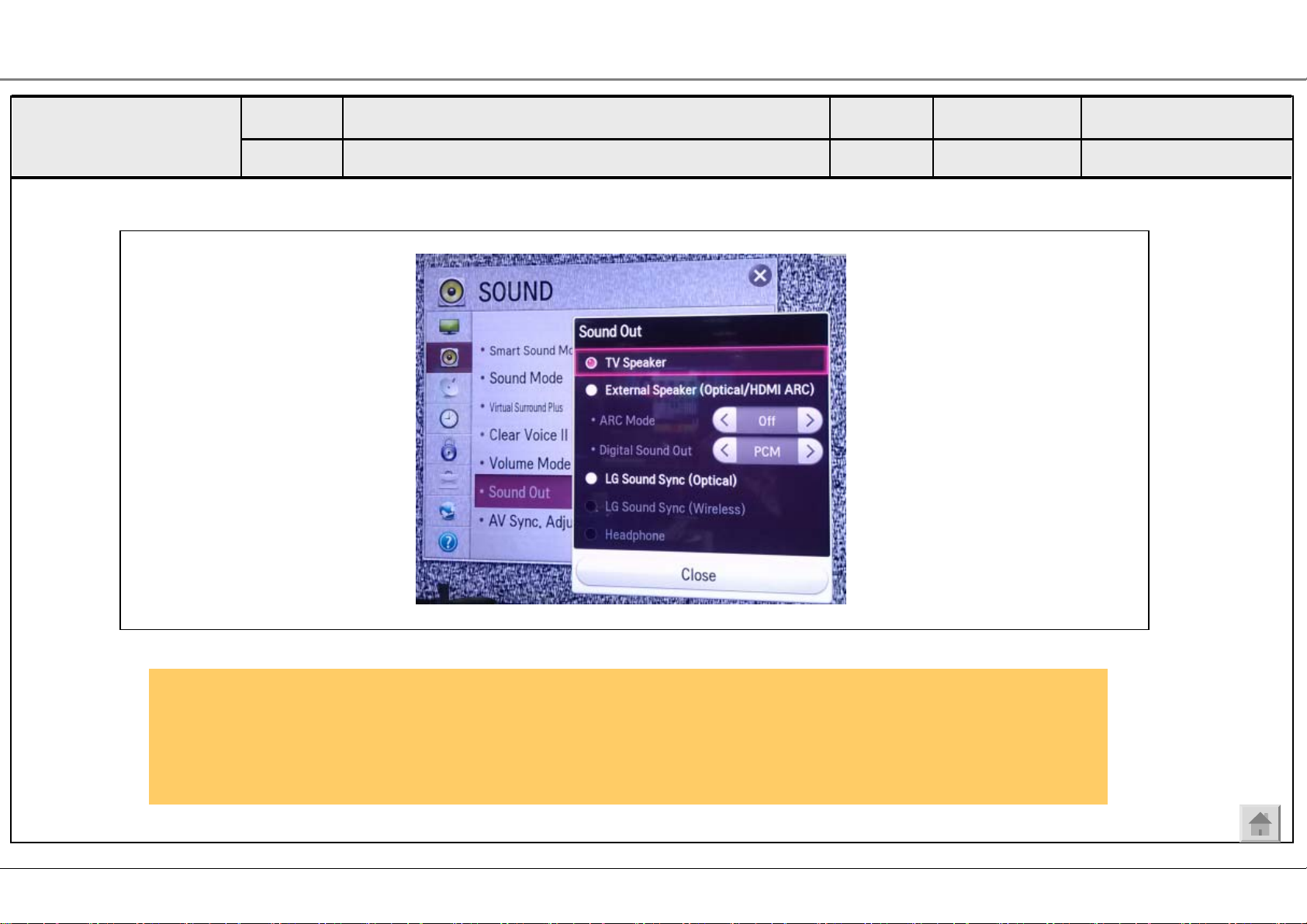

5.5.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI1)

(2) Check the sound from the TV Set

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

Only for training and service purposes

* Remark: Inspect in Power Only Mode and check SW version

in a master equipment

5.6. Selection of Country option

Selection of country option is allowed only North American model (Not allowed Korean model). It is selection of Country about Rating and Time Zone.

▪ Models: All models which use LJ22E Chassis (See the first

page.)

▪ Press “In-Start” button of Service Remocon, then enter the

“Option” Menu with “PIP CH-“ Button

▪ Select one of these three (USA, CANADA, MEXICO) defends

on its market using “Vol. +/-“button.

- 22 -

5.7. MHL Test

Step 1) Turn on TV Step 2) Select HDMI4 mode using input Menu. Step 3) Set MHL Zig(M1S0D3617) using MHL input, output

and power code.

Step 4) Connect HDMI cable between MHL Zig and HDMI4

port.

Step 5) Check LED light of Zig and Module of Set

Result) If, The LED light is green and The Module shows normal stream -> OK Else -> NG

6. GND and HI-POT Testing

6.1. GND & HI-POT auto-check preparation Check the connection between set and power cord

(1) Check the POWER CABLE and SIGNAL CABE insertion

condition

6.2. GND & HI-POT auto-check

(1) Pallet moves in the station. (POWER CORD / AV CORD is

tightly inserted) (2) Connect the AV JACK Tester (3) Controller (GWS103-4) on. (4) GND Test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, execute next process (Hi-pot test). (Remove A/V CORD from A/V JACK BOX) (5) HI-POT test (Auto)

- If Test is failed, Buzzer operates.

- If Test is passed, GOOD Lamp on and move to next process

automatically

6.3. Check Point

(1) Test voltage 3 Poles : GND: 1.5KV/min at 100mA / SIGNAL: 3KV/min at

100mA (2) TEST time: 1 second (3) TEST POINT 3 Poles : GND Test = POWER CORD GND and SIGNAL

CABLE GND. Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL. (4) LEAKAGE CURRENT: At 0.5mArms

※ Caution : Don’t push The INSTOP KEY after completing the

function inspection.

Only for training and service purposes

- 23 -

7. Default Service option

8. USB DOWNLOAD (*.epk file download)

(1) Put the USB Stick to the USB socket (2) Press Menu key, and move OPTION (3)

7.1. ADC-Set

▪ R-Gain adjustment Value (default 128) ▪ G-Gain adjustment Value (default 128) ▪ B-Gain adjustment Value (default 128) ▪ R-Offset adjustment Value (default 128) ▪ G-Offset adjustment Value (default 128) ▪ B-Offset adjustment Value (default 128)

7.2. White balance. Value

CENTER (DEFAULT)

C50 0 W50

R Gain 192 192 192

G Gain 192 192 192

B Gain 192 192 192

R Cut 64 64 64

G Cut 64 64 64

B Cut 64 64 64

(4) Press “FAV” Press 7 times.

(5) Select download file (epk file)

Only for training and service purposes

- 24 -

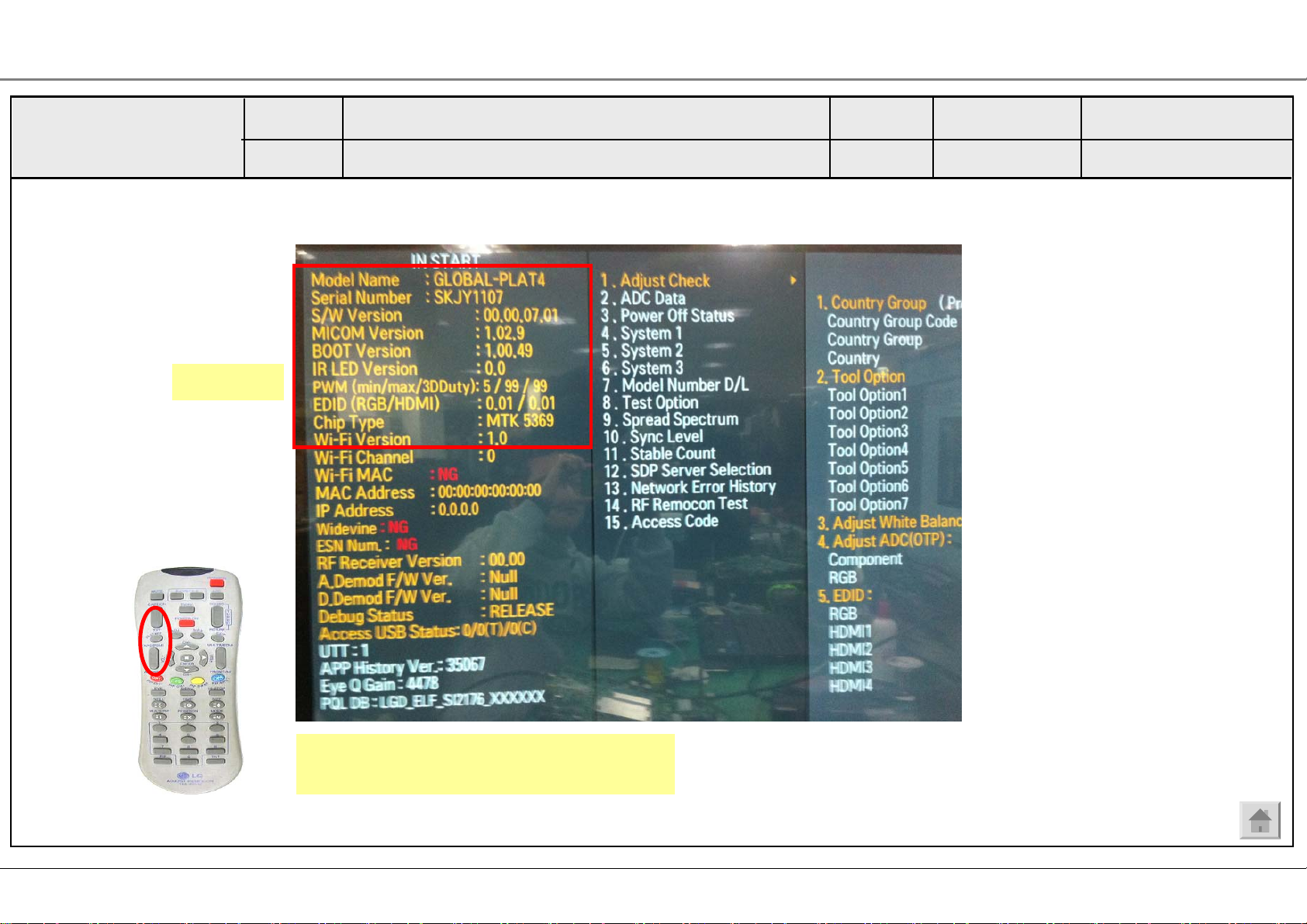

(6) After download is finished, remove the USB stick. (7) Press “IN-START” key of ADJ remote control, check the

S/W version

BLOCK DIAGRAM

Audio AMP

(NTP7513)

MTK A2

IF (+/-)

USB1

OPTIC

LAN

DDR3 1600 X 16

(512MB X 2EA)

HDMI1

HDMI2

HDMI3

SYSTEM EEPROM

(256Kb)

HDMI

MUX

Air/

Cable

TUNER

(T/C/A)

TUNER

(S2)

DVB-S

DEMOD

(S2)

LNB

USB2

USB3

41P

51P

eMMC

(4GB)

Sub Micom

(RENESAS

R5F1000G)

DDR3 1600 X 16

(256MB X 1EA)

P_TS

50P

X_TAL

27MHz

T/C/S2 Without ATV

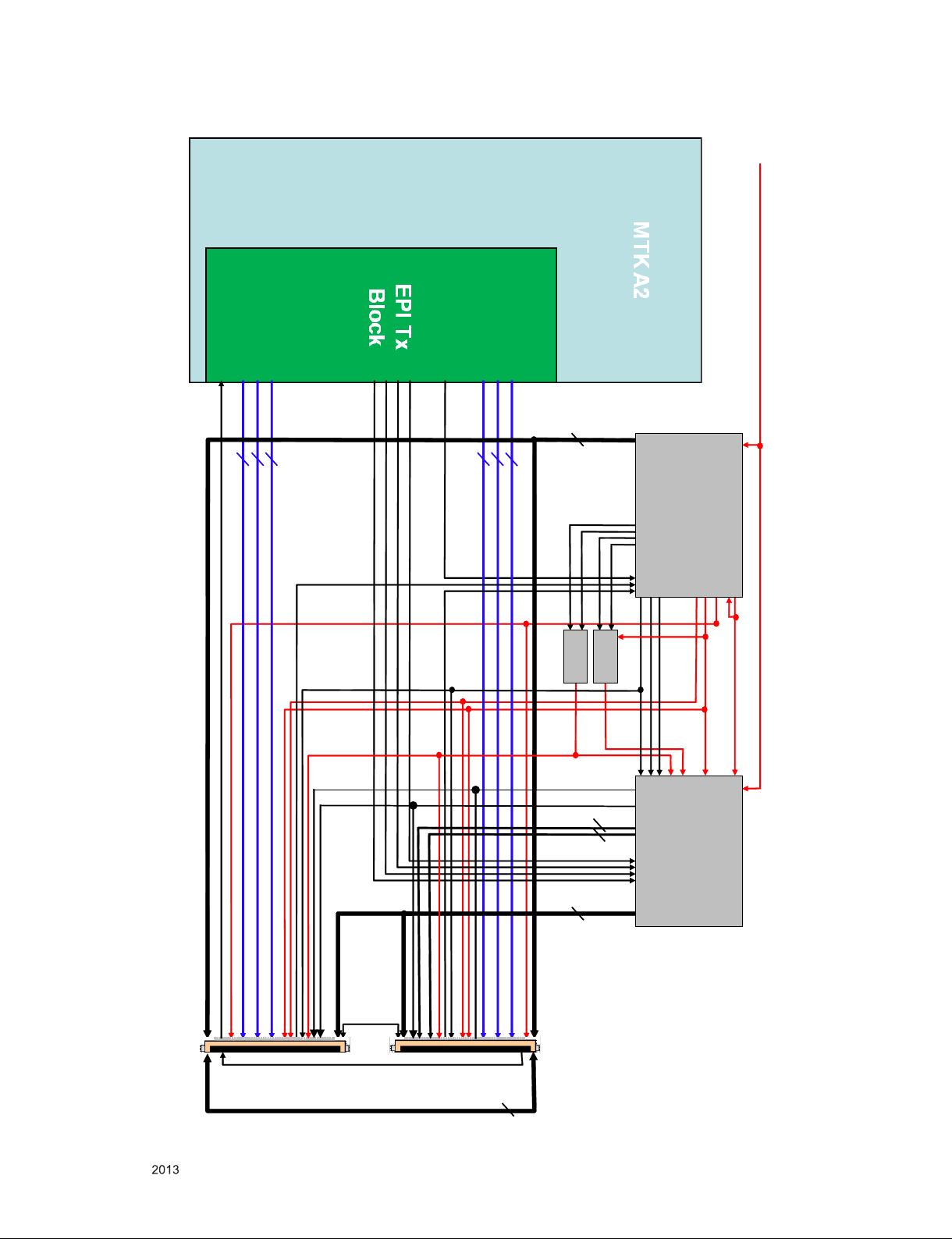

#EPI & LVDS Diagram

A B

HDCP EEPROM

(16Kb)

X_TAL

32.768KHz

I2S Out

I2C 1

EPI

I2C 2

LVDS

USB

I2C 5

I2C 1

H/P

AV/COMP

Tuner : I2C 6

DVB-S : I2C 4

OCP

2.5A

OCP

(HDD)

MHL 1A

SIL1292

MHL : I2C 4

MHL 사용시

(H)

AMP

CVBS/YPbPr

CVBS/RGB

SPDIF OUT

ETHERNET

I2C 3

LOCAL DIMMING

BLUTOOTH

LEVEL

SHIFTER

WIFI

KEY

LOGO LIGHT

SUB

ASSY

I2C 1

UART

KEY

USB_WIFI

Audio AMP

(NTP7513)

MTK A2

IF (+/-)

USB1

OPTIC

LAN

DDR3 1600 X 16

(512MB X 2EA)

HDMI1

HDMI2

HDMI3

SYSTEM EEPROM

(256Kb)

HDMI

MUX

Air/

Cable

TUNER

(T/C/A)

TUNER

(S2)

DVB-S

DEMOD

(S2)

LNB

USB2

USB3

41P

51P

eMMC

(4GB)

Sub Micom

(RENESAS

R5F1000G)

DDR3 1600 X 16

(256MB X 1EA)

P_TS

50P

X_TAL

27MHz

T/C/S2 Without ATV

#EPI & LVDS Diagram

A B

HDCP EEPROM

(16Kb)

X_TAL

32.768KHz

I2S Out

I2C 1

EPI

I2C 2

LVDS

USB

I2C 5

I2C 1

H/P

AV/COMP

Tuner : I2C 6

DVB-S : I2C 4

OCP

2.5A

OCP

(HDD)

MHL 1A

SIL1292

MHL : I2C 4

MHL 사용시

(H)

AMP

CVBS/YPbPr

CVBS/RGB

SPDIF OUT

ETHERNET

I2C 3

LOCAL DIMMING

BLUTOOTH

LEVEL

SHIFTER

WIFI

KEY

LOGO LIGHT

SUB

ASSY

I2C 1

UART

KEY

USB_WIFI

Only for training and service purposes

- 25 -

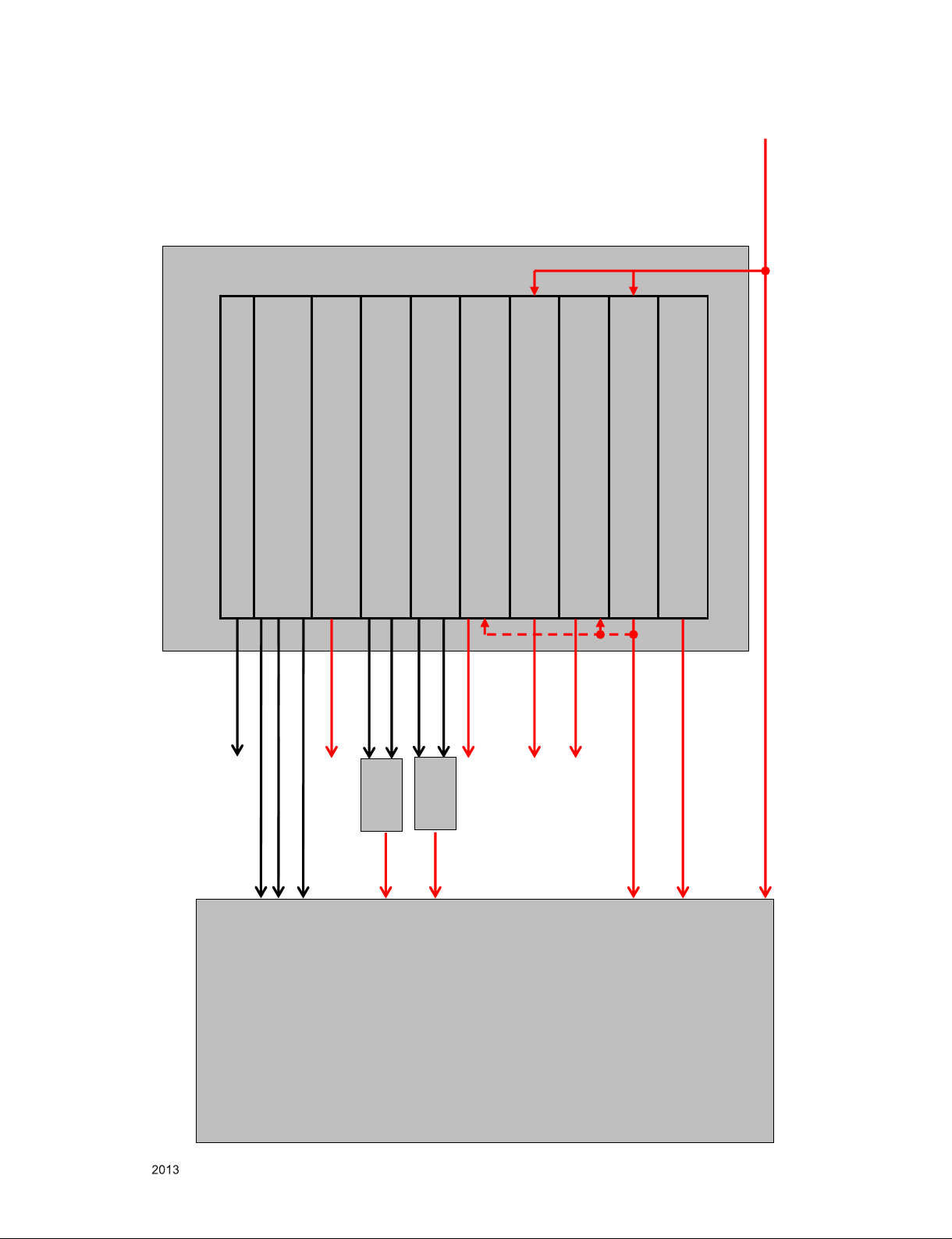

1.2V Core

DCDC 6A

3500mA

3.3V Multi

DCDC 4A

2000mA

1.8V TUNER

LDO 1A

240mA

1.25V TUNER

LDO 2A

600mA

24V

12V

3.5VST

640mA

AMP

3230mA

1.5V DDR

LDO 2A

650mA

5V USB

DCDC 5A

3000mA

390mA

WOL/WOW

400mA

MICOM,ETC

15mA

1065mA

730mA

LNB option

LNB

700mA

600mA

1330mA

PANEL

1500mA

45.6W

3.5W

37.9W

Only for training and service purposes

- 26 -

24V

5V USB

TPS5450

3000mA

OCP

2CH

OCP

USB1

USB2

USB3

MHL

NetCast 4.0

Only for training and service purposes

- 27 -

12V

1.2V Core

DC DC 6A

5260mA

MTK-A2

NetCast 4.0

MHL

Only for training and service purposes

- 28 -

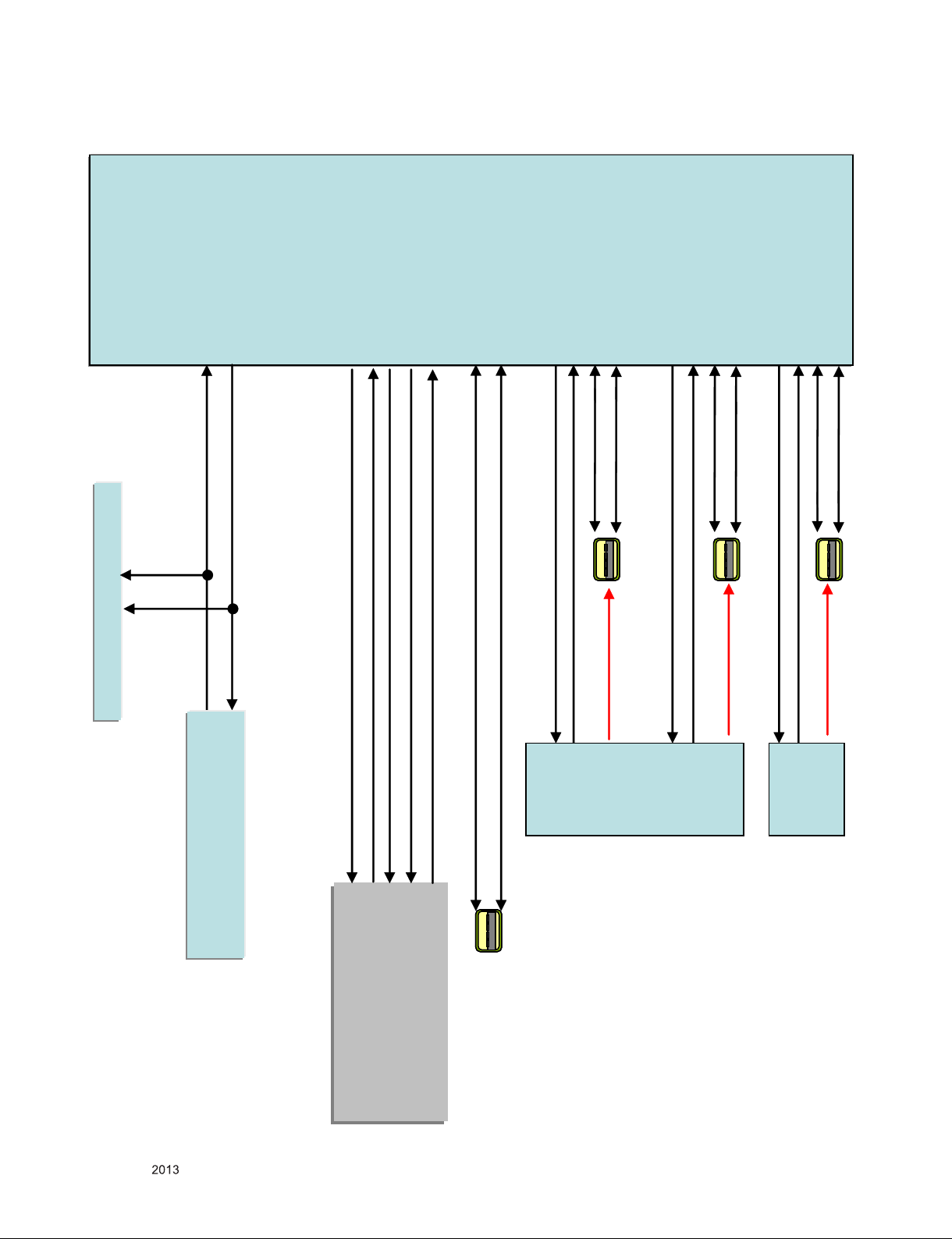

M13

MT5398

[CVBS2P]

Tuner

Jack Side

SoC Side

JK501

COMP1_Y/AV1_CVBS

COMP1_Pb

COMP1_Pr

COMP1/AV1/DVI_L_IN

COMP1/AV1/DVI_R_IN

COMP1_Y/AV1_CVBS_SOC

COMP1_Pb_SOC

[PB0P]

[PR0P]

[AIN4_L_AADC]

COMP1_Pb_SOC

COMP1/AV1/DVI_L_IN_SOC

[AIN4_R_AADC]

COMP1/AV1/DVI_R_IN_SOC

TU_CVBS

TUNER_SIF, IF_P/N

[CVBS1P]

[MPXP, ADCINP_DEMOD, ADCINN_DEMOD]

TU_CVBS

TUNER_SIF, IF_P/N

Parallel TS / ERROR,VAL,SYNC,CLK

Only for training and service purposes

- 29 -

SPDIF_OUT

IC8101

Audio AMP

NTP7513

LPF

COMP1/AV1/DVI_L_IN_SOC

COMP1/AV1/DVI_R_IN_SOC

[ASPDIF0]

Tuner

TR BUF

[MPXP]

AUD_LRCH

HP_LOUT / HP_ROUT

HEAD PHONE

LPF

4P WAFER

[AL0_ADAC]

[AR0_ADAC]

M13

MT5398

TUNER_SIF

[AOLRCK]

[AOSDATA0]

AUD_LRCK

AUD_SCK

[AOBCK]

[STB_SDA]

[STB_SCL]

I2C_SDA1

I2C_SCL1

IC3000

MICOM

AMP_MUTE

[AIN4_L_AADC]

[AIN4_R_AADC]

JK501

AUD_MASTER_CLK

[AOMCLK]

[OPCTRL4]

AMP_RESET_N

IC6100

TPA6138A2PWR

HP AMP

JK3602

JK3700

LPF

SPEAKER_L

SPEAKER_R

WOOFER

(LPF내장)

SIDE_HP_MUTE

Only for training and service purposes

- 30 -

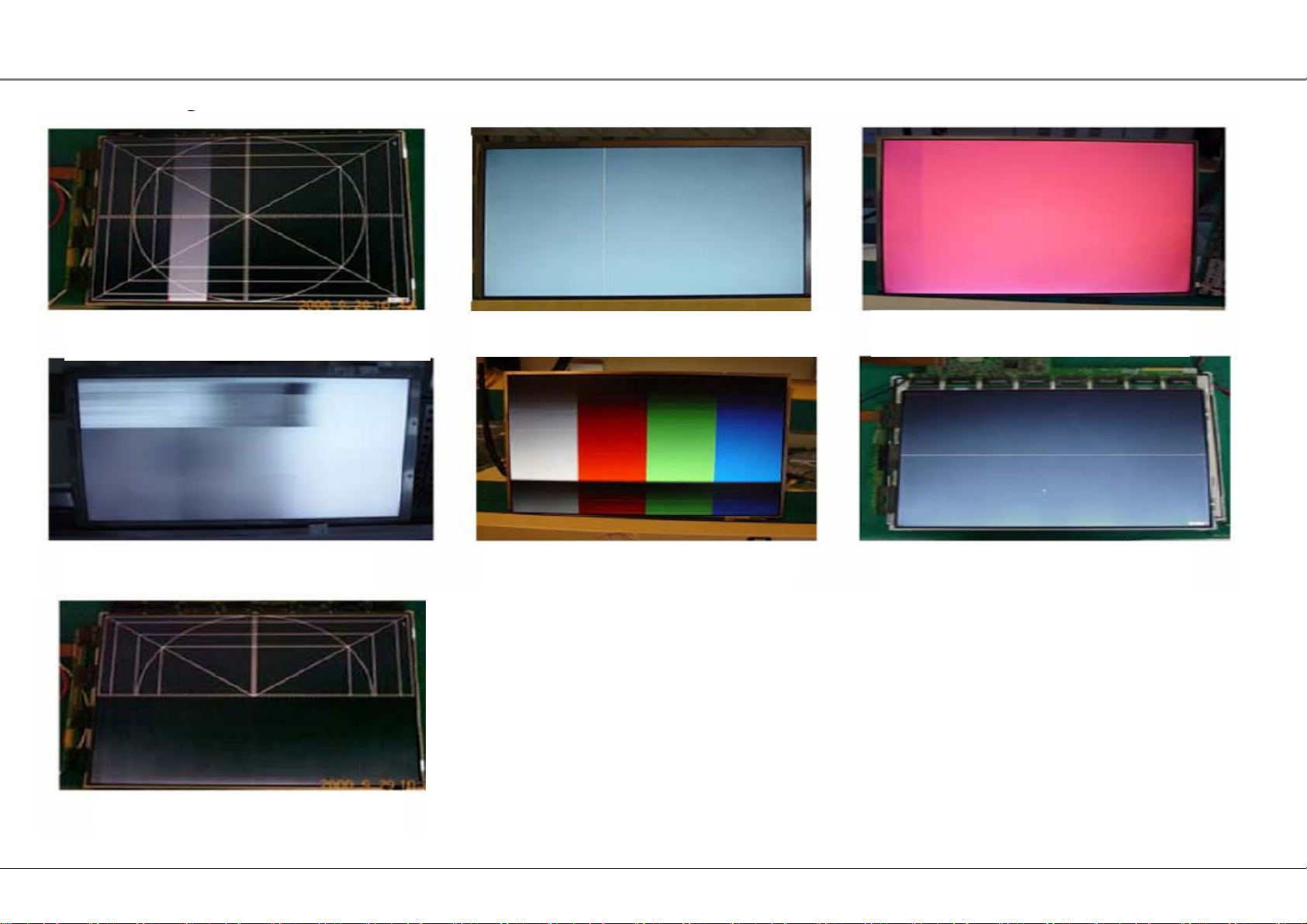

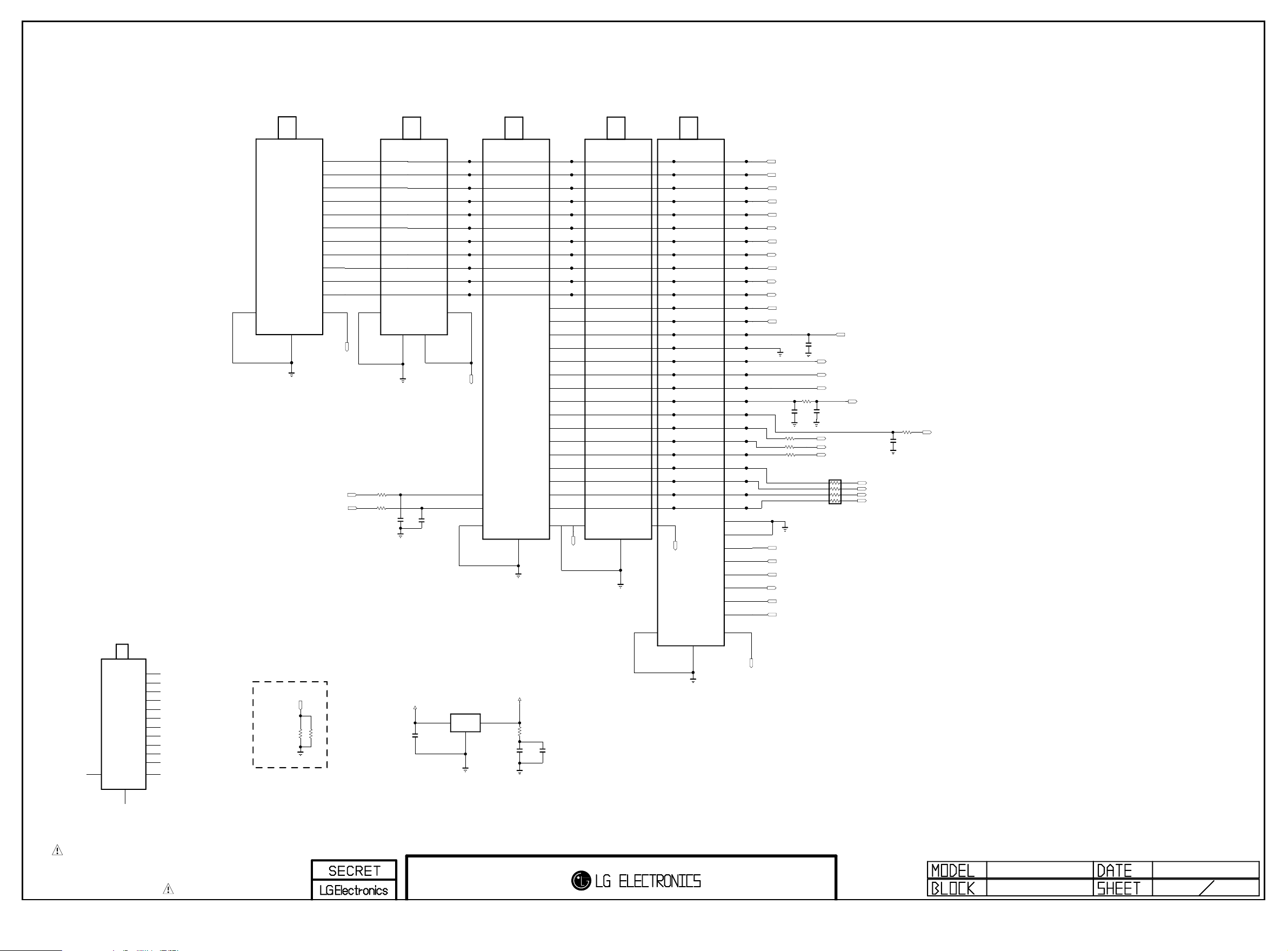

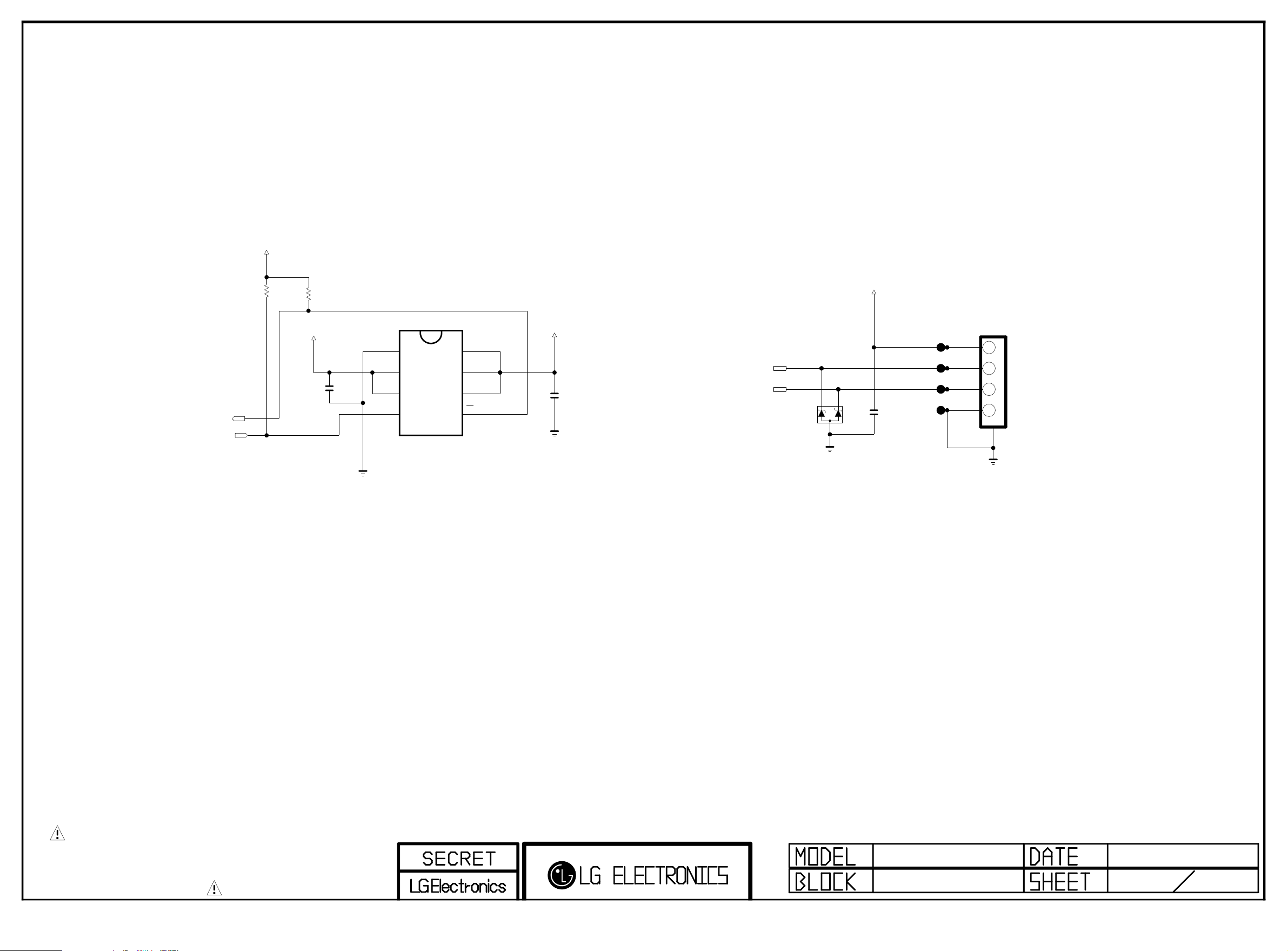

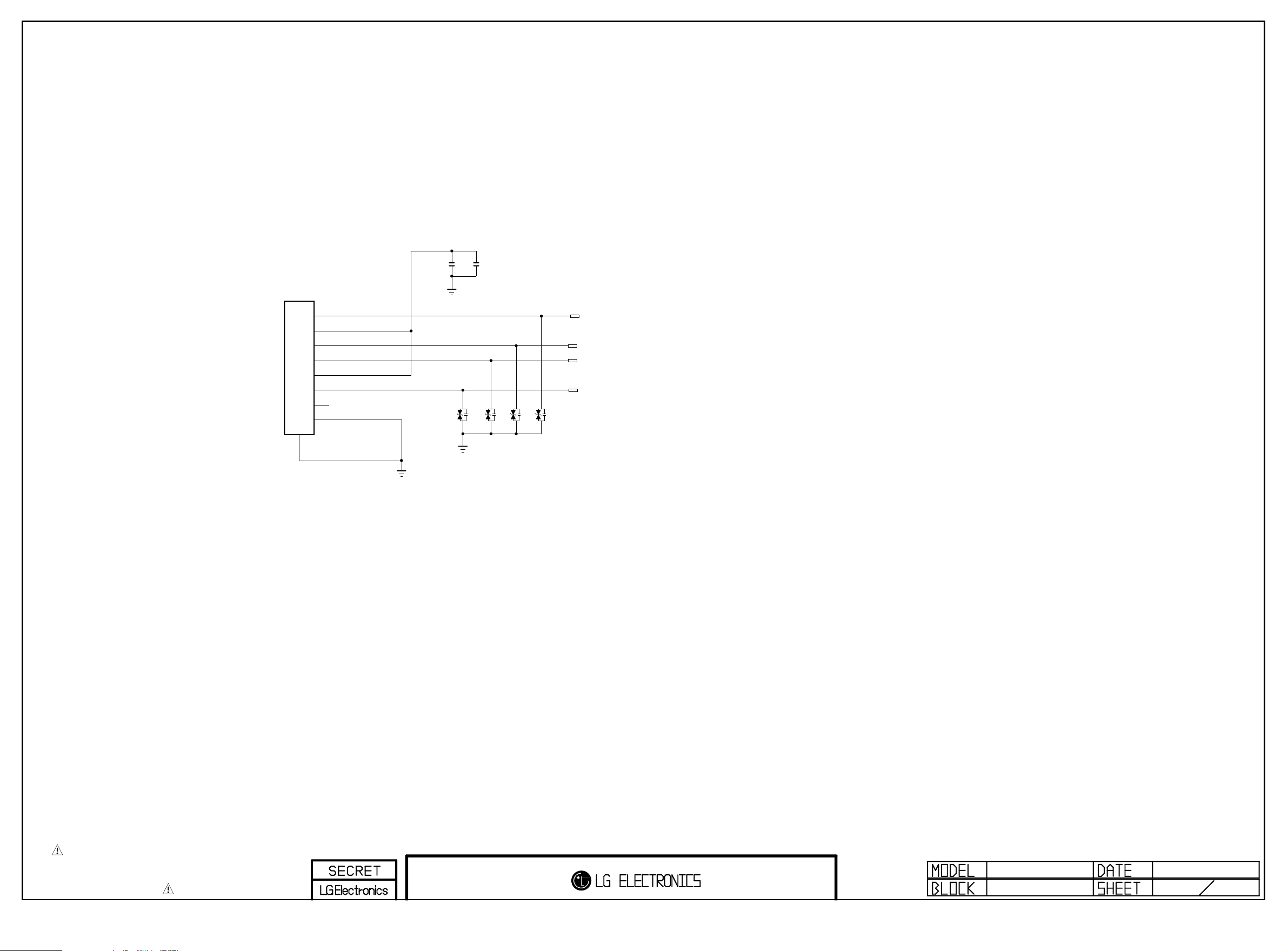

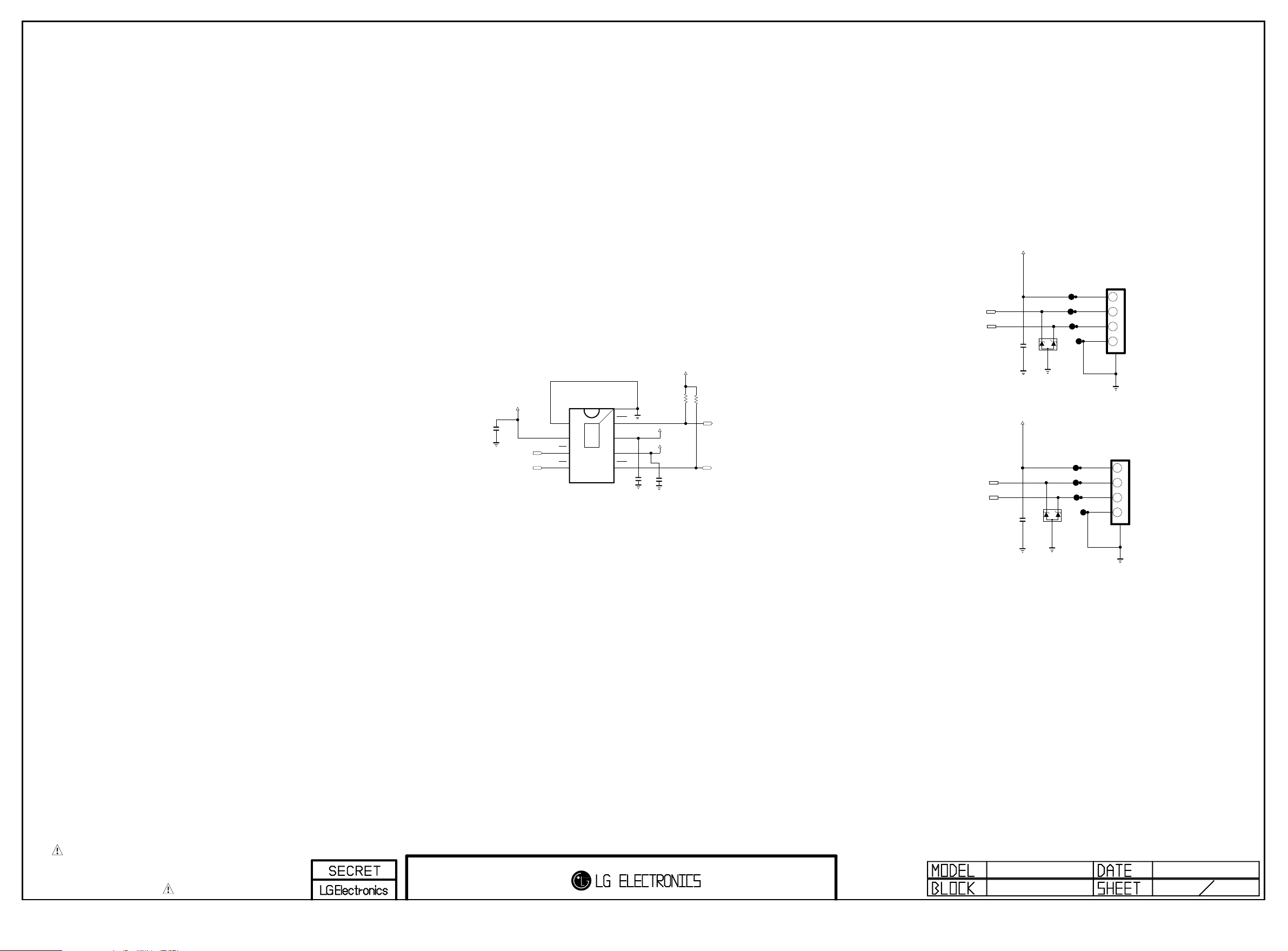

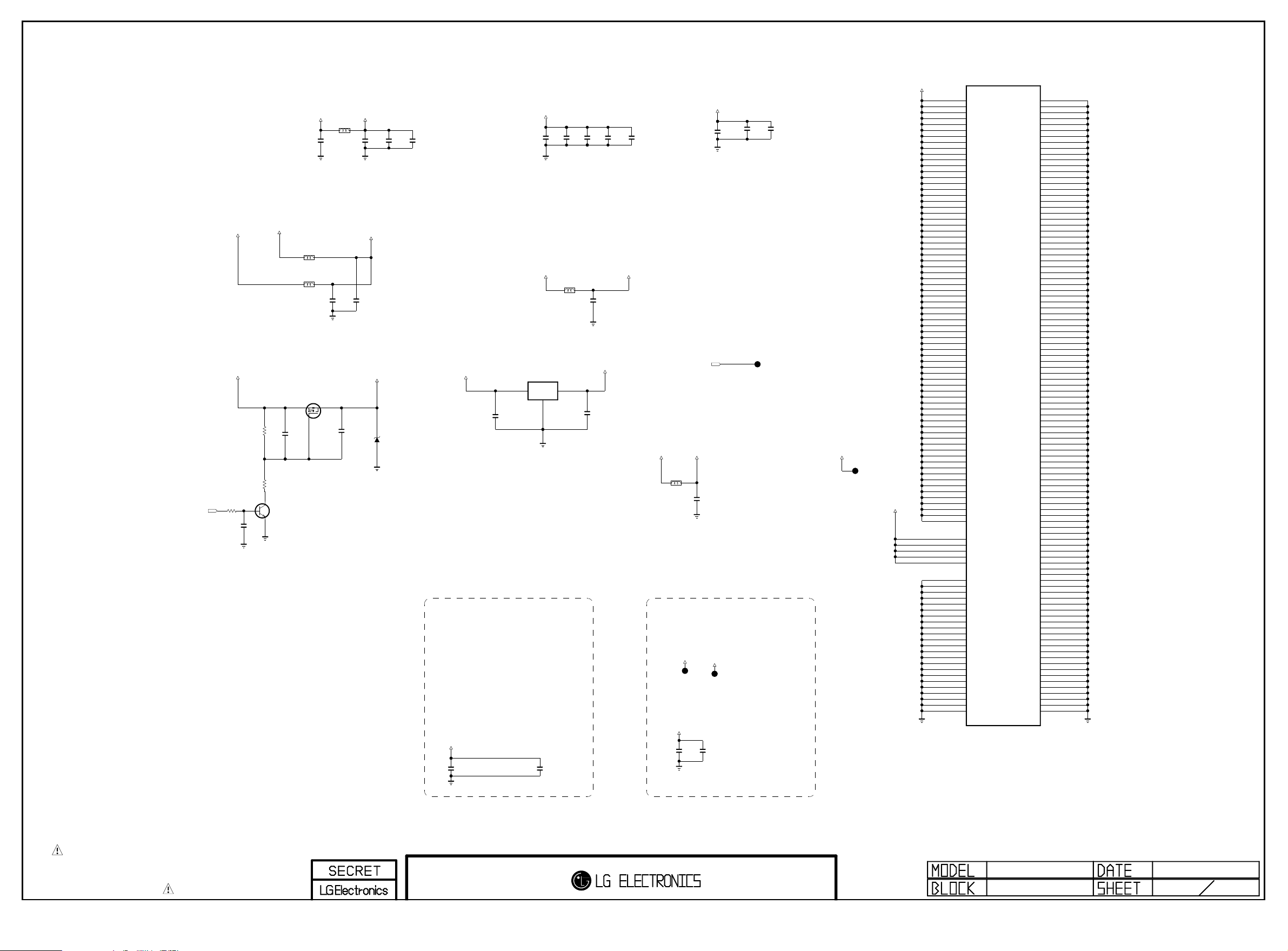

+ 67 hidden pages
