LG 37LK435C Schematic

Internal Use Only

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

LED LCD TV

SERVICE MANUAL

CHASSIS : LC0AC

MODEL : 37LK435C

MODEL : 37LK435C-CA

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

Printed in ChinaP/NO : MFL67360705(1204-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 5

ADJUSTMENT INSTRUCTION ............................................................... 9

BLOCK DIAGRAM ................................................................................. 17

EXPLODED VIEW .................................................................................. 19

SCHEMA

TIC CIRCUIT DIAGRAM ..............................................................

Only for training and service purposes

- 2 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exp ose d metallic par t. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precautions.
Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power
source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo­sion hazard.

2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its
assemblies.

4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication of
contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.

7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged eas­ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam­age caused by static by static electricity.

1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter­natively, obtain and wear a commercially available discharging
wrist strap device, which should be removed to prevent poten­tial shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo­sure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.

4. Use only an anti-static type solder removal device. Some solder
removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electri­cally shorted together by conductive foam, aluminum foil or
comparable conductive material).

7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replace­ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf­cient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wire­bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo­nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir­cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.

2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and
solder it.

3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor
Removal/Replacement

1. Remove the defective transistor by clipping its leads as close
as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.

Power Output, Transistor Device
Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit
board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as pos­sible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit
board.

3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.

3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec­tions).

1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.

1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con­nected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Fuse and Conventional Resistor
Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.

2. Securely crimp the leads of replacement component around
notch at stake top.

Only for training and service purposes

- 5 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This specification is applied to the LCD TV used LC0AC

chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C

2) Relative Humidity: 65 % ± 10 %

3) Power Voltage

: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to
the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC : CE, IEC

- Wireless : Wireless HD Specification (Option)

4. Model General Specification

No Item Specification Remark

1 Display Screen Device 37”Wide color display module CCFL/EEFL LCD
2 Aspect Ratio 16:9
3 LCD Module
4 Storage Environment Temp. : -20 ~ 60 deg, Humidity : 10 ~ 90 %
5 Input Voltage 100-240V~ 50/60Hz

Power Consumption

6

Module Size

Pixel Pitch

37” TFT LCD FHD

Power on (Blue)
37”LGD(FHD)

37”LGD(FHD)

Typ: 132.68 W

877(H)x516.8(V)x46.9mm(D)

37”LGD(FHD) 0.42675mmx0.42675mm

Only for training and service purposes

- 6 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Component Video Input (Y, Cb/Pb, Cr/Pr)

No. Resolution H-freq(kHz) V-freq(Hz) Porposed

1 720×480 15.73 60.00 SDTV, DVD 480i

2 720×480 15.63 59.94 SDTV, DVD 480i

3 720×480 31.47 59.94 480p

4 720×480 31.50 60.00 480p

5 720×576 15.625 50.00 SDTV, DVD 625 Line

6 720×576 31.25 50.00 HDTV 576p

7 1280×720 45.00 50.00 HDTV 720p

8 1280×720 44.96 59.94 HDTV 720p

9 1280×720 45.00 60.00 HDTV 720p

10 1920×1080 31.25 50.00 HDTV 1080i

11 1920×1080 33.75 60.00 HDTV 1080i

12 1920×1080 33.72 59.94 HDTV 1080i

13 1920×1080 56.250 50 HDTV 1080p

14 1920×1080 67.5 60 HDTV 1080p

6. RGB input (PC)

No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remark

640*350 31.47 70.09 EGA

1

720*400 31.468 70.08 VESA(VGA)

2

640*480 31.469 59.94 VESA(SVGA)

3

800*600 37.879 60.31 VESA(XGA)

4

1024*768 48.363 60.00 VESA

5

1152*864 54.348 60.053 VESA

1360*768 47.72 59.8 VESA(WXGA)

7

1920*1080 66.587 59.93

8

WUXGA(CEA 861D)

FHD only

Only for training and service purposes

- 7 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

7. HDMI Input

7.1. DTV mode

No. Resolution H-freq(kHz) V-freq.(kHz) Proposed Proposed

1. 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 HDTV 720P

5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 HDTV 1080P

8. 1920*1080 33.716/ 33.75 29.976/30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P

7.2. PC mode

No. Resolution H-freq(kHz) V-freq.(Hz) Proposed Remark

1 640*350 31.47 70.09 EGA

2 31.468 70.08

720 x 400

3

640 x 480

4

800 x 600

1024 x 768

5

6

1360 x 768

1280 x 1024

7 63.595 60.0

1920 x 1080 67.5

8

31.469 59.94 VESA

37.879 60.31 VESA

48.363

47.712 59.8

60.00

60.0

DOS

VESA(XGA)

WXGA

SXGA

WUXGA

FHD only(support to RGB-PC)

Only for training and service purposes

- 8 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

ADJUSTMENT INSTRUCTION

1. Application *

1.1 This spec sheet is applied all of the LCD TV with LC01U / LC0AC(D) chassis.

- LC01U : 32/37LK450-CC,42/47/55LK530-CC,32/37LV3500-CB,32LK330-CB,42/47/55LW4500-CA

- LC0AC : 32LK335C , 37/42/47LK435C

- LC0AD : 55LK535C

Main manufacturing type

z SET ( O )
z SKD ( O )
z CKD ( O )

2. Designation

2.1 The adjustment is according to the order which is designated and which must be followed, according to the plan

which can be changed only on agreeing.

2.2. Power adjustment : Free Voltage.

2.3. Magnetic Field Condition: Nil.

2.4. Input signal Unit: Product Specification Standard.

2.5. Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25℃±5°C

Relative humidity : 65 ±10%

Input voltage : 220V, 60Hz

In case of keeping module is in the circumstance of 0°C, it should be placed in the circumstance of
above 15°C for 2 hours.
In case of keeping module is in the circumstance of below -20°C, it should be placed in the circum
stance of above 15°C for 3 hours.

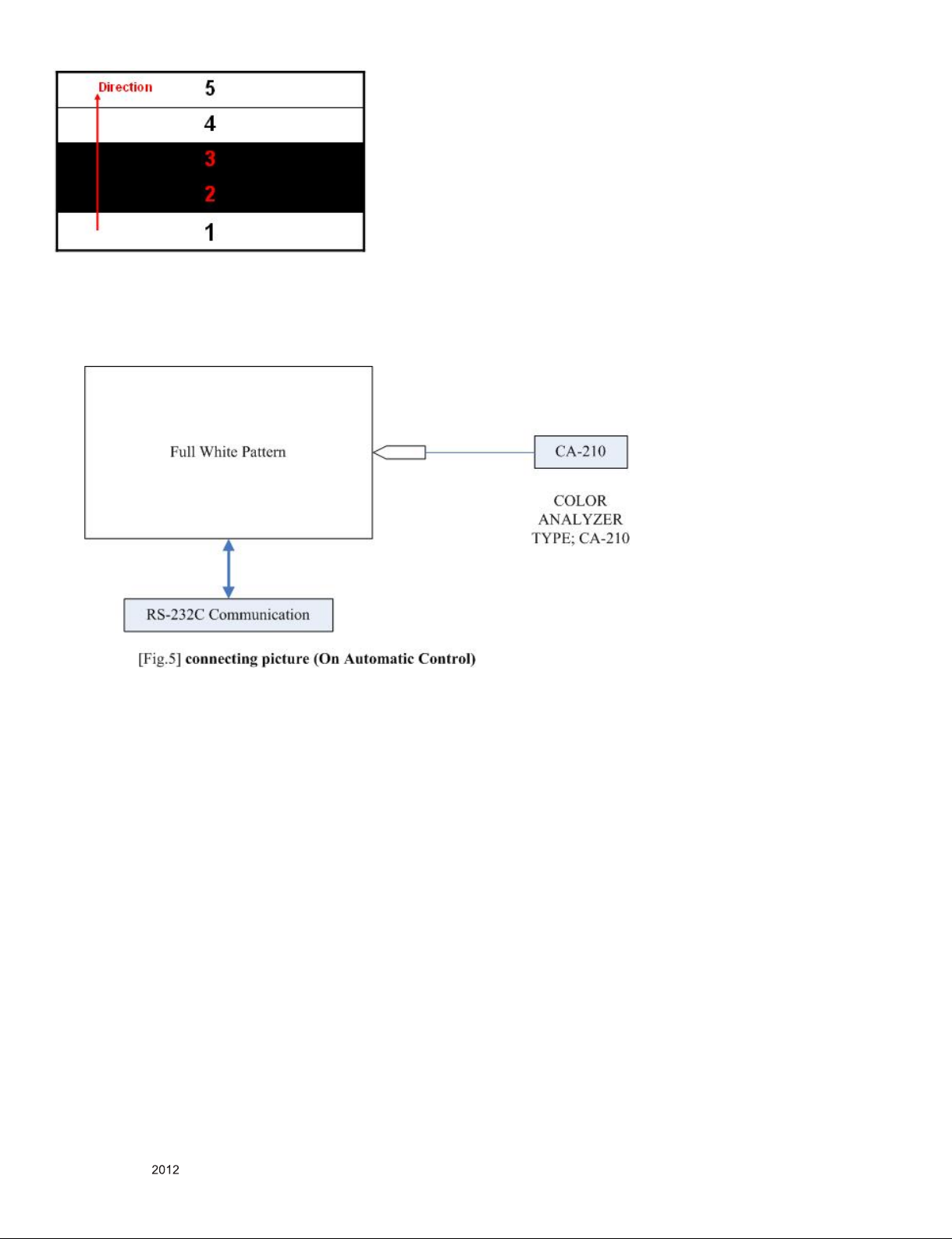

2.6. Adjustment equipments : Color Analyzer (CA-210 or CA-110), Pattern Generator (MSPG-925L or Equivalent),

DDC Adjustment Jig equipment, Factory SVC remocon.

Only for training and service purposes

- 9 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

2.7 Push the ‘IN STOP’ key – For memory initialization.

Case1 : Software version up

1. After downloading S/W by USB , TV set will reboot automatically

2. Push ‘IN STOP’ key

3. Push ‘POWER ON’ or ‘P-ONLY’ key

4. Function inspection

5. After function inspection, Push ‘IN STOP’ key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push ‘IN STOP’ key at first.

2. Push ‘POWER ON’ or ‘P-ONLY’ key for turning it on.

Î If you push ‘POWER ON’ or ‘P-ONLY’ key, TV set will recover preset CH information by itself.

3. After function inspection, Push ‘IN STOP’ key.

Only for training and service purposes

- 10 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3. Main PCB check process

(2)

* APC - After Manual-Insert, executing APC

* Boot file Download

1. Execute ISP program ‘Mstar ISP Utility’ and then click ‘Config’ tab.

2. Set as below, and then click ‘Auto Detect’ and check ‘OK’ message

If ‘Error’ is displayed, Check connection between computer, jig, and set.

(1)

Please Check the Speed :

To use speed between

from 200KHz to 400KHz

3. Click ‘Read’ tab, and then load download file (XXXX.bin) by clicking ‘Read’

(3)

filexxx.bin

4. Click ‘Connect’ tab. If ‘Can’t ‘ is displayed, Check connection between computer, jig, and set.

5. Click ‘Auto’ tab and set as below.

6. Click ‘Run’.

(4)

7. After downloading, check ‘OK’ message.

(5)

filexxx.bin

Only for training and service purposes

(6)

(7) ……….OK

- 11-

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

* USB DOWNLOAD(*.epk file download)

1. Put the USB Stick to the USB socket

2. Automatically detecting update file in USB Stick

- If version of update file in USB Stick is lower, it didn’t work.

But version of update file is higher, USB data is automatically detecting

3. Show the message ‘Copy the file from the memory’

4. Update is staring.

5. After update is complete, The TV will restart automatically.

6. If TV turns on, check your updated version and Tool option. (refer to the next page about tool option)

* If downloading version is higher than your TV have, TV can lost all channel data. In this case, you have to

channel recover. If all channel data is cleared, you didn’t have a DTV/ATV test on production line.

Only for training and service purposes

-12 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

* After downloading, have to check and adjust tool option again.

1. Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key,

2. Select each ‘Tool Option(1~5)’ and push ‘OK’ or ‘▶’ key.

3. Correct the number. (Each model has their number.)

Option

Model

Tool Option1 Tool Option2 Tool Option3 Tool Option4 Tool Option5

Remark

32LK450-CC 18056 19478 55305 31000 16674

37LK450-CC 22144 19478 55305 31000 16642

42LK530-CC 26304 19478 55305 14616/31000(HK) 24866

47LK530-CC 34496 19478 55305 14616 24866

55LK530-CC 46784 19478 55305 14616 24866

32LV3500-CB 18276 19478 55337 31000 16736

32LV3500-CB 18272 19478 55337 31000 16736

37LV3500-CB 22376 19478 55337 31000 16736

32LK330-CB 18008 19478 51209 14616 16674

32LK330-CB 18000 19478 51209 14616 16674

42LW4500-CA 26528 19478 55337 14744/31228(HK) 8480

AUO

LGD

LGD

LGD

LGD

CMI

LGD

AUO

BOE

IPS

LGD

47LW4500-CA 34720 19478 55337 14744/31228(HK) 8480

55LW4500-CA 47008 19478 55337 14744/31228(HK) 8480

32LK335C-CB 18000 19478 49161 14616 16672

32LK335C-CB 18008 19478 49161 14616 16672

32LK335C-CB 17984 19478 49161 14616 16672

55LK535C-CC 46784 19478 53257 14616 24864

37LK435C-CA 22112 19478 49161 14616 8450

42LK435C-CA 26208 19478 49161 14616 8450

47LK435C-CA 34400 19478 49161 14616 8450

4. Correcting Tool option is complete.

- 13 -

Only for training and service purposes

LGD

LGD

IPS

BOE

LGD

LGD

LGD

LGD

LGD

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3.1 ADC Process

3.1.1. ADC

※ You need not connecting component and RGB(D-sub) cable.

Because ADC uses TV internal pattern

■ Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key.

■ Enter ADC Calibration mode by pushing ‘OK’ or ‘►’ key after selecting ‘6. ADC Calibration’

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Country Group

6. ADC Calibration ▶

7. White Balance

8. 10 Point WB

ADC Comp 480i NG

ADC Comp 1080p NG

ADC RGB NG

Start Reset

9. Test Pattern

10. EDID D/L

11. Sub B/C

12. V-Com

13. P-Gamma

 Caution : Turn on TV by pushing ‘POWER ON’ or ‘P-ONLY’ key

※ ADC Calibration Protocol (RS-232)

ADC Calibration

NO Item CMD 1 CMD 2 Data 0

Enter

Adjust MODE

ADC adjust ADC Adjust

Adjust Sequence

▪aa 00 00 [Enter Adjust Mode]

▪xb 00 40 [Component1 Input (480i)]

▪ad 00 10 [Adjust 480i Comp1]

▪xb 00 60 [RGB Input (1024*768)]

▪ad 00 10 [Adjust 1024*768 RGB]

▪aa 00 90 End Adjust mode

Adjust ‘Mode In’

※ Required equipment : factory SVC remocon.

Only for training and service purposes

A A 0 0

When transfer the ‘Mode In’,

Automatically adjustment

A D 1 0

(The use of a internal pattern)

- 14-

Carry the command.

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

3.2 Function Check

3.2.1 Check display and sound

■ Check Input and Signal items. (cf. work instructions)

1. TV

2. AV1/2

3. COMPONENT1/2 (480i)

4. RGB (PC : 1024 x 768 @ 60hz)

5. HDMI1/2/3

6. PC Audio In

* Display and Sound check is executed by remocon.

4. Total Assembly line process

4.1 Adjustment Preparation

■ W/B Equipment condition

CA210 : CH 9, Test signal : Inner pattern (85IRE)

■ Above 5 minutes heatrun in the inner pattern. (turn on TV by pushing ‘POWER ON’ or ‘P-ONLY’ key)

[ Color Temperature ]

CCFL Module and O/S Edge Module

32/37LK450-CC

42/47/55LK530-CC

32LK330-CB

32LK335C-CB

32LV3500-CB(CMI)

55LK535C-CC

LGD Edge LED Models : 32LV3500/37LV3500/LW4500

Aging time Cool(13000k) Medium(9300k) Warm(6500k)

GP3

(Min)

1
2
3
4
5
6
7

8

9

0-2

3-5
6-9

10-19

20-35
36-49
50-79

80-149

Over 150

Cool 11,000k

Medium 9,300k

Warm 6,500k

X(±0.002) y(±0.002) x(±0.002) y(±0.002) x(±0.002) y(±0.002)

269 273 285 293 313 329

279 288 295 308 319 338

278 286 294 306 318 336

277 285 293 305 317 335
276 283 292 303 316 333
274 280 290 300 314 330
272 277 288 297 312 327
271 275 287 295 311 325
270 274 286 294 310 324

269 273 285 293 309 323

°K

°K

°K

X=0.276 (±0.002)

Y=0.283(±0.002)
X=0.285 (±0.002)
Y=0.293 (±0.002)
X=0.313 (±0.002)
Y=0.329 (±0.002)

4.1.1 Local Dimming Inspection (Only 42/47/55LW4500-CA)

1) Press ‘TILT” key of the Adj. R/C and check moving patterns. The black bar patterns moves from

top to bottom.

If local dimming function does not work, a whole screen shows full white.

- 15 -

Only for training and service purposes

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

※ Connecting picture of the measuring instrument (On Automatic control)

Inside PATTERN is used when W/B is controlled. Connect to auto controller or push Adjustment R/C

POWER-ON Æ Enter the mode of White-Balance, the pattern will come out.

Only for training and service purposes

- 16 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

Auto-control interface and directions

1. Adjust in the place where the influx of light like floodlight around is blocked. (illumination is less than

10ux).

2. Adhere closely the Color Analyzer (CA210) to the module less than 10cm distance, keep it with the surface
of the Module and Color Analyzer’s Prove vertically.(80~100°).

3. Aging time

-. After aging start, keep the power on (no suspension of power supply) and heat-run over 15 minutes.

-. Using ‘no signal’ or ‘full white pattern’ or the others, check the back light on.

 Auto adjustment Map(RS-232C)

Index

Equipment Æ Wireless unit Wireless unit Æ Set

CMD1 CMD2 Set ID Data CMD1 CMD2 CMD3 CMD4

Start w b 0 00 1F 04 00 00

Gain start w b 0 10 1F 04 00 10

Gain End w b 0 1F 1F 04 00 1F

Offset Start w b 0 20 1F 04 00 20

Offset End w b 0 2F 1F 04 00 2F

End w b 0 FF 1F 04 00 FF

RS-232C COMMAND

R Gain jg ja jd 00 172 192 192 192

G Gain jh jb je 00 172 192 192 192

B Gain ji jc jf 00 192 192 172 192

[CMD ID DATA]

Cool Mid Warm

MIN

Cool Mid Warm

CENTER

(DEFAULT)

MAX

R Cut 64 64 64 128

G Cut 64 64 64 128

B Cut 64 64 64 128

** Caution **

Color Temperature : Cool, Medium, Warm.

One of R Gain/G Gain/ B Gain should be kept on 0xC0, and adjust other two lower than C0.

(when R/G/B Gain are all C0, it is the FULL Dynamic Range of module)

*

Manual W/B process using factory SVC remocon.

■ Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key.

■ Enter White Balance mode by pushing ‘OK’ or ‘►’ key after selecting ‘7.White Balance’.

Only for training and service purposes

- 17 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

EZ ADJUST

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Country Group

6. ADC Calibration

7. White Balance ▶

8. 10 Point WB

9. Test Pattern

Color Temp. ◀ Cool ▶

R-Gain 172

G-Gain 172

B-Gain 192

R-Cut 64

G-Cut 64

B-Cut 64

Test-Pattern ON

Backlight 100

White Balance

Reset To Set

10. EDID D/L

11. Sub B/C

12. V-Com

13. P-Gamma

※ After all adjustments, press ‘IN START’ key and compare Tool option value with its BOM,

if it is correctly same then unplug the AC cable.

If it is not same, then correct it same with BOM and unplug AC cable.

For correct it to the model’s module from factory JIG model.

※ Push ‘IN STOP’ key after completing the function inspection.

4.2 DPM operation confirmation (Only Apply for MNT Model)

Check if Power LED Color and Power Consumption operate as standard.

■ Set Input to RGB and connect D-sub cable to set

■ Measurement Condition: (100~240V@ 50/60Hz)

■ Confirm DPM operation at the state of screen without Signal

4.3 DDC EDID Write (RGB 128Byte )

■ Connect D-sub Signal Cable to D-Sub Jack.

■ Write EDID DATA to EEPROM (24C02) by using DDC2B protocol.

■ Check whether written EDID data is correct or not.

* For SVC main Ass’y, EDID have to be downloaded to Insert Process in advance.

4.4 DDC EDID Write (HDMI 256Byte)

■ Connect HDMI Signal Cable to HDMI Jack.

■ Write EDID DATA to EEPROM(24C02) by using DDC2B protocol.

■ Check whether written EDID data is correct or not.

* For SVC main Ass’y, EDID have to be downloaded to Insert Process in advance.

- 18 -

Only for training and service purposes

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.5 EDID DATA

EZ ADJUST

0. Tool Option1

1) All Data : HEXA Value

2) Changeable Data :

*: Serial No : Controlled / Data:01

**: Month : Controlled / Data:00

***:Year : Controlled

****:Check sum

- Auto Download

■ Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key.

■ Select and enter ’10.EDID D/L’ mode.

■ Select ‘START’ by pushing ‘OK’ key.

 Caution : Never connect HDMI &
D-sub Cable when auto download.

EDID D/L

HDMI1 NG

HDMI2 NG

HDMI3 NG

RGB NG

Start Reset

.

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Country Group

6. ADC Calibration

7. White Balance

8. 10 Point WB

9. Test Pattern ▶

10. EDID D/L

11. Sub B/C

12. V-Com

13. P-Gamma

EDID D/L

HDMI1 OK

HDMI2 OK

HDMI3 OK

RGB OK

Start Reset

※

EDID data and Model option download (RS232)

NO Item CMD 1 CMD 2 Data 0

Enter

download MODE

EDID data and

Model option

Download

Download

‘Mode In’

Download

A A 0 0

A E 00 10

- Manual Download

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

Only for training and service purposes

- 19 -

When transfer the ‘Mode In’,

Carry the command.

Automatically download

(The use of a internal Data)

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

 Caution

- Never connect HDMI & D-sub Cable at the same time.

- Use the proper cables as below for EDID Writing.

- Download HDMI1, HDMI2, HDMI3 separately because each data is different.

For Analog EDID

D-sub to D-sub DVI-D to HDMI or HDMI to HDMI

For HDMI EDID

Only for training and service purposes

-20 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

4.7 Outgoing condition Configuration

■ Push ‘IN STOP’ key, then in-stop processing will start.

If processing is complete, TV will turn off automatically.

※ Must not AC power OFF during processing.

4.8 Internal pressure

Confirm whether is normal or not when between power board's ac block and GND is impacted on 1.5kV(dc) or 2.2kV

(dc) for one second.

4.9. 3D Function test(Only 42/47/55LW4500)

(Pattern Generator MSHG-600 or MSPG-6100 HDMI 1.4 Supported Equipment
, HDMI mode No. 872 , pattern No. 83)

1) Input 3D test pattern.
(HDMI mode No. 872, Pattern No. 83)

2) After automatically display 3D OSD, push the OK Key.

3) Check the pattern such as in the following Fig2 without having to wear glasses.

Only for training and service purposes

- 21 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

5. Preset CH Information

If you turn on TV by pushing the ‘POWER ON’ or ‘P-ONLY’ key, TV catch the channel 10 DTV, 1 CADTV, 12 ATV

and

2 CATV channels on line condition. Pr.2~4 of CADTV will be updated after changing channel to CADTV channel 1.

DTV Ch name is displayed below initially, but if you do channel tuning just one time, you can see DTV Ch name.

Total = 25(+3) Channels

◈ DTV : MUX No. in ‘( )’ is used for Hong Kong DTV.

MUX Pr. Name CH information Factory

1(82) J2 SD 16 : 9 576i GUMI

15 (23)

16 (24)

20 (28) 10(906)

2(83) Interactive Information SD 16 : 9 576i GUMI

3(85) High Definition Jade HD 16 : 9 1080i GUMI

4(900) CCTV-1 SD 4 : 3 576i LGEND

5(901) CCTV-2 SD 4 : 3 576i LGEND

6(902)

7(903)

CCTV-少儿
CCTV-音乐

SD 4 : 3 576i LGEND

SD 4 : 3 576i LGEND

8(904) BTV-1 SD 4 : 3 576i LGEND

9(905) CETV-3 SD 4 : 3 576i LGEND

CCTV–高淸

HD 16 : 9 1080i LGEND

◈ CADTV : MUX No. in ‘( )’ is used for Hong Kong DTV.

MUX Pr. Name CH information Factory

1 CCTV-4 SD 4 : 3 576i LGEND

55 (63)

2 CCTV-9 SD 4 : 3 576i LGEND

3 CCTV F SD 4 : 3 576i LGEND

4 CCTV E SD 4 : 3 576i LGEND

(Pr.2~4 of CADTV will be updated automatically after changing channel to Pr.1)

◈ ATV

Pr System Band Name CH Freq. Factory

1 NTSC M V/UHF US-04 C 04 67.25 LGEND

2

3

4

5

6

7

8

9

10

11

12

NTSC M CABLE J-01 S 67 91.25 LGEND

NTSC M V/UHF US-13 C 13 211.25 LGEND

NTSC M Cable US-14 C 14 471.25 LGEND

NTSC M V/UHF US-63 C 63 765.25 LGEND

NTSC M CABLE - S 15 127.25 LGEND

PAL DK V/UHF D-10 C 10 200.25 LGEND/GUMI

PAL DK V/UHF K-36 C 36 695.25 LGEND/GUMI

PAL I V/UHF I-05 C 05 183.25 GUMI

PAL I V/UHF I-11 C 11 231.25 GUMI

PAL I V/UHF I-41 C 41 631.25 GUMI

PAL I V/UHF I-63 C 63 807.25 GUMI

Only for training and service purposes

- 22 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

◈ CATV

Pr System Band Name CH Freq. Factory

1 PAL DK V/UHF - C 02 57.75 LGEND

2

NTSC M V/UHF - C 04 67.25 GUMI

Only for training and service purposes

- 23 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

6. Shipping condition

No. Item Condition Remark

1. Power Off

2. Mechanical Power switch On

3. Volume Level 10

4. Main Picture Input DTV DTV & ATV

5. Main Last Channel N.A.

6. Mute Off

7. ARC 16:9 (DTV)

Auto Tuning

Manual Tuning DTV / TV / CADTV / CATV

8

SETUP

Programme Edit

Booster off

CI Information *Except Hong Kong

DTV / RADIO / TV /

Cable DTV / Cable Radio / Cable TV

* Only Hong Kong :

DTV / RADIO /TV / Cable TV

9. PICTURE

Cable DTV setting

Aspect Ratio 16:9

Picture Wizard

Energy Saving Off

Picture Mode

Service Operator others

Audio Auto Mode On

Intelligent Sensor Except 32LK330

Vivid

Backlight 100

Contrast 95

Brightness 50

Sharpness 70

Colour 70

Tint 0

Colour Temp C50

Advanced Control

Dynamic Contrast High

Dynamic Colour High

Only for training and service purposes

- 24 -

Clear White High

Skin color 0

Noise Reduction Medium

Digital Noise Reduction Medium

Gamma

Black level Auto

Eye Care low

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

Medium

Real Cinema On

Color Gamut Wide

xvYCC Off

10. AUDIO

Picture Reset

Resolution

Auto Config.

Position

Screen

Size

Phase

Reset

Auto Volume Off

Clear Voice II Off *Default value +3;

Balance 0

Standard

Infinite Sound Off

Sound Mode

Treble 50

Bass 50

Reset

Digital Audio out PCM PCM/Auto

11. Time

12. LOCK

13. OPTION

TV Speaker ON ON/Off

DTV Audio Setting Auto

Auto/AAC/Dolby Digital+/Dolby Digital/MPEG;

Clock -- : -- Auto

Off time Off

On time Off

Sleep Timer Off

Set Password

Lock System Off

Key Lock Off-

Menu

汉语

* Mainland China

Language

Traditional Chinese * Hong Kong

Language

Audio

language

Subtitle

Language

Mandarin(普通话)

Cantonese(廣東话)

Mandarin(普通话)

Cantonese(廣東话)

* Mainland China

* Hong Kong

* Mainland China

* Hong Kong

City/Area -- * Mainland China/Hong Kong

Only for training and service purposes

Hard of hearing Off *Off/ON

Power Indicator Standby Light : On

- 25 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

MHEG Guide Off * Only Hong Kong

Factory Reset

Mode Setting Home Use

7. Additional Rules

This specification goes into effect from 2010/12/02

Power Light : On

Only for training and service purposes

- 26 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

HDMI1 In

HDMI2 In

HDMI3 In

RS232

Option:S7MR

)

(IC1101

MAX3232

MAX3232

MAX3232

2:S7_RXD1/TXD1

S7M+

(JK1101)

)

(IC1101)

(IC1101

- 18 -

(JK802)

EEPROM

(2K,IC801)

EEPROM

(2K,IC801)

2: DDC_SCL1/SDA1

8:HDMI1_D0+/-,D1+/-,D2+/-,CK+/-

(JK801)

EEPROM

(2K,IC802)

EEPROM

(2K,IC802)

2: DDC_SCL2/SDA2

8:HDMI2_D0+/-,D1+/-,D2+/-,CK+/-

(JK803)

EEPROM

(2K,IC804)

EEPROM

(2K,IC804)

2: DDC_SCL3/SDA3

8:HDMI3_D0+/-,D1+/-,D2+/-,CK+/-

R

R

-

-

)

)

1

1

(IC101)

(IC10

(IC10

Saturn7R

Saturn7R

Saturn7R

LGE101RC-R

LGE101RC

LGE101RC

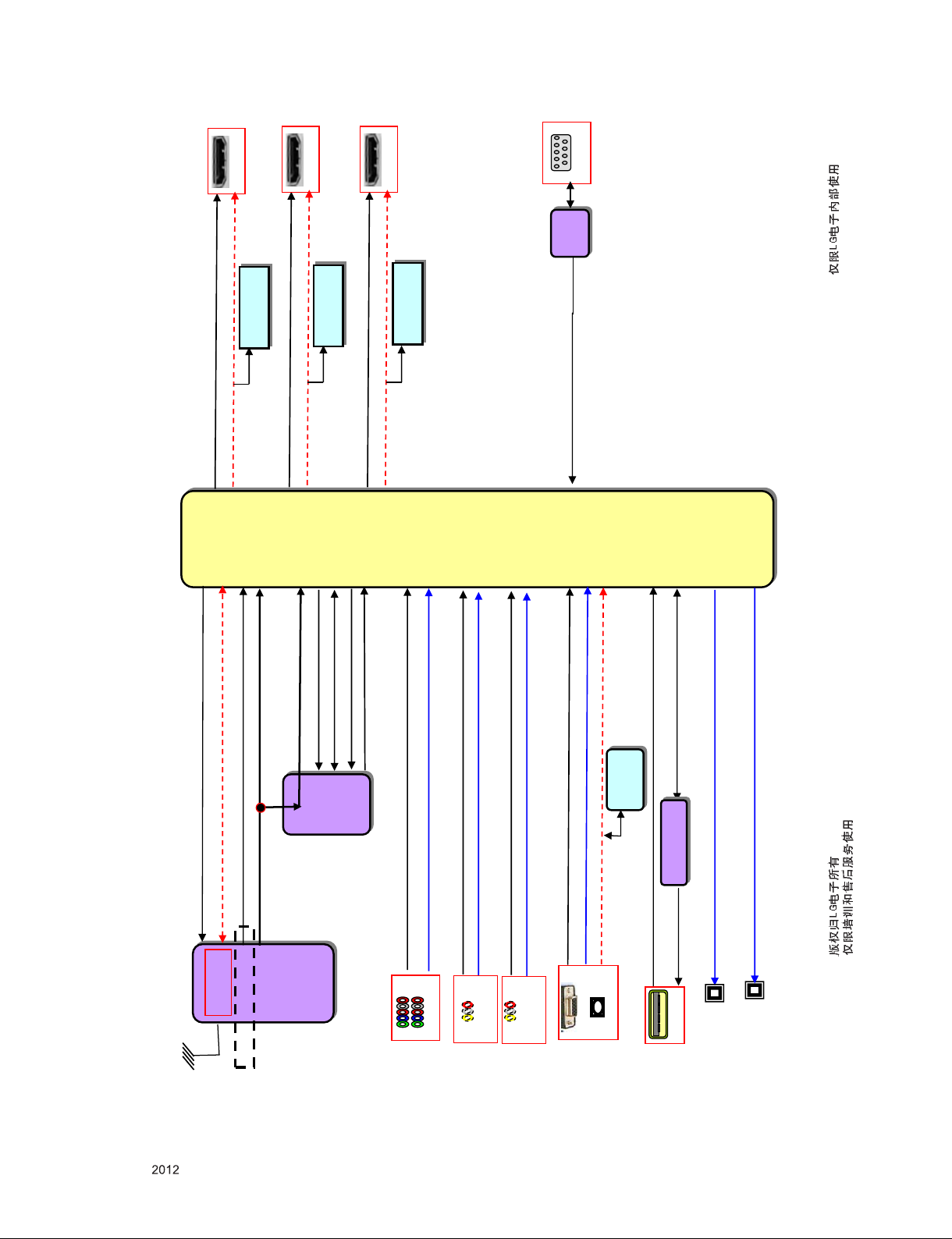

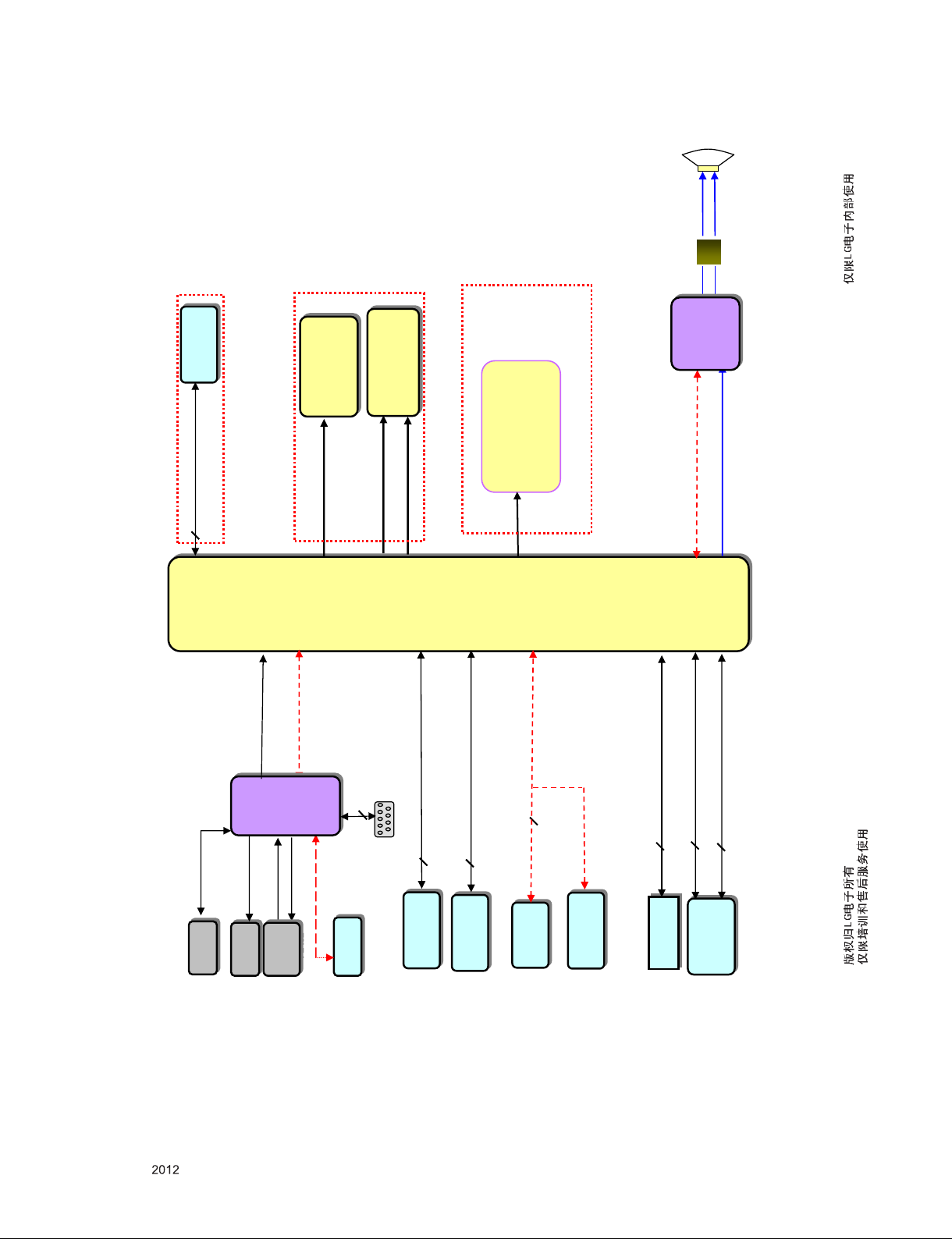

方框图

15: PCM_A[0-14]

6: CI_DATA[0-7]

1: PCM_IRQA

11:CI_TS_DATA[0-7]…

3 : RF_SWITCH_CTL , FE_BOOSTER_CTL, Tuner Reset

11 : TS_Sync/data[0..7]… (DTV)

4 : TU_SCL/SDA , Demod_SCL /SDA

2 : TU_CVBS/SIF (ATV)

TU3701

NIM TUNER

NIM TUNER

HK :ALTO BEAM TUNER

TU3701

LG3911

Inner Demod:

3: CE,OE,WE

2 : USB_CTL, USB_OCD

2: PC _R/L _IN

2: RGB_DDC_SCL/SDA

(JK1104)

RGB In

EEPROM

EEPROM

(JK1102)

PC Audio

(2K, IC1105)

(2K, IC1105)

2 : SIDE_USB_DM/DP

USB

(IC1450)

(IC1450)

(IC1450)

AP2191DSG

AP2191DSG

AP2191DSG

1 : SPDIF_OUT

1 : 5V_USB

(JK1450)

(Side)

SPDIF (Digital)

2: HP_L/R OUT

JK1103

HP (Analog)

01

01

P1901

CI Slot

P19

P19

CI Slot

CI Slot

2: CVBS _R/L _IN

AV2

9: R+/-,G+/-, B+/-,H/V sync, DET, ISP_RXD/TXD

JK9903

(Side)

AV1

2: CVBS _R/L _IN

2:SideAV_DET/CVBS IN

JK1604

7:Comp_DET,Y+/-,Pb+/-,Pr+/-

2: Comp _R/L _IN

2:CVBS_DET,CVBS IN

HNIM tuner)

HNIM tuner)

(Option: TU3702

(Option: TU3702

(JK1601/3)

COMP1&

COMP2

Only for training and service purposes

- 27 -

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

SPK_L+/-

方框图

Speaker

SPK_R+/-

LPF

S7MR/ S7M+ option

01)

01)

3

3

FRC DDR

(1G, IC301)

FRC DDR

FRC DDR

(1G, IC

(1G, IC

0Hz

0Hz

6

6

HD 60Hz

HD

HD

CCFL LCD module

CCFL LCD module

CCFL LCD module

P705

P705

P705

120Hz

120Hz

FHD 120Hz

FHD

FHD

P703&P704

P703&P704

P703&P704

Audio AMP

Audio AMP

Audio AMP

PWM

00
1

NTP7

00
1

NTP7100

NTP7

IC501

IC501

IC501

2D/3D

Only LW4500

46 : C-MA[0:12],….

30PIN, Channel a

51PIN, Channel a&b

41PIN, Channel c&d

R

R

-

-

))

))

1

Saturn7R

Saturn7R

Saturn7R

1

(IC101))

(IC10

(IC10

LGE101RC-R

LGE101RC

LGE101RC

S7M+

Option:S7MR

2：AMP_SCL/SDA

4:AUD_LRCH/LRCK/SCK,AMP_Mute

- 19 -

6: NEC_ISP_TX/RX….

P1001

P1001

P1001

Debugger

Debugger

Debugger

Only for training and service purposes

2: INV_CTL,RL_ON

Power B/D

Power B/D

Power B/D

P403

P403

1: SOC_ Reset

P403

NEC_Micom

NEC_Micom

NEC_Micom

3: KEY1/2 ,IR

touch

touch

Control&

Control&

Control&

SOFt

SOFt

2: NEC_SCL/SDA

IC1002

IC1002

IC1002

2: LED_R/B

SOFt touch

: NEC_RXD/TXD.
2

45 : DDR_D[0:15],DDR_A[0:13] …

45 : DDR_D[0:15],DDR_A[0:13] …

)

)

3

3

1201

1201

DDR3

DDR

DDR

(1G, IC

P2401

(16K, IC1001)

(16K, IC1001)

EEPROM

2: NEC_EEPROM_SCL/SDA

P2401

EEPROM

P2401

(1G, IC

(1G, IC1201)

3

3

DDR3

DDR

DDR

)

)

1202

1202

, IC

, IC

(1G, IC1202)

(1G

(1G

- 28 -

2 : I2C_SCL/SDA

EEPROM

EEPROM

EEPROM

(512K, IC104)

(512K, IC104)

(512K, IC104)

7:NAND_WEb/ALE/CLE…

5 : SCK,SDI,SDO,/CS,/WP

(8K, IC103)

(8K, IC103)

(8K, IC103)

HDCP EEPROM

HDCP EEPROM

HDCP EEPROM

Address:10101---

SPI Flash

SPI Flash

SPI Flash

Address: A0(10100000)

14 : PCM_A[0:7]

)

)

8M IC1401

8M IC1401

(8M IC1401)

(

(

NAND FLASH

NAND FLASH

NAND FLASH

(2G, IC102)

(2G, IC102)

(2G, IC102)

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

300

510

120

A10

200

800

530

810

900

910

540

521

400

A2

LV1

550

Only for training and service purposes

- 29-

LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.

LNA2_CTL

RF_SWITCH_CTL

3D_GPIO_1

3D_GPIO_2

OPT

R201 100

BOOSTER_OPT

R202

RF_SW_OPT

R203
R204 100

OPT

R210 100

OPT

R213

3D_SG

R216

3D_SG

CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1

CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2

CK+_HDMI4

HDMI

CK-_HDMI4
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
DDC_SDA_4
DDC_SCL_4
HPD4

CEC_REMOTE_S7

DSUB_HSYNC
DSUB_VSYNC

DSUB_R+

DSUB_G+

DSUB

DSUB_B+

SCART1_RGB/COMP1

SC1_ID
SC1_FB

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

SC1_SOG_IN

COMP2_Pr+

COMP2_Y+

COMP2

COMP2_Pb+

TU_CVBS

SC1_CVBS_IN

AV_CVBS_IN

SIDEAV_CVBS_IN

AV_CVBS_IN2

CVBS In/OUT

DTV/MNT_VOUT

AV_CVBS_IN2

OPT

OPT

100

100

0
0

OPT

R214 1K

R215 1K

R294 1K

R295 1K

100/120Hz LVDS

OPT

R293 1K

R297 1K

50/60Hz LVDS

R4026

Delete CHB_CVBS_IN

+3.3V_Normal

FHD

R206 1K

HD

R207 1K

10K

R4023

C203

1000pF

OPT

TP211

PHM_ON

DVB_T2

R211 1K

R208 1K

PHM_OFF

NON_DVB_T2

R212 1K

R209 1K

R4024
R4025

10K

Close to MSTAR

MODEL OPTION

R226 1K

FRC_H/W_OPT

NO_FRC

R227 1K

22

22
R228 33
R229 68
R230 33
R231 68
R232 33
R233 68

R253 33
R254 68
R255
R256
R257 33
R258 68

R236 0

NON_EU

R237 33
R238 68
R239
R240
R241 33
R242 68

R244 33
R245 33
R246 33
R4016 33
R248 33
R249 33
R250 33
R251 33

R252 68

C204 0.047uF
C205 0.047uF
C206 0.047uF
C207 0.047uF
C208 0.047uF
C209 0.047uF
C210 1000pF

C211 0.047uF
C212 0.047uF
C213

33

C214

68

C215
C216
C217 1000pF

C218 0.047uF
C219 0.047uF

33

C220 0.047uF

68

C221 0.047uF
C222 0.047uF
C223 0.047uF
C224 1000pF

C248

C225 0.047uF
C226 0.047uF
C227 0.047uF
C4057 0.047uF
C229 0.047uF
C230 0.047uF
C231 0.047uF
C232 0.047uF

TP210

C233 0.047uF

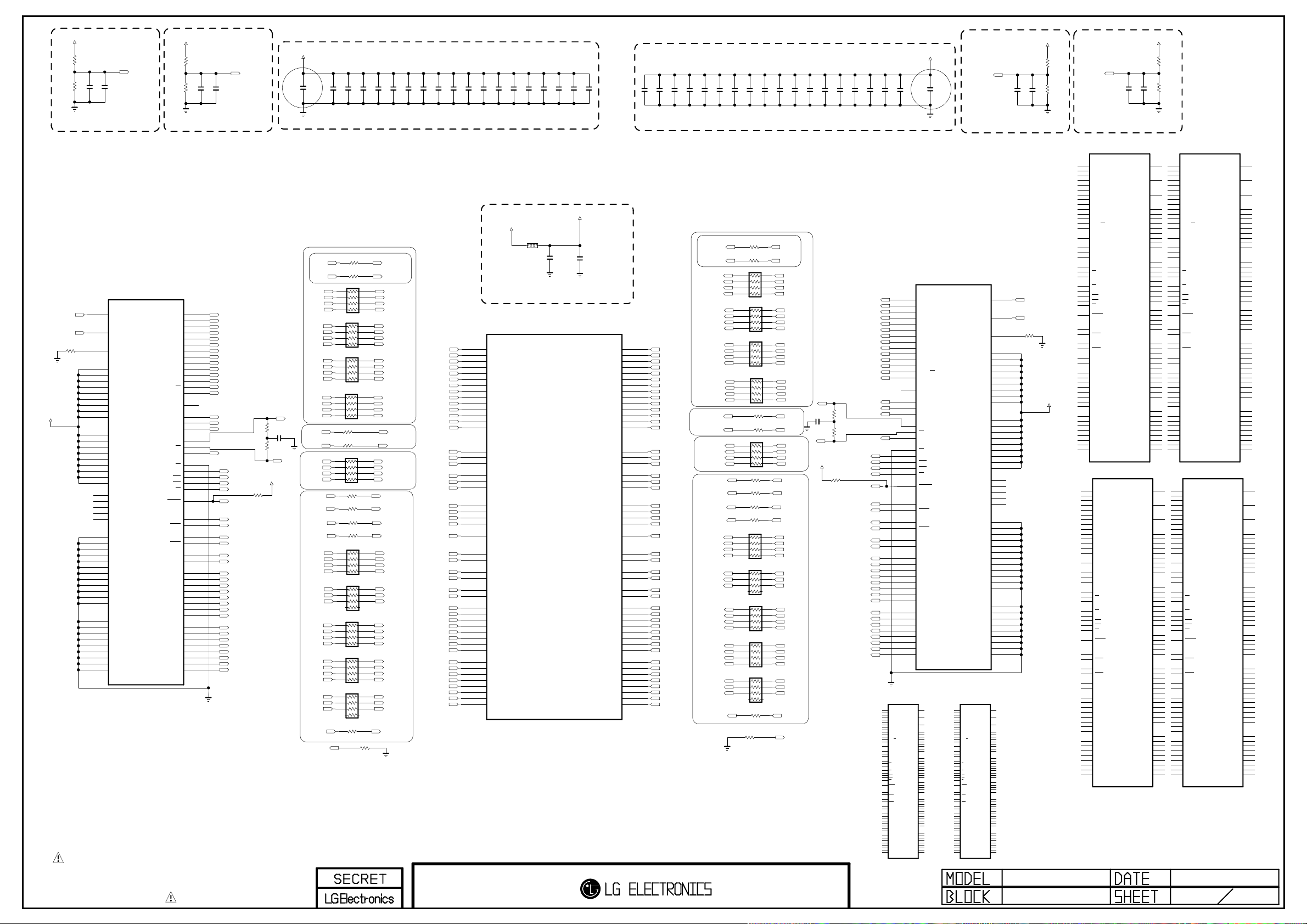

MODEL_OPT_0IF_AGC_SEL
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3

MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6

0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

PIN NAME

MODEL_OPT_0

MODEL_OPT_4

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_5

MODEL_OPT_6

LGE107DC-RP [S7M+ DIVX/MS10]

F1

A_RXCP

F2

A_RXCN

G2

A_RX0P

G3

A_RX0N

H3

A_RX1P

G1

A_RX1N

H1

A_RX2P

H2

A_RX2N

F5

DDCDA_DA/GPIO24

F4

DDCDA_CK/GPIO23

E6

HOTPLUGA/GPIO19

D3

B_RXCP

C1

B_RXCN

D1

B_RX0P

D2

B_RX0N

E2

B_RX1P

E3

B_RX1N

F3

B_RX2P

E1

B_RX2N

D4

DDCDB_DA/GPIO26

E4

DDCDB_CK/GPIO25

D5

HOTPLUGB/GPIO20

AA2

C_RXCP

AA1

C_RXCN

AB1

C_RX0P

AA3

C_RX0N

AB3

C_RX1P

AB2

C_RX1N

AC2

C_RX2P

AC1

C_RX2N

AB4

DDCDC_DA/GPIO28

AA4

DDCDC_CK/GPIO27

AC3

HOTPLUGC/GPIO21

A2

D_RXCP

A3

D_RXCN

B3

D_RX0P

A1

D_RX0N

B1

D_RX1P

B2

D_RX1N

C2

D_RX2P

C3

D_RX2N

B4

DDCDD_DA/GPIO30

C4

DDCDD_CK/GPIO29

E5

HOTPLUGD/GPIO22

D6

CEC/GPIO5

G5

HSYNC0

G6

VSYNC0

K1

RIN0P

L3

RIN0M

K3

GIN0P

K2

GIN0M

J3

BIN0P

J2

BIN0M

J1

SOGIN0

G4

HSYNC1

H6

VSYNC1

K5

RIN1P

K4

RIN1M

J4

GIN1P

K6

GIN1M

H4

BIN1P

J6

BIN1M

J5

SOGIN1

H5

HSYNC2

N3

RIN2P

N2

RIN2M

M2

GIN2P

M1

GIN2M

L2

BIN2P

L1

BIN2M

M3

SOGIN2

N4

CVBS0P

N6

CVBS1P

L4

CVBS2P

L5

CVBS3P

L6

CVBS4P

M4

CVBS5P

M5

CVBS6P

K7

CVBS7P

M6

CVBS_OUT1

M7

CVBS_OUT2

N5

VCOM0

MODEL OPTION

PIN NO.

G19

E18

C5

F7

B6

D18

F9

S7M-PLUS_DivX_MS10

IC101

SPDIF_IN/GPIO177

SPDIF_OUT/GPIO178

I2S_IN_BCK/GPIO175

I2S_IN_SD/GPIO176
I2S_IN_WS/GPIO174

I2S_OUT_BCK/GPIO181
I2S_OUT_MCK/GPIO179

I2S_OUT_SD/GPIO182
I2S_OUT_SD1/GPIO183
I2S_OUT_SD2/GPIO184
I2S_OUT_SD3/GPIO185

I2S_OUT_WS/GPIO180

LOW

NO FRC

50/60Hz LVDS

PHM_OFF

NON_DVB_T2

HD

Ready

LCD

SSIF/SIFP
SSIF/SIFM

IFAGC

RF_TAGC

TGPIO0/UPGAIN

TGPIO1/DNGAIN
TGPIO2/I2C_CLK
TGPIO3/I2C_SDA

XTALIN

XTALOUT

DM_P0
DP_P0

DM_P1
DP_P1

LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R
LINE_IN_2L
LINE_IN_2R
LINE_IN_3L
LINE_IN_3R
LINE_IN_4L
LINE_IN_4R
LINE_IN_5L
LINE_IN_5R

LINE_OUT_0L
LINE_OUT_2L
LINE_OUT_3L
LINE_OUT_0R
LINE_OUT_2R
LINE_OUT_3R

MIC_DET_IN

MICCM
MICIN

AUCOM

HP_OUT_1L
HP_OUT_1R

ET_RXD0
ET_TXD0

ET_RXD1
ET_TXD1

ET_REFCLK

ET_TX_EN

ET_MDC

ET_MDIO

ET_CRS

AVLINK

IRINT

TESTPIN

RESET

U3_RESET

VIFP
VIFM

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HIGH

FRC_HW_OPT

100/120Hz LVDS

PHM_ON

DVB_T2

FHD

default

OLED

W2
W1

V2

IP

V1

IM

Y2
Y1

U3

QP

V3

QM

Y5
Y4

U1
U2
R3
T3

T2
T1

G14
G13

B7
A7

AF17
AE17

F14
F13
F15

D20
E20
D19
F18
E18
D18
E19

N1
P3
P1
P2
P4
P5
R6
T6
U5
V5
U6
V6

U4
W3
W4
V4
Y3
W5

R4
T5
R5

T4

P7

VRM

R7

VAG

P6

VRP

R1
R2

E21
E22

D21
F21

E23
D22
F22
D23
F23

F8
G8
K8
A4
Y17

NO_FRC : LOW LOW
U3_INTERNAL : HIGH LOW
U5_EXTERNALBOOT :HIGH HIGH
reserved for FRC : LOW HIGH

--> This option is only applied in EU.
In case of NON_EU, default value set LOW.

-->In case of GP2, This port was used for GIP/NON_GIP

--> MODEL_OPT_5, MODEL_OPT_6
: Only 3D_SG GPIO OUTPUT CONTROL

TP201
TP202

TP203
TP204

TP205

FULL_NIM

R291 22

FULL_NIM

R292 22

1M

R287

R296 100

COMP2_DET

NEC_SCL

C236 2.2uF
C237

2.2uF
C238 2.2uF
C239

2.2uF
C4059 2.2uF
C4060

2.2uF
C242

2.2uF
C243 2.2uF
C244 2.2uF
C245 2.2uF
C246

2.2uF

TP207
TP208

TP209

2.2uF

2.2uF

TP206

22

5.6uH

OPT

2.2uF

OPT

C249

4.7uF

HEAD_PHONE

HEAD_PHONE

ET_RXD0
ET_TXD0

ET_RXD1

ET_TXD1
ET_REF_CLK

ET_TX_EN

ET_MDC

ET_MDIO
ET_CRS

OPT

R298 100

FRC

R205

10K

C253

1uF

+3.3V_Normal

C256

0.1uF

C247

OPT

C234
C235

OPT

CM2012F5R6KT
L203
L205 5.6uH

CM2012F5R6KT

FRC

R4018

10K

R4017

OPT

OPT_0

OPT_4

Close to MSTAR

R288 100
R289 100

C250 0.1uF
C251 0.1uF

ANALOG SIF

Close to MSTAR

+3.3V_Normal

AMP_SCL
AMP_SDA

C261 27pF

X201
24MHz

C262 27pF

NEC_SDA

MODEL_OPT_4
MODEL_OPT_5

C263
10uF

IR

FRC_RESET

C257 0.1uF
C258 0.1uF

R4002 47
R4003 47

L227

BLM18PG121SN1D

C4064

0.1uF

TU/DEMOD_I2C

BLM18SG121TN1D

HEAD_PHONE

10K

R4006

L202

C268

4.7uF

DEMOD_SCL
DEMOD_SDA
TU_SCL
TU_SDA

SC1/COMP1_L_IN
SC1/COMP1_R_IN
AV_L_IN
AV_R_IN
SIDEAV_L_IN
SIDEAV_R_IN
COMP2_L_IN
COMP2_R_IN
PC_L_IN
PC_R_IN

RSDS Power OPT

L213

+2.5V_Normal

OPT

C264

R4019
1K

BLM18PG121SN1D

L214

BLM18PG121SN1D

VDD33

IF_P_MSTAR
IF_N_MSTAR

1000pF

Close to MSTAR

R4020

10K

C4065

0.022uF
16V

LED_DRIVER_D/L_SDA

SPDIF_OUT

B/T USB

SIDE_USB_DM
SIDE_USB_DP

SIDE USB

AUDIO IN

HEAD_PHONE

C272

4.7uF

SOC_RESET

VDD_RSDS:88mA

VDD_RSDS

OPT

FRC

C4005

0.1uF

DTV_IF

TU_SIF

AUD_SCK
AUD_MASTER_CLK_0
AUD_LRCH
LED_DRIVER_D/L_SCL

AUD_LRCK

SCART1_Lout

SCART1_Rout

H/P OUT

HP_LOUT
HP_ROUT

IF_AGC_MAIN

I2S_I/F

+1.26V_VDDC

AUDIO OUT

10uFC276

10uFC275

10uFC228

+3.3V_Normal

L204

BLM18PG121SN1D

0.1uF

C4044 0.1uF

C4043

AVDD_MEMPLL:24mA

VDD33

L206

BLM18PG121SN1D

+3.3V_Normal

L207

BLM18PG121SN1D

Normal 2.5V

+2.5V_Normal

+2.5V_Normal

+1.5V_DDR

+1.5V_FRC_DDR

RSDS Power OPT

+1.26V_VDDC

L228

BLM18SG700TN1D

L226

BLM18SG700TN1D

C280 0.1uF

C277 0.1uF

VDD33

10uFC284

OPT

FRC_LPLL:13mA

FRC_LPLL

OPT

VDD33_DVI:163mA

VDD33_DVI

C287
10uF

L211

BLM18PG121SN1D

L212

BLM18PG121SN1D

AU25:10mA

L209

BLM18PG121SN1D

OPT

C281

C278

10uF

FRC

L210

BLM18PG121SN1D

FRC

FRC

10uF

C279

C282

MIU1VDDC

C4063 10uF

OPT

OPT

C292 0.1uF

C283 0.1uF

C299 0.1uF

Normal Power 3.3V

VDD33_T/VDDP/U3_VD33_2:47mA

10uFC4001

10uFC293

OPT

C4007 0.1uF

VDD33

L215

BLM18PG121SN1D

C286 0.1uF

C4016 0.1uF

C294

0.1uF

C4008

C4002

0.1uF

OPT

AVDD2P5

C289 10uF

C295 0.1uF

AU25

C296 0.1uF

DDR3 1.5V

AVDD_DDR0:55mA

10uF

AVDD_DDR_FRC:55mA

10uF

C4056 0.1uF

C290

FRC

C291

OPT

C4046

0.1uF

0.1uF

C4066 10uF

0.1uF

C297

0.1uF

OPT

AVDD_DDR_FRC

OPT

0.1uF

C298

MIU0VDDC

AVDD_DDR0

C4003

OPT

C4004

VDDC 1.26V

OPT

C4011 0.1uF

C4006 0.1uF

C4013 0.1uF

OPT

C4012 0.1uF

FRC_MPLL:4mA

AVDD_DMPLL

L217

BLM18PG121SN1D

0.1uF

AVDD2P5/ADC2P5:162mA

+2.5V_Normal

0.1uF

C4009

FRC

0.1uF
C4010

C4062 0.1uF

C4020 0.1uF

C4014 0.1uF

AU33

C4015

0.1uF
OPT

C288

0.1uF

C4017

0.1uF

AVDD_DMPLL/AVDD_NODIE:7.362mA

AVDD2P5

L219

BLM18PG121SN1D

AVDD25_PGA:13mA

AVDD_DDR0

C4018

0.1uF
C4042

0.1uF

OPT

AVDD_DDR0

R40141K1/16W

FRC

R40151K1/16W

0.1uF

0.1uF

C240

+1.26V_VDDC

OPT

C4019 0.1uF

C4024 0.1uF

OPT

C4025 0.1uF

+2.5V_Normal

C4023 0.1uF

FRC_VDD33_DDR:50mA

VDD33

AVDD2P5

AVDD25_PGA

AVDD_DDR1:55mA

C4022

C4028

10uF

10uF

OPT

1%

1%

C241

0.1uF

FRC

L225

BLM18SG700TN1D

FRC

C4031 0.1uF

FRC_AVDD:60mAAU33:31mA

L221

BLM18PG121SN1D

FRC

FRC_VDD33_DDR

FRC

L222

BLM18PG121SN1D

C4026 0.1uF

C4027 0.1uF

AVDD_DDR0

C4032

0.1uF

0.1uF

C4036

MVREF

FRCVDDC

C4061 10uF

VDDC : 2026mA

S7M-PLUS_DivX_MS10

IC101

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11

A_DVDD
B_DVDD

FRC_VDDC_0
FRC_VDDC_1
FRC_VDDC_2
FRC_VDDC_3
FRC_VDDC_4
FRC_VDDC_5
FRC_VDDC_6
FRC_VDDC_7
FRC_VDDC_8

U3_DVDD_DDR

AVDD1P2
DVDD_NODIE

AVDD2P5_ADC_1
AVDD2P5_ADC_2
AVDD25_REF

AVDD_AU25

PVDD_1
PVDD_2

AVDD25_PGA

AVDD_NODIE

AVDD_DVI_1
AVDD_DVI_2
AVDD3P3_CVBS
AVDD_DMPLL

AVDD_AU33
AVDD_EAR33

AVDD33_T

VDDP_1
VDDP_2
VDDP_3

FRC_VD33_2_1
FRC_VD33_2_2

FRC_AVDD_RSDS_1
FRC_AVDD_RSDS_2
FRC_AVDD_RSDS_3

FRC_AVDD
FRC_AVDD_LPLL
FRC_AVDD_MPLL

FRC_VDD33_DDR

AVDD_MEMPLL
FRC_AVDD_MEMPLL

AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR0_D_4
AVDD_DDR0_C

AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3
AVDD_DDR1_D_4
AVDD_DDR1_C

FRC_AVDD_DDR_D_1
FRC_AVDD_DDR_D_2
FRC_AVDD_DDR_D_3
FRC_AVDD_DDR_D_4
FRC_AVDD_DDR_C

MVREF

NC_1
NC_2

GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98

GND_99
GND_100
GND_101
GND_102
GND_103
GND_104
GND_105
GND_106
GND_107
GND_108
GND_109
GND_110

GND_FU

PGA_VCOM

OPT

FRC

C4058 0.1uF

FRC_AVDD

FRC

C4038

0.1uF

0.1uF

C4040 0.1uF

C4041 0.1uF

VDD33

MIU0VDDC
MIU1VDDC

FRCVDDC

FRC_AVDD
FRC_LPLL

LGE107DC-RP [S7M+ DIVX/MS10]

+1.26V_VDDC

H11
H12
H13
H14
H15
J12
J13
J14
J15
J16
L18

H16
K19

L19
M18
M19
N18
N19
N20
P18
P19
P20

Y12

AB11
AB12
AC11
AC12
AA12

J11

L7

H7
J7
J8

L8

W15
Y15

U8

M8

N9
P9
N8
P8

T7
U7

T9

R8
R9
T8

V20
W20

U19
U20
V19

W19
U18
T20

Y14

R19
W14

D15
D16
E15
E16
E17

F16
F17
G16
G17
H17

G15

Y7
Y8

C4045 1uF

AVDD2P5

AU25

AVDD2P5
AVDD2P5

AVDD25_PGA

AVDD_DMPLL

VDD33_DVI

AVDD_DMPLL

AU33

VDD33

VDD_RSDS

FRC_VDD33_DDR

AVDD_DDR0
C285 0.1uF

AVDD_DDR0

AVDD_DDR_FRC

MVREF

GP2R

MAIN2, HW OPT 2

GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8
GND_9

+1.26V_VDDC

G18
H9
H10
H18
H19
J10
J17
J18
J19
K9
K10
K11
K12
K13
K14
K15
K16
K17
K18
L9
L10
L11
L12
L13
L14
L15
L16
L17
M9
M10
M11
M12
M13
M14
M15
M16
M17
N10
N11
N12
N13
N14
N15
N16
N17
P10
P11
P12
P13
P14
P15
P16
P17
R10
R11
R12
R13
R14
R15
R16
R17
R18
T10
T11
T12
T13
T14
T15
T16
T17
T18
T19
U10
U11
U12
U13
U14
U15
U16
U17
V7
V8
V9
V10
V11
V12
V13
V14
V15
V16
V17
V18
W7
W8
W9
W10
W11
W12
W13
W16
W17
W18
Y13
Y18
AA13
AB13
AC13
D17
H23
AF13
J9

L223

BLM18SG121TN1D

U9

20101023

VCC1.5V_U3_DDR

C301

10uF

Close to DDR Power Pin

VCC1.5V_U3_DDR

R301

1K 1%

R302

1K 1%

C302

CLose to DDR3

C-MVREFCA

C-MVREFDQ

R303

240
1%

VCC1.5V_U3_DDR

C303

0.1uF

DDR3 1.5V By CAP - Place these Caps near Memory

OPT

C304

0.1uF

C305

1000pF

0.1uF

C306

C-MVREFDQ

C307

0.1uF

C308

0.1uF

C309

0.1uF

0.1uF

C310

C311

VCC1.5V_U3_DDR

R304

1K 1%

R305

1K 1%

0.1uF

C312

C313

0.1uF

0.1uF

CLose to Saturn7M IC

EAN61828901

IC301

H5TQ1G63DFR-H9C

FRC_DDR_1333_HYNIX

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

NC_5

RESET

DQSL
DQSL

DQSU
DQSU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7
R7

A11

N7
T3

A13

M7

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3
G3

C7
B7

E7

DML

D3

DMU

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

0.1uF

C314

C315

0.1uF

1000pF

C316

C-MA0
C-MA1
C-MA2
C-MA3
C-MA4
C-MA5
C-MA6
C-MA7
C-MA8

C-MA9
C-MA10
C-MA11
C-MA12

C-MBA0
C-MBA1
C-MBA2

0.1uF

C317

C-MVREFCA

OPT

R306

C-MODT
C-MRASB
C-MCASB

C-MWEB

C-MRESETB

C-MDQSL

C-MDQSLB

C-MDQSU

C-MDQSUB

C-MDML

C-MDMU

C-MDQL0
C-MDQL1
C-MDQL2
C-MDQL3
C-MDQL4
C-MDQL5
C-MDQL6
C-MDQL7

C-MDQU0
C-MDQU1
C-MDQU2
C-MDQU3
C-MDQU4
C-MDQU5
C-MDQU6
C-MDQU7

150

0.1uF

C318

R333
10K

0.1uF

C319

C-MCK

C-MCKB
C-MCKE

VCC1.5V_U3_DDR

0.1uF

C320

0.1uF

C321

0.1uF

C322

C-MRESETB

0.1uF

C323

C-MA9
C-MA2
C-MA0

C-MBA2

C-MA8
C-MA6
C-MA4

C-MBA1

C-MA10
C-MA12

C-MA1

C-MA11

C-MA3
C-MA5
C-MA7

C-MCK

C-MCKB

C-MCKE

C-MRASB

C-MCASB

C-MODT
C-MWEB
C-MBA0

C-MDQSL

C-MDQSLB

C-MDQSU

C-MDQSUB

C-MDMU

C-MDQL7
C-MDQL3
C-MDQL1

C-MDML

C-MDQL0
C-MDQL2
C-MDQL6
C-MDQL4

C-MDQL5

C-MDQU2
C-MDQU6
C-MDQU0
C-MDQU4

C-MDQU7
C-MDQU1
C-MDQU5
C-MDQU3

0.1uF

AR301

AR302

AR303

AR304

AR305

22

22

22

22

R307

22

R308

22
R309

22
R310

22

R311

R312

R315

AR306

AR307

AR308

AR309

22

22

R313

22

R314

22

22

22

22

22
R316

22

22

22

+1.5V_FRC_DDR

C-TMBA2

C-TMBA1

C-TMRESETB

C-TMCKB

C-TMCKE

C-TMRASB

C-TMDQSL

C-TMDQSLB

C-TMDQSU

C-TMDQSUB

L301

C-TMA9
C-TMA2
C-TMA0

C-TMA8
C-TMA6
C-TMA4

C-TMA10
C-TMA12

C-TMA1

C-TMA11

C-TMA3
C-TMA5
C-TMA7

C-TMCK

C-TMCASB

C-TMODT
C-TMWEB
C-TMBA0

C-TMDMU

C-TMDQL7
C-TMDQL3
C-TMDQL1

C-TMDML

C-TMDQL0
C-TMDQL2
C-TMDQL6
C-TMDQL4

C-TMDQL5

C-TMDQU2
C-TMDQU6
C-TMDQU0
C-TMDQU4

C-TMDQU7
C-TMDQU1
C-TMDQU5
C-TMDQU3

C324
10uF
10V

C-TMRESETB

C-TMDQSLB

C-TMDQSUB

V_SYNC

VCC1.5V_U3_DDR

C325

0.1uF
16V

C-TMA0
C-TMA1
C-TMA2
C-TMA3
C-TMA4
C-TMA5
C-TMA6
C-TMA7
C-TMA8

C-TMA9
C-TMA10
C-TMA11
C-TMA12

C-TMBA0
C-TMBA1
C-TMBA2

C-TMCK
C-TMCKE
C-TMCKB

C-TMODT

C-TMRASB
C-TMCASB

C-TMWEB

C-TMDQSL

C-TMDQSU

C-TMDML
C-TMDMU

C-TMDQL0
C-TMDQL1
C-TMDQL2
C-TMDQL3
C-TMDQL4
C-TMDQL5
C-TMDQL6
C-TMDQL7

C-TMDQU0
C-TMDQU1
C-TMDQU2
C-TMDQU3
C-TMDQU4
C-TMDQU5
C-TMDQU6
C-TMDQU7

FRC_L/DIM

33

R317

S7M-R

R317-*1

4.7K

S7M-PLUS

820

R332

S7M-PLUS_DivX_MS10

LGE107DC-RP [S7M+ DIVX/MS10]

AE1

FRC_DDR3_A0/DDR2_NC

AF16

FRC_DDR3_A1/DDR2_A6

AF1

FRC_DDR3_A2/DDR2_A7

AE3

FRC_DDR3_A3/DDR2_A1

AD14

FRC_DDR3_A4/DDR2_CASZ

AD3

FRC_DDR3_A5/DDR2_A10

AF15

FRC_DDR3_A6/DDR2_A0

AF2

FRC_DDR3_A7/DDR2_A5

AE15

FRC_DDR3_A8/DDR2_A2

AD2

FRC_DDR3_A9/DDR2_A9

AD16

FRC_DDR3_A10/DDR2_A11

AD15

FRC_DDR3_A11/DDR2_A4

AE16

FRC_DDR3_A12/DDR2_A8

AF3

FRC_DDR3_BA0/DDR2_BA2

AF14

FRC_DDR3_BA1/DDR2_ODT

AD1

FRC_DDR3_BA2/DDR2_A12

AD13

FRC_DDR3_MCLK/DDR2_MCLK

AE14

FRC_DDR3_CKE/DDR2_RASZ

AE13

FRC_DDR3_MCLKZ/DDR2_MCLKZ

AE4

FRC_DDR3_ODT/DDR2_BA1

AD5

FRC_DDR3_RASZ/DDR2_WEZ

AF4

FRC_DDR3_CASZ/DDR2_CKE

AD4

FRC_DDR3_WEZ/DDR2_BA0

AE2

FRC_DDR3_RESETB/DDR2_A3

AF8

FRC_DDR3_DQSL/DDR2_DQS0

AD9

FRC_DDR3_DQSLB/DDR2_DQSB0

AE9

FRC_DDR3_DQSU/DDR2_DQS1

AF9

FRC_DDR3_DQSUB/DDR2_DQSB1

AE11

FRC_DDR3_DML/DDR2_DQ7

AF6

FRC_DDR3_DMU/DDR2_DQ11

AE6

FRC_DDR3_DQL0/DDR2_DQ6

AF11

FRC_DDR3_DQL1/DDR2_DQ0

AD6

FRC_DDR3_DQL2/DDR2_DQ1

AD12

FRC_DDR3_DQL3/DDR2_DQ2

AE5

FRC_DDR3_DQL4/DDR2_DQ4

AF12

FRC_DDR3_DQL5/DDR2_NC

AF5

FRC_DDR3_DQL6/DDR2_DQ3

AE12

FRC_DDR3_DQL7/DDR2_DQ5

AE10

FRC_DDR3_DQU0/DDR2_DQ8

AF7

FRC_DDR3_DQU1/DDR2_DQ14

AD11

FRC_DDR3_DQU2/DDR2_DQ13

AD7

FRC_DDR3_DQU3/DDR2_DQ12

AD10

FRC_DDR3_DQU4/DDR2_DQ15

AE7

FRC_DDR3_DQU5/DDR2_DQ9

AF10

FRC_DDR3_DQU6/DDR2_DQ10

AD8

FRC_DDR3_DQU7/DDR2_DQM1

AE8

FRC_DDR3_NC/DDR2_DQM0

Y11

FRC_VSYNC_LIKE

Y19

FRC_TESTPIN

IC101

ACKP/RLV3P/RED[3]
ACKM/RLV3N/RED[2]

A0P/RLV0P/RED[9]
A0M/RLV0N/RED[8]
A1P/RLV1P/RED[7]
A1M/RLV1N/RED[6]
A2P/RLV2P/RED[5]
A2M/RLV2N/RED[4]
A3P/RLV4P/RED[1]

A3M/RLV4N/RED[0]
A4P/RLV5P/GREEN[9]
A4M/RLV5N/GREEN[8]

BCKP/TCON13/GREEN[1]
BCKM/TCON12/GREEN[0]

B0P/RLV6P/GREEN[7]
B0M/RLV6N/GREEN[6]
B1P/RLV7P/GREEN[5]
B1M/RLV7N/GREEN[4]
B2P/RLV8P/GREEN[3]
B2M/RLV8N/GREEN[2]
B3P/TCON11/BLUE[9]
B3M/TCON10/BLUE[8]

B4P/TCON9/BLUE[7]
B4M/TCON8/BLUE[6]

CCKP/LLV3P

CCKM/LLV3N
C0P/LLV0P/BLUE[5]
C0M/LLV0N/BLUE[4]
C1P/LLV1P/BLUE[3]
C1M/LLV1N/BLUE[2]
C2P/LLV2P/BLUE[1]
C2M/LLV2N/BLUE[0]

C3P/LLV4P
C3M/LLV4N
C4P/LLV5P
C4M/LLV5N

DCKP/TCON5

DCKM/TCON4

D0P/LLV6P
D0M/LLV6N
D1P/LLV7P
D1M/LLV7N
D2P/LLV8P
D2M/LLV8N
D3P/TCON3
D3M/TCON2
D4P/TCON1
D4M/TCON0

GPIO0/TCON15/HSYNC/VDD_ODD

GPIO1/TCON14/VSYNC/VDD_EVEN

GPIO2/TCON7/LDE/GCLK4
GPIO3/TCON6/LCK/GCLK2

FRC_SPI_CZ

FRC_GPIO1

FRC_SPI1_CK

FRC_GPIO8

FRC_SPI_DO

FRC_SPI1_DI

FRC_SPI_CK

FRC_SPI_DI

FRC_I2CS_DA
FRC_I2CS_CK

FRC_PWM0
FRC_PWM1

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

RXBCK+
RXBCK­RXB0+
RXB0­RXB1+
RXB1­RXB2+
RXB2­RXB3+
RXB3­RXB4+
RXB4-

RXACK+
RXACK­RXA0+
RXA0­RXA1+
RXA1­RXA2+
RXA2­RXA3+
RXA3­RXA4+
RXA4-

RXCCK+
RXCCK­RXC0+
RXC0­RXC1+
RXC1­RXC2+
RXC2­RXC3+
RXC3­RXC4+
RXC4-

RXDCK+
RXDCK­RXD0+
RXD0­RXD1+
RXD1­RXD2+
RXD2­RXD3+
RXD3­RXD4+
RXD4-

FRC_MODEL_OPT_0
FRC_MODEL_OPT_1
FRC_MODEL_OPT_2
2D/3D_CTL

FRC_CONF0

FRC_CONF1

FRC_PWM0
FRC_PWM1

R344
0

3D_SG

H5TQ1G63DFR-PBC

FRC_DDR_1600_HYNIX

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

R300 33

FRC_L/DIM

R348

33

FRC_L/DIM

R326

22

FRC

R331

22

FRC

R335

22

OPT

R334
OPT

3D_SYNC_RF

EAN61829001

IC301-*2

I2C_SDA
I2C_SCL

22

L/DIM_SCLK

L/DIM_MOSI

FRC_SCL

FRC_SDA

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

FRC_/SPI_CS

FRC_SPI_SDO

EAN61857101

IC301-*3

K4B1G1646G-BCH9

FRC_DDR_1333_SS_NEW

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+3.3V_Normal

R336

1K

R338

R340

1K

1K

OPT

R342

1K

OPT

L/DIM_EDGE_32/37

LVDS_EXT_URSA5

R341

R339

FRC_/SPI_CS

FRC_SPI_SDO

FRC_SPI_SCK
FRC_SPI_SDI

S7M-PLUS

R329
10

R330
10

S7M-PLUS

OPT

R343

1K

1K

LVDS_S7M-PLUS

+3.3V_Normal

R349

10K

S7M-PLUS

R350

1K

4.7K

OPT

R337

1K

L/DIM_EDGE_42/47/55

S7M-PLUS_S_FLASH_2MBIT_WIN

IC302

W25X20BVSNIG

CS

1

$ 0.17

DO

2

WP

3

GND

4

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

M7

M2
N8
M3

J7
K7
K9

L2
K1
J3
K3
L3

T2

F3
G3

C7
B7

E7
D3

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

FRC_MODEL_OPT_0
FRC_MODEL_OPT_1

FRC_MODEL_OPT_2

2D/3D_CTL

+3.3V_Normal

VCC

8

HOLD

7

S7M-PLUS

R328

CLK

10

6

R327

DIO

10

5

S7M-PLUS

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC_5

BA0
BA1
BA2

CK
CK
CKE

CS
ODT
RAS
CAS
WE

RESET

DQSL
DQSL

DQSU
DQSU

DML
DMU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

<U3 CHIP Config>

(FRC_CONF0)

HIGH : I2C ADR = B8
LOW : I2C ADR = B4

(FRC_CONF1,FRC_PWM1, FRC_PWM0)

3’d5 : boot from internal SRAM
3’d6 : boot from EEPROM
3’d7 : boot form SPI flash

FRC_SPI_SCK

FRC_SPI_SDI

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

R320

R319

ZQ

R321

1K

FRC

R325

1K
OPT

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

+3.3V_Normal

R322

1K

R323

1K

1K

OPT

FRC

S7M-PLUS

R324

R318

1K

1K

1K

OPT

FRC

S7M-R

EAN61857201

IC301-*4

NT5CB64M16DP-CF

FRC_DDR_1333_NANYA_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

FRC_CONF0
FRC_CONF1

FRC_PWM1

FRC_PWM0

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_7

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

FRC_DDR

20101023

3

FROM LIPS & POWER B/D

+3.5V_ST

RT1P141C-T112

Q402

RL_ON

C401

100uF

C402

100uF

16V

16V

+3.5V_ST

+12V/+15V

R401

10K

B

MLB-201209-0120P-N2

C406

0.1uF
16V

L402

MLB-201209-0120P-N2

C404

0.1uF
16V

L402-*1

CIS21J121

C

Q401
2SC3052

E

L404

L404-*1

CIS21J121

C407

0.1uF
16V

OPT

R406

4.7K

C408

0.1uF
16V

3

1

OPT

R476

0

2

POWER_23_GND

NORMAL_EXPEPT_32

P403

FW20020-24S

PWR ON

24V
GND
GND

3.5V

3.5V
GND
GND
12V
12V
12V

GND/P.DIM2

<MODULE PIN MAP>

CMO10"Lamp

AUO 10"Lamp

(PSU)

(PSU)

GND

A-DIM

INV_ON

Err_out

NC

PWM_DIM

INV_ON

PWM_DIM

GND

32LE5300-TA

NC

INV_ON

err_out

NC

--> NC

CMO10"LED

NC

32LE4500-TA

AUO 10"LED

(PSU)

INV_ON

err_out

--> NC

NC

PWM_DIM

NC

PWM_DIM

NC

NC

GND

NC

NC

NC

SHARP
(PSU)

GND

INV_ON

52/60:ERROR

26/32HD:NC

26/32/52:PWM

26/32/52:GND

60:PWM

32LE5300-TA

LGD 10"LED

(PSU)

INV_ON

PWM_DIM
err_out

--> NC

60:NC

GND

NC

NC

NC

IPS-@
(PSU)

INV_ON

Err_out

PWM_DIM

GND

16

18

20

24

23

22

LGD(PSU)

or LIPS

GND

INV_ON

VBR-A

PWM_DIM

Err_out

GND

PIN No

<LED MODULE PIN MAP -> latest update 20100618>

PIN No

LGD LPB/

OS LPB (PSU)

16

INV_ON

18

20

22

PWM_DIM

err_out

24

--> NC

23

LGD edge led error-out use or not? checking is necessary...

+5V_USB

+12V/+15V

L401

C405

C410

10uF

10uF

25V

25V

Vout=(1+R1/R2)*0.8

C489

0.1uF
16V

AOZ1073AIL-3

PGND

1

VIN

2

AGND

3

FB

4

IC401

3A

LX_2

8

LX_1

7

EN

6

COMP

5

1

2

2

1

2

1
3

4

4

3

4

3
5

6

6

5

6

5
7

8

8

7

8

7

10

9

9

9

10

10

11

12

12

11

12

11
13

14

13

14

14

13
15

16

16

15

16

15
17

18

18

17

18

17

20

19

19

20

19

20

21

22

21 22

21 22
23

24

23 24

23 24

25

25

SLIM_32~52
P401

SMAW200-H24S2

GNDGND

NC

NR8040T3R6N

POWER_ON/OFF2_1

R410

10K

12K

2200pF

R413

C413

NORMAL_32

P404
FM20020-24

24V
24V
GND
GND

3.5V

3.5V
GND
GND/V-sync
INV ON
A.DIM
P.DIM1
Err OUT

MLB-201209-0120P-N2

R475

0

POWER_24_GND

CIS21J121

L407

C418

0.1uF
50V

POWER_18_INV_CTL

R412 0

POWER_16_GND

POWER_24_INV_CTL

POWER_24_PWM_DIM

POWER_22_PWM_DIM

OPT

L407-*1

+3.3V_Normal

R415
100

R425
100

C

R418

6.8K
OPT

E

POWER_20_PWM_DIM

R484

0R472

0R471

PWM_PULL-DOWN_3.9K

C416

0.1uF

16V

POWER_20_ERROR_OUT

100R437

POWER_24_ERROR_OUT

100

R420

TP5302

TP5303
TP5304

TP5305

TP5306

R606

3.9K

0

<Module Inv to Main Pin Connection>

INV <--> MAIN
#11 <--> #24
#12 <--> #18
#13 <--> #20
#14 <--> #22

2000 mA

L406

3.6uH

1%

R414

51K

OPT

R416

R423

1.5K

10K

C429

100pF

R1

1%

50V

1%

R2

C420
22uF
16V

+24V

C426
68uF
35V

R419
1K

R421
10K

B

Q405

2SC3052

POWER_18_A_DIM

R451

POWER_22_A_DIM

R485 0

POWER_20_A_DIM

R453

C424

0.1uF
16V

+3.5V_ST

R426

OPT

10K

R427

10K

OPT

0

0

PWM_DIM

R606-*1
1K

PWM_PULL-DOWN_1K

+3.3V_Normal

OPT

R486

4.7K
ERROR_OUT

OLP

V_SYNC

SCAN_BLK2

SCAN_BLK1/OPC_OUT

OPC_OUT

+5V_USB

C428

0.1uF
16V

OPT

INV_CTL

A_DIM

PANEL_CTL

1:AK10

+12V/+15V

L412

+3.5V_ST

+3.5V_ST

OPT
R430
10K

R429
47K

0.015uF

B

C409

0.015uF
50V

R431
22K

C

Q406
2SC3052

E

0.01uF

0.01uF

C436
25V

R435

C438

0.1uF
16V

R439

33K

R440

5.6K

C

Q407

B

2SC3052

E

22K

S7M DDR 1.5V

10K

R464

C475

0.1uF
16V

L420

C461
10uF
10V

C468

0.1uF
16V

VIN_1

VIN_2

GND_1

GND_2

EP[GND]

1

2

3

4

VIN_3

15EN16

THERMAL

17

IC407

TPS54319TRE

7

5

6

COMP

AGND

VSENSE

3A

BOOT14PWRGD

13

12

11

10

9

8

RT/CLK

1/16W 5%

$ 0.145

PH_3

PH_2

PH_1

SS/TR

R455
15K

Vout=0.827*(1+R1/R2)=1.521V

+3.3V_Normal

C432

0.1uF
16V

VIN

IC402

AZ2940D-2.5TRE1

3

1

Vd=550mV

2

GND

VOUT

R473

1

C403
10uF
10V

S7M core 1.26V volt

10K

R445

C447

0.1uF
16V

C441

0.1uF

7

COMP

BOOT14PWRGD

13

12

11

10

9

8

RT/CLK

1/16W 5%

$ 0.165

R436

7.5K

16V

PH_3

PH_2

PH_1

SS

L413

C430
10uF
10V

C431

0.1uF
16V

VIN_1

VIN_2

GND_1

GND_2

VIN_3

EP[GND]

1

THERMAL

2

17

IC403

3

SN1007054RTER

4

5

AGND

VSENSE

15EN16

6

4A

Vout=0.8*(1+R1/R2)=1.29V

C442
10uF
16V

OPT

C462

0.1uF

16V

R452

C443
10uF

25V

C465

0.01uF
50V

330K1/16W 5%

4700pF

C467

POWER_ON/OFF1

L423

3.6uH

NR8040T3R6N

50V

Q409

AO3407A

S

C472
22uF
10V

New item

D

G

0.1uF
50V

1608

OPT

C476
22uF
10V

+2.5V/+1.8V

+2.5V_Normal

C440

0.1uF
16V

POWER_ON/OFF2_1

L415

3.6uH

R432

330K1/16W 5%

C488

0.01uF
50V

3300pF

NR8040T3R6N

C448

50V

C453
22uF
10V

10V

C456
22uF

PANEL_POWER

PANEL_DISCHARGE_RES

1074 mA

R457

R1

47K 1%

R2

R449
56K

1/16W

1%

300 mA

R442

24K 1%

1%

R1

22K

R444

R2

R441
75K

1/8W

1%

C455

0.1uF
16V

50V
100pF
C439

C463
100pF
50V

+1.26V_VDDC

R405-*1
3K

PANEL_DISCHARGE_RES

R405

2.2K

OPT

+1.5V_DDR

C470

0.1uF
16V

C444

0.1uF
16V

R407-*1

3K

PANEL_VCC

R407

2.2K

OPT

ST_3.5V--> 3.375V --> 3.46V

20V-->3.51V --> 3.76V (3.59V)
24V-->3.78V --> 3.92V (3.79V)
12V -->3.58V --> 3.82V (3.68V)

18.5V-->3.5V --> 3.75V (3.59V)

C411

0.1uF
16V

+24VC451

C412

0.1uF
16V

PD_+12V

POWER_+24V

POWER_+24V

+12V/+15V

R482

R403

8.2K

1.5K

1%

1%

L416

C457

C459

10uF

10uF

25V

25V

Vout=(1+R1/R2)*0.8

+12V/+15V

L417

C458

C460

10uF

10uF

25V

25V

Vout=0.8*(1+R1/R2)

IC410

AP1117EG-13

OUTIN

ADJ/GND

C491

+1.5V_DDR

POWER_ON/OFF2_1

0.1uF
50V

C421,C422 Close to LDO

R434

120K

330
R411

OPT

C435

4.7uF
10V

OPT

+12V/+15V

R448

R447

2.7K

1.21K

1%

PD_+12V

1/10W

1%

PD_+12V

+3.5V_ST

R45005%

VCC

PD_+3.5V

NCP803SN293

3

GND

+3.3V_Normal

IC405

AOZ1073AIL-3

C492

0.1uF
16V

PGND

AGND

1

VIN

2

3A

3

FB

4

LX_2

8

LX_1

7

EN

6

COMP

5

+5V_Normal

IC406

AOZ1072AI-3

PGND

C490

0.1uF
16V

AGND

1

VIN

2

3

FB

4

2A

8

7

6

5

+5V_Normal

R422
1
5%

C414

C415

0.1uF

10uF

16V

10V

S

OPT

R443

10K

4.7uF

C445

FRC

Q408
AO3438

D

110

R417

FRC

G

+1.5V_DDR_FRC

+3.5V_ST -> 3.375V

R488
100K

IC408

NCP803SN293

VCC

3

1

GND

R404

PD_+12V

100K

IC409

RESET

2

1

PD_+12V_PWR_DET_ON_SEMI

L421

3.6uH

NR8040T3R6N

POWER_ON/OFF2_2

R456

10K

12K

2200pF

R454

C464

LX_2

LX_1

EN

R459

10K

COMP

12K

R458

C422

0.1uF
50V

+1.5V_FRC_DDR

+3.5V_ST

R463

10K

OPT

R402
100

RESET

2

PWR_DET_ON_SEMI

PD_+12V

R480
100

Power_DET

1934 mA

1%

R460

27K

4.7K

R461

C423
100pF

R462

10K

L422

3.6uH

NR8040T3R6N

POWER_ON/OFF2_2

2200pF

C466

IC411

AP1117EG-13

ADJ/GND

C469

R1

22uF

1%

16V

OPT

50V

1%

R2

MAX 1A

1%

R465

24K

R1

1%

51K

R466

OPT

C427

100pF

50V

1%

R2

R467

10K

OUTIN

110
R408

330
R409

POWER_DET

C474

0.1uF

CIC21J501NE

C473

0.1uF
16V

C471
22uF
16V

R424
1
5%

C417

0.1uF
16V

+3.3V_Normal

L424

+5V_TUNER

C477

0.1uF
16V

C419
10uF
10V

C485

0.1uF
16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

20101023

POWER_LARGE 4

MICOM_DEBUG_WAFER

12505WS-12A00

+3.5V_ST

EEPROM for Micom

IC1001

M24C16-WMN6T

NC/E0

1

NC/E1

47K

R10 01

TP1001

2

NC/E2

3

VSS

4

EEPROM_NEC_16KBIT_STM

P1001

13

1

2

3

4

5

6

7

8

9

10

11

12

+3.5V_ST

+3.5V_ST

MICOM_DEBUG

R1002 10K

R1006

R1072

R1073

R1005

VCC

8

WC

7

SCL

6

SDA

5

OPT

OPT

OPT

OPT

MICOM_DEBUG

R10 76 2 2

MICOM_DEBUG

R10 78 2 2

MICOM_DEBUG

R10 10 2 2

MICOM_DEBUG

R10 81 2 2

MICOM_DEBUG

R10 13 2 2

10K

10K

10K

10K

TP1002

R1080

22

TP1003

R1008

22

for Debugger

MICOM_RESET
NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC CONFIGURATION

NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

+3.5V_ST

C1002

R1014 2.7K

R1015 2.7K

0.1uF

NEC_EEPROM_SCL

NEC_EEPROM_SDA

IC1001-*1

AT24C16BN-SH-B

NC_1

1

NC_2

2

NC_3

3

GND

4

EEPROM_NEC_16KBIT_ATMEL

8

7

6

5

+3.5V_ST

VCC

WP

SCL

SDA

OPT

R1084
10K

POWER_ON/OFF2_1

NEC_SCL

NEC_SDA

NEC_EEPROM_SCL

NEC_EEPROM_SDA

CEC_REMOTE_NEC

AMP_MUTE

AMP_RESET

(MODEL_OPT_0)

SOC_RESET

INV_CTL

PANEL_CTL

(MODEL_OPT_1)

OCD1B

R1020 0

22

R1018

22

R1019

P33/TI51/TO51/INTP4

R1065 22

R1066 22

R1023 22

R1063 22

P32/INTP3/OCD1B

+3.5V_ST

C1003

0.1uF

P60/SCL0
P61/SDA0

P62/EXSCL0

P63

P75

P74
P73/KR3
P72/KR2
P71/KR1
P70/KR0

R1030 10K

R1091 10K

GND

C1006 0.1uF

P121/X1/OCD0A

REGC

VSS

VDD

45

46

47

48

1
2
3
4
5
6
7
8
9
10
11
12

13

14

15

16

P30/INTP1

P17/TI50/TO50

P31/INTP2/OCD1A

P16/TOH1/INTP5

CRYSTAL_KDS

X1002-*1

FLMD0

15pF

C1007

X1002

32.768KHz

CRYSTAL_EPSON

R1034

4.7M

CRYSTAL_KDS

P123/XT1

FLMD0

P122/X2/EXCLK/OCD0B

42

43

44

32.768KHz

S/T_SCL

C1008 15pF

MICOM_RESET

22

NEW_SUB

R1043

R10 60 2 2

R1039 22

P41

P40

RESET

P124/XT2/EXCLKS

38

39

40

41

IC1002

uPD78F0514

NEC_MICOM

17

18

19

20

21

22

23

AVREF

P15/TOH0

P14/RXD6

P13/TXD6

P12/SO10

P11/SL10/RXD0

P10/SCK10/TXD0

22

22

S/T_SDA

+3.5V_ST

NEW_SUB

R4034

4.7K

NEW_SUB

R4035

4.7K

+3.5V_ST

47K

NEW_SUB

R1046

TP1601

C1010

0.1uF

TOP SIDE for reset.

TP1602

R1047 20K

R1089

20K

1/16W

P120/INTP0/EXLVI

37

36
35
34
33
32
31
30
29
28
27
26
25

1%

P140/PCL/INTP6
P00/TI000
P01/TI010/TO00
P130
P20/ANI0
ANI1/P21
ANI2/P22
ANI3/P23
ANI4/P24
ANI5/P25
ANI6/P26
ANI7/P27

24

+3.5V_ST

AVSS

C1009 1uF

+3.5V_ST

1/16W
1%

R1048 22

R1049 22

OPT

R1050 10K





R1090 22

OPT

R1055 22

R1056 22

R10 57 22

R1054 22

R1052 10K

19-22_LAMP

C

Q1001

B

2SC3052

E

EDID_WP

RL_ON

SCART1_MUTE

CEC_ON/OFF

(MODEL_OPT_3)

MODEL1_OPT_2

POWER_ON/OFF1

OLP

SIDE_HP_MUTE

KEY2

KEY1

GP2

GP3

R1079 10K

R1074 10K

+3.5V_ST

TOUCH_KEY

R1075 10K

TACT_KEY

R1011 10K

B/L_LED

R1009 10K

R1071 10K

PWM_BUZZ/IIC_LED

PWM_LED

B/L_LAMP

R1004 10K

R1012 10K

MODEL_OPT_0

MODEL_OPT_1
MODEL1_OPT_2

MODEL_OPT_3

MICOM MODEL OPTION

AMP_RESET
PANEL_CTL

CEC_ON/OFF

2011Y,GP2R, 101125 Update

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

PWM_BUZZ/IIC_LED :Using IIC for LED Breathing & PWM Buzz
PWM_LED : Using PWM Signal for LED Lighting

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MODEL OPTION

PIN NO.

8

11

PWM_BUZZ/IIC_LED

30

31

HIGH

B/L_LED

TOUCH_KEY

GP2

LOW

B/L_LAMP

PWM_LED

TACT_KEY

GP3

MODEL_OPT_0

LOW

LOW

LOW : LED

HIGH : LAMP

MODEL_OPT_1

LOW

LOW

HIGH

HIGH

Low

MODEL_OPT_2

LOW

LOW

HIGH

LOW

HIGH

MODEL_OPT_3

LOW

HIGH

LOW

LOW

LOW

Description

LK330/LK430 for KR/US

10Y EYE-Q Sensor

KEY & PWM LED & No Buzz & No LED Blink

LK330/LK430/LK530

KEY & PWM LED & No Buzz & No LED Blink

LV25/LV35/LV45/LW45/LV55/LK45/LK55

S/T & IIC LED & NO BUZZ & LED Blink

IIC LED(09Y IIC Protocol) & No BUZZ

S/T & IIC LED & No Buzz & LED Blink

TBD

TBD

R10 41

R10 37

22

22

R10 68

R10 69

IR

OCD1A

POWER_DET

LED_R/BUZZ

LED_B/LG_LOGO

NEC_ISP_Rx

NEC_ISP_Tx

S7_NEC_RXD

S7_NEC_TXD

POWER_ON/OFF2_2

MODEL OPTION

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

PWM_BUZZ/IIC_LED : For model that use LED Lighting used IIC
PWM_LED : For model that use LED Lighting used PWM Signal

PIN NO.

8

11

30

31

PWM_BUZZ/IIC_LED

R1083 10K

B/L_LED

TOUCH_KEY

GPIO_LED

OPT

2010Y,GP2

LOW

B/L_LAMP

PWM_LED

TACT_KEY

NON_GPIO_LED

MODEL_OPT_0

HIGH

HIGH

HIGH

MODEL_OPT_1

LOW

LOW

LOW

LOW

HIGH

HIGH

GP2R

MICOM Rev.4

LOW

HIGH

HIGH

LOW

LOW

MODEL_OPT_3

LOW

PWM LED & No Buzz & No LED Blink

LOW

LOW

LOW

HIGH

19/22/26LE5300/5300

IIC LED & PWM IIC BUZZ

32/37/42/47/55LE5300

IIC LED & PWM BUZZ

IIC LED(09Y IIC Protocol) & No BUZZ

LD350/450/550HIGH

LD420

LE7300

GPIO LED & NO BUZZ

MODEL_OPT_2

LOW

20101125
5

CONTROL

IR & LED

+3.5V_ST

C2406

1000pF

50V

EYEQ/TOUCH_KEY

EYEQ/TOUCH_KEY

R2412

R2413 1.5K

C2407
100pF

LED_R/BUZZ

R2411
100

100

50V

C2408
18pF
50V

OPT

C2409
18pF
50V

OPT

C2410

0.1uF

D2405

5.6V

R2414

1.5K

OPT

16V

EYEQ/TOUCH_KEY

5.6V
D2403

EYEQ/TOUCH_KEY

5.6V
D2404

JP2407

JP2408

OPT

R2416

10K

OLD_SUB

P2401

12507WR-12L

1

2

3

4

5

6

7

JP2409

8

JP2410

9

10

JP2411

11

12

13

NEW_SUB

P2402

12507WR-15L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

R2405

R2404

10K

10K

1%

1%

R2429

Q2405

2SC3052

BLM18PG121SN1D

L2402

BLM18PG121SN1D

+3.5V_ST

47K
OPT

C

B

E

OPT

L2401

R2431

47K

OPT

R2426

+3.5V_ST

47K

S/T_SCL

S/T_SDA

+3.5V_ST

C2401

0.1uF

C2402

0.1uF

L2403

BLM18PG121SN1D

C2403

0.1uF
16V

D2401

5.6V

AMOTECH

D2402

AMOTECH

C2404
1000pF
50V

+3.3V_Normal

C906
18pF
50V

OPT

C907
18pF
50V

OPT

5.6V

R2401
100

KEY1

R2402
100

KEY2

+3.5V_ST

R2425

Q2406

2SC3052

47K
OPT

R2430

C

10K

B

E

OPT

OPT

R2427
0

R2428

IR

22

LED_B/LG_LOGO

L2404

BLM18PG121SN1D

C2405

0.1uF
16V

NEW_SUB

D902

CDS3C05HDMI1

5.6V

NEW_SUB
D903
CDS3C05HDMI1

5.6V

NEC_EEPROM_SCL

NEC_EEPROM_SDA

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

IR/CONTROL-L

20101023

6

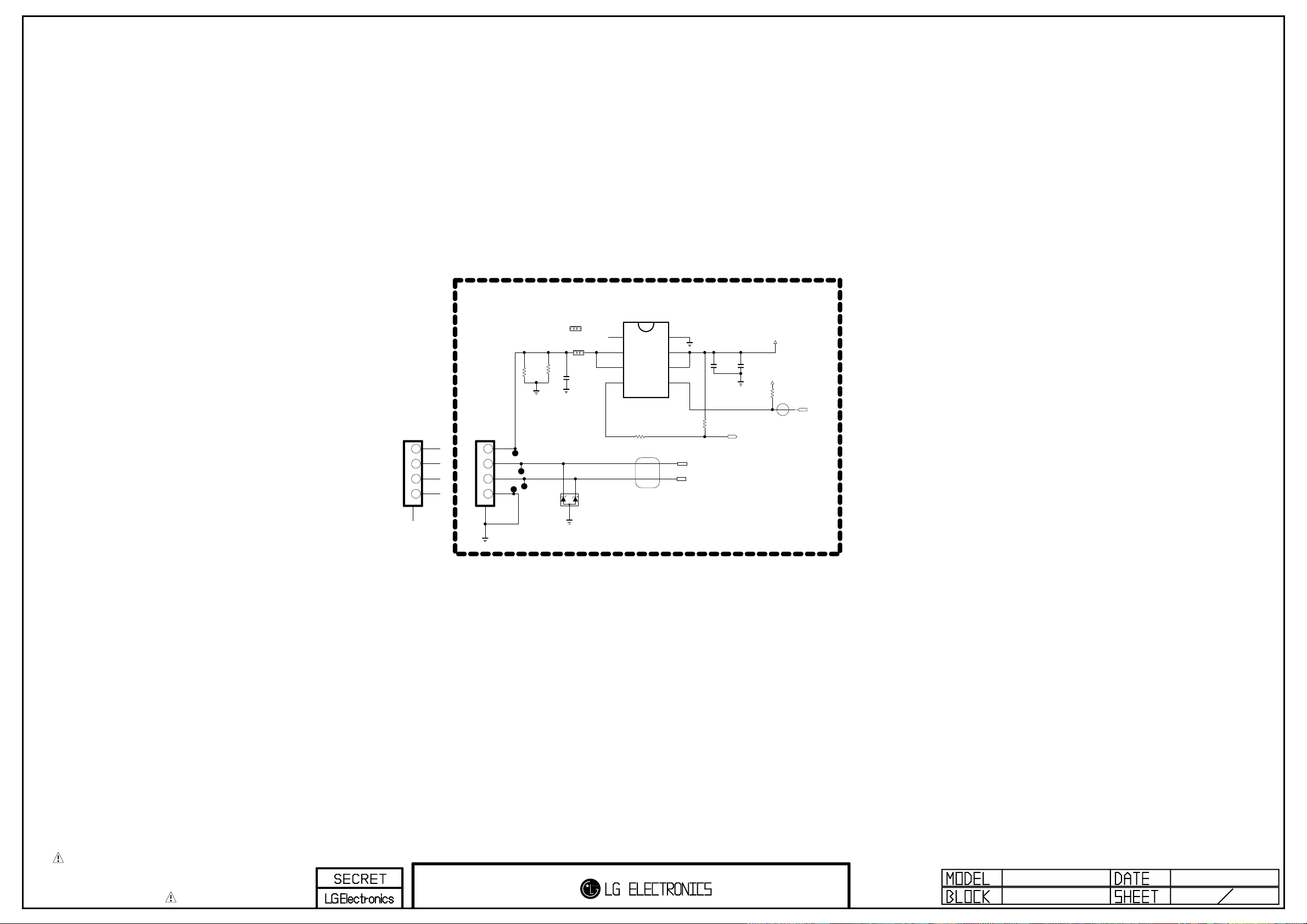

USB_JACK_LV3400

JK1450-*1

1234

USB DOWN STREAM

3AU04S-345-ZC-H-LG

5

USB_DIODES

R1458
2K
1/8W
1%

USB_JACK

JK1450

USB DOWN STR EAM

3AU 04S-3 05-Z C-(LG )

1234

5

SIGN6409

L1451-*1

CIS21J121

L1451

MLB-201209-0120P-N2

120-ohm

R1459
2K

C1451
1/8W
1%

22uF

16V

D1451
RCLAMP0502BA

OPT

OUT_2

OUT_1

NC

FLG

EAN61849601

IC1450

AP2191DSG

8

$0.077

7

6

5

R1451 47

GND

1

IN_1

2

IN_2

3

EN

4

SIDE_USB_DM

SIDE_USB_DP

R1454
10K

C1452
10uF
10V

USB1_OCD

C1453

0.1uF

+5V_USB

+3.3V_Normal

R1455

4.7K
OPT

USB1_CTL

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

20101023GP2R

USB_OCP_DIODE 7

HDMI_1

HDMI_1

EAG59023302

SHIELD

20

JK802

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

5V_HDMI_1

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

R896
1K

R804

1.8K

OPT

D802

5V_DET_HDMI_1

3.3K

R802

C802

0.1uF
16V

R824

HDMI EEPROM

5V_HDMI_1

+5V_Normal

A1CA2

ENKMC2838-T112

R874

10K

R884

2.7K

5V_HDMI_2

10K

R873

R885

2.7K

D821

R888

2.7K

+5V_Normal

A2

A1
ENKMC2838-T112
D822

C

R889

2.7K

EDID_WP

DDC_SCL_1

DDC_SDA_1

EDID_WP

DDC_SCL_2

DDC_SDA_2

HDMI_1_RENESAS

IC801-*1

R1EX24002ASAS0A

C

Q802

2SC3052

0

R830

B

10K

E

HPD1

DDC_SDA_1

DDC_SCL_1

HDMI_CEC

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

A0

1

A1

2

A2

3

VSS

4

HDMI_2_RENESAS

IC802-*1

R1EX24002ASAS0A

A0

1

A1

2

A2

3

VSS

4

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

HDMI_1_ATMEL

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

IC801

$0.055

HDMI_2_ATMEL

IC802

$0.055

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

R876 22

R875 22

JP810

R878 22

R877 22

C806

0.1uF

C807

0.1uF

HDMI_2

SHIELD

20

HDMI_2

EAG59023302

JK801

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_2

R895

1K

R803

1.8K

5V_DET_HDMI_2

C

R828

Q801

2SC3052

C801

0.1uF
16V

R801

3.3K

R815 0

OPT

D801

10K

B

E

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SIDE_HDMI

BODY_SHIELD

20

19

18

17

16

15

14

13

12

11
10

EAG62611201

9

HDMI_SIDE

8

7

6

5

4

3

2

1

JK803

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

5V_HDMI_4

R897

1K
R837

1.8K

+5V_Normal

C809

0.1uF

+3.3V_Normal

R856
10K

C805

0.1uF
16V

GND

R893
10K

GND

5V_HDMI_4

R871

R887

2.7K

C810

0.1uF
16V

10K

+3.5V_ST

A1CA2
ENKMC2838-T112
D824

R891

2.7K

R857

68K

OPT

CEC_ON/OFF

R853

68K

EDID_WP

DDC_SCL_4

DDC_SDA_4

CEC_REMOTE_S7

CEC_REMOTE_NEC

5V_DET_HDMI_4

C

Q803

2SC3052

C803

0.1uF
16V

3.3K

JP806

JP805

R841

0

R835

OPT

D811

R862

B

10K

E

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

HDMI_SIDE_RENESAS

IC804-*1

R1EX24002ASAS0A

A0

1

A1

2

A2

3

VSS

4

VCC

8

WP

7

SCL

6

SDA

5

For CEC

HDMI_CEC

OPT

D803

AVRL161A1R1NT

GND

OPT

D826

AVRL161A1R1NT

GND

HDMI_SIDE_ATMEL

AT24C02BN-SH-T

A0

1

A1

2

A2

3

GND

4

D804

D825

IC804

$0.055

VCC

8

WP

7

JP812

SCL

6

5

R881 22

SDA

R882 22

68K

R854

R855

0

OPT

SBD

Q806

G

BSS83

68K

R892

R883

0

OPT

SBD

Q805

G

BSS83

20101023 GP2R

HDMI 8

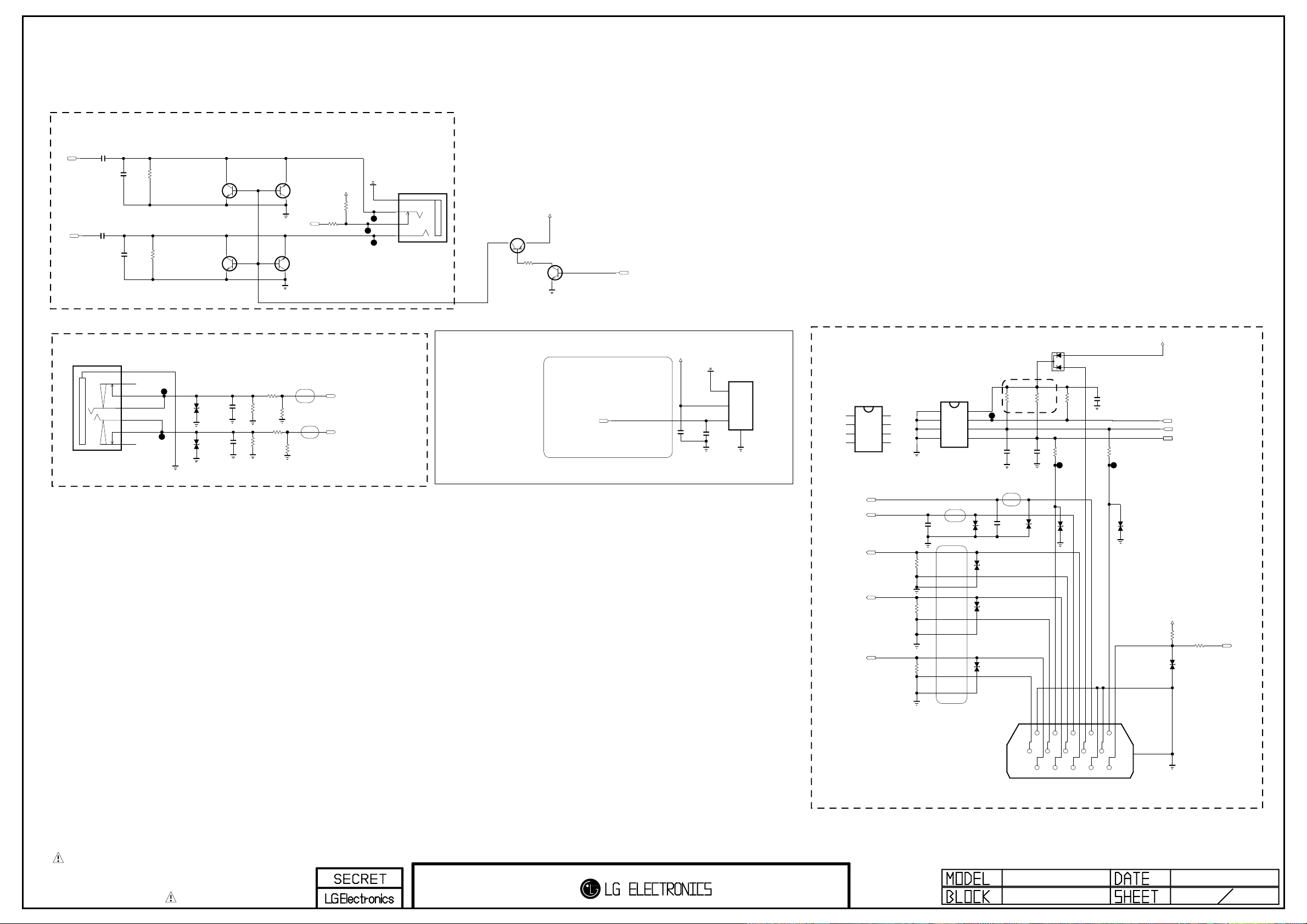

RGB/SPDIF/PC/HP

New Item Development

EARPHONE BLOCK

HP_LOUT

002:V7

HP_ROUT

002:V7

C1118
10uF
16V

C1119
10uF
16V

C1115
1000pF
50V

OPT

C1116
1000pF
50V

OPT

R1125
1K

R1128

1K

Q1101

MMBT3904-(F)

Q1102

MMBT3904-(F)

C

B

E

C

B

E

MMBT3904-(F)

B

MMBT3904-(F)

B

E

Q1104

C

E

Q1103

C

HP_DET

+3.3V_Normal

R1130

10K

R1155
1K

HEAD_PHONE

JK3301

KJA-PH-0-0177

5GND

4L

3DETECT

1R

C

Q1105

ISA1530AC1

E

B

R1129

3.3K

+3.5V_ST

C

E

B

Q1106

2SC3052

SIDE_HP_MUTE

PC AUDIO

JK1102

PEJ027-01

E_SPRING

3

T_TERMINAL1

6A

B_TERMINAL1

7A

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

D1101
AMOTECH

5.6V
OPT

D1102

AMOTECH

5.6V

OPT

C1107

100pF

50V

C1108
100pF
50V

R1102
470K

R1103
470K

R1107
15K

R1108
15K

R1110
10K

R1111

10K

PC_R_IN

PC_L_IN

002:S12

002:S12

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

002:T18

+3.3V_Normal

C1131

0.1uF
16V

VINPUT

C1121
100pF
50V

D1116

5.6V
OPT

+5V_Normal

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

R1146
10K

D1117

5.6V

OPT

R1147
1K

DSUB_DET

RGB PC

GND

Fiber Optic

1

VCC

2

JK1103

JST1223-001

3

4

FIX_POLE

RGB_EEMPROM_RENESAS

R1EX24002ASAS0A

A0

A1

A2

VSS

DSUB_VSYNC

DSUB_HSYNC

DSUB_B+

DSUB_G+

DSUB_R+

IC1105-*1

1

2

3

4

VCC

8

WP

7

SCL

6

SDA

5

R1133
75

R1135
75

R1137
75

RGB_EEMPROM_ATMEL

A0

A1

A2

GND

C1122
68pF
50V
OPT

IC1105

AT24C02BN-SH-T

1

2

3

4

R1139

D1109

30V

D1111
30V

D1112
30V

D1110
30V

C1127

18pF

2.2K

50V

C1126
68pF
50V

OPT

VCC

8

WP

7

SCL

6

SDA

5

C1128
18pF

50V

D1113

30V

D1115

ENKMC2838-T112

A1

C

A2

R1140

2.2K

R1141
22

D1114

5.6V

OPT

R1142

10K

C1129

0.1uF

16V

R1143
22

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

JK1104

SPG09-DB-010

11

6

1

SHILED

16

RGB/SPDIF/HP 9

20101023GP2R

RS232C

0.33uF

C1101

C1102

0.1uF

C1103

0.1uF

C1104

0.1uF

C1105

0.1uF
DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC1101

MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

10

5

9

4

R1123
100

S7_NEC_RXD

S7_NEC_TXD

R1124
100

+3.5V_ST

D1107
CDS3C30GTH
30V

OPT

C1106

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

D1108
CDS3C30GTH
30V

OPT

JP1121

JP1122

8

7

6

SPG09-DB-009

JK1101

3

2

1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

20101023GP2R

RS232C_9PIN 10

[51Pin LVDS Connector]
(For FHD 60/120Hz)

P703

FI-RE51S-HF-J-R1500

WAFER_FHD

52

PANEL_VCC

L702
120-ohm
WAFER_FHD

C709

C700
10uF
16V

R703

0

LVDS_PWM_44

R701

0

3D_SG

R702

0

3D_SG

OPT

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

RXB4-

RXB4+

RXB3-

RXB3+

RXBCK-

RXBCK+

RXB2-

RXB2+

RXB1-

RXB1+

RXB0-

RXB0+

R707
0

LVDS_51PIN_GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

C710

1000pF

0.1uF

50V

16V

OPT

WAFER_FHD

RXA4-

RXA4+

RXA3-

RXA3+

BIT_SEL

R709

10K

BIT_SEL_LOW

SCAN_BLK2

SCAN_BLK1/OPC_OUT

PWM_DIM

LED_DRIVER_D/L_SDA

LED_DRIVER_D/L_SCL

100

LVDS_51PIN_GPIO

R706

[41Pin LVDS Connector]
(For FHD 120Hz)

FI-RE41S-HF-J-R1500

LVDS_SEL

+3.3V_Normal

R705

3.3K
OPT

R710
10K

OPT

2D/3D_CTL

P704

WAFER_FHD_120HZ

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

RXD4-

RXD4+

RXD3-

RXD3+

RXDCK-

RXDCK+

RXD2-

RXD2+

RXD1-

RXD1+

RXD0-

RXD0+

RXC4-

RXC4+

RXC3-

RXC3+

RXCCK-

RXCCK+

RXC2-

RXC2+

RXC1-

RXC1+

RXC0-

RXC0+

[30Pin LVDS Connector]
(For HD 60Hz_Normal)

P705

FF10001-30

HD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

OPT

R7130

TP721

TP722

RXA3-

RXA3+

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

PWM_DIM

OPC_OUT

LVDS_SEL

+3.3V_Normal

R712

3.3K

R711
10K

C701
10uF
16V

OPT

OPT

OPT

C702
1000pF
50V

PANEL_VCC

L701

120-ohm

HD

OPT

C703

0.1uF
16V

HD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

20101023GP2R

LVDS_LARGE 11

VCC_1.5V_DDR

R1201

1K 1%

R1202

1K 1%

C1201

0.1uF

A-MVREFDQ

1000pF

C1202

VCC_1.5V_DDR

R1204

1K 1%

R1205

1K 1%

C1203

0.1uF

C1204

1000pF

A-MVREFCA

VCC_1.5V_DDR

C1205

10uF

DDR3 1.5V By CAP - Place these Caps near Memory

C1206

0.1uF

C1207

0.1uF

C1208

0.1uF

C1210

0.1uF

C1211

0.1uF

C1212

0.1uF

C1213

Close to DDR Power Pin

CLose to Saturn7M IC

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13

A-MBA0
A-MBA1
A-MBA2

A-MCKE

A-MODT
A-MRASB
A-MCASB
A-MWEB

A-MRESETB

A-MDQSL
A-MDQSLB

A-MDQSU
A-MDQSUB

A-MDML
A-MDMU

A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

R1235

56

R1236

56

VCC_1.5V_DDR

R1231
10K

1%

C1209

0.01uF

1%

25V

A-MCK

A-MCKB

A-MA11

A-MA1
A-MA8
A-MA6

A-MBA0

A-MA3
A-MA5
A-MA7

A-MA4
A-MA12
A-MBA1
A-MA10

A-MRESETB

A-MBA2
A-MA13

A-MA9

A-MCK

A-MCKB

A-MRASB
A-MCASB

A-MODT
A-MWEB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDQL1
A-MDQL3

A-MDML

A-MDQU2

A-MCKE
A-MDQL7
A-MDQL5

A-MDQL0
A-MDQL2
A-MDQL6
A-MDQL4

A-MDQU7
A-MDQU3
A-MDQU5

A-MDMU

A-MDQU6
A-MDQU0
A-MDQU4

A-MDQU1

A-MCKE

A-MA0

A-MA2

R1213

1%

56

R1214

1%

56

AR1208

56

AR1203

56

AR1204

56

AR1201

56

R1206

22

R1207

22

AR1202

56

R1208

22

R1209

22

R1211

22

R1212

22

AR1209

22

AR1210

22

AR1205

22

AR1206

22

AR1207

22

R1210

22

R1233 10K

A-TMA0

A-TMA2

A-TMA11
A-TMA1
A-TMA8
A-TMA6

A-TMBA0
A-TMA3
A-TMA5
A-TMA7

A-TMA4
A-TMA12
A-TMBA1
A-TMA10

A-TMRESETB
A-TMBA2
A-TMA13
A-TMA9

A-TMCK

A-TMCKB

A-TMRASB
A-TMCASB
A-TMODT
A-TMWEB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB

A-TMDQL1
A-TMDQL3
A-TMDML

A-TMDQU2

A-TMCKE
A-TMDQL7
A-TMDQL5

A-TMDQL0
A-TMDQL2
A-TMDQL6
A-TMDQL4

A-TMDQU7
A-TMDQU3
A-TMDQU5
A-TMDMU

A-TMDQU6
A-TMDQU0
A-TMDQU4

A-TMDQU1

A-TMRESETB

A-MVREFCA

A-MVREFDQ

VCC_1.5V_DDR

240

1%

R1203

CLose to DDR3

H5TQ1G63DFR-H9C

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

EAN61828901

IC1201

DDR_1333_HYNIX

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

0.1uF

C1214

A-TMA0
A-TMA1
A-TMA2
A-TMA3
A-TMA4
A-TMA5
A-TMA6
A-TMA7
A-TMA8

A-TMA9
A-TMA10
A-TMA11
A-TMA12
A-TMA13

A-TMBA0
A-TMBA1
A-TMBA2

A-TMCK
A-TMCKB
A-TMCKE

A-TMODT

A-TMRASB
A-TMCASB

A-TMWEB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB

A-TMDML
A-TMDMU

A-TMDQL0
A-TMDQL1
A-TMDQL2
A-TMDQL3
A-TMDQL4
A-TMDQL5
A-TMDQL6
A-TMDQL7

A-TMDQU0
A-TMDQU1
A-TMDQU2
A-TMDQU3
A-TMDQU4
A-TMDQU5
A-TMDQU6
A-TMDQU7

0.1uF

C1215

C1216

0.1uF

0.1uF

0.1uF

0.1uF

C1217

C1218

C1219

0.1uF

C1220

+1.5V_DDR

L1201

S7M-PLUS_DivX_MS10

LGE107DC-RP [S7M+ DIVX/MS10]

B8

A_DDR3_A0/DDR2_A13

B9

A_DDR3_A1/DDR2_A8

A8

A_DDR3_A2/DDR2_A9

C21

A_DDR3_A3/DDR2_A1

B10

A_DDR3_A4/DDR2_A2

A22

A_DDR3_A5/DDR2_A10

A10

A_DDR3_A6/DDR2_A4

B22

A_DDR3_A7/DDR2_A3

C9

A_DDR3_A8/DDR2_A6

C23

A_DDR3_A9/DDR2_A12

B11

A_DDR3_A10/DDR2_RASZ

A9

A_DDR3_A11/DDR2_A11

C10

A_DDR3_A12/DDR2_A0

B23

A_DDR3_A13/DDR2_A7

B21

A_DDR3_BA0/DDR2_BA2

A11

A_DDR3_BA1/DDR2_CASZ

A23

A_DDR3_BA2/DDR2_A5

A12

A_DDR3_MCLK/DDR2_MCLK

C11

A_DDR3_MCLKZ/DDR2_MCLKZ

B12

A_DDR3_CKE/DDR2_DQ5

C20

A_DDR3_ODT/DDR2_ODT

A20

A_DDR3_RASZ/DDR2_WEZ

B20

A_DDR3_CASZ/DDR2_BA1

A21

A_DDR3_WEZ/DDR2_BA0

C22

A_DDR3_RESETB

C16

A_DDR3_DQSL/DDR2_DQS0

B16

A_DDR3_DQSLB/DDR2_DQSB0

A16

A_DDR3_DQSU/DDR2_DQSB1

C15

A_DDR3_DQSUB/DDR2_DQS1

A14

A_DDR3_DML//DDR2_DQ13

B18

A_DDR3_DMU/DDR2_DQ6

C18

A_DDR3_DQL0/DDR2_DQ3

B13

A_DDR3_DQL1/DDR2_DQ7

A19

A_DDR3_DQL2/DDR2_DQ1

C13

A_DDR3_DQL3/DDR2_DQ10

C19

A_DDR3_DQL4/DDR2_DQ4

A13

A_DDR3_DQL5/DDR2_DQ0

B19

A_DDR3_DQL6/DDR2_CKE

C12

A_DDR3_DQL7/DDR2_DQ2

A15

A_DDR3_DQU0/DDR2_DQ15

A17

A_DDR3_DQU1/DDR2_DQ9

B14

A_DDR3_DQU2/DDR2_DQ8

C17

A_DDR3_DQU3/DDR2_DQ11

B15

A_DDR3_DQU4/DDR2_DQM1

A18

A_DDR3_DQU5/DDR2_DQ12

C14

A_DDR3_DQU6/DDR2_DQM0

B17

A_DDR3_DQU7/DDR2_DQ14

0.1uF

0.1uF

0.1uF

C1221

C1222

C1225
10uF
10V

IC101

B_DDR3_MCLK/DDR2_MCLK

B_DDR3_MCLKZ/DDR2_MCLKZ

B_DDR3_DQSL/DDR2_DQS0

B_DDR3_DQSLB/DDR2_DQSB0

B_DDR3_DQSU/DDR2_DQSB1
B_DDR3_DQSUB/DDR2_DQS1

B_DDR3_DQL3/DDR2_DQ10

B_DDR3_DQU0/DDR2_DQ15

B_DDR3_DQU3/DDR2_DQ11
B_DDR3_DQU4/DDR2_DQM1
B_DDR3_DQU5/DDR2_DQ12
B_DDR3_DQU6/DDR2_DQM0
B_DDR3_DQU7/DDR2_DQ14

0.1uF

0.1uF

C1223

C1224

VCC_1.5V_DDR

C1226

0.1uF
16V

B_DDR3_A0/DDR2_A13

B_DDR3_A1/DDR2_A8
B_DDR3_A2/DDR2_A9
B_DDR3_A3/DDR2_A1
B_DDR3_A4/DDR2_A2

B_DDR3_A5/DDR2_A10

B_DDR3_A6/DDR2_A4
B_DDR3_A7/DDR2_A3
B_DDR3_A8/DDR2_A6

B_DDR3_A9/DDR2_A12

B_DDR3_A10/DDR2_RASZ

B_DDR3_A11/DDR2_A11

B_DDR3_A12/DDR2_A0
B_DDR3_A13/DDR2_A7

B_DDR3_BA0/DDR2_BA2

B_DDR3_BA1/DDR2_CASZ

B_DDR3_BA2/DDR2_A5

B_DDR3_CKE/DDR2_DQ5

B_DDR3_ODT/DDR2_ODT
B_DDR3_RASZ/DDR2_WEZ
B_DDR3_CASZ/DDR2_BA1

B_DDR3_WEZ/DDR2_BA0

B_DDR3_RESETB

B_DDR3_DML/DDR2_DQ13

B_DDR3_DMU/DDR2_DQ6

B_DDR3_DQL0/DDR2_DQ3
B_DDR3_DQL1/DDR2_DQ7
B_DDR3_DQL2/DDR2_DQ1

B_DDR3_DQL4/DDR2_DQ4
B_DDR3_DQL5/DDR2_DQ0
B_DDR3_DQL6/DDR2_CKE
B_DDR3_DQL7/DDR2_DQ2

B_DDR3_DQU1/DDR2_DQ9
B_DDR3_DQU2/DDR2_DQ8

0.1uF

DDR3 1.5V By CAP - Place these Caps near Memory

C1227

0.1uF

C1228

0.1uF

C1229

0.1uF

C1230

0.1uF

C1231

0.1uF

C1232

0.1uF

C1233

0.1uF

C1234

0.1uF

C1235

0.1uF

C1236

0.1uF

C1237

0.1uF

C1238

0.1uF

C1239

0.1uF

C1241

0.1uF

C1242

0.1uF

C1243

0.1uF

C1244

0.1uF

VCC_1.5V_DDR

C1245

10uF

C1246

B-MVREFCA

1000pF

VCC_1.5V_DDR

0.1uF

C1247

C1248

R1224

1K 1%

B-MVREFDQ

R1225

1K 1%

1000pF

VCC_1.5V_DDR

0.1uF

C1249

C1250

R1227

1K 1%

R1228

1K 1%

Close to DDR Power Pin

CLose to Saturn7M IC

B-TMA0

B-TMA2

B-TMA11

B-TMA1
B-TMA8
B-TMA6

B-TMBA0

B-TMA3
B-TMA5
B-TMA7

A25
B24
A24
P25
C24
P26
B26
R24
B25
T26
D24
A26
C25
T25

P24
C26
R26

D26
D25
E24

N25
M26
N24
N26

R25

J25
J24

H26
H25

F26
L24

L25
F24
L26
F25
M25
E26
M24
E25

G26
J26
G24
K25
H24
K26
G25
K24

B-TMA0
B-TMA1
B-TMA2
B-TMA3
B-TMA4
B-TMA5
B-TMA6
B-TMA7
B-TMA8
B-TMA9
B-TMA10
B-TMA11
B-TMA12
B-TMA13

B-TMBA0
B-TMBA1
B-TMBA2

B-TMCK
B-TMCKB
B-TMCKE

B-TMODT
B-TMRASB
B-TMCASB
B-TMWEB

B-TMRESETB

B-TMDQSL
B-TMDQSLB

B-TMDQSU
B-TMDQSUB

B-TMDML
B-TMDMU

B-TMDQL0
B-TMDQL1
B-TMDQL2
B-TMDQL3
B-TMDQL4
B-TMDQL5
B-TMDQL6
B-TMDQL7

B-TMDQU0
B-TMDQU1
B-TMDQU2
B-TMDQU3
B-TMDQU4
B-TMDQU5
B-TMDQU6
B-TMDQU7

B-TMA4
B-TMA12
B-TMBA1
B-TMA10

B-TMRESETB

B-TMBA2
B-TMA13

B-TMA9

B-TMCK

B-TMCKB

B-TMRASB
B-TMCASB

B-TMODT
B-TMWEB

B-TMDQSL

B-TMDQSLB

B-TMDQSU

B-TMDQSUB

B-TMDQL1
B-TMDQL3

B-TMDML

B-TMDQU2

B-TMCKE

B-TMDQL7
B-TMDQL5

B-TMDQL0
B-TMDQL2
B-TMDQL6
B-TMDQL4

B-TMDQU7
B-TMDQU3
B-TMDQU5

B-TMDMU

B-TMDQU6
B-TMDQU0
B-TMDQU4

B-TMDQU1

R1215

56

R1216

56

AR1211

56

AR1214

AR1215

AR1219

R1222

R1223

AR1220

R1219

22

R1220

22

R1217

22

R1218

22

AR1212

22

AR1213

22

AR1216

AR1217

AR1218

R1221

22

B-MA0

1%

B-MA2

1%

B-MA11
B-MA1
B-MA8
B-MA6

B-MBA0
B-MA3
B-MA5
B-MA7

56

B-MA4
B-MA12
B-MBA1
B-MA10

56

B-MRESETB
B-MBA2
B-MA13
B-MA9

B-MCK

B-MCKB

B-MRASB
B-MCASB
B-MODT
B-MWEB

B-MDQSL

B-MCK

B-MCKB

VCC_1.5V_DDR

C1240

0.01uF
25V

1%

1%

R1232

56

22

22

56

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDQL1
B-MDQL3
B-MDML
B-MDQU2

B-MCKE
B-MDQL7
B-MDQL5

B-MDQL0
B-MDQL2
B-MDQL6
B-MDQL4

22

B-MDQU7
B-MDQU3
B-MDQU5
B-MDMU

22

B-MDQU6
B-MDQU0
B-MDQU4

22

B-MDQU1

R123410K

B-MCKE

10K

56

R1237

56

R1238

B-MRASB
B-MCASB

B-MRESETB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7

B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7

B-MODT

B-MWEB

B-MDML
B-MDMU

B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8

B-MA9
B-MA10
B-MA11
B-MA12
B-MA13

B-MBA0
B-MBA1
B-MBA2

B-MCKE

DDR_DVB_T2_2G

IC1201-*3

K4B2G1646C

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

EAN61828901

IC1202

H5TQ1G63DFR-H9C

DDR_1333_HYNIX

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

DDR_DVB_T2_2G

IC1202-*3
K4B2G1646C

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

NC_1
NC_2
NC_3
NC_4
NC_6

M8

B-MVREFCA

H1

B-MVREFDQ

R1226

L8

ZQ

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

240

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

1%

VCC_1.5V_DDR

GP2R

DDR_256

CLose to DDR3

IC1201-*1

K4B1G1646G-BCH9

DDR_1333_SS_NEW

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1201-*2

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3

EAN61857201A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDDQ_1

VDDQ_2

VDDQ_3

VDDQ_4

VDDQ_5

VDDQ_6

VDDQ_7

VDDQ_8

VDDQ_9

VSS_10

VSS_11

VSS_12

VSSQ_1

VSSQ_2

VSSQ_3

VSSQ_4

VSSQ_5

VSSQ_6

VSSQ_7

VSSQ_8

VSSQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

IC1202-*1

K4B1G1646G-BCH9

DDR_1333_SS_NEW

N3

M8

A0

P7

A1

P3

A2

N2

H1

A3

P8

A4

P2

A5

R8

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

H1

L8

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

IC1202-*2

NT5CB64M16DP-CF

DDR_1333_NANYA_NEW

N3

EAN61857201A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12

T3

NC_6

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

ZQ

ZQ

NC_1
NC_2
NC_3
NC_4
NC_7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VREFCA

VREFDQ

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

M8

H1

L8

ZQ

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

20101023

12

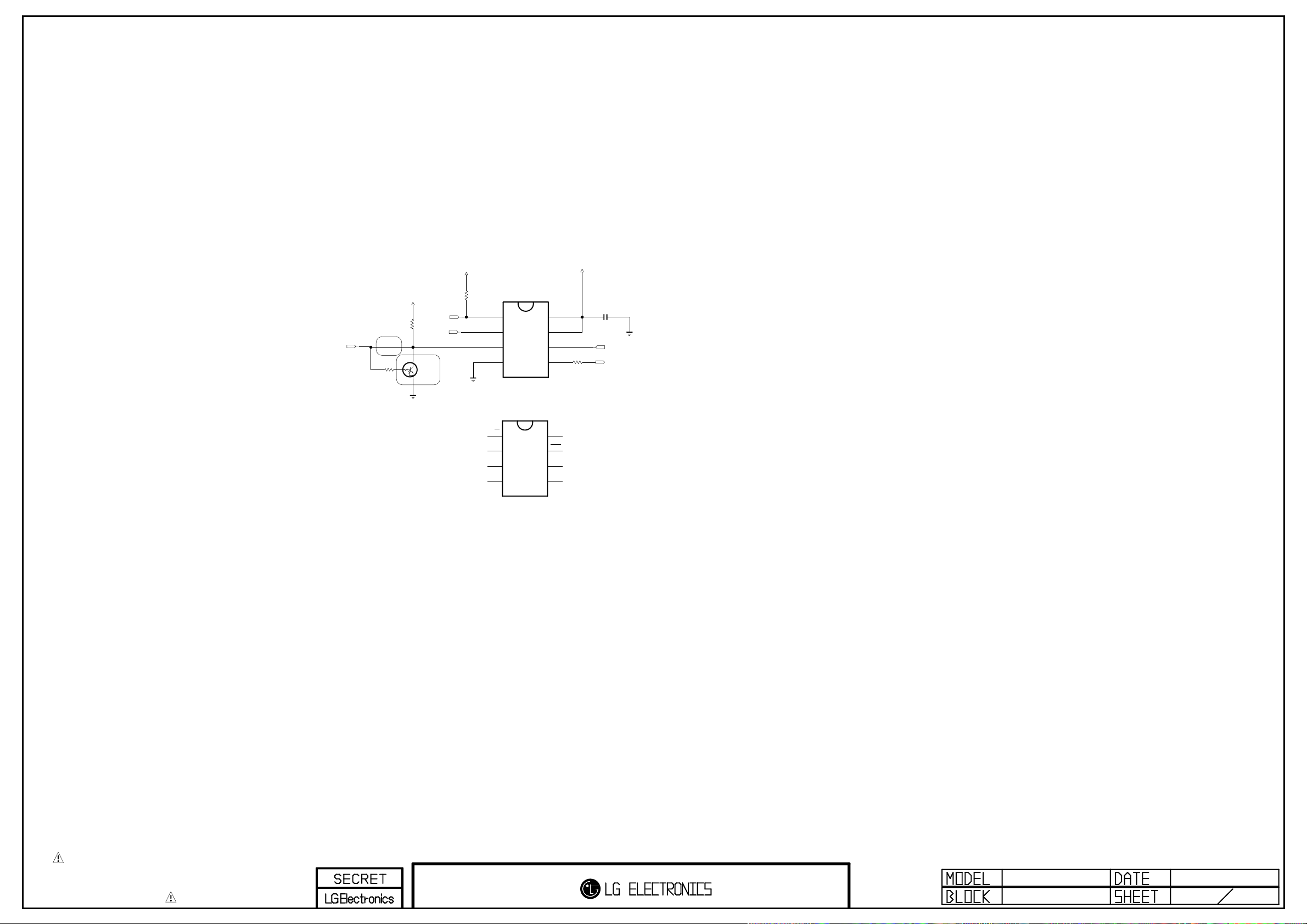

/FLASH_WP

R1401

OPT

+3.3V_Normal

B

0

R1403

10K

C

Q1401
KRC103S

E

/SPI_CS

SPI_SDO

OPT

+3.3V_Normal

R1404

4.7K

S_FLASH_MAIN_MACRONIX

MX25L8006EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND

4

S_FLASH_MAIN_WINBOND

IC1401-*1

W25Q80BVSSIG

CS

1

DO[IO1]

2

%WP[IO2]

3

GND

4

IC1401

8

7

6

5

8

7

6

5

VCC

HOLD#

SCLK

SI/SIO0

VCC

HOLD[IO3]

CLK

DI[IO0]

+3.3V_Normal

R1405
33

C1401

0.1uF

SPI_SCK

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

SFLASH_1MB

20101023

13

GP2R_LARGE_TUNER

close to TUNER

OPT

R3762 0

CN_2INPUT_H_LG3911

TU3702
TDTJ-S001D

DVB_1INPUT_H_LGIT

TUNER MULTI-OPTION

TU3702-*1
TDVJ-H101F

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

19

SHIELD

GP3_ATSC_1INPUT_H_LGIT

RF_S/W_CTL

1

BST_CTL

2

+B1[5V]

3

NC_1[RF_AGC]

4

NC_2

5

SCLT

6

SDAT

7

NC_3

8

SIF

9

NC_4

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

NTSC_2INPUT_H_LGIT

RESET

15

IF/AGC

16

DIF_1[N]

17

DIF_2[P]

18

19

SHIELD

TU3702-*2
TDTR-T036F

19

SHIELD

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC[IF_TP]

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

GP3_ATSC_1INPUT_H_SANYO

TU3702-*3
UDA55AL

NC_1

1

NC_2

2

+B[+5V]

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC(IF_TP)

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+1.2V

13

+3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

19

SHIELD

GP2R_AU_1INPUT_H_LGIT

TU3702-*4
TDTJ-S101D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

SHIELD

ANT_PWR

NC_1

+B1[5V]

RF_AGC

MOPLL_AS

SCL

SDA

NC_2

SIF

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

IF_AGC

DIF_1[N]

DIF_2[P]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

31

SHIELD

TU3701
TDFR-C036D

close to TUNER

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

R3701 100

FULL_NIM

18

19

20

21

22

23

24

25

26

27

28

29

30

R3705 0
C3701

0.1uF
16V

R3707 0

C3706

0.1uF
16V

C3702

0.1uF 16V

C3737
100pF
50V

FULL_NIM

R3702 100

close to IF line

RF_SW_OPT

OPT

close to TUNER

+1.2V/+1.8V_TU

FULL_NIM

C3738

0.1uF
16V

C3705

100uF

16V

+5V_TU

C3704

C3703

0.1uF

100pF

16V

50V

close to the tuner pin, add,09029

CONTROL_ATTEN

CN
C3739
10uF

6.3V

Close to the tuner

Pull-up can’t be applied
because of MODEL_OPT_2

C3728

0.1uF
16V

OPT

+3.3V_TU

C3707
100pF
50V

HALF_NIM

R3760 0

R3761 0

HALF_NIM

FULL_NIM_CHINA

FULL_NIM_CHINA

RF_SWITCH_CTL

C3731
10uF
10V

OPT

C

Q3704

2SC3052

OPT

E

C3708

0.1uF
16V

R3724

FULL_NIM

FULL_NIM

FULL_NIM

R3725

FULL_NIM

FULL_NIM

FULL_NIM

FULL_NIM

FULL_NIM

FULL_NIM

R3727

R3728

R3729

R3726

R3721

R3722

R3723

Close to the CI Slot

R3706

FULL_NIM_BR

B

R3730

R3731

OPTION : RF AGC

R3754
10K

OPT

FE_AGC_SPEED_CTL
IF_AGC_SEL

TU_I2C_NON_FILTER

+3.3V_TU

R3733

R3732

100K

100

C3710

0.1uF

16V

IF_N_MSTAR

IF_P_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils
Ground Width >= 24mils

0

0

0

0

0

0

0

0

0

0

0

0

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

TU_I2C_NON_FILTER

C3711
18pF
50V

TUNER_RESET

R3704

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

GPIO must be added.

33

TU_I2C_NON_FILTER

C3713

33

TU_I2C_NON_FILTER

18pF
50V

TU_I2C_FILTER

C3711-*1
20pF
50V

TU_I2C_FILTER

TU_I2C_FILTER

R3735-*1

COIL

0

HALF_NIM

BOOSTER_OPT

TU_IIC_NON_ATSC_SANYO

R3740-*1
1K

TU_IIC_ATSC_SANYO

R3735

R3736

C3742
20pF

TU_I2C_FILTER

50V

C3713-*1
20pF
50V

TU_I2C_FILTER

TU_I2C_FILTER

R3736-*1

C3743
20pF
50V

COIL

IF_AGC_MAIN

should be guarded by ground

C3712
22pF
50V

FULL_NIM

FE_TS_DATA[0-7]

FULL_NIM_BR

TU3701-*2
TDFR-B036F

RF_S/W_CNTL

1

BST_CNTL

2

+B1[5V]

3

NC_1[RF_AGC]

4

NC_2

5

SCLT

6

SDAT

7

NC_3

8

SIF

9

NC_4

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_5

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

31

SHIELD

+5V_TU

C3709

0.01uF
25V

+3.3V_TU

R3740

1.2K

L3701

BLM18PG121SN1D

BOOSTER_OPT

R3734
0

Q3701
ISA1530AC1

E

B

C

BOOSTER_OPT

TU_IIC_ATSC_SANYO

R3741

1.2K

FULL_NIM

C3714
22pF
50V

FULL_NIM

BOOSTER_OPT

BOOSTER_OPT

R3737

2.2K

C

Q3702

2SC3052

E

TU_IIC_NON_ATSC_SANYO

R3741-*1
1K

TU_SCL

TU_SDA

+3.3V_TU

R3742

R3744

4.7K

4.7K
FULL_NIM

CN_2INPUT_H_ALTO

TU3701-*4
TDFR-C236D

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SHIELD

BOOSTER_OPT

R3743
10K

BOOSTER_OPT

B

BOOSTER_OPT

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

NC_4

SCL

SDA

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

BOOSTER : CHINA OPT

R3745
10K

FE_BOOSTER_CTL

LNA2_CTL

The pull-up/down of LNA2_CTL
is depended on MODLE_OPT_1.
GPIO must be added for FE_BOOSTER_CTL

R3749 0

R3750

1K

OPT

DEMOD_SCL

DEMOD_SDA

+5V_TU

R3751
220

B

+3.3V_TU

C3717

0.1uF
16V

+5V_Normal

FULL_NIM_BCD

R3752

220

E

Q3703

ISA1530AC1

C

HALF_NIM_1.2V_DIODES

Please, check multi Item! 10/12

R3771 10K
FULL_NIM_BCD

R3770 10K

FULL_NIM_SEMTEK

R3769 10K

FULL_NIM_BCD

L3704

200mA

IC3703-*1

AP1117EG-13

OUTIN

ADJ/GND

+5V_TU

C3719
22uF
10V

TUNER_L

R3753

4.7K

TU_CVBS

HALF_NIM_1.2V_BCD

AZ1117BH-ADJTRE1

INPUT

IC3701

AP2132MP-2.5TRG1

PG

1

FULL_NIM_BCD

EN

2

VIN

3

VCTRL

4

IC3701-*1

SC4215ISTRT

NC_1

1
FULL_NIM_SEMTEK

EN

2

VIN

3

NC_2

4

MLB-201209-0120P-N2

C3724

0.1uF
16V

GP2R

+5V_TU

R3755

470

E

B

Q3705

C

IC3703

ADJ/GND

3

1

2

HALF_NIM

OUTPUT

R3768

1.2K
R1

[EP]

GND

8

ADJ

9

7

THERMAL

VOUT

6

NC

5

GND

8

ADJ

7

VO

6

NC_3

5

+5V_TUNER

L3702

C3722
22uF
16V

location movement,0929

R3758
82

TU_SIF

ISA1530AC1

DEMOD_RESET

This was being applied to the only china demod,
so this has to be deleted in both main and ISDB sheet.

R2

HALF_NIM

R3767

+1.2V/+1.8V_TU

10

HALF_NIM

R3766
1

1/10W

HALF_NIM

FULL_NIM_BCD

R3748-*1
10K

FULL_NIM_SEMTEK

R3748

5.1K

R1

R3747

9.1K

FULL_NIM

1005

R2

C3740

0.1uF
16V

C3741
10uF
10V

HALF_NIM

+1.2V/+1.8V_TU

FULL_NIM

C3729

0.1uF
16V

Vo=0.8*(1+R1/R2)

C3726

0.1uF
16V

+3.3V_TU

60mA

Size changeSize change

L3703

MLB-201209-0120P-N2

C3725

C3723

0.1uF

22uF

16V

10V

20101023

14

R3703
150
OPT

380mA

R3764

0

1/10W
FULL_NIM

FULL_NIM
C3730
10uF
10V

+3.3V_Normal

C3715
22uF
10V

Add,0929

C3727

0.1uF
16V

+3.3V_Normal

C434

0.1uF
16V

IC404

AP1117E18G-13

IN

Vd=1.4V

3

2

OUT

1

ADJ/GND

R474

+1.8V_AMP

1

C446

C421

0.1uF

10uF

16V

10V

120 mA

+24V

AUD_LRCH

AUD_LRCK

AUD_SCK
AMP_SDA
AMP_SCL

+1.8V_AMP

L501

BLM18PG121SN1D

OPT
C501

10uF

10V

AUD_MASTER_CLK

+1.8V_AMP

L502

BLM18PG121SN1D

C502

0.1uF
16V

AMP_RESET

OPT

C503

10uF

10V

R503 100

R504 100
R505 100

R506 33
R507 33

C506

1000pF

50V

C504
100pF

0.1uF

50V

C505

16V

C509

0.1uF

C508
1000pF
50V

R508

3.3K

C507
18pF
50V

+3.3V_Normal

L504

BLM18PG121SN1D

TP502

C433
10uF
10V

C510
18pF
50V

D501

OPT

R535

3.3
OPT

C525

22000pF

50V

R515

10K

Q501

2SC3052

C526

0.1uF
50V

POWER_DET

+3.5V_ST

C

E

C547

0.01uF
50V

+24V

C519

0.1uF
50V

C518
22000pF
50V

C520
1uF
25V

VDR1B44BST1B45PGND1B_1

43

42
41
40
39
38
37
36
35
34
33
32
31
30
29

28

PGND2B_1

C521
10uF
35V

NC
VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2

R514 100

C52 2

R513
0

1uF25V

OPT

C524
22000pF

50V

C515

0.1uF
50V

C514

22000pF

50V

PGND1B_2

OUT1B_1

OUT1B_2

PVDD1B_1

PVDD1B_2

PVDD1A_1

PVDD1A_2

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

EP_PAD

46

47

48

49

50

51

52

53

54

55

56
BST1A
VDR1A

/RESET

DGND_1
GND_IO

CLK_I

VDD_IO
DGND_PLL
AGND_PLL

AVDD_PLL
DVDD_PLL

C545
22pF
50V

OPT

AD

LF

GND

C513

0.1uF
16V

1
2
3
4
5
6
7
8
9
10
11
12
13
14

THERMAL

57

IC501

EAN60969603

NTP-7100

15

16

17

WCK19BCK20SDA21SCL

DVDD

SDATA

DGND_2

18

22

25

/FAULT

MONITOR023MONITOR124MONITOR2

C51 7
1uF
25V

C516
1000pF
50V

26

VDR2B27BST2B

C51 2

1uF 2 5V

OPT

+1.8V_AMP

OPT
C511
10uF

10V

C544

C546

22pF

22pF

50V

50V

OPT

OPT

1N4148W

100V

OPT

D502

1N4148W

100V

OPT

D503

1N4148W

100V

OPT

D504

1N4148W

100V

OPT

C527

0.1uF
50V

R517

B

10K

C528
10uF
35V

R519

12

C529
390pF

50V

C530
390pF

50V

R520

12

R521

12

C531
390pF

50V

C532
390pF

50V

R522

12

AMP_MUTE

R526

R524

R525

12

R523

12

12

12

L506

10.0uH

NRS6045T100MMGK

10.0uH

L507

NRS6045T100MMGK

NRS6045T100MMGK

L508

10.0uH

L509

10.0uH

NRS6045T100MMGK

C534

0.47uF
50V

C535

0.47uF

50V

C536

0.1uF
50V

C537

0.1uF
50V

C538

0.1uF
50V

C539

0.1uF

50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

R527

4.7K

R528

4.7K

R529

4.7K

R530

4.7K

SPK_L+

SPEAKER_L

SPK_L-

SPK_R+

SPEAKER_R

SPK_R-

WAFER-ANGLE

4

3

2

1

P501

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

AMP_NTP

20101023

16

Rear AV

JK1604

PPJ233-01

FIX-TER

PPJ-230-01

JK1601

COMPONENT1

REAR_AV

11

5C

4C

3C

4B

3A

4A

5A

10

9

8

7

6

5

4

13

[RD]E-LUG

[RD]O-SPRING

[RD]CONTACT

[WH]C-LUG

[YL]CONTACT

[YL]O-SPRING

[YL]E-LUG

[GN]GND

[GN]G

[GN]C_DET

[BL]B

[RD]R

[WH]L_IN

[RD]R_IN

[RD]MONO

L-MONO

0

R4223

COMPONENT1

EU_OPT

PSC008-01

JK1602

Full Scart/ Comp1

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

R4221

0

EU_OPT

REAR_AV

D1619
30V

R1654
75

REAR_AV

REAR_AV

D1626

5.6V

C1643
47pF
50V
REAR_AV

D1625

5.6V

REAR_AV

R1672

470K

REAR_AV

D1624

5.6V
OPT

R1671

470K

REAR_AV

D1602

30V

OPT

D1603

30V

OPT

D1604

30V

D1605

30V

D1606

30V

D1607

5.6V
NON_EU

D1609

5.6V
NON_EU

D1608

5.6V
OPT

D1601

5.6V
OPT

C1648
220pF
50V

OPT

+3.3V_Normal

C1646

0.1uF
16V

REAR_AV

L1609

120-ohm

REAR_AV

L1610

120-ohm

REAR_AV

D1610

30V

OPT

R1660
10K

REAR_AV

R1604
75

R1605

R1607
470K

R1608
75

75

R1606
470K

R1666

1K

REAR_AV

C1663
330pF

50V

REAR_AV

C1662
330pF
50V

REAR_AV

AV_CVBS_IN

REAR_AV

R1685
10K

REAR_AV

R1684
10K

D1611

5.6V
OPT

R1689

12K

EU_OPT
R1609
75

REAR_AV

R1688
12K

REAR_AV

EU_OPT
L1602
BLM18PG121SN1D

AV_CVBS_DET

AV_R_IN

AV_L_IN

+3.3V_Normal

R1613
10K

EU_OPT
C1604
47pF
50V

SC1_R+/COMP1_Pr+

SC1_G+/COMP1_Y+

SC1_B+/COMP1_Pb+

L1604

120-ohm

L1603

120-ohm

EU_OPT

L1601
BLM18PG121SN1D

C1607

0.1uF
16V

C1608
220pF
50V

OPT

R1614

1K

EU_OPT
R4210
0

C1611
330pF
50V

C1612

330pF

50V

EU_OPT

C1609
1000pF
50V

EU_OPT
C1610
1000pF
50V

OPT
D1618

30V

R1617
10K

R1618
10K

SC1_SOG_IN

SC1_CVBS_IN

EU_OPT
R1616

75

SC1/COMP1_DET

ISA1530AC1

EU_OPT
R1628
75

EU_OPT
R1627
22

EU_OPT
R1623
15K

COMPONENT2

6A

5A

4A

7B

5B

7C

5C

5D

4E

5E

6E

PPJ234-01

JK1603

REAR_COMP2

EU_OPT

E

Q1601

B

C

EU_OPT

R4211
390

EU_OPT
R1635
390

Rf
EU_OPT
C1620

Gain=1+Rf/Rg

100uF
16V

SC1_FB

OPT
30V

D1716

EU_OPT
R1629

3.9K

R1630
12K

R1631
12K

EU_OPT
C1618
4700pF

EU_OPT
C1619
4700pF

SC1_ID

SC1/COMP1_L_IN

SC1/COMP1_R_IN

[GN]E-LUG

[GN]O-SPRING

[GN]CONTACT

[BL]E-LUG-S

[BL]O-SPRING

[RD]E-LUG-S

[RD]O-SPRING_1

[WH]O-SPRING

[RD]CONTACT

[RD]O-SPRING_2

[RD]E-LUG

EU_OPT

R1640

470

EU_OPT
Q1602

2SC3052

C

B

E

EU_OPT

Rg

R1639
180

REC_8

DTV/MNT_L_OUT

DTV/MNT_R_OUT

EU_OPT
R1641
47K

EU_OPT
R1642
15K

D1614 30V

EU_OPT
C1621
47uF
16V

+3.3V_Normal

OPT

D1612

30V

D1615

30V

D1616

D1617

IN CASE OF SMALL= 15V

EU_OPT
L1606

EU_OPT
C1623

0.1uF
50V

R1612

10K

5.6V

5.6V

D1613

5.6V

+12V/+15V

EU_OPT

C1625

0.1uF
50V

DTV/MNT_VOUT

R1625
470K

R1626

470K

R1615
1K

R1619
75

R16 20
75

R16 21

75

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

DTV/MNT_R_OUT

EU_OPT
Q1607
2SC3052

EU_OPT
Q1608
2SC3052

C1616
1000pF
50V

C1617
1000pF
50V

EU_OPT
R1648
2K

EU_OPT
R1650
2K

R1633
10K

R1632
10K

COMP2_DET

COMP2_Y+

COMP2_Pb+

COMP2_Pr+

R1636

12K

OPT

R1634

12K

OPT

COMP2_L_IN

COMP2_R_IN

CLOSE TO MSTAR

C1664

0.01uF

R4219 100

R4216 100

SCART1_MUTE

C1665

0.01uF

EU_OPT
RT1P141C-T112
Q1610

3

1

2

EU_OPT
C1636

0.1uF

+12V/+15V

EU_OPT
R1652

10K

C1642

0.1uF
50V

EU_OPT

SCART1_Lout

SCART1_Rout

+3.5V_ST

ETHERNET FOR DVB_T2

TP1610

TP1611

TP1612

TP1613

TP1614

TP1615

TP1616

TP1617

TP1618

TP1619

TP1620

DTV/MNT_L_OUT

R4218
22K

R4217

22K

DTV/MNT_R_OUT

EU_OPT

[SCART PIN 8]

OPT
R1675
2K

SC_RE1

SC_RE2

OPT
R1676

560

OPT
R1678
680

EU_OPT
C1644
10uF

16V

C1645
10uF
16V

OPT
R1677
10K

OPT
R1681
1K

EU_OPT
R1655

2.2K

R1680
1K

EU_OPT
R1656

2.2K

OPT
R1662
470K

R1687
10K

OPT

EU_OPT

R1657

5.6K

EU_OPT

R1658

5.6K

OPT

B

OPT
R1661
470K

C

Q1611
2SC3052

E

OPT

ET_RXD0
ET_TXD0

ET_RXD1
ET_TXD1
ET_REF_CLK

ET_TX_EN
ET_MDC

ET_MDIO
ET_CRS

ET_RXER
/RST-PHY

EU_OPT
R1664
33K

EU_OPT
C1654
33pF

EU_OPT
R1665
33K

C1655

33pF
EU_OPT

EU_OPT

+12V/+15V

IN CASE OF SMALL= 15V

OPT
R1695
12K

C

B

Q1613

E

2SC3052

OPT

EU_OPT
R1667
10K

R1668
10K

OPT

NON_INV_IN1

NON_INV_IN2

OUT1

IN1-

IN1+

VCC

IN2+

IN2-

OUT2

R4207
51K

OUT1

1

INV_IN1

2

3

VCC

4

5

INV_IN2

6

OUT2

7

EU_OPT_BCD

IC1601

AS324MTR-E1

1

2

3

4

5

6

7

C

B

Q1615
2SC3052

E

IC1601-*1

SN324

EU_OPT_AUK

14

13

12

11

10

9

8

OPT

REC_8

OUT4

IN4-

IN4+

GND

IN3+

IN3-

OUT3

14

13

12

11

10

9

8

OUT4

INV_IN4

NON_INV_IN4

GND

NON_INV_IN3

INV_IN3

OUT3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

REAR_JACK

20101023

17

PPJ235-01

JK9903

SIDE_AV_3HOLE

5A

[YL]E-LUG

4A

[YL]O-SPRING

3A

[YL]CONTACT

4B

[WH]O-SPRING

3C

[RD]CONTACT

4C

[RD]O-SPRING

5C

[RD]E-LUG

SIDE CVBS PHONE JACK

(New Item Development)

JK9901

KJA-PH-1-0177

SIDE_AV_GENDER

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

ADUC30S03010L_AMODIODE

SIDE COMPONENT PHONE JACK

(New Item Developmen)

JK9902

KJA-PH-1-0177

5 M5_GND

4 M4

3 M3_DETECT

1 M1

6 M6

SIDE_COMP

SIDE_CVBS

D9901

30V

OPT

D9902

SIDE_CVBS

D9903

5.6V

SIDE_CVBS

D9904

5.6V

5.6V

ADMC5M03200L_AMODIODE

ADMC5M03200L_AMODIODE

ADMC5M03200L_AMODIODE

+3.3V_Normal

D9907
30V

SIDE_COMP

D9905
30V

SIDE_COMP

D9906

30V

SIDE_COMP

SIDE_CVBS

R9907

75

SIDE_CVBS

SIDE_CVBS

SIDE_CVBS

R9906
470K

R9905
470K

R9904

10K

SIDE_COMP

D9908

5.6V
OPT

+3.3V_Normal

C9901

100pF

SIDE_CVBS
L9902

BLM18PG121SN1D

SIDE_CVBS

L9901

BLM18PG121SN1D

SIDE_COMP

SIDE_COMP

SIDE_COMP

SIDE_CVBS

L9903

BLM18PG121SN1D

SIDE_CVBS

10K

R9911

R9912
1K

SIDE_COMP

R9910
75

75
R99 09

75
R99 08

SIDE_CVBS

C9906

100pF

50V

SIDE_CVBS

C9905

100pF

50V

SIDE_CVBS

R9915
1K

SIDE_CVBS

R99 14

10K

SIDE_CVBS

R99 13

10K

C9907

100pF

OPT

SIDE_CVBS
R9917
12K

SIDE_CVBS
R9916

12K

COMP2_DET

SIDEAV_CVBS_IN

SIDEAV_DET

SIDEAV_L_IN

SIDEAV_R_IN

COMP2_Y+

COMP2_Pb+

COMP2_Pr+

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

SIDE_JACK

20101023

18

CI Region

* Option name of this page : CI_SLOT

(because of Hong Kong)

CI SLOT

+3.3V_Normal

C1901

0.1uF

OPT

/CI_CD1

CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

CI_IORD
CI_IOWR

CI_MDI[0]
CI_MDI[1]
CI_MDI[2]
CI_MDI[3]

CI_MDI[4]
CI_MDI[5]
CI_MDI[6]
CI_MDI[7]

PCM_RST

/PCM_WAIT

REG

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

L1901

BLM18PG121SN1D

/CI_CD2

+3.3V_CI

0.1uF

R1901

C1902

AR1901

R1902

47

AR1902

AR1903

+5V_Normal

33

47

33

33

+5V_Normal

10K

R1903

C1903

0.1uF
16V

R1908 100

R1905

10K

0.1uF

C1905

GND

R1906

10K

R1907

100

R1909 0

R1904

10K C1904

0.1uF
16V

CI DETECT

/CI_CD2

/CI_CD1

CI POWER ENABLE CONTROL

+5V_Normal

C1907

PCM_5V_CTL

C1906
10uF
10V

GND

OPT

0.1uF
16V

+5V_CI_ON

R1910

OPT

0

CI_SLOT_OR_GATE_NXP

74LVC1G32GW

1B 5 VCC

3GND2A4

EAG41860102

CI_SLOT_JACK_LV3400

10067972-000LF

10067972-050LF

CI_SLOT_JACK

35

35
36

36
37

37
38

38
39

39
40

40
41

41
42

42
43

43
44

44
45

45
46

46
47

47
48

48
49

49
50

50
51

51
52

52
53

53
54

54
55

55
56

56
57

57
58

58
59

59

65

65
66

66
67

67
68

68

2

GND

IC1901

Y

R1912

10K

OPT

R1913
10K

P1901
P1902

69

R1924

10K

G1G2

G1G2

1

+3.3V_CI

CI_DATA[0-7]

CI_DATA[0-7]

1
2
3

3
4

4
5

5
6

6
7

7
8

8
9

9

10

10
11

11
12

12
13

13
14

14
15

15
16

16
17

17

R1916

18

18
19

19
20

20
21

21
22

22
23

23
24

24
25

25
2660

2660
2761

2761
2862

2862
2963

2963
3064

3064
31

31
32

32
33

33
34

34

16V

0.1 uF

C19 08

OPT

GND

R1915

47

R1914
22K

R1922

2.2K

C

Q1901

B

2SC3052

E

0

OPT

GND

Q1902

RSR025P03

S

C1911

4.7uF
16V

+3.3V_CI

G

R1917

D

R1919

10K

R1918

47

R1920

C1909

0.1uF

CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

47

100

GND

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]

CI_DET

L1902

BLM18PG121SN1D

C1910

0.1uF

16V

/PCM_CD

CI_DATA[0-7]

+5V_CI_ON

R1923

10K

OPT

R1921

10K

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

C1912

0.1uF
16V

OPT

/PCM_CE

CI_OE

CI_WE

CI_ADDR[0-14]

/PCM_IRQA

CI HOST I/F

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI TS INPUT

AR1905

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]

CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

REG

33

AR1906

33

AR1904

33

IC1902

1OE

1

TOSHIBA

1A1

2

0ITO742440D

2Y4

3

1A2

4

2Y3

5

1A3

6

2Y2

1A4

2Y1

GND

TC74LCX244FT

7

8

9

10

AR1907

33

AR1908

33

AR1912

33

AR1913

33

AR1909

33

CI_MDI[7]

CI_MDI[6]

CI_MDI[5]

CI_MDI[4]

CI_MDI[3]
CI_MDI[2]
CI_MDI[1]
CI_MDI[0]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

CI_DET

PCM_A[0]

PCM_A[1] PCM_A[7]

PCM_A[2]

PCM_A[3]

CI_DATA[0-7]

CI_DATA[0-7]

CI_ADDR[8]

CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]

CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

CI_OE

CI_WE
CI_IORD
CI_IOWR

FE_TS_DATA[7]
FE_TS_DATA[6]
FE_TS_DATA[5]
FE_TS_DATA[4]

FE_TS_DATA[3]
FE_TS_DATA[2]
FE_TS_DATA[1]
FE_TS_DATA[0]

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

+3.3V_CI

VCC

20

2OE

19

1Y1

18

2A4

17

1Y2

16

2A3

15

1Y3

14

2A2

13

1Y4

12

2A1

11

C1913

0.1uF
16V

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]

PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]

PCM_A[8]
PCM_A[9]

PCM_A[10]
PCM_A[11]

PCM_A[12]
PCM_A[13]
PCM_A[14]
/PCM_REG

/PCM_WE

/PCM_IORD

/PCM_IOWR

@netLa

FE_TS_DATA[0-7]

CI_ADDR[0]

CI_ADDR[1]

PCM_A[6]

CI_ADDR[2]

PCM_A[5]

CI_ADDR[3]

PCM_A[4]

PCM_D[0-7]

PCM_D[0-7]

/PCM_OE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

PCMCI

20101023

20

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES

SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.

FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS

ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR

THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

8.5T_GAS

MDS62110209

GAS1-*5

8.5T_GAS

MDS62110209

GAS2-*5

8.5T_GAS

MDS62110209

GAS3-*5

8.5T_GAS

MDS62110209

GAS4-*5

8.5T_GAS

MDS62110209

GAS5-*5

8.5T_GAS

MDS62110209

GAS6-*5

8.5T_GAS

MDS62110209

GAS7-*5

12.5T_GAS

MDS61887708

GAS1-*4

12.5T_GAS

MDS61887708

GAS2-*4

12.5T_GAS

MDS61887708

GAS3-*4

12.5T_GAS

MDS61887708

GAS4-*4

12.5T_GAS

MDS61887708

GAS5-*4

12.5T_GAS

MDS61887708

GAS6-*4

12.5T_GAS

MDS61887708

GAS7-*4

9.5T_GAS

MDS61887710

GAS1-*3

9.5T_GAS

MDS61887710

GAS2-*3

9.5T_GAS

MDS61887710

GAS3-*3

9.5T_GAS

MDS61887710

GAS4-*3

9.5T_GAS

MDS61887710

GAS5-*3

9.5T_GAS

MDS61887710

GAS6-*3

9.5T_GAS

MDS61887710

GAS7-*3

7.5T_GAS

MDS62110205

GAS1-*2

7.5T_GAS

MDS62110205

GAS2-*2

7.5T_GAS

MDS62110205

GAS3-*2

7.5T_GAS

MDS62110205

GAS4-*2

7.5T_GAS

MDS62110205

GAS5-*2

7.5T_GAS

MDS62110205

GAS6-*2

7.5T_GAS

MDS62110205

GAS7-*2

5.5T_GAS

MDS62110204

GAS1-*1

5.5T_GAS

MDS62110204

GAS2-*1

5.5T_GAS

MDS62110204

GAS3-*1

5.5T_GAS

MDS62110204

GAS4-*1

5.5T_GAS

MDS62110204

GAS5-*1

5.5T_GAS

MDS62110204

GAS6-*1

5.5T_GAS

MDS62110204

GAS7-*1

6.5T_GAS

MDS62110206

GAS1

6.5T_GAS

MDS62110206

GAS2

6.5T_GAS

MDS62110206

GAS3

6.5T_GAS

MDS62110206

GAS4

6.5T_GAS

MDS62110206

GAS5

6.5T_GAS

MDS62110206

GAS6

6.5T_GAS

MDS62110206

GAS7

SMD GASKET

SMD_GAS

GP2R

20101023

20

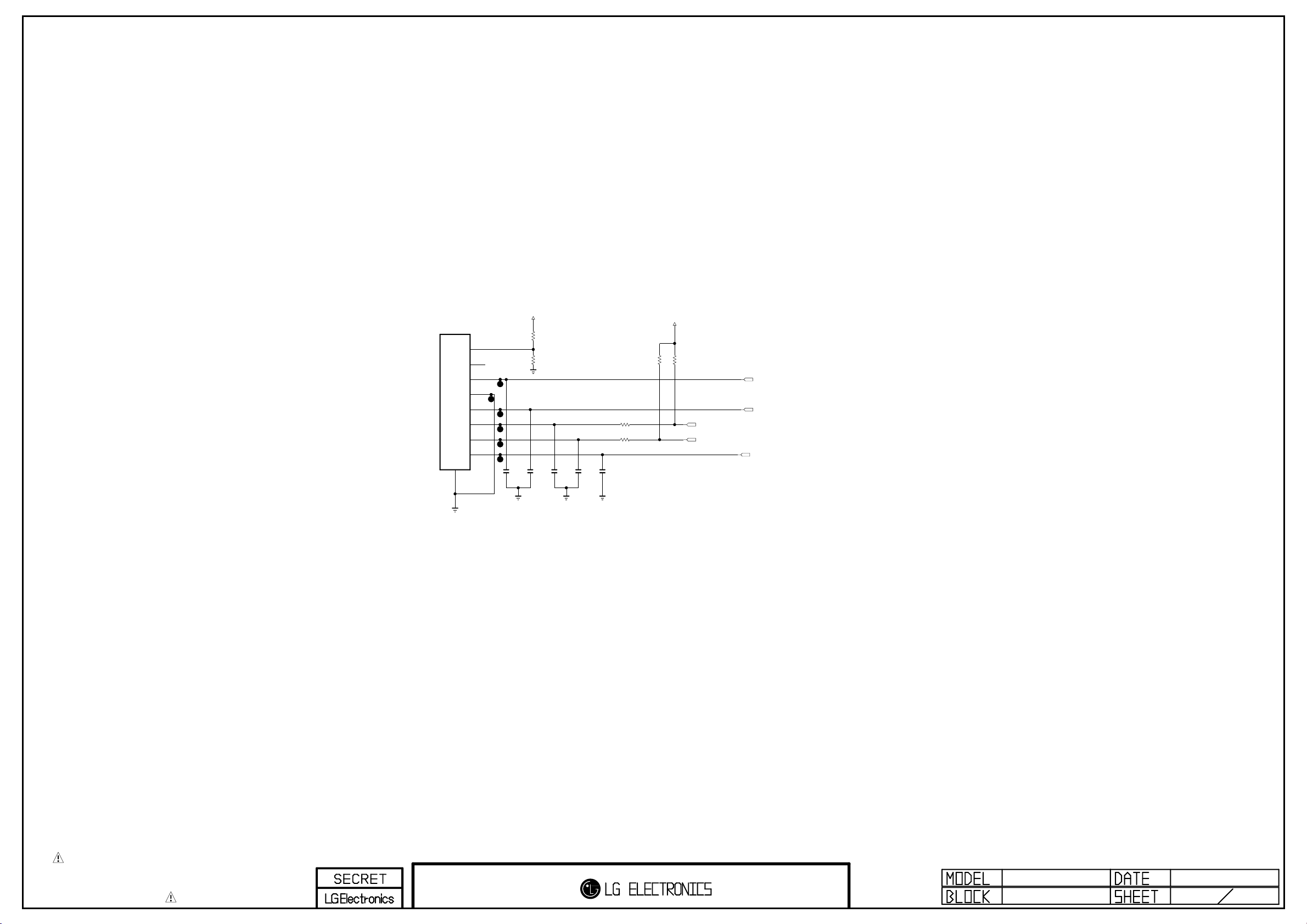

L/DIM_LED/DRIVER

P2100

12507WR-08L

1

2

3

4

5

6

7

8

9

C2100
18pF
50V

OPT

+3.3V_Normal

R2102
10K

R2103
10K

FRC_L/DIM_REVERSE_SEL

C2101
18pF
50V

OPT

+3.3V_Normal

OPT

R2100

2.2K

R2101

2.2K

LED_DRIVER_D/L

LED_DRIVER_D/L_SCL

LED_DRIVER_D/L_SDA

L/DIM_SCLK

L/DIM_MOSI

V_SYNC

C2102
18pF
50V

OPT

C2103
18pF
50V

OPT

LED_DRIVER_D/L

R4029
22

R4028
22

LED_DRIVER_D/L

C2104
18pF
50V

OPT

LED_DRIVER_D/L

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2R

L/DIM_LED

20101023

21

TI solution RF-3D OPTION

P3401

12507WR-12L

3D_SG

13

.

3D_SG

+3.3V_Normal

R3411

2.7K
3D_SG

R3412

2.7K
3D_SG

M_RFModule_RESET

DC_MREMOTE

DD_MREMOTE

FREQ.

3D Off

60Hz

59.94Hz

50Hz

RESERVED

RESERVED

RESERVED

RESERVED

GPOIO_0

GPOIO_1

0 0
0
0
0
1
1
1
1

0
0
1
1
0
0
1
1

GPOIO_2

1
0
1
0
1
0
1

+3.3V_Normal

L3401

120-ohm

3.3V

1

GND

2

RX

3

TX

4

RESET

5

DC

6

DD

7

GND

8

GPIO_0

9

GPIO_1

10

GPIO_2

11

3D_SYNC

12

3D_SG
R3402
100

3D_SG
R3401
100

3D_SG

3D_SG
R3408
100

3D_SG
R3409
100

3D_SG
R3407
100

3D_SG
R3406
22

3D_SG
R3404
22

3D_SG
R3405
22

3D_SG
R3403
22

M_REMOTE_RX

M_REMOTE_TX

3D_GPIO_0

3D_GPIO_1

3D_GPIO_2

3D_SYNC_RF

R3410

2.7K

ALL 3D-SG OPTION

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
