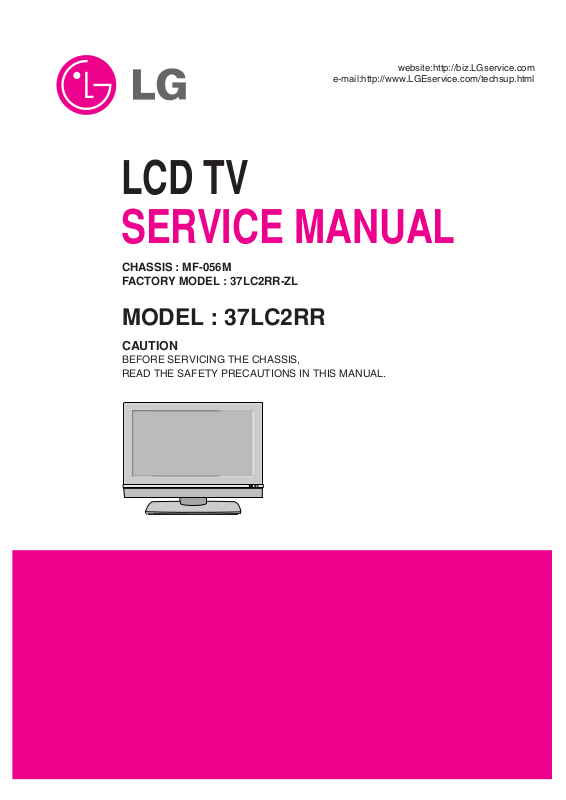

LG 37LC2RR-ZL, 42LC2RR-ZL Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : MF-056M FACTORY MODEL : 37LC2RR-ZL

MODEL : 37LC2RR

website:http://biz.LGservice.com

e-mail:http://www.LGEservice.com/techsup.html

- 2 -

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ..................................................................................3

SPECIFICATION ........................................................................................6

ADJUSTMENT INSTRUCTION................................................................11

SERVICE REMOTE CONTROL...............................................................17

TROUBLE SHOOTING GUIDE................................................................18

BLOCK DIAGRAM...................................................................................25

EXPLODED VIEW .................................................................................. 28

EXPLODED VIEW PARTS LIST..............................................................29

REPLACEMENT PARTS LIST ............................................................... 30

SVC. SHEET ...............................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500°F to 600°F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

- 6 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

4.General Specification(TV)

1. Application range

1) This spec sheet is applied all of the 42" LCD TV with MF056M chassis.

2) Not included spec and each product spec in this spec sheet apply correspondingly to the following each country standard and requirement of Buyer

2. Specification

Each part is tested as below without special appointment.

1) Temperature : 20±5°C

2) Relative Humidity : 65±10%

3) Power Voltage : Standard input voltage

(100~240V@50/60Hz)

* Standard Voltage of each product is marked by models

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM.

5) The receiver must be operated for about 20 minutes prior to the adjustment.

3. Test method

1) Performance : LGE TV test method followed

2) Demanded other specification Safety : UL, CSA, IEC specification EMC : FCC, ICES, IEC specification

No Item Specification Remark

1. Video input applicable system PAL-D/K, B/G, I, NTSC-M, SECAM

NTSC 4.43

2. Receivable Broadcasting System 1) PAL/SECAM BG NTSC M(Option)

2) PAL/SECAM DK

3) PAL I/I

4) SECAM L/L'

3. RF Input Channel VHF : E2 ~ E12 PAL

UHF : E21 ~ E69

CATV : S1 ~ S20

HYPER : S21~ S47

L/L' : B, C, D FRANCE

4. Input Voltage AC 100 ~ 240V/50Hz, 60Hz

5. Market EU

6. Picture Size 940.3mm (diagonal) 37.02 inch

7. Tuning System FVS 100 program PAL, 200 PR.(Option)

8. Operating Environment 1) Temp : 0 ~ 35 deg

2) Humidity : 10~80 %RH

9. Storage Environment 3) Temp : -20 ~ 60 deg

4) Humidity : 10~80 %

10. Display LCD Module LPL

11. Aspect ratio 16:9

- 7 -

No Item Specification Remark

1 Panel 37" TFT WXGA LCD

2 Frequency range H : 31 ~ 61Khz PC Input

V : 56 ~ 75Hz

3 Control Function 1) Contrast/Brightness

2) H-Position / V-Position

3) Tracking : Clock / Phase

4) Auto Configure

5) Reset

4 Component Jack 1 : Y Middle east / China

3 : Pb

5 : Pr

7 : LINE1 Ready

9 : LINE2

11 : LINE3

13 : LINE3 Ready

5 H/V-Sync Video Power consumption LED

Power ON - -

≤ 250W White

Stand by

≤ 3.0W Red

Rec. on Stand by - -

≤ 3.0W

Amber

AC Power off - -

- *

6 LCD Module Type Size 37" 877.0 x 516.8 x 55.5 (H)x(V)x(D)

Pixel Pitch 37" 0.200 x 0.600 x RGB

Pixel Format 1366 horiz. By 768 vert.

Pixels RGB strip arrangement

Coating Hard coating(3H), Anti-glare

reatment of the front polarizer

Back Light 37" 20EEFL

5. General Specification

- 8 -

6.Optical Feature(LCD Module)

No Item Specification

Min. Typ. Max. Remark

1 Viewing Angle <CR

≥

10> R/L, U/D 178

2 Luminance Luminance(cd/m

) 400 500

Unit : cd/m

Condition:Maximum

Luminance of LCD Module

250 350

Condition:RF/AV,

PSM:Dynamic,Full White

250 300

Condition:PC/HDMI,

PSM:Dynamic,Full White

Variation 1.3 MAX/MIN

3 Contrast Ratio CR 600 800

(With AI)

1200 1600

4 CIE Color Coordinates White Wx Typ 0.285 Typ LPL(37")

Wy -0.03 0.293 +0.03 Condition:216 Pattern

Red Xr 0.640 (85IRE), PSM Dynamic

Yr 0.341

Green Xg 0.287

Yg 0.610

Blue Xb 0.146

Yb 0.069

7. Component Video Input (Y, C

B/PB, CR/PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

1. 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)

2. 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)

3. 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I)

4. 720*480 31.47 59.94 27.000 SDTV 480P

5. 720*480 31.50 60.00 27.027 SDTV 480P

6. 720*576 31.25 50.00 27.000 SDTV 576P

7. 1280*720 44.96 59.94 74.176 HDTV 720P

8. 1280*720 45.00 60.00 74.250 HDTV 720P

9. 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz

10. 1920*1080 33.72 59.94 74.176 HDTV 1080I

11. 1920*1080 33.75 60.00 74.250 HDTV 1080I

12. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,

9. Mechanical specification

No, Item Content Remark

1 Product Dimension Width(W) Length(D) Height(H)

Before Packing 944 286 726 With Stand

After Packing 1052 383 855

2 Product Weight Only SET 32.2Kg

With Box 37.1kg

- 9 -

8. RGB PC/DTV

9. HDMI Input (PC/DTV)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1 720*400 31.468 70.8 28.321

2 640*480 31.469 59.94 25.17 VESA

37.684 75.00 31.5 VESA

3 800*600 37.879 60.31 40.00 VESA

46.875 75 49.5 VESA

4 832*624 49.725 74.55 57.283

5 1024*768 48.363 60.00 65.00 VESA(XGA)

56.47 70.00 75.00 VESA(XGA)

60.123 75.029 78.75 VESA(XGA)

6 1280*768 47.776 59.870 79.50 VESA(WXGA)

7 1360*768 47.720 59.799 84.75 VESA(WXGA)

8 1366*768 47.720 59.799 84.75 Supported

DTV

9 720*576 31.25 50.00 SDTV 576p 50Hz

10 720*480 31.47 59.94 SDTV 480p 60Hz

11 1280*720 45.00 50.00 HDTV 720p 50Hz HDCP

12 1280*720 44.96 59.94 HDTV 720p 60Hz HDCP

13 1920*1080 28.13 50.00 HDTV 1080i 50Hz HDCP

14 1920*1080 33.72 59.94 HDTV 1080i 60Hz HDCP

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

1 720*400 31.468 70.8 28.321

2 640*480 31.469 59.94 25.17 VESA

37.684 75.00 31.5 VESA

3 800*600 37.879 60.31 40.00 VESA

46.875 75 49.5 VESA

4 832*624 49.725 74.55 57.283

5 1024*768 48.363 60.00 65.00 VESA(XGA)

56.47 70.00 75.00 VESA(XGA)

60.123 75.029 78.75 VESA(XGA)

6 1280*768 47.776 59.870 79.50 VESA(WXGA)

7 1360*768 47.720 59.799 84.75 VESA(WXGA)

8 1366*768 47.720 59.799 84.75 Supported

DTV

9 720*576 31.25 50.00 SDTV 576p 50Hz

10 720*480 31.47 59.94 SDTV 480p 60Hz

11 1280*720 45.00 50.00 HDTV 720p 50Hz HDCP

12 1280*720 44.96 59.94 HDTV 720p 60Hz HDCP

13 1920*1080 28.13 50.00 HDTV 1080i 50Hz HDCP

14 1920*1080 33.72 59.94 HDTV 1080i 60Hz HDCP

- 10 -

10. Mechanical specification

<Table 1> Scart Arrangement 1.(Full Scart)

Pin Signal Signal Level Impedance

1 Audio Output B (right) 0.5 Vrms < 1K

2 Audio Input B (right) 0.5 Vrms > 10K

3 Audio Output A (left) 0.5 Vrms < 1K

4 Ground (audio) - -

5 Ground (blue) - -

6 Audio input A (left) 0.5 Vrms > 10K

7 Blue input 0.7 V 75

8 Function Select (AV control)

High (9.5 - 12V)-AV Mode

Mid (5 - 8V) - Wide Screen, Low (0 - 2V) - TV Mode

> 10KΩ

9 Ground (Green) - -

10 -

11 Green input 0.7 V 75

12 -

13 Ground (Red) - -

14 - - -

15 Red input 0.7 V 75

16 RGB Switching Control High (1 ?3V) ?RGB, Low (0 - 0.4V) -Composite 75 Ω

17 Ground (Video input & Output) - -

18 Ground (RGB Switching Control) - -

19 Video output (Composite) 1V including sync 75

20 Video input (Composite) 1V including sync 75 Ω

21 Common ground (Shield) - -

<Table 2> Scart Arrangement 2.(Half Scart)

Pin Signal Signal Level Impedance

1 Audio Output B (right) 0.5 Vrms < 1KΩ

2 Audio Input B (right) 0.5 Vrms > 10KΩ

3 Audio Output A (left) 0.5 Vrms < 1K

4 Ground (audio) - -

5 Ground (audio) - -

6 Audio input A (left) 0.5 Vrms > 10K

7- - -

8 Function Select (AV control)

High (9.5 - 12V) - AV Mode

Mid (5 - 8V) - Wide Screen, Low (0 - 2V) - TV Mode

> 10KΩ

9- - -

10 - - -

11 - - -

12 - - -

13 Ground - -

14 - - -

15 S-Video C input

16 - - -

17 Ground (Video input & Output) - -

18 Ground - -

19 Video output (Composite) 1V including sync 75

20 Video input (Composite / S-Video Y) 1V including sync 75 Ω

21 Common ground (Shield) - -

- 11 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec sheet is applied all of the 37" LCD TV, MF-056M chassis by manufacturing LG TV Plant or sort plants.

2. Specification.

1) Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help to protect test instruments.

2) Adjustment must be done in the correct sequence.

3) The adjustment must be performed at 25±5°C temperature and 65±10% relative humidity if there is no specified designation.

4) The input voltage of the receiver must be kept between 100~220V, 50/60Hz. Before adjustment, execute Heat-Run for 30 minutes at RF no signal.

3. Channel Memory

3.1. Setting up the LGIDS

1) Install the LGIDS

2) After installation, restart your PC.

3) Extract [files.zip] to folder [c:\LGIDS\files]

4) Start LGIDS.

3.2. Channel memory method

1) Press TILT key in Adjust remocon(Automatic setting).

2) Setting up like bottom figure Confirmation : Press ADJ Key in the Adjust remocon. Select "System Control" by using

D/E (CH+/-) key, and

press

V (ENTER).

3) Connect RS232 cable. (Use the general RS-232C Twisted Serial Cable)

4) Operate LGIDS.

5) Select "Hurricane" and "ALL" on Model dialog and check your connection in Communication dialog. (If your connection is 'NG', then set your PORT (COM1,2,3,...) correctly. If your connection has completed, you can see [READY]

6) Select proper CH_memory file(*.nvm) for each model at [Channel Download]$[Write Batch]. Next, select proper binary file(*.bin) including the CH information for each model at [Channel Download] $ [NVRAM File].

7) Click the [Download] button. It means the completion of the CH memory download if all items show 'OK' and Status is changed by 'PASS' at the lower right corner of the window

4. Sub Program Download

4.1. Sub Program Download for "Hudson"

1) Press TILT key in Adjust remocon(Automatic setting).

2) Setting up like bottom figure (Confirmation: Press ADJ Key in the Adjust remocon. Select "System Control" by using

D/E (CH+/-) key, and

press

V (ENTER).)

Cortez Version 1.00

1.00Hudson Version

40 Hr.Panel Used

59Tool Option 16Area Option

102OPTION 1

2OPTION 2

OPTION 3 3

OPTION 4

System Control Panel Control

192

MF-056A

System 4-SYS

5%Over Scan

2Orbit Fixel

Orbit Step 2

120Orbit Time

Sec.

30Inv.Time

Min.

System Control

Cortez Version 1.00

1.00Hudson Version

40 Hr.Panel Used

59Tool Option 16Area Option

102OPTION 1

2OPTION 2

OPTION 3 3

OPTION 4

System Control Panel Control

192

MF-056A

System 4-SYS

5%Over Scan

2Orbit Fixel

Orbit Step 2

120Orbit Time

Sec.

30Inv.Time

Min.

System Control

- 12 -

3) Connect RS232 cable(Use Download Jig and general RS232C Twisted Serial Cable)

* Before upgrading "Hudson flash memory", push the switch

on the download jig 'inside'.4) Operate LGIDS.

5) Select “Hurricane” and “ALL” on Model dialog and check your connection in Communication dialog. (If your connection is “NG”, then set your PORT (COM1,2,3,...¶) correctly. If your connection has completed, you can see [Ready].

6) First, select proper Batch file(*.flm) for each model at [ROM Download] $ [Batch File]. Second, select proper RAM file(*.hex) for each model at [ROM Download] $ [RAM File]. Third, select roper Flash File(*.hex) for each model at [ROM Download] $ [Flash File].

7) Click the [Download] button. It means the completion of the Hudson download if all items show 'OK' and Status is changed by 'PASS' at the lower right corner of the window.

4.2. Sub Program Download for “DVR”

1) Download Setup

- You must change the DVR Download mode by using the Turbo Sound Key on the remote controller.

2) MDS Program Setup

-Open the MDS Program

5. EDID (The Extended Display Identification Data) / DDC (Display Data Channel) Download

* Use the proper signal cable for EDID Download - Analog EDID : Pin3 exists Caution:Never connect HDMI & D-sub cable at the same time.

5.1. EDID Data

5.2. Data

1) ANALOG (128byte)

2) HDMI (256byte)

- 13 -

For RGB EDID For HDMI EDID

Item

Manufacturer

Version

Revision

GSM

Digital : 1

Digital : 3

1E6D

Condition Data

0x00

0x01

0x02

0x03

0x04

0x05

0x06

0x07

(C)

(d)

(a)

(d)

(a)

(b)

(e)

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F

0x00

0x01

0x02

0x03

0x04

0x05

0x06

0x07

(C)

(d)

(a)

(b)

(d)

(e)

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F

0x00

0x01

0x02

0x03

0x04

0x05

0x06

0x07

0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F

- Detail EDID Options are below ((a), (b), (c), (d), (e))

(a) Product ID (b) SerialNo : Controlled on production line (c) Month, Year : Controlled on production line

: ex) Monthly : ‘03’ -> ‘03’ / Year : ‘2005’ -> ‘0F’

(d) Model Name(Hex)

(e) Checksum : Changeable by total EDID data

6. ADC Calibrate

6.1. Adjustment of RF/AV/S-VIDEO

(1) Required Equipment

1) Remote controller for adjustment

2) MSPG-925F Pattern Generator (Which has Video Signal: 100% Color Bar Pattern shown in [Fig. 1])

-> Model: 202 / Pattern: 33 Case1) EC and FC model use PAL-BGDHI (composite signal)

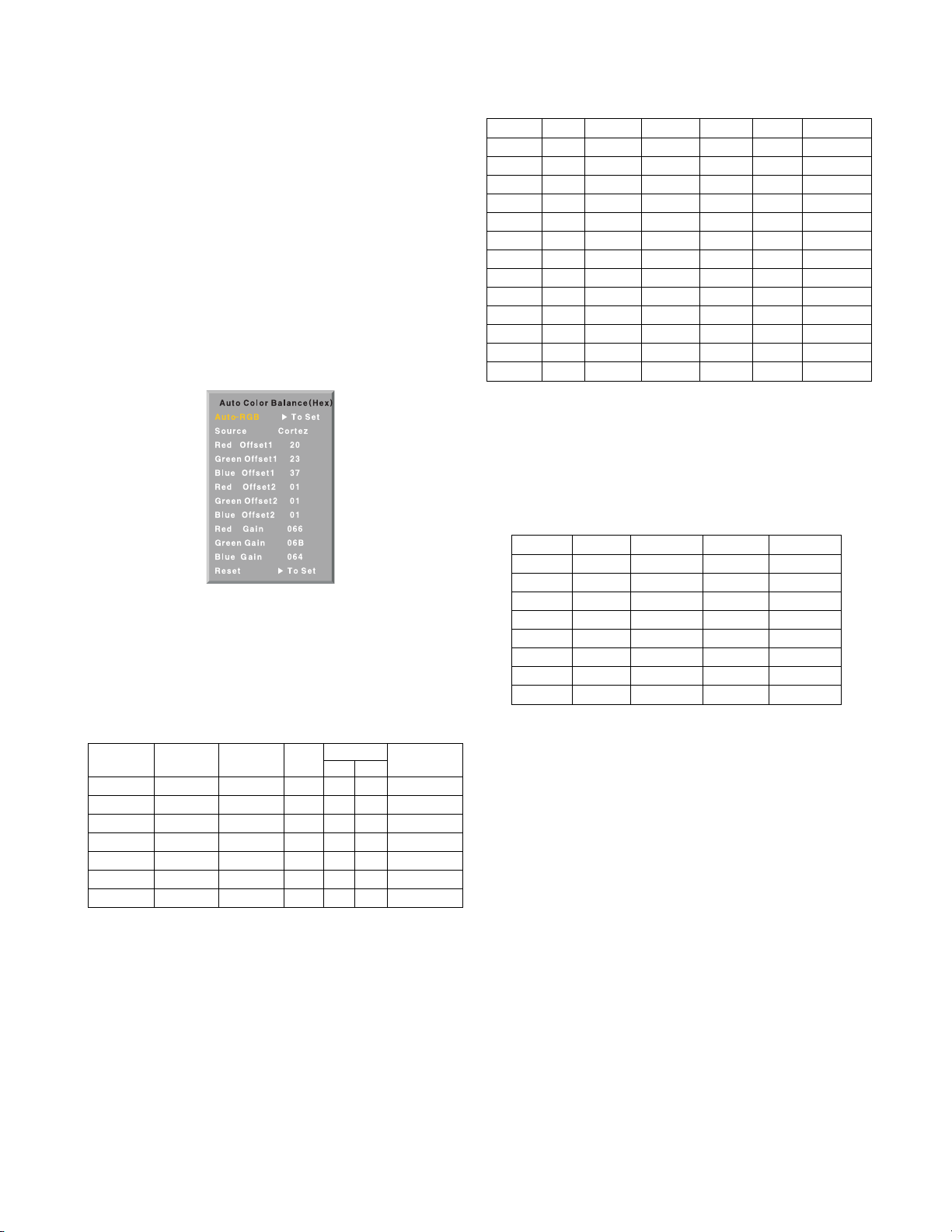

(2) Method of Auto RF/AV/S-VIDEO Color Balance.

1) Input the Video Signal: 100% Color Bar signal into AV4(ZL)/AV3(CL)

2) Set the PSM to Dynamic mode in the Picture menu.

3) Press IN-START key on R/C for adjustment.

4) Press the

G(Vol. +) key to operate the set, then it

becomes automatically.

5) Auto-RGB OK means the adjustment is completed.

6.2. Adjustment of Component

(1) Required Equipments

1) Remote controller for adjustment

2) MSPG-925F Pattern Generator -> Model:217/Pattern:33 (Which has 720p/ 60Hz YPbPr output Pattern shown in

[Fig. 2])

(2) Method of Auto Component Color Balance

1) Input the Component 720p/60Hz 100% Color Bar(MSPG-925F model:217, pattern:33) signal into Component.

2) Set the PSM to Dynamic mode in the Picture menu.

3) Press the IN-START key on R/C for adjustment.

4) Press the

G(Vol. +) key to operate the set, then it

becomes automatically.

5) Auto-RGB OK means the adjustment is completed.

- 14 -

Model Name

37LC2RR-ZL

42LC2RR-ZL

42LC2RR-CL

30083(A)

30084(D)

40035(A)

40036(D)

40053(A)

40054(D)

Dec

30083(A)

30084(D)

40035(A)

40036(D)

40053(A)

40054(D)

Hex

7583

7584

9C63

9C64

9C75

9C76

EDID Table

6175

6275

6175

6275

6175

6275

Product ID Product ID

RF/AV/S-VIDEO

INPUT select AV4 - ZL

AV3 - CL

Model: 202(PAL-BGDHI)

Pattern: 33

* PAL 100% Color Bar

ADC

MSPG9225F

Component

Model:217(720P)

Pattern: 33

* 720P 100%

Color Bar

DVI(RGB)

Model: 37

(1024*768 60Hz)

Pattern: 33

* Color Bar

Model Name

37LC2RR-ZL

42LC2RR-ZL

42LC2RR-CL

33 37 4C 43 32 52 52 2D 5A 4C

34 32 4C 43 32 52 52 2D 5A 4C

34 32 4C 43 32 52 52 2D 43 4C

Model Name (HEX)

[Fig. 1]

[Fig. 21]

6.3. Adjustment of RGB

(1) Required Equipment

1) Remote controller for adjustment

2) MSPG-925F Pattern Generator (Which has XGA [1024*768] 60Hz 100% Color Bar pattern shown in [Fig. 3])

(2) 6.3.1 Method of Auto RGB Color Balance

1) Input the PC 1024x768 @ 60Hz 100% Color Bar pattern (MSPG-925F model:37, pattern:33) into RGB. (using Dsub to D-sub cable)

2) Set the PSM to Dynamic mode in Picture menu.

3) Press the IN-START key on R/C for adjustment.

4) Press the

G(Vol. +) key operate To set , then it becomes

automatically.

5) Auto-RGB OK means adjustment is completed.

6.4 Adjustment of DVR (42LC2RR-CL, 42LC2RR-TL)

(1) Required Equipment

1) Remote controller for adjustment

2) MSPG-925F Pattern Generator ( Which has 576i YPbPr output with Standard (0.7Vpp) Vertical 100% Color Bar Pattern shown in [Fig. 4])

(2) Method of Auto DVR Color Balance

1) Input the Component 576i 100% Color Bar signal into Component1(CL,TL).

2) Set the PSM to Dynamic mode in Picture menu.

3) Press the IN-START key and then TURBO PICTURE Key on R/C for adjustment.

4) Press the

G(Vol. +) key operate To set, then it becomes

automatically.

5) Auto-RGB OK means completed adjustment.

6) Auto-RGB OK means adjustment is completed.

7) If the result is ‘NG’, Try once more.

* Before White-balance, the AV ADC should be done.

7. White Balance

- System control RS-232 Host should be “PC” for

adjustment.

- AV ADC should be done before White-balance.

7.1. Test Equipment

1) Color Analyzer (CA-110)

2) PC (for communication through RS-232C)

-> UART Baud rate : 115200

3)Pattern Generator (MSPG-925F)

7.2. Target Value (PSM: Dynamic, CSM: Normal)

1) Normal(9300K) x:0.283±0.003, y: 0.298±0.003

2) Luminance(Y)

- PC : more than 250 Cd/m2(Typ: 300 Cd/m2)

- AV/COMP : more than 250 Cd/m2(Typ: 350 Cd/m2)

- 15 -

[Fig. 3]

[Fig. 4]

High 216 Gray

White balance

MSPG925F Model : 202

Pattern : 78

* Pal Video

PSM : Dynamic

AV4(ZL)/AV3(CL)

+ 34 hidden pages
