LG 37LB2R Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : LP62E FACTORY MODEL : 37LB2R-ZH

MODEL : 37LB2R

website:http://biz.LGservice.com

- 2 -

CONTENTS

CONTENTS............................................................................................... 2

SAFETY PRECAUTIONS ..........................................................................3

SPECIFICATION ........................................................................................6

ADJUSTMENT INSTRUCTION................................................................11

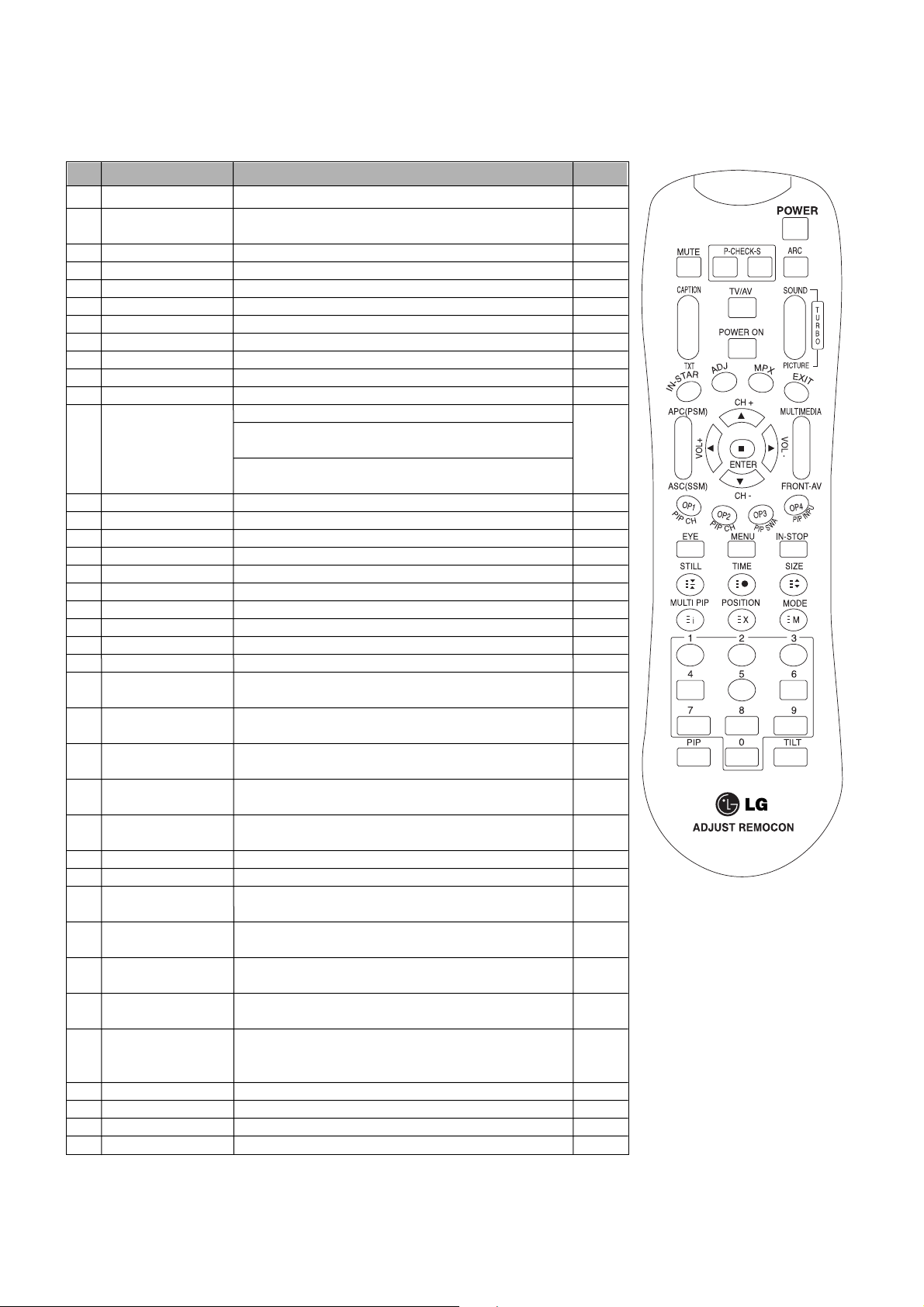

SERVICE REMOTE CONTROL...............................................................16

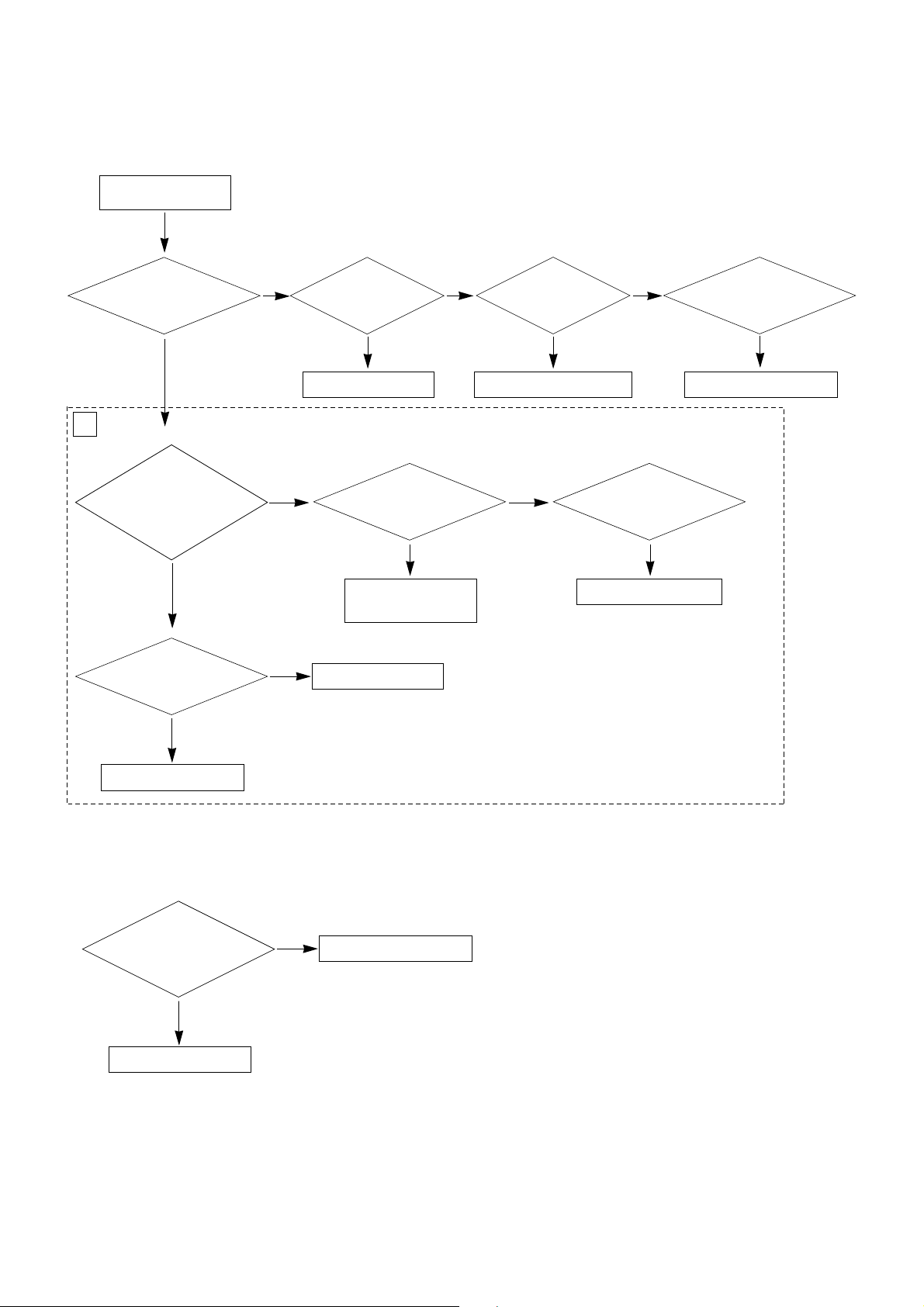

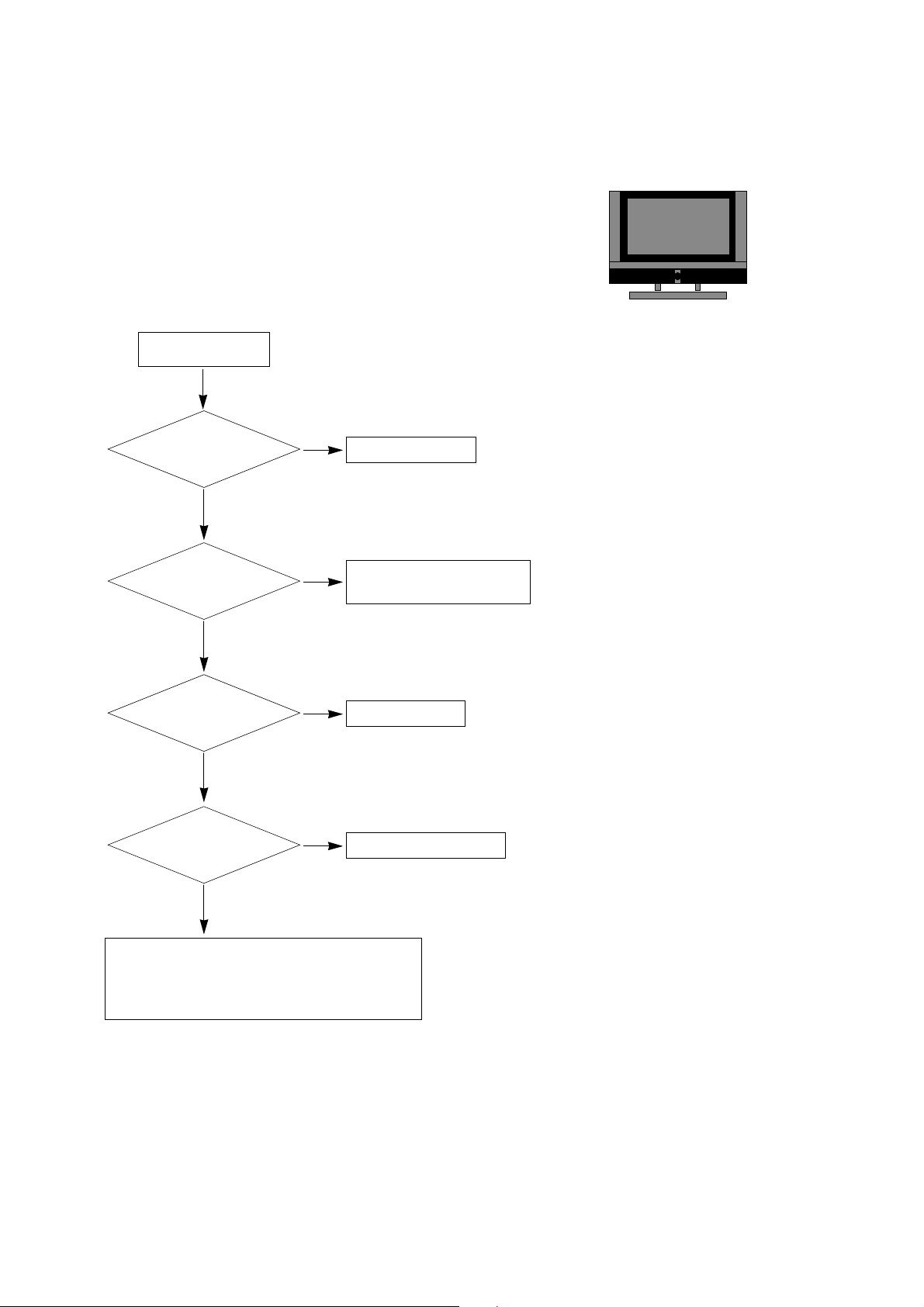

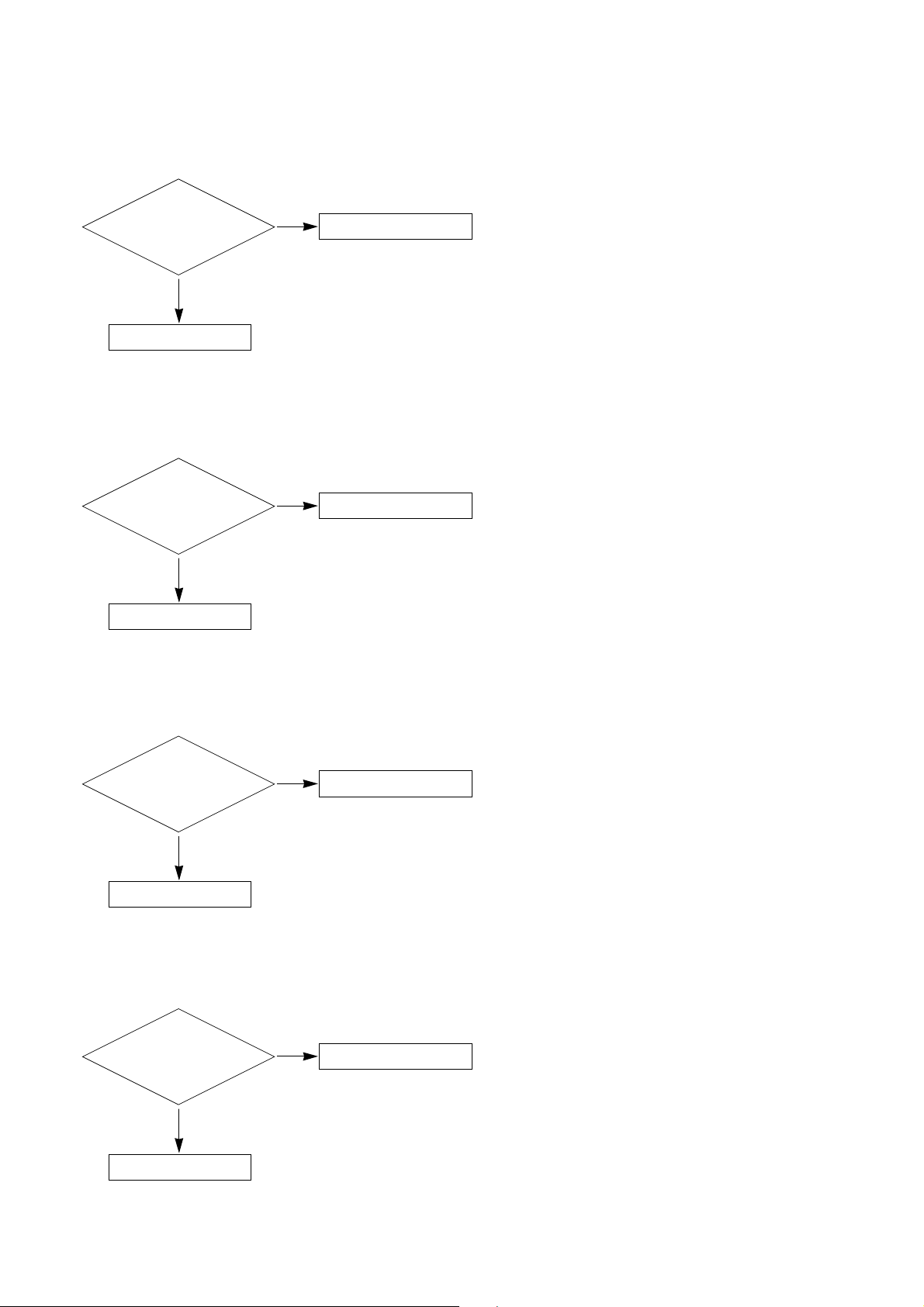

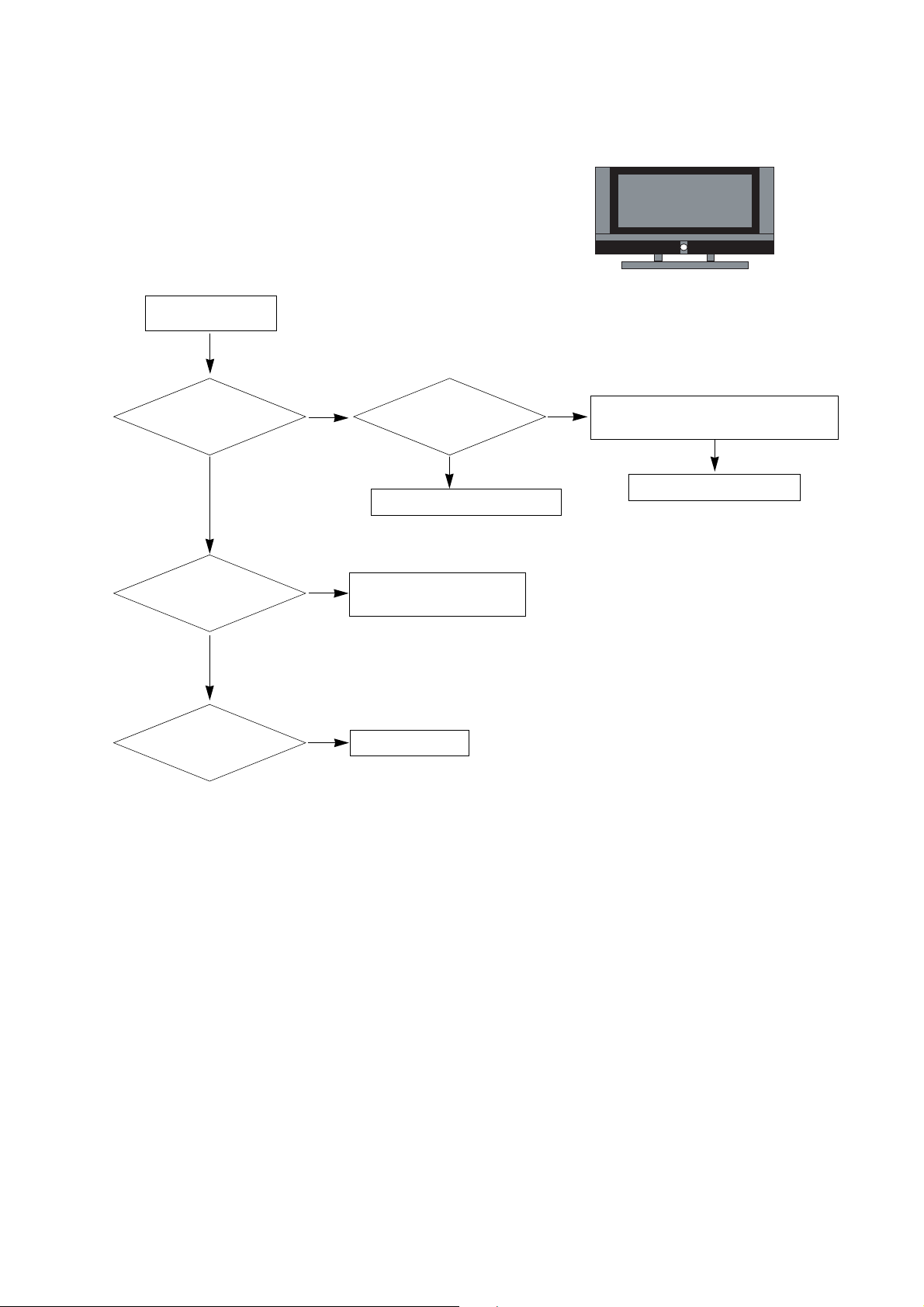

TROUBLE SHOOTING ............................................................................17

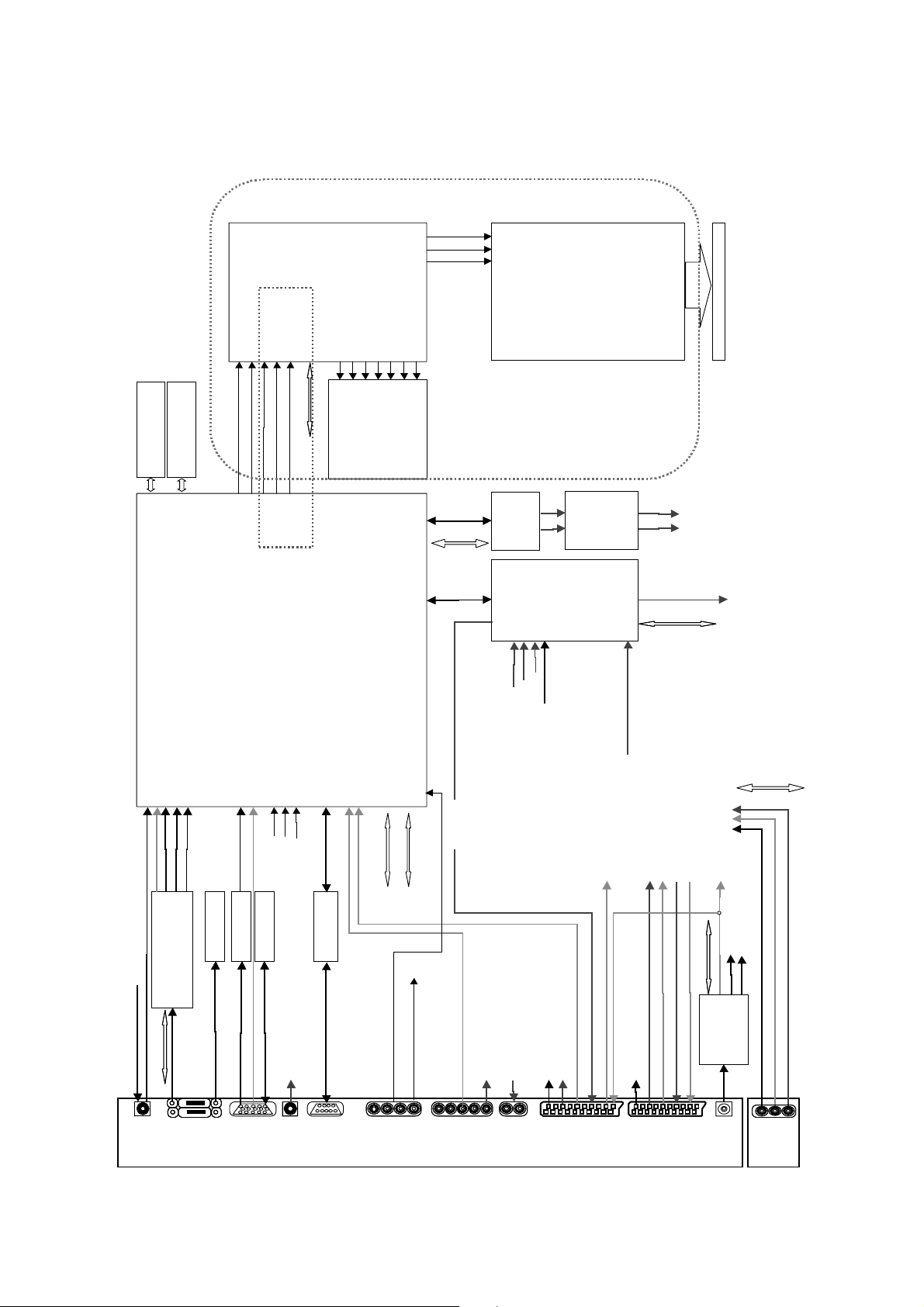

BLOCK DIAGRAM...................................................................................23

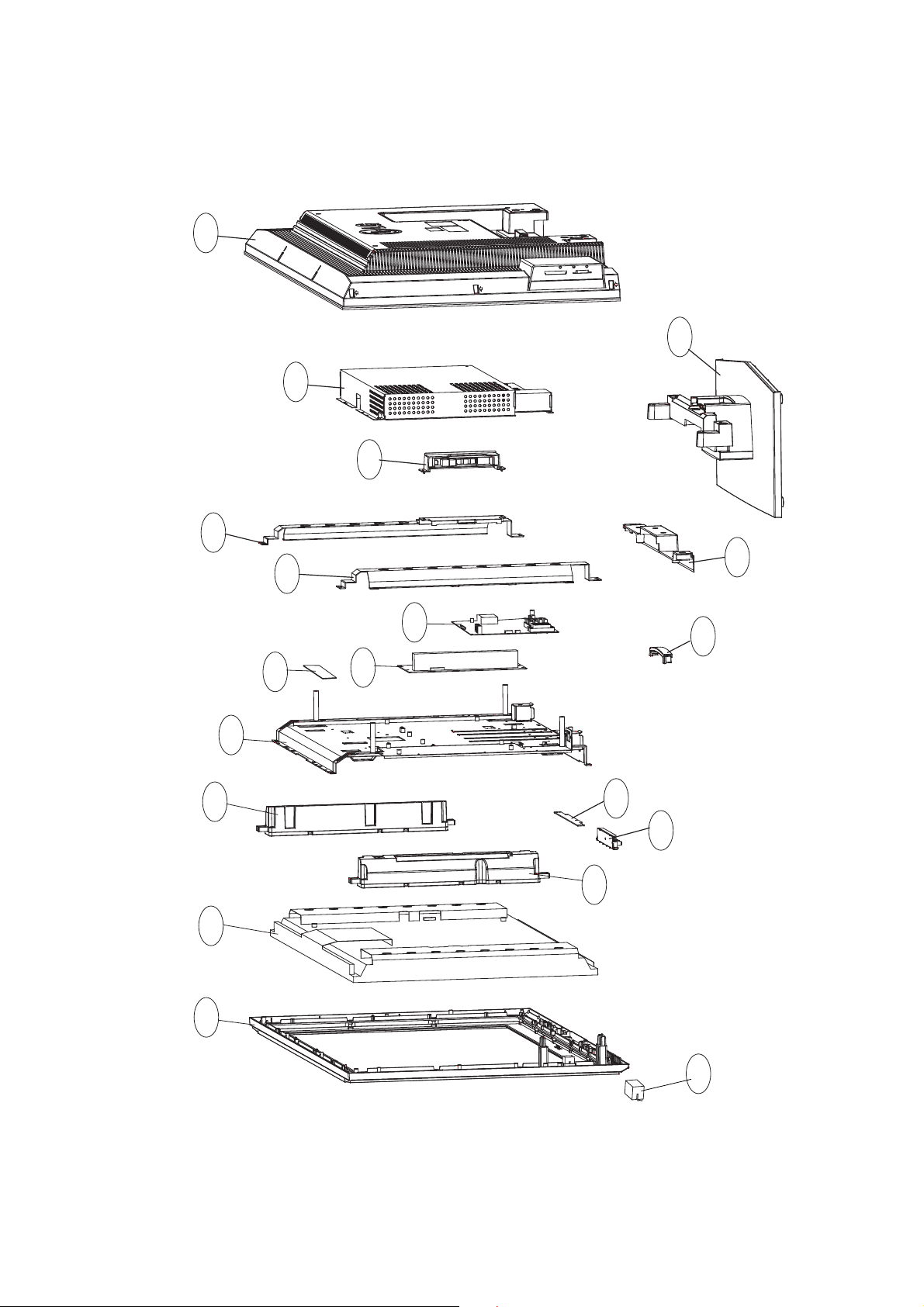

EXPLODED VIEW....................................................................................24

EXPLODED VIEW PARTS LIST..............................................................25

REPLACEMENT PARTS LIST ................................................................26

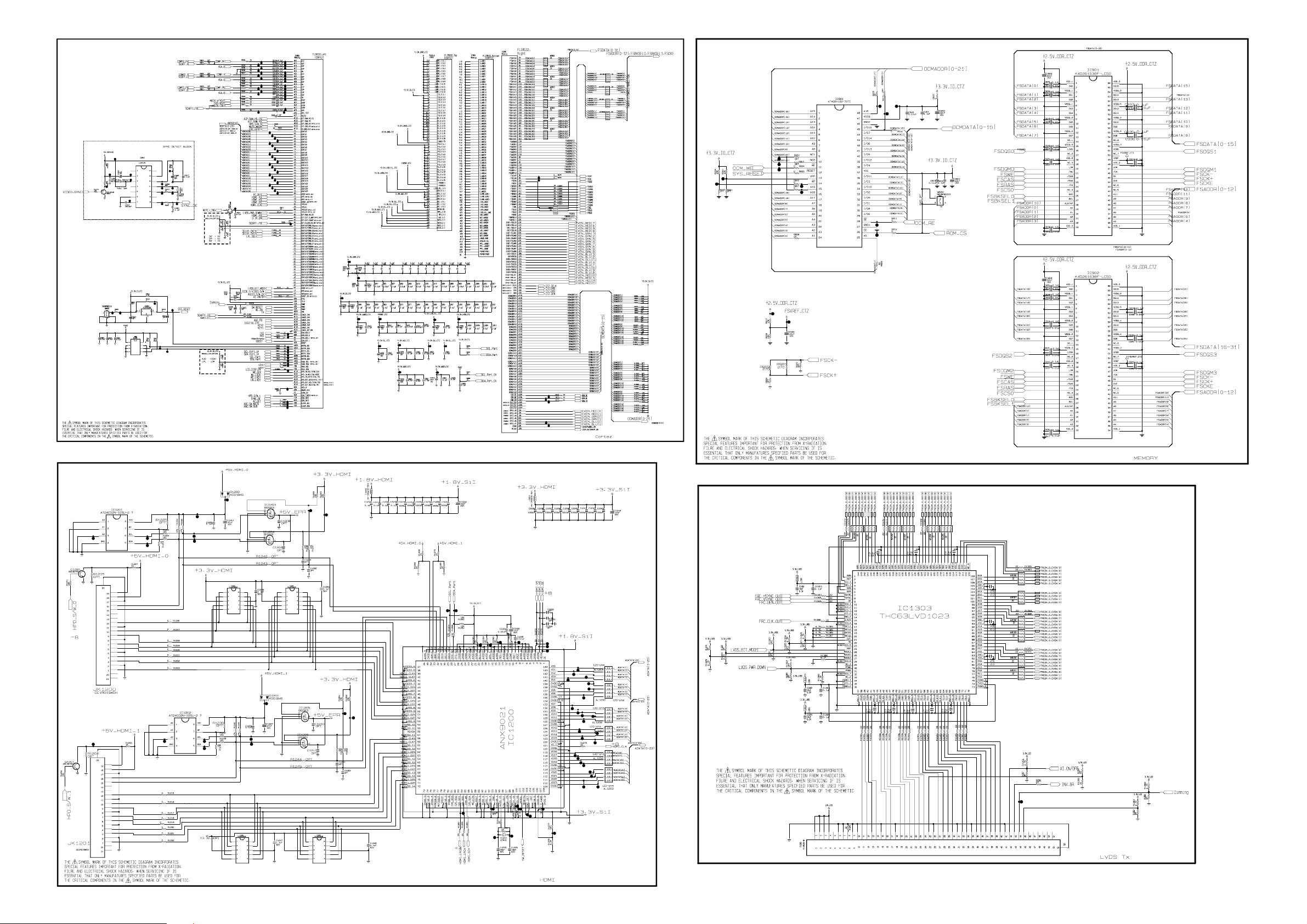

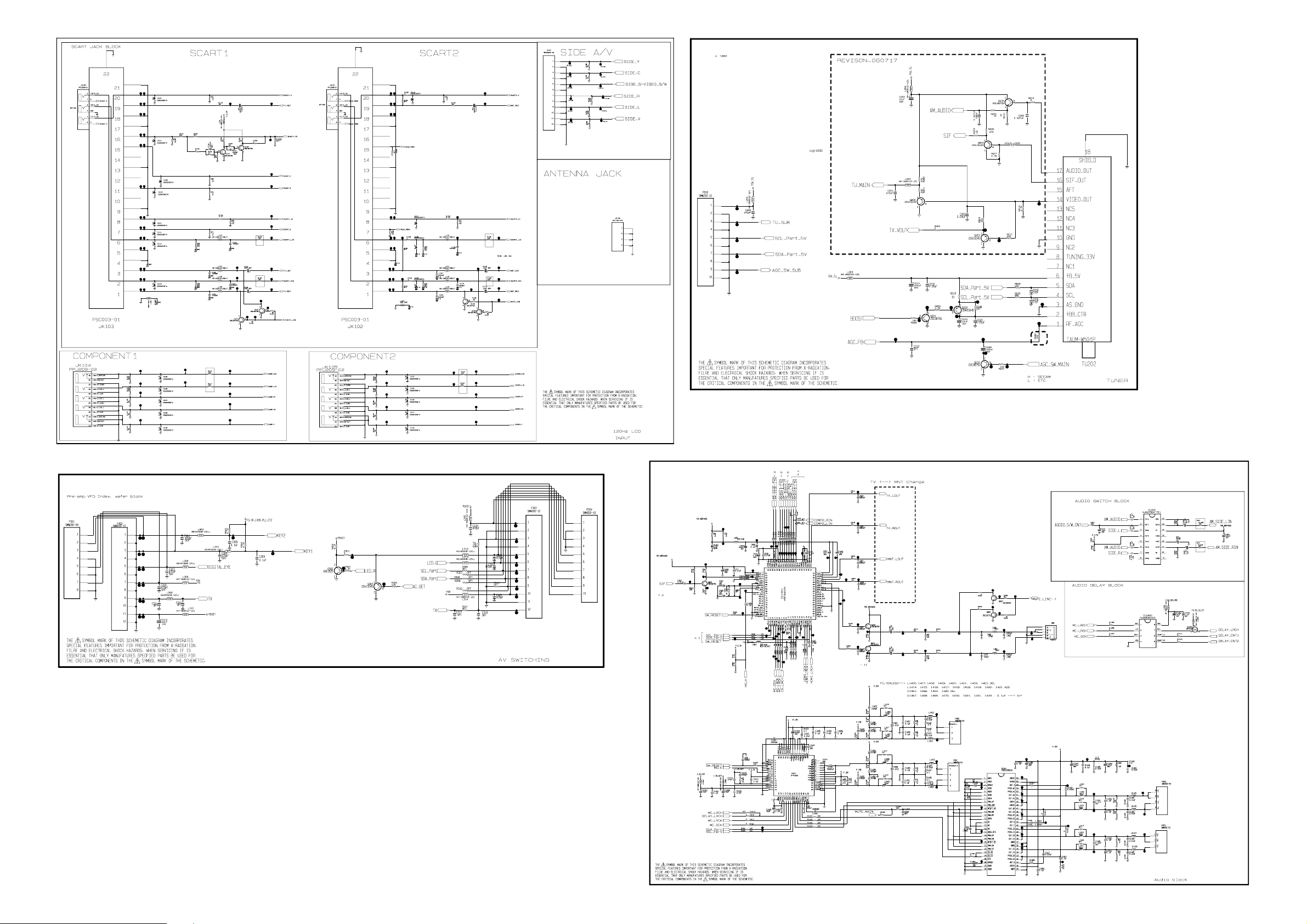

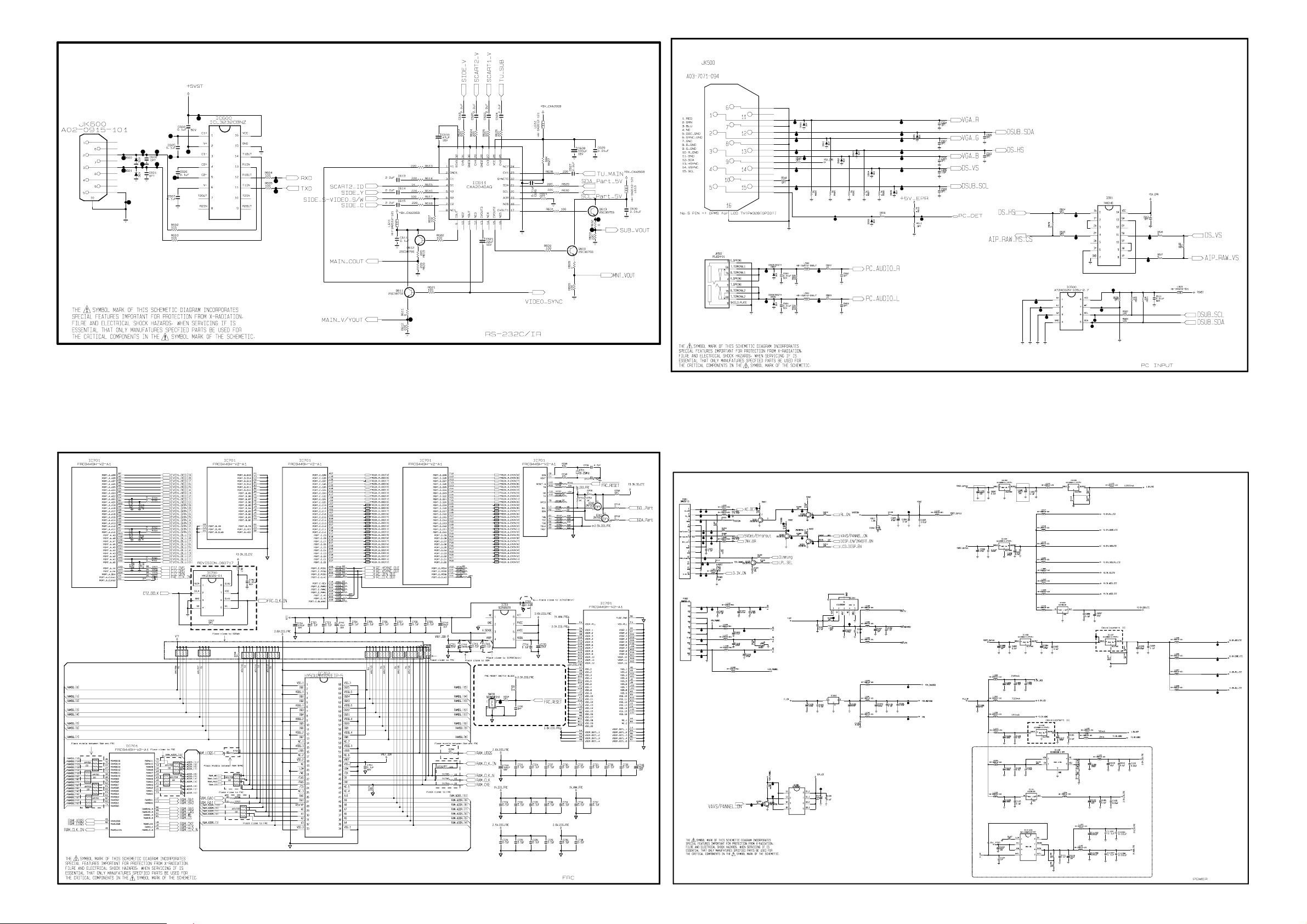

SVC. SHEET ................................................................................................

- 3 -

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

X-RAY Radiation

Warning:

To determine the presence of high voltage, use an accurate high impedance HV meter.

Adjust brightness, color, contrast controls to minimum. Measure the high voltage. The meter reading should indicate

23.5 ± 1.5KV: 14-19 inch, 26 ± 1.5KV: 19-21 inch,

29.0 ± 1.5KV: 25-29 inch, 30.0 ± 1.5KV: 32 inch If the meter indication is out of tolerance, immediate service and correction is required to prevent the possibility of premature component failure.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

The source of X-RAY RADIATION in this TV receiver is the High Voltage Section and the LCD PANEL. For continued X-RAY RADIATION protection, the replacement panel must be the same type panel as specified in the Replacement Parts List.

IMPORTANT SAFETY NOTICE

0.15uF

AC Volt-meter

To Instrument’s exposed METALLIC PARTS

1.5 Kohm/10W

Good Earth Ground such as WATER PIPE, CONDUIT etc.

- 4 -

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board

module or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99% strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test fixtures specified in this

service manual.

CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the

unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500

°F to 600°F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature.

(500

°F to 600°F)

b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuitboard printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500

°F to 600°F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

SERVICING PRECAUTIONS

- 5 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent flat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

- 6 -

1. Application range

This specification is applied to LP62E chassis.

2. Requirement for Test

Testing for standard of each part must be followed in below condition.

(1) Temperature : 25°C±5°C(77±9°F), CST : 40±5 (2) Humidity : 65%±10% (3) Power : Standard input voltage (100-240V~, 50/60Hz)

*Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

3.1 Performance : LGE TV test method followed

3.2 Demanded other specification Safety : CE, IEC Specification EMC : CE, IEC

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

4. General TV Specification

No Item Specification Remark

1. Video input applicable system PAL-D/K, B/G, I, NTSC-M, SECAM,

NTSC 4.43

2. Receivable Broadcasting System 1) PAL/SECAM BG

2) PAL/SECAM DK

3) PAL I/I

4) SECAM L/L' only ZH

5) PAL-N/M

6) NTSC M only TH

3. RF Input Channel VHF : E2 ~ E12 PAL

UHF : E21 ~ E69

CATV : S1 ~ S20

HYPER : S21~ S47

L/L' : B, C, D FRANCE

VHF : 2~13 NTSC

UHF : 14~69

CATV : 1~125

4. Input Voltage 100 ~ 240V~ /50Hz, 60Hz

5. Market Worldwide

6. Active Screen Size 800.4 mm(diagonal) 31.51 inches

940.3 mm(diagonal) 37.02 inches

1067.308 mm (diagonal) 42.02 inches

7. Tuning System FVS 100 program

8. Operating Environment 1) Temp : 0 ~ 40 deg

2) Humidity : 10 ~ 90 %RH

9. Storage Environment 1) Temp : -20 ~ 50 deg

2) Humidity : 10 ~ 90 %RH

10. Display LCD Module 32"/37" : AUO

42" : LPL

- 7 -

5. General Specification

6. Set Optical Feature(AUO 37” Module)

No Item Specification Remark

1 Panel 37", 42" TFT WXGA LCD

2 Frequency range H : 31 ~ 61Khz, V : 56 ~ 75Hz PC Input

3 Control Function 1) Contrast/Brightness

2) H-Position / V-Position

3) Tracking : Clock / Phase

4) Auto Configure

5) Reset

4 Component Jack Y/Pb/Pr : 1EA ZH

(480i/576i/480p/576p/720p/1080i) Y/Pb/Pr : 2EA TH

5 Power ON LED Power consumption

White ≤ 170W(32”)

≤ 200W(37")

≤ 230W(42")

Stand by RED ≤ 1W

6 LCD Module Outline 32" 760.0 x450.0 x 48.0

Dimension 37" 877.0 x 516.8 x 55.5 (H)mmx(V)mmx(D)mm

42" 1006 x 610 x 56

Pixel Pitch 32” 0.1702 x0.5107 x RGB

37" 0.200 x 0.600 x RGB

42" 0.227 x 0.681 x RGB

Pixel Format 1366 x 768 Pixels RGB strip arrangement

Coating

Hard coating(3H), Anti-glare treatment of the front polarizer

Back Light 32" 20CCFL TBD

37" 16CCFL

No Parameter Symbol Value Unit Remark

Min Typ Max

1. Contrast Ratio CR 32" 800 1200

- 100IRE Full white window pattern

- APC : Clear (Dynamic)

2. Surface Luminance, LWH 32” 360 450 Cd/m

- 100IRE Full white window pattern

white - APC : Clear (Dynamic)

3. White Coordinate Normal X axis 0.280 0.283 0.286 - 85IRE Full White Pattern

Y axis 0.295 0.298 0.301 - APC : Standard

Cool X axis 0.271 0.274 0.277

Y axis 0.283 0.286 0.289

Warm X axis 0.300 0.303 0.306

Y axis 0.316 0.319 0.322

4. Color Temperature Normal 8300 9300 10300 - 85IRE Full White Pattern

Warm 6200 7200 8200 - APC : Standard

Cool 10000 11000 12000

5. Color pull in Range PAL -500 +500 Hz

NTSC -500 +500 Hz

6. Color killer Sensitivity -80 dBm

- 8 -

7. Model Specification

No Item Specification Remark

1. Market EU

2. Broadcasting system PAL BG/I/DK, SECAM

3. Available Channel BAND PAL

VHF/UHF C1 ~ C69

CATV S1 ~ S47

4. Receiving system Upper Heterodyne

5. SCART Jack(2EA) PAL, SECAM, NTSC 4 System :

PAL, SECAM, NTSC, PAL60

6. Video Input (2EA) PAL, SECAM, NTSC 4 System :

PAL, SECAM, NTSC, PAL60

7. S-Video Input (2EA) PAL, SECAM, NTSC 4 System :

PAL, SECAM, NTSC, PAL60

8. Component Input (1EA) Y/Cb/Cr, Y/ Pb/Pr

9. RGB Input (1EA) RGB-PC,

RGB-DTV

10. HDMI Input (2EA) HDMI-PC

HDMI-DTV

11. Audio Input (3 EA) PC Audio, Component (1EA),

AV (1EA) L/R Input

12. Audio variable out(1EA)

8. Component Video Input (Y, PB, PR)

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 480 15.73 59.94 13.500 SDTV, DVD 480I(525I)

2. 720 x 480 15.75 60.00 13.514 SDTV, DVD 480I(525I)

3. 720 x 576 15.625 50.00 13.500 SDTV, DVD 576I(625I)

4. 720 x 480 31.47 59.94 27.000 SDTV 480P

5. 720 x 480 31.50 60.00 27.027 SDTV 480P

6. 720 x 576 31.25 50.00 27.000 SDTV 576P

7. 1280 x 720 44.96 59.94 74.176 HDTV 720P

8. 1280 x 720 45.00 60.00 74.250 HDTV 720P

9. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz

10. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I

11. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I

12. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz

- 9 -

9. RGB Input ( PC )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 400 31.469 70.08 28.32 DOS

2. 640 x 480 31.469 59.94 25.17 VESA(VGA)

3. 640 x 480 37.500 75.00 31.50 VESA(VGA)

4. 800 x 600 37.879 60.31 40.00 VESA(SVGA)

5. 800 x 600 46.875 75.00 49.50 VESA(SVGA)

6. 832 x 624 49.725 74.55 57.28 Macintosh

7. 1024 x 768 48.363 60.00 65.00 VESA(XGA)

8. 1024 x 768 56.476 70.06 75.00 VESA(XGA)

9. 1024 x 768 60.023 75.02 78.75 VESA(XGA)

10. 1280 x 768 47.693 59.99 80.125 WXGA(42XGA,50", 60")

11. 1360 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

12. 1366 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

10. RGB input ( DTV )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 480 31.47 59.94 27.000 SDTV 480P

2. 720 x 480 31.50 60.00 27.027 SDTV 480P

3. 720 x 576 31.25 50.00 27.000 SDTV 576P

4. 1280 x 720 44.96 59.94 74.176 HDTV 720P

5. 1280 x 720 45.00 60.00 74.250 HDTV 720P

6. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz

7. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I

8. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I

9. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz

11. HDMI Input ( PC )

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 400 31.469 70.08 28.32 DOS

2. 640 x 480 31.469 59.94 25.17 VESA(VGA)

3. 640 x 480 37.500 75.00 31.50 VESA(VGA)

4. 800 x 600 37.879 60.31 40.00 VESA(SVGA)

5. 800 x 600 46.875 75.00 49.50 VESA(SVGA)

6. 832 x 624 49.725 74.55 57.28 Macintosh

7. 1024 x 768 48.363 60.00 65.00 VESA(XGA)

8. 1024 x 768 56.476 70.06 75.00 VESA(XGA)

9. 1024 x 768 60.023 75.02 78.75 VESA(XGA)

10. 1280 x 768 47.693 59.99 80.125 WXGA(42XGA,50", 60")

11. 1360 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

12. 1366 x 768 47.700 60.00 84.62 WXGA(42XGA,50", 60")

- 10 -

12. HDMI input ( DTV )

13. Mechanical Specification

No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Remarks

1. 720 x 480 31.47 59.94 27.000 SDTV 480P

2. 720 x 480 31.50 60.00 27.027 SDTV 480P

3. 720 x 576 31.25 50.00 27.000 SDTV 576P

4. 1280 x 720 44.96 59.94 74.176 HDTV 720P

5. 1280 x 720 45.00 60.00 74.250 HDTV 720P

6. 1280 x 720 37.50 50.00 74.25 HDTV 720P 50Hz

7. 1920 x 1080 33.72 59.94 74.176 HDTV 1080I

8. 1920 x 1080 33.75 60.00 74.250 HDTV 1080I

9. 1920 x 1080 28.125 50.00 74.250 HDTV 1080I 50Hz

No Item Content Remark

1. Product Width Length Height Unit

Dimension Before Packing 1046 260 693.8 mm SET(With Stand)

After Packing 1152 378 815 mm

2. ProductWeight Only SET 31.6 Kg

With BOX 36.5 Kg

3. Container Loading Individual or 20ft 40ft

Quantity Palletizing Indi Wooden Indi Wooden

60 60 124 120

4. Stand Assy Type Attached ( detachable )

Size( W x D x H ) 609.8 294.5 176 mm

Tilt Degree -

Tilt force -

Swivel Degree + 30˚(±1) / -30˚(±1)

Swivel Force 1.7 ~1.9 kgf

5. Appearance General Refer to Standard of LG(55)G1-1020

- 11 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet is applied to all of the LP62E chassis(H3High) manufactured at LG TV Plant all over the world.

2. Specification

1) Because this is not a hot chassis, it is not necessary to use an isolation transformer. However, the use of isolation transformer will help to protect test instruments.

2) Adjustment must be done in the correct sequence.

3) The adjustment must be performed at 25±5°C temperature and 65±10% relative humidity if there is no specified designation.

4) The input voltage of the receiver must be kept between 100-220V, 50/60Hz.

5) Before adjustment, execute Heat-Run for 30 minutes at RF no signal

3. Adjustment items

3.1. PCB assembly adjustment items

O Channel memory

- Download the channel data from BOM to EEPROM by

using LGIDS.

O Option adjustment following BOM

- Tool Option1

- Tool Option2

- Area Option

1) Push the ADJ key in the Adjust Remote control.

2) Input the Option Number that was specified in the BOM, into the Shipping area.

3) Select "Tool Option1/ Tool Option2/ Area Option" by using

D /E(CH+/-) key, and press the number key(0~9)

consecutively

ex) If the value of Tool Option1 is 7, input the data using

number key "7" (Fig. 1)

3.2. SET assembly adjustment items

O Auto AV(ZH-AV3, TH-AV1) Color Balance O Aging (by Power on key) O Adjustment of White Balance O Auto Component Color Balance adjustment

- Standard equipment : MSPG925FA

O Auto RGB Color Balance adjustment

- Standard equipment : MSPG925FA

4. EDID

Δ Caution

* Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

* Caution : - Never connect HDMI & DVI-D & DVI-A Cable at

the same time.

- Use the proper cables below for EDID Writing.

4.1. EDID Data

(1) ANALOG(256 Bytes )

O BLOCK1 (128BYTE)

(2) HDMI(256 Bytes )

O BLOCK1 (128BYTE)

O BLOCK2 (128BYTE)

(Fig. 1)

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF FF 1E 6D 10 01 03 01 46 27 78 EA D9 B0 A3 57 49 9C 25 20 11 49 4B A5 6E 80 31 40 01 01 01 01 45 40 01 01 30 61 40 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88 40 35 00 BC 88 21 00 00 1C 4E 1F 00 80 51 00 1E 30 50 40 80 37 00 BC 88 21 00 00 18 00 00 00 FD 00 38 60 4B 1F 3D 09 00 0A 20 20 20 20 20 20 70 00 99

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 00 FF FF FF FF FF FF FF 1E 6D 10 01 03 80 46 27 78 EA D9 B0 A3 57 49 9C 25 20 11 49 4B A5 6E 80 31 40 01 01 01 01 45 40 01 01 30 61 40 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88 40 35 00 BC 88 21 00 00 1C 4E 1F 00 80 51 00 1E 30 50 40 80 37 00 BC 88 21 00 00 18 60 00 00 00

70 00 38 4B 1F 3D 09 00 0A 20 20 20 20 20 20 01 14

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 00 02 03 24 F1 49 85 04 02 01 03 11 12 13 14 23 09 10 07 07 23 09 07 07 23 09 07 07 83 01 00 00 65 03 20 0C 00 10 00 01 1D 00 80 51 D0 1C 20 40 80 35 00 30 BC 88 21 00 00 1E 8C 0A D0 8A 20 E0 2D 10 10 3E 40 96 00 13 8E 21 00 00 18 2A 12 00 10 41 43 17 20 50 28 60 35 00 00 00 32 00 00 1C 01 1D 80 18 71 1C 60 16 20 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6B

For Analog EDID

D-sub to DVI-I

For Digital EDID

DVI-D to DVI-D

For HDMI EDID

DV-D to HDMI or HDMI to HDMI

No.

Item

Manufacturer ID

Version

Revision

Data

1E6D

LP62E

Cortez Version x.xx Panel Used XX hr. Tool Option1 7 Tool Option2 161 Area Option 16

: :

- 12 -

=> Detail EDID Options are below (a, b, c, d, e)

a. Product ID

b. Serial No : Controlled on production line c. Month, Year : Controlled on production line:

ex) Montly : '03' => '03'

Year : '2005' => '0F'

d. Model Name/Monitor Name:

e. Checksum: Changeable by total EDID data

5. ADC Calibration

* Caution : System control RS-232C Host should be “PC” for

adjustment

- Press the FRONT-AV KEY on R/C for convering input mode (Change RS-232C Host : pc, Band Rate : 115200bps)

5.1. Adjustment of RF/AV/S-VIDEO

* Required Equipments

O Remote controller for adjustment O 802F Pattern Generator, Master (MSPG-925FA), etc. O MSPG-925FA Pattern Generator

(Which has Video Signal: 100% Color Bar Pattern shown in Fig. 2)

=> Model : 202 / Pattern: 33 (PAL : ZH, TH)

Model : 201 / Pattern : 33 (NTSC : MH)

(1) Method of Auto RF/AV/S-VIDEO Color Balance

1) Press the FRONT-AV KEY on R/C for converting input mode.

2) Input the Video Signal: 100% Color Bar signal into AV3(ZH), AV1(TH), VIDEO1(MH).

3) Set the PSM to Standard mode in the Picture menu.

4) Press INSTART key on R/C for adjustment.

5) Press the

G(Vol.+) key to operate the set, then it

becomes automatically.

6) Auto-RGB OK means the adjustment is completed.

(2) Requirement

1) This AV color balance adjustment should be performed before White Balance Adjustment.

2) After color balance adjustment, Change the mode from AV to RF. (Cancel Heat-run mode.)

5.2. Adjustment of Component.

* Required Equipments

O Remote controller for adjustment O 802F Pattern Generator, Master (MSPG-925FA), etc. O MSPG-925FA Pattern Generator

(Which has 720p YPbPr signal : 100% Color Bar Pattern shown in Fig. 2 ) => Model: 217 / Pattern: 33

It is very import to use correct adjustment pattern like Fig.2.

- Within the pattern, color sequence should be aligned

: White-Yellow-Cyan-Green-Magenta-Red-Blue-Black (If color sequence is reversed (Black -> ... -> White), reverse the pattern with REV key, when using Master pattern generator like MSPG-925)

- If Minimum Black Level and/or Maximum White Level

is not correct, Do select 100% Color Bar Pattern.

(1) Method of Auto Component Color Balance

1) Input the Component 720p 100% Color Bar(MSPG925FA model:217, pattern:33) signal into Component. (ZH : component , TH/MH : component 1 or 2)

2) Set the PSM to Standard mode in the Picture menu.

3) Press the INSTART key on R/C for adjustment.

4) Press the

G(Vol. +) key to operate the set , then it

becomes automatically.

5) Auto-RGB OK means the adjustment is completed.

5.3 Adjustment of RGB

* Required Equipments

Remote controller for adjustment

802F Pattern Generator, Master (MSPG-925FA), etc.

MSPG-925FA Pattern Generator

(Which has XGA [1024x768] 60Hz PC Format output signal : 100% Color Bar Pattern shown in Fig. 2 )

It is very import to use correct adjustment pattern like Fig.10.

- Within the pattern, color sequence should be aligned.

: White-Yellow-Cyan-Green-Magenta-Red-Blue-Black (If color sequence is reversed (Black ->...-> White), reverse the pattern with REV key, when using Master pattern generator like MSPG-925).

- If Minimum Black Level and/or Maximum White Level

is not correct, Do select 100% Color Bar Pattern.

Model Name

Product ID

Dec Hex EDID table

32LB2R 30103(A) 30103 7597 6D75

30104(D) 30104 7598 EC6B

37LC2R 30105(A) 30105 7599 6675

30060(D) 30106 759A E56B

42LC2R 40069(A) 40069 9C85 5775

40070(D) 40070 9C86 D66B

MSPG-

925FA

AV ADC Condition

PAL NTSC

Input ZH model:AV3 MH model

-select TH model:AV1 :VIDEO1

Model:202(PAL-BGDH) Model:201(NTSC)

Pattern :33 *100% Color Bar

Component

Model : 217

(720p@60Hz)

RGB

Model : 3

(1024x768@

60H)

Model Name

32LB2R-ZH 00 00 00 FC 00 33 32 4C 42 32 52 2D 5A 48 0A 20 20 20

37LB2R-ZH 00 00 00 FC 00 33 37 4C 42 32 52 2D 5A 48 0A 20 20 20

42LB2R-ZH 00 00 00 FC 00 34 32 4C 42 32 52 2D 5A 48 0A 20 20 20

<Fig. 2>

(1) Method of Auto RGB Color Balance

1) Input the PC 1024x768 @ 60Hz with 100% color bar pattern like Fig.2. into RGB.

2) Set the PSM to Standard mode in Picture menu.

3) Press the INSTART key on R/C for adjustment.

4) Press the

G(Vol. +) key operate To set , then it becomes

automatically.

5) Auto-RGB OK means adjustment is completed.

6. White Balance

=> Caution : Before White-balance, the AV ADC should be

done. (ZH:AV3, TH:AV1, MH:VIDEO1)

=> After Aging, When the procedure is changed White

balance adjustment, it will be canceled Heat_run mode auto.

Notice : Before White-balance, change input mode.

Move to AV3(ZH) or AV1(TH) or VIDEO1(MH) by using the FRONT-AV KEY on Remote controller.

- System control RS-232 Host should be "PC" for

adjustment.

- AV ADC(ZH: AV3, TH : AV1, MH: VIDEO1) should be

done before White-balance.

* Test Equipment

Color Analyzer (CA-110) PC(For communication through RS-232C) =>UART Baud rate : 115200 Pattern Generator (MSPG-925FA etc.)

*Target Value [ PSM: Standard(ZH/TH), CSM: Normal]

- Normal(9300K±1000K) x:283±0.015, y: 298±0.015

-Luminance(Y) AV : Min. 250 Cd/m2 (LPL) AV : Min. 200Cd/m2 (AUO)

=> Reference Value(Automatically fixed)

- Cool(11000K±1000K)

- Warm(7200K±1000K)

6.1. Manual white Balance (AV)

1) Execute CA-110 Zero Calibration.

2) Execute the SET Heat Run for 30minutes.

3) As below Fig.3, Supply 216Level (85 IRE) full screen pattern to Video input. 32LB2R-ZH, 37LB2R-ZH, 42LB2R-ZH: AV3/AV4 (Input 50Hz)

4) Press the FRONT-AV KEY on R/C for converting input mode.

5) Set the PSM to Standard mode in Picture menu.

6) Enter the White Balance adjustment mode by pressing the INSTART key twice(White Balance) on R/C.

7) Stick sensor to center of the screen and select each items (Red/Green/Blue Gain and Offset) using

D/E(CH+/-) key

on R/C.

8) Adjust Only High Light with R Gain/B Gain using

F/G (VOL

+/-) key on R/C.

9) Adjust it until color coordination becomes as below. X-axis : 0.283±0.003 Y-axis : 0.298±0.003

(R/G/B gain and R/G/B offset Default values are different in

according to using module )

10) Adjust High light with R/B Gain.

6.2 Auto white Balance (AV)

1) LPL Module

2) AUO Module

- 13 -

White balance ZH(AV3), TH(AV1) MH(VIDEO1)

MSPG925FA 216 Level (85IRE) Model : 202 Model : 201

Full screen pattern • Pal Video • NTSC Video

<Fig. 3>

216 Level(85IRE)

Command1 Command2 Set ID

Data

Min Max

Input Select XB B 00 00h 90h

R-Gain J A 00 00h E0h

G-Gain J B 00 00h E0h

B-Gain J C 00 00h E0h

R-Offset J D 00 00h 90h

G-Offset J E 00 00h 90h

B-Offset J F 00 00h 90h

Command1 Command2 Set ID

Data

Min Max

Input Select XB B 00 00h 90h

R-Gain J A 00 00h E0h

G-Gain J B 00 00h E0h

B-Gain J C 00 00h E0h

R-Offset J D 00 00h 90h

G-Offset J E 00 00h 90h

B-Offset J F 00 00h 90h

* Input Select Data

RF(10), AV1~4(20,21,22,23), SAV(30), COMP(40), DVI(50or60), HDMI(90)

* Command Set (SET ID : 0-> ALL , 1~99 -> each SET)

7. Detail list of SVC option data

- 14 -

POWER ON/OFF

MAIN INPUT

ARC

SCREEN MUTE

AUDIO MUTE

VOLUME

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

OSD ON/OFF

CHILD LOCK

PIP MODE

PIP ARC

PIP POSITION

TREBLE

BASS

BALANCE

COLOR TEMP.

RED LEVEL

GREEN LEVEL

BLUE LEVEL

PIP INPUT

CURRENT STATE

Adjustment CMD SET ID VAL Remark

KA(ka)

XB(xb)

KC(kc)

KD(kd)

KE(ke)

KF(kf)

KG(kg)

KH(kh)

KI(ki)

KJ(kj)

KK(kk)

KL(kl)

KM(km)

KN(kn)

KO(ko)

KQ(kq)

KR(kr)

KS(ks)

KT(kt)

KU(ku)

KV(kv)

KW(kw)

K$(k$)

XY(xy)

KZ(kz)

0~99

0~1

10~90

0~6

0~1

0~64

0~1

0~3

0~64

0~3

0~60

10~90

0: OFF, 1:ON

RF(10), AV1~4(20,21,22,23),

SAV(30), COMP(40),

RGB(50 or 60), HDMI(90)

SPECTACLE, FULL, ORIGINAL

4:3, 16:9, 14:9, ZOOM

0: MUTE, 1: MUTE OFF

0: 0, 64 : 100 (Hexadecimal)

0: R50, 64 : G50 (Hexadecimal)

0: 0, 64 : 100 (Hexadecimal)

0: OFF, 1: ON

0: LOCK, 1: OFF

PIP_OFF, PIP, DW1, DW2

NOT USED

0:0, 64:100

0:L50, 64:R50

COOL, NORMAL, WARM, USER

0 : -30, 60 : 30

RF(10), AV1~4(20,21,22,23),

SAV(30), COMP(41),

DVI(50 or 60), ,HDMI(61)

ACK : 0 - With signal

ACK : 1 -> Without signal

ACK : 2 -> Power Off

Tool Option1

Tool Option2

Area Option1

Option

Option2

Option3

Option4

Option Detail list Data

Side AV

BOOST

Woofer

SoundSettings

Tuner Num.

EYE

INDEX

VFD

FULL

HDMI Type (S or A)

200PR

ACMS

TEXT

CH+AU

SYS

A2 ST

I II SAVE

HDEV

V-Curve

MONO

Scart

CSM

Default Lang.

LANG

T LANG

0/1

32LB/37LB

No/1/2 Tuner

0/1

None/1-HDMI/2-HDMI

0/1

Off/Top/Flop

0/1

BGIDKL / BGIDKM

0/1

2 Scarts / 2 Components

Normal / Warm / Cool

English

EU-ALL/ EU / EU-8/ EU-North

/ EU-East/ Non-EU 8/ Non-EU etc

0~4

White Balanc“J”(A~F)

RED GAIN

GREEN GAIN

BLUE GAIN

RED OFFSET

GREEN OFFSET

BLUE OFFSET

AUTO CONFIG.

TUNER CONTROL

SELECT PR.

SELECT SUB PR.

FACTORY IR

IR CODE

ADC Calriblation

Red,Blue,Green

Gain

Red,Blue,Green

offset

Adjustment CMD SET ID VAL Remark

Ja,Jb,Jc

Jd,Je,Jf

0~99

direction

:00<E0

00<90

0~3F

0~C7

- F0

Min:00

Max:fe

Min:00

Max:fe

0:0, 3F:3F, FF : the state marking

0:0, 3F:3F, FF :the state marking

0:0, 3F:3F, FF : the state marking

0:0, 3F:3, FF : the state marking

0:0, 3F:3F, FF : the state marking

If Auto Adjust Condition is not,

send the NACK.

0: Pr. 0, C7: Pr.199

IR CODE 0, BITMASK = 0X01

Initial data : red -0x79

blue -0x6f

green -0x80

Initial data : red -0x80

blue -0x82

green -0x80

+ 30 hidden pages
