OWNER'S MANUAL

IPS LED MONITOR
LED MONITOR*

* LG LED Monitors are LCD Monitors with LED Backlighting.

Please read the safety information carefully
before using the product.

34UC87
34UC87M
34UC87C

www.lg.com

TABLE OF CONTENTS

2

ENGLISH

TABLE OF CONTENTS

3 LICENSE

4 ASSEMBLING AND PREPARING

4 Product Composition

5 Product and Button Description

5 - How to Use the Joystick Button

6 - Input Connector

7 Moving and Lifting the Monitor

8 Installing the Monitor

8 - Assembling the Stand

9 - Installing on a Table

9 - Adjusting the Stand Height

10 - Adjusting the Angle

11 - Tidying Up Cables

11 - Using the Kensington Lock

12 - Installing on the Wall

19 USER SETTINGS

19 Activating the Main Menu

19 - Main Menu Features

20 User Settings

20 - Menu Settings

21 - Ratio

22 - Function

24 - PBP

26 - Picture

27 - Color

28 - Settings

29 - Reset

30 TROUBLESHOOTING

32 PRODUCT SPECIFICATION

14 USING THE MONITOR

14 Connecting to a PC

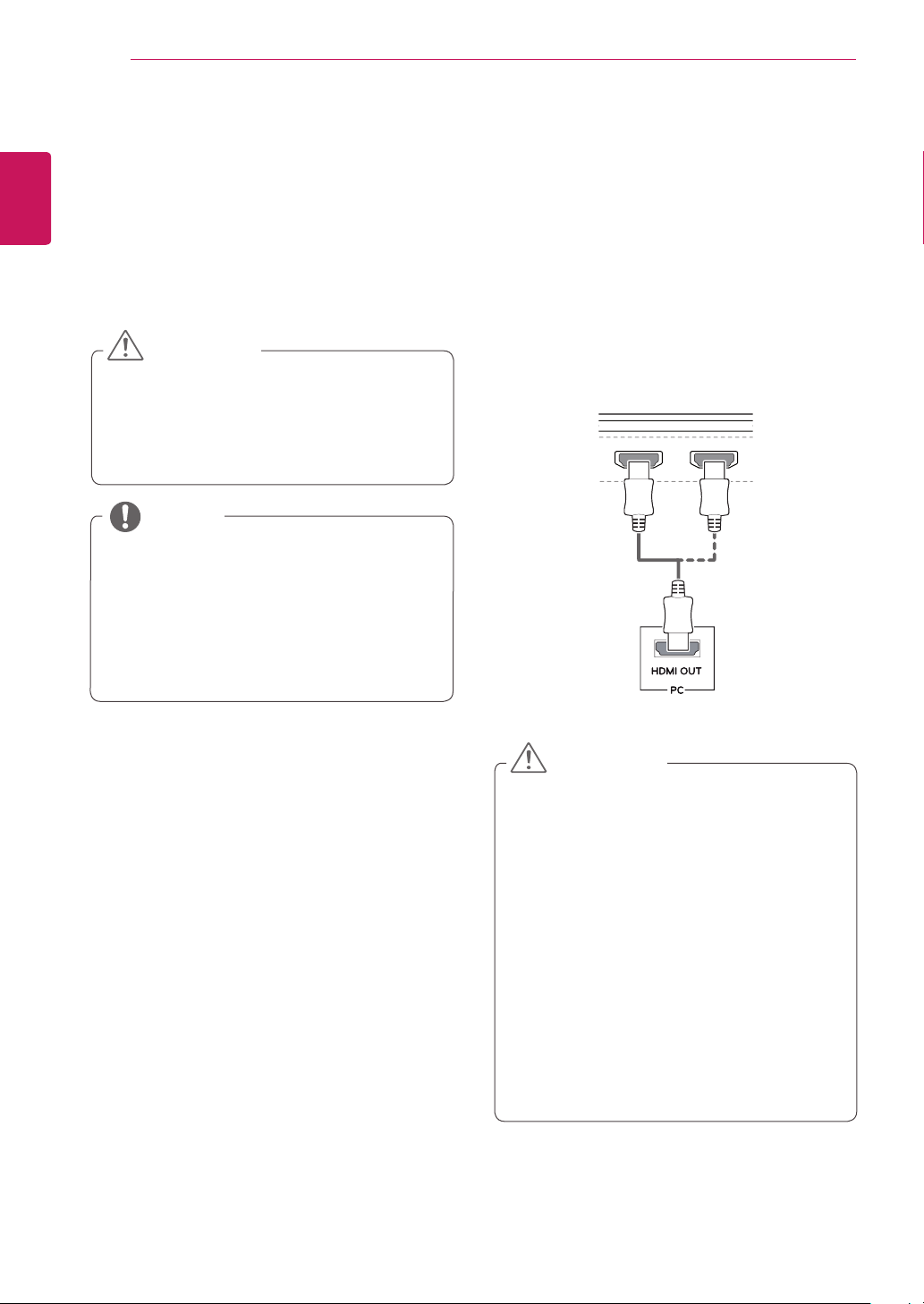

14 - HDMI Connection

15 - DisplayPort Connection

15 - Thunderbolt ( ) Connection

16 Connecting AV Devices

16 - HDMI Connection

16 Connecting Peripherals

16 - USB Cable connection - PC

17 - Connecting Headphones

18 - IR Connection

34 Factory Support Mode

34 HDMI Timing (Video)

34 Power LED

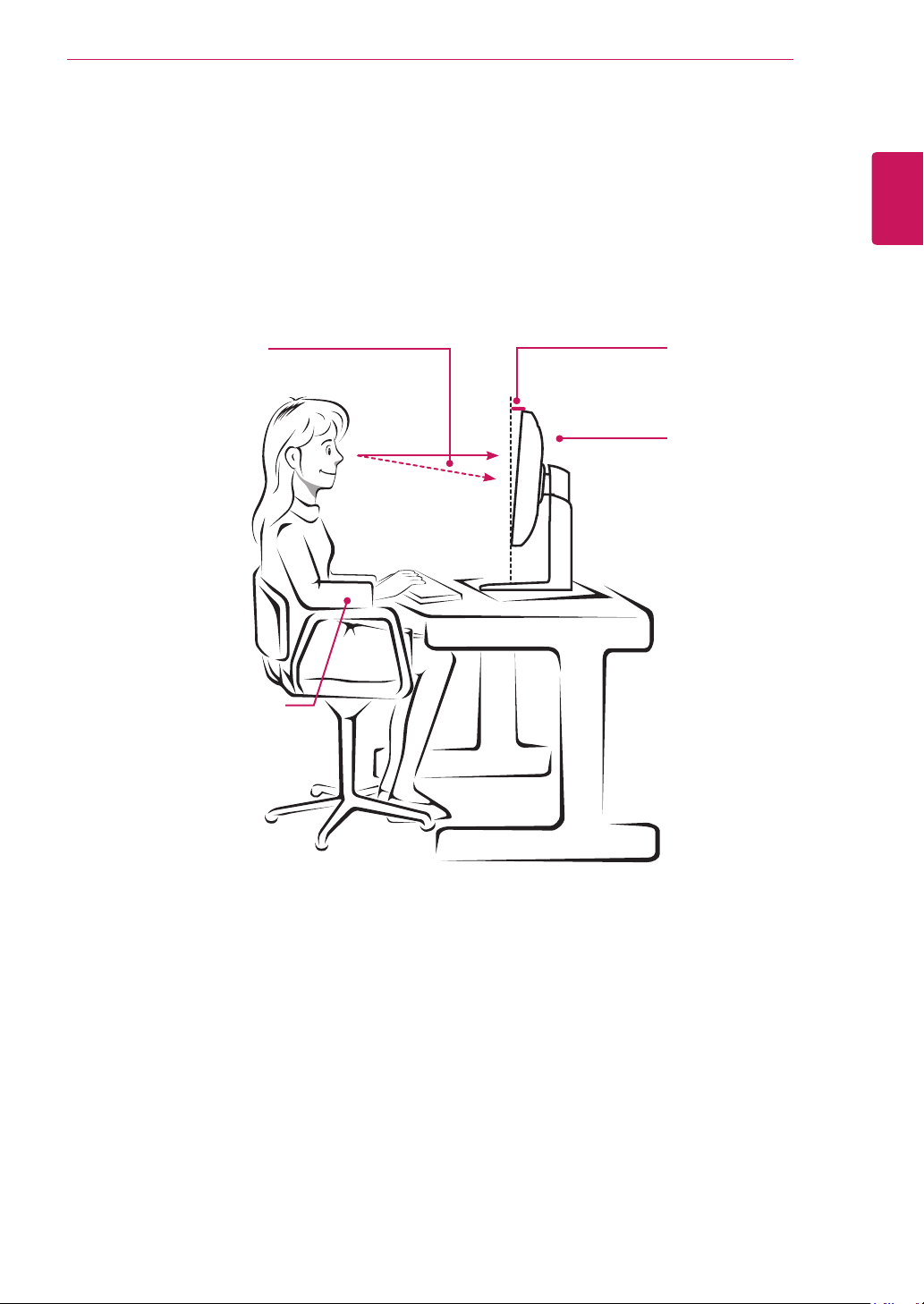

35 PROPER POSTURE

35 Proper Posture for Using the Monitor

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.

LICENSE

3

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort compliance logo for
dual-mode source devices are all registered trademarks of the Video Electronics Stan­dards Association.

MaxxAudio and additional MAXX trademarks are trademarks and/or registered trade­marks of Waves Audio Ltd.

ENGLISH

ASSEMBLING AND PREPARING

4

ENGLISH

ASSEMBLING AND PREPARING

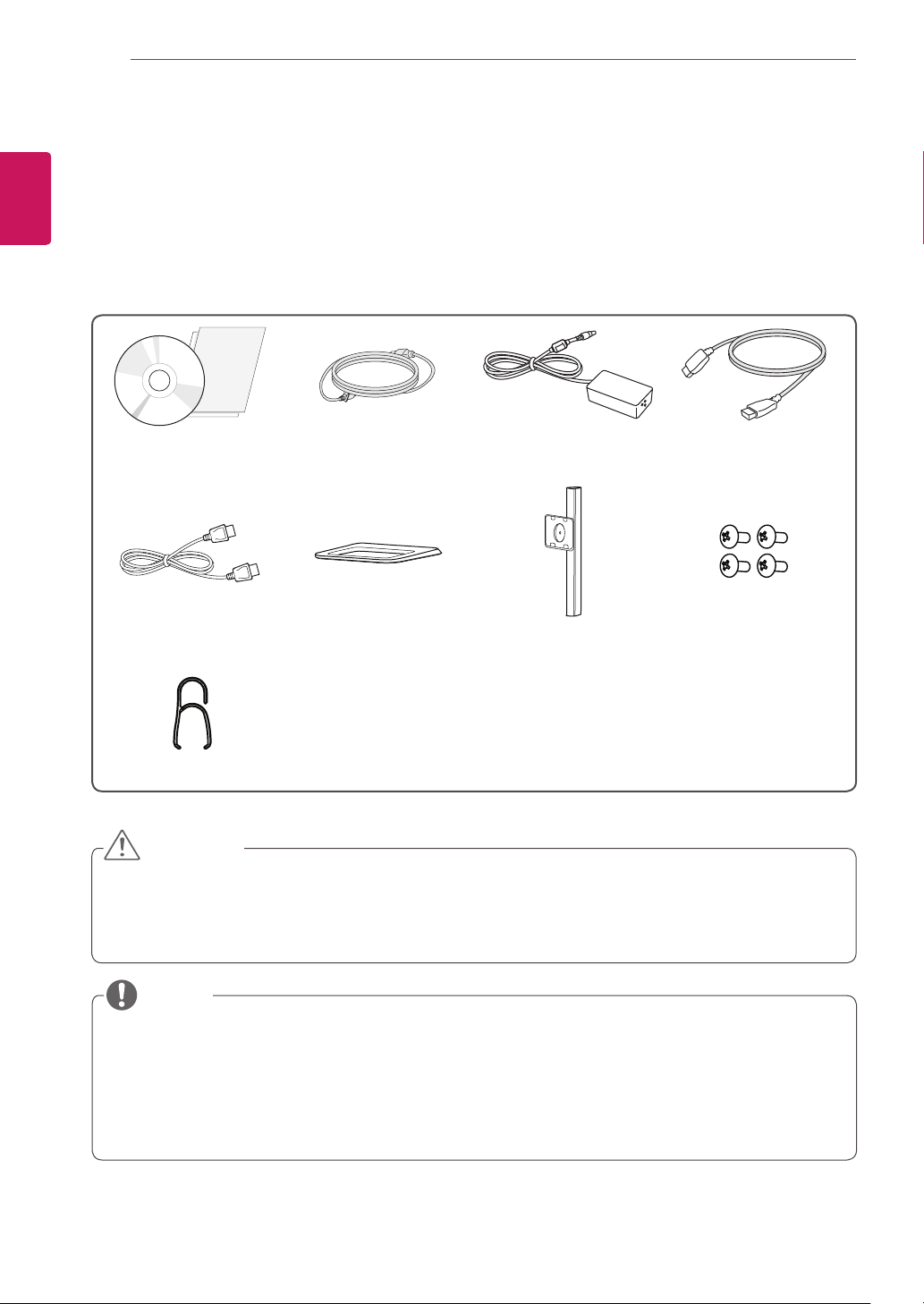

Product Composition

Please verify all the components are included in the box before using the product. If there are any missing compo­nents, contact the retailer where you purchased the product. Note that the product and related components may
look different from those shown here.

CD (Owner's Manual /

Software / Guides) / Cards

DisplayPort Cable Stand Base Stand Body

Power cord AC/DC Adapter HDMI cable

4 Screws

(M4 x L10)

Cable Holder

CAUTION

Always use genuine LG components to ensure safety and product performance.

y

The product warranty will not cover damage or injury caused by the use of unauthorized components.

y

Use the supplied components.

y

If you use generic cables not certified by LG, the screen may not display or there may be image noise.

y

NOTE

The components may look different from those illustrated here.

y

Without prior notice, all product information and specifications contained in this manual are subject to

y

change to improve the performance of the product.
To purchase optional accessories, visit an electronics store, an online shopping site, or contact the retailer from

y

which you purchased the product.
The power cord provided may differ, depending upon the region.

y

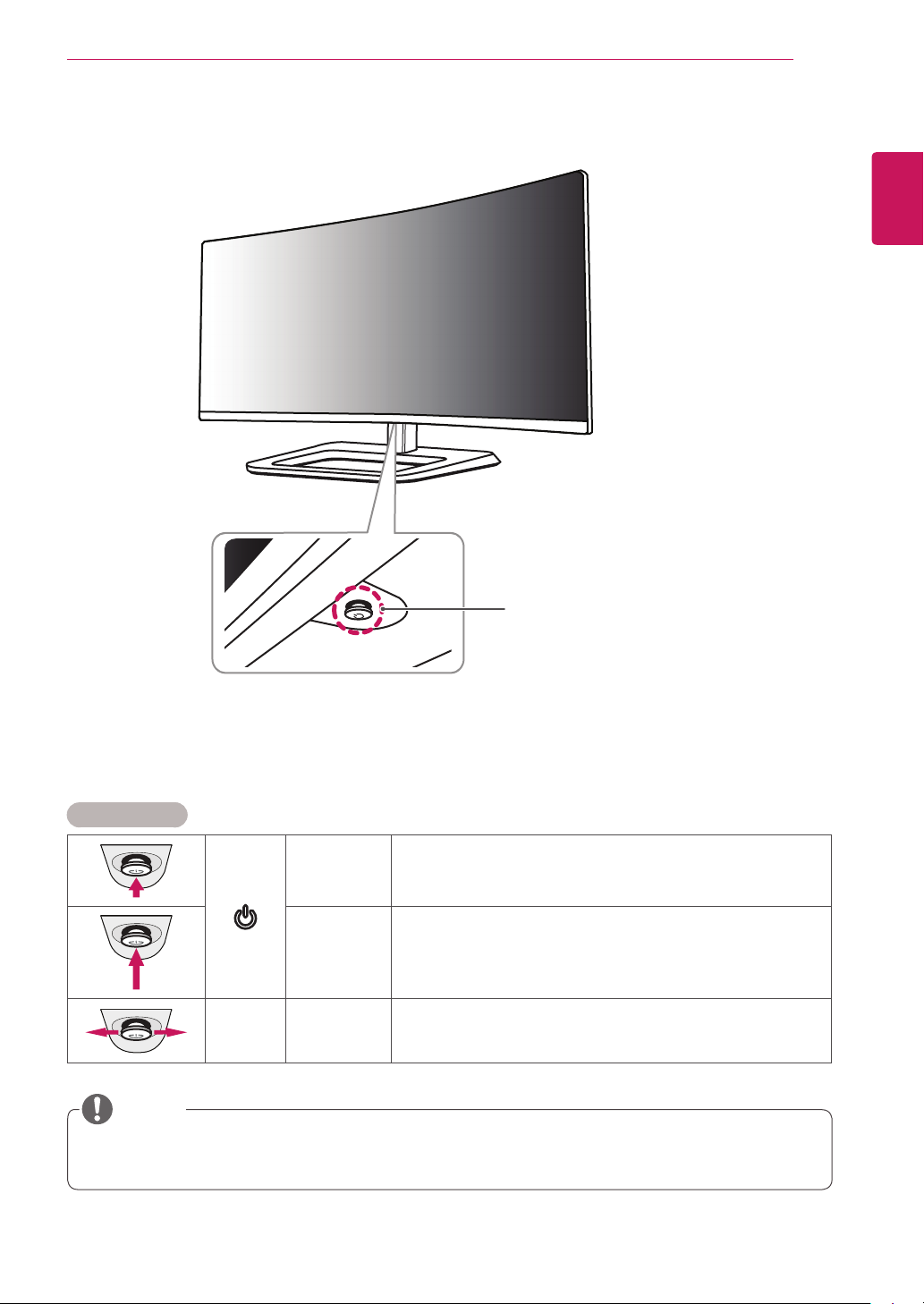

Product and Button Description

ASSEMBLING AND PREPARING

5

ENGLISH

Joystick Button /
Power LED

On Power on

y

Off Power off

y

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left or right with
your finger.

Basic Functions

Press the joystick button once with your finger to turn on the
monitor.

Press and hold the joystick button once with your finger to turn
off the monitor.

You can control the volume by moving the joystick button left or right.

◄/►

Power on

Power off

Volume
Control

NOTE

The joystick button is located at the bottom of the monitor.

y

Before turning on the monitor, please make sure that the DC switch on the rear side of product is ON.

y

ENGLISH

ASSEMBLING AND PREPARING

6

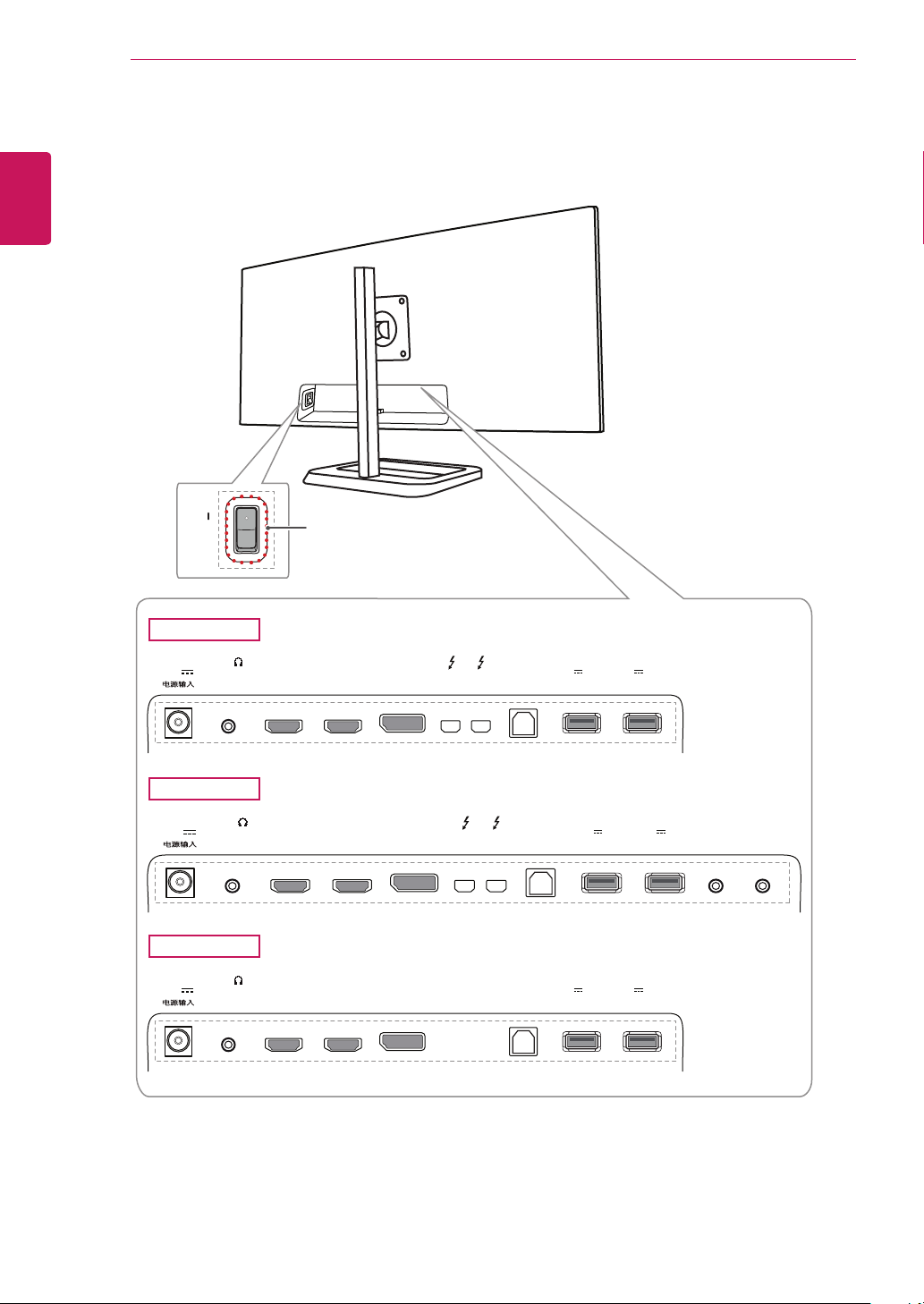

Input Connector

ON

34UC87

DC-IN

(19 V )

34UC87M

DC-IN

(19 V )

34UC87C

DC-IN

(19 V )

H/P

H/P

H/P

HDMI IN 1

HDMI IN 1

HDMI IN 1

DC switch

HDMI IN 2

HDMI IN 2

HDMI IN 2

DP-IN

DP-IN

DP-IN

USB UP USB IN 1

USB UP USB IN 1

5 V 1.1 A

USB UP IR IN IR OUTUSB IN 1

5 V 1.1 A

5 V 1.1 A

USB IN 2

5 V 1.1 A

USB IN 2

5 V 1.1 A

USB IN 2

5 V 1.1 A

ASSEMBLING AND PREPARING

7

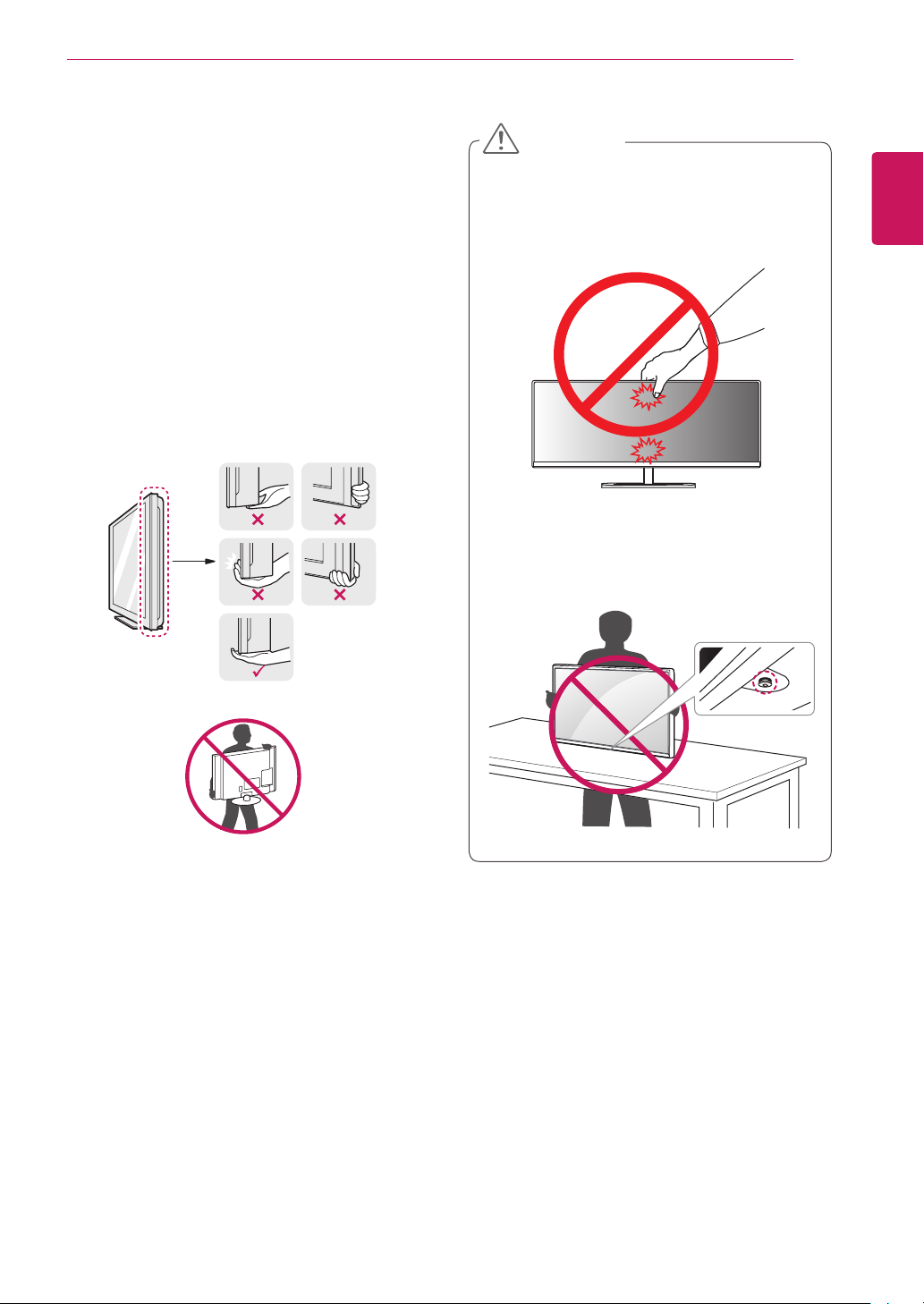

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe transporta­tion, regardless of its shape or size.

Place the monitor in the original box or packing

y

material before attempting to move it.
Before moving or lifting the monitor, disconnect

y

the power cord and all other cables.
Hold the bottom and side of the monitor frame

y

firmly. Do not hold the panel itself.

CAUTION

Avoid touching the monitor screen as much as

y

possible.

-

This may result in damage to the screen or
some of the pixels used to create images.

If you use the monitor panel without the stand

y

base, its joystick button may cause the monitor
to become unstable and fall, resulting in damage
to the monitor or personal injury. In addition, this
may cause the joystick button to malfunction.

ENGLISH

When holding the monitor, the screen should face

y

toward you to prevent it from being scratched.
When transporting the monitor, do not expose

y

the monitor to shock or excessive vibration.
When moving the monitor, keep it upright and

y

never turn the monitor on its side or tilt it side­ways.

ASSEMBLING AND PREPARING

8

ENGLISH

Installing the Monitor

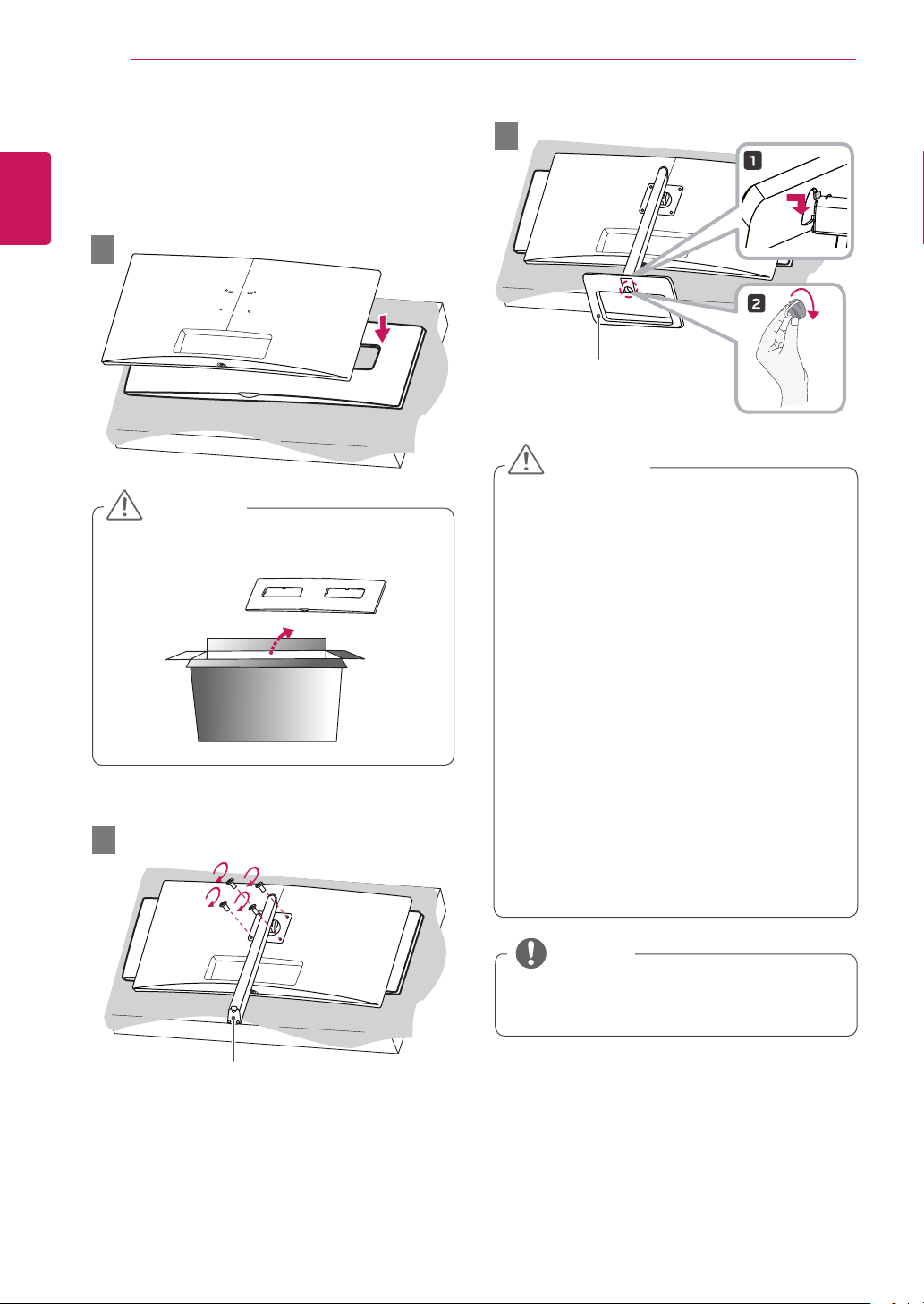

Assembling the Stand

1

CAUTION

To protect the screen, place the screen face down

y

on the screen pad which is inside the box.

2

3

Stand Base

CAUTION

Illustrations in this document represent typical

y

procedures, so they may look different from the
actual product.
Applying excessive force when tightening

y

screws may cause damage to the monitor.
Damage caused in this way will not be covered
by the product warranty.
When tightening the screws after mounting

y

the stand base onto the stand body, be sure to
hold the stand base with your hand. Otherwise,
the product may fall, causing personal injury or
damage to the product.
Do not carry the monitor upside down by just

y

holding the base. This may cause the monitor
to fall off the stand and could result in personal
injury.
When lifting or moving the monitor, do not

y

touch the monitor screen. The force applied to
the monitor screen may cause damage to it.

Stand Body

NOTE

You can disassemble the stand in the reverse

y

order of the assembly.

ASSEMBLING AND PREPARING

9

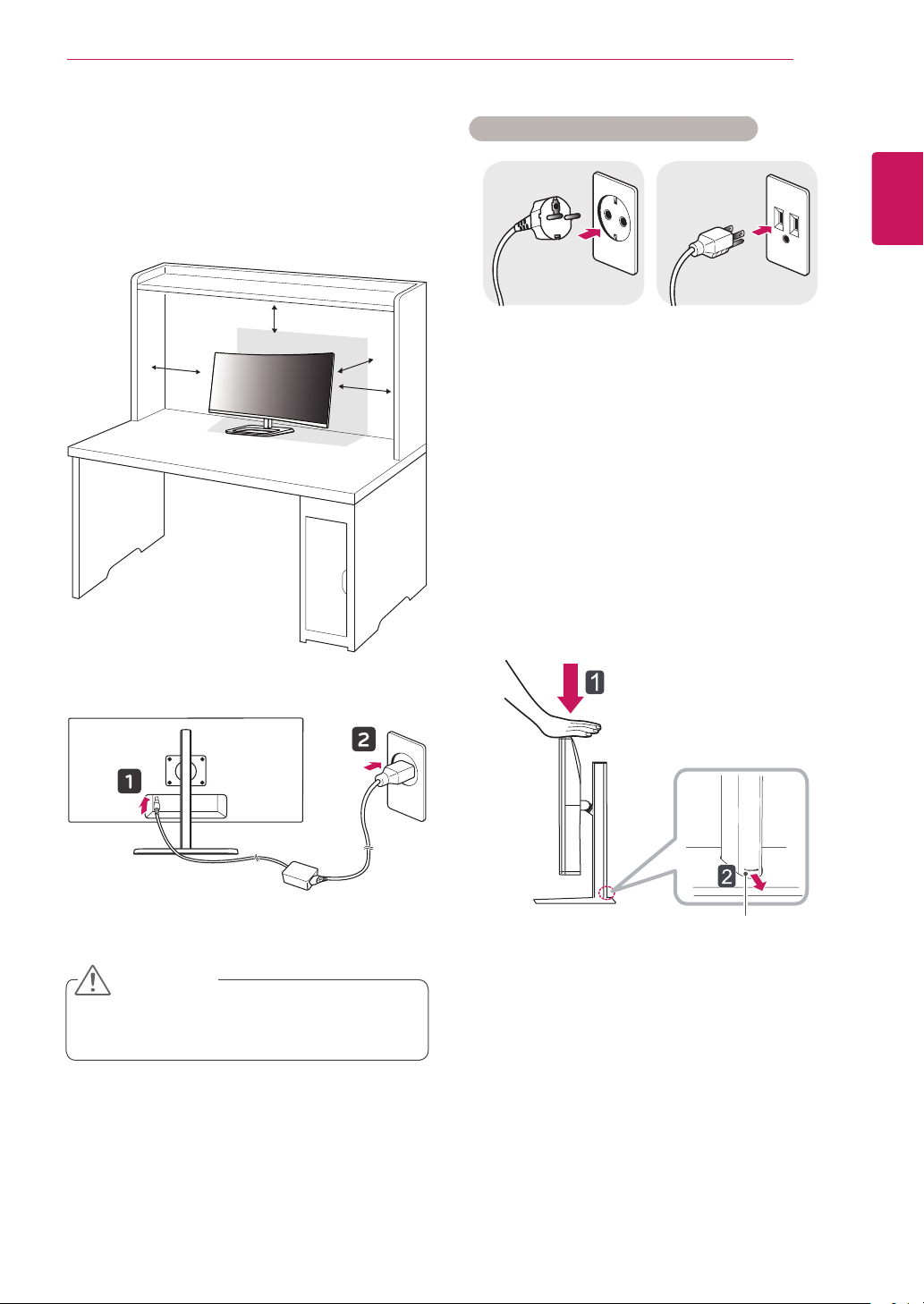

Installing on a Table

Lift the monitor and place it on the table in an

1

upright position. Place the monitor at least
10 cm (4 inches) away from the wall to ensure suf­ficient ventilation.

10 cm (4 inches)

10 cm

10 cm

10 cm

Connect the power adapter to the monitor and

2

then plug the power cord into the wall outlet.

Cautions When Connecting Power Cord

100-240 V ~

Make sure to use the power cord that is pro-

y

vided in the product package and connect it to a
grounded power outlet.
If you need another power cord, please contact

y

your local dealer or the nearest retail store.

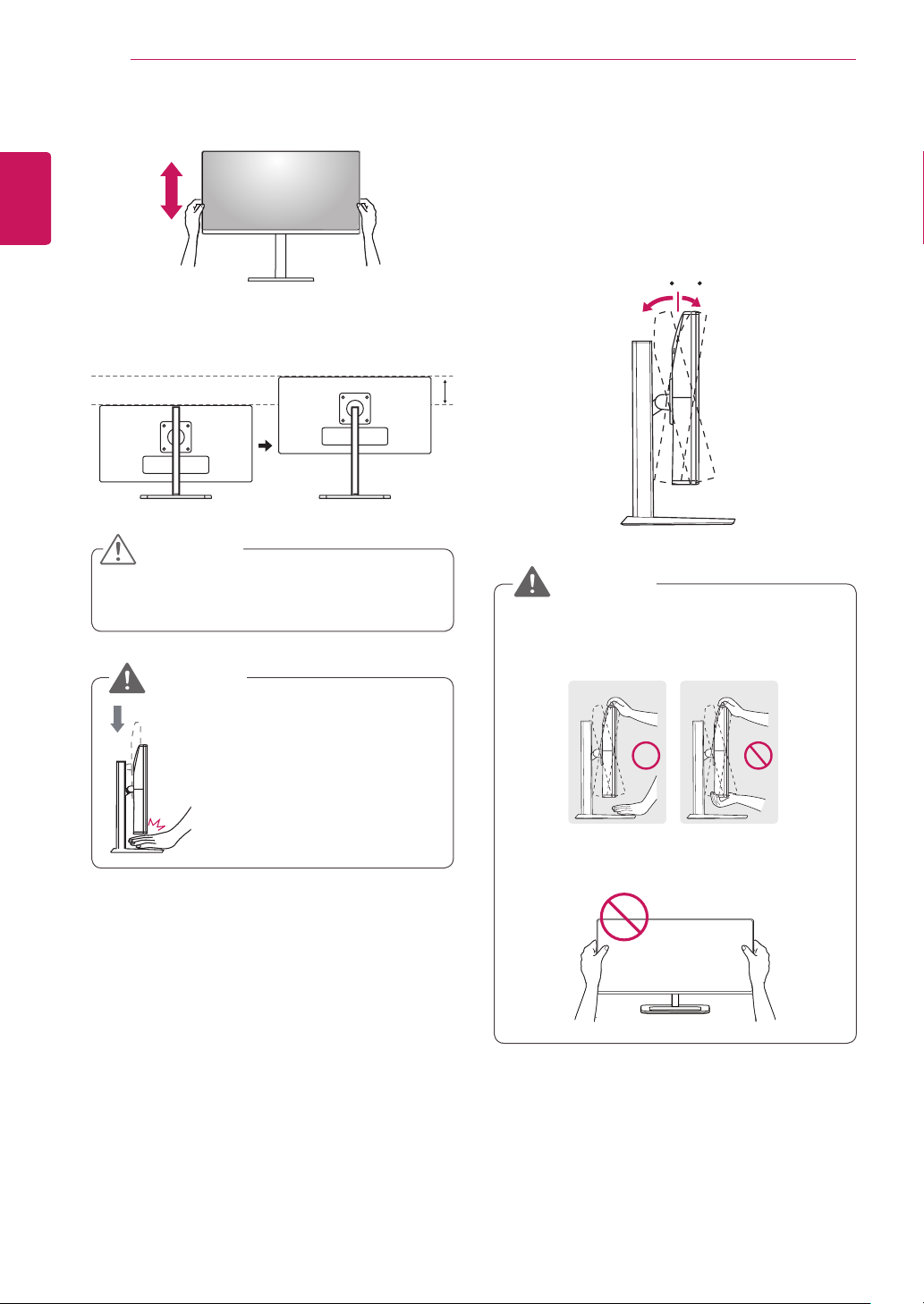

Adjusting the Stand Height

Place the monitor mounted on the stand base in

1

an upright position.
Push the head downward and pull out the

2

locking pin.

ENGLISH

Press the joystick button on the bottom of the

3

monitor to turn on the monitor.

CAUTION

Unplug the power cord before moving or install-

y

ing the monitor. There is risk of electric shock.

Head

Locking pin

ENGLISH

-515

-515

ASSEMBLING AND PREPARING

10

Handle the monitor with both hands for safety.

3

The height can be adjusted up to 140.0 mm (5/

4

inches).

140.0 mm (5/ inches)

CAUTION

Once the pin is removed, it is not necessary to re-

y

insert it to adjust the height.

WARNING

Adjusting the Angle

Place the monitor mounted on the stand base in

1

an upright position.
Adjust the angle of the screen. The angle of the

2

screen can be adjusted forward or backward from

-5° to 15° for a comfortable viewing experience.

-515

FrontRear

y

WARNING

To avoid injury to the fingers when adjusting the
screen, do not hold the lower part of the moni­tor's frame as illustrated below.

Do not put your fingers or hand

y

between the screen and the
base (chassis) when adjusting
the screen's height.

Be careful not to touch or press the screen area

y

when adjusting the angle of the monitor.

ASSEMBLING AND PREPARING

11

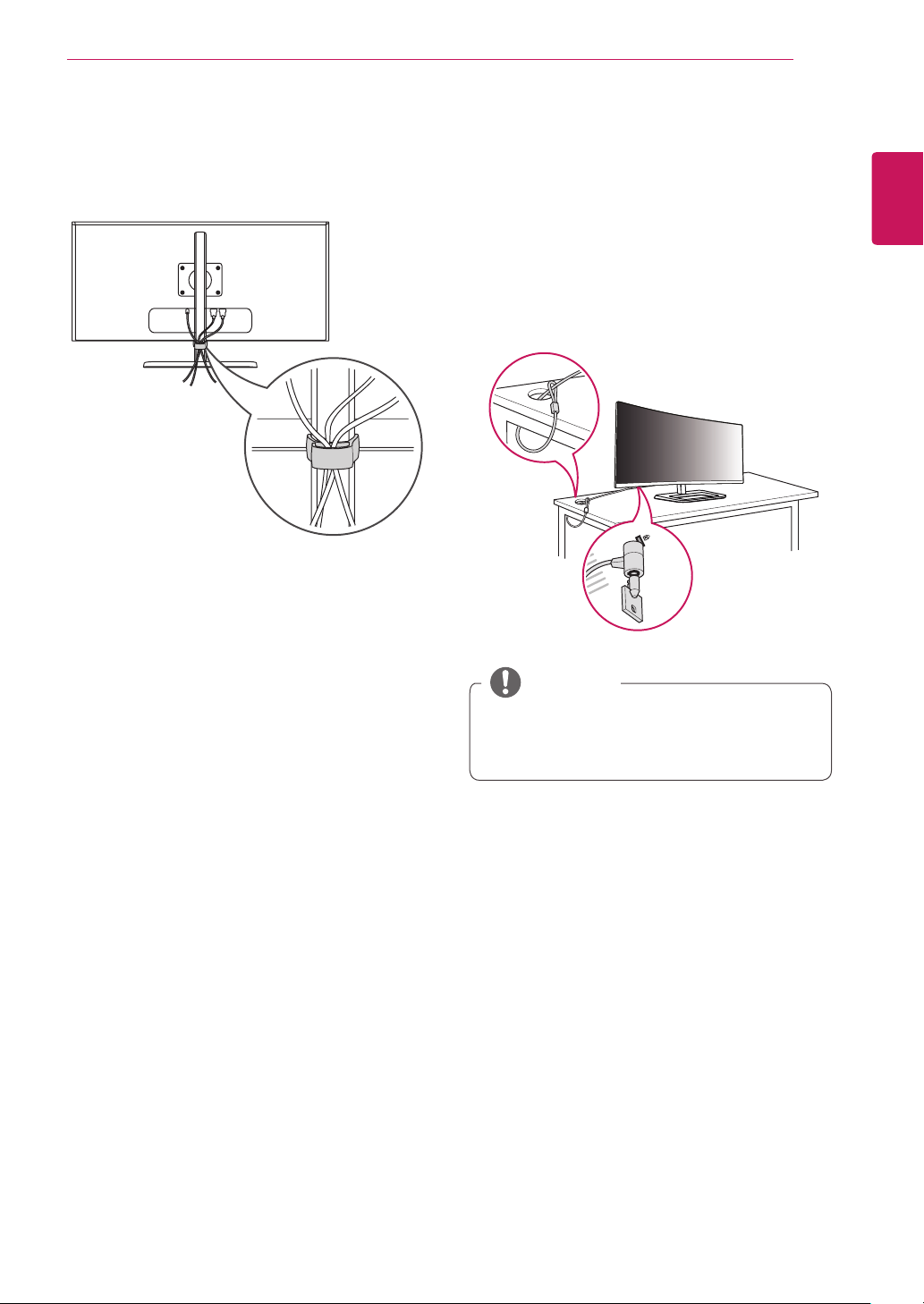

Tidying Up Cables

Arrange the cables using the cable holder as shown in
the illustration.

Using the Kensington Lock

The connector for the Kensington security system is
located at the bottom of the monitor.
For more information on installation and usage, refer
to the Kensington lock owner's manual or visit the
website at http://www.kensington.com.

Connect the monitor to a table using the Kensington
security system cable.

ENGLISH

NOTE

The Kensington security system is optional. You can

y

obtain optional accessories from most electronics
stores.

ENGLISH

A

B

ASSEMBLING AND PREPARING

12

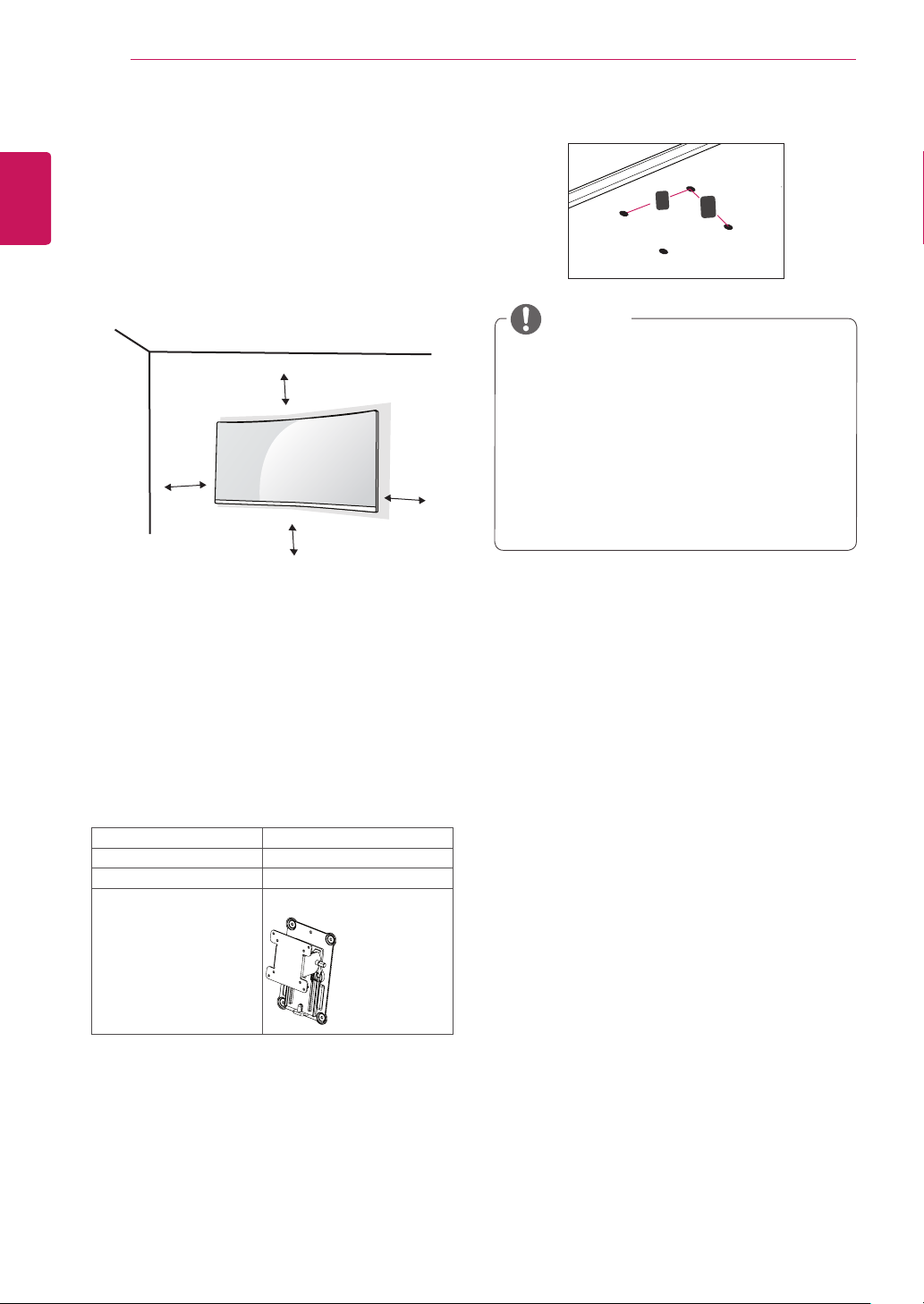

Installing on the Wall

Install the monitor at least 10 cm (4 inches) away from
the wall and leave about 10 cm (4 inches) of space at
each side of the monitor to ensure sufficient ventila­tion. Detailed installation instructions can be obtained
from your local retail store. Alternatively, refer to the
manual for how to install and set up a tilting wall
mounting bracket.

10 cm (4 inches)

10 cm

10 cm

10 cm

Wall Mount (A x B)

y

NOTE

Use the screws specified by VESA standards.

y

The wall mount kit includes the installation guide and

y

all necessary parts.
The wall mounting bracket is optional. You can obtain

y

optional accessories from your local dealer.
The length of the screw may differ for each wall

y

mounting bracket. Be sure to use the proper length.
For more information, please refer to the user manual

y

for the wall mounting bracket.

To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely
fixed to the monitor and to the wall.

If you use screws longer than the standard length,

1

it may damage the inside of the product.
A non-VESA standard screw may damage the

2

product and cause the monitor to fall. LG Elec­tronics is not liable for any accidents relating to
the use of non-standard screws.

Wall Mount (A x B) 100 x 100
Stand Screw M4 x L10
Required Screws 4
Wall Mount Plate

(Optional)

RW120

CAUTION

Unplug the power cord before moving or installing

y

the monitor to avoid electric shock.
Installing the monitor on the ceiling or on a slanted

y

wall may result in the monitor falling off, which
could lead to injury. Use an authorized LG wall
mount and contact the local dealer or qualified
personnel.
Applying excessive force when tightening screws

y

may cause damage to the monitor. Damage caused
in this way will not be covered by the product war­ranty.
Use the wall mounting bracket and screws that

y

conform to VESA standards. Damage caused by the
use or misuse of inappropriate components will not
be covered by the product warranty.
When measured from the back of the monitor, the

y

length of each installed screw must be 8 mm
(/ of an inch) or less.

Wall Mount Plate

ASSEMBLING AND PREPARING

13

ENGLISH

Wall Mount Plate

Back of the Monitor

Screw Dimensions
M4 x L10

Max 8 mm (/ of an inch

Back of the Monitor

USING THE MONITOR

14

ENGLISH

USING THE MONITOR

The following instructions are based on the

y

34UC87 model. Illustrations in this manual may
differ from the actual product.

Press the joystick button, go to Menu → Easy control

Input, and then select the input option.

→

CAUTION

Do not press the screen for a prolonged time.

y

This may cause image distortion.
Do not display a still image on the screen for a

y

prolonged time. This may cause image reten­tion. Use a screensaver if possible.

NOTE

When connecting the power cord to the outlet,

y

use a grounded (3-hole) power strip or a ground­ed power outlet.
The monitor may flicker when turned on in an

y

area where the temperature is low. This is normal.
Sometimes red, green, or blue spots may appear

y

on the screen. This is normal.

Connecting to a PC

This monitor supports the *Plug and Play feature.

y

* Plug and Play: A feature that allows you to add a de-

vice to your computer without having to reconfigure
anything or install any drivers.

HDMI Connection

Transmits digital video and audio signals from your PC
to the monitor. Connect your PC to the monitor using
the HDMI cable as shown in the illustration below.

HDMI IN 1 HDMI IN 2

CAUTION

Make sure to use the supplied HDMI cable of the

y

product. Otherwise, this may cause the device
to malfunction.
Connecting your PC to the monitor using the

y

HDMI cable may cause device compatibility is­sues.
Using a DVI to HDMI / DP (DisplayPort) to HDMI

y

cable may cause compatibility issues.
Use a certified cable with the HDMI logo

y

attached. If you do not use a certified HDMI
cable, the screen may not display or a connec­tion error may occur.
Recommended HDMI cable types

y

-

High-Speed HDMI®/

-

High-Speed HDMI®/

TM

Cable

TM

Cable with Ethernet

USING THE MONITOR

US

U

15

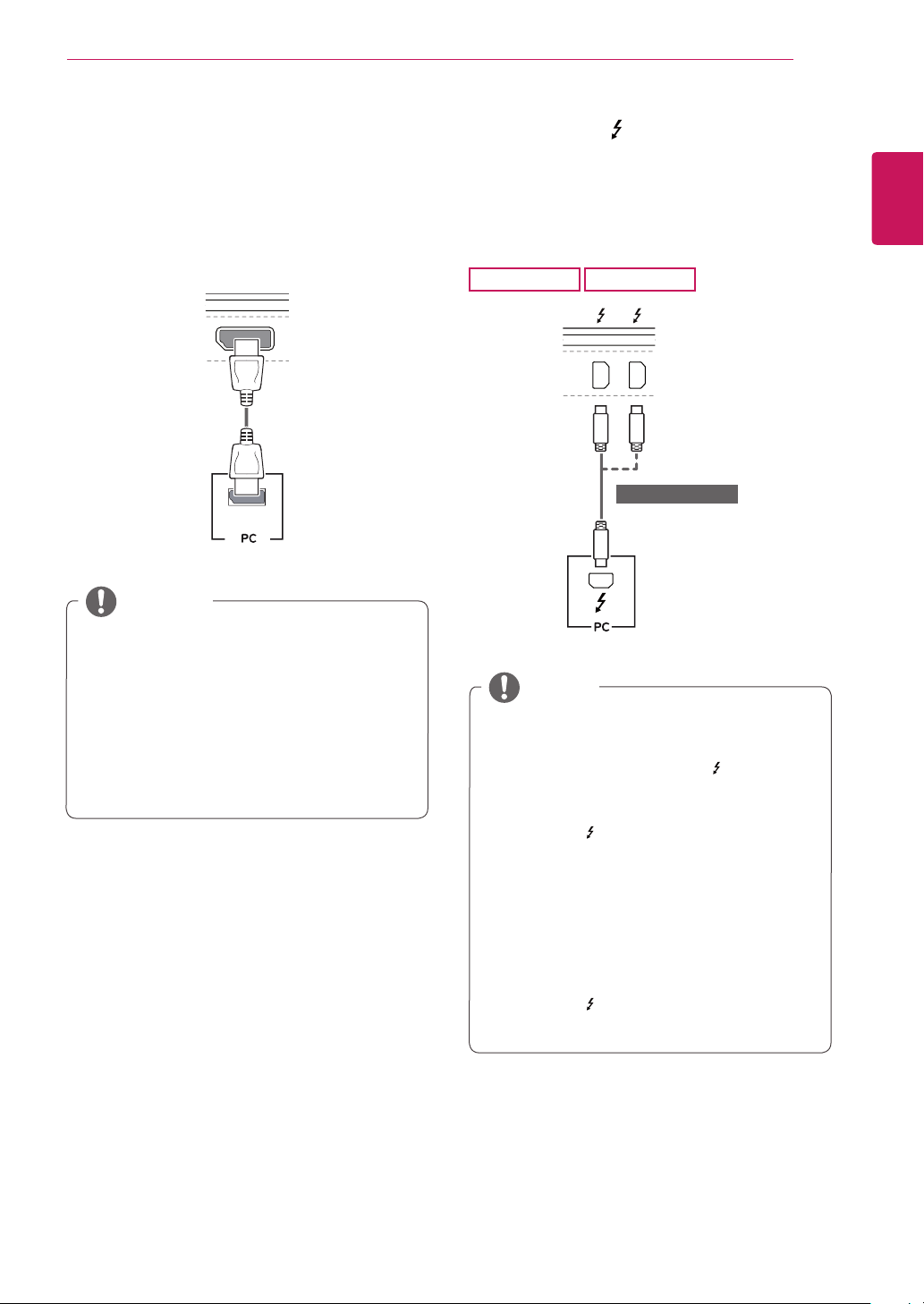

DisplayPort Connection

Transmits digital video and audio signals from your PC
to the monitor. Connect the monitor to your PC using
the display port cable as shown in the illustration
below:

DP-IN

DP OUT

NOTE

There may be no video or audio output depend-

y

ing upon the DP (DisplayPort) version of the PC.
Make sure to use the supplied DisplayPort cable

y

of the product. Otherwise, this may cause the
device to malfunction.
For using Mini DP to DP (Mini DisplayPort to Dis-

y

playPort) cable, it is recommended that you use
DisplayPort 1.2 cable.

Thunderbolt ( ) Connection

You can connect your high-resolution display or
high-performance data device to the monitor via a
Thunderbolt port. Connect your external device to
the monitor using the Thunderbolt cable as illustrated
below.

34UC87

NOTE

The maximum data transmission rate of each port

y

is 20 Gb/s.
Make sure to use a Thunderbolt (

y

Otherwise, this may cause the device to malfunc­tion.
Thunderbolt (

y

ments as Windows 7, Windows 8.1, and Mac
product.
Mac products may not support the recommend-

y

ed resolution or the some features. For more
information, refer to the support information card
of Mac which is provided separately.
The ability to set up dual monitors using the

y

Thunderbolt (
depends on the performance of your video card.

34UC87M

(sold separately)

) certified cable.

) is supported in such environ-

) and daisy-chaining technology

ENGLISH

USING THE MONITOR

HDMI IN 1 HDMI IN 2

US

U

16

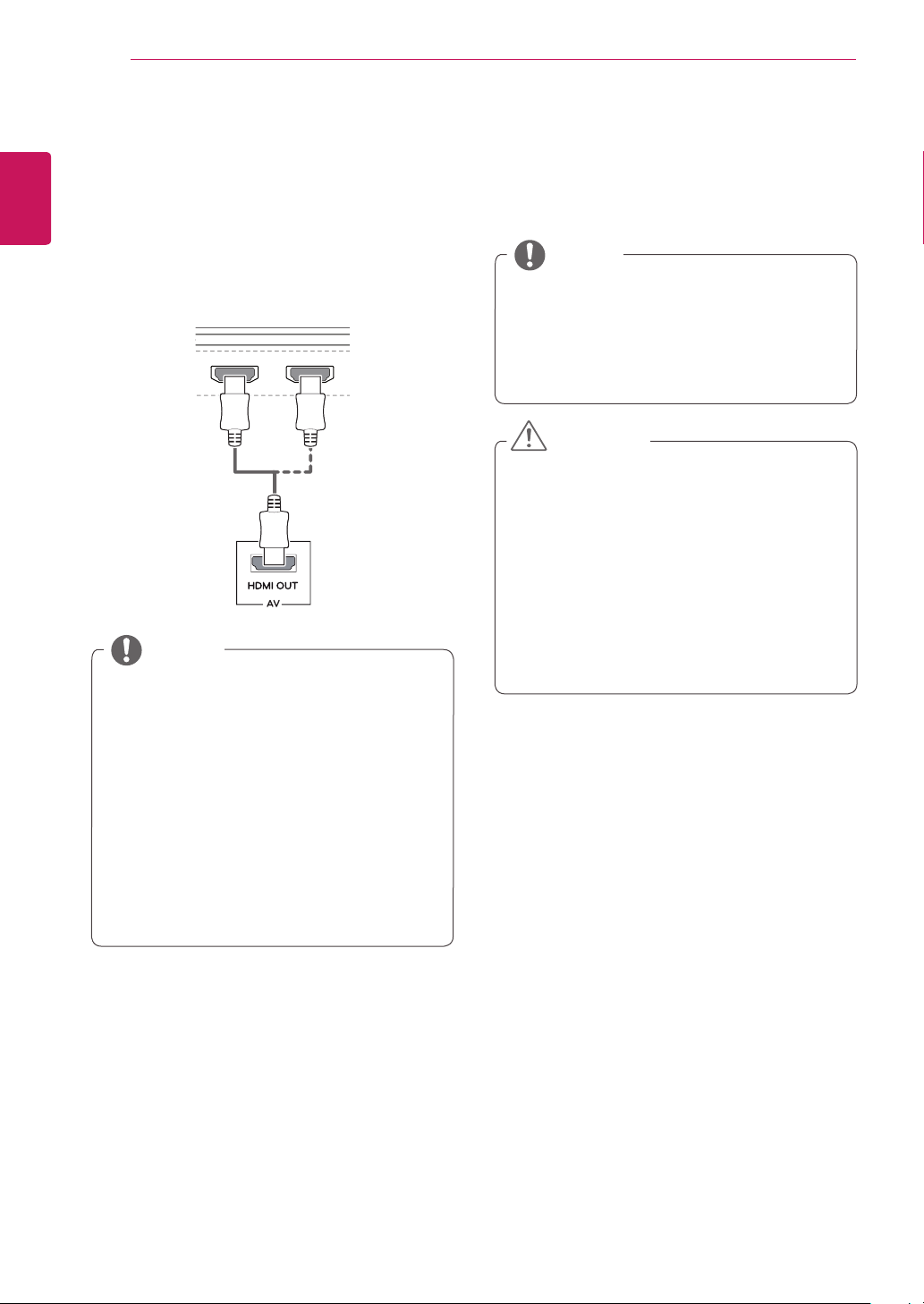

Connecting AV Devices

ENGLISH

HDMI Connection

HDMI transmits digital video and audio signals from
your AV device to the monitor. Connect your AV de­vice to the monitor using the HDMI cable as shown in
the illustration below.

Make sure to use the supplied HDMI cable of the

y

product. Otherwise, this may cause the device to
malfunction.
Using a DVI to HDMI / DP (DisplayPort) to HDMI

y

cable may cause compatibility issues.
Use a certified cable with the HDMI logo

y

attached. If you do not use a certified HDMI cable,
the screen may not display or a connection error
may occur.
Recommended HDMI cable types

y

-

-

HDMI IN 1 HDMI IN 2

NOTE

High-Speed HDMI®/
High-Speed HDMI®/

TM

Cable

TM

Cable with Ethernet

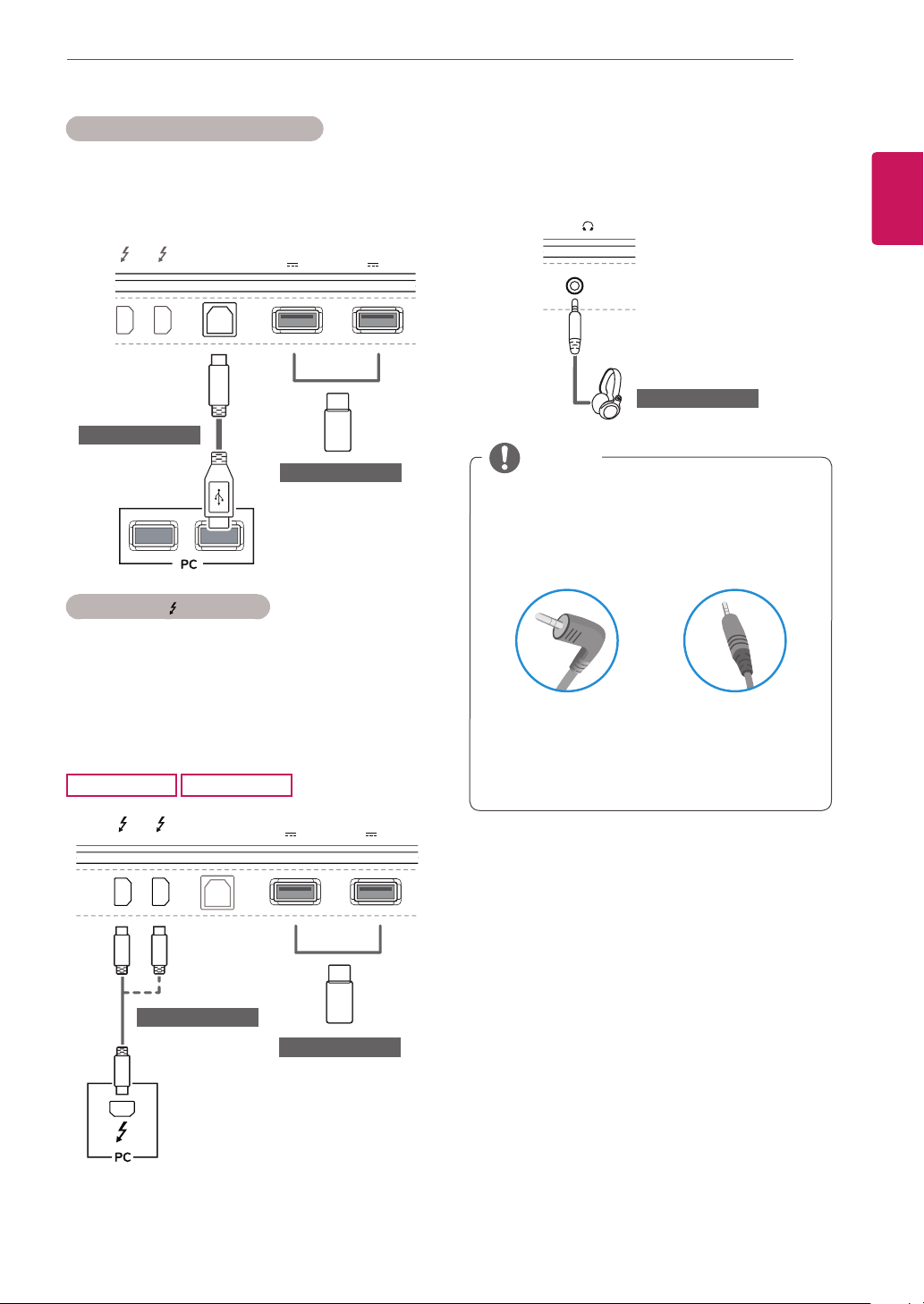

Connecting Peripherals

USB Cable connection - PC

The USB port on the product functions as a USB hub.

NOTE

Make sure to install the most recent Windows OS

y

service pack before using the product.
Peripheral devices are sold separately.

y

A keyboard, mouse, or USB device can be con-

y

nected to the USB port.

CAUTION

Cautions When Using a USB Device

A USB device with an automatic recognition

y

program installed or that uses its own driver
may not be recognized.
Some USB devices may not be supported or may

y

not work properly.
It is recommended to use a USB hub or hard disk

y

drive with power supplied. (If the power sup­ply is not adequate, the USB device may not be
recognized properly.)

USING THE MONITOR

USB IN 2

5 V 1.1 A

USB UP

USB U

USB IN 1

5 V 1.1 A

17

HDMI/DP (DisplayPort) connection

To use USB 3.0, connect the A-B type USB 3.0 cable of
the product to the PC.
Peripheral devices connected to the USB IN port can
be controlled from the PC.

(sold separately)

USB UP

USB IN 1

5 V 1.1 A

(sold separately)

USB IN 2

5 V 1.1 A

Thunderbolt ( ) connection

Peripheral devices connected to the USB IN port can
be controlled from the PC.
If you change the input on the menu while a device
is in connection via the Thunderbolt port, then the
device in connection via the USB port may not work
properly.

34UC87

34UC87M

Connecting Headphones

Connect peripherals to the monitor via the head­phones port. Connect as illustrated.

H/P

(sold separately)

NOTE

Peripheral devices are sold separately.

y

If you use angled earphones, it may cause a prob-

y

lem with connecting another external device to
the monitor. Therefore, it is recommended to use
straight earphones.

Angled Straight

Depending on the audio settings of the PC and

y

external device, headphones and speaker func­tions may be limited.

ENGLISH

P

(sold separately)

USB IN 1

5 V 1.1 A

(sold separately)

USB IN 2

5 V 1.1 A

ENGLISH

USB IN 2

5 V 1.1 A

USB IN 2

5 V 1.1 A

34UC87M

USING THE MONITOR

18

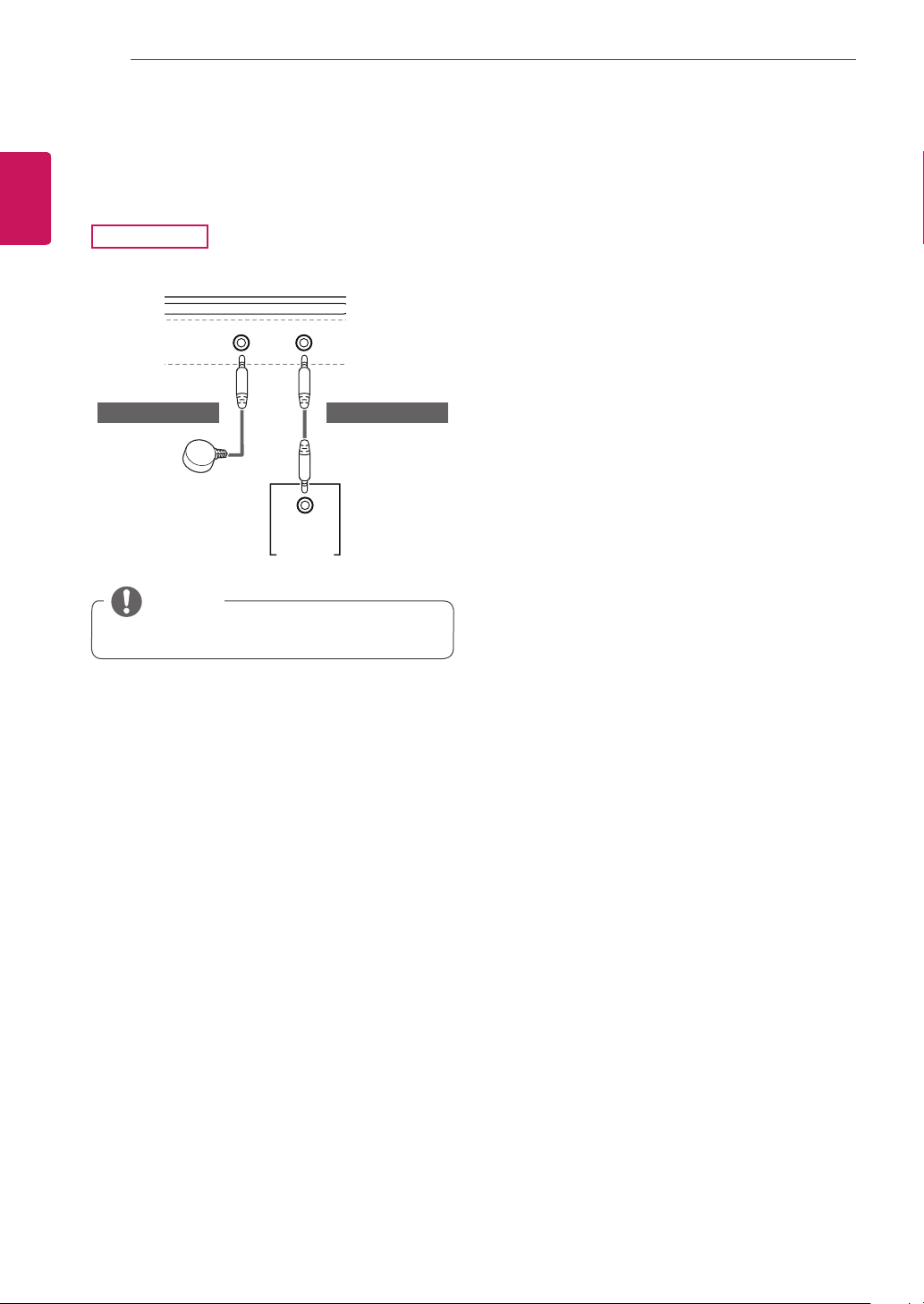

IR Connection

Connect the IR sensor and stereo cable to the monitor
(34UC87M) via the IR Port. Connect as illustrated.

34UC87M

IR IN IR OUT

(sold separately) (sold separately)

IR IN

NOTE

Make sure the power cable is disconnected.

y

USER SETTINGS

19

USER SETTINGS

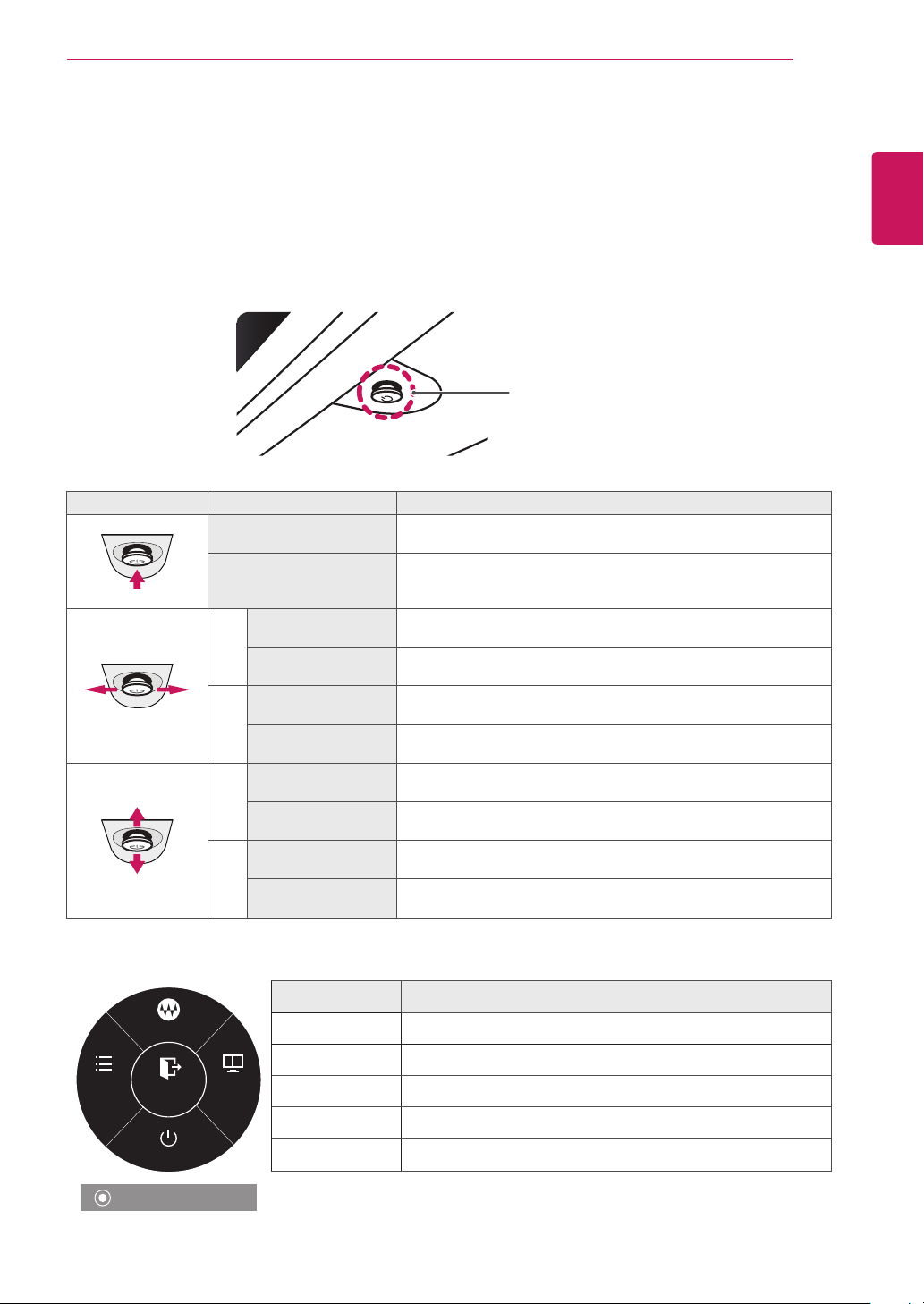

Activating the Main Menu

Press the joystick button on the bottom of the monitor.

1

Move the joystick up or down (▲/▼) and left or right(◄/►) to set the options.

2

Press the joystick button once more to exit the main menu.

3

Joystick Button

Button Menu Status Description

Main menu disabled Enables the main menu.

Main menu enabled

Main menu disabled Adjusts the monitor volume level.

◄

Main menu enabled Enters the menu features.

Exits the main menu.
(Hold the button down to turn off the monitor. You can turn off the
monitor this way at any time, including when the OSD is on.)

ENGLISH

Main menu disabled Adjusts the monitor volume level.

►

Main menu enabled Enters the PBP feature.

Main menu disabled Enables the main menu.

▲

Main menu enabled Enters the MaxxAudio feature.

Main menu disabled Enables the main menu.

▼

Main menu enabled Turns off the monitor.

Main Menu Features

MaxxAudio

Menu PBP

Exit

Monitor off

Long press: Monitor off

Main Menu Description

Menu Configures the screen settings.

MaxxAudio Sets the sound quality.

PBP Displays the screens of two input modes on one monitor.

Monitor off Turns off the monitor.

Exit Exits the main menu.

ENGLISH

USER SETTINGS

20

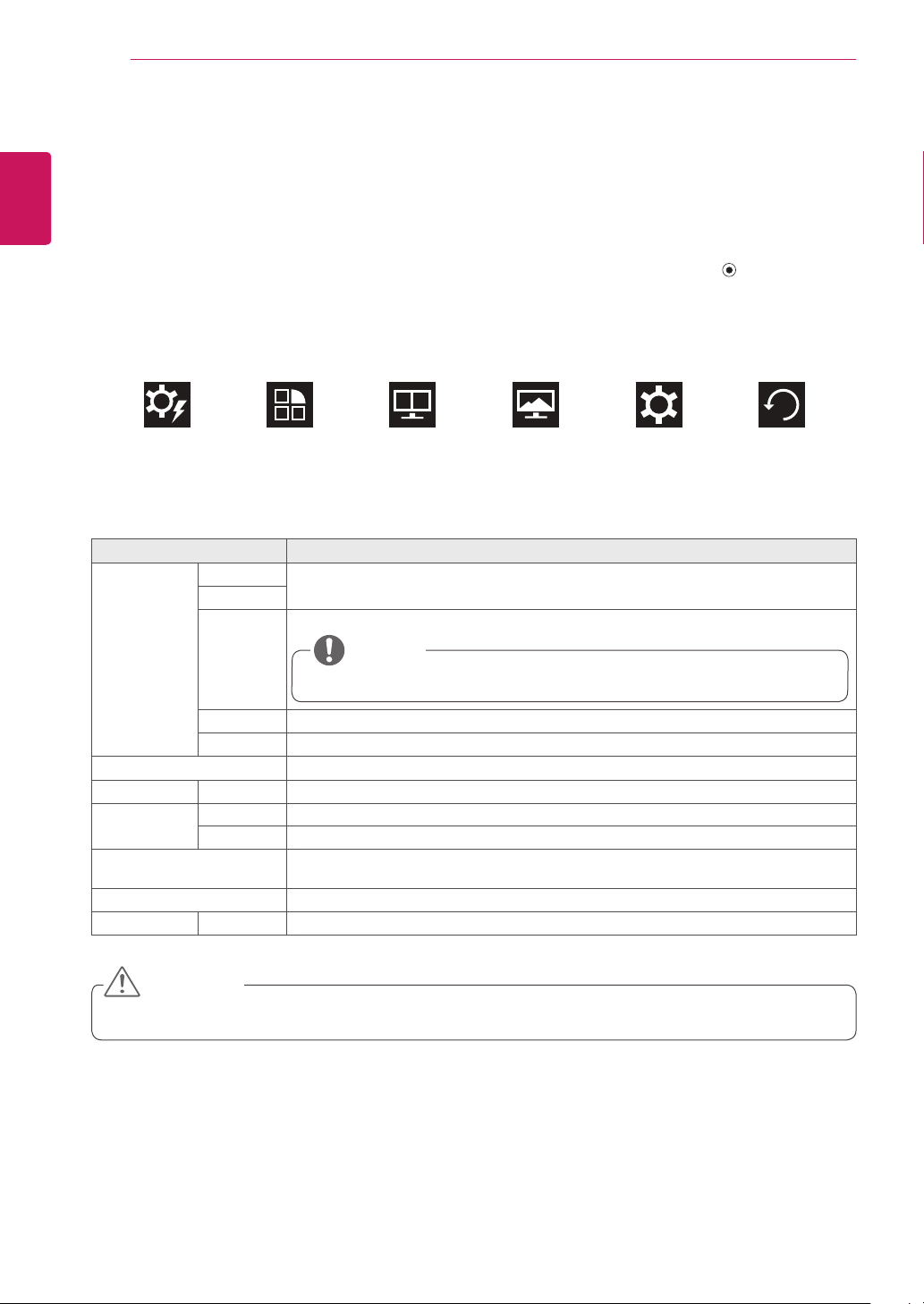

User Settings

Menu Settings

To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Menu.

1

Configure the options by moving the joystick up/down/left/right.

2

To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.

3

If you want to exit the OSD menu, move the joystick to ◄ until you exit.

4

When you enter the menu, instructions on how to use the button will appear in the bottom right corner of the

y

screen.

Easy control Function PBP Screen Settings Reset

Each option is described below.

Menu Description

Easy control Brightness

Contrast

Volume Adjusts the volume level.

Adjusts the color contrast and brightness of the screen.

NOTE

You can adjust Mute/ Unmute by moving the joystick button to ▼ in the Volume menu.

y

Input Selects the input mode.

Ratio Adjusts the aspect ratio of the screen.

Function Adjusts MaxxAudio, Reader Mode, Picture Mode, and SMART ENERGY SAVING.

PBP PBP Displays the screens of two input modes on one monitor.

Screen Picture Adjusts the Sharpness, Black Level, and Response Time of the screen.

Color Adjusts Gamma, Color Temperature, Red, Green, Blue, and Six Color.

Settings Adjusts Language, Power LED, Automatic Standby, DisplayPort 1.2, OSD Lock, and Set ID

Reset Restores the default settings.

◄

Exit Exits the OSD menu.

(34UC87M model only).

CAUTION

Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.

y

USER SETTINGS

21

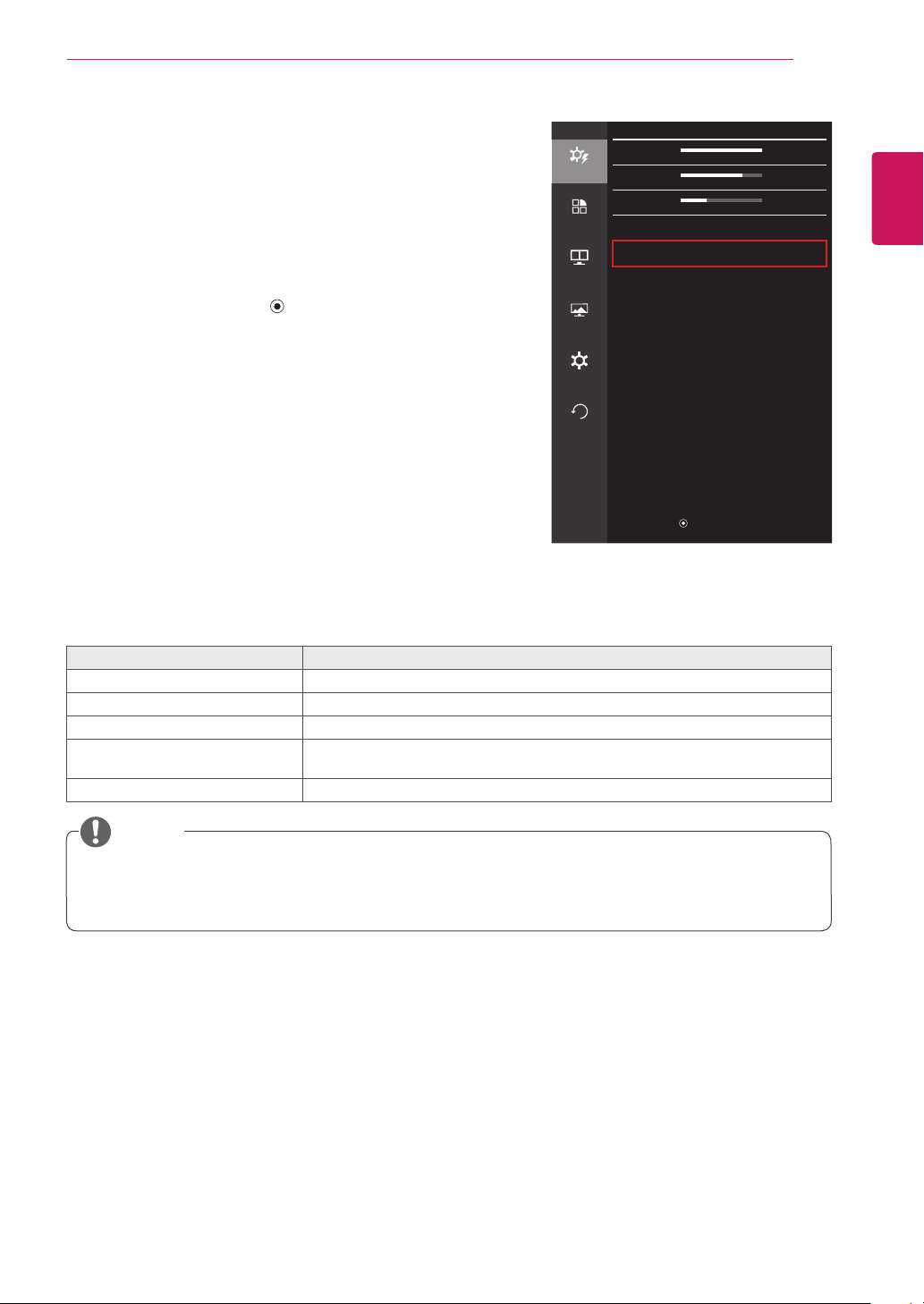

Ratio

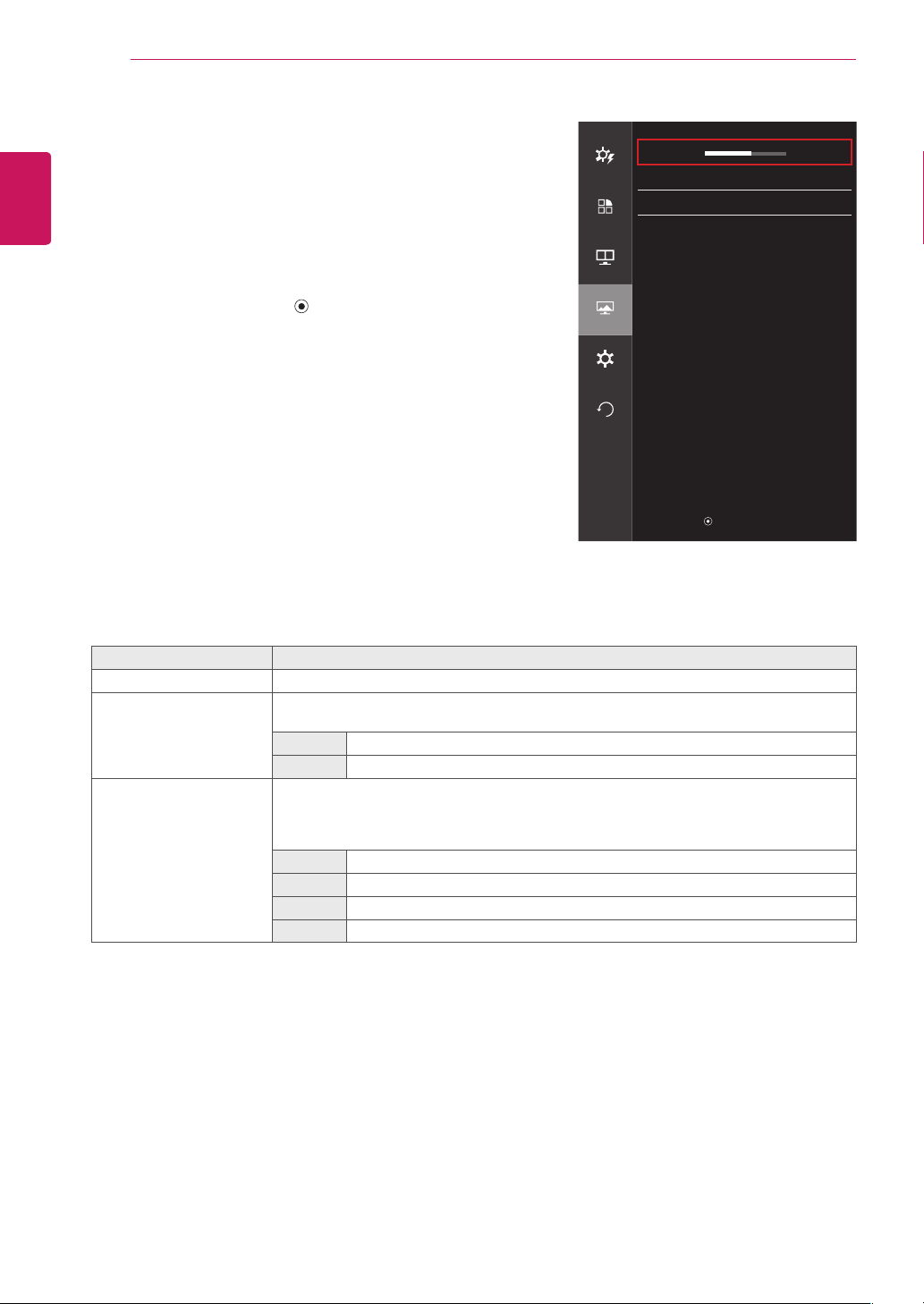

To view the OSD menu, press the joystick button at the bottom

1

of the monitor and then enter the Menu.
Go to Easy control > Ratio by moving the joystick.

2

Configure the options following the instructions that appear in

3

the bottom right corner.
To return to the upper menu or set other menu items, move the

4

joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until

5

you exit.

Each option is described below.

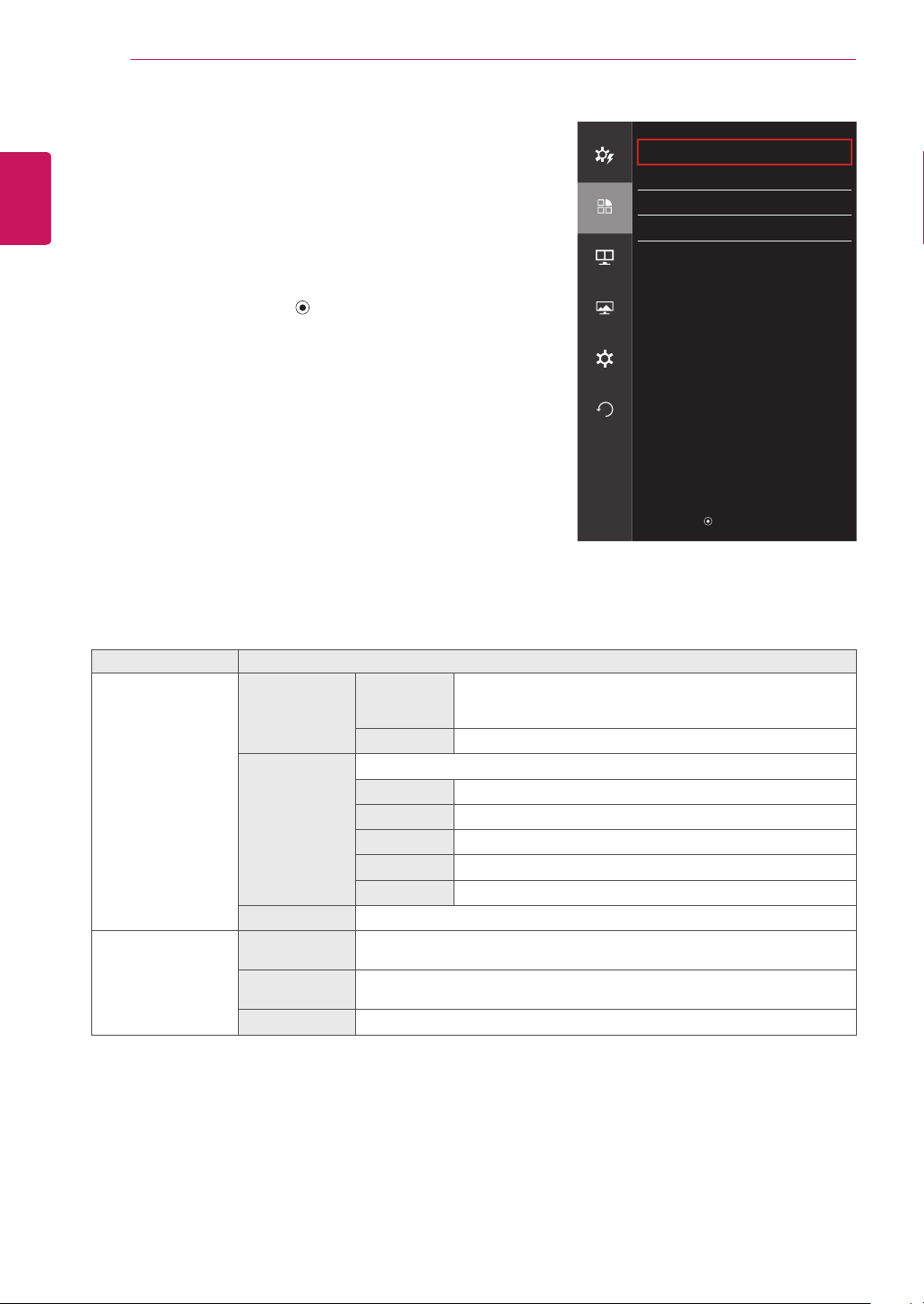

Easy control

Function

PBP

Screen

Settings

Reset

Easy control

Brightness

Contrast 70

Volume

Input HDMI1

Ratio Wide

▲/▼

: Move

/ ►: OK

: Back

◄

100

>

>

30

>

>

>

ENGLISH

Menu > Easy control > Ratio Description

Wide Displays the video in widescreen, regardless of the video signal input.

Original Displays video according to the aspect ratio of the video signal input.

Cinema 1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)

Cinema 2 Enlarges the screen with an aspect ratio of 21:9, including the black box at the bottom

for subtitles. (at 1080p)

1:1 The aspect ratio is not adjusted from the original.

NOTE

The display may look the same for Wide, Original, and 1:1 options at the recommended resolution (3440 x

y

1440).
The ratio is disabled in the interlaced signal.

y

USER SETTINGS

22

ENGLISH

Function

To view the OSD menu, press the joystick button at the bottom

1

of the monitor and then enter the Menu.
Go to Function by moving the joystick.

2

Configure the options following the instructions that appear in

3

the bottom right corner.
To return to the upper menu or set other menu items, move the

4

joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until

5

you exit.

Each option is described below.

Easy control

Function

PBP

Screen

Settings

Reset

Function

MaxxAudio

Reader Mode Off

Picture Mode Custom

SMART ENERGY SAVING Low

▲/▼

: Move

/ ►: OK

: Back

◄

>

>

>

>

Menu > Function Description

MaxxAudio

(Move the joystick to

in the main menu

▲

to enter the function
directly.)

MaxxAudio On MaxxAudio® by Waves, recipient of a Technical GRAMMY Award®

is a suite of studio-quality sound tools for a superior listening
experience.

Off Disables the MaxxAudio function.

MaxxAudio
Settings

The user can set the sound quality manually.

MaxxBass Bass Enhancement.

MaxxTreble Treble Enhancement.

MaxxDialog Dialog Enhancement.

Maxx3D Enhances the three dimensional effect of the sound.

Reset Returns the sound quality to the default settings.

Midnight Mode Lets you enjoy rich and full sound at a low volume.

Reader Mode Reader 1 Optimizes the screen for browsing newspapers. You can brighten the screen in the

OSD menu.

Reader 2 Optimizes the screen for looking at cartoons. You can brighten the screen in the

OSD menu.

Reader Off Reader Mode is off.

USER SETTINGS

Menu > Function Description

Picture Mode Custom Allows the user to adjust settings. You can adjust the color mode of the main

Photo Optimizes the screen for photos.

Cinema Optimizes the screen for videos.

Game Optimizes the screen for games.

SMART ENERGY
SAVING

Conserve energy by using luminance compensation algorithm

High Saves energy using the high-efficiency SMART ENERGY SAVING feature.

Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.

Off Disables the SMART ENERGY SAVING feature.

menu.

NOTE

Saving Data depends on the Panel. These values vary by panel and vendor. If option of SMART ENERGY

y

SAVING is High or Low, monitor luminance becomes higher or lower depending upon the source.
If option of SMART ENERGY SAVING is High or Low, Picture Mode will automatically be Custom, and Reader

y

Mode will automatically be Reader Off.
In the IR function, MaxxAudio is disabled when using the headphones. (34UC87M model only)

y

23

ENGLISH

USER SETTINGS

24

ENGLISH

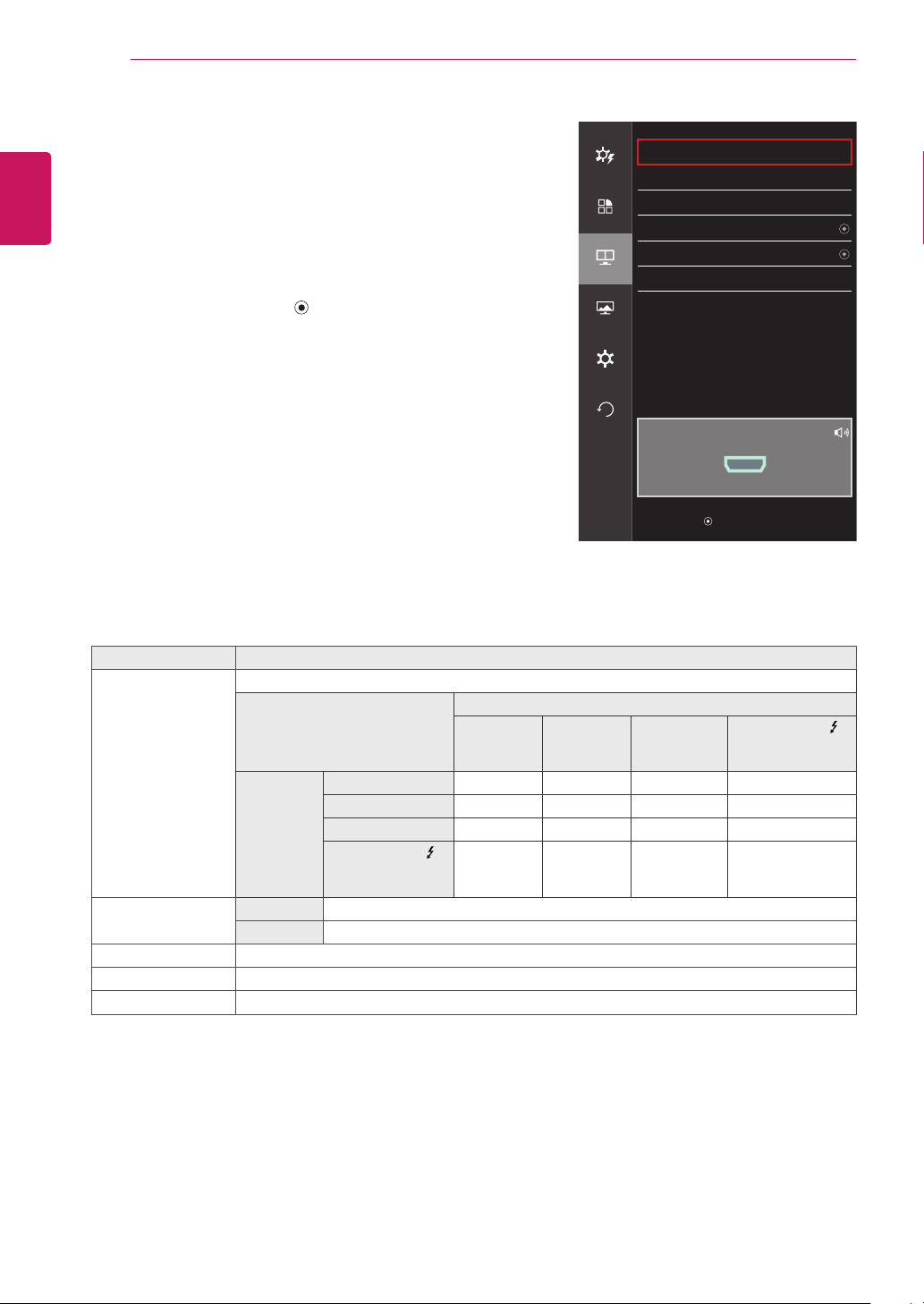

PBP

To view the OSD menu, press the joystick button at the bottom

1

of the monitor and then enter the Menu.
Go to PBP by moving the joystick.

2

Configure the options following the instructions that appear in

3

the bottom right corner.
To return to the upper menu or set other menu items, move the

4

joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until

5

you exit.

Each option is described below.

Easy control

Function

PBP

Screen

Settings

Reset

PBP

PBP Off

Input

Audio HDMI1

Swap

Sub Full

Ratio

PBP Preview

HDMI1

▲/▼

: Move

/ ►: OK

: Back

◄

>

>

>

>

Menu > PBP Description

PBP Displays the screens of two input modes on one monitor.

Sub Screen (Right)

PBP Connection

Main Screen

(Left)

HDMI 1

HDMI 2

DisplayPort

Thunderbolt ( )

(34UC87, 34UC87M

HDMI 1 HDMI 2 DisplayPort

- O X X

O - X X

O O - X

O O X -

model only)

Input Main Selects the video signal input of the main screen.

Sub Selects the video signal input of the sub screen.

Audio Changes the audio output in PBP mode.

Swap Toggles between the main screen and sub screen in PBP mode.

Sub Full Converts the sub screen in PBP mode to wide screen.

Thunderbolt ( )

(34UC87, 34UC87M

model only)

USER SETTINGS

Menu > PBP Description

Ratio Adjusts the aspect ratio of the main screen or sub screen.

Main Wide Displays the video to fit the PBP screen, regardless of the video

Original Displays the video in the aspect ratio of the video signal input on

Sub Wide Displays the video to fit the PBP screen, regardless of the video

Original Displays the video in the aspect ratio of the video signal input on

signal input.

the PBP screen.

signal input.

the PBP screen.

NOTE

When the PBP mode is Off, Input, Audio, Swap, Sub Full, and Ratio menus are disabled.

y

The Main/Sub options for Ratio are disabled if there is no signal.
The optimal resolution for PBP mode is set automatically when PBP mode is set. (34UC87C model only)

y

25

ENGLISH

USER SETTINGS

26

ENGLISH


To view the OSD menu, press the joystick button at the bottom

1

of the monitor and then enter the Menu.
Go to Screen > Picture by moving the joystick.

2

Configure the options following the instructions that appear in

3

the bottom right corner.
To return to the upper menu or set other menu items, move the

4

joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until

5

you exit.

Each option is described below.

Easy control

Function

PBP

Screen

Settings

Reset


Sharpness

Black Level High

Response Time Middle

▲/▼

: Move

/ ►: OK

: Back

◄

5

>

>

>

Menu > Screen > Picture Description

Sharpness Adjusts the sharpness of the screen.

Black Level Sets the offset level (for HDMI only).

• Offset as a reference for a video signal, this is the darkest color the monitor can display.

High The picture of the screen gets brighter.

Low The picture of the screen gets darker.

Response Time Sets a response time for displayed pictures based on the speed of the screen.

For a normal environment, it is recommended that you use Middle. For a fast-moving picture,
use high.
Setting to High may cause image sticking.

High Sets the response time to High.

Middle Sets the response time to Middle.

Low Sets the response time to Low.

Off Does not use the response time improvement feature.

USER SETTINGS

27

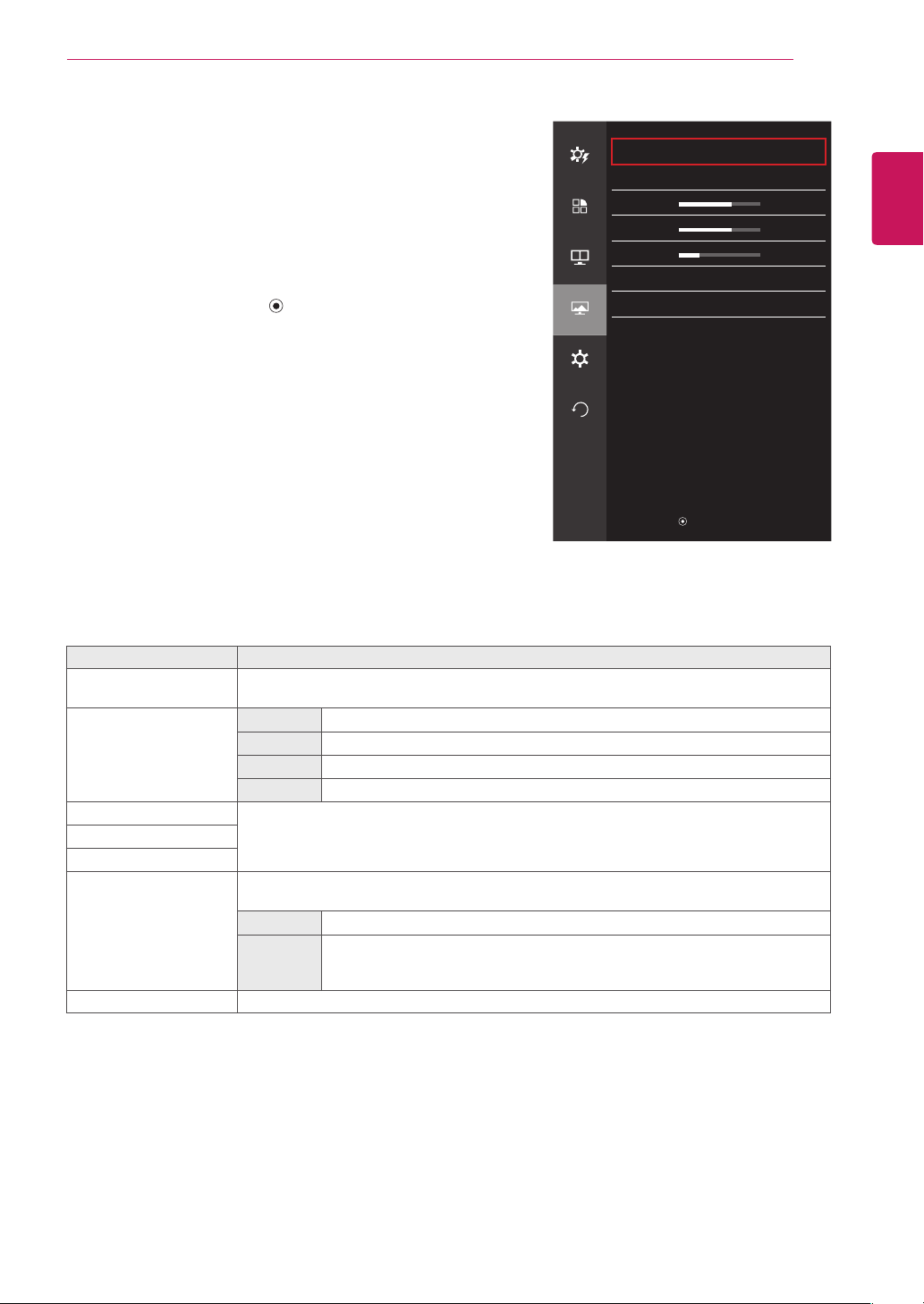

Color

To view the OSD menu, press the joystick button at the bottom

1

of the monitor and then enter the Menu.
Go to Screen > Color by moving the joystick.

2

Configure the options following the instructions that appear in

3

the bottom right corner.
To return to the upper menu or set other menu items, move the

4

joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until

5

you exit.

Each option is described below.

Easy control

Function

PBP

Screen

Settings

Reset

Color

Gamma Gamma 1

Color Temp Custom

Red

Green 50

Blue

Six Color

Reset

▲/▼

: Move

/ ►: OK

: Back

◄

>

>

50

>

>

50

>

>

>

ENGLISH

Menu > Screen > Color Description

Gamma Custom gamma settings: When using the gamma 0, gamma 1, and gamma 2 monitor settings,

higher gamma settings mean a brighter image is displayed and vice versa.

Color Temp Custom The user can adjust it to red, green, or blue by customization.

Warm Sets the screen color to a reddish tone.

Medium Sets the screen color to between a red and blue tone.

Cool Sets the screen color to a bluish tone.

Red You can customize the picture color using Red, Green, and Blue colors.

Green

Blue

Six Color Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red,

green, blue, cyan, magenta, and yellow) and then saving the settings.

Hue Adjusts the tone of the screen colors.

Saturation Adjusts the saturation of the screen colors. The lower the value, the less saturated

and brighter the colors become. The higher the value, the more saturated and
darker the colors become.

Reset Returns color to the default settings.

USER SETTINGS

28

ENGLISH

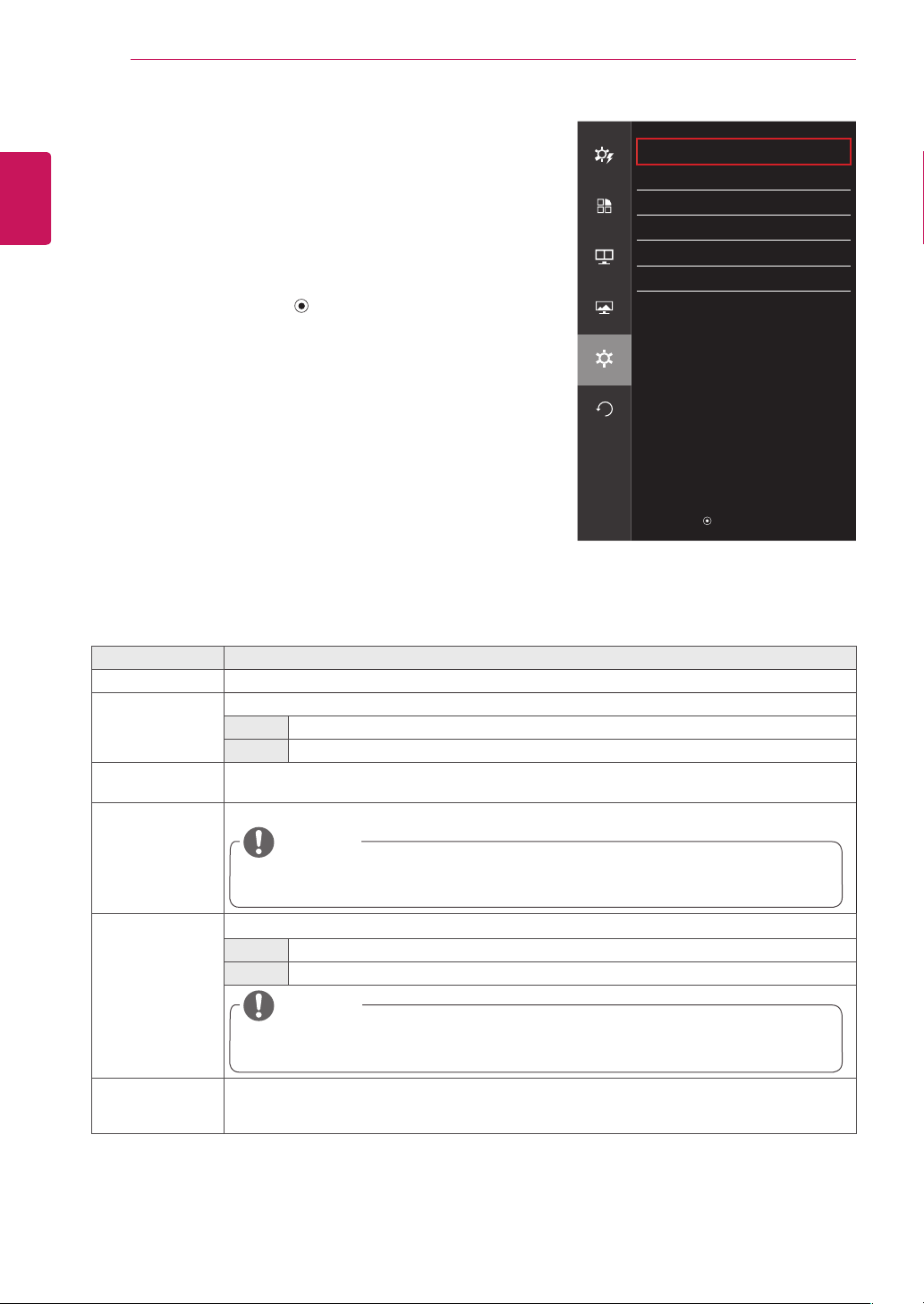

Settings

To view the OSD menu, press the joystick button at the bottom

1

of the monitor and then enter the Menu.
Go to Settings by moving the joystick.

2

Configure the options following the instructions that appear in

3

the bottom right corner.
To return to the upper menu or set other menu items, move the

4

joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until

5

you exit.

Each option is described below.

Easy control

Function

PBP

Screen

Settings

Reset

Settings

Language English

Power LED On

Automatic Standby Off

DisplayPort 1.2 Disable

OSD Lock Off

Set ID 1

▲/▼

: Move

/ ►: OK

: Back

◄

>

>

>

>

>

>

Menu > Settings Description

Language Sets the menu screen to the desired language.

Power LED Turns the power LED on the front of the monitor on or off.

On The power LED turns on automatically.

Off The power LED turns off.

Automatic
Standby

Feature that automatically turns off the monitor when there is no movement on the screen for a period
of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)

DisplayPort 1.2 Enables or disables DisplayPort 1.2.

NOTE

Be sure to configure this option according to the DisplayPort version supported by your graphics

y

card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.

OSD Lock Prevents incorrect key input.

On Disables key input

Off Enables key input

NOTE

All features are disabled except Brightness, Contrast, Volume, Input, OSD Lock in Settings, and the

y

Exit button.

Set ID

(34UC87M model
only)

You can assign a unique Set ID No. (name assignment) to each product when several products are
connected for display. Specify the number (1 to 6) using the button and exit. Use the assigned Set ID to
individually control each product using the Product Control Program.

USER SETTINGS

29

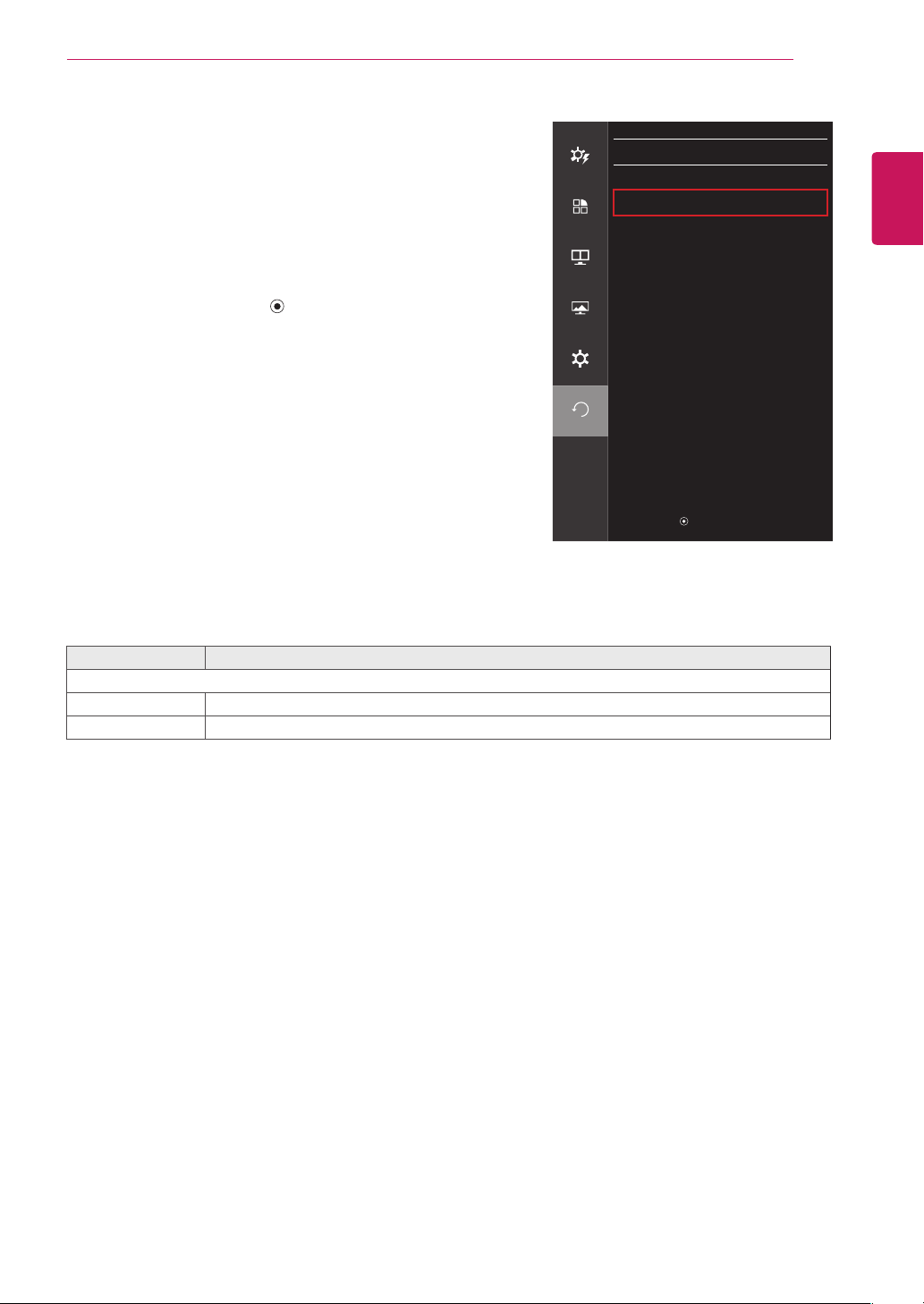

Reset

To view the OSD menu, press the joystick button at the

1

bottom of the monitor and then enter the Menu.
Go to Reset by moving the joystick.

2

Configure the options following the instructions that appear in

3

the bottom right corner.
To return to the upper menu or set other menu items, move the

4

joystick to ◄ or pressing ( / OK) it.
If you want to exit the OSD menu, move the joystick to ◄ until

5

you exit.

Each option is described below.

Easy control

Function

PBP

Screen

Settings

Reset

Reset

Do you want to reset your settings?

Reset

Cancel

: Move

▲/▼

/ ►: OK

ENGLISH

: Back

◄

Menu > Reset Description

Do you want to reset your settings?

Reset Restores the default settings.

Cancel Cancel the reset.

TROUBLESHOOTING

30

ENGLISH

TROUBLESHOOTING

Nothing is displayed on the screen.

Is the monitor's power cord
plugged in?

Is the power LED on?

Is the power on and the power
LED displaying white?

Is the power LED blinking?

Is the OUT OF RANGE message
being displayed?

Is the No Signal message being
displayed?

The screen may not be displayed
properly when configuring
DisplayPort 1.2 in a Mac product.

The OSD Lock message is being displayed.

Are some functions not available
when you press the Menu button?

Check if the power cord is correctly plugged into the power outlet.

y

Check the power cable connection and press the power button.

y

Check that the connected input is enabled (Menu - Input).

y

If the monitor is in sleep mode, move the mouse or press any key on the

y

keyboard to switch the display on.
Check if the computer is turned on.

y

This occurs when signals transferred from the PC (video card) are out

y

of the horizontal or vertical frequency range of the monitor. Please see
the Product Specification section of this manual to set the appropriate
frequency.

This is displayed when the signal cable between the PC and the monitor

y

is missing or disconnected. Check the cable and reconnect it.

DisplayPort 1.2 may not be supported depending upon the Mac product.

y

Please contact the manufacturer.

The OSD is locked. Go to Menu > Settings and set OSD Lock to Off.

y

The screen retains an image.

Does image sticking occur even
when the monitor is turned off?

Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.

Did you select the appropriate
resolution?

Displaying a still image for a prolonged time may cause damage to the

y

screen, resulting in the retention of the image.
To extend the lifetime of the monitor, use a screensaver.

y

If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen

y

may be flickering. Change the resolution to 1080p or the recommended
resolution.

NOTE

Vertical Frequency In order to display an image, the screen must be refreshed dozens of times per second,

y

like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or
refresh rate, and is represented by Hz.
Horizontal Frequency The time it takes to display one horizontal line is called the horizontal cycle. If 1 is di-

y

vided by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called
horizontal frequency and is represented by kHz.

TROUBLESHOOTING

NOTE

Check if the video card's resolution or frequency is within the range allowed by the monitor and set it to the

y

recommended (optimal) resolution in Control Panel > Display > Settings.
Not setting the video card to the recommended (optimal) resolution may result in blurred text, a dimmed

y

screen, a truncated display area, or misalignment of the display.
The setting methods may be different depending on the computer or operating system, and some resolutions

y

may not be available depending on the performance of the video card. If this is the case, contact the manufac­turer of the computer or video card for assistance.
Some video cards may not support 3440 x 1440 resolution. If the resolution cannot be displayed, contact the

y

manufacturer of your video card.

The display color is abnormal.

Does the display appear discol­ored (16 colors)?

Does the display color appear
unstable or monochrome?

Are there spots on the screen?

Set the color to 24 bit (true color) or higher. In Windows, go to Control

y

Panel > Display > Settings > Color Quality.

Check if the signal cable is connected properly. Reconnect the cable or

y

reinsert the PC's video card.

When using the monitor, pixilated spots (red, green, blue, white, or black)

y

may appear on the screen. This is normal for an LCD screen. It is not an
error, nor is it related to the monitor's performance.

31

ENGLISH

No sound from the headphone port.

Are images displayed using DP
(DisplayPort) or HDMI input with­out sound?

Make sure that the headphone port connections are made properly.

y

Try increasing the volume with the joystick.

y

Set the audio output of the PC to the monitor you are using. On Microsoft

y

Windows, go to Control Panel > Hardware and Sound > Sound > set the
monitor as default device.

PRODUCT SPECIFICATION

32

ENGLISH

PRODUCT SPECIFICATION

34UC87

LCD Screen Type TFT (Thin Film Transistor)

Resolution HDMI Max Resolution 3440 x 1440 @ 50 Hz

Video Signal Horizontal Frequency 30 kHz to 90 kHz

Input Connector

Power Sources Power Rating 19 V 6.0 A

AC/DC Adapter LCAP31 type, manufactured by Lienchang

Stand Angle Forward/Backward: -5° to 15° (Head)

Environmental
Conditions

Audio Output 7 W + 7 W

Supported
Operating System

34UC87M

LCD (Liquid Crystal Display) Screen

Color Depth HDMI 8-bit color is supported.

DP (DisplayPort) 10-bit color is supported.

Thunderbolt ( )

Pixel Pitch 0.2325 mm x 0.2325 mm

Recommended Resolution 3440 x 1440 @ 50 Hz

DP (DisplayPort)
Thunderbolt ( )

Vertical Frequency 56 Hz to 61 Hz

Synchronization Separate Sync.

34UC87

34UC87M

Power Consumption
(Typical)

Output: 19 V 7.37 A

Operating Conditions Temperature 0°C to 40°C (32 °F to 104°F)

Storing Conditions Temperature -20°C to 60°C (-4 °F to 140°F)

Win 7, Win 8.1, Mac OS*

Max Resolution 3440 x 1440 @ 60 Hz

Recommended Resolution 3440 x 1440 @ 60 Hz

H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, Thunderbolt ( ),
USB UP, USB IN 1, 2

H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, Thunderbolt ( ),
USB UP, USB IN 1, 2, IR IN, IR OUT

Operating Mode: 80 W (Typical, USB excluded) (Outgoing condi­tion)
Sleep Mode ≤ 1.2 W
Off Mode ≤ 0.5 W
Off Mode ≤ 0.3 W (DC switch is off.)

Humidity Less than 80%

Humidity Less than 85%

8-bit color is supported.

Dimensions Monitor Size (Width x Height x Depth)

With Stand 830.5 mm x 460.8 mm x 241.4 mm

(32.6 inch x 18.1 inch x 9.5 inch)

Without Stand 830.5 mm x 370.3 mm x 79.8 mm

(32.6 inch x 14.5 inch x 3.1 inch)

Weight (Without
Packaging)

Specifications are subject to change without notice.
* Mac products may not support the recommended resolution or some features.
(For more information, refer to the support information card of Mac which is provided separately.)

With Stand 10.0 kg (22.0 Ib)

Without Stand 8.0 kg (17.6 Ib)

PRODUCT SPECIFICATION

34UC87C

LCD Screen Type TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Screen

Color Depth HDMI 8-bit color is supported.

DP (DisplayPort) 10-bit color is supported.

Pixel Pitch 0.2325 mm x 0.2325 mm

Resolution HDMI Max Resolution 3440 x 1440 @ 50 Hz

Recommended Resolution 3440 x 1440 @ 50 Hz

DP (DisplayPort) Max Resolution 3440 x 1440 @ 60 Hz

Recommended Resolution 3440 x 1440 @ 60 Hz

Video Signal Horizontal Frequency 30 kHz to 90 kHz

Vertical Frequency 56 Hz to 61 Hz

Synchronization Separate Sync.

Input Connector

Power Sources Power Rating 19 V 4.0 A

AC/DC Adapter ADS-110CL-19-3 190110G type, manufactured by Honor

Stand Angle Forward/Backward: -5° to 15° (Head)

Environmental
Conditions

Audio Output 7 W + 7 W

Supported
Operating System

H/P OUT, HDMI IN 1, HDMI IN 2, DP (DisplayPort) IN, USB UP, USB IN 1, 2

Power Consumption
(Typical)

Output: 19 V 5.79 A

Operating Conditions Temperature 0°C to 40°C (32 °F to 104°F)

Storing Conditions Temperature -20°C to 60°C (-4 °F to 140°F)

Win 7, Win 8.1, Mac OS

Operating Mode: 70 W (Typical, USB excluded) (Outgoing condi­tion)
Sleep Mode ≤ 1.2 W
Off Mode ≤ 0.5 W
Off Mode ≤ 0.3 W (DC switch is off.)

Humidity Less than 80%

Humidity Less than 85%

33

ENGLISH

Dimensions Monitor Size (Width x Height x Depth)

With Stand 830.5 mm x 460.8 mm x 241.4 mm

(32.6 inch x 18.1 inch x 9.5 inch)

Without Stand 830.5 mm x 370.3 mm x 79.8 mm

(32.6 inch x 14.5 inch x 3.1 inch)

Weight (Without
Packaging)

Specifications are subject to change without notice.

With Stand 10.0 kg (22.0 Ib)

Without Stand 8.0 kg (17.6 Ib)

ENGLISH

PRODUCT SPECIFICATION

34

Factory Support Mode

34UC87

34UC87C

Preset Mode

640 x 480 31.469 59.94 -/-

800 x 600 37.879 60.317 +/+

1024 x 768 48.363 60 -/-

1152 x 864 54.347 60.05 +/+

1280 x 720 45 60 +/+

1280 x 1024 63.981 60.02 +/+

1600 x 900 60 60 +/+

1680 x 1050 65.29 59.954 -/+

1920 x 1080 67.5 60 +/-

2560 x 1080 66.7 60 -/+

3440 x 1440 43.82 29.99 +/+

3440 x 1440 73.68 49.99 +/+

3440 x 1440 88.82 59.97 +/+ HDMI is not supported.

34UC87M

(Preset Mode, HDMI/ DisplayPort/ Thunderbolt PC)

(Preset Mode, HDMI/ DisplayPort PC)

Horizontal Frequency
(kHz)

Vertical Frequency (Hz) Polarity (H/V) Remarks

HDMI Timing (Video)

Preset Mode

480p 31.5 60

720p 45 60

1080p 67.5 60

Horizontal Frequency
(kHz)

Power LED

Mode LED Color

On Mode White

Sleep Mode Flashing White

Off Mode Off

Vertical Frequency (Hz) Remarks

PROPER POSTURE

35

PROPER POSTURE

Proper Posture for Using the Monitor

Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye level.

Take a break for approximately 10 minutes every hour to reduce any fatigue caused by prolonged

y

usage.
Adjust the stand angle from -5° to 15° to obtain the best view of the screen.

y

You should be looking

slightly down at the

screen.

Stand Angle

-5° to 15°

Adjust the position of
the screen to minimize
reflections.

ENGLISH

Place your hands gently on

the keyboard, keeping your

arms bent at the elbows

and extended horizontally

in front of you.

Declaration of Conformity

Trade Name: LG
Model: 34UC87, 34UC87M, 34UC87C
Responsible Party: LG Electronics Inc.
Address: 1000 Sylvan Ave.
Englewood Cliffs NJ 07632
U.S.A
TEL: [phone]

This device meets the EMC requirements for
home appliances (Class B) and is intended for
home usage. This device can be used in all
regions. Read the owner's manual (CD) carefully
and keep it at hand. Please note that the label
attached to the product provides information for
technical support.

Model

Serial No.

ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency (EPA).

As an ENERGY STAR Partner LGE
U. S. A., Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.

Refer to ENERGY STAR.gov for more information
on the ENERGY STAR program.
