* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
34WL850
34BL850
OWNER’S MANUAL
LED LCD MONITOR
(LED Monitor*)
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Page 2
TABLE OF CONTENTS
ENGLISH
LICENSE ...................................................... 2
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
OPEN SOURCE SOFTWARE NOTICE
INFORMATION ............................................ 3
ASSEMBLING AND PREPARING .................. 3
USING THE MONITOR .................................. 8
USER SETTINGS ........................................ 11
TROUBLESHOOTING .................................24
PRODUCT SPECIFICATION ......................... 27
* USB Type-C
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
The SuperSpeed USB Trident logo is a registered trademark of USB
Implementers Forum, Inc.
Thunderbolt and the Thunderbolt logo are trademarks of Intel
Corporation or its subsidiaries in the U.S. and/or other countries.
TM
and USB-CTM are trademarks of USB Implementers Forum.
2
Page 3
OPEN SOURCE SOFTWARE NOTICE INFORMA
TION
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in
receipt of this information.
ASSEMBLING AND PREPARING
CAUTION
• Always use genuine LG components to ensure safety and product per formance.
• The product warranty will not cover damage or injury caused by the use of unauthorized components.
• It is recommended that use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there may be image noises.
• Illustrations in this document represent typical procedures, so they may look different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing
so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
• Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand
and could result in personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen
may cause damage to it.
NOTE
• The components may look different from those illustrated here.
• Without prior notice, all product information and specifications contained in this manual are subject to change
to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer
from which you purchased the product.
• The power cord provided may differ depending upon the region.
Supported Drivers and Software
You can download and install the latest version from the LGE website (www.lg.com).
Drivers and Software Installation Priority
Monitor Driver Recommended
OnScreen Control Recommended
Dual Controller Optional
True Color Pro Optional
ENGLISH
3
Page 4
Product and Button Description
ENGLISH

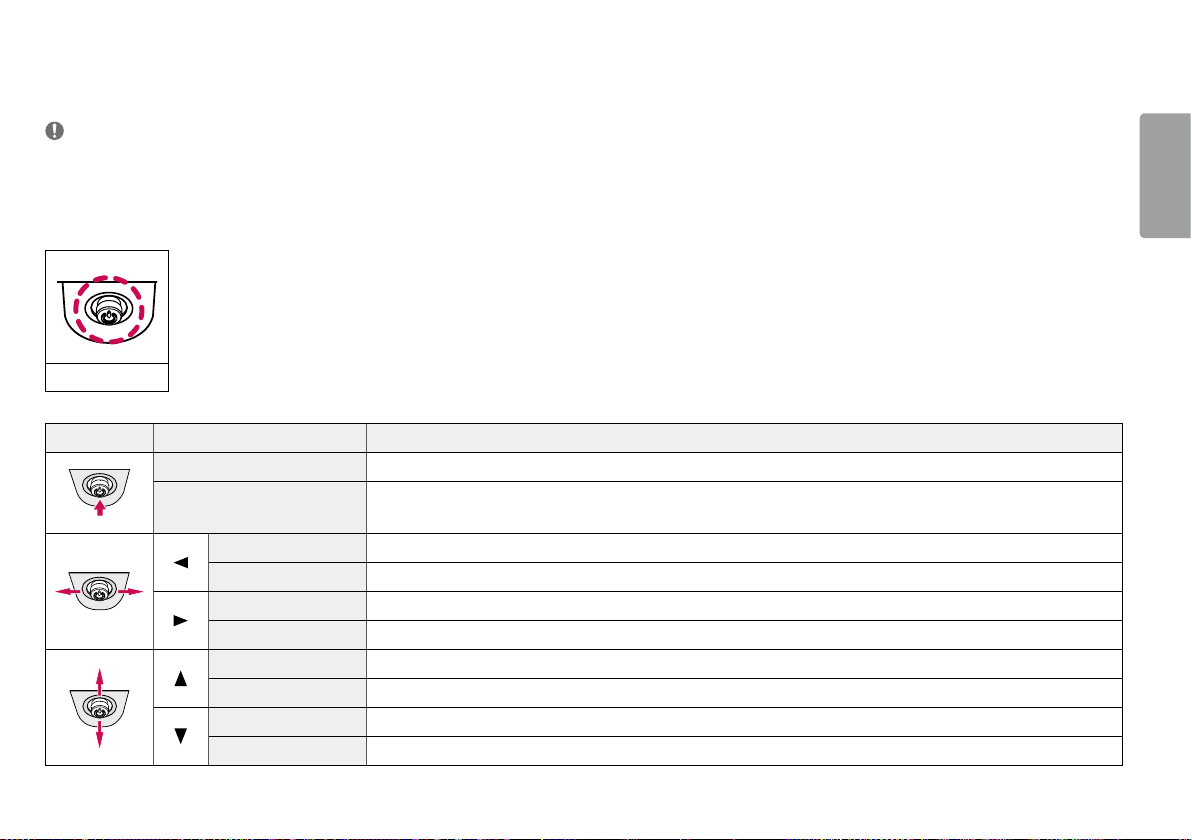

Joystick Button
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/
down with your finger.
Basic Functions
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or
damaged and to ensure safe transportation, regardless of its shape or size.
• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face away from you to prevent it from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.
/ Volume control
NOTE
• The joystick button is located at the bottom of the monitor.
4
Power on
Power off
Press the joystick button once with your finger
to turn on the monitor.
Press and hold the joystick button once more
than 5 seconds with your finger to turn off the
monitor.
You can control the volume by moving the
joystick button left/right.
CAUTION
• Avoid touching the monitor screen as much as possible.
- This may result in damage to the screen or some of the pixels used to create images.
• If you use the monitor panel without the stand base, its joystick button may cause the monitor to become
unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick
button to malfunction.
Page 5
Installing on a Table
• Lift the monitor and place it on the table in an upright position. Place the monitor at least 100mm away from
the wall to ensure sufficient ventilation.
Adjusting the Stand Height
1 Place the monitor mounted on the stand base in an upright position.
2 Handle the monitor with both hands for safety.
ENGLISH
100 mm
100 mm
100 mm
100 mm
CAUTION
• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power
outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.
Max. 110.0 mm
WARNING
• When adjusting the screen height, do not place your hand on the stand body to avoid injur y to your fingers.
Adjusting the Angle
1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen.
The angle of the screen can be adjusted forward or backward from -5° to 15° for a comfor table viewing
experience.
WARNING
• To avoid injur y to the fingers when adjusting the screen, do not hold the lower part of the monitor’s frame as
illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the monitor.
5
Page 6
Using the Kensington Lock
The connector for the Kensington security system is located at the bottom of the monitor.
For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website
at http://www.kensington.com.
ENGLISH
Connect the monitor to a table using the Kensington security system cable.
Installing the Wall Mount Plate
This monitor meets the specifications for the wall mount plate or other compatible devices.
NOTE
• The wall mount plate is sold separately.
• For more information on installation, refer to the wall mount plate’s installation guide.
• Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the
screen.
• Remove the stand before installing the monitor on a wall mount by performing the stand attachment in
reverse.
Installing on the Wall
Install the monitor at least 100mm away from the wall and leave about 100mm of space at each side of the
monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail
store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.
100 mm
NOTE
• The Kensington security system is optional. You can obtain optional accessories from most electronics stores.
6
100 mm
100 mm
100 mm
Page 7
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
Wall Mount (mm) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate (Optional) LSW 149
NOTE
• A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable
for any accidents relating to the use of non-standard screws.
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
• The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard
length, it may damage the inside of the product.
• For more information, please refer to the user manual for the wall mounting bracket.
CAUTION
• Unplug the power cord before moving or installing the monitor to avoid electric shock.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead
to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or
misuse of inappropriate components will not be covered by the product warranty.
• When measured from the back of the monitor, the length of each installed screw must be 8 mm or less.
Wall Mount Plate
Back of the Monitor
Wall Mount Plate
Back of the Monitor
Standard screw:
M4 x L10
Max. 8 mm
ENGLISH
7
Page 8
USING THE MONITOR
• Illustrations in this manual may differ from the actual product.
ENGLISH

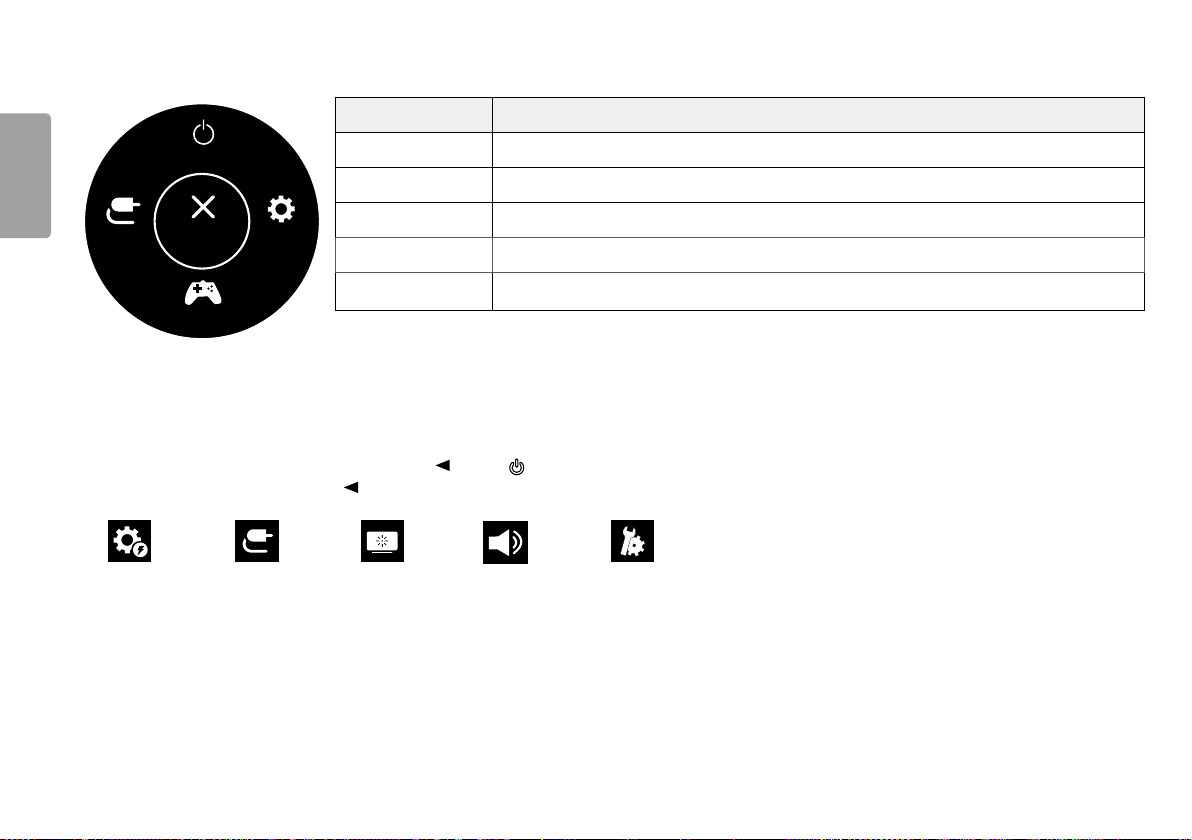

Press the joystick button, go to Settings
CAUTION
• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC
screensaver if possible.
• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power
outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
Connecting to a PC
• This monitor supports the *Plug and Play feature.
* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure
anything or install any manual drivers.
HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.
CAUTION
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
- High-Speed HDMI
®/TM
cable
®/TM
cable with Ethernet
Input, and then select the input option.
DisplayPort Connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
• There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
• Make sure to use the supplied DisplayPort cable of the product. Otherwise, this may cause the device to
malfunction.
• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort)
cable or gender that supports DisplayPort1.4. (Sold separately)

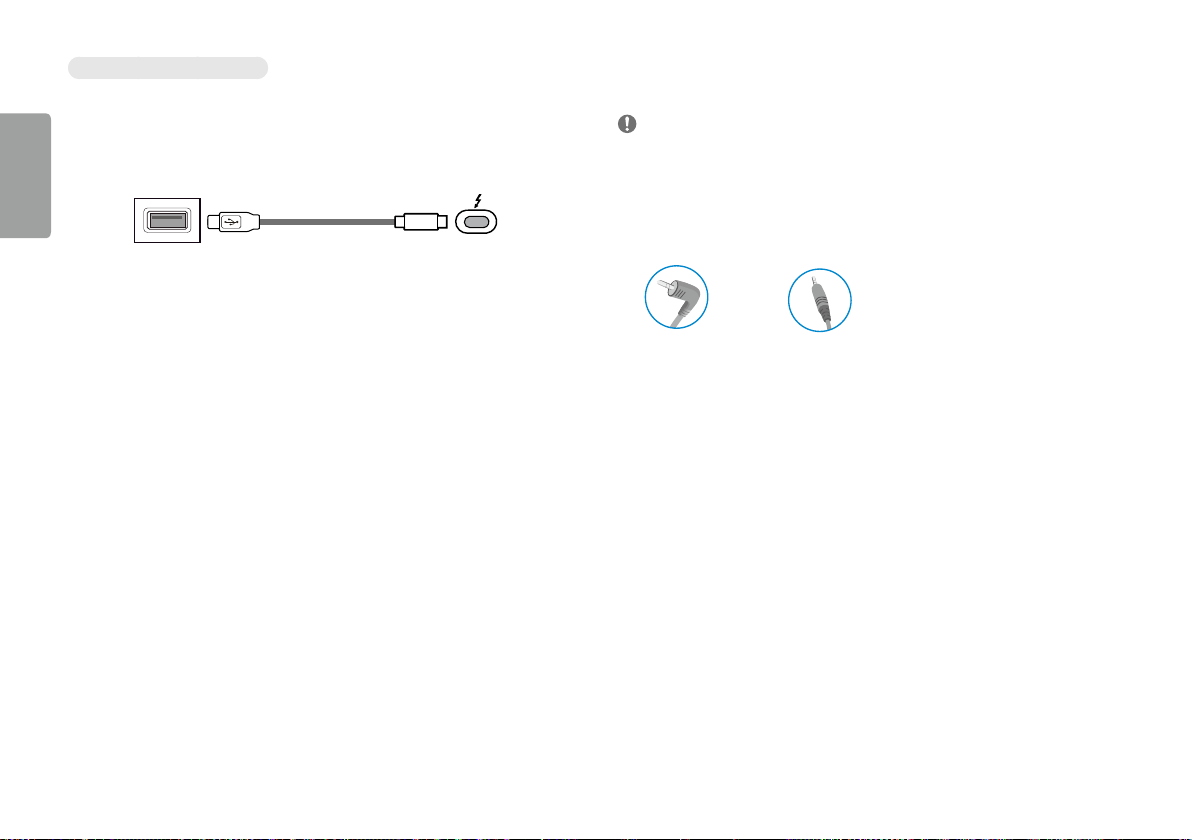

ThunderboltTM 3 ( ) Connection
You can connect your high-resolution display or high-per formance data device to the monitor via a
ThunderboltTM 3 ( ) port.
NOTE
• The maximum data transmission rate of each port is 40 Gb/s.
• Make sure to use a Thunderbolt
• Thunderbolt
• In accordance with Mac products may not support the recommended resolution or the some features.
TM
3 ( ) is supported in such environments as Windows 10 and Mac product.
TM
3 ( ) certified cable. Otherwise, this may cause the device to malfunction.
8
Page 9
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor.
NOTE
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
- High-Speed HDMI
®/TM
cable
®/TM
cable with Ethernet
Connecting Peripherals
CAUTION
• Cautions When Using a USB Device
- A USB device with an automatic recognition program installed, or that uses its own driver, may not be
recognized.
- Some USB devices may not be supported or may not work properly.
- It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not
adequate, the USB device may not be recognized properly.)
Case 1: Thunderbolt
Peripheral devices connected to the USB IN port can be controlled from the PC.
If you change the input on the menu while a device is connected via the Thunderbolt
device connected via the USB port may not work properly.
[To use Thunderbolt cable]
To use USB 3.0, connect the Thunderbolt cable from the monitor to your PC.
Set the USB Upstream menu in General to USB-C.
TM
3 ( ) Input
TM
3 ( ) port, then the
ENGLISH
USB Device connection
The USB port on the product functions as a USB hub.
NOTE
• It is recommended you install all Windows Updates to keep your Windows up-to-date before connecting to the
product for use.
• Peripheral devices are sold separately.
• A keyboard, mouse, or USB device can be connected to the USB port.
• The charging speed may vary depending on the device.
(Sold separately)
[PC]
[Monitor]
9
Page 10
Case 2: HDMI/DP (DisplayPort) Input
Peripheral devices connected to the USB IN port can be controlled from the PC.
[To USB C-A cable]
ENGLISH
To use USB 3.0, connect the USB C-A cable from the monitor to your PC.
Set the USB Upstream menu in General to USB-C.
[PC]
(Sold separately)
[Monitor]
Headphones Connection
Connect peripherals to the monitor via the headphones port.
NOTE
• Peripheral devices are sold separately.
• Depending on the audio settings of the PC and external device, headphones and speaker functions may be
limited.
• If you use angled earphones, it may cause a problem with connecting another external device to the monitor.
Therefore, it is recommended to use straight earphones.
Angled Straight
10
(Recommend)
Page 11
USER SETTINGS
NOTE
• Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
Activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down and left/right to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input features.
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Settings feature.
Main menu disabled Displays the information on the current input.
Main menu enabled Turns off the monitor.
Main menu disabled Displays the information on the current input.
Main menu enabled Enters the Game Mode feature.
Exits the main menu.
(Holding down the button more than 5 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
ENGLISH
11
Page 12
Main Menu Features
ENGLISH
Power Off
Main Menu Description
Input Sets input mode.
Power Off Turns off the monitor.
Input Settings
Exit
Game Mode
Settings Configures the screen settings.
Game Mode Sets the game mode for gaming.
Exit Exits the main menu.
Menu Settings
1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
2 Move the joystick up/down and left/right to set the options.
3 To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it.
4 If you want to exit the OSD menu, move the joystick to until you exit.
Quick Settings Input Picture Sound General
12
Page 13
Quick Settings
Settings > Quick Settings Description
Brightness Adjusts the brightness of the screen.
Auto Brightness Optimizes the brightness automatically for surrounding illuminance.
Contrast Adjusts the contrast of the screen.
Adjusts the volume.
Volume
MaxxAudio
Color Temp
NOTE
• You can adjust Mute / Unmute by moving the joystick button to
On MaxxAudio® by waves, recipient of a Technical GRAMMY Award® is a suite of studio- quality sound tools for a superior listening experience.
Off Disables the MaxxAudio function.
Custom The user can adjust it to red, green, or blue by customization.
6500K Sets the screen color to a reddish tone.
7500K Sets the screen color between a red and blue tone.
9300K Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.
in the Volume menu.
ENGLISH
13
Page 14
Input
Settings > Input Description
ENGLISH
Input List Selects the input mode.
Adjusts the aspect ratio of the screen.
Full Wide Displays the video in widescreen, regardless of the video signal input.
Aspect Ratio
PBP Displays the screens of two input modes on one monitor.
Main/Sub Screen Change Toggles between the main screen and sub screen in PBP mode.
Main/Sub Sound Change Toggles between the audio of the main screen and sub screen in PBP mode.
Original Displays video according to the aspect ratio of the video signal input.
Just Scan The aspect ratio is not adjusted from the original.
Cinema 1 Enlarges the screen with an aspect ratio of 21:9.
Cinema 2 Enlarges the screen with an aspect ratio of 21:9, including the black box at the bottom for subtitles.
14
Page 15
[PBP]
Settings > Input Description
Displays the screens of two input modes on one monitor.
Main Input List
Sub Input List
Input List
Main Screen (Left)
Adjusts the aspect ratio of the screen.
Aspect Ratio
PBP You can disable the feature that displays images from two input modes simultaneously on one monitor.
Main/Sub Screen Change Toggles between the main screen and sub screen in PBP mode.
Main/Sub Sound Change Toggles between the audio of the main screen and sub screen in PBP mode.
Main Aspect Ratio
Sub Aspect Ratio
Please refer to the table below for possible PBP combinations.
PBP Connection
HDMI 1 X O O O
HDMI 2 O X O O
DisplayPort O O X O
Thunderbolt O O O X
Full Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
Full Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
HDMI 1 HDMI 2 DisplayPort Thunderbolt
ENGLISH
Sub Screen (Right)
15
Page 16
NOTE
• The Picture Mode that can be set depends on the Input signal.
ENGLISH
[Picture Mode on SDR (Non-HDR) signal]
Settings > Picture Description
Custom Allows the user to adjust each element.
Heightens contrast, brightness and sharpness to display vivid images.
Optimizes the screen for high dynamic range.
Optimizes the screen for reading documents. You can brighten the screen in the OSD menu.
Optimizes the screen for video.
This mode is optimized for FPS games.
This mode is optimized for RTS Game.
This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish
between the two colors.
Picture Mode
Vivid
HDR Effect
Reader
Cinema
sRGB A standard RGB color space for the monitor and printer.
DCI-P3 Suitable for watching digital videos.
FPS
RTS
EBU A standard TV PAL color space for broadcasting.
REC709 A standard HDTV color space for broadcasting.
SMPTE-C A standard TV NTSC color space for broadcasting.
Color Weakness
Calibration 1 Adjusts to the last calibrated screen.
Calibration 2 Adjusts to the previously calibrated screen.
NOTE
• If the Picture Mode is changed in the DP (DisplayPort) input, the screen may flicker or the resolution of your PC screen may be affected.
16
Page 17
[Picture Mode on HDR signal]
Settings > Picture Description
Custom Allows the user to adjust each element.
Vivid Optimized the screen for HDR vivid colors.
Standard Optimized the screen for HDR standard.
Cinema Optimized the screen for HDR video.
Picture Mode
FPS This mode is optimized for FPS games.It is suitable for very dark FPS games.
RTS This mode is optimized for RTS Game.
NOTE
• HDR content may not display correctly depending on Window10 OS settings, please check HDR On/Off settings in Windows.
• When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card performance.
• While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to Graphic card performance.
ENGLISH
17
Page 18
Settings > Picture Description
Brightness Adjusts the brightness of the screen.
ENGLISH
Picture Adjust
Auto Brightness Optimizes the brightness automatically for surrounding illuminance.
Contrast Adjusts the contrast of the screen.
Sharpness Adjusts the sharpness of the screen.
High Optimizes the screen for crystal clear images. Best for high-definition video or games.
Middle
SUPER RESOLUTION+
Black Level
DFC Adjusts the brightness automatically according to the screen.
Uniformity
Low Optimizes the screen for smooth and natural images. Best for still images or images with less movement.
Off Displays in the most common setting. Disables SUPER RESOLUTION+.
NOTE
• Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for
normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
Sets the offset level
• Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
Adjusts uniformity of the image.
NOTE
• The Uniformity menu is activated only in Custom. Enabling Uniformity may reduce the overall brightness of the image.
Optimizes the screen for comfortable viewing, with images at the middle level between the low and high
modes. Best for UCC or SD videos.
18
Page 19
Settings > Picture Description
Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Fast.
For a fast-moving picture, it is recommended that you use Faster.
Response Time
Game Adjust
FreeSync
Black Stabilizer
Setting to Faster may cause image sticking.
Faster
Fast
Normal
Off
Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal.
CAUTION
• Supported Interface: DisplayPort,HDMI.
• Supported Graphic Card : A graphic card that supports AMD’s FreeSync is necessary.
• Supported Version : Make sure to update the graphic card to the latest driver.
• For more information and requirement, refer to AMD website at http://www.amd.com/FreeSync
On
Off FreeSync function off.
You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark
game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
Sets the response time to faster.
Sets the response time to fast.
Sets the response time to normal.
Does not use the response time improvement feature.
FreeSync function on.
NOTE
• When FreeSync function is On, the brightness is reduced.
ENGLISH
19
Page 20
Settings > Picture Description
ENGLISH
Color Adjust
Picture Reset Do you want to reset your picture settings?
Gamma
Color Temp
Red/Green/Blue You can customize the picture color using red, green, and blue colors.
Six Color
Mode 1,
Mode 2,
Mode 3
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Set your own color temperature.
Custom The user can adjust it to red, green, or blue by customization.
6500K Sets the screen color to a reddish tone.
7500K Sets the screen color between a red and blue tone.
9300K Sets the screen color to a bluish tone.
Manual The user can fine-tune the color temperature.
Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red, green, blue, cyan, magenta, and
yellow) and then saving the settings.
Hue
Saturation
Yes Returns to the default settings.
No Cancel the select.
The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter
the image becomes.
Adjusts the tone of the screen colors.
Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors
become. The higher the value, the more saturated and darker the colors become.
20
Page 21
Sound
Settings > Sound Description
Adjusts the volume level.
Volume
MaxxAudio
NOTE
• You can adjust Mute / Unmute by moving the joystick button to▼in the Volume menu.
On MaxxAudio® by waves, recipient of a Technical GRAMMY Award® is a suite of studio-quality sound tools for a superior listening experience.
Off Disables the MaxxAudio function.
ENGLISH
21
Page 22
General
Settings > General Description
Language Sets the menu screen to the desired language.
ENGLISH
Conserve energy by using luminance compensation algorithm.
High Saves energy using the high-efficiency SMART ENERGY SAVING feature.
Low Saves energy using the low-efficiency SMART ENERGY SAVING feature.
SMART ENERGY SAVING
Power LED
Automatic Standby
Off Disables the feature.
NOTE
• The value of energy saving data may differ depending on panel and panel suppliers.
• If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on source.
Turns the power LED on the bottom of the monitor on or off.
NOTE
• When the Power LED function is turned on, it operates as follows:
- On Mode: White
- Sleep Mode: White Blinking
- Off Mode: Off
Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto- off function.
(Off, 4 H, 6 H, and 8 H)
22
Page 23
Settings > General Description
DisplayPort Version
HDMI Compatibility Mode
Buzzer This feature lets you set the sound generated from Buzzer when your monitor powers on.
OSD Lock This feature disables the configuration and adjustment of menus.
Information
Reset to Initial Settings
Set DisplayPort/Thunderbolt Version to the same version as the connected external device. (1.4, 1.2, and 1.1)
To use the HDR function, set to 1.4.
HDMI Compatibility Mode feature can recognize the legacy equipment that does not support HDMI 2.0.
On
Off
NOTE
• If the connected device does not support HDMI Compatibility Mode , the screen or sound may not work properly.
• When HDMI Compatibility Mode is on, HDR function is not supported.
• Some older graphics cards do not support HDMI 2.0,but you can select HDMI 2.0 resolution in the control panel of window. This may cause the screen to appear abnormally.
The following display information will be shown; Serial Number, Total Power On Time, Resolution.
Do you want to reset your settings?
Yes Restores the default settings.
No Cancel the reset.
Enables HDMI Compatibility Mode.
Disables HDMI Compatibility Mode.
ENGLISH
23
Page 24
TROUBLESHOOTING
ENGLISH
Nothing is displayed on the screen.
Is the monitor's power cord plugged in? • Check if the power cord is correctly plugged into the power outlet.
Is the power LED on? • Check the power cable connection and press the power button.
Is the power on and the power LED displaying white? • Check that the connected input is enabled (Settings > Input).
Is the power LED blinking? • If the monitor is in sleep mode, move the mouse, or press any key on the keyboard, to switch the display on.
• Check if the computer is turned on.
Is the OUT OF RANGE message being displayed? • This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product Specification
Is the No Signal message being displayed? • This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
section of this manual to set the appropriate frequency.
The screen may not be displayed properly when
configuring DisplayPort 1.2 in a Mac product.
The OSD Lock message is being displayed.
Are some functions not available when you press the
Menu button?
24
• DisplayPort 1.2 may not be supported depending upon the Mac product. Please contact the manufacturer.
• The OSD is locked. Go to Settings > General and set OSD Lock to Off.
Page 25
The screen retains an image.
Does image sticking occur even when the monitor is
turned off?
Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution? • If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.
NOTE
• Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per second, like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency, or refresh rate,
and is represented by Hz.
• Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle. If 1 is divided by the horizontal interval, the result is the number of horizontal lines displayed per second. This is called horizontal
frequency and is represented by kHz.
• Check if the graphics card’s resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution Control Panel > Display > Settings in Windows. (The settings may differ
depending on the operating system (OS) you use.)
• Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.
• The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the performance of the graphics card. If this is the case, contact the manufacturer of
the computer or graphics card for assistance.
• Some graphics cards may not support 3440 x 1440 resolution. If the resolution cannot be displayed, contact the manufacturer of your graphics card.
• Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
• To extend the lifetime of the monitor, use a screensaver.
ENGLISH
25
Page 26
The display color is abnormal.
Does the display appear discolored
(16 colors)?
ENGLISH
Does the display color appear unstable or
monochrome?
Are there spots on the screen? • When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to
Do you see an "Unrecognized monitor, Plug and Play ( VESA DDC) monitor found" message?
Have you installed the display driver? • Be sure to install the display driver from our web site: http://www.lg.com.
No sound from the headphone port.
Are images displayed using DP (DisplayPort) or HDMI
input without sound?
• Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Settings > Color Quality. (The settings may differ depending on the
operating system (OS) you use.)
• Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphic card.
the monitor's performance.
• Make sure to check if the graphic card supports Plug and Play function.
• Make sure that the headphone port connections are made properly.
• Try increasing the volume with the joystick.
• Set the audio output of the PC to the monitor you are using. On Microsoft Windows, go to Control Panel > Hardware and Sound > Sound > set the Monitor as
default device. (The settings may differ depending on the operating system (OS) you use.)
26
Page 27
PRODUCT SPECIFICATION
Color Depth 8-bit / 10-bit color is supported.
Resolution
Power Sources
AC/DC adaptor
Environmental Conditions
Dimensions
Weight (Without Packaging)
Specifications are subject to change without notice.
* The Operating Mode of Power Consumption is measured with LGE test standard. (Full White pattern, Maximum resolution)
* The Power Consumption level can be different by operating condition and monitor setting.
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
Max Resolution 3440 x 1440 @ 75 Hz
Recommended Resolution 3440 x 1440 @ 60 Hz
Power Rating 19.5 V
Power Consumption
ACC-LATP1 type, manufactured by SHENZHEN HONOR ELECTRONIC CO.,LTD
OUTPUT: 19.5 V
Operating Conditions Temperature 0 °C to 40 °C
Storing Conditions Temperature -20 °C to 60 °C
Monitor Size (Width x Height x Depth)
With Stand 825.6 x 570.7 x 230 (mm)
Without Stand 825.6 x 369.8 x 51.2 (mm)
With Stand 7.6 kg
Without Stand 5.9 kg
10.8 A
8.0 A
Operating Mode: 70 W (Typical)*
Sleep Mode: ≤ 1.2 W**
Off Mode: ≤ 0.3 W
Humidity Less than 80 %
Humidity Less than 85 %
ENGLISH
27
Page 28
Factory Support Mode (Preset Mode, PC)
ENGLISH
28
Preset Mode Horizontal Frequency (kHz) Vertical Frequenc y (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/- Freesync only
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75.0 +/+ Freesync only
720 x 480 31.47 59.94 +/+ HDMI compatibility only
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75.029 +/+ Freesync only
1152 x 864 54.347 60.05 +/+
1152 x 870 68.681 75.061 -/- Freesync only
1280 x 720 45.00 60.00 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1600 x 900 60.00 60.00 +/+
1680 x 1050 64.674 59.883 +/-
1920 x 1080 67.5 60 +/-
1920 x 1080 83.894 74.973 +/- Freesync only
1720 x 1440 133.32 60 +/- PBP only
2560 x 1080 66.7 60 +/-
3440 x 1440 43.82 29.99 +/-
3440 x 1440 73.68 49.99 +/-
3440 x 1440 88.82 59.97 +/-
3440 x 1440 110.77 75.05 +/- Freesync On Native timing
Page 29
HDMI Timing (Video)
Factory Support Mode Horizontal Frequency (kHz) Vertical Frequency (Hz)
480P 31.47 60
576P 31.25 50
720P 37.5 50
720P 45 60
1080P 56.25 50
1080P 67.5 60
2160P 135 60
ENGLISH
29
Page 30
The model and serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.
Model
Serial No.
Loading...
