LG 32UL950, 32BL95U User Guide

* LG LED Monitor applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and
retain it for future reference.

32UL950

32BL95U

OWNER’S MANUAL

LED LCD MONITOR

(LED Monitor*)

www.lg.com

Copyright © 2018 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS

ENGLISH

LICENSE ...................................................... 2

OPEN SOURCE SOFTWARE NOTICE

INFORMATION ............................................ 3

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.

ASSEMBLING AND PREPARING .................. 3

USING THE MONITOR .................................. 8

USER SETTINGS ........................................ 11

TROUBLESHOOTING .................................23

PRODUCT SPECIFICATION ......................... 25

2

The SuperSpeed USB Trident logo is a registered trademark of USB
Implementers Forum, Inc.

Thunderbolt and the Thunderbolt logo are trademarks of Intel
Corporation or its subsidiaries in the U.S. and/or other countries.

*

OPEN SOURCE SOFTWARE NOTICE INFORMA
TION

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available
for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].

This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in
receipt of this information.

ASSEMBLING AND PREPARING

CAUTION

• Always use genuine LG components to ensure safety and product per formance.

• The product warranty will not cover damage or injury caused by the use of unauthorized components.

• It is recommended to use the supplied components.

• If you use generic cables not certified by LG, the screen may not display or there may be image problems.

• Illustrations in this document represent typical procedures, so they may look different from the actual product.

• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing

so may damage the product.)

• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this

way will not be covered by the product warranty.

• Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand

and could result in personal injury.

• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen

may cause damage to it.

NOTE

• The components may look different from those illustrated here.

• Without prior notice, all product information and specifications contained in this manual are subject to change

to improve the performance of the product.

• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer

from which you purchased the product.

• The power cord provided may differ depending upon the region.

Supported Drivers and Software

You can download and install the latest version from the enclosed CD or from the LGE website (www.lg.com).

Drivers and Software Installation Priority

Monitor Driver Recommended

OnScreen Control Recommended

Dual Controller Optional

True Color Pro Optional

ENGLISH

3

Product and Button Description

ENGLISH

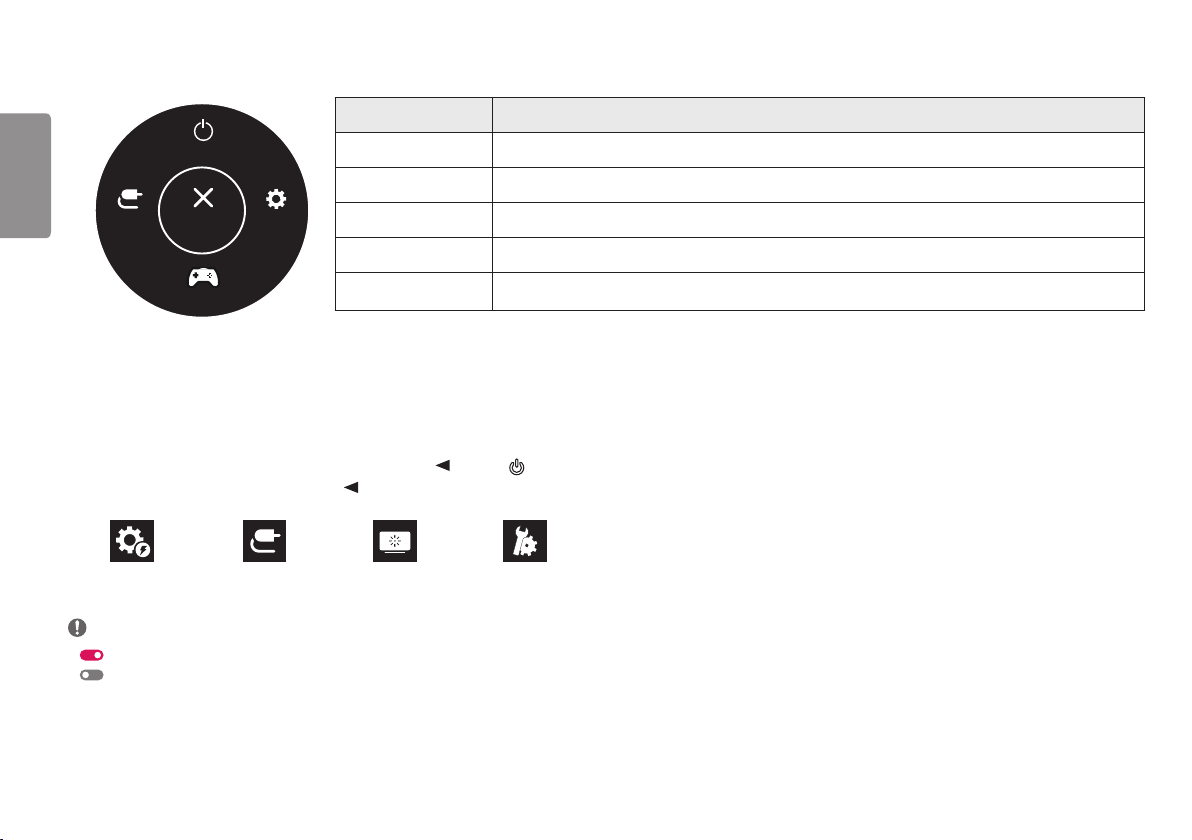

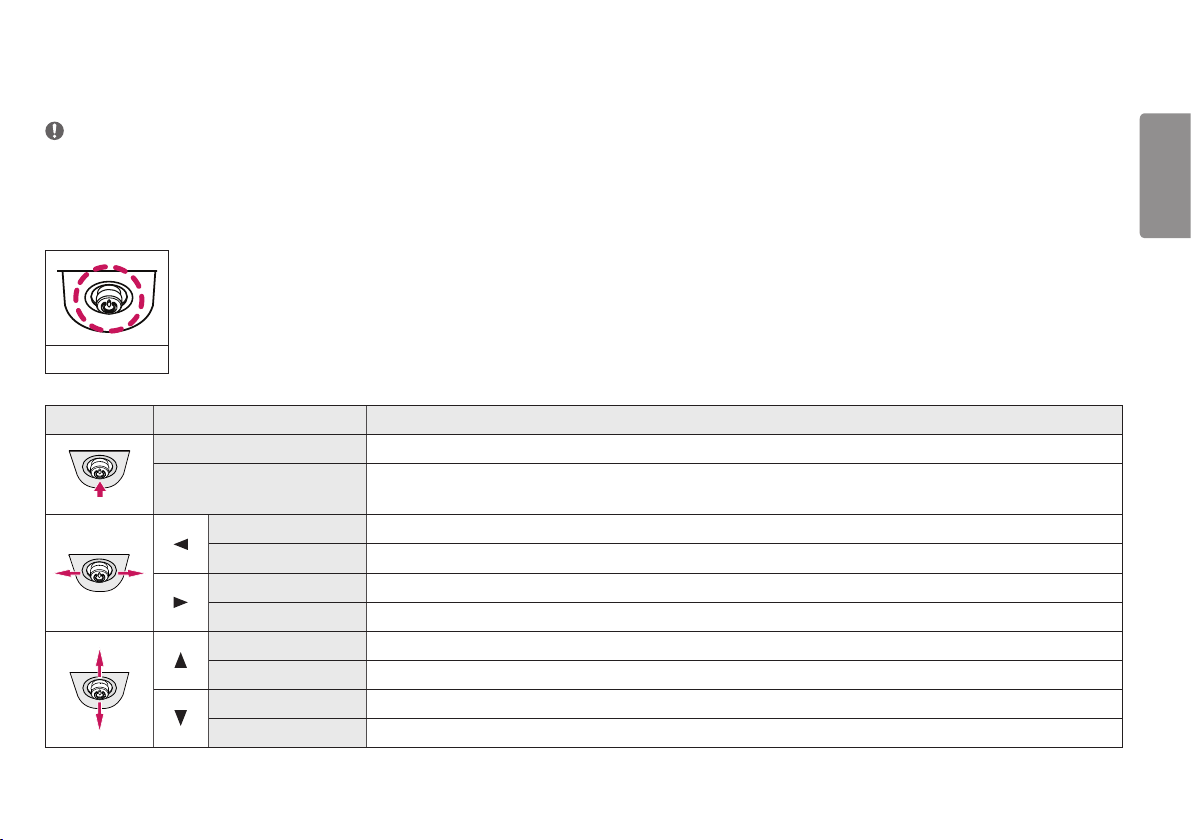

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/
down with your finger.

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or
damaged and to ensure safe transportation, regardless of its shape or size.

• Place the monitor in the original box or packing material before attempting to move it.

• Before moving or lifting the monitor, disconnect the power cord and all other cables.

• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.

• When holding the monitor, the screen should face away from you to prevent it from being scratched.

• When transporting the monitor, do not expose the monitor to shock or excessive vibration.

• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

Basic Functions

/ Volume control

NOTE

• The joystick button is located at the bottom of the monitor.

4

Power on

Power off

Press the joystick button once with your finger
to turn on the monitor.

Press and hold the joystick button once more
than 5 seconds with your finger to turn off the
monitor.

You can control the volume by moving the
joystick button left/right.

CAUTION

• Avoid touching the monitor screen as much as possible.

- This may result in damage to the screen or some of the pixels used to create images.

• If you use the monitor panel without the stand base, its joystick button may cause the monitor to become

unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick
button to malfunction.

Installing on a Table

• Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.9 inches)

away from the wall to ensure sufficient ventilation.

100 mm
(3.9 inches)

100 mm
(3.9 inches)

CAUTION

• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.

• Make sure to use the power cord that is provided in the product package and connect it to a grounded power

outlet.

• If you need another power cord, please contact your local dealer or the nearest retail store.

100 mm
(3.9 inches)

100 mm
(3.9 inches)

Adjusting the Stand Height

1 Place the monitor mounted on the stand base in an upright position.
2 Handle the monitor with both hands for safety.

ENGLISH

Max 110.0 mm
(4.3 inches)

WARNING

• When adjusting the screen height, do not place your hand on the stand body to avoid injur y to your fingers.

Adjusting the Angle

1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen.

The angle of the screen can be adjusted forward or backward from -5° to 20° for a comfor table viewing
experience.

WARNING

• To avoid injur y to the fingers when adjusting the screen, do not hold the lower part of the monitor’s frame as

illustrated below.

• Be careful not to touch or press the screen area when adjusting the angle of the monitor.

5

Using the Kensington Lock

The connector for the Kensington security system is located at the bottom of the monitor.
For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website

at http://www.kensington.com.

ENGLISH

Connect the monitor to a table using the Kensington security system cable.

Installing the Wall Mount Plate

This monitor meets the specifications for the wall mount plate or other compatible devices.

NOTE

• The wall mount plate is sold separately.

• For more information on installation, refer to the wall mount plate’s installation guide.

• Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the

screen.

• Remove the stand before installing the monitor on a wall mount by performing the stand attachment in

reverse.

Installing on the Wall

Install the monitor at least 100 mm (3.9 inches) away from the wall and leave about 100 mm (3.9 inches)
of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be
obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a
tilting wall mounting bracket.

NOTE

• The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

6

100 mm
(3.9 inches)

100 mm
(3.9 inches)

100 mm
(3.9 inches)

100 mm
(3.9 inches)

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

Wall Mount (mm) 100 x 100

Standard screw M4 x L10

Number of screws 4

Wall Mount Plate (Optional) RW120

NOTE

• A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable

for any accidents relating to the use of non-standard screws.

• The wall mount kit includes the installation guide and all necessary parts.

• The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.

• The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard

length, it may damage the inside of the product.

• For more information, please refer to the user manual for the wall mounting bracket.

CAUTION

• Unplug the power cord before moving or installing the monitor to avoid electric shock.

• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead

to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.

• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this

way will not be covered by the product warranty.

• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or

misuse of inappropriate components will not be covered by the product warranty.

• When measured from the back of the monitor, the length of each installed screw must be 8 mm (0.3 inches)

or less.

Wall Mount Plate

Back of the Monitor

Wall Mount Plate

Back of the Monitor

Standard screw

: M4 x L10

Max. 8 mm
(0.3 inches)

ENGLISH

7

USING THE MONITOR

• Illustrations in this manual may differ from the actual product.

Press the joystick button, go to [Settings] [Input], and then select the input option.

ENGLISH

CAUTION

• Do not press the screen for a prolonged time. This may cause image distortion.

• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC

screensaver if possible.

• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power

outlet.

• The monitor may flicker when turned on in an area where the temperature is low. This is normal.

• Sometimes red, green, or blue spots may appear on the screen. This is normal.

Connecting to a PC

• This monitor supports the *Plug and Play feature.

* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure

anything or install any manual drivers.

HDMI Connection

Transmits digital video and audio signals from your PC to the monitor.

CAUTION

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not

display or a connection error may occur.

• Recommended HDMI cable types

- High-Speed HDMI®/TM cable

- High-Speed HDMI®/TM cable with Ethernet

DisplayPort Connection

Transmits digital video and audio signals from your PC to the monitor.

NOTE

• There may be no video or audio output depending on the DP (DisplayPort) version of the PC.

• Make sure to use the supplied DisplayPort cable of the product. Otherwise, this may cause the device to

malfunction.

• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort)

cable or gender that supports DisplayPort1.4. (Sold separately)

Thunderbolt

You can connect your high-resolution display or high-per formance data device to the monitor via a
ThunderboltTM 3( ) port.

NOTE

• The maximum data transmission rate of each port is 40 Gb/s.

• Make sure to use a ThunderboltTM 3( ) certified cable. Otherwise, this may cause the device to malfunction.

• ThunderboltTM 3( ) is supported in such environments as Windows 10 and Mac product.

• In accordance with Mac products may not support the recommended resolution or the some features.

• The ability to set up dual monitors using the ThunderboltTM 3( ) and daisy-chaining technology depends on the

performance of your video card.

TM

3 ( ) Connection

8

Connecting AV Devices

HDMI Connection

HDMI transmits digital video and audio signals from your AV device to the monitor.

NOTE

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not

display or a connection error may occur.

• Recommended HDMI cable types

- High-Speed HDMI®/TM cable

- High-Speed HDMI®/TM cable with Ethernet

Connecting Peripherals

CAUTION

Cautions When Using a USB Device

• A USB device with an automatic recognition program installed, or that uses its own driver, may not be

recognized.

• Some USB devices may not be supported or may not work properly.

• It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not

adequate, the USB device may not be recognized properly.)

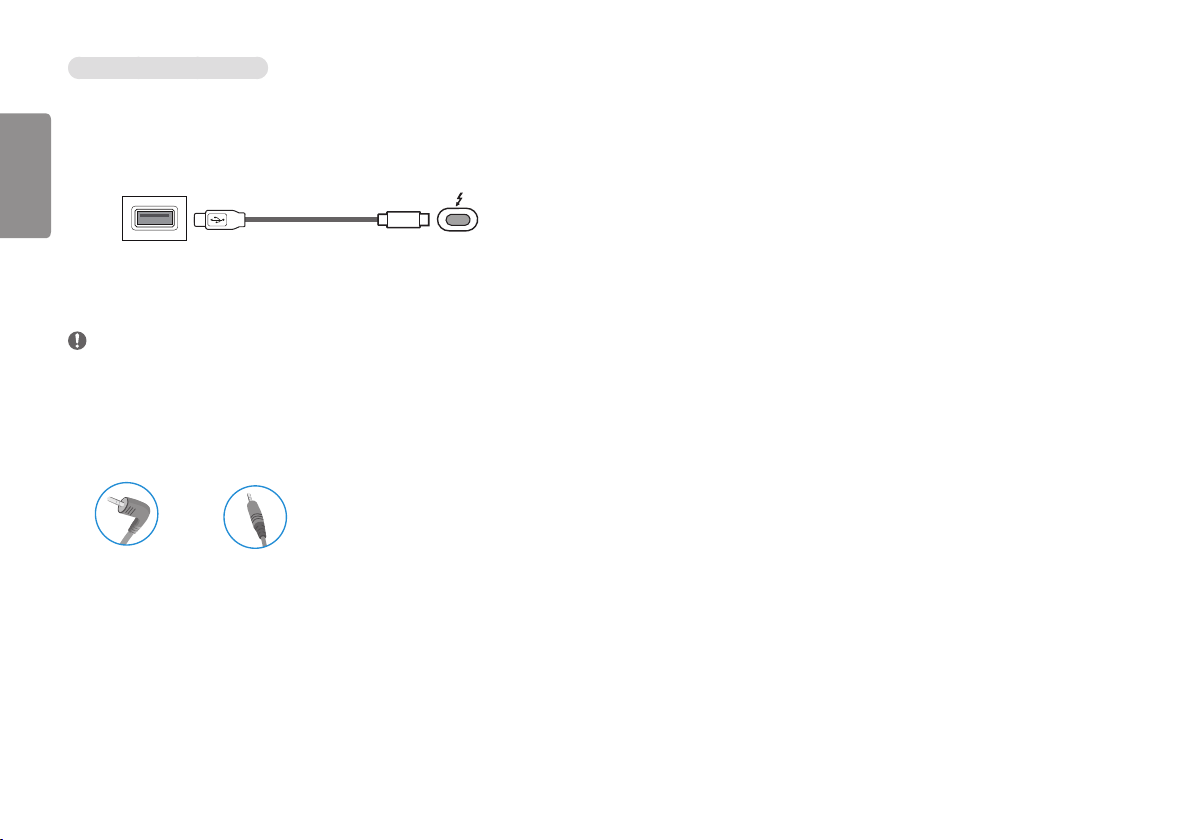

Case 1: ThunderboltTM 3 ( ) Input

Peripheral devices connected to the USB IN port can be controlled from the PC.
If you change the input on the menu while a device is in connection via the Thunderbolt

device in connection via the USB port may not work properly.

[To use Thunderbolt cable]

Please connect the Thunderbolt cable to the PC.
To use USB 3.0, connect the Thunderbolt cable of the product to the PC.

TM

3 ( ) port, then the

ENGLISH

USB Device connection

The USB port on the product functions as a USB hub.

NOTE

• It is recommended you install all Windows Updates to keep your Windows up-to-date before connecting to the

product for use.

• Peripheral devices are sold separately.

• A keyboard, mouse, or USB device can be connected to the USB port.

• The charging speed may vary depending on the device.

(Sold separately)

[PC]

[To use USB-C cable]

Please connect the USB-C cable to the PC.
To use USB 2.0, connect the USB-C cable of the product to the PC.

[PC]

[Monitor]

[Monitor]

9

Case 2: HDMI/DP (DisplayPort) Input

Peripheral devices connected to the USB IN port can be controlled from the PC.

[To use USB C-A cable]

Please connect the USB-C-A cable to the PC.

ENGLISH

To use USB 3.0, connect the USB C-A cable of the product to the PC.

[PC]

(Sold separately)

[Monitor]

Headphones Connection

Connect peripherals to the monitor via the headphones port.

NOTE

• Peripheral devices are sold separately.

• Depending on the audio settings of the PC and external device, headphones and speaker functions may be

limited.

• If you use angled earphones, it may cause a problem with connecting another external device to the monitor.

Therefore, it is recommended to use straight earphones.

Angled Straight

(Recommend)

10

USER SETTINGS

NOTE

• Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.

Activating the Main Menu

1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down and left/right to set the options.
3 Press the joystick button once more to exit the main menu.

Joystick Button

Button Menu Status Description

Main menu disabled Enables the main menu.

Main menu enabled

Main menu disabled Adjusts the monitor volume level.

Main menu enabled Enters the [Input] features.

Main menu disabled Adjusts the monitor volume level.

Main menu enabled Enters the [Settings] feature.

Main menu disabled Displays the information on the current input.

Main menu enabled Turns off the monitor.

Main menu disabled Displays the information on the current input.

Main menu enabled Enters the [Game Mode] feature.

Exits the main menu.
(Holding down the button more than 5 seconds to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)

ENGLISH

11

Main Menu Features

ENGLISH

Input

Power Off

Exit

Settings

Main Menu Description

[Input] Sets input mode.

[Power Off] Turns off the monitor.

[Settings] Configures the screen settings.

[Game Mode] Sets the game mode for gaming.

Game Mode

[Exit] Exits the main menu.

Menu Settings

1 To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the [Settings].
2 Move the joystick up/down and left/right to set the options.
3 To return to the upper menu or set other menu items, move the joystick to or pressing ( ) it.
4 If you want to exit the OSD menu, move the joystick to until you exit.

[Quick Settings] [Input] [Picture] [General]

NOTE

• : On

• : Off

12

Quick Settings

[Settings] > [Quick Settings] Description

[Brightness]

[Contrast]

[Volume] Adjusts the volume level.

Adjusts the contrast and brightness of the screen.

NOTE

• You can adjust [Mute] / [Unmute] by moving the joystick button to in the [Volume] menu.

Input

[Settings] > [Input] Description

[Input List] Selects the input mode.

[Aspect Ratio] Adjusts the aspect ratio of the screen.

[Full Wide] Displays the video in widescreen, regardless of the video signal input.

[Original] Displays video according to the aspect ratio of the video signal input.

NOTE

• The display may look the same for [Full Wide] and [Original] options at the recommended resolution (3840 x 2160).

[PBP] Displays the screens of two input modes on one monitor.

[Main/Sub Screen Change] Toggles between the main screen and sub screen in [PBP] mode.

[Main/Sub Sound Change] Toggles between the audio of the main screen and sub screen in [PBP] mode.

ENGLISH

13

[PBP]

[Settings] > [Input] Description

[Input List] Displays the screens of two input modes on one monitor.

ENGLISH

[Aspect Ratio] Adjusts the aspect ratio of the screen.

[PBP] You can disable the feature that displays images from two input modes simultaneously on one monitor.

[Main/Sub Screen Change] Toggles between the main screen and sub screen in [PBP] mode.

[Main/Sub Sound Change] Toggles between the audio of the main screen and sub screen in [PBP] mode.

[Main Input List]

[Sub Input List]

Main Screen (Left)

[Main Aspect Ratio]

[Sub Aspect Ratio]

Please refer to the table below for possible PBP combinations.

PBP Connection

- O O

[Full Wide] Displays the video to fit the PBP screen, regardless of the video signal input.

[Original] Displays the video in the aspect ratio of the video signal input on the PBP screen.

[Full Wide] Displays the video to fit the PBP screen, regardless of the video signal input.

[Original] Displays the video in the aspect ratio of the video signal input on the PBP screen.

Sub Screen (Right)

O - O

O O -

14


NOTE

• The [Picture Mode] that can be set depends on the Input signal.

[[Picture Mode] on SDR (Non HDR) signal]

[Settings] > [Picture] Description

[Picture Mode] [Custom] Allows the user to adjust each element.

[Vivid] Heightens contrast, brightness and sharpness to display vivid images.

[HDR Effect] Optimizes the screen for high dynamic range.

[Reader] Optimizes the screen for reading documents. You can brighten the screen in the OSD menu.

[Cinema] Optimizes the screen to improve the visual effects of a video.

[sRGB] A standard RGB color space for the monitor and printer.

[DCI-P3] Suitable for watching digital videos.

[FPS] This mode is optimized for FPS games.

[RTS] This mode is optimized for RTS Game.

[EBU] A standard TV PAL color space for broadcasting.

[REC709] A standard HDTV color space for broadcasting.

[SMPTE-C] A standard TV NTSC color space for broadcasting.

[Color Weakness] This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors.

[Calibration 1] Adjusts to the last calibrated screen.

[Calibration 2] Adjusts to the previously calibrated screen.

NOTE

• If the [Picture Mode] is changed in the DP (DisplayPort) input, the screen may flicker or the resolution of your PC screen may be affected.

• [Calibration 2] : Installation of TRUE COLOR PRO will enable this menu.

ENGLISH

15

[[Picture Mode] on HDR signal]

[Settings] > [Picture] Description

ENGLISH

[Picture Mode] [Custom] Allows the user to adjust each element.

[Vivid] Optimized the screen for HDR vivid colors.

[Standard] Optimized the screen for HDR standard.

[Cinema] Optimized the screen for HDR video.

[FPS] This HDR mode is optimized for FPS games.

[RTS] This HDR mode is optimized for RTS Game.

NOTE

• HDR content may not display correctly depending on Windows 10 OS settings, please check HDR On/Off settings in Windows.

• When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card performance.

• While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or power on/off according to Graphic card performance.

16

[Settings] > [Picture] Description

[Picture Adjust] [Brightness]

[Contrast]

[Sharpness] Adjusts the sharpness of the screen.

[SUPER RESOLUTION+] [High] Optimizes the screen for crystal clear images. Best for high-definition video or games.

[Black Level] Sets the offset level (for HDMI only).

[DFC] Adjusts the brightness automatically according to the screen.

[Uniformity] Adjusts uniformity of the image.

Adjusts the color contrast and brightness of the screen.

[Middle] Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes. Best for UCC or SD videos.

[Low] Optimizes the screen for smooth and natural images. Best for still images or images with less movement.

[Off ] Displays in the most common setting. Disables [SUPER RESOLUTION+].

NOTE

• Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for desktop icons. Doing so

may result in unnecessarily high sharpness.

• Offset: as a reference for a video signal, this is the darkest color the monitor can display.

[High] Keeps the current contrast ratio of the screen.

[Low] Lowers the black levels and raises the white levels from the current contrast ratio of the screen.

NOTE

• The Uniformity menu is activated only in Custom, sRGB, and Adobe RGB modes. Enabling Uniformity may reduce the overall brightness of the image.

ENGLISH

17

[Settings] > [Picture] Description

[Game Adjust] [Response Time] Sets a response time for displayed pictures based on the movement of the picture on the screen.

For a normal environment, it is recommended that you use [Fast]. When there is a lot of motion, it is recommended that you use [Faster].

ENGLISH

[FreeSync] Provides seamless and natural images by synchronizing the ver tical frequenc y of the input signal with that of the output signal.

[Black Stabilizer] You can control the black contrast to have better visibility in dark scenes.

Setting to [Faster] may cause image sticking.

[Faster] Sets the response time to faster.

[Fast] Sets the response time to fast.

[Normal] Sets the response time to normal.

[Off ] Does not use the response time improvement feature.

CAUTION

• Supported Interface: DisplayPort, HDMI

• Supported Graphic Card: A graphic card that supports AMD’s FreeSync is necessary.

• Supported Version: Make sure to update the graphic card to the latest driver.

• For more information and requirement, refer to AMD website at http://www.amd.com/FreeSync.

[Extended] Enable wider frequency range of FreeSync function than basic mode. The screen may flicker during the game play.

[Basic] Enable basic frequency range of FreeSync function.

[Off ] [FreeSync] function off.

Increasing the [Black Stabilizer] value brightens the low gray level area on the screen. (You can easily distinguish objects on dark game screens.)
Reducing the [Black Stabilizer] value darkens the low gray level area and increases the dynamic contrast on the screen.

18

[Settings] > [Picture] Description

[Color Adjust] [Gamma] [Mode 1], [Mode 2],

[Mode 3]

[Mode 4] If you do not need to adjust the gamma settings, select [Mode 4].

[Color Temp] S et your own color temperature.

[Custom] The user can customize the red, green and blue color.

[6500K] Sets the picture color to the color temperature of a reddish 6500K.

[7500K] Sets the picture color to the color temperatures of 7500K, setting to a color between red and blue.

[9300K] Sets the picture color to the color temperature of a bluish 9300K.

[Red], [Green], [Blue] You can customize the picture color using [Red], [Green], and [Blue] colors.

[Six Color] Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red, green, blue, cyan, magenta, and yellow) and then saving the settings.

[Hue] Adjusts the tone of the screen colors.

[Saturation] Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the colors become. The higher the value, the more

[Picture Reset] [Do you want to reset your picture settings?] [Yes] Returns to the default settings.

The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.

saturated and darker the colors become.

[No] Cancel the select.

ENGLISH

19

General

[Settings] > [General] Description

[Language] Sets the menu screen to the desired language.

ENGLISH

[SMART ENERGY SAVING] Conserve energy by using luminance compensation algorithm.

[High] Saves energy using the high-efficiency [SMART ENERGY SAVING] feature.

[Low] Saves energy using the low-efficiency [SMART ENERGY SAVING] feature.

[Off ] Disables the feature.

NOTE

• The value of energy saving data may differ depending on panel and panel suppliers.

• If you select the option of [SMART ENERGY SAVING] is [High] or [Low], monitor luminance become higher or lower depend on source.

[Power LED] Turns the power LED on the front of the monitor on or off.

NOTE

• When the Power LED function is turned on, it operates as follows:

- On Mode: White

- Sleep Mode: White Blinking

- Off Mode: Off

[Automatic Standby] Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. ([Off ], [4H], [6H], and [8H])

[DisplayPort Version] Set DisplayPort Version to the same version as the connected external device. ([1.4], [1.2], and [1.1])

To use the HDR function, set to [1.4].

20

[Settings] > [General] Description

[HDMI ULTRA HD Deep Color] Provides sharper images when connected to a device supporting ULTRA HD Deep Color.

4K @ 60 Hz Support Format

Resolution Frame rate (Hz)

3840 x 2160

NOTE

• To use [HDMI ULTRA HD Deep Color], turn this function [On].

• If the connected device does not support Deep Color, the screen or sound may not work properly. In this case, set this function to [Off].

[Local Dimming] Maximizes the contrast ratio by making the bright areas of the screen brighter and the dark areas of the screen darker.

NOTE

• Turning this option [Off] may increase energy consumption.

[Off ] Disables the feature.

[On] Enables [Local Dimming].

[Auto] Adjusts the contrast ratio automatically according to the screen for high dynamic range.

59.94

60.00

Color Depth / Chroma Sampling

8 bit 10 bit

YCbCr 4:2:0

YCbCr 4:2:2

YCbCr 4:4:4 -

RGB 4:4:4 -

ENGLISH

21

[Settings] > [General] Description

[Buzzer] This feature lets you set the sound generated from [Buzzer] when your monitor powers on to [On] or [Off ].

[OSD Lock] This feature disables the configuration and adjustment of menus.

ENGLISH

[Information] The following display information will be shown; [Serial Number], [Total Power On Time], [Resolution].

[Reset to Initial Settings] [Do you want to reset your settings?] [Yes] Returns to the default settings.

[No] Cancel the reset.

22

TROUBLESHOOTING

Nothing is displayed on the screen.

Is the monitor's power cord plugged in? • Check if the power cord is correctly plugged into the power outlet.

Is the power LED on? • Check the power cable connection and press the power button.

Is the power on and the power LED displaying white? • Check that the connected input is enabled ([Settings] > [Input]).

Is the [No Signal] message being displayed? • This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.

Is the [Out of Range] message being displayed? • This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product

Specification section of this manual to set the appropriate frequency.

Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.

Did you select the appropriate resolution? • If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended

resolution.

• Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or

misalignment of the display.

• The setting methods may be different depending on the computer or operating system, and some resolutions may not be available depending on the

performance of the graphics card. If this is the case, contact the manufacturer of the computer or graphics card for assistance.

Does image sticking occur even when the monitor is turned off? • Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.

• To extend the lifetime of the monitor, use a screensaver.

Are there spots on the screen? • When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor

is it related to the monitor's performance.

Some features are disabled.

Are some functions not available when you press the Menu button? • The OSD is locked. Disable [OSD Lock] in [General].

ENGLISH

23

Do you see an "Unrecognized monitor, Plug and Play ( VESA DDC) monitor found" message?

Have you installed the display driver? • Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://

ENGLISH

No sound from the headphone port.

Are images displayed without sound? • Make sure that the headphone port connections are made properly.

4K resolution is unavailable.

Did you check the cable connection? • Check if the cable is properly connected.

Is the resolution and refresh rate set properly? • Set the proper resolution and refresh rate in the PC screen resolution settings or the player's option menu.

Does the connected external device support 4K resolution? • It is available only on external devices that support 4K resolution.

Is the [HDMI ULTRA HD Deep Color] function enabled? • Go to [Settings] > [General] > [HDMI ULTRA HD Deep Color] function to enable the function.

www.lg.com.

• Make sure to check if the graphics card supports Plug and Play function.

• Try increasing the volume with the joystick.

• Set the audio output of the PC to the monitor you are using. (The settings may differ depending on the operating system (OS) you use.)

• It is recommended to use the accessories supplied with the product.

• Check if the connected external device supports 4K resolution.

24

PRODUCT SPECIFICATION

Color Depth 8-bit / 10-bit color is supported.

Resolution Max Resolution 3840 x 2160 @ 60 Hz

Recommended Resolution 3840 x 2160 @ 60 Hz

Power Sources Power Rating 19.5 V 9.0 A

Power Consumption
(Typical)

AC/DC Adapter ACC-LATP1 type, manufactured by SHENZHEN HONOR ELECTRONIC CO., LTD

Input: 100-240 V ~50/60 Hz 3.0A
Output: 19.5 V 10.8 A

Environmental Conditions Operating Conditions Temperature 0 °C to 40 °C (32 °F to 104 °F)

Storing Conditions Temperature -20 °C to 60 °C (-4 °F to 140 °F)

Dimensions Monitor Size (Width x Height x Depth)

With Stand 718.2 x 598.0 x 231.2 (mm) 28.2 x 23.5 x 9.1 (inches)

Without Stand 718.2 x 414.3 x 45.1 (mm) 28.2 x 16.3 x 1.7 (inches)

Weight (Without Packaging) With Stand 7.3 (kg) 16.0 (lbs)

Without Stand 5.9 (kg) 13.0 (lbs)

Specifications are subject to change without notice.
* The Operating Mode of Power Consumption is measured with LGE test standard. (Full White pattern, Maximum resolution)
* The Power Consumption level can be different by operating condition and monitor setting.

Operating Mode: 70 W (Typical)*
Sleep Mode: ≤ 1.2 W
Off Mode: ≤ 0.3 W

Humidity Less than 80 %

Humidity Less than 85 %

ENGLISH

25

Factory Support Mode (Preset Mode, PC)

DisplayPort/Thunderbolt

ENGLISH

TM

3/ USB-C

Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks

640 x 480 31.469 59.94 -/-

800 x 600 37.879 60.317 +/+

1024 x 768 48.363 60 -/-

1152 x 864 54.347 60.05 +/+

1280 x 720 45.00 60.00 +/+

1280 x 800 49.702 59.810 -/+

1280 x 1024 63.981 60.02 +/+

1600 x 900 60.00 60.00 +/+

1920 x 1080 67.5 60 +/-

1920 x 2160 133.32 60 +/- PBP Only

2560 x 1440 88.79 59.95 +/-

3840 x 2160 66.66 30 +/-

3840 x 2160 133.32 60 +/-

DP/USB-C/ThunderboltTM 3( ) Preferred

timing

26

HDMI

Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks

640 x 480 31.469 59.94 -/-

800 x 600 37.879 60.317 +/+

1024 x 768 48.363 60 -/-

1152 x 864 54.347 60.05 +/+

1280 x 720 45.00 60.00 +/+

1280 x 800 49.702 59.810 -/+

1280 x 1024 63.981 60.02 +/+

1600 x 900 60.00 60.00 +/+

1920 x 1080 67.5 60 +/-

1920 x 2160 133.29 60 +/- PBP Only

2560 x 1440 88.79 59.95 +/-

3840 x 2160 67.5 30 +/- HDMI1.4 Preferred timing, [HDMI ULTRA Deep Color] : [Off ]

3840 x 2160 135 60 +/- HDMI2.0 Preferred timing, [HDMI ULTRA Deep Color] : [On]

ENGLISH

27

HDMI Timing (Video)

Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz)

ENGLISH

480P 31.5 60

720P 45 60

1080P 67.5 60

2160P 135 60

28

This device can be used in all regions. Read the owner's manual (CD) carefully and keep it at hand. Please note that the
label attached to the product provides information for technical support.

Model

Serial No.

Supplier`s Declaration of Conformity

Trade Name: LG
Responsible Party: LG Electronics USA, Inc.
Address: 1000 Sylvan Ave Englewood Cliffs, NJ 07632
Telephon: [phone]
