LG 32PG6000 Schematic

PLASMA TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : PD81A

MODEL : 32PG6000 32PG6000-ZA

website:http://biz.LGservice.com

Internal Use Only

- 2 -

Only for training and service purposes

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ..........................................................................3

SPECIFICATION........................................................................................4

ADJUSTMENT INSTRUCTION .................................................................7

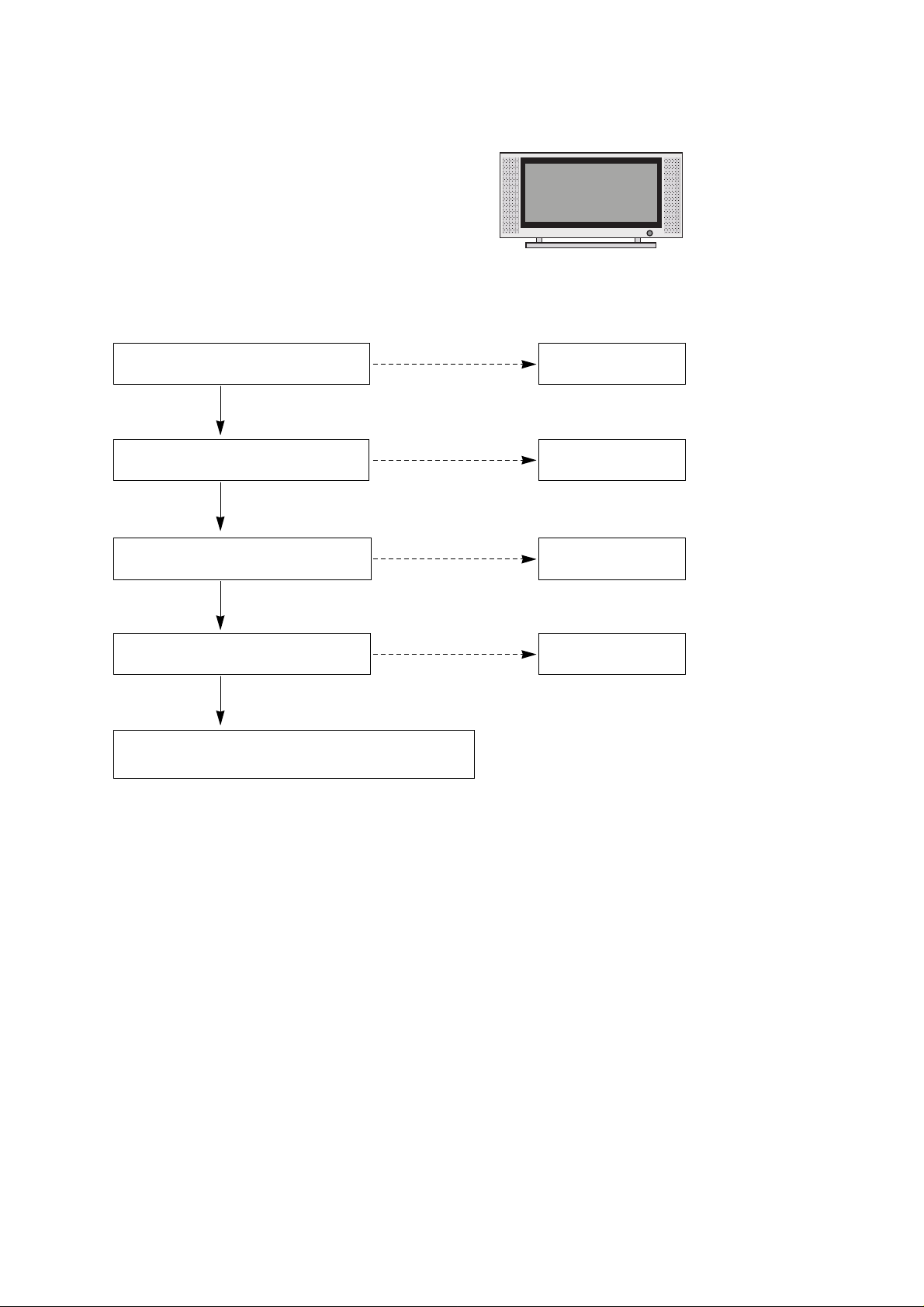

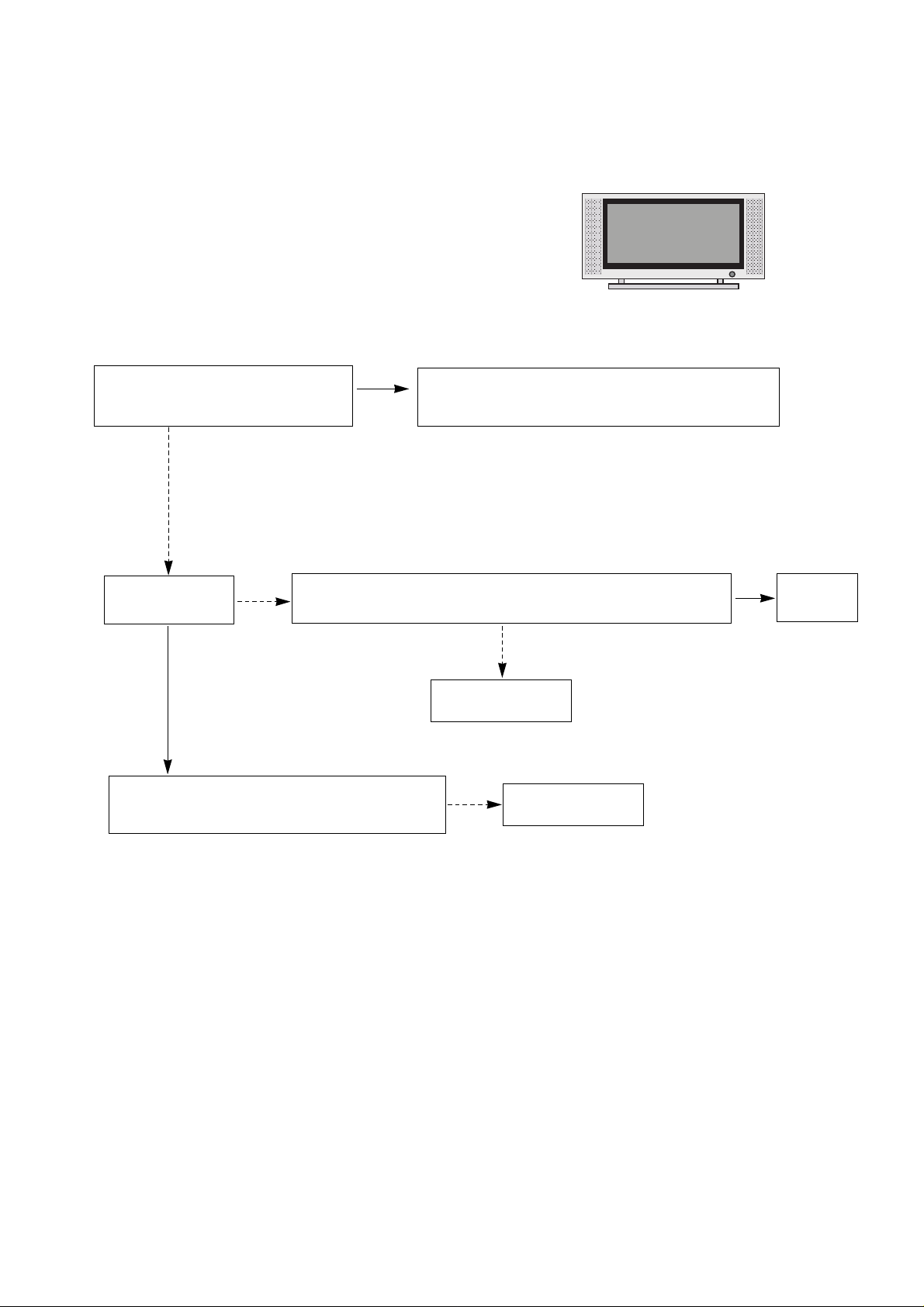

TROUBLE SHOOTING............................................................................12

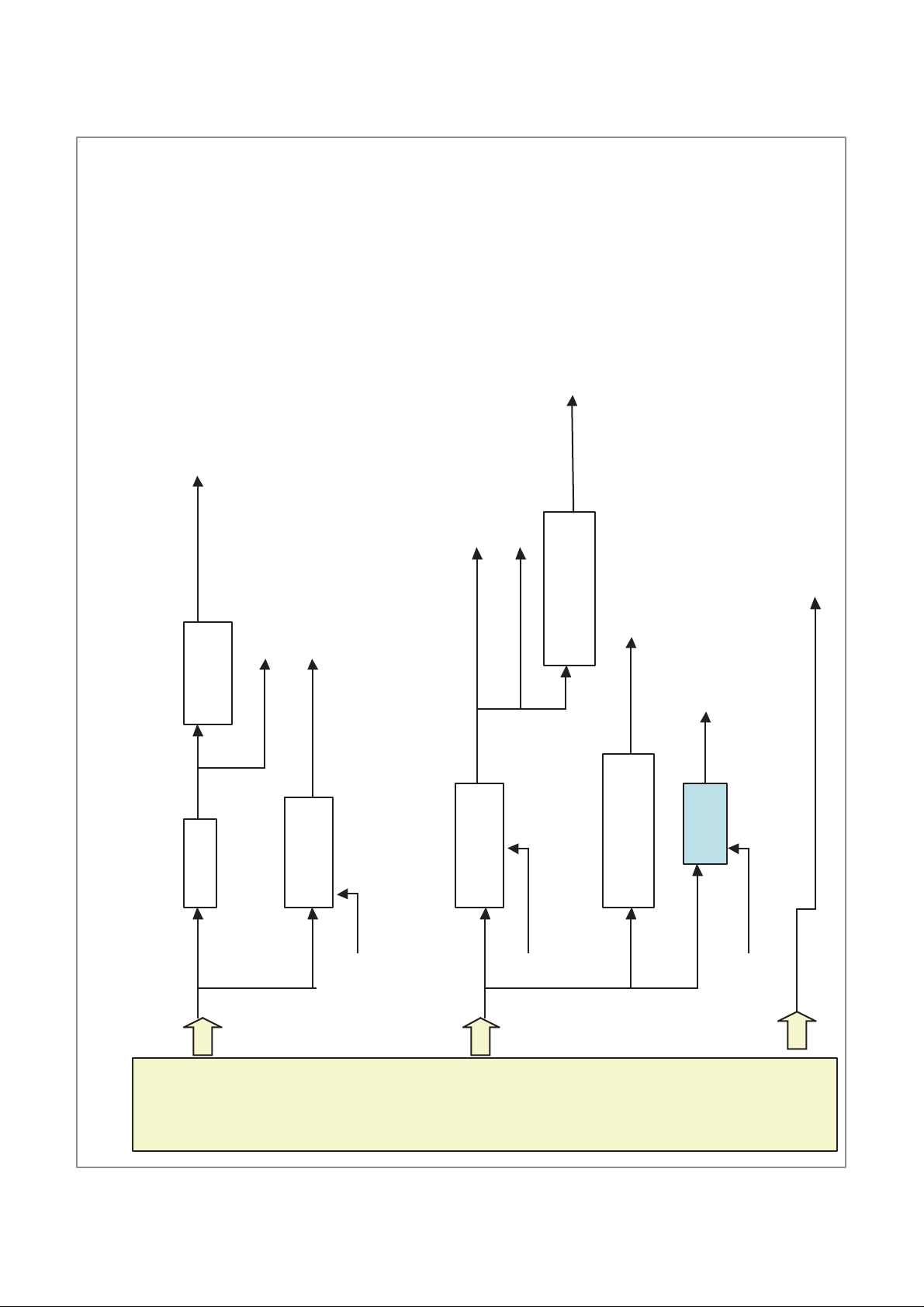

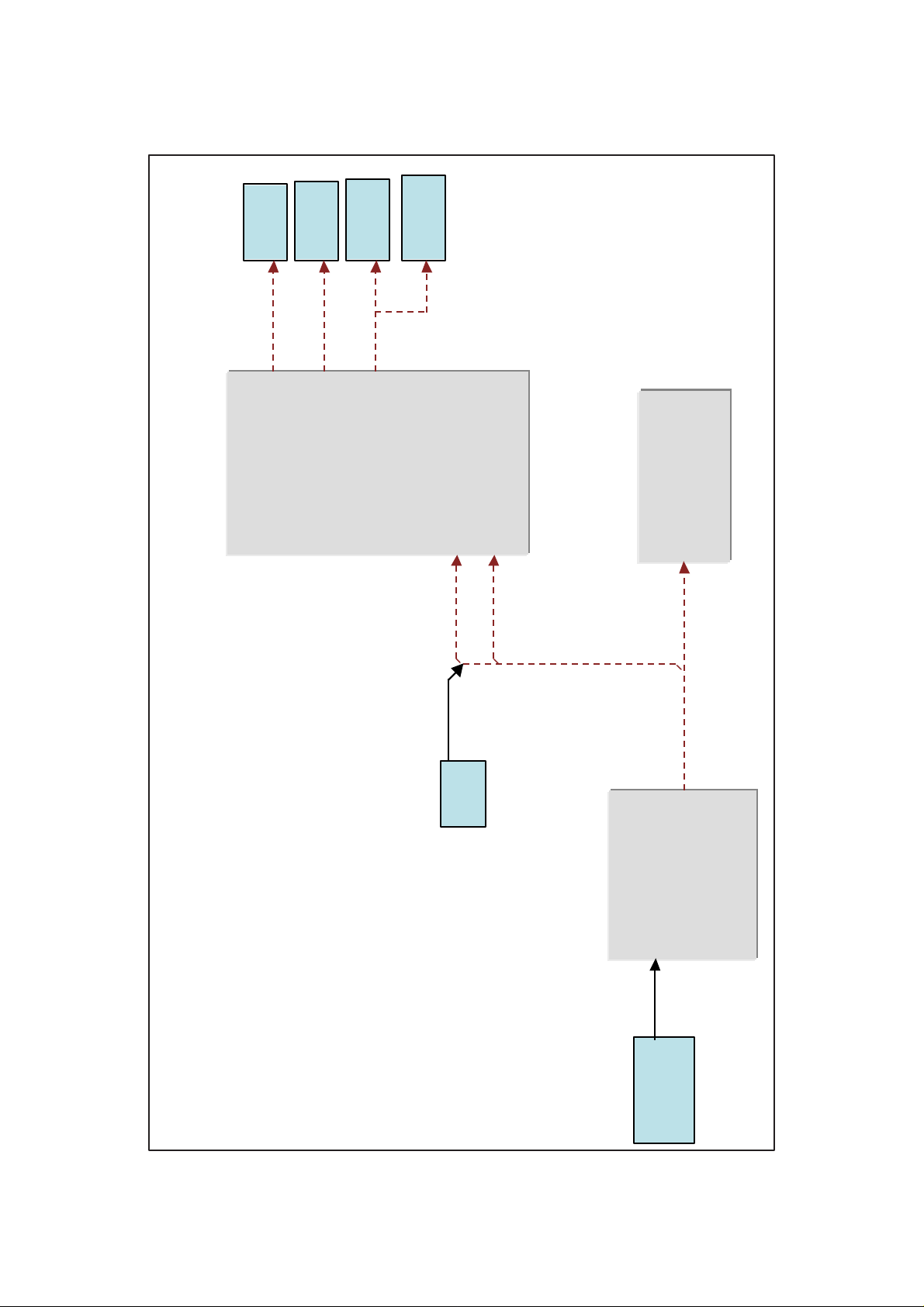

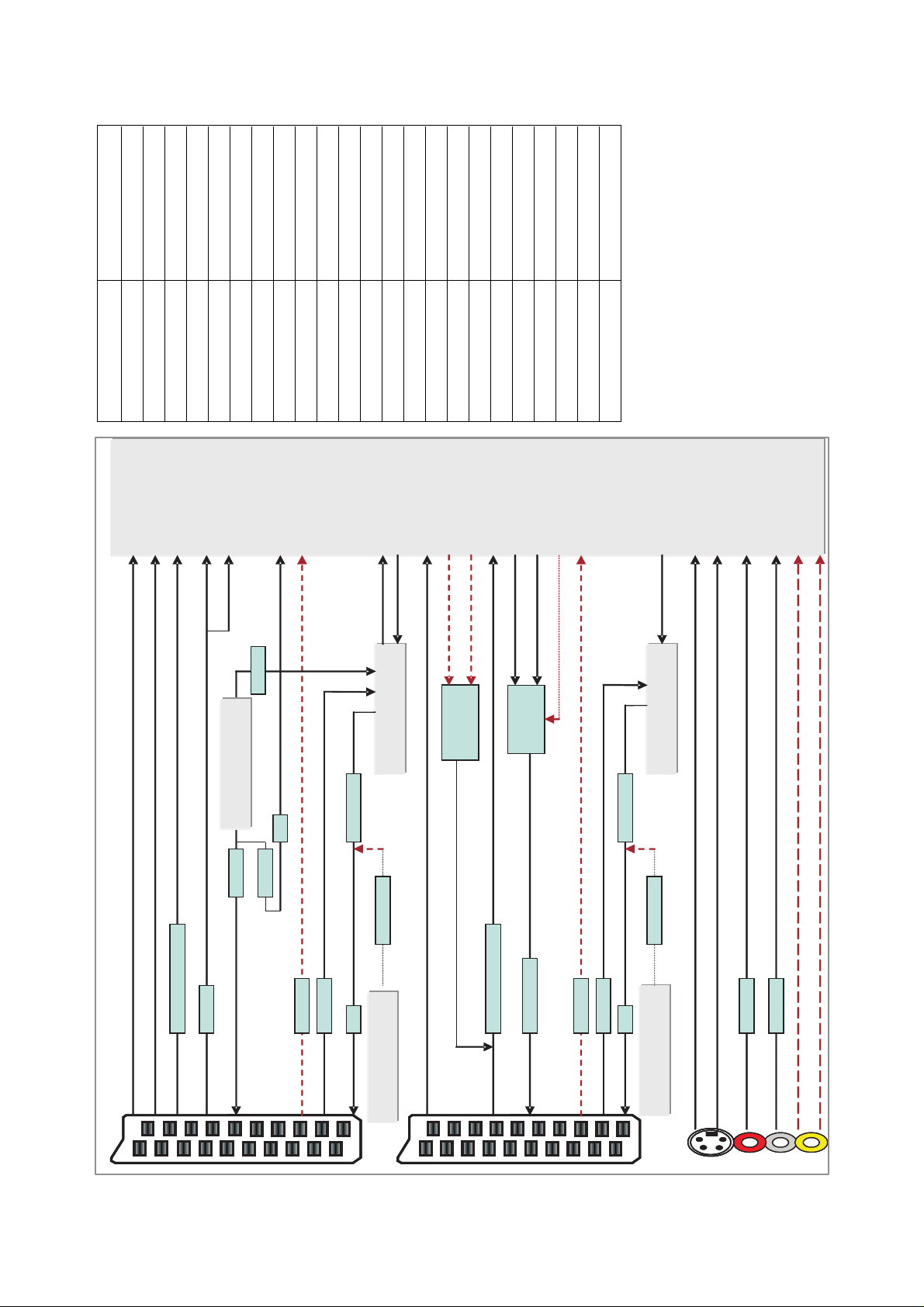

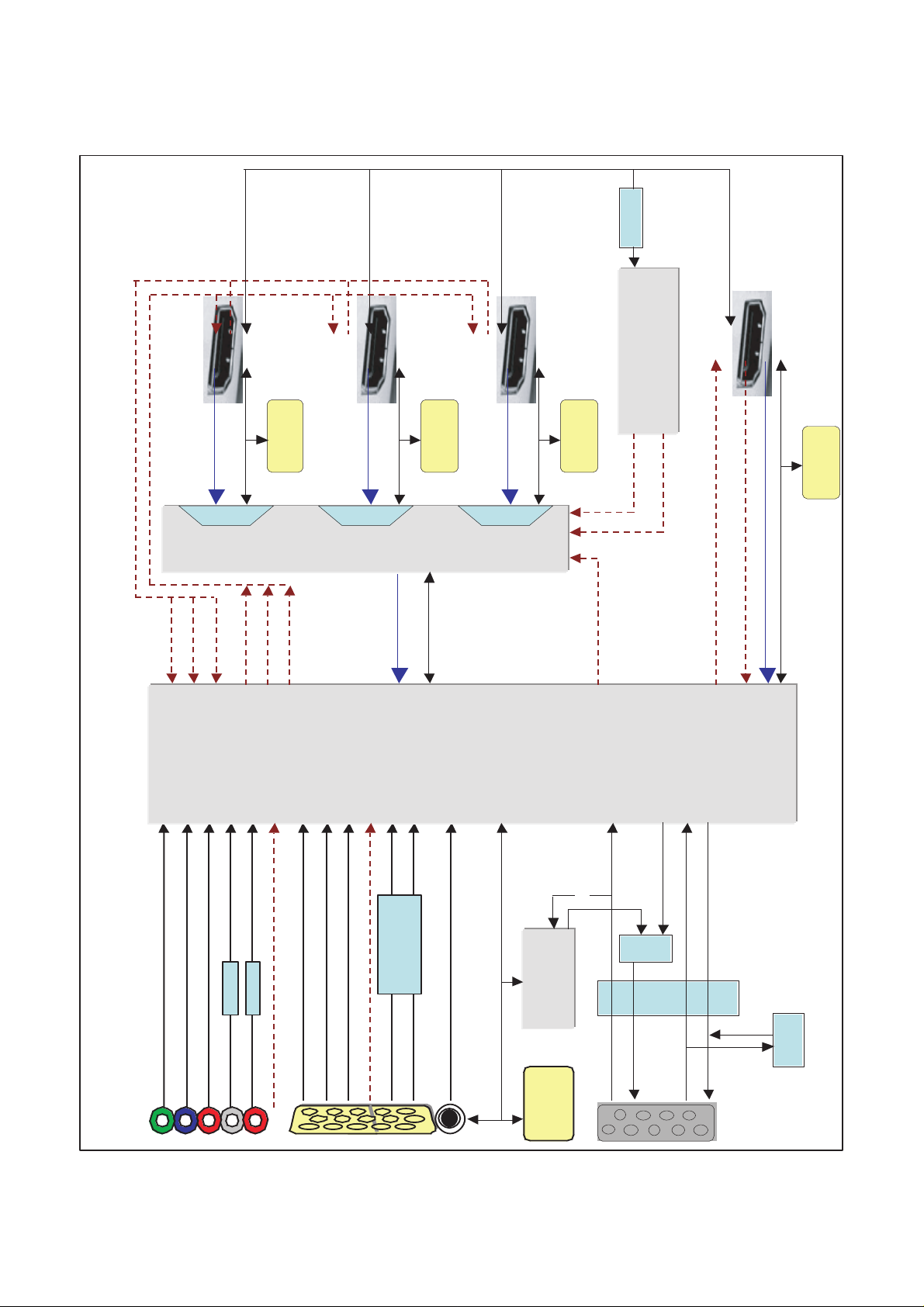

BLOCK DIAGRAM...................................................................................21

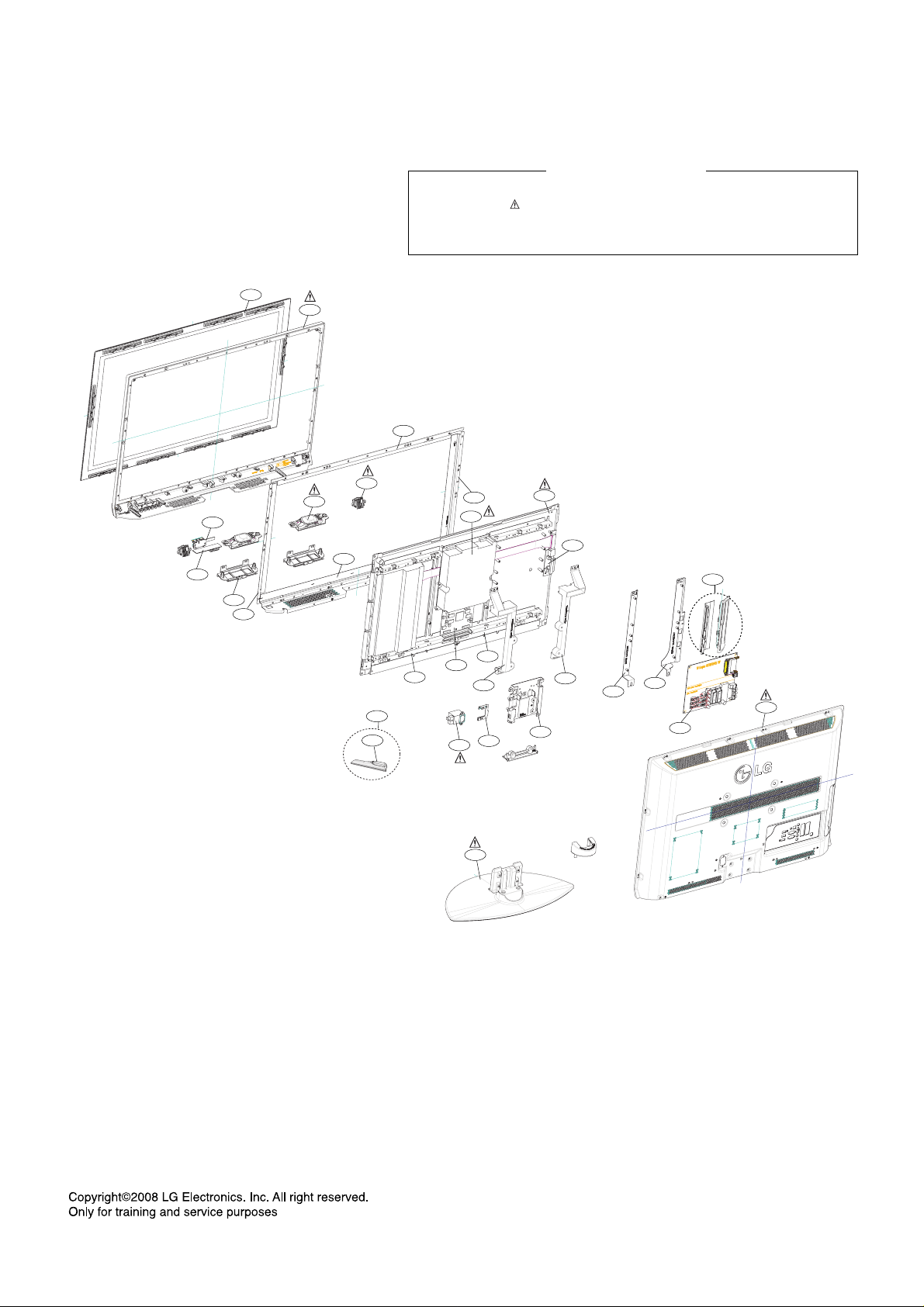

EXPLODED VIEW .................................................................................. 30

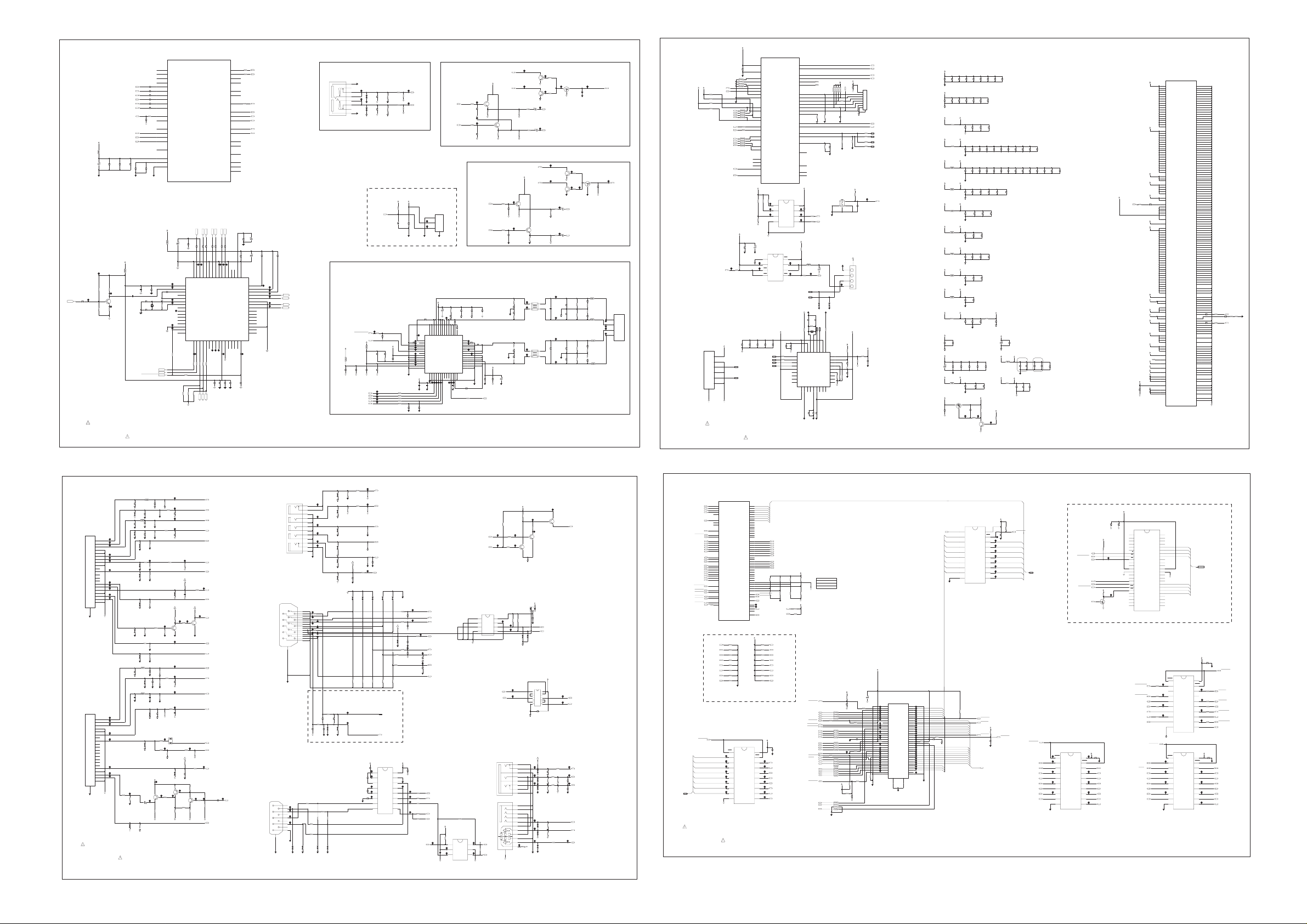

SVC. SHEET ...............................................................................................

PRINTED CIRCUIT DIAGRAM....................................................................

- 3 -

Only for training and service purposes

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Replacement Parts List. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this monitor is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1W), keep the resistor 10mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Due to high vacuum and large surface area of picture tube, extreme care should be used in handling the Picture Tube. Do not lift the Picture tube by it's Neck.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1MΩ and 5.2MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument’s exposed METALLIC PARTS

Good Earth Ground such as WATER PIPE, CONDUIT etc.

AC Volt-meter

IMPORTANT SAFETY NOTICE

0.15uF

- 4 -

Only for training and service purposes

SPECIFICATIONS

NOTE : Specifications and others are subject to change without notice for improvement

.

V Application Range

This spec is applied to the PD81A Chassis.

V Specification

Each part is tested as below without special appointment.

1) Temperature : 25±5°C (77±9°F), CST : 40±5

2) Relative Humidity: 65±10%

3) Power Voltage: Standard Input voltage (100-240V~, 50/60Hz) * Standard Voltage of each product is marked by models.

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with SBOM.

5) The receiver must be operated for about 20 minutes prior to the adjustment.

V Test Method

1) Performance : LGE TV test method followed.

2) Demanded other specification

Safety : CE, IEC specification EMC : CE, IEC specification

V Module General Specification

(1) 50” WXGA Module

Display Screen Device Aspect Ratio PDP Module

Operating Environment

Storage Environment

Input Voltage

1 2 3

4

5

6

No Item Specification Remark

50 inch Wide Color Display Module 16:9 PDP50G1####, RGB Closed(Well) Type, Glass Filter(38%) Pixel Format : 1365 horiz. By 768 ver.

1) Temp. : 0 ~ 40 deg

2) Humidity : 20 ~ 80 %

3) Temp. : -20 ~ 60 deg

4) Humidity : 10 ~ 90 % 100-240V~, 50/60Hz

PDP

LGE SPEC.

Maker LG

Chassis

PD81A 50PG6000/42PG6000/

32PG6000/50PG7000/

60PG7000/50PG4000

Austria,Belgium,Bulgaria,Coratia,Czech,Denmark,Finland,France,Germa

ny,Greece,Hungary,Italy,Luxembourg,

Netherlands,Norway,Poland,Portugal,Rumania,Russia,

Serbia,Slovenia,Spain,Sweden,Switzerland,UK,Morocco,Turkey

LG

Model Name Market Brand

50PG6000/42PG6000/ 32PG6000/50PG7000/

60PG7000/50PG4000

Safety : IEC/EN60065 EMI : EN55013 EMS : EN55020

Austria,Belgium,Bulgaria,Coratia,Czech,Denmark,Finland,France,

Germany,Greece,Hungary,Italy,Luxembourg,

Netherlands,Norway,Poland,Portugal,Rumania,Russia,

Serbia,Slovenia,Spain,Sweden,Switzerland,UK,Morocco,Turkey

Model ApplianceMarket

(2) 42” XGA Module

(3) 50” FHD Module

(4) 60” FHD Module

- 5 -

Only for training and service purposes

Display Screen Device Aspect Ratio PDP Module

Operating Environment

Storage Environment

Input Voltage

1 2 3

4

5

6

No Item Specification Remark

42 inch Wide Color Display Module 16:9 PDP42G1####, RGB Closed(Well) Type, Glass Filter(38%) Pixel Format : 1024 horiz. By 768 ver.

1) Temp. : 0 ~ 40 deg

2) Humidity : 20 ~ 80 %

3) Temp. : -20 ~ 60 deg

4) Humidity : 10 ~ 90 % 100-240V~, 50/60Hz

PDP

LGE SPEC.

Maker LG

Display Screen Device Aspect Ratio PDP Module

Operating Environment

Storage Environment

Input Voltage

1 2 3

4

5

6

No Item Specification Remark

50 inch Wide Color Display Module 16:9 PDP50H2####, RGB Closed(Well) Type, Glass Filter(38%) Pixel Format : 1920 horiz. By 1080 ver.

1) Temp. : 0 ~ 40 deg

2) Humidity : 20 ~ 80 %

3) Temp. : -20 ~ 60 deg

4) Humidity : 10 ~ 90 % 100-240V~, 50/60Hz

PDP

LGE SPEC.

Maker LG

Display Screen Device Aspect Ratio PDP Module

Operating Environment

Storage Environment

Input Voltage

1 2 3

4

5

6

No Item Specification Remark

60 inch Wide Color Display Module 16:9 PDP60H2####, RGB Closed(Well) Type, Glass Filter(38%) Pixel Format : 1920 horiz. By 1080 ver.

1) Temp. : 0 ~ 40 deg

2) Humidity : 20 ~ 80 %

3) Temp. : -20 ~ 60 deg

4) Humidity : 10 ~ 90 % 100-240V~, 50/60Hz

PDP

LGE SPEC.

Maker LG

- 6 -

Only for training and service purposes

V Model General Specification

Market

Broadcasting system

Receiving system

Scart Jack(2EA)

Video Input (1EA) S-Video Input (1EA) Component Input (1EA) RGB Input HDMI Input(4EA)

Audio Input (3EA) SPDIF Out(1EA) USB

1

2

3

4

5 6 7 8 9

10 11 12

No Item Specification Remark

Austria,Belgium,Bulgaria,Coratia,Czech,Denmark,Finland ,France,Germany,Greece,Hungary,Italy,Luxembourg, Netherlands,Norway,Poland,Portugal,Rumania,Russia, Serbia,Slovenia,Spain,Sweden,Switzerland,UK,Morocco, Turkey

1) PAL/SECAM BG

2) PAL/SECAM DK

3) PAL I / II

4) SECAM L/L’

5) DVB T Analog : Upper Heterodyne Digital : COFDM PAL, SECAM

PAL, SECAM, NTSC PAL, SECAM, NTSC Y/Cb/Cr, Y/Pb/Pr RGB-PC HDMI-PC HDMI-DTV RGB/DVI Audio, Component, AV SPDIF OUT For SVC, S/W Download, X-Studio

27 Country

EU(PAL Market)

Scart1 Jack is Full scart and support RF-OUT(Analoge) Scart2 Jack is Half scart and support MNT-OUT Side AV Side AV

Analog(D-Sub 15Pin) HDMI1/DVI,HDMI2,HDMI3,HDMI4

L/R Input

Side(X-Studio Only PG60 Series)

(5) 32” XGA Module

Display Screen Device Aspect Ratio PDP Module

Operating Environment

Storage Environment

Input Voltage

1 2 3

4

5

6

No Item Specification Remark

32 inch Wide Color Display Module 16:9 PDP32G1####, RGB Closed(Well) Type, Glass Filter(38%) Pixel Format : 1024 horiz. By 720 ver.

1) Temp. : 0 ~ 40 deg

2) Humidity : 20 ~ 80 %

3) Temp. : -20 ~ 60 deg

4) Humidity : 10 ~ 90 % 100-240V~, 50/60Hz

PDP

LGE SPEC.

Maker LG

- 7 -

Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet is applied to all of the PD81A chassis manufactured at LG TV Plant all over the world. Ex.) PD81A: 50PG6000-ZA, 42PG6000-ZA, 50PG7000-ZB,

60PG7000-ZB, 32PG6000-ZA ...

2. Specification.

[ Caution: The module keeping condition

1. The module keeping condition: The normal temperature

condition(more than 15°C)

--> Immediately the line supply.

2. The module keeping condition: 0°C

--> The module must be kept for more than 2 hours at the normal temperature.

3. The module keeping condition: -20°C

--> The module must be kept for more than 3 hours at the normal temperature.

4. The case of Gu-mi factory at the winter season.

--> The module must be kept for more than 5 minutes at the heating zone(40°C~45°C).

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument. (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25±5°C of temperature and 65±10% of relative humidity if

there is no specific designation. (4) The input voltage of the receiver must keep 100~240V,

50/60Hz. (5) The receiver must be operated for about 5 minutes prior to

the adjustment.

O After RGB Full White in HEAT-RUN Mode, the receiver

must be operated prior to the adjustment.

O Enter into HEAT-RUN MODE

1) Press the POWER ON KEY on R/C for adjustment.

2) Press the ADJ KEY on R/C and enter EZ ADJUST Select “3. Test Pattern” by using

D/E(CH +/-) and press

ENTER(

V)

Select “White” by using

F/G(VOL +/-) and press

ENTER(

V)

- Set is activated HEAT run without signal generator in this mode.

- Single color pattern (RED / BLUE / GREEN) of HEAT RUN MODE uses to check panel.

- Caution: If you turn on a still screen more than 20 minutes (Especially digital pattern, cross hatch pattern), an after image may be occur in the black level part of the screen.

[ Caution

- Using ‘power on’ button of the control R/C, power on TV.

- All adjustment process is executed through RS-232C.

- Do not connect external input cable.

3. S/W Auto Download Using the USB Memory Stick

[ Caution

- Using ‘power on’ button of the control R/C, power on TV.

- USB file (EPK) version must be bigger than downloaded version of main B/D.

(1) Insert the USB memory stick to the SET. (2) Using ‘power on’ button of the control R/C, power on TV. (3) S/W download process is executed automatically.

4. Auto-control Adjustment is Process

(1) All adjustment process is executed through RS-232C. (2) Command send --> ADC Calibration --> Model name

download --> EDID download.

(3) Auto-control adjustment protocol(RS-232C)

(4) Defined model name protocol (RS-232C)

- 8 -

Only for training and service purposes

5. Manual Model Name Download

(1) Press ADJ key on R/C for model name D/L (2) Select “. Model Option” and press ENTER(

V)

(3) Insert Option value by a number key (4) Press the ENTER(

V)

6. Manual ADC Adjustment

[ Caution

- Do not connect external input cable

- Adjustment result is applied to SET On/Off later.

[ Adjustment is done using internal ADC, so input signal is

not necessary.

(1) Press ADJ key on R/C for adjustment. (2) Select “2. ADC calibration” by using

D/E(CH +/-) and

press ENTER(

V).

(3) Select “Start’ by using

F/G(VOL +/-) and press

ENTER(

V).

(4) ADC adjustment is executed automatically.

7. Manual EDID Download

(1) Press the ADJ KEY on R/C and enter EZ ADJUST. (2) Select “5. EDID D/L” by using

D/E(CH +/-) and press

ENTER(

V).

(3) Select “Start” and press ENTER(

V).

(4) EDID download is executed automatically. (5) Press EXIT key on R/C.

8. EDID Data

(1) HDMI 1 (256 bytes)

(2) RGB (128 bytes)

=> Detail EDID Options are below(

, , , )

1.

-> Product ID

2.

-> Serial No : Controlled on production line

3.

-> Month, Year : Controlled on production line

NO SIGNAL or White noise

NO SIGNAL

RF Input AV / Component / RGB input

- 9 -

Only for training and service purposes

4. -> Model Name

5.

-> Checksum : Changeable by total EDID data.

9. PCMCIA CARD Checking Method

You must adjust DTV 29 Channel and insert PCMCIA CARD to socket.

(1) If PCMCIA CARD works normally, normal signals display

on screen. But it works abnormally, “No CA module” words display on screen.

[ Caution: Set up “RF mode” before launching products.

Caution: Set up “RF mode(noise)” before voltage adjustment.

- Test equipment: D.M.M 1EA

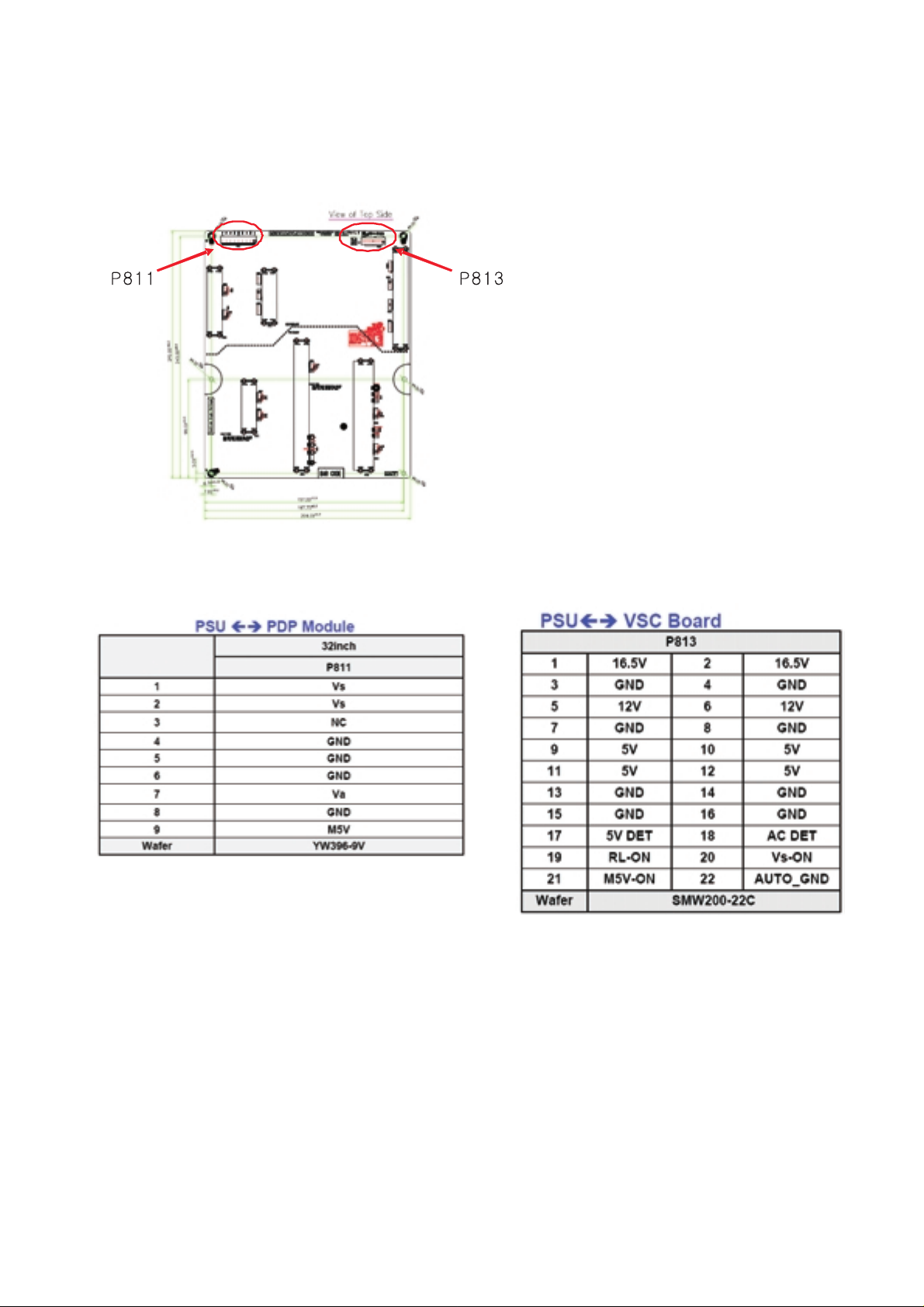

- Connection Diagram for Measuring: refer to fig.1, fig 2, fig 3. fig 4

10. 50” POWER PCB Ass’y Voltage Adjustment

(Va, Vs voltage Adjustment)

10-1. Model name: 50PG6000, 50PG6010 10-2. Adjustment Method

(1) 50” Va Aadjustment (refer fig. 1)

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D. M.M. to Va pin of P811,

connect -terminal to GND pin of P811.

3) After turning VR901,voltage of D.M.M adjustment as

same as Va voltage which on label of panel right/top (deviation; ±0.5V)

(2) 50” Vs Adjustment (refer fig. 1)

1) Connect + terminal of D. M..M. to Vs pin of P811,

connect -terminal to GND pin of P811.

2) After turning VR951, voltage of D.M.M adjustment as

same as Vs voltage which on label of panel right/top( deviation ; ±0.5V)

11. 42” POWER PCB Ass’y Voltage Adjustment

(Va, Vs voltage Adjustment)

11-1. Model name: 42PG6000, 42PG6010 11-2. Adjustment Method

(1) 42” Va Adjustment (refer fig. 2)

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D. M..M. to Va pin of P811, connect -terminal to GND pin of P811.

3) After turning VR901,voltage of D.M.M adjustment as same as Va voltage which on label of panel right/top (deviation; ±0.5V)

(2) 42” Vs Adjustment (refer fig. 2)

1) Connect + terminal of D. M..M. to Vs pin of P811, connect -terminal to GND pin of P811.

2) After turning VR951, voltage of D.M.M adjustment as same as Vs voltage which on label of panel right/top( deviation ; ±0.5V)

Caution: Each PCB assembly must be checked by check JIG set. (Because power PCB Assembly damages to PDP Module, especially be careful)

P812

P811

P813

Vs adj

Va adj

VR951

SC101

VR901

Va

GND

5V

Vs

(Fig. 1) 50inch Power PCB Assy Voltage Adjustment

P812

P811

P813

Vs adj

Va adj

VR951

SC101

VR901

Va

GND

5V

Vs

(Fig. 2) 42inch Power PCB Assy Voltage Adjustment

- 10 -

Only for training and service purposes

12. 60”(FHD), 50”(FHD) POWER PCB Ass’y Voltage Adjustment

(Va, Vs voltage Adjustment)

12-1. Model name:50PG7000, 60PG7000, 50PG4000 12-2. Adjustment Method

(1) 60” FHD Va Adjustment (refer fig. 3)

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D. M..M. to Va pin of P11, connect

-terminal to GND pin of P11.

3) After turning VR901,voltage of D.M.M adjustment as same as Va voltage which on label of panel right/top (deviation; ±0.5V)

(2) 60” FHD Vs Adjustment (refer fig. 3)

1) Connect + terminal of D. M..M. to Vs pin of P11, connect

-terminal to GND pin of P11.

2) After turning VR951, voltage of D.M.M adjustment as same as Vs voltage which on label of panel right/top( deviation ; ±0.5V)

13. 32”(XGA) POWER PCB Ass’y Voltage Adjustment

(Va, Vs voltage Adjustment)

13-1. Model name:32PG6000, 32PG6010 13-2. Adjustment Method

(1) 32” Va Adjustment (refer fig. 4)

1) After receiving 100% Full White Pattern, HEAT RUN.

2) Connect + terminal of D. M.M. to Va pin of P811,

connect -terminal to GND pin of P811.

3) After turning VR901,voltage of D.M.M adjustment as

same as Va voltage which on label of panel right/top (deviation; ±0.5V)

(2) 32” Vs Adjustment (refer fig. 4)

1) Connect + terminal of D. M..M. to Vs pin of P811,

connect -terminal to GND pin of P811.

2) After turning VR951, voltage of D.M.M adjustment as

same as Vs voltage which on label of panel right/top( deviation ; ±0.5V)

- Before adjusting White-balance , the AV ADC should be done.

- If ADC status were “NG”, Need to ADC adjustment.

14. Adjustment of White Balance

Caution: Press the POWER ON KEY on R/C before W/B

adjustment.

14-1. Test Equipment

- Color Analyzer (CS-1000, CA-100+(CH.10), CA-210(CH.10))

[ Please adjust CA-100+ / CA-210 by CS-1000 before

measuring

--> You should use Channel 10 which is Matrix compensated (White, Red, Green, Blue revised) by CS1000 and adjust in accordance with White balance adjustment coordinate.

O Color temperature standards according to CSM and Module

O Change target luminance and range of the Auto adjustment

W/B equipment.

(Fig. 3) 60inch FHD Power PCB Assy Voltage Adjustment

(Fig. 4) 32inch Power PCB Assy Voltage Adjustment

O White balance adjustment coordinate and color temperature

PC (for communication through RS-232C) ==> UART Baud rate : 115200 bps

14-2. Connecting Picture of the Measuring

Instrument

(On Automatic control ) Inside PATTERN is used when W/B is controlled. Connect to auto controller or push control R/C INSTART —> Enter the mode of White-Balance, the pattern will come out.

14-3. Auto-control Interface and Directions

(1) Adjust in the place where the influx of light like floodlight

around is blocked. (illumination is less than 10ux).

(2) In case of PDP: Measure and adjust after sticking the

Color Analyzer (CA-100+, CA210) to the side of the module.

In case of LCD: Adhere closely the Color Analyzer ( CA210 ) to the module less than 10cm distance, keep it with the surface of the Module and Color Analyzer’s Prove vertically.(80~100°).

(3) Aging time

1) After aging start, keep the power on (no suspension of power supply) and heat-run over 5 minutes.

2) In case of PDP, keep white pattern using inside pattern.

3) In case of LCD, using ’no signal’ or ‘full white pattern’ or the others, check the back light on.

O Auto Adjustment Map(RS-232C)

14-4. Manual White Balance

1) Zero Calibrate CA-100+ / CA-210, and when controlling, stick the sensor to the center of PDP module surface.

2) Press the ADJ KEY on R/C and enter EZ ASJUST Select “2. White Balance” and press

G (VOL +)

Set test-pattern on and display inside pattern.

3) Control is carried out on three color temperatures, COOL, MEDIUM, WARM. (Control is carried out three times)

<Temperature: COOL>

- R-Cut/ G-Cut / B-Cut is set to 64

- Control R-Gain and G-Gain.

- Each gain is limited to 192

<Temperature: MEDIUM>

- R-Cut/ G-Cut / B-Cut is set to 64

- Control R-Gain and G-Gain.

- Each gain is limited to 192

<Temperature: WARM>

- R-Cut/ G-Cut / B-Cut is set to 64

- Control G-Gain and B-Gain.

- Each gain is limited to 192

- 11 -

Only for training and service purposes

- 12 -

Only for training and service purposes

TROUBLE SHOOTING GUIDE

1. Power Board

1-1. The whole flowchart which it follows in voltage output state

Start check

Manufacture enterprise

meaning of a passage

1. Check the Power Off condition.

Doesn't the

screen whole come

out?

Is it identical

with Power Off

condition?

Yes

No

2. Check the Interface signal condition.

Is the Interface

signal operated?

Yes

3. Check the St-by 5V signal circuit.

Doesn't the

low pressure output

come out?

Doesn't the

St-by 5V signal

come out?

Yes

No

4. Check the 5V Monitor signal circuit.

Doesn't the

5V Monitor signal

come out?

Yes

7. Check the VSC Vs-ON signal

Doesn't the

high tension output

come out?

Doesn't the

VSC signal Vs-ON

come out?

Yes

Does

high tension

output voltage Drop

occur?

When the

Y B/D Module

input connector is

removed, does output

voltage drop

occur?

When the

Y, Z B/D Module

input connector is remove,

does Power Board hightension

output voltage Drop

occur?

Yes No No

9. Check the Power Board Output high

tension circuit

Yes

10. Check the Z B/D Module output circuit

Yes

When the

Z B/D Module

input connector is

removed, does output

voltage Drop

occurs?

11. Check the Y B/D

Module output circuit

Yes

No

8. Check the Vs, Va

voltage output circuit.

Doesn't the

Vs, Va voltage output

come out?

Yes

No

5. Check the VSC RL-ON signal.

Doesn't the

VSC signal RL-ON

come out?

Yes

6. Check the VSC low pressure output

Doesn't the

VSC low pressure

output come out?

Yes

- 13 -

Only for training and service purposes

1-2. Power Board Structure

(1) Pin Layout

(2) Pin Spec

- 14 -

Only for training and service purposes

2. No Power

(1) Symptom

1) Doesn’t minute discharge at module.

2) Non does not come in into the front LED.

(2) Check following

A Power cord is plugged with TV set? Plug in power cord.

Yes

No

Is the AC-INLET connected with

the power board?

Connect the AC-INLET

Yes

No

Is the Fuse(F101,F801) on

Power Board normal?

Replace the Fuses.

Yes

No

Is the Power Board with

VSC Board though Cable connected?

Connect the Cable.

Yes

No

Measure output voltages(16V,12V,5V) on the power board. If the measured values is not normal, replace power board.

- 15 -

Only for training and service purposes

3. Protect Mode

(1) Symptom

1) After once shining, it does not discharge minutely from module.

2) The Rely falls.(The sound is audible “click”)

3) It is converted with the color where the front LED is red from green.

(2) Check following

Is the Power Board

normal ?

Replace Power

Board.

Is output the normality Low/High

voltage except Stand-by 5V?

Yes

No

Is the each connector

normal?

Replace the

connector.

Replace

Y-Board.

After connecting well each connector,

the normality it operates?

Yes

No

Yes

Is the Ctrl Board

normal?

Replace

X-Board.

Is the output voltage normal after

remove P163 connector of Ctrl-B/D?

Yes

No

Yes

Is the Y-Board

normal?

Is the output voltage normal after remove

P209 connector of

Y-B/D?

Is the Fuse(FS201) on Y-B/D

normal?(In case of open is replace)

Yes

No

Yes Yes

Replace

Z-Board.

Is the Z-Board

normal?

Is the output voltage normal after remove

P3 connector of Z-

B/D?

Is the Fuse (FS1) on Z-B/D normal?

(In case of open is replace)

Yes

No

Yes

Is the X- Board

normal?

Is the output voltage normal after

remove P242 connector of

X-B/D?

After remove P211 output voltage normality: Replace Right X-B/D After remove P23 output voltage normality: Replace Left X-B/D

Yes

No

Yes

Is the

VSC Board normal?

Is the output voltage normal after

remove P1001 of VSC Board?

After crisis COF of each board, check the normality operates. If in case normality operates, correspondence COF Fail is replace the module.

After remove P1001 normal operation: Replace VSC Board

Yes

No

Is the COF of X, Y, Z

normal ?

No

Yes

- 16 -

Only for training and service purposes

Does minute discharge

At Module?

Is the LVDS cable connect well from Ctrl Board to VSC Borad?

Replace FLI106X0H

IC(IC100)

Is the VaVs normal?

Check the PDP Module

Yes

No

YES

Yes

Reconnect the LVDS

cable in P501

No

Is normal the VSC

Board?

Operates the FLI106X0H(IC100)?

1. Check the Monitor OUT by SCART2 : Connect the another TV SET

2. Check the LVDS clock(R537,R538) on the VSC Borad by Oscilloscope?

Replace the

VSC B/D.

No

NO

Replace the

Power board

Is output the normality

Low/High voltage except

stand-by 5V?

NO

4. No Raster

(1) Symptom

1) No OSD and image occur at screen.

2) It maintains the condition where the front LED is green.

(2) Check the followings

Yes

No

- 17 -

Only for training and service purposes

5. In case of occurring strange screen into specific mode

5-1. In case the OSD does not displayed

(1) Symptom

1) LED is green.

2) The minute discharged continuously becomes Accomplished from module.

(2) Check following

1. Is damage in the LVDS cable?

2. Isn’t the LVDS cable connect well from Ctrl Board to VSC Board?

Is the VSC Board

normal?

1. Replace cable

2. LVDS Cable connect well from Ctrl Board to VSC Borad

No

Yes

No

Is the Ctrl Board of Module normal?

1. Check the LED on the Ctrl Board

2. Check the 5V_ON on the Power Board by the DMM.

No

Replace FLI106X0H

IC(IC100)

Operates FLI106X0H(IC100)?

1. Check the Monitor OUT by SCART2 : Connect the another TV set

2. Check the LVDS clock(R240,R243) on the VSC Borad by Oscilloscope?

Replace the

VSC B/D.

Yes

No

Replace the Ctrl B/D

- 18 -

Only for training and service purposes

5-2. In case of does’t display the screen into specific mode

(1) Symptom

1) The screen does not become the display from specific input mode (RF, AV, Component, RGB, DVI).

(2) Check following

1) Check the all input mode should become normality display

.

(3) In case of becomes unusual display from RF mode

(4) In the case of becomes unusual display from side S-video/AV mode

Is the Tuner normal?

Is the RF Cable connected well?

1. Check the another TV set.

Cable inserts well or Change the RF Cable

Yes

No

Operates the FLI106X0H IC(IC100)?

1.Check the Monitor OUT by SCART2 : Connect the another TV SET

2.Check the LVDS clock(R537, R538) on the VSC Board by Oscilloscope?

3.Check the each Input Source. ATV(TV_CVBS : R302), DTV(TU301 Pin23), S/AV Mode( SIDE_CVBS_IN : R1160), Component/RGB (COMP_Y, V/HSYNC : R1122, R1174, R1180) HMDI(SDA/SCL : IC201 Pin29, Pin30), SCART(SC1/2_CVBS_IN : R977, R521) on the VSC Board by Oscilloscope.

Replace the Tuner(TU301)

No

Is normal the Input voltage, IIC Communication?

1.Check the Input Voltage 5V(L303), 3.3V(L1022), 1.8V(TU301 Pin22)

2. Check the Analog/Digital IIC(A:R334,R335 D:R342, R343)

Yes

Block A

Replace the FLI106X0H (IC100).

No

Is Video input of the AV Jack (JK700, 707) normal?

1. Check the CVBS signal in AV jack by Oscilloscope Yes

Check the input source of Equipment

No

Same as Block A

- 19 -

Only for training and service purposes

(5) In the case of becomes unusual display from Component, RGB mode

(6) In the case of becomes unusual display from HDMI mode

(7) In the case of becomes unusual display from SCART mode

Is R,G,B input and H,V Sync of the JK701, 703 normal?

1. Check the RGB signal/H(V)SYNC in the RGB Cable Yes

Check the input source of Equipment

Same as Block A

No

Is Video input of A/V jack normal?

Yes

Check the input source.

Same as Block A

No

Is the HDMI(IC201)

normal?

Yes

Same as Block A

Is the TMDS waveform between the

IC and HDMI jacks normal?

Replace the IC201.

No

- 20 -

Only for training and service purposes

6. In case of no sound

(1) Symptom

1) LED is Green.

2) Screen display but sound is not output.

(2) Check following

All input(mode) is no

sound?

Only HDMI is No

Sound?

Yes

Download

the EDID data

No

YES

Only RF is no sound?

Check the Tuner IN/OUT

TV_L/R_OUT( R356)

No

Yes

IC601(Audio AMP) operates Normal?

1.Check 1.8V, 3.3V, 16V input Voltage (L607, IC601 Pin8, IC601 Pin32)

2.Check the IIC communication (SDA/SCL : R645, R643)

3.Check the Audio Signal is normal.(SPK_L/R : L603, L604, L606, L610)

Replace the Audio AMP IC

(IC601).

No

YES

Replace the VSC Board

Is the speaker On it menu?

1. Menu > Audio > TV Speaker ON/OFF

Set on speaker in menu. (TV Speaker OFF ? ON)

No

Is the speaker Cable normal?

1. Isn’t damage in the Speaker Cable?

2. Is the Speaker cable connect well form VSC B/D to Speaker.

Change or Reconnect the

Speaker Cable.

Yes

Only RF is no sound?

Replace the VSC B/D

Yes

Check the Input Sound IN/OUT AV1(SC1_LIN : R1140, SC1_RIN : R1134) AV1(SC2_LIN : R1146, SC2_RIN : R1145) AV3(SIDE_LIN : R1306, SIDE_RIN: R1307 ) PC(PC_LIN: R631, PC_RIN : R630) Component (COMP_LIN : R1178, COMP_RIN: R1179)

No

- 21 -

Only for training and service purposes

BLOCK DIAGRAM

Main Block Diagram

COMP1

RGB

HDMI1,

HDMI2,

HDMI3

SCART1

Side AV1

TS[0:7]

CVBS, Y/C, L/R

SCART2

DDR2 SDRAM

(64MByte)

Qimonda

IC701

NOR Flash

(32MB)

SPANSION

IC404

WXGA Panel

SPDIF

USB

SPDIF_OUT

Digital amp

(NTP3000A)

IC601

RS-232C

TMDS351PAG

IC201

Y Pb Pr, L/R

RGB, CVBS, audio L/R

CVBS

DTV/MNT OUT

I2S

EEPROM

24LC512

IC907

HDMI4

RGB, L/R

Tuner

(TDFV-G135D1)

TU301

TMDS[0:7]

74LVC541A(PW)

Buffer

IC402

PCMCIA

Card

74LVC542A5

Bi-Buffer

IC405

DATA[0:7]

74LCX244MTC

Buffer

IC406,407,408

Address[0:14]

TMDS[0:7]

CVBS, SIF, AM Audio

Tuner V out

NLASB3157

IC502

LVDS TMDS ODD[10 bit]

Host Address[1:16]

Host Data[0:15]

LPF

DDR2 Data[0:15]

DDR2 SDRAM

(64MByte)

Qimonda

IC701

DDR2 Data[16:31]

DDR2 Address[0:12]

I2C

MICOM

WT61P8

IC802

I2C

MAX3232CDR

IC101

TX/RX

TX

NLASB3157

IC1013

TX

AT24C16AN

IC801

FLI10306

TS[0], CLK, SY, VAL

Module I2C

RX

Audio L/R out

MSP4458

Audio L/R in

I2S

Muxed audio

L/R Audio

Only

Demux

Only for DTV

Audio

MPE

- 22 -

Only for training and service purposes

1:Audio R out (TV)

2:audio R in

3:audio L out (TV)

4:audio GND

5:blue GND

6:audio L in

7:Blue

8:SCART ID

9:green GND

10:data 2 (NC)

11:Green

12:data1 (NC)

13: Link (red GND)

14:data GND (NC)

15:Red

16:SCART FB

17:video GND

18:RGB Control GND

19:CVBS out (TV out)

20:CVBS in

21:safety GND

22:GND

23:GND

1:Audio R out (DTV)

2:audio R in

3:audio L out (DTV)

4:audio GND

5:GND

6:audio L in

7:NC

8:function select

9: NC

10:data 2 (NC)

11:NC

12:data1 (NC)

13: Link

14:data GND (NC)

15: NC

16: NC

17:video GND

18:GND

19:CVBS out (DTV out)

20:CVBS in

21:safety GND

22:GND

23:GND

SCART 1 SCART 2

[A2P],[B2P],[C2P]

[ LBADC_IN4]

[C4P]

[A4P]

[SCART_FB]

VXO_DE

[SV3P]

TU_MAIN

TRAdj

FLI10306

SIF

AMA UDIO

[AUD_IN_I2S]

[ AUD_OUT1_L, R]

I2S

MuxedAudio

MSP4458

TUNER

[15] VIDEO

LPF

TRAdj

TRB UF

MUTE_LINE

TRN e t

[ VXI_D16]

[VXI_D15]

[SV4P]

REC8C trl1

[ LBADC_IN5]

Sc a r t2I D

REC8C trl2

Level

generator

0V,6 V, 11V

[VDAC_GY_YC_P]

NLASB3157

[ VXO_D13]

[VOUT2]

VXO_VS

DTV/MNTs witchC trl

VideoS /W

[ AUD_OUT1_L,R]

MSP4458

TRB UF

MUTE_LINE_DTV

TRN e t

[B4P]

[SV2P]

MuxedAudio

[ AUD_IN_L4]

[VXO_D1]

[ AUD_IN_R4]

[VXO_D11]

TRB UF

12V-> 3.3 VLevels hifter

Sc a r t1R , G ,B

Sc a r t1I D

Sc a r t1C VBS

TUNER_VOUT

Sc a r t1F B

LevelAd j

Sc a r t1L i nk

LPF

[ GPIOA4]

Sc a r t1L / R

MICOM

TVO UTL / R

Rec ordingC trl

Sc a r t2C VBS

Sc a r t2I D

TRA MP[ 6d B ]

12V-> 3.3 VLevels hifter

DTV/ MNT_VOUT

LevelAd j

LPF

[ GPIOA5]

LevelAd j

MICOM

Sc a r t2L i nk

Sc a r t2L / R

DTV/ MNTL / R

SIDEY /CVB S

SIDEC

SIDER

SIDEL

SIDESS /W

SIDEC VBSL ink

- 23 -

Only for training and service purposes

BlockDiagram ( Component & RGB & HDMI)

COMP_Y

COMP_PB

COMP_PR

VGA_R

VGA_B

VGA_G

HSYNC

VSYNC

EDID

EEPROM

AT24C02BN

D_SUB_I2C

COMP_L

COMP_R

PC L,R

[A3P]

[B3P]

[C3P]

[VXO_D0]

[AUD_IN_L3]

[AVS]

[AHS_ACS]

[A1P]

Level Adj

[AUD_IN_R3]

COMP Link

[B1P]

[C1P]

74HC14D

Schmitt triggering

Usage : BUF

[VXO_HS]

RGB Link

[AUD_IN_L5,R5]

HDMI 2 TMDS[8bit]

DDC HDMI2 I2C

EDID

AT24C02BN

HDMI 3 TMDS[8bit]

DDC HDMI3 I2C

EDID

AT24C02BN

HDMI SW TMDS[8bit]

HDMI I2C [SW]

HDMI EQ Ctrl

[VXO_D6]

[GPIOA0]

[GPIOA1]

HDMI Select 1

HDMI Select 2

CEC_REMOTE

[GPIOB1]

[2WIRE_S1]

[2WIRE_S0]

[DSDA1,DSCL1]

HDMI SW TMDS[8bit]

DDC HDMI4 I2C

EDID

AT24C02BN

[2WIRE_S2]

[BRX]

[ARX]

[VXO_D20]

[VXO_D21]

HDMI1 5V DET

HDMI3 5V DET

HDMI4 5V DET

[VXO_CLK]

HP DET S/W4

[VXI_D23]

HP DET S/W1

HP DET S/W3

[HDMI_B_HPD]

[HDMI_A_HPD]

[VXO_D22]

FET Bi-BUF

NLASB3157

IC502

2 RX

CHAPLIN RX

UCOM RX

3 TX

UCOM TX

CHAPLIN TX

6 RX

4TX

G-probe

FLI10306

MICOM

TMDS351PAG

IC201

MAX3232CDR

IC101

HDMI 2 TMDS[8bit]

DDC HDMI2 I2C

EDID

AT24C02BN

HDMI2 5V DET

HP DET S/W2

[VXO_D19]

- 24 -

Only for training and service purposes

BlockDiagram ( FE & PCMCIA)

CI_TS[0:7]

Tuner

(TDFV-G135D1)

TU301

74LVC541A(PW)

Buffer

IC402

PCMCIA

Card

74LVC542A5

Bi-Buffer

IC405

HOST DATA[0:7]

FE_TS[0:7]

FLI10306

HOST Address[1:24]

HOST DATA[0:15]

FLASH WP Ctrl

[OOB_CTX]

RESET

[GPIOE7]

HOST Write Enable

[POD_WE_HOST_WR]

HOST Out Enable

[POD_OE_HOST_RD]

HOST Chip Enable

[HOST_BOOD_CS_N]

CI DATA[0:7]

[POD_DIR_N]

CI DATA Dir Select

CI Detect

[POD_DETECT_N]

CI Detect

TS_IN[0:7]

74LCX244MTC

Buffer

IC406

HOST Address[0:3]

POD Address[4:7]

CI Address[0:7]

74LCX244MTC

Buffer

IC407

HOST Address[10:13]

POD Address[8;9;14]

HOST Address[4]

74LCX244MTC

Buffer

IC408

REG

CI Detect

CI Address[8:14]

CI Detect

[POD_OE_HOST_RD]

HOST Out Enable

CI Out Enable

HOST Write Enable

CI Write Enable

HOST Address[6]

CI IORD

HOST Address[5]

CI IOWR

FE_TS_DATA_VAL

CI_MIVAL

FE_TS_DATA_SYN

CI_MISTRT

FE_TS_DATA_CLK

CI_MICLK

Tuner

(TDFV-G135D1)

TU301

TPS2042BDRG4

Power

Distributer

IC301

5V

600mA

5V

5V_ANN_MNT

5V_ANN_CTL

[AUDO_I2SB_DAT1]

[AUDO_I2SB_DAT2]

S29GL256N10TFI020

NOR Flash

FLI10306

MICOM

TS[0], CLK, SY, VAL

- 25 -

Only for training and service purposes

Mute

CTRL

[TR]

BlockDiagram (Audio & etc)

SPDIF_OUT

MUTE_LINE

NTP3000

Digital AMP

Bit CLK

Mute

CTRL

[TR]

LR CLK

SW_RESET

LPF

Level Adj

Scart1 L/R

Scart2 L/R

Comp L/R

SIDE L/R

PC L/R

[AUD_IN_L/R 1] Ch. 3

[AUD_IN_L/R 1] Ch. 4

[AUD_IN_L/R 1] Ch. 5

Audio Master CLK

LR Ch. Data

[AUD_MCLK0]

[AUDO_I2SA_BCLK]

[AUDO_I2SA_WCLK]

[AUDO_I2SA_DAT0]

[AUD_OUT1 L/R]

[AUDO_SPDIR_OUT]

Tuner

(TDFV-G135D1)

TU301

AM AUDIO

TR BUF

MUTE_LINE_DTV

TR BUF

SCART 1

SCART 2

TV LR OUT

DTV/MNT LR OUT

16V

[FAULT]

AUDIO_MUTE

[VXO_D5]

[RESET]

I2C 3.3V

TPY : 10W+10W

MAX : 15W+15W

TPS2042BDRG4

Power

Distributer

IC901

5V

USB DP/DM

5V

600mA

FLI10306

MICOM

USB20-PWE

USB20-OC

Sound IF

TR BUF

MSP

4458

Bit CLK, LR CLK,

CR Ch Data

MPE

Level Adj

- 26 -

Only for training and service purposes

BlockDiagram (Reset)

KIA7029AF

Power On Reset

IC803

MICOM Reset

[NRST]

S29GL256N10TFI020

NOR Flash

IC404

RESET

EJTAG RESET

[EJ_RST_N]

SYS RESET

[RESET_N]

Tic S/W

NTP3000

SW_RESET

[VXO_D5]

PCMCIA

CI_RST

[POD_RESET]

TUNER

FE_RESET

[VXI_D14]

FLI10306

MICOM

[GPIOE6]

MSP

4458

- 27 -

Only for training and service purposes

I2C Control

SDA2_3.3V,SCL2_3.3V

Module

X4 : 0x72

MICOM

0x50

NTP3000

0x54

TUNER

Digital

R:0x1E

W:0x1F

[Master I2C 1]

TUNER

Analog

R : 0x87

W : 0x86

MVRAM

24LC512

W : 0xA6

R : 0xA7

SDA1_5V, SCL1_5V

[Master I2C 0]

[Slave I2C 0]

[Slave I2C 2]

[Slave I2C 1]

EDID

AT24C02BN

EDID

AT24C02BN

EDID

AT24C02BN

EDID

AT24C02BN

TMDS

351PAG

IC202

FLI10306

EDID

AT24C02BN

[DSDA1,DSCL1]

MICOM

EDID

AT24C02BN

MSP4458

Digital

R:0x81

W:0x80

- 28 -

Only for training and service purposes

Power Voltage BlockDiagram

12V

KA7809

(IC1005)

5V

KIA78R05F

(IC1011)

+5V-TUNER

KIA78R05F

(IC1007)

CI_EN

+5V-CI

NTP3000A

16V

KIA78R33F 1A

(IC1012)

3.3V_ON

+3.3V-TUNER

+3.3V-CI

AZ1117H-1.8TRE

(IC1004)

+1.8V

AZ1117H-3.3

(IC1003)

+3.3V_STBY

FET Power S/W

(Q1003)

+5V

RL_ON/PWR_ON/OFF

Tuner

CI_module

Tuner

HDMI S/W, CI buffer, Flash Memory,

NTP3000A, Chaplin(AUD_VREFP )

Tuner, NTP3000A

RS-232 Driver, Sub Micom ,

HDMI S/W, OPTIC Jack, NVRAM, USB

MSP4458

- 29 -

Only for training and service purposes

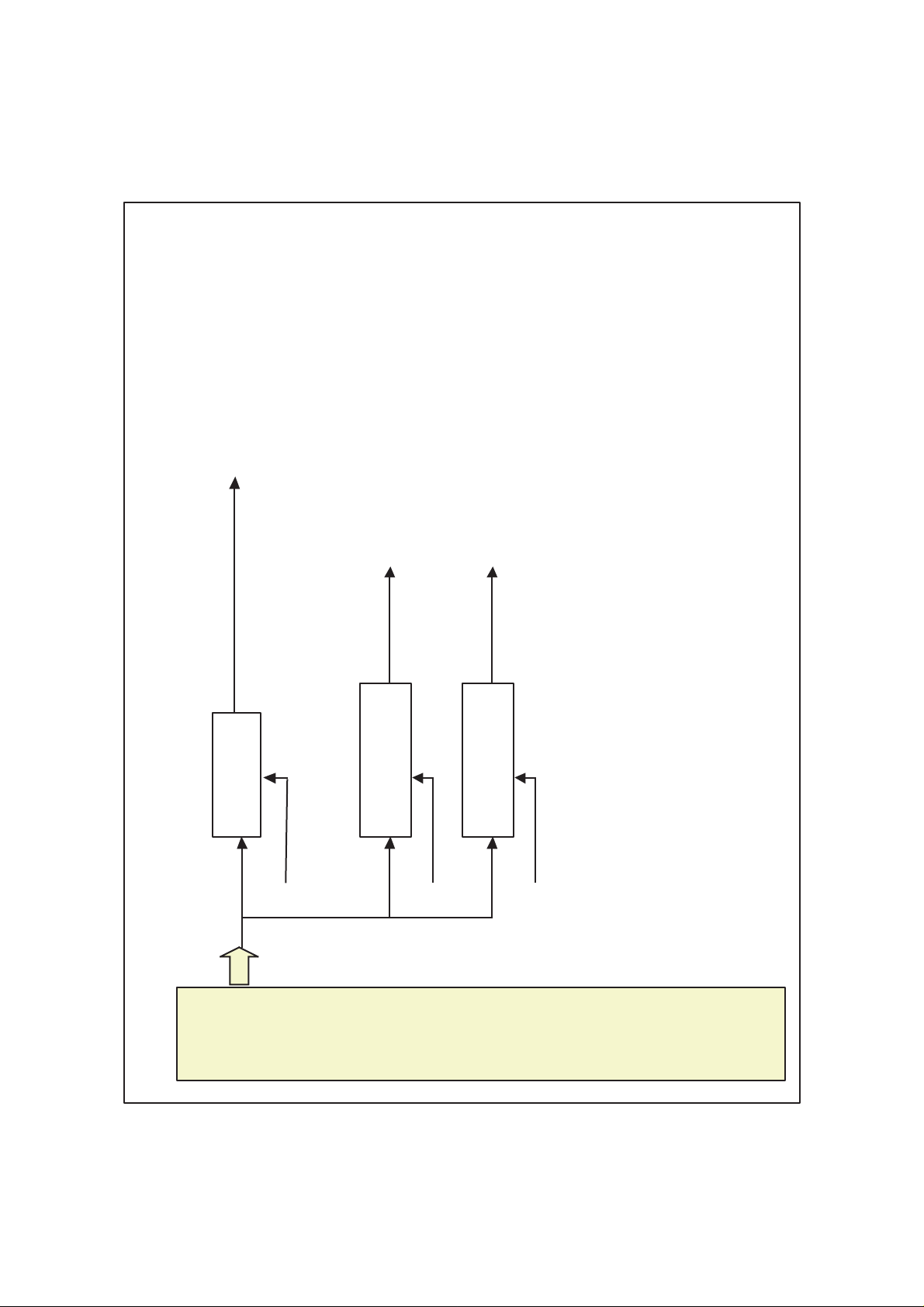

Power Voltage

BlockDiagram

5V

KIA78R33F 1A

(IC1001)

3.3V_ON

+3.3V-DOUGLAS

PQ018EZ02ZPH

0.23$

(IC1000)

+1.8V_DOUGLAS_DDR

1.8V_DOUGLAS_EN

SC4519STRT

600Khz,3A,0.41$

(IC1002)

+1.26V_DOUGLAS

1.26V_DOUGLAS_EN

- 30 -

LGE Internal Use Only

EXPLODED VIEW

300

305

301

304

200

603

520

400

602

580

202

203

240

900

A21

A2

501 591

590

204

601

250

201

121

120

302

570

306

560

303

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

270pF

C319

READY

FE_RESET

+3.3V_TUNER

+1.8V

FE_SDA

FE_SCL

SCL1_5V

SIF

TU_MAIN

TUNER_VOUT

AM_AUDIO

AGC_SPEED_CTL

BOOSTER

FE_TS_DATA_VAL

SCL2_3.3V

FE_SC L

10K

R360

2SC3052

Q302

E

B

C

2SC3052

Q306EB

C

2SC3052

Q308

E

B

C

SDA2_3.3V

FE_SDA

+5V_TUNER

220uF 16V

C309

SDA1_5V

0.1uF 16V

C325

0.1uF 16V

C326

0.01uF

C312

47

R34347R342

0.1uF 16V

C306

0.1uF 16V

C308 100pF 50V

C307

FE_TS_DATA[0-7],FE_TS_DATA_CLK,FE_TS_ DATA_V AL,FE_TS _ DATA_SYN

MLB-201209-0120P-N2

L303

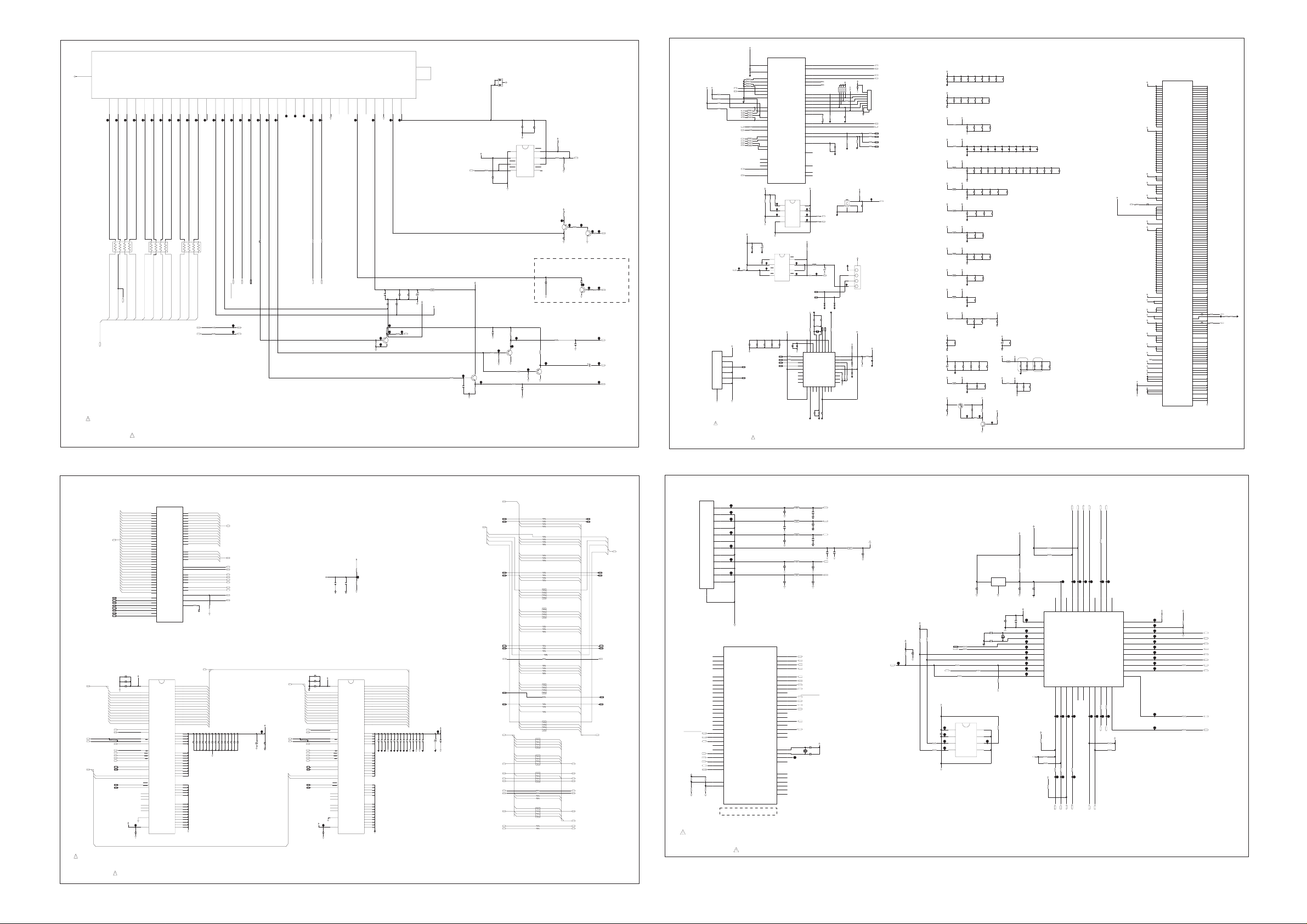

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTAN T FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2SA1504 S

Q304

E

B

C

2SA1504 S

Q305

E

B

C

2SA1504

S

Q301

2SA1504 S

Q307

E

B

C

220uF 16V

C321

0.1uF

C322

4.7uF 10V

C317

33

AR301

33

AR302

33

AR303

0.1uF 16V

C313

100

R334

100

R335

27

0

1%

R37

4

8

2

R34

7

470

R346

4.7

K

R34

5

0

R348

100pF 50V

C305

4700p

F

C310

1K

R350

0

R371

330

1%

R301

1K

R356

4700pF

C315

1K

1%

R373

READY

0

R35

7

1K

R372

READY

100

R358

10K

R367

2.2K

R366

10

R365

0

R302

KDS184

D301

A2

C

A1

TDFV-G135D1

TU301

TUNER

1

ANT[5V]

2

BB[CTR]3GND_14+B[5V]5NC_16RF_AGC7TP[VT]8NC_29GND_210SDA_T11SCL_T12AIF_113AIF_214NC_315VIDEO16AUDIO17SIF18SDA19SCL20RST213.3V221.8V23ERR24MCL25D726D627D528D429D330D231D1

35

SHIELD

32D033

VA L34SYNC

10K

READY

R364

2K

READY

R362

4.7uF

10V

READY

C320

+3.3V_CI

TPS2042BDRG4

IC302

READY

3

EN1

2

IN

4

EN2

1

GND

5

OC2

6

OUT2

7

OUT1

8

OC1

0R352

READY

0.1uF

C318

5V_ANN_MNT

5V_ANN_CTL

+5V

4.7K

R368

READY

0.1uF C316

READY

FE_TS_DATA_SYN

FE_TS_DATA_VAL

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA_CLK

FE_TS_DATA[7]

FE_TS_DATA[6]

(USE ONLY FOR SECAM)

OPTION: RF AGC

TUNE R

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI3_5V_DET

HDMI2_5V_DET HDMI1_5V_DET

SW_RESET

19.66080Hz

X801

+3.3V_DOUGLAS

FE_RESET REC_8_CTRL1 REC_8_CTRL2

HP_DET_S/W_2 HP_DET_S/W_4

DTV/MNT_SWITCH

HDMI4_5V_DET

HDMI_SW_EQ

5pF

READY

C809

5pF

READY

C808

LED_G

0.1uF 50V

C807

KEY2

LED_R

680pF

C810

KEY1

P_+5V

IR

MLB-201209-0120P-N2

L801

SCART1_LINK SCART2_LINK RGB_LINK

SIDE_S_SW

COMP_LINK SIDE_CVBS_LINK

+3.3V_STBY

22

R8057

+3.3V_STBY

AT24C16AN-10SI-2.7

IC801

3

A2

2

A1

4

GND

1

A0

5

SDA

6

SCL

7

WP

8

VCC

RL_ON/PWR_ONOFF

KEY2

22

R8053

+3.3V_STBY

UART_SEL

RESET

AUDIO_MUTE

22

R8030

DISP_EN

P_+5V

KEY1

0.1uF 16V

C814

D_SUB_SD A

100

R8054

15K

R8055

+3.3V_STBY

3.3V_ON

22

R8044

UCOM_RX

UCOM_TX

0.1uF 16V

C813

IR

SCL2_3.3V

22

R8072

1/16W

47K

R8061

LED_R

0.1uF 16V

C818

VAVS_ON

100

R8069

47K

R8075

AC_DET

5V_MNT

MUTE_LINE

0.1uF 16V

C819

100

R8031

1.8V_DOUGLAS_E N

6.8K

R8070

1.26V_DOUGLAS_EN

KIA7029AF

IC803

2

G

3O1

I

MUTE_LINE_DTV

100

R8092

P_+5V

22

R8051

LED_G

22

R8071

100

R8091

CEC_0

3.3K

R8041

4.7K

R8040

D_SUB_SCL

SDA2_3.3 V

4.7uF 10V

C803

0

R8087

READY

P_+5V

M5V_ON

10K

R8029

10K

R8052

10K

R8063

10K

R8050

10K

R8068

10K

R8073

10K

R8080

READY

10K

R8065

READY

10K

R8082

10uF

6.3V

C825

24pF

C801

24pF

C802

MODULE_SER_CL K

MODULE_SER_DATA

BOOSTER

AGC_SPEED_CTL

0.1uF 16V

C804

READY

HDMI_SEL1 HDMI_SEL2

12505WS-12A00

P803

1

IR

2

GND

3

KEY2

4

GND

5

KEY1

6

GND

7

STBY_5V

8

GND

9

LED_R

10

GND

11

LED_G

12

GND

13

6.8K

R8095

3.3K

R8049

WT61P8-RN440WT

IC802

1

VDD33V

2

GND

3

OSC O

4

OSCI

5

GPIOB6/SSD A

6

GPIOB5/SSCL

7

GPIOB4/P05

8

GPIOB3/P04

9

GPIOB2/IR

10

GPIOB1/IRQ3/CEC

11

GPIOB0/IRQ2

12

GPIOC7/P17/IRQ113GPIOC6/P16/IRQ0

14

GPIOC5/P15/TXD1

15

GPIOC4/P14/RXD1

16

GPIOC3/AD317GPIOC2/AD2

18

GPIOC1/AD1

19

GPIOC0/AD0

20

DSDA1

21

DSCL1

22

GPIOA5/DSDA2

23

GPIOA4/DSCL2

24

GPIOA3/PWM7/P03

25

GPIOA2/PWM6/P02

26

GPIOA1/PWM5/P01

27

GPIOA0/PWM4/P00

28

GPIOD7/RXD 2

29

GPIOD6/TXD2

30

GPIOD5/P13/AD7

31

GPIOD4/P12/AD6

32

GPIOD3/P11/AD5

33

GPIOD2/P10/AD4

34

GPIOD1/HIN2

35

GPIOD0/HIN1

36

GPIOE7/VIN1

37

GPIOE6/VIN2

38

GPIOE5/P07

39

GPIOE4/LPWM/P0640GPIOE3/PWM3

41

GPIOE2/PWM2

42

GPIOE1/PWM143NRST44GPIOE0/PWM0

FLI10610H-AA

IC100

VXI_CLK

A18

VXI_DE

C18

VXI_VS

B18

VXI_HS

D18

VXI_D0

E19

VXI_D1

A17

VXI_D2

B17

VXI_D3

C17

VXI_D4

D17

VXI_D5

F17

VXI_D6

A16

VXI_D7

B16

VXI_D8

C16

VXI_D9

D16

VXI_D10

D19

VXI_D11

E16

VXI_D12

A15

VXI_D13

B15

VXI_D14

C15

VXI_D15

D15

VXI_D16

E15

VXI_D17

A14

VXI_D18

B14

VXI_D19

C14

VXI_D20

D14

VXI_D21

E14

VXI_D22

E17

VXI_D23

E18

TESTMODE0

C27

TESTMODE1

C26

VXO_CLK

AD19

VXO_DE

AE19

VXO_VS

AG18

VXO_HS

AF18

VXO_D0

AF15

VXO_D1

AH16

VXO_D2

AJ16

VXO_D3

AE15

VXO_D4

AE16

VXO_D5

AF16

VXO_D6

AG16

VXO_D7

AH17

VXO_D8

AJ17

VXO_D9

AE17

VXO_D10

AF17

VXO_D11

AG17

VXO_D12

AH18

VXO_D13

AJ18

VXO_D14

AD15

VXO_D15

AE18

REF_CLK

A22

XTAL_IN

A23

CLKOUT

E12

OBUFC_CLK

F21

NC_1

F7

NC_2

F8

NC_3

F9

NC_4

F10

NC_5

F11

SIF_IN

K6

10pF 50V

C827

READY

10pF 50V

C828

READY

10pF 50V

C829

READY

10pF 50V

C830

READY

+3.3V_STBY

10K

R8058

24MHz

X802

18pF

50V

C817

18pF

50V

C812

470pF 50V

C832

470pF 50V

C826

100pF 50V

C831

100pF 50V

C833

+3.3V_STBY

0.1uF

C815

READY

10K

R8094

READY

10K

R8093

+3.3V_STBY

BLM18AG121SN1 D

L803

BLM18AG121SN1 D

L805

BLM18AG121SN1 D

L802

BLM18AG121SN1 D

L806

BLM18AG121SN1 D

L804

+3.3V_DOUGLAS

10K READY

R8002

10K

R8001

READY

10K READY

R8004

10K

R8003 READY

HIGH:Writable

Sub-Micom

LCD ONLY : PANEL_CTL

LCD ONLY : MOVING_LED_PWM

LCD ONLY : SOFT_TOUCH_BUZZ_CTRL

CPL_DDR2_CAS_N

CPL_DDR2_CK_N

CPL_DDR2_DQS1_N

CPL_DDR2_A[0-12]

DDR2_RAS_ N

CPL_DDR2_DQS3_P

CPL_DDR2_DQS0_N

DDR2_CKE

CPL_DDR2_DQS2_N

DDR2_WE_N

CPL_DDR2_DQS0_P

330uF

6.3V

C741

DDR2_A[0-12]

DDR2_DQS3_N

DDR2_DQS2_N

DDR2_A[0-12]

DDR2_VREF

CPL_DDR2_DQS3_N

1uF

6.3V

C742

CPL_DDR2_BA1

DDR2_DQS1_N

DDR2_DQS2_P

DDR2_CAS_ N

CPL_DDR2_BA0

CPL_DDR2_CK

DDR2_ODT_T

DDR2_DQS0_P

CPL_DDR2_DQS2_P

CPL_DDR2_DQS1_P

CPL_DDR2_CS_N

CPL_DDR2_DM[0-3 ]

DDR2_DQS1_P

DDR2_CS_N

330uF

6.3V

C720

DDR2_DQS3_P

DDR2_ODT

1uF

6.3V

C721

DDR2_DQS0_N

DDR2_BA1

CPL_DDR2_WE_N

CPL_DDR2_CK E

CPL_DDR2_RAS_N

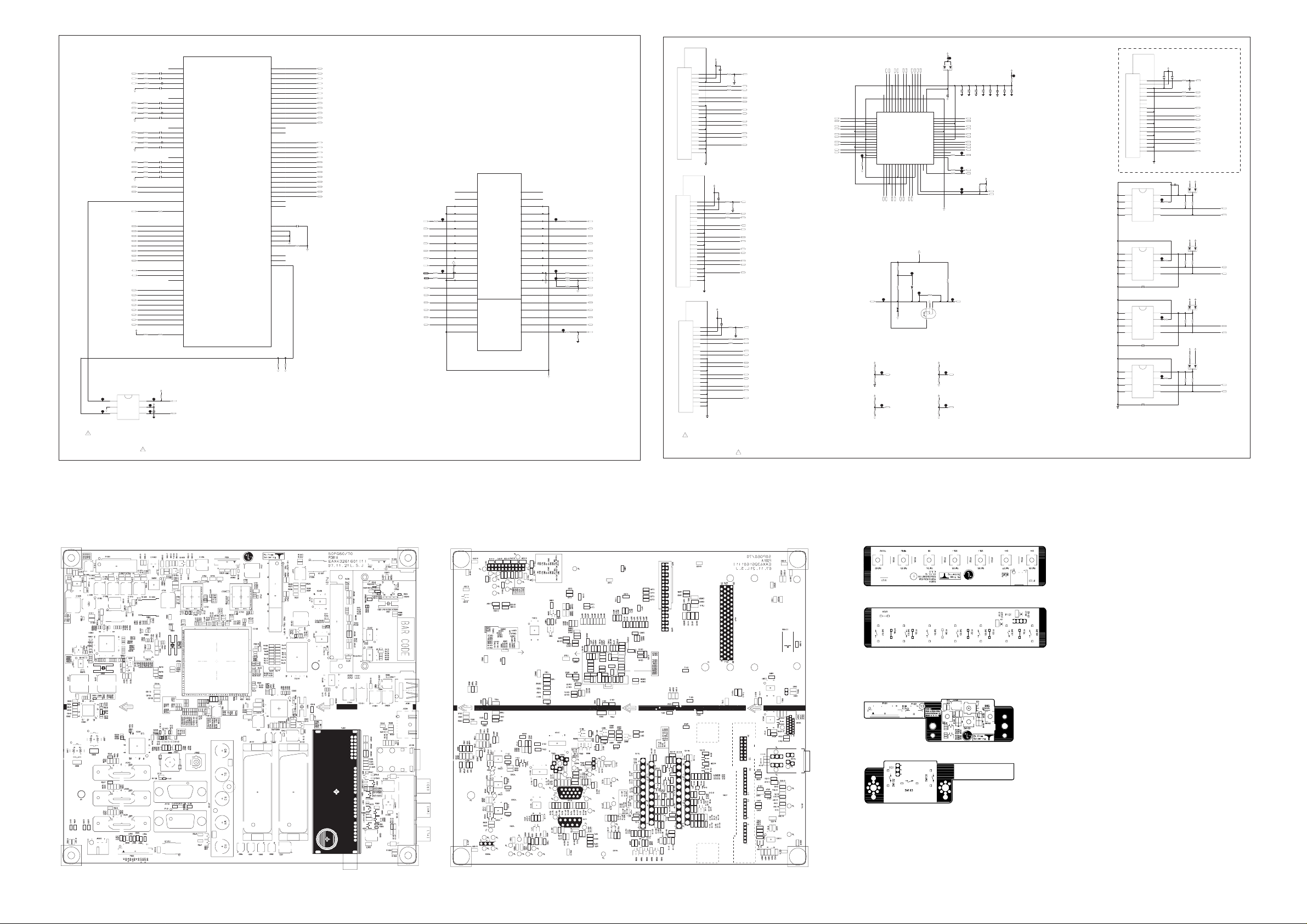

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTAN T FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+1.8V_DOUGLAS_DD R

+1.8V_DOUGLAS_DDR

DDR2_VREF

CPL_DDR2_D[0-31]

DDR2_D[0-31]

CPL_DDR2_D[0-31]

DDR2_D[0-31]

CPL_DDR2_DQS1_N

CPL_DDR2_DQS0_N

CPL_DDR2_DQS2_P

CPL_DDR2_DQS3_N

CPL_DDR2_DQS0_P

CPL_DDR2_DQS1_P

CPL_DDR2_DQS3_P

CPL_DDR2_DQS2_N

CPL_DDR2_A[0-12]

DDR2_DQS2_N DDR2_DQS2_P

CPL_DDR2_DM[0-3 ]

DDR2_DM[0-3]

DDR2_A[0-12]

CPL_DDR2_CS_N

CPL_DDR2_RAS_N

CPL_DDR2_CAS_N

CPL_DDR2_CK

CPL_DDR2_CK_N

CPL_DDR2_CK E

CPL_DDR2_BA0

CPL_DDR2_WE_N

CPL_DDR2_BA1

DDR2_CK_N DDR2_CK

DDR2_CAS_ N

DDR2_CS_N DDR2_RAS_ N

DDR2_CKE

DDR2_BA0

DDR2_WE_N

DDR2_BA1

DDR2_DQS3_P

DDR2_DQS3_N

DDR2_DQS0_P

DDR2_DQS0_N

DDR2_DQS1_P

DDR2_DQS1_N

DDR2_CK_N

DDR2_BA0

DDR2_CK

DDR2_CAS_ N

DDR2_BA0

DDR2_WE_N

DDR2_RAS_ N

DDR2_CK_N

DDR2_BA1

DDR2_CK

DDR2_ODT_T

DDR2_CKE

DDR2_CS_N

DDR2_DM[0-3]

1/16W

10

AR707

1/16W

10

AR711

1/16W

10

AR704

1/16W

10

AR708

1/16W

10

AR716

1/16W

10

AR706

1/16W

10

AR717

1/16W

10

AR710

HYB18T512160AF-3S

IC701

J2

VREF

J8

CK

H2

VSSQ2

B7

UDQS

N8

A4

P8

A8

L1

NC4

L2

BA0

R8

NC3

K7

RAS

F8

VSSQ3

F3

LDM

P3

A9

M3

A1

N3

A5

K8

CK

R3

NC5

L3

BA1

J7

VSSDL

L7

CAS

F2

VSSQ4

B3

UDM

M2

A10/AP

K2

CKE

R7

NC6

M7

A2

N7

A6

M8

A0

J1

VDDL

K3

WE

E8

LDQS

P7

A11

K9

ODT

A2

NC1

N2

A3

P2

A7

H8

VSSQ1

F7

LDQS

A8

UDQS

R2

A12

L8

CS

E2

NC2

E7

VSSQ5

D8

VSSQ6

D2

VSSQ7

A7

VSSQ8

B8

VSSQ9

B2

VSSQ10

P9

VSS1

N1

VSS2

J3

VSS3

E3

VSS4

A3

VSS5

G9

VDDQ1

G7

VDDQ2

G3

VDDQ3

G1

VDDQ4

E9

VDDQ5

C9

VDDQ6

C7

VDDQ7

C3

VDDQ8

C1

VDDQ9

A9

VDDQ10

R1

VDD1

M9

VDD2

J9

VDD3

E1

VDD4

A1

VDD5

B9

DQ15

B1

DQ14

D9

DQ13

D1

DQ12

D3

DQ11

D7

DQ10

C2

DQ9

C8

DQ8

F9

DQ7

F1

DQ6

H9

DQ5

H1

DQ4

H3

DQ3

H7

DQ2

G2

DQ1

G8

DQ0

HYB18T512160AF-3S

IC703

J2

VREF

J8

CK

H2

VSSQ2

B7

UDQS

N8

A4

P8

A8

L1

NC4

L2

BA0

R8

NC3

K7

RAS

F8

VSSQ3

F3

LDM

P3

A9

M3

A1

N3

A5

K8

CK

R3

NC5

L3

BA1

J7

VSSDL

L7

CAS

F2

VSSQ4

B3

UDM

M2

A10/AP

K2

CKE

R7

NC6

M7

A2

N7

A6

M8

A0

J1

VDDL

K3

WE

E8

LDQS

P7

A11

K9

ODT

A2

NC1

N2

A3

P2

A7

H8

VSSQ1

F7

LDQS

A8

UDQS

R2

A12

L8

CS

E2

NC2

E7

VSSQ5

D8

VSSQ6

D2

VSSQ7

A7

VSSQ8

B8

VSSQ9

B2

VSSQ10

P9

VSS1

N1

VSS2

J3

VSS3

E3

VSS4

A3

VSS5

G9

VDDQ1

G7

VDDQ2

G3

VDDQ3

G1

VDDQ4

E9

VDDQ5

C9

VDDQ6

C7

VDDQ7

C3

VDDQ8

C1

VDDQ9

A9

VDDQ10

R1

VDD1

M9

VDD2

J9

VDD3

E1

VDD4

A1

VDD5

B9

DQ15

B1

DQ14

D9

DQ13

D1

DQ12

D3

DQ11

D7

DQ10

C2

DQ9

C8

DQ8

F9

DQ7

F1

DQ6

H9

DQ5

H1

DQ4

H3

DQ3

H7

DQ2

G2

DQ1

G8

DQ0

10

R778

10

R779

10

R780

10

R781

10

R782

10

R783

10

R784

10

R785

10

R786

10

R787

10

R788

10R789 10R790 10R791

10

R792

10

R793

10

R794

10R795

10

R796

10

R797

10

R798

10

R799

10

R724

10R725

10

R706

10

R703

10

R701

10

R702

10R705 10R704

10R707

10K

R772

10R710

680

1%

R771

6801%R770

0.1uF

C713

0.1uF

C737

0.1uF

C708

0.1uF

C710

0.1uF

C705

0.1uF

C714

0.1uF

C728

0.1uF

C727

0.1uF

C717

0.1uF

C729

0.1uF

C706

0.1uF

C709

0.1uF

C711

0.1uF

C707

0.1uF

C725

0.1uF

C726

0.1uF

C712

0.1uF

C715

0.1uF

C738

0.1uF

C724

200

R712

200

R711

0.1uF 50V

C754

0.1uF

C704

0.1uF

C703

DDR2_ODTDDR2_ODT_T

10

R777

0.1uF 50V

C755

0.1uF

C702

0.1uF 16V

C750

0.1uF

C722

0.1uF 16V

C753

10uF

6.3V

C751

10uF

6.3V

C752

10R716 10R715 10R714 10R713

0.1uF

C723

0.1uF

C701

0.1uF

C716

0.1uF

C733

0.1uF

C732

0.1uF

C734

0.1uF

C730

0.1uF

C731

0.1uF

C736

0.1uF

C735

294

R709

1%

FLI10610H-AA

IC100

DDR_D0

F24

DDR_D1

M24

DDR_D2

J25

DDR_D3

K26

DDR_D4

M26

DDR_D5

E25

DDR_D6

L25

DDR_D7

F26

DDR_D8

E29

DDR_D9

L29

DDR_D10

H28

DDR_D11

J29

DDR_D12

L27

DDR_D13

E27

DDR_D14

K28

DDR_D15

F28

DDR_D16

Y24

DDR_D17

AF28

DDR_D18

AC25

DDR_D19

AD26

DDR_D20

AF26

DDR_D21

W25

DDR_D22

AE25

DDR_D23

Y26

DDR_D24

W29

DDR_D25

AE29

DDR_D26

AB28

DDR_D27

AC29

DDR_D28

AE27

DDR_D29

W27

DDR_D30

AD28

DDR_D31

Y28

DDR_DQS0

H25

DDR_DQS0_N

H26

DDR_DQS1

G28

DDR_DQS1_N

G29

DDR_DQS2

AB25

DDR_DQS2_N

AB26

DDR_DQS3

AA28

DDR_DQS3_N

AA29

DDR_A0

P27

DDR_A1

U29

DDR_A2

R26

DDR_A3

U26

DDR_A4

P25

DDR_A5

T28

DDR_A6

R27

DDR_A7

V28

DDR_A8

R29

DDR_A9

T29

DDR_A10

V25

DDR_A11

R28

DDR_A12

V26

DDR_DM0

K24

DDR_DM1

J27

DDR_DM2

AD24

DDR_DM3

AC27

DDR_BA0

U28

DDR_BA1

T27

DDR_CAS_N

P24

DDR_RAS_N

N26

DDR_CS_N

N25

DDR_WE_N

T25

DDR_CK

P29

DDR_CK_N

N29

DDR_CKE

U27

DDR_ODT

M27

DDR_CAL

U24

DDR2_A[9]

CPL_DDR2_DM[2]

DDR2_A[10]

DDR2_A[6]

DDR2_A[4]

DDR2_A[10]

DDR2_A[3]

DDR2_A[8]

DDR2_A[2]

DDR2_A[9]

DDR2_A[12] DDR2_A[12]

CPL_DDR2_DM[0]

DDR2_A[5] DDR2_A[6]

DDR2_A[2]

DDR2_A[0]

DDR2_A[7]

CPL_DDR2_DM[3]

DDR2_A[5]

DDR2_A[1]

DDR2_A[4]

DDR2_A[8]

CPL_DDR2_DM[1]

DDR2_A[3]

DDR2_A[0]

DDR2_A[7]

DDR2_A[1]

DDR2_A[11] DDR2_A[11]

CPL_DDR2_D[30] CPL_DDR2_D[25] CPL_DDR2_D[28]

CPL_DDR2_D[29] CPL_DDR2_D[24] CPL_DDR2_D[31]

DDR2_D[30] DDR2_D[25] DDR2_D[28]

DDR2_D[29] DDR2_D[24] DDR2_D[31]

CPL_DDR2_D[13] CPL_DDR2_D[8 ] CPL_DDR2_D[15]

CPL_DDR2_DM[3]

CPL_DDR2_DM[1]

CPL_DDR2_D[14] CPL_DDR2_D[9 ] CPL_DDR2_D[12]

CPL_DDR2_A[10 ] CPL_DDR2_A[3] CPL_DDR2_A[7] CPL_DDR2_A[12 ]

CPL_DDR2_A[2] CPL_DDR2_A[9] CPL_DDR2_A[5]

CPL_DDR2_A[1]

CPL_DDR2_A[8] CPL_DDR2_A[11 ]

CPL_DDR2_A[6]

DDR2_DM[3]

DDR2_DM[1]

DDR2_A[6]

DDR2_A[11]

DDR2_A[8]

DDR2_A[1]

DDR2_A[5]

DDR2_A[9]

DDR2_A[2]

DDR2_A[12]

DDR2_A[7]

DDR2_A[3]

DDR2_A[10]

DDR2_D[14]

DDR2_D[9]

DDR2_D[12]

DDR2_D[15]

DDR2_D[8]

DDR2_D[13]

DDR2_DM[2] DDR2_DM[3]

CPL_DDR2_D[0] CPL_DDR2_D[1] CPL_DDR2_D[2] CPL_DDR2_D[3] CPL_DDR2_D[4] CPL_DDR2_D[5] CPL_DDR2_D[6] CPL_DDR2_D[7] CPL_DDR2_D[8] CPL_DDR2_D[9] CPL_DDR2_D[10] CPL_DDR2_D[11] CPL_DDR2_D[12] CPL_DDR2_D[13] CPL_DDR2_D[14] CPL_DDR2_D[15] CPL_DDR2_D[16] CPL_DDR2_D[17] CPL_DDR2_D[18] CPL_DDR2_D[19] CPL_DDR2_D[20] CPL_DDR2_D[21] CPL_DDR2_D[22] CPL_DDR2_D[23] CPL_DDR2_D[24] CPL_DDR2_D[25] CPL_DDR2_D[26] CPL_DDR2_D[27] CPL_DDR2_D[28] CPL_DDR2_D[29] CPL_DDR2_D[30] CPL_DDR2_D[31]

DDR2_D[15]

DDR2_D[14]

DDR2_D[13]

DDR2_D[12]

DDR2_D[11]

DDR2_D[10]

DDR2_D[9]

DDR2_D[8]

DDR2_D[7]

DDR2_D[6]

DDR2_D[5]

DDR2_D[4]

DDR2_D[3]

DDR2_D[2]

DDR2_D[1]

DDR2_D[0]

DDR2_D[16] DDR2_D[17] DDR2_D[18] DDR2_D[19] DDR2_D[20] DDR2_D[21] DDR2_D[22] DDR2_D[23] DDR2_D[24] DDR2_D[25] DDR2_D[26] DDR2_D[27] DDR2_D[28] DDR2_D[29] DDR2_D[30] DDR2_D[31]

DDR2_DM[1]

DDR2_DM[0]

CPL_DDR2_D[18] CPL_DDR2_D[19]

CPL_DDR2_DM[2]

CPL_DDR2_D[22] CPL_DDR2_D[17] CPL_DDR2_D[20]

CPL_DDR2_D[21] CPL_DDR2_D[16] CPL_DDR2_D[23]

CPL_DDR2_D[5 ] CPL_DDR2_D[0 ] CPL_DDR2_D[7 ]

CPL_DDR2_DM[0]

CPL_DDR2_D[2 ]

CPL_DDR2_D[3 ] CPL_DDR2_D[6 ] CPL_DDR2_D[1 ] CPL_DDR2_D[4 ]

CPL_DDR2_A[0] CPL_DDR2_A[1] CPL_DDR2_A[2]

CPL_DDR2_A[3]

CPL_DDR2_A[4]

CPL_DDR2_A[5]

CPL_DDR2_A[6]

CPL_DDR2_A[7]

CPL_DDR2_A[8]

CPL_DDR2_A[9]

CPL_DDR2_A[10]

CPL_DDR2_A[11 ]

CPL_DDR2_A[12]

DDR2_D[18] DDR2_D[19]

DDR2_DM[2] DDR2_D[22] DDR2_D[17] DDR2_D[20]

DDR2_D[21] DDR2_D[16] DDR2_D[23]

DDR2_D[5] DDR2_D[0] DDR2_D[7]

DDR2_D[2]

DDR2_DM[0]

DDR2_D[3] DDR2_D[6] DDR2_D[1] DDR2_D[4]

CPL_DDR2_D[26] CPL_DDR2_D[27] DDR2_D[27]

DDR2_D[26]

DDR2_D[10]

CPL_DDR2_D[10] CPL_DDR2_D[11]

DDR2_D[11]

CPL_DDR2_A[4] DDR2_A[4]

CPL_DDR2_A[0] DDR2_A[0]

DDR2

0.1uF 16V

C9019

USBUP-DP USBUP-DM

USB20-OC1 USB20-PWE 1

1/10W

4.7K

5%

R951

1/10W1K5%

R954

1/10W

22 5%

R957

33pF 50V

C9020

RESET

SDA2_3.3V SCL2_3.3V

SDA_HDMI_SW SCL_HDMI_SW

DDC_SDA_4 DDC_SCL_4

100

R927

RESET

0.1uF

C9010

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SCART1_ID SCART2_ID

USB20-1-DM

USB20-PWE 1

+5V

0.1uF

C9016

USB20-1-DP

120-ohm

L908

0

R961

USB20-OC1

CDS3C30GT H

30V

D901

CDS3C30GT H

30V

D902

0

R936

0

R944

0

R945

RESET

TMUE312GAB

SW901 12

43

5

+3.3V_OTP

0.1uF 16V

READY

C9001

+3.3V_DAC_DOUGLAS

+3.3V_ADC_DOUGLAS

+3.3V_DOUGLAS

+3.3V_DAC_DOUGLAS

+1.26V_AUD_DOUGLAS

1K

R966

+1.26V_DOUGLAS_D

+1.26V_DOUGLAS

+3.3V_OTP

+3.3V_DOUGLAS

2N3904S

Q902EB

C

+3.3V_DOUGLAS

+1.26V_DOUGLAS

+1.26V_DOUGLAS_D

+3.3V_HDMI_DOUGLAS

+3.3V_DOUGLAS

+1.26V_DDRPLL

+1.26V_DOUGLAS_D

DDR2_VREF

+3.3V_ADC_DOUGLAS

1/10W

390

5%

R964

47K

R965

+3.3V_LVTX_PLL_DOUGLAS

+1.26V_HDMI_DOUGLAS

+3.3V_IO_DOUGLAS

+3.3V_HDMI_DOUGLAS

+1.26V_DOUGLAS

+1.8V_DOUGLAS_DDR

+3.3V_AUD_DOUGLAS

+3.3V_DOUGLAS

+1.26V_DDRPLL

+1.26V_AUD_DOUGLAS

+3.3V_LVTX_DOUGLAS

+3.3V_DOUGLAS

+3.3V_LVTX_DOUGLAS

+1.8V_DOUGLAS_DDR

+3.3V_AUD_DOUGLAS

+1.26V_HDMI_DOUGLAS

+3.3V_IO_DOUGLAS

+3.3V_DOUGLAS

+3.3V_LVTX_PLL_DOUGLAS

+1.26V_DOUGLAS_D

CI_EN

0.1uF

C9153

22

R971

47K

R967

22

R968

47K

R969

READY

47K

R970

+5V +5V

SCL1_5V

SDA1_5V

SCL1_5V

+1.26V_ADC_DOUGLAS+1.26V_DOUGLAS

+1.26V_ADC_DOUGLAS

+5V

D_SUB_SC L

D_SUB_SDA

100

R928

+1.8V_DOUGLAS_DDR

+3.3V_DOUGLAS

10K

R950

+1.26V_DOUGLAS_ D

+3.3V_DOUGLAS

+3.3V_CI

0

R907

0

R908

+1.8V_DOUGLAS_DDR

0.1uF 16V

C9059

0.1uF 16V

C9121

0.1uF 16V

C9035

0.1uF 16V

C9079

0.1uF 16V

C9090

0.1uF 16V

C9032

0.1uF 16V

C9050

0.1uF 16V

C9122

0.1uF 16V

C9060

0.1uF 16V

C9064

0.1uF 16V

C9053

0.1uF 16V

C9096

0.1uF 16V

C9048

0.1uF 16V

C9084

0.1uF 16V

C9066

0.1uF 16V

C9078

0.1uF 16V

C9157

0.1uF 16V

C9046

0.1uF 16V

C9044

0.1uF 16V

C9034

0.1uF 16V

C9061

0.1uF 16V

C9155

0.1uF 16V

C9136

0.1uF 16V

C9040

0.1uF 16V

C9103

0.1uF 16V

C9033

0.1uF 16V

C9071

0.1uF 16V

C9029

0.1uF 16V

C9074

0.1uF 16V

C9058

0.1uF 16V

C9082

0.1uF 16V

C9134

0.1uF 16V

C9160

0.1uF 16V

C9069

0.1uF 16V

C9123

0.1uF 16V

C9119

0.1uF 16V

C9051

0.1uF 16V

C9130

0.1uF 16V

C9036

0.1uF 16V

C9031

0.1uF 16V

C9101

0.1uF 16V

C9077

0.1uF 16V

C9062

0.1uF 16V

C9128

0.1uF 16V

C9056

0.1uF 16V

C9118

0.1uF 16V

C9063

0.1uF 16V

C9073

0.1uF 16V

C9038

0.1uF 16V

C9162

0.1uF 16V

C9138

0.1uF 16V

C9131

0.1uF 16V

C9072

0.1uF 16V

C9081

0.1uF 16V

C9114

0.1uF 16V

C9068

0.1uF 16V

C9055

0.1uF 16V

C9030

0.1uF 16V

C9070

0.1uF 16V

C9075

0.1uF 16V

C9052

0.1uF 16V

C9112

0.1uF 16V

C9039

0.1uF 16V

C9156

0.1uF 16V

C9037

0.1uF 16V

C9054

0.1uF 16V

C9161

0.1uF 16V

C9087

0.1uF 16V

C9049

0.1uF 16V

C9047

0.1uF 16V

C9107

0.1uF 16V

C9198

+3.3V_DOUGLAS

0.1uF 16V

C9165

0.1uF 16V

C9196

+3.3V_DOUGLAS_VAA

+3.3V_DOUGLAS_VDDI

+3.3V_DOUGLAS

0.1uF 16V

C9197

+3.3V_DOUGLAS_VAA

+3.3V_DOUGLAS_VDDI

0

R901

+3.3V_DOUGLAS

+3.3V_STBY

DEBUG_RX DEBUG_TX

CHAPLIN_RX CHAPLIN_TX

MLB-201209-0120P-N2

L919

MLB-201209-0120P-N2

L922

MLB-201209-0120P-N2

L926

MLB-201209-0120P-N2

L924

MLB-201209-0120P-N2

L910

MLB-201209-0120P-N2

L928

MLB-201209-0120P-N2

L912

MLB-201209-0120P-N2

L923

MLB-201209-0120P-N2

L921

0

R914

0

R913

4.7K

R984

24LC512

IC907

3

A2

2

A1

4

VSS

1

A0

5

SDA

6

SCL

7

WP

8

VCC

0.1uF 16V

C9199

4.7K

R982

47uF 16V

C9017

READY

100uF 16V

C9025

10uF

6.3V

C9045

10uF

6.3V

C9042

10uF

6.3V

C9026

10uF

6.3V

C9095

10uF

6.3V

C9043

10uF

6.3V

C9113

10uF

6.3V

C9085

10uF

6.3V

C9109

10uF

6.3V

C9028

10uF

6.3V

C9002

10uF

6.3V

C9164

10uF

6.3V

C9163

10uF

6.3V

C9144

READY

330uF

6.3V

C9159

TPS2042BDRG4

IC901

3

EN1

2

IN

4

EN2

1

GND

5

OC2

6

OUT2

7

OUT1

8

OC1

10uF

6.3V

C9154

10uF

6.3V

C9104

+3.3V_OTP

1/16W

1K

AR901

100

R960

READY

100

R963

READY

SCART1_VIN

SIDE_CIN

SCART1_FB

1/16W

4.7K

AR902

1/16W

100

AR904

1/16W

100

AR903

10

R978

0.1uF

C9166

510

R977

0

R962

READY

0.1uF

C9152

0.1uF 16V

C9158

6.2K 1%

R956

33uF 10V

C9076

12505WS-08A00

P904

1

2

3

4

5

6

7

8

9

RTR030P02

Q901

S

D

G

22

R904

0.1uF

C9003

22

R903

0.1uF

C9004

0.1uF

C9005

22R902

3.3K

R911

3.3K

R910

4.7K

R912

4.7K

R905

FLI10610H-AA

IC100

LBADC_33

D24

LBADC_GND

E23

LBADC_IN1

C25

LBADC_IN2

C24

LBADC_IN3

B25

LBADC_IN4

B24

LBADC_IN5

A25

LBADC_IN6

A24

LBADC_RETURN

F22

2WIRE_M1_SDA

D21

2WIRE_M1_SCL

D20

2WIRE_M0_SCL

E20

2WIRE_M0_SDA

F20

2WIRE_S0_SDA

B12

2WIRE_S0_SCL

A12

2WIRE_S1_SDA

D12

2WIRE_S1_SCL

C12

2WIRE_S2_SDA

E11

2WIRE_S2_SCL

D11

PWM3

A13

PWM2

B13

PWM1

C13

PWM0

D13

RESET_N

D23

UART0_RXD

A19

UART0_TXD

B19

UART1_RXD

A20

UART1_TXD

B20

UART1_RTS

C20

UART1_CTS

C19

TRST

B26

TDI

B27

TDO

A27

TMS

A28

TCK

B28

EJ_RST_N

A29

EJ_DINT

B29

USB_FLAG

C29

USB_PWRE N

C28

USBPHY_PADP

AJ20

USBPHY_PADM

AH20

USBPHY_VRES

AG20

IRDATA

C21

DFSYNC

E13

PPWR

A21

PBIAS

B21

FLI10610H-AA

IC100

CVDD12_1

L11

CVDD12_2

L12

CVDD12_3

L17

CVDD12_4

L18

CVDD12_5

L19

CVDD12_6

M11

CVDD12_7

M12

CVDD12_8

M17

CVDD12_9

M18

CVDD12_10

M19

CVDD12_11

V11

CVDD12_12

V12

CVDD12_13

V13

CVDD12_14

V18

CVDD12_15

V19

CVDD12_16

W11

CVDD12_17

W12

CVDD12_18

W13

CVDD12_19

W18

CVDD12_20

W19

IOVDD33_1

F12

IOVDD33_2

F13

IOVDD33_3

F14

IOVDD33_4

F15

IOVDD33_5

F16

IOVDD33_6

F18

IOVDD33_7

F19

IOVDD33_8

AD8

IOVDD33_9

AD10

IOVDD33_10

AD11

IOVDD33_11

AD12

IOVDD33_12

AD14

IOVDD33_13

AD16

IOVDD33_14

AD17

IOVDD33_15

AD18

IOVDD33_16

U6

IOVDD33_17

V6

IOVDD33_18

Y6

IOVDD33_19

AA6

IOVDD33_20

AB6

ADC_VDD12_1

A1

ADC_VDD12_2

B2

ADC_VDD12_3

C3

ADC_VDDA33_1

E4

ADC_VDDA33_2

F4

ADC_VDDA33_3

G4

ADC_VDDA33_4

H4

ADC_VDDA33_5

K4

AUD_AVDD12_1

P6

AUD_AVDD12_2

R6

C4P

L1

AUD_AVDD33_2

T6

AUD_AVDD33_3

T5

AUD_AVDD33_4

U5

AUD_AVDD33_5

U4

AUD_AVDD33_6

U3

AUD_HP_AVDD33

U2

DDRPLL_AVDD12

D22

DDR_VDD_1

D25

DDR_VDD_2

D27

DDR_VDD_3

D29

DDR_VDD_4

F25

DDR_VDD_5

F27

DDR_VDD_6

F29

DDR_VDD_7

H24

DDR_VDD_8

H27

DDR_VDD_9

H29

DDR_VDD_10

K25

DDR_VDD_11

K27

DDR_VDD_12

K29

DDR_VDD_13

M25

DDR_VDD_14

M29

DDR_VDD_15

N24

DDR_VDD_16

P28

DDR_VDD_17

R25

DDR_VDD_18

U25

DDR_VDD_19

V27

DDR_VDD_20

Y25

DDR_VDD_21

Y27

DDR_VDD_22

Y29

DDR_VDD_23

AB24

DDR_VDD_24

AB27

DDR_VDD_25

AB29

DDR_VDD_26

AD25

DDR_VDD_27

AD27

DDR_VDD_28

AD29

DDR_VDD_29

AF25

DDR_VDD_30

AF27

DDR_VDD_31

AF29

DDRPLL_AVDD33

E22

DDR_VDDI_1

F23

DDR_VDDI_2

AD23

DDR_VRF_0

G25

DDR_VRF_1

R24

DDR_VRF_2

AA25

DLL_VAA0

M28

DLL_VAA1

V24

HDMI_VDDA33_1

C4

HDMI_VDDA33_2

D5

HDMI_VDDA33_3

D6

HDMI_VDDA33_4

E6

HDMI_VDDA33_5

E7

HDMI_VDD12_1

D10

HDMI_VDD12_2

E8

HDMI_VDD12_3

E9

HDMI_VDD12_4

E10

LVTX_VDD33_1

AE21

LVTX_VDD33_2

AE22

LVTX_VDD33_3

AF24

LVTX_PLL_VDD33

AG26

OTP_VDD33

A26

RPLL_AVDD33

B23

RPLL_AVDD12

C23

USB_AVDD12

AE20

USB_AVDD33_1

AF20

USB_AVDD33_2

AG19

USB_AVDD33_3

AH19

VDAC_VDD12

AD6

VDAC_AVDD33_1

AE6

VDAC_AVDD33_2

AF5

VDAC_AVDD33_3

AF6

CVSS_1

D26

CVSS_2

D28

CVSS_3

E24

CVSS_4

E26

CVSS_5

E28

CVSS_6

G24

CVSS_7

G26

CVSS_8

G27

CVSS_9

J24

CVSS_10

J26

CVSS_11

J28

CVSS_12

L13

CVSS_13

L14

CVSS_14

L15

CVSS_15

L16

CVSS_16

L24

CVSS_17

L26

CVSS_18

L28

CVSS_19

M13

CVSS_20

M14

CVSS_21

M15

CVSS_22

M16

CVSS_23

N11

CVSS_24

N12

CVSS_25

N13

CVSS_26

N14

CVSS_27

N15

CVSS_28

N16

CVSS_29

N17

CVSS_30

N18

CVSS_31

N19

CVSS_32

N27

CVSS_33

N28

CVSS_34

P11

CVSS_35

P12

CVSS_36

P13

CVSS_37

P14

CVSS_38

P15

CVSS_39

P16

CVSS_40

P17

CVSS_41

P18

CVSS_42

P19

CVSS_43

P26

CVSS_44

R11

CVSS_45

R12

CVSS_46

R13

CVSS_47

R14

CVSS_48

R15

CVSS_49

R16

CVSS_50

R17

CVSS_51

R18

CVSS_52

R19

CVSS_53

T11

CVSS_54

T12

CVSS_55

T13

CVSS_56

T14

CVSS_57

T15

CVSS_58

T16

CVSS_59

T17

CVSS_60

T18

CVSS_61

T19

CVSS_62

T24

CVSS_63

T26

CVSS_64

U11

CVSS_65

U12

CVSS_66

U13

CVSS_67

U14

CVSS_68

U15

CVSS_69

U16

CVSS_70

U17

CVSS_71

U18

CVSS_72

U19

CVSS_73

V14

CVSS_74

V15

CVSS_75

V16

CVSS_76

V17

CVSS_77

V29

CVSS_78

W14

CVSS_79

W15

CVSS_80

W16

CVSS_81

W17

CVSS_82

W24

CVSS_83

W26

CVSS_84

W28

CVSS_85

AA24

CVSS_86

AA26

CVSS_87

AA27

CVSS_88

AC24

CVSS_89

AC26

CVSS_90

AC28

CVSS_91

AE24

CVSS_92

AE26

CVSS_93

AE28

ADC_GND12_1

D4

ADC_GND12_2

E5

ADC_GND12_3

F6

ADC_GNDA_1

F5

ADC_GNDA_2

E3

ADC_GNDA_3

F1

ADC_GNDA_4

G5

ADC_GNDA_5

G3

ADC_GNDA_6

H5

ADC_GNDA_7

J5

ADC_GNDA_8

K5

A4P

K3

AUD_AVSS12_1

M6

AUD_AVSS12_2

N6

B4P

L2

AUD_AVSS33_2

P1

AUD_AVSS33_3

P2

AUD_AVSS33_4

P3

AUD_AVSS33_5

P4

AUD_AVSS33_6

P5

AUD_HP_AVSS33

U1

DDRPLL_AGND

E21

HDMI_GNDA_1

A2

HDMI_GNDA_2

C5

HDMI_GNDA_3

C6

HDMI_GNDA_4

C7

HDMI_GNDA_5

C8

HDMI_GNDA_6

C9

HDMI_GNDA_7

C10

HDMI_GNDA_8

D7

HDMI_GNDA_9

D8

LVTX_VSS_1

AD21

LVTX_VSS_2

AD22

LVTX_VSS_3

AE23

LVTX_VSS_4

AG27

RPLL_AGND_1

B22

RPLL_AGND_2

C22

USB_GND_1

AD20

USB_GND_2

AJ19

USB_GND_3

AF19

VDAC_VSS12

AC6

VDAC_AVSS33_1

AD7

VDAC_AVSS33_2

AG4

10uF

6.3V

C9027

USB DOWN STREAM

KJA-UB-4-0004

JK901

1234

5

10K

R909

USB2512

IC902

USB_HUB

1

USBDN1_DM

3

USBDN2_DM

7

NC7

9

NC9

10

VDDA3310

11

TEST

12

PRTPWR1

13

OCS1_N

14

VDD18

15

VDD33CR

16

PRTWR2

17

OCS2_N

18

NC18

19

NC19

20

NC20

21

NC21

22

SDA/SMBDATA/NON_REM1

23

VDD33

24

SCL/SMBCLK/CFG_SEL0

25

HS_IND/CFG_SEL1

26

RESET_N

27

VBUS_DET

28

SUSP_IND/LOCAL_PWR/NON_REM029VDDA3329

30

USBUP_DM

31

USBUP_DP32XTAL2

5

VDDA335

8

NC8

6

NC6

4

USBDN2_DP

2

USBDN1_DP

33

XTAL1/CLKIN34VDD18PLL35RBIAS

36

VDD33PLL

24MHz

X901

1uF 16V

C9207

USB_HUB

+3.3V_CI

4.7uF

6.3V

C9210

+3.3V_CI

100KR922

1uF 16V

C9206

1uF 16V

C9200

+3.3V_CI

12505WS-06A00

P901

USB_HUB

1

2

3

4

5

6

7

+5V

BLUE-DM

BLUE-DP

BLUE-DM

USB20-1-DP

USB20-1-DM

USBUP-DP

USBUP-DM

+5V

0.1uF 16V

C9205

0.1uF 16V

C9208

USB_HUB

0.1uF

16V

C9203

USB_HUB

100KR918

100K

R917

100KR916

0.1uF 16V

C9212

0.1uF 16V

C9201

100K R920

100K

R923

100KR915

1M

R919

12K

1%

R921

33pF 50V

C9213

33pF 50V

C9214

0.1uF 16V

C9202

0.1uF 16V

C9204

0.1uF 16V

C9209

0.1uF 16V

C9211

USB20-1-DP USB20-1-DM

0

R989

USB_HUB_BYPASS

0

R990

USB_HUB_BYPASS

0

R986

USB_HUB

0

USB_HUB

R988

0

R985

USB_HUB

0

USB_HUB

R987

USB 2.0 Jack

USB POWER ENABLE

LOW ACTIVE

Douglas POWER

Nearby pin AD23Nearby pin F23

Only for training and service purposes

220

R606

SPDIF_OUTPC_AUDIO_L

PC_AUDIO_R

COMP_LIN

COMP_RIN

SIDE_LIN SIDE_RIN

0.1uF 16V

C602

0.47uFC611

0.47uFC612

0.47uFC613

0.47uFC614

0.47uFC615

0.47uFC616

1K

R648

6800pF

C644

4.7K

R652

470K

R658

DTV/MNT_LOUT_SC2

DTV/MNT_ROUT_SC2

PEJ024-01

JK601

6B

T_TERMINAL2

8

SHIELD_PLATE

7B

B_TERMINAL2

5

T_SPRING

4

R_SPRING

7A

B_TERMINAL1

6A

T_TERMINAL1

3

E_SPRING

CDS3C30GT H

READY

D602

PC_AUDIO_L

PC_AUDIO_R

220K

R624

CDS3C30GT H

READY

D601

220K

R623

SW_ROUT

SW_LOUT

4.7K

R654

470K

R662

1K

R650

6800pF

C648

4.7K

R653

4.7K

R651

470K

R655

1K

R649

6800pF

C647

1K

R647

470K

R661

6800pF

C643

TV_LOUT_SC1

TV_ROUT_SC1

TV_LOUT

TV_ROUT

0.1uF

C659

2KR667

TV_LOUT

2K

R665

TV_ROUT

0.1uF

C660

DTV/MNT_ROUT

2K

R668

2K

R669

DTV/MNT_LOUT

P_+12V

1K

R672

+5V

0.1uF

C657

READY

ZD601

+5V

0.1uF 16V

C604

0.1uF 16V

C606

2SC305 2

Q601EB

C

2SC305 2

Q602EB

C

2SC305 2

Q608

2SC305 2

Q607

2SC305 2

Q605

2SC305 2

Q606

2SC305 2

Q603EB

C

2SC305 2

Q604EB

C

RT1P141C-T112

Q609

1

2

3

RT1P141C-T112

Q610

1

2

3

0.1uF 50V

C630

5.6

R635

3.3

R636

1000pF

C632

0.1uF

C634

0.1uF

C635

22000pF

C637

DA-8580 EAP38319001

L605

2S

1S 1F

2F

0.1uF

C638

3.3

R640

0.1uF

C639

0.1uF

C640

4.7K

R641

4.7K

R642

100R643

0.01uF

C678

+3.3V_CI

0.1uF

C641

1uF

C645

5.6

R644

P_+16V

22000pF

C646

+1.8V

0.1uF 50V

C649

0.1uF

C650

0.1uF

C652

3.3

K

R64

6

100

R670

5.6

R671

0.1uF

C653

22000pF

C654

P_+16V

+1.8V

0.01uF

C656

4.7K

R673

0.47uF

C658

3.3

R674

1uF

C66

2

3.3

R677

22000pFC663

4.7K

R686

DA-8580 EAP38319001

L609

2S

1S 1F

2F

1000pF

C665

0.47uF

C666

3.3

R687

0.01uF

C667

0.1uF

C668

5.6

R688

1uF

C669

0.1uF

C670

+1.8V

0.01uF

C672

0.01uF

C673

100pF

C677

+3.3V_CI

0

R689

100

R645

SPDIF_OUT

MUTE_LINE

DTV/MNT_LOUT

DTV/MNT_ROUT

MUTE_LINE_DTV

SW_RESE T

AUDIO_MASTER_CLK

MS_DAT_AMP

MS_WCLK_AMP

MS_BCLK_AMP

SDA2_3.3V SCL2_3.3V

AUDIO_MUTE

c

itpO

r

ebiF

JST1223-001

JK602

1

GND

2

VCC

3

VINPUT

4

FIX_POLE

MLB-201209-0120P-N2

L601

MLB-201209-0120P-N2

L608

MLB-201209-0120P-N2

L607

1uF

C63

3

47uF 16V

C601

10uF

6.3V

C661

10uF

6.3V

C674

330uF 25V

C679

330uF 25V

C675

2.2K

R696

10uF

25V

C684

10uF

25V

C681

2.2K

R695

10uF

25V

C682

10uF

25V

C683

2.2K

R664

2.2K

R663

6602T25009C

JK603

1

2

3

4

33pF

C691 READY

33pF

C688

READY

10uF

C689

MS_WCLK

MS_BCLK

MS_DAT

MS_BCLK_AMP

MS_WCLK_AMP

MS_DAT_AMP

47pF 50V

READY

C619

AUDIO_MASTER_CLK

22

R601

220

R679

220

R678

220

R680

TV_ROUT_SC1

TV_LOUT_SC1

3.3uF 50V

C680

750R610

SIF

0.1uF

C676

AM_AUDIO

SW_RE SET

100R614

SCART2_LIN

SCAR T2_RI N

0

READY

R617

750R602

SCART1_LIN

SCAR T1_RI N

100R603

0.01uF

C642

0.01uFC636

100

R604

0.47uF

C629

MS_BCLK

220R609

220R611

0.47uF

C627

0.47uF

C626

100pFC625

SW_L OUT

100uF 16V

C624

READY

0.01uFC687

220R612

56pF

C622

SCL1_5 V

0.47uF

C621

SDA1_5V

0.47uFC620

SW_ROU T

MS_DAT

DTV/MNT_LOUT_SC2

+5V

+8V_MSP

56pF

C610

750R616

4.7uF 10V

C609

470pF

C608

0.47uFC607

100

R615

MSP4458G-C4

IC602

1

I2C_CL

2

I2C_DA

3

I2S_CL

4

I2S_WS

5

I2S_DA_OUT

6

I2S_DA_IN1

7

I2S_DA_OUT4

8

I2S_WS4

9

I2S_CL4

10

DVSUP

11

DVSS

12

I2S_DA_IN2/3

13

NC1

14

I2S_CL3

15

I2S_WS3

16

RESETQ

17

DACA_R

18

DACA_L

19

VREF2

20

DACM_R

21

DACM_L

22

NC2

23

NC3

24

NC4

25

SC2_OUT_ R

26

SC2_OUT_ L

27

VREF1

28

SC1_OUT_ R

29

SC1_OUT_ L

30

CAPL_A

31

AHVSUP

32

CAPL_M

33

AHVSS34AGNDC35SC4_IN_L36SC4_IN_R37ASG138SC3_IN_L39SC3_IN_R

40

ASG2

41

SC2_IN_L42SC2_IN_R43ASG344SC1_IN_L45SC1_IN_R

46

VREFTOP

47

MONO_IN48AVSS

49

AVSUP

50

ANA_IN1+

51

ANA_IN?

52

ANA_IN2+

53

TESTEN

54

XTAL_IN

55

XTAL_OUT

56

TP

57

AUD_CL_OUT

58

NC5

59

NC6

60

D_CTR_I/O_1

61

D_CTR_I/O_0

62

ADR_SEL

63

STANDBYQ

64

NC7

0.1uF

C686

DTV/MNT_ROUT_SC 2

MS_WCLK

0.47uF

C690

MLB-201209-0120P-N2

L611

0

R621

0

R620

62K

R628

2SC3875S

Q611

0.01uF

C692

1.5K

R627

470

R626

24K

R625

3.3uF

C694

0.01uF

C693

4.7uF 10V

C618

2pF

50V

C623

2pF

50V

C617

10uF 16V

C603

10uF 16V

C605

10uF 16V

C628

10uF 16V

C685

3.9K

R631

3.9K

R630

6.8K

R697

6.8K

R698

120-ohm

MLB-201209-0120P-N2

L602

390pF

C671

390pF

C664

390pF

C631

390pF

C651

NTP3000A

EAN41584001

IC601

1

BST1A

2

VDR1A

3

/RESET

4

AD

5

VSS_IO

6

CLK_I

7

CLK_O

8

VDD_IO

9

DGNDPLL

10

AGNDPLL

11

LFM

12

AVDDPLL

13

DVDDPLL

14

NC_1

15

DVSS

16

DVDD

17

SDATA

18

WCK

19

BCK

20

SDA

21

SCL

22

PWM_3B/PWM_HP2

23

PWM_3A/PWM_HP1

24

PROTECT

25

FAULT

26

VDR2B

27

BST2B

28

PGND2B_1

29

PGND2B_2

30

OUT2B_1

31

OUT2B_2

32

PVDD2B_1

33

PVDD2B_2

34

PVDD2A_1

35

PVDD2A_2

36

OUT2A_1

37

OUT2A_2

38

PGND2A_1

39

PGND2A_2

40

BST2A

41

VDR2A

42

NC_2

43

VDR1B

44

BST1B

45

PGND1B_1

46

PGND1B_2

47

OUT1B_1

48

OUT1B_2

49

PVDD1B_1

50

PVDD1B_2

51

PVDD1A_1

52

PVDD1A_2

53

OUT1A_1

54

OUT1A_2

55

PGND1A_156PGND1A_2

FLI10610H-AA

IC100

AUD_IN_L1

M3

AUD_IN_R1

M4

AUD_IN_L2

M1

AUD_IN_R2

M2

AUD_IN_L3

N5

AUD_IN_R3

M5

AUD_IN_L4

N3

AUD_IN_R4

N4

AUD_IN_L5

N1

AUD_IN_R5

N2

AUD_MCLK0

AC1

AUD_MCLK1

AB5

SIF_RTN

L6

AUDIN_I2S_BCLK

AC2

AUDIN_I2S_WCLK

AB3

AUDIN_I2S_DAT

AA4

AUDIN_SPDIF_IN

AA5

AUD_VREFP

L3

AUD_VCM

L5

AUD_VREFN

L4

AUD_OUT1_L

R1

AUD_OUT1_R

R2

AUD_OUT2_L

T3

AUD_OUT2_R

T4

AUD_OUT_HP_ L

T1

AUD_OUT_HP_ R

T2

AUDO_SPDIF_OUT

AD1

AUDO_I2SA_BCLK

AB4

AUDO_I2SA_WCLK

AC5

AUDO_I2SA_DAT0

AC4

AUDO_I2SB_DAT1

AD2

AUDO_I2SB_DAT2

AE2

AUDO_I2SB_BCLK

AC3

AUDO_I2SB_WC LK

AD3

AUDO_MUTE

AE1

LS_OUT_L

R3

LS_OUT_R

R4

LS_OUT_SW

R5

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

18.432MHz

X601

47pF 50V

C697

47pF 50V

C696

L604

L603

L610

L606

5V_ANN_CTL

5V_ANN_MNT

SPDIF OPTIC JACK

OPTION

MNT/DTV OUT

SCART2 Buffer

PC Sound

TV_L/ROUT SCART1

Buffer MUTE Ctrl

AUDIO

PWM AMP

K01

82 11R

3.3uH

L101

3.3uH

L105

3.3uH

L106

3.3uH

L102

K022

0211R

47K

R1124

K 0 2 2

81 1

1R

0

R1123

+3.3V_CI

1K

R1195

1K

R1194

12K

R1210

W 01 / 1

K 7 . 4

5%

3911

R

10K

R1199

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_CI

P_+12V

30V

D108

READY

30V

D106

READY

30V

D104

READY

30V

D107

READY

30V

D105

READY

30V

D101

READY

D102

READY

D103

READY

D112

READY

D110

READY

D111

READY

D109

READY

D113

220K

R1172

220K

R1169

D123

D125

D124 D115

CHAPLIN_TX

100

R1188

READY

D116

0.1uF

C143

READY

D119

100

R1186

READY

D118

0.1uF

C141

100

R1187

CHAPLIN_RX

0.1uF

C145

READY

D121

DEBUG_RX

0.1uF

C144

100

R1189

0.1uF

C142

D114

D117

1KR1180

921D

READY

12pF

C132

AT24C02BN-10SU-1.8

IC102

3

2

415

6

7

8

74HC14D

IC103

3

2

4

1

6

5

78

9

10

11

12

13

14

8 21D

K01

5 121R

031D

READY

D126

12pF

C133

D127

K01

4 121R

1K

R1174

+5V

0.1uF

C150

4.7K

R1175

4.7K

R1166

D122

D120

GND

TV_ROUT

TV_LOUT

+3.3V_STBY +3.3V_STBY

5pF

C157

5pF

C158

REC_8

P_+5V

D134 D131D132D133

220K

R1310

100pF

C160 READY

100pF

C161 READY

REC_8

100

R1164

100

R1165

100

R1185

100

R1325

READY

100

PC_COMMAND

R1322

UCOM_RX

100

READY

R1324

REC_8_CTRL1

REC_8_CTRL2

6.8K

R1327

6.8K

R1328

100

R1181

100

R1177

K022

903 1

R

2SC3052

Q101

E

B

C

2SC3052

Q102EB

C

2SC3052

Q104

1

E

2

B

3

C

2SC3052

Q105 1

E

2

B

3

C

2SC3052

Q107

1

E

2

B

3 C

SCART1_RIN

SCART1_LIN

75

% 1

R1103

75

%1

R1107

75

%1

R1104

75

1%

R1109

75

%1

R1101

75

% 1

R1102

0

R1110

4.7K

R1111

D135

75

R1157

75

R1158

75

R1163

75

1%

8 0 3 1 R

751%R1168

75

1%

R1171

75

R1119

75

1%

2131R

75

1%

R1170

751%R1117

1000pF

C103

READY

1000pF

C110

READY

1000p

F

C109

READY

1000pF

C101

READY

5pF

C156

5pF

C105

1K

R1143

1K

R1133

1K

R1147

1K

R1115

K 074

631 1R

K074

7 3 1 1 R

K07 4

921 1R

470K

R1116

K022

8 0 1 1 R

220K

R1105

3.3K

R1125

SCART1_B

SCART1_ID

SCART1_G

SCART1_R

SCART1_FB

TUNER_VOUT

SCART1_VIN

SCART2_RIN

SCART2_LIN

SCART2_ID

SCART2_VIN

DTV/MNT_LOUT

DTV/MNT_VOUT

COMP_RIN

COMP_LIN

COMP_Pr

COMP_Pb

COMP_Y

VGA_R

D_SUB_SDA VGA_G

VGA_B

DS_HS

DS_VS

D_SUB_SCL

D_SUB_SCL D_SUB_SDA

DS_VS

V_SYNC_PC

H_SYNC_PC

DS_HS

+3.3V_CI

1000pF

C163

1000pF

C164

1000pF

C165

1000pF

C162

220uF 16V

C118

DTV/MNT_ROUT

SIDE_LIN

SIDE_RIN

SIDE_CIN

SIDE_YIN/SIDE_VIN

SIDE_S_S W

82

R1344

2SC3052

Q108EB

C

2SA1504S

Q103EB

C

2SC3052

Q106EB

C

P_+12V

330

R1343

47

R1342

330

R1341

470

R1345

1K

R1340

27K

R1339

27K

R1338

330

R1337

330

R1336

0.1uF

READY

C148

18K

R1112

18K

R1131

PC_SER_DAT A

PC_SER_CLK

+3.3V_CI

10K

R1151

0.1uF 16V

C115

30V

READY

D140

SCART1_LINK

0.1uF 16V

C114

10K

R1148

30V

READY

D136

SCART2_LINK

+3.3V_CI

RGB_LINK

30V

READY

D137

0.1uF 16V

C112

+3.3V_CI

COMP_LINK

30V

D138

10K

R1150

0.1uF 16V

C116

+3.3V_CI

SIDE_CVBS_LINK

30V

D139

10K

R1152

0.1uF 16V

C119

+3.3V_CI

1K

R1153

1K

R1154

1K

R1159

1K

R1160

DEBUG_TX

1/16W

0 5%

READY

R1347

UART_SEL

NLASB3157DFT2G

IC1013

3

B0

2

GND

4

A

1B16

SELECT

5

VCC

+3.3V_STBY

10K

R1346

0.1uF 16V

C167

UCOM_TX

6.8K R1304

6.8K

R1303

0

READY

R1156

4.7pF

C108

4.7pF

C106

4.7pF

C107

22

R1334

22

R1333

22

R1335

3.3K

READY

R1238

1K

R1240

1K

R1245

3.3K

READY

R1247

3.9K

R1179

3.9K

R1178

3.9K

R1306

3.9K

R1307

1K

R1138

10K

R1149

1K

R1145

1K

R1140

1K

R1146

1K

R1134

0.039uF 25V

C121

READY

0.039uF 25V

C120

READY

0.039uF 25V

C122

READY

0.039uF 25V

C123

READY

100

R1184

47K

R1106

470K

R1121

10uF 16V

C111

MAX3232CDR

IC101

3

C1-

2

V+

4

C2+

1

C1+

6

V-

5

C2-

7

DOUT2

8

RIN29ROUT2

10

DIN2

11

DIN1

12

ROUT1

13

RIN1

14

DOUT1

15

GND

16

VCC

KCN-DS-1-0089

JK104

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

KCN-DS-1-0088

P101

1

2

3

4

5

6

7

8

9

10

10K

R1113

+3.3V_STBY

PPJ218-01

JK105

5C

[RD]CONTACT

2C

[RD]U_CAN

4C

[RD]O_SPRING

2B

[WH]U_CAN

3B

[WH]C_LUG

2A

[YL]U_CAN

5A

[YL]CONTACT

4A

[YL]O_SPRING

PSJ018-01

JK106

1 GND_TER

2 C_LUG_S1

3 C_LUG_L1

6NC1

7 COM1

8NO1

9NC2

10 COM2

11 NO2

12

SHIELD

4 C_LUG_S2

5 C_LUG_L2

PSC003-03

JK102

1

AUDIO_R_OUT

2

AUDIO_R_IN

3

AUDIO_L_OUT

4

AUDIO_GND

5

B_GND

6

AUDIO_L_IN

7

B_OUT

8

ID

9

G_GND

10

D2B_IN

11

G_OUT

12

D2B_OUT

13

RED_GND

14

RGB_GND

15

R_OUT

16

RGB_IO

17

SYNC_GND1

18

SYNC_GND2

19

SYNC_OUT

20

SYNC_IN

21

COM_GND

22

SHIELD

PSC003-03

JK101

1

AUDIO_R_OUT

2

AUDIO_R_IN

3

AUDIO_L_OUT

4

AUDIO_GND

5

B_GND

6

AUDIO_L_IN

7

B_OUT

8

ID

9

G_GND

10

D2B_IN

11

G_OUT

12

D2B_OUT

13

RED_GND

14

RGB_GND

15

R_OUT

16

RGB_IO

17

SYNC_GND1

18

SYNC_GND2

19

SYNC_OUT

20

SYNC_IN

21

COM_GND

22

SHIELD

KDS184 D141

2 A

C

1A

0

R1114

PPJ209-01

JK103

4A[GN]CONTACT

2A [GN]1P_CAN

3A [GN]O_SPRING

2B [BL]1P_CAN

5B [BL]C_LUG_L

2C [RD]1P_CAN1

5C [RD]C_LUG_L

2D [WH]1P_CAN

5D [WH]C_LUG_L

2E [RD]1P_CAN2

4E[RD]CONTACT

3E [RD]O_SPRING

0

R1122

4.7pF

READY

C102

270pF 50V

READY

C125

270pF 50V READY

C126

10

R1126

KDS184

D142

A2

C

A1

10

R1127

0

R1155

220pF 50V READY

C124

220pF 50V READY

C127

+3.3V_CI

SCART1_VIN

SCART2_VIN

Full SCART 1

Half SCART 2

SIDE CVBS & S_VIDEO

5.19V / 10.91V_1Kohm(LOAD)

[SCART PIN8]

4.89V / 9.09V_120ohm(LOAD)

Y

R

Pr

Pb

L

COMPONENT

1 : Data carrier detect

2 : RX 3 : TX

4 : DTR(Data terminal ready

5 : GND

6 : DSR(Data set ready)

7 : RTS(Request to send)

8 : CTS(Clear to send)

9 : RI(Ring indicator)

RS-232C Input

9.G_GN D

3.BLU

ROM DOWNLOAD FOR PDP

7.GNC

4.NC

5.DDC_GN D

11.RGB Input

12.SDA

13.HSYNC

2.GRN

1.RED

11.GND

14.VSYNC

15.SCL

8.B_GND

6.SYNC_GND

10.R_ GND

External Jack

33

AR403

COMMON INTERFACE

1

2

3

4

5 6 7 8

33

AR405

COMMON INTERFACE

1

2

3

4

5 6 7 8

33

AR404

COMMON INTERFACE

1

2

3

4

5 6 7 8

74LVC541A(PW)

BUFFER

IC402

COMMON INTERFACE

3

A1

2

A0

4

A2

1

OE1

6

A4

5

A3

7

A5

8

A6

9

A7

10

GND

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

Y0

19

OE2

20

VCC

33

AR401

COMMON INTERFACE

1

2

3

4

5 6 7 8

33

AR402

COMMON INTERFACE

1

2

3

4

5 6 7 8

74LVC245A

Bidirec(High:A->B)

IC405

COMMON INTERFACE

3

A1

2

A0

4

A2

1

DIR

6

A4

5

A3

7

A5

8

A6

9

A7

10

GND

11

B7

12

B6

13

B5

14

B4

15

B3

16

B2

17

B1

18

B0

19

OE

20

VCC

33 1/16W

AR406

COMMON INTERFACE

1 2 3456

7

8

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

FE_TS_DATA[0-7]

0.1uF 16V

C402

+3.3V_CI

CI_DET

0.1uF

C404

10K

R443

0.1uF

C411

100

R456

33

R459

0.1uF

C412

10K

R471

47

R472

47

R473

47

R474

47

R475

47

R478

47

R479

47

R480

CI_MDO[4] CI_MDO[5] CI_MDO[6] CI_MDO[7]

CI_MDO[0] CI_MDO[1] CI_MDO[2] CI_MDO[3]

CI_MISTRT CI_MIVAL

CI_MCLKI

CI_MOVAL CI_MOSTRT

CI_CD1

10K

R444

CI_CD2

10K

R428

CI_RST

22

R403

CI_RST

CI_WAIT REG

+3.3V_CI

CI_DETCI_DAT_DIR

POD_A[4] POD_A[5] POD_A[6] POD_A[7] POD_A[8] POD_A[9]

CI_CE1

CI_OE CI_IORD CI_IOWR

CI_WE

CI_IRQ

CI_OE

CI_WE

CI_IORD

CI_IOWR

HOST_OE

HOST_WE

0.1uFC415

+3.3V_CI

CI_DET

HOST_A[0]

HOST_A[1]

HOST_A[2]

HOST_A[3]

HOST_A[4]

HOST_A[5]

HOST_A[6]

HOST_A[7]

HOST_A[0]

HOST_A[1]

HOST_A[2]

HOST_A[3]

HOST_A[4]

HOST_A[5]

HOST_A[6]

HOST_A[7]

CI_ADDR[0-14]

HOST_A[0]

HOST_A[1]

HOST_A[2]

HOST_A[3]

CI_ADDR[0]

CI_ADDR[1]

CI_ADDR[2]

CI_ADDR[3]

+3.3V_CI

0.1uF 16V

C414

CI_DET

+3.3V_CI

0.1uF 16V

C413

POD_A[8]

POD_A[9]

HOST_A[10]

HOST_A[11] HOST_A[13]

HOST_A[12]POD_A[4]

POD_A[5]

POD_A[6]

POD_A[7]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[8]

CI_ADDR[9]

CI_ADDR[10]

CI_ADDR[11]CI_ADDR[12]

CI_ADDR[13]

CI_ADDR[14]

REG

HOST_A[6]

HOST_A[5]

CI_IRQ

CI_CE1

CI_CD1 CI_CD2

CI_MDO[7] CI_MDO[6] CI_MDO[5] CI_MDO[4] CI_MDO[3] CI_MDO[2] CI_MDO[1] CI_MDO[0]

POD_A[14]

CI_DET

CI_DAT_DIR

FE_TS_DATA_VAL

FE_TS_DATA_SYN

FE_TS_DATA_CLK

CI_MIVAL

CI_MISTRT

CI_MCLKI

CI_MOVAL CI_MOSTRT

FE_TS_DATA_VAL FE_TS_DATA_CLK FE_TS_DATA_SYN

FE_TS_DATA[0]

10K

R442

CI_MCLKO

HOST_WE HOST_OE

10K

R421

10K

R423

HOST_ACK

HOST_READY

HOST_ACK

HOST_CS0_N

HOST_READY

CI_WAIT

CI_CE2

0.1uF 16V

C405

HOST_A[4]

0

R476

CI_MDI[4]

CI_MDI[2] CI_MDI[3]

CI_MDI[5]

CI_MDI[1]

CI_MDI[7]

CI_MDI[0]

CI_MDI[6]

CI_MDI[4]

CI_MDI[0]

CI_MDI[5]

CI_MDI[2]

CI_MDI[3]

CI_MDI[1]

CI_MDI[7]

CI_MDI[6]

GND

+3.3V_CI

HOST_CS0_N

HOST_WE

FLASH_WP

HOST_A[2] HOST_A[1]

HOST_OE

0.1uF

C418

10K

R464

FLASH_WP

HOST_D[0-7]

10K

R441

10K

R436

0.1uF 16V

C419

GND

+5V_CI

0

R404

10K

R437

READY

10K

R408

10K

R415

READY

10K

R409

READY

10K

R416

READY

10K

R410

10K

R417

10K

R411

10K

R418

READY

10K

R405

READY

10K

R412

READY

10K

R419

READY

10K

R406

READY

10K

R413

10K

R420

10K

R407

10K

R414

47

R477

HOST_READY

100

R447

47

R435

100

R446

+5V

0.1uF 16V

C420

HOST_D[0-7]

10KR47 0

74LCX244MTC

IC407

COMMON INTERFACE

3

O4

2

I0

4

I1

1

OE1

6

I2

5

O5

7

O6

8

I3

9

O7

10

GND

11

I7

12

O3

13

I6

14

O2

15

I5

16

O1

17

I4

18

O0

19

OE2

20

VCC

74LCX244MTC

IC408

COMMON INTERFACE

3

O4

2

I0

4

I1

1

OE1

6

I2

5

O5

7

O6

8

I3

9

O7

10

GND

11

I7

12

O3

13

I6

14

O2

15

I5

16

O1

17

I4

18

O0

19

OE2

20

VCC

74LCX244MTC

IC406

COMMON INTERFACE

3

O4

2

I0

4

I1

1

OE1

6

I2

5

O5

7

O6

8

I3

9

O7

10

GND

11

I7

12

O3

13

I6

14

O2

15

I5

16

O1

17

I4

18

O0

19

OE2

20

VCC

HY27US08121B-TPCB

IC410

26

NC_17

27

NC_18

28

NC_19

29

I/O0

30

I/O1

31

I/O2

32

I/O3

33

NC_20

34

NC_21

35

NC_22

36

VSS_2

37

VCC_2

38

PRE

39

NC_23

40

NC_24

41

I/O4

42

I/O5

43

I/O6

44

I/O7

45

NC_25

46

NC_26

47

NC_27

48

NC_28

17

ALE

3

NC_3

6

NC_6

16

CLE

15

NC_10

14

NC_9

13

VSS_1

12

VCC_1

11

NC_8

10

NC_7

9

CE

8

RE

7

R/B

4

NC_4

5

NC_5

25

NC_16

24

NC_15

23

NC_14

2

NC_2

22

NC_13

21

NC_12

1

NC_1

20

NC_11

19

WP

18

WE

+3.3V_CI

KRC103S

Q401EB

C

0.1uF

C417

100uF 16V

C407

HOST_A[0] HOST_A[1] HOST_A[2] HOST_A[3] HOST_A[4] HOST_A[5] HOST_A[6] HOST_A[7]

HOST_A[12] HOST_A[13]

HOST_A[10] HOST_A[11]

FLI10610H-AA

IC100

CDI0_VALID

AH6

CDI0_CLK

AH7

CDI0_SYNC

AJ6

CDI0_D0

AJ7

CDI0_ERROR

AJ5

OOB_CTX

W1

OOB_CRX

W2

OOB_DRX

W3

POD_VS2_MCLKO

W6

POD_DETECT_N

AD4

POD_DIR_N

AD5

POD_A4_CTX

AE3

POD_A5_ITX

AF3

POD_A6_ETX

AF2

POD_A7_QTX

AG2

POD_A8_CRX

AF1

POD_A9_DRX

AG1

POD_A14_MCLKO

W5

POD_BVD2_MOVAL

Y5

POD_BVD1_MOSTRT

Y4

POD_D15_MDO7

AB1

POD_D14_MDO6

AA1

POD_D13_MDO5

Y1

POD_D12_MDO4

AB2

POD_D11_MDO3

AA2

POD_D10_MDO2

Y2

POD_D9_MDO1

AA3

POD_D8_MDO0

Y3

POD_WAIT_N

V3

POD_CD_1

V5

POD_CD_2

V4

POD_CE_1

AE4

POD_CE_2

W4

POD_READY_IRQ_N

V2

POD_RESET

V1

POD_HOST_D0

AG7

POD_HOST_D1

AJ8

POD_HOST_D2

AG8

POD_HOST_D3

AE7

POD_HOST_D4

AH9

POD_HOST_D5

AF9

POD_HOST_D6

AJ10

POD_HOST_D7

AG10

HOST_D8

AF7

HOST_D9

AH8

HOST_D10

AE8

HOST_D11

AJ9

HOST_D12

AG9

HOST_D13

AE9

HOST_D14

AH10

HOST_D15

AF10

POD_HOST_A0

AJ15

POD_HOST_A1

AH15

POD_HOST_A2

AG15

POD_HOST_A3

AE14

PODREG_HOST_A 4

AF14

POD_IOWR_HOST_A5

AG14

POD_IORD_HOST_A6

AH14

HOST_A7

AJ14

HOST_A8

AE13

HOST_A9

AF12

POD_HOST_A10

AG12

POD_HOST_A11

AH12

POD_HOST_A12

AJ12

POD_HOST_A13

AE11

HOST_A14

AF11

HOST_A15

AG11

HOST_A16

AH11

HOST_A17

AE10

HOST_A18

AF13

HOST_A19

AG13

HOST_A20

AE12

HOST_A21

AD13

HOST_A22

AH13

HOST_A23

AJ11

HOST_A24

AD9

POD_WE_HOST_ WR

AJ13

POD_OE_HOST_RD

AF8

HOST_ACK

AG3

HOST_DEV_CS2_ N

AE5

HOST_DEV_CS1_ N

AF4

HOST_DEV_CS0_ N

AJ4

HOST_BOOT_CS_N

AG6

HOST_READY

AH5

4.7K

R422

4.7K

R424 FHD_FRC

4.7K

R426

WXGA_XGA

4.7K

R425

XGA_FRC

4.7K

R427 WXGA_FHD

+3.3V_CI

4.7K

R430

4.7K

READY

R401

4.7K

READY

R402

4.7K

R429

10067972-050LF

P401

COMMON INTERFACE

G1G2

57

21

52

16

10

47

41

5

36

59

23

45

54

18

49

43

13

7

38

2

25

56

20

51

15

9

46

40

4

35

58

22

53

17

11

48

42

12

6

37

1

24

55

19

50

44

14

8

39

3

2660 2761 2862 2963 3064 31 32 33 34

65 66 67 68

0

READY

R451

0

READY

R453

0

READY

R454

HOST_D[0] HOST_D[1] HOST_D[2] HOST_D[3] HOST_D[4] HOST_D[5] HOST_D[6] HOST_D[7]

HOST_A[0] HOST_A[1] HOST_A[2] HOST_A[3]

HOST_A[7]

HOST_A[10] HOST_A[11]

HOST_A[4] HOST_A[5] HOST_A[6]

HOST_D[7]

HOST_D[6]

HOST_D[5]

HOST_D[4]

HOST_D[3]

HOST_D[2]

HOST_D[1]

HOST_D[0]

CI_DATA[0-7]

HOST_D[0]

HOST_D[7]

HOST_D[5]

HOST_D[6]

HOST_D[4]

HOST_D[2]

HOST_D[3]

HOST_D[1]

CI_DATA[0]

CI_DATA[1]

CI_DATA[2]

CI_DATA[3]

CI_DATA[4]

CI_DATA[5]

CI_DATA[6]

CI_DATA[7]

CI_DATA[3] CI_DATA[4] CI_DATA[5] CI_DATA[6] CI_DATA[7]

CI_ADDR[10] CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8] CI_ADDR[13] CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

CI_DATA[0] CI_DATA[1] CI_DATA[2]

FE_TS_DATA[7]

FE_TS_DATA[6]

FE_TS_DATA[4]

FE_TS_DATA[3]

FE_TS_DATA[2]

FE_TS_DATA[1]

FE_TS_DATA[0]

FE_TS_DATA[5]

HOST_A[12] HOST_A[13]

Boot Strap Setting (NOR FLASH

Boot, 16bit, Internal OSC)

Flash & CI

NAND FLASH READY

WXGA : R426,R427(00)

H/W OPTION(AD13, AH13)

H/W VERSION OPTION(AJ11, AD9)

FHD : R424,R427(10)

XGA : R426,R425(01)

FRC : R424,R425(11)

Only for training and service purposes

0.1uF 16V

C9019

USBUP-DP USBUP-DM

USB20-OC1 USB20-PWE 1

1/10W

4.7K

5%

R951

1/10W1K5%

R954

1/10W

22 5%

R957

33pF 50V

C9020

RESET

SDA2_3.3V SCL2_3.3V

SDA_HDMI_SW SCL_HDMI_SW

DDC_SDA_4 DDC_SCL_4

100

R927

RESET

0.1uF

C9010

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SCART1_ID SCART2_ID

USB20-1-DM

USB20-PWE 1

+5V

0.1uF

C9016

USB20-1-DP

120-ohm

L908

0

R961

USB20-OC1

CDS3C30GT H

30V

D901

CDS3C30GT H

30V

D902

0

R936

0

R944

0

R945

RESET

TMUE312GAB

SW901 12

43

5

+3.3V_OTP

0.1uF 16V

READY

C9001

+3.3V_DAC_DOUGLAS

+3.3V_ADC_DOUGLAS

+3.3V_DOUGLAS

+3.3V_DAC_DOUGLAS

+1.26V_AUD_DOUGLAS

1K

R966

+1.26V_DOUGLAS_D

+1.26V_DOUGLAS

+3.3V_OTP

+3.3V_DOUGLAS

2N3904S

Q902EB

C

+3.3V_DOUGLAS

+1.26V_DOUGLAS

+1.26V_DOUGLAS_D

+3.3V_HDMI_DOUGLAS

+3.3V_DOUGLAS

+1.26V_DDRPLL

+1.26V_DOUGLAS_D

DDR2_VREF

+3.3V_ADC_DOUGLAS

1/10W

390

5%

R964

47K

R965

+3.3V_LVTX_PLL_DOUGLAS

+1.26V_HDMI_DOUGLAS

+3.3V_IO_DOUGLAS

+3.3V_HDMI_DOUGLAS

+1.26V_DOUGLAS

+1.8V_DOUGLAS_DDR

+3.3V_AUD_DOUGLAS

+3.3V_DOUGLAS

+1.26V_DDRPLL

+1.26V_AUD_DOUGLAS

+3.3V_LVTX_DOUGLAS

+3.3V_DOUGLAS

+3.3V_LVTX_DOUGLAS

+1.8V_DOUGLAS_DDR

+3.3V_AUD_DOUGLAS

+1.26V_HDMI_DOUGLAS

+3.3V_IO_DOUGLAS

+3.3V_DOUGLAS

+3.3V_LVTX_PLL_DOUGLAS

+1.26V_DOUGLAS_D

CI_EN

0.1uF

C9153

22

R971

47K

R967

22

R968

47K

R969

READY

47K

R970

+5V +5V

SCL1_5V

SDA1_5V

SCL1_5V

+1.26V_ADC_DOUGLAS+1.26V_DOUGLAS

+1.26V_ADC_DOUGLAS

+5V

D_SUB_SC L

D_SUB_SDA

100

R928

+1.8V_DOUGLAS_DDR

+3.3V_DOUGLAS

10K

R950

+1.26V_DOUGLAS_ D

+3.3V_DOUGLAS

+3.3V_CI

0

R907

0

R908

+1.8V_DOUGLAS_DDR

0.1uF 16V

C9059

0.1uF 16V

C9121

0.1uF 16V

C9035

0.1uF 16V

C9079

0.1uF 16V

C9090

0.1uF 16V

C9032

0.1uF 16V

C9050

0.1uF 16V

C9122

0.1uF 16V

C9060

0.1uF 16V

C9064

0.1uF 16V

C9053

0.1uF 16V

C9096

0.1uF 16V

C9048

0.1uF 16V

C9084

0.1uF 16V

C9066

0.1uF 16V

C9078

0.1uF 16V

C9157

0.1uF 16V

C9046

0.1uF 16V

C9044

0.1uF 16V

C9034

0.1uF 16V

C9061

0.1uF 16V

C9155

0.1uF 16V

C9136

0.1uF 16V

C9040

0.1uF 16V

C9103

0.1uF 16V

C9033

0.1uF 16V

C9071

0.1uF 16V

C9029

0.1uF 16V

C9074

0.1uF 16V

C9058

0.1uF 16V

C9082

0.1uF 16V

C9134

0.1uF 16V

C9160

0.1uF 16V

C9069

0.1uF 16V

C9123

0.1uF 16V

C9119

0.1uF 16V

C9051

0.1uF 16V

C9130

0.1uF 16V

C9036

0.1uF 16V

C9031

0.1uF 16V

C9101

0.1uF 16V

C9077

0.1uF 16V

C9062

0.1uF 16V

C9128

0.1uF 16V

C9056

0.1uF 16V

C9118

0.1uF 16V

C9063

0.1uF 16V

C9073

0.1uF 16V

C9038

0.1uF 16V

C9162

0.1uF 16V

C9138

0.1uF 16V

C9131

0.1uF 16V

C9072

0.1uF 16V

C9081

0.1uF 16V

C9114

0.1uF 16V

C9068

0.1uF 16V

C9055

0.1uF 16V

C9030

0.1uF 16V

C9070

0.1uF 16V

C9075

0.1uF 16V

C9052

0.1uF 16V

C9112

0.1uF 16V

C9039

0.1uF 16V

C9156

0.1uF 16V

C9037

0.1uF 16V

C9054

0.1uF 16V

C9161

0.1uF 16V

C9087

0.1uF 16V

C9049

0.1uF 16V

C9047

0.1uF 16V

C9107

0.1uF 16V

C9198

+3.3V_DOUGLAS

0.1uF 16V

C9165

0.1uF 16V

C9196

+3.3V_DOUGLAS_VAA

+3.3V_DOUGLAS_VDDI

+3.3V_DOUGLAS

0.1uF 16V

C9197

+3.3V_DOUGLAS_VAA

+3.3V_DOUGLAS_VDDI

0

R901

+3.3V_DOUGLAS

+3.3V_STBY

DEBUG_RX DEBUG_TX

CHAPLIN_RX CHAPLIN_TX

MLB-201209-0120P-N2

L919

MLB-201209-0120P-N2

L922

MLB-201209-0120P-N2

L926

MLB-201209-0120P-N2

L924

MLB-201209-0120P-N2

L910

MLB-201209-0120P-N2

L928

MLB-201209-0120P-N2

L912

MLB-201209-0120P-N2

L923

MLB-201209-0120P-N2

L921

0

R914

0

R913

4.7K

R984

24LC512

IC907

3

A2

2

A1

4

VSS

1

A0

5

SDA

6

SCL

7

WP

8

VCC

0.1uF 16V

C9199

4.7K

R982

47uF 16V

C9017

READY

100uF 16V

C9025

10uF

6.3V

C9045

10uF

6.3V

C9042

10uF

6.3V

C9026

10uF

6.3V

C9095

10uF

6.3V

C9043

10uF

6.3V

C9113

10uF

6.3V

C9085

10uF

6.3V

C9109

10uF

6.3V

C9028

10uF

6.3V

C9002

10uF

6.3V

C9164

10uF

6.3V

C9163

10uF

6.3V

C9144

READY

330uF

6.3V

C9159

TPS2042BDRG4

IC901

3

EN1

2

IN

4

EN2

1

GND

5

OC2

6

OUT2

7

OUT1

8

OC1

10uF

6.3V

C9154

10uF

6.3V

C9104

+3.3V_OTP

1/16W

1K

AR901

100

R960

READY

100

R963

READY

SCART1_VIN

SIDE_CIN

SCART1_FB

1/16W

4.7K

AR902

1/16W

100

AR904

1/16W

100

AR903

10

R978

0.1uF

C9166

510

R977

0

R962

READY

0.1uF

C9152

0.1uF 16V

C9158

6.2K 1%

R956

33uF 10V

C9076

12505WS-08A00

P904

1

2

3

4

5

6

7

8

9

RTR030P02

Q901

S

D

G

22

R904

0.1uF

C9003

22

R903

0.1uF

C9004

0.1uF

C9005

22R902

3.3K

R911

3.3K

R910

4.7K

R912

4.7K

R905

FLI10610H-AA

IC100

LBADC_33

D24

LBADC_GND

E23

LBADC_IN1

C25

LBADC_IN2

C24

LBADC_IN3

B25

LBADC_IN4

B24

LBADC_IN5

A25

LBADC_IN6

A24

LBADC_RETURN

F22

2WIRE_M1_SDA

D21

2WIRE_M1_SCL

D20

2WIRE_M0_SCL

E20

2WIRE_M0_SDA

F20

2WIRE_S0_SDA

B12

2WIRE_S0_SCL

A12

2WIRE_S1_SDA

D12

2WIRE_S1_SCL

C12

2WIRE_S2_SDA

E11

2WIRE_S2_SCL

D11

PWM3

A13

PWM2

B13

PWM1

C13

PWM0

D13

RESET_N

D23

UART0_RXD

A19

UART0_TXD

B19

UART1_RXD

A20

UART1_TXD

B20

UART1_RTS

C20

UART1_CTS

C19

TRST

B26

TDI

B27

TDO

A27

TMS

A28

TCK

B28

EJ_RST_N

A29

EJ_DINT

B29

USB_FLAG

C29

USB_PWRE N

C28

USBPHY_PADP

AJ20

USBPHY_PADM

AH20

USBPHY_VRES

AG20

IRDATA

C21

DFSYNC

E13

PPWR

A21

PBIAS

B21

FLI10610H-AA

IC100

CVDD12_1

L11

CVDD12_2

L12

CVDD12_3

L17

CVDD12_4

L18

CVDD12_5

L19

CVDD12_6

M11

CVDD12_7

M12

CVDD12_8

M17

CVDD12_9

M18

CVDD12_10

M19

CVDD12_11

V11

CVDD12_12

V12

CVDD12_13

V13

CVDD12_14

V18

CVDD12_15

V19

CVDD12_16

W11

CVDD12_17

W12

CVDD12_18

W13

CVDD12_19

W18

CVDD12_20

W19

IOVDD33_1

F12

IOVDD33_2

F13

IOVDD33_3

F14

IOVDD33_4

F15

IOVDD33_5

F16

IOVDD33_6

F18

IOVDD33_7

F19

IOVDD33_8

AD8

IOVDD33_9

AD10

IOVDD33_10

AD11

IOVDD33_11

AD12

IOVDD33_12

AD14

IOVDD33_13

AD16

IOVDD33_14

AD17

IOVDD33_15

AD18

IOVDD33_16

U6

IOVDD33_17

V6

IOVDD33_18

Y6

IOVDD33_19

AA6

IOVDD33_20

AB6

ADC_VDD12_1

A1

ADC_VDD12_2

B2

ADC_VDD12_3

C3

ADC_VDDA33_1

E4

ADC_VDDA33_2

F4

ADC_VDDA33_3

G4

ADC_VDDA33_4

H4

ADC_VDDA33_5

K4

AUD_AVDD12_1

P6

AUD_AVDD12_2

R6

C4P

L1

AUD_AVDD33_2

T6

AUD_AVDD33_3

T5

AUD_AVDD33_4

U5

AUD_AVDD33_5

U4

AUD_AVDD33_6

U3

AUD_HP_AVDD33

U2

DDRPLL_AVDD12

D22

DDR_VDD_1

D25

DDR_VDD_2

D27

DDR_VDD_3

D29

DDR_VDD_4

F25

DDR_VDD_5

F27

DDR_VDD_6

F29

DDR_VDD_7

H24

DDR_VDD_8

H27

DDR_VDD_9

H29

DDR_VDD_10

K25

DDR_VDD_11

K27

DDR_VDD_12

K29

DDR_VDD_13

M25

DDR_VDD_14

M29

DDR_VDD_15

N24

DDR_VDD_16

P28

DDR_VDD_17

R25

DDR_VDD_18

U25

DDR_VDD_19

V27

DDR_VDD_20

Y25

DDR_VDD_21

Y27

DDR_VDD_22

Y29

DDR_VDD_23

AB24

DDR_VDD_24

AB27

DDR_VDD_25

AB29

DDR_VDD_26

AD25

DDR_VDD_27

AD27

DDR_VDD_28

AD29

DDR_VDD_29

AF25

DDR_VDD_30

AF27

DDR_VDD_31

AF29

DDRPLL_AVDD33

E22

DDR_VDDI_1

F23

DDR_VDDI_2

AD23

DDR_VRF_0

G25

DDR_VRF_1

R24

DDR_VRF_2

AA25

DLL_VAA0

M28

DLL_VAA1

V24

HDMI_VDDA33_1

C4

HDMI_VDDA33_2

D5

HDMI_VDDA33_3

D6

HDMI_VDDA33_4

E6

HDMI_VDDA33_5

E7

HDMI_VDD12_1

D10

HDMI_VDD12_2

E8

HDMI_VDD12_3

E9

HDMI_VDD12_4

E10

LVTX_VDD33_1

AE21

LVTX_VDD33_2

AE22

LVTX_VDD33_3

AF24

LVTX_PLL_VDD33

AG26

OTP_VDD33

A26

RPLL_AVDD33

B23

RPLL_AVDD12

C23

USB_AVDD12

AE20

USB_AVDD33_1

AF20

USB_AVDD33_2

AG19

USB_AVDD33_3

AH19

VDAC_VDD12

AD6

VDAC_AVDD33_1

AE6

VDAC_AVDD33_2

AF5

VDAC_AVDD33_3

AF6

CVSS_1

D26

CVSS_2

D28

CVSS_3

E24

CVSS_4

E26

CVSS_5

E28

CVSS_6

G24

CVSS_7

G26

CVSS_8

G27

CVSS_9

J24

CVSS_10

J26

CVSS_11

J28

CVSS_12

L13

CVSS_13

L14

CVSS_14

L15

CVSS_15

L16

CVSS_16

L24

CVSS_17

L26

CVSS_18

L28

CVSS_19

M13

CVSS_20

M14

CVSS_21

M15

CVSS_22

M16

CVSS_23

N11

CVSS_24

N12

CVSS_25

N13

CVSS_26

N14

CVSS_27

N15

CVSS_28

N16

CVSS_29

N17

CVSS_30

N18

CVSS_31

N19

CVSS_32

N27

CVSS_33

N28

CVSS_34

P11

CVSS_35

P12

CVSS_36

P13

CVSS_37

P14

CVSS_38

P15

CVSS_39

P16

CVSS_40

P17

CVSS_41

P18

CVSS_42

P19

CVSS_43

P26

CVSS_44

R11

CVSS_45

R12

CVSS_46

R13

CVSS_47

R14

CVSS_48

R15

CVSS_49

R16

CVSS_50

R17

CVSS_51

R18

CVSS_52

R19

CVSS_53

T11

CVSS_54

T12

CVSS_55

T13

CVSS_56

T14

CVSS_57

T15

CVSS_58

T16

CVSS_59

T17

CVSS_60

T18

CVSS_61

T19

CVSS_62

T24

CVSS_63

T26

CVSS_64

U11

CVSS_65

U12

CVSS_66

U13

CVSS_67

U14

CVSS_68

U15

CVSS_69

U16

CVSS_70

U17

CVSS_71

U18

CVSS_72

U19

CVSS_73

V14

CVSS_74

V15

CVSS_75

V16

CVSS_76

V17

CVSS_77

V29

CVSS_78

W14

CVSS_79

W15

CVSS_80

W16

CVSS_81

W17

CVSS_82

W24

CVSS_83

W26

CVSS_84

W28

CVSS_85

AA24

CVSS_86

AA26

CVSS_87

AA27

CVSS_88

AC24

CVSS_89

AC26

CVSS_90

AC28

CVSS_91

AE24

CVSS_92

AE26

CVSS_93

AE28

ADC_GND12_1

D4

ADC_GND12_2

E5

ADC_GND12_3

F6

ADC_GNDA_1

F5

ADC_GNDA_2

E3

ADC_GNDA_3

F1

ADC_GNDA_4

G5

ADC_GNDA_5

G3

ADC_GNDA_6

H5

ADC_GNDA_7

J5

ADC_GNDA_8

K5

A4P

K3

AUD_AVSS12_1

M6

AUD_AVSS12_2

N6

B4P

L2

AUD_AVSS33_2

P1

AUD_AVSS33_3

P2

AUD_AVSS33_4

P3

AUD_AVSS33_5

P4

AUD_AVSS33_6

P5

AUD_HP_AVSS33

U1

DDRPLL_AGND

E21

HDMI_GNDA_1

A2

HDMI_GNDA_2

C5

HDMI_GNDA_3

C6

HDMI_GNDA_4

C7

HDMI_GNDA_5

C8

HDMI_GNDA_6

C9

HDMI_GNDA_7

C10

HDMI_GNDA_8

D7

HDMI_GNDA_9

D8

LVTX_VSS_1

AD21

LVTX_VSS_2

AD22

LVTX_VSS_3

AE23

LVTX_VSS_4

AG27

RPLL_AGND_1

B22

RPLL_AGND_2

C22

USB_GND_1

AD20

USB_GND_2

AJ19

USB_GND_3

AF19

VDAC_VSS12

AC6

VDAC_AVSS33_1

AD7

VDAC_AVSS33_2

AG4

10uF

6.3V

C9027

USB DOWN STREAM

KJA-UB-4-0004

JK901

1234

5

10K

R909

USB2512

IC902

USB_HUB

1

USBDN1_DM

3

USBDN2_DM

7

NC7

9

NC9

10

VDDA3310

11

TEST

12

PRTPWR1

13

OCS1_N

14

VDD18

15

VDD33CR

16

PRTWR2

17

OCS2_N

18

NC18

19

NC19

20

NC20

21

NC21

22

SDA/SMBDATA/NON_REM1

23

VDD33

24

SCL/SMBCLK/CFG_SEL0

25

HS_IND/CFG_SEL1

26

RESET_N

27

VBUS_DET

28

SUSP_IND/LOCAL_PWR/NON_REM029VDDA3329

30

USBUP_DM

31

USBUP_DP32XTAL2

5

VDDA335

8

NC8

6

NC6

4

USBDN2_DP

2

USBDN1_DP

33

XTAL1/CLKIN34VDD18PLL35RBIAS

36

VDD33PLL

24MHz

X901

1uF 16V

C9207

USB_HUB

+3.3V_CI

4.7uF

6.3V

C9210

+3.3V_CI

100KR922

1uF 16V

C9206

1uF 16V

C9200

+3.3V_CI

12505WS-06A00

P901

USB_HUB

1

2

3

4

5

6

7

+5V

BLUE-DM

BLUE-DP

BLUE-DM

USB20-1-DP

USB20-1-DM

USBUP-DP

USBUP-DM

+5V

0.1uF 16V

C9205

0.1uF 16V

C9208

USB_HUB

0.1uF

16V

C9203

USB_HUB

100KR918

100K

R917

100KR916

0.1uF 16V

C9212

0.1uF 16V

C9201

100K R920

100KR923

100KR915

1M

R919

12K

1%

R921

33pF 50V

C9213

33pF 50V

C9214

0.1uF 16V

C9202

0.1uF 16V

C9204

0.1uF 16V

C9209

0.1uF 16V

C9211

USB20-1-DP USB20-1-DM

0

R989

USB_HUB_BYPASS

0

R990

USB_HUB_BYPASS

0

R986

USB_HUB

0

USB_HUB

R988

0

R985

USB_HUB

0

USB_HUB

R987

USB 2.0 Jack

USB POWER ENABLE

LOW ACTIVE

Douglas POWER

Nearby pin AD23Nearby pin F23

TX1_BUF+

0.1uFC518

0.1uFC519

VGA_G

TX0_BUF-

0.1uFC507

TXCLK_BUF-

0.1uFC501

SIDE_YIN/SIDE_VIN

22R515

22R513

22R519

TXCLK_BUF+

TX1_SW-

22R514

0.1uFC508

0.1uFC520

0.1uFC515

0.1uFC503

22R521

SCART1_R

TX1_SW+

TX2_BUF+

0.1uFC517

SCART1_G

22R510

VGA_R

TX0_SW-

COMP_P r

TX0_BUF+

22R504

TXCLK_SW+

0.1uFC506

COMP_P b

0.1uFC523

VGA_B

0.1uFC510

TX2_SW+

0.1uFC513

SCART2_VIN

TU_MAIN

TX2_SW-

0.1uFC502

SCART1_B

22R505

TX2_BUF-

22R503

COMP_Y

TXCLK_SW-

0.1uFC511

0.1uFC512

22R508

V_SYNC_PC

TX0_SW+

0.1uFC505

TX1_BUF-

100

R589

10K

R590

HD

100

R588

100R587

HD

RX4RX4+

RX3RX3+

RXCLKRXCLK+

RX2RX2+

RX1RX1+

RX0RX0+

RX1-

RX1+

RX3-

RX3+

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTAN T FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_HDMI_DOUGLAS

SCART1_F B

H_SYNC_P C

DTV/MNT_SWITCH

22

R524

DTV/MNT_VOUT

SDA2_3.3V SCL2_3.3V

DISP_EN

RX4+

RX4-

RX2-

RX2+

RX0+

RX0-

+5V

HP_DET_S /W_ 3 HP_DET_S /W_ 1

10K

R591

RXCLK+

RXCLK-

22R520

1

R523

0.1uF 50V

C550

NLASB3157DFT2 G

IC502

3

B0

2

GND

4

A

1B16

SELECT

5

VCC

PC_SER_CLK

0

R538

PC_SER_DATA

0

R537

MODULE_SER_CL K

0

R544

ROM_DL

MODULE_SER_DATA

0

R543

ROM_DL

75 1%

R551

75 1%

R552

+3.3V_CI

22R509

1K

R593

1K

R592

56R517

56R507

56R522

56R512

249

R526

1%

1.8K 1%

R555

CH0E-CH0E+

CH4E-

CH2E-CH2E+

CH3E+

CH4E+

CKE+

CH1E-CH1E+

CKE-

CH3E-

CH4E+

CH1E-

CH4E-

CH1E+

CH3E-

CKE+

CKE-

CH2ECH2E+

CH3E+

CH0E+

CH0E-

FLI10610H-AA

IC100

A1P

C2

A2P

E2

A3P

G2

B_GRA

J2

AN

D2

B1P

B1

B2P

D1

B3P

G1

G_GRA

J1

BN

F2

C1P

C1

C2P

E1

C3P

H1

R_GRA

K1

CN

H2

SV1P

D3

SV2P

F3

SV3P

H3

SV4P

J3

SVN

K2

AHS_ACS

J6

AV S

H6

VOUT2

J4

SCART_F B

G6

ARXCM

A10

ARXCP

B10

ARX0M

A9

ARX0P

B9

ARX1M

A8

ARX1P

B8

ARX2M

A7

ARX2P

B7

HDMI_A_HPD

B11

HDMI_B_HPD

C11

HDMI_CEC

A11

BRXCM

A6

BRXCP

B6

BRX0M

A5

BRX0P

B5

BRX1M

A4

BRX1P

B4

BRX2M

A3

BRX2P

B3

REXT

D9

LVTX_ODD_CH0N_DISP23

AH29

LVTX_ODD_CH0P_DISP22

AJ29

LVTX_ODD_CH1N_DISP21

AH28

LVTX_ODD_CH1P_DISP20

AJ28

LVTX_ODD_CH2N_DISP19

AH27

LVTX_ODD_CH2P_DISP18

AJ27

LVTX_ODD_CLKN_DISP17

AH26

LVTX_ODD_CLKP_DISP16

AJ26

LVTX_ODD_CH3N_DISP15

AH25

LVTX_ODD_CH3P_DISP14

AJ25

LVTX_ODD_CH4N_DISP3

AH24

LVTX_ODD_CH4P_DISP2

AJ24

LVTX_ODD_CH5N_DISPCLK

AG29

LVTX_ODD_CH5P_DISPDE

AG28

LVTX_EVN_CH0N_DISP13

AH23

LVTX_EVN_CH0P_DISP12

AJ23

LVTX_EVN_CH1N_DISP11

AF23

LVTX_EVN_CH1P_DISP10

AG23

LVTX_EVN_CH2N_DISP9

AH22

LVTX_EVN_CH2P_DISP8

AJ22

LVTX_EVN_CLKN_DISP7

AF22

LVTX_EVN_CLKP_DISP6

AG22

LVTX_EVN_CH3N_DISP5

AH21

LVTX_EVN_CH3P_DISP4

AJ21

LVTX_EVN_CH4N_DISP1

AF21

LVTX_EVN_CH4P_DISP0

AG21

LVTX_EVN_CH5N_DISPVS

AG25

LVTX_EVN_CH5P_DISPHS

AG24

VDAC_COMP

AG5

VDAC_BU_N

AH1

VDAC_RV_N

AH2

VDAC_GY_YC_N

AH3

VDAC_RSET

AH4

VDAC_BU_P_1

AJ1

VDAC_BU_P_2

AJ2

VDAC_GY_YC_P

AJ3

SMW200-26C

P501

HD

19

14

9

4

18

13

8

3

17

12

7

2

16

11

6

1

20

15

10

5

2122 2324 2526

0

FHD

R527

DISP_EN

10K FHD

R529

100

FHD

R528

P502

SMW200-40C

FHD

19

14

9

4

18

13

8

3

17

12

7

2

16

11

6

1

20

15

10

5

2122 2324 2526 2728 2930 3132 3334 3536 3738 3940

PANNEL WAFER

L VDS, AFE

D1-_HDMI1

D1+_HDMI3

CK-_HDMI1

DDC_SCL_3

CK-_HDMI3

HP_DET_S/W_3

D0+_HDMI1

D0+_HDMI3

DDC_SCL_1

D2-_HDMI1

D2+_HDMI3

CK+_HDMI1

CK+_HDMI3

DDC_SDA_1

D1+_HDMI1

D1-_HDMI3

DDC_SDA_3

5V_HDMI_1

D2+_HDMI1

D2-_HDMI3

HP_DET_S/W_1

5V_HDMI_3

D0-_HDMI1

D0-_HDMI3

GND

5V_HDMI_4

GND

DDC_SDA_4 DDC_SCL_4

CEC_REMOTE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

5V_HDMI_1

DDC_SCL_2

0

READY

R218

0

R217

READY

P_+5V

AT24C02BN-10SU-1.8

IC204

3

A2

2

A1

4

GND

1

A0

5

SDA

6

SCL

7

WP

8

VCC

33K

R222

CEC_0

P_+5V

CEC_REMOT E

HDMI3_5V_DET

0.1uF

C216

33K

R213

0.1uF

C217

BSS83

Q201

S

BD

G

KDS184 D203

2A

C

1A

5V_HDMI_1

0

R237

0

R238

10K

R214

+3.3V_STBY

0.1uF

C218

5V_HDMI_3

KDS184 D204

2A

C

1A

DDC_SDA_3

DDC_SDA_2

10K

R212

DDC_SCL_3

READY

D201

DDC_SCL_1

P_+5V

AT24C02BN-10SU-1.8

IC202

3

A2

2

A1

4

GND

1

A0

5

SDA

6

SCL

7

WP

8

VCC

DDC_SDA_1

0

R239

HDMI1_5V_DET

KDS18

4

D205

2 A

C

1A

AT24C02BN-10SU-1.8

IC203

3

A2

2

A1

4

GND

1

A0

5

SDA

6

SCL

7

WP

8

VCC

5V_HDMI_3

33K

R215

33K

R220

10K

R219

5V_HDMI_2

HDMI2_5V_DET

HDMI4_5V_DET

GND

5V_HDMI_2

CEC_REMOTE

DDC_SDA_2 DDC_SCL_2

CK-_HDMI2

CK+_HDMI2 D0-_HDMI2

D0+_HDMI2

D1+_HDMI2 D2-_HDMI2

D2+_HDMI2

HP_DET_S/W_ 2

D1-_HDMI2

GND

DDC_SCL_4

AT24C02BN-10SU-1.8

IC205

3

A2

2

A1

4

GND

1

A0

5

SDA

6

SCL

7

WP

8

VCC

P_+5V

0.1uF

C219

DDC_SDA_4

KDS184 D206

2 A

C

1A

0

R240

5V_HDMI_2

TXCLK_BUF-

TXCLK_BUF+

TX0_BUF-

TX0_BUF+ TX1_BUF-

TX1_BUF+ TX2_BUF-

TX2_BUF+

5V_HDMI_4

10K

R231

HP_DET_S/W_4

5V_HDMI_4

0

R289

D2+_HDMI2

DDC_SCL_3

0.1uF

C211

CK-_HDMI1

+3.3V_CI

D1-_HDMI2

CK+_HDMI3

DDC_SDA_1

D0+_HDMI2

D2+_HDMI3

4.7K

R261

D1-_HDMI1

TX2_SW-

D1-_HDMI3

D0+_HDMI1

HDMI_SEL2

DDC_SDA_2

DDC_SDA_3

CK-_HDMI3

4.7K

R264

D2-_HDMI3

DDC_SCL_1

TX1_SW-

D2-_HDMI1

D2-_HDMI2

0

R259

D1+_HDMI2

SCL_HDMI_SW

D2+_HDMI1

TX0_SW-

CK-_HDMI2

0

R262

D0-_HDMI1

SDA_HDMI_SW

D1+_HDMI1

HDMI_SW_EQ

+5V

+3.3V_CI

TXCLK_SW+

CK+_HDMI2

0.1uF

C210

TX1_SW+

TXCLK_SW-

TX0_SW+

D0-_HDMI2

D1+_HDMI3

CK+_HDMI1

DDC_SCL_2

D0-_HDMI3

HDMI_SEL1

TX2_SW+

0

R268

D0+_HDMI3

0.1uF

C209

0.1uF

C208

0.1uF

C206

0.1uF

C207

0.1uF

C212

0.1uF

C204

0.1uF

C205

1K

R232

1K

R203

1K

R204

1K

R202

56K

R216

47K

R233

22

R286

22

R229

22R283 22R288

22R285

22

R287

22R284

22

R230

18K

R246

18K

R248

18K

R24

4

18K

R243

18K

R245

18K

R241

18K

R247

18K

R242

TMDS351PAG

IC201

1

SDA3

2

SCL3

3

GND_1

4

B31

5

A31

6

VCC_1

7

B32

8

A32

9

GND_2

10

B33

11

A33

12

VCC_2

13

B34

14

A34

15

GND_3

16

VSADJ

17

Y4

18

Z4

19

VCC_3

20

Y3

21

Z3

22

GND_4

23

Y2

24Z225

VCC_4

26Y127Z128

GND_5

29

SCL_SINK

30

SDA_SINK31HPD_SINK

32

S1

33

S2

34

EQ

35

HPD1

36

SDA1

37

SCL1

38

B11

39

A11

40

VCC_5

41

B12

42

A12

43

GND_6

44

B13

45

A13

46

VCC_6

47

B14

48

A14

49

VDD

50

HPD2

51

SDA2

52

SCL2

53

B2154A21

55

VCC_7

56

B22

57

A22

58

GND_7

59

B23

60

A23

61

VCC_8

62

B24

63

A24

64

HPD3

MMBD301LT1G

30V

D202

0.1uF 16V

C201

0.1uF 16V

C213

0.1uF 16V

C203

0.1uF 16V

C220

0.1uF

16V

C202

KDS184

D207

A2

C

A1

QJ41193-FEE2-7F

JK202

1

D2+

2

D2_GND

3

D2-

4

D1+

5

D1_GND

6

D1-

7

D0+

8

D0_GND

9

D0-

10

CK+

11

12

13

14

15

16

17

18

19

20

GND

21

GND

22

QJ41193-FEE2-7F

JK203

1

D2+

2

D2_GND

3

D2-

4

D1+

5

D1_GND

6

D1-

7

D0+

8

D0_GND

9

D0-

10

CK+

11

12

13

14

15

16

17

18

19

20

GND

21

GND

22

QJ41193-FEE2-7F

JK201

1

D2+

2

D2_GND

3

D2-

4

D1+

5

D1_GND

6

D1-

7

D0+

8

D0_GND

9

D0-

10

CK+

11

12

13

14

15

16

17

18

19

20

GND

21

GND

22

4.7K

R201

1

R299

DC1R019NBH

JK204

14

NC

13

CEC

5

DATA1_SHIELD

20

JACK_GND

12

CLK-

11

CLK_SHIELD

2

DATA2_SHIELD

19

HPD

18

+5V_POWER

10

CLK+

4

DATA1+

1

DATA2+

17

DDC/CEC_GND

9

DATA0-

8

DATA0_SHIELD

3

DATA2-

16

SDA

7

DATA0+

6

DATA1-

15

SCL

GND

47K

READY

R207

GND

47K

R208

READY

47K

READY

R205

47K

READY

R206

SIDE HDMI

HDMI 5V Detection

HDMI

Only for training and service purposes

MAIN(TOP)

Control B/D(BOTTOM)

Control B/D(TOP)

MAIN(BOTTOM)

PRE AMP(TOP)

PRE AMP(BOTTOM)

June, 2008

Printed in KoreaP/NO : MFL41181008
