Owner's Manual
LED MONITOR (LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
Please read this manual carefully before operating your set and retain it for future reference.
LED MONITOR MODEL
32MA68HY
www.lg.com
<![endif]>ENGLISH
2 TABLE OF CONTENTS
3 LICENSE |
|
18 CUSTOMIZING SETTINGS |
|
|
|
4ASSEMBLING AND PREPARING
4Unpacking
5 Supported Drivers and Software
6Parts and buttons
6- How to Use the Joystick Button 7 - Input Connector
8 Moving and Lifting the Monitor
9 Setting up the Monitor set
9 - Attaching the Stand Base
10 - Detaching the Stand Base

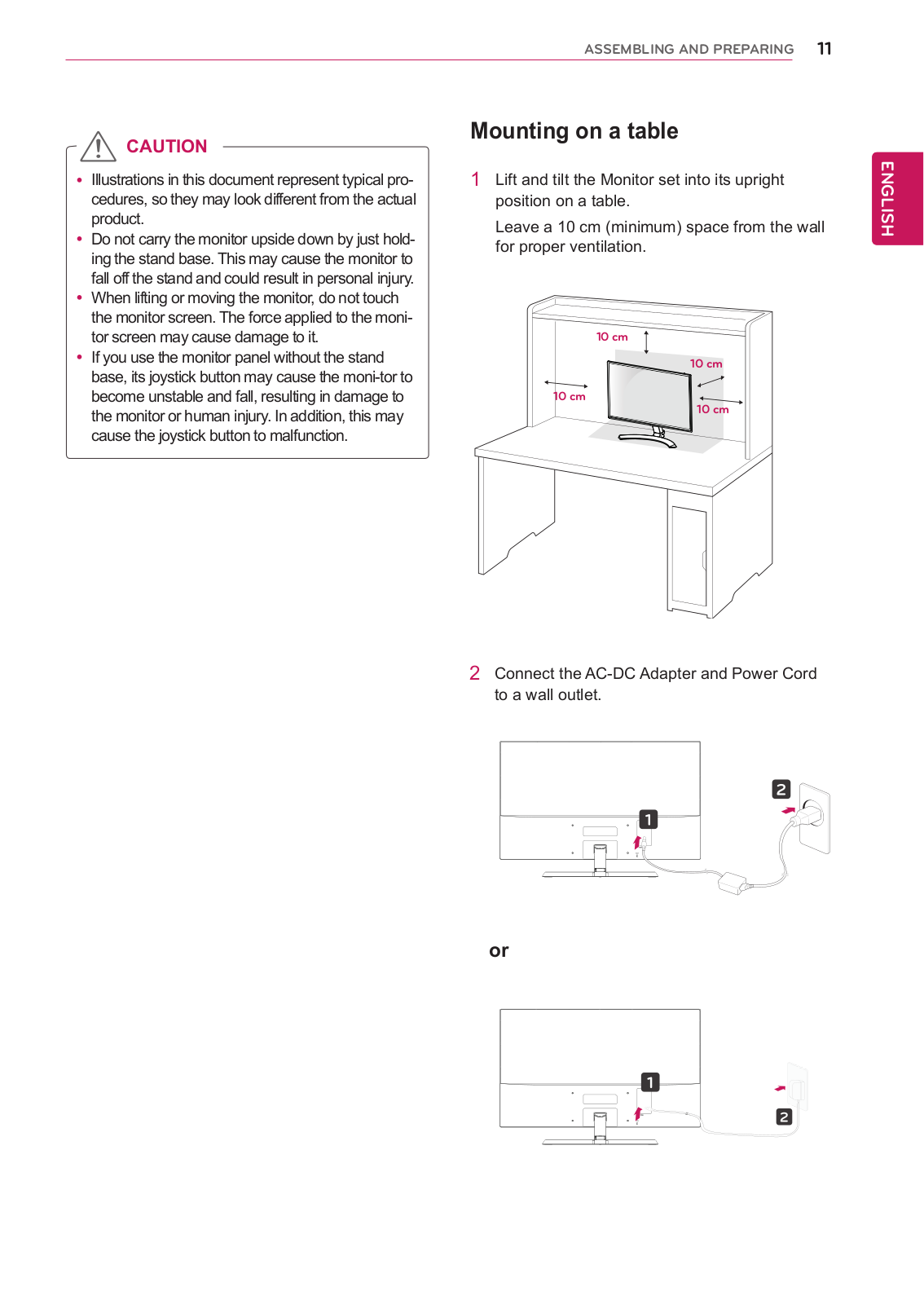

11 - Mounting on a table
12 - Using the cable holder

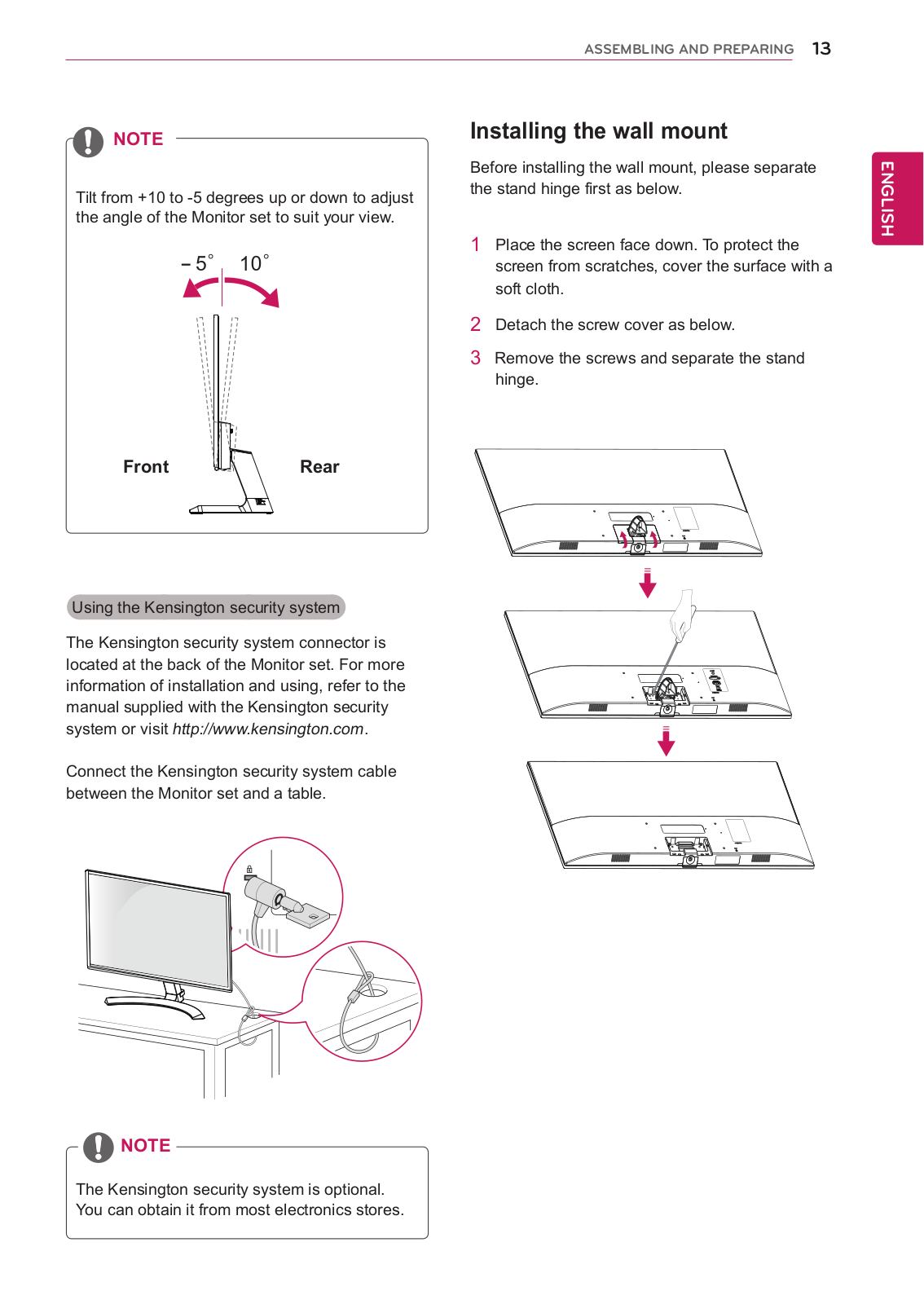

13 - Installing the wall mount

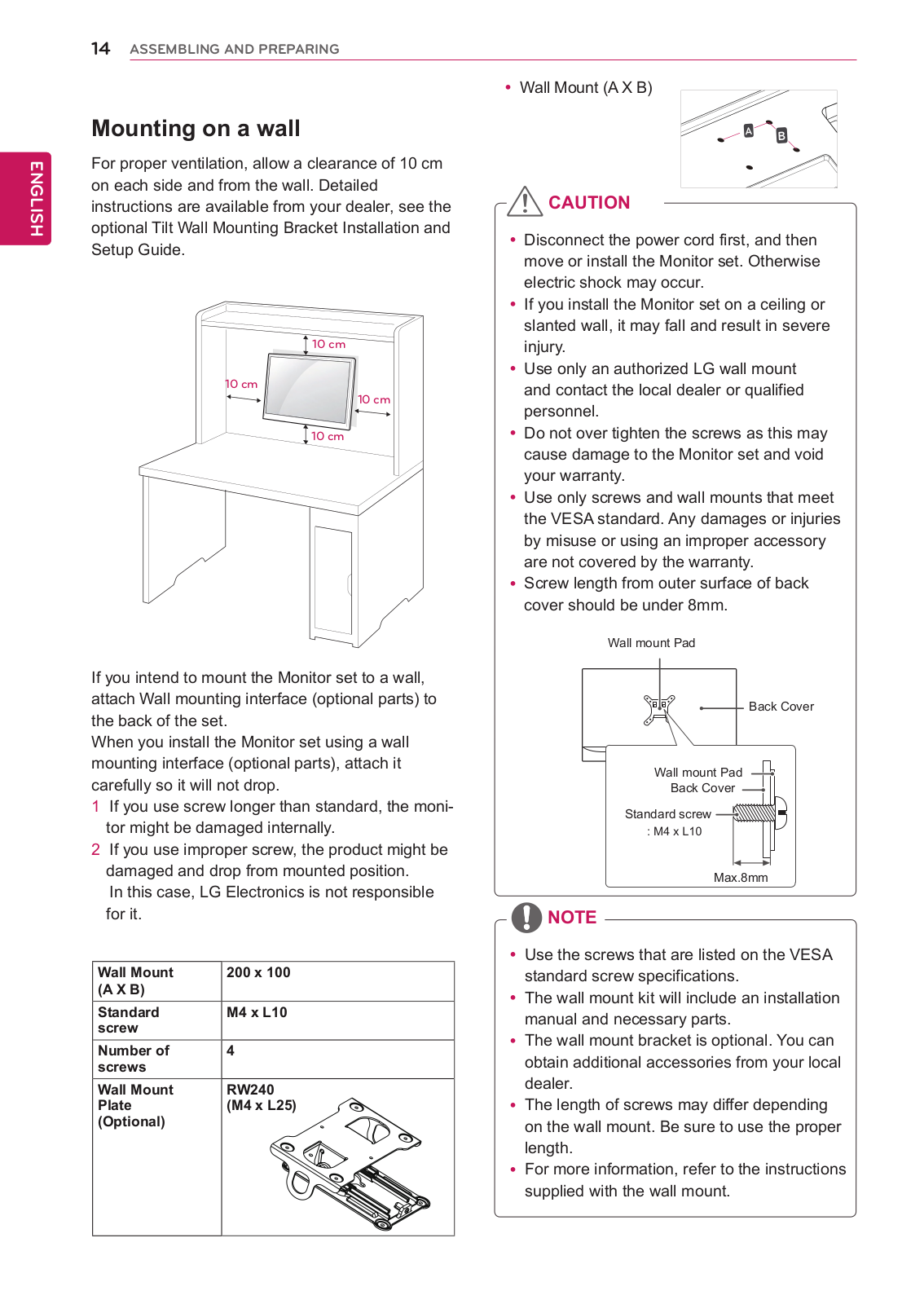

14 - Mounting on a wall
19Customizing settings
19- Menu Settings
19- -Quick Settings

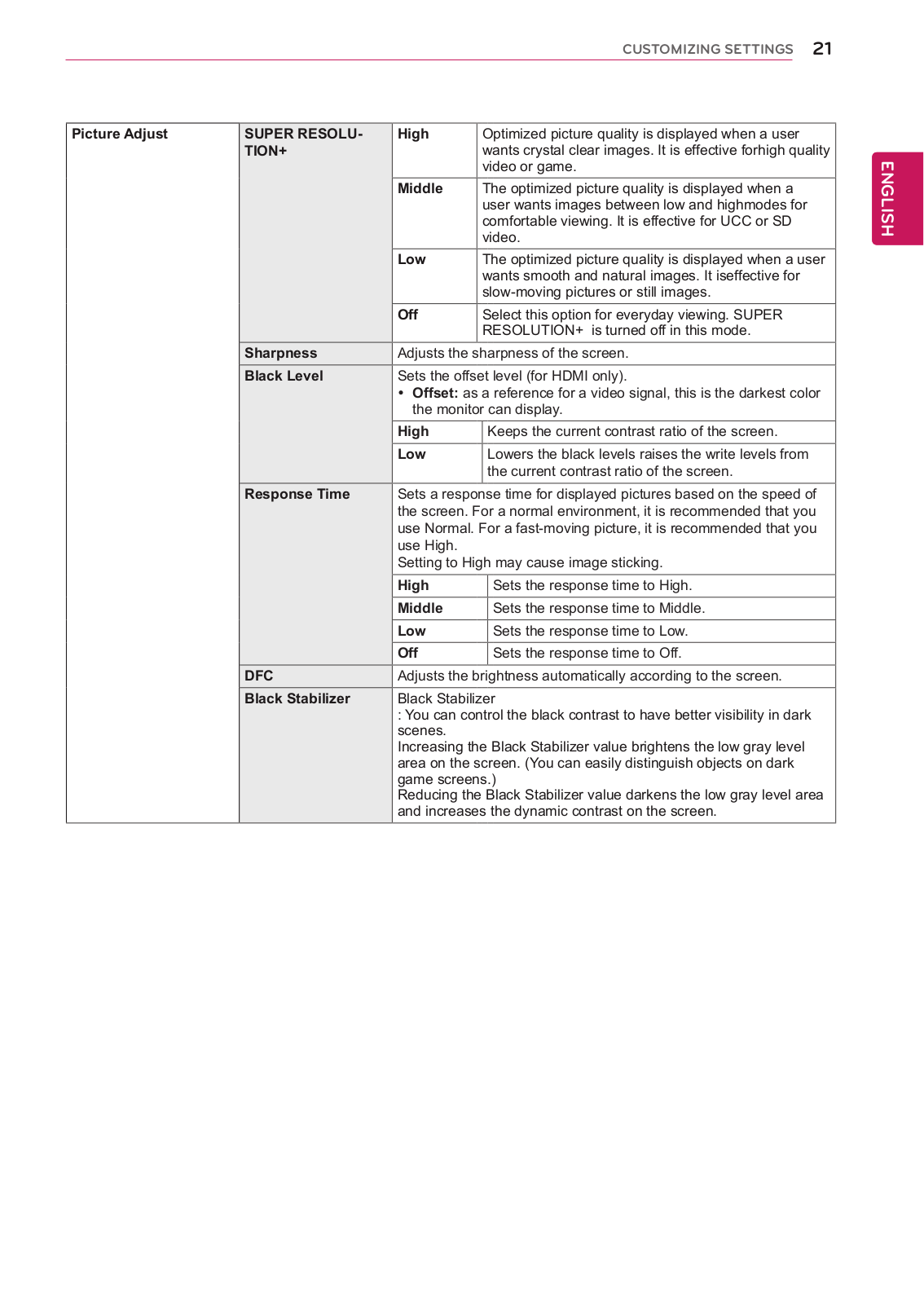

20- -Picture

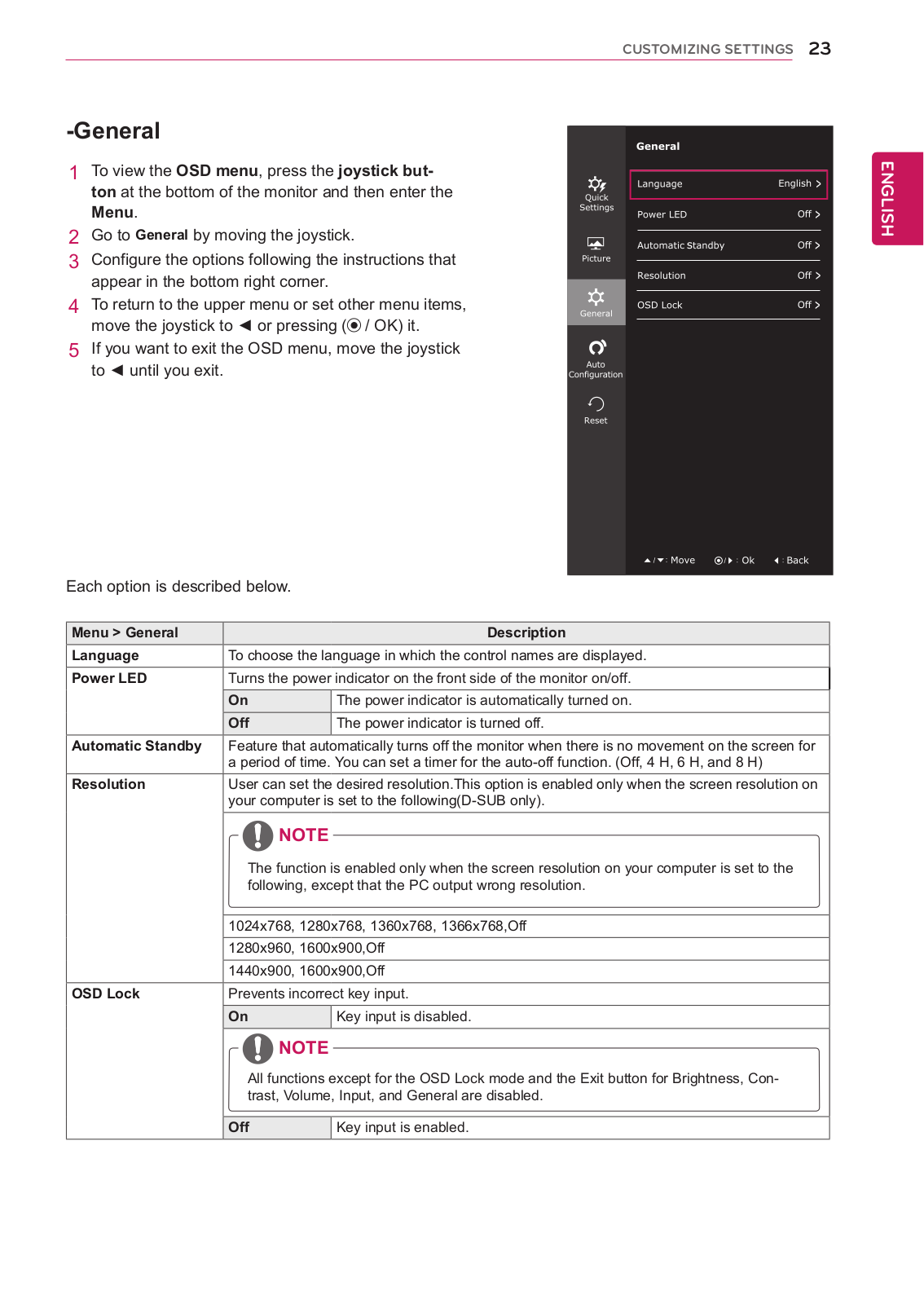

23- -General

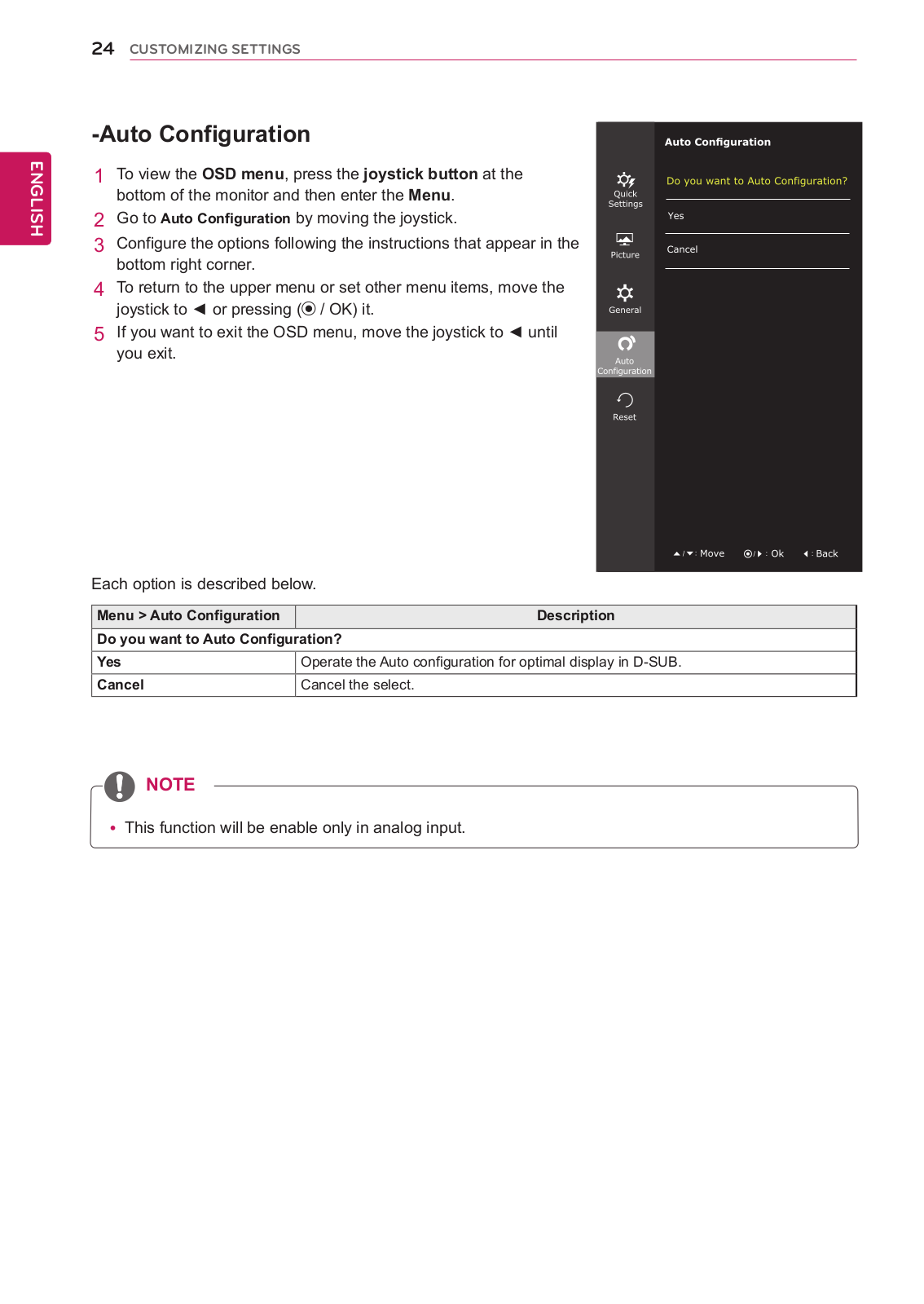

24- -Auto Configuration

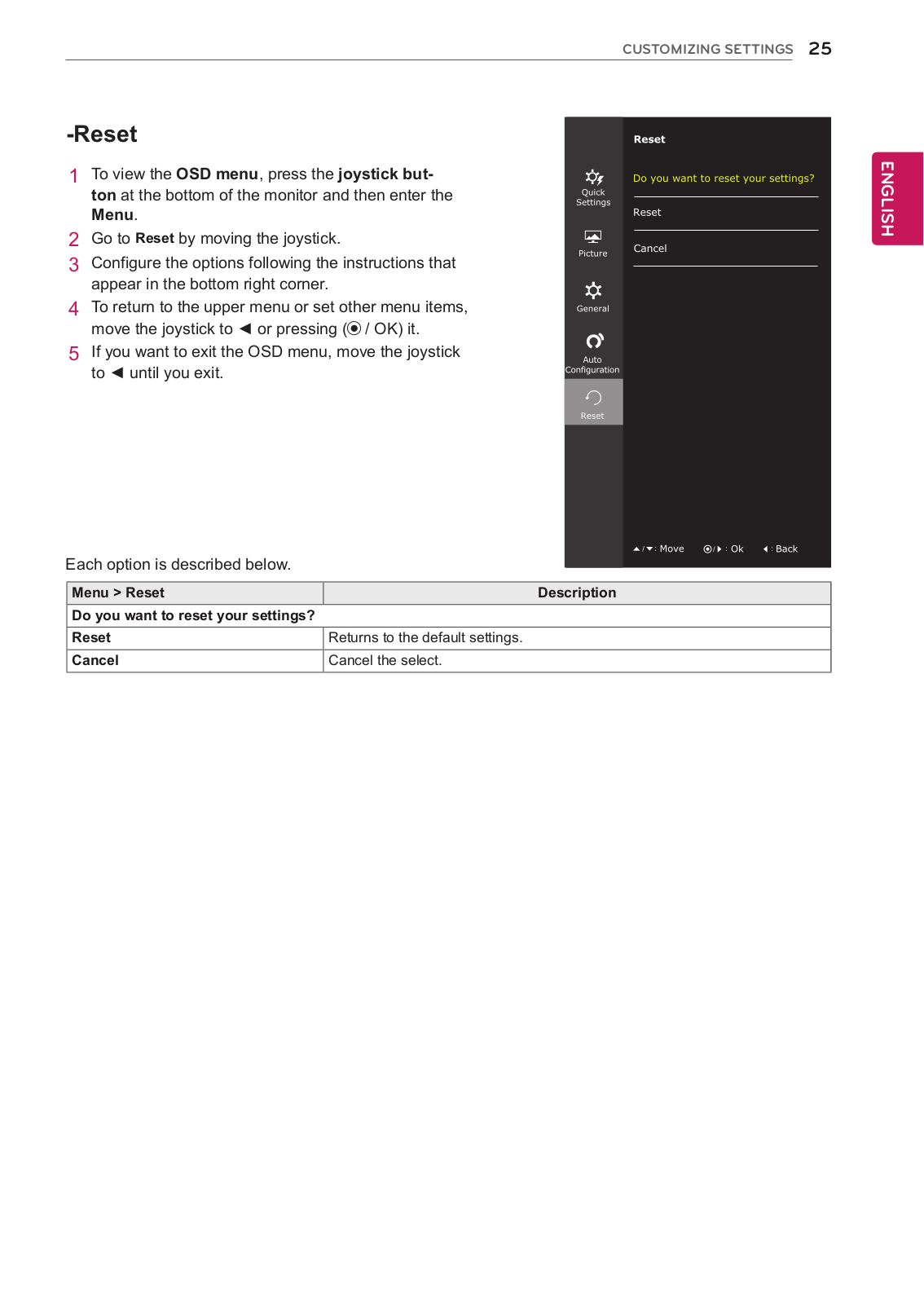

25- -Reset

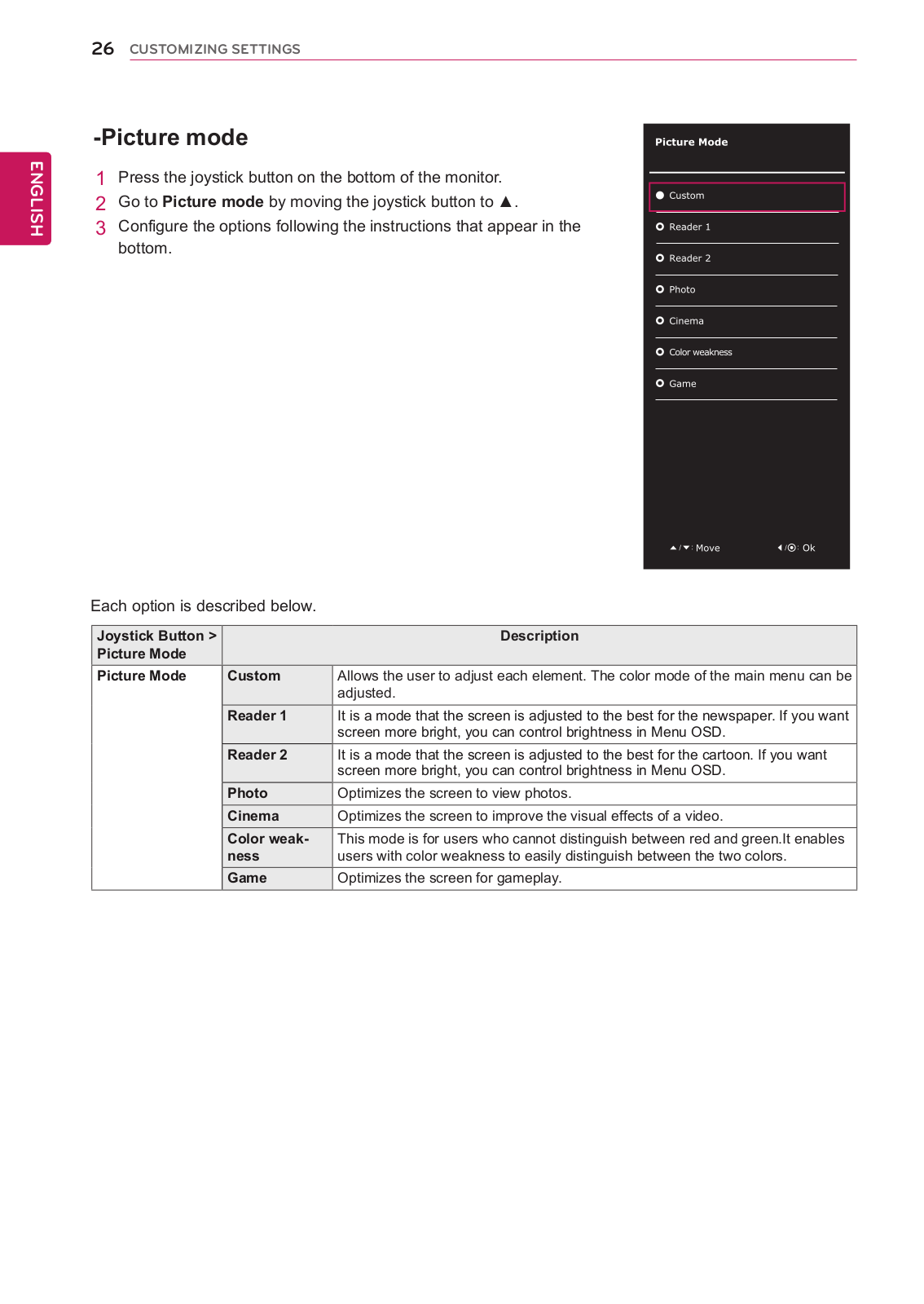

26- -Picture mode

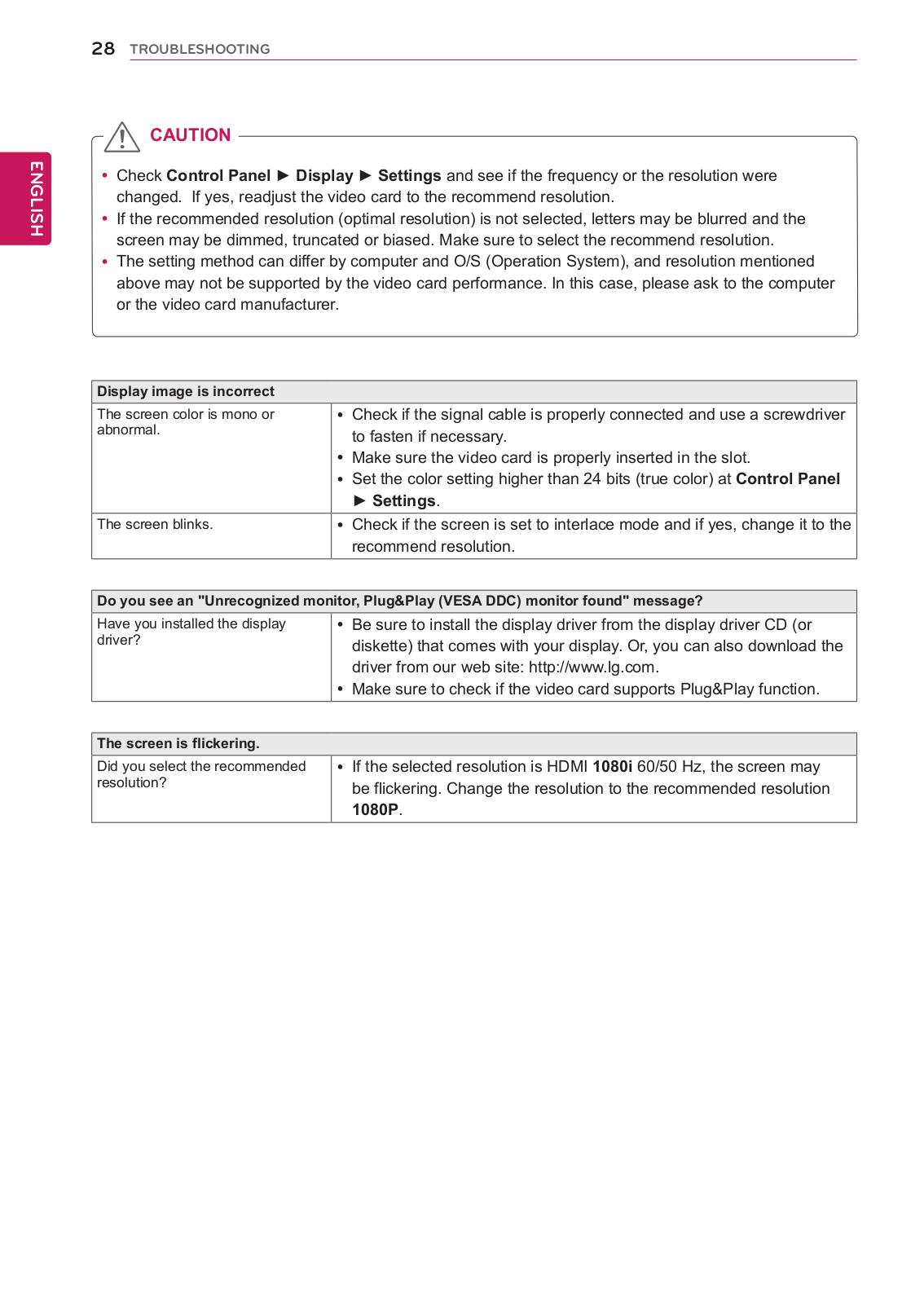

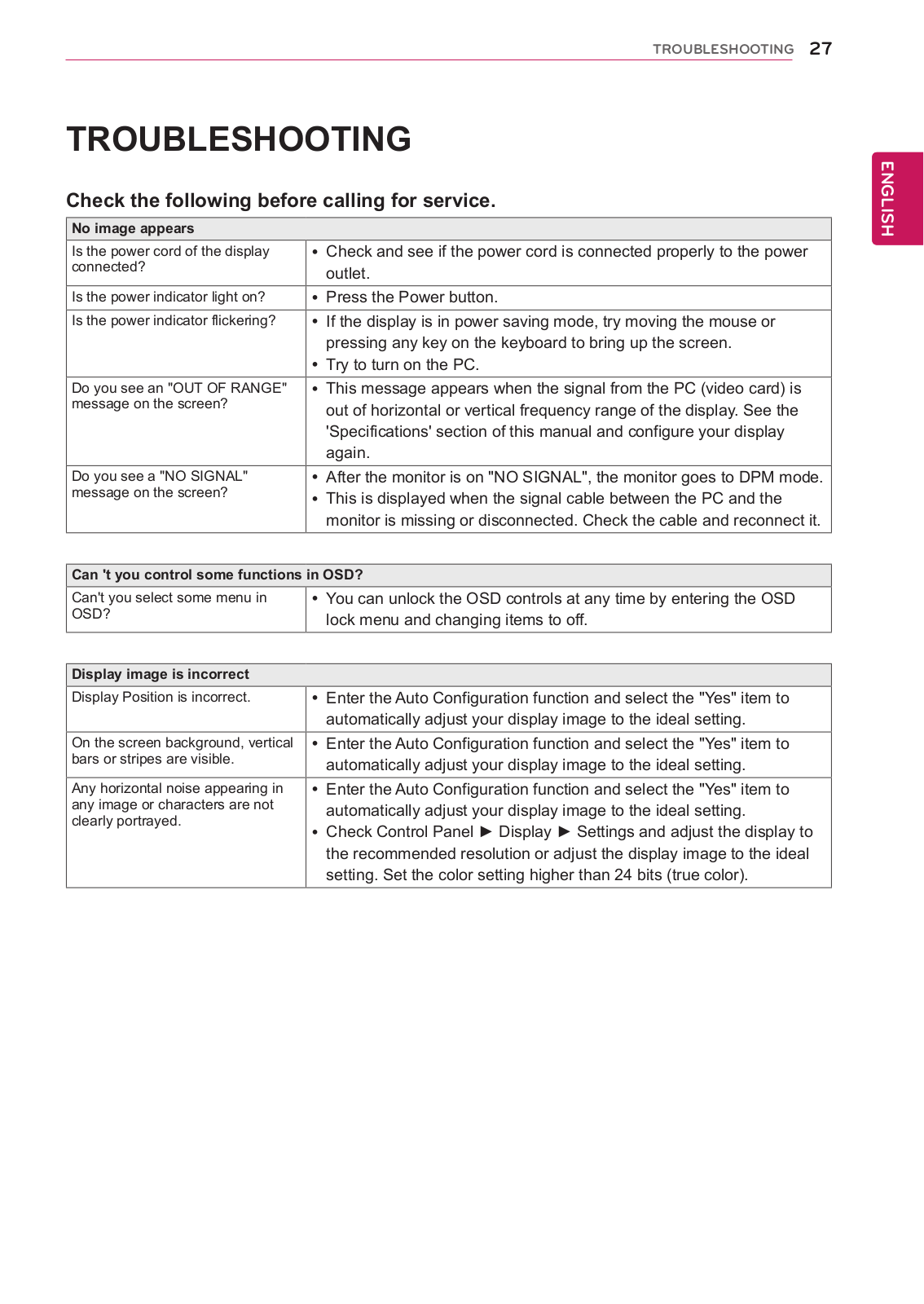

27TROUBLESHOOTING
29 SPECIFICATIONS

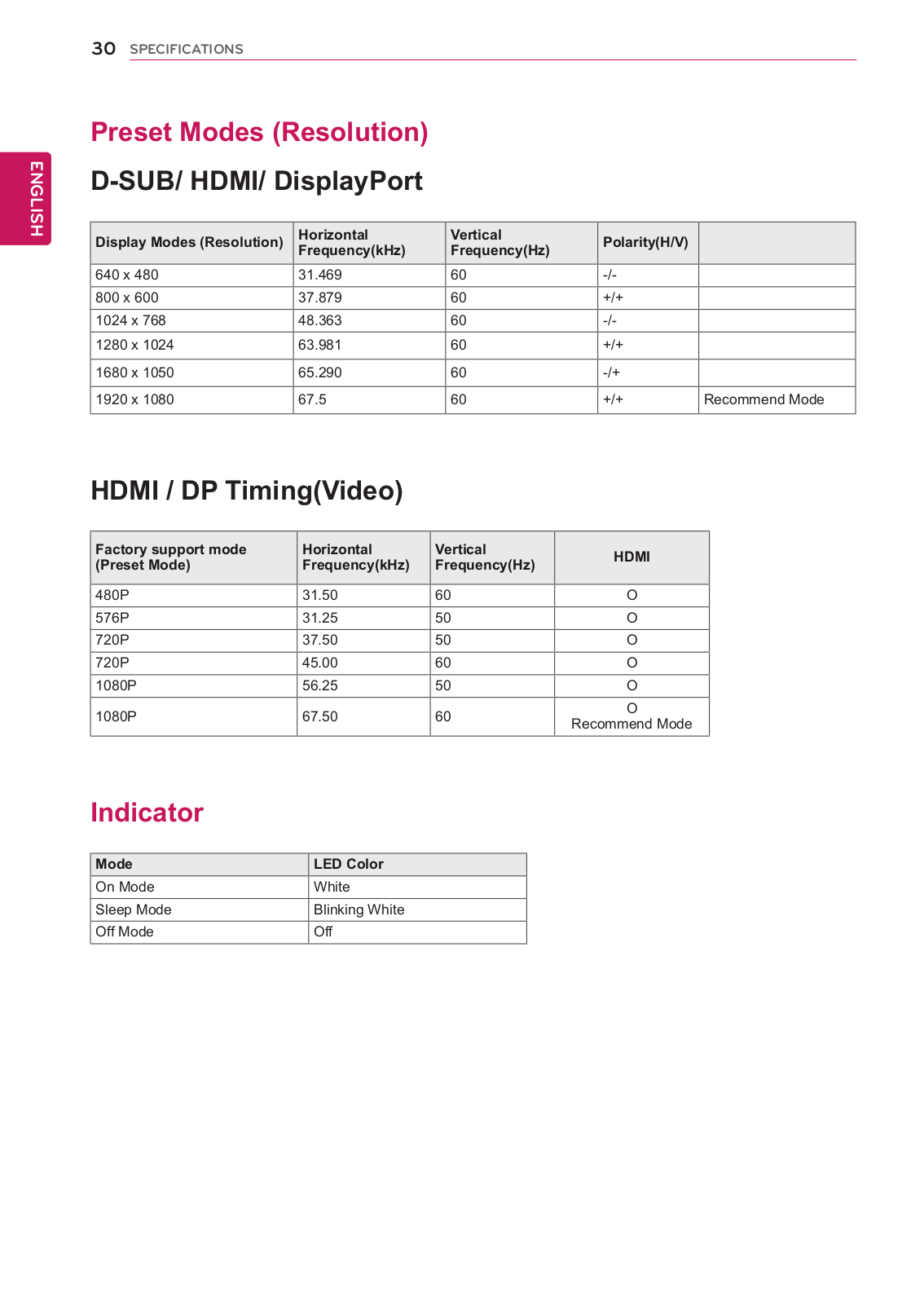

30 Preset Modes (Resolution)
30 Indicator
15 USING THE MONITOR SET

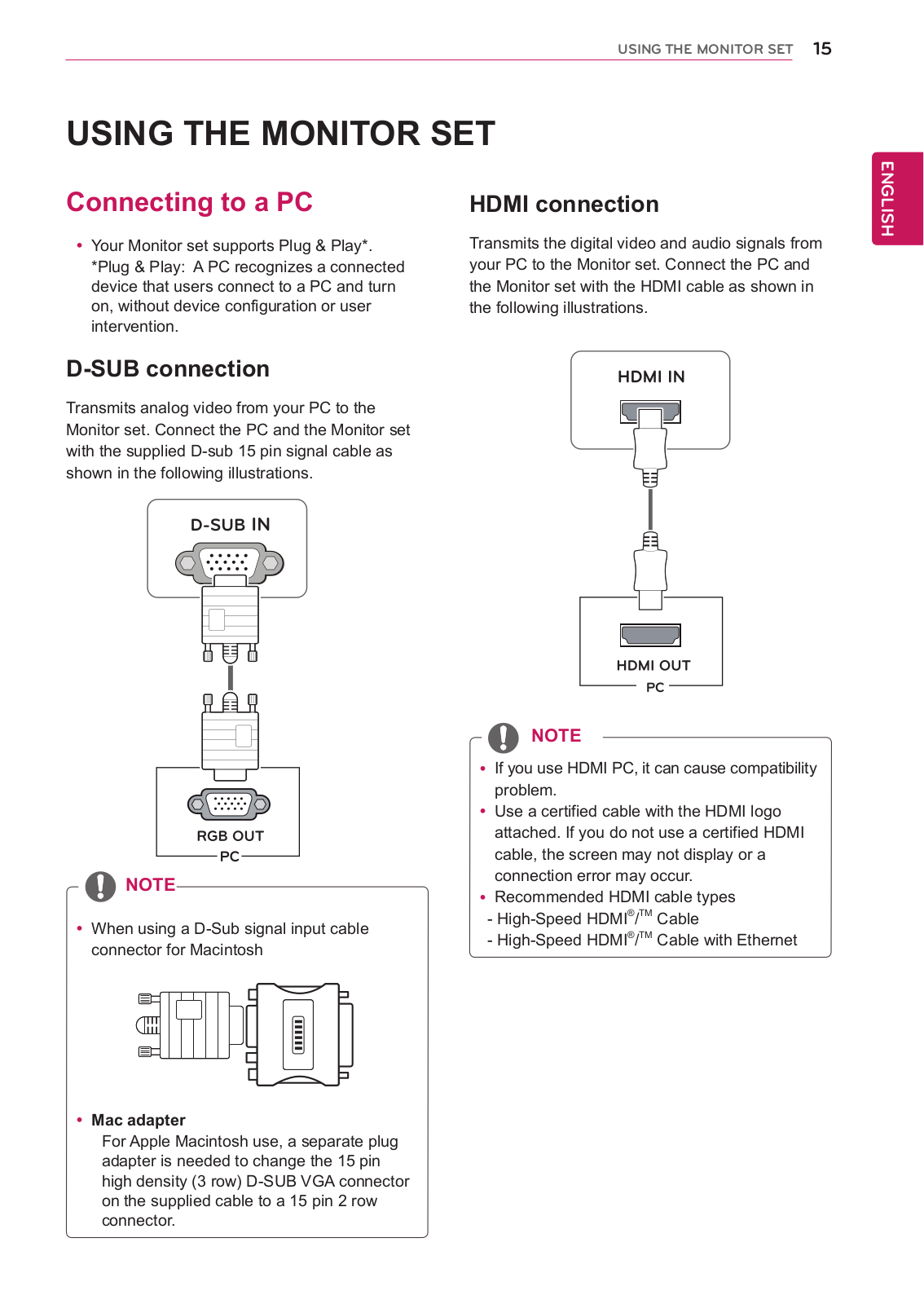

15Connecting to a PC
15- D-SUB connection
15- HDMI connection

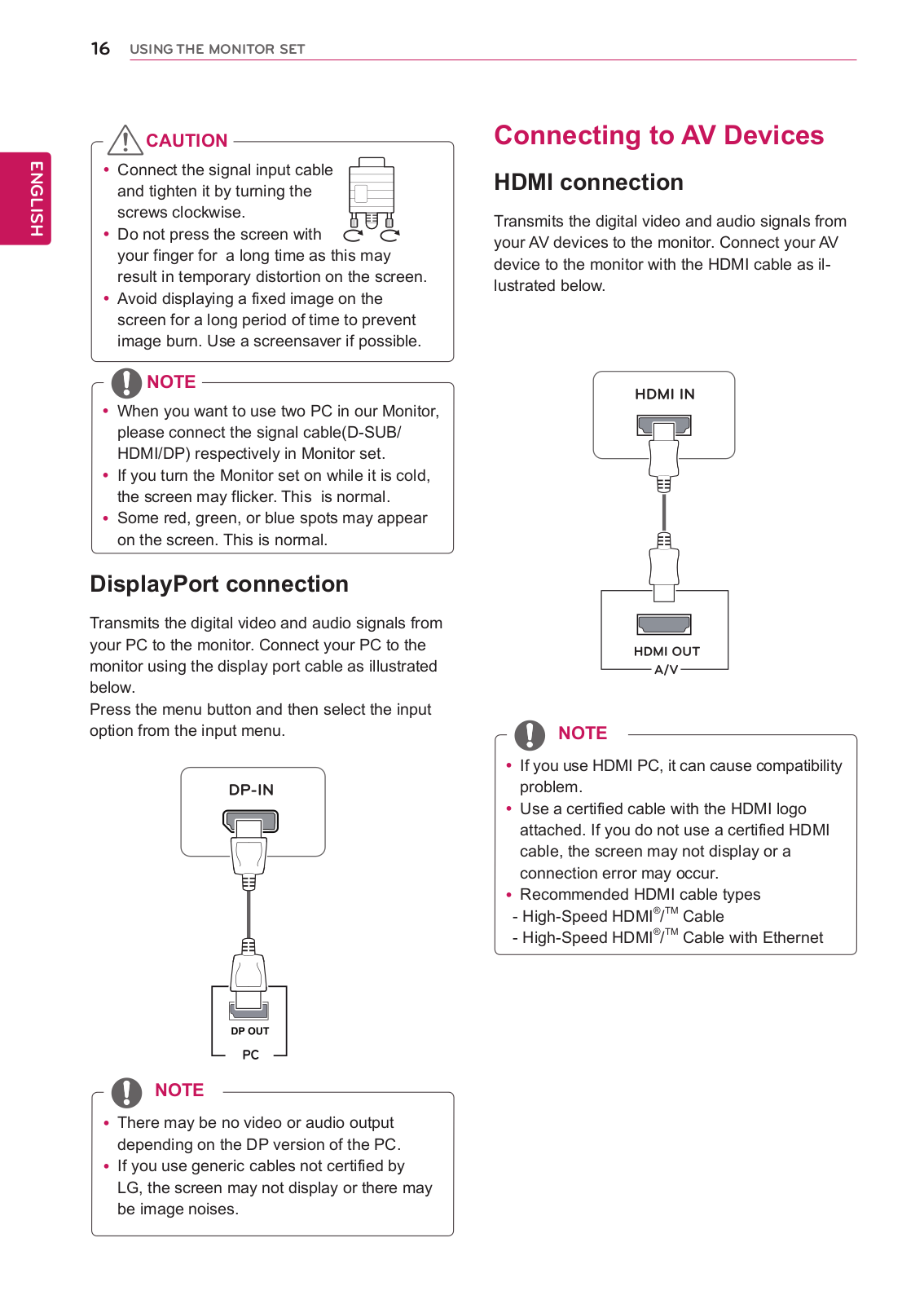

16- DisplayPort connection
16Connecting to AV Devices
16- HDMI connection
17Connecting Peripherals
17 - USB Cable connection - PC
17 Connecting to External Devices
17 - Peripheral device connection
LICENSE 3
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:
*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
*To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
<![endif]>ENGLISH
<![endif]>ENGLISH
4 ASSEMBLING AND PREPARING
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.
or |
CD(Owner's Manual) / |
Power Cord |
AC-DC Adapter |
AC-DC Adapter |
Card |
( Depending on the country ) |
( Depending on the country ) |
OPTIONAL ACCESSORIES
Display Port Cable |
HDMI Cable |
D-SUB Cable |
|
( This cable is not included in |
( This cable is not included |
||
( This cable is not included in all countries. ) |
|||
|
all countries. ) |
in all countries. ) |
USB Cable |
Stand Body |
Stand Base |
Cable Holder |
( This cable is not included |
|||
in all countries. ) |
|
|
|
CAUTION
yyDo not use any unapproved accessories to ensure the safety and product life span.
yyAny damages or injuries by using unapproved accessories are not covered by the warranty.
NOTE
yyThe accessories supplied with your product may vary depending on the model.
yyProduct specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
ASSEMBLING AND PREPARING 5
Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product package.
Drivers and Software |
Installation Priority |
32MA68HY |
|
|
|
Monitor Driver |
Recommended |
O |
OnScreen Control |
Recommended |
O |
yyRequired and Recommended: You can download and install the latest version from the enclosed CD or from the LGE website (www.lg.com).
<![endif]>ENGLISH
6 ASSEMBLING AND PREPARING
<![endif]>ENGLISH
Joystick Button/
Power Indicator
yyOn:powerison
yyOff: power is off
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.
Basic Functions
|
|
Power on |
Press the joystick button once with your finger to turn on the |
|
|
monitor. |
|
|
|
|
|
|
|
Power off |
Press and hold the joystick button once with your finger to turn off |
|
|
the monitor. |
|
|
|
|
|
|
◄/► |
Volume |
You can control the volume by moving the joystick button left/right. |
|
Control |
||
|
|
|
|
|
|
|
|
NOTE
yyThe joystick button is located at the bottom of the monitor.
Parts and buttons
ASSEMBLING AND PREPARING 7
<![if ! IE]><![endif]>ENGLISH
<![endif]>ENGLISH
8 ASSEMBLING AND PREPARING
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.
yyIt is advisable to place the monitor in the original box or packing material before attempting to move it.
yyBefore moving or lifting the monitor, disconnect the power cord and all cables.
yyHold the top and bottom of the monitor frame firmly. Do not hold the panel itself.
yyWhen holding the monitor, the screen should face away from you to prevent it being scratched.
yyWhen moving the monitor, avoid any strong shock or vibrations to the product.
yyWhen moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.
8 CAUTION
yyAs far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.
ASSEMBLING AND PREPARING 9
11 Please put a soft cloth on a low table or box to protect the screen of the monitor.
2Please put the monitor on the soft cloth with the screen facing down.
2Please grab the Stand body in one hand, and push it in the direction of the arrow to hinge
body.After assembling, you must check if the Stand body latched in or not.
31 Please push the Stand Base in the direction of the arrow as shown below and assemble
together.
Stand Base
2Please use a driver(-) or coin to insert thumb screw and turn right arrow direction lock.
* It is necessary to thoroughly tighten it with Thumb Screw, or the monitor will shake.
<![endif]>ENGLISH
4 Please set the Monitor upright, and install the
Stand body |
necessary cable. |
|
* Must use one type input cable. Don't use |
||
|
||
|
more than two types cable together. |
<![endif]>ENGLISH
10 ASSEMBLING AND PREPARING
1 Please remove the cable installed to the monitor. |
2 Please pull the Stand Base in the direction of |
|
the arrow as shown below and disassemble |
|
as shown below. |
21 Please put a soft cloth on a low table or box to protect the screen of the monitor.
4 After fixing the monitor in one hand, remove the Stand body by pulling it strongly in the direction of the arrow as shown below.
2 Please put the monitor on the soft cloth with the screen facing down.
* If it is difficult to remove, you can push the Latch with a small flat-head screw driver or a flat-headed tool and disassemble as shown below.
3 1 Please use the driver(-) or coin insert thumb screw and turn left arrow direction unlock.
