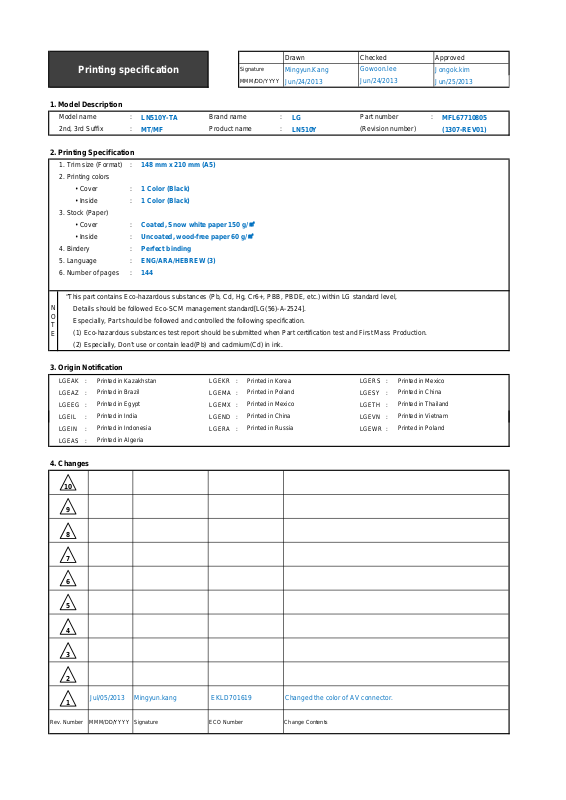

LG 32LN510Y User guide

Checked

Gowoon.lee
Jun/24/2013

Printing specification

Signature
MMM/DD/YYYY

Drawn Approved

Mingyun.Kang Jongok.kim
Jun/24/2013 Jun/25/2013

1. Model Description

:Model name

LN510Y-TA LG MFL67710805

:2nd, 3rd Suffix

MT/MF LN510Y (1307-REV01)

:Brand name
:Product name

(Revision number)

2. Printing Specification

148 mm x 210 mm (A5)

:1. Trim size (Format)

2. Printing colors

1 Color (Black)

: • Cover

1 Color (Black)

: • Inside

3. Stock (Paper)
: • Cover

Coated, Snow white paper 150 g/㎡

: • Inside

Uncoated, wood-free paper 60 g/㎡

:4. Bindery

Perfect binding
ENG/ARA/HEBREW (3)

:5. Language

144

:6. Number of pages

“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,

N

Details should be followed Eco-SCM management standard[LG(56)-A-2524].

O

Especially, Part should be followed and controlled the following specification.

T

(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.

E

(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

:Part number

3. Origin Notification

Printed in Kazakhstan

:LGEAK :LGEKR :LGERS

Printed in Brazil

:LGEAZ :LGEMA :LGESY
:LGEEG :LGEMX :LGETH

Printed in India

:LGEIL :LGEND :LGEVN

Printed in Indonesia Printed in Russia Printed in Poland

:LGEIN :LGERA :LGEWR

Printed in Algeria

:LGEAS

4. Changes

10

9

8

7

6

5

4

Printed in Korea
Printed in Poland
Printed in MexicoPrinted in Egypt
Printed in China Printed in Vietnam

Printed in Mexico
Printed in China
Printed in Thailand

3

2

Jul/05/2013 Mingyun.kang EKLD701619 Changed the color of AV connector.

1

Rev. Number MMM/DD/YYYY

Signature Change ContentsECO Number

:Part number MFL67710805

Pagination sheet

Front Back
(Eng)
P/No. 2 … … … … 47

Back Front

47…………2

Back Front

47…………2

144 pages:Total pages

(Ara)

(Heb)

OWNER’S MANUAL

*

LED TV

* Disclaimer

LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating
your set and retain it for future reference.

LN510*
LN511*
LN512*
LN513*
LN515*
LN49**

P/NO : MFL67710805 (1307-REV01)
Printed in Korea

www.lg.com

2

TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

ENG

3 SAFETy INSTruCTIONS

8 INSTALLATION PrOCEdurE

8 ASSEMBLING ANd PrEPArING

8 Unpacking
10 Parts and buttons
11 Lifting and moving the TV
12 Setting up the TV
12 - Attaching the stand
13 Mounting on a table
15 Mounting on a wall
16 - Attaching the shelf stand
17 - How to attach to masonry walls
18 Tidying cables

19 MAKING CONNECTIONS

19 Antenna connection
20 HDMI connection
20 Component connection
21 Composite connection
21 USB connection
22 Audio System connection
22 - External Stereo Connection

23 rEMOTE CONTrOL

24 WATCHING TV

24 Turning the TV on for the first time
24 Watching TV
24 Managing programmes
24 - Automatically setting up programme
25 - Manually setting up programme
26 - Editing your programme list
26 - Selecting a programme on the

programme list
26 Using additional options
26 - Adjusting aspect ratio
27 - Using the input list

28 ENTErTAINMENT

28 Connecting USB storage devices
29 Browsing files
30 Viewing photos
31 Listening to music
32 Viewing movies
34 DivX® VOD Guide

35 CuSTOMIZING TV SETTING

35 Accessing main menus

35 Customizing Settings
35 - SETUP Settings
36 - PICTURE Settings
38 - AUDIO Settings
40 - TIME Settings
40 - OPTION Settings
41 - LOCK Settings

41 TELETEXT

41 Switch On/Off
41 Simple Text
41 - Page selection
42 - Programming a colour button in LIST

mode
42 Fastext
42 - Page selection
42 Special Teletext Function

43 MAINTENANCE

43 Cleaning your TV
43 - Screen, frame, cabinet and stand
43 - Power cord

43 TrOuBLESHOOTING

44 SPECIFICATIONS

47 LICENSES

WArNING

yIf you ignore the warning message, you

may be seriously injured or there is a
possibility of accident or death.

CAuTION

yIf you ignore the caution message, you

may be slightly injured or the product
may be damaged.

NOTE

yThe note helps you understand and use

the product safely. Please read the note
carefully before using the product.

SAFETY INSTRUCTIONS

3

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control

y

in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a
bathroom

- Near any heat source such as stoves
and other devices that produce heat

- Near kitchen counters or humidifiers
where they can easily be exposed to
steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric
shock, malfunction or product deformation.

Do not place the product where it might be

y

exposed to dust.
This may cause a fire hazard.

Mains Plug is the TV connecting/

y

disconnecting device to AC mains electric
supply. This plug must remain readily
attached and operable when TV is in use.

Insert power cable plug completely into

y

wall socket otherwise if not secured
completely into socket, fire ignition may
break out.

Ensure the power cord does not come into

y

contact with hot objects such as a heater.
This may cause a fire or an electric shock
hazard.

Do not place a heavy object, or the

y

product itself, on power cables.
Otherwise, this may result in fire or electric
shock.

Bend antenna cable between inside and

y

outside building to prevent rain from
flowing in.
This may cause water damaged inside the
Product and could give an electric shock.

ENGENGLISH

Do not touch the power plug with wet

y

hands. Additionally, if the cord pin is wet
or covered with dust, dry the power plug
completely or wipe dust off.
You may be electrocuted due to excess
moisture.

Make sure to connect Mains cable to

y

compliant AC mains socket with Grounded
earth pin. (Except for devices which
are not grounded on earth.) Otherwise
possibility you may be electrocuted or
injured.

When mounting TV onto wall make sure to

y

neatly install and isolate cabling from rear
of TV as to not create possibility of electric
shock /fire hazard.

Do not plug too many electrical devices

y

into a single multiple electrical outlet.
Otherwise, this may result in fire due to
over-heating.

4

SAFETY INSTRUCTIONS

ENGLISH

ENG

Do not drop the product or let it fall over

y

when connecting external devices.
Otherwise, this may result in injury or
damage to the product.

Keep the anti-moisture packing material or

y

vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach
of children.

Do not let your children climb or cling onto

y

the TV. Otherwise, the TV may fall over,
which may cause serious injury.

Dispose of used batteries carefully

y

to ensure that a small child does not
consume them. Please seek Doctor­Medical Attention immediately if child
consumes batteries.

Do not drop metallic objects such as

y

coins, hair pins, chopsticks or wire into
the product, or inflammable objects such
as paper and matches. Children must
pay particular attention. Electrical shock,
fire or injury can occur. If a foreign object
is dropped into the product, unplug the
power cord and contact the service centre.

Do not spray water on the product or

y

scrub with an inflammable substance
(thinner or benzene). Fire or electric shock
accident can occur.

Do not allow any impact, shock or any

y

objects to fall into the unit, and do not
drop anything onto the screen.
You may be injured or the product can be
damaged.

Never touch this product or antenna

y

during a thunder or lighting storm.
You may be electrocuted.

Do not insert any metal objects/conductors

y

(like a metal chopstick/cutlery/screwdriver)
between power cable plug and input Wall
Socket while it is connected to the input
terminal on the wall. Additionally, do not
touch the power cable right after plugging
into the wall input terminal. You may be
electrocuted. (Depending on model)

Do not put or store inflammable

y

substances near the product. There is a
danger of combustion/explosion or fire due
to careless handling of the inflammable
substances.

Never touch the wall outlet when there is

y

leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the

y

product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check,
calibration or repair.

SAFETY INSTRUCTIONS

5

If any of the following occur, unplug the

y

product immediately and contact your
local service centre.

- The product has been impacted by
shock

- The product has been damaged

- Foreign objects have entered the
product

- The product produced smoke or a
strange smell

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket

y

if you do not intend to use the TV for a
long period of time. Accumulated dust
can cause fire hazard and insulation
deterioration can cause electric leakage/
shock/fire.

Apparatus shall not be exposed to

y

dripping or splashing and no objects
filled with liquids, such as vases, shall be
placed on the apparatus.

CAUTION

If you install the TV on a stand, you need

y

to take actions to prevent the product from
overturning. Otherwise, the product may
fall over, which may cause injury.

If you intend to mount the product to a

y

wall, attach VESA standard mounting
interface (optional parts) to the back of the
product. When you install the set to use
the wall mounting bracket (optional parts),
fix it carefully so as not to drop.
Only use the attachments / accessories

y

specified by the manufacturer.

When installing the antenna, consult

y

with a qualified service technician. If not
installed by a qualified technician, this
may create a fire hazard or an electric
shock hazard.

We recommend that you maintain a

y

distance of at least 2 to 7 times the
diagonal screen size when watching TV.
If you watch TV for a long period of time,
this may cause blurred vision.

ENGENGLISH

Install the product where no radio wave

y

occurs.

There should be enough distance between

y

an outside antenna and power lines to
keep the former from touching the latter
even when the antenna falls.
This may cause an electric shock.

Do not install the product on places such

y

as unstable shelves or inclined surfaces.
Also avoid places where there is vibration
or where the product cannot be fully
supported. Otherwise, the product may
fall or flip over, which may cause injury or
damage to the product.

Only use the specified type of battery.

y

This could cause damage to the remote
control.

Do not mix new batteries with old

y

batteries. This may cause the batteries to
overheat and leak.

Batteries should not be exposed to

y

excessive heat. For example, keep away
from direct Sunlight, open fireplace and
electric heaters.
Do not place non-rechargeable batteries

y

in charging device.

Make sure there are no objects between

y

the remote control and its sensor.

6

SAFETY INSTRUCTIONS

Signal from Remote Control can be

ENGLISH

ENG

y

interrupted due to external/internal lighting
eg Sunlight, fluorescent lighting.If this
occurs turn off lighting or darken viewing
area.

When connecting external devices such

y

as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over,
which may cause injury or damage the
product.

Do not turn the product On/Off by

y

plugging-in or unplugging the power plug
to the wall outlet. (Do not use the power
plug for switch.)
It may cause mechanical failure or could
give an electric shock.

Please follow the installation instructions

y

below to prevent the product from
overheating.

- The distance between the product and
the wall should be more than 10 cm.

- Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in
a cupboard).

- Do not install the product on a carpet or
cushion.

- Make sure the air vent is not blocked by
a tablecloth or curtain.

Otherwise, this may result in fire.

Take care not to touch the ventilation

y

openings when watching the TV for long
periods as the ventilation openings may
become hot. This does not affect the
operation or performance of the product.

Prevent dust collecting on the power plug

y

pins or outlet.
This may cause a fire hazard.

Protect the power cord from physical or

y

mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or
walked upon. Pay particular attention to
plugs, wall outlets, and the point where
the cord exits the appliance.

Do not press strongly upon the panel with

y

a hand or sharp object such as nail, pencil
or pen, or make a scratch on it, as it may
cause damage to screen.

Avoid touching the screen or holding your

y

finger(s) against it for long periods of time.
Doing so may produce some temporary or
permanent distortion/damage to screen.

When cleaning the product and its

y

components, unplug the power first
and wipe it with a soft cloth. Applying
excessive force may cause scratches or
discolouration. Do not spray with water
or wipe with a wet cloth. Never use glass
cleaner, car or industrial shiner, abrasives
or wax, benzene, alcohol etc., which can
damage the product and its panel.
Otherwise, this may result in fire, electric
shock or product damage (deformation,
corrosion or breakage).

Periodically examine the cord of your

y

appliance, and if its appearance indicates
damage or deterioration, unplug it,
discontinue use of the appliance, and
have the cord replaced with an exact
replacement part by an authorized
servicer.

As long as this unit is connected to the AC

y

wall outlet, it is not disconnected from the
AC power source even if you turn off this
unit by SWITCH.

SAFETY INSTRUCTIONS

7

When unplugging the cable, grab the plug

y

and unplug it, by pulling at the plug. Don’t
pull at the cord to unplug the power cord
from the power board, as this could be
hazardous.

When moving the product, make sure

y

you turn the power off first. Then, unplug
the power cables, antenna cables and all
connecting cables.
The TV set or power cord may be
damaged, which may create a fire hazard
or cause electric shock.

When moving or unpacking the product,

y

work in pairs because the product is
heavy.
Otherwise, this may result in injury.

Contact the service centre once a year to

y

clean the internal parts of the product.
Accumulated dust can cause mechanical
failure.

Refer all servicing to qualified service

y

personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.

The panel is a high technology display

y

product with resolution of two million to six
million pixels. You may see tiny black dots
and/or brightly coloured dots (red, blue or
green) at a size of 1 ppm on the panel.
This does not indicate a malfunction and
does not affect the performance and
reliability of the product.
This phenomenon also occurs in third­party products and is not subject to
exchange or refund.

You may find different brightness and

y

colour of the panel depending on your
viewing position(left/right/top/down).
This phenomenon occurs due to the
characteristic of the panel. It is not related
with the product performance, and it is not
malfunction.

Displaying a still image (e.g., broadcasting

y

channel logo, on-screen menu, scene
from a video game) for a prolonged
time may cause damage to the screen,
resulting in retention of the image, which
is known as image sticking. The warranty
does not cover the product for image
sticking.
Avoid displaying a fixed image on your
television’s screen for a prolonged period
(2 or more hours for LCD, 1 or more hours
for Plasma).
Also, if you watch the TV at a ratio of 4:3
for a long time, image sticking may occur
on the borders of the panel.
This phenomenon also occurs in third­party products and is not subject to
exchange or refund.

ENGENGLISH

If the product feels cold to the touch, there

y

may be a small “flicker” when it is turned
on. This is normal, there is nothing wrong
with product.

Generated Sound

y

“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to tempera-ture and humidity. This
noise is common for products where
thermal deformation is required. Electrical
circuit humming/panel buzzing: A low level
noise is generated from a high-speed
switching circuit, which supplies a large
amount of current to operate a product. It
varies depend-ing on the product.
This generated sound does not affect the
performance and reliability of the product.

8

<

<

INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING

ENGLISH

ENG

NOTE

yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you

are using.
yNew features may be added to this TV in the future.
yThe TV can be placed in standby mode in order to reduce the power consumption. And the

TV should be turned off if it will not be watched for some time, as this will reduce energy

consumption.
yThe energy consumed during use can be significantly reduced if the level of brightness of the

picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.

CAUTION

yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the manufacturer’s

warranty.
ySome models have a thin film attached on to the screen and this must not be removed.

WARNING

y You need to enable easy access for connecting and disconnecting electric cables fed from the

mains.

NOTE

yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm

thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB

memory stick does not fit into your TV’s USB port.

B

A

B

*A

10 mm

=

*B

18 mm

A

=

ASSEMBLING AND PREPARING

9

ENGENGLISH

Remote control and
batteries (AAA)

(See p.23)

Power Cord Stand Screws

Stand Rack Screws

3EA, M4 x 8
(Only LN515*)
(See p.16)

Wall mount screws

3EA, P5 x 69.5
(Only LN515*)
(See p.16)

Owner’s manual Cable holder

3EA, P5 x 25
4EA, M4 x 14
(Only LN510*, LN511*,
LN512*, LN513*, LN49**)
(See p.12)

Desk-mount Screw

1EA
(See p.13)

Wall mount anchors

3EA
(Only LN515*)
(See p.17)

(Depending on model)
(See p.18)

Stand Screws

4EA, P5 x 25
4EA, M4 x 14
(Only LN515*)
(See p.12)

Wall Plate

(Only LN515*)
(See p.16)

Stand Body /
Stand Base

(Only LN510*, LN511*,
LN512*, LN513*, LN49**)
(See p.12)

Stand Body /
Stand Base

(Only LN515*)
(See p.12, 16)

10

H

H

H

SETTINGS

INPUT

OK

ASSEMBLING AND PREPARING

ENGLISH

Parts and buttons

ENG

Screen

Remote control sensor

Power indicator

buttons

Speakers

Button Description

Scrolls through the saved programmes.

Adjusts the volume level.

Selects the highlighted menu option or confirms an input.

S

Accesses the main menu, or saves your input and exits the menus.

Changes the input source.

Turns the power on or off.

ASSEMBLING AND PREPARING

11

Lifting and moving the TV

Please note the following advice to prevent the
TV from being scratched or damaged and for
safe transportation regardless of its type and
size.

CAUTION

yAvoid touching the screen at all times, as

this may result in damage to the screen.

yIt is recommended to move the TV in the

box or packing material that the TV originally
came in.

yBefore moving or lifting the TV, disconnect

the power cord and all cables.

yWhen holding the TV, the screen should face

away from you to avoid damage.

yWhen transporting a large TV, there should

be at least 2 people.

yWhen transporting the TV by hand, hold the

TV as shown in the following illustration.

yWhen transporting the TV, do not expose the

TV to jolts or excessive vibration.

yWhen transporting the TV, keep the TV

upright, never turn the TV on its side or tilt
towards the left or right.

yDo not apply excessive pressure to cause

exing /bending of frame chassis as it may

damage screen.

ENGENGLISH

yHold the top and bottom of the TV frame

rmly. Make sure not to hold the transparent

part, speaker, or speaker grill area.

12

ASSEMBLING AND PREPARING

ENGLISH

Setting up the TV

ENG

Image shown may differ from your TV.

Attaching the stand

LN510*, LN511*, LN512*, LN513*, LN49**

1

Stand Body

2

3EA

P5 x 25

Stand Base

LN515*

1

Stand Body

Stand Base

2

4EA

P5 x 25

3

3

4EA

M4 x 14

4

4EA

M4 x 14

ASSEMBLING AND PREPARING

13

CAUTION

yWhen attaching the stand to the TV

set, place the screen facing down on a

cushioned table or flat surface to protect

the screen from scratches.
yMake sure that the screws are inserted

correctly and fastened securely. (If they

are not fastened securely enough, the TV

may tilt forward after being installed.)

Do not use too much force and over

tighten the screws; otherwise screw may

be damaged and not tighten correctly.

NOTE

yRemove the stand before installing the

TV on a wall mount by performing the

stand attachment in reverse.

Mounting on a table

1 Lift and tilt the TV into its upright position on

a table.

- Leave a 10 cm (minimum) space from
the wall for proper ventilation.

Securing the TV to a table

ENGENGLISH

Fix the TV to a table to prevent from tilting
forward, damage, and potential injury.
To secure the TV to a table, insert and tighten
the supplied screw on the rear of the stand.

WARNING

yTo prevent TV from falling over, the TV

should be securely attached to the floor/
wall per installation instructions. Tipping,
shaking, or rocking the TV may cause
injury.

10 cm

10 cm

2 Connect the power cord to a wall outlet.

10 cm

10 cm

CAUTION

yDo not place the TV near or on sources

of heat, as this may result in fire or other
damage.

14

ASSEMBLING AND PREPARING

Securing the TV to a wall

ENGLISH

ENG

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV

brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye­bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall.
Match the location of the wall bracket and
the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets

tightly with a sturdy rope.
Make sure to keep the rope horizontal with
the flat surface.

CAUTION

yMake sure that children do not climb on

or hang on the TV.

WARNING

yIf a television is not positioned in a

sufficiently stable location, it can be
potentially hazardous due to falling. Many
injuries, particularly to children, can be
avoided by taking simple precautions
such as:

»Using cabinets or stands

recommended by the manufacturer
of the television.

»Only using furniture that can safely

support the television.

»Ensuring the television is not

overhanging the edge of the
supporting furniture.

»Not placing the television on tall

furniture (for example, cupboards or
bookcases) without anchoring both
the furniture and the television to a
suitable support.

»Not standing the televisions on cloth

or other materials placed between
the television and supporting
furniture.

»Educating children about the dangers

of climbing on furniture to reach the
television or its controls.

Using the Kensington security system

(This feature is not available for all models.)

The Kensington security system connector
is located at the rear of the TV. For more
information of installation and using, refer to the
manual provided with the Kensington security
system or visit http://www.kensington.com.

NOTE

yUse a platform or cabinet that is strong

and large enough to support the TV
securely.

yBrackets, bolts and ropes are not

provided. You can obtain additional
accessories from your local dealer.

Connect the Kensington security system cable
between the TV and a table.

ASSEMBLING AND PREPARING

15

Mounting on a wall

Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
LG recommends that wall mounting be
performed by a qualified professional installer.

10 cm

10 cm

10 cm

10 cm

Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.

Separate purchase(Wall Mounting Bracket)

Model 32LN510*,

VESA (A x B) 200 x 100 200 x 200
Standard
screw
Number of
screws
Wall mount
bracket

LSW130B LSW230B MSW240

32LN511*,
32LN512*,
32LN513*,
32LN515*
32LN49**

M4 M6

4 4

LSW130B LSW230B

Wall mount bracket

39/42LN510*,
39/42LN511*,
39/42LN512*,
39/42LN513*

MSW240

A

B

CAUTION

yDisconnect the power first, and then

move or install the TV. Otherwise electric
shock may occur.

yIf you install the TV on a ceiling or slanted

wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.

yDo not over tighten the screws as this

may cause damage to the TV and void
your warranty.

yUse the screws and wall mounts that

meet the VESA standard. Any damages
or injuries by misuse or using an
improper accessory are not covered by
the manufacturer’s warranty.

NOTE

yUse the screws that are listed on the

VESA standard screw specifications.

yThe wall mount kit includes an installation

manual and necessary parts.

yThe wall mount bracket is not provided.

You can obtain additional accessories
from your local dealer.

yThe length of screws may differ

depending on the wall mount. Make sure
to use the proper length.

yFor more information, refer to the manual

supplied with the wall mount.

ENGENGLISH

16

ASSEMBLING AND PREPARING

ENGLISH

Attaching the shelf stand

ENG

Image shown may differ from your TV.

- You can use the shelf stand by putting STB (Set
top box).

LN515*

1

Stand Base

Stand Body

4

5

2

NOTE

yTo install wall mount anchor, you can

refer to p.17.

3

3EA

P5 x 69.5

1EA

2EA

M4 x 8

M4 x 8

CAUTION

yMake sure that the screws are inserted

correctly and fastened securely. (If they
are not fastened securely enough, the
Stand may tilt after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.

Wall Plate

ASSEMBLING AND PREPARING

17

150mm

Shelf Stand

350mm

STB
(Set top box)

Shelf Stand conditions of use

STB Dimensions (W x D) 350mm x 150mm
STB Weight 2.5kg
Maximum supported
weight

3.5kg

How to attach to masonry
walls

(This feature is not available for all models.)

1

ENGENGLISH

2

Wall mount anchor

3

4

Wall mount screw

5

Use the anchors for wall material of concrete,
light concrete, strong natural stone, soft natural
stone masonry brick and hallow block that do not
crack.

Please follow the below direction

- Check the material of the wall and the thickness
of the finishing.

- When installing the product on wall material
not designated, install the product so that each
fixated location can withstand the pull out load
of 70 kgf (686 N) and shear load of 100 kgf (980
N) or above.

- Use the Ø8 mm drill bit for concrete and
hammer (Impact) drill.

6

1 Use a drill bit Ø8 mm to drill a hole for the

anchor location within a depth of 80 mm -

100 mm.
2 Clean the drilled hole.
3 Insert the sealed anchor to the hole. (When

inserting the anchor, use a hammer.)
4 Set the wall mount on the wall by aligning to

the location of the hole. and, set the angle

adjusting part to face upward.
5 Align the wall mount bolt to the hole and

tighten it. Then, fasten the bolts at torque of

45 kgf/cm - 60 kgf/cm.

18

ASSEMBLING AND PREPARING

ENGLISH

Tidying cables

ENG

Use Cable Holder to neatly secure and position
cables together.

Cable Holder

CAUTION

yDo not move the TV by holding the cable

holder, as the cable holders may break,
and injuries and damage to the TV may
occur.

MAKING CONNECTIONS

19

MAKING CONNEC­TIONS

This section on MAKING CONNECTIONS
mainly uses diagrams for the LN510* models.

Connect various external devices to the TV
and switch input modes to select an external
device. For more information of external device’s
connection, refer to the manual provided with
each device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB
storage devices, gaming devices, and other
external devices.

NOTE

yThe external device connection may differ

from the model.

yConnect external devices to the TV

regardless of the order of the TV port.

yIf you record a TV programme on a

DVD recorder or VCR, make sure to
connect the TV signal input cable to the
TV through a DVD recorder or VCR. For
more information of recording, refer to
the manual provided with the connected
device.

yRefer to the external equipment’s manual

for operating instructions.

yIf you connect a gaming device to the TV,

use the cable supplied with the gaming
device.

Antenna connection

Connect the TV to a wall antenna socket with an
RF cable (75 Ω).

ANTENNA

IN

NOTE

yUse a signal splitter to use more than 2

TVs.

yIf the image quality is poor, install a signal

amplifier properly to improve the image

quality.

yIf the image quality is poor with an

antenna connected, try to realign the

antenna in the correct direction.

yAn antenna cable and converter are not

supplied.

ENGENGLISH

20

AUDIO

VIDEO

L R

MAKING CONNECTIONS

ENGLISH

HDMI connection

ENG

Transmits the digital video and audio signals
from an external device to the TV. Connect the
external device and the TV with the HDMI cable
as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.

IN

1

2

DVD/ Blu-Ray / HD Cable
Box / HD STB

(*Not
Provided)

Component connection

Transmits analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable as shown.

GREEN

BLUE

GREEN

BLUE

RED

RED

WHITE

WHITE

RED

(*Not
Provided)

RED

HDMI

NOTE

yIt is recommended to use the TV with

the HDMI connection for the best image
quality.

yUse the latest High Speed HDMI™

Cable.

yHigh Speed HDMI™ Cables are tested to

carry an HD signal up to 1080p.

ySupported HDMI Audio format : Dolby

Digital(Up to 48kHz), PCM(Up to 192kHz,
32kHz/44.1kHz/48kHz/88kHz/96kHz/
176kHz/192kHz) *DTS Not Supported.

DVD/ Blu-Ray / HD Cable Box

NOTE

yIf cables are not installed correctly, it

could cause this image to display in black

and white or with distorted colours.

MAKING CONNECTIONS

AUDIO OUT

21

Composite connection

Transmits analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown.

AV IN 2

YELLOW

(*Not Provided)

YELLOW

WHITE

WHITE

RED

RED

USB connection

Connect a USB storage device such as a USB
flash memory, external hard drive, or a USB
memory card reader to the TV and access the
USB menu to use various multimedia files.

USB IN

USB

(*Not Provided)

ENGENGLISH

( )

MONO

VIDEO

DVD/ Blu-Ray / HD Cable Box / VCR

AUDIOL

R

22

2

MAKING CONNECTIONS

ENGLISH

Audio System connection

ENG

Use an external audio system instead of the
built-in speaker.

NOTE

yIf you use an optional external audio

device instead of the built-in speaker, set
the TV speaker feature to off.

External Stereo Connection

Use to connect to an external amplier, or sur­round sound system.

AV IN

AUDIO OUT

(*Not Provided)

L R

AUDIO IN

External Stereo

REMOTE CONTROL

23

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA)
matching the
the battery cover.
To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control.

y

In Analogue TV and some countries, some remote control buttons may not work.

y

Make sure to point the remote control toward the remote control sensor on the TV.

1

and ends to the label inside the compartment, and close

CAUTION

(POWER) Turns the TV on or off.

TV Returns to the TV viewing from any mode.

Q.MENU Accesses the Quick menus.

PICTURE Changes the image mode.

SOUND Changes the sound mode.

INPUT Changes the input source.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

Q.VIEW Returns to the previously viewed programme.

FAV Accesses your favourite programme list.

I/II Selects the sound output.

MUTE

P

PAGE

SETTINGS Accesses the main menus.

Navigation buttons(up/down/left/right) Scrolls through

menus or options.

OK

BACK

EXIT Clears on-screen displays and return to TV viewing.

1

Control buttons (

Coloured buttons These access special functions in some

menus.
(

Mutes all sounds.

Adjusts the volume level.

Scrolls through the saved programmes.

Moves to the previous or next screen.

Selects menus or options and confirms your input.

Returns to the previous level.

TELETEXT BUTTONS

: Red, : Green, : Yellow, : Blue)

These buttons are used for teletext.

) Controls the USB menus.

ENGENGLISH

24

WATCHING TV

ENGLISH

WATCHING TV

ENG

Turning the TV on for the

rst time

When you turn the TV on for the rst time, the

Initial setting screen appears. Select a language
and customize the basic settings.

1 Connect the power cord to a power outlet. The

Power indicator turns red and the TV switches
to Standby mode.

2 In Standby mode, press the power button on

the remote control or local key to turn the TV
on. The Initial setting screen appears if you
turn the TV on for the first time.

NOTE

yYou can also access Initial Setting by

accessing OPTION in the main menu.

NOTE

yIf you do not complete the Initial setting, it will

appear whenever the TV turns on.

yDisconnect the power cord from the power

outlet when you do not use the TV for a long
period of time.

5 To turn the TV off, press the power button

on the remote control.

Watching TV

1 In Standby mode, press (POWER) to

turn the TV on.
2 Press INPUT and select TV.

3 To turn the TV off, press

The TV switches to Standby mode.

(POWER).

Managing programmes

3 Follow the on-screen instructions to

customize your TV settings according to
your preferences.

Menu Language



Mode Setting



Time Setting



Auto Tuning

Selects a language to
display.

Selects Home
Use for the home
environment.
Sets the time.

Scans and saves
available programmes
automatically.

NOTE

yTo display images in the best quality for

your home environment, select Home Use.

yStore Demo is suitable for the retail

environment.

yIf you select Store Demo, any customized

settings will switch back to the default
settings of Store Demo in 5 minutes.

4 When the basic settings are complete,

press the OK.

Automatically setting up pro­gramme

Use this to automatically nd and store all avail­able programmes.

1 Press SETTINGS and the Navigation

buttons to scroll to SETUP and press OK.
2 Press the Navigation buttons to scroll to

Auto Tuning and press OK.
3 Press the Navigation buttons to scroll to

To Start and select To Start to begin auto

tuning. The TV scans and saves available

programmes automatically.
4 When you return to the previous menu,

press BACK

ꕣ

.

WATCHING TV

25

Manually setting up pro­gramme

Manual Tuning lets you manually tune and ar­range the stations in whatever order you desire.

1 Press SETTINGS and the Navigation

buttons to scroll to SETUP.

2 Press the Navigation buttons to scroll to

Manual Tuning.

3 Press the Navigation buttons to scroll to

Storage.

4 Press the Navigation buttons or Number

buttons to select the desired programme
number.

5 Press the Navigation buttons to scroll to

System.

6 Press the Navigation buttons to scroll to

TV System.

7 Press the Navigation buttons to scroll to

Band.

8 Press the Navigation buttons to scroll to

V/UHF or Cable.

9 Press the Navigation buttons to scroll to

Channel.

10 Press the Navigation buttons and then

select the desired channel number with the
Navigation buttons or Number buttons.

11 Press the Navigation buttons to scroll to

Search.

12 Press the Navigation buttons to scroll and

start Searching.
13 Press the OK to store it.
14 When you return to the previous menu,

press BACK

NOTE

y To store another programme, repeat steps

3 to 13.

ꕣ

.

Assigning a station name

You can assign a station name with five
characters to each programme number.

1 Press SETTINGS and the Navigation

buttons to scroll to SETUP.

2 Press the Navigation buttons to scroll to

Manual Tuning.

3 Press the Navigation buttons to scroll to

Name.

4 Press the Navigation buttons to scroll to

select the position and make your choice of
the second character, and so on. You can
use an the alphabet A to Z, the number 0 to

9, +/ -, and blank and press OK.
5 Press the OK to store it.
6 When you return to the previous menu,

press BACK

ꕣ

.

Fine Tuning

Normally fine tuning is only necessary if
reception is poor.

1 Press SETTINGS and the Navigation

buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to

Manual Tuning.
3 Press the Navigation buttons to scroll to

Fine.
4 Press the Navigation buttons to fine tune for

the best picture and sound.
5 Press the OK to store it.
6 When you return to the previous menu,

press BACK

ꕣ

.

ENGENGLISH

26

WATCHING TV

ENGLISH

Editing your programme list

ENG

Using additional options

When a programme number is skipped, it means
that you will be unable to select it using P
button during TV viewing.
If you wish to select the skipped programme,
directly enter the programme number with the
NUMBER buttons or select it in the Programme
edit menu.
This function enables you to skip the stored
programmes.

1 Press SETTINGS and the Navigation

buttons to scroll to SETUP.

2 Press the Navigation buttons to scroll to

Programme Edit.

3 Edit programmes using the following

buttons.

Button Description

Red button

Yellow button

Blue button

4 When you return to the previous menu,

press BACK

Deletes a programme.
Press the Red button twice.
The selected programme
is deleted, all the following
programmes are shifted up
one position.

Moves a programme.
Press the Yellow button again
to release this function.

Selects a programme number
to be skipped. Press the Blue
button again to release the
skipped programme.

.

ꕣ



Adjusting aspect ratio

Resize an image to view at its optimal size by
pressing Q.MENU or accessing Aspect Ratio in

the PICTURE menu.

NOTE

yThe available ratio varies depending on the

input source.

- 16:9: Resizes images to fit the screen width.

Just Scan: Displays video images in the

-

original size without removing parts of the
edge of the image. (This function works
in Component/HDMI (720P/1080i/1080p)
Mode.)

Selecting a programme on the
programme list

1 Press LIST to access the programme list.
2 Press the Navigation buttons to select to

desired programme and press OK.

3 When you return to the previous menu,

press LIST.

NOTE

y You may find some blue programmes.

They have been set up to be skipped by
auto programming or in the programme
edit mode.

ySome programmes with the programme

number shown in the programme
list indicate there is no station name
assigned.

NOTE

yIf you select Just Scan, you may see

image noises at the edge of the original

signal.

Original: When your TV receives a wide

-

screen signal it will automatically change to
the picture format broadcasted.

(4:3 4:3) (16:9 16:9)

4:3: Resizes images to the previous

OKMove

-

standard 4:3.

14:9 : You can view a picture format of 14:9

-

or a general TV programme in the 14:9
mode. The 14:9 screen is viewed in the
same way as in 4:3, but is moved to the up
and down.

WATCHING TV

Using the input list

Selecting an input source

1 Press INPUT to access the input sources.

- The connected device displays on each
input source.

2 Press the Navigation buttons or input button

to scroll to one of the input sources and
press OK.

Image shown may differ from your TV.

y

27

ENGENGLISH

- Zoom : Formats an image to fit the screen

width. The top and bottom of the image may
not appear.

Cinema Zoom 1 : Formats an image to the

-

cinemascope ratio, 2.35:1.
To change the ratio of the cinema zoom,
press < or > and its range is from 1 to 16.

INPUT

TV

AV1

AV2

Component

HDMI1

HDMI2

Move OK

Input source Description

TV Watch TV over the air and

cable broadcast.

AV Watch video from a VCR or

other external devices.

Component Select it when using the DVD

or the Digital set-top box
depends on connector.

HDMI Watch video from a HTS or

other high definition devices.

NOTE

If you enlarge or reduce an image, the

y

image may be distorted.

28

ENTERTAINMENT

ENGLISH

ENTERTAINMENT

ENG

(Depending on model)

Image shown may differ from your TV.

y

Connecting USB storage
devices

Connect USB storage devices (external HDD,
USB memory) to the TV and use multimedia
features (See “Browsing les” on p.29).

Connect a USB ash memory or USB memory

card reader to the TV as shown on the following
illustration.

USB IN

To disconnect a USB storage device,
make sure to end the connection properly to
prevent damages to the TV or files.

1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to

Eject and press OK.

3 Disconnect the USB storage device only

when the message says that it is safe to
remove.

CAUTION

Do not turn the TV off or remove a USB

y

storage device while the USB storage
device is connected to the TV, as this
could result in loss of files or damage to
the USB storage device.
Back up your files saved on a USB

y

storage device frequently, as you may
lose or damage the files and this may
be not covered by the manufacturer’s
warranty.

Tips for using USB storage devices

yOnly a USB storage device is recognizable.
yIf the USB storage device is connected

through a USB hub, the device is not
recognizable.

yA USB storage device using an automatic

recognition programme may not be
recognized.

yA USB storage device which uses its own

driver may not be recognized.

yThe recognition speed of a USB storage

device may depend on each device.

yPlease do not turn off the TV or unplug

the USB device when the connected USB
storage device is working. When such device
is suddenly separated or unplugged, the

stored les or the USB storage device may

be damaged.

yPlease do not connect the USB storage

device which was articially manoeuvred on

the PC. The device may cause the product to
malfunction or fail to be played. Never forget
to use only a USB storage device which has

normal music les, image les or movie les.

yPlease use only a USB storage device which

was formatted as a FAT16, FAT32, NTFS le

system.

yPlease connect a USB storage device with

the cable offered by the device maker.

ySome USB storage devices may not be

supported or operated smoothly.

yBe sure to back up important les since data

stored in a USB memory device may be
damaged. We will not be responsible for any
data loss.

yIf a USB memory device is connected to a

USB multi-card reader, its volume data may
not be detected.

yIf the USB memory device does not work

properly, disconnect and reconnect it.

yHow fast a USB memory device is detected

differs from device to device.

yThe recommended capacity is 1 TB or less

for a USB external hard disk and 32 GB or
less for USB memory.

yAny device with more than the recommended

capacity may not work properly.

yUSB storage devices below USB 2.0 are

supported as well. But they may not work
properly in the movie list.

yMaximum of 999 folders or les can be

recognized under one folder.

yIf there are a lot of folders or les all within

one folder, the device may not be able to
access these properly.

yFor external USB HDDs, it is recommended

that you use devices with a rated voltage of
less than 5 V and a rated current of less than

0.5A.
