OWNER’S MANUAL

Safety and Reference

LED TV* *LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your TV and retain it for future reference.

28TK420S 24TL520S

28TL520S

24TL510S 28TL510S

www.lg.com

ENG

ENGLISH

Table of contents

Licenses -------------------------------------------3

Open source software notice information --------------------------------------3

Preparing -----------------------------------------3

Lifting and moving the TV -------------------4

Setting up the TV -------------------------------4

Using the button -------------------------------5

Mounting on a table ---------------------------6

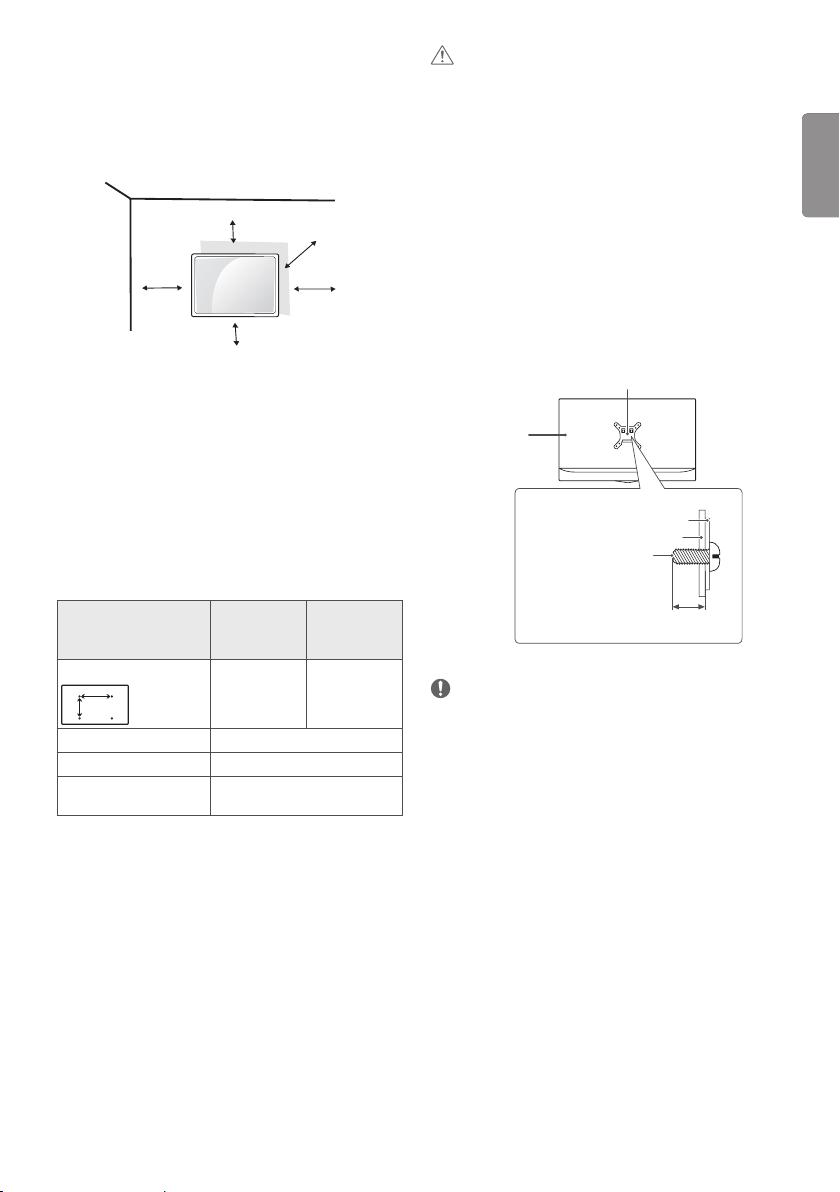

Mounting on a wall ----------------------------7

Connections (notications) -----------------8

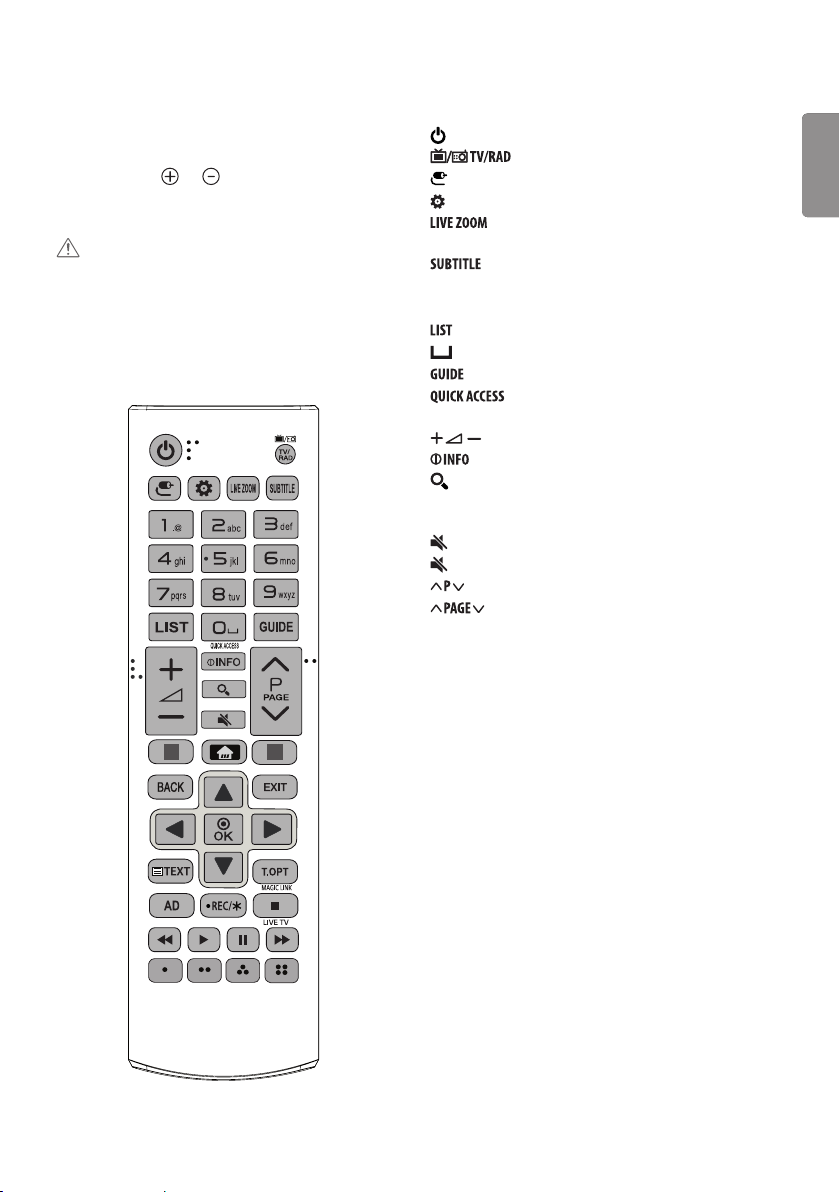

Remote control ---------------------------------9

Maintenance ----------------------------------- 11

Troubleshooting------------------------------11

Specications --------------------------------- 12

ENGENGLISH

Licenses

Preparing

Supported licenses may dier by model. For more information about licenses, visit www.lg.com.

Open source software notice information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

This oer is valid for a period of three years after our last shipment of this product. This oer is valid to anyone in receipt of this information.

NOTE

y Image shown may dier from your TV. y Your TV’s OSD (On Screen Display) may dier slightly from that

shown in this manual.

y The available menus and options may dier from the input source or

product model that you are using.

y New features may be added to this TV in the future. y The TV can be placed in standby mode in order to reduce the power

consumption. And the TV should be turned o if it will not be watched for some time, as this will reduce energy consumption.

y The energy consumed during use can be signicantly reduced if the

level of brightness of the picture is reduced, and this will reduce the overall running cost.

y The items supplied with your product may vary depending on the

model.

y Product specications or contents of this manual may be changed

without prior notice due to upgrade of product functions.

y For an optimal connection, HDMI cables and USB devices should

have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not t into your TV’s USB port.

y Use a certied cable with the HDMI logo attached. If you do not use

a certied HDMI cable, the screen may not display or a connection error may occur.

y Recommended HDMI cable types

- High-Speed HDMI®/™ cable

- High-Speed HDMI®/™ cable with Ethernet

CAUTION

y Do not use any unapproved items to ensure the safety and product

life span.

y Any damage or injuries caused by using unapproved items are not

covered by the warranty.

*A < 10 mm

18 mm

ENG

ENGLISH

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

y It is recommended to move the TV in the box or packing material

that the TV originally came in.

y Before moving or lifting the TV, disconnect the power cord and all

cables.

y When holding the TV, the screen should face away from you to avoid

damage.

y Hold the top and bottom of the TV frame rmly. Make sure not to

hold the transparent part, speaker, or speaker grill area.

y When transporting the TV, do not expose the TV to jolts or excessive

vibration.

y When transporting the TV, keep the TV upright, never turn the TV on

its side or tilt towards the left or right.

y Do not apply excessive pressure to cause exing/bending of frame

chassis as it may damage screen.

CAUTION

y Avoid touching the screen at all times, as this may result in damage

to the screen.

y When handling the TV, be careful not to damage the protruding

joystick button. (Depending on model)

Setting up the TV

CAUTION

y When attaching the stand to the TV set, place the screen facing

down on a cushioned table or at surface to protect the screen from scratches.

y Do not carry the TV upside-down by holding the stand body (or

stand base) as this may cause it to fall o, resulting in damage or injury.

y Do not apply foreign substances (oils, lubricants, etc.) to the screw

parts when assembling the product. (Doing so may damage the product.)

NOTE

y Remove the stand before installing the TV on a wall mount by

performing the stand attachment in reverse. (Only TK420S/TL520S)

y Lift up the latch at the bottom of the stand base and detach the

stand base from the TV. (Only TL510S)

ENGENGLISH

Using the button

You can simply operate the TV functions, using the button. (Depending on model)

y Image shown may dier from your TV.

Basic functions

Power On (Press) Power O1 (Press and hold) Menu Control (Press2) Menu Selection (Press and Hold3)

1 All running apps will close. 2 You can access and adjust the menu by pressing the button when

TV is on.

3 You can use the function when you access menu control.

Adjusting the menu

When the TV is turned on, press the button one time. You can adjust the menu items using the buttons. (Depending on model)

Turns the power o.

Accesses the setting menu.

Clears on-screen displays and returns to TV viewing.

Changes the input source.

Scrolls through the saved programmes.

Adjusts the volume level.

Power On (Press) Power O (Press and hold1)

Volume Control

Programmes Control

1 If the menu button is on the screen, pressing and holding the

button will let you exit the menu.

NOTE

y If you press the joystick button rst, you may not be able to adjust

the volume level and saved programmes.

CAUTION

y With your nger on the joystick button, when moving it up, down,

left or right be careful not to press the button in.

ENG

ENGLISH

Mounting on a table

y Image shown may dier from your TV.

1 Lift and tilt the TV into its upright position on a table.

- Leave a 100 mm (minimum) space from the wall for proper

ventilation.

100 mm

Using the kensington security system

(This is not available for all models.)

y Image shown may dier from your TV.

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.

100 mm

2 Connect the AC-DC Adapter and power cord to a wall outlet.

CAUTION

y Do not place the TV near or on sources of heat, as this may result in

re or other damage.

y Please be sure to connect the TV to the AC/DC power adapter before

connecting the TV’s power plug to a wall power outlet.

NOTE

y The Kensington security system is optional. You can obtain

additional accessories from most electronics stores.
