* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
27UK670 27BK67U
OWNER’S MANUAL
LED LCD MONITOR
(LED Monitor*)
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Page 2
TABLE OF CONTENTS
ENGLISH
LICENSE ...................................................... 2
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
OPEN SOURCE SOFTWARE NOTICE
INFORMATION ............................................ 3
ASSEMBLING AND PREPARING .................. 3
USING THE MONITOR ................................10
USER SETTINGS ........................................ 13
TROUBLESHOOTING .................................23
PRODUCT SPECIFICATION ......................... 25
* USB Type-C
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
VESA, VESA logo, DisplayPort compliance logo and DisplayPort
compliance logo for dual-mode source devices are all registered
trademarks of the Video Electronics Standards Association.
The SuperSpeed USB Trident logo is a registered trademark of USB
Implementers Forum, Inc.
TM
and USB-CTM are trademarks of USB Implementers Forum.
2
Page 3
OPEN SOURCE SOFTWARE NOTICE INFORMA
TION
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in
receipt of this information.
ASSEMBLING AND PREPARING
CAUTION
• Always use genuine LG components to ensure safety and product per formance.
• The product warranty will not cover damage or injury caused by the use of unauthorized components.
• It is recommended that use the supplied components.
• If you use generic cables not certified by LG, the screen may not display or there may be image noises.
• Illustrations in this document represent typical procedures, so they may look different from the actual product.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing
so may damage the product.)
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
• Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand
and could result in personal injury.
• When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen
may cause damage to it.
NOTE
• The components may look different from those illustrated here.
• Without prior notice, all product information and specifications contained in this manual are subject to change
to improve the performance of the product.
• To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer
from which you purchased the product.
• The power cord provided may differ depending upon the region.
Supported Drivers and Software
You can download and install the latest version from the LGE website (www.lg.com).
Drivers and Software Installation Priority
Monitor Driver Recommended
OnScreen Control Recommended
Dual Controller Optional
ENGLISH
3
Page 4
Product and Button Description
ENGLISH

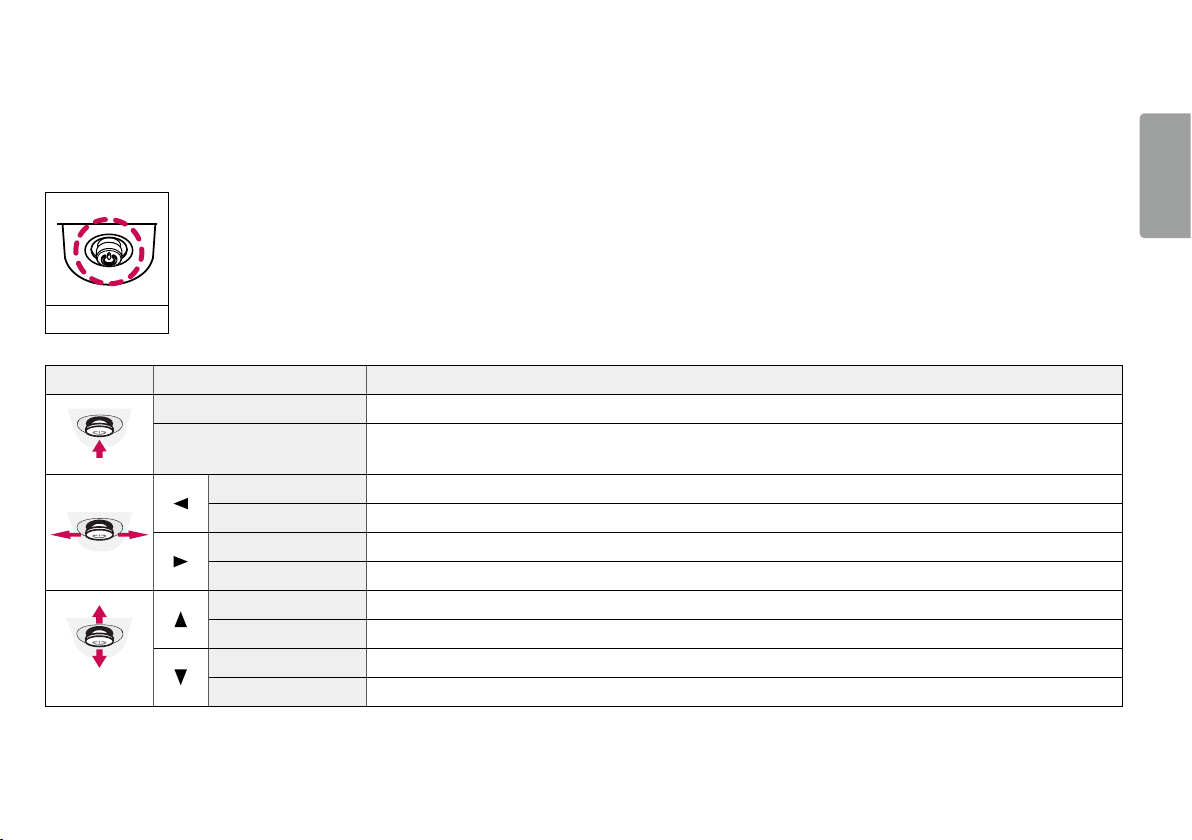

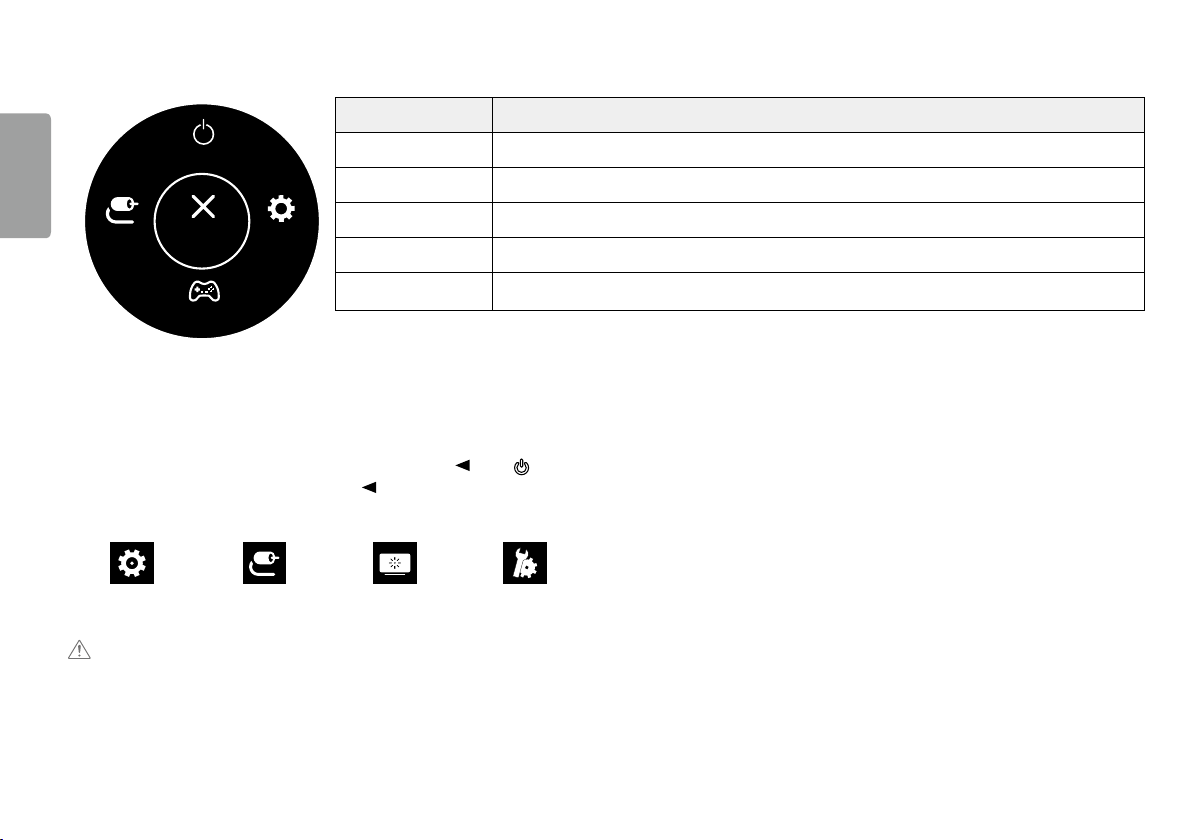

Joystick Button
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/
down with your finger.
Basic Functions
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or
damaged and to ensure safe transportation, regardless of its shape or size.
• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face away from you to prevent it from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.
/ Volume control
NOTE
• The joystick button is located at the bottom of the monitor.
4
Power on
Power off
Press the joystick button once with your finger
to turn on the monitor.
Press and hold the joystick button once more
than 5 seconds with your finger to turn off the
monitor.
You can control the volume by moving the
joystick button left/right.
CAUTION
• Avoid touching the monitor screen as much as possible.
- This may result in damage to the screen or some of the pixels used to create images.
• If you use the monitor panel without the stand base, its joystick button may cause the monitor to become
unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick
button to malfunction.
Page 5
Installing on a Table
• Lift the monitor and place it on the table in an upright position. Place the monitor at least 100mm away from
the wall to ensure sufficient ventilation.
Adjusting the Stand Height
1 Place the monitor mounted on the stand base in an upright position.
2 Handle the monitor with both hands for safety.
ENGLISH
100 mm
100 mm
100 mm
100 mm
CAUTION
• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power
outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.
Max. 130.0 mm
WARNING
• When adjusting the screen height, do not place your hand on the stand body to avoid injur y to your fingers.
Adjusting the Angle
1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen.
The angle of the screen can be adjusted forward or backward from -5° to 35° for a comfor table viewing
experience.
WARNING
• To avoid injur y to the fingers when adjusting the screen, do not hold the lower part of the monitor’s frame as
illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the monitor.
5
Page 6
Pivot Feature
The pivot feature allows the monitor to rotate 90° clockwise.
ENGLISH
Head
Stand
WARNING
• To avoid scratching the stand base, make sure that when rotating the monitor using the pivot feature, the
stand does not make contact with the monitor.
1 Raise the monitor to the maximum height.
2 Adjust the angle of the monitor in the direction of the arrow as shown in the figure.
3 Rotate the monitor clockwise as shown in the figure.
4 Complete the installation by rotating the monitor 90° as shown below.
NOTE
• Auto Pivot feature of the display is not supported.
• The screen can be rotated easily using the screen pivot shortcut key provided with your Windows operating
system. Note that some Windows versions and some graphics card drivers may use different settings for the
screen pivot key or may not support the pivot key at all.
6
Page 7
Swivel stand
• Image shown may differ from your Monitor set.
1 Swivel 355 degrees and adjust the angle of the Monitor set to suit your view.
Using the cable holder
Arrange the cables using the cable holder as shown in the illustration.
ENGLISH
cable holder
7
Page 8
Using the Kensington Lock
The Kensington security system connector is located at the back of the Monitor set.
For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website
at http://www.kensington.com.
ENGLISH
Connect the monitor to a table using the Kensington security system cable.
Installing the Wall Mount Plate
This monitor meets the specifications for the wall mount plate or other compatible devices.
NOTE
• The wall mount plate is sold separately.
• For more information on installation, refer to the wall mount plate’s installation guide.
• Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the
screen.
• Remove the stand before installing the monitor on a wall mount by performing the stand attachment in
reverse.
Installing on the Wall
Install the monitor at least 100mm away from the wall and leave about 100mm of space at each side of the
monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail
store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.
100 mm
NOTE
• The Kensington security system is optional. You can obtain optional accessories from most electronics stores.
• The left or right side of the monitor head can be slightly rotated up or down (up to 3°). Adjust the horizontal
level of the monitor head.
Monitor head
8
100 mm
100 mm
100 mm
Page 9
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
Wall Mount (mm) 100 x 100
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate (Optional) LSW 149
NOTE
• A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable
for any accidents relating to the use of non-standard screws.
• The wall mount kit includes the installation guide and all necessary parts.
• The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
• The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard
length, it may damage the inside of the product.
• For more information, please refer to the user manual for the wall mounting bracket.
CAUTION
• Unplug the power cord before moving or installing the monitor to avoid electric shock.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead
to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or
misuse of inappropriate components will not be covered by the product warranty.
• When measured from the back of the monitor, the length of each installed screw must be 8 mm or less.
Wall Mount Plate
Back of the Monitor
Wall Mount Plate
Back of the Monitor
Standard screw:
M4 x L10
Max. 8 mm
ENGLISH
9
Page 10
USING THE MONITOR
• Illustrations in this manual may differ from the actual product.
ENGLISH
Press the joystick button, go to Settings
CAUTION
• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC
screensaver if possible.
• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power
outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
Connecting to a PC
• This monitor supports the *Plug and Play feature.
* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure
anything or install any manual drivers.
HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.
CAUTION
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
- High-Speed HDMI
®/TM
cable
®/TM
cable with Ethernet
Input, and then select the input option.
DisplayPort Connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
• There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
• If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort)
cable or gender that supports DisplayPort1.2. (Sold separately)
USB-C connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
• PD(Power Delivery) and DP Alternate Mode(DP over USB-C) are supported via USB-C Port.
• Features may not work properly depending on the connected device’s specifications and the environment.

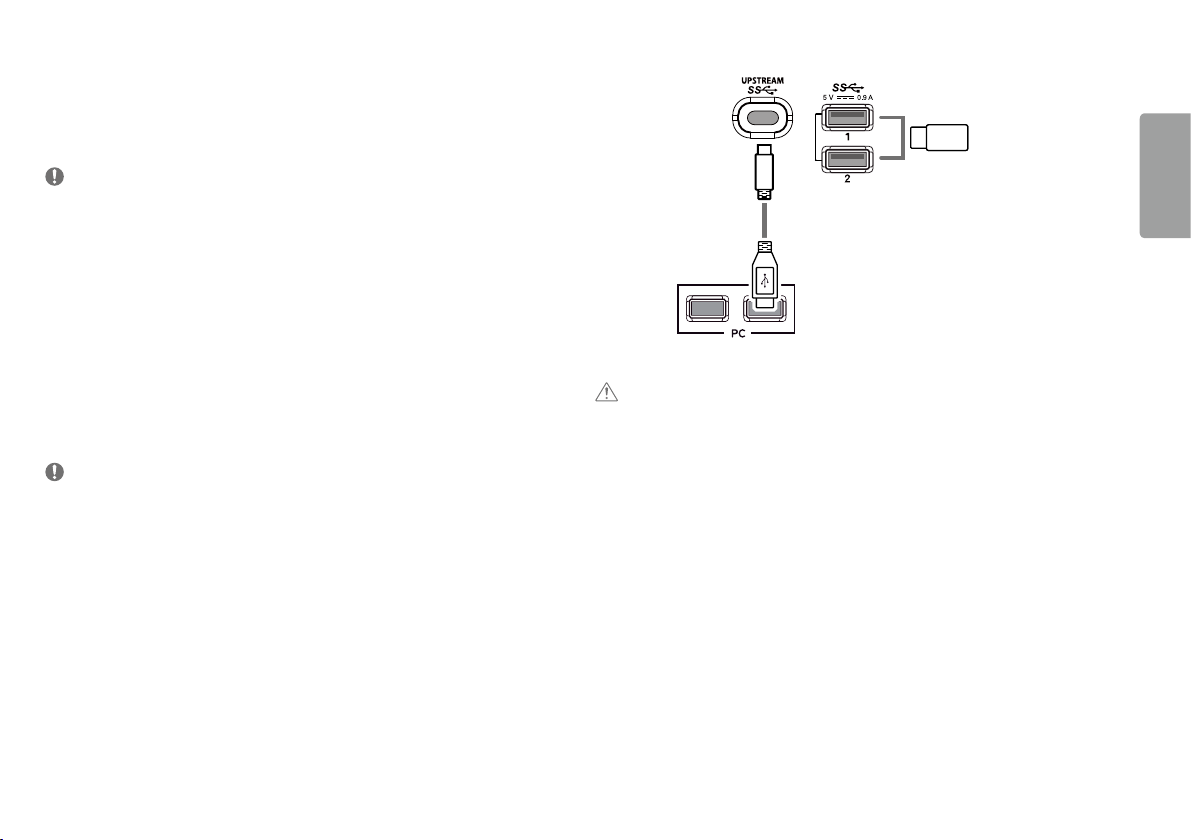

• USB-C port is not for the Monitor Power source but for a PC power source.
Connect Adapter to supply power to the Monitor
10
Page 11
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor.
NOTE
• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
• Recommended HDMI cable types
- High-Speed HDMI
- High-Speed HDMI
®/TM
cable
®/TM
cable with Ethernet
Connecting Peripherals
USB Device connection
The USB port on the product functions as a USB hub.
NOTE
• It is recommended you install all Windows Updates to keep your Windows up-to-date before connecting to the
product for use.
• Peripheral devices are sold separately.
• A keyboard, mouse, or USB device can be connected to the USB port.
• The charging speed may vary depending on the device.
• To use USB Downstream port of monitor, user must connect Upstream port of monitor to Host PC using USB C-C
or USB C-A cable.
• When the USB C-C cable is connected between Upstream port of monitor and Host PC, the Downstream port of
monitor support USB 2.0 device.
• When the USB C-A cable is connected between Upstream port of monitor and Host PC, the Downstream port of
monitor support USB 3.0 device.
However, Host PC must support USB 3.0 func tion.
ENGLISH
(Sold separately)
(Sold separately)
CAUTION
• Cautions When Using a USB Device
- A USB device with an automatic recognition program installed, or that uses its own driver, may not be
recognized.
- Some USB devices may not be supported or may not work properly.
- It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not
adequate, the USB device may not be recognized properly.)
11
Page 12
Headphones Connection
Connect peripherals to the monitor via the headphones port.
ENGLISH
NOTE
• Peripheral devices are sold separately.
• Depending on the audio settings of the PC and external device, headphones and speaker functions may be
limited.

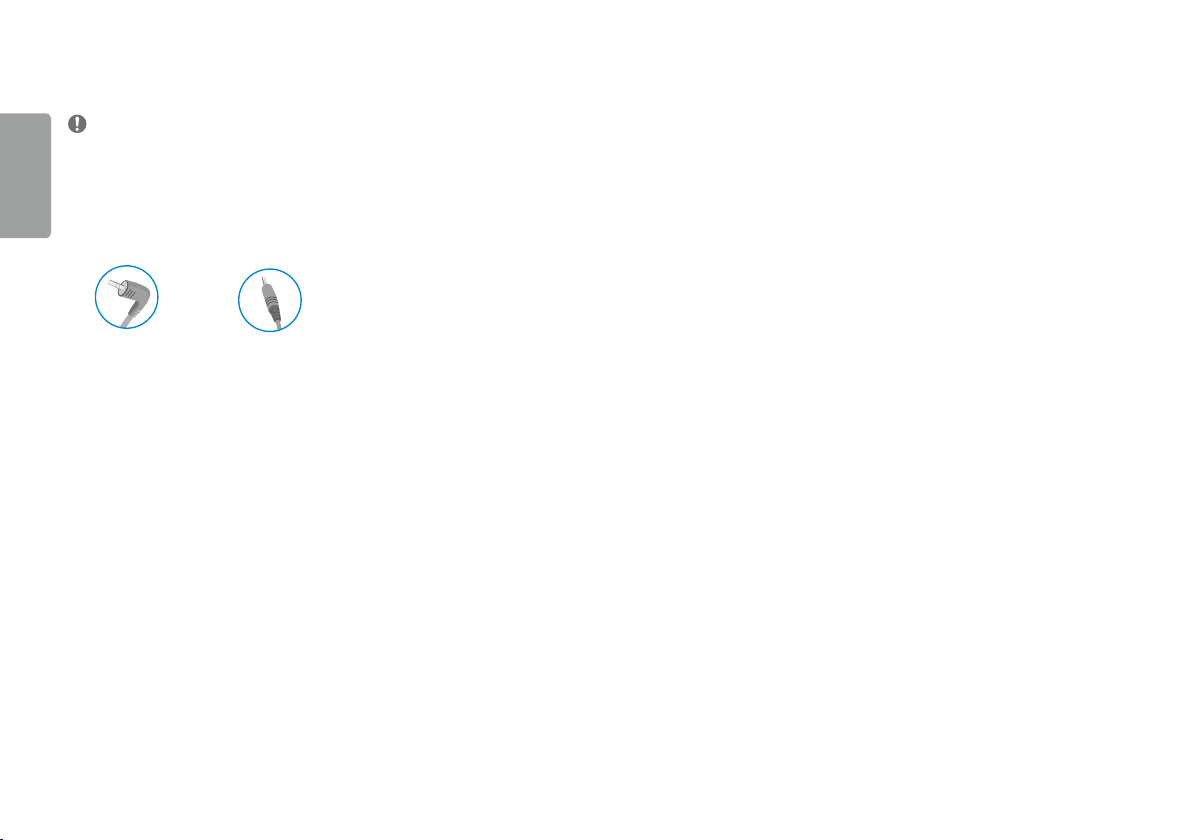

• If you use angled earphones, it may cause a problem with connecting another external device to the monitor.
Therefore, it is recommended to use straight earphones.
Angled Straight
12
(Recommend)
Page 13
USER SETTINGS
Activating the Main Menu
1 Press the joystick button on the bottom of the monitor.
2 Move the joystick up/down and left/right to set the options.
3 Press the joystick button once more to exit the main menu.
Joystick Button
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Input feature.
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the Settings features.
Main menu disabled Displays information on the current input.
Main menu enabled Turns off the monitor.
Main menu disabled Displays information on the current input.
Main menu enabled Enters the Game features.
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off the monitor this way at any time, including when the OSD is on.)
ENGLISH
13
Page 14
Main Menu Features
ENGLISH
Power Off
Main Menu Description
Input Sets input mode.
Power Off Turns off the monitor.
Input Settings
Exit
Game
Settings Configures the screen settings.
Game Sets the game mode for gaming.
Exit Exits the main menu.
Menu Settings
1 To view the settings menu, press the joystick button at the bottom of the monitor and then enter the Settings.
2 Configure the options by moving the joystick up/down/left/right.
3 To return to the upper settings or set other settings items, move the joystick to or press ( ) it.
4 If you want to exit the settings menu, move the joystick to until you exit.
• When you enter the menu, instructions on how to use the button will appear in the bottom right corner of the screen.
Quick Settings Input Picture General
CAUTION
• Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
14
Page 15
Quick Settings
Settings > Quick Settings Description
Brightness
Contrast
Volume
Color Temp
Adjusts the color contrast and brightness of the screen.
Adjusts the volume level.
NOTE
• You can adjust Mute / Unmute by moving the joystick button to
Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
in the Volume menu.
Input
Settings > Input Description
Input List Selects the input mode.
Adjusts the aspect ratio of the screen.
Full Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays video according to the aspect ratio of the video signal input.
Aspect Ratio
1:1 The aspect ratio is not adjusted from the original.
NOTE
• The display may look the same for Full Wide , Original, and 1:1 options at the recommended resolution (3840 x 2160).
• There is no 1:1 menu on FreeSync Mode. ( Go to Picture → Game Adjust → FreeSync, to set from FreeSync Basic or Extended to Off)
ENGLISH
15
Page 16
Settings > Picture Description
ENGLISH
Picture Mode
NOTE
• If the Picture Mode is changed, the screen may flicker or the resolution of your PC screen may be affected.
Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Reader Optimizes the screen for viewing documents. You can brighten the screen in the OSD menu.
Photo Optimizes the screen for photos.
Cinema Optimizes the screen for video.
Dark Room 1 This mode adjusts the brightness to the optimal level for working in a dark environment.
Dark Room 2 This mode sets the brightness to a lower level than Dark Room 1.
Color Weakness
FPS Game 1 This mode is optimized for FPS games.
FPS Game 2 It has a higher Black Stabilizer value than FPS Game 1. It is suitable for very dark FPS games.
RTS Game This mode is optimized for RTS Game.
Custom (Game) In this mode, users can customize various elements including game-related options.
EBU A standard TV PAL color space for broadcasting.
REC709 A standard HDTV color space for broadcasting.
SMPTE-C A standard TV NTSC color space for broadcasting.
This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish
between the two colors.
16
Page 17
Settings > Picture Description
Brightness Adjusts the brightness of the screen.
Contrast Adjusts the contrast of the screen.
Sharpness Adjusts the sharpness of the screen.
Optimized picture quality is displayed when a user wants crystal clear images. It is effective for high
quality video or game.
The optimized picture quality is displayed when a user wants images between low and high modes
for comfortable viewing. It is effective for UCC or SD video.
The optimized picture quality is displayed when a user wants smooth and natural images. It is
effective for slow-moving pictures or still images.
Picture Adjust
SUPER RESOLUTION+
Black Level
High
Middle
Low
Off Selec t this option for everyday viewing. SUPER RESOLUTION+ is turned off in this mode.
NOTE
• Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for
normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.
Sets the offset level (for HDMI only).
• Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
ENGLISH
17
Page 18
Settings > Picture Description
On Provides sharper images when connected to a device supporting ULTRA HD Deep Color.
ENGLISH
HDMI ULTRA HD Deep Color
Picture Adjust
DFC
Off Disables the HDMI ULTRA HD Deep Color feature.
NOTE
• 4K@60 Hz Support Format (HDMI ULTRA HD Deep Color On)
Resolution Frame rate (Hz)
3840 x 2160
• 4K@30 Hz Support Format (HDMI ULTRA HD Deep Color Off)
Resolution Frame rate (Hz)
3840 x 2160
• If the connected device does not support ULTRA HD Deep Color, the feature may not work properly.
• If a problem occurs, set the HDMI ULTRA HD Deep Color option to Off.
• HDMI ULTRA HD Deep Color option must be set for each HDMI port (HDMI IN 1, HDMI IN 2) separately.
• HDMI ULTRA HD Deep Color option can be changed with SET OSD Menu.
(Settings - Picture - Picture Adjust - HDMI ULTRA HD Deep Color Off / On)
On Adjusts the brightness automatically according to the screen.
Off Disables the DFC feature.
59.94
60.00
29.97
30.00
Color Depth / Chroma Sampling
8 bit 10 bit
YCbCr 4:2:0
YCbCr 4:2:2
YCbCr 4:4:4 -
RGB -
Color Depth / Chroma Sampling
8 bit 10 bit
YCbCr 4:2:2
YCbCr 4:4:4 -
RGB -
18
Page 19
Settings > Picture Description
Sets a response time for displayed pictures based on the speed of the screen.
For a normal environment, it is recommended that you use Fast.
For a fast-moving picture, it is recommended that you use Faster.
Response Time
Game Adjust
FreeSync
Black Stabilizer
Setting to Faster may cause image sticking.
Faster Sets the response time to faster.
Fast Sets the response time to fast.
Normal Sets the response time to normal.
Off Does not use the response time improvement feature.
Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal.
CAUTION
• Supported Interface: DisplayPort,HDMI.
• Supported Graphic Card : A graphic card that supports AMD’s FreeSync is necessary.
• Supported Version : Make sure to update the graphic card to the latest driver.
• For more information and requirement, refer to AMD website at http://www.amd.com/FreeSync
Extended
Basic Enable basic frequenc y range of FreeSync function.
Off FreeSync function off.
You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen. (You can easily distinguish objects on dark
game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic contrast on the screen.
Enable wider frequency range of FreeSync function than basic mode.
The screen may flicker during the game play.
ENGLISH
19
Page 20
Settings > Picture Description
ENGLISH
Color Adjust
Picture Reset Do you want to reset your picture settings?
Gamma
Color Temp
Red
Green
Blue
Six Color
Mode 1, Mode 2, Mode 3
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Custom The user can adjust it to red, green, or blue by customization.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
You can customize the picture color using Red, Green, and Blue colors.
Meets the user requirements for colors through adjusting the color and saturation of the six colors(Red_Hue, Red_Saturation,
Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue, Cyan_Saturation, Magenta_Hue, Magenta_
Saturation, Yellow_Hue, Yellow_Saturation) and saving the settings.
Hue Adjusts the tone of the screen colors.
Saturation
No Cancel the select.
Yes Returns to the default settings.
The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value,
the lighter the image becomes.
Adjusts the saturation of the screen colors. The lower the value, the less saturated and brighter the
colors become. The higher the value, the more saturated and darker the colors become.
20
Page 21
General
Settings > General Description
Language Sets the menu screen to the desired language.
High Saves energy using the high-efficiency SMART Energy Saving feature.
SMART ENERGY SAVING
Power LED
Automatic Standby Feature that automatically turns off the monitor when there is no movement on the screen for a period of time. You can set a timer for the auto-off function. (Off, 4 H, 6 H, and 8 H)
DisplayPort 1.2
Buzzer
Low Saves energy using the low-efficiency SMART Energy S aving feature.
Off Disables the SMART Energy Saving feature.
Turns the power LED on the bottom of the monitor on or off.
On The power LED turns on automatically.
Off The power LED turns off.
NOTE
• When the Power LED function is turned on, it operates as follows:
- On Mode: White
- Sleep Mode: White Blinking
- Off Mode: Off
Enables or disables DisplayPort 1.2.
NOTE
• Be sure to configure this option according to the DisplayPort version suppor ted by your graphics card. Set this option to Disable if your graphics card does not support DisplayPort 1.2.
This feature lets you set the sound generated from Buzzer when your monitor powers on.
On Enables your monitor's Buzzer.
Off Disables your monitor's Buzzer.
ENGLISH
21
Page 22
Settings > General Description
This feature disables the configuration and adjustment of menus.
ENGLISH
OSD Lock
OSD Size User can select OSD Size to Large or Small.
Deep Sleep Mode
Information The display information will be shown the Model, Serial Number, Total Power On Time, Resolution.
Reset Do you want to reset your settings?
NOTE
• Saving Data depends on the Panel. So, these values may be different from each panel and/or panel vendor. If the SMART ENERGY SAVING option is High or Low, monitor luminance become lower or higher depending on the source.
On Enables OSD Lock.
Off Disables OSD Lock.
NOTE
• All features are disabled except Brightness, Contrast, Volume, Input List, Aspect Ratio, OSD Lock and Information.
When Deep sleep mode is enabled, power consumption is minimized while the monitor is in standby mode.
On Enables Deep sleep Mode.
Off Disables Deep sleep Mode.
NOTE
• USB HUB functions will not work in standby mode while Deep sleep Mode is enabled in standby mode.
No Cancel the select.
Yes Returns to the default settings.
22
Page 23
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged in? • Check if the power cord is correctly plugged into the power outlet.
Is the power LED on? • Check the power cable connection and press the power button.
Is the power on and the power LED displaying white? • Check that the connected input is enabled (Settings > Input > Input list).
Is the OUT OF RANGE message being displayed? • This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the Product
Is the No Signal message being displayed? • This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.
The OSD lock message is being displayed.
Are some functions not available when you press the
Menu button?
The screen retains an image.
Does image sticking occur even when the monitor is
turned off?
Screen display is unstable and shaky / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution? • If the selec ted resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080P or the recommended resolution.
The display color is abnormal.
Does the display appear discolored (16 colors)? • Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Settings > Color Quality.
Does the display color appear unstable or monochrome? • Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphics card.
Are there spots on the screen? • When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related
Specification section of this manual to set the appropriate frequency.
• The OSD is locked. Go to Settings > General and set OSD Lock to Off.
• Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
• To extend the lifetime of the monitor, use a screensaver.
to the monitor's performance.
ENGLISH
23
Page 24
Do you see an "Unrecognized monitor, Plug&Play ( VESA DDC) monitor found" message?
Have you installed the display driver? • Be sure to install the display driver from our web site: http://ww w.lg.com.
ENGLISH
No sound from the headphone port or speaker.
Are images displayed using DisplayPort or HDMI input
without sound?
NOTE
• LED can be lighted with Set OSD Menu.
Settings – General – Power LED – On
• Make sure to check if the video card supports Plug&Play function.
• Try increasing the volume using the button on the monitor.
• Set the audio output of the PC to the monitor you are using. On Microsoft Windows, go to Control Panel > Hardware and Sound > Sound > set the monitor as default
device.
24
Page 25
PRODUCT SPECIFICATION
27UK670
Color Depth 8-bit / 10-bit color is supported.
Resolution HDMI / DP(DisplayPort) / USB-C
Power Sources
AC/DC Adapter
Environmental Conditions
Dimensions
Weight (Without Packaging)
The specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
** In case of USB-C input, the power consumption of Sleep Mode may vary depending on the connected device.
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
Max Resolution 3840 x 2160 @ 60 Hz
Recommended Resolution 3840 x 2160 @ 60 Hz
Power Rating 19 V
On mode: 41 W Typ. (Outgoing condition) *
Power Consumption
ADS-110CL-19-3 190110G, manufactured by SHENZHEN HONOR ELECTRONIC
Output: 19 V
Operating Conditions Temperature 0 °C to 40 °C
Storing Conditions Temperature -20 °C to 60 °C
Monitor Size (Width x Height x Depth)
With Stand 613.2 x 527.3 x 251.0 (mm)
Without Stand 613.2 x 364.5 x 44.6 (mm)
With Stand 7.0 kg
Without Stand 4.8 kg
5.79 A
Sleep Mode ≤ 0.5 W (HDMI / DP input Condition) **
Off Mode ≤ 0.3 W
Humidity Less than 80 %
Humidity Less than 85 %
ENGLISH
5.0 A
25
Page 26
PRODUCT SPECIFICATION
27BK67U
ENGLISH
Color Depth 8-bit / 10-bit color is supported.
Resolution HDMI / DP(DisplayPort) / USB-C
Power Sources
AC/DC Adapter
Environmental Conditions
Dimensions
Weight (Without Packaging)
The specifications are subject to change without notice.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
** In case of USB-C input, the power consumption of Sleep Mode may vary depending on the connected device.
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
Power Rating 19 V
Power Consumption
ADS-110CL-19-3 190110G, manufactured by SHENZHEN HONOR ELECTRONIC
Output: 19 V
Operating Conditions Temperature 0 °C to 40 °C
Storing Conditions Temperature -20 °C to 60 °C
Monitor Size (Width x Height x Depth)
With Stand 613.2 x 527.3 x 251.0 (mm)
Without Stand 613.2 x 364.5 x 44.6 (mm)
With Stand 7.0 kg
Without Stand 4.8 kg
5.79 A
Max Resolution 3840 x 2160 @ 60 Hz
Recommended Resolution 3840 x 2160 @ 60 Hz
5.0 A
On mode: 24 W Typ. (ENERGY STAR® standard) *
Sleep Mode ≤ 0.5 W (HDMI / DP input Condition) **
Off Mode ≤ 0.3 W
Humidity Less than 80 %
Humidity Less than 85 %
26
Page 27
Factory Support Mode (Preset Mode, PC)
HDMI
Preset Mode Horizontal Frequency (kHz) Vertic al Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45 60 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60 60 +/+
1920 x 1080 67.5 60 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 67.5 30 +/-
3840 x 2160 135 60 +/- When HDMI ULTRA HD Deep Color is set to ON
ENGLISH
27
Page 28
DP(DisplayPort) / USB-C
ENGLISH
Preset Mode Horizontal Frequency (kHz) Vertic al Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 54.347 60.05 +/+
1280 x 720 45 60 +/+
1280 x 800 49.702 59.810 -/+
1280 x 1024 63.981 60.02 +/+
1600 x 900 60 60 +/+
1920 x 1080 67.5 60 +/-
2560 x 1440 88.79 59.95 +/-
3840 x 2160 66.66 30 +/-
3840 x 2160 133.32 60 +/- DP/USB-C Preferred timing
HDMI Timing (Video)
Factory support mode
(Preset Mode)
480p 31.5 60
720p 45 60
1080p 67.5 60
2160p 135 60
28
Horizontal Frequency(kHz) Vertic al Frequenc y(Hz) Remarks
When HDMI ULTRA HD Deep Color
is set to ON
Page 29
(for 27BK67U)
This device meets the EMC requirements for home appliances (Class B) and is intended for home usage.
The model and serial number of the product are located on the back and on one side of the product.
Record them below in case you ever need service.
Model
Serial No.
This Product qualifies for ENERGY STAR
Changing the factory default configuration and settings or enabling certain optional features
and functionalities may increase energy consumption beyond the limits required for ENERGY
STAR
® certification.
Refer to ENERGYSTAR.gov for more information on the ENERGY STAR® program.
®
Loading...
