Owner's Manual
IPS LED MONITOR
(LED MONITOR*)
*LG LED Monitors are LCD Monitors with LED Backlighting.
Please read this manual carefully before operating your set and
retain it for future reference.
IPS LED MONITOR MODEL
27MP89HM
www.lg.com
Page 2
2
ENGLISH
CONTENTS
LICENSE ---------------------------- 3
ASSEMBLING AND PREPARING - 4
- Product Components -------------------------- 4
- Supported Drivers and Software -------------- 5
- Component and Button Description ---------- 6
How to Use the Joystick Button
Input Connector
- Moving and Lifting the Monitor --------------- 8
- Setting up the Monitor set ------------------- 9
Attaching the Stand Base
Mounting on a table
Using the cable holder
Installing to a wall
USING THE MONITOR SET ------ 13
- Connecting to a PC ---------------------------13
- Connecting to AV Devices --------------------14
CUSTOMIZING SETTINGS ------ 15
TROUBLESHOOTING ------------ 21
SPECIFICATIONS ---------------- 22
- Preset Modes (Resolution) -------------------23
- Indicator --------------------------------------- 23
Page 3
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
MaxxAudio and additional MAXX trademarks are trademarks and/or registered trademarks of Waves Audio Ltd.
3
ENGLISH
ENG
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
Page 4
4
ENGLISH
ENG
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are missing
components, contact the retail store where you purchased the product. Note that the product and components may
look different from those shown here.
CD(Owner's Manual) /
Card
( Depending on the country )
HDMI Cable
( This cable is not included in all
countries. )
or
AC-DC AdapterPower Cord
( Depending on the country )
D-SUB Cable
( This cable is not included in all
countries. )
AC-DC Adapter
Stand Body Stand Base Screw Cover
Cable Holder 2 Screws
Page 5
CAUTION
5
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
It is recommend that use the supplied components.
y
If you use generic cables not certified by LG, the screen may not display or there may be image noises.
y
NOTE
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to improve the
y
performance of the product.
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store
y
where you purchased the product.
Supported Drivers and Software
You can download and install the latest version from the LGE website (www.lg.com).
Drivers and Software Installation Priority 27MP89HM
Monitor Driver Recommended O
OnScreen Control Recommended O
ENGLISH
ENG
Page 6
ENGLISH
ENG
6
Component and Button Description
Joystick Button/
Power Indicator
On: power is on
y
Off: power is off
y
How to Use the Joystick Button

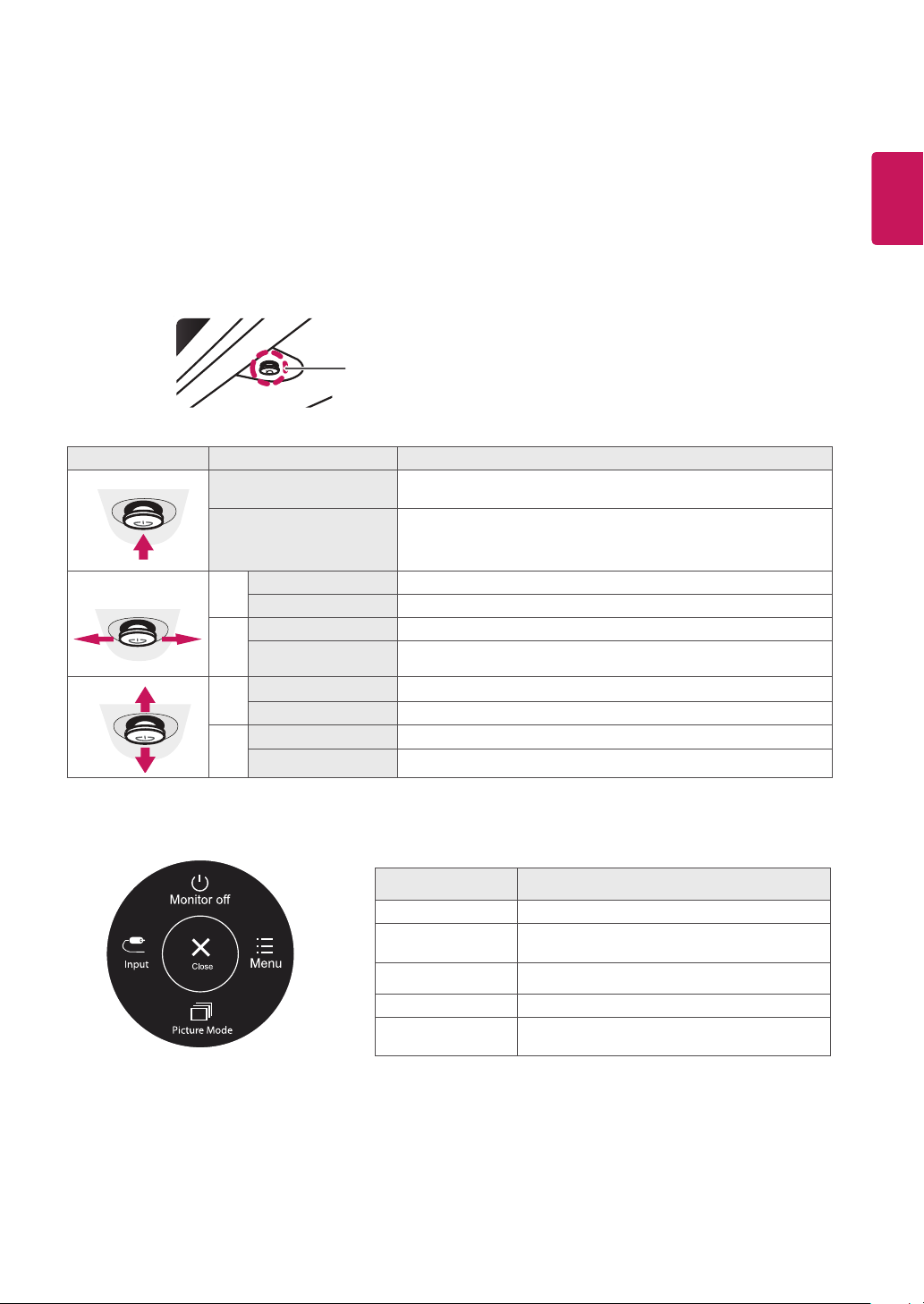

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Press the joystick button once with your finger to turn on the
monitor.
Press and hold the joystick button once with your finger to turn off
the monitor.
You can control the volume by moving the joystick button left/right.
◄/►
Power on
Power off
Volume
Control
NOTE
The joystick button is located at the bottom of the monitor.
y
Page 7
Input Connector
7
ENGLISH
ENG
Page 8
8
ENGLISH
ENG
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched
or damaged and to ensure safe transportation regardless of its shape or size.
It is advisable to place the monitor in the original box
y
or packing material before attempting to move it.
Before moving or lifting the monitor, disconnect the
y
power cord and all cables.
Hold the top and bottom of the monitor frame firmly.
y
Do not hold the panel itself.
CAUTION
As far as possible, avoid touching the monitor screen.
y
This may result in damage to the screen or some of
the pixels used to create images.
If you use the monitor panel without the stand
y
base, its joystick button may cause the monitor to
become unstable and fall, resulting in damage to
the monitor or human injury. In addition, this may
cause the joystick button to malfunction.
When holding the monitor, the screen should face
y
away from you to prevent it being scratched.
When moving the monitor, avoid any strong shock or
y
vibrations to the product.
When moving the monitor, keep it upright, never turn
y
the monitor on its side or tilt it sideways.
Page 9
Setting up the Monitor set
9

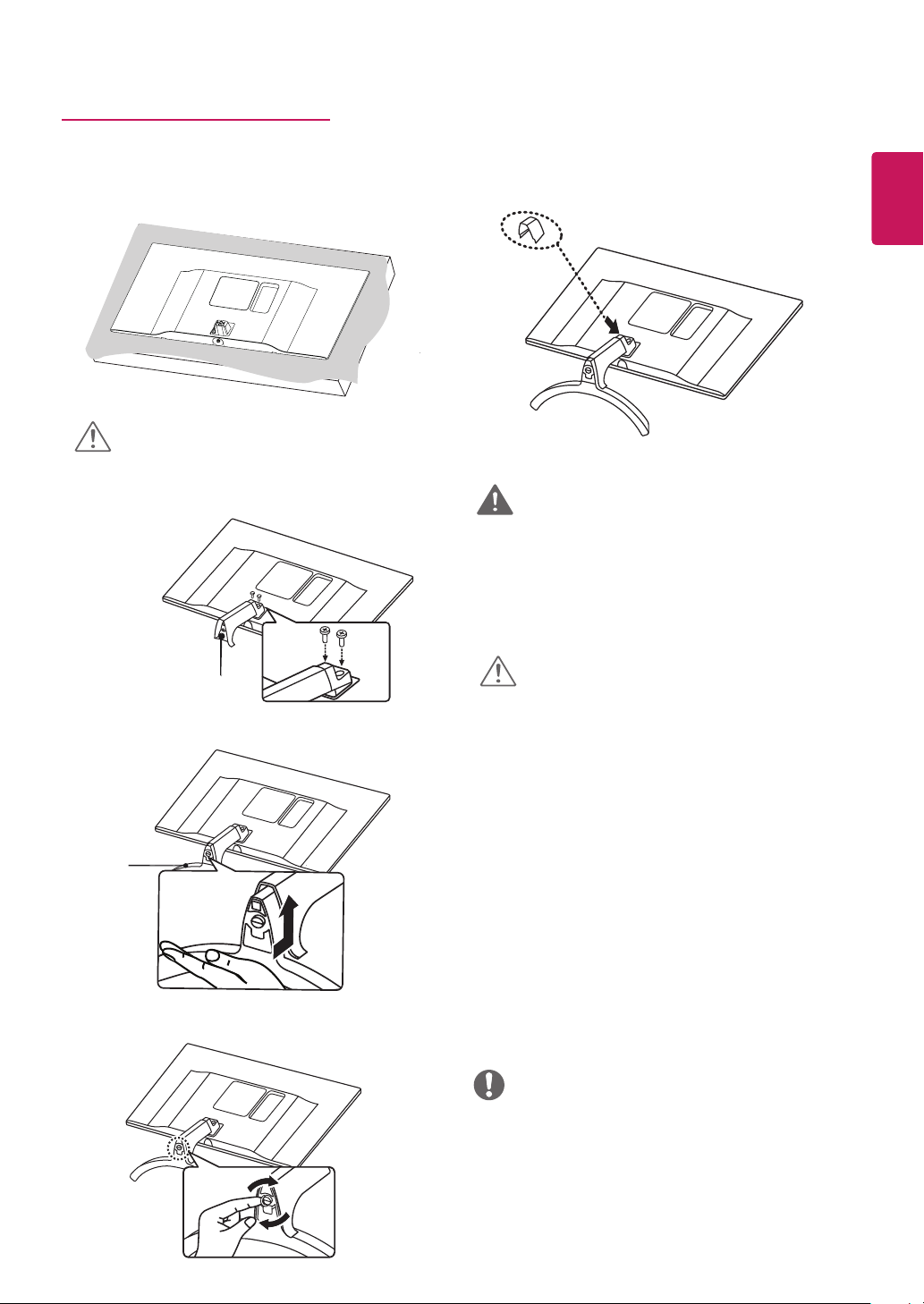

Attaching the Stand Base
1
CAUTION
To protect the screen from scratches, cover the
y
surface with a soft cloth.
2
Stand Body
3
Stand Base
4
5
Screw Cover
WARNING
To avoid injury to the fingers and foot when
y
Assembly Stand Body and Base, should hold Base
when assembly stand body and base.
CAUTION
Illustrations in this document represent typical
y
procedures, so they may look different from the actual
product.
Do not carry the monitor upside down by just holding
y
the stand base. This may cause the monitor to fall off
the stand and could result in personal injury.
When lifting or moving the monitor, do not touch the
y
monitor screen. The force applied to the monitor screen
may cause damage to it.
Do not apply foreign substances (oils, lubricants,
y
etc.) to the screw parts when assembling the
product. (Doing so may damage the product.)
Applying excessive force when tightening screws
y
may cause damage to the monitor. Damage caused
in this way will not be covered by the product
warranty.
ENGLISH
ENG
NOTE
You can disassemble the stand in the reverse
y
order of the assembly.
Page 10
10
ENGLISH
ENG
Mounting on a table
Lift and tilt the Monitor set into its upright position
1
on a table.

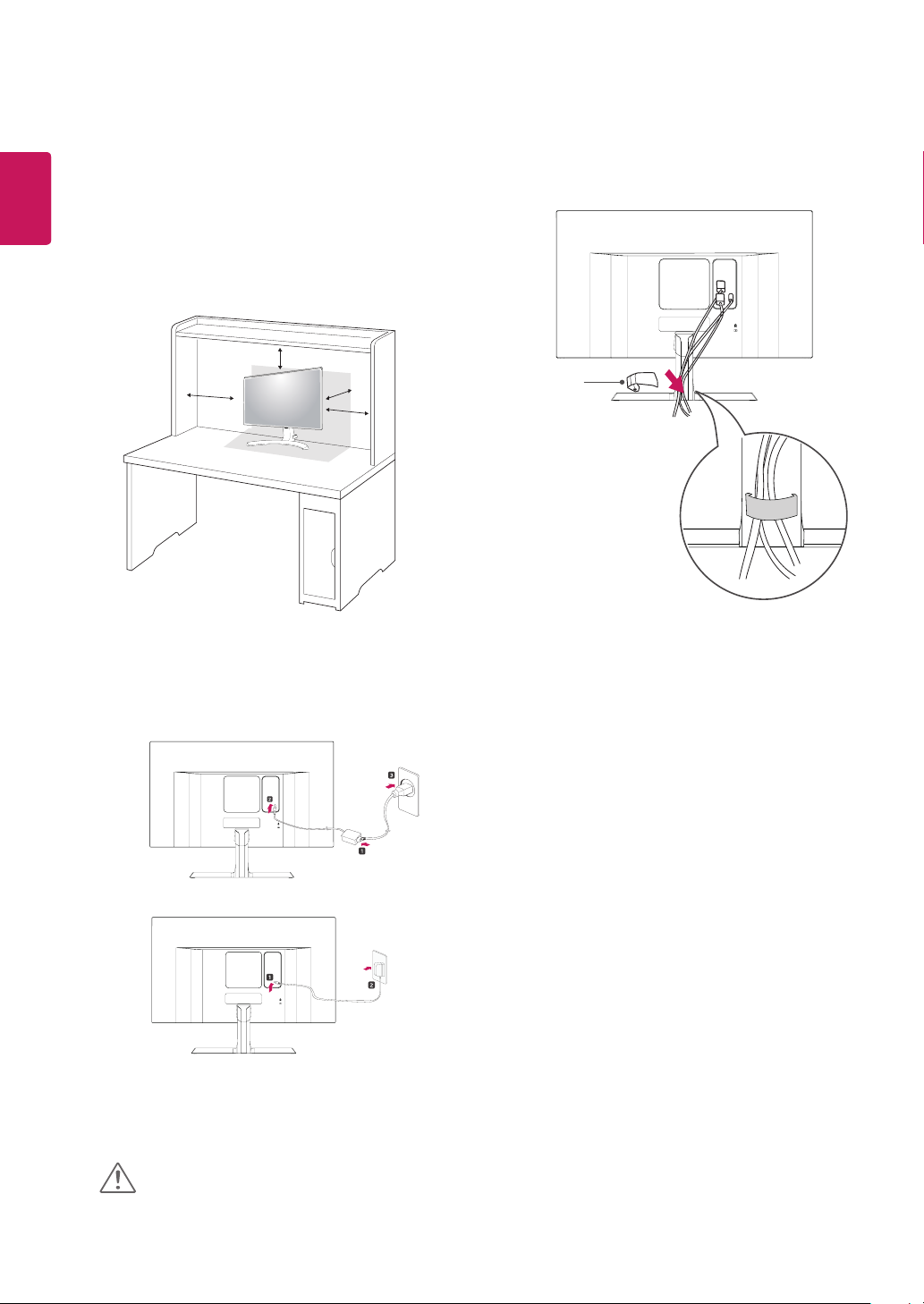

Leave a 100 mm (minimum) space from the wall for
proper ventilation.
100 mm
100 mm
100 mm
100 mm
Using the cable holder
Cable holder
Connect the AC-DC Adapter and Power Cord to a
2
wall outlet.
or
Press the joystick button on the bottom of the
3
monitor to turn on the monitor.
CAUTION
Unplug the power cord prior to moving or installing the
y
monitor. There is risk of electric shock.
Page 11
11
WARNING
When you adjust the angle, do not hold the bottom
of the Monitor set frame as shown on the following
illustration, as may injure your fingers.
Do not touch or press the screen when adjusting the
angle of the monitor.
NOTE

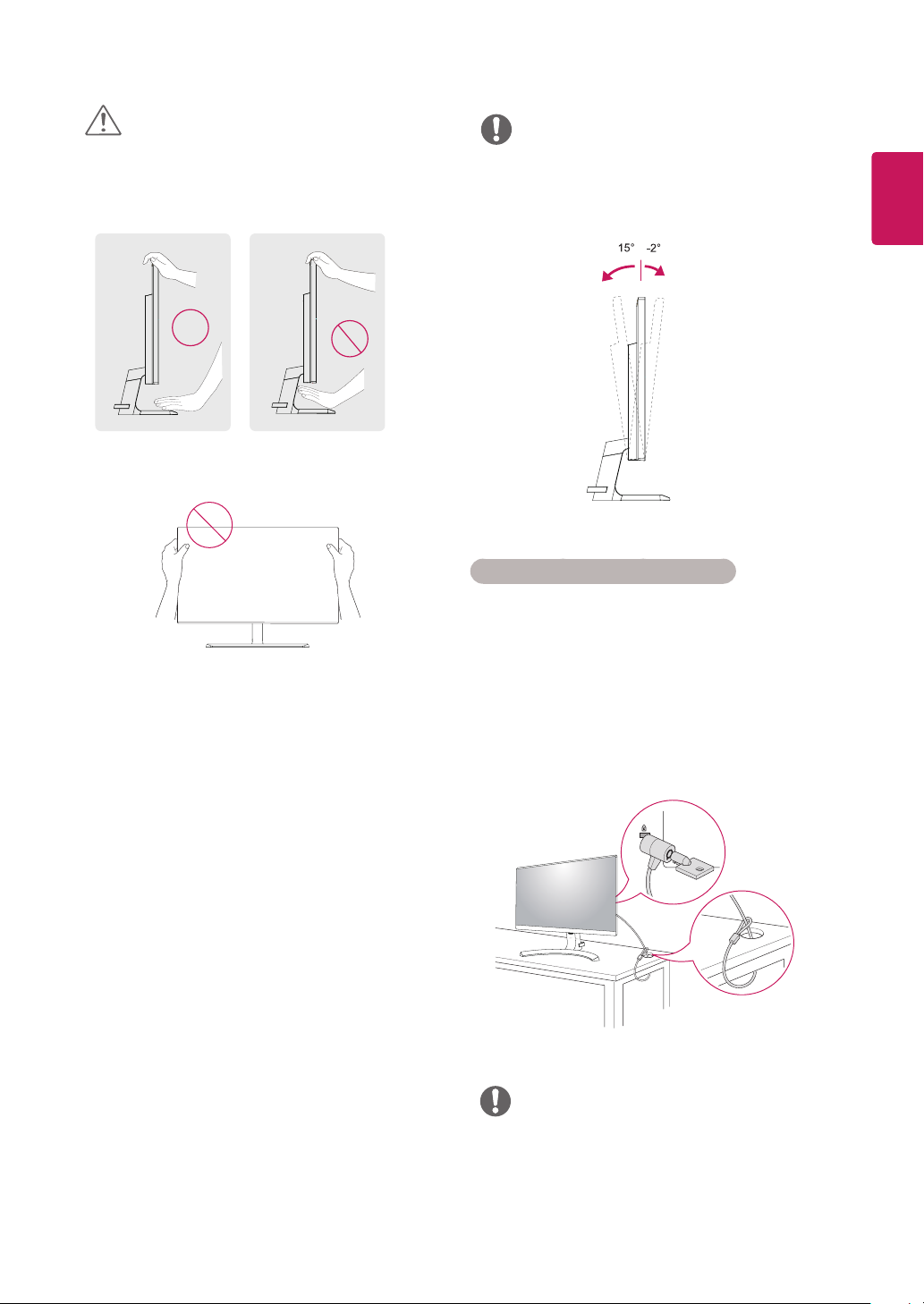

Tilt from +15 to -2 degrees up or down to adjust
the angle of the Monitor set to suit your view.
Rear
Using the Kensington security system
The Kensington security system connector is located at the
back of the Monitor set. For more information of installation
and using, refer to the manual supplied with the Kensington
security system or visit
http://www.kensington.com
Front
.
ENGLISH
ENG
Connect the Kensington security system cable between the
Monitor set and a table.
NOTE
The Kensington security system is optional. You can
y
obtain it from most electronics stores.
Page 12
12
Wall Mount (A x B)
y
ENGLISH
ENG

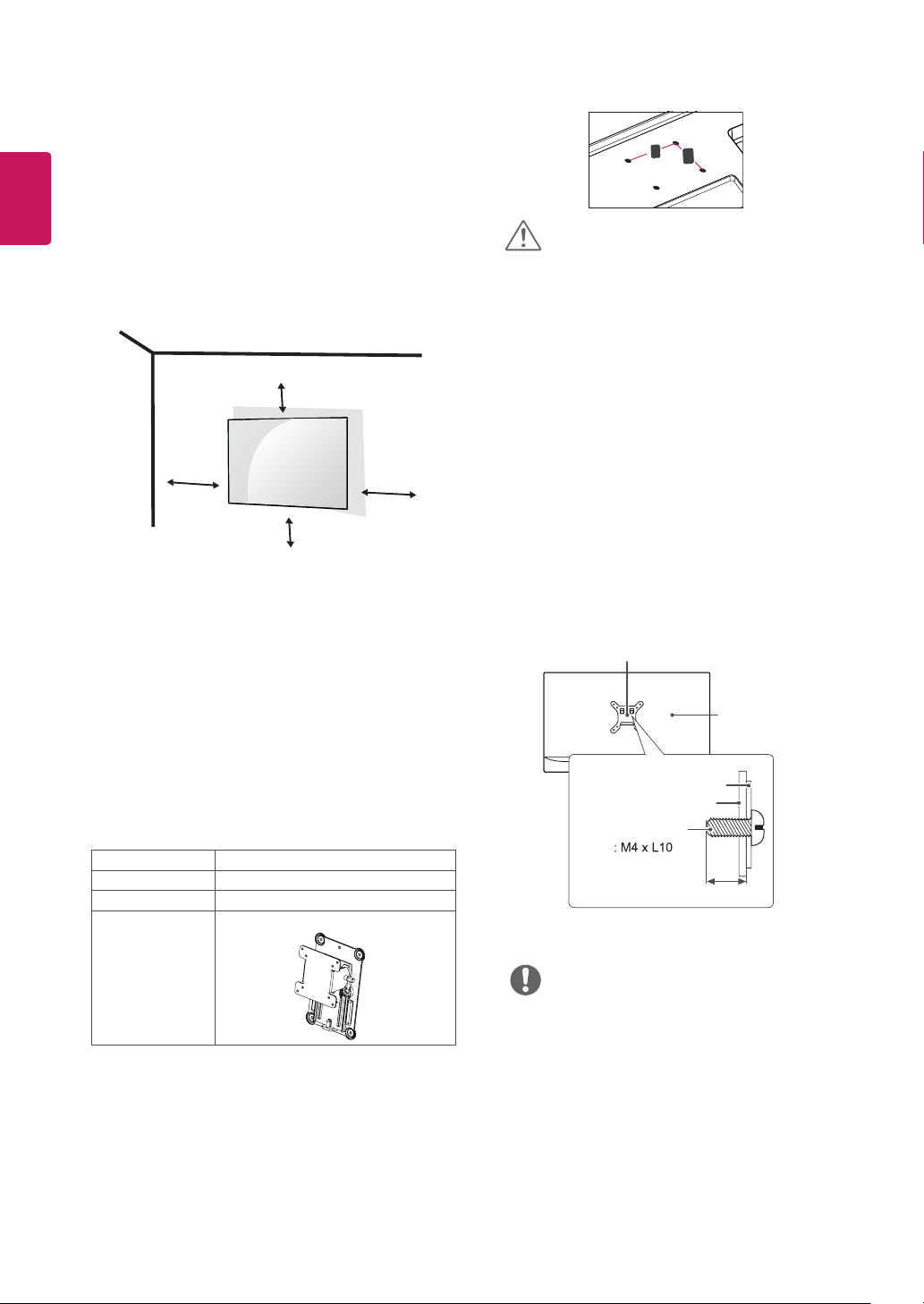

Installing to a wall
Install the monitor at least 100 mm away from the wall
and leave about 100 mm of space at each side of the
monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail
store. Please refer to the manual to install and set up a
tilting wall mounting bracket.
100 mm
100 mm
100 mm
To install the monitor to a wall, attach a wall mounting
bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed
to the monitor and to the wall.
100 mm
A
B
CAUTION
Unplug the power cord before moving or installing
y
the monitor to avoid electric shocks.
Installing the monitor on the ceiling or on a slanted
y
wall may result in the monitor falling off, which
could lead to injury. Please use the genuine LG wall
mounting bracket. For more information, contact
your local retail store or a qualified installer.
Applying excessive force when fastening screws
y
may cause damage to the monitor. Damage caused
in this way will not be covered by the product warranty.
Use the wall mounting bracket and screws that
y
conform to the VESA standard. Damage caused by
the use or misuse of inappropriate components will
not be covered by the product warranty.
Screw length from outer surface of back cover
y
should be under 8mm.
Wall mount Pad
1 If you use screw longer than standard, the monitor
might be damaged internally.
2 If you use improper screw, the product might be dam-
aged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Wall Mount (A x B)
Standard screw
Number of screws
Wall Mount Plate
(Optional)
100 x 100
M4 x L10
4
RW120
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max.8mm
NOTE
Use the screws specified by the VESA standard.
y
The wall mount kit includes the installation guide
y
and all necessary parts.
The wall mounting bracket is optional. The acces-
y
sories can be purchased at your local retail store.
The length of the screw may differ for each wall
y
mounting bracket. Ensure the correct length
screw is used.
For more information, please refer to the user
y
manual for the wall mounting bracket.
Page 13
USING THE MONITOR SET

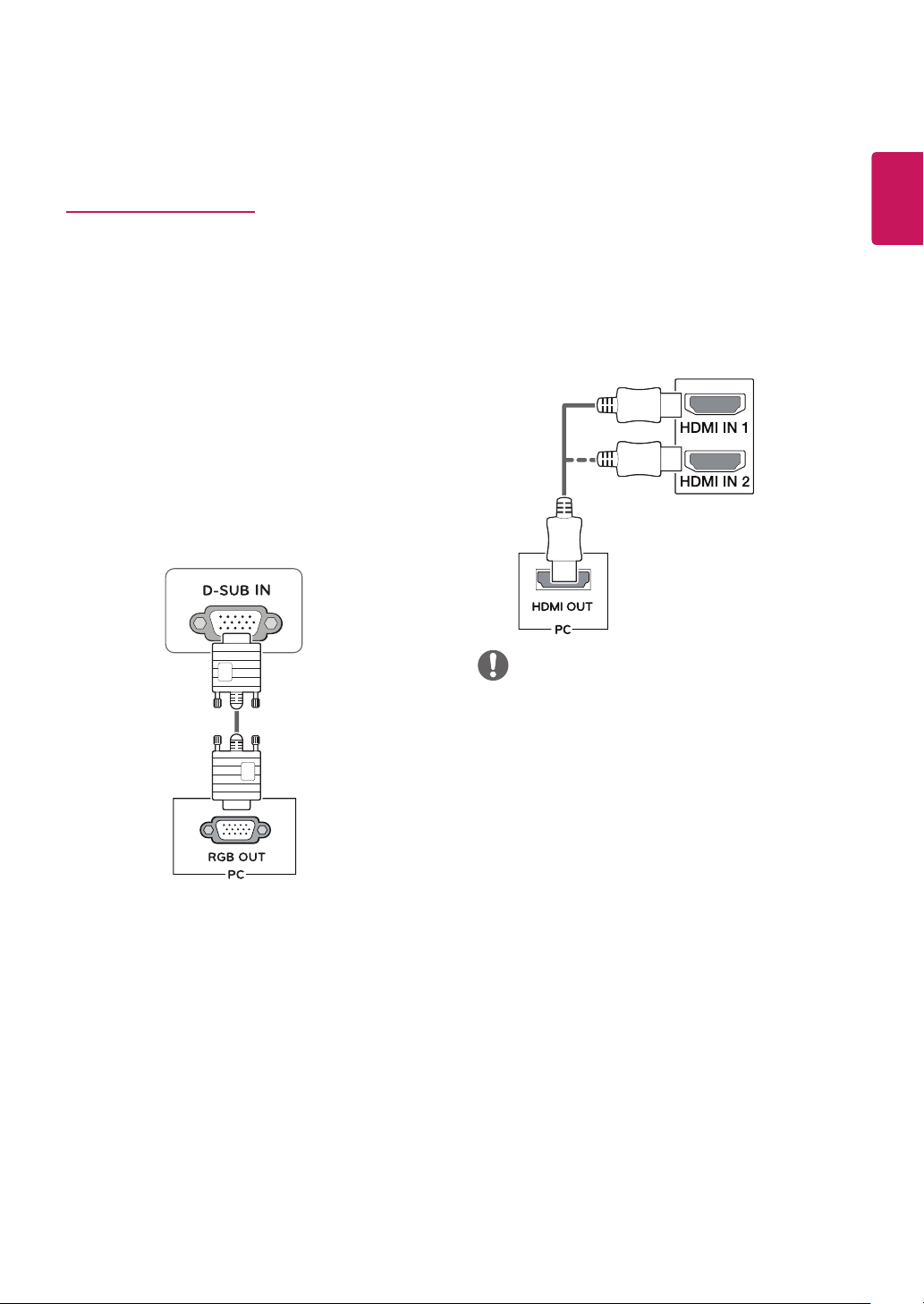

Connecting to a PC
HDMI connection
13
ENGLISH
ENG
Your Monitor set supports Plug & Play*.
y
*Plug & Play: A PC recognizes a connected device
that users connect to a PC and turn on, without
device configuration or user intervention.
D-SUB connection
Transmits analog video from your PC to the Monitor set.
Connect the PC and the Monitor set with the supplied
D-sub 15 pin signal cable as shown in the following
illustrations.
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
Recommended HDMI cable types
y
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
Page 14
14
ENGLISH
Connecting to AV Devices

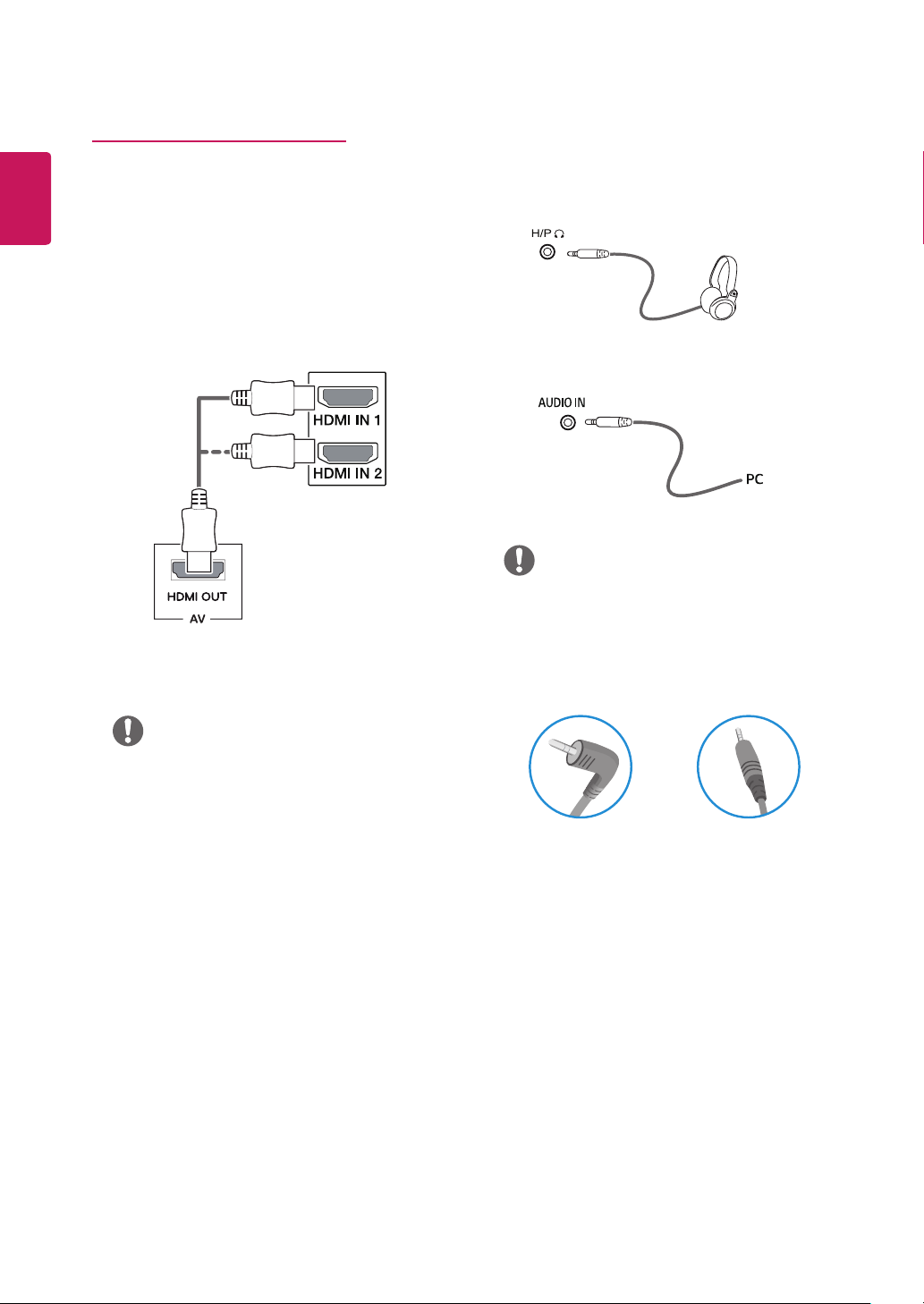

HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
Connecting Headphones
Connect peripherals to the monitor via the headphones
port. Connect as illustrated.
(sold separately)
NOTE
Peripheral devices are sold separately.
y
If you use angled headphones, it may cause a
y
problem with connecting another external device
to the monitor. Therefore, it is recommended to
use straight headphones.
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
Recommended HDMI cable types
y
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
Angle Type Straight Type
Depending on the audio settings of the PC and
y
external device, headphones and speaker functions may be limited.
Page 15
15
CUSTOMIZING SETTINGS
Activating the Main Menu
Press the joystick button on the bottom of the monitor.
1
Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options.
2
Press the joystick button once more to close the main menu.
3
Joystick Button
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Main menu disabled Adjusts the monitor volume level.
◄
Main menu enabled Enters the input features.
Main menu disabled Adjusts the monitor volume level.
►
Main menu enabled Enters the menu feature.
Main menu disabled Enables the main menu.
▲
Main menu enabled Turns off the monitor.
Main menu disabled Enables the main menu.
▼
Main menu enabled Enters the picture mode feature.
Close the main menu.
(Long press the button to turn off the monitor)
ENGLISH
ENG
Main Menu Features
Main Menu Description
Menu Configures the screen settings.
Picture Mode
Input Sets input mode.
Monitor off Turns off the monitor.
Close Close the main menu.
Select picture mode to achieve the best display effect.
Page 16
ENGLISH
ENG
16
Customizing settings
Menu > Quick Settings Description
Brightness
Contrast
Volume Adjusts the volume.
Ratio Adjusts the screen ratio.
SMART ENERGY
SAVING
* SMART ENERGY SAVING : Conserve energy by using luminance compensation algorithm.
NOTE
The display may look the same for Wide, Original options at the recommended resolution (1920 x 1080).
y
The ratio is disabled in the interlaced signal.
y
Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor.If you
y
select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher
depend on source.
Adjusts the color contrast and brightness of the screen.
NOTE
You can adjust Mute/ Unmute by moving the joystick button to ▼ in the Volume menu.
y
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
High Enables SMART ENERGY SAVING you can save energy with this energy- high efficient.
Low Enables SMART ENERGY SAVING you can save energy with this energy- low efficient.
Off Disables SMART ENERGY SAVING .
Page 17
Customizing settings
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Reader 1 It is a mode that the screen is adjusted to the best for the new spaper. If you want screen more
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Color
Weakness
Game Optimizes the screen for gameplay.
Picture Adjust SUPER
Game Adjust
RESOLUTION+
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
DFC On Adjusts the brightness automatically according to the screen.
Response Time Sets a response time for displayed pictures based on the speed of the screen.
bright, you can control brightness in Menu OSD.
bright, you can control brightness in Menu OSD.
This mode is for users who cannot distinguish between red and green.It enables users with color
weakness to easily distinguish between the two colors.
High Optimized picture quality is displayed when a user wants crystal clear images. It is ef-
Middle The optimized picture quality is displayed when a user wants images between low
Low The optimized picture quality is displayed when a user wants smooth and natural im-
Off Select this option for everyday viewing. SUPER RESOLUTION+ is turned off in this
High Keeps the current contrast ratio of the screen.
Low Low ers the black levels and raises the white levels from the current contrast ratio of the
Off Disables the DFC feature.
For a normal environment, it is recommended that you use Middle. For a fast-moving picture, it
is recommended that you use high.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Does not use the response time improvement feature.
fective forhigh quality video or game.
and high modes for comfortable viewing. It is effective for UCC or SD video.
ages. It is effective for slow -moving pictures or still images.
mode.
Offset: as a reference for a video signal, this is the darkest color the monitor can display.
y
screen.
17
ENGLISH
ENG
NOTE
This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off
y
this function.
This function can’t distinguish some colors in some images.
y
Page 18
18
ENGLISH
ENG
Game Adjust
FreeSync Provides seamless and natural images by synchronizing the vertical frequency of the input sig-
nal with that of the output signal.
CAUTION
Supported Interface: HDMI.
y
Supported Graphic Card : A graphic card that supports AMD’s FreeSync is necessary.
y
Supported Version : Make sure to update the graphic card to the latest driver.
y
For more information and requirement, refer to AMD website at http://www.amd.com/
y
FreeSync
On FreeSync function on.
Off FreeSync function off.
Black
Stabilizer
Cross Hair Cross Hair provides a mark on the center of the screen for First Person Shooter(FPS) games.
Color Adjust Gamma Mode 1,
Color Temp Selects the factory default picture color.
Red/Green/
Blue
Six Color Meets the user requirements for colors through adjusting the color and saturation of the six
Reset Returns the color settings to the default settings.
Display Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars or stripes visible on the screen background.The horizontal screen
Phase To adjust the focus of the display. This item allows you to remove any horizontal noise and clear
Black Stabilizer:
You can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the screen.
(You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and increases the dynamic
contrast on the screen.
Users can select the cross hair that fits their gaming environment among four different cross
hairs.
When the monitor is off or enters energy saving mode, the Cross Hair feature is
y
automatically turned off.
The higher the gamma value, the darker the image becomes. Likewise, the lower the
Mode 2,
Mode 3
Mode 4 If you do not need to adjust the gamma settings, select Mode 4.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Custom: The user can adjust it to red, green or blue by customization.
You can customize the picture color using Red, Green, and Blue colors.
colors(Red_Hue, Red_Saturation, Green_Hue, Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_
Hue, Cyan_Saturation, Magenta_Hue, Magenta_Saturation, Yellow_Hue, Yellow_Saturation) and saving the Six Color settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower the value, less saturated and
bright the colors become. The higher the value, the more saturated and dark the colors become.
size will also change.
or sharpen the image of characters.
gamma value, the lighter the image becomes.
Page 19
Customizing settings
Menu > Sound Description
MaxxAudio On MaxxAudio
Off Disables the MaxxAudio function.
MaxxAudio
Settings
Midnight Mode On Lets you enjoy rich and full sound at a low volume.
Main Audio Main Audio have two options Audio-In , HDMI.(Only for HDMI )
Menu > General Description
Language To choose the language in which the control names are displayed.
Power LED Turns the power indicator on the bottom side of the monitor on/off.
Automatic Standby The monitor will automatically switch to standby mode after a certain period.
Resolution User can set the desired resolution.This option is enabled only when the screen resolution on your
The user can set the sound quality manually.
MaxxBass Bass Enhancement.
MaxxTreble Treble Enhancement.
MaxxDialog Dialog Enhancement.
Maxx3D Enhances the three dimensional effect of the sound.
Reset Returns the sound quality to the default settings.
Off Disables Midnight Mode.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
computer is set to the following(D-SUB only).
studio-quality sound tools for a superior listening experience.
®
by Waves, recipient of a Technical GRAMMY Award® is a suite of
19
ENGLISH
ENG
NOTE
The function is enabled only when the screen resolution on your computer is set to the following, except that the PC output wrong resolution.
1024x768, 1280x768, 1360x768, 1366x768,Off
1280x960, 1600x900,Off
1440x900, 1600x900,Off
OSD Lock Prevents incorrect key input.
On Key input is disabled.
NOTE
All function except for the OSD Lock mode, brightness, Contrast, Input and Volume are dis-
y
abled.
Off Key input is enabled.
Page 20
ENGLISH
ENG
20
Menu > Auto Configuration Description
Do you want to Auto Configuration?
Yes Operate the Auto configuration for optimal display in D-SUB.
Cancel Cancel the select.
NOTE
This function will be enable only in analog input.
y
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
Page 21
21
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
Is the power indicator light on?
Do you see an "Out of Range"
message on the screen?
Do you see a "NO SIGNAL" message on
the screen?
Can 't you control some functions in OSD?
Can't you select some menu in
OSD?
CAUTION
Check Control Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the
y
video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed,
y
truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be
y
supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.
yCheck and see if the power cord is connected properly to the power outlet.
yPress the Power button.
yThis message appears when the signal from the PC (video card) is out of horizontal
or vertical frequency range of the display. See the 'Specifications' section of this
manual and configure your display again.
yAfter the monitor is on "NO SIGNAL", the monitor goes to DPM mode.
yThis is displayed when the signal cable between the PC and the monitor is
missing or disconnected. Check the cable and reconnect it.
yYou can unlock the OSD controls at any time by entering the OSD lock menu and
changing items to off.
ENGLISH
ENG
Display image is incorrect
The screen color is mono or abnormal.
yCheck if the signal cable is properly connected and use a screwdriver to fasten if
necessary.
yMake sure the video card is properly inserted in the slot.
ySet the color setting higher than 24 bits (true color) at Control Panel ► Settings.
The screen blinks.
yCheck if the screen is set to interlace mode and if yes, change it to the recommend
resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?
yBe sure to install the display driver from our web site: http://www.lg.com.
yMake sure to check if the video card supports Plug&Play function.
The screen is flickering.
Did you select the recommended
resolution?
yIf the selected resolution is HDMI 1080i 60/50 Hz, the screen may be flickering.
Change the resolution to the recommended resolution 1080P.
Page 22
22
ENGLISH
ENG
SPECIFICATIONS
27MP89HM
LCD Screen Type TFT (Thin Film Transistor)
Pixel Pitch 0.3114mm x 0.3114mm
Resolution Maximum Resolution 1920 x 1080 @ 75 Hz
Recommended Resolution 1920 × 1080 @ 60 Hz
Video Signal Horizontal Frequency HDMI : 30 ~ 85 KHz (FreeSync on)
Vertical Frequency HDMI : 40 ~ 75 Hz (FreeSync on)
Synchronization Separate Sync, Digital.
Input Connector HDMI1/2 IN, D-SUB IN, HP OUT, AUDIO IN
Power Input 19 V
Power Consumption On Mode : 24.5 W Typ. ( Outgoing condition ) *
AC/DC adaptor Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC
Environmental
conditions
Dimension Monitor Size (Width x Height x Depth)
Weight (Without
Packaging)
Sleep Mode ≤ 0.3 W **
Off Mode ≤ 0.3 W
or Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-32FSG-19 19032EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP51A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PA-1031-23, manufactured by Lite-On Technology Corporation
OUTPUT: 19 V
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
With Stand 613.1 mm x 456.2 mm x 209.7 mm
Without Stand 613.1 mm x 352.8 mm x 60.5 mm
With Stand 4.8 Kg
Without Stand 4.3 Kg
1.6 A
1.7 A
LCD(Liquid Crystal Display) Screen
HDMI : 30 ~ 83 KHz (FreeSync off)
Analog : 30 ~ 83 KHz
HDMI : 56 ~ 75 Hz (FreeSync off)
Analog : 56 ~ 75 Hz
0 °C to 40 °C
Less than 80%
-20 °C to 60 °C
Less than 85 %
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
Page 23
Preset Modes (Resolution)
D-SUB/HDMI PC Timing
23
ENGLISH
ENG
Display Modes (Resolution)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
1920 x 1080 83.89 75 +/+ FreeSync on
Horizontal
Frequency(kHz)
Vertical Frequency(Hz) Polarity(H/V)
HDMI AV Timing
Factory support mode
(Preset Mode)
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI
O
Recommend Mode
Indicator
Mode LED Color
On Mode White
Sleep Mode Off
Off Mode Off
Page 24
Make sure to read the Safety Precautions before using the product.
The model and serial number of the product are located on the back and
on one side of the product.
Record them below in case you ever need service.
MODEL
SERIAL
Loading...
