OWNER’S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

27EA31V

www.lg.com

Page 2

TABLE OF CONTENTS

ENGLISH

ENG

3 ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Setting up the Monitor set

5 - Attaching the Stand Base

6 - Detaching the Stand Base

7 - Mounting on a table

7 - Using the cable holder

9 - Mounting on a wall

10 USING THE MONITOR SET

10 Connecting to a PC

10 - D-SUB connection

10 - DVI-D connection

10 - HDMI connection

25 SPECIFICATIONS

25 27EA31V

26 Preset Modes (Resolution)

26 Indicator

27 PROPER POSTURE

27 Proper posture for using the Monitor set.

12 CUSTOMIZING SETTINGS

13 Customizing Settings

13 - Menu Settings

14 - PICTURE

15 - COLOR

16 - DISPLAY

16 - VOLUME

17 - OTHERS

18 MY KEY Setting

19 FUNC. Setting

19 - PICTURE MODE

20 - SUPER ENERGY SAVING

21 - DUAL DISPLAY

21 - DUAL WEB

22 - MY KEY SETTING

23 TROUBLESHOOTING

Page 3

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

CD(Owner's Manual) /

Card

D-SUB Cable

DVI-D Cable

(This cable is not included

in all countries.)

ENGLISH

ENG

Power Cord AC-DC Adapter AC-DC Adapter

( Depending on the country ) ( Depending on the country )

Stand Body Stand Base

Two Screws

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.

Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

Page 4

ENGLISH

ENG

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

Lighting On: Turned on

Lighting Off: Turned off

Connection panel (See p.10)

(Power Button)

Button (See p.12)

Page 5

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

Place the Monitor set with the screen side

down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

Attach the

Use two screws to fix the

monitor set.

Attach the

Tighten the screw to the right with a coin.

Stand Body

Stand Base

to the monitor set.

Stand Body

and

ENGLISH

ENG

Stand Body

Stand Base

Page 6

ENGLISH

ENG

ASSEMBLING AND PREPARING

Detaching the Stand Base

Place the Monitor set with the screen side

down on a flat and cushioned surface.

Turn the screw to the left with a coin.

Pull out the

Body

Remove two screws and pull out the

Body

Stand Body

Stand Base

from the monitor set.

from the

Stand

Stand Body

CAUTION

This illustration depicts the general model of

connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding

only the stand base. The product may fall and get damaged or injure your foot.

Page 7

ASSEMBLING AND PREPARING

Mounting on a table

Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

Press (Power) button on the bottom switch

panel to turn the power on.

CAUTION

Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.

Using the cable holder

ENGLISH

ENG

Connect the AC-DC Adapter and Power Cord

to a wall outlet.

Cable holder

Page 8

ASSEMBLING AND PREPARING

ENGLISH

ENG

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Do not touch or press the screen when adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit

Connect the Kensington security system cable between the Monitor set and a table.

http://www.kensington.com

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

Front Rear

The Kensington security system is optional. You can obtain it from most electronics stores.

Page 9

ASSEMBLING AND PREPARING

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set. When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

Please, Use the screw and wall mount interface

in accordance with VESA Standards.

If you use screw longer than standard, the

monitor might be damaged internally.

If you use improper screw, the product might be

damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

VESA compatible.

Please use VESA standard as below.

784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

10 cm

Model

VESA (A x B) Standard screw Number of screws

27EA31V

100 x 100 M4 4

CAUTION

Disconnect the power cord first, and then

move or install the Monitor set. Otherwise electric shock may occur. If you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe injury. Use only an authorized LG wall mount

and contact the local dealer or qualified personnel. Do not over tighten the screws as this may

cause damage to the Monitor set and void your warranty. Use only screws and wall mounts that

meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA

standard screw specifications. The wall mount kit will include an installation

manual and necessary parts. The wall mount bracket is optional. You can

obtain additional accessories from your local dealer. The length of screws may differ depending

on the wall mount. Be sure to use the proper length. For more information, refer to the

instructions supplied with the wall mount.

ENGLISH

ENG

Page 10

USING THE MONITOR SET

ENGLISH

ENG

USING THE MONITOR SET

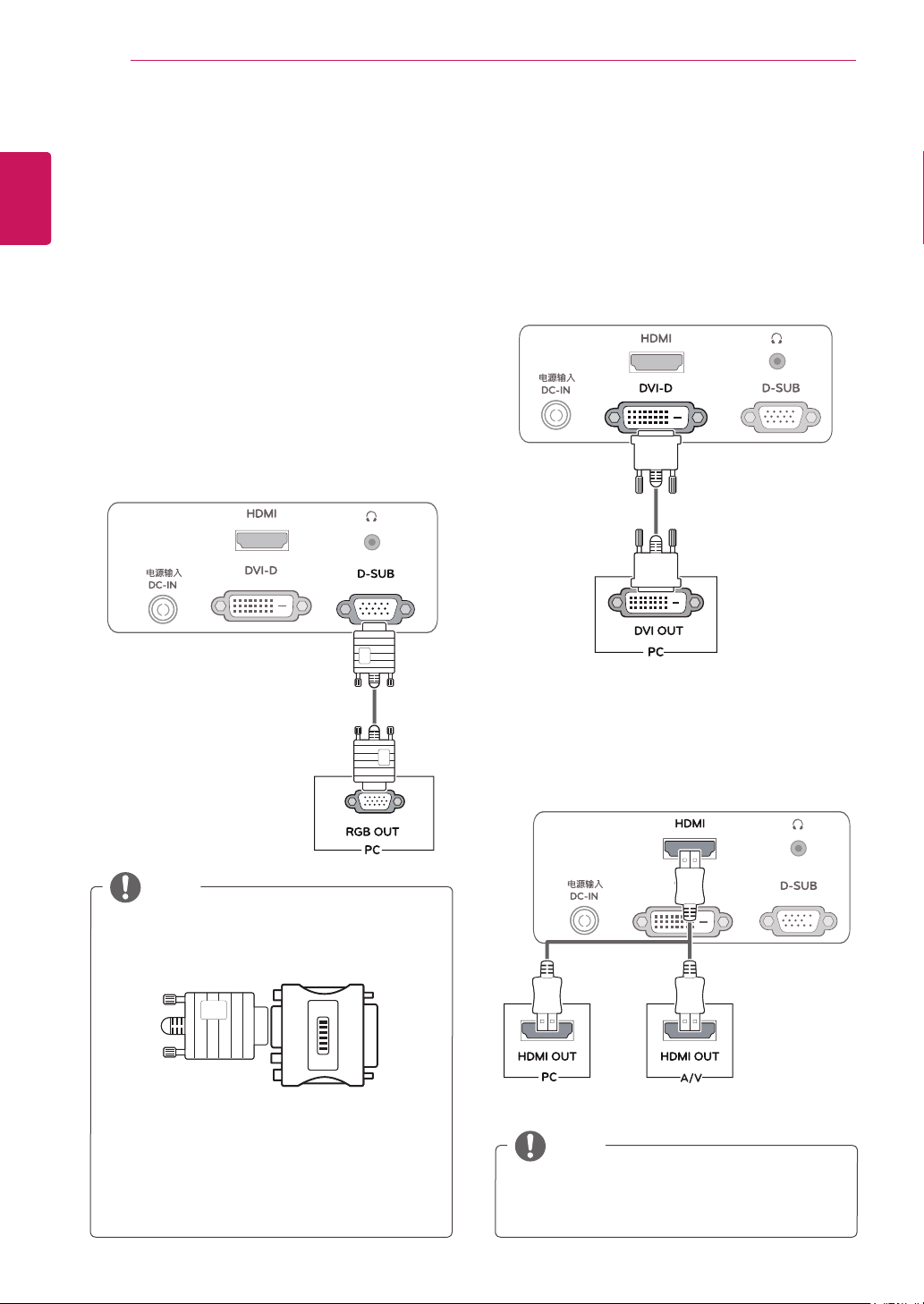

Connecting to a PC

Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

DVI-D connection

Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.

NOTE

When using a D-Sub signal input cable

connector for Macintosh

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

HDMI connection

Transmits the digital video and audio signals from your PC or A/V to the Monitor set. Connect the PC or A/V and the Monitor set with the HDMI cable as shown in the following illustrations.

NOTE

If you use HDMI PC, it can cause compatibility

problem.

Page 11

USING THE MONITOR SET

CAUTION

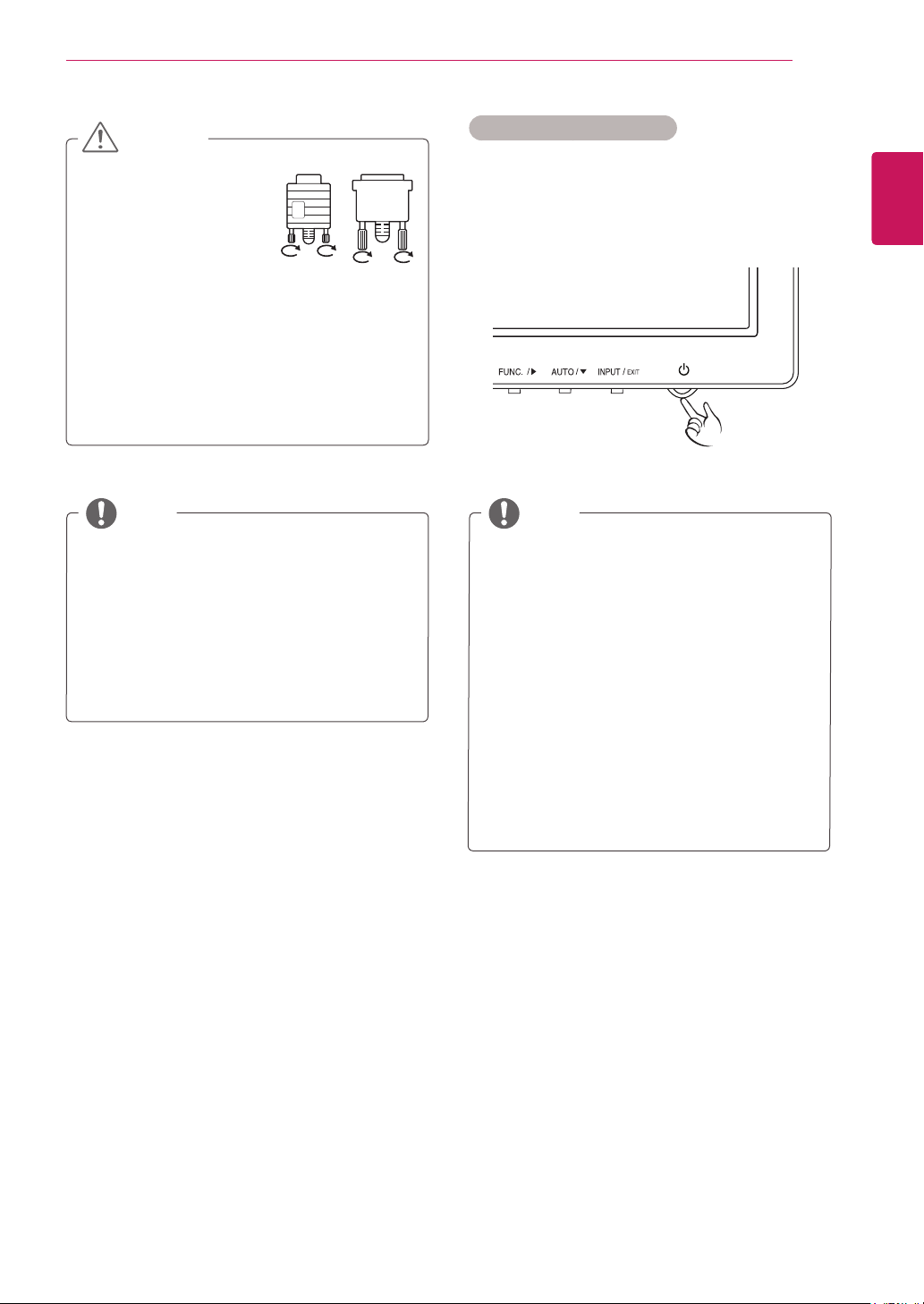

Connect the signal

input cable and tighten it by turning the screws clockwise. Do not press the screen with your finger for

a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the

screen for a long period of time to prevent image burn. Use a screensaver if possible.

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the " automatically. (Only supported in Analog Mode)

NOTE NOTE

When you want to use two PC in our Monitor,

please connect the signal cable(D-SUB/ DVI-D/HDMI) respectively in Monitor set. If you turn the Monitor set on while it is cold,

the screen may flicker. This is normal. Some red, green, or blue spots may appear

on the screen. This is normal.

Self Image Setting

"Self Image Setting" Function.

This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.(Only supported in Analog Mode)

‘AUTO’ Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

" Function is executed

ENGLISH

ENG

Page 12

CUSTOMIZING SETTINGS

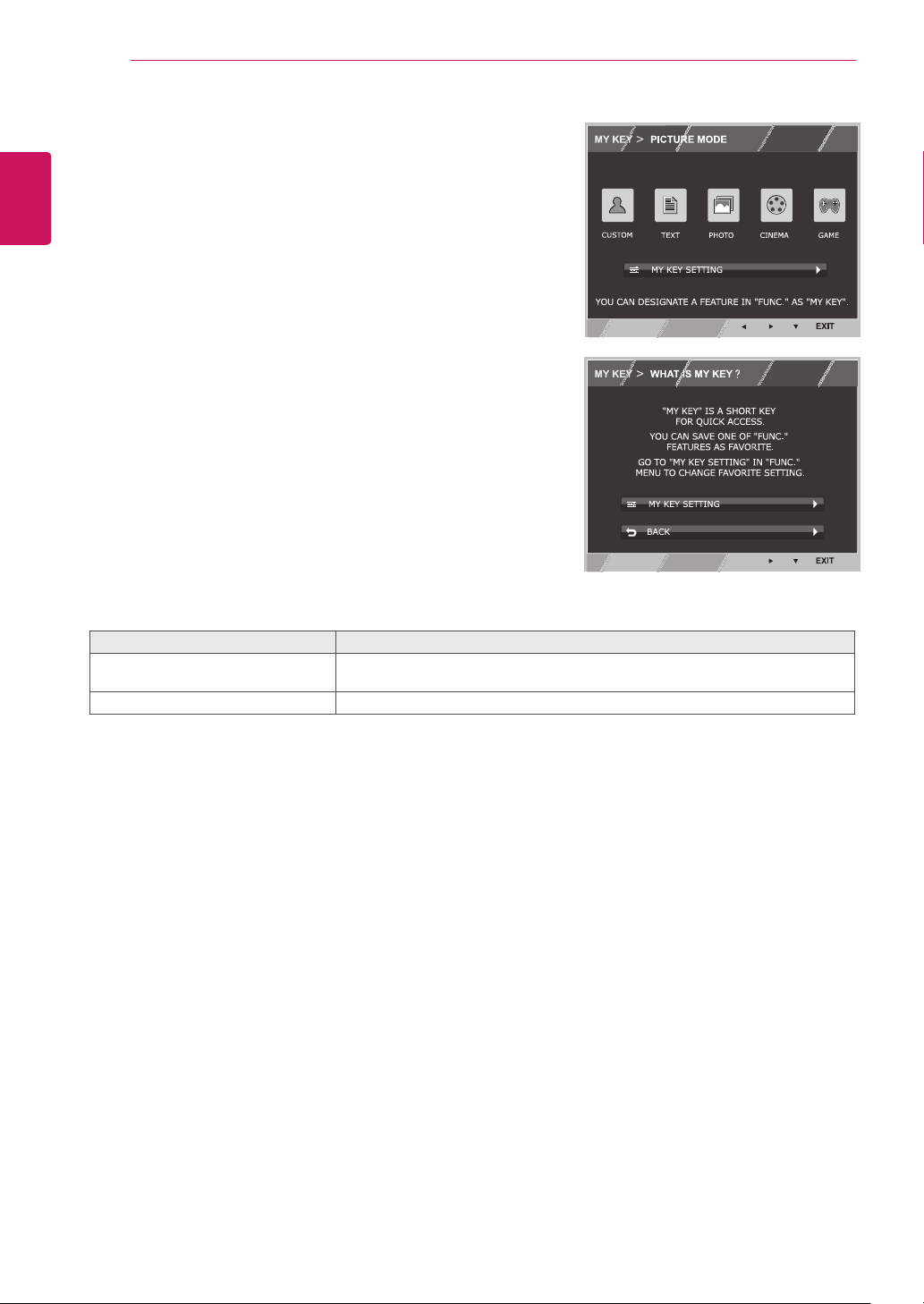

MY KEY

AUTO

INPUT

EXIT

FUNC.

ENGLISH

ENG

CUSTOMIZING SETTINGS

Press the desired button on the bottom of the Monitor set.

Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Select

EXIT

to leave the OSD menu.

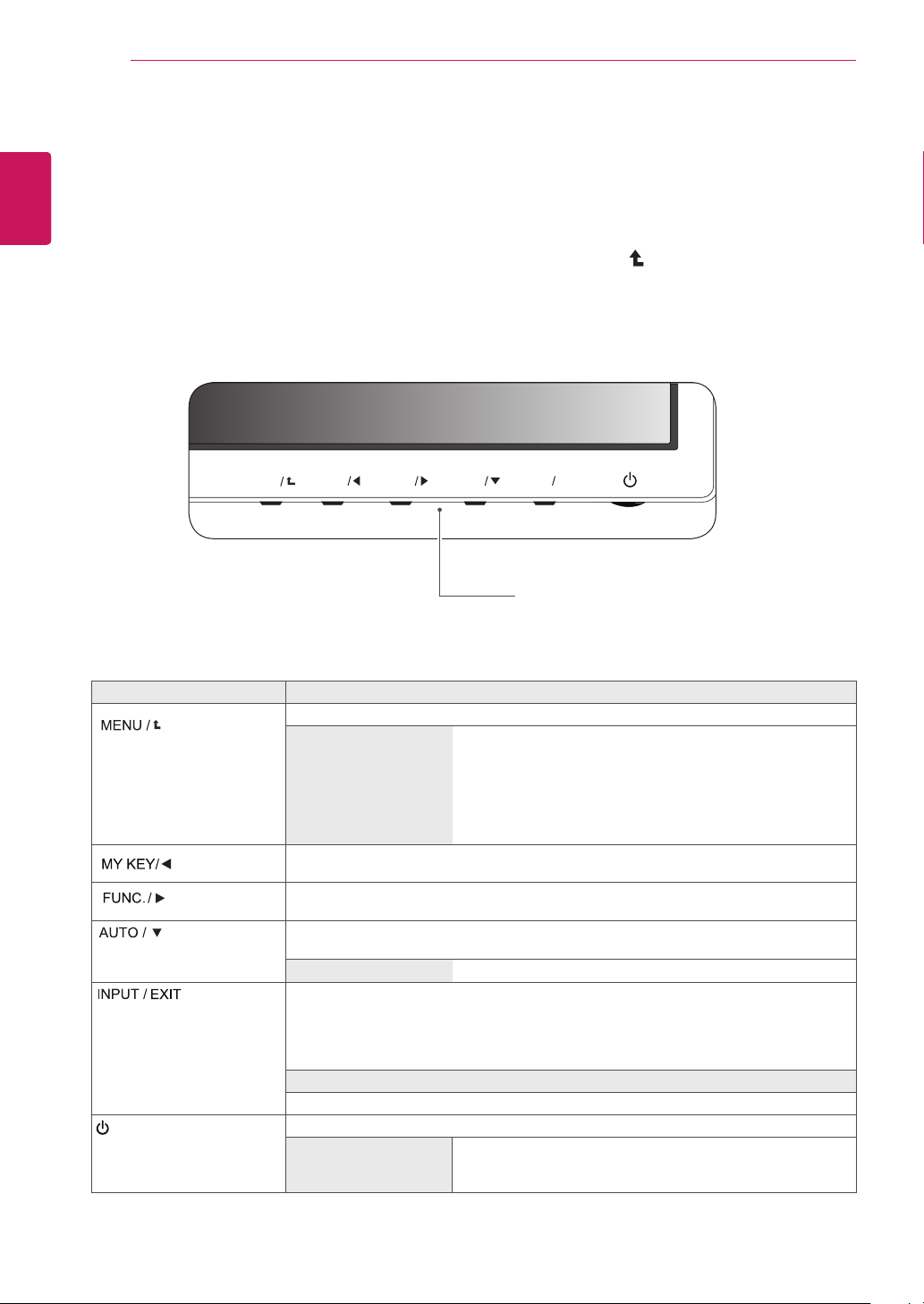

Monitor set Buttons

Button Description

Accesses the main menus.(See p.13)

(Power Button)

OSD LOCKED/ UNLOCKED

Use this button to enter MY KEY menu.For more information.(See p.18)

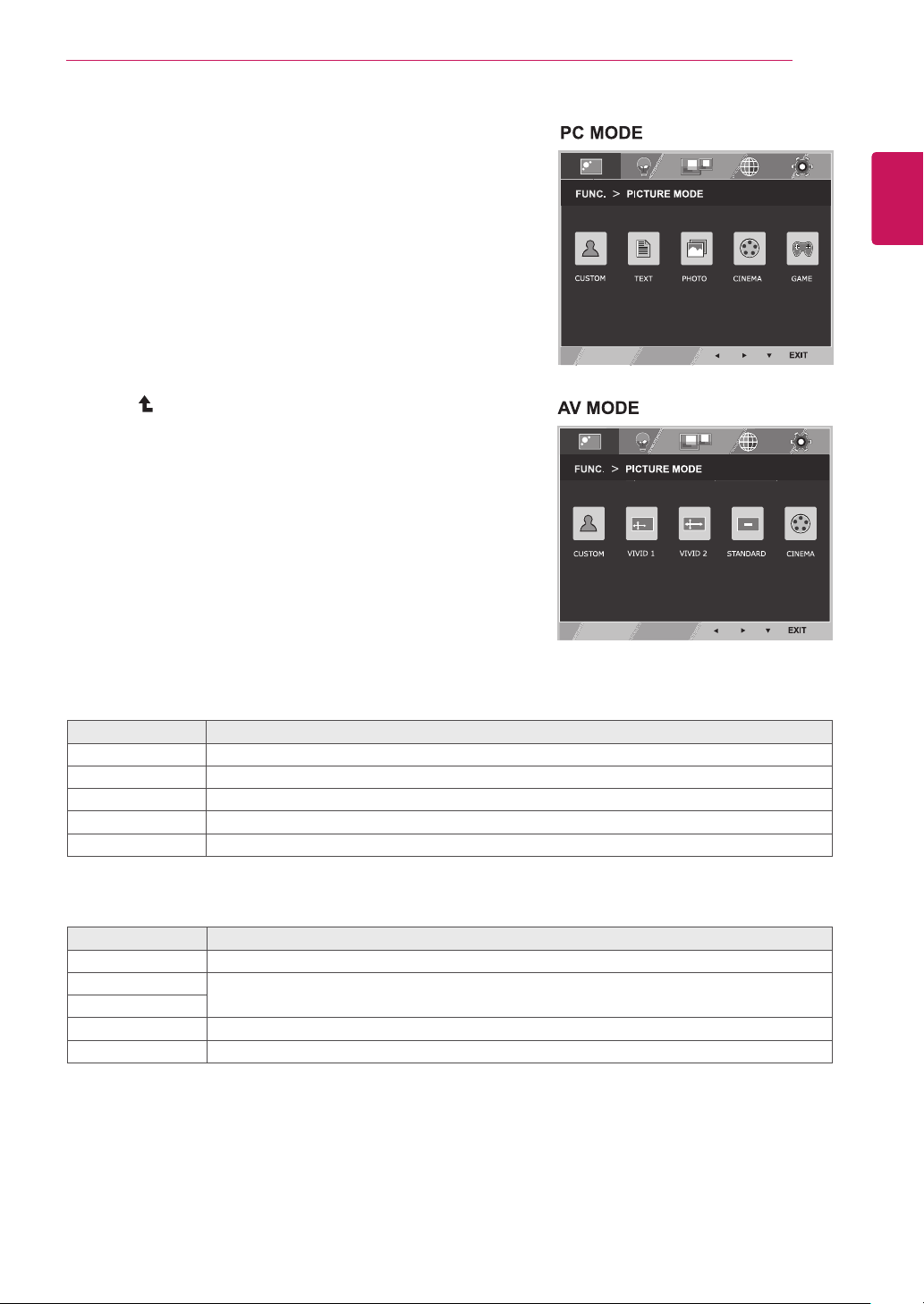

Use this button to enter PICTURE MODE, SUPER ENERGY SAVING, DUAL DISPLAY, DUAL WEB,MY KEY SETTING menus.(See p.19)

When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode)

The best display mode

You can choose the input signal.

• When two input signals are connected, you can select the input signal (D-SUB/DVI/

HDMI) you want.

• When only one signal is connected, it is automatically detected. The default setting is

D-SUB.

EXIT

Exit the OSD(On Screen Display).

Turns the power on or off.

Power Indicator

This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear. You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear.

1920 x 1080

The power indicator stays red if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks red.

Page 13

Customizing Settings

Menu Settings

CUSTOMIZING SETTINGS

ENGLISH

ENG

Press

Set the options by pressing the ◄ or ► or ▼

to display the

button on the bottom of the Monitor set

OSD.

buttons.

Select the "

NEXT MENU

" button to enter the more

option settings.

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

MENU Analog Digital HDMI Description

BRIGHTNESS

CONTRAST ● ● ●

WIDE/ORIGINAL

RESET

● ● ●

To adjust the brightness, contrast of the screen

WIDE

Switch to full screen mode according to input image signal.

ORIGINAL

Change the input image signal ratio to original. * This function works only if input resolution is lower than Monitor set ratio (16:9).

Restore all factory default settings. Press the immediately.

buttons to reset

, ►

◄

MENU > NEXT MENU Analog Digital HDMI Description


COLOR GAMMA

DISPLAY HORIZONTAL

VOLUME

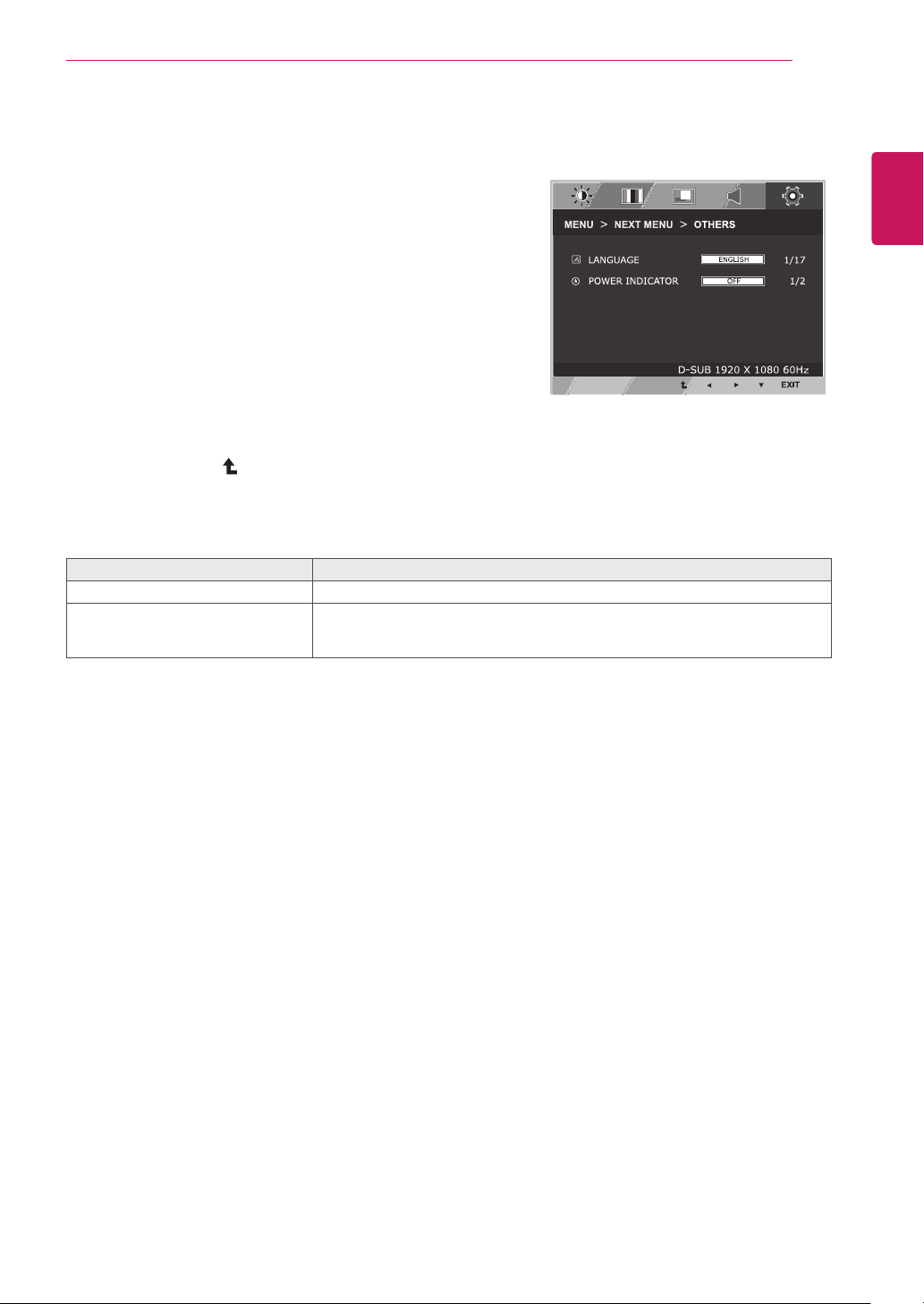

OTHERS LANGUAGE

Analog:

Digital:

HDMI:

SHARPNESS ● ● ●

BLACK LEVEL ●

OVER SCAN ●

RESPONSE TIME ● ● ●

COLOR TEMP

VERTICAL

CLOCK

PHASE

POWER INDICATOR

● ● ●

●

● ● ●

D-SUB(Analog signal) input.

DVI-D(Digital signal) input.

HDMI(Digital signal) input.

To adjust the clearness of the screen .

To set offset level

To improve the clarity and stability of the screen

To set the response time of displayed picture.

To customize the color of the screen

To adjust the position of the screen

To improve the clarity and stability of the screen

●

To adjust the volume

To customize the screen status for a user's operating environment

Page 14

ENGLISH

ENG

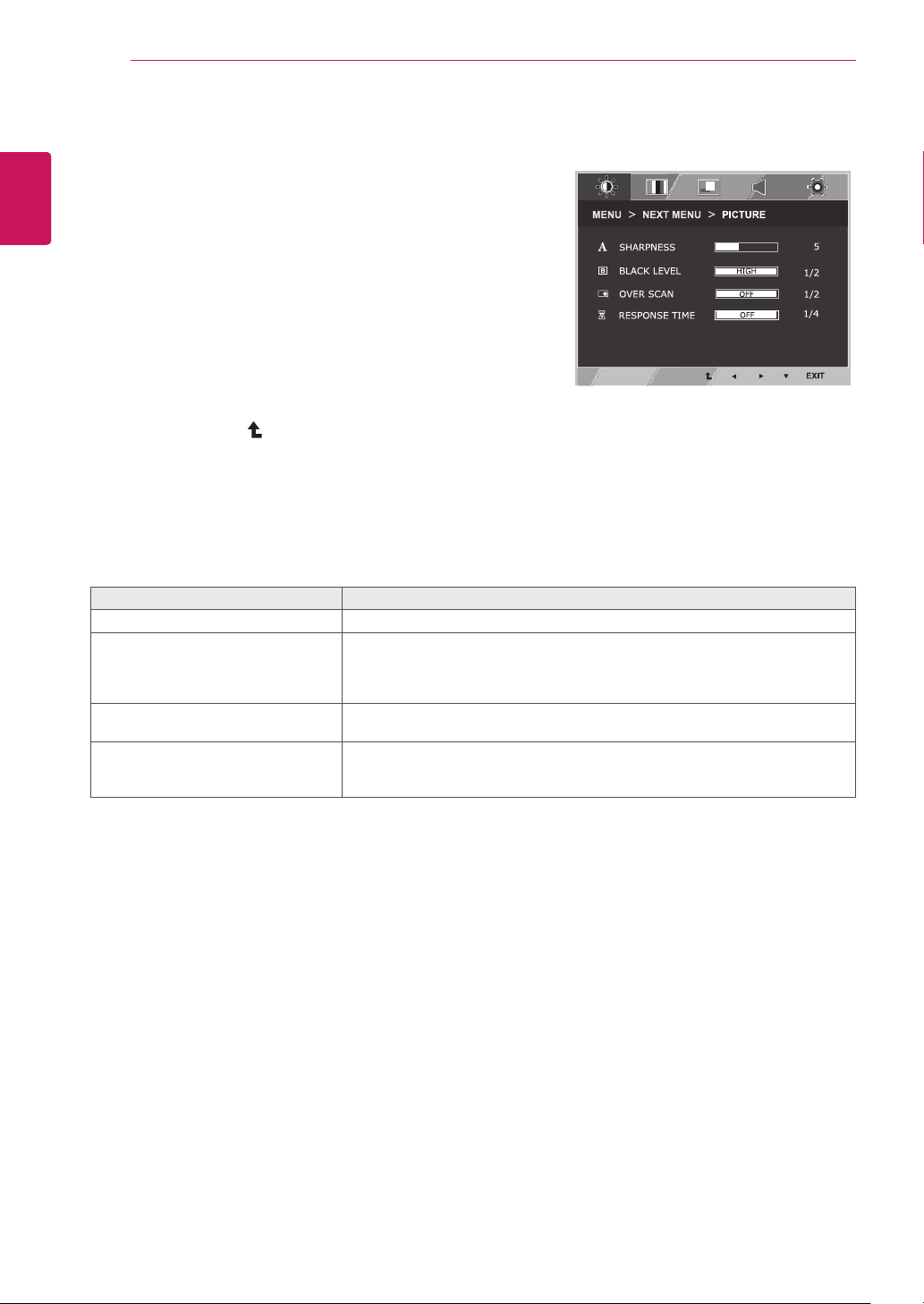

CUSTOMIZING SETTINGS


Press

to display the

button on the bottom of the Monitor set

OSD.

Select the "

option settings.

Enter to

Set the options by pressing the ◄ or ► or ▼

buttons.

Select

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

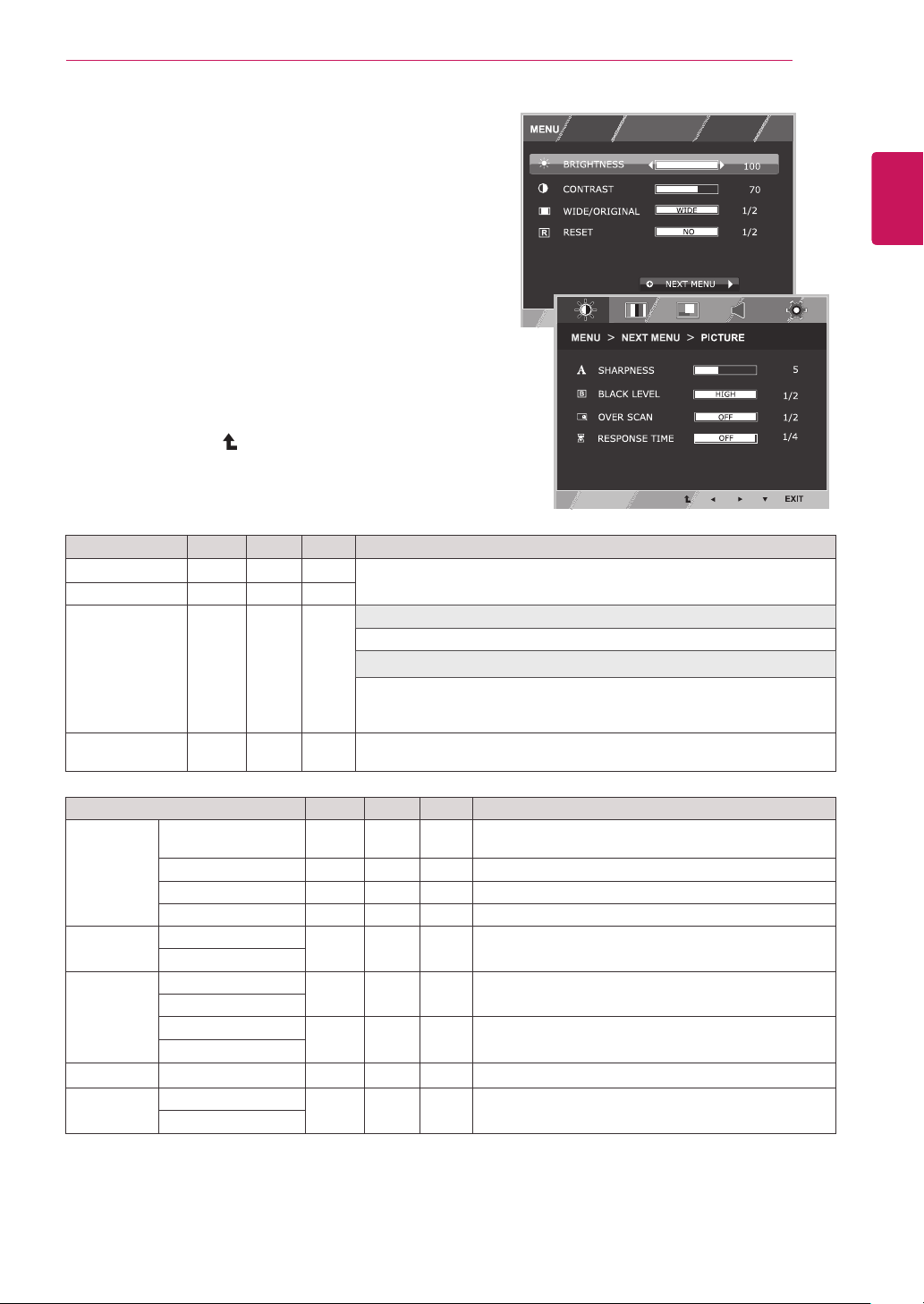

MENU > NEXT MENU > PICTURE Description

SHARPNESS

BLACK LEVEL

OVER SCAN

RESPONSE TIME

NEXT MENU


EXIT

by pressing the ▼ button.

to leave the OSD menu.

" button to enter the more

To adjust the clearness of the screen.

You can set the offset level. If you select'HIGH', the screen will be bright and if you select ‘LOW’, the screen will be dark.(only for HDMI input) * Offset?As the criteria for video signal, it is the darkest screen the monitor can show.

To select the range of output image for DTV timing in HDMI input.(only for HDMI input)Recommend overscan function to turn on when connect AV equipment.

You can set a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use 'NORMAL'. For a fast-moving picture, it is recommended that you use 'FAST'.

Page 15

COLOR

Press

to display the

button on the bottom of the Monitor set

OSD.

CUSTOMIZING SETTINGS

ENGLISH

ENG

Select the "

option settings.

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

buttons.

Select

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

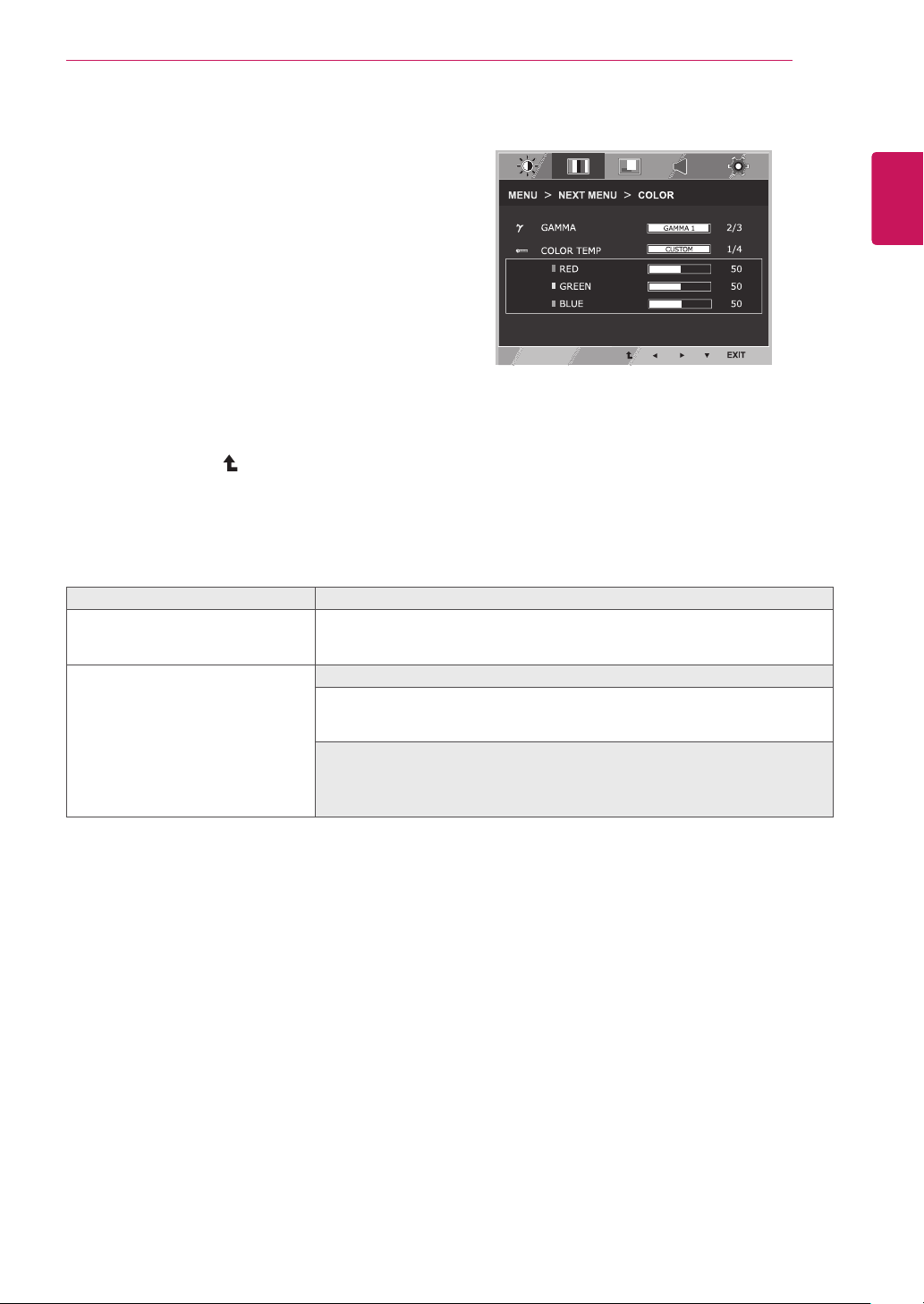

MENU > NEXT MENU > COLOR Description

GAMMA

COLOR TEMP CUSTOM

NEXT MENU

COLOR

EXIT

by pressing the ► button.

COLOR

by pressing the ▼ button.

to leave the OSD menu.

" button to enter the more

Set your own gamma value. : GAMMA 0, GAMMA 1, GAMMA 2 on the monitor, high gamma values display whitish images and low gamma values display blackish images.

• RED:

Set your own red color levels.

• GREEN:

• BLUE:

Select the screen color.

WARM: MEDIUM: COOL:

Set your own green color levels.

Set your own blue color levels.

Set the screen to warm color temperature (more red).

Set the screen to medium color temperature.

Set the screen to cool color temperature (more blue).

Page 16

ENGLISH

ENG

CUSTOMIZING SETTINGS

DISPLAY

Press

to display the

button on the bottom of the Monitor set

OSD.

Select the "

option settings.

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

buttons.

Select

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

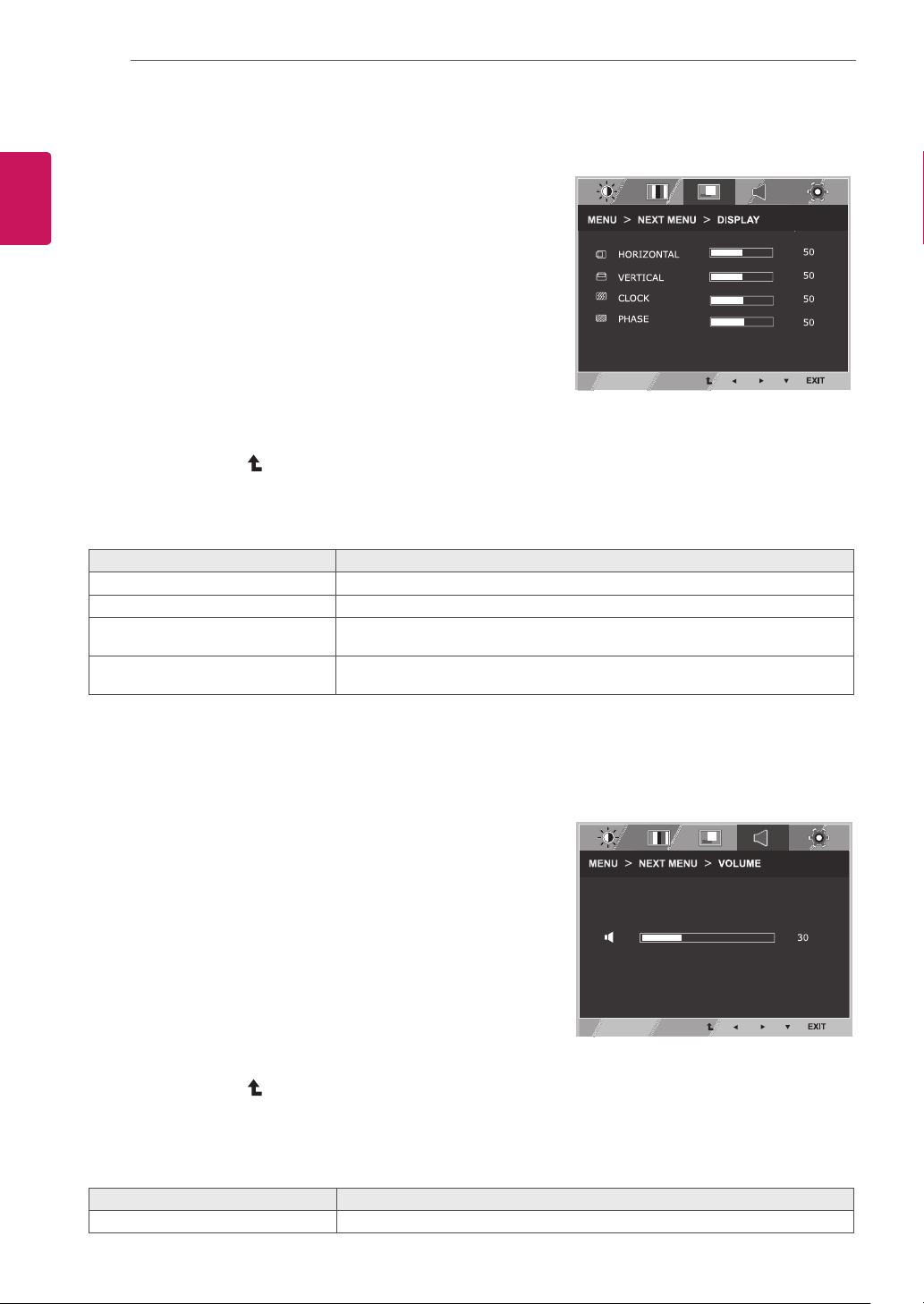

MENU > NEXT MENU > DISPLAY Description

HORIZONTAL

VERTICAL

CLOCK

PHASE

NEXT MENU

DISPLAY

EXIT

by pressing the ► button.

by pressing the ▼ button.

to leave the OSD menu.

" button to enter the more

To move image left and right.

To move image up and down.

To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.

To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

VOLUME

Press

Select the "

Select

Enter to

Set the options by pressing the ◄ or ► buttons.

Select

Each option is explained below.

MENU > NEXT MENU > VOLUME Description

VOLUME

button on the bottom of the Monitor set

to display the

option settings.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

OSD.

NEXT MENU

VOLUME

EXIT

by pressing the ► button.

by pressing the ▼ button.

to leave the OSD menu.

" button to enter the more

To adjust the volume of headphone/earphone.(Only for HDMI input)

Page 17

CUSTOMIZING SETTINGS

OTHERS

Press

Select the "

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

Select

Each option is explained below.

MENU > NEXT MENU > OTHERS Description

LANGUAGE

POWER INDICATOR

button on the bottom of the Monitor set

to display the

option settings.

buttons.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

OSD.

NEXT MENU

OTHERS

EXIT

by pressing the ► button.

by pressing the ▼ button.

to leave the OSD menu.

" button to enter the more

To choose the language in which the control names are displayed.

Use this function to set the power indicator on the bottom side of the monitor to ON or OFF.If you set OFF, it will go off. If you set ON at any time, the power indicator will automatically be turned on.

ENGLISH

ENG

Page 18

CUSTOMIZING SETTINGS

ENGLISH

ENG

MY KEY Setting

Press

Set the options by pressing the ◄or►or▼buttons.

Select

Each option is explained below.

MY KEY SETTING

BACK

MY KEY

set to display the

EXIT

button on the bottom of the Monitor

to leave the OSD menu.

MY KEY Description

MY KEY

OSD.

MY KEY is short key. You can select one of FUNC. (PICTURE MODE, SUPER ENERGY SAVING, DUAL DISPLAY, DUAL WEB) as your favorite feature.

Select BACK to return MY KEY menu.

Page 19

CUSTOMIZING SETTINGS

FUNC. Setting

PICTURE MODE

Press

Enter to

Set the options by pressing the ◄ or ► buttons.

Select

FUNC.

button on the bottom of the Monitor set

to display the

FUNC.

OSD.

PICTURE MODE

EXIT

to leave the OSD menu.To return to the

by pressing the ▼ button.

upper menu or set other menu items, use the up

arrow( )button.

ENGLISH

ENG

Each option is explained below.

PC MODE

PICTURE MODE Description

CUSTOM

TEXT


CINEMA

GAME

It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.

It is a mode that the screen is adjusted to the best for the textworks.

It is a mode that the screen is adjusted to the best to view pictures.

It is a mode that the screen is adjusted to the best to view the videos.

It is a mode that the screen is adjusted to the best to play a game.

AV MODE

PICTURE MODE Description

CUSTOM

VIVID 1

VIVID 2

STANDARD

CINEMA

It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.

Adjusts the video image for the retail environment by enhancing the contrast, brightness, Colour, and sharpness.

Adjusts the image for the normal environment.

It is a mode that the screen is adjusted to the best to view the videos.

Page 20

ENGLISH

ENG

CUSTOMIZING SETTINGS

SUPER ENERGY SAVING

Press

FUNC.

display the

button on the bottom of the Monitor set to

FUNC.

OSD.

Select

Enter to

Set the options by pressing the ◄ or ► or ▼buttons.

Select

Each option is explained below.

SUPER ENERGY SAVING Description

OFF

RESET

SUPER ENERGY SAVING

button.

SUPER ENERGY SAVING

button.

EXIT

to leave the OSD menu.To return to the

upper menu or set other menu items, use the up arrow

( ) button.

by pressing the ►

by pressing the ▼

Enables SUPER ENERGY SAVING you can save energy with this energy- efficient function

Disables SUPER ENERGY SAVING.

Resets the values of total energy consumption reduction and CO2 emission reduction estimates.

NOTE

TOTAL POWER REDUCTION

TOTAL CO2 REDUCTION

SAVING DATA(W/h)

685 mm (27 inch)

SUPER SAVING

8 W/h

: How much power is saved while using the monitor.

: Change the TOTAL POWER REDUCTION to CO2.

Saving Data depends on the Panel. So,those values should be different from each panel and panel

vendor. LG calculated these values by using

(including broadcast video: IEC 62087)

SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING

function.

“broadcast video signal”

Page 21

CUSTOMIZING SETTINGS

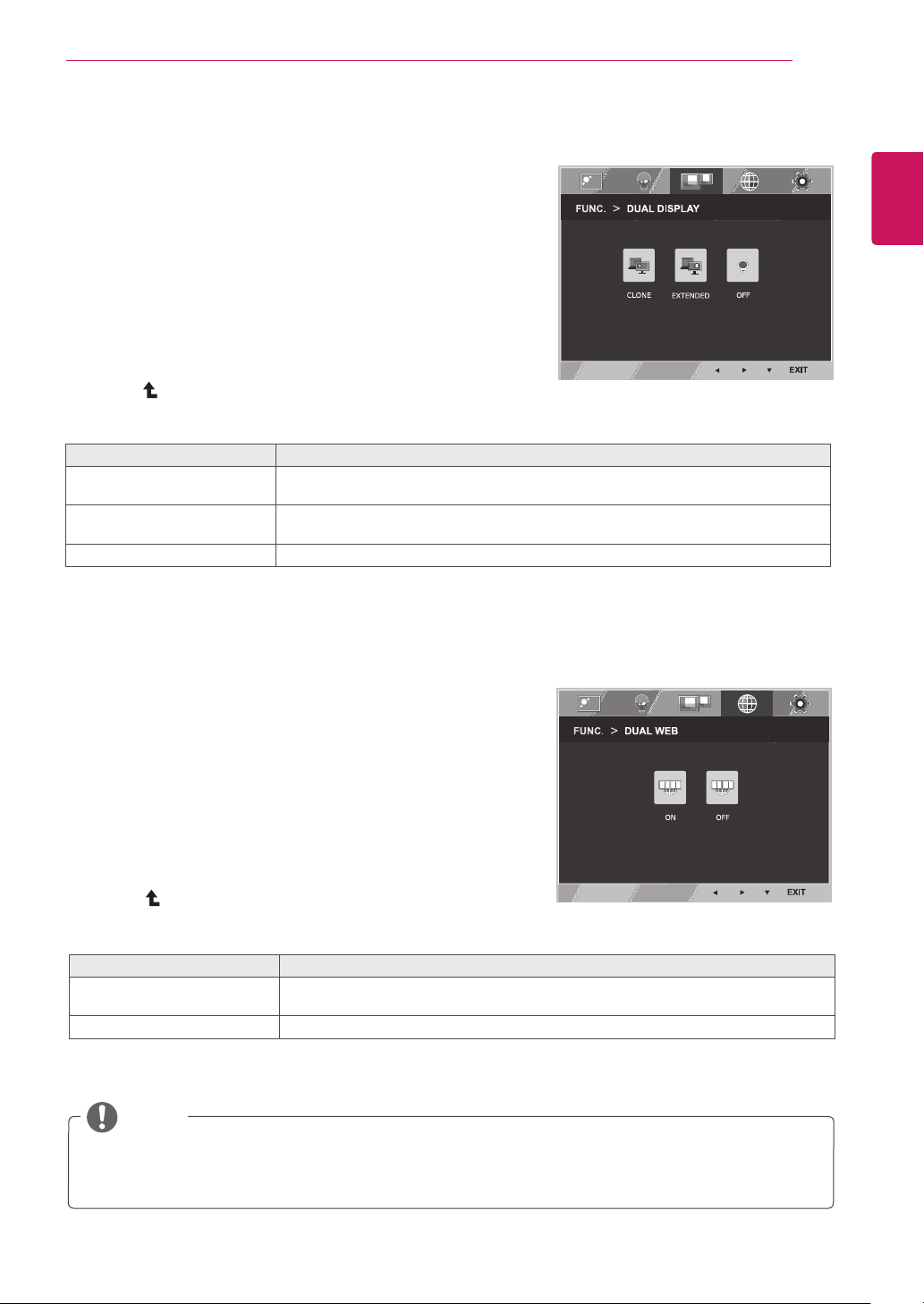

DUAL

WEB

* Before using below functions, please install DUAL SMART SOLUTION programme.

DUAL DISPLAY

Press

Select

Enter to

Set the options by pressing the ◄ or ► buttons.

Select

Each option is explained below.

CLONE

EXTENDED

OFF

* Before using below functions, please install DUAL SMART SOLUTION programme.

FUNC.

button on the bottom of the Monitor set

to display the

upper menu or set other menu items, use the up

arrow ( ) button.

DUAL DISPLAY Description

FUNC.

OSD.

DUAL DISPLAY

EXIT

to leave the OSD menu.To return to the

by pressing the ► button.

by pressing the ▼ button.

By selecting CLONE,user can use secondary monitor as done mode of primary monitor.

By selecting EXTENDED,user can use secondary monitor as extended mode of primary monitor.

If select OFF,DUAL DISPLAY is off.

DUAL WEB

ENGLISH

ENG

Press

Select

Enter to

Set the options by pressing the ◄ or ► buttons.

Select

Each option is explained below.

OFF

FUNC.

button on the bottom of the Monitor set

to display the

upper menu or set other menu items, use the up

arrow ( ) button.

DUAL WEB Description

FUNC.

OSD.

DUAL WEB

EXIT

by pressing the ► button.

by pressing the ▼ button.

to leave the OSD menu.To return to the

Help user to browse web efficiently by dividing in half. Help to arrange and move windowson screen. Help user to control dividedwindows ratio.

If select OFF,DUAL WEB is off.

NOTE

When monitor goes to power saving mode with pc saving option-> Pressing any button -> OSD

appear and user should press dual button -> User can bring back to normal mode.

Page 22

ENGLISH

ENG

CUSTOMIZING SETTINGS

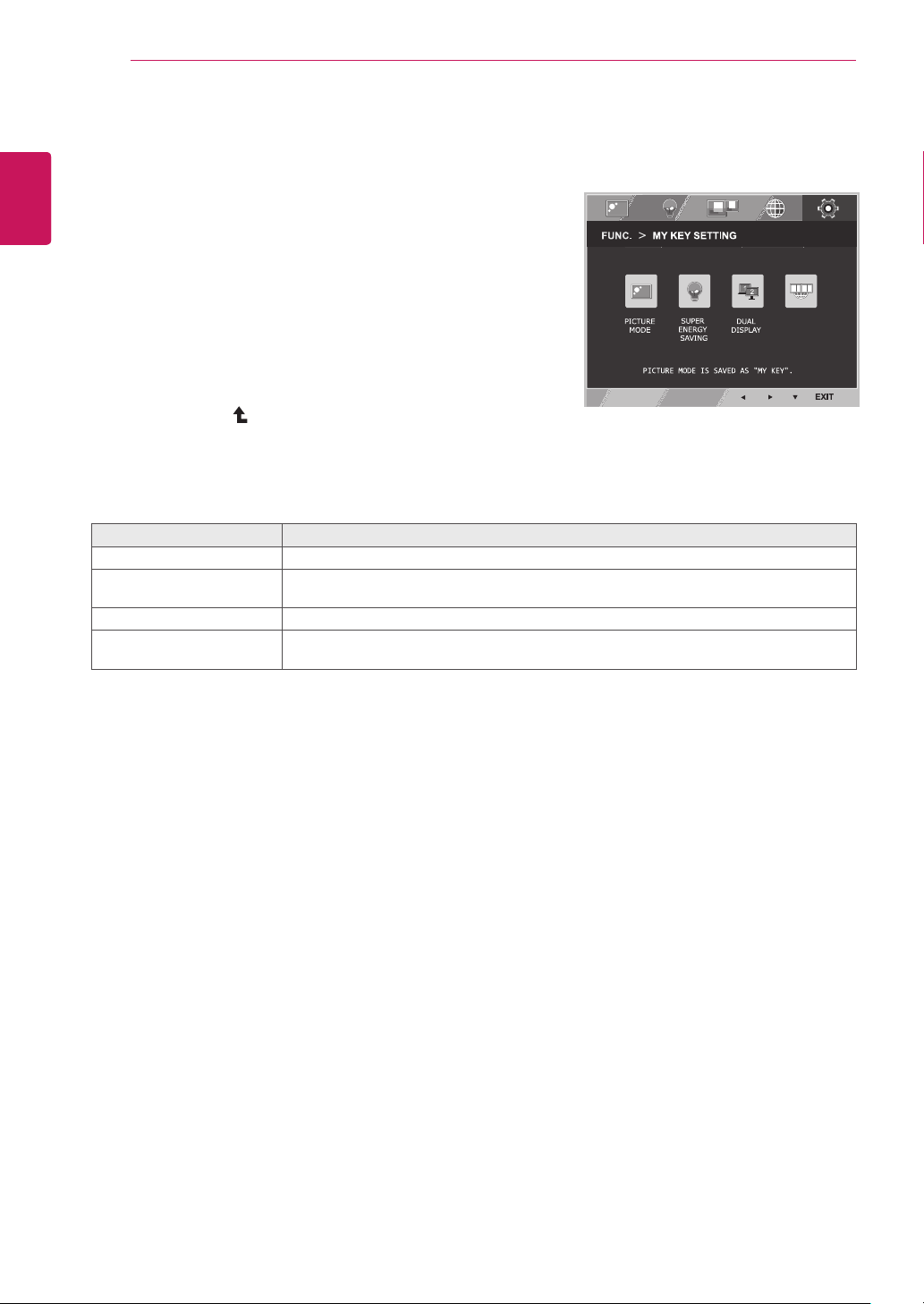

MY KEY SETTING

Press

FUNC.

button on the bottom of the Monitor

set to display the

FUNC.

OSD.

Select

Enter to

MY KEY SETTING

by pressing the ► button.

by pressing the ▼

button.

Set the options by pressing the ◄ or ► buttons.

Select

EXIT

to leave the OSD menu.To return to

the upper menu or set other menu items, use

the up arrow ( ) button.

Each option is explained below.

MY KEY SETTING Description

PICTURE MODE

SUPER ENERGY SAVING

DUAL DISPLAY

DUAL WEB

PICTURE MODE adjust the Monitor set for the best picture appearance.

Enables SUPER ENERGY SAVING you can save energy with this energy-effcient function.

User can use CLONE or EXTENDED in another monitor.

Help user to browse web efficiently by dividing in half and some other convenience in browsing dual pages.

DUAL

WEB

Page 23

TROUBLESHOOTING

Check the following before calling for service.

No image appears

Is the power cord of the display connected?

Is the power indicator light on?

Is the power on and the power indicator Red?

Is the power indicator flickering?

Do you see an "OUT OF RANGE" message on the screen?

Do you see a "NO SIGNAL" message on the screen?

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD LOCKED” when you push MENU button?

yCheck and see if the power cord is connected properly to the power

outlet.

yPress the Power button.

yAdjust the brightness and the contrast.

yIf the display is in power saving mode, try moving the mouse or

pressing any key on the keyboard to bring up the screen.

yTry to turn on the PC.

yThis message appears when the signal from the PC (video card) is

out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.

yWhen the monitor is on "No-Signal" in 5 minutes, the monitor goes to

DPM mode.

yYou can secure the current control settings, so that they cannot be

inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

ENGLISH

ENG

Display image is incorrect

Display Position is incorrect.

On the screen background, vertical bars or stripes are visible.

Any horizontal noise appearing in any image or characters are not clearly portrayed.

yPress the

AUTO

button to automatically adjust your display image to

the ideal setting.

yPress the

AUTO

button to automatically adjust your display image to

the ideal setting.

yPress the

AUTO

button to automatically adjust your display image to

the ideal setting.

yCheck

Control Panel ► Display ► Settings

and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

Page 24

ENGLISH

ENG

TROUBLESHOOTING

CAUTION

Control Panel ► Display ► Settings

Check

changed. If yes, readjust the video card to the recommend resolution. If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the

screen may be dimmed, truncated or biased. Make sure to select the recommend resolution. The setting method can differ by computer and O/S (Operation System), and resolution mentioned

above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect

The screen color is mono or abnormal.

The screen blinks.

yCheck if the signal cable is properly connected and use a screwdriver

to fasten if necessary. yMake sure the video card is properly inserted in the slot. ySet the color setting higher than 24 bits (true color) at

► Settings

yCheck if the screen is set to interlace mode and if yes, change it to the

recommend resolution.

and see if the frequency or the resolution were

Control Panel

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

Have you installed the display driver?

yBe sure to install the display driver from the display driver CD (or

diskette) that comes with your display. Or, you can also download the

driver from our web site: http://www.lg.com. yMake sure to check if the video card supports Plug&Play function.

Page 25

SPECIFICATIONS

27EA31V

Display Screen Type

Pixel Pitch

Sync Input Horizontal Frequency

Vertical Frequency

Input Form

Video Input Signal Input

Input Form

Resolution Max

Recommend

Plug & Play

Power Consumption

Power Input

AC-DC Adapter

Dimensions (Width x Height x Depth)

Weight

Tilt Range

Environmental conditions

Stand Base

Power cord

DDC 2B(Analog,Digital,HDMI)

On Mode : 30 W(Typ.)

Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W

19 V 1.6 A

Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC or ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC

OUTPUT:

With Stand

Without Stand

4.7 kg

-5° to 20°

Operating Temperature Operating Humidity

Storage Temperature Storage Humidity

Attached ( ), Detached (O)

Wall-outlet type

19 V 1.7 A

ENGLISH

ENG

68.5 cm (27 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating Visible diagonal size: 68.5 cm

0.311 mm x 0.311 mm (Pixel Pitch)

30 kHz to 83 kHz (Automatic)

56Hz to 75Hz (D-SUB, DVI-D) 56Hz to 61Hz (HDMI)

Separate Sync. Digital

15 pin D-SUB Connector /DVI-D Connector (Digital) HDMI Connector

RGB Analog (0.7 Vp-p/ 75 ohm), Digital

D-SUB(Analog) : 1920 x 1080 @ 60 Hz DVI / HDMI (Digital) : 1920 x 1080 @ 60 Hz

VESA 1920 x 1080 @ 60 Hz

64.1 cm x 45.9 cm x 20.3 cm

64.1 cm x 39 cm x 4.7 cm

10°C to 35 °C 10 % to 80 %

-20°C to 60 °C 5 % to 90 % non-Condensing

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

Page 26

ENGLISH

ENG

SPECIFICATIONS

Preset Modes (Resolution)

27EA31V

Display Modes (Resolution)

720 x 400 31.468 70 -/+

640 x 480 31.469 60 -/-

640 x 480 37.500 75 -/-

800 x 600 37.879 60 +/+

800 x 600 46.875 75 +/+

1024 x 768 48.363 60 -/-

1024 x 768 60.023 75 +/+

1152 x 864 67.500 75 +/+

1280 x 1024 63.981 60 +/+

1280 x 1024 79.976 75 +/+

1680 x 1050 65.290 60 -/+

1920 x 1080 67.500 60 +/+ Recommend Mode

Horizontal Frequency(kHz)

Vertical Frequency(Hz)

Polarity(H/V)

HDMI TIMING

Display Modes (Resolution) Horizontal Frequency(kHz) Vertical Frequency(Hz)

480P 31.50 60

576P 31.25 50

720P 37.50 50

720P 45.00 60

1080i 28.12 50

1080i 33.75 60

1080P 56.25 50

1080P 67.50 60 Recommend Mode

Indicator

Mode LED Color

On Mode Red

Sleep Mode Blinking Red

Off Mode Off

Page 27

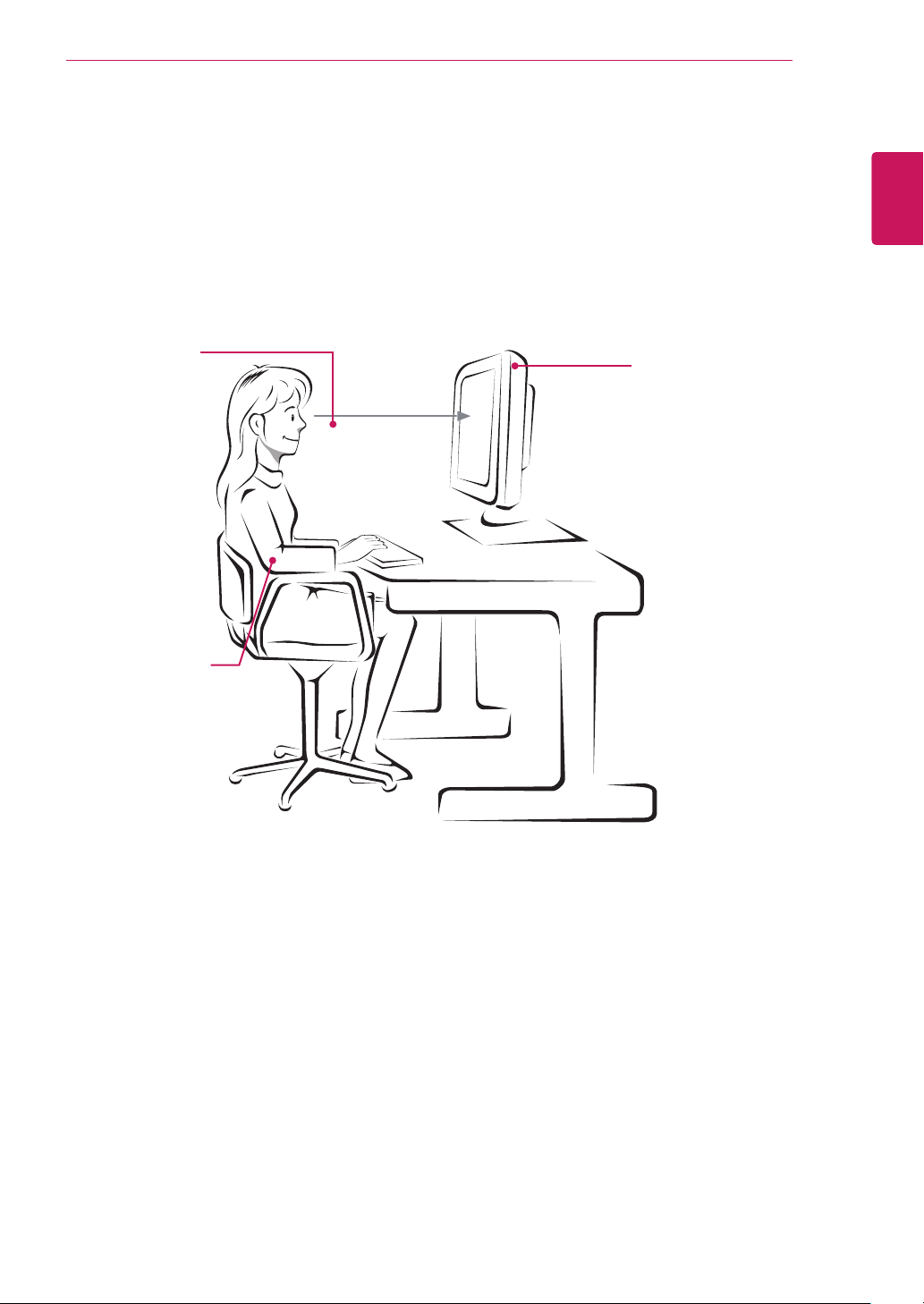

PROPER POSTURE

Proper posture for using the Monitor set.

Adjust the

Monitor set and

your posture to

allow you to view

images at the

optimal viewing

angle.

Place your hands

gently on the

keyboard, keeping

your arms bent at

the elbows and

horizontally outright.

ENGLISH

ENG

Adjust the location of the Monitor set to avoid it reflecting light.

Page 28

Declaration of Conformity

Trade Name: LG Model : 27EA31VA Responsible Party: LG Electronics Inc. Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A TEL: 201-266-2534

*above information is only for USA FCC Regulatory

Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual (CD) in an accessible place for future reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL
