OWNER’S MANUAL
IPS LED MONITOR
Please read this manual carefully before operating
your set and retain it for future reference.
IPS LED MONITOR MODEL
24EB23PY
www.lg.com
Page 2
TABLE OF CONTENTS
2
ENGLISH
ENG
CONTENTS
3 ASSEMBLING AND PREPAR-
ING
3 Unpacking
4 Parts and buttons
5 Setting up the Monitor set
5 - Attaching the Stand Base
5 - Detaching the stand base
6 - Detaching the stand body
6 - Using the cable holder
7 - Mounting on a table
7 - Adjusting the angle
8 - Adjusting the stand height
8 - Using the Kensington locking device
9 - Swivel stand
9 - Using the Pivot function
10 - Mounting on a wall
24 - MY KEY Setting
25 TROUBLESHOOTING
27 SPECIFICATIONS
27 24EB23PY
28 Preset Modes (Resolution)
28 Indicator
29 PROPER POSTURE
29 Proper posture for using the Monitor set.
11 USING THE MONITOR SET
11 Connecting to a PC
11 - D-SUB connection
11 - DVI-D connection
13 - Peripheral device connection
14 CUSTOMIZING SETTINGS
15 Customizing Settings
15 - Menu Settings
16 - Picture

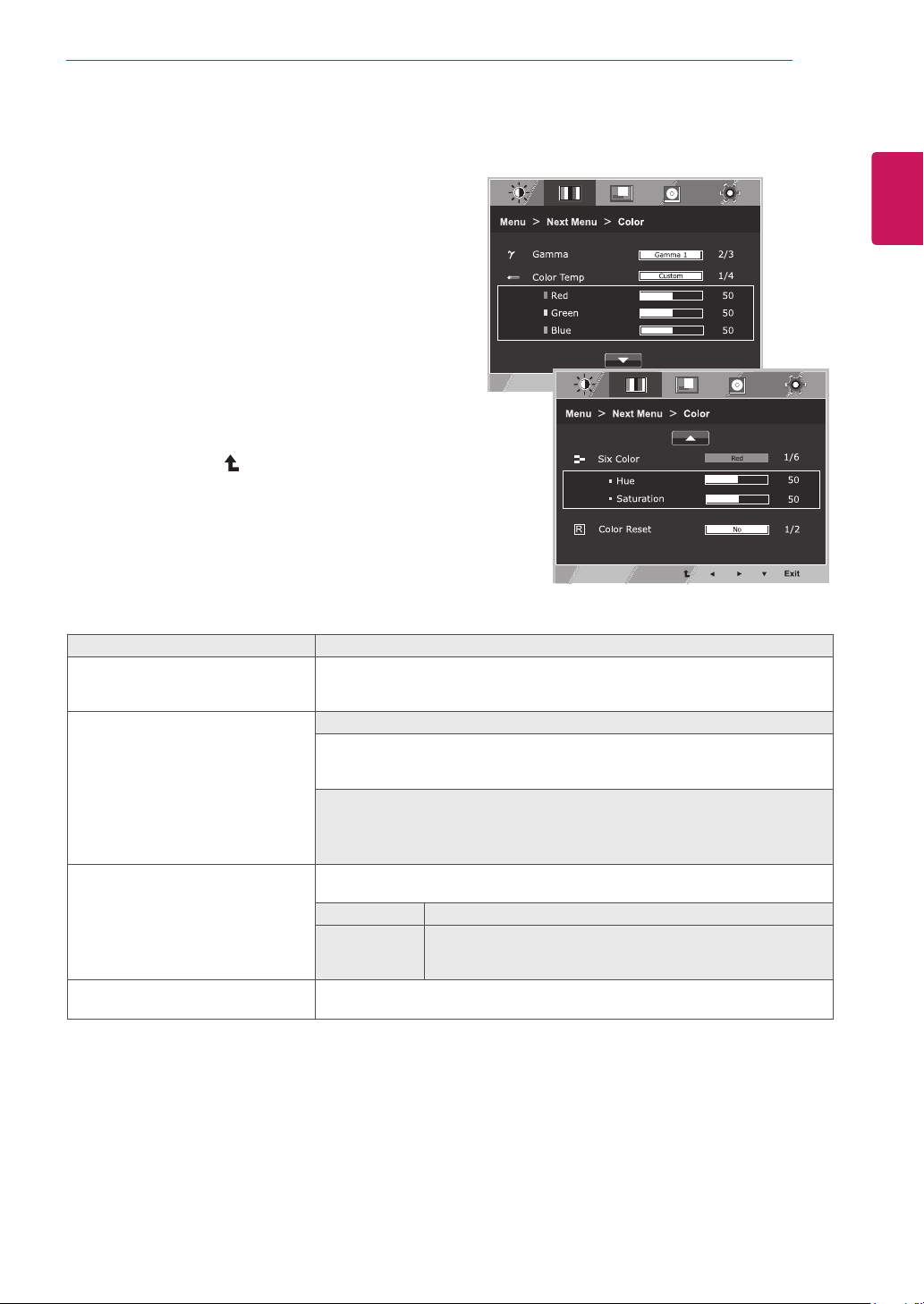

17 - Color
18 - Display
18 - Audio
19 - Others

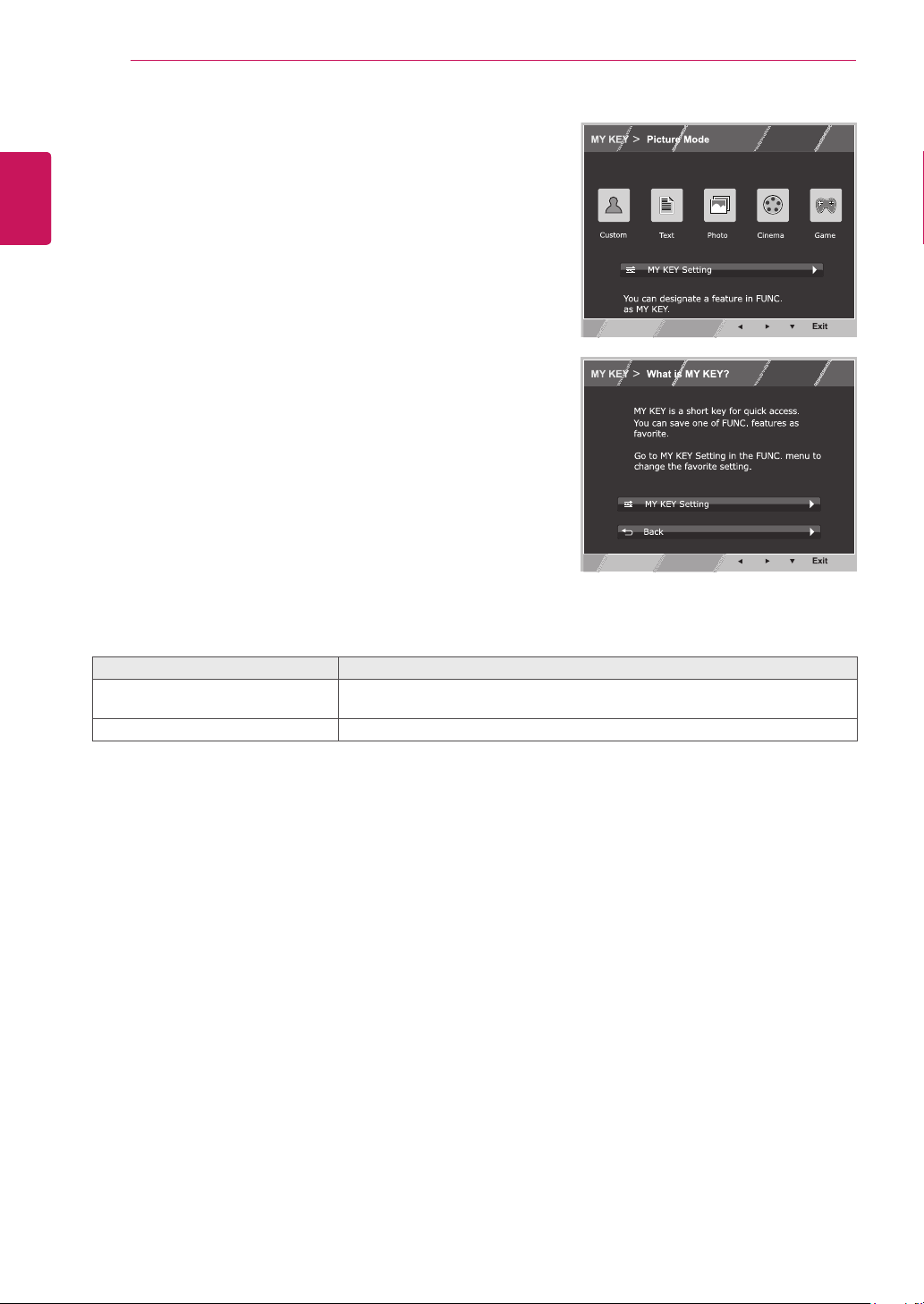

20 MY KEY Setting
21 FUNC. Setting
21 - Picture Mode
22 - SUPER ENERGY SAVING
23 - DUAL DISPLAY
23 - DUAL WEB
Page 3
ASSEMBLING AND PREPARING
3
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
CD(Owner's Manual) /
Card
D-SUB Cable
(This cable is not included in all
countries.)
(This cable is not included in all
DVI-D Cable
countries.)
ENGLISH
ENG
Power Cord
Audio Cable
( Depending on the country )
Stand Base
USB Cable
( Depending on the country )
One Screw
Cable Holder
CAUTION
Do not use any unapproved accessories to ensure the safety and product life span.
y
Any damages or injuries by using unapproved accessories are not covered by the warranty.
y
NOTE
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
y
of product functions.
Page 4
ENGLISH
ENG
ASSEMBLING AND PREPARING
4
Parts and buttons
Power Indicator
LED On : Power is on
y
LED Off: Power is off
y
(Power Button)

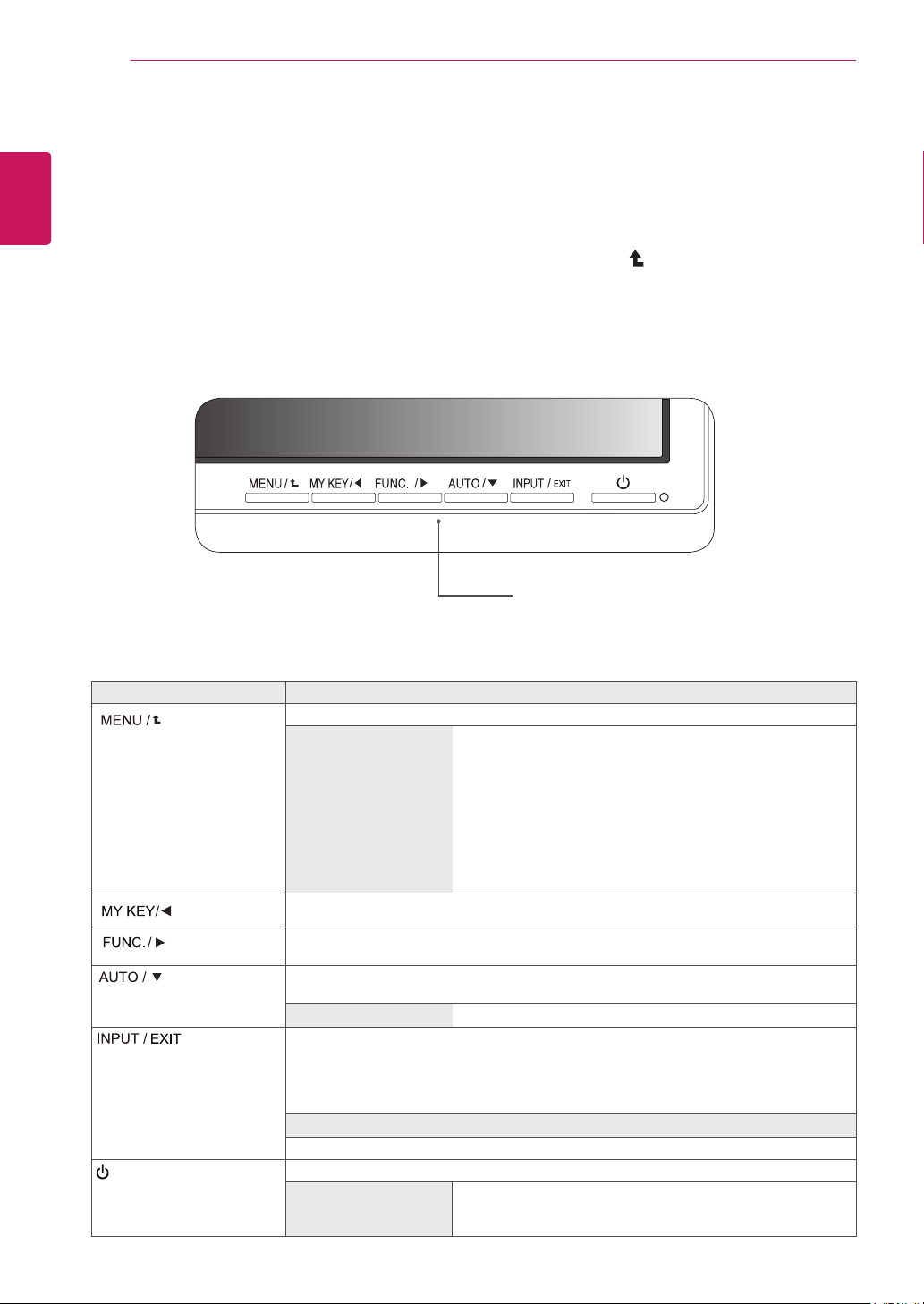

Front Side Buttons
Input Connectors (See p.11 to 13)
Page 5
ASSEMBLING AND PREPARING
5
Setting up the Monitor set
Attaching the Stand Base
Place the Monitor set with the screen side
1
down on a flat and cushioned surface.
CAUTION
To protect the screen from scratches, cover
y
the surface with a soft cloth.
Check the position (at the front and rear) of
2
the stand body, then mount the stand base on
the stand body as shown in the figure.
Stand Body
Detaching the stand base
Place the monitor's screen face down.
1
To protect the screen from scratches, cover the
surface with a soft cloth.
Using a coin, turn the screw in the stand base
2
counterclockwise. Detach the stand base from
the stand body.
Stand Body
ENGLISH
ENG
Using a coin, turn the screw clockwise to se-
3
cure the stand base.
Stand Base
Stand Base
Stand Base
CAUTION
The components appearing in the illustra-
y
tions may look different from the actual product.
Do not carry the monitor upside-down as this
y
may cause it to fall off its stand, resulting in
damage or injury.
To avoid damaging the screen when lifting
y
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnecessary pressure on the screen.
Only remove the tape and the locking pin
y
when the monitor is mounted on the stand
base and is in an upright position. Otherwise,
the stand body may protrude, which may
lead to injury.
Page 6
ENGLISH
ENG
ASSEMBLING AND PREPARING
6
Detaching the stand body
Place the monitor's screen face down. To
1
protect the screen from scratches, cover the
surface with a soft cloth.
Using a screwdriver, remove the four screws
2
and detach the stand from the monitor.
Using the cable holder
1
Fix the Knob (Cable holder) to the
Hole(Hingebody).
Use one screw to fix the Cable Holder and
2
monitor set.
3
Close the Cable holder.
Page 7
ASSEMBLING AND PREPARING
7
Mounting on a table
Lift the monitor and place it on the table in an
1
upright position.
Install at least 10 cm away from the wall to
ensure sufficient ventilation.
10 cm
10 cm
10 cm
Connect the Power cord to the monitor, then
2
1
plug the power cord into the wall outlet.
(Before connect please check the “ON/OFF”
knob in “O” state).
2
Press the “ON/OFF” knob in “ ” state
(Open the power).
10 cm
Adjusting the angle
Place the monitor mounted on the stand base
1
in an upright position.
Adjust the angle of the screen. The angle of
2
the screen can be adjusted up to 5° forwards
and 20° backwards for a comfortable viewing
experience.
Front SideRear Side
WARNING
To avoid injury to the fingers when adjusting
y
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
ENGLISH
ENG
Press the (Power) button on the front of the
3
monitor to turn on the monitor.
CAUTION
Unplug the power cord prior to moving or
y
installing the monitor. There is risk of electric
shock.
Be careful not to touch or press the screen
y
area when adjusting the angle of the monitor.
Page 8
ASSEMBLING AND PREPARING
8
ENGLISH
ENG
Adjusting the stand height
Place the monitor mounted on the stand base
1
in an upright position.
Remove the tape attached at the bottom rear
2
of the stand body, then pull out the locking
pin.
Stand Body
Tape
Locking Pin
The height can be adjusted up to 120 mm.
3
120.0mm
Using the Kensington locking device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensing-
ton lock cable.
CAUTION
Once the pin is removed, it is not necessary
y
to re-insert it to adjust the height.
WARNING
Do not put your finger be-
y
tween the screen and the
base (chassis) when adjusting the screen's height.
NOTE
Using the Kensington lock is optional. The
y
accessories can be purchased at your local
electronics store.
Page 9
Swivel stand
Image shown may differ from your Monitor
y
set.
Swivel 355 degrees and adjust the angle of the
1
Monitor set to suit your view.
ASSEMBLING AND PREPARING
Be careful with the cables when rotating the
3
screen.
9
ENGLISH
ENG
Using the Pivot function
The pivot function allows you to rotate the screen
90 degrees clockwise.
Lift the monitor to its highest height to utilize
1
the Pivot function.
Landscape & Portrait : You can rotate the panel
2
90° clockwise. Please be cautious and avoid
contact between the monitor head and the
Stand Base when rotating the screen to access
the Pivot function. If the monitor head touches
the Stand Base, then the Stand Base could
crack.
Head
section
Stand
section
Page 10
ASSEMBLING AND PREPARING
10
ENGLISH
ENG

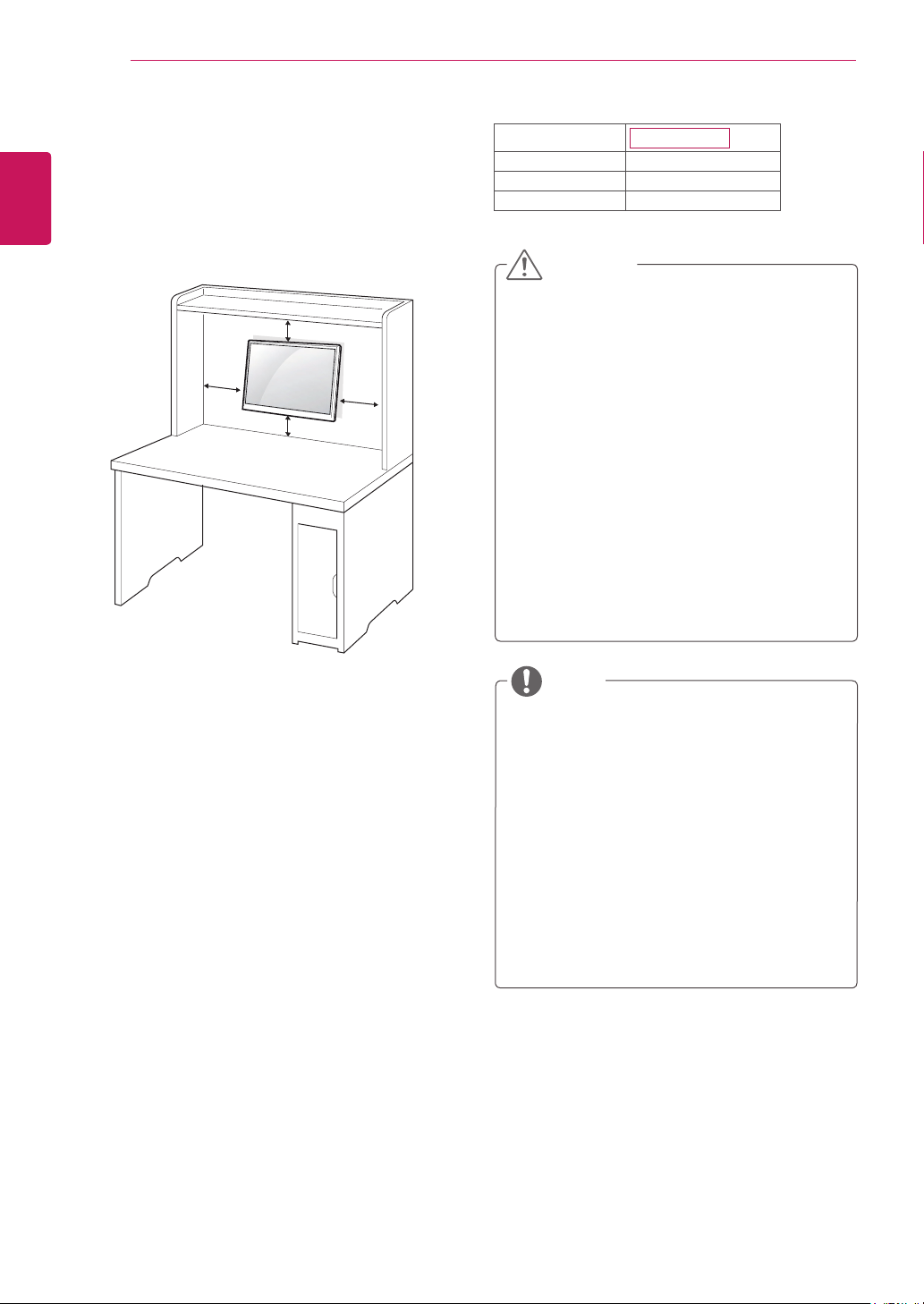

Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
10 cm
10 cm
10 cm
10 cm
Model
VESA (A x B) 100 x 200
Standard screw M4
Number of screws 8
24EB23PY
CAUTION
Disconnect the power cord first, and then
y
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
y
slanted wall, it may fall and result in severe
injury.
Use only an authorized LG wall mount
y
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
y
cause damage to the Monitor set and void
your warranty.
Use only screws and wall mounts that
y
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
Please, Use the screw and wall mount interface
1
in accordance with VESA Standards.
If you use screw longer than standard, the
2
monitor might be damaged internally.
If you use improper screw, the product might be
3
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
VESA compatible.
4
Please use VESA standard as below.
5
784.8 mm (30.9 inch) and under
y
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
y
* Please use VESA standard wall mount pad
and screws.
NOTE
Use the screws that are listed on the VESA
y
standard screw specifications.
The wall mount kit will include an installation
y
manual and necessary parts.
The wall mount bracket is optional. You can
y
obtain additional accessories from your local
dealer.
The length of screws may differ depending
y
on the wall mount. Be sure to use the proper
length.
For more information, refer to the
y
instructions supplied with the wall mount.
Page 11
USING THE MONITOR SET
11
USING THE MONITOR SET
Connecting to a PC
Your Monitor set supports Plug & Play*.
y
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.

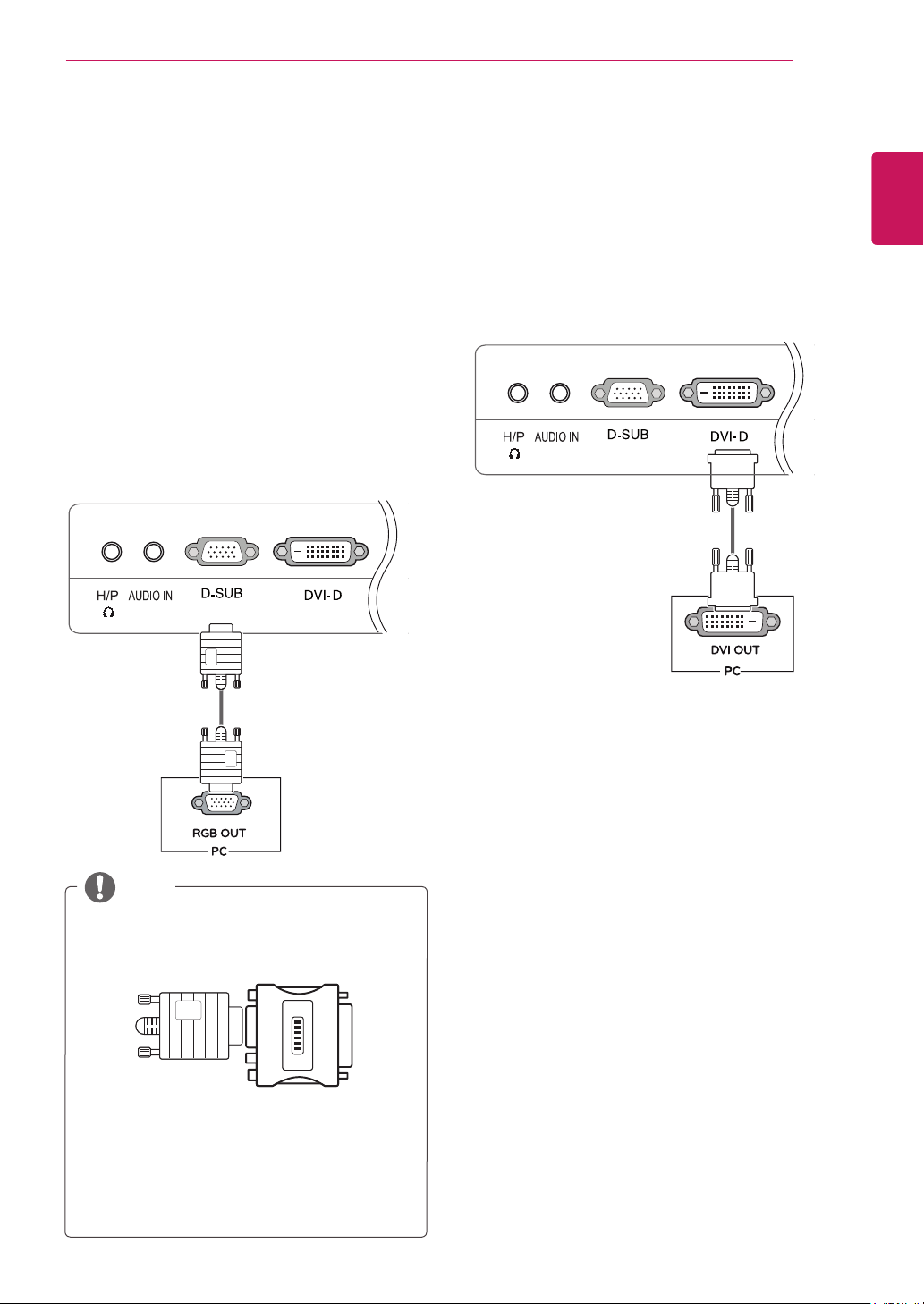

D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
DVI-D connection
Transmits a digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with a DVI cable as shown in the following
illustrations.
ENGLISH
ENG
NOTE
When using a D-Sub signal input cable
y
connector for Macintosh
Mac adapter
y
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
Page 12
USING THE MONITOR SET
12
ENGLISH
ENG
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
When you want to use two PC in our Monitor,
y
please connect the signal cable(D-SUB/
DVI-D/Display Port) respectively in Monitor
set.
If you turn the Monitor set on while it is cold,
y
the screen may flicker. This is normal.
Some red, green, or blue spots may appear
y
on the screen. This is normal.
CAUTION

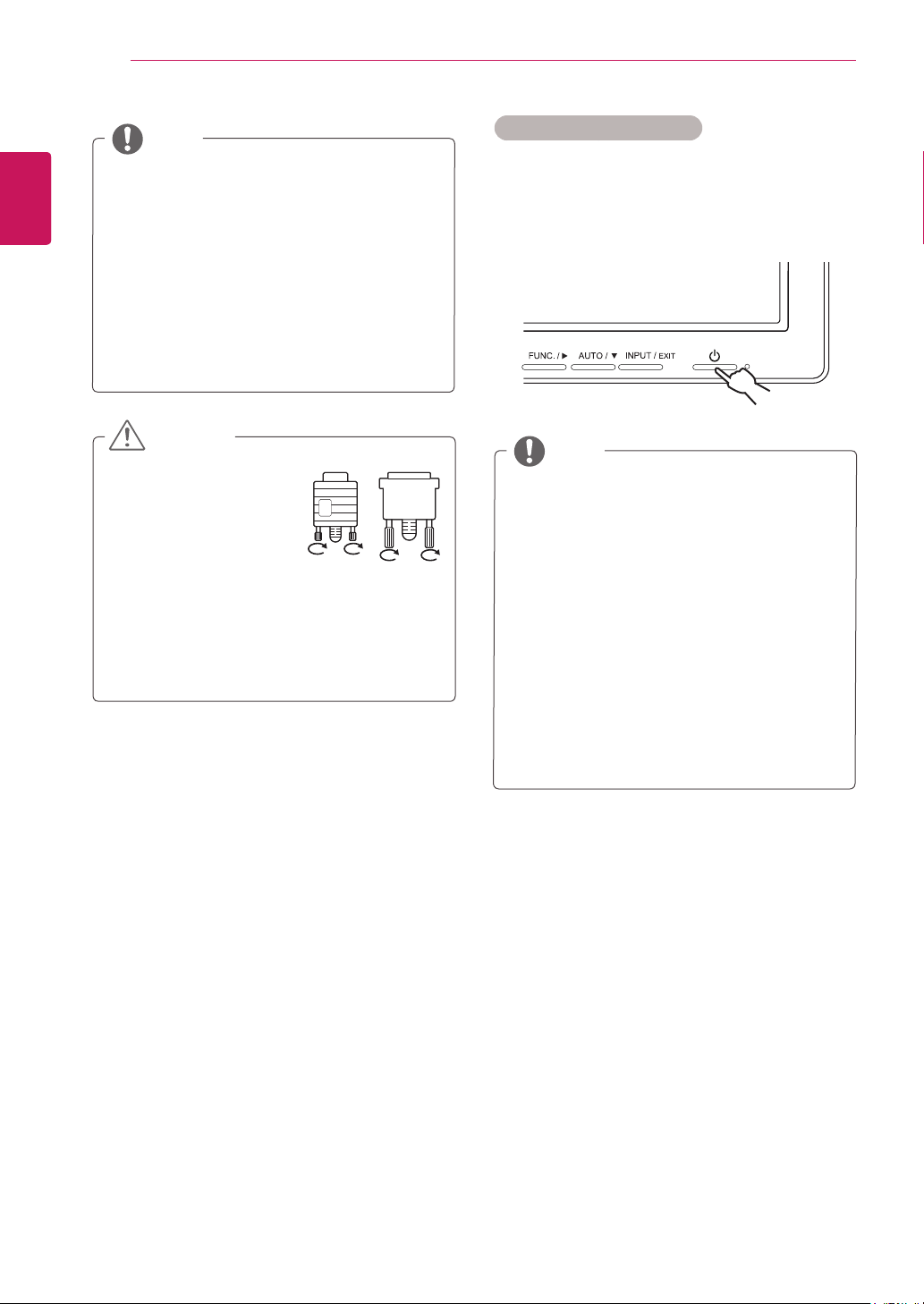

Connect the signal
y
input cable and tighten
it by turning the screws
clockwise.
Do not press the screen
y
with your finger for a long time as this may
result in temporary distortion on the screen.
Avoid displaying a fixed image on the
y
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
Self Image Setting Function
Press the power button on the bottom panel to
turn the power on. When monitor power is turned
on, the "Self Image Setting" Function is executed
automatically. (Only supported in Analog Mode)
NOTE
"Self Image Setting" Function.
y
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
‘AUTO’ Function.
y
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
Page 13
CUSTOMIZING SETTINGS
13
Peripheral device connection

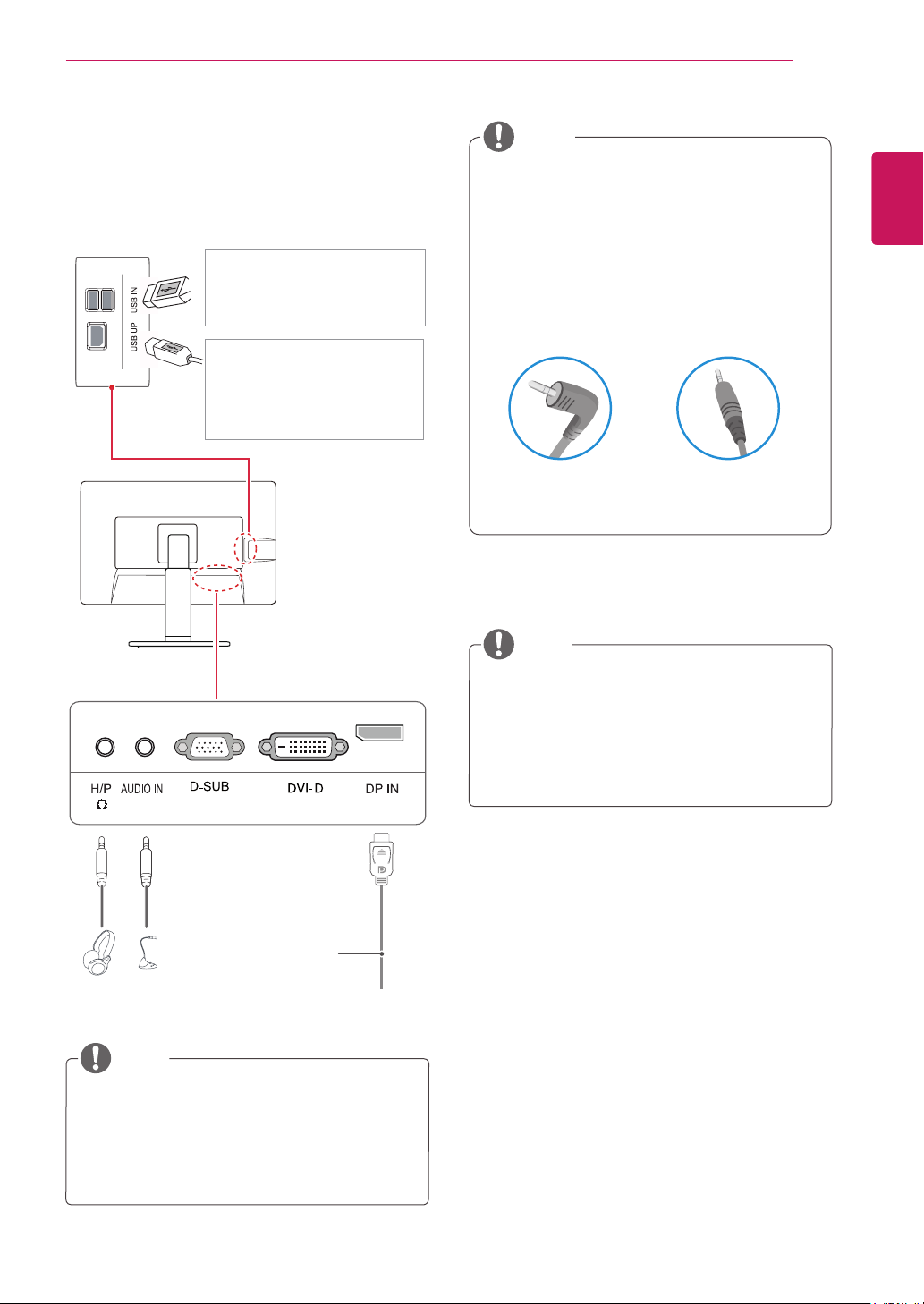

Connect peripheral devices to the monitor using
USB, microphone and headphone ports.
Two USB Downstream ports
Connect these ports to a mouse,
USB keyboard, memory stick with
current spec under 100mA.
One USB Upstream port
Connect this port to the downstream port of a computer, laptop
or USB monitor (Your computer or
USB monitor must support USB
and have USB ports).
NOTE
Peripheral devices are sold separately.
y
The USB ports on the left and bottom of the
y
monitor can be used to connect the keyboard, mouse, and other USB devices.
Cables with angled plugs may have clear-
y
ance issues, use straight plugs when possible.
Angle Type Straight Type
NOTE
ENGLISH
ENG
(Not Provided)
NOTE
The monitor's USB terminal supports USB
y
2.0 and high speed cables.
DP = Display Port
y
The cable is Separate purchase.
Headphones, speakers or microphone may
y
not work normally, depending on the server
PC settings.
Virtual solutions may affect the functions or
y
speed of the specific USB storage device.
Page 14
CUSTOMIZING SETTINGS
14
ENGLISH
ENG
CUSTOMIZING SETTINGS
Press the desired button on the bottom of the Monitor set.
1
Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
2
To return to the upper menu or set other menu items, use the up arrow (
Select Exit to leave the OSD menu.
3
Monitor set Buttons
) button.
Button Description
Accesses the main menus.(See p.15)
(Power Button)
OSD Locked/OSD
Unlocked
Use this button to enter MY KEY menu.For more information.(See p.20)

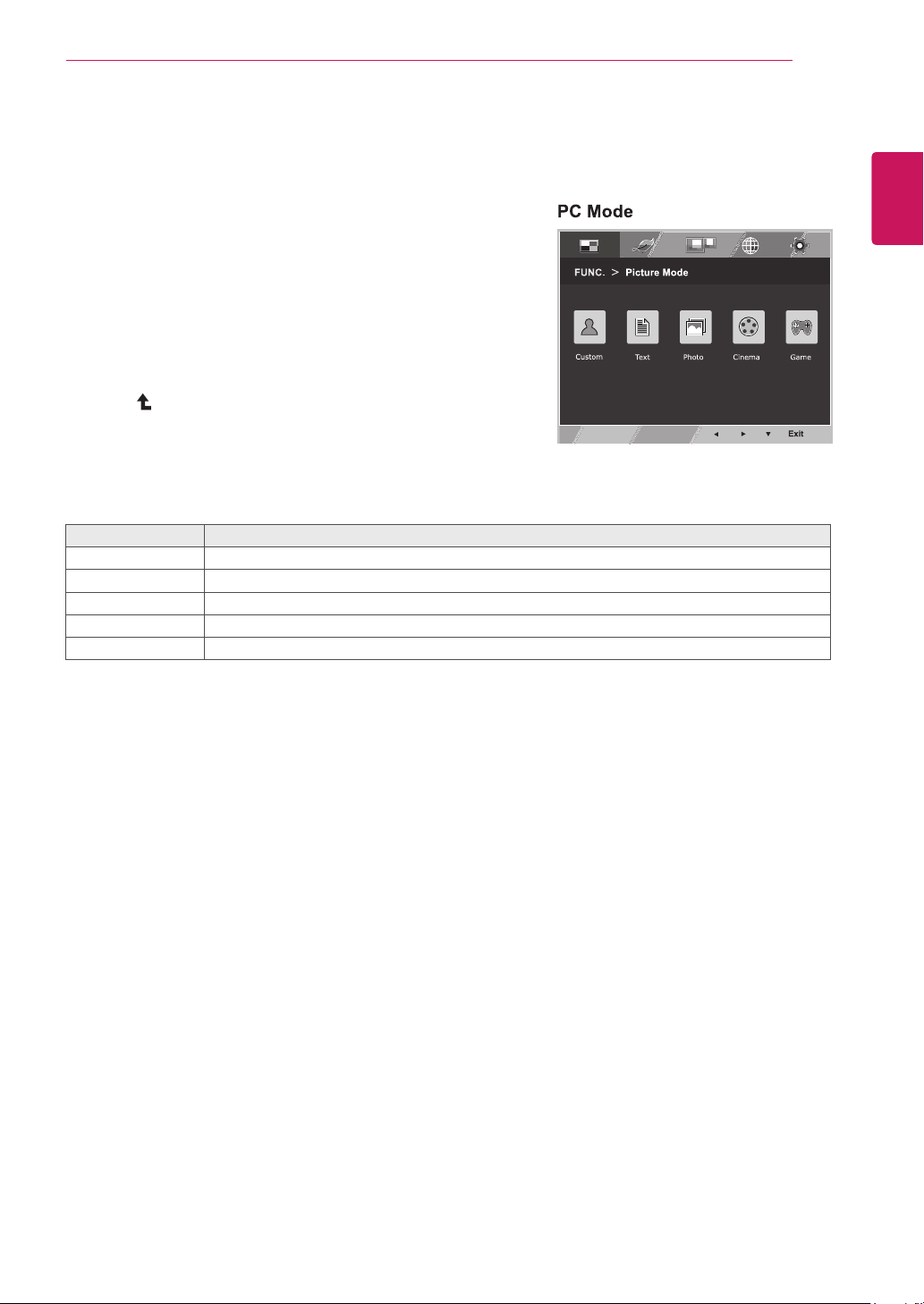

Use this button to enter Picture Mode, SUPER ENERGY SAVING, DUAL DISPLAY,
DUAL WEB,MY KEY Setting menus.(See p.21)
When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode 24EB23PY:1920 x 1200
You can choose the input signal.
• When two input signals are connected, you can select the input signal (D-SUB/DVI/
Display Port) you want.
• When only one signal is connected, it is automatically detected. The default setting is
D-SUB.
Exit
Exit the OSD(On Screen Display).
Turns the power on or off.
Power Indicator The power indicator stays red if the display is running properly
This function allow you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds. Then
OSD of “OSD Lock” will appear. After that, user can select
lock or unlock by pressing left/right button.
If user selects the “Lock” icon by pressing the “OK” button,
the message “OSD Locked” will appear. Otherwise, “OSD
Unlocked” will appear. After selecting the “Lock”, If you want
to change to Unlock, you can push the “MENU” button for
several seconds. The message “OSD Unlocked” will appear.
(On Mode). If the display is in Sleep Mode, the power indicator
blinks red.
Page 15
Customizing Settings
Menu Settings
Press MENU button on the bottom of the Monitor set
1
to display the Menu OSD.
Set the options by pressing the ◄ or ► or ▼
2
buttons.
Select the "Next Menu" button to enter the more
3
option settings.
Select Exit to leave the OSD menu.
4
To return to the upper menu or set other menu items,
use the up arrow (
Each option is explained below.

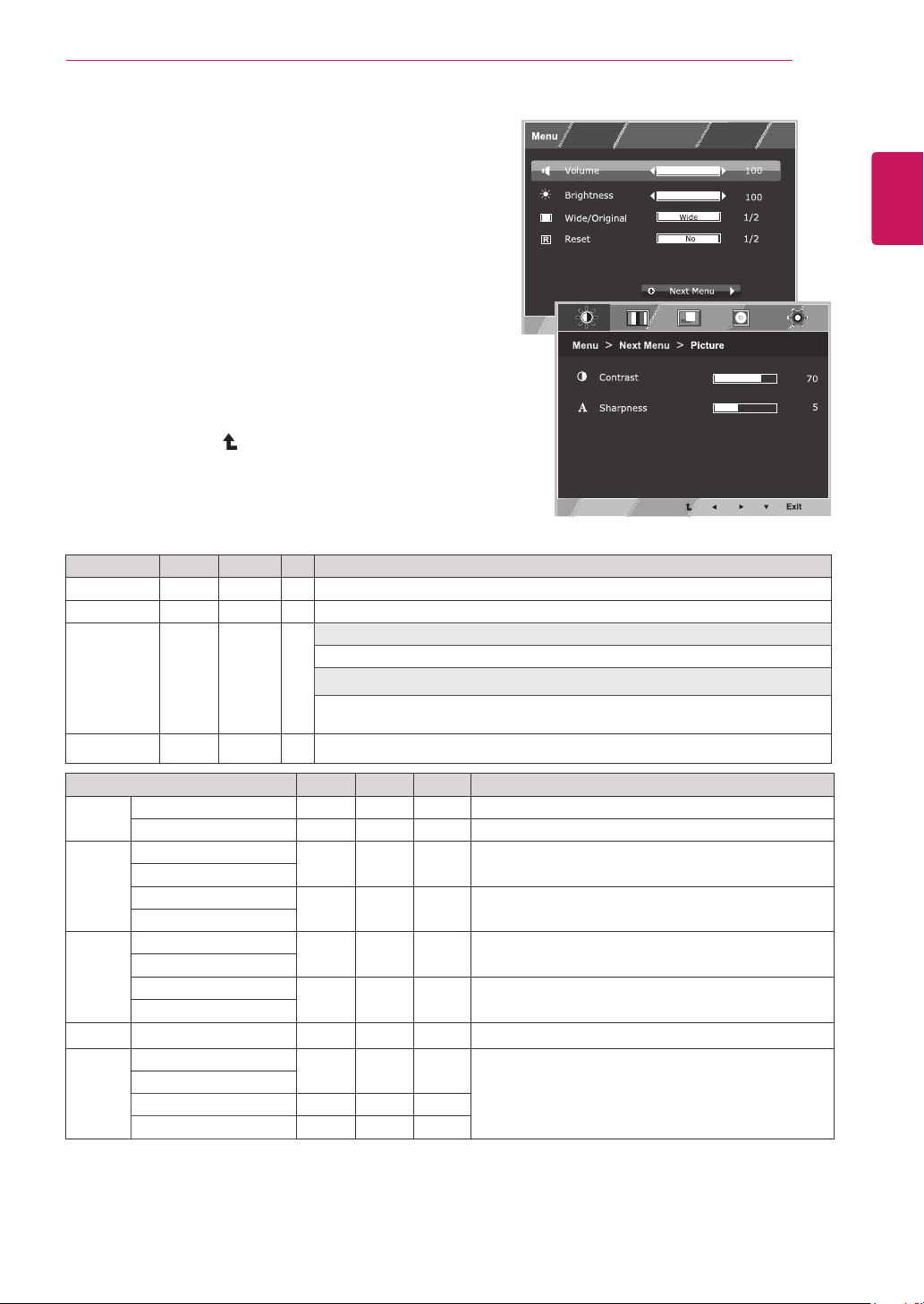

Menu Analog Digital DP Description
Volume ● ● ● To adjust the volume
Brightness ● ● ● To adjust the brightness of the screen
Wide/
Original
Reset
) button.
● ● ●
● ● ●
Wide
Switch to full screen mode according to input image signal.
Original
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
Restore all factory default settings. Press the
CUSTOMIZING SETTINGS
, ►buttons to reset immediately.
◄
15
ENGLISH
ENG
Menu > Next Menu Analog Digital DP Description
Picture Contrast ● ● ● To adjust the contrast of the screen
Sharpness ● ● ● To adjust the clearness of the screen
Color Gamma
Color Temp
Six Color
Color Reset
Display Horizontal
Vertical
Clock
Phase
Audio
Others Language
Audio Input ● To select the audio input
Power Indicator
Off Time Setting ● ● ●
Response Time ● ● ●
Analog: D-SUB(Analog signal) input.
y
Digital: DVI-D(Digital signal) input.
y
DP: Display Port input.
y
● ● ● To customize the color of the screen
● ● ●
● To adjust the position of the screen
● To improve the clarity and stability of the screen
● ● ●
To customize the color of the screen
(Only use for 24EB23PY Model)
To customize the screen status for a user's operating
environment
Page 16
ENGLISH
ENG
CUSTOMIZING SETTINGS
16
Press MENU button on the bottom of the Monitor set
1
to display the Menu OSD.
Select the "Next Menu" button to enter the more
2
option settings.
Enter to Picture by pressing the ▼ button.
3
Set the options by pressing the ◄ or ► or ▼
4
buttons.
Select Exit to leave the OSD menu.
5
To return to the upper menu or set other menu items,
use the up arrow (
Each option is explained below.
) button.
Menu > Next Menu > Picture Description
Contrast To adjust the contrast of the screen.
Sharpness To adjust the clearness of the screen.
Page 17
Color
Press MENU button on the bottom of the Monitor set
1
to display the Menu OSD.
Select the "Next Menu" button to enter the more
2
option settings.
Select Color by pressing the ► button.
3
Enter to Color by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► or ▼
5
buttons.
Select Exit to leave the OSD menu.
6
To return to the upper menu or set other menu items,
use the up arrow (
) button.
CUSTOMIZING SETTINGS
17
ENGLISH
ENG
Each option is explained below.
Menu > Next Menu > Color Description
Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,
Color Temp Custom
Six Color Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/
Color Reset Resets the color settings to the factory default settings for the current input
high gamma values display whitish images and low gamma values display
blackish images.
• Red:Set your own red color levels.
• Green: Set your own green color levels.
• Blue:Set your own blue color levels.
Select the screen color.
Warm: Set the screen to warm color temperature (more red).
Medium: Set the screen to medium color temperature.
Cool: Set the screen to cool color temperature (more blue).
Magenta/Yellow) to satisfy the color requirements of a user.
Hue Adjusts the screen hue.
Saturation Adjusts the color sharpness on the screen. Lower values make
the color sharpness weaker and colors lighter while higher
values make the color sharpness stronger and colors dark.
device.
Page 18
ENGLISH
ENG
CUSTOMIZING SETTINGS
18
Display
Press MENU button on the bottom of the Monitor set
1
to display the Menu OSD.
Select the "Next Menu" button to enter the more
2
option settings.
Select Display by pressing the ► button.
3
Enter to Display by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► or ▼
5
buttons.
Select Exit to leave the OSD menu.
6
To return to the upper menu or set other menu items,
use the up arrow (
Each option is explained below.

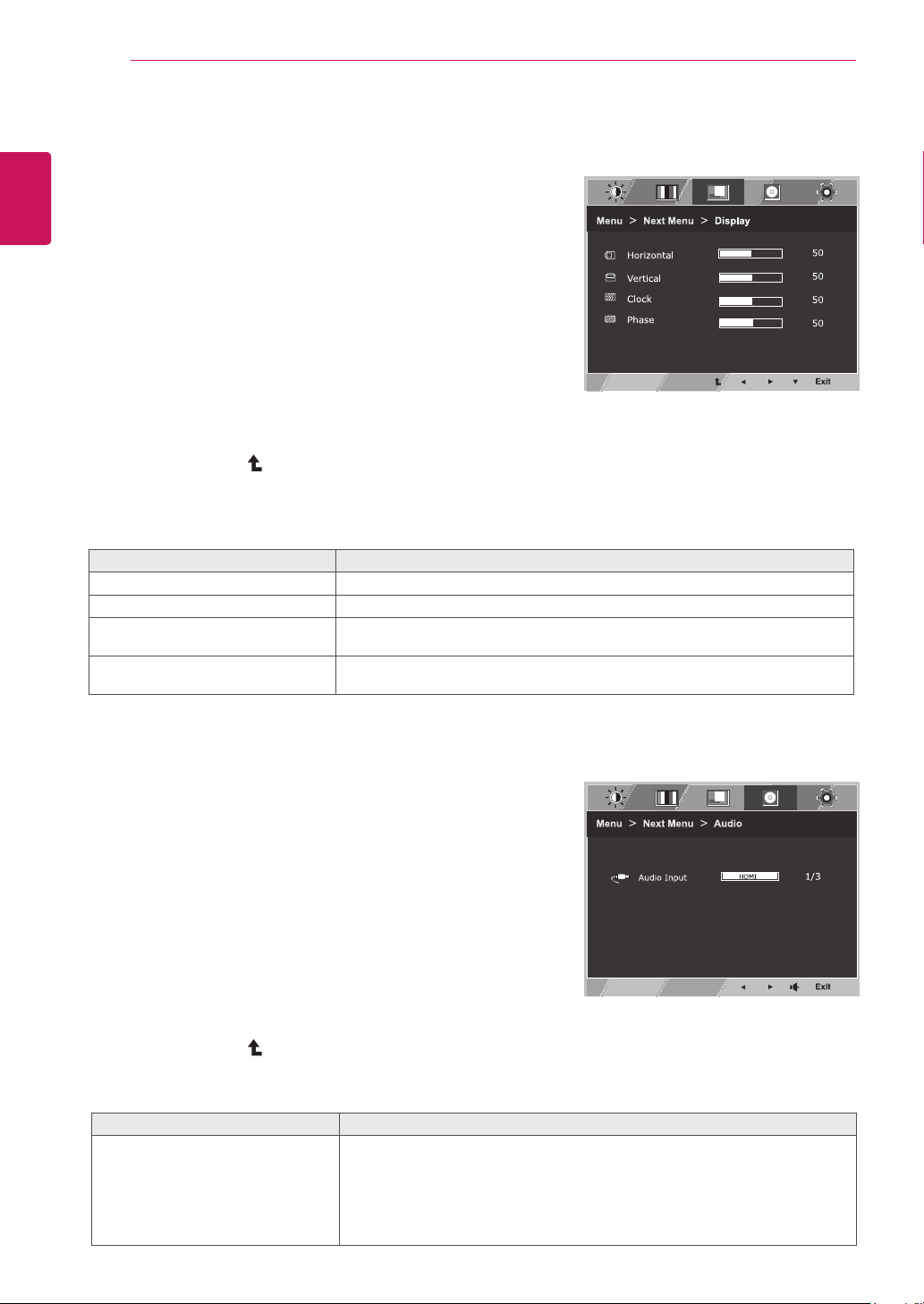

Menu > Next Menu > Display Description
Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars or stripes visible on the screen background.The
Phase To adjust the focus of the display. This item allows you to remove any horizontal
) button.
horizontal screen size will also change.
noise and clear or sharpen the image of characters.
Audio
Press MENU button on the bottom of the Monitor set
1
to display the Menu OSD.
Select the "Next Menu" button to enter the more
2
option settings.
Select Audio by pressing the ► button.
3
Enter to Audio by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► buttons.
5
Select Exit to leave the OSD menu.
6
To return to the upper menu or set other menu items,
use the up arrow (
Each option is explained below.
Menu > Next Menu > Audio Description
Audio Input To Select the audio source to output to speaker/headphone from below items.
) button.
1. DP: The audio source on DP port (Only in DP input).
2.Audio-In: The audio source on external analog audio jack.
(Only in Dsub/DVI-D input)
3.Auto : The audio source is switched automatically between DP or Audio-In.
DP has higher priority. (Only in DP input)
Page 19
CUSTOMIZING SETTINGS
19
Others
Press MENU button on the bottom of the Monitor set
1
to display the Menu OSD.
Select the "Next Menu" button to enter the more
2
option settings.
Select Others by pressing the ► button.
3
Enter to Others by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► or ▼
5
buttons.
Select Exit to leave the OSD menu.
6
To return to the upper menu or set other menu items,
use the up arrow (
Each option is explained below.

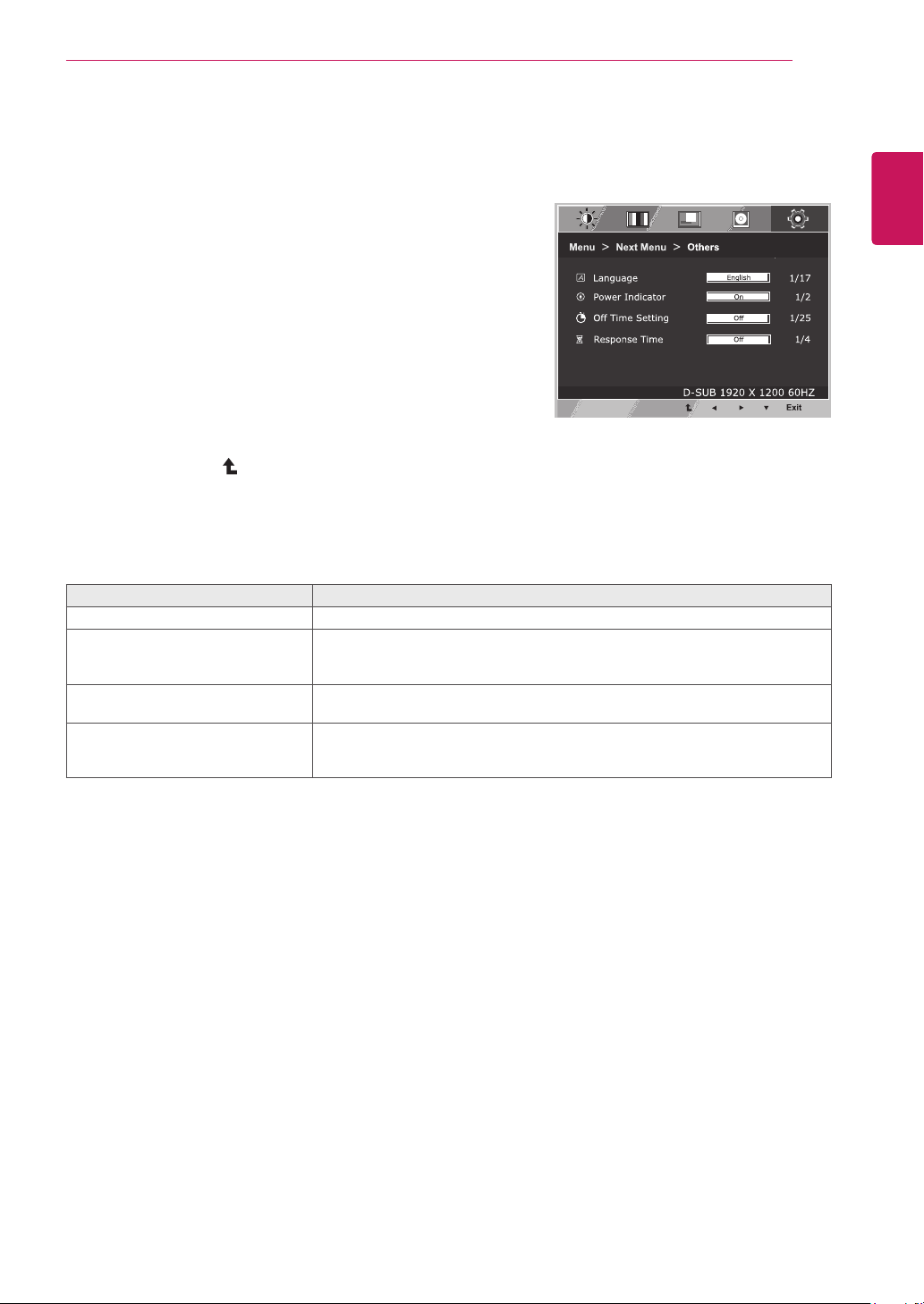

Menu > Next Menu > Others Description
Language To choose the language in which the control names are displayed.
Power Indicator Use this function to set the power indicator on the bottom side of the monitor to
Off Time Setting The monitor set will switch to power off mode after the time to be chosen by user
Response Time You can set a response time for displayed pictures based on the speed of the
) button.
On or Off.If you set Off, it will go off.
If you set On at any time, the power indicator will automatically be turned on.
(1 ~ 24 hours)
screen. For a normal environment, it is recommended that you use 'Off'. For a
fast-moving picture, it is recommended that you use 'Low/Middle/High'.
ENGLISH
ENG
Page 20
CUSTOMIZING SETTINGS
20
ENGLISH
ENG

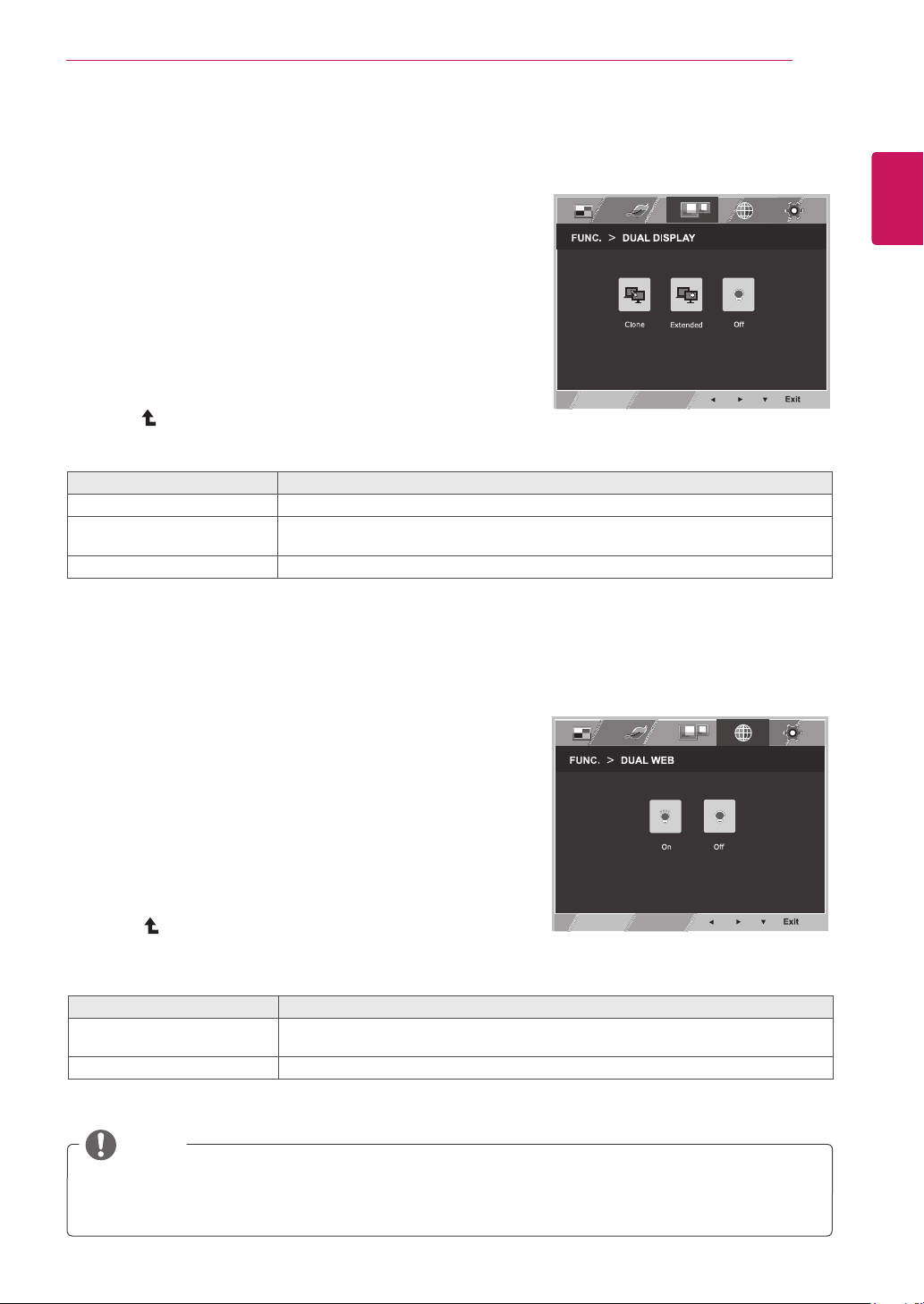

MY KEY Setting
Press MY KEY button on the bottom of the Monitor
1
set to display the MY KEY OSD.
Set the options by pressing the ◄or►or▼buttons.
2
Select Exit to leave the OSD menu.
3
Each option is explained below.
MY KEY Description
MY KEY Setting MY KEY is short key. You can select one of FUNC. (Picture Mode, SUPER
Back Select Back to return MY KEY menu.
ENERGY SAVING, DUAL DISPLAY, DUAL WEB) as your favorite feature.
Page 21
CUSTOMIZING SETTINGS
21
FUNC. Setting
Picture Mode
Press
1
Enter to Picture Mode by pressing the ▼ button.
2
Set the options by pressing the ◄ or ► buttons.
3
Select Exit to leave the OSD menu.To return to the
4
Each option is explained below.
Custom It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Text It is a mode that the screen is adjusted to the best for the textworks.
Photo It is a mode that the screen is adjusted to the best to view pictures.
Cinema It is a mode that the screen is adjusted to the best to view the videos.
Game It is a mode that the screen is adjusted to the best to play a game.
FUNC.
button on the bottom of the Monitor set
to display the
upper menu or set other menu items, use the up
arrow(
Picture Mode Description
FUNC.
)button.
OSD.
ENGLISH
ENG
Page 22
ENGLISH
ENG
CUSTOMIZING SETTINGS
22

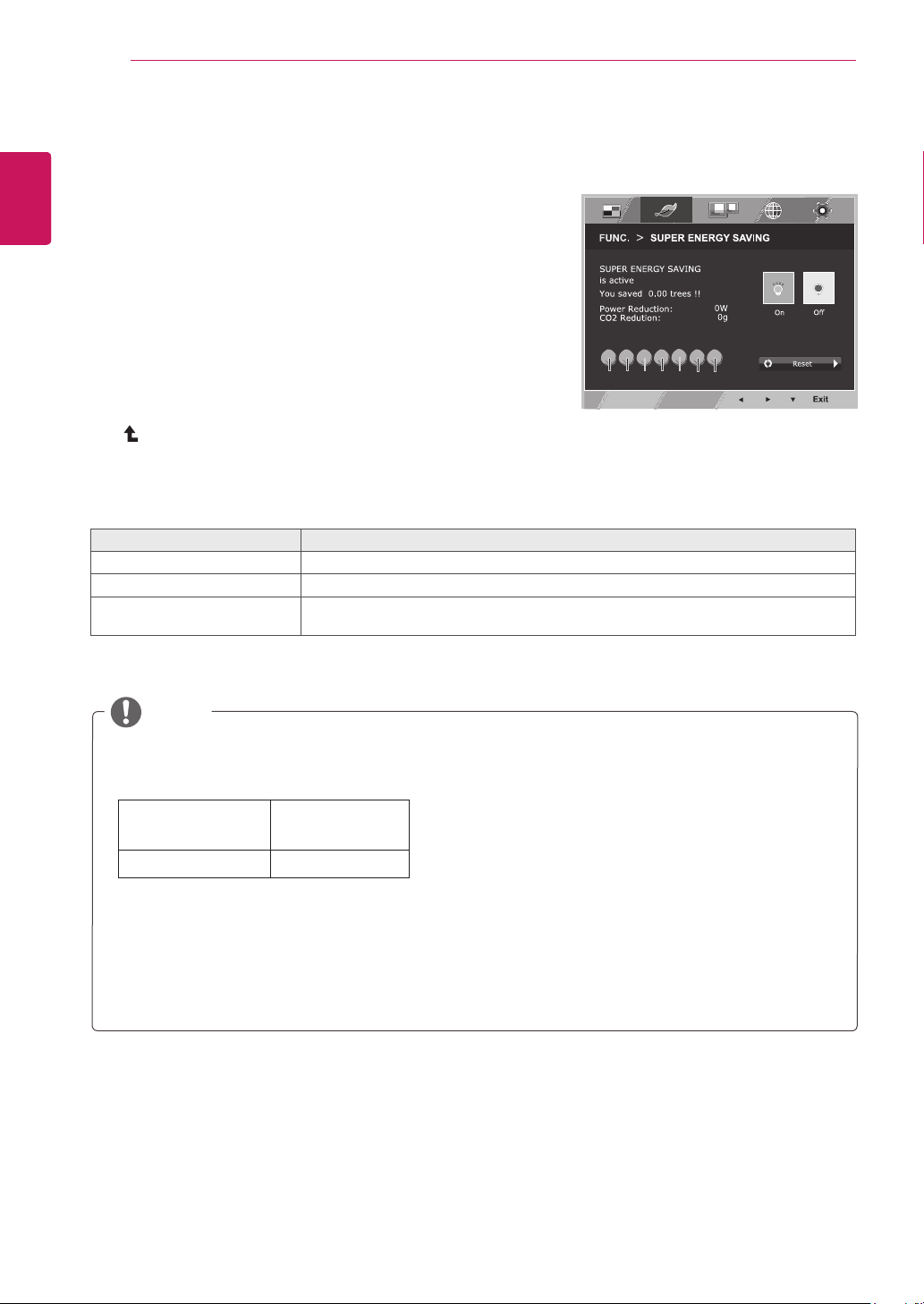

SUPER ENERGY SAVING
Press FUNC. button on the bottom of the Monitor set to
1
display the FUNC. OSD.
Select SUPER ENERGY SAVING by pressing the ►
2
button.
Enter to SUPER ENERGY SAVING by pressing the ▼
3
button.
Set the options by pressing the ◄ or ► or ▼buttons.
4
Select Exit to leave the OSD menu.To return to the
5
upper menu or set other menu items, use the up arrow
(
) button.
Each option is explained below.
SUPER ENERGY SAVING Description
On
Off Disables SUPER ENERGY SAVING.
Reset Resets the values of total energy consumption reduction and CO2 emission reduction
Enables SUPER ENERGY SAVING you can save energy with this energy- efficient function
estimates.
NOTE
TOTAL POWER REDUCTION: How much power is saved while using the monitor.
y
TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2.
y
SAVING DATA(W/h)
y
609 mm
(24 inch)
SUPER SAVING 6 W/h
Saving Data depends on the Panel. So,those values should be different from each panel and panel
y
vendor.
LG calculated these values by using “broadcast video signal”
y
(including broadcast video: IEC 62087)
SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING
y
function.
Page 23
CUSTOMIZING SETTINGS
* Before using below functions, please install DUAL SMART SOLUTION programme.
DUAL DISPLAY
Press FUNC. button on the bottom of the Monitor set
1
to display the FUNC. OSD.
Select DUAL DISPLAY by pressing the ► button.
2
Enter to DUAL DISPLAY by pressing the ▼ button.
3
Set the options by pressing the ◄ or ► buttons.
4
Select Exit to leave the OSD menu.To return to the
5
upper menu or set other menu items, use the up
arrow (
Each option is explained below.
Clone By selecting Clone,user can use secondary monitor as done mode of primary monitor.
Extended By selecting Extended,user can use secondary monitor as extended mode of primary
Off If select Off,DUAL DISPLAY is off.
) button.
DUAL DISPLAY Description
monitor.
23
ENGLISH
ENG
* Before using below functions, please install DUAL SMART SOLUTION programme.
DUAL WEB
Press FUNC. button on the bottom of the Monitor set
1
to display the FUNC. OSD.
Select DUAL WEB by pressing the ► button.
2
Enter to DUAL WEB by pressing the ▼ button.
3
Set the options by pressing the ◄ or ► buttons.
4
Select Exit to leave the OSD menu.To return to the
5
upper menu or set other menu items, use the up
arrow (
Each option is explained below.
On Help user to browse web efficiently by dividing in half. Help to arrange and move
Off If select Off,DUAL WEB is off.
When monitor goes to power saving mode with pc saving option-> Pressing any button -> OSD
y
appear and user should press dual button -> User can bring back to normal mode.
) button.
DUAL WEB Description
windowson screen. Help user to control dividedwindows ratio.
NOTE
Page 24
ENGLISH
ENG
CUSTOMIZING SETTINGS
24
MY KEY Setting
Press FUNC. button on the bottom of the Monitor
1
set to display the FUNC. OSD.
Select MY KEY Setting by pressing the ► button.
2
Enter to MY KEY Setting by pressing the ▼ button.
3
Set the options by pressing the ◄ or ► buttons.
4
Select Exit to leave the OSD menu.To return to
5
the upper menu or set other menu items, use
the up arrow (
Each option is explained below.
MY KEY Setting Description
Picture Mode Picture Mode adjust the Monitor set for the best picture appearance.
SUPER ENERGY SAVING Enables SUPER ENERGY SAVING you can save energy with this energy-effcient
DUAL DISPLAY User can use Clone or Extended in another monitor.
DUAL WEB Help user to browse web efficiently by dividing in half and some other convenience in
) button.
function.
browsing dual pages.
Page 25
TROUBLESHOOTING
25
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
Is the power indicator light on?
Is the power on and the power
indicator Red?
Is the power indicator flickering?
Do you see an "OUT OF RANGE"
message on the screen?
Do you see a "NO SIGNAL"
message on the screen?
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
yCheck and see if the power cord is connected properly to the power
outlet.
yPress the Power button.
yAdjust the brightness and the contrast.
yIf the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yTry to turn on the PC.
yThis message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
yWhen the monitor is on "No-Signal" in 5 minutes, the monitor goes to
DPM mode.
yYou can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
ENGLISH
ENG
Display image is incorrect
Display Position is incorrect.
On the screen background, vertical
bars or stripes are visible.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
yPress the AUTO button to automatically adjust your display image to
the ideal setting.
yCheck Control Panel ► Display ► Settings and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
Page 26
ENGLISH
ENG
TROUBLESHOOTING
26
CAUTION
Check Control Panel ► Display ► Settings and see if the frequency or the resolution were
y
changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
y
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
y
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
Display image is incorrect
The screen color is mono or
abnormal.
The screen blinks.
yCheck if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yMake sure the video card is properly inserted in the slot.
ySet the color setting higher than 24 bits (true color) at Control Panel
► Settings.
yCheck if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
The screen is flickering.
Did you select the recommended
resolution?
yBe sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
yMake sure to check if the video card supports Plug&Play function.
yIf the selected resolution is Display Port 1080i 60/50 Hz, the screen
may be flickering. Change the resolution to the recommended
resolution 1080P.
Page 27
SPECIFICATIONS
27
SPECIFICATIONS
24EB23PY
Display Screen Type 60.9 cm (24 inch) Flat Panel Active matrix-TFT LCDAnti-
Pixel Pitch 0.27 mm x 0.27 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency 56Hz to 75Hz (D-SUB,DVI-D)
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max D-SUB(Analog) : 1920 x 1200 @ 60 Hz
Recommend VESA 1920 x 1200 @ 60 Hz
Plug & Play DDC 2B(Analog,Digital)
Power
Consumption
Power Input AC 100-240V ~ 50/60Hz 1.2A
Dimensions
(Width x Height x
Depth)
Weight 5.4 kg
Tilt Range -5° to 20°
Environmental
conditions
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
On Mode : 28 W(Typ.)
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
With Stand 55.8 cm x 39.5 cm x 23.9 cm
Without Stand 55.8 cm x 37.0 cm x 5.8 cm
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Glare coating
Visible diagonal size: 60.9 cm
56Hz to 61Hz (Display Port)
Display Port Connector
DVI (Digital) : 1920 x 1200 @ 60 Hz
10°C to 35 °C
10 % to 80 %
-20°C to 60 °C
5 % to 90 % non-Condensing
ENGLISH
ENG
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
Page 28
ENGLISH
ENG
SPECIFICATIONS
28
Preset Modes (Resolution)
24EB23PY
Display Modes (Resolution)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 -/-
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+
1920 x 1200 74.038 59.95 +/- Recommend Mode
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
Indicator
Mode LED Color
On Mode Red
Sleep Mode Blinking Red
Off Mode Off
Page 29
PROPER POSTURE
29
PROPER POSTURE

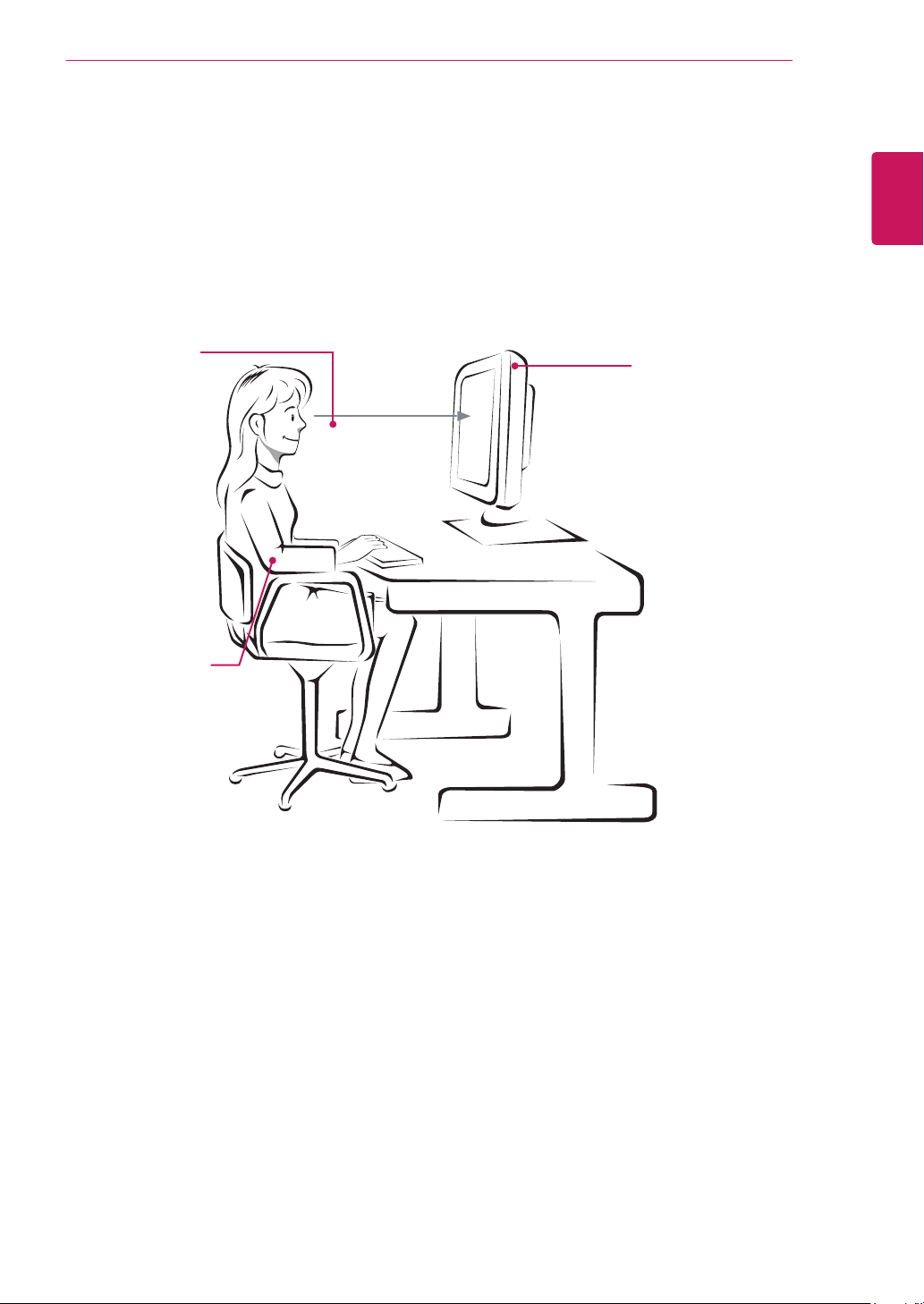

Proper posture for using the Monitor set.
Adjust the
Monitor set and
your posture to
allow you to view
images at the
optimal viewing
angle.
Place your hands
gently on the
keyboard, keeping
your arms bent at
the elbows and
horizontally outright.
ENGLISH
ENG
Adjust the location of the
Monitor set to avoid it
reflecting light.
Page 30
Declaration of Conformity
Trade Name: LG
Model : 24EB23PYC
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
As an ENERGY STAR Partner LGE
U. S. A.,Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
Loading...
