LG 24CAV37K User Guide

Download

Owner's Manual

CLOUD MONITOR LED LCD MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

Please read this manual carefully before operating your set and retain it for future reference.

CLOUD(LED LCD) MONITOR MODEL

24CAV37K

www.lg.com

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

English

ENG

TABLE OF CONTENTS

3 ASSEMBLING AND

PREPARING

3 Unpacking

4 Parts and buttons

5 Lifting and moving the Monitor

5 Setting Up the Monitor set

5 - Attaching the Stand Base

6 - Mounting on a table

6 - Adjusting the angle

7 - Adjusting the stand height

7 - Using the Kensington locking device

8 - Detaching the stand base

8 - Using the cable holder

8 - Detaching the stand body

9 - Swivel stand

9 - Using the Pivot function

10 - Installing the wall mount plate

10 - Mounting on a wall

23 - Volume

24 TROUBLESHOOTING

26 PRODUCT SPECIFICATION

27 Preset Mode

27 Indicator

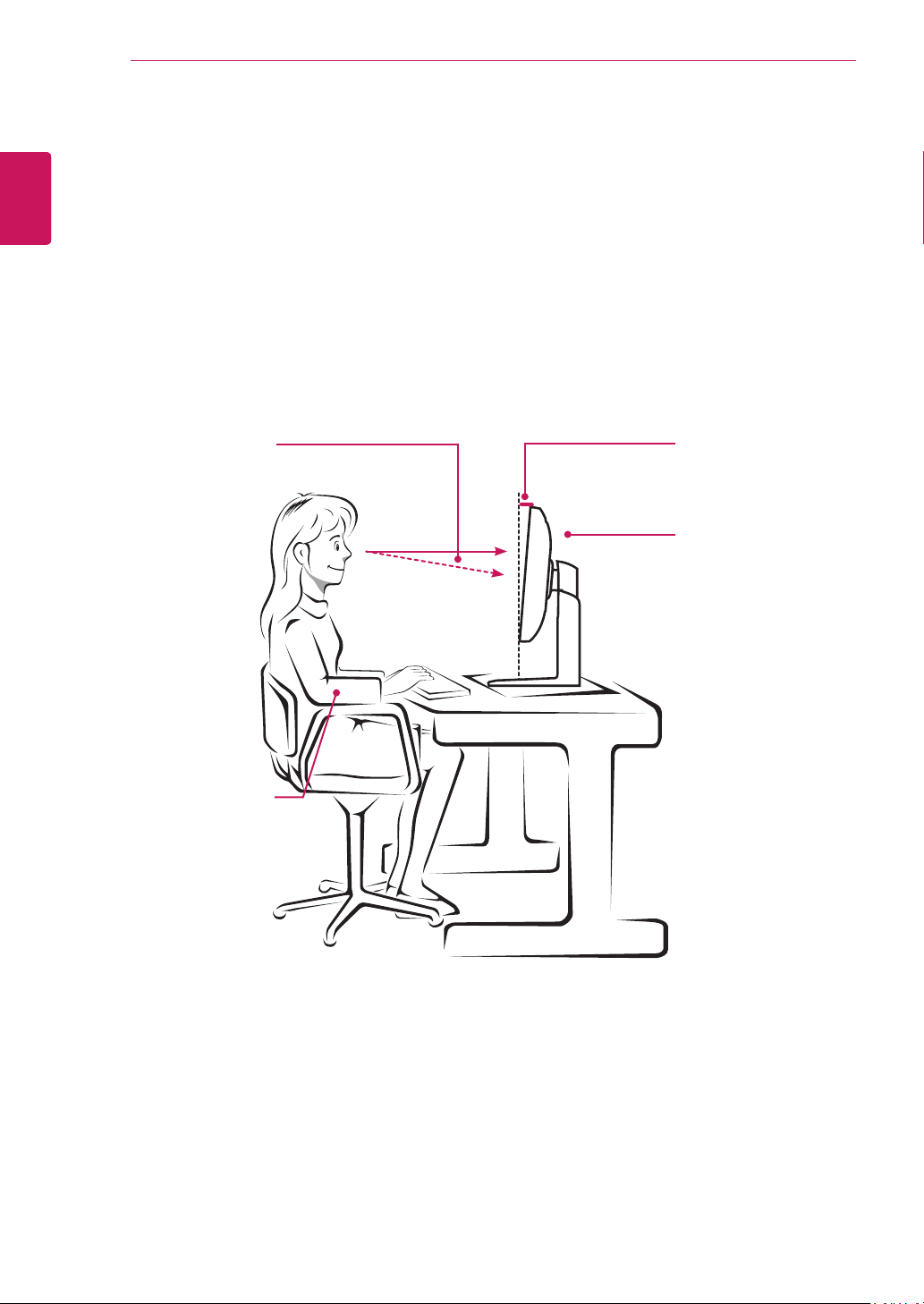

28 PROPER POSTURE

28 Proper posture for using the monitor

29 USING CLOUD SOLUTION

12 USING THE MONITOR SET

12 Connecting Input Signal Cable

12 - D-SUB IN connection - PC

13 - DVI connection

14 Connecting LAN/Peripherals

14 - LAN connection

15 - Peripheral device connection

16 - Self Image Adjustment

17 CUSTOMIZING SETTINGS

18 Customizing Settings

18 - Menu Settings

19 - Picture

20 - Color

21 - Display

22 - Others

ASSEMBLING AND PREPARING

Unpacking

Please check whether all the components are included in the box before using the product. If there are missing components, contact the retail store where you purchased the product. Note that the product and components may look different from those shown here.

English

ENG

CAUTION

User Manual/Card

Power Cord

Stand Base

One Screw

D-SUB Cable

(This cable is not included in all

countries.)

AC-DC Adapter

Cable Holder

Only use an approved LG power adapter.



Damage caused by other power adapters is not covered by warranty.



NOTE

Note that the components may look different from those shown here.



Without prior notice, all information and specifications in this manual are subject to change to improve



the performance of the product. To purchase optional accessories, visit an electronics store or online shopping site or contact the retail



store where you purchased the product.

English

ENG

ASSEMBLING AND PREPARING

Parts and buttons

Input Connectors (See p.15 )

Power Indicator

LED On : Power is on



LED Off: Power is off



(Power Button)

Front Side Buttons

Input Connectors (See p.12 to 15)

ASSEMBLING AND PREPARING

Lifting and moving the Monitor

Please heed the following information when moving the monitor.

CAUTION

Avoid touching the screen at all times, as this



may result in damage to the screen or pixels .

It is recommended to move the Monitor in



the box or packing material that the Monitor originally came in. Before moving or lifting the Monitor,



disconnect the power cord and all cables. Hold the top and bottom of the Monitor frame



firmly. Make sure not to hold the transparent part area.

Setting Up the Monitor set

Attaching the Stand Base

Place the monitor's screen face down.

CAUTION

To protect the screen from scratches, cover



the surface with a soft cloth.

Check the

the stand body, then mount the the

position (at the front and rear)

stand body

as shown in the figure.

Stand Body

stand base

English

ENG

When holding the Monitor, the screen should



face away from you to prevent the screen from scratches.

When transporting the Monitor, do not



expose the Monitor to jolts or excessive vibration. When transporting the Monitor, keep the



Monitor upright, never turn the Monitor on its side, or tilt towards the left or right.

Stand Base

Using a coin, turn the screw clockwise to se-

cure the

stand base.

Stand Base

ASSEMBLING AND PREPARING

English

ENG

Mounting on a table

Lift the monitor and place it on the table in an

upright position.

Install at least 3.94 inches away from the wall to ensure sufficient ventilation.

3.94 inches

Adjusting the angle

Place the monitor mounted on the stand base

in an upright position.

Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards and 35° backwards for a comfortable viewing experience.

Front SideRear Side

WARNING

Connect the adaptor to the monitor, then plug

the power cord into the wall outlet.

Press the (Power) button on the front of the

monitor to turn on the monitor.

CAUTION

Unplug the power cord prior to moving or

installing the monitor. There is risk of electric shock.

To avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the monitor's frame as illustrated below.

Be careful not to touch or press the screen

area when adjusting the angle of the monitor.

ASSEMBLING AND PREPARING

Adjusting the stand height

Place the monitor mounted on the stand base

in an upright position.

Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

Stand Body

Tape

Locking Pin

Using the Kensington locking device

The connector for the Kensington lock is located on the rear of the monitor. For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

English

ENG

The height can be adjusted up to

5.12 inches.

CAUTION

Once the pin is removed, it is not necessary

to re-insert it to adjust the height.

WARNING

Do not put your finger be-

tween the screen and the base (chassis) when adjusting the screen's height.

5.12 inches

NOTE

Using the Kensington lock is optional. The

accessories can be purchased at your local electronics store.

English

NOTE

The holes are used for wall mount bracket. Varies depending upon your country or model.

NOTE

ENG

ASSEMBLING AND PREPARING

Detaching the stand base

Place the monitor's screen face down.

To protect the screen from scratches, cover the surface with a soft cloth.

Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from the stand body.

Stand Body

NOTE

The holes are used for wall mount bracket.

Varies depending upon your country or

model.

Stand Base

CAUTION

The components appearing in the illustra-

tions may look different from the actual product. Do not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in damage or injury. To avoid damaging the screen when lifting

or moving the monitor, only hold the stand or the plastic cover. This avoids putting unnecessary pressure on the screen. Only remove the tape and the locking pin

when the monitor is mounted on the stand base and is in an upright position. Otherwise, the stand body may protrude, which may lead to injury.

Using the cable holder

Fix the Knob (Cable holder) to the

Hole(Hingebody).

Use one screw to fix the Cable Holder and

monitor set.

Close the Cable holder.

Detaching the stand body

Place the monitor's screen face down. To

protect the screen from scratches, cover the surface with a soft cloth.

Using a screwdriver, remove the four screws

and detach the stand from the monitor.

Swivel stand

Image shown may differ from your Monitor

set.

Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

ASSEMBLING AND PREPARING

Be careful with the cables when rotating the

screen.

English

ENG

Using the Pivot function

The pivot function allows you to rotate the screen 90 degrees clockwise.

Lift the monitor to its highest height to utilize

the Pivot function.

Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid contact between the monitor head and the Stand Base when rotating the screen to access the Pivot function. If the monitor head touches the Stand Base, then the Stand Base could crack.

Head section

Stand section

ASSEMBLING AND PREPARING

English

ENG

Installing the wall mount plate

This monitor has a VESA compatible mount on the back. Most mounts will require an LG mounting plate.

Place the monitor's screen face down. To

protect the screen from scratches, cover the surface with a soft cloth.

Place the wall mount plate on the monitor and

align it with the screw holes on the monitor.

Using a screwdriver, tighten the four screws to

fix the plate onto the monitor.

Wall Mount Plate

Mounting on a wall

Install the monitor at least 3.94 inches away from the wall and leave about 3.94 inches of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Please refer to the manual to install and set up a tilting wall mounting bracket.

3.94 inches

NOTE

The wall mount plate is sold separately.

For more information on the installation, refer

to the wall mount plate's installation guide.

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set. When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1 If you use screw longer than standard, the moni-

tor might be damaged internally.

2 If you use improper screw, the product might be

damaged and drop from mounted position.

In this case, LG Electronics is not responsible

for it.

Model

Wall Mount (A x B) Stand Screw Number of screws Wall Mount Plate (Optional)

24CAV37K

100 x 100

RW120

VESA (A x B)

Wall Mount (A x B)



CAUTION

Disconnect the power cord first, and then



move or install the Monitor set. Otherwise electric shock may occur. If you install the Monitor set on a ceiling or



slanted wall, it may fall and result in severe injury. Use only an authorized LG wall mount



and contact the local dealer or qualified personnel. Do not over tighten the screws as this may



cause damage to the Monitor set and void your warranty. Use only screws and wall mounts that



meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. Screw length from outer surface of back



cover should be under 8mm.

Wall mount Pad

ASSEMBLING AND PREPARING

NOTE

Use the screws that are listed on the VESA



standard screw specifications. The wall mount kit will include an installation



manual and necessary parts. The wall mount bracket is optional. You can



obtain additional accessories from your local dealer. The length of screws may differ depending



on the wall mount. Be sure to use the proper length. For more information, refer to the



instructions supplied with the wall mount.

English

ENG

Back Cover

Wall mount Pad

Back Cover

Standard screw

Max.8mm

English

ENG

USING THE MONITOR SET

Connecting Input Signal Cable

This monitor supports the *Plug and Play



feature. *Plug and Play: A feature that allows you to

add a device to your computer, without having to reconfigure anything or install any manual drivers.

D-SUB IN connection - PC

D-SUB IN transfers analog video signals from the PC to the monitor. Connect the monitor to the PC using the provided 15-pin D-SUB signal cable as illustrated below.

NOTE

Apple Adapter



An adapter may be needed for Apple computers. This adapter can be purchased from Apple.

USING THE MONITOR SET

DVI connection

Transfers digital video signals from the Cloud Monitor to an extended monitor. Connect the Cloud Monitor to an extended monitor using a DVI cable.

(sold separately)

CAUTION

Connect the input signal



cable and tighten in the direction of the arrow. To prevent disconnection secure the cable tightly. Do not press on the screen for a prolonged



time. This may cause image distortion. Do not display a still image on the screen



for a prolonged time. This may cause image retention. If possible, use the screen saver.

NOTE

To connect the monitor to a computer, use



the appropriate signal cable (LAN and DSUB). A converter can be used to convert the DVI-I



input signal to D-SUB input signal. When connecting the power cord to the out-



let, use a grounded (3-hole) multi-socket or a grounded wall outlet. The monitor may flicker when turned on in an



area of low temperature. This is normal. Sometimes red, green or blue spots may ap-



pear on the screen. This is normal.

English

ENG

USING THE MONITOR SET

English

ENG

Connecting LAN/Peripherals

LAN connection

Connect the router or switch to the monitor using a LAN cable as illustrated below.

(sold separately)

NOTE

The LAN cable is sold separately.



The following LAN cable type can be used:



Standard: IEEE 802.3 ETHERNET If a device is connected into the earphone



out port via a LAN cable, you can adjust the volume with the volume icon on PC taskbar. Connect the LAN cable and the peripheral



devices prior to booting up the PC.

USING THE MONITOR SET

Peripheral device connection

Connect peripheral devices to the monitor using USB, microphone and headphone ports.

Left

NOTE

Peripheral devices are sold separately.



The USB ports on the left and bottom of the



monitor can be used to connect the keyboard, mouse, and other USB devices. Cables with angled plugs may have clear-



ance issues, use straight plugs when possible.

Angle Type Straight Type

NOTE

English

ENG

Bottom

NOTE

When the user use the USB devices to con-



nect the top and bottom ports at the same time, Please refer the below depth and length of USB for optimal connection.

A ≤ 8.5 mm B ≤ 18 mm

Headphones, speakers or microphone may



not work normally, depending on the server PC settings. Virtual solutions may affect the functions or



speed of the specific USB storage device.

English

ENG

USING THE MONITOR SET

Self Image Adjustment

Press the power button on the front to turn on the monitor. When powered on, the

Adjustment"

available for analog [D-SUB input] signals).

function will run automatically (only

"Self Image

NOTE

What is "Self Image Adjustment"? This func-



tion runs when the monitor is connected for the first time and performs automatic image adjustment for each signal (only available for analog [D-SUB input] signals) to provide an optimal screen display.

CUSTOMIZING SETTINGS

Press the desired button on the bottom of the Monitor set.

Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

English

ENG

Select

EXIT

to leave the OSD menu.

Monitor set Buttons

Button Description

MENU Activates the main menu.

OSD Lock/Unlock Functions

VOL

CLOUD

AUTO To adjust the monitor settings, press the AUTO button on the MONITOR SETUP OSD

INPUT Allows selection of the input signal.

EXIT Exits the OSD menu.

(Power Button)

Adjust the volume of the monitor.(only works in Cloud mode)/the left arrow key.

Disconnects the connection when the key is pressed for a few seconds while in Cloud mode;the right arrow key.

menu (only supported for analog signal). For optimal screen display, use the following resolution.

Optimal Resolution 1920 x 1080

If you connect the monitor to a computer using a D-SUB cable, select either the

CLOUD or D-SUB input signal.

The initial input signal is D-SUB.

D-SUB Input: Power On/Off CLOUD Input

Monitor Off: Press the power button once then the monitor will be turned off after 5 seconds. CLOUD Off: Press the power button twice then the monitor and CLOUD connection will be disabled. CLOUD On: Press the power button.

Power Indicator The power indicator stays white if the display is running

This function allow you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. Then OSD of “OSD Lock” will appear. After that, user can select lock or unlock by pressing left/right button. If user selects the “Lock” icon by pressing the “OK” button, the message “OSD Locked” will appear. Otherwise, “OSD Unlocked” will appear. After selecting the “Lock”, If you want to change to Unlock, you can push the “MENU” button for several seconds. The message “OSD Unlocked” will appear.

properly (On Mode). If the display is in Sleep Mode, the power indicator blinks white.

CUSTOMIZING SETTINGS

Menu > Next Menu > Picture

Sharpness

Menu > Next Menu > Color

Gamma

Color Temp

Red

Green

Blue

Gamma 1

Custom

Menu > Next Menu > Color

Gamma

Color Temp

Red

Green

Blue

Gamma 1

Custom

English

ENG

Customizing Settings

Menu Settings

Press

Set the options by pressing the ◄ or ► or ▼

Select the "

Select

Each option is explained below.

Brightness

Contrast

Reader Mode

Wide/Original

Reset

button on the bottom of the Monitor set

to display the

OSD.

buttons.

Next Menu

" button to enter the more

option settings.

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

D-SUB CLOUD Description

● ●

To adjust the brightness, contrast of the screen

Reader 1

It is a mode that the screen is adjusted to the best for the newspaper. If you want screen more bright, you can control brightness in Menu OSD.

● ●

Reader 2

It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.

Reader Off

It is a mode that reader mode is off.

Wide

Switch to full screen mode according to input image signal.

● ●

Original

Change the input image signal ratio to original. * This function works only if input resolution is lower than Monitor set ratio (16:9).

● ●

Restore all factory default settings. Press the immediately.

Brightness

Contrast

Reader Mode

Wide / Original

Reset

Menu > Next Menu > Picture

Sharpness

, ►

◄

100

Off

Wide

Next Menu

3/3

1/2

buttons to reset

Menu > Next Menu


Sharpness

Color Gamma

Color Temp

Display Horizontal

Vertical

Clock

Phase

Others Language

Cloud

Power Indicator

CLOUD:



Using PC via a network.

D-SUB CLOUD Description

● ●

●

● ●

To adjust the clearness of the screen .

To customize the color of the screen

To adjust the position of the screen

To improve the clarity and stability of the screen

To customize the screen status for a user's operating environment


Menu > Next Menu > Color

Gamma

Color Temp

Red

Green

Blue

Gamma 1

Custom

Press

Select the "

to display the

option settings.

button on the bottom of the Monitor set

OSD.

Next Menu

" button to enter the more

CUSTOMIZING SETTINGS

Menu > Next Menu > Picture

Sharpness

English

ENG

Enter to

Set the options by pressing the ◄ or ► buttons.

Select


EXIT

by pressing the ▼ button.

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Picture

Sharpness

To adjust the clearness of the screen.

Description

English

Menu > Next Menu > Display

Horizontal

Vertical

Clock

Phase

ENG

CUSTOMIZING SETTINGS

Color

Press

Select the "

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

button on the bottom of the Monitor set

to display the

Next Menu

option settings.

Color

by pressing the ► button.

Color

buttons.

OSD.

" button to enter the more

by pressing the ▼ button.

Menu > Next Menu > Color

Gamma

Color Temp

Red

Green

Blue

Gamma 1

Custom

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Color Description

Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2, Off on

Color Temp Custom

the monitor, high gamma values display whitish images and low gamma values display blackish images. If user don't want adjusted gamma, user can select Gamma off.

• Red:

Set your own red color levels.

• Green:

• Blue:

Select the screen color.

Warm: Medium: Cool:

Set your own green color levels.

Set your own blue color levels.

Set the screen to warm color temperature (more red).

Set the screen to medium color temperature.

Set the screen to cool color temperature (more blue).

Display

Menu > Next Menu > Others

Language

Cloud

Power Indicator

English

Off

Press

Select the "

Select

to display the

option settings.

button on the bottom of the Monitor set

OSD.

Next Menu

Display

by pressing the ► button.

" button to enter the more

CUSTOMIZING SETTINGS

Menu > Next Menu > Display

Horizontal

Vertical

Clock

Phase

English

ENG

Enter to

Set the options by pressing the ◄ or ► or ▼

Display

by pressing the ▼ button.

buttons.

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Display

Horizontal

Vertical

Clock

Phase

To move image left and right.

To move image up and down.

To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.

To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

Description

Only available in D-SUB input mode.



English

Volume

ENG

CUSTOMIZING SETTINGS

Others

Press

Select the "

Select

button on the bottom of the Monitor set

to display the

Next Menu

option settings.

Others

OSD.

" button to enter the more

by pressing the ► button.

Menu > Next Menu > Others

Language

Cloud

Power Indicator

English

Off

Enter to

Set the options by pressing the ◄ or ► or ▼

Others

by pressing the ▼ button.

buttons.

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Others

Language

Cloud

Power Indicator

To choose the language in which the control names are displayed.

Off

CLOUD is disabled in D-SUB input mode.

CLOUD is enabled in D-SUB input mode.

Use this function to set the power indicator on the bottom side of the monitor to On or Off.If you set Off, it will go off. If you set On at any time, the power indicator will automatically be turned on.

Description

Volume

Press the

display the

Press the ◄ or ► button to adjust the volume.

Press the button to enable or disable Mute.

VOL

button at the bottom of the monitor to

VOL

OSD menu.

CUSTOMIZING SETTINGS

Volume

English

ENG

Select

Each option is explained below.

Volume

EXIT

to leave the OSD menu.

Description

Adjusts the volume (only available in CLOUD input mode).

Troubleshooting

English

ENG

TROUBLESHOOTING

Check the following before calling for service.

No image appears

Is the power cord of the display connected?

Is the power indicator light on?

Is the power on and the power indicator White?

Is the power indicator flickering?

Do you see an "OUT OF RANGE" message on the screen?

Is the No Signal message being displayed?

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD LOCKED” when you push MENU button?

Check and see if the power cord is connected properly to the power

outlet.

Press the Power button.

Adjust the brightness and the contrast.

If the display is in power saving mode, try moving the mouse or

pressing any key on the keyboard to bring up the screen.

Try to turn on the PC.

This message appears when the signal from the PC (video card) is

out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.

This is displayed when the signal cable between the PC and the

monitor is missing or disconnected. Check the cable and reconnect it.

You can secure the current control settings, so that they cannot be

inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

Display image is incorrect

Display Position is incorrect.

Press the

AUTO

button to automatically adjust your display image to

the ideal setting.

On the screen background, vertical bars or stripes are visible.

Any horizontal noise appearing in any image or characters are not clearly portrayed.

Press the

the ideal setting.

Press the

the ideal setting.

Check

AUTO

button to automatically adjust your display image to

AUTO

button to automatically adjust your display image to

Control Panel ► Display ► Settings

and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

NOTE

Vertical Frequency:



second like a fluorescent lamp. The number of times the screen is refreshed per second is called vertical frequency or refresh rate and is represented by Hz.

Horizontal Frequency:



The number of horizontal lines displayed in one second

can be calculated by dividing one by the horizontal cycle. This is called horizontal frequency and is represented by kHz.

In order to display an image, the screen must be refreshed dozens of times per

The time it takes to display one horizontal line is called the horizontal cycle.

Troubleshooting

NOTE

Check if the video card's resolution or frequency is within the range allowed by the monitor and set to



the recommended (optimal) resolution in Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a



dimmed screen, a truncated display area or misalignment of the display. The configuration procedure may differ depending on your computer and/or operating system. Also,



some video cards may not support certain resolutions. If this is the case, contact the computer or video card manufacturer for assistance. The AUTO option is only available for D-SUB (analog) signals.



The display color is abnormal.

Does the display color appear discolored (16 color)?

Does the display color appear unstable or in monochrome?

Are there spots on the screen?

Set the color to 24 bit (true color) or higher. In Windows, go to Control

Panel > Display > Settings > Color Quality.

Check if the signal cable is connected properly. Re-connect the cable

or re-insert the PC's video card.

When using the monitor, pixilated spots (red, green, blue, white or

black) may appear on the screen. This is normal for the LCD screen. It is not an error nor is it related to the monitor's performance.

Control Panel > Display > Settings.

English

ENG

Product Specication

English

ENG

PRODUCT SPECIFICATION

LCD Screen Type TFT (Thin Film Transistor)

LCD (Liquid Crystal Display) Screen

Pixel Pitch 0.2745 mm x 0.2745 mm

Resolution Maximum Resolution 1920 x 1080 @ 60 Hz

Recommended Resolution 1920 x 1080 @ 60 Hz

Video Signal Horizontal Frequency 30 kHz to 69 kHz

Vertical Frequency 57 Hz to 63 Hz

Synchronization Separate Sync

Input Connector 15-pin D-SUB (Analog)

Power 19 V

Power Consumption: CLOUD/D-SUB

AC/DC Adapter Type DA-48F19, manufactured by Asian Power Devices Inc.

Or type LCAP35,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE Or type PA-1650-43,manufactured by LITE-ON TECHNOLOGY CORPORATION OUTPUT: 19 V

Dimension/ Weight

Weight (Without Packaging)

Stand Angle Adjustment

Environment Condition

Monitor Size (Width x Height x Depth)

With Stand 56.9 cm x 39.0 cm x 25.9 cm

Without Stand 56.9 cm x 34.2 cm x 5.1 cm

5.5 kg

Forwards/Backwards: -5° to 35° (Monitor)

Operating Condition Temperature: 0°C to 40°C; Humidity: Less than 80%

Storing Condition Temperature: -20°C to 60°C; Humidity: Less than 85%

2.3 A

On Mode: 24 W(D-sub)/29 W(CLOUD)

Power Saving Mode ≤ 0.5 W(CLOUD mode:5.5 W) Off Mode ≤ 0.5 W

2.53 A

The specifications are subject to change without notice.

Product Specication

Preset Mode

Display Modes

(Resolution)

720 x 400 31.468 70.08 -/+

640 x 480 31.469 59.94 -/-

800 x 600 37.879 60.317 +/+

1024 x 768 48.363 60 -/-

1280 x 1024 63.981 60.02 +/+

1680 x 1050 65.290 59.954 -/+

1920 x 1080 67.5 60 +/+ Recommended Mode

Horizontal Frequency (kHz)

Vertical Frequency (Hz)

Polarity (H/V) Remark

Indicator

Mode LED Color

On Mode White

Sleep Mode Blinking White

Off Mode Off

English

ENG

Proper Posture

English

ENG

PROPER POSTURE

Proper posture for using the monitor

Adjust the angle so that the screen is slightly lower than your eyes.

Using the monitor for a prolonged period of time can cause eye fatigue. Take a 10-minute break every



hour. The stand is designed to best support the monitor when the optimal conditions are selected.



Adjust the angle of the monitor from -5° to 35° to obtain the best view of the screen.

You should be

looking

slightly down at

the screen.

Adjust the angle from -5° to 35°

so that there is no reflection or glare from the screen.

Place your hands gently

on the keyboard,

keeping your arms bent at

the elbows

and extended horizontally

in front of you.

Using CLOUD Solution

USING CLOUD SOLUTION

NOTE

Menus and functions in CLOUD mode may



be slightly different depending on the firmware version.You can download the user manual for each version from the Teradici homepage: http://techsupport.teradici.com To check the firmware version, see page



<51>.

Connect Screen

The Connect screen is shown during start-up, except when the portal has been configured for a managed start-up or auto-reconnect. The logo displayed above the Connect button can be changed by uploading a replacement image via the admin interface.

If the network is connected and IP is being acquired, the message "Network connection detected. Acquiring IP address …" is displayed on the Connection screen. Figure 2-3 shows the message displayed when the network is ready and the IP is being acquired.

English

ENG

If the network is not properly connected (e.g., during portal boot up), or connection is being created, the "Network connection lost. Waiting for connection …" message is displayed on the Connection screen. Figure 2-2 shows the message displayed when the network is not ready.

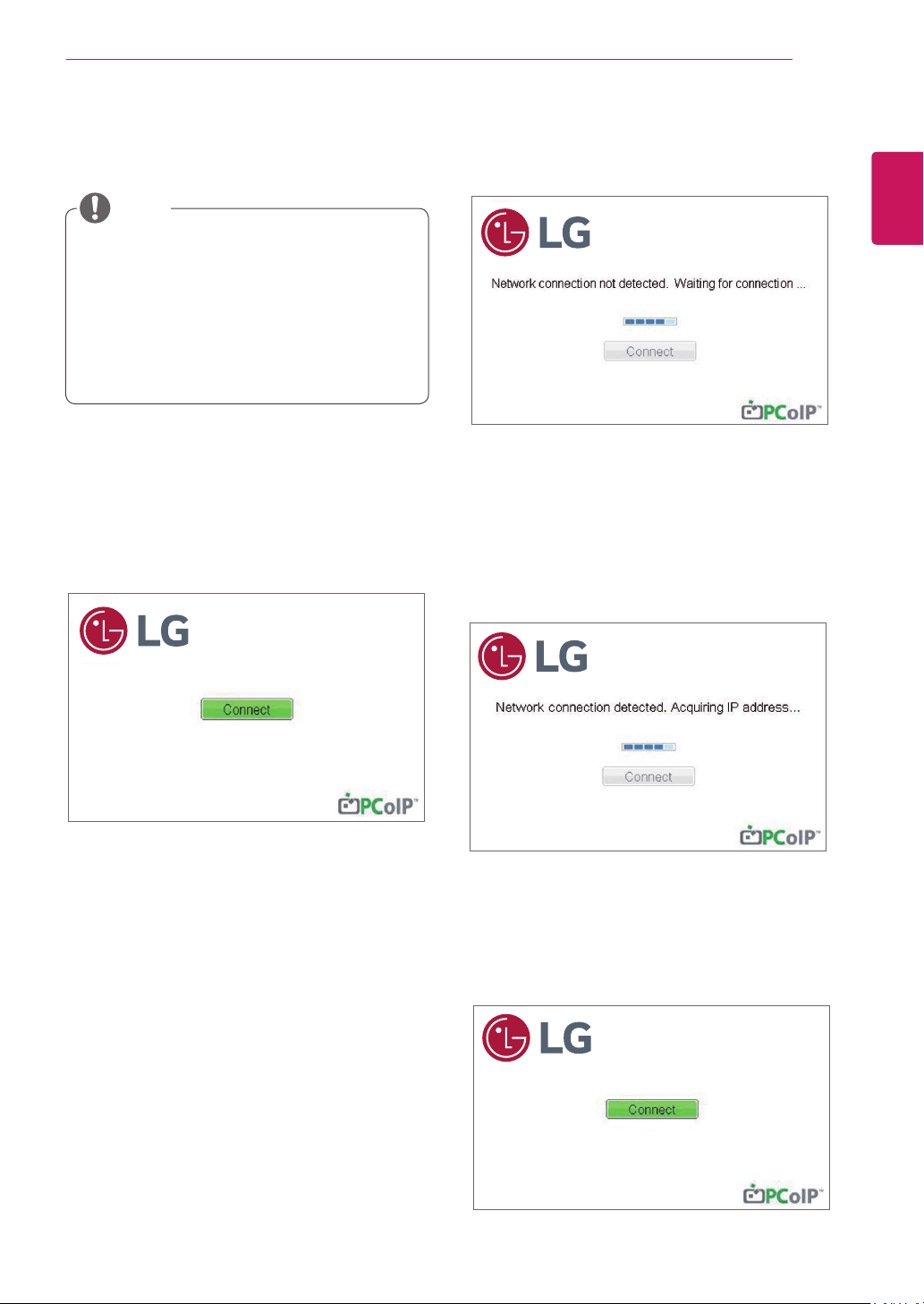

<Figure 2-3: Acquiring the IP after Network Con-

nected>

The below is the Connection screen displayed

when network is completely ready.

Using CLOUD Solution

English

ENG

If you select the Connect button, the connection session is started. When the connection is pending, the "Discovering hosts, please wait…" message is displayed on the OSD local GUI.When the connection is established, the OSD local GUI will disappear and be replaced by the session image.

OSD Options Menu Selecting the Options menu will produce a list of selections. The OSD Options menu contains:

Configuration Window

In the Configuration window, the administrator can access the window tabs that contain the settings to configure and manage the portal environment. The Configuration window has the following tabs:

Network IPv6 SCEP Label Discovery Session Language Power Display Access Audio Reset

Each tab contains OK, Cancel and Apply buttons to allow the administrator to apply or cancel the modified settings as well as the Advanced button for advanced settings.



Configuration  Diagnostics  Information  User Settings  Password

Selecting one of the options will produce a settings window.

NOTE

Some PCoIP devices have their password



protection disabled and can be logged into the management web page or access the OSD parameters without a password. The login page and the OSD's password protection can be enabled in the PCoIP management console.

Using CLOUD Solution

Network Tab

The Network tab allows the administrator to configure the portal network parameters.

NOTE

The network parameters can also be con-



figured using the Webpage Administration Interface.

Enable DHCP

If the Enable DHCP option is selected, a device will be connected to the DHCP server. that allocates the IP address, subnet mask, gateway IP address, and DNS server. If this option is disabled, the above parameters must be configured manually.

Gateway

The Gateway field contains the gateway IP address of the device. If DHCP is disabled, this field is required. If DHCP is enabled, this field cannot be edited.

Primary DNS Server

The Primary DNS Server field contains the primary DNS IP address of the device. This field is optional. If DHCP is enabled, this field cannot be edited.

Secondary DNS Server

The Secondary DNS Server field contains the secondary DNS IP address of the device. This field is optional. If the DHCP is enabled, this field cannot be edited.

Domain Name

The Domain Name field contains the domain name used, e.g. "domain local". This field is optional. It specifies on which domain the host or portal operates.

FQDN

The FQDN field represents the Fully Qualified Domain Name of the host or portal. The default value is PCoIP-host-MAC or PCoIP-portal-MAC, where MAC is the MAC address of the host or portal. If there is a domain name, it will be added to the FQDN in the format of PCoIP-host-MAC.domain.local

NOTE

In order to utilize the FQDN feature, a DNS



server, configured properly with DHCP option 81, must be used.

English

ENG

IP Address

The IP Address field contains the IP address of the device. If DHCP is disabled, this field is required. If DHCP is enabled, this field cannot be edited. This field must contain the correct IP address. If an incorrect IP address is provided, an OSD message is displayed prompting the administrator to provide the correct the IP address.

Subnet Mask

The Subnet Mask field contains the subnet mask of the device. If DHCP is disabled, this field is required. If DHCP is enabled, this field cannot be edited. This field must have the correct subnet mask. If an incorrect subnet mask is provided, an OSD message is displayed prompting the administrator to provide the correct the subnet mask.

Ethernet Mode

The Ethernet Mode field specifies the portal's Ethernet mode. The available options are as follows.

Auto 100 Mbps Full-Duplex 10 Mbps Full-Duplex

Enable 802.1X Security

Enable this field for each of your remote workstation cards and zero clients if your network uses

802.1x security to ensure that only authorized devices access the network.

Using CLOUD Solution

English

ENG

Identity

Enter the identity string used to identify your device to the network.

Client Certificate

Click Choose to select the client certificate you want to use for your 802.1x devices. The list of certificates that appears includes the certificate uploaded from the Certificate Upload page that contain a private key.

If another network device (for example, a switch) is configured to operate under 10 Mbps Full-Duplex, 100Mbps Full-Duplex or 1GbpsFull-Duplex, the administrator should always set the Ethernet Mode field to Auto; and if the device is to operate under only one speed out of multiple settings, select either 10 Mbps Full-Duplex or 100 Mbps Full-Duplex.

IPv6 Tab

The IPv6 tab is used when the portal is connected to the network configured with the IP v6.

Enable IPv6

If you select Enable IPv6, the portal in use can be connected to the network configured with the IPv6.

Link Local Address

The Link Local Address field is automatically filled with the IP address of a device.

Gateway

The Gateway field contains the gateway IP address of the device. Enter the gateway address to be used by a device.

Enable DHCPv6

To assign the Dynamic Host Configuration Protocol version 6 (DHCPv6) of a device select the Enable DHCPv6 field.

Primary DNS Server

The Primary DNS Server field contains the primary DNS IP address of the device. This field is optional. If DHCPv6 is enabled, this field cannot be edited.

Using CLOUD Solution

Secondary DNS Server

The Secondary DNS Server field contains the secondary DNS IP address of the device. This field is optional. If DHCPv6 is enabled, this field cannot beedited.

Domain Name

The Domain Name field contains the domain name used, e.g. "domain local". This field is optional. It specifies on which domain the host or portal operates.

FQDN

Enable SLAAC

Select the Enable SLAAC field to use the stateless auto-configuration of the device.

Enable Manual Address

Select the Enable Manual Address field to enter the device address manually.

Manual Address

In the Manual Address field, enter the IP address manually.

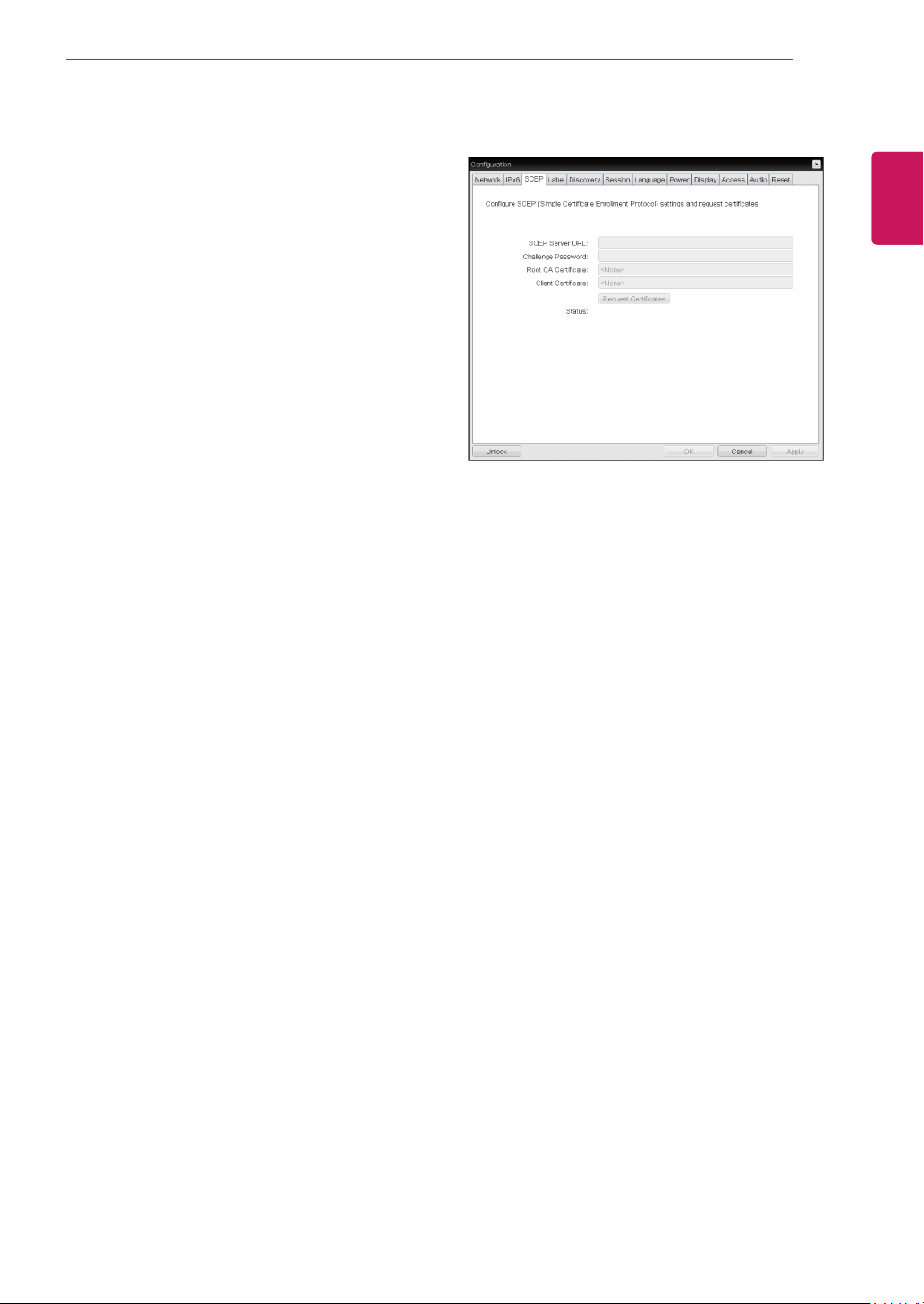

SCEP Tab

SCEP Server URL

Enter the URL for the SCEP server that is configured to issue certificates for the device.

Challenge Password

Enter the password to present to the SCEP server.

Root CA Certificate

Displays the name of the root CA certificate that has been installed in the device.

Client Certificate

Displays the name of the client certificate that has been installed in the device.

English

ENG

Status

Displays the status of the request (e.g., in progress, successful, failed)

Using CLOUD Solution

English

ENG

Label Tab

The Label tab allows the administrator or host to add customized information to the portal.

NOTE

The portal label parameters can also be con-



figured using the Webpage Administration Interface.

Discovery Tab

The Discovery tab allows the administrator to easily find a portal in the PCoIP system.

NOTE

The Discovery parameters can also be con-



figured using the Webpage Administration Interface.

PCoIP Device Name

In the PCoIP Device Name field, the administrator can specify a logical name to the host or portal. The default value is PCoIP-host-MAC or PCoIPportal-MAC, where MAC is the MAC address of the host or portal.

PCoIP Device Description

In the PCoIP Device Description field, the administrator can add specific information, such as the endpoint location, or add a description to the host or portal. This field cannot be used in the PCoIP firmware and accessibility is strictly limited to the administrator.

Generic Tag

In the Generic Tag field, the administrator can add a generic tag to the host or portal. This field cannot be used in the PCoIP firmware and accessibility is strictly limited to the administrator.

Enable Discovery

If the Enable Discovery option is selected, a device will use SLP Discovery to dynamically locate the peer device without requiring any information about the location of the device in the network. This means that the configuration and maintenance work in a complicated system can be significantly reduced. As SLP Discovery requires a multicast-enabled router, the recommended search structure is DNSSRV Discovery.

Session Tab

The Session tab allows the administrator to set the method to connect the device to a peer device.

NOTE

The Session parameters can also be con-



figured using the Webpage Administration Interface.

Using CLOUD Solution

Auto Detect

This connection type automatically detects which broker protocol a connection server is using so users in a mixed environment do not have to manually reconfigure the session type each time they switch brokers.

English

ENG

Connection Type

The Connection Type field allows the user to select the device to be connected with the portal. The Connection Type field has following options:

Auto Detect Direct to Host Direct to Host + SLP Host Discovery PCoIP Connection Manager PCoIP Connection Manager + Auto-Logon View Connection Server View Connection Server + Auto-Logon View Connection Server + Kiosk View Connection Server + Imprivata OneSign Connection Management Interface

 Server URI

Enter the Uniform Resource Identifier (URI) of the current connection broker.

English

ENG

Using CLOUD Solution

See below for information how to set for each option.

Direct to Host

You can view the screen of the host PC by establishing 1:1 connection between the PCI host card connected to the host PC through the entered IP address of the host PC and the portal.

DNS Name or IP Address

Enter the DNS name or IP address of the host PC.

<Figure 2-15: Advanced Settings for Direct to

Host>

Wake Host from Low Power State

Select whether to use the host’s MAC address or IP address when configuring the Wake-On-LAN feature for a client. This feature wakes up the host when the user presses the client’s remote PC button or clicks the connect button on the connect window.

Host Wake MAC Address

Enter the host’s MAC address to complete the host wake up configuration when Wake-On-LAN Enabled + Peer Address or Wake-On-LAN Enabled + Custom Address is selected. This client will send a “Magic packet” to this MAC address to wake the host computer from a low power state.

Host Wake IP Address

Enter the host’s IP address to complete the host wake up configuration when Wake-On-LAN Enabled + Custom Address is selected. This client will send a “Magic packet” to this IP address to wake the host computer from a low power state.

Using CLOUD Solution

Enable Auto-Reconnect

If this option is selected, reconnection is attempted automatically when a session is disconnected or the user is logged off.

NOTE

This setting is provided only for the client.



Enable Peer Loss Overlay

The "Connection Lost" message is displayed.The display is the same as in the VDI environ-ment. The default is Disable.

NOTE

This setting is provided only for the client.



 Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-top" message is displayed on the screen when the user is logged in.

 Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

Direct to Host + SLP Host Discovery

You can view the screen of the host PC by discovering the host PC within the network and establishing 1:1 connection between the PCI host card connected to the host PC and the portal.

<Figure 2-16: Direct to Host + SLP Host Discovery Set-

tings>

English

ENG

English

ENG

Using CLOUD Solution

<Figure 2-17: Advanced Settings for Direct to Host

+ SLP Host Discovery>

Enable Auto-Reconnect

If this option is selected, reconnection is attempted automatically when a session is disconnected or the user is logged off.

PCoIP Connection Manager

This option can configure the client to use a PCoIP Connection Manager as the PCoIP session broker.

NOTE

This setting is provided only for the client.



Enable Peer Loss Overlay

The "Connection Lost" message is displayed.The display is the same as in the VDI environ-ment. The default is Disable.

NOTE

This setting is provided only for the client.



 Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desk-top" message is displayed on the screen when the user is logged in.

 Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

Server URI

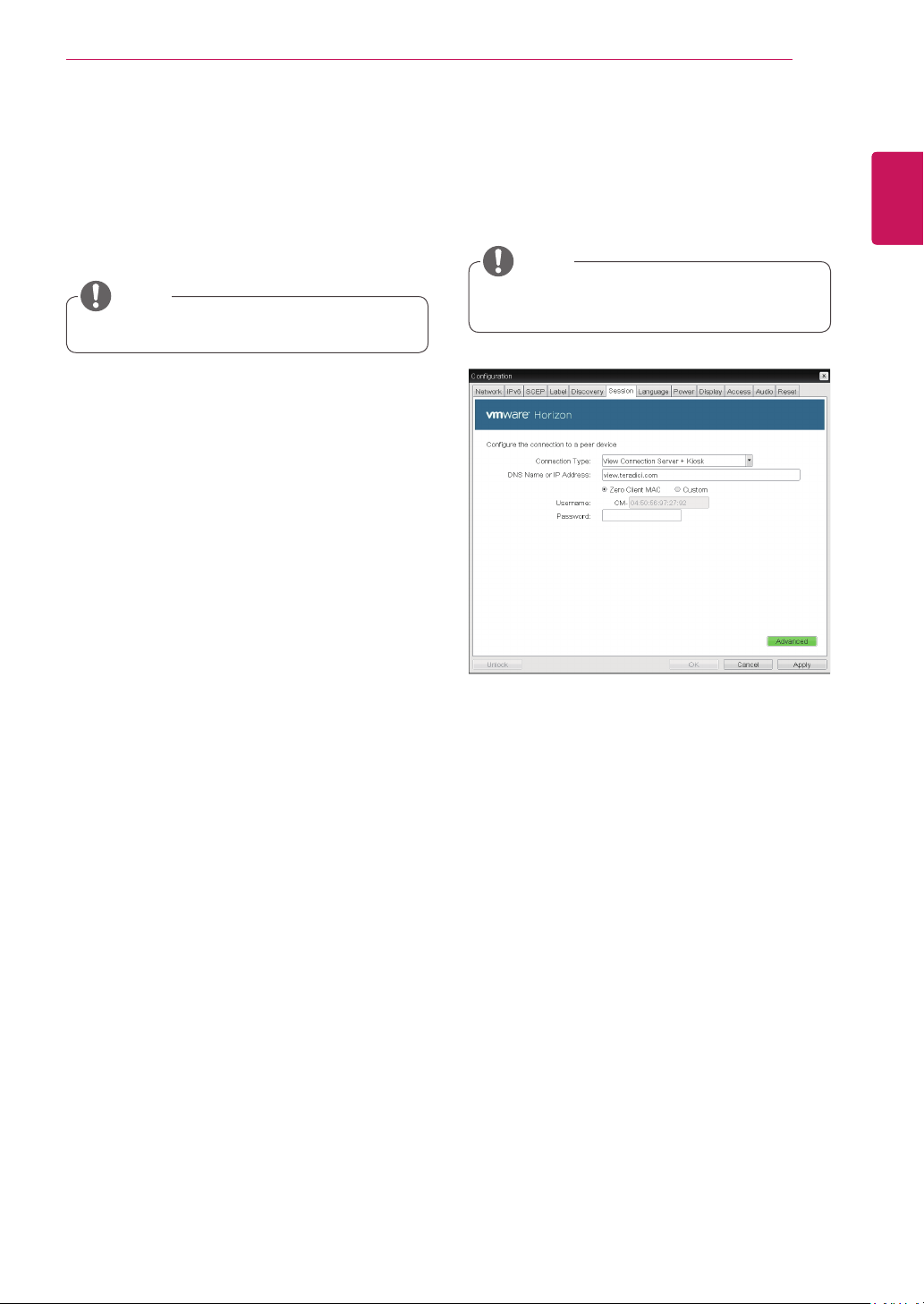

Enter the Uniform Resource Identifier (URI) for the PCoIP Connection Manager.

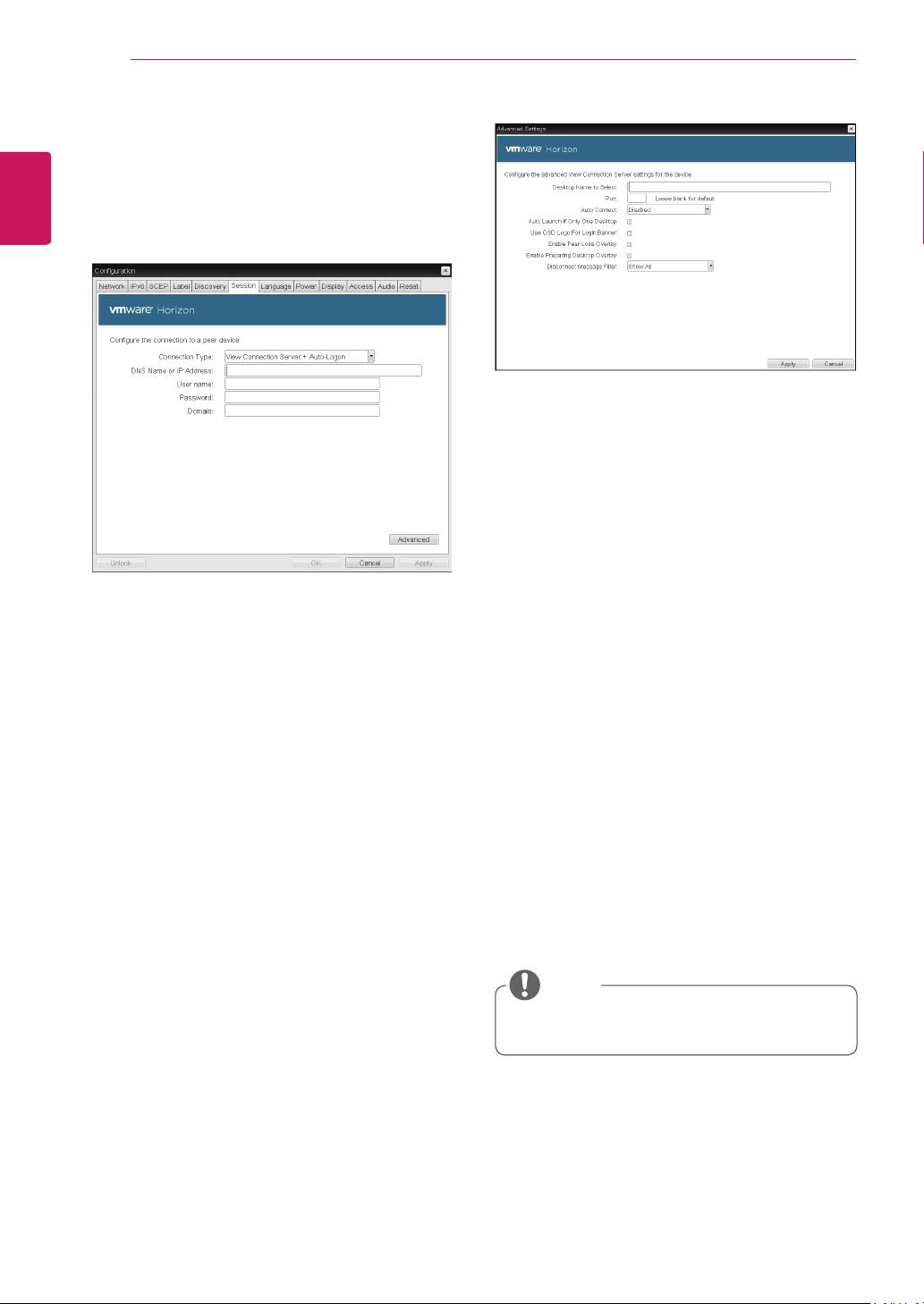

<Figure 2-19: Advanced Setting for PCoIP Con-

nection Manager Setting>

Desktop Name to Select

Enter the name of the pool/desktop which the user client uses upon starting a session.

Auto Connect

If this option is enabled, the selected VMware View Connection Server is automatically connected when the user client is powered on. If the Auto Connect option is enabled, you should turn the user client off and turn it on again at least once.

Remember Username

If this option is selected, the username which is previously used to access the VMware View Connection Server is automatically entered in the username field.

Using CLOUD Solution

<Figure 2-20: PCoIP Connection Manager + Auto-

Logon Setting>

English

ENG

Auto Launch if Only One Desktop

If this option is selected, connection is established to the desktop when there is only one virtual desktop that a user wants to access.

Use OSD logo for View banner

If this option is enabled, you can change the OSD logo of PCoIP during the login.

Enable Peer Loss Overlay

If this option is selected, the "Network Connection Lost" message is displayed on the screen when it is confirmed that the network is disconnected. The display is the same as in the VDI environment. The default is Disable.

Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desktop" message is displayed on the screen when the user is logged in.

Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

PCoIP Connection Manager + Auto-Logon

This option can configure a client to automatically enter a user’s login details when a PCoIP Connection Manager is used as the PCoIP session broker.

Server URI

Enter the Uniform Resource Identifier (URI) for the PCoIP Connection Manager.

Username

Enter the username for the client.

Password

Enter the password for the client.

Domain

Enter the domain name.

Organization ID

Enter an organization ID for the company. This field accepts any UTF-8 character.

<Figure 2-21: Advanced Setting for PCoIP Con-

nection Manager + Auto-Logon Setting>

Using CLOUD Solution

English

ENG

Desktop Name to Select

Enter the name of the pool/desktop which the user client uses upon starting a session.

Auto Connect

Auto Launch if Only One Desktop

If this option is selected, connection is established to the desktop when there is only one virtual desktop that a user wants to access.

Use OSD logo for View banner

If this option is enabled, you can change the OSD logo of PCoIP during the login.

Enable Peer Loss Overlay

Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desktop" message is displayed on the screen when the user is logged in.

Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

 View Connection Server

In the Session tab, you can select to enable the user client to access the VMware View ConnectionServer. To do this, select View Connection Server for Connection Type.

DNS Name or IP Address

Enter the DNS name or IP address of the VMware View Connection Server.

<Figure 2-23: Advanced Settings for View Connec-

tion Server>

Desktop Name to Select

Enter the name of the pool/desktop which the user client uses upon starting a session.

Port

For the default setting, leave the port field empty. When the VMware View Connection Server uses the SSL authentication, enter 443 in the Port field.If the server where a user tries to access uses a port other than a general port, enter the port.

 Auto Connect

 Remember Username

If this option is selected, the username which is previously used to access the VMware View Connection Server is automatically entered in the username field.

 Auto Launch if Only One Desktop

If this option is selected, connection is established to the desktop when there is only one virtual desktop that a user wants to access.

 Use OSD logo for View banner

If this option is enabled, you can change the OSD logo of PCoIP during the login.

Using CLOUD Solution

 Prefer GSC-IS

If this option is selected, the GCS-IS interface is used when a smart card supports more than one interface. If the smart card supports only one interface, it is not used.

NOTE

This setting is provided only when a smart



card is used.

 Enable Peer Loss Overlay

NOTE

This setting is provided only for the client.



 Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desktop" message is displayed on the screen when the user is logged in.

 Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

English

ENG

NOTE

The OSD logo can be uploaded using the



Webpage Administration Interface.

English

ENG

Using CLOUD Solution

View Connection Server with Auto-Logon

In the Session tab, you can select to enable the user client to automatically access the VMware View Connection Server.To do this, select View Connection Server with Auto-Logon for Connection Type.

<Figure 2-24: View Connection Server with Auto-

Logon Setting>

DNS Name or IP Address

Enter the DNS name or IP address of the VMware View Connection Server.

Username

Enter the username for the user client.

Password

Enter the password for the user client.

Domain

Enter the domain name.

<Figure 2-25: Advanced Settings for View Connec-

tion Server with Auto-Logon>

Desktop Name to Select

Enter the name of the pool/desktop which the user client uses upon starting a session.

Port

 Auto Connect

 Auto Launch if Only One Desktop

If this option is selected, connection is established to the desktop when there is only one virtual desktop that a user wants to access.

 Use OSD logo for View banner

If this option is enabled, you can change the OSD logo of PCoIP during the login.

NOTE

The OSD logo can be uploaded using the



Webpage Administration Interface.

Using CLOUD Solution

 Enable Peer Loss Overlay

NOTE

This setting is provided only for the client.



 Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desktop" message is displayed on the screen when the user is logged in.

 Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

View Connection Server + Kiosk

Select View Connection Server + Kiosk to use the kiosk mode. You can configure the View Connection Server + Kiosk mode using the Webpage Administration Interface.

NOTE

You cannot use the kiosk mode by connect-



ing to the host PC.

<Figure 2-26: View Connection Server + Kiosk

Setting>

English

ENG

 DNS Name or IP Address

Enter the DNS name or IP address of the VMware View Connection Server.

 Username

Select the type of username that matches the device name used in the VMware View Connection Server.

 Password

Enter the password for the user client.

English

ENG

Using CLOUD Solution

<Figure 2-27: Advanced Setting for View Connec-

tion Server + Kiosk>

Port

For the default setting, leave the port field empty. When the VMware View Connection Server uses the SSL authentication, enter 443 in the Port field. If the server where a user tries to access uses a port other than a general port, enter the port.

Use OSD logo for View banner

If this option is enabled, you can change the OSD logo of PCoIP during the login.

 Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desktop" message is displayed on the screen when the user is logged in.

 Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

 View Connection Server + Imprivata OneSign

Connection

Select View Connection Server + Imprivata Onesign Connection to use the Imprivata Onesign Connection for the client authentication.

NOTE

The OSD logo can be uploaded using the



Webpage Administration Interface.

 Enable Peer Loss Overlay

NOTE

This setting is provided only for the client.



<Figure 2-28: View Connection Server + Imprivata One-

Sign Connection Setting>

 Bootstrap URL

Enter the IP address or FQDN information of the server which performs the OneSign authentication.

<Figure 2-29: Advanced Settings for View Connec-

tion Server + Imprivata OneSign Connection>

Onesign Desktop Name Mode

Select whether the Desktop Name to Select property is used in OneSign Mmode : Ignore the Desktop Name to Select field Use the Desktop Name to Select field if set

Desktop Name to Select

Enter the desktop name. When the desktop pool list includes a pool with this name, the client will immediately start a session with that pool.

 Remember Username

If this option is selected, the username which is previously used to access the VMware View Connection Server is automatically entered in the username field.

Using CLOUD Solution

 Enable Peer Loss Overlay

NOTE

This setting is provided only for the client.



 Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desktop" message is displayed on the screen when the user is logged in.

 Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

 Connection Management Interface

In the Connection Management Interface setting, you can manage the connection by entering the IP address for connection management instead of using the IP address of the VMware View Connection Server and can select to enable or disabled the management interface.

English

ENG

 Use OSD logo for View banner

If this option is enabled, you can change the OSD logo of PCoIP during the login.

NOTE

The OSD logo can be uploaded using the



Webpage Administration Interface.

 Prefer GSC-IS

If this option is selected, the GCS-IS interface is used when a smart card supports more than one interface. If the smart card supports only one interface, it is not used.

NOTE

This setting is provided only when a smart



card is used.

<Figure 2-30: Connection Management Interface

Setting>

 DNS Name or IP Address

Enter the DNS name or IP address of the VMware View Connection Server.

English

ENG

Using CLOUD Solution

<Figure 2-31: Advanced Settings for Connection

Management Interface>

 Enable Peer Loss Overlay

Language Tab

The Language tab allows the administrator to set the OSD language.

NOTE

The Language parameters can also be con-



figured using the Webpage Administration Interface.

NOTE

This setting is provided only for the client.



 Enable Preparing Desktop Overlay

If this option is selected, the "Preparing Desktop" message is displayed on the screen when the user is logged in.

 Enable Event Log Notification

With this option, you can select whether to allow the host and client device to send their event log information to the Connection Management Server.

 Disconnect Message Filter

This option determines the type of message to display when a session is disconnected.

- Show All: Shows all the error messages.

- Show Error and Warning Only: Shows the error and warning messages only.

- Show Error Only: Shows the error messages only.

- Show None: Shows nothing.

Language

The Language field is used to set the display language of the OSD and the user level event log messages.

Keyboard Layout

The Keyboard Layout field allows the administrator to modify the keyboard layout.

Using CLOUD Solution

Power Tab

The Power Tab allows the user to configure timeout and power settings for the client.

OSD Screen-Saver Timeout

Configure the number of seconds to wait after a period of inactivity(i.e., no keyboard or mouse action) before the client puts its attached displays into low power mode. Valid values are 10 to 9999, or use 0 to disable the feature.

NOTE

Display Tab

The Display tab allows the user to configure the EDID function of the monitor.

NOTE

The Enable display override function can be



used when the EDID function of the monitor is not running.

Enable Attached Display Override

This option is intended for legacy systems. It configures the client to send default EDID information to the host when a monitor cannot be detected or is not attached to the client.

English

ENG

This timeout only applies when the device is



not in session.

Display Suspend Timeout

NOTE

This timeout only applies when the device is



in session.

Enable Preferred Resolution Override

Enable this option when a display is attached but cannot be detected by the system, and you want to specify a preferred resolution for the display.

Enable Display Cloning

This option is only available for the TERA2321 zero client. Enable the display cloning option if you want the secondary display to mirror the primary display.

Using CLOUD Solution

English

ENG

Access Tab

This Access tab lets you prevent the device from being managed by the MC and lets you disable administrative access to the device’s AWI. It also provides an option to force an administrative password change the next time the AWI or OSD is accessed.

Audio Tab

This Audio tab lets you configure audio options for the device.

Enable Local USB Audio Driver

This option locally terminates any USB audio devices that are attached to the zero client.

Disable Management Console Interface

When enabled, the management console interface is disabled, and the device cannot be accessed or managed by the MC.

Disable Administrative Web Interface

When enabled, the device cannot be accessed or managed using the AWI.

Force password change on next login

When enabled, the administrative password must be changed the next time either the AWI or OSD is accessed. The new password may be blank.

Using CLOUD Solution

Reset Tab

The Reset tab allows the administrator to reset all configurable parameters stored in Flash.

NOTE

The Reset function can also be accessed



through the Webpage Administration Interface.

Diagnostics Window

In the Diagnostics window, the administrator can access the window tab to diagnose the portal. The Diagnostics window has the following tabs:

Event Log Session Statistics PCoIP Processor Ping

Each tab has the Close button to close the window.

Event Log Tab

The Event Log tab allows the administrator to view and delete the event log messages from the portal.

NOTE

The event log (regardless of the quantity)



can also be reset using the Webpage Administration Interface.

English

ENG

Reset Parameters

Pressing the Reset Parameters button will reset all settings and options to the factory default settings. When this button is pressed, an OSD message is displayed. This is to prompt the administrator and prevent accidental reset.

View Event Log Message

The View Event Log Message field displays the log messages accompanied by the timestamp information. The following two buttons are available:

Refresh

The Refresh button refreshes the displayed event log messages.

Clear

The Clear button clears all event log messages.

Using CLOUD Solution

English

ENG

Session Statistics Tab

The Session Statistics tab allows the administrator to view the PCoIP specific statistics of the last active PCoIP session from the portal.

NOTE

The session statistics (regardless of the



quantity) can also be viewed using the Webpage Administration Interface.

PCoIP Processor Tab

The PCoIP Processor tab allows the administrator to view the portal PCoIP processor's uptime since its last booting.

NOTE

The PCoIP Processor Uptime can also be



viewed using the Webpage Administration Interface.

PCoIP Packets Statistics

PCoIP Packets Sent

The PCoIP Packets Sent field shows the total number of PCoIP packets sent from the portal to the host in the last active session.

PCoIP Packets Received

The PCoIP Packets Received field shows the total number of PCoIP packets received from the host to the portal in the last active session.

PCoIP Packets Lost

The PCoIP Packets Lost field shows the total number of PCoIP packets lost in the last active session.

Bytes Statistics

Bytes Sent

The Bytes Sent field shows the total number of bytes sent in the last active session.

Bytes Received

The Bytes Received field shows the total number of bytes received in the last active session.

Round Trip Latency

The Round Trip Latency field shows the total round-trip PCoIP system (e.g. from the portal to the host, then back to the portal) and the network latency in milliseconds (+/- 1 ms).

Ping Tab

The Ping tab allows the administrator to perform a ping test to the device and check if it can reach the overall IP network. This is useful to check whether the device can reach the host.

NOTE

The Ping tab has no corresponding menu in



to the Webpage Administration Interface of Section 1.

Ping Settings

Destination

The IP address or FQDN to perform the ping test.

Interval

The interval between the ping packets.

Packet Size

The size of the ping packet.

Packets

Sent

The number of ping packets sent.

Received

The number of ping packets received.

Information Window

In the Information window, the administrator can access the Version tab that contains the device related information.

NOTE

The version information can also be viewed



using the Webpage Administration Interface.

Using CLOUD Solution

VPD Information

The Vital Product Data (VPD) is information that uniquely identifies each portal or host.

MAC Address

The portal MAC address

Unique Identifier

The portal ID

Serial Number

The portal serial number

Firmware Part Number

The part number of the PCoIP firmware

Hardware Version

The portal hardware version

Firmware Information

The Firmware Information shows the details of the current PCoIP firmware.

Firmware Version

The current PCoIP firmware version

Firmware Build ID

The current PCoIP firmware revision code

Firmware Build Date

The current PCoIP firmware build date

PCoIP Processor Revision

This shows the PCoIP processor's revision code. TERA1x00 Revision A silicone is denoted by 0.0 and TERA1x00 Revision B silicone is denoted by

1.0.

Boot Loader Information

The Boot Loader Information shows the details of the current PCoIP boot loader.

Boot Loader Version

The current PCoIP boot loader version

Boot Loader Build ID

The current PCoIP boot loader revision code

Boot Loader Build Date

The current PCoIP boot loader build date

English

ENG

Using CLOUD Solution

English

ENG

User Settings Window

In the User Settings window, the administrator can access the tab to select the mouse and keyboard and define the PCoIP image quality. The User Settings window has the following tabs:

Certificate Mouse Keyboard Image Display Topology Touch Screen Tablet

Certificate Tab

The Certificate tab allows user to specify the client behavior for when a user cannot check the secure connection to a server.

Mouse Tab

The Mouse tab allows the user to modify the OSD and RDP session's mouse cursor speed setting.

NOTE

The OSD mouse cursor speed setting does



not affect the mouse cursor settings when a PColP session is active unless the Local Keyboard Host Driver function is being used (see PColP Host Software User Guide for more information). The Mouse tab has no corresponding menu



in the Webpage Administration Interface of Section 1.

Never connect to untrusted servers

Configures the client to reject the connection if a trusted, valid certificate is not installed.

Warn before connecting to untrusted servers

Configures the client to display a warning if an unsigned or expired certificate is encountered, or when the certificate is not self-signed and the client trust store is empty.

Do not verify server identity certificates

Configures the client to allow all connections.

Mouse Speed

The Mouse Speed field allows the user to set the portal's mouse cursor speed.

NOTE

The Mouse Speed can also be configured via



the PCoIP Host Software. For more information on using the PCoIP Host Software, refer to the PCoIP Host Software User Guide.

Using CLOUD Solution

Keyboard Tab

The Keyboard tab allows the user to modify the OSD and RDP session's keyboard repeat setting.

NOTE

The OSD keyboard setting does not affect



the keyboard settings when a PColP session is active unless the Local Keyboard Host Driver function is being used (see PColP Host Software User Guide for more information). The Keyboard tab has no corresponding



menu in the Webpage Administration Interface of Section 1.


The Image tab allows a user to change the image settings on the PCoIP system.

NOTE

The Image parameters can also be con-



figured using the Webpage Administration Interface.

English

ENG

Keyboard Repeat Delay

The Keyboard Repeat Delay field allows the user to set the portal's keyboard repeat delay.

Keyboard Repeat Rate

The Keyboard Repeat Rate field allows the user to set the portal's keyboard repeat rate.

Repeat Settings Test Box

The Repeat Settings Test Box allows the user to test the selected keyboard settings.

Minimum Image Quality

The Minimum Image Quality slider allows the administrator to make compromises between image quality and frame rate when network bandwidth is limited. Sometimes, lower-quality images at a higher frame rate may be required, while at other times, higher-quality images at a lower frame rate may be preferred. In environments where the network bandwidth is limited, moving the slider towards Reduced ensures higher frame rates; moving the slider towards Perception-Free ensures higher image quality. When network bandwidth is not limited, the PCoIP system will maintain perception-free quality regardless of the Minimum Image Quality setting.

Using CLOUD Solution

English

ENG

Display Topology Tab

The Display Topology tab allows the user to specify the position and alignment of a connected secondary monitor.

NOTE

It is applicable when the VMware View Con-



nection Server version is 4.5 or later.

Touch Screen Tab

The Touch Screen tab allows the user to specify the touch sensitivity and alignment when the monitor supports the touch screen function.

Enable Configuration

When this option is selected, you can set the display position and alignment. You can save the settings by clicking the Apply or OK button, and the settings will be reset if you initialize the monitor set.

Display Layout

This option allows the user to specify the direction of monitor connection: vertical or horizontal.

Alignment

This option allows the user to specify the alignment position of the monitor to be connected when there is a resolution difference between the two monitors.

Primary

This option allows the user to change the primary/ secondary settings of the connected monitor.

Enable right click on hold

If this option is selected, clicking and holding the touch screen for several seconds works the same as the mouse right click.

Right Click Delay

This option allows the user to make moving the pointer position work the same as the mouse right click. You can also specify the distance to move (from Long to Short).

Touch screen calibration

The alignment of a touch screen is started when clicking the Start button.

Using CLOUD Solution

Tablet Tab

The Tablet tab lets you selects whether an attached Wacom tablet is mapped to the entire desktop or to a specific attached monitor. It also lets you specify whether the tablet operates in a left-handed or right-handed orientation.

Display and Desktop icons

This section shows the number of displays that are currently attached to the zero client. When just one monitor is attached, only the desktop icon appears in this area, and any attached tablets are mapped to the entire desktop.

Tablet Model

Shows the model number of each attached Wacom tablet.

Display Mapping

Shows the current mapping configuration for each attached tablet.(A, B, C or D, or Desktop).

Left-Handed Orientation

To configure the tablet for a left-handed orientation:

1. Using either a mouse or the tablet’s stylus, select the tablet’s Left-Handed Orientation check box.

2. Click Apply.

3. Rotate the tablet 180 degree before using it.

Revert

Reverts the tablet settings to the last applied configuration. To revert table mappings to their default setting(Desktop), unplug a monitor and then reconnect it to the zero client. Applying topology changes will also clear the tablet configuration and set it to default.

Password Tab

This Password tab lets you update the local administrative password for the device.

Old Password

This field must match the current administrative password before you can update the password.

New Password

The new administrative password or both the AWI and the local OSD GUI.

Confirm New Password

This field must match the New Password field for the change to take place.

English

ENG

Declaration of Conformity

Trade Name: LG Model : 24CAV37K Responsible Party: LG Electronics Inc. Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A TEL: 201-266-2534

*above information is only for USA FCC Regulatory

Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual (CD) in an accessible place for future reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com . In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

LG 24CAV37K User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Owner's Manual

Table of Contents

ASSEMBLING AND PREPARING

Unpacking

Parts and buttons

Lifting and moving the Monitor

Setting Up the Monitor set

Attaching the Stand Base

Mounting on a table

Adjusting the angle

Adjusting the stand height

Using the Kensington locking device

Detaching the stand base

Using the cable holder

Detaching the stand body

Swivel stand

Using the Pivot function

Installing the wall mount plate

Mounting on a wall

USING THE MONITOR SET

Connecting Input Signal Cable

D-SUB IN connection - PC

DVI connection

Connecting LAN/Peripherals

LAN connection

Peripheral device connection

Self Image Adjustment

CUSTOMIZING SETTINGS

CUSTOMIZING SETTINGS

Menu Settings


Color

Display

Others

Volume

Troubleshooting

PRODUCT SPECIFICATION

Preset Mode

Indicator

Proper Posture

Proper posture for using the monitor

Using CLOUD Solution
