Page 1

ENGLISH

OWNER’S MANUAL

LED LCD Monitor (LED Monitor*)

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

22MB35PU 24MB35PU

www.lg.com

Page 2

TABLE OF CONTENTS

ENGLISH

ENG

3 ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Setting up the Monitor set

5 - Attaching the Stand Base

6 - Detaching the stand base

6 - Detaching the stand body

7 - Mounting on a table

7 - Adjusting the angle

8 - Adjusting the stand height

8 - Using the Kensington locking device

9 - Swivel stand

9 - Using the Pivot function

10 - Mounting on a wall

24 SPECIFICATIONS

24 22MB35PU

25 24MB35PU

26 Preset Modes (Resolution)

26 Indicator

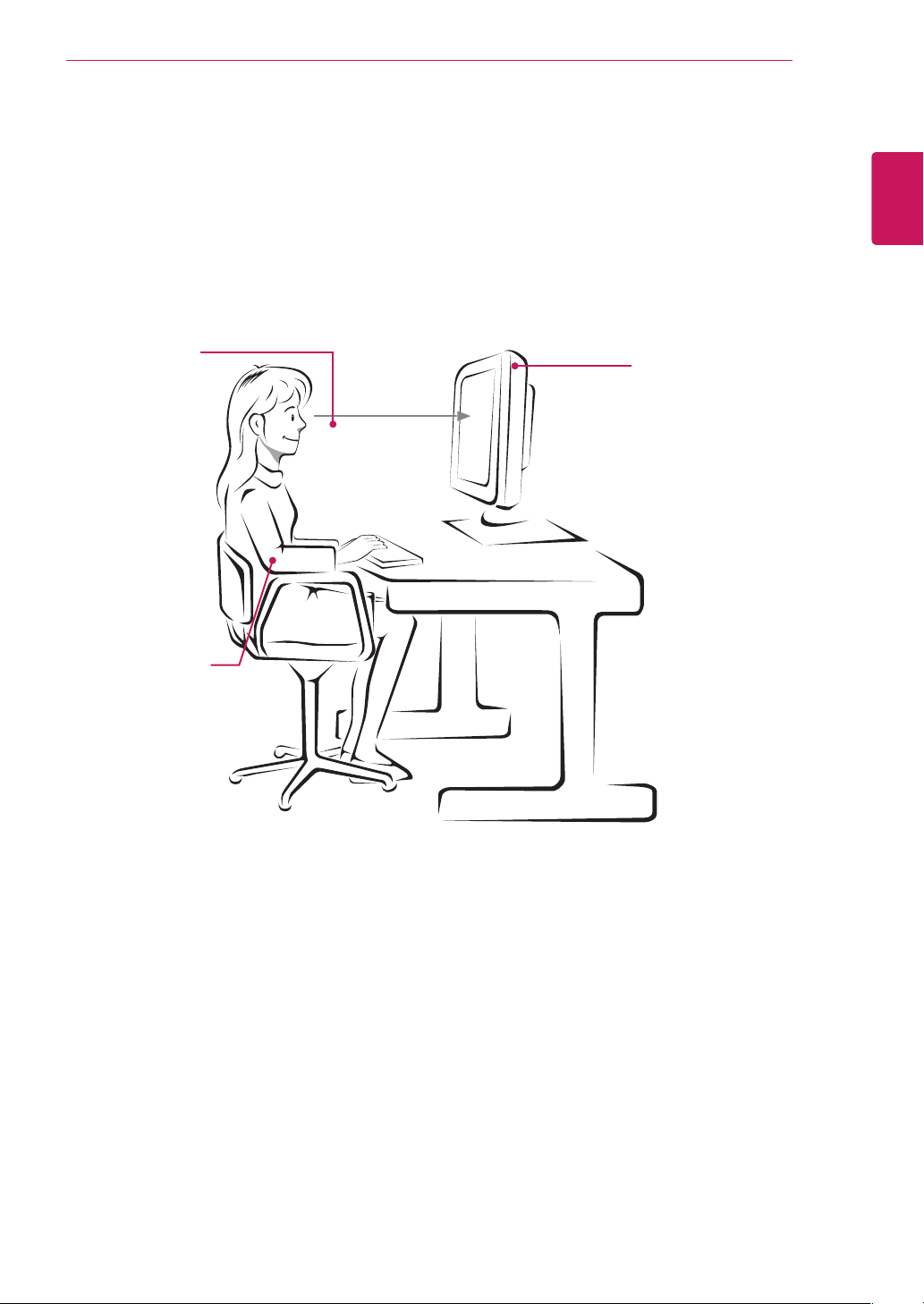

27 PROPER POSTURE

27 Proper posture for using the Monitor set.

11 USING THE MONITOR SET

11 Connecting to a PC

11 - D-SUB connection

11 - DVI-D connection

13 - Peripheral device connection

14 CUSTOMIZING SETTINGS

15 Customizing Settings

15 - Menu Settings

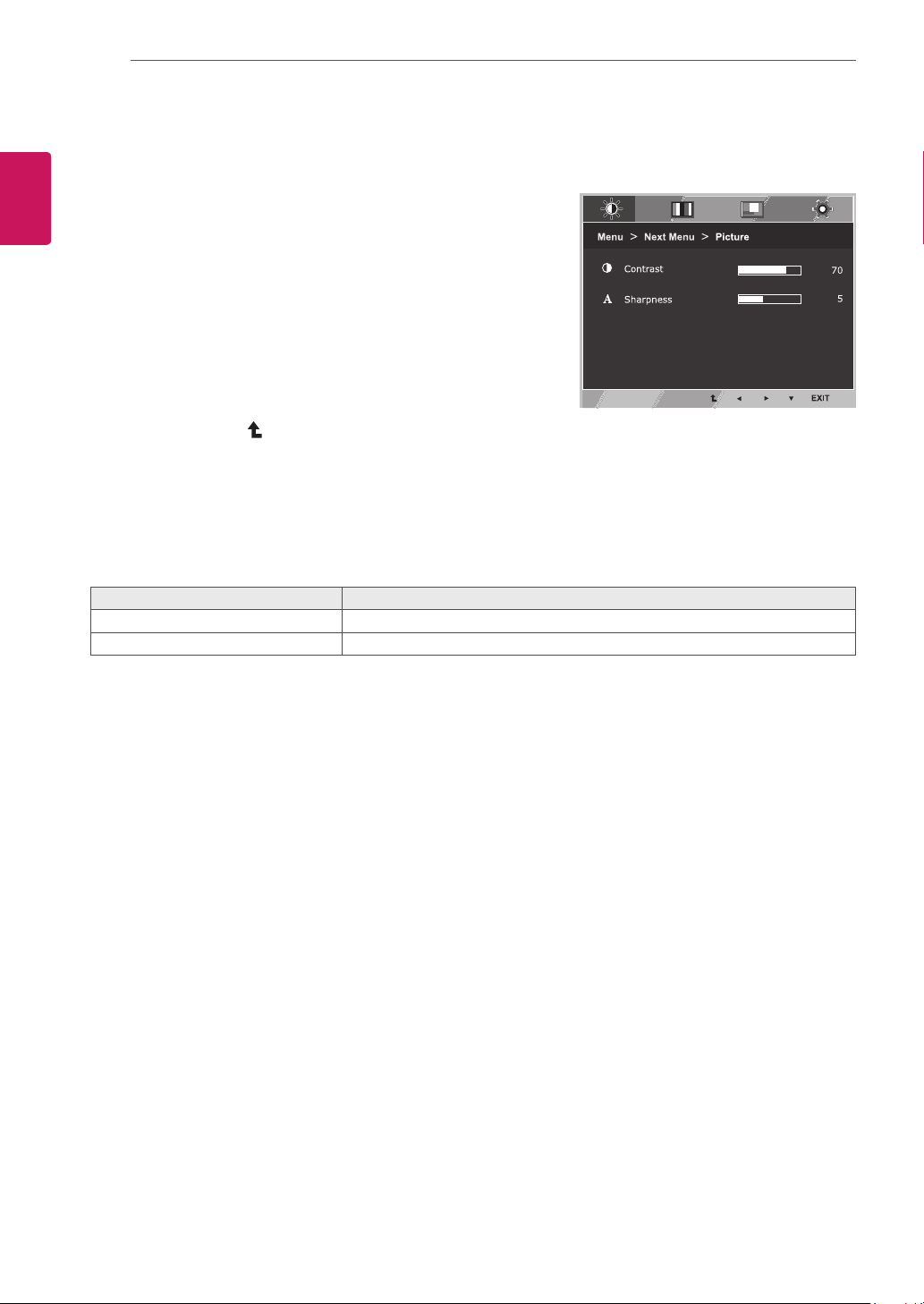

16 - Picture

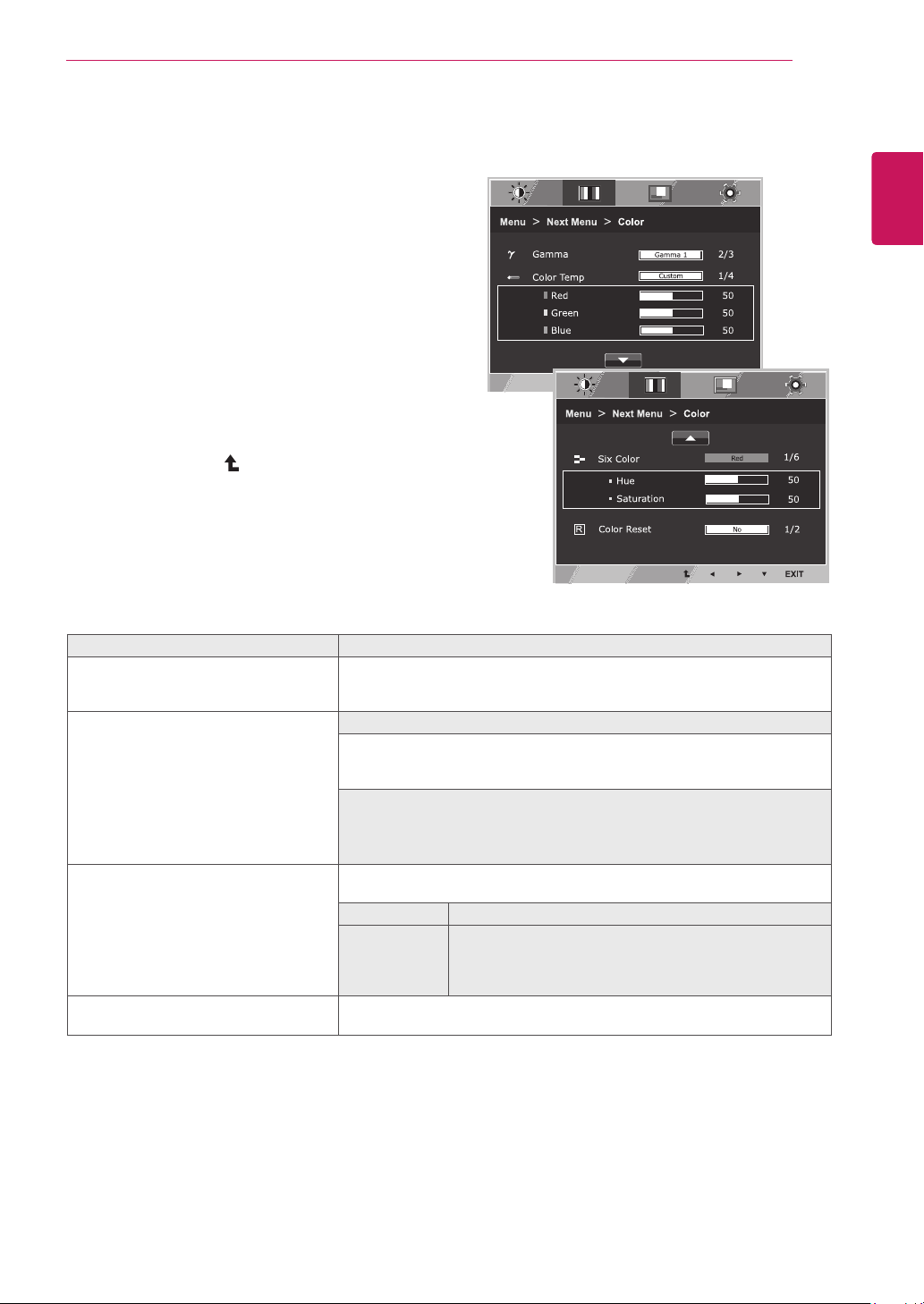

17 - Color

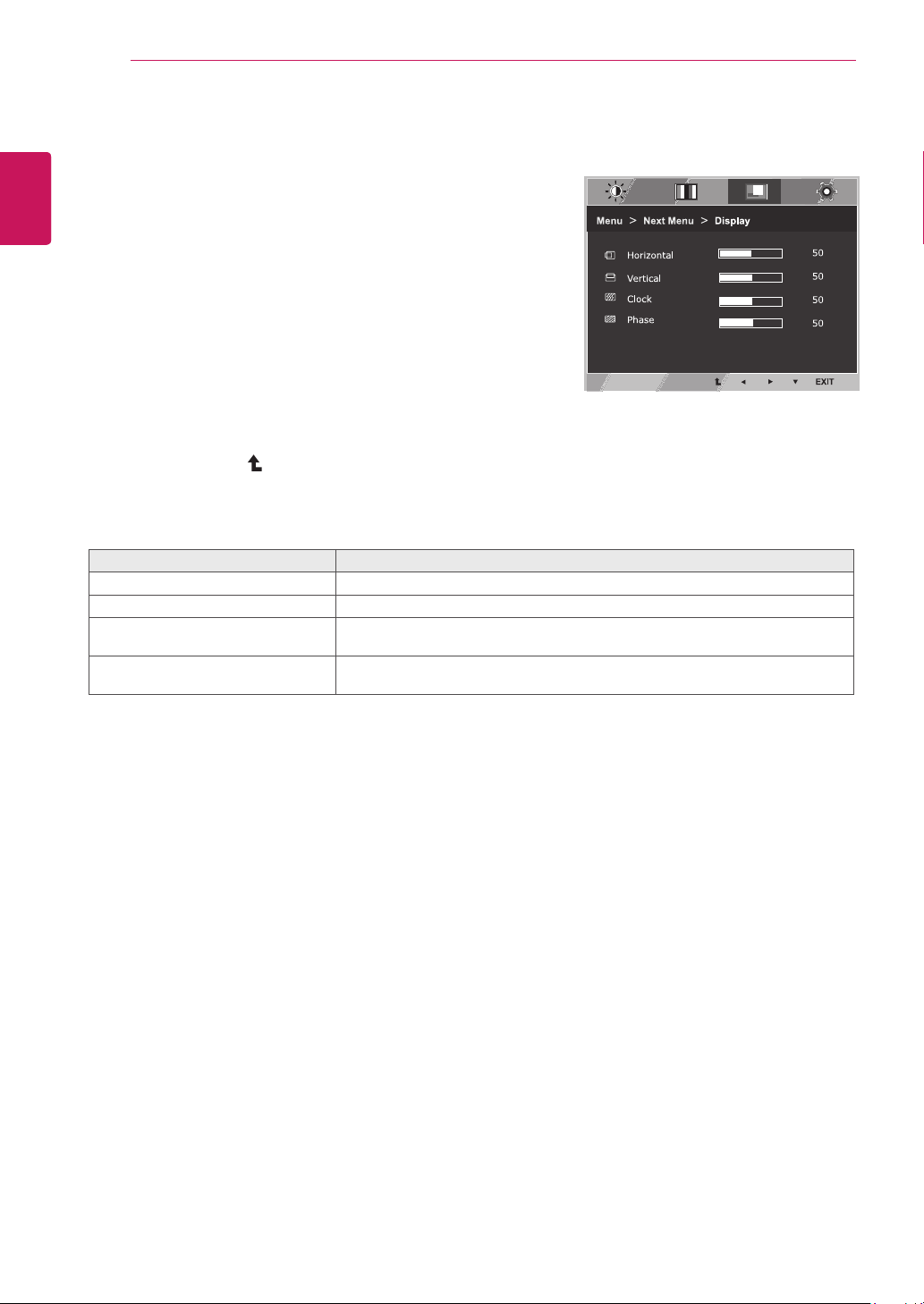

18 - Display

19 - Others

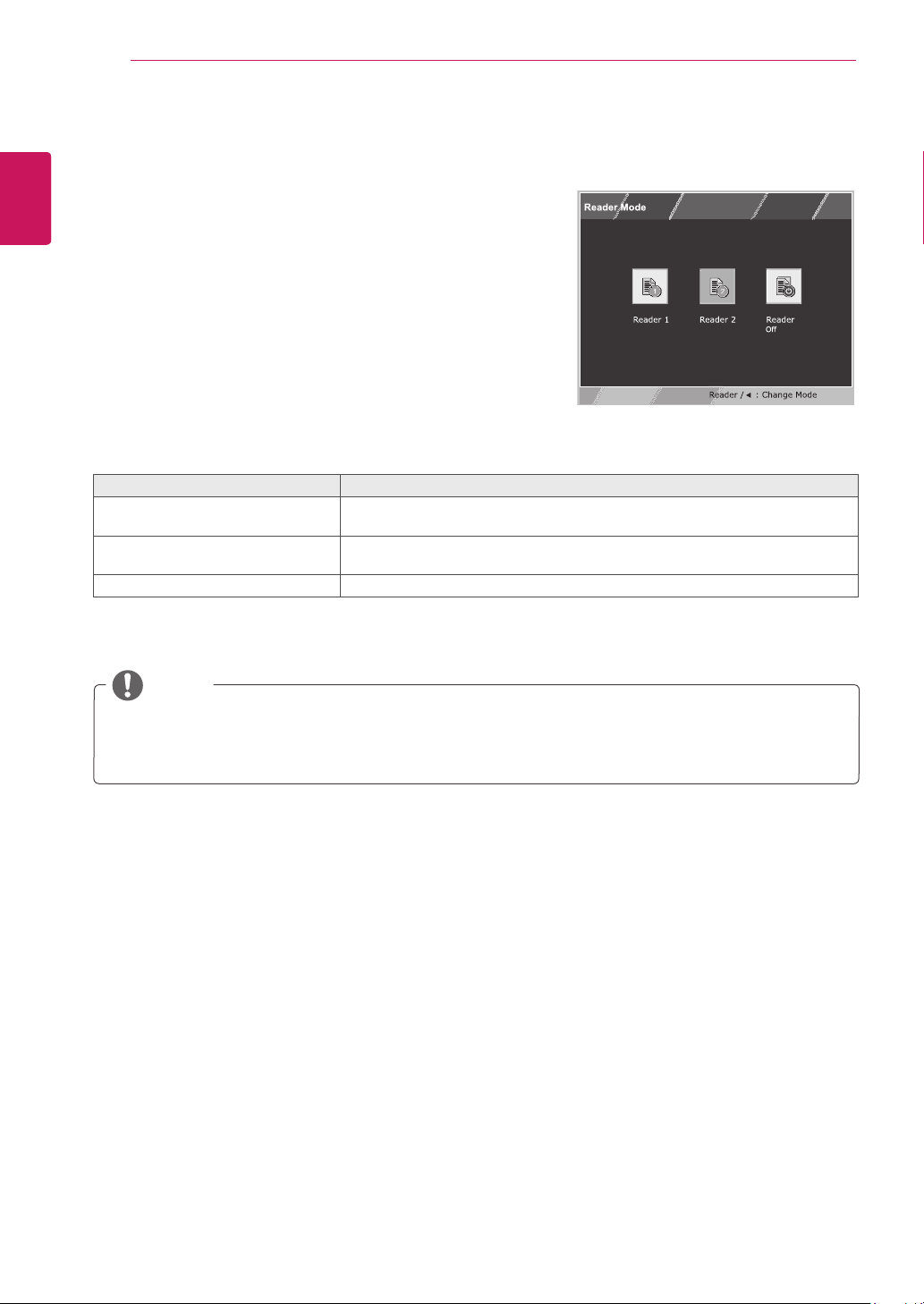

20 READER Setting

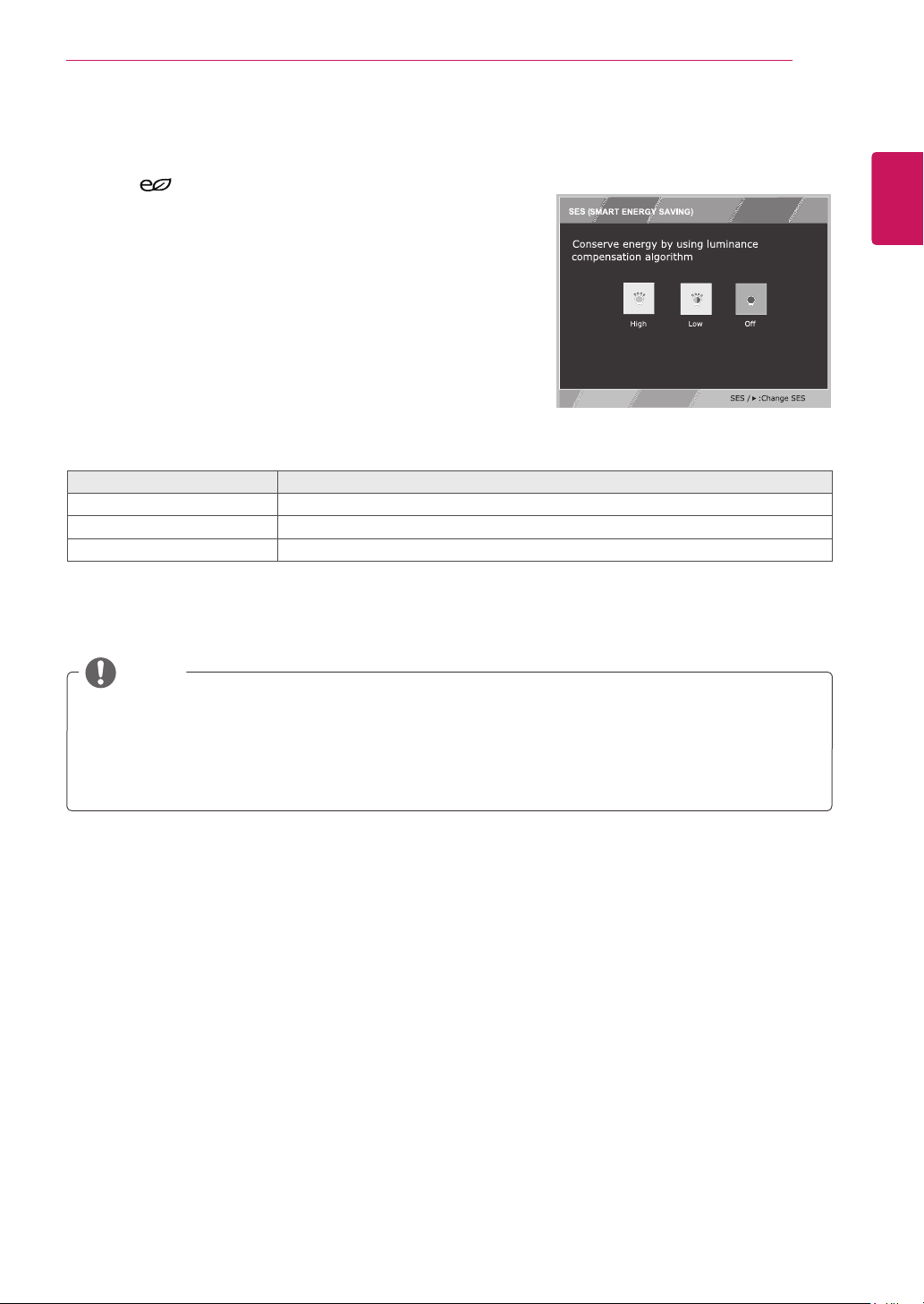

21 SMART ENERGY SAVING

22 TROUBLESHOOTING

Page 3

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

CD(Owner's Manual) /

Card

D-SUB Cable

(This cable is not included in all

countries.)

(This cable is not included in all

DVI-D Cable

countries.)

ENGLISH

ENG

Power Cord

Audio Cable

( Depending on the country )

Stand Base

USB Cable

( Depending on the country )

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.

Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

Page 4

ENGLISH

ENG

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

LED On : Power is on

LED Off: Power is off

(Power Button)

Front Side Buttons

Input Connectors (See p.11 to 13)See p.11 to 13) to 13)13))

Page 5

Setting up the Monitor set

Attaching the Stand Base

Place the Monitor set with the screen side

down on a flat and cushioned surface.

CAUTION

ASSEMBLING AND PREPARING

24MB35PU

Check the

the stand body, then mount the the

position (at the front and rear)

stand body

as shown in the figure.

stand base

ENGLISH

ENG

To protect the screen from scratches, cover

the surface with a soft cloth.

22MB35PU

Check the

the stand body, then mount the the

position (at the front and rear)

stand body

as shown in the figure.

Stand Body

Stand Base

stand base

Stand Base

Stand Body

Using a coin, turn the screw clockwise to se-

cure the

stand base.

Stand Base

Page 6

ASSEMBLING AND PREPARING

ENGLISH

ENG

Detaching the stand base

Place the monitor's screen face down.

To protect the screen from scratches, cover the surface with a soft cloth.

22MB35PU

Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from the stand body.

Stand Body

CAUTION

The components appearing in the illustra-

tions may look different from the actual product. Do not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in damage or injury. To avoid damaging the screen when lifting

or moving the monitor, only hold the stand or the plastic cover. This avoids putting unnecessary pressure on the screen. Only remove the tape and the locking pin

when the monitor is mounted on the stand base and is in an upright position. Otherwise, the stand body may protrude, which may lead to injury.

Detaching the stand body

Place the monitor's screen face down. To

protect the screen from scratches, cover the surface with a soft cloth.

Using a screwdriver, remove the four screws

and detach the stand from the monitor.

24MB35PU

Detach the

Stand Base

stand base

from the

stand body

22MB35PU

24MB35PU

Page 7

ASSEMBLING AND PREPARING

Mounting on a table

Lift the monitor and place it on the table in an

upright position.

Install at least ensure sufficient ventilation.

Connect the Power cord to the monitor, then

plug the power cord into the wall outlet.

100 mm

away from the wall to

100 mm

Adjusting the angle

Place the monitor mounted on the stand base

in an upright position.

Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards and 20° backwards for a comfortable viewing experience.

Front SideRear Side

WARNING

To avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the monitor's frame as illustrated below.

ENGLISH

ENG

Press the (Power) button on the front of the

monitor to turn on the monitor.

CAUTION

Unplug the power cord prior to moving or

installing the monitor. There is risk of electric shock.

Be careful not to touch or press the screen

area when adjusting the angle of the monitor.

Page 8

ASSEMBLING AND PREPARING

ENGLISH

ENG

Adjusting the stand height

Place the monitor mounted on the stand base

in an upright position.

Remove the

of the

pin.

Stand Body

The height can be adjusted up to

tape

stand body,

attached at the bottom rear

then pull out the

Tape

Locking Pin

locking

110 mm

Using the Kensington locking device

The connector for the Kensington lock is located on the rear of the monitor. For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

CAUTION

Once the pin is removed, it is not necessary

to re-insert it to adjust the height.

WARNING

Do not put your finger be-

tween the screen and the base (chassis) when adjusting the screen's height.

110.0mm

NOTE

Using the Kensington lock is optional. The

accessories can be purchased at your local electronics store.

Page 9

Swivel stand

Image shown may differ from your Monitor

set.

Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

ASSEMBLING AND PREPARING

Be careful with the cables when rotating the

screen.

ENGLISH

ENG

Using the Pivot function

The pivot function allows you to rotate the screen 90 degrees clockwise.

Lift the monitor to its highest height to utilize

the Pivot function.

Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid contact between the monitor head and the Stand Base when rotating the screen to access the Pivot function. If the monitor head touches the Stand Base, then the Stand Base could crack.

Head section

Stand section

Page 10

ASSEMBLING AND PREPARING

ENGLISH

ENG

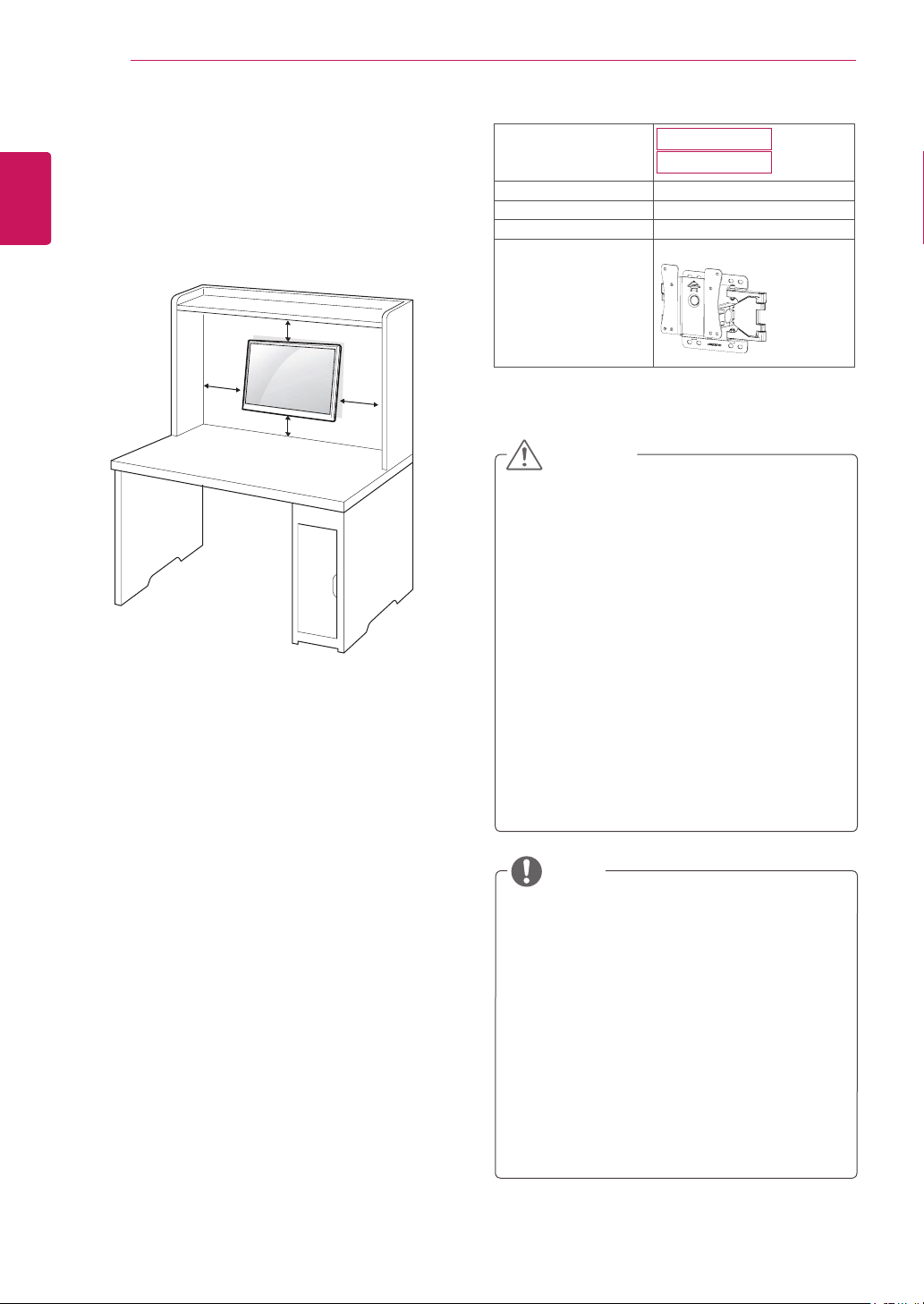

Mounting on a wall

For proper ventilation, allow a clearance of 100 mm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

100 mm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set. When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

Please, Use the screw and wall mount interface

in accordance with VESA Standards.

100 mm

Model

22MB35PU 24MB35PU

VESA (A x B) 100 x 100 Standard screw M4 Number of screws 4 Wall Mount Plate

(Optional)

LSW 149

CAUTION

Disconnect the power cord first, and then

move or install the Monitor set. Otherwise electric shock may occur. If you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe injury. Use only an authorized LG wall mount

and contact the local dealer or qualified personnel. Do not over tighten the screws as this may

cause damage to the Monitor set and void your warranty. Use only screws and wall mounts that

meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

If you use screw longer than standard, the

monitor might be damaged internally.

If you use improper screw, the product might be

damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

VESA compatible.

Please use VESA standard as below.

784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

NOTE

Use the screws that are listed on the VESA

standard screw specifications. The wall mount kit will include an installation

manual and necessary parts. The wall mount bracket is optional. You can

obtain additional accessories from your local dealer. The length of screws may differ depending

on the wall mount. Be sure to use the proper length. For more information, refer to the

instructions supplied with the wall mount.

Page 11

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

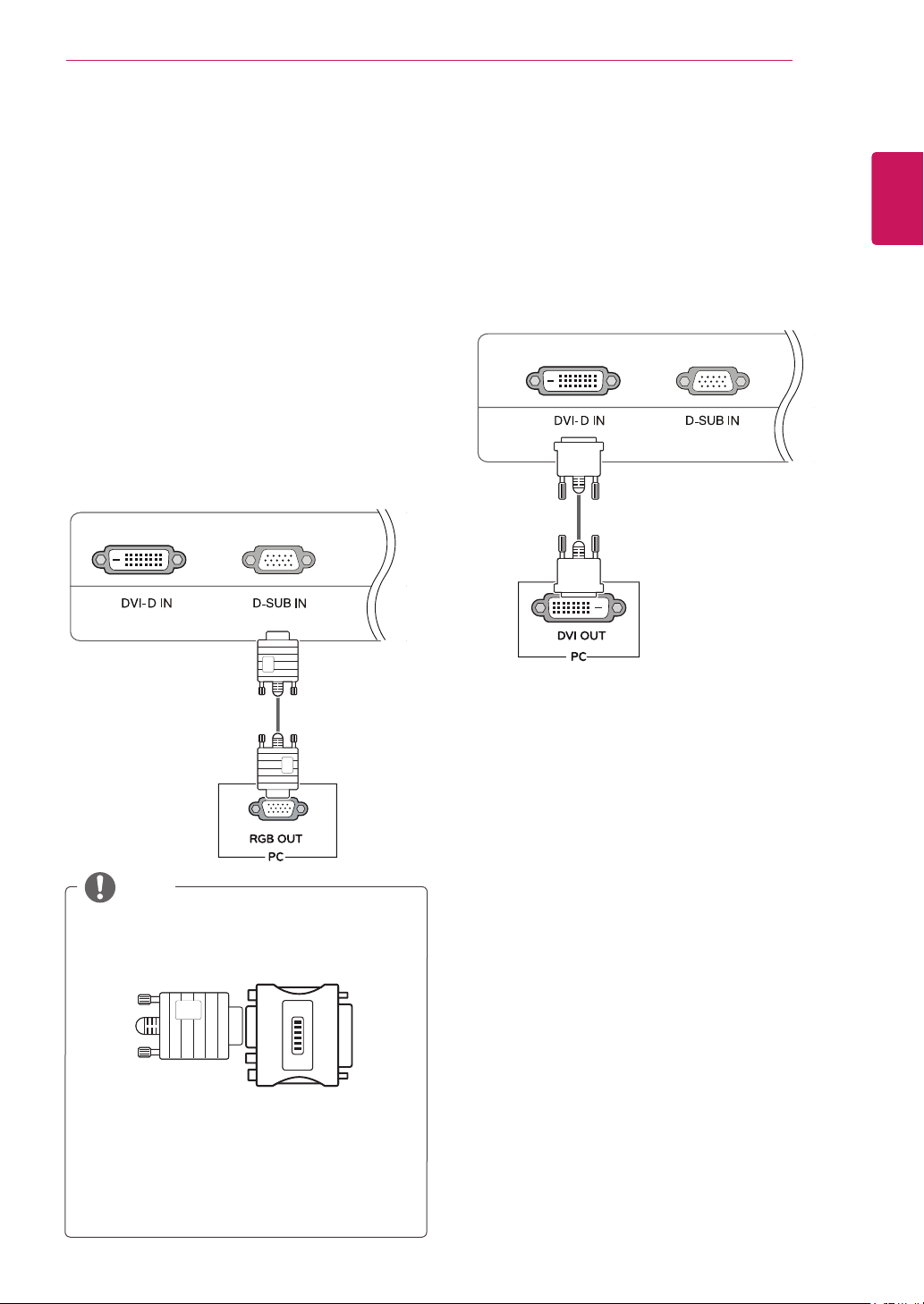

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

DVI-D connection

Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.

ENGLISH

ENG

NOTE

When using a D-Sub signal input cable

connector for Macintosh

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

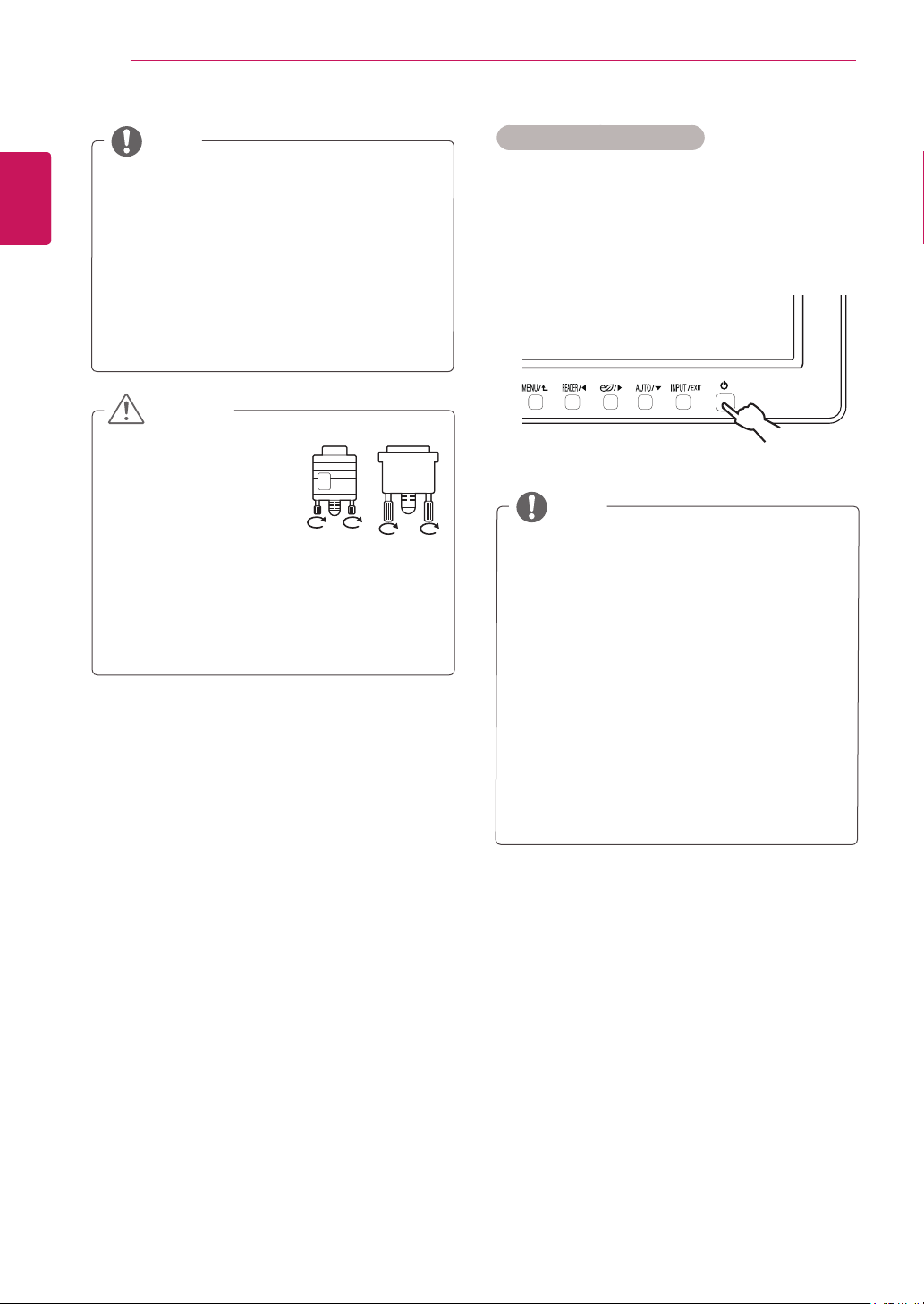

Page 12

USING THE MONITOR SET

ENGLISH

ENG

NOTE

When you want to use two PC in our Monitor,

please connect the signal cable(D-SUB/ DVI-D) respectively in Monitor set. If you turn the Monitor set on while it is cold,

the screen may flicker. This is normal. Some red, green, or blue spots may appear

on the screen. This is normal.

CAUTION

Connect the signal

input cable and tighten it by turning the screws clockwise. Do not press the screen

with your finger for a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the

screen for a long period of time to prevent image burn. Use a screensaver if possible.

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the " automatically. (Only supported in Analog Mode)

Self Image Setting

" Function is executed

NOTE

"Self Image Setting" Function.

This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals.(Only supported in Analog Mode)

‘AUTO’ Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

Page 13

USING THE MONITOR SET

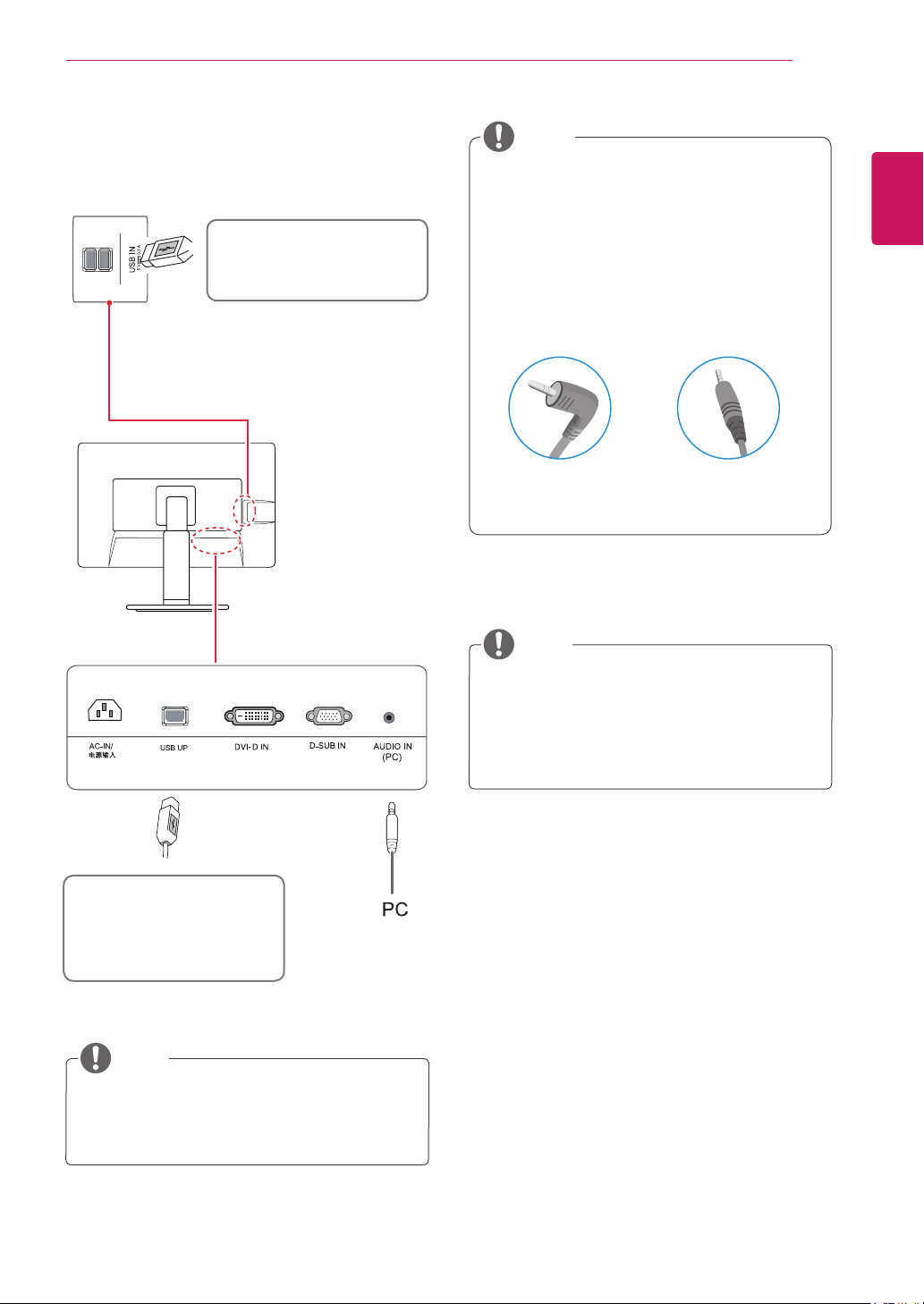

Peripheral device connection

Connect peripheral devices to the monitor.

Two USB Downstream ports Connect these ports to a mouse, USB keyboard, memory stick with current spec under 100mA.

NOTE

Peripheral devices are sold separately.

The USB ports on the left and bottom of the

monitor can be used to connect the keyboard, mouse, and other USB devices. Cables with angled plugs may have clear-

ance issues, use straight plugs when possible.

Angle Type Straight Type

NOTE

ENGLISH

ENG

One USB Upstream port Connect this port to the downstream port of a computer, laptop or USB monitor (Your computer or USB monitor must support USB and have USB ports).

NOTE

The monitor's USB terminal supports USB

2.0 and high speed cables.

Speakers may not work normally, depending

on the server PC settings. Virtual solutions may affect the functions or

speed of the specific USB storage device.

Page 14

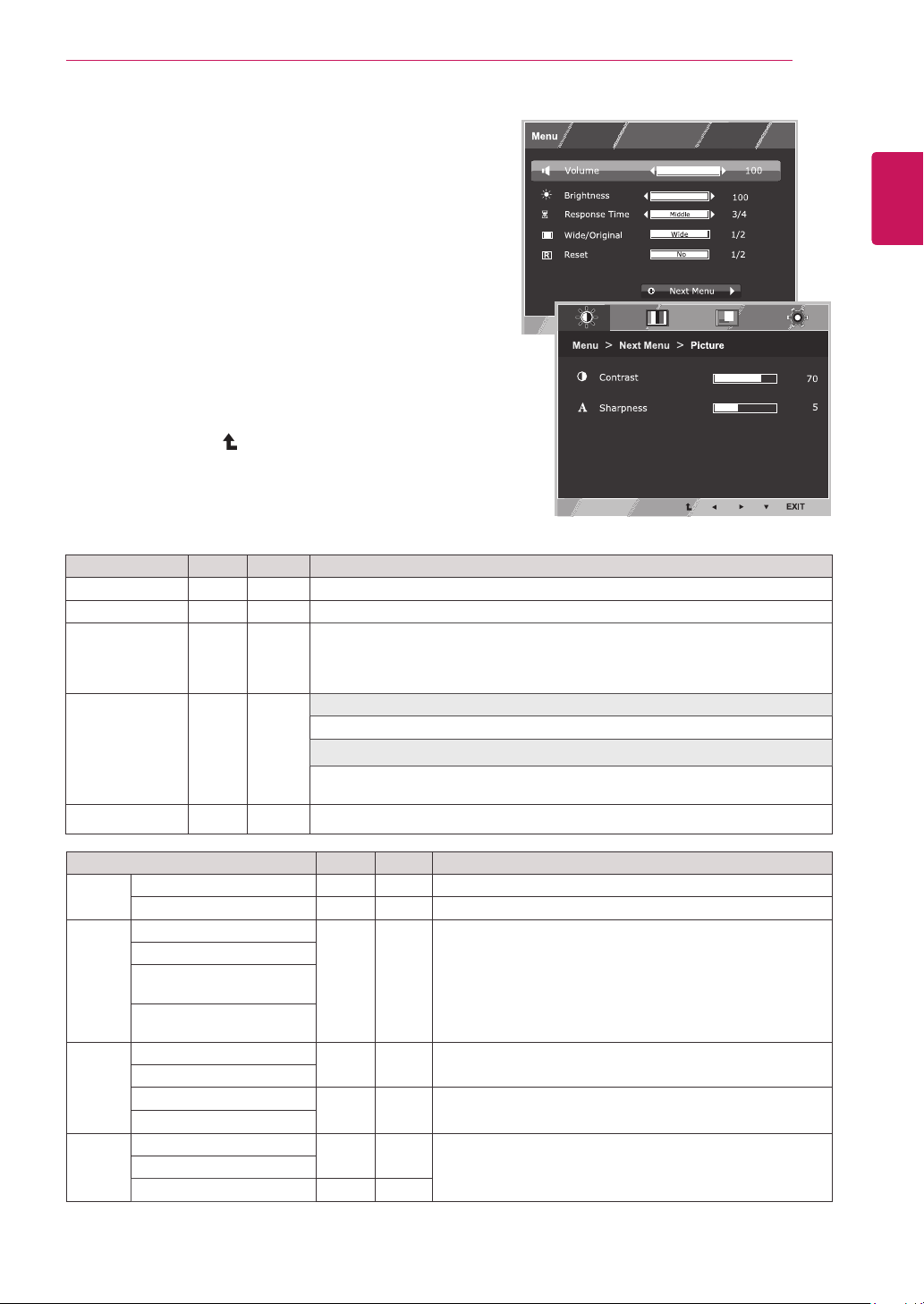

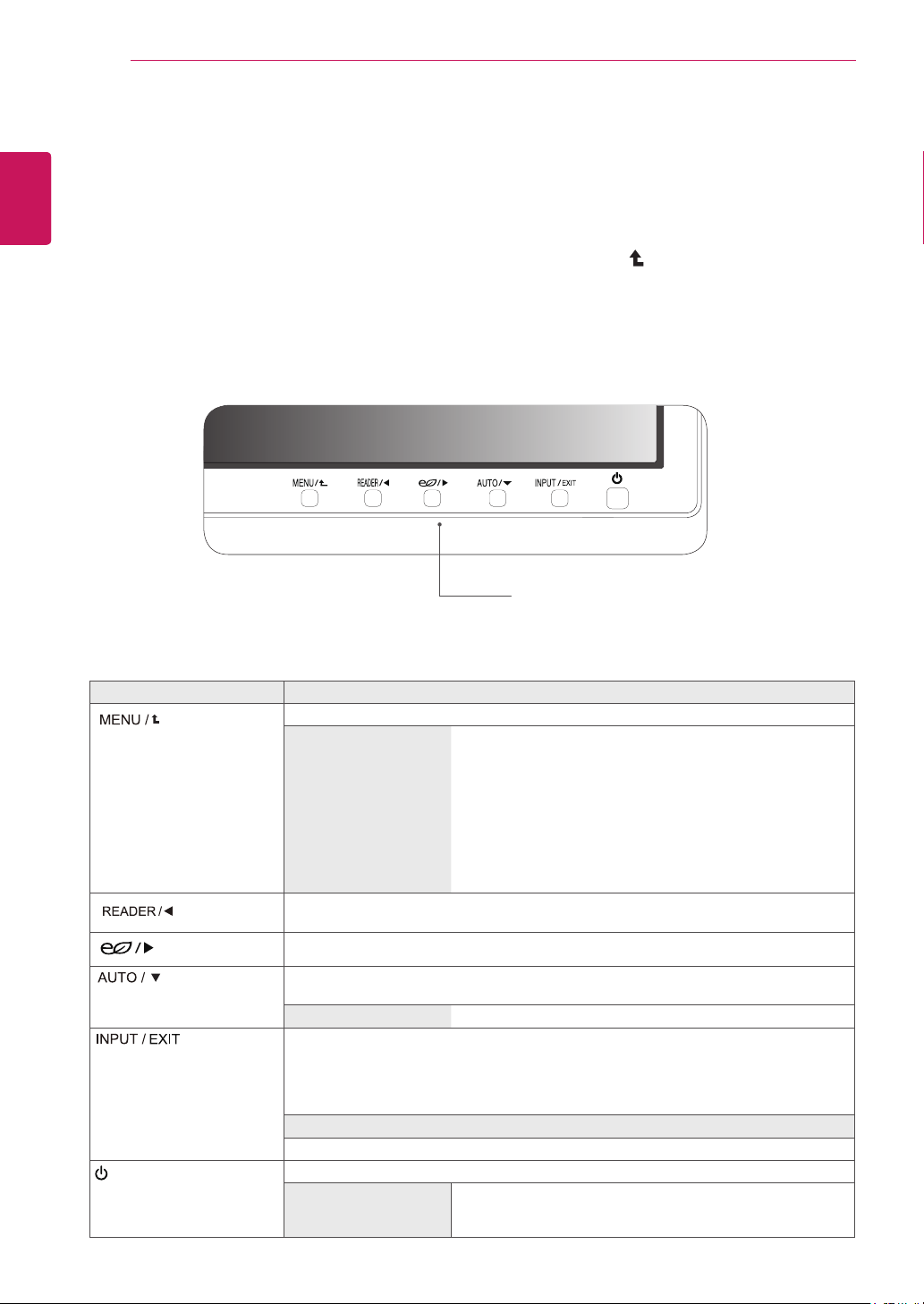

CUSTOMIZING SETTINGS

ENGLISH

ENG

CUSTOMIZING SETTINGS

Press the desired button on the bottom of the Monitor set.

Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Select

EXIT

to leave the OSD menu.

Monitor set Buttons

Button Description

(Power Button)

Accesses the main menus.(See p.15)

OSD Locked/OSD Unlocked

Use this button to enter Reader Mode menu. Its function works to display screen as paper-like picture for Eye comfort.If you want to more information.(See p.20)

Use this button to enter SMART ENERGY SAVING menu.(See p.21)

When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode)

The best display mode

You can choose the input signal.

• When two input signals are connected, you can select the input signal (D-SUB/DVI)

you want.

• When only one signal is connected, it is automatically detected. The default setting is

D-SUB.

EXIT

Exit the OSD(On Screen Display).

Turns the power on or off.

Power Indicator

This function allow you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. Then OSD of “OSD Lock” will appear. After that, user can select lock or unlock by pressing left/right button. If user selects the “Lock” icon by pressing the “OK” button, the message “OSD Locked” will appear. Otherwise, “OSD Unlocked” will appear. After selecting the “Lock”, If you want to change to Unlock, you can push the “MENU” button for several seconds. The message “OSD Unlocked” will appear.

1920 x 1080

The power indicator stays white if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks white.

Page 15

Customizing Settings

Menu Settings

CUSTOMIZING SETTINGS

ENGLISH

ENG

Press

Set the options by pressing the ◄ or ► or ▼

to display the

button on the bottom of the Monitor set

OSD.

buttons.

Select the "

Next Menu

" button to enter the more

option settings.

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu Analog Digital Description

Volume ● ●

Brightness ● ●

Response Time (only use for 22MB35PU-I*/ 24MB35PU)

Wide/Original

Reset

● ●

To adjust the volume

To adjust the brightness of the screen

You can set a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use 'Off'. For a fast-moving picture, it is recommended that you use 'High'.

Wide

Switch to full screen mode according to input image signal.

Original

Change the input image signal ratio to original. * This function works only if input resolution is lower than Monitor set ratio (16:9).

Restore all factory default settings. Press the

buttons to reset immediately.

, ►

◄

Menu > Next Menu Analog Digital Description

Picture Contrast ● ●

Sharpness ● ●

Color Gamma

Color Temp

Six Color(only use for 22MB35PU-I*/24MB35PU)

Color Reset(only use for 22MB35PU-I*/24MB35PU)

Display Horizontal

Vertical

Clock

Phase

Others Language

Power Indicator

Off Time Setting ● ●

Analog:

Digital:

D-SUB(Analog signal) input.

DVI-D(Digital signal) input.

● ●

●

● ●

To adjust the contrast of the screen

To adjust the clearness of the screen

To customize the color of the screen

To adjust the position of the screen

To improve the clarity and stability of the screen

To customize the screen status for a user's operating environment

Page 16

ENGLISH

ENG

CUSTOMIZING SETTINGS


Press

to display the

button on the bottom of the Monitor set

OSD.

Select the "

option settings.

Enter to

Set the options by pressing the ◄ or ► or ▼

buttons.

Select

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Picture Description

Contrast To adjust the contrast of the screen.

Sharpness To adjust the clearness of the screen.

Next Menu


EXIT

to leave the OSD menu.

" button to enter the more

by pressing the ▼ button.

Page 17

Color

Press

to display the

button on the bottom of the Monitor set

OSD.

CUSTOMIZING SETTINGS

ENGLISH

ENG

Select the "

Next Menu

" button to enter the more

option settings.

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

Color

by pressing the ► button.

Color

by pressing the ▼ button.

buttons.

Select

EXIT

to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Color Description

Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the

Color Temp Custom

Six Color (only use for 22MB35PU-I*/24MB35PU)

Color Reset (only use for 22MB35PU-I*/24MB35PU)

monitor, high gamma values display whitish images and low gamma values display blackish images.

• Red:

Set your own red color levels.

• Green:

• Blue:

Select the screen color.

Warm: Medium: Cool:

Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/ Magenta/Yellow) to satisfy the color requirements of a user.

Hue Adjusts the screen hue.

Saturation Adjusts the color sharpness on the screen. Lower values

Resets the color settings to the factory default settings for the current input device.

Set your own green color levels.

Set your own blue color levels.

Set the screen to warm color temperature (more red).

Set the screen to medium color temperature.

Set the screen to cool color temperature (more blue).

make the color sharpness weaker and colors lighter while higher values make the color sharpness stronger and colors dark.

Page 18

ENGLISH

ENG

CUSTOMIZING SETTINGS

Display

Press

to display the

button on the bottom of the Monitor set

OSD.

Select the "

option settings.

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

buttons.

Select

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Each option is explained below.

Menu > Next Menu > Display Description

Horizontal To move image left and right.

Vertical To move image up and down.

Clock To minimize any vertical bars or stripes visible on the screen background.The

Phase To adjust the focus of the display. This item allows you to remove any horizontal

Next Menu

Display

EXIT

by pressing the ► button.

Display

to leave the OSD menu.

" button to enter the more

by pressing the ▼ button.

horizontal screen size will also change.

noise and clear or sharpen the image of characters.

Page 19

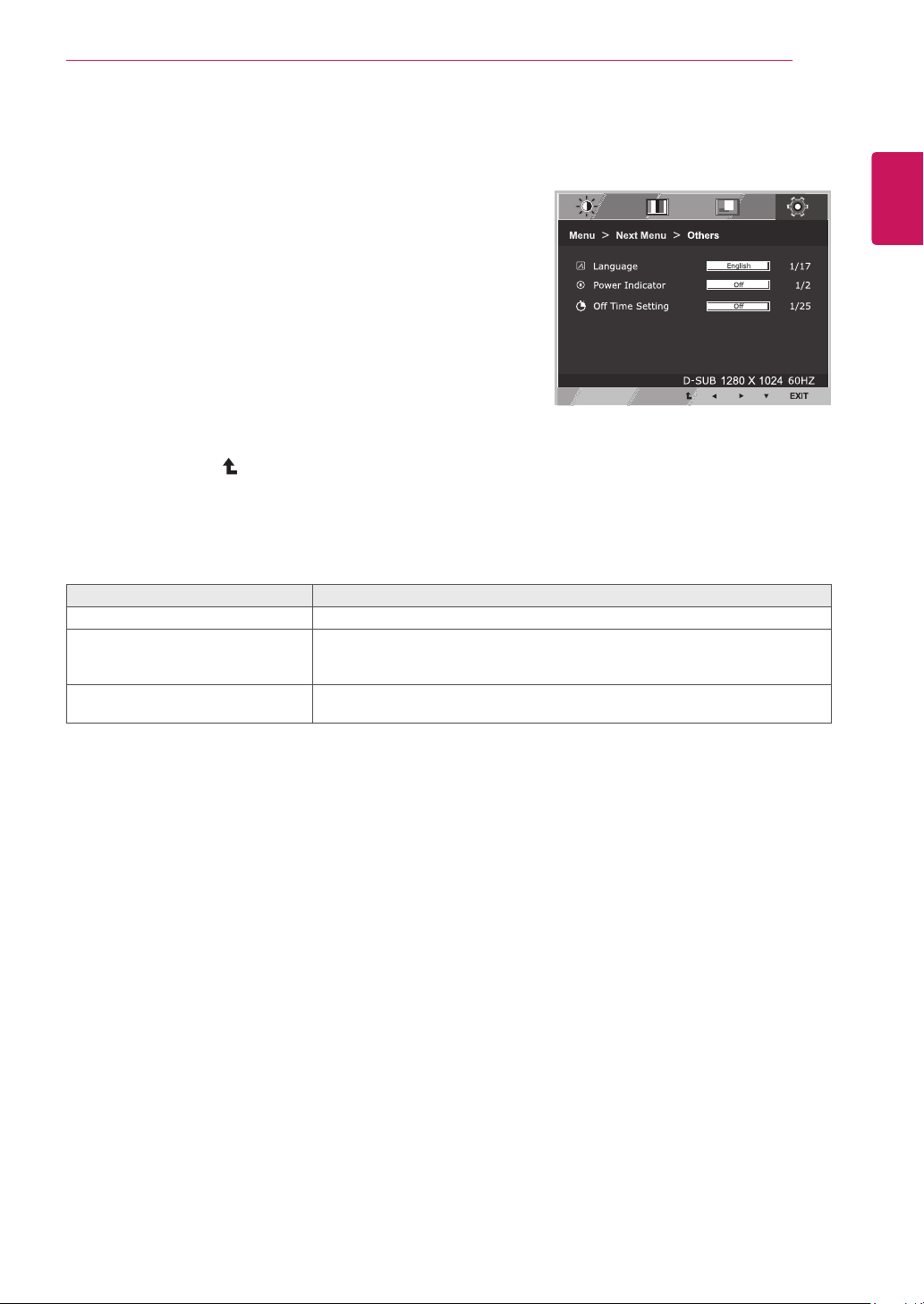

CUSTOMIZING SETTINGS

Others

Press

Select the "

Select

Enter to

Set the options by pressing the ◄ or ► or ▼

Select

Each option is explained below.

Language To choose the language in which the control names are displayed.

Power Indicator Use this function to set the power indicator on the bottom side of the monitor to

Off Time Setting The monitor set will switch to power off mode after the time to be chosen by user

button on the bottom of the Monitor set

to display the

option settings.

buttons.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Menu > Next Menu > Others Description

OSD.

Next Menu

Others

by pressing the ► button.

Others

EXIT

to leave the OSD menu.

" button to enter the more

by pressing the ▼ button.

On or Off.If you set Off, it will go off. If you set On at any time, the power indicator will automatically be turned on.

(1 ~ 24 hours)

ENGLISH

ENG

Page 20

CUSTOMIZING SETTINGS

ENGLISH

ENG

SMART ENERGY SAVING

Press button on the bottom of the Monitor set to

display the SMART ENERGY SAVING OSD.

Set the options by pressing the ► buttons.

Each option is explained below.

SMART ENERGY SAVING Description

High

Low

Off Disables SMART ENERGY SAVING.

SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.

Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.

Enables SMART ENERGY SAVING you can save energy with this energy- low efficient function.

ENGLISH

ENG

NOTE

Saving Data depends on the Panel. So,those values should be different from each panel and panel

vendor. If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower

or higher depend on source.

Page 22

TROUBLESHOOTING

ENGLISH

ENG

TROUBLESHOOTING

Check the following before calling for service.

No image appears

Is the power cord of the display connected?

Is the power indicator light on?

Is the power on and the power indicator White?

Is the power indicator flickering?

Do you see an "OUT OF RANGE" message on the screen?

Do you see a "NO SIGNAL" message on the screen?

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD LOCKED” when you push MENU button?

Check and see if the power cord is connected properly to the power

outlet.

Press the Power button.

Adjust the brightness and the contrast.

If the display is in power saving mode, try moving the mouse or

pressing any key on the keyboard to bring up the screen. Try to turn on the PC.

This message appears when the signal from the PC (video card) is

out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.

When the monitor is on "No-Signal" in 5 minutes, the monitor goes to

DPM mode.

You can secure the current control settings, so that they cannot be

inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

Display image is incorrect

Display Position is incorrect.

On the screen background, vertical bars or stripes are visible.

Any horizontal noise appearing in any image or characters are not clearly portrayed.

Press the AUTO button to automatically adjust your display image to

the ideal setting.

Press the AUTO button to automatically adjust your display image to

the ideal setting.

Press the AUTO button to automatically adjust your display image to

the ideal setting. Check Control Panel ► Display ► Settings and adjust the display

to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

Page 23

TROUBLESHOOTING

CAUTION

Check Control Panel ► Display ► Settings and see if the frequency or the resolution were

changed. If yes, readjust the video card to the recommend resolution. If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the

screen may be dimmed, truncated or biased. Make sure to select the recommend resolution. The setting method can differ by computer and O/S (Operation System), and resolution mentioned

above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect

The screen color is mono or abnormal.

The screen blinks.

Check if the signal cable is properly connected and use a screwdriver

to fasten if necessary. Make sure the video card is properly inserted in the slot.

Set the color setting higher than 24 bits (true color) at Control Panel

► Settings.

Check if the screen is set to interlace mode and if yes, change it to the

recommend resolution.

ENGLISH

ENG

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

Have you installed the display driver?

Be sure to install the display driver from the display driver CD (or

diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com. Make sure to check if the video card supports Plug&Play function.

Page 24

SPECIFICATIONS

ENGLISH

ENG

SPECIFICATIONS

22MB35PU

Display Screen Type Flat Panel Active matrix-TFT LCD

Pixel Pitch 0.248 mm x 0.248 mm (Pixel Pitch)

Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)

Vertical Frequency 56Hz to 75Hz (D-SUB,DVI-D)

Input Form Separate Sync. Digital

Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)

Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz

Recommend VESA 1920 x 1080 @ 60 Hz

Plug & Play DDC 2B(Analog,Digital)

Power Consumption

Power Input AC 100-240V ~ 50/60Hz 1.0 A

Speaker Wattage 1 W +1 W

Dimensions (Width x Height x Depth)

Weight 3.9 kg

Tilt Range -5° to 20°

Environmental conditions

Stand Base Attached ( ), Detached (O)

Power cord Wall-outlet type

On Mode : 20.3 W Typ. (Outgoing condition)*

Sleep Mode ≤ 0.3 W ** Off Mode ≤ 0.3 W

With Stand 50.9 cm x 35.3 cm x 22.4 cm

Without Stand 50.9 cm x 30.4 cm x 14.4 cm

Operating Temperature Operating Humidity

Storage Temperature Storage Humidity

Anti-Glare coating

DVI (Digital) : 1920 x 1080 @ 60 Hz

10°C to 35 °C 10 % to 80 %

-20°C to 60 °C 5 % to 90 % non-Condensing

Product specifications shown above may be changed without prior notice due to upgrade of product functions. The power consumption level can be different by operating condition and monitor setting. *The On mode power consumption is measured with LGE test standard(Full White pattern,Maximum resolution). **The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Page 25

SPECIFICATIONS

24MB35PU

Display Screen Type Flat Panel Active matrix-TFT LCD

Pixel Pitch 0.275 mm x 0.275 mm (Pixel Pitch)

Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)

Vertical Frequency 56Hz to 75Hz (D-SUB,DVI-D)

Input Form Separate Sync. Digital

Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)

Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz

Recommend VESA 1920 x 1080 @ 60 Hz

Plug & Play DDC 2B(Analog,Digital)

Power Consumption

Power Input AC 100-240V ~ 50/60Hz 1.2 A

Speaker Wattage 1 W +1 W

Dimensions (Width x Height x Depth)

Weight 5.1 kg

Tilt Range -5° to 20°

Environmental conditions

Stand Base Attached ( ), Detached (O)

Power cord Wall-outlet type

On Mode : 17.1 W Typ. (ENERGY STAR® standard)*

24.3 W Typ. (Outgoing condition)**

Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W

With Stand 56.9 cm x 43.2 cm x 27.1 cm

Without Stand 56.9 cm x 34.2 cm x 6.3 cm

Operating Temperature Operating Humidity

Storage Temperature Storage Humidity

Anti-Glare coating

DVI (Digital) : 1920 x 1080 @ 60 Hz

10°C to 35 °C 10 % to 80 %

-20°C to 60 °C 5 % to 90 % non-Condensing

ENGLISH

ENG

Product specifications shown above may be changed without prior notice due to upgrade of product functions. * The power consumption level can be different by operating condition and monitor setting. * The On mode power consumption is measured with ENERGY STAR® test standard. **The On mode power consumption is measured with LGE test standard(Full White pattern,Maximum resolution).

Page 26

ENGLISH

ENG

SPECIFICATIONS

Preset Modes (Resolution)

Display Modes (Resolution)

720 x 400 31.468 70 -/+

640 x 480 31.469 60 -/-

640 x 480 37.500 75 -/-

800 x 600 37.879 60 +/+

800 x 600 46.875 75 +/+

1024 x 768 48.363 60 -/-

1024 x 768 60.023 75 +/+

1152 x 864 67.500 75 +/+

1280 x 1024 63.981 60 +/+

1280 x 1024 79.976 75 +/+

1680 x 1050 65.290 60 -/+

1920 x 1080 67.500 60 +/+ Recommend Mode

Horizontal Frequency(kHz)

Vertical Frequency(Hz)

Polarity(H/V)

Indicator

Mode LED Color

On Mode White

Sleep Mode Blinking White

Off Mode Off

Page 27

PROPER POSTURE

Proper posture for using the Monitor set.

Adjust the

Monitor set and

your posture to

allow you to view

images at the

optimal viewing

angle.

Place your hands

gently on the

keyboard, keeping

your arms bent at

the elbows and

horizontally outright.

ENGLISH

ENG

Adjust the location of the Monitor set to avoid it reflecting light.

Page 28

Make sure to read the Safety Precautions before using the product. Keep the Owner’s Manual (CD) in an accessible place for future reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

MODEL

SERIAL
