Page 1
ENGLISH
OWNER’S MANUAL
LED TV
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating the your TV and
retain it for future reference.
22MA33D
24MN33D
26MA33D
29MN33D
www.lg.com
Page 2
TABLE OF CONTENTS
2
ENGLISH
TABLE OF CONTENTS
3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
8 Parts and buttons
10 Lifting and moving the TV
11 Setting up the TV
11 - Attaching the Stand
15 - Mounting on a table
16 - Tidying cables
17 - Detaching the Stand

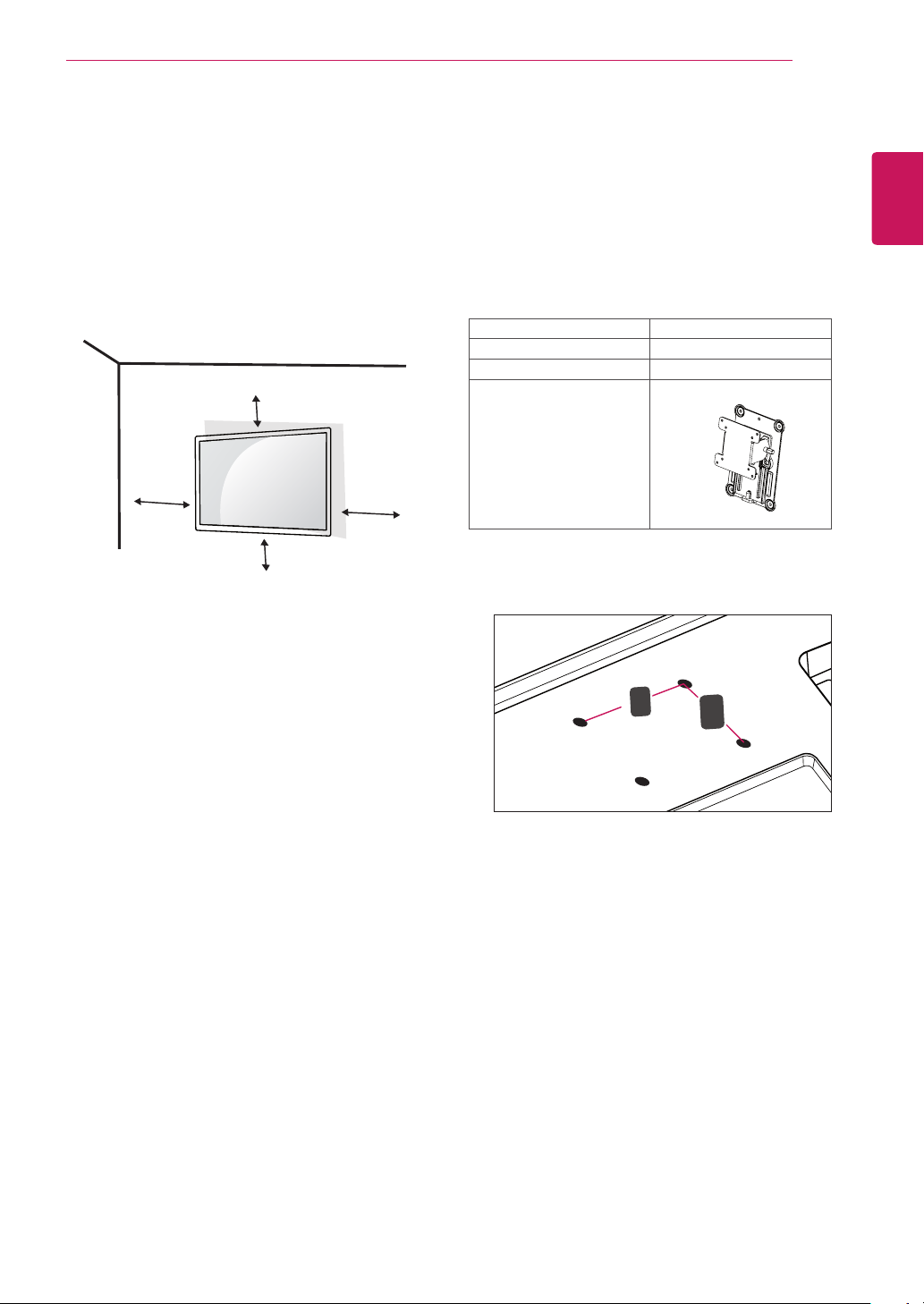

19 - Mounting on a wall
21 WATCHING TV
21 Turning the TV on for the first time

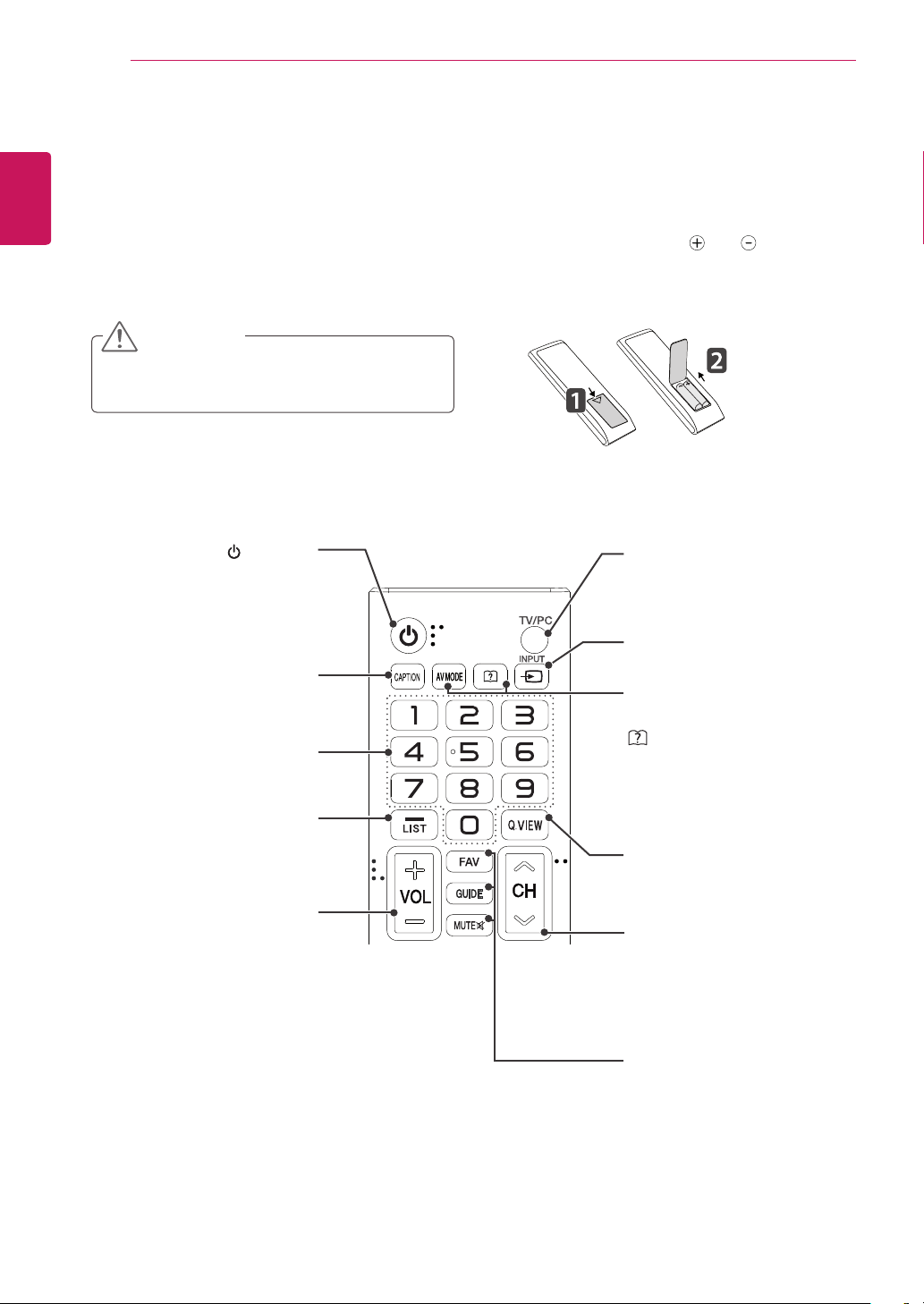

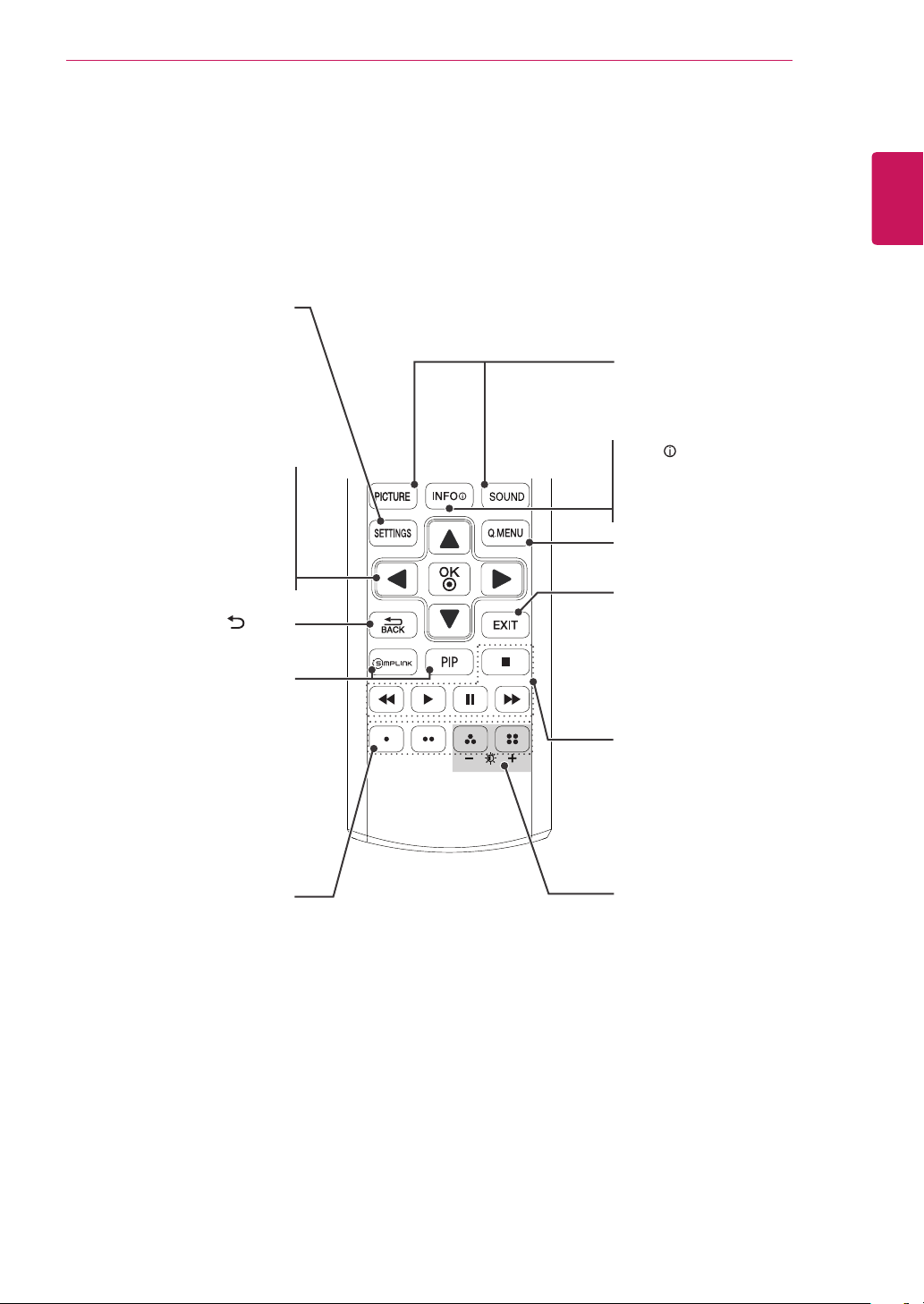

34 REMOTE CONTROL
36 CUSTOMIZING SETTINGS
36 Accessing the Main Menus
37 USING THE USER GUIDE

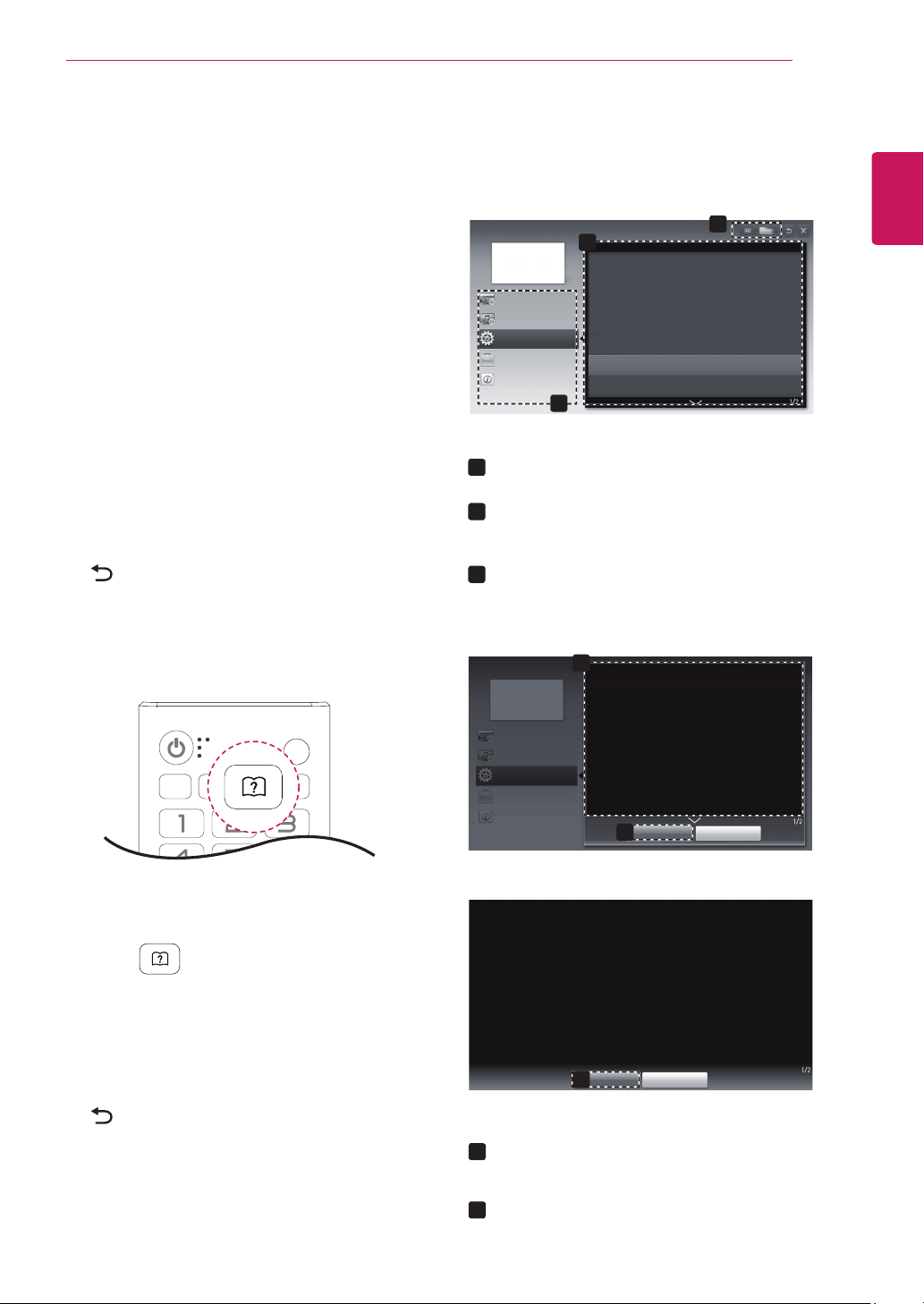

37 Accessing the On-Screen User Guide
37 - Using the TV menu
37 - Using the Remote Control
38 MAINTENANCE
38 Cleaning Your TV
38 Screen and frame
38 Cabinet and stand
38 Power cord
39 Preventing “Image burn” or “Burn-in” on
your TV screen
23 MAKING CONNECTIONS
23 Connecting an antenna
23 - Connecting an antenna or basic cable

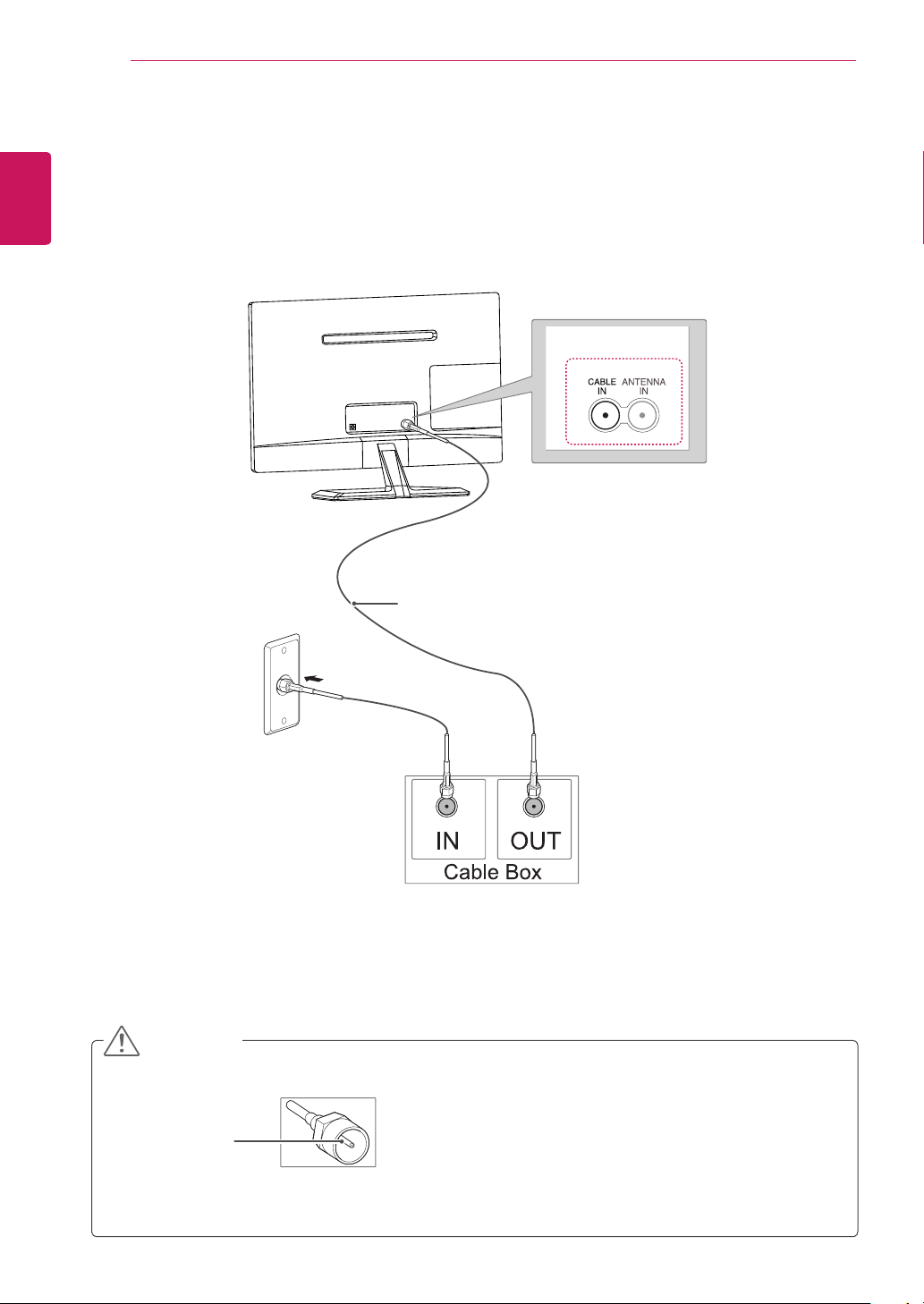

24 - Connecting with a cable box
25 Connecting to a HD receiver, DVD Player,
VCR or Gaming device
25

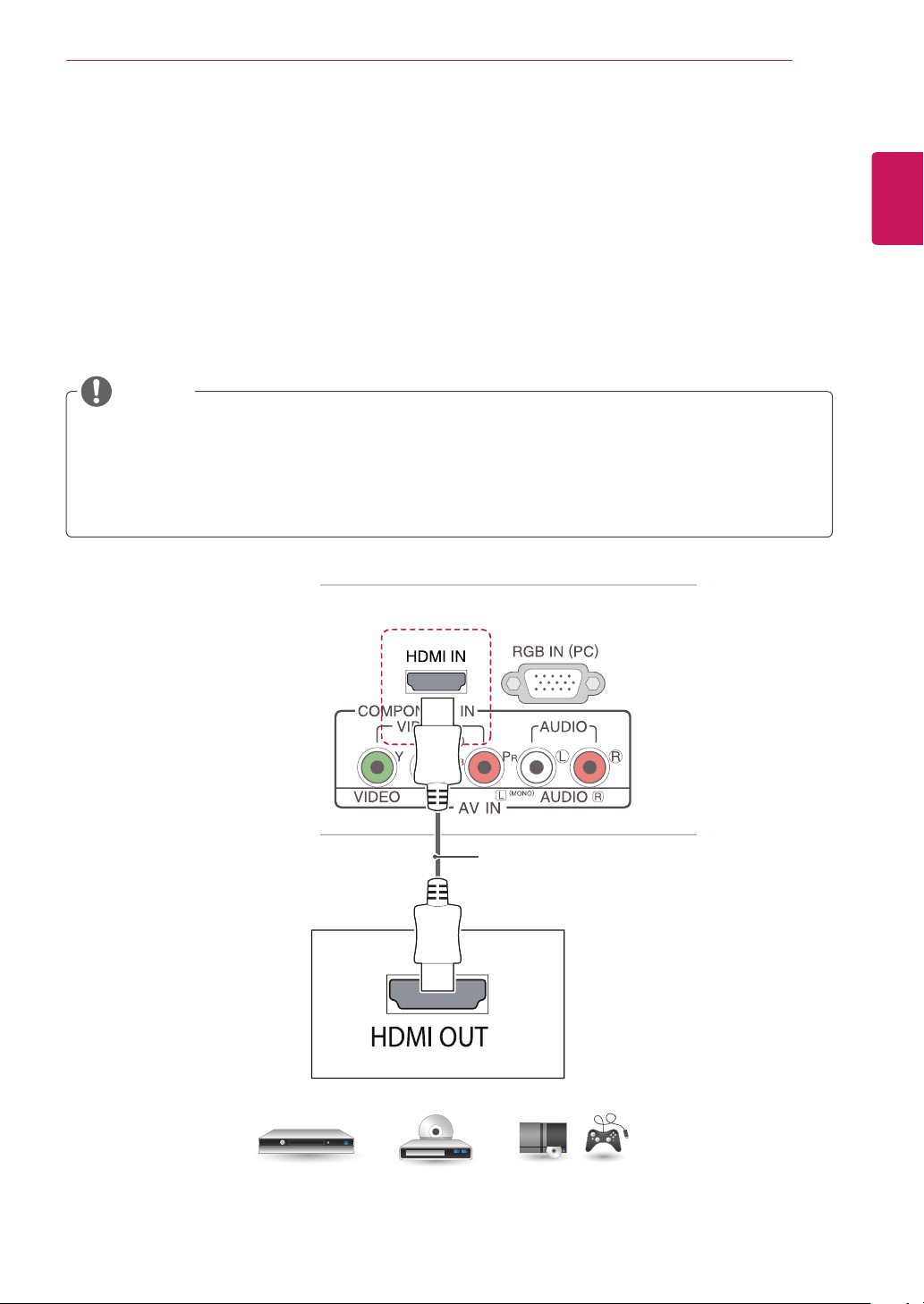

- HDMI Connection
26 - HDMI to DVI Connection

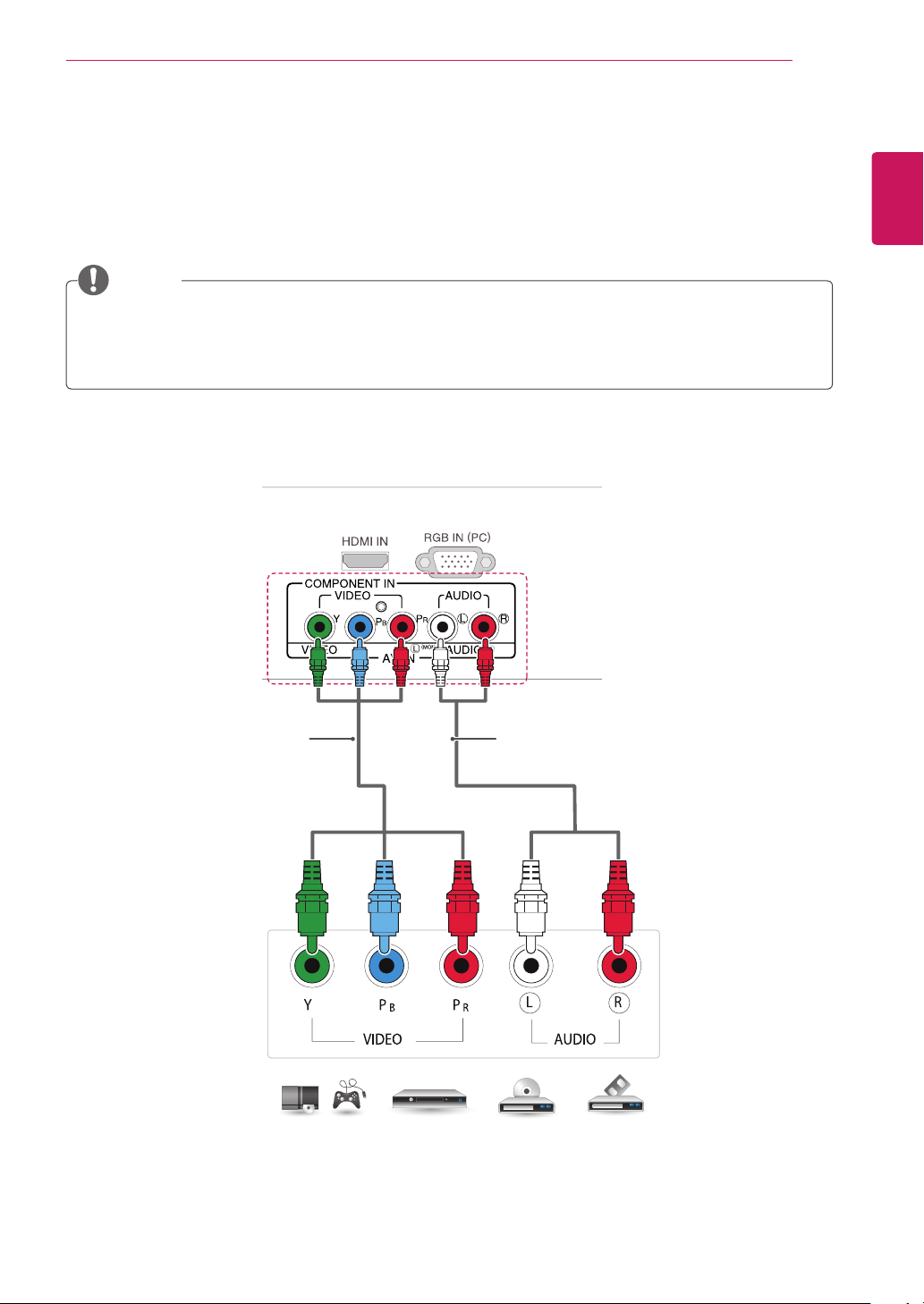

27 - Component Connection

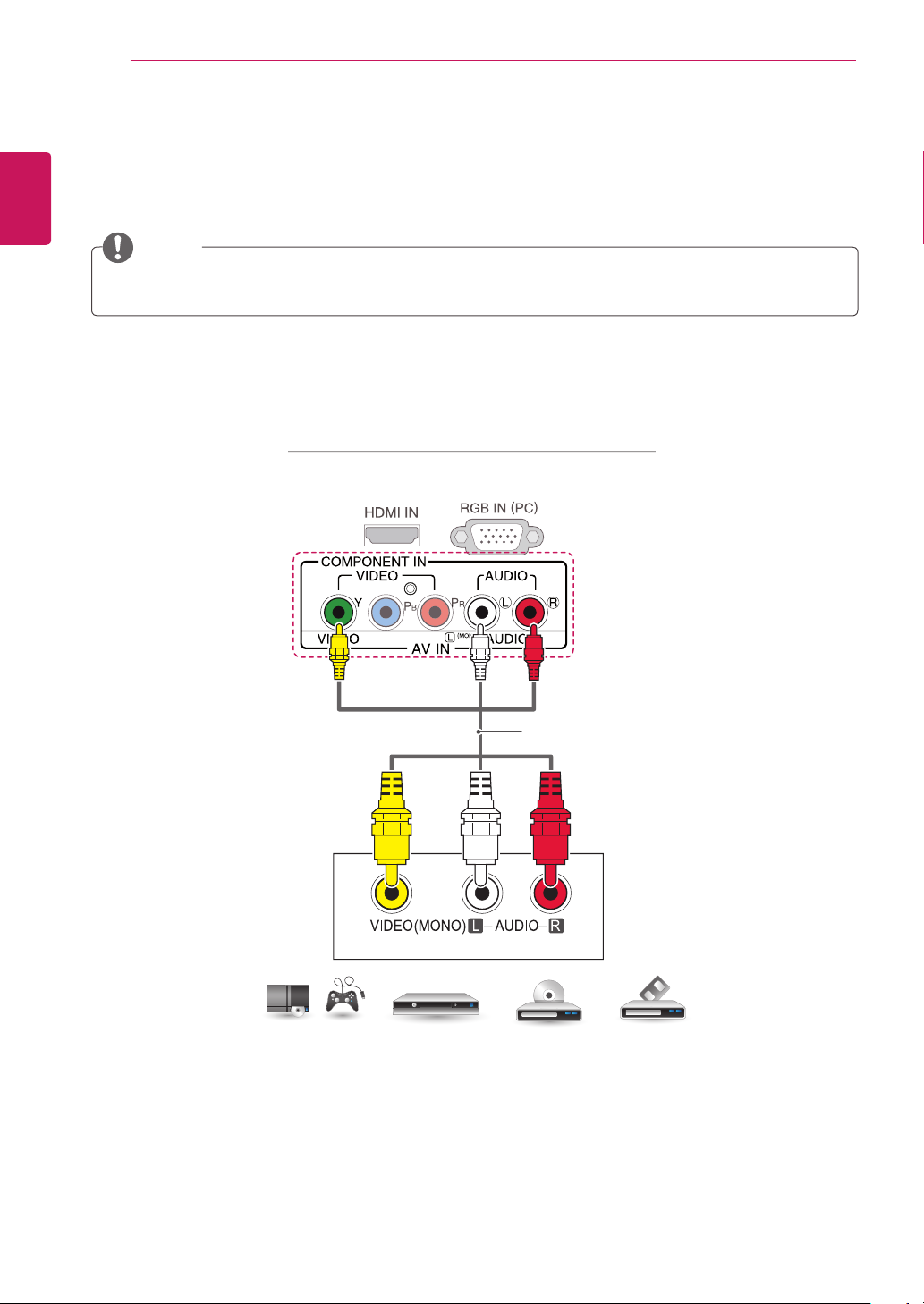

28 - Composite Connection

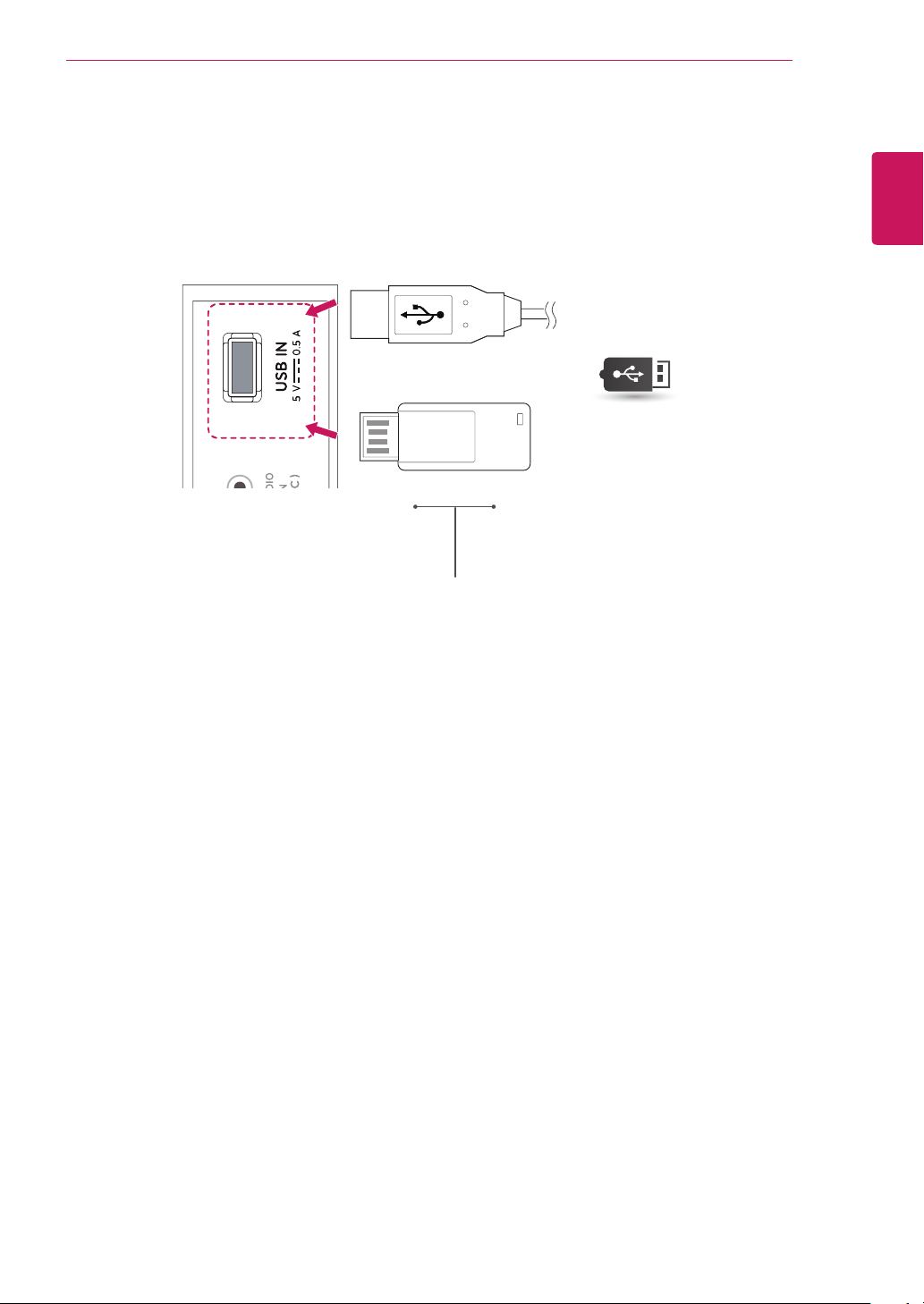

29 Connecting a USB Device
30 Connecting to a PC

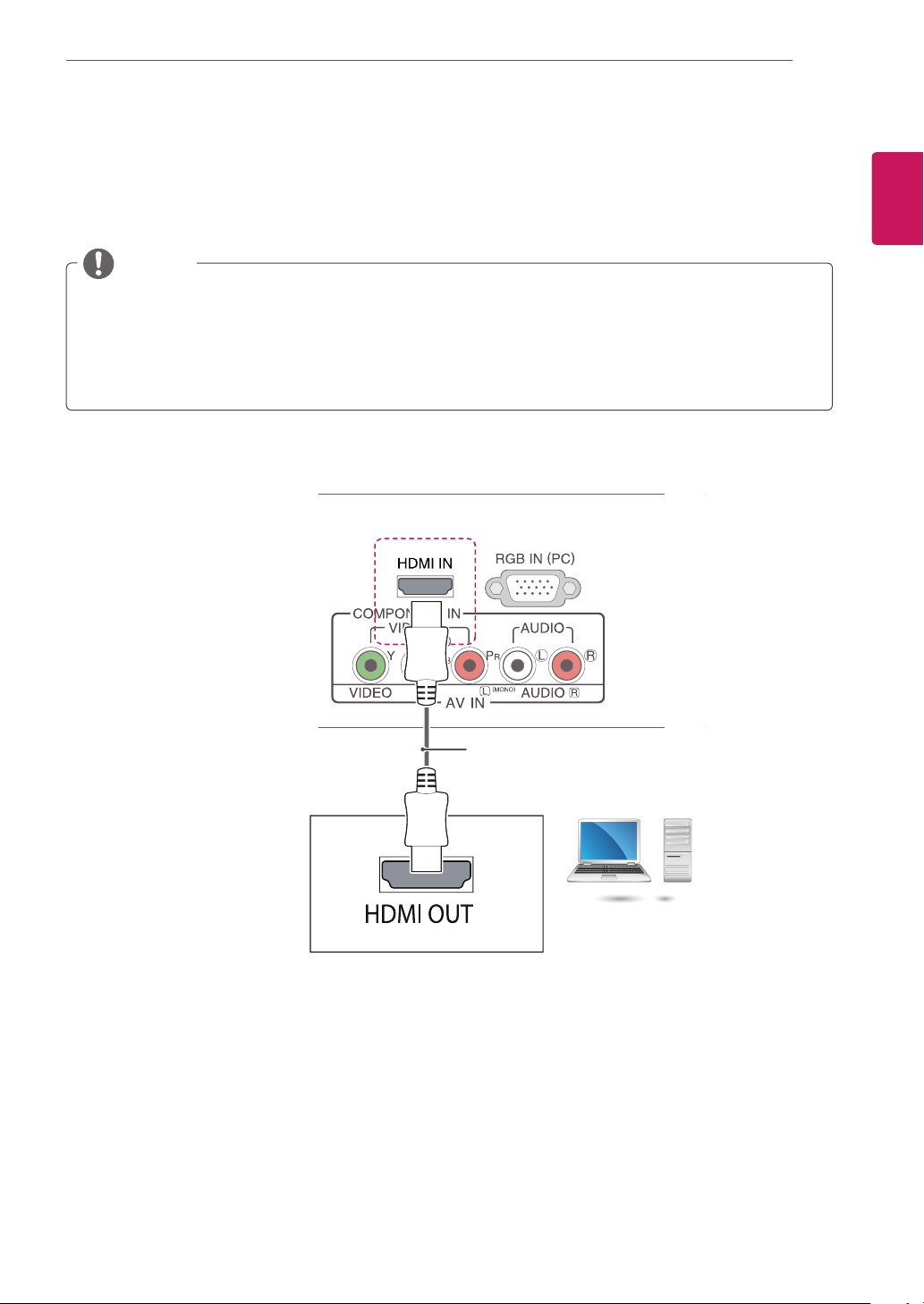

31 - HDMI connection
32 - HDMI to DVI connection
33 - RGB connection
40 TROUBLESHOOTING
40 General
41 SPECIFICATIONS
Page 3
LICENSES
3
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
ENGLISH
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Page 4
INSTALLATION PROCEDURE
4
ENGLISH
INSTALLATION PROCEDURE
1
2
3
Open the package and make sure all the accessories are included.
Attach the stand to the TV.
Connect an external device to the TV.
NOTE
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
Page 5
ASSEMBLING AND PREPARING
5
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
NOTE
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
CAUTION
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using unapproved or counterfeit parts or accessories are not covered
by the warranty.
NOTE
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
ENGLISH
B
A
B
*A 10 mm
*B
A
18 mm
Page 6
6
22MA33D 24MN33D
ENGLISH
ASSEMBLING AND PREPARING
Remote Control
Batteries (AAA)
(See p.34, See p.35)
Stand Body
(See p.11, See p.17)
CD (Owner's Manual)
Cards
Cable Tie
(See p.16)
Stand Base
(See p.11, See p.17)
or
Power Cord AC-DC Adapter
( Depending on the country )
AC-DC Adapter
( Depending on the country )
(See p.15)(See p.15) (See p.15)
Page 7
26MA33D 29MN33D
ASSEMBLING AND PREPARING
7
ENGLISH
Remote Control
Batteries (AAA)
(See p.34, See p.35)
Stand Body
(See p.13, See p.18)
CD (Owner's Manual)
Cards
Screws for Assembly
2 EA
(See p.13, See p.18)
Stand Base
(See p.13, See p.18)
Cable Tie.
(See p.16)
or
Power Cord. AC-DC Adapter.
( Depending on the country )
AC-DC Adapter.
( Depending on the country )
(See p.15)(See p.15) (See p.15)
Page 8
8
Parts and buttons
ENGLISH
ASSEMBLING AND PREPARING
Remote Control Sensor
Standby Light
Lighting On:
When Power is turned off
Lighting Off:
When Power is turned on
Touch Buttons
Touch button Description
Scrolls through the saved channels.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ I
Turns the power on or off.
NOTE
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
Page 9
ASSEMBLING AND PREPARING
9
ENGLISH
22MA33D 24MN33D 26MA33D
29MN33D
or
(Depending on the
model)
Connection panel (See p.23)
Page 10
10
Lifting and moving the TV
ENGLISH
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
ASSEMBLING AND PREPARING
CAUTION
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Page 11
Setting up the TV
Attaching the Stand
22MA33D 24MN33D
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
Place the TV with the screen side down on a
1
flat and cushioned surface.
ASSEMBLING AND PREPARING
Attach the Stand Base from the Stand Body by
3
turning the screw to the right with a Coin.
11
ENGLISH
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
When attaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Attach the Stand Body from the TV.
2
CAUTION
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
Page 12
12
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
Do not carry the monitor upside-down
as this may cause it to fall off its stand,
resulting in damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
Do not carry the monitor upside-down by
holding the stand body as this may cause it
to fall off, resulting in damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
Page 13
26MA33D 29MN33D
If you are not mounting the TV to a wall, use the
following instructions to attach the stand.
Place the TV with the screen side down on a
1
flat and cushioned surface.
ASSEMBLING AND PREPARING
Secure the TV and the Stand Body with the
3
2 screws.
WARNING
If you don`t fasten the screw tightly, TV will
fall down and get damaged.
13
ENGLISH
Attach the Stand Body from the TV.
2
Insert the two Lockers of the Stand Body right
into the groove of the TV head and secure
them by pressing the left and right bottom
sides.
Locker
Attach the Stand Base from the Stand Body by
4
turning the screw to the right with a Coin.
CAUTION
Tighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
Page 14
ASSEMBLING AND PREPARING
14
ENGLISH
CAUTION
Do not carry the monitor upside-down
as this may cause it to fall off its stand,
resulting in damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
Do not carry the monitor upside-down by
holding the stand body as this may cause it
to fall off, resulting in damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
Page 15
Mounting on a table
Lift and tilt the TV into its upright position on a
1
table.
Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
10 cm
10 cm
ASSEMBLING AND PREPARING
Connect the AC-DC Adapter and Power Cord
2
to a wall outlet.
15
ENGLISH
10 cm
10 cm
WARNING
When you adjust the angle, do not hold the
buttom of the TV frame as shown on the
following illustration, as may injure your fingers.
or
CAUTION
Disconnect the power cord first, and then move
or install the TV. Otherwise electric shock may
occur.
CAUTION
Do not place the TV near or on sources of
heat, as this may result in fire or other damage.
Page 16
ASSEMBLING AND PREPARING
16
ENGLISH

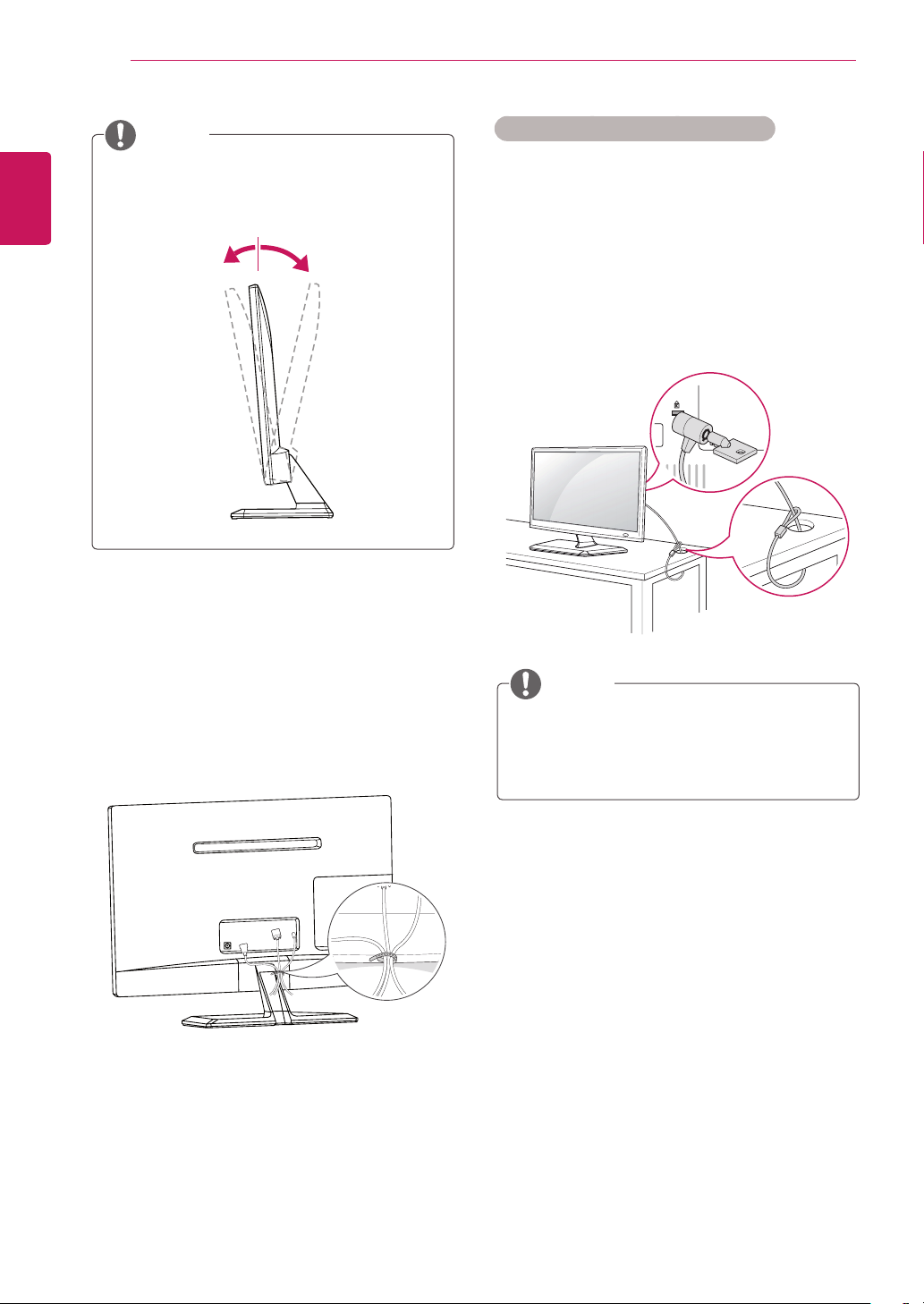

NOTE
Tilt from +20 to -5 degrees up or down to
adjust the angle of the TV to suit your view.
+20-5
Front Rear
Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com
Connect the Kensington security system cable
between the TV and a table.
.
Tidying cables
Gather and bind the cables with the supplied
cable tie.
NOTE
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
Page 17

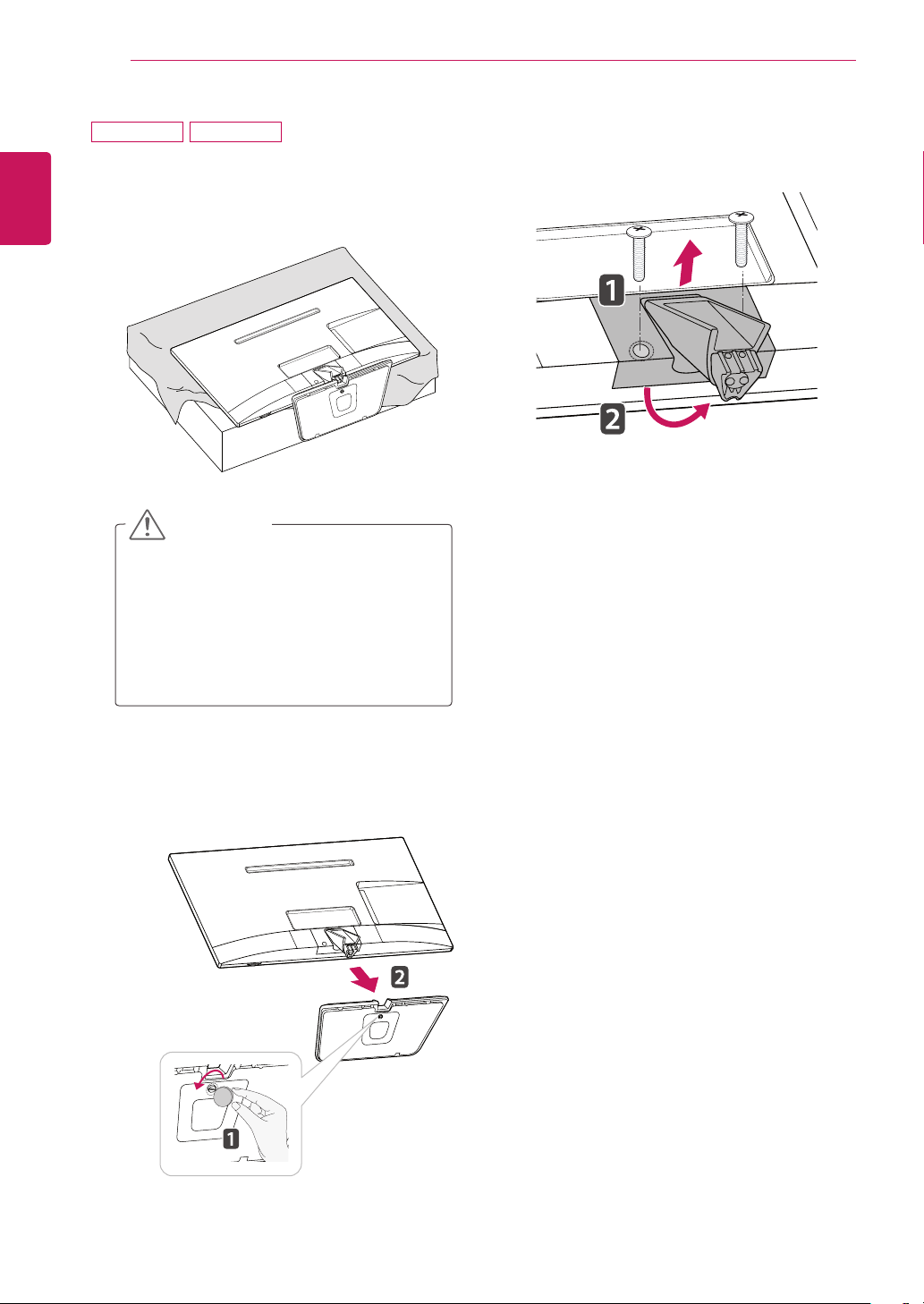

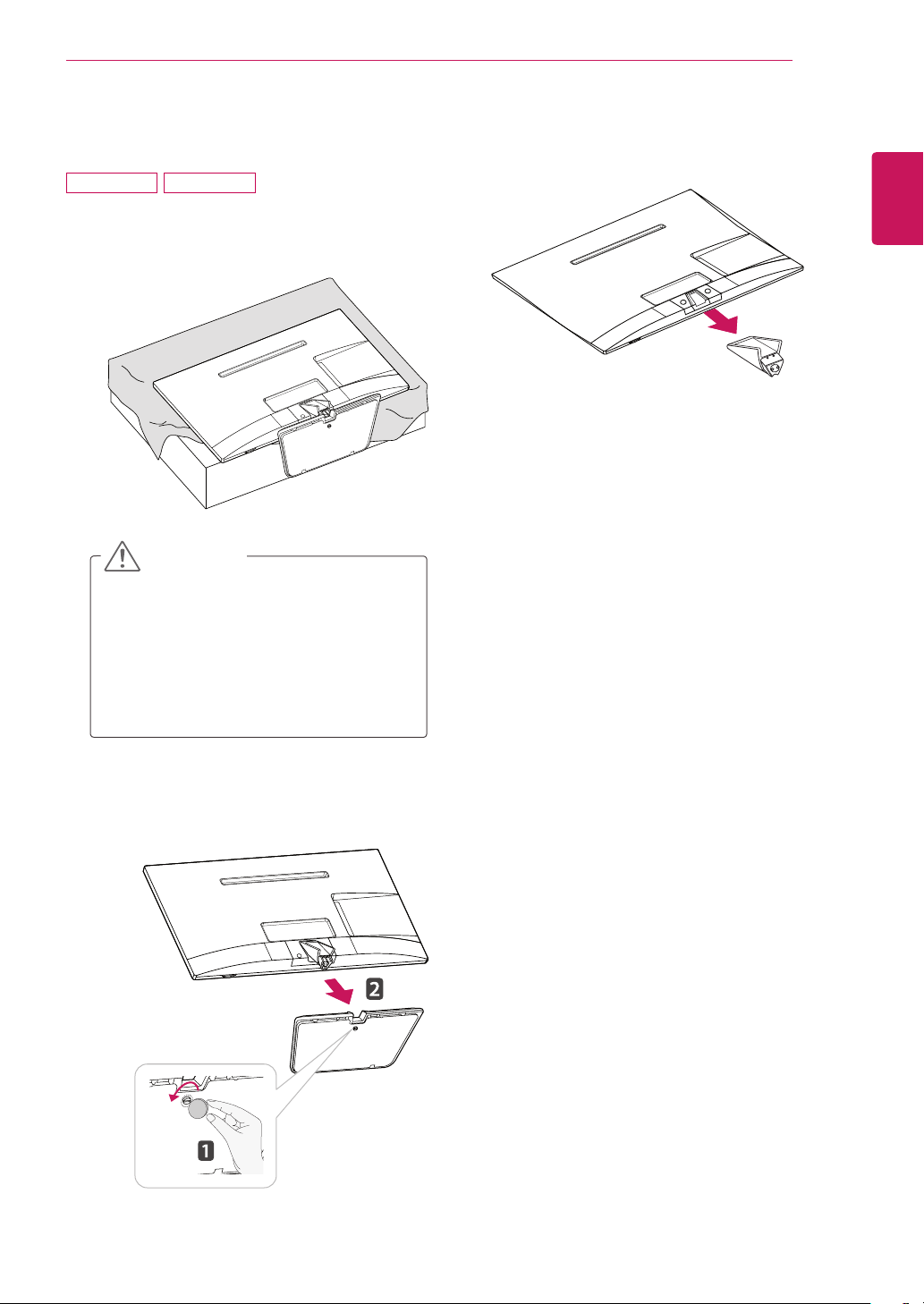

Detaching the Stand
22MA33D 24MN33D
Place the TV with the screen side down on a
1
flat and cushioned surface.
CAUTION
ASSEMBLING AND PREPARING
Pull out the Stand Body from the TV.
3
17
ENGLISH
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
When detaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Turn the screw to the left, and then pull out the
2
Stand Base from the Stand Body.
Page 18
18
26MA33D 29MN33D
ENGLISH
1
ASSEMBLING AND PREPARING
Place the TV with the screen side down on a
flat and cushioned surface.
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
When detaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Remove 2 screws and pull out the Stand Body
3
from the TV.
Turn the screw to the left, and then pull out the
2
Stand Base from the Stand Body.
Page 19
Mounting on a wall
A
B
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
10 cm
ASSEMBLING AND PREPARING
Please use VESA standard as below.
5
784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
VESA (A x B) 100 x 100
Standard screw M4
Number of screws 4
Wall mount bracket
(optional)
RW120
19
ENGLISH
10 cm
10 cm
If you intend to mount the TV to a wall, attach Wall
mounting interface (optional parts) to the back of
the TV.
When you install the TV using the wall mounting
interface (optional parts), attach it carefully so it
will not drop.
Please, Use the screw and wall mount interface
1
in accordance with VESA Standards.
If you use screw longer than standard, the TV
2
might be damaged internally.
If you use improper screw, the product might
3
be damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
10 cm
VESA (A x B)
VESA compatible only with respect to screw
4
mounting interface dimensions and mounting
screw specifications.
Page 20
20
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
Disconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
NOTE
Use the screws that are listed on the VESA
standard screw specifications.
The wall mount kit includes an installation
manual and necessary parts.
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
For more information, refer to the instructions
supplied with the wall mount.
Page 21
WATCHING TV
21
WATCHING TV
Turning the TV on for the first time
When you access the TV for the first time, the initial setting screen appears. Select a language and
customize the basic settings.
Connect the power cord to a power outlet.
1
Press on the TV or power button on the remote control to turn the TV on.
2
The Standby Light is turned off.
NOTE
When the TV is in Power saving mode, the Standby Light turns amber.
The initial setting screen appears if you access the TV for the first time.
3
NOTE
If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting
menus will disappear.
Follow the on-screen instructions to customize your TV according to your preferences.
4
ENGLISH
Language
Mode Setting
Power Indicator
Time Zone
User Guide and Tips for
FAQ Utilization
Auto Tuning
Selects a language for the display.
Selects Home Use for the home environment.
Selects the Standby Light. If you select On, the TV turns on the Standby Light in
the front panel when the TV is off.
Selects the time zone and daylight saving.
Shows how to use User Guide and FAQ.
Scans and saves available programs automatically.
Page 22
22
ENGLISH
5
6
WATCHING TV
NOTE
For those countries without confirmed DTV broadcasting standards, some DTV features might not
work, depending on the DTV broadcasting environment.
To display images in the best quality for your home environment, select Home Use mode.
Store Demo mode is suitable for the retail environment.
If you select Store Demo mode, the previously customized settings will switch to the default
settings of Store Demo mode in 5 minutes.
When the basic settings are complete, press OK.
NOTE
If you do not complete the initial setting, it will appear whenever you access the TV.
To turn the TV off, press on the TV.
The Standby Light is turned on.
CAUTION
Disconnect the power cord from the power outlet when you do not use the TV for a long period of
time.
NOTE
You can also switch the TV from PC mode to TV mode, press TV/PC.
You can also access Factory Reset by accessing OPTION in the main menus.
Page 23
MAKING CONNECTIONS
23
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information about an external device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
camcorders or cameras, gaming devices, and other external devices.
NOTE
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual supplied with the connected device.
The external device connection may differ from the model.
Connect external devices to the TV regardless of the order of the TV port.

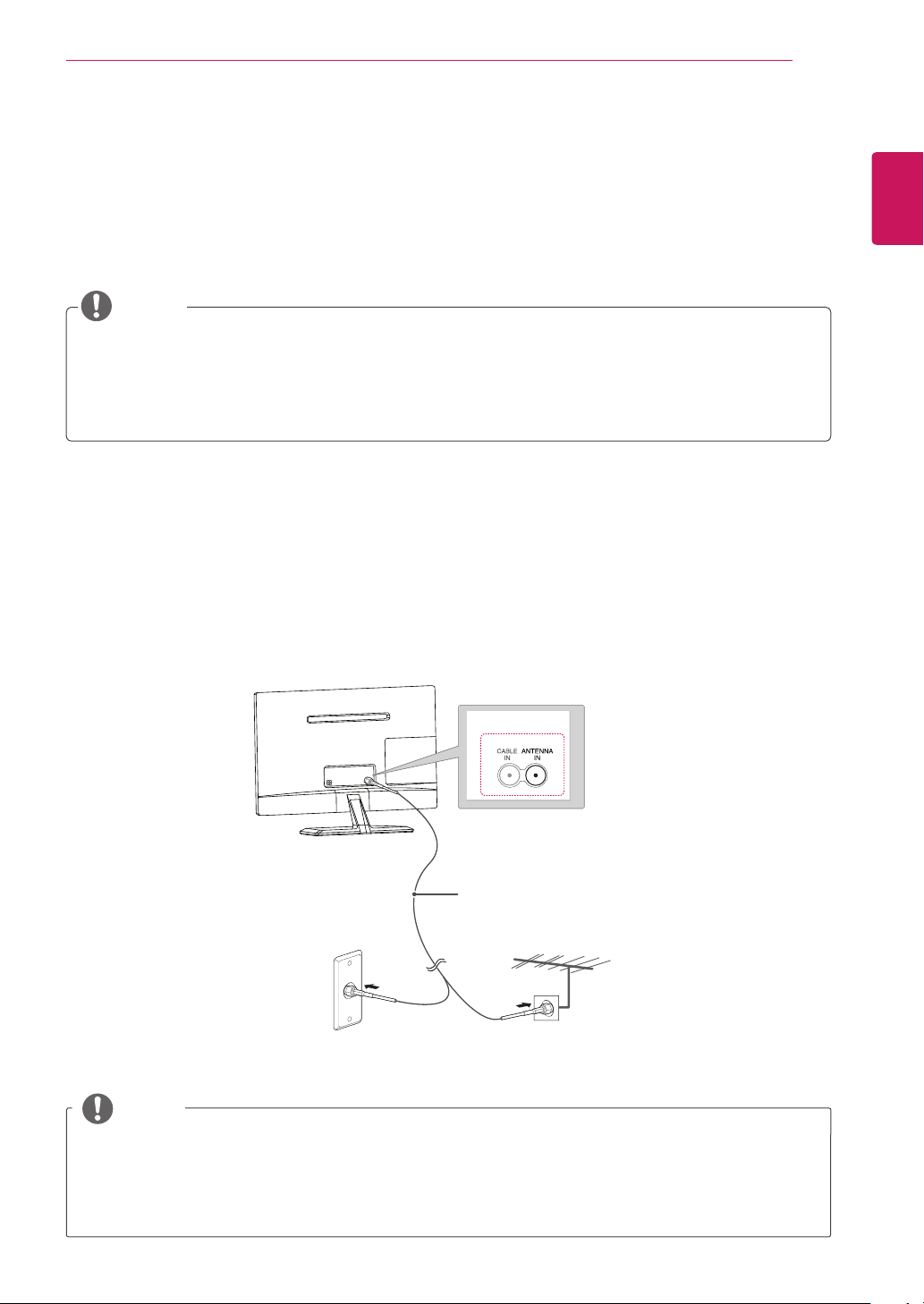

Connecting an antenna
Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ
from the actual accessories and an RF cable is optional.
Connecting an antenna or basic cable
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
ENGLISH
(Not Provided)
Wall Antenna Socket
Outdoor Antenna
NOTE
Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal amplifier properly to improve the image quality.
If the image quality is poor with an antenna connected, aim the antenna to the proper direction.
http://AntennaWeb.org
Visit
for more information about the antenna and cable connection.
Page 24
24
Connecting with a cable box
ENGLISH
Connect the TV to a cable box and the cable box to a wall antenna socket with 2 RF cables (75 Ω).
MAKING CONNECTIONS
(Not Provided)
CAUTION
Make sure not to bend the copper wire of the RF cable.
Copper wire
Complete all connections instructions between devices, and then connect the power cord to the
power outlet to prevent damages to your TV.
Page 25
MAKING CONNECTIONS
25
Connecting to a HD receiver, DVD Player, VCR or Gaming device
Connect a HD receiver, DVD Player, VCR or Gaming device to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with an HDMI cable as shown on the following illustration.
NOTE
Use a High Speed HDMI™ Cable.
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/
192k, DTS Not supported.)
ENGLISH
(Not Provided)
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
Page 26
26

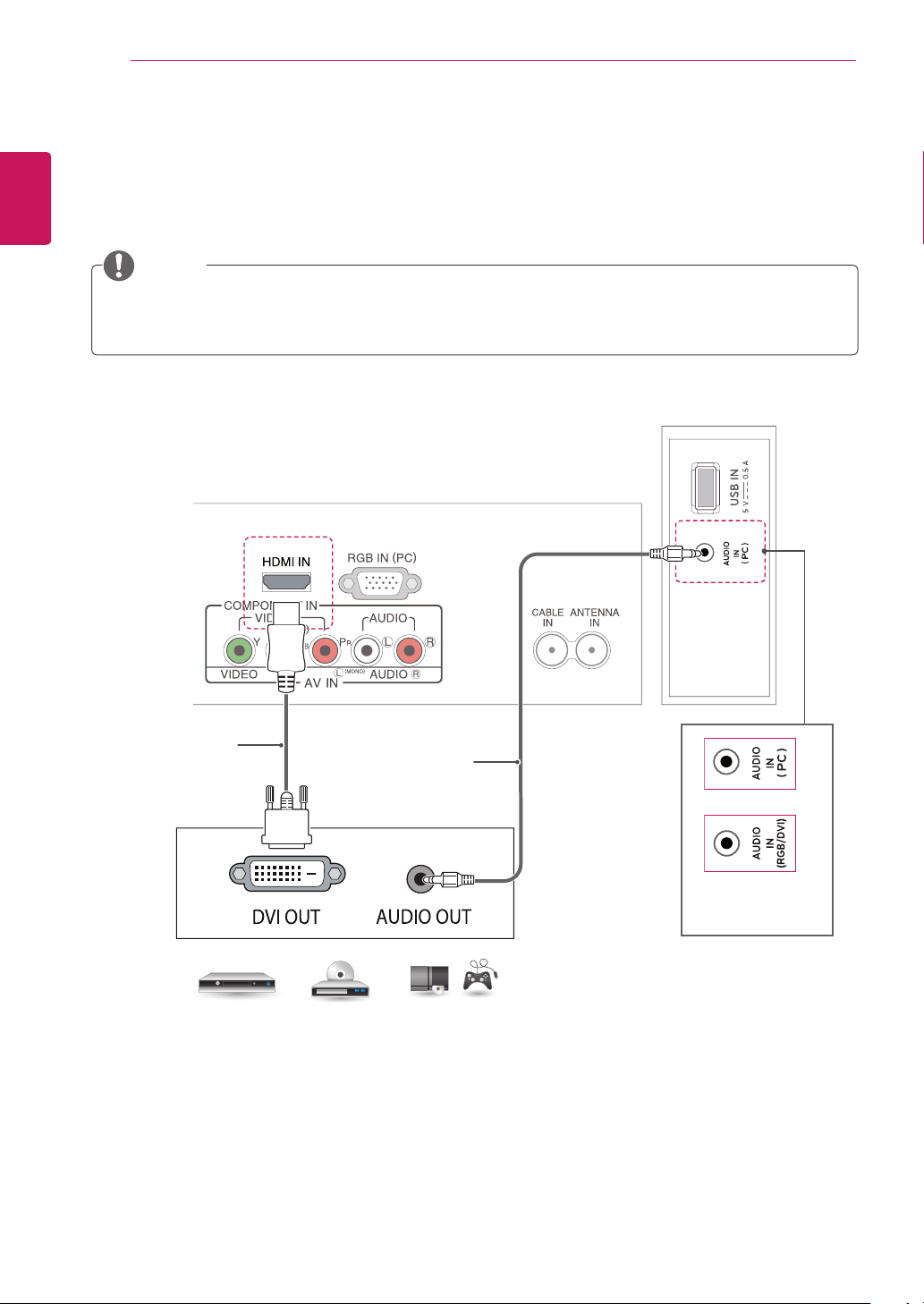

HDMI to DVI Connection
ENGLISH
Transmits the digital video signal from an external device to the TV. Connect the external device and the
TV with an HDMI to DVI cable as shown in the following illustration. To transmit an audio signal, connect an
optional audio cable.
MAKING CONNECTIONS
NOTE
If you do not use an optional external speaker, connect the external device to the TV with an optional
audio cable.
(Not Provided)
(Not Provided)
or
(Depending on the
model)
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
Page 27
MAKING CONNECTIONS
27
Component Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external device
and the TV with the component cable as shown on the following illustration. Component connections
support HD, but some devices will not output HD on Component (due to copyright issues).
NOTE
If cables are installed incorrectly, it could case the image to display in black and white or with distorted
color.
Check to ensure each cable is matched with the corresponding color connection.
ENGLISH
(Not Provided) (Not Provided)
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
Page 28
28
Composite Connection
ENGLISH
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown on the following illustration.
MAKING CONNECTIONS
NOTE
Check to ensure each cable is matched with the corresponding color connection.
(Not Provided)
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
Page 29
MAKING CONNECTIONS
Connecting a USB Device
Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB
memory card reader to the TV and access the USB menu to use various multimedia files.
or
USB
29
ENGLISH
(Not Provided)
Page 30
30
Connecting to a PC
ENGLISH
Your TV supports the Plug & Play* feature and has the built-in speakers with Virtual Surround that
reproduces sound clearly and rich bass.
* Plug & Play: The function when a PC recognizes a connected device and requires no driver to be installed.
MAKING CONNECTIONS
NOTE
It is recommended to use the TV with an HDMI connection for the best image quality.
If you do not use an optional external speaker, connect the PC to the TV with the optional audio
cable.
If you turn the TV on when the set is cold, the screen may flicker. This is normal.
Some red, green, or blue spots may appear on the screen. This is normal.
Connect the signal input cable and tighten it by turning the screws clockwise.
Do not press the screen with your finger for a long time as this may result in temporary distortion on
the screen.
Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a
screensaver if possible.
NOTE
If you want to use HDMI-PC mode, you must set the input label to PC mode.
The OSD (On Screen Display) is displayed on the screen as shown below.
» When turning the product on in HDMI input.
» When switching to HDMI input.
Is the input connected to your PC?
Yes No
Do not show message again.
If you select "Yes" the size and image quality are optimised for your PC.
If you select "No" the size and image quality are optimised for the AV device (DVD player, set-top
box, gaming device).
If you select "Do not show message again" this message does not appear until the TV is reset. You
can change the set value in SETTINGS INPUT Input Label.
Page 31
MAKING CONNECTIONS
31
HDMI connection
Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with an
HDMI cable as shown in the following illustrations. You should change the input label on the TV's HDMI port
(this can be done in the input menu).
NOTE
Use a High Speed HDMI™ Cable.
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
If you want to use HDMI-PC mode, you must set the input label to PC or DVI mode.
Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/
192k, DTS Not supported.)
ENGLISH
(Not Provided)
PC
Page 32
32

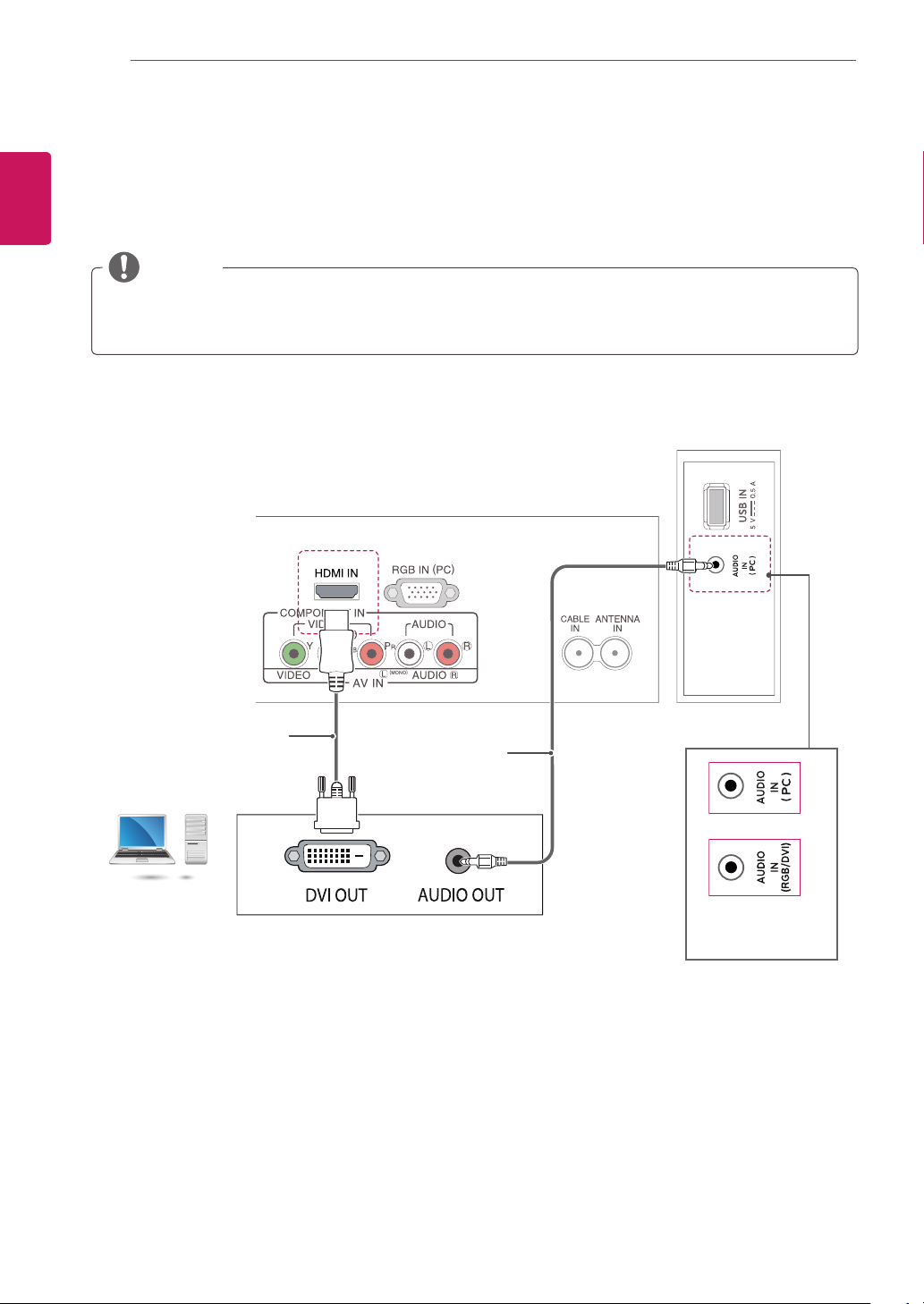

HDMI to DVI connection
ENGLISH
Transmits the digital video signal from your PC to the TV. Connect the PC and the TV with an HDMI to DVI
cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.
MAKING CONNECTIONS
NOTE
If you want to use HDMI-PC mode, you must set the input label to DVI mode.
If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
(Not Provided)
PC
(Not Provided)
or
(Depending on the
model)
Page 33
MAKING CONNECTIONS

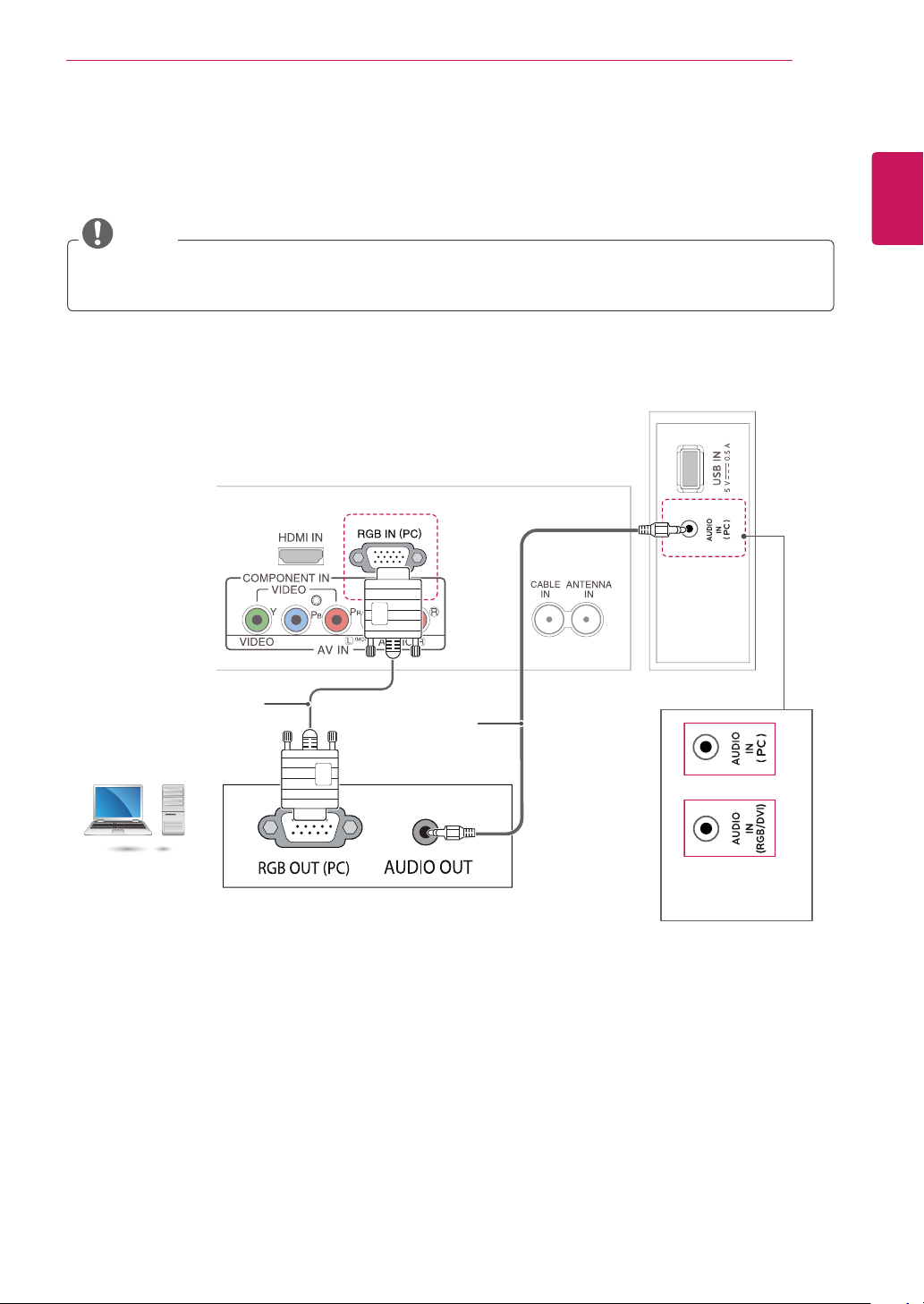

RGB connection
Transmits analog video from your PC to the TV. Connect the PC and the TV with a D-sub 15 pin cable as
shown the following illustrations. To transmit an audio signal, connect an optional audio cable.
NOTE
If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
33
ENGLISH
(Not Provided)
PC
(Not Provided)
or
(Depending on the
model)
Page 34
REMOTE CONTROL
34
ENGLISH
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
Make sure to point the remote control to the remote control sensor on the TV.
CAUTION
Do not mix old and new batteries, as this may
damage the remote control.
(POWER)
Turns the TV on or off.
CAPTION
On or Off.
Number buttons
Enters numbers.
and ends to the
TV/PC
Selects TV or PC mode.
INPUT
Selects the input mode.
AV MODE
Selects an AV Mode.
(User Guide)
Accesses the User Guide menu.
Displays the channel table.
LIST
VOL
Adjusts the volume level.
PAGE
Q.VIEW
Alternates between the two last
channels selected (pressing
repeatedly).
CH
Selects a channel.
PAGE
Moves to the previous or next
screen.
FAV
Accesses your favorite channel list.
GUIDE
Displays the program event
according to time scheduler.
MUTE
Mutes all sounds.
Page 35
REMOTE CONTROL
35
ENGLISH
Accesses the main menu.
SETTINGS
Navigation buttons
Scrolls through menus or
options.
OK
Selects menus or options and
confirms your input.
BACK
Returns to the previous level.
SIMPLINK
Accesses the AV devices
connected with the HDMI cable
through HDMI-CEC. Opens the
SIMPLINK menu.
PIP
Turns the PIP mode on or off.
PICTURE Mode
Changes the image mode.
SOUND
Changes the sound mode.
INFO
Views the information of the
currently program and the
screen.
Q.MENU
Accesses the quick menus.
EXIT
Clears all on-screen displays
and returns to TV viewing from
any menu.
Control buttons
Controls the SIMPLINK
compatible devices
(USB,SIMPLINK).
Colored buttons
These access special
functions in some menus.
Backlight
Adjusts the brightness of
the screen by controlling the
screen backlight.
Page 36
CUSTOMIZING SETTINGS
36
ENGLISH
CUSTOMIZING SETTINGS
Accessing the Main Menus
1
2
3
4
Press SETTINGS to access the main menus.
Press the Navigation buttons to scroll to one of the following menus and press OK.
Press the Navigation buttons to scroll to the setting or option you want and press OK.
When you are finished, press EXIT.
When you return to the previous menu, press
AUDIO
CHANNEL
TIME
LOCK
Adjusts the image size, quality or effect.
Adjusts the sound quality, effect or volume level.
Sets up and edit channels.
Sets the time, date or Timer feature.
Locks or unlocks channels and programs.
(BACK).
OPTION
INPUT
MY MEDIA
Customizes the general settings.
Views the input sources with their labels.
Using integrated media feature.
Press RED button to access the Customer Support menus.
Press GREEN Button to access the FAQ menus.
Press OK( ) to set your option settings.
Customer Support FAQ
Customer Support
Using Customer Support feature.
Software Update
Picture Test
Sound Test
Product/Service Info.
User Guide
FAQ
Shows answers to frequently asked
questions about TV viewing and sets
the related menus.
Exit
Page 37
USING THE USER GUIDE
37
USING THE USER GUIDE
Acc essing th e O n-Scree n User Guide
Using the TV menu
Press SETTINGS to access the main menus.
1
Press the RED button to access the Customer
2
Support menus.
Press the Navigation button to scroll to User
3
Guide and press OK.
Press the Navigation buttons to scroll to the
4
option you want and press OK.
When you are finished, press EXIT.
5
When you return to the previous menu, press
(BACK).
Using the Remote Control
Image shown may differ from your TV.
User Guide
3
2
To use input device
CHANNEL Setting
PICTURE, SOUND Setting
OPTION
Advanced Function
Information
To set ODC(Over Driving Circuit)
To use PIP(Picture In Picture)
To set time options
To set TV lock options
To set language
To set caption
1
Allows to select the category you want.
1
Allows to select the item you want.
2
You can use ꕌ/ꕍto move between pages.
Allows to browse the description of the
3
function you want from the index.
User Guide
CHANNEL Setting
PICTURE, SOUND Setting
OPTION
Advanced Function
Information
1
OPTION > To set language
SETTING OPTION Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
Menu Language : Selects a screen menu language.
Audio Language [In Digital Mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
Zoom In
2
Close
ENGLISH
Press (User Guide) to access the User
1
Guide.
Press the Navigation buttons to scroll to the
2
option you want and press OK.
When you are finished, press EXIT.
3
When you return to the previous menu, press
(BACK).
SETTING OPTION Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
Menu Language : Selects a screen menu language.
Audio Language [In Digital Mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
Zoom Out
2
1
Shows the description of the selected menu.
Close
You can use ꕌ/ꕍto move between pages.
2
Zooms in or out the screen.
Page 38
MAINTENANCE
38
ENGLISH
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep the best performance and to extend the product's lifespan.
Screen and frame
To remove dust, wipe the surface with a dry and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a clean and dry cloth.
CAUTION
Make sure to turn the power off and disconnect the power cord and all other cables first.
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
CAUTION
Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners,
lubricants, as these may damage the screen’s finish and cause discolorations.
Cabinet and stand
To remove dust, wipe the cabinet with a dry and soft cloth.
To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a
small amount of mild detergent.
CAUTION
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Do not use any chemicals as this may deteriorate the surface.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
Page 39
MAINTENANCE

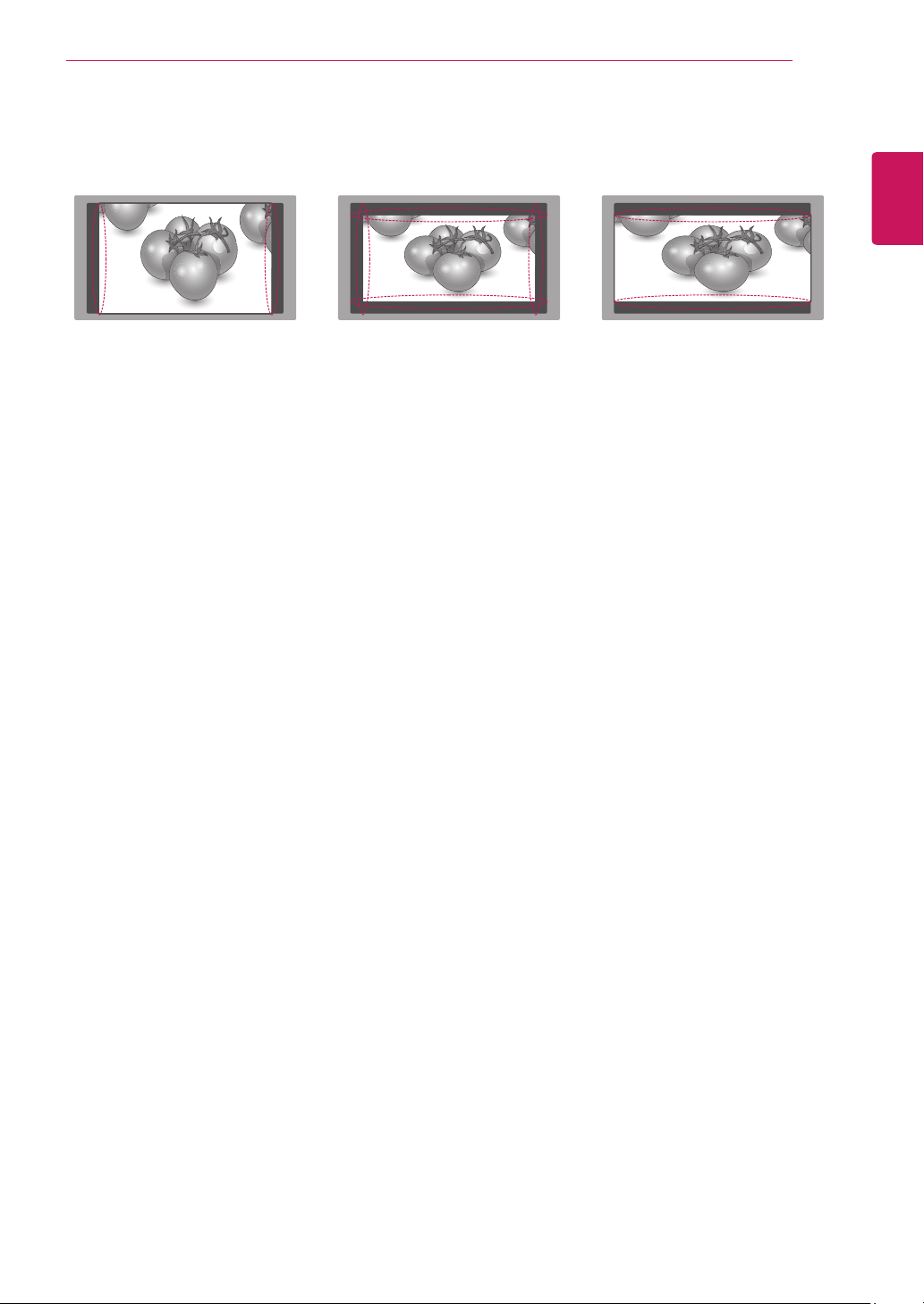

Preventing “Image burn” or “Burn-in” on your TV screen
If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become
a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the
warranty.
If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the
letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD)
to prevent image burn.
39
ENGLISH
Page 40
TROUBLESHOOTING
40
ENGLISH
TROUBLESHOOTING
General
Problem Resolution
Cannot control the TV with
the remote control.
No image display and no
sound is produced.
The TV turns off suddenly.
Check the remote control sensor on the product and try again.
Check if there is any obstacle between the product and the remote control.
Check if the batteries are still working and properly installed ( to , to ).
Check if the product is turned on.
Check if the power cord is connected to a wall outlet.
Check if there is a problem in the wall outlet by connecting other products.
Check the power control settings. The power supply may be interrupted.
Check if the Auto sleep feature is activated in the Time settings.
If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
Page 41
SPECIFICATIONS
41
SPECIFICATIONS
Television System NTSC, PAL-M/N, SBTVD
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135
22MA33D
Panel Screen Type 550 mm Wide (22 inch)
Visible diagonal size : 550 mm
Pixel Pitch 0.349 mm (H) x 0.349 mm (V)
Video Signal Max. Resolution 1366 × 768 @ 60 Hz
Recommended Resolution 1366 × 768 @ 60 Hz
Horizontal Frequency 30 kHz to 61 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Type Separate Sync, Digital
Input Connector TV, D-Sub Analog, PC Audio In, Component, AV(CVBS),
HDMI, USB
Power Rated Voltage 19 V
Power Consumption On Mode : 30 W (typ.)
Off Mode
AC/DC Adapter
Tilt Tilt Range -5 to 20°
Dimensions (Width x Depth x Height)
Weight
Environmental
conditions
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Manufacturer: Lien Chang, Model: LCAP16A-B, LCAP25A
Manufacturer: Honor, Model: ADS-40SG-19-2 19032G
With Stand
512.6 mm x 180.9 mm x 388.7 mm
3.4 kg
Without Stand
512.6 mm x 63.1 mm x 315.6 mm
3.2 kg
10 °C to 35 °C
20 % to 80 %
-10 °C to 60 °C
5 % to 90 %
1.6 A
0.4 W
ENGLISH
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
Page 42
42
ENGLISH
24MN33D
MAKING CONNECTIONS
Panel Screen Type 600 mm Wide (24 inch)
Visible diagonal size : 600 mm
Pixel Pitch 0.382 mm (H) x 0.382 mm (V)
Video Signal Max. Resolution 1366 × 768 @ 60 Hz
Recommended Resolution 1366 × 768 @ 60 Hz
Horizontal Frequency 30 kHz to 61 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Type Separate Sync, Digital
Input Connector TV, D-Sub Analog, PC Audio In, Component, AV(CVBS),
HDMI, USB
Power Rated Voltage 19 V
Power Consumption On Mode : 33 W (typ.)
Off Mode
AC/DC Adapter
Tilt Tilt Range -5 to 20°
Dimensions (Width x Depth x Height)
Weight
Environmental
conditions
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Manufacturer: Lien Chang, Model:LCAP16B-B, LCAP25B
Manufacturer: LG Innotek, Model: PSAB-L205F, PSAB-L204B
With Stand
556.5 mm x 180.9 mm x 414.7 mm
3.8 kg
Without Stand
556.5 mm x 62.9 mm x 343.1 mm
3.6 kg
10 °C to 35 °C
20 % to 80 %
-10 °C to 60 °C
5 % to 90 %
2.0 A
0.4 W
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
Page 43
SPECIFICATIONS
26MA33D
Panel Screen Type 660 mm Wide (26 inch)
Visible diagonal size : 660 mm
Pixel Pitch 0.422 mm (H) x 0.422 mm (V)
Video Signal Max. Resolution 1366 × 768 @ 60 Hz
Recommended Resolution 1366 × 768 @ 60 Hz
Horizontal Frequency 30 kHz to 61 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Type Separate Sync, Digital
Input Connector TV, D-Sub Analog, PC Audio In, Component, AV(CVBS),
HDMI, USB
Power Rated Voltage 19 V
Power Consumption On Mode : 35 W (typ.)
Off Mode
AC/DC Adapter
Tilt Tilt Range -5 to 20°
Dimensions (Width x Depth x Height)
Weight
Environmental
conditions
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Manufacturer: Lien Chang, Model:LCAP16B-B, LCAP25B
Manufacturer: LG Innotek, Model: PSAB-L205F, PSAB-L204B
With Stand
620.4 mm x 203.3 mm x 447.3 mm
4.7 kg
Without Stand
620.4 mm x 58.8 mm x 380.5 mm
4.1 kg
10 °C to 35 °C
20 % to 80 %
-10 °C to 60 °C
5 % to 90 %
2.0 A
0.4 W
43
ENGLISH
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
Page 44
44
ENGLISH
29MN33D
CUSTOMIZING SETTINGS
Panel Screen Type 720 mm Wide (29 inch)
Visible diagonal size : 720 mm
Pixel Pitch 0.462 mm (H) x 0.462 mm (V)
Video Signal Max. Resolution 1366 × 768 @ 60 Hz
Recommended Resolution 1366 × 768 @ 60 Hz
Horizontal Frequency 30 kHz to 61 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Type Separate Sync, Digital
Input Connector TV, D-Sub Analog, PC Audio In, Component, AV(CVBS),
HDMI, USB
Power Rated Voltage 19 V
Power Consumption On Mode : 40 W (typ.)
Off Mode
AC/DC Adapter
Tilt Tilt Range -5 to 20°
Dimensions (Width x Depth x Height)
Weight
Environmental
conditions
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Manufacturer: LG Innotek, Model: PSAB-L101A
Manufacturer: Lite-On, Model: PA-1650-64
With Stand
668.6 mm x 223.5 mm x 472.4 mm
5.9 kg
Without Stand
668.6 mm x 65.8 mm x 405.5 mm
5.3 kg
10 °C to 35 °C
20 % to 80 %
-10 °C to 60 °C
5 % to 90 %
2.4 A
0.4 W
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
Page 45
SPECIFICATIONS
45
RGB (PC) / HDMI (PC) supported mode
Resolution
720 x 400 31.468 70.080
640 x 480 31.469 59.940
640 x 480 37.500 75.000
800 x 600 37.879 60.317
800 x 600 46.875 75.000
1024 x 768 48.363 60.004
1024 x 768 60.023 75.029
1280 x 800 49.702 59.810
1366 x 768 47.717 59.790
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
NOTE
The optimal display resolution is 1366 x 768 @
60 Hz. The optimal timing is vertical frequency
60Hz in each mode.
Component supported mode
Resolution
720 x 480 15.730 59.940
720 x 480 15.750 60.000
720 x 576 15.625 50.000
720 x 480 31.470 59.940
720 x 480 31.500 60.000
720 x 576 31.250 50.000
1280 x 720 44.960 59.940
1280 x 720 45.000 60.000
1280 x 720 37.500 50.000
1920 x 1080 33.720 59.940
1920 x 1080 33.750 60.000
1920 x 1080 28.125 50.000
1920 x 1080 56.250 50.000
1920 x 1080 67.432 59.940
1920 x 1080 67.500 60.000
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
ENGLISH
HDMI (DTV) supported mode
Resolution
720 x 480 31.469
720 x 576 31.250 50.000
1280 x 720 37.500 50.000
1280 x 720 44.960
1920 x 1080 33.720
1920 x 1080 28.125 50.000
1920 x 1080 27.000 24.000
1920 x 1080 33.750 30.000
1920 x 1080 56.250 50.000
1920 x 1080 67.430
Horizontal
Frequency(kHz)
31.500
45.000
33.750
67.500
Vertical
Frequency(Hz)
59.940
60.000
59.940
60.000
59.940
60.000
59.940
60.000
Component port connecting information
Component ports on the
TV
Video output ports
on DVD player
Y P
Y P
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
B
B
P
R
P
R
Page 46
SPECIFICATIONS
46
ENGLISH
NOTE
Avoid keeping a fixed image on the set’s screen for prolonged periods of time. The fixed image may
become permanently imprinted on the screen. Use a screen saver when possible.
There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode.
Change the PC mode to another resolution or change the refresh rate to another rate or adjust the
brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic
card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic
card.
The synchronization input waveform for Horizontal and Vertical frequencies are separate.
Connect the signal cable from the TV output port of the PC to the RGB IN (PC) port of the TV or the
signal cable from the HDMI output port of the PC to the HDMI IN port on the TV.
Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included
with the TV).
If using a sound card, adjust PC sound as required.
If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only
one of either RGB IN (PC) or HDMI IN to display the PC output on the TV.
If the graphic card on the PC does output analogue and digital RGB simultaneously, set the TV to
either RGB or HDMI. (The other mode is set to Plug and Play automatically by the TV.)
DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
If you use too long an RGB-PC cable that is too long, there may be interference on the screen. We
recommend using under 5 m of cable. This provides the best picture quality.
Page 47
Make sure to read the Safety Precautions
before using the product.
Keep the Owner’s Manual (CD) in an
accessible place for future reference.
The model and serial number of the TV is
located on the back and one side of the
TV. Record it below should you ever need
service.
MODEL
SERIAL
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping and handling)
upon email request to [email protected].
This offer is valid for three (3) years from the
date on which you purchased the product.
Loading...
