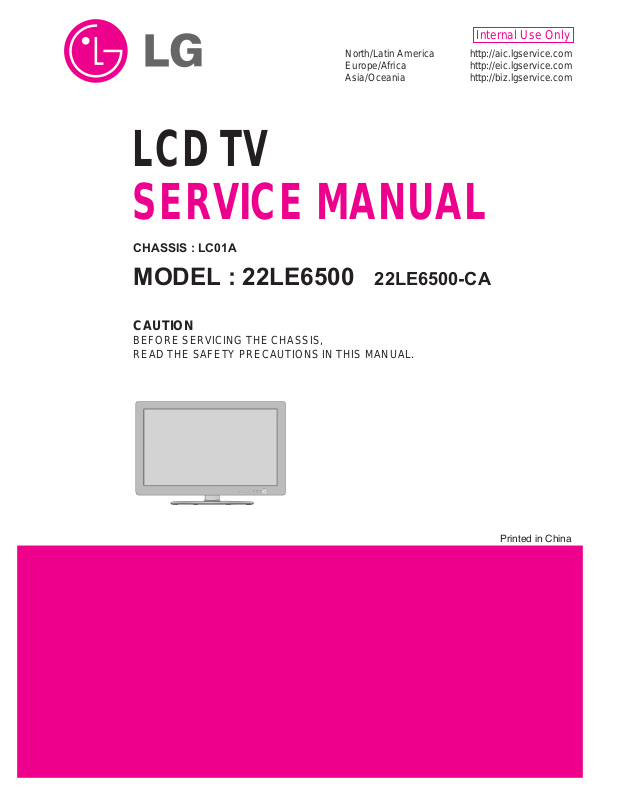

LG 22LE6500 Schematic

LCD TV

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com

Internal Use Only

Printed in China

CHASSIS : LC01A

MODEL : 22LE6500 22LE6500-CA

- 2 -

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

CONTENTS

CONTENTS .............................................................................................. 2

PRODUCT SAFETY ................................................................................. 3

SPECIFICATION ....................................................................................... 4

ADJUSTMENT INSTRUCTION ................................................................ 8

EXPLODED VIEW .................................................................................. 14

SVC. SHEET ...............................................................................................

- 3 -

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

SAFETY PRECAUTIONS

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.

It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check.

Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

Leakage Current Hot Check circuit

1.5 Kohm/10W

To Instrument's
exposed
METALLIC PARTS

Good Earth Ground
such as WATER PIPE,
CONDUIT etc.

AC Volt-meter

When 25A is impressed between Earth and 2nd Ground
for 1 second, Resistance must be less than 0.1

*Base on Adjustment standard

IMPORTANT SAFETY NOTICE

0.15 uF

Ω

1. Application range

This specification is applied to the LCD TV used LC03E chassis.

2. Requirement for Test

Each part is tested as below without special appointment.

1) Temperature: 25 ºC ± 5 ºC(77 ºF ± 9 ºF), CST: 40 ºC ± 5 ºC

2) Relative Humidity : 65 % ± 10 %

3) Power Voltage: Standard input voltage (AC 100-240 V~ 50 / 60 Hz)
* Standard Voltage of each products is marked by models.

4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with

BOM.

5) The receiver must be operated for about 5 minutes prior to the adjustment.

3. Test method

1) Performance: LGE TV test method followed

2) Demanded other specification

- Safety : CE, IEC specification

- EMC :CE, IEC

4. Module General Specification

- 4 -

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

No. Item Specification Remark

1 Display Screen Device 22 inch wide color display module

2 Aspect Ratio 16:9

3 LCD Module 22 inch TFT LCD FHD

4 Operating Environment Temp. : 0 deg ~ 50 deg

Humidity : 20 % ~ 90 %

5 Storage Environment Temp. : -20 deg ~ 60 deg

Humidity : 10 ~ 90 %

6 Input Voltage AC 100-240V~, 50 / 60Hz

7 Power Consumption Power on (White)

LGD Typ : 40.8W LCD (Module) + Backlight(Lamp)

8 Module Size 495.6(H) x 292.2(V) x 14.5 mm(D)

8 Pixel Pitch 0.2475 (H) x 0.2475 (V)

9 Back Light LED(EDGEL)

10 Display Colors 1.06 B(true) colors

11 Coating 3H,AG

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 5 -

No. Item Specification Min. Typ. Max. Remark

1. Viewing Angle<CR>10> Right/Left/Up/Down 89 Degree

Luminance (cd/m

2

) 150

2. Luminance

- no i tair aV 1.3

3. Contrast Ratio CR 700 1000

White WX 0.279

WY Typ 0.292 Typ

RED Xr - 0.03 0.615 +0.03

4. CIE Color Coordinates Yr 0.343

Green Xg 0.319

Yg 0.631

Blue Xb 0.155

Yb 0.046

5. LCD Module

5.1. 22” LCD Module (LGD) LC216EXN-SCA1

1) Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25 °C ± 2 °C

2) Surface luminance is the luminance value at center 1-point across the LCD surface 50cm from the surface with all pixels
displaying white.

No. Item Min Typ Max Remark

1. Cool White Balance,X axis 0.274 0.276 0.278 DQA : ±0.015 PSM: Vivid,

White Balance,Y axis 0.281 0.283 0.285 White (85IRE)

2. Medium White Balance,X axis 0.283 0.285 0.287 Color Temp : C50 -> Cool

White Balance,Y axis 0.291 0.293 0.295 0 -> Medium

3. Warm White Balance,X axis 0.311 0.313 0.315 W50 -> Warm

White Balance,Y axis 0.327 0.329 0.331

6. Chroma (Vivid)

- except “RGB PC Mode PSM: Standard, Color Temperature:Medium”
** The W/B Tolerance is ±0.002 for Adjustment, but for DQA ±0.015

MAX/MIN

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

7. Component Video Input (Y, CB/PB, CR/PR)

No

Specification

Remark

Resolution H-freq(kHz) V-freq(Hz)

1. 720x480 15.73 60.00 SDTV,DVD 480i

2. 720x480 15.63 59.94 SDTV,DVD 480i

3. 720x480 31.47 59.94 480p

4. 720x480 31.50 60.00 480p

5. 720x576 15.625 50.00 SDTV,DVD 625 Line

6. 720x576 31.25 50.00 HDTV 576p

7. 1280x720 37.50 50.00 HDTV 720p

8. 1280x720 44.96 59.94 HDTV 720p

9. 1280x720 45.00 60.00 HDTV 720p

10. 1920x1080 28.125 50.00 HDTV 1080i

11. 1920x1080 33.75 60.00 HDTV 1080i

12. 1920x1080 33.72 59.94 HDTV 1080i

13. 1920x1080 56.250 50 HDTV 1080p

14. 1920x1080 67.43/67.5 59.94/60 HDTV 1080p

No

Specification

Proposed Remark

Resolution H-freq(kHz) V-freq(Hz) Pixel Clock(MHz)

1. 720*400 31.468 70.08 28.321 For only DOS mode

2. 640*480 31.469 59.94 25.17 VESA

Input 848*480

60Hz, 852*480 60Hz

-> 640*480 60Hz Display

3. 800*600 37.879 60.31 40.00 VESA

4. 1024*768 48.363 60.00 65.00 VESA(XGA)

5. 1280*768 47.78 59.87 79.5 WXGA

6. 1360*768 47.72 59.8 84.75 WXGA

8. 1280*1024 63.595 60.0 108.875 SXGA FHD model

10. 1920*1080 66.587 59.93 138.625 WUXGA FHD model

8. RGB (PC)

7. 1366*768 47.56 59.6 84.75 WXGA

9. 1280*720 45 60 74.25 720p DTV standard

FHD model

WXGA model

- 6 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 7 -

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*400 31.468 70.08 28.321 HDCP

2. 640*480 31.469 59.94 25.17 VESA HDCP

3. 800*600 37.879 60.31 40.00 VESA HDCP

4. 1024*768 48.363 60.00 65.00 VESA(XGA) HDCP

5. 1280*768 47.78 59.87 79.5 WXGA HDCP

6. 1360*768 47.72 59.8 84.75 WXGA HDCP

7. 1280*1024 63.595 60.0 108.875 SXGA HDCP，FHD model

8. 1920*1080 67.5 60 148.5 WUXGA HDCP，FHD model

9.2. PC Mode

9. HDMI Input (PC/DTV)

9.1. DTV Mode

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1. 720*480 31.469 /31.5 59.94 / 60 27.00/27.03 SDTV 480P

2. 720*576 31.25 50 54 SDTV 576P

3. 1280*720 37.500 50 74.25 HDTV 720P

4. 1280*720 44.96 / 45 59.94 / 60 74.17/ 74.25 HDTV 720P

5. 1920*1080 33.72 / 33.75 59.94 / 60 74.17/ 74.25 HDTV 1080I

6. 1920*1080 28.125 50.00 74.25 HDTV 1080I

7. 1920*1080 26.97 / 27 23.97 / 24 74.17/ 74.25 HDTV 1080P

8. 1920*1080 33.716 / 33.75 29.976 / 30.00 74.25 HDTV 1080P

9. 1920*1080 56.250 50 148.5 HDTV 1080P

10. 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 HDTV 1080P

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All right reserved.

Only for training and service purposes

ADJUSTMENT INSTRUCTION

1. Application Range

This specification sheet is applied to all of the LCD TV with

chassis.

2. Designation

1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.

2) Power Adjustment: Free Voltage

3) Magnetic Field Condition: Nil.

4) Input signal Unit: Product Specification Standard

5) Reserve after operation: Above 5 Minutes (Heat Run)

Temperature : at 25 ºC ± 5 ºC
Relative humidity : 65 % ± 10 %
Input voltage : 220 V, 60 Hz

6) Adjustment equipments: Color Analyzer (CA-210 or CA-

110), Pattern Generator(MSPG-925L or Equivalent), DDC
Adjustment Jig equipment, Service remote control.

7) Push the “IN STOP” key - For memory initialization.

3. Main PCB check process

* APC - After Manual-Insert, executing APC

* Boot file Download

(1) Execute ISP program “Mstar ISP Utility” and then click

“Config” tab.

(2) Set as below, and then click “Auto Detect” and check “OK”

message.
If “Error” is displayed, Check connection between
computer, jig, and set.

(3) Click “Read” tab, and then load download file (XXXX.bin)

by clicking “Read”.

(4) Click “Connect” tab. If “Can’t” is displayed, check

connection between computer, jig, and set.
(5) Click “Auto” tab and set as below
(6) Click “Run”.
(7) After downloading, check “OK” message.

* USB DOWNLOAD(*.epk file download)

(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.

- If version of update file in USB Stick is Lower, it didn’t
work. But version of update file is Higher, USB data is
automatically detecting

filexxx.bin

(7) .........OK

(6)

(5)

(1)

Please Check the Speed : To use speed between
from 200KHz to 400KHz

(2)

filexxx.bin

(3) (4)

Case1 : Software version up

1. After downloading S/W by USB, TV set will reboot
automatically

2. Push “In-stop” key

3. Push “Power on” key

4. Function inspection

5. After function inspection, Push “I n-stop” key.

Case2 : Function check at the assembly line

1. When TV set is entering on the assembly line, Push
“In-stop” key at first.

2. Push “Power on” key for turning it on.

-> If you push “Power on” key, TV set will recover
channel information by itself.

3. After function inspection, Push “In-stop” key.

LC01A

- 8 -

(3) Show the message “Copying files from memory”

(4) Updating is staring.

(5) After updating is complete, the TV will restart automatically.

(6) If TV turns on, check your updated version and Tool

option. (refer to the next page about tool option)

* If downloading version is higher than your TV have, TV

can lost all channel data. In this case, you have to
channel recover. If all channel data is cleared, you didn’t
have a DTV/ATV test on production line.

* After downloading, have to adjust Tool Option again.

(1) Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key.
(2) Select each ‘Tool Option(1~5)’ and push ‘OK’ or ‘G’ key.
(3) Correct the number. (Each model has their number.)

(4) Correction Tool option is complete.

3.1. ADC Process

* You need not connecting RGB(D-sub) cable. Because ADC

uses TV internal pattern.

• Enter ‘EZ ADJUST’ mode by pushing ‘ADJ’ key,

• Enter ‘ADC Calibration’ mode by pushing ‘OK’ or “G ” key
after selecting “6. ADC Calibration”.

<Caution> Turn on Tv by pushing ‘POWER ON’ or ‘P-ONLY’ key.

* ADC Calibration Protocol (RS232)

Adjust Sequence

• aa 00 00 [Enter Adjust Mode]

• xb 00 40 [Component1 Input (480i)]

• ad 00 10 [Adjust 480i Comp1]

• xb 00 60 [RGB Input (1024*768)]

• ad 00 10 [Adjust 1024*768 RGB]

• aa 00 90 End Adjust mode

* Required equipment : factory Service Remote control

3.2. Function Check

(1) Check display and sound

- Check Input and Signal items.

- 9 -

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All right reserved.

Only for training and service purposes

Model Tool option1 Tool option2 Tool option3 Tool option4 Tool option 5

22LE6500 9056 18954 52260 14604 32

Item CMD1 CMD2 Data0

Adjust A A 0 0 When transfer the ‘Mode In’,

‘Mode In’ Carry the command.

ADC Adjust A D 1 0 Automatically adjustment

(The use of a internal pattern)

ADC Calibration

ADC Comp 480i

NG

ADC Comp 1080p

NG

ADC RGB

NG

Start Reset

EZ ADJUST

0. Tool Option1

1. Tool Opti on2

2. Tool Option3

3. Tool Option4

4. Tool Option5

5. Country Group

6. ADC Calibration

7. White Balance

8. 10 Point WB

9. Test Pattern

10. EDID D/L

11. Sub B/C

12. V-Com

13. P-Gamma

1) TV

2) AV

3) COMPONENT (480i)

4) RGB (PC : 1024 x 768 @ 60hz)

5) HDMI 1/2/3

6) PC Audio In

* Display and Sound check is executed by remote control.

- 10 -

LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.

Only for training and service purposes

4.3. White Balance Adjustment

4.3.1 Overview

(1) W/B adj. Objective & How-it-works
(2) Objective: To reduce each Panel’s W/B deviation
(3) How-it-works : When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.

(4) Adj. condition : normal temperature

1) Surrounding Temperature : 25 ºC ± 5 ºC

2) Warm-up time: About 5 Min

3) Surrounding Humidity : 20 % ~ 80 %

4.3.2 Equipment

1) Color Analyzer: CA-210 (LED Module : CH 14)

2) Adj. Computer(During auto adj., RS-232C protocol is
needed)

3) Adjust Remocon

4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model:217, Pattern:78)

-> Only when internal pattern is not available

A Color Analyzer Matrix should be calibrated using CS-1000

4.3.3. Equipment connection MAP

Color Analyzer

Comp uter

Pattern Generator

RS- 232C

RS-232C

RS-232C

Probe

Signal Source

* If TV internal pattern is used, not needed

4.3.4. Adj. Command (Protocol)

<Command Format>

- LEN: Number of Data Byte to be sent

- CMD: Command

- VAL: FOS Data value

- CS: Checksum of sent data

- A: Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

A RS-232C Command used during auto-adj.

Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj.
ja 00 ff -> Adj. data
jb 00 c0
...
...
wb 00 1f -> Gain adj. completed

*(wb 00 20(start), wb 00 2f(end)) -> Off-set adj.

wb 00 ff -> End white balance auto-adj.

A Adj. Map

LEN CMD VAL

CS

RS-232C COMMAND Explanation

[CMD ID DATA]

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.(Internal pattern disappears)

ITEM Command Data Range Default

(lower case ASCII) (Hex.) (Decimal)

Cmd 1 Cmd 2 Min Max

Cool R-Gain j g 00 C0

G-Gain j h 00 C0

B-Gain j i 00 C0

R-Cut

G-Cut

B-Cut

Medium R-Gain j a 00 C0

G-Gain j b 00 C0

B-Gain j c 00 C0

R-Cut

G-Cut

B-Cut

Warm R-Gain j d 00 C0

G-Gain j e 00 C0

B-Gain j f 00 C0

R-Cut

G-Cut

4.3.5. Adj. method

4.3.6. Reference (White Balance Adj. coordinate
and temperature)

A Luminance : 216 Gray
A Standard color coordinate and temperature using CS-1000

(over 66cm(26 inch))

A Standard color coordinate and temperature using CA-210

(CH 9)

A 10 Point White Balance

A Color Coordinate Variation by Aging time

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 0.273 13000 K 0.0000

MEDIUM 0.285 0.293 9300 K 0.0000

WARM 0.313 0.329 6500 K 0.0000

Mode Color Coordination Temp ∆UV

xy

COOL 0.269 ± 0.002 0.273 ± 0.002 13000 K 0.0000

MEDIUM 0.285 ± 0.002 0.293 ± 0.002 9300 K 0.0000

WARM 0.313 ± 0.002 0.329 ± 0.002 6500 K 0.0000

LGD Edge LED Aging Time Cool Medium Warm

(Min.) (13,000 K) (93,000 K) (65,000 K)

1 0-2 276/285 292/305 315/334

2 3-5 274/282 290/302 313/332

3 6-9 273/280 289/300 312/330

4 10-15 272/278 288/298 311/328

5 20-35 271/276 287/296 310/326

6 36-49 269/274 286/294 309/324

7 50-79 269/273 286/293 308/323

8 Over 80 269/273 285/293 308/323

On / Off On / Off

Pattern Outer(default)

IRE 100

Luminance 130

Red(130.0 nit) 0

Green(130.0 nit) 0

Blue(130.0 nit) 0

(1) Auto adj. method

1) Set TV in adj. mode using POWER ON key.

2) Zero calibrate probe then place it on the center of the
Display.

3) Connect Cable (RS-232C)

4) Select mode in adj. Program and begin adjustment.

5) When adj. is complete (OK Sing), check adj. status pre
mode. (Warm, Medium, Cool)

6) Remove probe and RS-232C cable to complete adj.

A W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need.

(2) Manual adj. method

1) Set TV in Adj. mode using POWER ON

2) Zero Calibrate the probe of Color Analyzer, then place it
on the center of LCD module within 10cm of the surface.

3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White­Balance then press the cursor to the right (KEY G).

(When KEY(G) is pressed 216 Gray internal pattern will
be displayed)

4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.

5) Adj. is performed in COOL, MEDIUM, WARM 3 modes
of color temperature.

A If internal pattern is not available, use RF input. In EZ

Adj. menu 7.White Balance, you can select one of 2
Test-pattern: ON, OFF. Default is inner(ON). By
selecting OFF, you can adjust using RF signal in 216
Gray pattern.

A Adj. condition and cautionary items

1) Lighting condition in surrounding area

2) Probe location

3) Aging time

Surrounding lighting should be lower 10 lux. Try to
isolate adj. area into dark surrounding.

: Color Analyzer (CA-210) probe should be within 10
cm and perpendicular of the module surface (80° ~
100°)

- After Aging Start, Keep the Power ON status during
5 Minutes.

- In case of LCD, Back-light on should be checked
using no signal or Full-white pattern.

Copyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

- 11 -

LGE Internal Use Only

4.3. DDC EDID Write (RGB 128Byte )

· Connect D-sub Signal Cable to D-Sub Jack.

· Write EDID DATA to EEPROM (24C02) by using DDC2B
protocol.

· Check whether written EDID data is correct or not.

* For SVC main Ass’y, EDID have to be downloaded to Insert

Process in advance.

4.4 DDC EDID Write (HDMI 256Byte)

· Connect HDMI Signal Cable to HDMI Jack.

· Write EDID DATA to EEPROM(24C02) by using DDC2B
protocol.

· Check whether written EDID data is correct or not.

* For SVC main Ass’y, EDID have to be downloaded to Insert

Process in advance.

4.5 EDID DATA

1) All Data : HEXA Value

2) Changeable Data :
*: Serial No : Controlled / Data:01
**: Month : Controlled / Data:00
***:Year : Controlled
****:Check sum

- Auto Download

- Manual Download

* Caution

1) Use the proper signal cable for EDID Download

- Analog EDID : Pin3 exists

- Digital EDID : Pin3 exists

2) Nerver connect HDMI & D-sub Cable at the same time.

3) Use the proper cables below for EDID Writing.

4) Download HDMI1, HDMI2 separately because each data is
different.

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

EZ ADJUT

0. Tool Option1

1. Tool Option2

2. Tool Option3

3. Tool Option4

4. Country Group

5. ADC Calibration

6. White Balance

7. Test Pattern

8. EDID D/L

9. Sub B/C

EDID D/L

HDMI1
HDMI2
HDMI3
RGB

NG
NG
NG
NG

Reset

Start

EDID D/L

HDMI1
HDMI2
HDMI3
RGB

OK
OK
OK
OK

Reset

Start

D-sub to D-sub

DVI-D to HDMI or HDMI to HDMI

For HDMI EDIDFor Analog EDID

Item CMD1 CMD2 Data0

Download A A 0 0 When transfer the ‘Mode In’,

‘Mode In’ Carry the command.

Download A E 00 10 Automatically Download

(The use of a internal pattern)

(1) RGB EDID data : 128 byte

(2) HDMI EDID data : 256 byte

012 3 4 5 67 8 9 A BCD EF

00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ 01 03 68 10 09 78 0A EE 91 A3 54 4C 99 26

20 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ 00 ⓔ

0123456 789 ABCDEF

00 00 FF FF FF FF FF FF 00 1E 6D ⓐⓑ
10 ⓒ 01 03 80 10 09 78 0A CF 74 A3 54 4C 99 26

20 0F 50 54 A1 08 00 81 80 61 40 45 40 31 40 01 01

30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

40 45 00 A0 5A 00 00 00 1E 01 1D 00 72 51 D0 1E 20

50 6E 28 55 00 A0 5A 00 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 ⓓ
70 ⓓ 01 ⓔ

80 02 03 20 F1 4E 10 1F 84 13 05 14 03 02 12 20 21
90 22 15 01 26 15 07 50 09 57 07 ⓕ
A0 ⓕ E3 05 03 01 01 1D 80 18 71 1C 16 20 58 2C

B0 25 00 A0 5A 00 00 00 9E 01 1D 00 80 51 D0 0C 20

C0 40 80 35 00 A0 5A 00 00 00 1E 02 3A 80 18 71 38

D0 2D 40 58 2C 45 00 A0 5A 00 00 00 1E 66 21 50 B0

E0 51 00 1B 30 40 70 36 00 A0 5A 00 00 00 1E 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ⓔ

Item

Manufacturer ID

Version

Revision

Condition

GSM

Digital : 1

Digital : 3

Data(Hex)

1E6D

01

03

* EDID data and Model option download (RS232)

- 12 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

4.7. Outgoing condition Configuration

- When pressing IN-STOP key by SVC remocon, Red LED

are blinked alternatively. And then Automatically turn off.
(Must not AC power OFF during blinking)

4.8. Internal pressure

Confirm whether is normal or not when between power
board’s ac block and GND is impacted on 1.5 kV(dc) or 2.2
kV(dc) for one second.

* Detail EDID Options are below

Product ID

MODEL HEX EDID Table DDC Fuction

FHD 0001 01 00 Analog/Digital

Serial No: Controlled on production line.

Week, Year:Fixed as S/W released day(same as MES data)

ex) Week : 0x02(2), Year 0x13(2009)

Model Name(Hex):

MODEL Model name(HX)

All 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20

Checksum: Changeable by total EDID data.

MODEL RGB HDMI1 HDMI2 HDMI3 Remark

HD 0x93 0x7A, 0xD5 0x7A, 0xC5 0x7A, 0xB5

*HDMI3:only 26LE5300

Vendor Specific(HDMI)

INPUT MODEL NAME(HEX) Remark

HDMI1 65 03 0C 00 10 00

HDMI2 65 03 0C 00 20 00

HDMI3 65 03 0C 00 30 00 * Only LD550

- 13 -

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.

Only for training and service purposes

- 14 -

EXPLODED VIEW

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These

parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components a s
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

400

521

540

900

820

LV1

200

500

800

810

A10

120

A6

511

A21

300

A2

510

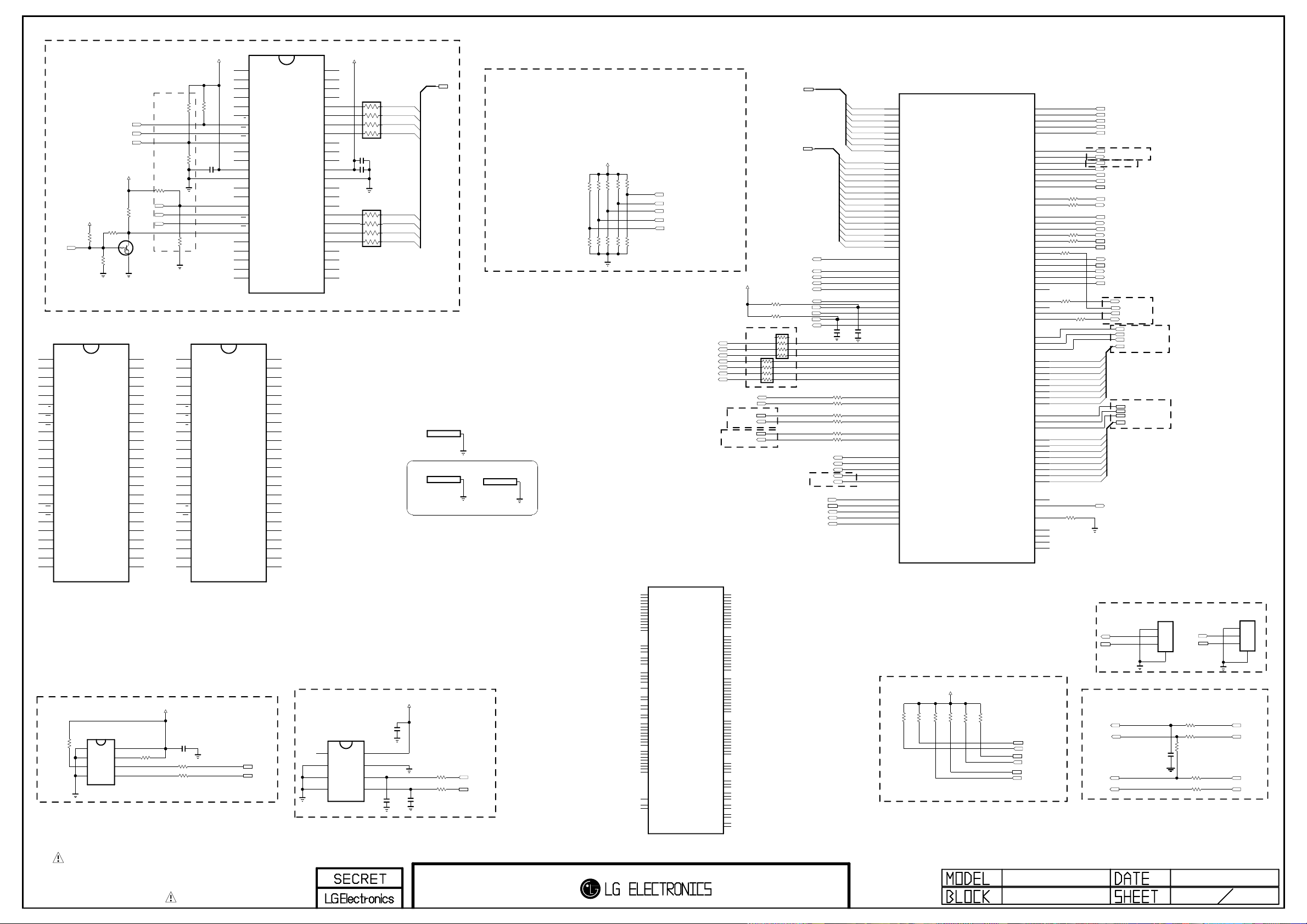

/PF_WP

NC_1

1

NC_2

2

NC_3

3

NC_4

4

NC_5

5

NC_6

6

R/B

7

RE

8

CE

9

NC_7

10

NC_8

11

VCC_1

12

VSS_1

13

NC_9

14

NC_10

15

CLE

16

ALE

17

WE

18

WP

19

NC_11

20

NC_12

21

NC_13

22

NC_14

23

NC_15

24

HDCP EEPROM

R113

4.7K

NAND FLASH MEMORY

/PF_CE0
H : Serial Flash
L : NAND Flash
/PF_CE1
H : 16 bit
L : 8 bit

+3.5V_ST

R103

OPT

R101

3.3K

3.3K

R102

IC102-*1

HY27US08121B-TPCB

512MBIT

IC103

CAT24WC08W-T

A0

1

$0.199

A1

2

A2

3

VSS

4

/F_RB

/PF_OE

/PF_CE0

+3.3V_Normal

OPT

R104

0

B

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

VCC

8

WP

7

SCL

6

SDA

5

/PF_CE1

10K

PF_ALE

/PF_WE

C

Q101
KRC103S

OPT

E

NC_28

NC_27

NC_26

NC_25

I/O7

I/O6

I/O5

I/O4

NC_24

NC_23

PRE

VCC_2

VSS_2

NC_22

NC_21

NC_20

I/O3

I/O2

I/O1

I/O0

NC_19

NC_18

NC_17

NC_16

R127 4.7K

R105
1K

OPT

R106

VDD_1

VSS_1

NC_10

NC_11

NC_12

NC_13

NC_14

NC_15

+3.3V_Normal

R128

R129 22

1K

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

NC_7

NC_8

NC_9

C107

0.1uF

1K

R107

R1081K

RB

R

E

CL

AL

W

WP

22

+3.3V_Normal

R109 3.9K

C101

OPT

0.1uF

NAND01GW3A2CN6E

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_1

NC_2

NC_3

NC_4

NC_5

NC_6

R/B

RE

CE

NC_7

NC_8

VCC_1

VSS_1

NC_9

NC_10

CLE

ALE

WE

WP

NC_11

NC_12

NC_13

NC_14

NC_15

IC102-*2

1GBIT

Addr:10101--

I2C_SCL

I2C_SDA

HY27UF082G2B-TPCB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VDD_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

IC102

2GBIT

NC_29

48

NC_28

47

NC_27

46

NC_26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC_25

40

NC_24

39

NC_23

38

VCC_2

37

VSS_2

36

NC_22

35

NC_21

34

NC_20

33

I/O3

32

I/O2

31

I/O1

30

I/O0

29

NC_19

28

NC_18

27

NC_17

26

NC_16

25

IC104

M24M01-HRMN6TP

NC

1

E1

2

E2

A0’h

3

VSS

4

+3.3V_Normal

AR101

C102

10uF

C103

0.1uF

AR102

EEPROM

VCC

8

WP

7

SCL

6

SDA

5

C105

0.1uF

22

22

C104
8pF
OPT

PCM_A[7]

PCM_A[6]

PCM_A[5]

PCM_A[4]

PCM_A[3]

PCM_A[2]

PCM_A[1]

PCM_A[0]

+3.3V_Normal

PCM_A[0-7]

MDS62110204

22_26LE6500

MDS62110204

22_26LE6500

R111 22

R112 22

C106
8pF
OPT

GAS2

GAS1

PLACE UNDER TUNER

<T3 CHIP Config(AUD_LRCH)>

Boot from SPI flash : 1’b0
Boot from NOR flash : 1’b1

<T3 CHIP Config>
(AUD_SCK, AUD_MASTER_CLK, PWM1, PWM0)

MIPS_no_EJ_NOR8 : 4’h3 (MIPS as host. No EJ PAD. Byte mode NAND flash.)
MIPS_EJ1_NOR8 : 4’h4 (MIPS as host. EJ use PAD1. Byte mode NAND flash.)
MIPS_EJ2_NOR8 : 4’h5 (MIPS as host. EJ use PAD2. Byte mode NAND flash.)
B51_Secure_no scramble : 4’hb (8051 as host. Internal SPI flash secure boot, no scramble)
B51_Sesure_scramble : 4’hc (8051 as host. Internal SPI flash secure boot with scarmble)

GAS3

MDS62110204

22_26LE6500

I2C_SCL

I2C_SDA

R115

R116

R117

1K

OPT

R118

1K

+3.3V_Normal

R123

1K

R120

1K

1K

OPT

OPT

OPT

R121

R124

1K

1K

1K

R125

R126

1K

OPT

1K

AUD_LRCH

AUD_SCK
AUD_MASTER_CLK

PWM1

PWM0

for SYSTEM/HDCP
EEPROM&URSA3

LGE101 (S7 NON_TON/DiX/RM)

AE1

NC_48

AF16

NC_78

AF1

NC_64

AE3

NC_50

AD14

NC_45

AD3

NC_34

AF15

NC_77

AF2

NC_65

AE15

NC_62

AD2

NC_33

AD16

NC_47

AD15

NC_46

AE16

NC_63

AF3

NC_66

AF14

NC_76

AD1

NC_32

AD13

NC_44

AE14

NC_61

AE13

NC_60

AE4

NC_51

AD5

NC_36

AF4

NC_67

AD4

NC_35

AE2

NC_49

AF8

NC_71

AD9

NC_40

AE9

NC_56

AF9

NC_72

AE11

NC_58

AF6

NC_69

AE6

NC_53

AF11

NC_74

AD6

NC_37

AD12

NC_43

AE5

NC_52

AF12

NC_75

AF5

NC_68

AE12

NC_59

AE10

NC_57

AF7

NC_70

AD11

NC_42

AD7

NC_38

AD10

NC_41

AE7

NC_54

AF10

NC_73

AD8

NC_39

AE8

NC_55

Y11

NC_12

Y19

GND_105

IC101-*1

S7_NON_DIVX

/PF_CE0
/PF_CE1

/PF_OE
/PF_WE
PF_ALE
/PF_WP

/F_RB

LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]

LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]

LVA4P/LLV8P
LVA4N/LLV8N

LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]

LVB0P/RLV6P/RED[1]

LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]

RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC

RLV1N/LCK

RLV2P/RED[9]

RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]

TCON3/OE/GOE/GCLK2

TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6

TCON11/CS5/HCON

TCON10/CS4/OPT_N

TCON9/CS3/OPT_P

TCON16/WPWM

TCON12/DPM

TCON1/STV/GSP/VST

TCON5/TP/SOE

TCON14/SACN_BLK

TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN

TCON13/LEDON

TCON17/CS6/GCLK4

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16

NC_26

AA14

NC_19

AC15

NC_30

Y16

NC_15

AC16

NC_31

AC14

NC_29

AA16

NC_21

AA15

NC_20

Y10

NC_11

AA11

NC_17

AB15

NC_25

AB14

NC_24

+5V_Normal

S7_TXD
S7_RXD

I2C_SDA
I2C_SCL

RGB_DDC_SDA
RGB_DDC_SCL

AR103

22

PCM_D[0-7]

PCM_A[0-14]

/PCM_IORD

/PCM_IOWR

R132
10K

/PCM_IRQA

R133
10K

/PCM_WAIT

AR104

TO SCART1

/PCM_REG

/PCM_OE

/PCM_WE

/PCM_CE

/PCM_CD

PCM_RST

22

MODEL_OPT_3

PCM_5V_CTL

SC_RE2
SC_RE1

DSUB_DET

/RST_PHY
/RST_HUB

C108

0.1uF
OPT

R134 22

R135 22

R136 22

R137 22

R138 22

R139 22

PWM0
PWM1
PWM2

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]

PCM_A[0]
PCM_A[1]
PCM_A[2]
PCM_A[3]
PCM_A[4]
PCM_A[5]
PCM_A[6]
PCM_A[7]
PCM_A[8]
PCM_A[9]
PCM_A[10]
PCM_A[11]
PCM_A[12]
PCM_A[13]
PCM_A[14]

C109

0.1uF

LGE101D (S7 Non_Tcon/RM)

U22

PCM_D0

T21

PCM_D1

T22

PCM_D2

AB18

PCM_D3

AC18

PCM_D4

AC19

PCM_D5

AC20

PCM_D6

AC21

PCM_D7

U21

PCM_A0

V21

PCM_A1

Y22

PCM_A2

AA22

PCM_A3

R22

PCM_A4

R21

PCM_A5

T23

PCM_A6

T24

PCM_A7

AA23

PCM_A8

Y20

PCM_A9

AB17

PCM_A10

AA21

PCM_A11

U23

PCM_A12

Y23

PCM_A13

W23

PCM_A14

W22

PCM_REG_N

AA17

PCM_OE_N

V22

PCM_WE_N

W21

PCM_IORD_N

Y21

PCM_IOWR_N

AA20

PCM_CE_N

V23

PCM_IRQA_N

P23

PCM_CD_N

R23

PCM_WAIT_N

P22

PCM_RESET

AC17

PCM_PF_CE0Z

AB20

PCM_PF_CE1Z

AA18

PCM_PF_OEZ

AB21

PCM_PF_WEZ

AB19

PCM_PF_ALE

AD17

PCM_PF_AD[15]

AA19

PCM_PF_RBZ

M23

UART_TX2/GPIO65

N23

UART_RX2/GPIO64

M22

DDCR_DA/GPIO71

N22

DDCR_CK/GPIO72

A5

DDCA_DA/UART0_TX

B5

DDCA_CK/UART0_RX

K23

PWM0/GPIO66

K22

PWM1/GPIO67

G23

PWM2/GPIO68

G22

PWM3/GPIO69

G21

PWM4/GPIO70

C6

SAR0/GPIO31

B6

SAR1/GPIO32

C8

SAR2/GPIO33

C7

SAR3/GPIO34

A6

SAR4/GPIO35

I2C

R1401KR141

+3.3V_Normal

R142

3.3K

R143

1K

IC101

S7_DIVX

TCON2/GSP_R/GCLK1

TCON4/CPV/GSC/GCLK3

TCON8/CS2/FLK3

GPIO36/UART3_RX
GPIO37/UART3_TX

GPIO50/UART1_RX
GPIO51/UART1_TX

GPIO6/PM0/INT0

GPIO7/PM1/PM_UART_TX

GPIO11/PM5/PM_UART_RX/INT1

PM_SPI_CS1/GPIO12/PM6
PM_SPI_WP1/GPIO13/PM7

PM_SPI_WP2/GPIO14/PM8/INT2

PM_SPI_CS2/GPIO16/PM10

GPIO17/PM11/INT3
GPIO18/PM12/INT4

PM_SPI_CK/GPIO1
GPIO0/PM_SPI_CZ
PM_SPI_DI/GPIO2
PM_SPI_DO/GPIO3

R145

2.2K

3.3K

R144

2.2K

TCON0/POL

TCON6/FLK

GPIO38
GPIO39
GPIO40
GPIO41
GPIO42

GPIO8/PM2
GPIO9/PM3

GPIO10/PM4

GPIO15/PM9

TS0_CLK
TS0_VLD

TS0_SYNC

TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7

TS1_CLK
TS1_VLD

TS1_SYNC

TS1_D0
TS1_D1
TS1_D2
TS1_D3
TS1_D4
TS1_D5
TS1_D6
TS1_D7

MPIF_CLK

MPIF_CS_N

MPIF_BUSY

MPIF_D0
MPIF_D1
MPIF_D2
MPIF_D3

AMP_SDA

AMP_SCL

I2C_SDA

I2C_SCL

NEC_SDA
NEC_SCL

N21
M21
L22
L21
P21

K21
L23
K20
L20
M20
G20
G19

F20
F19

E7
D7
E11
G9
F9
C5
E8
E9
F7
F6
D8
G12
F10

D9
D11
E10
D10

AA9
AA5
AA10

AB5
AC4
Y6
AA6
W6
AA7
Y9
AA8

AC5
AC6
AB6

AC10
AB10
AC9
AB9
AC8
AB8
AC7
AB7

D12
D14

E14

E12
F12
D13
E13

OPT

OPT

R14633

R14733

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]
CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

FE_TS_DATA[0]
FE_TS_DATA[1]
FE_TS_DATA[2]
FE_TS_DATA[3]
FE_TS_DATA[4]
FE_TS_DATA[5]
FE_TS_DATA[6]
FE_TS_DATA[7]

R160
1K

5V_DET_HDMI_1
5V_DET_HDMI_2
5V_DET_HDMI_4
5V_DET_HDMI_3

WIRELESS_DL_RX
WIRELESS_DL_TX
ET_RXER
FRC_RESET
SC1/COMP1_DET
ERROR_OUT
MODEL_OPT_0

R14822

M_REMOTE_RX

R14922

M_REMOTE_TX

USB1_OCD
USB1_CTL
HP_DET

R1500

CONTROL_ATTEN

R1100

MODEL_OPT_6
MODEL_OPT_1

/FLASH_WP

MODEL_OPT_2
TUNER_RESET
DEMOD_RESET

AV_CVBS_DET

R15133

/PIF_SPI_CS

URSA degug port

UART_FRC_RX

UART_FRC_TX

DIMMING

A_DIM

PWM_DIM

SCAN_BLK2

SCAN_BLK1/OPC_OUT

SIDEAV_DET

SPI_SCK

/SPI_CS
SPI_SDI
SPI_SDO

CI_TS_CLK
CI_TS_VAL
CI_TS_SYNC

CI_TS_DATA[0-7]

FE_TS_CLK
FE_TS_VAL_ERR
FE_TS_SYNC

FE_TS_DATA[0-7]

for WIRELESS READY

for ETHERNET PHY

for SERIAL FLASH

from CI SLOT

Internal demod out
/External demod in

OPT
P3903

12505WS-03A00

1

2

FRC_SCL

3

FRC_SDA

4

R156

R157

R155
0

C111

OPT

2.2uF

OPT

R158

OPT

R159

OPT
P3904

12505WS-03A00

1

2

3

4

10K

100

100

100

PWM0

PWM2

FRC_PWM1

FRC_PWM0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7

FLASH/EEPROM/GPIO

Ver. 2.0

1

12505WS-12A00

+3.5V_ST

EEPROM for Micom

IC1001

M24C16-WMN6T

NC/E0

1

NC/E1

47K

R10 01

TP1001

NC/E2

2

3

VSS

4

MICOM_DEBUG

P1001

FLMD0

15pF

+3.5V_ST

C1007

C1008 15pF

R1030 10K

47K

OPT

R1086

+3.5V_ST

for Debugger

+3.5V_ST

1

2

3

4

5

6

7

8

9

10

11

12

13

+3.5V_ST

R1002 10K

R1006

R1072

R1073

R1005

VCC

8

WC

7

SCL

6

SDA

5

R10 76 22

R10 78 22

R10 10 22

R10 81 22

R10 13 22

10K

10K

10K

10K

TP1002

R1080

22

TP1003

R1008

22

R1014 4.7K

MICOM_RESET
NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

FLMD0

NEC_ISP_Tx

NEC_ISP_Rx

OCD1A

OCD1B

+3.5V_ST

C1002

R1015 4.7K

0.1uF

NEC_EEPROM_SCL

NEC_EEPROM_SDA

+3.5V_ST

OPT

R1084

10K

POWER_ON/OFF2_1

NEC_SCL

NEC_SDA

NEC_EEPROM_SCL

NEC_EEPROM_SDA

CEC_REMOTE_NEC

AMP_MUTE

MODEL1_OPT_0

SOC_RESET

INV_CTL

MODEL1_OPT_1

OCD1B

RF_RESET

R1020 0

22

R1018

22

R1019

P33/TI51/TO51/INTP4

R1065 22

R1067 22

R1066 22

R1023 22

R1064 22

R1063 22

R1059 22

R1060 22

OPT

C1003

0.1uF

P60/SCL0
P61/SDA0

P62/EXSCL0

P63

P75

P74
P73/KR3
P72/KR2
P71/KR1
P70/KR0

P32/INTP3/OCD1B

R1091 10K

GND

C1006 0.1uF

REGC

VSS

VDD

46

47

48

1
2
3
4
5

UPD78F0513AGA-GAM-AX

6
7
8
9
10
11
12

13

14

15

P30/INTP1

X1002

32.768KHz
R1034

4.7M

FLMD0

P122/X2/EXCLK/OCD0B

P121/X1/OCD0A

43

44

45

MICOM_RESET

OPT

P123/XT1

42

WIRELESS_DETECT

R1039 22

P40

RESET

P124/XT2/EXCLKS

39

40

41

IC1002

NEC_MICOM

16

17

18

19

20

21

22

P15/TOH0

P14/RXD6

P13/TXD6

P12/SO10

+3.5V_ST

WIRELESS_PWR_EN

22

47K

R1043

P120/INTP0/EXLVI

P41

37

38

23

24

AVSS

AVREF

SW1001

R1046

JTP-1127WEM

C1010

4 3

0.1uF

R1047 20K

R1089

20K

P140/PCL/INTP6

36

P00/TI000

35

P01/TI010/TO00

34

P130

33

P20/ANI0

32

ANI1/P21

31

ANI2/P22

30

ANI3/P23

29

ANI4/P24

28

ANI5/P25

27

ANI6/P26

26

ANI7/P27

25

+3.5V_ST

12

1/16W

1/16W
1%

1%

R1048 22

R1049 22

OPT

R1050 10K





R1090 22

R1055 22

R1056 22

R10 57 22

R1051 22

19-22_LAMP

R1054 22

R1052 10K

C

Q1001

B

2SC3052

E

EDID_WP

RL_ON

OPC_EN

WIRELESS_SW_CTRL

SCART1_MUTE

MODEL1_OPT_3

MODEL1_OPT_2

POWER_ON/OFF1

OLP

SIDE_HP_MUTE

KEY2

KEY1

OPT

R1074 10K R1079 10K

+3.5V_ST

TOUCH_KEY

R1075 10K

TACT_KEY

R1011 10K

B/L_LED

R1071 10K

R1009 10K

PWM_BUZZ/IIC_LED

PWM_LED

B/L_LAMP

R1004 10K

R1012 10K

MODEL1_OPT_0
MODEL1_OPT_1
MODEL1_OPT_2
MODEL1_OPT_3

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MICOM MODEL OPTION

AMP_RESET_N

PANEL_CTL

CEC_ON/OFF

R1007 100
R1070 100

R1003 0

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

MODEL OPTION

PIN NO.11HIGH

MODEL_OPT_0

LOW LOW LOW

HIGH HIGH

HIGH

HIGH

B/L_LED

8

PWM_BUZZ/IIC_LED

30

TOUCH_KEY TACT_KEY

31 GPIO_LED

MODEL_OPT_1

LOW

HIGH

HIGH

LOW LOW

HIGH

MODEL_OPT_2

HIGH

LOWLOW

LOWPIN NAME

B/L_LAMP

PWM_LED

NON_GPIO_LED

MODEL_OPT_3

LOW

LOW

LOW

LOW

HIGH

HIGH

LD350/450/550

19/22/26LE3300(5500)

32/37/42/47/55LE5300(10)

LD420

LE7300

TBD

P17/TI50/TO50

P31/INTP2/OCD1A

OPT

R10 62 22

R10 61 22

RF_ENABLE

P16/TOH1/INTP5

22

R10 69

OCD1A

POWER_DET

LED_B/LG_LOGO

IR

22

R10 68

LED_R/BUZZ

NEC_ISP_Rx

P11/SL10/RXD0

P10/SCK10/TXD0

22

22

R10 41

R10 37

22

R10 36

NEC_RXD

NEC_ISP_Tx

NEC_TXD

POWER_ON/OFF2_2

R1044 10K

R1045 10K

R1083 10K

+3.5V_ST

OPT

OPT

OPT

C1009 1uF

GP2_Saturn7M

MICOM

Ver. 1.4

5

COMMON AREA

New Item Development

EARPHONE BLOCK

HP_LOUT

2:X19

HP_ROUT

2:X19

EXCEPT_CHINA_HOTEL_OPT

C1118
10uF

C1115

16V

1000pF
50V

OPT

EXCEPT_CHINA_HOTEL_OPT

C1119
10uF
16V

C1116
1000pF
50V

OPT

R1125
1K

R1128
1K

Q1101

MMBT3904-(F)

Q1102

MMBT3904-(F)

C

B

E

C

B

E

MMBT3904-(F)

B

MMBT3904-(F)

B

E

Q1104

C

HP_DET

E

Q1103

C

+3.3V_Normal

R1130

10K

R1155
1K

JK3301

KJA-PH-0-0177

5GND

4L

3DETECT

1R

SPK_R+_HOTEL

2:X19

SPK_R-_HOTEL

2:X19

C

Q1105

ISA1530AC1

E

B

R1129

3.3K

+3.5V_ST

C

E

B
Q1106

2SC3052

SIDE_HP_MUTE

PC AUDIO

JK1102

PEJ027-01

E_SPRING

3

T_TERMINAL1

6A

B_TERMINAL1

7A

R_SPRING

4

T_SPRING

5

B_TERMINAL2

7B

T_TERMINAL2

6B

D1101
AMOTECH

5.6V
OPT

D1102

AMOTECH

5.6V
OPT

C1107

100pF

50V

C1108
100pF
50V

R1102
470K

R1103
470K

R1107
15K

R1108
15K

R1110
10K

R1111

10K

R1112
0

R1113
0

PC_R_IN

PC_L_IN

2:S16

2:S16

SPDIF OPTIC JACK

5.15 Mstar Circuit Application

SPDIF_OUT

2:X18

OPT

4.7K

R1152

A

B

GND

IC1104

NL17SZ00DFT2G

OPT

1

2

3

D1116

5.6V
OPT

+5V_Normal

EDID_WP

RGB_DDC_SCL

RGB_DDC_SDA

+3.3V_Normal

R1146
10K

D1117

5.6V

R1147
1K

DSUB_DET

+3.3V_Normal

VCC

5

C1117

0.1uF
16V
OPT

R1126

Y

4

22

OPT

R1127
0

C1131

0.1uF
16V

VINPUT

C1121
100pF
50V

GND

Fiber Optic

1

VCC

2

JK1103

JST1223-001

3

4

FIX_POLE

RGB PC

DSUB_VSYNC

DSUB_HSYNC

DSUB_B+

DSUB_B-

DSUB_G+

DSUB_G-

DSUB_R+

DSUB_R-

R1133
75

0

R1135
75

0

R1137
75

0

R1134

R1136

R1138

GND

C1122
68pF
50V
OPT

IC1105

AT24C02BN-10SU-1.8

A0

1

A1

2

A2

3

4

C1123
OPT

C1124
OPT

C1125
OPT

R1148

0

OPT

OPT

OPT

D1115

ENKMC2838-T112

A1

C

A2

4.7K

R1150
0

C1128
18pF

50V

D1113

30V

R1140

4.7K

R1141
22

D1114

5.6V
OPT

R1142

10K

C1129

0.1uF
16V

R1143
22

R1139

VCC

8

WP

7

SCL

6

SDA

5

C1127

18pF

50V

C1126

D1109

68pF

30V

50V

OPT

D1110
30V

D1111
30V

D1112
30V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RED2GREEN3BLUE4GND_15DDC_GND

RED_GND7GREEN_GND8BLUE_GND9NC10SYNC_GND

GND_212DDC_DATA13H_SYNC14V_SYNC15DDC_CLOCK

11

SPG09-DB-010

6

1

JK1104

GP2_Saturn7M

COMMON AREA

SHILED

16

Ver. 1.0

9

RS232C

C1101 0.33uF

C1102

0.1uF

C1103

0.1uF

C1104

0.1uF

C1105

0.1uF
DOUT2

RIN2

C1+

C1-

C2+

C2-

V+

V-

IC1101
MAX3232CDR

1

2

3

4

5

6

7

8

EAN41348201

10

5

9

8

7

6

SPG09-DB-009

JK1101

4

3

2

1

R1123
100

R1124
100

OPT

R1122

0

IR_OUT

+3.5V_ST

D1107
CDS3C30GTH
30V

C1106

0.1uF

VCC

16

GND

15

DOUT1

14

RIN1

13

ROUT1

12

DIN1

11

DIN2

10

ROUT2

9

+3.5V_ST

R1109

4.7K
OPT

4.7K
OPT

R1114

R1157 0

R1156

R1154

R1153

0

0

0

D1108
CDS3C30GTH
30V

S7_RXD1

NEC_RXD

S7_TXD1

NEC_TXD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

RS232C 9PIN

Ver. 2.0GP2_Saturn7

10

VCC_1.5V_DDR

R1201

1K 1%

R1202

1K 1%

0.1uF
1000pF

C1202

C1201

CLose to DDR3

A-MVREFDQ

VCC_1.5V_DDR

R1204

1K 1%

0.1uF

R1205

1K 1%

C1204

C1203

CLose to Saturn7M IC

1000pF

A-MVREFCA

VCC_1.5V_DDR

C1205

10uF

C1206

Close to DDR Power Pin

DDR3 1.5V By CAP - Place these Caps near Memory

0.1uF

C1207

0.1uF

C1208

0.1uF

C1210

0.1uF

C1211

0.1uF

C1212

0.1uF

C1213

0.1uF

C1214

0.1uF

C1215

0.1uF

C1216

0.1uF

C1217

0.1uF

C1218

0.1uF

C1219

0.1uF

C1220

0.1uF

C1221

0.1uF

C1222

0.1uF

C1223

0.1uF

C1224

0.1uF

0.1uF

DDR3 1.5V By CAP - Place these Caps near Memory

0.1uF

0.1uF

C1227

0.1uF

C1228

0.1uF

C1229

C1230

C1231

0.1uF

C1232

0.1uF

C1233

0.1uF

C1234

0.1uF

C1235

0.1uF

C1236

0.1uF

C1237

0.1uF

0.1uF

0.1uF

C1239

C1238

Close to DDR Power Pin

C1241

0.1uF

C1242

0.1uF

C1243

0.1uF

C1244

0.1uF

VCC_1.5V_DDR

C1245

10uF

B-MVREFCA

C1246

CLose to Saturn7M IC

1000pF

VCC_1.5V_DDR

0.1uF

C1247

C1248

VCC_1.5V_DDR

C1249

0.1uF

1K 1%

C1250

R1227

R1228

1K 1%

R1224

1K 1%

B-MVREFDQ

R1225

1K 1%

1000pF

CLose to DDR3

A-MVREFCA

A-MVREFDQ

VCC_1.5V_DDR

R1203

240

1%

IC1201

H5TQ1G63BFR-H9C

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

A10/AP

A12/BC

RESET

DQSL
DQSL

DQSU
DQSU

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

+1.5V_DDR

L1201

A-MA0

A-MA2

A-MA11

A-MA1
A-MA8
A-MA6

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7
R7

A11

N7
T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

F3
G3

C7
B7

E7

DML

D3

DMU

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

A-MA0
A-MA1
A-MA2
A-MA3
A-MA4
A-MA5
A-MA6
A-MA7
A-MA8
A-MA9
A-MA10
A-MA11
A-MA12
A-MA13

A-MBA0
A-MBA1
A-MBA2

A-MCKE

A-MODT
A-MRASB
A-MCASB
A-MWEB

A-MRESETB

A-MDQSL
A-MDQSLB

A-MDQSU
A-MDQSUB

A-MDML
A-MDMU

A-MDQL0
A-MDQL1
A-MDQL2
A-MDQL3
A-MDQL4
A-MDQL5
A-MDQL6
A-MDQL7

A-MDQU0
A-MDQU1
A-MDQU2
A-MDQU3
A-MDQU4
A-MDQU5
A-MDQU6
A-MDQU7

VCC_1.5V_DDR

R1231
10K

A-MCK

56

1%

R1235

C1209

0.01uF
25V

56

1%

R1236

A-MCKB

A-MBA0

A-MA3
A-MA5
A-MA7

A-MA4
A-MA12
A-MBA1
A-MA10

A-MRESETB

A-MBA2
A-MA13

A-MA9

A-MCK

A-MCKB

A-MRASB
A-MCASB

A-MODT
A-MWEB

A-MDQSL

A-MDQSLB

A-MDQSU

A-MDQSUB

A-MDQL1
A-MDQL3

A-MDML

A-MDQU2

A-MCKE

A-MDQL7
A-MDQL5

A-MDQL0
A-MDQL2
A-MDQL6
A-MDQL4

A-MDQU7
A-MDQU3
A-MDQU5

A-MDMU

A-MDQU6
A-MDQU0
A-MDQU4

A-MDQU1

A-MCKE

R1213

10

R1214

10

AR1208

10

AR1203

10

AR1204

10

AR1201

10

R1206

10

R1207

10

AR1202

10

R1208

10

R1209

10

R1211

10

R1212

10

AR1209

10

AR1210

10

AR1205

10

AR1206

10

AR1207

10

R1210

10

R1233 10K

A-TMA0

A-TMA2

A-TMA11
A-TMA1
A-TMA8
A-TMA6

A-TMBA0
A-TMA3
A-TMA5
A-TMA7

A-TMA4
A-TMA12
A-TMBA1
A-TMA10

A-TMRESETB
A-TMBA2
A-TMA13
A-TMA9

A-TMCK

A-TMCKB

A-TMRASB
A-TMCASB
A-TMODT
A-TMWEB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB

A-TMDQL1
A-TMDQL3
A-TMDML

A-TMDQU2

A-TMCKE
A-TMDQL7
A-TMDQL5

A-TMDQL0
A-TMDQL2
A-TMDQL6
A-TMDQL4

A-TMDQU7
A-TMDQU3
A-TMDQU5
A-TMDMU

A-TMDQU6
A-TMDQU0
A-TMDQU4

A-TMDQU1

LGE101D (S7 Non_Tcon/RM)

A-TMA0
A-TMA1
A-TMA2
A-TMA3
A-TMA4
A-TMA5
A-TMA6
A-TMA7
A-TMA8

A-TMA9
A-TMA10
A-TMA11
A-TMA12
A-TMA13

A-TMBA0
A-TMBA1
A-TMBA2

A-TMCK
A-TMCKB
A-TMCKE

A-TMODT

A-TMRASB
A-TMCASB

A-TMWEB

A-TMRESETB

A-TMDQSL

A-TMDQSLB

A-TMDQSU

A-TMDQSUB B-MDML

A-TMDML
A-TMDMU

A-TMDQL0
A-TMDQL1
A-TMDQL2
A-TMDQL3
A-TMDQL4
A-TMDQL5
A-TMDQL6
A-TMDQL7

A-TMDQU0
A-TMDQU1
A-TMDQU2
A-TMDQU3
A-TMDQU4
A-TMDQU5
A-TMDQU6
A-TMDQU7

B8

A_DDR3_A0/DDR2_A13

B9

A_DDR3_A1/DDR2_A8

A8

A_DDR3_A2/DDR2_A9

C21

A_DDR3_A3/DDR2_A1

B10

A_DDR3_A4/DDR2_A2

A22

A_DDR3_A5/DDR2_A10

A10

A_DDR3_A6/DDR2_A4

B22

A_DDR3_A7/DDR2_A3

C9

A_DDR3_A8/DDR2_A6

C23

A_DDR3_A9/DDR2_A12

B11

A_DDR3_A10/DDR2_RASZ

A9

A_DDR3_A11/DDR2_A11

C10

A_DDR3_A12/DDR2_A0

B23

A_DDR3_A13/DDR2_A7

B21

A_DDR3_BA0/DDR2_BA2

A11

A_DDR3_BA1/DDR2_CASZ

A23

A_DDR3_BA2/DDR2_A5

A12

A_DDR3_MCLK/DDR2_MCLK

C11

A_DDR3_MCLKZ/DDR2_MCLKZ

B12

A_DDR3_CKE/DDR2_DQ5

C20

A_DDR3_ODT/DDR2_ODT

A20

A_DDR3_RASZ/DDR2_WEZ

B20

A_DDR3_CASZ/DDR2_BA1

A21

A_DDR3_WEZ/DDR2_BA0

C22

A_DDR3_RESETB

C16

A_DDR3_DQSL/DDR2_DQS0

B16

A_DDR3_DQSLB/DDR2_DQSB0

A16

A_DDR3_DQSU/DDR2_DQSB1

C15

A_DDR3_DQSUB/DDR2_DQS1

A14

A_DDR3_DML//DDR2_DQ13

B18

A_DDR3_DMU/DDR2_DQ6

C18

A_DDR3_DQL0/DDR2_DQ3

B13

A_DDR3_DQL1/DDR2_DQ7

A19

A_DDR3_DQL2/DDR2_DQ1

C13

A_DDR3_DQL3/DDR2_DQ10

C19

A_DDR3_DQL4/DDR2_DQ4

A13

A_DDR3_DQL5/DDR2_DQ0

B19

A_DDR3_DQL6/DDR2_CKE

C12

A_DDR3_DQL7/DDR2_DQ2

A15

A_DDR3_DQU0/DDR2_DQ15

A17

A_DDR3_DQU1/DDR2_DQ9

B14

A_DDR3_DQU2/DDR2_DQ8

C17

A_DDR3_DQU3/DDR2_DQ11

B15

A_DDR3_DQU4/DDR2_DQM1

A18

A_DDR3_DQU5/DDR2_DQ12

C14

A_DDR3_DQU6/DDR2_DQM0

B17

A_DDR3_DQU7/DDR2_DQ14

IC101

S7_DIVX/NON_RM

VCC_1.5V_DDR

C1225

C1226

10uF

0.1uF

10V

16V

B_DDR3_A0/DDR2_A13

B_DDR3_A1/DDR2_A8
B_DDR3_A2/DDR2_A9
B_DDR3_A3/DDR2_A1
B_DDR3_A4/DDR2_A2

B_DDR3_A5/DDR2_A10

B_DDR3_A6/DDR2_A4
B_DDR3_A7/DDR2_A3
B_DDR3_A8/DDR2_A6

B_DDR3_A9/DDR2_A12

B_DDR3_A10/DDR2_RASZ

B_DDR3_A11/DDR2_A11

B_DDR3_A12/DDR2_A0
B_DDR3_A13/DDR2_A7

B_DDR3_BA0/DDR2_BA2

B_DDR3_BA1/DDR2_CASZ

B_DDR3_BA2/DDR2_A5

B_DDR3_MCLK/DDR2_MCLK

B_DDR3_MCLKZ/DDR2_MCLKZ

B_DDR3_CKE/DDR2_DQ5

B_DDR3_ODT/DDR2_ODT
B_DDR3_RASZ/DDR2_WEZ
B_DDR3_CASZ/DDR2_BA1

B_DDR3_WEZ/DDR2_BA0

B_DDR3_RESETB

B_DDR3_DQSL/DDR2_DQS0

B_DDR3_DQSLB/DDR2_DQSB0

B_DDR3_DQSU/DDR2_DQSB1
B_DDR3_DQSUB/DDR2_DQS1

B_DDR3_DML/DDR2_DQ13

B_DDR3_DMU/DDR2_DQ6

B_DDR3_DQL0/DDR2_DQ3
B_DDR3_DQL1/DDR2_DQ7
B_DDR3_DQL2/DDR2_DQ1

B_DDR3_DQL3/DDR2_DQ10

B_DDR3_DQL4/DDR2_DQ4
B_DDR3_DQL5/DDR2_DQ0
B_DDR3_DQL6/DDR2_CKE
B_DDR3_DQL7/DDR2_DQ2

B_DDR3_DQU0/DDR2_DQ15

B_DDR3_DQU1/DDR2_DQ9
B_DDR3_DQU2/DDR2_DQ8

B_DDR3_DQU3/DDR2_DQ11
B_DDR3_DQU4/DDR2_DQM1
B_DDR3_DQU5/DDR2_DQ12
B_DDR3_DQU6/DDR2_DQM0
B_DDR3_DQU7/DDR2_DQ14

B-TMA0

B-TMA2

B-TMA11

B-TMA1
B-TMA8
B-TMA6

B-TMBA0

B-TMA3
B-TMA5
B-TMA7

A25
B24
A24
P25
C24
P26
B26
R24
B25
T26
D24
A26
C25
T25

P24
C26
R26

D26
D25
E24

N25
M26
N24
N26

R25

J25
J24

H26
H25

F26
L24

L25
F24
L26
F25
M25
E26
M24
E25

G26
J26
G24
K25
H24
K26
G25
K24

B-TMA0
B-TMA1
B-TMA2
B-TMA3
B-TMA4
B-TMA5
B-TMA6
B-TMA7
B-TMA8
B-TMA9
B-TMA10
B-TMA11
B-TMA12
B-TMA13

B-TMBA0
B-TMBA1
B-TMBA2

B-TMCK
B-TMCKB
B-TMCKE

B-TMODT
B-TMRASB
B-TMCASB
B-TMWEB

B-TMRESETB

B-TMDQSL
B-TMDQSLB

B-TMDQSU
B-TMDQSUB

B-TMDML
B-TMDMU

B-TMDQL0
B-TMDQL1
B-TMDQL2
B-TMDQL3
B-TMDQL4
B-TMDQL5
B-TMDQL6
B-TMDQL7

B-TMDQU0
B-TMDQU1
B-TMDQU2
B-TMDQU3
B-TMDQU4
B-TMDQU5
B-TMDQU6
B-TMDQU7

B-TMA4
B-TMA12
B-TMBA1
B-TMA10

B-TMRESETB

B-TMBA2
B-TMA13

B-TMA9

B-TMCK

B-TMCKB

B-TMRASB
B-TMCASB

B-TMODT
B-TMWEB

B-TMDQSL

B-TMDQSLB

B-TMDQSU

B-TMDQSUB

B-TMDQL1
B-TMDQL3

B-TMDML

B-TMDQU2

B-TMCKE

B-TMDQL7
B-TMDQL5

B-TMDQL0
B-TMDQL2
B-TMDQL6
B-TMDQL4

B-TMDQU7
B-TMDQU3
B-TMDQU5

B-TMDMU

B-TMDQU6
B-TMDQU0
B-TMDQU4

B-TMDQU1

R1215

10

R1216

10

AR1211

10

AR1214

AR1215

AR1219

R1222

R1223

AR1220

R1219

10

R1220

10

R1217

10

R1218

10

AR1212

10

AR1213

10

AR1216

AR1217

AR1218

R1221

10

B-MA0

B-MA2

B-MA11
B-MA1
B-MA8
B-MA6

B-MBA0
B-MA3
B-MA5
B-MA7

10

B-MA4
B-MA12
B-MBA1
B-MA10

10

B-MRESETB
B-MBA2
B-MA13
B-MA9

10

B-MCK

10

B-MCKB

10

B-MRASB
B-MCASB
B-MODT
B-MWEB

10

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDQL1
B-MDQL3
B-MDML
B-MDQU2

B-MCKE
B-MDQL7
B-MDQL5

B-MDQL0
B-MDQL2
B-MDQL6
B-MDQL4

10

B-MDQU7
B-MDQU3
B-MDQU5
B-MDMU

10

B-MDQU6
B-MDQU0
B-MDQU4

10

B-MDQU1

R123410K

B-MCKE

B-MCK

B-MCKB

C1240

0.01uF
25V

R1237

56

R1238

56

1%

1%

VCC_1.5V_DDR

R1232

10K

B-MODT
B-MRASB
B-MCASB

B-MWEB

B-MRESETB

B-MDQSL

B-MDQSLB

B-MDQSU

B-MDQSUB

B-MDMU

B-MDQL0
B-MDQL1
B-MDQL2
B-MDQL3
B-MDQL4
B-MDQL5
B-MDQL6
B-MDQL7

B-MDQU0
B-MDQU1
B-MDQU2
B-MDQU3
B-MDQU4
B-MDQU5
B-MDQU6
B-MDQU7

B-MA0
B-MA1
B-MA2
B-MA3
B-MA4
B-MA5
B-MA6
B-MA7
B-MA8

B-MA9
B-MA10
B-MA11
B-MA12
B-MA13

B-MBA0
B-MBA1
B-MBA2

B-MCKE

IC1202

H5TQ1G63BFR-H9C

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9

VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8
VDDQ_9

NC_1
NC_2
NC_3
NC_4
NC_6

VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11
VSS_12

VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8
VSSQ_9

M8

B-MVREFCA

H1

B-MVREFDQ

R1226

L8

ZQ

240

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

J1
J9
L1
L9
T7

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

1%

VCC_1.5V_DDR

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7

DDR3(256MB)

Ver. 2.0

21

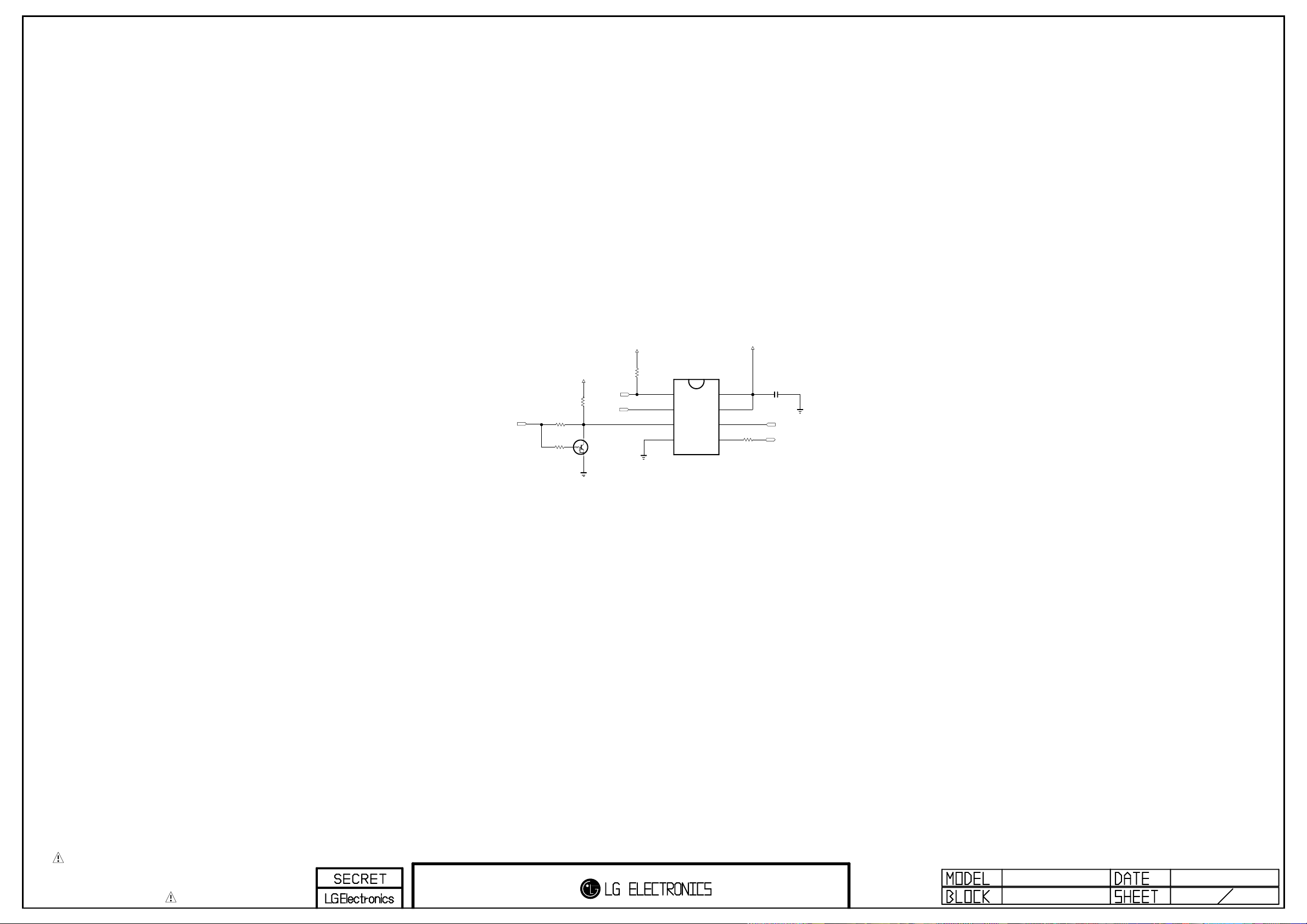

/FLASH_WP

R1401

OPT

R1402
0

0

+3.3V_Normal

R1403

10K

C

Q1401

B

KRC103S

E

/SPI_CS

SPI_SDO

+3.3V_Normal

R1404

4.7K

S_FLASH

IC1401

MX25L8005M2I-15G

CS#

1

SO

2

WP#

3

GND

4

8

7

6

5

VCC

HOLD#

SCLK

SI

+3.3V_Normal

R1405
33

C1401

0.1uF

SPI_SCK

SPI_SDI

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7

S-Flash(1MB)

Ver. 2.0

23

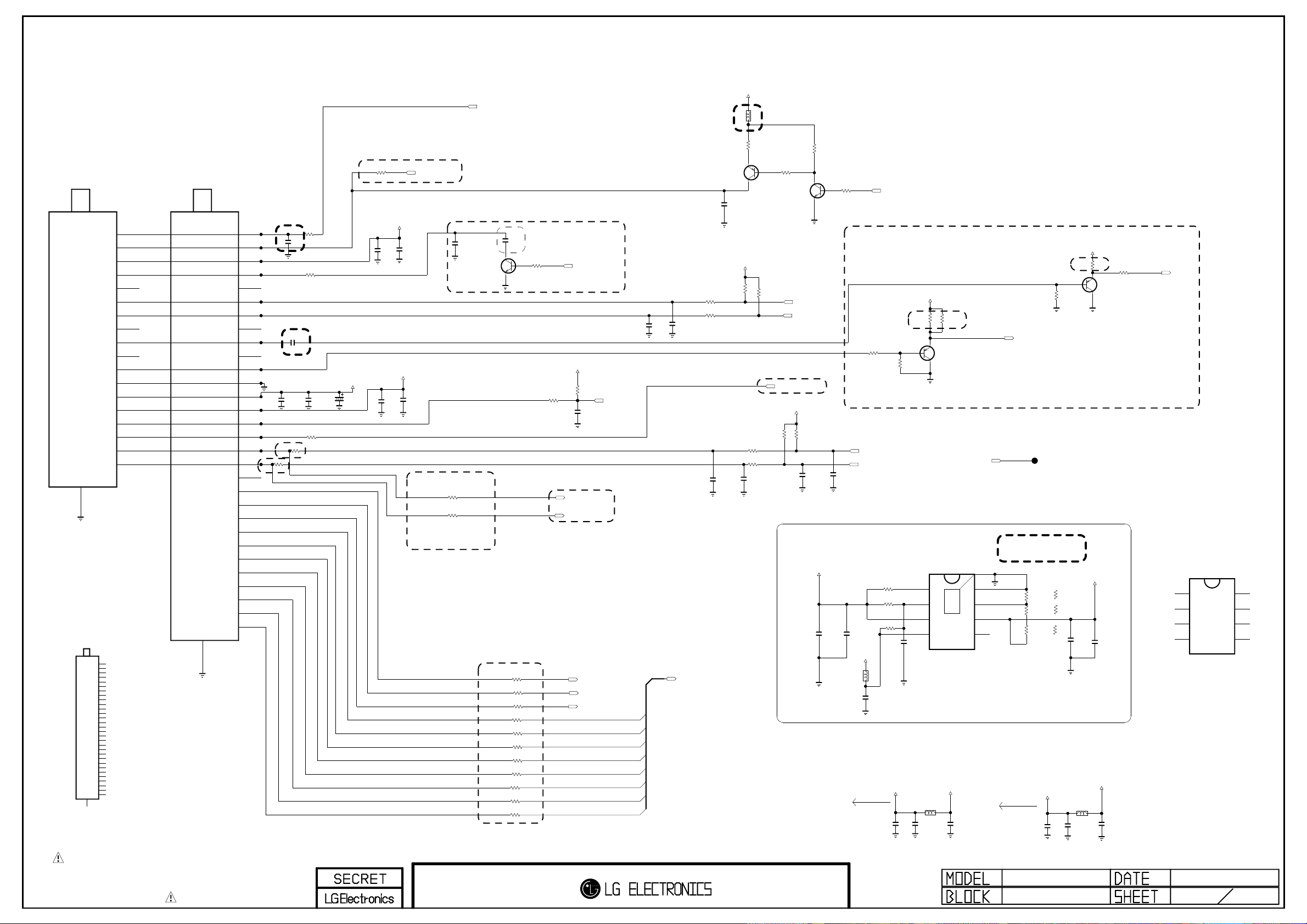

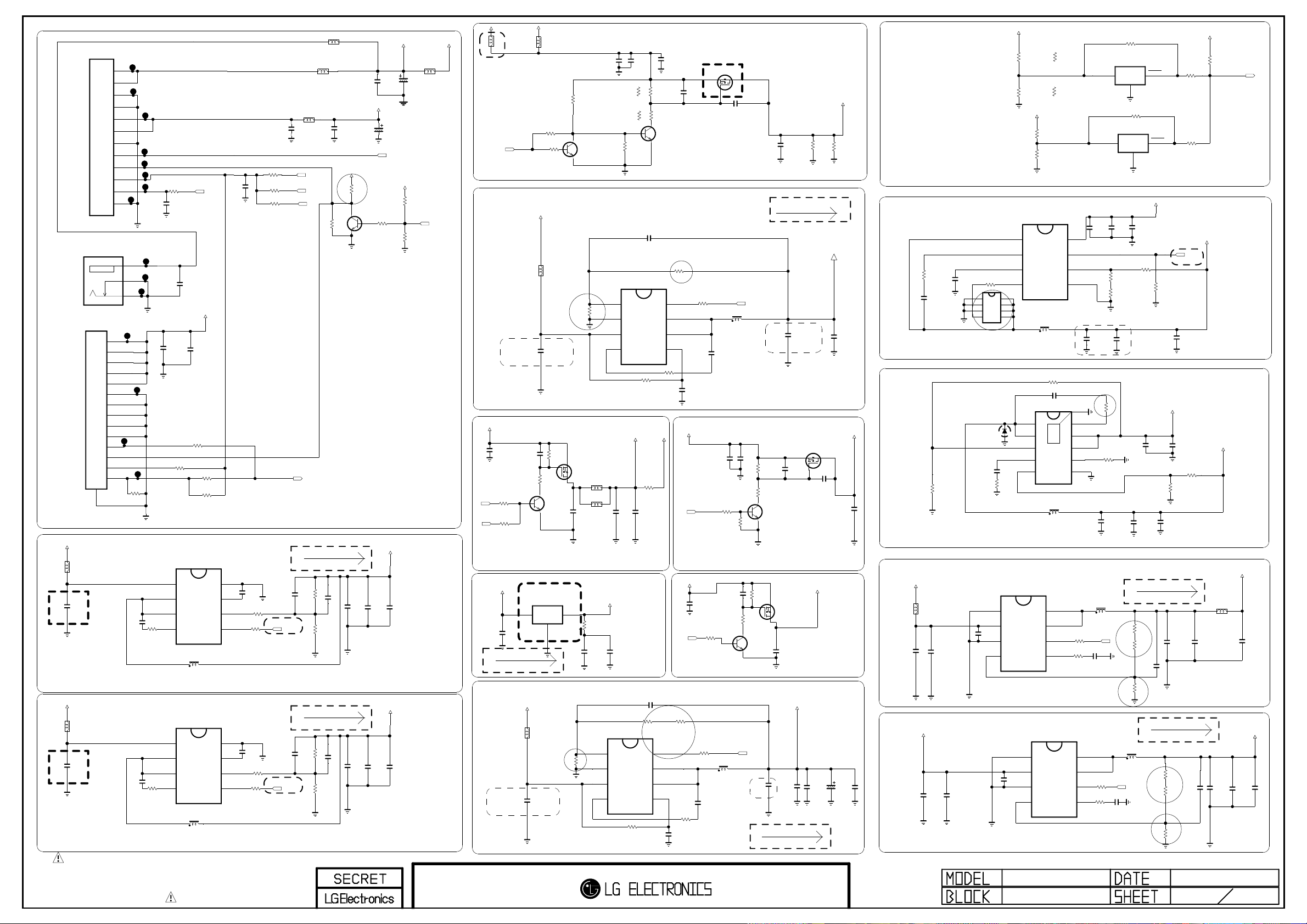

LGIT CAN NIM_H/N TUNER for EU & CHINA

RF_SWITCH_CTL

Pull-up can’t be applied
because of MODEL_OPT_2

+5V_TU

L3701

CHINA_OPT

BLM18PG121SN1D

EU_TUNER

19

SHIELD

CN_VERTICAL_LG3911

31

SHIELD

TU3702
TDTJ-S001D

ANT_PWR[OPT]

1

BST_CNTL

2

+B

3

NC[RF_AGC]

4

AS

5

SCL

6

SDA

7

NC[IF_TP]

8

SIF

9

NC

10

VIDEO

11

GND

12

1.2V

13

3.3V

14

RESET

15

IF_AGC_CNTL

16

DIF_1

17

DIF_2

18

TU3701-*1
TDFR-C055D

RF_S/W_CNTL

1

BST_CNTL

2

+B1[+5V]

3

NC[RF_AGC]

4

NC_1

5

SCLT

6

SDAT

7

NC_2

8

SIF

9

NC_3

10

VIDEO

11

GND

12

+B2[1.2V]

13

+B3[3.3V]

14

RESET

15

NC_4

16

SCL

17

SDA

18

ERR

19

SYNC

20

VALID

21

MCL

22

D0

23

D1

24

D2

25

D3

26

D4

27

D5

28

D6

29

D7

30

TU3701
TDFR-C035D

CN_HORIZONTAL_LG3911

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

SHIELD

close to TUNER

RF_S/W_CNTL

BST_CNTL

+B1[+5V]

NC[RF_AGC]

NC_1

SCLT

SDAT

NC_2

SIF

NC_3

VIDEO

GND

+B2[1.2V]

+B3[3.3V]

RESET

NC_4

SCL

SDA

R3702 0

R3701 0

ERR

SYNC

VALID

MCL

D0

D1

D2

D3

D4

D5

D6

D7

R3705 0

C3701

CHINA_OPT

0.1uF
16V

R3707 0

OPT

0.1uF 16V

C3737

C3738

100pF

0.1uF

50V

16V

R3704

CHINA_OPT

close to IF line

close to TUNER

close to TUNER

+1.2V_TU

C7934

100uF
16V

CHINA_OPT

0

EU_OPT

CHINA_OPT

OPT

R3762 0

+5V_TU

C3703
100pF
50V

C3707
100pF
50V

C3704

0.1uF
16V

+3.3V_TU

C3708

0.1uF
16V

CONTROL_ATTEN

EU_OPT

R3760 0

R3761 0

EU_OPT

Close to the tuner

C3728

0.1uF
16V

OPT

2SC3052

CHINA_OPT

CHINA_OPT

CHINA_OPT

C3731
10uF
10V

OPT

C

Q3704

B

OPT

E

R3724

CHINA_OPT

R3730

CHINA_OPT

R3731

CHINA_OPT

R3725

CHINA_OPT

R3727

CHINA_OPT

R3728

CHINA_OPT

R3729

CHINA_OPT

R3726

CHINA_OPT

R3721

R3722

R3723

Close to the CI Slot

OPTION : RF AGC

R3754
10K

OPT

FE_AGC_SPEED_CTL

IF_AGC_SEL

+3.3V_TU

R3733

R3732

100K

100

C3710

0.1uF

16V

IF_N_MSTAR

IF_P_MSTAR

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils
Signal to Signal Width = 12mils
Ground Width >= 24mils

0

0

0

0

0

0

0

0

0

0

0

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

TUNER_RESET

FE_TS_DATA[0]

FE_TS_DATA[1]

FE_TS_DATA[2]

FE_TS_DATA[3]

FE_TS_DATA[4]

FE_TS_DATA[5]

FE_TS_DATA[6]

FE_TS_DATA[7]

GPIO must be added.

C3711
18pF
50V

C3713
18pF
50V

FE_TS_DATA[0-7]

33

33

CHINA_OPT

R3735

R3736

C3712
22pF
50V

R3734
0

Q3701
ISA1530AC1

E

B

C

CHINA_OPT

C3709

0.01uF
25V
CHINA_OPT

+3.3V_TU

R3740

1.2K R3741

1.2K

should be guarded by ground

CHINA_OPT

R3738 100

CHINA_OPT

R3739 100

CHINA_OPT

C3714
22pF
50V
CHINA_OPT

CHINA_OPT

R3737

2.2K

IF_AGC_MAIN

+3.3V_TU

R3742

4.7K

Q3702

2SC3052

TU_SCL

TU_SDA

4.7K

C3732

10uF

10V

C

E

R3744

CHINA_OPT

C3715
22pF
50V

OPT

+3.3V_TU

CHINA_OPT

R3743
10K

CHINA_OPT

B

CHINA_OPT

C3717

0.1uF

R3745
10K

C3716
22pF
50V
OPT

C3733

0.1uF

FE_BOOSTER_CTL
LNA2_CTL

The pull-up/down of LNA2_CTL
is depended on MODLE_OPT_1.
GPIO must be added for FE_BOOSTER_CTL

R3749 0

R3750

1K

OPT

DEMOD_SCL

DEMOD_SDA

R3708
10K

BCD

R3709

SEMTEK

10K

R3710
10K

OPT

C3734

+5V_Normal

OPT

0.1uF

500

BCD

L3704

+5V_TU

200mA

+5V_TU

090916 de-rating solution

R3751

R3752

220

220

E

B

Q3703

ISA1530AC1

C

DEMOD_RESET

TU_CVBSC3702

SEMTEK VOUT : 1.248V

BCD VOUT : 1.215V

AP2132MP-2.5TRG1

1

PG

2

EN

3

VIN

BCD

VCTRL

4

IC3701

THERMAL

BCD

[EP]

8

GND

ADJ

VOUT

NC

SEMTEK

SEMTEK

SEMTEK

9

7

6

5

SEMTEK:Vout=0.8*(1+R1/R2)

BCD:Vout=0.6*(1+R1/R2)

+5V_General

BLM18PG121SN1D

C3722
22uF
16V

C3724

0.1uF
16V

L3702

C3726

0.1uF
16V

60mA

R3747

9.1K
5%

R3748

5.1K
5%

R3756
0
5%

+3.3V_TU

R3753

4.7K

R2

R1

BCD

R3747-*1
39K
1%

R3748-*1
20K
1%

R3756-*1
20K
1%

BLM18PG121SN1D

C3723
10uF
16V

+5V_TU

R3755

470

B

+1.2V_TU

BCD

BCD

C3729

0.1uF

+3.3V_Normal

L3703

C3725

0.1uF
16V

E

C

C3727

090916 de-rating solution

R3758
82

ISA1530AC1

Q3705

C3730
10uF

10V

0.1uF

16V

TU_SIF

NC_1

EN

VIN

NC_2

IC3701-*1

SC4215ISTRT

1

SEMTEK

2

3

4

8

GND

7

ADJ

6

VO

5

NC_3

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7

EU CAN TUNER

VER 2.0

27

USB1 OPTION

USB

USB DOW N ST REAM

JK2 301

KJA -UB- 4-00 04

1

2

3

VIN

GND

ENABLE

+3.3V_Normal

R2303

4.7K
OPT

R2306 0

R2305 0

R2304 0

TP2301

USB1_CTL

R2307
10K

C2303
10uF
10V

USB1_OCD

SIDE_USB_DM

SIDE_USB_DP

/RST_HUB

IC2301

R2301

180

D2302

CDS3C05HDMI1

5.6V

MIC2009YM6-TR

VOUT

ILIMIT

FAULT/

R2302 47

OPT

6

5

4

$0.18

L2301

MLB-201209-0120P-N2

120-ohm

C2302
10uF
10V

1234

D2301

5

CDS3C05HDMI1

5.6V
OPT

C2304

0.1uF

+5V_USB

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

USB

Ver. 1.0

39

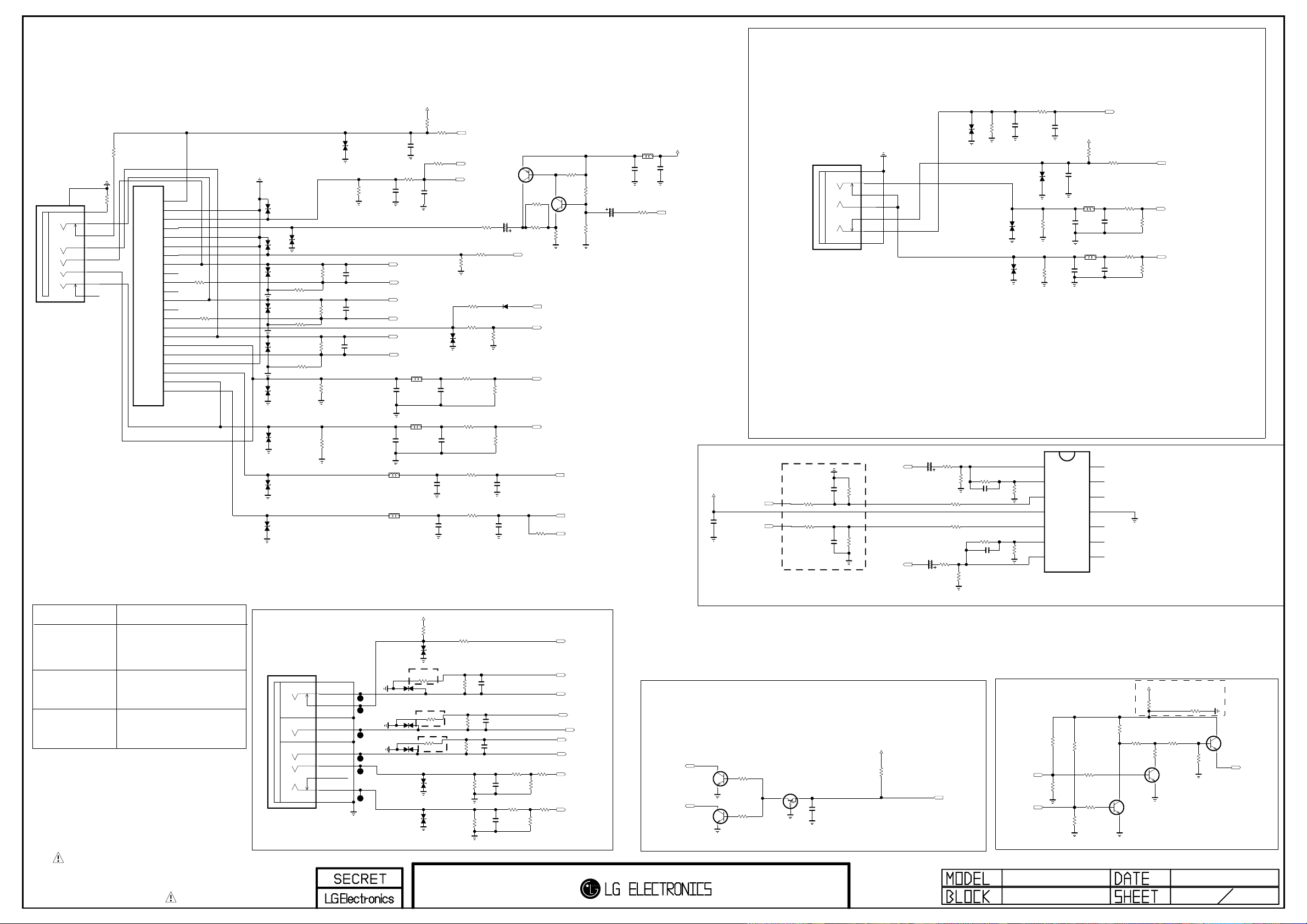

For EU & CHINA

Composite

Full Scart/ Comp1

0

R4223

FIX-TER

11

PPJ-230-01

JK1601

10

9

8

7

6

5

4

13

R4220

0

[GN]GND

[GN]G

[GN]C_DET

[BL]B

[RD]R

[WH]L_IN

[RD]R_IN

[RD]MONO

EU_OPT

PSC008-01

JK1602

OPTION TABLE

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV_DET

COM_GND

SYNC_IN

SYNC_OUT

SYNC_GND2

SYNC_GND1

RGB_IO

R_OUT

RGB_GND

R_GND

D2B_OUT

G_OUT

D2B_IN

G_GND

ID

B_OUT

AUDIO_L_IN

B_GND

AUDIO_GND

AUDIO_L_OUT

AUDIO_R_IN

AUDIO_R_OUT

R4221

0

EU_OPT

EU_OPT

R4224

+3.3V_Normal

R1613
10K

1K

C1612
330pF

EU_OPT

C1609
1000pF
50V

EU_OPT
C1610
1000pF
50V

C1611
330pF
50V

50V

OPT

D1618

30V

EU_OPT
R1616

75

EU_OPT
R1669
0

R1617
10K

R1618
10K

SC1_CVBS_IN

EU_OPT
R1622
0

SC1/COMP1_DET

SC1_SOG_IN

ISA1530AC1

EU_OPT
R1628
75

EU_OPT
R1627
22

EU_OPT
R1623
15K

EU_OPT
R1624
0

EU_OPT

Q1601

EU_OPT
C1620

100uF
16V

EU_OPT

30V

D1716

EU_OPT
R1629

3.9K

R1630
12K

R1631
12K

EU_OPT
C1618
4700pF

EU_OPT
C1619
4700pF

E

B

C

EU_OPT

R4211
390

EU_OPT
R1635
390

Rf

Gain=1+Rf/Rg

SC1_FB

R4212 0

HOTEL_OPT

EU_OPT

R1640
470

EU_OPT
Q1602

2SC3052

C

B

E

EU_OPT

Rg

R1639
180

REC_8

SC1_ID

SC1/COMP1_L_IN

SC1/COMP1_R_IN

DTV/MNT_L_OUT

DTV/MNT_R_OUT

AUDIO_R

EU_OPT
R1641
47K

EU_OPT
R1642
15K

EU_OPT
C1621
47uF
16V

IN CASE OF SMALL= 15V

+12V/+15V

EU_OPT
L1606

EU_OPT

EU_OPT

C1625

C1623

0.1uF

0.1uF
50V

50V

DTV/MNT_VOUT
EU_OPT
R1645
0

+12V/+15V

SCART1_Lout

C1642

0.1uF
50V

SCART1_Rout

EU_OPT/CHINA_HOTEL_OPT

CLOSE TO MSTAR

C1664

0.01uF

R4219 100

R4216 100

C1665

0.01uF

JK1604

PPJ233-01

5C

4C

3C

4B

3A

4A

5A

R4218

22K

R4217

22K

[RD]E-LUG

[RD]O-SPRING

[RD]CONTACT

[WH]C-LUG

[YL]CONTACT

[YL]O-SPRING

[YL]E-LUG

DTV/MNT_L_OUT

DTV/MNT_R_OUT

EU_OPT
C1644
10uF

16V

EU_OPT/CHINA_HOTEL_OPT

EU_OPT/CHINA_HOTEL_OPT

EU_OPT/CHINA_HOTEL_OPT

C1645
10uF
16V

R1655

2.2K

EU_OPT
R1656

2.2K

EU_OPT
R1611
0

L1604

120-ohm

L1603

120-ohm

C1607

0.1uF
16V

C1608
220pF
50V
OPT

R1614

EU_OPT
R4210
0

D1611

5.6V
OPT

OPT
C1606

OPT
C1605

EU_OPT
L1601
BLM18PG121SN1D

EU_OPT
L1602
BLM18PG121SN1D

EU_OPT
C1604
47pF
50V

SC1_R+/COMP1_Pr+

SC1_R-/COMP1_Pr-

SC1_G+/COMP1_Y+

SC1_G-/COMP1_Y-

SC1_B+/COMP1_Pb+

SC1_B-/COMP1_Pb-

EU_OPT
R1609

OPT
C1602

10pF

OPT
C1603

10pF

OPT

C1601
10pF

75

D1602
30V

OPT

D1610
30V

D1603
30V

OPT

OPT

D1604
30V

R1601

0

D1605

0

30V

D1606
30V

D1607

5.6V
OPT

D1609

5.6V

D1608

5.6V
OPT

D1601

5.6V
OPT

OPT

R1602
0

R1603

0

R1608
75

R1604
75

R1605

75

R1606

470K

R1607

470K

D1619
30V

EU_OPT

R1664
OPT
R1662
470K

33K

EU_OPT
R1657

5.6K

R1658

5.6K
EU_OPT/CHINA_HOTEL_OPT

R1665
33K

EU_OPT/CHINA_HOTEL_OPT

OPT
R1661
470K

R1654
75

D1626

5.6V

EU_OPT
C1654
33pF

C1655

33pF

EU_OPT/CHINA_HOTEL_OPT

C1643
47pF
50V

D1625

5.6V

EU_OPT
R1667
10K

R1668
10K

R1672

470K

R1659
0

1

2

3

4

5

6

7

R1671

470K

D1624

5.6V

1

2

3

4

5

6

7

C1648
220pF
50V

OPT

C1659

OPT

C1658
OPT

OPT

IC1601
LM324D

+3.3V_Normal

C1646

0.1uF
16V

L1609

120-ohm

OPT

L1610

120-ohm

14

13

12

11

10

9

8

AV_CVBS_IN

R1660
10K

R1666

1K

R1685
10K

C1663

330pF

R1689

12K

50V

R1684
10K

C1662
330pF

R1688

12K

50V

EU_OPT/CHINA_HOTEL_OPT

14

13

12

11

10

9

8

AV_CVBS_DET

AV_R_IN

AV_L_IN

NAME

AV_OPT

STATUS

EU : Not Using

COMPONENT2

+3.3V_Normal

China : Using

D1612
30V

D1614 30V

D1615

R4215

R4214

R4213

30V

CHINA_OPT

EU_OPT

EU : Not Using
China : Using

EU :Using

China:NotUsing

PPJ234-01

JK1603

[GN]E-LUG

6A

[GN]O-SPRING

5A

[GN]CONTACT

4A

[BL]E-LUG-S

7B

[BL]O-SPRING

5B

[RD]E-LUG-S

7C

[RD]O-SPRING_1

5C

[WH]O-SPRING

5D

[RD]CONTACT

4E

[RD]O-SPRING_2

5E

[RD]E-LUG

6E

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R1612

10K

D1613

5.6V

FOR ESD & EMI

0

FOR ESD & EMI

0

FOR ESD & EMI

0

D1616

5.6V

D1617

5.6V

R1615
1K

R1625
470K

R1626

470K

R1619
75

75
R16 20

75
R16 21

OPT
C1613

10pF
50V

50V
10pF
C1614

OPT

50V
10pF
C1615

OPT

C1616
1000pF
50V

C1617
1000pF
50V

R1633
10K

R1632
10K

R1637
0

R1636

12K

R1634
12K

R1638
0

COMP2_DET

COMP2_Y-

COMP2_Y+

COMP2_Pb-

COMP2_Pb+

COMP2_Pr-

COMP2_Pr+

COMP2_L_IN

COMP2_R_IN

[SCART AUDIO MUTE]

DTV/MNT_L_OUT

DTV/MNT_R_OUT

EU_OPT
Q1607
2SC3052

EU_OPT
Q1608
2SC3052

EU_OPT
R1648
2K

EU_OPT
R1650
2K

EU_OPT
RT1P141C-T112
Q1610

3

1

2

EU_OPT
C1636

0.1uF

R1652
10K

+3.5V_ST

SCART1_MUTE

[SCART PIN 8]

OPT
R1675
2K

SC_RE1

SC_RE2

OPT
R1676

560

OPT
R1678
680

GP2_Saturn7M

SCART/RCA

EU_OPT
R1677
10K

EU_OPT
R1681
1K

EU_OPT
R1680

1K

EU_OPT
R1687
10K

B

C

E

EU_OPT
R1690
0

EU_OPT
Q1611
2SC3052

+12V/+15V

B

IN CASE OF SMALL= 15V

R4205
0

EU_OPT
R1695
12K

C

EU_OPT
Q1613

E

2SC3052

EU_OPT
R4202
0

19-22_LAMP

R4207
51K

R1694

10K

OPT

41

C

EU_OPT

B

Q1615
2SC3052

E

Ver. 1.1

REC_8

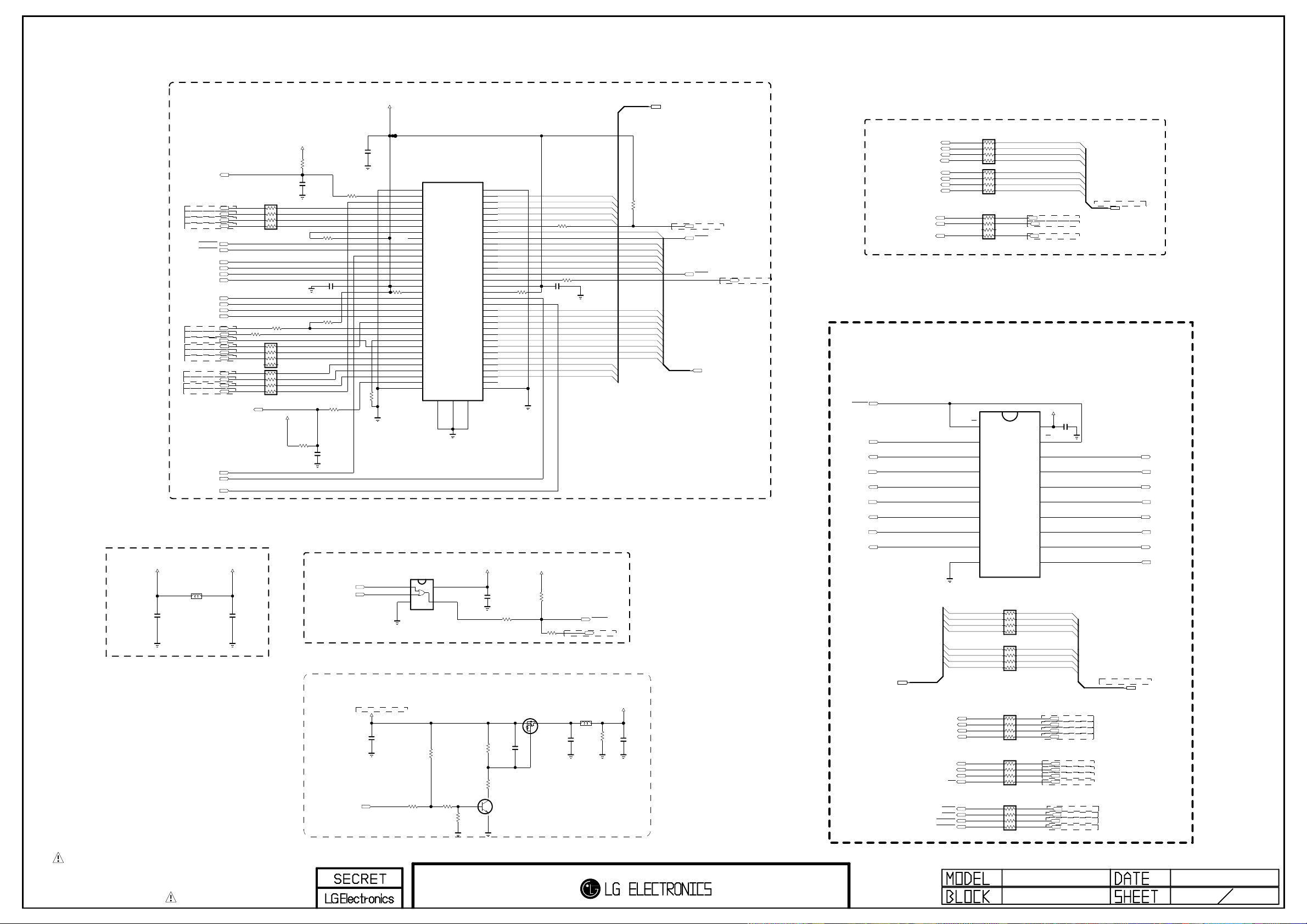

CI Region

* Option name of this page : CI_SLOT

(because of Hong Kong)

CI SLOT

+3.3V_Normal

0.1uF

C1901

/CI_CD1

CI_TS_DATA[4]
CI_TS_DATA[5]
CI_TS_DATA[6]
CI_TS_DATA[7]

CI_IORD
CI_IOWR

CI_MDI[0]
CI_MDI[1]
CI_MDI[2]
CI_MDI[3]

CI_MDI[4]
CI_MDI[5]
CI_MDI[6]
CI_MDI[7]

PCM_RST

/PCM_WAIT

REG

CI_TS_CLK

CI_TS_VAL

CI_TS_SYNC

CI_TS_DATA[0]
CI_TS_DATA[1]
CI_TS_DATA[2]
CI_TS_DATA[3]

CI_MISTRT

CI_MIVAL_ERR

CI_MCLKI

L1901

BLM18PG121SN1D

/CI_CD2

+3.3V_CI

C1902

0.1uF

R1901

AR1901

R1902

47

AR1902

AR1903

+5V_Normal

33

47

33

33

+5V_Normal

10K

R1903

C1903

0.1uF
16V

R1908 100

R1905

10K

0.1uF

C1905

GND

R1906

10K

R1907

100

R1909 0

GND

R1904
10K

C1904

0.1uF
16V

CI DETECT

/CI_CD2

/CI_CD1

CI POWER ENABLE CONTROL

+5V_Normal

C1907

PCM_5V_CTL

+5V_CI_ON

C1906
10uF
10V

R1910

OPT

0.1uF
16V

CI_DATA[0-7]

EAG41860102

P1901

10067972-000LF

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

0

52

OPT

53
54
55
56
57
58
59

65
66
67
68

2

IC1901

KIC7SZ32FU

1IN_B 5 VCC

2IN_A

3GND

4 OUT_Y

10K

OPT

R1911

R1913
10K

0

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17

R1916

18
19
20
21
22
23
24
25
2660
2761
2862
2963
3064
31
32
33
34

G1G2

1

69

GND

+3.3V_CI

16V

0.1 uF

C19 08

GND

R1915

47

R1914
22KR1912

R1922

2.2K

C

Q1901

B

2SC3052

R1924

E

10K

0

OPT

GND

+3.3V_CI

Q1902

RSR025P03

S

C1911

4.7uF
16V

OPT

R1919

10K

R1917

R1918

D

G

R1920

C1909

0.1uF

47

CI_DATA[3]
CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

47

100

GND

L1902

BLM18PG121SN1D

C1910

0.1uF

16V

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]

CI_DET

/PCM_CD

CI_DATA[0-7]

CI_DATA[0-7]

+5V_CI_ON

R1923

10K

OPT

R1921

10K

CI_ADDR[10]

CI_ADDR[11]

CI_ADDR[9]

CI_ADDR[8]
CI_ADDR[13]
CI_ADDR[14]

CI_ADDR[12]

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_ADDR[3]

CI_ADDR[2]

CI_ADDR[1]

CI_ADDR[0]

C1912

0.1uF
16V

/PCM_CE

CI_OE

CI_WE

CI_ADDR[0-14]

/PCM_IRQA

CI HOST I/F

CI_ADDR[7]

CI_ADDR[6]

CI_ADDR[5]

CI_ADDR[4]

CI_DET

PCM_A[0]

PCM_A[1]

PCM_A[2]

PCM_A[3]

CI TS INPUT

CI_MIVAL_ERR

CI_DATA[0-7]

CI_MDI[7]
CI_MDI[6]
CI_MDI[5]

CI_MDI[4]

CI_MDI[3]
CI_MDI[2]
CI_MDI[1]
CI_MDI[0]

CI_MISTRT

CI_MCLKI

CI_DATA[0-7]

CI_ADDR[8]

CI_ADDR[9]
CI_ADDR[10]
CI_ADDR[11]

CI_ADDR[12]
CI_ADDR[13]
CI_ADDR[14]

CI_OE

CI_WE
CI_IORD
CI_IOWR

CI_DATA[0]
CI_DATA[1]
CI_DATA[2]
CI_DATA[3]

CI_DATA[4]
CI_DATA[5]
CI_DATA[6]
CI_DATA[7]

REG

AR1905

33

AR1906

33

AR1904

33

IC1902

1OE

1

TOSHIBA

1A1

2

0ITO742440D

2Y4

3

1A2

4

2Y3

5

1A3

6

2Y2

1A4

2Y1

GND

TC74LCX244FT

7

8

9

10

AR1907

33

AR1908

33

AR1912

33

AR1913

33

AR1909

33

FE_TS_DATA[7]
FE_TS_DATA[6]
FE_TS_DATA[5]
FE_TS_DATA[4]

FE_TS_DATA[3]
FE_TS_DATA[2]
FE_TS_DATA[1]
FE_TS_DATA[0]

FE_TS_SYNC

FE_TS_VAL_ERR

FE_TS_CLK

+3.3V_CI

VCC

20

2OE

19

1Y1

18

2A4

17

1Y2

16

2A3

15

1Y3

14

2A2

13

1Y4

12

2A1

11

C1913

0.1uF
16V

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]

PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]

PCM_A[8]
PCM_A[9]

PCM_A[10]
PCM_A[11]

PCM_A[12]
PCM_A[13]
PCM_A[14]
/PCM_REG

/PCM_OE

/PCM_WE
/PCM_IORD
/PCM_IOWR

@netLa

FE_TS_DATA[0-7]

CI_ADDR[0]

PCM_A[7]

CI_ADDR[1]

PCM_A[6]

CI_ADDR[2]

PCM_A[5]

CI_ADDR[3]

PCM_A[4]

PCM_D[0-7]

PCM_D[0-7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M Ver. 1.0

PCMCI

45

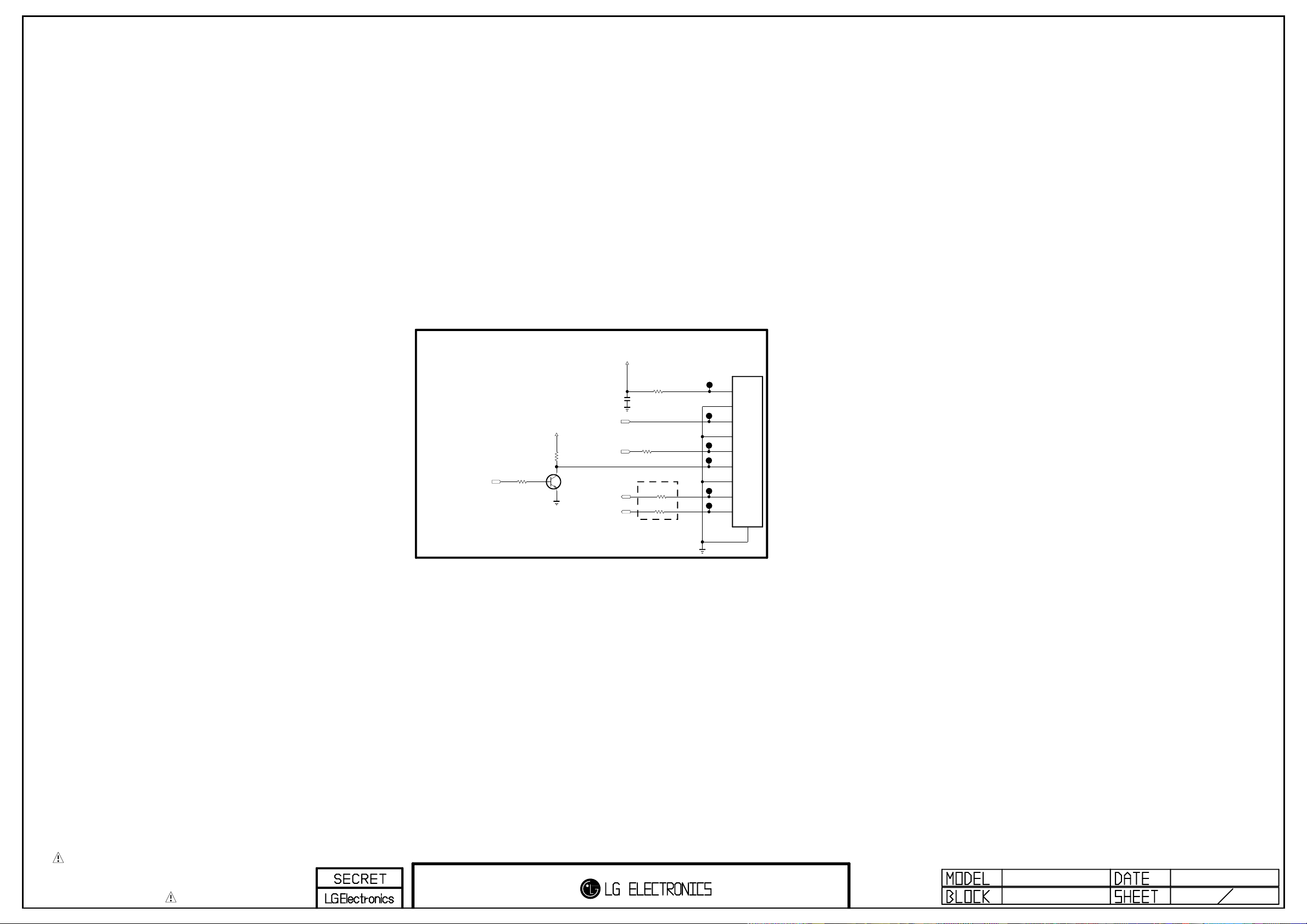

China HOTEL Option

Chinese Hotel Option

AMP_MUTE_HOTEL

AMP_MUTE_HOTEL

R3401 200
HOTEL_OPT

+3.3V_Normal

C

B

E

R3402
10K
HOTEL_OPT

Q3401
RT1C3904-T112
HOTEL_OPT

AUDIO_R

AMP_RESET_N

SPK_R+_HOTEL

SPK_R-_HOTEL

AMP_VCC

R3404
HOTEL_OPT

C3401

0.1uF
HOTEL_OPT

HOTEL_OPT

R3403 0

HOTEL_OPT

CLOSE TO THE EARPHONE

0

HOTEL_OPT

R3406 0

R3405 0

P3401

12505WS-09A00

HOTEL_OPT

1

2

3

4

5

6

7

8

9

10

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

CHINA HOTEL

Ver. 1.0

51

SIDEAV_DET

SIDEAV_CVBS_IN

SIDEAV_L_IN

SIDEAV_R_IN

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

NON SIDE AV

Ver. 1.0
53

NON-WIRELESS MODEL

S7_TXD

WIRELESS_SW_CTRL

WIRELESS_PWR_EN

WIRELESS_DETECT

WIRELESS_DL_RX

WIRELESS_DL_TX

R2627 0

R2626 0

S7_RXD1S7_RXD

S7_TXD1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

NON WIRELESS READY

Ver. 1.0

54

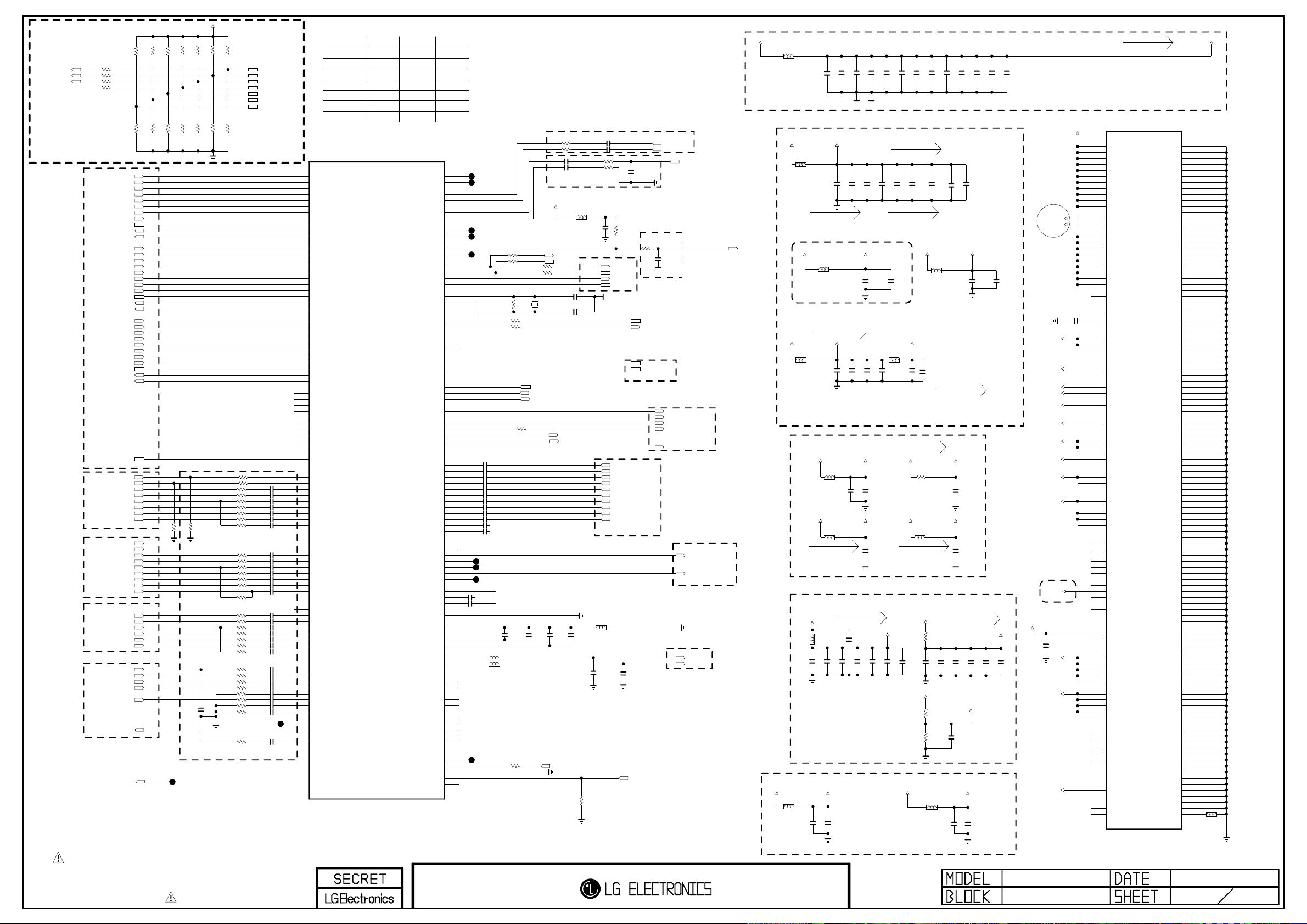

IF_AGC_SEL

LNA2_CTL

RF_SWITCH_CTL

OPT

R7300 100
R7301 100
R7302 100
R7303 100

CK+_HDMI1
CK-_HDMI1
D0+_HDMI1
D0-_HDMI1
D1+_HDMI1
D1-_HDMI1
D2+_HDMI1
D2-_HDMI1
DDC_SDA_1
DDC_SCL_1
HPD1

CK+_HDMI2
CK-_HDMI2
D0+_HDMI2
D0-_HDMI2
D1+_HDMI2
D1-_HDMI2
D2+_HDMI2
D2-_HDMI2
DDC_SDA_2
DDC_SCL_2
HPD2

CK+_HDMI4

HDMI

CK-_HDMI4
D0+_HDMI4
D0-_HDMI4
D1+_HDMI4
D1-_HDMI4
D2+_HDMI4
D2-_HDMI4
DDC_SDA_4
DDC_SCL_4
HPD4

CEC_REMOTE_S7

DSUB_HSYNC
DSUB_VSYNC

DSUB_R+
DSUB_R­DSUB_G+

DSUB

DSUB_G­DSUB_B+
DSUB_B-

SCART1_RGB/COMP1

SC1_ID

SC1_FB
SC1_R+/COMP1_Pr+
SC1_R-/COMP1_Pr-

SC1_G+/COMP1_Y+

SC1_G-/COMP1_Y­SC1_B+/COMP1_Pb+
SC1_B-/COMP1_Pb-

SC1_SOG_IN

COMP2_Pr+
COMP2_Pr-

COMP2_Y+

COMP2

COMP2_Y­COMP2_Pb+
COMP2_Pb-

TU_CVBS

SC1_CVBS_IN

AV_CVBS_IN

SIDEAV_CVBS_IN

AV_CVBS_IN2

CVBS In/OUT

DTV/MNT_VOUT

AV_CVBS_IN2

1K

R7834

1K

R7833

+3.3V_Normal

OPT

OPT

R7377 1K

R7379 1K

OPT

R7378 1K

R7380 1K

OPT

FHD

OPT

R7306 1K

R7308 1K

HD

R7309 1K

R7307 1K

R7310 1K

R7311 1K

OPT

R7312 1K

R7313 1K

MODEL OPTION

MODEL_OPT_0
MODEL_OPT_1
MODEL_OPT_2
MODEL_OPT_3
MODEL_OPT_4
MODEL_OPT_5
MODEL_OPT_6

PIN NAME

MODEL_OPT_0

MODEL_OPT_1

MODEL_OPT_2

MODEL_OPT_3

MODEL_OPT_4

MODEL_OPT_5

MODEL_OPT_6

LGE101D (S7 Non_Tcon/RM)

F1

A_RXCP

F2

A_RXCN

G2

A_RX0P

G3

A_RX0N

H3

A_RX1P

G1

A_RX1N

H1

A_RX2P

H2

A_RX2N

F5

DDCDA_DA/GPIO24

F4

DDCDA_CK/GPIO23

E6

HOTPLUGA/GPIO19

D3

B_RXCP

C1

B_RXCN

D1

B_RX0P

D2

B_RX0N

E2

B_RX1P

E3

B_RX1N

F3

B_RX2P

E1

B_RX2N

D4

DDCDB_DA/GPIO26

E4

DDCDB_CK/GPIO25

D5

HOTPLUGB/GPIO20

AA2

C_RXCP

AA1

C_RXCN

AB1

C_RX0P

AA3

C_RX0N

AB3

C_RX1P

AB2

C_RX1N

AC2

C_RX2P

AC1

C_RX2N

AB4

DDCDC_DA/GPIO28

AA4

DDCDC_CK/GPIO27

AC3

HOTPLUGC/GPIO21

A2

D_RXCP

A3

D_RXCN

B3

D_RX0P

A1

D_RX0N

B1

D_RX1P

B2

D_RX1N

C2

D_RX2P

C3

D_RX2N

B4

DDCDD_DA/GPIO30

C4

DDCDD_CK/GPIO29

E5

HOTPLUGD/GPIO22

D6

CEC/GPIO5

R7314

R7304

10K

1000pF

R7305

C7300

OPT

22

R7315

22

R7316 33

C7301 0.047uF

R7317 68

C7302 0.047uF
C7303 0.047uF

R7318 33

C7304 0.047uF

R7319 68

C7305 0.047uF

R7320 33

C7306 0.047uF

R7321 68

C7307 1000pF

R7322 0

10K

R7340 33

C7308 0.047uF

R7341 68

C7309 0.047uF
C7310

R7342

33

R7343

C7311

68

R7344 33

C7312

R7345 68

C7313
C7314 1000pF

R7323 0

NON_EU

R7324 33

C7315 0.047uF
C7316 0.047uF

R7325 68
R7326

C7317 0.047uF

33

R7327

68

C7318 0.047uF
C7319 0.047uF

R7328 33

C7320 0.047uF

R7329 68

C7321 1000pF

R7330 0

R7331 33

C7322 0.047uF
C7323 0.047uF

R7332 33

C7324 0.047uF

R7333 33
R7334 33

C7325 0.047uF
C7326 0.047uF

R7335 33
R7336 33

C7327 0.047uF

R7337 33

C7328 0.047uF

R7338 33

C7329 0.047uF

TP7300

R7339 68

C7330 0.047uF

0.047uF

0.047uF

0.047uF

0.047uF

G5
G6
K1
L3
K3
K2
J3
J2
J1

G4
H6
K5
K4
J4
K6
H4
J6
J5

H5
N3
N2
M2
M1
L2
L1
M3

N4
N6
L4
L5
L6
M4
M5
K7

M6
M7

N5

HSYNC0
VSYNC0
RIN0P
RIN0M
GIN0P
GIN0M
BIN0P
BIN0M
SOGIN0

HSYNC1
VSYNC1
RIN1P
RIN1M
GIN1P
GIN1M
BIN1P
BIN1M
SOGIN1

HSYNC2
RIN2P
RIN2M
GIN2P
GIN2M
BIN2P
BIN2M
SOGIN2

CVBS0P
CVBS1P
CVBS2P
CVBS3P
CVBS4P
CVBS5P
CVBS6P
CVBS7P

CVBS_OUT1
CVBS_OUT2

VCOM0

Close to MSTAR

TP211

MODEL OPTION

PIN NO.

IC101

S7_DIVX

MINI LVDSC5

DDR_512MB

F7

B6

E18

D18

F9

TGPIO0/UPGAIN

TGPIO1/DNGAIN
TGPIO2/I2C_CLK
TGPIO3/I2C_SDA

SPDIF_IN/GPIO177

SPDIF_OUT/GPIO178

I2S_IN_BCK/GPIO175

I2S_IN_SD/GPIO176
I2S_IN_WS/GPIO174

I2S_OUT_BCK/GPIO181
I2S_OUT_MCK/GPIO179

I2S_OUT_SD/GPIO182
I2S_OUT_SD1/GPIO183
I2S_OUT_SD2/GPIO184
I2S_OUT_SD3/GPIO185

I2S_OUT_WS/GPIO180

HIGH

FRCG19

FHD

GIP

OLED

SSIF/SIFP
SSIF/SIFM

IFAGC

RF_TAGC

XTALIN

XTALOUT

DM_P0
DP_P0

DM_P1
DP_P1

LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R
LINE_IN_2L
LINE_IN_2R
LINE_IN_3L
LINE_IN_3R
LINE_IN_4L
LINE_IN_4R
LINE_IN_5L
LINE_IN_5R

LINE_OUT_0L
LINE_OUT_2L
LINE_OUT_3L
LINE_OUT_0R
LINE_OUT_2R
LINE_OUT_3R

MIC_DET_IN

MICCM
MICIN

AUCOM

HP_OUT_1L
HP_OUT_1R

ET_RXD0
ET_TXD0

ET_RXD1
ET_TXD1

ET_REFCLK

ET_TX_EN

ET_MDC

ET_MDIO

ET_CRS

AVLINK

IRINT

TESTPIN

RESET
NC_16

VIFP
VIFM

IP
IM

QP
QM

VRM

VAG
VRP

LOW

NO FRC

LVDS

DDR_256MB

HD

50/60Hz LVDS100/120Hz LVDS

NON_GIP

LCD

W2
W1

V2
V1

Y2
Y1

U3
V3

Y5
Y4

U1
U2
R3
T3

T2
T1

G14
G13

B7
A7

AF17
AE17

F14
F13
F15

D20
E20
D19
F18
E18
D18
E19

N1
P3
P1
P2
P4
P5
R6
T6
U5
V5
U6
V6

U4
W3
W4
V4
Y3
W5

R4
T5
R5

T4

P7

R7
P6

R1
R2

E21
E22

D21
F21

E23
D22
F22
D23
F23

F8
G8
K8
A4
Y17

C7333 2.2uF
C7334
C7335 2.2uF
C7336
C7337 2.2uF
C7338
C7339
C7340 2.2uF
C7341 2.2uF
C7342 2.2uF
C7343
C7344

OPT

C7331
C7332

OPT

TP7301
TP7302

TP7303
TP7304

TP7305

TP7307
TP7308

TP7309

2.2uF

2.2uF

C7345

4.7uF

CM2012F5R6KT

L7315

L7316

CM2012F5R6KT

TP7306

R7350
R7351

DEMOD_OPT
DEMOD_OPT

R7349

R7352

R7353 100

R7355

2.2uF

2.2uF

2.2uF

2.2uF

2.2uF

OPT

2.2uF

OPT

C7346

1uF

5.6uH

5.6uH

OPT

R7354 100

0
0

R7359 22
R7360 22

1M

OPT

0

NEC_SDA

COMP2_DET

NEC_SCL

0

OPT

C7347

0.1uF

Close to MSTAR

R7361 100
R7362 100

C7348 0.1uF
C7349 0.1uF

ANALOG SIF

Close to MSTAR

+3.3V_Normal

AMP_SCL

AMP_SDA

C7350 27pF

X7300

24MHz

C7351 27pF

MODEL_OPT_4

MODEL_OPT_5

C7352
10uF

IR

C7353 0.1uF
C7354 0.1uF

R7364 47
R7365 47

L7300
BLM18PG121SN1D

C7355

0.1uF

TU/DEMOD_I2C

L7301

BLM18SG121TN1D

C7417

4.7uF
10V

10K

R7363

OPT

C7357

1000pF

Close to MSTAR

R7366
1K

DEMOD_SCL
DEMOD_SDA
TU_SCL
TU_SDA

SIDE USB

SC1/COMP1_L_IN
SC1/COMP1_R_IN
AV_L_IN
AV_R_IN
SIDEAV_L_IN
SIDEAV_R_IN
COMP2_L_IN
COMP2_R_IN
PC_L_IN
PC_R_IN

C7418

4.7uF
10V

SOC_RESET

R7370

10K

AMP_SDA
SPDIF_OUT

SIDE_USB_DM
SIDE_USB_DP

AUDIO IN

DTV_IF

IF_P_MSTAR
IF_N_MSTAR

TU_SIF

C7359

0.022uF
16V

AUD_SCK
AUD_MASTER_CLK
AUD_LRCH
AMP_SCL

AUD_LRCK

H/P OUT

SCART1_Lout

SCART1_Rout

HP_LOUT
HP_ROUT

I2S_I/F

+1.26V_VDDC

IF_AGC_MAIN

AUDIO OUT

L7302
BLM18SG700TN1D

+3.3V_Normal

L7304

BLM18PG121SN1D

AVDD_MEMPLL:24mA

VDD33

+3.3V_Normal

L7305

BLM18PG121SN1D

Normal 2.5V

+2.5V_Normal

+2.5V_Normal

+1.5V_DDR

L7306

C7366

RSDS Power OPT

+1.26V_VDDC

L7303
BLM18SG700TN1D

10uFC7362

10uFC7361

VDD33

10uFC7370

L7314
BLM18PG121SN1D

VDD33_DVI:163mA

VDD33_DVI

C7371

10uF

L7307
BLM18PG121SN1D

L7308
BLM18PG121SN1D

AU25:10mA

AVDD_DDR0:55mA

BLM18PG121SN1D

C7369

C7374

10uF

10uF

MIU1VDDC

10uFC7363

C7372 0.1uF

C7368 0.1uF

C7365 0.1uF

Normal Power 3.3V

VDD33_T/VDDP/U3_VD33_2:47mA

10uFC7375

10uFC7381

C7389 0.1uF

C7385 0.1uF

AU33:31mA

AVDD_LPLL

C7413

C7414

0.1uF

0.1uF

090916 modified

AVDD_DMPLL

L7310

BLM18PG121SN1D

C7386

0.1uF

C7382

0.1uF

C7376

0.1uF

AVDD_DMPLL/AVDD_NODIE:7.362mA

C7378 0.1uF

AU25

C7379 0.1uF

AVDD2P5/ADC2P5:162mA

AVDD2P5

+2.5V_Normal

AVDD25_PGA:13mA

AVDD2P5

C7373 10uF

DDR3 1.5V

AVDD_DDR0

C7419

0.1uF

C7384

0.1uF

0.1uF

C7380

0.1uF

C7388

C7420

0.1uF

+1.26V_VDDC

VDDC 1.26V

C7377 0.1uF

C7383 0.1uF

C7392 0.1uF

C7398 0.1uF

VDD33

L7309

BLM18PG121SN1D

C7395

0.1uF

C7394

0.1uF

R7373
0

1/10W
5%

L7311

BLM18PG121SN1D

AVDD_DDR0

0

5%

R7374

1/10W

C7397

C7401

0.1uF
10uF

AVDD_DDR0

R73751K1/16W

1%

R73761K1/16W

1%

L7313

BLM18SG700TN1D

C7391 0.1uF

C7387 0.1uF

C7402 0.1uF

ADC2P5

AVDD25_PGA

AVDD_DDR1:55mA

C7406

10uF

C7415

0.1uF

MIU0VDDC

C7407 0.1uF

C7404 0.1uF

C7405 0.1uF

0.1uF

MVREF

AU33

C7408

C7396 0.1uF

C7393

0.1uF

0.1uF

C7400 0.1uF

AVDD_DDR1

C7409

0.1uF

C7410

C7403 0.1uF

C7399 0.1uF

0.1uF

MIU0VDDC
MIU1VDDC

AVDD_LPLL

090916 modified

VDD33

C7412 1uF

ADC2P5

AU25

AVDD2P5

AVDD2P5

AVDD25_PGA

AVDD_DMPLL

VDD33_DVI

AVDD_DMPLL

AU33

VDD33

C7411

0.1uF

AVDD_DDR0

AVDD_DDR1

MVREF

VDDC : 2026mA

LGE101D (S7 Non_Tcon/RM)

VDDC

H11
H12
H13
H14
H15
J12
J13
J14
J15
J16
L18

H16
K19

L19
M18
M19
N18
N19
N20
P18
P19
P20

Y12

J11

L7

H7
J7
J8

L8

W15
Y15

U8

M8

N9
P9
N8
P8

T7
U7

T9

R8
R9
T8

V20
W20

U19
U20
V19

W19
U18
T20

Y14

R19
W14

D15
D16
E15
E16
E17

F16
F17
G16
G17
H17

AB11
AB12
AC11
AC12
AA12

G15

Y7
Y8

IC101

S7_DIVX

VDDC_1
VDDC_2
VDDC_3
VDDC_4
VDDC_5
VDDC_6
VDDC_7
VDDC_8
VDDC_9
VDDC_10
VDDC_11

A_DVDD
B_DVDD

VDDC_12
VDDC_13
VDDC_14
VDDC_15
VDDC_16
VDDC_17
VDDC_18
VDDC_19
VDDC_20

NC_13

AVDD1P2
DVDD_NODIE

AVDD2P5_ADC_1
AVDD2P5_ADC_2
AVDD25_REF

AVDD_AU25

PVDD_1
PVDD_2

AVDD25_PGA

AVDD_NODIE

AVDD_DVI_1
AVDD_DVI_2
AVDD3P3_CVBS
AVDD_DMPLL

AVDD_AU33
AVDD_EAR33

AVDD33_T

VDDP_1
VDDP_2
VDDP_3

NC_5
NC_8

NC_2
NC_3
NC_4

NC_7
AVDD_LPLL
NC_1

NC_14

AVDD_MEMPLL
NC_6

AVDD_DDR0_D_1
AVDD_DDR0_D_2
AVDD_DDR0_D_3
AVDD_DDR0_D_4
AVDD_DDR0_C

AVDD_DDR1_D_1
AVDD_DDR1_D_2
AVDD_DDR1_D_3
AVDD_DDR1_D_4
AVDD_DDR1_C

NC_22
NC_23
NC_27
NC_28
NC_18

MVREF

NC_9
NC_10

GND_1
GND_2
GND_3
GND_4
GND_5
GND_6
GND_7
GND_8

GND_9
GND_10
GND_11
GND_12
GND_13
GND_14
GND_15
GND_16
GND_17
GND_18
GND_19
GND_20
GND_21
GND_22
GND_23
GND_24
GND_25
GND_26
GND_27
GND_28
GND_29
GND_30
GND_31
GND_32
GND_33
GND_34
GND_35
GND_36
GND_37
GND_38
GND_39
GND_40
GND_41
GND_42
GND_43
GND_44
GND_45
GND_46
GND_47
GND_48
GND_49
GND_50
GND_51
GND_52
GND_53
GND_54
GND_55
GND_56
GND_57
GND_58
GND_59
GND_60
GND_61
GND_62
GND_63
GND_64
GND_65
GND_66
GND_67
GND_68
GND_69
GND_70
GND_71
GND_72
GND_73
GND_74
GND_75
GND_76
GND_77
GND_78
GND_79
GND_80
GND_81
GND_82
GND_83
GND_84
GND_85
GND_86
GND_87
GND_88
GND_89
GND_90
GND_91
GND_92
GND_93
GND_94
GND_95
GND_96
GND_97
GND_98
GND_99

GND_100
GND_101
GND_102
GND_103
GND_104
GND_106
GND_107
GND_108
GND_109
GND_110
GND_111

GND_FU

PGA_VCOM

AI26

VDDC

G18
H9
H10
H18
H19
J10
J17
J18
J19
K9
K10
K11
K12
K13
K14
K15
K16
K17
K18
L9
L10
L11
L12
L13
L14
L15
L16
L17
M9
M10
M11
M12
M13
M14
M15
M16
M17
N10
N11
N12
N13
N14
N15
N16
N17
P10
P11
P12
P13
P14
P15
P16
P17
R10
R11
R12
R13
R14
R15
R16
R17
R18
T10
T11
T12
T13
T14
T15
T16
T17
T18
T19
U10
U11
U12
U13
U14
U15
U16
U17
V7
V8
V9
V10
V11
V12
V13
V14
V15
V16
V17
V18
W7
W8
W9
W10
W11
W12
W13
W16
W17
W18
Y13
Y18
AA13
AB13
AC13
D17
H23
AF13
J9

L7312

BLM18SG121TN1D

U9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

C7364 10uF

C7367 0.1uF

C7416 10uF

C7390 0.1uF

GP2_Saturn7M

MAIN_2

Ver. 1.4

2

LGE101D (S7 Non_Tcon/RM)

AE1

NC_48

AF16

NC_78

AF1

NC_64

AE3

NC_50

AD14

NC_45

AD3

NC_34

AF15

NC_77

AF2

NC_65

AE15

NC_62

AD2

NC_33

AD16

NC_47

AD15

NC_46

AE16

NC_63

AF3

NC_66

AF14

NC_76

AD1

NC_32

AD13

NC_44

AE14

NC_61

AE13

NC_60

AE4

NC_51

AD5

NC_36

AF4

NC_67

AD4

NC_35

AE2

NC_49

AF8

NC_71

AD9

NC_40

AE9

NC_56

AF9

NC_72

AE11

NC_58

AF6

NC_69

AE6

NC_53

AF11

NC_74

AD6

NC_37

AD12

NC_43

AE5

NC_52

AF12

NC_75

AF5

NC_68

AE12

NC_59

AE10

NC_57

AF7

NC_70

AD11

NC_42

AD7

NC_38

AD10

NC_41

AE7

NC_54

AF10

NC_73

AD8

NC_39

AE8

NC_55

Y11

NC_12

Y19

GND_105

IC101

S7_DIVX

LVACLKP/LLV6P/BLUE[3]
LVACLKN/LLV6N/BLUE[2]

LVA0P/LLV3P/BLUE[9]
LVA0N/LLV3N/BLUE[8]
LVA1P/LLV4P/BLUE[7]
LVA1N/LLV4N/BLUE[6]
LVA2P/LLV5P/BLUE[5]
LVA2N/LLV5N/BLUE[4]
LVA3P/LLV7P/BLUE[1]
LVA3N/LLV7N/BLUE[0]

LVA4P/LLV8P
LVA4N/LLV8N

LVBCLKP/LLV0P/GREEN[5]
LVBCLKN/LLV0N/GREEN[4]

LVB0P/RLV6P/RED[1]

LVB0N/RLV6N/RED[0]
LVB1P/RLV7P/GREEN[9]
LVB1N/RLV7N/GREEN[8]
LVB2P/RLV8P/GREEN[7]
LVB2N/RLV8N/GREEN[6]
LVB3P/LLV1P/GREEN[3]
LVB3N/LLV1N/GREEN[2]
LVB4P/LLV0P/GREEN[1]
LVB4N/LLV0N/GREEN[0]

RLV3P/RED[7]
RLV3N/RED[6]
RLV0P/LVSYNC
RLV0N/LHSYNC

RLV1N/LCK

RLV2P/RED[9]

RLV1P/LDE
RLV2N/RED[8]
RLV4P/RED[5]
RLV4N/RED[4]
RLV5P/RED[3]
RLV5N/RED[2]

TCON3/OE/GOE/GCLK2

TCON15/SCAN_BLK1
TCON18/CS7/GCLK5
TCON19/CS8/GCLK6

TCON11/CS5/HCON

TCON10/CS4/OPT_N

TCON9/CS3/OPT_P

TCON16/WPWM

TCON12/DPM

TCON1/STV/GSP/VST

TCON5/TP/SOE

TCON14/SACN_BLK

TCON21/CS10/VGH_ODD
TCON20/CS9/VGH_EVEN

TCON13/LEDON

TCON17/CS6/GCLK4

NC_26
NC_19
NC_30

NC_15
NC_31
NC_29

NC_21
NC_20

NC_11
NC_17

NC_25
NC_24

W26
W25
U26
U25
U24
V26
V25
V24
W24
Y26
Y25
Y24

AC26
AC25
AA26
AA25
AA24
AB26
AB25
AB24
AC24
AD26
AD25
AD24

AD23
AE23
AE26
AE25
AF26
AF25
AE24
AF24
AF23
AD22
AE22
AF22

AD19
AE19
AD21
AE21
AF21
AD20
AE20
AF20
AF19
AD18
AE18
AF18

AB22
AB23
AC23
AC22

AB16
AA14
AC15

Y16
AC16
AC14

AA16
AA15

Y10
AA11

AB15
AB14

RXBCK+
RXBCK­RXB0+
RXB0­RXB1+
RXB1­RXB2+
RXB2­RXB3+
RXB3­RXB4+
RXB4-

RXACK+
RXACK­RXA0+
RXA0­RXA1+
RXA1­RXA2+
RXA2­RXA3+
RXA3­RXA4+
RXA4-

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

DDR3(FRC)

Ver. 1.4

3

+24V/+15V

Adapter
L7912

MLB-201209-0120P-N2

C7517

C7514

68uF

0.1uF
35V

50V

+3.5V_ST

C7515
68uF
35V
NON_Adapter

OLP

3.3K -> 1K (threshold voltage up)
R7514

1K

B

Q7502
2SC3052

R7516
10K

R7515
10K

+5V_General

C7918

0.1uF
16V

+3.5V_ST

C7919

0.1uF
16V

R7517
10K
OPT

INV_CTL

+12V/+15V

JPD003N-M432-4F

SM14B-SRSS-TB

L7910

C7910
10uF
25V

NON_Adapter

P7500

SMAW200-12

Adapter

JK7500

Adapter

P7501

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

GND

1

2

3

4

5

6

7

8

9

10

11

12

24V

24V

24V

24V

24V

GND

GND

GND

GND

GND

NC

INV_ON

PWM_DIM

ERROR_OUT

+15V

+15V

GND

GND

+3.5V_ST

+3.5V_ST

GND

OLP

INV_ON

P_DIM

A_DIM

NC

24V

SW

GND

R7580

3.3K

Adapter_AUO

C7506
1uF

6.3V
OPT

To Tuner

C7920

0.1uF

R7850
22

R7505

A_DIM

4.7K

C7502

0.1uF
50V

+24V_LED_driver

C7927

C7928

0.1uF

0.01uF

50V

50V

Adapter_AUO

R7588

0

Adapter_LGD

R7589

Adapter_LGD

0

R7579

100

Adapter_AUO

R7587

0

IC7511

MP8706EN-C247-LF-Z

IN

1

SW_1

2

SW_2

3A

3

BST

4

L7911

3.6uH

NR8040T3R6N

8

7

6

5

C7507
1uF

6.3V
OPT

GND

VCC

FB

EN/SYNC

C7921
1uF
50V

R7851
10K

POWER_ON/OFF2_2

R7852

10K

MLB-201209-0120P-N2

MLB-201209-0120P-N2

MLB-201209-0120P-N2

NON_Adapter

C7509

NON_Adapter

0.1uF
16V

PWM_DIM

R7506

0

OPC_OUT

R7507

0

OPT

OPC_OUT

R7508

0

OPT

OPT

C7913

100pF

50V

090916

L7503

NON_Adapter

L7502

C7511

0.1uF

ERROR_OUT

MAX 300mA

R7853

33K

R1

R7854

6.2K

Adapter

NON_Adapter

16V

R7511

6.8K

OPT

1%

C7914

100pF

50V

1%

R2

L7504

+3.3V_Normal

C

OPT

E

C7915
22uF
10V

Vout=(1+R1/R2)*0.8

+12V/+15V

L7500

C7500
10uF
25V

+5V_USB

IC7500

MP8706EN-C247-LF-Z

IN

1

SW_1

2

SW_2

3A

3

C7504

0.1uF
BST

R7502
22

4

L7501

3.6uH

NR8040T3R6N

8

7

6

5

GND

VCC

FB

EN/SYNC

C7508
1uF
50V

R7509
10K

POWER_ON/OFF2_1

R7510

10K

OPT

C7510

100pF

50V

090916

MAX 2000mA

1%

R7512

33K

100pF

R1

1%

R7513

6.2K

R2

OPT
C7512

50V

C7513
22uF
16V

C7516

0.1uF
16V

+5V_USB

C7518

0.1uF
16V

Vout=(1+R1/R2)*0.8

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+24V_LED

+3.5V_ST

+12V/+15V

12V_PANEL

L7517

OPT
R7522
10K

R7521
10K

B

+5V_Normal

5V_PANEL

L7505

4A -> 3A modify 090916

PANEL_CTL

L7506

Placed on SMD-TOP

C7572

C IN

10uF

16V

+24V/+15V

POWER_ON/OFF2_2

RL_ON

AO3407A Vgs : 10.8V(24V input)

AO3407A Vgs : 8.3V(15V input)

C7501

C7503

0.1uF

2.2uF

50V

50V

R7501
27K

R7500
10K

Adapter

B

R7832

10K

NON_Adapter

Q7501
AO3407A

C

Q7500

E

R7503
22K

G

0.01uF

S

D

C7505

50V

+15V Control

+3.5V_Normal

C IN

C7553

0.1uF
16V

300 mA

+3.5V_ST

C7520
10uF
16V

VIN

AZ2940D-2.5TRE1

IC7505

VOUT

3

1

Vd=550mV

2

GND

L7507

R7524
75K

1/8W

1%

Placed on SMD-TOP

R7523

C

E

22K

Q7503
2SC3052

C7525

0.01uF
25V

5V_PANEL
R7530-*1

22K

5V_PANEL
R7531-*1

2.7K

R7527

22K

C7526

0.1uF
16V

B

S7 DDR 1.5V

C7573

IC7504

MP2212DN

FB

R2

3.3uH

1608

2A

+2.5V_Normal

Replaced Part

FB

GND

IN

BS

1

GND

2

IN

3

BS

4

2520

C7932

3.3uF
50V

C7557

0.1uF
16V

IC7501

MP2212DN

1

2

3A

3

4

3A

AMP_VCC

R7528

10

1/10W

R7576

10

1%

R7572

NON_Adapter

C7933

0.01uF
50V

R7533

1%

R7574

11K

5%

Adapter

L7913

CPI2520NHL3R3ME

L7914

BLM18PG121SN1D

NON_Adapter

+2.5V

1

R7552

C7556
10uF
10V

R2

R7530

33K

12V_PANEL

R7531

5.6K

12V_PANEL

C

Q7505
2SC3052

E

100pF

50V

R7577 0

+12V/+15V

0

C7528

100pF

50V

22K 1%

Close to IC

EN/SYNC

8

SW_2

7

SW_1

6

VCC

5

PANEL_POWER

C7529

10uF
16V
OPT

Replaced Part

R7575

10K

Close to IC

EN/SYNC

8

SW_2

7

SW_1

6

VCC

5

+3.5V_ST

Q7506

AO3407A

C7531

4.7uF
16V

R1

1%

10K

R7578

C7574
1uF

10V

C7554

0.01uF

POWER_ON/OFF2_2

S

C7575

0.1uF
50V

G

R7545
10K

R7551

C7541

1uF
25V

OPT

L7516

3.6uH

22K

D

+3.5V_Normal

+24V_LED

RL_ON

R1

R7536

24K 1%

R7532

0
C7530
1uF

10V

C7925

2.2uF
50V

Adapter

R7860

10K

Adapter

Adapter

R7861
27K

Adapter

B

C7924

0.1uF
50V

S7 core 1.26V volt

Vout=0.8*(1+R1/R2)

10K

POWER_ON/OFF2_1

R7539

L7510

3.6uH

NR8040T3R6N

C7534

0.1uF

Placed on SMD-TOP

50V

New item

POWER_ON/OFF1

C7555

0.1uF

R7555
10K

C

B

E

R7862
22K

Adapter

G

Q7521

Adapter

AO3407A

C

Q7520

Adapter

E

C7546
10uF

16V

C7547

0.1uF
16V

1074 mA

C7576
22uF
10V

Placed on SMD-TOP

C7559

4.7uF
16V

R7556

0

Q7507
2SC3052

S

D

AO3407A Vgs : 10.8V

Adapter

C7926

0.01uF
50V

LED Driver Power

+1.26V_VDDC

C7548

0.1uF

2026 mA

OPT

R7863

2.2K
R7864

Vout=0.8*(1+R1/R2)

+1.5V_DDR

C7577

0.1uF

+3.5V_Normal

Q7508

AO3407A

D

S

G

C7561

1uF
25V

+24V_LED_driver

C7929

0.1uF

2.2K

OPT

C7568

0.1uF
16V

C7930

330uF

4V

OPT

PANEL_VCC

24V-->3.48V
15V-->3.56V

ST_3.5V-->3.5V --> 3.375V

Power_DET

+12V/+15V

+12V/+15V

C7931
22uF
10V

OPT

5%

1/16W

Adapter

Adapter

R7519

C7519
1uF
25V

close to IC7502

18K

R7570

Adapter

C7522
1uF
50V

R7865
10

Adapter
Q7504

Si4800BDY

S1

1

S2

2

$0.12

S3

3

G

4

MBRA340T3G

close to pin

Adapter

Adapter

R7525

68K

Adapter

Adapter

22

+3.3V_Normal

L7511

C7549
10uF
25V

C7550
10uF
25V

C7551
10uF
25V

C7552
10uF
25V

PGND

VIN

C7923

0.1uF
AGND

50V

FB

Vout=0.8*(1+R1/R2)

+24V/+15V

1%

Adapter

5%

Adapter

+3.5V_ST

1%

1/16W

1%

1/16W

IC7502

1

Adapter

2

$0.37

3

4

Adapter

SP-7850_4.7

C7527

SW_1

SW_2

EN

COMP

FB

18K

R7547-*1

5.6K1%LIPS

R7548-*1

1K

LIPS

R7583

27K

R7584

LIPS

L7508

4.7uH

Adapter

R7529
100K

Adapter

50V

IC7503

MP4460DQ-LF-Z

1

2

THERMAL

3

Adapter

4

$0.21

5

Adapter

L7509

3.6uH

NR8040T3R6N

LX_2

8

LX_1

7

EN

6

COMP

5

R7547

30K

R7548

5.1K

MP8670DN-LF-Z

SW

BST

VCC

BG

D8

8

D7

7

D6

6

D5

5

D7500

C7524
220pF

50V

1/16W

5%

IC7506

AOZ1073AIL

1

2

3A

3

4

+5V_Normal

IC7507

AOZ1072AI

PGND

1

VIN

2

C7922

0.1uF
50V

GP2_Saturn7

POWER_SMALL

AGND

2A

3

FB

4

0.1uF

11

1%

8

7

6

5

LIPS

IN

EN/SYNC

FB

GND

EP_GND

10

9

8

7

6

8

7

6

5

Adapter

C7533

0.1uF
50V

R1

R2

Placed on SMD-TOP

Adapter

C7532

10uF
25V

BST

VIN_2

VIN_1

Adapter

FREQ

GND

Adapter

L7513

3.6uH

NR8040T3R6N

POWER_ON/OFF2_2

R7558

10K

9.1K
2200pF

R7557

C7558

LX_2

LX_1

POWER_ON/OFF2_2

EN

R7560

10K

COMP

12K

R7559

R7561
100K

IC7509

NCP803SN293

VCC

1%

VCC

Adapter

1%

1/8W

C7536

3.3uF
50V

3

1

GND

R7585
100K

IC7512

NCP803SN293

3

LIPS

1

GND

+24V/+15V

Adapter

6.8K
R7538

Adapter

1.6K
R7581

Adapter

Adapter

C7537
10uF

25V

2

C7540

3.3uF
50V

Adapter

R7540
120K

1%

LIPS

2

RESET

RESET

22K

OPT

R7542

24V->15V

090916

Adapter

24V->3.5V

Switching noise reducing [MPS recommend]

22

Adapter

R7537
200K

1/8W
1%

C7538
10uF
10V

2200pF

C7560

R7571

Adapter

Adapter

R7562

27K

4.7K

R7563

R7564

10K

L7514

3.6uH

NR8040T3R6N

C7562

C7571
10uF
10V

1%

1%

OPT

100pF

50V

1%

R1

R2

C7542

3.3uF
50V

Adapter

Adapter

1934 mA

R7565

R1

R7566

R7567

1%

C7543

0.1uF
50V

51K

1.5K

10K

+24V/+15V

Adapter

C7544

0.1uF
50V

30K

1/10W

C7563
10uF
16V

Vout=(1+R1/R2)*0.8

MAX 1A

5%

1%

R2

1%

+3.5V_ST

OPT

R7569

10K

1%
R7582
100

LIPS

1%
R7586
100

UNDER CHECKING

+12V/+15V

real output : 12.3V

RL_ON

C7545

0.1uF
50V

+3.5V_ST

Adapter

R7544
105K

1/10W
1%

R7543

L7515

CIC21J501NE

C7567

0.1uF
16V

C7565

C7566

100pF

10uF

50V

16V

Ver. 1.00

92

POWER_DET

+3.3V_Normal

C7569

0.1uF
16V

+5V_Normal

C7578

0.1uF
16V

C7570

0.1uF
16V

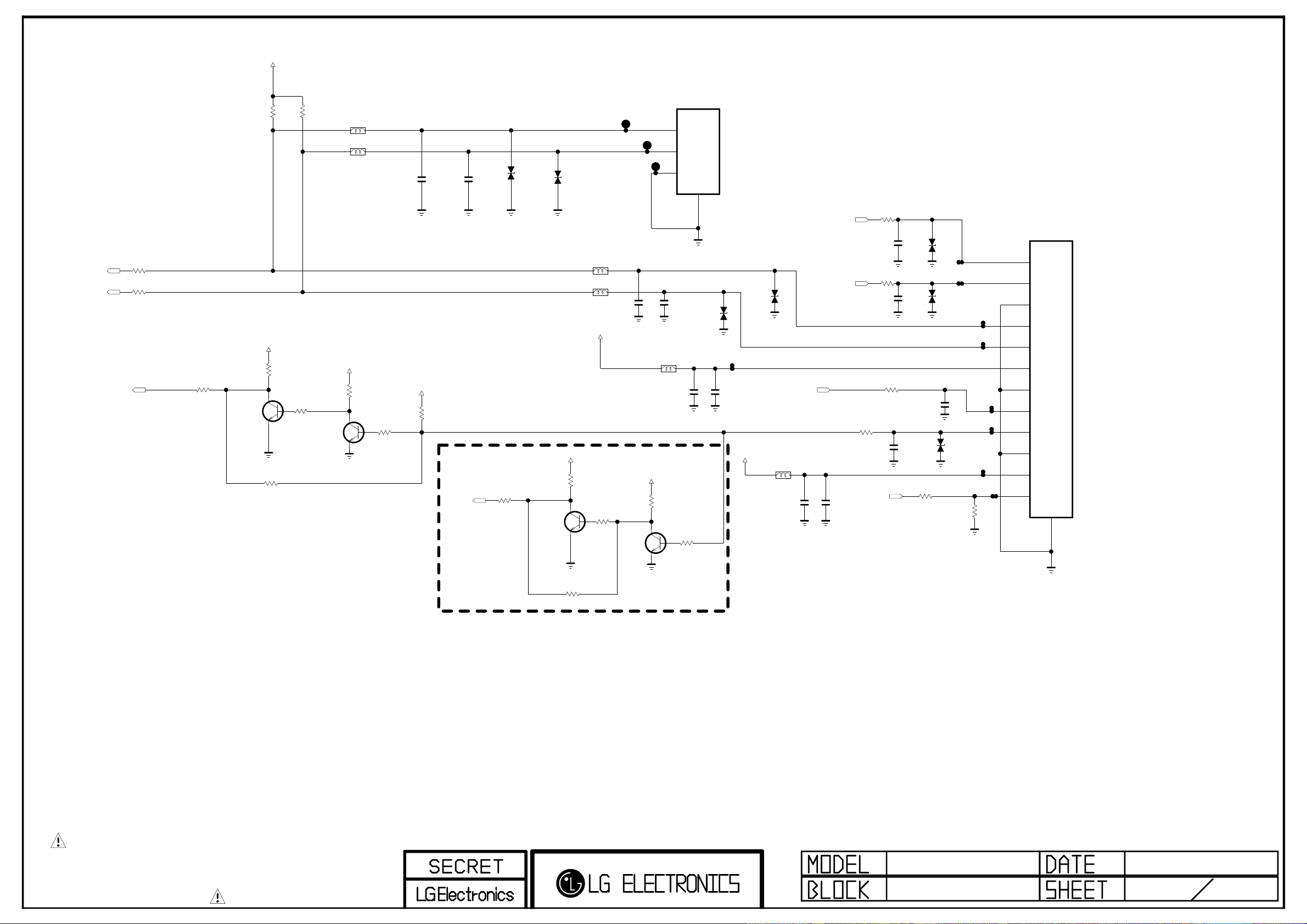

CONTROL

IR & LED

KEY1

KEY2

IR

R7600
100

R7601
100

R7602

22

R7605

R7604

Q7600

2SC3052

+3.5V_ST

10K

1%

+3.5V_ST

47K

R7603
0

C

E

OPT

R7606

B

10K

1%

R7607

10K

BLM18PG121SN1D

BLM18PG121SN1D

+3.5V_ST

R7608

47K

Q7601

2SC3052

L7600

L7601

C

E

P7600

12507WR-03L

1

2

L7604

C

E

C7603

0.1uF

C7604

0.1uF

B

Commercial

3

16V

R7616

47K

4

D7602

5.6V

AMOTECH

NEC_EEPROM_SCL

L7605

C7606

0.1uF
16V

NEC_EEPROM_SDA

C7607

1000pF

50V

D7603

5.6V

AMOTECH

C7605
1000pF
50V

+3.3V_Normal

LED_B/LG_LOGO

BLM18PG121SN1D

Zener Diode is

close to wafer

EYEQ/TOUCH_KEY

EYEQ/TOUCH_KEY

R7620 1.5K

R7617
100

C7608
100pF

50V

LED_R/BUZZ

R7618
100

R7619
100

C7609
1000pF
50V

OPT

C7610
1000pF
50V

OPT

D7606

5.6V

AMOTECH

R7621

D7604

CDS3C05HDMI1

5.6V

D7605

CDS3C05HDMI1

5.6V

OPT

C7611

0.1uF
16V

1.5K

OPT

R7622

10K

P7601

12507WR-12L

1

2

3

4

5

6

7

8

9

10

11

12

13

C7600

0.1uF
16V

+3.5V_ST

R7610

3.3K

R7609

OPT

47K

B

C7601

0.1uF
16V

COMMERCIAL

IR_OUT

Commercial

5.6V

R7611

22

Commercial_EU

D7600

Commercial_EU

5.6V

R7613

47K

Q7602

2SC3052

Commercial_US

D7601

L7602

BLM18PG121SN1D

L7603

BLM18PG121SN1D

+3.5V_ST

+3.5V_ST

C

B

E

Commercial_EU

R7612
0

R7614

10K

C7602

0.1uF

Commercial

R7615

Q7603

2SC3052

Commercial

BLM18PG121SN1D

+3.5V_ST

47K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

IR & LED

Ver. 1.2

6

HDMI_1

$0.253

HDMI_1

HDMI_2

SHIELD

20

$0.253

HDMI_2

EAG59023302

JK7700

SHIELD

20

19

18

17

16

15

14

13

12

11
10

EAG59023302

9

8

7

6

5

4

3

2

1

JK7701

19

18

17

16

15

14

13

12

11

CK+

10

D0-

9

D0_GND

8

D0+

7

D1-

6

D1_GND

5

D1+

4

D2-

3

D2_GND

2

D2+

1

5V_HDMI_1

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

R7700
1K

R7701

1.8K

5V_HDMI_2

R7702

1K

R7703

1.8K

D7700

D7701

5V_DET_HDMI_1

3.3K

R7704

5V_DET_HDMI_2

R7705

3.3K

C7701

0.1uF
16V

C7700

0.1uF
16V

JP7700

JP7701

JP7702

JP7703

R7717

R7718

R7719

R7720

R7721

R7722

R7723

R7724

R7725

R7726

R7727

R7706 22

R7707

R7708 100

R7709

R7710

R7711

R7712

R7713

R7714

R7715

R7716

HDMI EEPROM

5V_HDMI_1

R7753

10K

R7754

4.7K

5V_HDMI_2

R7755

R7756

4.7K

5V_HDMI_4

R7757

10K

10K

R7758

4.7K

A2

+5V_Normal

A1
ENKMC2838-T112
D7704

C

R7759

4.7K

+5V_Normal

A2

A1

ENKMC2838-T112
D7705

C

R7760

4.7K

+5V_Normal

A2

A1
ENKMC2838-T112
D7706

C

R7761

4.7K

EDID_WP

DDC_SCL_1

DDC_SDA_1

EDID_WP

DDC_SCL_2

DDC_SDA_2

EDID_WP

DDC_SCL_4

DDC_SDA_4

SIDE_HDMI

5V_HDMI_4

C

Q7700

2SC3052

22

22

100

0

0

0

0

0

0

0

0

R7728

B

10K

E

HPD1

DDC_SDA_1

DDC_SCL_1

HDMI_CEC

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

JACK_GND

20

$0.253

EAG42463001

HDMI_SIDE

JK7702

R7730

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

1K
R7731

1.8K

19

18

17

16

15

14

13

12

11
10

9

8

7

6

5

4

3

2

1

For CEC

C

R7729

Q7701

2SC3052

22

0

0

0

0

0

0

0

0

10K

B

E

HPD2

DDC_SDA_2

DDC_SCL_2

HDMI_CEC

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

HDMI_CEC

D7702

5V_DET_HDMI_4

R7732

3.3K

D7709

C7702

0.1uF
16V

JP7704

JP7705

OPT

AVRL161A1R1NT

GND

R7733 22

R7734

R7735

R7736

R7737

R7738

R7739

R7740

R7741

R7742

D7708

D7703

C

E

68K

R7765

R7766

0

OPT

SBD

R7744

B

10K

+3.3V_Normal

R7767

10K

HPD4

DDC_SDA_4

DDC_SCL_4

HDMI_CEC

CK-_HDMI4

CK+_HDMI4

D0-_HDMI4

D0+_HDMI4

D1-_HDMI4

D1+_HDMI4

D2-_HDMI4

D2+_HDMI4

R7768

68K
OPT

R7769

0

CEC_REMOTE_S7

Q7702

2SC3052

22

100

0

0

0

0

0

0

0

0

HDMI_1

IC7700

AT24C02BN-10SU-1.8

A0

1

$0.055

A1

2

A2

3

GND

4

HDMI_2
IC7701

AT24C02BN-10SU-1.8

A0

1

$0.055

A1

2

A2

3

GND

4

HDMI_SIDE

AT24C02BN-10SU-1.8

A0

1

$0.055

A1

2

A2

3

GND

4

IC7702

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

VCC

8

WP

7

SCL

6

SDA

5

JP7706

R7748 22

R7747 22

JP7707

R7750 22

R7749 22

JP7708

C7703

0.1uF

0.1uFR7743

R7751 22

R7752 22

C7704

C7705

0.1uF

BSS83
Q7704

G

C7707

0.1uF
16V

68K

R7745

R7763

OPT

S

GND

+3.5V_ST

0

D

B

R7762

10K

R7764

68K

CEC_ON/OFF

CEC_REMOTE_NEC

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

OPT

D7707

AVRL161A1R1NT

GND

BSS83
Q7703

G

C7706

0.1uF
16V

GND

GP2_Saturn7M

HDMI

Ver. 1.2

94

MICOM BLOCKMAIN1 BLOCK

TP7013

TP7014

TP7016

TP7017

TP7018

TP7019

TP7020

TP7021

TP7022

TP7023

TP7024

TP7025

TP7026

TP7027

TP7028

TP7029

TP7030

5V_DET_HDMI_3

FRC_RESET

SCAN_BLK2

SCAN_BLK1/OPC_OUT

WIRELESS_DL_RX

WIRELESS_DL_TX

/PIF_SPI_CS

ET_RXER

/RST_PHY

M_REMOTE_RX

M_REMOTE_TX

FRC_SCL

FRC_SDA

UART_FRC_RX

UART_FRC_TX

FRC_PWM0

FRC_PWM1

TP7032

TP7033

TP7034

TP7035

TP7036

WIRELESS_DETECT

WIRELESS_PWR_EN

WIRELESS_SW_CTRL

RF_ENABLE

RF_RESET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7 Ver. 1.0

TP_SMALL 75

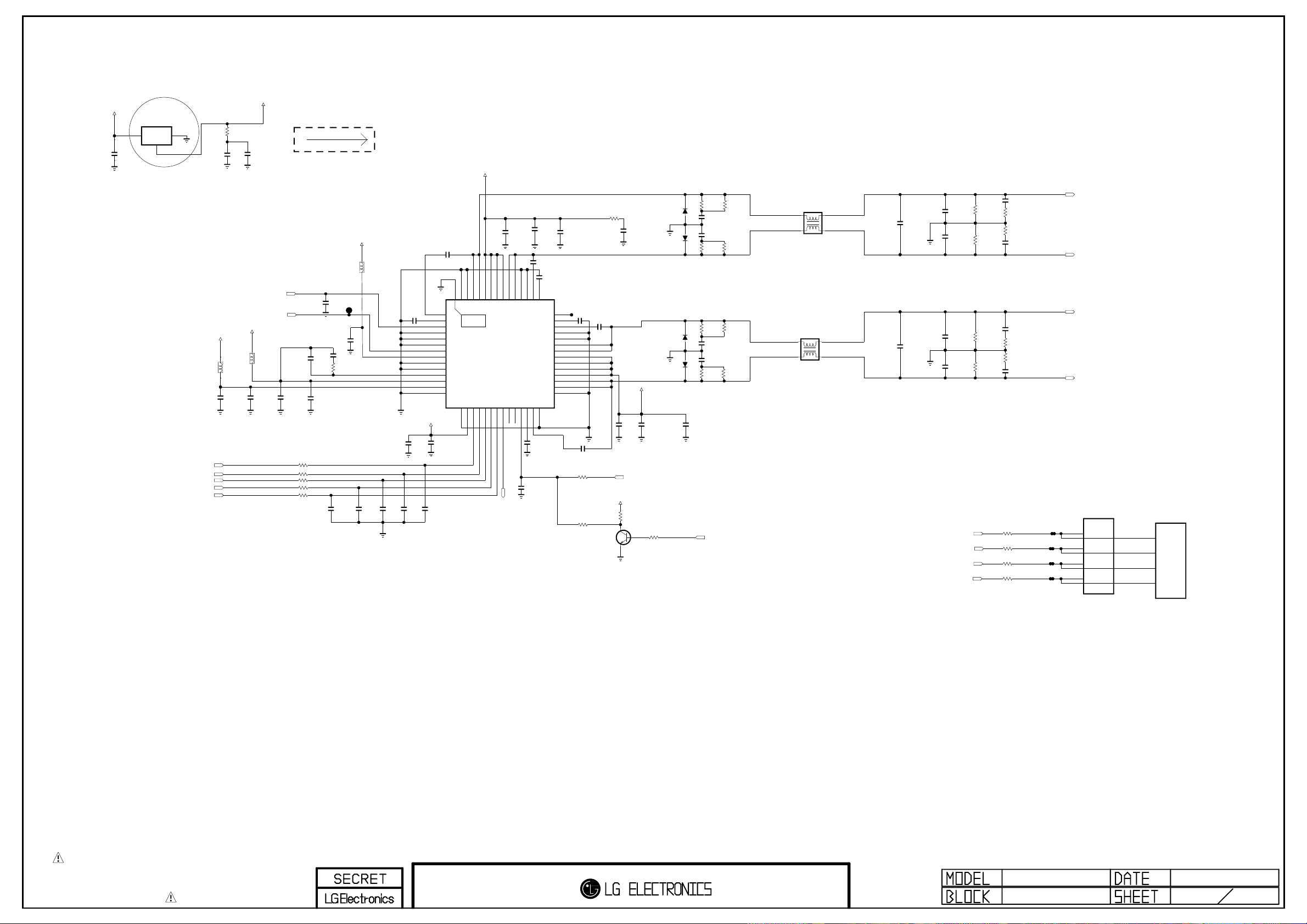

+3.3V_Normal

C7800

0.1uF
16V

IC7800

AP1117E18G-13

3IN1

2

OUT

Replacement Item

ADJ/GND

R7800

+1.8V_AMP

1

C7803

C7802

0.1uF

10uF

16V

10V

120 mA

AMP_VCC

AUD_LRCH

AUD_LRCK

AUD_SCK
AMP_SDA
AMP_SCL

+1.8V_AMP

L7800

BLM18PG121SN1D

OPT

C7801

10uF

10V

AMP_RESET_N

AUD_MASTER_CLK

+1.8V_AMP

L7801

BLM18PG121SN1D

C7804

0.1uF
16V

OPT

C7805

10uF

10V

R7801 100

R7802 100
R7803 100

R7804 33
R7805 33

C7808

1000pF

50V

C7806
100pF

0.1uF

50V

C7807

16V

C7811

0.1uF

C7810
1000pF

50V

R7806

3.3K

C7809
18pF
50V

+3.3V_Normal

L7802

BLM18PG121SN1D

TP7800

C7812
18pF
50V

C7813
22pF
50V

OPT

C78 16

1uF 25 V

+1.8V_AMP

OPT
C7815
10uF

10V

C7814
22pF
50V

OPT

C7819

22000pF

BST1A
VDR1A

/RESET

DGND_1
GND_IO

CLK_I

VDD_IO
DGND_PLL
AGND_PLL

AVDD_PLL
DVDD_PLL

C7818

0.1uF

C7817
22pF
50V

OPT

SPK_L+

SPK_L-

SPK_R+

SPK_R-

WAFER-ANGLE

4

3

2

1

SPEAKER_L

SPEAKER_R

P7800

SMAW250-04

4

3

2

1

P7801

R7824
0

R7825
0

R7826
0

R7827
0

C7844

0.01uF
50V

R7828

3.3

R7829

3.3
C7845

0.01uF
50V

C7846

0.01uF
50V

R7830

3.3

R7831

3.3
C7847

0.01uF
50V

OPT

OPT

OPT

OPT

OPT

OPT

OPT

OPT

D7800

C7832

0.1uF
50V

R7811

10K

1N4148W

100V

OPT

D7801

1N4148W

100V

OPT

D7802

1N4148W

100V

OPT

D7803

1N4148W

100V

OPT

C7833
10uF
35V

OPT
R7809

3.3
OPT

C7829

22000pF

50V

R7810

10K

Q7800

2SC3052

AMP_VCC

C7830

0.1uF
50V

POWER_DET

+3.5V_ST

C

E

C7831

0.01uF
50V

B

C7824

0.1uF
50V

C7823
22000pF
50V

C7825
1uF
25V

VDR1B44BST1B45PGND1B_1

43

28

PGND2B_1

42
41
40
39
38
37
36
35
34
33
32
31
30
29

C7826
10uF
35V

NC
VDR2A
BST2A
PGND2A_2
PGND2A_1
OUT2A_2
OUT2A_1
PVDD2A_2
PVDD2A_1
PVDD2B_2
PVDD2B_1
OUT2B_2
OUT2B_1
PGND2B_2

R7808 100

C78 27

R7807
0

OPT

1uF25V

C7828
22000pF

50V

C7820

0.1uF
50V

50V

PGND1B_2

OUT1B_1

OUT1B_2

PVDD1B_1

PVDD1B_2

PVDD1A_1

PVDD1A_2

OUT1A_1

OUT1A_2

PGND1A_1

PGND1A_2

EP_PAD

46

47

48

49

50

51

52

53

54

55

56

1

THERMAL

2

57

3

AD

4
5

IC7801

6
7
8

EAN60969601

9
10

LF

NTP-7000

11
12
13

GND

14

15

16

17

18

22

25

26

WCK19BCK20SDA21SCL

DVDD

SDATA

DGND_2

16V

VDR2B27BST2B

/FAULT

MONITOR023MONITOR124MONITOR2

C78 22
1uF
25V

C7821
1000pF
50V

AMP_MUTE_HOTEL

R7812

12

C7834
390pF

50V

C7835
390pF

50V

R7813

12

R7814

12

C7836
390pF

50V

C7837
390pF

50V

R7815

12

AMP_MUTE

R7819

12

R7817

12

R7818

12

R7816

12

L7804

AD-8770

2S

1S 1F

15uH

L7803

AD-8770

2S

1S 1F

15uH

R7820

C7840

2F

2F

C7838

0.47uF
50V

C7839

0.47uF
50V

0.1uF
50V

C7841

0.1uF
50V

C7842

0.1uF
50V

C7843

0.1uF

50V

SPK_L+

SPK_L-

SPK_R+

SPK_R-

4.7K

R7821

4.7K

R7822

4.7K

R7823

4.7K

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

AUDIO[NTP]

Ver. 1.1

96

[51Pin LVDS Connector]
(For FHD 60Hz)

P7900

TF05-51S

FHD

1

2

3

4

5

6

7

8

9

R7900 0

EXCEPT_LGD_22

10

R7901 0

EXCEPT_LGD_22

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

PANEL_VCC

L7900

120-ohm

must be located Bottom side

FHD

C7901

C7900

1000pF

10uF

50V

16V

OPT

RXA4-

RXA4+

RXA3-

RXA3+

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

RXB4-

RXB4+

RXB3-

RXB3+

RXBCK-

RXBCK+

RXB2-

RXB2+

RXB1-

RXB1+

RXB0-

RXB0+

C7902

0.1uF
16V

R7910

10K

BIT_SEL_LOW

+3.3V_Normal

R7911

3.3K

LVDS_SEL_HIGH

R7912
10K

LVDS_SEL_LOW

[30Pin LVDS Connector]
(For HD 60Hz_Small)

P7903

FF10001-30

30PIN_FHD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

C7912
10uF
16V

OPT

RXA3-

RXA3+

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

RXB3-

RXB3+

RXBCK-

RXBCK+

RXB2-

RXB2+

RXB1-

RXB1+

RXB0-

RXB0+

PANEL_VCC

C7911
1000pF
50V

30PIN_FHD

30PIN_FHD

L7904

120-ohm

30PIN_FHD

C7909

0.1uF
16V

[30Pin LVDS Connector]
(For HD 60Hz_Normal)

P7901

FF10001-30

HD_60Hz_NORMAL

1

R7915 0

2

HD_60Hz_NORMAL

3

R7916 0

R7917 0

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

R7913 0

22

R7914 0

23

HD_60Hz_NORMAL

24

25

26

27

28

29

30

31

[30Pin LVDS Connector]

SMALL_NC1
SMALL_NC2
SMALL_OPC_OUT

OPT

OPT

OPT

PWM_DIM

OPC_OUT

RXA3-

RXA3+

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

OPC_EN

SMALL_OPC_EN
SMALL_NC3
SMALL_NC4

+3.3V_Normal

R7919

3.3K
LVDS_SEL_HIGH

R7920

10K

LVDS_SEL_LOW

C7905
10uF
16V

OPT

PANEL_VCC

HD_60Hz_NORMAL

HD_60Hz_NORMAL
C7904
1000pF
50V

HD_60Hz_NORMAL

L7901

120-ohm

C7903

0.1uF
16V

(For HD 60Hz_Small)

P7902

FF10001-30

HD_60Hz_SMALL

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

C7908
10uF
16V

OPT

C7907
1000pF
50V

HD_60Hz_SMALL

SMALL_NC1

SMALL_NC2

SMALL_OPC_OUT

RXA3-

RXA3+

RXACK-

RXACK+

RXA2-

RXA2+

RXA1-

RXA1+

RXA0-

RXA0+

SMALL_OPC_EN

SMALL_NC3

SMALL_NC4

PANEL_VCC

L7902

120-ohm

HD_60Hz_SMALL

HD_60Hz_SMALL
C7906

0.1uF
16V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

GP2_Saturn7M

LVDS 33

Ver. 1.0
