LG 22EA53T-P User Manual

ENGLISH

OWNER’S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

22EA53T 23EA53T 24EA53T

www.lg.com

TABLE OF CONTENTS

ENGLISH

ENG

3 ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

5 Setting up the Monitor set

5 - Attaching the Stand Base

6 - Detaching the Stand Base

6 - Mounting on a table

6 - Using the cable holder

8 - Mounting on a wall

22 TROUBLESHOOTING

24 SPECIFICATIONS

24 22EA53T

25 23EA53T

26 24EA53T

27 Preset Modes (Resolution) 27 Indicator

9 USING THE MONITOR SET

9 Connecting to a PC

9 - D-SUB connection

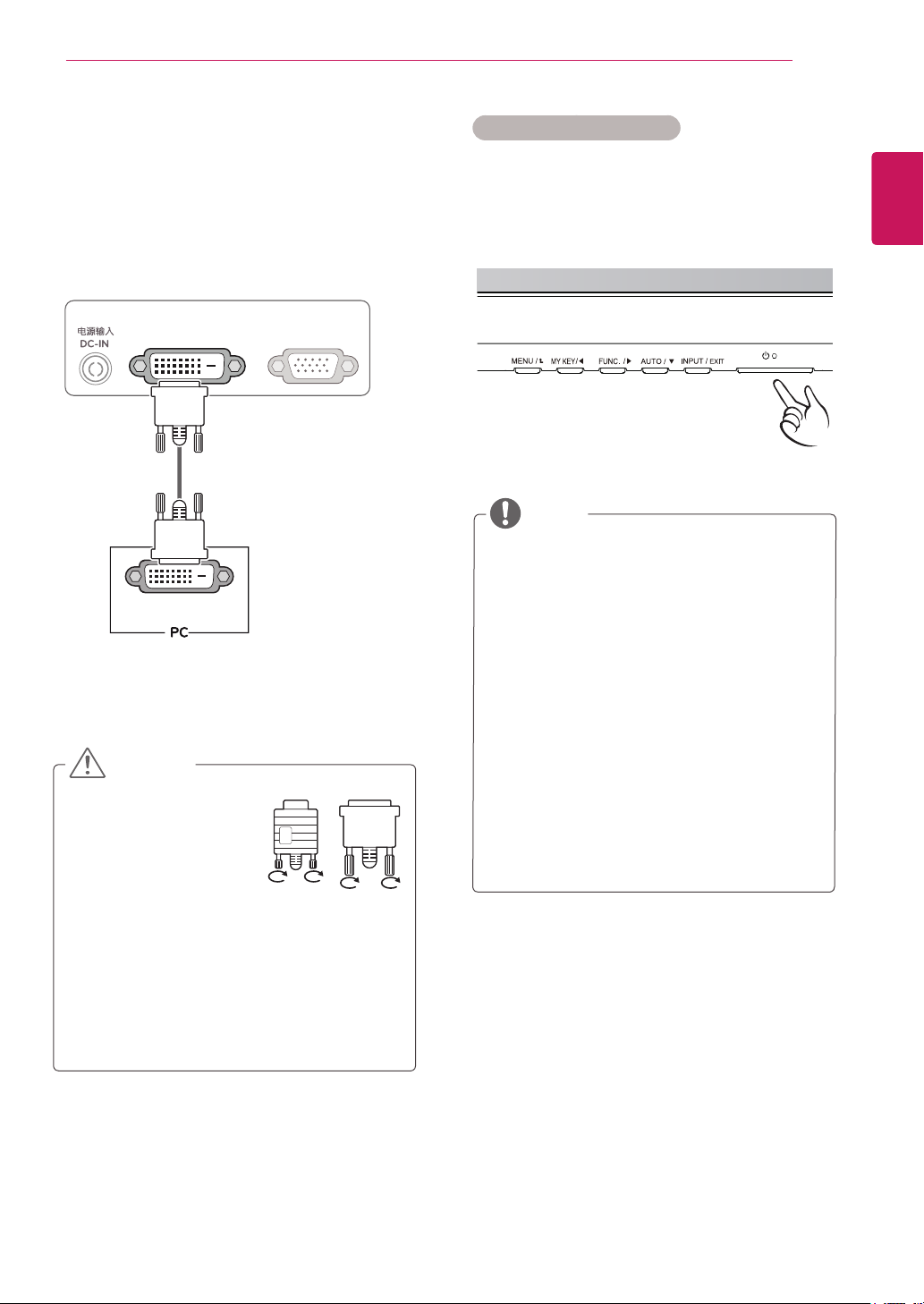

9 - DVI-D connection

11 CUSTOMIZING SETTINGS

12 Customizing Settings

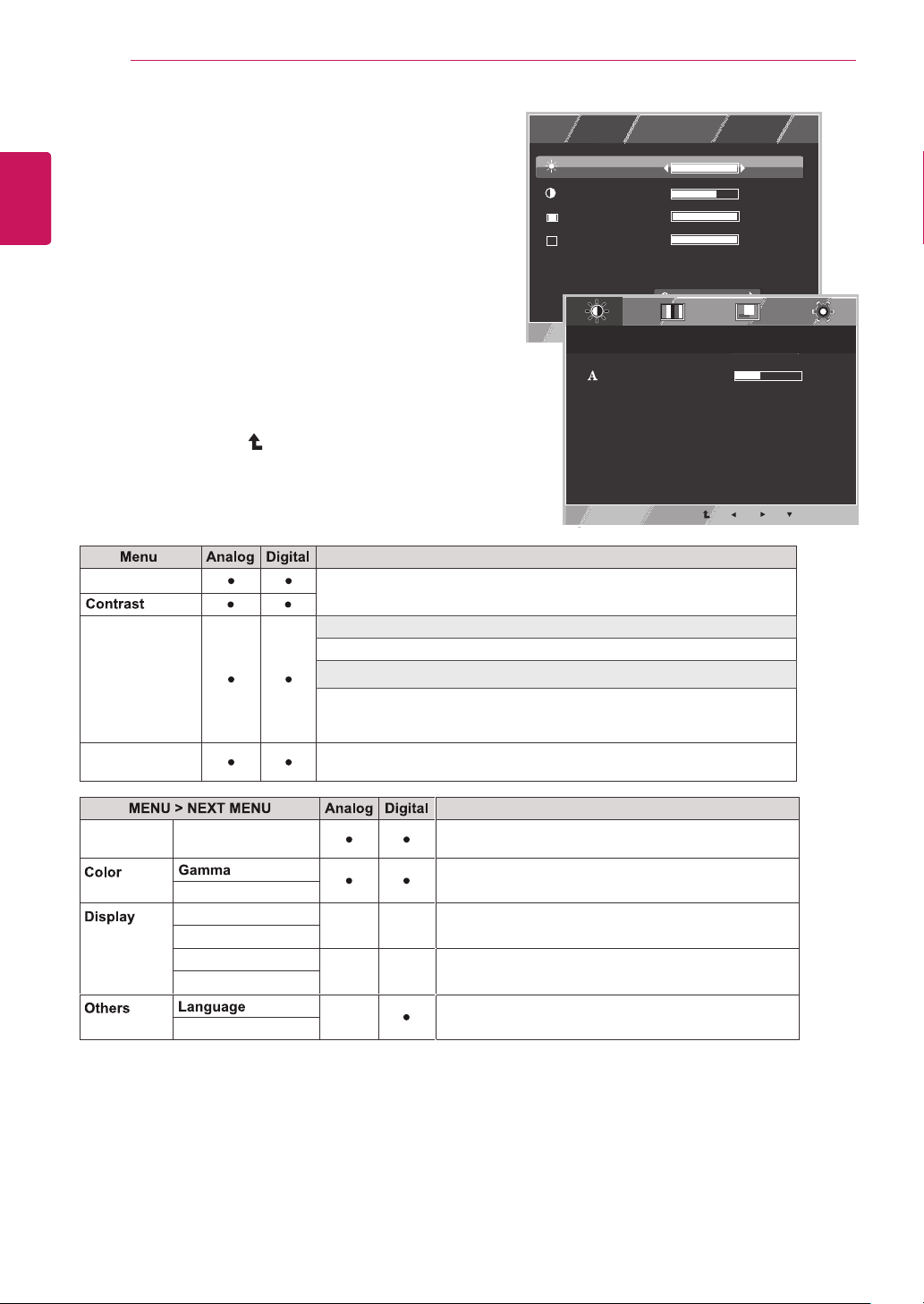

12 - Menu Settings

13 - PICTURE

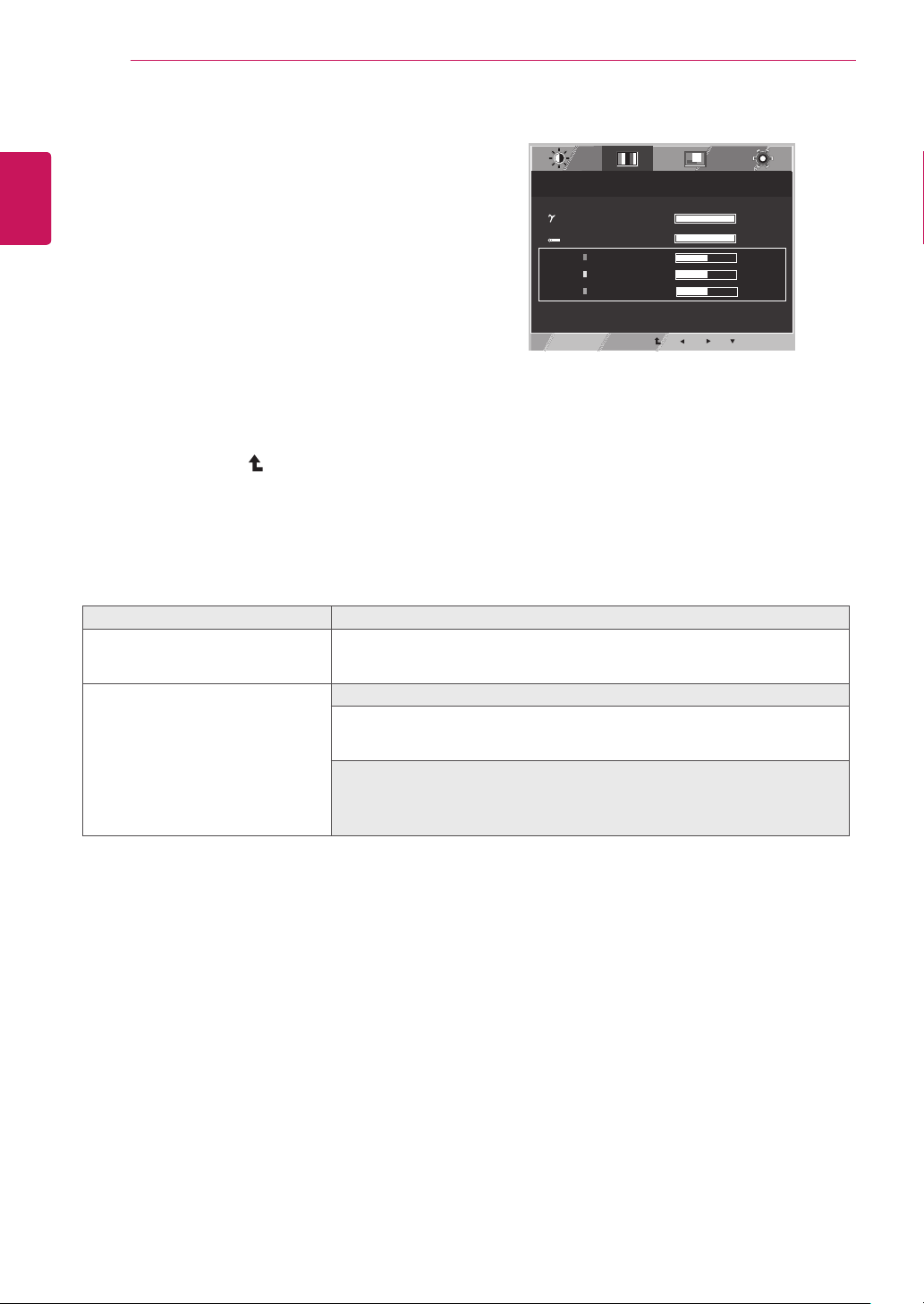

14 - COLOR

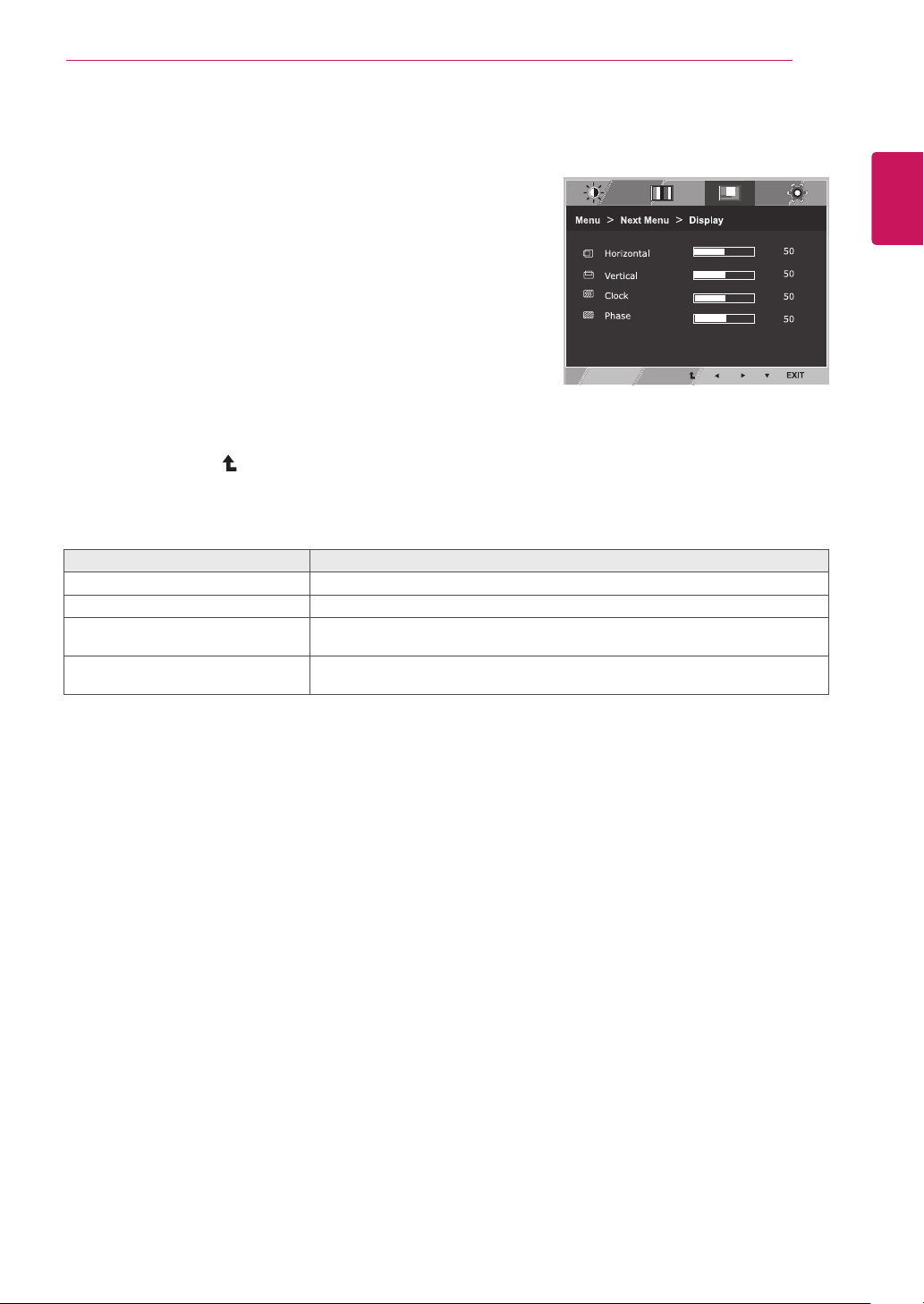

15 - DISPLAY

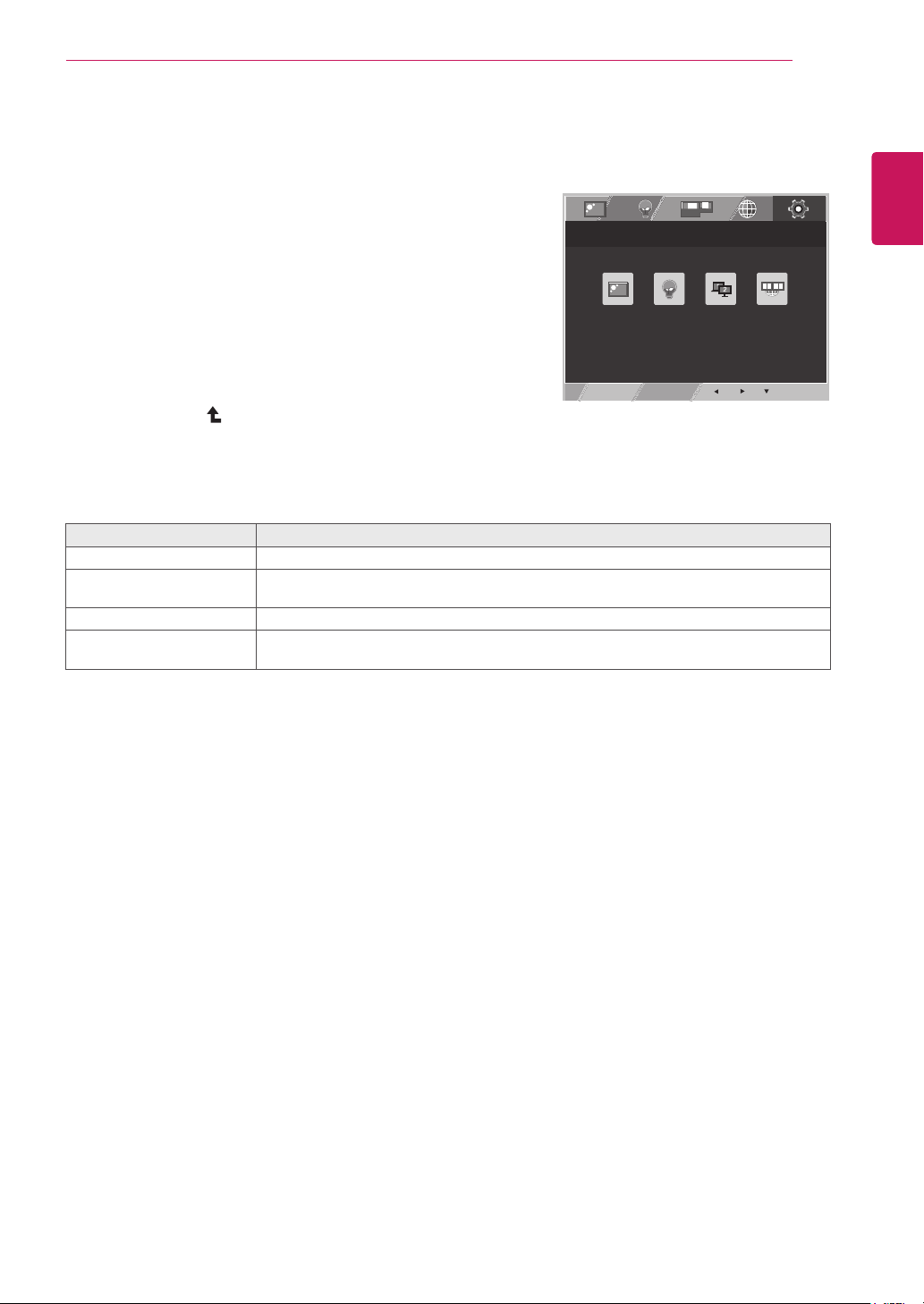

16 - OTHERS

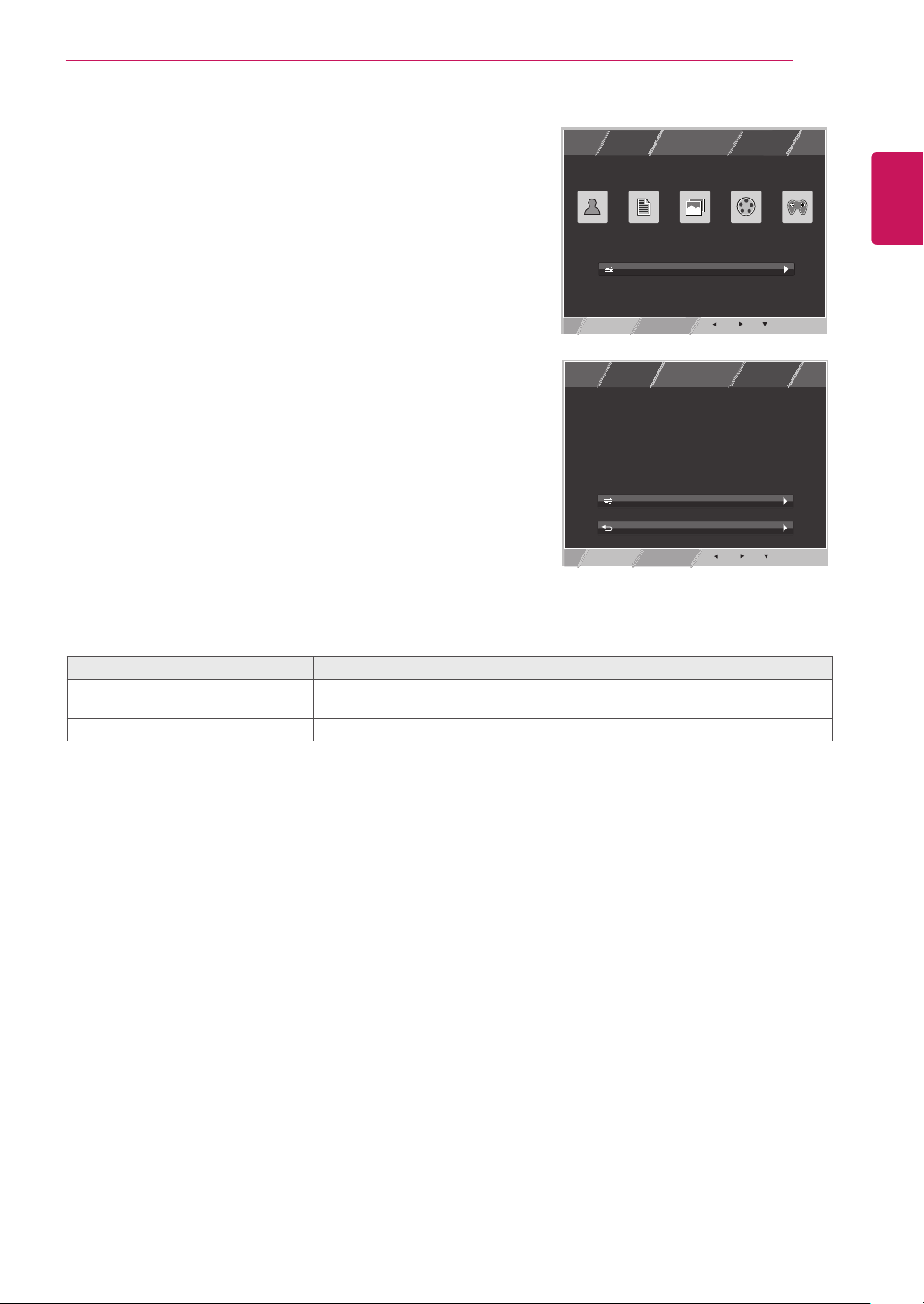

17 MY KEY Setting

18 FUNC. Setting

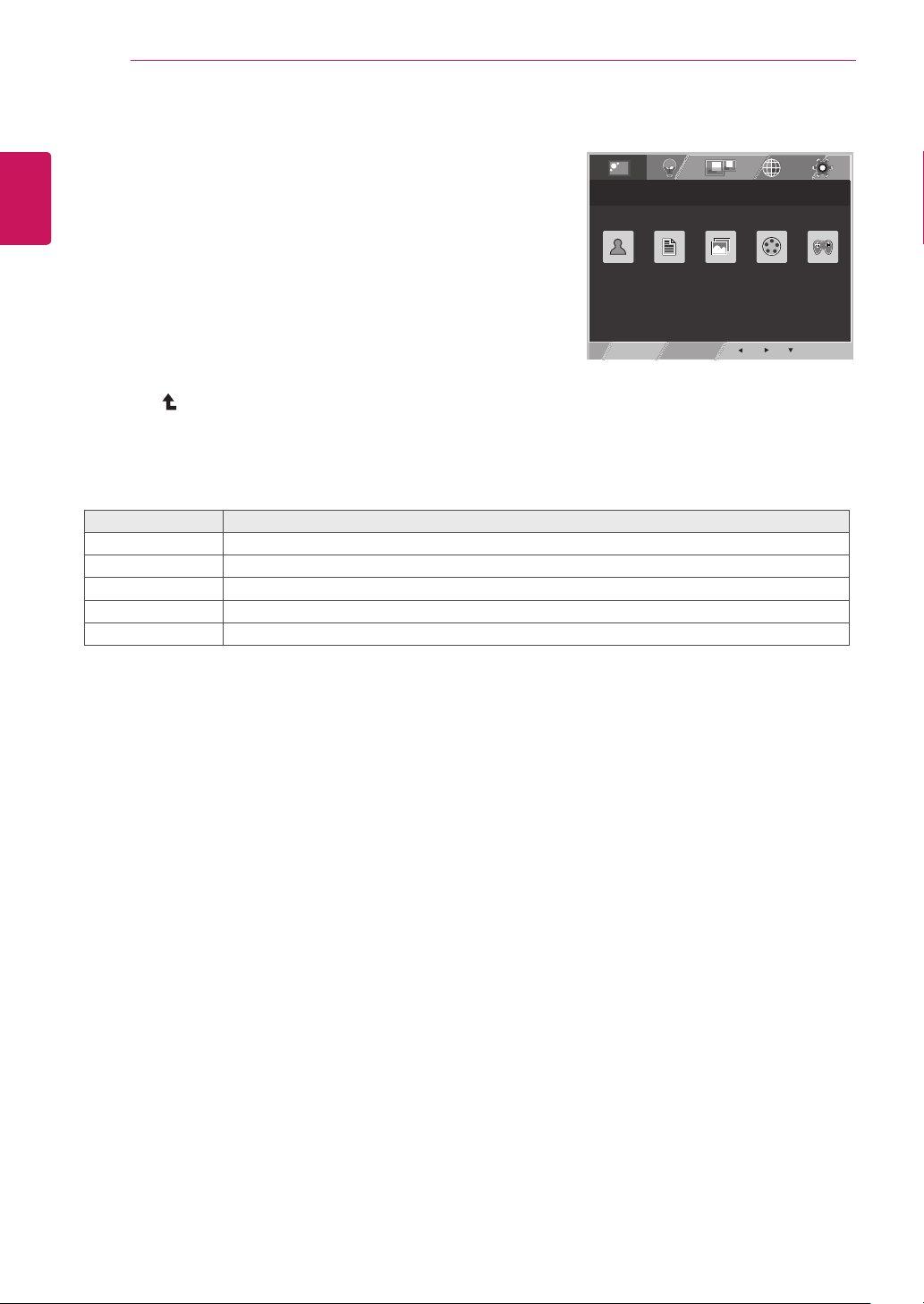

18 - Picture Mode Setting

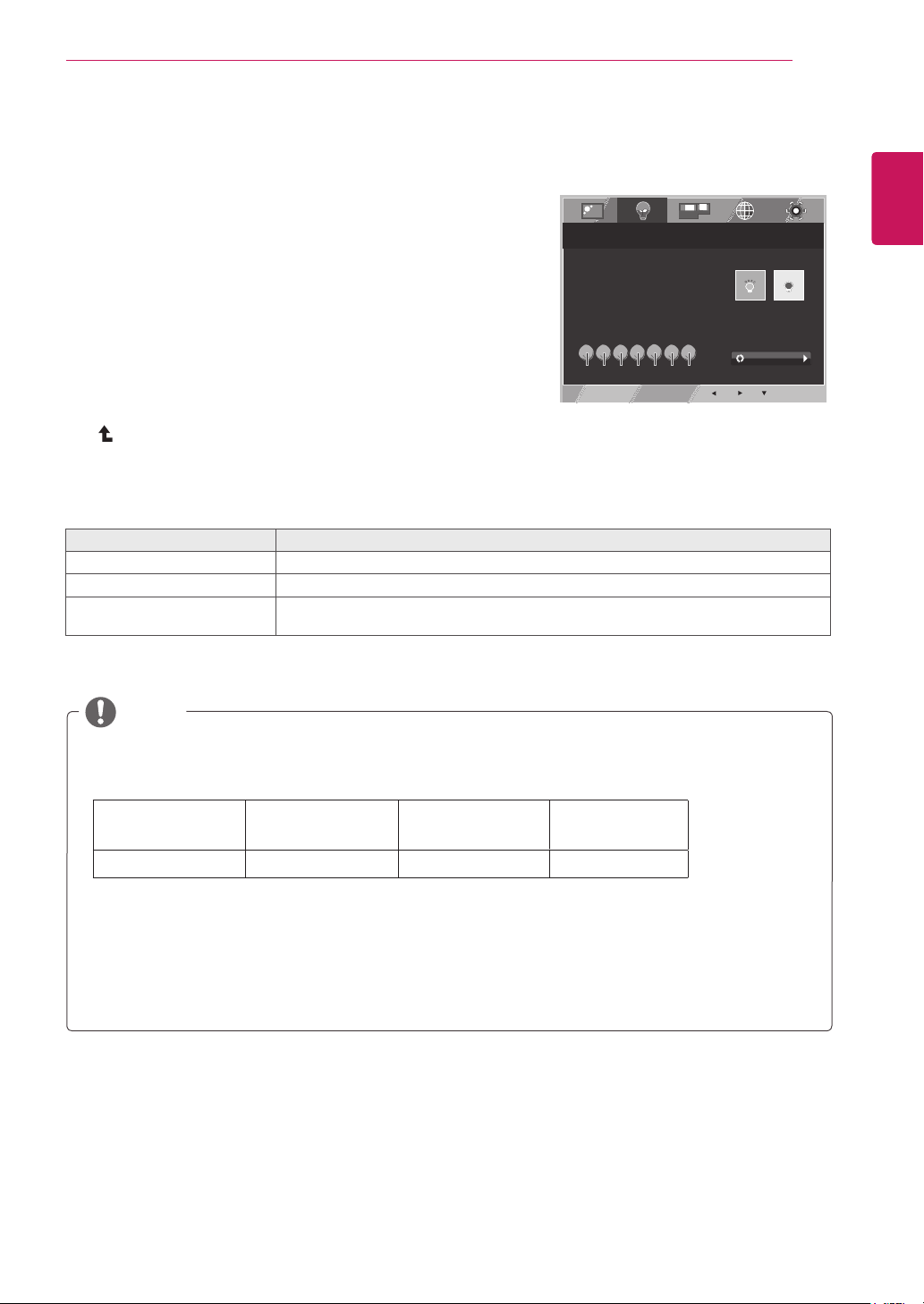

19 - SUPER ENERGY SAVING Setting

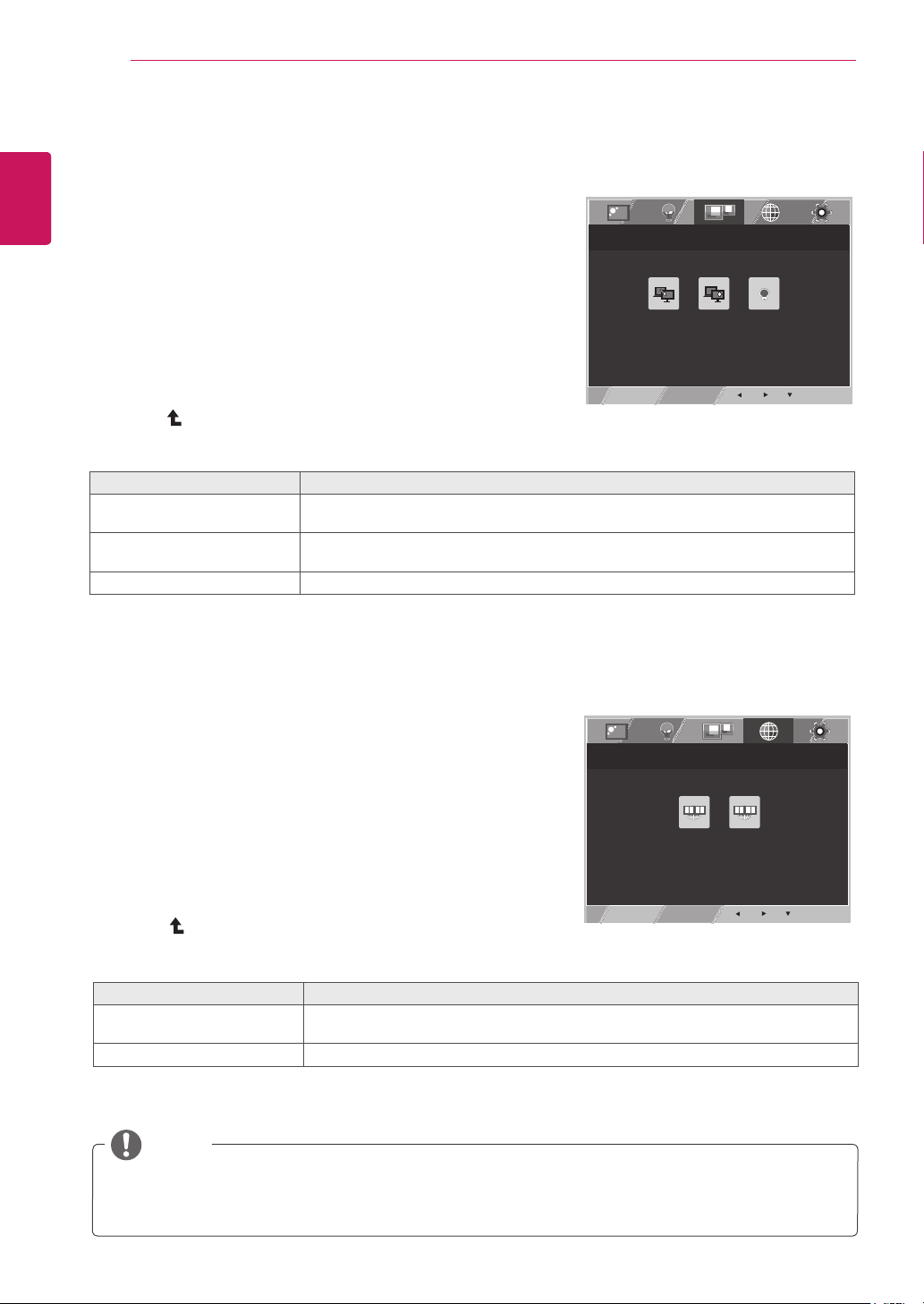

20 - DUAL DISPLAY Setting

20 - DUAL WEB Setting

21 - MY KEY Setting

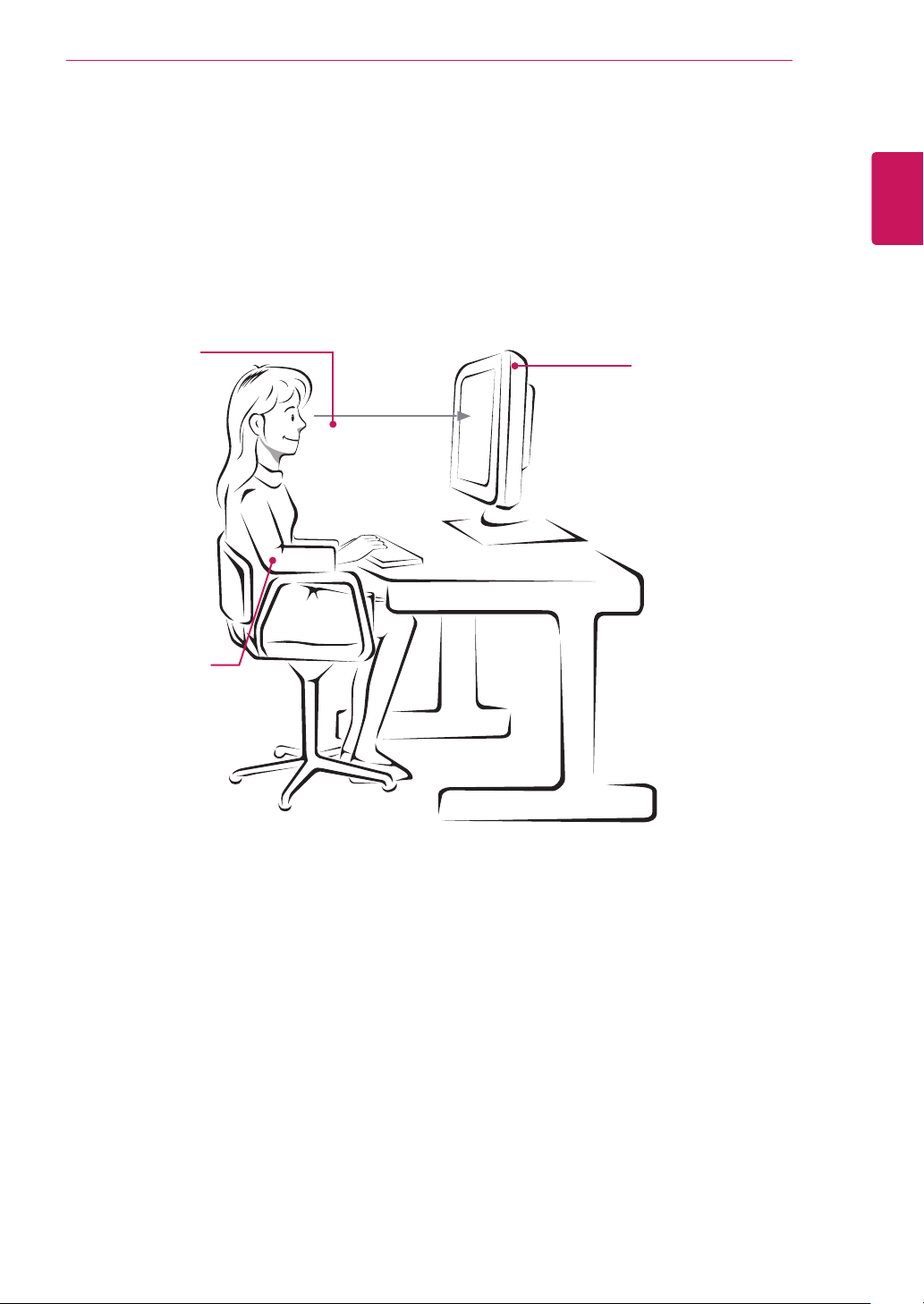

28 PROPER POSTURE

28 Proper posture for using the Monitor set.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

CD(Owner's Manual) /

Card

D-SUB Cable

DVI-D Cable

(This cable is not included

in all countries.)

ENGLISH

ENG

Power Cord AC-DC Adapter AC-DC Adapter

( Depending on the country ) ( Depending on the country )

Stand Body Stand Base

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.



Any damages or injuries by using unapproved accessories are not covered by the warranty.



NOTE

The accessories supplied with your product may vary depending on the model.



Product specifications or contents in this manual may be changed without prior notice due to upgrade



of product functions.

ENGLISH

ENG

ASSEMBLING AND PREPARING

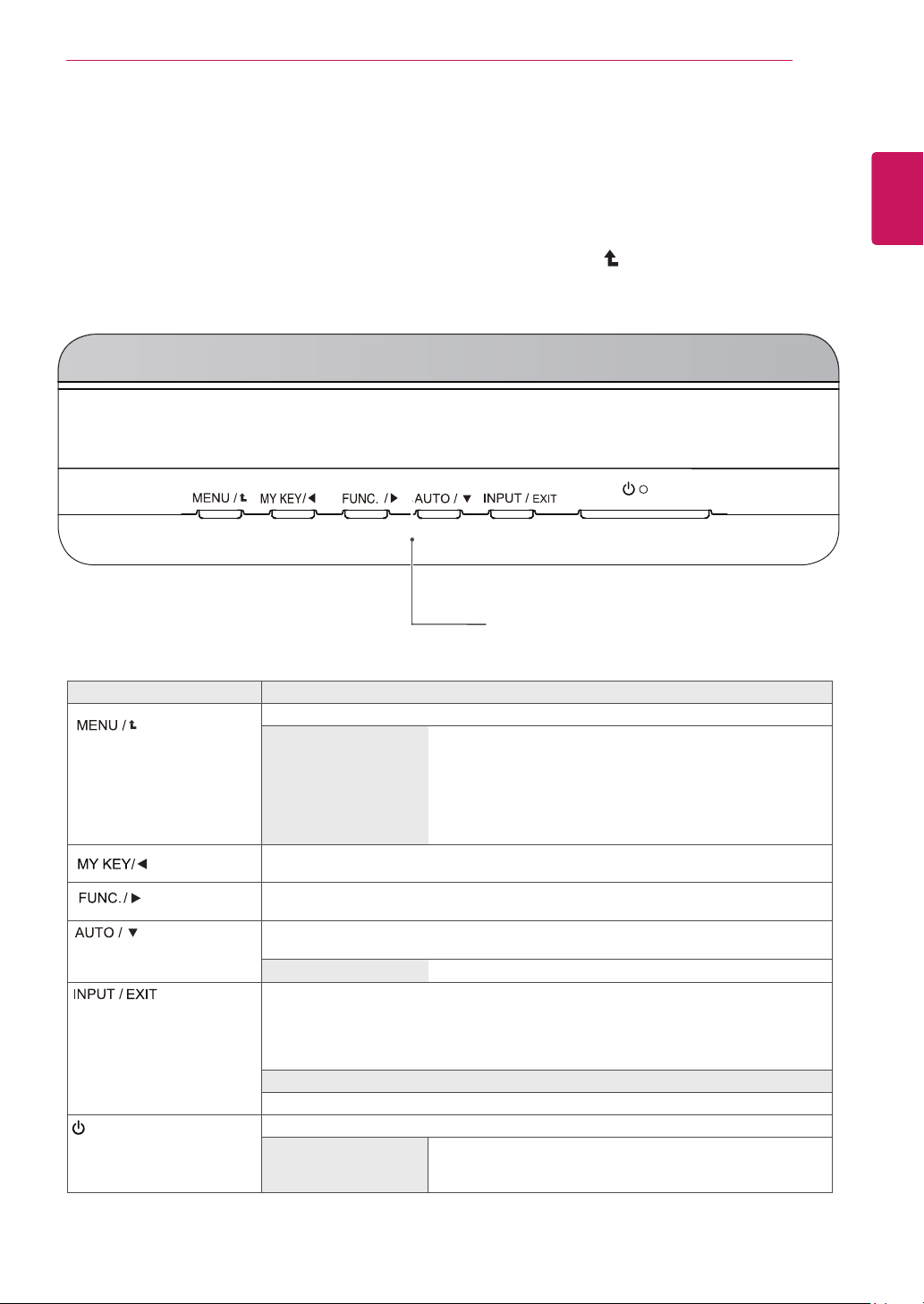

Parts and buttons

Power Indicator

Lighting On: Turned on



Lighting Off: Turned off



DC-IN

(Power Button)

Button (See p.11)

D-SUBDVI-D

Connection panel (See p.)

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

Place the Monitor set with the screen side

down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

Attach the Stand Body to the monitor set. Attach the Stand Base.

Tighten the screw to the right with a coin.

Detaching the Stand Base

Place the Monitor set with the screen side

down on a flat and cushioned surface.

Pull out the Stand Body and Stand Base from

the monitor set.

Turn the screw to the left with a coin. Pull out the Stand Base.

Stand Body

ENGLISH

ENG

Stand Body

Stand Base

Stand Body

Stand Base

CAUTION

This illustration depicts the general model of



connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding



only the stand base. The product may fall and get damaged or injure your foot.

ASSEMBLING AND PREPARING

Mounting on a table

Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm

Press (Power) button on the bottom switch

panel to turn the power on.

CAUTION

Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.

Using the cable holder

ENGLISH

ENG

Connect the AC-DC Adapter and Power Cord

to a wall outlet.

Cable holder

ASSEMBLING AND PREPARING

ENGLISH

ENG

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Do not touch or press the screen when adjusting the angle of the monitor.

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit

Connect the Kensington security system cable between the Monitor set and a table.

http://www.kensington.com

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

Front Rear

The Kensington security system is optional. You can obtain it from most electronics stores.

ASSEMBLING AND PREPARING

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

10 cm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set. When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

Please, Use the screw and wall mount interface

in accordance with VESA Standards.

If you use screw longer than standard, the

monitor might be damaged internally.

If you use improper screw, the product might be

damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

VESA compatible.

Please use VESA standard as below.

784.8 mm (30.9 inch) and under



* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

787.4 mm (31.0 inch) and above



* Please use VESA standard wall mount pad

and screws.

10 cm

Model

VESA (A x B) 75 x 75 100 x 100 Standard screw M4 Number of screws 4

22EA53T 23EA53T

24EA53T

CAUTION

Disconnect the power cord first, and then



move or install the Monitor set. Otherwise electric shock may occur. If you install the Monitor set on a ceiling or



slanted wall, it may fall and result in severe injury. Use only an authorized LG wall mount



and contact the local dealer or qualified personnel. Do not over tighten the screws as this may



cause damage to the Monitor set and void your warranty. Use only screws and wall mounts that



meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed on the VESA



standard screw specifications. The wall mount kit will include an installation



manual and necessary parts. The wall mount bracket is optional. You can



obtain additional accessories from your local dealer. The length of screws may differ depending



on the wall mount. Be sure to use the proper length. For more information, refer to the



instructions supplied with the wall mount.

ENGLISH

ENG

USING THE MONITOR SET

ENGLISH

ENG

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.



*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

NOTE

When using a D-Sub signal input cable



connector for Macintosh

Mac adapter



For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

ENGLISH
