LG 19EB13P-B User Guide
<![endif]>ENGLISH
OWNER’S MANUAL
LED MONITOR
Please read this manual carefully before operating your set and retain it for future reference.
LED MONITOR MODEL
19EB13P
www.lg.com
Accessories
!!! Thank for selecting LGE products !!!
Please make sure the following items are included with your monitor. If any items are missing, contact your dealer.
User's Guide/Cards
DVI-D Signal Cable
(This feature is not available in all countries.)
Power Cord
15-pin D-Sub Signal Cable
(To set it up, this signal cable may be attached to this product before shipping out.)
NOTE
This accessories may look different from those shown here.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite cores to maintain standard compliance for the product.
1

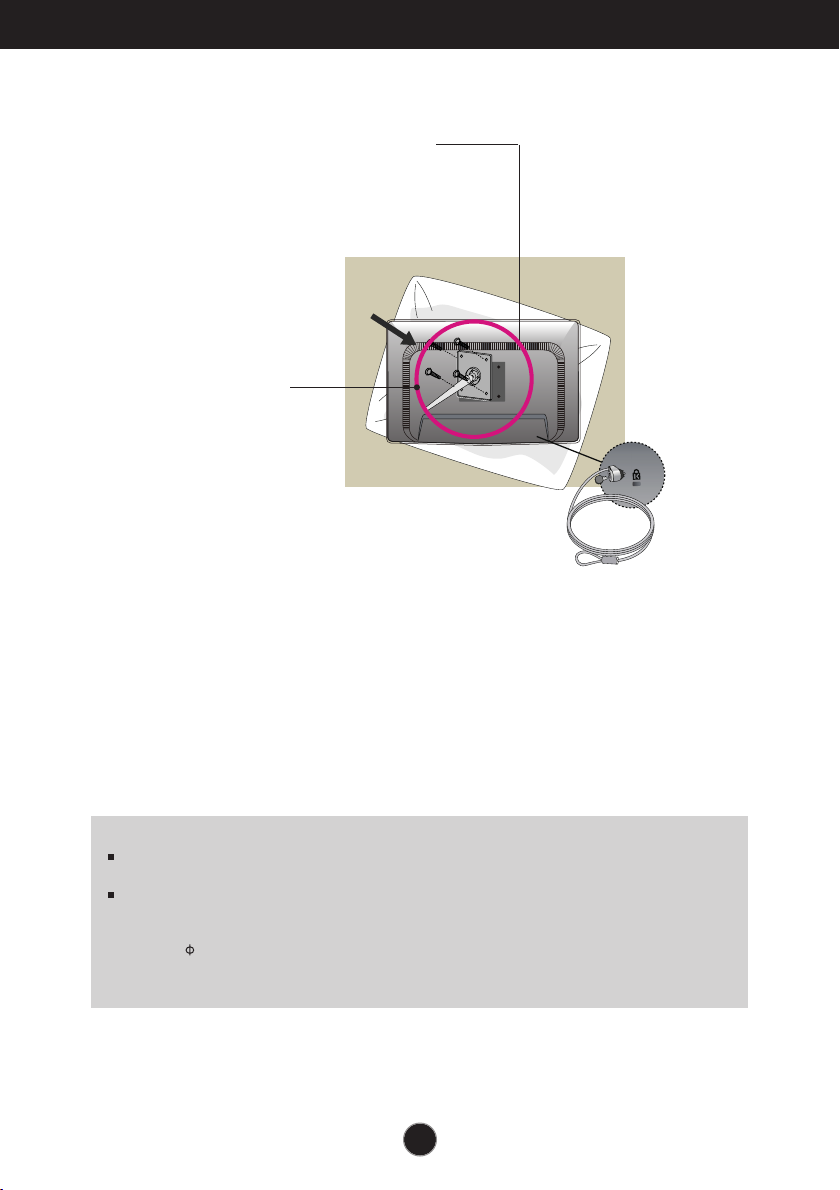

Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices are turned off.
Connecting the stand base or Removing the stand base

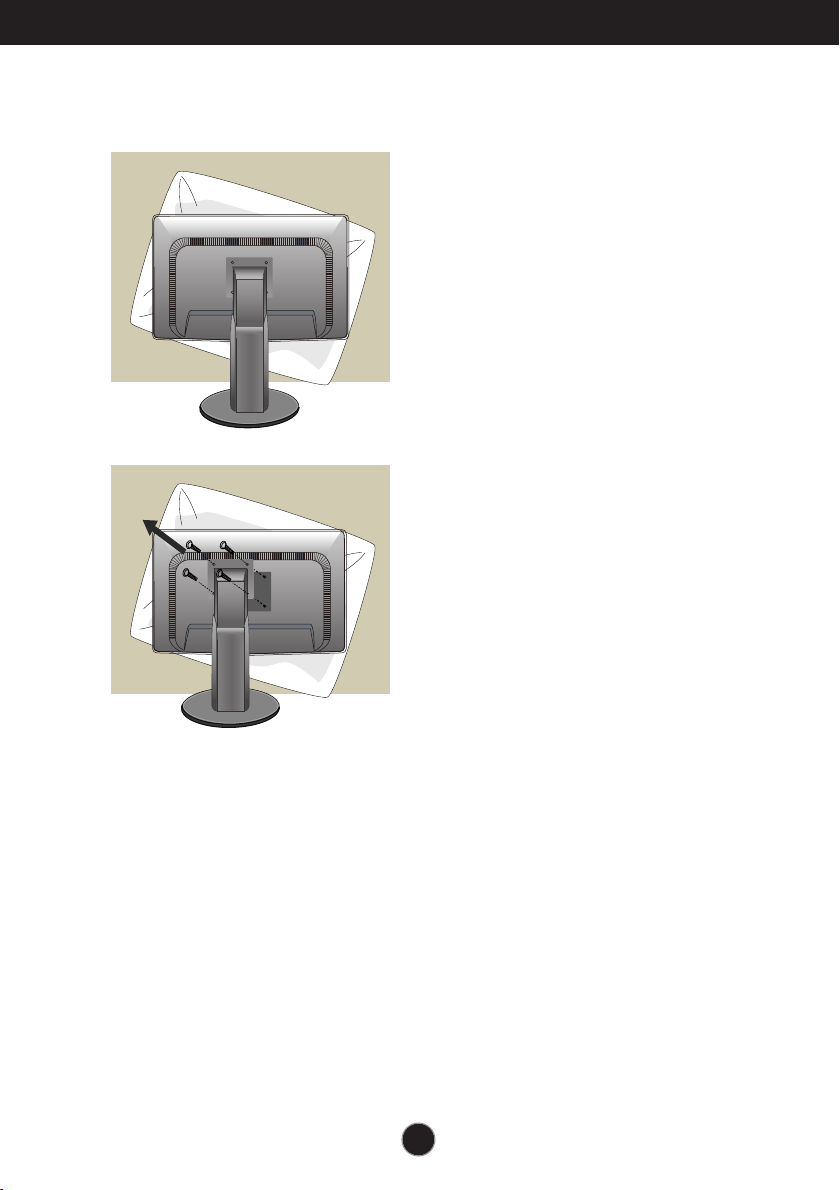

1. Place the monitor with its front facing downward on a cushion or soft cloth.
2. Assemble the Stand Base into the Stand Body.
Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.
Stop Pin
Stand Body
Stand Base
WARNING
The tape and locking pin may only be removed from those monitors equipped with a standing base when the base is pulled up. Otherwise, you may be injured by the protruding sections of the stand.
Product Handling with Care : When you lift up or move the product, Do Not hold or touch the front part of LCD panel. It will damage the panel. (Please hold the Stand Body or plastic cover of the product.)
2
Connecting the Display
3. Use a coin on the back of the stand base and turn the screw clockwise to tighten.
4. Lift and turn the monitor to face towards the front after the connection is made to the female part of the cable you're attaching.
5. When you desire to disintegrate the monitor from the stand base, use a coin to turn the screw counterclockwise.
IMPORTANT
This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.
Positioning your display
After installation, adjust the angle as shown below.
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -5˚ to 20˚
When adjusting the angle of the screen, do not put your finger(s) in between the head of the monitor and the stand body. You can hurt your finger(s).
3
Connecting the Display
Swivel Range : 356˚
Height Range : maximum 4.33 inches (110.0 mm)
110.0 mm
* Please be sure to remove the Locking pin to adjust the height.
WARNING
You do not need to replace the Locking pin after it is removed, to adjust its height.
ERGONOMIC
It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees.
4
Connecting the Display
Using the Pivot function
-The pivot function allows you to rotate the screen 90 degrees clockwise.
1. Lift the monitor to its highest height to utilize the Pivot function.
2. Landscape & Portrait : You can rotate the panel 90o clockwise.
Please be cautious and avoid contact between the monitor head and the Stand Base when rotating the screen to access the Pivot function. If the monitor head touches the Stand Base, then the Stand Base could crack.
Head section
Stand section
3. Be careful with the cables when rotating the screen.
5
Connecting the Display
Connecting with the PC
1. |
Before setting up the monitor, |
that the power to the monitor, the computer |
2. |
system, and other attached devices is turned off. |
|
Connect signal input cable 1 |
2 in order, then tighten the screw |
|
of the signal cable.
AConnect DVI-D(Digital signal) Cable
BConnect D-sub(Analog signal) Cable
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
Varies according to model.
Wall-outlet type
When using a D-Sub signal input cable connector for Macintosh
Mac adapter : For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector.
Connect the signal input cable and tighten it up by turning in the direction of the arrow as shown in the figure.
|
|
A DVI-D (This feature is not available in all countries.) |
||
|
|
|||
|
|
|||
B |
||||
|
|
|
|
PC |
|
|
|
|
PC |
|
|
|
|
|
|
|
|
|
|
3. Press the power button on the front panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically.
(Only Analog Mode)
|
Power Button |
NOTE |
|
‘ |
Setting Function’? This function provides the user with optimal display |
settings.When the user connects the monitor for the first time, this function automatically adjusts the to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen flicker tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution.
6

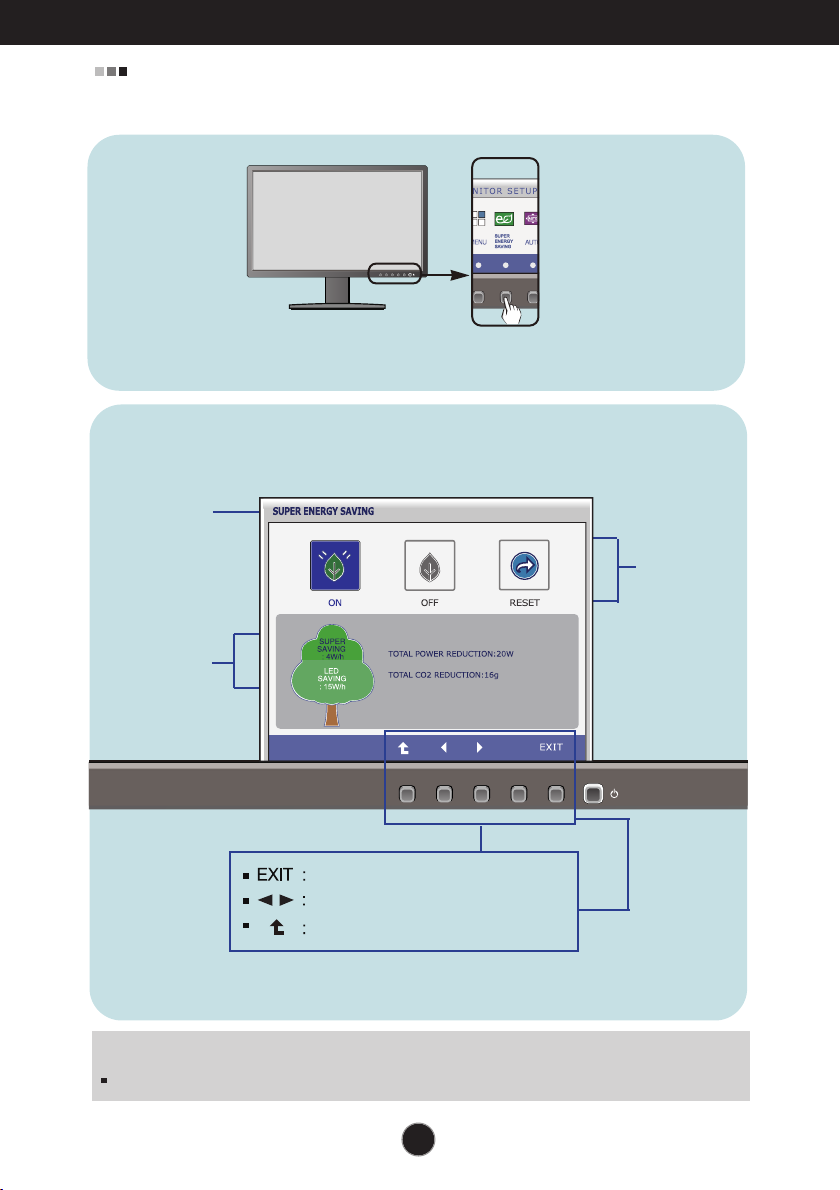

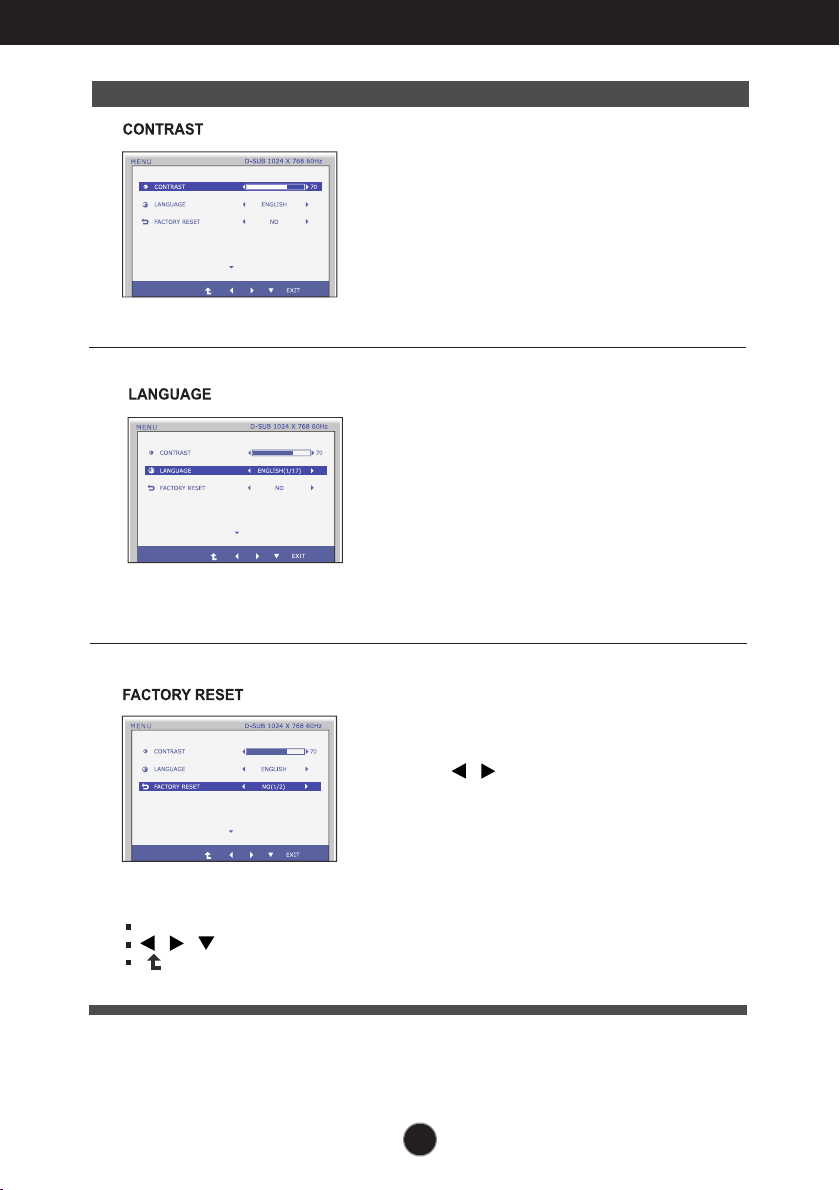

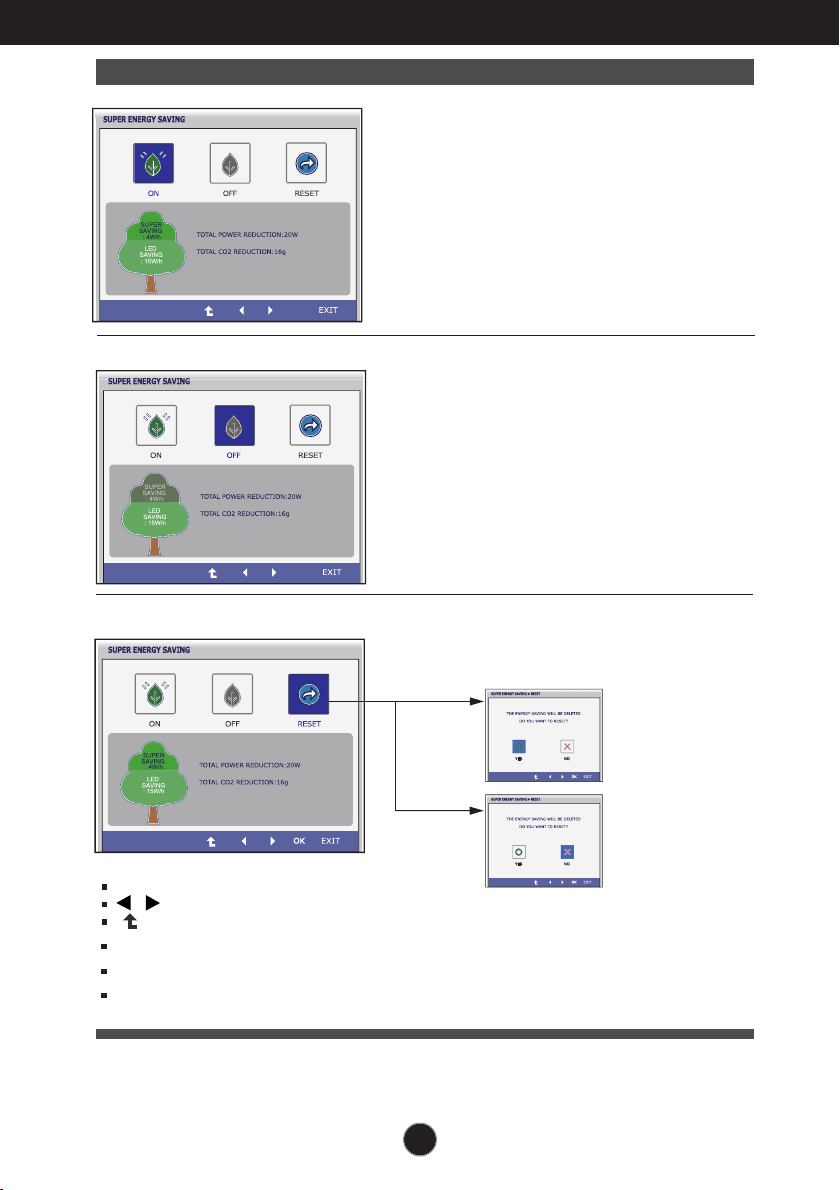

Control Panel Functions

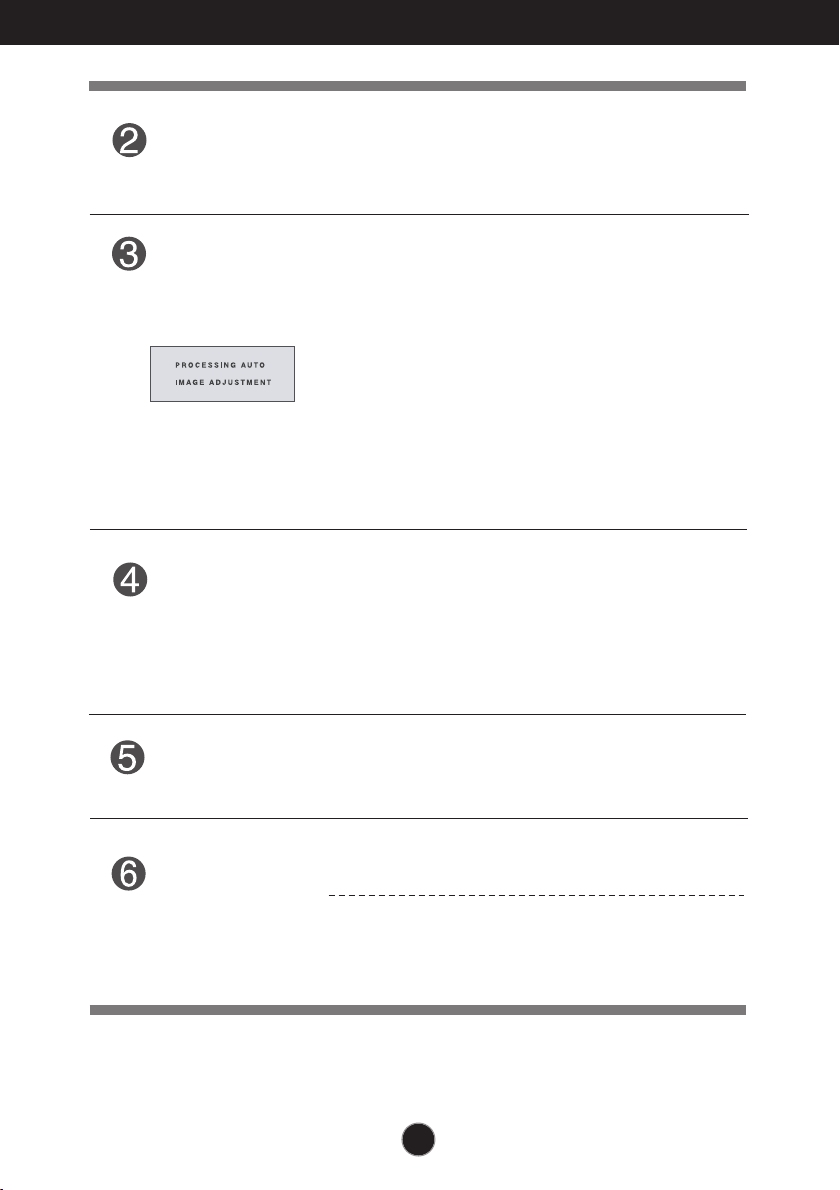

Front Panel Controls
MENU Button OSD LOCKED/UNLOCKED
This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
