Lexus UX (2019) Owner’s Manual

The Quick Guide is not intended as a substitute for your

OWNER’S MANUAL

the

OWNER’S MANUAL

will have a better understanding of your vehicle’s capabilities

Contents

Pictorial Index ............................................ ................................................................................. 3

Hybrid System

Hybrid System....................................................................................................................................11

For safe use

Floor Mat Installation.....................................................................................................................14

Entering and Exiting

Keys......................................................................................................................................................15

Smart Access System with Push-button Start.................................................................... 17

When Driving

Front Seats.........................................................................................................................................18

Power (Ignition) Switch................................................................................................................19

EV Drive Mode ..............................................................................................................................22

Hybrid Transmission.....................................................................................................................23

Turn Signal Lever...........................................................................................................................26

Parking Brake..................................................................................................................................27

Brake Hold .......................................................................................................................................29

Multi-information Display.......................................................................................................... 30

Head-up Display............................................................................................................................33

Headlights.........................................................................................................................................36

AHB (Automatic High Beam)..................................................................................................37

Fog Light Switch.............................................................................................................................39

Windshield Wipers and Washer.............................................................................................40

Rear Window Wiper and Washer .........................................................................................42

and limitations.

. We strongly encourage you to review

and supplementary manuals so you

1

Driving Comfort

*: These features may be operated by Voice Command (See P.68)

Remote Touch................................................................................................................................ 43

Energy Monitor/Consumption Screen...............................................................................48

Navigation System

Hands-free System For Cellular Phone

Audio System

Lexus Climate Concierge.........................................................................................................64

Air Conditioning System

Interior features

Voice Command System

USB/AUX Ports ............................................................................................................................76

Garage Door Opener.................................................................................................................77

Lexus Enform

Lexus Enform Safety Connect...................................................................................................81

Lexus Enform Remote ................................................................................................................83

Lexus Enform Service Connect..............................................................................................84

Audio

SiriusXM Satellite Radio............................................................................................................85

Opening and Closing

Door Locks ......................................................................................................................................86

Back Door........................................................................................................................................87

Fuel Tank Cap ................................................................................................................................90

What to do if...

List of Warning/Indicator Lights...............................................................................................91

If the electronic key does not operate properly............................................................... 95

If the hybrid system will not start ..............................................................................................97

*.......................................................................................................................51

*........................................................................... 53

*................................................................................................................................57

*.........................................................................................................65

*........................................................................................................68

Depending on specifications, the vehicle shown in the illustration may
differ from your vehicle in terms of equipment.

2

Pictorial Index

■Instrument panel

Power switch .............................................. ................................................................. P.19

A

Starting the hybrid system/changing the mode ...............................................P.19, 20

Emergency stop of the hybrid system ..........................................................................P.21

When the hybrid system will not start..........................................................................P.96

Warning messages

1

*

Shift lever ............................................................................. ....................................... P.23

B

Changing the shift position...............................................................................................P.23

Precautions against towing
When the shift lever does not move*

Meters*

C

Reading the meters/adjusting the instrument panel lights*

Warning lights/indicator lights........................................................................................P.91

When the warning lights come on

Multi-information display ...................................................................................... P.30

D

Display......................................................................................................................................P.30

Energy monitor..................................................................................................................... P.48

When the warning messages are displayed

3

1

1

*

1

1

1

*

1

*

Parking brake switch ............................................................................................... P.27

E

H

M

Applying/releasing..............................................................................................................P.27

1

Precautions against winter season
Warning buzzer/message*

Turn signal lever........................................................................................................ P.26

F

*

1

Headlight switch ........................................ ............................................................... P.36

Headlights/parking lights/tail lights/license plate lights/

daytime running lights ........................................................................................................P.36

AHB (Automatic High Beam)........................................................................................P.37

Fog lights

Windshield wiper and washer switch ................................................................. P.40

G

2

*

............................................................................................................................P.39

Rear window wiper and washer switch .............................................................. P.42

Usage...............................................................................................................................P.40, 42

1

Adding washer fluid

*

Headlight cleaners*2.........................................................................................................P.40

Warning messages

Emergency flasher switch*
Hood lock release lever*

I

Tilt and telescopic steering control switch*

J

Adjustment*
Driving position memory*

Tilt and telescopic steering lock release lever*

K

Adjustment*

1

*

1

1

1, 2

1

1, 2

1, 2

1

Air conditioning system .......................................................................................... P.65

L

Usage........................................................................................................................................P.66

Rear window defogger......................................................................................................P.65

Audio system.......... .................................................................................................... P.57

1

*

: Refer to the “OWNER’S MANUAL”.

2

*

: If equipped

4

■Switches

E

VSC off switch*

A

Driving mode select switch*

B

Power back door switch*2.................................................................................... P.87

C

Fuel filler door opener switch ........................................................ ....................... P.90

D

1

Instrument panel light control switches
Odometer/trip meter and trip meter reset button*

F

Head-up display switch*2...................................................................................... P.33

G

ASC switch

H

Seat ventilator switches*

I

Seat heater switches*

J

Heated steering wheel switch*

K

1

*

: Refer to the “OWNER’S MANUAL”.

2

*

: If equipped

1, 2

*

1, 2

1, 2

1

1

*

1

1, 2

5

Driving position memory switches*

D

A

Outside rear view mirror switches*

B

Door lock switches................................................................................................... P.86

C

Power window switches
Window lock switch*

E

1

*

: If equipped

2

*

: Refer to the “OWNER’S MANUAL”.

*

2

1, 2

2

2

6

Meter control switches .......................................................................................... P.32

D

A

Paddle shift switches

B

TEL switch ........................................................... ........................................................ P.56

C

1

*

................................................................................... P.24, 25

LTA (Lane Tracing Assist) switch
Vehicle-to-vehicle distance switch*

E

Cruise control switches*

F

Dynamic radar cruise control with full-speed range*

Audio remote control switches ............................................................................ P.58

G

Talk switch .................................................................................................................. P.56

H

1

*

: If equipped

2

*

: Refer to the “OWNER’S MANUAL”.

2

*

2

2

2

7

Remote Touch ........................................................................................................... P.43

A

Audio control switches ........................................................................................... P.57

B

Brake hold switch ................................................................................................ .....P.29

C

EV drive mode switch .............................................................................................. P.22

D

8

■Interior

A

B

I

J

SRS airbags*

Floor mats .................................................................................................................... P.14

Front seats .......................................................... .................................................. ....... P.18

C

Rear seats

D

Head restraints*

E

Seat belts*

F

Console box*

G

*

Inside lock buttons ................................................................................................... P.86

H

Cup holder
Assist grips*

: Refer to the “OWNER’S MANUAL”.

*

9

*

■ Ceiling

C

E

Garage door opener buttons*1.............................................................................P.77

A

1, 2

2

*

2

Inside rear view mirror

B

Sun visors*
Vanity mirrors*

D

Interior light*
Personal lights*

Moon roof switches*

F

Door-linked interior light switch*

G

“SOS” button*1.......................................................................................................... P.81

H

1

*

: If equipped

2

*

: Refer to the “OWNER’S MANUAL”.

3

*

: The illustration shows the front, but they are also equipped in the rear.

2

2

2, 3

2

10

Hybrid System

A

B

C

D

Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles.
Be sure you are closely familiar with the characteristics of your vehicle, and operate it with
care.

The hybrid system combines the use of a gasoline engine and an electric motor (traction
motor) according to driving conditions, improving fuel efficiency and reducing exhaust
emissions.

For details, refer to the “OWNER’S MANUAL”.

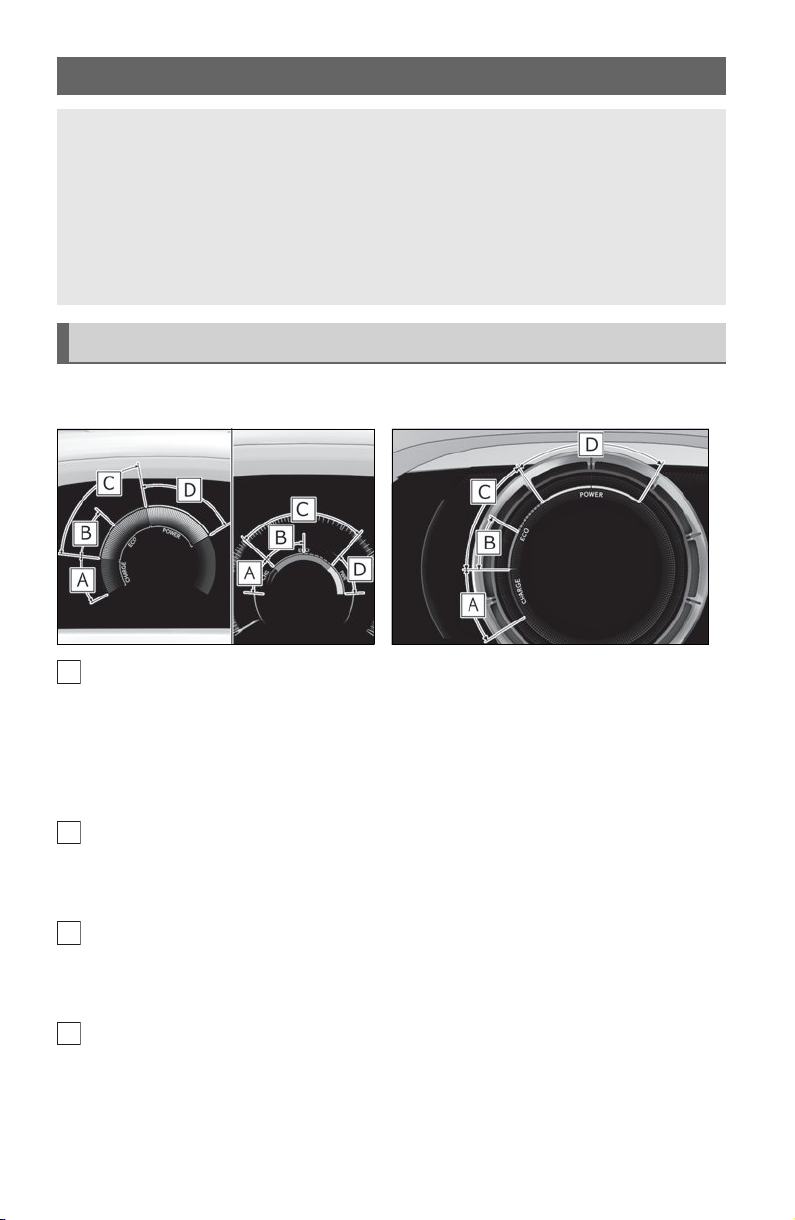

Hybrid System Indicator

 Except F SPORT models  F SPORT models

Charge area

Shows regeneration
battery (traction battery).

* status. Regenerated energy will be used to charge the hybrid

*: When used in this manual, regeneration refers to the conversion of energy created by

the movement of the vehicle into electrical energy.

Hybrid Eco area

Shows that gasoline engine power is not being used very often.

The gasoline engine will automatically stop and restart under various conditions.

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.

By keeping the bar display within Eco area, more Eco-friendly driving can be achieved.

Power area

Shows that an Eco-friendly driving range is being exceeded (during full power driving
etc.)

11

Hybrid battery (traction battery) charge

If the shift lever is in N, the hybrid battery (traction battery) will not be charged even when
the engine is running. Therefore, if the vehicle is left with the shift lever in N for a long period
of time, the hybrid battery (traction battery) will discharge, and this may result in the vehicle
not being able to start.

Regenerative braking

In the following situations, kinetic energy is converted to electric energy and deceleration
force can be obtained in conjunction with the recharging of the hybrid battery (traction bat­tery).

● The accelerator pedal is released while driving with the shift lever in D or S.

● The brake pedal is depressed while driving with the shift lever in D or S.

Sounds and vibrations specific to a hybrid vehicle

There may be no engine sound or vibration even though the vehicle is able to move with the
“READY” indicator is illuminated. For safety, apply the parking brake and make sure to shift
the shift lever to P when parked.

The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:

● Motor sounds may be heard from the engine compartment.

● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats

when the hybrid system starts or stops.

● Relay operating sounds such as a snap or soft clank will be emitted from the hybrid bat­tery (traction battery), behind the rear seats, when the hybrid system is started or
stopped.

● Sounds from the hybrid system may be heard when the back door is open.

● Sounds may be heard from the hybrid transmission when the gasoline engine starts or

stops, when driving at low speeds, or during idling.

● Engine sounds may be heard when accelerating sharply.

● Sounds may be heard due to regenerative braking when the brake pedal is depressed or

as the accelerator pedal is released.

● Vibration may be felt when the gasoline engine starts or stops.

● Cooling fan sounds may be heard from the air intake vent under the right side of the rear

seat.

12

Running out of fuel

When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 1.8 gal. [7.0 L, 1.5 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)

Hybrid warning message

A message is automatically displayed when a malfunction occurs in the hybrid system or an
improper operation is attempted.

If a warning message is shown on the multi­information display, read the message and
follow the instructions.

13

Floor Mat Installation

A

Use only floor mats designed specifically for vehicles of the same model and model year
as your vehicle. Fix them securely in place onto the carpet.

1 Insert the retaining hooks (clips) into

the floor mat eyelets.

2 Turn the upper knob of each retaining

hook (clip) to secure the floor mats in
place.

Always align the marks .

The shape of the retaining hooks (clips) may differ from that shown in the illustration.

14

Keys

Electronic key

Mechanical key

● Smart access system with push-button
start (P.17)

● Wireless remote control

*: If equipped

To take out the mechanical key, push the
release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.

After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.

15

Wireless remote control

Locks all the doors

A

Unlocks all the doors

B

Opens the windows and moon roof

C

Opens and closes the power back

D

1

*

door

Sounds the alarm

E

1

*

: If equipped

2

*

: This setting must be customized at your

Lexus dealer.

1, 2

*

16

Smart Access System with Push-button Start

The following operations can be performed simply by carrying the electronic key on your
person, for example in your pocket. The driver should always carry the electronic key.

For details on starting the hybrid system, see page 19.

Unlocking and locking the doors from the outside

1 Grip the driver’s door handle to unlock

the door. Holding the driver’s door
handle for approximately 2 seconds
unlocks all the doors. Grip the front
passenger door handle to unlock all

the doors.

Make sure to touch the sensor on the
back of the handle.

The doors cannot be unlocked for
3 seconds after the doors are locked.

*: The door unlock settings can be

2 Touch the lock sensor (the indentation on the upper part of the front door handle) to

lock all the doors.

Check that the door is securely locked.

*

changed.

Unlocking and locking the back door from the outside

1 Locks all the doors

Check that the door is securely locked.

2 Unlocks all the doors

The doors cannot be unlocked for 3
seconds after the doors are locked.

For details on what to do when the electronic key does not operate properly, see page 95.

17

Front Seats

Adjustment procedure

Seat position adjustment switch

A

Seat cushion (front) angle adjustment

B

switch

Seatback angle adjustment switch

C

Vertical height adjustment switch

D

Lumbar support adjustment switch (for

E

driver’s side)

18

Power (Ignition) Switch

Performing the following operations when carrying the electronic key on your person
starts the hybrid system or changes power switch modes.

Starting the hybrid system

1 Press the parking brake switch to

check that the parking brake is set.
(P.27)

Parking brake indicator will come on.

2 Check that the shift lever is in P

3 Firmly depress the brake pedal.

and a message will be displayed

on the multi-information display. If it is
not displayed, the hybrid system can­not be started.

4 Press the power switch shortly and firmly.

When operating the power switch, one short, firm press is enough. It is not necessary to
press and hold the switch.

If the “READY” indicator turns on, the hybrid system will operate normally.
Continue depressing the brake pedal until the “READY” indicator is illuminated.
The hybrid system can be started from any power switch mode.

5 Check that the “READY” indicator is illuminated.

The vehicle will not move when the “READY” indicator is off.

19

Stopping the hybrid system

1 Stop the vehicle completely.

2 Set the parking brake (P.27), and shift the shift lever to P. (P.23)

3 Press the power switch.

4 Release the brake pedal and check that “ACCESSORY” or “IGNITION ON” is not

shown on the meter.

Changing power switch modes

Modes can be changed by pressing the power switch with the brake pedal released. (The
mode changes each time the switch is pressed.)

1 OFF*

The emergency flashers can be used.

2 ACC

Some electrical components such as
the audio system can be used.

“ACCESSORY” will be displayed on
the meter.

3 ON

All electrical components can be used.

“IGNITION ON” will be displayed on
the meter.

*: If the shift lever is in a position other than

P when turning off the hybrid system, the
power switch will be turned to ACC, not
to OFF.

20

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way,
stop the vehicle using the following procedure:

1 Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort required to slow
the vehicle.

2 Shift the shift lever to N.

 If the shift lever is shifted to N

3 After slowing down, stop the vehicle in a safe place by the road.

4 Stop the hybrid system.

 If the shift lever cannot be shifted to N

3 Keep depressing the brake pedal with both feet to reduce vehicle speed as much as

possible.

4 To stop the hybrid system, press and

hold the power switch for 2 consecu­tive seconds or more, or press it briefly
3 times or more in succession.

5 Stop the vehicle in a safe place by the road.

21

EV Drive Mode

In EV drive mode, electric power is supplied by the hybrid battery (traction battery), and
only the electric motor (traction motor) is used to drive the vehicle.

Turns EV drive mode on/off

When EV drive mode is turned on, the EV
drive mode indicator will come on. Pressing
the switch when in EV drive mode will
return the vehicle to normal driving (using
the gasoline engine and electric motor
[traction motor]).

22

Hybrid Transmission

Shifting the shift lever

While the power switch is in ON

and the brake pedal depressed
shift lever while pushing the shift release
button on the shift knob.

Shift the shift lever while pushing

the shift release button on the shift knob.

Shift the shift lever normally.

When shifting the shift lever between P and D, make sure that the vehicle is completely
stopped and the brake pedal is depressed.

*, shift the

*: For the vehicle be able to be shifted from P, the brake pedal must be depressed before

the shift release button is pushed. If the shift release button is pushed first, the shift lock
will not be released.

23

Shift position purpose and functions

Shift position Objective or function

P Parking the vehicle/starting the hybrid system

R Reversing

N Neutral (Condition in which the power is not transmitted)
D Normal driving*

S S mode driving*2 (P.25)

1

*

: To improve fuel efficiency and reduce noise, shift the shift lever to D for normal driving.

2

*

: By selecting shift ranges using S mode, you can control accelerating force and engine

braking force.

1

Selecting shift ranges in the D position (vehicles with paddle shift
switches)

To drive using temporary shift range selection, operate the “-” or “+” paddle shift switch
when driving with the shift lever in D.

When the “-” paddle shift switch is operated, the shift range switches to a range that enables
engine braking force that is suitable to driving conditions. When the “+” paddle shift switch is
operated, the shift range switches to a range that is one range higher than the current range.

1 Upshifting

2 Downshifting

The selected shift range, from D1 to D6, will
be displayed in the meter.

To return to normal D position driving, the
“+” paddle shift switch must be held down
for a period of time.

Meter display Function

A gear in the range between D1 and the selected shift range is

D2 - D6

D1 Setting the shift range at D1

automatically chosen depending on vehicle speed and driving
conditions

24

Changing shift ranges in the S position

To enter S mode, shift the shift lever to S. Shift ranges can be selected by operating the shift
lever or paddle shift switches (if equipped).

1 Upshifting

2 Downshifting

The selected shift range, from S1 to S6, will
be displayed in the meter.

The initial shift range in S mode is 4.

■ Shift ranges and their functions

● You can choose from 6 levels of accelerating force and engine braking force.

● A lower shift range will provide greater accelerating force and engine braking force

than a higher shift range, and the engine revolutions will also increase.

25

Turn Signal Lever

1 Right turn

2 Lane change to the right (move the

lever partway and release it)

The right hand signals will flash 3 times.

3 Lane change to the left (move the lever

partway and release it)

The left hand signals will flash 3 times.

4 Left turn

26

Parking Brake

A

B

The parking brake can be set or released automatically or manually.

Using the manual mode

The parking brake can be set and released manually.

U.S.A.

Canada

1 Push the switch to set the parking

brake

The parking brake indicator light will
turn on.

Press and hold the parking brake
switch if an emergency occurs and it is
necessary to operate the parking
brake while driving.

2 Pull the switch to release the parking

brake

• Operate the parking brake switch
while depressing the brake pedal.

• Using the parking brake automatic
release function, the parking brake
can be released by depressing the
accelerator pedal. When using this
function, slowly depress the acceler­ator pedal.

Make sure that the parking brake indi­cator light turn off.

27

Turning the automatic mode on

In automatic mode, the parking brake can be set or released automatically according to shift
lever operation. Also, even in automatic mode, the parking brake can be set or released
manually.

While the vehicle is stopped, press and hold
the parking brake switch until a message is
shown on the multi-information display

When the automatic mode is turned on, the
parking brake operates as follows.

● When the shift lever is shifted from P, the
parking brake will be released, and the
parking brake indicator light will turn off.

● When the shift lever is shifted to P, the
parking brake will be set, and the park­ing brake indicator light will turn on.

Operate the shift lever with the vehicle stopped and the brake pedal depressed.

Turning the automatic mode off

While the vehicle is stopped, pull and hold
the parking brake switch until a message is
shown on the multi-information display

28

Brake Hold

A

B

The brake hold system keeps the brake applied when the shift lever is in D, S or N with the
system on and the brake pedal has been depressed to stop the vehicle. The system
releases the brake when the accelerator pedal is depressed with the shift lever in D or S to
allow smooth start off.

Turns the brake hold system on

The brake hold standby indicator comes
on. While the system is holding the brake,

the brake hold operated indicator
comes on.

29

Multi-information Display

The multi-information display presents the driver with a variety of vehicle data.

Display and menu icons

■ Display (except F SPORT models)

By selecting menu icons on the multi-infor­mation display, a variety of driving-related
information can be displayed.

The multi-information display can also be
used to change display settings and other
vehicle settings.

Warning or suggestion/advice pop-up dis­plays are also displayed in certain situations.

■ Display (F SPORT models)

 When the main meter is in the center position

The multi-information display presents the
driver with a variety of driving-related infor­mation.

Warning or suggestion/advice pop-up dis­plays are also displayed in certain situations.

 When the main meter is in the side position

By selecting menu icons on the multi-infor­mation display, a variety of driving-related
information can be displayed.

The multi-information display can also be
used to change display settings and other
vehicle settings.

Warning or suggestion/advice pop-up dis­plays are also displayed in certain situations.

30

■Menu icons

The menu icons will be displayed by pressing or of the meter control switches.

F SPORT models: The menu icons can be displayed when the main meter is in the side posi­tion.

Driving information display

Select to display various drive data.

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance to destination

• Compass display

Audio system-linked display

Select to enable selection of an audio source or track on the meter using the
meter control switches.

Driving support system information display

Select to display the operational status of the following systems:

• LTA (Lane Tracing Assist)

• Dynamic radar cruise control with full-speed range

• RSA (Road Sign Assist) (if equipped)

Warning message display

Select to display warning messages and measures to be taken if a malfunction is
detected.

Settings display

Select to change the meter display settings

31

Changing the meter display

A

B

C

Call sending/receiving and history display

D

Linked with the hands-free system, sending or receiving call is displayed. For details
regarding the hands-free system, refer to the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

/ : Select menu icons

/ : Change displayed content,

scroll up/down the screen or move the
cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter
previous screen

* or return to the

*:F SPORT models

32

Head-up Display (if equipped)

ABC

D

The head-up display projects a variety of driving-related information and the operating
state of the driving support systems on the windshield.

System components

Driving support system display area
Navigation system-linked display area
(if equipped)

Driving information display area

Hybrid System Indicator/tachometer
display area

Head-up display switch

Illustrations used in this text are intended as
examples, and may differ from the image
that is actually displayed by the head-up dis­play.

33

Using the head-up display

■ Enabling/disabling the head-up display

Press the head-up display switch.

■ Changing settings of the head-up display

The following settings can be changed on of the multi-information display. For details,
refer to the “OWNER’S MANUAL”.

● Brightness and vertical position of the head-up display
Select to adjust the brightness or vertical position of the head-up display.

● Hybrid System Indicator/tachometer
Select to display the Hybrid System Indicator, tachometer or no content.

● Display content
Select to enable/disable the following items:

• Route guidance to destination/street name

• Driving support system display

• Compass (heading-up display)

• Audio system operation status

● Display angle
Select to adjust the angle of the head-up display.

1

*

: To set this item, select on the multi-information display, select “Vehicle Settings” and

select “HUD”.

2

*

: Make sure to enable this display when using the driving support systems

1

*

1

*

1

*

2

*

34

Hybrid System Indicator/tachometer display area

A

B

C

D

■Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as that
displayed on the meter (Hybrid System
Indicator). For details, refer to P.11.

■Tachometer

Displays the engine speed in revolutions per minute.

The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses. Adjust the brightness of the head-up display or remove
your sunglasses.

35

Headlights

Turning on the high beam headlights

U.S.A.

A

Canada

B

1 The side marker, parking, tail,

license plate, instrument panel lights,
and daytime running lights turn on.

2 The headlights and all the lights

listed above (except daytime running
lights) turn on.

3 The headlights, daytime running

lights and all the lights listed above turn
on and off automatically.

4 (U.S.A.) Off

1 With the headlights on, push the lever

away from you to turn on the high
beams.

Pull the lever toward you to the center
position to turn the high beams off.

2 Pull the lever toward you and release it

to flash the high beams once.

You can flash the high beams with the
headlights on or off.

36

AHB (Automatic High Beam)

The Automatic High Beam uses a front camera located behind the upper portion of the
windshield to assess the brightness of the lights of vehicles ahead, streetlights, etc., and
automatically turns the high beams on or off as necessary.

Activating the Automatic High Beam

1 Press the Automatic High Beam

switch.

2 Turn the headlight switch to the

or position.

The Automatic High Beam indicator
will come on when the system is oper­ating.

37

Turning the high beams on/off manually

■ Switching to the high beams

■ Switching to the low beams

■ Temporarily switching to the low beams

Push the lever away from you.

The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.

Pull the lever to its original position to acti­vate the Automatic High Beam system
again.

Press the Automatic High Beam switch.

The Automatic High Beam indicator will
turn off.

Press the switch to activate the Automatic
High Beam system again.

Pull the lever toward you and then return it
to its original position.

The high beams are on while the lever is
pulled toward you, however, after the lever
is returned to its original position, the low
beams remain on for a certain amount of
time. Afterwards, the Automatic High
Beam will be activated again.

38

Fog Light Switch (if equipped)

When in difficult driving conditions, such as in rain and fog, turn on the fog lights to secure
front visibility.

Turning on the fog light

1 *1 or *2 Turns the fog

lights off

2

1

*

2

*

Turns the fog lights on

:For the U.S.A.

:For Canada

39

Windshield Wipers and Washer

 Intermittent windshield wipers with interval adjuster

1 *1 or *2 Off

2

ation

3 *

ation

4 *

ation

5 *

ation

1

*

:For the U.S.A.

2

*

:For Canada

Wiper intervals can be adjusted when inter­mittent operation is selected.

6 Increases the intermittent windshield

wiper frequency

7 Decreases the intermittent windshield

wiper frequency

1

*

or *2 Intermittent oper-

1

or *2 Low speed oper-

1

or *2 High speed oper-

1

or *2 Temporary oper-

8 Washer/wiper dual operation

Pulling the lever operates the wipers
and washer.

The wipers will automatically operate a
couple of times after the washer
squirts.

Vehicles with headlight cleaners: When the power switch is in ON and the headlights are
on, if the lever is pulled, the headlight cleaners will operate once. After this, the headlight
cleaners will operate every 5th time the lever is pulled.

40

 Rain-sensing windshield wipers

1 *

1

or *2 Off

2 *

3 *

ation

4 *

ation

5 *

ation

1

*

:For the U.S.A.

2

*

:For Canada

When is selected, the sensor sensi­tivity can be adjusted by turning the switch

ring.

1

Rain-sensing operation

1

or *2 Low speed oper-

1

or *2 High speed oper-

1

or *2 Temporary oper-

6 Increases the sensitivity

7 Decreases the sensitivity

8 Washer/wiper dual operation

Pulling the lever operates the wipers
and washer.

The wipers will automatically operate a
couple of times after the washer
squirts.

(After operating several times, the wip­ers operate once more time after a
short delay to prevent dripping. How­ever, the dripping prevention does not
operate while the vehicle is moving.)

Vehicles with headlight cleaners: When the power switch is in ON and the headlights are
on, if the lever is pulled, the headlight cleaners will operate once. After this, the headlight
cleaners will operate every 5th time the lever is pulled.

41

Rear Window Wiper and Washer

1 *

2 *

operation

3 *

1

*

:For the U.S.A.

2

*

:For Canada

1

or *2 Off

1

or *2 Intermittent

1

or *2 Normal operation

4 Washer/wiper dual operation

Pushing the lever operates the wiper
and washer.

The wiper will automatically operate a
couple of times after the washer
squirts.

42

Remote Touch

A

B

C

D

The Remote Touch can be used to operate the Center Display.
Remote Touch is the name for the device that includes the “MAP” (“HOME”) button,
“MENU” button, back button, touchpad and sub function button.

Names and operations of each part

“MAP” button*

Press to display the current location.

“HOME” button

Press to display the home screen.

“MENU” button

Press to display the menu screen.

Back button

Press to display the previous screen.

43

1

2

*

Touchpad

E

Slide your finger on the touchpad and move the pointer to select a function, letter and
screen button.

Press the touchpad to enter the selected function, letter or screen button. Certain fin­ger movements on the touchpad can perform functions, such as changing map scalings
and scrolling list screens.

Sub function button

F

When is displayed on the screen, a function screen assigned to the screen can be
displayed.

1

*

: 10.3-inch display model

2

*

:7-inch display model

Menu screen

Press the “MENU” button on the Remote Touch to display the menu screen.

The displays shown in the illustrations are used for example only and may differ from the
actual vehicle.

 7-inch display model  10.3-inch display model

44

Switch Function

Select to display the destination screen.*1 (P.51)

Select to display the audio control screen. (P.57)

Select to display the hands-free control screen. (P.53)

Select to display the “Apps” screen.*

2, 3

When an Apple CarPlay/Android Auto connection is estab­lished and this button displays “Apple CarPlay”/“Android

/ /

Auto”, select to display the home screen of Apple CarPlay/
Android Auto.

Select to display the information screen.*

Select to display the setup screen.*

2, 3

*

2, 4

2

Select to display the air conditioning control screen.
(P.66)

Select to adjust the contrast and brightness of the screens,
turn the screen off, etc.

1

*

: If equipped

2

*

: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

3

*

: This function is not made available in some countries or areas.

4

*

: Refer to the “OWNER’S MANUAL”.

1, 2

*

45

Split-screen display (10.3-inch display model)

Different information can be displayed on the left and right of the screen. For example, the
air conditioning system screen can be displayed and operated while the fuel consumption
information screen is being displayed. The large screen on the left of the display is called the
main display, and the small screen to the right is called the side display.

Side display (10.3-inch display model)

The following functions can be displayed
and operated on the side display.

Navigation system (P.51)

A

Audio (P.60, 61, 62, 63)

B

Vehicle information (P.50)

C

Air conditioning system (P.67)

D

Show/hide the side display

E

46

Map scroll operation

A

BCD

ABC

D

E

F

Select the desired point on the map screen.

Move the desired point on the center of the
map screen.

Cursor mark

Distance from the current position to
the cursor mark

Select to register as a memory point

Select to set as a destination

Press the “MAP” button on the Remote Touch to return to the current position.

Editing route

While route guidance is operating, you can change the route using the following method.

1 Select on the map screen.

2 Select the desired item to be set.

Select to display the overview of the
entire route.

Select to reorder destinations.

3 Check that the route overview is displayed.

Some functions are unavailable while the vehicle is in motion. Refer to the “NAVIGATION
AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

47

Select to change route type.

Select to set route preferences.

Select to set detours.

Select to start from adjacent road.

Energy Monitor/Consumption Screen

The status of your hybrid system and fuel consumption information can be displayed on
the multi-information display and Center Display.

10.3-inch display model: The energy monitor and consumption screen can be displayed
on the side display. For details, refer to the “OWNER’S MANUAL”.

Energy monitor

■ How to display on Center Display

Press the “MENU” button on the Remote Touch, and then select on the menu
screen.

If the “Trip Information” or “History” screen is displayed, select “Energy”.

The flow of energy is displayed on Center Display.

Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery

A light blue arrow appears when regenerative
braking occurs.

■ How to display on the multi-information display

Press or of the meter control switches and select , and then press or

to select the energy monitor display.

The flow of energy is indicated by the movement of
the arrows on the multi-information display.

Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery

A light blue arrow appears when regenerative
braking occurs.

The displayed energy flow, battery level, etc. will change in response to the current driving
conditions.

48

Consumption

A

BCDEF

G

ABC

D

E

Press the “MENU” button on the Remote Touch, and then select on the menu screen.

■Trip information

If a screen other than “Trip Information” is displayed, select “Trip Information”.

Resetting the consumption data

Fuel consumption in the past 15 min­utes

Current fuel consumption

Regenerated energy in the past 15
minutes
One symbol indicates 30 Wh. Up to 5
symbols are shown.

Average vehicle speed since the hybrid system was started.

Elapsed time since the hybrid system was started.

Cruising range

■History

If a screen other than “History” is displayed, select “History”.

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consumption
data

49

Using the side display (10.3-inch display model)

Vehicle information can be displayed on the side display.

Select or to display the desired screen.

● Trip information (type A/type B)

● History

● Energy monitor

50

Navigation System

Registering home

1 Press the “MAP” button on the

Remote Touch.

2 Select .

3 Select “Home”.

4 Select “Yes”.

5 Select “Address” or “Current Location”

to search for your home.

6 Select “OK”.

Registration of home is complete.

Destination search

■Searching by address

Display the destination search screen by either operation:

1

● “MAP” button 

● “MENU” button  “Destination”

2 Select “Address”.

If a state (province) has not been selected yet, “State/Province” screen is displayed.

3 Enter a house number and select “Search”.

“Change State/Province”: Select to change the search area.

4 Enter a street name and select “Search”.

5 Select the desired street name.

6 Enter a city name and select “Search”.

7 Select the desired city name.

If multiple locations with the same address exist, the address list screen will be dis­played.
Select the desired address.

51

■ Searching by point of interest

B

D

There are 3 methods to search for a destination by Points of Interest.

1 Display the destination search screen by either operation:

● “MAP” button 

● “MENU” button  “Destination”

2 Select “Point of Interest”.

3 Select the desired search method.

Select to change the search area.

A

Select to search by name.

B

Select to search by category.

C

Select to search by phone number.

D

 Searching by name ( )

4 Select “Name”.

5 Enter a POI name and select “Search”.

6 Select the desired POI.

 Searching by category ( )

C

4 Select “Category”.

6 Select the desired POI category.

7 Select the desired POI.

 Searching by phone number ( )

4 Select “Phone #”.

5 Enter a phone number and select “OK”.

5 Select the desired search point.

Select to search for POIs near your

A

current position.

Select to search for POIs along the set

B

route.

Select to search for POIs near a spe-

C

cific city center.

Select to search for POIs near a desti-

D

nation. When more than 1 destination
has been set, a list will be displayed on
the screen. Select the desired destina­tion.

52

Hands-free System For Cellular Phone

Registering/connecting Bluetooth® device

To use the hands-free system, it is necessary to register a Bluetooth® phone with the system.
Refer to http://www.lexus.com/MobileLink

system.

1 Turn the Bluetooth

®

connection setting of your cellular phone on.

2 Press the “MENU” button on the Remote Touch.

3 Select “Phone”.

4 Select “Yes” to register a phone.

to find approved Bluetooth® phones for this

5 Select the desired Bluetooth

®

device.

6 Register the Bluetooth

®

device using your Bluetooth® device.

7 Check that the following screen is dis-

played, indicating pairing was success­ful.

● The system is connecting to the regis­tered device.

● At this stage, the Bluetooth
are not yet available.

8 Check that “Connected” is displayed

and registration is complete.

®

functions

53

Contacts transfer

1 Display the phone settings screen:

● “MENU” button  “Setup”  “Phone” on the sub menu

2 Select “Contacts/Call History”.

3 Select “Transfer Contacts from

Device”.

4 Select “From Phone (Bluetooth)”.

5 Transfer the contact data to the system

using a Bluetooth

6 Check that a confirmation screen is

displayed when the operation is com­plete.

Depending on the type of Bluetooth® phone, certain functions may not be available.

®

phone.

54

Registering the contacts in the favorites list

1 Display the phone settings screen:

● “MENU” button  “Setup”  “Phone” on the sub menu

2 Select “Contacts/Call History”.

3 Select “Add Favorite”.

4 Select the desired contact to add to the

favorites list.

5 Check that a confirmation screen is

displayed when the operation is com­plete.

Calling by favorites list

1 Press the “MENU” button on the Remote Touch.

2 Select “Phone”.

3 Select “Favorites” on the sub menu and select the desired contact.

4 Select the desired number.

5 Check that the dialing screen is displayed.

Calling the message sender

1 Display the message screen:

● “MENU” button  “Phone”  “Message” on the sub menu

2 Select a desired account name that is displayed on the left side of screen.

3 Select the desired message from the list.

4 Select , or press the switch on the steering wheel.

5 Check that the dialing screen is displayed.

55

Receiving a call

Select “Answer” or press the switch on the steering wheel to talk on the phone.

 Main display  Side display (10.3-inch display model)

“Decline”: Select to refuse to receive the call.

Steering switches

TEL switch

A

• Start talking

• End talking

• End dialing

• Depending on the system, if the
switch is pressed when an Apple
CarPlay connection is established,
the Apple CarPlay phone application
will be displayed on the system

*

screen.

Volume control switch

B

• Press the “+” side to increase the volume.

• Press the “-” side to decrease the volume.
Talk switch

C

• Press the talk switch to start the voice command system.

• To cancel voice recognition, press and hold the talk switch.

*: This function is not made available in some countries or areas.

56

Audio System

Audio control screen

The audio control screen can be reached by the following methods:

 Using the audio control switch

Press the “RADIO” or “MEDIA” button.

 Using the Remote Touch

Press the “MENU” button on the Remote Touch, then select “Audio”.

Selecting an audio source

 Using the audio control switch

1 Press the “RADIO” or “MEDIA” button.

2 “RADIO” button: Press to change

radio modes.

“MEDIA” button: Press to change
media modes.

Each time the “RADIO” or “MEDIA”
button is pressed, the audio source
changes.

 From the audio source selection screen

1 Display the audio control screen.

2 Select “Source” on the sub menu.

3 Select the desired source.

57

Steering switch operation

A

B

C

Some parts of the audio/visual system can be adjusted using the switches on the steering
wheel.

Volume control switch

“MODE” switch

switch

■ Volume control switch

● Press: Volume up/down

● Press and hold (0.8 sec. or more): Volume up/down continuously

■ “MODE” switch

®

audio*

1

4, 5

, APPS*

1, 4, 5

2

*

(Press and hold again to resume the sound.)

3

*

, USB*

4, 5

, iPod/iPhone*5, Android Auto*4,

 AM, FM, SXM*

● Press: Change audio modes

● Press and hold (0.8 sec. or more): Mute

 AUX

● Press: Change audio modes

● Press and hold (0.8 sec. or more): Mute

 CD, MP3/WMA/AAC disc, DVD

Bluetooth

● Press: Change audio modes

● Press and hold (0.8 sec. or more): Pause

1

*

: This function is not made available in some countries or areas.

2

*

: If cached radio is enabled, pressing and holding the “MODE” switch pauses the broad-

cast. (Press and hold again to play back the cached radio program.)

3

*

: 10.3-inch display model

4

*

: When an Apple CarPlay connection is established, this function will be unavailable.

5

*

: When an Android Auto connection is established, this function will be unavailable.

58

■ switch

 AM, FM, HD

● Press: Preset station up/down

● Press and hold (0.8 sec. or more): Seek up/down

● Press and hold (1.5 sec. or more): Seek up/down continuously while the switch is being

pressed

1

 SXM

● Press: Preset channel up/down

● Press and hold (0.8 sec. or more): Seek for stations in the relevant program type/channel

● Press and hold (1.5 sec. or more): Seek for the channel while the switch is being pressed

 CD

● Press: Track up/down

● Press and hold (0.8 sec. or more): Fast forward/rewind

 MP3/WMA/AAC disc

● Press: File up/down

● Press and hold (0.8 sec. or more): Fast forward/rewind

 DVD

● Press: Chapter up/down

● Press and hold (0.8 sec. or more): Fast forward/rewind

 USB

● Press: File/Track up/down

● Press and hold (0.8 sec. or more): Fast forward/rewind

 iPod/iPhone

● Press: Track up/down

● Press and hold (0.8 sec. or more): Fast forward/rewind

 Android Auto

● Press: Track up/down

 Bluetooth

● Press: Track up/down

● Press and hold (0.8 sec. or more): Fast forward/rewind

*
*
*
*

*

category

2

*

3, 4

*

4

*

3

*

®

1

: This function is not made available in some countries or areas.

2

: 10.3-inch display model

3

: When an Apple CarPlay connection is established, this function will be unavailable.

4

: When an Android Auto connection is established, this function will be unavailable.

audio*

3, 4

59

Radio

A

B

■ Audio control switch

■ Control screen

Turn to step up/down frequencies/
channels.

Press to seek up/down.
Press and hold for continuous seek.

Displays cover art.

A

Select to display HD) multicast chan-

B

nels available.

Displays the artist info and song title or

C

album and genre. Select to change the
displayed information. Displays mes­sages when available from RBDS.

Select to tune to preset stations/chan-

D

nels.

Displays items on the channels regis-

E

tered to smart favorites.

: This function is not made available

*

in some countries or areas.

*

■ Presetting a station

Radio mode has a mix preset function, which can store up to 36 stations (6 stations per
page x 6 pages) from any of the AM, FM or SXM bands.

1 Tune in the desired station.

2 Select and hold “(Hold Edit)”.

To change the preset station to a differ­ent one, select and hold the preset sta­tion.

60

CD

A

B

A

BCD

E

F

ABC

DEF

G

■Audio control switch

■Control screen

 Audio CD

Turn to select a track/file.

Press to select a track/file.
Press and hold to fast forward/rewind.

Displays cover art.

Select to set repeat playback.

Select to change the track.
Select and hold to fast rewind.

Select to play/pause.

Select to change the track.
Select and hold to fast forward.

 MP3/WMA/AAC disc

61

Select to set random playback.

Displays cover art.

Select to change the folder.

Select to set repeat playback.

Select to change the file.
Select and hold to fast rewind.

Select to play/pause.

Select to change the file.
Select and hold to fast forward.

Select to set random playback.

DVD (10.3-inch display model)

A

B

■ Audio control switch

■ Control screen

Turn to select a chapter.

Press to select a chapter.
Press and hold to fast forward/rewind.

Select to display the menu control key.

A

Select to display the menu screen.

B

Select to change the chapter.

C

Select and hold to fast rewind.

Select to stop the video screen.

D

Select to play/pause.

E

Select to change the chapter.

F

During playback: Select and hold to
fast forward.
During a pause: Select and hold to
slow forward.

Select to display expanded screen

G

video.

62

iPod/iPhone (Apple CarPlay*)

A

B

A

B

C

D

EFG

H

I

*: This function is not made available in some countries or areas.

■Audio control switch

Turn to select a track. *
Turn to move up/down the list.

Press to select a track.
Press and hold to fast forward/rewind.

*: If equipped

■Control screen

Displays cover art.

Select to change the artist.
Select to change the album.*
Select to change the playlist.*

Select to set repeat playback.

Select to change the track.
Select and hold to fast rewind.

Select to play/pause.

Select to change the track.
Select and hold to fast forward.

Select to set random playback.

*: When an Apple CarPlay connection is

established, this switch will not be dis­played.

Some functions may not be available depending on the type of model.

*

63

Lexus Climate Concierge

The seat heaters (if equipped), seat ventilators (if equipped) and heated steering wheel (if
equipped) are each automatically controlled according to the set temperature of the air
conditioning system, the outside and cabin temperature, etc. Lexus Climate Concierge
allows a comfortable condition to be maintained without adjusting each system.

Displaying the Lexus Climate Concierge

Press the “MENU” button on the Remote Touch and select “Climate” to display the air con-

ditioning control screen. Then, select to display the Lexus Climate Concierge control
screen.

Turning on Lexus Climate Concierge

Select .

The indicator on the Lexus Climate Con­cierge control screen illuminates, and the
automatic air conditioning system, seat
heaters and ventilators (if equipped), and
heated steering wheel (if equipped) oper­ate in automatic mode.

If any of the system is operated manually, the indicator turns off. However, all other functions
continue to operate in automatic mode.

64

Air Conditioning System

A

BCD

E

F

GHI

Press the “MENU” button on the Remote Touch, then select “Climate” to display the air
conditioning control screen.

Air conditioning controls

Left-hand side temperature control switch

Operate the temperature control switch upwards to increase the temperature and
downwards to decrease the temperature.

Fan speed control switch

Automatic mode switch

Off switch

Windshield defogger switch

Rear window and outside rear view mirror defoggers switch

Outside/recirculated air mode switch

Airflow mode control switch

Right-hand side temperature control switch

Operate the temperature control switch upwards to increase the temperature and
downwards to decrease the temperature.

65

Air conditioning control screen

A

BCD

EFG

■ Main control screen

Using the touchpad of the Remote Touch, select the button on the screen.

Sub menu

Adjust the left-hand side temperature
setting

Adjust the fan speed setting

Select the air flow mode

Adjust the right-hand side temperature
setting

Function on/off indicators

Sub function menu

■ Option control screen

Select on the sub menu to display the option control screen.
The functions can be switched on and off.

When the function is on, the indicator illuminates on the screen.

Set Lexus Climate Concierge (P.64)

A

Adjusting the temperature for driver

B

and front passenger seats separately
(“DUAL” mode)

Set eco air conditioning mode

C

Air conditioning and heater output is
limited to prioritize fuel economy.

Cooling and dehumidification function

D

Prevent ice from building up on the windshield and wiper blades (Windshield wiper

E

de-icer) (if equipped)

Select front seat concentrated airflow mode (S-FLOW)

F

66

■Side display (10.3-inch display model)

A

B

C

D

EFG

Display the heated steering wheel/seat
heaters/seat ventilators control screen
(if equipped)

Adjust the left-hand side temperature
setting

Adjust the fan speed setting

Adjust the right-hand side temperature
setting

Set cooling and dehumidification function on/off

Adjust the temperature for the driver’s and front passenger’s seats separately (“DUAL”
mode)

Select the air flow mode

Using automatic mode

1 Press the automatic mode switch or select “AUTO” on the sub function menu (P.66).

2 Adjust the temperature setting.

3 To stop the operation, press the off switch or select “Off” on the sub function menu

(P.66).

67

Voice Command System

Basic operation

The voice command system enables the radio, phone dialing, etc. to be operated using
voice commands. Refer to the command list for samples of voice commands.

1 Press the talk switch.

Voice guidance for the voice com­mand system can be skipped by press­ing the talk switch.

2 If “Getting Started with Voice” screen

is displayed, select “OK” or press the
talk switch.

3 After hearing a beep, say a supported command.

● To display sample commands of the desired function, say the desired function or
select the desired function button. To display more commands, select “More Com­mands”.

● Selecting “Help” or saying “Help” prompts the voice command system to offer
examples of commands and operation methods.

● Registered POIs, registered names in the contacts list etc., can be said in the place
of the “<>” next to the commands.

Continue on to pages 69-75 for a detailed list of Voice Commands for the following cate­gories:

Common . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.69

Top menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.69

Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.70

Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P.71

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.72

Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.73

Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.74

Apps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.74

Climate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P.75

68

Command list

■Common

Command Action

“Help” Displays examples of some of the available commands

“Go Back” Returns to the previous screen

“Cancel” Cancels the voice command system

“Start over” Returns to top menu screen

“Pause”

Temporarily pauses a voice session until it is resumed
by pressing the talk switch again.

■Top menu

Command Action

“Show command examples for
<menu>”

“More Commands” Displays more commonly used commands

“Voice Settings” Displays Voice Setting screen
“Train my voice” Displays Train Voice Recognition screen*

Displays the command list of the selected menu

*: Vehicle must be parked

69

■ Navigation*

Command Action

1

“Get directions to <house #,
street, city, state>”

2

*

“Find a <POI category/POI
name>”

“Find a <POI> near my destina­tion”

“Find a <POI category> in a

2

city”

*

Enables setting a destination by saying the address*

Displays a list of <POI category*5/POI name*6> near
the current position

Displays a list of <POI> near the destination

Displays a list of <POI> in a specified city and state*

“Go Home” Displays the route to home

“Go to Favorite <1-10>”

Sets the location registered to the corresponding
favorite number as the destination

Displays recent destinations. Selecting a number from

“Show Recent Destinations”

the list will start navigation to the selected recent desti­nation.

“Cancel Route” Cancels the route guidance
“Delete destinations” Displays a list of destination to delete*

“Show <POI category> icons”

Displays the specified point of interest category*
icons on the map

7

“Destination Assist” Connects the system to the Lexus response center

1

*

: 10.3-inch display model

2

*

: English and French only

3

*

: Best recognition results occur when saying the full address without the zipcode

4

*

: When the language is set to French, the supported area is only Quebec Province in

Canada

5

*

: For example; “Gas stations”, “Restaurants”, etc.

6

*

: Major national brands are always supported. Local brands are also supported with a

subscription to the Lexus Enform. Contact your Lexus dealer for details.

7

*

: Used when multiple destinations are set on a route

3, 4

4

5

70

■Phone

Command Action

“Call <contact>”*

“Call <contact> <phonetype>”*

“Dial <phone number>” Places a call to the specified phone number

“Redial”

“Call Back”

“Show Recent Calls” Displays the call history screen

“Send a message to <contacts>”

Places a call to the specified contact from the phone
book

Places a call to the specified phone type of the contact
from the phone book

Places a call to the phone number of the latest outgo­ing call

Places a call to the phone number of latest incoming
call

Sends a text message to specified contact from the
phone book

*: If the system does not recognize the name of a contact, create a voice tag. The name of a

contact can also be recognized by adding a voice tag.

■While in a phone call

Command Action

“Send <digits>” Sends DTMF tones has specified

“Mute”

Mutes the microphone (far side cannot hear the con­versation)

“Unmute” Unmutes the microphone

71

■ While incoming message notification is displayed*

Command Action

“Read Message”

“Ignore” Ignores the incoming message notification

“Reply” Initiates sending a reply to the incoming message

“Call”

*

: Full screen message notification must be turned on within the phone settings

Reads the incoming message over the vehicle speak­ers

Places a call to the phone number of incoming mes­sage

■ Radio

Command Action

“Tune to <frequency> AM” Changes the radio to the specified AM frequency

“Tune to <frequency> FM” Changes the radio to the specified FM frequency

“Play a <genre> station”

“Tune to preset <1-36>” Changes the radio to the specified preset radio station

“Tune to a <genre> satellite sta­tion”

“Tune to <satellite channel
name>”

Changes the radio to an FM station of the specified

1

genre

*

Changes the radio to a satellite radio channel of the
specified genre

Changes the radio to the satellite radio channel with
the specified name

2

*

2

*

“Tune to channel <number> on
XM”

1

*

: A station list must be built first using the radio screen

2

*

: Requires a satellite radio subscription

Changes the radio to a satellite radio channel of the
specified number

2

*

72

■Audio*

Command Action

“Play Playlist <name>” Plays tracks from the selected playlist

“Play Artist <name>” Plays tracks from the selected artist

“Play Song <name>” Plays the selected track

“Play Album <name>” Plays tracks from the selected album

“Play Genre <name>” Plays tracks from the selected genre

“Play Composer <name>” Plays tracks from the selected composer

“Play Podcast <name>” Plays tracks from the selected podcast

“Play Audiobook <name>” Plays tracks from the selected audiobook

“Audio On” Turns the audio system on

“Audio Off” Turns the audio system off

“Change the audio source to
<source name>”

: The audio device must be connected via a USB cable to use the functionality in this sec-

*

tion

Sets the source to the specified audio mode

73

■ Info*

1

Command Action

“Get the Forecast” Displays weather information
“Get the Forecast for <city>”*2Displays weather for the specified city

“Show Traffic” Displays traffic information

“Show Traffic near here” Displays traffic information near your current location

“Get traffic along my route” Displays traffic information along your current route

“Show Traffic on this street”

“Show Traffic for saved route” Displays traffic information for a saved route

“Show Predictive Traffic” Displays the predictive traffic map

1

*

: 10.3-inch display model (This function is not made available in some countries, areas, or

on some models.)

2

*

: Only major US cities are supported by voice

Displays traffic information along road you are cur­rently driving on

■ Apps

Command Action

“Launch <apps>”* Activates the Lexus Enform App Suite 2.0 application

*: When an application is opened and is in full screen mode, pressing the talk switch will

start the voice command system and commands for the currently displayed application
will be available

74

■Climate

Command Action

“Turn the AC on/Turn the AC off” Turns air conditioning system on or off

“Change the Fan speed to <#>”

“Set temperature to <#>
degrees”

“Increase Temperature/
Decrease Temperature”

“Increase Fan speed/Decrease
Fan speed”

“Show the front climate control
screen”

“Set the steering wheel tempera­ture”

“Show the front seat heater set­tings”

“Show the concierge screen”

“Concierge Mode On” Turns Concierge Mode ON

Changes the set fan speed of the air conditioning sys­tem to <#>

Changes the set temperature of the air conditioning
system to <#> degrees*

Increases or decreases the temperature of the air con­ditioning system

Increases or decreases the fan speed of the air condi­tioning system

Displays the screen to control the air conditioning or
seat heating system

Displays the screen to control the air conditioning or
seat heating system

Displays the screen to control the air conditioning or
seat heating system

Displays the screen to control the air conditioning or
seat heating system

*: Only within the possible temperature range of the air conditioning system

75

USB/AUX Ports

There are 2 USB ports and an AUX port in the console box.

1 Press the button to release the lock and

lift the armrest.

2 Connect a device.

Turn on the power of the device if it is
not turned on.

76

Garage Door Opener (if equipped)

A

B

C

D

The garage door opener can be programmed using the HomeLink® to operate garage
doors, gates, entry doors, door locks, home lighting systems, security systems, and other
devices.

System components

The HomeLink® wireless control system in your vehicle has 3 buttons which can be pro­grammed to operate 3 different devices. Refer to the programming methods on the follow­ing pages to determine the method which is appropriate for the device.

HomeLink

Garage door operation indicators

HomeLink

Illuminates while HomeLink
ating.

Buttons

®

indicator light

®

icon

®

is oper-

■Before programming HomeLink

®

● During programming, it is possible that garage doors, gates, or other devices may oper­ate. For this reason, make sure that people and objects are clear of the garage door or
other devices to prevent injury or other potential harm.

● It is recommended that a new battery be placed in the remote control transmitter for
more accurate programming.

● Garage door opener motors manufactured after 1995 may be equipped with rolling
code protection. If this is the case, you may need a stepladder or other sturdy, safe device
to reach the “Learn” or “Smart” button on the garage door opener motor.

■HomeLink

®

programming procedure

The programming procedures can also be found at the following URL.
Website: www.homelink.com/lexus

For support, contact customer support at the following.
Help Line: 1-800-355-3515

77

■ Programming HomeLink

®

Steps 1 through 3 must be performed within 60 seconds, otherwise the indicator light will
stop flashing and programming will not be able to be completed.

1 Press and release the HomeLink

HomeLink

®

indicator light flashes (orange).

®

button you want to program and check that the

2 Point the remote control transmitter

for the device at the rear view mirror,
1 to 3 in. (25 to 75 mm) from the

®

HomeLink

Keep the HomeLink

buttons.

®

indicator light in

view while programming.

3 Program a device.

 Programming a device other than an entry gate (for U.S.A. owners)

Press and hold the remote control transmitter button until the HomeLink

®

indicator light
changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously
lit green (fixed code), then release the button.

 Programming an entry gate (for U.S.A. owners)/Programming a device in the Cana-

dian market

Press and release the remote control transmitter button at 2 second intervals, repeatedly,

®

until the HomeLink

indicator light changes from slowly flashing (orange) to rapidly flashing

(green) (rolling code) or continuously lit (green) (fixed code).

78

4 Test the HomeLink

®

operation by pressing the newly programmed button and observ-

ing the indicator light:

● Indicator light illuminates: Programming of a fixed code device has completed. The
garage door or other device should operate when a HomeLink

®

button is pressed

and released.

● Indicator light flashes rapidly: The garage door opener motor or other device is
equipped with a rolling code. To complete programming, firmly press and hold the

®

HomeLink

button for 2 seconds then release it.

● If the garage door or other device does not operate, proceed to “Programming a
rolling code system”.

5 Repeat the steps above to program another device for any of the remaining

HomeLink

®

buttons.

■Programming a rolling code system

2 or more people may be necessary to complete rolling code programming.

1 Locate the “Learn” or “Smart” button

on the garage door opener motor in
the garage.
This button can usually be found where
the hanging antenna wire is attached to
the unit. The name and color of the but­ton may vary by manufacturer. Refer to
the owner’s manual supplied with the
garage door opener motor for details.

79

2 Press and release the “Learn” or

“Smart” button.
Perform
performing

3 within 30 seconds after

2.

3 Press and hold the desired

HomeLink
for 2 seconds and release it. Repeat
this sequence (press/hold/release) up
to 3 times to complete programming.
If the garage door opener motor oper-

ates when the HomeLink
pressed, the garage door opener

motor recognizes the HomeLink
nal.

®

button (inside the vehicle)

®

button is

®

sig-

■ Enabling 2-way communication with a garage door (only available for compat-

ible devices)

When enabled, 2-way communication allows you to check the status of the opening and
closing of a garage door through indicators in your vehicle.

2-way communication is only available if the garage door opener motor used is a compati­ble device. (To check device compatibility, refer to www.homelink.com.)

1 Within 5 seconds after programming the garage door opener has been completed, if

the garage door opener motor is trained to HomeLink
indicators will flash rapidly (green) and the light on the garage door opener motor will
blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform

2 and 3 within the first 10 presses of the HomeLink

button after programming has been completed.

2 Press a programmed HomeLink

3 Within 1 minute of pressing the HomeLink

®

button to operate a garage door.

®

button, after the garage door operation

has stopped, press the “Learn” or “Smart” button on the garage door opener motor.
Within 5 seconds of the establishment of 2-way communication with the garage door
opener, both garage door operation indicators in the vehicle will flash rapidly (green)
and the light on the garage door opener motor will blink twice, indicating that 2-way
communication is enabled.

■ Reprogramming a single HomeLink

®

button

When the following procedure is performed, buttons which already have devices registered
to them can be overwritten:

1 With one hand, press and hold the desired HomeLink

2 When the HomeLink

HomeLink
for the HomeLink

®

button and perform “Programming HomeLink®” 1 (it takes 20 seconds

®

indicator starts flashing (orange), continue to hold the

®

indicator to start flashing).

®

, both garage door operation

®

button.

®

Operating HomeLink

®

Press the appropriate HomeLink

®

button. The HomeLink® indicator light should turn on.

80

Lexus Enform Safety Connect (if equipped)

A

B

C

Safety Connect is a subscription-based telematics service that uses Global Positioning
System (GPS) data and embedded cellular technology to provide safety and security fea­tures to subscribers. Safety Connect is supported by Lexus’ designated response center,
which operates 24 hours per day, 7 days per week.

Safety Connect service is available by subscription on select, telematics hardware­equipped vehicles.

System components

Microphone

“SOS” button

LED light indicators

Services

Subscribers have the following Safety Connect services available:

● Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emer­gency. If the occupants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services provider to describe the
situation, and requests that assistance be sent to the location.

81

● Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in
locating and recovering the vehicle. After filing a police report, call the Safety Connect
response center at 1-800-25-LEXUS (1-800-255-3987) in the United States, 1-877­539-8777 in Puerto Rico or 1-800-265-3987 in Canada, and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Con­nect-equipped vehicle location data may, under certain circumstances, be shared with
third parties to locate your vehicle. Further information is available at Lexus.com.

● Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. The answering agent will determine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required.

If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.

● Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already included warranty-based
Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Roadside Assistance services and their limitations, please see the
Safety Connect Terms and Conditions, which are available at Lexus.com.

Subscription

After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.

A variety of subscription terms is available for purchase. Contact your Lexus dealer, call the
following or push the “SOS” button in your vehicle for further subscription details.

● The United States

1-800-25-LEXUS (1-800-255-3987)

● Canada

1-800-26-LEXUS (1-800-265-3987)

● Puerto Rico

1-877-539-8777

82

Lexus Enform Remote (if equipped)

Lexus Enform Remote is a smart phone application that lets you view and remotely con­trol certain aspects of your vehicle.

For details about the functions and services of this application, refer to
http://www.lexus.com/enform/

Function of the Lexus Enform Remote is achieved by using DCM (Data Communication
Module) and a smart phone.

Subscription

After you sign the Telematics Subscription Service Agreement, download the Lexus App
from your smart phone’s app store, and register within the app (or enroll and complete reg­istration at the dealer), you can begin using these services.

A variety of subscription terms are available. Contact your Lexus dealer, or call 1-800-25­LEXUS (1-800-255-3987) for further subscription details.

.

83

Lexus Enform Service Connect (if equipped)

Lexus Enform Service Connect uses DCM (Data Communication Module) to collect and
transmit vehicle data that allows Lexus to provide:

● Vehicle Health Report (VHR) (Safety Recalls, Service Campaigns, Current Vehicle
Alerts, Required Maintenance, and Vehicle Condition Status)

● Maintenance Notifications

● Vehicle Alert Notifications

For details about this service and how to register, refer to http://www.lexus.com/enform/

The Lexus Enform Service Connect is achieved by using a DCM built in the vehicle.

.

84

SiriusXM Satellite Radio

Most in-car trials today include SiriusXM’s best package  All Access. It includes every
channel available on your radio, plus streaming.

For details, refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

Subscription

All SiriusXM services, including satellite radio and data services, plus streaming services,
require a subscription, sold separately or as a package by Sirius XM Radio Inc. (or, in Can­ada, Sirius XM Canada Inc.), after any trial subscription which may be included with your
vehicle purchase or lease. To subscribe after your trial subscription, call 1-877-447-0011
(U.S.A.) or 1-877-438-9677 (Canada).

85

Door Locks

The vehicle can be locked and unlocked using the entry function, wireless remote control
or door lock switches.

For details about the entry function or wireless remote control, refer to P.16, 17.

Unlocking and locking the doors from the inside

■ Door lock switches (to lock/unlock)

Locks all the doors

1

2 Unlocks all the doors

■ Inside lock buttons (to lock)

Push down the inside lock button to lock the
door.

■ Inside door handles (to unlock)

 For the front doors

Pull the handle to unlock and open the
door.

When the door is unlocked, the inside
lock button will pop up.

 For the rear doors

Pull the handle to unlock the door. Pull
the handle a second time to open the
door.

When the door is unlocked, the inside
lock button will pop up.

86

Back Door

Opening the back door from the outside (vehicles without power back
door)

Raise the back door while pressing up the
back door opener switch.

Opening/closing the back door (vehicles with power back door)

■From the inside

Press the switch for 1 second.

A buzzer sounds and the back door auto­matically opens and closes.

87

■ From the outside

 Wireless remote control

 P.16

 Power back door opener switch

● Open

● Close

When the back door is unlocked: Press the
back door opener switch.

When the back door is locked: While carry­ing the electronic key on your person, press
the back door opener switch.

A buzzer sounds and the back door auto­matically opens.

Press the switch.

A buzzer sounds and the back door auto­matically closes.

● Close the back door and lock all doors (close & lock function)
Press the switch.

A different buzzer than the normal one will
sound and the power back door will begin
closing automatically. When the power
back door is closed, all of the doors will lock
simultaneously and operation signals will
indicate that all of the doors have been
locked.

88

■Opening/closing the back door using the Hands Free Power Back Door

ABC

A

B

While carrying an electronic key, stand within the smart access system with push-but-

1

ton start operation range, approximately 19.7 to 27.6 in. (50 to 70 cm) from the rear
bumper.

Kick sensor

Hands Free Power Back Door opera­tion detection area

Smart access system with push-button
start operation detection area

2 Perform a kick operation by moving your foot to within approximately 3.9 in. (10 cm) of

the rear bumper and then pulling it back.

Kick sensor

Hands Free Power Back Door opera­tion detection area

3 When the kick sensor detects that your foot is pulled back, a buzzer will sound and the

back door will automatically fully open/close.

89

Fuel Tank Cap

Before refueling the vehicle

● Turn the power switch off and ensure that all the doors and windows are closed.

● Confirm the type of fuel.

Opening the fuel tank cap

1 Press the opener switch.

The fuel filler door will open within
about 10 seconds of the switch being
pressed. Before refueling is possible, a
message will be shown on the multi­information display in the instrument
cluster to indicate the progress of the
fuel filler door opener.

2 Turn the fuel tank cap slowly and

remove it, then put it into the holder on
the fuel filler door.

Closing the fuel tank cap

After refueling, turn the fuel tank cap until
you hear a click. Once the cap is released, it
will turn slightly in the opposite direction.

90

What to do if...

List of Warning/Indicator Lights

Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continu­ing to drive the vehicle may be dangerous.

(U.S.A.)

Brake system warning light

(Canada)

(Red)

Immediately stop the vehicle in a safe place and contact your Lexus dealer.

Low engine oil pressure warn­ing light

Charging system warning light

Have the vehicle inspected by your Lexus dealer immediately.

(U.S.A.)

(Canada)

Malfunction
indicator lamp

(Red or
yellow)

(Flashes or

illuminates)

(Flashes)

SRS warning light

(U.S.A.)

ABS warning light

(Canada)

Electric power steering
system warning light

(Flashes)

(Flashes)

(Flashes)

(Yellow)

Brake hold operated indicator

(U.S.A.)

Parking brake
indicator

(Canada)

Brake system warning light

RCTA OFF indicator (if

PCS warning light

(Flashes)

Slip indicator

(Flashes)

equipped)

PKSB OFF indicator (if
equipped)

Intuitive parking assist OFF
indicator (if equipped)

For further information, refer to the “OWNER’S MANUAL”.

91

What to do if...

Follow the correction procedures.

Brake Override System
warning light/Drive-Start
Control warning light/PKSB
warning light

Rear passengers’ seat belt
reminder lights

Tire pressure warning light

(Blinking
and then
continu-

ously on)

Low fuel level warning light

Driver’s and front passenger’s
seat belt reminder light

Stop and check.

High coolant temperature
warning light

For further information, refer to the “OWNER’S MANUAL”.

(Orange)

(Illuminates

without

blinking)

LTA indicator

Tire pressure warning light*

Low traction battery charge
warning light

Hybrid system overheat warn­ing light

92

What to do if...

See the “OWNER’S MANUAL”

Turn signal indicator BSM indicator (if equipped)

(White or

green)

Headlight indicator (U.S.A.)

Tail light indicator (Canada)

Headlight high beam indicator

Automatic High Beam
indicator

Fog light indicator (if
equipped)

Intuitive parking assist OFF
indicator (if equipped)

RCTA OFF indicator (if
equipped)

PKSB OFF indicator (if
equipped)

Brake hold standby indicator

Brake hold operated
indicator

Cruise control indicator Security indicator

Dynamic radar cruise control
indicator

Cruise control “SET” indicator

Smart access system with
push-button start indicator

Low outside temperature
indicator

LTA indicator “READY” indicator

93

(Flashes in

orange)

(Flashes)

LTA indicator EV drive mode indicator

Slip indicator EV indicator

VSC OFF indicator

(U.S.A.)

Parking brake
indicator

PCS warning light

(Canada)

BSM outside rear view mirror
indicators (if equipped)

For further information, refer to the “OWNER’S MANUAL”.

What to do if...

See the “OWNER’S MANUAL”

(U.S.A.)

“AIR BAG ON/OFF” indica­tor

(Canada)

“AIR BAG ON/OFF” indica­tor

● Drive mode indicators

 Except F SPORT models  F SPORT models

Eco drive mode indicator Eco drive mode indicator

Sport mode indicator Sport mode indicator

For further information, refer to the “OWNER’S MANUAL”.

*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure

changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have the system checked by your Lexus dealer.

94

What to do if...

If the electronic key does not operate properly

Locking and unlocking the door

■Unlocking the door

Insert the mechanical key while pulling

1

on the driver’s door handle.

2 Unlock the door.

3 Remove the key, return the handle, and then pull the handle again.

■Locking the door

With the door open, push down the

1

inside lock button.

2 Close the door.

95

What to do if...

Starting the hybrid system

1 Ensure that the shift lever is in P and depress the brake pedal.

2 Touch the Lexus emblem side of the

electronic key to the power switch.

When the electronic key is detected, a
buzzer sounds and the power switch
will turn to ON.

When the smart access system with
push-button start is deactivated in cus­tomization setting, the power switch
will turn to ACC.

3 Firmly depress the brake pedal and check that is shown on the multi-information

display.

4 Press the power switch.

In the event that the hybrid system still cannot be started, contact your Lexus dealer.

Replace the battery with a new one. For instructions on replacing the battery, refer to the
“OWNER’S MANUAL”.
If you need further assistance, contact your Lexus dealer.

96

What to do if...

Brake pedal

If the hybrid system will not start

Make sure that the correct operating procedures have been followed.

Make sure that the brake pedal is firmly
depressed when attempting to start the
hybrid system. (P.19)

If the hybrid system still does not start, see the “OWNER’S MANUAL” for more informa­tion or contact your Lexus dealer.

97

Your Lexus dealer

Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:

■U.S. OWNERS

●In the U.S. mainland or Canada:

Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)

●In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)

■CANADIAN OWNERS

●In Canada or the U.S. mainland:

Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)

Please access our websites for further information.

●The U.S. mainland: www.lexus.com

●Hawaii: www.servcolexus.com

●Canada: www.lexus.ca

©2021 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.

98
