Lexus Tx (2024) User manual

The Quick Guide is not intended as a substitute for your

OWNER’S MANUAL

the

OWNER’S MANUAL

will have a better understanding of your vehicle’s capabilities

Contents

Pictorial Index............................................................................................................................. 3

Floor Mat Installation

Floor Mat Installation.....................................................................................................................12

Entering and Exiting

Keys...................................................................................................................................................... 13

Smart Access System with Push-button Start....................................................................15

When Driving

Engine (Ignition) Switch............................................................................................................... 16

Automatic Transmission.............................................................................................................. 19

Turn Signal Lever...........................................................................................................................23

Parking Brake..................................................................................................................................24

Brake Hold .......................................................................................................................................26

Multi-information Display...........................................................................................................27

Displayed content..........................................................................................................................28

Headlight Switch.............................................................................................................................31

AHS (Adaptive High-beam System).....................................................................................32

AHB (Automatic High Beam)..................................................................................................34

Fog Light Switch.............................................................................................................................36

Windshield Wipers and Washer.............................................................................................37

Rear Window Wiper and Washer .........................................................................................39

Driving Mode Select Switch .....................................................................................................40

and limitations.

. We strongly encourage you to review

and supplementary manuals so you

1

Driving Comfort

*

: This feature may be operated by Voice Command (See P.62)

Basic Operation of Multimedia System ...............................................................................42

Navigation

Connecting a Smartphone or Communication Device

Basic Operation of Audio System

Lexus Climate Concierge.........................................................................................................59

Front Automatic Air Conditioning System

Rear Air Conditioning System ..................................................................................................61

Interior features

Starting Voice Control

Connecting a device via the USB port ................................................................................ 66

Connected Services

Safety Connect ...............................................................................................................................67

Remote Connect...........................................................................................................................69

Service Connect............................................................................................................................70

Opening and Closing

Side Doors .........................................................................................................................................71

Power Windows.............................................................................................................................73

Panoramic Moon Roof ................................................................................................................74

Fuel Tank Cap .................................................................................................................................76

Power Back Door ..........................................................................................................................77

Garage Door Opener................................................................................................................83

What to do if...

List of Warning/Indicator Lights.............................................................................................90

If the electronic key does not operate properly............................................................... 94

If the engine doesn’t start........................................................................................................... 96

If a door cannot be opened using the door opener switch...........................................97

*

..................................................................................................................................... 43

*

.............................................47

*

......................................................................................53

*

.....................................................................60

*

............................................................................................................ 62

2

Pictorial Index

A

C

Pictorial Index

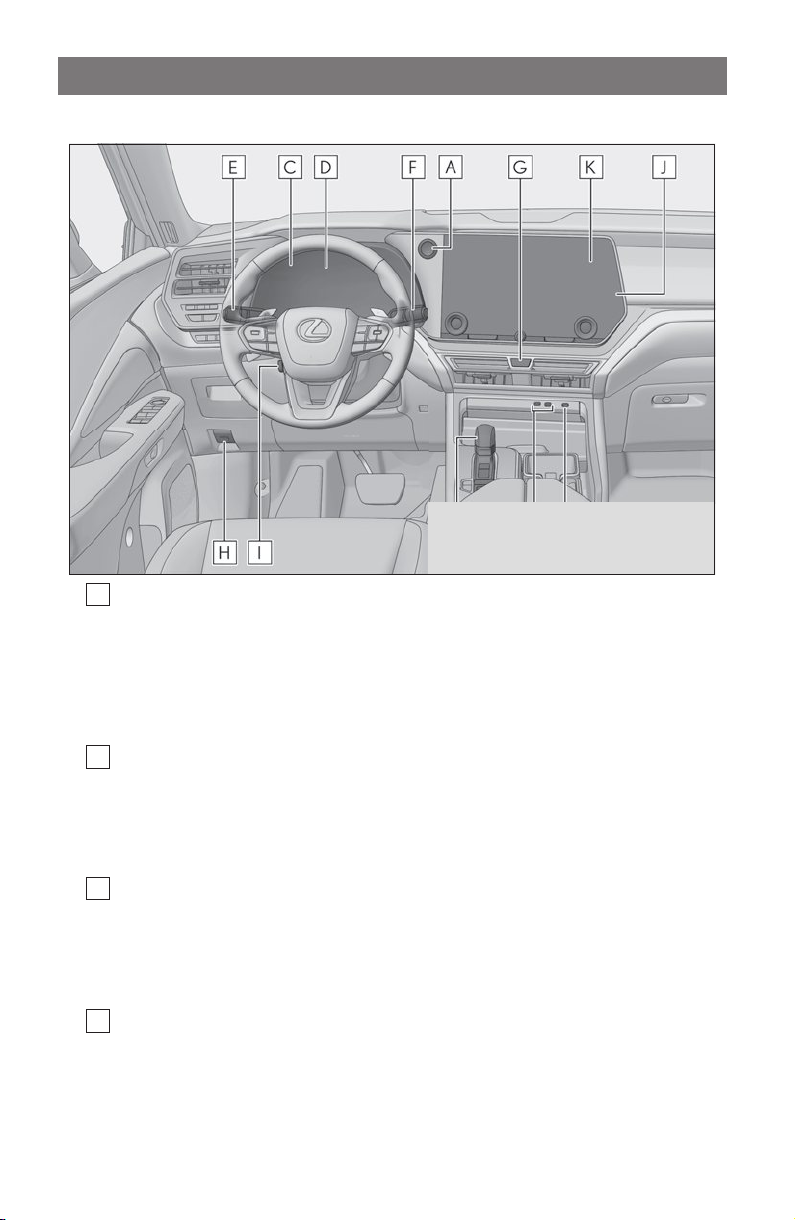

■ Instrument panel

Engine switch .............................................................................................................. P.16

Starting the engine/changing the modes....................................................................P.16

Emergency stop of the engine.........................................................................................P.18

When the engine will not start ........................................................................................P.96

Warning messages

1

*

Shift lever .....................................................................................................................P.19

B

Shifting the shift position.....................................................................................................P.19

Precautions for towing

When the shift lever does not move

Meters

Reading the meters/adjusting the instrument panel light

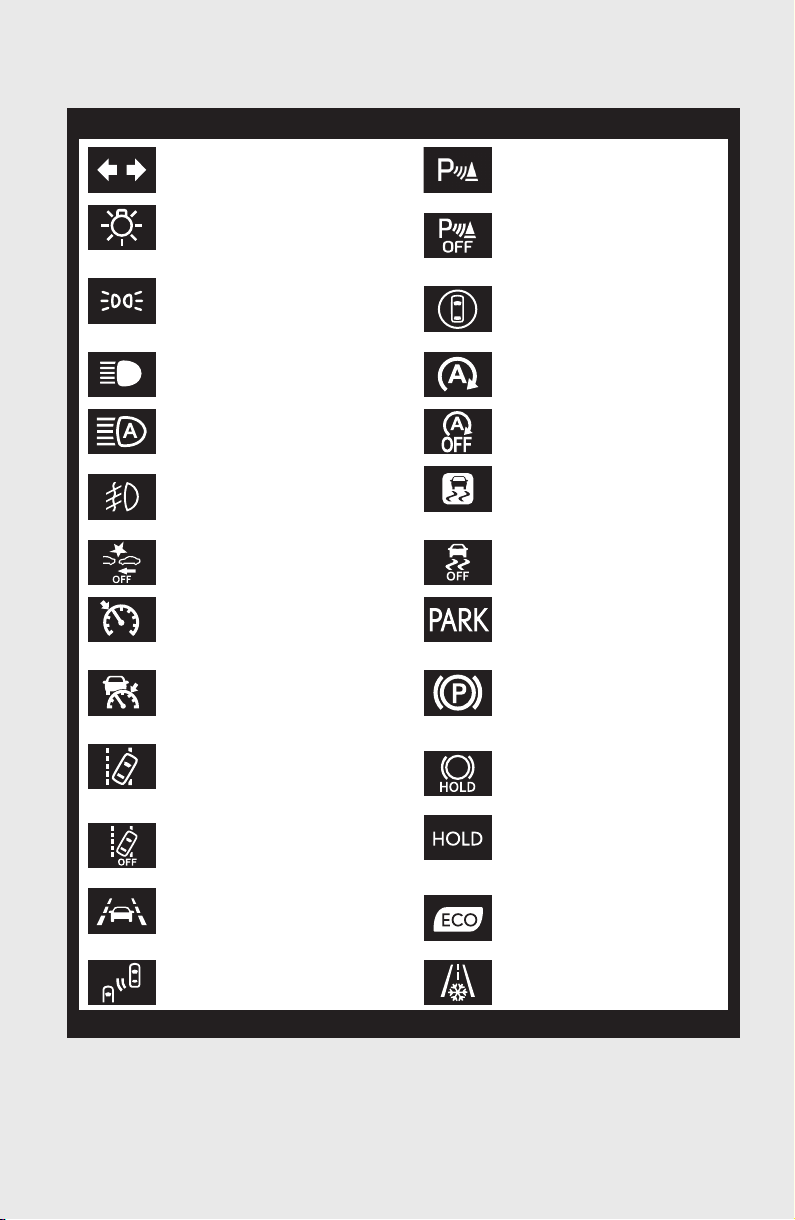

Warning lights/indicator lights......................................................................................P.90

When a warning light turns on

Multi-information display ...................................................................................... P.27

D

Display.......................................................................................................................................P.27

When the warning messages are displayed

3

1

*

1

*

1

*

1

*

1

*

1

*

Turn signal lever........................................................................................................ P.23

E

F

G

H

I

J

K

L

M

Headlight switch ........................................................................................................ P.31

Headlights/parking lights/tail lights/side marker lights/

license plate lights/daytime running lights .................................................................P.31

Front fog lights.......................................................................................................................P.36

Windshield wiper and washer switch ......................................................... P.37, 39

Usage................................................................................................................................P.37, 39

Adding washer fluid

Warning messages

Emergency flasher switch

Hood lock release lever

Tilt and telescopic steering control switch

Adjustment

Driving position memory

Air conditioning system ....................................................................................P.60, 61

Usage.................................................................................................................................P.60, 61

Rear window defogger

Windshield wiper de-icer

Audio system

USB charging ports

1

*

1

*

1

*

1

*

1

*

1

*

1, 2

*

1

*

1, 2

*

3

*

1

*

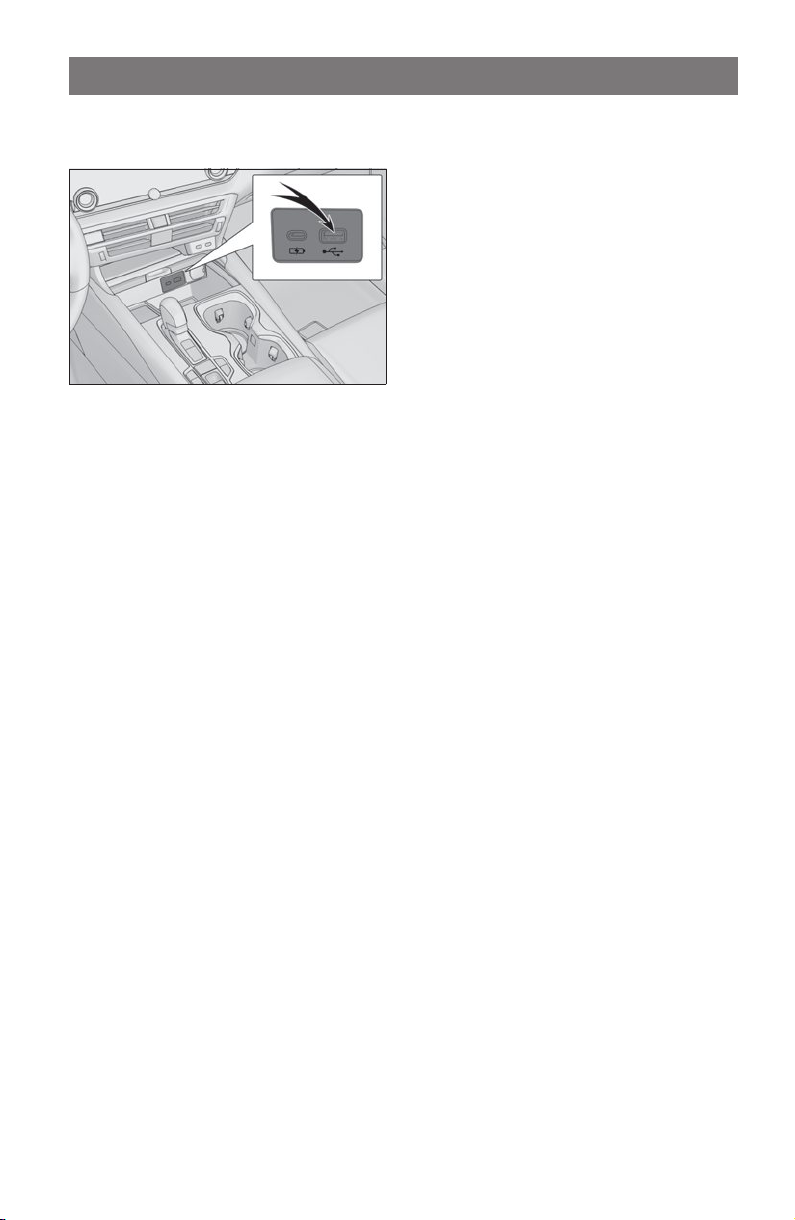

USB port...................................................................................................................... P.66

1

*

: Refer to the “OWNER’S MANUAL”.

2

*

: If equipped

3

*

: Refer to the “MULTIMEDIA OWNER’S MANUAL”.

4

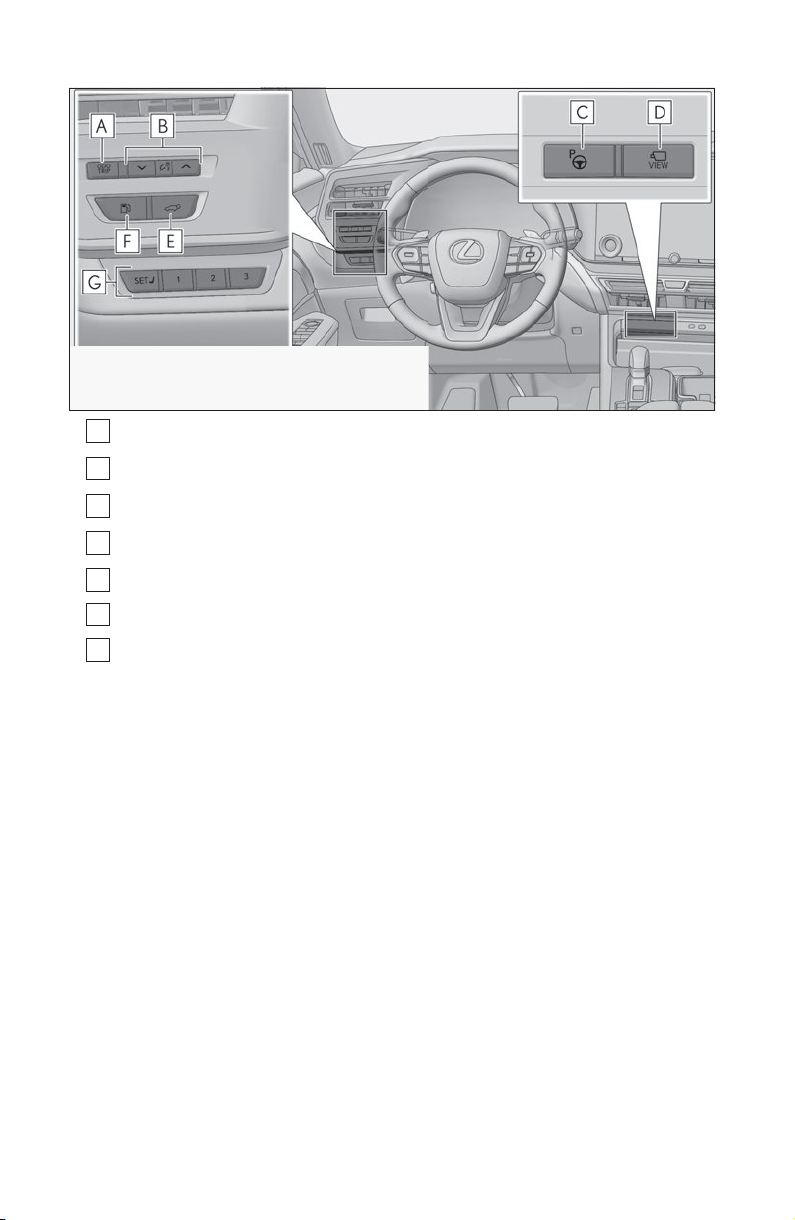

■ Switches

A

B

E

F

“ODO TRIP” switch

Instrument panel light control switches

Advanced Park (parking assist system) main switch

C

Camera switch

D

Power back door switch ..........................................................................................P.77

Fuel filler door opener switch ................................................................................P.76

Driving position memory switches

G

1

*

: Refer to the “OWNER’S MANUAL”.

2

*

: If equipped

3

*

: Refer to the “MULTIMEDIA OWNER’S MANUAL”.

1

*

*

2, 3

*

1, 2

*

1

1, 2

*

5

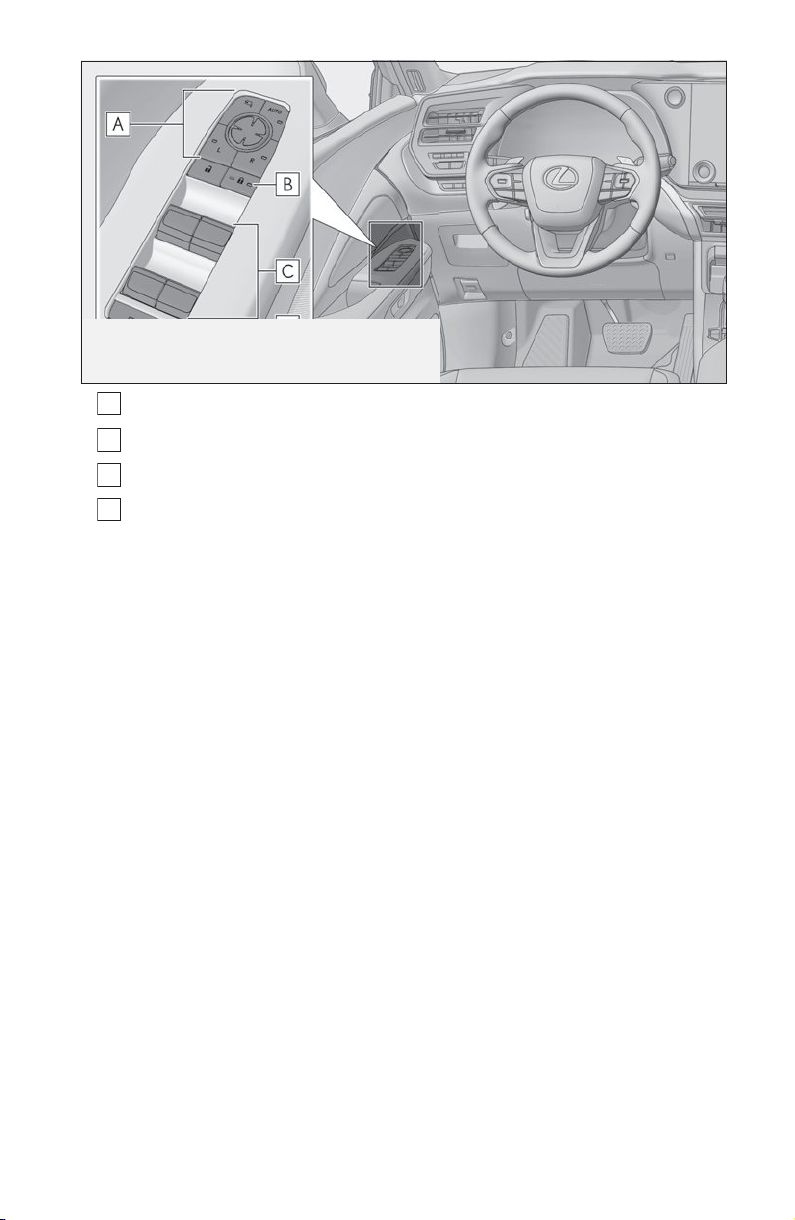

Outside rear view mirror switches

A

B

C

D

Door lock switches .....................................................................................................P.71

Power window switches.......................................................................................... P.73

Window lock switch ................................................................................................. P.73

*

: Refer to the “OWNER’S MANUAL”.

*

6

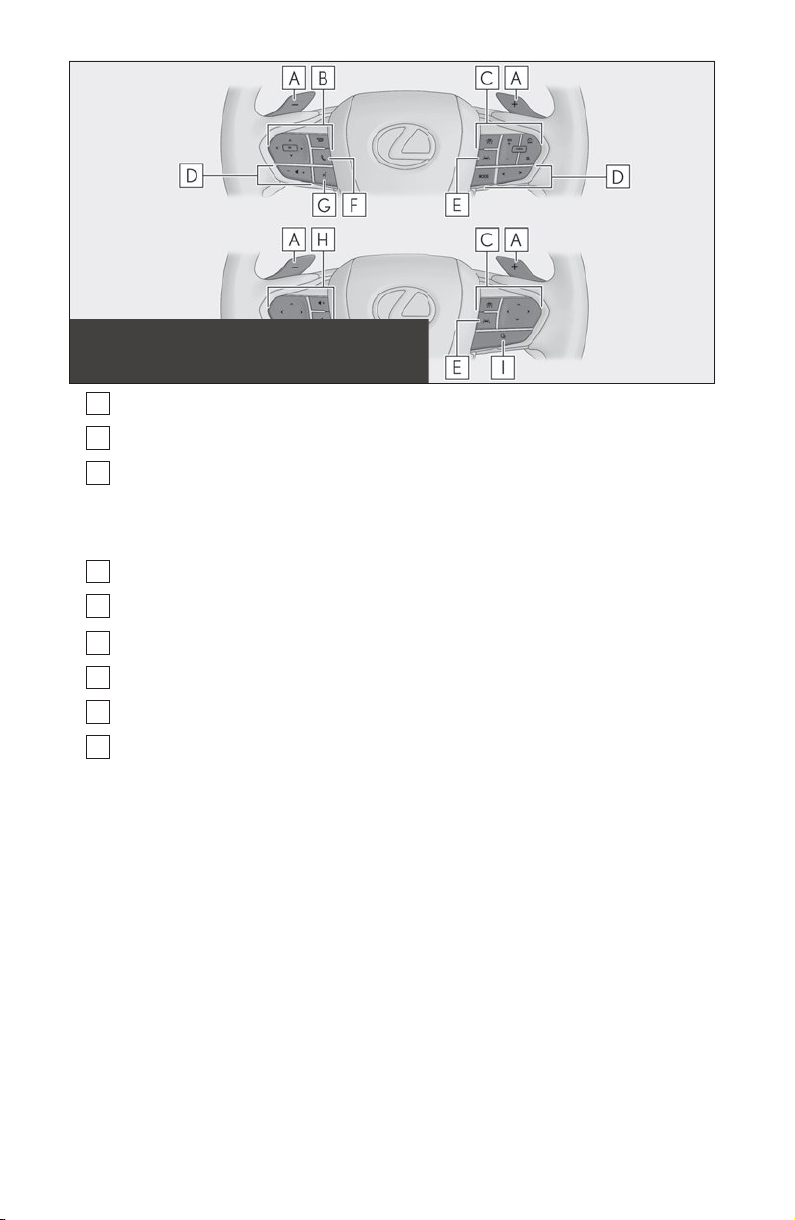

Paddle shift switches ................................................................................................ P.21

F

A

Meter control switches .......................................................................................... P.28

B

Cruise control switch

C

Dynamic radar cruise control

Cruise control

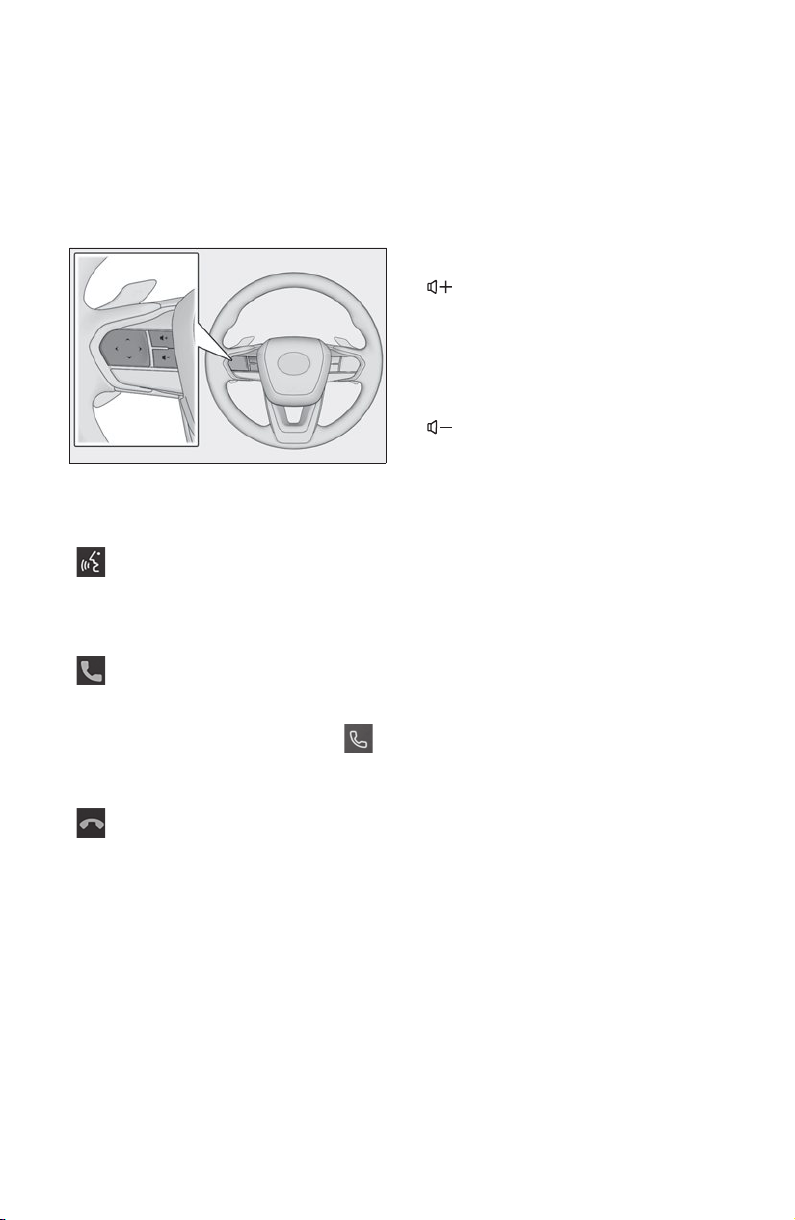

Audio remote control switches ............................................................................ P.47

D

LTA (Lane Tracing Assist) switch

E

Telephone switch...................................................................................................... P.47

Talk switch .................................................................................................................. P.47

G

Audio remote control switches/telephone switch/talk switch .................. P.47

H

Switch function change switch ............................................................................. P.28

I

*

: Refer to the “OWNER’S MANUAL”.

*

*

*

7

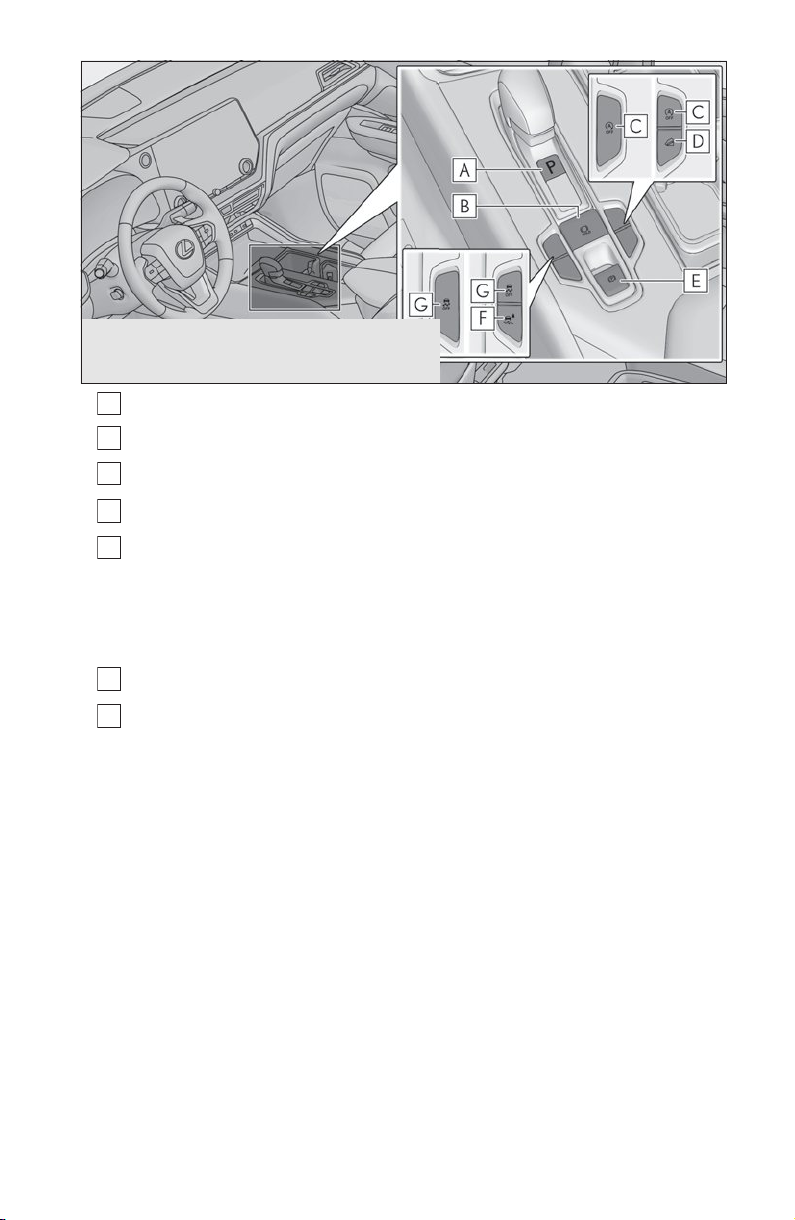

P position switch......................................................................................................... P.19

A

B

C

D

E

F

G

Brake hold switch ..................................................................................................... P.26

Stop & Start cancel switch

Downhill assist control switch

Parking brake switch ............................................................................................... P.24

Applying/releasing..............................................................................................................P.24

Precautions for winter season

Warning buzzer/messages

Trail Mode switch

VSC OFF switch

1

*

: Refer to the “OWNER’S MANUAL”.

2

*

: If equipped

1, 2

*

1

*

1

*

1, 2

*

1

*

1

*

8

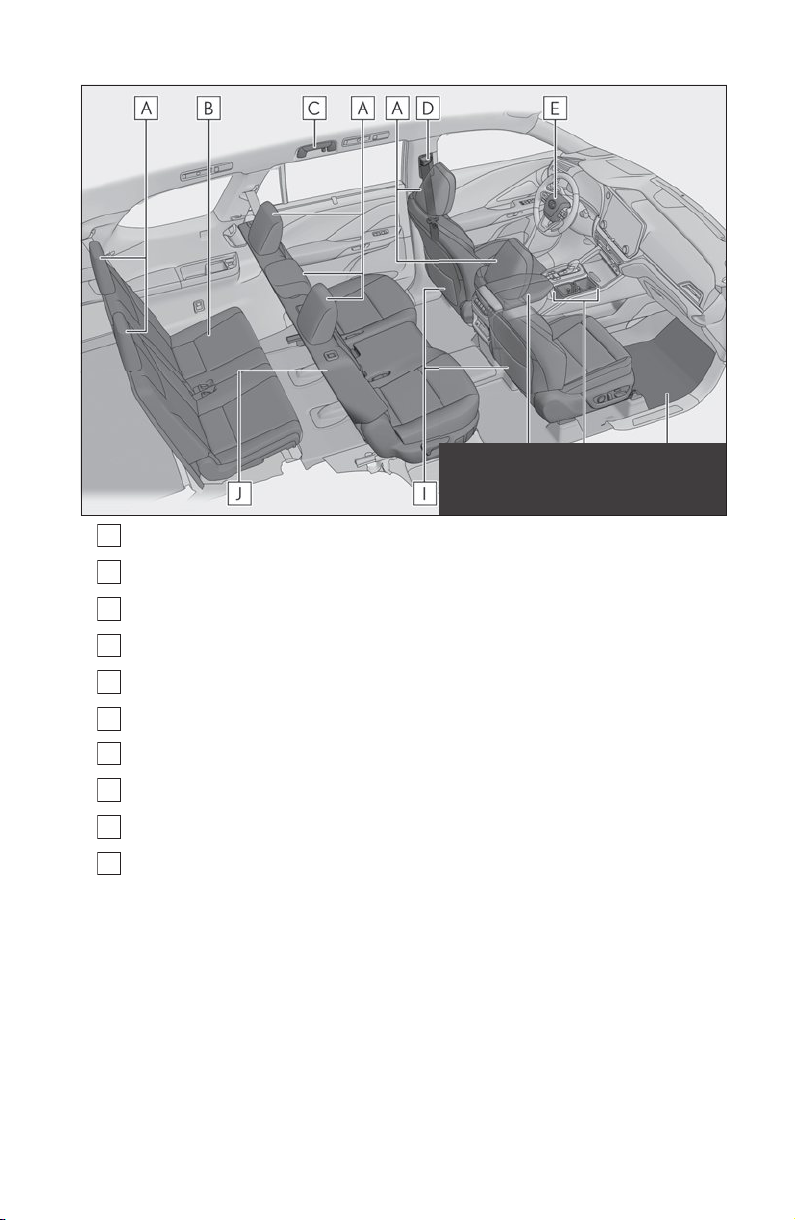

■ Interior

A

F

I

 6-passenger models

Head restraints

Third seats

B

Assist grips

C

Seat belts

D

SRS airbags

E

Floor mats .................................................................................................................... P.12

Cup holders

G

Console box

H

Front seats

Second seats

J

*

: Refer to the “OWNER’S MANUAL”.

*

*

*

*

*

*

*

*

*

9

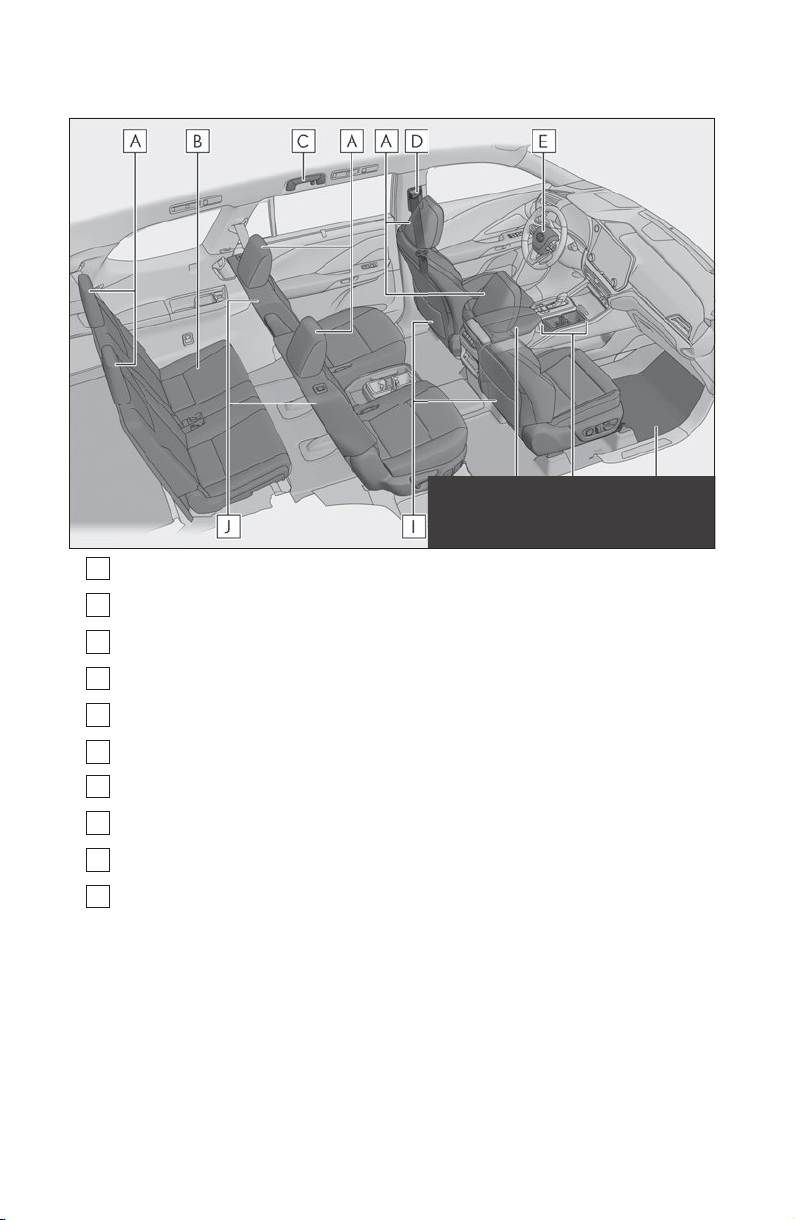

 7-passenger models

A

B

C

D

E

F

G

H

I

J

Head restraints

Third seats

Assist grips

Seat belts

SRS airbags

Floor mats .................................................................................................................... P.12

Cup holders

Console box

Front seats

Second seats

*

: Refer to the “OWNER’S MANUAL”.

*

*

*

*

*

*

*

*

*

10

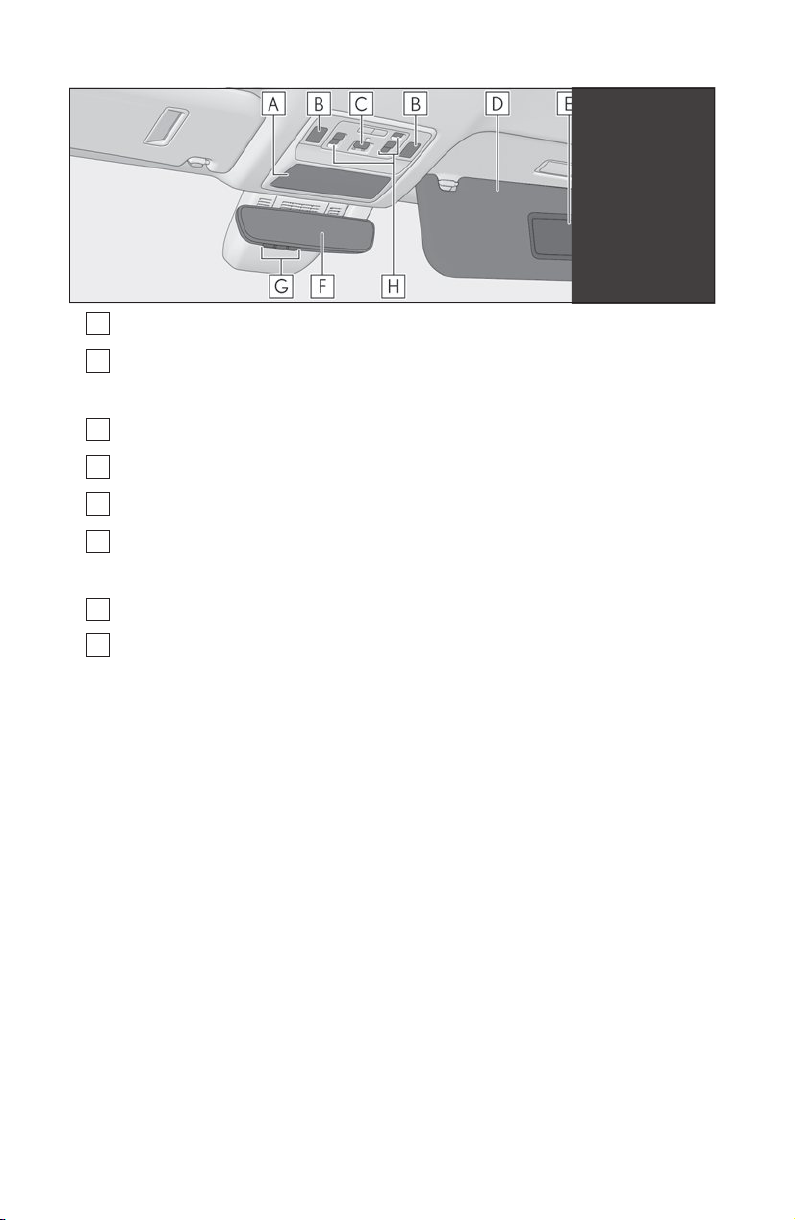

■ Ceiling

E

F

H

Auxiliary box

A

Interior light

B

Personal lights

“SOS” button

C

Sun visors

D

Vanity mirrors

Inside rear view mirror

Digital Rearview Mirror

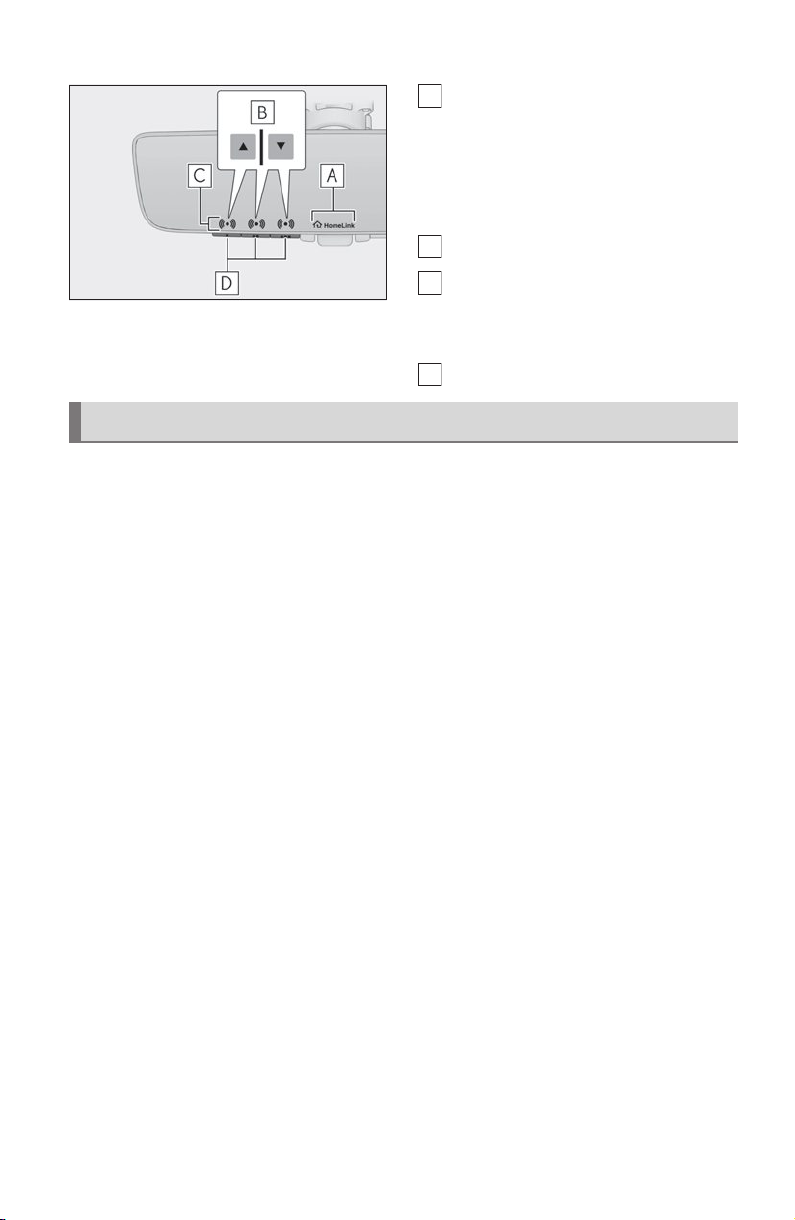

Garage door opener switches ............................................................................. P.83

G

Panoramic moon roof switches

1

*

: Refer to the “OWNER’S MANUAL”.

2

*

: The illustration shows the front, but they are also equipped in the rear.

3

*

: If equipped

1

*

1

*

1, 2

*

1

*

1

*

1

*

1, 3

*

1, 3

*

3

*

....................................................................... P.74

11

Floor Mat Installation

A

Floor Mat Installation

Use only floor mats designed specifically for vehicles of the same model and model year
as your vehicle. Fix them securely in place onto the carpet.

1

Insert the retaining hooks (clips) into
the floor mat eyelets.

2

Turn the upper knob of each retaining
hook (clip) to secure the floor mats in
place.

Always align the marks .

The shape of the retaining hooks (clips) may differ from that shown in the illustration.

12

Entering and Exiting

A

B

C

D

A

B

C

D

E

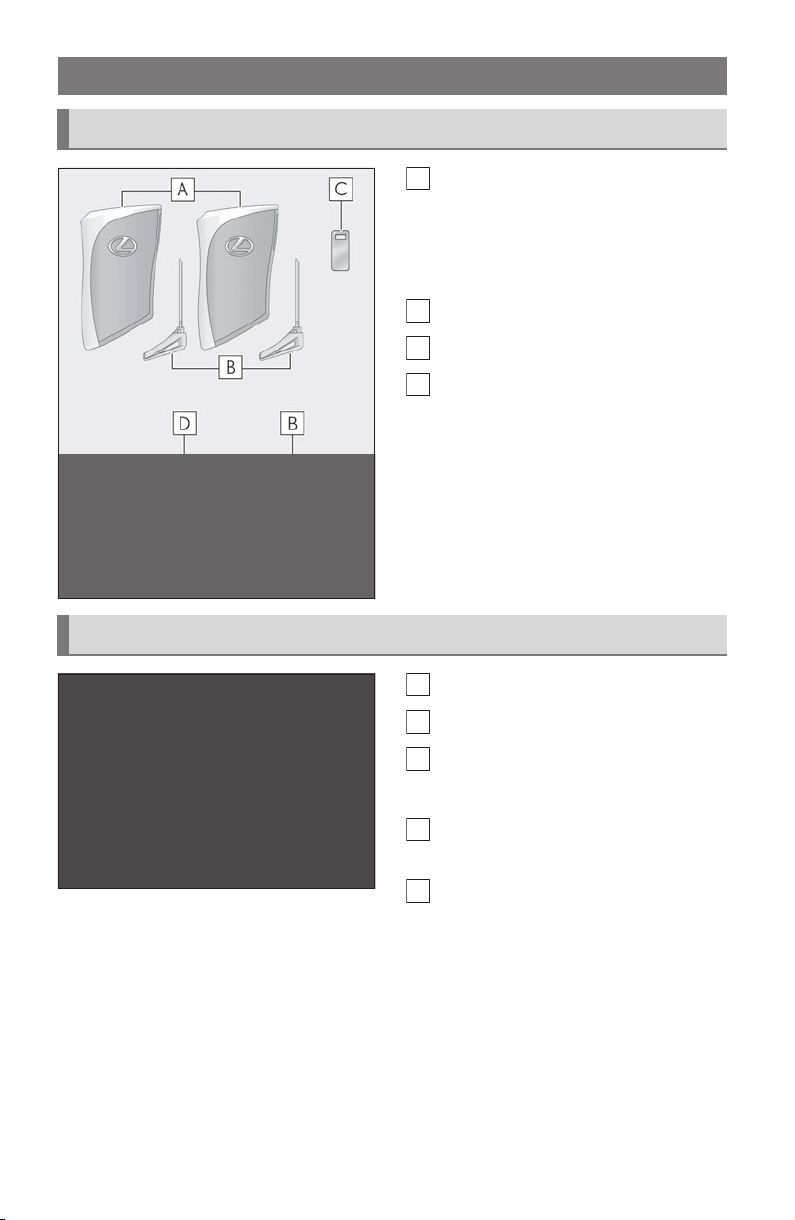

Keys

The keys

Electronic keys

• Operating the smart access system with
push-button start

• Operating the wireless remote control
function

Mechanical keys

Key number plate

Card key (electronic key) (if equipped)

Wireless remote control

Locks all the doors

Unlocks all the doors

Opens the windows

oramic moon roof

Opens and closes the power back
door

Sounds the alarm

1

*

: These settings must be customized at

your Lexus dealer.

2

*

: If equipped

13

1

*

and the pan-

1, 2

*

Mechanical key

To take out the mechanical key, push the
release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.

After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.

14

Smart Access System with Push-button Start

The following operations can be performed simply by carrying the electronic key on your
person, for example in your pocket. The driver should always carry the electronic key.

For details on starting the engine, see page 16.

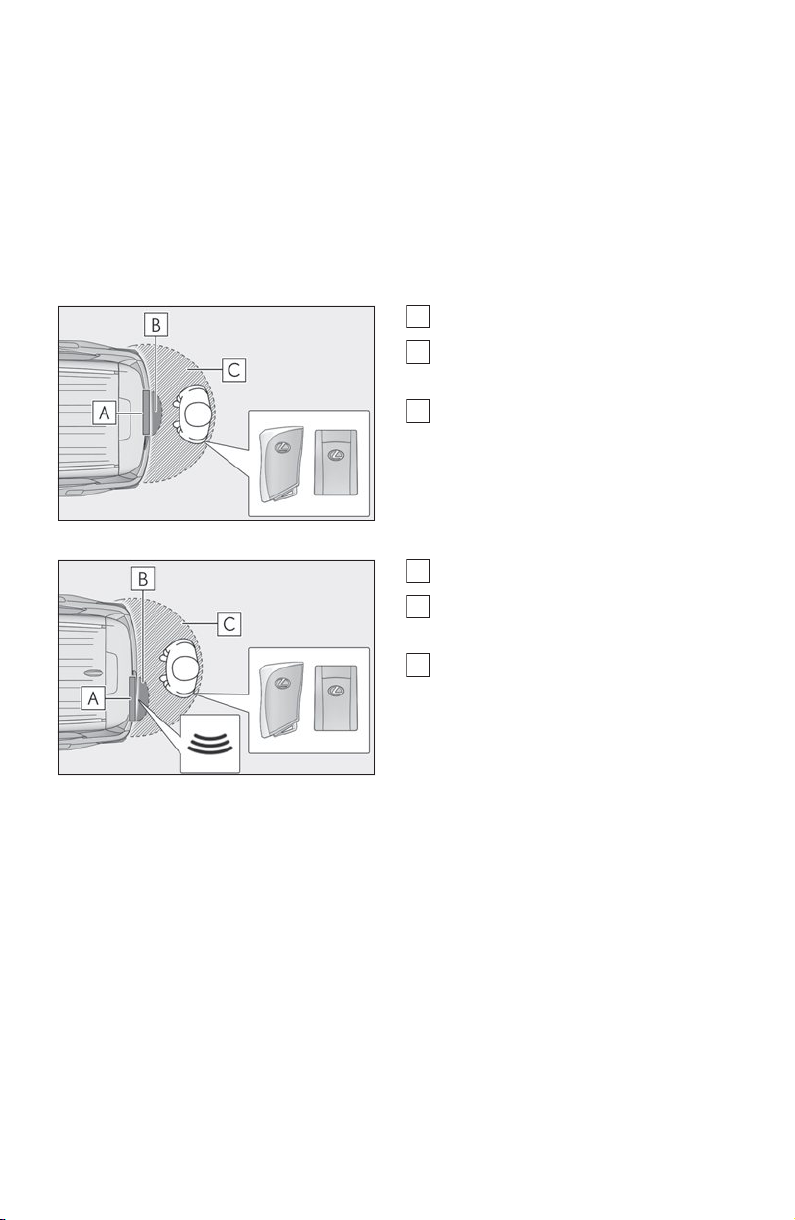

Unlocking and locking the doors from the outside

1

Grip the driver’s door handle to unlock
the door. Holding the driver’s door
handle for approximately 2 seconds
unlocks all the doors. Grip any passen­ger door handle to unlock all the

*

doors.

Make sure to touch the sensor on the
back of the handle.

The doors cannot be unlocked for 3
seconds after the doors are locked.

*

: The door unlock settings can be

changed.

2

Touch the lock sensor (indentation on the surface of the door handle) to lock all the
doors.

Check that the door is securely locked.

Unlocking and locking the power back door from the outside

1

Locks all the doors

Check that the door is securely locked.

2

Unlocks all the doors

The doors cannot be unlocked for 3
seconds after the doors are locked.

For details on what to do when the electronic key does not operate properly, see page 94.

15

When Driving

Engine (Ignition) Switch

Performing the following operations when carrying the electronic key on your person
starts the engine or changes engine switch modes.

Starting the engine

1

Pull the parking brake switch to check that the parking brake is set.

The parking brake indicator will come on.

2

Firmly depress the brake pedal.

and a message will be displayed on the multi-information display.

If it is not displayed, the engine cannot be started.

3

Press the engine switch shortly and
firmly.

When operating the engine switch,
one short, firm press is enough. It is not
necessary to press and hold the switch.

The engine will crank until it starts or
for up to 30 seconds, whichever is less.

Continue depressing the brake pedal
until the engine is completely started.

The engine can be started from any
engine switch mode.

16

Stopping the engine

1

Stop the vehicle completely.

2

Set the parking brake.

3

Press the P position switch.

Check that the shift position indicator shows P and the parking brake indicator is illumi­nated.

4

Press the engine switch.

The engine will stop, and the meter display will be extinguished (the shift position indi­cator will be extinguished a few seconds after the meter display).

5

Release the brake pedal and check that “ACCESSORY” or “POWER ON” is not
shown on the multi-information display.

Changing engine switch modes

Modes can be changed by pressing the engine switch with brake pedal released. (The mode
changes each time the switch is pressed.)

1

Off

The emergency flashers can be used.

2

ACC

*

Some electrical components such as
the audio system can be used.

3

ON

All electrical components can be used.

*

: ACC mode can be enabled/disabled on

the customize menu.

17

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way,
stop the vehicle using the following procedure:

1

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort required to slow
the vehicle.

2

Shift the shift position to N.

 If the shift position is shifted to N

3

After slowing down, stop the vehicle in a safe place by the road.

4

Stop the engine.

 If the shift position cannot be shifted to N

3

Keep depressing the brake pedal with both feet to reduce vehicle speed as much as
possible.

4

To stop the engine, press and hold the
engine switch for 2 consecutive sec­onds or more, or press it briefly 3 times
or more in succession.

5

Stop the vehicle in a safe place by the road.

18

Automatic Transmission

A

B

C

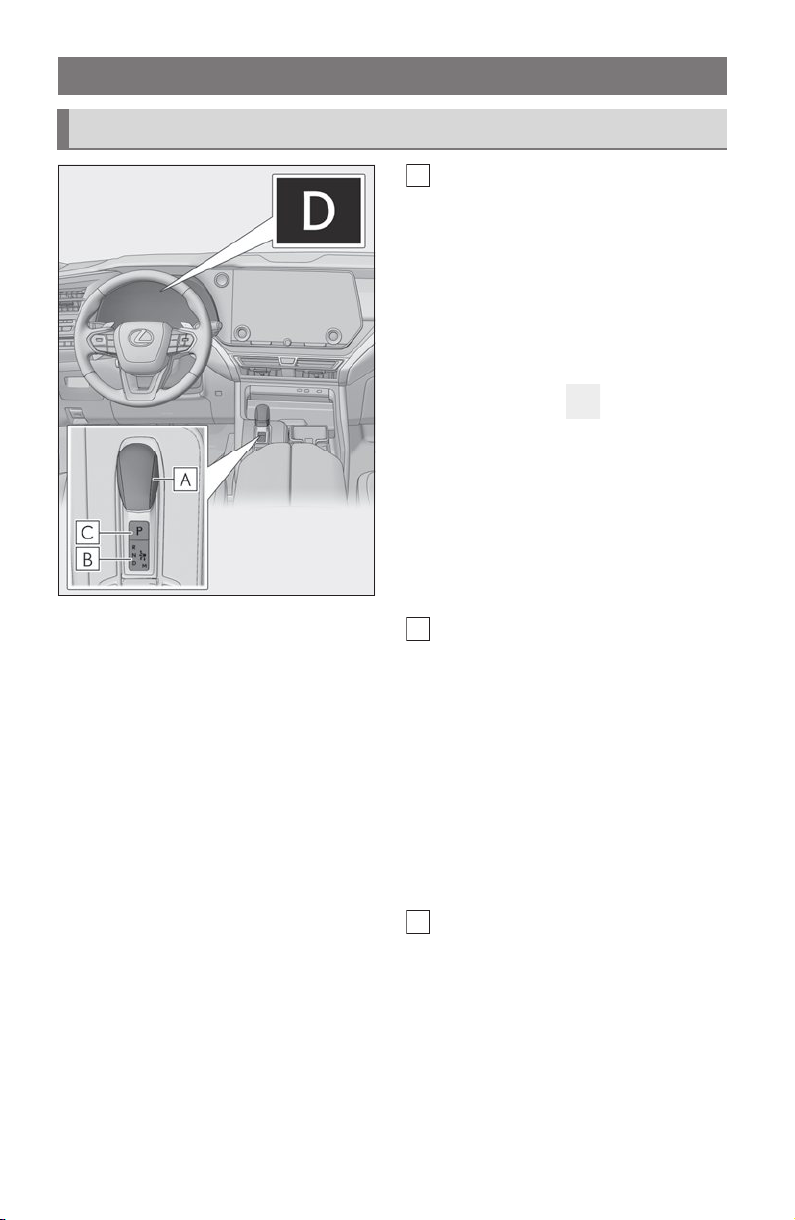

Shift position display and how to change the shift position

Shift lever

Operate the shift lever gently and
securely in the direction of the arrow
on the shift position indicator.

To shift to N, slide the shift lever in the
direction of the arrow and hold it.

Release the shift lever after each shift­ing operation to allow it to return to its

regular position ( ).

Shifting to M is only possible when the
shift position is in D.

When shifting from P to N, D or R,
from N, D, M or R to P, from D or M to
R, or from R to D, ensure that the brake
pedal is being depressed and the vehi­cle is stationary.

Shift position indicator

Meter display:

The current shift position is illuminated.

Shift lever display:

The current shift position is illuminated.

When selecting the shift position, make
sure that the shift position has been
changed to the desired position by
checking the shift position indicator
provided on the instrument cluster.

P position switch

Fully stop the vehicle and set the park­ing brake, and then press the P position
switch.

When the shift position is changed to P,
the switch illuminates.

Check that the shift position indicator
shows P.

19

Shift position purpose and functions

Shift position Objective or function

P Parking the vehicle/starting the engine

R Reversing

N

D Normal driving

M M mode driving

1

*

: To improve fuel efficiency and reduce noise, set the shift position in D for normal driving.

You can choose gear range suitable for your driving situation by operating the paddle
shift switches.

2

*

: Any gear range can be fixed when driving in M mode.

(Condition in which the power is not transmitted)

Neutral

1

*

2

*

Selecting the driving mode

■

Driving mode

P.40

20

Selecting shift ranges in the D position

To drive using temporary shift range selection, operate the “-” or “+” paddle shift switch.
When the “-” paddle shift switch is operated, the shift range switches to a range that enables
engine braking force that is suitable to driving conditions. When the “+” paddle shift switch is
operated, the shift range switches to a range that is one range higher than the current range.
Changing the shift range allows restriction of the highest gear, preventing unnecessary
upshifting and enabling the level of engine braking force to be selected.

1

Upshifting

2

Downshifting

The selected shift range, from D1 to D8, will
be displayed on the meter.

To return to normal D position driving, the
“+” paddle shift switch must be held down
for a period of time.

■

Shift ranges and their functions

Meter display Function

D2 - D8

D1 1st gear is set

A lower shift range will provide greater engine braking forces than a higher shift range.

A gear in the range between 1 and the selected gear is automati-

cally chosen depending on vehicle speed and driving conditions

21

Selecting gears in the M position

To enter M mode, shift the shift position to M. Gears can be selected by operating the pad­dle shift switches, allowing you to drive in the gear of your choosing.

1

Upshifting

2

Downshifting

The gear changes once every time the pad­dle shift switch is operated.

The selected gear, from M1 to M8, will be
fixed and displayed on the meter.

When in the M position, the gear will not change unless the paddle shift switches are oper­ated. Also, the gear will not shift when the vehicle speed is low, even if an upshift operation is
performed.
However, even when in the M position, the gears will be automatically changed in the fol­lowing situations:

● When vehicle speed drops (downshift only).

● When it is necessary to protect the engine or automatic transmission when the engine

coolant temperature is low, the automatic transmission fluid temperature is high or low,
or other reasons.

22

Turn Signal Lever

1

Right turn

2

Lane change to the right (move the
lever partway and release it)

The right hand signals will flash 3 times.

3

Lane change to the left (move the lever
partway and release it)

The left hand signals will flash 3 times.

4

Left turn

23

Parking Brake

A

The parking brake can be set or released automatically or manually.

In automatic mode, the parking brake can be set or released automatically according to
shift position operation.

Also, even in automatic mode, the parking brake can be set or released manually.

Using the manual mode

The parking brake can be set and released manually.

Parking brake indicator (U.S.A.)

Parking brake indicator (Canada)

B

1

Pull the switch to set the parking brake.

The parking brake indicator will turn
on.

Pull and hold the parking brake switch
if an emergency occurs and it is neces­sary to operate the parking brake while
driving.

2

Press the switch to release the parking
brake.

• Operate the parking brake switch while
depressing the brake pedal.

• Using the parking brake automatic
release function, the parking brake can be
released by depressing the accelerator
pedal. When using this function, slowly
depress the accelerator pedal.

Make sure that the parking brake indicator
turn off.

If the parking brake indicator flash, operate
the switch again.

24

Turning the automatic mode on

While the vehicle is stopped, pull and hold the parking brake switch until a buzzer sounds
and a message is shown on the multi-information display.

When the automatic mode is turned on, the parking brake operates as follows.

● When the shift position is shifted from P, the parking brake will be released, and the park­ing brake indicator will turn off.

● When the shift position is shifted to P, the parking brake will be set, and the parking brake
indicator light will turn on.

Operate the shift lever and P position switch with the vehicle stopped and the brake pedal
depressed.

The auto function may not operate if the shift lever is moved extremely quickly or the brake
pedal is not firmly depressed. In this situation, apply the parking brake manually.

Turning the automatic mode off

While the vehicle is stopped and depressing the brake pedal, press and hold the parking
brake switch until a buzzer sounds and a message is shown on the multi-information display.

25

Brake Hold

A

B

The brake hold system keeps the brake applied when the shift position is in D, M or N with
the system on and the brake pedal has been depressed to stop the vehicle. The system
releases the brake when the accelerator pedal is depressed with the shift position in D or
M to allow smooth start off.

Turns the brake hold system on

The brake hold standby indicator (green)

comes on. While the system is holding

the brake, the brake hold operated indica­tor (yellow) comes on.

26

Multi-information Display

Displayed contents summary

A variety of driving-related information can be displayed. Depending on the situation, warn­ing or advice pop-up displays will also be displayed.

■

Items displayed in the content display area

 7-inch display

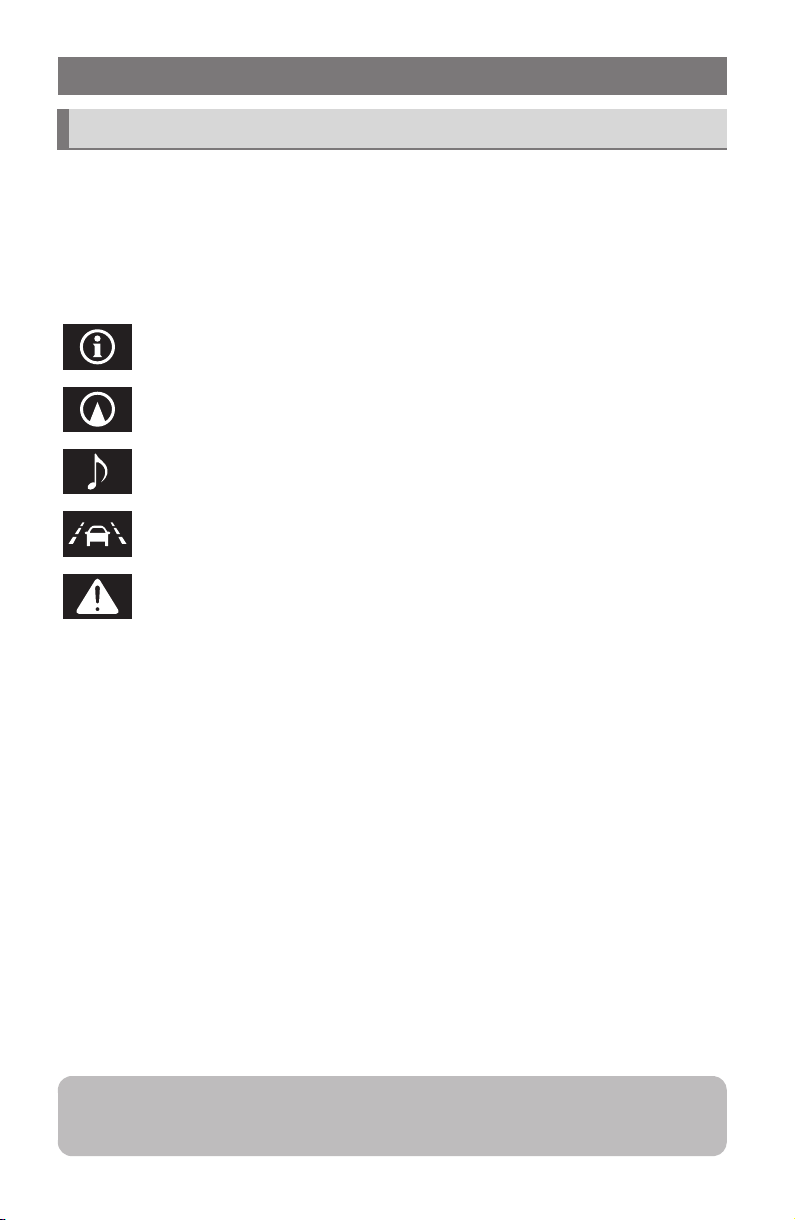

By selecting menu icons on the multi-information display, the following items can be dis­played.

Driving information display

Navigation system-linked display

Audio system-linked display

Driving support system information display

Warning message

 12.3-inch display

● Content display area (center)

• Driving support system information display

• Navigation system-linked display

• Message

•Blank

● Content display area (side)

•Blank

• Fuel consumption

• Eco Driving Indicator

• Driving support system information display

• Navigation system-linked display

• Audio system-linked display

• Drive information

• Engine coolant temperature gauge/engine oil temperature gauge/engine oil pressure

gauge

• Boost gauge

•G-force

•Gear Position

If a problem is detected in any of the vehicle’s systems, a warning message is shown on the
multi-information display.

27

Displayed content

A

C

E

Components/Operations

 Vehicles without a head-up display

1

*

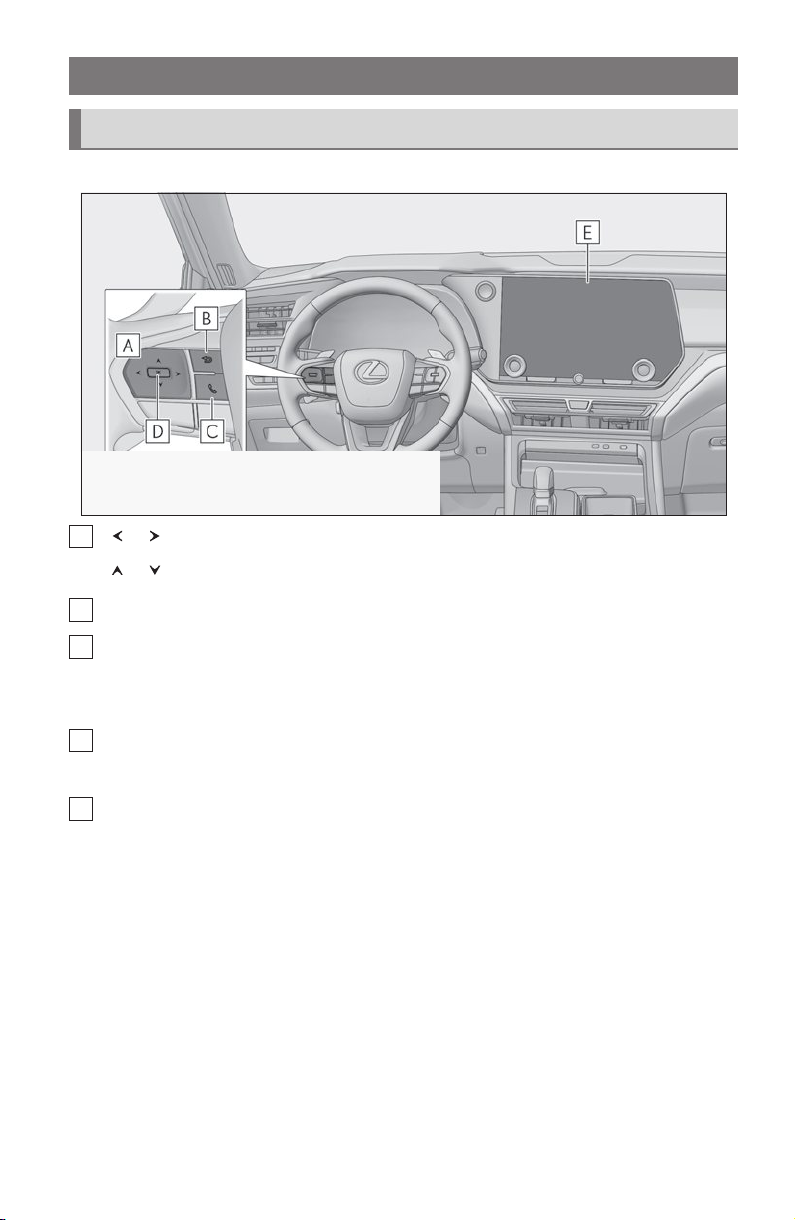

/ : Select menu icons

/ : Change displayed content, scroll up/down the screen

Return to the previous screen

B

Start/receive call

Linked with the hands-free system, sending or receiving call is displayed. For details
regarding the hands-free system, refer to the “MULTIMEDIA OWNER’S MANUAL”.

Press: Enter/Set

D

Press and hold: Reset/Display customizable items, display the cursor

Center display

1

*

:7-inch display

2

*

:12.3-inch display

/Change the screen and move the cursor

2

*

2

*

28

 Vehicles with a head-up display

B

D

F

E

Center display

A

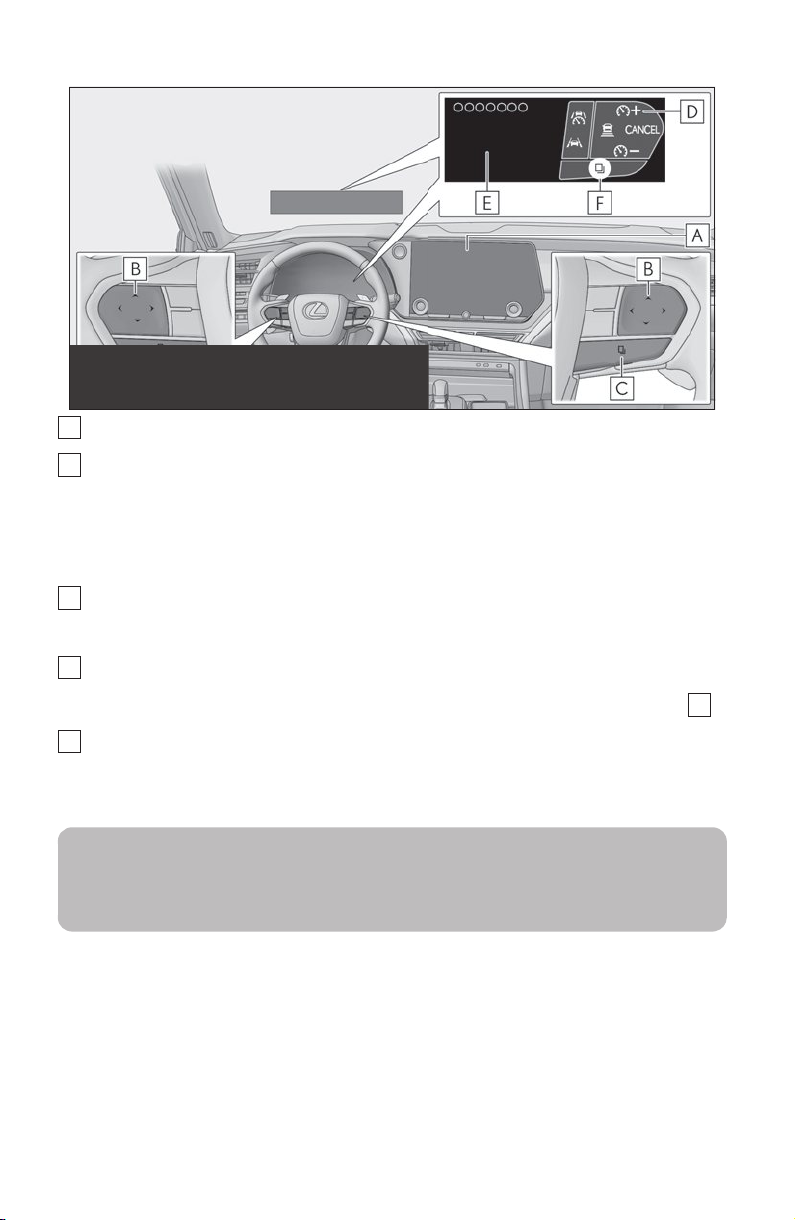

Steering switch

The function of each switch differs depending on the conditions and settings.

When a switch is touched, the function of each switch is displayed.

Also, preferred functions for each switch can be set on the center display.

Switch function change switch

C

Each time this switch is pressed, the functions will change.

Switch icon display

The icon of each switch will be displayed. The touched switch will be highlighted. ( )

Switch function guide display

The function guide for the touched switch will be displayed.

The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

29

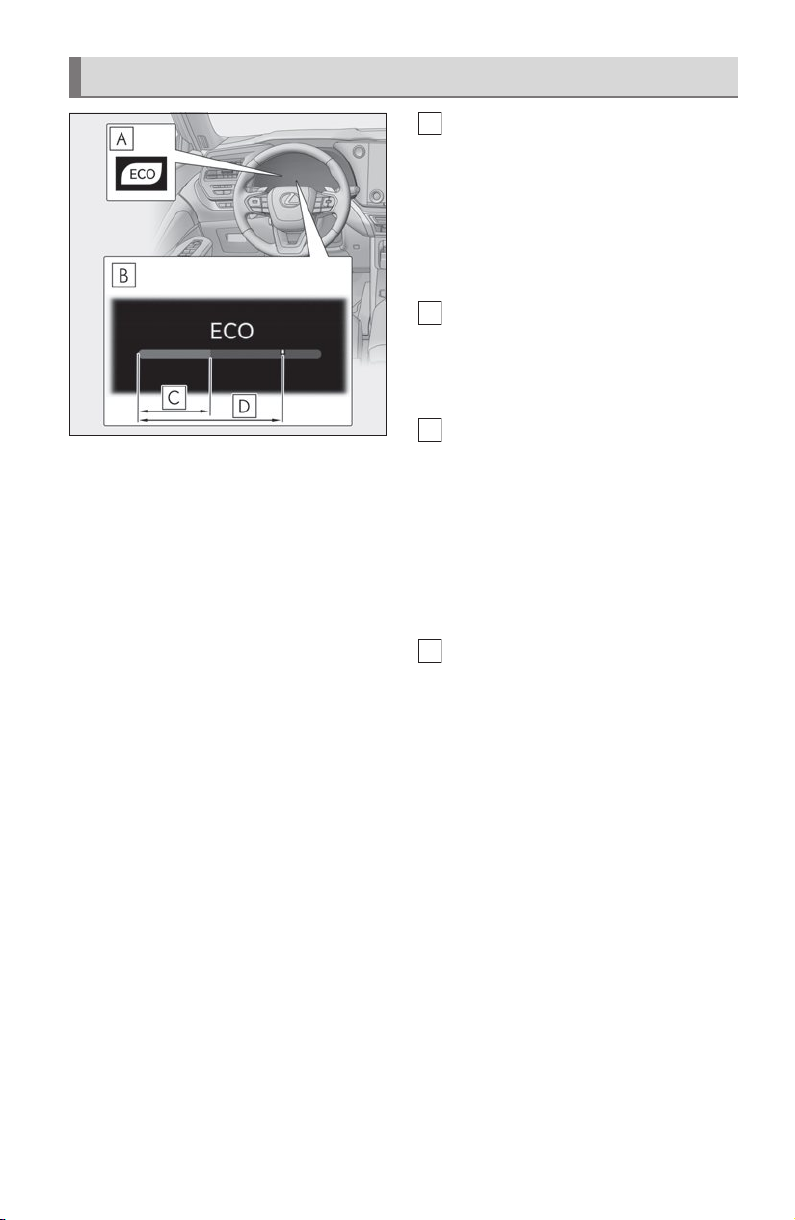

Eco Driving Indicator

B

Eco Driving Indicator Light

A

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator
Light will turn on. When the accelera­tion exceeds the Zone of Eco driving,
or when the vehicle is stopped, the light
turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.

Eco driving ratio based on accelera-

C

tion

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco
Driving Indicator Zone Display will illu­minate.

At this time, the Eco Driving Indicator
Light will turn off.

Zone of Eco driving

D

30

Headlight Switch

A

B

U.S.A.

Canada

Turning on the high beam headlights

1

2

3

4

1

2

The side marker, parking, tail,

license plate, instrument panel lights,
and daytime running lights turn on.

The headlights and all lights listed

above (except daytime running lights)
turn on.

The headlights, daytime running

lights and all the lights listed below turn
on and off automatically.
(When the engine switch is in ON.)

(U.S.A.) Off

With the headlights on, push the lever
away from you to turn on the high
beams.

Pull the lever toward you to the center
position to turn the high beams off.

Pull the lever toward you and release it
to flash the high beams once.

You can flash the high beams with the
headlights on or off.

31

AHS (Adaptive High-beam System) (if equipped)

The Adaptive High-beam System uses a front camera located on the upper portion of the
windshield to detect the brightness of the lights of vehicles ahead, streetlights, etc., and
automatically controls the light distribution of the headlights.

Using the Adaptive High-beam System

1

Press the Adaptive High-beam System
switch.

2

Turn the headlight switch to the or

position.

When the headlight switch lever is in
the low beam position, the AHS will be
enabled and the AHS indicator will illu­minate.

32

Turning the high beams on/off manually

■

Changing to the high beams

■

Changing to the low beams

Push the lever forward.

The AHS indicator will turn off and the high
beam indicator will turn on.

Pull the lever to its original position to
enable the Adaptive High-beam System
again.

Press the Adaptive High-beam System
switch.

The AHS indicator will turn off.

Press the switch to enable the Adaptive
High-beam System again.

■

Temporarily changing to the low beams

33

Pull the lever rearward and then return it to
its original position.

The high beams will illuminate while the
lever is pulled, however, after the lever is
returned to its original position, the low
beams will remain on for a certain amount
of time. After this, the Adaptive High-beam
System will operate.

AHB (Automatic High Beam)

The Automatic High Beam uses a front camera located on the upper portion of the wind­shield to detect the brightness of the lights of vehicles ahead, streetlights, etc., and auto­matically changes the head lights between the high beams and low beams.

Using the Automatic High Beam system

1

Press the Automatic High Beam
switch.

2

Turn the headlight switch to the or

position.

When the headlight switch lever is in
the low beam position, the AHB system
will be enabled and the AHB indicator
will illuminate.

34

Turning the high beams on/off manually

■

Changing to the high beams

■

Changing to the low beams

Push the lever forward.

The AHB indicator will turn off and the high
beam indicator will turn on.

Pull the lever to its original position to
enable the Automatic High Beam system
again.

Press the Automatic High Beam switch.

The AHB indicator will turn off.

Press the switch to enable the Automatic
High Beam system again.

■

Temporarily switching to the low beams

35

Pull the lever rearward and then return it to
its original position.

The high beams will illuminate while the
lever is pulled, however, after the lever is
returned to its original position, the low
beams will remain on for a certain amount
of time. After this, the Automatic High
Beam system will operate.

Fog Light Switch

The fog lights secure excellent visibility in difficult driving conditions, such as in rain and
fog.

1

2

(U.S.A.) or (Canada)

Turns the fog lights off

Turns the fog lights on

36

Windshield Wipers and Washer

When is selected, the wipers will operate automatically when the sensor detects falling
rain. The system automatically adjusts wiper timing in accordance with rain volume and

vehicle speed.

1

2

3

4

5

When AUTO mode is selected, the sensor
sensitivity can be adjusted by turning the
switch ring.

6

7

(U.S.A.) or (Canada) Off

Rain-sensing wiper operation

(U.S.A.) or (Canada)

Low speed operation

(U.S.A.) or (Canada)

High speed operation

(U.S.A.) or (Canada)

Temporary operation

Increases the sensitivity

Decreases the sensitivity

37

8

Washer/wiper dual operation

Pulling the lever operates the wipers
and washer.
(After operating several times, the wip­ers operate once more time after a
short delay to prevent dripping. How­ever, the dripping prevention does not
operate while the vehicle is moving.)

Vehicles with headlight cleaners:
When the engine switch is in ON and
the headlights are on, if the lever is
pulled, the headlight cleaners will
operate once. After this, the headlight
cleaners will operate every 5th time
the lever is pulled.

38

Rear Window Wiper and Washer

1

2

3

4

*
*

(U.S.A.) or (Canada) Off

(U.S.A.) or (Canada) Inter-

mittent operation

(U.S.A.) or (Canada) Nor-

mal operation

Washer/wiper dual operation

Pushing the lever operates the wiper
and washer.

The wiper will automatically operate a
couple of times after the washer
squirts.

The washer will automatically operate
and clean the camera for the Digital

1

*

Rear-view Mirror

2

era

*

.

1

: If equipped

2

: Refer to the “MULTIMEDIA

OWNER’S MANUAL”.

and rear cam-

39

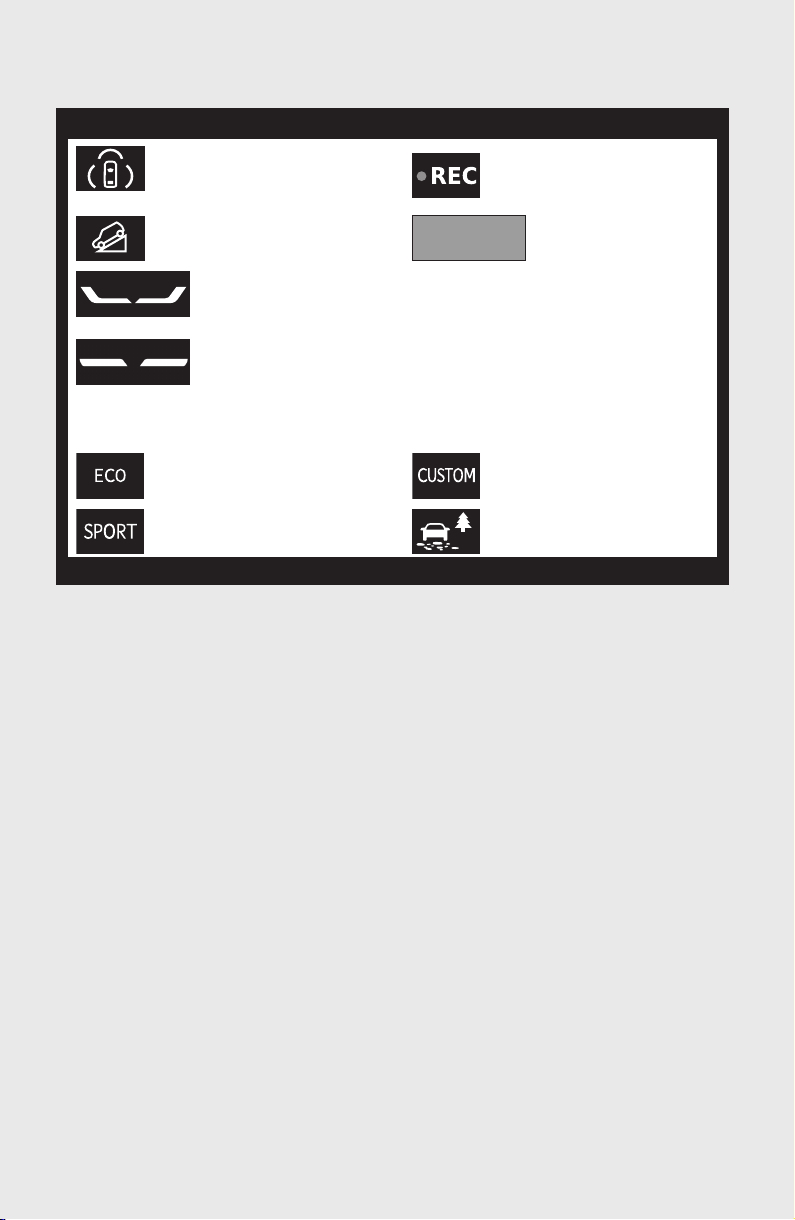

Driving Mode Select Switch

The driving modes can be selected to suit driving conditions.

Selecting a drive mode

1

Select on the center display.

2

Select “Drive mode”.

3

Select driving mode.

1

Normal mode

Provides an optimal balance of fuel
economy, quietness, and dynamic per­formance. Suitable for city driving.

2

Eco drive mode

Helps the driver accelerate in an eco­friendly manner and improve fuel
economy through moderate throttle
characteristics and by controlling the
operation of the air conditioning sys­tem (heating/cooling).

When the Eco drive mode is selected,
Eco drive mode indicator comes on.

3

Sport mode

Controls the transmission and engine
to provide quick, powerful accelera­tion. This mode also changes the steer­ing feel, making it suitable for when
agile driving response is desired, such
as when driving on roads with many
curves.

When the Sport mode is selected,
sport mode indicator will comes on

40

4

Custom mode

Allows you to drive with the power
train, steering and air conditioning sys­tem functions set to your preferred set­tings.

When the Custom mode is selected,
Custom mode indicator comes on.

To change Custom mode settings,

select .

41

Driving Comfort

Basic Operation of Multimedia System

Map scrolling operation

The map can be moved and a touched point can be set as the center of the map screen.

■

Flick/drag operation

The map screen can be moved by touching,
dragging or flicking it.

Touch [Recenter] to return the center of the
map to the current position.

■

Touch and hold operation

If a desired point on the map screen is touched and held, the full route map screen to the
selected point will be displayed.

1

Touch and hold the desired point.

2

Full route map screen will be displayed
for the selected point.

42

Navigation

The navigation system indicates your present position and assists in locating a desired desti­nation.

Destination search screen

■

Searching for a destination using the keyboard

A destination can be searched for by entering keywords.

1

Touch [ ] or [ ] on the map screen.

2

Touch [Search navigation].

3

Enter characters using the keyboard.

43

4

Touch [Go].

5

Touch the desired item from the list.

■

Searching for a destination by category

A destination can be searched for from a list of categories.

1

Touch [ ] or [ ] on the map screen.

2

Touch [Destinations].

3

Touch [Navigation].

4

Touch the desired search method.

[Home]: Touch to set the registered
home as the destination. A point must
be registered as home before using

this function.

[Work]: Touch to set the registered
workplace as the destination. A point
must be registered as a workplace

before using this function.

[Favorites]: Touch to set a registered favorite as the destination. A point must be regis­tered as a favorite before using this function.

[Recents]: Touch to set a destination from the destination history as the destination.

[Sent to car]: Send to car enables customer to send a destination or POI to the vehicle
from Lexus app.

[Parking]: Touch to search for a nearby parking lot to set as a destination.

[Fuel/Charging]: Touch to search for a fuel station/charging facility to set as a destina­tion.

[Food]: Touch to search for a restaurant to set as a destination.

[Hospitals]: Touch to search for a hospital to set as a destination.

When setting a business as a destination, if your estimated time of arrival is outside of
business hours or near closing time, a notification asking to confirm the destination will
be displayed.

*

*

*

: Home and Work must be added via Lexus app.

44

5

Touch the desired destination from the list.

 Editing the favorites list

The favorites list can be edited.

1

Touch [ ] or [ ] on the map screen.

2

Touch [Destinations].

3

Touch [Favorites].

5

Touch [Save].

 Editing the destination history

The destination history can be edited.

1

Touch [ ] or [ ] on the map screen.

2

Touch [Destinations].

3

Touch [Recents].

4

Touch [ ].

Touch [ ] to delete a favorite.

The favorites list editing screen will be
displayed.

45

5

Touch [Save].

4

Touch [ ].

The destination history editing screen
will be displayed.

Touch [ ] to delete a destination his­tory item.

■

Searching for a destination using voice controls

1

Touch [ ] or [ ] on the map screen.

2

3

Touch or use voice command for desired result from list.

Say the keyword you wish to use for the
search.

46

Connecting a Smartphone or Communication Device

Registering a Bluetooth® device from the multimedia system

A cellular phone or portable device must be registered in order to use hands-free calling or

®

Bluetooth
nected each time the multimedia system is started.

When Apple CarPlay/Android Auto is connected via USB, the device will be registered
automatically.

When no Bluetooth

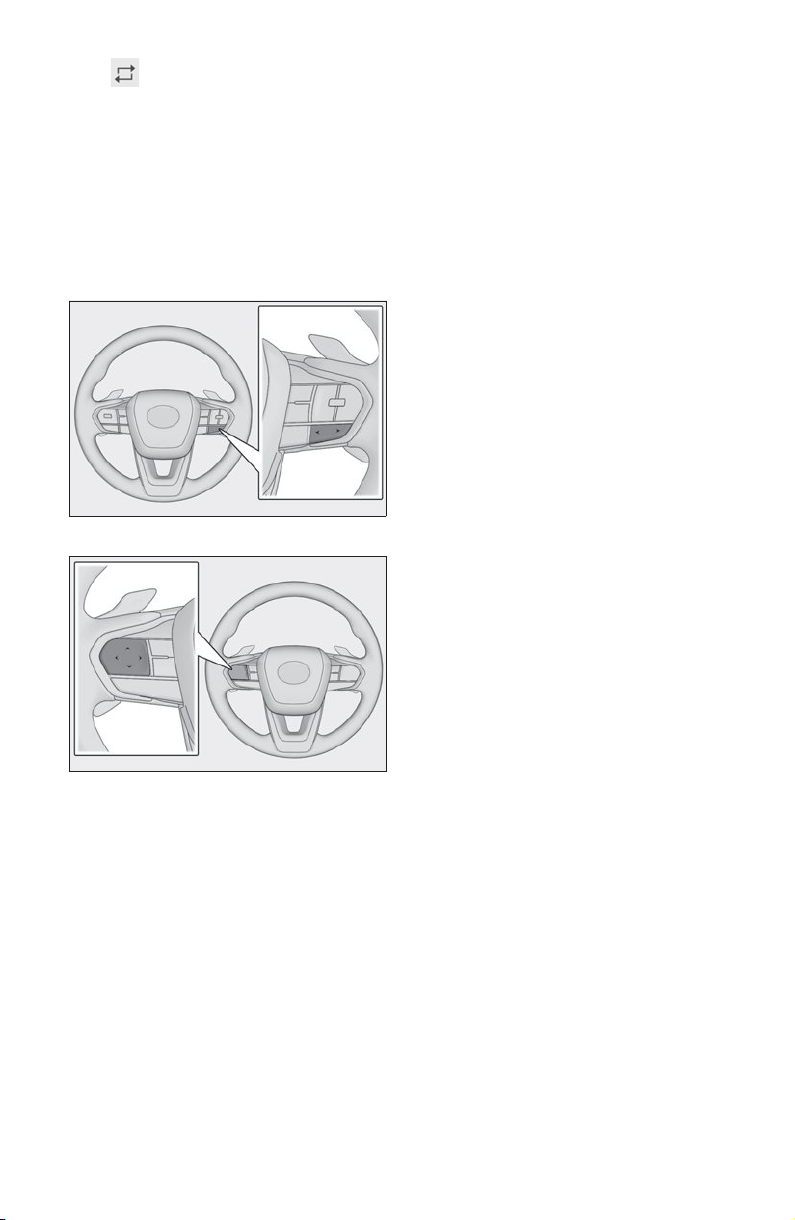

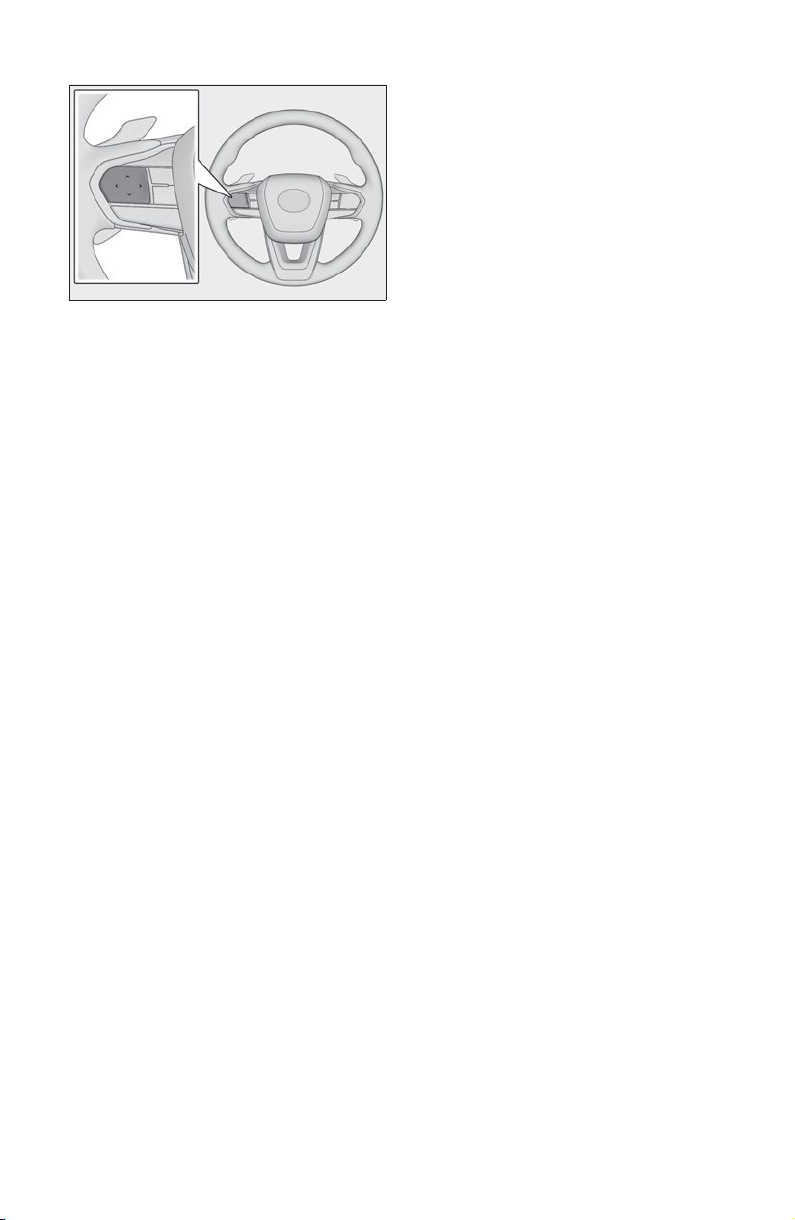

pressing and holding the [ ] switch on the steering.

1

2

3

audio. Once registration is complete, Bluetooth® will automatically be con-

®

devices are connected, the registration screen can be displayed by

Touch [ ] from the main menu.

Touch [Bluetooth & Devices] on the submenu.

If no device is registered, proceed to Procedure 4.

Touch [Add another device].

While a device is connected to the multimedia system, the confirmation screen for dis­connecting the device may be displayed. Disconnect the device to perform registra­tion.

4

Touch [Search for devices].

47

5

Touch the device to register from the main area.

®

● The Bluetooth

● Certain models of Bluetooth

address may be displayed instead of the device name.

®

devices may not be displayed in the device list, unless

a certain screen is displayed on the Bluetooth
device’s instruction manual for details.

®

device. Refer to the Bluetooth

®

6

Check that the displayed PIN code matches the PIN code displayed on the
Bluetooth

● Some Bluetooth

®

device, and then touch [OK].

®

devices may need to be operated to complete registration.

● You may be prompted to install the Lexus Application on your phone. Please follow
the displayed instruction.

● Primary device settings may be displayed. Perform the operation according to the
screen guidance.

● The Apple CarPlay or Android Auto settings may be displayed. The Apple CarPlay
or Android Auto screen will be displayed if the use of either is enabled.

● A message indicating that connection is complete is displayed, and the name of the

®

registered Bluetooth

device is displayed in the submenu.

● If an operation failed screen is displayed, follow the operation instructions on the
screen.

■

Registering from a Bluetooth® device

If the Bluetooth® device cannot be found by searching with the multimedia system, register

®

by searching for the multimedia system from the Bluetooth

1

Touch [ ] from the main menu.

2

Touch [Bluetooth & Devices] on the submenu.

device.

If no device is registered, proceed to Procedure 4.

3

Touch [Add another device].

While a device is connected to the multimedia system, the confirmation screen for dis­connecting the device may be displayed. Disconnect the device to perform registra­tion.

4

Register the multimedia system from
the Bluetooth

®

device to be used.

● Perform the operation according to
the operating procedure of the

Bluetooth

®

device.

● Be sure to display this Bluetooth
connection screen before perform-

ing registration on the Bluetooth
device.

®

®

48

5

Check that the displayed PIN code matches the PIN code displayed on the
Bluetooth

● Some Bluetooth

®

device, and then touch [OK].

®

devices may need to be operated to complete registration.

● You may be prompted to install the Lexus Application on your phone. Please follow
the displayed instruction.

● Primary device settings may be displayed. Perform the operation according to the
screen guidance.

● The Apple CarPlay or Android Auto settings may be displayed. The Apple CarPlay
or Android Auto screen will be displayed if the use of either is enabled.

● A message indicating that connection is complete is displayed, and the name of the

®

registered Bluetooth

device is displayed in the submenu.

● If an operation failed screen is displayed, follow the operation instructions on the
screen.

■

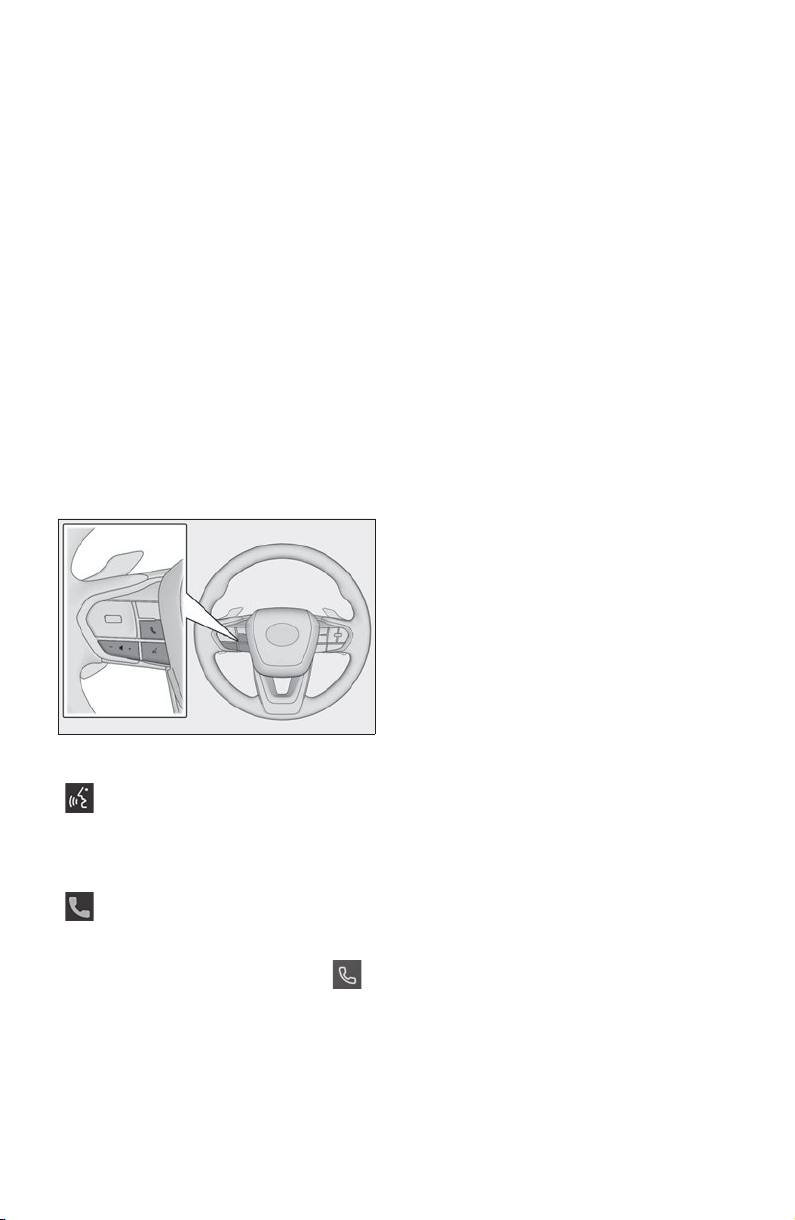

Operating with the steering switches (Type A)

Some hands-free call functions can be operated from the steering switches, such as receiv­ing or making calls. The steering switch functions change depending on the status of the
multimedia system.

● Operate the switches as necessary.
[+] switch

Increases the ringtone volume or receiver
volume.

Press and hold to adjust continuously.

[-] switch

Decreases the ringtone volume or receiver
volume.

Press and hold to adjust continuously.

[] switch

Calls can be made using Intelligent Assistant.

To end Intelligent Assistant, press and hold the talk switch.

[] switch

• While a call cannot be made, displays call history screen or phone menu.

• Phone calls can be made when [ ] is displayed on the phone screen.

• While making a call or during a call, ends the call.

• While receiving a call or during call waiting, answers the call.

49

■

Operating with the steering switches (Type B)

Some hands-free call functions can be operated from the steering switches, such as receiv­ing or making calls. The steering switch functions change depending on the status of the
multimedia system.

The steering switches are an electrostatic type. A switch functions when the switch is
touched. The displayed switch functions and their position will vary depending on the state
of the vehicle and multimedia system.

● Operate the switches as necessary.

[] switch

Increases the ringtone volume or receiver

volume.

Press and hold to adjust continuously.

[] switch

Decreases the ringtone volume or receiver
volume.

Press and hold to adjust continuously.

[] switch

Calls can be made using Intelligent Assistant.

To end Intelligent Assistant, press and hold the talk switch.

[] switch

• While a call cannot be made, displays call history screen or phone menu.

• Phone calls can be made when [ ] is displayed on the phone screen.

• Change calls/put a call on hold during a call.

• While receiving a call or during call waiting, answers the call.

[] switch

• While making a call or during a call, ends the call.

• Decline an incoming call/call waiting call.

50

Making calls from call history

Calls can be made to phone numbers that have been recorded in the call history as outgo­ing or incoming calls.

1

Touch [ ] from the main menu.

2

Touch [Recents] on the submenu.

3

Select the contact.

For phone numbers that are not regis­tered in the contact, the phone number
will be displayed as it is.

4

Touch the desired phone number.

Making calls from the favorites list

Make a call from your favorites list.

1

Touch [ ] from the main menu.

2

Touch [Favorites] on the submenu.

3

Select the person you want to call from
your favorites list.

4

Touch the desired phone number.

51

Making calls from contacts

Make a call from the contacts registered on the multimedia system.

1

Touch [ ] from the main menu.

2

Touch [Contacts] on the submenu.

3

Select a contact.

4

Touch the desired phone number.

Answering calls

When there is an incoming call, the incoming call sounds and the incoming call screen or
incoming call notification is displayed.

● Answer the call by doing one of the fol­lowing.

• Touch [ ].

• Press the [ ] switch on the steer­ing.

Making calls from the message function

Hands-free calls can be made using the message function.

● Touch the blue number to make a call.
Consecutive numbers may be recognized as phone numbers. In addition, some phone
numbers, such as phone numbers from other countries, may not be recognized.

52

Basic Operation of Audio System

Changing the audio source

Source can be changed to radio, USB, etc.

1

Touch [ ] from the main menu.

2

Touch [Sources].

3

Touch the source you wish to select.

Listening to the radio

Switch to your preferred frequency or service and listen to the radio.

1

Touch [ ] from the main menu.

2

Touch [Sources].

53

3

Touch [Radio].

4

Select the station selection method or service as necessary.

[Favorites]: Select a broadcasting station from those registered as favorites.

[Tune]: Select the broadcasting station by entering a frequency with the numeric key­pad.

[FM Radio]: Switches to FM mode. The FM station list, the 3 most recently listened sta­tions, and the receivable FM broadcasting stations are displayed.

[AM Radio]: Switches to AM mode. The AM station list, the 3 most recently listened
stations, and the receivable AM broadcasting stations are displayed.

[SiriusXM]: Switches to SiriusXM Radio mode. Displays [For You] and contents/Super
Categories/[All channels]/[Listening History]. (This function is not available in some
countries or areas)

5

Select the broadcasting station from the station list or genre.

6

Operate the radio that is being received as necessary.

● Operating AM/FM from the screen

[Ch]: Touch [ ] or [ ] to search for the receivable broadcasting stations. Touch
and hold to jump to the next frequency with available radio signal. When released, the

broadcasting station closest to that position with the best reception sensitivity is
selected automatically.

[Scan]: SEEK UP and output the audio of the detected station for 10 sec. This is
repeated.

[ ]: Displayed when Multicast CH is supported in FM mode. Touch to display
the SPS channel list. The mode can be changed to the displayed SPS channel list.

[ ]: Registers the currently received broadcasting station in favorites. When regis­tered, touch to cancel.

Preset buttons of submenu: Receive the registered broadcasting stations.

54

● Operating SiriusXM Radio from the screen
(This function is not made available in some countries or areas)

[Ch]: Touch [ ] or [ ] to search for the receivable channels. Touch and hold to
jump to the next frequency with available radio signal. When released, the current

channel is received.

[ ]/[ ]: Fast rewind or fast forward the radio cache. Touch and hold to jump to the
start or end of the buffer.

[ ]: Pause the radio cache.

[ ]: Play the radio cache.

[Related]: Displays content related to the received channel.

[Notify me]: Select an artist or song, or both an artist and song, to receive a notification
when the corresponding broadcast starts. (When receiving a regular channel) Select a
sports team to receive a notification when the corresponding broadcast starts. (When
receiving a sport channel)

[ ]: Registers the currently received channel in favorites. When registered, touch to
cancel.

Preset buttons of submenu: Receive the registered channels.

● Operating with the steering switches

 Type A

[<]/[>]switches

•AM/FM
Switch the frequencies or broadcasting sta­tions registered in the preset buttons in
order.

Press and hold to switch frequencies. When
released, the broadcasting station closest to
that position with the best reception sensi­tivity is selected automatically.

• SiriusXM Radio
Switch the channels registered in the preset buttons in order.

Press and hold to switch channels. When released, the channel closest to that position
with the best reception sensitivity is selected automatically.

55

 Type B

[<]/[>]switches

This switch can be used if set as a favorite
steering switch through customization.

For the customization procedure, refer to
the “OWNER’S MANUAL”.

•AM/FM
Switch the frequencies or broadcasting stations registered in the preset

buttons in order.

Press and hold to switch frequencies. When released, the broadcasting station

closest to that position with the best reception sensitivity is selected automatically.

• SiriusXM Radio
Switch the channels registered in the preset buttons in order.

Press and hold to switch channels. When released, the channel closest to that

position with the best reception sensitivity is selected automatically.

56

Playing iPod/iPhone

Play back music files on an iPod/iPhone connected to the USB port. When an iPod/iPhone
is connected, a button with the device’s name is displayed on the source selection screen.
This may not be displayed for some devices.

Connect an iPod or iPhone.

1

Touch [ ] from the main menu.

2

Touch [Sources].

3

Touch the device name or [USB].

4

Operate the iPod or iPhone that is playing as necessary.

● Operating from the screen

57

[ ]: Performs shuffle playback. Each touch switches the shuffle setting.

[ ]: Plays the currently playing track from the beginning. When at the start of the
track, the previous track will play from the beginning.

Touch and hold to fast rewind. Release to start playback from that position.

[ ]: Pauses playback.

[]: Plays.

[ ]: Switches the tracks. Touch and hold to fast forward. Release to start playback
from that position.

*

[ ]: Performs repeat playback. Each touch switches the repeat setting.

[Browse]: Displays the playback mode in the submenu. Tracks can be selected from a
list sorted by artist, album, song, playlist, genre, Podcast, composer, audiobook, or
radio. [Shuffle play] is displayed when playing a track selected from the list. Touch this to
return to the playback screen and perform shuffle playback.

*

: The order in which shuffle or repeat settings switch depends on the connected device.

● Operating with the steering switches

 Type A

[<]/[>]switches

Switch the tracks.

Press and hold to fast rewind or fast for­ward. Release to start playback from that
position.

 Type B

[<]/[>]switches

This switch can be used if set as a favorite
steering switch through customization.

For the customization procedure, refer to
the “OWNER’S MANUAL”.

Switch the tracks.

Press and hold to fast rewind or fast for­ward. Release to start playback from that
position.

*

58

Lexus Climate Concierge

The climate control seats are automatically controlled according to the set temperature of
the air conditioning system, outside temperature, cabin temperature, etc. Lexus Climate
Concierge allows a comfortable condition to be maintained without adjusting each sys­tem.

Turning on Lexus Climate Concierge

Lexus Climate Concierge operates in conjunction with “AUTO” of the air conditioning sys­tem.

1

Select the option screen switch.

2

Select the “Climate concierge” switch.

3

Turn the “AUTO” switch on.

59

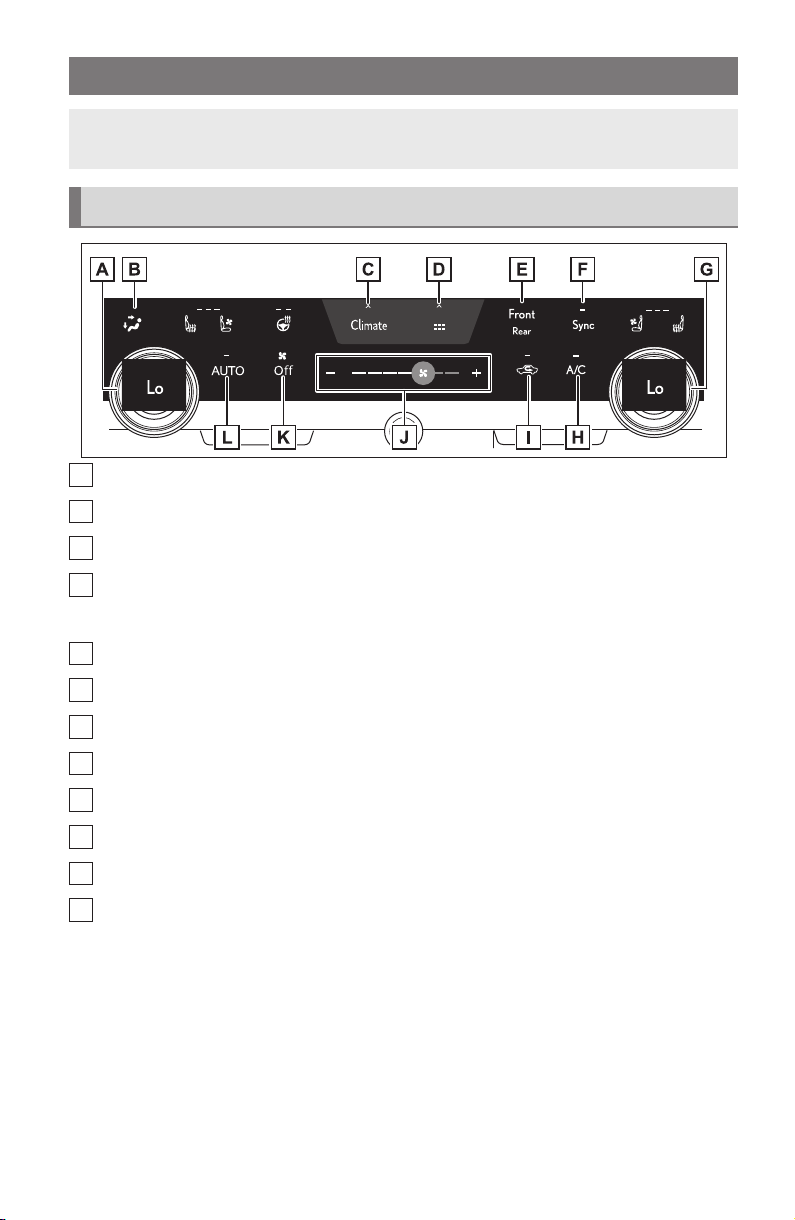

Front Automatic Air Conditioning System

B

D

F

H

J

When the “AUTO” switch is on, the air outlets and fan speed will automatically be
changed according to the set temperature.

Air conditioning controls

Left-hand side temperature control switch

A

Airflow mode control switch

Option screen switch

C

Shortcut screen switch

Select to display shortcut icons for various functions.

Front/rear control screen switch

E

“Sync” switch

Right-hand side temperature control switch

G

“A/C” switch

Outside/recirculated air mode switch

I

Fan speed control switch

“Off” switch

K

“AUTO” switch

L

60

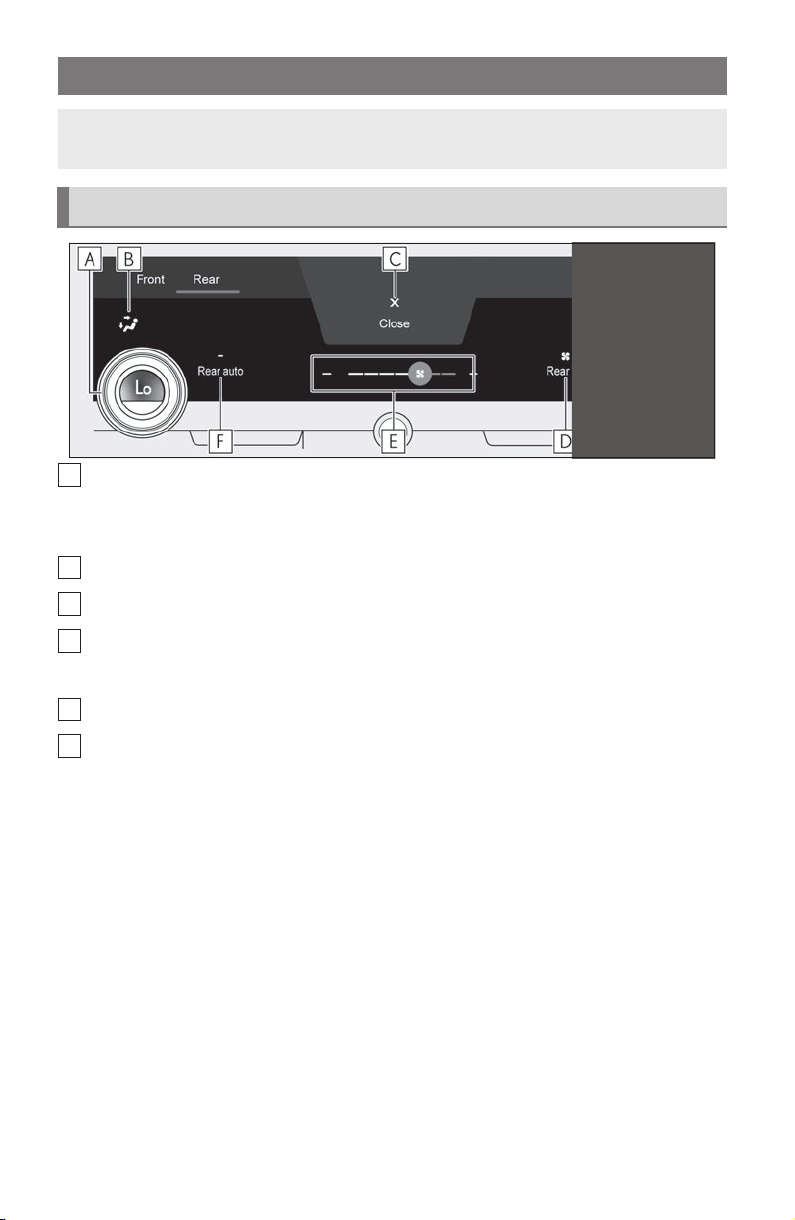

Rear Air Conditioning System

D

E

The rear air conditioning system can be operated selecting option switch and also select­ing “Rear” switch on the center display and rear air conditioning system control panel.

Rear air conditioning control operation

Rear seats temperature control switch

A

Turn temperature control dial clockwise to increases the temperature and turn the dial
counterclockwise to decreases the temperature.

Air flow mode control switch

B

Close the rear air conditioning control screen

C

“Rear off” switch

Turn the rear seats fan off.

Adjust the rear seats fan speed setting

“Rear auto” switch

F

Set the rear seats automatic mode on/off.

61

Interior features

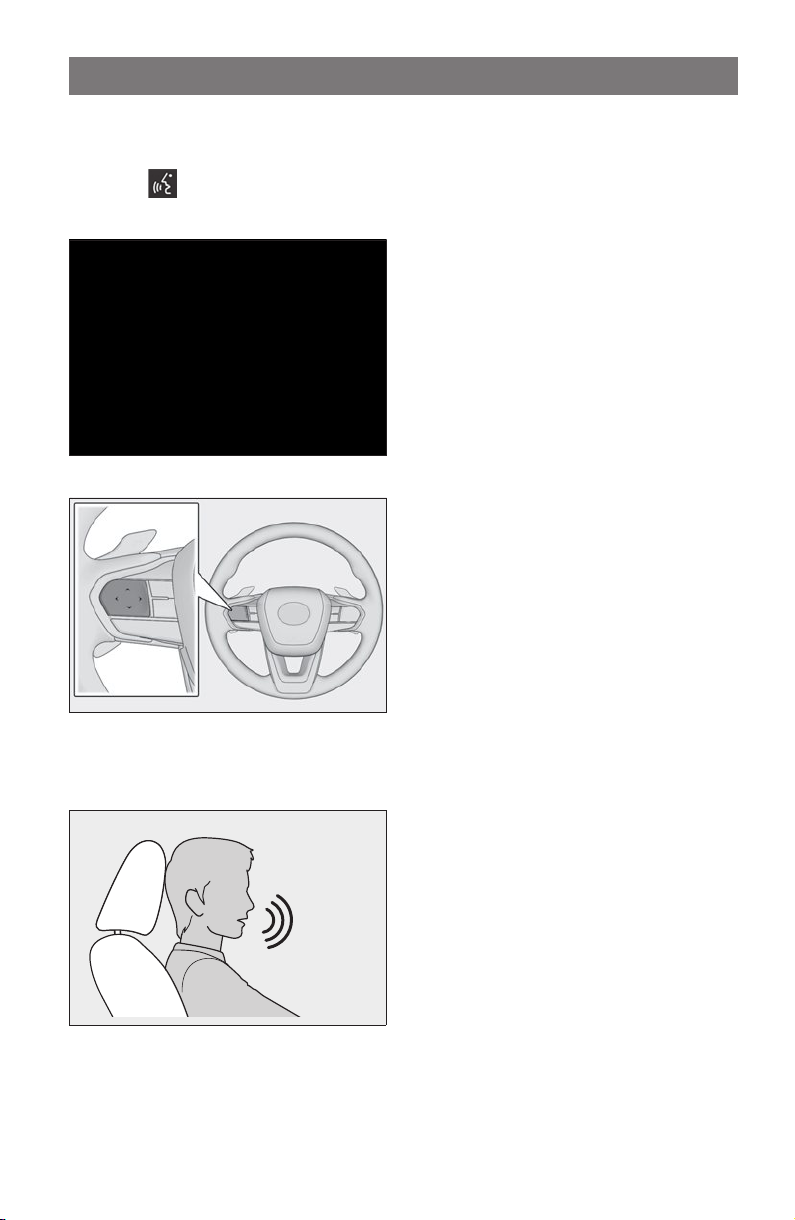

Starting Voice Control

Voice control can be started by any of the following operations:

■

Press the talk switch

Press the [ ] switch (talk switch) on the steering.

 Type A

 Type B

The position of each switch function will vary depending on the state of the vehicle and mul­timedia system.

■

Say the wake word

Say “Hey Lexus”

● The wake word can be turned on or off.

● The wake word can be used and then

immediately issue a voice command.
Example: “Hey Lexus, take me to an Italian
restaurant.”

62

■

Touch the voice search button

Touch [ ] or [ ] on the screen.

Function list

The following tables list frequently used commands for each function category.

● The functions available may vary according to the system installed.

● Items with “Subscription” will require Intelligent Assistant functionality.

■

Common

Action Example voice command Subscription

Shows list of general
commands

Stops the current con­versation and re-starts
at the beginning

Cancels the Intelligent
Assistant system

■

Navigation

Intelligent Assistant system enables navigation voice search. This allows you with variety of
features such as searching a point of interest (POI), navigate to an address as well as discov­ering new POIs.

Function Example voice command Subscription

Destination search

Map control

Route information “Cancel trip” Yes

Telematics “Call destination assist” No

“Help” No

“Start over” No

“Cancel” No

“Take me to <location category/business name>”
“Take me to an Italian restaurant”
“Take me to <address>”
“Take me to 6565 Headquarters drive Plano TX”
“Take me home”
“Take me to work”

“Map zoom in”
“Map zoom out”

Yes

Yes

63

■

Multimedia control

Allows you to engage in a dialog with the Intelligent Assistant to complete various multime­dia tasks via voice input.

Function Example voice command Subscription

Radio

Media

Media Streaming

■

Hands-free phone operation

Allows you to engage in a dialog with the Intelligent Assistant to complete various tasks via
voice input, such as making a phone call to a contact, or calling destination assist.

Function Example voice command Subscription

Phone call

Message

■

Screen display switching

Allows you to easily change to various function screen by voice.

Function Example voice command Subscription

“Tune to 99.5 FM”
“Tune to Rock on FM”
“Tune to channel 2 on SiriusXM”

“Mute audio”
“Next”
“Previous”

“Play <artist/album/song/genre/playlist>”
“Play Frank Sinatra”

“Call John Smith”
“Dial 0123456789”
“Call back”
“Redial”

“Send message to John Smith”
“Read message”

No

No

Yes

No

No

Navigation “Show map” Yes

Phone “Show recent calls” No

Multimedia “Show the FM station list” No

Settings “Show display settings” No

64

■

Vehicle device control

Allows you to easily change a vehicle setting or activate a function by voice.

Function Example voice command Subscription

Climate

■

Notifications

Offers notifications based on user preferences, vehicle geolocation and learned behavior.
Each service can be set to On/Off from the Lexus app.

Function Detail Subscription

POI suggestion
(Navigation)

Low fuel reminder
(Navigation)

“Turn on the air conditioner”
“Set the temperature to 70 degrees”
“Turn the fan speed up”

Parking suggestions near destination Yes

Automatically notifies user of low fuel level. If
applicable, provides POI list nearby (ahead) or
along route and allows user to select and navigate
by touch.

No

Yes

65

Connecting a device via the USB port

Connect a device such as smartphone or portable player.

● Connect the USB cable to the port.

When connecting a USB flash drive, connect it directly to the USB port.

66

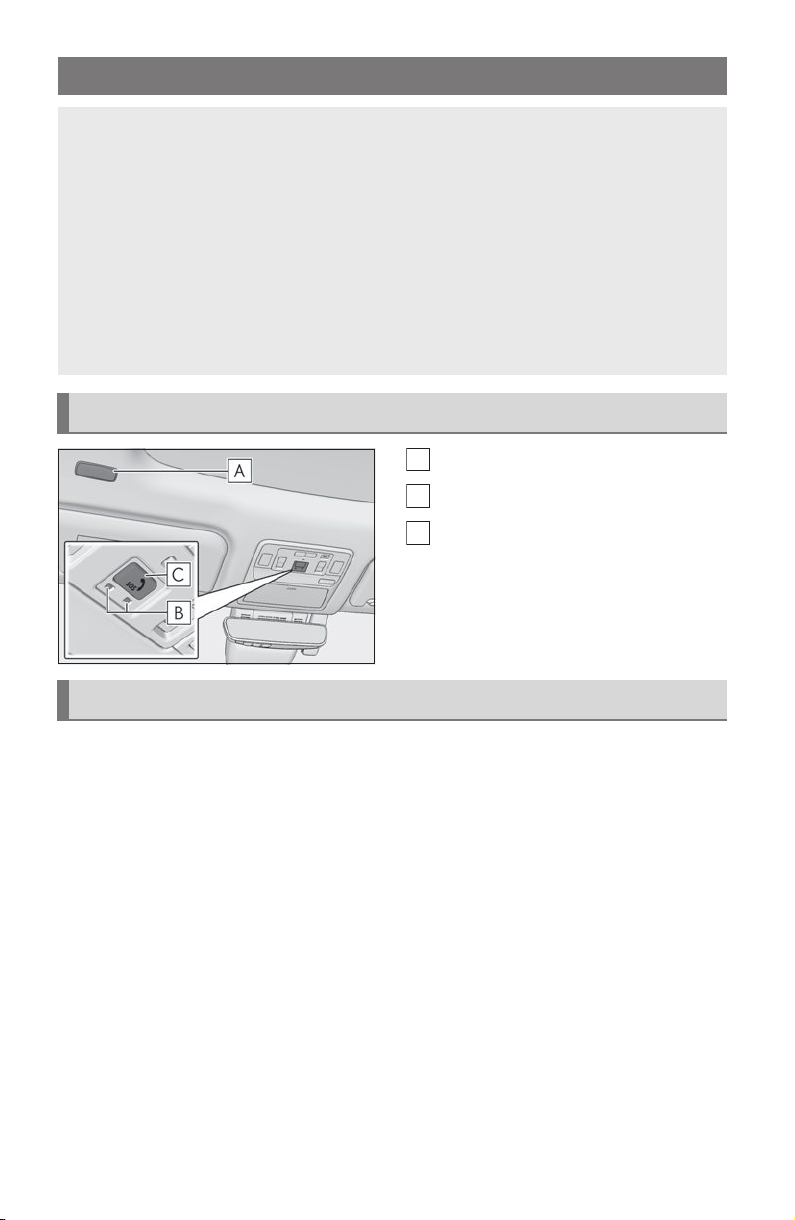

Connected Services

A

B

C

Safety Connect

Safety Connect is a subscription-based telematics service that uses Global Positioning
System (GPS) data and embedded cellular technology to provide safety and security fea­tures to subscribers. Safety Connect is supported by Lexus’ designated response center,
which operates 24 hours per day, 7 days per week.

Safety Connect service is available by subscription on select, telematics hardware­equipped vehicles.

By using the Safety Connect service, you are agreeing to be bound by the Telematics
Subscription Service Agreement and its Terms and Conditions, as in effect and amended
from time to time, a current copy of which is available at Lexus.com. All use of the Safety
Connect service is subject to such then-applicable Terms and Conditions.

System components

Microphone

LED light indicators

“SOS” button

Services

Subscribers have the following Safety Connect services available:

● Automatic Collision Notification
Helps drivers receive necessary response from emergency service providers.

*

: U.S. Patent No. 7,508,298 B2

● Stolen Vehicle Location
Helps drivers in the event of vehicle theft.

● Emergency Assistance Button (“SOS”)
Connects drivers to response-center support.

● Enhanced Roadside Assistance
Provides drivers various on-road assistance.

67

*

Subscription

After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.

A variety of subscription terms is available for purchase. Contact your Lexus dealer, call the
following or push the “SOS” button in your vehicle for further subscription details.

● The United States
1-800-25-LEXUS (1-800-255-3987)

● Canada
1-800-26-LEXUS (1-800-265-3987)

● Puerto Rico
1-877-539-8777

68

Remote Connect (if equipped)

Remote Connect is a smartphone application that lets you view and remotely control cer­tain aspects of your vehicle. For details about the functions and services of this application,
refer to http://www.lexus.com/enform/
using an embedded cellular device in the vehicle (DCM: Data Communication Module).

Subscription

After you sign the Telematics Subscription Service Agreement, download the Lexus App
from your smartphone’s app store, and register within the app (or enroll and complete regis­tration at the dealer), you can begin using these services.

A variety of subscription terms are available. Contact your Lexus dealer, or call 1-800-25­LEXUS (1-800-255-3987) for further subscription details.

. Function of the Remote Connect is achieved by

69

Service Connect (if equipped)

Service Connect uses embedded telematics hardware to collect and transmit vehicle
data that allows Lexus to provide:

● Vehicle Health Report (VHR) (Safety Recalls, Service Campaigns, Current Vehicle
Alerts, Required Maintenance, and Vehicle Condition Status)

● Maintenance Notifications

● Vehicle Alert Notifications

For details about this service and how to register, refer to http://www.lexus.com/enform/
The Service Connect is achieved by using a Data Communication Module (DCM) built in
the vehicle.

.

70

Opening and Closing

A

A

Side Doors

The vehicle can be locked and unlocked using the entry function, wireless remote control
or door lock switches.

Unlocking and locking the doors from the inside

■

Door lock switches (to lock/unlock)

Driver’s door: Locks all the doors

1

Doors other than the driver’s door:
Locks the doors

The indicator comes on.

2

Driver’s door: Unlocks all the doors

Doors other than the driver’s door:
Unlocks the doors

The indicator turns off.

Opening the doors from outside the vehicle

Press the door opener switch of the
door handle to open the door.

Make sure to securely press the door
opener switch on the inner side of the

door handle

Opening the doors from inside the vehicle

Press the front side of the door opener
switch to open the door.

Driver’s door: The door will open even if it is
locked.

When the door is unlocked, the door lock
indicator will turn off.

A

A

A

71

Rear door child-protector lock

The door cannot be opened from inside the
vehicle when the lock is set.

1

Unlock

2

Lock

These locks can be set to prevent chil­dren from opening the rear doors.
Push down on each rear door switch to
lock both rear doors.

72

Power Windows

A

Opening and closing the power windows

1

Closing

2

One-touch closing

3

Opening

4

One-touch opening

: To stop the window partway, operate the

*

switch in the opposite direction.

Preventing accidental operation (window lock switch)

Press the switch.

The indicator will come on and the pas­senger windows will be locked.

The passenger windows can still be opened
and closed using the driver’s switch even if
the lock switch is on.

*

*

73

Panoramic Moon Roof (if equipped)

Operating the panoramic moon roof

■

Opening and closing the electronic sunshade

1

Opens the electronic sunshade

2

Closes the electronic sunshade

1

*

: Lightly press either end of the

switch to stop the electronic sunshade
while it is operating.

2

*

:Lightly press either end of the

switch to stop the electronic sunshade
while it is operating.

■

Tilting the panoramic moon roof up and down

Tilts the panoramic moon roof up (press)

When the panoramic moon roof is tilted up,
the electronic sunshade will open to the
half-open position of the roof.

*

: Lightly press the switch again to

stop the panoramic moon roof partway.

Tilts the panoramic moon roof down (press
and hold)

The panoramic moon roof can be tilted
down only when it is in the tilt-up position.

1

*

2

*

*

74

■

Opening and closing the panoramic moon roof

1

2

*

*

Opens the panoramic moon roof

The panoramic moon roof and elec­tronic sunshade will open.

The panoramic moon roof can be
opened from the tilt-up position.

Closes the panoramic moon roof

The panoramic moon roof stops at the
tilt-up position.

Press and hold the switch again to
fully close the panoramic moon roof.

1

: Lightly press either end of the

switch to stop the electronic sunshade
while it is operating.

2

:Lightly press either end of the

switch to stop the electronic sunshade
while it is operating.

*

*

1

2

75

Fuel Tank Cap

Before refueling the vehicle

● Close all the doors and windows, and turn the engine switch off.

● Confirm the type of fuel.

Opening the fuel tank cap

1

Press the switch to open the fuel filler
door.

2

Turn the fuel tank cap slowly and
remove it, then put it into the holder on
the fuel filler door.

Closing the fuel tank cap

After refueling, turn the fuel tank cap until
you hear a click. Once the cap is released, it
will turn slightly in the opposite direction.

76

Power Back Door

Opening/closing the power back door

■

From the inside

■

From the outside

 Smart access system with push-button start

P.15

 Wireless remote control

P.13

 Back door opener switch

● Open

Press and hold the switch for approximately
1 second.

A buzzer will sound and the power back
door will automatically open or close. How­ever, if the power back door is locked, it will
not open.

Pressing the switch while the power back
door is opening/closing will stop the opera­tion.

Pressing and holding the switch again for
approximately 1 second will operate the
power back door in the opposite direction.

When the power back door is unlocked:
Press the back door opener switch.

When the power back door is locked:
While carrying an electronic key, press and
hold the back door opener switch.

A buzzer will sound and the power back
door will automatically open.

Pressing the switch while the power back
door is opening/closing will stop the opera­tion.

77

● Close

Press the switch.

A buzzer will sound and the power back
door will automatically close.

Pressing the switch while the power
back door is closing will stop the operation.

Pressing the switch again will open the
power back door automatically.

● Close the back door and lock all doors after moving away from the back door (close &
lock [Walk-Away] function)

1

Close all of the doors except the back
door, carrying an electronic key and

press the switch on the lower part
of the back door.

A different buzzer than the normal one
will sound and the close & lock (Walk­Away) function will go into standby.

2

While the buzzer is sounding, move away from the back door.

When the sensor detects that you are away from the back door, the emergency flashers
will flash, and the buzzer will sound. Depending on the direction of moving away from
the back door, the location and how to hold the electronic key or circumstances, it may
not be detected properly.

All the doors other than the back door will be locked, and after the back door is closed,
the back door will also be locked. When all the doors have been closed and locked, the
buzzer will sound and the emergency flashers will flash.

The standby state is canceled if you do not move away from the back door for 30 sec­onds. To operate the function again, perform the procedure again from the beginning.

If you approach the back door carrying the electronic key, the back door operation will
stop, all the doors will be unlocked, and the buzzer will sound and the emergency flash­ers will flash.

If the switch is pressed after the back door operation has stopped, the close & lock
(Walk-Away) function will go into standby again.

78

● Close the back door and lock all doors (close & lock function)

A

B

C

*

: This setting can be customized by your Lexus dealer.

Press the switch.

The power back door will close and all of
the doors will be locked at the same time.

A different buzzer than the normal one will
sound and the power back door will begin
closing automatically. When the power
back door is closed, all of the doors will lock
simultaneously and operation signals will
indicate that all of the doors have been
locked.

If the switch is pressed while the power
back door is closing, the operation will stop.

Pressing the switch again will open the
power back door automatically.

■

Hands Free Power Back Door (if equipped)

1

While carrying an electronic key, stand within the smart access system with push-but­ton start operation range, approximately 19.7 to 23.6 in. (50 to 60 cm) from the rear
bumper.

 Vehicles without tow hitch

Kick sensor

*

Hands Free Power Back Door opera­tion detection area

Smart access system with push-button
start operation detection area

79

 Vehicles with tow hitch

Kick sensor

A

Hands Free Power Back Door opera-

B

tion detection area

Smart access system with push-button

C

start operation detection area

2

Perform a kick operation by moving
your foot to within approximately 3.9
in. (10 cm) of the rear bumper and then
pulling your foot back after the buzzer
sounds.

• Perform the entire kick operation
within 1 second.

• The Hands Free Power Back Door
will not start operating while a foot is
detected under the rear bumper.

• Operate the Hands Free Power Back
Door without contacting the rear
bumper with your foot.

• If another electronic key is in the
cabin or luggage compartment, it
may take slightly longer than normal
for the operation to occur.

• If the buzzer sounds twice, perform a
kick operation again.

Kick sensor

A

Hands Free Power Back Door opera-

B

tion detection area

3

When the kick sensor detects that your foot is pulled back, a buzzer will sound and the
power back door will automatically fully open/close.

If kick operation is performed again in the middle of back door operating, the operation
will stop.

80

■

A

B

C

A

B

C

Closing and locking the back door after moving away from the back door using
the kick sensor (Hands Free close & lock [Walk-Away] function)

1

*

: If equipped

2

*

: This setting can be customized by your Lexus dealer.

1

While carrying an electronic key, stand within the smart access system with push-but­ton start operation range, approximately 19.7 to 23.6 in. (50 to 60 cm) from the rear
bumper.

 Vehicles without tow hitch

Kick sensor

Hands Free Power Back Door opera­tion detection area

Smart access system with push-button
start operation detection area

 Vehicles with tow hitch

Kick sensor

Hands Free Power Back Door opera­tion detection area

1, 2

*

Smart access system with push-button
start operation detection area

81

2

A

B

Perform a kick operation by moving
your foot to within approximately 3.9
in. (10 cm) of the rear bumper and then
pulling your foot back after the buzzer
sounds.

• Perform the entire kick operation within 1
second.

• The Han ds Free Powe r Back D oor w ill n ot
start operating while a foot is detected
under the rear bumper.

• Operate the Hands Free Power Back
Door without contacting the rear bumper
with your foot.

• If another electronic key is in the cabin or
luggage compartment, it may take slightly
longer than normal for the operation to
occur.

• If the buzzer sounds twice, perform a kick
operation again.

Kick sensor

Hands Free Power Back Door opera­tion detection area

3

When the kick sensor detects that your foot is pulled back, a different buzzer than the
normal one will sound and the Hands Free close & lock (Walk-Away) function will go
into standby.

4

While the buzzer is sounding, move away from the back door.

When the sensor detects that you are away from the back door, the emergency flashers
will flash, and the buzzer will sound. Depending on the direction of moving away from
the back door, the location and how to hold the electronic key or circumstances, it may
not be detected properly.

All the doors other than the back door will be locked, and after the back door is closed,
the back door will also be locked. When all the doors have been closed and locked, the
buzzer will sound and the emergency flashers will flash.

The standby state is canceled if you do not move away from the back door for 30 sec­onds. To operate the function again, perform the procedure again from the beginning.

If you approach the back door carrying the electronic key, the back door operation will
stop, all the doors will be unlocked, and the buzzer will sound and the emergency flash­ers will flash.

If the power back door is operated after the back door operation has stopped, the
Hands Free close & lock (Walk-Away) function will go into standby again.

82

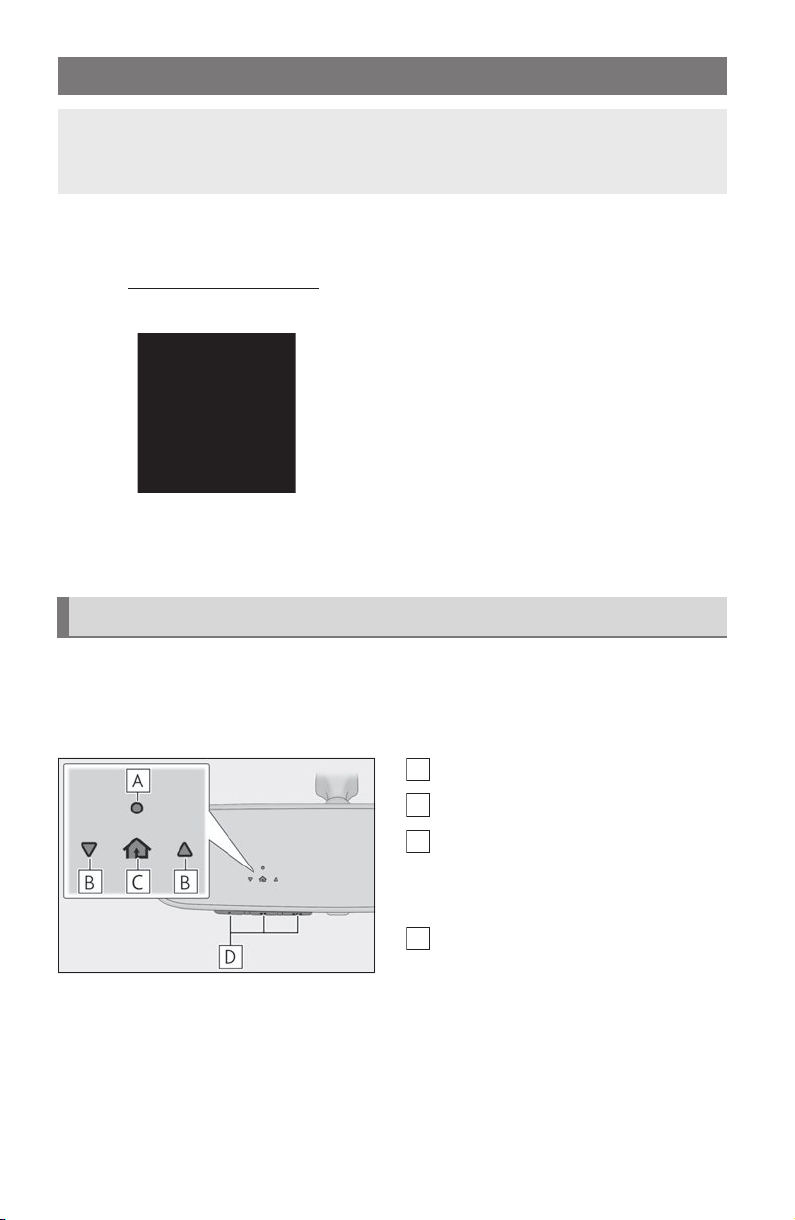

Garage Door Opener

A

B

C

D

The garage door opener can be programmed using the HomeLink® to operate garage
doors, gates, entry doors, door locks, home lighting systems, security systems, and other
devices.

■

HomeLink® programming procedure

The programming procedures can also be found at the following URL.
Website: www.homelink.com/lexus

For support, contact customer support at the following.
Help Line: 1-800-355-3515

System components

®

The HomeLink
grammed to operate 3 different devices. Refer to the programming methods on the follow­ing pages to determine the method which is appropriate for the device.

 Vehicles with auto anti-glare inside rear view mirror

wireless control system in your vehicle has 3 buttons which can be pro-

HomeLink

®

indicator light

Garage door operation indicators

HomeLink

Illuminates while HomeLink

®

icon

®

is oper-

ating.

Buttons

83

 Vehicles with Digital Rearview Mirror

A

HomeLink

Appears while HomeLink

®

logo

®

is operat­ing. When the menu button is pressed,
the logo disappears even while the

®

HomeLink

Garage door operation indicators

B

HomeLink

C

is operating.

®

indicator light

Illuminates above each button
selected.

Buttons

D

Programming the HomeLink

■

Before programming HomeLink

®

®

● During programming, it is possible that garage doors, gates, or other devices may oper­ate. For this reason, make sure that people and objects are clear of the garage door or
other devices to prevent injury or other potential harm.

● It is recommended that a new battery be placed in the remote control transmitter for
more accurate programming.

● Garage door opener motors manufactured after 1995 may be equipped with rolling
code protection. If this is the case, you may need a stepladder or other sturdy, safe device
to reach the “Learn” or “Smart” button on the garage door opener motor.

84

■

Programming HomeLink

®

Steps 1 through 3 must be performed within 60 seconds, otherwise the HomeLink® indica­tor light will stop flashing and programming will not be successfully completed.

1

Press and release the HomeLink® button you want to program and check that the
HomeLink

2

Point the remote control transmitter for the device at the rear view mirror, 1 to 3 in. (25
to 75 mm) from the HomeLink

Keep the HomeLink

®

indicator light flashes (orange).

®

buttons.

®

indicator light in view while programming.

 Vehicles with auto anti-glare inside rear view mirror

 Vehicles with Digital Rearview Mirror

3

Program a device.

 Vehicles with auto anti-glare inside rear view mirror

85

 Vehicles with Digital Rearview Mirror

 Programming a device other than an entry gate (for U.S.A. owners)

®

Press and hold the remote control transmitter button until the HomeLink

indicator light
changes from slowly flashing orange to rapidly flashing green (rolling code) or continuously
lit green (fixed code), then release the button.

 Programming an entry gate (for U.S.A. owners)/Programming a device in the Cana-

dian market

Press and release the remote control transmitter button at 2 second intervals, repeatedly,

®

until the HomeLink

indicator light changes from slowly flashing (orange) to rapidly flashing

(green) (rolling code) or continuously lit (green) (fixed code).

4

Test the HomeLink

®

operation by pressing the newly programmed button and observ-

ing the indicator light:

● HomeLink

®

indicator light illuminates: Programming of a fixed code device has

completed. The garage door or other device should operate when a HomeLink
button is pressed and released.

®

● HomeLink

indicator light flashes rapidly: The garage door opener motor or other

device is equipped with a rolling code. To complete programming, firmly press and

®

hold the HomeLink

button for 2 seconds then release it.

● If the garage door or other device does not operate, proceed to “Programming a
rolling code system”.

5

Repeat the steps above to program another device for any of the remaining
HomeLink

®

buttons.

®

86

■

Programming a rolling code system

Two or more people may be necessary to complete rolling code programming.

1

Locate the “Learn” or “Smart” button
on the garage door opener motor in
the garage.
This button can usually be found where
the hanging antenna wire is attached to
the unit. The name and color of the but­ton may vary by manufacturer. Refer to
the owner’s manual supplied with the
garage door opener motor for details.

2

Press and release the “Learn” or
“Smart” button.
Perform
performing

3

Press and hold the desired HomeLink® button (inside the vehicle) for 2 seconds and
release it. Repeat this sequence (press/hold/release) up to 3 times to complete pro­gramming.
If the garage door opener motor operates when the HomeLink

garage door opener motor recognizes the HomeLink

 Vehicles with auto anti-glare inside rear view mirror

3

within 30 seconds after

2

.

®

button is pressed, the

®

signal.

87

 Vehicles with Digital Rearview Mirror

■

Enabling 2-way communication with a garage door (only available for compat­ible devices)

When enabled, 2-way communication allows you to check the status of the opening and
closing of a garage door through indicators in your vehicle.

2-way communication is only available if the garage door opener motor used is a compati­ble device. (To check device compatibility, refer to www.homelink.com

1

Within 5 seconds after programming the garage door opener has been completed, if
the garage door opener motor is trained to HomeLink

®

, both garage door operation
indicators will flash rapidly (green) and the light on the garage door opener motor will
blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform

2

and 3 within the first 10 presses of the HomeLink

button after programming has been completed.

.)

®

2

Press a programmed HomeLink® button to operate a garage door.

3

Within 1 minute of pressing the HomeLink

®

button, after the garage door operation
has stopped, press the “Learn” or “Smart” button on the garage door opener motor.
Within 5 seconds of the establishment of 2-way communication with the garage door
opener, both garage door operation indicators in the vehicle will flash rapidly (green)
and the light on the garage door opener motor will blink twice, indicating that 2-way
communication is enabled.

■

Reprogramming a single HomeLink® button

When the following procedure is performed, buttons which already have devices registered
to them can be overwritten:

1

Press and hold the desired HomeLink® button.

2

When the HomeLink® indicator starts flashing orange, release the HomeLink® button
and perform “Programming HomeLink

®

” 1 (it takes 20 seconds for the HomeLink

indicator to start flashing).

®

88

Operating HomeLink

A

B

A

B

®

Press the appropriate HomeLink® button. The HomeLink® indicator light should turn on.

The status of the opening and closing of a garage door is shown by the indicators.

 Vehicles with auto anti-glare inside rear view mirror

Opening

Closing

 Vehicles with Digital Rearview Mirror

Opening

Closing

This function is only available if the garage door opener motor used is a compatible device.
(To check device compatibility, refer to www.homelink.com

.)

Color Status

Orange (flashing) Currently opening/closing

Green Opening/closing has completed

Red (flashing) Feedback signals cannot be received

The indicators can operate within approximately 820 ft. (250 m) of the garage door. How­ever, if there are obstructions between the garage door and the vehicle, such as houses and
trees, feedback signals from the garage door may not be received.

To recall the previous door operation status, press and release either HomeLink

and or and (vehicles with auto anti-glare inside rear view

mirror), and or and (vehicles with Digital Rearview Mir­ror), simultaneously. The last recorded status will be displayed for 3 seconds.

89

®

buttons

What to do if...

What to do if...

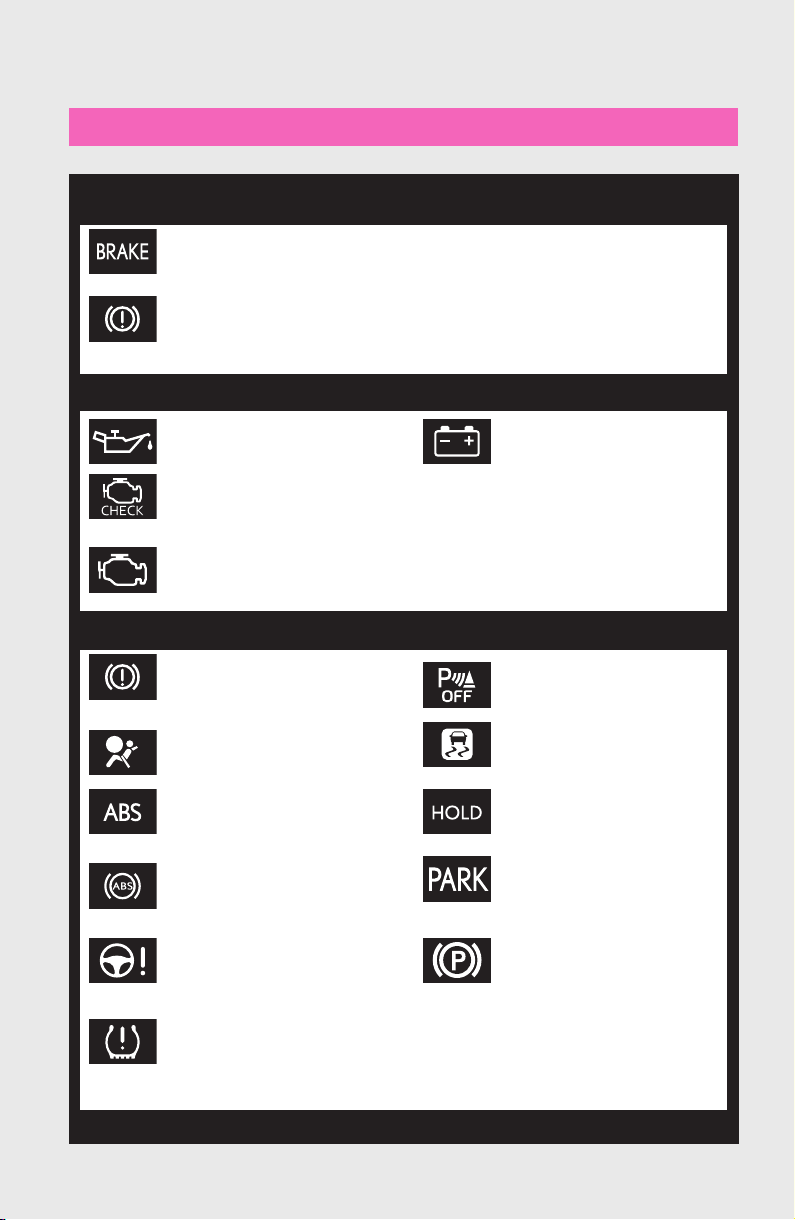

List of Warning/Indicator Lights

Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continu­ing to drive the vehicle may be dangerous.

(U.S.A.)

Brake system warning light

(Red)

(Canada)

Immediately stop the vehicle in a safe place and contact your Lexus dealer.

(U.S.A.)

(Canada)

Low engine oil pressure
warning light

Malfunction indicator lamp

Charging system warning light

Have the vehicle inspected by your Lexus dealer immediately.

Brake system warning light

(yellow)

SRS warning light

(illuminates)

Intuitive parking assist OFF
indicator (if equipped)

Slip indicator

Brake hold operated indicator

(U.S.A.)

(flashes)

ABS warning light

(Canada)

(Red or

yellow)

(Blinking and
then continu-

ously on)

(flashes)

(U.S.A.)

Parking brake indicator

Electric power steering
system warning light

(flashes)

(Canada)

Tire pressure warning light

For further information, refer to the “OWNER’S MANUAL”.

90

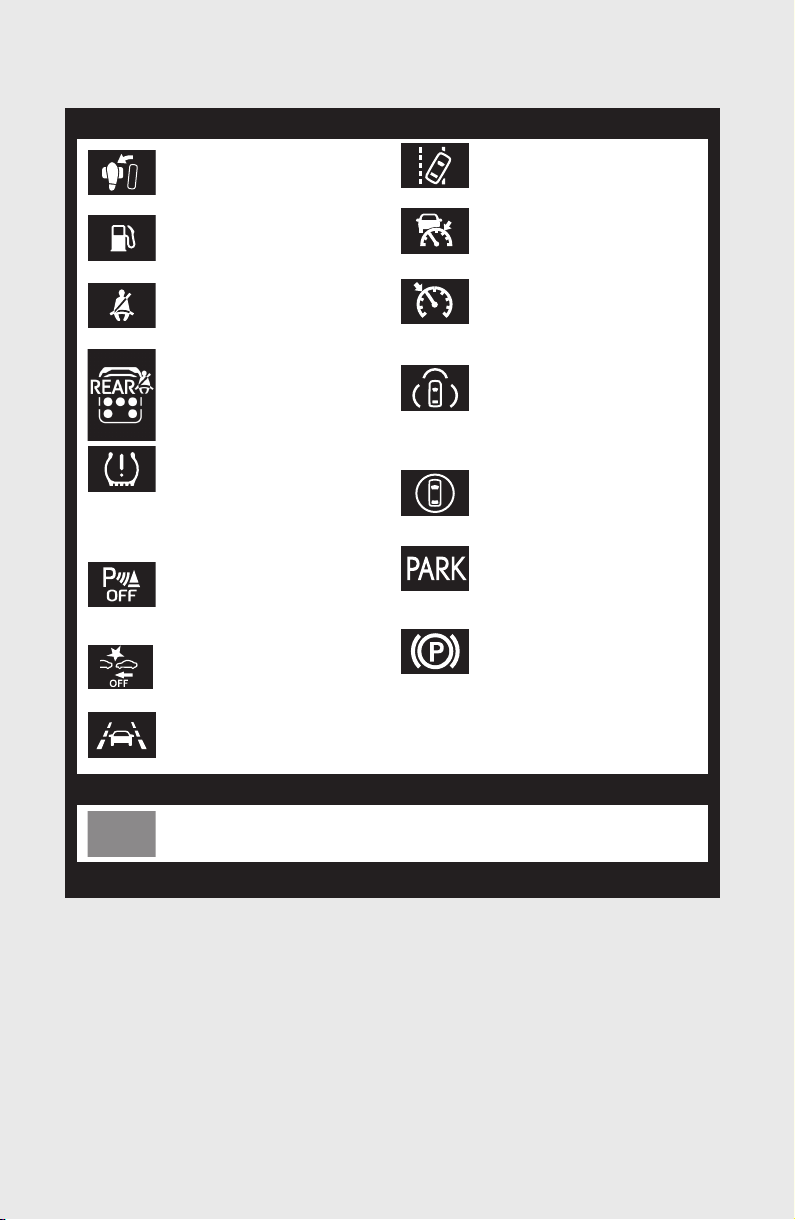

What to do if...

Follow the correction procedures.

Inappropriate pedal oper­ation warning light

Low fuel level warning
light

Driver’s and front passen­ger’s seat belt reminder
light

Rear passengers’ seat belt
reminder light

Tire pressure warning

(Illuminates

without

blinking)

light

Intuitive parking assist
OFF indicator
(if equipped)

PCS warning light

LTA indicator

(yellow)

Stop and check.

High coolant temperature
warning light

LDA indicator

(yellow)

Dynamic radar cruise control

(yellow)

indicator

Cruise control indicator

(yellow)

PDA indicator

(yellow)

*

(flashes)

(U.S.A.)

(flashes)

(Canada)

Driving assist information indi­cator

Parking brake indicator

For further information, refer to the “OWNER’S MANUAL”.

91

What to do if...

See the “OWNER’S MANUAL”

Turn signal indicator

Intuitive parking assist detec­tion indicator (if equipped)

(U.S.A.)

(Canada)

(green/white)

(green/white)

(green/white)

Headlight indicator

Tail light indicator

Headlight high beam indicator

AHS indicator (if equipped)
AHB indicator

Fog light indicator

(flashes)

Intuitive parking assist OFF
indicator (if equipped)

Driving assist information indi­cator

Stop & Start indicator

Stop & Start cancel indicator

Slip indicator

PCS warning light VSC OFF indicator

Cruise control indicator

(U.S.A.)

Parking brake indicator

Dynamic radar cruise control
indicator

LDA indicator

(Canada)

Brake hold standby indicator

(green/white)

LDA OFF indicator
(if equipped)

LTA indicator

Outside rear view mirror
indicators

(illuminates)

Brake hold operated indicator

Eco Driving Indicator Light

Low outside temperature
indicator

For further information, refer to the “OWNER’S MANUAL”.

92

What to do if...

See the “OWNER’S MANUAL”

PDA indicator REC indicator

(green/white)

Downhill assist control system
indicator (if equipped)

“AIR BAG ON/OFF”
indicator

(7-inch display)

(12.3-inch display)

Stop light indicator

● Drive mode indicators

Eco drive mode indicator Customize mode indicator

Sport mode indicator

Trail Mode indicator
(if equipped)

For further information, refer to the “OWNER’S MANUAL”.

*

: It also comes on due to natural causes such as natural air leaks and tire inflation pressure

changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have the system checked by your Lexus dealer.

93

What to do if...

If the electronic key does not operate properly

Locking and unlocking the doors

Use the mechanical key in order to perform the following operations:

1

Insert a plastic card, etc. into the gap in
the door handle to pry up the cover.

To avoid damage, do not apply exces­sive force to the cover.

2

Remove the cover by pressing it on the
rear.

3

Use the mechanical key in order to
perform the following operations:

1

Unlocks all the doors

Turning the key rearward unlocks the driver’s door. Turning the key again unlocks the
other doors.

2

Locks all the doors

94

What to do if...

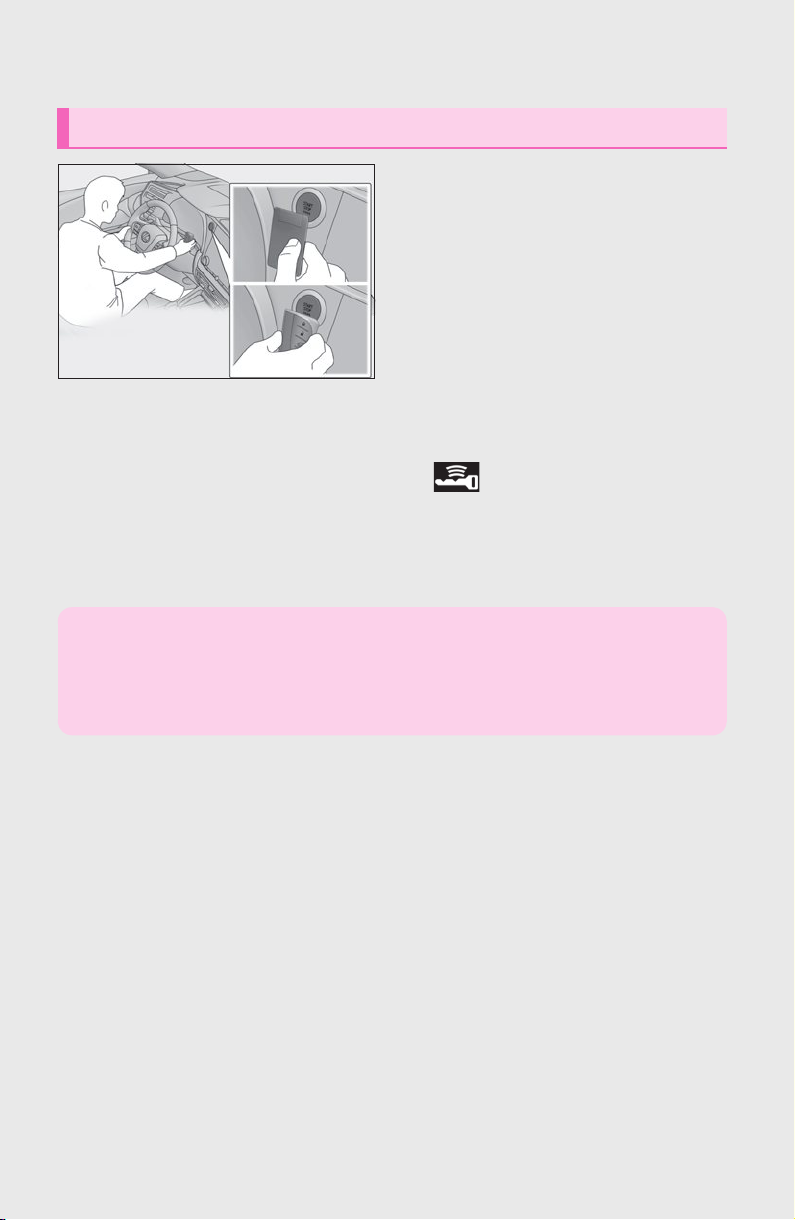

Starting the engine

1

Ensure that the shift position is in P and

depress the brake pedal.

2

Touch the Lexus emblem side of the

electronic key to the engine switch.

When the electronic key is detected, a

buzzer will sound and the engine

switch mode will change to ON.

When the smart access system with

push-button start is deactivated in

customization setting, the engine

switch will turn to ACC.

3

Firmly depress the brake pedal and check that is shown on the multi-information
display.

4

Press the engine switch shortly and firmly.

In the event that the engine still cannot be started, contact your Lexus dealer.

If the electronic key battery becomes depleted, a warning message will be shown on the
multi-information display. Replace the battery with a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance, contact your Lexus dealer.

95

What to do if...

Brake pedal

If the engine doesn’t start

Make sure that the correct operating procedures have been followed.

Make sure that the brake pedal is firmly
depressed when attempting to start the
engine. (P.16)

If the engine still does not start, see the “OWNER’S MANUAL” for more information or
contact your Lexus dealer.

96

What to do if...

A

A

If a door cannot be opened using the door opener
switch

If a door cannot be opened using the door opener switch, it can be opened using a manual
release handle.

Opening a door using the manual release handle

■

Opening a door using the manual release handle from outside the vehicle

Pull the manual release handle to open
the door.

Normally, the manual release handles can­not be used to open the doors.

To open a door, enable manual release han­dle operation.

■

Opening a door using the manual release handle from inside the vehicle

Pull the manual release handle twice to
open the door.

Pulling the handle once will enable opera­tion. Pulling the handle again will open the
door.

97

What to do if...

■

Enabling outside manual release handle operation using the mechanical key

Operation of a manual release handle can be enabled by unlocking a door with the
mechanical key.

1

Insert a plastic card, etc. into the gap in
the door handle to pry up the cover.

To avoid damage, do not apply exces­sive force to the cover.

2

Remove the cover by pressing it on the
rear.

3

Using the mechanical key, turn the lock
cylinder to the unlock side to enable
the manual release handle operation.

The mechanical key can only be
inserted in one direction, as the key
only has a groove on one side.

If the key cannot be inserted in a lock
cylinder, turn it over and re-attempt to
insert it.

98

Memo

99
