Pictorial index
For safety
1
and security

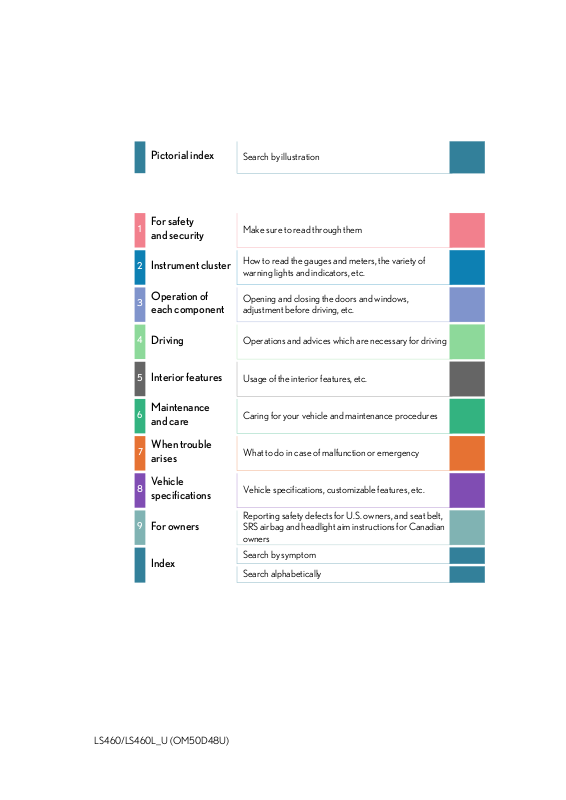

Search by illustration
Make sure to read through them
2
Instrument cluster
Operation of
3
each component
4
Driving
5
Interior features
Maintenance
6
and care
When trouble
7
arises
Vehicle
8
specifications
9
For owners
How to read the gauges and meters, the variety of
warning lights and indicators, etc.
Opening and closing the doors and windows,
adjustment before driving, etc.
Operations and advices which are necessary for driving
Usage of the interior features, etc.
Caring for your vehicle and maintenance procedures
What to do in case of malfunction or emergency
Vehicle specifications, customizable features, etc.
Reporting safety defects for U.S. owners, and seat belt,
SRS airbag and headlight aim instructions for Canadian
owners
Index
LS460/LS460L_U (OM50D48U)
Search by symptom
Search alphabetically
Page 2
TABLE OF CONTENTS2
For your information................................... 8
Reading this manual...................................14
How to search..............................................15
Pictorial index...............................................16
1
For safety and security
1-1. For safe use
Before driving................................. 34
For safety drive...............................36
Seat belts.......................................... 38
SRS airbags..................................... 44
Front passenger occupant
classification system...................57
Safety information for
children ..........................................63
Child restraint systems............... 64
Installing child restraints.............68
Exhaust gas precautions.............77
1-2. Theft deterrent system
Engine immobilizer system....... 78
Alarm.................................................80
2
Instrument cluster
2. Instrument cluster
Warning lights and
indicators.......................................84
Gauges and meters..................... 89
Multi-information display ..........93
Operation of
3
each component
3-1. Key information
Keys.................................................. 102
3-2. Opening, closing and locking
the doors and trunk
Smart access system with
push-button start ......................107
Wireless remote control...........122
Doors................................................126
Trunk................................................. 130
3-3. Adjusting the seats
Front seats.......................................137
Power rear seat.............................144
Driving position memory.......... 157
Rear seat position memory .....162
Head restraints.............................164
3-4. Adjusting the steering wheel
and mirrors
Steering wheel............................. 168
Inside rear view mirror ..............169
Outside rear view mirrors......... 171
3-5. Opening, closing the windows
and moon roof
Power windows.............................175
Moon roof.......................................178
Page 3
3
4
Driving
4-1. Before driving
Driving the vehicle ..................... 184
Cargo and luggage.....................195
Vehicle load limits....................... 199
Trailer towing ...............................200
Dinghy towing.............................. 201
4-2. Driving procedures
Engine (ignition) switch........... 202
Automatic transmission
(except 2WD models with
paddle shift switches)............ 207
Automatic transmission
(2WD models with paddle
shift switches) .............................212
Turn signal lever........................... 218
Parking brake ................................219
Brake Hold ................................... 222
Horn .................................................224
4-3. Operating the lights and
wipers
Headlight switch ........................ 225
Automatic High Beam............. 229
Fog light switch........................... 234
Windshield wipers and
washer......................................... 235
Headlight cleaner switch........ 239
4-4. Refueling
Opening the fuel tank cap .....240
4-5. Using the driving support
systems
Cruise control..............................244
Dynamic radar cruise control
with full-speed range............. 248
LKA
(Lane-Keeping Assist).......... 265
Intuitive parking assist...............275
Rear view monitor system...... 286
Driving mode select switch ....297
Electronically modulated air
suspension................................. 303
Driving assist systems ..............305
PCS
(Pre-Collision System) ...........312
BSM
(Blind Spot Monitor) ............. 324
• The Blind Spot Monitor
function ....................................328
• The Rear Cross Traffic
Alert function ..........................331
Lexus night view......................... 334
4-6. Driving tips
Winter driving tips.....................339
1
2
3
4
5
6
7
8
9
Page 4
TABLE OF CONTENTS4
5
Interior features
5-1. Remote Touch screen
Remote Touch .............................346
Remote Touch screen..............348
Set up screen...............................356
12.3-inch display
operation.....................................372
Voice command system........... 381
Mobile Assistant.......................... 391
5-2. Lexus Climate Concierge
Lexus Climate Concierge......393
5-3. Using the air conditioning
system and defogger
Front automatic air
conditioning system............... 394
Rear air conditioning
system........................................... 410
Rear window and outside
rear view mirror
defoggers.....................................417
Windshield wiper de-icer........ 418
5-4. Using the audio system
Audio system type.......................419
Using the radio .............................441
Using the CD/DVD
player........................................... 459
Playing an audio CD and
MP3/WMA discs ....................461
Playing DVD video ....................467
CD/DVD player and DVD
video disc information ...........478
Listening to Bluetooth
audio ............................................ 490
Listening to a USB
memory.......................................500
Listening to an iPod.................... 510
Using the AUX port................. 520
Optimal use of the audio/
video system ............................. 522
Using the rear seat audio
controls....................................... 523
Using the steering wheel
audio switches.......................... 526
5-5. Using the rear seat
entertainment system
Rear seat entertainment
system features........................ 529
Playing a Blu-ray Disc™
(BD) and DVD disc................ 546
Playing an audio CD and
MP3/WMA discs ...................574
Playing an SD card.....................579
Using the front audio
system..........................................585
Using the video mode.............. 587
Changing other setting ...........589
®
Page 5
5
5-6. Using the hands-free phone
system (for cellular phone)
Hands-free system
(for cellular phone) ................ 593
®
Using a Bluetooth
phone....600
Setting the hands-free system
(for cellular phone) ................ 620
®
Setting the Bluetooth
............ 644
5-7. Using the interior lights
Interior lights list ..........................657
• Interior lights..........................658
• Personal lights....................... 659
5-8. Using the storage features
List of storage features ..............661
• Glove box............................... 663
• Coin holder ............................664
• Door pockets......................... 664
• Cup holders ...........................665
• Console box ...........................667
• Cool box/auxiliary box ......669
• Auxiliary boxes ......................672
Trunk features...............................675
5-9. Other interior features
Sun visors and vanity
mirrors..........................................677
Clock ...............................................679
Ashtrays.........................................680
Cigarette lighters........................ 681
Power outlets...............................683
Heated steering wheel............ 687
Climate control seats/
seat heaters............................... 689
Armrest.......................................... 694
Retractable table........................ 695
Rear sunshade .............................697
Rear door sunshades .................701
Trunk storage extension.......... 704
Coat hooks................................... 706
Assist grips ....................................707
Garage door opener............... 708
Safety Connect............................. 715
1
2
3
4
5
6
7
8
9
Page 6
TABLE OF CONTENTS6
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .................724
Cleaning and protecting
the vehicle interior.................. 728
6-2. Maintenance
Maintenance requirements.....731
General maintenance.............. 734
Emission inspection and
maintenance (I/M)
programs.................................... 738
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions................................ 739
Hood................................................ 742
Positioning a floor jack.............. 743
Engine compartment ................745
Tires...................................................759
Tire inflation pressure................ 769
Wheels............................................772
Air conditioning filter ................774
Electronic key battery...............777
Checking and replacing
fuses...............................................779
Headlight aim.............................. 783
Light bulbs .................................... 785
7
When trouble arises
7-1. Essential information
Emergency flashers.................. 788
If your vehicle has to
be stopped in an
emergency ................................ 789
7-2. Steps to take in an
emergency
If your vehicle needs to be
towed........................................... 790
If you think something is
wrong............................................796
Fuel pump shut off system....... 797
If a warning light turns on
or a warning buzzer
sounds ......................................... 798
If a warning message is
displayed ................................... 808
If you have a flat tire .....................811
If the engine will not start........820
If the shift lever cannot be
shifted from P ........................... 822
If the parking brake
cannot be released ................823
If the electronic key does
not operate properly.............825
If the vehicle battery is
discharged.................................828
If your vehicle overheats.......... 831
If the vehicle becomes
stuck.............................................835
Page 7
8
For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual” for information regarding the navigation system.
Vehicle specifications
7
Index
8-1. Specifications
Maintenance data
(fuel, oil level, etc.) ..................838
Fuel information..........................850
Tire information...........................853
8-2. Customization
Customizable features............ 864
9
For owners
Reporting safety defects
for U.S. owners......................................876
Seat belt instructions
for Canadian owners
(in French)...............................................877
SRS airbag instructions
for Canadian owners
(in French).............................................. 879
Headlight aim instructions
for Canadian owners
(in French)............................................. 888
What to do if...
(Troubleshooting) ...............................892
Alphabetical index ................................898
1
2
3
4
5
6
7
8
9
Page 8
8
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. However, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ from
your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound coming
from under the vehicle for several minutes. This is the sound of a fuel evaporation
leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.
LS460/LS460L_U (OM50D48U)
Page 9
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
●Dynamic radar cruise control with full-speed range
●Cruise control system
●Anti-lock brake system
●Vehicle dynamics integrated management
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with your Lexus dealer for precautionary measures or special
instructions regarding installation of a mobile two-way radio system.
9
LS460/LS460L_U (OM50D48U)
Page 10
10
Vehicle data recording
Your Lexus is equipped with several sophisticated computers that will record certain
data, such as:
•Engine speed
• Accelerator status
•Brake status
• Vehicle speed
• Shift position
The recorded data varies according to the vehicle grade level and options with which
it is equipped. Furthermore, these computers do not record conversations, sounds or
pictures.
● Data usage
Lexus may use the data recorded in these computers to diagnose malfunctions,
conduct research and development, and improve quality.
Lexus will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the
vehicle is leased
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a law suit
• For research purposes where the data is not tied to a specific vehicle or vehicle
owner
● Usage of data collected through Safety Connect / Lexus Enform (U.S. mainland
only)
If your Lexus has Safety Connect or Lexus Enform and if you have subscribed to
those services, please refer to the Safety Connect / Lexus Enform Telematics Subscription Service Agreement for information on data collected and its usage.
LS460/LS460L_U (OM50D48U)
Page 11
Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal;
and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving conditions and no
personal data (e.g., name, gender, age, and crash location) are recorded. However,
other parties, such as law enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information
if they have access to the vehicle or the EDR.
● Disclosure of the EDR data
Lexus will not disclose the data recorded in an EDR to a third party except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is
obtained
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a law suit
However, if necessary, Lexus may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing infor-
mation about the specific vehicle or vehicle owner
11
LS460/LS460L_U (OM50D48U)
Page 12
12
CAUTION
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the windows, the
moon roof, or other features of the vehicle. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.
LS460/LS460L_U (OM50D48U)
Page 13
13
LS460/LS460L_U (OM50D48U)
Page 14
14

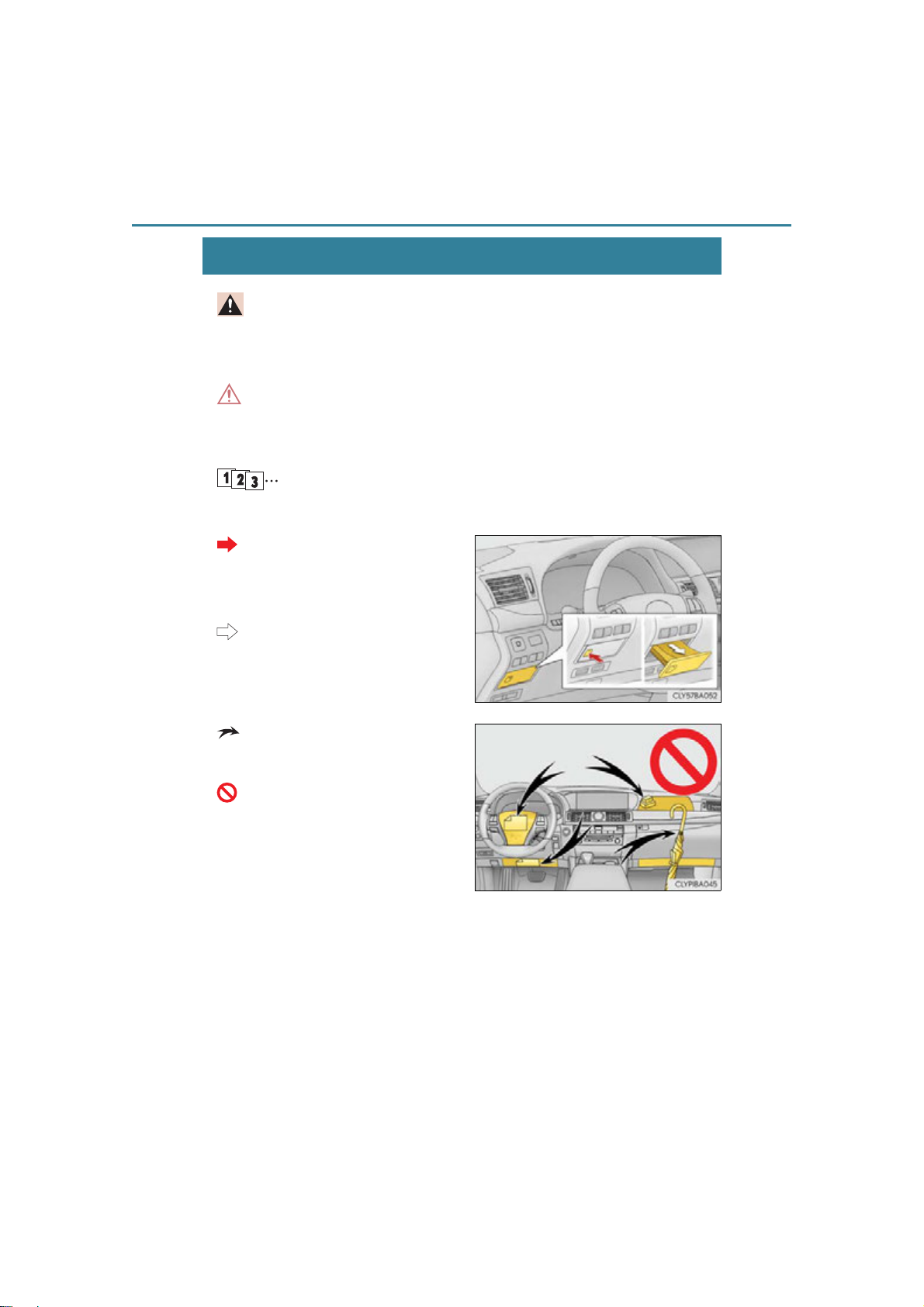

Reading this manual
CAUTION:
Explains something that, if not obeyed, could cause death or serious
injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to or a
malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps in
numerical order.
Indicates the action (pushing,
turning, etc.) used to operate
switches and other devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this happen”.
LS460/LS460L_U (OM50D48U)
Page 15
How to search
■ Searching by name
• Alphabetical index .........P. 898
■ Searching by installation posi-
tion
• Pictorial index........................ P. 16
15
■ Searching by symptom or sound
• What to do if...
(Troubleshooting)............ P. 892
■ Searching by title
• Table of contents ....................P. 2
LS460/LS460L_U (OM50D48U)
Page 16
16
3
Pictorial index
Pictorial index

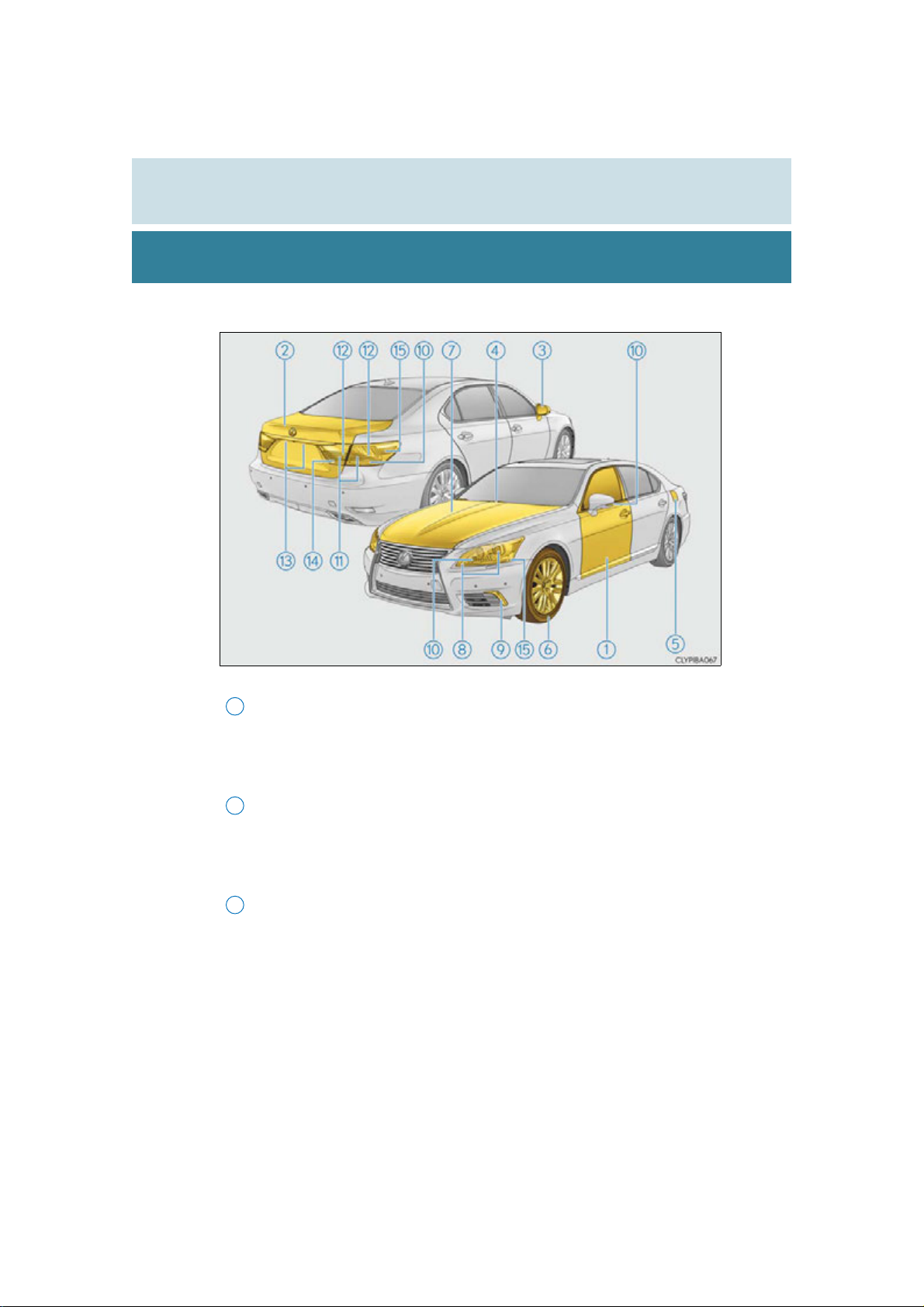

■Exterior
The shape of the headlights may differ depending on the grade, etc. (P. 315)
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
1
Locking/unlocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 109, 122
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 175
Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . .P. 825
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 801, 808
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
2
Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 109, 122
Opening by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 826
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 801, 808
Outside rear view mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 417
LS460/LS460L_U (OM50D48U)
Page 17
Pictorial index
9
12
15
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
4
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . . . . . . . . . . .P. 418
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 726
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
5
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240
Fuel type/fuel tank capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 841
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 759
6
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 847
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . P. 759
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 811
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 742
7
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 742
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 747
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 841
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 831
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 808
17
Light bulbs of the exterior lights for driving
(Replacing method: P. 785)
Headlights/parking lights/daytime running lights . . . . . . . . . . . . . . . . . . P. 225
8
Fog lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
10
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
11
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
13
Back-up lights
14
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207, 212
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
*: If equipped
LS460/LS460L_U (OM50D48U)
Page 18
18
Pictorial index

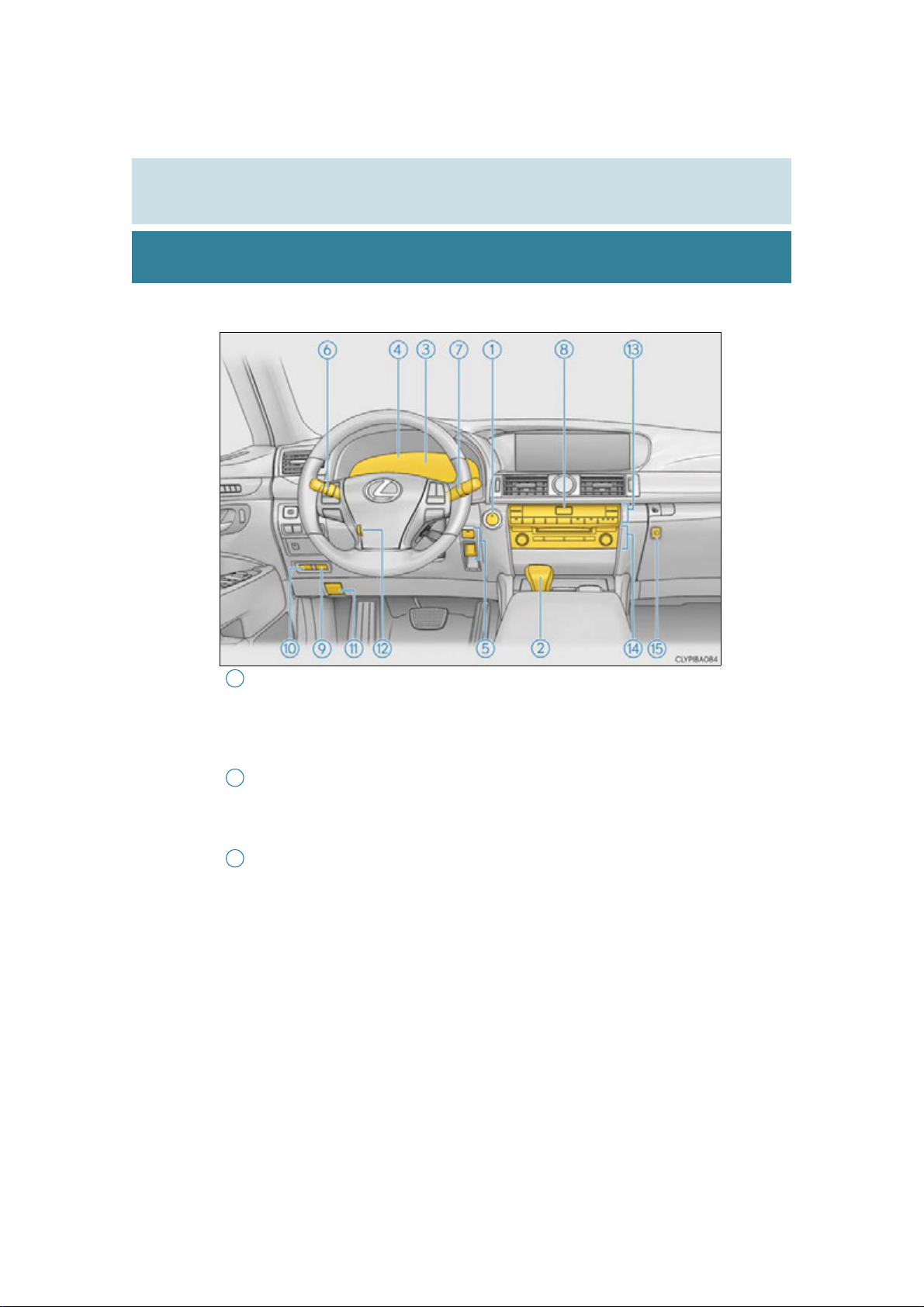

■Instrument panel
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
1
Starting the engine/changing the modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 789
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 820
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 808
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 207, 212
2
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207, 212
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 790
When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 822
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 89
3
Reading the meters/adjusting the instrument panel light . . . . . . . . . . . . . P. 89
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 84
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 798
LS460/LS460L_U (OM50D48U)
Page 19
Pictorial index
9
12
15
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 93
4
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 93
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . P. 808
Parking brake switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
5
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 808
Turn signal lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
6
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Headlights/parking lights/tail lights/daytime running lights . . . . . . . . . . P. 225
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 234
Windshield wiper and washer switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
7
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 235
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 758
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 808
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 788
8
Trunk opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
10
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 742
11
Tilt and telescopic steering control switch . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 168
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394
13
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 394
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 417
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 419
14
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 419
Hands-free system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 593
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
19
LS460/LS460L_U (OM50D48U)
Page 20
20
Pictorial index

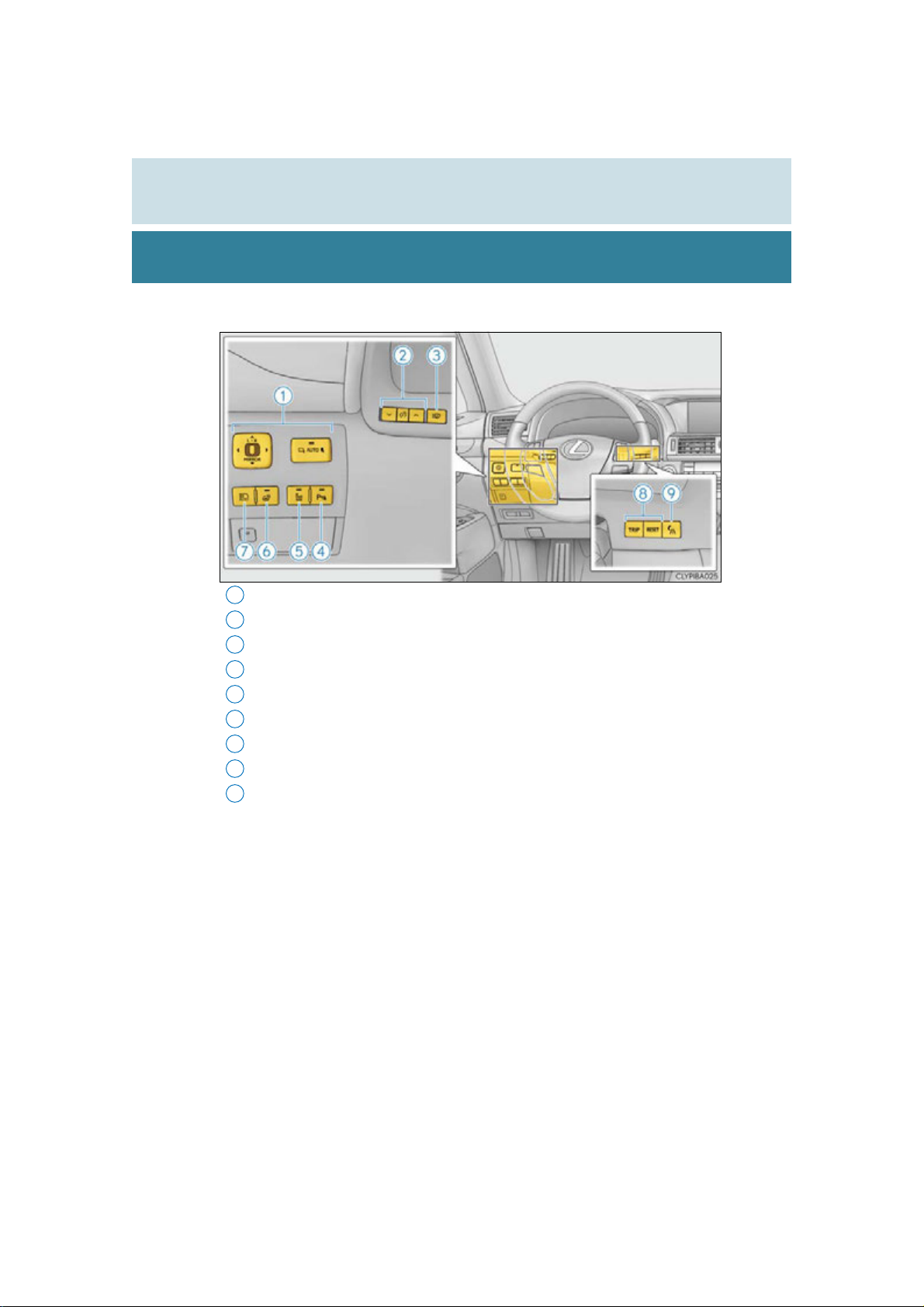

■Instrument panel switches
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171
1
Instrument panel light control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90
2
Headlight cleaner switch
3
Intuitive parking assist switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
4
BSM (Blind Spot Monitor) main switch
5
Heated steering wheel switch
6
Automatic High Beam switch
7
Odometer/trip meter and trip meter reset switches . . . . . . . . . . . . . . . . P. 90
8
Lexus night view switch
9
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 239
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 324
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 687
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
LS460/LS460L_U (OM50D48U)

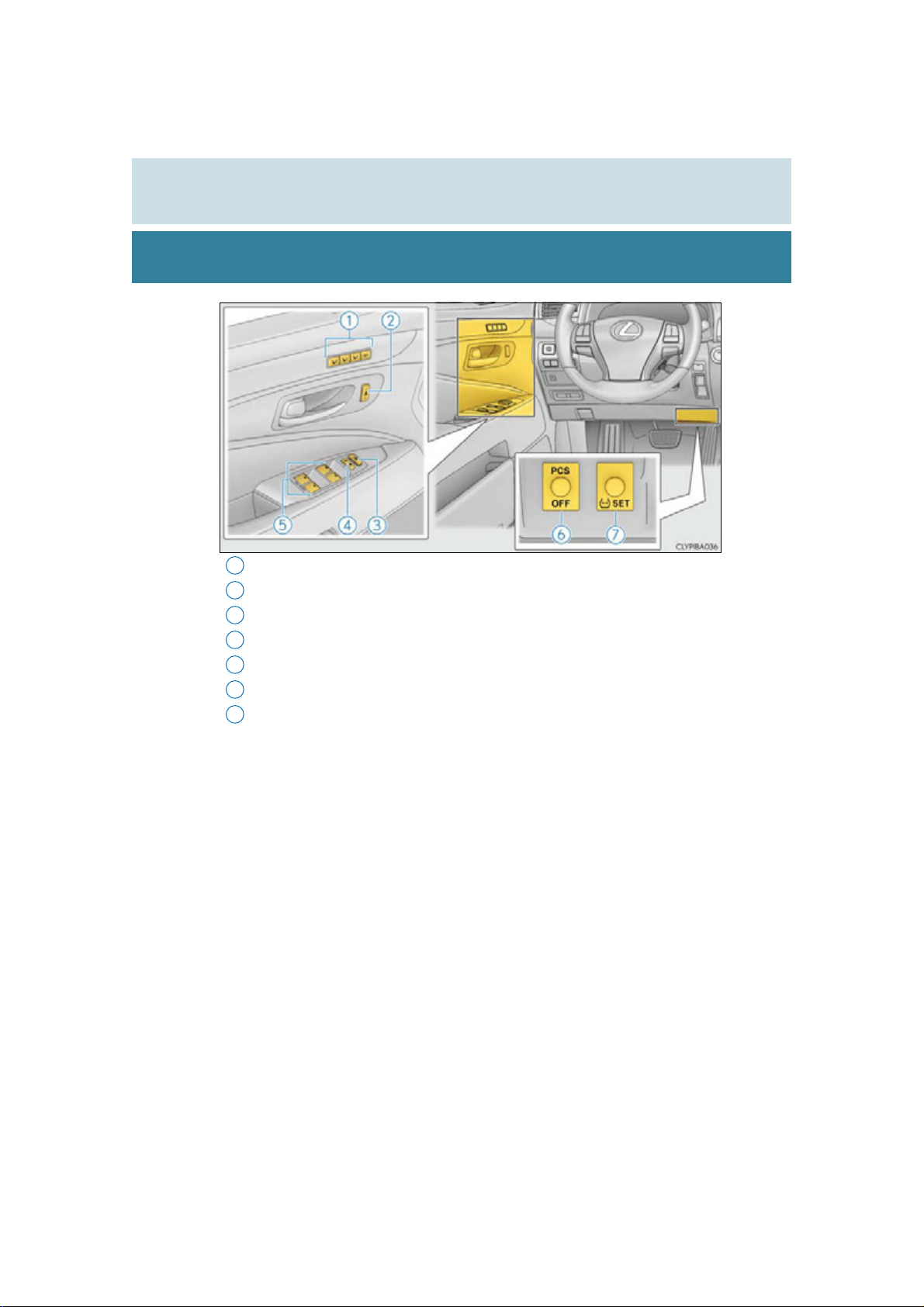

Page 21
Pictorial index
Driving position memory switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157
1
Shoulder anchor control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 39
2
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
3
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 126
4
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
5
Pre-collision braking off switch
6
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 761
7
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 314
21
LS460/LS460L_U (OM50D48U)
*: If equipped
Page 22

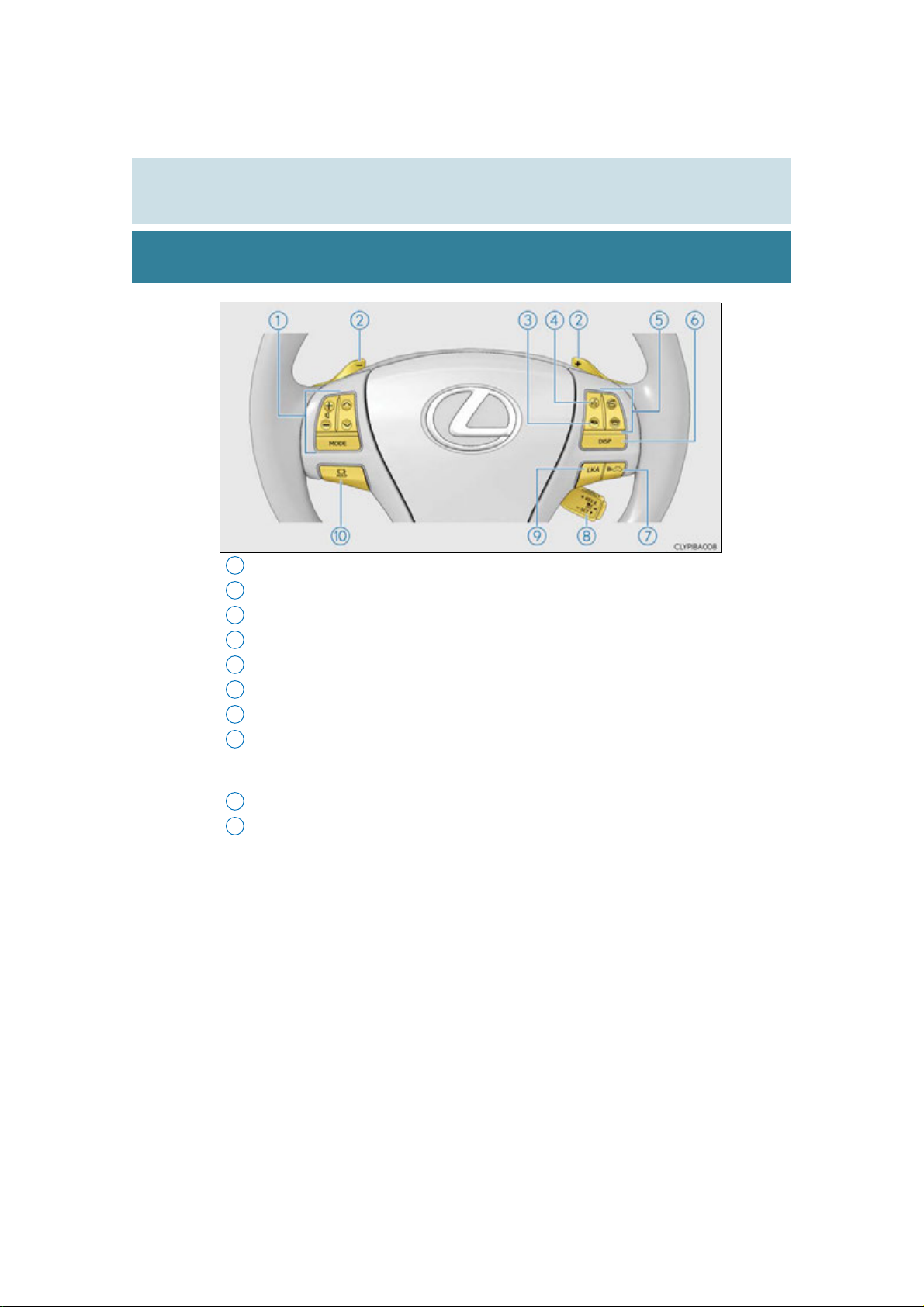

22
Pictorial index
Audio remote control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 526
1
2
*
Paddle shift switches
2
Back switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
3
1
*
Ta l k s wi t ch
4
Telephone switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 391, 593
5
“DISP” button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 94
6
Vehicle-to-vehicle distance button
7
Cruise control switch
8
Cruise control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
2
*
Dynamic radar cruise control with full-speed range
LKA (Lane-Keeping Assist) switch
9
Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208, 214
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
2
*
. . . . . . . . . . . . . . P. 248
LS460/LS460L_U (OM50D48U)

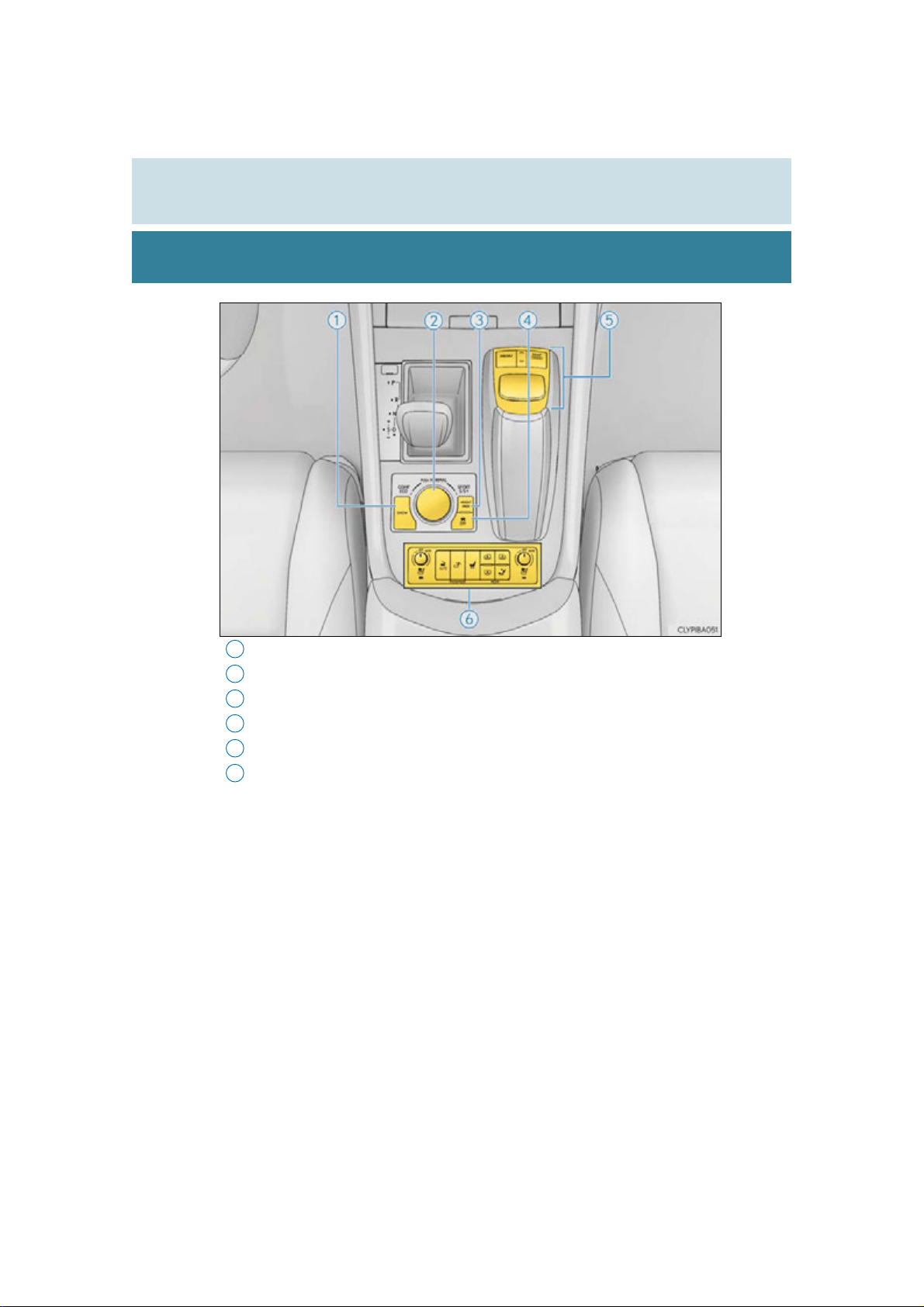

Page 23
Pictorial index
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210, 216
1
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 297
2
2
*
Vehicle height adjustment switch
3
VSC (Vehicle Stability Control) OFF switch. . . . . . . . . . . . . . . . . . . . . . . . P. 307
4
Remote Touch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 346
5
Seat and interior feature switches
6
Rear sunshade switch*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697
Rear door sunshade switches
Front climate control seat switches
Rear seat return switch
Front passenger’s power seat switches
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 303
3
*
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 701
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 689
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 138
23
3
*
: Location of the switches varies according to the vehicle grade level.
LS460/LS460L_U (OM50D48U)
1
*
: Refer to “Navigation System Owner’s Manual”.
2
*
: If equipped
Page 24
24
Pictorial index

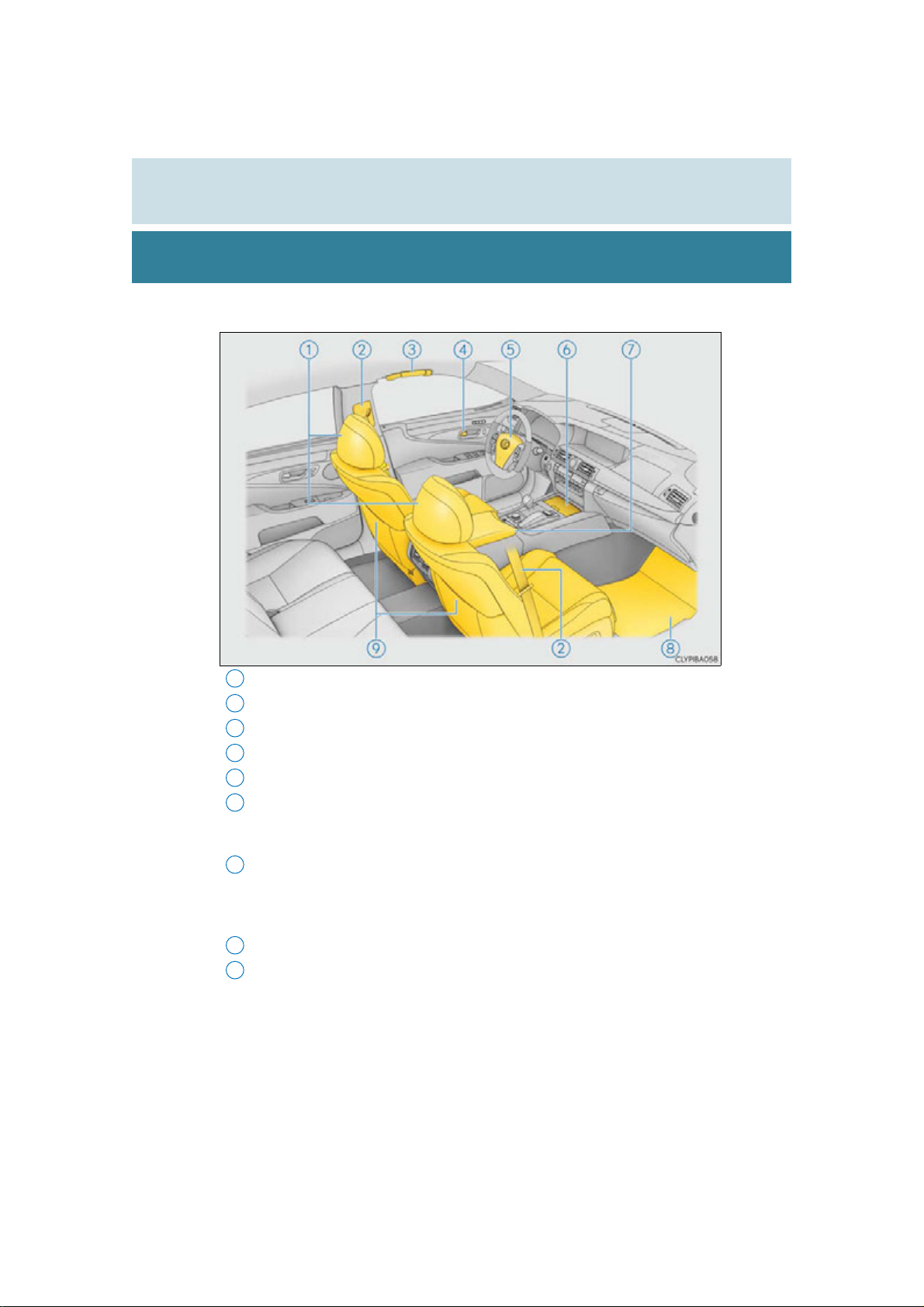

■Front interior
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 164
1
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
2
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 707
3
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
4
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 44
5
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 65
6
Pow er outlet
Cigarette lighter
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 667
7
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 683
AUX port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 520
USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500, 510
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 34
8
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
9
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 683
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 681
LS460/LS460L_U (OM50D48U)
Page 25
Pictorial index

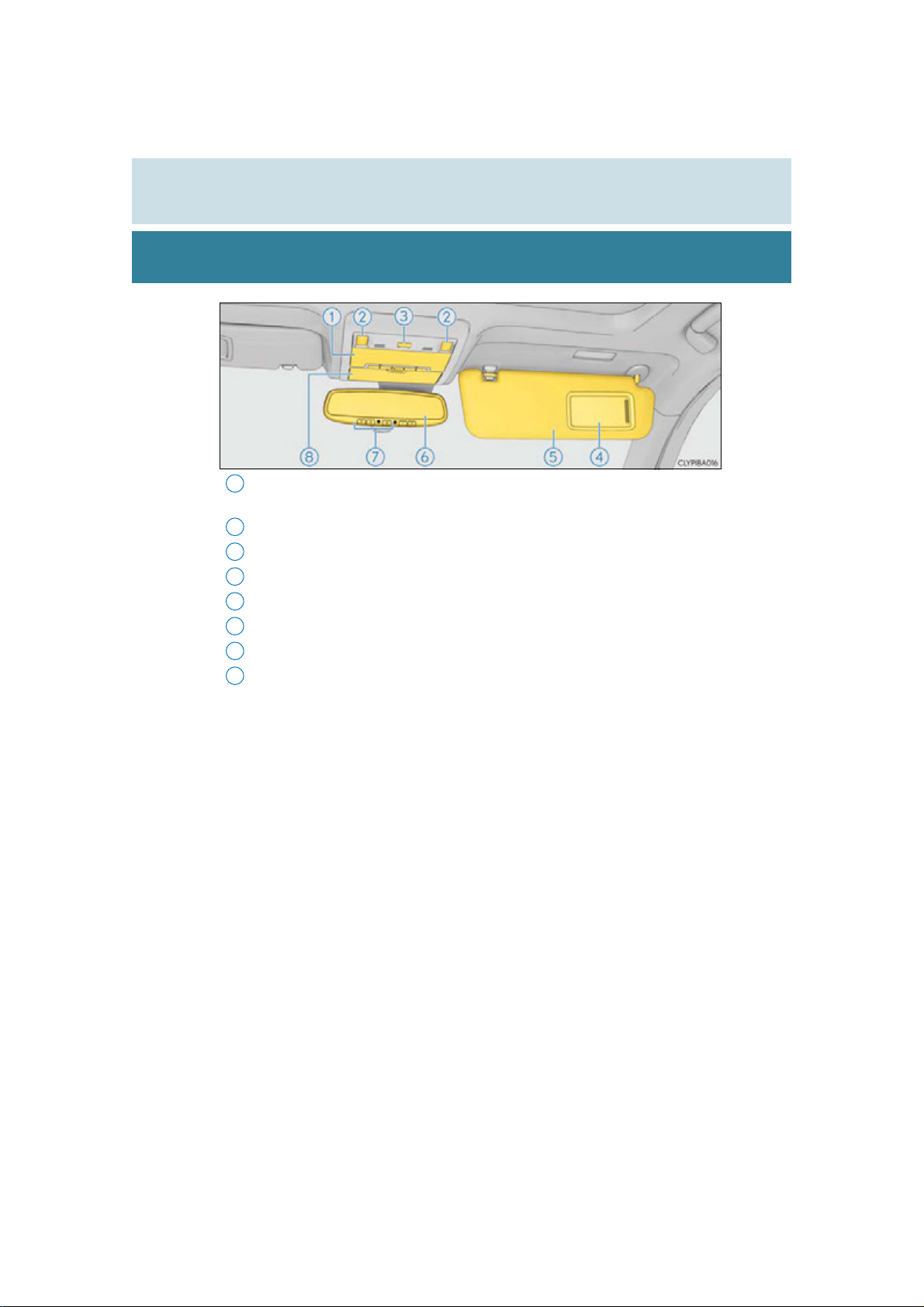

Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 658
1
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 659
Moon roof switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 178
2
“SOS” button
3
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 677
4
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 677
5
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
6
Garage door opener switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 708
7
Auxiliary box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 67 2
8
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 715
25
LS460/LS460L_U (OM50D48U)
*: If equipped
Page 26
26
Pictorial index

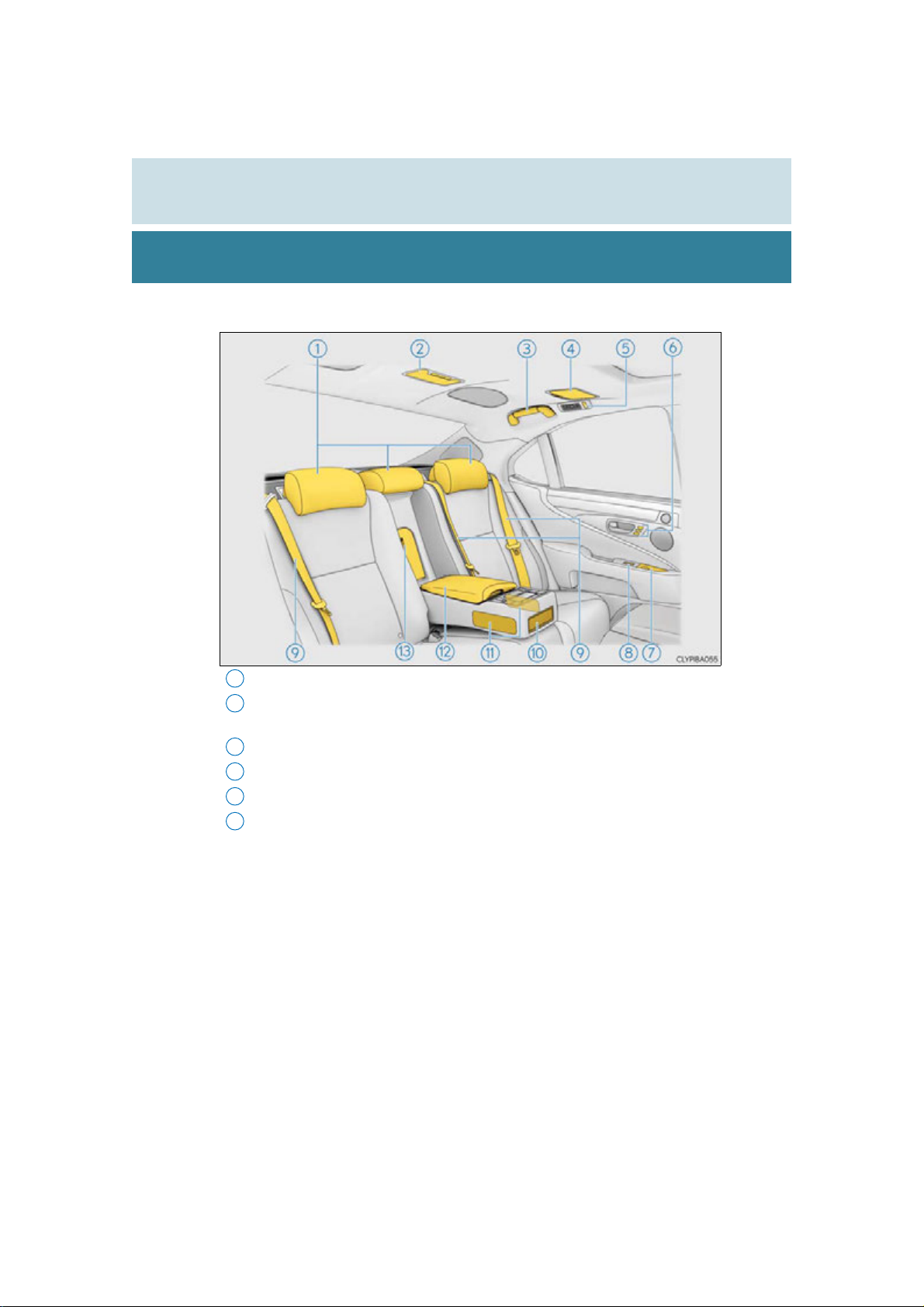

■Rear interior (5-seat models)
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 164
1
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 658
2
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 659
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 707
3
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 677
4
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 0 6
5
Seat position memory switches
6
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
LS460/LS460L_U (OM50D48U)
Page 27
Pictorial index
27
Auxiliary boxes
7
Ashtrays
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
8
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
9
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 65
10
Pelvic support seat switches
11
Rear seat relaxation system/pelvic support seat switches
Auxiliary box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 67 2
12
Rear seat entertainment system controller
Headphone jacks
Cool box/auxiliary box
13
Trunk storage extension
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 672
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 680
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 149
* . . . . P. 149, 151
* . . . . . . . . . . . . . . . . . . . . . . . . .P. 531
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 669
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 704
LS460/LS460L_U (OM50D48U)
*: If equipped
Page 28
28
Pictorial index

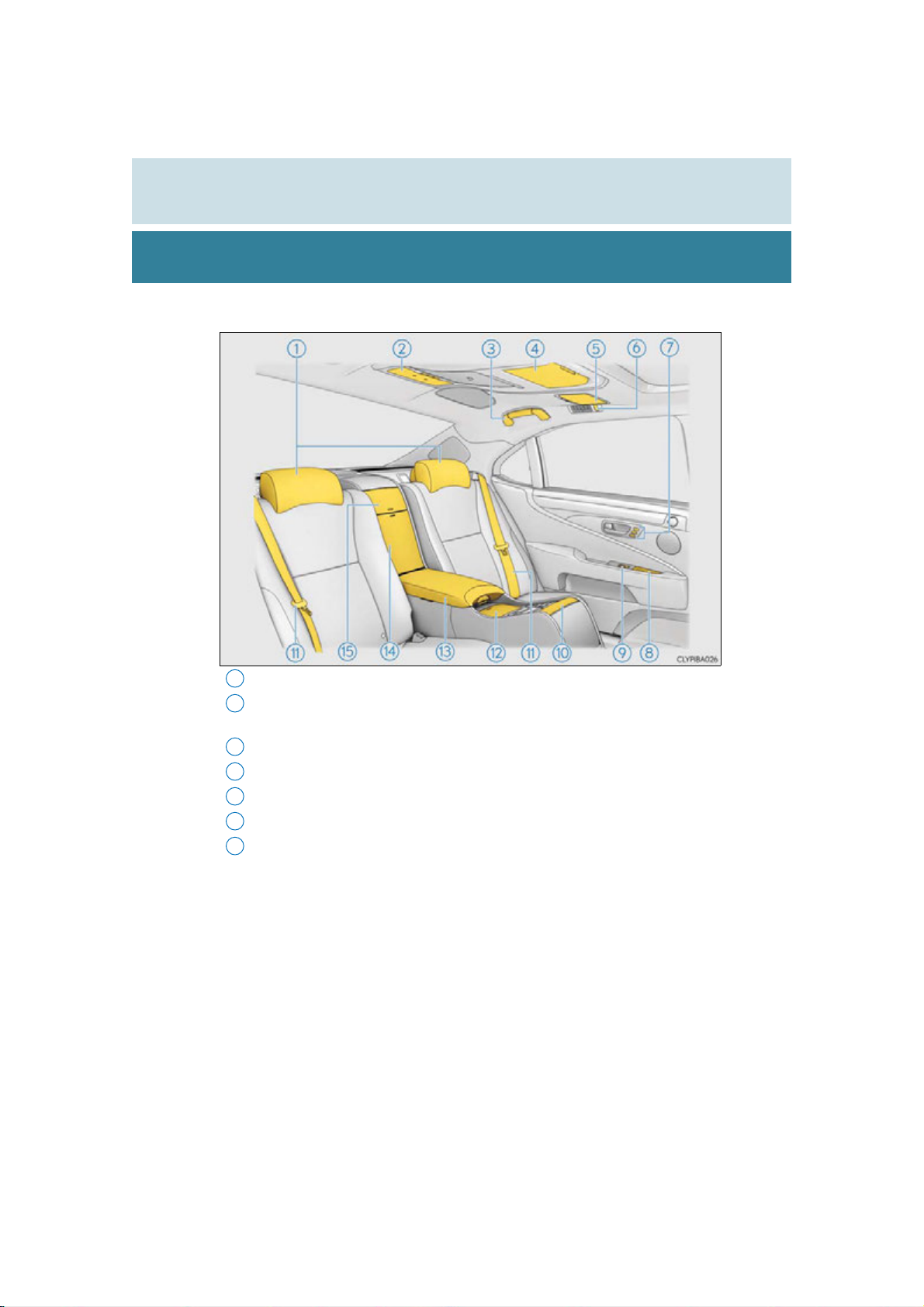

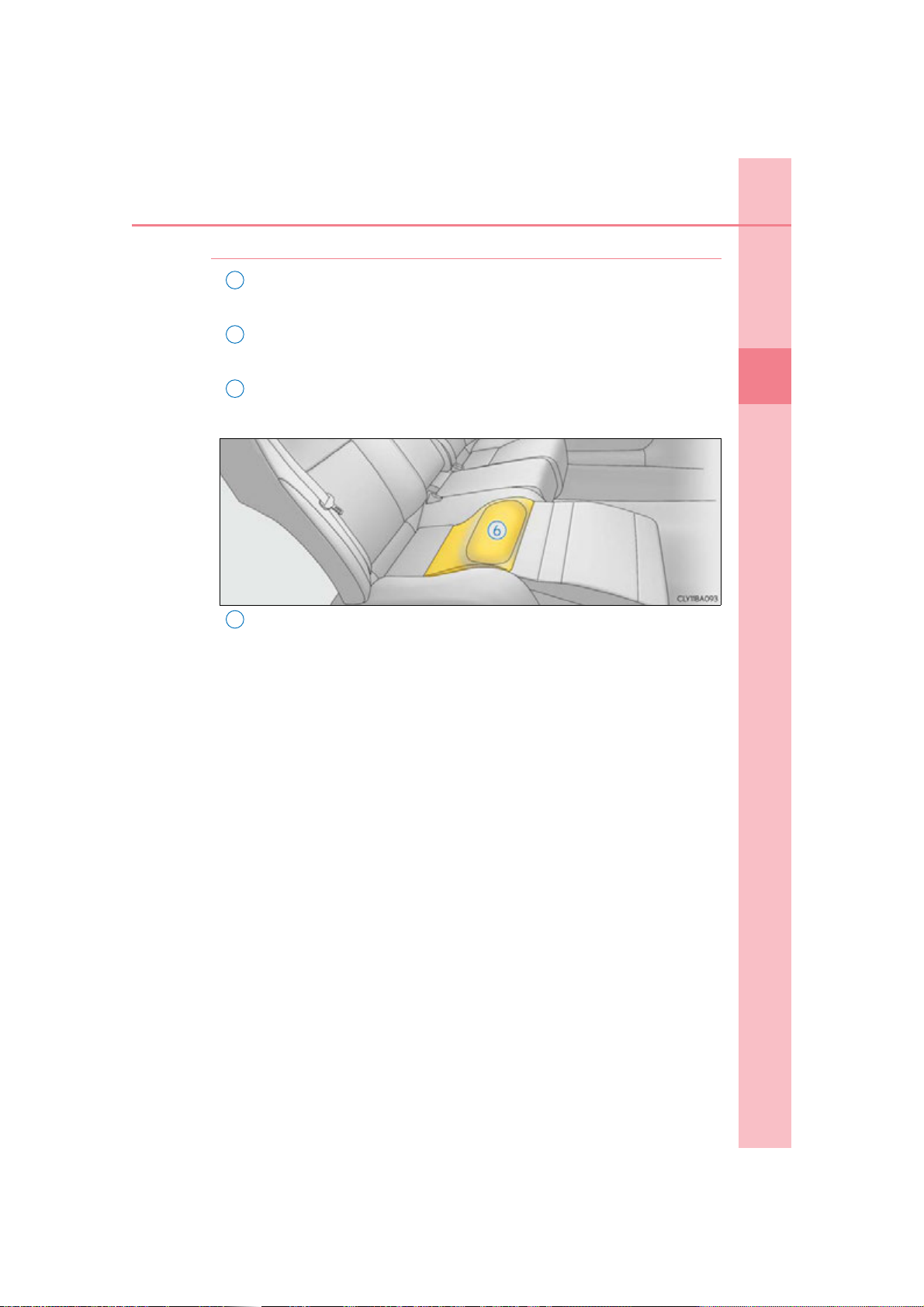

■Rear interior (4-seat models)
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 164
1
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 658
2
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 659
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 707
3
Rear seat entertainment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 529
4
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 677
5
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 0 6
6
Seat position memory switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
7
LS460/LS460L_U (OM50D48U)
Page 29
Pictorial index
29
Auxiliary boxes
8
Ashtrays
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175
9
Retractable table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 695
10
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
11
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 65
12
Rear seat console
13
Rear seat relaxation system/pelvic support seat controller . . . . . . P. 149, 151
Rear seat entertainment system controller . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 531
Cigarette lighter
Pow er outlet
A/V input port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 588
Cool box/auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 669
Auxiliary box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 67 2
14
BD/DVD player
15
Disc slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 533
SD card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 534
Headphone jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 672
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 680
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 681
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 683
LS460/LS460L_U (OM50D48U)
*: If equipped
Page 30
30
Pictorial index

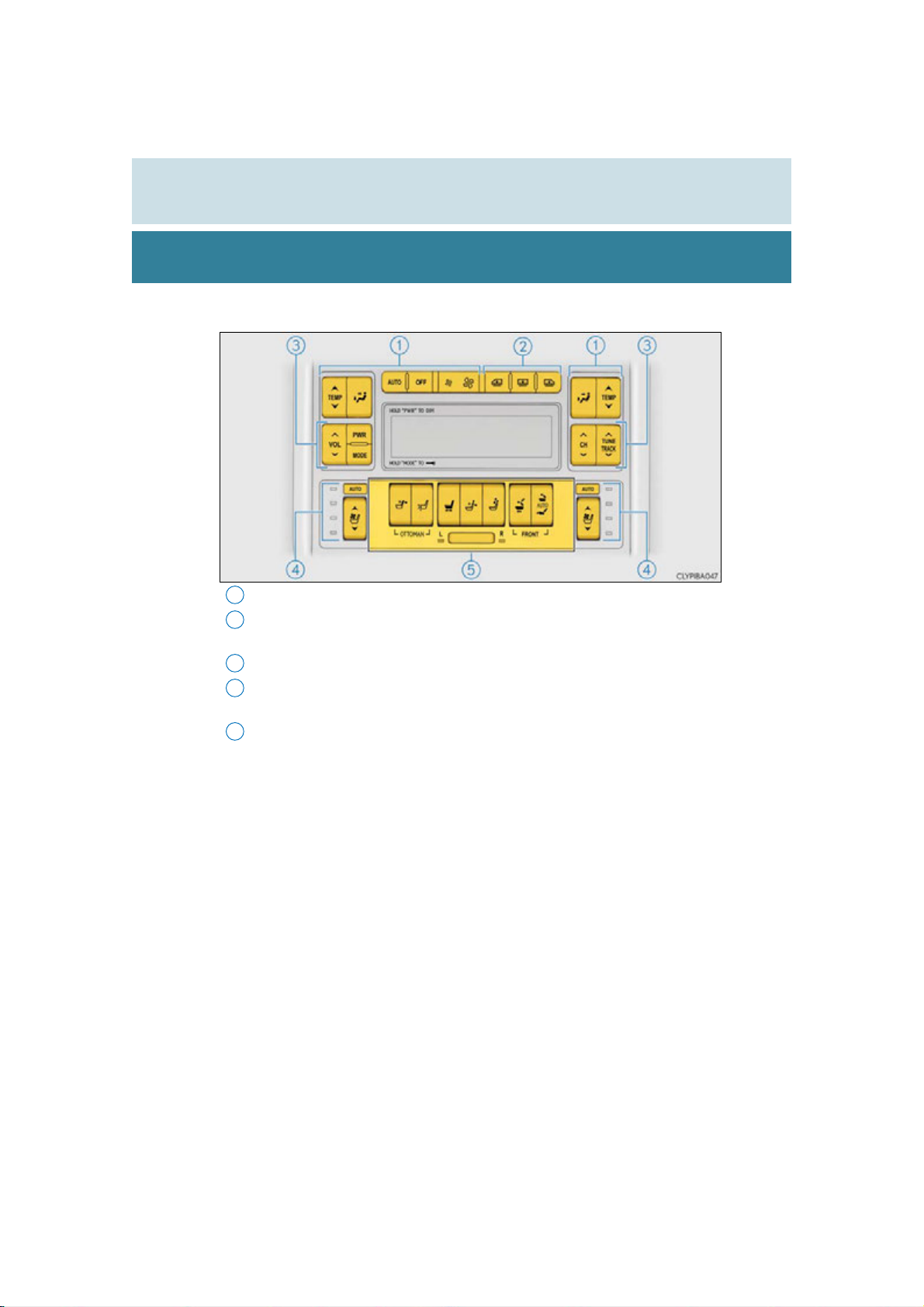

■Rear interior switches
Rear air conditioning switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 410
1
Rear sunshade switch*
2
Rear door sunshade switches
Rear audio switches
3
Rear climate control seat switches
4
Rear seat heater switches
Power rear seat switches*
5
Front passenger’s seat control switches
Pelvic support seat switches
1, 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 701
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 523
1
*
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 690
1, 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 144
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 690
1, 2
*
1, 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 149
. . . . . . . . . . . . . . . . . . . P. 139, 148
LS460/LS460L_U (OM50D48U)
Page 31
Pictorial index

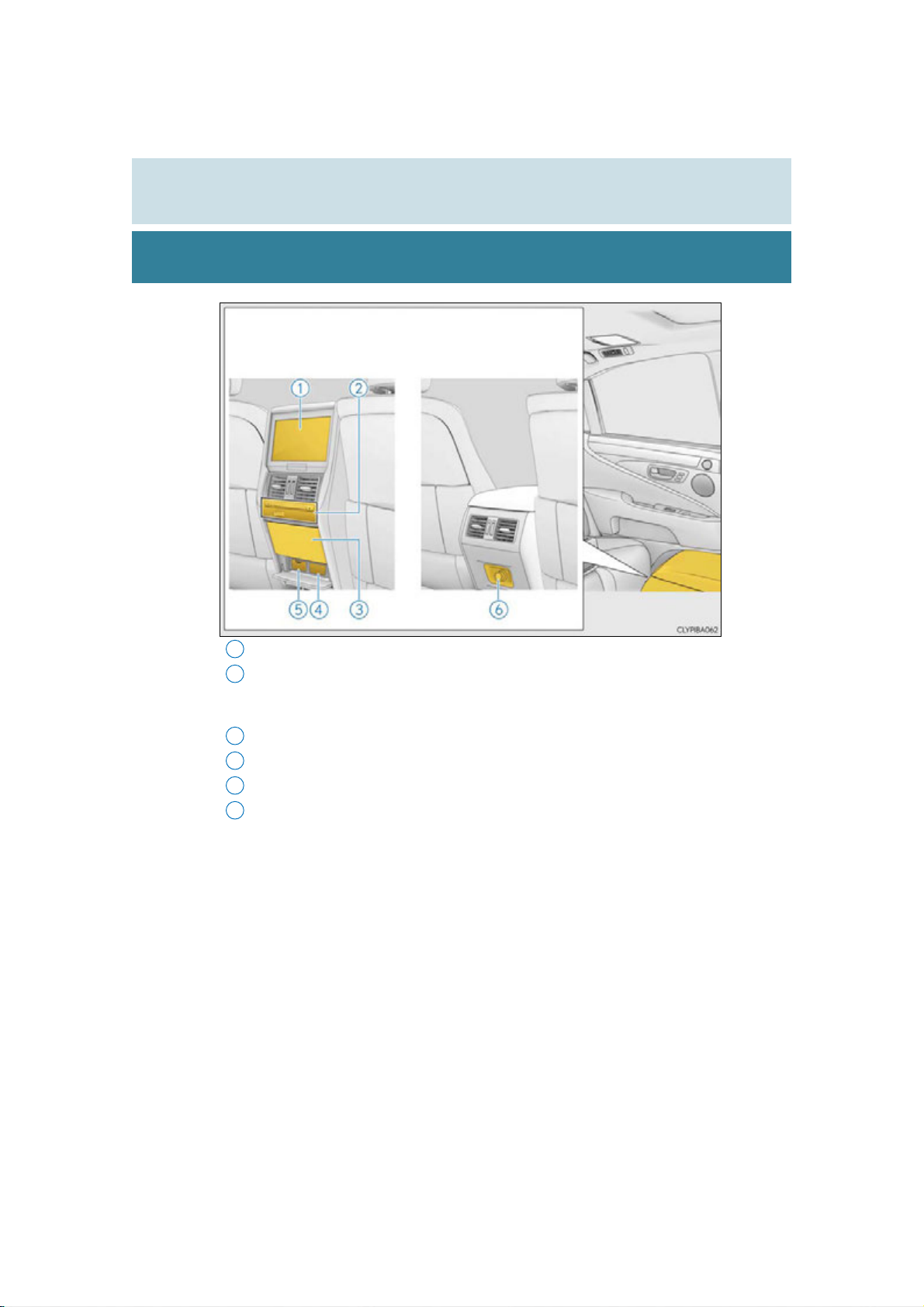

Vehicles with rear
console display
Vehicles without rear
console display
Rear seat entertainment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 529
1
BD/DVD player
2
Disc slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 533
SD card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 534
Auxiliary box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 67 2
3
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 683
4
A/V input port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 588
5
1
*
Cigarette lighter
6
Power outlet
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 681
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 683
31
LS460/LS460L_U (OM50D48U)
2
*
1
*
: If equipped
: Location of the switches varies according to the vehicle grade level.
Page 32
32
Pictorial index
LS460/LS460L_U (OM50D48U)
Page 33
33
For safety and security
1
1-1. For safe use
Before driving.................................34
For safety drive...............................36
Seat belts ..........................................38
SRS airbags .....................................44
Front passenger occupant
classification system.................. 57
Safety information for
children ..........................................63
Child restraint systems ...............64
Installing child restraints.............68
Exhaust gas precautions.............77
1-2. Theft deterrent system
Engine immobilizer system....... 78
Alarm .................................................80
LS460/LS460L_U (OM50D48U)
Page 34
34
*
1-1. For safe use
Before driving

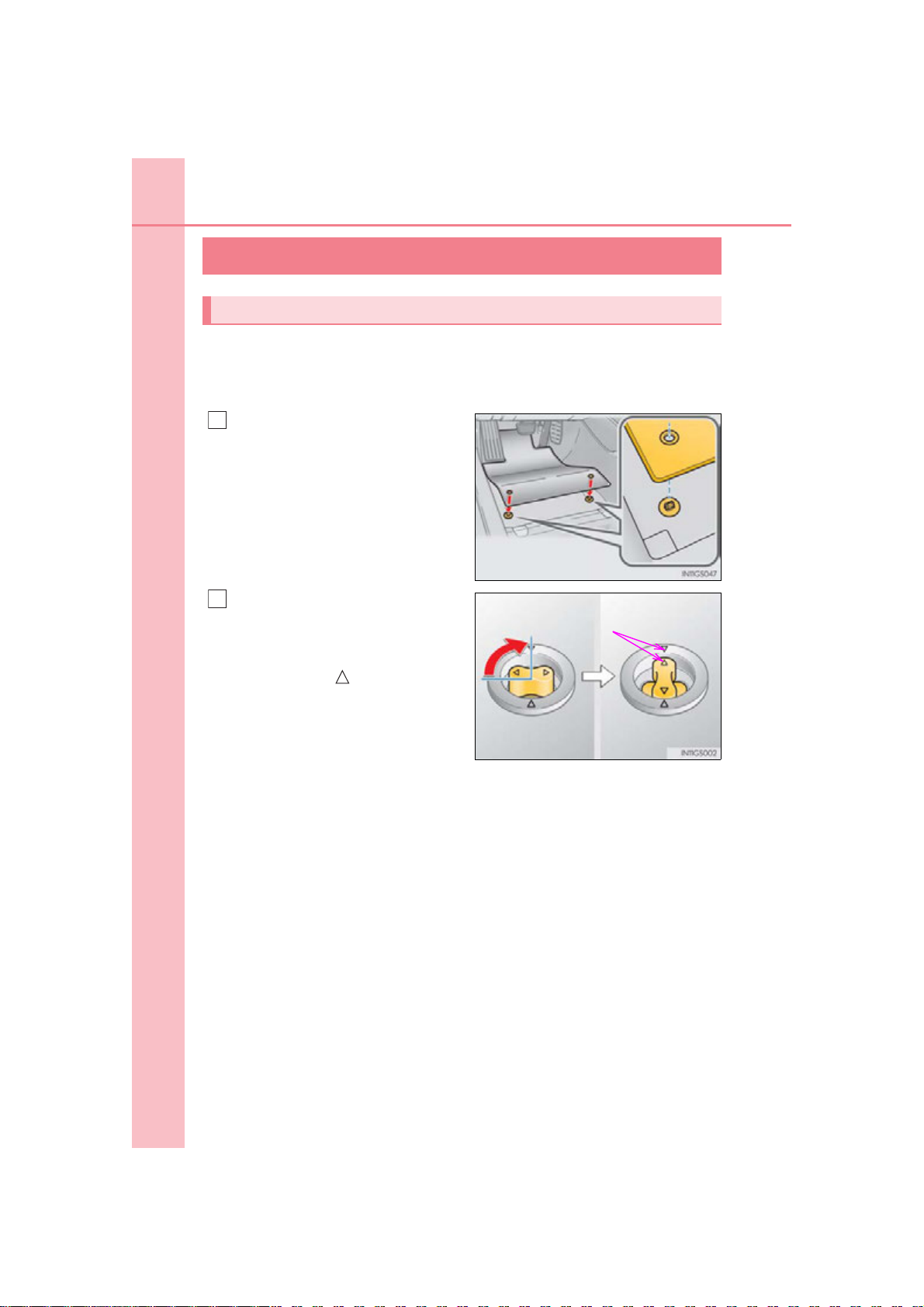

Floor mat
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix them securely in place onto the carpet.
1
Insert the retaining hooks (clips)
into the floor mat eyelets.
2
Turn the upper knob of each
retaining hook (clip) to secure the
floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
LS460/LS460L_U (OM50D48U)
Page 35
1-1. For safe use
CAUTION
● Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially careful to perform this check after cleaning the
floor.
● With the engine stopped and the shift lever
in P, fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become difficult to stop the vehicle, leading to an accident, or leading to death or a serious injury.

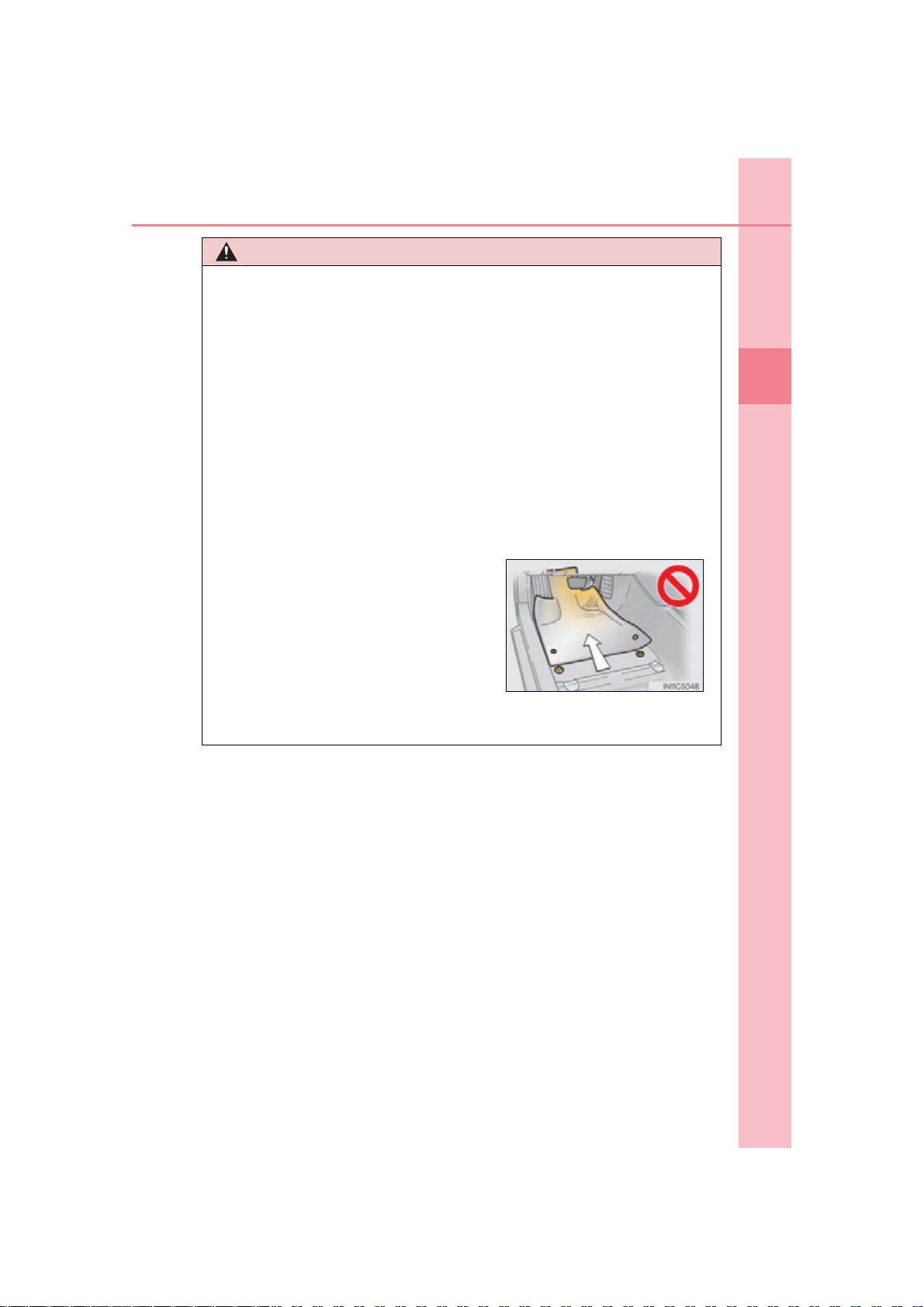

■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) provided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
35
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 36
36
1-1. For safe use

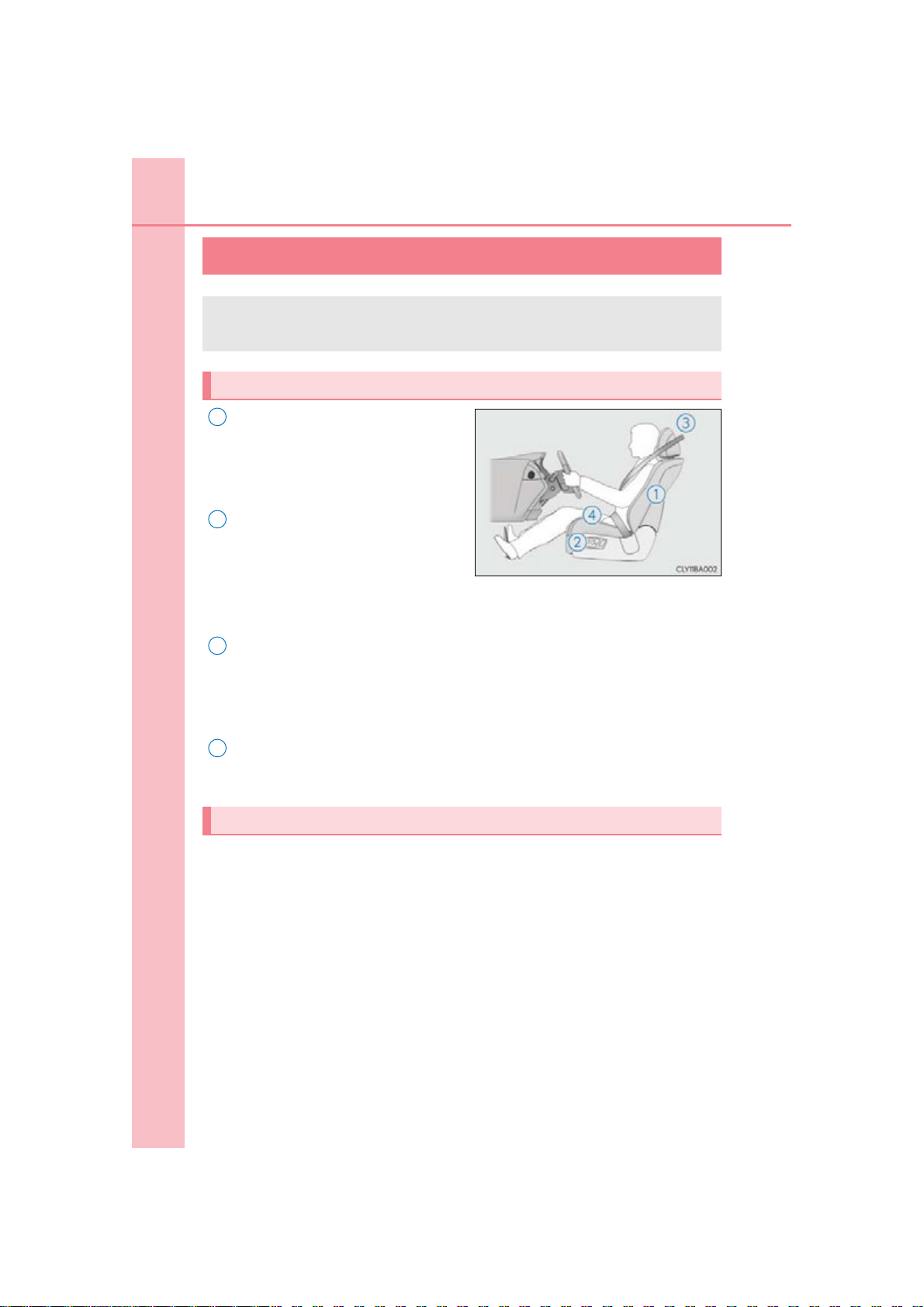

For safety drive
For safe driving, adjust the seat and mirror to an appropriate position
before driving.
Correct driving posture
Adjust the angle of the seatback
1
so that you are sitting straight up
and so that you do not have to
lean forward to steer. (P. 137)
Adjust the seat so that you can
2
depress the pedals fully and so
that your arms bend slightly at the
elbow when gripping the steering
wheel. (P. 1 37 )
Lock the head restraint in place
3
with the center of the head
restraint closest to the top of your
ears. (P. 164)
Wear the seat belt correctly.
4
(P. 38)
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving
the vehicle. (P. 38)

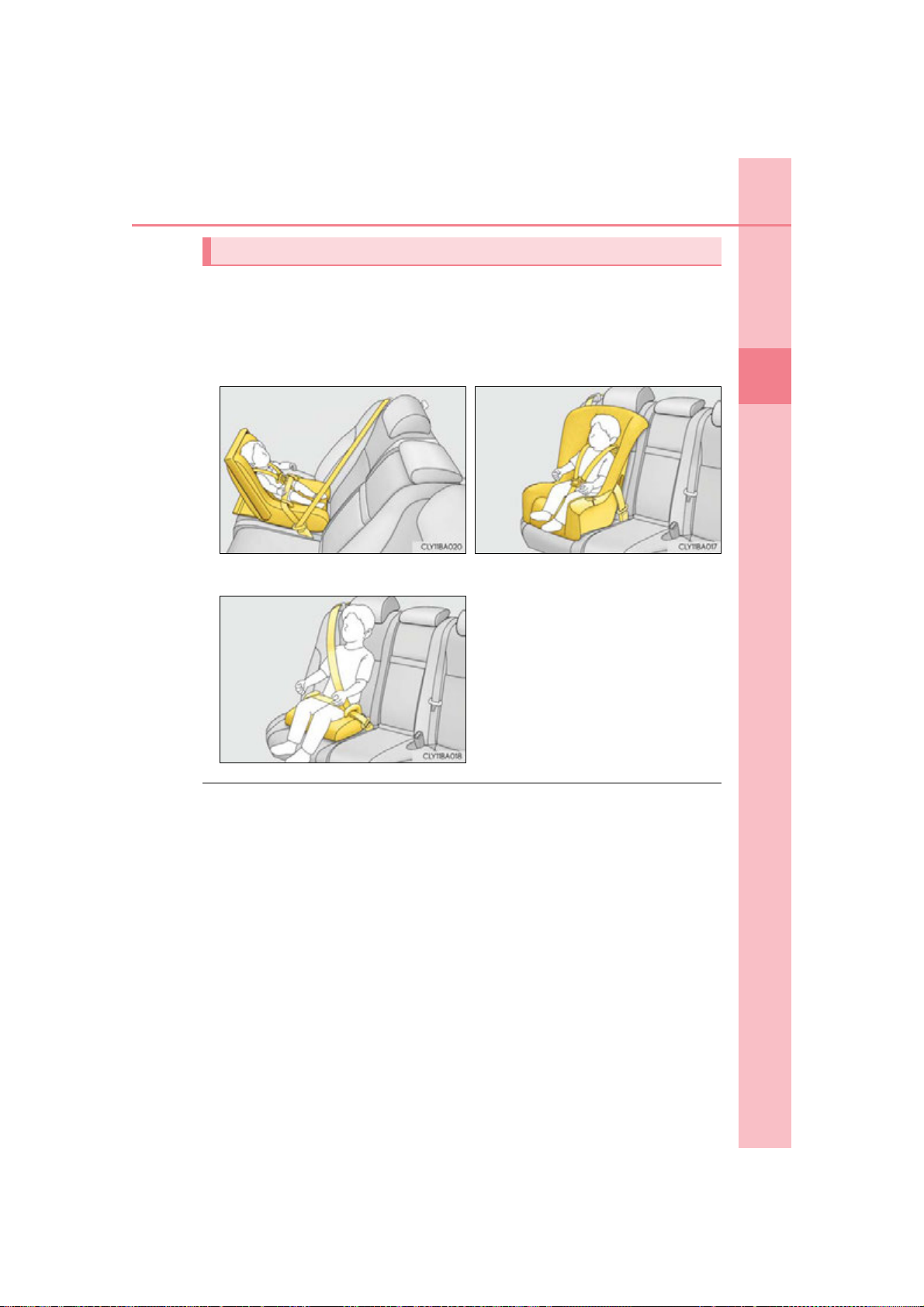

Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 64)
LS460/LS460L_U (OM50D48U)
Page 37
1-1. For safe use
CAUTION
Adjusting the mirrors
Make sure that you can see backward clearly by adjusting the inside and
outside rear view mirrors properly. (P. 169, 171)
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue
driving and take a break immediately.
37
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 38
38
Release button
1-1. For safe use

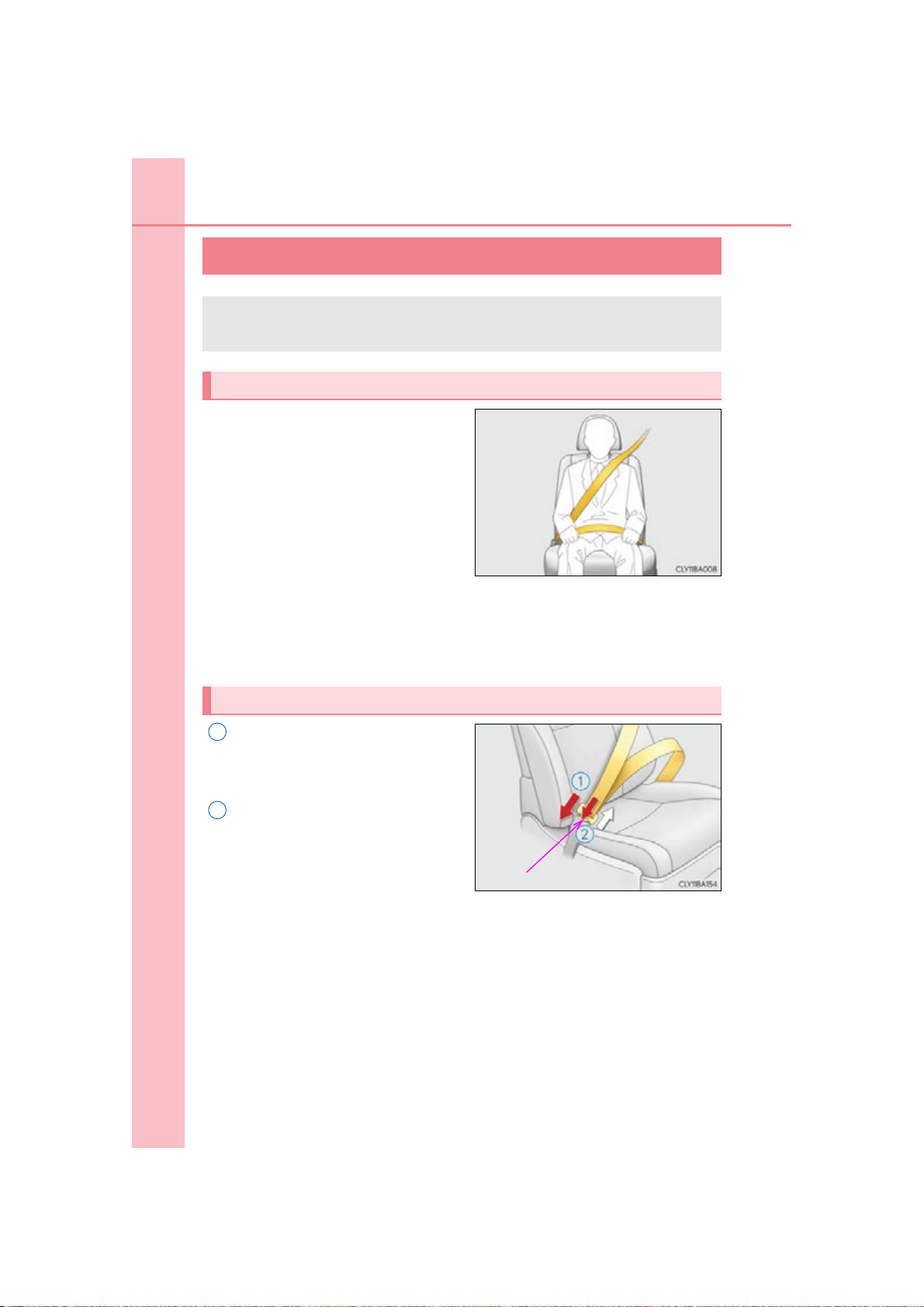

Seat belts
Make sure that all occupants are wearing their seat belts before driving
the vehicle.
Correct use of the seat belts
●
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with
the neck or slide off the shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well back
in the seat.
● Do not twist the seat belt.
Fastening and releasing the seat belt
To fasten the seat belt, push the
1
plate into the buckle until a click
sound is heard.
To release the seat belt, press the
2
release button.
If the seat belt cannot be pulled out of
the retractor, firmly pull the belt and
release it.
LS460/LS460L_U (OM50D48U)

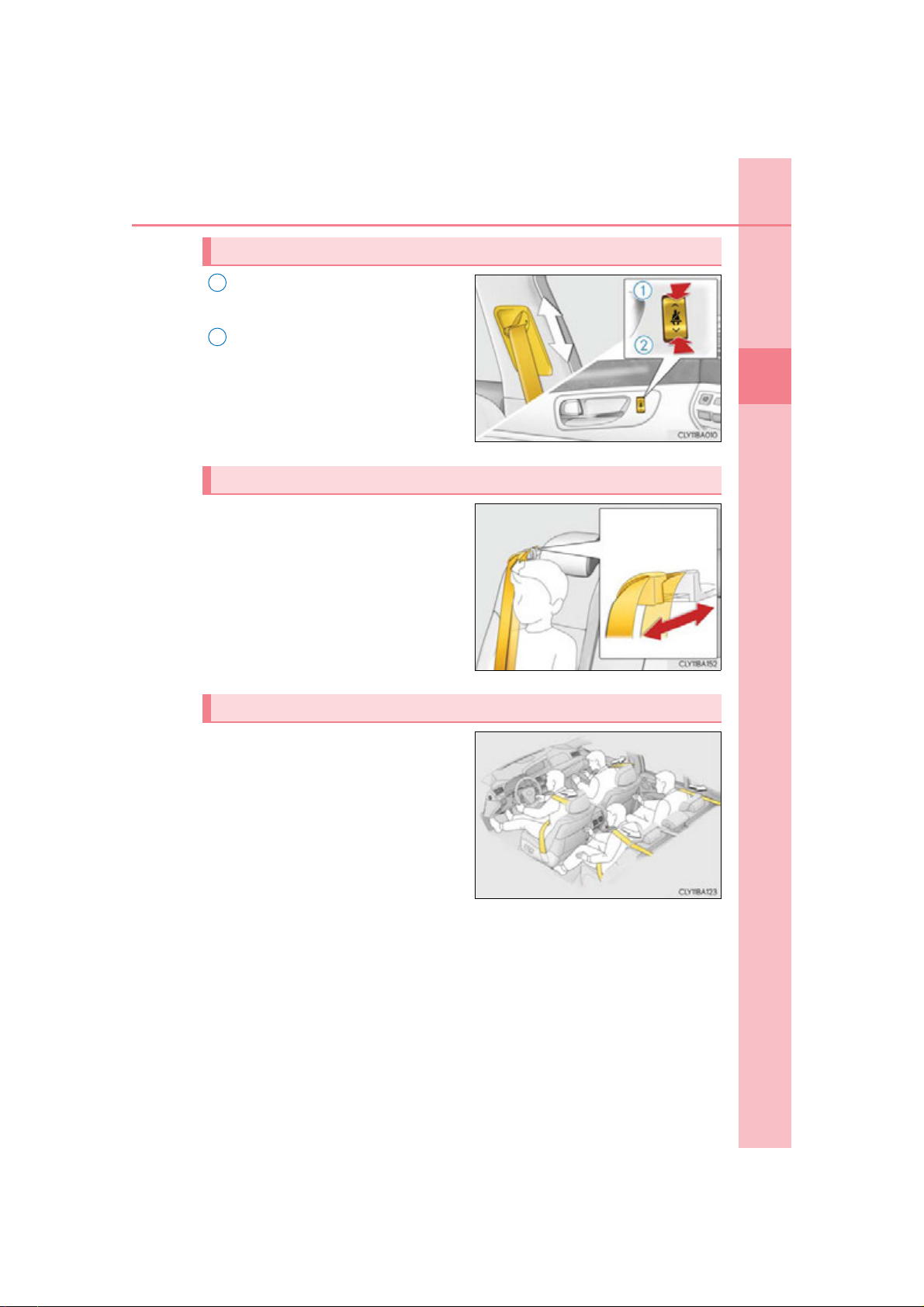

Page 39
1-1. For safe use
2
Adjusting the seat belt shoulder anchor height (front seats)
Moves the seat belt shoulder
1
anchor up
Moves the seat belt shoulder
anchor down
Seat belt comfort guide (outer rear seats)
For children or smaller-than-average people, slide the seat belt comfort guide forward so that the
shoulder belt does not sit close to
the person’s neck.
39
1
For safety and security

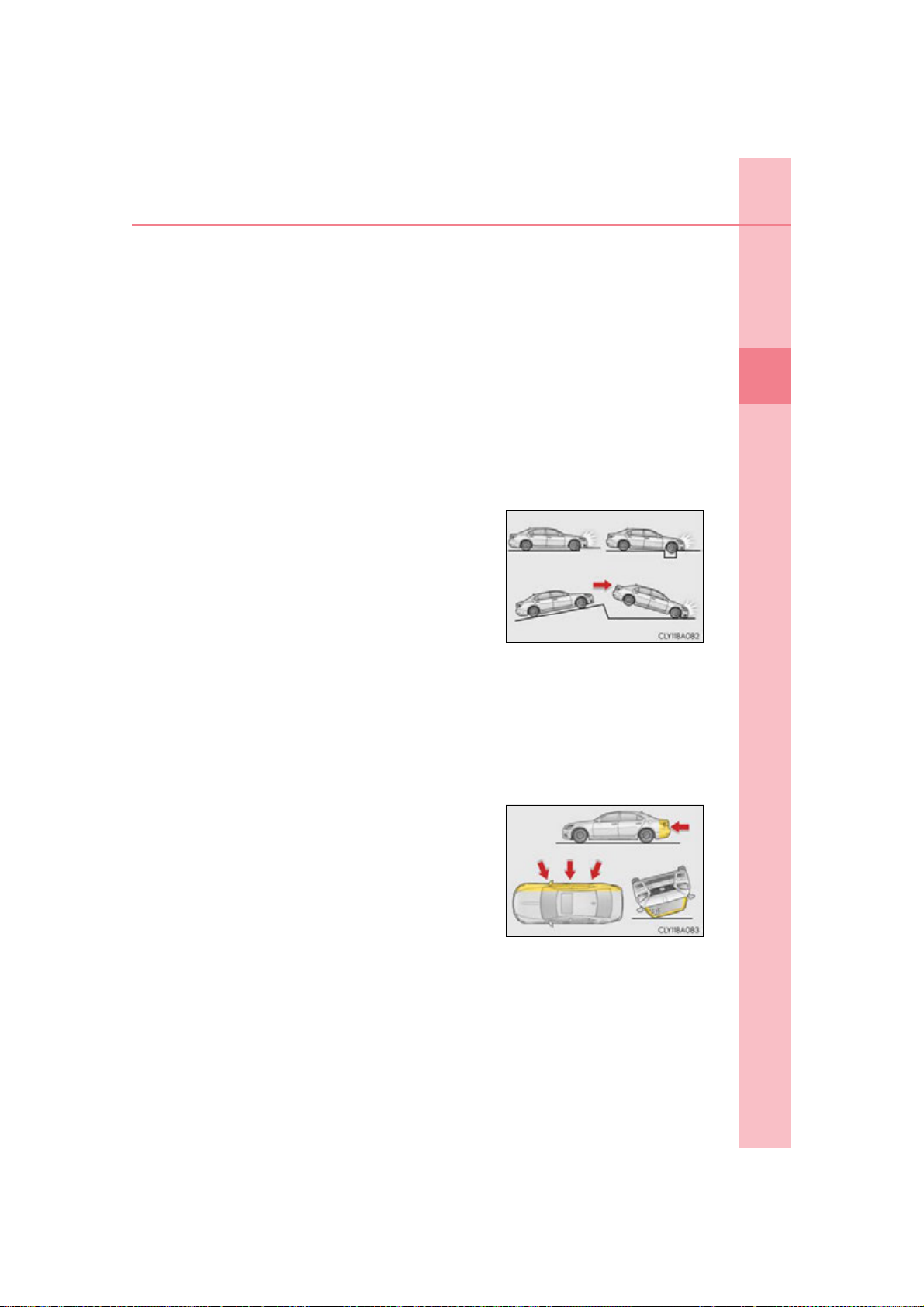

Seat belt pretensioners (front and outer rear seats)
The pretensioners help the seat
belts to quickly restrain the occupants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal collision.
The front seat belt pretensioners also
activate when the vehicle is subjected
to certain types of severe side collision.
The pretensioners do not activate in
the event of a minor frontal impact, a
minor side impact, a rear impact or a
vehicle rollover.
LS460/LS460L_U (OM50D48U)
Page 40
40
1-1. For safe use
Pre-collision seat belts (front seats of vehicles with pre-collision
system)
If the system determines that a collision is unavoidable, the front seat belts
will retract before the collision. (P. 312)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. (P. 64)
● When the child becomes large enough to properly wear the vehicle’s seat belt, fol-
low the instructions regarding seat belt usage. (P. 3 8)
■ Automatic adjustment of the seat belt shoulder anchor height (front seats)
A desired seat belt shoulder anchor height can be entered to memory and recalled
automatically by the driving position memory and seat position memory. (P. 15 7)
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is used
to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the
belt and then pull the belt out once more. (P. 6 8)
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.

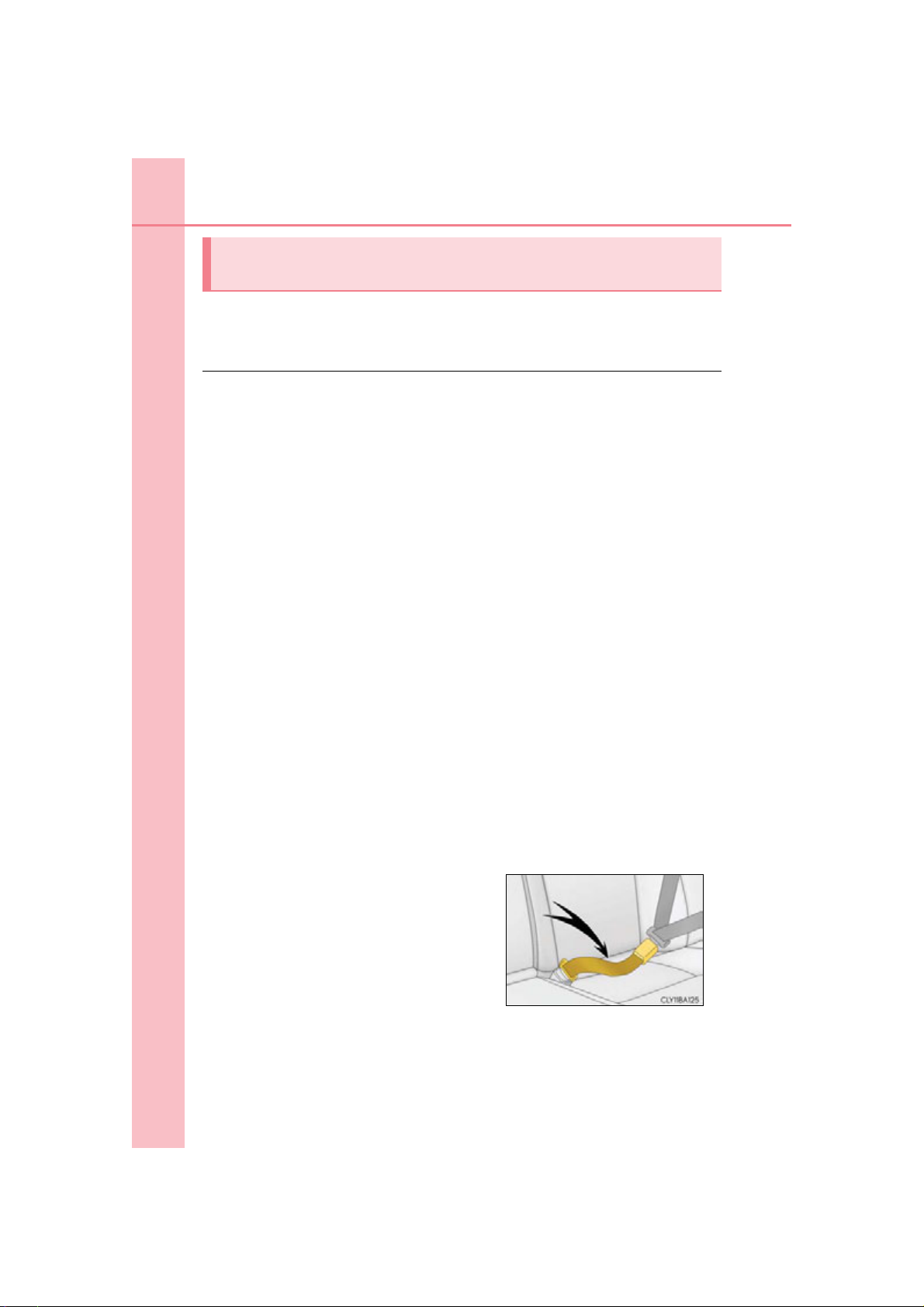

■ Seat belt extender
If your seat belts cannot be fastened securely
because they are not long enough, a personalized seat belt extender is available from
your Lexus dealer free of charge.
LS460/LS460L_U (OM50D48U)
Page 41
1-1. For safe use
CAUTION

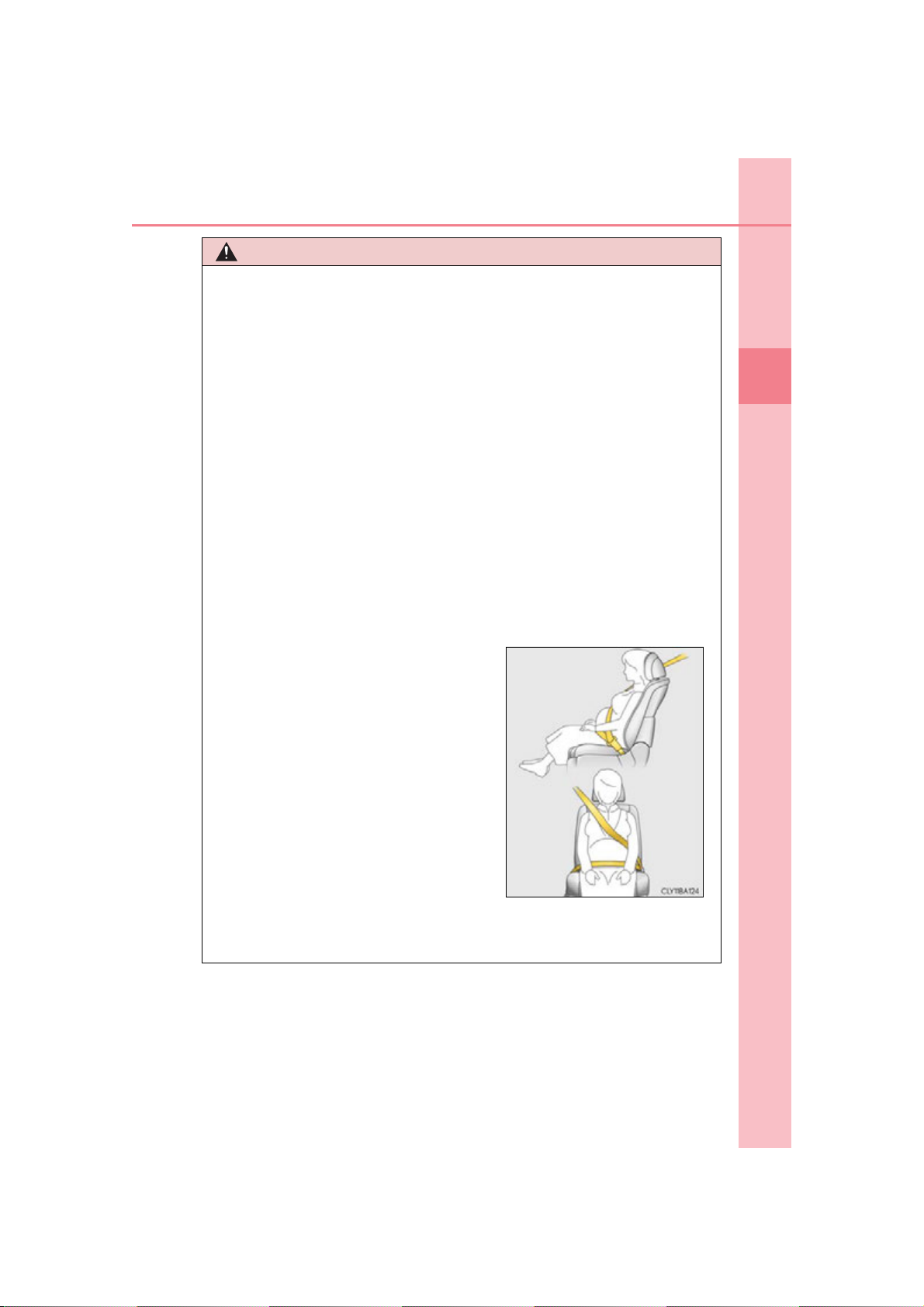

Obtain medical advice and wear the seat
belt in the proper way. (P. 3 8)
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants,
extending the shoulder belt completely over
the shoulder and avoiding belt contact with
the rounding of the abdominal area.
If the seat belt is not worn properly, not only
the pregnant woman, but also the fetus could
suffer death or serious injury as a result of
sudden braking or a collision.
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
● Lexus recommends that children be seated in the rear seat and always use a seat
belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than necessary.
The seat belt is most effective when the occupants are sitting up straight and well
back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
41
1
For safety and security
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 38)
LS460/LS460L_U (OM50D48U)
Page 42
42
CAUTION
■ When children are in the vehicle
1-1. For safe use
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■ Seat belt pretensioners
● Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the seat belt pretensioner for the
front passenger’s seat may not activate in the event of a collision.
● If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(P. 3 9)
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling may lead to incorrect operation.
LS460/LS460L_U (OM50D48U)
Page 43
1-1. For safe use
CAUTION
NOTICE
■ Using a seat belt extender
● Do not wear the seat belt extender if you can fasten the seat belt without the
extender.
● Do not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of an accident.
● The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
■ When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
43
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 44
44
1-1. For safe use

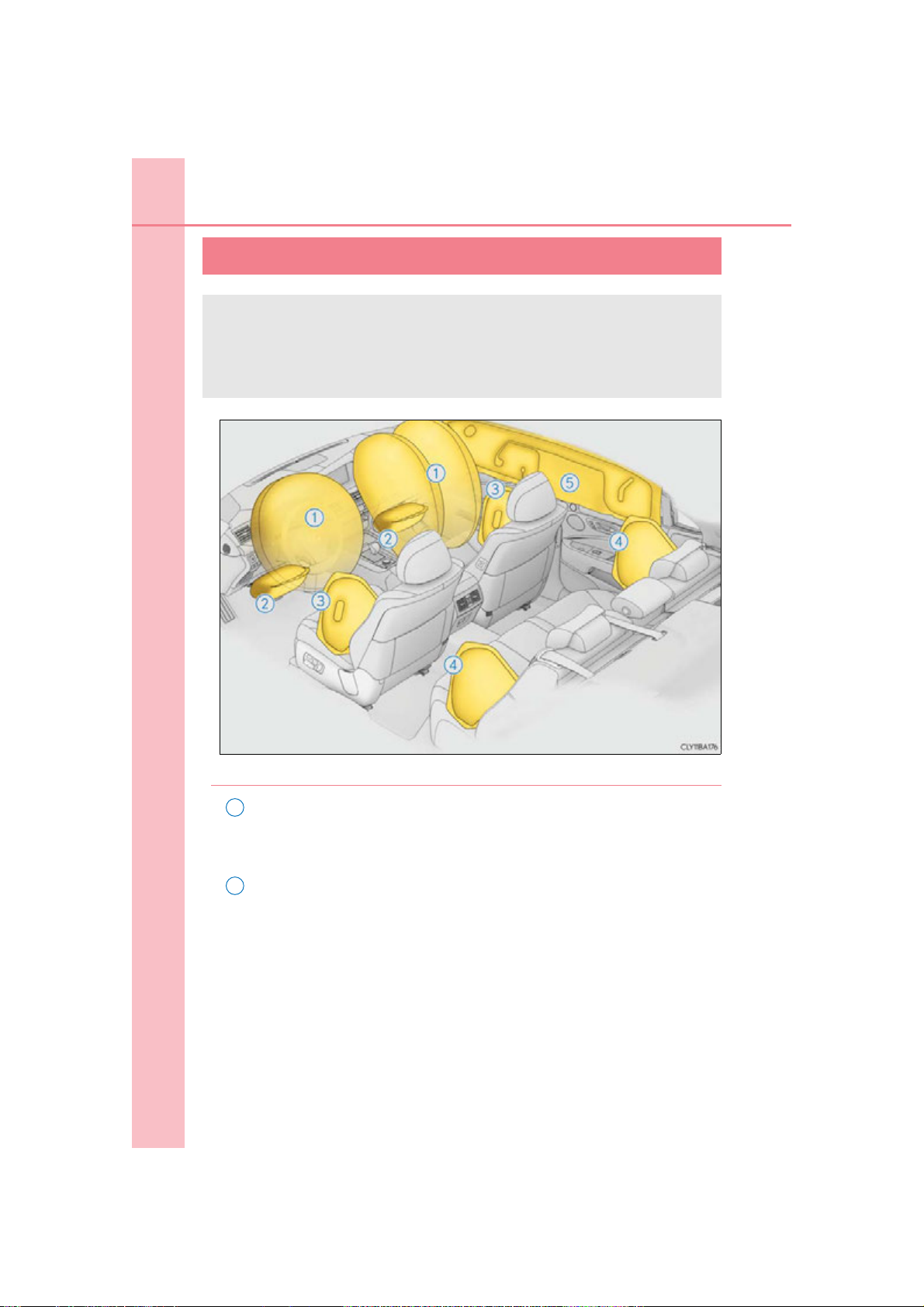

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types
of severe impacts that may cause significant injury to the occupants.
They work together with the seat belts to help reduce the risk of death
or serious injury.
◆ SRS front airbags
SRS driver airbag/front passenger airbag
1
Can help protect the head and chest of the driver and front passenger from impact with interior components
SRS knee airbags
2
Can help provide driver and front passenger protection
LS460/LS460L_U (OM50D48U)
Page 45
1-1. For safe use
3
◆ SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags (if equipped)
4
Can help protect the torso of occupants in the rear outer seats
SRS curtain shield airbags
5
Can help protect primarily the head of occupants in the outer seats
SRS seat cushion airbag (relaxation seat)
6
Can help restrain the relaxation seat occupant
45
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 46
46
2
1-1. For safe use

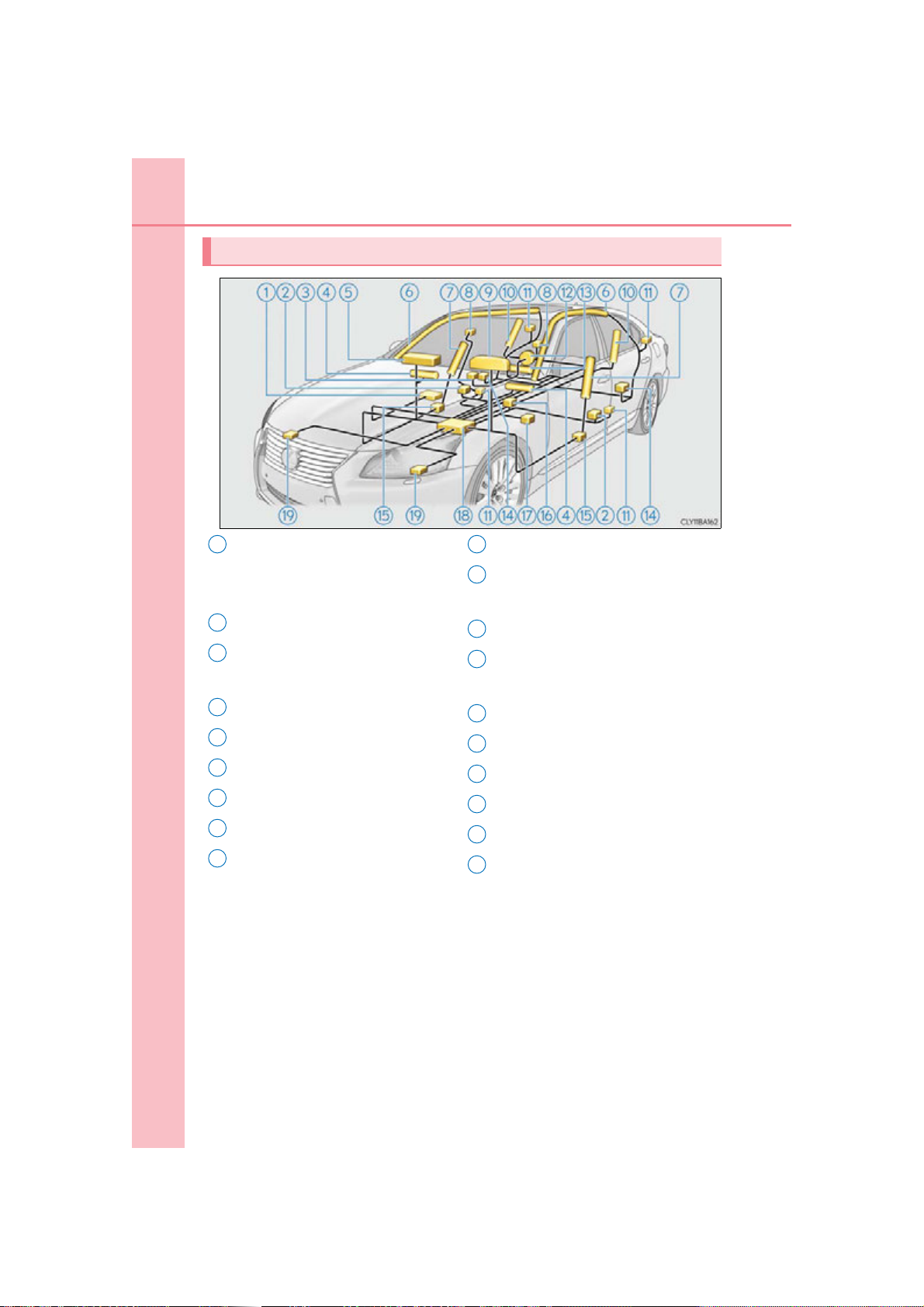

SRS airbag system components
Front passenger occupant clas-
1
sification system (ECU and sensors)
Side impact sensors (front)
“AIR BAG ON” and “AIR BAG
3
OFF” indicator lights
Knee airbags
4
Front passenger airbag
5
Curtain shield airbags
6
Front side airbags
7
Active head restraints
8
SRS warning light
9
Rear side airbags (if equipped)
10
Seat belt pretensioners and
11
force limiters
Driver airbag
12
Seat cushion airbag
13
(if equipped)
Side impact sensors (rear)
14
Side impact sensors (front door)
15
Driver’s seat belt buckle switch
16
Driver’s seat position sensor
17
Airbag sensor assembly
18
Front impact sensors
19
LS460/LS460L_U (OM50D48U)
Page 47
1-1. For safe use
CAUTION
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU) controls airbag deployment based on information
obtained from the sensors etc. shown in the system components diagram
above. This information includes crash severity and occupant information.
As the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occupants.
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 10 in. (250 mm) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals, steering wheel, and your view of the
instrument panel controls.
47
1
For safety and security
LS460/LS460L_U (OM50D48U)

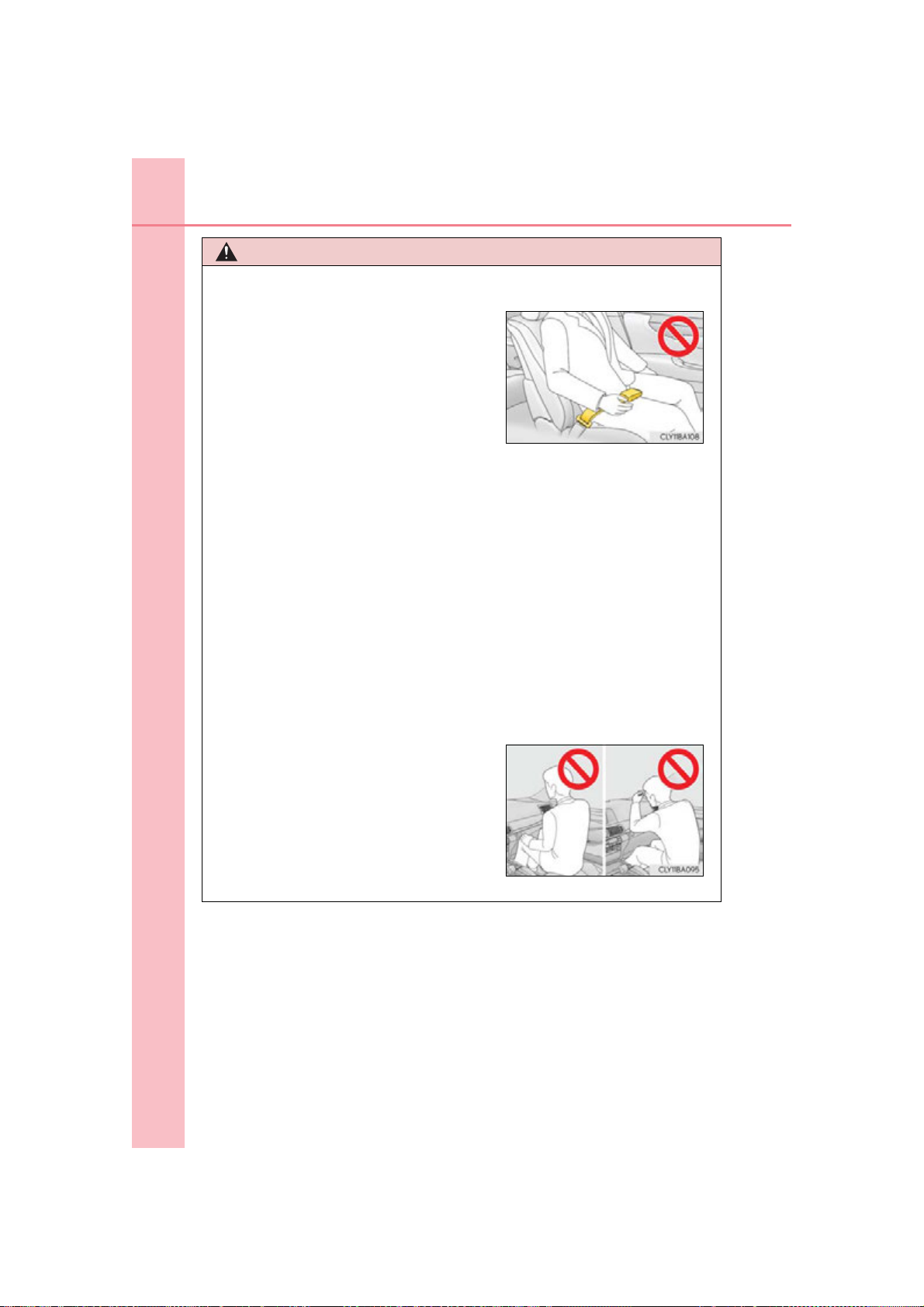

Page 48
48
CAUTION
● If the seat belt extender has been con-
nected to the front seat belt buckle but the
seat belt extender has not also been fastened to the latch plate of the seat belt, the
SRS front airbags will judge that the driver
and front passenger are wearing the seat
belt even though the seat belt has not been
connected. In this case, the SRS front airbags may not activate correctly in a collision, resulting in death or serious injury in
the event of a collision. Be sure to wear the
seat belt with the seat belt extender.
● Do not sit on the edge of the seat or lean
against the dashboard.
■ SRS airbag precautions
1-1. For safe use
● The SRS front passenger airbag also deploys with considerable force, and can
cause death or serious injury especially if the front passenger is very close to the
airbag. The front passenger seat should be as far from the airbag as possible with
the seatback adjusted, so the front passenger sits upright.
● Improperly seated and/or restrained infants and children can be killed or seri-
ously injured by a deploying airbag. An infant or child who is too small to use a
seat belt should be properly secured using a child restraint system. Lexus strongly
recommends that all infants and children be placed in the rear seats of the vehicle
and properly restrained. The rear seats are safer for infants and children than the
front passenger seat. (P. 6 4)
LS460/LS460L_U (OM50D48U)
Page 49

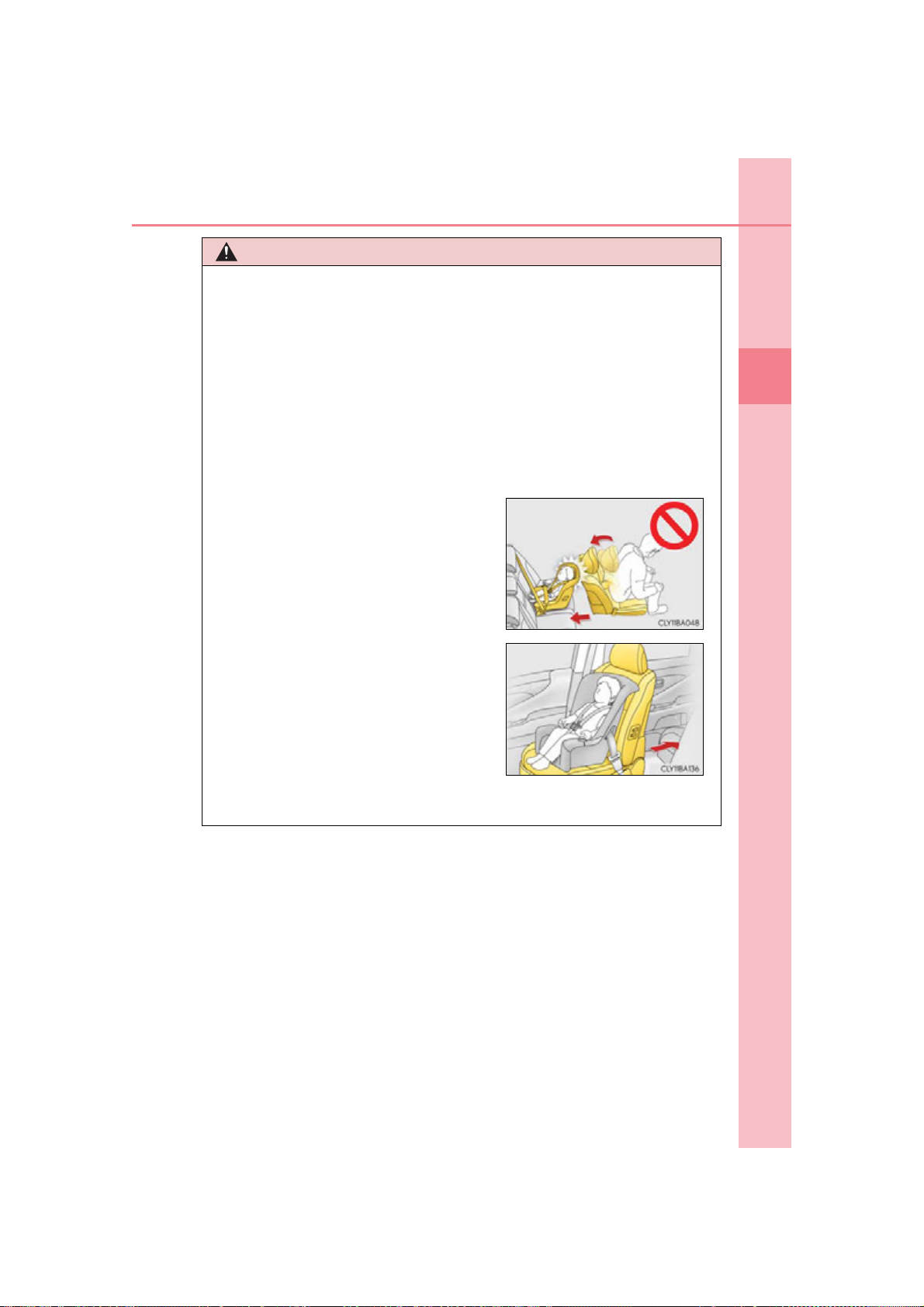

CAUTION

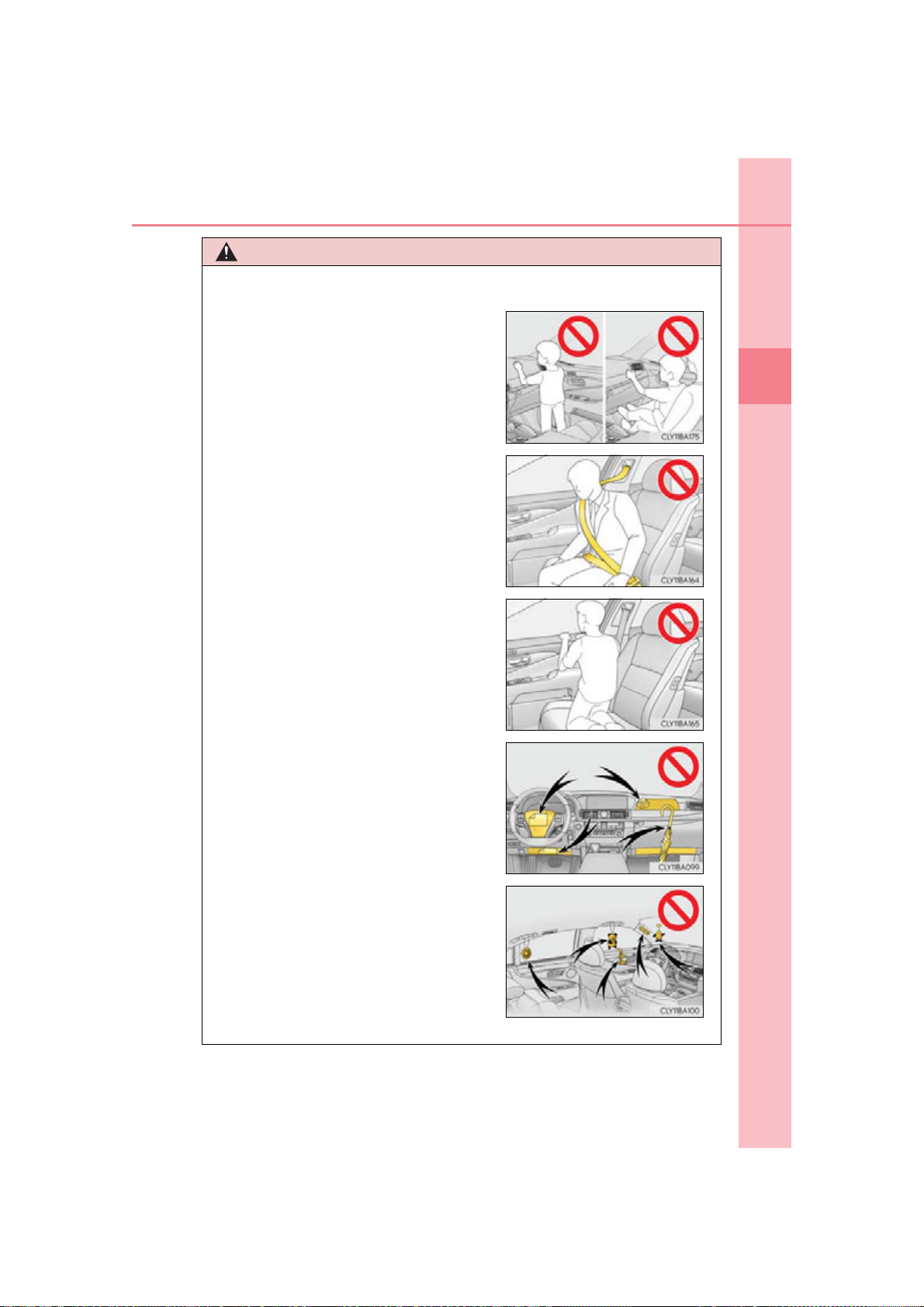

■ SRS airbag precautions
● Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on
the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof side
rail or the front, side and rear pillars.
● Do not allow anyone to kneel on the pas-
senger seats toward the door or put their
head or hands outside the vehicle.
● Do not attach anything to or lean anything
against areas such as the dashboard, steering wheel pad and lower portion of the
instrument panel.
These items can become projectiles when
the SRS driver, front passenger and knee
airbags deploy.
● Do not attach anything to areas such as a
door, windshield glass, side door glass, front
and rear pillar, roof side rail and assist grip.
1-1. For safe use
49
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 50
50
CAUTION
■ SRS airbag precautions
1-1. For safe use
● Do not hang coat hangers or hard objects on the coat hooks. All of these items
could become projectiles and may cause death or serious injury, should the SRS
curtain shield airbags deploy.
● If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
● Do not use seat accessories which cover the parts where the SRS side airbags
and SRS seat cushion airbag inflate as they may interfere with inflation of the SRS
airbags. Such accessories may prevent the side airbags and seat cushion airbag
from activating correctly, disable the system or cause the side airbags and seat
cushion airbag to inflate accidentally, resulting in death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS airbag
components. Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes are damaged or cracked, have them replaced by
your Lexus dealer.
● Do not place anything, such as a cushion, on the front passenger's seat. Doing so
will disperse the passenger's weight, which prevents the sensor from detecting
the passenger's weight properly. As a result, the SRS front passenger airbag may
not deploy in the event of a collision.
LS460/LS460L_U (OM50D48U)
Page 51
1-1. For safe use
CAUTION
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without consulting your Lexus dealer. The SRS airbags may malfunction or deploy
(inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rails
● Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows, winches
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios and CD players
● Modifications to your vehicle for a person with a physical disability
51
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 52
52
■ If the SRS airbags deploy (inflate)
● Bruising and slight abrasions may result from contact with a deploying (inflating)
1-1. For safe use
SRS airbag.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as
the seats, parts of the front and rear pillars, and roof side rails may be hot for several
minutes. The airbag itself may also be hot.
● The windshield may crack.
● For Safety Connect subscribers, if the SRS airbags deploy or in the event of a
severe rear-end collision, the system is designed to send an emergency call to the
response center, notifying them of the vehicle’s location (without needing to push
the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistance required. If the occupants are unable to
communicate, the agent automatically treats the call as an emergency and helps to
dispatch the necessary emergency services. (P. 71 5)
■ SRS airbag deployment conditions (SRS front airbags and SRS seat cushion air-
bag)
● The SRS front airbags and SRS seat cushion airbag will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding to an
approximately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that
does not move or deform).
However, this threshold velocity will be considerably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
● Depending on the type of collision, it is possible that only the seat belt pretension-
ers will activate.
● The SRS front airbags for the front passenger will not activate if there is no passen-
ger sitting in the front passenger seat. However, the SRS front airbags for the front
passenger may deploy if luggage is put in the seat, even if the seat is unoccupied.
(P. 57 )
LS460/LS460L_U (OM50D48U)
Page 53
1-1. For safe use
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an impact that
53
exceeds the set threshold level (the level of force corresponding to the impact
force produced by an approximately 3300 lb. [1500 kg] vehicle colliding with the
vehicle cabin from a direction perpendicular to the vehicle orientation at an
app roximate speed of 12 - 18 mph [20 - 30 km/h]).
● The SRS curtain shield airbags may also deploy in the event of a severe frontal colli-
sion.
■ Conditions under which the SRS airbags may deploy (inflate), other than a collision
(SRS front airbags, SRS curtain shield airbag and SRS seat cushion airbag)
The SRS front airbags, SRS curtain shield airbag and SRS seat cushion airbag may
also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
1
For safety and security
■ Types of collisions that may not deploy the SRS airbags (SRS front airbags and SRS
seat cushion airbag)
The SRS front airbags and SRS seat cushion airbag do not generally inflate if the
vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a lowspeed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags and SRS seat
cushion airbag may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
LS460/LS460L_U (OM50D48U)
Page 54
54

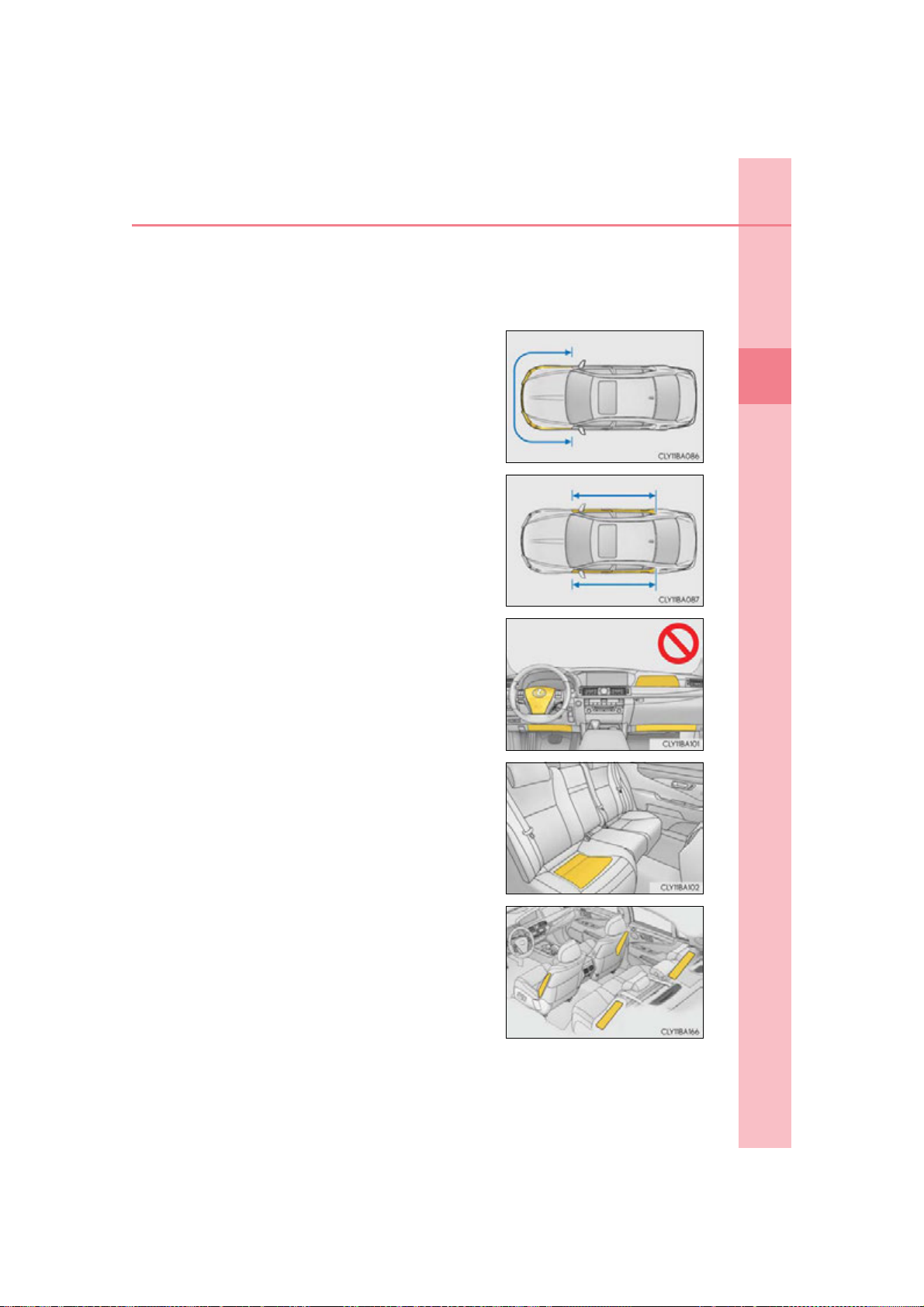

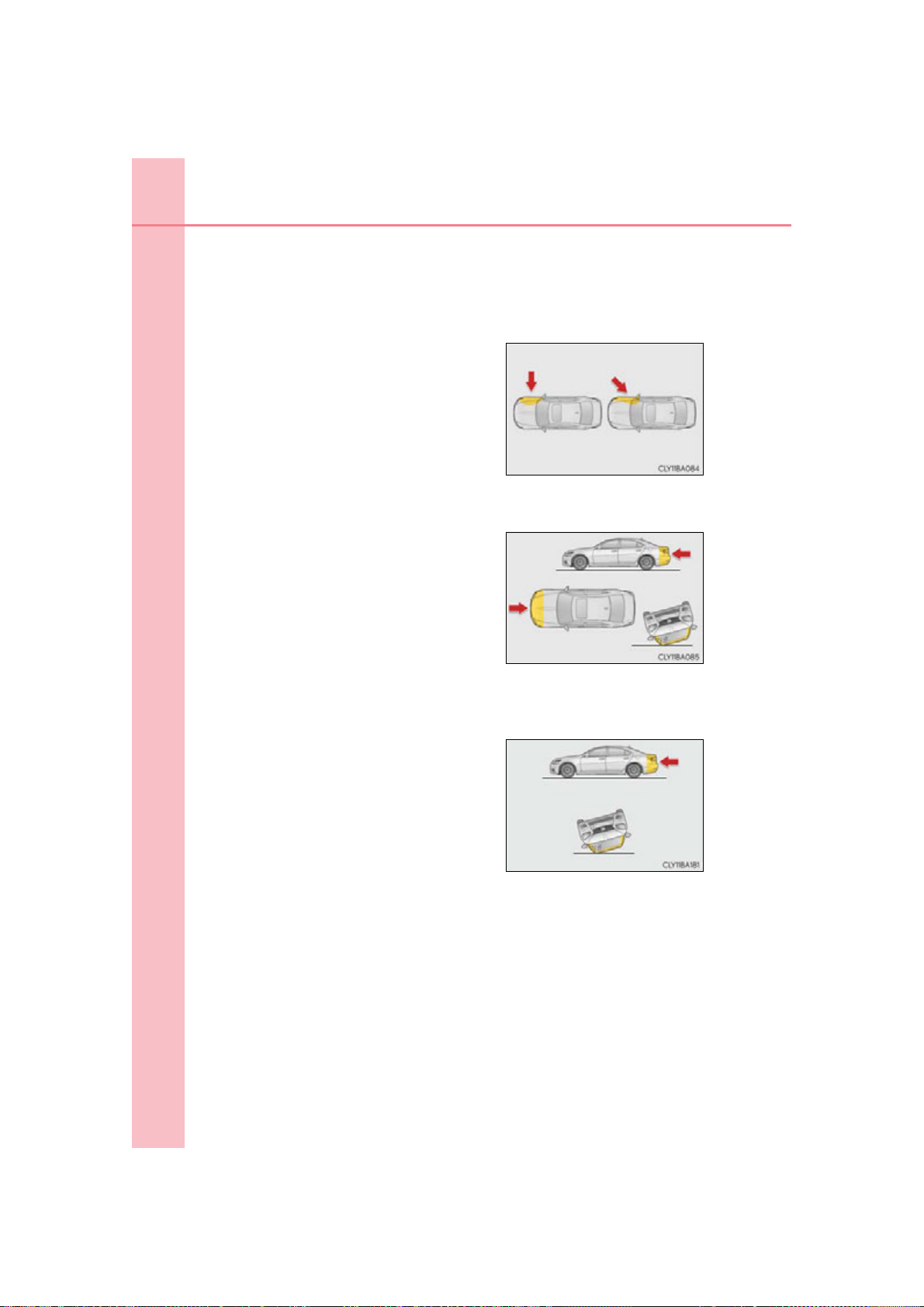

■ Types of collisions that may not deploy the SRS airbags (SRS side and SRS curtain
1-1. For safe use
shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is subjected to
a collision from the side at certain angles, or a collision to the side of the vehicle body
other than the passenger compartment.
● Collision from the side to the vehicle body
other than the passenger compartment
● Collision from the side at an angle
The SRS side airbags do not generally inflate if the vehicle is involved in a frontal or
rear collision, if it rolls over, or if it is involved in a low-speed side collision.
● Collision from the front
● Collision from the rear
● Vehicle rollover
The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a
rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal
collision.
● Collision from the rear
● Vehicle rollover
LS460/LS460L_U (OM50D48U)
Page 55
1-1. For safe use
■ When to contact your Lexus dealer
In the following cases, the vehicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS airbags to inflate.
● A portion of a door is damaged or
deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side and curtain shield airbags to inflate.
● The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.
55
1
For safety and security
● Relaxation seat: The seat cushion surface is
scratched, cracked, or otherwise damaged.
● The surface of the seats with the side airbag
is scratched, cracked, or otherwise damaged.
LS460/LS460L_U (OM50D48U)
Page 56
56

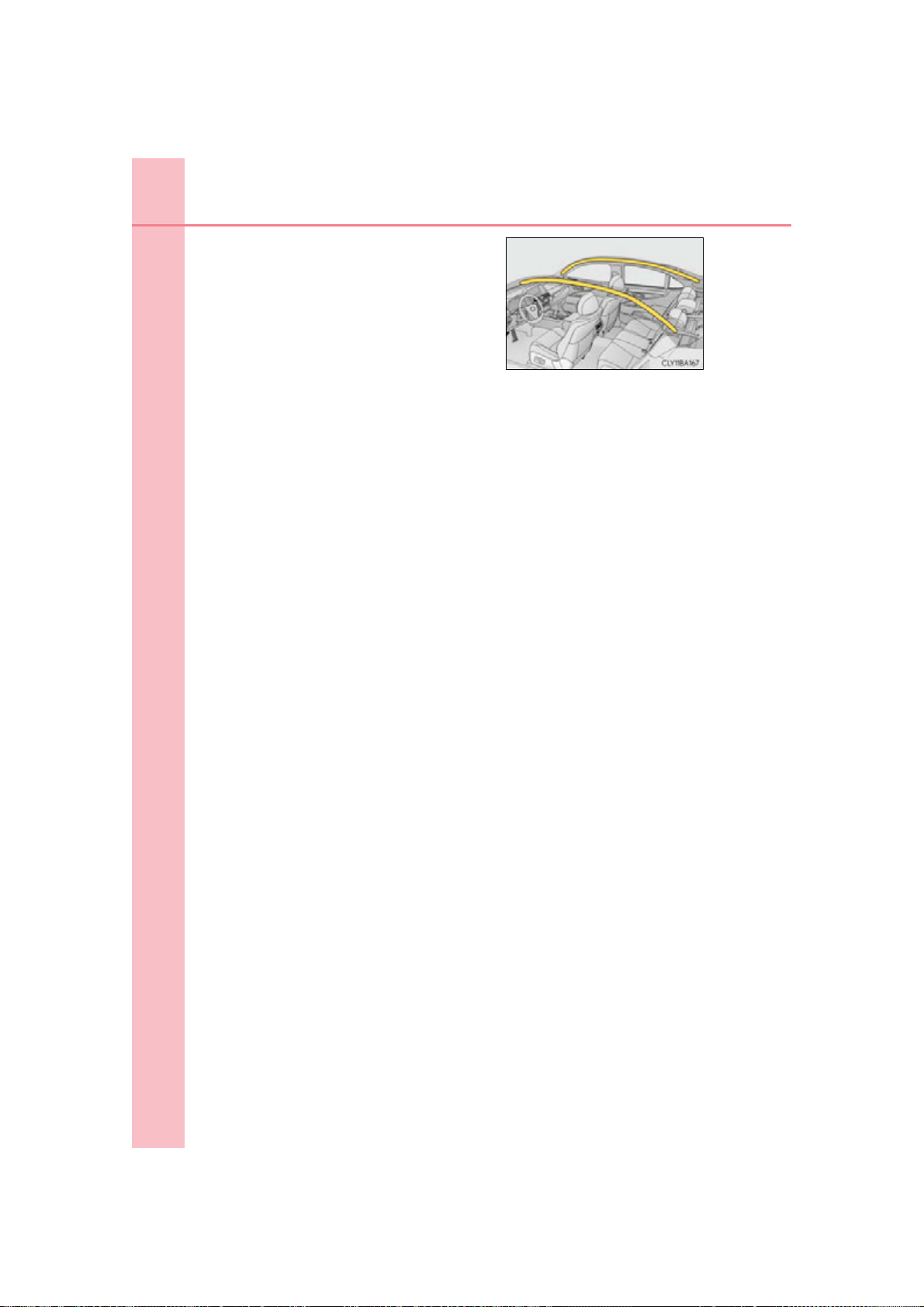

● The portion of the front pillars, rear pillars or
1-1. For safe use
roof side rail garnishes (padding) containing
the curtain shield airbags inside is scratched,
cracked, or otherwise damaged.
LS460/LS460L_U (OM50D48U)
Page 57
1-1. For safe use

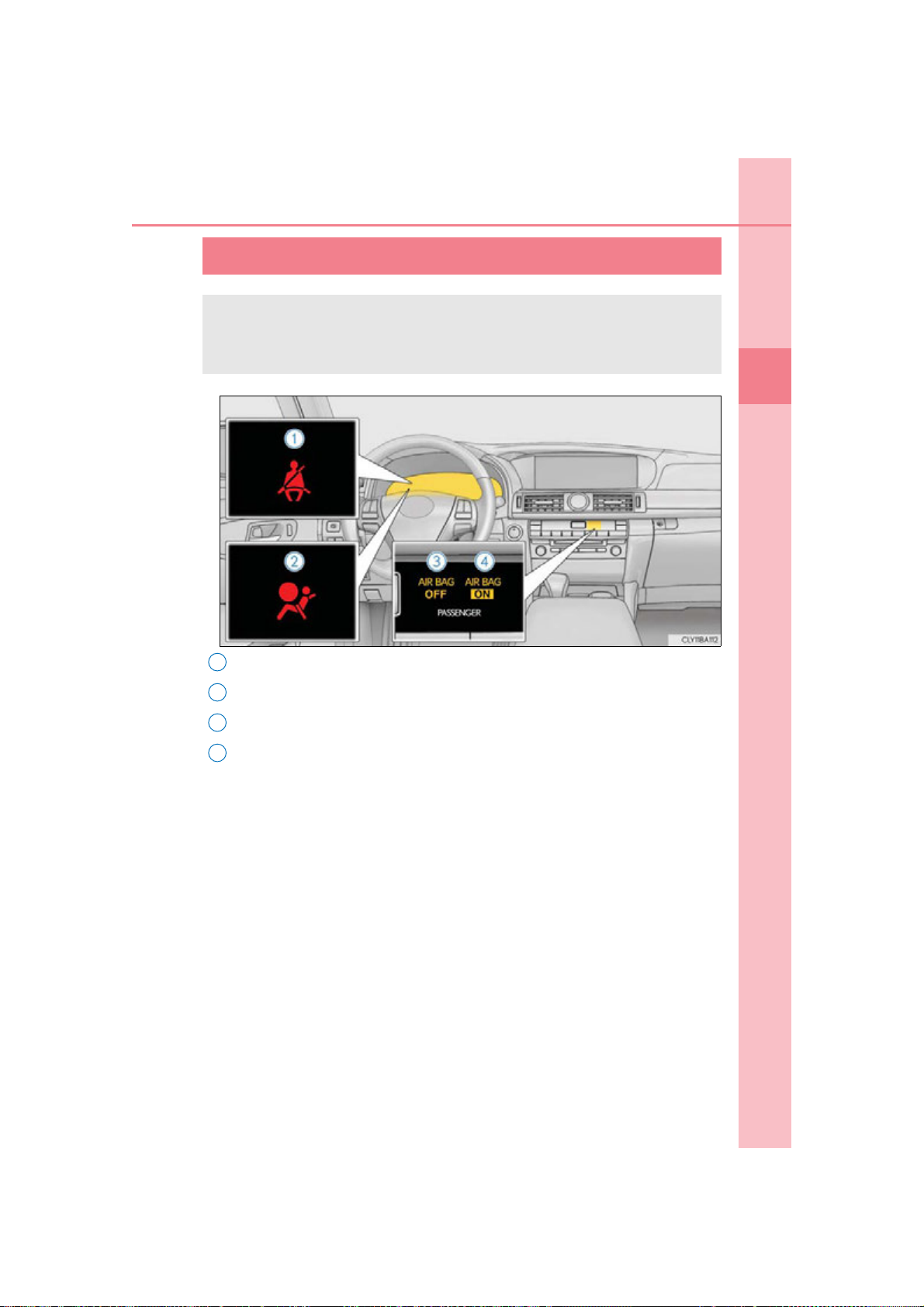

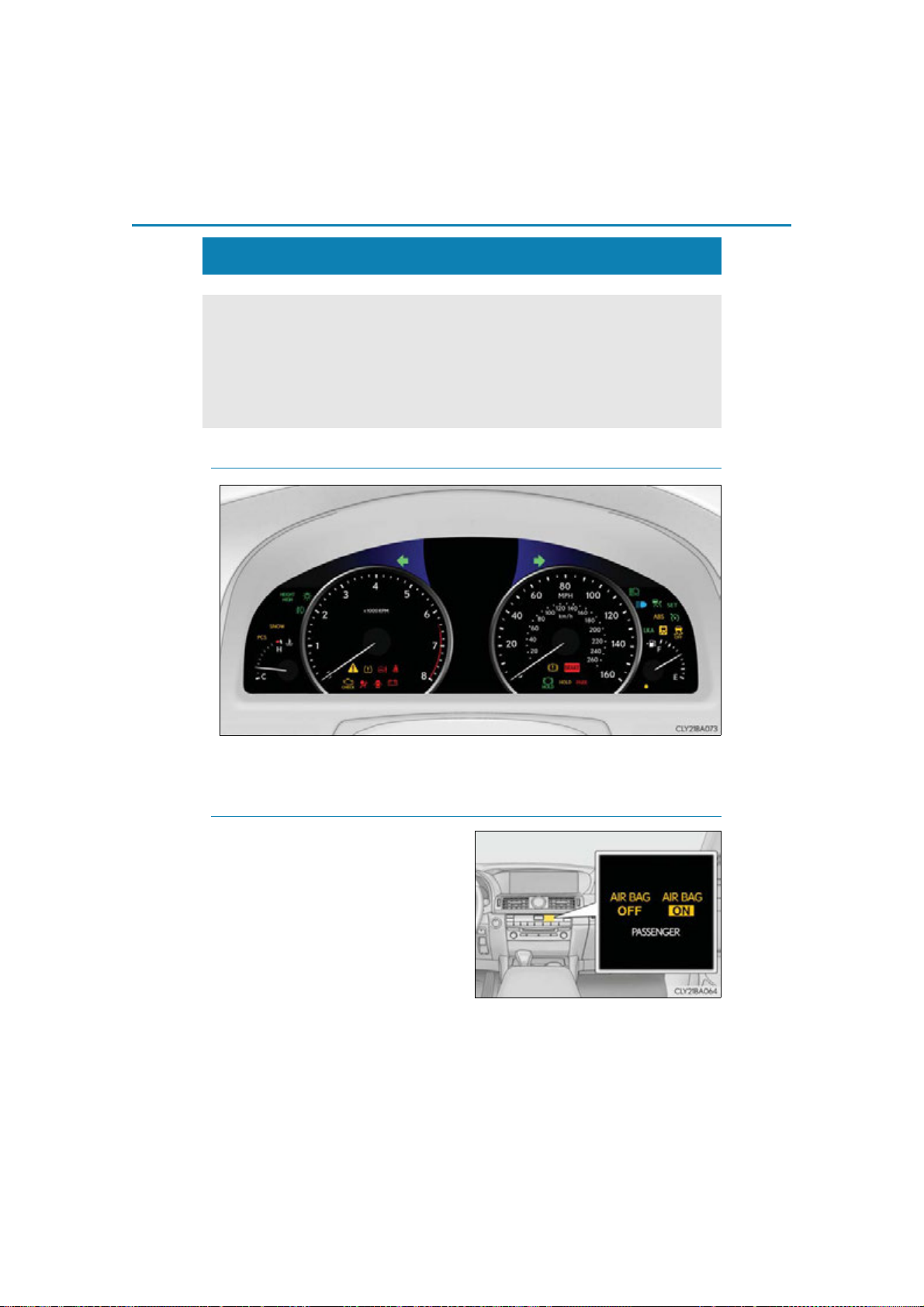

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification
system. This system detects the conditions of the front passenger seat
and activates or deactivates the devices for the front passenger.
57
1
For safety and security
Seat belt reminder light
1
SRS warning light
2
“AIR BAG OFF” indicator light
3
“AIR BAG ON” indicator light
4
LS460/LS460L_U (OM50D48U)
Page 58
58
1-1. For safe use
Condition and operation in the front passenger occupant classification system
■ Adult*
1
Indicator/
warning light
Devices
■ Child*
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
SRS warning light Off
Front passenger’s seat belt reminder light Flashing*
Front passenger airbag
Side airbag on the right side
passenger seats
Curtain shield airbag in the front
passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Active head restraints
3
or child restraint system*
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
SRS warning light Off
Front passenger’s seat belt reminder light Flashing*
“A I R B A G O N ”
2
Activated
4
“A I R B A G
OFF”
5
*
2
Curtain shield airbag in the front
Devices
Front passenger’s seat belt pretensioner
LS460/LS460L_U (OM50D48U)
Front passenger airbag Deactivated
Side airbag on the right side
passenger seats
Activated
passenger side
Front passenger knee airbag Deactivated
Activated
Active head restraints
Page 59
■ Unoccupied
1-1. For safe use
59
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Indicator/
warning light
SRS warning light
Front passenger’s seat belt reminder light
Front passenger airbag Deactivated
Side airbag on the right side
passenger seats
Curtain shield airbag in the front
passenger side
Devices
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner
Active head restraints
■ There is a malfunction in the system
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
Indicator/
warning light
SRS warning light On
Not illuminated
Off
Activated
Deactivated
or
6
activated
*
Deactivated
“AIR BAG OFF”
1
For safety and security
Front passenger’s seat belt reminder light Off
Curtain shield airbag in the front
Devices
Front passenger’s seat belt pretensioner
LS460/LS460L_U (OM50D48U)
Front passenger airbag Deactivated
Side airbag on the right side
passenger seats
Activated
passenger side
Front passenger knee airbag Deactivated
Activated
Active head restraints
Page 60
60
1-1. For safe use
1
*
: The system judges a person of adult size as an adult. When a smaller adult sits
in the front passenger seat, the system may recognize him/her as a child
depending on his/her physique and posture.
2
*
: In the event the front passenger does not wear a seat belt
3
*
: When a larger child who has outgrown a child restraint system sits in the front
passenger seat, the system may recognize him/her as an adult depending on
his/her physique or posture.
4
*
: Never install a rear-facing child restraint system on the front passenger seat. A
forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable. (P. 64 )
5
*
: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. (P. 68 )
6
*
: Activated only in cases of side impact
LS460/LS460L_U (OM50D48U)
Page 61
1-1. For safe use
CAUTION
■ Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.
● Make sure the “AIR BAG OFF” indicator light is not illuminated when using the
seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle,
then reconnect the seat belt. Reconnect the seat belt extender after making sure
the “AIR BAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIR BAG OFF” indicator light is illuminated, the SRS airbags for the
passenger may not activate correctly, which could cause death or serious injury
in the event of a collision.
● Do not apply a heavy load to the front passenger seat or equipment (e.g. seat-
back pockets or armrest).
● Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the rear passenger seat.
● Do not let a rear passenger lift the front passenger seat with their feet or press on
the seatback with their legs.
● Do not put objects under the front passenger seat.
61
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 62
62
CAUTION
■ Front passenger occupant classification system precautions
1-1. For safe use
● Do not recline the front passenger seatback so far that it touches a rear seat. This
may cause the “AIR BAG OFF” indicator light to be illuminated, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear seat, return the seatback to a position where it does
not touch the rear seat. Keep the front passenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
● If an adult sits in the front passenger seat, the “AIR BAG ON” indicator light is illu-
minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If the “AIR BAG OFF” indicator still remains illuminated, either ask the passenger to move to the rear seat, or if that is not possible, move the front passenger
seat fully rearward.
● When it is unavoidable to install a forward-facing child restraint system on the
front passenger seat, install the child restraint system on the front passenger seat
in the proper order. (P. 68 )
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction of the detection system. In this case, contact your Lexus dealer immediately.
● Child restraint systems installed on the rear seat should not contact the front seat-
backs.
● Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.
● Do not modify or replace the upholstery of the front seat.
LS460/LS460L_U (OM50D48U)
Page 63
1-1. For safe use
CAUTION
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt.
●
It is recommended that children sit in the rear seats to avoid accidental
contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the power
window accidentally.
● Do not let small children operate equipment which may catch or pinch
body parts, such as the power window, hood, trunk, seats etc.
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.
63
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 64
64
1-1. For safe use
Child restraint systems
A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use
of child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is much
safer than installing one on the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appropri-
ate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual. (P. 6 8)
LS460/LS460L_U (OM50D48U)
Page 65
1-1. For safe use
Types of child restraints
Child restraint systems are classified into the following 3 types according
to the age and size of the child:
65
Rear facing Infant seat/con-
vertible seat
Booster seat
Forward facing Convertible
seat
1
For safety and security
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes large
enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat and use
the vehicle’s seat belt. (P. 3 8)
LS460/LS460L_U (OM50D48U)
Page 66
66
CAUTION
■ Child restraint precautions
1-1. For safe use
● For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the windshield, or between you and the vehicle’s interior.
● Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
● Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child if the rear-facing child
restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top tether
strap should not be used in the front passenger seat since there is no top tether
strap anchor for the front passenger seat. Adjust the seatback as upright as possible and always move the seat as far back as possible even if the “AIR BAG OFF”
indicator light is illuminated, because the front passenger airbag could inflate with
considerable speed and force. Otherwise, the child may be killed or seriously
injured.
● Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of an accident.
● Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and curtain shield
airbags inflate, and the impact could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.
LS460/LS460L_U (OM50D48U)
Page 67
1-1. For safe use
CAUTION
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.
● If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk. This will prevent it from injuring passengers in the
event of a sudden stop or accident.
67
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 68
68
1-1. For safe use

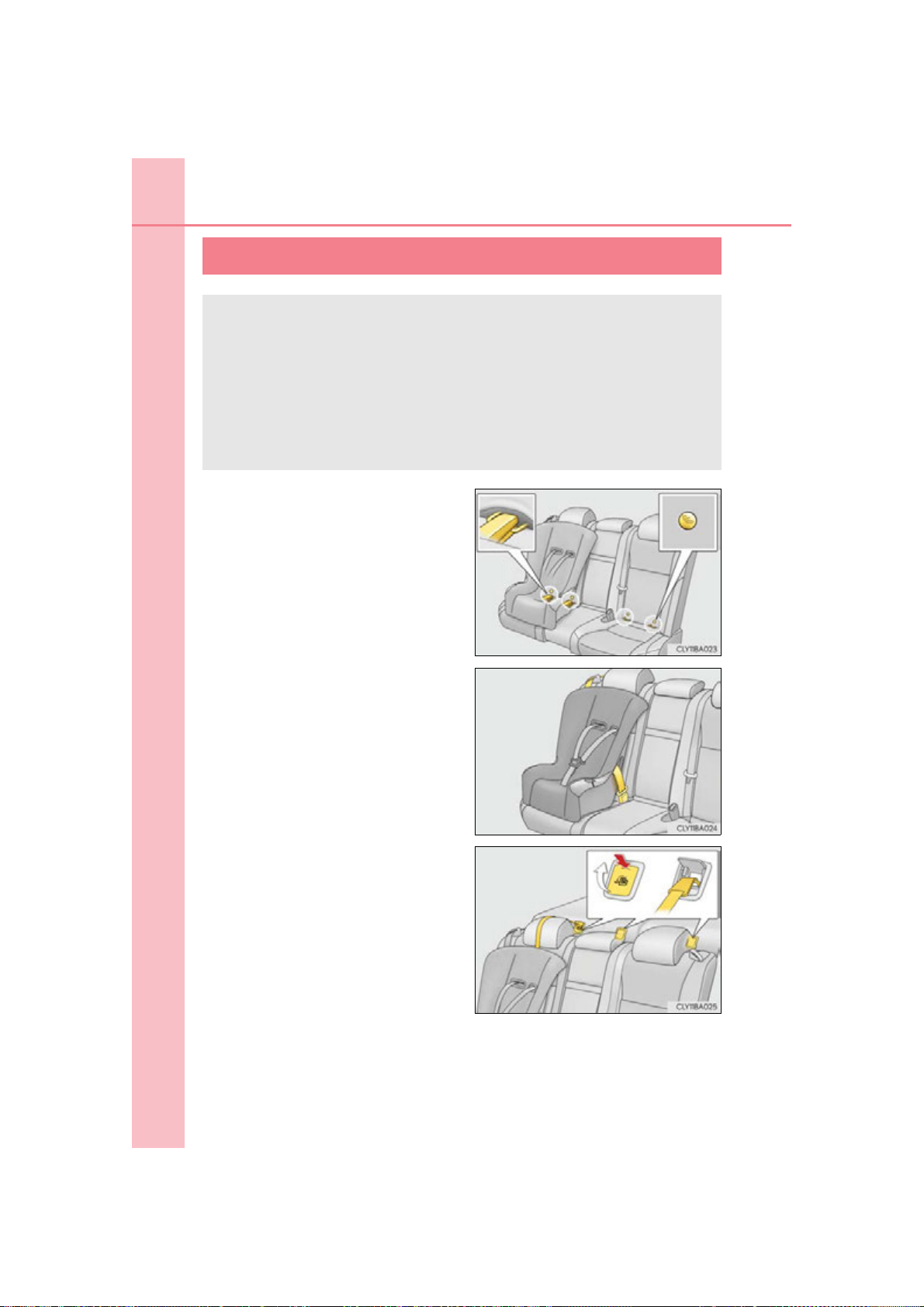

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the outer rear seats using the LATCH anchors
or a seat belt. Attach the top tether strap when installing a child
restraint.
The lap/shoulder belt can be used if your child restraint system is not
compatible with the LATCH (Lower Anchors and Tethers for Children)
system.

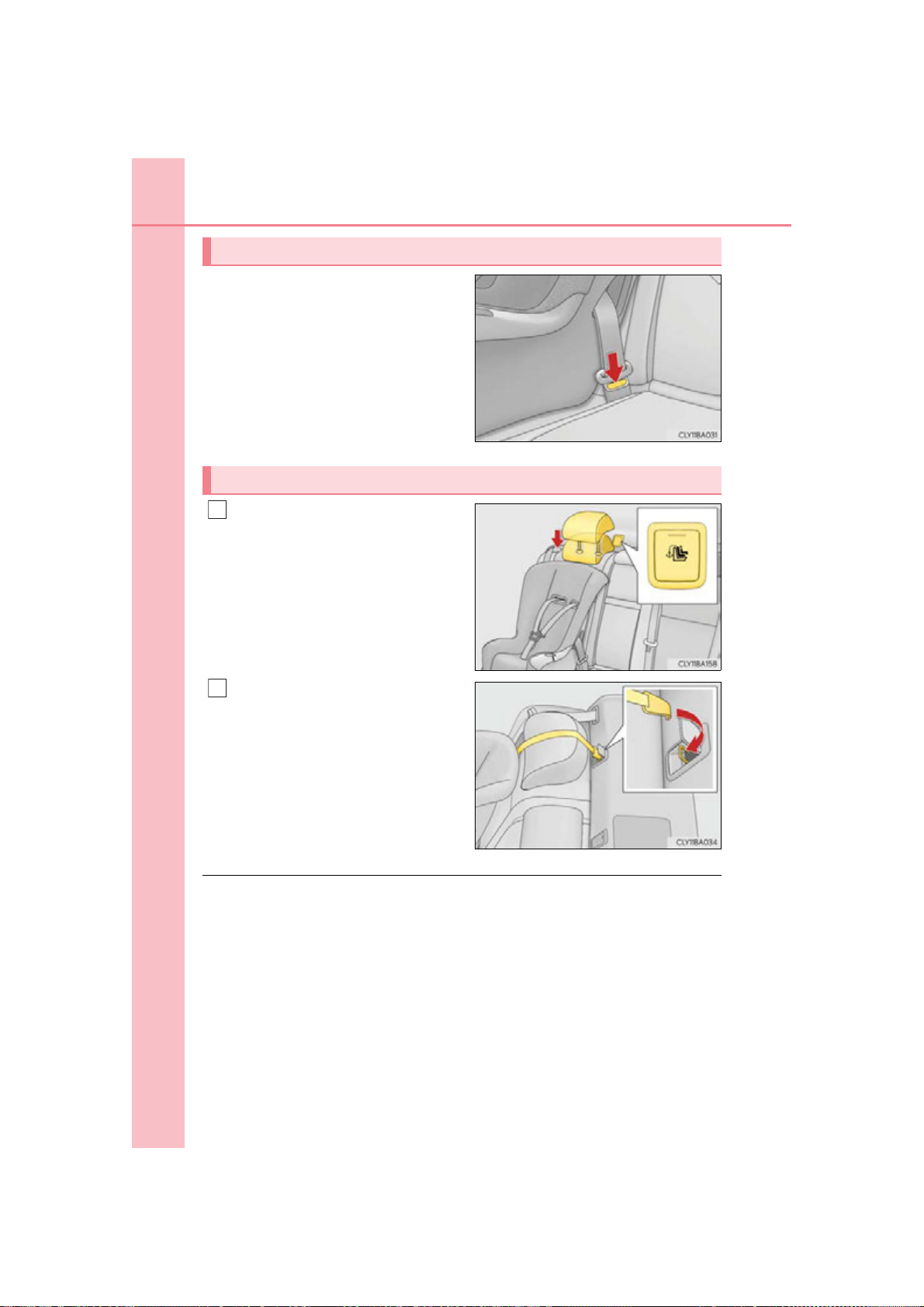

Child restraint LATCH anchors
LATCH anchors are provided for the
outer rear seats. (Buttons displaying
the location of the anchors are
attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism (ALR/
ELR belts except driver’s seat belt)
(P. 4 0)
5-seat models
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
LS460/LS460L_U (OM50D48U)
Page 69
1-1. For safe use

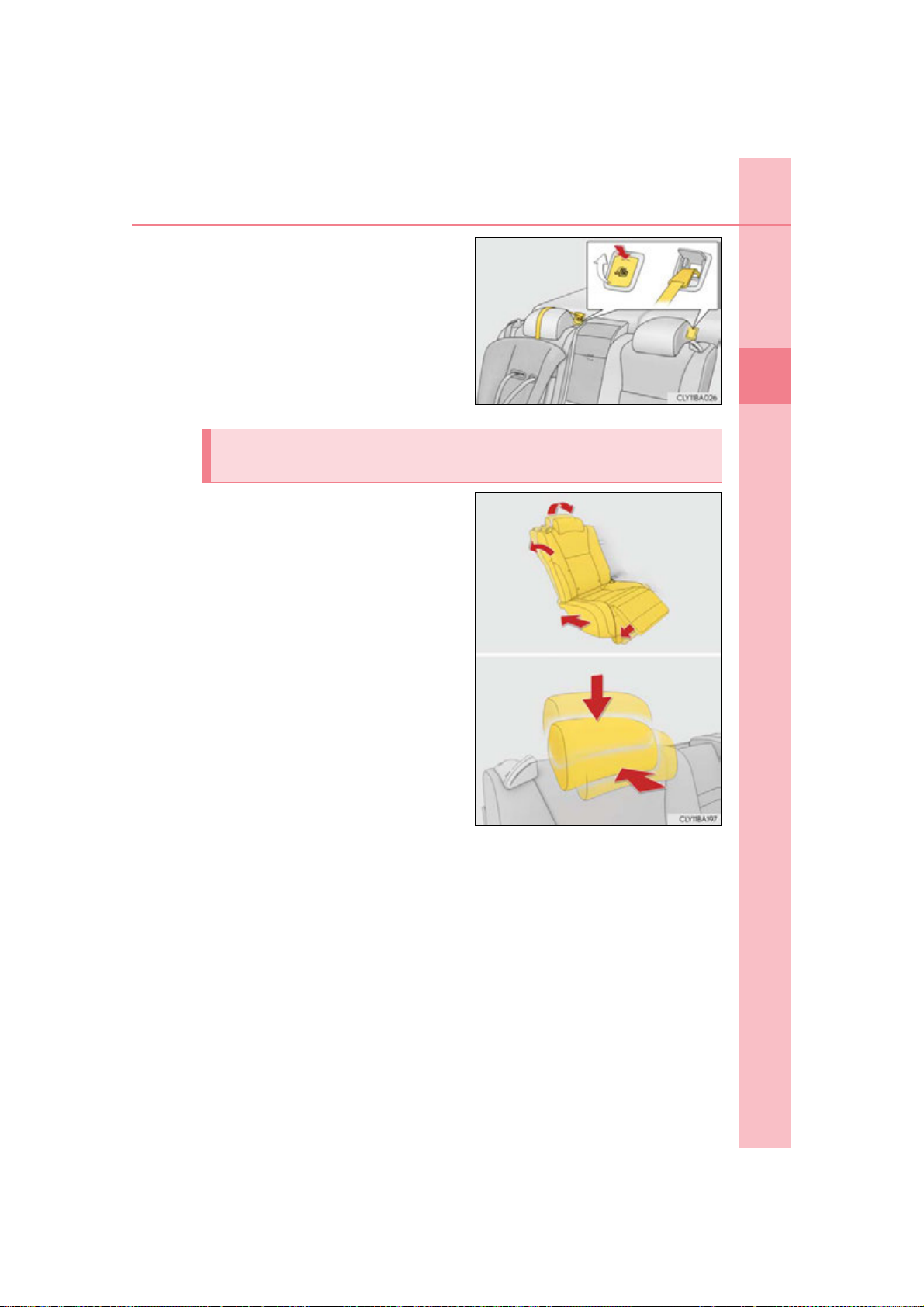

4-seat models
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
Before installing the child restraint system on an outer rear seat
(power rear seat)
When using a child restraint system
in an outer rear seat, adjust the following:
● The seat cushion to the fully rear-
ward position
● The upper seatback to the rear-
most position
69
1
For safety and security
● The head restraint to the lowest
and rearmost position
● Relaxation seat: The seatback to
the most upright position and
ottoman (footrest) to the stowed
position
LS460/LS460L_U (OM50D48U)
Page 70
70
Canada only
Canada only
1-1. For safe use

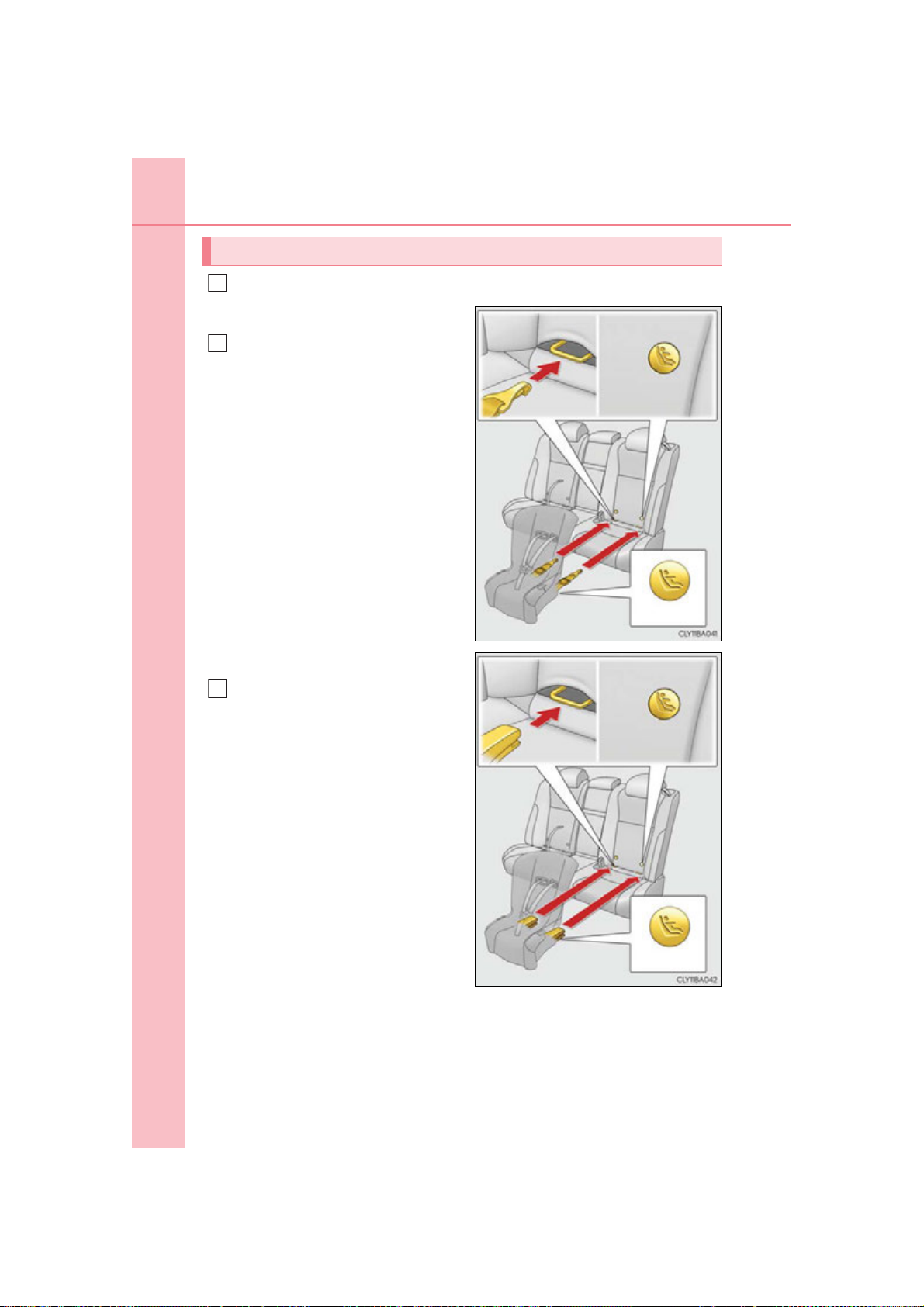

Installation with LATCH system
1
Widen the gap between the seat cushion and seatback slightly.
Ty pe A
2
Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Ty pe B
2
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
LS460/LS460L_U (OM50D48U)
Page 71
1-1. For safe use
2
Installing child restraints using a seat belt (child restraint lock
function belt)

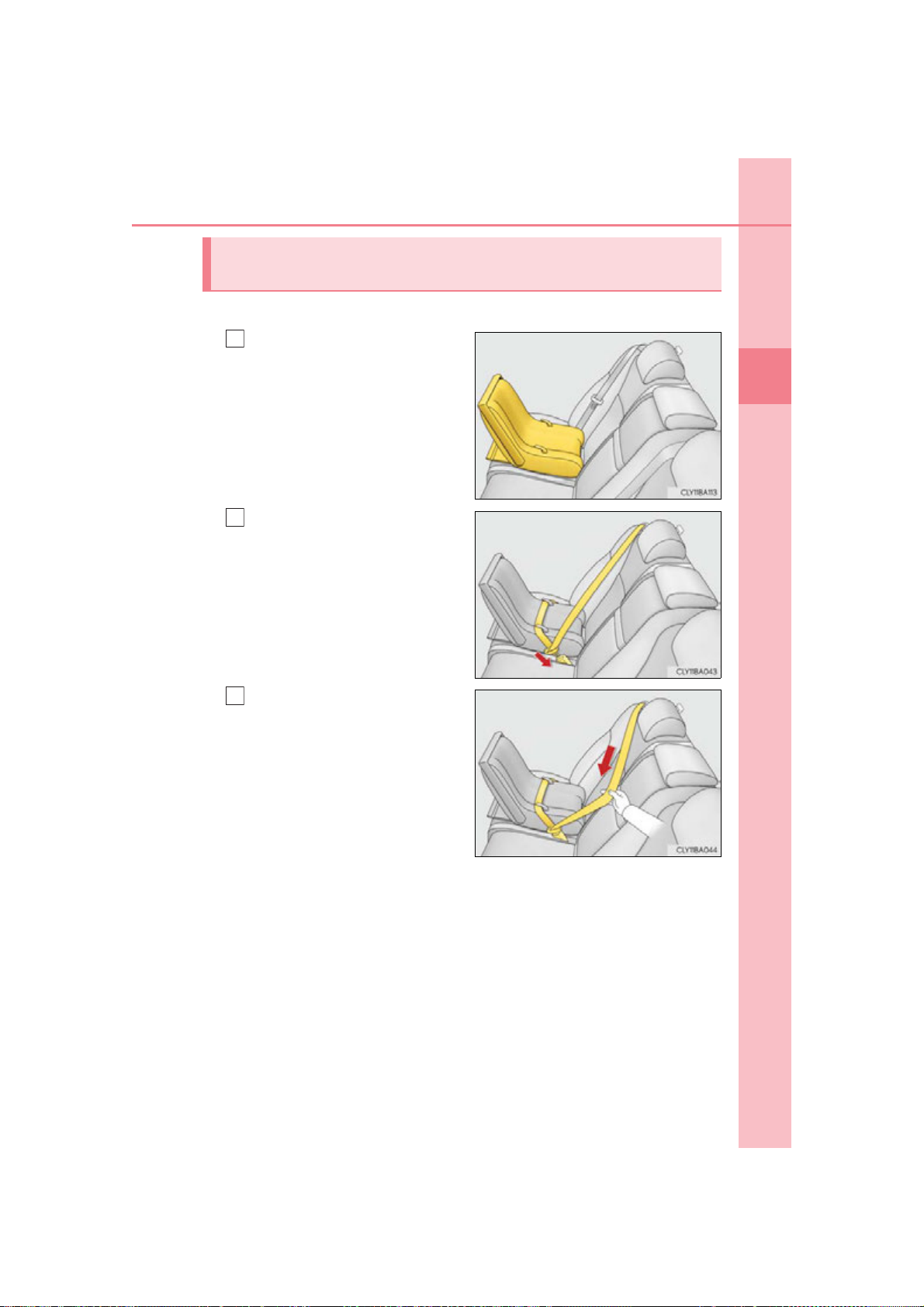

■ Rear-facing Infant seat/convertible seat
1
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
71
1
For safety and security
3
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode, the
belt cannot be extended.
LS460/LS460L_U (OM50D48U)

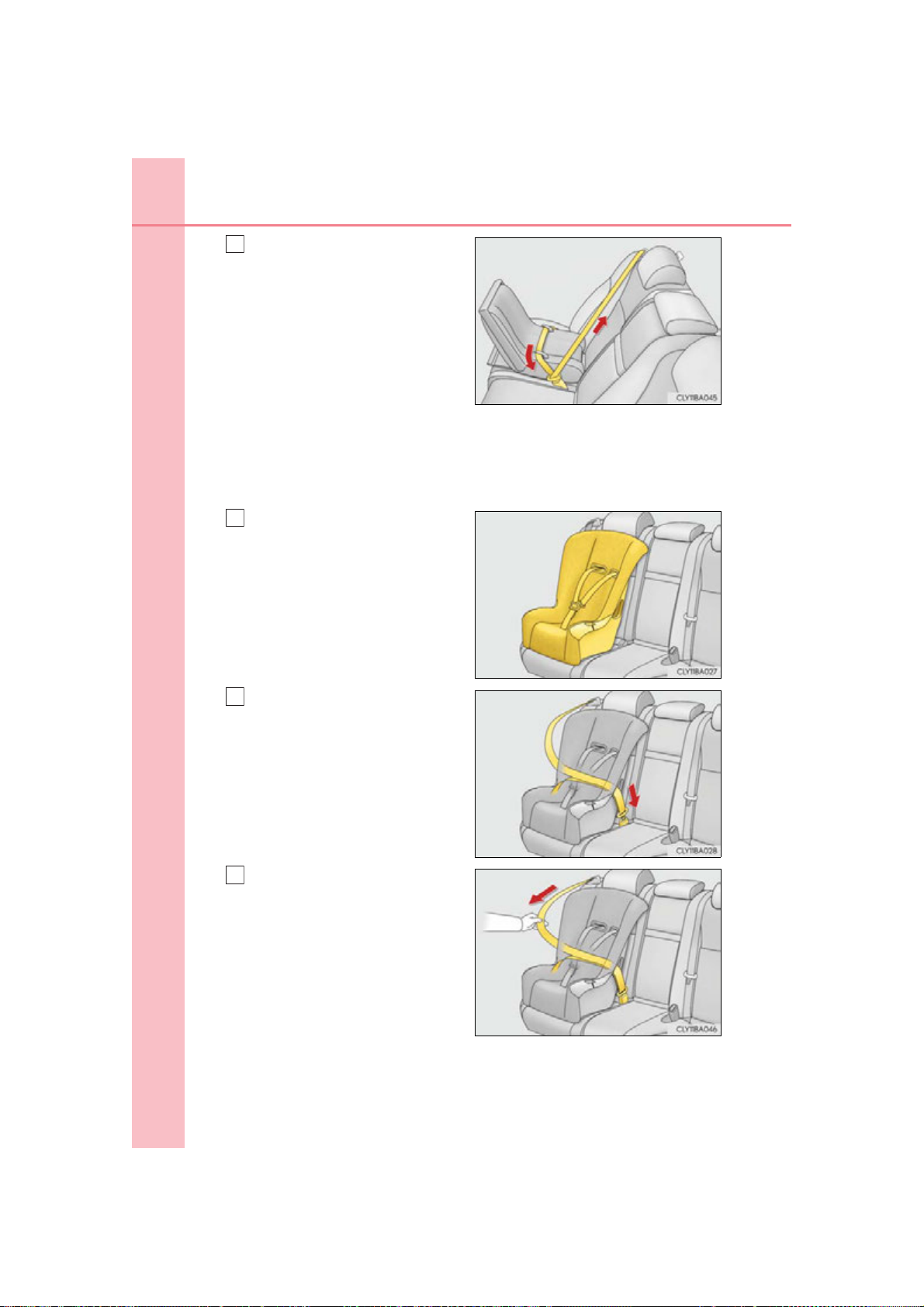

Page 72
72
4
1-1. For safe use
While pushing the child
restraint system down into the
rear seat, allow the shoulder
belt to retract until the child
restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■ Forward-facing Convertible seat
1
Place the child restraint system
on the seat facing the front of
the vehicle.
2
Run the seat belt through the
child restraint system and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
3
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode, the
belt cannot be extended.
LS460/LS460L_U (OM50D48U)

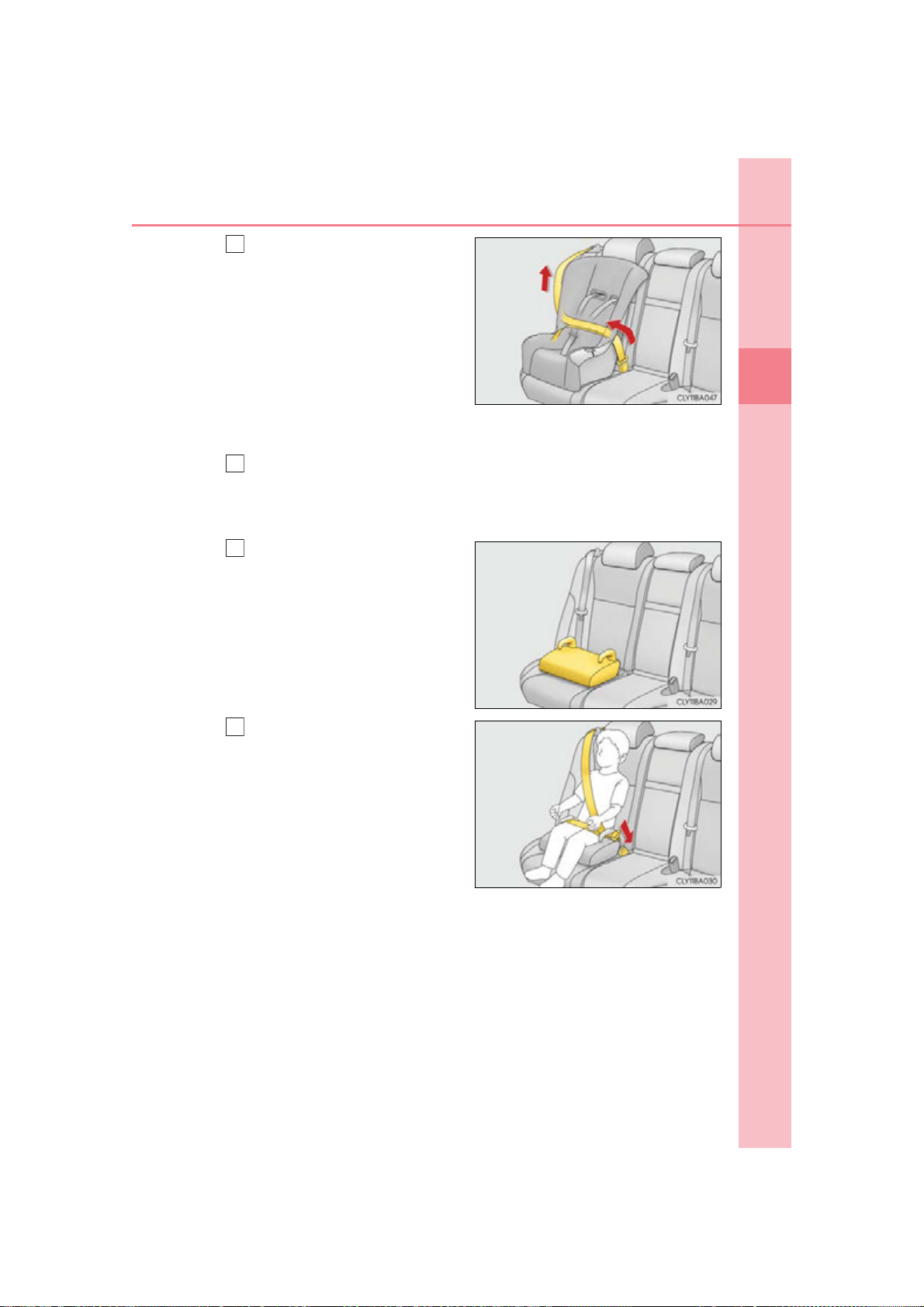

Page 73
While pushing the child
4
restraint system into the rear
seat, allow the shoulder belt to
retract until the child restraint
system is securely in place.
1-1. For safe use
73
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
5
If the child restraint has a top tether strap, the top tether strap should
be latched onto the top tether strap anchor. (P. 74)
■ Booster seat
1
Place the child restraint system
on the seat facing the front of
the vehicle.
2
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint system according to the manufacturer’s instructions and insert
the plate into the buckle. Make
sure that the belt is not twisted.
1
For safety and security
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as
low as possible. (P. 3 8)
LS460/LS460L_U (OM50D48U)
Page 74
74
2
1-1. For safe use
Removing a child restraint installed with a seat belt
Push the buckle release button and
fully retract the seat belt.
Child restraint systems with a top tether strap
1
Secure the child restraint system
using the seat belt or the LATCH
anchors and move the head
restraint to the lowest position
(outer rear seats) or fold the head
restraint (rear center seat).
(P. 164)
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
■ Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can
be used.
This vehicle is designed to conform to the SAE J1819.
LS460/LS460L_U (OM50D48U)
Page 75
1-1. For safe use
CAUTION
● If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
● Adjust the front passenger seat or rear
seats so that it does not interfere with the
child restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failure to do so may result in
death or serious injury if the airbags deploy
(inflate).
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to the child. (P. 4 0)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passengers may be seriously injured or even killed in the event of sudden braking or an
accident.
75
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 76
76
CAUTION
■ When installing a child restraint system
1-1. For safe use
● When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of an accident or sudden braking.
● When using the LATCH anchors for a child restraint system, adjust the seatback
as upright as possible.
● Ensure that the belt and plate are securely locked and the seat belt is not twisted.
● Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system manufac-
turer.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of a sudden braking, sudden
swerving or an accident.
■ To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects around
the anchors and that the seat belt is not caught behind the child restraint system.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child or other passengers in the event of sudden braking or an
accident.
LS460/LS460L_U (OM50D48U)
Page 77
1-1. For safe use
CAUTION
Exhaust gas precautions
Substances in the exhaust gases are harmful to the human body if
inhaled.
77
1
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident caused by light-headedness, or may lead to death or a serious health hazard.
■ Important points while driving
Keep the trunk lid closed.
If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop
the engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is running,
exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have
the vehicle inspected and repaired by your Lexus dealer.
For safety and security
LS460/LS460L_U (OM50D48U)
Page 78
78
1-2. Theft deterrent system

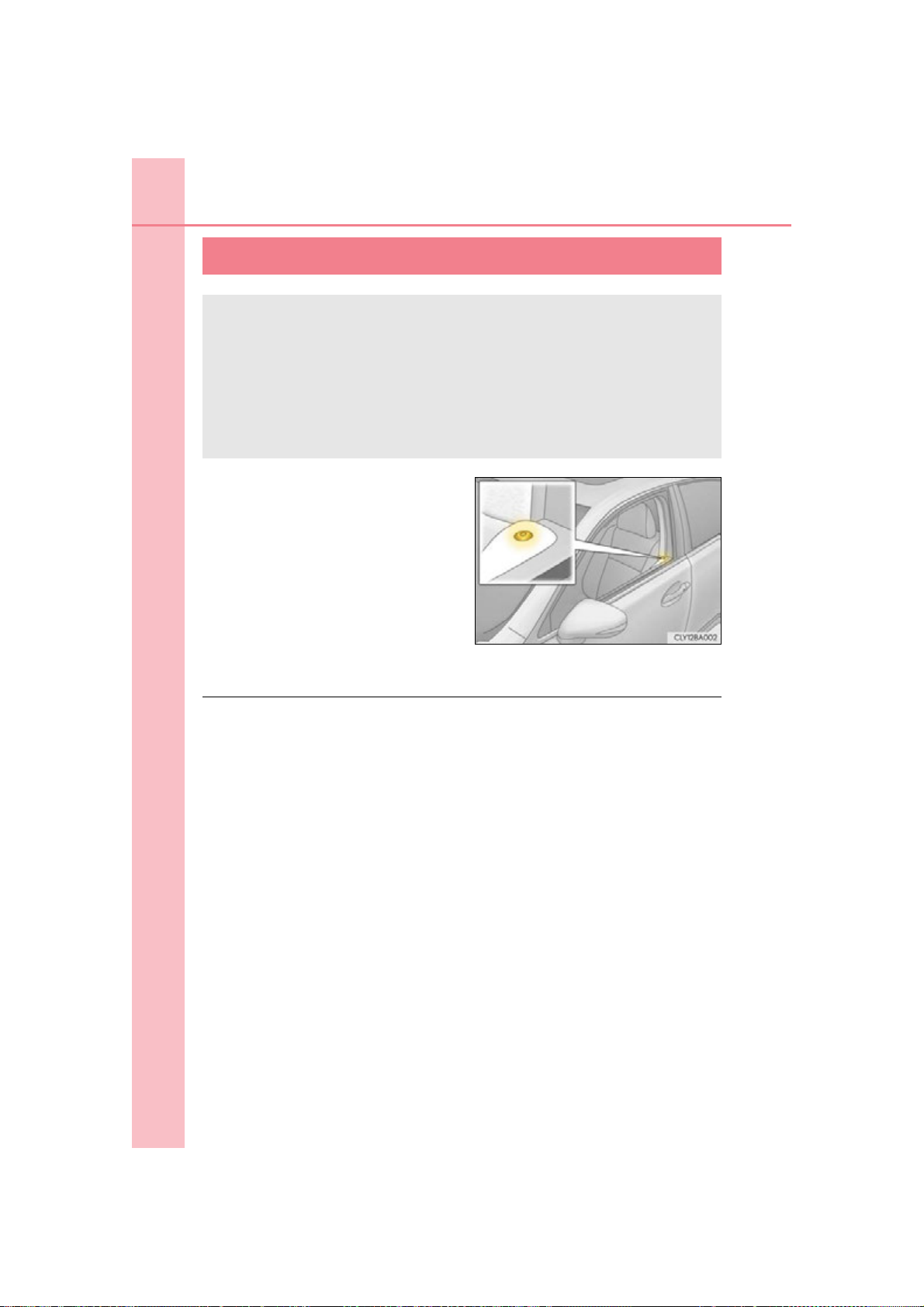

Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee absolute security against all vehicle thefts.
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
LS460/LS460L_U (OM50D48U)
Page 79
1-2. Theft deterrent system
NOTICE
■ Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-1
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
79
1
For safety and security
LS460/LS460L_U (OM50D48U)
Page 80
80
1-2. Theft deterrent system
Alarm
The alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
● A locked door or trunk is unlocked or opened in any way other than
using the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)
● The hood is opened.

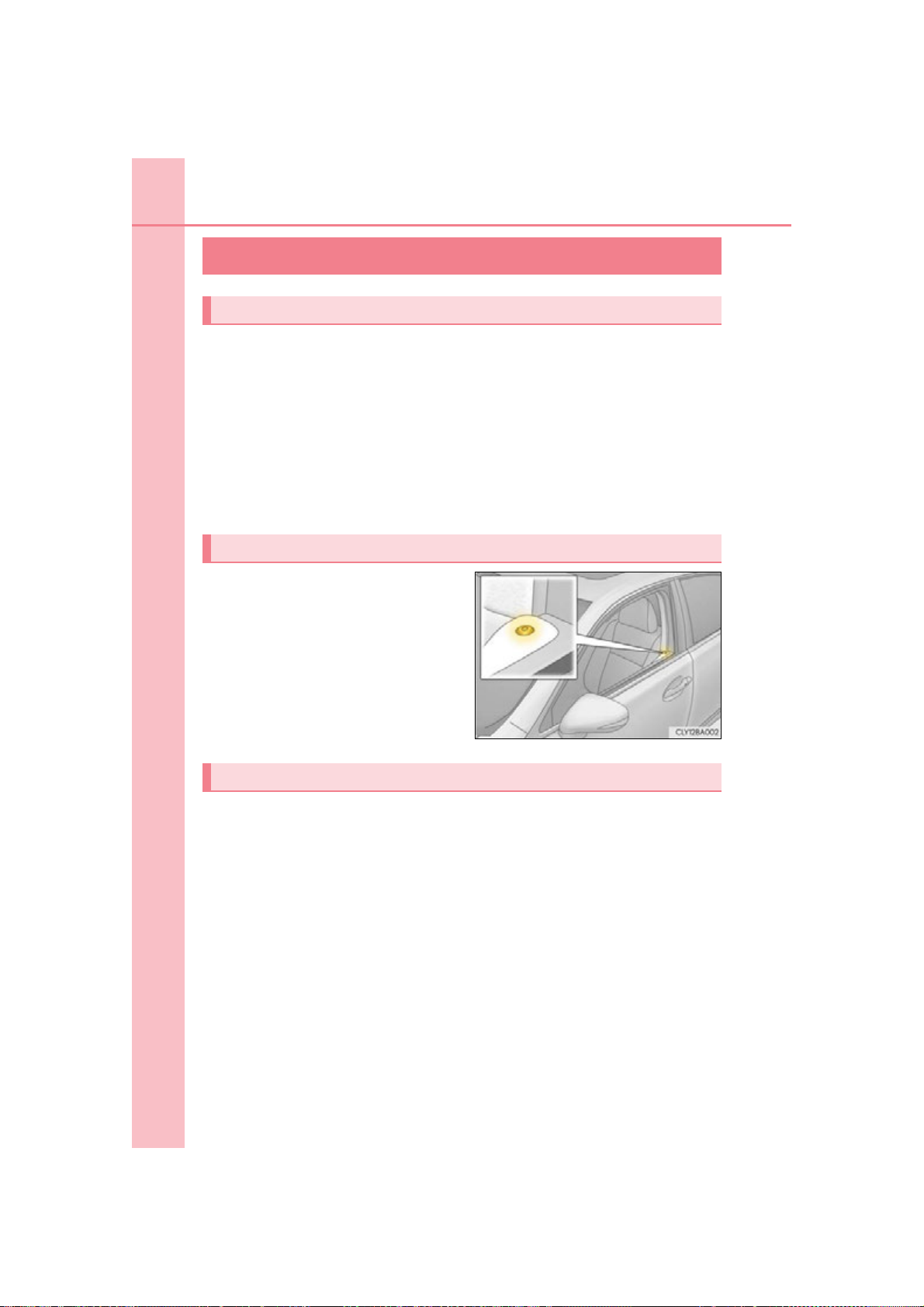

Setting the alarm system
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the system
is set.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarms:
● Unlock the doors or open the trunk.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
LS460/LS460L_U (OM50D48U)
Page 81
1-2. Theft deterrent system
NOTICE
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following:
● Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.

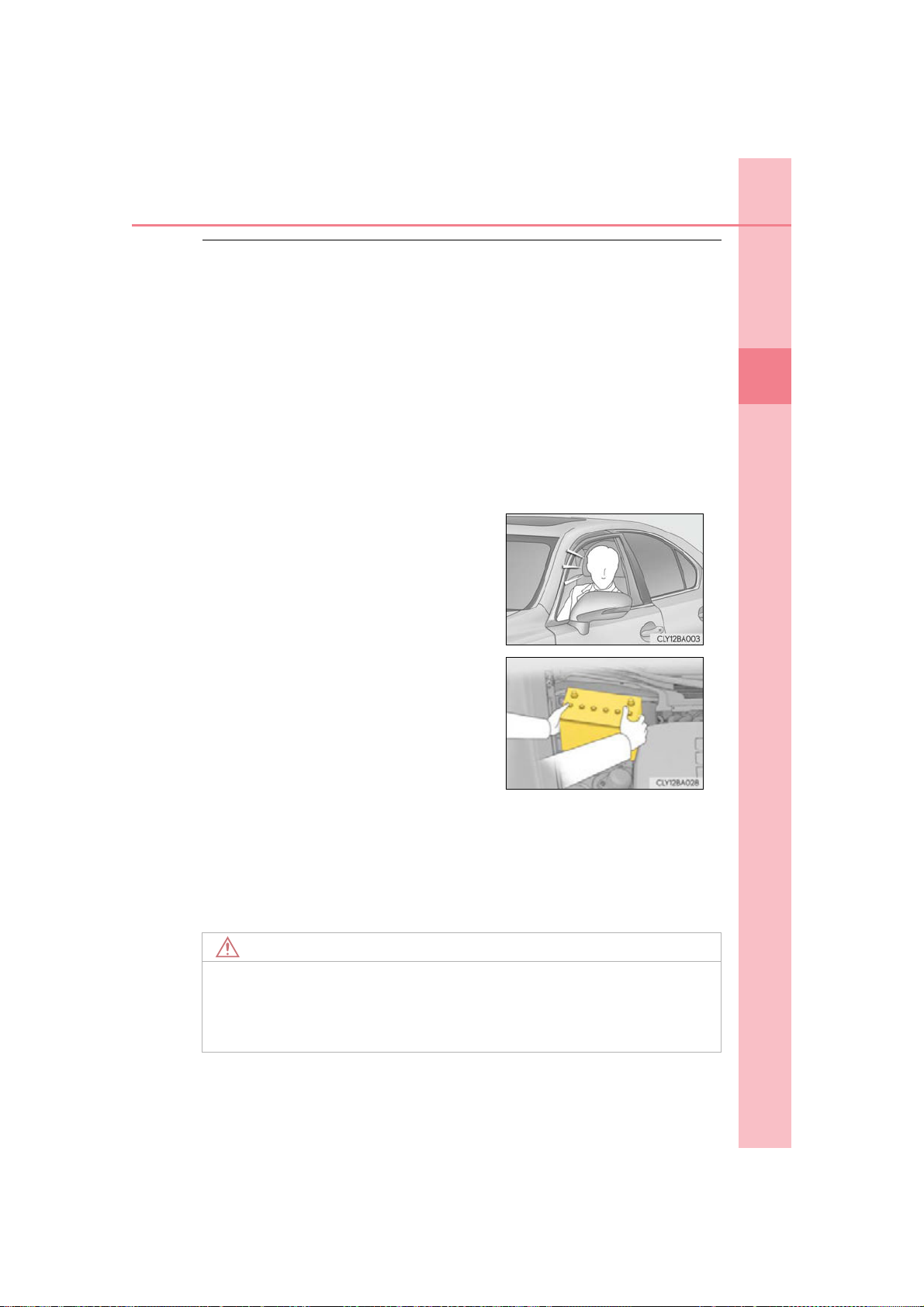

■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● A person inside the vehicle opens a door,
the trunk or hood.
81
1
For safety and security
● The battery is recharged or replaced when
the vehicle is locked. (P. 82 9)
■ Alarm-operated door lock
● When the alarm is operating, the doors are locked automatically to prevent intrud-
ers.
● Do not leave the key inside the vehicle when the alarm is operating, and make sure
the key is not inside the vehicle when recharging or replacing the battery.
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
LS460/LS460L_U (OM50D48U)
Page 82
82
1-2. Theft deterrent system
LS460/LS460L_U (OM50D48U)
Page 83
83
Instrument cluster
2
2. Instrument cluster
Warning lights and
indicators.......................................84
Gauges and meters .....................89
Multi-information display ..........93
LS460/LS460L_U (OM50D48U)
Page 84
84
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and indicators illuminated.
◆ Instrument cluster
The units used on the speedometer, the tachometer and some indicators may differ depending on the target region.
◆ Center panel
LS460/LS460L_U (OM50D48U)
Page 85
2. Instrument cluster

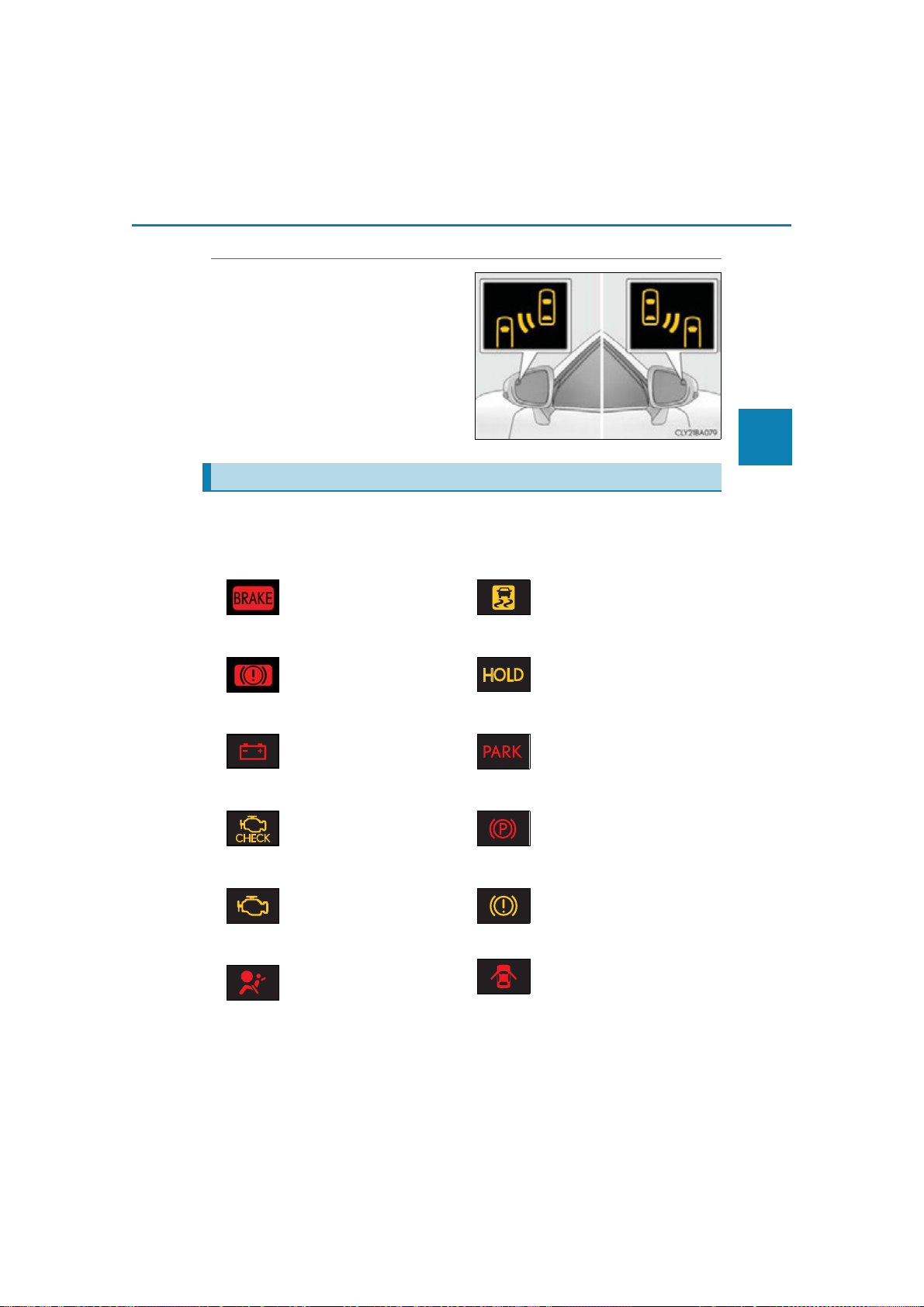

◆ Outside rear view mirrors (vehicles with BSM)
85
2
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
(U.S.A.)
(Canada)
(U.S.A.)
(Canada)
1
*
Brake system warning light
(P. 7 98 )
1
*
Brake system warning light
(P. 7 98 )
1
*
Charging system warning
light (P. 79 9)
1
*
Malfunction indicator
lamp (P. 7 99 )
1
*
Malfunction indicator
lamp (P. 7 99 )
1
*
SRS warning light
(P. 7 99 )
(Canada)
(U.S.A.)
1
*
Slip indicator (P. 800)
1, 2
*
Brake hold operated
indicator (P. 80 0)
1, 2
*
Parking brake indicator
( P. 800)
1, 2
*
Parking brake indicator
(P. 8 00)
1
*
Brake system warning light
(P. 8 00)
Open door warning light
(P. 8 01 )
Instrument cluster
LS460/LS460L_U (OM50D48U)
Page 86
86
2. Instrument cluster
1
*
(U.S.A.)
1
*
(Canada)
1
*
ABS warning light
(P. 7 99 )
ABS warning light
(P. 7 99 )
Electric power steering
system warning light
(P. 7 99 )
Low fuel level warning light
(P. 8 01 )
Seat belt reminder light
(P. 8 01 )
1
*
Master warning light
(P. 8 01 )
1, 2
*
Pre-collision system warning light (P. 80 0)
(if equipped)
1
*
: These lights come on when the engine switch is turned to IGNITION ON mode
1
*
Tire pressure warning light
(P. 8 02)
to indicate that a system check is being performed. They will go off after the
engine is on, or after a few seconds. There may be a malfunction in a system if the
lights do not come on, or go off. Have the vehicle inspected by your Lexus dealer.
2
*
: The light flashes to indicate a malfunction.
LS460/LS460L_U (OM50D48U)
Page 87
2. Instrument cluster
Indicators
The indicators inform the driver of the operating state of the vehicle’s various systems.
1
Turn signal indicator
(P. 2 18)
*
Brake hold operated indicator (P. 222)
87
(U.S.A.)
(Canada)
(if equipped)
(U.S.A.)
(Canada)
Headlight indicator
(P. 2 25)
Tail light indicator
(P. 2 25)
Headlight high beam indicator (P. 22 6)
Automatic High Beam
indicator (P. 2 29 )
Front fog light indicator
(P. 2 34 )
Snow mode indicator
(P. 2 10 , 2 16 )
1
*
Parking brake indicator
( P. 2 19 )
1
*
Parking brake indicator
(P. 2 19 )
1
*
Brake hold standby indicator (P. 222)
(if equipped)
(if equipped)
(if equipped)
1, 2
*
1, 3
*
(if equipped)
*
(if equipped)
Cruise control “SET” indicator (P. 244, 248)
Cruise control indicator
(P. 244, 248)
Radar cruise control indicator (P. 24 8)
LKA (Lane-Keeping
Assist) indicator
(P. 2 65 )
1
*
“HEIGHT HIGH” indicator (P. 3 03 )
Slip indicator (P. 307 )
1
*
VSC (Vehicle Stability
Control) OFF indicator
(P. 3 08)
Pre-collision system warning light (P. 31 4)
4
BSM (Blind Spot Monitor)
outside rear view mirror
indicators (P. 324 )
2
Instrument cluster
LS460/LS460L_U (OM50D48U)
Page 88
88
CAUTION
2. Instrument cluster
“A I R B A G O N /
1
*
OFF” indicator
(P. 5 7)
1
*
: These lights come on when the engine switch is turned to IGNITION ON mode
to indicate that a system check is being performed. They will go off after the
engine is on, or after a few seconds. There may be a malfunction in a system if the
lights do not come on, or go off. Have the vehicle inspected by your Lexus dealer.
2
*
: The light flashes to indicate that the system is operating.
3
*
: The light comes on when the system is turned off. The light flashes faster than
usual to indicate that the system is operating.
4
*
: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main
switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.
LS460/LS460L_U (OM50D48U)
Page 89
2. Instrument cluster

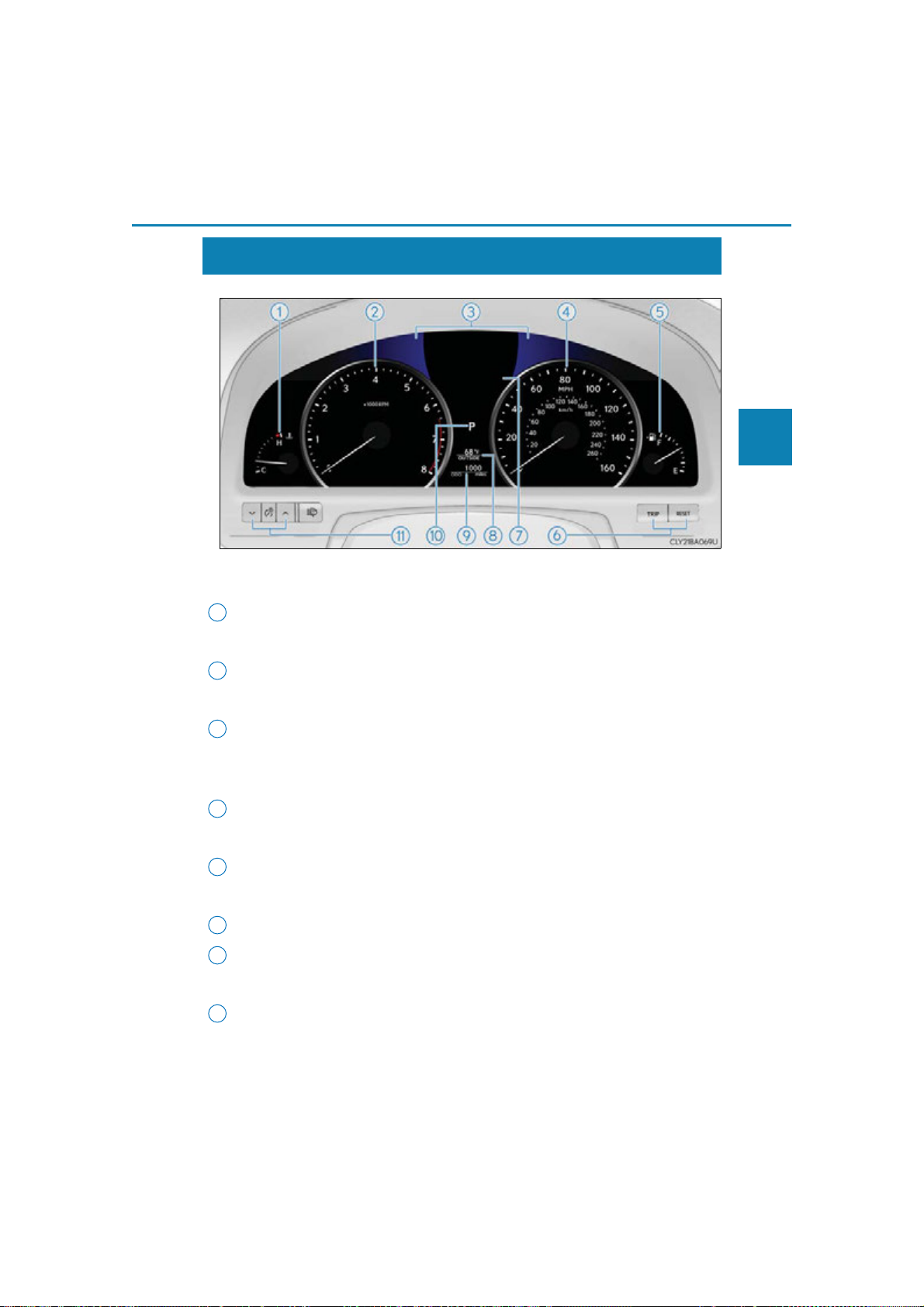

Gauges and meters
The units used on the speedometer and the tachometer may differ depending on
the target region.
Engine coolant temperature gauge
1
Displays the engine coolant temperature
89
2
Instrument cluster
Tachometer
2
Displays the engine speed in revolutions per minute
ECO lamp and SPORT lamp
3
Changes colors or brightness according to driving mode or way of driving
(P. 9 1)
Speedometer
4
Displays the vehicle speed
Fuel gauge
5
Displays the quantity of fuel remaining in the tank
Odometer/trip meter and trip meter reset switches
6
Multi-information display
7
Presents the driver with a variety of driving-related data (P. 9 3)
Outside temperature
8
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)
LS460/LS460L_U (OM50D48U)
Page 90
90
Type B
Type A
Ty pe A
Type B
9
10
11
2. Instrument cluster

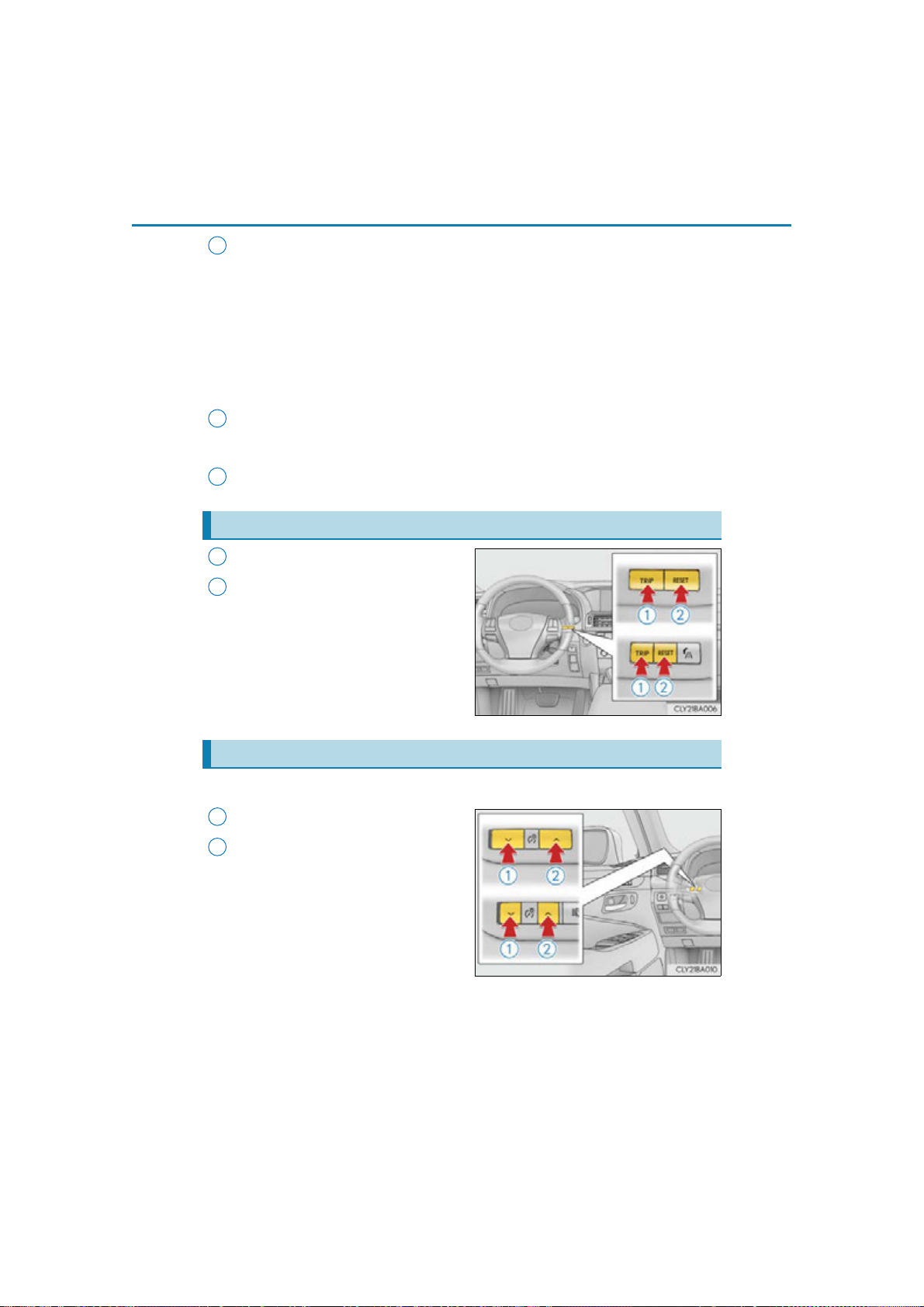

Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr ip me t er :
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances independently.
Shift position and shift range
Displays the selected shift position or selected shift range (P. 207, 212)
Instrument panel light control switches
Changing the odometer and trip meter display
Switches the display
1
Resets the trip meter currently
2
displayed to “0”
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
1
Brighter
2
LS460/LS460L_U (OM50D48U)
Page 91
2. Instrument cluster
■ The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■ Instrument panel brightness adjustment
● Meters:
The brightness level of the meters when the surroundings are bright (day mode)
and dark (night mode) can be adjusted individually. However, when in day mode,
adjusting the brightness level will also change the brightness level of night mode.
● Clock, air conditioning temperature display and switch lights:
The brightness level of the clock, air conditioning temperature display and switch
lights are linked with the brightness level of meter night mode.
■ Light dimmer control (Changing to night mode)
The brightness level of the meter, clock and air conditioning temperature display
lights will change to night mode only when the surroundings are dark and the tail
lights are on.
■ Automatic adjustment of the brightness level of the meters
The brightness level of the meters will be adjusted automatically according to the
brightness of the surroundings detected by the light sensor. However, the brightness
level of the meters will not be adjusted automatically in the following conditions.
● Day mode: When the brightness of the meter is adjusted to the brightest manually
● Night mode: When the brightness of the meter is adjusted to the brightest or dark-
est manually
■ ECO lamp and SPORT lamp
● When all of the following conditions are satisfied and Eco-friendly driving is being
performed, ECO lamp (blue) will illuminate. (ECO lamp will become brighter the
more Eco-friendly your driving is. Also, while the vehicle is stopped or the acceleration exceeds Zone of Eco driving, ECO lamp turns off. (P. 95) H ow ever, w hen
Eco drive mode is selected, while the vehicle is stopped or the acceleration
exceeds Zone of Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D.
• Vehicles with paddle shift switches: Paddle shift switch is not operated.
• Normal mode, comfort mode (if equipped) or Eco drive mode is selected, and
snow mode is not in use.
• The vehicle speed is approximately 80 mph (130 km/h) or below.
● When sport mode is selected, SPORT lamp (red) will illuminate.
91
2
Instrument cluster
LS460/LS460L_U (OM50D48U)
Page 92
92
NOTICE
■ Outside temperature display
2. Instrument cluster
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
● When stopped, or driving at low speeds (less than 12 mph [20 km/h])
● When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■ Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features P. 865)
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. (P. 8 31 )
LS460/LS460L_U (OM50D48U)
Page 93
2. Instrument cluster

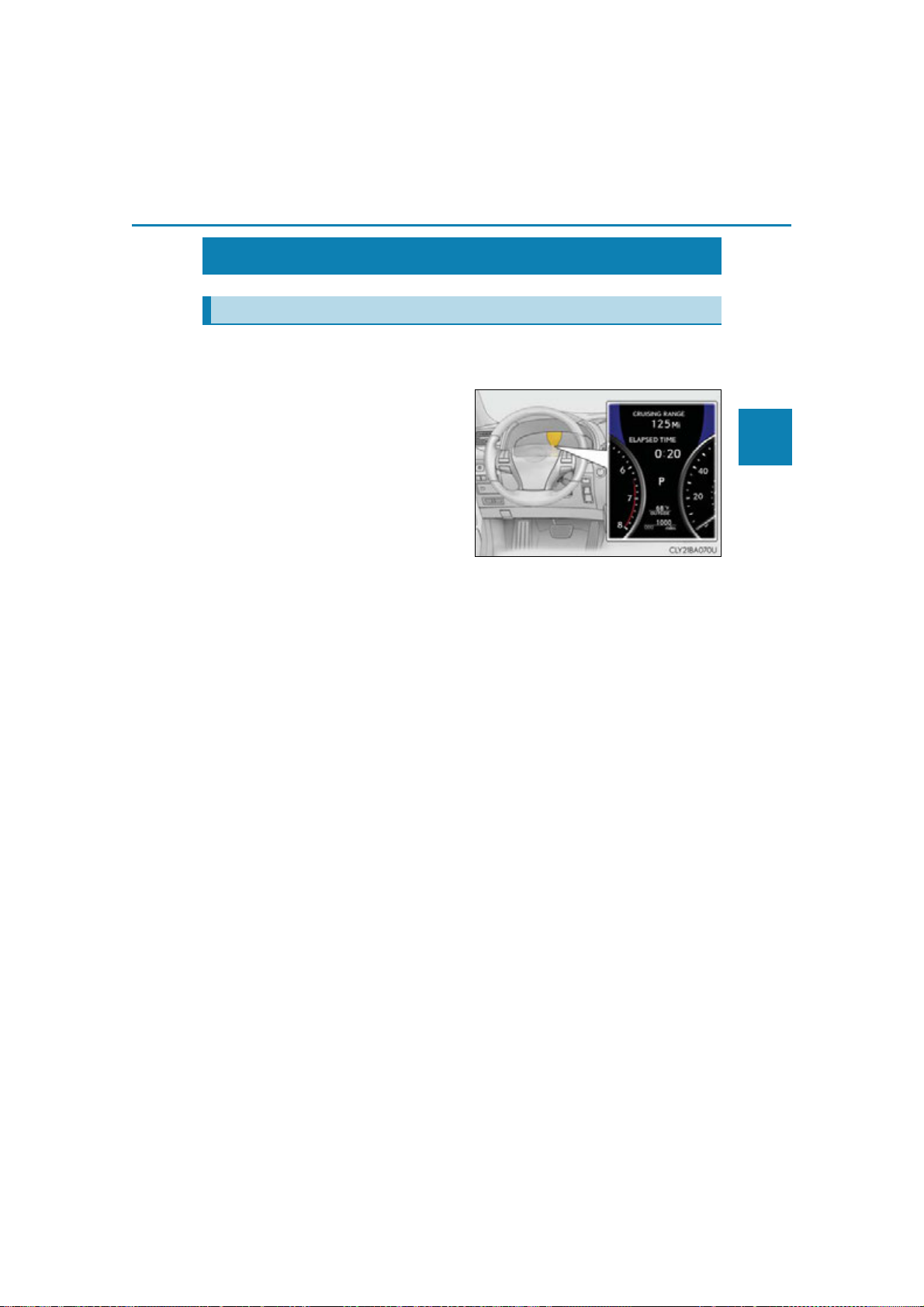

Multi-information display
Display contents
The multi-information display presents the driver with a variety of drivingrelated data.
● Trip information (P. 94 )
93
Displays driving range, fuel consumption and other cruising related information
●
Drive monitor (P. 97)
Displays either the average fuel consumption after refueling or the driving
range
●
Intuitive parking assist display*
(P. 2 76)
● Dynamic radar cruise control
with full-speed range display* (if
equipped) (P. 248 )
● LKA (Lane-Keeping Assist) dis-
play* (if equipped) (P. 2 69 )
● Warning messages (P. 80 8)
Automatically displayed when a malfunction occurs in one of the vehicle’s
systems. Display can be switched by
pressing the “DISP” button. (P. 94 )
2
Instrument cluster
*: Automatically displayed when the sys-
tem is used. Display can be switched
by pressing the “DISP” button.
(P. 9 4)
LS460/LS460L_U (OM50D48U)
Page 94
94
2. Instrument cluster

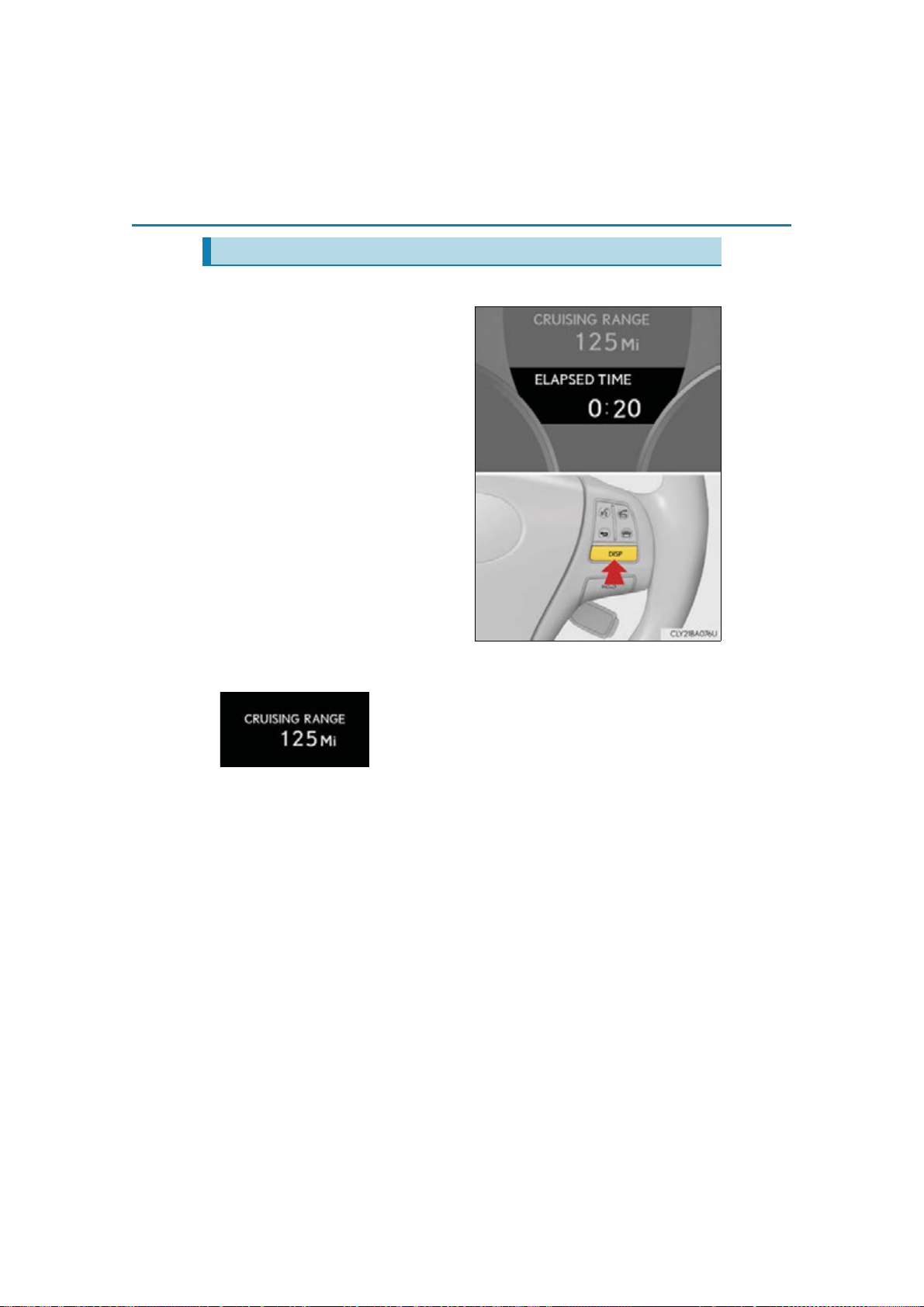

Trip information
■ Switching the display
Items displayed can be switched
by pressing the “DISP” button.
The information displayed on the
drive monitor will not be displayed
on the trip information screen.
■ Driving range
Displays the estimated approximate distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine switch
off, the display may not be updated.
LS460/LS460L_U (OM50D48U)
Page 95
2. Instrument cluster
1

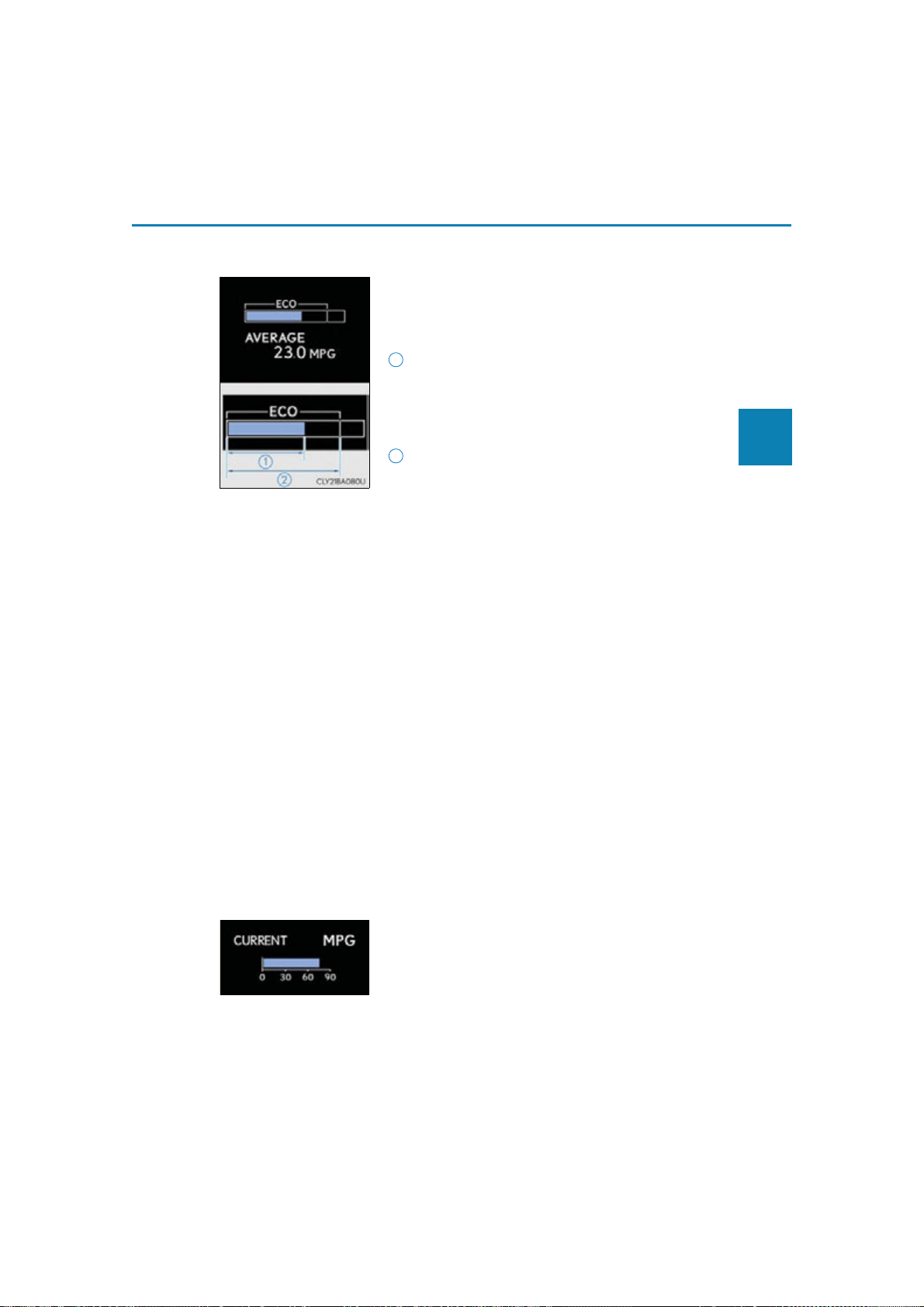

■ Eco Driving Indicator Zone Display and average fuel consumption
● Displays Eco Driving Indicator Zone Display
Suggests Zone of Eco driving and Eco driving ratio
based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driving, the
right side of Eco Driving Indicator Zone Display
blinks.
2
Zone of Eco driving
Eco Driving Indicator will not operate in the following
conditions:
• The shift lever is anything other than D.
• Vehicles with paddle shift switches: Paddle shift
switch is operated.
• Normal mode, comfort mode (if equipped) or Eco
drive mode is not selected. (P. 29 7)
• The vehicle speed is approximately 80 mph (130
km/h) or higher.
95
2
Instrument cluster
●
Displays the average fuel consumption since
the function was reset
• The function can be reset by pressing the “DISP”
• Use the displayed average fuel consumption as a
■ Current fuel consumption
Displays the current rate of fuel consumption
button for longer than 1 second when the average
fuel consumption is displayed.
On vehicles with a navigation system, the “Past
record” screen on the Remote Touch screen will
also be updated. (P. 35 4)
reference.
LS460/LS460L_U (OM50D48U)
Page 96
96

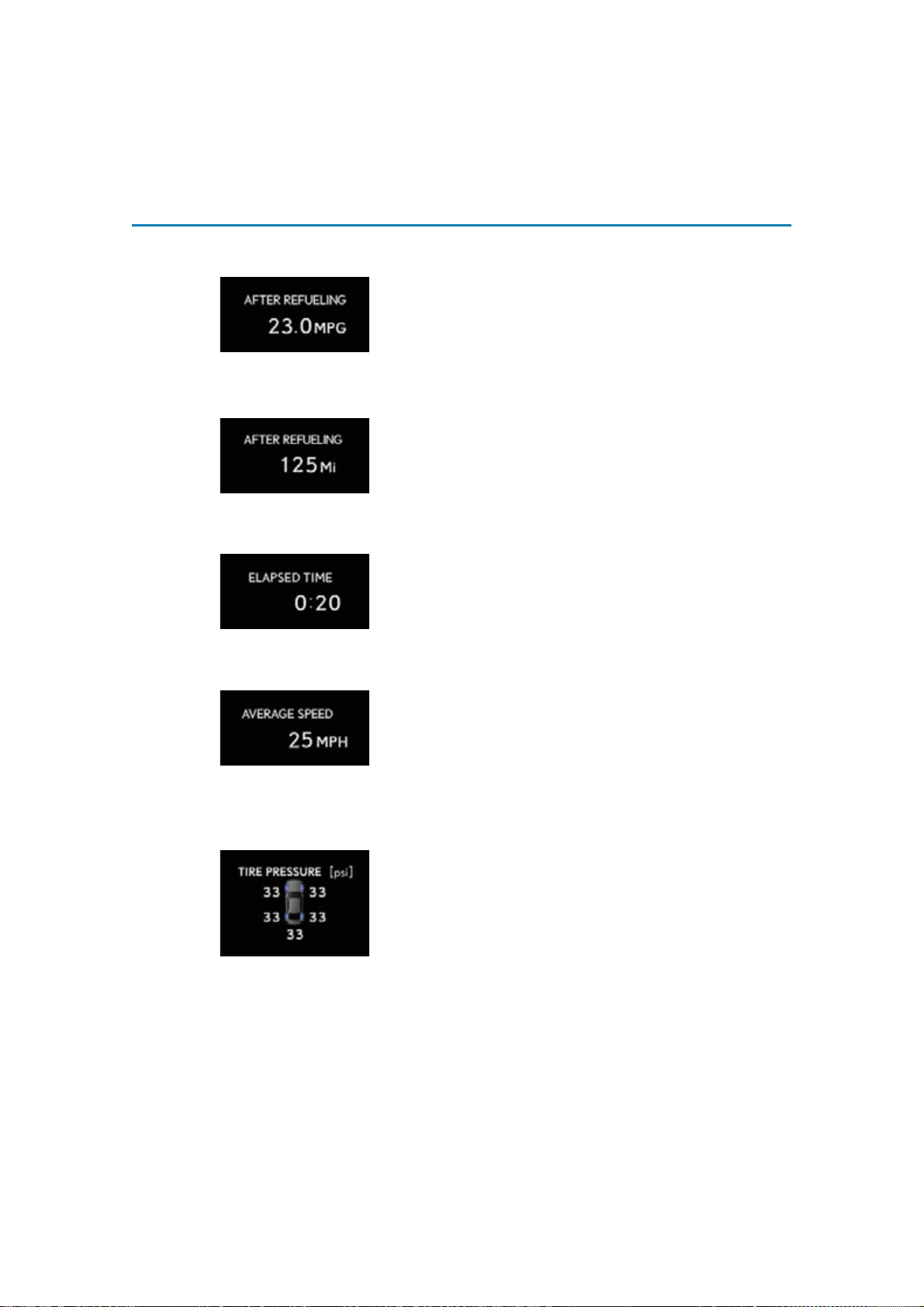

■ Average fuel consumption after refueling
2. Instrument cluster
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a reference.
■ Distance after refueling
Displays the distance the vehicle has been driven
since the vehicle was last refueled
■ Elapsed time
Displays the elapsed time since it was last reset
The function can be reset by pressing the “DISP” button for longer than 1 second when the elapsed time is
displayed.
■ Average vehicle speed
■ Tire inflation pressure
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP” button for longer than 1 second when the average vehicle
speed is displayed.
Displays inflation pressure of each tire
LS460/LS460L_U (OM50D48U)
Page 97
■ Customization
2. Instrument cluster
The multi-information display settings can be
changed (P. 9 8)
97

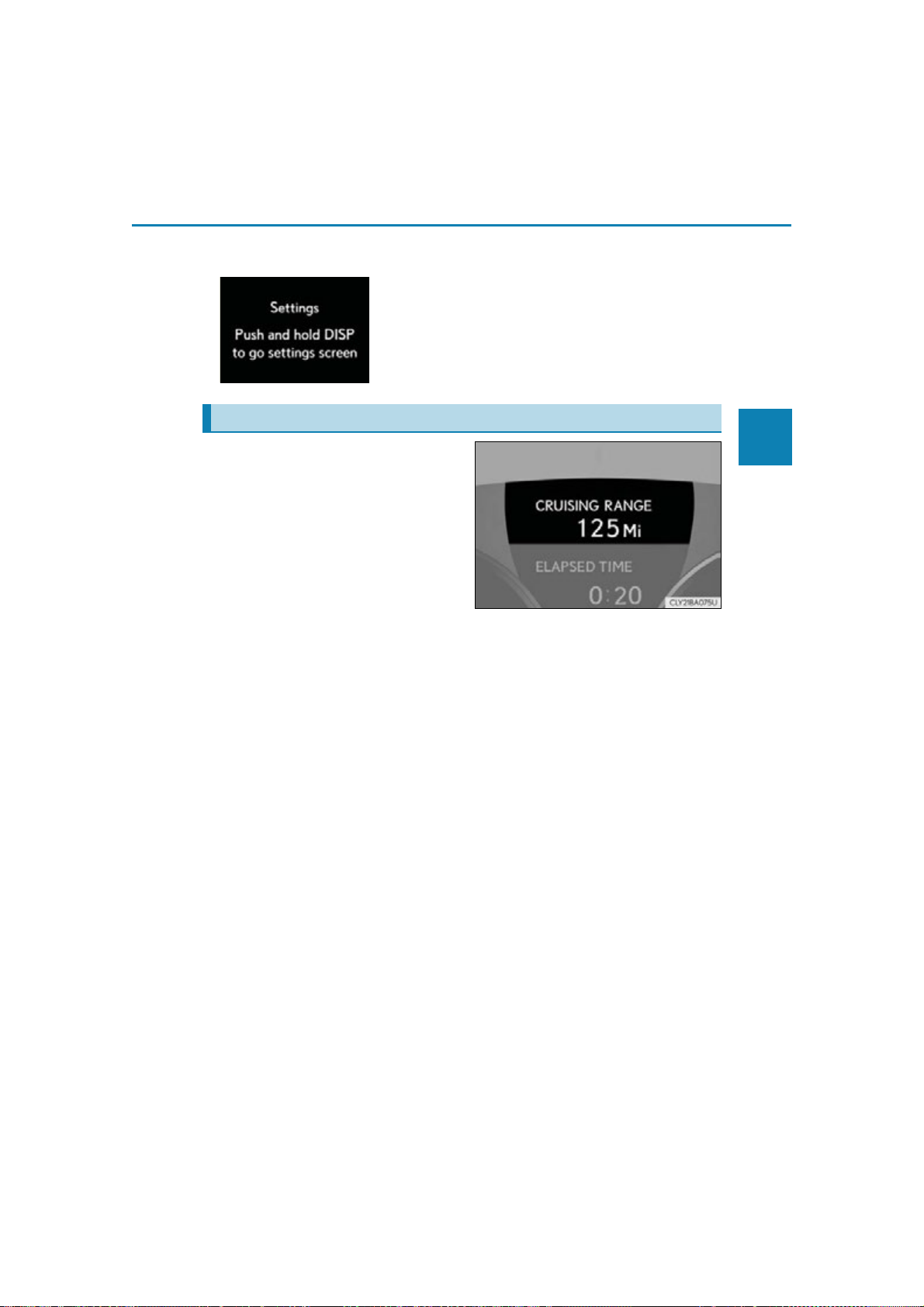

Drive monitor
Either average fuel consumption
after refueling or driving range can
be selected and displayed.
If displayed on the drive monitor,
other trip information or warning
messages can be displayed simultaneously.
For display and selection procedures, follow the “Setting up the displays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
2
Instrument cluster
LS460/LS460L_U (OM50D48U)
Page 98
98
1
4
2. Instrument cluster

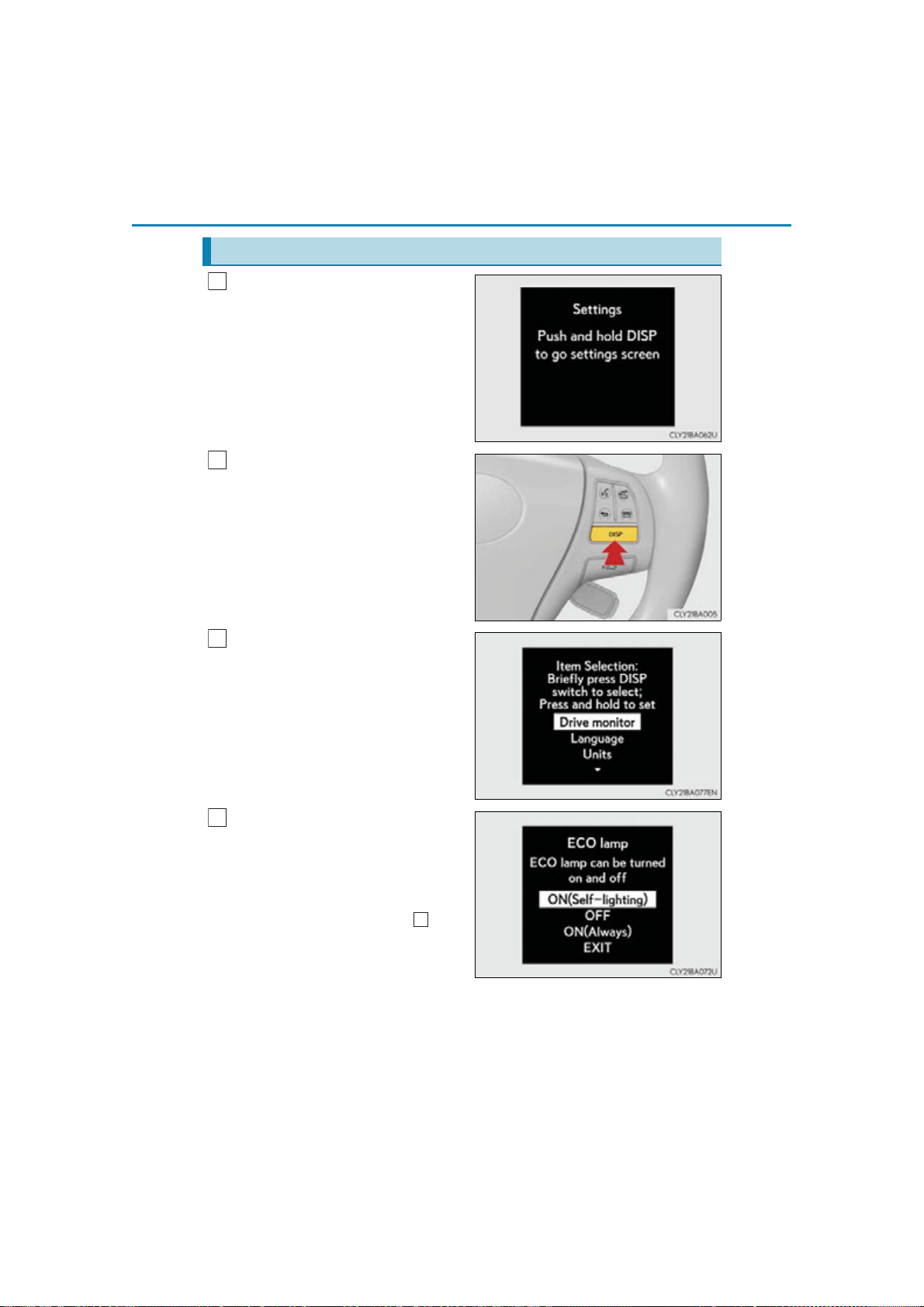

Setting up the displays
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
2
Press and hold the “DISP” button
until the screen changes.
3
Press and hold the “DISP” button
after selecting the desired setting item by pressing the “DISP”
button.
Press and hold the “DISP” button
after selecting the desired setting by pressing the “DISP” button.
The display goes back to step .
LS460/LS460L_U (OM50D48U)
3
Page 99

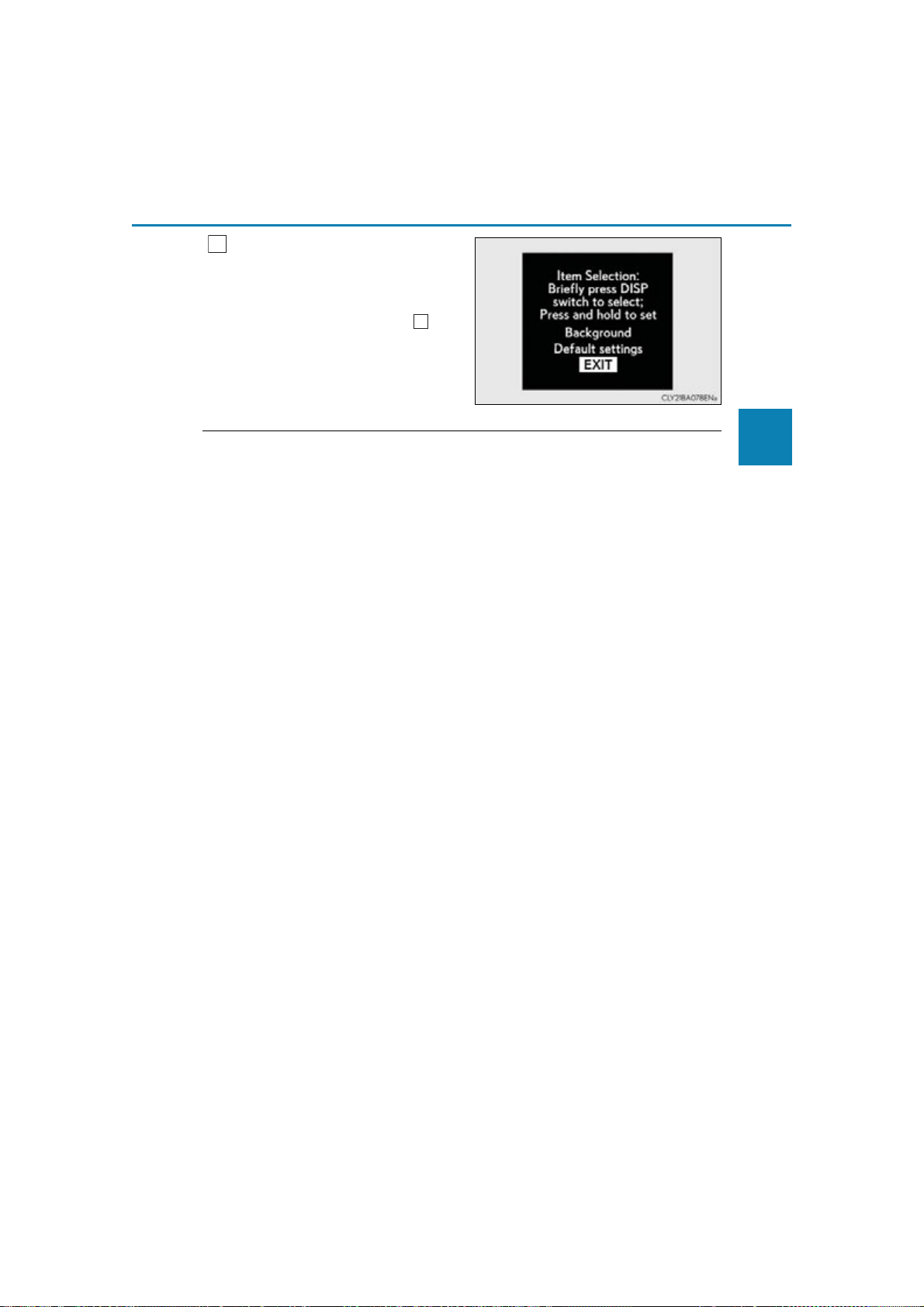

Press and hold the “DISP” button
5
after selecting the “EXIT” by
pressing the “DISP” button.
2. Instrument cluster
99
The display goes back to step .
■ System check display
1
After turning the engine switch to IGNITION ON mode, “SYSTEM CHECK” is displayed while system operation is checked.
■ Ti re in flation pressu re
● It may take a few minutes to display the tire inflation pressure after the engine
switch is turned to IGNITION ON mode. It may also take a few minutes to display
the tire inflation pressure after inflation pressure has been adjusted.
● “---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
● Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■ When disconnecting and reconnecting battery terminals
The following information data will be reset:
● Driving range
● Average fuel consumption
● Average fuel consumption after refueling
● Distance after refueling
● Elapsed time
● Average vehicle speed
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display.
■ Customization
Setting of available languages can be changed. (Customizable features P. 865)
2
Instrument cluster
LS460/LS460L_U (OM50D48U)
Page 100
100
CAUTION
NOTICE
■ The information display at low temperatures
2. Instrument cluster
Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and
enter the vehicle. This may lead to death or a serious health hazard.
■ During setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the
display features.
LS460/LS460L_U (OM50D48U)
