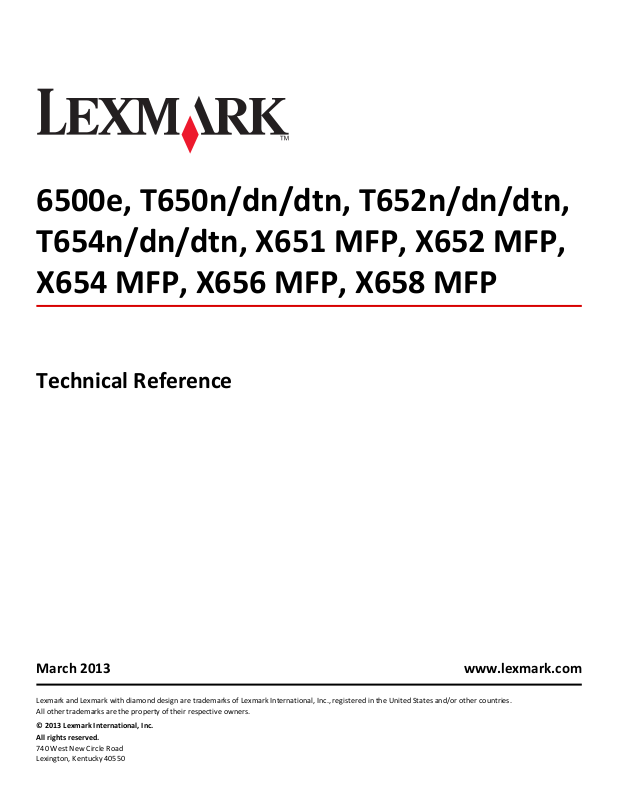

6500e, T650n/dn/dtn, T652n/dn/dtn,
T654n/dn/dtn, X651 MFP, X652 MFP,
X654 MFP, X656 MFP, X658 MFP
Technical Reference
March 2013 www.lexmark.com
Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
All other trademarks are the property of their respective owners.
© 2013 Lexmark International, Inc.
All rights reserved.
740 West New Circle Road
Lexington, Kentucky 40550
Edition notice
March 2013
The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL,
INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of
express or implied warranties in certain transactions; therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these
changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any
time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all
countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product,
program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual
property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services,
except those expressly designated by the manufacturer, are the user’s responsibility.
For Lexmark technical support, visit support.lexmark.com.
For information on supplies and downloads, visit www.lexmark.com.
If you don't have access to the Internet, you can contact Lexmark by mail:
Lexmark International, Inc.
Bldg 004-2/CSC
740 New Circle Road NW
Lexington, KY 40550
USA
© 2013 Lexmark International, Inc.
All rights reserved.
Trademarks
Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other
countries.
Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries.
PCL® is a registered trademark of the Hewlett-Packard Company.
All other trademarks are the property of their respective owners.
UNITED STATES GOVERNMENT RIGHTS
This software and any accompanying documentation provided under this agreement are c ommercial computer software and do cumentation
developed exclusively at private expense.
Contents 3
Contents
Edition notice...............................................................................................2
Introduction.................................................................................................5
Understanding letters after model numbers............................................................................................5
Learning about the printer and the MFP option............................................7
Finding information about the printer......................................................................................................7
Printer Control Language (PCL) page formatting...........................................9
Printable areas..........................................................................................................................................9
Supported paper and envelope dimensions...........................................................................................10
Printer Job Language (PJL)..........................................................................12
PJL commands information.....................................................................................................................12
PostScript (PS) emulation...........................................................................13
Supported paper sizes.............................................................................................................................13
PostScript paper tray support.................................................................................................................14
PostScript envelope size support............................................................................................................16
PostScript envelope tray support............................................................................................................18
Printer and MFP option specifications........................................................20
Airflow requirement................................................................................................................................20
Noise emission levels..............................................................................................................................20
Electrical specifications...........................................................................................................................21
Power requirements................................................................................................................................22
Physical specifications.............................................................................................................................23
Clearance requirements..........................................................................................................................26
Environmental conditions.......................................................................................................................26
Altitude specifications and atmospheric pressure..................................................................................27
Appendix A: PCL support............................................................................28
PCL emulation commands.......................................................................................................................28
GL/2 commands......................................................................................................................................35
Contents 4
Appendix B: PJL support.............................................................................39
Common variables for both printer languages........................................................................................39
Lexmark‑ unique PJL variables for both printer languages......................................................................42
Common variables for PCL emulation.....................................................................................................53
Lexmark‑ unique variables for PCL emulation..........................................................................................54
Common variables for PostScript emulation...........................................................................................55
Lexmark‑ unique variables for PostScript emulation...............................................................................55
Printer‑ unique LRESOURCE variables......................................................................................................56
Status Readback commands....................................................................................................................56
USTATUS unsolicited status variables.....................................................................................................57
PJL messages for auto-continuable conditions.......................................................................................57
PJL messages for attendance conditions.................................................................................................69
PJL messages for paper handling.............................................................................................................96
PJL messages for paper jams.................................................................................................................102
Service errors........................................................................................................................................109
Device attendance messages................................................................................................................109
Lexmark‑ unique PJL commands............................................................................................................109
File and device protection commands..................................................................................................111
Appendix C: PostScript support................................................................112
Supplemental operators........................................................................................................................112
Page device parameters........................................................................................................................116
User interpreter parameters.................................................................................................................121
System interpreter parameters.............................................................................................................122
Devices supported.................................................................................................................................125
Device parameters................................................................................................................................128
PostScript message keys commands.....................................................................................................138
Index........................................................................................................139
Introduction 5
Introduction
Overview
This edition of the Technical Reference contains information about the 6500e option and the following single-function
(SFP) and multifunction (MFP) printers:
T650
T650n
T652dn
T654dn
T656dne
X651de
X652de
X654de
X656de
X656dte
X658d
X658de
X658dme
X658dfe
X658dte
X658dtme
X658dtfe
Understanding letters after model numbers
Some LexmarkTM printers and MFP options may have one or more letters after the model number to indicate features.
Acronym Meaning
d
de duplex and e-Task (electronic task) touch-screen interface
dfe duplex, finisher/stapler, and e-Task touch-screen interface
dhe duplex, high-capacity drawer, and e-Task touch-screen interface
dhn duplex, high-capacity drawer, and network
dme duplex, mailbox, and e-Task touch-screen interface
dn duplex and network
dnf duplex, network, and finisher/stapler
dnw or dw duplex, network, and wireless
dt
1
Duplex (two‑ sided) printing using an optional duplex unit or an internal duplex unit based on the product
2
The additional tray may be part of a drawer.
1
duplex
duplex and additional tray
2
Introduction 6
Acronym Meaning
dte
dtfe
dtme
dtn
dtpe
duplex, additional tray
duplex, additional tray
duplex, additional tray
duplex, additional tray
duplex, additional tray
2
, and e-Task touch-screen interface
2
, finisher/stapler, and e-Task touch-screen interface
2
, mailbox, and e-Task touch-screen interface
2
, and network
2
, finisher with hole punch, and e-Task touch-screen interface
dttn duplex, tandem tray module, and network
dtse
dtwe
duplex, additional tray
duplex, additional tray
2
, stacker, and e-Task touch-screen interface
2
, wireless, and e-Task touch-screen interface
e e-Task touch-screen interface
hdn hard disk, duplex, and network
nn e t w o r k
nl network light model
ni network and ImageQuick
tn
1
Duplex (two‑ sided) printing using an optional duplex unit or an internal duplex unit based on the product
2
The additional tray may be part of a drawer.
network and additional tray
2
Learning about the printer and the MFP option 7
Learning about the printer and the MFP option
Finding information about the printer
What are you looking for? Find it here
Initial setup instructions:
• Connecting the printer
• Installing the printer software
Additional setup and instructions for using the printer:
• Selecting and storing paper and specialty media
• Loading paper
• Configuring printer settings
• Viewing and printing documents and photos
• Setting up and using the printer software
• Configuring the printer on a network
• Caring for and maintaining the printer
• Troubleshooting and solving problems
Instructions for:
• Connecting the printer to an Ethernet network
• Troubleshooting printer connection problems
Help using the prin ter software Windows or Mac Help—Open a printer software program
Setup documentation—The setup documentation came
with the printer and is also available at
http://support.lexmark.com.
User's Guide and Quick Reference Gu ide —The guides may
be available on the Software and Documentation CD.
For more information, visit
http://support.lexmark.com.
Networking Guide—Open the Software and
Documentation CD, and then navigate to:
Documentation > User’s Guide and other publications >
Networking Guide
or application, and then click Help.
?
Click
to view context‑ sensitive information.
Notes:
• Help is automatically installed with the printer
software.
• The printer software is located in the printer
program folder or on the desktop, depending on
your operating system.
Learning about the printer and the MFP option 8
What are you looking for? Find it here
The latest supplemental information, updates, and customer
support:
• Documentation
• Driver downloads
• Live chat support
• E‑ mail support
• Voice support
Lexmark support Web site—
http://support.lexmark.com
Note: Select your country or region, and then select
your product to view the appropriate support site.
Support telephone numbers and hours of operation for
your country or region can be found on the support Web
site or on the printed warranty that came with your
printer.
Record the following information (located on the store
receipt and at the back of the printer), and have it ready
when you contact customer support so that they may
serve you faster:
• Machine Type number
• Serial number
• Date purchased
• Store where purchased
Warranty information Warranty information varies by country or region:
• In the U.S.—See the Statement of Limited Warranty
included with this printer, or at
http://support.lexmark.com.
• In other countries and regions—See the printed
warranty that came with your printer.
Printer Control Language (PCL) page formatting 9
Printer Control Language (PCL) page formatting
For more information on PCL, see the Printer Languages and Interfaces Technical Reference. It contains a complete
listing with descriptions of PCL commands.
To determine which PCL commands your printer supports, see “Appendix A: PCL support” on page 28.
Printable areas
The printable areas and logical pages for PCL emulation (both portrait and landscape orientation) are illustrated below.
See the legend that follows for definitions of areas A through I.
I
I
I
Legend:
A Portrait physical page width and landscape physical page length
B Portrait physical page length and landscape physical page width
C Portrait logical page width
D Landscape logical page width
E Distance between the side edge of the physical page and the logical page in portrait
F Distance between the side edge of the physical page and the logical page in landscape
G Distance between the top and bottom edge of the physical page and logical page
H Distance between the left and right edge of the physical page and the printable area in portrait, or distance between
the top and bottom edge of the physical page and printable area in landscape
I
I Distance between the top and bottom edge of the physical page and the printable area in portrait, or distance between
the left and right edge of the physical page and the printable area in landscape
Note: The tables that follow in this chapter list the page sizes and dimensions of each area labeled on the preceding
diagram for all paper and envelope sizes your printer supports.
Printer Control Language (PCL) page formatting 10
Supported paper and envelope dimensions
The following table lists the page sizes and print area dimensions for all supported paper and envelope sizes. For more
information about the printable areas and logical pages for PCL emulation, see “Printable areas” on page 9.
Selection Paper/envelope
Dimensions by area (pels)
1
dimensions
Page size
parameters
Name mm inches A B C D E F G H I
2
Paper
2, 602 Letter 216 x 279 8.5 x 11 5100 6600 4800 6360 150 120 0 100 100
3, 603 Legal 216 x 356 8.5 x 14 5100 8400 4800 8160 150 120 0 100 100
12, 45, 612 JIS B5 182 x 257 7.2 x 10.1 4300 6070 4000 5830 150 120 0 100 100
26, 626 A4
(198 mm)
26, 626 A4
(203 mm)
210 x 297 8.3 x 11.7 4960 7014 4676 6778 142 118 0 80 100
3
210 x 297 8.3 x 11.7 4960 7014 4800 6778 80 118 0 80 100
3
1, 601 Executive 184 x 267 7.5 x 10.5 4350 6300 4050 6060 150 120 0 100 100
13, 613 A5 148 x 210 5.8 x 8.27 3496 4960 3196 4720 142 118 0 100 100
300 Oficio
216 x 340 8.5 x 13.4 5100 8040 4800 7800 150 120 0 100 100
(México)
4 or 10 Folio 216 x 330 8.5 x 13 5100 7800 4800 7560 150 120 0 100 100
15 Statement 139.7 x
5.5 x 8.5 3300 5100 3000 4860 150 120 0 100 100
215.9
24 A6 148 x 105 5.8 x 41 2480 3496 2199 3260 142 118 0 100 100
101 Universal 215.9 x
359.92
8.5 x 14.17 1800–
5100
4
1800–
8502
4
1500–
4800
4
1500–
8262
150 120 0 100 100
4
Envelope
80 7 3/4
98.4 x 190.5 3.875 x 7.5 2324 4500 2024 4260 150 120 0 100 100
Envelope
89 9 Envelope 98.4 x 225.4 3.875 x
2324 5324 2024 5084 150 120 0 100 100
8.875
1
Pel dimensions are for 600 dpi.
2
Page Size Parameters are explained in the Page Control table in the PCL chapter in the Printer Language and Interfaces
Technical Reference .
3
The width of the logical page for A4 paper can be changed from the printer control panel or your application.
4
For the Universal paper size, the area dimensions are listed in pel ranges.
5
Paper ID 99 will be supported for backward compatibility with other Lexmark printers. Paper ID 99 has the same logical
paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.
Note: The explanation of the printable area assumes that the Print Area menu item is set to Normal . For more
information, see “Print Area Menu Item” in the PCL chapter in the Printer Language and Interfaces Technical Reference .
Printer Control Language (PCL) page formatting 11
Selection Paper/envelope
Dimensions by area (pels)
1
dimensions
Page size
parameters
81 10 Envelope 104.8 x
Name mm inches A B C D E F G H I
2
4.125 x 9.5 2474 5700 2174 5460 150 120 0 100 100
241.3
90 DL
220 x 110 8.66 x 4.33 2598 5196 2314 4960 142 118 0 100 100
Envelope
91 C5
229 x 162 9.02 x 6.38 3826 5408 3542 5172 142 118 0 100 100
Envelope
5
, 100
99
600 Other
B5
envelope
176.0 x
6.93 x 9.84 4156 5904 3872 5668 142 118 0 100 100
250.0
216 x 356 8.5 x 14 7012 8400 4800 8160 150 120 0 100 100
Envelope
1
Pel dimensions are for 600 dpi.
2
Page Size Parameters are explained in the Page Control table in the PCL chapter in the Printer Language and Interfaces
Technical Reference .
3
The width of the logical page for A4 paper can be changed from the printer control panel or your application.
4
For the Universal paper size, the area dimensions are listed in pel ranges.
5
Paper ID 99 will be supported for backward compatibility with other Lexmark printers. Paper ID 99 has the same logical
paper size as ID 100 (compatible with HP LaserJet 5Si/5SiMx) but is 8 pels wider than the Lexmark 4039.
Note: The explanation of the printable area assumes that the Print Area menu item is set to Normal . For more
information, see “Print Area Menu Item” in the PCL chapter in the Printer Language and Interfaces Technical Reference .
Printer Job Language (PJL) 12
Printer Job Language (PJL)
PJL commands information
Your printer or scanner supports complete PJL commands, including certain commands that cause the printer or scanner
to enter PCL emulation, PostScript emulation, and Personal Printer Data Stream (PPDS).
For a complete listing with descriptions of PJL commands, see the Printer Languages and Interfaces Technical Reference .
To determine which commands your printer or scanner supports, see “Appendix B: PJL support” on page 39.
PostScript (PS) emulation 13
PostScript (PS) emulation
Your MFP option supports complete PostScript emulation supplemental operators. For full, detailed descriptions of
these operators, see the PostScript emulation chapter of the Printer Languages and Interfaces Technical Reference .
To determine which commands your MFP option supports, see “Appendix C: PostScript support” on page 112.
Supported paper sizes
= Supported
X = Not supported
Paper sizes
Model
Size Literal name Size (mm) Size (inches) Size (points)
T650,
T650n,
6500e
MFP
option
11 x 17 11x17 279.4 x 431.8 11 x 17 792 x 1224
17 x 11 ledger 431.8 x 279.4 17 x 11 1224 x 792
A3 a3 297 x 420 11.7 x 16.54 842 x 1191 XX X
A4 a4 210.0 x 297.0 8.3 x 11.7 595 x 842
A5 a5 148.0 x 210.0 5.83 x 8.27 419 x 595
A6 a6 105.0 x 148.0 4.13 x 5.83 297 x 419
Executive executivepage 184.2 x 266.7 7.25 x 10.5 522 x 756
T652dn,
T654dn,
T656dne
XX
XX
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d,
X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Folio folio 215.9 x 330.2 8.5 x 13.0 612 x 936
JIS B4 b4* 257 x 364 10.12 x 14.33 729 x 1032 XX X
JIS B5 b5* 182.0 x 257.0 7.2 x 10.1 516 x 729
Legal legal 215.9 x 355.6 8.5 x 14.0 612 x 1008
Letter letter 215.9 x 279.4 8.5 x 11.0 612 x 792
* This is a Japanese Industry Standard (JIS) paper size. The same named designation is used by JIS
and the International Organization for Standardization (ISO) for different paper sizes.
PostScript (PS) emulation 14
= Supported
X = Not supported
Paper sizes
Model
Size Literal name Size (mm) Size (inches) Size (points)
6500e
MFP
option
Oficio oficio 215.9 x 340.4 8.5 x 13.4 612 x 965
(Lexmark‑ unique
size)
612 x 972 (official
PostScript size)
Statement statement 139.7 x 215.9 5.5 x 8.5 396 x 612
Universal universal 215.9 x 359.92 8.5 x 14.17 612 x 1020
Custom custom 215.9 x 355.6 8.5 x 14.0 612 x 1020
* This is a Japanese Industry Standard (JIS) paper size. The same named designation is used by JIS
and the International Organization for Standardization (ISO) for different paper sizes.
T650,
T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d,
X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
PostScript paper tray support
When the printer receives one of the operators listed in “Tray selected with tray operators” on page 15, it performs
the actions listed in this section. This paper tray selection process ends when a suitable paper source is chosen and
paper is fed from this tray.
• The printer checks the value of manualfeed in statusdict and the ManualFeed page device parameter. If either one
is true, then the printer sends a message to load the requested size in the manual feeder or multipurpose feeder.
• The PageSize Policy is set to 0 by means of setpagedevice.
• The printer checks the paper size loaded in the current active source to determine if it matches the requested size.
If the sizes match, then the paper is fed from the active source.
Note: The current active tray is the last source that was selected from the printer control panel or by the printer
language.
• If the requested size and the size loaded in the active source do not match, then the sources are searched in the
order defined by the Priority array in the InputAttributes dictionary in the pagedevice dictionary.
• If the requested media size is not found by the previous search, then the following search order is used:
– Tray 1
– Tray 2
– Tray 3
PostScript (PS) emulation 15
– Multipurpose feeder
– Tray 4
– Tray 5
• If the requested size cannot be located in any automatic source, then a configurationerror is issued and the job is
flushed.
For printers that support automatic two‑ sided printing (duplexing):
• Automatic two‑sided printing is not supported for custom-size paper or for envelopes in the multipurpose feeder.
Automatic two‑ sided printing is supported from the multipurpose feeder for all other papers.
• If the paper source is changed before the back side of a duplexed page prints, then a blank back page prints, the
paper source changes, and the information for the back side of the page is printed on the front side of a page sent
from the new paper source.
When these operators are used, it is equivalent to executing the following PostScript emulation sequence:
<< /PageSize [x y]/ImagingBBox null /Policies << /PageSize 0>> >>
setpagedevice
where x y are the PageSize in points.
Tray selected with tray operators
= Supported
X = Not supported
Operator Tray selected (corre sponding image size is set)
6500e MFP
option
11x17tray tray with 11 x 17‑ size paper
a3tray tray with A3‑ size paper XX X
a4tray tray with A4-size paper
a5tray tray with A5-size paper
a6tray tray with A6-size paper
b4tray tray with B4‑ size paper XX X
b5tray tray with B5-size paper
customtray tray with custom-size paper XX X
T652dn, T654dn,
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
T650, T650n,
T656dne
XX
X658de, X658dme,
X658dfe, X658dte,
X658dtme, X658dtfe
executivetray tray with executive-size paper
foliotray tray with folio-size paper
ledgertray tray with ledger‑ size paper XX X
legaltray tray with legal-size paper
lettertray tray with letter-size paper
PostScript (PS) emulation 16
= Supported
X = Not supported
Model
Operator Tray selected (corre sponding image size is set)
oficiotray tray with oficio‑ size paper
statementtray tray with statement-size paper
6500e MFP
option
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme, X658dtfe
PostScript envelope size support
The literal names in “Envelope sizes supported” on page 16 are also supported as operators in userdict . These
operators change the image size, but do not change the active paper source. Therefore, when these operators are used,
part of the image may be clipped.
When these literal names are used as operators, it is equivalent to executing the following PostScript emulation
sequence. The following example uses a 3.875 x 7.5 envelope.
<</Policies <</PageSize 7>> /PageSize [279 540]>> >>setpagedevice
Envelope sizes supported
= Supported
X = Not supported
Envelope sizes
Size name Literal name Size (mm) Size (inches) Size (points) 6500e
MFP
option
7 3/4 3.875x7.5envelope 98.4 x 190.5 3.875 x 7.5 279 x 540
Commercial 9 3.875x8.875envelope98.4 x 225.4 3.875 x 8.875 279 x 639
Commercial 10 4.125x9.5envelope 104.8 x 241.3 4.125 x 9.5 297 x 684
* For other envelopes, the page is formatted to 215.9 x 355.6 mm (8.5 x 14 in.) unless a size is specified by your software
program.
Model
T650,
T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d,
X658de,
X658dme
, X658dfe,
X658dte,
X658dtm
e,
X658dtfe
PostScript (PS) emulation 17
= Supported
X = Not supported
Envelope sizes
Model
Size name Literal name Size (mm) Size (inches) Size (points) 6500e
MFP
option
International B5 176x250envelope 176 x 250 6.93 x 9.84 499 x 708
International C5 162x229envelope 162 x 229 6.38 x 9.02 459 x 649
International DL 110x220envelope 110 x 220 4.33 x 8.66 312 x 624
Other envelope otherenvelope* 229.11 x 355.6 9.02 x 14 612 x 996
* For other envelopes, the page is formatted to 215.9 x 355.6 mm (8.5 x 14 in.) unless a size is specified by your software
program.
T650,
T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d,
X658de,
X658dme
, X658dfe,
X658dte,
X658dtm
e,
X658dtfe
Literal names supported
= Supported
X = Not Supported
Literal names
Literal name Compatible literal name 6500e MFP option T650, T650n, T652dn,
T654dn, T656dne
b5envelope 176x250envelope
c5envelope 162x229envelope
com10envelope 4.125x9.5envelope
dlenvelope 110x220envelope
monarcenvelope 3.875x7.5envelope
Model
X651de, X652de, X654de,
X656de, X656dte, X658d,
X658de, X658dme, X658dfe,
X658dte, X658dtme, X658dtfe
PostScript (PS) emulation 18
PostScript envelope tray support
If manualfeed in statusdict and the ManualFeed page device parameter are false when the printer receives one of the
envelopetray operators listed in “Envelopetray operator selections” on page 18, then the following occurs:
• The printer sets the PageSize Policy to 0.
• The printer checks the active source to see if it matches the requested envelope size. If the sizes match, then the
envelope is fed from the active source.
Note: The active source is the last source selected from the printer control panel or data stream.
• If the requested size and the size loaded in the active source do not match, then the sources are searched in the
order defined by the Priority array in the InputAttributes dictionary in the pagedevice dictionary.
• If the requested media size is not found by the previous search, then the following search order is used:
– Envelope feeder
– Multipurpose feeder
• If the requested size and type are not available from any automatic source, then you are prompted to load the
requested envelope size and type in the manual feed source.
• If the size is still not available, then a configurationerror is issued, and the print job is flushed.
If manualfeed or ManualFeed is true, then the printer prompts you to load the requested size manually. If no manual
feed exists on the printer, then a rangecheck error message is issued.
The envelope tray the printer selects when it receives an envelopetray operator is listed in “Envelopetray operator
selections” on page 18. These operators are equivalent to executing the following PostScript emulation sequence:
<</PageSize [x y] /ImagingBBox null /Policies<</PageSize 0>> >>
setpagedevice
where x y are the PageSize in points.
Envelopetray operator selections
= Supported
X = Not supported
Tray operators
Operator Tray selected (corresponding image
size is set)
110x220envelopetray tray with 110 x 220‑ size envelopes
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme, X658dtfe
dlenvelopetray tray with 110 x 220‑ size envelopes
162x229envelopetray tray with 162 x 229‑ size envelopes
c5envelopetray tray with 162 x 229‑ size envelopes
176x250envelopetray tray with 176 x 250‑ size envelopes
b5envelopetray tray with 176 x 250‑ size envelopes
PostScript (PS) emulation 19
= Supported
X = Not supported
Tray operators
Model
Operator Tray selected (corresponding image
size is set)
3.875x7.5envelopetray tray with 3.875 x 7.5‑ size envelopes
monarcenvelopetray tray with 3.875 x 7.5‑ size envelopes
3.875x8.875envelopetray tray with 3.875 x 8.875‑ size envelopes
4.125x9.5envelopetray tray with 4.125 x 9.5‑ size envelopes
com10envelopetray tray with 4.125 x 9.5‑ size envelopes
otherenvelopetray tray with other size envelopes
6500e MFP
option
T650, T650n,
T652dn,
T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme, X658dtfe
Printer and MFP option specifications 20
Printer and MFP option specifications
Airflow requirement
The room should meet ASHRAE 62—1989 standards.
Noise emission levels
The following measurements were made in accordance with ISO 7779 and reported in conformance with ISO 9296.
1-meter average sound pressure, dBA
6500e MFP
Status
ADF Color
Scan
ADF Mono
Scan
Copying Not
Printing Not
Quiet Mode
printing
Robust
mode Color
Scan
Robust
mode Mono
Scan
Scanning Not
Option
35 Not
50 Not
applicable
applicable
Not
applicable
45 Not
45 Not
applicable
T650n T652n/dn T654n/dn X651 MFP,
X652 MFP
Not
applicable
applicable
Not
applicable
53 (simplex)
56 (duplex)
47 51 51 51 52 50
applicable
applicable
Not
applicable
applicable
Not
applicable
Not
applicable
54 (simplex)
54 (duplex)
Not
applicable
Not
applicable
Not
applicable
Not
applicable
Not
applicable
Not
applicable
55 (simplex)
56 (duplex)
Not
applicable
Not
applicable
Not
applicable
Not applicable Not applicable Not
Not applicable Not applicable Not
55 56 55
54 (simplex)
54 (duplex)
Not applicable Not applicable Not
Not applicable Not applicable Not
56 55 55
X654 MFP,
X656 MFP
56 (simplex)
56 (duplex)
X658 MFP
applicable
applicable
55 (simplex)
55 (duplex)
applicable
applicable
Standby
(Idle without
Power
Saver)
Note: Measurements apply to 300‑dpi, 600‑ dpi, and 1200‑ dpi printing.
35 26 30 30 29 29 28
Printer and MFP option specifications 21
Declared sound power level, Bels
6500e MFP
Status
ADF Color
Scan
ADF Mono
Scan
Copying Not
Printing Not
Quiet Mode
printing
Robust
mode Color
Scan
Robust
mode Mono
Scan
Scanning Not
Option
5.0 Not
6.5 Not
applicable
applicable
Not
applicable
6.0 Not
6.0 Not
applicable
T650n T652n/dn T654n/dn X651 MFP,
X652 MFP
Not
applicable
applicable
Not
applicable
6.8 (simplex)
7.1 (duplex)
6.2 6.7 6.7 6.7 6.7 6.6
applicable
applicable
Not
applicable
applicable
Not
applicable
Not
applicable
7.0 (simplex)
7.0 (duplex)
Not
applicable
Not
applicable
Not
applicable
Not
applicable
Not
applicable
Not
applicable
7.1 (simplex)
7.2 (duplex)
Not
applicable
Not
applicable
Not
applicable
Not applicable N ot applicable Not
Not applicable N ot applicable Not
7.0 7.0 7.0
6.9 (simplex)
6.9 (duplex)
Not applicable N ot applicable Not
Not applicable N ot applicable Not
7.2 7.2 7.2
X654 MFP,
X656 MFP
7.1 (simplex)
7.1 (duplex)
X658 MFP
applicable
applicable
7.1 (simplex)
7.1 (duplex)
applicable
applicable
Standby (Idle
without
Power Saver)
Note: Measurements apply to 300‑dpi, 600‑ dpi, and 1200‑ dpi printing.
5.0 4.1 4.5 4.5 4.5 4.5 4.5
Electrical specifications
Model Electrical specification
6500e MFP Option low‑ voltage model 100–127 V at 57–63 Hz, nominal
90–137 V, extreme
6500e MFP Option high‑ voltage model 220–240 V at 47–63 Hz, nominal (available in some countries)
198–254 V, extreme
T65x low‑ voltage models* 100–127 V at 47–63 Hz, nominal
90–137 V, extreme
T65x high‑ voltage models 220–240 V at 47–63 Hz, nominal (not available in all countries)
198–254 V, extreme
X65x MFP low‑ voltage models 100–127 V at 50–60 Hz, nominal
90–137 V, extreme
* Using a 220–110 power converter with 110 V printer is not recommended.
Printer and MFP option specifications 22
Model Electrical specification
X65x MFP high‑voltage models 220–240 V at 50–60 Hz, nominal (not available in all countries)
198–259 V, extreme
* Using a 220–110 power converter with 110 V printer is not recommended.
Warning—Potential Damage: Do not use voltage converters with printers or scanners.
Power requirements
The following tables list the nominal average power requirements, including fuser power.
Lexmark 6500e MFP option
State Nominal average power requirement
Idle 40 W (Ready mode)
25 W (Sleep mode)
Continuous copying 810 W
Scanning 70 W (ADF scan)
Printing 36 W (low‑ voltage model)
18 W (high‑ voltage model)
Normal mode 12.09 kWh*
Eco‑ Mode 9.52 kWh*
Off 0.0 W
* The values were measured using the 6500e MFP option with the T654 printer.
Lexmark T65x
State Nominal average power requirement
T650n T652n T654n
Average power while printing continuously
1‑ sided (simplex)
2‑ sided (duplex)
Average power while idle
Power Saver on
Ready mode
640 W
540 W
12 W
80 W
725 W
565 W
13 W
85 W
740 W
575 W
14 W
85 W
Max current while printing
100–110 V
110–127 V
220–240 V
8.7 A
7.6 A
4.1 A
8.7 A
7.6 A
4.1 A
8.7 A
7.6 A
4.1 A
Printer and MFP option specifications 23
Lexmark X65x
State Nominal average power requirement
X651 MFP, X652 MFP X654 MFP, X656 MFP X658 MFP
Continuous printing 700 W 800 W 800 W
Continuous copying 765 W 875 W 875 W
Continuous scanning 165 W 165 W 165 W
Average power while idle
Power Saver on
Ready (Standby mode)
Average current while printing
100 V
120 V
230 V
24 W
105 W
9.8 A
8.1 A
4.3 A
28 W
105 W
9.8 A
8.1 A
4.3 A
30 W
105 W
9.9 A
8.5 A
4.5 A
Physical specifications
Lexmark 6500e MFP option dimensions and weight ‑ unpackaged
Length Width Height Weight
6500e MFP option 595 mm (23.43 in.) 562 mm (22.13 in.) 210 mm (8.27 in.) 17.2 kg (38.0 lb)
Lexmark T650n/dn/dtn, T652n/dn/dtn, T654n/dn/dtn dimensions and weight
Height Width Depth Weight
T650n base printer 348 mm (13.7 in.) 425 mm (16.7 in.) 493 mm (19.4 in.) 18.4 kg (40.6 lb)
T650dn configured with an optional duplex unit 402 mm (15.8 in.) 425 mm (16.7 in.) 640 mm (25.2 in.) 23.4 kg (51.6 lb)
T650dn configured with an additional
550‑ sheet drawer
T652n/dn base printer 425 mm (16.7 in.) 425 mm (16.7 in.) 510 mm (20.1 in.) 23 kg (50.7 lb)
T652dn configured with an additional
550‑ sheet drawer
T654n/dn base printer 438 mm (17.2 in.) 425 mm (16.7 in.) 510 mm (20.1 in.) 23.4 kg (51.6 lb)
T654dn configured with an additional
550‑ sheet drawer
533 mm (24.2 in.) 425 mm (16.7 in.) 640 mm (25.2 in.) 27.4 kg (60.4 lb)
557 mm (21.7 in.) 425 mm (16.7 in.) 510 mm (20.1 in.) 59.5 kg (27 lb)
568 mm (22.4 in.) 425 mm (16.7 in.) 510 mm (20.1 in.) 60.4 kg (27.4 lb)
Printer and MFP option specifications 24
Input options for Lexmark T650n/dn/dtn, T652n/dn/dtn, T654n/dn/dtn dimensions and weight
Option name Height Width Depth Weight
Duplex unit (attached to the T650 only) 54 mm (2.1 in.) 421 mm (16.6 in.) 640 mm (25.2 in.) 5 kg (11 lb)
550-sheet drawer 130 mm (5.1 in.) 421 mm (16.6 in.) 510 mm (20.1 in.) 4 kg (8.8 lb)
550-sheet tray 121 mm (4.8 in.) 421 mm (16.6 in.) 506 mm (19.9 in.) 1.4 kg (3.1 lb)
250-sheet drawer 90 mm (3.5 in.) 421 mm (16.6 in.) 510 mm (20.1 in.) 3.2 kg (7.1 lb)
250-sheet tray 56 mm (2.2 in.) 421 mm (16.6 in.) 488 mm (19.2 in.) 0.9 kg (2 lb)
2000-sheet drawer 357 mm (14.1 in.) 421 mm (16.6 in.) 510 mm (20.1 in.) 16.8 kg (37 lb)
200‑ sheet universally adjustable drawer 90 mm (3.5 in.) 421 mm (16.6 in.) 510 mm (20.1 in.) 3.2 kg (7.1 lb)
200‑ sheet universally adjustable tray 56 mm (2.2 in.) 421 mm (16.6 in.) 488 mm (19.2 in.) 0.9 kg (2 lb)
400‑ sheet universally adjustable drawer 130 mm (5.1 in.) 421 mm (16.6 in.) 510 mm (20.1 in.) 4 kg (8.8 lb)
400‑ sheet universally adjustable tray 121 mm (4.8 in.) 421 mm (16.6 in.) 506 mm (19.9 in.) 1.4 kg (3.1 lb)
Envelope feeder (closed position) * * 233 mm (9.2 in.) 2 kg (4.4 lb)
Envelope feeder (support fully extended) * * 350 mm (13.8 in.) 2 kg (4.4 lb)
* The envelope feeder fits within the height and width of the printer.
Output options for Lexmark T650n/dn/dtn, T652n/dn/dtn, T654n/dn/dtn dimensions and weight
Option name Height Width Depth Weight
Output expander 160 mm (6.2 in.) 421 mm (16.6 in.) 378 mm (14.9 in.) 2.8 kg (5.7 lb)
5‑ bin mailbox 315 mm (12.4 in.) 421 mm (16.6 in.) 330 mm (12.9 in.) 5.2 kg (11.5 lb)
High capacity output stacker 323 mm (12.7 in.) 421 mm (16.6 in.) 378 mm (14.9 in.) 4.5 kg (9.9 lb)
StapleSmart
TM
II
320.4 mm (12.6 in.) 433 mm (17.1 in.) 403 mm (15.9 in.) 7.2 kg (15.9 lb)
Furniture for Lexmark T650n/dn/dtn, T652n/dn/dtn, T654n/dn/dtn dimensions and weight
Furniture name Height Width Depth Weight
Spacer 130 mm (5.1 in.) 421 mm (16.6 in.) 510 mm (20.1 in.) 3.4 kg (7.5 lb)
T65x caster base 107 mm (4.2 in.) 768 mm (30.2 in.) 801 mm (31.5 in.) 38.5 kg (84.9 lb)
Lexmark X651de MFP, X652de MFP, X654de MFP, X656de MFP dimensions and weight ‑ unpackaged
Height Width Depth Weight with cartridge
Base MFP 755 mm (29.7 in.) 548 mm (21.6 in.) 611 mm (24.1 in.) 45.4 kg (100 lb)
550‑ sheet drawer 130.4 mm (5.1 in.) 421 mm (16.6 in.) 510.2 mm (20.1 in.) 4.1 kg (9 lb)
250‑ sheet drawer 89.6 mm (3.5 in.) 421 mm (16.6 in.) 510.2 mm (20.1 in.) 3.2 kg (7 lb)
2000‑ sheet drawer 357 mm (14.1 in.) 421 mm (16.6 in.) 510.2 mm (20.1 in.) 16.8 kg (37 lb)
Caster base 107.5 mm (4.2 in.) 778 mm (30.6 in.) 803 mm (31.6 in.) 36.3 kg (80 lb)
Printer and MFP option specifications 25
Lexmark X656dte MFP preconfigured dimensions and weight ‑ unpackaged
Height Width Depth Weight with cartridge
dte 885.4 mm (34.8 in.) 548 mm (21.6 in.) 611 mm (24.1 in.) 49.5 kg (109 lb)
250‑ sheet drawer 89.6 mm (3.5 in.) 421 mm (16.6 in.) 510.2 mm (20.1 in.) 4.1 kg (9 lb)
550‑ sheet drawer 130.4 mm (5.1 in.) 421 mm (16.6 in.) 510.2 mm (20.1 in.) 4.1 kg (9 lb)
2000‑ sheet drawer 357 mm (14.1 in.) 421 mm (16.6 in.) 510 mm (20.1 in.) 16.8 kg (37 lb)
Caster base 107.5 mm (4.2 in.) 778 mm (30.6 in.) 803 mm (31.6 in.) 36.3 kg (80 lb)
X658dxe MFP dimensions and weight ‑ unpackaged
Height Width Depth Weight with cartridge
de, dfe, dme 1114 mm (43.9 in.) 548 mm (21.6 in.)* 596 mm (23.5 in.)* de: 75 kg (165.3 lb)
dfe: 75.1 kg (165.5 lb)
dme: 72.8 kg (160.6 lb)
Models configured with an
additional drawer
MFP with all options ‑ maximum
dimensions
550‑ sheet drawer option 132 mm (5.2 in.) 548 mm (21.6 in.) 548 mm (21.6 in.) 5 kg (11 lb)
Optional envelope feeder (closed
position)
Optional envelope feeder (support
fully extended)
Caster base 89 mm (3.5 in.)* 915 mm (36 in.) 771 mm (30.4 in.) 13.6 kg (30 lb)
* The bottom drawer fits 43 mm (1.7 in.) into the base.
1246 mm (49.1 in.) 548 mm (21.6 in.)* 596 mm (23.5 in.)* de: 80 kg (176.3 lb)
dfe: 80.1 kg (176.5 lb)
dme: 77.8 kg (171.5 lb)
1378 mm (54.3 in.) 548 mm (21.6 in.)* 596 mm (23.5 in.)* de: 85 kg (187.3 lb)
dfe: 85.1 kg (187.5 lb)
dme: 82.8 kg (182.6 lb)
193 mm (7.6 in.) 421 mm (16.6 in.) 233 mm (9.2 in.) 2 kg (4.4 lb)
193 mm (7.6 in.) 421 mm (16.6 in.) 350 mm (13.8 in.) 2 kg (4.4 lb)
Physical dimensions with extensions in open positions
Printer model Height Width Depth
X651de, X652de, X654de, X656de 755 mm (29.7 in.) 548 mm (21.6 in.) 790 mm (31.1 in.)
X656dte 885.4 mm (34.8 in.) 548 mm (21.6 in.) 790 mm (31.1 in.)
X658de/dfe/dme 1114 mm (43.9 in.) 548 mm (21.6 in.) 787 mm (31 in.)
X658dte/dtfe/dtme 1246 mm (49.1 in.) 548 mm (21.6 in.) 787 mm (31 in.)
Printer and MFP option specifications 26
Clearance requirements
Lexmark 6500e MFP option
Model Left side Right side Front Rear Top
6500e MFP option 368 mm (14.5 in.) 25 mm (1 in.) 25 mm (1 in.) 25 mm (1 in.) 348 mm (13.7 in.)
Lexmark T650n/dn/dtn, T652n/dn/dtn, T654n/dn/dtn
Model Left side Right side Front Rear Top
T650n/dn/dtn, T652n/dn/dtn,
T654n/dn/dtn
305 mm (12 in.) 305 mm (12 in.) 508 mm (20 in.) 305 mm (12 in.) 115 mm (4.5 in.)
Lexmark X651 MFP, X652 MFP, X654 MFP, X656 MFP, X658 MFP
Model Left side Right side Front Rear Top
X651 MFP, X652 MFP,
X654 MFP, X656 MFP,
X658 MFP
304.8 mm (12 in.) 203.2 mm (8 in.) 508 mm (20 in.) 203.2 mm (8 in.) 304.8 mm (12 in.)
Environmental conditions
Lexmark 6500e MFP option
Air temperature ranges
Operating value
Product operating Product in power‑ off mode
15.6 to 32.20°C (60 to 90.0°F) 10.0 to 43.3°C (50 to 110°F)
Wet‑ bulb and ambient operating environment temperature
Operating value
Wet‑ bulb temperature
(product operating)
22.80°C (73.0°F) maximum 26.70°C (80.10°F) maximum 15.6 to 32.2°C (60 to 90°F)
Wet‑ bulb temperature
(product in power‑ off mode)
Ambient operating environment
8 to 80% Relative Humidity (RH)
Humidity range
Operating value
8 to 80% RH
Printer and MFP option specifications 27
Lexmark T65x and X65x printer models
Note: When shipping or storing printers, always pack the printer supplies (such as cartridges and photoconductors)
separately.
Air temperature ranges
Printer model Operating value Shipping value Storage (unpacked)
T650n/dn/dtn, T652n/dn/dtn,
T654n/dn/dtn
X651 MFP, X652 MFP, X654 MFP,
X656 MFP, X658 MFP
15.6 to 32.2°C (60 to 90°F) -40 to 43.3°C (-40 to 110°F) 0 to 40°C (32 to 104°F)
15.6 to 32.2°C (60 to 90°F) -40 to 43.3°C (-40 to 110°F) 0 to 40°C (32 to 104°F)
Humidity ranges
Printer model Operating value Shipping value Storage value
T650n/dn/dtn, T652n/dn/dtn, T654n/dn/dtn 8% to 80%* 5% to 95% 5% to 80%
X651 MFP, X652 MFP, X654 MFP, X656 MFP, X658 MFP 8% to 80%* 5% to 95% 8% to 80%
* Approaching 32°C (90°F) the maximum relative humidity is 60%.
Altitude specifications and atmospheric pressure
Lexmark 6500e MFP option
Altitude specification (above sea level)
Operating value
0 to 3048 m (10000 ft)
Lexmark T65x and X65x printer models
Altitude specifications (above sea level)
Printer model Operating Shipping/storage
T650n/dn/dtn, T652n/dn/dtn, T654n/dn/dtn 0 to 3048 M (10,000 ft.) 0.25 atmospheric pressure (equal to 10,300 M
[34,000 ft.]
X651 MFP, X652 MFP, X654 MFP, X656 MFP,
X658 MFP
0 to 3048 M (10,000 ft.) Less than 10,300 M (34,000 ft.)
Atmospheric Pressure
74.6 kPa
Appendix A: PCL support 28
Appendix A: PCL support
PCL emulation commands
= Supported
X = Not supported
Command Function 6500e MFP option
Decimal 8 Backspace (BS)
Decimal 9 Horizontal Tab (HT)
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Decimal 10 Line Feed (LF)
Decimal 12 Form Feed (FF)
Decimal 13 Carrier Return (CR)
Decimal 14 Select Secondary Font (SO)
Decimal 15 Select Primary Font (SI)
Decimal 32 Space (SP)
ESC
ESC
ESC
ESC
ESC
E
Y
Z
z
&a#C
Printer Reset
Display Functions-On
Display Functions-Off
Print Test Page XXX
Set Horizontal Cursor Positi on
(Column Number)
ESC
ESC
&a#G
&a#H
Duplex Page Side Selection
Set Horizontal Cursor Positi on
(in Decipoints)
ESC
&a#L
Set Left Margin
ESC
ESC
ESC
&a#M
&a#N
&a#P
Set Right Margin
Negative Motion XXX
Print Direction
Appendix A: PCL support 29
= Supported
X = Not supported
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
Command Function 6500e MFP option
ESC
&a#R
Set Vertical Cursor Position
T650, T650n,
T652dn, T654dn,
T656dne
X658dfe, X658dte,
X658dtme,
X658dtfe
(Row Number)
ESC
&a#V
Set Vertical Cursor Position
(in Decipoints)
ESC
&b#M
Monochrome Print Mode
ESC
&b#W[data]
ESC
&c#T
ESC
&d@
ESC
&d#A
ESC
&d#D
ESC
&f#F
ESC
&f#G
ESC
&f#O
ESC
&f#W
ESC
&f#S
ESC
&f#X
ESC
&f#Y
ESC
&k#G
Configuration Command XXX
Character Text Path Direction
Disable Underline
Collation ‑ Collated Copies
(QTY)
Select Underline Type
Set Universal Height
Set Universal Width
Set Universal Feed Direction
Set Universal Custom Name
Push/Pop Cursor
Macro Control
Set Macro ID
Set Line Termination
ESC
ESC
ESC
ESC
ESC
&k#H
&k#S
&k#W
&l #A
&l #C
Set Horizontal Motion Index
(HMI)
Select Primary and Secondary
Pitch
Text Scale Mode X
Set Page Size
Set Vertical Motion Index
(VMI)
Appendix A: PCL support 30
= Supported
X = Not supported
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
Command Function 6500e MFP option
ESC
&l #D
Set Line Spacing
T650, T650n,
T652dn, T654dn,
T656dne
X658dfe, X658dte,
X658dtme,
X658dtfe
ESC
&l #E
ESC
&l #F
ESC
&l #G
ESC
&l #H
ESC
&l #L
ESC
&l #O
ESC
&l #M(b)
ESC
&l #P
ESC
&l #S
ESC
&l 1T
ESC
&l #U
ESC
&l #X
ESC
&l #Z
ESC
&n#W [operation] [string
id]
ESC
&p#C
Set Top Margin
Set Text Length
Set Output Bin
Select Paper Feed
Skip Perforation
Select Orientation
Media Type XXX
Set Page Length
Simplex/Duplex
Job Separation XXX
Left (Long-Edge) Offset
Registration
Set Copy Count
Top (Short-Edge) Offset
Registration
Alphanumeric ID
Palette Control
ESC
&p#I
ESC
&p#S
ESC
&p#X[data]
ESC
&r#F
ESC
&s#C
ESC
&t#P
Palette Control ID
Select Palette
Transparent Print Data
Flush All Pages
End-Of-Line Text Wrap
Text Parsing Method
Appendix A: PCL support 31
= Supported
X = Not supported
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
Command Function 6500e MFP option
ESC
&u#D
Unit of Measure
T650, T650n,
T652dn, T654dn,
T656dne
X658dfe, X658dte,
X658dtme,
X658dtfe
ESC
(#
ESC
(#X
ESC
(3@
ESC
(f#W[data]
ESC
(s#B
ESC
(s#H
ESC
(s#P
ESC
(s#S
ESC
(s#T
ESC
(s#V
ESC
(s#W[data]
ESC
)#
ESC
)#X
ESC
)3@
ESC
)s#B
ESC
)s#H
Select Symbol Set
Select Font by ID
Select Default Primary Font
Define Symbol Set
Select Font Stroke Weight
Select Font Pitch
Select Font Spacing
Select Font Style
Select Font Typeface
Select Font Height (Point Size)
Load Character
Secondary Font Symbol Set X
Select Secondary Download
Font (by Font ID)
Select Default Secondary
Font
Secondary Font Stroke
Weight
Secondary Font Pitch X
X
X
ESC
)s#P
ESC
)s#S
ESC
)s#T
ESC
)s#V
ESC
)s#W[data]
Secondary Font Spacing X
Secondary Font Style X
Secondary Font Typeface
Selection
Secondary Font Height
(Point Size)
Load Font Header
X
X
Appendix A: PCL support 32
= Supported
X = Not supported
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
Command Function 6500e MFP option
ESC
*b#M
Set Raster Compression
T650, T650n,
T652dn, T654dn,
T656dne
X658dfe, X658dte,
X658dtme,
X658dtfe
Mode
ESC
*b#V[data]
Transfer Raster Data (Plane)
ESC
*b#W[data]
ESC
*b#Y
ESC
*c#A
ESC
*c#B
ESC
*c#D
ESC
*c#E
ESC
*c#F
ESC
*c#G
ESC
*c#H
ESC
*c#K
ESC
*c#L
ESC
*c#P
Transfer Raster Data
(Row/Block)
Y Offset
Horizontal Rectangle Size
(in PCL Units)
Vertical Rectangle Size
(in PCL Units)
Set Font ID
Set Character Code
Font Control
Area Fill ID
Horizontal Rectangle Size
(in Decipoints)
Horizontal Plot Size
(in Inches)
Vertical Plot Size (in Inches)
Fill Rectangular Area
ESC
*c#Q
ESC
*c#R
ESC
*c#S
ESC
*c0T
ESC
*c#V
ESC
*c#W[data]
Pattern Control
Symbol Set ID Code
Symbol Set Control
Set Picture Frame Anchor
Point
Vertical Rectangle Size
(in Decipoints)
Define Pattern
Appendix A: PCL support 33
= Supported
X = Not supported
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
Command Function 6500e MFP option
ESC
*c#X
Picture Frame Horizontal Size
T650, T650n,
T652dn, T654dn,
T656dne
X658dfe, X658dte,
X658dtme,
X658dtfe
(in Decipoints)
ESC
*c#Y
Picture Frame Vertical Size
(in Decipoints)
ESC
*l #O
Logical Operation
ESC
*l #R
ESC
*l #W[data]
ESC
*m#W[data]
ESC
*o#M(b)
ESC
*o#Q
ESC
*o#W[data]
ESC
*p#P
ESC
*p#R
ESC
*p#X
ESC
*p#Y
ESC
*r#A
ESC
*r#F
ESC
*r#S
Pixel Placement
Color Lookup Tables XXX
Download Dither Matrix
Print Quality X
Mechanical Print Quality XXX
Driver Configuration
Push/Pop Palette
Set Pattern Reference Point
Set Horizontal Cursor Positi on
(in PCL Units)
Set Vertical Cursor Position
(in PCL Units)
Start Raster Graphics
Raster Graphics
Presentatione
Raster Width (Source)
ESC
ESC
ESC
ESC
ESC
*r#T
*r#U
*rB
*rC
*s#I
Raster Height (Source)
Simple Color
End Raster Graphics
(Version B)
End Raster Graphics
(Version C)
Inquire Status Readback
Entity
Appendix A: PCL support 34
= Supported
X = Not supported
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
Command Function 6500e MFP option
ESC
*s1M
Free Space
T650, T650n,
T652dn, T654dn,
T656dne
X658dfe, X658dte,
X658dtme,
X658dtfe
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
ESC
*s#T
*s#U
*s#X
*t#H
*t#I
*t#J
*t#K
*t#R
*t#V
*g#W
*v#A
*v#B
*v#C
Set Status Readback Location
Type
Set Status Readback Location
Unit
Echo
Raster Width (Destination)
Gamma Correction
Render Algorithm XXX
Scale Algorithm XXX
Set Raster Resolution
Raster Height (Destination)
Set Raster Configuration X
Color Component One
Color Component Two
Color Component Three
ESC
*v#I
ESC
*v#N
ESC
*v#O
ESC
*v#S
ESC
*v#T
ESC
*v#W[data]
ESC
*i#W[data]
ESC
9
ESC
=
Assign Color Index
Source Transparency Mode
Pattern Transparency Mode
Foreground Color
Select Current Pattern
Configure Image Data
Viewing Illuminant
Clear Horizontal Margins
Half Line-Feed
XX
Appendix A: PCL support 35
= Supported
X = Not supported
Command Function 6500e MFP option
ESC
%#A
Enter PCL Emulation
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
ESC
%#B
ESC
%12345X
Enter HP‑ GL/2 Language
Note: The values of -1, 2,
and 3 are not supported by
any of the printers included
in this document.
Universal Exit Language
(UEL) / Start of PJL
GL/2 commands
= Supported
X = Not supported
Command Function 6500e MFP option
AA Arc Absolute
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
AC Anchor Corner
AD Define Alternate Font
AR Arc Relative
AT Arc Absolute Three Point
BR Bezier Relative
BZ Bezier Absolute
CF Character Fill
CI Circle
CO Comment
Appendix A: PCL support 36
= Supported
X = Not supported
Command Function 6500e MFP option
CP Character Plot
CR Color Range
DF Default
DI Absolute Direction
DR Relative Direction
DT Define Label Terminator
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
DV Define Variable Text Path
EA Edge Rectangle Absolute
EP Edge Polygon
ER Edge Rectangle Relative
ES Extra Space
EW Edge Wedge
FI Primary Font
FN Secondary Font
FP Fill Polygon, Odd/Even
FP Fill Polygon, Non-Zero
Winding
FT Fill Type
FT Fill Type - 22
FT Fill Type - 9
IN Initialize
IP Input P1 and P2
IR Input Relative P1 and P2
IW Input Window
Appendix A: PCL support 37
= Supported
X = Not supported
Command Function 6500e MFP option
LA Line Attributes
LB Label, Default Terminator =
'03'x
LO Label Origin
LO Uses PCL Label Origin
LT Line Type
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LM Label Mode XXX
MC Logical Operation
NP Number of Pens
PA Plot Absolute
PC Pen Color
PD Pen Down
PE Polyline Encoded
PM Polygon Mode
PP Pixel Placement
PR Plot Relative
PU Pen Up
PW Pen Width
RA Fill Rectangle Absolute
RF Define Raster Fill
RO Rotate Coordinate System
RR Fill Rectangle Relative
RT Arc Relative Three Point
SA Select Alternate Font
Appendix A: PCL support 38
= Supported
X = Not supported
Command Function 6500e MFP option
SB Scalable/Bitmapped Fonts
SC Scale
SD Define Standard Font
SI Absolute Character Size
SL Character Slant
SM Symbol Mode
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
SP Select Pen
SR Relative Character Size
SS Select Standard Font
SV Screened Vectors
SV Screened Vectors - 9, level
TD Transparent Data
TM Threshold Matrix
TR Transparency Mode
UL User Defined Line
WG Fill Wedge
WU Pen Width Units
Appendix B: PJL support 39
Appendix B: PJL support
Common variables for both printer languages
= Supported
X = Not supported
Variable name 6500e MFP option
AUTOCONT
AUTOSELECT XXX
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
BINDING
BITSPERPIXEL
CLEARABLEWARNINGS
CONTEXTSWITCH XXX
COPIES
CPLOCK
DENSITY
DISKLOCK XXX
DUPLEX
ECONOMODE
FORMATTERNUMBER
FORMLINES
HELDJOBTIMEOUT
HOLD
HOLDKEY
HOLDTYPE
IMAGEADAPT XXX
INTRAY1 XXX
Appendix B: PJL support 40
= Supported
X = Not supported
Variable name 6500e MFP option
INTRAY2
INTRAY3
INTRAY4
INTRAY5
INTRAY1SIZE
INTRAY2SIZE
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
INTRAY3SIZE
INTRAY4SIZE
INTRAY5SIZE
IOBUFFER XXX
IOSIZE XXX
JOBATTR XXX
JOBNAME
JOBOFFSET
LANG
LOWTONER
MANUALFEED
MEDIASOURCE XXX
MEDIATYPE
MPTRAY
ORIENTATION
OUTBIN
PAGEPROTECT
PAPER
Appendix B: PJL support 41
= Supported
X = Not supported
Variable name 6500e MFP option
PARALLEL
PASSWORD
PERSONALITY
POWERSAVE
POWERSAVETIME
PRINTQUALITY XXX
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
QTY
RENDERMODE XXX
REPEATJOBTIMEOUT
REPRINT
RESERVEJOBTIMEOUT XX
RESOLUTION
RESOURCESAVE
RESOURCESAVESIZE XXX
RET XXX
STRINGCODESET
TIMEOUT
USERNAME
VERIFYJOBTIMEOUT XX
WIDEA4
XX
XX
Appendix B: PJL support 42
Lexmark‑ unique PJL variables for both printer languages
= Supported
X = Not supported
Variable name 6500e MFP option
LACTIVEBINRESET
LADVANCEDSTATUS
LALARMCONTROL
LAUTOCRLF
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LAUTOLFCR
LBAYERSCREENLIMIT
LBLANKPAGES
LBONDLENGTH XXX
LBONDLOADING
LBONDOUTBIN
LBONDTEXTURE
LBONDWEIGHT
LBOTTOMMARGINOFFSET X
LBWLOCK XXX
LCANCEL
LCARDSTOCKLENGTH XXX
LCARDSTOCKLOADING
LCARDSTOCKOUTBIN
LCARDSTOCKTEXTURE
LCARDSTOCKWEIGHT
LCOLLATION
LCOLORBALANCEBLACK XXX
LCOLORBALANCECYAN XXX
Appendix B: PJL support 43
= Supported
X = Not supported
Variable name 6500e MFP option
LCOLORBALANCEMAGENTA XXX
LCOLORBALANCEYELLOW XXX
LCOLORCORRECTION
LCOLOREDLENGTH XXX
LCOLOREDLOADING
LCOLOREDOUTBIN
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LCOLOREDTEXTURE
LCOLOREDWEIGHT
LCOLORMODEL XXX
LCOLORSAVER XXX
LCOLORTRAPPING XXX
LCUSTOMPAPERUNITS
LCUSTOMPAPERWIDTH
LCUSTOMPAPERHEIGHT
LCUSTOMPAPERFEED
LCUSTOMTYPE1LENGTH XXX
LCUSTOMTYPE1LOADING
LCUSTOMTYPE1MEDIA
LCUSTOMTYPE1NAME
LCUSTOMTYPE1OUTBIN
LCUSTOMTYPE1TEXTURE
LCUSTOMTYPE1WEIGHT
LCUSTOMTYPE2LENGTH XXX
LCUSTOMTYPE2LOADING
Appendix B: PJL support 44
= Supported
X = Not supported
Variable name 6500e MFP option
LCUSTOMTYPE2MEDIA
LCUSTOMTYPE2NAME
LCUSTOMTYPE2OUTBIN
LCUSTOMTYPE2TEXTURE
LCUSTOMTYPE2WEIGHT
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LCUSTOMTYPE3LENGTH XXX
LCUSTOMTYPE3LOADING
LCUSTOMTYPE3MEDIA
LCUSTOMTYPE3NAME
LCUSTOMTYPE3OUTBIN
LCUSTOMTYPE3TEXTURE
LCUSTOMTYPE3WEIGHT
LCUSTOMTYPE4LENGTH XXX
LCUSTOMTYPE4LOADING
LCUSTOMTYPE4MEDIA
LCUSTOMTYPE4NAME
LCUSTOMTYPE4OUTBIN
LCUSTOMTYPE4TEXTURE
LCUSTOMTYPE4WEIGHT
LCUSTOMTYPE5LENGTH XXX
LCUSTOMTYPE5LOADING
LCUSTOMTYPE5MEDIA
LCUSTOMTYPE5NAME
Appendix B: PJL support 45
= Supported
X = Not supported
Variable name 6500e MFP option
LCUSTOMTYPE5OUTBIN
LCUSTOMTYPE5TEXTURE
LCUSTOMTYPE5WEIGHT
LCUSTOMTYPE6LENGTH XXX
LCUSTOMTYPE6LOADING
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LCUSTOMTYPE6MEDIA
LCUSTOMTYPE6NAME
LCUSTOMTYPE6OUTBIN
LCUSTOMTYPE6TEXTURE
LCUSTOMTYPE6WEIGHT
LDOWNLOADTARGET
LDRYTIMEDELAY XXX
LDUPLEXLEFTMARGINOFFSET XXX
LDUPLEXTOPMARGINOFFSET X
LDUPLICATEHELDJOBS
LECOMODE
LENVELOPEENHANCE
LENVELOPELENGTH XXX
LENVELOPEOUTBIN
LENVELOPETEXTURE
LENVELOPEWEIGHT
LESCCHAR
LFAXFOLD XXX
LFAXJOBWAITFORTONER
Appendix B: PJL support 46
= Supported
X = Not supported
Variable name 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LFAXREDIAL
LFAXREDIALFREQUENCY X
LFAXRESOLUTION X
LFAXTRANSMISSIONLOG X
LFOLD XXX
LFEEDERPAPERTYPE
LGLOSSYLOADING XXX
LGLOSSYOUTBIN XXX
LGLOSSYTEXTURE XXX
LGLOSSYWEIGHT XXX
LHEAVYGLOSSYLOADING XXX
LHEAVYGLOSSYOUTBIN XXX
LHEAVYGLOSSYTEXTURE XXX
LHEAVYGLOSSYWEIGHT XXX
LHEAVYPAPERLOADING
X
LHEAVYPAPEROUTBIN
LHEAVYPAPERTEXTURE
LHEAVYPAPERWEIGHT
LHELDJOBPRTORDER
LHOLEPUNCHALARM XXX
LHOLEPUNCHMODE XXX
LHONORINIT
LIMAGEESS XX
LIMAGEBRIGHTNESS X
LIMAGECONTRAST
Appendix B: PJL support 47
= Supported
X = Not supported
Variable name 6500e MFP option
LIMAGEENHANCE
LIMAGEENHANCETYPE
LIMAGEORIENTATION
LIMAGESATURATION XXX
LIMAGESMOOTHING XXX
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LINFEEDER XXX
LINFEEDERSIZE
LINKALERT XXX
LINMPFEEDERSIZE
LJAMRECOVERY
LJOBPARKPERSIST
LJOBWAITFORSUPPLIES
LLABELSLENGTH XXX
LLABELSLOADING
LLABELSOUTBIN
LLABELSTEXTURE
LLABELSWEIGHT
LLASTTRAYRENUMBER
LLEFTMARGINOFFSET X
LLETTERHEADLENGTH XXX
LLETTERHEADLOADING
LLETTERHEADOUTBIN
LLETTERHEADTEXTURE
LLETTERHEADWEIGHT
Appendix B: PJL support 48
= Supported
X = Not supported
Variable name 6500e MFP option
LLIGHTPAPERLOADING
LLIGHTPAPEROUTBIN
LLIGHTPAPERTEXTURE
LLIGHTPAPERWEIGHT
LLINEDETAIL
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LMANUALCOLORRGBTEXT XXX
LMANUALCOLORRGBGRAPHICS XXX
LMANUALCOLORRGBIMAGE XXX
LMANUALCOLORCMYKTEXT XXX
LMANUALCOLORCMYKGRAPHICS XXX
LMANUALCOLORCMYKIMAGE XXX
LMANUALENVELOPESIZE
LMANUALENVELOPETYPE
LMANUALPAPERSIZE
LMANUALPAPERTYPE
MICRJOB
LMAXSTATUSMSG XXX
LMPFEEDERPAPERTYPE
LMPFEEDERRENUMBER
LMULTIPAGEBORDER
LMULTIPAGEORDER
LMULTIPAGEPRINT
LMULTIPAGEVIEW
LNPAP
Appendix B: PJL support 49
= Supported
X = Not supported
Variable name 6500e MFP option
LOPTIONALOUTBIN1NAME
LOPTIONALOUTBIN2NAME
LOPTIONALOUTBIN3NAME
LOPTIONALOUTBIN4NAME
LOPTIONALOUTBIN5NAME X
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LOPTIONALOUTBIN6NAME
LOPTIONALOUTBIN7NAME
LOPTIONALOUTBIN8NAME
LOPTIONALOUTBIN9NAME
LOPTIONALOUTBIN10NAME
LOUTBINCONFIG
LOVERFLOWOUTBIN
LOVERFLOWTIMER
LPAGECOUNT
LPAGEMODE
LPAPERSOURCE
LPICTUREGRADE XXX
LPLAINLENGTH XXX
LPLAINOUTBIN
X
X
X
X
X
LPLAINTEXTURE
LPLAINWEIGHT
LPOWERSAVER
LPPDS
Appendix B: PJL support 50
= Supported
X = Not supported
Variable name 6500e MFP option
LPPDSFORMLINES
LPPDSLINESPERINCH
LPREPRINTEDLENGTH XXX
LPREPRINTEDLOADING
LPREPRINTEDOUTBIN
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LPREPRINTEDTEXTURE
LPREPRINTEDWEIGHT
LPRINTBUFFER
LPRINTSCREENS
LPRINTHEADIDLETIME
LPRINTERUSAGE XXX
LPRINTMENUSBUTTON XXX
LPRINTQUALITY XXX
LPUNCH XXX
LQUIETMODE
LREAROUTBINNAME XXX
LRECYCLEDLOADING
LRECYCLEDMEDIA
LRECYCLEDOUTBIN
LRECYCLEDTEXTURE
LRECYCLEDWEIGHT
LREPEATPRINTLIMIT
LRESET
LRESOURCESAVE
Appendix B: PJL support 51
= Supported
X = Not supported
Variable name 6500e MFP option
LRIGHTMARGINOFFSET X
LROUGHENVELOPELOADING XXX
LROUGHENVELOPEOUTBIN
LROUGHENVELOPETEXTURE
LROUGHENVELOPEWEIGHT
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LROUGHPAPERLOADING
LROUGHPAPEROUTBIN
LROUGHPAPERTEXTURE
LROUGHPAPERWEIGHT
LSCREENING XXX
LSEPARATORSHEETS
LSEPARATORSOURCE
LSMALLFONTENHANCER
LSSGALVO X
LSTANDARDOUTBINNAME
LSTAPLE
LSTAPLESEMPTYALARM
LSTAPLETESTBIN XXX
LSTAPLETESTSOURCE XXX
LSTROKEWIDTH XXX
LSUBSTITUTESIZE
LTOPBINROTATE
LTOPMARGINOFFSET X
LTRANSPARENCYLENGTH XXX
Appendix B: PJL support 52
= Supported
X = Not supported
Variable name 6500e MFP option
LTRANSPARENCYOUTBIN
LTRANSPARENCYTEXTURE
LTRANSPARENCYWEIGHT
LTRAY1AUTOSIZE
LTRAY2AUTOSIZE
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LTRAY3AUTOSIZE
LTRAY4AUTOSIZE
LTRAY5AUTOSIZE
LTRAY1PAPERTYPE
LTRAY2PAPERTYPE
LTRAY3PAPERTYPE
LTRAY4PAPERTYPE
LTRAY5PAPERTYPE
LTRAY1RENUMBER
LTRAY1SENSEDTYPEPAPER XXX
LTRAY1SENSEDTYPETRANSPARENCY XXX
LTRAY2SENSEDTYPEPAPER XXX
LTRAY2SENSEDTYPETRANSPARENCY XXX
LTRAY3SENSEDTYPEPAPER XXX
LTRAY3SENSEDTYPETRANSPARENCY XXX
LTRAY4SENSEDTYPEPAPER XXX
LTRAY4SENSEDTYPETRANSPARENCY XXX
LTRAYINSERTMESSAGEDELAY XXX
LTYPE1FONTS
Appendix B: PJL support 53
= Supported
X = Not supported
Variable name 6500e MFP option
LUSDEFAULTS
LVINYLLABELSLOADING
LVINYLLABELSOUTBIN
LVINYLLABELSTEXTURE
LVINYLLABELSWEIGHT
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de,
X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LWRITECOVERAGE
Common variables for PCL emulation
= Supported
X = Not supported
Variable name 6500e MFP option
FONTNUMBER
FONTSOURCE
PITCH
PTSIZE
SYMSET
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Appendix B: PJL support 54
Lexmark‑ unique variables for PCL emulation
= Supported
X = Not supported
Variable name 6500e MFP option
LA4WIDTH
LASSIGNFEEDER
LASSIGNMANUALENVELOPE
LASSIGNMANUALPAPER
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
LASSIGNMPFEEDER
LASSIGNTRAY1
LASSIGNTRAY2
LASSIGNTRAY3
LASSIGNTRAY4
LASSIGNTRAY5
LBITMAPROUNDING
LCOLOREXTENSIONS
LFONTCOMPATIBILITY
LFONTPRIORITY
Appendix B: PJL support 55
Common variables for PostScript emulation
= Supported
X = Not supported
Variable name 6500e MFP option
JAMRECOVERY
PRTPSERRS
ADOBEMBT XXX
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Lexmark‑ unique variables for PostScript emulation
Lexmark‑ unique variables for PostScript emulation
= Supported
X = Not supported
Variable name 6500e MFP option
LPICTUREGRADE XXX
LPSFONTPRIORITY
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Appendix B: PJL support 56
Printer‑ unique LRESOURCE variables
= Supported
X = Not supported
Variable name 6500e MFP option
LDESCRIPTION
LRWLOCK
LWLOCK
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Status Readback commands
= Supported
X = Not supported
Command 6500e MFP option
DINQUIRE
ECHO
INFO
INFO MICR
INQUIRE
USTATUS
USTATUSOFF
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Appendix B: PJL support 57
USTATUS unsolicited status variables
= Supported
X = Not supported
Variable name 6500e MFP option
DEVICE
JOB
PAGE
TIMED
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
PJL messages for auto-continuable conditions
= Supported
X = Not supported
6500e MFP
Message Status code Return string
Intervention
Required -
PPDS Font Error
Intervention
Required -
Insufficient Collation
Area
30014
30016
50 PPDS font
error
37 Insufficient
Collation Area
option
XXX
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Insufficient
Defragment Memory
30016
37 Insufficient
Defrag Memory
XXX
Appendix B: PJL support 58
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Insufficient Memory
Intervention
Required -
Insufficient
Defragment Memory
Intervention
Required -
Insufficient
Defragment Memory
Intervention
Required -
Insufficient
Defragment Memory
Intervention
Required -
Insufficient Collation
Area
30016
30016
30016
30016
30016
37 Insufficient
memory, some
Held Jobs were
deleted
37 Insufficient
memory, some
Held Jobs were
deleted
37 Insufficient
memory, some
Held Jobs will
not be restored
37 Insufficient
memory for
Flash Memory
Defragment
operation
37 Insufficient
memory to
collate job
XXX
X
XX
Intervention
Required -
Memory Full
Intervention
Required -
Configuration
Change
Intervention
Required -
Held Jobs May Not Be
Restored (57
Configuration
Change)
30016
30016
30016
38 Memory full
57
Configuration
Change
57
Configuration
change, some
held jobs were
not restored
XXX
Appendix B: PJL support 59
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Held Jobs May Not Be
Restored
Intervention
Required -
Held Jobs May Not Be
Restored
Intervention
Required -
Held Jobs May Not Be
Restored
Intervention
Required -
Complex Page
Intervention
Required -
Parallel Error
Intervention
Required -
Serial Option Error
30016
30016
30016
30017
30018
30018
Held Jobs May
Not Be Restored
Some held jobs
were not
restored
37 Insufficient
memory, some
held jobs will
not be restored
39 Complex
page, some data
may not have
printed
54 Parallel
Error
54 Serial
option [slot #]
error
XXX
XX
XXX
XXX
Intervention
Required -
Standard Serial Error
Intervention
Required -
Standard Network
Software Error
Intervention
Required -
Standard Serial Fax
Connection Lost
30018
30018
30018
54 Standard
Serial Error
54 Standard
network
software error
54 Std Ser Fax
Connection Lost
XXX
XXX
Appendix B: PJL support 60
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Parallel Port Disabled
Intervention
Required -
Parallel Port Error
Intervention
Required -
Serial Option
Disabled
Intervention
Required -
Standard Serial
Disabled
Intervention
Required -
Standard USB Port
Disabled
Intervention
Required -
Std Parallel Port
Disabled
30018
30018
30018
30018
30018
30018
56 Parallel
Port Disabled
56 Parallel
Port Disabled
56 Serial
[slot #] Port
Disabled
56 Standard
Serial Disabled
56 Standard USB
port disabled
56 Std Parallel
Port Disabled
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Resource Save Off
Deficient Memory
Intervention
Required -
Insufficient Fax
Buffer
30019
30026
35 Res Save Off
Deficient
Memory
55 Insufficient
Fax Buffer
XXX
XXX
Appendix B: PJL support 61
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Std Par ENA
Connection Lost
Intervention
Required -
Standard Parallel
Port Disabled
Intervention
Required -
Std Parallel Port
Disabled
Intervention
Required -
Resolution Reduced
Intervention
Required -
Print Jobs on Disk
Request
Intervention
Required -
Restore Held Jobs.
Go/Stop?
30027
30027
30027
30029
30031
30031
54 Std Par ENA
Connection Lost
56 Standard
Parallel Port
Disabled
56 Std Parallel
Port Disabled
36 Resolution
Reduced
Print Jobs on
Disk? or
Print Jobs on
Disk. Go/Stop?
Restore held
jobs?
XXX
X
XXX
XXX
XXX
X
Intervention
Required -
Short Paper
Intervention
Required -
Short Paper
Intervention
Required -
Flash Full
30034
30034
30035
34 Short Paper
34 Incorrect
paper size,
open [source]
52 Flash Full
X
XX
XXX
Appendix B: PJL support 62
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Disk Full
Intervention
Required -
Defective Flash
Intervention
Required -
Unformatted Flash
Intervention
Required -
Defective Disk
Intervention
Required -
Unformatted Disk
Intervention
Required -
Scheduled
Maintenance
Intervention
Required -
Scheduled
Maintenance
30035
30036
30036
30036
30036
30075
30075
62 Disk Full
51 Defective
Flash
53 Unformatted
Flash
61 Defective
Disk
63 Unformatted
Disk
80 Scheduled
Maintenance
80 Scheduled
maintenance ADF
kit
XXX
XXX
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Res Save Off Deficient
Memory
Intervention
Required -
Insufficient memory
30076
30076
35 Insufficient
memory to
support
Resource Save
feature
35 Insufficient
memory to
support
Resource Save
feature
X
XXX
Appendix B: PJL support 63
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Resource Save Off
Deficient Memory
Intervention
Required -
Insufficient Collation
Area
Intervention
Required -
Service Required
Intervention
Required -
Empty Box M
Intervention
Required -
Empty Hole Punch
Box
Intervention
Required -
Insert Box M
30076
30076
30095
30107
30107
30107
35 Res Save Off
Deficient
Memory
37 Insufficient
Collation Area
36 Printer
service
required
Empty Box M
Empty Hole
Punch Box
Insert Box M
X
XXX
XXX
XXX
XXX
XXX
X
Intervention
Required -
Insert Staple
Cartridge
Intervention
Required -
Insert Stapler
Intervention
Required -
Priming Failed
30107
30107
30107
Insert staple
cartridge
Insert Stapler
Priming Failed,
Retry. Go/Stop?
XXX
XXX
Appendix B: PJL support 64
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Network [x] Software
Error
Intervention
Required -
Serial [x] Fax
Connection Lost
Intervention
Required -
Serial Option [x] Error
Intervention
Required -
Serial Port [x]
Disabled
Intervention
Required -
USB Port [x] Disabled
Intervention
Required -
Parallel [x] ENA
Connection Lost
30112
30112
30112
30112
30112
30113
54 Network [x]
software error
54 Ser [x] Fax
Connection Lost
54 Serial
option [x]
error
56 Serial
port [x]
disabled
56 USB port [x]
disabled
54 Par [x] ENA
Connection Lost
XXX
XXX
Intervention
Required -
Parallel Port [x]
Disabled
Intervention
Required -
Disk Operation Failed
Faxes on Disk
30113
32001
56 Parallel
port [x]
disabled
Operation
Failed Faxes on
Disk
XXX
Appendix B: PJL support 65
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Disk Operation Failed
Jobs on Disk
Intervention
Required -
Flash Full
Intervention
Required -
Flash Full
Intervention
Required -
Disk Full
Intervention
Required -
Disk Corrupted
Intervention
required -
Disk Corrupted.
Reformat?
32001
32002
32002
32002
32015
32015
Operation
Failed Jobs on
Disk
52 Flash Full
52 Not enough
free space in
flash memory
for resources
62 Disk full
Disk Corrupted
Disk Corrupted.
Reformat?
XXX
XXX
X
XXX
Intervention
required -
Too Many Bins
Attached
Intervention
Required -
Too Many Flash
Options Installed
Intervention
Required -
Too Many Flash
Options Installed
32030
32030
32030
58 Too many
bins attached
58 Too Many
Flash Options
58 Too many
flash options
installed
X
XXX
X
Appendix B: PJL support 66
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Unformatted Flash
Intervention
Required -
Unformatted Flash
Detected
Intervention
Required -
Unformatted Disk
Intervention
Required -
Unsupported Disk
Format
Intervention
Required -
Defective Flash
Intervention
Required -
Defective Flash
32052
32052
32052
32052
32056
32056
53 Unformatted
flash detected
53 Unformatted
Flash detected
63 Unformatted
disk
64 Unsupported
Disk Format
51 Defective
Flash
51 Defective
flash detected
XXX
XXX
XX
XXX
XXX
Intervention
Required -
Defective Disk
Intervention
Required -
Defective Disk
Intervention
Required -
Scheduled
Maintenance
32056
32056
35075
61 Defective
Disk
61 Remove
defective disk
80 Scheduled
Maintenance
XXX
X
XXX
Appendix B: PJL support 67
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Scheduled
Maintenance
Intervention
Required -
Scheduled
Maintenance
Intervention
Required -
Scheduled
Maintenance
Intervention
Required -
Belt Life Warning
Intervention
Required -
Belt Exhausted
Intervention
Required -
Fuser Maintenance
35075
40315
40316
40038
40038
40038
81 Scheduled
Maintenance
81 Scheduled
Maintenance [x]
81 Scheduled
Maintenance [x]
80 Belt Life
Warning
80 Belt
Exhausted
80 Fuser
Maintenance
XXX
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Fuser Life Warning
Intervention
Required -
Fuser Exhausted
Intervention
Required -
Fuser/Belt Life
Warning
40038
40038
40038
80 Fuser Life
Warning
80 Fuser
Exhausted
80 Fuser/Belt
Life Warning
XXX
XXX
XXX
Appendix B: PJL support 68
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Fuser/Belt Exhausted
Intervention
Required -
ITU Maintenance
Intervention
Required -
Cartridge low
Intervention
Required -
Cartridge nearly low
Intervention
Required -
PJL OP Message
Intervention
Required -
PJL ST Message
40038
40038
40038
40038
40048
40049
80 Fuser/Belt
Exhausted
83 ITU
Maintenance
88 Cartridge
low
88.yy Cartridge
nearly low
[Pick up text
from 'data1'
and 'data2 but
not
'userMessage1'
and
'userMessage2'
]
[Pick up text
from 'data1'
and 'data2' but
not
'userMessage1'
and
'userMessage2'
]
XXX
XXX
X
X
Appendix B: PJL support 69
= Supported
X = Not supported
Message Status code Return string
6500e MFP
option
Model
T650, T650n,
T652dn,
T654dn,
T656dne
X651de,
X652de,
X654de,
X656de,
X656dte,
X658d, X658de,
X658dme,
X658dfe,
X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Waste Toner Nearly
Full
Intervention
Required -
Transfer Module Life
Warning
40141
40215
82.xx Waste
toner bottle
nearly full
or
82.xx Waste
toner box
nearly full
83.xx Transfer
module life
warning
PJL messages for attendance conditions
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
XXX
XX
Model
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
T650, T650n,
T652dn, T654dn,
T656dne
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Empty Hole Punch
Box
Intervention
Required -
Insert Staple
Cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
30107
30107
Empty the
hole punch
box
Insert staple
cartridge
XXX
Appendix B: PJL support 70
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
required -
Disk Corrupted.
Reformat?
Intervention
Required -
Too Many Bins
Attached
Intervention
Required -
Too Many Flash
Options Installed
Intervention
Required -
Remove Defective
Disk
Intervention
Required -
Defective Flash
Intervention
Required -
Defective Flash
32015
32030
32030
32056
32056
32056
Disk
corrupted
58 Too many
bins attached
58 Too many
flash options
installed
61 Remove
defective
disk
61 Defective
flash
detected
51 Defective
flash
detected
XXX
X
Intervention
Required -
Insert Hole Punch
Box
Intervention
Required -
Insert PC Cartridge
Intervention
Required -
30 CMYK* Print Unit
Missing
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40010
40010
40010
Insert Hole
Punch Box
Insert PC
Cartridge
30 CMYK* Print
Unit Missing
XXX
XXX
XXX
Appendix B: PJL support 71
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
30 Coating Roll
Missing
Intervention
Required -
Remove Originals
from Scanner ADF
Intervention
Required -
Remove Paper
Standard Bin
Intervention
Required -
Remove Paper
Output Bin [x]
Intervention
Required -
Remove Paper [All
Output Bins]
40010
40019
40019
40019
40019
30 Coating
Roll Missing
Remove
originals
from the
scanner
automatic
document
feeder
Remove paper
from standard
output bin
Remove paper
from bin [x]
Remove paper
from all bins
XXX
XXX
Intervention
Required -
Remove Paper
[linked set bin name]
Intervention
Required -
Install MICR cartridge
Intervention
Required -
Cartridge Life Expired
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40019
40020
40021
Remove paper
from [linked
set bin name]
Install MICR
cartridge
Cartridge
Life Expired
CMYK*
X
XXX
Appendix B: PJL support 72
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Cartridge Life
Warning
Intervention
Required -
Change Cartridge
Invalid Refill
Intervention
Required -
Close Cover [x]
Intervention
Required -
Close Cover [x]
Intervention
Required -
Printer Cover Open
Intervention
Required -
Close Toner Box
Cover
40021
40021
40021
40021
40021
40021
Cartridge
Life Warning
CMYK*
Change
Cartridge
Invalid
Refill
Close cover
[x]
Close paper
transport
cover
Close Cover
Close Cover
XXX
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Close Deflector G
Intervention
Required -
Close Door
Intervention
Required -
Close Door [x]
Intervention
Required -
Close Door [x]
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40021
40021
40021
40021
Close
Deflector G
Close Door
Close door
[x]
Close stapler
door
XXX
XXX
XXX
XXX
Appendix B: PJL support 73
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Close Door Insert
Cartridge
Intervention
Required -
Close Finisher Door
Intervention
Required -
Close Finisher Side
Door
Intervention
Required -
Close Finisher Top
Cover
Intervention
Required -
Close Front Door
Intervention
Required -
Close Left Side Door
40021
40021
40021
40021
40021
40021
Close door or
insert
cartridge
Close
Finisher Door
Close
finisher side
door
Close
finisher top
cover
Close front
door
Close left
side door
X
XXX
XXX
XXX
XXX
Intervention
Required -
Close Low ADF Door
Intervention
Required -
Close Side Door
Intervention
Required -
Close Surface
Intervention
Required -
Close Cover
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40021
40021
40021
40021
Close lower
automatic
feeder door
Close Side
Door
Close surface
H
Close top
access cover
XXX
XXX
XXX
XX
Appendix B: PJL support 74
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Close Cover and Door
Intervention
Required -
Close Door
Intervention
Required -
Close Tray [x] Top
Cover
Intervention
Required -
Printer Upper Door
Open
Intervention
Required -
Insert Print Cartridge
Intervention
Required -
Open Cover
40021
40021
40021
40021
40021
40021
Close top
access cover
and front
door
Close [tray]
door
Close
Tray [x] Top
Cover
Cover Open,
Close Top
Covers, Close
Door, or
Insert
Cartridge
Insert Print
Cartridge
Open Cover
XXX
XX
XXX
XXX
XXX
XXX
Intervention
Required -
Open Rear Door
Intervention
Required -
Invalid Refill
Intervention
Required -
Defective Ink
Cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40021
40021
40021
Open Rear
Door
30 Invalid
Refill Change
Cartridge
31 Defective
Cartridge
CMYK*
XXX
X
XXX
Appendix B: PJL support 75
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Defective Print
Cartridge
Intervention
Required -
Missing Cartridge
Intervention
Required -
Missing Printhead
Intervention
Required -
Defective Print
Cartridge
Intervention
Required -
Invalid Refill
Intervention
Required -
Defective Print
Cartridge
40021
40021
40021
40021
40021
40021
31 Defective
Print
Cartridge
31 Missing
Cartridge
CMYK*
31 Missing
Printhead
31 Replace
defective
cartridge
31.xx Invalid
refill,
change
cartridge
31.xx Replace
defective
cartridge
XXX
XXX
XXX
XXX
XXX
X
Intervention
Required -
Defective Print
Cartridge
Intervention
Required -
Unsupported
Cartridge
Intervention
Required -
Unsupported CMYK*
Cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40021
40021
40021
31.xx Replace
defective
print
cartridge
32
Unsupported
Cartridge
32
Unsupported
CMYK*
Cartridge
XXX
XXX
XXX
Appendix B: PJL support 76
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Unsupported Print
Cartridge
Intervention
Required -
Unsupported
Printhead
Intervention
Required -
Unsupported
Cartridge
Intervention
Required -
Tray Size Sense Error
Intervention
Required -
Open Bin Exit Tray
Intervention
Required -
Cartridge Region
Mismatch
40021
40021
40021
40021
40021
40021
32
Unsupported
Print
Cartridge
32
Unsupported
Printhead
32.xx
Cartridge
part number
unsupported
by device
40 Tray [x]
Size Sense
Error
41 Open Bin 1
Exit Tray
42.xy
Cartridge
region
mismatch
XXX
XXX
X
XXX
XXX
X
Intervention
Required -
Paper Jam
Intervention
Required -
Remove Packaging
Material
Intervention
Required -
Remove Packaging
Material
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40022
40025
40025
2xx Paper Jam
Remove
packaging
material
Remove
packaging
material,
[area name]
XXX
XXX
X
Appendix B: PJL support 77
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Waste Toner Missing
Intervention
Required -
Waste Toner Bottle
Missing
Intervention
Required -
Check Tray
Connection
Intervention
Required -
Install Tray [x] or
Cancel Job
Intervention
Required -
Install Tray [x] or
Cancel Job
Intervention
Required -
Check Tray [x]
Connection
40025
40025
40027
40027
40027
40027
82 Waste
toner bottle
missing
82.xx Waste
toner bottle
missing
Check tray
[paper
source #]
connection
Install
tray [x]
Install
Tray [x] or
Cancel Job
Check tray
[x]
connection
XXX
XXX
XXX
XX
X
X
Intervention
Required -
Install Env Feed or
Cancel Job
Intervention
Required -
Install Env Feeder or
Cancel Job
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40028
40028
Install
envelope
feeder
Install Env
Feed or
Cancel Job
XXX
Appendix B: PJL support 78
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Reattach Envelope
Feeder
Intervention
Required -
Reattach MP Feeder
Intervention
Required -
Check Finisher
Installation
Intervention
Required -
Check Mailbox
Installation
Intervention
Required -
Install Bin [x] or
Cancel Job
Intervention
Required -
Reattach Bin
40028
40028
40029
40029
40029
40029
Reattach
Envelope
Feeder
Reattach MP
Feeder
Check
Finisher
Installation
Check Mailbox
Installation
Install
bin [x]
Reattach bin
[x]
X
XXX
XXX
XXX
XXX
Intervention
Required -
Reattach Bins
Intervention
Required -
Reattach Output Bin
Intervention
Required -
Tray Config Error
Intervention
Required -
Input Config Error
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40029
40029
40030
40030
Reattach bins
[x]—[y]
Reattach bin
[x]
33 Tray [x]
Config Error
58 Input
config error
XXX
XX
Appendix B: PJL support 79
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Too Many Bins
Attached
Intervention
Required -
Too Many Disks
Installed
Intervention
Required -
Too Many Trays
Attached
Intervention
Required -
Too Many Disks
Installed
Intervention
Required -
PerfectFinish Missing
Intervention
Required -
PerfectFinish Empty
40030
40030
40030
40036
40037
40037
58 Too Many
Bins Attached
58 Too many
disks
installed
58 Too many
trays
attached
58 Too Many
Disks
Installed
31
PerfectFinish
Missing
87
PerfectFinish
Empty
XXX
XXX
XXX
XXX
Intervention
Required -
Replace Oil Coating
Roll
Intervention
Required -
Replace PC Kit
Intervention
Required -
Replace PC Kit To
Continue
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40038
40038
40038
Replace Oil
Coating Roll
Replace PC
Kit
Replace PC
Kit To
Continue
XXX
XXX
XXX
Appendix B: PJL support 80
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Replace Toner
Cartridge
Intervention
Required -
Replace Toner
Cartridge To
Continue
Intervention
Required -
84 All Photo Devs
Exhausted
Intervention
Required -
84 Black Photo Dev
Exhausted
Intervention
Required -
84 Black Photo Dev
Life Warning
40038
40038
40038
40038
40038
Replace Toner
Cartridge
Replace Toner
To Continue
84 All Photo
Devs
Exhausted
84 Black
Photo Dev
Exhausted
84 Black
Photo Dev
Life Warning
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
84 Color Photo Dev
Life Warning
Intervention
Required -
Cartridge Low
Intervention
Required -
Cartridge nearly low
Intervention
Required -
[Color] Cartridge Low
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40038
40038
40038
40038
84 Color
Photo Dev
Life Warning
88 Cartridge
Low
88.yy
Cartridge
nearly low
88 [Color]
cartridge is
low
XXX
X
X
XXX
Appendix B: PJL support 81
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Toner Low
Intervention
Required -
Cartridge Low
Intervention
Required -
Toner Low
Intervention
Required -
Toner Low
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40038
40038
40038
40038
88 Cartridge
low
88 Cartridge
Low [CMYK]
88 Toner is
low
88 Toner Low
XXX
XXX
XXX
XXX
Appendix B: PJL support 82
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Toner Low
40038
88 Yellow
Toner Low
88 Magenta
Toner Low
88 Cyan Toner
Low
88 Black
Toner Low
88 Color
Print
Cartridge Low
88 Black
Print
Cartridge Low
88 Photo
Print
Cartridge Low
88 Yellow
Toner Empty
88 Magenta
Toner Empty
88 Cyan Toner
Empty
88 Black
Toner Empty
XXX
XX X
XX X
Intervention
Required -
Cartridge Nearly Low
Intervention
Required -
Cartridge Empty
Intervention
Required -
Load Staples
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40038
40039
40040
88.xx
Cartridge
nearly low
89 Cartridge
Empty [CMYK]
Load Staples
X
XXX
XXX
Appendix B: PJL support 83
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Priming Failed.
Retry?
Intervention
Required -
PJL OP Message
Intervention
Required -
PJL OP Message
Intervention
Required -
PJL ST Message
40041
40048
40048
40049
Priming
Failed.
Retry?
OPMSG message
[pick up text
from ‘data1’
and ‘data2’
but not
‘userMessage1
’ and
‘userMessage2
’]
[pick up text
from ‘data1’
and ‘data2’
but not
‘userMessage1
’ and
‘userMessage2
’]
XXX
XX
X
X
Intervention
Required -
PJL ST Message
Intervention
Required -
Replace Fuser
Intervention
Required -
Replace Transfer Kit
Intervention
Required -
Incompatible Bin [x]
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40049
40050
40050
40087
STMSG message
Replace Fuser
Replace
Transfer Kit
59
Incompatible
Bin [x]
XX
XXX
XXX
XXX
Appendix B: PJL support 84
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Incompatible Output
Bin [x]
Intervention
Required -
Incompatible Duplex
Intervention
Required -
Incompatible Tray [x]
Intervention
Required -
Paper Size
Unsupported
Intervention
Required -
Incompatible
Envelope Feeder
Intervention
Required -
Check Duplex
Connection
40087
40088
40089
40089
40090
40095
59
Incompatible
output
bin [x]
59
Incompatible
Duplex
59
Incompatible
Tray [x]
Tray [x]
paper size
unsupported
59
Incompatible
envelope
feeder
Check duplex
connection
X
X
XX
X
X
Intervention
Required -
Install Duplex or
Cancel Job
Intervention
Required -
Install Duplex or
Cancel Job
Intervention
Required -
Duplex Cover Open
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40095
40095
40096
Install
Duplex or
Cancel Job
Install
duplex
Close Duplex
Door
XXX
X
XXX
Appendix B: PJL support 85
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Insert Duplex Option
Intervention
Required -
Load Staples
Intervention
Required -
Insert Hole Punch
Box
Intervention
Required -
Replace Color PC
Units
Intervention
Required -
Replace
Photoconductor
Intervention
Required -
Replace Waste Toner
Bottle
40096
40101
40107
40129
40129
40141
Insert Duplex
Option
Load staples
Insert hole
punch box
84 Replace
color PC
Units
84.xx Replace
[Color]
photoconducto
r
82.xx Replace
waste toner
bottle
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Replace Waste Toner
Intervention
Required -
Waste Toner Bottle
Nearly Full
Intervention
Required -
Waste Toner Nearly
Full
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40141
40141
40141
82 Replace
waste toner
bottle
82.xx Waste
toner bottle
nearly full
82 Waste
toner bottle
nearly full
XXX
XXX
XXX
Appendix B: PJL support 86
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Transfer Module
Missing
Intervention
Required -
Cartridge Low
Intervention
Required -
Cartridge Nearly Low
Intervention
Required -
Cartridge Very Low
Intervention
Required -
Replace Cartridge
Intervention
Required -
Replace Cartridge
40143
40200
40200
40200
40200
40200
83.xx
Transfer
module
missing
88.xx Black
cartridge low
88.1x black
cartridge
nearly low
88.xx Black
cartridge
very low
88.xx black
cartridge
critically
low
88.2x Replace
black
cartridge
XX
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Cartridge Low
Intervention
Required -
Cartridge Nearly Low
Intervention
Required -
Cartridge Very Low
Intervention
Required -
Replace Cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40201
40201
40201
40201
88.xx Cyan
cartridge low
88.1x cyan
cartridge
nearly low
88.xx Cyan
cartridge
very low
88.xx cyan
cartridge
critically
low
XXX
XXX
XXX
XXX
Appendix B: PJL support 87
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Replace Cartridge
Intervention
Required -
Cartridge Low
Intervention
Required -
Cartridge Nearly Low
Intervention
Required -
Cartridge Very Low
Intervention
Required -
Replace Cartridge
Intervention
Required -
Replace Cartridge
Intervention
Required -
Cartridge Low
40201
40202
40202
40202
40202
40202
40203
88.2x Replace
cyan
cartridge
88.xx Magenta
cartridge low
88.1x magenta
cartridge
nearly low
88.xx Magenta
cartridge
very low
88.xx magenta
cartridge
critically
low
88.2x Replace
magenta
cartridge
88.xx Yellow
cartridge low
XXX
XXX
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Cartridge Nearly Low
Intervention
Required -
Cartridge Very Low
Intervention
Required -
Replace Cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40203
40203
40203
88.1x yellow
cartridge
nearly low
88.xx Yellow
cartridge
very low
88.xx yellow
cartridge
critically
low
XXX
XXX
XXX
Appendix B: PJL support 88
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Replace Cartridge
Black PC Unit Life
Warning
Intervention
Required -
Unsupported PC Unit
Intervention
Required -
Color PC Units Life
Warning
Intervention
Required -
PC Kit Life Warning
Intervention
Required -
Photoconductor Low
40203
40204
40204
40204
40204
40204
88.2x Replace
yellow
cartridge
84 Black pc
unit life
warning
84
unsupported
[color] pc
unit
84.xx Color
PC Unit Life
warning
84 PC kit life
warning
84.xx [Color]
photoconducto
r low
XXX
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Photoconductor Low
Intervention
Required -
Photoconductor
Nearly Low
Intervention
Required -
Transfer Module Life
Warning
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40204
40204
40215
84
Photoconducto
r low
84.xx [color]
photoconducto
r nearly low
83.xx
Transfer
module life
warning
XXX
XXX
XXX
Appendix B: PJL support 89
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Transfer Module
Near Life Warning
Intervention
Required -
Fuser Life Warning
Intervention
Required -
Fuser Life Warning
Intervention
Required -
Fuser Near Life
Warning
Intervention
Required -
Replace Toner
Intervention
Required -
Replace Toner
40215
40216
40216
40216
40300
40301
83.xx
Transfer
module near
life warning
87 Fuser Life
Warning
80.xx Fuser
life warning
80.xx Fuser
near life
warning
88 Replace
black toner
88 Replace
cyan toner
XXX
XXX
XX
XX
XXX
XXX
Intervention
Required -
Replace Toner
Intervention
Required -
Replace Toner
Intervention
Required -
Replace PC Kit
Intervention
Required -
Replace
Photoconductor
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40302
40303
40304
40304
88 Replace
magenta toner
88 Replace
yellow toner
84 Replace PC
Kit
84 Replace
photoconducto
r
XXX
XXX
XXX
XXX
Appendix B: PJL support 90
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
84 Replace Black PC
Unit
Intervention
Required -
Cartridge Part
Number
Unsupported
Intervention
Required -
Replace
unsupported
cartridge
Intervention
Required -
Invalid Refill, Change
Cartridge
Intervention
Required -
Cartridge Part
Number
Unsupported
40305
40309
40309
40309
40310
84 Replace
black PC Unit
32.xx Black
cartridge
part number
unsupported
by device
32.xx Replace
unsupported
black
cartridge
40 Black
invalid
refill,
change
cartridge
32.xx Cyan
cartridge
part number
unsupported
by device
XXX
XXX
XXX
XX
XXX
Intervention
Required -
Replace
unsupported
cartridge
Intervention
Required -
Invalid Refill, Change
Cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40310
40310
32.xx Replace
unsupported
cyan
cartridge
40 Cyan
invalid
refill,
change
cartridge
XXX
XX
Appendix B: PJL support 91
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Cartridge Part
Number
Unsupported
Intervention
Required -
Replace
unsupported
cartridge
Intervention
Required -
Invalid Refill, Change
Cartridge
Intervention
Required -
Cartridge Part
Number
Unsupported
Intervention
Required -
Replace
unsupported
cartridge
40311
40311
40311
40312
40312
32.xx Magenta
cartridge
part number
unsupported
by device
32.xx Replace
unsupported
magenta
cartridge
40 Magenta
invalid
refill,
change
cartridge
32.xx Yellow
cartridge
part number
unsupported
by device
32.xx Replace
unsupported
yellow
cartridge
XXX
XXX
XX
XXX
XXX
Intervention
Required -
Invalid Refill, Change
Cartridge
Intervention
Required -
Scheduled
Maintenance
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40312
40315
40 Yellow
invalid
refill,
change
cartridge
80 Scheduled
maintenance
[x]
Note: [x] indicates
600K kit.
XXX
XX
Appendix B: PJL support 92
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Replace Transfer
Module
Intervention
Required -
Install Finisher
Intervention
Required -
Replace Fuser
Intervention
Required -
Replace Fuser
Intervention
Required -
Scheduled
Maintenance
Intervention
Required -
Replace Cartridge
40315
40316
40316
40316
40316
40400
83.xx Replace
transfer
module
Slide
finisher to
the left
80.xx Replace
fuser
87.xx Replace
fuser
80 Scheduled
maintenance
[x]
Note: [x] indicates
100K kit.
31.xx Replace
defective or
missing
cartridge
XX
XXX
XX
XXX
XXX
XXX
Intervention
Required -
Insert
Photoconductor
Intervention
Required -
Intervention
Required -
[Color] PC Unit
Missing
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40404
40404
40405
84 Insert
photoconducto
r
84
Photoconducto
r abnormal
84.41 Black
PC Unit
missing
XXX
XXX
XXX
Appendix B: PJL support 93
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
[Color]
Photoconductor
Missing
Intervention
Required -
[Color] PC Unit
Missing
Intervention
Required -
[Color]
Photoconductor
Missing
Intervention
Required -
[Color] PC Unit
Missing
Intervention
Required -
[Color]
Photoconductor
Missing
40405
40406
40406
40407
40407
84.41 Black
photoconducto
r missing
84.41 Cyan PC
Unit missing
84.41 Cyan
photoconducto
r missing
84.41 Magenta
PC Unit
missing
84.41 Magenta
photoconducto
r missing
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
[Color] PC Unit
Missing
Intervention
Required -
[Color]
Photoconductor
Missing
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40408
40408
84.41 Yellow
PC Unit
missing
84.41 Yellow
photoconducto
r missing
XXX
XXX
Appendix B: PJL support 94
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Toner Cartridge
Missing
Intervention
Required -
Defective Cartridge
Intervention
Required -
Missing or Defective
Cartridge
Intervention
Required -
Toner Cartridge
Missing
Intervention
Required -
Defective Cartridge
Intervention
Required -
Missing or Defective
Cartridge
40409
40409
40409
40410
40410
40410
30.xx Black
toner
cartridge
missing
31.xx
Defective
black
cartridge
31.41 Missing
or defective
black
cartridge
30.xx Cyan
toner
cartridge
missing
31.xx
Defective
cyan
cartridge
31.41 Missing
or defective
cyan
cartridge
XXX
XXX
XXX
XXX
XXX
XXX
Intervention
Required -
Toner Cartridge
Missing
Intervention
Required -
Defective Cartridge
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
40411
40411
30.xx Magenta
toner
cartridge
missing
31.xx
Defective
magenta
cartridge
XXX
XXX
Appendix B: PJL support 95
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Missing or Defective
Cartridge
Intervention
Required -
Toner Cartridge
Missing
Intervention
Required -
Defective Cartridge
Intervention
Required -
Missing or Defective
Cartridge
Intervention
Required -
Fuser Missing
Intervention
Required -
Fuser Missing
40411
40412
40412
40412
40416
40416
31.41 Missing
or defective
magenta
cartridge
30.xx Yellow
toner
cartridge
missing
31.xx
Defective
yellow
cartridge
31.41 Missing
or defective
yellow
cartridge
80.xx Fuser
missing
87.xx Fuser
missing
XXX
XXX
XXX
XXX
XX
XXX
Intervention
Required -
Insert Duplex Pages
in Tray [x]
* This message contains a subset of letters CMYK, where CMYK denotes Cyan, Magenta, Yellow, and Black cartridges,
respectively.
41202
Reload
printed pages
in Tray [x]
XXX
Appendix B: PJL support 96
PJL messages for paper handling
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Tray [x] Empty
Intervention
Required -
Tray [x] Missing
Intervention
Required -
Bin [x] Full
Intervention
Required -
Short Paper
Intervention
Required -
Wrong Paper Size in
Tray [x]
Intervention
Required -
Wrong Paper Size
Manual Feed
11xyy
12x01
15ww1
30034
30034
30034
Tray [paper
source #]
Empty
Tray [paper
source #]
Missing
Bin [Bin #]
Full
34 Incorrect
paper size,
open [paper
source]
34 Wrong
Paper Size in
Tray [x]
34 Wrong
Paper Size
Manual Feed
XXX
XXX
XXX
XX
XXX
XXX
Intervention
Required -
Short Paper
Intervention
Required -
Remove Paper [All
Output Bins]
Intervention
Required -
Remove Paper From
All Bins
30034
40019
40019
34 Short
Paper
Remove paper
from all bins
Remove paper
from all bins
X
XXX
Appendix B: PJL support 97
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Remove Paper From
Output Bin [x]
Intervention
Required -
Remove Paper
Output Bin [bin #]
Intervention
Required -
Remove
Paper [linked set bin
name]
Intervention
Required -
Remove
Paper [linked set bin
name]
Intervention
Required -
Remove Paper From
Standard Output Bin
40019
40019
40019
40019
40019
Remove paper
from bin [x]
Remove Paper
Output Bin
[bin #]
Remove paper
from [linked
set bin name]
Remove
Paper [linked
set bin name]
Remove paper
from standard
output bin
XXX
XXX
Intervention
Required -
Remove Paper
Standard Bin
Intervention
Required -
Photoconductor
Exposure Warning
Intervention
Required -
Remove Packaging
Material
40019
40025
40025
Remove Paper
Standard Bin
Photoconducto
r exposure
warning
Remove
packaging
material,
check [area
name]
XXX
XXX
X
Appendix B: PJL support 98
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Check [Paper
Source] Orientation
or Guides
Intervention
Required -
Check [Paper
Source] Paper Guide
Intervention
Required -
Incorrect Media
Intervention
Required -
Load [paper source]
[Custom Type Name]
Intervention
Required -
Load [paper source]
[Custom String]
Intervention
Required -
Load [paper source]
[paper size]
4100x
4100x
41xy
41xyy
41xyy
41xyy
Check [paper
source]
orientation
or guides
Check [paper
source] Paper
Guide
Paper changes
needed
Load [paper
source] with
[Custom Type
Name]
Load [paper
source] with
[Custom
String]
Load [paper
source] with
[paper size]
XXX
XXX
X
Intervention
Required -
Load [paper source]
[paper type] [paper
size]
Intervention
Required -
Load Manual
Request
Intervention
Required -
Load Manual
Request
41xyy
41xyy
41xyy
Load [paper
source] with
[paper type]
[paper size]
Load Manual
Feeder
with [Custom
Type Name]
Load Manual
Feeder
with [Custom
String]
Appendix B: PJL support 99
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Load Manual
Request
Intervention
Required -
Load Manual
Request
Intervention
Required -
Load Manual
[Custom Type Name]
Intervention
Required -
Load Manual
[Custom String]
Intervention
Required -
Load Manual [paper
size]
41xyy
41xyy
41xyy
41xyy
41xyy
Load Manual
Feeder
with [paper
size]
Load Manual
Feeder
with [paper
type] [paper
size]
Load single
sheet feeder
with [Custom
Type Name]
Load single
sheet feeder
with [Custom
String]
Load single
sheet feeder
with [paper
size]
XXX
XXX
XXX
Intervention
Required -
Load Manual [paper
type] [paper size]
Intervention
Required -
Change Request
Intervention
Required -
Change Request
41xyy
41xyy
41xyy
Load single
sheet feeder
with [paper
type] [paper
size]
Change [paper
source] to
[Custom Type
Name]
Change [paper
source] to
[Custom Type
Name], load
[orientation]
XXX
XXX
Appendix B: PJL support 100
= Supported
X = Not supported
Message Status code Return string 6500e MFP option
Model
T650, T650n,
T652dn, T654dn,
T656dne
X651de, X652de,
X654de, X656de,
X656dte, X658d,
X658de, X658dme,
X658dfe, X658dte,
X658dtme,
X658dtfe
Intervention
Required -
Change Request
Intervention
Required -
Change Request
Intervention
Required -
Change Request
Intervention
Required -
Change Request
Intervention
Required -
Change Request
41xyy
41xyy
41xyy
41xyy
41xyy
Change [paper
source] to
[Custom
String]
Change [paper
source] to
[Custom
String] load
[orientation]
Change [paper
source] to
[paper type]
[paper size]
Change [paper
source] to
[paper type]
[paper size]
load
[orientation]
Change [src]
to [size]
XXX
XXX
X
Intervention
Required -
Load Manual
Request
Intervention
Required -
Load Manual
Request
Intervention
Required -
Load Manual
Request
41xxy
41xxy
41xxy
Load Manual
Feeder
with [Custom
Type Name]
Load Manual
Feeder
with [Custom
String]
Load Manual
Feeder
with [paper
size]
XXX
XXX
XXX
