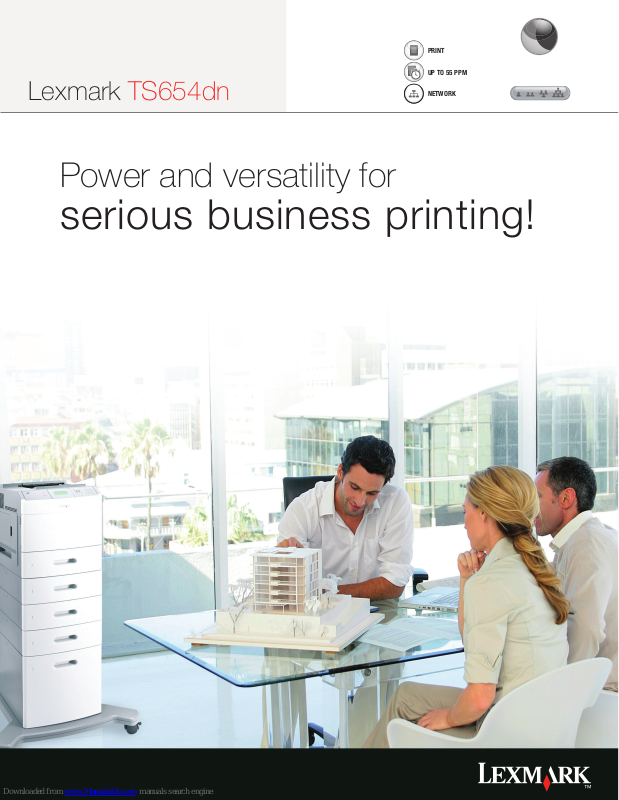

Page 1
PRINT
UP TO 55 PPM
Lexmark TS654dn
Power and versatility for
serious business printing!
NETWORK
Page 2
Print Less. Save More.
Print less? This may seem like a surprising message for a company dedicated solely to printing. But when you consider that businesses spend, on
average, up to 6% of their revenue on printing and active print management can cut office print costs by up to 30%1, it makes a lot of sense. Lexmark
products, solutions and services provide innovative ways to save you time, drive down costs and reduce your impact on the environment. We are
committed to helping you print less and save more.
Robust, ultra-fast and incredibly versatile, the Lexmark TS654dn fits every type of need. Whether you’re looking for a serious
performer for high-volume printing or an effective solution for printing on a wide range of media, this powerful monochrome laser
printer delivers the ultimate combination of quality, low ownership costs and outstanding reliability.
(1)
Source: InfoTrends/CapVentures, Network Document Solutions Forecast 2007-
2012, Network Document Solutions Consulting Service, August 2008
Quality and productivity unite
Start accruing the benefits of a printer with the real power to perform.
With the new redesigned Lexmark TS654dn, you can now own
an office machine that pushes quality and performance to truly
impressive levels.
• Up to 55 ppm, first page out as fast as 7.5 seconds
• Impressive print quality, up to 1200 x 1200 dpi
• Up to 600MHz processing power and up to 256MB of RAM
standard
• Automatically adjusts toner darkness for consistent results from first
page to last
Unrivalled versatility
Every workgroup is different. So why not match your printer
to suit the way you work? Benefit from diverse media support
plus a range of flexible choices, including leading-edge paper
handling.
• Opt for extra drawers to expand your input capacity up to
4,300 sheets
• Ultra-reliable paper feeding supports diverse media, including
card stock and labels
• Stapler option with 50-sheet capacity; offset job stacking
• Install up to two 5-bin mailboxes to separate users output
Intelligent functionality Prints black, thinks green
The Lexmark TS654dn offers you a wide range of intelligent features
that help you maximize uptime, save money and work more efficiently
than ever before.
• Should the media required for a job not be available, Job Waiting
automatically places the job on hold to keep the print queue flowing
(hard-drive option required)
• Performance enhancement on the Lexmark TS654dn speeds up
output of short print jobs
• Direct Web printing lets you print Web-based documents with ease
• Models with Lexmark’s Embedded Solutions Framework can be
customized to meet specific workflow needs
Printing responsibly means everyone wins – your business,
your budget and the environment! Lexmark TS654dn printer
is designed with sustainability in mind. It’s incredibly quiet and
equipped with a range of eco-conscious features to help you
print greener at every level.
• Duplex printing models reduce paper consumption
• Eco-Mode reduces power consumption
• Series is as quiet as 53 dBA when printing; reduce sound
even more with Quiet Mode
• Lexmark Extra High Yield (30,000* pages) Print Cartridges
conserve resources
Page 3
Lexmark TS654dn
Explore the features that keep you moving
Special delivery
Mailbox options let you
assign users their own
output bins
Direct USB
Front USB port lets you
print PDFs and other
image files directly from a
memory device – no PC
needed
4-line graphical display
Intuitive visuals for
exceptionally simple user
operation
Rock-solid reliability!
Secure PIN release
Use the alphanumeric pad
to release confidential jobs
Low cost of ownership
Reduce running costs with
high-capacity cartridges,
up to 30,000* pages
Expandable input
Boost your paper input
capacity up to 4,300
sheets
Introducing the new Lexmark TS654dn, a robust workgroup printer that is built to last – and keeps up with your heaviest
print volumes.
Backed by an award-winning sixth-generation print engine and Lexmark’s proven track record in product innovation,
these rugged workhorses ensure maximum uptime while reliably delivering fast, high-quality pages year after year.
Now you can have a truly reliable solution that meets your highest expectations!
Page 4
Lexmark TS654dn
If you’ve got all these, then you’ve got a Lexmark!
Performance
optimized
Which is more advantageous
– more pages per minute or
a quicker time-to-first-page?
That depends on your print job.
Lexmark TS654dn printer can
identify the size and complexity
of your job and automatically
calculate the optimal speed –
quicker time-to-first-page for
short jobs and more pages
per minute for longer jobs. So
whatever you’re printing, you’re
always sure to get the fastest
result!
Intelligent
Job Waiting
One person’s setback should
never mean a bottleneck for the
whole workgroup! Say someone
launches a print job that requires
labels, but there are none
loaded. Why lose precious
uptime? Lexmark’s Job Waiting
feature will simply hold that job
aside while everyone else goes
on working without interruption
(hard drive required).
The Productivity Checklist
Outstanding print
quality
When you purchase a highperformance workgroup printer,
you expect high-performance
results and that includes
flawless print quality. The
Lexmark TS654dn combines
true 1200 x 1200 dpi with
automatic darkness adjustment
and pixel-boosting technology,
ensuring you high-quality,
professional documents every
time.
Cutting-edge
security
From network security to
user-access restrictions,
Lexmark makes sure you’re
fully equipped with all the
tools you need to help keep
your valuable corporate data
safe and sound. In addition
to IPSec, SNMPv3 and
802.1x network security, the
Lexmark TS654dn offers an
alphanumeric pad for easy PIN
authentication, plus encryption
and disk wiping to secure the
optional hard drive.
Page 5
Product specifications
Printing
Print Technology
Print Speed (Letter, Black): Up to
Time to First Page (Black)
Print Resolution, Black
Memory, Standard
Memory, Maximum
Print Noise Level, Operating
Noise Level, Idle
Maximum Monthly Duty Cycle: Up to
Recommended Monthly Page Volume
Supplies
Supplies Yield
Cartridge(s) Shipping with Product
Paper Handling
Paper Handling Standard
Paper Handling Optional
Paper Input Capacity, Standard: Up to
Paper Input Capacity, Maximum: Up to
Paper Output Capacity, Standard: Up to
Paper Output Capacity, Maximum: Up to
Media Types Supported
Media Sizes Supported
Compatibility
Network Protocol Support
Printer Languages (Standard)
Standard Ports
Microsoft Windows Operating Systems Supported
Apple Macintosh Operating Systems Supported
Other Operating Systems Supported
General
Product Certifications
Size (in. - H x W x D)
Weight (lb.)
Specified Operating Environment
Lexmark TS654dn
Lexmark TS654dn
Monochrome Laser
55 ppm
As fast as 7.5 seconds
1200 Image Quality, 1200 x 1200 dpi, 2400 Image Quality, 600 x 600 dpi
256 MB
1280 MB
55 dBA
30 dBA
275000 pages per month
5000 - 35000 pages
based on actual customer usage. Aftermarket 30,000*-Page Extra High Yield Print Cartridge available.
1,850-Sheet High-capacity Output Stacker, 200-Sheet Universally Adjustable Tray with Drawer, 400-Sheet Universally Adjustable Tray with Drawer,
10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, DL Envelope, A6 Card, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal
Ethernet 10/100BaseTX (RJ-45), One Internal Card Slot, USB 2.0 Specification Hi-Speed Certified (Type B), Front USB 2.0 Specification
2000, XP, Server 2003, XP x64, Server 2003 running Terminal Services, 2000 Server running Terminal Services, Server 2003 x64, Server 2003
Terminal Services, Vista, Vista x64, Server 2008, Server 2008 x64, Server 2008 running Terminal Services, Server 2008 x64 running Terminal
5-Bin Mailbox, 550-Sheet Drawer, Envelope Feeder, 250-Sheet Drawer, Optional furniture required.,
2,000-Sheet High-capacity Feeder, 550-Sheet Output Expander, StapleSmart II Finisher
Card Stock, Dual Web Labels, Envelopes, Integrated Labels, Paper Labels, Plain Paper, Polyester Labels, Transparencies,
PCL 5e Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, xHTML,
Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A)
Temperature: 16 to 32°C (60 to 90°F), Humidity: 8 to 80% Relative Humidity, Altitude: 0 - 3048 Meters (10,000 Feet)
* Based on approximately 5% print coverage. Yields may vary
10,000*-page Starter Return Program Print Cartridge
100-Sheet Multipurpose Feeder, 550-Sheet Input Tray, 550-Sheet Output Bin
650 pages 20 lb or 75 gsm bond
4300 pages 20 lb or 75 gsm bond
550 pages 20 lb or 75 gsm bond
2950 pages 20 lb or 75 gsm bond
Vinyl Labels, Refer to the Card Stock & Label Guide
TCP/IP IPv4, IPX/SPX, AppleTalk™, LexLink (DLC), TCP/IP IPv6, TCP, UDP
PDF 1.6, Direct Image, Microsoft XPS (XML Paper Specification)
x64 running
Services
Mac OS X, Mac OS 9.x
www.lexmark.com
www.lexmark.com
17.2 x 16.7 x 20.1 in.
51.6 lb.
Maximum Monthly Duty Cycle
«Maximum Monthly Duty Cycle» is defined as the maximum number of pages a device could deliver in a month. This metric provides
a comparison of robustness in relation to other Lexmark printers and MFPs.
Recommended Monthly Page Volume
«Recommended Monthly Page Volume» is a range of pages that helps customers evaluate Lexmark’s product offerings based on the
average number of pages customers plan to print on the device each month. Lexmark recommends that the number of pages per
month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper
loading intervals, speed, and typical customer usage.
Trademarks
Lexmark and Lexmark with the diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.
All other trademarks are the property of their respective owners. PCL is a registered trademark of Hewlett-Packard Company. AppleTalk, Mac and
Macintosh are trademarks of Apple Computer, Inc., registered in the United States and other countries. MarkNet and MarkVision are trademarks of
Lexmark International, Inc., registered in the United States and/or other countries. The USB-IF logos are trademarks of Universal Serial Bus Implementers
Forum, Inc. Microsoft, Windows, the Windows logo, Windows Vista, and the Windows Vista logo are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries. Citrix, MetaFrame and MetaFrame XP are registered trademarks or trademarks of Citrix Systems,
Inc. in the U.S. and other countries. Information in this document is subject to change without notice.
Page 6
Ordering information
Lexmark TS654dn
Lexmark TS654dn
550-Sheet Output Bin
100-Sheet Multipurpose
Feeder
550-Sheet Input Tray
250-Sheet Drawer / 550-
Sheet Drawer
250-Sheet Drawer / 550-
Sheet Drawer
T650, T652, T654
Caster Base
T65x StapleSmart II
Finisher
T65x StapleSmart II
Finisher + T65x Output
Expander
Paper Handling Standard
Paper Handling Optional
In the box
Lexmark TS654dn Laser Printer, Up to 10,000*-page starter Return Program Print Cartridge, Software and documentation CD, Setup guide or sheet (network and local attachment), Power cord(s), Statement of limited warranty, Safety sheet or booklet, Lexmark
Cartridge Collection Program information
2 x T65x 5-Bin Mailbox T65x High Capacity Output
Stacker
T65x High Capacity Output
Stacker + T65x Output
Expander
Envelope Feeder
250-Sheet Drawer / 550Sheet Drawer
250-Sheet Drawer / 550Sheet Drawer / 2,000-Sheet
High-capacity Feeder
3 x T65x Output Expander
T65x 5-Bin Mailbox + T65x
Output Expander
Part #
Model
30G0115
Lexmark TS654dn
Part # Part #
Laser Toner/Print Cartridge Laser Toner/Print Cartridge
24B5880
TS654 Extra High Yield Return Program Print Cartridge
25A0013
Staple Cartridges (3 pack)
Part # Part #
Paper & Transparencies Connectivity
70X7240 1021294
Laser Printer Transparencies (Letter) USB (2 Meter) Cable
Part #
Paper Handling
30G0804
2000-Sheet High Capacity Feeder
30G0802
550-Sheet Drawer
30G0800
250-Sheet Drawer
30G0807
Envelope Feeder
30G0852
T65x 5-Bin Mailbox
30G0851
T65x Output Expander
30G0853
T65x High Capacity Output Stacker
30G0850
T65x StapleSmart II Finisher
30G0860
400-Sheet Universally Adjustable Tray with Drawer
30G0880
T65x Kiosk Presenter
30G0871
200-Sheet Universally Adjustable Tray with Drawer
Part #
Furniture
16M1207
T650, T652, T654 Caster Base
Part #
Memory Options
1025041
256MB DDR2-DRAM
1025042
512MB DDR2-DRAM
1025043
1024MB DDR2-DRAM
14F0245
256MB Flash Card
14F0102
80+GB Hard Disk
30G0828
Japanese Font Card
30G0825
Korean Font Card
30G0827
Traditional Chinese Font Card
30G0826
Simplified Chinese Font Card
30G0829
30G0835
30G0834
14F0000
1021231
14F0100
14F0037
14F0042
14F0040
14T0145
14T0220
Lexmark PrintCryption Card
T654 Card for IPDS and SCS/TNe
T654 Forms and Bar Code Card
Parallel 1284-B Interface Card
Parallel (10’) Cable
RS-232C Serial Interface Card
MarkNet N8120 Gigabit Ethernet Print Server
MarkNet N8130 Fiber Ethernet 100BaseFX, 10BaseFL Print Server
MarkNet N8150 802.11b/g/n Wireless Print Server
Lexmark N4050e 802.11g Wireless Print Server
MarkNet™ N7020e Gigabit Ethernet Print Server
Environmental commitment
Lexmark believes that the environment is a critical component of responsible business
management and clearly demonstrates it by implementing the “4R” strategy: Reduce,
Recover, Reuse and Recycle. To learn more about these programs please visit
www. lexmark.com/recycle.
www.lexmark.com
Cost-saving and environmental features
- Duplex models are Energy Star compliant
- Duplex printing, Print and Hold, multi-up and support of recycled paper help reduce paper consumption
- Eco-Mode reduces power consumption and Quiet Mode reduces noise
- High Yield Cartridges and Lexmark Cartridge Collection Program help reduce waste
Loading...
