Lexmark MS710, MS711, MS810, MS811, MS812 Service Manual

Lexmark MS81x, MS71x Printer

Machine Type 4063-2xx, -4x0, -63x, -83x

Service Manual

• Start diagnostics

• Maintenance

• Safety and notices

• Trademarks

• Index

October 18, 2012 www.lexmark.com

Product information

Product name:
Lexmark MS71x and MS81x Series

Machine type:
4063

Model(s):
2xx, 4x0, 63x, 83x

4063

Edition notice

October 18, 2012

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL,
INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of
express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these
changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any
time.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all
countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product,
program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual
property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services,
except those expressly designated by the manufacturer, are the user’s responsibility.

Trademarks

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other
countries.

PrintCryption is a trademark of Lexmark International, Inc.
Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries.
PCL® is a registered trademark of the Hewlett-Packard Company. PCL is Hewlett-Packard Company’s designation of a set of printer commands

(language) and functions included in its printer products. This printer is intended to be compatible with the PCL language. This means the
printer recognizes PCL commands used in various application programs, and that the printer emulates the functions corresponding to the
commands.

All other trademarks are the property of their respective owners.

© 2012 Lexmark International, Inc.
All rights reserved.

P/N 12G3023

4063

Table of contents

Product information.....................................................................................2

Edition notice...............................................................................................2

Notices and safety information..................................................................17

Laser notices............................................................................................................................................17

Safety.......................................................................................................................................................20

Preface.......................................................................................................25

Service manual conventions....................................................................................................................25

General information...................................................................................27

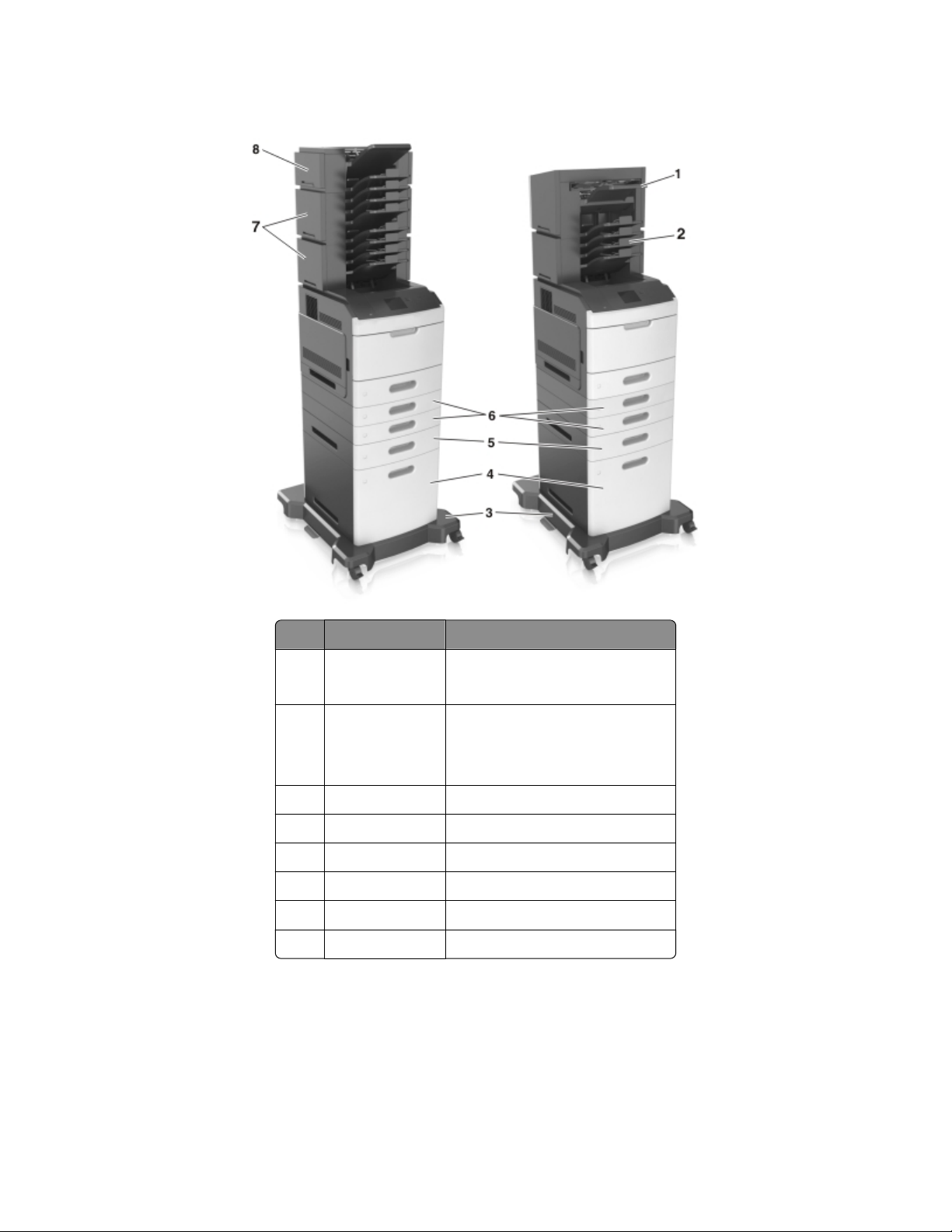

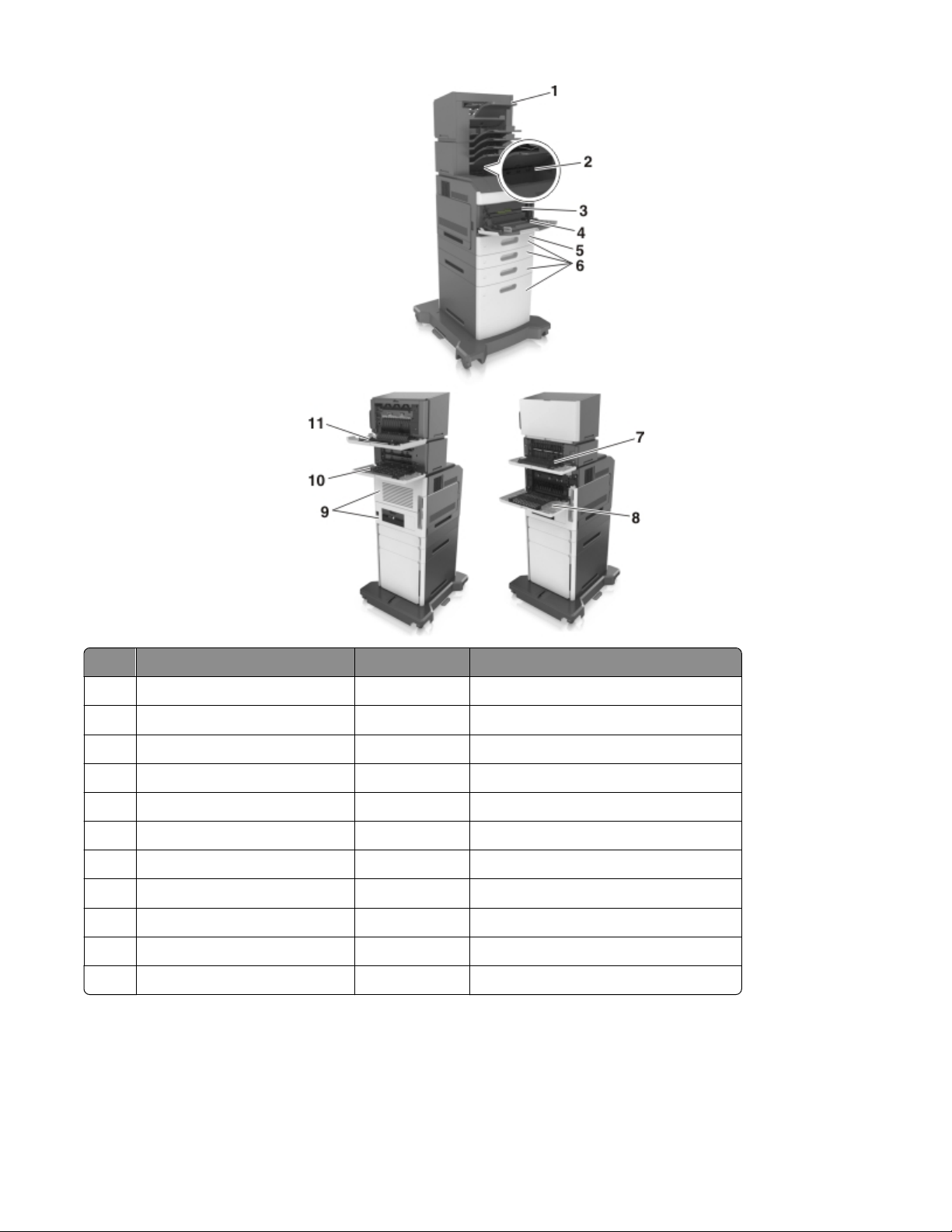

Printer configurations.............................................................................................................................28

Paper guidelines......................................................................................................................................30

Paper characteristics......................................................................................................................................... 30

Selecting paper .................................................................................................................................................31

Selecting preprinted forms and letterhead ......................................................................................................31

Using recycled paper and other office papers.................................................................................................. 31

Storing paper .................................................................................................................................................... 33

Data security notice.................................................................................................................................33

Tools required for service........................................................................................................................33

Diagnostic information...............................................................................35

Troubleshooting overview.......................................................................................................................35

Performing the initial troubleshooting check ...................................................................................................35

Error code number key ..................................................................................................................................... 36

Power‑on Reset (POR) sequence.............................................................................................................36

Using Safe Mode.....................................................................................................................................37

Fixing print quality issues........................................................................................................................37

Initial print quality check .................................................................................................................................. 38

Gray background on prints ...............................................................................................................................38

Printer is printing blank pages ..........................................................................................................................39

Printer is printing solid black pages .................................................................................................................. 40

Repeating defects ............................................................................................................................................. 41

Shadow images appear on prints ..................................................................................................................... 41

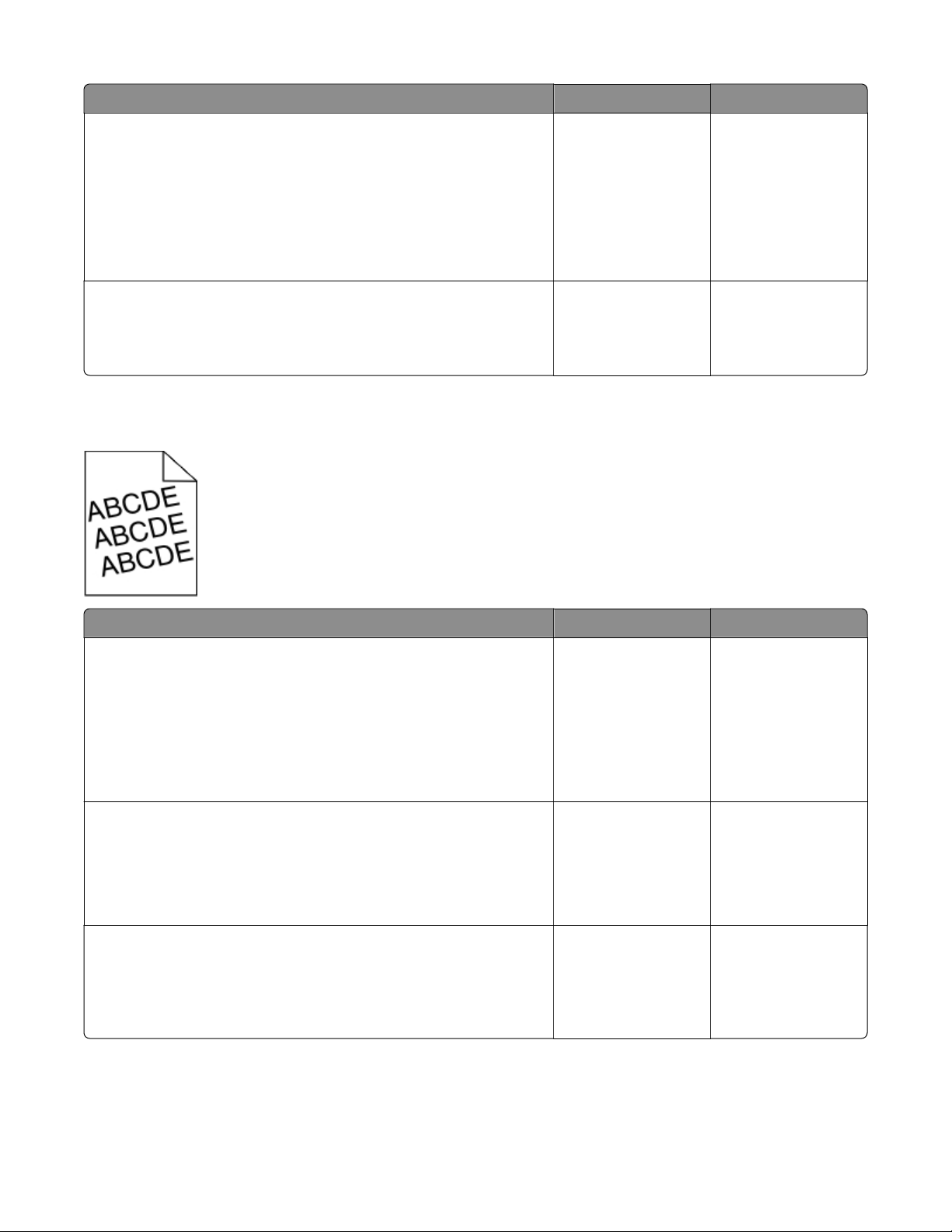

Skewed print..................................................................................................................................................... 42

Streaked horizontal lines appear on prints....................................................................................................... 43

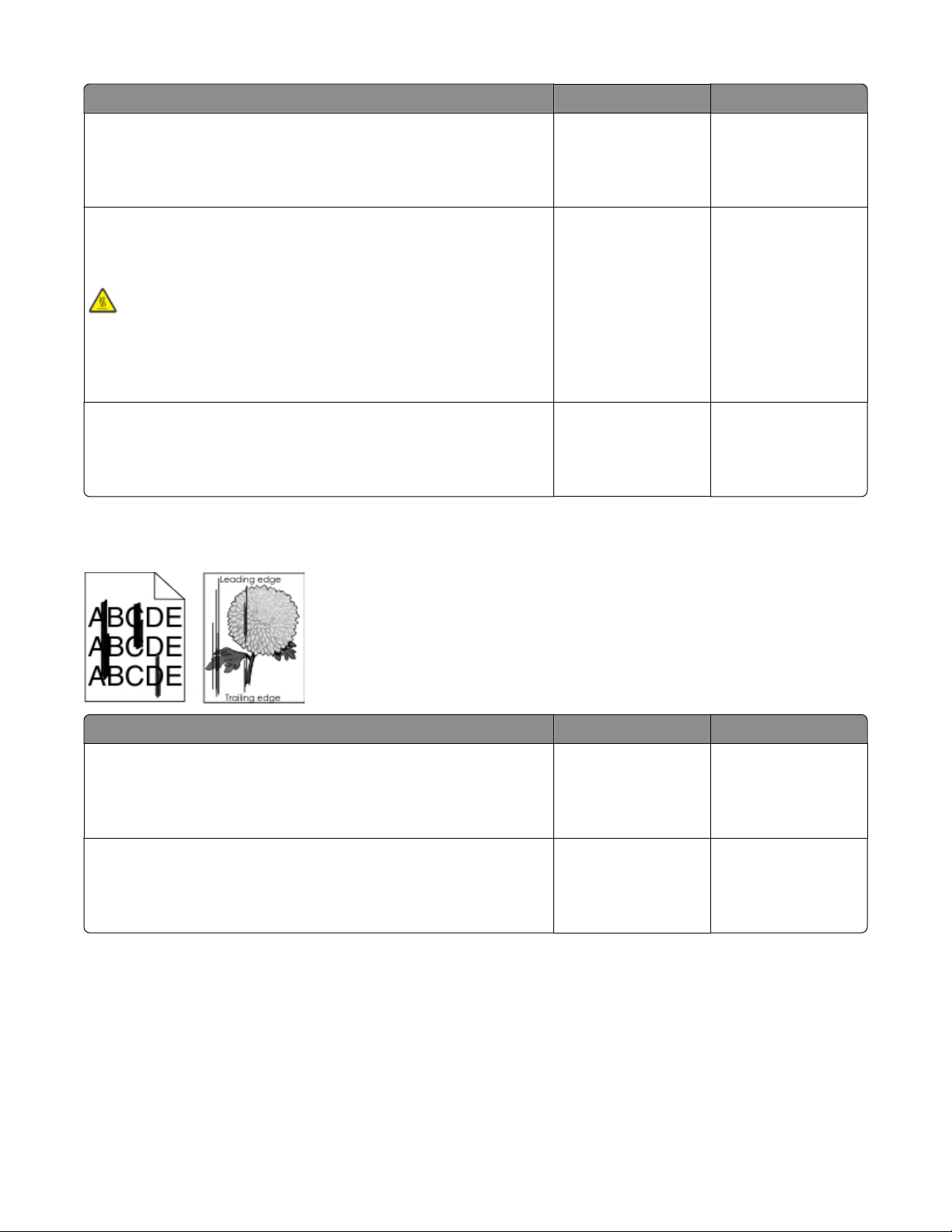

Streaked vertical lines appear on prints ...........................................................................................................45

Table of contents

3

4063

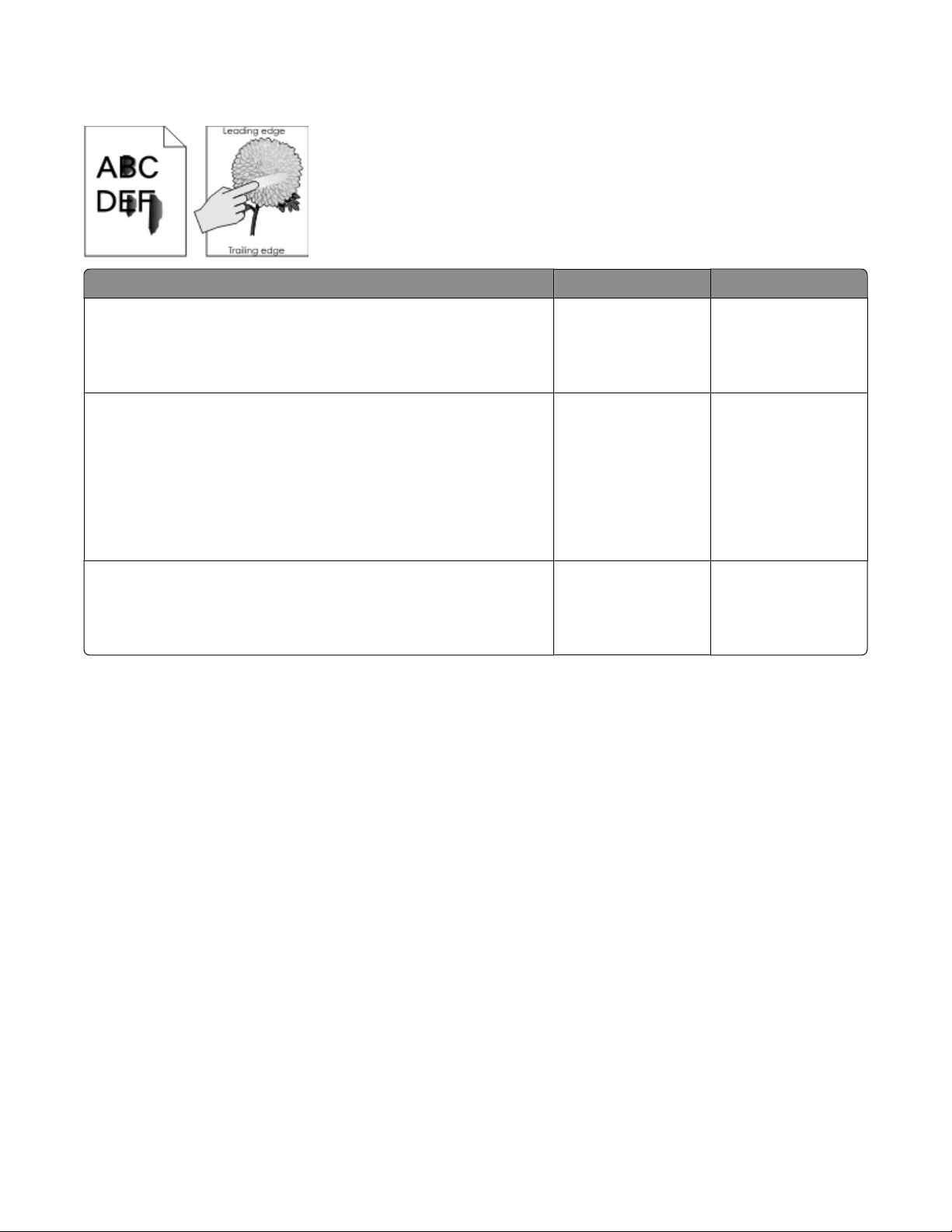

Toner rubs off ...................................................................................................................................................46

Paper jams...............................................................................................................................................46

Understanding jam numbers and locations...................................................................................................... 47

200–201 paper jams .........................................................................................................................................49

Sensor (input) static jam service check............................................................................................................. 53

Sensor (input) early arriving jam service check ................................................................................................53

Sensor (input) never‑ or late‑arriving jam service check.................................................................................. 54

Sensor (input) late-leaving or did-not-clear jam service check......................................................................... 56

Main drive motor control jam service check ....................................................................................................57

Printhead motor control jam service check...................................................................................................... 58

Fuser drive motor control jam service check.................................................................................................... 58

Sensor (input) miscellaneous jam 1 service check............................................................................................ 58

Sensor (input) miscellaneous jam 2 service check............................................................................................ 59

Sensor (input) miscellaneous jam 3 service check............................................................................................ 59

202 paper jams ................................................................................................................................................. 60

Sensor (fuser exit) static jam service check ...................................................................................................... 62

Sensor (fuser exit) late-leaving jam service check ............................................................................................62

Sensor (fuser exit) late-arriving jam service check ...........................................................................................63

Sensor (narrow media) late arriving jam service check ....................................................................................64

Sensor (narrow media) static jam service check............................................................................................... 65

Sensor (fuser exit) miscellaneous jam service check ........................................................................................66

Fuser ID chip control jam service check............................................................................................................ 66

203 paper jams ................................................................................................................................................. 67

Upper redrive motor control jam service check ...............................................................................................68

230 paper jams ................................................................................................................................................. 68

Sensor (duplex path) static jam service check ..................................................................................................71

Sensor (duplex path) early arriving jam service check...................................................................................... 72

Sensor (duplex path) never‑ or late‑arriving jam service check ....................................................................... 73

Sensor (duplex path) late leaving jam service check ........................................................................................74

Duplex control jam service check .....................................................................................................................75

Sensor (duplex path) miscellaneous jam service check .................................................................................... 75

Sensor (input) never-arriving jam (exiting duplex) service check..................................................................... 76

235–239 paper jams .........................................................................................................................................76

24x paper jams.................................................................................................................................................. 77

Media feeder motor control service check....................................................................................................... 79

Media tray 1, tray pulled jam ........................................................................................................................... 80

Media feeder motor tray lift error service check ............................................................................................. 81

Sensor (input) never-arriving jam from tray 1 service check............................................................................ 81

250 paper jams ................................................................................................................................................. 82

Sensor (input) never-arriving jam from MPF media tray service check............................................................ 84

41y.xx paper jams ............................................................................................................................................. 86

43y.xx paper jams ............................................................................................................................................. 87

451 paper jams ................................................................................................................................................. 88

455–457 paper jams .........................................................................................................................................89

Table of contents

4

4063

User attendance messages (0-99.99)......................................................................................................92

User attendance messages (0‑99.99) ............................................................................................................... 92

Toner level sensing error check ........................................................................................................................ 97

Toner cartridge smart chip error service check ................................................................................................ 97

Imaging unit smart chip service check.............................................................................................................. 98

Fuser unit smart chip service check.................................................................................................................. 99

Printer hardware errors (100-199.99).....................................................................................................99

Printer hardware error messages(100‑199.99) ..............................................................................................100

Printhead ID service check.............................................................................................................................. 104

Printhead service check .................................................................................................................................. 104

Fuser drive motor service check .....................................................................................................................105

Fuser service check ......................................................................................................................................... 105

LVPS service check .......................................................................................................................................... 106

Toner level sensing service check ................................................................................................................... 106

Main drive motor service check...................................................................................................................... 107

Media feeder service check ............................................................................................................................ 107

Redrive motor service check........................................................................................................................... 108

Duplex motor service check............................................................................................................................ 108

Toner add motor service check ...................................................................................................................... 109

Main cooling fan service check ....................................................................................................................... 109

Cartridge cooling fan service check ................................................................................................................110

LVPS cooling fan service check ....................................................................................................................... 110

HVPS cooling fan service check....................................................................................................................... 111

Miscellaneous cooling fan service check ........................................................................................................111

Firmware and/or system electronics errors (900-999.99)....................................................................111

9xx error messages ......................................................................................................................................... 112

System software error service check.............................................................................................................. 115

NVRAM mismatch failure service check .........................................................................................................120

Input/output option hardware errors...................................................................................................121

3xx error messages (300‑399.99) ................................................................................................................... 121

250/550-sheet transport motor failure service check.................................................................................... 126

250/550-sheet media feeder failure service check ........................................................................................ 128

250/550-sheet controller board failure service check.................................................................................... 130

HCIT lift drive motor failure service check...................................................................................................... 131

HCIT lift plate failure service check................................................................................................................. 133

HCIT transport motor failure service check .................................................................................................... 135

HCOE failure service check ............................................................................................................................. 137

Mailbox failure service check.......................................................................................................................... 138

Output expander failure service check ........................................................................................................... 139

Input/output option paper jam errors..................................................................................................141

Input option jam error messages (242‑245.99) .............................................................................................. 141

250/550-sheet media tray option jam service check...................................................................................... 152

HCIT jam service check ................................................................................................................................... 154

HCIT source jam service check........................................................................................................................ 156

Table of contents

5

4063

4xx error messages (400‑499.99) ................................................................................................................... 158

Sensor (mailbox pass through) jam service check ..........................................................................................167

Mailbox diverter jam service check ................................................................................................................170

HCOE diverter jam service check .................................................................................................................... 172

Sensor (HCOE pass through) jam service check.............................................................................................. 173

Sensor (finisher pass through) jam service check........................................................................................... 175

Finisher left tamper jam service check ...........................................................................................................177

Finisher right tamper jam service check .........................................................................................................179

Finisher ejector jam service check.................................................................................................................. 181

Finisher diverter jam service check ................................................................................................................ 182

Finisher paddle jam service check ..................................................................................................................183

Finisher tray holder jam service check ........................................................................................................... 185

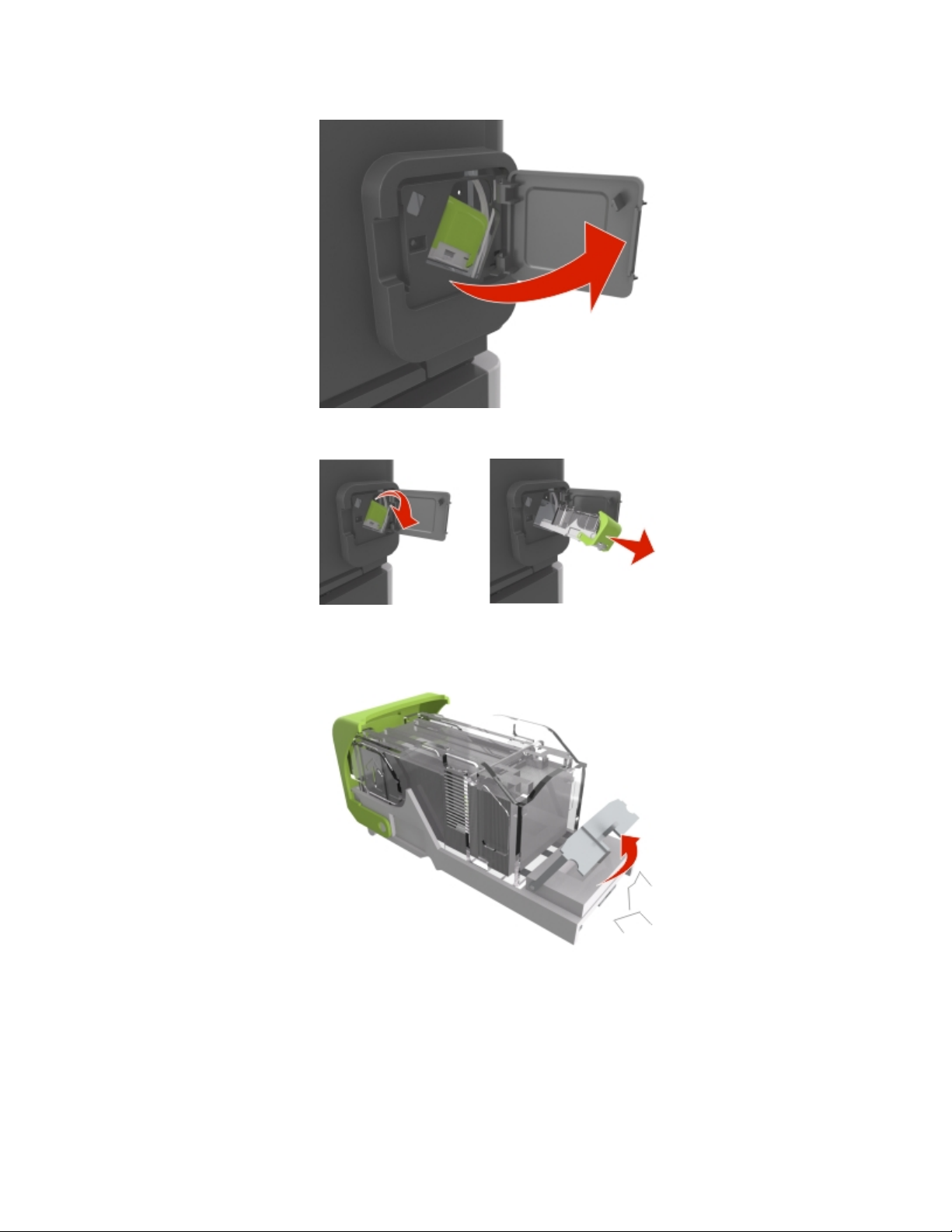

Stapler carriage jam service check.................................................................................................................. 186

Output expander jam service check ...............................................................................................................188

Sensor (media in stapler) jam service check................................................................................................... 190

Symptoms..............................................................................................................................................191

Base printer symptoms................................................................................................................................... 191

Network service check.................................................................................................................................... 191

Dead machine service check........................................................................................................................... 194

Option tray symptoms .................................................................................................................................... 195

250/550-sheet media type error service check ..............................................................................................196

250/550-sheet tray undetected service check ............................................................................................... 198

HCIT incorrect media error service check....................................................................................................... 199

HCIT media type error service check ..............................................................................................................201

HCIT undetected service check....................................................................................................................... 203

HCIT media low undetected service check .....................................................................................................204

Finisher side door error service check ............................................................................................................ 206

Mailbox incorrect bin exit service check......................................................................................................... 208

Finisher cartridge error service check ............................................................................................................ 209

Finisher undetected service check.................................................................................................................. 211

Finisher bin error service check ..................................................................................................................... 212

Finisher door undetected service check ........................................................................................................213

Stapler carriage failure service check .............................................................................................................215

Finisher bin media present error service check.............................................................................................. 216

Output expander error service check ............................................................................................................. 218

Service menus..........................................................................................219

Using the printer control panel.............................................................................................................219

Menus list..............................................................................................................................................220

Diagnostics menu..................................................................................................................................220

Entering diagnostics mode ............................................................................................................................. 221

REGISTRATION ................................................................................................................................................221

PRINT TESTS .................................................................................................................................................... 222

Print Quality Pages (Prt Quality Pgs) ..........................................................................................................222

Table of contents

6

4063

HARDWARE TESTS .......................................................................................................................................... 222

Panel Test ................................................................................................................................................... 222

Button Test................................................................................................................................................. 223

DRAM Test.................................................................................................................................................. 223

Serial Wrap Test .........................................................................................................................................224

USB HS Test Mode...................................................................................................................................... 224

DUPLEX TESTS ................................................................................................................................................. 225

Quick Test................................................................................................................................................... 225

Top Margin ................................................................................................................................................. 226

Sensor Test ................................................................................................................................................. 226

Motor Test.................................................................................................................................................. 226

Duplex Feed 1............................................................................................................................................. 227

Duplex Feed 2............................................................................................................................................. 227

INPUT TRAY TESTS .......................................................................................................................................... 227

Feed Tests .................................................................................................................................................. 227

Sensor Tests ............................................................................................................................................... 228

OUTPUT BIN TESTS ......................................................................................................................................... 228

Feed Tests .................................................................................................................................................. 228

Feed To All Bins ..........................................................................................................................................228

Sensor Test ................................................................................................................................................. 229

Diverter Test............................................................................................................................................... 229

FINISHER TESTS ............................................................................................................................................... 229

Staple Test.................................................................................................................................................. 229

Hole Punch Test.......................................................................................................................................... 230

Feed Test (finisher)..................................................................................................................................... 230

Finisher Sensor Test ................................................................................................................................... 230

BASE SENSOR TEST.......................................................................................................................................... 231

DEVICE TESTS .................................................................................................................................................. 231

Quick Disk Test ...........................................................................................................................................231

Disk Test/Clean........................................................................................................................................... 232

Flash Test.................................................................................................................................................... 232

PRINTER SETUP ............................................................................................................................................... 232

Defaults ......................................................................................................................................................232

Printed Page Count..................................................................................................................................... 233

Permanent Page Count (Perm page count)................................................................................................ 233

Processor ID................................................................................................................................................ 233

Engine Setting [x] ....................................................................................................................................... 234

Edge to Edge............................................................................................................................................... 234

Parallel Strobe Adjustment (Par 1 Strobe Adj) ...........................................................................................234

EP SETUP......................................................................................................................................................... 234

EP Defaults ................................................................................................................................................. 234

Fuser Temperature (Fuser Temp)............................................................................................................... 234

Fuser Page Count ....................................................................................................................................... 235

Warm Up Time ...........................................................................................................................................235

Transfer ......................................................................................................................................................235

Table of contents

7

4063

Print Contrast .............................................................................................................................................235

Charge Roll ................................................................................................................................................. 235

Gap Adjust.................................................................................................................................................. 236

Automatic Darkness Adjust (Auto Dark Adj) .............................................................................................. 236

REPORTS ......................................................................................................................................................... 236

Menu Settings Page.................................................................................................................................... 236

Installed Licenses........................................................................................................................................ 237

EVENT LOG...................................................................................................................................................... 237

Display Log ................................................................................................................................................. 237

Print Log ..................................................................................................................................................... 237

Clear Log..................................................................................................................................................... 237

Exit Diags......................................................................................................................................................... 238

Configuration menu..............................................................................................................................238

Entering configuration mode.......................................................................................................................... 239

Roller Kit Counter Value.................................................................................................................................. 239

Reset Roller Kit Counter.................................................................................................................................. 239

Print Quality Pages.......................................................................................................................................... 240

Reports ........................................................................................................................................................... 240

Menu Settings Page.................................................................................................................................... 240

Event Log .................................................................................................................................................... 240

Size sensing..................................................................................................................................................... 240

Panel Menus ...................................................................................................................................................241

PPDS Emulation .............................................................................................................................................. 241

Download Emuls ............................................................................................................................................. 241

Safe Mode....................................................................................................................................................... 241

Factory Defaults.............................................................................................................................................. 242

Energy Conserve .............................................................................................................................................242

Paper Prompts ................................................................................................................................................ 242

Envelope Prompts........................................................................................................................................... 243

Action for Prompts.......................................................................................................................................... 243

Jobs on Disk .................................................................................................................................................... 244

Disk Encryption ............................................................................................................................................... 244

Erase All Information on Disk.......................................................................................................................... 244

Wipe All Settings............................................................................................................................................. 245

Font Sharpening.............................................................................................................................................. 245

Require Standby.............................................................................................................................................. 245

A5 Loading ...................................................................................................................................................... 245

UI Automation ................................................................................................................................................ 246

LES Applications .............................................................................................................................................. 246

Key Repeat Initial Delay .................................................................................................................................. 246

Key Repeat Rate.............................................................................................................................................. 246

Wiper Message ............................................................................................................................................... 247

Clear Supply Usage History ............................................................................................................................. 247

Clear Custom Status........................................................................................................................................ 247

USB Speed....................................................................................................................................................... 247

Table of contents

8

4063

Automatically Display Error Screens............................................................................................................... 248

USB PnP .......................................................................................................................................................... 248

Entering invalid engine mode................................................................................................................248

Entering recovery mode........................................................................................................................248

Accessing the Network SE menu...........................................................................................................249

Service Engineer menu..........................................................................................................................249

Accessing the service engineer (SE) menu...................................................................................................... 249

Service engineer (SE) menu ............................................................................................................................249

Repair information...................................................................................251

Removal precautions.............................................................................................................................251

Handling ESD‑sensitive parts ..........................................................................................................................251

Controller board/control panel replacement ................................................................................................. 252

eSF solutions backup ...................................................................................................................................... 252

Ribbon cable connectors ................................................................................................................................ 253

Zero Insertion Force (ZIF) connectors ........................................................................................................ 253

Horizontal top contact connector ..............................................................................................................254

Horizontal bottom contact connector........................................................................................................ 257

Vertical mount contact connector ............................................................................................................. 260

Horizontal sliding contact connector ......................................................................................................... 263

Low Insertion Force (LIF) connector........................................................................................................... 266

Adjustments..........................................................................................................................................267

Media aligner roller adjustment .....................................................................................................................269

Polygon printhead mechanical registration adjustment ................................................................................ 270

Removal procedures.............................................................................................................................272

Base printer - cover removals...............................................................................................................273

Left cover removal .......................................................................................................................................... 273

Rear lower cover removal............................................................................................................................... 276

Top cover removal .......................................................................................................................................... 278

Right cover removal........................................................................................................................................ 278

Rear door removal .......................................................................................................................................... 280

Base printer- front removals.................................................................................................................281

Duplex exit diverter removal ..........................................................................................................................282

Front door removal......................................................................................................................................... 284

Inner guide deflector removal ........................................................................................................................ 285

Laser printhead removal................................................................................................................................. 286

Left inner cover removal................................................................................................................................. 291

Media aligner roller removal ..........................................................................................................................293

Media turn guide removal .............................................................................................................................. 295

Media vertical guide removal .........................................................................................................................296

MPF feeder lift plate removal......................................................................................................................... 298

MPF pick roller removal.................................................................................................................................. 301

MPF tray removal ........................................................................................................................................... 303

Table of contents

9

4063

Right inner cover removal .............................................................................................................................. 304

Sensor (input) removal ................................................................................................................................... 305

Sensor (toner density) removal ...................................................................................................................... 307

Transfer roller left arm with cable removal.................................................................................................... 308

Transfer roller right arm removal ...................................................................................................................309

Transfer roller removal ................................................................................................................................... 312

Base printer - rear removals..................................................................................................................314

Duplex motor removal.................................................................................................................................... 314

Fuser removal ................................................................................................................................................. 316

Fuser access door removal ............................................................................................................................. 318

Left frame pivot removal ................................................................................................................................319

Output bin sensor cover removal ...................................................................................................................320

Right frame pivot removal .............................................................................................................................. 321

Sensor (rear door interlock) removal.............................................................................................................. 322

Base printer - top removals...................................................................................................................322

Sensor (standard bin full) removal ................................................................................................................. 323

Standard bin cover removal............................................................................................................................ 324

Upper redrive removal.................................................................................................................................... 325

Base printer - bottom removals............................................................................................................327

Duplex front flap removal............................................................................................................................... 328

Duplex rear flap removal ................................................................................................................................329

Left frame extension removal......................................................................................................................... 330

Media tray removal ........................................................................................................................................ 332

Pick roller assembly removal ..........................................................................................................................333

Right frame extension..................................................................................................................................... 334

Sensor (duplex path) removal......................................................................................................................... 335

Sensor (tray 1 media out) removal .................................................................................................................336

Separator roller assembly removal................................................................................................................. 338

Base printer - left removals...................................................................................................................339

Controller board removal ...............................................................................................................................340

Controller board access cover removal ..........................................................................................................341

Controller board access shield removal.......................................................................................................... 342

Fuser drive motor removal .............................................................................................................................342

Main cooling fan removal ............................................................................................................................... 344

Main drive motor removal.............................................................................................................................. 345

Media feeder removal ....................................................................................................................................347

PCBA housing removal.................................................................................................................................... 348

Sensor (control panel interlock) removal ....................................................................................................... 350

Sensor (pick roller position) removal.............................................................................................................. 351

Toner add motor removal............................................................................................................................... 352

Base printer - right removals.................................................................................................................353

Cartridge cooling fan removal ........................................................................................................................ 354

Duplex cooling fan removal ............................................................................................................................355

HVPS removal ................................................................................................................................................. 356

Table of contents

10

4063

LVPS removal ..................................................................................................................................................357

Control panel removals.........................................................................................................................360

4.3‑inch tilting display removal....................................................................................................................... 360

7‑inch tilting display removal.......................................................................................................................... 363

Control panel removal (2.4‑inch screen) ........................................................................................................366

Control panel removal (4.3‑inch screen, 7‑inch screen)................................................................................. 372

Control panel board (2.4‑inch tilting display) removal ...................................................................................378

Control panel board (4.3‑inch tilting display) removal ...................................................................................381

Control panel board (7‑inch tilting display) removal (MS812de) ................................................................... 384

Control panel front cover removal ................................................................................................................. 387

Control panel latch removal ........................................................................................................................... 389

Control panel left bezel removal .................................................................................................................... 390

Left control panel hinge removal.................................................................................................................... 391

Right control panel hinge removal.................................................................................................................. 394

250/550-sheet media tray option removals..........................................................................................397

250/550-sheet media tray and drawer assembly removal............................................................................. 397

Media tray separation roller removal............................................................................................................. 398

Media tray assembly removal......................................................................................................................... 398

Media tray front cover removal...................................................................................................................... 398

Drawer pick roller removal ............................................................................................................................399

Sensor (pick roll position) removal ................................................................................................................399

Drawer assembly rear cover removal............................................................................................................. 400

Drawer assembly left cover removal .............................................................................................................. 401

Drawer controller PCBA removal.................................................................................................................... 402

Drawer upper interface cable removal........................................................................................................... 403

Drawer lower interface cable removal ...........................................................................................................404

Drawer media feeder removal ....................................................................................................................... 405

Drawer transport motor removal ................................................................................................................... 407

Sensor (drawer pass through) removal .......................................................................................................... 408

Sensor (pick) removal ..................................................................................................................................... 410

High capacity input tray option removals.............................................................................................413

HCIT and drawer assembly removal ...............................................................................................................413

HCIT removal .................................................................................................................................................. 414

HCIT drawer assembly removal ......................................................................................................................414

HCIT separator roll assembly removal ............................................................................................................ 415

HCIT media guide removal.............................................................................................................................. 415

HCIT front cover removal................................................................................................................................ 416

HCIT pick arm assembly removal.................................................................................................................... 418

HCIT drawer assembly rear cover removal..................................................................................................... 419

HCIT drawer assembly left cover removal ......................................................................................................420

HCIT drawer assembly right cover removal.................................................................................................... 422

HCIT controller PCBA removal ........................................................................................................................424

HCIT top cover assembly removal .................................................................................................................. 425

HCIT lift drive motor removal .........................................................................................................................427

Table of contents

11

4063

HCIT drawer assembly interface cable removal ............................................................................................. 429

Sensor (HCIT media low) with flag removal.................................................................................................... 430

Sensor (pick roll position) removal .................................................................................................................431

Sensor (HCIT pick) removal............................................................................................................................. 433

HCIT media feeder removal ............................................................................................................................ 434

Output expander option removals........................................................................................................437

Output expander assembly removal............................................................................................................... 437

Output expander top cover removal ..............................................................................................................437

Output expander rear door removal ..............................................................................................................438

Output expander sensor cover removal .........................................................................................................440

Sensor (media bin full) with flag removal ....................................................................................................... 440

Output expander right cover removal ............................................................................................................ 441

Output expander left cover removal ..............................................................................................................443

Output expander controller PCBA removal ....................................................................................................445

Lower interface cable removal .......................................................................................................................446

Upper interface cable removal ....................................................................................................................... 446

Spring with string removal.............................................................................................................................. 448

High capacity output expander option removals..................................................................................450

High capacity output expander assembly removal......................................................................................... 450

HCOE top cover removal................................................................................................................................. 450

HCOE rear door removal................................................................................................................................. 451

HCOE sensor cover removal ........................................................................................................................... 452

Sensor (HCOE media bin full) with flag removal............................................................................................. 453

HCOE right outer cover removal..................................................................................................................... 453

HCOE left cover removal................................................................................................................................. 455

HCOE controller PCBA removal....................................................................................................................... 457

HCOE lower interface cable removal .............................................................................................................. 459

HCOE upper interface cable removal.............................................................................................................. 460

Staple finisher option removals............................................................................................................461

Staple finisher assembly removal ...................................................................................................................461

Stapler rear door removal............................................................................................................................... 462

Stapler right cover removal ............................................................................................................................ 464

Sensor (cartridge door interlock) removal...................................................................................................... 466

Stapler door close limit switch removal.......................................................................................................... 466

Stapler carriage assembly removal................................................................................................................. 469

Stapler left cover removal .............................................................................................................................. 470

Stapler cartridge access door removal ........................................................................................................... 472

Stapler top cover removal .............................................................................................................................. 472

Stapler spring with string removal.................................................................................................................. 474

Media stack flap (right) removal..................................................................................................................... 475

Media stack flap (left) removal....................................................................................................................... 476

Standard output bin LED removal................................................................................................................... 479

Sensor (finisher bin media present) removal.................................................................................................. 480

Tamper motor (right) removal........................................................................................................................ 481

Table of contents

12

4063

Tamper motor (left) removal.......................................................................................................................... 481

Tamper drive belt removal ............................................................................................................................. 482

Paddle drive motor removal ........................................................................................................................... 483

Stapler lower interface cable removal............................................................................................................ 484

Stapler controller PCBA removal .................................................................................................................... 486

Sensor (bin full send) removal ........................................................................................................................ 487

Sensor (bin full receive) removal .................................................................................................................... 488

Mailbox option removals......................................................................................................................490

Mailbox assembly removal .............................................................................................................................490

Mailbox top cover removal............................................................................................................................. 490

Mailbox rear door removal............................................................................................................................. 490

Mailbox right cover removal........................................................................................................................... 492

Mailbox spring with string removal ................................................................................................................493

Mailbox solenoid removal .............................................................................................................................. 494

Mailbox left cover removal............................................................................................................................. 496

Mailbox controller PCBA removal................................................................................................................... 497

Sensor (mailbox divert motor) removal.......................................................................................................... 499

Mailbox lower interface cable removal .......................................................................................................... 500

Mailbox upper interface cable removal.......................................................................................................... 502

Mailbox divert motor removal........................................................................................................................ 502

Mailbox media bin full flag removal ...............................................................................................................504

Sensor (mailbox bin full receive) removal ...................................................................................................... 505

Mailbox belt removal...................................................................................................................................... 508

Mailbox output bin LED assembly removal .................................................................................................... 510

Component locations...............................................................................515

Connectors............................................................................................................................................515

Controller board....................................................................................................................................515

Maintenance............................................................................................523

Inspection guide....................................................................................................................................523

Scheduled maintenance........................................................................................................................525

Fuser maintenance kits................................................................................................................................... 525

Replacing fuser maintenance kits............................................................................................................... 525

Identifying the type of fuser used in the printer ........................................................................................ 526

Resetting the Roller Kit counter...................................................................................................................... 527

Preventive maintenance.......................................................................................................................528

Device‑specific preventive maintenance........................................................................................................ 528

Lubrication specification.......................................................................................................................528

Cleaning the printer..............................................................................................................................528

Table of contents

13

4063

Parts catalog............................................................................................530

Legend...................................................................................................................................................530

Assembly 1: Covers................................................................................................................................533

Assembly 2: Paper path.........................................................................................................................535

Assembly 3: Fusers................................................................................................................................537

Assembly 4: Electronics.........................................................................................................................539

Assembly 5: Drive motors.....................................................................................................................543

Assembly 6: Duplex...............................................................................................................................545

Assembly 7: Frame................................................................................................................................547

Assembly 8: Control panel.....................................................................................................................549

Assembly 9: Paper tray..........................................................................................................................553

Assembly 10: Input options...................................................................................................................555

Assembly 11: 250-sheet tray option......................................................................................................557

Assembly 12: 550-sheet tray option......................................................................................................559

Assembly 13: High capacity input tray option 1....................................................................................561

Assembly 14: High capacity input tray option 2....................................................................................563

Assembly 15: Output options................................................................................................................565

Assembly 16: Output expander option.................................................................................................567

Assembly 17: High capacity output expander option............................................................................569

Assembly 18: Staple finisher option 1...................................................................................................571

Assembly 19: Staple finisher option 2...................................................................................................573

Assembly 20: Mailbox option 1.............................................................................................................575

Assembly 21: Mailbox option 2.............................................................................................................577

Assembly 22: Miscellaneous.................................................................................................................579

Assembly 23: Power cords....................................................................................................................581

Appendix A: Printer specifications............................................................583

Power specifications..............................................................................................................................583

Operating clearances.............................................................................................................................584

Acoustics...............................................................................................................................................584

Environment..........................................................................................................................................585

Processor...............................................................................................................................................585

Appendix B: Options and features............................................................587

Available internal options.....................................................................................................................587

Input options supported.......................................................................................................................587

Table of contents

14

4063

Output options supported.....................................................................................................................587

Physical specifications (options)............................................................................................................588

Options configurations..........................................................................................................................588

Appendix C: Theory of operation..............................................................589

Models MS81x and MS71x paper path rollers and sensors..................................................................590

Models MS81x and MS71x sensors.......................................................................................................591

Functions of main components - need a new title................................................................................591

Media tray assembly....................................................................................................................................... 591

Rear media guide............................................................................................................................................ 591

Side media guide............................................................................................................................................. 591

Media tray.............................................................................................................................................592

Media feeder .................................................................................................................................................. 592

Sensor (media size) ......................................................................................................................................... 592

Sensor (pick roller position) ............................................................................................................................ 592

Multi-purpose feeder (MPF).................................................................................................................592

MPF pick roller................................................................................................................................................ 593

MPF pick solenoid........................................................................................................................................... 593

Registration...........................................................................................................................................593

Sensor (input) ................................................................................................................................................. 594

Duplex...................................................................................................................................................594

Sensor (duplex path)....................................................................................................................................... 594

Transfer.................................................................................................................................................594

Transfer roller ................................................................................................................................................. 594

Printhead...............................................................................................................................................595

Fuser components.................................................................................................................................596

Heat belt (belt fuser)....................................................................................................................................... 597

Heat belt (hot roll fuser) ................................................................................................................................. 597

Pressure roll.................................................................................................................................................... 597

Heater lamp (hot roll fuser) ............................................................................................................................597

Thermistor ...................................................................................................................................................... 597

Sensor (fuser exit)........................................................................................................................................... 598

Sensor (narrow media) (hot roll fuser only) ................................................................................................... 598

Exit.........................................................................................................................................................598

Sensor (standard bin full)................................................................................................................................ 598

Drive......................................................................................................................................................599

Main drive motor assembly ............................................................................................................................ 599

Fuser drive motor assembly ........................................................................................................................... 599

Toner add motor assembly............................................................................................................................. 599

Redrive motor assembly ................................................................................................................................. 599

Sensors..................................................................................................................................................600

Table of contents

15

4063

Electrical components and controller...................................................................................................600

Sensor (control panel door interlock)............................................................................................................. 601

Sensor (rear door interlock)............................................................................................................................ 601

Main cooling fan .............................................................................................................................................601

Cartridge cooling fan....................................................................................................................................... 601

Duplex cooling fan .......................................................................................................................................... 601

Fuser cooling fan (hot roll printer only).......................................................................................................... 601

LVPS board assembly ...................................................................................................................................... 602

HVPS board assembly .....................................................................................................................................602

Controller board ............................................................................................................................................. 602

Xerographic and print cartridge components.......................................................................................602

Supported paper sizes, types, and weights...........................................................................................606

Paper types and weights supported by the printer ........................................................................................606

Paper sizes supported by the printer.............................................................................................................. 607

Paper sizes, types, and weights supported by the optional finishers............................................................. 608

Output options theory...........................................................................................................................610

Output expander theory................................................................................................................................. 610

High capacity output expander theory ........................................................................................................... 611

Mailbox theory................................................................................................................................................ 612

Staple finisher theory...................................................................................................................................... 613

Appendix D: Acronyms.............................................................................615

Acronyms...............................................................................................................................................615

Index........................................................................................................617

Part number index...................................................................................625

Part name index.......................................................................................635

Table of contents

16

4063

Notices and safety information

Laser notices

Laser notice

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, Chapter I, Subchapter J for Class I
(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.

Class I laser products are not considered to be hazardous. The printer contains internally a Class IIIb (3b) laser that is
nominally a 10 milliwatt gallium arsenide laser operating in the wavelength of 787-800 nanometers. The laser system
and printer are designed so there is never any human access to laser radiation above a Class I level during normal
operation, user maintenance, or prescribed service condition.

Laser-Hinweis

Der Drucker wurde in den USA zertifiziert und entspricht den DHHS-Vorschriften 21 CFR, Kapitel I, Unterkapitel J für
Laserprodukte der Klasse I (1); andernorts ist er als Laserprodukt der Klasse I zertifiziert, das den IEC 60825-1­Anforderungen entspricht.

Laserprodukte der Klasse I werden nicht als gefährlich eingestuft. Der Drucker enthält im Inneren einen Laser der
Klasse IIIb (3b), und zwar einen 10-Milliwatt-Gallium-Arsenid-Laser, der im Wellenlängenbereich von 787 bis 800
Nanometern arbeitet. Das Lasersystem und der Drucker sind so konstruiert, dass unter normalen Betriebsbedingungen,
bei der Wartung durch den Benutzer oder bei den vorgeschriebenen Wartungsbedingungen Menschen keiner
Laserstrahlung ausgesetzt sind, die die Werte für Klasse I überschreitet.

Avis relatif à l'utilisation du laser

L'imprimante est certifiée conforme aux exigences de la réglementation des Etats-Unis relative aux produits laser (DHHS
21 CFR, Chapter I, Subchapter J for Class I (1)). Pour les autres pays, elle est certifiée conforme aux exigences des normes
IEC 60825-1 relatives aux produits laser de classe I.

Les produits laser de Classe I ne sont pas considérés comme dangereux. L'imprimante contient un laser de classe IIIb
(3b), laser arséniure de gallium 10 milliwatts opérant sur une longueur d'onde de l'ordre de 787 à 800 nanomètres. Le
système laser ainsi que l'imprimante ont été conçus de manière à ce que personne ne soit exposé à des rayonnements
laser dépassant le niveau de classe I dans le cadre d'un fonctionnement normal, de l'entretien par l'utilisateur ou de la
maintenance.

Avvertenze sui prodotti laser

La stampante è certificata negli Stati Uniti come stampante conforme ai requisiti DHHS 21 CFR, Capitolo I, Sottocapitolo
J per i prodotti laser di Classe I (1), mentre in altri paesi è certificata come prodotto laser di Classe I conforme ai requisiti
IEC 60825-1.

I prodotti laser di Classe I non sono considerati pericolosi. La stampante contiene un laser di Classe IIIb (3b), che è
nominalmente un laser ad arseniuro di gallio a 10milliwatt funzionante a una lunghezza d'onda di 787-800 nanometri.
Il sistema laser e la stampante sono stati progettati in modo da impedire l'esposizione a radiazioni laser superiori al
livello previsto dalla Classe I durante le normali operazioni di stampa, manutenzione o assistenza.

Notices and safety information

17

4063

Aviso de láser

Esta impresora se ha certificado en EE. UU. de conformidad con los requisitos de DHHS 21 CFR, capítulo I, subcapítulo
J, para los productos láser de Clase I (1), y en otros países está certificada como un producto láser de Clase I de acuerdo
con los requisitos de IEC 60825-1.

Los productos láser de Clase I no se consideran peligrosos. La impresora contiene un láser interno de Clase IIIb (3b) que
nominalmente es un láser de arseniuro de galio de 10 milivatios que funciona en una longitud de onda de 787-800
nanómetros. El sistema láser y la impresora se han diseñado para que ningún individuo acceda nunca a las radiaciones
láser por encima del nivel de Clase I durante su uso normal, ni en tareas de mantenimiento o intervenciones de servicio
técnico prescritas.

Aviso sobre laser

A impressora foi certificada nos EUA por estar em conformidade com os requisitos do DHHS 21 CFR, capítulo I,
subcapítulo J,
I em conformidade com os requisitos da IEC 60825-1.

Os produtos a laser de Classe I não são considerados perigosos. A impressora contém, internamente, um laser de Classe
IIIb (3b) que é um laser de arsenieto de gálio de 10 miliwatts operando no comprimento de onda de 787-800
nanômetros. O sistema do laser e a impressora foram projetados para que jamais haja acesso humano à radiação do
laser acima do nível da Classe I durante a operação normal ou a manutenção pelo usuário ou sob as condições de
manutenção prescritas.

para produtos a laser de Classe I (1) e, nos demais países, foi certificada como produto a laser de Classe

Laserinformatie

Deze printer is in de Verenigde Staten gecertificeerd als een product dat voldoet aan de vereisten van DHHS 21 CFR,
hoofdstuk 1, paragraaf J voor laserproducten van klasse I (1). Elders is de printer gecertificeerd als een laserproduct
van klasse I dat voldoet aan de vereisten van IEC 60825-1.

Laserproducten van klasse I worden geacht geen gevaar op te leveren. De printer bevat intern een laser van klasse IIIb
(3b), een galliumarsenide laser met een nominaal vermogen van 10 milliwatt en een golflengtebereik van 787-800
nanometer. Het lasersysteem en de printer zijn zodanig ontworpen dat gebruikers nooit blootstaan aan laserstraling
die hoger
door de gebruiker of voorgeschreven servicewerkzaamheden.

is dan het toegestane niveau voor klasse I-apparaten, tijdens normaal gebruik, onderhoudswerkzaamheden

Lasererklæring

Denne printer er certificeret i USA i henhold til kravene i DHHS 21 CFR, afsnit I, underafsnit J, for Klasse I-laserprodukter
(1) og certificeret andetsteds som et Klasse I-laserprodukt i henhold til kravene i IEC 60825-1.

Klasse I-laserprodukter anses ikke for at være farlige. Printeren indeholder internt en klasse IIIb (3b)-laser, der nominelt
er en 10 milliwatt galliumarsenid-laser, som fungerer i bølgelængdeområdet 787-800 nanometer. Lasersystemet og
printeren er udviklet på en sådan måde, at der ikke er en direkte laserstråling, der overskrider Klasse I-niveauet under
normal brug, brugers vedligeholdelse eller de foreskrevne servicebetingelser.

Laserilmoitus

Tämä tulostin on sertifioitu Yhdysvalloissa DHHS 21 CFR, Chapter I, Subchapter J -standardin mukaiseksi luokan I (1) ­lasertuotteeksi ja muualla IEC 60825-1 -standardin mukaiseksi luokan I lasertuotteeksi.

Notices and safety information

18

4063

Luokan I lasertuotteita ei pidetä haitallisina. Tulostimen sisällä on luokan IIIb (3b) laser, joka on nimellisteholtaan 10
mW:n galliumarsenidilaser ja toimii 787–800 nanometrin aallonpituuksilla. Laserjärjestelmä ja tulostin ovat
rakenteeltaan sellaisia, että käyttäjä ei joudu alttiiksi luokkaa 1 suuremmalle säteilylle normaalin käytön, ylläpidon tai
huollon aikana.

Lasermeddelande

Skrivaren är certifierad i USA enligt kraven i DHHS 21 CFR, avsnitt I, underavsnitt J för laserprodukter av klass I (1) och
i andra länder är den certifierad som en laserprodukt av klass I som uppfyller kraven i IEC 60825-1.

Laserprodukter av klass I anses inte vara skadliga. Skrivaren innehåller en klass IIIb (3b)-laser, vilket är en 10 mW
galliumarseniklaser som arbetar inom en våglängd på 787–800 nm. Lasersystemet och skrivaren är utformade så att
människor aldrig utsätts för laserstrålning över klass I-nivå under normala förhållanden vid användning, underhåll eller
service.

Lasermerknad

Skriveren er sertifisert i USA for samsvar med kravene i DHHS 21 CFR, kapittel I, underkapittel J for laserprodukter av
klasse I (1), og er andre steder sertifisert som et laserprodukt av klasse I som samsvarer med kravene i IEC 60825-1.

Laserprodukter av klasse I anses ikke som helseskadelige. Skriveren inneholder en intern laser av klasse IIIb (3b) som
nominelt er en 10 milliwatt galliumarsenid-laser, og som opererer i bølgelengder på 787-800 nanometer. Lasersystemet
og skriveren er utformet slik at mennesker ikke utsettes for laserstråling utover nivået i klasse I under normal drift,
vedlikehold eller foreskrevet service.

Avís sobre el làser

Als EUA, la impressora està certificada de conformitat amb els requisits del capítol I, apartat J del CFR 21 del Departament
de Salut i Serveis Humans per a productes làser de classe I (1) i a la resta de països està certificada com a producte làser
de classe I d'acord amb els requisits de la norma IEC 60825-1.

Els productes làser de classe I no es consideren perillosos. A l'interior de la impressora hi ha un làser de classe IIIb (3b)
que nominalment es un arsenur de galió de 10 mil·liwatts que funciona a una longitud d'ona de 787-800 nanòmetres.
El sistema làser y la impressora s'han dissenyat amb l'objectiu d'impedir l'accés humà de la radiació làser superior al
nivell de classe I durant un funcionament normal, el manteniment per part de l'usuari o les condicions de servei
prescrites.

レーザーに関する通知

本機は、米国においてクラス I（1）レーザー製品に対する DHHS 21 CFR、Chapter I、Subchapter J の要件に準
拠し、その他の国では IEC 60825-1 の要件に準拠するクラス I レーザー製品として認可されています。

クラス I レーザー製品は、危険性がないとみなされています。 本機には、クラス IIIb（3b）レーザーが内蔵
されています。これは、787 ～ 800 ナノメートルの波長で動作する定格 7 ミリワットのガリウムヒ素レーザ
ーです。 レーザーシステムとプリンタは、通常の操作、ユーザーによるメンテナンス、または所定のサー
ビス条件の下で、ユーザーがクラス I レベルを超えるレーザー放射に絶対にさらされないように設計されて
います。

레이저 관련 공지

이 프린터는 미국에서 DHHS 21 CFR, Chapter I, Subchapter J 의 요구 사항을 준수하는 클래스 I(1) 레이저 제품으
로 승인되었으며 이외 지역에서 IEC

60825-1 의 요구 사항을 준수하는 클래스 I 레이저 제품으로 승인되었습니다.

Notices and safety information

19

4063

Class I 레이저 제품은 위험한 제품으로 간주되지 않습니다. 프린터에는 655-675 나노미터의 파장 영역에서 작동
하는 공칭 7 밀리와트 갈륨 비소 레이저인 클래스 IIIb(3b) 레이저가 내부에 포함되어 있습니다. 레이저 시스템
과 프린터는 정상적인 작동, 사용자 유지 관리 또는 사전 설명된 서비스 조건에는 사람에게 클래스 I 수준 이상
의 레이저 방사가 노출되지 않도록 설계되었습니다.

激光注意事项

本打印机在美国认证合乎 DHHS 21 CFR Chapter I，Subchapter J 对分类 I（1）激光产品的标准，而在其他地区则
被认证是合乎 IEC 60825-1 的分类 I 激光产品。

一般认为分类 I 激光产品不具有危险性。本打印机内部含有分类 IIIb（3b）的激光，在操作过程中会产生额定
7 毫瓦的砷化镓激光，其波长范围在 787-800nm 之间。本激光系统及打印机的设计，在一般操作、使用者维护
或规定内的维修情况下，不会使人体接触分类 I 以上等级的辐射。

雷射聲明

本印表機係經過美國核可，符合 DHHS 21 CFR，Chapter I，Subchapter J 規定的 I (1) 級雷射產品激光注意事项；
在美國以外的地區，為符合 IEC 60825-1 規定的 I 級雷射產品。

根據 I 級雷射產品的規定，這類產品不會對人體造成傷害。本機所採用之 IIIb (3b) 級雷射只會產生 7 百萬分之
一瓦特 (milliwatt)、波長 787 至 800 億分之一米 (nanometer) 的鎵砷放射線 (gallium arsenide laser)。使用者只要
以正確的方法操作及維護保養，並依照先前所述之維修方式進行修護，此印表機與其雷射系統絕不會產生 I 級
以上的放射線，而對人體造成傷害。

Safety

Safety information

• The safety of this product is based on testing and approvals of the original design and specific components. The

manufacturer is not responsible for safety in the event of use of unauthorized replacement parts.

• The maintenance information for this product has been prepared for use by a professional service person and is

not intended to be used by others.

• There may be an increased risk of electric shock and personal injury during disassembly and servicing of this product.

Professional service personnel should understand this and take necessary precautions.

CAUTION—POTENTIAL INJURY

The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium
battery is
lithium batteries according to the manufacturer's instructions and local regulations.

Consignes de sécurité

• La sécurité de ce produit repose sur des tests et des agréations portant sur sa conception d'origine et sur des

composants particuliers.
pièces de rechange non agréées.

• Les consignes d'entretien et de réparation de ce produit s'adressent uniquement à un personnel de maintenance

qualifié.

• Le démontage et l'entretien de ce produit pouvant présenter certains risques électriques, le personnel d'entretien

qualifié devra prendre toutes les précautions nécessaires.

incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used

Le fabricant n'assume aucune responsabilité concernant la sécurité en cas d'utilisation de

Notices and safety information

20

4063

AVERTISSEMENT—RISQUE DE BLESSURE

La batterie lithium de ce produit n'est pas destinée à être remplacée. Il existe un risque d'explosion si une
batterie
batterie lithium. Mettez les batteries lithium usagées au rebut selon les instructions du fabricant et les
réglementations locales.

lithium

est placée de façon incorrecte. Ne rechargez pas, ne démontez pas et n’incinérez pas une

Norme di sicurezza

• La sicurezza del prodotto si basa sui test e sull'approvazione del progetto originale e dei componenti specifici. Il

produttore non è responsabile per la sicurezza in caso di sostituzione non autorizzata delle parti.

• Le informazioni riguardanti la manutenzione di questo prodotto sono indirizzate soltanto al personale di assistenza

autorizzato.

• Durante lo smontaggio e la manutenzione di questo prodotto, il rischio di subire scosse elettriche e danni alla

persona è più elevato. Il personale di assistenza autorizzato deve, quindi, adottare le precauzioni necessarie.

ATTENZIONE — PERICOLO DI LESIONI

La batteria al litio presente del prodotto non deve essere sostituita. In caso di sostituzione errata della
batteria al litio, potrebbe verificarsi un'esplosione. Non ricaricare, smontare o bruciare batterie al litio.
Smaltire le batterie al litio usate seguendo le istruzioni del produttore e le norme locali.

Sicherheitshinweise

• Die Sicherheit dieses Produkts basiert auf Tests und Zulassungen des ursprünglichen Modells und bestimmter

Bauteile. Bei Verwendung nicht genehmigter Ersatzteile wird vom Hersteller keine Verantwortung oder Haftung
für die Sicherheit übernommen.

• Die Wartungsinformationen für dieses Produkt sind ausschließlich für die Verwendung durch einen

Wartungsfachmann bestimmt.

• Während des Auseinandernehmens und der Wartung des Geräts besteht ein zusätzliches Risiko eines elektrischen

Schlags und körperlicher Verletzung. Das zuständige Fachpersonal sollte entsprechende Vorsichtsmaßnahmen
treffen.

VORSICHT - VERLETZUNGSGEFAHR

Die Lithiumbatterie in diesem Produkt darf nicht ausgetauscht werden. Wird eine Lithiumbatterie nicht
ordnungsgemäß ausgetauscht, besteht Explosionsgefahr. Lithiumbatterien dürfen auf keinen Fall wieder
aufgeladen, auseinander genommen oder verbrannt werden. Befolgen Sie zum Entsorgen verbrauchter
Lithiumbatterien die Anweisungen des Herstellers und die örtlichen Bestimmungen.

Pautas de Seguridad

• La seguridad de este producto se basa en pruebas y aprobaciones del diseño original y componentes específicos.

El fabricante no es responsable de la seguridad en caso de uso de piezas de repuesto no autorizadas.

• La información sobre el mantenimiento de este producto está dirigida exclusivamente al personal cualificado de

mantenimiento.

• Existe mayor riesgo de descarga eléctrica y de daños personales durante el desmontaje y la reparación de la máquina.

El personal cualificado debe ser consciente de este peligro y tomar las precauciones necesarias.

PRECAUCIÓN: POSIBLES DAÑOS PERSONALES

La batería de litio de este producto no debe reemplazarse. Existe riesgo de explosión si se sustituye
incorrectamente una batería de litio. No recargue, desmonte ni incinere una batería de litio. Deseche las
baterías de litio según las instrucciones del fabricante y las normativas locales.

Notices and safety information

21

4063

Informações de Segurança

• A segurança deste produto baseia-se em testes e aprovações do modelo original e de componentes específicos. O

fabricante não é responsável pela segunrança, no caso de uso de peças de substituição não autorizadas.

• As informações de segurança relativas a este produto destinam-se a profissionais destes serviços e não devem ser

utilizadas por outras pessoas.

• Risco de choques eléctricos e ferimentos graves durante a desmontagem e manutenção deste produto. Os

profissionais destes serviços devem estar avisados deste facto e tomar os cuidados necessários.

ATENÇÃO — RISCO DE FERIMENTO

A bateria de lítio neste produto não deve ser substituída. Existe o risco de explosão se uma bateria de lítio
for substituída incorretamente. Não recarregue, desmonte ou incinere uma bateria de lítio. Descarte as
baterias de lítio usadas de acordo com as instruções do fabricante e regulamentos locais.

Informació de Seguretat

• La seguretat d'aquest producte es basa en l'avaluació i aprovació del disseny original i els components específics.

El fabricant no es fa responsable de les qüestions de seguretat si s'utilitzen peces de recanvi no autoritzades.

• La informació pel manteniment d’aquest producte està orientada exclusivament a professionals i no està destinada

a ningú que no ho sigui.

• El risc de xoc elèctric i de danys personals pot augmentar durant el procés de desmuntatge i de servei d’aquest

producte. El personal professional ha d’estar-ne assabentat i prendre les mesures convenients.

ATENCIÓ

La bateria de liti d'aquest producte no ha estat dissenyada perquè es substitueixi. Hi ha perill d’explosió si
no es substitueix correctament la bateria de liti. No recarregueu, desmunteu o incinereu una bateria de
liti. Desfeu-vos de les bateries de liti usades d’acord amb les instruccions del fabricant i les regulacions
locals.

안전 사항

• 본 제품은 원래 설계및특정 구성에 대한 테스트 결과로 안정 성이 입증된 것입니다. 따라서 무허가 교체부품

을 사용하는 경 우 에는 제조업체에서 안전에 대한 책임을 지지 않습니다.

• 본 제품에 관한 유지 보수 설명 서는 전문 서비스 기술자 용으로 작성된 것이므로, 비 전문가는 사용할 수 없

습니다.

• 본 제품을 해체하거나 정비할 경우, 전 기전 인 충 경 을 받거나 상 처를 입을 위험이 커집니다. 전문 서비스

기술자는 이 사실을 숙지하고, 필요한 예방조치를 취하도록 하십시오.

주의—부상 위험
이 제품에 들어 있는 리튬 배터리는 교체할 수 없습니다. 리튬 배터리를 잘못 교체하면 폭발할 위험

이 있습니다. 리튬 배터리를 재충전하거나, 분해하거나, 태우지 마십시오. 제조업체의 지침과 지역
규정에 따라 다 쓴 리튬 배터리를 폐기하십시오.

安全信息

• 本产品的安全性以原来设计和特定产品的测试结果和认证为基础。万一使用来经许可的替换部件，制造商

不对安全性负责。

• 本产品的维护信息仅供专业服务人员使用，并不打算证其他人使用。

• 本产品在拆卸、维修时，遭受电击或人员受伤的危险性会增高，专业服务人员对这点必须有所了触，并采

取必要的预防措施。

Notices and safety information

22

4063

当心一可能的伤害：
本产品中的锂电池不可更换。如果不正确更换锂电池，可能会有爆炸危险。不要再 充电、拆解或

焚烧锂电池。丢弃旧的锂电池时应按照制造商的指导及当地法规进行处理。

Notices and safety information

23

4063

24

4063

Preface

This manual contains maintenance procedures for service personnel.

It is divided into the following chapters:

• General information contains a general description of the printer and the maintenance approach used to repair it.

Special tools and test equipment, as well as general environmental and safety instructions, are discussed.

• Diagnostic information contains diagnostic aids you can use to isolate failing field replaceable units. These

diagnostic aids include error code tables, symptom tables, and service checks.

• Diagnostic aids contains descriptions of the printer interface, the user and service menus, and the basic theory of

printer operation.

• Repair information provides instructions for making printer adjustments and removing and installing FRUs.

• Connector locations uses illustrations to identify the connector locations.

• Preventive maintenance

• Parts catalog contains illustrations and part numbers for individual FRUs.

• Appendix A—Contains service tips and detailed information about the product, including the basic theory of printer

operation.

• Appendix B—Contains representative print samples.

contains the lubrication specifications and recommendations to prevent problems.

Service manual conventions

Note: A note provides additional information.

Warning—Potential Damage: A warning identifies something that might damage the product hardware or software.

This service manual uses several different types of caution statements:

CAUTION—POTENTIAL INJURY: A caution identifies something that might cause the service technician harm.

CAUTION—SHOCK HAZARD: This type of caution indicates a danger from hazardous voltage in the area of the

product where you are working. Unplug the product before you start working, or use caution if the product
must receive power to perform the task.

CAUTION—HOT SURFACE: This type of caution indicates a hot surface.

CAUTION—TIPPING HAZARD: This type of caution indicates a tipping hazard.

Preface

25

4063

26

General information

• “Printer configurations” on page 28

•

“Paper guidelines” on page 30

• “Data security notice” on page 33

• “Tools required for service” on page 33

4063

The LexmarkTMM5150, M5160, M5170, MS710, MS711, MS810, MS811, and MS812 printers are network‑capable
printers
noted.

The printers are available in the following models:

Model Configuration

M5150 Network, 4.3” e‑Task touch screen, duplex printer 4063‑29E

M5160 Network, 4.3” e‑Task touch screen, duplex printer 4063‑49E

M5170 Network, 7” e‑Task touch screen, duplex printer 4063‑69E

MS710dn Network, duplex printer 4063‑832

MS711dn Network, duplex printer 4063‑835

MS810n Network 4063-210

MS810dn Network, duplex printer 4063-230

MS810de Network, 4.3” e‑Task touch screen, duplex printer 4063-23E

MS811n Network 4063-410

MS811dn Network, duplex printer 4063-430

MS812dn Network, duplex printer 4063-630

that print monochrome print jobs. All information in this service manual pertains to all models unless explicitly

Machine type / model
number

laser

MS812de Network, 7” e‑Task touch screen, duplex printer 4063-63E

The diagnostic information in this manual leads you to the correct field replaceable unit (FRU) or part. Use the error
code charts, symptom index, and service checks to determine the symptom and then repair the failure. After you
complete the repair, perform tests as needed to verify the repair.

To begin diagnosing a problem, go to “Diagnostic information” on page 35. See “Repair information” on page 251
for information about removing and reinstalling parts. See “Parts catalog” on page 530 to help identify parts.

General information

27

Printer configurations

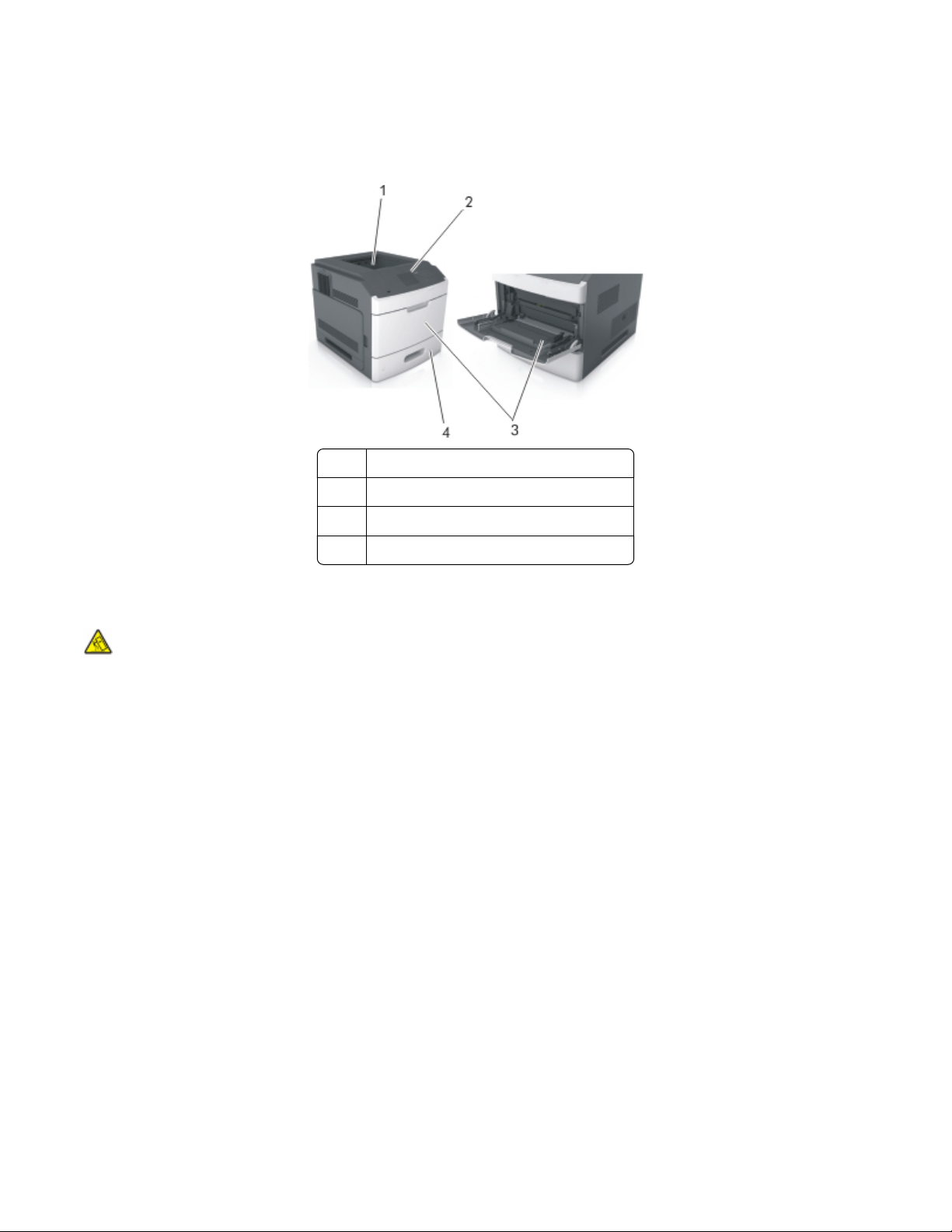

Basic model

1 Standard bin

2 Printer control panel

4063

3 Multipurpose feeder

4 Standard 250‑ or 550‑sheet tray (Tray 1)

Fully configured model

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must

use either a printer stand or printer base if you are using multiple input options. If you purchased a printer with
a similar configuration, then you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

General information

28

4063

The following illustration shows the maximum number of optional finishers and trays that are supported by the printer.
For more information on other configurations, visit www.lexmark.com/multifunctionprinters.

Hardware option Alternative hardware option

1 Staple finisher

• Output expander

• 4‑bin mailbox

2 4‑bin mailbox

• Output expander

• High‑capacity output expander

• Staple finisher

3 Caster base None

4 2100‑sheet tray None

5 550‑sheet tray 250‑sheet tray

6 250‑sheet tray 550‑sheet tray

7 4‑bin mailbox Output expander

8 Output expander 4‑bin mailbox

In a configuration with two or more optional finishers:

• The staple finisher must always be on top.

• The high‑capacity output expander must always be at the bottom.

• The output expander is the only finisher that can be placed on top of the high‑capacity output expander.

• The output expander and mailbox may be installed in any order.

General information

29

4063

When using optional trays:

• Always use a caster base when the printer is configured with a 2100‑sheet tray.

• The 2100‑sheet tray must always be at the bottom of a configuration.

• A maximum of four optional trays may be configured with the printer.

• The optional 250‑ and 550‑sheet trays may be installed in any order.

Paper guidelines

Paper characteristics

The following paper characteristics affect print quality and reliability. Consider these factors before printing on them:

Weight

The printer trays and multipurpose feeder can automatically feed paper weights between 60–176 g/m2 (16–47‑lb) grain

paper. The 2100‑

long
Paper lighter than 60 g/m2 (16 lb) might not be stiff enough to feed properly, and may cause jams.

sheet tray can automatically feed paper weights up to 60–135 g/m2 (16–36‑lb) grain long paper.

2

Note: Two‑sided printing is supported for 60–176 g/m

(16–47‑lb) paper.

Curl

Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after
the
cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding
problems.

passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid,

paper

Smoothness

Paper smoothness directly affects print quality. If paper is too rough, toner cannot fuse to it properly. If paper is too
smooth, it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield points;
smoothness between 150 and 250 Sheffield points produces the best print quality.

Moisture content

The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly.
Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that
can degrade its performance.

Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend
the time
paper may also require a longer conditioning period.

several days if the storage or transportation environment is very different from the printer environment. Thick

Grain direction

Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of
the paper, or grain short, running the width of the paper.

For 60–176 g/m2 (16–47‑lb) paper, grain long paper is recommended.

General information

30

4063

Fiber content

Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the
paper with a high degree of stability, resulting in fewer paper feeding problems and better print quality. Paper containing
fibers such as cotton can negatively affect paper handling.

Selecting paper

Using the appropriate paper prevents jams and helps ensure trouble‑free printing.

To help avoid paper jams and poor print quality:

• Always use new, undamaged paper.

• Before loading paper, know the recommended printable side of the paper. This information is usually indicated on

the paper package.

• Do not use paper that has been cut or trimmed by hand.

• Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.

• Do not use coated papers unless they are specifically designed for electrophotographic printing.

Selecting preprinted forms and letterhead

•

Use grain long for 60–90‑g/m2 (16–24‑lb) paper.

• Use only forms and letterhead printed using an offset lithographic or engraved printing process.

• Avoid paper with rough or heavily textured surfaces.

• Use inks that are not affected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these

requirements; latex inks might not.

• Print samples on preprinted forms and letterheads considered for use before buying large quantities. This

determines whether or not the ink in the preprinted form or letterhead will affect print quality.

• When in doubt, contact your paper supplier.

Using recycled paper and other office papers

As an environmentally conscientious company, Lexmark supports the use of recycled paper produced specifically for
use in laser (electrophotographic) printers.

While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers that
represent
and discipline. Many factors are taken into consideration both separately and as a whole, including the following:

•

• Temperature and humidity conditions (Testing chambers simulate climates from all over the world.)

• Moisture content (Business papers should have low moisture: 4–5%.)

• Bending resistance and proper stiffness means optimum feeding through the printer.

• Thickness (impacts how much can be loaded into a tray)

• Surface roughness (measured in Sheffield units, impacts print clarity and how well toner fuses to the paper)

• Surface friction (determines how easily sheets can be separated)

recycled

Amount of post-consumer waste (Lexmark tests up to 100% post-consumer waste content.)

cut size copier papers available on the global market. This scientific testing is conducted with rigor

General information

31

4063

• Grain and formation (impacts curling, which also influences the mechanics of how the paper behaves as it moves

through the printer)

• Brightness and texture (look and feel)

Recycled papers are better than ever; however, the amount of recycled content in a paper affects the degree of control
over

foreign
they are not perfect. The energy required to de-ink and deal with additives such as colorants and “glue” often generates
more carbon emissions than does normal paper production. However, using recycled papers enables better resource
management overall.

Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its products. To
gain a better understanding of the impact of printers on the environment, the company commissioned a number of
life cycle assessments and found that paper was identified as the primary contributor (up to 80%) of carbon emissions
caused throughout the entire life of a device (from design to end-of-life). This is due to the energy-intensive
manufacturing processes required to make paper.

Thus, Lexmark seeks to educate customers and partners on minimizing the impact of paper. Using recycled paper is
one way. Eliminating excessive and unnecessary paper consumption is another. Lexmark is well-equipped to help
customers minimize
who demonstrate their commitment to sustainable forestry practices.

Lexmark does not endorse specific suppliers, although a converter’s product list for special applications is maintained.
However, the following paper choice guidelines will help alleviate the environmental impact of printing:

matter. And while recycled papers are one good path to printing in an environmentally responsible manner,

printing and copying waste. In addition, the company encourages purchasing paper from suppliers

1 Minimize paper consumption.

2 Be selective about the origin of wood fiber. Buy from suppliers who carry certifications such as the Forestry

Stewardship Council (FSC) or The Program for the Endorsement of Forest Certification (PEFC). These certifications
guarantee that the paper manufacturer uses wood pulp from forestry operators that employ environmentally and
socially responsible forest management and restoration practices.

3

Choose the most appropriate paper for printing needs: normal 75 or 80 g/m2 certified paper, lower weight paper,
or recycled paper.

Unacceptable paper examples

Test results indicate that the following paper types are at risk for use with laser printers:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be affected by the temperature in the printer fuser

•

Preprinted papers that require a registration (the precise location on the page) greater than ± 2.3 mm (± 0.9 in.),
such as optical character recognition (OCR) forms. In some cases, registration can be adjusted with a software
application to successfully print on these forms.)

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough-edged, rough or heavily textured surface papers or curled papers

• Recycled papers that fail EN12281:2002 (European testing)

•

Paper weighing less than 60 g/m2 (16 lb)

• Multiple part forms or documents

For more information about Lexmark, visit www.lexmark.com. General sustainability-related information can be found
at the Environmental Sustainability link.

General information

32

4063

Storing paper

Use these paper storage guidelines to help avoid jams and uneven print quality:

• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most

label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity
between 40 and 60 percent.

• Store paper in cartons, on a pallet or shelf, rather than on the floor.

• Store individual packages on a flat surface.

• Do not store anything on top of individual paper packages.

• Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and wrapper

help keep the paper clean, dry, and flat.

Data security notice

This printer contains various types of memory that are capable of storing device and network settings, information
from embedded solutions, and user data:

• Volatile memory—This device utilizes standard Random Access Memory (RAM) to temporarily buffer user data

during simple print and copy jobs.

• Non-volatile memory—This device may utilize two forms of non-volatile memory: EEPROM and NAND (flash

memory). Both types are used to store the operating system, device settings, network information, scanner and
bookmark settings, and embedded solutions.

• Hard disk memory—Some devices have a hard disk drive installed. The printer hard disk is designed for device-

specific
not provide the capability for users to extract information, create folders, create disk or network file shares, or FTP
information directly from a client device. The hard disk can retain buffered user data from complex scan, print,
copy, and fax jobs, as well as form data, and font data.

functionality

and cannot be used for long term storage for data that is not print-related. The hard disk does

To erase volatile memory, turn off the printer.

To erase non-volatile memory, see

To erase the printer hard disk, see “Wipe All Settings” on page 245.

The printer control panel and RIP/controller board contain NVRAM. The old part must be returned to your next level
support.

“Erase All Information on Disk” on page 244.

Tools required for service

Flat-blade screwdrivers, various sizes
#1 Phillips screwdriver, magnetic
#2 Phillips screwdriver, magnetic
#2 Phillips screwdriver, magnetic short-blade
7/32 inch (5.5 mm) open-end wrench

7.0 mm nut driver
Needlenose pliers
Diagonal side cutters
Spring hook
Feeler gauges

General information

33

Analog or digital multimeter
Parallel wrap plug 1319128
Twinax/serial debug cable 1381963
Coax/serial debug cable 1381964
Flash light (optional)
3mm hex wrench

4063

General information

34

Diagnostic information

• “Troubleshooting overview” on page 35

•

“Power‑on Reset (POR) sequence” on page 36

• “Using Safe Mode” on page 37

• “Fixing print quality issues” on page 37

•

“Paper jams” on page 46

• “User attendance messages (0-99.99)” on page 92

•

“Printer hardware errors (100-199.99)” on page 99

• “Firmware and/or system electronics errors (900-999.99)” on page 111

• “Input/output option hardware errors” on page 121

•

“Input/output option paper jam errors” on page 141

• “Symptoms” on page 191

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord

from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn

them off as well, and unplug any cables going into the printer.

4063

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

Troubleshooting overview

• “Performing the initial troubleshooting check” on page 35

•

“Error code number key” on page 36

Performing the initial troubleshooting check

Before you start the troubleshooting procedures, perform the following checks:

• With the power cord unplugged from the wall outlet, check that the cord is free from breakage, short-circuits,

disconnected wires, or incorrect connections.

• Make sure the printer is properly grounded. Check the power cord ground terminal.

•

Make sure the power supply line voltage is within 10% of the rated line voltage.

• Make sure the machine is securely installed on a level surface in a well-ventilated area.

•

Make sure the room temperature is between 16 and 32°C (60 and 90°F) and that the relative humidity is between
20 and 80%.

• Avoid sites generating ammonia gas, high temperature, high humidity (near water faucets, kettles, humidifiers),

cold spaces, near open flames, and dusty areas.

• Avoid sites exposed to direct sunlight.

Diagnostic information

35

• Make sure the paper is the recommended paper for this printer.

• Make a trial print with paper from a newly opened package, and check the result.

Error code number key

The following chart identifies the error code numbers that should be consistent across product lines.

Range Description Go to page

0–99 User attendance messages See “User attendance messages

(0-99.99)” on page 92.

100–199 Printer hardware errors See “Printer hardware errors

(100-199.99)” on page 99.

200–299 Printer and input option paper jams See “Paper jams” on page 46.

300-399 Input/output option hardware errors See “Input/output option hardware

errors” on page 121.

4063

400–499

400–403

431–432

450–458

461

900–999 Firmware and/or system electronics errors See “Firmware and/or system

Output option paper jams

HTU paper jam

Mailbox (x = bin number) paper jam

Finisher/Stacker paper jam

Hole Punch paper jam

See “Input/output option paper jam

errors” on page 141.

electronics errors (900-999.99)” on
page 111.

Power‑on Reset (POR) sequence

When you turn the printer on, it performs a Power-on Reset (POR) sequence.

Check for correct POR functioning of the base printer by observing the following:

1 The LED turns on.

2 The main fan turns on.

3 The operator panel turns on.

4 The fuser heater turns on. The fuser takes longer to warm up from a cold start than a warm start.

5 The operator panel LED starts blinking.

6 A splash screen appears on the display. The following errors or messages may appear:

• Close Door or Insert Cartridge appear if the front access door is open or the print cartridge is missing

• Cartridge errors, such as Defective Cartridge or Missing Cartridge

7 Ready appears on the display.

8 The main drive motor turns on.

9 The EP drive assembly drives the developer shaft located in the print cartridge.

Diagnostic information

36

4063

10 The exit rollers turn.

11 The printer may begin calibration.

Using Safe Mode

Safe Mode lets the printer continue to operate in a special limited mode in which it attempts to continue offering as
much functionality as possible despite known issues. See “Safe Mode print behavior” on page 37.

Warning—Potential Damage: Safe Mode is intended as a short‑term workaround and should be used only in the
case of a non‑critical error when a print job must be completed before service can be arranged to repair the printer.
The printer must be returned to standard operating mode before diagnostics can be run or full‑function printing can
continue.

You can enter Safe Mode in one of the following ways:

• Enter Safe Mode from the Configuration menu, and then POR the printer. See “Safe Mode” on page 241.

• For 2.4” display models, press the Stop and Back keys, and then POR the printer.

• For 4.3” and 7” display touchscreen models, press the 6 and 7 keys, and then POR the printer.

• For LED models, you must contact the next level of technical support for assistance.

Return the printer to standard operating mode to service the printer and return to full‑function printing.

Safe Mode print behavior

The following table outlines the behavior for this printer model while in Safe Mode:

Safe Mode engine features Engine behavior Control panel behavior

Simplex printing only Reports that duplex printing is disabled. Duplex print option is not selectable.

Ignore duplex sensor

Ignore standard bin full sensor Standard bin full messages are not

reported.

Print at narrow media operating point Pages are printed slower. N/A

Ignore all input options Reports that only Tray 1 is installed. Only Tray 1 and the MPF are selectable.

Ignore all output options Does not any report installed finishing

options.

Ignore rear door sensor Rear door open messages are not

reported.

Reduce print speed Pages are printed slower. N/A

Reduce time to first print Slower time to first print. N/A

Standard bin full messages will not
occur.

No finishing options are selectable.

Rear door open messages do not occur.

Fixing print quality issues

•

“Initial print quality check” on page 38

• “Gray background on prints” on page 38

•

“Printer is printing blank pages” on page 39

• “Printer is printing solid black pages” on page 40

Diagnostic information

37

4063

• “Repeating defects” on page 41

•

“Shadow images appear on prints” on page 41

• “Skewed print” on page 42

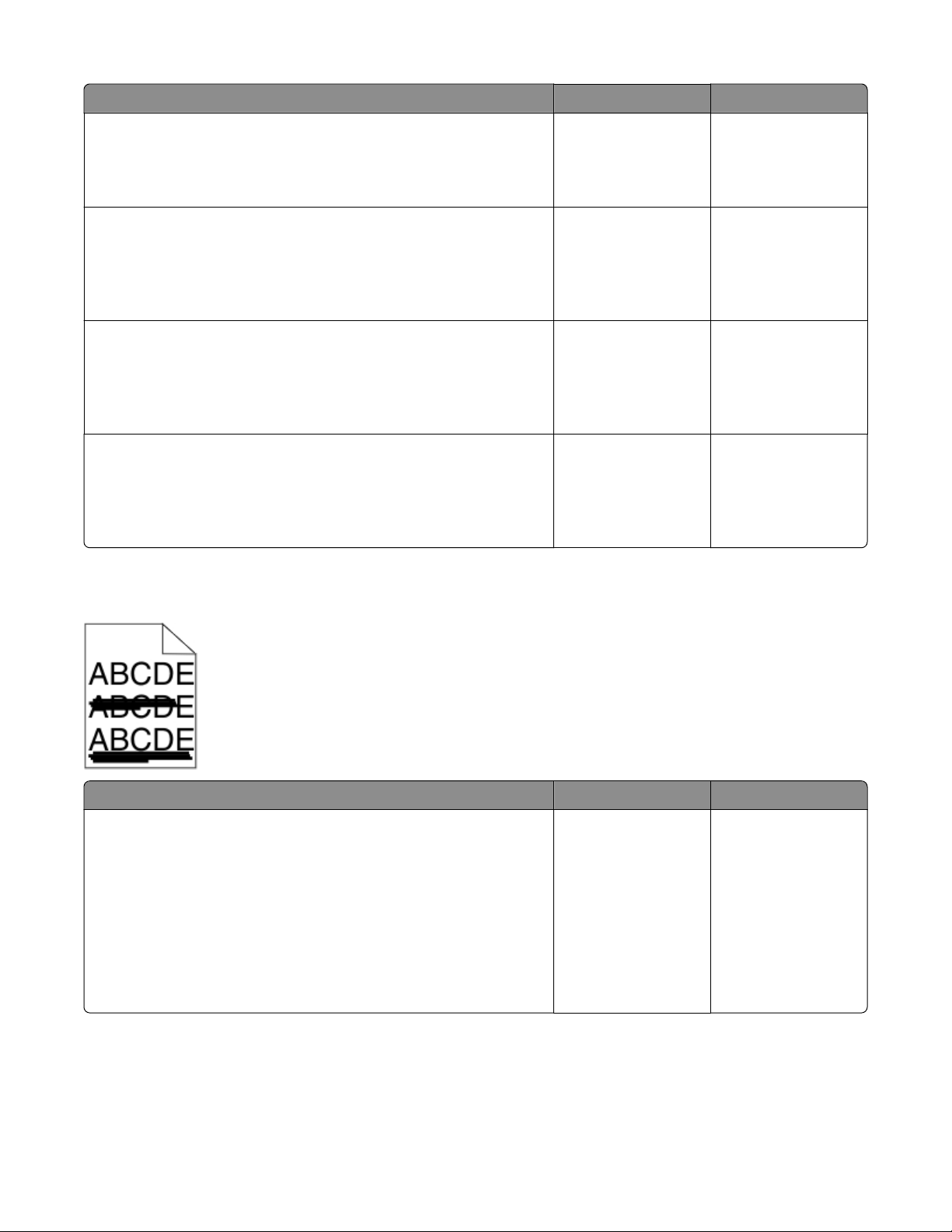

• “Streaked horizontal lines appear on prints” on page 43

•

“Streaked vertical lines appear on prints” on page 45

• “Toner rubs off” on page 46

The symptoms described in this chapter might require replacement of one or more CRUs (Customer Replaceable Units)
designated as supplies or maintenance items, which are the responsibility of the customer. With the customer's
permission, you might need to install a developer (toner) cartridge.

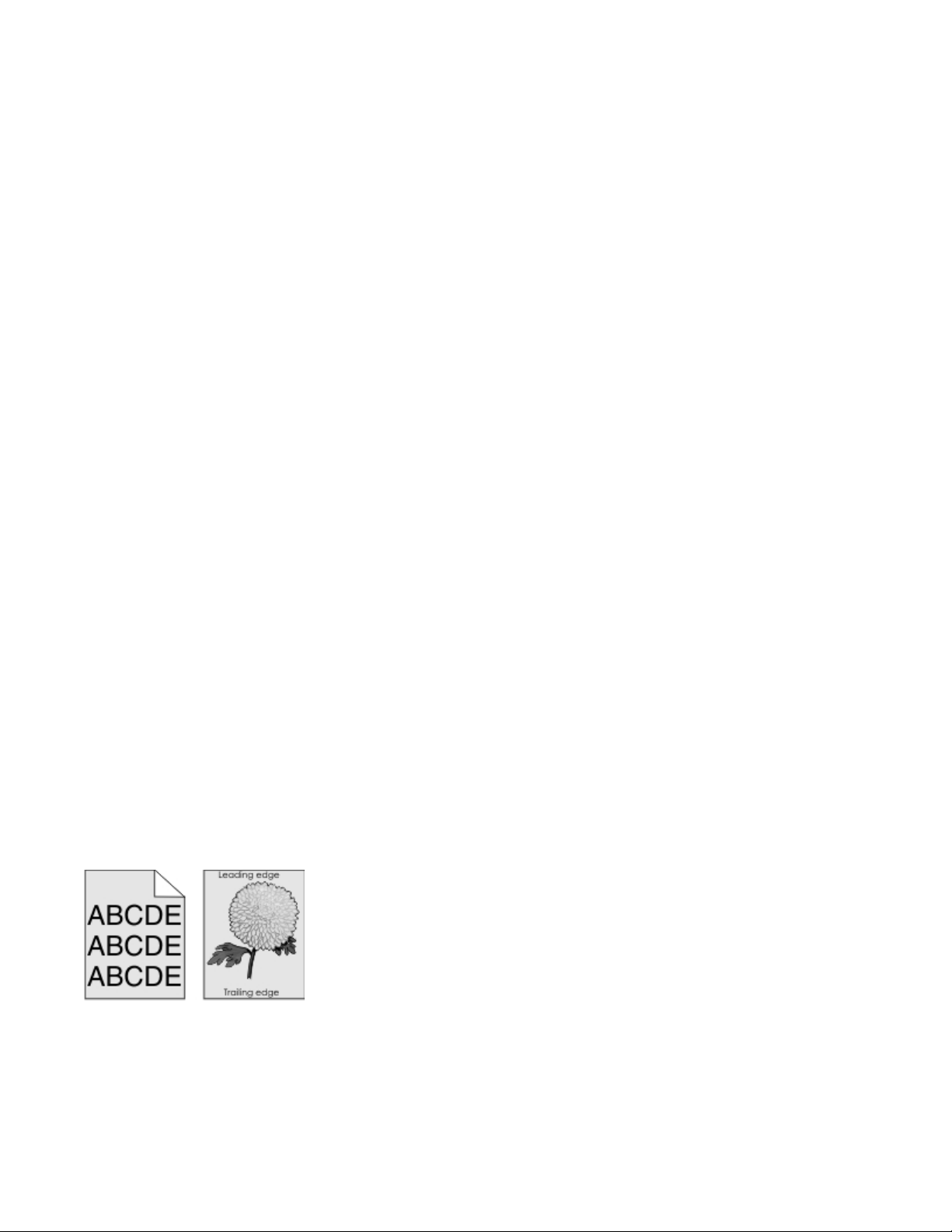

Initial print quality check

Before troubleshooting specific print problems, complete the following initial print quality check:

1 Print a menu settings page, and then check the life status of all supplies. Any supplies that are low should be replaced.

Be sure to keep the original menu page to restore the customer's custom settings if needed.

2 On the menu page, make sure the following settings are at the default level:

• Print Resolution: Set to 600 dpi (print quality problems should be checked at different resolution settings).

• Toner Darkness: Set to 8 (default).

• Check the paper type, texture and weight settings against the paper that is loaded in the printer.

3 Inspect the transfer roller for damage. Replace, if damaged.

4 Inspect the print cartridge and imaging unit for damage. Replace, if damaged.

5

If paper other than 20 lb plain letter/A4 paper is being used, load 20 lb plain letter/A4 and print the Print Quality
pages to see if the problem remains. Use Tray 1 to test print quality problems.

6 Print the Print Quality Pages, and then look for variations in the print from what is expected.

7 Check to ensure the correct printer driver for the installed software is being used. An incorrect printer driver for

the installed software can cause problems. Incorrect characters could print, and the copy may not fit the page
correctly.

8 Measure all voltages from the connector to the printer ground.

Gray background on prints

Diagnostic information

38

Actions Yes No

4063

Step 1

Ensure the toner cartridge has sufficient toner.

Does the cartridge have sufficient toner?

Step 2

Remove any contamination from the CTLS contacts, located on the toner
level/imaging unit high voltage contact. Perform a print test.

Does the problem remain?

Step 3

Check the CTLS, located on the toner level/imaging unit high voltage
contact, for damage.

Is it free of damage?

Step 4

Check the transfer roller for surface contamination or excessive wear.

Is it free of contamination and wear?

Step 5

Check the transfer roller left contact spring, located on the transfer roller
left arm, for damage.

Is it free of damage?

Go to step 2. Replace the toner

cartridge.

Go to step 3. Problem is solved.

Go to step 4. Replace the toner

level/imaging unit high
voltage contact.

Go to step 5. Replace the transfer

roller.

Contact the next
highest level of
support.

Replace the transfer
roller left arm. See

“Transfer roller left
arm with cable
removal” on page

.

308

Printer is printing blank pages

Actions Yes No

Step 1

Check the toner cartridge level.

Is the toner level low?

Step 2

Check the imaging unit for wear or damage.

Is it free of wear or damage?

Diagnostic information

Replace the toner
cartridge.

Go to step 3. Replace the imaging

Go to step 2.

unit.

39

Actions Yes No

4063

Step 3

Check the transfer roller for surface contamination or excessive wear.

Is it free of contamination and wear?

Step 4

Check the transfer roller left contact spring, located on the transfer roller
left arm, for damage.

Is it free of damage?

Step 5

Reseat the cables on the HVPS.

Does the problem remain?

Step 6

Reseat the cables J101 (video) and "MIR MTR" on the controller board.

Does the problem remain?

Printer is printing solid black pages

Go to step 4. Replace the transfer

roller.

Go to step 5. Replace the transfer

roller left arm with
cable. See “Transfer

roller left arm with
cable removal” on
page 308.

Replace the HVPS. See

“HVPS removal” on
page 356.

Replace the laser
printhead. See “Laser

printhead
page 286.

removal”

The problem is solved.

Contact the next level
of support.

on

Actions Yes No

Step 1

Check the imaging unit for damage.

Is it free of damage?

Step 2

Remove any contamination from the imaging unit contacts.

Does the problem remain?

Step 3

Check the cables on the HVPS.

Are the above cables properly connected?

Go to step 2. Replace the imaging

unit.

Go to step 3. Problem is solved.

Replace the HVPS. See

“HVPS removal” on
page 356.

Reconnect the cables.

Diagnostic information

40

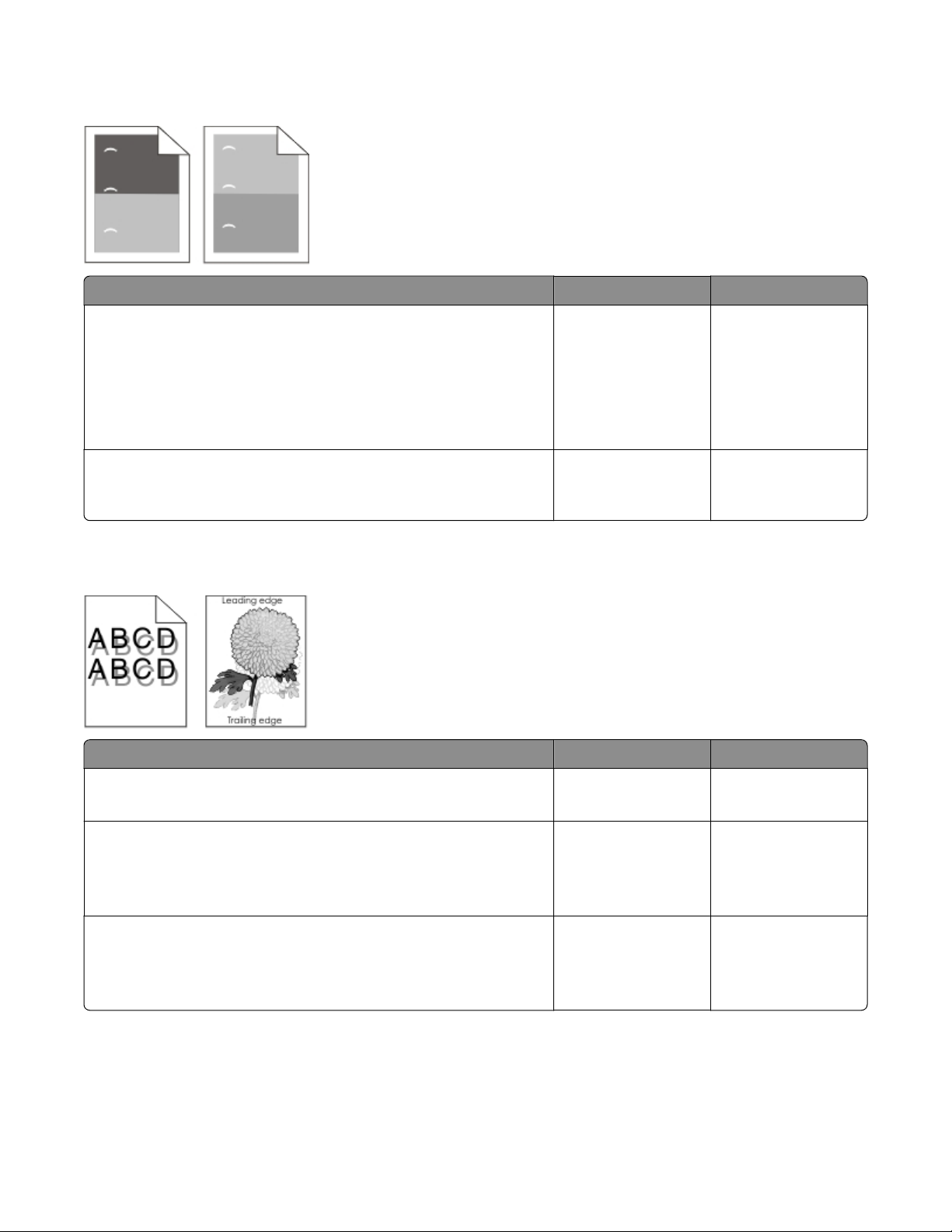

Repeating defects

Actions Yes No

4063

Step 1

Measure the distance between defects. Is the distance between defects
equal to any of the following?

Replace the imaging
unit.

• 3.81 in. (96.8 mm)

• 1.88 in. (47.8 mm)

• 1.12 in. (28.5 mm)

Step 2

Is the distance between defects equal to 3.71 in. (94.25 mm) or 3.75 in.
(95.2 mm)?

Replace the fuser. Contact the next

Shadow images appear on prints

Actions Yes No

Go to step 2.

highest level of
support.

Step 1

Does the shadow image appear every two pages?

Step 2

Check the upper redrive for wear or damage.

Is it free of wear or damage?

Step 3

Check the transfer roller for surface contamination or excessive wear.

Is it free of contamination and wear?

Diagnostic information

41

Go to step 2. Go to step 3.

Go to step 3. Replace the upper

redrive. See “Upper

redrive removal” on
page 325.

Go to step 4. Replace the transfer

roller. See “Transfer

roller removal” on
page 312.

Actions Yes No

4063

Step 4

Check the following fuser components for wear or damage:

• Gears

• Exit rollers

• Heat belt or hot roller

Are they free of damage?

Step 5

Reseat the connections on the LVPS.

Does the problem remain?

Skewed print

Go to step 5. Replace the fuser. See

“Fuser removal” on
page 316.

Replace the LVPS. See

“LVPS removal” on
page 357.

Problem solved.

Actions Yes No

Step 1

Go to step 2. The problem is solved.

a Perform a print test:

Diagnostics menu > PRINT TESTS > Tray 1

b Adjust the margins if necessary:

Diagnostics menu > REGISTRATION

Does the error remain?

Step 2

a Check the media source.
b If the media is from tray 1, go to step 3.

If the media is from the MPF, go to step 5.

Step 3

Make sure the pick roller tires are free of debris. Check for wear or
damage.

Are they free of wear or damage?

Go to step 4. Replace the pick roller.

See “Pick roller

assembly removal” on
page 333.

Diagnostic information

42

Actions Yes No

4063

Step 4

Check the lift plate on the media tray for damage.

Is it free of damage?

Step 5

Make sure the MPF pick roller and separator pad are free of debris. Check
for wear or damage.

Are they free of wear or damage?

Step 6

Perform the media skew adjustment. See “Media aligner roller

adjustment” on page 269.

Does the problem remain?

Step 7

Make sure the input roller/deskew assembly is free of debris. Check for
wear or damage.

Are they free of wear or damage?

Go to step 11. Replace the media tray.

Go to step 6. Replace the MPF pick

roller/separator pad.
See “MPF pick roller

removal” on page

.

301

Contact the next level
of support.

Problem solved. Replace the printer.

Problem solved.

Streaked horizontal lines appear on prints

Actions Yes No

Step 1

Select another tray or feeder and then resend the print job.

Specify the paper tray before sending the print job.

• For Windows users, specify the type and weight from Print

Properties.

• For Macintosh users, specify the type and weight from the Print

dialog.

Does the problem remain?

Go to step 2. The problem is solved.

Diagnostic information

43

Actions Yes No

4063

Step 2

From the Paper menu on the printer control panel, check the paper type
and paper weight settings.

Do the paper type and paper weight settings match the paper in the tray?

Step 3

Load paper from a fresh package.

Paper absorbs moisture due to high humidity. Store paper in its
original wrapper until you use it.

Does the problem remain?

Step 4

Make sure the imaging unit or toner cartridge is not damaged.

a Remove the print or toner cartridge.

Warning—Potential Damage: Be careful not to touch the

photoconductor drum or imaging unit. Doing so may affect the print
quality of future print jobs.

b Reinstall the print or toner cartridge.

Note: For some printer models, you may need to check all printer or

toner cartridges.

Go to step 3. Change the paper type

and weight settings to
match the paper in the
tray.

Go to step 4. The problem is solved.

Go to step 5. The problem is solved.

Does the problem remain?

Step 5

Replace the imaging unit.or toner cartridge.

Does the problem remain?

Step 6

a Check the media condition.
b Load new, dry, recommended media.

c Reprint the defective image.

Does the problem remain?

Step 7

a Check the media transfer route.
b Check the media route for contamination or obstacles.

Are there obstacles in the route?

Step 8

Check the imaging unit for proper installation.

Is the above component properly installed?

Go to step 6. The problem is solved.

Go to step 7. The problem is solved.

Go to step 8. Remove obstacles or

contamination.

Go to step 9. Inspect, clean, and

reinstall or replace the
imaging unit.

Diagnostic information

44

Actions Yes No

4063

Step 9

Check the transfer roller assembly for contamination and wear.

Is the above component free of excess wear and contamination?

Step 10

a Check the heat belt and hot roller in the fuser.
b Remove the fuser unit assembly.

CAUTION—HOT SURFACE: The inside of the printer might be hot.

To reduce the risk of injury from a hot component, allow the surface to
cool before touching.

Is there contamination or cracks on the heat roll and/or pressure roll?

Step 11

Perform a print test.

Does the problem remain?

Streaked vertical lines appear on prints

Go to step 10. Replace the transfer

“Transfer

Replace the fuser. See

“Fuser removal” on
page 316.

Contact your next level
of support.

roller. See

roller removal” on
page 312.

Go to step 11.

The problem is solved.

Actions Yes No

Step 1

Check the transfer roll for contamination or excessive wear.

Is it free of contamination or wear?

Step 2

Remove the fuser, and check for damage or debris on the rollers and belts.

Is it free of damage and debris?

Go to step 2. Replace the transfer

roll.

Replace the fuser.

Diagnostic information

45

Toner rubs off

Actions Yes No

4063

Step 1

Check if the fuser screws are tightly fastened.

Are they tightly fastened?

Step 2

Check the following fuser components for wear or damage:

• Gears

• Exit rollers

• Heat belt or hot roller

Are they free of damage?

Step 3

Check the cables on the LVPS.

Are the connections on the above component properly connected?

Paper jams

•

“Understanding jam numbers and locations” on page 47

• “200–201 paper jams” on page 49

• “Sensor (input) static jam service check” on page 53

•

“Sensor (input) early arriving jam service check” on page 53

• “Sensor (input) never‑ or late‑arriving jam service check” on page 54

•

“Sensor (input) late-leaving or did-not-clear jam service check” on page 56

• “Main drive motor control jam service check” on page 57

• “Printhead motor control jam service check” on page 58

•

“Fuser drive motor control jam service check” on page 58

• “Sensor (input) miscellaneous jam 1 service check” on page 58

• “Sensor (input) miscellaneous jam 2 service check” on page 59

•

“Sensor (input) miscellaneous jam 3 service check” on page 59

• “202 paper jams” on page 60

• “Sensor (fuser exit) static jam service check” on page 62

•

“Sensor (fuser exit) late-leaving jam service check” on page 62

Go to step 2. Reseat the fuser, and

tighten the screws.

Go to step 3. Replace the fuser. See

“Fuser removal” on
page 316.

Contact the next level
of support.

Replace the LVPS. See

“LVPS removal” on
page 357.

Diagnostic information

46

• “Sensor (fuser exit) late-arriving jam service check” on page 63

•

“Sensor (narrow media) late arriving jam service check” on page 64

• “Sensor (narrow media) static jam service check” on page 65

• “Sensor (fuser exit) miscellaneous jam service check” on page 66

•

“Fuser ID chip control jam service check” on page 66

• “203 paper jams” on page 67

•

“Upper redrive motor control jam service check” on page 68

• “230 paper jams” on page 68

• “Sensor (duplex path) static jam service check” on page 71

•

“Sensor (duplex path) early arriving jam service check” on page 72

• “Sensor (duplex path) never‑ or late‑arriving jam service check” on page 73

• “Sensor (duplex path) late leaving jam service check” on page 74

•

“Duplex control jam service check” on page 75

• “Sensor (duplex path) miscellaneous jam service check” on page 75

• “Sensor (input) never-arriving jam (exiting duplex) service check” on page 76

•

“235–239 paper jams” on page 76

• “24x paper jams” on page 77

•

“Media feeder motor control service check” on page 79

• “Media tray 1, tray pulled jam” on page 80

• “Media feeder motor tray lift error service check” on page 81

•

“Sensor (input) never-arriving jam from tray 1 service check” on page 81

• “250 paper jams” on page 82

• “Sensor (input) never-arriving jam from MPF media tray service check” on page 84

•

“41y.xx paper jams” on page 86

• “43y.xx paper jams” on page 87

• “451 paper jams” on page 88

•

“455–457 paper jams” on page 89

4063

Understanding jam numbers and locations

When a jam occurs, a message indicating the jam location appears on the display. Open doors and covers, and remove
trays to

access jam locations. To resolve any paper jam message, you must clear all jammed paper from the paper path.

Diagnostic information

47

4063

Area # Jam location Printer message Go to this section

1 Staple finisher 455–457 See “455–457 paper jams” on page 89

2 Standard bin 203 See

3 Inside the printer 200–201 See “200–201 paper jams” on page 49

4 Multipurpose feeder 250 See

5 Duplex area 235–239 See “235–239 paper jams” on page 76

6 Trays 24x See

7 Output expander 43y.xx See “43y.xx paper jams” on page 87.

8 Upper rear door 202 See “202 paper jams” on page 60.

9 Upper door and rear duplex area 231–234 See “230 paper jams” on page 68

10 Mailbox 41y.xx See “41y.xx paper jams” on page 86.

11 Staple finisher rear door 451 See “451 paper jams” on page 88.

“203 paper jams” on page 67.

“250 paper jams” on page 82.

“24x paper jams” on page 77.

.

.

.

Diagnostic information

48

200–201 paper jams

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

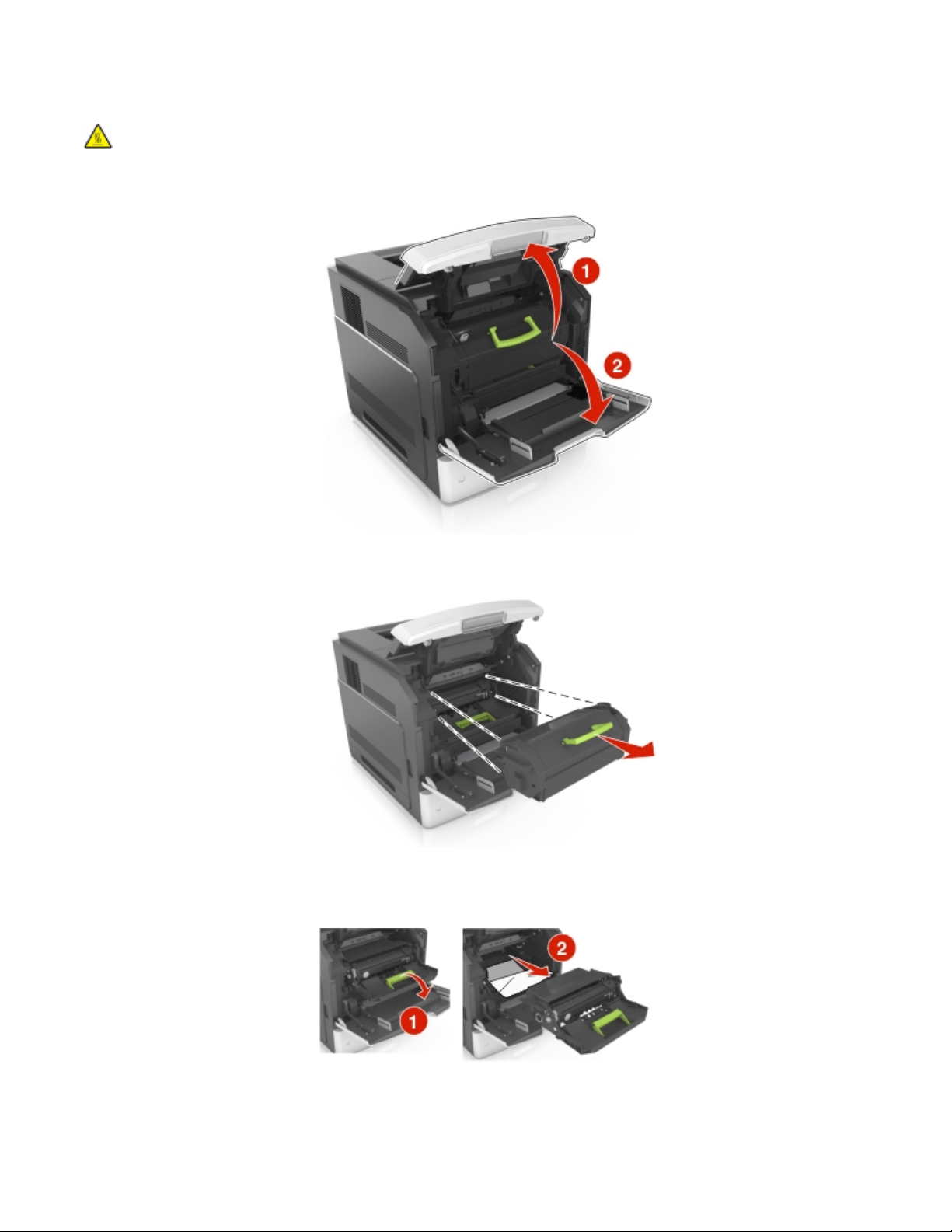

1 Lift the front cover, and then pull down the multipurpose feeder door.

4063

2 Lift the green handle, and then pull the toner cartridge out of the printer.

3 Place the cartridge aside.

4 Lift the green handle, and then pull the imaging unit out of the printer.

Diagnostic information

49

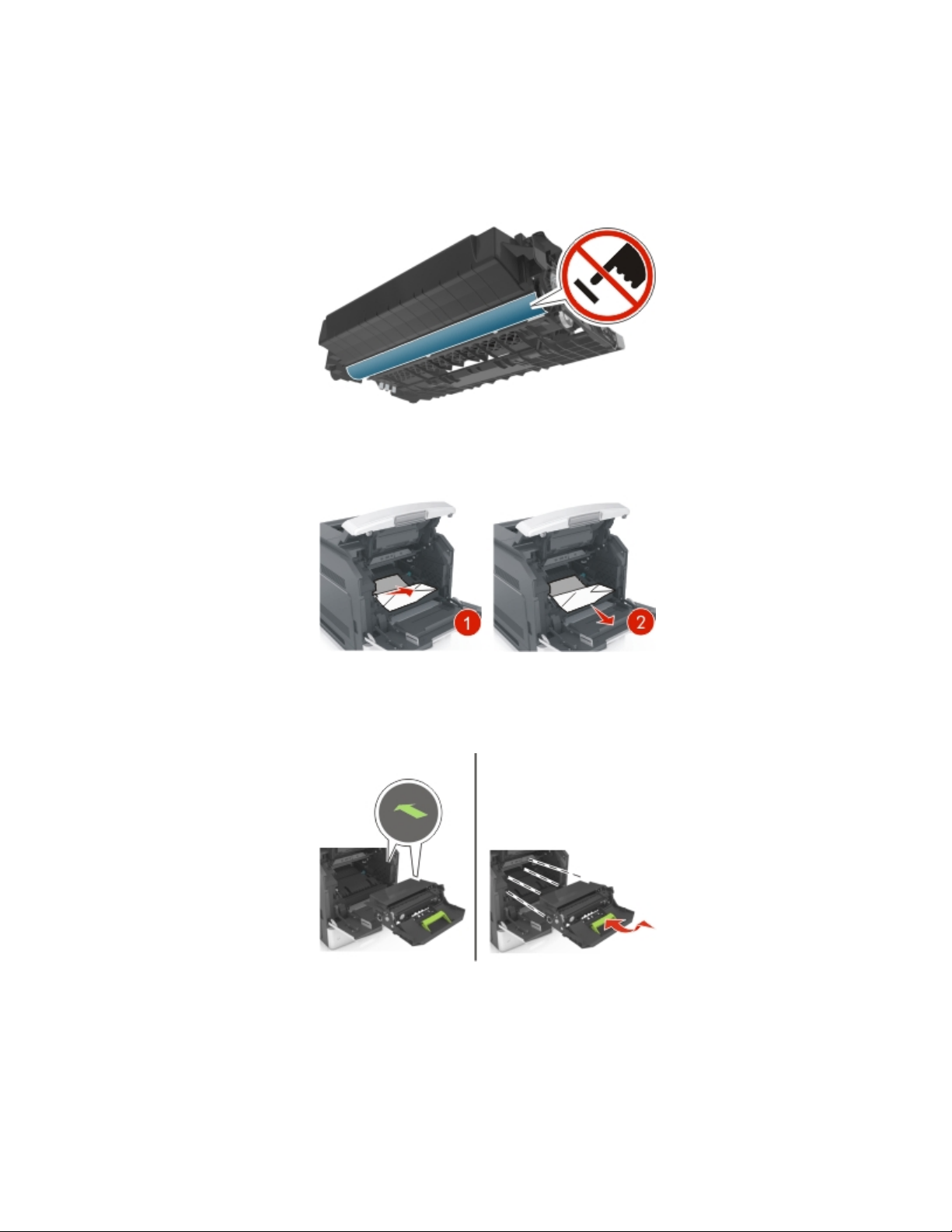

5 Place the imaging unit aside on a flat, smooth surface.

Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.

Extended exposure to light may cause print quality problems.

Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.

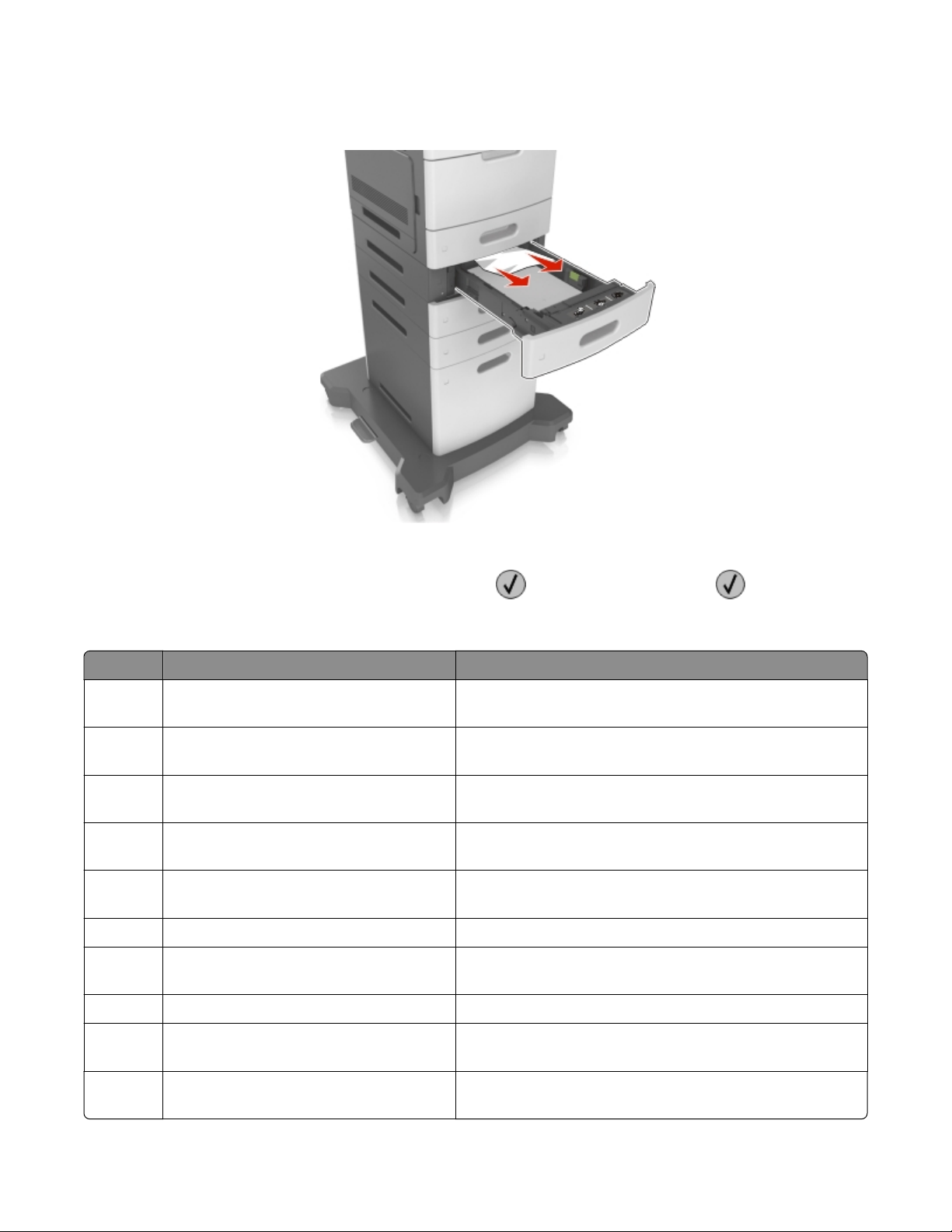

6 Pull the jammed paper gently to the right, and then remove it from the printer.

Note: Make sure all paper fragments are removed.

4063

Warning—Potential Damage: The jammed paper may be covered with toner, which can stain garments and

skin.

7 Install the imaging unit.

Note: Use the arrows on the side of the printer as a guide.

Diagnostic information

50

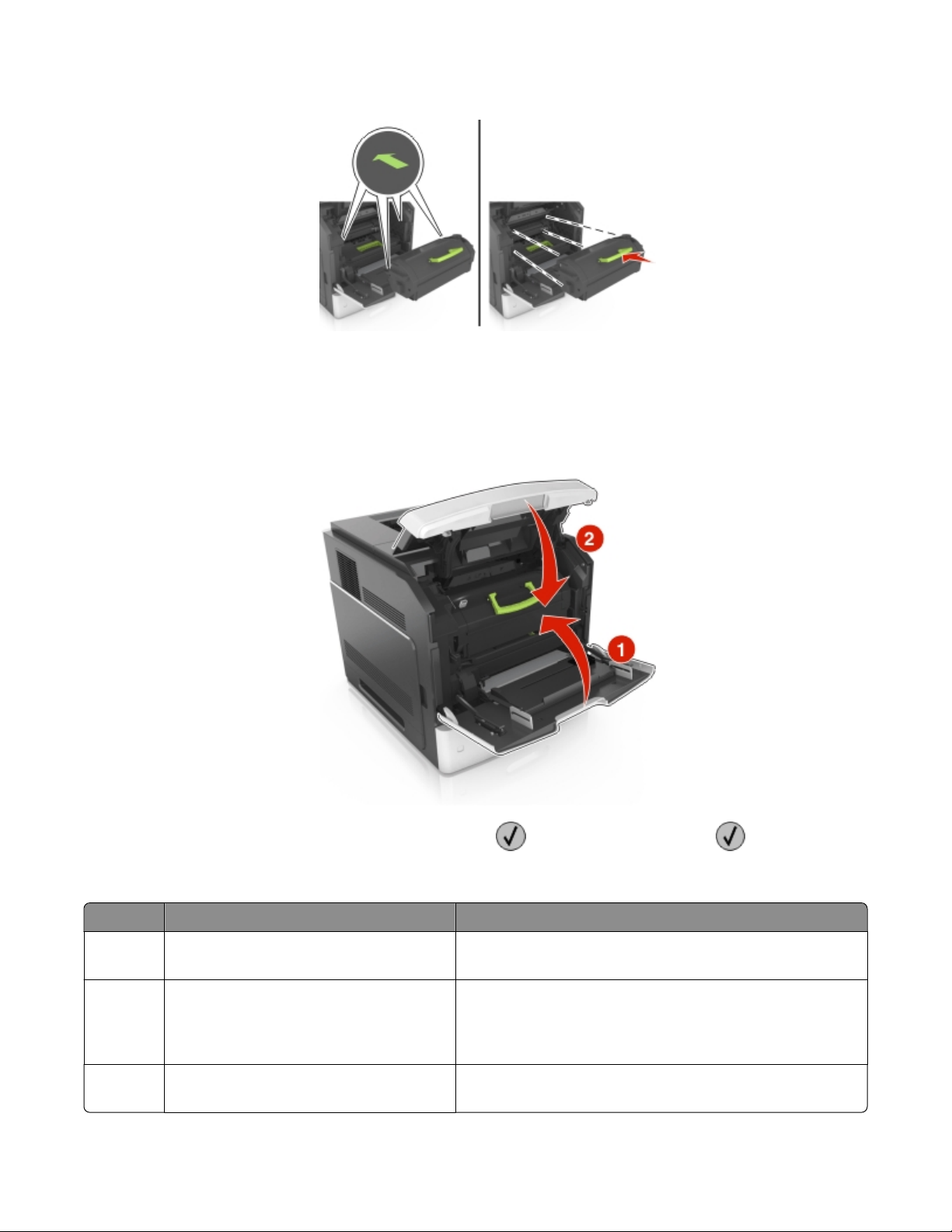

8 Insert the cartridge into the printer, and then push the green handle back into place.

Notes:

• Align the arrows on the guides of the toner cartridge with the arrows in the printer.

• Make sure the cartridge is fully pushed in.

9 Close the multipurpose feeder door and the front cover.

4063

10 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

200‑201 paper jams

Error code Description Action

200.01 Media remains on the sensor (input) during
the warm‑up sequence.

200.02 Media reached the sensor (input) sooner
than the
causes the engine to assume a 550 paper
path on a 250 model.

200.03 Media is late reaching the sensor (input)
within the specified time.

specified time. The wrong config ID

See “Sensor (input) static jam service check” on page 53.

“Sensor (input) early arriving jam service check” on

See

page 53.

See “Sensor (input) never‑ or late‑arriving jam service check”

on page 54.

Diagnostic information

51

Error code Description Action

4063

200.05 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = MPF tray)

200.07 Media reached the sensor (input) but did not
clear it within the specified time.

200.08 Media is late reaching the sensor (input)
within the specified time.

200.09 The proper main motor feedback to start
laser servo was not received.

200.10 Printhead motor was not locked when page
reached the sensor (input).

200.11 Printhead motor fell out of lock after the
page reached the sensor (input).

200.12 Printhead was not ready for the page when
the sensor (input) was reached.

200.13 The page at the sensor (input) is not the next
page to be imaged.

200.14 Proper main motor feedback to start laser
servo was not received.

200.15 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = Tray 1)

See “Sensor (input) late-leaving or did-not-clear jam service

check” on page 56.

See

“Sensor (input) late-leaving or did-not-clear jam service

check” on page 56.

See “Sensor (input) never‑ or late‑arriving jam service check”

on page 54.

See “Main drive motor control jam service check” on page

57.

See “Printhead motor control jam service check” on page

58.

See “Printhead motor control jam service check” on page

58.

See “Printhead motor control jam service check” on page

58.

See “Sensor (input) miscellaneous jam 1 service check” on

page 58.

See “Main drive motor control jam service check” on page

57.

See “Sensor (input) late-leaving or did-not-clear jam service

check” on page 56.

200.16 Main drive motor stalled. See “Main drive motor control jam service check” on page

57.

200.17 Fuser motor stalled. See “Fuser drive motor control jam service check” on page

58.

200.19 Paper never reached the sensor (input), but
it was successfully picked from the source.

200.25 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = Tray 2)

200.32 Detected sensor (control panel interlock)
bounce.

200.33 Printhead was not ready for page when
sensor (input) was reached.

200.34 Short media detected. See “Sensor (input) miscellaneous jam 3 service check” on

200.35 Media reached the sensor (input) but did not
clear it within the specified time. (Media
source = Tray 3)

200.45 Media reached the sensor (input), but did not
clear it within the specified time. (Media
source = Tray 4)

See “Sensor (input) miscellaneous jam 1 service check” on

page 58.

See “Sensor (input) late-leaving or did-not-clear jam service

check” on page 56.

See “Sensor (input) miscellaneous jam 2 service check” on

page 59.

See “Printhead motor control jam service check” on page

58.

page 59.

See “Sensor (input) late-leaving or did-not-clear jam service

check” on page 56.

See “Sensor (input) late-leaving or did-not-clear jam service

check” on page 56.

Diagnostic information

52

Sensor (input) static jam service check

Action Yes No

4063

Step 1

Check the media path for partially fed or jammed media.

Is the media path free from partially fed or jammed media?

Step 2

Check the sensor (input) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item input.

Does the display on the operator panel change every time the sensing
area of the above sensor is interrupted or blocked?

Step 3

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 4

Perform a print test.

Go to step 2. Remove any pre-

staged or jammed
media.

Go to

step 4. Go to step 3.

Replace the Sensor
(input). See “Sensor

(input) removal” on
page 305.

Go to step 4.

Contact the next
highest level of tech
support.

Reseat the connection.

Go to step 4.

Problem resolved.

Does the problem remain?

Sensor (input) early arriving jam service check

Action Yes No

Step 1

Check media origination.

Did the media originate from the MPF?

Step 2

Check the MPF pick roller.

Is the MPF pick roller free of excess wear and contamination?

Step 3

Perform a MPF print test and check the MPF pick solenoid for proper
operation.

Does the above component operate properly?

Go to step 2. Go to step 5.

Go to step 3. Clean or replace the

Go to step 4. Replace the MPF pick

MPF pick roller. See

“MPF pick roller
removal” on page

301.

solenoid.

Diagnostic information

53

Action Yes No

4063

Step 4

Check the MPF feeder lift plate assembly for damage.

Is the above component free from damage?

Step 5

Check all the media trays for proper media installation.

Is the media properly installed in all the media trays?

Step 6

Check all of the media trays and the media path for partially fed media.

Are the media trays and the media path free from any partially fed pieces
of media?

Step 7

Check the sensor (input) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item input.

Does the display on the operator panel change every time the sensing
area of the above sensor is interrupted or blocked?

Go to step 5. Replace the MPF

feeder lift plate. See

“MPF feeder lift plate
removal” on page

298.

Go to step 6. Remove and properly

reinstall the media.

Go to step 7. Remove any pre-

staged or jammed
media.

Go to

step 9. Go to step 8.

Step 8

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 9

Perform a print test.

Does the problem remain?

Replace the Sensor
(input). See “Sensor

(input) removal” on
page 305.

Go to step 9.

Contact the next
highest level of
technical support.

Sensor (input) never‑ or late‑arriving jam service check

Action Yes No

Step 1

Check the media size setup and tray guides for all media trays.

Does the media size, in use, match the size set for all media trays?

Step 2

Check the media trays for overfilling.

Go to step 2. Replace the media, or

Remove any excess
new media.

Replace the
connection.

Go to step 9.

Problem solved.

change the media size
setup.

Go to step 3.

Are any of the media trays overfilled?

Diagnostic information

54

Action Yes No

4063

Step 3

Check the media condition in all media trays.

Is any of the media in any of the media trays crumpled or damaged?

Step 4

Check media origination.

Did the media originate from the MPF?

Step 5

Check the MPF pick roll assembly.

Is the above component free of excess wear and contamination?

Step 6

Perform a MPF print test, and check the MPF pick solenoid for proper
operation.

Does the above component operate properly?

Step 7

Check the pick roller in the media tray being picked from.

Is the pick roller free of excess wear and contamination?

Replace the damaged
media.

Go to step 5. Go to step 7.

Go to step 6. Clean or replace the

Go to step 8. Replace the MPF pick

Go to step 8. Clean or replace the

Go to step 4.

MPF pick roller. See

“MPF pick roller
removal” on page

.

301

solenoid.

pick roller. See “Pick

roller assembly
removal” on page

.

333

Step 8

Check the aligner assembly for obstructions.

Is the above component free from obstructions?

Step 9

Check the sensor (input) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item input.

Does the display on the operator panel change every time the sensing
area of the above sensor is interrupted or blocked?

Step 10

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 11

Perform a print test, and check the appropriate media feeder.

Is the media properly picked and advanced out of the appropriate media
tray?

Go to step 9. Remove obstructions.

Go to

step 11. Go to step 10.

Replace the Sensor
(input). See “Sensor

(input) removal” on
page 305.

Go to step 12. Replace the

Replace the
connection.

appropriate media
feeder. See “Media

feeder removal” on
page 347.

Diagnostic information

55

Action Yes No

4063

Step 12

Perform a print test, and check the main motor assembly.

Is the media properly transported and able to reach the sensor (input)?

Step 13

Perform a print test.

Does the problem remain?

Go to step 13. Replace the main drive

Contact the next
highest level of
technical support.

Sensor (input) late-leaving or did-not-clear jam service check

Action Yes No

Step 1

Check the media size setup and tray guides for all media trays.

Does the media size, in use, match the size set for all media trays?

Step 2

Check the media trays for overfilling.

Are any of the media trays overfilled?

Go to step 2. Replace the media, or

Remove any excess
new media.

See “Main drive

motor.

motor removal” on
page 345.

Problem solved.

change the media size
setup.

Go to step 3.

Step 3

Check the media condition in all media trays.

Is any of the media in any of the media trays crumpled or damaged?

Step 4

Check media origination.

Did the media originate from the MPF?

Step 5

Check the MPF pick roll assembly.

Is the above component free of excess wear and contamination?

Step 6

Perform a MPF print test, and check the MPF pick solenoid for proper
operation.

Does the above component operate properly?

Step 7

Check the pick roller in the media tray being picked from.

Is the pick roller free of excess wear and contamination?

Replace the damaged
media.

Go to step 5. Go to step 7.

Go to step 6. Clean or replace the

Go to step 9. Replace the MPF pick

Go to step 8. Clean or replace the

Go to step 4.

MPF pick roller. See

“MPF pick roller
removal” on page

.

301

solenoid.

pick roller. See “Pick

roller assembly
removal” on page

.

333

Diagnostic information

56

Action Yes No

4063

Step 8

Check the aligner assembly for obstructions.

Is the above component free from obstructions?

Step 9

Check the sensor (input) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item input.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Step 10

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 11

Perform a print test, and check the appropriate media feeder.

Is the media properly picked and advanced out of the appropriate media
tray?

Go to step 9. Remove obstructions.

Go to

step 11. Go to step 10.

Replace the Sensor
(input). See “Sensor

(input) removal” on
page 305.

Go to step 12. Replace the

Replace the
connection.

appropriate media
feeder. See “Media

feeder removal” on
page 347.

Step 12

Perform a print test, and check the main motor assembly.

Is the media properly transported and able to reach the sensor (input)?

Step 13

Perform a print test.

Does the problem remain?

Go to step 13. Replace the main drive

Contact the next level
of technical support.

Main drive motor control jam service check

Action Yes No

Step 1

Check the main drive motor and the socket “TRANSPORT MTR” on the
controller board for proper connection.

Is the main drive motor properly connected?

Step 2

Reset the machine.

Does the error continue?

Replace the main drive
motor. See “Main drive

motor removal” on
page 345.

Replace the controller
board. See “Controller

board removal” on
page 340.

motor. See “Main drive

motor removal” on
page 345.

Problem solved.

Reseat the connection.

Go to step 2.

Problem solved.

Diagnostic information

57

Printhead motor control jam service check

Action Yes No

4063

Step 1

Ensure the cables for sockets “MIR MTR” and “VIDEO” on the controller
card are properly connected and not damaged.

Are the cables connected and undamaged?

Step 2

Reset the machine.

Does the error continue?

Step 3

Reset the machine.

Does the error continue?

Go to step 2. Reseat the

Replace the printhead.
See “Laser printhead

removal” on page

.

286

Replace the controller
board. See “Controller

board removal” on
page 340.

Fuser drive motor control jam service check

Action Yes No

Step 1

Check the fuser drive motor and the socket “J24” on the controller board
for proper connection.

Is the main drive motor properly connected?

Replace the fuser drive
motor. See “Fuser

drive motor removal”
on page 342.

Go to step 2.

connections.

Go to step 2.

Problem solved.

Problem solved.

Reseat the connection.

Step 2

Reset the machine.

Does the error continue?

Replace the controller
board. See “Controller

board removal” on
page 340.

Sensor (input) miscellaneous jam 1 service check

Action Yes No

Step 1

Check the appropriate media tray sensor (pass through) in the appropriate
input option for proper operation.

a Enter the diagnostic mode.
b Select Input tray tests.

c Select Sensor test.

d Select the appropriate input tray.

Observe the line item “pass through” for the appropriate media tray.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Go to

step 3. Go to step 2.

Problem solved.

Diagnostic information

58

Action Yes No

4063

Step 2

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 3

Perform a print test using the appropriate input tray.

Does the error continue?

Replace the sensor
(pass through). See

“Sensor (drawer pass
through) removal ” on
page 408.

Replace the input
option.

Sensor (input) miscellaneous jam 2 service check

Action Yes No

Step 1

Check the sensor (input) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item control panel door interlock.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Go to

step 3. Go to step 2.

Reseat the connection.

Problem solved.

Step 2

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 3

Reset the machine.

Does the error continue?

Replace the sensor
(control panel door
interlock).

Go to step 3.

Replace the controller
board. See “Controller

board removal” on
page 340.

Sensor (input) miscellaneous jam 3 service check

Action Yes No

Step 1

Check the media size setup and tray guides for all media trays.

Does the media size in use match the size set for all media trays?

Step 2

Check the media condition in all media trays.

Is any of the media in any of the media trays crumpled or damaged?

Go to step 2. Replace the media, or

Replace the damaged
media.

Replace the
connection.

Go to step 3.

Problem solved.

change the media size
setup.

Go to step 3.

Diagnostic information

59

Action Yes No

4063

Step 3

Reset the machine.

Does the error continue?

Contact the next level
of technical support.

Problem solved.

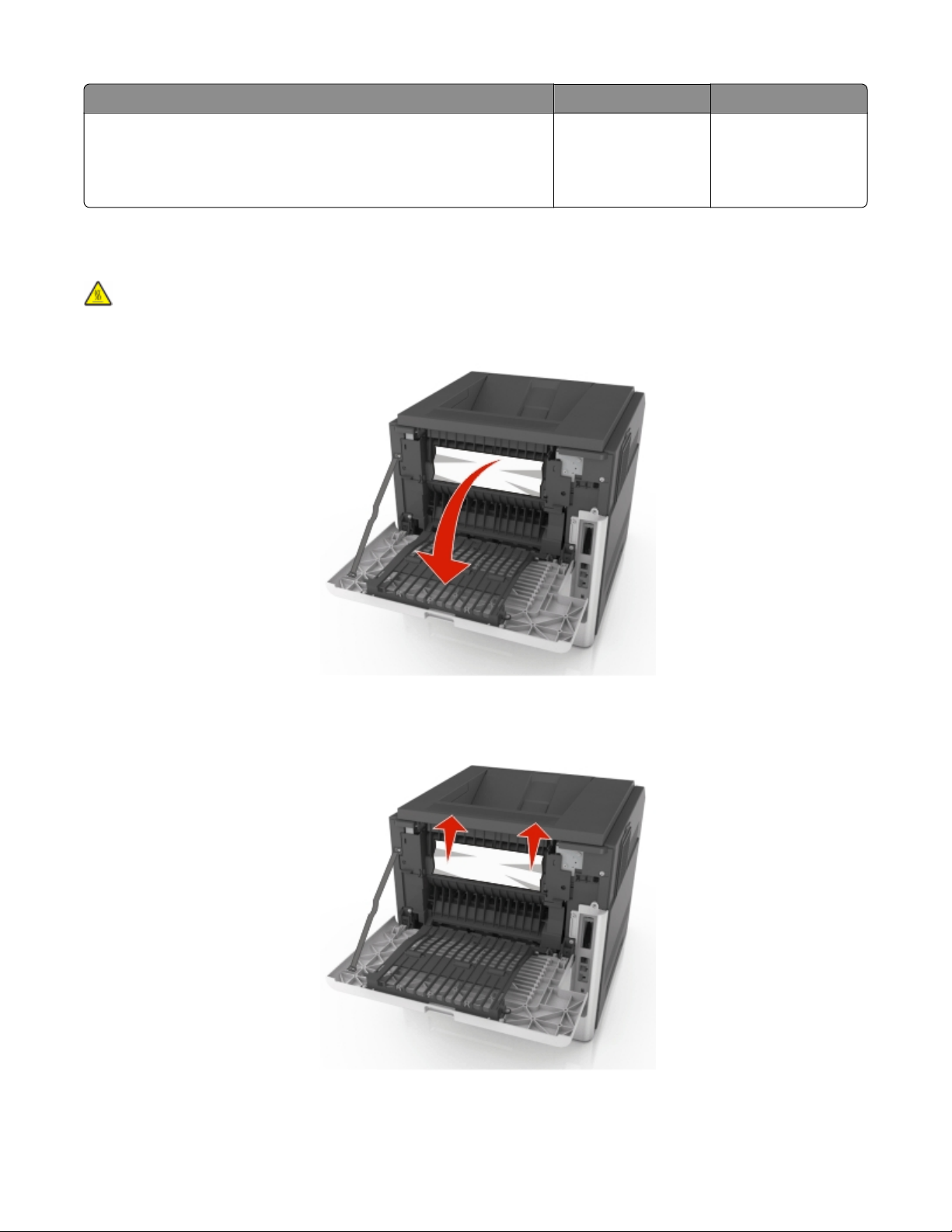

202 paper jams

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

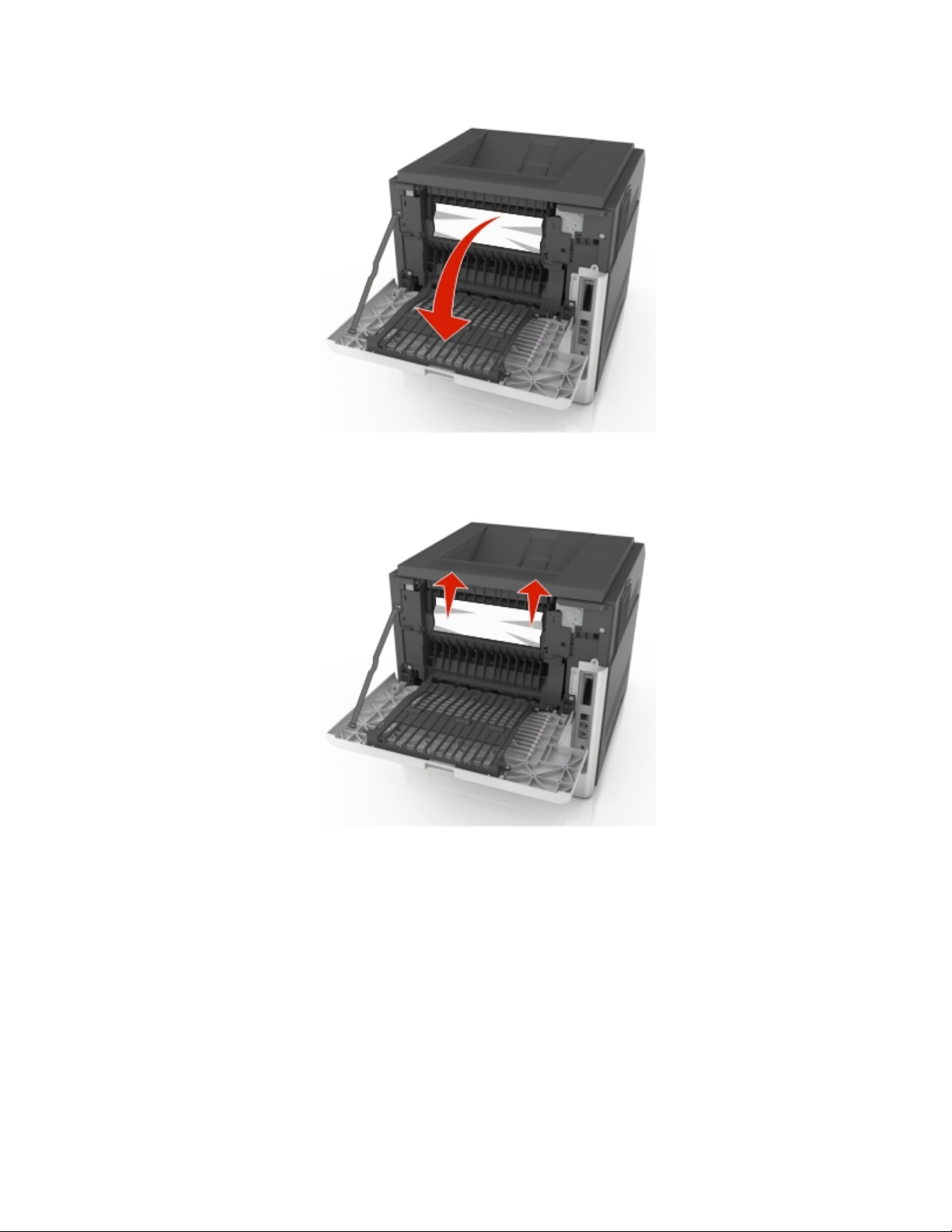

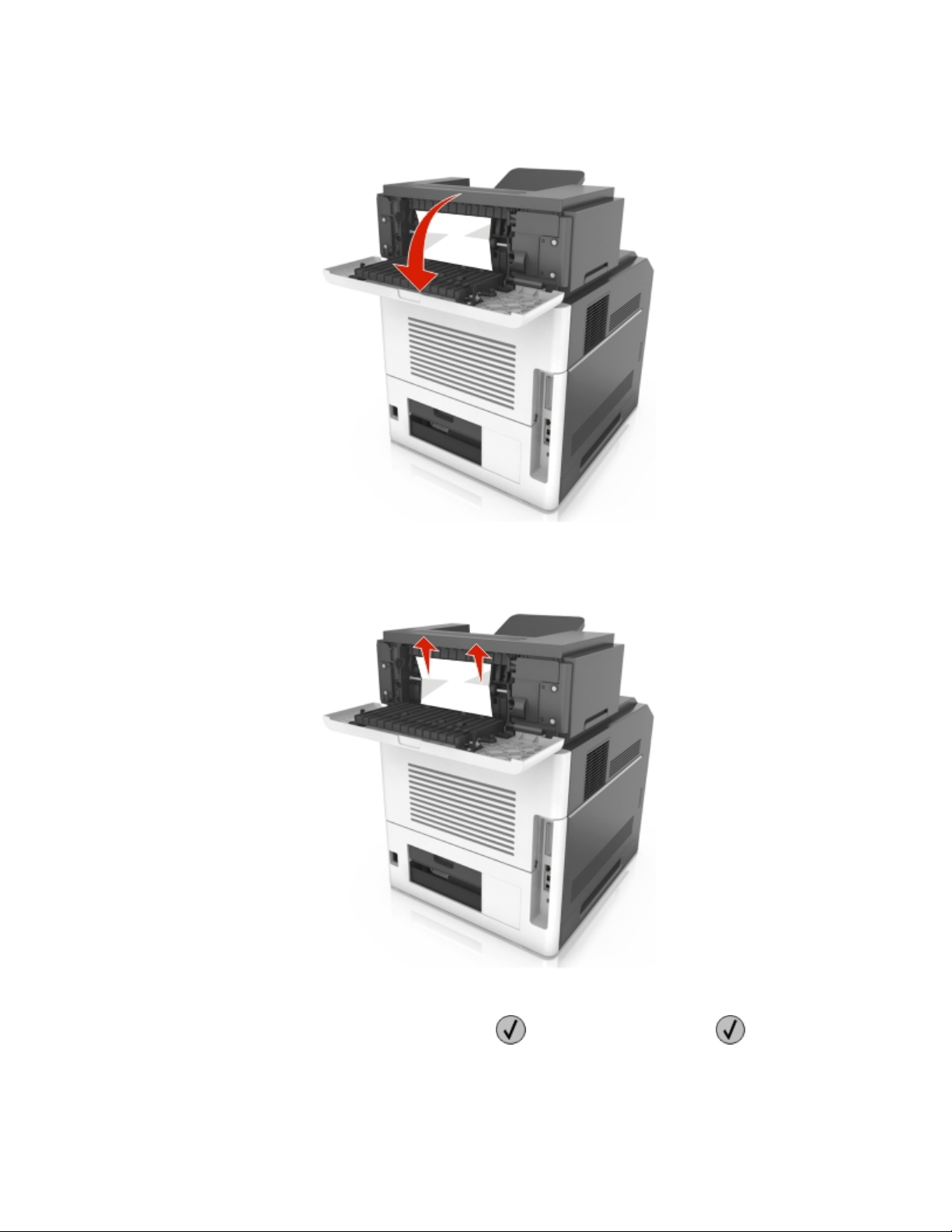

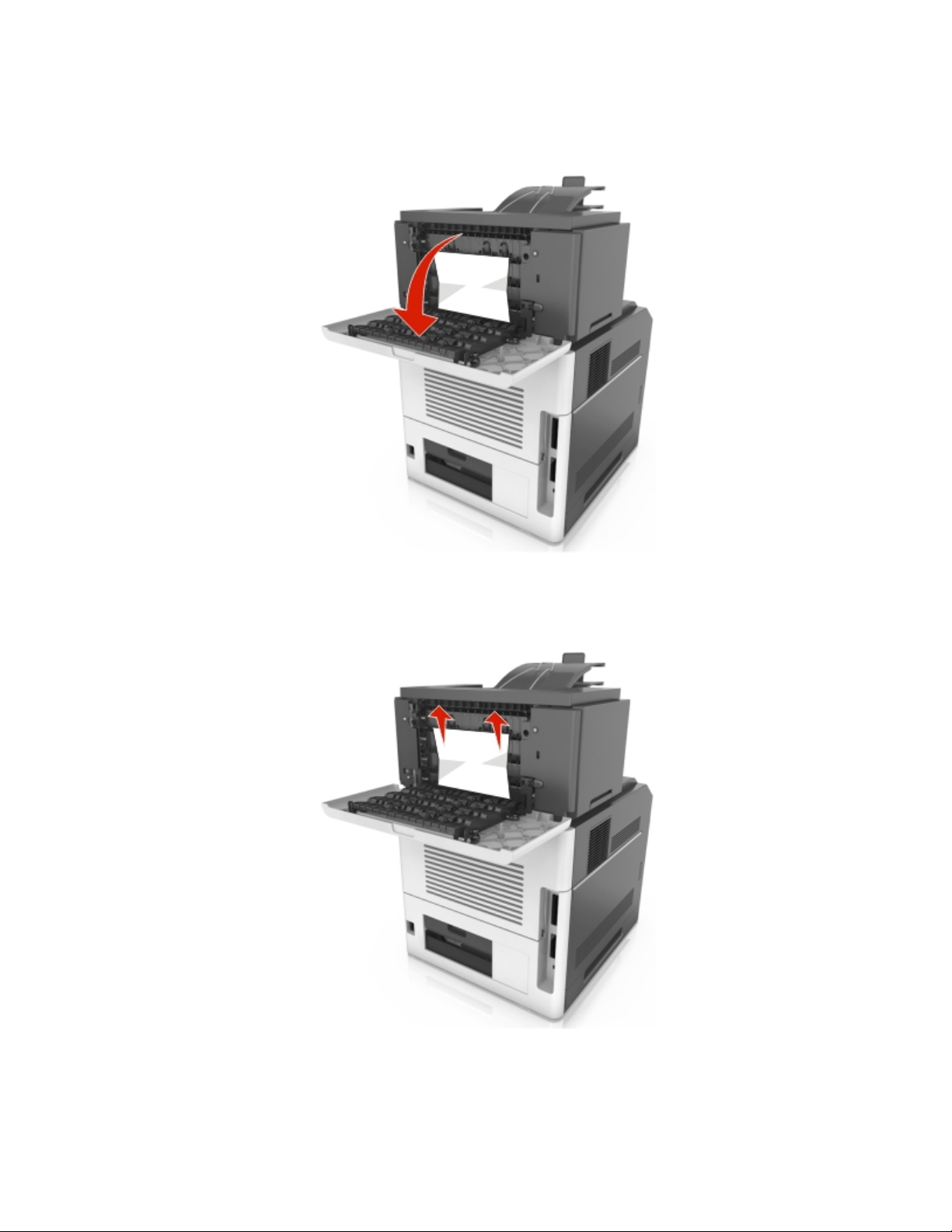

1 Pull down the rear door.

2 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

Diagnostic information

60

3 Close the rear door.

4 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

200.xx paper jams

Error code Description Action

4063

202.01 Media remains on the sensor (narrow media)

during the warm‑up sequence (MS71x)

202.01 Media remains on the sensor (fuser exit)

during the warm‑up sequence

202.03 The media is late reaching the sensor (fuser

exit) within the specified time

202.05 The media reached the sensor (fuser exit) but

did not clear it within the specified time

202.07 The media reached the sensor (fuser exit) but

did not clear it within the specified time

202.13 The media is late reaching the sensor (fuser

exit) within the specified time

202.14 Expected banner sheet (assumed wide) not

detected by narrow media sensor—possible
accordion jam, unsupported narrow banner
media, or missing signal

202.16 Page at fuser nip before fuser started

ramping
may be receiving more hall interrupts than
intended

toward

desired area. Indicates code

See “Sensor (narrow media) static jam service check” on

page 65.

See “Sensor (fuser exit) static jam service check” on page 62

See

“Sensor (fuser exit) late-arriving jam service check” on

page 63.

See “Sensor (fuser exit) late-leaving jam service check” on

page 62.

See “Sensor (fuser exit) late-leaving jam service check” on

page 62.

See “Sensor (fuser exit) late-arriving jam service check” on

page 63.

See “Sensor (narrow media) late arriving jam service check” on

page 64.

See

“Fuser drive motor control jam service check” on page 58.

.

202.17 Page at fuser nip before fuser reached

acceptable operating temperature. Page
arrived at fuser earlier than expected, so it
was probably staged

202.22 Cartridge Motor—Motor under‑speed error.

Motor made it to closed loop at a steady
state, but then detected speed was below
threshold

202.28 The sensor (fuser exit) rebounded upon being

released by the trailing edge of the media

202.31 Media remains on the sensor (narrow media)

during the warm‑up sequence

202.32 The media reached the sensor (fuser exit) but

did not clear it within the specified time

202.33 Expected wide page not detected by sensor

(narrow media), possible accordion jam or
missing signal

202.43 The media is late reaching the sensor (fuser

exit) within the specified time

Diagnostic information

See “Fuser drive motor control jam service check” on page 58.

See “Fuser drive motor control jam service check” on page 58.

See “Sensor (fuser exit) miscellaneous jam service check” on

page 66.

See “Sensor (narrow media) static jam service check” on

page 65.

See “Sensor (fuser exit) late-leaving jam service check” on

page 62.

See “Sensor (narrow media) late arriving jam service check” on

page 64.

See “Sensor (fuser exit) late-arriving jam service check” on

page 63.

61

Error code Description Action

4063

202.45 Media remains on the sensor (fuser exit)

during the warm‑up sequence

202.49 Fuser info chip error See

See “Sensor (fuser exit) static jam service check” on page 62

“Fuser ID chip control jam service check” on page 66

Sensor (fuser exit) static jam service check

Action Yes No

Step 1

Check the media size setup and tray guides for all media trays.

Does the media size, in use, match the size set for all media trays?

Step 2

Check the media condition in all media trays.

Is any of the media in any of the media trays crumpled or damaged?

Step 3

Reset the machine.

Does the error continue?

Go to step 2. Replace the media, or

Replace the damaged

with

media

Contact the next
highest level of
technical support.

new media.

.

.

change the media size
setup.

Go to step 3.

Problem solved.

Sensor (fuser exit) late-leaving jam service check

Action Yes No

Step 1

Check the rear door.

Is the rear door free of damage and properly closed?

Step 2

Check the fuser unit assembly for damage and life expiration.

Is the above component damaged or has it exceeded life?

Step 3

Check the sensor (fuser output) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor tests.

c Observe the line item fuser exit.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Go to step 2. Close or replace the

Replace the fuser. See

“Fuser removal” on
page 316.

Go to

step 5. Go to step 4.

rear door. See “Rear

door removal” on
page 280.

Go to step 3.

Diagnostic information

62

Action Yes No

4063

Step 4

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 5

Check the upper redrive for damage.

Is the above component free from damage?

Step 6

Perform a print test, and check the upper redrive motor for proper
operation.

Does the above component operate properly?

Step 7

Perform a print test.

Does the problem remain?

Sensor (fuser exit) late-arriving jam service check

Replace the fuser. See

“Fuser removal” on
page 316.

Go to step 6. Replace the upper

Go to step 7. Replace the upper

Contact the next
highest level of
technical support.

Reseat the connection.

redrive. See “Upper

redrive removal” on
page 325.

redrive motor. See

“Upper redrive
removal” on page

.

325

Problem solved.

Action Yes No

Step 1

Check the fuser unit assembly for damage and life expiration.

Is the above component damaged or has it exceeded life?

Step 2

Check the fuser unit assembly for obstructions.

Is the above component free from obstructions?

Step 3

Check the sensor (fuser output) for proper operation.

Replace the fuser. See

“Fuser removal” on
page 316.

Go to step 3. Go to step 3.

Go to

step 5. Go to step 4.

Go to step 2.

a Enter the diagnostic mode.
b Select Base sensor tests.

c Observe the line item output.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Step 4

Check the above sensor for proper connection.

Replace the fuser. See

“Fuser removal” on
page 316.

Reseat the connection.

Is the above sensor connected properly?

Diagnostic information

63

Action Yes No

4063

Step 5

Check the transfer roller for damage.

Is the above component free from damage?

Step 6

Check the media aligner roller for damage.

Is the above component free from damage?

Step 7

Perform a print test, and check the main motor assembly for proper
operation.

Is the media properly transported and able to reach the sensor (fuser
exit)?

Step 8

Perform a print test.

Does the problem remain?

Go to step 6. Replace the transfer

roller. See

roller removal” on
page 312.

Go to step 7. Replace the media

aligner roller. See

“Media aligner roller
removal” on page
293

Go to step 8. Replace the upper

fuser drive motor. See

“Fuser drive motor
removal” on page
342

Contact the next
highest level of
technical support.

Problem solved.

“Transfer

.

.

Sensor (narrow media) late arriving jam service check

Action Yes No

Step 1

Check the media size setup and tray guides for all media trays.

Does the media size, in use, match the size set for all media trays?

Step 2

Check all the media trays for proper media installation.

Is the media properly installed in all the media trays?

Step 3

Check the rear door.

Is the rear door free of damage and properly closed?

Step 4

Check the fuser unit assembly for damage and life expiration.

Is the above component damaged, or has it exceeded life?

Go to step 2. Replace the media, or

Go to step 3. Remove and properly

Go to step 4. Close or replace the

Replace the fuser. See

“Fuser removal” on
page 316.

change the media size
setup.

reinstall the media.

rear door. See “Rear

door removal” on
page 280.

Go to step 5.

Diagnostic information

64

Action Yes No

4063

Step 5

Check the sensor (narrow media) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item input.

Does the display on the operator panel change every time the sensing
area of the above sensor is interrupted or blocked?

Step 6

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 7

Check the upper redrive for damage.

Is the above component free from damage?

Step 8

Perform a print test, and check the upper redrive motor for proper
operation.

Go to

step 7. Go to step 6.

Replace the fuser. See

“Fuser removal” on
page 316.

Go to step 8. Replace the upper

Go to step 9. Replace the upper

Reseat the connection.

redrive. See “Upper

redrive removal” on
page 325.

redrive. See “Upper

redrive removal” on
page 325.

Does the above component operate properly?

Step 9

Perform a print test.

Does the problem remain?

Contact the next
highest level of
technical support.

Sensor (narrow media) static jam service check

Action Yes No

Step 1

Check the fuser for jammed media.

Is the fuser path free from jammed media?

Step 2

Check the sensor (fuser exit) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item fuser exit.

Go to step 2. Remove any jammed

Go to

step 4. Go to step 3.

Problem solved.

media.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Diagnostic information

65

Action Yes No

4063

Step 3

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 4

Perform a print test.

Does the problem remain?

Replace the fuser. See

“Fuser removal” on
page 316.

Go to step 4.

Contact the next
highest level of
technical support.

Sensor (fuser exit) miscellaneous jam service check

Action Yes No

Step 1

Check the sensor (fuser exit) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item fuser exit.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Go to

step 3. Go to step 2.

Reseat the connection.

Go to step 4.

Problem solved.

Step 2

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 3

Perform a print test.

Does the problem remain?

Replace the fuser. See

“Fuser removal” on
page 316.

Contact the next level
of technical support.

Fuser ID chip control jam service check

Action Yes No

Step 1

Ensure the fuser is properly installed.

Is the fuser properly installed?

Step 2

Remove the existing fuser, and install a different fuser.

Does the error remain?

Go to step 2. Reinstall the fuser.

Replace the fuser. See

“Fuser removal” on
page 316.

Go to step 3.

Reseat the connection.

Problem solved.

Problem solved.

Diagnostic information

66

Action Yes No

4063

Step 3

Ensure the cable for socket "J27" on the controller board is properly
connected.

Is the above connection properly connected?

Step 4

Ensure the LVPS connections are properly connected.

Are the above connections properly connected?

Step 5

Reset the machine.

Does the error continue?

Step 6

Reset the machine.

Does the error continue?

203 paper jams

Go to step 4. Reseat the connection.

Go to step 5. Reseat the

connections.

Replace the LVPS. Go to

“LVPS removal” on
page 357.

Go to step 6.

Replace the controller
board. See “Controller

board removal” on
page 340.

Problem solved.

Problem solved.

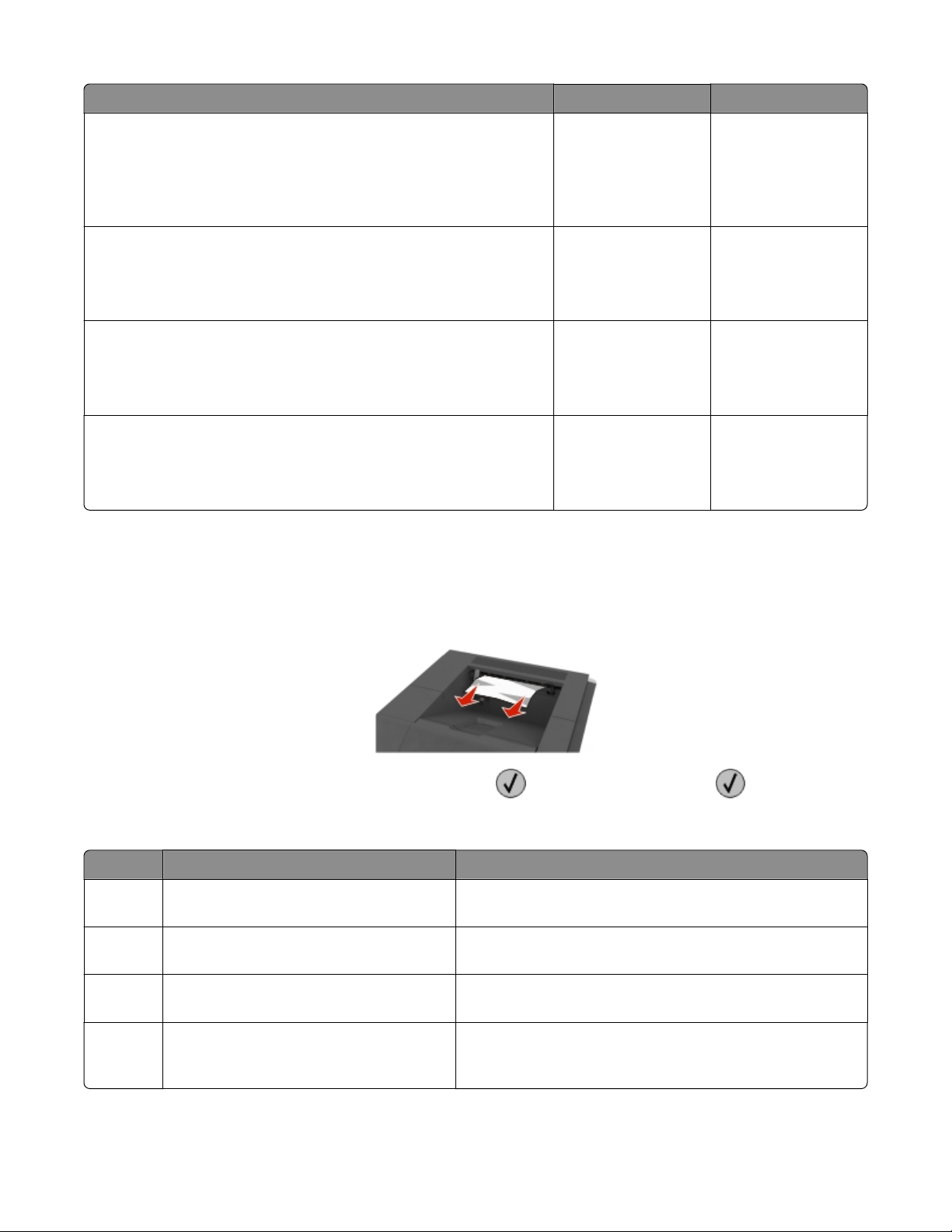

1 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

2 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

203 paper jams

Error code Description Action

203.20 Took too long to ramp up upper redrive

motor

203.21 Upper redrive motor stopped after successful

start up

203.22 Upper redrive motor under‑speed error See “Upper redrive motor control jam service check” on

203.30 Upper redrive motor failed to stop the sheet

at the duplex reverse point within the
specified time

See “Upper redrive motor control jam service check” on

page 68.

See “Upper redrive motor control jam service check” on

page 68.

page 68.

See “Upper redrive motor control jam service check” on

page 68.

Diagnostic information

67

Upper redrive motor control jam service check

Action Yes No

4063

Step 1

Ensure the upper redrive area is free of media jams.

Is the upper redrive area free from media jams?

Step 2

Check the upper redrive for damage.

Is the upper redrive free from damage?

Step 3

Ensure the upper redrive motor cable and the socket "REDRIVE” on the
controller board is properly connected.

Is the above cable properly connected?

Step 4

Reset the machine.

Does the error continue?

Step 5

Reset the machine.

Does the error continue?

Go to step 2. Remove media jams.

Go to step 2.

Go to step 3. Replace the upper

redrive. See “Upper

redrive removal” on
page 325.

Go to step 4. Reseat the connection.

Replace the upper
redrive motor. See

“Upper redrive
removal” on page

.

325

Go to step 5.

Replace the controller
card. See “Controller

board removal” on
page 340.

Problem solved.

Problem solved.

230 paper jams

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

Diagnostic information

68

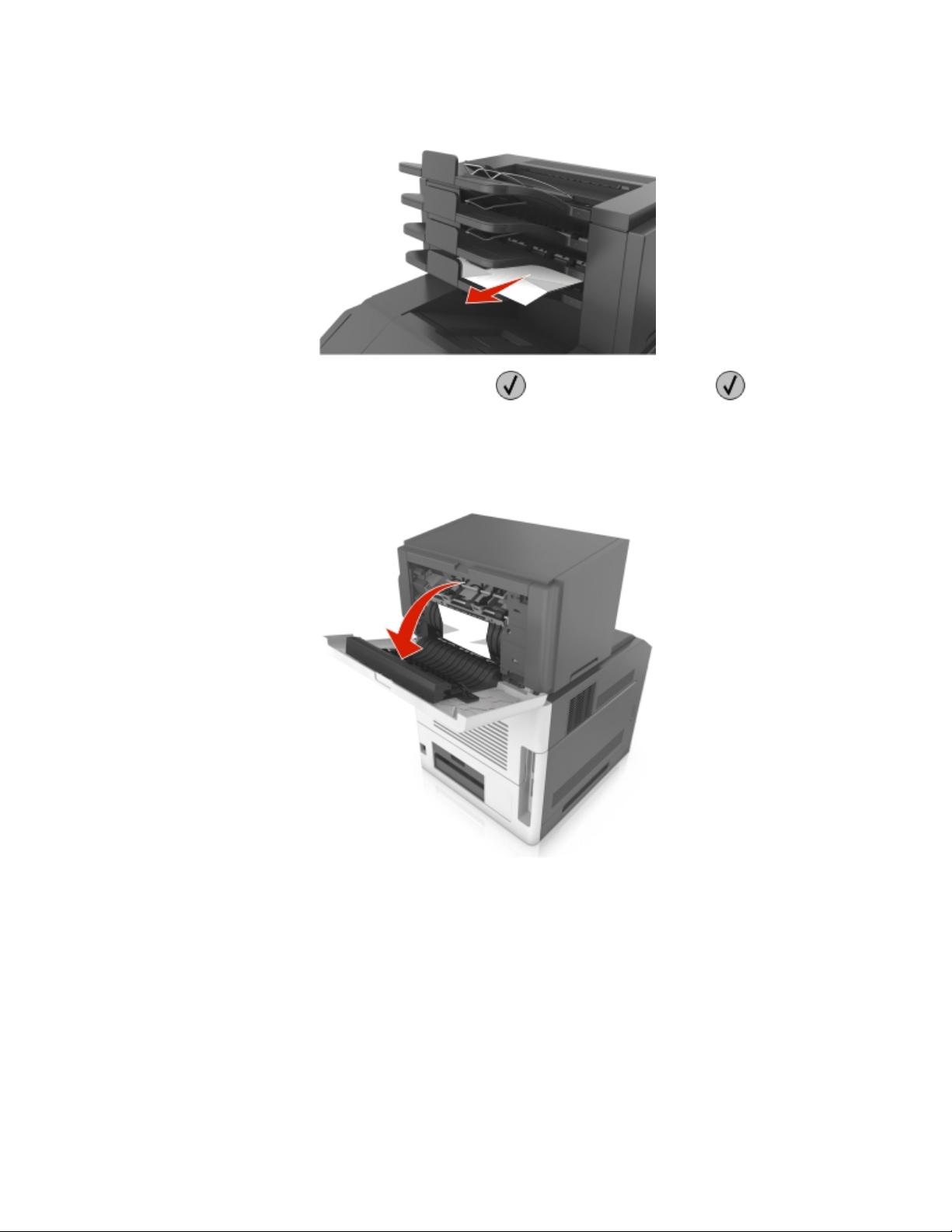

1 Pull down the rear door.

2 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

4063

3 Close the rear door.

Diagnostic information

69

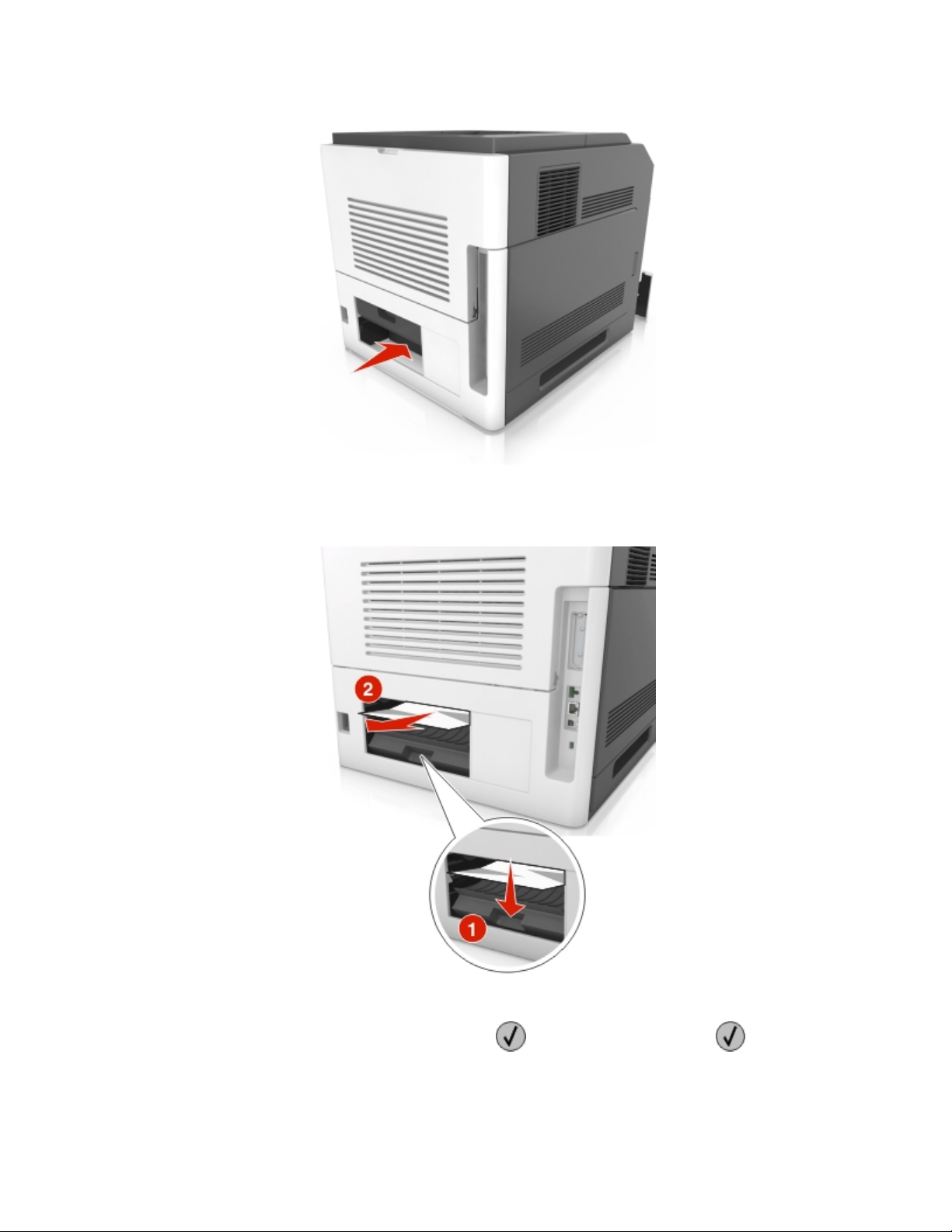

4 Push the back of the standard tray.

5 Press down the rear duplex flap, then firmly grasp the jammed paper, and then gently pull the paper out.

4063

Note: Make sure all paper fragments are removed.

6 Insert the standard tray.

7 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

Diagnostic information

70

230 paper jams

Error code Description Action

4063

230.01 Media remains on the sensor (duplex path)

during the warm up sequence

230.02 The media reached the sensor (duplex path)

sooner than the specified time

230.03 The media is late reaching the sensor (duplex

path) within the specified time

232.03 The media is late reaching the sensor (input)

within the specified time when exiting the
duplex

230.05 The media reached the sensor (duplex path)

but did not clear it within the specified time

230.07 The media reached the sensor (duplex path)

but did not clear it within the specified time

230.20 Took too long to ramp up duplex motor See “Duplex control jam service check” on page 75.

230.21 Duplex motor stopped after successful start upSee “Duplex control jam service check” on page 75.

230.22 Duplex motor under‑speed error See “Duplex control jam service check” on page 75.

230.28 The sensor (duplex path) rebounded upon

being released by the trailing edge of the
media

“Sensor (duplex path) static jam service check” on

See

page 71.

See “Sensor (duplex path) early arriving jam service check” on

page 72.

See “Sensor (duplex path) never‑ or late‑arriving jam service

check” on page 73.

See “Sensor (input) never-arriving jam (exiting duplex) service

check” on page 76.

See “Sensor (duplex path) late leaving jam service check” on

page 74.

See “Sensor (duplex path) late leaving jam service check” on

page 74.

See “Sensor (duplex path) miscellaneous jam service check” on

page 75.

Sensor (duplex path) static jam service check

Action Yes No

Step 1

Check the duplex path for jammed media.

Is the duplex path free from jammed media?

Step 2

Check the sensor (duplex path) for proper operation.

a Enter the diagnostic mode.
b Select duplex tests.

c Select sensor test.

d Observe the line item sensor.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Go to step 2. Remove any jammed

Go to

step 4. Go to step 3.

media.

Diagnostic information

71

Action Yes No

4063

Step 3

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 4

Perform a print test.

Does the problem remain?

Replace the sensor
(duplex path). See

“Sensor (duplex path)
removal” on page

.

335

Go to step 4.

Contact the next level
of technical support.

Sensor (duplex path) early arriving jam service check

Action Yes No

Step 1

Check the duplex path for jammed media and obstructions.

Is the duplex path free from jammed media and obstructions?

Step 2

Check the sensor (duplex path) for proper operation.

a Enter the diagnostic mode.
b Select duplex tests.

c Select sensor test.

d Observe the line item sensor.

Go to step 2. Remove any jammed

Go to step 4. Go to step 3.

Reseat the connection.

Go to step 4.

Problem solved.

media or obstructions.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Step 3

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 4

Perform a print test.

Does the problem remain?

Diagnostic information

Replace the sensor
(duplex path). See

“Sensor (duplex path)
removal” on page

335.

Contact the next
highest level of
technical support.

Reseat the connection.

Problem solved.

72

Sensor (duplex path) never‑ or late‑arriving jam service check

Action Yes No

4063

Step 1

Check the fuser access door area for media jams and obstructions.

Is the fuser access door area free from jammed media and obstructions?

Step 2

Check the fuser access door area and the attached diverter for damage.

Is the fuser access door and diverter free from damage?

Step 3

Check the duplex path for jammed media and obstructions.

Is the duplex path free from jammed media and obstructions?

Step 4

Check the sensor (duplex path) for proper operation.

a Enter the diagnostic mode.
b Select duplex tests.

c Select sensor test.

d Observe the line item sensor.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Go to step 2. Remove any jammed

media or obstructions.

Go to step 3. Replace the fuser

door.

access

access door removal”
on page 318.

Go to step 4. Remove any jammed

media or obstructions.

Go to

step 6. Go to step 5.

See

“Fuser

Step 5

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 6

Ensure the duplex motor cable is properly connected.

Is the above cable properly connected?

Step 7

Perform a print test.

Does the error continue?

Step 8

Perform a print test.

Does the error continue?

Replace the sensor
(duplex path). See

“Sensor (duplex path)
removal” on page

335.

Go to step 7. Reseat the connection.

Replace the duplex
motor. See “Duplex

motor removal” on
page 314.

Replace the controller
card. See “Controller

board removal” on
page 340.

Reseat the connection.

Problem solved.

Problem solved.

Diagnostic information

73

Sensor (duplex path) late leaving jam service check

Action Yes No

4063

Step 1

Check the duplex path for media jams and obstructions.

Is the duplex path free from media jams and obstructions?

Step 2

Check the duplex front flap for damage.

Is the duplex front flap free from damage?

Step 3

Check the sensor (duplex path) for proper operation.

a Enter the diagnostic mode.
b Select duplex tests.

c Select sensor test.

d Observe the line item sensor.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Step 4

Check the above sensor for proper connection.

Is the above sensor connected properly?

Go to step 2. Remove media jams

and obstructions.

Go to step 3. Replace the duplex

front flap. See “Duplex

front flap removal” on
page 328.

Go to

step 5. Go to step 4.

Replace the sensor
(duplex path) See

“Sensor (duplex path)
removal” on page

335.

Reseat the connection

Step 5

Check the upper redrive for damage.

Is the above component free from damage?

Step 6

Perform a print test and check the upper redrive motor for proper
operation.

Does the above component operate properly?

Step 7

Perform a print test.

Does the problem remain?

Go to step 6. Replace the upper

redrive. See “Upper

redrive removal” on
page 325.

Go to step 7. Replace the upper

redrive motor. See

“Upper redrive
removal” on page

325.

Contact the next
highest level of
technical support.

Problem solved.

Diagnostic information

74

Duplex control jam service check

Action Yes No

4063

Step 1

Check the duplex path for media jams and obstructions.

Is the duplex path free from media jams and obstructions?

Step 2

Ensure the duplex motor cable and the socket "DUPLEX MTR” on the
controller board is properly connected.

Is the above cable properly connected?

Step 3

Reset the machine.

Does the error continue?

Step 4

Reset the machine.

Does the error continue?

Go to step 2. Remove media jams

Go to step 3. Reseat the connection.

Replace the duplex
motor. See “Duplex

motor removal” on
page 314.

Go to step 4.

Replace the controller
board. See “Controller

board removal” on
page 340.

Sensor (duplex path) miscellaneous jam service check

and obstructions.

Problem solved.

Problem solved.

Action Yes No

Step 1

Check the sensor (duplex path) for proper operation.

Go to step 3. Go to step 2.

a Enter the diagnostic mode.
b Select duplex tests.

c Select sensor test.

d Observe the line item sensor.

Does the display on the control panel change every time the sensing area
of the above sensor is interrupted or blocked?

Step 2

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 3

Perform a print test.

Does the problem remain?

Replace the sensor
(duplex path) See

“Sensor (duplex path)
removal” on page

335.

Contact the next level
of technical support.

Reseat the connection.

Problem solved.

Diagnostic information

75

Sensor (input) never-arriving jam (exiting duplex) service check

Action Yes No

4063

Step 1

Check the duplex path for media jams and obstructions.

Is the duplex path free from media jams and obstructions?

Step 2

Check the sensor (input) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item input.

Does the display on the operator panel change every time the sensing
area of the above sensor is interrupted or blocked?

Step 3

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 4

Ensure the duplex motor cable and the socket "DUPLEX MTR” on the
controller board is properly connected.

Go to step 2. Remove media jams

and obstructions.

Go to step 4. Go to step 3.

Replace the sensor
(input). See “Sensor

(input) removal” on
page 305.

Go to step 5. Reseat the connection.

Replace the
connection.

Is the above cable properly connected?

Step 5

Perform a print test.

Does the problem remain?

Step 6

Perform a print test.

Does the problem remain?

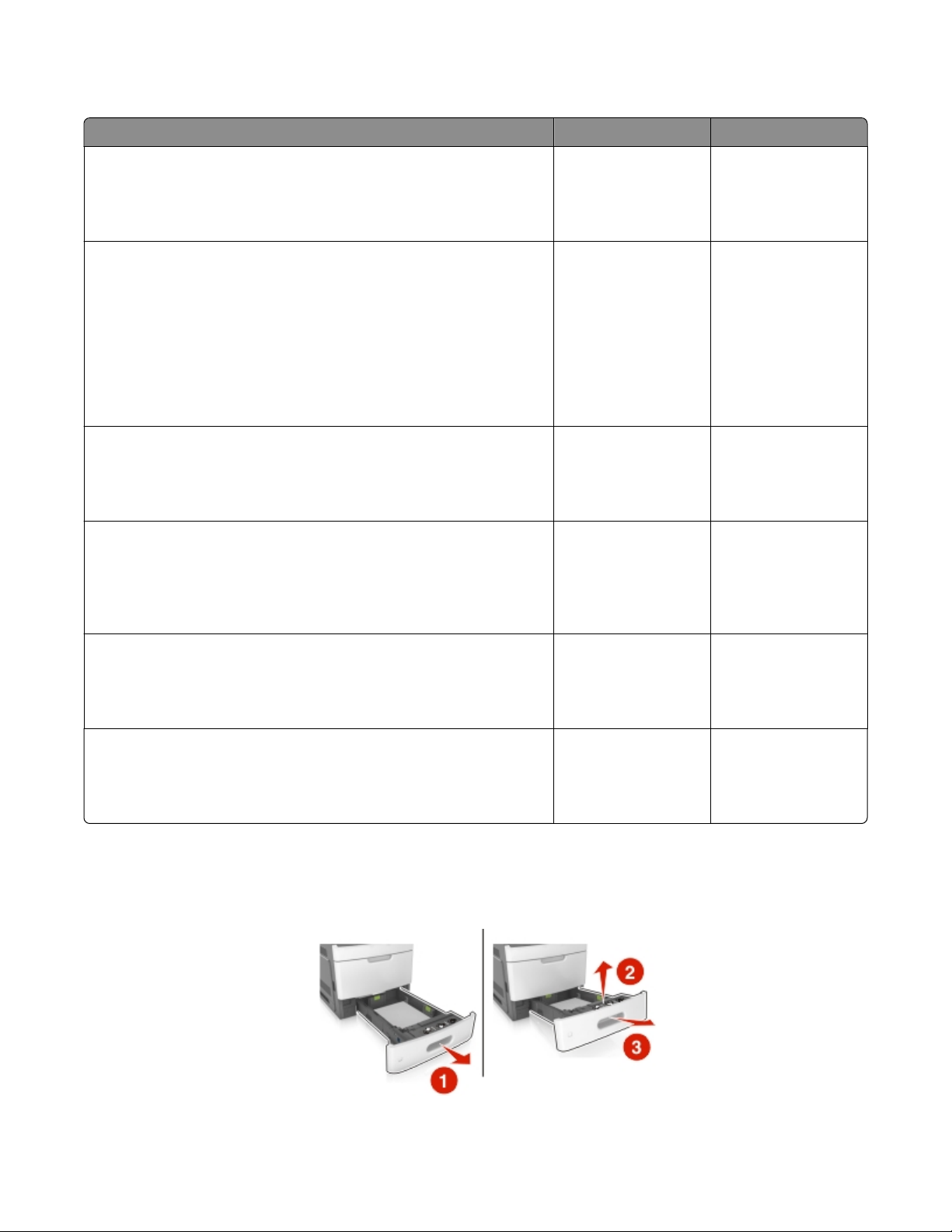

235–239 paper jams

1 Lift the tray slightly, and then pull it out completely.

Replace the duplex
motor. See “Duplex

motor removal” on
page 314.

Contact the next
highest level of
technical support.

Problem solved.

Problem solved.

Diagnostic information

76

4063

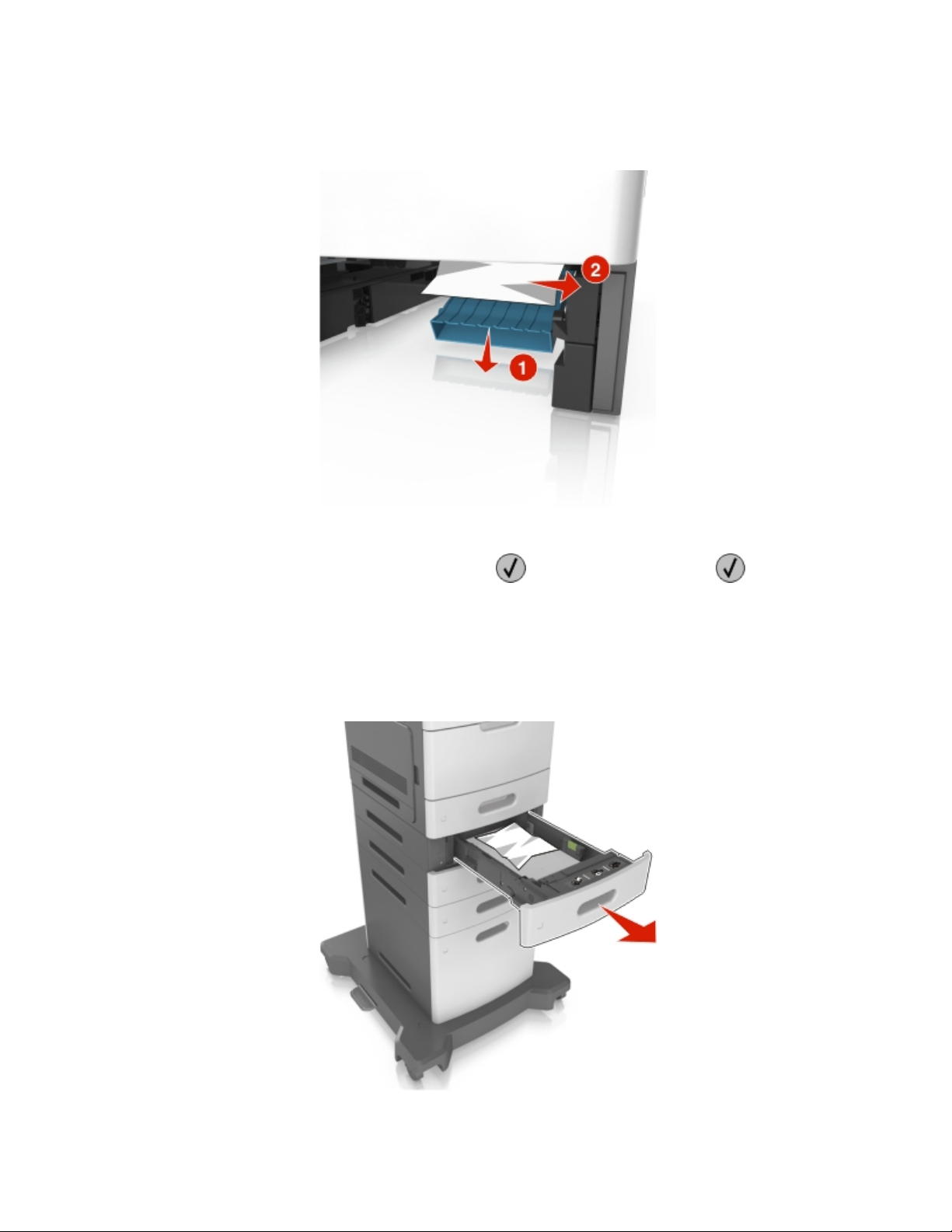

2 Push down the front duplex flap, then firmly grasp the jammed paper, and then gently pull the paper to the right

and out of the printer.

Note: Make sure all paper fragments are removed.

3 Insert the tray.

4 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

24x paper jams

1 Check which tray is indicated on the printer display.

2 Lift the tray slightly, and then pull it out completely.

Diagnostic information

77

3 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

4063

4 Insert the tray.

5 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

24x paper jams

Error code Description Action

241.02 Sensor (input) early arriving jam See “Sensor (input) early arriving jam service check” on page

53.

241.06 The media is late reaching the sensor (input)

within the specified time from tray 1

241.10 The media is late reaching the sensor (input)

within the specified time from tray 1

241.13 The media is late reaching the sensor (input)

within the specified time from tray 1

241.14 The media is late reaching the sensor (input)

within the specified time from tray 1

241.15 Media tray 1, tray pulled jam See “Media tray 1, tray pulled jam” on page 80.

241.20 Took

too long to ramp up media feeder motor

in tray 1

See “Sensor (input) never‑ or late‑arriving jam service check”

on page 54.

See “Sensor (input) never‑ or late‑arriving jam service check”

on page 54.

See “Sensor (input) never‑ or late‑arriving jam service check”

on page 54.

See “Sensor (input) never‑ or late‑arriving jam service check”

on page 54.

“Media feeder motor control service check” on page 79.

See

241.21 Media feeder motor stall in tray 1 See “Media feeder motor control service check” on page 79.

241.22 Media feeder motor pick motor under‑speed

in tray 1

241.24 Media feeder motor stalled on the last pick

attempt in tray 1

See “Media feeder motor control service check” on page 79.

See “Media feeder motor control service check” on page 79.

Diagnostic information

78

Error code Description Action

4063

241.29 Media feeder motor did not turn off when

lifting the tray

241.32 Media tray not ready See

241.33 The media tray was pulled during the media

pick process

241.41 Media feeder motor stall in tray 1 See

241.42 Media feeder motor pick motor under‑speed

in tray 1

241.43 Media feeder motor stalled on the last pick

attempt in tray 1

242.29 Media feeder motor did not turn off when

lifting the tray

243.29 Media feeder motor did not turn off when

lifting the tray

244.29 Media feeder motor did not turn off when

lifting the tray

245.29 Media feeder motor did not turn off when

lifting the tray

See “Media feeder motor tray lift error service check” on

page 81.

See

See “Media feeder motor control service check” on page 79.

See “Media feeder motor control service check” on page 79.

See “Media feeder motor tray lift error service check” on

page 81.

See “Media feeder motor tray lift error service check” on

page 81.

See “Media feeder motor tray lift error service check” on

page 81.

See “Media feeder motor tray lift error service check” on

page 81.

“Media tray 1, tray pulled jam” on page 80

“Media tray 1, tray pulled jam” on page 80

“Media feeder motor control service check” on page 79.

.

.

Media feeder motor control service check

Action Yes No

Step 1

Check the media size setup and tray guides for media tray 1.

Does the media size in use match the size set for media tray 1?

Step 2

Check the media trays for overfilling.

Are any of the media trays overfilled?

Step 3

Check the media condition in media tray 1.

Is any of the media in media tray 1 crumpled or damaged?

Step 4

Ensure the pick roller is properly installed.

Is the pick roller properly installed?

Go to step 2. Replace the media, or

Remove any excess
new media.

Replace the damaged
media.

Go to step 5. Remove and reinstall

change the media size
setup in media tray 1.

Go to step 3.

Go to step 4.

the pick roller. See

“Pick roller assembly
removal” on page

.

333

Diagnostic information

79

Action Yes No

4063

Step 5

Ensure the cable for socket “INDEX / PAP OUT/ PICK MTR” on the controller
board is properly connected.

Is the above connection properly connected?

Step 6

Reset the machine.

Does the error continue?

Step 7

Reset the machine.

Does the error continue?

Go to step 6. Reseat the connection.

Replace the media
feeder. See “Media

feeder removal” on
page 347.

Go to step 7.

Replace the controller
board. See “Controller

board removal” on
page 340.

Media tray 1, tray pulled jam

Action Yes No

Step 1

Remove all media jams from the media tray and printer.

Go to step 2. Remove all media jams.

Problem solved.

Problem solved.

Are all of the media jams removed?

Step 2

Ensure the media tray is properly inserted into the printer.

Is the media tray properly inserted?

Step 3

Perform a print test.

Does the problem remain?

Go to step 3. Insert the media tray.

Replace the media tray
with a new media tray.

Problem solved.

Diagnostic information

80

Media feeder motor tray lift error service check

Action Yes No

4063

Step 1

Ensure the pick roller is properly installed.

Is the pick roller properly installed?

Step 2

Ensure the cable for socket “INDEX / PAP OUT/ PICK MTR” on the controller
board is properly connected.

Is the above connection properly connected?

Step 3

Reset the machine.

Does the error continue?

Step 4

Reset the machine.

Does the error continue?

Go to step 2. Remove and reinstall

the pick roller. See

“Pick roller assembly
removal” on page

.

333

Go to step 3. Reseat the connection.

Replace the media
feeder. See

feeder removal” on
page 347.

Go to step 4.

Replace the controller
board. See “Controller

board removal” on
page 340.

“Media

Problem solved.

Problem solved.

Sensor (input) never-arriving jam from tray 1 service check

Action Yes No

Step 1

Check the media size setup and tray guides for media tray 1.

Does the media size, in use, match the size set for media tray 1?

Step 2

Check the media tray 1 for overfilling.

Is media tray 1 overfilled?

Step 3

Check the media condition in media tray 1.

Is any of the media in media tray 1 crumpled or damaged?

Step 4

Check the pick roller in the media tray being picked from.

Is the pick roller free of excess wear and contamination?

Go to step 2. Replace the media, or

Remove any excess
new media.

Replace the damaged
media with new.

Go to step 5. Clean or replace the

change the media size
setup in media tray 1.

Go to step 3.

Go to step 4.

pick roller. See “Pick

roller assembly
removal” on page

333.

Diagnostic information

81

Action Yes No

4063

Step 5

Check the aligner assembly for obstructions.

Is the above component free from obstructions?

Step 6

Check the sensor (input) for proper operation.

a Enter the diagnostic mode.
b Select Base sensor test.

c Observe the line item input.

Does the display on the operator panel, change every time the sensing
area of the above sensor is interrupted or blocked?

Step 7

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 8

Perform a print test and check the tray 1 media feeder.

Is the media properly picked and advanced out of the media tray?

Go to step 6. Remove obstructions.

Go to step 8. Go to step 7.

Replace the Sensor
(input). See “Sensor

(input) removal” on
page 305.

Go to step 9. Replace the media

Replace the
connection.

feeder. See “Media

feeder removal” on
page 347.

Step 9

Perform a print test and check the main motor assembly.

Is the media properly transported and able to reach the sensor (input)?

Step 10

Perform a print test.

Does the problem remain?

Go to step 10. Replace the main drive

motor. See “Main drive

motor removal” on
page 345.

Contact the next
highest level of
technical support.

Problem solved.

250 paper jams

1 From the multipurpose feeder, firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

Diagnostic information

82

4063

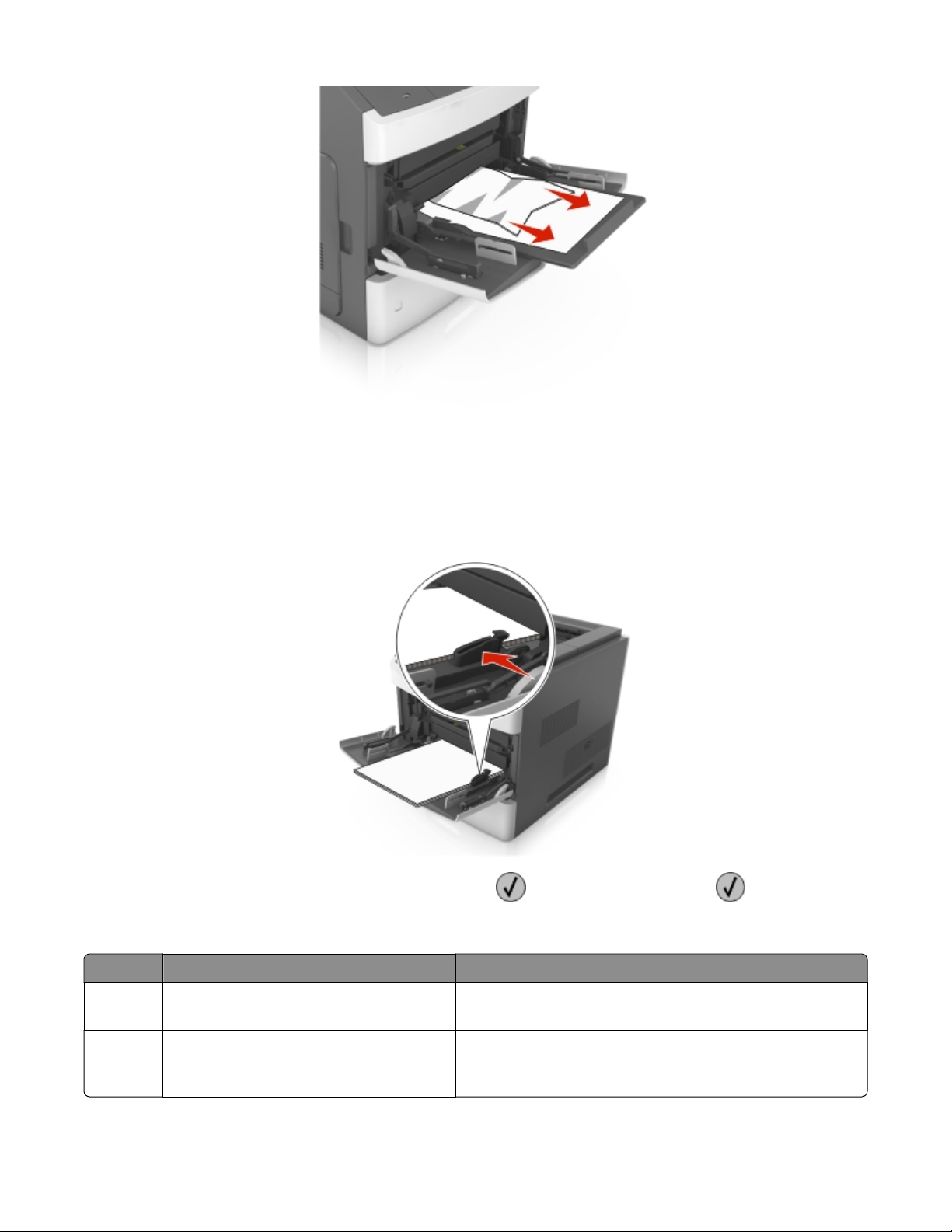

2 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the

edges on a level surface.

3 Reload paper into the multipurpose feeder.

4 Slide the paper guide until it lightly rests against the edge of the paper.

5 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

250 paper jams

Error code Description Action

250.02 The input sensor detected a late feed during

a pick retry from the MPF media tray

250.06 The media is late reaching the sensor (input)

within the
tray

specified time from the MPF media

Diagnostic information

See “Sensor (input) early arriving jam service check” on page

53.

“Sensor (input) never-arriving jam from MPF media tray

See

service check” on page 84.

83

Error code Description Action

4063

250.10 The media is late reaching the sensor (input)

the

within
tray

250.13 The media is late reaching the sensor (input)

within
tray

250.14 The media is late reaching the sensor (input)

within
tray

250.17 The media is late reaching the sensor (input)

within
tray

250.18 The media is late reaching the sensor (input)

within
tray

specified time from the MPF media

specified time from the MPF media

the

the

specified time from the MPF media

the

specified time from the MPF media

the

specified time from the MPF media

See

“Sensor (input) never-arriving jam from MPF media tray

service check” on page 84.

See

“Sensor (input) never-arriving jam from MPF media tray

service check” on page 84.

See

“Sensor (input) never-arriving jam from MPF media tray

service check” on page 84.

See

“Sensor (input) never-arriving jam from MPF media tray

service check” on page 84.

See

“Sensor (input) never-arriving jam from MPF media tray

service check” on page 84.

Sensor (input) never-arriving jam from MPF media tray service check

Action Yes No

Step 1

Check the media size setup and tray guides for the MPF tray.

Go to step 2. Replace the media, or

change the media size
setup.

Does the media size, in use, match the size set for the MPF tray?

Step 2

Check the MPF tray for overfilling.

Is the MPF tray overfilled?

Step 3

Check the media condition in the MPF tray.

Is any of the media in any of the MPF media tray crumpled or damaged?

Step 4

Check the MPF pick roll assembly.

Is the above component free of excess wear and contamination?

Step 5

Perform a MPF print test and check the MPF pick solenoid for proper
operation.

Does the above component operate properly?

Remove any excess
new media.

Replace the damaged
media with new.

Go to step 5. Clean or replace the

Go to step 6. Replace the MPF pick

Go to step 3.

Go to step 4.

MPF pick roller. See

“MPF pick roller
removal” on page

.

301

solenoid.

Diagnostic information

84

Action Yes No

4063

Step 6

Check the aligner assembly for obstructions.

Is the above component free from obstructions?

Step 7

Check the sensor (input) for proper operation:

a Enter the diagnostic mode
b Select Base sensor test.

c Observe the line item “input”.

Does the display on the operator panel change every time the sensing
area of the above sensor is interrupted or blocked?

Step 8

Check the above sensor for proper connection.

Is the above sensor connected properly?

Step 9

Perform a print test and check the MPF feeder lift plate.

Is the media properly picked and advanced out of the MPF feeder lift
plate?

Go to step 7. Remove obstructions.

Go to step 9. Go to step 8.

Replace the Sensor
(input). See “Sensor

(input) removal” on
page 305.

Go to step 10. Replace the MPF

Replace the
connection.

feeder lift plate. See

“MPF feeder lift plate
removal” on page

298.

Step 10

Perform a print test and check the main motor assembly.

Is the media properly transported and able to reach the sensor (input)?

Step 11

Perform a print test.

Does the problem remain?

Go to step 11. Replace the main drive

motor. See “Main drive

motor removal” on
page 345.

Contact the next
highest level of
technical support.

Problem solved.

Diagnostic information

85

41y.xx paper jams

1 Open the rear output expander door.

4063

2 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

3 Close the rear output expander door.

4 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

Diagnostic information

86

43y.xx paper jams

1 Open the rear mailbox door.

4063

2 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

3 Close the rear mailbox door.

Diagnostic information

87

4 If the jam is in the mailbox bin, then firmly grasp the jammed paper, and then gently pull it out.

Note: Make sure all paper fragments are removed.

5 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

451 paper jams

1 Open the rear staple finisher door.

4063

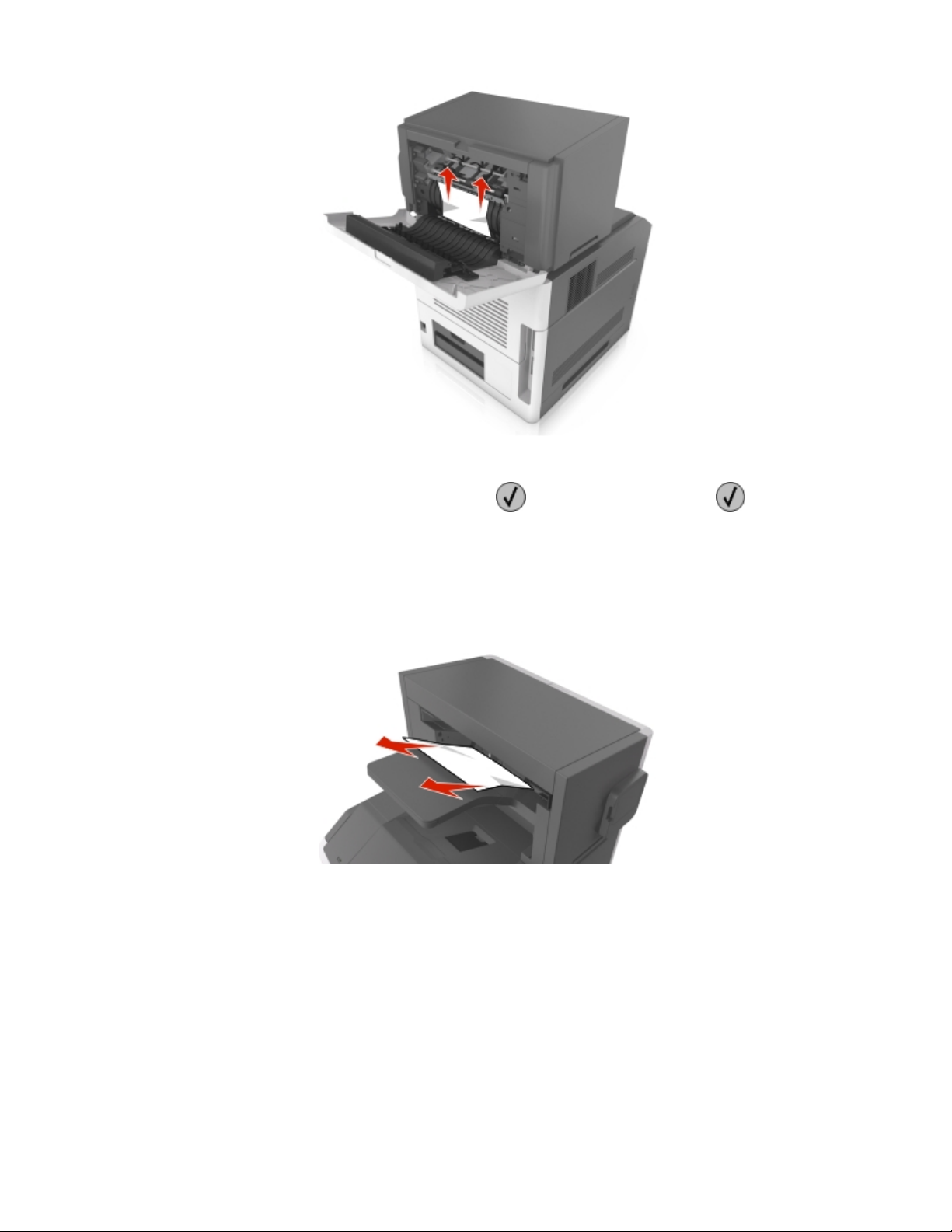

2 Firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

Diagnostic information

88

3 Close the staple finisher door.

4063

4 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

455–457 paper jams

1 From the stapler bin, firmly grasp the jammed paper on each side, and then gently pull it out.

Note: Make sure all paper fragments are removed.

Diagnostic information

89

2 Open the stapler door.

3 Pull down the latch of the staple cartridge holder, and then pull the holder out of the printer.

4063

4 Use the metal tab to lift the staple guard, and then remove any loose staples.

Diagnostic information

90

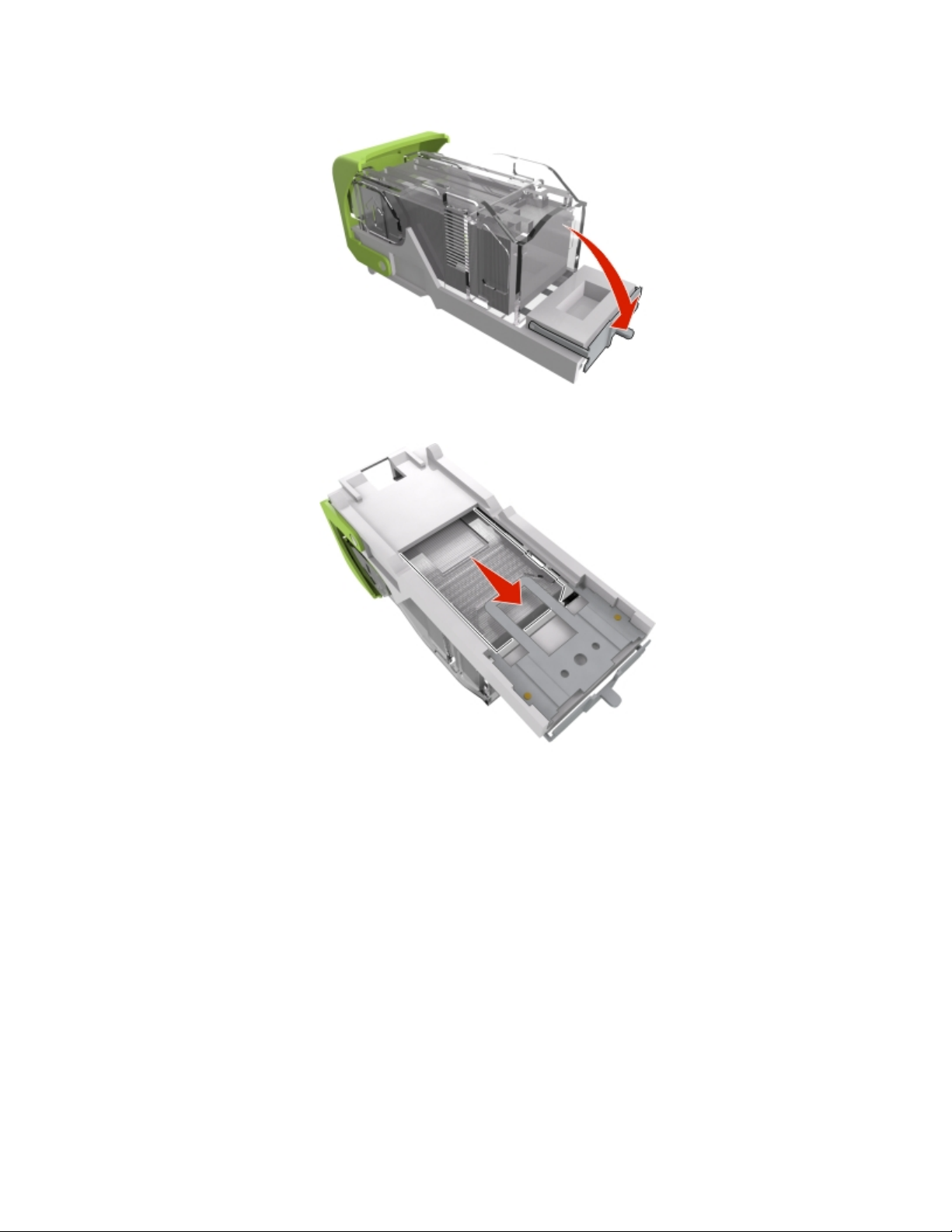

5 Press down the staple guard until it clicks into place.

6 Slide the staples toward the metal bracket.

4063

Note: If the staples are at the rear of the cartridge, then shake the cartridge downward to bring the staples near

the metal bracket.

Diagnostic information

91

4063

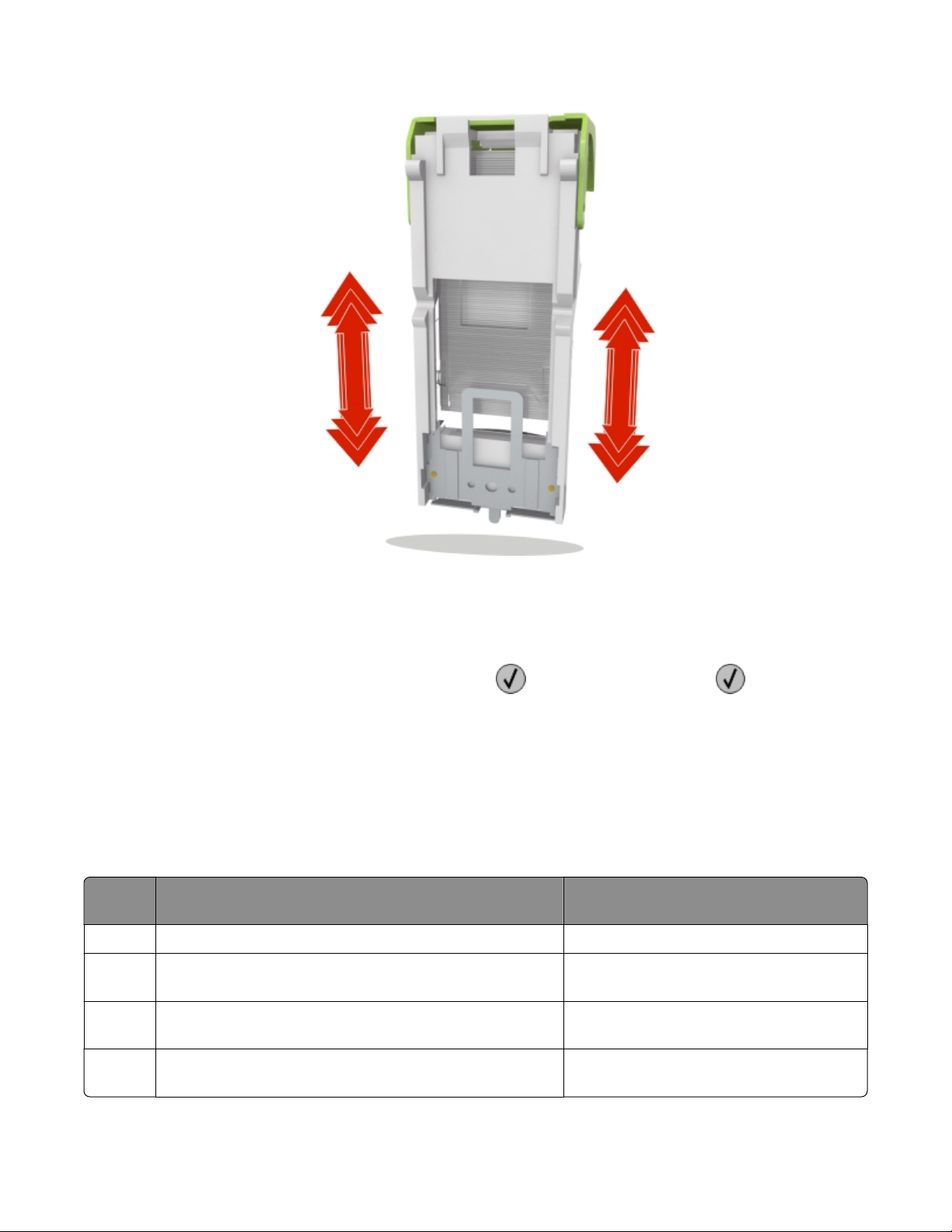

Warning—Potential Damage: Do not tap the cartridge on a hard surface. This could damage the cartridge.

7 Push the cartridge holder firmly back into the stapler unit until the cartridge holder clicks into place.

8 Close the stapler door.

9 To clear the message and continue printing, select Next > > Clear the jam, press OK > .

User attendance messages (0-99.99)

User attendance messages (0‑99.99)

User attendance messages

Error
code

30.xx Toner cartridge missing Make sure all cartridges are installed properly.

31.21 Toner Level Sensing reading out of range See “Toner level sensing error check” on

31.22 Excessive toner sensing line noise See “Toner level sensing error check” on

Description Action

page 97.

page 97.

31.23 Abrupt change detected in toner sensing reading See “Toner level sensing error check” on

page 97.

Diagnostic information

92

4063

Error
code

31.25 Toner level sensing calibration capacitor reading too low See “Toner level sensing error check” on

31.40 Toner cartridge smart chip error See “Toner cartridge smart chip error service

31.41 Toner cartridge I2C packet time-out See “Toner cartridge smart chip error service

31.42 Toner cartridge I2C packet has been sent but code timed-out on

31.43 Toner cartridge security error in the send challenge sequence See “Toner cartridge smart chip error service

31.44 Toner cartridge ROM signature error See “Toner cartridge smart chip error service

31.45 Toner cartridge stuck or busy; status register and/or CRI Arbiter

31.60 Imaging unit smart chip error See “Imaging unit smart chip service check” on

31.61 Imaging unit I2C packet time-out See “Imaging unit smart chip service check” on

Description Action

page 97.

check” on page 97.

check” on page 97.

See “Toner cartridge smart chip error service

receiving the data (callback)

register report busy

check” on page 97.

check” on page 97.

check” on page 97.

See “Toner cartridge smart chip error service

check” on page 97.

page 98.

page 98.

31.62 Imaging unit I2C packet has been sent, but code timed-out on

receiving the data (callback)

31.63 Imaging unit security error in the send challenge sequence See “Imaging unit smart chip service check” on

31.64 Imaging unit ROM signature error See “Imaging unit smart chip service check” on

31.65 Imaging unit stuck or busy; status register and/or CRI Arbiter

register report busy)

31.80 Fuser smart chip error See “Fuser unit smart chip service check” on

31.81 Fuser I2C packet time-out See “Fuser unit smart chip service check” on

31.82 Fuser I2C packet has been sent but code timed out on receiving

the data (callback)

31.83 Fuser security error in the send challenge sequence See “Fuser unit smart chip service check” on

31.84 Fuser ROM signature error See “Fuser unit smart chip service check” on

31.85 Fuser smart chip stuck or busy; status register and/or CRI Arbiter

register report busy)

See “Imaging unit smart chip service check” on

page 98.

page 98.

page 98.

See “Imaging unit smart chip service check” on

page 98.

page 99.

page 99.

See “Fuser unit smart chip service check” on

page 99.

page 99.

page 99.

See “Fuser unit smart chip service check” on

page 99.

32.10 Toner cartridge smart chip compatibility error Replace the toner cartridge.

32.11 Imaging unit smart chip compatibility error Replace the imaging unit.

Diagnostic information

93

4063

Error
code

32.12 Fuser smart chip compatibility error Replace the fuser. See “Fuser removal” on

33.xx Non‑license return program (NLRP) supply installers Replace non‑licensed supply with properly

34.xx Media size mismatch—the printer detects the media as too

Description Action

page 316.

licensed supply.

Do the following:

short or too narrow

• Make sure that the media loaded is in the

proper
coincide with the size of the media being
printed on.

size.

The print job settings must also

• Make sure that the media tray guides are

properly set.

35.xx Res save off deficient memory—the printer lacks sufficient

memory to enable Resource Save

Try one or more of the following:

• From the printer control panel, press

Continue to disable Resource Save, clear
the message, and continue printing.

• Install additional memory.

37.xx Insufficient collation area Try one or more of the following:

• From the printer control panel, select

Continue to
continue printing. For non‑
printer models, press OK to confirm.

stop the defragmentation and

touch‑screen

• Delete fonts, macros, and other data from

the printer memory.

• Install additional printer memory.

38.xx Memory full Try one or more of the following:

• From the printer control panel, press

Continue to disable Resource Save, clear
the message, and continue printing.

• Install additional memory.

39 Complex page—the page is too complex to print Try one or more of the following:

• From the printer control panel, press

Continue to clear the message.

• Decrease the resolution setting.

• Install additional printer memory.

41

Cartridge/imaging unit type mismatch Install properly regioned supply.

Diagnostic information

94

4063

Error
code

42.xy Printer/cartridge mismatch Install a toner cartridge that matches the

Description Action

region number of the printer. The .xy error
code value represents the required region
number,
number and y for the cartridge’s region
number:

where x indicates the printer’s region

• 0—Global

• 1—United States, Canada

• 2—European Economic Area (EEA),

Switzerland

• 3—Asia Pacific, Australia, New Zealand

• 4—Latin America

• 5—Africa, Middle East, rest of Europe

• 9—Invalid

50 The PPDS interpreter has encountered a font error Press Continue to clear the message and

continue processing the job.

51 Defective flash—this error may occur at power on, or during

flash format and write operations

Try one or more of the following:

• Replace the defective flash memory card.

• From the printer control panel, press

Continue to ignore the message and
continue printing.

• Cancel the current print job.

52 Flash full Try one or more of the following:

• From the printer control panel, touch

Continue to ignore the message and
continue printing.

• Delete

fonts, macros, and other data stored

in the flash memory.

• Install a flash memory card with larger

capacity.

Note: Downloaded fonts and macros not
previously stored in the flash memory are
deleted.

53 Unformatted flash Try one or more of the following:

• From the printer control panel, press

Continue to stop the defragmentation and
continue printing.

• Format the flash memory device.

Note: If the error message remains, then
the flash memory device may be defective
and need to be replaced.

Diagnostic information

95

4063

Error
code

54 Network error—communication failure between the controller

Description Action

Try one or more of the following:

board and the network port

• From the printer control panel, press

Continue to confirm.

• Unplug the router, then wait for 30

seconds, and then plug it back again.

• POR the machine.

• Update the network firmware in the printer

or print server.

55 Unsupported option card detected

1 Turn off the printer.
2 Unplug the power cord from the electrical

outlet.

3 Remove the unsupported option card

from the printer controller board, and
then replace it with a supported card.

4 Re‑connect the power cord, and then turn

the machine on.

56 USB port disabled Do either of the following:

• From the printer control panel, select

Continue to clear the message and
continue printing without using the
specified bin/tray.

• Select Reset active bin to reset the bin for

a linked set of bins.

59 Incompatible output bin/tray Do either of the following:

• Remove the specified bin.

• From the printer control panel, press

Continue

continue printing without using the
specified bin/tray.

80 Maintenance kit—end of life Install maintenance kit.

80 Maintenance kit—late warning

80 Maintenance kit—low

80 Maintenance kit—nearly low Maintenance kit is near the end of its life.

81 Roller kit—end of life Install a roller kit.

84 Imaging unit—nearly low

84 Imaging unit—middle warning Imaging unit near is near the end of its life.

84 Imaging unit—late warning

84 Imaging unit—end of life Replace the imaging unit.

88 Toner cartridge low Replace the imaging unit.

to clear the message and

Diagnostic information

96

Toner level sensing error check

Action Yes No

4063

Step 1

Ensure that the toner cartridge is installed properly.

Is the toner cartridge properly installed?

Step 2

Remove the existing toner cartridge and install a different cartridge.

Does the error continue?

Step 3

Ensure the cable for socket “JCTLS” on the controller board is properly
connected.

Is the above connection properly connected?

Step 4

Ensure the toner low / imaging unit high voltage contact is free from
damage.

Is the toner low / imaging unit high voltage contact free from damage?

Step 5

Reset the machine.

Does the error continue?

Go to step 2. Reinstall the toner

cartridge properly.

Go to step 3. Problem resolved.

Go to step 4. Reseat the connection

or replace the cable.

Go to step 4.

Go to step 5. Replace the toner low /

imaging unit high
voltage contact.

Replace the controller
board. See “Controller

board removal” on
page 340.

Problem resolved.

Toner cartridge smart chip error service check

Action Yes No

Step 1

Ensure that the toner cartridge is installed properly.

Is the toner cartridge properly installed?

Step 2

Remove the existing toner cartridge and install a different cartridge.

Does the error remain?

Step 3

Ensure the cable for socket "TONER UNIT" on the controller board is
properly connected.

Is the above cable properly connected?

Diagnostic information

Go to step 2. Reinstall the toner

Go to step 3. Problem resolved.

Go to step 4. Reseat the connection

cartridge properly.

or replace the cable.

Go to step 4.

97

Action Yes No

4063

Step 4

Ensure the toner cartridge smart chip contact with cable is free from
damage.

Is the toner cartridge smart chip contact with cable free from damage?

Step 5

Reset the machine.

Does the error continue?

Go to step 5. Reseat the connection

Replace the controller
board. See “Controller

board removal” on
page 340

Imaging unit smart chip service check

Action Yes No

Step 1

Ensure that the imaging unit is installed properly.

Is the imaging unit properly installed?

Step 2

Remove the imaging unit and install a different unit.

Go to step 2. Reinstall the imaging

Go to step 3. Problem resolved.

or replace the cable.

Go to step 5.

Problem resolved.

unit properly.

Does the error remain?

Step 3

Ensure the cable for socket "IMAG UNIT" on the controller board is
properly connected.

Is the above cable properly connected?

Step 4

Ensure the imaging unit smart chip contact with cable is free from damage.

Is the imaging unit smart chip contact with cable free from damage?

Step 5

Reset the machine.

Does the error continue?

Go to step 4. Reseat the connection

or replace the cable.

Go to step 4.

Go to step 5. Replace the imaging

unit smart chip contact
with cable.

Go to step 5.

Replace the controller
board. See “Controller

board removal” on
page 340.

Problem resolved.

Diagnostic information

98

Fuser unit smart chip service check

Action Yes No

4063

Step 1

Ensure that the fuser is installed properly.

Is the fuser properly installed?

Step 2

Remove the fuser and install a different fuser.

Does the error remain?

Step 3

Ensure the cable for socket "J27" on the controller board is properly
connected.

Is the above component properly connected?

Step 4

Reset the machine.

Does the error continue?

Printer hardware errors (100-199.99)

Go to step 2. Reinstall the fuser

properly.

Go to step 3. Problem resolved.

Go to step 4. Reseat the connection

or replace the cable.

Go to step 4.

Replace the controller
board. Go to

“Controller board
removal” on page

.

340

Problem resolved.

• “Printer hardware error messages(100‑199.99)” on page 100

•

“Printhead ID service check” on page 104

• “Printhead service check” on page 104

• “Fuser drive motor service check” on page 105

•

“Fuser service check” on page 105

• “LVPS service check” on page 106

•

“Toner level sensing service check” on page 106

• “Main drive motor service check” on page 107

• “Media feeder service check” on page 107

•

“Redrive motor service check” on page 108

• “Duplex motor service check” on page 108

• “Toner add motor service check” on page 109

•

“Main cooling fan service check” on page 109

• “Cartridge cooling fan service check” on page 110

• “LVPS cooling fan service check” on page 110

•

“HVPS cooling fan service check” on page 111

• “Miscellaneous cooling fan service check” on page 111

Diagnostic information

99

Printer hardware error messages(100‑199.99)

User attendance messages

Error code Description Action

4063

111.30

111.31 Printhead no first HSYNC error See

111.32 Printhead loss of HSYNC error See “Printhead service check” on page 104.

111.33 Printhead loss of HSYNC during servo See “Printhead service check” on page 104.

111.34 Printhead mirror motor loss of lock See “Printhead service check” on page 104.

111.35 Printhead mirror motor initial lock See “Printhead service check” on page 104.

111.36 Printhead mirror motor stabilization error See “Printhead service check” on page 104.

111.37 Page reached input sensor but the mirror

111.38 Page reached input sensor but the

111.90 Printhead video cable not plugged in See “Printhead service check” on page 104.

120.10 Fuser drive Motor Halls detection error See “Fuser drive motor service check” on page 105.

120.20 Fuser drive Motor took too long to stop See “Fuser drive motor service check” on page 105.

120.30 Fuser drive Motor Unable To Lock (before

120.40 Fuser drive motor over‑speed error See “Fuser drive motor service check” on page 105.

Printhead ID error See “Printhead ID service check” on page 104.

“Printhead service check” on page 104.

See “Printhead service check” on page 104.

motor was not locked

See “Printhead service check” on page 104.

printhead startup was not complete

See “Fuser drive motor service check” on page 105.

motor ID)

120.60 Fuser drive motor unable to lock (after

motor ID)

120.70 Fuser drive motor out of lock See “Fuser drive motor service check” on page 105.

120.80 Fuser drive motor excessive PWM / over

temperature

121.07 Fuser has been on for more than allowed

after a gap blowout, and the temperature
is still too cold

121.08 Fuser was under temperature when page

was in fuser

121.20 Fuser undertemp during steady state

control

121.22 Fuser did not warm enough to start line

voltage detection

121.23 Fuser took too long to heat to line

detection temperature

121.24 Fuser never reached fuser detection

temperature

See “Fuser drive motor service check” on page 105.

See “Fuser drive motor service check” on page 105.

See “Fuser service check” on page 105.

See “Fuser service check” on page 105.

See “Fuser service check” on page 105.

See “Fuser service check” on page 105.

See “Fuser service check” on page 105.

See “Fuser service check” on page 105.

Diagnostic information

100
