MS620 Series
Reliability. Security. Productivity.

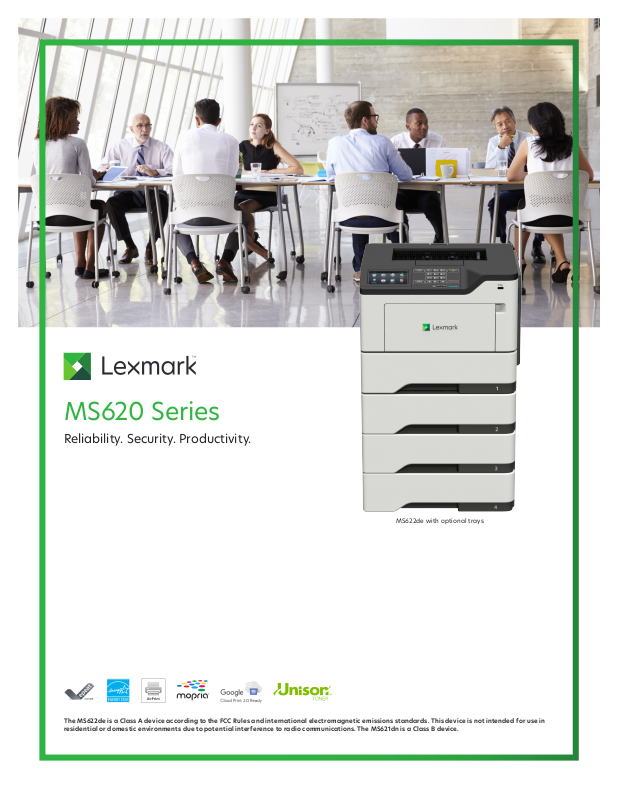

MS622de with optional trays
The MS622de is a Class A dev ice acc ording to the FCC Rules and internat ional electroma gnetic emission s standards . This device is not intended for use in
residential or domestic environments due to potential interference to radio communications. The MS621dn is a Class B device.
Page 2
Lexmark MS620 Series
The MS620 series prints up to 50 pages per minute* and features superior print quality, enhanced security and built-in durability.
Maximize printing performance with a 1-GHz dual-core processor and up to 1 GB of memory (MS622de), while monitoring and
interacting via a 2.4-inch color LCD (MS621dn) or tablet-like 4.3-inch touch screen with e-Task(MS622de).
Robust, built-in security
} Lexmark’s full-spectrum security architecture helps keep
your information safe—on the document, the device, over
the network, and everywhere in between.
} A range of embedded features harden device
against attacks.
} Go beyond standard Condential Print with optional
Get more done
} Get up to 50-page-per-minute printing.
} Tackle your printing workload with the power of a 1-GHz
dual-core processor with up to 1 GB of memory and optional
hard drive (for MS622de).
} Easily congure and monitor vital system information via a
2.4-inch color LCD (MS621dn).
security solutions like Print Release and Lexmark Secure
Document Monitor.
} Keypoint Intelligence - Buyers Lab honored Lexmark
with a prestigious BLI PaceSetter award for Document
Imaging Security***.
} Intuitive 4.3-inch color touch screen (MS622de) offers
smooth, tablet-like interaction.
Ready when you are
} Long-life fuser and imaging components extend uptime.
} Unison™ Toner replacement cartridges deliver up to 25,000
pages** of high-quality printing.
} Maximum input capacity of 2300 pages means
fewer interruptions.
} Durable metal frame is designed for longevity.
Built for planet earth
} Energy management features reduce power consumption in
active use or sleep mode.
} Standard two-sided printing saves paper.
} Use of post-consumer recycled content in manufacturing
saves natural resources.
} Device is rated EPEAT® Silver and ENERGY STAR® certied.
} Recycle cartridges through the award-winning Lexmark
Cartridge Collection Program (LCCP).
*Print and copy speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735 respectively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
**Average standard page yield value declared in accordance with ISO/IEC 19752.
***Award based on North America data.
lexmark.com
2
Page 3
Lexmark MS620 Series
1 Printer with 2.4-inch (6 cm) color display
11.9 x 15.7 x 14.7 inches
303 x 399 x 374 mm
3 550-sheet tray
5 x 15.7 x 14.7 inches
126 x 389 x 374 mm
2 Printer with 4.3-inch (10.9 cm) color touch screen
11.9 x 15.7 x 14.7 inches
303 x 399 x 374 mm
4 250-sheet tray
3.7 x 15.7 x 14.7 inches
95 x 389 x 374 mm
Standard
Optional
Supports up to three optionaltrays.
© 2018 Lexmark. All rights reserved.
Lexmark, the Lexmark logo and Unison are trademarks of Lexmark Internation al, Inc., registered in the United States and/or other countries. AirPrint and the AirPrint Logo
are trademarks of Apple, Inc. ENERGY STAR® is a U.S . registered mark. EPEAT® is a trademark of EPEAT, Inc. in the United States and other countries. Google Cloud Print is a
trademark of Google, Inc. MOPRIA®, the Mopria® Logo™ and the Mopria® Alliance logos are trademarks, service marks, and certication marks of Mopria Alliance, Inc. in the
United States andother countries. A ll other trademarks are the property of their respec tive owners.
This product includes sof tware developed by the OpenSSL Project for use in the Open SSL Toolkit ( http:// ww.openssl.org/).
lexmark.com
3
Page 4
Product specications Lexmark MS621dn Lexmark MS622de
Printing
Display
Print Speed: Up to
Time to First Page: As fast as
Print Resolution
Memory / Processor
Hard Disk
Recommended Monthly Page Volume
Maximum Monthly Duty Cycle: Up to
Supplies
Laser Cartridge Yields (up to)
Imaging Unit Estimated Yield: Up to
Cartridge(s) Shipping with Product
2
7
6
3
1
4
1
Paper Handling
Included Paper Handling
Optional Paper Handling
Paper Input Capacity: Up to
Paper Output Capacity: Up to
Media Types Supported
Media Sizes Supported
General Information
Standard Ports
Optional Network Ports / Optional Local
Ports
Noise Level: Operating
Specied Operating Environment
Limited Warranty - See Statement of Limited
Warranty
Size (in. - H x W x D) / Weight (lb.)
5
Standard: 512 MB / Maximum: 512 MB / Dual Core, 1000 MHz Standard: 1024 MB / Maximum: 1024 MB / Dual Core, 1000 MHz
6,000-page Cartridge, 25,000-page Ultra High Yield Cartridge,
15,000-page High Yield Cartridge, 20,000-page Extra High Yield
10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, DL Envelope, Executive, Folio, JIS-B5, Legal, Letter, Statement, Universal, Ocio, A6
USB 2.0 Specication Hi-Speed Certied (Type B), Gigabit
Ethernet (10/100/1000), Front USB 2.0 Specication Hi-Speed
Marknet N8370 WiFi Option, Marknet N8372 WiFi Option MarkNet N8230 Fiber Ethernet Print Server, Marknet N8370 WiFi
2.4-inch (60 mm) Color LCD display Lexmark e-Task 4.3-inch (10.9 cm) color touch screen
Black: 50 ppm
Black: 6 seconds
Black: 1200 Image Quality, 1200 x 1200 dpi, 2400 Image Quality, 600 x 600 dpi
Not Available Option available
2000 - 20000 pages
175000 pages per month
15,000-page Black High Yield Cartridge, 20,000-page Extra High
Cartridge
Yield Cartridge, 25,000-page Ultra High Yield Cartridge, 6,000-
page Cartridge
60000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
6,000-page Starter Return Program Toner Cartridge
550-Sheet Input, 100-Sheet Multipurpose Feeder, Integrated Duplex, 250-Sheet Output Bin
250-Sheet Tray, 550-Sheet Tray, 550-Sheet Lockable Tray
Standard: 650 pages 20 lb or 75 gsm bond / Maximum: 2300 pages 20 lb or 75 gsm bond
Standard: 250 pages 20 lb or 75 gsm bond / Maximum: 250 pages 20 lb or 75 gsm bond
Card Stock, Envelopes, Paper Labels, Plain Paper, Transparencies, Refer to the Card Stock & Label Guide.
One Internal Card Slot, USB 2.0 Specication Hi-Speed Certied
Certied port (Type A)
(Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0
Specication Hi-Speed Certied port (Type A), Rear USB 2.0
Specication Hi-Speed Certied Port (Type A)
Option, Marknet N8372 WiFi Option / Internal RS-232C serial,
Internal 1284-B Bidirectional Parallel
Print: 56 dBA
Humidity: 8 to 80% Relative Humidity, Temperature: 10 to 32°C (50 to 90°F), Altitude: 0 - 5000 Meters (16,404 Feet)
1-Year Exchange, Return-to-Base Service
11.9 x 15.7 x 14.7 in. / 34.8 lb. 11.9 x 15.7 x 14.7 in. / 35.5 lb.
All information in this brochure is subject to change without notice. Lexmark is not liable for any errors or omissions.
The MS622de is a Class A device according to the FCC Rules and international electromagnetic emissions standards. This device is
not intended for use in residential or domestic environments due to potential interference to radio communications. The MS621dn is
a Class B device.
1
Average standard page yield value declared in accordance with ISO/IEC 19752. 2Print and copy speeds measured in accordance with ISO/IEC 24734 and ISO/IEC 24735
respectively (ESAT). For more information see: www.lexmark.com/ISOspeeds.
region. See w ww.lexmark.com/regions for more details.
tray source, percentage of black-only printing and average print job complexity.
printerlicense for details.
provides a comparison of robustness in relation to other Lexmark printers and MFPs.
Lexmark’s product offerings based on the average number of pages customers plan to print on the device each month . Lexmark recommends that the number of pages per
month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical
customer usage.
6
”Maximum Monthly Duty Cycle” is dened as the maximum number of pages a device could deliver in a month using a multishift operation. This metric
4
Actual Yield may var y based on other factors such as device speed, paper size and feed orientation, toner coverage,
3
Product functions only with replacement car tridges designed for use in a specic geographical
5
Printers are sold subject to certain licen se/agreement conditions. See www.lexmark.com/
7
”Recommended Monthly Page Volume” is a range of pages that helps customer s evaluate
