Lexmark CX510DE, 637, CX510 User Manual

Loading...

CX510 Series

User's Guide

June 2013

www.lexmark.com





Machine type(s):

7527

Model(s):

636, 637

Contents

2

Contents



Safety information.......................................................................................

7

Learning about the printer...........................................................................

9

Finding information about the printer......................................................................................................

9

Selecting a location for the printer..........................................................................................................

10

Printer configurations.............................................................................................................................

11

Understanding the basic functions of the scanner..................................................................................

12

Using the ADF and scanner glass.............................................................................................................

13

Understanding the printer control panel....................................................

14

Using the printer control panel...............................................................................................................

14

Understanding the home screen.............................................................................................................

14

Understanding the colors of the Sleep button and indicator lights........................................................

16

Using the touch-screen buttons..............................................................................................................

17

Setting up and using the home screen applications....................................

19

Finding the IP address of the computer..................................................................................................

19

Finding the IP address of the printer.......................................................................................................

20

Accessing the Embedded Web Server.....................................................................................................

20

Customizing the home screen.................................................................................................................

20

Understanding the different applications...............................................................................................

21

Activating the home screen applications................................................................................................

21

Finding information about the home screen applications................................................................................

21

Setting up Forms and Favorites ........................................................................................................................

21

Setting up Card Copy ........................................................................................................................................

22

Using MyShortcut .............................................................................................................................................

23

Setting up Multi Send .......................................................................................................................................

23

Setting up Scan to Network ..............................................................................................................................

24

Setting up Remote Operator Panel.........................................................................................................

25

Exporting and importing a configuration................................................................................................

25

Additional printer setup.............................................................................

27

Installing internal options........................................................................................................................

27

Installing hardware options.....................................................................................................................

33

Attaching cables......................................................................................................................................

36

Setting up the printer software...............................................................................................................

38

Contents

3

Networking..............................................................................................................................................

40

Verifying printer setup............................................................................................................................

45

Loading paper and specialty media............................................................

46

Setting the paper size and type...............................................................................................................

46

Configuring Universal paper settings......................................................................................................

46

Loading the 250 and 550 sheet tray......................................................................................................

46

Loading the manual feeder.....................................................................................................................

49

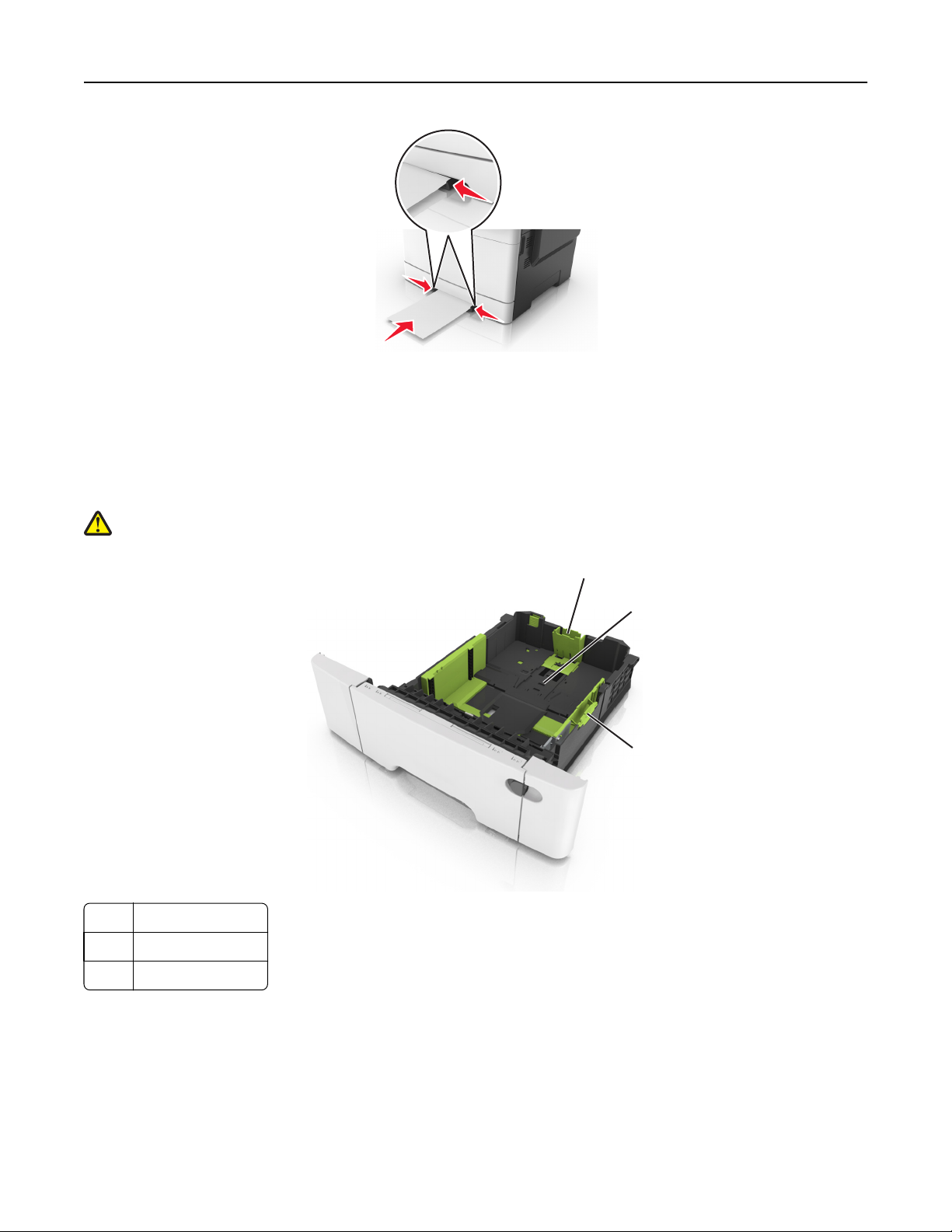

Loading the 650 sheet duo tray..............................................................................................................

50

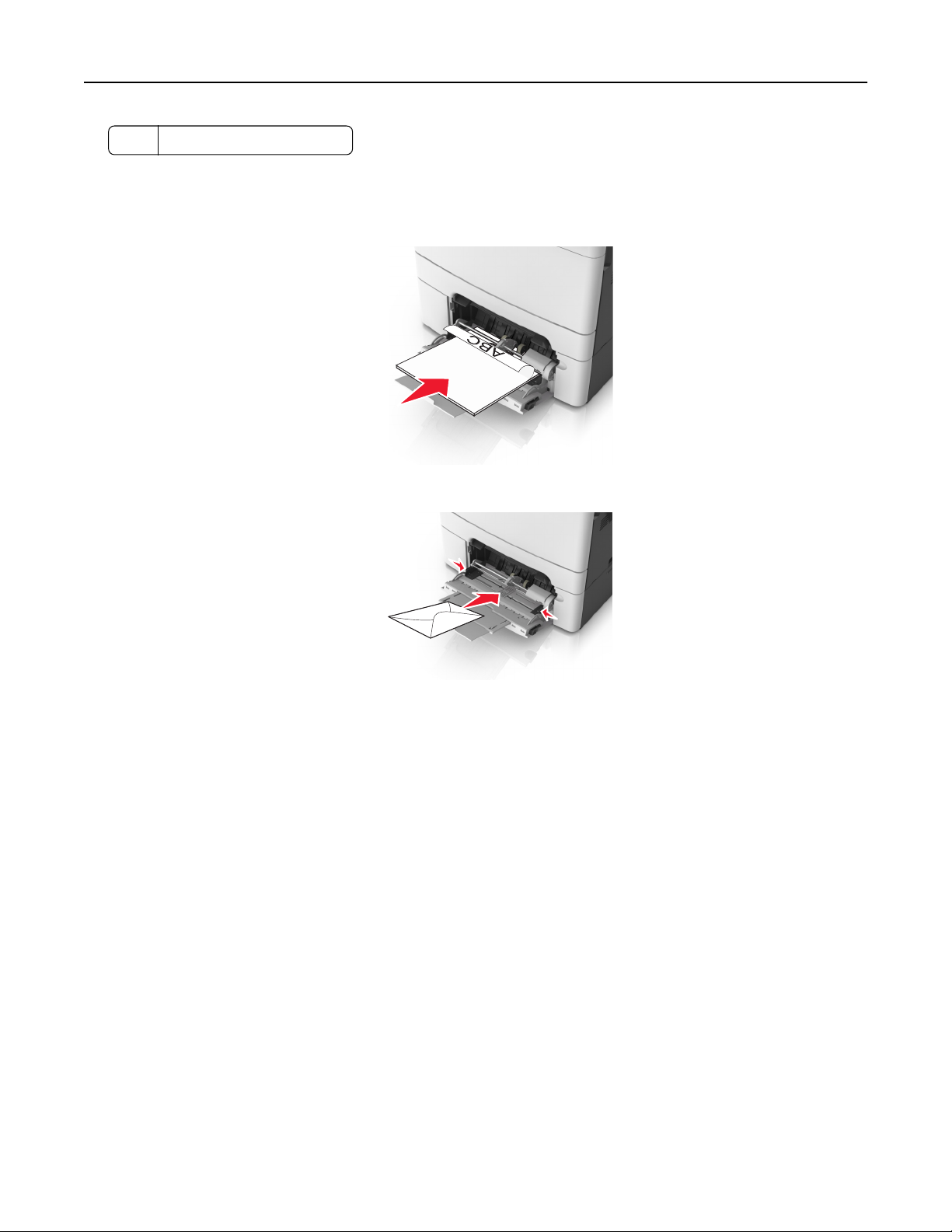

Loading the multipurpose feeder............................................................................................................

51

Linking and unlinking trays......................................................................................................................

53

Paper and specialty media guide................................................................

56

Using specialty media..............................................................................................................................

56

Paper guidelines......................................................................................................................................

59

Supported paper sizes, types, and weights.............................................................................................

62

Printing......................................................................................................

66

Printing forms..........................................................................................................................................

66

Printing a document................................................................................................................................

66

Printing from a flash drive or mobile device...........................................................................................

68

Printing confidential and other held jobs................................................................................................

70

Printing information pages......................................................................................................................

72

Canceling a print job................................................................................................................................

72

Copying......................................................................................................

74

Making copies.........................................................................................................................................

74

Copying photos........................................................................................................................................

75

Copying on specialty media.....................................................................................................................

75

Creating a copy shortcut using the printer control panel.......................................................................

76

Customizing copy settings.......................................................................................................................

77

Placing information on copies.................................................................................................................

82

Canceling a copy job................................................................................................................................

83

Understanding the copy options.............................................................................................................

83

E-mailing....................................................................................................

87

Setting up the printer to e-mail...............................................................................................................

87

Creating an e-mail shortcut.....................................................................................................................

88

Contents

4

E-mailing a document..............................................................................................................................

89

Customizing e-mail settings.....................................................................................................................

90

Canceling an e-mail.................................................................................................................................

91

Understanding the e-mail options..........................................................................................................

91

Faxing........................................................................................................

94

Setting up the printer to fax....................................................................................................................

94

Sending a fax.........................................................................................................................................

108

Creating shortcuts.................................................................................................................................

111

Customizing fax settings........................................................................................................................

112

Canceling an outgoing fax.....................................................................................................................

113

Holding and forwarding faxes...............................................................................................................

113

Understanding the fax options..............................................................................................................

114

Scanning...................................................................................................

117

Using Scan to Network..........................................................................................................................

117

Scanning to an FTP address...................................................................................................................

117

Scanning to a computer or flash drive..................................................................................................

119

Understanding the scan options...........................................................................................................

122

Understanding the printer menus............................................................

125

Menus list..............................................................................................................................................

125

Supplies menu.......................................................................................................................................

126

Paper menu...........................................................................................................................................

127

Reports menu........................................................................................................................................

136

Network/Ports.......................................................................................................................................

137

Security menu.......................................................................................................................................

145

Settings menu........................................................................................................................................

150

Saving money and the environment.........................................................

203

Saving paper and toner.........................................................................................................................

203

Saving energy........................................................................................................................................

204

Recycling................................................................................................................................................

208

Securing the printer..................................................................................

210

Using the security lock feature..............................................................................................................

210

Statement of Volatility..........................................................................................................................

210

Erasing volatile memory........................................................................................................................

211

Contents

5

Erasing non volatile memory................................................................................................................

211

Erasing printer hard disk memory.........................................................................................................

212

Configuring printer hard disk encryption..............................................................................................

212

Finding printer security information.....................................................................................................

213

Maintaining the printer............................................................................

214

Cleaning printer parts............................................................................................................................

214

Checking the status of parts and supplies.............................................................................................

216

Estimated number of remaining pages.................................................................................................

216

Ordering supplies..................................................................................................................................

217

Storing supplies.....................................................................................................................................

219

Replacing supplies.................................................................................................................................

220

Moving the printer................................................................................................................................

239

Managing the printer...............................................................................

241

Finding advanced networking and administrator information.............................................................

241

Checking the virtual display...................................................................................................................

241

Setting up e mail alerts.........................................................................................................................

241

Viewing reports.....................................................................................................................................

241

Configuring supply notifications from the Embedded Web Server.......................................................

242

Copying printer settings to other printers.............................................................................................

243

Restoring factory default settings.........................................................................................................

243

Clearing jams............................................................................................

244

Avoiding jams........................................................................................................................................

244

Understanding jam messages and locations.........................................................................................

245

[x] page jam, clear standard bin [203.xx]..............................................................................................

247

[x] page jam, open front door to clear fuser [20y.xx]...........................................................................

250

[x] page jam, open front door [20y.xx].................................................................................................

253

[x] page jam, open front door to clear duplex [23y.xx]........................................................................

254

[x] page jam, open tray [x] [24y.xx]......................................................................................................

255

[x] page jam, clear manual feeder [251.xx]...........................................................................................

256

[x] page jam, clear multipurpose feeder [250.xx].................................................................................

257

[x] page jam, open automatic feeder top cover [28y.xx]......................................................................

259

Troubleshooting.......................................................................................

260

Understanding the printer messages....................................................................................................

260

Contents

6

Solving printer problems.......................................................................................................................

274

Solving print problems..........................................................................................................................

280

Solving copy problems..........................................................................................................................

308

Solving fax problems.............................................................................................................................

311

Solving scanner problems.....................................................................................................................

317

Solving home screen applications problems.........................................................................................

321

Embedded Web Server does not open.................................................................................................

321

Contacting customer support................................................................................................................

323

Notices.....................................................................................................

324

Product information..............................................................................................................................

324

Edition notice........................................................................................................................................

324

Power consumption..............................................................................................................................

328

Index........................................................................................................

342

Safety information

7

Safety information

Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.

Disconnect all cords and cables from the printer before moving it.

Lift the printer off the optional tray, and then set it aside instead of trying to lift the tray and printer at the same time.

Note: Use the handholds located on both sides of the printer to lift it.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

Use only the telecommunications (RJ 11) cord provided with this product or a 26 AWG or larger replacement when connecting this product to the public switched telephone network.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

Safety information

8

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using multiple input options. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

SAVE THESE INSTRUCTIONS.

Learning about the printer

9

Learning about theprinter

Finding information about the printer



What are you looking for?

Find it here









Initial setup instructions:

Setup documentation—The setup documentation came



Connecting the printer

with the printer and is also available at



Installing the printer software

http://support.lexmark.com.













Additional setup and instructions for using the printer:

User's Guide and Quick Reference Guide—The guides may



Selecting and storing paper and specialty media

be available on the Software and Documentation CD.



Loading paper

For more information, visit



http://support.lexmark.com.



Configuring printer settings







Viewing and printing documents and photos





Setting up and using the printer software





Configuring the printer on a network





Caring for and maintaining the printer





Troubleshooting and solving problems











Instructions for:

Networking Guide—Open the Software and



Connecting the printer to an Ethernet network

Documentation CD, and then navigate to:



Troubleshooting printer connection problems

Documentation > User’s Guide and other publications >



Networking Guide















Help using the printer software

Windows or Mac Help—Open a printer software program







or application, and then click Help.







Click ? to view context sensitive information.







Notes:







Help is automatically installed with the printer







software.







The printer software is located in the printer







program folder or on the desktop, depending on







your operating system.









Learning about the printer



10













What are you looking for?

Find it here









The latest supplemental information, updates, and customer

Lexmark support Web site—



support:

http://support.lexmark.com



Documentation

Note: Select your country or region, and then select



Driver downloads

your product to view the appropriate support site.



Live chat support

Support telephone numbers and hours of operation for



E mail support

your country or region can be found on the support Web



site or on the printed warranty that came with your



Voice support

printer.







Record the following information (located on the store







receipt and at the back of the printer), and have it ready







when you contact customer support so that they may







serve you faster:







Machine Type number







Serial number







Date purchased







Store where purchased









Warranty information

Warranty information varies by country or region:







In the U.S.—See the Statement of Limited Warranty









included with this printer, or at









http://support.lexmark.com.







In other countries and regions—See the printed









warranty that came with your printer.











Selecting a location for the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

Set up the printer near a properly grounded and easily accessible electrical outlet.

Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee 156 standard.

Provide a flat, sturdy, and stable surface.

Keep the printer:

Clean, dry, and free of dust.

Away from stray staples and paper clips.

Away from the direct airflow of air conditioners, heaters, or ventilators.

Free from direct sunlight and humidity extremes.

Observe the recommended temperatures and avoid fluctuations:

Ambient temperature 15.6 to 32.2°C (60 to 90°F)

Storage temperature -40 to 43°C (-40 to 110°F)

Allow the following recommended amount of space around the printer for proper ventilation:

Learning about the printer

11

5

3

4



2

1

1

Right side

304.8 mm (12 in.)







2

Front

508 mm (20 in.)







3

Left side

76.2 mm (3 in.)







4

Rear

101.6 mm (4 in.)







5

Top

291.7 mm (11.5 in.)







Printer configurations

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using multiple input options. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters.

Learning about the printer

12

Basic models

1 Printer control panel

2Automatic document feeder (ADF)

3Standard bin

4Top door latch

5Right side cover

6Standard 250-sheet tray (Tray 1)

7Manual feeder

8Optional 650-sheet duo tray with integrated multipurpose feeder (Tray 2)

9 Optional 550-sheet tray (Tray 3)

Understanding the basic functions of the scanner

Make quick copies or set the printer to perform specific copy jobs.

Send a fax using the printer control panel.

Send a fax to multiple fax destinations at the same time.

Scan documents and send them to your computer, an e-mail address, or an FTP destination.

Scan documents and send them to another printer (PDF through an FTP).

Learning about the printer

13

Using the ADF and scanner glass

Automatic document feeder (ADF)

Scanner glass





C



AB



Use the ADF for multiple page documents including twosided (duplex) pages.

Use the scanner glass for single page documents, book pages, small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings).

Using the ADF

When using the ADF:

Load the document into the ADF tray faceup, short edge first.

Load up to 50 sheets of plain paper into the ADF tray.

Scan sizes from 105 x 148 mm (4.1 x 5.8 inches) wide to 216 x 355 mm (8.5 x 14 inches) long.

Scan media weights from 52 to 120 g/m2 (14 to 32 lb).

Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray. Place these items on the scanner glass.

Using the scanner glass

When using the scanner glass:

Place a document facedown on the scanner glass in the corner with the green arrow.

Scan or copy documents from 216 x 296.9 mm (8.5 x 11.69 inches) dimension.

Copy books up to 12.7 mm (0.5 inch) thick.

Understanding the printer control panel

14

Understandingthe printer control panel

Using the printer control panel

1

2

3

4







8

7

6

5



















Use the

To

















1

Display

View printing, copying, e-mailing, faxing, and scanning options.







View printer status and error messages.



















2

Home button

Go to the home screen.





















3

Sleep button

Enable Sleep mode or Hibernate mode.



















4

Keypad

Enter numbers, letters, or symbols.





















5

Indicator light

Check the status of the printer.

















6

Start button

Start a job, depending on which mode is selected.

















7

Stop or cancel button

Cancel all printer activity.

















8

Clear all / Reset button

Reset the default settings of a function, such as printing, copying, or e mailing.

Understanding the home screen

When the printer is turned on, the display shows a basic screen, referred to as the home screen. Touch the home screen buttons and icons to initiate an action such as copying, faxing, or scanning; to open the menu screen; or to respond to messages.

Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and active embedded solutions.

Understanding the printer control panel







15

1

2

3

4

5



6

14





7

13

8







12

11

10

9

















Touch



To

















1

Change Language

Launch the Change Language pop up window that lets you change the primary language of







the printer.

















2

Copy

Access the Copy menus and make copies.













3

Fax

Access the Fax menus and send fax.













4

E-mail

Access the E-mail menus and send e mails.











5

FTP

Access the File Transfer Protocol (FTP) menus and scan documents directly to an FTP server.

















6

Arrows

Scroll up or down.

















7

Forms and Favorites

Quickly find and print frequently used online forms.













8

Menu icon

Access the printer menus.









Note: The menus are available only when the printer is in Ready state.











9

Bookmarks

Create, organize, and save a set of bookmarks (URL) into a tree view of folders and file links.







Note: The tree view supports only bookmarks created from this function, and not from any







other application.

















10

USB Drive

View, select, print, scan, or e mail photos and documents from a flash drive.







Note: This icon appears only when you return to the home screen while a memory card or







flash drive is connected to the printer.















11

Held Jobs

Display all current held jobs.













12

Status/Supplies

Show a warning or error message whenever the printer requires intervention to continue







processing.













Access the messages screen for more information on the message, and how to clear it.













13

Tips

Open a context-sensitive Help dialog.













14

Search Held Jobs

Search for one or more of the following items:

User name for held or confidential print jobs

Job names for held jobs, excluding confidential print jobs

Profile names

Bookmark container or print job names

USB container or print job names for supported file types

Understanding the printer control panel

16

Features



Feature

Description









Menu trail line

A menu trail line is located at the top of each menu screen. This feature shows the



Example:

path taken to arrive at the current menu.







Menus > Settings > Copy Settings >

Touch any of the underlined words to return to that menu.







Number of Copies

Number of Copies is not underlined because it is the current screen. If you touch an





underlined word on the “Number of Copies” screen before the number of copies is





set and saved, then the selection is not saved, and it does not become the default





setting.









Attendance message alert

If an attendance message affects a function, then this icon appears and the red





indicator light blinks.









Warning

If an error condition occurs, then this icon appears.









Status message bar

Show the current printer status such as Ready or Busy.





Show printer conditions such as Toner Low or Cartridge Low.





Show intervention messages so the printer can continue processing.









Printer IP address

The IP address of your network printer is located at the upper left corner of the



Example:

home screen and appears as four sets of numbers separated by periods. You can



use the IP address when accessing the Embedded Web Server so you can view and

123.123.123.123

remotely configure printer settings even when you are not physically near the









printer.





Understanding the colors of the Sleep button and indicator

lights



The colors of the Sleep button and indicator lights on the printer control panel signify a certain printer status or condition.



Indicator light

Printer status









Off

The printer is off or in Hibernate mode.









Blinking green

The printer is warming up, processing data, or printing.









Solid green

The printer is on, but idle.









Blinking red

The printer requires user intervention.









Sleep button light

Printer status









Off

The printer is off, idle or in Ready state.









Solid amber

The printer is in Sleep mode.









Blinking amber

The printer is entering or waking from Hibernate mode.







Understanding the printer control panel

17





Sleep button light

Printer status





Blinking amber for 0.1 second, then goes

The printer is in Hibernate mode.

completely off for 1.9 seconds in a slow,



pulsing pattern







Using the touch-screen buttons

Note: Your home screen, icons, and buttons may vary, depending on your home screen customization settings, administrative setup, and active embedded solutions.

1







7

6

5

4

3

2























Touch

To





























1

Arrows

View a list of options.





























2

Copy It

Print a copy.





























3

Advanced Options

Select a copy option.



























4

Home

Go to the home screen.



























5

Increase

Select a higher value.



























6

Decrease

Select a lower value.

























7

Tips

Open a context-sensitive Help dialog.

























Other touch-screen buttons

Touch

To

Accept

Save a setting.

Understanding the printer control panel

18











Touch

To













Cancel

Cancel an action or a selection.







Exit a screen and return to the previous screen without saving changes.













Reset

Reset values on the screen.











Setting up and using the home screen applications

19

Setting upand using thehome screen applications

Notes:

Your home screen may vary depending on your home screen customization settings, administrative setup, and active embedded applications. Some applications are supported only in select printer models.

There may be additional solutions and applications available for purchase. For more information, visit www.lexmark.com or contact the place where you purchased the printer.

Finding the IP address of the computer

Note: Make sure that you know how your printer and computer are connected to the network (Ethernet or wireless).

The computer IP address is required when setting up home screen applications, such as:

Forms and Favorites

Multi Send

Scan to Network

For Windows users

1 Open the command window.

In Windows 8

From the Search charm, type run, and then navigate to:

Apps list > Run > type cmd > OK

In Windows 7 or earlier

aClick or click Start, and then click Run.

bIn the Start Search or Run dialog, type cmd.

cPress Enter, or click OK.

2 Type ipconfig, and then click Go or press Enter.

Note: Type ipconfig /all to see additional useful information.

3Look for IP Address.

The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

For Macintosh users

Note: This is applicable only in Mac OS X version 10.5 or later.

1From the Apple menu, navigate to:

System Preferences > Network

2Click Ethernet, Wi Fi, or AirPort.

Setting up and using the home screen applications

20

3Click Advanced > TCP/IP.

4Look for IPv4 Address.

Finding the IP address of the printer

Note: Make sure your printer is connected to a network or to a print server.

You can find the printer IP address:

From the top left corner of the printer home screen.

From the TCP/IP section in the Network/Ports menu.

By printing a network setup page or menu settings page, and then finding the TCP/IP section.

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

Accessing the Embedded Web Server

The Embedded Web Server is the printer Web page that lets you view and remotely configure printer settings even when you are not physically near the printer.

1Obtain the printer IP address:

From the printer control panel home screen

From the TCP/IP section in the Network/Ports menu

By printing a network setup page or menu settings page, and then finding the TCP/IP section

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2Open a Web browser, and then type the printer IP address in the address field.

3Press Enter.

Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.

Customizing the home screen

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2 Do one or more of the following:

Show or hide the icons of basic printer functions.

aClick Settings > General Settings > Home screen customization.

bSelect the check boxes to specify which icons appear on the home screen.

Note: If you clear a check box beside an icon, then the icon does not appear on the home screen.

cClick Submit.

Customize the icon for an application. For more information, see “Finding information about the home screen applications” on page 21 or see the documentation that came with the application.

Setting up and using the home screen applications

21

Understanding the different applications

Use

To





Card Copy

Scan and print both sides of a card on a single page. For more information, see “Setting up Card Copy”



on page 22.





Fax

Scan a document, and then send it to a fax number. For more information, see “Faxing” on page



94.

Forms and Favorites Quickly find and print frequently used online forms directly from the printer home screen. For more information, see “Setting up Forms and Favorites” on page 21.

Multi Send

Scan a document, and then send it to multiple destinations. For more information, see “Setting up



Multi Send” on page 23.





MyShortcut

Create shortcuts directly on the printer home screen. For more information, see “Using MyShortcut”



on page 23.





Scan to E mail

Scan a document, and then send it to an e mail address. For more information, see “E-mailing” on



page 87.





Scan to Computer

Scan a document, and then save it to a predefined folder on a host computer. For more information,



see “Setting up Scan to Computer” on page 121.





Scan to FTP

Scan documents directly to a File Transfer Protocol (FTP) server. For more information, see “Scanning



to an FTP address” on page 117.





Scan to Network

Scan a document, and then send it to a network shared folder. For more information, see “Setting



up Scan to Network” on page 24.

Activating the home screen applications

Finding information about the home screen applications

Your printer comes with preinstalled home screen applications. Before you can use these applications, you must first activate and set up these applications using the Embedded Web Server. For more information on accessing the Embedded Web Server, see “Accessing the Embedded Web Server” on page 20.

For more information on configuring and using the home screen applications, do the following:

1Go to http://support.lexmark.com.

2Click Software Solutions, and then select either of the following:

Scan to Network—This lets you find information about the Scan to Network application.

Other Applications—This lets you find information about the other applications.

3Click the Manuals tab, and then select the document for the home screen application.

Setting up Forms and Favorites

Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To check for updates of this User’s Guide, go to http://support.lexmark.com.

Setting up and using the home screen applications

22







Use

To









Streamline work processes by letting you quickly find and print frequently used online forms directly



from the printer home screen.





Note: The printer must have permission to access the network folder, FTP site, or Web site where the



bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and





firewall settings to allow the printer at least a read access. For help, see the documentation that





came with your operating system.









1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2Click Settings > Apps > Apps Management > Forms and Favorites.

3Click Add, and then customize the settings.

Notes:

See the mouse-over help beside each field for a description of the setting.

To make sure the location settings of the bookmark are correct, type the correct IP address of the host computer where the bookmark is located. For more information on obtaining the IP address of the host computer, see “Finding the IP address of the computer” on page 19.

Make sure the printer has access rights to the folder where the bookmark is located.

4Click Apply.

To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form categories, or search for forms based on a form number, name, or description.

Setting up Card Copy

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To check for updates of this User's Guide, go to http://support.lexmark.com.

Use

To

Quickly and easily copy insurance, identification, and other wallet size cards.

You can scan and print both sides of a card on a single page, saving paper and showing the information on the card in a more convenient manner.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Card Copy.

Setting up and using the home screen applications

23

3Change the default scanning options, if necessary.

Default tray—Select the default tray to be used for printing scan images.

Default number of copies—Specify the number of copies that should automatically print when the application is used.

Default contrast setting—Specify a setting to increase or decrease the level of contrast when a copy of the scanned card is printed. Select Best for Content if you want the printer to adjust the contrast automatically.

Default scale setting—Set the size of the scanned card when printed. The default setting is 100% (full size).

Color Output—Select the check box to print the scanned card in color, or clear it to scan in black and white.

Resolution setting—Adjust the quality of the scanned card.

Notes:

When scanning a card, make sure the scan resolution is not more than 200 dpi for color, and 400 dpi for black and white.

When scanning multiple cards, make sure the scan resolution is not more than 150 dpi for color, and 300 dpi for black and white.

Print Borders—Select the check box to print the scan image with a border around it.

4Click Apply.

To use the application, touch Card Copy on the printer home screen, and then follow the instructions.

Using MyShortcut

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To check for updates of this User's Guide, go to http://support.lexmark.com.

Use

To

Create shortcuts on the printer home screen, with settings for up to 25 frequently used copy, fax, or e- mail jobs.

To use the application, touch MyShortcut, and then follow the instructions on the printer display.

Setting up Multi Send

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To check for updates of this User's Guide, go to http://support.lexmark.com.

Setting up and using the home screen applications

24







Use

To











Scan a document, and then send the scanned document to multiple destinations.





Note: Make sure there is enough space in the printer hard disk.









1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The printer IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2Click Settings > Apps > Apps Management > Multi Send.

3From the Profiles section, click Add, and then customize the settings.

Notes:

See the mouse over help beside each field for a description of the setting.

If you select FTP or Share Folder as a destination, then make sure the location settings of the destination are correct. Type the correct IP address of the host computer where the specified destination is located. For more information on obtaining the IP address of the host computer, see “Finding the IP address of the computer” on page 19.

4Click Apply.

To use the application, touch Multi Send on the printer home screen, and then follow the instructions on the printer display.

Setting up Scan to Network

Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To check for updates of this User's Guide, go to http://support.lexmark.com.

Use

To

Scan a document and send it to a shared network folder. You can define up to 30 unique folder destinations.

Notes:

The printer must have permission to write to the destinations. From the computer where the destination is specified, use sharing, security, and firewall settings to allow the printer at least a write access. For help, see the documentation that came with your operating system.

The Scan to Network icon appears only when one or more destinations are defined.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2Do either of the following:

Click Set up Scan to Network > Click here.

Click Settings > Apps > Apps Management > Scan to Network.

Setting up and using the home screen applications

25

3Specify the destinations, and then customize the settings.

Notes:

See the mouse-over help beside some of the fields for a description of the setting.

To make sure the location settings of the destination are correct, type the correct IP address of the host computer where the specified destination is located. For more information on obtaining the IP address of the host computer, see “Finding the IP address of the computer” on page 19.

Make sure the printer has access rights to the folder where the specified destination is located.

4Click Apply.

To use the application, touch Scan to Network on the printer home screen, and then follow the instructions on the printer display.

Setting up Remote Operator Panel

This application enables you to interact with the printer control panel even when you are not physically near the network printer. From your computer, you can view the printer status, release held print jobs, create bookmarks, and do other print-related tasks.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2Click Settings > Remote Operator Panel Settings.

3Select the Enable check box, and then customize the settings.

4Click Submit.

To use the application, click Remote Operator Panel > Launch VNC Applet.

Exporting and importing a configuration

You can export configuration settings into a text file, and then import the file to apply the settings to other printers.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2To export or import a configuration for one application, do the following: a Click Settings > Apps > Apps Management.

b From the list of installed applications, click the name of the application you want to configure. c Click Configure, and then do either of the following:

To export a configuration to a file, click Export, and then follow the instructions on the computer screen to save the configuration file.

Notes:

When saving the configuration file, you can type a unique file name or use the default name.

Setting up and using the home screen applications

26

If a "JVM Out of Memory” error occurs, then repeat the export process until the configuration file is saved.

To import a configuration from a file, click Import, and then browse to the saved configuration file that was exported from a previously configured printer.

Notes:

Before importing the configuration file, you can choose to preview it first or load it directly.

If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click Apply.

3To export or import a configuration for multiple applications, do the following: a Click Settings > Import/Export.

b Do either of the following:

To export a configuration file, click Export Embedded Solutions Settings File, and then follow the instructions on the computer screen to save the configuration file.

To import a configuration file, do the following:

1Click Import Embedded Solutions Settings File > Choose File, and then browse to the saved configuration file that was exported from a previously configured printer.

2Click Submit.

Additional printer setup

27

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Available internal options

Memory card

DDR3 DIMM

Flash memory

Fonts

Firmware

Forms and Barcode

Prescribe

IPDS

Printer hard disk

Note: To install a printer hard disk, contact customer support at http://support.lexmark.com or your service representative.

Accessing the controller board

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Additional printer setup

28

Note: This task requires a flat head screwdriver.

1 At the back of the printer, turn the screws counterclockwise to remove them.

2 Slightly open the controller board access cover, and then shift to the right to remove it.

2

1

3 Locate the appropriate connector on the controller board.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Lexmark CX510DE, 637, CX510 User Manual

Additional printer setup

29

3 2 1

1 Flash memory or font card connector

2 Printer hard disk connector

3 Memory card connector

4 Reattach the cover.

1

2

Additional printer setup

30

5 Turn the screws clockwise to lock the cover.

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1Access the controller board.

For more information, see “Accessing the controller board” on page 27.

2Unpack the memory card.

Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may cause damage.

Additional printer setup

31

3 Align the notch (1) on the memory card with the ridge (2) on the connector.

2

1

4Push the memory card straight into the connector, and then push the card toward the controller board wall until it clicks into place.

1

2

5 Close the controller board access cover.

Additional printer setup

32

Installing an optional card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1Access the controller board.

For more information, see “Accessing the controller board” on page 27.

2Unpack the optional card.

Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.

2

1

Additional printer setup

33

4 Push the card firmly into place as shown in the illustration.

Warning—Potential Damage: Improper installation of the card may cause damage to the card and the controller board.

Note: The entire length of the connector on the card must touch and be flushed against the controller board.

5 Close the controller board access door.

Note: When the printer software and any hardware options are installed, it may be necessary to manually add the options in the printer driver to make them available for print jobs. For more information, see “Updating available options in the printer driver” on page 38.

Installing hardware options

Order of installation

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

Additional printer setup

34

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Install the printer and any optional tray in the following order:

Optional 550 sheet tray (Tray 3)

Optional 650 sheet duo tray with integrated multipurpose feeder (Tray 2)

Printer

Installing optional trays

The printer supports two optional input sources: a 550 sheet tray (Tray 3) and a 650 sheet duo tray (Tray 2) with an integrated multipurpose feeder.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1 Unpack the optional tray and the dust cover, and then remove all packing material.

2Place the tray near the printer.

3Align the 650 sheet duo tray with the 550 sheet tray, and then lower it into place.

Notes:

If you are installing both the optional trays, then the 550 sheet tray (Tray 3) must always be below the 650 sheet tray (Tray 2).

The standard 250 sheet tray can be labeled as Tray 1 by using the tray number label that came with the optional tray.

Additional printer setup

35

4 Align the printer with the 650 sheet duo tray, and then lower the printer into place.

Additional printer setup

36

5 Install the dust covers.

Note: When the printer software and any hardware options are installed, you may need to manually add the options in the printer driver to make them available for print jobs. For more information, see “Updating available options in the printer driver” on page 38.

Attaching cables

CAUTION—POTENTIAL INJURY: Do not use the fax feature during a lightning storm. Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

Connect the printer to the computer using a USB cable or to the network using an Ethernet cable.

Make sure to match the following:

The USB symbol on the cable with the USB symbol on the printer

The appropriate Ethernet cable to the Ethernet port

Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown while actively printing. Loss of data or a malfunction can occur.

Additional printer setup

37





8





1

















7















2







6















3







5

4

























Use the



To

















1

USB wireless port



Attach an optional wireless network adapter.

















2

Security lock port



Lock the controller board.















3

Printer power cord



Connect the printer to a properly grounded electrical outlet.





socket



















4

LINE port



Connect the printer to an active telephone line through a standard wall jack (RJ 11), DSL









filter, or VoIP adapter, or any other adapter that allows you to access the telephone line









to send and receive faxes.















5

EXT port



Connect additional devices (telephone or answering machine) to the printer and the









telephone line. Use this port if you do not have a dedicated fax line for the printer and if









this connection method is supported in your country or region.









Note: Remove the adapter plug to access the port.















6

Rear USB port



Attach a keyboard.















7

USB printer port



Connect the printer to a computer using a USB cable.















8

Ethernet port



Connect the printer to an Ethernet network.















Additional printer setup

38

Setting up the printer software

Installing the printer software

Notes:

If you installed the printer software on the computer before but need to reinstall the software, then uninstall the current software first.

Close all open software programs before installing the printer software.

1Obtain a copy of the software installer package.

From the Software and Documentation CD that came with your printer.

From our Web site:

Go to www.lexmark.com, and then navigate to:

SUPPORT & DOWNLOADS > select your printer > select your operating system > download your software installer package

2Do either of the following:

If you are using the Software and Documentation CD, then insert the CD and wait for the installation dialog to appear.

If the installation dialog does not appear, then do the following:

In Windows 8

From the Search charm, type run, and then navigate to:

Apps list > Run > type D:\setup.exe > OK.

In Windows 7 or earlier

aClick , or click Start and then click Run.

bIn the Start Search or Run dialog, type D:\setup.exe.

cPress Enter, or click OK.

Note: D is the letter of your CD or DVD drive.

In Macintosh

Click the CD icon on the desktop.

If you are using the downloaded software installer from the Web, then double click the installer that you have saved in your computer. Wait for the Select Installation Type dialog to appear, and then click Install.

Note: If you are prompted to run your software installation package, then click Run.

3 Click Install, and then follow the instructions on the computer screen.

Updating available options in the printer driver

When any hardware options are installed, you may need to manually add the options in the printer driver to make them available for use.

Additional printer setup

39

For Windows users

1 Open the printers folder.

In Windows 8

From the Search charm, type run, and then navigate to:

Apps list > Run > type control printers > OK

In Windows 7 or earlier

aClick or click Start, and then click Run.

bIn the Start Search or Run dialog, type control printers.

cPress Enter, or click OK.

2Depending on your device, do either of the following:

Press and hold the printer you want to update.

Right click the printer you want to update.

3From the menu that appears, do either of the following:

For Windows 7 or later, select Printer properties.

For earlier versions, select Properties.

4Click the Configuration tab.

5Do either of the following:

Click Update Now Ask Printer.

Under Configuration Options, manually add any installed hardware options.

6Click Apply.

For Macintosh users

1From the Apple menu, navigate to either of the following:

System Preferences > Print & Scan > select your printer > Options & Supplies > Driver

System Preferences > Print & Fax > select your printer > Options & Supplies > Driver

2Add any installed hardware options, and then click OK.

Additional printer setup

40

Networking

Notes:

Purchase a MarkNetTM N8352 wireless network adapter first before setting up the printer on a wireless network. For information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

A Service Set Identifier (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA), WPA2, and 802.1X - RADIUS are types of security used on a network.

Preparing to set up the printer on an Ethernet network

To configure your printer to connect to an Ethernet network, organize the following information before you begin:

Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the printer.

A valid, unique IP address for the printer to use on the network

The network gateway

The network mask

A nickname for the printer (optional)

Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to use the default printer nickname, or assign a name that is easier for you to remember.

You will need an Ethernet cable to connect the printer to the network and an available port where the printer can physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a damaged cable.

Installing the printer on an Ethernet network

For Windows users

1Obtain a copy of the software installer package.

From the Software and Documentation CD that came with your printer.

From our Web site:

Go to www.lexmark.com, and then navigate to:

SUPPORT & DOWNLOADS > select your printer > select your operating system > download your software installer package

2Do either of the following:

If you are using the Software and Documentation CD, then insert the CD and wait for the installation dialog to appear.

If the installation dialog does not appear, then do the following:

In Windows 8

From the Search charm, type run, and then navigate to:

Apps list > Run > type D:\setup.exe > OK

Additional printer setup

41

In Windows 7 or earlier

aClick , or click Start and then click Run.

bIn the Start Search or Run dialog, type D:\setup.exe.

cPress Enter, or click OK.

Note: D is the letter of your CD or DVD drive.

If you are using the downloaded software installer from the Web, then double click the installer that you have saved in your computer. Wait for the Select Installation Type dialog to appear, and then click Install.

Note: If you are prompted to run your software installation package, then click Run.

3Click Install, and then follow the instructions on the computer screen.

4Select Ethernet connection, and then click Continue.

5Attach the Ethernet cable when instructed to do so.

6Select the printer from the list, and then click Continue.

Note: If the configured printer does not appear in the list, then click Modify Search.

7 Follow the instructions on the computer screen.

For Macintosh users

1Allow the network DHCP server to assign an IP address to the printer.

2Obtain the printer IP address either:

From the printer control panel

From the TCP/IP section in the Network/Ports menu

By printing a network setup page or menu settings page, and then finding the TCP/IP section

Note: You will need the IP address if you are configuring access for computers on a different subnet than the printer.

3 Install the printer driver on the computer.

aInsert the Software and Documentation CD, and then double click the installer package for the printer.

bFollow the instructions on the computer screen.

cSelect a destination, and then click Continue.

dFrom the Easy Install screen, click Install.

eType the user password, and then click OK.

All the necessary applications are installed on the computer.

f Click Close when installation is complete.

4 Add the printer.

For IP printing:

aFrom the Apple menu, navigate to either of the following:

System Preferences > Print & Scan

System Preferences > Print & Fax

bClick +.

cIf necessary, click Add Printer or Scanner or Add Other Printer or Scanner.

Additional printer setup

42

dClick the IP tab.

eType the printer IP address in the address field, and then click Add.

For AppleTalk printing:

Notes:

Make sure AppleTalk is activated on your printer.

This feature is supported only in Mac OS X version 10.5.

aFrom the Apple menu, navigate to:

System Preferences > Print & Fax

bClick +, and then navigate to: AppleTalk > select your printer > Add

Preparing to set up the printer on a wireless network

Notes:

Make sure your wireless network adapter is installed in your printer and working properly. For more information, see the instruction sheet that came with the wireless network adapter.

Make sure your access point (wireless router) is turned on and is working properly.

Make sure you have the following information before setting up the printer on a wireless network:

SSID—The SSID is also referred to as the network name.

Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.

Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.

Some ad hoc networks will also require the automatic setting. Check with your system support person if you are not sure which channel to select.

Security Method—There are four basic options for Security Method:

WEP key

If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key currently in use on the network by selecting the default WEP transmit key.

WPA or WPA2 preshared key or passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

802.1X–RADIUS

If you are installing the printer on an 802.1X network, then you may need the following:

Authentication type

Inner authentication type

802.1X user name and password

Certificates

No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: We do not recommend using an unsecured wireless network.

Additional printer setup

43

Notes:

If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility of the computer network adapter, and then look for the network name. If you cannot find the SSID or the security information for your network, then see the documentation that came with the access point, or contact your system support person.

To find the WPA/WPA2 preshared key or passphrase for the wireless network, see the documentation that came with the access point, see the Embedded Web Server associated with the access point, or consult your system support person.

Connecting the printer using the Wireless Setup Wizard

Before you begin, make sure that:

A wireless network adapter is installed in the printer and is working properly. For more information, see the instruction sheet that came with the wireless network adapter.

An Ethernet cable is disconnected from the printer.

Active NIC is set to Auto. To set this to Auto, navigate to:

> Network/Ports > Active NIC > Auto > Submit

Note: Make sure to turn off the printer, then wait for at least five seconds, and then turn the printer back on.

1From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup

2Select a wireless connection setup.

Use

To

Search for networks Show available wireless connections.

Note: This menu item shows all broadcast secured or unsecured SSIDs.

Enter a network name Manually type the SSID.

Note: Make sure to type the correct SSID.

Wi Fi Protected Setup Connect the printer to a wireless network using Wi Fi Protected Setup.

3 Follow the instructions on the printer display.

Connecting the printer to a wireless network using Wi Fi Protected Setup

Before you begin, make sure that:

The access point (wireless router) is Wi Fi Protected Setup (WPS) certified or WPS compatible. For more information, see the documentation that came with your access point.

A wireless network adapter installed in your printer is attached and working properly. For more information, see the instruction sheet that came with the wireless network adapter.

Additional printer setup

44

Using the Push Button Configuration method

1From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi Fi Protected Setup > Start Push Button Method

2Follow the instructions on the printer display.

Using the Personal Identification Number (PIN) method

1From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi Fi Protected Setup > Start PIN Method

2Copy the eight digit WPS PIN.

3Open a Web browser, and then type the IP address of your access point in the address field.

Notes:

The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

If you are using a proxy server, then temporarily disable it to load the Web page correctly.

4Access the WPS settings. For more information, see the documentation that came with your access point.

5Enter the eight digit PIN, and then save the setting.

Connecting the printer to a wireless network using the Embedded Web Server

Before you begin, make sure that:

Your printer is connected temporarily to an Ethernet network.

A wireless network adapter is installed in your printer and working properly. For more information, see the instruction sheet that came with the wireless network adapter.

1Open a Web browser, and then type the printer IP address in the address field.

Notes:

View the printer IP address on the printer control panel. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2Click Settings > Network/Ports > Wireless.

3Modify the settings to match the settings of your access point (wireless router).

Note: Make sure to enter the correct SSID, security method, preshared key or passphrase, network mode, and channel.

4Click Submit.

5Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the printer back on.

6To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x] section, see if the status is Connected.

Additional printer setup

45

Verifying printer setup

When all hardware and software options are installed and the printer is turned on, verify that the printer is set up correctly by printing the following:

Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed options appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly. Remove the option, and then install it again.

Network setup page—If your printer has Ethernet or wireless capability and is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

Printing a menu settings page

From the home screen, navigate to:

> Reports > Menu Settings Page

Printing a network setup page

If the printer is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

1From the home screen, navigate to: > Reports > Network Setup Page

2Check the first section of the network setup page, and confirm that the status is Connected.

If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning. Consult a system support person for a solution, and then print another network setup page.

Loading paper and specialty media

46

Loadingpaperand specialty media

This chapter covers the selection and handling of paper and specialty media. Proper selection and loading of media can improve how reliably documents print. For more information, see “Avoiding jams” on page 244 and “Storing paper” on page 62.

Setting the paper size and type

From the home screen navigate to:

> Paper Menu > Paper Size/Type > select a tray > select the paper size or type > Submit

Configuring Universal paper settings

The Universal paper size is a user defined setting that lets you print on paper sizes that are not preset in the printer menus.

Notes:

The smallest supported Universal size is 76 x 127 mm (3 x 5 inches) and is loaded only in the multipurpose feeder and manual feeder.

The largest supported Universal size is 215.9 x 359.9 mm (8.5 x 14.17 inches) and is loaded only in the multipurpose feeder and manual feeder.

1From the home screen, navigate to:

> Paper Menu > Universal Setup > Units of Measure > select a unit of measure

2Touch Portrait Width or Portrait Height.

3Select the width or height, and then touch Submit.

Loading the 250 and 550 sheet tray

The printer has one 250-sheet tray (Tray 1) with an integrated manual feeder. The 250-sheet tray, the 650-sheet duo tray, and the 550-sheet tray support the same paper sizes and types and are loaded in the same way.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

1 Pull out the tray completely.

Note: Do not remove trays while a job is printing or while Busy appears on the display. Doing so may cause a jam.

Loading paper and specialty media

47

2If the paper is longer than letter size paper, then squeeze and then slide the length guide at the back of the tray to extend it.

1

2

3 Squeeze, and then slide the length guide tab to the correct position for the size of the paper being loaded.

1

2

Note: Use the paper size indicators on the bottom of the tray to help position the guide.

Loading paper and specialty media

48

4 Squeeze, and then slide the width guide tab to the correct position for the size of the paper being loaded.

1

Note: Use the paper size indicators on the bottom of the tray to help position the guides.

5Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface.

6 Load the paper stack with the recommended printable side faceup.

7 Place the paper guides securely against the edges of the paper.

Loading paper and specialty media

49

8 Insert the tray.

9From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in the tray.

Note: Mixing paper sizes or paper types in a tray may cause jams.

Loading the manual feeder

The standard 250 sheet tray has an integrated manual feeder that can be used to print on different types of paper one sheet at a time.

1Load a sheet of paper into the manual feeder:

Printable side facedown for one-sided printing

Printable side faceup for two sided (duplex) printing

Note: There are different ways for loading letterhead depending on the mode of printing.

One sided printing using a letterhead

Two sided printing using a letterhead

ABC





ABC

Load envelope with the flap side up and against the right side of the paper guide.

2Feed paper into the manual feeder only to the point where its leading edge can contact the paper guides.

Note: To achieve the best possible print quality, use only high quality media designed for laser printers.

3Adjust the paper guides to the width of the paper loaded.

Warning—Potential Damage: Do not force the paper into the feeder. Forcing the paper may cause jams.

Loading paper and specialty media

50

Loading the 650 sheet duo tray

The 650 sheet duo tray (Tray 2) consists of a 550 sheet tray and an integrated 100 sheet multipurpose feeder. The tray is loaded in the same way as the 250 sheet tray and the optional 550 sheet tray, and supports the same paper types and sizes. The only differences are the look of the guide tabs and the location of the paper size indicators.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

1

2

3

1 Length guide tab

2 Paper size indicator

3 Width guide tab
