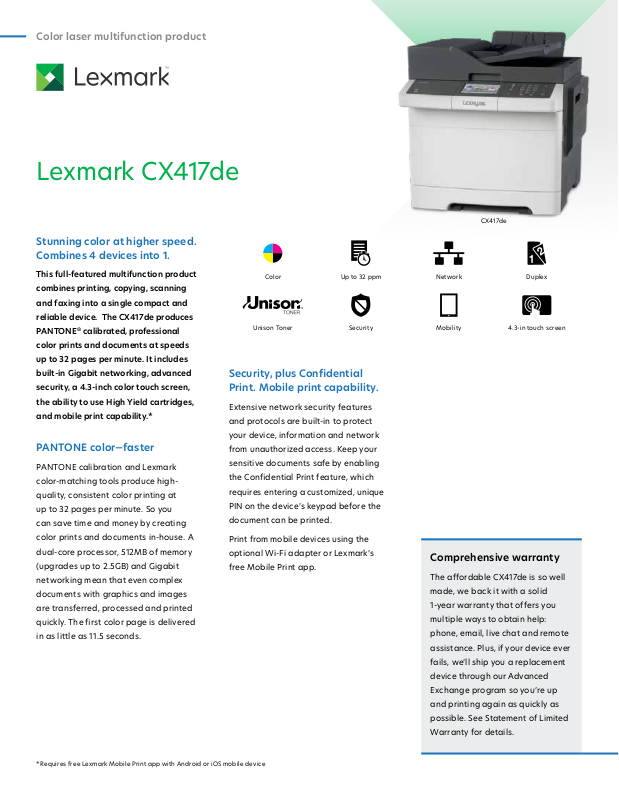

Page 1
Color laser multifunction product
Lexmark CX417de
Stunning color at higher speed.
Combines 4 devices into 1.
CX417de
This full-featured multifunction product
combines printing, copying, scanning
and faxing into a single compact and
reliable device. The CX417de produces
PANTONE® calibrated, professional
color prints and documents at speeds
up to 32 pages per minute. It includes
built-in Gigabit networking, advanced
security, a 4.3-inch color touch screen,
the ability to use High Yield cartridges,
and mobile printcapability.*
PANTONE color—faster
PANTONE calibration and Lexmark
color-matching tools produce highquality, consistent color printing at
up to 32 pages per minute. So you
can save time and money by creating
color prints and documents in-house. A
dual-core processor, 512MB of memory
(upgrades up to 2.5GB) and Gigabit
networking mean that even complex
documents with graphics and images
are transferred, processed and printed
quickly. The first color page is delivered
in as little as 11.5 seconds.
Color Up to 32 ppm Network Duplex
Unison Toner Security Mobility 4.3-in touch screen
Security, plus Confidential
Print. Mobile print capability.
Extensive network security features
and protocols are built-in to protect
your device, information and network
from unauthorized access. Keep your
sensitive documents safe by enabling
the Confidential Print feature, which
requires entering a customized, unique
PIN on the device’s keypad before the
document can be printed.
Print from mobile devices using the
optional Wi-Fi adapter or Lexmark’s
free Mobile Print app.
Comprehensive warranty
The affordable CX417de is so well
made, we back it with a solid
1-year warranty that offers you
multiple ways to obtain help:
phone, email, live chat and remote
assistance. Plus, if your device ever
fails, we’ll ship you a replacement
device through our Advanced
Exchange program so you’re up
and printing again as quickly as
possible. See Statement of Limited
Warranty for details.
*Requires free Lexmark Mobile Print app with Android or iOS mobile device
Page 2
Color laser multifunction product
High Yield cartridges offer
lower cost per page
The CX417de can use available High
Yield cartridges that produce up to
3,500 color pages and 6,000 black
pages to lower your cost per page.
Plus they never require shaking, which
minimizes interruptions and keeps your
work moving. Lexmark’s print system
and exclusive Unison™ Toner ensure
consistent print quality throughout
the life of the cartridge to prevent
wasted prints.
User-friendly
The CX417de features a 4.3-inch
customizable color touch screen that
provides quick access to copy, fax and
scan functions. It also provides access
to pre-installed applications, such as
our Forms and Favorites app that lets
you save frequently used documents
and print them from the touch screen.
The CX417de is built to last, so you’ll
easily be able to print up to 10,000
pages per month, thanks to our stateof-the-art paper handling technology.
An automatic document feeder
simplifies printing, copying, scanning
and faxing multipage documents.
Eco-friendly
Built-in two-sided printing reduces
paper use. The instant warm-up fuser
saves energy and delivers the first color
page as fast as 12.5 seconds. Select an
energy-saving mode (Quiet, Hibernate
or Eco) to automatically minimize noise
and energy consumption
Monitor jobs and supplies on the
screen, or from a remote location
through its web interface. Add up to
two extra paper trays to boost capacity
to 1,450 pages for fewer interruptions.
A front USB port lets you print directly
from a flash drive.
lexmark.com
2
Page 3
Lexmark CX417de features
Product specifications Lexmark CX417de
Printing
Display
Print Speed: Up to
Time to First Page: As fast as
Print Resolution
Memory / Processor
Hard Disk
Recommended Monthly Page Volume
Maximum Monthly Duty Cycle: Up to
6
2
3
Copying
Copy Speed: Up to
Time to First Copy: As fast as
6
Scanning
Scanner Type / ADF Scan
A4/Ltr Duplex Scan Speed: Up to
A4/Ltr Simplex Scan Speed: Up to
ADF Paper Input Capacity: Up to
Faxing
Modem Speed
Supplies
Laser Cartridge Yields (up to)
Photoconductor Estimated Yield: Up to
Cartridge(s) Shipping with Product
7
1
5
1
Paper Handling
Included Paper Handling
Optional Paper Handling
Paper Input Capacity: Up to
Paper Output Capacity: Up to
Media Types Supported
Media Sizes Supported
General Information
Standard Ports
Optional Network Ports
Noise Level: Operating
Specified Operating Environment
Limited Warranty - See Statement of Limited Warranty
Size (in. - H x W x D) / Weight (lb.)
4
Black: 1200 x 1200 dpi, 4800 Color Quality (2400 x 600 dpi) / Color: 1200 x 1200 dpi, 4800 Color Quality (2400 x 600 dpi)
2,300-page Color (CMY) Cartridges, 3,000-page Black Cartridge, 3,500-page Color (CMY) High Yield Cartridges, 6,000-
40,000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
1,400-page Black Starter Return Program Toner Cartridge, 750-page Color (CMY) Starter Return Program Toner Cartridge
250-Sheet Input, 150-Sheet Output Bin, Integrated Duplex, Single-Sheet Manual Feed
Standard: 250+1 pages 20 lb or 75 gsm bond / Maximum: 1450+1 pages 20 lb or 75 gsm bond
Standard: 150 pages 20 lb or 75 gsm bond / Maximum: 150 pages 20 lb or 75 gsm bond
Card Stock, Paper Labels, Plain Paper, Transparencies, Refer to the Card Stock & Label Guide.
USB 2.0 Specification Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed
Temperature: 16 to 32°C (60 to 90°F), Humidity: 8 to 80% Relative Humidity, Altitude: 0 - 2896 Meters (9,500 Feet)
Lexmark e-Task 4.3-inch (10.9 cm) color touch screen
Black: 32 ppm / Color: 32 ppm
Black: 10.5 seconds / Color: 11.5 seconds
Standard: 512 MB / Maximum: 2560 MB / Dual Core, 800 MHz
Not Available
800 - 6000 pages
75000 pages per month
Black: 32 cpm / Color: 32 cpm
Black: 10.8 seconds / Color: 11.6 seconds
Flatbed scanner with ADF / RADF (Reversing Duplex)
Black: 13 / 14 sides per minute / Color: 13 / 14 sides per minute
Black: 30 / 32 sides per minute / Color: 30 / 32 sides per minute
50 pages 20 lb or 75 gsm bond
ITU T.30, V.34 Half-Duplex, 33.6 Kbps
page Black High Yield Cartridge
550-Sheet Tray, 550-Sheet Duo Tray with 100-Sheet Feeder
A4, A5, Executive, Folio, JIS-B5, Legal, Letter, Universal, Oficio
Certified port (Type A)
MarkNet N8352 802.11b/g/n Wireless
Print: 49 dBA / Copy: 50 dBA / Scan: 50 dBA
1-Year Onsite Service, Next Business Day
18.44 x 17.48 x 21.99 in. / 60.25 lb.
1
Average continuous black or continuous composite CMY declared cartridge yield up to this number of standard pages in accordance with ISO/IEC 19798. 2”Recommended
Monthly Page Volume” is a range of pages that helps customers evaluate Lexmark’s product offerings based on the average number of pages customers plan to print on the
device each month. Lexmark recommends that the number of pages per month be within the stated range for optimum device performance, based on factor s including: supplie s
replacement intervals, paper loading intervals, speed, and typical customer usage.
deliver in a month using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers and MFPs.
certain license/agreement conditions. See www.lexmark.com/printerlicense for details.
orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.
and ISO/IEC 24735 respectively (ESAT). For more information see: ww w.lexmark.com/ISOspeeds.
geographical region. See www.lexmark.com/regions for more details.
3
”Maximum Monthly Dut y Cycle” is defined as the maximum number of pages a device could
5
Actual Yield may vary based on other factors such as device speed, paper size and feed
7
Product func tions only with replacement cartridges designed for use in a specific
6
Print and copy speeds measured in accordance with ISO/IEC 24734
4
Printers are sold subject to
lexmark.com
3
Page 4
Lexmark CX417de features
4.3-inch touchscreen
250-sheetinput
Single-sheet manualfeed
550-sheet duo tray with
100-sheetfeeder
550-sheettray
Adjustable printerstand
Swivelcabinet
Standard
Optional
© 2017 Lexmark. All rights reser ved.
Lexmark and the Lexmark logo are trademarks or registered trademarks of Lexmark International, Inc. in the United States and/or other countries. All other trademarks are the
property of their respective owners. ENERGY STAR® is a U.S. registered mark.
