Lexmark CS510de User Guide

Download

CS510, CS517

User's Guide

November 2017 www.lexmark.com

Machine type(s):

5027

Model(s):

630

Contents 2

Safety information........................................................................................ 6

Conventions.......................................................................................................................................................... 6

Learning about the printer...........................................................................9

Finding information about the printer.............................................................................................................9

Selecting a location for the printer................................................................................................................10

Printer conﬁgurations......................................................................................................................................... 11

Using the Embedded Web Server.................................................................................................................12

Understanding the printer control panel................................................. 14

Using the printer control panel.......................................................................................................................14

Understanding the colors of the Sleep button and indicator lights......................................................14

Understanding the home screen................................................................................................................... 15

Using the touch-screen buttons.....................................................................................................................16

Setting up and using the home screen applications..............................18

Finding the IP address of the computer.......................................................................................................18

Finding the IP address of the printer.............................................................................................................18

Accessing the Embedded Web Server.........................................................................................................18

Customizing the home screen........................................................................................................................19

Activating the home screen applications.....................................................................................................19

Setting up Remote Operator Panel............................................................................................................... 21

Exporting and importing a conﬁguration......................................................................................................21

Additional printer setup.............................................................................23

Installing internal options................................................................................................................................ 23

Installing hardware options.............................................................................................................................33

Setting up the printer software......................................................................................................................36

Attaching cables................................................................................................................................................36

Networking..........................................................................................................................................................37

Verifying printer setup.......................................................................................................................................41

Loading paper and specialty media.........................................................42

Setting the paper size and type.................................................................................................................... 42

Conﬁguring Universal paper settings.......................................................................................................... 42

Contents 3

Loading the 250‑ and 550‑sheet tray......................................................................................................... 42

Loading the 650‑sheet duo tray....................................................................................................................45

Loading the multipurpose feeder..................................................................................................................46

Loading the manual feeder.............................................................................................................................49

Linking and unlinking trays.............................................................................................................................50

Paper and specialty media guide............................................................. 53

Using specialty media......................................................................................................................................53

Paper guidelines................................................................................................................................................56

Supported paper sizes, types, and weights...............................................................................................59

Printing.........................................................................................................63

Printing forms and documents.......................................................................................................................63

Printing from a ﬂash drive...............................................................................................................................65

Printing from a mobile device........................................................................................................................66

Printing conﬁdential and other held jobs....................................................................................................68

Printing information pages..............................................................................................................................69

Canceling a print job........................................................................................................................................ 69

Understanding the printer menus............................................................70

Menus list.............................................................................................................................................................70

Supplies menu....................................................................................................................................................70

Paper menu..........................................................................................................................................................71

Reports menu.....................................................................................................................................................80

Network/Ports menu..........................................................................................................................................81

Security menu....................................................................................................................................................90

Settings menu.................................................................................................................................................... 93

Help menu.......................................................................................................................................................... 116

Saving money and the environment.......................................................118

Saving paper and toner...................................................................................................................................118

Saving energy....................................................................................................................................................118

Recycling............................................................................................................................................................122

Securing the printer..................................................................................124

Using the security lock feature.................................................................................................................... 124

Statement of Volatility.....................................................................................................................................124

Erasing volatile memory.................................................................................................................................125

Contents 4

Erasing non‑volatile memory........................................................................................................................125

Erasing printer hard disk memory............................................................................................................... 126

Finding printer security information............................................................................................................126

Conﬁguring printer hard disk encryption...................................................................................................127

Maintaining the printer.............................................................................128

Cleaning the printer........................................................................................................................................ 128

Checking the status of supplies...................................................................................................................128

Estimated number of remaining pages......................................................................................................129

Ordering supplies............................................................................................................................................ 129

Storing supplies................................................................................................................................................132

Replacing supplies...........................................................................................................................................132

Moving the printer...........................................................................................................................................150

Managing the printer................................................................................152

Finding advanced networking and administrator information.............................................................152

Checking the virtual display..........................................................................................................................152

Checking the printer status...........................................................................................................................152

Viewing reports................................................................................................................................................152

Conﬁguring supply notiﬁcations from the Embedded Web Server....................................................153

Modifying conﬁdential print settings...........................................................................................................153

Copying printer settings to other printers.................................................................................................154

Restoring factory default settings................................................................................................................154

Clearing jams.............................................................................................156

Avoiding jams................................................................................................................................................... 156

Identifying jam locations................................................................................................................................ 157

Paper jam in the standard bin.......................................................................................................................158

Paper jam in the front door........................................................................................................................... 158

Paper jam in trays............................................................................................................................................ 160

Paper jam in the manual feeder....................................................................................................................161

Paper jam in the multipurpose feeder........................................................................................................162

Troubleshooting........................................................................................ 163

Understanding the printer messages.........................................................................................................163

Solving printer problems................................................................................................................................175

Solving home screen application problems.............................................................................................. 181

Contents 5

Solving print problems................................................................................................................................... 182

Color quality problems..................................................................................................................................206

Embedded Web Server does not open.....................................................................................................210

Contacting customer support........................................................................................................................211

Notices........................................................................................................212

Index...........................................................................................................223

Safety information 6

Safety information

Conventions

Note: A note identiﬁes information that could help you.

Warning: A warning identiﬁes something that could damage the product hardware or software.

CAUTION: A caution indicates a potentially hazardous situation that could injure you.

Dierent types of caution statements include:

CAUTION—POTENTIAL INJURY: Indicates a risk of injury.

CAUTION—SHOCK HAZARD: Indicates a risk of electrical shock.

CAUTION—HOT SURFACE: Indicates a risk of burn if touched.

CAUTION—TIPPING HAZARD: Indicates a crush hazard.

CAUTION—PINCH HAZARD: Indicates a risk of being caught between moving parts.

CAUTION—POTENTIAL INJURY: To avoid the risk of ﬁre or electrical shock, connect the power cord to

an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.

CAUTION—POTENTIAL INJURY: Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or other types of surge or UPS devices. The power rating capacity of these types of accessories can be easily overloaded by a laser printer and may result in poor printer performance, property damage, or potential ﬁre.

CAUTION—POTENTIAL INJURY: Only a Lexmark Inline Surge Protector that is properly connected between the printer and the power cord provided with the printer may be used with this product. The use of non-Lexmark surge protection devices may result in a risk of ﬁre, property damage, or poor printer performance.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those speciﬁed herein may result in hazardous radiation exposure.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching it.

Safety information 7

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

CAUTION—TIPPING HAZARD: Floor-mounted conﬁgurations require additional furniture for stability. You must use either a printer stand or printer base if you are using multiple input options. If you purchased a printer with a similar conﬁguration, then you may need additional furniture. For more information, see

CAUTION—POTENTIAL INJURY: When moving the printer, follow these guidelines to avoid personal injury or printer damage:

www.lexmark.com/multifunctionprinters.

• Make sure that all doors and trays are closed.

• Turn o the printer, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer.

• If the printer has a caster base, then carefully roll it to the new location. Use caution when passing over

thresholds and breaks in ﬂooring.

• If the printer does not have a caster base but is conﬁgured with optional trays, then lift the printer o the

trays. Do not try to lift the printer and the trays at the same time.

• Always use the handholds on the printer to lift it.

• Any cart used to move the printer must have a surface able to support the full footprint of the printer.

• Any cart used to move the hardware options must have a surface able to support the dimensions of the

options.

• Keep the printer in an upright position.

• Avoid severe jarring movements.

• Make sure that your ﬁngers are not under the printer when you set it down.

• Make sure that there is adequate clearance around the printer.

CAUTION—POTENTIAL INJURY: To avoid the risk of ﬁre or electrical shock, use only the power cord provided with this product or the manufacturer's authorized replacement.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of speciﬁc manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of ﬁre or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

Safety information 8

CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

SAVE THESE INSTRUCTIONS.

Learning about the printer 9

Learning about the printer

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Conﬁguring printer settings

Setup documentation—The setup documentation came with the printer and is also available at

http://support.lexmark.com.

User's Guide and Quick Reference Guide—The guides are available at

Note: These guides are also available in other languages.

http://support.lexmark.com.

• Viewing and printing documents and photos

• Setting up and using the printer software

• Conﬁguring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Information on setting up and conﬁguring the accessibility features of your printer

Help using the printer software Windows or Mac Help—Open a printer software

Lexmark Accessibility Guide—This guide is available

http://support.lexmark.com.

program or application, and then click Help.

Click

Notes:

to view context‑sensitive information.

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

Learning about the printer 10

What are you looking for? Find it here

The latest supplemental information, updates, and customer support:

• Documentation

• Driver downloads

• Live chat support

• E‑mail support

• Voice support

Lexmark support Web site—

http://support.lexmark.com

Note: Select your country or region, and then select

your product to view the appropriate support site. Support telephone numbers and hours of operation

for your country or region can be found on the support Web site or on the printed warranty that came with your printer.

Record the following information (located on the store receipt and at the back of the printer), and have it ready when you contact customer support so that they may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Warranty information Warranty information varies by country or region:

• In the U.S.—See the Statement of Limited

Warranty included with this printer, or go to

http://support.lexmark.com.

• In other countries and regions—See the printed

warranty that came with this printer.

Selecting a location for the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or

more trained personnel to lift it safely.

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airﬂow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical

Committee 156 standard.

• Provide a ﬂat, sturdy, and stable surface.

• Keep the printer: – Clean, dry, and free of dust. – Away from stray staples and paper clips. – Away from the direct

airﬂow

– Free from direct sunlight and humidity extremes.

• Observe the recommended temperatures and avoid ﬂuctuations:

Ambient temperature 15.6 to 32.2°C (60 to 90°F)

Storage temperature 1 to 35°C (34 to 95°F)

• Allow the following recommended amount of space around the printer for proper ventilation:

of air conditioners, heaters, or ventilators.

Learning about the printer 11

1 Right side 102 mm (4 in.)

2 Front 508 mm (20 in.)

3 Left side 152 mm (6 in.)

4 Rear 102 mm (4 in.)

5 Top 254 m m (10 i n.)

Printer conﬁgurations

CAUTION—TIPPING HAZARD: Floor-mounted conﬁgurations require additional furniture for stability.

You must use either a printer stand or printer base if you are using multiple input options. If you purchased a printer with a similar conﬁguration, then you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

Learning about the printer 12

1 Printer control panel

2 Standard bin

3 250-sheet tray (Tray 1)

4 Manual feeder

4534

5 Optional 650-sheet duo tray with integrated multipurpose feeder (Tray 2)

Note: This tray is standard on the CS410dtn and CS510dte models.

6 Optional 550-sheet tray (Tray 3)

Using the Embedded Web Server

Note: This feature is available only in network printers or printers connected to print servers.

If the printer is installed on a network, then you can use the Embedded Web Server to do the following:

• View the virtual display of the printer control panel.

• Check the status of the printer supplies.

• Conﬁgure supply notiﬁcations.

• Conﬁgure printer settings.

•

Conﬁgure

• View reports.

To access the Embedded Web Server for your printer:

1 Obtain the printer IP address:

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then ﬁnding the TCP/IP section

network settings.

Notes:

– An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

Learning about the printer 13

– If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Open a Web browser, and then type the printer IP address in the address

3 Press Enter.

The Embedded Web Server page appears.

ﬁeld.

Understanding the printer control panel 14

Understanding the printer control panel

Using the printer control panel

21 3 4

Use the To

1 Display

2 Home button Go to the home screen.

3 Keypad Enter numbers, letters, or symbols on the printer.

4 Sleep button Enable Sleep mode or Hibernate mode.

5 Stop or Cancel

button

6 Indicator light Check the status of the printer.

7 USB port Connect a USB a ﬂash drive to the printer.

• Show the status of the printer.

• Set up and operate the printer.

Notes:

• Pressing any hard button, touching the printer control panel, attaching a device to

a USB port, sending a print job, or performing a power-on reset with the main power switch wakes the printer from Sleep mode.

• Pressing the Sleep button or the power switch causes the printer to wake from

Hibernate Mode.

Stop all printer activity.

Note: Only the front USB port supports ﬂash drives.

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator lights on the printer control panel signify a certain printer status or condition.

Indicator light Printer status

O The printer is o or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Understanding the printer control panel 15

Indicator light Printer status

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Sleep button light Printer status

O The printer is o, idle or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Blinking amber for 0.1 second, then goes completely o for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Understanding the home screen

When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen buttons and icons to initiate an action.

Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and active embedded solutions.

To uc h To

1 Change Language Change the primary language of the printer.

2 Bookmarks Create, organize, and save a set of bookmarks (URLs) into a tree view of folders and

ﬁle links. Note: The tree view does not include bookmarks created within Forms and

Favorites, and the ones in the tree are not usable in Forms and Favorites.

3 Held Jobs Display all current held jobs.

4 USB View, select, or print photos and documents from a ﬂash drive.

Note: This icon appears only when you return to the home screen while a memory

card or

drive is connected to the printer.

ﬂash

Understanding the printer control panel 16

To uc h To

5 Menus Access printer menus.

Note: These menus are available only when the printer is in ready state.

6 Status message bar

• Show the current printer status such as Ready or Busy.

• Show the status of printer supplies.

• Show intervention messages and the instructions on how to clear them.

7 Status/Supplies

• Show a printer warning or error message whenever the printer requires intervention

to continue processing.

• View more information on the printer warning or message, and on how to clear it.

8 Tips View a context‑sensitive help information.

This may also appear on the home screen:

To uc h To

Search Held Jobs Search current held jobs.

Jobs by user Access print jobs saved by user.

Proﬁles and Solutions Access proﬁles and solutions.

Features

Feature Description

Attendance message alert

If an attendance message aects a function, then this icon appears and the red indicator light blinks.

Warning

Printer IP address Example: 123.123.123.123

If an error condition occurs, then this icon appears.

The IP address of your printer is located at the top left corner of the home screen and appears as four sets of numbers separated by periods. You can use the IP address when accessing the Embedded Web Server to view and remotely conﬁgure printer settings even when you are not physically near the printer.

Using the touch-screen buttons

Note: Your home screen may vary, depending on your home screen customization settings, administrative

setup, and active embedded solutions.

Understanding the printer control panel 17

Touch th e To

1 Radio button Select or clear an item.

2 Up arrow Scroll up.

3 Down arrow Scroll down.

4 Accept button Save a setting.

5 Cancel button

• Cancel an action or a selection.

• Return to the previous screen.

To uc h To

Return to the home screen.

Open a context-sensitive Help dialog on the printer control panel.

Scroll to the left.

Scroll to the right.

Setting up and using the home screen applications 18

Setting up and using the home screen applications

Notes:

• Your home screen may vary depending on your home screen customization settings, administrative

setup, and active embedded applications. Some applications are supported only in some printer models.

• There may be additional solutions and applications available for purchase. For more information, go to

www.lexmark.com or contact the place where you purchased the printer.

Finding the IP address of the computer

For Windows users

1 In the Run dialog box, type cmd to open the command prompt.

2 Type ipconfig, and then look for the IP address.

For Macintosh users

1 From System Preferences in the Apple menu, select Network.

2 Select your connection type, and then click Advanced > TCP/IP.

3 Look for the IP address.

Finding the IP address of the printer

Note: Make sure your printer is connected to a network or to a print server.

You can ﬁnd the printer IP address:

• From the top left corner of the printer home screen.

• From the TCP/IP section in the Network/Ports menu.

• By printing a network setup page or menu settings page, and then ﬁnding the TCP/IP section.

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

Accessing the Embedded Web Server

The Embedded Web Server is the printer Web page that lets you view and remotely conﬁgure printer settings even when you are not physically near the printer.

1 Obtain the printer IP address:

• From the printer control panel home screen

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then ﬁnding the TCP/IP section

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

Setting up and using the home screen applications 19

2 Open a Web browser, and then type the printer IP address in the address ﬁeld.

3 Press Enter.

Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.

Customizing the home screen

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

2 Do one or more of the following:

• Show or hide the icons of basic printer functions.

a Click Settings > General Settings > Home screen customization. b Select the check boxes to specify which icons appear on the home screen.

Note: If you clear a check box beside an icon, then the icon does not appear on the home

screen.

c Click Submit.

• Customize the icon for an application. For more information, see “Finding information about the home

screen applications” on page 19 or see the documentation that came with the application.

Activating the home screen applications

Finding information about the home screen applications

Your printer comes with preinstalled home screen applications. Before you can use these applications, you must ﬁrst activate and set up these applications using the Embedded Web Server. For more information on accessing the Embedded Web Server, see

For more information on conﬁguring and using the home screen applications, do the following:

1 Go to http://support.lexmark.com.

2 Click Software Solutions, and then select either of the following:

• Scan to Network—This lets you ﬁnd information about the Scan to Network application.

• Other Applications—This lets you ﬁnd information about the other applications.

3 Click the Manuals tab, and then select the document for the home screen application.

“Accessing the Embedded Web Server” on page 18.

Setting up and using the home screen applications 20

Using Background and Idle Screen

Icon Description

The application lets you customize the background and idle screen of your printer home screen.

1 From the home screen, navigate to:

Change Background > select background to use

2 To u ch .

Setting up Forms and Favorites

Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this

application. To check for updates of this User’s Guide, go to

Use To

Streamline work processes by letting you quickly ﬁnd and print frequently used online forms directly from the printer home screen.

Note: The printer must have permission to access the network folder, FTP site, or Web site where the bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and ﬁrewall settings to allow the printer at least a read access. For help, see the documentation that came with your operating system.

1 Open a Web browser, and then type the printer IP address in the address

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

http://support.lexmark.com.

ﬁeld.

2 Click Settings > Apps > Apps Management > Forms and Favorites.

3 Click Add, and then customize the settings.

Notes:

• See the mouse-over help beside each

for a description of the setting.

ﬁeld

• To make sure the location settings of the bookmark are correct, type the correct IP address of the

host computer where the bookmark is located. For more information on obtaining the IP address of the host computer, see

“Finding the IP address of the computer” on page 18.

• Make sure the printer has access rights to the folder where the bookmark is located.

4 Click Apply.

To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form categories, or search for forms based on a form number, name, or description.

Setting up and using the home screen applications 21

Understanding Eco‑Settings

Icon Description

The application lets you easily manage energy consumption, noise, toner, and paper usage settings to help reduce the environmental impact of your printer.

Setting up Remote Operator Panel

This application enables you to interact with the printer control panel even when you are not physically near the network printer. From your computer, you can view the printer status, release held print jobs, create bookmarks, and do other print-related tasks.

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

2 Click Settings > Remote Operator Panel Settings.

3 Select the Enable check box, and then customize the settings.

4 Click Submit.

To use the application, click Remote Operator Panel > Launch VNC Applet.

Exporting and importing a conﬁguration

You can export conﬁguration settings into a text ﬁle, and then import the ﬁle to apply the settings to other printers.

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Note: View the IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Export or import a conﬁguration ﬁle for one or multiple applications.

For one application

a Navigate to:

Settings > Apps > Apps Management > select an application > Conﬁgure

b Export or import the

Notes:

conﬁguration ﬁle.

• If a JVM Out of Memory error occurs, then repeat the export process until the conﬁguration ﬁle

is saved.

Setting up and using the home screen applications 22

• If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click

Apply.

For multiple applications

a Click Settings > Import/Export. b Export or import a conﬁguration ﬁle.

Note: When importing a

conﬁguration ﬁle,

click Submit to complete the process.

Additional printer setup 23

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware

or memory devices sometime after setting up the printer, then turn the printer o, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

You can customize your printer connectivity and memory capacity by adding optional cards.

Available internal options

Memory cards

DDR3 DIMM

•

• Flash memory – Fonts – Firmware

• Forms Barcode

• Prescribe

• IPDS

• Hard disk

This internal option is available only in CS510 printer model.

Accessing the controller board

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware

or memory devices sometime after setting up the printer, then turn the printer cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

and unplug the power

o,

Additional printer setup 24

Note: This task requires a ﬂat‑head screwdriver.

1 At the back of the printer, turn the screws counterclockwise to remove them.

2 Slightly open the controller board access cover, and then shift to the right to remove it.

3 Locate the appropriate connector on the controller board.

Warning—Potential Damage: Controller board electronic components are easily damaged by static

electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Additional printer setup 25

132

1 Flash memory or font card connector

2 Printer hard disk connector

3 Memory card connector

4 Reattach the cover.

Additional printer setup 26

5 Turn the screws clockwise to lock the cover.

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware

1 Access the controller board.

For more information, see “Accessing the controller board” on page 23.

2 Unpack the memory card.

Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so

may cause damage.

and unplug the power

o,

Additional printer setup 27

3 Align the notch (1) on the memory card with the ridge (2) on the connector.

4 Push the memory card straight into the connector, and then push the card toward the controller board wall

until it clicks into place.

5 Close the controller board access cover.

Additional printer setup 28

Installing an optional card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware

or memory devices sometime after setting up the printer, then turn the printer cord from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see “Accessing the controller board” on page 23.

2 Unpack the optional card.

Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.

and unplug the power

o,

Additional printer setup 29

4 Push the card ﬁrmly into place as shown in the illustration.

Warning—Potential Damage: Improper installation of the card may cause damage to the card and the

controller board.

Note: The entire length of the connector on the card must touch and be board.

ﬂushed

against the controller

5 Close the controller board access door.

Note: When the printer software and any hardware options are installed, it may be necessary to manually

add the options in the printer driver to make them available for print jobs. For more information, see

“Adding available options in the print driver” on page 36.

Installing a printer hard disk

Note: This task requires a ﬂathead screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware

Additional printer setup 30

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch something metal on the printer before touching any controller board electrical components or connectors.

1 Access the controller board.

For more information, see

“Accessing the controller board” on page 23.

2 Unpack the printer hard disk.

3 Remove the screws attached to the printer hard disk mounting bracket, and then remove the bracket.

4 Locate the appropriate connector on the controller board.

Additional printer setup 31

5 Align the standos of the printer hard disk to the holes in the controller board, and then press the printer

hard disk down until the standos are in place.

6 Insert the plug of the printer hard disk interface cable into the receptacle of the controller board.

Note: The plugs and receptacles are color‑coded.

7 Close the controller board access cover.

Note: When the printer software and any hardware options are installed, you may need to manually add the

options in the printer driver to make them available for print jobs. For more information, see

available options in the print driver” on page 36.

“A dd in g

Removing a printer hard disk

Note: This task requires a ﬂathead screwdriver.

Additional printer setup 32

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch something metal on the printer ﬁrst before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see

“Accessing the controller board” on page 23.

2 Unplug the printer hard disk interface cable from the controller board, leaving the cable attached to the

printer hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the latch before pulling the cable out.

3 Remove the printer hard disk by pulling it away from the controller board.

Additional printer setup 33

4 Set aside the printer hard disk.

5 Close the controller board access cover.

Installing hardware options

Order of installation

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb), and requires two or

more trained personnel to lift it safely.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

Install the printer and any optional tray in the following order:

• Optional 550‑sheet tray (Tray 3)

• 650‑sheet duo tray (Tray 2)

• Printer

and unplug the power

o,

Installing an optional tray

The printer supports two optional input sources: a 550‑sheet tray and a 650‑sheet duo tray (Tray 2) with an integrated multipurpose feeder.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

Additional printer setup 34

1 Unpack the optional tray, and then remove all packing material and the dust cover.

2 Label the trays with the supplied tray number labels from the top down.

Note: The standard 250‑sheet tray must be labeled as Tray 1.

3 Place the tray near the printer.

Note: If you are installing both the optional trays, then the optional 550‑sheet tray must always be

installed as the

tray when

ﬁrst

conﬁguring

from the bottom to the top.

4 Align the 650‑sheet duo tray with the optional 550‑sheet tray, and then lower it into place.

Additional printer setup 35

5 Align the printer with the 650‑sheet duo tray, and then lower the printer into place.

6 Install the dust covers.

Note: When the printer software and any options are installed, you may need to manually add the options in

the printer driver to make them available for print jobs. For more information, see

in the print driver” on page 36.

“Adding available options

Additional printer setup 36

Setting up the printer software

Installing the printer software

1 Obtain a copy of the software installer package.

• From the software CD that came with your printer.

• Go to http://support.lexmark.com, and then select your printer and operating system.

2 Run the installer, and then follow the instructions on the computer screen.

3 For Macintosh users, add the printer.

Note: Obtain the printer IP address from the TCP/IP section in the Network/Ports menu.

Adding available options in the print driver

For Windows users

1 Open the printers folder.

2 Select the printer you want to update, and then do the following:

• For Windows 7 or later, select Printer properties.

• For earlier versions, select Properties.

3 Navigate to the Conﬁguration tab, and then select Update Now ‑ Ask Printer.

4 Apply the changes.

For Macintosh users

1 From System Preferences in the Apple menu, navigate to your printer, an d t h en select Options & Supplies.

2 Navigate to the list of hardware options, and then add any installed options.

3 Apply the changes.

Attaching cables

Make sure to match the following:

• The USB symbol on the cable with the USB symbol on the printer

• The appropriate Ethernet cable to the Ethernet port

Additional printer setup 37

Use the To

1 Rear USB port Attach a keyboard to the printer.

2 USB printer port Connect the printer to a computer.

3 Ethernet port Connect the printer to a network.

4 USB wireless port Attach an optional wireless network adapter.

5 Security lock port Lock the system controller board.

6 Printer power cord socket Connect the printer to a properly grounded electrical outlet.

Networking

Notes:

• Purchase a MarkNet

network. For information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

• A Service Set Identiﬁer (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP),

Wi-Fi Protected Access (WPA), WPA2, and 802.1X - RADIUS are types of security used on a network.

Preparing to set up the printer on an Ethernet network

To conﬁgure your printer to connect to an Ethernet network, organize the following information before you begin:

N8352 wireless network adapter before setting up the printer on a wireless

Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the printer.

• A valid, unique IP address for the printer to use on the network

• The network gateway

Additional printer setup 38

• The network mask

• A nickname for the printer (optional)

Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to use the default printer nickname, or assign a name that is easier for you to remember.

You will need an Ethernet cable to connect the printer to the network and an available port where the printer can physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a damaged cable.

Preparing to set up the printer on a wireless network

Notes:

• Make sure your wireless network adapter is installed in your printer and working properly.

• Make sure your access point (wireless router) is turned on and is working properly.

Make sure you have the following information before setting up the printer on a wireless network:

• SSID—The SSID is also referred to as the network name.

• Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.

• Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.

Some ad hoc networks will also require the automatic setting. Check with your system support person if you are not sure which channel to select.

• Security Method—There are three basic options for Security Method: – WEP key

If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key currently in use on the network by selecting the default WEP transmit key.

– WPA or WPA2 preshared key or passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

– 802.1X–RADIUS

If you are installing the printer on an 802.1X network, then you may need the following:

• Authentication type

• Inner authentication type

• 802.1X user name and password

•

Certiﬁcates

– No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: Using an unsecured wireless network is not recommended.

Notes:

– If you do not know the SSID of the network that your computer is connected to, then launch the wireless

utility of the computer network adapter, and then look for the network name. If you cannot

the SSID

ﬁnd

Additional printer setup 39

or the security information for your network, then see the documentation that came with the access point, or contact your system support person.

– To ﬁnd the WPA/WPA2 preshared key/passphrase for the wireless network, see the documentation that

came with the access point, see the Web page associated with the access point, or consult your system support person.

Connecting the printer using the Wireless Setup Wizard

Before you begin, make sure that:

• A wireless network adapter is installed in the printer and is working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

• An Ethernet cable is disconnected from the printer.

• Active NIC is set to Auto. To set this to Auto, navigate to:

> Network/Ports > Active NIC > Auto >

Note: Make sure to turn o the printer, then wait for at least ﬁve seconds, and then turn the printer back on.

1 From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup

2 Select a wireless connection setup.

Use To

Search for networks Show available wireless connections.

Note: This menu shows all broadcast secured or unsecured SSIDs.

Enter a network name Manually type the SSID.

Note: Make sure to type the correct SSID.

Wi‑Fi Protected Setup Connect the printer to a wireless network using Wi‑Fi Protected Setup.

3 Follow the instructions on the printer display.

Connecting the printer to a wireless network using Wi‑Fi Protected Setup

Before you begin, make sure that:

• The access point (wireless router) is Wi‑Fi Protected Setup (WPS) certiﬁed or WPS‑compatible. For more

information, see the documentation that came with your access point.

• A wireless network adapter installed in your printer is attached and working properly. For more information,

see the instruction sheet that came with the wireless network adapter.

Using the Push Button Conﬁguration method

From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup >

Wi‑Fi Protected Setup > Start Push Button Method

2 Follow the instructions on the printer display.

Additional printer setup 40

Using the Personal Identiﬁcation Number (PIN) method

From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup >

Wi‑Fi Protected Setup > Start PIN Method

2 Copy the eight‑digit WPS PIN.

3 Open a Web browser, and then type the IP address of your access point in the address ﬁeld.

Notes:

• The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

4 Access the WPS settings. For more information, see the documentation that came with your access

point.

5 Enter the eight‑digit PIN, and then save the setting.

Connecting the printer to a wireless network using the Embedded Web Server

Before you begin, make sure that:

• Your printer is connected temporarily to an Ethernet network.

• A wireless network adapter is installed in your printer and working properly. For more information, see the

instruction sheet that came with your wireless network adapter.

1 Open a Web browser, and then type the printer IP address in the address

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears

as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Network/Ports > Wireless.

3 Modify the settings to match the settings of your access point (wireless router).

Note: Make sure to enter the correct SSID.

4 Click Submit.

5 Turn o the printer, and then disconnect the Ethernet cable. Then wait for at least ﬁve seconds, and then

turn the printer back on.

6 To verify if your printer is connected to the network, print a network setup page. Then in the Network Card

[x] section, see if the status is “Connected”. For more information, see the “Verifying printer setup” section of the User’s Guide.

ﬁeld.

Additional printer setup 41

Verifying printer setup

When all hardware and software options are installed and the printer is turned on, verify that the printer is set up correctly by printing the following:

• Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed

options appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly. Remove the option and install it again.

• Network setup page—If your printer is connected to a network or connected to a print server, print a network

setup page to verify the network connection. This page also provides important information that aids network printing conﬁguration.

Printing a menu settings page

From the home screen, navigate to:

> Reports > Menu Settings Page

Printing a network setup page

If the printer is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing conﬁguration.

1 From the home screen, navigate to:

> Reports > Network Setup Page

2 Check the

If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning. Consult a system support person for a solution, and then print another network setup page.

section of the network setup page, and

ﬁrst

conﬁrm

that the status is Connected.

Loading paper and specialty media 42

Loading paper and specialty media

Proper selection and loading of media can improve how reliably documents print. For more information, see

“Avoiding jams” on page 156 and “Storing paper” on page 59.

Setting the paper size and type

From the home screen navigate to:

> Paper Menu > Paper Size/Type > select a tray > select the paper size or type >

Conﬁguring Universal paper settings

The Universal paper size is a user‑ printer menus.

Notes:

• The smallest supported Universal size is 76 x 127 mm (3 x 5 inches) and is loaded only in the

multipurpose feeder and manual feeder.

• The largest supported Universal size is 215.9 x 359.9 mm (8.5 x 14.17 inches) and is loaded only in the

multipurpose feeder and manual feeder.

1 From the home screen, navigate to:

> Paper Menu > Universal Setup > Units of Measure > select a unit of measure

2 To u ch Portrait Width or Portrait Height.

3 Select the width or height, and then touch .

deﬁned

setting that lets you print on paper sizes that are not preset in the

Loading the 250‑ and 550‑sheet tray

The printer has one 250-sheet tray (Tray 1) with an integrated manual feeder. The 250-sheet tray, the 650-sheet duo tray, and the 550-sheet tray support the same paper sizes and types and are loaded in the same way.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

1 Pull out the tray completely.

Note: Do not remove trays while a job is printing or while Busy appears on the display. Doing so may

cause a jam.

Loading paper and specialty media 43

2 If the paper is longer than letter‑size paper, then squeeze and then slide the length guide at the back of the

tray to extend it.

3 Squeeze, and then slide the length guide tab to the correct position for the size of the paper being loaded.

Note: Use the paper size indicators on the bottom of the tray to help position the guide.

Loading paper and specialty media 44

4 Squeeze, and then slide the width guide tab to the correct position for the size of the paper being loaded.

Note: Use the paper size indicators on the bottom of the tray to help position the guides.

5 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten

the edges on a level surface.

Loading paper and specialty media 45

6 Load the paper stack with the recommended printable side faceup.

7 Place the paper guides securely against the edges of the paper.

8 Insert the tray.

9 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper

loaded in the tray.

Note: Mixing paper sizes or paper types in a tray may cause jams.

Loading the 650‑sheet duo tray

The 650‑sheet duo tray (Tray 2) consists of a 550‑sheet tray and an integrated 100‑sheet multipurpose feeder. The tray is loaded in the same way as the 250‑sheet tray and the optional 550‑sheet tray, and supports the same paper types and sizes. The only dierences are the look of the guide tabs and the location of the paper size indicators.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

Loading paper and specialty media 46

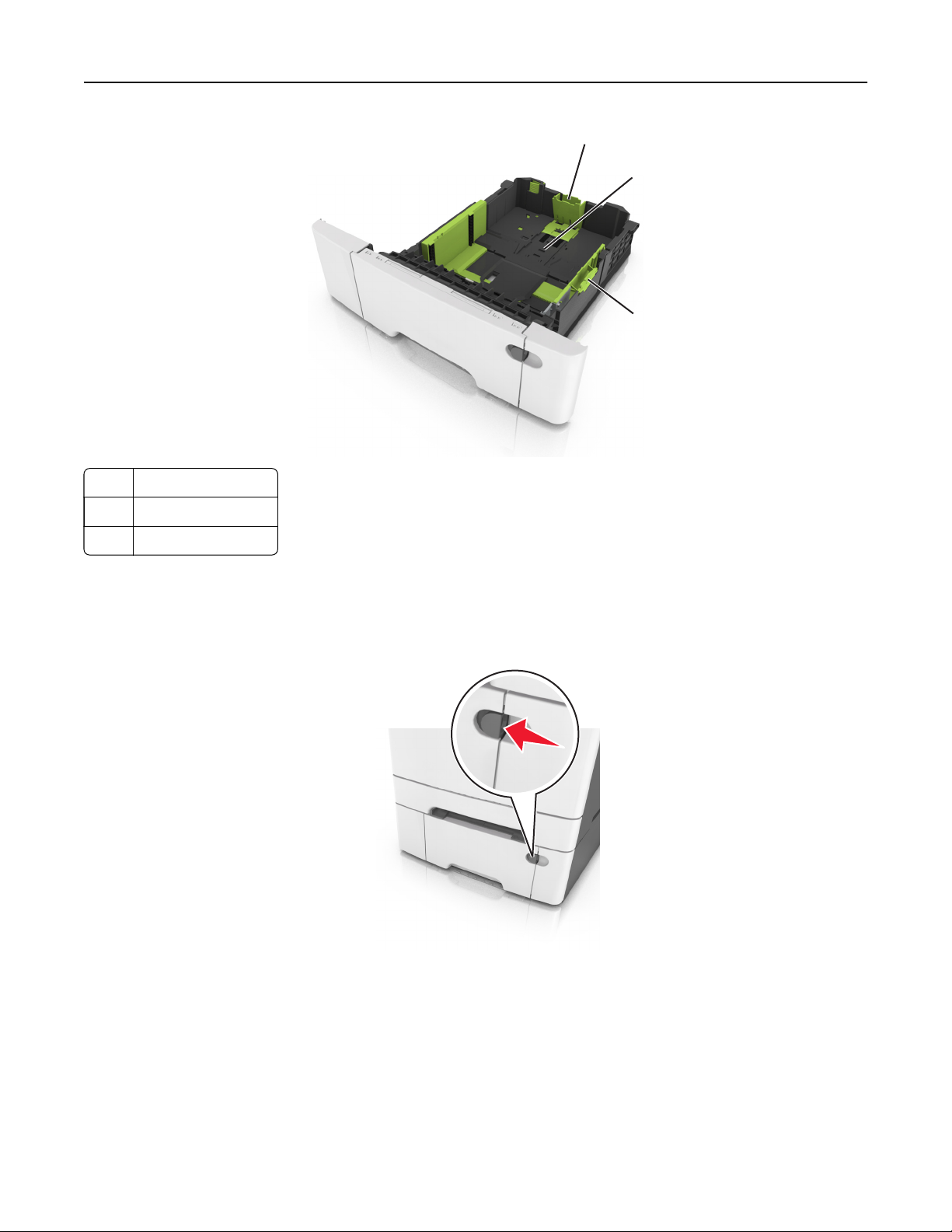

1 Length guide tab

2 Paper size indicator

3 Width guide tab

Loading the multipurpose feeder

1 Push the multipurpose feeder latch to the left.

Loading paper and specialty media 47

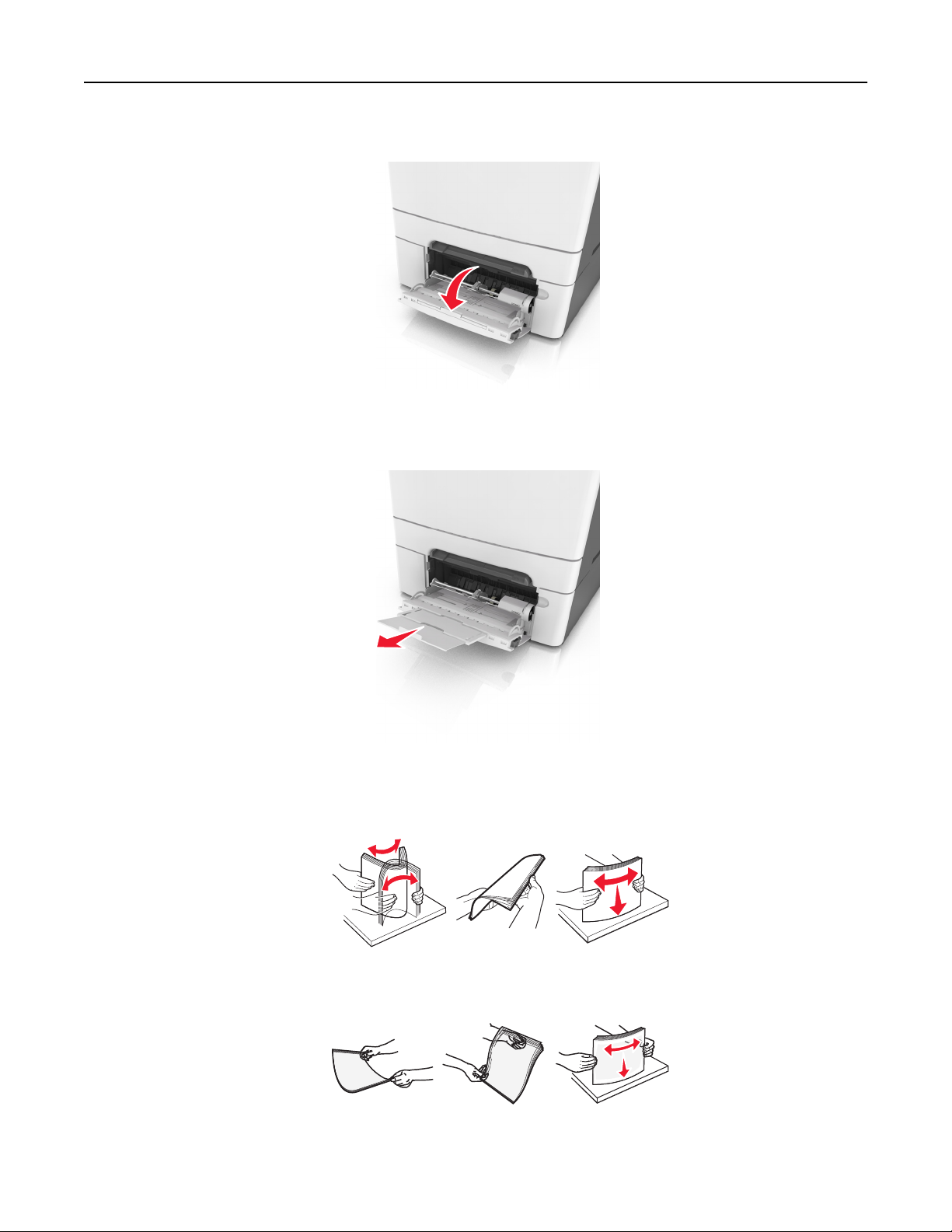

2 Open the multipurpose feeder.

3 Pull the multipurpose feeder extender.

Note: Guide the extender gently so that the multipurpose feeder is fully extended and open.

4 Prepare the paper for loading.

• Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the

paper. Straighten the edges on a level surface.

• Hold transparencies by the edges, and then fan them. Straighten the edges on a level surface.

Note: Avoid touching the printable side of transparencies. Be careful not to scratch them.

• Flex a stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a

level surface.

Loading paper and specialty media 48

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer.

5 Locate the maximum paper ﬁll indicator and tab.

Note: Make sure the paper or specialty media is below the maximum paper ﬁll indicator located on the

paper guides.

1 Width guide tab

2 Maximum paper ﬁll indicator

3 Width guide

4 Feeder extender

5 Paper size indicator

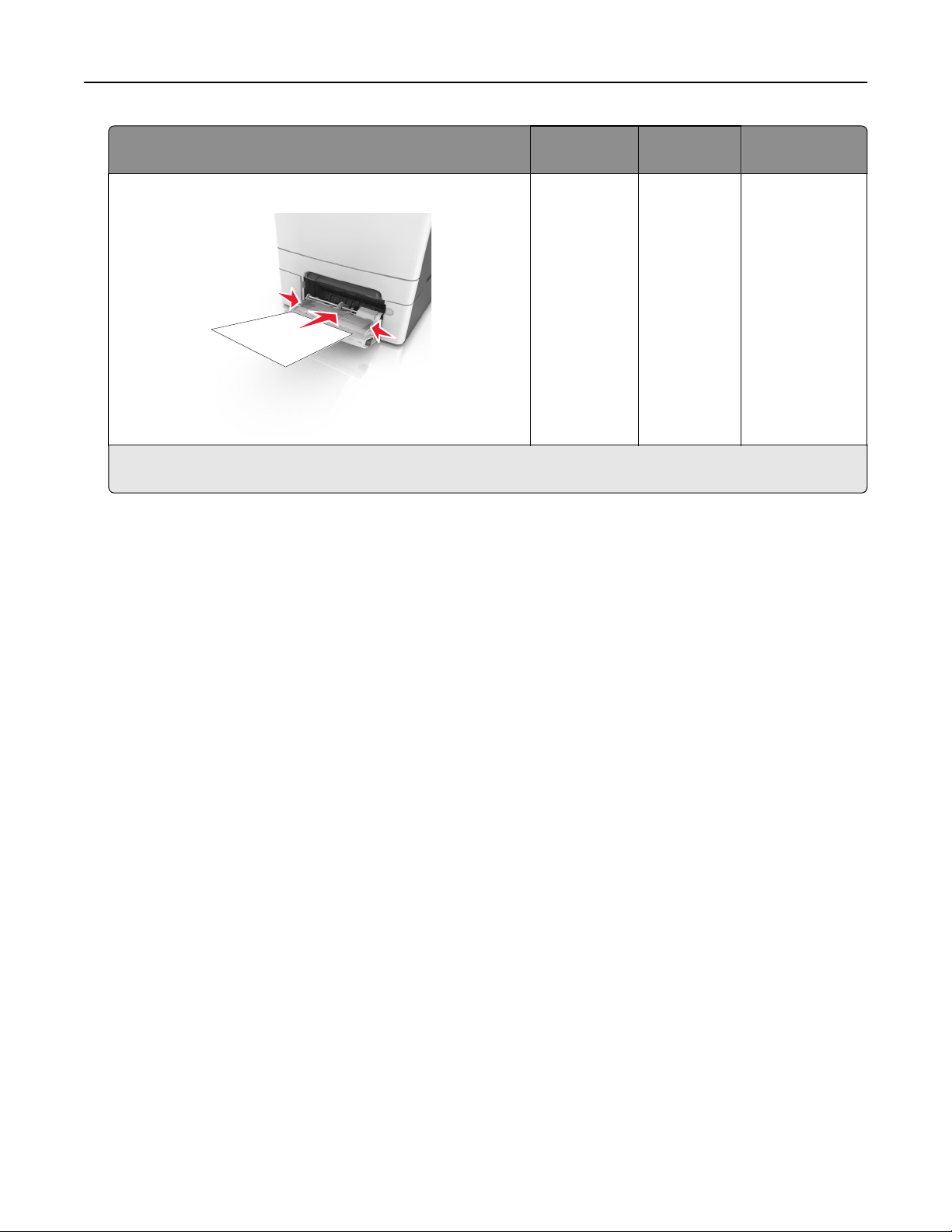

6 Load the paper, and then adjust the width guide to lightly touch the edge of the paper stack.

• Load paper, card stock, and transparencies with the recommended printable side facedown and the top

edge entering the printer ﬁrst.

Loading paper and specialty media 49

• Load envelopes with the ﬂap side up and against the right side of the paper guide.

Notes:

• Do not load or close the multipurpose feeder while a job is printing.

• Load only one size and type of paper at a time.

• Paper should lie

feeder and is not bent or wrinkled.

in the multipurpose feeder. Make sure the paper

ﬂat

loosely in the multipurpose

ﬁts

7 From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in

the tray.

Loading the manual feeder

The standard 250‑sheet tray has an integrated manual feeder that can be used to print on dierent types of paper one sheet at a time.

1 Load a sheet of paper into the manual feeder:

• Printable side facedown for one-sided printing

• Printable side faceup for two‑sided (duplex) printing

Note: There are

dierent

One‑sided printing using a letterhead Two‑sided printing using a letterhead

ways for loading letterhead depending on the mode of printing.

ABC

Loading paper and specialty media 50

• Load envelope with the ﬂap side up and against the right side of the paper guide.

2 Feed paper into the manual feeder only to the point where its leading edge can contact the paper guides.

Note: To achieve the best possible print quality, use only high‑quality media designed for laser printers.

3 Adjust the paper guides to the width of the paper loaded.

Warning—Potential Damage: Do not force the paper into the feeder. Forcing the paper may cause jams.

Linking and unlinking trays

The printer links trays when the speciﬁed paper size and type are the same. When a linked tray becomes empty, paper feeds from the next linked tray. To prevent trays from linking, assign a unique custom paper type name.

Linking and unlinking trays

Note: This feature applies only in network printers.

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Notes:

• View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears

as four sets of numbers separated by periods, such as 123.123.123.123.

Loading paper and specialty media 51

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

3 Change the tray settings to specify the paper size and type for the tray.

• To link trays, make sure the paper size and type for the tray match with that of the other tray.

• To unlink trays, make sure the paper size or type for the tray does not match with that of the other tray.

4 Click Submit.

Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the

printer. The temperature of the fuser varies according to the if settings are not properly conﬁgured.

speciﬁed

paper type. Printing issues may occur

Creating a custom name for a paper type

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address ﬁeld.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Names.

3 Select a custom name, and then type a custom paper type name.

4 Click Submit.

5 Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Using the printer control panel

From the home screen, navigate to:

> Paper Menu > Custom Names

2 Select a custom name, and then type a custom paper type name.

3 To u ch .

4 To u ch Custom Types, and then verify that the new custom paper type name has replaced the custom name.

Assigning a custom paper type

Using the Embedded Web Server

Assign a custom paper type name to a tray when linking or unlinking trays.

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Loading paper and specialty media 52

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Types.

3 Select a custom paper type name, and then select a paper type

Note: Paper is the factory default paper type for all user‑

deﬁned

4 Click Submit.

Using the printer control panel

From the home screen, navigate to:

> Paper Menu > Custom Types

2 Select a custom paper type name, and then select a paper type

Note: Paper is the factory default paper type for all user‑

deﬁned

3 To u ch .

custom names.

Paper and specialty media guide 53

Paper and specialty media guide

Notes:

• Make sure that the paper size, type, and weight are set correctly on the computer or on the control

panel.

• Flex, fan, and straighten specialty media before loading them.

• The printer may print at a reduced speed to prevent damage to the fuser.

• For more information on card stock and labels, see the Card Stock & Label Guide at

http://support.lexmark.com.

Using specialty media

Tips on using letterhead

• Use letterhead designed speciﬁcally for laser printers.

• Print a test page on the letterhead being considered for use before buying large quantities.

• Before loading letterhead, ﬂex, fan, and straighten the stacks to prevent sheets from sticking together.

• Page orientation is important when printing on letterhead.

Source Printing Printable

side

Trays

One‑sided Faceup Load the sheet

ABC

Note: Check with the manufacturer or vendor to determine whether or not the preprinted letterhead is acceptable for laser printers.

Paper orientation

with the top edge entering the printer ﬁrst.

Paper and specialty media guide 54

Source Printing Printable

side

Trays

Two‑sided Facedown Load the sheet

ABC

Manual feeder

ABC

One‑sided Facedown Load the sheet

Paper orientation

with the bottom edge entering the printer ﬁrst.

with the top edge entering the printer ﬁrst.

Manual feeder

Two‑sided Faceup Load the sheet

with the bottom edge entering the printer ﬁrst.

ABC

Multipurpose feeder

Note: Check with the manufacturer or vendor to determine whether or not the preprinted letterhead is acceptable for laser printers.

One‑sided Facedown Load the sheet

with the top edge entering the printer ﬁrst.

Paper and specialty media guide 55

Source Printing Printable

side

Multipurpose feeder

Two‑sided Faceup Load the sheet

Paper orientation

with the bottom edge entering the printer ﬁrst.

ABC

Note: Check with the manufacturer or vendor to determine whether or not the preprinted letterhead is acceptable for laser printers.

Tips on using transparencies

Print a test page on the transparencies being considered for use before buying large quantities.

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

transparencies loaded in the tray.

• Print a test page on the transparencies being considered for use before buying large quantities.

• Feed transparencies from the 250-sheet tray, manual feeder, or multipurpose feeder.

• Use transparencies designed

• Avoid getting

ﬁngerprints

speciﬁcally

on the transparencies to prevent print quality problems.

• Before loading transparencies, ﬂex, fan, and straighten the stacks to prevent sheets from sticking together.

for laser printers.

Tips on using envelopes

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

envelopes loaded in the tray.

• Print samples on the envelopes being considered for use before buying large quantities.

• Use envelopes designed

speciﬁcally

• For best performance, use envelopes made from 90‑g/m

• Use only new envelopes from undamaged packages.

• To optimize performance and minimize jams, do not use envelopes that: – Have excessive curl or twist. – Are stuck together or damaged in any way. – Have windows, holes, perforations, cutouts, or embossing. – Have metal clasps, string ties, or folding bars. – Have an interlocking design. – Have postage stamps attached. – Have any exposed adhesive when the ﬂap is in the sealed or closed position.

for laser printers.

(24‑lb) paper or 25% cotton.

Paper and specialty media guide 56

– Have bent corners. – Have rough, cockle, or laid ﬁnishes.

• Adjust the width guides to ﬁt the width of the envelopes.

• Before loading the envelopes on the tray, ﬂex and fan the envelopes to loosen them. Straighten the edges

on a level surface.

Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.

Tips on using labels

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

labels loaded in the tray.

• Print samples on labels being considered for use before buying large quantities.

• For more information on label printing, characteristics, and design, see the Card Stock & Label Guide at

http://support.lexmark.com.

• Use labels designed speciﬁcally for laser printers.

• Do not use labels with slick backing material.

• Use full label sheets. Partial sheets may cause labels to peel o during printing, resulting in a jam. Partial

sheets also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge warranties.

• Do not use labels with exposed adhesive.

• Before loading labels on the tray, ﬂex and fan labels to loosen them. Straighten the edges on a level surface.

Tips on using card stock

Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness, and texture, can signiﬁcantly aect print quality.

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

card stock loaded in the tray.

• Print samples on the card stock being considered for use before buying large quantities.

• Specify the paper texture and weight from the tray settings to match the paper loaded in the tray.

• Preprinting, perforation, and creasing may

feed problems.

signiﬁcantly aect

the print quality and cause jams or other paper

• Before loading the card stock on the tray, ﬂex and fan the card stock to loosen them. Straighten the edges

on a level surface.

Paper guidelines

Select the correct paper or specialty media to reduce printing problems. For the best print quality, try a sample of the paper or specialty media before buying large quantities.

Paper characteristics

The following paper characteristics aect print quality and reliability. Consider these characteristics when evaluating new paper stock.

Paper and specialty media guide 57

Weight

The printer trays can automatically feed paper weights up to 176‑g/m2 (47‑lb) bond grain long paper. The multipurpose feeder can automatically feed paper weights up to 176‑g/m lighter than 60 g/m

75‑g/m 90 g/m

(20‑lb) bond grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 inches), we recommend

(24 lb) or heavier paper.

(16 lb) might not be sti enough to feed properly, causing jams. For best performance, use

(47‑lb) bond grain long paper. Paper

Note: Duplex printing is supported from 60–105‑g/m

(16–28‑lb) bond grain long paper.

Curl

Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding problems.

Smoothness

Paper smoothness directly aects print quality. If paper is too rough, then toner cannot fuse to it properly. If paper is too smooth, then it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheeld points; smoothness between 150 and 250 Sheeld points produces the best print quality.

Moisture content

The amount of moisture in paper aects both print quality and the ability of the printer to feed the paper correctly. Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that can degrade its performance.

Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend the time to several days if the storage or transportation environment is very dierent from the printer environment. Thick paper may also require a longer conditioning period.

Grain direction

Grain refers to the alignment of the paper ﬁbers in a sheet of paper. Grain is either grain long, running the length of the paper, or grain short, running the width of the paper.

For 60–90‑g/m

(16–24‑lb) bond paper, grain long paper is recommended.

Fiber content

Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing ﬁbers such as cotton can negatively aect paper handling.

Unacceptable paper

The following paper types are not recommended for use with the printer:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers,

carbonless copy paper (CCP), or no carbon required (NCR) paper

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be aected by the temperature in the printer fuser

Paper and specialty media guide 58

• Preprinted papers that require a registration (the precise print location on the page) greater than ±2.3 mm

(±0.9 in.), such as optical character recognition (OCR) forms In some cases, registration can be adjusted with a software application to successfully print on these forms.

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough‑edged, rough or heavily textured surface papers, or curled papers

• Recycled papers that fail EN12281:2002 (European)

• Paper weighing less than 60 g/m

(16 lb)

• Multiple‑part forms or documents

Selecting paper

Using the appropriate paper prevents jams and helps ensure trouble‑free printing.

To help avoid paper jams and poor print quality:

• Always use new, undamaged paper.

• Before loading paper, know the recommended printable side of the paper. This information is usually

indicated on the paper package.

• Do not use paper that has been cut or trimmed by hand.

• Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.

• Do not use coated papers unless they are speciﬁcally designed for electrophotographic printing.

Selecting preprinted forms and letterhead

Use these guidelines when selecting preprinted forms and letterhead:

• Use grain long for 60–90 g/m

• Use only forms and letterhead printed using an oset lithographic or engraved printing process.

• Avoid papers with rough or heavily textured surfaces.

Use papers printed with heat‑resistant inks designed for use in xerographic copiers. The ink must be able to withstand temperatures up to 230°C (446°F) without melting or releasing hazardous emissions. Use inks that are not aected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements; latex inks might not. When in doubt, contact the paper supplier.

Preprinted papers such as letterhead must be able to withstand temperatures up to 230°C (446°F) without melting or releasing hazardous emissions.

Using recycled paper and other

As an environmentally conscious company, Lexmark supports the use of recycled oce paper produced speciﬁcally for use in laser (electrophotographic) printers. In 1998, Lexmark presented to the US government a study demonstrating that recycled paper produced by major mills in the US fed as well as non-recycled paper. However, no blanket statement can be made that all recycled paper will feed well.

Lexmark consistently tests its printers with recycled paper (20–100% post-consumer waste) and a variety of test paper from around the world, using chamber tests for dierent temperature and humidity conditions. Lexmark has found no reason to discourage the use of today's recycled oce papers, but generally the following property guidelines apply to recycled paper.

• Low moisture content (4–5%)

(16–24 lb) paper.

oce

papers

Paper and specialty media guide 59

• Suitable smoothness (100–200 Sheeld units, or 140–350 Bendtsen units, European)

Note: Some much smoother papers (such as premium 24 lb laser papers, 50–90 Sheeld units) and much rougher papers (such as premium cotton papers, 200–300 to work very well in laser printers, despite surface texture. Before using these types of paper, consult your paper supplier.

Sheeld

units) have been engineered

• Suitable sheet-to-sheet coecient of friction (0.4–0.6)

• Sucient bending resistance in the direction of feed

Recycled paper, paper of lower weight (<60 g/m paper that is cut grain-short for portrait (or short-edge) fed printers may have lower bending resistance than is required for reliable paper feeding. Before using these types of paper for laser (electrophotographic) printing, consult your paper supplier. Remember that these are general guidelines only and that paper meeting these guidelines may still cause paper feeding problems in any laser printer (for example, if the paper curls excessively under normal printing conditions).

[16 lb bond]) and/or lower caliper (<3.8 mils [0.1 mm]), and

Storing paper

Use these paper storage guidelines to help avoid jams and uneven print quality:

• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent.

Most label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity between 40 and 60 percent.

• Store paper in cartons, on a pallet or shelf, rather than on the

• Store individual packages on a

surface.

ﬂat

• Do not store anything on top of individual paper packages.

• Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and

wrapper help keep the paper clean, dry, and ﬂat.

ﬂoor.

Supported paper sizes, types, and weights

The following tables provide information on standard and optional paper sources and the sizes, types, and weights of paper they support.

Note: For unlisted paper sizes, select the closest larger listed size.

Supported paper sizes

Note: Your printer model may have a 650‑sheet duo tray, which consists of a 550‑sheet tray and an

integrated 100‑sheet multipurpose feeder. The 550‑sheet tray of the 650‑sheet duo tray supports the same paper sizes as the optional 550‑sheet tray. The integrated multipurpose feeder supports dierent paper sizes, types, and weights.

Paper and specialty media guide 60

Paper size and dimension

210 x 297 mm (8.3 x 11.7 in.)

148 x 210 mm (5.83 x 8.3 in.)

105 x 148 mm (4.1 x 5.8 in.)

JIS B5

182 x 257 mm (7.2 x 10.1 in.)

Letter

216 x 279 mm (8.5 x 11 in.)

Standard

250‑sheet tray

1 1 1 1

1 2 1 2

1 1 1 1

Manual

feeder

650‑sheet duo tray 550‑sheet

550‑sheet tray Multipurpose

feeder

Duplex

tray

mode

Legal

1 1 1 1

216 x 356 mm (8.5 x 14 in.)

Executive

1 1 1 1

184 x 267 mm (7.3 x 10.5 in.)

Oﬁcio (Mexico)

1 1 1 1

216 x 340 mm (8.5 x 13.4 in.)

Folio

1 1 1 1

216 x 330 mm (8.5 x 13 in.)

Statement

140 x 216 mm (5.5 x 8.5 in.)

The paper source supports paper size without size sensing.

Universal is only supported in the standard 250and optional 550sheet tray if the paper size is from 148 x 215.9

mm (5.83 x 8.5 inches) to 215.9 x 355.6 mm (8.5 x 14 inches).

Universal is only supported in the multipurpose feeder and manual feeder if the paper size is from 76.2 x 127 mm

(3 x 5 inches) to 215.9 x 359.9 mm (8.5 x 14.17 inches).

Universal is only supported in duplex mode if the width is between 210 mm (8.27 inches) and 215.9 mm (8.5 inches)

and length is between 279.4 mm (11 inches) and 355.6 mm (14 inches).

Paper and specialty media guide 61

Paper size and dimension

Universal

76 x 127 mm (3 x 5 in.) to 216 x 356 mm (8.5 x 14 in.)

Universal

148 x 210 mm (5.8 x 8.3 in) to 216 x 356 mm (8.5 x 14 in).

7 3/4 Envelope (Monarch)

98 x 191 mm (3.9 x 7.5 in.)

9 Envelope

98 x 225 mm (3.9 x 8.9 in.)

10 Envelope

105 x 241 mm (4.1 x 9.5 in.)

Standard

250‑sheet tray

1,2 1,2 1,2 4

X X

Manual

feeder

1,3

650‑sheet duo tray 550‑sheet

550‑sheet tray Multipurpose

feeder

1,3

Duplex

tray

mode

DL Envelope

110 x 220 mm (4.3 x 8.7 in.)

C5 Envelope

162 x 229 mm (6.4 x 9 in.)

B5 Envelope

176 x 250 mm (6.9 x 9.8 in.)

Other Envelope

98 x 162 mm (3.9 x 6.3 in.) up to 176 x 250 mm (6.9 x 9.8 in.)

The paper source supports paper size without size sensing.

Universal is only supported in the standard 250and optional 550sheet tray if the paper size is from 148 x 215.9

mm (5.83 x 8.5 inches) to 215.9 x 355.6 mm (8.5 x 14 inches).

Universal is only supported in the multipurpose feeder and manual feeder if the paper size is from 76.2 x 127 mm

(3 x 5 inches) to 215.9 x 359.9 mm (8.5 x 14.17 inches).

Universal is only supported in duplex mode if the width is between 210 mm (8.27 inches) and 215.9 mm (8.5 inches)

and length is between 279.4 mm (11 inches) and 355.6 mm (14 inches).

Paper and specialty media guide 62

Supported paper types and weights

Notes:

• Your printer model may have a 650‑sheet duo tray, which consists of a 550‑sheet tray and an integrated

100‑sheet multipurpose feeder. The 550‑sheet tray of the 650‑sheet duo tray supports the same paper as the 550‑sheet tray. The integrated multipurpose feeder supports dierent paper sizes, types, and weights.

• Labels, transparencies, envelopes, and card stock always print at reduced speed.

Paper type 250‑sheet

tray

Paper

Manual

feeder

650‑sheet duo tray 550‑sheet

550‑sheet

tray

Multipurpose

feeder

Duplex mode

tray

• Plain

• Recycled

• Glossy

• Bond

• Letterhead

• Preprinted

• Colored

• Light

• Heavy

• Rough/Cotton

• Custom

Type [x]

Card stock X

Transparencies

X XX

Labels

• Paper

Envelope X

X XX

Printing 63

Printing

Printing forms and documents

Printing forms

1 From the home screen, navigate to:

Forms and Favorites > select form > Print

2 If necessary,

3 Send the print job.

conﬁgure

the print settings.

Printing from a computer

Note: For labels, card stock, and envelopes, set the paper size and type in the printer before sending the

print job.

1 From the document that you are trying to print, open the Print dialog.

2 If necessary, adjust the settings.

3 Send the print job.

Printing in black and white

From the home screen, navigate to:

> Settings > Print Settings > Quality Menu > Print Mode > Black Only >

Adjusting toner darkness

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address ﬁeld.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Quality Menu > Toner Darkness.

3 Adjust the setting, and then click Submit.

Printing 64

Using the printer control panel

From the home screen, navigate to:

> Settings > Print Settings > Quality Menu > To n e r D a r k ness

2 Adjust the setting, and then touch .

Using Max Speed and Max Yield

Max Speed and Max Yield let you choose between a faster print speed or a higher toner yield. Max Yield is the factory default setting.

• Max Speed—This lets you print in either black or color depending on what is set in the printer driver. The

printer prints in color unless Black Only is selected in the printer driver.

• Max Yield—This lets you switch from black to color based on the color content found on each page. Frequent

color mode switching can result to slower printing if the content of pages is mixed.

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address ﬁeld.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Setup Menu.

3 From the Printer Usage list, select Max Speed or Max Yield.

4 Click Submit.

Using the printer control panel

From the home screen, navigate to:

> Settings > Print Settings > Setup Menu

2 From the Printer Usage list, select Max Speed or Max Yield.

3 To u ch Submit.

Printing 65

Printing from a ﬂash drive

Notes:

• Before printing an encrypted PDF ﬁle, you will be prompted to type the ﬁle password from the printer

control panel.

• You cannot print ﬁles for which you do not have printing permissions.

1 Insert a

Notes:

drive into the USB port.

ﬂash

• A ﬂash drive icon appears on the printer home screen when a ﬂash drive is inserted.

• If you insert the ﬂash drive when the printer requires attention, such as when a jam has occurred,

then the printer ignores the ﬂash drive.

• If you insert the ﬂash drive while the printer is processing other print jobs, then Busy appears. After

these print jobs are processed, you may need to view the held jobs list to print documents from the

drive.

ﬂash

Warning—Potential Damage: Do not touch the printer or the printing, reading, or writing from the memory device. Loss of data can occur.

drive in the area shown while actively

ﬂash

2 From the printer control panel, touch the document you want to print.

Printing 66

3 Touch the arrows to specify the number of copies for printing, and then touch Print.

Notes:

• Do not remove the

drive from the USB port until the document has

ﬂash

ﬁnished

printing.

• If you leave the ﬂash drive in the printer after leaving the initial USB menu screen, then touch Held

Jobs on the home screen to print ﬁles from the ﬂash drive.

Supported

Notes:

ﬂash

drives and

ﬁle

types

• High‑speed USB ﬂash drives must support the full‑speed standard. Low-speed USB devices are not

supported.

• USB ﬂash drives must support the File Allocation Table (FAT) system. Devices formatted with New

Technology File System (NTFS) or any other ﬁle system are not supported.

Recommended ﬂash drives File type

• Lexar JumpDrive FireFly (512MB and 1GB)

• SanDisk Cruzer Micro (512MB and 1GB)

• Sony Micro Vault Classic (512MB and 1GB)

Documents:

• .pdf

• .xps

Images:

• .dcx

• .gif

• .jpeg or .jpg

• .bmp

• .pcx

• .ti or .tif

• .png

•

.ﬂs

Printing from a mobile device

Notes:

• Make sure that the printer and mobile device share the same wireless network. For more information on

conﬁguring the wireless settings of your mobile device, see the documentation that came with the device.

• Mobile printing is available only in some printer models.

Printing from a mobile device using Mopria Print Service

Mopria® Print Service is a mobile printing solution for mobile devices running on Android version 4.4 or later. It allows you to print directly to any Mopria‑certiﬁed printer.

Printing 67

Note: Before printing, make sure that the Mopria Print Service is enabled.

1 From the home screen of your mobile device, launch a compatible application.

2 Tap Print, and then select the printer.

3 Send the print job.

Printing from a mobile device using Google Cloud Print

Google Cloud PrintTM is a mobile printing service that allows enabled applications on mobile devices to print to any Google Cloud Print‑ready printer.

1 From the home screen of your mobile device, launch an enabled application.

2 Tap Print, and then select the printer.

3 Send the print job.

Printing from a mobile device using AirPrint

AirPrint is a mobile printing solution that allows you to print directly from Apple devices to an AirPrint‑certiﬁed printer.

Notes:

• This application is supported only in some Apple devices.

• This application is supported only in some printer models.

1 From the home screen of your mobile device, launch a compatible application.

2 Select an item to print, and then tap the share icon.

3 Tap Print, and then select a printer.

4 Print the document.

Printing from a mobile device using Lexmark Mobile Print

LexmarkTM Mobile Print allows you to send documents and images directly to a supported Lexmark printer.

1 Open the document, and then send or share the document to Lexmark Mobile Print.

Note: Some third‑party applications may not support the send or share feature. For more information, see

the documentation that came with the application.

2 Select a printer.

3 Print the document.

Printing 68

Printing conﬁdential and other held jobs

Storing print jobs in the printer

1 From the home screen, navigate to:

> Security > Conﬁdential Print > select a print job type

Use To

Max Invalid PIN Limit the number of times an invalid PIN can be entered.

Note: When the limit is reached, the print jobs for that user name and PIN are deleted.

Conﬁdential Job Expiration Hold print jobs in the computer until you enter the PIN from the printer

control panel. Note: The PIN is set from the computer. It must be four digits, using the

numbers 0–9.

Repeat Job Expiration Print and store print jobs in the printer memory.

Verify Job Expiration Print one copy of a print job and hold the remaining copies. It lets you

examine if the ﬁrst copy is satisfactory or not. The print job is automatically deleted from the printer memory when all copies are printed.

Reserve Job Expiration Store print jobs for printing at a later time.

Note: The print jobs are held until deleted from the Held Jobs menu.

Notes:

• Conﬁdential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to

process additional held jobs.

• You can set the printer to store print jobs in the printer memory until you start the print job from the

printer control panel.

• All print jobs that can be initiated by the user at the printer are called held jobs.

2 To u ch .

Printing held jobs

1 From the document that you are trying to print, open the Print dialog.

2 Select the printer, and then do either of the following:

• For Windows users, click Properties or Preferences, and then click Print and Hold.

• For Macintosh users, select Print and Hold.

3 Select the print job type.

4 If necessary, assign a user name.

5 Send the print job.

Printing 69

6 From the printer home screen, touch Held Jobs.

7 Send the print job.

Printing information pages

Printing a font sample list

1 From the home screen, navigate to:

> Reports > Print Fonts

2 To u ch PCL Fonts or PostScript Fonts.

Printing a directory list

A directory list shows the resources stored in a ﬂash memory or on the printer hard disk.

From the home screen, navigate to:

> Reports > Print Directory

Canceling a print job

Canceling a print job from the printer control panel

1 From the printer control panel, touch Cancel Job or press on the keypad.

2 Touch the print job you want to cancel, and then touch Delete Selected Jobs.

Note: If you press

Canceling a print job from the computer

1 Depending on the operating system, do either of the following:

• Open the printers folder, and then select your printer.

• From the System Preferences in the Apple menu, navigate to your printer.

2 Select the print job to cancel.

on the keypad, then touch Resume to return to the home screen.

Understanding the printer menus 70

Understanding the printer menus

Menus list

Note: Some menus are available only in some printer models.

Supplies Paper Menu Reports Network/Ports

Cyan Cartridge Magenta Cartridge Yellow Cartridge Black Cartridge Waste Toner Bottle Black or Color Imaging Kit Maintenance Kit

Security Settings Help Option Card Menu

Miscellaneous Security Settings Conﬁdential Print Erase Temporary Data Files Security Audit Log Set Date and Time

This menu item appears only when a 650-sheet duo tray is attached.

Default Source Paper Size/Type Conﬁgure MP Substitute Size Paper Texture Paper Weight Paper Loading Custom Types Custom Names Universal Setup

General Settings Flash Drive Menu Print Settings

Menu Settings Page Device Statistics

Network Setup Page Network [x] Setup Page Proﬁles Print Fonts Print Directory Print Demo Asset Report

Print All Guides Color Quality Print Quality Printing Guide Print Defects Guide Information Guide Supplies Guide

List

Active NIC Standard Network or Network [x] Standard USB SMTP Setup

Note: A list of installed DLEs (Download Emulators) appears.

Supplies menu

Use To

Cyan Cartridge View the status of the toner cartridges, which can be any

Magenta Cartridge

Yellow Cartridge

Black Cartridge

of the following:

Early Warning Low Invalid Near End of Life Replace Missing Defective OK Unsupported

Understanding the printer menus 71

Use To

Waste Toner Bottle

Near Full Replace Missing OK

Imaging Kit

OK Replace Black Imaging Kit Replace Color Imaging Kit

Maintenance Kit

OK Replace

Paper menu

Default Source menu

Use To

View the status of the waste toner bottle.

View the status of the imaging kit.

View the status of the maintenance kit.

Default Source

Tray [x ] Multipurpose Feeder Manual Paper Manual Envelope

Set a default paper source for all print jobs.

Notes:

Paper Size/Type menu

Use To

Tray [x] Size

A4 A5 JIS‑B5 Letter Legal Executive Oﬁcio (Mexico) Folio Universal

• Tray 1 (standard tray) is the factory default setting.

• From the Paper menu, set

Multipurpose Feeder to appear as a menu setting.

Conﬁgure

MP to "Cassette" for

• If two trays contain paper of the same size and type, and the trays

have the same settings, then the trays are automatically linked. When one tray is empty, the print job continues using the linked tray.

Specify the size of the paper loaded in each tray. Note: Letter is the U.S. factory default setting. A4 is the international

factory default setting.

Note: Only installed trays and feeders are listed in this menu.

Understanding the printer menus 72

Use To

Tray [x] Type

Plain Paper Card Stock Transparency Recycled Glossy Labels Bond Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Multipurpose Feeder Size

A4 A5 A6 JIS B5 Letter Legal Executive Oﬁcio (Mexico) Folio Statement Universal 7 3/4 Envelope 9 Envelope 10 Envelope DL Envelope C5 Envelope B5 Envelope Other Envelope

Specify the type of the paper loaded in each tray.

Notes:

• Plain Paper is the factory default setting for Tray 1.

Custom Type [x] is the factory default setting for all other trays.

• If available, a user‑deﬁned name will appear instead of Custom

Type [x].

• Use this menu to conﬁgure automatic tray linking.

• Only the 250-sheet tray supports transparency.

Specify the size of the paper loaded in the multipurpose feeder.

Notes:

• Letter is the U.S. factory default setting. A4 is the international

factory default setting.

• From the Paper menu, set

Multipurpose Feeder Size to appear as a menu.

Conﬁgure

MP to Cassette in order for

• The multipurpose feeder does not automatically detect the paper

size. Make sure the paper size is set.

Note: Only installed trays and feeders are listed in this menu.

Understanding the printer menus 73

Use To

Multipurpose Feeder Type

Plain Paper Card Stock Transparency Recycled Glossy Labels Bond Envelope Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Manual Paper Size

A4 A5 A6 JIS B5 Letter Legal Executive Oﬁcio (Mexico) Folio Statement Universal

Specify the type of the paper loaded in the multipurpose feeder.

Notes:

• Custom [x] is the factory default setting.

• From the Paper menu, set Conﬁgure MP to Cassette in order for

Multipurpose Feeder Type to appear as a menu.

Specify the size of the paper being manually loaded. Note: Letter is the U.S. factory default setting. A4 is the international

factory default setting.

Manual Paper Type

Plain Paper Card Stock Transparency Recycled Glossy Labels Bond Letterhead Preprinted Colored Paper Light Paper Heavy Paper Rough/Cotton Custom Type [x]

Note: Only installed trays and feeders are listed in this menu.

Specify the type of the paper being manually loaded.

Notes:

• Plain Paper is the factory default setting.

• From the Paper menu, set

Manual Paper Type to appear as a menu.

Conﬁgure

MP to Manual in order for

Understanding the printer menus 74

Use To

Manual Envelope Size

7 3/4 Envelope 9 Envelope 10 Envelope DL Envelope C5 Envelope B5 Envelope Other Envelope

Manual Envelope Type

Envelope Custom Type [x]

Note: Only installed trays and feeders are listed in this menu.

Specify the size of the envelope being manually loaded. Note: 10 Envelope is the U.S. factory default setting. DL Envelope is the

international factory default setting.

Specify the type of the envelope being manually loaded.

Note: Envelope is the factory default setting.

Conﬁgure MP menu

Use To

Conﬁgure MP

Cassette Manual First

Determine when the printer selects paper from the multipurpose feeder.

Notes:

• Cassette is the factory default setting. Cassette conﬁgures the

multipurpose feeder as the automatic paper source.

• Manual sets the multipurpose feeder only for manual‑feed print jobs.

• First conﬁgures the multipurpose feeder as the primary paper

source.

Substitute Size menu

Use To

Substitute Size

O Statement/A5 Letter/A4 All Listed

Substitute a speciﬁed paper size if the requested paper size is not available.

Notes:

• All Listed is the factory default setting. All available substitutions are

allowed.

• O indicates that no size substitutions are allowed.

• Setting a size substitution lets the print job continue without Change

Paper appearing.

Understanding the printer menus 75

Paper Texture menu

Use To

Plain Texture

Smooth Normal Rough

Card Stock Texture

Smooth Normal Rough

Transparency Texture

Smooth Normal Rough

Recycled Texture

Smooth Normal Rough

Glossy Texture

Smooth Normal Rough

Specify the relative texture of the plain paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the card stock loaded.

Notes:

• Normal is the factory default setting.

• The options appear only if card stock is supported.

Specify the relative texture of the transparencies loaded. Note: Normal is the factory default setting.

Specify the relative texture of the recycled paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the glossy paper loaded.

Note: Normal is the factory default setting.

Heavy Glossy Texture

Smooth Normal Rough

Labels Texture

Smooth Normal Rough

Bond Texture

Smooth Normal Rough

Envelope Texture

Smooth Normal Rough

Letterhead Texture

Smooth Normal Rough

Specify the relative texture of the heavy glossy paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the labels loaded. Note: Normal is the factory default setting.

Specify the relative texture of the bond paper loaded. Note: Rough is the factory default setting.

Specify the relative texture of the envelopes loaded. Note: Normal is the factory default setting.

Specify the relative texture of the letterhead loaded. Note: Normal is the factory default setting.

Understanding the printer menus 76

Use To

Preprinted Texture

Smooth Normal Rough

Colored Texture

Smooth Normal Rough

Light Texture

Smooth Normal Rough

Heavy Texture

Smooth Normal Rough

Rough/Cotton Texture

Rough

Custom [x] Texture

Smooth Normal Rough

Specify the relative texture of the preprinted paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the colored paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the light paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the heavy paper loaded. Note: Normal is the factory default setting.

Specify the relative texture of the cotton paper loaded.

Specify the relative texture of the custom paper loaded.

Notes:

• Normal is the factory default setting.

• The options appear only if custom type is supported.

Paper Weight menu

Use To

Plain Weight

Light Normal Heavy

Card Stock Weight

Light Normal Heavy

Transparency Weight

Light Normal Heavy

Specify the relative weight of the plain paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the card stock loaded. Note: Normal is the factory default setting.

Specify the relative weight of the transparencies loaded. Note: Normal is the factory default setting.

Understanding the printer menus 77

Use To

Recycled Weight

Light Normal Heavy

Glossy Weight

Light Normal Heavy

Heavy Glossy Weight

Light Normal Heavy

Labels Weight

Light Normal Heavy

Bond Weight

Light Normal Heavy

Specify the relative weight of the recycled paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the glossy paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the heavy glossy paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the labels loaded. Note: Normal is the factory default setting.

Specify the relative weight of the bond paper loaded.

Note: Normal is the factory default setting.

Envelope Weight

Light Normal Heavy

Rough Envelope Weight

Light Normal Heavy

Letterhead Weight

Light Normal Heavy

Preprinted Weight

Light Normal Heavy

Colored Weight

Light Normal Heavy

Specify the relative weight of the envelope loaded. Note: Normal is the factory default setting.

Specify the relative weight of the rough envelope loaded. Note: Heavy is the factory default setting.

Specify the relative weight of the letterhead loaded. Note: Normal is the factory default setting.

Specify the relative weight of the preprinted paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the colored paper loaded.

Note: Normal is the factory default setting.

Light Weight

Light

Specify that the relative weight of the paper loaded is light.

Understanding the printer menus 78

Use To

Heavy Weight

Heavy

Rough/Cotton Weight

Light Normal Heavy

Custom [x] Weight

Light Normal Heavy

Specify that the relative weight of the paper loaded is heavy.

Specify the relative weight of the rough or cotton paper loaded. Note: Normal is the factory default setting.

Specify the relative weight of the custom paper loaded.

Notes:

• Normal is the factory default setting.

• The options appear only when the custom type is supported.

Paper Loading menu

Use To

Cardstock Loading

O

Recycled Loading

Duplex O

Determine and set two‑sided printing for all print jobs that specify Cardstock as the paper type.

Determine and set two‑sided printing for all print jobs that specify Recycled as the paper type.

Glossy Loading

Duplex O

Heavy Glossy Loading

O

Labels Loading

O

Bond Loading

Duplex O

Letterhead Loading

Duplex O

Preprinted Loading

Duplex O

Notes:

Determine and set two‑sided printing for all print jobs that specify Glossy as the paper type.

Determine and set two‑sided printing for all print jobs that specify Heavy Glossy as the paper type.

Determine and set two‑sided printing for all print jobs that specify Labels as the paper type.

Determine and set two‑sided printing for all print jobs that specify Bond as the paper type.

Determine and set two‑sided printing for all print jobs that specify Letterhead as the paper type.

Determine and set two‑sided printing for all print jobs that specify Preprinted as the paper type.

• Duplex sets the printer default to two‑sided printing for every print job unless one‑sided printing is selected

from Printing Preferences or the Print dialog.

• O is the factory default setting for all the menus.

Understanding the printer menus 79

Use To

Colored Loading

Duplex O

Light Loading

Duplex O

Heavy Loading

Duplex O

Rough/Cotton Loading

O

Custom [x] Loading

Duplex O

Notes:

Determine and set two‑sided printing for all print jobs that specify Colored as the paper type.

Determine and set two‑sided printing for all print jobs that specify Light as the paper type.

Determine and set two‑sided printing for all print jobs that specify Heavy as the paper type.

Determine and set two‑sided printing for all print jobs that specify Rough/Cotton as the paper type.

Determine and set two‑sided printing for all print jobs that specify Custom [x] as the paper type.

Note: Custom [x] Loading is available only when the custom type is supported.

• Duplex sets the printer default to two‑sided printing for every print job unless one‑sided printing is selected

from Printing Preferences or the Print dialog.

• O is the factory default setting for all the menus.

Custom Types menu

Use To

Custom Type [x]

Paper Card Stock Transparency Glossy Rough/Cotton Labels Envelope

Recycled

Paper Card Stock Transparency Glossy Rough/Cotton Labels Envelope

Associate a paper or specialty media type with a factory default Custom Type [x] name or a user‑deﬁned custom name created in the Embedded

Web Server or MarkVision

Notes:

Professional.

• Paper is the factory default setting for Custom Type [x].

• The custom media type must be supported in the selected tray or

feeder in order to print from that source.

Specify a paper type when Recycled is selected.

Notes:

• Paper is the factory default setting.

• The Recycled paper type must be supported in the selected tray or

feeder in order to print from that source.

Understanding the printer menus 80

Custom Names menu

Use To

Custom Name [x] Specify a custom name for a paper type. This name replaces Custom

Type [x] in the printer menus.

Universal Setup menu

Use To

Units of Measure

Inches Millimeters

Portrait Width

3–8.5 inches 76–216 mm

Portrait Height

3–14.17 inches 76–360 mm

Identify the units of measure.

Notes:

• Inches is the US factory default setting.

• Millimeters is the international factory default setting.

Set the width for portrait orientation.

Notes:

• If the width exceeds the maximum, then the printer uses the

maximum width allowed.

• 8.5 inches is the US factory default setting. You can increase

the width in 0.01‑inch increments.

• 216 mm is the international factory default setting. You can

increase the width in 1‑mm increments.

Set the width for portrait orientation.

Notes:

• If the height exceeds the maximum, then the printer uses the

maximum height allowed.

• 14 inches is the US factory default setting. You can increase the

height in 0.01‑inch increments.

• 356 mm is the international factory default setting. You can

increase the height in 1‑mm increments.

Reports menu

Use To

Menu Settings Page Print a report on the current printer menu settings. The report also contains

information about the status of the supplies and a list of hardware options that are successfully installed.

Device Statistics Print a report containing printer statistics, such as supply information and

number of printed pages.

Network Setup Page Print a report containing information about the network settings of the

printer. Note: This menu item appears only in network printers or printers

connected to print servers.

Understanding the printer menus 81

Use To

Network [x] Setup Page Print a report containing information about the network settings of the

printer. Note: This menu item appears only in network printers or printers

connected to print servers, and when there is more than one network option installed.

Proﬁles List Print a list of proﬁles stored in the printer.

Print Fonts

PCL Fonts PostScript Fonts

Print Directory Print a list of all the resources stored in an optional ﬂash memory card or

Print a report of all the fonts available for the printer language currently set in the printer.

Note: A separate list is available for PCL and PostScript emulations. Each emulation report contains print samples and information about the available fonts for each language.

printer hard disk.

Notes:

• Job

Size must be set to 100%.

Buer

• Make sure that the memory card or hard disk is installed and working

properly.

Print Demo

Demo Page [list of available demo pages]

Asset Report Print a report containing asset information, including the printer serial

Event Log Summary Print a summary of logged events.

Print demo ﬁles that are available in the ﬁrmware, the ﬂash option, and the disk option.

number and model name. The report contains text and UPC bar codes that can be scanned into an asset database.

Network/Ports menu

Active NIC menu

Use To

Active NIC

Auto [list of available network cards]

Standard Network or Network [x] menu

Note: Only active ports appear in this menu.

Allow the printer to connect to a network.

Notes:

• Auto is the factory default setting.

• This menu item appears only if an optional network adapter is installed.

Understanding the printer menus 82

Use To

Energy Ecient Ethernet

Enable Disable

PCL SmartSwitch

On O

PS SmartSwitch

On O

NPA Mode

O Auto

Reduce power consumption when the printer receives no data from the Ethernet network.

Note: Enable is the factory default setting.

Set the printer to automatically switch to PCL emulation when a print job requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• If PCL SmartSwitch is disabled, then the printer does not examine

incoming data and it uses the default printer language speciﬁed in the Setup menu.

Set the printer to automatically switch to PS emulation when a print job requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• If PS SmartSwitch is disabled, then the printer does not examine

incoming data and it uses the default printer language speciﬁed in the Setup menu.

Set the printer to perform the special processing required for bidirectional communication following the conventions deﬁned by the NPA protocol.

Notes:

Network Buer

Auto 3KB to [maximum size allowed]

Job Buering

O On Auto

• Auto is the factory default setting.

• The printer automatically restarts when the setting is changed from the

control panel.

Set the size of the network input buer.

Notes:

• Auto is the factory default setting.

• The maximum size allowed depends on the amount of memory in the

printer, the size of the other link set to On or O.

buers,

• To increase the maximum size range for the Network

reduce the size of the parallel, serial, and USB buers.

and whether Resource Save is

disable or

Buer,

• The printer automatically restarts when the setting is changed from the

control panel.

Temporarily store print jobs in the printer hard disk before printing. This menu only appears when a formatted disk is installed.

Notes:

is the factory default setting.

•

O

• The printer automatically restarts when the setting is changed from the

control panel. The menu selection is then updated.

Understanding the printer menus 83

Use To

Mac Binary PS

On O Auto

Standard Network Setup OR Network [x] Setup

Reports Network Card TCP/IP IPv6 Wireless AppleTalk

Set the printer to process Macintosh binary PostScript print jobs. Note: Auto is the factory default setting.

Show and set the printer network settings. Note: The Wireless menu appears only when the printer is connected to a

wireless network.

Reports menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > Reports

• Network/Ports > Network [x] > Network [x] Setup > Reports

Use To

Print Setup Page Print a report containing information about the network printer settings, such as the TCP/IP

address.

Network Card menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > Network Card

• Network/Ports > Network [x] > Network [x] Setup > Network Card

Use To

View Card Status

Connected Disconnected

View Card Speed View the speed of an active wireless network adapter.

Energy Ecient Ethernet

Enable Disable

Network Address

UAA LAA

View the connection status of the wireless network adapter.

Reduce power consumption when the printer receives no data from the Ethernet network.

Note: Enable is the factory default setting.

View the network addresses.

Understanding the printer menus 84

Use To

Job Timeout

0, 10–225 seconds

Set the amount of time it takes for a network print job to be canceled.

Notes:

• 90 seconds is the factory default setting.

• A setting value of 0 disables the timeout.

• A value between 1 and 9 is invalid.

Banner Page

O On

Allow the printer to print a banner page.

Note: O is the factory default setting.

TCP/IP menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > TCP/IP

• Network/Ports > Network [x] > Network [x] Setup > TCP/IP

Note: This menu is available only in network printers or printers connected to print servers.

Use To

Set Hostname Set the current TCP/IP host name.

Note: This menu is available only in select printer models.

IP Address View or change the current TCP/IP address.

Note: Manually setting the IP address sets the Enable DHCP and Enable Auto

IP settings to O. It also sets Enable BOOTP and Enable RARP to O on systems that support BOOTP and RARP.

Netmask View or change the current TCP/IP netmask.

Gateway View or change the current TCP/IP gateway.

Enable DHCP

On O

Enable RARP

On O

Enable BOOTP

On O

Enable AutoIP

Ye s No

Enable FTP/TFTP

Ye s No

Specify the DHCP address and parameter assignment. Note: On is the factory default setting.

Specify the RARP address assignment setting. Note: O is the factory default setting.

Specify the BOOTP address assignment setting. Note: On is the factory default setting.

Specify the Zero Conﬁguration Networking setting. Note: Yes is the factory default setting.

Enable the built-in FTP server, which lets you send ﬁles to the printer using File Transfer Protocol.

Note: Yes is the factory default setting.

Understanding the printer menus 85

Use To

Enable HTTP Server

Ye s No

WINS Server Address View or change the current WINS server address.

Enable DDNS

Ye s No

Enable mDNS

Ye s No

DNS Server Address View or change the current DNS server address.

Backup DNS Server Address [x] View or change the current DNS server address.

Enable HTTPS

Ye s No

Enable the built-in Web server (Embedded Web Server). When enabled, the printer can be monitored and managed remotely using a Web browser.

Note: Yes is the factory default setting.

View or change the current DDNS setting. Note: Yes is the factory default setting.

View or change the current mDNS setting. Note: Yes is the factory default setting.

View or change the current HTTPS setting.

Note: Yes is the factory default setting.

IPv6 menu

To access the menu, navigate to either of the following:

• Network/Ports > Standard Network > Standard Network Setup > IPv6

• Network/Ports > Network [x] > Network [x] Setup > IPv6

Note: This menu is available only in network printers or printers that are attached to print servers.

Use To

Enable IPv6

On O

Auto Conﬁguration

On O

View Hostname Set the host name.

View Address

View Router Address

Enable DHCPv6

On O

Enable IPv6 in the printer. Note: On is the factory default setting.

Specify whether or not the wireless network adapter accepts the automatic IPv6 address conﬁguration entries provided by a router.

Note: On is the factory default setting.

Note: These settings can be changed only from the Embedded

Web Server.

Enable DHCPv6 in the printer. Note: On is the factory default setting.

Understanding the printer menus 86

Wireless menu

Note: This menu is available only in printers connected to a wireless network or printer models that have a

wireless network adapter.

To access the menu, navigate to:

Network/Ports > Network [x] > Network [x] Setup > Wireless

Use To

Wi‑Fi Protected Setup

Start Push Button Method Start PIN Method

Enable/Disable WPS Auto‑detection

Enable Disable

Network Mode

BSS Type

Infrastructure Ad hoc

Compatibility

802.11b/g

802.11b/g/n

Establish a wireless network and enable network security.

Notes:

• Start Push Button Method connects the printer to a wireless

network when buttons on both the printer and the access point (wireless router) are pressed within a given period of time.

• Start PIN Method connects the printer to a wireless network

when a PIN on the printer is entered into the wireless settings of the access point.

Automatically detect the connection method that an access point with WPS uses—Start Push Button Method or Start PIN Method.

Note: Disable is the factory default setting.

Specify the network mode.

Notes:

• Infrastructure is the factory default setting. This lets the printer

access a network using an access point.

• Ad hoc conﬁgures wireless connection directly between the

printer and a computer.

Specify the wireless standard for the wireless network.

Note: 802.11b/g/n is the factory default setting.

Choose Network Select an available network for the printer to use.

View Signal Quality View the quality of the wireless connection.

View Security Mode View the encryption method for the wireless network.

AppleTalk menu

Note: This menu is available only in printer models connected to a wired network or when an optional

network card is installed.

To access the menu, navigate to any of the following:

• Network/Ports > Standard Network > Standard Network Setup > AppleTalk

• Network/Ports > Network Setup [x] > AppleTalk

Understanding the printer menus 87

Use To

Activate

Ye s No

View Name Show the assigned AppleTalk name.

View Address Show the assigned AppleTalk address.

Set Zone

[list of zones available on the network]

Enable or disable AppleTalk support.

Note: Yes is the factory default setting.

Note: The name can be changed only from the Embedded Web Server.

Note: The address can be changed only from the Embedded Web

Server.

Provide a list of AppleTalk zones available on the network. Note: The factory default setting is the default zone for the network. If no

default zone exists, then the zone marked with an asterisk (*) is the default setting.

Standard USB menu

Use To

PCL SmartSwitch

On O

Set the printer to automatically switch to PCL emulation when a print job received through a USB port requires it, regardless of the default printer language.

Notes:

PS SmartSwitch

On O

NPA Mode

On O Auto

• On is the factory default setting.

• When set to O, the printer does not examine incoming data. The printer

uses PostScript emulation if the PS SmartSwitch is set to On. It uses the default printer language speciﬁed in the Setup menu if the PS SmartSwitch is set to O.

Set the printer to automatically switch to PS emulation when a print job received through a USB port requires it, regardless of the default printer language.

Notes:

• On is the factory default setting.

• When set to

uses PCL emulation if the PCL SmartSwitch is set to On. It uses the default printer language SmartSwitch is set to O.

Set the printer to perform the special processing required for bidirectional communication following the conventions deﬁned by the NPA protocol.

Notes:

the printer does not examine incoming data. The printer

O,

speciﬁed

in the Setup menu if the PCL

• Auto is the factory default setting. Auto sets the printer to examine data,

determine the format, and then process it appropriately.

• The printer automatically restarts when changing the setting from the

printer control panel. The menu selection is then updated.

Understanding the printer menus 88

Use To

USB Buer

Disabled Auto 3K to [maximum size allowed]

Job Buering

O On Auto

Set the size of the USB input buer.

Notes:

• Auto is the factory default setting.

• Disabled turns o job buering. Any jobs already buered on the printer

hard disk are printed before normal processing resumes.

• The USB buer size value can be changed in 1-K increments.

• The maximum size allowed depends on the amount of memory in the

printer, the size of the other link buers, and whether Resource Save is set to On or O.

• To increase the maximum size range for the USB Buer, disable or

reduce the size of the parallel, serial, and network buers.

• The printer automatically restarts when the setting is changed from the

printer control panel. The menu selection is then updated.

Temporarily store print jobs in the printer hard disk before printing.

Notes:

• O is the factory default setting.

• On buers jobs on the printer hard disk.

• Auto buers print jobs only if the printer is busy processing data from

another input port.

• Changing this setting from the printer control panel and then exiting the

menus causes the printer to restart. The menu selection is then updated.

Mac Binary PS

On O Auto

ENA Address

yyy.yyy.yyy.yyy

ENA Netmask

yyy.yyy.yyy.yyy

ENA Gateway

yyy.yyy.yyy.yyy

Set the printer to process Macintosh binary PostScript print jobs.

Notes:

• Auto is the factory default setting.

• On processes raw binary PostScript print jobs.

• O ﬁlters print jobs using the standard protocol.

Set the network address information for an external print server. Note: This menu is available only when the printer is attached to an external

print server through the USB port.

Set the netmask information for an external print server. Note: This menu is available only when the printer is attached to an external

print server through the USB port.

Set the gateway information for an external print server. Note: This menu is available only when the printer is attached to an external

print server through the USB port.

Understanding the printer menus 89

SMTP Setup menu

Use To

Primary SMTP Gateway Specify SMTP server gateway and port information.

Primary SMTP Gateway Port

Secondary SMTP Gateway

Secondary SMTP Gateway Port

Note: 25 is the default SMTP gateway port.

SMTP Timeout

5–30

Reply Address Specify a reply address of up to 128 characters in the e-mail sent by

Use SSL

Disabled Negotiate Required

Specify the amount of time in seconds before the server stops trying to send an e‑mail.

Note: 30 is the factory default setting.

the printer.

Set the printer to use SSL for increased security when connecting to the SMTP server.

Notes:

• Disabled is the factory default setting.

• When the Negotiate setting is used, the SMTP server

determines if SSL will be used.

SMTP Server Authentication

No authentication required Login/Plain CRAM‑MD5 Digest‑MD5 NTLM Kerberos 5

Device‑Initiated E‑mail

None Use Device SMTP Credentials

User‑Initiated E‑mail

None Use Device SMTP Credentials Use Session User ID and Password Use Session E‑mail address and

Password Prompt user

Specify the type of user authentication required for scan to e‑mail privileges.

Note: “No authentication required” is the factory default setting.

Specify what credentials will be used when communicating to the SMTP server.

Notes:

• None is the factory default setting for Device‑Initiated E‑mail

and User‑Initiated E‑mail.

• “Device Userid” and “Device password” are used to log in to

the SMTP server when Use Device SMTP Credentials is selected.

Device Userid

Device password

Kerberos 5 Realm

NTLM Domain

Understanding the printer menus 90

Security menu

Miscellaneous Security Settings menu

Use To

Minimum PIN Length

1–16

Limit the number and time frames of failed login attempts from the printer control panel before all users are locked out.

Notes:

• “Login failures”

are locked out. You can choose from 1 to 10 attempts. The factory default setting is 3.

speciﬁes

• “Failure time frame”

attempts can be made before users are locked out. You can choose from 1 to 60 minutes. The factory default setting is 5 minutes.

• “Lockout time”

the login failures limit. You can choose from 1 to 60 minutes. The factory default setting is 5 minutes. The printer does not impose a lockout time if you set to 1 minute.

speciﬁes

the number of failed login attempts before users

speciﬁes

the time frame during which failed login

how long users are locked out after exceeding

• Panel Login Timeout speciﬁes how long the printer remains idle on the

home screen before automatically logging the user o. You can choose from 1 to 900 seconds. The factory default setting is 30 seconds.

• Remote Login Timeout speciﬁes how long a remote interface remains

idle before automatically logging the user o. You can choose from 1 to 120 minutes. The factory default setting is 10 minutes.

Limit the digit length of the PIN.

Note: 4 is the factory default setting.

Conﬁdential Print menu

Use To

Max Invalid PIN

O 2–10

Conﬁdential Job Expiration

O 1 hour 4 hours 24 hours 1 week

Note: O is the factory default setting.

Limit the number of times an invalid PIN can be entered.

Notes:

• This menu appears only when a formatted, non-defective printer hard disk is

installed.

• Once the limit is reached, the print jobs for that user name and PIN are deleted.

Limit the amount of time a conﬁdential print job stays in the printer before it is deleted.

Notes:

• If the “Conﬁdential Job Expiration” setting is changed while conﬁdential print

jobs reside in the printer RAM or printer hard disk, then the expiration time for those print jobs does not change to the new default value.

• If the printer is turned o, then all conﬁdential jobs held in the printer RAM are

deleted.

Understanding the printer menus 91

Use To

Repeat Job Expiration

O 1 hour 4 hours 24 hours 1 week

Verify Job Expiration

O 1 hour 4 hours 24 hours 1 week

Reserve Job Expiration

O 1 hour 4 hours 24 hours 1 week

Note: O is the factory default setting.

Set a time limit on how long the printer stores print jobs.

Set a time limit on how long the printer stores print jobs needing veriﬁcation.

Set a time limit on how long the printer stores print jobs for printing at a later time.

Erase Temporary Data Files menu

Erase Temporary Data Files deletes only print job data on the printer hard disk that are not currently in use by the ﬁle system. All permanent data on the printer hard disk are preserved, such as downloaded fonts, macros, and held jobs.

Note: This menu appears only when a formatted, working printer hard disk is installed.

Use To

Wiping Mode

Auto

Automatic Method

Single pass Multiple pass

Specify the mode for erasing temporary data ﬁles.

Mark all disk space used by a previous print job. This method does not permit the ﬁle system to reuse this space until it has been cleared.

Notes:

• “Single pass” is the factory default setting.

• Only automatic wiping enables users to erase temporary data ﬁles

without having to turn o the printer for an extended amount of time.

• Highly conﬁdential information should be erased using only the Multiple

pass method.

Understanding the printer menus 92

Security Audit Log menu

Use To

Export Log Let an authorized user export the audit log.

Notes:

• To export the audit log from the printer control panel, attach a ﬂash drive

to the printer.

• The audit log can be downloaded from the Embedded Web Server and

saved on a computer.

Delete Log

Ye s No

Conﬁgure Log

Enable Audit

Ye s No

Enable Remote Syslog

No Ye s

Remote Syslog Facility

0–23

Severity of Events to Log

0–7

Specify whether or not audit logs are deleted. Note: Yes is the factory default setting.

Specify how and whether or not audit logs are created.

Notes:

• Enable Audit determines if events are recorded in the secure audit log

and remote syslog. No is the factory default setting.

• Enable Remote Syslog determines if logs are sent to a remote server. No

is the factory default setting.

• Remote Syslog Facility determines the value used to send logs to the

remote syslog server. 4 is the factory default setting.

• If the security audit log is activated, then the severity value of each event

is recorded. 4 is the factory default setting.

Set Date and Time menu

Use To

Current Date and Time View the current date and time settings for the printer.

Manually Set Date and Time Enter the date and time.

Notes:

• Date/Time is set in YYYY-MM-DD HH:MM:SS format.

• Manually setting the date and time sets “Enable NTP” (Network Time

Protocol) to On.

Time Zone Select the time zone.

Note: GMT is the factory default setting.

Automatically Observe DST

On O

Enable NTP

On O

Set the printer to use the applicable daylight saving time (DST) start and end times associated with the printer Time Zone setting.

Note: On is the factory default setting and uses the applicable Daylight Saving Time associated with the Time Zone setting.

Enable Network Time Protocol, which synchronizes the clocks of devices on a network.

Note: On is the factory default setting.

Understanding the printer menus 93

Settings menu

Setup menu

Use To

Printer Language

PCL Emulation PS Emulation

Job Waiting

On O

Print Area

Normal Fit To Page Whole Page

Set the default printer language.

Notes:

• PS Emulation is the factory default setting. PS Emulation

uses a PS interpreter for processing print jobs.

• PCL Emulation uses a PCL interpreter for processing

print jobs.

• Setting a printer language as the default does not

prevent a software program from sending print jobs that use another printer language.

Determine if print jobs are removed from the print queue when they require unavailable printer options or custom settings. These print jobs are stored in a separate print queue, so other jobs print normally. When the missing information or options are obtained, the stored jobs print.

Notes:

• O is the factory default setting.

• This menu item appears only if a non-read‑only printer

hard disk is installed. This requirement ensures that stored jobs are not deleted if the printer loses power.

Set the logical and physical printable area.

Notes:

• Normal is the factory default setting. When attempting to

print data in the non‑printable area deﬁned by the Normal setting, the printer clips the image.

• Fit to Page ﬁts the page content into the selected paper

size.

• Whole Page allows the image to be moved into the

non‑printable area deﬁned by the Normal setting, but the printer clips the image at the Normal setting boundary. This setting interpreter and has no eect on pages printed using the PCL XL or PostScript interpreter.

aects

only pages printed using a PCL 5e

Printer Usage

Max Yield Max Speed

Set color toner use in printing. Note: Max Yield is the factory default setting.

Understanding the printer menus 94

Use To

Black Only Mode

On O

Download Target

RAM Flash Disk

Resource Save

On O

Set the printer to print text and graphics using only the black toner cartridge.

Notes:

• O is the factory default setting.

• The setting value does not aect the ability of the printer

to generate color output from ﬂash drive print jobs.

Set the storage location for downloads.

Notes:

• RAM is the factory default setting. Storing downloads in

the RAM is temporary.

• Storing downloads in a

disk places them in permanent storage. Downloads remain in the when the printer is turned o.

memory or printer hard disk even

ﬂash

memory or on a printer hard

ﬂash

• This menu item appears only if an optional ﬂash memory

or printer hard disk is installed.

Specify how the printer handles temporary downloads, such as fonts and macros stored in the RAM, when the printer receives a job that requires more memory than is available.

Notes:

Print All Order

Alphabetical Oldest First Newest First

is the factory default setting. O sets the printer to

•

O retain the downloads only until memory is needed. Downloads are deleted in order to process print jobs.

• On sets the printer to retain downloads during language

changes and printer resets. If the printer runs out of memory, 38 Memory full appears, but downloads are not deleted.

Specify the order in which held and conﬁdential jobs are printed .

Note: Alphabetical is the factory default setting.

Understanding the printer menus 95

General Settings menu

Use To

Display Language

English Francais Deutsch Italiano Espanol Dansk Norsk Nederlands Svenska Portuguese Suomi Russian Polski Greek Magyar Turkce Cesky Simpliﬁed Chinese Traditional Chinese Korean Japanese

Set the language of the text that appears on the display. Note: Not all languages are available for all models. You may

need to install special hardware for some languages.

Show Supply Estimates

Show estimates Do not show estimates

Eco-Mode

O Energy Energy/Paper Paper

Quiet Mode

O On

Run Initial Setup

Ye s No

View the supply estimates on the control panel, Embedded Web Server, menu settings, and device statistics reports.

Note: Show estimates is the factory default setting.

Minimize the use of energy, paper, or specialty media.

Notes:

• O is the factory default setting. This setting resets the

printer to its factory default settings.

• Setting Eco-Mode to Energy or Paper may aect printer

performance, but not print quality.

Reduce printer noise. Note: O is the factory default setting.

Run the setup wizard.

Understanding the printer menus 96

Use To

Keyboard

Keyboard Type

English Francais Francais Canadien Deutsch Italiano Espanol Greek Dansk Norsk Nederlands Svenska Suomi Portuguese Russian Polski Swiss German Swiss French Korean Magyar Turk ce Cesky Simpliﬁed Chinese Traditional Chinese Japanese

Custom Key [x]

Specify a language and custom key information for the keyboard on the display.

Paper Sizes

US Metric

Specify the unit of measurement for paper sizes.

Notes:

• US is the factory default setting.

• The country or region selected in the initial setup wizard

determines the initial paper size setting.

Understanding the printer menus 97

Use To

Displayed Information

Left Side Right Side

Displayed Information (continued)

Custom Text [x]

Displayed Information (continued)

Black Toner Cyan Toner Magenta Toner Ye l lo w To n e r Waste Toner Bottle Fuser Transf e r Module

Specify the display information on the upper corners of the home screen.

Select from the following options:

None IP Address Hostname Contact Name Location Date/Time mDNS/DDNS Service Name Zero Conﬁguration Name Custom Text [x] Model Name

Notes:

• IP Address is the factory default setting for Left Side.

• Date/Time is the factory default setting for Right Side.

Customize the text to display in the upper corners of the home screen.

Note: You can type up to 32 characters.

Specify the display information for the supplies. Select from the following options:

When to display

Do not display Display

Message to display

Default Alternate

Default

[text entry]

Alternate

[text entry]

Notes:

• Do not display is the factory default setting for When to

display.

• Default is the factory default setting for Message to

display.

Understanding the printer menus 98

Use To

Displayed Information (continued)

Paper Jam Load Paper Service Errors

Home screen customization

Change Language Search Held Jobs Held Jobs USB Drive Proﬁles and Apps Bookmarks Jobs by User Forms and Favorites Background and Idle Screen Eco-Settings

Customize the displayed information for certain menus. Select from the following options:

Display

Ye s No

Message to display

Default Alternate

Default

[text entry]

Alternate

[text entry]

Notes:

• No is the factory default setting for Display.

• Default is the factory default setting for Message to

display.

Change the icons that appear on the home screen. Select from the following options:

Display Do Not display

Date Format

MM‑DD‑YYYY DD‑MM‑YYYY YYYY‑MM‑DD

Time Format

12 hour A.M./P.M. 24 hour clock

Screen Brightness

20–100

Audio Feedback

Button Feedback

On O

Volume

1–10

Format the printer date. Note: MM‑DD‑YYYY is the U.S. factory default setting. DD-

MM-YYYY is the international factory default setting.

Format the time. Note: 12 hour A.M./P.M. is the factory default setting.

Specify the brightness of the display. Note: 100 is the factory default setting.

Set the button volume and feedback.

Notes:

• On is the factory default setting for Button Feedback.

• 5 is the factory default setting for Volume.

Understanding the printer menus 99

Use To

Show Bookmarks

Ye s No

Web Page Refresh Rate

30–300

Contact Name Specify a contact name for the printer.

Location Specify the printer location.

Alarms

Alarm Control Cartridge Alarm

Timeouts

Standby Mode

Disabled 1–240

Specify whether to display bookmarks from the Held Jobs area.

Note: Yes is the factory default setting.

Specify the number of seconds between Embedded Web Server refreshes.

Note: 120 is the factory default setting.

Note: The contact name is stored on the Embedded Web

Server.

Note: The location is stored on the Embedded Web Server.

Set an alarm when the printer requires user intervention. For each alarm type, select from the following options:

O Single Continuous

Note: Single is the factory default setting.

Set the time in minutes before the printer enters a lower power state.

Note: 15 is the factory default setting.

Timeouts

Sleep Mode

Disabled 1–120

Timeouts

Print with Display O

Allow printing with display o Display on when printing

Set the idle time before the printer begins operating in Sleep Mode.

Notes:

• 20 is the factory default setting.

• Disabled appears only when Energy Conserve is set to

O.

• Lower settings conserve more energy, but may require

longer warm‑up times.

Print a job with the display turned o. Note: Display on when printing is the factory default setting.

Understanding the printer menus 100

Use To

Timeouts

Hibernate Timeout

Disabled 20 minutes 1 hour 2 hours 3 hours 6 hours 1 day 2 days 3 days 1 week 2 weeks 1 month

Hibernate Timeout on Connection

Hibernate Do Not Hibernate

Timeouts

Screen Timeout

15–300

Set the time before the printer enters Hibernate mode. Note: 3 days is the factory default setting.

Set the printer to Hibernate mode even if there is an active Ethernet connection.

Notes:

• Hibernate is the factory default setting.

• The fax function is available only in some printer models.

Set the idle time before the display automatically returns to a Ready state.

Note: 30 is the factory default setting.

Timeouts

Print Timeout

Disabled 1–255

Timeouts

Wait Timeout

Disabled 15–65535

Timeouts

Job Hold Timeout

5–255

Set the printer to end a print job after it has been idle for the speciﬁed amount of time.

Notes:

• 90 is the factory default setting.

• When the timer expires, any partially printed page still in

the printer is printed, and then the printer checks to see if any new print jobs are waiting.

• Print Timeout is available only when using PCL

emulation.

Set the time in seconds the printer waits to receive more data from the host.

Notes:

• 40 is the factory default setting.

• Wait Timeout is available only when the printer is using

PostScript emulation.

Set the time the printer waits for user intervention before it holds jobs that require unavailable resources.

Notes:

• 30 seconds is the factory default setting.

• This menu appears only when a hard disk is installed.

Lexmark CS510de User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety information

Conventions

Learning about the printer

Finding information about the printer

Selecting a location for the printer

Using the Embedded Web Server

Understanding the printer control panel

Using the printer control panel

Understanding the colors of the Sleep button and indicator lights

Understanding the home screen

Using the touch-screen buttons

Setting up and using the home screen applications

Finding the IP address of the computer

Finding the IP address of the printer

Accessing the Embedded Web Server

Customizing the home screen

Activating the home screen applications

Finding information about the home screen applications

Using Background and Idle Screen

Setting up Forms and Favorites

Setting up Remote Operator Panel

Additional printer setup

Installing internal options

Available internal options

Accessing the controller board

Installing a memory card

Installing an optional card

Installing a printer hard disk

Removing a printer hard disk

Installing hardware options

Order of installation

Installing an optional tray

Setting up the printer software

Installing the printer software

Adding available options in the print driver

Attaching cables

Networking

Preparing to set up the printer on an Ethernet network

Preparing to set up the printer on a wireless network

Connecting the printer using the Wireless Setup Wizard

Connecting the printer to a wireless network using the Embedded Web Server

Verifying printer setup

Printing a menu settings page

Printing a network setup page

Loading paper and specialty media

Setting the paper size and type

Loading the multipurpose feeder

Loading the manual feeder

Linking and unlinking trays

Linking and unlinking trays

Creating a custom name for a paper type

Assigning a custom paper type

Paper and specialty media guide

Using specialty media

Tips on using letterhead

Tips on using transparencies

Tips on using envelopes

Tips on using labels

Tips on using card stock

Paper guidelines

Paper characteristics

Unacceptable paper

Selecting paper

Selecting preprinted forms and letterhead

Storing paper

Supported paper sizes, types, and weights

Supported paper sizes

Supported paper types and weights

Printing

Printing forms and documents

Printing forms

Printing from a computer

Printing in black and white

Adjusting toner darkness

Using Max Speed and Max Yield
