Lexmark C910n, C910in, C910dn Setup Manual

Download

www.lexmark.com

Setup Guide

October 2001

C910

Edition: October 2001

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL,

INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

Comments about this publication may be addressed to Lexmark International, Inc., Department F95/032-2, 740 West New Circle Road, Lexington , Kentucky 40550, U.S.A. In the United Kingdom and Eire, send to Lexmark International Ltd., Marketing and Services Department, Westhorpe House, Westhorpe, Marlow Bucks SL7 3RQ. Lexmark may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. You can purchase additional copies of publications related to this product by calling 1-800-553-9727. In the United Kingdom and Eire, call 0628-481500. In other countries, contact your point of purchase.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by the manufacturer, are the user’s responsibility.

Lexmark and Lexmark with diamond design, MarkNet, and MarkVision are trademarks of Lexmark International, Inc., registered in the United St a t es a n d/ or other countries. ImageQuick is a trademark of Lexmark International, Inc.

PostScript® is a registered trademark of Adobe Systems Incorporated. PostScript 3 is Adobe Systems’ designation of a set of printer com man ds (language) and functions included in its software products. This printer is intended to be compatible with the PostScript 3 language. This means the printer recognizes PostScript 3 commands used in various application programs, and that the printer emulates the functions corresponding to the commands.

UNITED STAT ES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc., Lexington, KY 40550.

FCC emissions information

The Lexmark ABC has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Refer to the Lexmark ABC Publications CD for additional details.

Any questions on this statement should be directed to:

Safety information

• If your product is NOT marked with this symbol , it MUST be connected to an electrical outlet that is properly grounded.

• The power cord must be connected to an electrical outlet that is near the product and easily accessible.

• Refer service or repairs, other than those described in the operating instructions, to a professional service person.

• This product is designed, tested, and approved to meet strict global safety standards with the use of specific Lexmark components. The safety

features of some parts may not always be obvious. Lexmark is not responsible for the use of other replacement parts.

• Your product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

Conventions

It may help you to recognize the caution and warning conventions used in this book. These appear in the left column for easy reference.

CAUTION! A caution identifies something that could cause you harm. Warning! A warning identifies something that could damage your printer hardware or software.

Director of Lab Operations Lexmark International, Inc. 740 West New Circle Road Lexington, KY 40550 (859) 232-3000

iii

Table of contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

About your printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v

Other sources of information . . . . . . . . . . . . . . . . . . . . . . . . . vi

Step 1: Unpack your printer . . . . . . . . . . . . . . . . . . . . . . . . .1

Step 2: Select a location for your printer . . . . . . . . . . . . . .3

Considering environmental issues . . . . . . . . . . . . . . . . . . . . . .3

Allowing enough space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Step 3: Set up the printer and paper handling options . . .8

Installing the printer base or cabinet . . . . . . . . . . . . . . . . . . . . .9

Installing a 550-sheet drawer . . . . . . . . . . . . . . . . . . . . . . . . .10

Positioning the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Installing an optional duplex unit . . . . . . . . . . . . . . . . . . . . . . .12

Installing an optional high-capacity feeder . . . . . . . . . . . . . . .15

Attaching the paper tray labels . . . . . . . . . . . . . . . . . . . . . . . .23

Step 4: Install memory an d option cards . . . . . . . . . . . . .24

Removing the system board access cover . . . . . . . . . . . . . . .24

Installing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Installing a firmware card . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Installing a hard disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Installing an option card . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Reinstalling the system board access cover . . . . . . . . . . . . . .34

Step 5: Attach cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Network printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Local printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Table of contents

Step 6: Install printer supplies . . . . . . . . . . . . . . . . . . . . . .38

Opening the top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Installing the photodevelopers . . . . . . . . . . . . . . . . . . . . . . . .41

Installing the toner cartridges . . . . . . . . . . . . . . . . . . . . . . . . .44

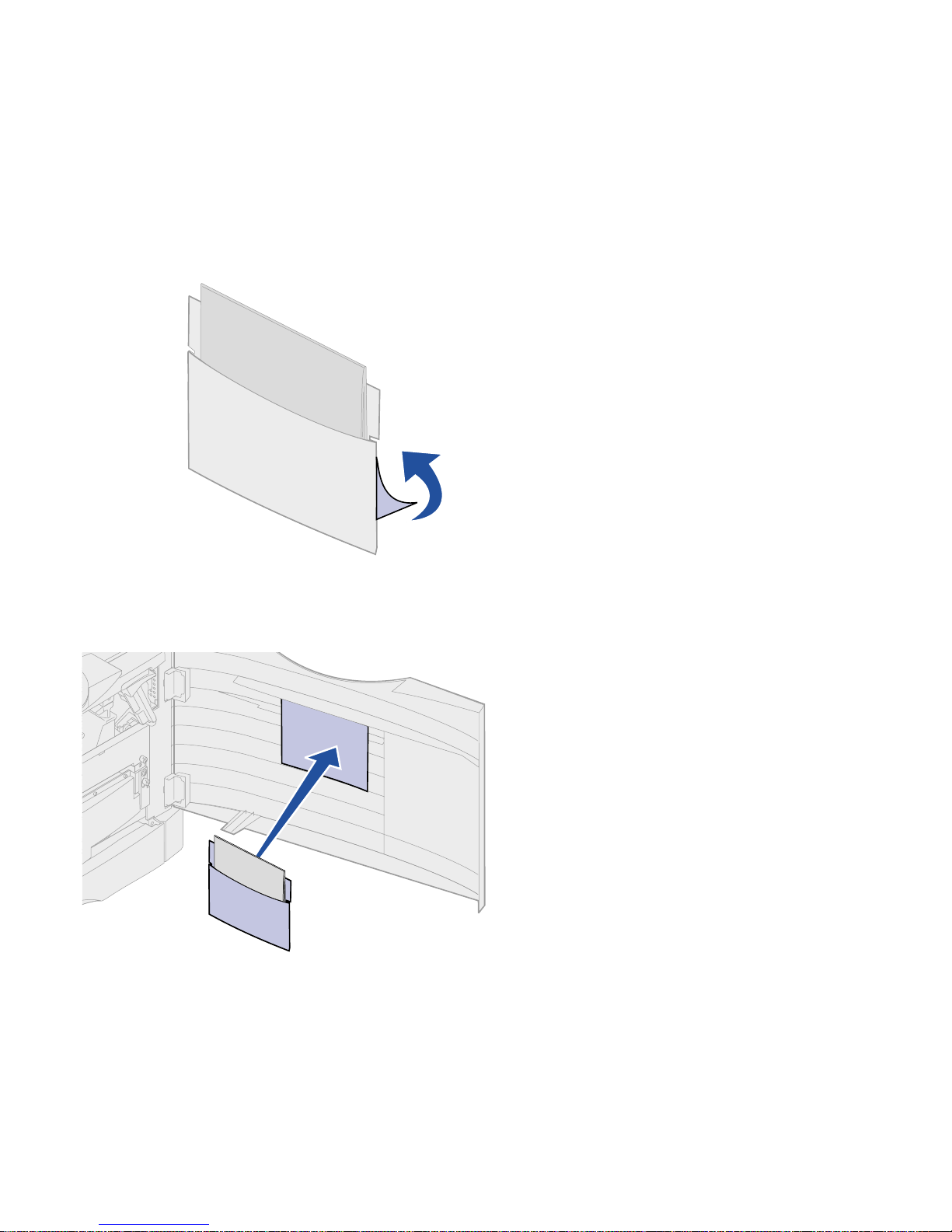

Attaching the Quick Reference booklet sleeve . . . . . . . . . . . .47

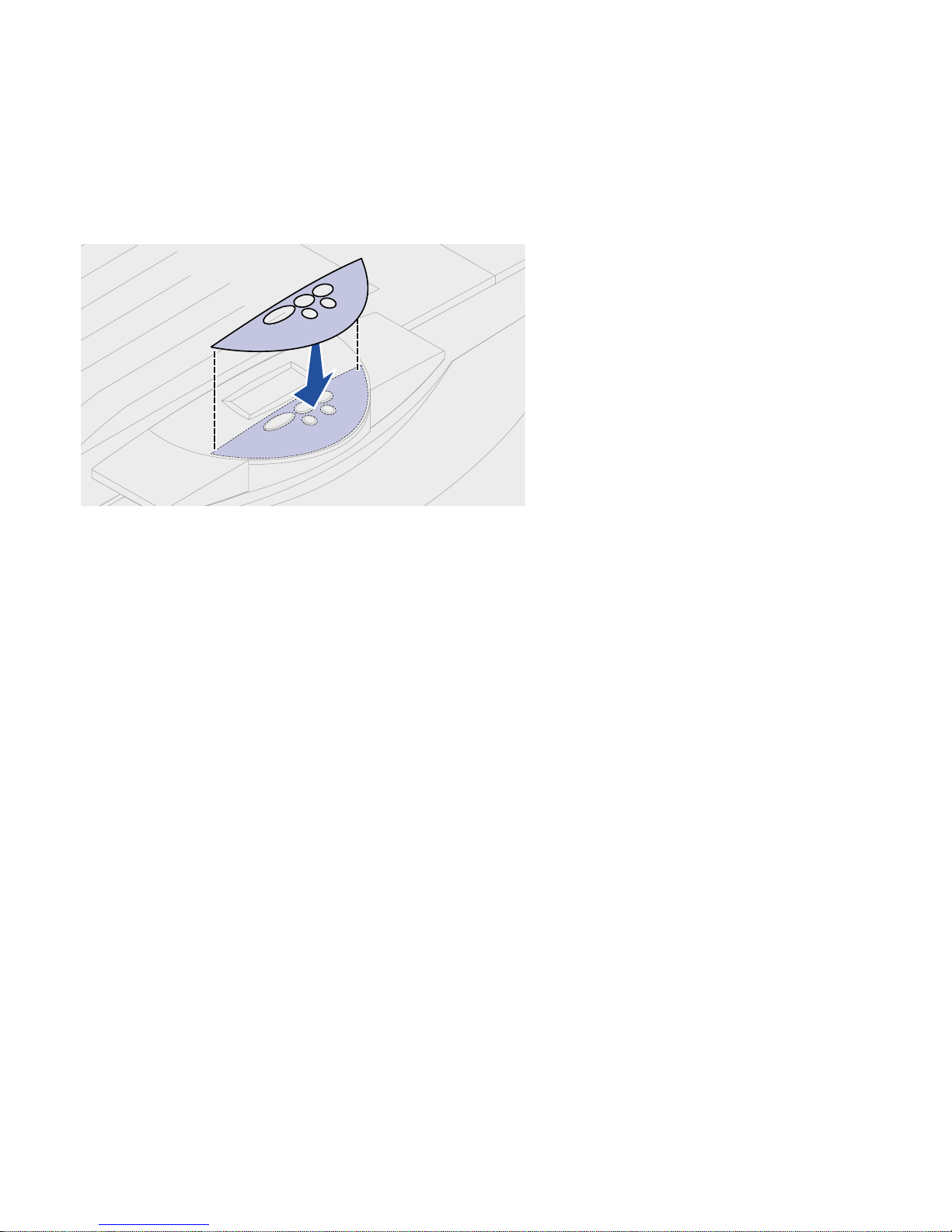

Attaching an adhesive operator panel overlay . . . . . . . . . . . .48

Closing the top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Step 7: Load paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Loading the paper trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

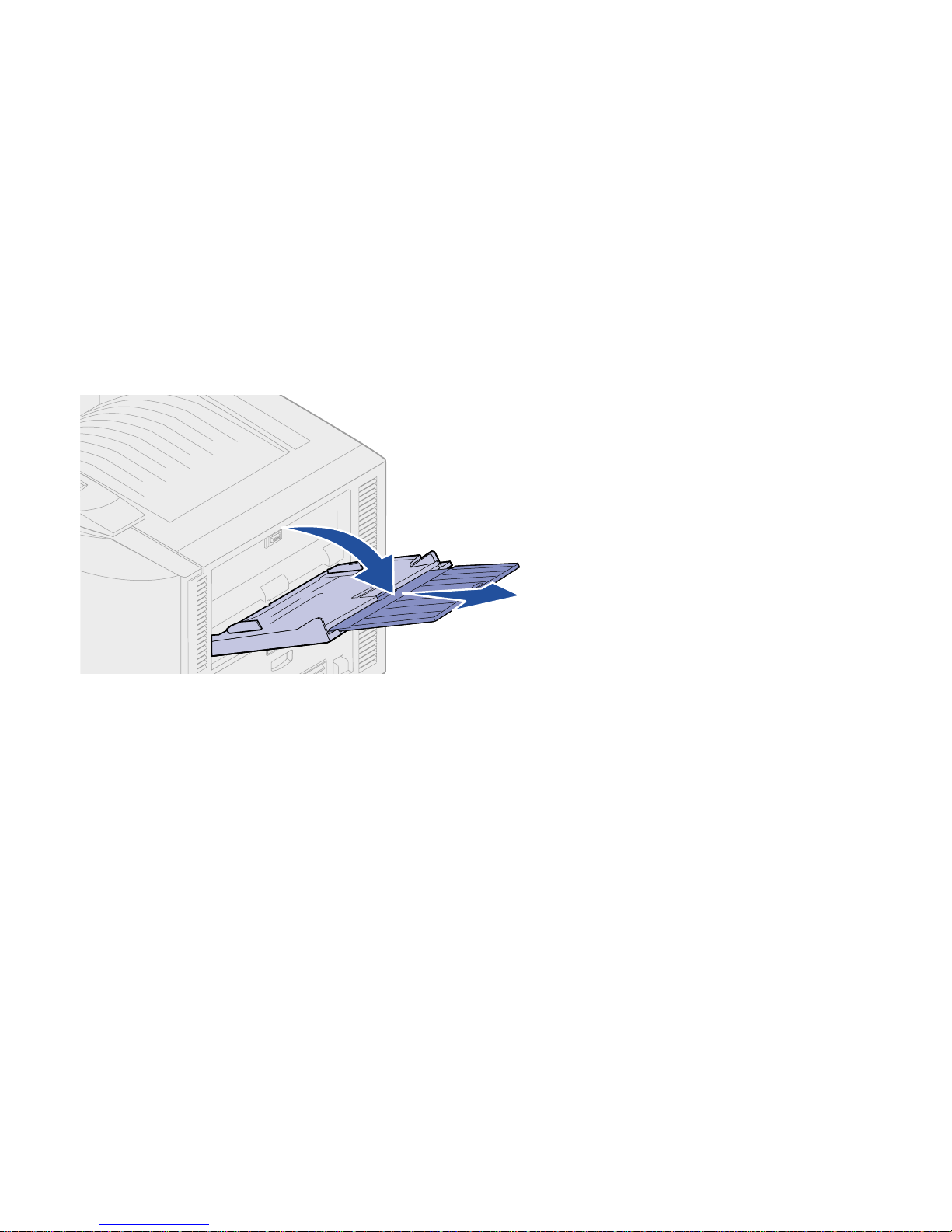

Loading the multipurpose feeder . . . . . . . . . . . . . . . . . . . . . .59

Loading the high-capacity feeder . . . . . . . . . . . . . . . . . . . . . .63

Step 8: Verify printer setup . . . . . . . . . . . . . . . . . . . . . . . .67

Turning on the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Printing a menu settings page . . . . . . . . . . . . . . . . . . . . . . . .68

Printing a network setup page . . . . . . . . . . . . . . . . . . . . . . . .69

Step 9: Configure for TCP/IP . . . . . . . . . . . . . . . . . . . . . . .70

Setting the printer IP address . . . . . . . . . . . . . . . . . . . . . . . . .70

Verifying the IP settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Configuring for Pull Printing . . . . . . . . . . . . . . . . . . . . . . . . . .71

Network printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Local printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Identifying printer users . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Finding information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Distributing the information . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Storing the Quick Reference . . . . . . . . . . . . . . . . . . . . . . . . . .78

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Introduction

About your printer Your printer is available in four models:

• Lexmark C910 printer, with 2400

IQ resolution, 64MB of standard memory, one 550-sheet tray, multipurpose feeder, and USB and parallel connectors.

• Lexmark C910n, a network

model with 64MB of standard memory, an Ethernet 10BaseT/ 100BaseTx print server installed, an additional 550-sheet drawer, and USB and Ethernet connectors.

• Lexmark C910in, a network

internet model with an ImageQuick firmware card installed.

• Lexmark C910dn, a network

model with duplexing capabilities.

To customize your Lexmark C910 printer you can purchase a variety of input options including a high-capacity feeder.

If you purchased your printer as part of a multifunction device, refer to the documentation that came with the device for information about setting up components other than the printer.

Lexmark C910

Lexmark C910n

Lexmark C910in

Lexmark C910dn

Other sources of

information

If you need more information after you have completed setup, refer to the other printer documentation.

Lexmark C910

Publications CD

The Lexmark C910 Publications CD provides information about loading paper, clearing error messages, ordering and replacing supplies, installing maintenance kits, and troubleshooting. It also provides general information for administrators.

The information on the CD is also available on the Lexmark Web site at www.lexmark.com/publications.

Quick Reference The Quick Reference provides easy

access to information about loading print media, printing confidential jobs, understanding printer messages, and clearing jams.

Drivers CD The drivers CD contains all the

necessary printer drivers to get your printer up and running.

Depending on which version of the drivers CD shipped with your printer, it may also contain MarkVision™ Professional, other printer utilities, worldwide customer support phone numbers, screen fonts, and additional documentation.

Lexmark Web site Visit our Web site at www.lexmark.com

for updated printer drivers, utilities, and other printer documentation.

Unpack your printer

Step 1: Unpack your printer

CAUTION! The printer weighs 69.9 kg

(154 Ib) and requires at least four people to lift it safely. Anytime you move or lift the printer make sure you have enough people to help you. Use the handholds on the side of the printer when lifting.

Remove all items from the box except the printer. Make sure you have the following items:

• Printer

• Power cord

Note: Leave the printer in the box until

you are ready to install memory options or place it into position.

• Four toner cartridges

• Four photodevelopers

• Setup Guide

• Lexmark C910 Publications CD

• Quick Reference and sleeve

• Drivers CD

If any items are missing or damaged, refer to the publications CD for th e designated Lexmark support phone number for your country .

Save the carton and packing material in case you need to repack the printer.

Setup Guide

Power cord

Drivers CD

Quick Reference and sleeve

Toner cartridges

Photodevelopers

Printer

Publications CD

Unpack your printer

Familiarize yourself with the names and location s of item s on the fr ont and rear of your new printer. This will help you during printer setup. We use the same terms throughout this book and on the publications CD.

Power switch

Door release latch

Operator panel

Handholds

Top cover and standard output bin

Front door

Paper tray

Paper size dial

Exit tray (bin 1)

Power cord socket

Rear cover

Parallel or Ethernet connector

Handholds

Duplex unit cover

High-capacity feeder connector

USB connector

Option slot cover

Select a location for your printer

Step 2: Select a location for y our

printer

Choosing the correct location for your new Lexmark C910 is vital to ensuring the printer provides you with the quality of service you expect.

Consider these factors when selecting a place to set up your printer:

• The type of environment

necessary for optimum printer performance

• The amount of space required for

your printer and all its options

Considering

environmental issues

When choosing a place to set up the printer, look for:

• A firm, level surface

Note: Adequate ventilation is important

if you expect to print high volumes of materials or print continuously.

• An area that is:

— Well ventilated — Clean, dry, and free of dust — Away from direct sunlight — Free of temperature or

humidity extremes or fluctuations

— Away from the direct airflow of

heaters, air conditioners, or ventilators

Select a location for your printer

Allowing enough space When choosing a place to set up your

printer, be sure to allow enough space for the printer and any options you may have purchased. It’s also important to allow space for proper ventilation around the printer.

Base printer When selecting a location for your

printer, make sure you have at least the amount of space indicated in the figure.

508 mm (26 in.)

1241.8 mm (56 in.)

1178.4 mm (46.5 in.)

734.9 mm (29 in.)

102 mm (5 in.)

152.1 mm (6 in.)

329.5 mm (13 in.)

Select a location for your printer

Network and internet printers The network and internet models are

configured with two 550-sheet drawers. Make sure you have at least the amount of space indicated in the figure.

1241.8 mm (56 in.)

1355.8 mm (53.5 in.)

869.2 mm (34.3 in.)

102 mm (5 in.)

152.1 mm (6 in.)

329.5 mm (13 in.)

508 mm (26 in.)

Select a location for your printer

Duplex network printers The duplex network printer is configured

with two 550-sheet drawers and an internal duplex unit. Make sure you have at least the amount of space indicated in the figure.

508 mm (26 in.)

1241.8 mm

(56 in.)

1355.8 mm (53.5 in.)

869.2 mm (34.3 in.)

102 mm (5 in.)

329.5 mm (13 in.)

Select a location for your printer

Printer with

high-capacity feeder

You can add a high-capacity feeder to your printer if you have a printer cabinet or if you have a printer stand with optional drawers.

When attaching a high-capacity feeder, make sure you provide the additional space indicated in the figure.

508 mm (26 in.)

1241.8 mm (56 in.)

17.84.1 mm (70.4 in.)

1110 mm (43.8 in.)

102 mm (5 in.)

329.5 mm (13 in.)

494.2 mm (30 in.)

Set up the printer and paper handling options

Step 3: Set up the printer and

paper handling options

Note: Be sure to set up the items in the

order listed in the table.

Use the following table to locate the instructions you need to set up your printer and any paper handling options you may have purchased.

Topic Go to page...

Installing the printer base or cabinet 9 Installing a 550-sheet drawer 10 Positioning the printer 11 Installing an optional duplex unit 12 Installing an optional high-capacity feeder 15

Set up the printer and paper handling options

Installing the printer

base or cabinet

You can purchase an optional printer cabinet or printer base.

The instructions for installing the printer cabinet or printer base are the same.

To install the printer cabinet:

1 Remove the printer cabinet from

the box.

2 Remove all packing material from

the printer cabinet.

3 Follow the instructions that came

with the option to assemble or prepare the cabinet or base for installation.

4 Place the printer cabinet in the

location you have chosen for your printer.

Set up the printer and paper handling options

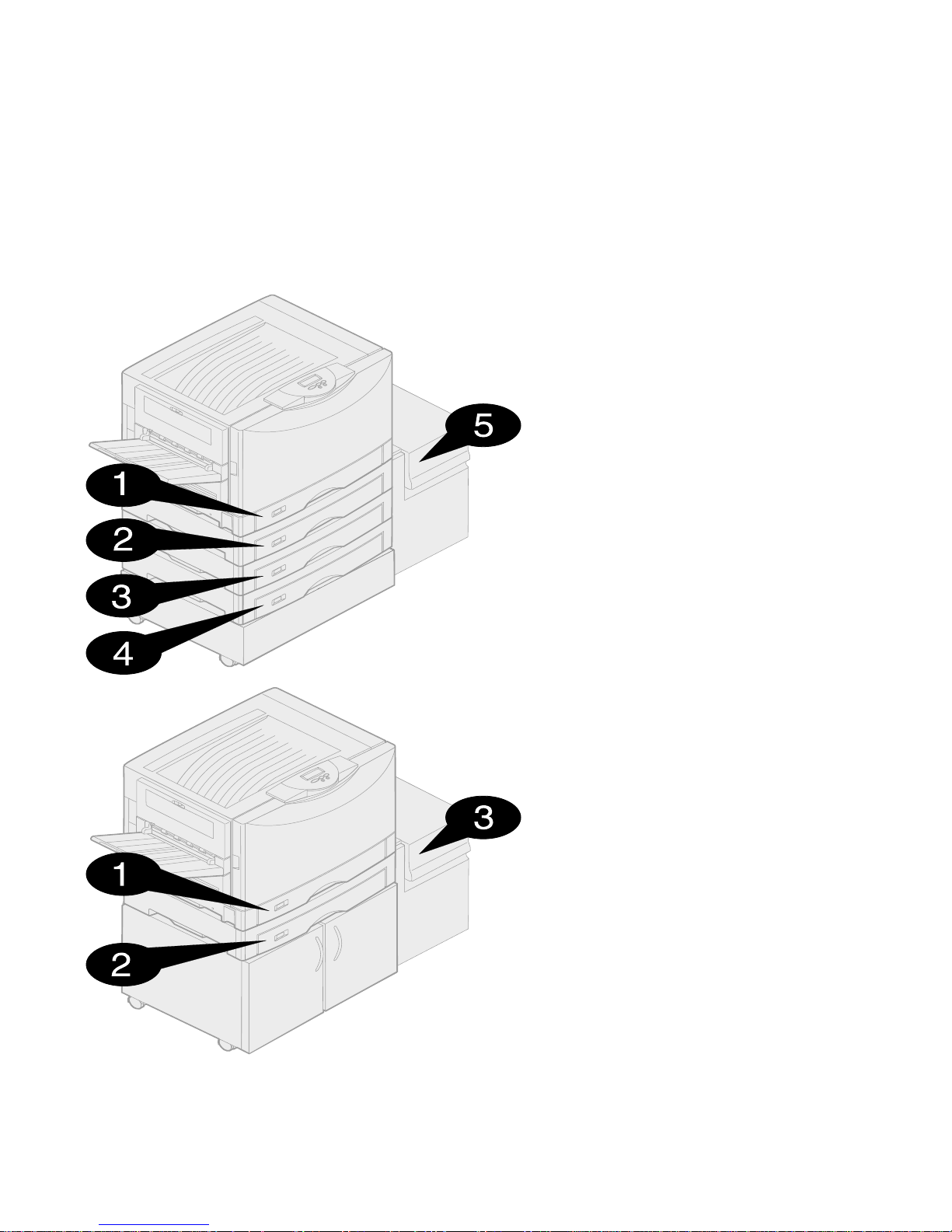

Installing a

550-sheet drawer

Your printer supports a total of up to three optional 550-sheet drawers.

1 Unpack the 550-sheet drawer and

remove any packing material.

2 Place the 550-sheet drawer on the

optional printer cabinet, optional printer base, or in the location you have chosen for your printer.

3 If you have additional 550-sheet

drawers:

a Align the positioning posts on

the lo wer dr aw er wi th the h oles in the 550-sheet drawer.

b Lower the 550-sheet drawer

into place. Make sure it is seated securely on the other drawer.

4 Go to “Positioning the printer” on

page 11.

Set up the printer and paper handling options

Positioning the printer Once you have selected a location and

set up any optional 550-sheet drawers, you are ready to position the printer.

CAUTION! The printer weighs 69.9 kg

1 Have others help you lift the

printer out of the box. Use the handholds on the sides of

the printer.

Set up the printer and paper handling options

2 Have three other people help you

place the printer in the location you have chosen.

If you are installing the printer on a 550-sheet drawer, align the positioning posts on the option with the holes in the printer. Make sure the printer is seated securely on the option.

3 Remove any tape or packing

material from the outside of the printer.

Installing an optional

duplex unit

Your printer supports an optional duplex unit that provides two-sided printing.

To install the duplex unit:

1 Remove the duplex unit from its

packing material.

2 Remove any shipping tape and

additional packing materi al fro m the duplex unit.

Set up the printer and paper handling options

3 Open the duplex unit access door

on the left side of the printer.

4 Align the duplex unit with the slots

in the printer.

5 Slide in the duplex unit.

Set up the printer and paper handling options

6 Align the thumbscrews on the

duplex unit with the holes in the printer.

7 Tighten the thumbscrews . 8 Close the duplex unit door.

Set up the printer and paper handling options

Installing an optional

high-capacity feeder

Your printer supports an optional highcapacity feeder. You can load up to 3,000 sheets of paper in the highcapacity feeder.

Note: You must ha ve an opti onal p rint er

cabinet or an optional printer stand with optional drawers to install a highcapacity feeder.

1 Remove and unpack all items

from the box.

2 Make sure you have the following

items:

— High-capacity feeder — Docking frame — Guide rail — Interface cable — Power cord — Four docking frame screws — Cable holder — Eight height adjustment

spacers

— Wrench

If any items are missing or damaged, refer to the publications CD for th e designated Lexmark support phone number for your country .

High-capacity feeder

Docking frame

Guide rail

Interface cable

Power cord

Four docking frame screws

Cable holder

Eight height adjustment spacers

Wrench

Set up the printer and paper handling options

3 Make sure the printer power

switch is in the Off position.

Attaching the docking frame

1 Remove the two side covers from

the top 550-sheet drawer. You may need to use a small

flathead screwdriver to pry the covers up and outward.

Set up the printer and paper handling options

2 Insert two screws through the top

screw holes of the docking frame and into the holes in the 550sheet drawer.

3 Use the wrench to tighten the

screws.

4 Insert two screws through the

bottom scre w holes of the d oc king frame and into the holes in the printer cabinet or printer base.

5 Tighten the screws.

6 Place the wrench in the holder on

the high-capacity feeder.

Set up the printer and paper handling options

Attaching the guide rail

and feeder

1 Align the two holes on guide rail

with the studs on the docking frame.

2 Slide the guide rail down until it is

fully seated on the docking rail.

3 Place the high-capacity feeder on

the guide rail.

Note: Make sure all four casters are on

the guide rail.

Set up the printer and paper handling options

4 Roll the high-capacity feeder

toward the printer and check the alignment of the pins with the holes in the docking frame.

If the pins do not align with the holes in the docking frame, see “Installing height adjustment spacers” on page 21.

5 Roll the high-capacity feeder

toward the printer until the feeder locks to the docking frame.

When the feeder is in the correct position, you hear a click when it locks.

Set up the printer and paper handling options

CAUTION! Do not install the high-

capacity feeder power cord at this time.

6 Attach the interface cable to the

back of the printer and tighten the thumbscrews.

7 Attach the interface cable to the

side of the high-capacity feeder and tighten the thumbscrews.

Set up the printer and paper handling options

8 Insert the point on the cable

holder into the hole on the back of the top optional drawer.

9 Place the high-capacity feeder

cable into the holder.

10 Close the cable holder.

Installing height adjustment

spacers

If the pins on the high-capacity feeder did not align with the holes in the docking frame you can adjust the height of the feeder.

You can either remove the factory installed spacer or add two spacers between each caster and the bottom of the high-capacity feeder.

Use the following steps to add or remove spacers.

1 Determine the height difference

between high-capacity feeder alignment pins and the docking frame.

Set up the printer and paper handling options

2 Place the high-capacity feeder on

the floor or adequate work surface.

3 Remove the four screws securing

one of the casters to the highcapacity feeder.

4 Add or remove spacers.

To add spacers:

a Insert the four screws through

the caster.

b Place the spacers on the

screws.

c Align and insert the screws

into the screw holes on the high-capacity feeder.

To remove the factory installed spacer:

a Remove the spacer from the

top of the caster.

b Insert the four screws through

the caster.

c Align and insert the screws

into the screw holes on the high-capacity feeder.

5 Tighten the four screws to secure

the caster to the high-capacity feeder.

6 Repeat steps 3 through 5 to add

or remove spacers on the remaining three casters.

7 Return to step 5 on page 19.

Set up the printer and paper handling options

Attaching the paper

tray labels

Paper tray labels are included with each paper tray option. Use the labels to indicate the tray number and help identify paper jams and change paper tray menu options.

Refer to the illustrations to determine where to place the tray numbers for your printer configuration.

Install memory and option cards

Step 4: Install memory and

option car ds

You can customize your printer memory capacity and connecti vity by adding optional cards or hard disk.

Removing the system

board access cover

You must remove the system board cover to install memory cards, a firmware card, a hard disk, or an option card.

CAUTION! If you are installing memory

or option cards after initial printer setup, turn the printer off and unplug the power cord. If you have any other devices connected to the printer, turn them off as well and unplug any cables going to the printer.

You need a number 2 Phillips screwdriver to remove the system board cover.

Rear cover

Install memory and option cards

1 Loosen the eight screws on the

system board cover. Do not remove the screws completely.

2 Slide the cover up and away from

the printer.

Screws

Install memory and option cards

3 Use the illustration to locate the

connector for the card you want to install.

4 Use the following table to locate

the instructions you need.

emory and flash memory

card connectors

Optional hard disk

Optional ImageQuick firmware card

Option card connector

Parallel connector

Ethernet connector

USB connector

Option card cover

To install a... Go to page...

Memory card 27 Firmware card 28 Hard disk 30 Option card 31

Install memory and option cards

Installing a

memory card

Complete the foll owing instructions to install either a printer memory card or a flash memory card. Memory cards must have 168-pin connectors.

Note: Memory options designed for

other Lexmark printers may not work with your printer.

The system board has three connectors for optional memory cards. You can install any combination of printer memory and flash memory cards in the connectors. However, the printer only recognizes one flash memory card at a time.

Warning! Printer memory and flash

memory cards are easily damaged by static electricity. Touch something metal such as the printer frame before you touch a memory card.

1 Remove the system board access

cover (see page 24).

2 Push open the latches on both

ends of the memory connector you want to use.

3 Unpack the memory card.

Avoid touching the connection points along the edge of the card. Save the packaging.

Install memory and option cards

4 Align the notches on the bottom of

the card with the notches on the connector.

5 Push the memory card firmly into

the connector until the latche s on either end of the connector snap into place.

It may require some force to fully seat the card.

6 Make sure each latch fits over the

notch on the end of the card.

Installing a

firmware card

Follow the instructions in this section to install a firmware card.

If you have a Lexmark C910in, an ImageQuick™ firmware card is already installed.

Note: Firmware cards designed for

other Lexmark printers may not work with your printer.

If an option card has been installed, you need to remove the option card before installing the firmware card.

1 Remove the system board access

cover (see page 24).

Install memory and option cards

Warning! Firmware cards are easily

damaged by static electricity. Touch something metal such as the printer frame before you touch a card.

2 Unpack the firmware card.

Avoid touching the metal pins on the bottom of the card. Save the packaging.

3 Holding th e card by it s side s, align

the pins on the card with the holes on the system board.

4 Push the firmware card firmly into

place. The entire length of the connector

on the firmware card must touch the system board.

Be careful not to damage the connectors.

Alignment pins

System board holes

Install memory and option cards

Installing a hard disk Follow the instructions in this section to

install an optional hard disk.

Warning! Hard disks are easily

damaged by static electricity. Touch something metal such as the printer frame before you touch the hard disk.

If an option card has been installed, you need to remove the option card before installing the hard disk.

1 Remove the system board access

cover (see page 24).

2 Align and press the ribbon cable

connector into the connector on the system board.

Install memory and option cards

3 Flip the hard disk over, and then

press the three posts on the mounting plate into the holes on the system board. The hard disk snaps into place.

Installing an

option card

Your printer has one expansion card slot that supports a number of option cards. The following table describes their function.

Card Function

MarkNet™ internal print server Adds an Ethernet or Token-Ring port to connect your printer to a network.

Install a MarkNet N2 501e o r N24 01e i nternal print serv er if y o u rece iv ed e ither

of these cards as part of a multifunction printer upgr ad e . USB/Parallel 1284-C Interface Card Adds a Universal Serial Bus (USB) port or a parallel port. Coax/Twinax Adapter for SCS Adds a coaxial/twinaxial port. Tri-Port Adapter Adds LocalTalk, serial, and infrared ports. For details on setting up and using

the Tri-Port Adapter, refer to the documentation that shipped with the card. Infrared Adapter Adds infrared functionality.

Install memory and option cards

Note: The Lexmark C910n and

Lexmark ABCdn printers ship with an Ethernet print server already installed.

You need a small Phillips screwdriver to install these options.

1 Remove the system board access

cover (see page 24).

2 Remove the screw from the metal

plate that covers the connector slot, and then lift the plate off.

Save the screw.

Warning! Option cards are easily

damaged by static electricity. Touch something metal such as the printer frame before you touch an option card.

3 Unpack the option card.

Save the packing materials.

Install memory and option cards

4 Align the connector on the option

card with the connector on the system board.

The cable connectors on the side of the option card must fit through the connector slot.

5 Push the option card firmly into

the option card connector.

6 Secure the card to the system

board with the screws.

Install memory and option cards

Reinstalling the system

board access cover

After you have finished installing cards on the printer system board, you must reinstall th e system board access cover.

1 Align the holes on the access

cover with the screws on the printer as shown.

2 Place the cover against the printer

and slide it down.

3 Tighten the eight screws.

Screw slot

Attach cables

Step 5: Attach cables

The Lexmark C910 can be attached to a network or locally (directly to a computer).

Network printing You can attach your printer to a network using standard network

cables. A 10BaseT/100BaseTX Fast Ethernet port is standard on the

Lexmark C910n and Lexmark ABCdn. You can add a Token-Ring or 10Base2 Ethernet port to any printer model by installing an optional MarkNet internal print server.

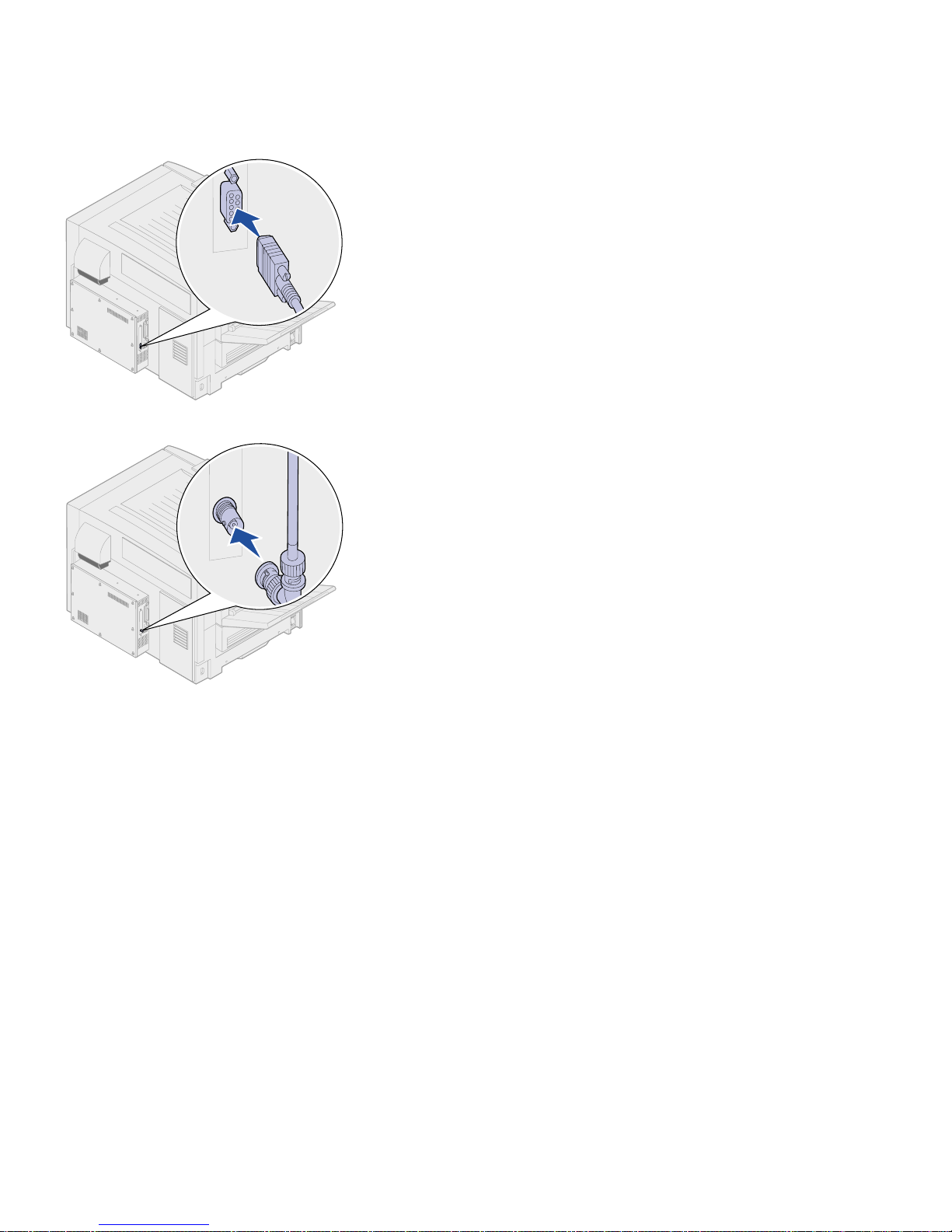

To attach the printer to a network:

1 Make sure the printer is turned off and unplugged. 2 Connect the printer to a LAN drop or hub using standard

cabling that is compatible with your network:

— Token-Ring, Ethernet 10BaseT, or Ethernet 100BaseTX

networks (Category 5) use an RJ-45 connector

Attach cables

— Token-Ring networks (Shielded Twisted Pair) use a DB9

connector

— Ethernet 10Base2 networks (Thin Coax) use a

BNC T-connector

The printer automatically adjusts itself for the network speed.

Local printing You can attach your printer locally using either a USB port or a

parallel port.

Attach cables

Note: All Windows operating

systems support parallel connections. However, only the Windows 98, Windows Me, and Windows 2000 operating systems support USB connections. Some UNIX, Linux, and Macintosh compu ters als o support USB connections. Refer to your computer documentation to see if your system supports USB.

• A USB port requires a USB printer cable, such as Lexmark part

number 12A2405 (2 m).

• A parallel port requires an IEEE-1284 compliant parallel cable

such as Lexmark part number 1329605 (10 ft) or 1427498 (20 ft).

If you install an optional USB/Parallel Interface Card to the Lexmark C910n or Lexmark ABCdn, you need a 1284 A-C parallel cable such as Lexmark part number 43H5171 (9.8 ft), or a USB cable such as Lexmark part number 12A2405 (2 m).

If you have installed an optional Tri-Port Adapter, you can locally attach the printer with a serial cable. We recommend Lexmark part number 1038693 (50 ft). For details on LocalTalk or infrared connections, refer to the documentation that shipped with the Tri-Port Adapter.

To attach the printer to a computer:

1 Make sure the printer, computer, and any other attached

devices are turned off and unplugged.

2 Connect the printer to the computer using a parallel or USB

cable. — Use an IEEE-1284 compliant parallel cable to ensure that

you can access all of your printer functions.

— Be sure to match the USB symbol on the cable to the USB

symbol on the printer.

Install printer supplies

Step 6: Install printer supplies

Opening the top cover To access the Lexmark C91 0 pr i nte r

supplies you must open the top cover. To open the top cover:

1 Remove any shipping tape and

packing material from the front of the printer.

2 Open the front door.

Install printer supplies

3 Rotate the top cover locking lever

to the left.

Note: The top cover will open very

quickly, keep both hands on the top cover when opening.

4 Place both hands on the lifting

points and squeeze the right top cover latch.

Right top cover latch

Install printer supplies

5 Lift the top cover until it stops. 6 Remove any shipping tape and

yellow packing material from inside the printer.

Install printer supplies

Installing the

photodevelopers

Your printer ships with four color-coded photodevelopers which you must place inside the top cover . Each photodeveloper has its own color-coded position inside the printer.

Warning! Do not touch, drop, or place

anything on the transfer belt. Touching the surface of the transfer belt or placing items on it may damage it.

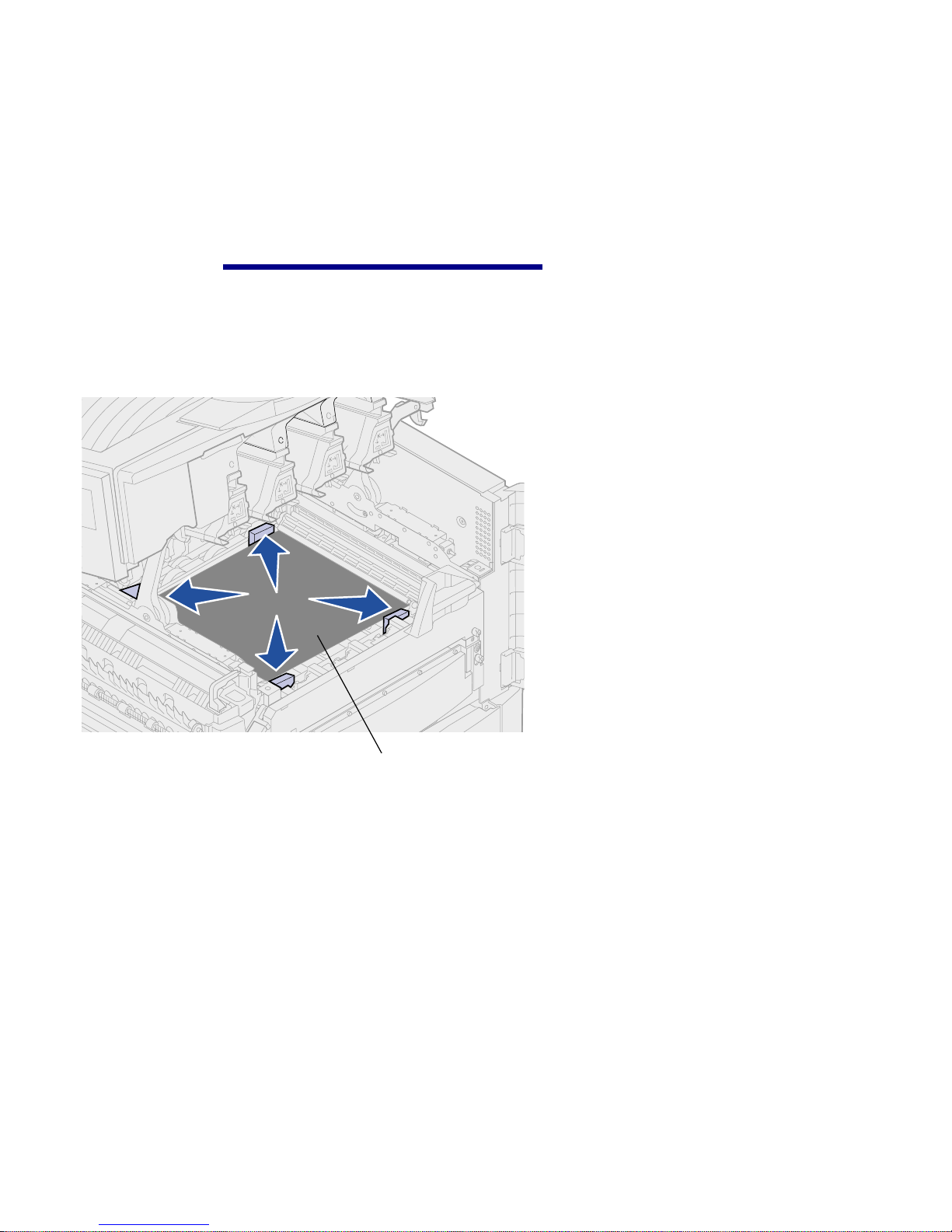

1 Lift and remove the four shipping

spacers from the transfer belt.

2 Remove any shipping tape and

packing material from inside the printer.

Transfer belt

Install printer supplies

3 Remove one of the

photodevelopers from its packing material.

You can install the photodevelopers in any order. However, it may be easier to install them from left to right: black, yellow, cyan, and magenta.

4 Remove the tape from the

photodeveloper. The photodeveloper has a cover

over the green glass tube. Do not touch the glass. Touching the glass may damage it and reduce print quality. Do not remove the cover until you begin installing the photodeveloper.

5 Align the photodeveloper with the

slot in the printer as shown.

Install printer supplies

6 While holding the photodeveloper

with your left hand and the photodeveloper cover with your right hand, slide the photodeveloper in until the unit is fully seated.

As the photodeveloper slides in, remove the photodeveloper cover.

7 Repeat steps 3 through 6 to install

the remaining photodevelopers.

Install printer supplies

Installing the toner

cartridges

Your printer ships with four color-coded starter toner cartridges. Starter toner cartridges have a yield of up to 8,000 pages.

You must install the toner cartridges inside the top cover of the printer. Each cartridge has its own color-coded position.

Note: Use a brush or cold water to

remove any toner that has soiled clothing.

1 Remove one of the toner

cartridges from its packing material.

You can install the cartridges in any order. However, it may be easier to install them from left to right: black, yellow, cyan, and magenta.

2 Gently shake the toner cartridge

to distribute the toner evenly.

Waste toner arm

Install printer supplies

3 Remove the shipping tape and

any additional packing material.

4 Align the toner cartridge with its

slot in the printer. The toner car tridge is placed to

the right of the corresponding colored label.

Colored label

Install printer supplies

5 Slide the toner cartridge in until

the cartridge is fully seated.

6 Push the waste toner arm onto

the photodeveloper until it snaps into place.

7 Repeat steps 2 through 6 to install

the remaining toner cartrid ges.

Install printer supplies

Attaching the Quick

Reference booklet

sleeve

The adhesive sleeve that came with your printer is a handy place to store your Quick Reference.

1 Remove the protective paper from

the back of the Quick Reference pouch.

2 Firmly press the adhesive-backed

sleeve onto the area inside the front door.

Install printer supplies

Attaching an adhesive

operator panel overlay

If English is not your preferred language attach the overlay that has the appropriately translated button names:

1 Locate the adhesive overlay

packaged with your printer.

2 Peel the backing off the overlay. 3 Align the holes in the overlay with

the buttons on the operator panel, and then press it into place.

4 Peel the covering away from the

overlay.

Refer to the publications CD for instructions on changing the language of the text displayed on the operator panel.

Install printer supplies

Closing the top cover 1 Place both hands on the top cover

as shown.

CAUTION! Before closing the top

cover, make sure the area under the cover is free of hands, clothing, and other items.

2 Press down firmly until the top

cover clicks into place.

Install printer supplies

3 Rotate the top cover locking lever

to the right. If you cannot rotate the locking

lever, the cover is not fully closed.

a Place both hands on the lifting

points and squeeze the right top cover latch.

b Lift the top cover. c Press down firmly until the top

cover clicks into place.

4 Close the front door.

Load paper

Step 7: Load paper

The following table lists page numbers where you can find loading instructions for the standard and optional trays, as well as for the multipurpose feeder.

Source Paper sizes Paper types Capacity

Go to page...

Tray 1 Letter , A4, Legal, Tabloid

A3, B4

Paper, glossy paper • 550 sheets of 20 lb paper

• 130 sheets of glossy paper

Trays 2-4 Letter , A4, Legal, Tabloid,1

A3, B4, Universal

Paper • 550 sheets of 20 lb paper 52

Heavy media tray

Letter , A4, Legal, Tabloid1, A3, Universal

Paper, glossy paper, transparencies, labels, card stock

• 150 transparencies

• 250 sheets of labels or

card stock

• 500 sheets of glossy paper

Multipurpose feeder

Letter, A4, A5, Legal, Tabloid

, A3, Executive,

B4, JIS B5, Universal

Paper, glossy paper, transparencies, labels, card stock

• 100 sheets of 20 lb paper

• 50 sheets of glossy paper

• 50 transparencies

• 30 sheets of labels

• 50 sheets cardstock

7¾, 9, 10, DL, C4, C5, B5, other

Envelopes 10 envelopes

High capacity feeder

Letter, A4 Paper 3000 sheets of 20lb paper 63

Tabloid paper is 278.8 x 430.8 mm (11 x 17 in.)

Universal setting lets you select the following custom sizes:

– 139.7 x 210 mm to 215.9 x 355.6 mm (5.5 x 8.27 to 8.5 x 14 in.), – 69.85 x 127 mm to 229 x 355.6 mm (2.75 x 5 to 9.01 x 14 in.) – 148 x 182 mm to 215.9 x 355.6 mm (5.83 x 7.17 to 8.5 x 14 in.)

You can use other envelope sizes if they are: 98.4 x 162 mm to 176 x 250 mm (3.87 x 6.38 to 6.93 x 9.84 in.)

Load paper

Your printer supports a wide variety of paper types, sizes, and weights. The standard tray (tray 1) and optional trays 2, 3, and 4 are marked with stack height letters A, B, C. The optional heavy media tray is marked with stack height letters D, E, and F.

The following table lists recommended media, weights, and the stack height guide to use when loading the paper trays.

Loading the paper trays Each paper tray provides an input of 550

sheets of paper.

Note: If you have an optional heavy

media paper tray, make sure you review the heavy media tray section in the table on page 51 and follow the heavy media tray instructions on page 57.

Follow these instructions to load paper in all the paper trays.

Stack height letter Recommended media

A Lexmark Glossy Paper

: Letter (P/N 12A5950), A4 (P/N 12A5951)

B 11x17, Legal, B4, A3 (90–105 g/m

, 24–28 lb bond)

C • Letter, A4 (60–105 g/m2, 16–28 lb bond)

• 11x17, Legal, B4, A3 (60 - 90 g/m2, 16 - 24 lb bond)

D Lexmark Transparency**: Letter (P/N 12A5940), A4 (P/N 12A5941) E • Lexmark Glossy Paper

: Letter (P/N 12A5950), A4 (P/N 12A5951)

• Cardstock: Letter, A4 (128–163 g/m

, 90 lb index)

• Paper Labels: Letter, A4 (up to 180 g/m2, 48 lb bond)

F Letter, A4 (105–128 g/m2, 28–34 lb bond)

Lexmark Glossy Paper is 120 g/m2, 80 lb. book, 32 lb bond.

Lexmark Transparency weight is 120 g/m2.

Load paper

1 Pull the paper tray out until it

stops.

2 Press the m eta l pl at e down until it

locks.

Load paper

Note: The position of the left paper

guide tells the printer the size of the paper in the tray . If the left paper guide is in the wrong position, you may experience paper feeding problems or incorrect page formatting.

3 Squeeze the left guide and slide it

to the position for the size paper you are loading.

4 Release the paper guide.

5 Flex the sheets back and forth to

loosen them, and then fan them. Do not fold or crease the paper.

Straighten the edges of the stack on a level surface.

Load paper

Note: Do not exceed the maximum

stack height. Overfilling the tray may cause jams.

6 Place the paper in the tray, print

side down.

7 Squeeze the front paper guide

lever and slide the guide until it lightly touches the stack of paper.

Load paper

8 Rotate the paper size dial until the

size of the paper in the tray is indicated.

9 Push the tray completely in the

printer.

Load paper

Using the heavy media tray The optional heavy media tray replaces

tray 1. The heavy media tray is specially designed for use with heavier plain paper, transparencies, labels, and card stock. For instructions on installing the heavy media tray, refer to your publications CD.

Note: Using the heavy media tray with

lighter weight paper such as 16–26 lb plain paper may cause jams.

When the heavy media tray is installed, it turns the auto size sensing off. You must set the operator panel to the size and type of media you have placed in the tray.

Set the paper size

1 Follow the instructions for

“Loading the paper trays” on page 52 to place your print media in the heavy media paper tray.

Note: For more information about using

the operator panel and changing menu settings, refer to the publications CD.

2 Press Menu until you see

Paper Menu, and then press Select.

3 Press Menu until you see Paper

Size, and then press Select.

4 Press Menu until you see Tray 1

Size, and then press Select.

5 Press Menu until the size paper

you placed into the tray appears, and then press Select.

PAPER MENU

PAPER SIZE

Select

Return

Stop

Load paper

Set the paper type

1 Press Return once.

Paper Menu appears on the first

line and Paper Size appears on the second line.

2 Press Menu until you see Paper

Type, and then press Select.

3 Press Menu until you see Tray 1

Type, and then press Select.

4 Press Menu until you see

Custom Type 1, and then press Select.

5 Press Return once.

Paper Menu appears on the first

line and Paper Type appears on the second line.

6 Press Menu until you see

Custom Types, and then press Select.

7 Press Menu until you see

Custom Type 1, and then press Select.

8 Press Menu until you see the type

of media you loaded in the heavy media tray, and then press Select.

9 Press Go.

Ready is displayed.

PAPER MENU

PAPER TYPE

Select

Return

Stop

Tray 1 Type

Custom Type 1

Select

Return

Stop

PAPER MENU

PAPER TYPE

Select

Return

Stop

Load paper

Loading the

multipurpose feeder

The multipurpose feeder provides an additional input of 100 sheets of paper.

You can use the multipurpose feeder one of two ways:

• Paper tray—Load plain paper,

glossy paper, labels, card stock, or other print media in the feeder with the intention of leaving the media in the feeder.

• Manual bypass feeder—Send a

print job to the feeder while specifying the type and size of media from your computer. The printer then prompts you to load the appropriate print media before it prints.

To load the multipurpose feeder:

1 Open the multipurpose feeder.

Load paper

Note: The guides are interconnected,

when you move one, they both move together.

2 Slide the paper guides to the

correct position for the size paper you are loading.

3 Press the paper feed plate down

until it locks into place.

Load paper

4 Flex the sheets back and forth to

loosen them, and then fan them. Do not fold or crease the paper.

Straighten the edges of the stack on a level surface.

Note: Do not exceed the maximum

stack height. Overfilling the feeder may cause jams.

5 Place the paper print side up

between the paper guides.

Load paper

6 Move the SET button to the left to

unlock the tray. The multipurpose tray can be

closed by lifting it.

Set button

Load paper

Loading the high-

capacity feeder

The optional high-capacity feeder provides an additional input of 3,000 sheets of paper.

Note: Do not load any print media other

than paper in the high-capacity feeder.

To load the high-capacity feeder:

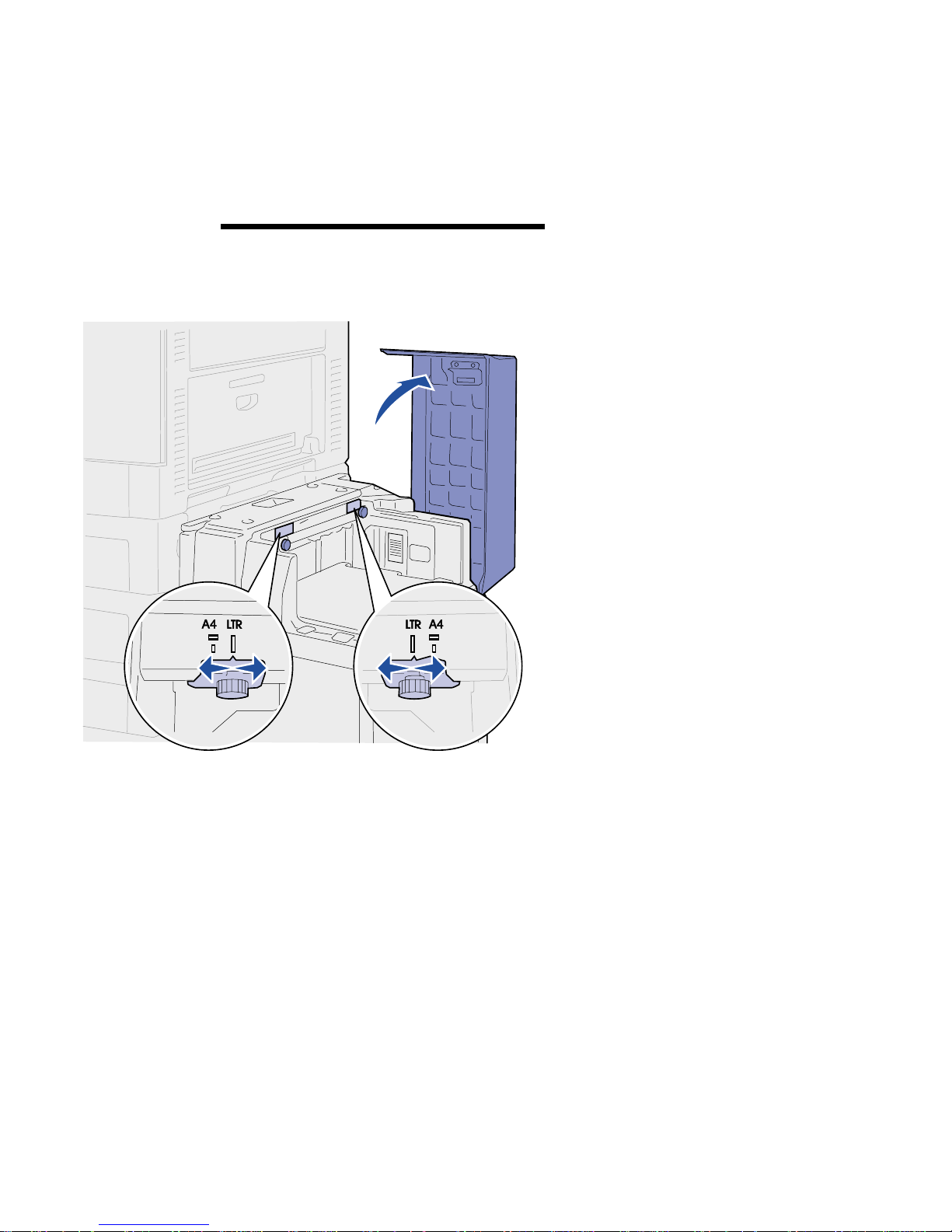

1 Open the high-capacity feeder top

cover.

The paper guides are set at the factory and may already be configured for your size paper.

2 Inspect the position of the paper

guides. If the paper guides are correctly

set for the size paper you are loading, go to step 6 on page 65, if not continue with step 3 on page 64.

Load paper

Note: The high-capacity feeder must be

properly adjusted for A4 or Letter size paper. If the paper guides are in the wrong position, you m ay experience paper feeding problems.

3 Loosen the left and right paper

guide thumbscrews.

4 Slide the guides left or right to the

correct position for the size paper you are loading (A4 or Letter).

5 Tighten the left and right paper

guide thumbscrews.

Load paper

6 Flex the sheets back and forth to

loosen them, and then fan them. Do not fold or crease the paper.

Straighten the edges of the stack on a level surface.

Note: Do not exceed the maximum

stack height. Overfilling the tray may cause paper jams.

7 Place the paper against the paper

guides, with the print side up.

Load paper

Note: If there is only a partial stack of paper in the tray, the paper low sensor will not allow the tray to go down. Add more paper to lower the tray.

8 Press the Paper Tray button.

The paper tray lowers so you can load another 500 sheets of paper.

9 Place the paper against the paper

guides, with the print side up.

10 Repeat step 8 and step 9 until you

have filled the tray or loaded the desired quantity.

11 Close the high-capacity feeder top

cover. Make sure the high-capacity

feeder is pushed completely against the prin ter.

Verify printer setup

Step 8: Verify printer setup

Turning on the

printer

Note: To prevent an electrical

overload, plug your printer into a well-grounded outlet on a nonground fault interrupter (GFI) circuit.

1 Plug one end of the power cord into the socket on the side of

the printer and the other end into a properly grounded outlet.

Verify printer setup

2 Plug one end of the high-capacity feeder power cord into the

socket on the side of the high-capacity feeder and the other end into a properly grounded outlet.

3 Turn on the printer. If the printer is attached locally (directly to a

computer), leave the computer and any other attached devices turned off. You will turn these on in a later step.

The message Performing Self Te st appears on the display while the printer warms up.

After the internal tests complete, the Ready message indicates the printer is ready to receive jobs. If you see a message other than Ready , refer to your quick reference booklet or the publications CD for instructions on clearing the message. Click

Printing, and then Understanding printer messages.

4 If you attached your printer to a network, continue with “Printing

a network setup page” on page 69. Otherwise, go on to “Printing a menu settings page” on

page 68.

Printing a menu

settings page

Print the menu settings page to review the default printer settings and to verify that printer options are installed correctly.

Note: For more information

about using the operator panel and changing menu settings, refer to the publications CD.

1 Press Menu until you see Utilities Menu, and then press

Select.

2 Press Menu until you see Print Menus, and then press

Select to print the page.

The message Printing Menus is displayed.

3 Verify the options you installed are correctly listed under

“Installed Features.” If an option you installed is not listed, turn the printer off, unplug

the power cord, and reinstall the option.

4 Verify the amount of memory installed is correctly listed under

“Printer Information.”

5 Verify the paper trays are configured for the sizes and types of

paper you loaded.

UTILITIES ME NU

Select

Return

Stop

Verify printer setup

Printing a network

setup page

If the printer is attached to a network, print a network setup page to verify the network connection. This page also provides important information that helps you configure for network printing.

Note: If an optional MarkNet

card is installed in slot 1, you see Print Net1 Setup on the display. If the card is installed in slot 2, you see Print Net2 Setup.

1 Press Menu until you see Utilities Menu, and then press

Select.

2 Press Menu until you see Print Net Setup, and then press

Select. The network setup page prints and the printer returns

to Ready status.

3 Check the first section on the network setup page and confirm

that Status is “Connected.” If Status is “Not Connected,” your LAN drop may not be active

or your network cable may be malfunctioning. Consult your network support person, and then print another network setup page to verify that you are connected to your network.

Save the network setup page for later use.

UTILITIES ME NU

Select

Return

Stop

What do I do next?

Task Go to page…

Configure for TCP/IP 70 Install printer drivers 72

Configure for TCP/IP

Step 9: Configure for TCP/IPP/IP

If you have TCP/IP available on your network, we recommend that you assign an IP address to the printer.

Setting the printer

IP address

If your network is using DHCP, an IP address is automatically assigned after you connect the network cable to the printer.

1 Look for the address under the TCP/IP heading on the network

setup page you printed in “Printing a network setup page” on page 69.

2 Go to “Verifying the IP settings” on page 71 and begin with

step 2.

Note: You can find instructions

for other methods of setting the IP address in the online documentation on the drivers CD that shipped with your printer. Launch the CD, click View Documentation, and then click Network Printer Install.

If your network is not using DHCP, you must manually assign an IP address to the printer. One of the easiest ways is to use the operator panel:

1 Press Menu until you see Network Menu, and then press

Select.

2 Press Menu until you see Standard Network, and then press

Select.

Standard Network appears if you purchased a printer with a network port on the printer system board. If you have an optional MarkNet card installed, you see Network Option 1.

3 Press Menu until you see Std Net Setup or Network 1 Setup,

and then press Select.

4 Press Menu until you see TCP/IP, and then press Select. 5 Press Menu until you see Set IP Address, and then press

Select.

Configure for TCP/IP

6 Change the address by pressing Menu to increa se or decr ease

each number. Press

Select to move to the next segment. Press

Select when you are finished.

The message Saved appears briefly.

7 Press Menu until you see Set IP Netmask, and then press

Select.

8 Repeat step 6 to set the IP Netmask. 9 Press Menu until you see Set IP Gateway, and then press

Select.

10 Repeat step 6 to set the IP Gateway. 11 When you are finished, press Go to return the printer to the

Ready state.

Verifying the

IP settings

1 Print another network setup page. Look under the “TCP/IP”

heading and make sure the IP address, netmask, and gateway are what you want.

See “Printing a network setup page” on page 69 if you need help.

Note: On Windows computers,

click Start

Programs

Command Prompt.

2 Ping the printer and verify that it responds. For example, at a

command prompt on a network computer type “ping” followed by the new printer IP address:

ping xxx.xxx.xxx.xx If the printer is active on the network, you will receive a reply.

Configuring for

Pull Printing

If your printer has an optional ImageQuick firmware card installed, it can be configured for Pull Printing once an IP address has been assigned.

For detailed configuration instructions, refer to the CD that shipped with the ImageQuick card.

Install printer drivers

Step 10: Install printer drivers

A printer driver is software that lets your computer communicate with your printer.

The following table is a quick guide to finding the specific installation instructions you need.

Network printing The following instructions explain how to install printer drivers on

printers attached to a network.

Windows In Windows network environments, Lexmark printers can be

configured for direct printing or for shared printing.

Supported network printer ports

• Microsoft IP port (Windows NT 4.0 and Windows 2000)

• Lexmark network port (Windows 95/98/Me, Windows NT 4.0,

and Windows 2000)

Type of printer installation Network environment or operating system Go to page

Network (Ethernet or Token-Ring connections)

Windows 95/98/Me, Windows NT 4.0, Windows 2000 72 Macintosh 73 UNIX/Linux 74 NetWare 74

Local (parallel or USB connections)

Windows 95/98/Me, Windows NT 4.0, Windows 2000 75 Macintosh 76 UNIX/Linux 76

Install printer drivers

Supported printer drivers

Note: Using the Lexmark C910

custom printer driver and a Lexmark network port provides enhanced functionality, such as printer status alerts.

• Windows system printer driver

• Lexmark C910 custom printer driver

System drivers are built into Windows operating systems. Custom drivers are available on the drivers CD.

Updated system and custom drivers are available on the Lexmark Web site at www.lexmark.com.

Supported printing methods

• Direct IP printing—when you just want to print directly to a

printer on your network

• Shared printing (point and print, peer-to-peer)—when you need

to centrally manage network printers

You can find detailed information about using each of these printing methods on the drivers CD. Click View Documentation and look for information about network printer installation.

Creating ports and installing drivers

Read the detailed instructions on the drivers CD. Click View Documentation and look for information about network printer

installation for your specific Windows environment.

If you choose to install without using the instructions on the drivers CD, you need a basic understanding of network printing on

TCP/IP networks, installing printer drivers, and the process involved in creating new network ports.

Macintosh Your printer connects automatically to AppleTalk networks and

becomes readily visible to other network clients.

Note: A PostScript Product

Description (PPD) file provides detailed information about the capabilities of a printer to UNIX or Macintosh drivers or applications.

You must create a printer object (icon) on the desktop of each network client using the LaserWriter 8 printer driver and the Lexmark C910 PPD file.

Specific information about installing the printer on your AppleTalk network can be found in the online documentation on the drivers CD that shipped with your printer.

Install printer drivers

You can find a Lexmark PPD Installer in the downloadable Web package available on the Lexmark Web site at www.lexmark.com.

Depending upon which version of the drivers CD shipped with your printer, you may also find this software on the drivers CD. Launch the Lexmark PPD Installer and follow the instructions to install the PPDs. Send a test print job when you have finished.

UNIX/Linux Your printer supports many UNIX and Linux platforms, such as Sun

Solaris and Red Hat.

Note: The Sun Solaris package

is located both on the drivers CD and on the Lexmark Web site at www.lexmark.com.

Lexmark provides a printer driver package for each supported UNIX and Linux platform. The package contains all the necessary drivers and PPDs. The User’s Guide in each package gives detailed instructions for installing and using Lexmark printers in UNIX and Linux environments.

You can download these printer driver packages from Lexmark’s Web site at www.lexmark.com. Depending on which version of the drivers CD shipped with your printer, you may also find the driver package you need on the CD.

NetWare Your printer works with both Novell Distributed Print Services (NDPS)

and regular queue-based NetWare environments.

NDPS (Novell Distributed Print Services)

If you have an NDPS environment, we recommend you install the Lexmark NDPS IP Gateway. The gateway tightly integrates your printers with NDPS so you can easily monitor, control, and print to them.

You can get the gateway, the snap-ins, the support files, and a white paper with installation instructions from Lexmark’s Web site at www.lexmark.com/networking/ndps.html.

You can find other information about installing network printers in NetWare environments on the drivers CD that shipped with your printer. Click View Documentation and look for information about network printer installation.

Install printer drivers

Non-NDPS (queue-based)

For the latest information about Lexmark support for non-NDPS environments, click View Documentation on the drivers CD and look for information about network printer installation.

Local printing In order to print, you m ust install a printer driver on the computer

attached to the printer.

Windows Not all Windows operating systems support all types of connections.

In addition to the following information, you may need to refer to the documentation that shipped with your computer and your Windows software.

Installation instructions

Read the detailed online instructions on the drivers CD. Click View Documentation and look for information about local printer

installation. Detailed instructions are provided for parallel and USB connections.

Supported connections

Parallel or USB refers to the type of printer cable you used in “Attach cables” on page 35 to attach the printer to your computer.

• Parallel (works with Windows 95/98/Me, Windows NT 4.0, and

Windows 2000)

• USB (works with Windows 98/Me and Windows 2000 only)

Install printer drivers

Supported printer drivers

Note: Using the Lexmark C910

custom printer driver provides enhanced functionality, such as printer status alerts.

• Windows system printer driver

• Lexmark C910 custom printer driver

System drivers are built into Windows operating systems. Custom drivers are available on the drivers CD.

Updated system and custom drivers are available on Lexmark’s Web site at www.lexmark.com.

Macintosh You must install the Lexmark C910 PPD and use it with the

LaserWriter 8 printer driver or the Adobe PostScript driver. You can find the Lexmark C910 PPD and specific information about

local printer installation on Macintosh computers on the drivers CD that shipped with your printer. Click View Documentation and look for information about local printer installation.

After the printer is installed, print a test page to verify your printer is correctly se t up.

UNIX/Linux Your printer supports many UNIX and Linux platforms, such as Sun

Solaris and Red Hat. Lexmark provides a printer driver package for each supported UNIX

and Linux platform. The package contains all the necessary drivers and PPDs. The User’s Guide in each package gives detailed instructions for installing and using Lexmark printers in UNIX and Linux environments.

Note: The Sun Solaris package

is located both on the drivers CD and on the Lexmark Web site at www.lexmark.com.

All the driver packages support local printing using a parallel connection. The driver package for Sun Solaris supports USB connections to Sun Ray appliances and Sun workstations.

Distribute information to users

Step 11: Distribu te information

to users

Identifying printer

users

Several types of users may need access to the information stored on the Lexmark C910 Publications CD. These include:

• Users sending print jo bs

• Network printer administrators

• Help desk personnel

• Information Technology support staff

Finding

information

Launch the CD and browse the contents to see a complete list of the available information. If you have a version of Acrobat capable of full text searching, we have created catalog entries to help you find the information you need.

The type of helpful information provided on the Lexmark C910 Publications CD includes:

• Tips for successful printing

• Ways to improve print quality

• Information about using the operator panel

• Instructions for replacing print cartridges and other supply

items

• Solutions to common printing problems

• Instructions for clearing jams

Distribute information to users

Distributing the

information

You can give users access to the information on the publications CD in several ways:

• Give the publications CD to a system administrator or the Help

desk.

• Copy the entire contents of the CD (or just specific topics) to a

shared network dri ve or Intranet site. Each topic on the publications CD is a separate PDF. Launch

the CD, click Other resources, and then click File locations. This will provide a brief overview of each PDF file.

• Send Lexmark’s printer documentation URL to printer users

(www.lexmark.com/publications). Users with Internet access can browse the site.

• Print the information on the publications CD and store it near

the printer for easy access. For printing instructions, launch the CD, and then click Navigation or Print as Book from the Home page.

Storing the Quick

Reference

In addition to the Lexmark C910 Publications CD, your printer shipped with a Quick Reference. We recommend that you store this booklet in the convenient sleeve. The sleeve should be attached inside the front door of the printer.

Congratulations! You are now ready to use your new printer. Save this book if you

anticipate purchasing or installing printer options in the future.

Statement of limited warranty

Lexmark International, Inc., Lexington, KY

This warranty applies to the United States and Canada. For customers outside the U.S. and Canada, refer to the country-specific warranty information that came w ith your printer.

Lexmark C910 This Statement of Limited Warranty applies to this product if it was originally

purchased for your use, and not for resale, from Lexmark or a Lexmark remarketer, referred to in this statement as “Remarketer.”

Warranty Lexmark warrants that this product:

• Is manufactured from new parts, or new and serviceable used parts,

which perform like new parts

• Is free from defects in material and workmanship

• Conforms to Lexmark’s official pub li sh ed sp eci f ic ati on s

• Is in good working order

If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair without charge.

If this product is a feature or option, this statement applies only when that feature or opt ion is us ed with the pro duct f or w hich it was des igned . To obtain warranty service, you may be required to present the feature or option with the product.

If you transfer this product to another user, warranty service under the terms of this statement is available to that user for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that user.

Warranty service The warranty period is 12 m onth s an d sta rts on the date of original purc ha se

as shown on the purchase receipt. To obtain warranty service you may be required to present proof of original

purchase. Warranty service will be provided at your location. When warranty service involves the exchange of a product or part, the item

replaced becomes the property of the Remarketer or Lexmark. The replacement may be a new or repaired item. The replacement item assumes the remaining warranty period of the original product.

Statement of limited warranty

Replacement is not a v ailab le to y ou if the prod uct yo u present f or e xchange is defaced, altered, in need of a repair not included in warranty service, or damaged beyond repair. Also, such product must be free of any legal obligation or restrictions that prevent its exchange.

Before you present this product for warranty service, remove all programs, data, and removable storage media.

For further exp lanation of y our w arranty alternativ es and the neare st Le xmark authorized servicer in your area , please contact Le xmark at 1-800-LEXMARK (1-800-539-6275), or on the World Wide Web at www.lexmark.com.

Free remote technical support is provided for this product throughout its warranty period. Lexmark offers a variety of e xte nded w arr anty pro gr ams th at include an extension of technical support. For products no longer covered by a Lexmark warranty, technical support may only be available for a fee.

Extent of warranty We do not warrant uninterrupted or error-free operation of a product.

Warranty service does not include repair of failures caused by:

• Modification or attachments

• Accidents or misuse

• Unsuitable physical or operating environment

• Maintenance by anyone other than Lexmark or a Lexmark authorized

servicer

• Operation of a product beyond the limit of its duty cycle

• Failure to have installed a maintenance kit as specified (if applicable)

• Use of printing media outside of Lexmark specifications

• Use of other than Lexmark supplies (such as toner cartridges, inkjet

cartridges, and ribbons)

• Use of other than Lexmark product or component

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD.

Limitation of liability Your sole rem edy un der th is State me nt of L im ited Warranty is set forth in this

section. For any claim concerning performance or nonperformance of Lexmark or a Remarketer for this product under this Statement of Limited Warranty, you may recover actual damages up to the limit set forth in the following paragraph.

Lexmark's liability for actual damages from any cause whatsoever will be limited to the greater of 1) $5,000 or 2) the amount you paid for the product

Statement of limited warranty

that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real property or tangible personal property for which Lexmark is legally liable. In no event will Lexmark be liable for any lost profits, lost sav ings , inc identa l damag e, or oth er econo mic co nse quenti al damages. This is true even if you advise Lexmark or a Remarketer of the possibility of s uc h da mages. Lexm ark is n ot l iable for any claim by you based on a third party claim.

This limitation o f remedies also ap plies to a ny de v elop er of ma terials supp lied to Lexmark. Lexmark’s and the developer’s limitations of remedies are not cumulative. Such developer is an intended beneficiary of this limitation.

Additional rights Some states do not allo w limi tations on ho w long an i mpli ed w arr anty last s, or

do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Statement of limited warranty

Index

accessing supplies 38 attaching

550-sheet drawers 10 BNC T-connector 36 DB9 connector 36 duplex unit 12 high-capacity feeder 15 memory cards 27 operator panel overlay 48 option cards 31 parallel cable 37 print server 31 Quick Reference sleeve 47 RJ-45 connector 35 USB cable 37

base printer 4 bin 1 2

cables

Ethernet 35, 36 parallel 37 power 67 Token-Ring 35, 36 USB 37

card stock 51 CD

drivers vi publications vi

Coax/Twinax Adapter for SCS 31

dpi v drivers 72 drivers CD vi duplex network (dn) 6 duplex unit, installing 12

environmental issues 3 exit tray 2

FCC emissions information ii firmware card, installing 28 flash memory, installing 27

hard disk 30 heavy media paper tray 57 high-capacity feeder 15

Index

ImageQuick 71 Infrared Adapter 31 installing

Coax/Twinax Adapter 31 firmware card 28 flash memory 27 hard disk with adapter card 31 internal print server 31 MarkNet print server 31 memory cards 27 option cards 31 parallel interface card 31 photodevelopers 41 print servers 31 printer drivers 72 printer memory 27 supplies 38 toner cartridges 44 Tri-Port Adapter 31

USB/Parallel Interface Card 31 internal print server 31 introduction v IP address, setting 70 IP settings, verifying 71

labels

paper tray 23

printing 51 Lexmark ABC Publications CD vi Lexmark Web site vi Linux 74 loading

high capacity feeder 63

multipurpose feeder 59

paper trays 52 local printing

cables 36

drivers 75 LocalTalk network

port on Tri-Port adapter 31

Macintosh 73 MarkNet internal print servers 31 maximum stack height

550-sheet trays 55 high-capacity feeder 65 multipurpose feeder 61

memory cards

flash 27 installing 27 printer 27

menu settings page 68

NetWare 74 network printer 5

printer location 5

network printing

cables 35 drivers 72

network setup page 69

operator panel 69 operator panel overlay, attaching 48 option cards

Coax/Twinax Adapter for SCS 31 Infrared Adapter 31 installing 31 internal print server 31 Tri-Port Adapte r 31 USB/Parallel Interface Card 31

options

heavy media tray 57 interface cards 31 internal print server 31 memory 27 paper handling 8 printer stand 9

output bins

bin 1 2 standard 2

Index

paper

loading 51

sizes 51

types 51 paper handling 8 paper size, setting 57 paper tray, heavy media 57 paper type, setting 58 parallel cable 37 photodevelopers, installing 41 print media 51 print server

installed in network models v

installing 31 printer

base 9

cabinet 9

lifting 11

memory v, 27

models v

turning the power on 67

unpacking 1 printer drivers 72 printer location 3, 4, 5, 6, 7 printer view, front and rear 2 printer with high-capacity feeder 7 publications CD

distributing 78

information vi Pull Printing 71

Quick Reference

attaching booklet sleeve 47

booklet information vi, 78

resolution v

safety information

located on inside front cover

setting

paper size 57

paper type 58 sources of information vi space requirements 4, 5, 6, 7 stack height, maximum

550-sheet trays 55

high-capacity feeder 65

multipurpose feeder 61 system board, accessing 24

TCP/IP 70 toner cartridges, installing 44 top cover

closing 49

opening 38 transparencies 51 tray, exit 2 Tri-Port Adapte r 31 turning on the printer 67

UNIX 74 unpacking

high-capacity feeder 15

memory cards 27

option cards 32

printer 1 USB 37 USB/Parallel Interface Card 31

warranty 79 Web site, Lexmark vi Windows 72, 75, 76

www.lexmark.com

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.

P/N 12N0401 E.C. 2N0016

Lexmark C910n, C910in, C910dn Setup Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
