Lexmark 28E0626 User Manual

Download

CX510 Series

User's Guide

September 2014 www.lexmark.com

Machine type(s):

7527

Model(s):

636, 637

Contents 2

Safety information.......................................................................................7

Learning about the printer...........................................................................9

Finding information about the printer......................................................................................................9

Selecting a location for the printer..........................................................................................................10

Printer configurations.............................................................................................................................11

Understanding the basic functions of the scanner..................................................................................12

Using the ADF and scanner glass.............................................................................................................13

Understanding the printer control panel....................................................14

Using the printer control panel...............................................................................................................14

Understanding the home screen.............................................................................................................14

Understanding the colors of the Sleep button and indicator lights........................................................16

Using the touch-screen buttons..............................................................................................................17

Setting up and using the home screen applications....................................19

Finding the IP address of the computer..................................................................................................19

Finding the IP address of the printer.......................................................................................................19

Accessing the Embedded Web Server.....................................................................................................19

Customizing the home screen.................................................................................................................20

Understanding the different applications...............................................................................................20

Activating the home screen applications................................................................................................21

Finding information about the home screen applications................................................................................ 21

Setting up Forms and Favorites ........................................................................................................................ 21

Setting up Card Copy ........................................................................................................................................22

Using MyShortcut .............................................................................................................................................22

Setting up Multi Send .......................................................................................................................................23

Setting up Scan to Network ..............................................................................................................................23

Setting up Remote Operator Panel.........................................................................................................24

Exporting and importing a configuration................................................................................................25

Additional printer setup.............................................................................26

Installing internal options........................................................................................................................26

Installing hardware options.....................................................................................................................32

Attaching cables......................................................................................................................................35

Setting up the printer software...............................................................................................................36

Contents 3

Networking..............................................................................................................................................37

Verifying printer setup............................................................................................................................41

Loading paper and specialty media............................................................42

Setting the paper size and type...............................................................................................................42

Configuring Universal paper settings......................................................................................................42

Loading the 250‑ and 550‑sheet tray......................................................................................................42

Loading the manual feeder.....................................................................................................................45

Loading the 650‑sheet duo tray..............................................................................................................46

Loading the multipurpose feeder............................................................................................................47

Linking and unlinking trays......................................................................................................................49

Paper and specialty media guide................................................................52

Using specialty media..............................................................................................................................52

Paper guidelines......................................................................................................................................55

Supported paper sizes, types, and weights.............................................................................................58

Printing......................................................................................................62

Printing forms..........................................................................................................................................62

Printing a document................................................................................................................................62

Printing from a flash drive or mobile device...........................................................................................64

Printing confidential and other held jobs................................................................................................66

Printing information pages......................................................................................................................68

Canceling a print job................................................................................................................................68

Copying......................................................................................................69

Making copies.........................................................................................................................................69

Copying photos........................................................................................................................................70

Copying on specialty media.....................................................................................................................70

Creating a copy shortcut using the printer control panel.......................................................................71

Customizing copy settings.......................................................................................................................72

Placing information on copies.................................................................................................................77

Canceling a copy job................................................................................................................................78

Understanding the copy options.............................................................................................................78

E-mailing....................................................................................................82

Setting up the printer to e-mail...............................................................................................................82

Creating an e-mail shortcut.....................................................................................................................83

Contents 4

E-mailing a document..............................................................................................................................84

Customizing e-mail settings.....................................................................................................................85

Canceling an e-mail.................................................................................................................................86

Understanding the e-mail options..........................................................................................................86

Faxing........................................................................................................89

Setting up the printer to fax....................................................................................................................89

Sending a fax.........................................................................................................................................103

Creating shortcuts.................................................................................................................................106

Customizing fax settings........................................................................................................................106

Canceling an outgoing fax.....................................................................................................................108

Holding and forwarding faxes...............................................................................................................108

Understanding the fax options..............................................................................................................109

Scanning...................................................................................................112

Using Scan to Network..........................................................................................................................112

Scanning to an FTP address...................................................................................................................112

Scanning to a computer or flash drive..................................................................................................114

Understanding the scan options...........................................................................................................116

Understanding the printer menus............................................................119

Menus list..............................................................................................................................................119

Supplies menu.......................................................................................................................................120

Paper menu...........................................................................................................................................120

Reports menu........................................................................................................................................130

Network/Ports.......................................................................................................................................131

Security menu.......................................................................................................................................139

Settings menu........................................................................................................................................145

Saving money and the environment.........................................................195

Saving paper and toner.........................................................................................................................195

Saving energy........................................................................................................................................196

Recycling................................................................................................................................................199

Securing the printer..................................................................................201

Using the security lock feature..............................................................................................................201

Statement of Volatility..........................................................................................................................201

Erasing volatile memory........................................................................................................................202

Contents 5

Erasing non‑volatile memory................................................................................................................202

Erasing printer hard disk memory.........................................................................................................203

Configuring printer hard disk encryption..............................................................................................203

Finding printer security information.....................................................................................................204

Maintaining the printer............................................................................205

Cleaning printer parts............................................................................................................................205

Checking the status of parts and supplies.............................................................................................207

Estimated number of remaining pages.................................................................................................207

Ordering supplies..................................................................................................................................208

Storing supplies.....................................................................................................................................210

Replacing supplies.................................................................................................................................211

Moving the printer................................................................................................................................230

Managing the printer...............................................................................232

Finding advanced networking and administrator information.............................................................232

Checking the virtual display...................................................................................................................232

Setting up e‑mail alerts.........................................................................................................................232

Viewing reports.....................................................................................................................................232

Configuring supply notifications from the Embedded Web Server.......................................................233

Copying printer settings to other printers.............................................................................................234

Restoring factory default settings.........................................................................................................234

Clearing jams............................................................................................235

Avoiding jams........................................................................................................................................235

Understanding jam messages and locations.........................................................................................236

[x]‑page jam, clear standard bin [203.xx]..............................................................................................237

[x]‑page jam, open front door to clear fuser [20y.xx]...........................................................................240

[x]‑page jam, open front door [20y.xx].................................................................................................243

[x]‑page jam, open front door to clear duplex [23y.xx]........................................................................244

[x]‑page jam, open tray [x] [24y.xx]......................................................................................................245

[x]‑page jam, clear manual feeder [251.xx]...........................................................................................246

[x]‑page jam, clear multipurpose feeder [250.xx].................................................................................247

[x]‑page jam, open automatic feeder top cover [28y.xx]......................................................................249

Troubleshooting.......................................................................................250

Understanding the printer messages....................................................................................................250

Contents 6

Solving printer problems.......................................................................................................................264

Solving print problems..........................................................................................................................270

Solving copy problems..........................................................................................................................297

Solving fax problems.............................................................................................................................300

Solving scanner problems.....................................................................................................................307

Solving home screen application problems...........................................................................................311

Embedded Web Server does not open.................................................................................................311

Contacting customer support................................................................................................................313

Notices.....................................................................................................314

Product information..............................................................................................................................314

Edition notice........................................................................................................................................314

Power consumption..............................................................................................................................318

Index........................................................................................................331

Safety information 7

Safety information

Connect the power cord directly to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.

CAUTION—POTENTIAL INJURY: Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or other types of surge or UPS devices. The power rating capacity of these types of accessories can be easily overloaded by a laser printer and may result in poor printer performance, property damage, or potential fire.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer before moving it.

• Lift the printer off the optional tray, and then set it aside instead of trying to lift the tray and printer at the same

time.

Note: Use the handholds located on both sides of the printer to lift it.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

Use only the telecommunications (RJ‑11) cord provided with this product or a 26 AWG or larger replacement when connecting this product to the public switched telephone network.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

Safety information 8

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using multiple input options. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

SAVE THESE INSTRUCTIONS.

www.lexmark.com/multifunctionprinters.

Learning about the printer 9

Learning about the printer

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Configuring printer settings

• Viewing and printing documents and photos

• Setting up and using the printer software

• Configuring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Information on setting up and configuring the accessibility features of your printer

Help using the prin ter software Windows or Mac Help—Open a printer software program

Setup documentation—The setup documentation came with the printer and is also available at

http://support.lexmark.com.

User's Guide and Quick Reference Guide—The guides are available at

Note: These guides are also available in other languages.

Lexmark Accessibility Guide—This guide is available at

http://support.lexmark.com.

or application, and then click Help.

Click

Notes:

http://support.lexmark.com.

to view context‑sensitive information.

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

Learning about the printer 10

What are you looking for? Find it here

The latest supplemental information, updates, and customer support:

• Documentation

• Driver downloads

• Live chat support

• E‑mail support

• Voice support

Lexmark support Web site—

http://support.lexmark.com

Note: Select your country or region, and then select

your product to view the appropriate support site. Support telephone numbers and hours of operation for

your country or region can be found on the support Web site or on the printed warranty that came with your printer.

Record the following information (located on the store receipt and at the back of the printer), and have it ready when you contact customer support so that they may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Warranty information Warranty information varies by country or region:

• In the U.S.—See the Statement of Limited Warranty

included with this printer, or go to

http://support.lexmark.com.

• In other countries and regions—See the printed

warranty that came with this printer.

Selecting a location for the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee

156 standard.

• Provide a flat, sturdy, and stable surface.

• Keep the printer: – Clean, dry, and free of dust. – Away from stray staples and paper clips. – Away from the direct airflow of air conditioners, heaters, or ventilators. – Free from direct sunlight and humidity extremes.

• Observe the recommended temperatures and avoid fluctuations:

Ambient temperature 15.6 to 32.2°C (60 to 90°F)

Storage temperature -40 to 43°C (-40 to 110°F)

• Allow the following recommended amount of space around the printer for proper ventilation:

Learning about the printer 11

1 Right side 304.8 mm (12 in.)

2 Front 508 mm (20 in.)

3 Left side 76.2 mm (3 in.)

4 Rear 101.6 mm (4 in.)

5 Top 291.7 mm (11.5 in.)

Printer configurations

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must

use either a printer stand or printer base if you are using multiple input options. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

Learning about the printer 12

Basic models

1 Printer control panel

2 Automatic document feeder (ADF)

3 Standard bin

4 Top door latch

5 Right side cover

6 Standard 250-sheet tray (Tray 1)

7 Manual feeder

8 Optional 650-sheet duo tray with integrated multipurpose feeder (Tray 2)

9 Optional 550-sheet tray (Tray 3)

Understanding the basic functions of the scanner

• Make quick copies or set the printer to perform specific copy jobs.

• Send a fax using the printer control panel.

• Send a fax to multiple fax destinations at the same time.

• Scan documents and send them to your computer, an e-mail address, or an FTP destination.

• Scan documents and send them to another printer (PDF through an FTP).

Learning about the printer 13

Using the ADF and scanner glass

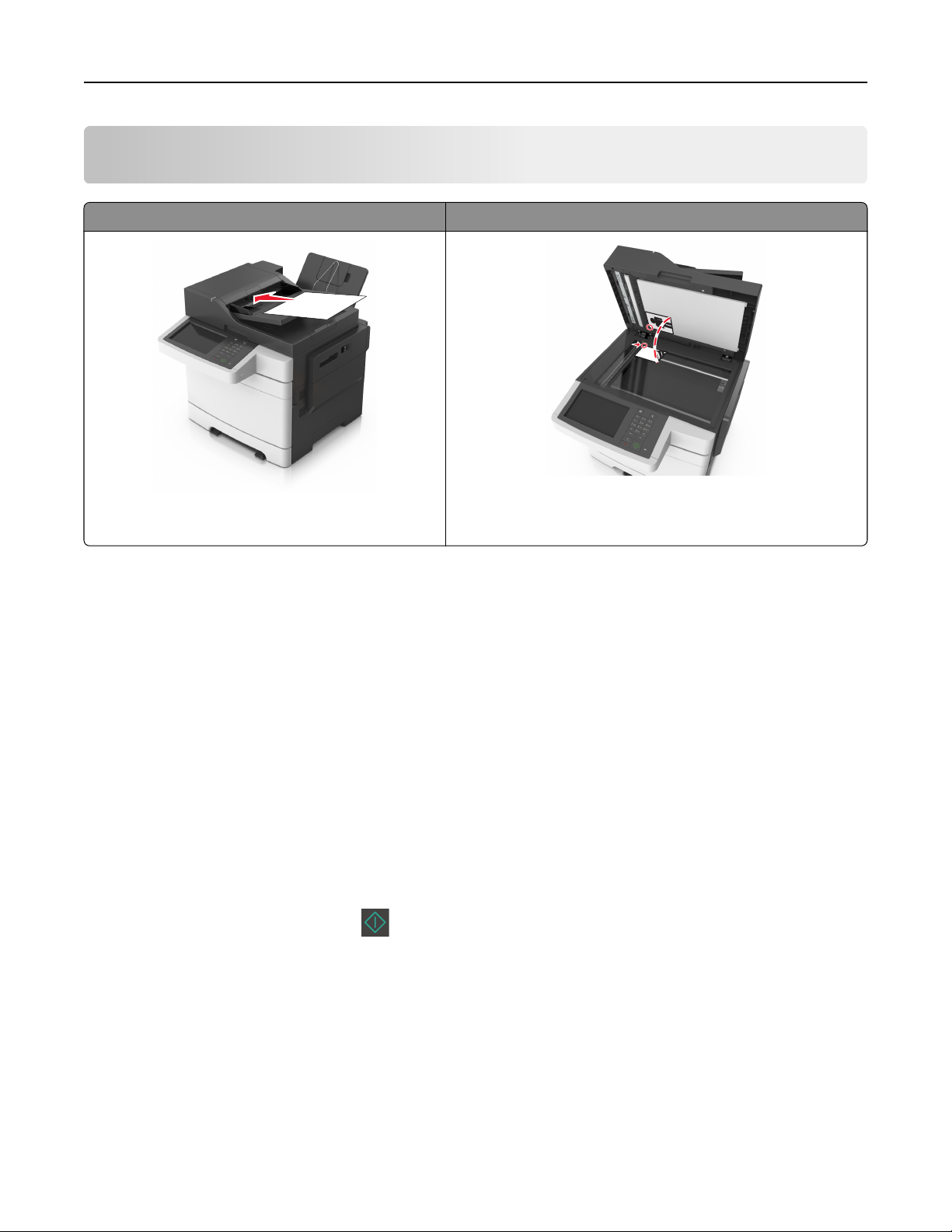

Automatic document feeder (ADF) Scanner glass

Use the scanner glass for single‑page documents, book pages,

Use the ADF for multiple‑page documents including twosided (duplex) pages.

small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings).

Using the ADF

When using the ADF:

• Load the document into the ADF tray faceup, short edge first.

• Load up to 50 sheets of plain paper into the ADF tray.

• Scan sizes from 105 x 148 mm (4.1 x 5.8 inches) wide to 216 x 355 mm (8.5 x 14 inches) long.

• Scan media weights from 52 to 120 g/m

(14 to 32 lb).

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings)

into the ADF tray. Place these items on the scanner glass.

Using the scanner glass

When using the scanner glass:

• Place a document facedown on the scanner glass in the corner with the green arrow.

• Scan or copy documents from 216 x 296.9 mm (8.5 x 11.69 inches) dimension.

• Copy books up to 12.7 mm (0.5 inch) thick.

Understanding the printer control panel 14

Understanding the printer control panel

Using the printer control panel

Use the To

1 Display

2 Home button Go to the home screen.

3 Sleep button Enable Sleep mode or Hibernate mode.

4 Keypad Enter numbers, letters, or symbols.

5 Indicator light Check the status of the printer.

6 Start button Start a job, depending on which mode is selected.

7 Stop or cancel button Cancel all printer activity.

8 Clear all / Reset button Reset the default settings of a function, such as printing, copying, or e‑mailing.

• View printing, copying, e-mailing, faxing, and scanning options.

• View printer status and error messages.

Understanding the home screen

When the printer is turned on, the display shows a basic screen, referred to as the home screen. Touch the home screen buttons and icons to initiate an action such as copying, faxing, or scanning; to open the menu screen; or to respond to messages.

Note: Your home screen may vary depending on your home screen customization settings, administrative setup, and active embedded solutions.

Understanding the printer control panel 15

2 3 4 5

Touch To

1 Change Language Launch the Change Language pop‑up window that lets you change the primary language of

the printer.

2 Copy Access the Copy menus and make copies.

3 Fax Access the Fax menus and send fax.

4 E-mail Access the E-mail menus and send e‑mails.

5 FTP Access the File Transfer Protocol (FTP) menus and scan documents directly to an FTP server.

6 Arrows Scroll up or down.

7 Forms and Favorites Quickly find and print frequently used online forms.

8 Menu icon Access the printer menus.

Note: The menus are available only when the printer is in Ready state.

9 Bookmarks Create, organize, and save a set of bookmarks (URL) into a tree view of folders and file links.

Note: The tree view supports only bookmarks created from this function, and not from any

other application.

10 USB Drive View, select, print, scan, or e‑mail photos and documents from a flash drive.

Note: This icon appears only when you return to the home screen while a memory card or

flash drive is connected to the printer.

11 Held Jobs Display all current held jobs.

12 Status/Supplies

• Show a warning or error message whenever the printer requires intervention to continue

processing.

• Access the messages screen for more information on the message, and how to clear it.

13 Tips Open a context-sensitive Help dialog.

14 Search Held Jobs Search for one or more of the following items:

• User name for held or confidential print jobs

• Job names for held jobs, excluding confidential print jobs

• Profile names

• Bookmark container or print job names

• USB container or print job names for supported file types

Understanding the printer control panel 16

Features

Feature Description

Menu trail line Example: Menus > Settings > Copy Settings >

Number of Copies

Attendance message alert

Warning

Status message bar

Printer IP address Example:

123.123.123.123

A menu trail line is located at the top of each menu screen. This feature shows the path taken to arrive at the current menu.

Touch any of the underlined words to return to that menu. Number of Copies is not underlined because it is the current screen. If you touch an

underlined word on the “Number of Copies” screen before the number of copies is set and saved, then the selection is not saved, and it does not become the default setting.

If an attendance message affects a function, then this icon appears and the red indicator light blinks.

If an error condition occurs, then this icon appears.

• Show the current printer status such as Ready or Busy.

• Show printer conditions such as Toner Low or Cartridge Low.

• Show intervention messages so the printer can continue processing.

The IP address of your network printer is located at the upper left corner of the home screen and appears as four sets of numbers separated by periods. You can use the IP address when accessing the Embedded Web Server so you can view and remotely configure printer settings even when you are not physically near the printer.

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator l ights on the printer control panel signify a certain printer s tatus or condition.

Indicator light Printer status

Off The printer is off or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Sleep button light Printer status

Off The printer is off, idle or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Understanding the printer control panel 17

Sleep button light Printer status

Blinking amber for 0.1 second, then goes completely off for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Using the touch-screen buttons

Note: Your home screen, icons, and buttons may vary, depending on your home screen customization settings,

administrative setup, and active embedded solutions.

Touch To

1 Arrows View a list of options.

2 Copy It Print a copy.

3 Advanced Options Select a copy option.

4 Home Go to the home screen.

5 Increase Select a higher value.

6 Decrease Select a lower value.

7 Tips Open a context-sensitive Help dialog.

Other touch-screen buttons

Touch To

Save a setting.

Understanding the printer control panel 18

Touch To

Cancel

Reset

• Cancel an action or a selection.

• Exit a screen and return to the previous screen without saving changes.

Reset values on the screen.

Setting up and using the home screen applications 19

Setting up and using the home screen applications

Notes:

• Your home screen may vary depending on your home screen customization settings, administrative setup, and

active embedded applications. Some applications are supported only in some printer models.

• There may be additional solutions and applications available for purchase. For more information, go to

www.lexmark.com or contact the place where you purchased the printer.

Finding the IP address of the computer

For Windows users

1 In the Run dialog box, type cmd to open the command prompt.

2 Type ipconfig, and then look for the IP address.

For Macintosh users

1 From System Preferences in the Apple menu, select Network.

2 Select your connection type, and then click Advanced > TCP/IP.

3 Look for the IP address.

Finding the IP address of the printer

Note: Make sure your printer is connected to a network or to a print server.

You can find the printer IP address:

• From the top left corner of the printer home screen.

• From the TCP/IP section in the Network/Ports menu.

• By printing a network setup page or menu settings page, and then finding the TCP/IP section.

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

Accessing the Embedded Web Server

The Embedded Web Server is the printer Web page that lets you view and remotely configure printer settings even when you are not physically near the printer.

1 Obtain the printer IP address:

• From the printer control panel home screen

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then finding the TCP/IP section

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2 Open a Web browser, and then type the printer IP address in the address field.

Setting up and using the home screen applications 20

3 Press Enter.

Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.

Customizing the home screen

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Do one or more of the following:

• Show or hide the icons of basic printer functions.

a Click Settings > General Settings > Home screen customization. b Select the check boxes to specify which icons appear on the home screen.

Note: If you clear a check box beside an icon, then the icon does not appear on the home screen.

c Click Submit.

• Customize the icon for an application. For more information, see “Finding information about the home screen

applications” on page 21 or see the documentation that came with the application.

Understanding the different applications

Use To

Card Copy Scan and print both sides of a card on a single page. For more information, see

on page 22.

Fax Scan a document, and then send it to a fax number. For more information, see

89.

Forms and Favorites Quickly find and print frequently used online forms directly from the printer home screen. For more

information, see

Multi Send Scan a document, and then send it to multiple destinations. For more information, see

Multi Send” on page 23.

MyShortcut Create shortcuts directly on the printer home screen. For more information, see

on page 22.

Scan to E‑mail Scan a document, and then send it to an e‑mail address. For more information, see

page 82.

Scan to Computer Scan a document, and then save it to a predefined folder on a host computer. For more information,

“Setting up Scan to Computer” on page 116.

see

Scan to FTP Scan documents directly to a File Transfer Protocol (FTP) server. For more information, see

to an FTP address” on page 112.

Scan to Network Scan a document, and then send it to a network shared folder. For more information, see

up Scan to Network” on page 23.

“Setting up Forms and Favorites” on page 21.

“Setting up Card Copy”

“Faxing” on page

“Setting up

“Using MyShortcut”

“E-mailing” on

“Scanning

“Setting

Setting up and using the home screen applications 21

Activating the home screen applications

Finding information about the home screen applications

Your printer comes with preinstalled home screen applications. Before you can use these applications, you must first activate and set up these applications using the Embedded Web Server. For more information on accessing the Embedded Web Server, see

For more information on configuring and using the home screen applications, do the following:

1 Go to http://support.lexmark.com.

2 Click Software Solutions, and then select either of the following:

• Scan to Network—This lets you find information about the Scan to Network application.

• Other Applications—This lets you find information about the other applications.

3 Click the Manuals tab, and then select the document for the home screen application.

Setting up Forms and Favorites

“Accessing the Embedded Web Server” on page 19.

Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To check for updates of this User’s Guide, go to

Use To

Streamline work processes by letting you quickly find and print frequently used online forms directly from the printer home screen.

Note: The printer must have permission to access the network folder, FTP site, or Web site where the bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and firewall settings to allow the printer at least a read access. For help, see the documentation that came with your operating system.

http://support.lexmark.com.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Forms and Favorites.

3 Click Add, and then customize the settings.

Notes:

• See the mouse-over help beside each field for a description of the setting.

• To make sure the location settings of the bookmark are correct, type the correct IP address of the host

computer where the bookmark is located. For more information on obtaining the IP address of the host computer, see

“Finding the IP address of the computer” on page 19.

• Make sure the printer has access rights to the folder where the bookmark is located.

4 Click Apply.

To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form categories, or search for forms based on a form number, name, or description.

Setting up and using the home screen applications 22

Setting up Card Copy

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To

check for updates of this User's Guide, go to

Use To

Quickly and easily copy insurance, identification, and other wallet‑size cards. You can scan and print both sides of a card on a single page, saving paper and showing the information

on the card in a more convenient manner.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Card Copy.

3 Change the default scanning options, if necessary.

• Default tray—Select the default tray to be used for printing scan images.

• Default number of copies—Specify the number of copies that should automatically print when the application

is used.

• Default contrast setting—Specify a setting to increase or decrease the level of contrast when a copy of the

scanned card is printed. Select Best for Content if you want the printer to adjust the contrast automatically.

• Default scale setting—Set the size of the scanned card when printed. The default setting is 100% (full size).

• Color Output—Select the check box to print the scanned card in color, or clear it to scan in black and white.

• Resolution setting—Adjust the quality of the scanned card.

http://support.lexmark.com.

Notes:

– When scanning a card, make sure the scan resolution is not more than 200 dpi for color, and 400 dpi for

black and white.

– When scanning multiple cards, make sure the scan resolution is not more than 150 dpi for color, and

300 dpi for black and white.

• Print Borders—Select the check box to print the scan image with a border around it.

4 Click Apply.

To use the application, touch Card Copy on the printer home screen, and then follow the instructions.

Using MyShortcut

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To

check for updates of this User's Guide, go to

http://support.lexmark.com.

Setting up and using the home screen applications 23

Use To

Create shortcuts on the printer home screen, with settings for up to 25 frequently used copy, fax, or email jobs.

To use the application, touch MyShortcut, and then follow the instructions on the printer display.

Setting up Multi Send

Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To

check for updates of this User's Guide, go to

Use To

Scan a document, and then send the scanned document to multiple destinations.

Note: Make sure there is enough space in the printer hard disk.

http://support.lexmark.com.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The printer IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

2 Click Settings > Apps > Apps Management > Multi Send.

3 From the Profiles section, click Add, and then customize the settings.

Notes:

• See the mouse‑over help beside each field for a description of the setting.

• If you select FTP or Share Folder as a destination, then make sure the location settings of the destination are

correct. Type the correct IP address of the host computer where the specified destination is located. For more information on obtaining the IP address of the host computer, see

computer” on page 19.

“Finding the IP address of the

4 Click Apply.

To use the application, touch Multi Send on the printer home screen, and then follow the instructions on the printer display.

Setting up Scan to Network

Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To

check for updates of this User's Guide, go to

http://support.lexmark.com.

Setting up and using the home screen applications 24

Use To

Scan a document and send it to a shared network folder. You can define up to 30 unique folder destinations.

Notes:

• The printer must have permission to write to the destinations. From the computer where the

destination is specified, use sharing, security, and firewall settings to allow the printer at least a write access. For help, see the documentation that came with your operating system.

• The Scan to Network icon appears only when one or more destinations are defined.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Do either of the following:

• Click Set up Scan to Network > Click here.

• Click Settings > Apps > Apps Management > Scan to Network.

3 Specify the destinations, and then customize the settings.

Notes:

• See the mouse-over help beside some of the fields for a description of the setting.

• To make sure the location settings of the destination are correct, type the correct IP address of the host

computer where the specified destination is located. For more information on obtaining the IP address of the host computer, see

“Finding the IP address of the computer” on page 19.

• Make sure the printer has access rights to the folder where the specified destination is located.

4 Click Apply.

To use the application, touch Scan to Network on the printer home screen, and then follow the instructions on the printer display.

Setting up Remote Operator Panel

This application enables you to interact with the printer control panel even when you are not physically near the network printer. From your computer, you can view the printer status, release held print jobs, create bookmarks, and do other print-related tasks.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 Click Settings > Remote Operator Panel Settings.

3 Select the Enable check box, and then customize the settings.

4 Click Submit.

To use the application, click Remote Operator Panel > Launch VNC Applet.

Setting up and using the home screen applications 25

Exporting and importing a configuration

You can export configuration settings into a text file, and then import the file to apply the settings to other printers.

1 Open a Web browser, and then type the printer IP address in the address field.

Note: View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

2 To export or import a configuration for one application, do the following:

a Click Settings > Apps > Apps Management. b From the list of installed applications, click the name of the application you want to configure. c Click Configure, and then do either of the following:

• To export a configuration to a file, click Export, and then follow the instructions on the computer screen to

save the configuration file.

Notes:

– When saving the configuration file, you can type a unique file name or use the default name. – If a "JVM Out of Memory” error occurs, then repeat the export process until the configuration file is

saved.

• To import a configuration from a file, click Import, and then browse to the saved configuration file that was

exported from a previously configured printer.

Notes:

– Before importing the configuration file, you can choose to preview it first or load it directly. – If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click Apply.

3 To export or import a configuration for multiple applications, do the following:

a Click Settings > Import/Export. b Do either of the following:

• To export a configuration file, click Export Embedded Solutions Settings File, and then follow the instructions

on the computer screen to save the configuration file.

• To import a configuration file, do the following:

1 Click Import Embedded Solutions Settings File > Choose File, and then browse to the saved configuration

file that was exported from a previously configured printer.

2 Click Submit.

Additional printer setup 26

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Available internal options

• Memory card – DDR3 DIMM

• Flash memory – Fonts – Firmware

• Forms and Barcode

• Prescribe

• IPDS

• Printer hard disk

Note: To install a printer hard disk, contact customer support at representative.

http://support.lexmark.com or your service

Accessing the controller board

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

Additional printer setup 27

Note: This task requires a flat‑head screwdriver.

1 At the back of the printer, turn the screws counterclockwise to remove them.

2 Slightly open the controller board access cover, and then shift to the right to remove it.

3 Locate the appropriate connector on the controller board.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch a metal surface on the printer before touching any controller board electronic components or connectors.

Additional printer setup 28

1 Flash memory or font card connector

2 Printer hard disk connector

3 Memory card connector

4 Reattach the cover.

Additional printer setup 29

5 Turn the screws clockwise to lock the cover.

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

1 Access the controller board.

For more information, see

2 Unpack the memory card.

Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may

cause damage.

“Accessing the controller board” on page 26.

Additional printer setup 30

3 Align the notch (1) on the memory card with the ridge (2) on the connector.

4 Push the memory card straight into the connector, and then push the card toward the controller board wall until

it clicks into place.

5 Close the controller board access cover.

Additional printer setup 31

Installing an optional card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1 Access the controller board.

For more information, see

“Accessing the controller board” on page 26.

2 Unpack the optional card.

Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.

Additional printer setup 32

4 Push the card firmly into place as shown in the illustration.

Warning—Potential Damage: Improper installation of the card may cause damage to the card and the

controller board.

Note: The entire length of the connector on the card must touch and be flushed against the controller board.

5 Close the controller board access door.

Note: When the printer software and any hardware options are installed, it may be necessary to manually add

the options in the printer driver to make them available for print jobs. For more information, see

available options in the print driver” on page 37.

“Adding

Installing hardware options

Order of installation

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

Additional printer setup 33

Install the printer and any optional tray in the following order:

• Optional 550‑sheet tray (Tray 3)

• Optional 650‑sheet duo tray with integrated multipurpose feeder (Tray 2)

• Printer

Installing optional trays

The printer supports two optional input sources: a 550‑sheet tray (Tray 3) and a 650‑sheet duo tray (Tray 2) with an integrated multipurpose feeder.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

1 Unpack the optional tray and the dust cover, and then remove all packing material.

2 Place the tray near the printer.

3 Align the 650‑sheet duo tray with the 550‑sheet tray, and then lower it into place.

Notes:

• If you are installing both the optional trays, then the 550‑sheet tray (Tray 3) must always be below the

650‑sheet tray (Tray 2).

• The standard 250‑sheet tray can be labeled as Tray 1 by using the tray number label that came with the

optional tray.

Additional printer setup 34

4 Align the printer with the 650‑sheet duo tray, and then lower the printer into place.

Additional printer setup 35

5 Install the dust covers.

Note: When the printer software and any hardware options are installed, you may need to manually add the options

in the printer driver to make them available for print jobs. For more information, see

the print driver” on page 37.

“Adding available options in

Attaching cables

CAUTION—POTENTIAL INJURY: Do not use the fax feature during a lightning storm. Do not set up this product

or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

Connect the printer to the computer using a USB cable or to the network using an Ethernet cable.

Make sure to match the following:

• The USB symbol on the cable with the USB symbol on the printer

• The appropriate Ethernet cable to the Ethernet port

Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown while actively printing. Loss of data or a malfunction can occur.

Additional printer setup 36

Use the To

1 USB wireless port Attach an optional wireless network adapter.

2 Security lock port Lock the controller board.

3 Printer power cord

socket

4 LINE port Connect the printer to an active telephone line through a standard wall jack (RJ‑11), DSL

Connect the printer to a properly grounded electrical outlet.

filter, or VoIP adapter, or any other adapter that allows you to access the telephone line to send and receive faxes.

5 EXT port Connect additional devices (telephone or answering machine) to the printer and the

telephone line. Use this port if you do not have a dedicated fax line for the printer and if this connection method is supported in your country or region.

Note: Remove the adapter plug to access the port.

6 Rear USB port Attach a keyboard.

7 USB printer port Connect the printer to a computer using a USB cable.

8 Ethernet port Connect the printer to an Ethernet network.

Setting up the printer software

Installing the printer

1 Obtain a copy of the software installer package.

2 Run the installer, and then follow the instructions on the computer screen.

Additional printer setup 37

3 For Macintosh users, add the printer.

Note: Obtain the printer IP address from the TCP/IP section in the Network/Ports menu.

Adding available options in the print driver

For Windows users

1 Open the printers folder.

In Windows 8

From the Search charm, type run, and then navigate to:

Run > type control printers > OK

In Windows 7 or earlier

a Click , or click Start and then click Run. b Type control printers. c Press Enter, or click OK.

2 Select the printer you want to update, and then do either of the following:

• For Windows 7 or later, select Printer properties.

• For earlier versions, select Properties.

3 Navigate to the Configuration tab, and then select Update Now ‑ Ask Printer.

4 Apply the changes.

For Macintosh users

1 From System Preferences in the Apple menu, navigate to your printer, and then select Options & Supplies.

2 Navigate to the list of hardware options, and then add any installed options.

3 Apply the changes.

Networking

Notes:

• Purchase a MarkNet

information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

• A Service Set Identifier (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP), Wi-Fi

Protected Access (WPA), WPA2, and 802.1X - RADIUS are types of security used on a network.

N8352 wireless network adapter before setting up the printer on a wireless network. For

Preparing to set up the printer on an Ethernet network

To configure your printer to connect to an Ethernet network, organize the following information before you begin:

Additional printer setup 38

Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the printer.

• A valid, unique IP address for the printer to use on the network

• The network gateway

• The network mask

• A nickname for the printer (optional)

Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to use the default printer nickname, or assign a name that is easier for you to remember.

You will need an Ethernet cable to connect the printer to the network and an available port where the printer can physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a damaged cable.

Preparing to set up the printer on a wireless network

Notes:

• Make sure your wireless network adapter is installed in your printer and working properly. For more

information, see the instruction sheet that came with the wireless network adapter.

• Make sure your access point (wireless router) is turned on and is working properly.

Make sure you have the following information before setting up the printer on a wireless network:

• SSID—The SSID is also referred to as the network name.

• Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.

• Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.

Some ad hoc networks will also require the automatic setting. Check with your system support person if you are not sure which channel to select.

• Security Method—There are four basic options for Security Method: – WEP key

If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key currently in use on the network by selecting the default WEP transmit key.

– WPA or WPA2 preshared key or passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

– 802.1X–RADIUS

If you are installing the printer on an 802.1X network, then you may need the following:

• Authentication type

• Inner authentication type

• 802.1X user name and password

• Certificates

– No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: We do not recommend using an unsecured wireless network.

Additional printer setup 39

Notes:

– If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility

of the computer network adapter, and then look for the network name. If you cannot find the SSID or the security information for your network, then see the documentation that came with the access point, or contact your system support person.

– To find the WPA/WPA2 preshared key or passphrase for the wireless network, see the documentation that

came with the access point, see the Embedded Web Server associated with the access point, or consult your system support person.

Connecting the printer using the Wireless Setup Wizard

Before you begin, make sure that:

• A wireless network adapter is installed in the printer and is working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

• An Ethernet cable is disconnected from the printer.

• Active NIC is set to Auto. To set this to Auto, navigate to:

> Network/Ports > Active NIC > Auto > Submit

Note: Make sure to turn off the printer, then wait for at least five seconds, and then turn the printer back on.

1 From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup

2 Select a wireless connection setup.

Use To

Search for networks Show available wireless connections.

Note: This menu item shows all broadcast secured or unsecured SSIDs.

Enter a network name Manually type the SSID.

Note: Make sure to type the correct SSID.

Wi‑Fi Protected Setup Connect the printer to a wireless network using Wi‑Fi Protected Setup.

3 Follow the instructions on the printer display.

Connecting the printer to a wireless network using Wi‑Fi Protected Setup

Before you begin, make sure that:

• The access point (wireless router) is Wi‑Fi Protected Setup (WPS) certified or WPS‑compatible. For more

information, see the documentation that came with your access point.

• A wireless network adapter installed in your printer is attached and working properly. For more information, see

the instruction sheet that came with the wireless network adapter.

Additional printer setup 40

Using the Push Button Configuration method

From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi‑Fi Protected

Setup > Start Push Button Method

2 Follow the instructions on the printer display.

Using the Personal Identification Number (PIN) method

From the printer control panel, navigate to:

> Network/Ports > Network [x] > Network [x] Setup > Wireless > Wireless Connection Setup > Wi‑Fi Protected

Setup > Start PIN Method

2 Copy the eight‑digit WPS PIN.

3 Open a Web browser, and then type the IP address of your access point in the address field.

Notes:

• The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

4 Access the WPS settings. For more information, see the documentation that came with your access point.

5 Enter the eight‑digit PIN, and then save the setting.

Connecting the printer to a wireless network using the Embedded Web Server

Before you begin, make sure that:

• Your printer is connected temporarily to an Ethernet network.

• A wireless network adapter is installed in your printer and working properly. For more information, see the

instruction sheet that came with the wireless network adapter.

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer control panel. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Network/Ports > Wireless.

3 Modify the settings to match the settings of your access point (wireless router).

Note: Make sure to enter the correct SSID, security method, preshared key or passphrase, network mode, and

channel.

4 Click Submit.

5 Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the

printer back on.

6 To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x]

section, see if the status is Connected.

Additional printer setup 41

Verifying printer setup

When all hardware and software options are installed and the printer is turned on, verify that the printer is set up correctly by printing the following:

• Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed options

appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly. Remove the option, and then install it again.

• Network setup page—If your printer has Ethernet or wireless capability and is attached to a network, then print a

network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

Printing a menu settings page

From the home screen, navigate to:

> Reports > Menu Settings Page

Printing a network setup page

If the printer is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration.

1 From the home screen, navigate to:

> Reports > Network Setup Page

2 Check the first section of the network setup page, and confirm that the status is Connected.

If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning. Consult a system support person for a solution, and then print another network setup page.

Loading paper and specialty media 42

Loading paper and specialty media

Proper selection and loading of media can improve how reliably documents print. For more information, see “Avoiding

jams” on page 235 and “Storing paper” on page 58.

Setting the paper size and type

From the home screen navigate to:

> Paper Menu > Paper Size/Type > select a tray > select the paper size or type > Submit

Configuring Universal paper settings

The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer menus.

Notes:

• The smallest supported Universal size is 76 x 127 mm (3 x 5 inches) and is loaded only in the multipurpose

feeder and manual feeder.

• The largest supported Universal size is 215.9 x 359.9 mm (8.5 x 14.17 inches) and is loaded only in the

multipurpose feeder and manual feeder.

1 From the home screen, navigate to:

> Paper Menu > Universal Setup > Units of Measure > select a unit of measure

2 Touch Portrait Width or Portrait Height.

3 Select the width or height, and then touch Submit.

Loading the 250‑ and 550‑sheet tray

The printer has one 250-sheet tray (Tray 1) with an integrated manual feeder. The 250-sheet tray, the 650-sheet duo tray, and the 550-sheet tray support the same paper sizes and types and are loaded in the same way.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

1 Pull out the tray completely.

Note: Do not remove trays while a job is printing or while Busy appears on the display. Doing so may cause a

jam.

Loading paper and specialty media 43

2 If the paper is longer than letter‑size paper, then squeeze and then slide the length guide at the back of the tray to

extend it.

3 Squeeze, and then slide the length guide tab to the correct position for the size of the paper being loaded.

Note: Use the paper size indicators on the bottom of the tray to help position the guide.

Loading paper and specialty media 44

4 Squeeze, and then slide the width guide tab to the correct position for the size of the paper being loaded.

Note: Use the paper size indicators on the bottom of the tray to help position the guides.

5 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the

edges on a level surface.

6 Load the paper stack with the recommended printable side faceup.

7 Place the paper guides securely against the edges of the paper.

Loading paper and specialty media 45

8 Insert the tray.

9 From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in

the tray.

Note: Mixing paper sizes or paper types in a tray may cause jams.

Loading the manual feeder

The standard 250‑sheet tray has an integrated manual feeder that can be used to print on different types of paper one sheet at a time.

1 Load a sheet of paper into the manual feeder:

• Printable side facedown for one-sided printing

• Printable side faceup for two‑sided (duplex) printing

Note: There are different ways for loading letterhead depending on the mode of printing.

One‑sided printing using a letterhead Two‑sided printing using a letterhead

ABC

• Load envelope with the flap side up and against the right side of the paper guide.

2 Feed paper into the manual feeder only to the point where its leading edge can contact the paper guides.

Note: To achieve the best possible print quality, use only high‑quality media designed for laser printers.

3 Adjust the paper guides to the width of the paper loaded.

Warning—Potential Damage: Do not force the paper into the feeder. Forcing the paper may cause jams.

Loading paper and specialty media 46

Loading the 650‑sheet duo tray

The 650‑sheet duo tray (Tray 2) consists of a 550‑sheet tray and an integrated 100‑sheet multipurpose feeder. The tray is loaded in the same way as the 250‑sheet tray and the optional 550‑sheet tray, and supports the same paper types and sizes. The only differences are the look of the guide tabs and the location of the paper size indicators.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

1 Length guide tab

2 Paper size indicator

3 Width guide tab

Loading paper and specialty media 47

Loading the multipurpose feeder

1 Push the multipurpose feeder latch to the left.

2 Open the multipurpose feeder.

3 Pull the multipurpose feeder extender.

Note: Guide the extender gently so that the multipurpose feeder is fully extended and open.

Loading paper and specialty media 48

4 Prepare the paper for loading.

• Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper.

Straighten the edges on a level surface.

• Hold transparencies by the edges, and then fan them. Straighten the edges on a level surface.

Note: Avoid touching the printable side of transparencies. Be careful not to scratch them.

• Flex a stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level

surface.

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer.

5 Locate the maximum paper fill indicator and tab.

Note: Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper

guides.

1 Width guide tab

2 Maximum paper fill indicator

3 Width guide

4 Feeder extender

Loading paper and specialty media 49

5 Paper size indicator

6 Load the paper, and then adjust the width guide to lightly touch the edge of the paper stack.

• Load paper, card stock, and transparencies with the recommended printable side facedown and the top edge

entering the printer first.

• Load envelopes with the flap side up and against the right side of the paper guide.

Notes:

• Do not load or close the multipurpose feeder while a job is printing.

• Load only one size and type of paper at a time.

• Paper should lie flat in the multipurpose feeder. Make sure the paper fits loosely in the multipurpose feeder

and is not bent or wrinkled.

7 From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the

tray.

Linking and unlinking trays

The printer links trays when the specified paper size and type are the same. When a linked tray becomes empty, paper feeds from the next linked tray. To prevent trays from linking, assign a unique custom paper type name.

Linking and unlinking trays

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

Loading paper and specialty media 50

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

3 Change the paper size and type settings for the trays you are linking.

• To link trays, make sure the paper size and type for the tray match that of the other tray.

• To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.

4 Click Submit.

Note: You can also change the paper size and type settings using the printer control panel. For more information,

“Setting the paper size and type” on page 42.

see

Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer. The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are not properly configured.

Creating a custom name for a paper type

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Names.

3 Select a custom name, and then type a custom paper type name.

4 Click Submit.

5 Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Using the printer control panel

From the home screen, navigate to:

> Paper Menu > Custom Names

2 Select a custom name, and then type a custom paper type name.

3 Touch Submit.

4 Touch Custom Types, and then verify if the new custom paper type name has replaced the custom name.

Assigning a custom paper type

Using the Embedded Web Server

Assign a custom paper type name to a tray when linking or unlinking trays.

1 Open a Web browser, and then type the printer IP address in the address field.

Loading paper and specialty media 51

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Types.

3 Select a custom paper type name, and then select a paper type.

Note: Paper is the factory default paper type for all user‑defined custom names.

4 Click Submit.

Using the printer control panel

From the home screen, navigate to:

> Paper Menu > Custom Types

2 Select a custom paper type name, and then select a paper type.

Note: Paper is the factory default paper type for all user‑defined custom names.

3 Touch Submit.

Configuring a custom name

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu > Custom Types.

3 Select a custom name you want to configure, then select a paper or specialty media type, and then click Submit.

Using the printer control panel

From the home screen, navigate to:

> Paper Menu > Custom Types

2 Select a custom name you want to configure, and then touch Submit.

Paper and specialty media guide 52

Paper and specialty media guide

Notes:

• Make sure that the paper size, type, and weight are set correctly on the computer or on the control panel.

• Flex, fan, and straighten specialty media before loading them.

• The printer may print at a reduced speed to prevent damage to the fuser.

• For more information on card stock and labels, see the Card Stock & Label Guide on the Lexmark support Web

http://support.lexmark.com.

site at

Using specialty media

Tips on using letterhead

• Use letterhead designed specifically for laser printers.

• Print a test page on the letterhead being considered for use before buying large quantities.

• Before loading letterhead, flex, fan, and straighten the stacks to prevent sheets from sticking together.

• Page orientation is important when printing on letterhead.

Source Printing Printable side Paper orientation

Trays

ABC

One‑sided Faceup Load the sheet

with the top edge entering the printer first.

Two‑sided Facedown Load the sheet

with the bottom edge entering the printer first.

Note: Check with the manufacturer or vendor to determine whether or not the preprinted letterhead is acceptable for laser printers.

Paper and specialty media guide 53

Source Printing Printable side Paper orientation

Manual feeder

Multipurpose feeder

One‑sided Facedown Load the sheet

with the top edge entering the printer first.

ABC

Two‑sided Faceup Load the sheet

with the bottom edge entering the printer first.

ABC

One‑sided Facedown Load the sheet

with the top edge entering the printer first.

Multipurpose feeder

Two‑sided Faceup Load the sheet

with the bottom edge entering the printer first.

Note: Check with the manufacturer or vendor to determine whether or not the preprinted letterhead is acceptable for laser printers.

Paper and specialty media guide 54

Tips on using transparencies

Print a test page on the transparencies being considered for use before buying large quantities.

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

transparencies loaded in the tray.

• Print a test page on the transparencies being considered for use before buying large quantities.

• Feed transparencies from the 250-sheet tray, manual feeder, or multipurpose feeder.

• Use transparencies designed specifically for laser printers.

• Avoid getting fingerprints on the transparencies to prevent print quality problems.

• Before loading transparencies, flex, fan, and straighten the stacks to prevent sheets from sticking together.

Tips on using envelopes

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the

envelopes loaded in the tray.

• Print samples on the envelopes being considered for use before buying large quantities.

• Use envelopes designed specifically for laser printers.

• For best performance, use envelopes made from 90‑g/m

• Use only new envelopes from undamaged packages.

• To optimize performance and minimize jams, do not use envelopes that: – Have excessive curl or twist. – Are stuck together or damaged in any way. – Have windows, holes, perforations, cutouts, or embossing. – Have metal clasps, string ties, or folding bars. – Have an interlocking design. – Have postage stamps attached. – Have any exposed adhesive when the flap is in the sealed or closed position. – Have bent corners. – Have rough, cockle, or laid finishes.

• Adjust the width guides to fit the width of the envelopes.

• Before loading the envelopes on the tray, flex and fan the envelopes to loosen them. Straighten the edges on a

level surface.

(24‑lb) paper or 25% cotton.

Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.

Tips on using labels

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the labels

loaded in the tray.

• Print samples on labels being considered for use before buying large quantities.

• For more information on label printing, characteristics, and design, see the Card Stock & Label Guide at

http://support.lexmark.com.

• Use labels designed specifically for laser printers.

• Do not use labels with slick backing material.

Paper and specialty media guide 55

• Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets

also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge warranties.

• Do not use labels with exposed adhesive.

• Before loading labels on the tray, flex and fan labels to loosen them. Straighten the edges on a level surface.

Tips on using card stock

Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness, and texture, can significantly affect print quality.

• From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the card

stock loaded in the tray.

• Print samples on the card stock being considered for use before buying large quantities.

• Specify the paper texture and weight from the tray settings to match the paper loaded in the tray.

• Preprinting, perforation, and creasing may significantly affect the print quality and cause jams or other paper feed

problems.

• Before loading the card stock on the tray, flex and fan the card stock to loosen them. Straighten the edges on a

level surface.

Paper guidelines

Select the correct paper or specialty media to reduce printing problems. For the best print quality, try a sample of the paper or specialty media before buying large quantities.

Paper characteristics

The following paper characteristics affect print quality and reliability. Consider these characteristics when evaluating new paper stock.

Weight

The printer trays can automatically feed paper weights up to 176‑g/m2 (47‑lb) bond grain long paper. The multipurpose feeder can automatically feed paper weights up to 176‑g/m 60 g/m bond grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 inches), we recommend 90 g/m

heavier paper.

Note: Duplex printing is supported from 60–105‑g/m

(16 lb) might not be stiff enough to feed properly, causing jams. For best performance, use 75‑g/m2 (20‑lb)

Curl

Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding problems.

(47‑lb) bond grain long paper. Paper lighter than

(16–28‑lb) bond grain long paper.

(24 lb) or

Paper and specialty media guide 56

Smoothness

Paper smoothness directly affects print quality. If paper is too rough, then toner cannot fuse to it properly. If paper is too smooth, then it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield points; smoothness between 150 and 250 Sheffield points produces the best print quality.

Moisture content

The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly. Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that can degrade its performance.

Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend the time to several days if the storage or transportation environment is very different from the printer environment. Thick paper may also require a longer conditioning period.

Grain direction

Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of the paper, or grain short, running the width of the paper.

For 60–90‑g/m

(16–24‑lb) bond paper, grain long paper is recommended.

Fiber content

Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing fibers such as cotton can negatively affect paper handling.

Unacceptable paper

The following paper types are not recommended for use with the printer:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers, carbonless

copy paper (CCP), or no carbon required (NCR) paper

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be affected by the temperature in the printer fuser

• Preprinted papers that require a registration (the precise print location on the page) greater than ±2.3 mm (±0.9 in.),

such as optical character recognition (OCR) forms In some cases, registration can be adjusted with a software application to successfully print on these forms.

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough‑edged, rough or heavily textured surface papers, or curled papers

• Recycled papers that fail EN12281:2002 (European)

• Paper weighing less than 60 g/m

• Multiple‑part forms or documents

(16 lb)

Selecting paper

Using the appropriate paper prevents jams and helps ensure trouble‑free printing.

Paper and specialty media guide 57

To help avoid paper jams and poor print quality:

• Always use new, undamaged paper.

• Before loading paper, know the recommended printable side of the paper. This information is usually indicated on

the paper package.

• Do not use paper that has been cut or trimmed by hand.

• Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.

• Do not use coated papers unless they are specifically designed for electrophotographic printing.

Selecting preprinted forms and letterhead

Use these guidelines when selecting preprinted forms and letterhead:

• Use grain long for 60–90‑g/m

• Use only forms and letterhead printed using an offset lithographic or engraved printing process.

• Avoid paper with rough or heavily textured surfaces.

Use inks that are not affected by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements; latex inks might not.

(16–24‑lb) paper.

When in doubt, contact your paper supplier.

Using recycled paper and other office papers

As an environmentally conscious company, Lexmark supports the use of recycled office paper produced specifically for use in laser (electrophotographic) printers. In 1998, Lexmark presented to the US government a study demonstrating that recycled paper produced by major mills in the US fed as well as non-recycled paper. However, no blanket statement can be made that all recycled paper will feed well.

Lexmark consistently tests its printers with recycled paper (20–100% post-consumer waste) and a variety of test paper from around the world, using chamber tests for different temperature and humidity conditions. Lexmark has found no reason to discourage the use of today's recycled office papers, but generally the following property guidelines apply to recycled paper.

• Low moisture content (4–5%)

• Suitable smoothness (100–200 Sheffield units, or 140–350 Bendtsen units, European)

Note: Some much smoother papers (such as premium 24 lb laser papers, 50–90 Sheffield units) and much rougher papers (such as premium cotton papers, 200–300 Sheffield units) have been engineered to work very well in laser printers, despite surface texture. Before using these types of paper, consult your paper supplier.

• Suitable sheet-to-sheet coefficient of friction (0.4–0.6)

• Sufficient bending resistance in the direction of feed

Recycled paper, paper of lower weight (<60 g/m that is cut grain-short for portrait (or short-edge) fed printers may have lower bending resistance than is required for reliable paper feeding. Before using these types of paper for laser (electrophotographic) printing, consult your paper supplier. Remember that these are general guidelines only and that paper meeting these guidelines may still cause paper feeding problems in any laser printer (for example, if the paper curls excessively under normal printing conditions).

[16 lb bond]) and/or lower caliper (<3.8 mils [0.1 mm]), and paper

Paper and specialty media guide 58

Storing paper

Use these paper storage guidelines to help avoid jams and uneven print quality:

• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most

label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity between 40 and 60 percent.

• Store paper in cartons, on a pallet or shelf, rather than on the floor.

• Store individual packages on a flat surface.

• Do not store anything on top of individual paper packages.

• Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and wrapper

help keep the paper clean, dry, and flat.

Supported paper sizes, types, and weights

The following tables provide information on standard and optional paper sources and the sizes, types, and weights of paper they support.

Note: For an unlisted paper size, select the closest larger listed size.

Supported paper sizes

Note: Your printer model may have a 650‑sheet duo tray, which consists of a 550‑sheet tray and an integrated

100‑sheet multipurpose feeder. The 550‑sheet tray of the 650‑sheet duo tray supports the same paper sizes as the optional 550‑sheet tray. The integrated multipurpose feeder supports different paper sizes, types, and weights.

Paper size and dimension

210 x 297 mm (8.3 x 11.7 in.)

148 x 210 mm (5.83 x 8.3 in.)

105 x 148 mm (4.1 x 5.8 in.)

The paper source supports paper size without size sensing.

Universal is supported in the standard 250‑ and optional 550‑sheet trays only if the paper size is from 148 x 215.9 mm

(5.83 x 8.5 in.) to 215.9 x 355.6 mm (8.5 x 14 in.).

Universal is supported in the multipurpose feeder and manual feeder only if the paper size is from 76.2 x 127 mm (3 x 5 in.)

to 215.9 x 359.9 mm (8.5 x 14.17 in.).

Universal is supported in duplex mode only if the width is from 210 mm (8.27 in.) to 215.9 mm (8.5 in.), and the length is

from 279.4 mm (11 in.) to 355.6 mm (14 in.).

Standard

250‑sheet

tray

1 1 1 1

1 2 1 2

Manual

feeder

650‑sheet duo tray 550‑sheet

550‑sheet tray

Multipurpose

feeder

ADF Scanner

tray

XX X

glass

Duplex

mode

Paper and specialty media guide 59

Paper size and dimension

JIS B5

182 x 257 mm (7.2 x 10.1 in.)

Letter

216 x 279 mm (8.5 x 11 in.)

Legal

216 x 356 mm (8.5 x 14 in.)

Executive

184 x 267 mm (7.3 x 10.5 in.)

Oficio (Mexico)

216 x 340 mm (8.5 x 13.4 in.)

Folio

216 x 330 mm (8.5 x 13 in.)

Standard

250‑sheet

tray

1 1 1 1

Manual

feeder

650‑sheet duo tray 550‑sheet

550‑sheet tray

Multipurpose

feeder

tray

ADF Scanner

glass

Duplex

mode

Statement

X X

140 x 216 mm (5.5 x 8.5 in.)

Universal

1,3

X X

76 x 127 mm (3 x 5 in.) to 216 x 356 mm (8.5 x 14 in.)

Universal

1,2 1,2 1,2

148 x 210 mm (5.8 x 8.3 in) to 216 x 356 mm (8.5 x 14 in).

The paper source supports paper size without size sensing.

Universal is supported in the standard 250‑ and optional 550‑sheet trays only if the paper size is from 148 x 215.9 mm

(5.83 x 8.5 in.) to 215.9 x 355.6 mm (8.5 x 14 in.).

Universal is supported in the multipurpose feeder and manual feeder only if the paper size is from 76.2 x 127 mm (3 x 5 in.)

to 215.9 x 359.9 mm (8.5 x 14.17 in.).

Universal is supported in duplex mode only if the width is from 210 mm (8.27 in.) to 215.9 mm (8.5 in.), and the length is

from 279.4 mm (11 in.) to 355.6 mm (14 in.).

Paper and specialty media guide 60

Paper size and dimension

7 3/4 Envelope (Monarch)

98 x 191 mm (3.9 x 7.5 in.)

9 Envelope

98 x 225 mm (3.9 x 8.9 in.)

10 Envelope

105 x 241 mm (4.1 x 9.5 in.)

DL Envelope

110 x 220 mm (4.3 x 8.7 in.)

C5 Envelope

162 x 229 mm (6.4 x 9 in.)

Standard

250‑sheet

tray

Manual

feeder

650‑sheet duo tray 550‑sheet

550‑sheet tray

Multipurpose

feeder

tray

ADF Scanner

glass

Duplex

mode

X XXX

B5 Envelope

X XXX

176 x 250 mm (6.9 x 9.8 in.)

Other Envelope

X XXX

98 x 162 mm (3.9 x 6.3 in.) up to 176 x 250 mm (6.9 x 9.8 in.)

The paper source supports paper size without size sensing.

Universal is supported in the standard 250‑ and optional 550‑sheet trays only if the paper size is from 148 x 215.9 mm

(5.83 x 8.5 in.) to 215.9 x 355.6 mm (8.5 x 14 in.).

Universal is supported in the multipurpose feeder and manual feeder only if the paper size is from 76.2 x 127 mm (3 x 5 in.)

to 215.9 x 359.9 mm (8.5 x 14.17 in.).

Universal is supported in duplex mode only if the width is from 210 mm (8.27 in.) to 215.9 mm (8.5 in.), and the length is

from 279.4 mm (11 in.) to 355.6 mm (14 in.).

Supported paper types and weights

Notes:

• Your printer model may have a 650‑sheet duo tray, which consists of a 550‑sheet tray and an integrated

100‑sheet multipurpose feeder. The 550‑sheet tray of the 650‑sheet duo tray supports the same paper as the 550‑sheet tray. The integrated multipurpose feeder supports different paper sizes, types, and weights.

• Labels, envelopes, and card stock always print at reduced speed.

Paper and specialty media guide 61

Paper type 250‑sheet

tray

Paper

Manual

feeder

650‑sheet duo tray 550‑sheet

550‑sheet tray

Multipurpose

feeder

tray

ADF Scanner

glass

Two‑sided

printing

• Plain

• Recycled

• Glossy

• Bond

• Letterhead

• Preprinted

• Colored

• Light

• Heavy

• Custom

Type [x]

Card stock X

Labels

• Paper

Envelope X

X X X

Printing 62

Printing

Printing forms

Use Forms and Favorites to quickly and easily access frequently used forms or other information that is regularly printed. Before you can use this application, first set it up on the printer. For more information, see

Favorites” on page 21.

1 From the home screen, navigate to:

Forms and Favorites > select the form from the list > enter the number of copies > adjust other settings

2 Apply the changes.

Printing a document

“Setting up Forms and

Printing a document

1 From the printer control panel, set the paper type and size to match the paper loaded.

2 Send the print job:

For Windows users

With a document open, click File > Print.

b Click Properties, Preferences, Options, or Setup.

c Adjust the settings, if necessary.

d Click OK > Print.

For Macintosh users

Customize the settings in the Page Setup dialog:

1 With a document open, choose File > Page Setup. 2 Choose a paper size or create a custom size to match the paper loaded. 3 Click OK.

b Customize the settings in the Print dialog:

1 With a document open, choose File > Print.

If necessary, click the disclosure triangle to see more options.

2 From the print options pop‑up menus, adjust the settings, if necessary.

Note: To print on a specific paper type, adjust the paper type setting to match the paper loaded, or

select the appropriate tray or feeder.

3 Click Print.

Printing in black and white

From the home screen, navigate to:

Printing 63

> Settings > Print Settings > Quality Menu > Print Mode > Black Only > Submit

Adjusting toner darkness

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Quality Menu > Toner Darkness.

3 Adjust the toner darkness, and then click Submit.

Using the printer control panel

From the home screen, navigate to:

> Settings > Print Settings > Quality Menu > Toner Darkness

2 Adjust the setting, and then touch Submit.

Using Max Speed and Max Yield

Max Speed and Max Yield let you choose between a faster print speed or a higher toner yield. Max Yield is the factory default setting.

• Max Speed—This lets you print in either black or color depending on what is set in the printer driver. The printer

prints in color unless Black Only is selected in the printer driver.

• Max Yield—This lets you switch from black to color based on the color content found on each page. Frequent color

mode switching can result to slower printing if the content of pages is mixed.

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Print Settings > Setup Menu.

3 From the Printer Usage list, select Max Speed or Max Yield.

4 Click Submit.

Printing 64

Using the printer control panel

From the home screen, navigate to:

> Settings > Print Settings > Setup Menu

2 From the Printer Usage list, select Max Speed or Max Yield.

3 Touch Submit.

Printing from a flash drive or mobile device

Printing from a flash drive

Notes:

• Before printing an encrypted PDF file, you will be prompted to type the file password from the printer control

panel.

• You cannot print files for which you do not have printing permissions.

1 Insert a flash drive into the USB port.

Notes:

• A flash drive icon appears on the printer home screen when a flash drive is inserted.

• If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the

printer ignores the flash drive.

• If you insert the flash drive while the printer is processing other print jobs, then Busy appears on the printer

display. After these print jobs are processed, you may need to view the held jobs list to print documents from the flash drive.

Warning—Potential Damage: Do not touch the USB cable, any wireless network adapter, any connector, the memory device, or the printer in the areas shown while actively printing, reading, or writing from the memory device. Loss of data can occur.

Printing 65

2 From the printer control panel, touch the document you want to print.

3 Touch the arrows to get a preview of the document.

4 Use or to specify the number of copies to be printed, and then touch Print.

Notes:

• Do not remove the flash drive from the USB port until the document has finished printing.

• If you leave the flash drive in the printer after leaving the initial USB menu screen, then touch Held Jobs on

the home screen to print files from the flash drive.

Supported flash drives and file types

Notes:

• High‑speed USB flash drives must support the full‑speed standard. Low-speed USB devices are not supported.

• USB flash drives must support the File Allocation Table (FAT) system. Devices formatted with New Technology

File System (NTFS) or any other file system are not supported.

Recommended flash drives File type

• Lexar JumpDrive FireFly (512MB and 1GB)

• SanDisk Cruzer Micro (512MB and 1GB)

• Sony Micro Vault Classic (512MB and 1GB)

Documents:

• .pdf

• .xps

Images:

• .dcx

• .gif

• .jpeg or .jpg

• .bmp

• .pcx

• .tiff or .tif

• .png

• .fls

Printing 66

Printing from a mobile device

To download a compatible mobile printing application, visit www.lexmark.com/mobile.

Note: Mobile printing applications may also be available from your mobile device manufacturer.

Printing confidential and other held jobs

Storing print jobs in the printer

1 From the printer control panel, navigate to:

> Security > Confidential Print > select the print job type

Use To

Max Invalid PIN Limit the number of times an invalid PIN can be entered.

Note: When the limit is reached, the print jobs for that user name and PIN are deleted.

Confidential Job Expiration Hold print jobs in the computer until you enter the PIN from the printer control

panel. Note: The PIN is set from the computer. It must be four digits, using the

numbers 1–9.

Repeat Job Expiration Print and store print jobs in the printer memory.

Verify Job Expiration Print one copy of a print job and hold the remaining copies. It allows you to

examine if the first copy is satisfactory. The print job is automatically deleted from the printer memory when all copies are printed.

Reserve Job Expiration Store print jobs for printing at a later time.

Note: The print jobs are held until deleted from the Held Jobs menu.

Notes:

• Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to

process additional held jobs.

• You can set the printer to store print jobs in the printer memory until you start the print job from the printer

control panel.

• All print jobs that can be initiated by the user at the printer are called held jobs.

2 Touch Submit.

Printing confidential and other held jobs

Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve

jobs are held in the printer until you delete them.

For Windows users

With a document open, click File > Print.

2 Click Properties, Preferences, Options, or Setup.

Printing 67

3 Click Print and Hold.

4 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

5 Click OK or Print.

6 From the printer home screen, release the print job.

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

For Macintosh users

With a document open, choose File > Print. If necessary, click the disclosure triangle to see more options.

2 From the print options or Copies & Pages pop‑up menu, choose Job Routing.

3 Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential

print job, also enter a four‑digit PIN.

4 Click OK or Print.

5 From the printer home screen, release the print job.

• For confidential print jobs, navigate to:

Held jobs > select your user name > Confidential Jobs > enter the PIN > Print

• For other print jobs, navigate to:

Held jobs > select your user name > select the print job > specify the number of copies > Print

Modifying confidential print settings

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Security > Confidential Print Setup.

3 Modify the settings:

• Set a maximum number of PIN entry attempts. When a user exceeds that number, all of the jobs for that user

are deleted.

• Set an expiration time for confidential print jobs. When a user has not printed the jobs within that time, all of

the jobs for that user are deleted.

4 Click Submit to save the modified settings.

Printing 68

Printing information pages

Printing a font sample list

1 From the home screen, navigate to:

> Reports > Print Fonts

2 Touch PCL Fonts or PostScript Fonts.

Printing a directory list

A directory list shows the resources stored in a flash memory or in the printer hard disk.

From the home screen, navigate to:

> Reports > Print Directory

Canceling a print job

Canceling a print job from the printer control panel

1 From the printer control panel, touch Cancel Job or press on the keypad.

2 Touch the print job you want to cancel, and then touch Delete Selected Jobs.

Note: If you press

Canceling a print job from the computer

For Windows users

1 Open the printers folder, and then select your printer.

2 From the print queue, select the print job you want to cancel, and then delete it.

For Macintosh users

1 From System Preferences in the Apple menu, navigate to your printer.

2 From the print queue, select the print job you want to cancel, and then delete it.

on the keypad, then touch Resume to return to the home screen.

Copying 69

Copying

Automatic document feeder (ADF) Scanner glass

Use the scanner glass for single-page documents, book pages,

Use the ADF for multiple‑page documents including twosided pages.

small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings).

Making copies

Making a quick copy

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

Note: To avoid a cropped image, make sure the size of the original document and the size of the copy paper are

the same.

3 From the printer control panel, press .

Copying using the ADF

1 Load an original document faceup, short edge first into the ADF tray.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

Copying 70

• The ADF indicator light comes on when the paper is loaded properly.

2 Adjust the paper guides.

3 From the home screen, navigate to:

Copy > specify the copy settings > Copy It

Copying using the scanner glass

1 Place an original document facedown on the scanner glass in the upper left corner.

2 From the home screen, navigate to:

Copy > specify the copy settings > Copy It If you have more pages to scan, then place the next document on the scanner glass, and then touch Scan the next

page.

3 Touch Finish the Job.

Copying photos

1 Place a photo facedown on the scanner glass in the upper left corner.

2 From the home screen, navigate to:

Copy > Content > Photo >

3 From the Content Source menu, select the appropriate setting that best matches the original photo.

4 Touch > Copy It

Note: If you have more photos to copy, then place the next photo on the scanner glass, and then touch Scan the next page.

5 Touch Finish the Job.

Copying on specialty media

Copying on transparencies

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 From the home screen, navigate to:

Copy > Copy from > select the size of the original document >

Copying 71

3 Navigate to:

Copy to > select the tray that contains transparencies > Copy It

If there are no trays that contain transparencies, then navigate to:

Manual Feeder >

> select the size of the transparencies > > Transparency >

4 Load transparencies into the multipurpose feeder, and then touch Copy It.

Copying on letterhead

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Copy from > select the size of the original document >

4 Navigate to:

Copy to > select the tray containing the letterhead > Copy It

5 If there are no trays that support letterhead, then navigate to:

Manual Feeder > select the size of the letterhead > Letterhead

6 Load the letterhead faceup, top edge first into the multipurpose feeder, and then touch Copy It.

Creating a copy shortcut using the printer control panel

1 From the home screen, touch Copy.

2 Adjust the copy settings, and then touch Save as Shortcut.

Note: If you change the settings after the copy shortcut has been created, then the settings are not saved.

3 Type a unique name for the shortcut, and then touch Done.

4 Verify that the shortcut name is correct, and then touch OK.

If the shortcut name is incorrect, then touch Cancel, and then reenter the information.

Notes:

• The shortcut name appears in the Copy Shortcuts icon on the printer home screen.

• You can use the shortcut when copying another document using the same settings.

Copying 72

Customizing copy settings

Copying to a different size

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Copy from > select the size of the original document >

4 Navigate to:

Copy to > select a new size for the copy >

> Copy It

Making copies using paper from a selected tray

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Copy from > select the size of the original document >

4 Navigate to:

Copy to > select the tray containing the paper type you want to use >

5 Touch Copy It.

Copying different paper sizes

Use the ADF to copy original documents with different paper sizes. Depending on the paper sizes loaded and the “Copy to” and “Copy from” settings, each copy is either printed on mixed paper sizes (Example 1) or scaled to fit a single paper size (Example 2).

Example 1: Copying on mixed paper sizes

Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Copying 73

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Copy from > Mixed Sizes >

4 Navigate to:

Copy to > Auto Size Match >

The scanner identifies the different paper sizes as they are scanned. Copies are printed on mixed paper sizes corresponding to the paper sizes of the original document.

> Copy It

Example 2: Copying on a single paper size

Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Copy from > Mixed Sizes >

4 Navigate to:

Copy to > Letter >

The scanner identifies the different paper sizes as they are scanned, and then scales the mixed paper sizes to fit on the paper size selected.

> Copy It

Copying on both sides of the paper (duplexing)

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

Copying 74

3 From the home screen, navigate to:

Copy > Sides (Duplex) > select the preferred duplexing method

Note: For the preferred duplexing method, the first number represents sides of the original documents while

the second number represents sides of the copy. For example, select “2 sided to 2 sided” if you have two-sided original documents and you want two‑sided copies.

4 Touch > Copy It.

Reducing or enlarging copies

Copies can be scaled from 25% to 400% of the original document size.

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, touch Copy.

4 From the Scale area, touch or to decrease or increase the value by 1%.

Touching “Copy to” or “Copy from” after setting Scale manually changes the scale value back to Auto.

Note: Auto is the factory default setting. This automatically adjusts the scan image of the original document to fit the size of the paper onto which you are copying.

5 Touch Copy It.

Adjusting copy quality

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Content

4 Touch the button that best represents the content type of the document you are copying.

• Text—The content of the original document is mostly text or line art.

• Text/Photo—The original document is a mixture of text, graphics, and photos.

• Photo—The original document is mostly a photo or an image.

• Graphics—The original document is mostly business‑type graphics, such as pie charts, bar charts, and

animations.

Copying 75

5 Touch .

6 Touch the button that best represents the content source of the document you are copying.

• Color Laser—The original document was printed using a color laser printer.

• Inkjet—The original document was printed using an inkjet printer.

• Magazine—The original document is from a magazine.

• Press—The original document was printed using a printing press.

• Black/White Laser—The original document was printed using a mono laser printer.

• Photo/Film—The original document is a photo from a film.

• Newspaper—The original document is from a newspaper.

• Other—The original document was printed using an alternate or unknown printer.

7 Touch > Copy It.

Collating copies

If you print multiple copies of a document, then you can choose to print the copies as a set (collated) or to print the copies as groups of pages (not collated).

Collated Not collated

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > enter the number of copies > Collate > select the preferred order of pages >

> Copy It

Placing separator sheets between copies

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

Copying 76

3 From the home screen, navigate to:

Copy > Advanced Options > Separator Sheets

Note: Set Collate to “1,2,3 ‑ 1,2,3” to place separator sheets between copies. If Collate is set to “1,1,1 ‑ 2,2,2,”

then the separator sheets are added to the end of the copy job. For more information, see

page 75.

“Collating copies” on

4 Select one of the following:

• Between Copies

• Between Jobs

• Between Pages

• Off

5 Touch > Copy It.

Copying multiple pages onto a single sheet

In order to save paper, you can copy either two or four consecutive pages of a multiple‑page document onto a single sheet of paper.

Notes:

• Make sure to set the paper size to letter, legal, A4, or JIS B5.

• Make sure to set the copy size to 100%.

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Advanced Options > Paper Saver > select the output you want >

Note: If Paper Saver is set to Off, then the Print Page Borders option is unavailable.

> Copy It

Creating a custom copy job

The custom copy job or job build is used to combine one or more sets of original documents into a single copy job. Each set may be scanned using different job parameters. When a copy job is submitted and Custom Job is enabled, the scanner scans the first set of original documents using the specified settings, and then it scans the next set with the same or different settings.

The definition of a set depends on the scan source:

• If you scan a document on the scanner glass, then a set consists of one page.

• If you scan multiple pages using the ADF, then a set consists of all scanned pages until the ADF tray becomes empty.

• If you scan one page using the ADF, then a set consists of one page.

Copying 77

For example:

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Advanced Options > Custom Job > On >

Note: When the end of a set is reached, the scan screen appears.

> Copy It

4 Load the next document faceup, short edge first into the ADF tray or facedown on the scanner glass, and then touch

Scan from automatic feeder or Scan from flatbed.

Note: Change the scan job settings, if necessary.

5 If you have another document to scan, then repeat the previous step. Otherwise, touch Finish the job.

Placing information on copies

Placing a header or footer on pages

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Advanced Options > Header/Footer > select where you want to place the header or footer > select the type

of header or footer you want

4 Enter the required information depending on the header or footer you selected, and then touch Done.

5 Touch , and then press .

Placing an overlay message on each page

An overlay message can be placed on each page. The message choices are Urgent, Confidential, Copy, Custom, and Draft.

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Copying 78

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

Copy > Advanced Options > Overlay > select overlay message > Done > Copy It

Canceling a copy job

Canceling a copy job while the original document is in the ADF

When the ADF begins processing a document, touch Cancel Job on the printer control panel.

Canceling a copy job while copying pages using the scanner glass

From the home screen, touch Cancel Job.

Canceling appears on the display. When the job is canceled, the Copy screen appears.

Canceling a copy job while pages are being printed

1 From the printer control panel, touch Cancel Job or press on the keypad.

2 Touch the job you want to cancel, and then touch Delete Selected Jobs.

Note: If you press

on the keypad, then touch Resume to return to the home screen.

Understanding the copy options

Copy from

This option lets you select the paper size of the original document.

• Touch the paper size that matches the original document.

• To copy an original document that contains mixed paper sizes with the same width, touch Mixed Sizes.

Copy to

This option lets you select the size and type of paper on which your copies will be printed.

• Touch the paper size and type that matches the paper loaded.

• If the settings for “Copy from” and “Copy to” are different, then the printer automatically adjusts the Scale setting

to accommodate the difference.

Copying 79

• If the type or size of paper you want to use is not loaded in one of the trays, then touch Manual Feeder, and manually

load the paper in the manual feeder or multipurpose feeder.

• When “Copy to” is set to Auto Size Match, each copy matches the paper size of the original document. If a matching

paper size is not in one of the trays, then Paper size not found appears and prompts to load a paper in a tray, manual feeder, or multipurpose feeder.

Scale

This option lets you scale the document from 25% to 400% of the original document size. You can also set automatic scaling.

• When copying to a different paper size, such as from legal‑size to letter‑size paper, set the “Copy from” and “Copy

to” paper sizes automatically to scale the scan image to fit the size of the paper onto which you are copying.

• To decrease or increase the value by 1%, touch or on the printer control panel. To make a continuous

decrease or increase in value, hold the button for two seconds or more.

Darkness

This option lets you adjust how light or dark the copies are in relation to the original document.

Copies

This option lets you set the number of copies to be printed.

Sides (Duplex)

This option lets you make one- or two-sided copies from one- or two-sided original documents.

Collate

This option keeps the pages of a print job stacked in sequence when printing multiple copies of the document.

Content

This option lets you set the original document type and source.

Select from the following content types:

• Graphics—The original document is mostly business‑type graphics such as pie charts, bar charts, and animations.

• Photo—The original document is mostly a photo or an image.

• Text—The content of the original document is mostly text or line art.

• Text/Photo—The original document is a mixture of text, graphics, and photos.

Select from the following content sources:

• Black/White Laser—The original document was printed using a mono laser printer.

• Color Laser—The original document was printed using a color laser printer.

• Inkjet—The original document was printed using an inkjet printer.

• Magazine—The original document is from a magazine.

Copying 80

• Newspaper—The original document is from a newspaper.

• Other—The original document was printed using an alternate or unknown printer.

• Photo/Film—The original document is a photo from film.

• Press—The original document was printed using a printing press.

Color

This option lets you set the output to either color or monochrome for the scanned image.

Save As Shortcut

This option lets you save the current settings by assigning a shortcut name.

Note: Selecting this option automatically assigns the next available shortcut number.

Using the advanced options

Select from the following settings:

• Adjust ADF Skew—This straightens scanned images that are slightly skewed when received from the ADF tray.

• Advanced Duplex—This specifies the document orientation, whether documents are one-sided or two-sided, and

how documents are bound.

• Advanced Imaging—This adjusts the Auto Center, Background Removal, Color Balance, Color Dropout, Contrast,

Mirror Image, Negative Image, Scan Edge to Edge, Shadow Detail, Sharpness, and Temperature settings before you copy the document.

• Create Booklet—This creates a booklet. You can choose between one‑sided and two‑sided.

Note: This option appears only when a formatted, working printer hard disk is installed.

• Cover Page Setup—This sets up the cover page of copies and booklets.

• Custom Job—This combines multiple scanning jobs into a single job.

Note: This option appears only when a formatted, working printer hard disk is installed.

• Edge Erase—This removes smudges or marks around the edges of a document. You can choose to remove an equal

area around all four sides of the paper, or pick a particular edge. Edge Erase will erase whatever is within the area selected, leaving nothing on that portion of the scan.

• Header/Footer—This inserts Date/Time, Page number, Bates number, or Custom text, and then prints them in the

specified header or footer location.

• Margin Shift—This increases or decreases the page margin by shifting the scanned image. Touch or to

set the margin you want. If the additional margin is too large, then the copy will be cropped.

• Overlay—This creates a watermark (or message) that overlays the content of your copy. You can choose from

Confidential, Copy, Draft, and Urgent, or you can enter a custom message in the ”Enter custom text” field. The word you pick will appear, faintly, in large print across each page.

Copying 81

• Paper Saver—This prints two or more pages of an original document on the same page. Paper Saver is also called

N-up printing, where N stands for the number of pages. For example, 2-up would print two pages of your document on a single page, and 4-up would print four pages of your document on a single page.

• Separator Sheets—This places a blank sheet of paper between copies, pages, or print jobs. The separator sheets

can be drawn from a tray that contains a type or color of paper that is different from the paper your copies are printed on.

E-mailing 82

E-mailing

Automatic document feeder (ADF) Scanner glass

Use the scanner glass for single-page documents, book pages,

Use the ADF for multiple‑page documents including twosided pages.

small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings).

Setting up the printer to e-mail

Setting up the e-mail function

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > E-mail/FTP Settings > E-mail Settings.

3 Enter the appropriate information, and then click Submit.

Configuring e‑mail settings

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > E-mail/FTP Settings > E-mail Settings.

3 Enter the appropriate information, and then click Submit.

E-mailing 83

Creating an e-mail shortcut

Creating an e-mail shortcut using the Embedded Web Server

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings.

3 From the Other Settings column, click Manage Shortcuts > E-mail Shortcut Setup.

4 Type a unique name for the e‑mail recipient, and then type the e‑mail address. If you are entering multiple addresses,

then separate each address with a comma.

5 Click Add.

Creating an e-mail shortcut using the printer control panel

1 From the home screen, navigate to:

E-mail > Recipient > type an e‑mail address To create a group of recipients, touch Next address, and then type the next recipient’s e-mail address.

2 Touch Subject, then type the e‑mail subject, and then touch Done.

3 Touch Message, then type your message, and then touch Done.

4 Adjust the e‑mail settings.

Note: If you change the settings after the e‑mail shortcut has been created, then the settings are not saved.

5 Touch .

6 Type a unique name for the shortcut, and then touch Done.

7 Verify that the shortcut name is correct, and then touch OK.

If the shortcut name is incorrect, then touch Cancel, and then reenter the information.

Notes:

• The shortcut name appears in the E-mail Shortcuts icon on the printer home screen.

• You can use the shortcut when e‑mailing another document using the same settings.

E-mailing 84

E-mailing a document

Note: You can also send an e-mail by using the Multi Send or MyShortcut application from the home screen. For

more information, see

Sending an e-mail using the printer control panel

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

Note: To avoid a cropped image, make sure that the size of the original document and the copy paper size are

the same.

3 From the home screen, navigate to:

E-mail > Recipient(s)

“Activating the home screen applications” on page 21.

4 Type the e‑mail address, or press # using the keypad, and then enter the shortcut number.

Notes:

• To enter additional recipients, touch Next address, and then enter the address or shortcut number you want

to add.

• You can also enter an e‑mail address using the address book.

5 Touch Done > Send It.

Sending an e‑mail using a shortcut number

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 Press #, then enter the shortcut number using the keypad, and then touch .

Note: To enter additional recipients, touch Next address, and then enter the address or shortcut number that

you want to add.

4 Touch Send It.

Sending an e‑mail using the address book

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

E-mailing 85

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

E-mail > Recipient(s) >

4 Touch the name of the recipient.

Note: To enter additional recipients, touch Next address, and then enter the address or shortcut number that

you want to add, or search the address book.

5 Touch Done.

> type the name of the recipient > Search

Customizing e-mail settings

Adding e-mail subject and message information

1 Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

Notes:

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF tray. Place these items on the scanner glass.

• The ADF indicator light comes on when the paper is loaded properly.

2 If you are loading a document into the ADF tray, then adjust the paper guides.

3 From the home screen, navigate to:

E-mail > Recipient(s) > type the e‑mail address > Done

4 Touch Subject, then type the e‑mail subject, and then touch Done.

5 Touch Message, then type your message, and then touch Done.

Changing the output file type

1 Load an original document into the ADF tray or on the scanner glass.

2 From the home screen, navigate to:

E-mail > Recipient(s) > type the e‑mail address > Done > Send as

3 Select the file type you want to send.

Note: If you select Secure PDF, then you will be prompted to enter your password twice.

4 Touch > Send It.

E-mailing 86

Canceling an e-mail

• When using the ADF, touch Cancel Job while Scanning appears.

• When using the scanner glass, touch Cancel Job while Scanning appears, or while Scan the Next Page /

Finish the Job appears.

Understanding the e-mail options

Recipient(s)

This option lets you enter the recipient of your e-mail. You may enter multiple e‑mail addresses.

Subject

This option lets you type a subject line for your e-mail.

Message

This option lets you type a message that will be sent with your scanned attachment.

File Name

This option lets you customize the attachment file name.

Original Size

This option lets you set the paper size of the documents you are going to e‑mail. When Original Size is set to Mixed Sizes, you can scan an original document that contains mixed paper sizes (letter‑ and legal‑size pages).

Resolution

This option lets you adjust the output quality of your e-mail. Increasing the image resolution increases the e-mail file size and the time needed to scan your original document. Decreasing the image resolution reduces the file size.

Color

This option lets you set the output to either color or monochrome for the scanned image.

Content

This option lets you set the original document type and source.

Select from the following content types:

• Graphics—The original document is mostly business‑type graphics, such as pie charts, bar charts, and animations.

• Photo—The original document is mostly a photo or an image.

E-mailing 87

• Text—The content of the original document is mostly text or line art.

• Text/Photo—The original document is a mixture of text, graphics, and photos.

Select from the following content sources:

• Black/White Laser—The original document was printed using a mono laser printer.

• Color Laser—The original document was printed using a color laser printer.

• Inkjet—The original document was printed using an inkjet printer.

• Magazine—The original document is from a magazine.

• Newspaper—The original document is from a newspaper.

• Other—The original document was printed using an alternate or unknown printer.

• Photo/Film—The original document is a photo from film.

• Press—The original document was printed using a printing press.

Darkness

This option lets you adjust how light or dark your scanned documents are in relation to the original document.

Send As

This option lets you set the output type for the scan image.

Select one of the following:

• PDF—Use this to create a single file with multiple pages. This can be sent as a secured or compressed file.

• TIFF—Use this to create multiple files or a single file. If Multi-page TIFF is turned off in the Settings menu of the

Embedded Web Server, then TIFF saves one page in each file. The file size is usually larger than an equivalent JPEG.

• JPEG—Use this to create and attach a separate file for each page of your original document.

• XPS—Use this to create a single XPS file with multiple pages.

• RTF—Use this to create a file in editable format.

• TXT—Use this to create an ASCII text file with no formatting.

Page Setup

This option lets you change the following settings:

• Sides (Duplex)—This specifies if the original document is printed on only one side or on both sides of the paper.

This also identifies what needs to be scanned for inclusion in the e-mail.

• Orientation—This specifies the orientation of the original document, and then changes the Sides (Duplex) and

Binding settings to match the orientation.

• Binding—This specifies if the original document is bound on the long‑edge or short‑edge side.

Scan Preview

This option lets you view the first page of the image before it is included in the e-mail. When the first page is scanned, the scanning is paused and a preview image appears.

Note: This option appears only when a working printer hard disk is installed.

E-mailing 88

Save As Shortcut

This option lets you save the current settings as a shortcut by assigning a shortcut name.

Note: Selecting this option automatically assigns the next available shortcut number.

Using the advanced options

Select from the following settings:

• Adjust ADF Skew—This straightens scanned images that are slightly skewed when received from the ADF tray.

• Advanced Imaging—This adjusts the Background Removal, Color Balance, Color Dropout, Contrast, JPEG Quality,

Mirror Image, Negative Image, Scan Edge to Edge, Shadow Detail, Sharpness, and Temperature settings before you e‑mail the document.

• Custom Job—This combines multiple scanning jobs into a single job.

Note: This option appears only when a formatted, working printer hard disk is installed.

• Edge Erase—This removes smudges or marks around the edges of a document. You can choose to remove an equal

area around all four sides of the paper, or pick a particular edge. Edge Erase will erase whatever is within the area selected, leaving nothing on that portion of the scan.

• Transmission Log—This prints the transmission log or transmission error log.

Faxing 89

Faxing

Automatic document feeder (ADF) Scanner glass

Use the scanner glass for single-page documents, book pages,

Use the ADF for multiple‑page documents including twosided pages.

small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings).

Setting up the printer to fax

CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or

make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

Notes:

• The following connection methods are applicable only in some countries or regions.

• During the initial printer setup, clear the fax function check box and any other function you plan to set up later,

and then touch Continue.

• The indicator light may blink red if the fax function is enabled and not fully set up.

Warning—Potential Damage: Do not touch cables or the printer in the area shown while actively sending or receiving a fax.

Faxing 90

Initial fax setup

Many countries and regions require outgoing faxes to contain the following information in a margin at the top or bottom of each transmitted page, or on the first page of the transmission: fax name (identification of the business, other entity, or individual sending the message) and fax number (telephone number of the sending fax machine, business, other entity, or individual). For more information, see

page 321.

“Regulatory notices for telecommunication terminal equipment” on

To enter your fax setup information, use the printer control panel, or use your browser to access the Embedded Web Server and then enter the Settings menu.

Note: If you do not have a TCP/IP environment, then you must use the printer control panel to enter your fax setup information.

Using the printer control panel for fax setup

When the printer is turned on for the first time, a series of start‑up screens appear. If the printer has fax capabilities, then the Fax Name and Fax Number screens appear.

1 When the Fax Name screen appears, do the following:

a Enter the name to be printed on all outgoing faxes.

b Enter the fax name, and then touch Submit.

2 When the Fax Number screen appears, enter the fax number, and then touch Submit.

Using the Embedded Web Server for fax setup

1 Open a Web browser, and then type the printer IP address in the address field.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of numbers

separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Fax Settings > Analog Fax Setup.

3 In the Fax Name field, type the name to be printed on all outgoing faxes.

Faxing 91

4 In the Fax Number field, enter the printer fax number.

5 Click Submit.

Choosing a fax connection

Scenario 1: Standard telephone line

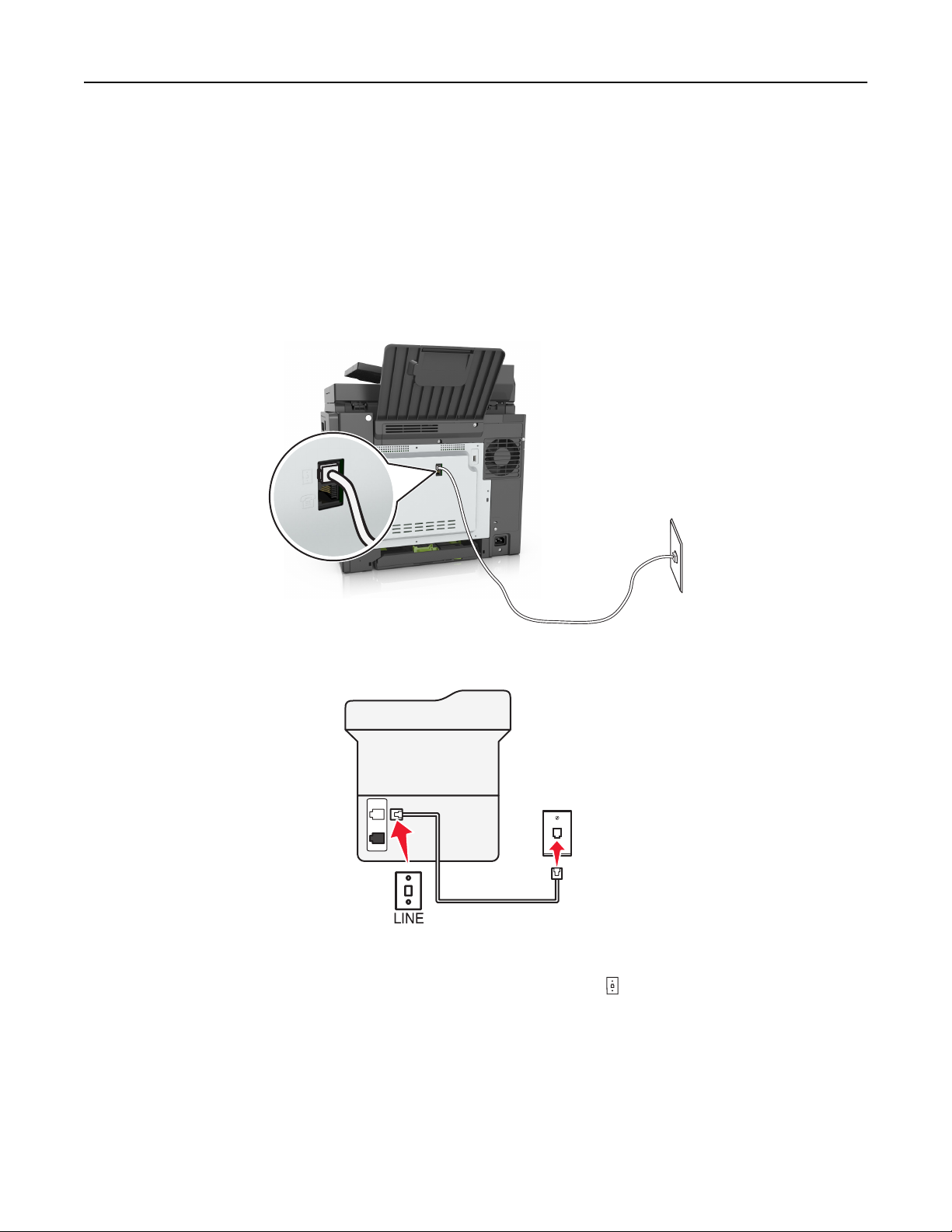

Setup 1: Printer is connected to a dedicated fax line

To connect:

1 Connect one end of the telephone cable that came with the printer to the port of the printer.

2 Connect the other end of the telephone cable to an active analog wall jack.

Tips for this setup:

• You can set the printer to receive faxes automatically (Auto Answer On) or manually (Auto Answer Off).

• If you want to receive faxes automatically (Auto Answer On), then set the printer to pick up on any number of rings

that you want.

Faxing 92

Setup 2: Printer is sharing the line with an answering machine

Connected to the same telephone wall jack

To connect:

1 Connect one end of the telephone cable that came with the printer to the port of the printer.

2 Connect the other end of the telephone cable to an active analog wall jack.

3 Connect the answering machine to the port of the printer.

Faxing 93

Connected to different wall jacks

To connect:

1 Connect one end of the telephone cable that came with the printer to the port of the printer.

2 Connect the other end of the telephone cable to an active analog wall jack.

Tips for this setup:

• If you have only one telephone number on your line, then you need to set the printer to receive faxes automatically

(Auto Answer On).

• Set the printer to pick up calls two rings after the answering machine. For example, if the answering machine picks

up calls after four rings, then set the printer to pick up after six rings. This way, the answering machine picks up calls first and your voice calls are received. If the call is a fax, then the printer detects the fax signal on the line and takes over the call.

• If you subscribe to a distinctive ring service provided by your telephone company, then make sure that you set the

correct ring pattern for the printer. Otherwise, the printer does not receive faxes even if you have set it to receive faxes automatically.

Faxing 94

Setup 3: Printer is sharing the line with a telephone subscribed to voice mail service

To connect:

1 Connect one end of the telephone cable that came with the printer to the port of the printer.

2 Connect the other end of the telephone cable to an active analog wall jack.

3 Connect the telephone to the port of the printer.

Tips for this setup:

• This setup works best if you subscribe to a distinctive ring service. If you have distinctive ring service, then make

sure that you set the correct ring pattern for the printer. Otherwise, the printer does not receive faxes even if you have set it to receive faxes automatically.

• If you have only one telephone number on your line, then you need to set the printer to receive faxes manually

(Auto Answer Off). When you answer the telephone and you hear fax tones, press *9* or the manual answer code on the telephone

to receive the fax.

• You can also set the printer to receive faxes automatically (Auto Answer On), but you need to turn off the voice

mail service when you are expecting a fax. This setting works best if you are using voice mail more often than fax.

Faxing 95

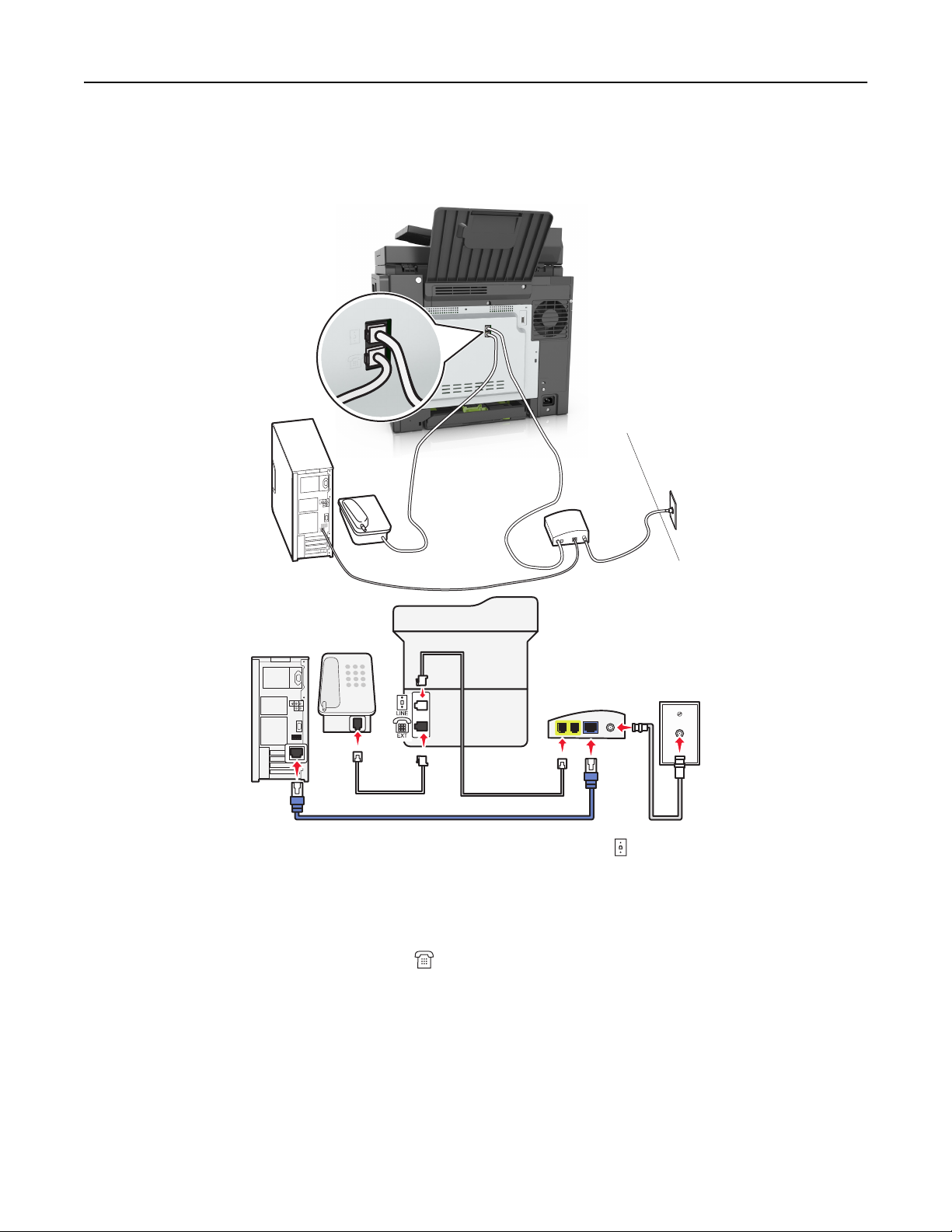

Scenario 2: Digital Subscriber Line (DSL)

A Digital Subscriber Line splits your regular telephone line into two channels: voice and Internet. Telephone and fax signals travel through the voice channel, and Internet signals pass through the other channel. This way, you can use the same line for analog voice calls (including faxes) and digital Internet access.

To minimize interference between the two channels and ensure a quality connection, you need to install a DSL filter for the analog devices (fax machine, telephone, answering machine) in your network. Interference causes noise and static on the telephone, failed and poor quality faxes for the printer, and slow Internet connection on your computer.

To install a filter for the printer:

1 Connect the line port of the DSL filter to the wall jack.

2 Connect one end of the telephone cable that came with your printer to the port of the printer. Connect the other

end to the phone port on the DSL filter.

3 To continue using a computer for Internet access, connect the computer to the DSL HPN port on the DSL filter.

4 To connect a telephone to the printer, remove any installed adapter plug from the port of the printer, and then

connect the telephone to the port.

Faxing 96

Scenario 3: VoIP telephone service

To connect:

1 Connect one end of the telephone cable that came with the printer to the port of the printer.

2 Connect the other end of the cable to the port labeled Phone Line 1 or Phone Port on the VoIP adapter.

Note: The port labeled Phone Line 2 or Fax Port is not always active. VoIP providers may charge additional cost

for activation of the second phone port.

3 Connect the telephone to the port of the printer.

Tips for this setup:

• To make sure that the phone port on the VoIP adapter is active, plug an analog telephone into the phone port, and

then listen for a dial tone. If you hear a dial tone, then the port is active.

• If you need two phone ports for your devices, but do not want to pay additional cost, then do not plug the printer

into the second phone port. You can use a phone splitter. Plug the phone splitter into the port labeled Phone Line 1 or Phone Port, and then plug the printer and telephone into the splitter.

Note: Make sure you use a phone splitter, not a line splitter. To make sure that you are using the correct

splitter, plug an analog telephone into the splitter and then listen for a dial tone.

Faxing 97

Scenario 4: Digital telephone service through a cable provider

Setup 1: Printer is connected directly to a cable modem

1 Connect one end of the telephone cable that came with your printer to the port of the printer.

2 Connect the other end of the cable to the port labeled Phone Line 1 or Phone Port on the cable modem.

Note: The port labeled Phone Line 2 or Fax Port is not always active. VoIP providers may charge additional cost

for activation of the second phone port.

3 Connect your analog telephone phone to the port of the printer.

Notes:

• To make sure that the telephone port on the cable modem is active, plug an analog telephone into the

telephone port, and then listen for a dial tone. If you hear a dial tone, then the port is active.

• If you need two telephone ports for your devices, but do not want to pay additional cost, then do not plug the

printer into the second telephone port. You can use a phone splitter. Plug the phone splitter into the Phone Line 1 or Phone Port, and then plug the printer and telephone into the splitter.

Faxing 98

• Make sure you use a phone splitter, not a line splitter. To make sure that you are using the correct splitter, plug

an analog telephone into the splitter and then listen for a dial tone.

Setup 2: Printer is connected to a wall jack; cable modem is installed elsewhere in the facility

1 Connect one end of the telephone cable that came with your printer to the port of the printer.

2 Connect the other end of the telephone cable to an active analog telephone wall jack.

3 Connect your analog telephone to the port of the printer.

Scenario 5: Countries or regions with different telephone wall jacks and plugs

Some countries or regions may have different types of telephone wall jack connectors than those that came with the printer. The standard wall jack adopted by most countries or regions is RJ-11. Your printer comes with the RJ-11 jack and a telephone cable with the RJ-11 plug.

Faxing 99

If the wall jack or equipment in your facility is not compatible with this type of connection, then you need to use a telephone adapter. An adapter for your country or region may not come with your printer, and you may need to purchase it separately.

There may be an adapter plug installed in the port of the printer. If you are using a telephone adapter or a facility that has a cascaded or serial wiring scheme, then do not remove the adapter plug from the

port of the printer.

Part name Part number

Lexmark adapter plug 40X8519

Faxing 100

Connecting the printer to a non‑RJ‑11 wall jack

LINE

EXT

1 Connect one end of the telephone cable that came with printer to the port of the printer.

2 Connect the other end of the cable to the RJ‑11 adapter, and then connect the adapter to the wall jack.

3 If you want to connect another device (telephone or answering machine) to the same wall jack, and if the device

has a non‑RJ‑11 connector, then connect it directly to the telephone adapter.

Notes:

• The port of the printer may have an adapter plug for use with the adapter. Do not remove the plug from

the

port of the printer.

• In some countries or regions, the printer may not come with a telephone adapter or an adapter plug.

Lexmark 28E0626 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety information

Learning about the printer

Finding information about the printer

Selecting a location for the printer

Printer configurations

Understanding the basic functions of the scanner

Using the ADF and scanner glass

Understanding the printer control panel

Using the printer control panel

Understanding the home screen

Understanding the colors of the Sleep button and indicator lights

Using the touch-screen buttons

Setting up and using the home screen applications

Finding the IP address of the computer

Finding the IP address of the printer

Accessing the Embedded Web Server

Customizing the home screen

Understanding the different applications

Activating the home screen applications

Finding information about the home screen applications

Setting up Forms and Favorites

Setting up Card Copy

Using MyShortcut

Setting up Multi Send

Setting up Scan to Network

Setting up Remote Operator Panel

Exporting and importing a configuration

Additional printer setup

Installing internal options

Available internal options

Accessing the controller board

Installing a memory card

Installing an optional card

Installing hardware options

Order of installation

Installing optional trays

Attaching cables

Setting up the printer software

Installing the printer

Adding available options in the print driver

Networking

Preparing to set up the printer on an Ethernet network

Preparing to set up the printer on a wireless network

Connecting the printer using the Wireless Setup Wizard

Connecting the printer to a wireless network using the Embedded Web Server

Verifying printer setup

Printing a menu settings page

Printing a network setup page

Loading paper and specialty media

Setting the paper size and type

Configuring Universal paper settings

Loading the manual feeder

Loading the multipurpose feeder

Linking and unlinking trays

Linking and unlinking trays

Creating a custom name for a paper type

Assigning a custom paper type

Configuring a custom name

Paper and specialty media guide

Using specialty media

Tips on using letterhead

Tips on using transparencies

Tips on using envelopes

Tips on using labels

Tips on using card stock

Paper guidelines

Paper characteristics

Unacceptable paper

Selecting paper

Selecting preprinted forms and letterhead

Using recycled paper and other office papers

Storing paper

Supported paper sizes, types, and weights

Supported paper sizes

Supported paper types and weights
