Lexmark 21K0282 Quick Start Guide

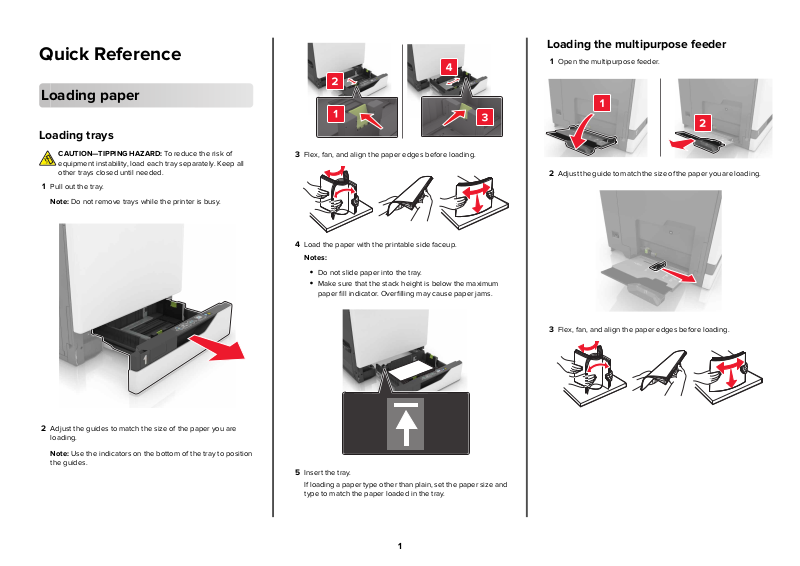

Quick Reference

Loading paper

Loading trays

Loading the multipurpose feeder

1
Open the multipurpose feeder.
CAUTION—TIPPING HAZARD: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.
1
Pull out the tray.
2
Adjust the guides to match the size of the paper you are loading.
Note: Use the indicators on the bottom of the tray to position the guides.
3
Flex, fan, and align the paper edges before loading.
4
Load the paper with the printable side faceup.
Notes:
Do not slide paper into the tray.
Make sure that the stack height is below the maximum paper fill indicator. Overfilling may cause paper jams.
5
Insert the tray.
If loading a paper type other than plain, set the paper size and type to match the paper loaded in the tray.
2
Adjust the guide to match the size of the paper you are loading.
3
Flex, fan, and align the paper edges before loading.
1
4
Load the paper.
Load paper, card stock, and transparencies with the printable side facedown and the top edge entering the printer first.
Load envelopes with the flap side up and against the left side of the paper guide. Load European envelopes with the
side up and entering the printer
flap
Warning—Potential Damage: Do not use envelopes with stamps, clasps, snaps, windows, coated linings, or self
stick adhesives.
5
From the control panel, set the paper size and type to match the paper loaded in the tray.
first.

Setting the size and type of the specialty media

The trays automatically detect the size of plain paper. For specialty media like labels, card stock, or envelopes, do the following:
1
From the home screen, navigate to:
Settings > Paper > Tray Configuration > select a tray
2
Configure the size and type of the specialty media.

Printing

Printing from a computer

Note: For specialty media such as labels, card stock, and
envelopes, set the paper size and type in the printer before sending the print job.
1
With a document open, click File > Print.
2
If necessary, adjust the settings.
3
Send the print job.

Printing held jobs

1
With a document open, select File > Print.
2
Select the printer, and then do the following:
For Windows users, click Properties or Preferences, and then click Print and Hold.
For Macintosh users, select Print and Hold.
3
Select the print job type.
4
If necessary, assign a user name.
5
Send the print job.
6
From the printer home screen, touch Held Jobs.
7
Send the print job.

Canceling a print job

From the printer control panel
1
From the home screen, touch Job Queue.
Note: You can also access this setting by touching the top
section of the home screen.
2
Select the job to cancel.
From the computer
1
Depending on the operating system, do either of the following:
Open the printers folder, and then select your printer.
From the System Preferences in the Apple menu, navigate to your printer.
2
Select the job to cancel.

Maintaining the printer

Replacing a toner cartridge

1
Open door A.
2
Remove the toner cartridge.
3
Unpack the new toner cartridge.
2
