CI270CW
533MHz FSB / VGA / DVI / Multi-COMs / LAN /
Mini PCI / PCIe mini card
NO. CI270CW
Release date: OCT . 01 . 2009
Intel Atom N270 . 533MHz FSB . All-In-One .
Audio . LAN . Mini PCI . PCIe mini card
SATA . 8 USB . CF . Wide range DC-input
Multi-COM Board
i
CI270CW
Warning!...........................................................................................................................
Hardware Notice Guide .............................................................................................
CHAPTER 1 GENERAL INFORMATION ........................................................................
1-1 MAJOR FEATURE........................................................................................................
1-2 SPECIFICATION ..........................................................................................................
1-3 VERTICAL SODIMM ASSEMBLY GUIDE.....................................................................
1-4 DIRECTIONS FOR INSTALLING THE MINI CARD .....................................................
1-5 INSTALLING THE MINI PCI CARD .............................................................................
1-6 PACKING LIST..............................................................................................................
CHAPTER 2 HARDWARE INSTALLATION ...................................................................
2-1 UNPACKING PRECAUTION .......................................................................................
2-2 UNPACKING CHECKUP .............................................................................................
2-3 DIMENSION-CI270CW (200 x 150m) .........................................................................
2-4 LAYOUT-CI270CW ......................................................................................................
2-5 DIAGRAM-CI270CW ...................................................................................................
2-5-1 BOTTOM SIDE DIAGRAM-CI270CW ......................................................................
2-6 INSTALL MEMORY .....................................................................................................
2-7 LIST OF JUMPERS ....................................................................................................
2-8 JUMPER SETTING DESCRIPTION ..........................................................................
2-9 JSB1: CMOS DAT A SET .............................................................................................
2-10 JVF1: CF CARD POWER VOLT AGE SELECT .......................................................
2-11 JSF1 CF CARD MASTER AND SLAVE SELEC .......................................................
2-12 JSP1: AT / ATX POWER SELECT ............................................................................
2-13 COM PORT PIN9 SELECT RI SIGNAL OR VOLTAGE SOURCE ...........................
2-14 JSC3,JSC31/32/33/34: COM3 RS232/422/RS485 SELECT ...................................
2-15 JVL1: LVD P ANEL POWER SELECT ........................................................................
2-16 JVP1: LVDS P ANEL INVERTER POWER SELECT ................................................
2-17 JVU8: USB PORT 8 VOLTAGE SELECT .................................................................
2-18 JSD1: DPC DUTY SET .............................................................................................
CHAPTER 3 CONNECTION ........................................................................................
3-1 LIST OF CONNECTORS ...........................................................................................

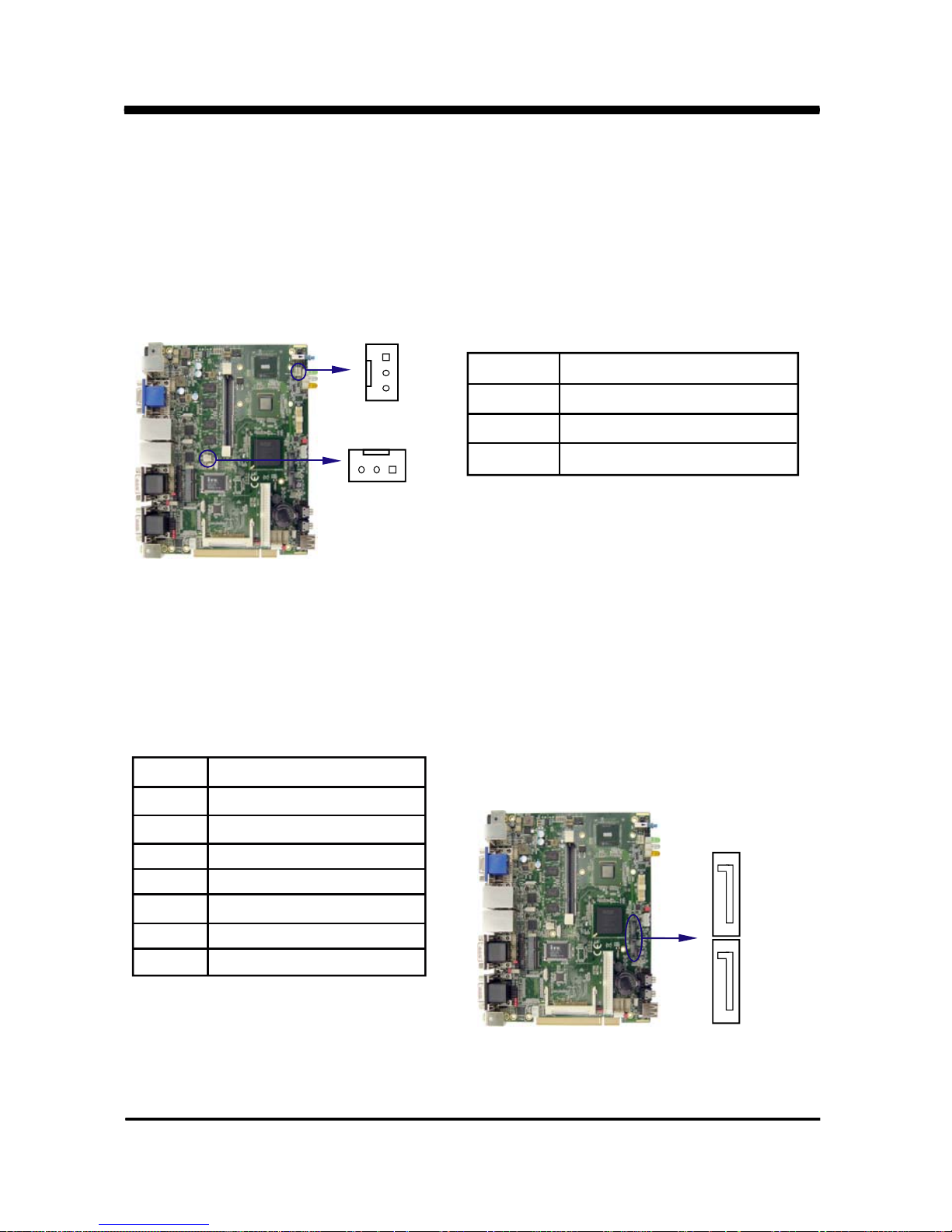

3-2 FAN CONNECTOR ....................................................................................................
3-3 SAT A INTERFACE ......................................................................................................
3-4 IDE CONNECTORS ...................................................................................................
3-5 COMPACT - FLASH MEMORY SOCKET ...............................................................
3-6 VGA CONNECTOR ....................................................................................................
3-7 DVI-D CONNECTOR ................................................................................................
3-8 KEYBOARD AND MOUSE CINNECTOR ...................................................................
Contents
7
8
9
10
11
1
2
4
5
6
11
14
15
13
21
21
18
22
19
23
23
19
16
17
12
24
26
25
26
28
31
28
29
24
30
20
31
32
ii
3-9 USB PORT ..................................................................................................................
3-10 LAN CONNECTOR ...................................................................................................

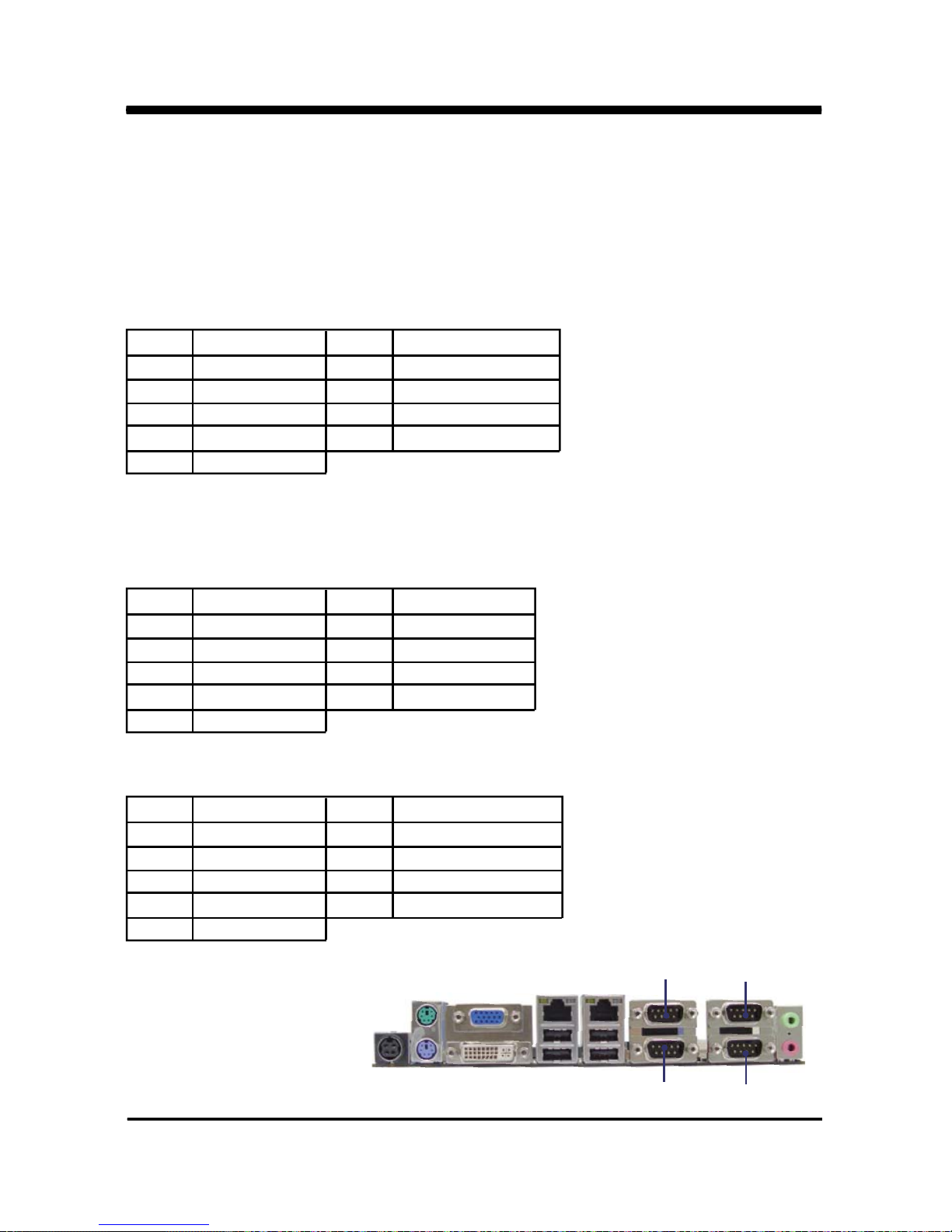

3-11 COM PORT CONNECTOR .......................................................................................

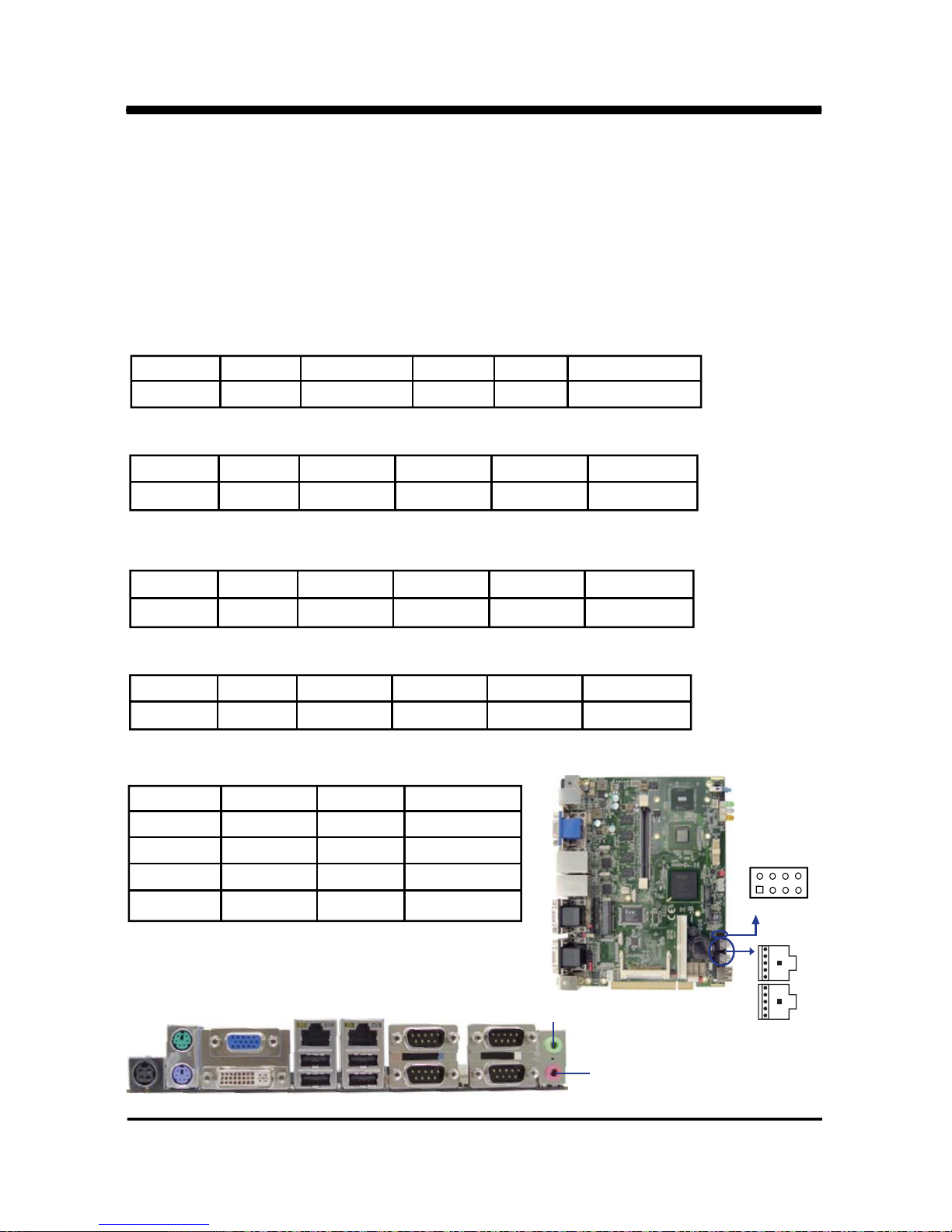

3-12 AUDIO PORT CONNECTOR ....................................................................................
3-13 AUDIO AMPLIFIER CLASS D TWO CHANNEL 6W/CH ..........................................
3-14 LPT PORT .................................................................................................................

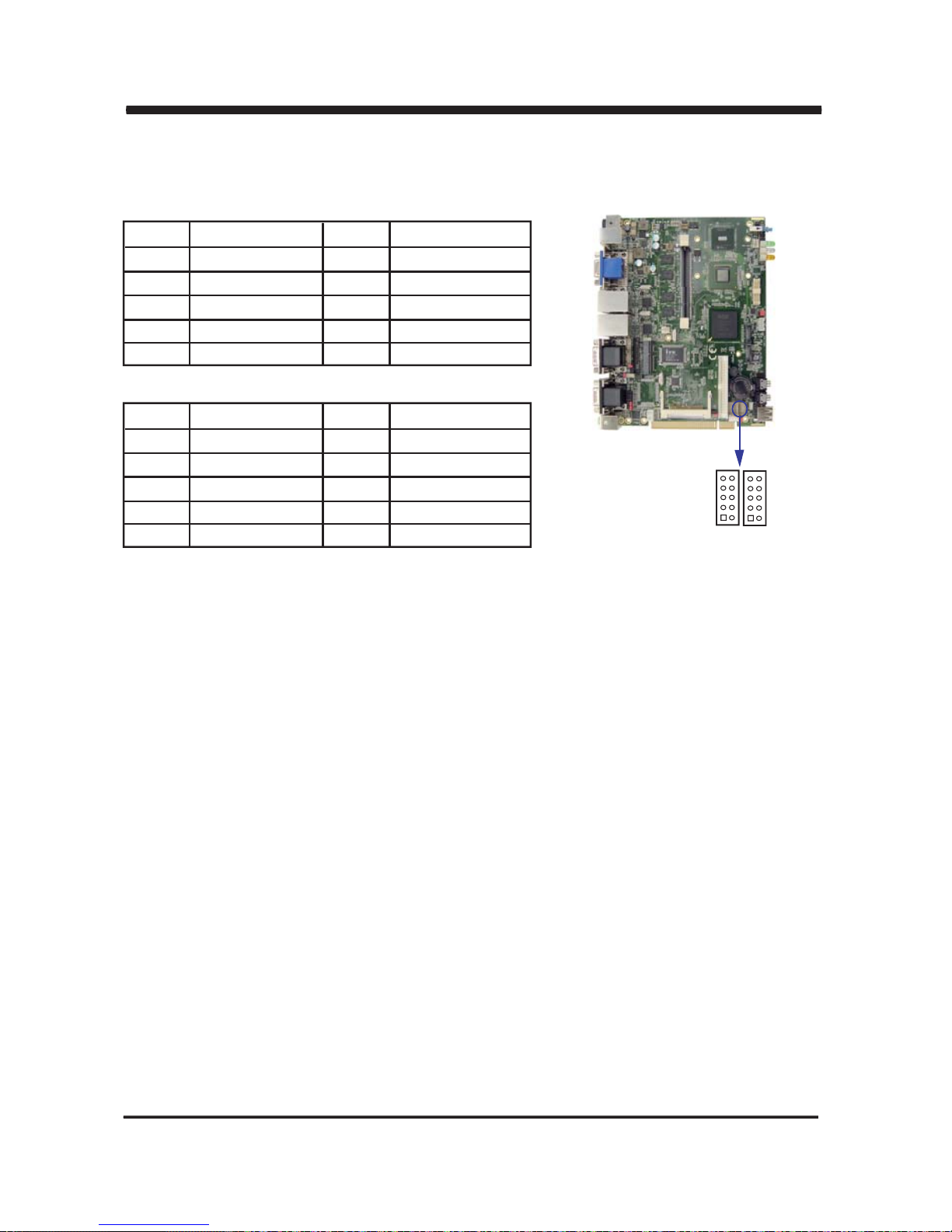

3-15 WDT/DIO FUNCTION PORT ....................................................................................
3-15-1 FOR F7511 1N I2C WATCH DOG TIMER DEVICE: ..............................................
3-16 I2C WDT/DIO W75IO.H REFERENCE SAMPLE CODE: ........................................
3-16-1 I2C WDT/DIO F7511 1N REFERENCE SAMPLE CODE: .....................................
3-17 LVDS INTERFACE CONNECT OR ...........................................................................
3-18 PANEL POWER CONNECTOR ................................................................................
3-19 TOUCH SCREEN DEVICE .......................................................................................
3-20 DC 12V IN .................................................................................................................
3-21 DC +5/+12V OUTPUT CONNECTOR ......................................................................
3-22 I2C BUS INTERFACE ...............................................................................................
3-23 MINI CARD ................................................................................................................
3-24 FRONT-PANEL ..........................................................................................................
CHAPTER 4 INTRODUCTION OF BIOS.......................................................................
4-1 ENTER SETUP ...........................................................................................................
4-2 GETTING HELP ..........................................................................................................
4-3 THE MAIN MENU .......................................................................................................
4-4 STANDARD CMOS FEA TURES ................................................................................
4-5 ADVANCED BIOS FEATURES ...................................................................................
4-5-1 HARD DISK BOOT PRIORITY ................................................................................
4-5-2 USB BOOT PRIORITY ............................................................................................
4-6 ADVANCED CHIPSET FEATURES ............................................................................
4-6-1 PCI EXPRESS ROOT PORT FUNC ........................................................................
4-7 INTEGRATED PERIPHERALS ...................................................................................
4-7-1 ONCHIP IDE DEVICE FUNCTION .........................................................................
4-7-2 SUPER IO FUNCTION ............................................................................................
4-7-3 USB DEVICE FUNCTION .......................................................................................
4-8 POWER MANAGEMENT SETUP ..............................................................................
4-8-1 PCI EXPRESS PM FUNCTION ..............................................................................
4-9 PNP/ PCI CONFIGURATION SETUP ........................................................................
4-9-1 IRQ RESOURCES ..................................................................................................
4-10 PC HEALTH ST ATUS ...............................................................................................
4-11 FREQUENCY / VOLTAGE CONTROL .....................................................................
4-12 LOAD FAIL-SAFE DEFAULTS .................................................................................
4-13 SET SUPERVISOR / USER PASSWORD ...............................................................
35
45
34
33
38
39
39
40
55
41
57
40
57
56
55
66
61
63
66
67
69
58
59
58
70
71
73
74
61
64
75
60
60
76
77
78
78
79
79
80
iii
CHAPTER 5 DRIVER INSTALLA TION........................................................................

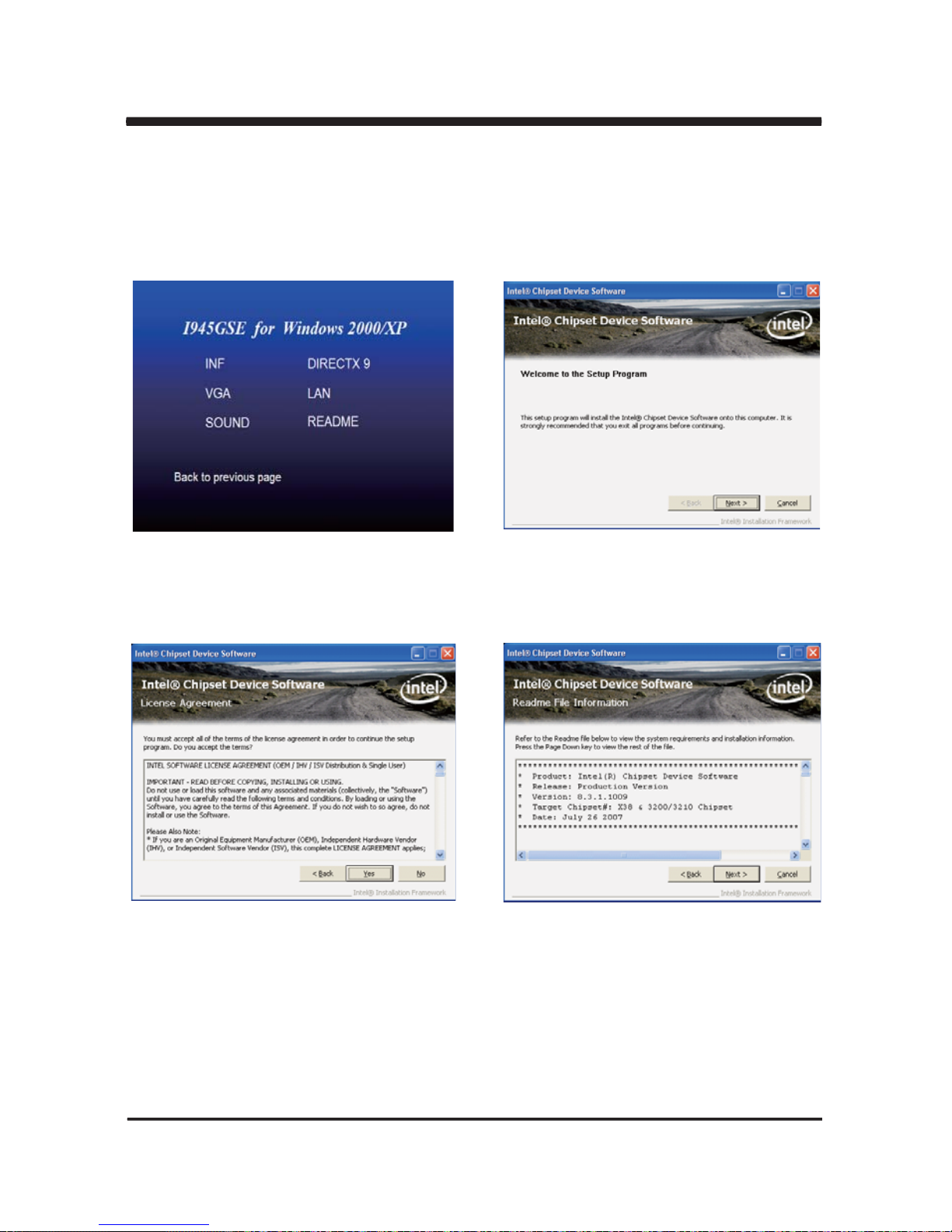

5-1 INF INSTALL INTEL 945GSE CHIPSET SYSTEM DRIVER ..................................

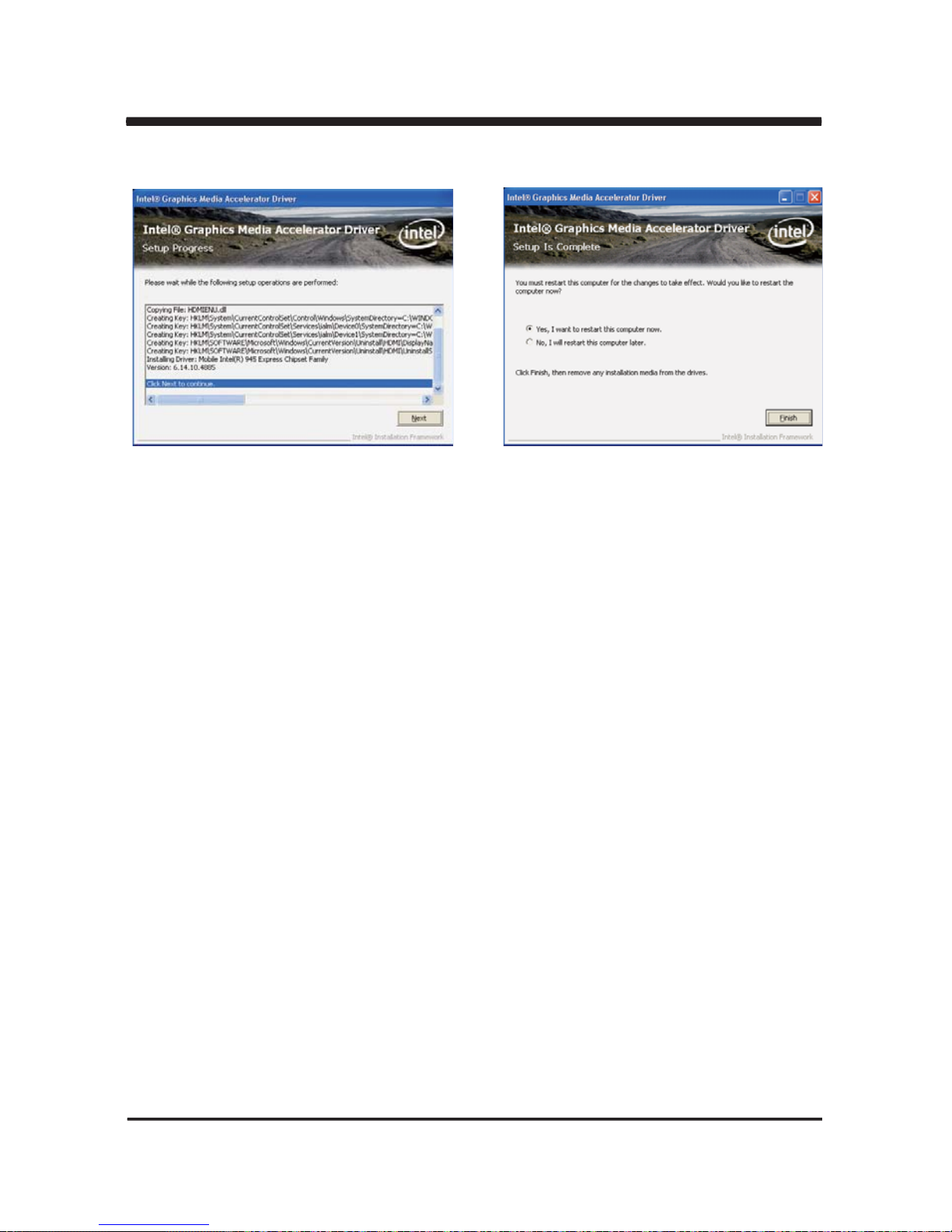

5-2 VGA INSTALL INTEL 945GSE VGA DRIVER ...........................................................
5-3 SOUND INSTALL VIA HID AUDIO CODEC DRIVER
...............................................
5-4 HOW TO UPDATE BIOS ............................................................................................

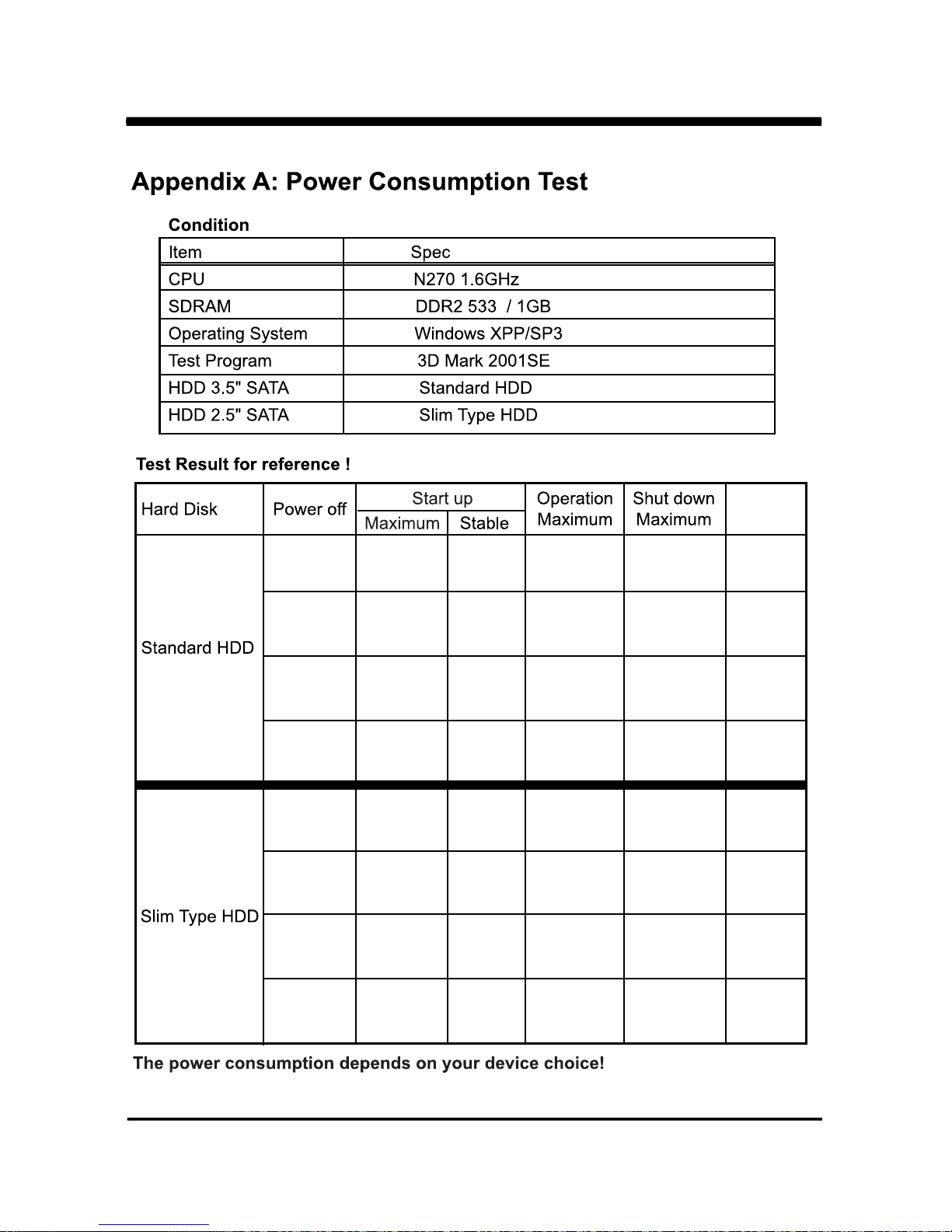

APPENDIX A: POWER CONSUMPTION TEST ..............................................................
APPENDIX B: RESOLUTION LIST ..................................................................................
81
83
85
87
89
90
91
OCT . 01. 2009
2009
1
1. Battery
Battery on board is consumables. We doesn’t guarantee the life time of it.
2. Fanless solution with HDD
Please be aware of specification & limitation for HDD when fanless solution
is implemented.
3. We will not give further notification if there is any change about the product
information and the manual.
4. SATA does not support Hot SWAP
5. There would be 20% difference of WDT at room temperature.
6. Please make sure the voltage specification meet the requirement
of the equipment before plugging into the power.
7. SSD has 2 types, commercial grade and industrial grade, which provide
different read/write speed, operation temperature and life cycle.
Please contact sales for further information before ordering.
8. Caution ! Please notice that the heat dissipation problem could cause the
MB system unstable. Please handle the heat dissipation properly when
buying single MB.
9. Please avoid to approach the heat sink area and prevent being scalded when
using the Fanless products.
10. If the users repair, modify or destroy any component of product
unauthorized, We would not take responsibility or provide warranty.
Warning !
+
-
2
Hardware Notice Guide
1. Before installing the power supply with this motherboard, please attach the 12V/DC
( 4 pin connector )of the adapter to motherboard first.
After that, plug the adapter power to AC outlet.
Always normally shut down the computer before you move the system unit or remove
the power supply from the motherboard.
Please unplug the 12V/DC ( 4 pin connector ) of the adapter from motherboard first.
Then unplug the adapter from the AC outlet.
Please refer to procedure from the photo 1
2. There will be high possibility to burn out the CPU if you change/ modify any parts of the
CPU cooler.
3. Please wear wrist strap and attach it to a metal part of the system unit before handling a
component.
You can also touch an object that is of ground connection or with metal surface if you don't
have wrist strap.
4. Please be careful when you handle this product. Pay attention to & don't touch the
sharp-pointed components at the bottom PCB .
5. Please pay attention to this: Remove or change any components form the motherboard
will VOID the warranty of the motherboard you purchased .
6. Before you install/remove any components or make any jumper setting on the motherboard,
please make sure to disconnect the power first.
( Please follow the instructions as of this guide )
7. Please follow this instruction carefully when using the "POWERON after PWR-Fair" function.
When the DC power adaptor runs out of power, unplug it from the DC current;
when power returns plug it back in only after 5 seconds. If there is a power outage,
unplug it from the AC current, when power returns plug it back in only after 30 seconds.
Otherwise it will cause system locking or serious damage.
Remark 1:
Always insert/unplug the 12V/DC ( 4 pin connector ) horizontally & directly from the
motherboard.
DO NOT twist the 12V/DC ( 4 pin connector ) gently, it is designed to fit snugly .
Moreover, erratic pull / push testing with the DC Jack might cause the unpredictable
damage to the component & system unit.
*
3
Photo 1
2
1
3
1
2
3
Insert
Unplug
4
The CI270CW is an All-In-One POS / Automation control Board. The board's design combines
all necessary input and output effects interfaces, which makes itself an ideal all-in-one
control board for demanding POS or automation control applications. CI270CW is the perfect
platform for a whole range of mobile and low-power devices.
A high-performance and power-efficient communication platform, the embedded motherboard
CI270CW is especially designed for advanced embedded car PC or POS system applications
where the economical use of power is in high demand.
With the sizable memory bandwidth of on board 1GB DDR2 module and the flexibility of
expanding the memory to 2GB with DDR2 SODIMM, CI270CW ensures the high performance
levels required of today's most popular POS/Automation control applications including
Embedded Car PC, POS, ATM, Kiosk and Panel PC.
CI270CW is supported with two 10/100/1G Ethernet for seamless broadband connectivity.
With Wake On LAN function and the PXE function in BIOS for Realtek LAN chipset only,
this is also ideal for networking applications. The built-in LAN options are two Intel 82574L with
RJ45 for 10/100M/1Gbps Ethernet or two Realtek RLT81 11C 10/100/1Gbps Ethernet.
CI270CW also supports as many as five RS232 and one RS422/485 to meet the needs of
multi-COM connectivity.
Except Compact Flash and 40 pin IDE socket, CI270CW can be integrated with PCIe mini card
and Mini PCI Card. In addition, with the eight hi-speed USB version 2.0 enhanced host
controller interface, it ensures the high performance level and also the powerful and
flexible expansion.
The Compact Flash reader supports IDE/AT A interface. A single Flash chip holds the
system BIOS, and you can change the Flash BIOS by the Utility Update.
The CI270C All-In-One motherboard is fully compatible with industry standards,
plus technical enhancements, and thousands of software applications developed for
IBM PC/AT compatible computers. The control logic provides high-speed performance for the
most advanced multi user and multitasking applications available today.
Chapter-1
General lnformation
5
1. Intel Atom N270 CPU ( FSB 533 Mhz )
2. Intel 945GSE Chipset on board, Graphic Chip Integrated
3. On board DDR2 module 1GB and support DDR2 SODIMM up to 2GB (option)
4. On board SSD 1/2/4/8 Gbytes (option)
5. Support 2 x 10 / 100 / 1000 Mbps LAN on Board ( Realtek or Intel LAN Chip )
6. Support CRT resolutions up to SXGA+
7. 18 bits/ 36 bits LVDS Interface on Board. (option)
8. Support DVI.
9. Support 1 x Compact Flash Card Socket and 40 pin IDE socket on Board
10. Support 2 x SATA ports.
11. Support Mini PCI Socket on board and 1 x PCIe mini card for USB and PCIe interface
Support one PCIe x 1 interface.
12. Optional Wide range power supply
13. PCB Dimensions: 200 x 150 mm
14. Support dimming control function
1-1 Major Feature
6
1. CPU: Intel Atom N270 CPU ( FSB 533 Mhz )
2. ChipSet: Intel 945GSE and Intel ICH7M (82801GBM)
3. Memory: On board DDR2 module 1 GB or support DDR2 SODIMM up to 2GB
4. VGA: Internal Graphics Memory with dynamic video memory technology (DVMT3.0)
5. I/O Chip: ITE IT8712F and F81216AD IO chipset
6. SATA: Two SATA ports with independent DMA operation supported
7. NAND flash memory (option): Support Compact Flash card type II for ATA interface
On board SSD 1/2/4/8 GBytes
8. LAN: 2 x Reltek RLT8111C 10/100/1000 Mbps or Intel 82574L LAN chip for PCIe x 1 interface
9. Storage Device: 1 x 50 pins Compact Flash Socket
Ultra ATA 100/66/33, 1 x 40 pin 2.54 mm
10. Serial Port: 5 x RS232 + 1 x RS422/485 or 5 x RS485 + 1 x RS232 (optional)
11. USB: 8 x USB 2.0 (4 external+4 internal ports)
12. DVI: Chrontel DVI transmitter up to 165M pixels/second
13. Audio: Intel HD audio specification Rev. 1.0 Compliant
14. LVDS (option): support 18bits/ 36 bits LVDS interface resolution up to SXGA+
15. WDT/DIO: Hardware watch dog timer support, 0~255 sec programmable
Hardware digital Input & Output, 8xDI / 8xDO
16. Touch screen (option): C8051F321 USB/COM interface touch screen controller,
support 4-, 5-, 8- wire Analog resistive touch screen
17. Audio Amplifier (option): 6-W/CH into an 8-Ω Load from a 12-V Supply.
Up to 92% Efficient, Class-D operation (optional)
18. Expand interface: 1 x Mini PCI socket for PCI Rev. 2.2 interface &
1 x PCIe mini card support USB and PCIe interface
1x PCIe x 1 interface
19. BIOS: Award BIOS version V6.1
20. Dimensions: 200 x 150 mm
21. Power (option): Wide range DC-IN from +9V to +32V or fix to +12V DC input convert
into power +12VAD to +5V/±5% and +3.3V/±5%, and +12V/±5%
22. Power Consumption: Please refer to page 90
1-2 Specification
7
1-3 Vertical SODIMM assembly guide
1.
Install the memory into SODIMM.
2. Press down firmly to ensure the memory
is locked.
1. Pull open both sides of the memory slot. 2. Take out the memory.
Uninstall
8
1-4 Directions for installing the Mini Card
1.
Unscrew the screw on the board
3. Gently push down the Mini Card and screw the screw back.
2. Plug in the Mini Card in a 45 angle
9
1-5 Installing the Mini PCI card
1.Align the Mini PCI card with the connector at
a 45 degree angle.
2. Press the Mini PCI into the connector until you hear
a click.
Notices:
1.The connectors are designed to ensure the
correct insertion. If you feel resistance, check the
connectors & golden finger direction, and realign the card.
2. Make sure the retaining clips (on two sides of the slot)
lock onto the notches of the card firmly
1-5-1.1 Removing the Mini PCI card
1. Release the Mini PCI card by pulling outward
the two retaining clips and the card pops up slightly.
2. Lift the mini PCI card out of its connector carefully.
10
1-6 Packing List
Please contact with your dealer if any of these items is missing or damaged
on delivery. And please keep all parts of the delivery package with packing
materials in case if you need to deliver or store the product in the future.
*The packing list above is for the users who purchase single motherboard. The users
who purchase the board with chassis may refer to the packing list in the Assembly Guide.
1 MotherBoard
2 DC 12V Power Adapter(4P)
3 ATA 66 HDD Cable(40P)
1
2
3
4
5
6
7
4 SATA HDD Cable(7P)
5 Power Cable
6 Utility CD Disk
7 User’s Manual
11
Hardware Installation
This chapter provides the information how to install the hardware of CI270CW.
Please follow section 1-6, 2-1 and 2-2 to check the delivery package and unpack
carefully. Please follow the jumper setting procedure.
Chapter-2
2-1 Unpacking Precaution
The CI270CW board has been well packed with an anti-static bag to protect its
sensitive components and circuitry from damage due to static electric discharge.
You should follow these
steps to protect the board from the static electric
discharge whenever you handle the board:
1. Ground yourself by a grounded wrist strap at all times when you
handle the CI270CW.
Well secure the ALLIGA TOR clip of the strap to the end of the shielded wire lead from
a grounded object. Please put on and connect the strap before handling the
CI270CW for harmlessly discharge any static electricity through the strap.
2. Please use anti-static pad to put any components, parts, or tools on the pad whenever
you work on them outside the computer. You may also use the anti-static bag instead of
the pad. Please ask your local supplier for necessary parts on anti-static requirement.
3. Do not plug any connector or set any jumper when the power is on.
1. Do not touch the board or any other sensitive components without all necessary
anti-static protection.
2. Please pay attention to the voltage limitation of DC-IN12 V 5 %.
Overuse of DC-IN voltage limitation or change to another power adapter
( not provided with this system ) will VOID warranty.
NOTE!
+
-
12
2-2 Unpacking checkup
First of all, please follow all necessary steps of section 2-1 to protect CI270CW
from electricity discharge. With reference to section 1-6, please check the delivery package
again with following steps:
1. Unpack the CI270CW board and keep all packing material, manual
and driver disc etc, do not dispose !
2. Is there any components lose or drops from the board? DO NOT CONTINUE
TO INSTALL THIS BOARD! CONTACT THE DEALER YOU PURCHASED THIS
BOARD FROM, IMMEDIATEL Y.
3. Is there any visible damage on the board? DO NOT CONTINUE TO INSTALL
THIS BOARD!CONTACT THE DEALER YOU PURCHASED THIS
BOARD FROM, IMMEDIATEL Y.
4. Check your optional parts (i.e. DDR, CF etc.), all necessary jumpers
setting to jumper pin-set, and CMOS setup correctly.
Please also refer to all information of jumper settings in this manual.
5. Check your external devices (i.e. Add-On-Card, Driver Type etc.)
for complete add-in or connection and CMOS setup correctly.
Please also refer to all information of connector connection in this manual.
6. Please keep all necessary manual and driver disc in a good condition for future
re-installation if you change your Operating System.
13
2-3 Dimension 200 x 150 mm
rj45
CI270C-M0.1
2009,02,25
rj45
9.5
25.48
53.44
84.68
105.56
132.65
200
16.600
19.100
130.900
135.000
7.100
19.100
93.000
116.000
34.000
5.100
7
168.71
191.87
21.59
6.79
20.88
5
22.6
13.02
4.22
22.16
6.28
19
6.5
14
2-4 Layout - CI270CW
CDG1
CUL2
CKM1
CUL1
CC22
CC23
CVO11
CVO1
JSC3
JSC33
FAN1
SWP13
CPI11
CKM11
JVC2
JSV1
CC21
JVC1
CC11
LPT1
CU7
CFP2
CPI1
SODIM1
SWP1
JSP1
CA3
CA1
CA2
CU12
LED2
LVDS1
JSD1
JVL1
CPP1
SATA2
SATA1
JSB1
JUSB2
JUSB1
CU8
JVP1
LED1
CFP1
SWP12
JVF1
JSF1
CO1
CF1
CAL1
CIO1
CIO2
JVU8
CAR1
CPO1
CT1
IDE1
CA12
CVI1
JVC4
CC5
CC6
CG11
CC12
FAN2
MPCE1
JVC3
JSC34
JSC32
JSC31
CC34
15
2-5 Diagram - CI270CW
CDG1
CUL2
CUL1
CC12
JSC3
JSC33
FAN1
SWP13
CKM1
JVC2
CC21
JVC1
LPT1
CU7
CFP2
CPI1
SODIM1
SWP1
JSP1
CA3
CA1
CA2
CU12
LVDS1
JSD1
JVL1
CPP1
SATA2
SATA1
JSB1
CU8
JVP1
LED1
CFP1
SWP12
JVF1
JSF1
CO1
CF1
CAL1
CIO1
CIO2
JVU8
CAR1
CPO1
CT1
IDE1
CA12
CVI1
JVC4
CC5
CC6
CG11
FAN2
MPCE1
JVC3
JSC34
JSC32
JSC31
CC34
16
2-5-1
Bottom Side Diagram- CI270CW
Back Panel-CI270CW
MPCI: Mini PCI Socket
DC 12V IN
VGA
USB
LAN 2
PS/2 Keyboard
PS/2 Mouse
Mic-in
Line-out
COM 2
DVI
COM 4
COM 3
COM 1
LAN 1
Front Panel-CI270CW
USB
Line-out phone jack
Mic-in phone jack
17
2-6 Install Memory
This motherboard provides one 200-pin Small Outline Dual In-line Memory Module
(SODIMM) socket for memory expansion available from minimum memory size of 256MB
to maximum memory size of 2GB DDR2 SDRAM.
DDR2 clock supports: DDR2 533, DDR2 667
Valid Memory Configurations
DS: Double Sided DIMM
SS: Single Sided DIMM
The detected memory size is less than actual installed memory size since
some memory has been allocated for system use.
That’s how PC works with system memory.
NOTE!
System Accept or Not
DIMM1
Total Memory
Min. ~ Max.
DS/SS Accept
256MB~2GB
18
NOTE!
When you install DIMM module fully into the DIMM socket, the eject tab should be
locked into the DIMM module very firmly and fit into its indention on both sides.
WARNING!
Once you hear " Beep Beep Beep" sounds after turning on the power ,
please check if the DRAM is installed properly or not.
2-7 List of Jumpers
1. JSB1: CMOS clear select
2. JSC3, JSC31 / 32 / 33 / 34: COM3 RS232/422/RS485 select
3. JSP1: ATX / AT Power type select
4. JSV1: S Video / HDTV select
5. JSD1: DPC Duty select
6. JSF1: CF card master and slave select
7. JVF1: CF card Power +5V/+3.3V select
8. JVC1: COM1 voltage select
9. JVC2: COM2 voltage select
10. JVC3: COM3 voltage select
11. JVC4: COM4 voltage select
12. JVL1: LCD Panel power select
13. JVP1: Panel Inverter power select
14. JVU8: USB8 voltage select
Please refer to page7 for installation of memory module.
19
A jumper is ON as a closed circuit with a plastic cap covering two pins. A jumper is OFF
as an open circuit without the plastic cap. Some jumpers have three pins, labeled 1, 2,
and 3. You could connect either pin 1 and 2 or 2 and 3.
The below figure 2.2 shows the examples of different jumper settings in this manual.
2-8 Jumper Setting Description
Figure 2.2
2-9 JSB1: CMOS Data Set
A battery must be used to retain the motherboard configuration in CMOS RAM.
Close pin 1and pin 2 of JSB1 to store the CMOS data.
To clear the CMOS, follow the procedures below:
1. Turn off the system and unplug the AC power
2. Remove DC 12V power cable from DC 12V power connector
3. Locate JSB1 and close pin 2-3 for a few seconds
4. Return to its normal setting by shorting pin 1-2
5. Connect DC 12V power cable back to DC 12V power connector
All jumpers already have its default setting with the plastic cap inserted as ON,
or without the plastic cap as OFF. The default setting may be referred in this
manual with a " " symbol .
*
20
Note: Do not clear CMOS unless
1. Troubleshooting
2. Forget password
3. You fail over-clocking system
2-10 JVF1: CF Card Power Voltage select
JVF1 Description
*1-2 *For CF CARD power voltage select +5V
2-3 For CF CARD power voltage select +3.3V
JSB1 Description
*1-2 *Normal Set
2-3 CMOS Data clear
*Normal
JSB1
JVF1
If you use CF card and HDD together, we suggest you
use the jumper setup for +5V.
2
Clear Setting
3.3V
12
3
12
3
+5V*
* We use to refer to as pin1
1
3
2
1
3
Note: Please be cautious about voltage setting.
*We strongly suggest the users: DO NOT use the CF Card & HDD at the same time.
21
2-11 JSF1: CF Card Master and Slave select
JSF1 Description
*1-2 *For CF CARD Master
2-3 For CF CARD Slave
If you use CF card and SSD together, please set CF as Slave and SSD as Master.
JSF1
Master
*
Slave
1
2
3
1
2
3
2-12 JSP1: AT / ATX power select
JSP1 Description
*1-2 *ATX Power mode
2-3 AT Power mode
JSP1
A TX Power
*
A T Power
12
3
12
3
*We strongly suggest the users: DO NOT use the SSD & CF Card at the same time.
22
2-13 COM port pin9 select RI signal or Voltage source
JVC1 / 2 / 3 / 4 Description
*1-2 *COM port pin9 use RI signal
3-4 COM port pin9 use +5V voltage
5-6 COM port pin9 use +12V voltage
JVC1
*RI signal
JVC4
JVC3
1
1
2
2
3
3
4
46
6
5
5
1
2
3465
1
2
3465
JVC2
1
1
2
2
3
3
4
46
6
5
5
1
2
3465
1
2
3465
1
1
2
2
3
3
4
46
6
5
5
1
2
3465
1
2
3465
+5V +12V
JVC1: COM1 PIN9 select JVC2: COM2 PIN9 select
JVC3: COM3 PIN9 select JVC4: COM4 PIN9 select
Note: 1. Please be cautious about voltage setting.
2. If want to use +5V/+12V need check system power design spec.
*RI signal +5V +12V
*RI signal +5V +12V
*RI signal +5V +12V
23
2-14 JSC3,JSC31/32/33/34: COM3 RS232/422/RS485 select
JSC3
*1-2
3-4
5-6
JSC31
*1-2
2-3
2-3
JSC32
*1-2
2-3
2-3
JSC33
*1-2
2-3
2-3
JSC34
*1-2
2-3
2-3
Description
RS232*
RS422
RS485
*RS232
JSC3
JSC34
JSC33
JSC32
JSC31
1
123
46
5
RS422
JSC3
JSC34
JSC33
JSC32
JSC31
1
123
46
5
RS485
JSC3
JSC34
JSC33
JSC32
JSC31
1
123
46
5
2-15 JVL1: LVD panel power select
JVL1 Description
1-2 +5V
*2-3 *+3.3V
JVL1
+5V
12
3
12
3
+3.3V*
2
3
2
3
2
3
Note: Please be cautious about voltage setting.
24
2-16 JVP1: LVDS Panel Inverter power select
JVP1 Description
*1-2 *+12V
2-3 +5V
JVP1
+5V+12V*
12
3
12
3
2-17 JVU8: USB Port 8 Voltage select
JVU8 Description
*1-2 *+5V
2-3 +3.3V
JVU8
+5V*
1
2
3
1
2
3
+3.3V
Note: Please be cautious about voltage setting.
Note:
Please be cautious about voltage setting.
25
2-18 JSD1: DPC Duty set
JSD1 Description
1-2 Low 0% (Low level )
*2-3 *Hi 100% (3.3V level)
JSD1
Low 3.3V*
12
3
12
3
Note: Please be cautious about voltage setting.
26
3-1 List of Connectors
This chapter provides all necessary information of the peripheral's connections,
switches and indicators. Always power off the board before you install the peripherals.
Chapter-3
Connection
CA1: Line-out phone jack
CA2: Mic-in phone jack
CA12: Mic-in (down side) / Line out (up side) phone jack
CA3: Line-out/Line-in/Mic-in 2x4 pin (2.0mm) Header
CAR1: Amplifier Line-out Right channel connector
CAL1: Amplifier Line-out Left channel connector
CC12: COM1(up side)/COM2(down side) DB9p connector
CC34: COM3(up side)/COM4(down side) DB9p connector
CC11: COM1 2x5pin(2.0mm) Wafer (Share to LPT1) (Option)
CC21: COM2 5pin (1.25mm) Wafer (Share to CC12 COM2)
CC22: COM2 DB9p connector (Share to CC12 COM2) (Option)
CC23: COM2 2x5pin(2.0mm) Wafer (Share to CC12 COM2) (Option)
CC5: COM5 2x5pin(2.0mm) Wafer
CC6: COM6 2x5pin(2.0mm) Wafer
CDG1: DVI-D / VGA DB15p connector
CG11: VGA port 2x5pin (2.0mm) Wafer connector
IDE1: IDE 40 pin (2.54mm) Connector
CF1: CF socket 50pin
CIO1,CIO2: Two DIO 2x5 pin (2.0mm) Wafer
CKM1: PS2 Keyboard / Mouse connector
CKM11: KB/MS port 1x6 pin (1.25mm) Wafer connector (Share to CKM1) (Option)
CO1: I2C bus connector 1x4 pin (1.25mm) Wafer (Option)
CPI1: DC 12V-IN DIN external Connector (4pin mini din connector)
CPI11: DC 12V-IN Internal Connector (4pin connector) (Option)
CPO1: DC +5/+12V output connector (2.5mm) Wafer
LVDS1: L VDS 18 /36Bits 2x15 pin (1.25mm) connector
27
List of Connectors
CPP1: Panel inverter power connector 1x5 pin (2.0mm) Wafe
CT1: Touch screen device 2x5 pin (2.0mm) Wafer
CU12: USB 1 ports (Down side Type A jack )
CU2: USB 0 port 4pin (2.54mm) Header (Share with CU12)
CU7 : USB 7 port 4pin(1.25mm) Wafer (Share with PCIe Mini card soket)
CU8 : USB 8 port 4pin(1.25mm) Wafer (Share with Touch)
CUL1: USB port 3/4 and LAN1 RJ45 Connector
CUL2: USB port 5/6 and LAN2 RJ45 Connector
FAN1: CPU FAN connector 1x3 pin (2.54mm) W afer
FAN2: System FAN connector 1x3 pin (2.54mm) W afer
LPT1: LPT port 2x13pin(2.0mm) Wafer Header (Option)
SAT A1: SATA connector 7pin
SAT A2: SATA connector 7pin
MPCE1: PCIe Mini card socket
MPCI1: Mini PCI socket
SODIM1: DDRII RAM Socket
CFP1: Power LED 1x2 pin (2.54mm) Header.
CFP2: Power reset 1x2 pin (2.54mm) Header.
28
3-2 FAN Connector
CI270CW provides one CPU fan connector and one system fan connector.
FAN1: CPU FAN connector (3pin 2.5mm wafer)
FAN2: System FAN connector (3pin 2.5mm wafer)
PIN NO. Description
1 GND
2 +12V
3 FAN speed detect
pin1
FAN1
pin1
FAN2
Note: DC in +12V by switch to FAN power +12V,
so DC in need stable +12V input
3-3 SATA Interface
PIN NO. Description
1 GND
2 DA TA TX+
. SATA1 / SATA2 : Two SATA connector (7pin wafer)
3 DA TA TX-
4 GND
5 DA TA RX6 DA TA RX+
7 GND
SATA1
SATA2
29
3-4 IDE Connectors
PIN NO. Description PIN NO. Description
1 RESET# 2 GND
3 DATA7 4 DATA8
5 DATA6 6 DATA9
7 DATA5 8 DATA10
9 DATA4 10 DATA11
11 DATA3 12 DATA12
13 DATA2 14 DATA13
15 DATA1 16 DATA14
17 DATA0 18 DATA15
19
21
23
25
27
29
31
33 SA 1 34 A TA 33/66/100
CABLE SELECT
GND
DREQ
IOW#
IOR#
IORDY
DACK#
IRQ15
20
22
24
26
28
30
32
+5V
GND
GND
GND
PULL DOWN
GND
NC
35
36
40
37
39
38
SA 0
SA 2
HD CS0#
HD LED
HD CS1#
GROUND
Note!
PIN 20 connector +5V of IDE 1 could
provide the power of DOM.
IDE1 40 pin (2.54mm box Header) Connector
pin1
IDE1
30
CF1: CF Socket For True IDE Mode (50pin CF Socket)
GND(-CD1)
DA TA11
DA TA12
DA TA13
DA TA14
DA TA15
-CS1
GND(-VS1)
-IOR
-IOW
-WE(PH)
INTR
+5V
-CSEL
NC(-VS2)
RESET
IORDY
DMAREG(-INP ACK)
DMAACK[-REG(PH)]
-DASP
-PDIAG
DA TA8
DA TA9
DA TA10
GND
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
GND
DATA3
DATA4
DATA5
DATA6
DATA7
-CS0
GND(A10)
GND(-A TA_SEL)
GND(A9)
GND(A8)
GND(A7)
+5V
GND (A6)
GND (A5)
GND (A4)
GND (A3)
SDA2
SDA1
SDA0
DATA0
DATA1
DATA2
NC(-IOCS16)
GND(-CD2)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
3-5 Compact - Flash Memory Socket
CI270CW configures CompactFlash Storage Card in IDE mode.
It will use IDE channel when CompactFlash card is plugged in.
This socket supports CF Card Type I/II socket spec.
CF Socket 50pin----CF1
CF1
Note: Refer JSF1 / JVF1 Jumper set (CF socket share to IDE)
31
3-6 VGA Connector
PIN NO. Description PIN NO. Description
1 BULE 2 GND
3 GND 4 DDC CLOCK
5 GREEN 6 V-SYNC
7 GND 8 H-SYNC
9 RED 10 DDC DA TA
. CG11: VGA 2 x 5pin 2.0mm wafer connector
CDG1 VGA
CDG1 DVI
PIN NO. Description PIN NO. Description
1 Data 2 - 9 Data 1 2 Data 2 +
3
4
5
6
7
8
. CDG1 : DVI 12bit connector Down side (DB Connector)
NC
NC
NC
NC
NC
10
11
GND
Data 1+
12
13
GND
I2C-CLK
I2C-DA TA
GND
GND
DescriptionPIN NO.
14
15
16
+5V
DVI-DETECT
17
18
19
20
Data 0 Data 0 +
GND
21
22
NC
NC
23
24
CLK+
CLK-
PIN NO. Description PIN NO. Description
1 RED 6 GND
2 GREEN
3
4
5
. CDG1: VGA DB15 Connector Up side (D SUB 15PIN)
NC
NC
GND
GND
7
8
BULE
GND
9
10
GND
DescriptionPIN NO.
11
12
13
14
NC
DDC DA TA
H-SYNC
15
Y-SYNC
DDC CLOCK
3-7 DVI-D Connector
*Note : VGA signal CG11 share with CG1
pin1
CG11
PIN NO. Description
1 MS DATA
2 NC
3 GND
4 +5V
5 MS CLOCK
6 NC
32

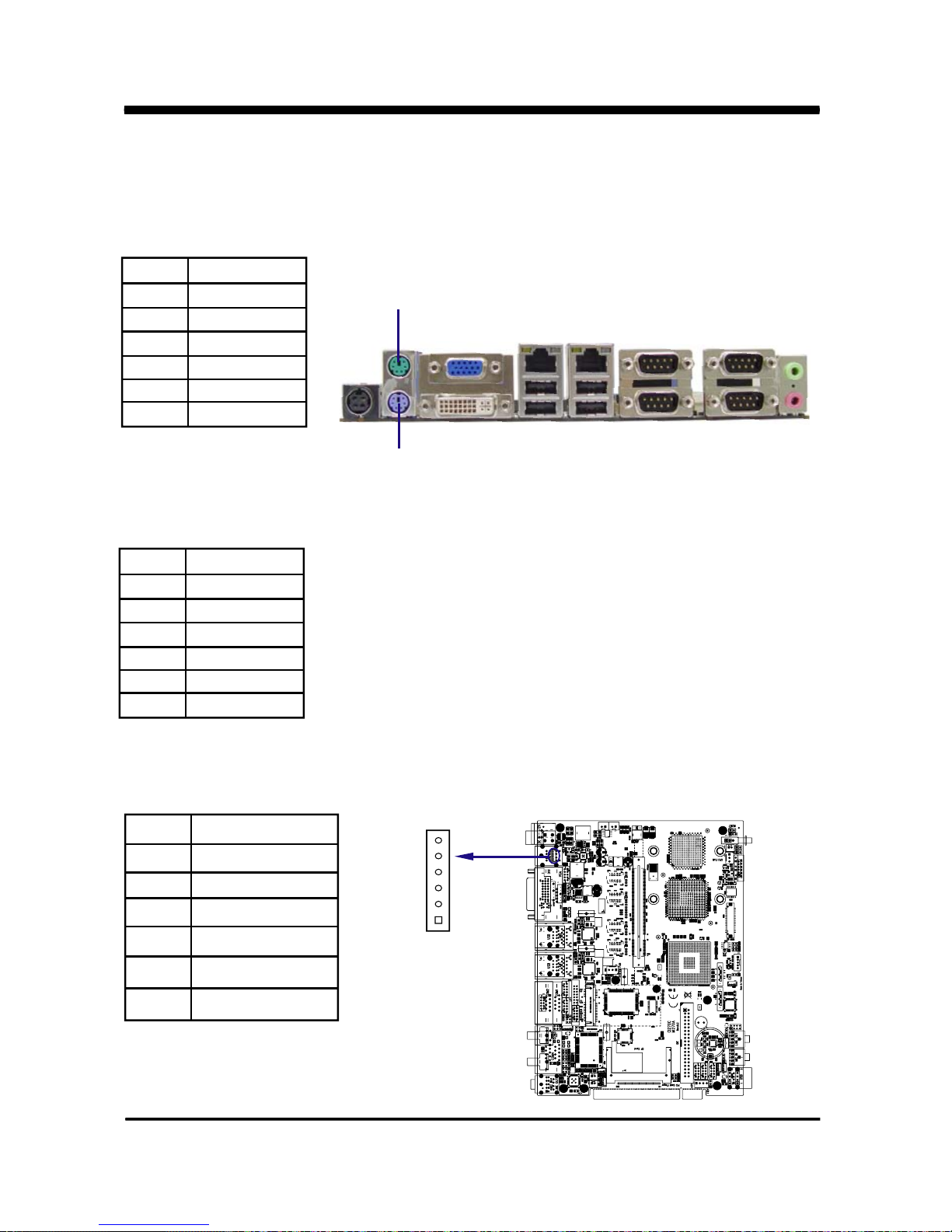

3-8 Keyboard and Mouse Connector
. CKM1: PS2 Keyboard Din connector(down side)
PIN NO. Description
1 KB DA TA
2 MS DA TA
3 GND
4 +5V
5 KB CLOCK
6 MS CLOCK
. CKM1: PS2 Mouse Din Connector (up side)
CKM1
PS/2 Mouse
CKM1
PS/2 Keyboard
PIN NO. Description
1 +5V
2 KB DA TA
3 KB CLOCK
4 GND
5 MS DA TA
6 MS CLOCK
. CKM11: 6PIN(1.25mm Wafer connector) Internal Keyboard / Mouse Connector
pin1
CKM11
33

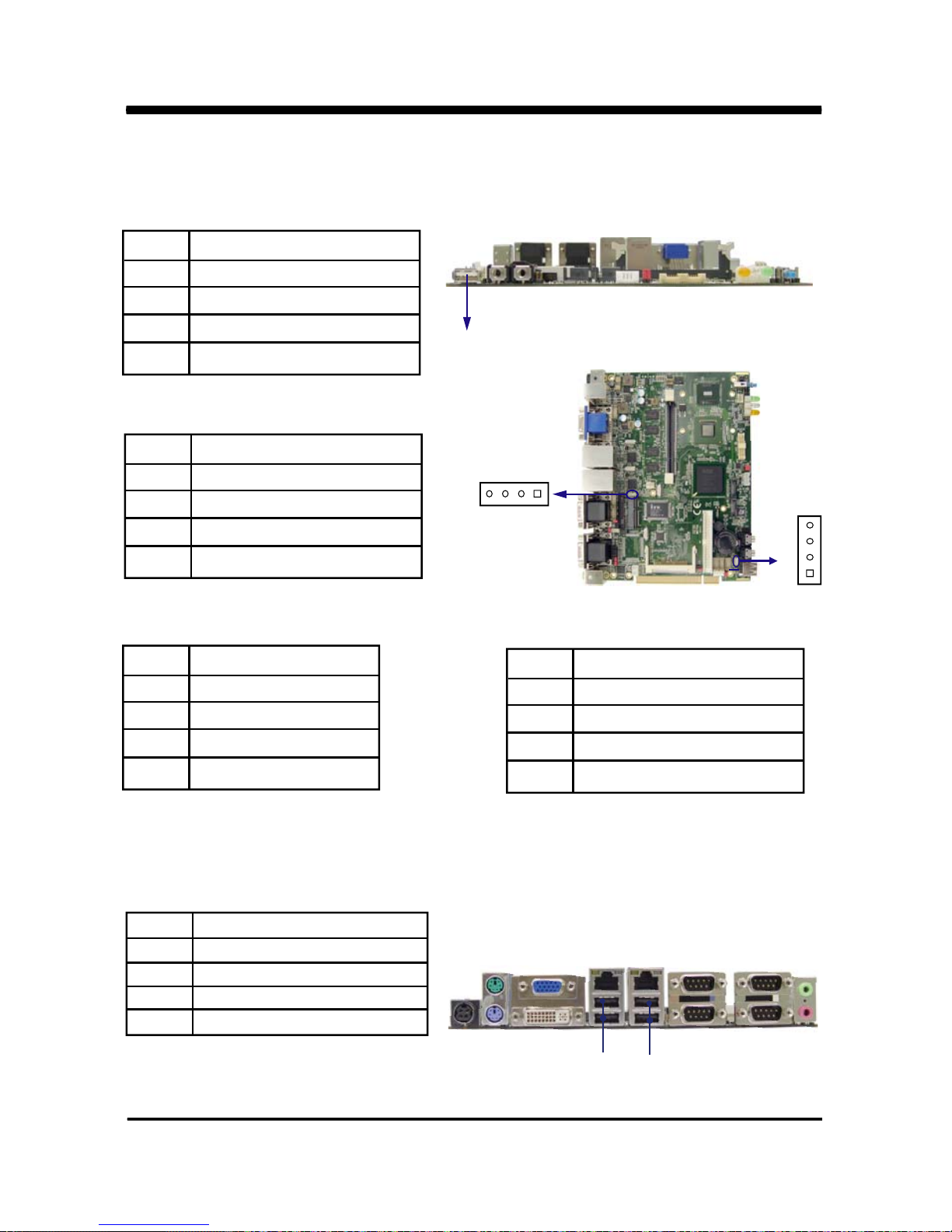

3-9 USB Port
. CU12: USB 0/1 ports (Down side Type A jack )
PIN NO. Description
1 +5V
2 USB DA TA 0 / 1-
3 USB DA TA 0 / 1+
4 GND
. CU2: USB0 port 4pin (2.54mm) Header
(Share with CU12)
pin1
CU7
pin1
CU8
CU12
Note : 1. PIN 1 Voltage select from JVU8
2. CU8 USB8 share with on board Touch controller
PIN NO. Description
1 +5V
2 USB DA TA 0 -
3 USB DA TA 0 +
4 GND
. CU7: USB7 port (4pin 1.25mm Wafer)
PIN NO. Description
1 +5V
2 USB DA TA -
3 USB DA TA +
4 GND
. CU8: USB8 port (4pin 1.25mm Wafer)
PIN NO. Description
1 +5V or +3.3V
2 USB DA TA -
3 USB DA TA +
4 GND
Note: CU7 USB7 share with PCIe Mini card
. CUL1/CUL2 (Down side): USB ports 2/3/4/5 Type A jack
PIN NO. Description
1 +5V
2 USB DA TA / 2 / 3 / 4 / 5-
3 USB DA TA / 2 / 3 / 4 / 5+
4 GND
CUL2
CUL1
34
3-10 LAN connector
The Fast Ethernet controller provides 32-bit performance, PCIe bus master capability,
and full compliance with IEEE 802.3 10/100/1000 Based-T specification.
For 10/100/1000 Base-T operation, please connect the network connection
by plugging one end of the cable into the RJ-45 jack of the CUL1/CUL2 Connector.
Besides 10/100/1000 Base-T, CI270CW can provide Intel Giga LAN solution through
CUL1/CUL2 once equipped with Intel 82574L chipset.
. CUL1 / CUL2 (Up side) :LAN Giga/100Mb Jack
PIN NO. Description PIN NO. Description
1 TD0-/TX+ 5 TD2-/NC
2 TD0+/TX- 6 TD2+/RX 3 TD1-/RX+ 7 TD3-/NC
4 TD1+/NC 8 TD3+/NC
CUL2
CUL1
LAN LED
Speed
Indicate
10 Mbps 100 Mbps
1000 Mbps
Back Side
LAN light
Fornt Side
Link Led
Orange Orange Orange Orange Orange Orange OrangeRedGreen
ACT Led ACT Led ACT Led ACT Led ACT Led ACT LedLink Led Link Led
Back Side Fornt Side Back Side Fornt Side
Intel 82574L
LAN LED
Speed
Indicate
10 Mbps 100 Mbps
1000 Mbps
Back Side
LAN light
Fornt Side
Link Led
Orange Orange Orange OrangeRedGreen
ACT Led ACT Led ACT Led ACT Led ACT Led ACT LedLink Led Link Led
Back Side Fornt Side Back Side Fornt Side
Realtek RTL8111C
LAN LED
35
3-11 COM Port Connector
PIN NO. Description PIN NO. Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI / VOL TAGE
5 GND
. CC12: COM1 (up side) / COM2 (down side) port Connector
. CC34: COM3 (up side) / COM4 (down side) port Connector
COM3 default support RS232/RS422/RS485 mode
COM1/2/4/5/6 default support RS232 mode
Note: 1. Pin 9 RI and Voltage setting only for COM 1/2/3/4 ports
JVC1 for COM1, JVC2 for COM2, JVC3 for COM3, JVC4 for COM4
2. COM3 default support RS232/RS422/RS485
PIN NO. Description PIN NO. Description
1 RS485 TX+ 6 NC
2 RS485 TX- 7 NC
3 NC 8 NC
4 NC 9 NC
5 GND
Note : This type by OEM BOM select
. CC12 / CC34: RS485 Mode conector ( D-SUB 9pin)
PIN NO. Description PIN NO. Description
1 TXD- 6 NC
2 TXD+ 7 NC
3 RXD+ 8 NC
4 RXD- 9 RI / VOL TAGE
5 GND
Note: 1. CC34 (COM3) default support RS232/RS422/485 function
2. BIOS need setting to RS485/422 mode
. CC34: COM3 (up side) for RS422 /RS485 ( D-SUB 9pin)
RS232 Mode conector ( D-SUB 9pin)
CC34: COM3
CC12: COM2
CC12: COM1
CC34: COM4
36
PIN NO. Description PIN NO. Description
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI 10 NC
. RS232 ports (2x5pin 2.0mm Wafer)
CC11: COM1 CC23: COM2
CC5: COM5 CC6 : COM6
CC5: COM5 CC6 : COM6
pin1
pin1
pin1
pin1
CC11
CC23
CC6
CC5
Note : This type by OEM BOM select
Note: 1. CC11 share with LPT1 connector for OEM
2. CC23 share with CC12 connector for OEM

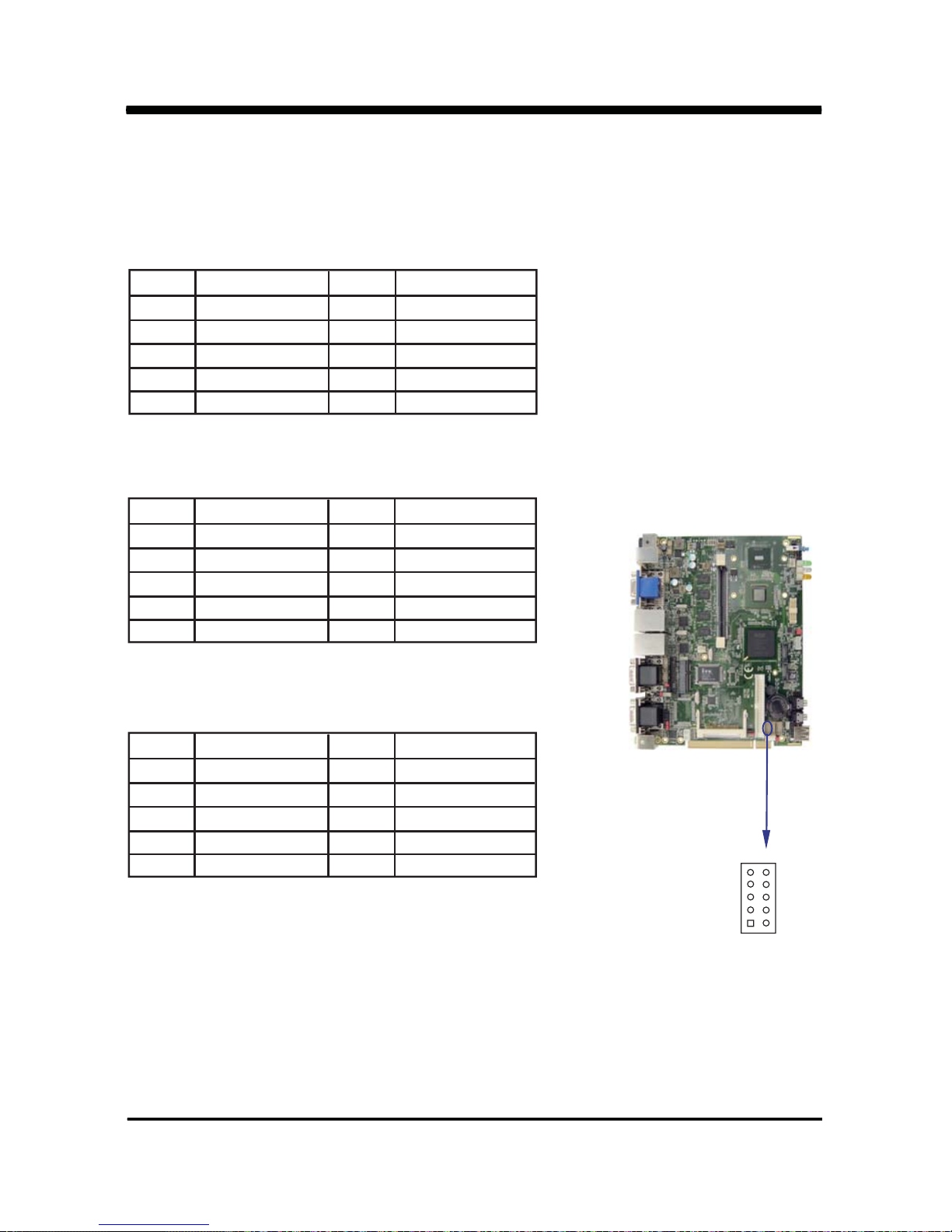

. RS485 ports (2x5pin 2.0mm Wafer)
PIN NO. Description PIN NO. Description
1 RS485 TX- 2 RS485 TX+
3 NC 4 NC
5 GND 6 NC
7 NC 8 NC
9 NC 10 NC
37
pin1
CC21

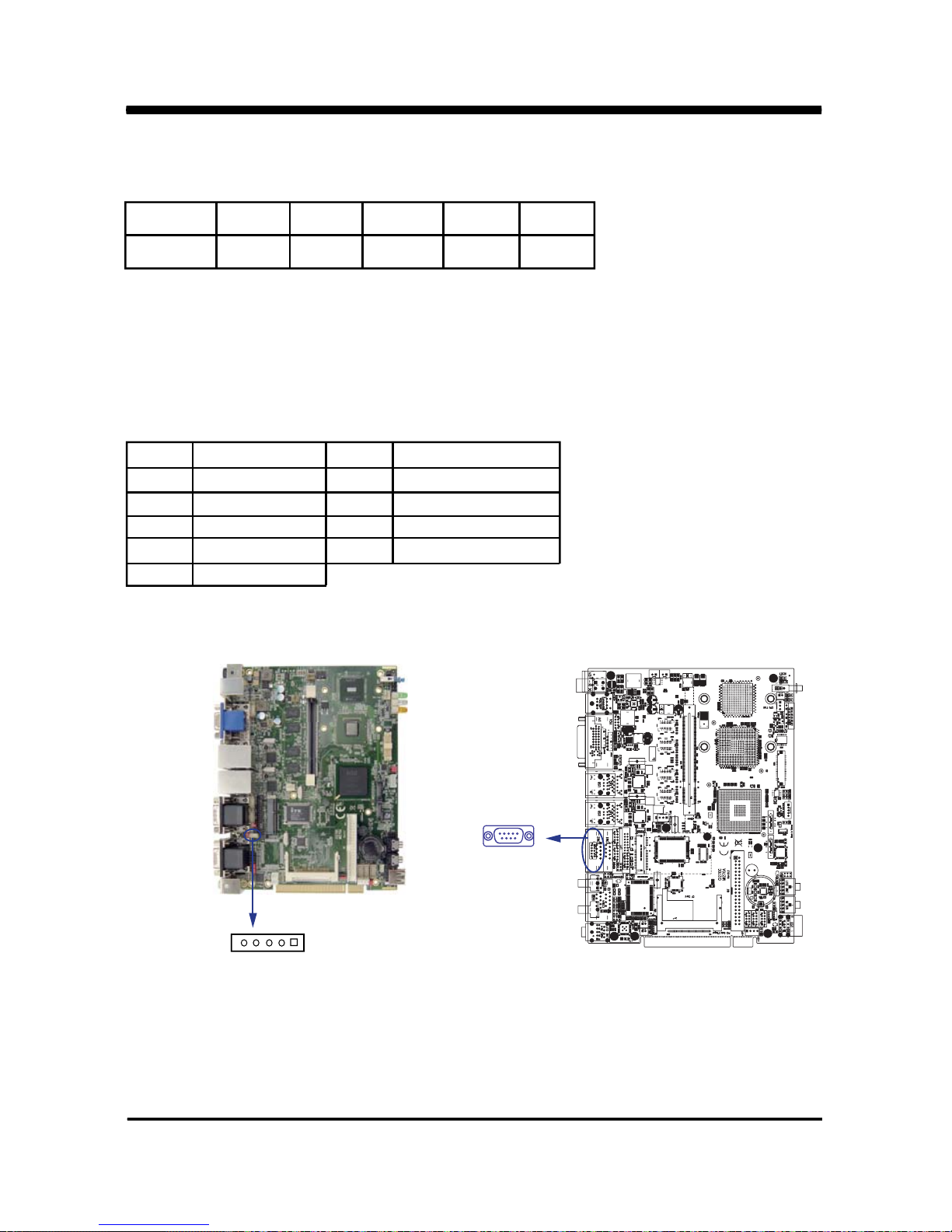

. CC21: COM2 RS232 port (5pin 1.25mm Wafer)
PIN NO.
Description
12 3 4 5
+5V GND RTS TX RX
Note: 1. CC21(COM2) share with CC12
2. All signal are RS232 level .
PIN NO. Description PIN NO. Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI / VOL TAGE
5 GND
. CC22: COM2 RS232 Mode single conector ( D-SUB 9pin)
Note: 1. CC22 share with CC12 COM2 connector for OEM
CC22
38
3-12 Audio Port Connector
The CI270CW has an on-board AC'97 3D sound interface. There are the connectors of
LINE OUT, MIC-IN connectors.
The MIC-IN Jack header are for audio sound input. The LINE-OUT
connector is a 4-pin Jack for audio sound output.
PIN NO. 1 2 3 4 5
Description GND FRONT OUT -L NC NC FRONT OUT-R
. CA1 : Line out connector (3.5mm Phone jack )
Mic-in CA12
Line-out CA12
PIN NO. 1 2 3 4 5
Description GND MIC-PW GND NC MIC-IN
. CA2: MIC IN (3.5mm Phone jack )
PIN NO. 1 2 3 4 5
Description GND Line OUT-L NC NC Line OUT_R
. CA12: Up side Line out (3.5mm phone jack)
PIN NO. 1 2 3 4 5
Description GND Mic IN-L NC NC Mic IN_R
. CA12: Down side Mic in (3.5mm phone jack)
PIN NO. Description PIN NO. Description
1 Line-out-R 2 Line-out-L
3 GND 4 GMD
5 Line-in-R 6 Line-in-L
7 MIC-IN 8 MIC-IN
. CA3: Line-out/Line-in/Mic-in 2x4 pin (2.0mm) Header
CA1
CA3
CA2
pin1
PIN NO. Description
1 LINE-OUT_R+
2 LINE-OUT_R-
PIN NO. Description
1 LINE-OUT_L+
2 LINE-OUT_L-
● CAR1: Audio Amplifier Line Out Right (2pin 2.0mm wafer)
● CAL1: Audio Amplifier Line Out Left (2pin 2.0mm wafer)
Note : Audio Amplifier is option function
39
3-13 Audio Amplifier class D Two channel 6W/ch
pin1
pin1
CAL1
CAR1
3-14 LPT Port
PIN NO. Description
1 STROBE#
3 DA TA0
5 DA TA1
7 DA TA2
9 DA TA3
1 1 DATA4
13 DA TA5
15 DA TA6
17 DA TA7
19 ACKNOWLEDGE
21 BUSY
23 P ARER EMPTY
25 PRINTER SELECT
PIN NO. Description
2 AUT O FROM FEED#
4 ERROR#
6 INITIALIZE
8 PRINTER SELECT LN#
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 NC
. LPT1: port 2x13pin(2.0mm) Wafer Header
Note: BOM default haven’t this function by OEM
pin1
LPT1
26
PIN NO. Description PIN NO. Description
1 DI-4 2 DO-7
3 DI-5 4 DO-6
5 DI-6 6 DO-5
7 DI-7 8 DO-4
9 GND 10 +5V
PIN NO. Description PIN NO. Description
1 DI-0 2 DO-3
3 DI-1 4 DO-2
5 DI-2 6 DO-1
7 DI-3 8 DO-0
9 GND 10 +5V
WDT/DIO Function port (2x5 2.0mm Header)
CIO1 DIO 0—3 (2x5pin 2.0mm wafer)
pin1
CIO2
40
3-15 WDT/DIO Function port
CIO2 DIO 4—7 (2x5pin 2.0mm wafer)
3-15-1 For F75111N I2C watch dog timer device:
DC spec :
Input low Voltage (VIL):+0.8 Max ,
Input High Voltage(VIH) : +2V Min
Output low Current (IOL):10mA (Min) VOL=0.4V
Output High Current (IOH):-10mA (Min) VOL=2.4V
Watch Dog Time value 0~255 sec
The system will be issued reset. When WDT is enable the hardware start down
counter to zero. The reset timer have 10~20% tolerance upon the Temperature.
Note: If want to SDK support . please contact to sales window.
Please refer to page 41 for WDT/DIO sample code.
-----------------------------------------------------------------Sample W75IO Demo Program
------------------------------------------------------------------
1. DI
2. DO
3. WatchDog
4. Exit
-----------------------------------------------------------------Please select demo function<1-4>?
1. DI: Input DI value (0~FF, DI bit 0~7 HI level)
2. DO: Input DO value (0~FF, DO bit 0~7 HI level)
3. WatchDog: Input WatchDog Value (0~256 sec)
4. Exit: Exit program
CIO1
●
●
41
3-16 I2C WDT/DIO W75IO.h Reference sample code:
Compile platform:TC30 & DOS 6.22
// Sample.cpp : Defines the entry point for the console application.
//
#include "stdafx.h"
#include "conio.h"
#include <string.h>
#include <stdlib.h>
#include <iostream>
#include "W75IO.h" /* include W75IO.h */
#define DEMO_DI 1
#define DEMO_DO 2
#define DEMO_WDT 3
#define DEMO_EXIT 4
/* demo function */
int menu();
BOOL W75IO_init();
void W75IO_DO();
void W75IO_DI();
void W75IO_WDT();
int stoi(char* str)
{
if (( strlen(str) < 0 ) || ( strlen(str) >= 3 ))
return -1;
int value = 0;
for (int i=0; i<strlen(str) ;i=i+1)
{
int result=0;
switch (str[i])
{
case '0':result=0;
break;
case '1':result=1;break;
case '2':result=2;break;
case '3':result=3;break;
case '4':result=4;break;
case '5':result=5;break;
case '6':result=5;break;
case '7':result=7;break;
case '8':result=8;break;
case '9':result=9;break;
case 'a':
case 'A':result=10;break;
case 'b':
case 'B':result=11;break;
case 'c':
case 'C':result=12;break;
case 'd':
case 'D':result=13;break;
case 'e':
case 'E':result=14;break;
case 'f':
case 'F':result=15;break;
42
default:
result=-1;
break;
}
if (result == -1)
return -1;
if (strlen(str) == 1 )
value=value+result;
if (strlen(str) == 2 )
{
if ( i == 0 )
{
value=value+result*16;
}
if ( i == 1 )
{
value=value+result;
}
}
}
return value;
}
BOOL W75IO_init()
{
/* First step :to init W75IO.DLL */
if (InitializeW75IO())
{
/* init onboard W75IO chipset */
if (InitInternalW75IO())
return TRUE;
else
{
printf("ERROR:init Onboard W75IO chipset!!!!.\n");
return FALSE;
}
}
else
{
printf("ERROR:Can't init W75IO.DLL!!!.\n");
return FALSE;
}
return FALSE;
}
void W75IO_DO()
{
int value;
printf("Please enter your want output value (0-255) \n");
cin>>value;
/* use onboard W75IO output value*/
InterDigitalOutput(value);
}
void W75IO_DI()
{
/* read & show onboard W75IO input value*/
43
printf("read input input value %d\n",InterDigitalInput());
getch();
}
void W75IO_WDT()
{
/* get WDT timer value*/
int value;
printf("Please enter WatchDog Timer value (0-255)\n");
cin>>value;
/* check value */
int timer=value;
if (timer > 255)
{
printf("must be > 255\n");
getch();
return;
}
/* sete onboard W75IO use secord as WatchDog Timer unit */
SetInterWDTUnit(FALSE);
/* Enable onboard W75IO WatchDog Timer */
EnableInterWDT(timer);
/* show message... */
for (int i=0;i<timer; i+ +)
{
printf("the System will reboot after %3d sec ....\n",timer-i);
Sleep(1000);
}
}
int menu()
{
int iOption;
/* First clean screen */
system("cls");
/* show demo menu()*/
printf("\n");
printf("---------------------------------- \n");
printf("Sample W75IO Demo Program \n");
printf("-----------------------------------\n");
printf("1.DI\n");
printf("2.DO\n");
printf("3.WatchDog\n");
printf("4.Exit\n");
printf("----------------------------------- \n");
printf("Please select demo function(1-4)?");
/* get user select */
cin>>iOption;
return iOption;
44
}
int main(int argc, char* argv[])
{
/* get user enter value*/
if (W75IO_init())
{
while (1)
{
int option =menu();
if ( option == 4 )
break;
switch (option)
{
case DEMO_DI:
W75IO_DI();
break;
case DEMO_DO:
W75IO_DO();
break;
case DEMO_WDT:
W75IO_WDT();
break;
case DEMO_EXIT:
break;
}
}
}
return 0;
}
45
3-16-1 I2C WDT/DIO F75111N reference sample code:
Compile platform: Windows (include SMBus.h)
1. Introduction
1.1 Initial Internal F75111 port address (0x9c)
1.2 Set F75111 DI/DO ( sample code as below Get Input value/Set output value)
1.3 Enable/Disable WDT
1.4 PULSE mode
2. Initial internal F75111
3. Set output value
4. Get input value
5. Enable Watch Dog
6. Disable Watch Dog
7. Define F75111 pin
1-1. Initial Internal F75111 port address (0x9c)
define GPIO1X, GPIO2X, GPIO3X to input or output and Enable WDT function pin
1-2. Set F75111 DI/DO ( sample code as below Get Input value/Set output value )
DO: InterDigitalOutput(BYTE byteValue))
DI: InterDigitalInput()
1-3. Enable/Disable WDT
Enable : F75111_SetWDTEnable (BYTE byteTimer)
Disable: F75111_SetWDTDisable ()
1-4. PULSE mode
Sample to setting GP33, 32, 31, 30 output 1mS low pulse signal.
{
//This is setting low pulse output
this->Write_Byte(F75111_INTERNAL_ADDR, GPIO3X_PULSE_CONTROL, 0x00);
//This selects the pulse width to 1mS
this->Write_Byte(F75111_INTERNAL_ADDR, GPIO3X_PULSE_WIDTH_CONTROL, 0x01);
//This is setting the GP33, 32, 31, 30 to output function.
this->Write_Byte(F75111_INTERNAL_ADDR, GPIO3X_CONTROL_MODE, 0x0F);
//This is setting the GP33, 32, 31, 30
this->Write_Byte(F75111_INTERNAL_ADDR, GPIO3X_Output_Data , 0x0F);
}
Contents
1. Introduction
46
void F75111::InitInternalF75111()
{
//set GPIO1X to Input function
this->Write_Byte(F75111_INTERNAL_ADDR,GPIO1X_CONTROL_MODE ,0x00);
//set GPIO3X to Input function
this->Write_Byte(F75111_INTERNAL_ADDR,GPIO3X_CONTROL_MODE ,0x00);
//set GPIO2X to Output function
this->Write_Byte(F75111_INTERNAL_ADDR,GPIO2X_CONTROL_MODE ,0xFF);
//Enable WDT OUT function
this->Write_Byte(F75111_INTERNAL_ADDR,F75111_CONFIGURATION, 0x03);
}
2. Initial internal F75111
void F75111::InterDigitalOutput(BYTE byteValue)
{
BYTE byteData = 0;
byteData = (byteData & 0x01 )? byteValue + 0x01 : byteValue;
byteData = (byteData & 0x02 )? byteValue + 0x02 : byteValue;
byteData = (byteData & 0x04 )? byteValue + 0x04 : byteValue;
byteData = (byteData & 0x80 )? byteValue + 0x08 : byteValue;
byteData = (byteData & 0x40 )? byteValue + 0x10 : byteValue;
byteData = (byteData & 0x20 )? byteValue + 0x20 : byteValue;
byteData = (byteData & 0x10 )? byteValue + 0x40 : byteValue;
byteData = (byteData & 0x08 )? byteValue + 0x80 : byteValue; // get value bit by bit
// write byteData value via GPIO2X output pin
this->Write_Byte(F75111_INTERNAL_ADDR,GPIO2X_OUTPUT_DATA,byteData);
}
3. Set output value
BYTE F75111::InterDigitalInput()
{
BYTE byteGPIO1X = 0;
BYTE byteGPIO3X = 0;
BYTE byteData = 0;
// Get value from GPIO1X
this->Read_Byte(F75111_INTERNAL_ADDR,GPIO1X_INPUT_DATA,&byteGPIO1X) ;
// Get value from GPIO3X
this->Read_Byte(F75111_INTERNAL_ADDR,GPIO3X_INPUT_DATA,&byteGPIO3X) ;
4. Get Input value
47
byteGPIO1X = byteGPIO1X & 0xF0; // Mask unuseful value
byteGPIO3X = byteGPIO3X & 0x0F; // Mask unuseful value
byteData = ( byteGPIO1X & 0x10 )? byteData + 0x01 : byteData;
byteData = ( byteGPIO1X & 0x80 )? byteData + 0x02 : byteData;
byteData = ( byteGPIO1X & 0x40 )? byteData + 0x04 : byteData;
byteData = ( byteGPIO3X & 0x01 )? byteData + 0x08 : byteData;
byteData = ( byteGPIO3X & 0x02 )? byteData + 0x10 : byteData;
byteData = ( byteGPIO3X & 0x04 )? byteData + 0x20 : byteData;
byteData = ( byteGPIO3X & 0x08 )? byteData + 0x40 : byteData;
byteData = ( byteGPIO1X & 0x20 )? byteData + 0x80 : byteData;
// Get correct DI value from GPIO1X & GPIO3X
return byteData;
}
void F75111_SetWDTEnable (BYTE byteTimer)
{
// set WatchDog range and timer
WriteByte(F75111_INTERNAL_ADDR,WDT_TIMER_RANGE ,byteTimer);
// Enable WatchDog, Setting WatchDog configure
WriteByte(F75111_INTERNAL_ADDR,WDT_CONFIGURATION,WDT_TIMEOUT_FLAG | WDT_ENABLE |
WDT_PULSE | WDT_PSWIDTH_100MS);
}
5. Enable WatchDog
void F75111_SetWDTDisable ()
{
WriteByte(F75111_INTERNAL_ADDR,WDT_CONFIGURATION,0x00);
}
6. Disable WatchDog
48
//-------------------------------------------------------------------------------------------------------#define F75111_INTERNAL_ADDR 0x9C // OnBoard F75111 Chipset
#define F75111_EXTERNAL_ADDR 0x6E // External F75111 Chipset
//-------------------------------------------------------------------------------------------------------#define F75111_CONFIGURATION 0x03 // Configure GPIO13 to WDT2 Function
//-------------------------------------------------------------------------------------------------------#define GPIO1X_CONTROL_MODE 0x10 // Select Output Mode or Input Mode
#define GPIO2X_CONTROL_MODE 0x20 // Select GPIO2X Output Mode or Input Mode
#define GPIO3X_CONTROL_MODE 0x40 // Select GPIO3X Output Mode or Input Mode
//-------------------------------------------------------------------------------------------------------#define GPIO1X_INPUT_DATA 0x12 // GPIO1X Input
#define GPIO3X_INPUT_DATA 0x42 // GPIO3X Input
//-------------------------------------------------------------------------------------------------------#define GPIO2X_OUTPUT_DATA 0x21 // GPIO2X Output
//-------------------------------------------------------------------------------------------------------#define GPIO1X_PULSE_CONTROL 0x13 // GPIO1x Level/Pulse Control Register
// 0:Level Mode
// 1:Pulse Mode
#define GPIO1X_PULSE_WIDTH_CONTROL 0x14 // GPIO1x Pulse Width Control Register
#define GP1_PSWIDTH_500US 0x00 // When select Pulse mode:500us.
#define GP1_PSWIDTH_1MS 0x01 // When select Pulse mode:1ms.
#define GP1_PSWIDTH_20MS 0x02 // When select Pulse mode:20ms.
#define GP1_PSWIDTH_100MS 0x03 // When select Pulse mode:100ms.
//-------------------------------------------------------------------------------------------------------#define GPIO2X_PULSE_CONTROL 0x23 // GPIO2x Level/Pulse Control Register
// 0:Level Mode
// 1:Pulse Mode
#define GPIO2X_PULSE_WIDTH_CONTROL 0x24 // GPIO2x Pulse Width Control Register
#define GP2_PSWIDTH_500US 0x00 // When select Pulse mode:500us.
#define GP2_PSWIDTH_1MS 0x01 // When select Pulse mode:1ms.
#define GP2_PSWIDTH_20MS 0x02 // When select Pulse mode:20ms.
#define GP2_PSWIDTH_100MS 0x03 // When select Pulse mode:100ms.
//-------------------------------------------------------------------------------------------------------#define GPIO3X_PULSE_CONTROL 0x43 // GPIO3x Level/Pulse Control Register
// 0:Level Mode
// 1:Pulse Mode
#define GPIO3X_Output_Data 0x41 // GPIO3x Output Data Register
#define GPIO3X_PULSE_WIDTH_CONTROL 0x44 // GPIO3x Pulse Width Control Register
#define GP3_PSWIDTH_500US 0x00 // When select Pulse mode:500us.
#define GP3_PSWIDTH_1MS 0x01 // When select Pulse mode:1ms.
7. Define F75111 pin in F75111.h
49
#define GP3_PSWIDTH_1MS 0x01 // When select Pulse mode: 1 ms.
#define GP3_PSWIDTH_20MS 0x02 // When select Pulse mode: 20 ms.
#define GP3_PSWIDTH_100MS 0x03 // When select Pulse mode:100 ms.
//-------------------------------------------------------------------------------------------------------#define WDT_TIMER_RANGE 0x37 // 0-255 (secord or minute program by
// WDT_UNIT)
#define WDT_CONFIGURATION 0x36 // Configure WDT Function
#define WDT_TIMEOUT_FLAG 0x40 // When watchdog timeout.this bit will be set
to 1.
#define WDT_ENABLE 0x20 // Enable watchdog timer
#define WDT_PULSE 0x10 // Configure WDT output mode
// 0:Level Mode
// 1:Pulse Mode
#define WDT_UNIT 0x08 // Watchdog unit select.
// 0:Select second.
// 1:Select minute.
#define WDT_LEVEL 0x04 // When select level output mode:
// 0:Level low
// 1:Level high
#define WDT_PSWIDTH_1MS 0x00 // When select Pulse mode: 1 ms.
#define WDT_PSWIDTH_20MS 0x01 // When select Pulse mode: 20 ms.
#define WDT_PSWIDTH_100MS 0x02 // When select Pulse mode: 100 ms.
#define WDT_PSWIDTH_4000MS 0x03 // When select Pulse mode: 4 s.
50
1. Write_Byte Mode
2. Read_Byte Mode
3. Check Device (F75111)
4. SMBus_Clear
5 SMBus_Wait
6. SMBus_Busy
7. IO_Write
8. IO_Read
9. Define SMBus IO address
10. Define SMBus pin in SMBus.
int SMBus::Write_Byte(WORD dwSlave, BYTE pCmd, BYTE pByte)
{
this->SMBus_Clear(); // Clear SMBus data first
if (this->SMBus_Busy()) // Check SMBus busy or not, return busy if busy
return SMBUS_BUSY;
this->IO_Write(SMBHSTADD , dwSlave & ~1 ); // write address in first variable
this->IO_Write(SMBHSTCMD , pCmd ); // write command in second variable
this->IO_Write(SMBHSTDAT0 , pByte ); // write data in third variable
this->IO_Write(SMBHSTCNT , SMBHSTCNT_START | SMBHSTCNT_BYTE);
// Sent start command to SMBus control register
return (int)this->SMBus_Wait(); // return wait command when SMBus finish the job
}
int SMBus::Read_Byte(WORD dwSlave, BYTE pCmd, BYTE *pByte)
{
this->SMBus_Clear(); // Clear SMBus data first
if (this->SMBus_Busy()) // Check SMBus busy or not, return busy if busy
return SMBUS_BUSY;
this->IO_Write(SMBHSTADD , dwSlave | 1 ); // write address in first variable
this->IO_Write(SMBHSTCMD , pCmd ); // write command in second variable
this->IO_Write(SMBHSTCNT , SMBHSTCNT_START | SMBHSTCNT_BYTE);
// Sent start command to SMBus control register
Contents
1. Write Byte Mode
2. Read Byte Mode
51
int ret = this->SMBus_Wait(); // Check SMBus Status
if (ret == SMBUS_OK) // If SMBus Stand by
{
*pByte = (BYTE)this->IO_Read(SMBHSTDAT0) &0xFF; // Get SMBus host data value
}
return ret; // reture SMBus status
}
BOOL SMBus::CheckDevice(WORD wDeviceAddress)
{
int ret;
this->SMBus_Clear(); // Clear SMBus data first
if (this->SMBus_Busy()) // Check SMBus busy or not, return busy if busy
return SMBUS_BUSY;
this->IO_Write(SMBHSTADD , wDeviceAddress & ~1 ); // write address in first variable
this->IO_Write(SMBHSTCNT , SMBHSTCNT_START | SMBHSTCNT_SENDRECV);
// Sent start command to SMBus control register
ret = this->SMBus_Wait(); // Check SMBus Status
if (ret == SMBUS_OK) // Check device exist or not, if exist return ture else false
return TRUE;
else
return FALSE;
}
3. Check Device (F75111)
void SMBus::SMBus_Clear()
{
this->IO_Write(SMBHSTSTS ,0xFF); // Clear SMBus status
this->IO_Write(SMBHSTDAT0,0x0 ); // Clear SMBus data
}
4. SMBus_Clear
52
int SMBus::SMBus_Wait()
{
int timeout = SMBUS_TIMEOUT;
DWORD dwValue;
while (timeout--)
{
Sleep(10); // I/O Delay
dwValue = IO_Read(SMBHSTSTS) & 0x00FF; // Read Host Status Register
if( dwValue & SMBHSTSTS_INTR ) // if status value equal
SMBHSTSTS_INTR, return SMBus_OK
{
return SMBUS_OK;
}
// if status value equal SMBHSTSTS_FAILED, return SMBHSTSTS_FAILED
if( dwValue & SMBHSTSTS_FAILED )
{
printf("SMBus Action FAILED! %x\n",dwValue);
return SMBHSTSTS_FAILED;
}
// if status value equal SMBHSTSTS_COLLISION, return SMBHSTSTS_COLLISION
if(dwValue & SMBHSTSTS_COLLISION)
{
printf("SMBus Action COLLISION! %x\n",dwValue);
return SMBHSTSTS_COLLISION;
}
// if status value equal SMBHSTSTS_ERROR, return SMBHSTSTS_ERROR
if(dwValue & SMBHSTSTS_ERROR)
{
printf("SMBus Action ERROR! %x\n",dwValue);
return SMBHSTSTS_ERROR;
}
}
return SMBUS_BUSY;
}
5. SMBus_Wait
53
BOOL SMBus::SMBus_Busy()
{
// Check SMBus status if equal SMBHSTSTS_BUSY
if( (this->IO_Read(SMBHSTSTS) & SMBHSTSTS_BUSY ) == 1 )
return TRUE; // return true
else
return FALSE; // else retrun false
}
6. SMBus_Busy
void SMBus::IO_Write(WORD dwOffset, BYTE dwData)
{
// Set dwData value to assigned address
SetPortVal(this->m_MapIOAddress+dwOffset, dwData,1);
}
7. IO_Write
BYTE SMBus::IO_Read(WORD dwOffset)
{
DWORD dwAddrVal;
// Get dwAddrVal value from assigned address
GetPortVal(this->m_MapIOAddress+dwOffset,&dwAddrVal,1);
return (BYTE)(dwAddrVal & 0x0FF);
}
8. IO_Read
SMBus::SMBus()
{
this->m_MapIOAddress = 0x500;
}
9. Define SMBus IO address
54
#define SMBHSTSTS 0x00 // SMBus Host Status Register Offset
#define SMBHSTSTS_BUSY 0x01 // SMBus Host -> 0000-0001 Busy
#define SMBHSTSTS_INTR 0x02 // SMBus Host -> 0000-0010 Interrupt / complection
#define SMBHSTSTS_ERROR 0x04 // SMBus Host -> 0000-0100 Error
#define SMBHSTSTS_COLLISION 0x08 // SMBus Host -> 0000-1000 Collistion
#define SMBHSTSTS_FAILED 0x10 // SMBus Host -> 0001-0000 Failed
//---------------------------------------------------------------------------------#define SMBHSTCNT 0x02 // SMBus Host Contorl Register Offset
#define SMBHSTCNT_KILL 0x02 // SMBus Host Contorl -> 0000 0010 Kill
#define SMBHSTCNT_QUICK 0x00 // SMBus Host Contorl -> 0000 0000 quick (default)
#define SMBHSTCNT_SENDRECV 0x04 // SMBus Host Contorl -> 0000 0100 Byte
#define SMBHSTCNT_BYTE 0x08 // SMBus Host Contorl -> 0000 1000 Byte Data
#define SMBHSTCNT_WORD 0x0c // SMBus Host Contorl -> 0000 1100 Word Data
#define SMBHSTCNT_BLOCK 0x14 // SMBus Host Contorl -> 0001 0100 Block
#define SMBHSTCNT_START 0x40 // SMBus Host Contorl -> 0100 0000 Start
//---------------------------------------------------------------------------------#define SMBHSTCMD 0x03 // SMBus Host Command Register Offset
#define SMBHSTADD 0x04 // SMBus Host Address Register Offset
#define SMBHSTDAT0 0x05 // SMBus Host Data0 Register Offset
#define SMBHSTDAT1 0x06 // SMBus Host Data1 Register Offset
#define SMBBLKDAT 0x07 // SMBus Host Block Data Register Offset
//---------------------------------------------------------------------------------// SMBus Bus Status Code
//---------------------------------------------------------------------------------#define SMBUS_OK 0x0 // SMBUS OK
#define SMBUS_BUSY 0x1 // SMBUS BUSY
#define SMBUS_INT 0x2 // SMBUS INTR
#define SMBUS_ERROR 0x4 // SMBUS ERROR
//---------------------------------------------------------------------------------#define SMBUS_TIMEOUT 100
10. Define SMBus pin in SMBus.h
55
. LVDS1: 18bit LVDS interface from 945GSE chipset (2x15 pin 1.25mm wafer)
3-17 LVDS Interface Connector
PIN NO. Description PIN NO. Description
1 PWM dimming 2 +5V
3 +LCD (5V or 3.3V) 4 +LCD (5V or 3.3V)
5 NC 6 NC
7 NC 8 NC
9 Channel-0-DA TA2+ 10 Channel-0-CLK+
1 1 Channel-0-DATA2- 12 Channel-0-CLK13 GND 14 GND
15 Channel-0-DA TA1+ 16 Channel-0-DATA0+
17 Channel-0-DA TA1- 18 Channel-0-DATA019
21
23
25
GND
+LCD(5V or 3.3V)
20
22
24
26
GND
+LCD(5V or 3.3V)
pin1
LVDS1
Note: 1. JVL1: LVDS panel +5V/+3.3V Voltage select
2. LVDS1 PIN 1 for panel backlight active default Hi or Low by JSD1 jumper setting.
3. Pin 1 back light dimming control.
provided 200Hz / 275Hz / 380Hz / 20KHz /25KHz
and adjust PWM duty cycle by software program .
3-18 Panel Power Connector
. CPP1: Panel Inverter power (5pin 2.0mm wafer)
30
PIN NO. Description
1 +12V or +5V
2 GND
3 PWM dimming
4 ENBKL(3.3V)
5 ENBKL(5V)
CPP1
pin1
27
29
28
30
Note : 1. JVP1 Inverter Voltage select
2. CCP1 PIN 3 and LVDS1 PIN1 is same signal.
Default active setup by JSD1
3. Pin 3 back light dimming control .
provided 200Hz / 275Hz / 380Hz / 20KHz /25KHz
and adjust PWM duty cycle by software program .
NC
NC
NC
NC
NC
NC
NC
NC
PIN NO. Description PIN NO. Description
1 UR(H) 2 N/A
3 Sense 4 UL(Y)
5 LR(X) 6 N/A
7 LL(L) 8 N/A
9 GND 10 KEY
56
3-19 Touch screen device
. For 8- wire type pin define
PIN NO. Description PIN NO. Description
1 Bottom 2 Bottom Sense
3 Top Sense 4 Top
5 Right 6 Right Sense
7 Left Sense 8 Left
9 GND 10 KEY
CT1: Touch screen (2x5 pin 2.0mm wafer)
Note: For eight wire type cable Pin 3 and Pin4 need short.
. For 4- wire type pin define
PIN NO. Description PIN NO. Description
1 Left 2 N/A
3 N/A 4 Top
5 Right 6 N/A
7 Bottom 8 N/A
9 GND 10 KEY
Note: For four wire type cable Pin 3 and Pin4 need short.
. For 5- wire type pin define
CT1
pin1
57
3-20 DC 12V IN
PIN NO. Description
1,2 +12V DC-IN
3,4 GND
PIN NO. Description
1,2 +12V DC-IN
3,4 GND
. CPI1 1: DC 12V-IN Internal Connector (4pin connector) (Option)
3-21 DC +5/+12V output connector
PIN NO. Description
1 +5V
2 GND
3 GND
4 +12V*
. CPO1 : +12V/+5V DC voltage output (4pin 2.5mm Wafer)
CPO1
*Note: DC in +12V by switch to DC-out voltage +12V,
so DC in need stable +12V input
. CPI1: DC 12V -IN external Connector (4pin mini din connector)
CPI1
pin1
58
3-22 I2C Bus Interface
PIN NO. Description
1 +3.3V
2 GND
3 I2C CLK
4 I2C DA TA
. CO1: I2C(SM) bus connector (4 pin 1.25mm wafer)
Note: BOM default haven’t this function by OEM
pin1
CO1
3-23 Mini card
. MPCE1: Support USB and PCIe by one Interface
(Mini card socket 52pin)
MPCE1
pin1
pin52
59
3-24 Front-Panel
. Power switch: PW-ON--- SWP1
SWP1 / SWP12 / SWP13 : system push button power switch
Based on case design , there may be a power switch or a 2-pin header connected to the
case-mounted power switch. It is used to power ON/OFF the system.
. Power LED: PW-LED / CFP1
The Power LED is lit while the system power is on.
. IDE Activity LED: HDD-LED
HDD-LED shows the activity of the hard disk.
. LAN LED Activity LED
LAN LED shows the activity of network
SWP1
HDD LED
LAN LED
Power LED
SWP1
SWP12
CFP1
SWP13
CFP2: system reset pin header.
CFP2
60
The BIOS is a program located in the Flash Memory on the motherboard. This program is
a bridge between motherboard and operating system. When you start the computer, the
BIOS program gains control. The BIOS first operates an auto-diagnostic test called POST
(Power on Self Test) for all the necessary hardware, it detects the entire hardware devices
and configures the parameters of the hardware synchronization. After these tasks are
completed, BIOS will give control of the computer back to operating system (OS). Since the
BIOS is the only channel for hardware and software to communicate with, it is the key factor
of system stability and of ensuring your system performance at best.
Chapter 4
Introduction of BIOS
In the BIOS Setup main menu, you can see several options. We will explain these options
in the following pages. First, let us see the function keys you may use here:
Press <Esc> to quit the BIOS Setup.
Press ↑↓←→(up, down, left, right) to choose the option you want to confirm or modify.
Press <F10> to save these parameters and to exit the BIOS Setup menu after you
complete the setup of BIOS parameters.
Press Page Up/Page Down or +/- keys to modify the BIOS parameters for the active option.
4-1 Enter Setup
Power on the computer and press <Del> key immediately to enter Setup.
If the message disappears before your respond but you still wish to enter Setup,
restart the system by turning it OFF then ON button on the system case.
You may also restart the system by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys.
61
4-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of
the screen.
Status Page Setup Menu/ Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and
the possible selections for the highlighted item. To exit the Help Window, press <Esc>.
4-3 The Main Menu
Once you enter Award BIOS CMOS Setup Utility , the Main Menu will appear on the
screen. The Main Menu has fourteen setup functions and two exit choices. Use arrow keys
to select among these items. Press <Enter> to accept or enter the sub-menu.
Phoenix-AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Frequency/Voltage Control
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc : Quit
↑↓→ ←
: Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type…
62
Advanced Chipset Features
This menu is to change the values in the chipset registers and optimize your system
performance.
Integrated Peripherals
This menu is to specify your settings for integrated peripherals.
Power Management Setup
This menu is to specify your settings for power management.
PnP/PCI configurations
This entry appears if your system supports PnP/PCI.
PC Health Status
This entry shows your PC health status.
Load Optimized Defaults
Use this menu to load the BIOS default values for optimal system performances.
Set Supervisor/User Password
This menu is to set User and Supervisor Passwords.
Exit Without Saving
Abandon all the CMOS values modified and exit setup.
Save & Exit Setup
Save CMOS values modified to CMOS and exit setup.
Standard CMOS Features
This Menu is for basic system configurations.
Advanced BIOS Features
This menu is to set the Advanced Features available in your system.
63
4-4 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into several categories.
Each category includes none, one or more than one setup items. Use the arrow keys to
highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want
to modify with this item.
Phoenix-AwardBIOS CMOS Setup Utility
Standard CMOS Features
Item Help
Sat, Jun 1 2009
0 : 0 : 0
[
EGA/VGA]
[
No Errors]
Base Memory
Extended Memory
1038336K
Total Memory
Menu Level
Change the day, Month,
year and century
↑↓→←
:Move Enter:Select +/
-
/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Time (hh:mm:ss)
Date
(mm:dd:yy)
IDE Channel 2 Slave
[ None ]
Video
Halt On
1039360K
640K
IDE Channel 0 Slave
[ None ]
IDE Channel 2 Master
[ None ]
IDE Channel 3 Slave
[ None ]
IDE Channel 3 Master
[ None ]
IDE Channel 0 Master
[ None ]
IDE Primary/Secondary Master/Slave
Press PgUp/<+> or PgDn/<-> to select Manual, None, Auto type. Note that the specifications
of your drive must match with the drive table. The hard disk will not work properly if you enter
improper information for this category. If your hard disk drive type is not matched or listed,
you can use Manual to define your own drive type manually. If you select Manual, related
information is asked to be entered to the following items. Enter the information directly from
the keyboard. This information should be provided in the documentation from your hard disk
vendor or the system manufacturer.
Video
The setting controls the type of video adapter used for the primary monitor of the system.
Settings are: EGA/VGA (default), CGA 40, CGA 80 and Mono.
Halt On
The setting determines whether the system will stop if an error is detected at boot.
Settings are: All Errors: The system stops when any error is detected.
No Errors (default): The system doesn’t stop for any detected error.
All, But Keyboard: The system doesn’t stop for a keyboard error.
All, But Diskette: The system doesn’t stop for a disk error.
All, But Disk/ Key: The system doesn’t stop for either a disk or a keyboard error.
64
4-5 Advanced BIOS Features
Phoenix-AwardBIOS CMOS Setup Utility
Advanced BIOS Features
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
Item Help
Menu Level
[
Press Enter
]
[
Press Enter
]
Hard Disk Boot Priority
USB Boot Priority
Virus Warning
Quick Power On Self Test
[
Enabled
]
[
Disabled
]
First Boot Device
[
USB-FDD
]
Third Boot Device
[
Hard Disk
]
Boot Other Device
[
Enabled
]
Boot Up NumLock Status
[
On
]
Gate A20 Option
[
Fast
]
Typematic Rate Setting
[
Disabled
]
Typematic Rate <Chars/Sec>
[
6
]
Typematic Delay <Msec>
[
250
]
OS Select For DRAM > 64MB
[
Non-OS2
]
HDD S.M.A.R.T. Capability
[
Disabled
]
Full Screen LOGO Show
[
Enabled
]
Small Logo<EPA> Show
[
Disabled
]
X
X
Hard Disk Boot Priority
Please refer section.
USB Boot Priority
Please refer section.
Virus Warning
The Virus Warning feature can help you protect IDE Hard Disk boot sector.
If this function is enabled, BIOS will show a warning message on screen and alarm beep
when someone attempts to write data into this area without permission.
Disabled (Default) No warning message appears when anything attempts to access
the boot sector or hard disk partition table.
Enabled Activate automatically when the system boots up. The system will
show the warning message if anything attempts to access the boot
sector of hard disk partition table.
Second Boot Device
[
USB-CDROM
]
65
Quick Power On Self Test
This category speeds up Power On Self Test (POST) after you power on the
computer . If this is set to Enabled, BIOS will shorten or skip some check items
during POST.
Enabled (Default) Enable quick POST
Disabled Normal POST
First/Second/Third Boot Device
The BIOS attempts to load the operating system from the devices in the sequence
selected in these items.
Settings are: LS120, Hard Disk, CDROM, USB-Device, ZIP100, USB-FDD, USB-ZIP,
USB-CDROM, LAN and Disabled
Boot Other Device
Setting the option to Enabled allows the system to try to boot from other devices if the
system fails to boot from the 1st/2nd/3rd boot device.
Boot Up NumLock Status
On (Default) Keypad is numeric keys.
Off Keypad is arrow keys.
Typematic Rate (Chars/Sec)
Sets the number of times a second to repeat a keystroke when you hold the key
down.
Settings are: 6, 8, 10, 12, 15, 20, 24, and 30.
Gate A20 Option
Normal The A20 signal is controlled by keyboard controller or chipset
hardware.
Fast (Default) The A20 signal is controlled by port 92 or chipset specific method.
Typematic Rate Setting
Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the
typematic rate and typematic delay can be selected. The settings are: Enabled/Disabled.
Typematic Delay (Msec)
Sets the delay time after the key is held down before is begins to repeat the keystroke.
Settings are 250, 500, 750, and 1000.
OS Select For DRAM > 64MB
Allows OS2 to be used with >64MB or DRAM. Settings are Non-OS/2 (Default) and OS2.
Set to OS/2 if using more than 64MB and running OS/2
66
4-5-1 Hard Disk Boot Priority
Phoenix – AwardBIOS CMOS Setup Utility
Hard Disk Boot Priority
Item Help
Menu Level
1. Ch1 S. :xxx-xxxxx
2. Ch2 P. :xxx-xxxxx
3. Bootable Add-in Cards
:Move Enter:Select +/-
/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
↑↓→←
4-5-2 USB Boot Priority
Phoenix – AwardBIOS CMOS Setup Utility
USB Boot Priority
Item Help
Menu Level
1. USB HDD0 : XXX-XXXXX
2. USB HDD1 : XXX-XXXXX
:Move Enter:Select +/-
/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
↑↓→←
Ch1 S/Ch2 P
It allows you to set the priority for hard disk boot. When you press enter, the selections
shows the current hard disks used in your system
Bootable Add-in Cards
that is relevant to other boot sources media such as SCSI cards and LAN cards.
USB HDD0/USB HDD1
It allows you to set the priority for USB storage boot. When you press enter,
the selections shows the current USB storage used in your system
67
4-6 Advanced Chipset Features
The Advanced Chipset Features Setup option is used to change the values of the chipset
registers. These registers control most of the system options in the computer.
Phoenix-AwardBIOS CMOS Setup Utility
Advanced Chipset Features
Item Help
Menu Level
Video BIOS Cacheable [ Disabled ]
System BIOS Cacheable [ Enabled ]
PCI Express Root Port Func [ Press Enter ]
:Move Enter:Select +/-
/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
↑↓→←
PCI Express Root Port Func
Please refer to section
On-chip Frame Buffer Size
This item allows you to select on-chip buffer size
The item choice: 1MB, 8MB (default)
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in
better system performance. However, if any program writes to this memory area, a system
error may result.
Settings are: Enabled (default) and Disabled.
Video BIOS Cacheable
Select Enabled allows caching of the video BIOS, resulting in better system performance.
However, if any program writes to this memory area, a system error may result.
Settings are: Enabled and Disabled (default).
** VGA Setting **
On-Chip Frame Buffer Size [ 8MB ]
DVMT Mode [ DVMT ]
DVMT/FIXED Memory Size [ 128MB ]
Boot Display [ CRT+LVDS ]
Panel Number [ 1024 X 768 18Bit ]
68
Boot Display
This item allows you to select the display device.
Display Device: CRT, DVI,LVDS, CRT+LVDS (default),CRT+DVI
Panel Number
This item allows you to select the panel resolution
1. 640 X 480 18bit
2. 800 X 600 18bit *
3. 1024 X 768 18bit * (default)
4. 1280 X 1024 18bit
5. 1400 X 1050 18bit (Reduced Blanking LVDS)
6. 1400 X 1050 18bit (Non-Reduced Blanking LVDS)
7. 1600 X 1200 18bit
8. 1280 X 768 18bit
9. 1680 X 1050 18bit
10. 1920 X 1200 18bit
11. 1280 X 800 18bit
12. 1280 X 600 18bit
DVMT Mode
This item allows you to select the DVMT mode.
The choice: FIXED, DVMT (default), BOTH
DVMT/FIXED Memory Size
This item allows you to select the DVMT or FIXED graphics memory size.
The memory size choice: 64MB, 128MB (default), 224MB
69
4-6-1 PCI Express Root Port Func
Phoenix-AwardBIOS CMOS Setup Utility
PCI Express Root Port Func
Item Help
Menu Level
PCI Express Port 1 [ Auto ]
PCI Express Port 2 [ Auto ]
PCI Express Port 3 [ Auto ]
PCI Express Port 4 [ Auto ]
PCI-E Compliancy Mode [ v1.0a ]
:Move Enter:Select +/-
/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
↑↓→←
PCI Express Port 1/2/3/4
These items are Disable or Enable port 1 to port 4 of PCIe device.
Note: Port 1 to port 4 will all disables, if you select “Disable” on Port 1 item.
PCI-E Compliancy Mode
This item determines PCI Express bus in mode?
V1.0a (default) it’s compliant PCI Express in v1.0a specification.
V1.0 it’s compliant PCI Express in v1.0 specification.
70
OnChip IDE Device Function
Please refer to section
Super IO Device Function
Please refer to section
Onboard Serial Port 3~6
Select an address for the third to the sixth serial ports.
Settings are: 3F8, 2F8, 3E8, 2E8, Disabled.
Serial Port 3 ~ 6 Use IRQ
Select an interrupt for the third to the sixth serial ports.
Settings are: IRQ3,IRQ4,IRQ5,IRQ6,IRQ7,IRQ10,IRQ11.
The Serial Port 3 ~ 6 default value below:
PORT ADDR/IRQ
COM 3 3E8/IRQ10
COM 4 2E8/IRQ10
COM 5 4F8/IRQ11
COM 6 4E8/IRQ11
4-7 Integrated Peripherals
Phoenix-AwardBIOS CMOS Setup Utility
Integrated Peripherals
Item Help
Onboard Serial Port 3 [ 3E8 ]
Serial Port 3 Use IRQ [ IRQ10 ]
Onboard Serial Port 4 [ 2E8 ]
Serial Port 4 Use IRQ [ IRQ10 ]
Onboard Serial Port 5 [ 4F8 ]
Serial Port 5 Use IRQ [ IRQ11 ]
Onboard Serial Port 6 [ 4E8 ]
Serial Port 6 Use IRQ [ IRQ11 ]
COM3 422/485 flow control [ Disable ]
Menu Level
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
OnChip IDE Device [ Press Enter ]
Super IO Device [ Press Enter ]
USB Device Setting [ Press Enter ]
71
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector read/write. If
your IDE hard drive supports block mode (most new drives do), select Enabled for automatic
detection of the optimal number of block read/writes per sector the drive can support. The
settings are: Disabled, Enabled (default).
PATA DMA Mode
Force IDE device to work in DMA33 or DMA66/100 mode.
Auto ( Default ) By system determine automatically.
DMA33 Work in DMA 33 mode.
DMA66/100 Work in DMA 66/100 mode.
Note: That is supported fastest speed by IDE device to determine in DMA66 or DMA100.
4-7-1 OnChip IDE Device Function
Phoenix-AwardBIOS CMOS Setup Utility
OnChip IDE Device
Item Help
On-Chip Primary PCI IDE
On-Chip Serial ATA [Enhanced Mode]
SATA PORT Speed Setting Disabled
PATA IDE Mode Secondary
SATA Port P0,P2 is Primary
*** On-Chip Serial ATA Setting ***
[
Enabled]
PATA DMA Mode [
Auto]
IDE DMA transfer access
Disabled]
IDE HDD Block Mode [
Enabled]
IDE Primary Master PIO [Auto]
IDE Primary Slave PIO [Auto]
IDE Primary Master UDMA [Auto]
IDE Primary Slave UDMA [Auto]
On-Chip Secondary PCI IDE [Enabled]
IDE Secondary Master PIO [Auto]
IDE Secondary Slave PIO [Auto]
IDE Secondary Master UDMA [Auto]
IDE Secondary Slave UDMA [Auto]
Menu Level
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
[
USB Device Setting
Please refer to section
COM 3 422/485 flow control
This item allows you to disable or enable RS422 or RS485 function on COM 3, if you need.
X
72
OnChip IDE Primary/Secondary
The integrated peripheral controller contains an IDE interface with support for two IDE
channels.
Select Enabled to activate each channel separately.
Settings are: Enabled (default), Disabled.
Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each
of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide
successively increased performance. In Auto mode, the system automatically determines
the best mode for each device.
The settings are: Auto (default), Mode 0, Mode 1, Mode 2, Mode 3 and Mode 4.
Primary/Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the
operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus
master driver)You’re your hard drive and your system software both support Ultra DMA/33
and Ultra DMA/66, select Auto to enable BIOS support.
Settings are: Auto(default) , Disabled.
OnChip Serial SATA
That it has 5 choices as below:
Disable Disable SATA Controller.
Auto By system determine automatically.
Combined Mode PATA and SATA are combined. Max of 2 IDE drives
in each channel.
Enhanced Mode ( default ) Enable both SATA and PATA. Max of 6 IDE drives
are supported.
SATA Only SAT A is operating in legacy mode.
73
4-7-2 Super IO Function
Phoenix-AwardBIOS CMOS Setup Utility
Super IO Function
Item Help
Onboard Serial Port 1 [ 3F8/IRQ4 ]
Onboard Serial Port 2 [ 2F8/IRQ3 ]
PWRON After PWR-Fail [ Former-Sts ]
Menu Level
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Onboard Serial Port 1&2
Select an address and corresponding interrupt for the first and the second serial ports.
Settings are: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.
PWRON After PWR-fail
This item specifies whether your system will reboot after a power failure or interrupt occurs.
Settings are: Off: Leaves the computer in the power off state.
On: Leaves the computer in the power on state.
Former-Sts: Restores the system to the status before power failure or interrupt
occurred (Default).
74
4-7-3 USB Device Function
Phoenix-AwardBIOS CMOS Setup Utility
USB Device Function
Item Help
USB 1.0 Controller [ Enabled ]
USB 2.0 Controller [ Enabled ]
USB Operation Mode [ High Speed ]
USB Keyboard Function [ Enabled ]
USB Mouse Function [ Enabled ]
USB Storage Function [ Enabled ]
Menu Level
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
USB 1.0 Controller
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have
a USB peripherals.
Settings are: Enabled (default), Disabled.
USB 2.0 Controller
Select Enabled if your system contains a Enhanced Serial Bus (USB) controller and you have
a USB peripherals.
Settings are: Enabled (default), Disabled.
USB Operation Mode
High speed:
If USB device was high speed device, then it operated on high speed mode. If USB device
was full/low speed device, then it operated on full/low speed mode.
Full/Low Speed:
All of USB device operated on full/low speed mode.
USB Keyboard Function/ USB MOUSE Function/USB Storage Function
Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have
a USB keyboard or USB mouse and USB storage.
Settings are: Enabled (default), Disabled.
75
4-8 Power Management Setup
The Power Management Setup allows you to configure your system to most effectively
save energy saving while operating in a manner consistent with your own style of
computer use.
Phoenix-AwardBIOS CMOS Setup Utility
Power Management Setup
Item Help
Menu Level
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
x
x
PCI Express PM Function [Press Enter]
ACPI Function [Enabled]
Power Management [User Define]
Video Off Method [DPMS]
Video Off In Suspend [Yes]
MODEM Use IRQ [3]
Suspend Mode [Disable]
HDD Power Down [Disable]
Soft-Off by RWR-BTTN [Instant-Off]
Resume by Alarm [Disable]
Date (of Month)Alarm 0
Time (hh:mm:ss)Alarm 0: 0: 0
** Reload Global Timer Events**
Primary IDE 0 [Disabled]
Primary IDE 1 [Disabled]
Secondary IDE 0 [Disabled]
Secondary IDE 1 [Disabled]
FDD, COM, LPT Port [Disabled]
PCI PIRQ[A-D]#
[Disabled]
ACPI Function
This item allows you to Enabled/Disabled the Advanced Configuration and Power
Management (ACPI).
Settings are: Enabled (default) and Disabled.
PCI Express PM Function
Please refer to section
76
Video Off Method
This determines the manner in which the monitor is blanked.
DPMS (default) Initial display power management signaling.
Blank Screen This option only writes blanks to the video buffer.
V/H SYNC+Blank This selection will cause the system to turn off the vertical
and horizontal synchronization ports and write blanks to the
video buffer.
Video Off in Suspend
This determines the manner in which the monitor is blanked.
Yes Video will off.
No Video always On.
PCI Express PME
This item allows you to wake-up system, when PME event has presence.
MODEM Use IRQ
This determines the IRQ in which the MODEM can use.
The settings are: 3(default), 4, 5, 7, 9, 10, 11, NA.
Resume by Alarm
This function is for setting date and time for your computer to boot up. During Disabled, you
cannot use this function. During Enabled, choose the Date and Time Alarm:
Date(of month) Alarm
You can choose which month the system will boot up. Set to 0, to boot every day.
Time(hh:mm:ss) Alarm
You can choose what hour, minute and second the system will boot up.
Note: If you have change the setting, you must let the system boot up until it goes to the
operating system, before this function will work
4-8-1 PCI Express PM Function
Phoenix-AwardBIOS CMOS Setup Utility
PCI Express PM Function
Item Help
PCI Express PME [ Disabled ]
Menu Level
↑↓→←
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
77
4-9 PnP/PCI Configuration Setup
This section describes how to configure the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at the speed the CPU itself
keeps when CPU communicates with its own special components. This section covers some
very technical items and we strongly recommended that only experienced users should make
any change to the default settings.
Phoenix-AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Item Help
Init Display First [ PCI Slot ]
Reset Configuration Data [ Disabled ]
Resources Controlled By [ Auto(ESCD) ]
IRQ Resources Press Enter
PCI/VGA Palette Snoop [ Disabled ]
Menu Level
↑↓→←
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
x
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration
Data (ESCD) when you exit Setup if you have installed a new add-on and the system
reconfiguration has caused such a serious conflict that the operating system can not boot. The
settings are: Enabled and Disabled.
Resource Controlled By
The Award Plug and Play BIOS can automatically configure all of the boot and Plug and Play
compatible devices. However, this capability means absolutely nothing unless you are using
a Plug and Play operating system such as Windows 95/98. If you set this field to "manual",
choose a specific resource by going into each sub menu that follows this field.
Settings are: Auto(ESCD) (default) or Manual.
IRQ Resources
Please refer section.
PCI/VGA Palette Snoop
Leave this field at Disabled. The settings are Enabled or Disabled.
78
Item Help
Menu Level
Legacy ISA for devices
Compliant with the
original PC AT bus
specification,
PCI/ISA PnP for devices
compliant with the Plug
and Play standard whether
designed for PCI or ISA
bus architecture.
4-9-1 IRQ Resources
When resources are controlled manually, each system interrupt is assigned a type,
depending on the type of device using the interrupt.
Phoenix-AwardBIOS CMOS Setup Utility
IRQ Resources
IRQ-3 assigned to [PCI Device]
IRQ-4 assigned to [PCI Device]
IRQ-5 assigned to [PCI Device]
IRQ-7 assigned to [PCI Device]
IRQ-9 assigned to [PCI Device]
IRQ-10 assigned to [PCI Device]
IRQ-11 assigned to [PCI Device]
IRQ-12 assigned to [PCI Device]
IRQ-14 assigned to [PCI Device]
IRQ-15 assigned to [PCI Device]
↑↓→←
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
4-10 PC Health Status
This section shows the status of your CPU, Fan, and overall system.
This is only available when there is Hardware Monitor function onboard.
Current CPU Temperature/Current System T emp
Vcore/+1.05V/+3.3V/+5V/+12V
This will show the CPU/FAN/System voltage chart.
Phoenix-AwardBIOS CMOS Setup Utility
PC Health Status
Item Help
Menu Level
↑↓→←
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Vcore 0.86V
+ 1.05V 1.02V
+ 3.33V 3.29V
+ 5.00V 5.02V
+ 12.0V 11.84V
Voltage Battery 3.02V
System Temp. 55 C
CPU Temp. 63 C
CPU Fan Speed. 4017 RPM
System Fan Speed. 3924 RPM
0
0
79
4-11 Frequency/Voltage Control
This section is to set CPU Frequency Control.
Spread Spectrum
This item allows you to set the CPU Host/PCI clock Spread Spectrum.
Settings are: Disabled or Enabled. (default)
Phoenix-AwardBIOS CMOS Setup Utility
Frequency/Voltage Control
Item Help
Menu Level
↑↓→←
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Spread Spectrum [Enabled]
4-12 Load Fail-Safe Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a message
similar to:
Load Optimized Defaults ( Y/N )? N
Press <Y> to load the default values that are factory settings for optimal
system operation performance.
80
4-13 Set Supervisor/ User Password
You can set supervisor password, user password, or both. The differences are:
Supervisor password: You can enter the setup menus and change the options.
User password: You can enter the setup menus but do not have the right to
change the options. When you select this function, the
following message will appear at the center of the screen to
assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password
typed will clear any previous password from CMOS memory. You will be asked to confirm
the password. Type the password again and press <Enter>. You may also press <Esc> to
abort the selection without entering password. To disable a password, just press <Enter>
when you are prompted to enter the password. A message will confirm if you want to disable
the password. Once the password is disabled, the system will boot and you can enter Setup
menus freely.
PASSWORD DISABLED.
When a password has been enabled, you have to enter it every time before you enter the
Setup. This prevents an unauthorized person from changing any part of your system
configuration.
81
Chapter 5
DRIVER INSTALLATION
There is a SYSTEM INSTALL CD disk in the package. This CD has all the drivers you need
and some free application programs and utility programs. In addition, this CD also
includes an auto-detect software which can tell you which hardware is installed and
which driver is needed so that your system can function properly.
We call this auto detect software SYSTEM INSTALL.
SYSTEM INSTALL Supports WINDOWS 2000/XP
Insert the CD into your CD-ROM drive and the SYSTEM INSTALL Menu should appear as
below. If the menu does not appear, double-click MY COMPUTER and double-click
CD-ROM drive or click START, click RUN, and type X:\SETUP.EXE (assuming X is your
CD-ROM drive).
From SYSTEM INSTALL MENU you may make 3 selections:
1 . Auto detect main board and OS Into auto install driver Menu
2 . Explore CD to explore the contents of the CD
3 . EXIT to exit from SYSTEM INSTALL menu
82
Auto install driver Menu
1. INF install Intel 945 GSE chipset system driver
2. VGA install on-board VGA driver
3. SOUND install VIA HID Audio Codec Audio driver
4. DIRECTX install DirectX 9 driver
5. LAN to LAN install driver readme file
Each selection is illustrated as below:
83
1.Click INF when System Install MENU 2.Click NEXT when Chipset Software
appears Install Utility appears
3. This license agreement appear,
click Yes, the Click NEXT.
4. This is Readme information appear,
Click NEXT.
5-1 Inf Install INTEL 945GSE Chipset system driver
84
5. Click Next.
6. Click Finish to restart computer
NOTE: SYSTEM INSTALL will auto detect file path
X:\driver\INTEL\I945\INF\infinst_autol.exe
This driver supports WINDOWS 2000\XP\Vista
85

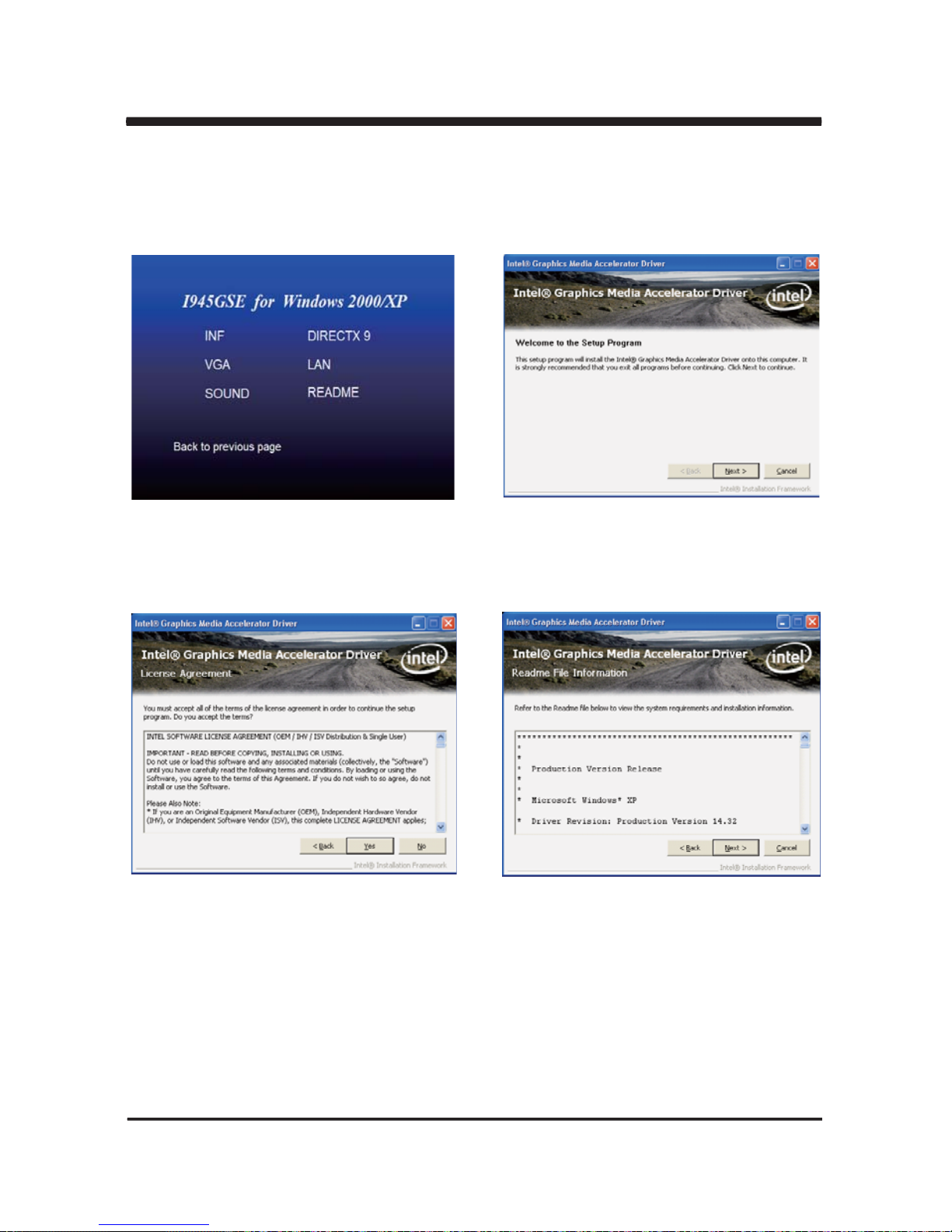

1. Clic k VGA when System Install MENU
appears.
5-2 VGA Install Intel 945GSE VGA Driver
2.Click NEXT when Intel ® Chipset
Graphics Driver Software Setup appears.
3. Click NEXT when Intel ® Graphics Media
Accelerator Driver Software appear
4.Click YES, This Announce CopyRight
86
5. Click Next.
6. Click FINISH to Restart Computer
NOTE: The path of the file
For WINDOWS XP/2000
X:\driver\INTEL\I945\VGA\win2k_xp\Setup.exe
For WINDOWS Vista
X:\driver\INTEL\I945\VGA\winvista\Setup.exe
For WINDOWS Vista 64
X:\driver\INTEL\I945\VGA\winvista64\ Setup.exe
For WINDOWS XP 64
X:\driver\INTEL\I945\VGA\winxp64\ Setup.exe
87
1.Click SOUND when System Install
MENU appears.
2.Click Next.
5-3 SOUND Install VIA HID Audio Codec Driver
3. Click Next. 4.Click Next to begin installing driver.
The program might be few minutes.
5. Click Next 6. Click FINISH to Restart Computer
NOTE: The path of the file For 2000 \ XP
X:\driver\INTEL\I945\SOUND\setup.exe
88
89
5-4 HOW TO UPDATE BIOS
Under DOS Mode
STEP 1. Prepare a bootable disc.
(Storage device could be USB FDD, CF card, or USB pen drive.)
STEP 2. Copy utility program to your bootable disc. You may copy it from DRIVER CD
X:\Dirver\bios\AWDFLASH.EXE or download it from our web site.
STEP 3. Copy the latest BIOS for your LEX motherboard from our web site to
your bootable disc.
STEP 4. (Here take CI270C as an example, please enter your motherboard’s name)
Insert your bootable disc into X: (X could be C:, A: or others.
It depends on which type of storage device you use. )
Start the computer and type
X:\ Awdflash CI270Cxx.BIN /SN/PY/WB/CP/CD/CC/R
CI270Cxxx.BIN is the file name of the latest BIOS. It may be CI270CA1.BIN or
CI270CA2.BIN, etc. Please leave one space between .BIN & /SN/PY/WB/CP/CD/CC/R
By 945GSE series mainboard, pls type
X:\Awdflash CI270Cxxx.BIN /SN/PY/WB/CP/CD/CC/R
SN : don't save the current BIOS data
PY : renew the current BIOS data
WB : always programming Boot Block
CP : clear PnP(ESCD) data after programming
CD : clear DMI data after programming
CC : clear the current CMOS data
R : restart computer
STEP 5. Press ENTER and the BIOS will be updated,
Computer will restart automatically.
90
In put
0.11A 3.23A 1.85A 3.01A 2.20A 9V
0.09A 2.38A 1.36A 2.07A 1.59A 12V
0.05A 1.19A 0.69A 1.00A 0.81A 24V
0.04A 0.91A 0.53A 0.83A 0.62A 32V
0.11A 2.04A 1.35A 2.23A 1.68A 9V
0.10A 1.53A 1.03A 1.67A 1.25A 12V
0.05A 0.75A 0.52A 0.81A 0.64A 24V
0.04A 0.60A 0.41A 0.64A 0.49A 32V
Voltage
91
1400 x 1050 x ( 256 / 16bit / 32bit )
1440 x 900 x ( 256 / 16bit / 32bit )
1920 x 1080 x ( 256 / 16bit / 32bit )
1600 x 1200 x ( 256 / 16bit / 32bit )
1600 x 900 x ( 256 / 16bit / 32bit )
1920 x 1200 x ( 256 / 16bit / 32bit )
Appendix B: Resolution list
640 x 480 x ( 256 / 16bit / 32bit )
800 x 600 x ( 256 / 16bit / 32bit )
1024 x 768 x ( 256 / 16bit / 32bit )
1280 x 720 x ( 256 / 16bit / 32bit )
1280 x 600 x ( 256 / 16bit / 32bit )
1152 x 864 x ( 256 / 16bit / 32bit )
1280 x 800 x ( 256 / 16bit / 32bit )
1280 x 960 x ( 256 / 16bit / 32bit )
1280 x 1024 x ( 256 / 16bit / 32bit )
1280 x 768 x ( 256 / 16bit / 32bit )
Loading...
