Lex Products Corporation
Portable Distribution Boxes
PowerHOUSE™
15 Progress Drive
Shelton, CT 06484
203.363.3738
203.363.3742 Fax

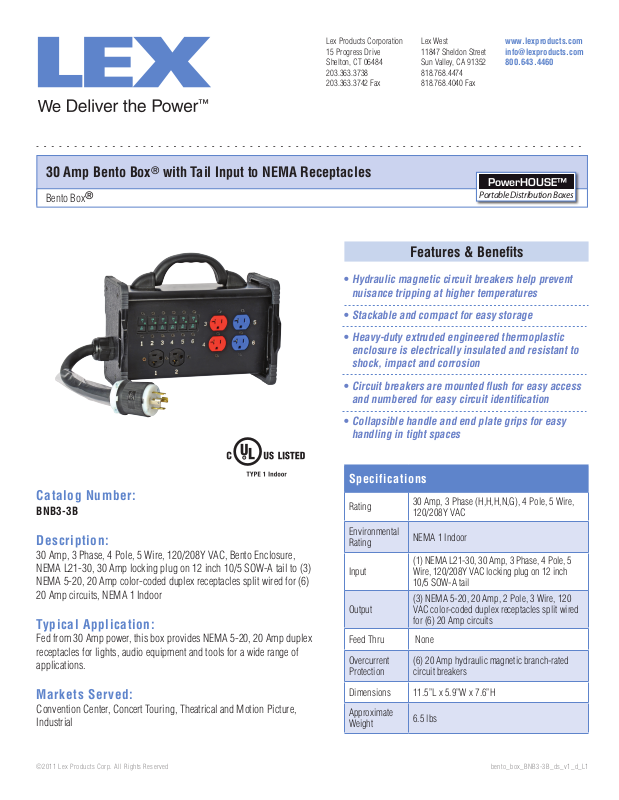

30 Amp Bento Box® with Tail Input to NEMA Receptacles
Lex West
11847 Sheldon Street
Sun Valley, CA 91352
818.768.4474
818.768.4040 Fax
www.lexproducts.com
[email protected]
800.643.4460
Bento Box
®
Catalog Number:
BNB3-3B
Features & Benefits
•
Hydraulic magnetic circuit breakers help prevent
nuisance tripping at higher temperatures
•
Stackable and compact for easy storage
•
Heavy-duty extruded engineered thermoplastic
enclosure is electrically insulated and resistant to
shock, impact and corrosion
•
Circuit breakers are mounted flush for easy access
and numbered for easy circuit identification
•
Collapsible handle and end plate grips for easy
handling in tight spaces
Specifications
Rating
30 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire,
120/208Y VAC
Description:
30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Bento Enclosure,
NEMA L21-30, 30 Amp locking plug on 12 inch 10/5 SOW-A tail to (3)
NEMA 5-20, 20 Amp color-coded duplex receptacles split wired for (6)
20 Amp circuits, NEMA 1 Indoor
Typical Application:
Fed from 30 Amp power, this box provides NEMA 5-20, 20 Amp duplex
receptacles for lights, audio equipment and tools for a wide range of
applications.
Markets Served:
Convention Center, Concert Touring, Theatrical and Motion Picture,
Industrial
©2011 Lex Products Corp. All Rights Reserved
Environmental
Rating
Input
Output
Feed Thru None
Overcurrent
Protection
Dimensions 11.5”L x 5.9”W x 7.6”H
Approximate
Weight
NEMA 1 Indoor
(1) NEMA L21-30, 30 Amp, 3 Phase, 4 Pole, 5
Wire, 120/208Y VAC locking plug on 12 inch
10/5 SOW-A tail
(3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120
VAC color-coded duplex receptacles split wired
for (6) 20 Amp circuits
(6) 20 Amp hydraulic magnetic branch-rated
circuit breakers
6.5 lbs
