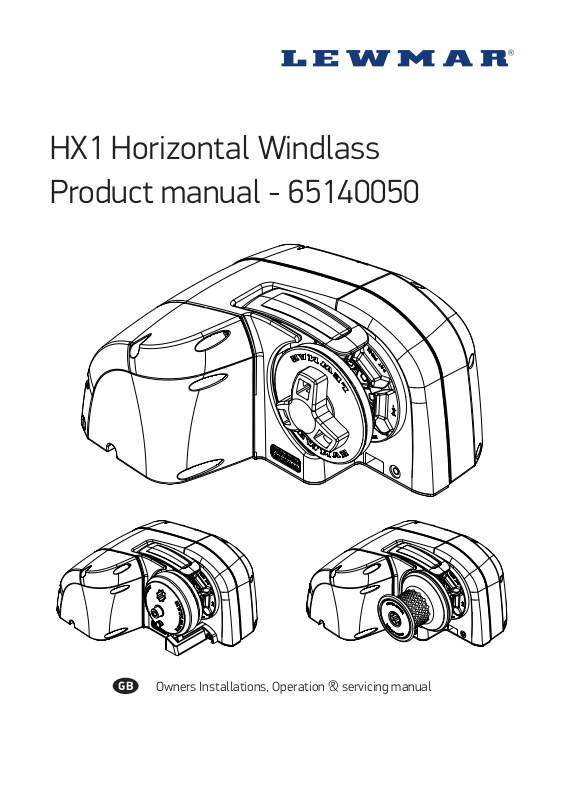

HX1 Horizontal Windlass Product manual - 65140050

Owners Installations, Operation & servicing manual

Page 2

1. Introduction

Dear Customer, Thank you for choosing Lewmar. Lewmar products are world renowned for their quality, technical innovation and

proven performance. With a Lewmar product you will be provided with many years of outstanding service.

Product support

Lewmar products are supported by a worldwide network of distributors and Authorised Service Representatives. If you encounter any diﬃculties with this product, please contact your national distributor, or your local Lewmar dealer. Details are available at: www.lewmar.com

CE Approvals

For CE approval certiﬁcates contact Lewmar.

Important information about this manual

Throughout this manual, you will see safety and product damage warnings. You must follow these warnings carefully to avoid possible injury or damage.

The type of warnings, what they look like, and how they are used in this manual are explained as follows:.

 WARNING!

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

SAFETY SYMBOL

When you see the safety symbol it means: “Do not...”; “Do not do this”; or “Do not let this happen”.

Page 3

2. Safety Notice

IMPORTANT: Read these notes before continuing.

2.1 Windlass general

Classiﬁcation Societies and Lewmar require that a vessel at anchor must have its chain/rode held by a chain stopper or equivalent strong point at all times

At all times it is the responsibility of the boat operator to ensure that the anchor and rode are properly stowed for the prevailing sea conditions. This is particularly important with high-speed powerboats, because an anchor accidentally deploying while under way can cause considerable damage. An anchor windlass is mounted in the most exposed position on a vessel and is thus subject to severe atmospheric attack resulting in a possibility of corrosion in excess of that experienced with most other items of deck equipment. As the windlass may only be used infrequently, the risk of corrosion is further increased. It is essential that the windlass is regularly examined, operated and given any necessary maintenance.

Please ensure that you thoroughly understand the operation and safety requirements of the windlass before commencing the installation. Only persons who are completely familiar with the controls and those who have been fully made aware of the correct use of the windlass should be allowed to use it. If there is any doubt of how to install or operate this unit please seek advice from a suitably qualiﬁed engineer.

• Windlasses used incorrectly could cause harm to equipment or crew.

• Windlasses should be used with care and treated with respect.

• Boating, like many other activities can be hazardous. Even the correct selection, maintenance and use of proper equipment cannot eliminate the potential for danger, serious injury or death.

• Lewmar windlasses are designed and supplied for anchor control in marine applications and are not to be used in conjunction with any other use.

• Keep limbs, fingers, clothing and hair clear of windlass, rode and anchor during operation. Severe bodily harm could result.

• Ensure there are no swimmers or divers nearby when dropping anchor.

• Windlasses must not be used as the sole means of securing the anchor to the bow fitting especially under storm conditions. Anchors should be independently secured to prevent accidental release.

• Classification Societies require that a vessel lying at anchor must have its anchor rope/chain secured to a chain stopper or other suitable independent strong point.

• A windlass should never be used as a mooring bollard, the anchor rode MUST be secured to a mooring cleat, chain stopper or other designated strong point. Using the windlass to secure the rode will damage the windlass.

• Do not use windlass for ANY purpose other than deployment and recovery of anchor.

• The circuit breaker in this product must never be deactivated or otherwise bypassed, it is intended to protect the motor and cables from overheating and damage.

• Always switch off this windlass at the circuit breaker/isolator when not in use.

• It is the unavoidable responsibility of the owner, master or other responsible party to assess the risk of any operation on the vessel.

• Windlass must not be operated whilst under the influence of alcohol or drugs.

2.2 Fitting

• This equipment must be installed and operated in accordance with the instructions contained in this manual. Failure to do so could result in poor product performance, personal injury and/or damage to your boat.

• Consult the boat manufacturer if you have any doubt about the strength or suitability of the mounting location.

2.3 Electrical

• Make sure that the boat’s battery power supply has been switched off before starting the installation.

• This product requires installation by a suitably qualified electrical engineer.

 WARNING!

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 3

Page 4

300 mm

(12”)

6°

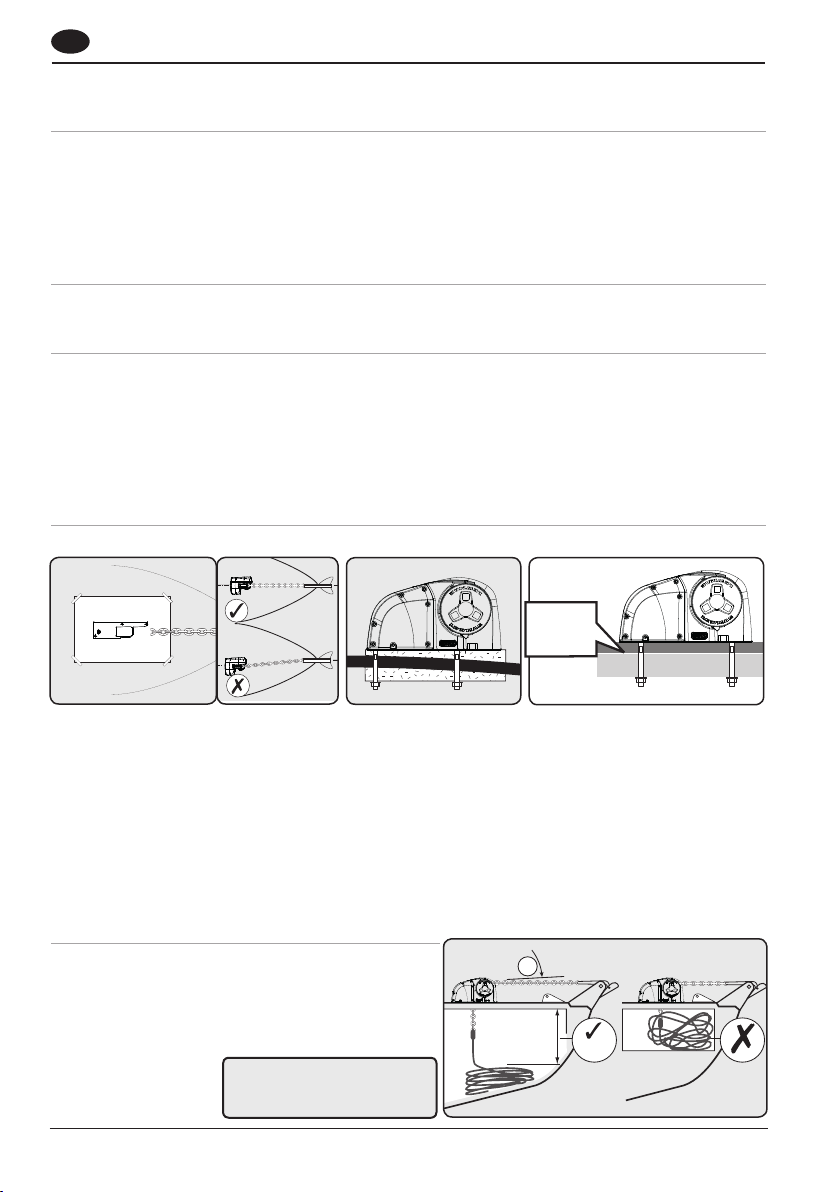

3 - Installation

3.1 Basic requirements

Each installation requires the following tools:

WINDLASS INSTALLATION

• An appropriate marine sealant

• Electric drill and 10mm (3/8inch), 12mm (1/2inch) and 14mm (9/16inch) drill bits

3.2 Accessories

Use only genuine Lewmar parts and accessories to ensure top performance and eliminate the risk of voiding your warranty. For replacement parts, please visit your dealer or www.lewmar.com

3.3 Gypsy Suitability

Gypsies ﬁtted to the HX1 windlasses are ideally suited to handling our factory made Rope/Chain combination rodes, which consist of rope spliced to a chain tail.

Ropes used must be windlass grade, medium lay nylon. Ropes from diﬀerent manufacturers have wide variations in stretch and consistency in diameter. Therefore, rope and chain from other manufacturers may require some experimentation to determine the optimum size.

Should you have diﬃculty in matching a gypsy to your chain please consult your local agent or our international network of distributors.

3.4 Above deck preparation

IMPORTANT - Plan location carefully and allow for the following:

• Jigsaw

WIRING INSTALLATION

• Crimping Pliers / Wire Stripper

• Suitable electrical cable and crimp terminals

25-60 mm 1” - 21/4”

1. Use drilling template provided and choose an appropriate position with reference to the vessel’s bow roller

and the chain locker below. Allow for the rotation of the manual operating wrench handle

2. If the deck is not ﬂat, a suitable mounting pad may be required to take up camber or sheer.

NOTE: If in doubt about the suitable construction of the pad consult a qualiﬁed marine engineer. The deck is an integral component of the windlass it has to secure the windlass and be strong enough to cope with the high torque stresses involved in recovering the anchor. Decks that are thin, or of foam or balsa laminate construction, will require reinforcement in order to spread the loads that will be applied to the deck while the windlass is in use.

3. Lewmar recommends a minimum deck thickness of 25mm (1”),

M8 Studs suit deck and packing thickness of 25-60mm (1” - 21/4”).

3.5 Below deck preparation

IMPORTANT: The positioning of the windlass must be checked prior to cutting for deck/hull and bulkhead clearance.

Lead from the roller should be fed horizontally back to the top of the gypsy and along its centre line within +6˚. There must be suﬃcient vertical fall (minimum of 300 mm /12” at all times) for the chain or rope when hauling in.

 WARNING! Failure to

provide minimum vertical fall will cause jamming.

Page 5

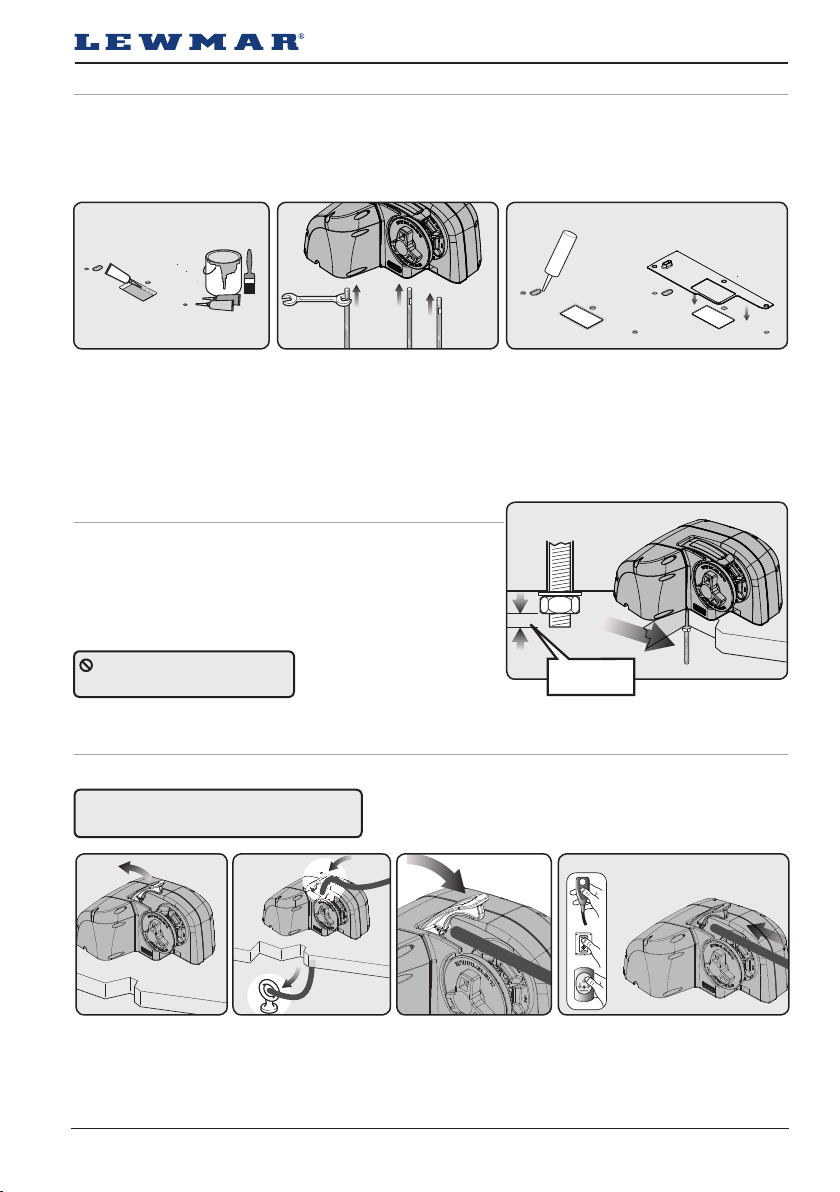

3.6 Above deck ﬁtting

Using the template and aer you have checked all the above and below deck requirements cut the following holes: Using 10mm drill bit, make the three holes for the mounting studs and three for the chain hole. Use a 12mm drill bit make one hole for the chain hole, create the chain hole by cutting the between the four holes to create the chain hole. Using a 14mm drill bit make two holes to create the slot for the motor and chain sensor wires.

1. When all the holes have been made, remove the template. To help avoid water absorption by the deck, apply an appropriate marine sealant to the freshly cut hole edges.

2. Assemble and tighten studs into base until they bottom out in their holes. Studs have a ﬂat for spanner location. Position the ﬂats of the studs nearest the base of the windlass.

3. Place the windlass in position on the deck. Optionally, apply a suitable sealant to the base of the windlass, any mounting pad or around the studs.

3.7 Under deck fastening

1. Fit windlass to deck. Trim the studs back to 6mm (1/4”) below the fully tightened nuts to prevent snagging anchor rope/chain if necessary.

NOTE: If using silicone or other rubbery type sealant, it is advisable to allow curing of the sealant before ﬁnal tightening of the mounting nuts.

DO NOT use a permanent

adhesive/sealant eg.5200

3.8 Loading rope/chain

For safety and performance Lewmar recommends the use of matched Lewmar anchor rodes.

6mm - 1/4”

 WARNING! Isolate (turn off) the wind-

lass using circuit breaker / isolator.

2 3

1. Pull out control arm. (Do not use excessive force)

2. Feed anchor rope/chain into entry hole. Tie oﬀ to suitable strong point in the anchor locker.

3. Align rope/chain in gypsy. Release control arm and wrap rope/chain around gypsy.

4. Turn on the breaker and power load rest of anchor rope/chain.

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 5

Page 6

4- Electrical wiring

4.1 Electric cable selection

Installation of this product should meet the regulations and standards or codes of practice relevant to the cra to which it is being ﬁtted. As a minimum the installer should conform ISO 10133.

Lewmar recommends the installer use cable with insulation rated at 90°C or higher. Length = Length of cable from battery ‘+’ terminal and back to battery ‘-’ terminal including breaker and

switch gear if ﬁtted Cable size guide given is for guidance only. It is the responsibility of the installer to conﬁrm the capacity and voltage drop for the installation. If in any doubt,

contact your local marine electrician.

MODEL

HX1 500 42 50 16 6

HX1 800 60 70 25 4

CURRENT DRAW AT

WORKING LOAD

BREAKER SUPPLIED

AMPs

CSA TO MEET ISO

10133 ANNEX A FOR

20 M

AWG TO MEET ABYC E11 FO R

L= 66 FEET

4.2 Wiring

Plan the installation to suit the controls and give the operator a full view of the windlass. The wiring system should be of the fully insulated type, which avoids possible electrolytic corrosion problems. We recommend the use of type III stranded, tinned copper wire with copper crimp terminals.

Overload protection, in the form of the circuit breaker provided must be built into the windlass wiring circuit.

• Circuit breaker supplied: HX1 500 - 50A (Part No 68000348) HX1 800 - 70A (Part No 68000240)

• The circuit breaker should be positioned close to the battery conforming to relevant regulations, in a readily accessible place.

• The breaker must be manually reset should an overload occur that causes it to trip to the off position.

If in any doubt, contact your local marine electrician.

4.3 Control switch installation

The unit is supplied with

• Guarded rocker switch (product ref 68000593)

• Contactor (product ref 68000939)

Follow the wiring diagram § 4.4

NOTE: Optional electric foot switches and remote handheld control available. Visit www.lewmar.com for more information

Contactor box and control box used in some installation refer to wiring diagram

Optional wireless remote also available See table below for models and references

WIRELESS REMOTE

3 BUTTON WINDLASS ONLY

68000967 68000968

WIRELESS REMOTE

5 BUTTON WINDLASS & THRUSTER

NOTE: In a multi- station installation all switches must be wired in a parallel circuit.

Page 7

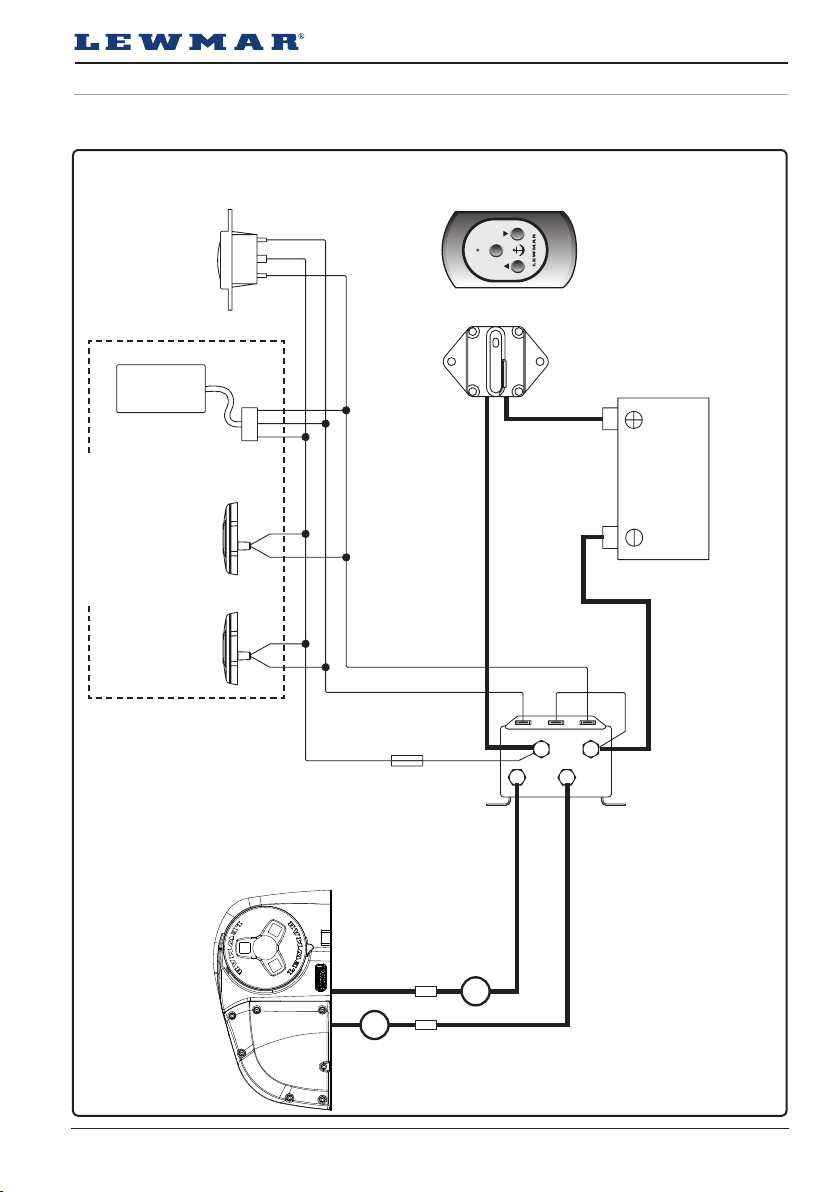

4.4 Wiring diagram using contactor provided (Part No 68000939)

Installation instructions are supplied separately with any accessories.

(68000593)

Rocker Switch

(See www.lewmar.com)

Remote Handheld Control

Optional accessories

Electric Switches

(See www.lewmar.com)

UP DOWN

(See § 5.3)

Control Available

Optional Wireless

(See § 4.2)

Circuit Breaker

Battery

12 V DC

See 4:1

Cable Sizing

Contactor

Fuse

3 A

Red

Black

(68000939)

Cable Colours

A = Black

B = Red

Switch wire thickness: 1.5 mm2 (16 AWG)

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 7

Page 8

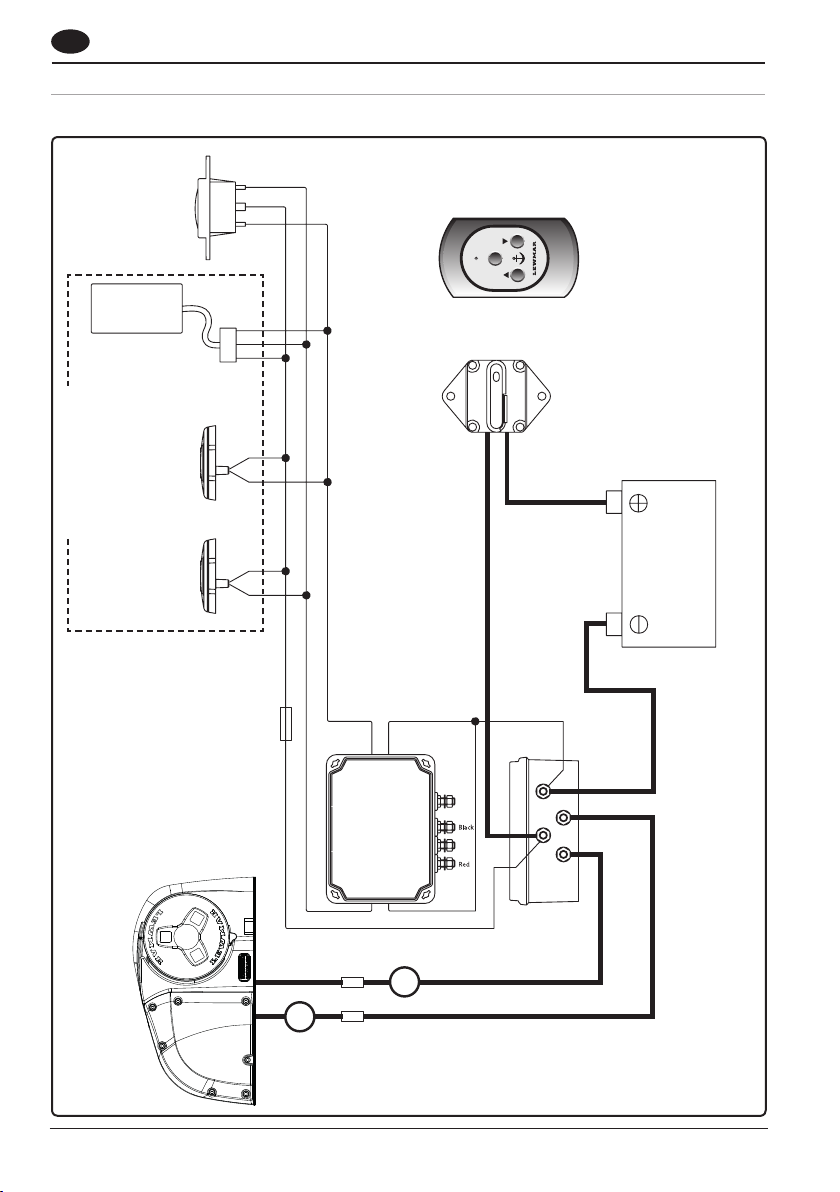

4.5 Wiring diagram if a contactor box (Part No 68000965) is used

Installation instructions are supplied separately with any accessories.

(68000593)

UP DOWN

Rocker Switch

(See www.lewmar.com)

Remote Handheld Control

Optional accessories

Electric Switches

UP DOWN

(See www.lewmar.com)

(See § 5.3)

Control Available

Optional Wireless

(See Chart 4.2)

Circuit Breaker

Battery

12 V DC

3 A

Fuse

See 4:1

Cable Sizing

Black

(16 AWG)

(68000965)

Contactor Box

+ -

Red

Cable Colours

A = Black

B = Red

Switch wire thickness: 1.5 mm

Page 9

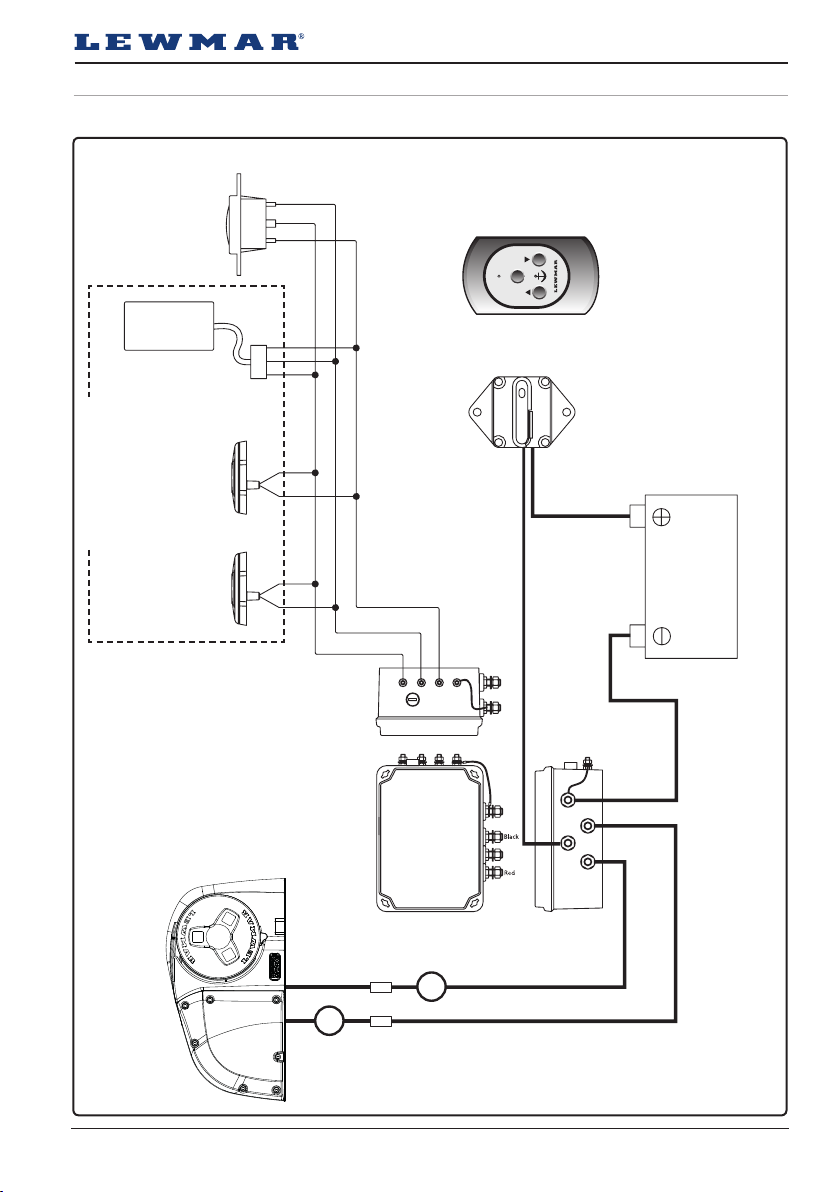

4.6 Wiring diagram if a pre-wired control box (Part No 68000963) is used

Installation instructions are supplied separately with any accessories.

(68000593)

UP DOWN

Rocker Switch

(See § 5.3)

Control Available

Optional Wireless

(16 AWG)

(See www.lewmar.com)

Remote Handheld Control

Optional accessories

Electric Switches

(See www.lewmar.com)

UP DOWN

Pre-Wired

(68000963)

Control Box

(See § 4.2)

Circuit Breaker

+ -

Red

Cable Colours

A = Black

Battery

12 V DC

See 4:1

Black Cable Sizing

B = Red

Switch wire thickness: 1.5 mm

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 9

Page 10

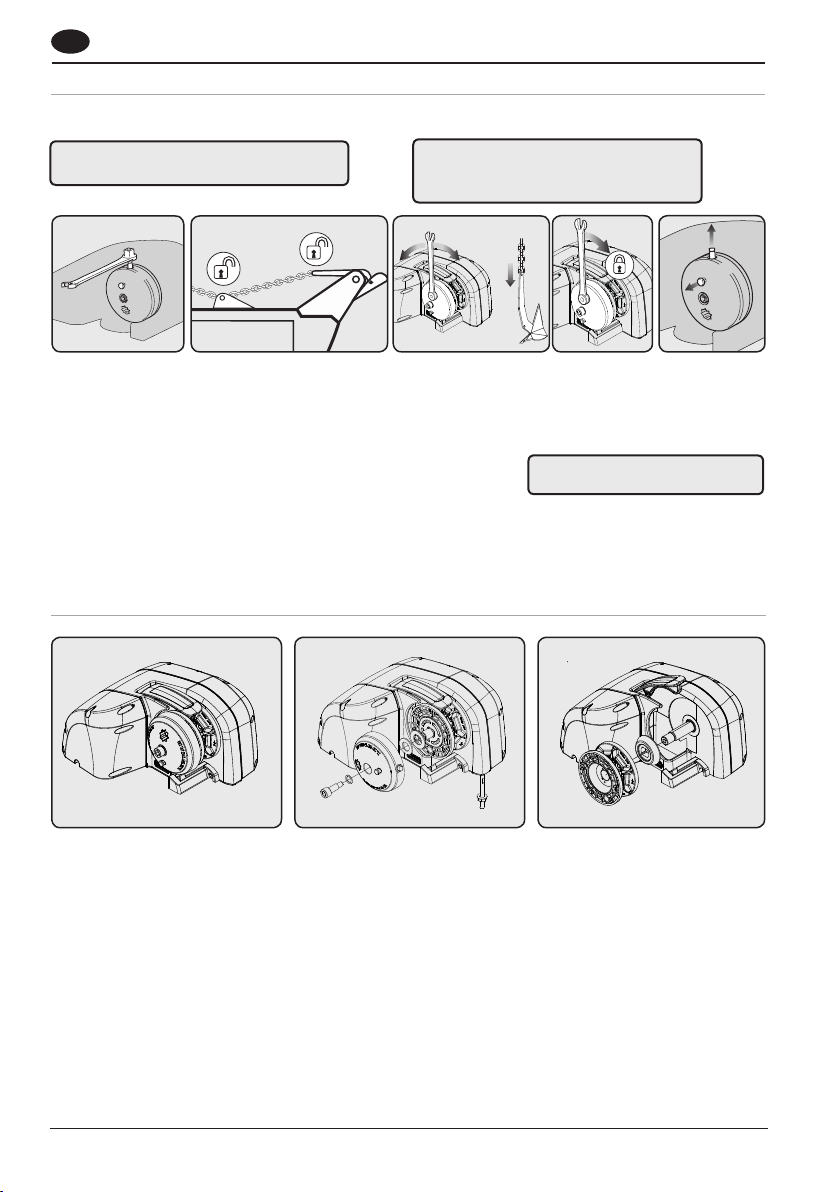

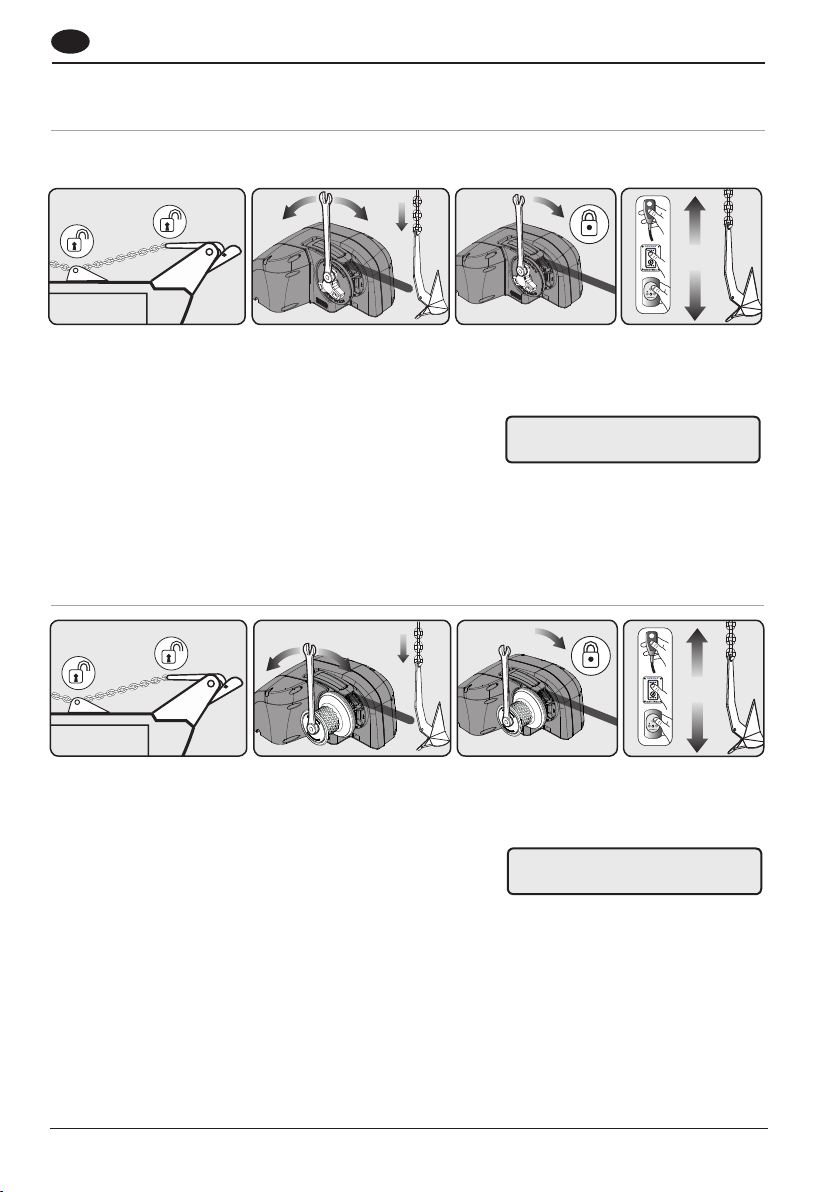

5- Operation

5.1 Manual controlled free-fall Gypsy only

Use this method for quicker anchor deployment, in an emergency involving loss of power or to save battery power. Observe maritime anchor deployment safety rules.

2 3 4

1. Engage the circuit breaker/isolator and press the up button.

2. Release any anchor locks

3. When safe, insert the Lewmar wrench in to the windlass drive cap. Rotate clockwise to grip the gypsy and

anticlockwise to free the gypsy controlling the rate of descent of the anchor. Lock the clutch by turning the drive cap clockwise, Engage the anchor locks.

4. To return the windlass back to powered operation lock the clutch by

 WARNING! Always remove

wrench handle after use rotating the windlass drive cap clockwise until tight and remove the wrench handle.

5. Engage the circuit breaker/isolator and press the up button.

6. NOTE: If the clutch nut is not tight the internal clutch mechanism will rotate freely and not engage the drive to the gypsy.

5.2 Manual controlled free-fall Gypsy Drum

1. Engage the circuit breaker/isolator and press the up button.

2. Release any anchor locks

3. When safe, insert the Lewmar wrench in to the drum top cap. Rotate clockwise to grip the gypsy and anticlockwise to free the gypsy controlling the rate of descent of the anchor. Lock the clutch by turning the drum cap clockwise, Engage the anchor locks.

4. To return the windlass back to powered operation lock the clutch by rotating the Drum top cap clockwise until tight and remove the wrench handle.

5. Engage the circuit breaker/isolator and press the up button.

6. NOTE: If the Drum cap is not tight the internal clutch mechanism will rotate freely and not engage the drive to the gypsy.

2 3

 WARNING! Always remove

wrench handle after use

Page 11

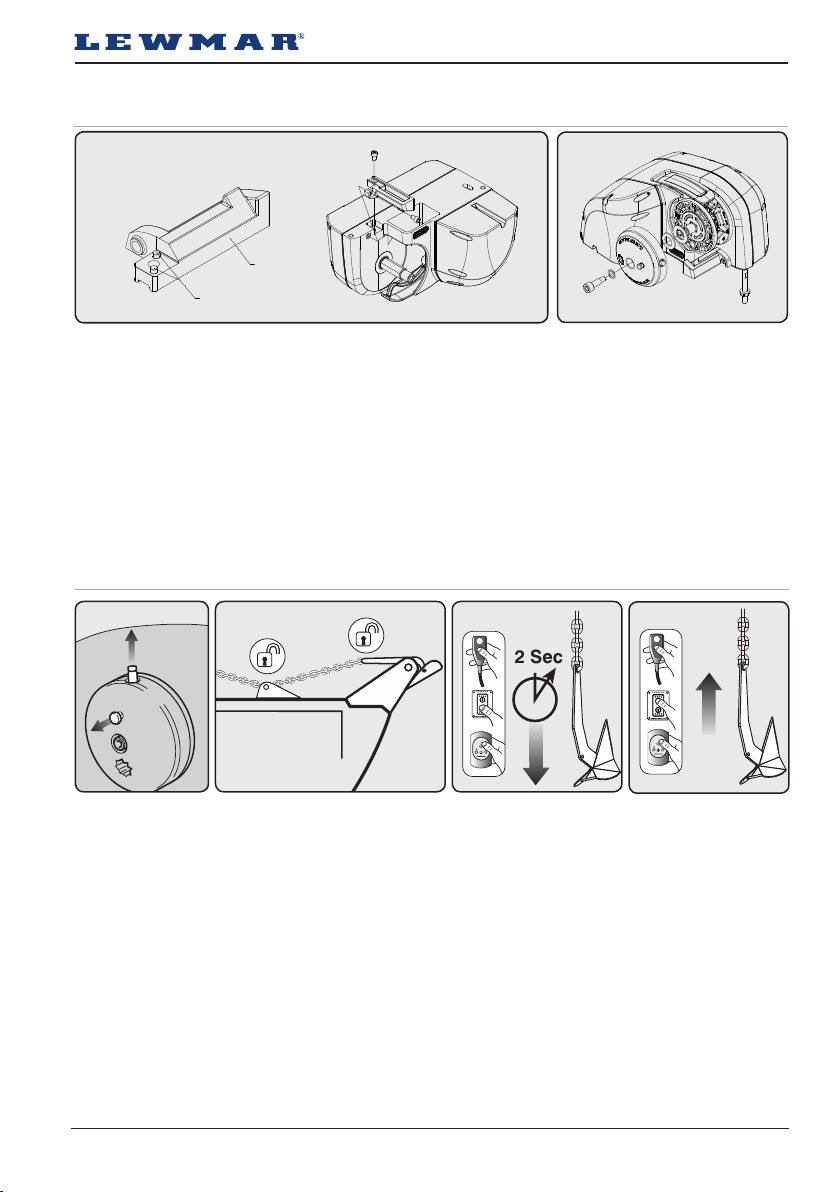

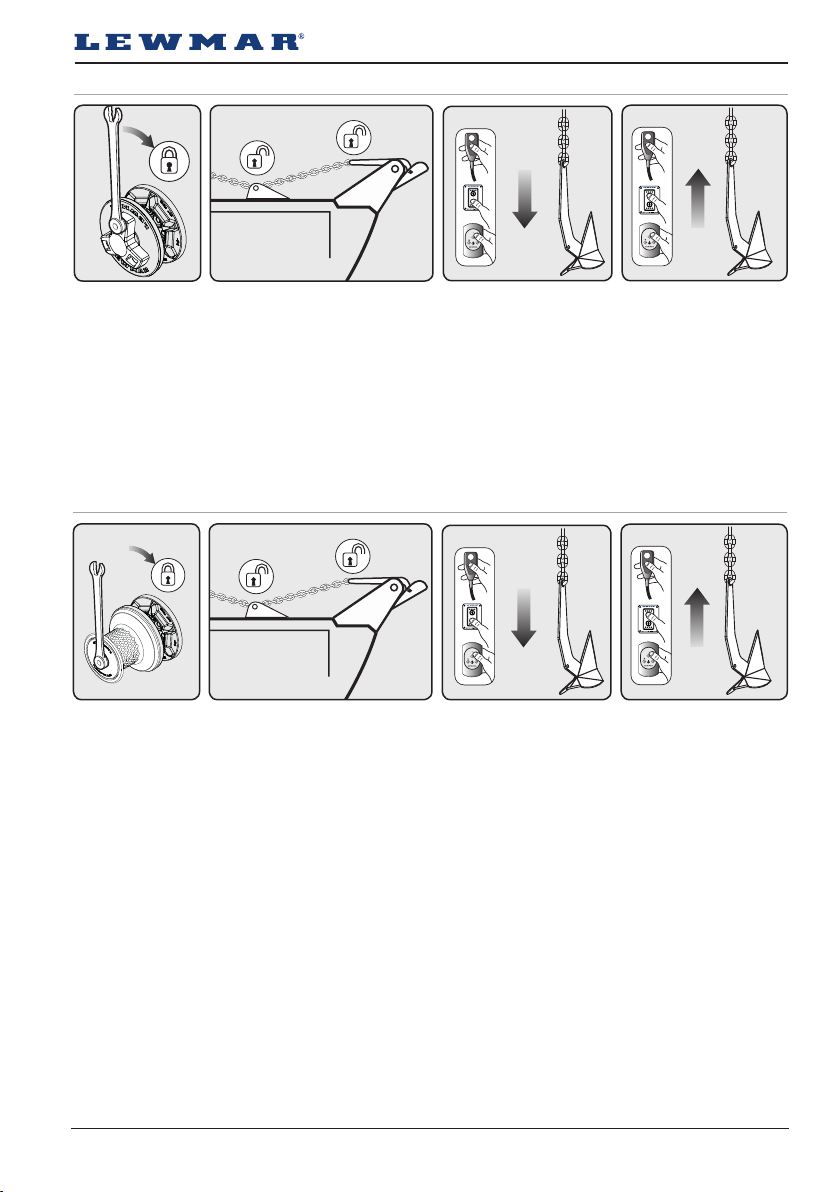

5.3 - HX1 Gypsy Only Operation

To release anchor:

1. Check top cap is tight. If the clutch nut is not tight the internal clutch will rotate freely and not engage the drive.

2. Release any anchor locks.

3. Engage the circuit breaker/isolator. Press DOWN button.

5.4 - HX1 Gypsy Drum Operation

To retrieve anchor:

4. Press the UP button continuously to retrieve the anchor.

Note: If the clutch nut is not tight the internal clutch will rotate freely and not engage the drive.

To release anchor:

1. Check top cap is tight. If the clutch nut is not tight the internal clutch will rotate freely and not engage the drive to the capstan.

2. Release any anchor locks.

3. Engage the circuit breaker/isolator. Press DOWN button.

To retrieve anchor:

4. Press the UP button continuously to retrieve the anchor.

Note: If the clutch nut is not tight the internal clutch will rotate freely and not engage the drive.

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 11

Page 12

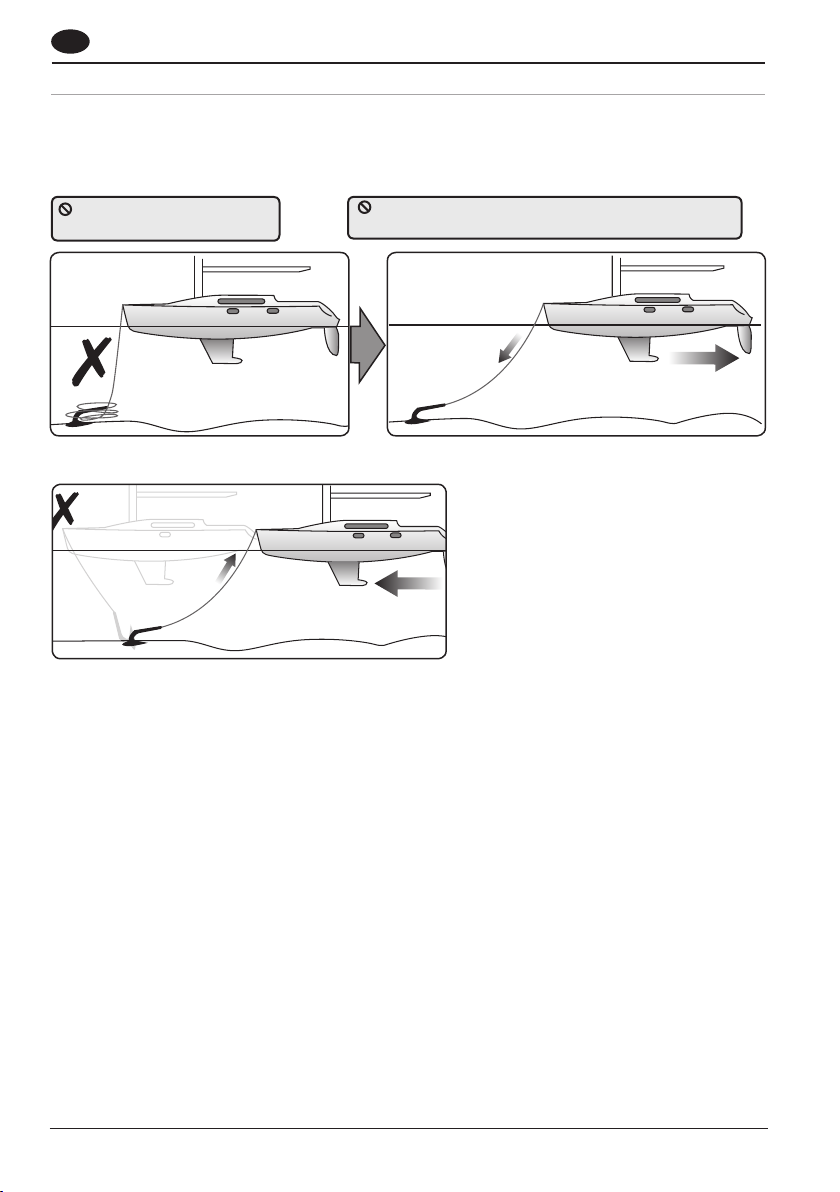

5.5 Windlass operating procedures

This is an anchor recovery device. DO NOT use the windlass to pull the boat to the anchor as it will damage the mechanism. Vessels at anchor will snub on the rode and this can cause slippage or apply excessive loads to the windlass. Best practice is to use a bollard or other strong point when at anchor and use the vessels engines to break the anchor free. Otherwise excessive load will cause the free-fall function to seize and can cause damage to the gearbox.

When retrieving anchor do not

overload or stall in windlass.

When anchoring, power rode out allowing the vessel to take up stern away preventing the rode tangling with anchor. Use this method for mooring stern ﬁrst to a jetty.

When stowing it is important to make sure, particularly with rode lines that there is at least 300mm (12”) of free space below the windlass (See §4.5). Stop and check during the stowing process to determine if there is suﬃcient space on you vessel. If the rode pile is too close to the underside of the windlass, re-distribute the rode away from directly below the windlass. If the rode gets too close to the underside of the windlass it will cause problems with good rode recovery and may cause damage to the line.

The rode should be secured directly to a bollard, sampson

post or cleat and a chain secured by a chain stopper.

To aid recovery, under power, move vessel towards anchor but not over and beyond, as this can cause damage to topside.

As anchor approaches the vessel use careful adjustments of controls to avoid damaging vessel, start and stop the windlass to bring the anchor slowly into the bow roller. Pulling the last bit of rode and anchor into the bow roller at full speed can damage the boat, bow roller and windlass.

Page 13

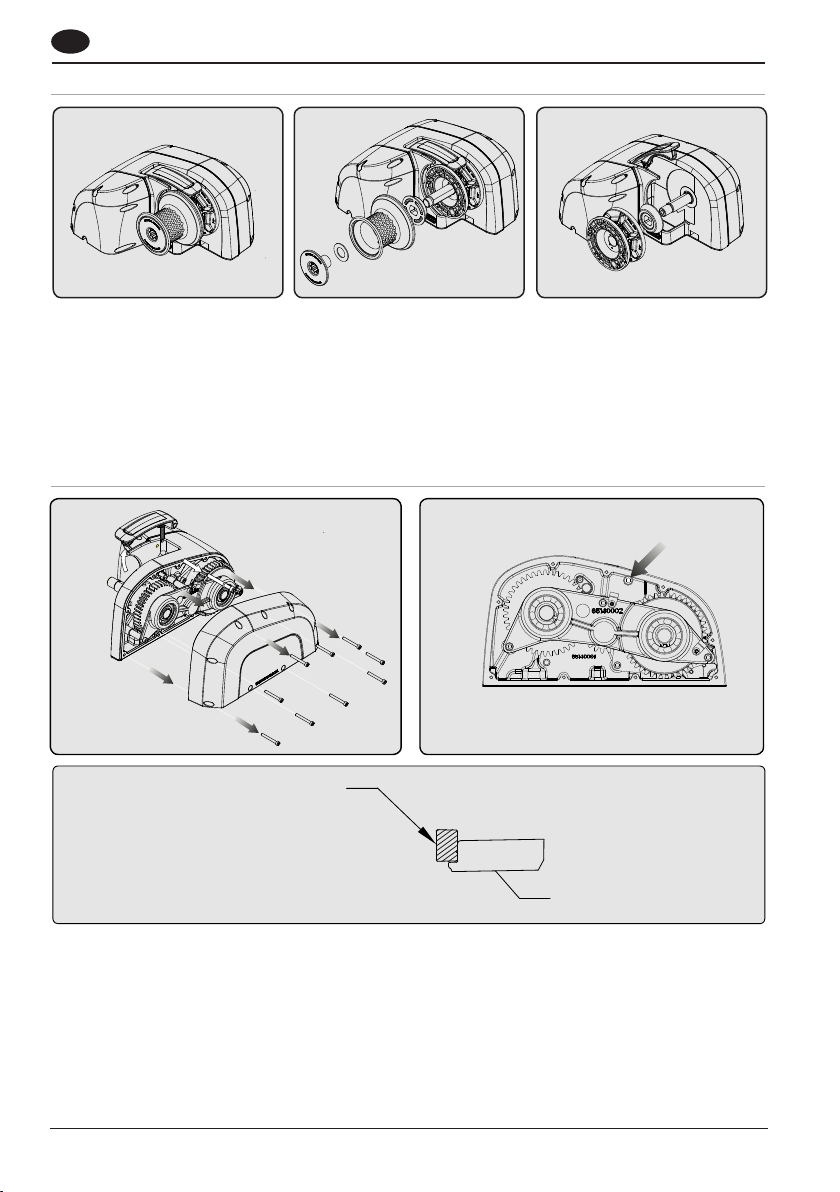

6- Servicing

 WARNING! Isolate the windlass

using circuit breaker/isolator

 WARNING! Ensure rode is adequately

secured to an independent strong point

6.1 Servicing schedule

The service period is determined by the frequency of use. Professional user will need to carry out these operations more oen than the weekend user. Before commencing any work on this or any other electrical product, isolate from the power source.

Bedding in period: When new there are some areas that will need frequent checking. If no movement is found they can be inspected

less oen.

• Examine all electrical connections, to make sure they are sound and corrosion hasn’t set in. Tighten if necessary and protect if required.

• Check mounting studs are firmly clamped and tighten if required.

Aer use:

• Wash down the windlass using fresh water.

• Ensure rode is at least 12” (300mm) below the windlass

• Check anchor locker drain

• Check rode and splice for wear.

Annually or more oen if frequent user:

• Examine all electrical connections, to make sure they are sound and corrosion hasn’t set in. Tighten if necessary and protect if required.

• Check mounting studs are firmly clamped and tighten if required.

• Check rode and splice for wear.

• Check gypsy as it is a high wear item (For service and replacement see §8.2)

• Check main case for damage particularly around the seal and cover.

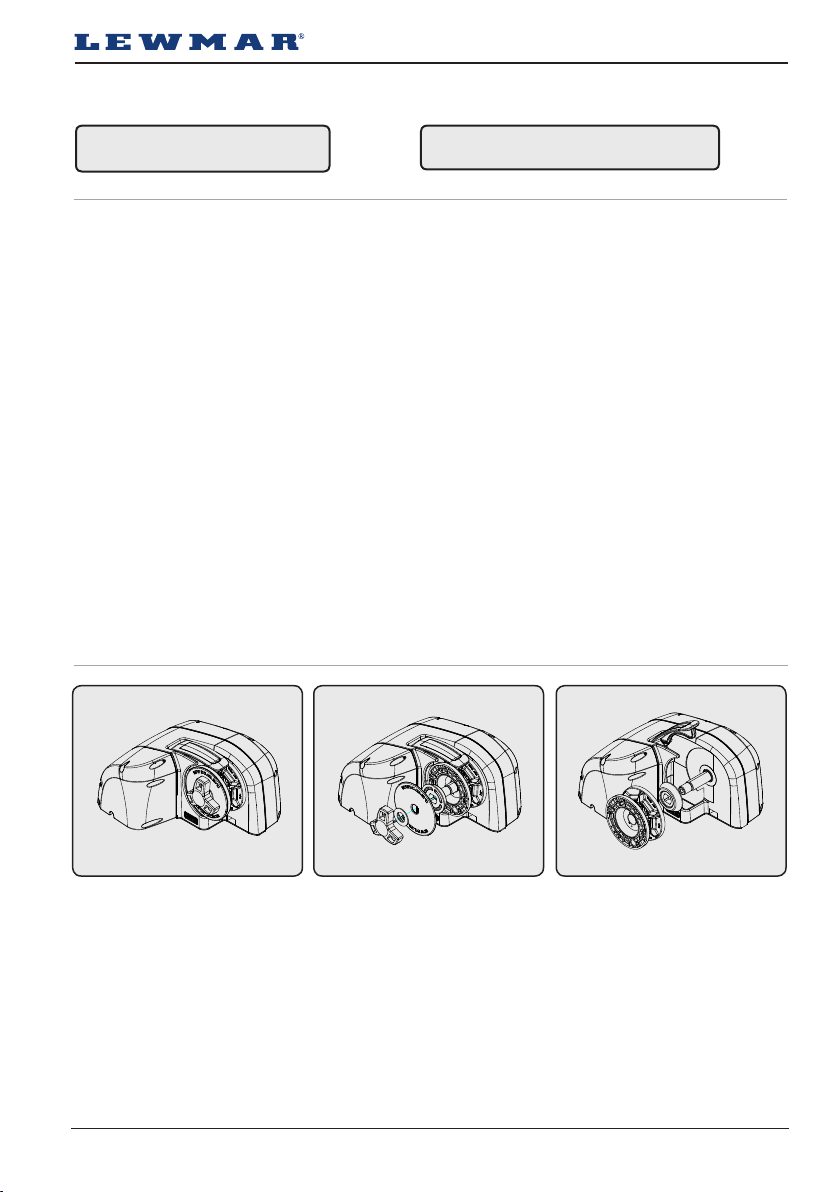

6.2 Gypsy Replace/Fitment on Gypsy Only version:

1 2 3

1. Release the clamp nut

2. Remove clamp nut, gypsy cap, upper cone washer and upper cone from the drive sha

3. Pull control arm up out of the gypsy

4. Remove gypsy, and if required the lower cone from the drive sha

5. Replace in reverse order, on re-assembly add a small smear of grease to the contact surfaces of the cones

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 13

Page 14

HX1 REAR COVER

HX1 REAR COVER GASKET

6.3 Gypsy Replace/Fitment on Gypsy Drum version:

1. Remove the drum top cap

2. Remove drum top cap, Drum, upper cone washer and upper cone from the drive sha

3. Pull control arm up out of the gypsy

4. Remove gypsy, and if required the lower cone from the drive sha

5. Replace in reverse order, on re-assembly add a small smear of grease to the contact surfaces of the cones

6.4 Control Arm Replacement:

1. Remove Gypsy, as above 6.3 & 6.4

2. Remove the rear casing by removing the nine holding screws, take gear of gasket

3. Unhook control arm spring from HX1 body

4. Remove control arm screw and O-ring

5. While the rear cover is oﬀ inspect the unit for wear on the gear train and bearings, re-grease where required

6. Replace in reverse order - Ensure that the rear Gasket cover is sitting correctly. Note : Gasket is bonded to cover at point of manufacture.

Page 15

HX1 FREE FALL ACTUTATOR

LOCATION PINS

2 Sec

7- Free-fall Kit

7.1 Fitting

Fitting the HX1 Free-fall actuator

1. Remove Gypsy as per 6.4

2. Ensure that the location pins are securely ﬁtted to the actuator

3. Push ﬁt the actuator into the HX1 Body as shown

4. Secure actuator with screw supplied

5. Reﬁt gypsy, ensure that the control arm pin is located correctly

6. Place the plastic washer and metal shim between the upper cone and the Free-Fall cap

7. Fit the HX1 Free-Fall cap by screwing onto the sha

8. Smear a little threadlock to the Free-Fall Cap screw

9. Secure screw into the drivesha, torque to 4NM.

7.2 Power up/down

1 2

3 4

To release anchor:

1. Check unit is not in manual mode by ensuring button released & plunger is extended.

2. Release any anchor locks.

3. Engage the circuit breaker/isolator.

When releasing the anchor, press DOWN button until the anchor is under free-fall. If the clutch was le in a locked position the anchor will move almost immediately, if unlocked it could take several seconds to fully re-engage the internal clutch.

NOTE: Pressing the DOWN button for over 5 seconds will result in a longer clutch re-engagement time during the next UP command).

If using a rope/chain rode, motor astern to create the desired scope. Once scope has been created press the UP button continuously until free-fall stops. It normally takes several seconds to fully re-engage the internal clutch mechanism, locking the windlass.

NOTE: Failure to lock the windlass clutch could result in rope/chain creeping out.

To retrieve anchor:

4. Press the UP button continuously to retrieve the anchor.

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 15

Page 16

7.3 Manual controlled Free-Fall

Use this method for quicker anchor deployment, in an emergency involving loss of power or to save battery power. Observe maritime anchor deployment safety rules.

 WARNING! Isolate (Turn off) the

windlass using circuit breaker / isolator.

1 2 3 4 5

1. Disengage the drive by pressing the plunger button on the Free-Fall drive cap and pressing the locking button until the plunger remains in the down position.

2. Release any anchor locks

3. When safe insert the Lewmar wrench in to the capstan drive cap. Rotate clockwise to grip the gypsy and anticlockwise to free the gypsy controlling the rate of descent of the anchor. Once deployed adjust desired scope if using a rope/chain, lock the clutch by turning the drive cap clockwise and engage the anchor locks. Remove the wrench handle.

4. To return the windlass back to powered operation pull the locking button out disengaging the plunger. Engage the circuit breaker/isolator and press the UP/DOWN button.

 WARNING! Trapping, crushing or

entanglement danger whiIst operating windlass manually or under power

 WARNING! Always remove

wrench handle after use

7.4 Gypsy Replace/Fitment on Gypsy Free-Fall version:

1 2 3

1. Undo the locking screw (This may require gentle heat to release threadlock)

2. Remove locking screw, washer, ﬁsh cap, upper cone washer and upper cone from the drive sha

3. Pull control arm up out of the gypsy

4. Remove gypsy, and if required the lower cone from the drive sha

5. Replace in reverse order, on re-assembly add a small smear of grease to the contact surfaces of the cones.

6. Add a small amount of thread lock to the locking screw before re-inserting

Page 17

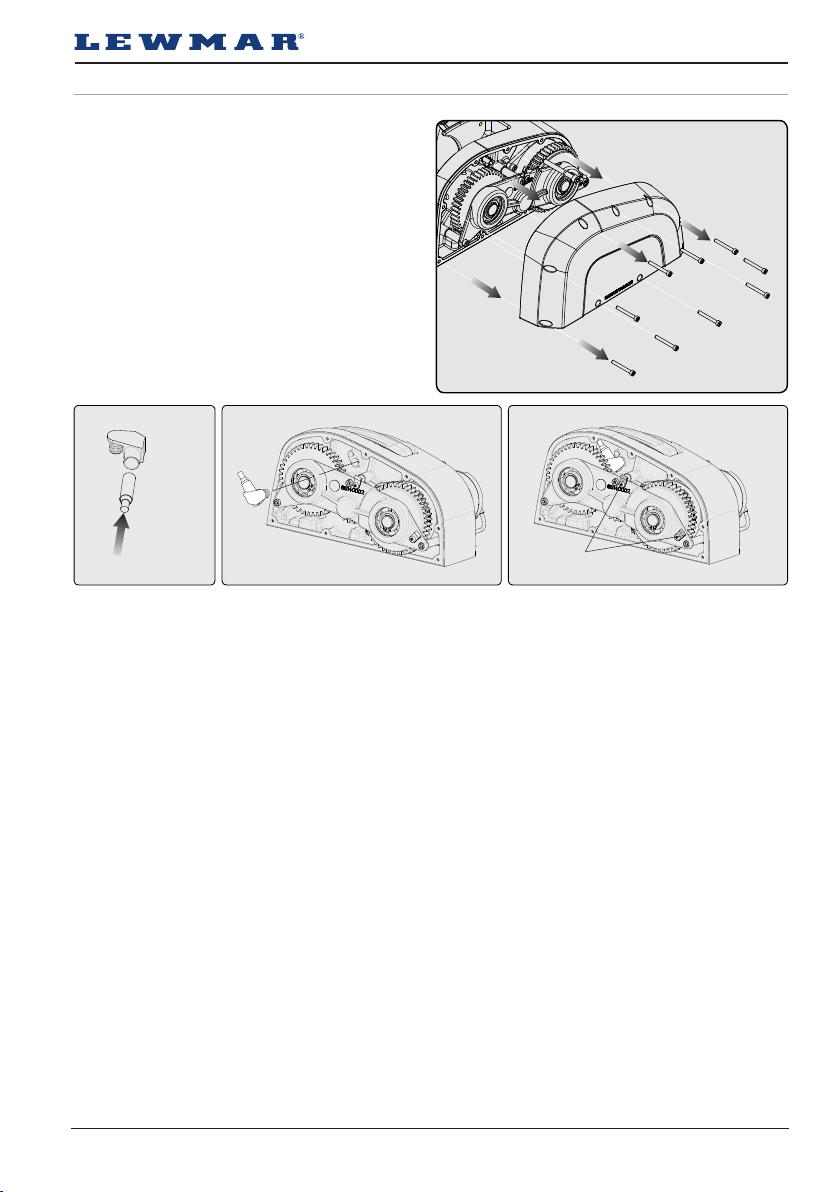

7.5 Auto Anchor Fitting

1. Remove the rear casing by removing the nine holding screws, take gear of gasket

2. Remove existing sensor

3. Fit existing sensor into Auto Anchor bracket

4. Fitting Auto Anchor sensor into ﬁtting mount. See 7.5.5

5. While the rear cover is oﬀ inspect the unit for wear on the gear train and bearings, re-grease where required

6. Replace in reverse order - Ensure that the rear Gasket cover is sitting correctly

Note : Gasket is bonded to cover at point of manufacture.

7.5.4 7.5.5 7.5.5

7.5.2

CABLE RUN P CLIPS

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 17

Page 18

626667

69707172737475

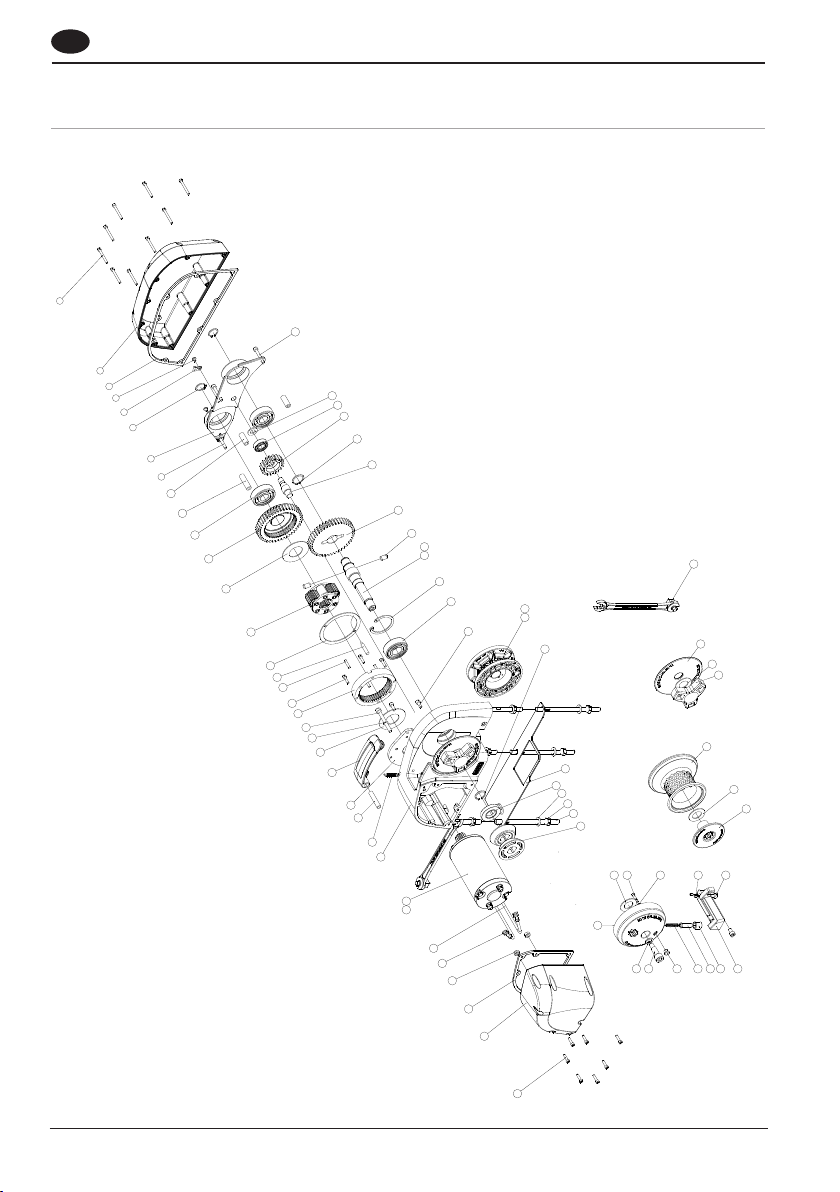

8. Speciﬁcations

8.1 Parts list

Page 19

KIT NO DESCRIPTION ITEMS INCLUDED QTY

66100124 VX1 DRUM KIT 62(1), 63(1), 64(1),

66100139 VX1L/HX1 12v 500 MOTOR ASSY 29(1)

66100141

66140001

66140002

66140003

66140004

66140005

66140007

66140008

66140009

66140010

66140012

68140009

68140010

VX1L/HX1 12v 800 MOTOR ASSY 30(1)

HX1 GASKET KIT 4(1), 35(1), 43(1)

HX1 DRIVE GO/GF KIT 12(1), 45(1), 49(1), 50(1), 51(1), 53(2), 54(1), 55(1),

HX1 DRIVE GD KIT 12(1), 45(1), 49(1), 50(1), 52(1), 53(2), 54(1), 55(1),

HX1 GEAR TRAIN ASSY 500w 12v

HX1 GEAR TRAIN ASSY 800w 12v

7(2), 8(1), 9(1), 10(2), 11(1), 12(1), 13(1), 14(1), 15(1), 16(1), 18(2), 19(4), 20(1), 23(1), 25(1), 29(1), 32(1), 33(1), 34(2), 56(1), 57(1), 58(1), 59(1), 60(2)

7(2), 8(1), 9(1), 10(2), 11(1), 12(1), 13(1), 14(1), 15(1), 16(1), 18(2), 19(4), 20(1), 23(1), 25(1), 30(1), 32(1), 33(1), 34(2), 56(1), 57(1), 58(1), 59(1), 60(2)

HX1 GYPSY CAP KIT 61(1), 62(1), 63(1)

HX1 FREE-FALL KIT 62(1), 66(1), 67(1), 68(1), 69(1), 70(1), 71(1), 72(1), 73(1), 74(1), 75(1), 76(1), 77(2)

HX1 CONTROL ARM KIT 21(1), 22(1), 24(1), 26(1)

HX1 POLYMER COVER KIT 2(1), 4(1), 35(1), 36(1)

HX1 BASE MATT & KIT 40(3), 41(3), 42(3), 44(1), 78(1),

HX1 6/7mm 1/4” GYPSY ASSY 39(2), 46(1)

HX1 8mm GYPSY ASSY 39(2), 47(1)

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 19

Page 20

224

144

268

109

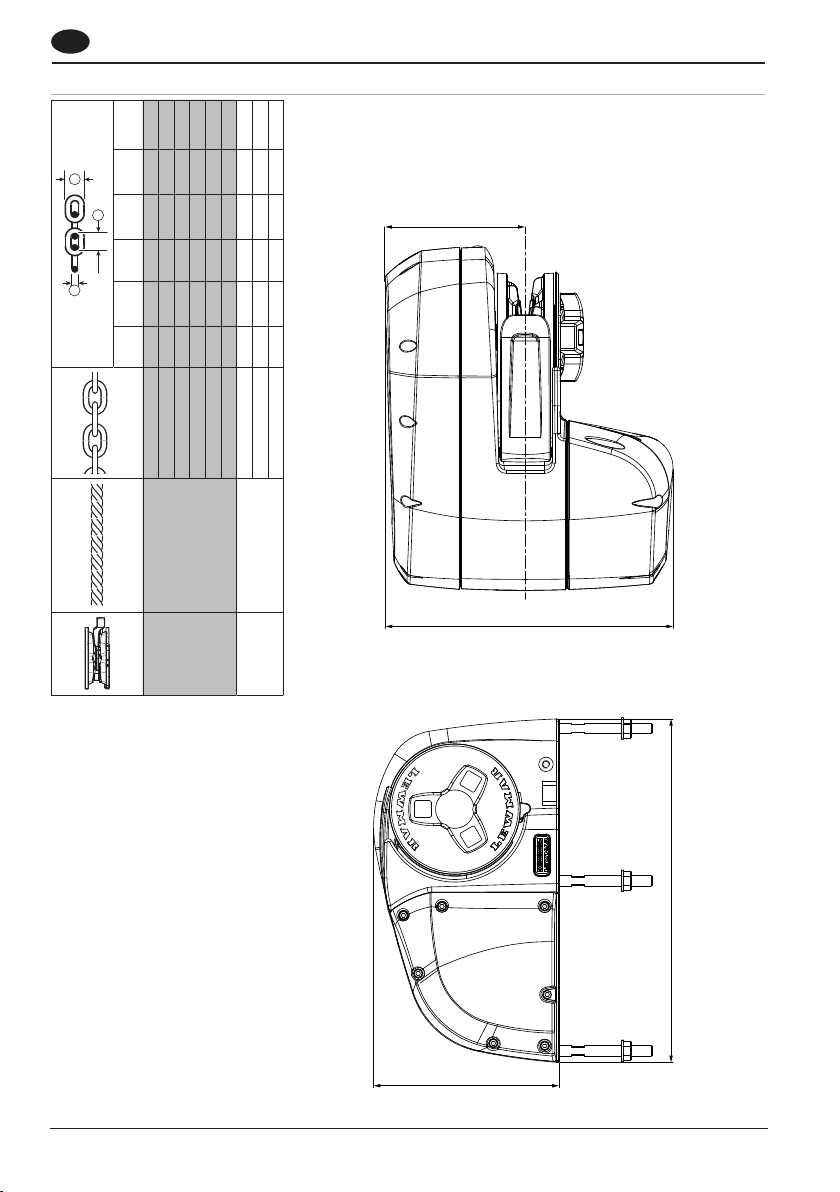

8.2 HX1 Dimensions

(inch)

(mm)

(inch)

(mm)

(inch)

(mm)

6mm Din766 6 0.236 18.5 0.728 20.4 0.803

7mm Din766 7 0.276 22 0.866 23.8 0.937

7mm ISO 4565 7 0.276 21 0.826 23 0.905

6 mm ISO 4565 6 0.236 18 0.709 21.6 0.85

12-16 mm (½ - ⅝”)

3 Strand and 8 Plait

¼” G40 7 0.276 21.3 0.840 24.4 0.962

¼” BBB 7.14 0.281 22.1 0.870 25.2 0.992

8mm ISO 4565 8 0.315 24 0.945 28.8 1.134

5/16” G40 8.4 0.329 26.2 1.030 29.7 1.168

8mm Din766 8 0.315 24 0.945 27.2 1.07

3 Strand and 8 Plait

CHAIN

CENTER LINE

68140009

68140010 12-16 mm (½”)

Page 21

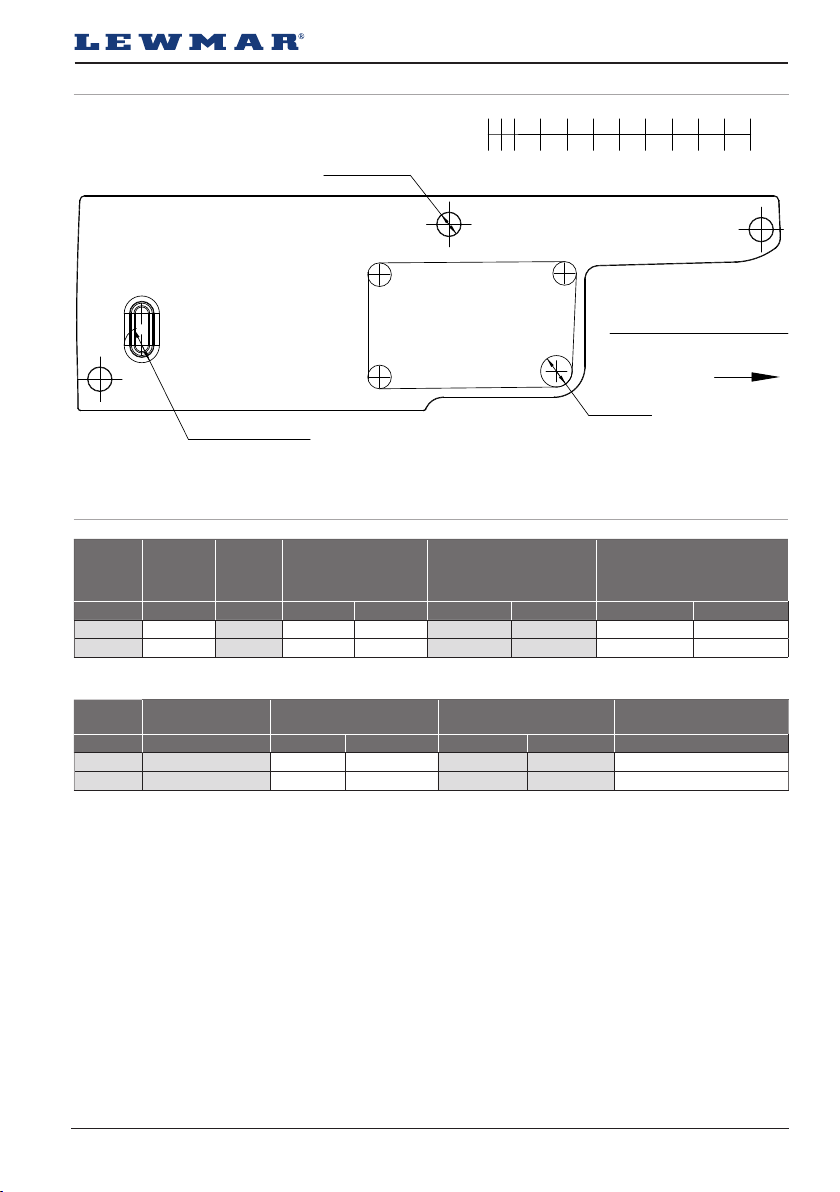

8.3 HX1 Deck Mounting Detail

SLOT WIDTH n 13.4

8.4 Electric speciﬁcations

6 HOLES n 9

ANCHOR RODE CENTRELINE

100

BOW OF BOAT

n 12.00

MODEL

POWER OPTION

MOTOR TYPICAL MAX. PULL MAXIMUM LINE SPEED TYPICAL WORKING LOAD

V W KG LB M/MIN FT/MIN KG LB

HX1 500 HX1 800

12 500 700 1543 20 60 175 383 12 800 1065 2348 21 63 266 586

*Values tested at +/- 10% on 12/24V system typical of electric systems installed on boats

MODEL

HX1 500

HX1 800

CURRENT DRAW

AT WORKING LOAD

TOTAL WEIGHT

GYPSY ONLY

A KG LB KG LB A

42 9 20 9.5 21 50 60 9 20 9.5 21 70

TOTAL WEIGHT

GYPSY/DRUM

CIRCUIT BREAKER

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 21

Page 22

9- Troubleshooting

1. Anchor rode pays out independently while windlass is not in use.

• This problem is a result of not securing the anchor rode combined with the gypsy drive cap being slack. Tighten the gypsy drive cap using the winch handle and always secure the anchor rode independently of the windlass when not in use.

2. Failure to operate or sluggish operation.

• The majority of these problems are electrical in nature. It is essential that the proper voltage be maintained. The proper voltage on a 12 Volt system is 13.5 Volts, constant low voltage will damage the motor.

• Ensure electrical cable size is large enough to handle the current draw and keep voltage drop within acceptable limits.

• Check control switches, connections, battery condition, isolator switch, fuse and motor for operation failure.

3. Failure to operate.

• Is there a voltage at the input terminals to the contactor and switches. Check the circuit breaker/isolator switch and any fuses.

• Operate the switch. Is there voltage at the positive switch terminal on the solenoid. If not, the switch (or its wiring), is defective.

• Keep the switch activated. Is there voltage at the main output terminal on the contactor. If not check the contactor coil ground circuit. If okay, replace the contactor.

• Check the voltage at the motor. If voltage of at least 12.5 volts is present and the motor does not operate, the motor is defective.

Page 23

10 - Warranty

Limited Warranty and Key Terms of Supply by Lewmar

Lewmar warrants that in normal private pleasure boat usage and with proper maintenance its products will conform with their speciﬁcation for a period of three years from the date of purchase by the end user, subject to the conditions, limitations and exceptions listed below. Any product, which proves to be defective in normal usage during that three-year period, will be repaired or, at Lewmar’s option, replaced by Lewmar.

A CONDITIONS AND LIMITATIONS i Lewmar’s liability shall be limited to the repair or

replacement of any parts of the product which are defective in materials or workmanship.

ii Responsibility for the selection of products

appropriate for the use intended by the Buyer shall rest solely with the Buyer and Lewmar accepts no responsibility for any such selection.

iii Lewmar shall not be liable in any way for Product

failure, or any resulting loss or damage that arises from:

a. Use of a product in an application for which it was

not designed or intended; b. Corrosion, ultra violet degradation or wear and tear; c. A failure to service or maintain the product in

accordance with Lewmar’s recommendations; d. Faulty or deﬁcient installation of the product (unless

conducted by Lewmar); e. Any modiﬁcation or alteration of the product; f. Conditions that exceed the product’s performance

speciﬁcations or safe working loads. g. Abuse

iv Product subject to a warranty claim must be returned

to the Lewmar outlet that supplied the product for examination unless otherwise approved by Lewmar in writing.

v This warranty does not cover any incidental costs

incurred for the investigation, removal, carriage, transport or installation of product.

vi Service by anyone other than authorized Lewmar

representatives shall void this warranty unless it accords with Lewmar guidelines and standards of workmanship.

vii Lewmar’s products are intended for use only in the

marine environment. Buyers intending to use them for any other purpose should seek independent professional advice as to their suitability. Lewmar accepts no liability arising from such other use.

B EXCEPTIONS Cover under this Warranty is limited to a period of

one year from the date of purchase by the end user in the case of any of the following products or parts of products:

• Electric motors and associated electrical equipment

• Electronic controls

• Hydraulic pumps, valves and actuators

• Hatch & Portlight weather seals

• Products used in “Grand Prix” racing applications

• Products used in commercial or charter applications

• Anchor rodes C LIABILITY i Lewmar’s liability under this warranty shall be to the

exclusion of all other warranties or liabilities (to the

extent permitted by law). In particular (but without limitation):

a. Lewmar shall not be liable for:

• Any loss of anticipated turnover or proﬁt or indirect, consequential or economic loss;

• Damages, costs or expenses payable to any third party;

• Any damage to yachts or equipment;

• Death or personal Injury (unless caused by Lewmar’s negligence).

Some states and countries do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you

b. Lewmar grants no other warranties regarding the

ﬁtness for purpose, use, nature or satisfactory quality of the products.

ii Where applicable law does not permit a statutory or

implied warranty to be excluded, then such warranty, if permitted by that state or country’s law, shall be limited to a period of one year from the date of purchase by the end user. Some states and countries do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.

D PROCEDURE Notice of a claim for service under this warranty shall

be made promptly and in writing by the end user to the Lewmar outlet that supplied the product or to Lewmar Limited at Southmoor Lane, Havant, Hampshire PO9 1JJ, England.

E SEVERANCE CLAUSE If any clause of this warranty is held by any court

or other competent authority to be invalid or unenforceable in whole or in part, the validity of the remaining clauses of this warranty and the remainder of the clause in question shall not be aﬀected.

F OTHER RIGHTS This warranty gives you speciﬁc legal rights, and you

may also have other legal rights, which vary from state to state and country to country.In the case of European States a Consumer customer (as deﬁned nationally) has legal rights under the applicable national law governing the sale of Consumer Goods; this Warranty does not aﬀect those rights.

G LAW This warranty shall be governed by and read in

accordance with the laws of England or the state or country in which the ﬁrst end user is domiciled at the time of purchase of the product.

H DISPUTES Any dispute arising under this warranty may, at the

option of the end-user, be referred to alternative dispute resolution under the rules of the British Marine Federation or to the Courts of the State whose law shall govern the warranty or to the Courts of England and Wales.

The British Marine Federation may be contacted at

Marine House, Thorpe Lea Road, Egham, England, TW20 8BF

Lewmar HX1 Horizontal Windlass - 65140050 Iss.2 | 23

Page 24

UK & International Distribution

Lewmar Southmoor Lane Havant Hampshire PO9 1JJ England

Tel: +44 (0)23 9247 1841 Fax: +44 (0)23 9248 5720 Email: [email protected]

USA

Lewmar 351 New Whitfield Street Guilford, CT 06437 USA

Tel: +1 203 458 6200

Fax: +1 203 453 5669 Email: [email protected]

www.lewmar.com

Part No 65140050 iss.2
