Leviton D24SF Installation Manual

GROUND

GROUND

TRAVELER

LOAD

To Fan

LINE

From

Branch Circuit

GROUND

LOAD

LINE

To Fan

From

Branch Circuit

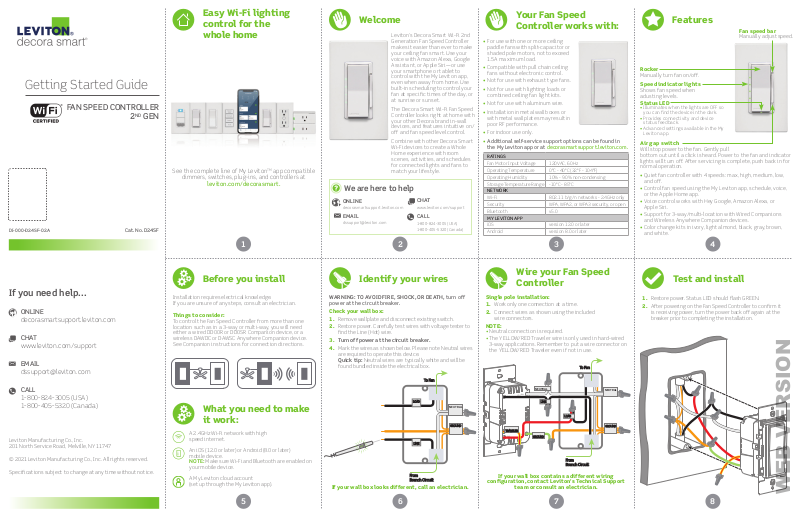

Getting Started Guide

WEB VERSION

FAN SPEED CONTROLLER

DI-000-D24SF-02A

ND

2

GEN

Cat. No. D24SF

Easy Wi-Fi lighting
control for the
whole home

See the complete line of My LevitonTM app compatible

dimmers, switches, plug-ins, and controllers at

leviton.com/decorasmart.

Welcome

Leviton’s Decora Smart Wi-Fi 2nd
Generation Fan Speed Controller
makes it easier than ever to make
your ceiling fan smart. Use your
voice with Amazon Alexa, Google
Assistant, or Apple Siri—or use
your smartphone or tablet to
control with the My Leviton app,
even when away from home. Use
built-in scheduling to control your
fan at specific times of the day, or
at sunrise or sunset.

The Decora Smart Wi-Fi Fan Speed
Controller looks right at home with
your other Decora brand in-wall
devices, and features intuitive on/
off and fan speed level control.

Combine with other Decora Smart
Wi-Fi devices to create a Whole
Home experience with room
scenes, activities, and schedules
for connected lights and fans to
match your lifestyle.

We are here to help

ONLINE

decorasmartsupport.leviton.com

EMAIL

[e-mail]

CHAT

www.leviton.com/support

CALL

1-8 00- 824 -30 05 ( USA )

1-800-405-5320 (Canada)

Your Fan Speed
Controller works with:

• For use with one or more ceiling

paddle fans with split-capacitor or
shaded pole motors, not to exceed

1.5A maximum load.

• Compatible with pull chain ceiling

fans without electronic control.

• Not for use with exhaust type fans.

• Not for use with lighting loads or

combined ceiling fan light kits.

• Not for use with aluminum wire.

• Installation in metal wall boxes or

with metal wall plates may result in
poor RF performance.

• For indoor use only.

•

Additional self-service support options can be found in
the My Leviton app or at decorasmartsupport.leviton.com.

RATINGS

Fan Motor Input Voltage 120VAC, 60Hz

ating Temperature 0°C - 40°C (32°F - 104°F)

Oper
Operating Humidity 10% - 90% non-condensing
Storage Temperature Range -10°C - 85°C

NETWORK

Wi-Fi 802.11 b/g/n networks - 2.4GHz only
Security
Bluetooth v5.0

MY LEVITON APP

iOS version 12.0 or later

oid version 8.0 or later

Andr

WPA, WPA2, or WPA3 security, or open

Features

Fan speed bar

Manually adjust speed.

Rocker

Manually turn fan on/off.

Speed indicator lights

Shows fan speed when
adusting levels.

Status LED

• Illuminates when the lights are OFF so

you can find the device in the dark.

• Provides connectivity and device

status feedback.

• Advanced settings available in the My

Leviton app.

Air gap switch

Will stop power to the fan. Gently pull
bottom out until a click is heard. Power to the fan and indicator
lights will turn off. After servicing is complete, push back in for
normal operation.

• Quiet fan controller with 4 speeds: max, high, medium, low,

and off.

• Control fan speed using the My Leviton app, schedule, voice,

or the Apple Home app.

• Voice control works with Hey Google, Amazon Alexa, or

Apple Siri.

• Support for 3-way/multi-location with Wired Companions

and Wireless Anywhere Companion devices.

• Color change kits in ivory, light almond, black, gray, brown,

and white.

If you need help...

ONLINE

decorasmartsupport.leviton.com

CHAT

www.leviton.com/support

EMAIL

[e-mail]

CALL

1-800-824-3005 (USA)
1-800-405-5320 (Canada)

Leviton Manufacturing Co., Inc.
201 North Service Road, Melville, NY 11747

© 2021 Leviton Manufacturing Co., Inc. All rights reserved.

Specifications subject to change at any time without notice.

1 2 3 4

Before you install Identify your wires

Installation requires electrical knowledge.
If you are unsure of any steps, consult an electrician.

Things to consider:

To control the Fan Speed Controller from more than one
location such as in a 3-way or multi-way, you will need
either a wired DD00R or DD0SR Companion device, or a
wireless DAWDC or DAWSC Anywhere Companion device.
See Companion instructions for connection directions.

What you need to make
it work:

A 2.4GHz Wi-Fi network with high
speed internet.

An iOS (12.0 or later) or Android (8.0 or later)
mobile device.

NOTE: Make sure Wi-Fi and Bluetooth are enabled on

your mobile device.

A My Leviton cloud account
(set up through the My Leviton app).

WARNING: TO AVOID FIRE, SHOCK, OR DEATH, turn off
power at the circuit breaker.

Check your wall box:

1. Remove wallplate and disconnect existing switch.

2. Restore power. Carefully test wires with voltage tester to

find the Line (Hot) wire.

3. Turn off power at the circuit breaker.

4. Mark the wires as shown below. Please note Neutral wires

are required to operate this device.

Quick tip: Neutral wires are typically white and will be

found bundled inside the electrical box.

To F an

LOAD

LINE

From
Branch Circuit

If your wall box looks different, call an electrician.

NEUTRAL

GROUND

Wire your Fan Speed
Controller

Single pole installation:

1. Work only one connection at a time.

2. Connect wires as shown using the included

wire connectors.

NOTE:

• Neutral connection is required.

• The YELLOW/RED Traveler wire is only used in hard-wired

3-way applications. Remember to put a wire connector on
the YELLOW/RED Traveler even if not in use.

To F an

NEUTRAL

NEUTRAL

LINE

TRAVELER

TRAV

GND

LOAD

If your wall box contains a different wiring

configuration, contact Leviton’s Technical Support

team or consult an electrician.

GROUND

LINE

LOAD

From
Branch Circuit

NEUTRAL

GROUND

Test and install

1. Restore power. Status LED should flash GREEN.

2. After powering on the Fan Speed Controller to confirm it

is receiving power, turn the power back off again at the
breaker prior to completing the installation.

65 7 8

Test and install

WEB VERSION

(continued)

Turn off power at the circuit breaker
before screwing in your Fan Speed
Controller.

3. Gently push wires

into wall box.
Screw Fan Speed
Controller
to box.

4. Snap on Decora

®

wallplate and

restore power.

Once power is restored, the status
LED will blink GREEN, indicating
your device is in setup mode. See
page 15 if your status LED is not
blinking GREEN.

Congratulations!

Your Decora Smart Fan Speed Controller

is ready to control your fan speed level.

9 10 11 12

Connect to My Leviton
partners (optional)

works with

Hey Google

Visit my.leviton.com for a complete list of

compatible smart home products.

1. Tap menu icon in lower

right corner.

2. Tap Integrations, locate the

desired service, select it, and
follow the instructions.

Get the app

visit my.leviton.com and select the link or s

To download the app,

can

the below QR code for your device.

Add your device to Apple
HomeKit (optional)

NOTE: Skip step 1 if your device is already enrolled to My Leviton and

on your Wi-Fi network.

1. Make sure the device is in setup mode (status LED should be

blinking GREEN). If the status LED is not blinking GREEN, see
page 15 for instructions on how to put the device into setup mode.

Using an iOS device, open the Apple Home app and select “Add Accessory”

2.

3. Make sure your Decora Smart Wi-Fi Fan Speed Controller is model

number D24SF. Locate and scan the HomeKit setup code on the
device or on the front page of this Getting Started Guide.

4. Follow the instructions in the Apple Home app.

5. Once the device is set up, you will be able to voice control your

Decora Smart Wi-Fi Fan Speed Controller with Apple Siri.

Diagnostic LED

If your device is not connecting to the My Leviton app, the Status
LED can be used as a diagnostic tool. Press the top rocker for at
least 2 seconds (but no more than 7 seconds) then release.
The Status LED will blink a diagnostic code for 2 seconds.

CO L O R STAT U S

Amber Not connected to Wi-Fi.

d

Re

Green/Amber,
Alternating

Green

Connected to Wi-Fi but not able to connect to
the My Leviton cloud.

Connected to Wi-Fi and My Leviton cloud but
unable to set the time from the internet.

Connected to Wi-Fi and My Leviton cloud is
working properly.

1413 15 16

Device setup

• Decora Smart Wi-Fi 2nd Gen devices can be connected to

the My Leviton service, Apple HomeKit, or both.

• For voice control with Amazon Alexa or Google Assistant,

you will need to set up the device with My Leviton.

• For voice control with Siri, you will need to connect your

device to Apple HomeKit. See page 14 for instructions on
how to add your device to Apple HomeKit.

Add your device to
My Leviton

1. Make sure the device is in setup mode (status LED should

be blinking GREEN). If the status LED is not blinking
GREEN, see page 15 for instructions on how to put the
device in setup mode.

2. Launch the My Leviton app.

3. Log in or choose “Sign Up” for an Account.

4. Follow the instructions on the screen.

5. Once logged in, tap the “+” in the upper right corner and

select “Add Device.”

6. Follow the app instructions to add your device and

connect it to your home Wi-Fi network.

Status LED

COLOR ACTIVITY STATUS

Green Flashing

Green Slow Blink

Green or
Off

.

Amber Slow Blink

Green/
Amber

Red Blink

Green/Red/
Amber

Solid

Alternating
Blink

Alternating
Blink

In setup mode and r
to a Wi-Fi network.

Connecting to a Wi-Fi network on
power up.

Normal operation. Can be configured
in a setup.

Device is not connected to the Wi­Fi network, but is attempting to
reconnect.

Device is in wireless Anywhere
Companion Pairing mode.

Wireless Anywhere Companion
devices have unpaired or at max
number of paired devices.

Identify feature triggered from the
My Leviton app.

eady to be added

Please see My.Leviton.com support for additional
diagnostic assistance.

Setup mode

1.

Hold the top rocker for 7 seconds until the
status light turns AMBER, then release.

2. The status light will flash GREEN.

The device is now in setup mode.

NOTE: To exit, hold the top rocker for

7 seconds while in Setup mode.

Test My Leviton
app control

1. Open the My Leviton app.

2. Tap icon to turn ON/OFF.

Quick tips

• The My Leviton app includes many features such as:

scheduling, remote control, vacation mode,
auto-shutoff, room scenes, and advanced options.

• Additional settings include: pre-set speed, return to last

speed, min/max speed, and speed level LED options.

• Self-service support options can be found in the My

Leviton app or at decorasmartsupport.leviton.com.

Factory default reset

1.

Hold the top rocker for 14 seconds.

2. After the first 7 seconds, the status light will turn AMBER.

Continue to hold.

3. After 7 more seconds, the status light will quickly flash

RED/AMBER.

4. Release the top rocker and the device will reset.

What to do if...

The fan turns on but does not run as fast as it should:

• Use the Fan Speed Bar to select the MAX (100%) setting.

• If the fan has a pull chain or similar speed control, make

sure it is at 100% and then only use the Decora Smart Fan
Speed Controller to set the Fan’s Speed.

Intermittent operation:

• Confirm the load does not exceed its ratings.

• Confirm the Neutral wire is connected.

Not connected to Wi-Fi:

• If your device is setup in the My Leviton app, select your

device, then select “Device Settings.” On the “Device
Settings” screen select “Reconfigure Wireless.”

• Follow the prompts to reconfigure your device and update

the Wi-Fi settings.

How do I clean my device?

• To clean use a damp cloth with mild soap. DO NOT use

disinfecting products, including foggers, sprays or other
types of atomized cleaning agents.

Visit leviton.com/decorasmart or contact Technical Services
for additional help.

Safety first

WAR NINGS :

• TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER at

or fuse a nd test that power is of f before wiring!

• TO AVOID FIRE, PERSONAL INJURY OR PROPERTY DAMAGE, DO NOT

install to con trol a receptacle or tra nsformer operated applian ce.

• This product is to be installed and/or used i n accordance w ith electr ical

codes and regulations.

• For indoor use only.

• If you a re unsure about any part of th ese instructions, consult an elect rician.

CAUTIONS:

• For use on ceiling paddle fans with split-capac itor or shaded pole motors

o

nly. Please refer to man ufacturer ’s instruc tions or rati ng label on the motor
to confir m type. Use with any ot her types of motors or e quipment may
cause overheating and/or damage to the motors or e quipment.

• Use only one (1) Fan Spe ed Control per load. The s witch(es) will tu rn ON the

an at the s peed level selected at t he control.

f

• To avoid overheati ng and possible dama ge to this device and ot her

equipment, DO NOT ins tall to control a recept acle, fluorescent lig hting, a
motor or a trans former-operate d appliance ot her than app ropriate
ceiling fans.

• The Deco ra Smart D24SF Fan Speed Cont roller is not compati ble with

tanda rd 3-way or 4-way sw itches. It must b e used with w ired Decora

s
Smart DD00R or DD0SR Companions or wi reless DAWDC or DAWSC Any where
Companions for multi-location control.

• Ma ximum wi re length to all installed w ired companion dev ices cannot

xceed 300 f t (90m).

e

• Save this instruct ion sheet. It co ntains important technical dat a along

with testi ng and troubleshoot ing informat ion which wil l be useful after
installation is complete.

• Recommended mi nimum wall box de pth is 2-3/4 in.

• Use this Fan Speed Co ntroller wit h copper or copper-clad w ire only.

• Leviton Wi-Fi enabled dev ices rely on Wi-Fi communic ation. For cus tomers

l

ooki ng to install a l arge number of devices it is reco mmended to
consult the w ireless network’s access point sp ecifications to determine
the ma ximum number of supp orted Wi-Fi devices. In some case s, for
example large installatio ns, it may be neces sary to upgrade to newe r high
perfo rmance wireless grade access poi nts to ensure proper operatio n.

ADDITIONAL RATINGS:

• Purpose of control: Operating Control

• Action Control Type: 1

• Pollution Degre e: 2

• Impulse Volt age: 2500V

• Disconnection Type: Micro

circuit breaker

®

Limited 2 Year Warranty &
Exclusions

For Levit on’s limited pr oduct warr anty, go to www.leviton.com. For a printed co py of the warra nty,
call 1-800-824-3005.

FOR CANADA ONLY

For warr anty infor mation and/or pro duct retur ns, resident s of Canada sho uld contact L eviton
in wri ting at Levito n Manufact uring of Can ada ULC to the att ention of the Q uality Ass urance
Depar tment, 165 Hy mus Blvd, Point e-Claire (Qu ebec), Canada H9R 1E9 o r by telephone
at 1 800 405-5320.

FCC COMPL IANCE STATEMENT

The enc losed devic e complies wi th Part 15 of the F CC Rules. Oper ation is subj ect to the foll owing
two con ditions: (i .) This d evice may not c ause harmf ul interfere nce (ii.) This dev ice must acc ept any
inter ference rece ived, includ ing interfe rence that may c ause undes ired operat ion. Any chan ges
or modi fications not e xpressly ap proved by Levit on could void the u ser’s auth ority to ope rate this
equip ment. This e quipment ha s been teste d and found to co mply with th e limits for a Cla ss B
dig ital device, p ursuant to pa rt 15 of the FCC Rule s. These lim its are desi gned to provi de reasonabl e
protec tion again st harmful i nterferen ce in a resident ial insta llation. Th is equipme nt generates
uses an d can radiate r adio frequen cy energy an d, if not insta lled and use d in accordan ce with
the in struct ions, may caus e harmful int erference to r adio commun ications. H owever, there is no
guara ntee that inte rference w ill not occu r in a partic ular inst allation. If t his equipm ent does cau se
harmf ul interfere nce to radio or te levision re ception, w hich can be det ermined by tu rning the
equip ment off and o n, the user is e ncourage d to try to corr ect the inte rference by o ne or more of
the following measures:

• Reori ent or relocate t he receivi ng antenna.

• Increa se the sepa ration betw een the equi pment and re ceiver.

• Connect t he equipme nt into an outl et on a circui t different fr om that to which t he receiver

s connected.

i

• Consult th e dealer or an exp erienced r adio/TV tech nician for he lp.

C CAUTIO N

FC

Any cha nges or modific ations not ex pressly appr oved by Leviton M anufactur ing Co., Inc., c ould void
the use r’s author ity to operat e the equip ment.

FCC SUPPL IER’S DECL ARATION OF CON FORMITY

Model D24SF – W i-Fi Fan Speed Cont roller is man ufacture d by Leviton Manu facturi ng Co., Inc. 201
N. Ser vice Road, Melv ille, NY 11747. www.levi ton.com This d evice compl ies with par t 15 of the FCC
Rules. O peration is s ubject to th e following t wo conditi ons: (1) This devic e may not cause ha rmful
inter ference, and (2) th is device mus t accept any in terferenc e received, in cluding int erference t hat
may caus e undesire d operation .

IC S TATEM ENT

This de vice complie s with Indus try Canad a license-e xempt RSS stan dard(s). Operatio n is subject t o
the foll owing two c onditions : (1) this de vice may not ca use interfe rence, and (2) thi s device mus t
accept a ny interfere nce, includ ing interf erence that may c ause undes ired operat ion of the dev ice.

RF EXPOSURE AND CO-LOCATION

To comply wit h FCC OET Bullet in 65 and ISED RF e xposure lim its for general p opulation a nd
uncon trolled expo sure, this de vice shall b e installe d and operated w ith a minim um distanc e of 7.9
inche s (20 cm) between th e radiator and y our body. Also, m ust not be co- located or op erated in
conjun ction wit h any other an tenna or tra nsmitter.

Copyright and Trademark Information

Decora and Decora Smart are the registered trademarks of Leviton Manufacturing Co., Inc., registered in the
U.S., Canada, Mexico and China.

Google and Google Play are trademarks of Google LLC. Alexa, and related logos are trademarks of Amazon.
com, Inc. or its affiliates. Apple®, HomeKit®, and Siri® are trademarks of Apple Inc., registered in the U.S. and
other countries. IFTTT and the Wi-Fi CERTIFIED logo are trademarks of their respective owners and any use
of such marks by Leviton is under license.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with
the technology identified in the badge and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards.

Use herein of other third party trademarks, service marks, trade names, brand names and/or product names
are for informational purposes only, are/may be the trademarks of their respective owners; such use is
not meant to imply affiliation, sponsorship, or endorsement. No part of this document may be reproduced,
transmitted or transcribed without the express written permission of Leviton Manufacturing Co., Inc.

Copyright 2021 Leviton Mfg. Co., Inc.
