Understanding Cat 6A

u Where is Cat 6A used?

u Standards

u Network Migration

u Copper Cable Terms and Types

Applications

Testing

Product Overview

Termination

Glossary and References

Cat 6A

Installation

Cat 6A projects require proper design, planning, products, and installation practices. Use this guide to gain a better understanding of these requirements to help you eciently plan, bid, and install a Cat 6A structured cabling system for networks up to 10 gigabit Ethernet. This guide will also cover the general areas and applications where Cat 6A may be deployed, and give you an overview of Leviton’s Cat 6A system connectivity.

Cat 6A

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 3

Page 4

Where is Cat 6A used?

Cat 6A >

Where is Cat 6A is used?

Applications

Testing

Product Overview

Termination

Glossary and References

Cat 6A

Installation

Category 6A cabling systems have come a long way since the original “augmented Category 6” standard was ﬁrst introduced in 2008. Today, Cat 6A is a popular speciﬁcation for data center and other enterprise applications. The move to Cat 6A has been driven by several factors, including support for 10G networks, long-term planning for workstation areas, Power over Ethernet (PoE) applications, and new wireless access points.

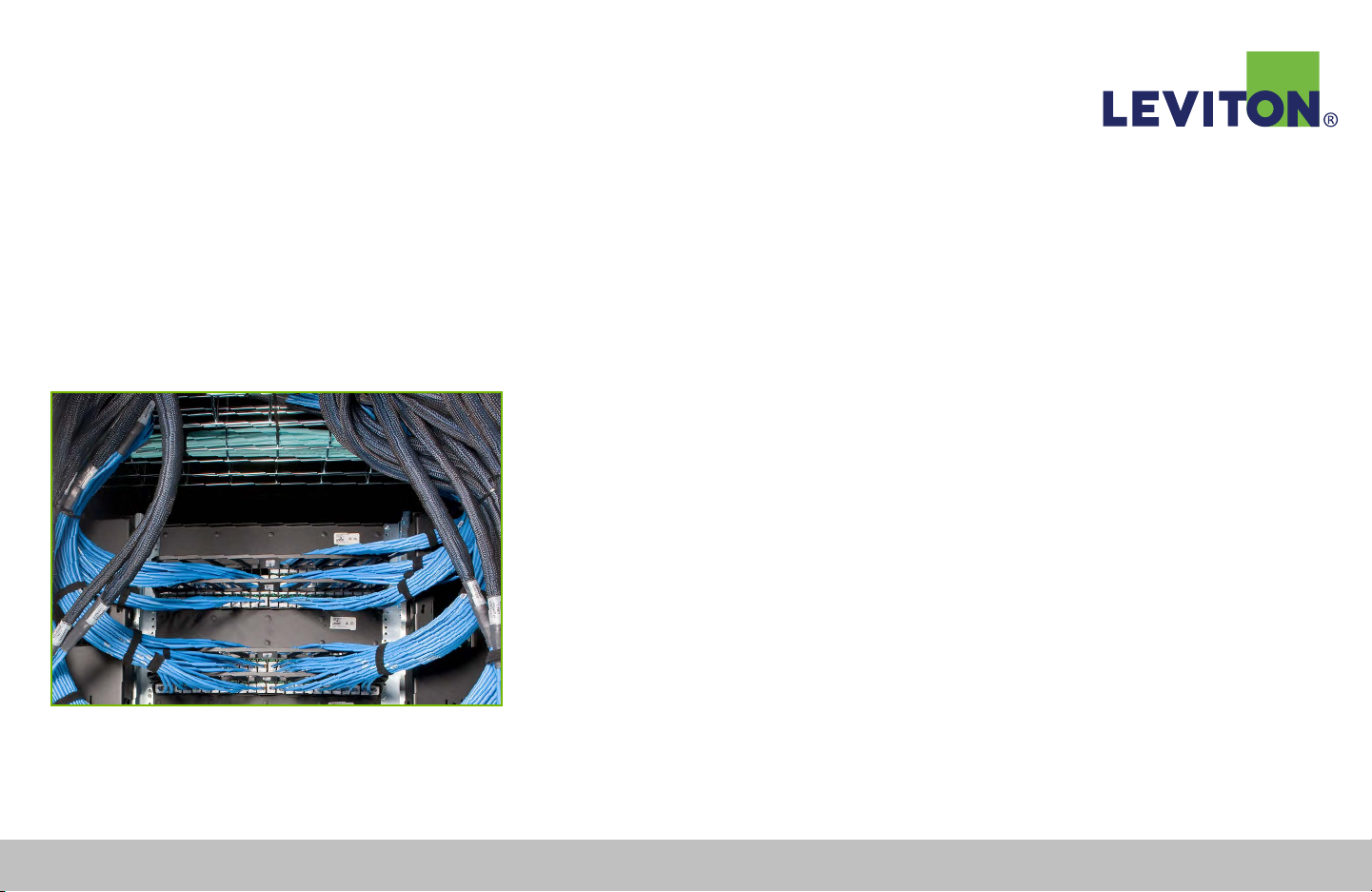

Data Centers

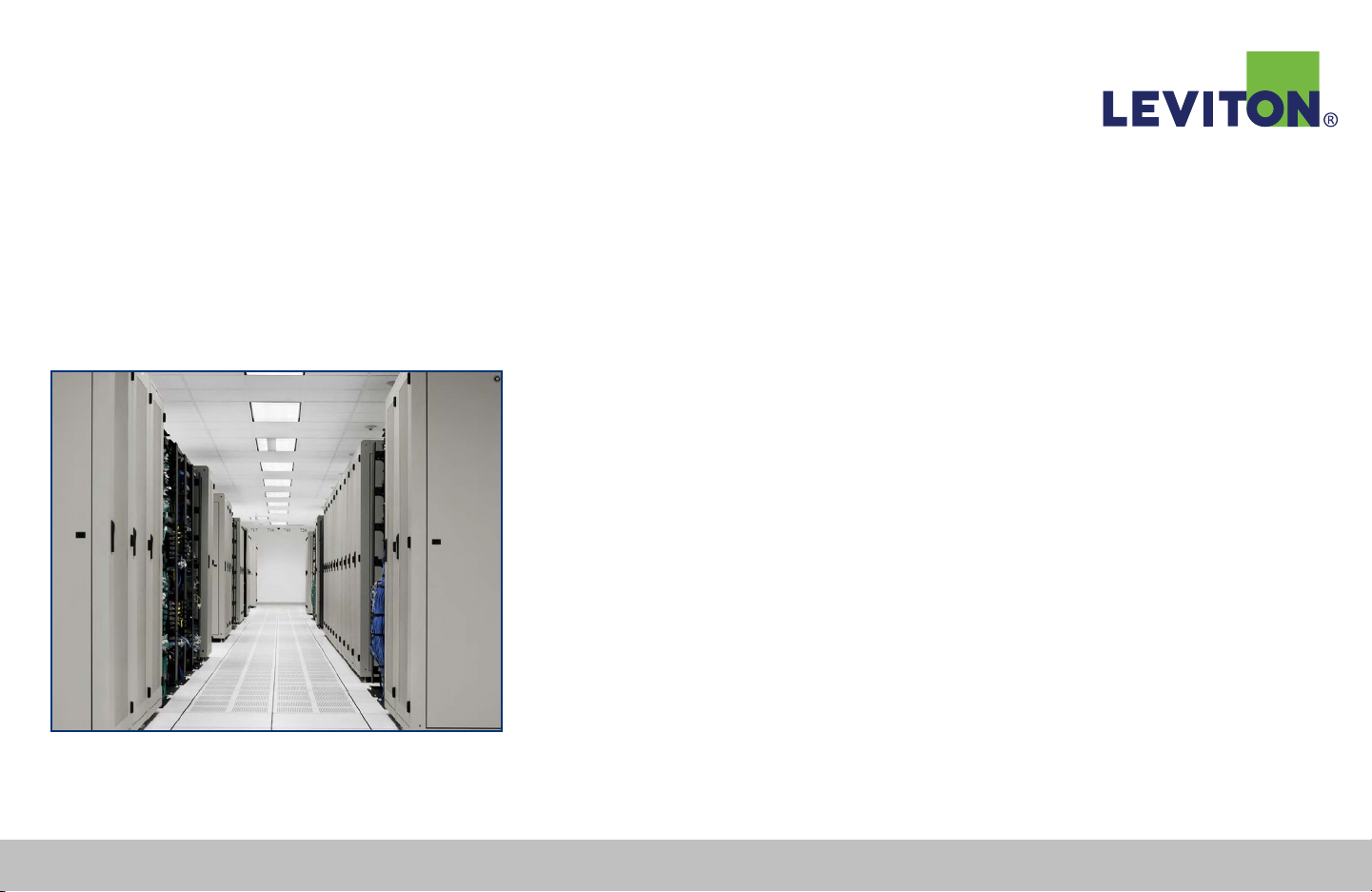

Many data center managers looking to control costs are choosing Cat 6A twisted pair copper for 10 Gb/s applications, since it is the most cost-eective option for access layer networking. In fact, the cost of 10GBASE-T channels is at least 30% lower than alternative SFP+ channels.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

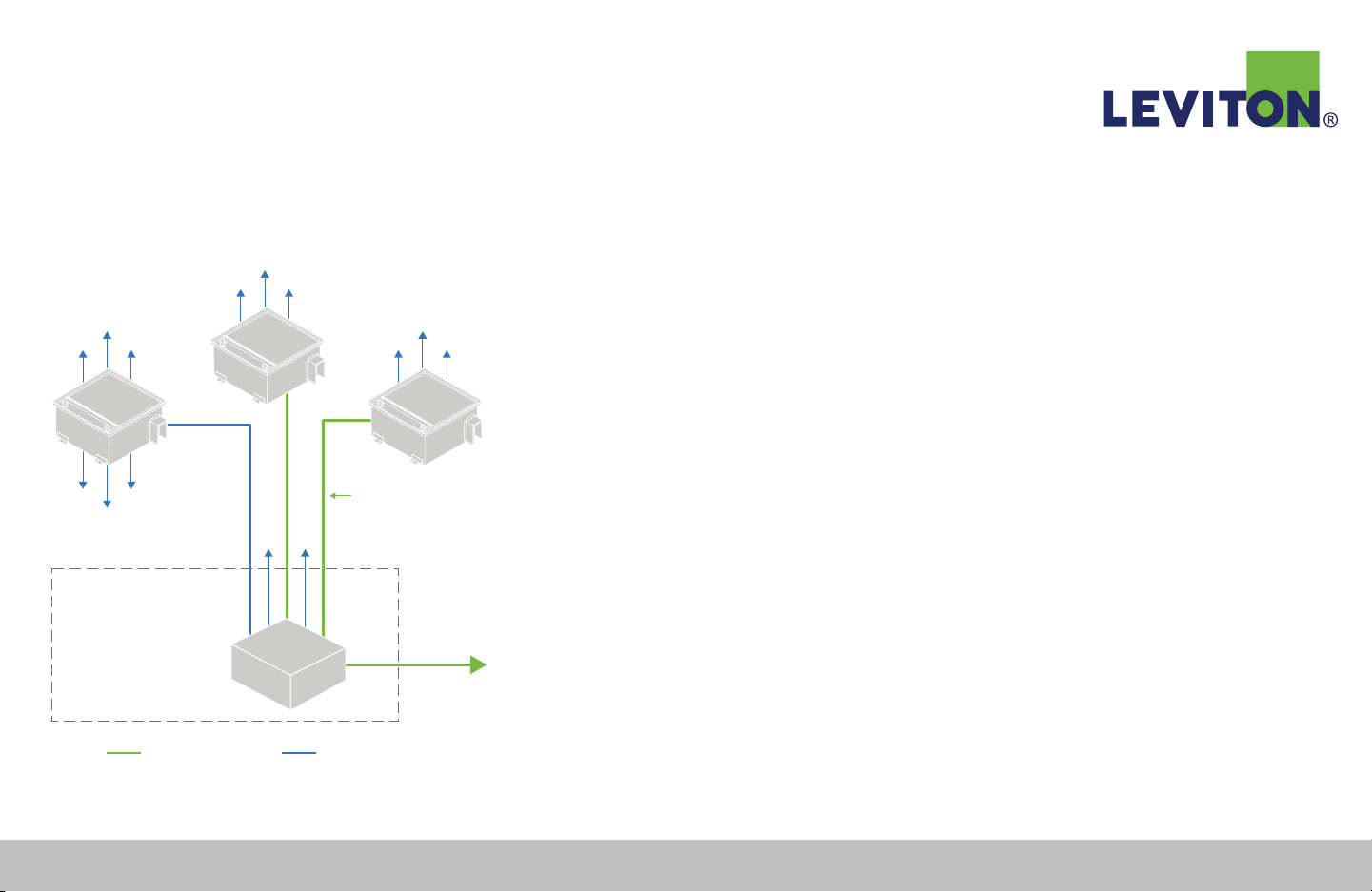

Wireless Applications

More businesses are updating their wireless networks with 802.11ac access points, capable of delivering up to 6.9 Gb/s. Future standard 802.11ax will support speeds up to 10 Gb/s. Businesses won’t see the true beneﬁts of these higher speeds without the right cabling infrastructure; that’s why TIA standards recommend Cat 6A for horizontal cabling to these wireless access points.

leviton.com/ns 4

Page 5

Where is Cat 6A used?

Cat 6A >

Where is Cat 6A is used?

Applications

Testing

Product Overview

Termination

Glossary and References

Cat 6A

Installation

Power over Ethernet (PoE)

PoE is seeing explosive growth rates, boosted by new applications and standards that expand support to more devices. Higher current PoE brings important cabling and connectivity considerations while ensuring utmost performance in the network, and for this reason Cat 6A is recommended for all new installations.

10GBASE-T Networks

Data centers, businesses, government agencies, hospitals, and schools are all looking to 10 Gb/s networks to meet today’s data demand. Since its introduction in 2008, 10GBASE-T has become widely adopted around the world. The standard deﬁnes 10 Gb/s over twisted-pair up to 100 meters, with Cat 6A as the required cabling.

HDBaseT Networks

HDBaseT™ is a key technology that enables audio visual signal extension over category cabling to high

deﬁnition displays and projectors. It extends HDMI up to 100 meters on a single category-rated twisted-pair cable. The HDBaseT Alliance speciﬁes Cat 5e, Cat 6 UTP, and Cat 6A UTP cabling as supported media types. But these category ratings will deliver varying performance results, with Cat 6A more capable of supporting higher bandwidth signals such as 4K.

video and audio, 100BaseT Ethernet, control, and power

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 5

Page 6

Standards

u TIA (Telecommunications Industry Association)

Cat 6A >

Standards

u ISO/IEC (International Standards Organization)

u IEEE (Institute of Electrical and Electronics Engineers)

Applications

Testing

Product Overview

Termination

Glossary and References

Cat 6A

Installation

Cat 6A requirements are addressed in standards from multiple organizations. Regardless of the standard, all Cat 6A cabling will provide 10 Gb/s data rates, operate at a maximum frequency of 500 MHz, and have a maximum distance of 100 meters.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 6

Page 7

TIA (Telecommunications Industry Association)

Standards >

TIA (Telecommunications Industry Association)

Cat 6A >

Applications

Testing

Product Overview

Termination

Glossary and References

Cat 6A

Installation

Telecommunications: ANSI/TIA-568.2-D (replaces 568-C.2) Deﬁnes: Performance requirements for Cat 6A channels, permanent links, and components

Data Center:

ANSI/TIA-942-B Telecommunications Infrastructure Standards for Data Centers speciﬁes the minimum requirements for telecommunications infrastructure of data centers and computer rooms, including single-tenant enterprise data centers and multi-tenant Internet hosting data centers.

Note: Cat 6A is recommended for horizontal cable in data centers using 100 ohm balanced twisted pair.

Health Care Facilities:

ANSI/TIA-1179-A Healthcare Facility Telecommunications Infrastructure Standard. Category 6A is recommended for new installations (for both backbone and horizontal copper cabling).

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Power over Ethernet:

TIA TSB-184-A Guidelines for Supporting Power Delivery Over Balanced Twisted-Pair Cabling raises requirements to Category 6A cabling to better support IEEE 802.3bt four-pair PoE

Wireless Access Points:

TSB-162-A Telecommunications Cabling Guidelines for Wireless Access Points recommends Cat 6A for horizontal cabling to WAPs in new installations

leviton.com/ns 7

Page 8

ISO/IEC (International Standards Organization)

Standards >

ISO/IEC (International Standards Organization) and IEEE (Institute of Electrical and Electronics Engineers)

Cat 6A >

Applications

Testing

Product Overview

Termination

Glossary and References

Cat 6A

Installation

Standard: ISO/IEC 11801-1 Information (Technology — Generic Cabling for Customer Premises; Class EA Speciﬁcation) Deﬁnes: Class E

cabling and component performance requirements for customer premises. ISO equivalent of Cat 6A

Power over Ethernet:

The ISO/IEC 11801-6 Distributed Building Services standard raises cabling requirements to Category 6A to better support IEEE 802.3bt four-pair PoE

IEEE (Institute of Electrical and Electronics Engineers)

Standard: IEEE 802.3 an Deﬁnes: Channel performance for 10GBASE-T Ethernet over balanced twisted-pair cabling systems

Standard: IEEE 1911.3 Deﬁnes: Protocol for communicating 5Play™ over a single long-distance Local Area Network (LAN) cable.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 8

Page 9

Network Migration

Cat 6A >

Applications

Testing

Product Overview

Termination

Glossary and References

Cat 6A

Installation

Cat 6A is backwards compatible with Cat 6 and 5e, allowing it to support gigabit Ethernet and provide a seamless migration path to 10 gigabit bandwidth in the future (10GBASE-T). Using Cat 6A in new installations prevents the need to recable when upgrading to 10 Gb/s, avoiding possible network disruption and additional project costs in the future. End users and building owners who are planning for network upgrades or new construction in the near future should consider Cat 6A as a way to extend the expected life of their cabling systems.

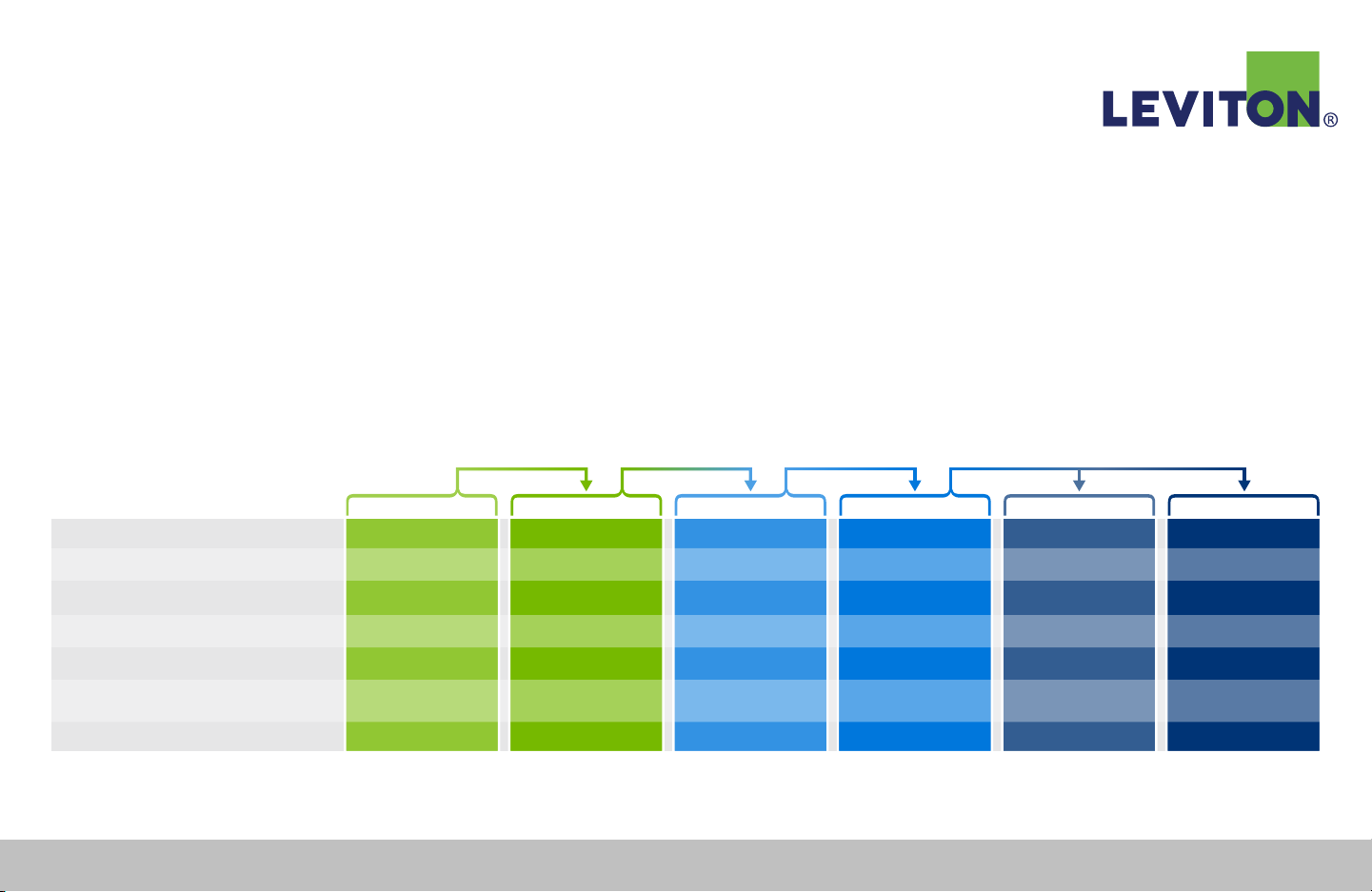

Twisted-Pair Migration Roadmap

Placement

Leviton approved-partner Cat 6A cable may be placed in the same tray with Cat 6, 5e, and other category-rated cables. In addition, Leviton warrants its product performance regardless of whether strict combing or randomizing dressing methods are used. As with all cable runs, large or heavy cable bundles should be positioned under other cable to prevent crushing. Cable trays should be loaded no more than six inches deep.

Follow NEC code for separating power and data cables.

•••••

••••••

•••••••

••••••

•••••

•••

•••••

••••••

•••••••

••••••

•••••

•••

•••••

••••••

•••••••

••••••

•••••

•••

•••••

••••••

•••••••

••••••

•••••

•••

•••••

••••••

•••••••

••••••

•••••

•••

•••••

••••••

•••••••

••••••

•••••

•••

•••••

Bend Radius

To maintain Cat 6A performance, minimum bend radius should be 4x OD for UTP and shielded cable. This radius is significantly larger than Cat 6 and 5e. For example, Cat 6 cables at 4x OD is 0.904", whereas Cat 6A is 1.21". Plan carefully to ensure there is sufficient space throughout cable runs to maintain proper bend radius.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 14

Page 15

Routing and Handling

Installation >

Routing and Handling >

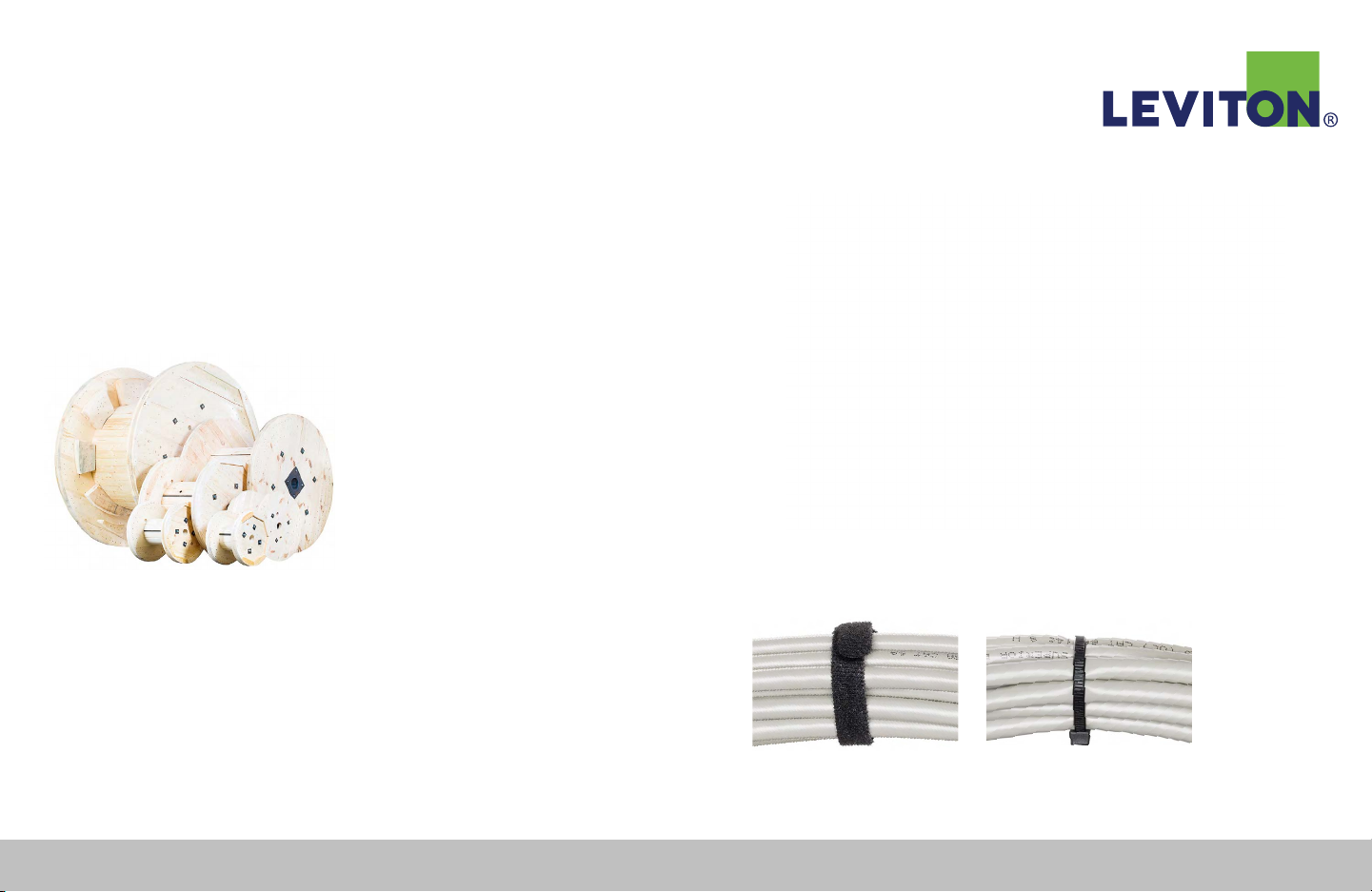

Slack Loops and Pulling Lubricants

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

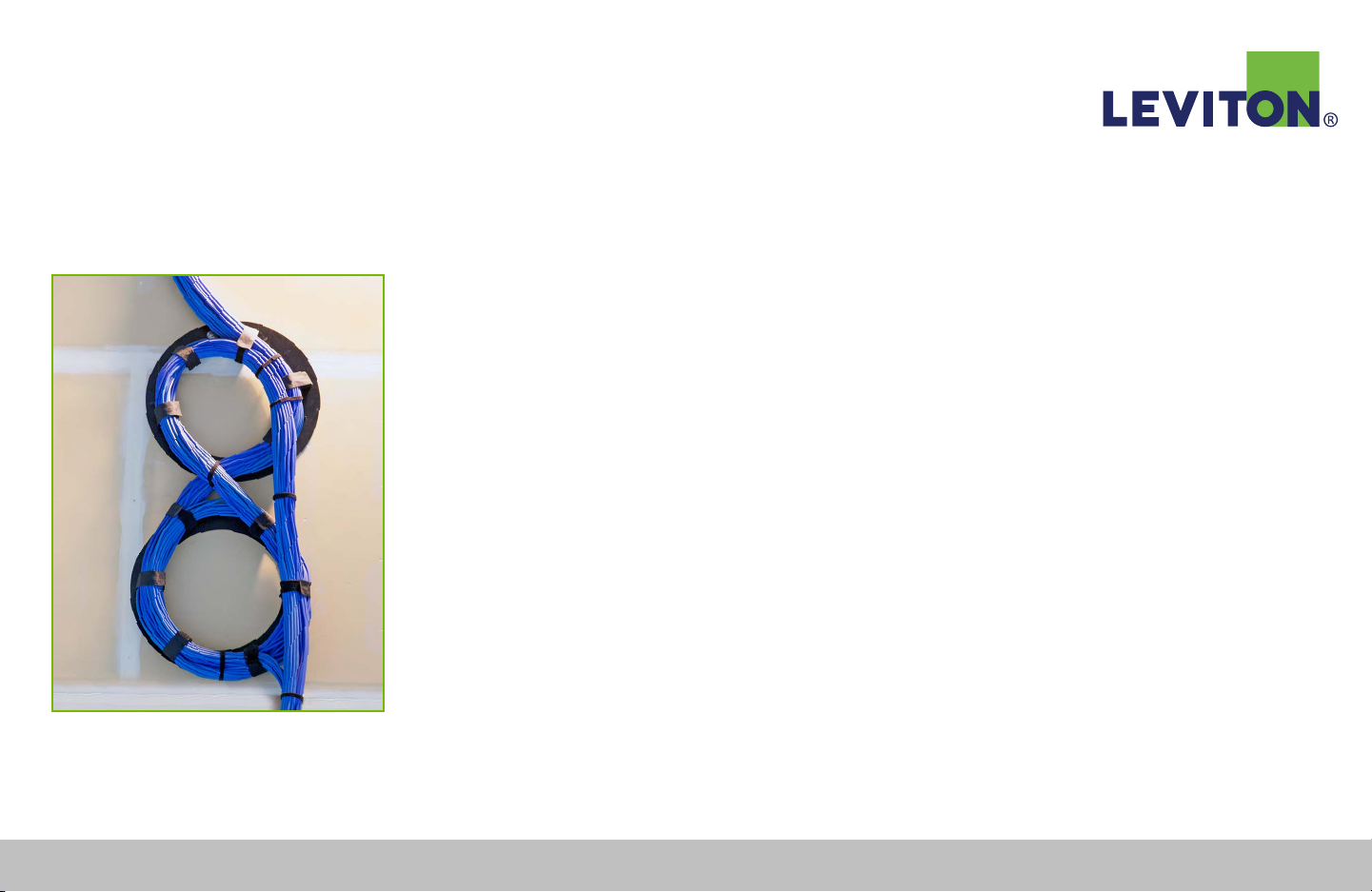

Slack Loops

TIA recommends storing 10 feet (3.05 m) of extra cable in the telecom room and 12-18 inches (304-457 mm) above work area installations for re-terminations and to accommodate moves, adds, and changes. Use an extended or ﬁgure-8 loop conﬁguration to alleviate cable stress. Cable slack in bundled or excessive loops has been shown to degrade cable performance and is associated with return loss failures. Plan carefully to ensure there is sucient space and support for heavy Cat 6A cable slack loops.

Pulling Lubricants

To maintain Cat 6A performance, choose spray or wipe lubricants specifically designed for data communications cables. Using other lubricants can degrade performance; the majority of insertion loss failures have been traced back to the use of general purpose lubricants.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 15

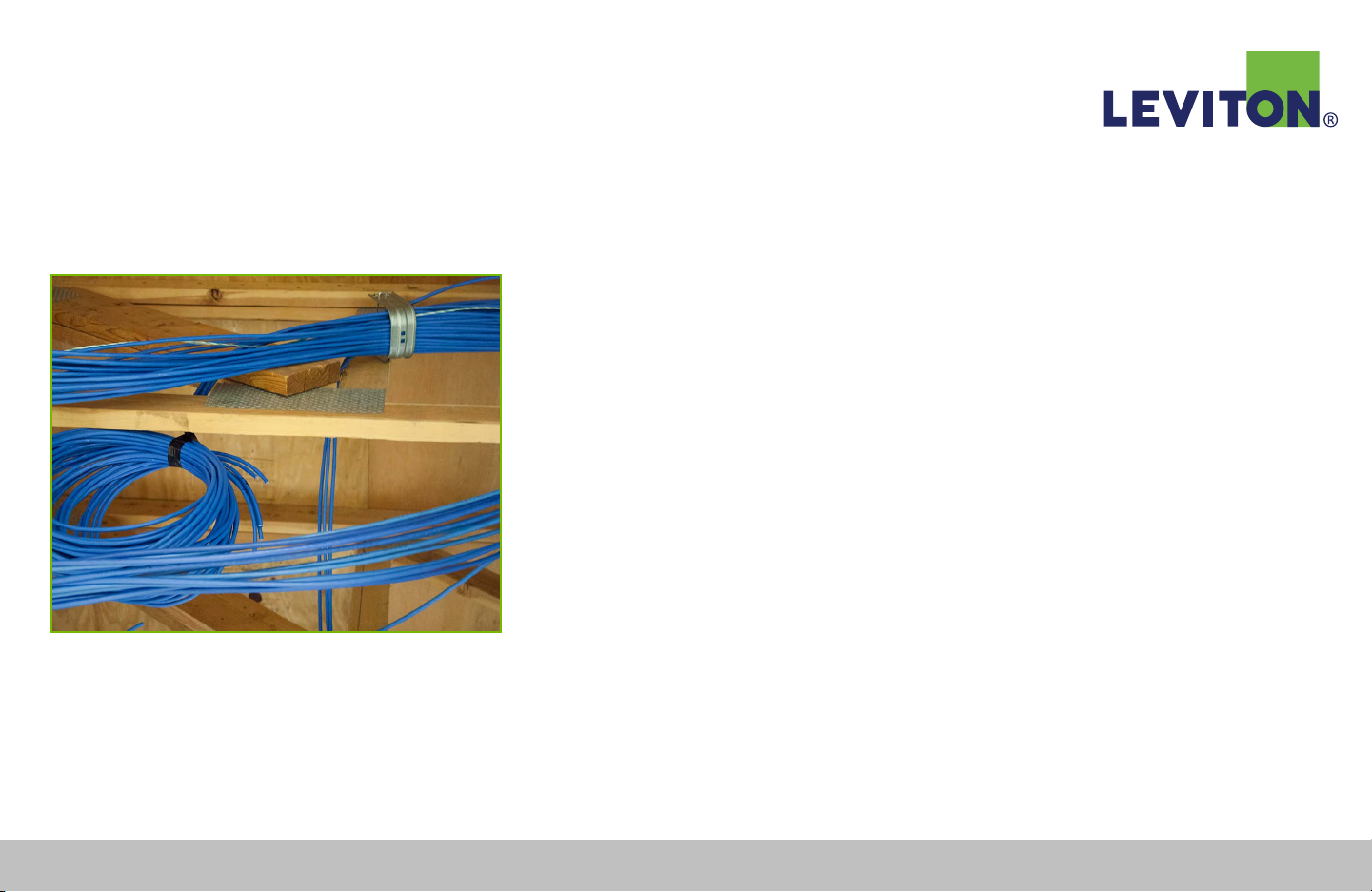

Page 16

Pathways and Spaces

u Cable Tray Fill

u Conduit Fill

u Cable Tray Sizing Example

u Structural and Cable Supports

u Firestopping

u Consolidation Points and Zone Enclosures

u Ensure Shielded Category 6A Integrity

Installation >

Pathways and Spaces

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 16

Page 17

Pathways and Spaces

Installation >

Pathways and Spaces >

Cable Tray Fill and Conduit Fill

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

CABLE CAPACITY FOR TRAYS AND CONDUIT

CAT 5E C AT 6 CAT 6A

Cable Tray Fill

TIA-569-D recommends 25% ﬁll at initial installation and up to 50% with unplanned additions. If a single cable tray will also carry power cables, a physical barrier is required to comply with the NEC and IEC. Finally, ensure tray support spacing is sucient to prevent excessive sagging. Consider solid bottom tray for higher density applications.

Note: A tray at 25% ﬁll looks half-full. A tray at 50% ﬁll looks completely full. Cable trays should be loaded no more than six inches deep.

Conduit Fill

A maximum conduit ﬁll ratio of 40% is recommended by TIA-569 standards to accommodate cable bundle bend radius requirements and allow for future expansion.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Average OD

UTP UTP UTP UTP UTP with

0.185 in

(5 mm)

0.23 in

(6 mm)

0.33 in

(8 mm)

0.3 in

(8 mm)

Isolation Wrap

0.275 in

(7 mm)

Shielded

0.29 in

(7 mm)

Cable Tray 25% 50% 25% 50% 25% 50% 25% 50% 25% 50% 25% 50%

2" x 6"

(51 x 152 mm)

4" x 8"

(102 x 203 mm)

6" x 20"

(152 x 508 mm)

111 222 72 144 35 70 42 84 50 101 45 90

298 596 192 384 93 186 113 226 134 269 121 242

1116 2232 722 1444 350 700 424 848 505 1010 454 908

Conduit 40% 40% 40% 40% 40% 40%

(19 mm) 6 5 1* 1* 3 2*

¾"

(25 mm) 11 8 3 4 5 4

1 ¼" (32 mm) 19 14 5 6 8 7

(38 mm) 25 19 8 10 11 10

1 ½"

* Conduit Fill Ratio NEC Chapter 9: 1 Cable = 53% maximum ﬁll ratio, 2 cables = 31%, 3 or more = 40%

leviton.com/ns 17

Page 18

Pathways and Spaces

Installation >

Pathways and Spaces >

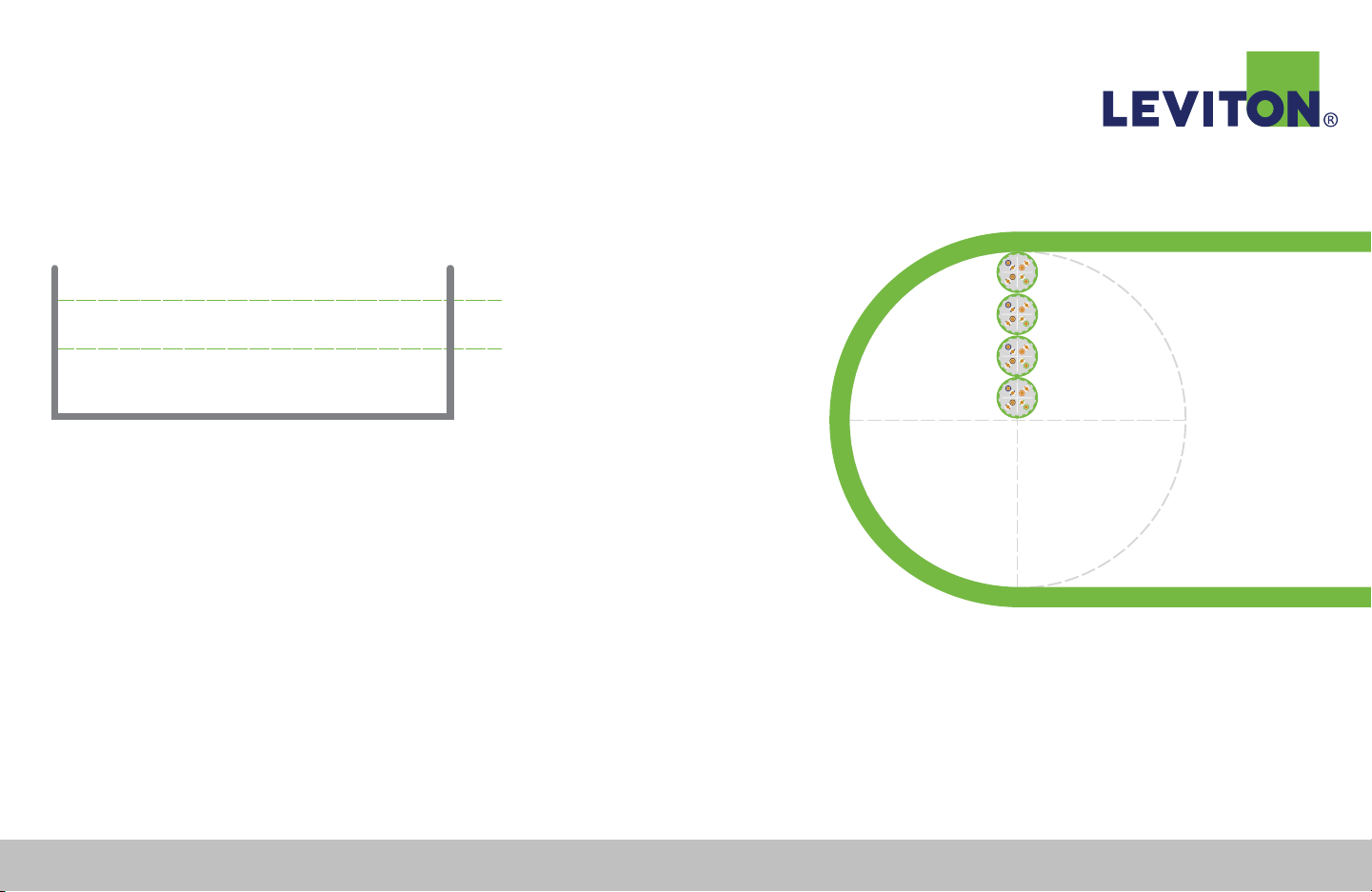

Cable Tray Sizing Example

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Cable Tray Sizing Example

To determine the proper tray size based on 25% ﬁll, use the following calculation for cable with outer diameter of 0.30 inches (8 mm):

Determine cable diameter and total number of cables

Square the cable diameter

Multiply result by number of cables

Multiply result by 0.785 to factor for cable roundness

This result is the total cross-sectional area of your cables

Multiply result by 4 to obtain pathway size at 25% ﬁll

At 25% ﬁll, a 28 sq in (20096 sq mm) area is needed, so a standard 4" x 8" (102 x 203 mm) tray would be adequate.

Note: For conduit, size for 40% ﬁll by substituting 2.5 as the multiplier in Step 5

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

0.30" diameter each

Cable OD2 x No. of cables = y

100 cables total

(8 mm diameter)

y x 0.785 = z

0.30 x 0.30 = .09

(8 x 8 = 64)

z x 4 = Pathway size at 25% fill

0.09 x 100 = 9

(64 x 100 = 6400)

9 x 0.785 = 7.065 sq in

(6400 x 0.785 = 5024 sq mm)

7.065 x 4 = 28.26 sq in

(5024 x 4 = 20096 sq mm)

leviton.com/ns 18

Page 19

Pathways and Spaces

Installation >

Pathways and Spaces >

Firestopping, Structural and Cable Supports

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Firestopping

Suspended

Structural and Cable Supports

• Stronger anchors and threaded rods are needed to support heavier Cat 6A cable

• Use properly sized J hooks and other supports to accommodate bundle size

• Limit bundles to 50 cables to prevent damage to cables on the bottom

• Do not exceed cable support manufacturer’s recommended capacity

• Space cable supports randomly between 3 and 4 feet (0.9 -1.2 meters) apart to prevent system degradation due to sagging

• Do not use ceiling support wires or other ceiling components to support communications infrastructure

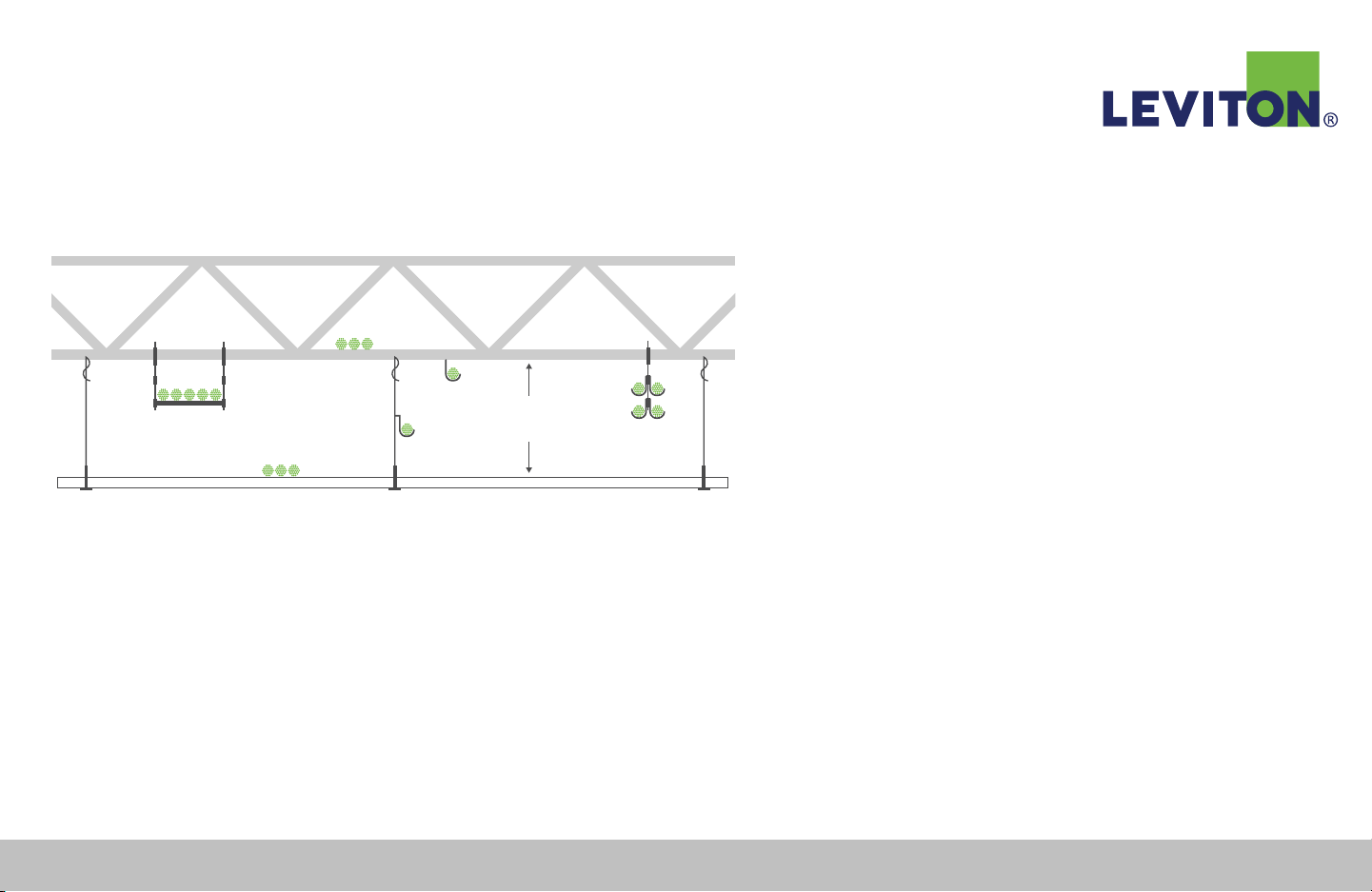

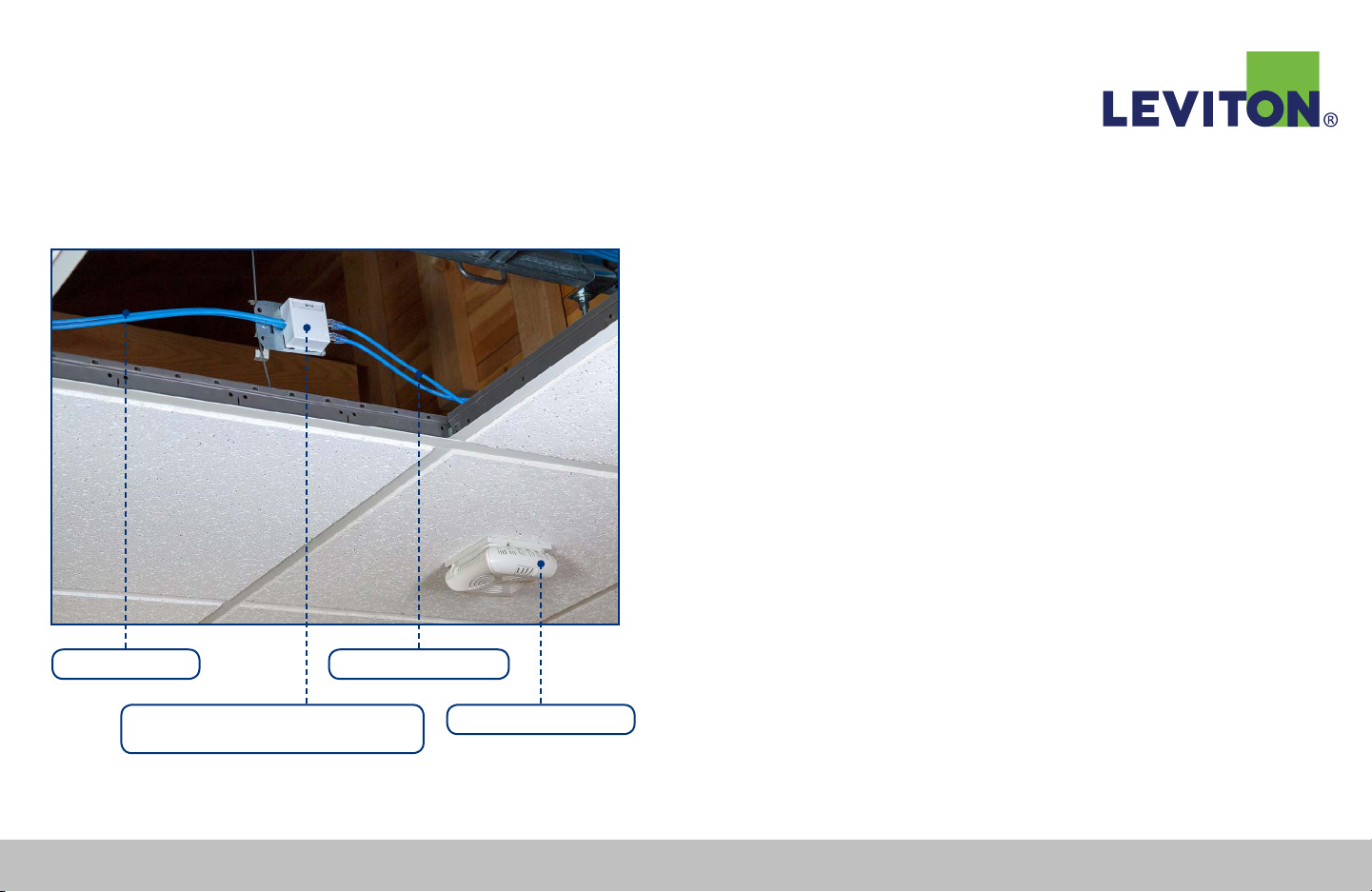

Ceiling Space

Cat 6A cables may require larger firewall penetrations. Always follow applicable national code (e.g. NEC or CEC) or superseding authorityhaving jurisdiction (AHJ) codes for firestopping requirements.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 19

Page 20

Pathways and Spaces

Permanent Link +  Patch Cords

Installation >

Pathways and Spaces >

Consolidation Points and Zone Enclosures

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Consolidation Points and Zone Enclosures

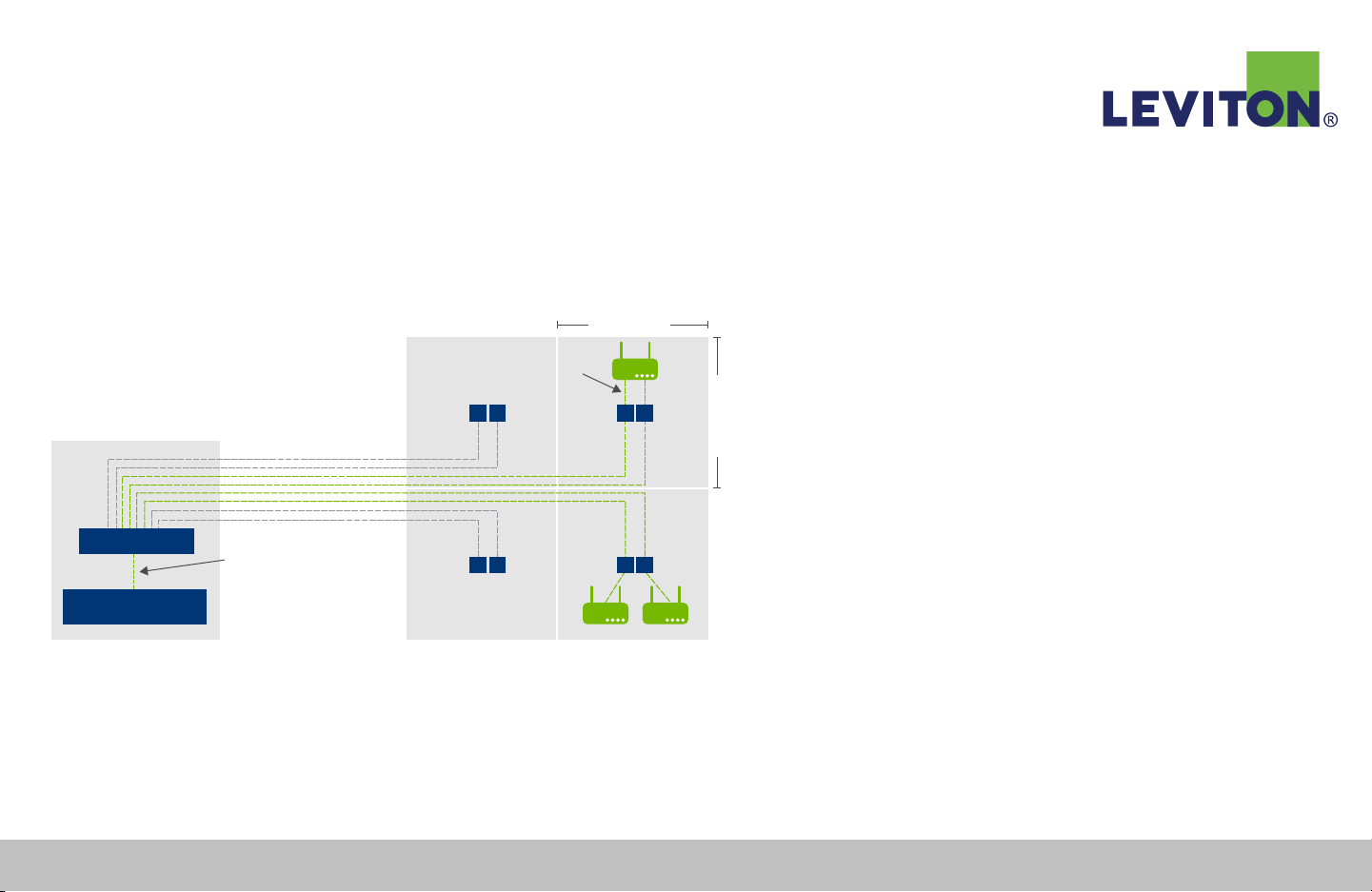

TIA standards allow an optional consolidation point (CP) within a permanent link. A Cat 6A 110 block is Leviton’s standard CP solution. It has a density that is ⅓ less than Cat 6 110 blocks (64-pair Cat 6A capacity versus 96-pair for Cat 6 in the same footprint).

Another CP option is to use a patch panel and plug-jack cable assembly. With this option, only an interconnect (one connection) may be used in a patch panel CP application. A cross-connect (two connections with a patch cord) may not be used.

Work Area

110 Block

Plug to Jack Cable Assembly

Patch Panel

Permanent Link: 90 m (295.28 ft) max

 Horizontal Cable + Connectors +  Optional Consolidation Point

Minimum of 15 m

Channel: 100 m (328.1 ft) max



Telecom

Room

Telecom

Room

Telecom

Room

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 20

Page 21

TBB:

TEBC:

SBB:

Pathways and Spaces

Installation >

Pathways and Spaces >

Ensure Shielded Category 6A Integrity

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

TBB

Telecommunications Bonding Backbone

Telecommunication Equipment Bonding Conductor

Secondary Bonding Busbar

Leviton Network Solutions

(800) 722 2082

TEBC

SBB

+1 (425) 486 2222

Ensure Shielded Category 6A Integrity

The general best practices below highlight the grounding/bonding elements within a single telecommunications room. You can download an expanded list of grounding best practices from Leviton (pdf). Refer to the TIA-607-C standard for additional elements required for a larger Telecommunications Grounding System.

• Follow standards-compliant methodology to install and verify an eective telecommunications grounding system

• Follow the manufacturer’s instructions to properly install shielded connectors, cables, patch cords, and patch panels

• Finally, install individual #6 AWG Unit Bonding Conductors (UBC) between each Shielded Patch Panel and the rack or cabinet bonding element. While #12 AWG UBCs are the minimum called out by grounding and bonding standards, #6 AWG is the industry best practice.

leviton.com/ns 21

Page 22

Telecommunications Rooms

u Rear of Rack (cables)

Telecommunications Rooms

u Front of Rack (cords)

u High-Density Patching

u Leviton Solutions

Installation >

u Bend Radius

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Organizing cable runs at racks and cabinets is essential to a well-managed network. Larger, heavier Cat 6A cables may require special planning and equipment for a successful installation. Select the best patch panels, cable management, and patch cords or trunks for your application to speed installation and simplify ongoing management.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 22

Page 23

Telecommunications Rooms

Installation >

Telecommunications Rooms >

Rear of Rack (cables)

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

TECH TIP: Routing and Patching Cables with One Rear Cable Manager

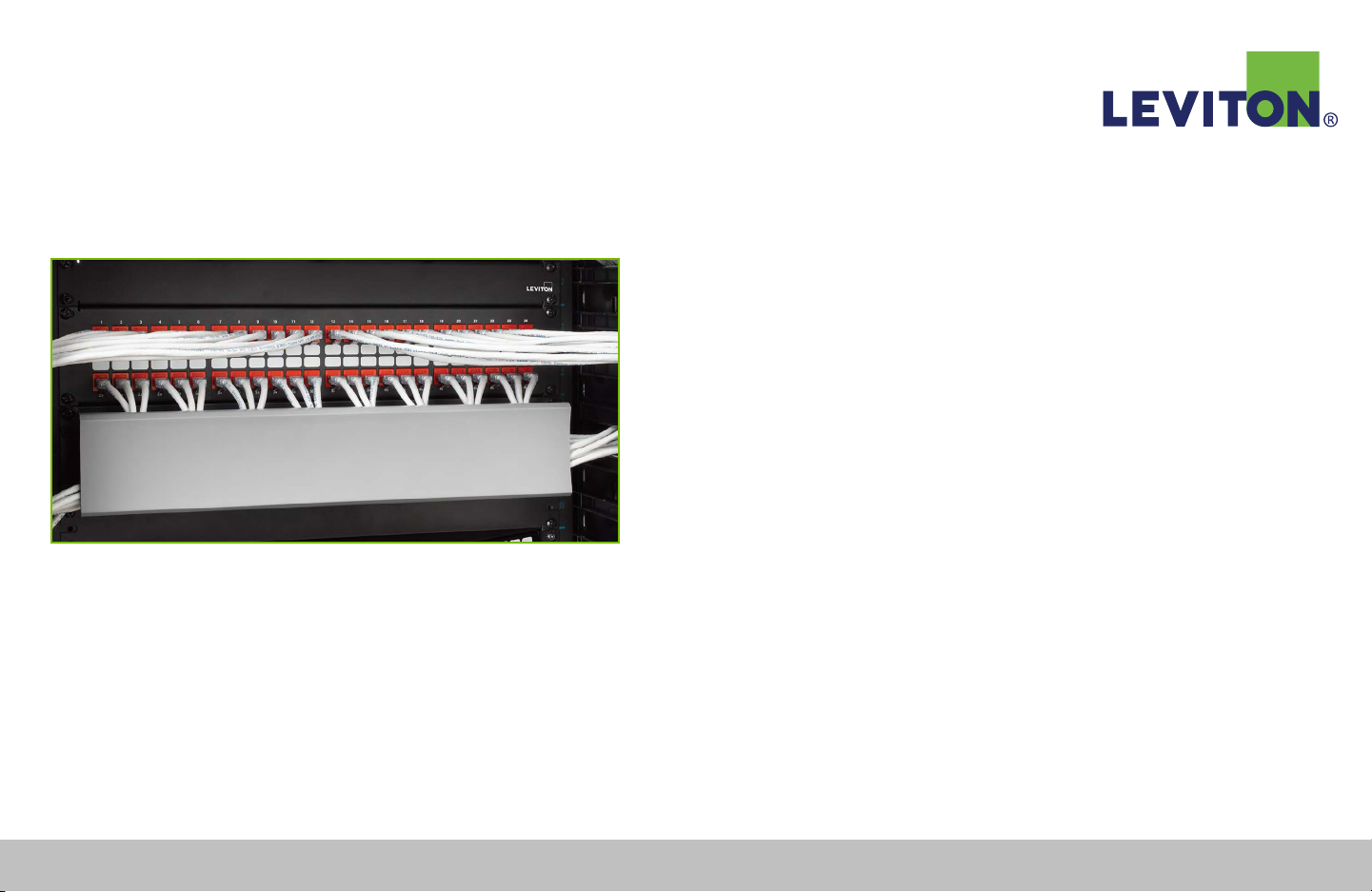

Follow the suggestions below for managing and dressing Cat 6A cables using a single rear cable management bar with a 2RU 48-port ﬂat patch panel.

Rear of Rack (cables)

Whether routing cables from above or below, distribute bundles symmetrically to feed into each panel from left and right. This will balance the cable bundles, allow easier access to connections, and reduce congestion at the rear of the panels. Leviton rear cable managers, Versi-Duct and horizontal finger duct (front/rear versions),

and VELCRO

Brand fasteners all support Cat 6A

cable at the rear of racks and cabinets.

Leviton Network Solutions

(800) 722 2082

vertical

+1 (425) 486 2222

1. Split the cable bundle before routing it to the rack; connectors that will terminate to the right side of the panel should route down the right

4. Install and dress the next group of six in a similar fashion, taking them again to the right

side of the vertical cable manager. side of the rack. Connectors that will terminate on the left side of the panel route down the left side of the rack. (For angled panels: Connectors on the left will route to the right side and connectors on the right will route to the left, crossing over each other.)

2. Start with the bottom row of patch panel ports, and seat the connectors of the ﬁrst six terminated cables into the ﬁrst six ports.

3. Attach the bundle of six cables to the bottom

of the cable management bar with VELCRO

Brand fasteners, and dress cables into the vertical cable manager on the right.

leviton.com/ns 23

5. Move to the left and install and dress the leftmost group of six cables ﬁrst, then the ﬁnal group of six on the bottom row of the patch panel.

6. Next, route terminated cables to the top row of patch panel ports.

7. Install the ﬁrst six on the right and route the cables over the top of the cable management bar.

8. Attach this bundle in place to the top of the cable

management bar with VELCRO

Brand fasteners,

and dress it into the vertical cable manager.

9. Do the same with the next three top bundles.

Page 24

Telecommunications Rooms

Installation >

Telecommunications Rooms >

Front of Rack (cords) and Bend Radius

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

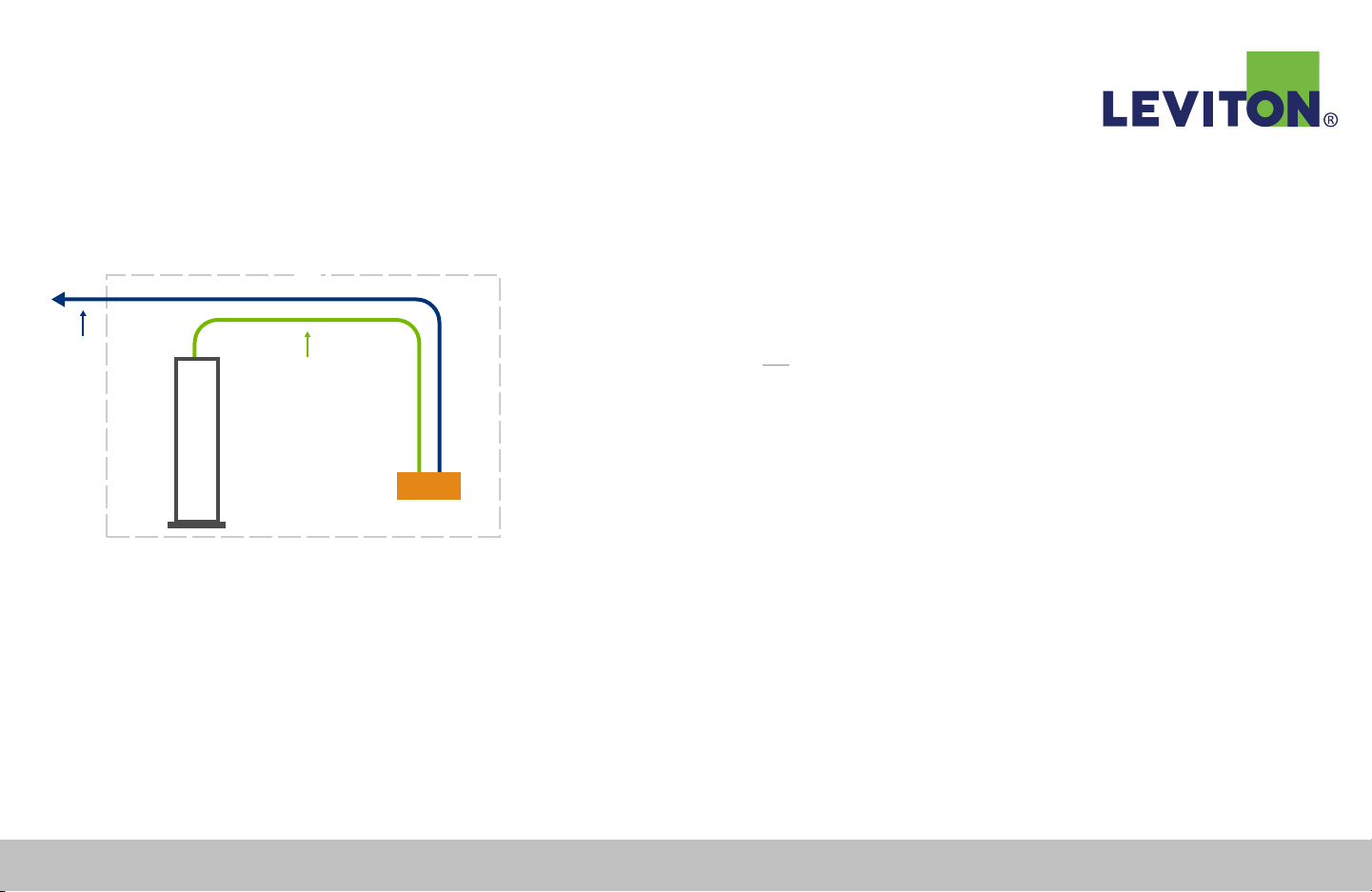

Bend Radius

To maintain Cat 6A performance, minimum bend radius should be 4x OD for UTP and shielded cable. This radius is signiﬁcantly larger than Cat 6 and 5e. For example, Cat 6 cables at 4x OD is 0.9" (23 mm), whereas Cat 6A is 1.21" (31 mm). Plan carefully to ensure there is sucient space throughout cable runs to maintain proper bend radius.

Front of Rack (cords)

Symmetrically dress cords and route into cable management. Leviton’s Cat 6A cords have been independently- and field-tested to ensure 10G performance, whether they are strictly combed or randomized in cable managers. Our horizontal ring-type

cable managers as well as horizontal and vertical Versi-Duct

products help manage patch cords at the front of the rack. To reduce cord bundle sizes and save rack space, consider using angled patch panels with Versi-Duct vertical managers, as the angled design eliminates the need for horizontal managers. Also consider Leviton Atlas-X1 Cat 6A SlimLine Boot patch cords: Their low proﬁle boots will reduce congestion at the face of the patch panel and on high-density switch equipment.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 24

Page 25

Telecommunications Rooms

Installation >

Telecommunications Rooms >

High-Density Patching

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

TECH TIP: Color Coding

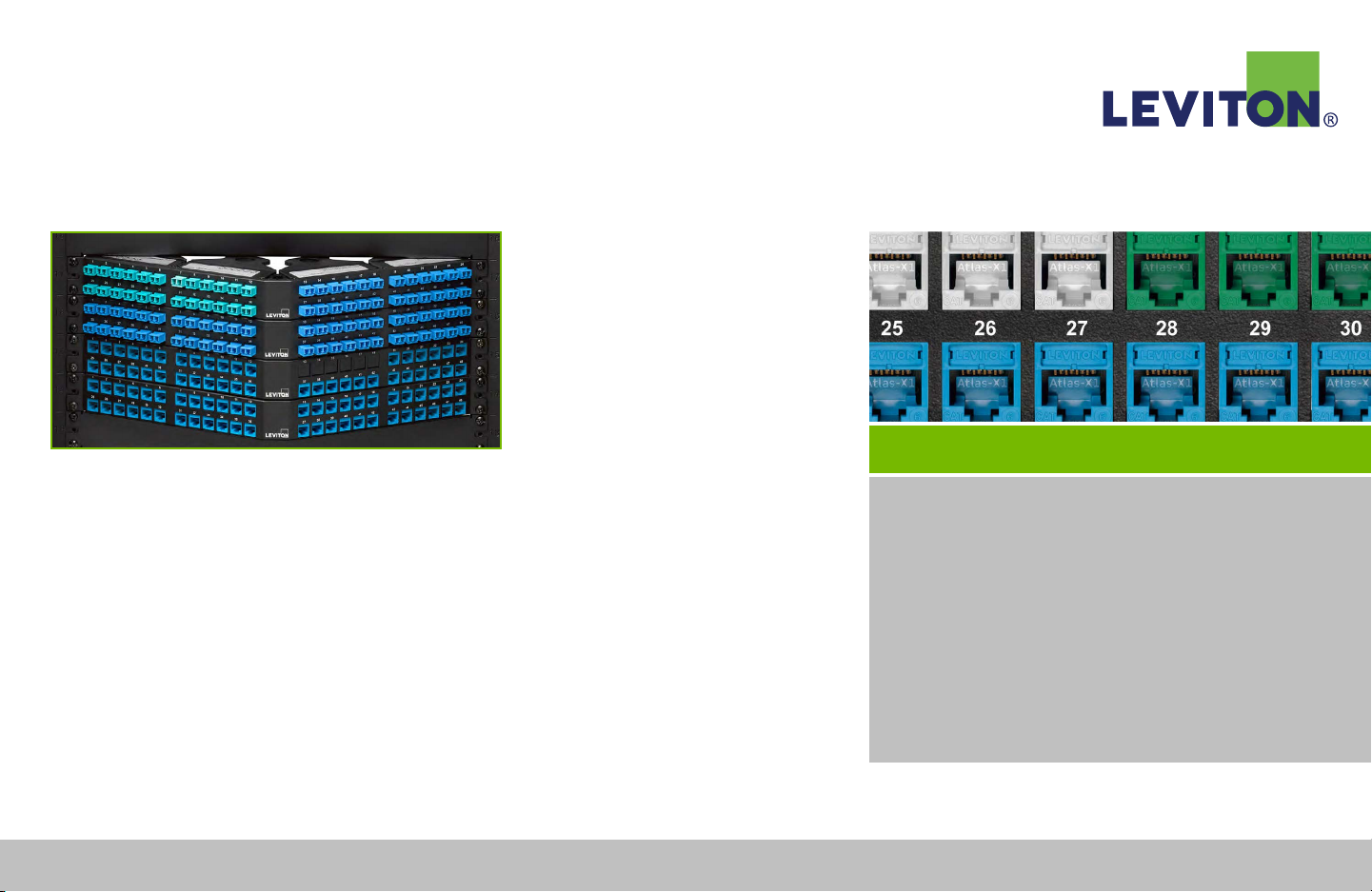

High-Density Patching

Many IT managers face physical space constraints, with limited room for additional network infrastructure. High-density patch panels are an efficient way to increase copper port density in racks. While standard patch panels oer 24 ports in one rack unit, high-density panels can double that amount with 48 ports per rack unit. However, one should factor in Cat 6A cable size when considering high-density panels, as too many panels in a rack or cabinet may create unwanted congestion.

Angled panel designs can also consolidate rack space, as they allow for proper cable bend radius without needing horizontal cable managers typically found above and below traditional ﬂat panels in the rack.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 25

Enhance telecom room and data center organization by color-coding connectors and patch cords. Choose from several schemes, depending on application and system management priorities:

• A/B switch fabric for data center redundancy

• Connectivity types such as WAN/corporate data, LAN, engineering networks, voice, and more

• Campus location

• Company colors

Page 26

Telecommunications Rooms — Leviton Solutions

Installation >

Telecommunications Rooms >

Leviton Solutions

u Pre-Terminated Copper Trunks

u Patch Panels

u Vertical Cable Management

u Horizontal Cable Management

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 26

Page 27

Work Area

u Cabling

u In-Wall Applications

u Drop Ceiling Applications

u Workstations

u Consolidation Points and Zone Cabling

u Junction Boxes and Mud Rings

u Surface Mount Boxes

Installation >

Work Area

u Leviton Solutions

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Connectivity in the work area requires a finished look, ease of maintenance, and performance, all while meeting installation codes and guidelines. Simplify work area connectivity planning, design, and installation with the following tips.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 27

Page 28

Work Area — Cabling

Installation >

Work Area >

Cabling

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

In-Wall Applications

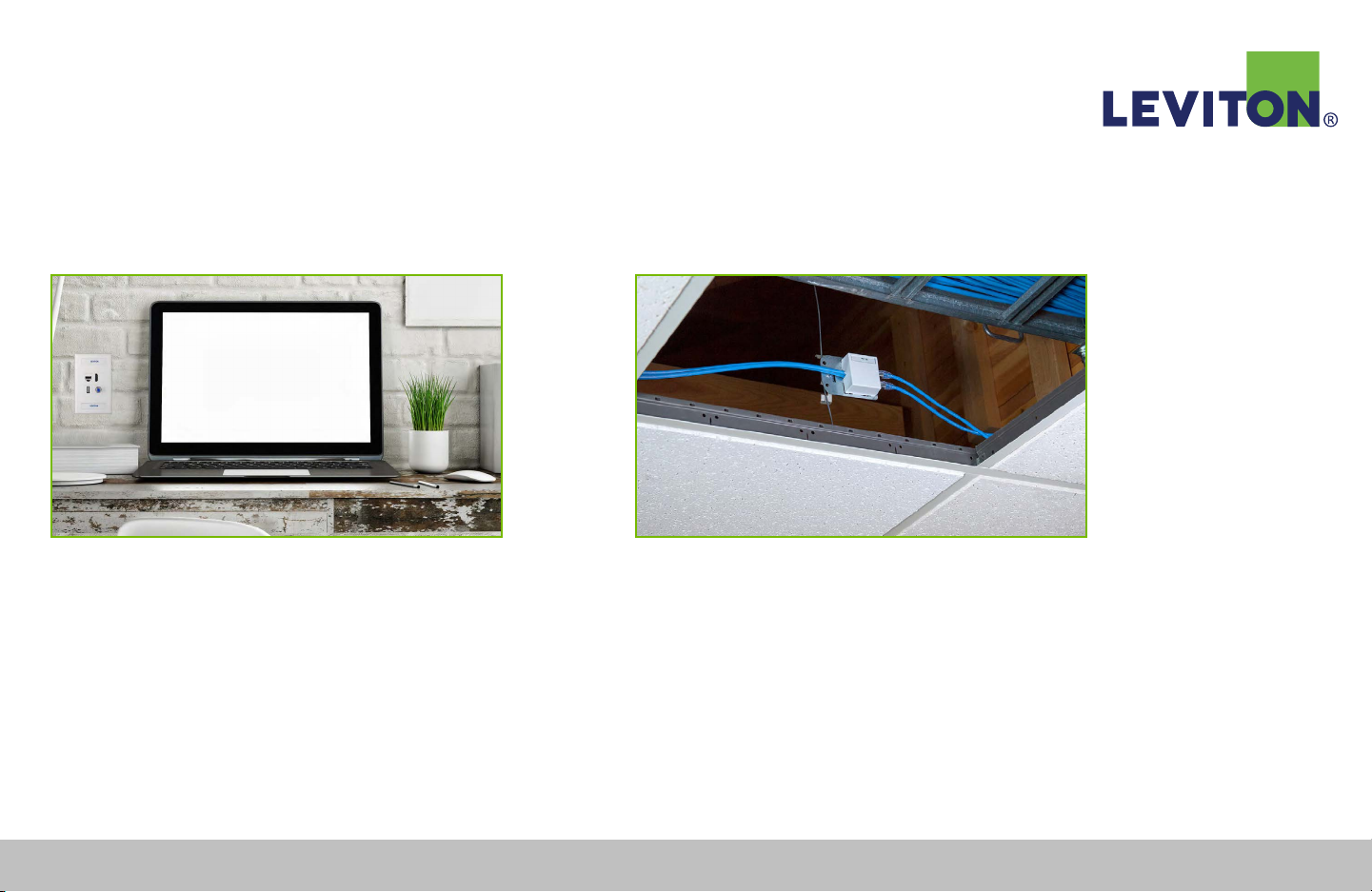

Cat 6A cables require additional depth behind faceplates and at all directional changes to maintain proper bend radius. Before installation, verify that the design allows sufficient depth throughout the cable pathway.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Drop Ceiling Applications

Cable infrastructure must be independently suspended by components designed for this purpose, separate from all other building systems. Do not use ductwork, piping, earthquake bracing, or the drop ceiling grid to suspend cable or cabling support infrastructure.

Note: Hanger wire shown above is not part of the drop ceiling grid hanging system; it was added later to independently hang the telecommunications infrastructure.

leviton.com/ns 28

Page 29

Work Area — Cabling

Backbone Cabling Horizontal Cabling

Installation >

Work Area >

Consolidation Points and Zone Cabling

Cabling >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

WAWAWA

Racks or Cabinets

Zone Enclosure (Active network equipment/switch, router, etc.)

WAWAWA

WA WA

Rack or Cabinet

WAWAWA

MM Fiber-Optic Cable (Backbone)

Consolidation Points and Zone Cabling

In a zone cabling design, cables are routed from the telecommunications room (TR) to appropriately placed zone enclosures or telecommunications enclosures (TE). Cabling is then run from the zone enclosure to each work area (WA). This kind of cabling design is ideal for open oce architecture. When work areas are modiﬁed, cabling need only be reconﬁgured back to the consolidation point, rather than all the way to the telecom room.

Zone cabling beneﬁts include:

• Maximum infrastructure ﬂexibility

• Improved network performance

• Simpliﬁed moves, adds, and changes

• Reduced use of ﬂoor space

• Reduced cost of ownership

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 29

Page 30

Work Area — Workstations

Installation >

Work Area >

Workstations

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Junction Boxes and Mud Rings

Verify that the connectivity design speciﬁes the proper junction box size before drywall is installed. Consider an oversized junction box to accommodate Cat 6A cabling and bend radius requirements, box eliminators, or Leviton QuickPlate Tempo 1-piece wallplates.

TECH TIP: Modular Furniture Installations

Leviton Network Solutions

Surface-Mount Boxes

To maintain proper bend radius, consider exiting cable from modular furniture pathways into a surface-mount box instead of directly to a faceplate. Leviton’s extended depth four-port surface-mount box works with most modular furniture and is an excellent solution for larger Cat 6A bend radius requirements.

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 30

Cubicle furniture and walls often have restricted wireways. Determine cable capacity before ﬁnalizing speciﬁcations to verify there is adequate space for cables and bend radius requirements. Consider mocking up a cubicle. Most cubicle installations use surface mount boxes or modular furniture faceplates, which help oset the space restrictions of narrow cubicle walls.

Page 31

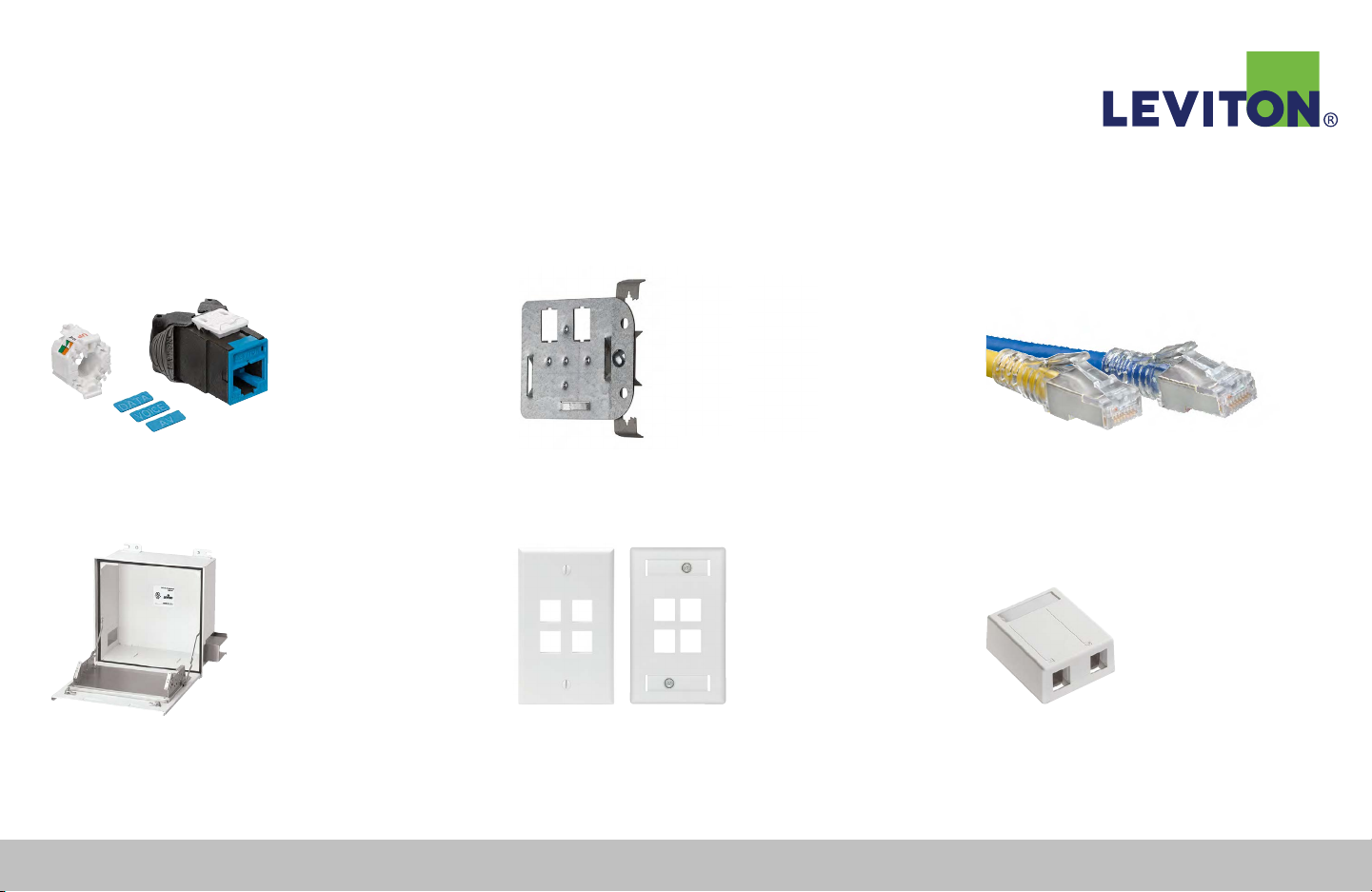

Work Area — Leviton Solutions

Installation >

Work Area >

Leviton Solutions

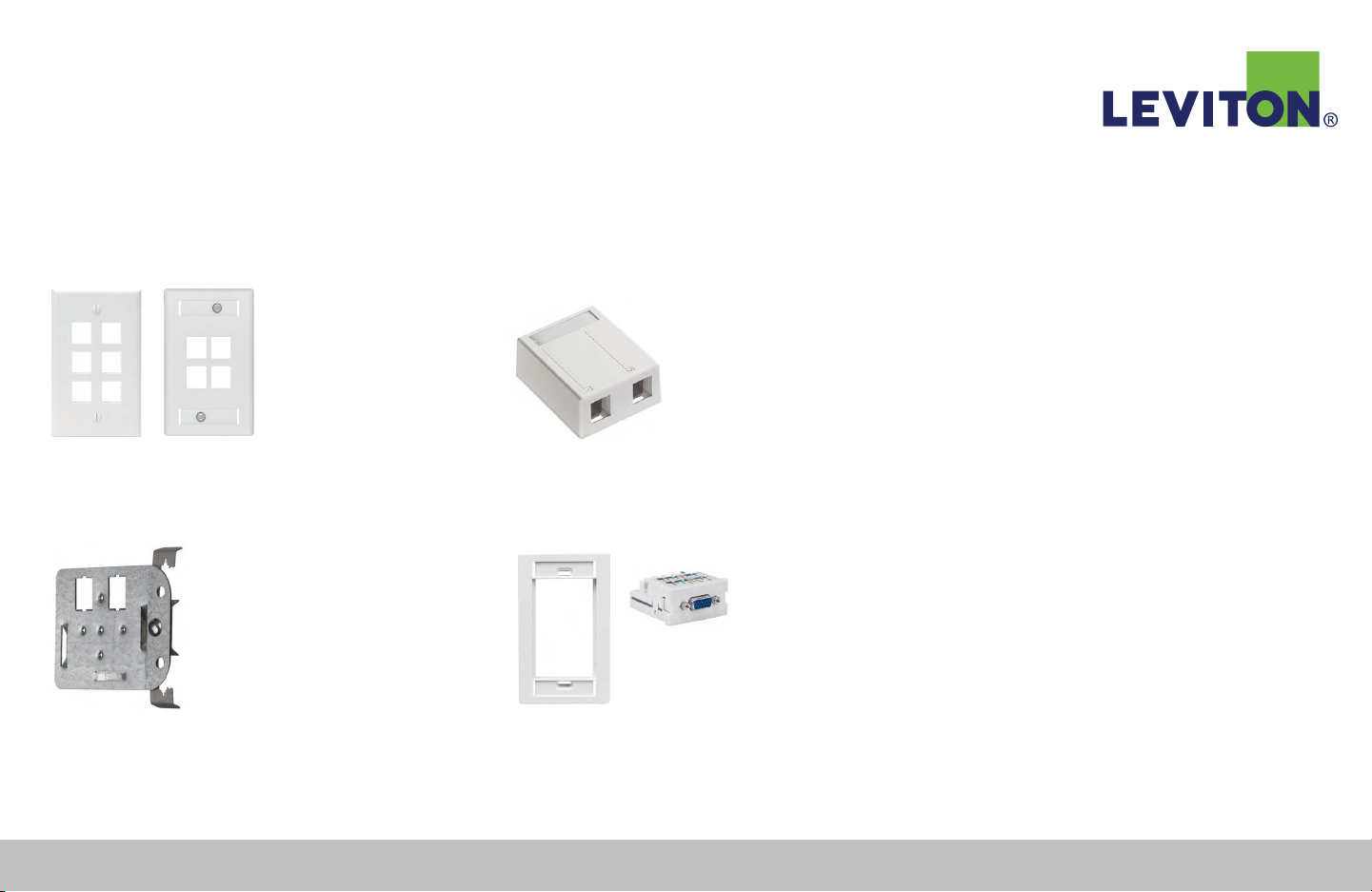

u Connectors

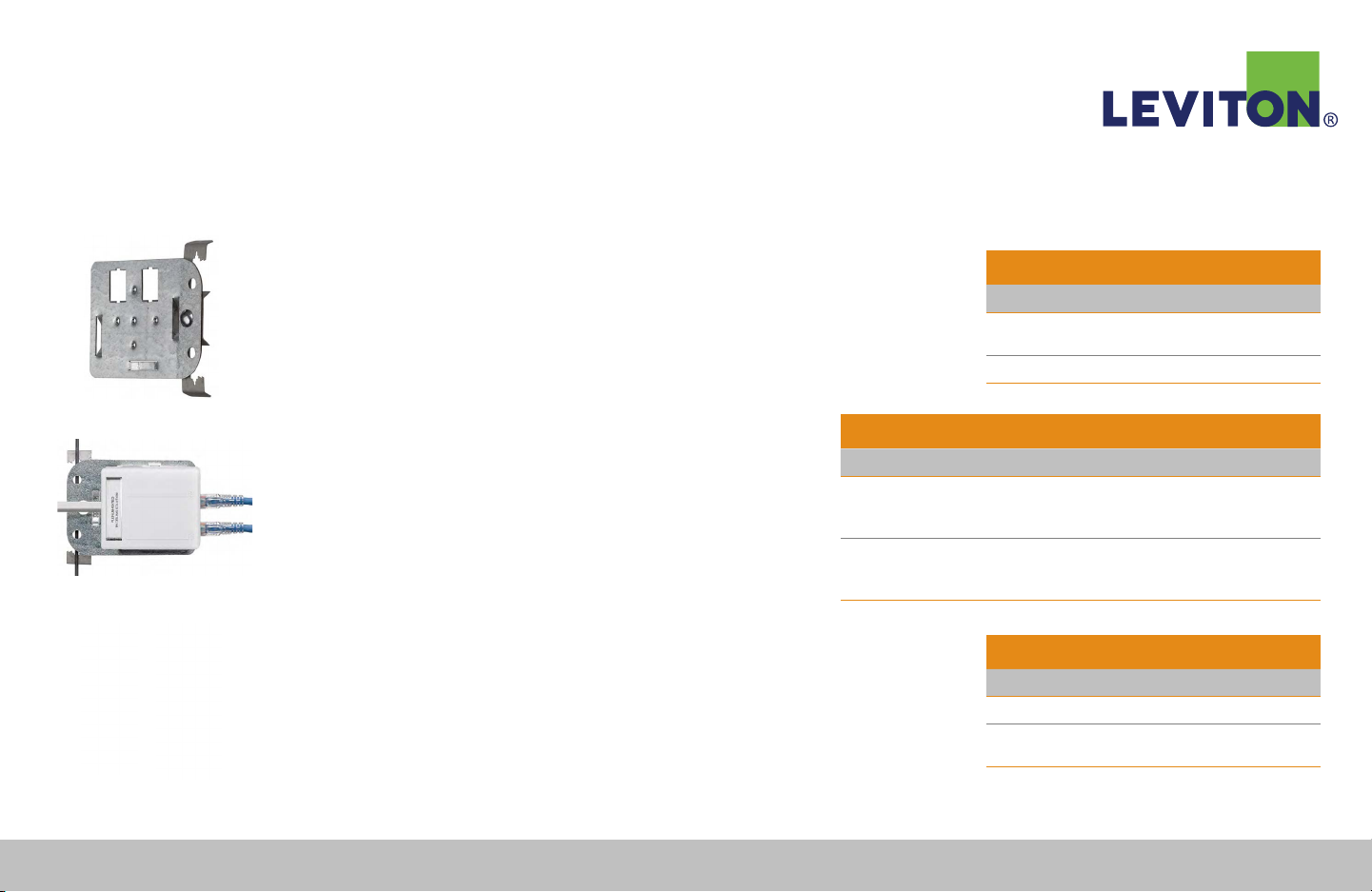

u In-Ceiling and In-Wall Brackets

u Zone Enclosures

u Wallplates

u Patch Cords

u Surface-Mount Boxes

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 31

Page 32

Applications

u Data Centers

u Wireless Access Points

u Power over Ethernet

u IT/AV and HDBaseT

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Applications

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 32

Page 33

Data Centers

u Pathways and Spaces

Applications >

Data Centers

u Leviton Solutions

u Raised Floor vs. Overhead Cable Runs

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Data centers are one of the most critical parts of any data network and thus require the highest levels of performance and reliability. Cabling for data centers diers from horizontal installations in several ways: typical distances, network function, pathways, and spaces. Cat 6A cabling may affect requirements for all of these, but especially pathways and spaces. Careful planning and proper specifications will help ensure a successful installation.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 33

Page 34

Data Centers — Pathways and Spaces

Applications >

Pathways and Spaces

Data Centers >

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

In recent years, data center switches have been introduced that support 10GBASE-T at lower costs and higher densities, such as the Cisco Nexus 9500 Series and Arista 7300 Series switches. These switch manufacturers and others are promoting “ﬂatter” network architectures that remove some of the north-to-south trac from switch to server, and replace it with east-to-west, server-to-server designs.

As these new switches and architectures become widely used, it’s important to understand how higher densities will aect cabling pathways, as cabinet and cable tray space may become an issue. Cat 6A cabling used to support the 10GBASE-T server connections has a signiﬁcant impact on the physical support infrastructure needed to deploy it.

64 Cat 6A Pre-Terminated Trunks

40G Fiber

Uplinks

Higher density example: 8-Cabinet Row with Cisco Nexus 9508 Switch

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 34

Page 35

Data Centers — Raised Floor vs. Overhead Cable Runs

Applications >

Raised Floor vs. Overhead Cable Runs

Data Centers >

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

There are three typical data center Cat 6A cable run configurations: power and data cabling both under a raised floor, both overhead, or power below and data overhead. The chosen configuration will affect other data center design elements:

• If power and communications cable are both overhead, cable trays must be properly sized, separated, and conﬁgured to support 6A cables and accommodate power runs.

• If both are underﬂoor, pedestals must be higher to accommodate larger 6A cables, room for expansion, segregation from power runs, and proper airﬂow.

INSTALLATION BEST PRACTICES

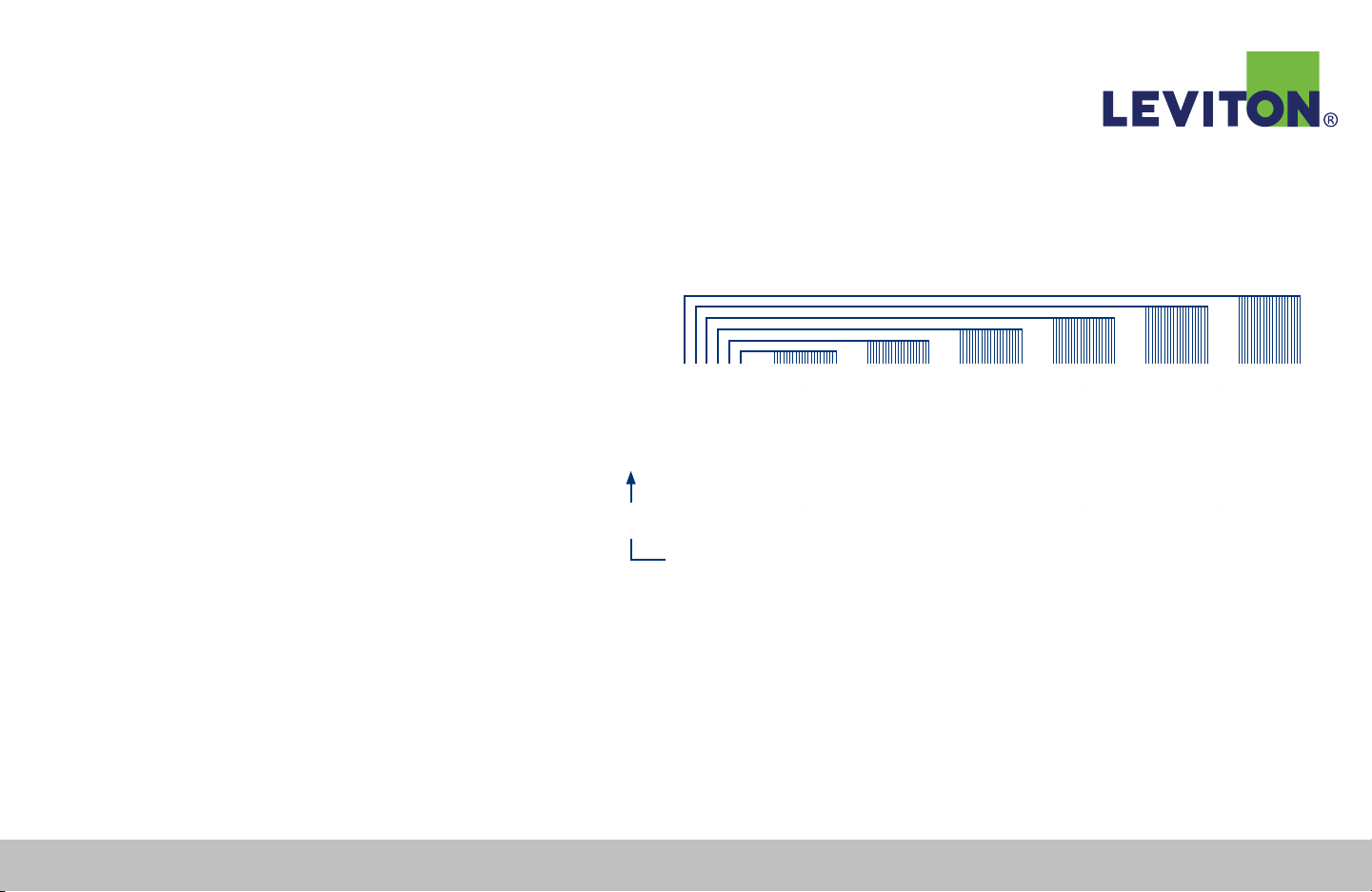

Pathways should be sized for 25% initial ﬁll ratio, which allows space for up to 50% fill with future additions. Pathways should be no more than 6" (15 cm or 150 mm) deep; larger deployments may use multiple trays or pathways to support cabling requirements. See page 18 for cable tray sizing in pathways.

Space cable bundle supports every three to four feet (0.9-1.2 meters) at irregular intervals.

Leviton trunks are pre-terminated with either a jack or plug. There are numerous advantages to using pre-terminated trunks, including factory testing. See this application note (pdf) for how to select the right copper trunk cables.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 35

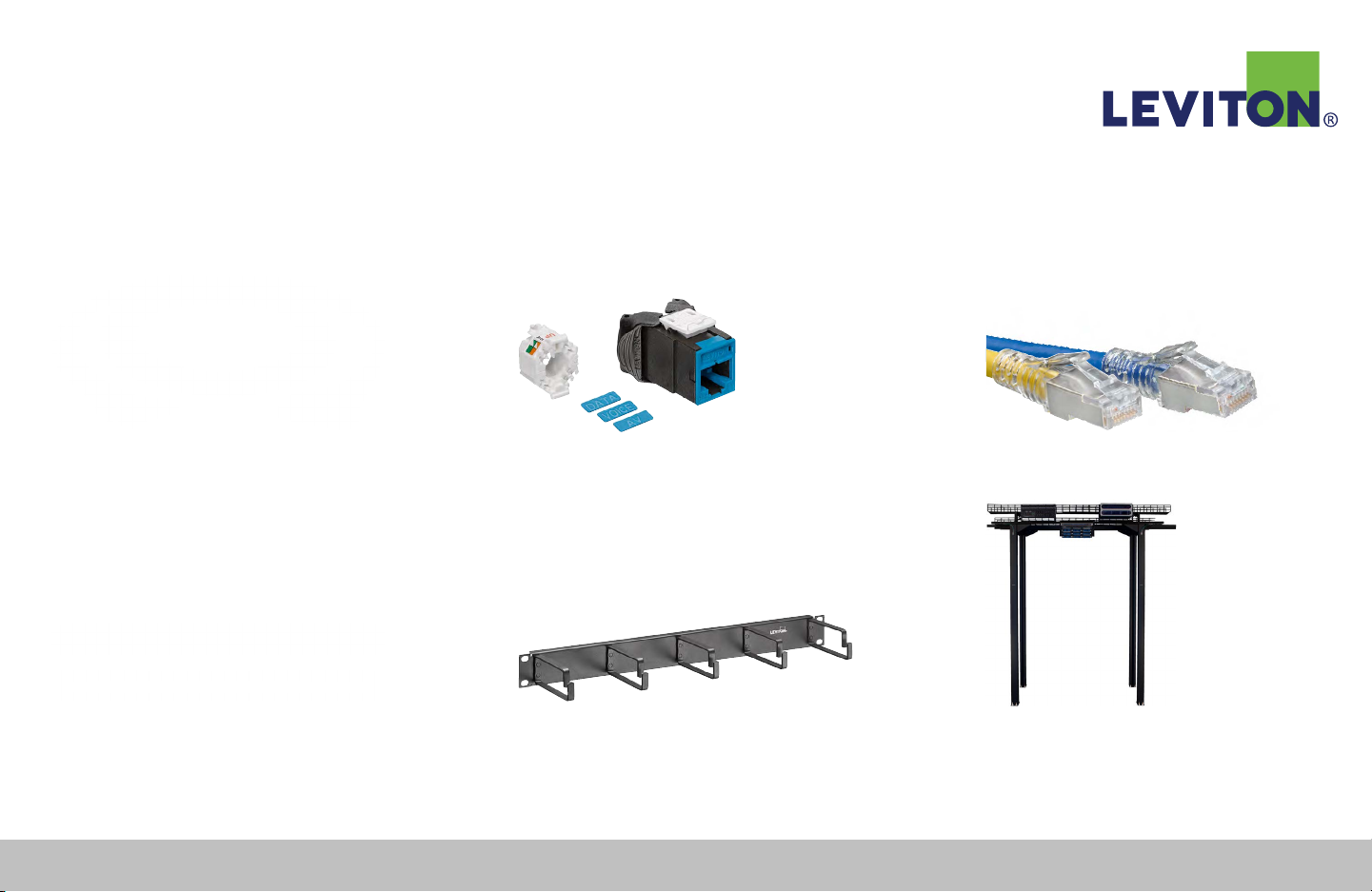

Page 36

Data Centers — Leviton Solutions

Applications >

Leviton Solutions

u Pre-Terminated Trunks

u Atlas-X1™ Connectors

u High-Density vs. Standard Panels

u Cable Management

Data Centers >

u Atlas-X1 Cords

u OIP (Overhead Infrastructure Platform)

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 36

Page 37

Wireless Access Points

u TIA and Leviton Cabling Recommendations

u Plenum Cabling Systems for WAPs

Applications >

Wireless Access Points

u Leviton Solutions

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

IEEE 802.11ac defines the next generation of Wi-Fi, and succeeds 802.11n. While 802.11ac was approved in late 2013, 802.11ac-enabled smartphones, routers, and laptops have been on the market since 2012. Most people are already using phones and laptops capable of connecting at the higher speed and frequencies

802.11ac offers, and adoption rates have been much faster than the move from

802.11a/b/g to 802.11n.

Enterprise wireless access points (WAPs) and backbone cabling infrastructure will need to be upgraded to see the real benefits of 802.11ac. Standards have already been revised to support access point upgrades. In late 2013, TIA published TSB-162-A, Telecommunications Cabling Guidelines for Wireless Access Points, which revises recommendations for mounting and routing cable between LAN equipment and WAPs.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 37

Page 38

Wireless Access Points — TIA and Leviton Cabling Recommendations

Applications >

TIA and Leviton Cabling Recommendations

Wireless Access Points >

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Install twisted-pair Cat 6A for horizontal cabling to WAPs. These highbandwidth solutions can prepare wireless networks for the next waves of

802.11ac devices, as data rates grow from 433 kb/s to 6.9 Gb/s. By using a Cat 6A RJ-45 interface and twisted-pair structured cabling system, users get the added beneﬁt of backwards compatibility and connection from the horizontal cabling all the way to the backbone and active gear.

WAP Cabling Structure

Based on a 60 Sq ft Uniform Cell Size

WAP Cord

Max = 13m (42ft)

EO EO

18.3m (60ft)

WAP

EO EO

6A Cable Max = 80m (262 ft)

Patch Panel

Equip. Cord

Max = 6m (20ft)

Active Equipment

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Use grid-based zone cabling architectures, with each cell in the grid no

18.3m (60ft)

greater than 60 feet (18.3 meters) wide. Many designs will likely use smaller grid cells — and in turn require additional WAPs — to improve data rates and allow for greater occupancy rates in each cell.

EO EO EO EO

WAPWAP

Run at least two Cat 6A cable runs to each cell in the grid architecture. As 802.11ac WAPs allow for Power over Ethernet (PoE), it is recommended to run two Cat 6A cables to each WAP for backup power capabilities in case one power source isn’t working. Two cable runs will also prepare the infrastructure for future expansion and data requirements. Leviton also suggests installing shielded cabling or UTP cabling with a Leviton patented metallic isolation wrap for these PoE applications, as it reduces heat buildup in cable bundles that may contribute to performance issues.

leviton.com/ns 38

Page 39

Wireless Access Points — Plenum Cabling Systems for WAPs

Applications >

Plenum Cabling Systems for WAPs

Wireless Access Points >

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Many wireless access points are installed in drop ceilings, which means the cabling system may require a plenum rating to meet requirements for ﬂammability and smoke density in air-handling spaces. Leviton oers a complete plenum-rated in-ceiling system which includes patch cords, cable, Atlas-X1™ connectors, QuickPort® surface-mount boxes and In-Ceiling Mounting Brackets.

The QuickPort in-ceiling mounting bracket provides a ﬁxed location for terminating the data connector. This reduces the possibility of damage during construction. Contractors can perform the initial installation and permanent link testing, while allowing the flexibility to move the In-Ceiling Bracket to refine Wi-Fi or WAN placement without needing to retest the link.

Plenum-Rated Patch CordsPlenum-Rated Cables

Wireless Access Point (WAP)QuickPort In-Ceiling Bracket with Plenum-Rated

Surface-Mount Box, Attached to Drop Wire*

coverage

* = Drop-wire not included in QuickPort In-Ceiling System and installed independent of ceiling grid suspension.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 39

Page 40

Wireless Access Points — Leviton Solutions

Applications >

Leviton Solutions

Wireless Access Points >

u In-Ceiling Bracket

u Plenum-Rated Surface-Mount Box

u Atlas-X1™ QuickPort® Connectors

u Patch Cords

u QuickPort Wireless Access Point (WAP) Kit

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 40

Page 41

Power over Ethernet

u Standards

u Cable and Connectivity Recommendations

Applications >

Power over Ethernet

u Leviton Solutions

u Reduce the Number of Cables per Bundle

u Install Shielded Cabling or UTP with Isolation Wrap

u Consider Connection Integrity and Performance

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

High-quality connectivity is essential for attaining the performance and reliability needed in current and future Power over Ethernet (PoE) network operations. System components should be designed to minimize temperature increases and meet industry standards for performance.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 41

Page 42

Power over Ethernet — Standards

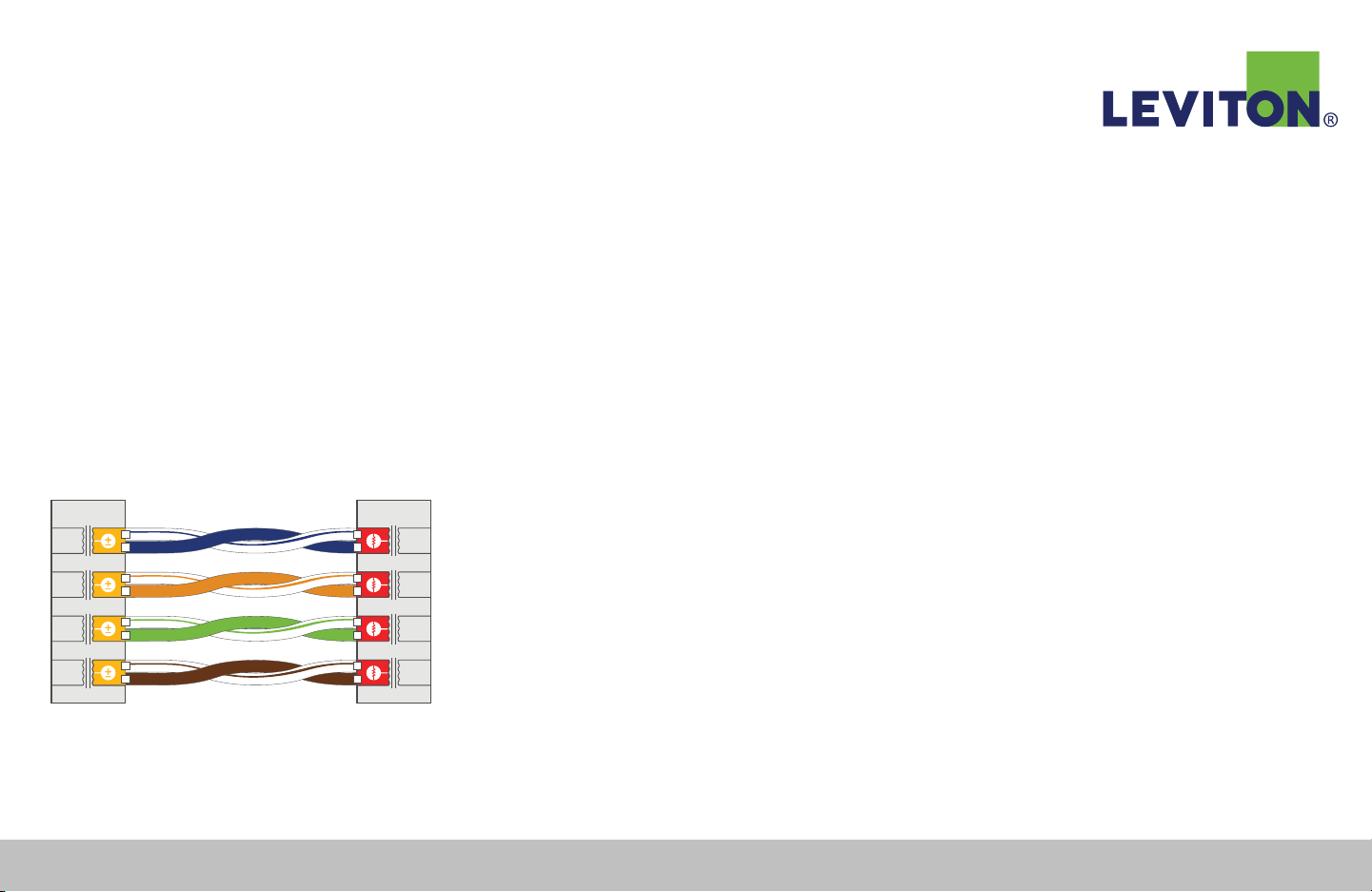

4-Pair PoE

Applications >

Standards

Power over Ethernet >

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

In 2013, IEE

E announced a task force for creating

802.3bt, which will define PoE over four pairs

and support 10GBASE-T. The standard will deﬁne two new tiers of PoE: Type 3 for up to 60 watts, and Type 4 for up to 100 watts. Both will support devices requiring higher power, such as laptops, displays, and next-generation wireless access points. Publication of 802.3bt is expected in early 2018.

PHY / PSE

VPSE LOAD

PHY / PD

In addition, in June 2016 the U.S. National Fire Protection Association (NFPA) voted for changes to the 2017 National Electric Code (NEC) that aect PoE. The NEC provides standards for installing electrical wiring and equipment in the United States, and while not a law, it is commonly adopted by states and cities around the country. The NFPA voted to create a new ampacity table to be referenced when the power supplied to conventional cables exceed 60 watts. This table, included in NEC article 725, governs the maximum cable bundle size allowed for conventional telecommunications cables with various temperature ratings, carrying various level of PoE.

The Telecommunications Industry Association (TIA) and the International Organization for Standardization (ISO) have updated standards that address cabling to support 4-pair PoE in accordance with 802.3bt. TIA TSB-184-A Guidelines for Supporting Power Delivery Over Balanced Twisted-Pair Cabling and the ISO/IEC TS29125 “Information Technology — Telecommunications Cabling Requirements for Remote Powering of Terminal Equipment” both oer cabling guidelines to support IEEE 802.3bt four-pair PoE, as well as other applications. These documents provide guidance on maximum bundle size for dierent category cables based on installation conditions and the maximum power delivered (15.4, 30, 60, or 100 watts).

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 42

Page 43

Power over Ethernet — Cable and Connectivity Recommendations

LEVITON.COM/NS | 800.722.2082 / +1.425.486.2222

The maximum temperature to which a cable will increase depends on a number of factors, including the amount of power being applied to the cable, the cable’s resistance, the cable’s construction, ambient temperature, and the amount of heat allowed to radiate out of the cable. If cables are bundled or closely grouped, the cables near the center of the bundle have difficulty radiating heat out into the environment. Therefore, the cables in the middle heat up more than those toward the outer surface of the bundle. The larger the bundle size, the more the cables will heat up.

Industry-standard cables carrying PoE at low power levels like 15 and 30 watts are unlikely to overheat, unless extreme conditions exist such as huge bundle sizes or extreme ambient temperatures. It is only when high levels of PoE are deployed — like 60 and 100 watts — that heating can become a potential issue.

When twisted-pair cabling is used for PoE (Power over Ethernet), the majority of the power entering the cable is successfully delivered to the device being powered. However, a small percentage is dissipated in the cabling. This can cause the cable’s temperature to increase above the temperature of its surroundings. It is important to keep cable temperatures at reasonable levels and below the maximum operating temperature. This will:

• Prevent transmission impairment due to structural compromise

• Reduce long term cable degradation

• Minimize the negative eect of heating on transmission performance

• Reduce the amount of heat added to the surrounding environment

temperature rise

IN POE INSTALLATIONS

TIPS FOR

minimizing cable

It is only when higher levels of PoE are deployed — such as 60 and 100 watts — that cable heating can become a potential issue.

PRACTICE THE FOLLOWING TIPS TO BETTER MANAGE CABLE TEMPS

Applications >

Power over Ethernet >

Cable and Connectivity Recommendations

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

One issue that can aect performance is heat generation in cable bundles. When power is added to balanced twisted-pair cabling, the copper conductors generate heat and temperatures rise. The heat dissipates into the surrounding area until a stable temperature is reached, with the cable bundle at a higher temperature than the surrounding ambient temperature. High temperatures can lead to higher insertion loss, and in turn shorter permissible cable lengths. It can also increase bit error rates, and create higher power costs due to more power dissipated in the cabling. Cables also behave dierently with respect to heat dissipation depending on whether they are insulated in conduit, cable tray, or open air. The Telecommunications Industry Association (TIA) recommends 15 degrees Celsius as the maximum allowed temperature rise above ambient as a result of power over the cabling.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Leviton oers a list of tips for minimizing cable temperature rise in PoE installations.

leviton.com/ns/library

“Tips for Minimizing Cable Temperature Rise in PoE Installations”

leviton.com/ns 43

Page 44

Grounding and Bonding

Power over Ethernet — Cable and Connectivity Recommendations

Applications >

Power over Ethernet >

Cable and Connectivity Recommendations

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Reduce the Number of Cables per Bundle

Separating large cable bundles into smaller bundles or avoiding tight bundles will reduce temperature rise. For example, TIA tested the temperature of a bundle of 91 cables, and three bundles of 37 cables. The temperature in the center of a 91 cable bundle was higher than the worst case temperature in center point of three bundles. Physically separating the three bundles from each other further reduced the maximum temperature.

Install Shielded Cabling or UTP with Isolation Wrap

UTP cable with patented isolation wrap features separations in the wrap to prevent a current from flowing along the length of the cable. These cables radiate heat better than traditional UTP cable, minimizing the cables temperature rise. UTP cable with a segmented isolation wrap provides additional alien crosstalk suppression, but eliminates the need for grounding and bonding required with shielded cabling.

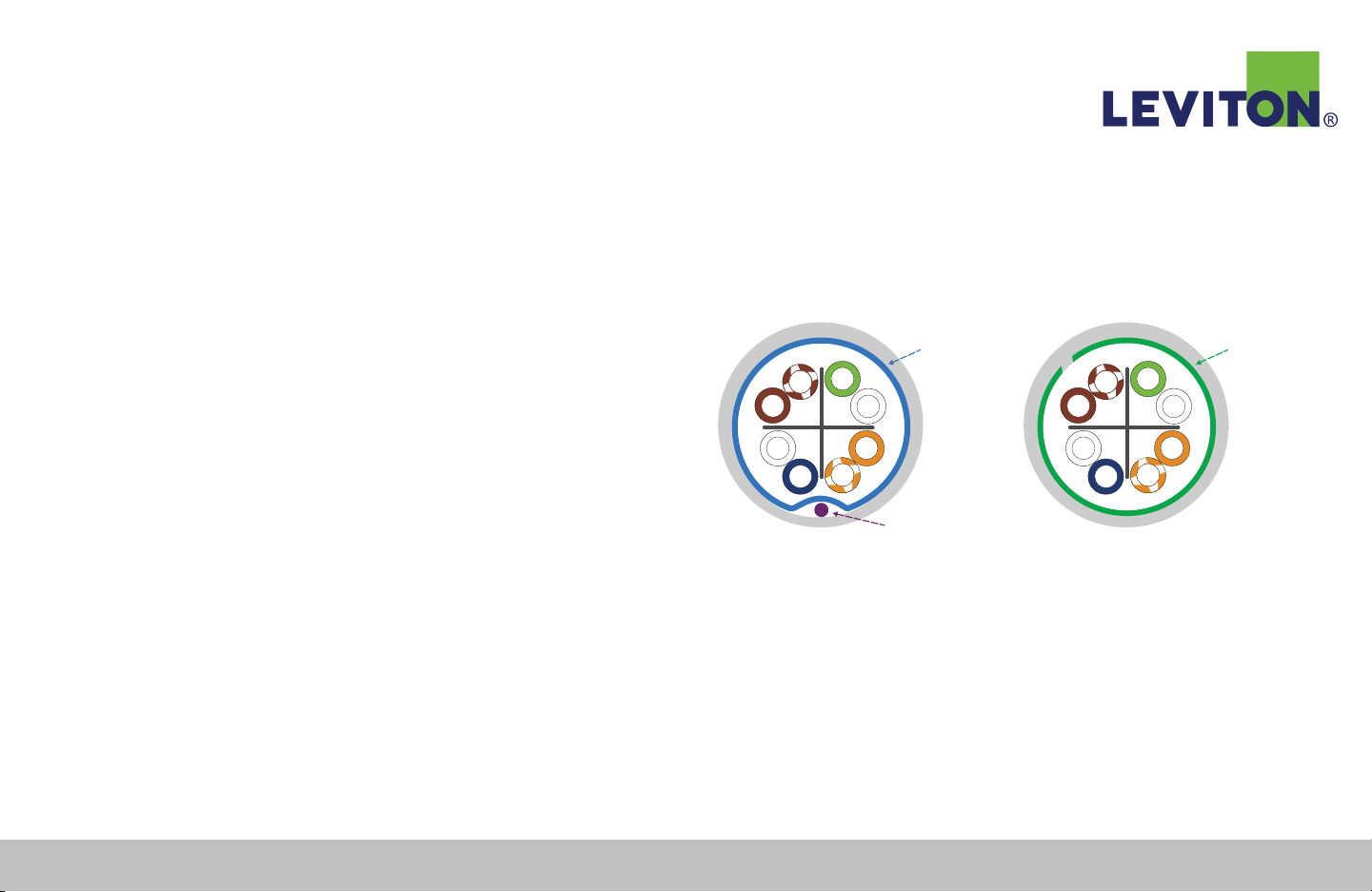

Shield/Foil

Drain Wire for

No Drain Wire

Isolation Wr

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 44

Page 45

Power over Ethernet — Cable and Connectivity Recommendations for PoE

Applications >

Cable and Connectivity Recommendations

Power over Ethernet >

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Consider Connection Integrity and Performance

Another consideration with PoE is the potential for damage over time to RJ-45 connectors in the network. Speciﬁcally, when a patch cord is unplugged while the connection is energized, a small electrical arc can occur between the connector and the plug. While there is no immediate damage (and the arc is not dangerous to users), it can create pitting on the connector tines and patch cord plug contacts over numerous disconnections, weakening the integrity of the connection.

Leviton recommends using a connector that is designed to keep the connection point between the mated connector tines and plug at a distance from the point of arcing damage. Leviton has designed the geometry of its connectors so that arcing occurs at a dierent area from the point of contact during data transmission. Leviton connectors also use a patented retention force technology that maintains contact force between plug and connector, preventing intermittent disconnects that cause arcing.

Retention Force Te chnology

As with cable, temperature rise in connectors can also aect channel performance. Leviton engineers tested Atlas-X1 connectors and patch cords against standards requirements. The connector was tested to the IEC 60512-5-2 Connectors for Electronic Equipment standard. The higher performance in the Atlas-X1 connector is largely due to its unique metal-body construction. Leviton testing found that using metal in the connector body — instead of commonly-used ABS plastic — creates a 53 percent improvement in heat dissipation.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 45

Plastic Metal

Tine Geometry

Damaged Area from Arcing

Contact Zone

Page 46

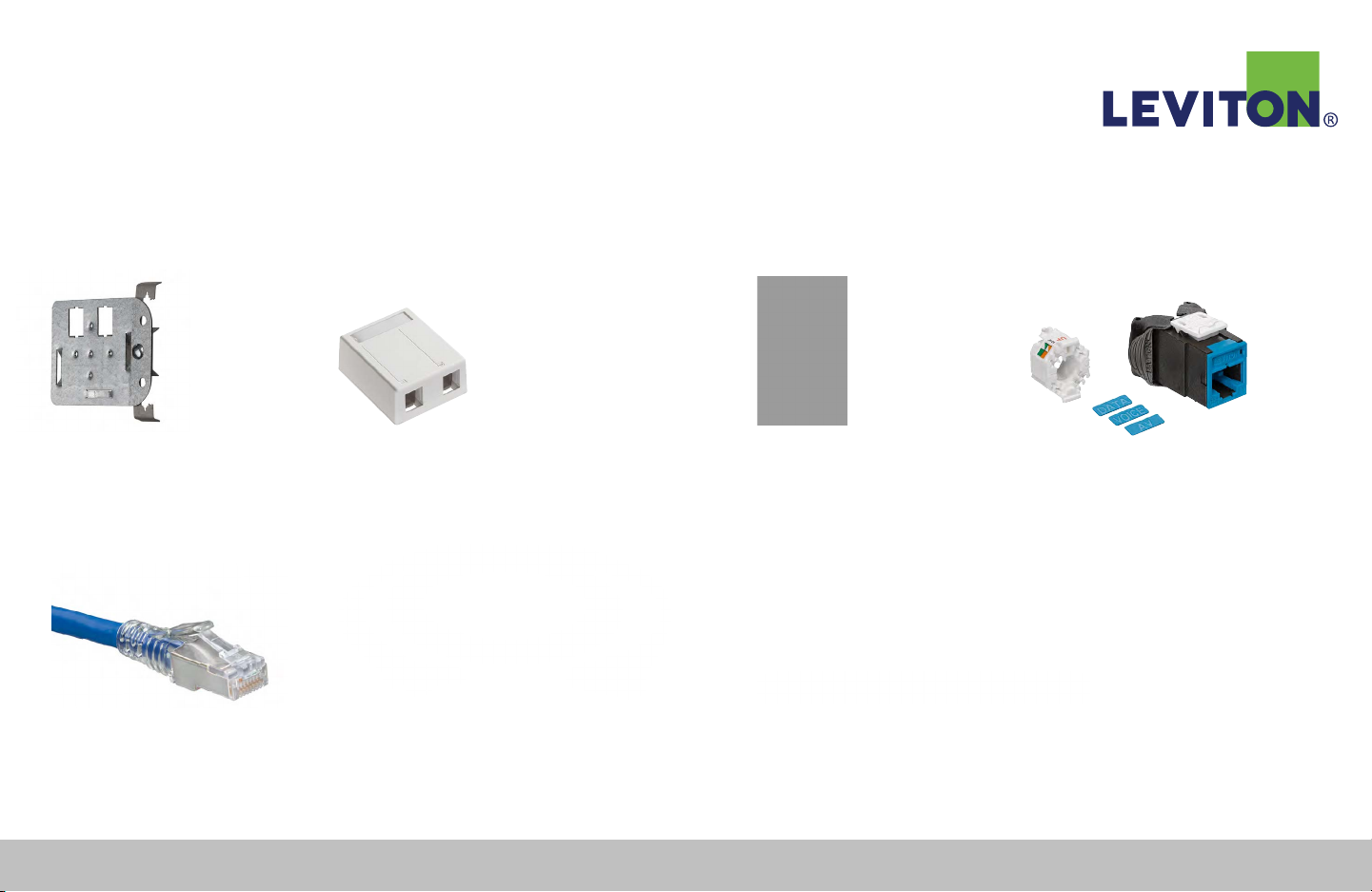

Power over Ethernet — Leviton Solutions

Applications >

Leviton Solutions

Power over Ethernet >

u In-Ceiling Bracket

u Plenum-Rated Surface-Mount Box

u Atlas-X1 Patch Cords

u Atlas-X1™ QuickPort® Connectors

u Wallplates

u Patch Panels

u Pre-Terminated Trunks

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 46

Page 47

IT/AV and HDBaseT™

Applications >

IT/AV and HDBaseT

u Leviton Solutions

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

HDBaseT has become a key technology that enables audiovisual signal extension

to high definition displays and projectors. HDBaseT 5Play™ extends HDMI and audio, 100BaseT Ethernet, control, and power up to 100 meters on a single category-rated twisted-pair cable. Category cable is not only faster and simpler to install than traditional HDMI cables, it is also more cost effective.

video

HDBaseT 5Play at a Glance

Simultaneous transmission of 5 functions over a single category cable up to 100 m (328 ft)

HD Video — Full HDMI: HD/3D and 2K/4K uncompressed video

AV signals over HDBaseT look much like the 10GBASE-T data signals you encounter every day — they are just a little less forgiving. HDBaseT is packet based like Ethernet, but it doesn’t have a retransmission mechanism, so there is no recovery from packet errors. You can avoid pixelation or complete video dropout due to packet errors by using the right cabling.

A key feature of HDBaseT 5Play is the ability to power transmitter and receiver devices over the category cable link using PoH. Typical power levels used are only 10-15 watts, but the system is capable of supporting the full 100 watts in compliance with the IEEE PoE+ standard. A Category 6A connectivity system is recommended.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 47

Audio — Full audio including Dolby Digital, DTS, Dolby TrueHD, and DTS HD-Master Audio formats

Ethernet — Supports 100Mb Ethernet Channel. For connecting devices to the local area network; can also be utilized to enable IP control of devices

Control — Control via bi-directional RS-232 and IR Channels

Power over HDBaseT (PoH) — Power extenders from either

the source or display end with certiﬁed bi-directional PoH extenders. Complies with IEEE802.3at-2009 “PoE+”

Page 48

IT/AV and HDBaseT™

Applications >

IT/AV and HDBaseT

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

The HDBaseT Alliance speciﬁes Cat 5e, Cat 6 UTP, and Cat 6A UTP cabling as supported media types. But these category ratings will deliver varying performance results, depending on the type of installation, video resolution, and distance. While Cat 5e channels can carry HDBaseT signals in an isolated point-to-point link, they do not support HDBaseT in real-world high-density installations with adjacent data or HDBaseT channels.

Leviton testing ﬁnds use of Cat 5e in these applications can lead to high packet error rates and total link loss, as the channels are not designed for resistance to alien crosstalk. Even Cat 6 cables can be limited in carrying HDBaseT signals when adjacent to other cables carrying HDBaseT. We recommend Cat 6A with alien crosstalk prevention technology to support HDBaseT signals that are in the presence of multiple disturbers, including other HDBaseT signals and 10 GbE.

Leviton offers a complete IT/AV System for HDBaseT applications, including HDMI extenders and Cat 6A connectivity and cable. This system can be installed, tested, and veriﬁed as a Cat 6A 10GBASE-T link, and is certiﬁed to HDBaseT Alliance Standards.

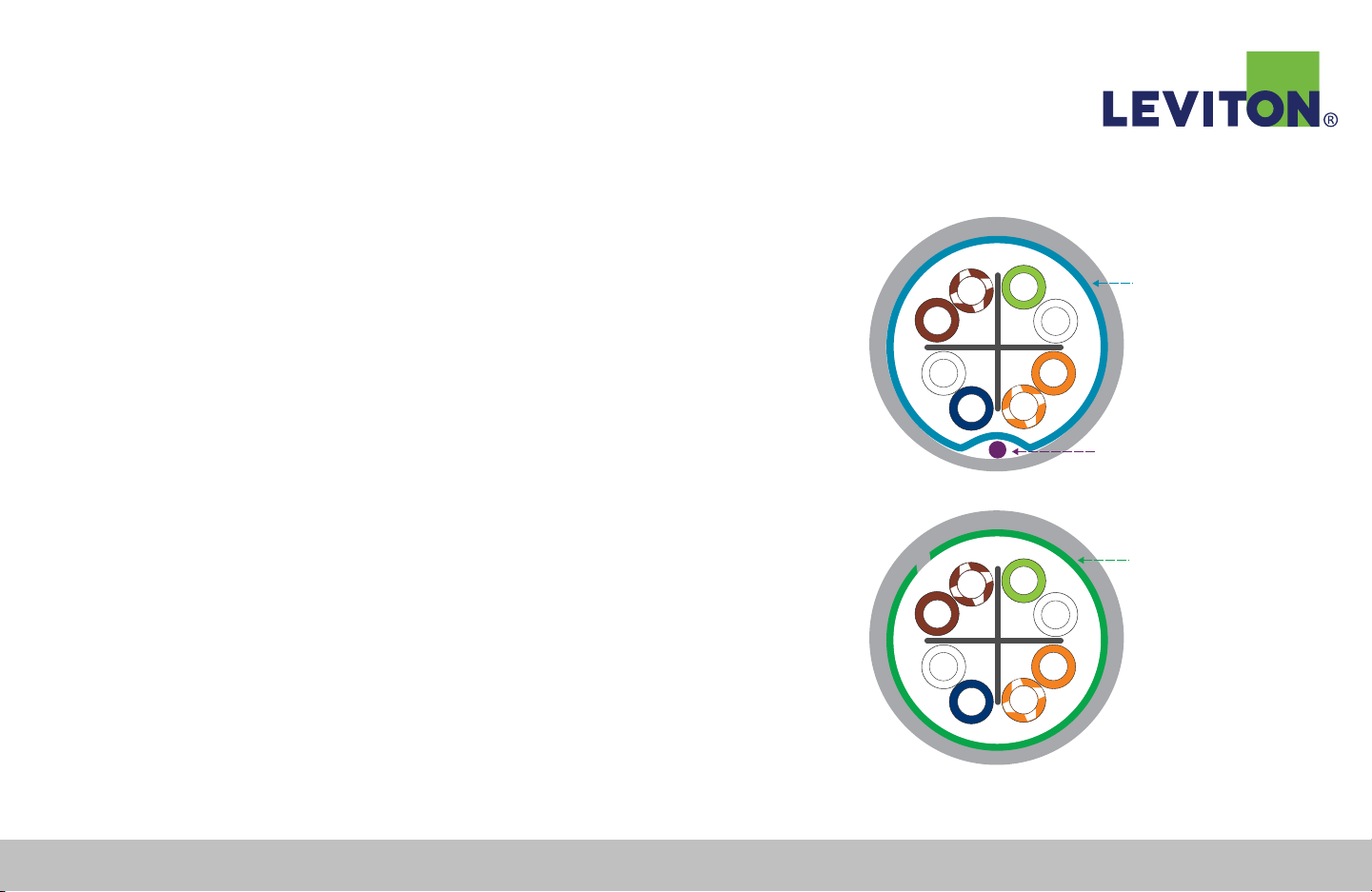

Shield/Foil

Shielded Cable

Drain Wire for Grounding and Bonding

Isolation Wrap

UTP Cable with Isolation Wrap

No Drain Wire Discontinuous Foil Shield

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 48

Page 49

IT/AV and HDBaseT™ — Leviton Solutions

u Signal Extension

u HDMI Cables

u Atlas-X1™ Patch Cords

u Atlas-X1 Connectors

Applications >

Leviton Solutions

IT/AV and HDBaseT >

u Multi-Media Outlet System (MOS)

u Control Systems

Testing

Product Overview

Termination

Cat 6A

Applications

Glossary and References

Installation

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 49

Page 50

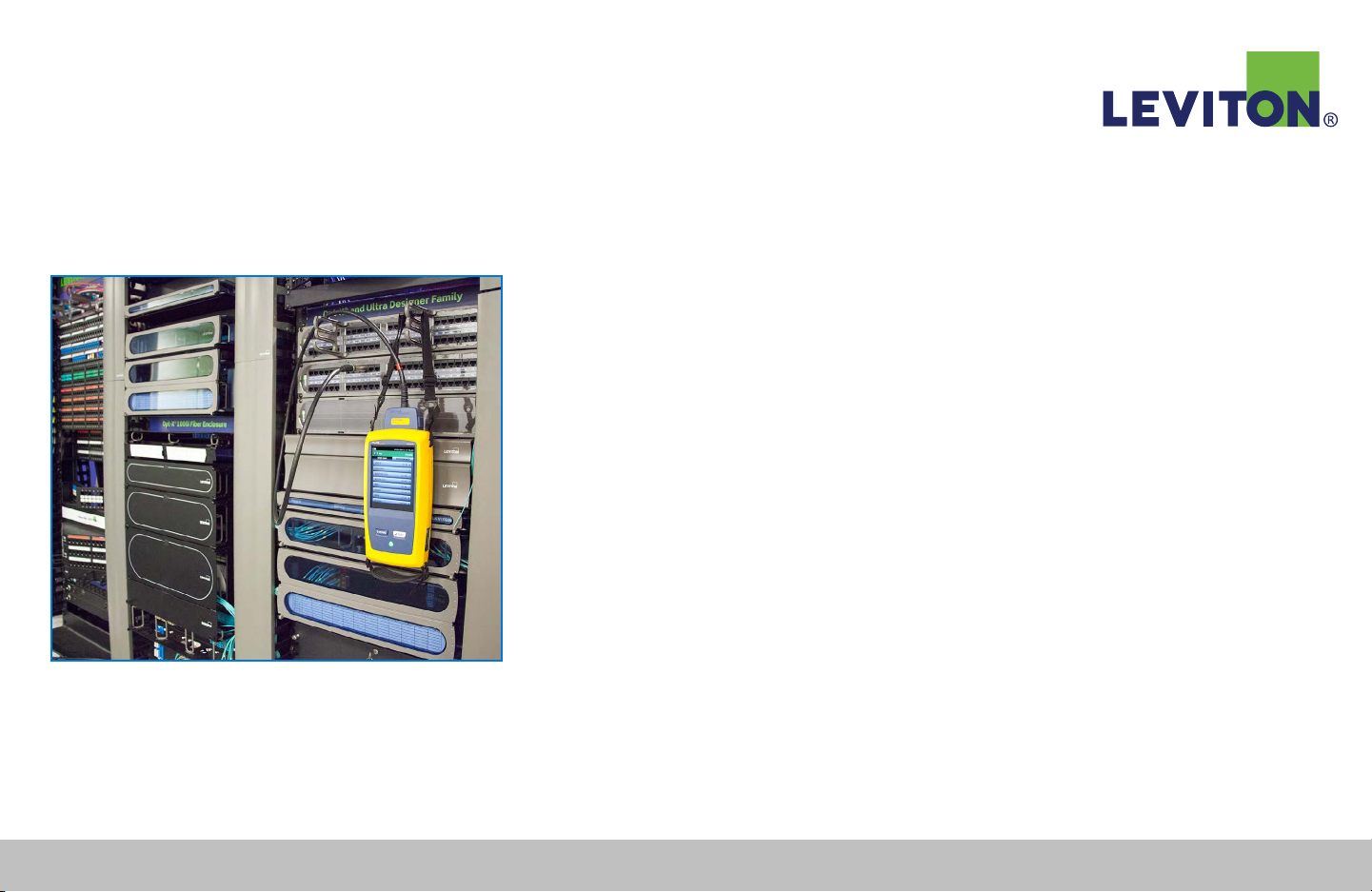

Testing

u Cat 6A Testing

u AXT Testing

u AXT Testing Preparation

Product Overview

Termination

Cat 6A

Testing

Glossary and References

Installation

Applications

Testing

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 50

Page 51

Cat 6A Testing

Testing >

Cat 6A Testing

Product Overview

Termination

Cat 6A

Testing

Glossary and References

Installation

Applications

Field testing of Cat 6A installations is much like ﬁeld testing for Cat 5e and Cat 6. However, Cat 6A testing is performed to a maximum frequency of 500 MHz. In addition, Cat 6A adds several tests for alien crosstalk (AXT).

Use an industry-recognized UL Level 4 or higher ﬁeld tester capable of testing to 500 MHz. Contact the test equipment manufacturer for any necessary hardware or software upgrades, including AXT testing capabilities, for testing Cat 6A installations. Perform permanent link or channel tests for all installed drops. Upon completion, provide the customer with all test results.

• Wire map

• Length

• Attenuation

• Propagation delay

• Delay skew

• NEXT – near-end crosstalk

• FEXT – far-end crosstalk

• Return loss (RL)

Leviton Network Solutions

• PSNEXT – power sum near-end crosstalk

• PSFEXT – power sum far-end crosstalk

• PSACRF – power sum attenuation-to-crosstalk ratio, far-end

• AACRF – alien attenuation-to-crosstalk ratio, far-end

• AFEXT – alien far-end crosstalk

• ANEXT – alien near-end crosstalk

• PSAFEXT – power sum alien far-end crosstalk

• PSANEXT – power sum alien near-end crosstalk

(800) 722 2082

+1 (425) 486 2222

• ELFEXT (ACRF) – equal level far-end crosstalk (attenuation-to-crosstalk ratio, far-end)

• PSELFEXT (PSACRF) – power sum equal level far-end crosstalk (power sum attenuation-to-crosstalk ratio, far-end)

• PSAACRF – power sum alien attenuation-to-crosstalk ratio, far-end

leviton.com/ns 51

Page 52

AXT Testing

PSAACRF

PSANEXT

Testing >

AXT Testing

Product Overview

Termination

Cat 6A

Testing

Glossary and References

Installation

Applications

-20

-40

-60

-80

-100 0 100 200 300 400 500 600 700

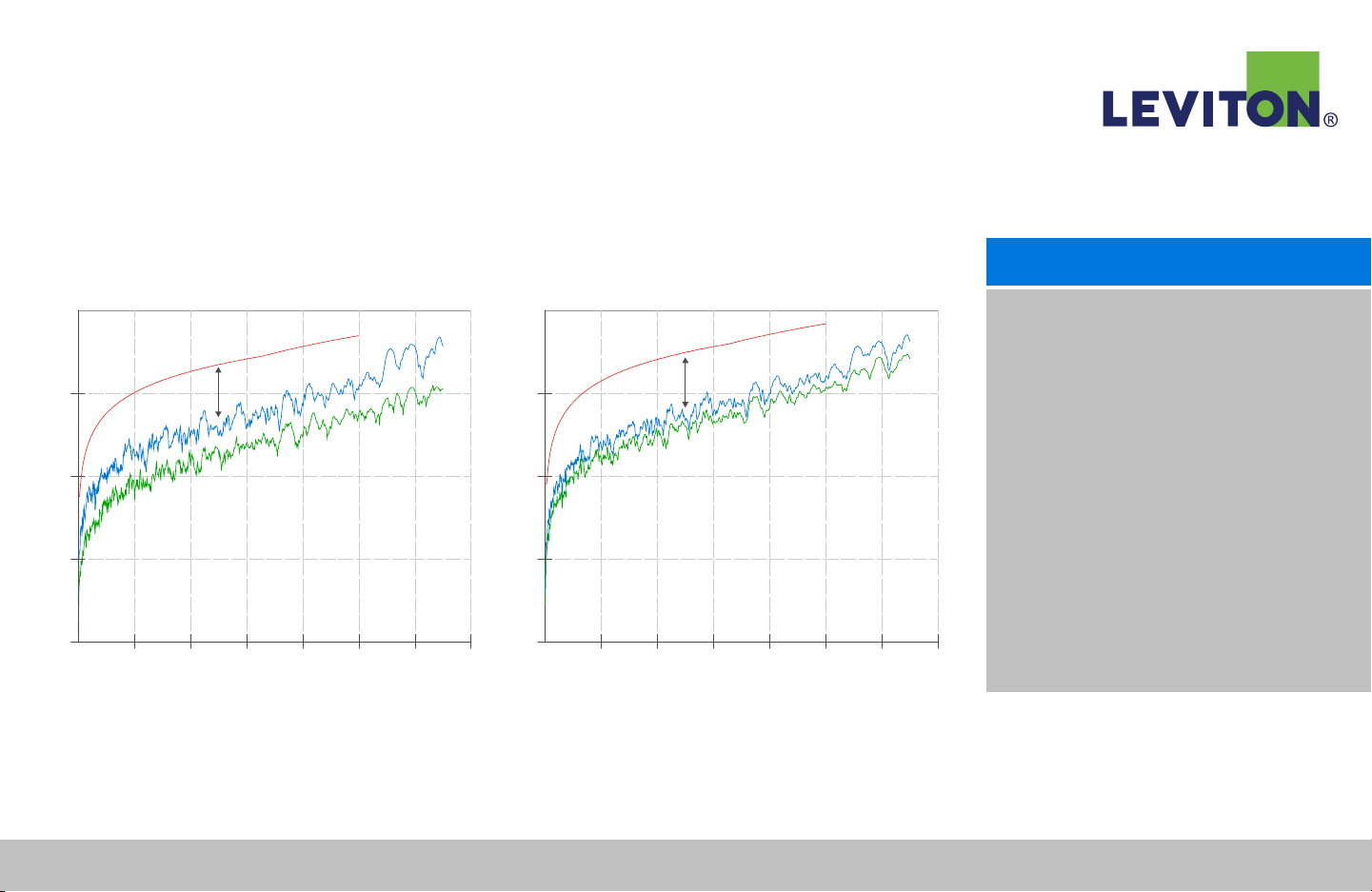

Power Sum Alien Near End Crosstalk

TIA Limit

Performance Margin

Better Performance

Frequency (MHz): (Blue — Worst Case, Green — Average)

Power Sum Alien Attenuation to Crosstalk Ratio — Far End

-20

Performance

-40

-60

-80

-100 0 100 200 300 400 500 600 700

Frequency (MHz): (Blue — Worst Case, Green — Average)

Margin

Better Performance

TIA Limit

TECH TIP: Leviton AXT Performance

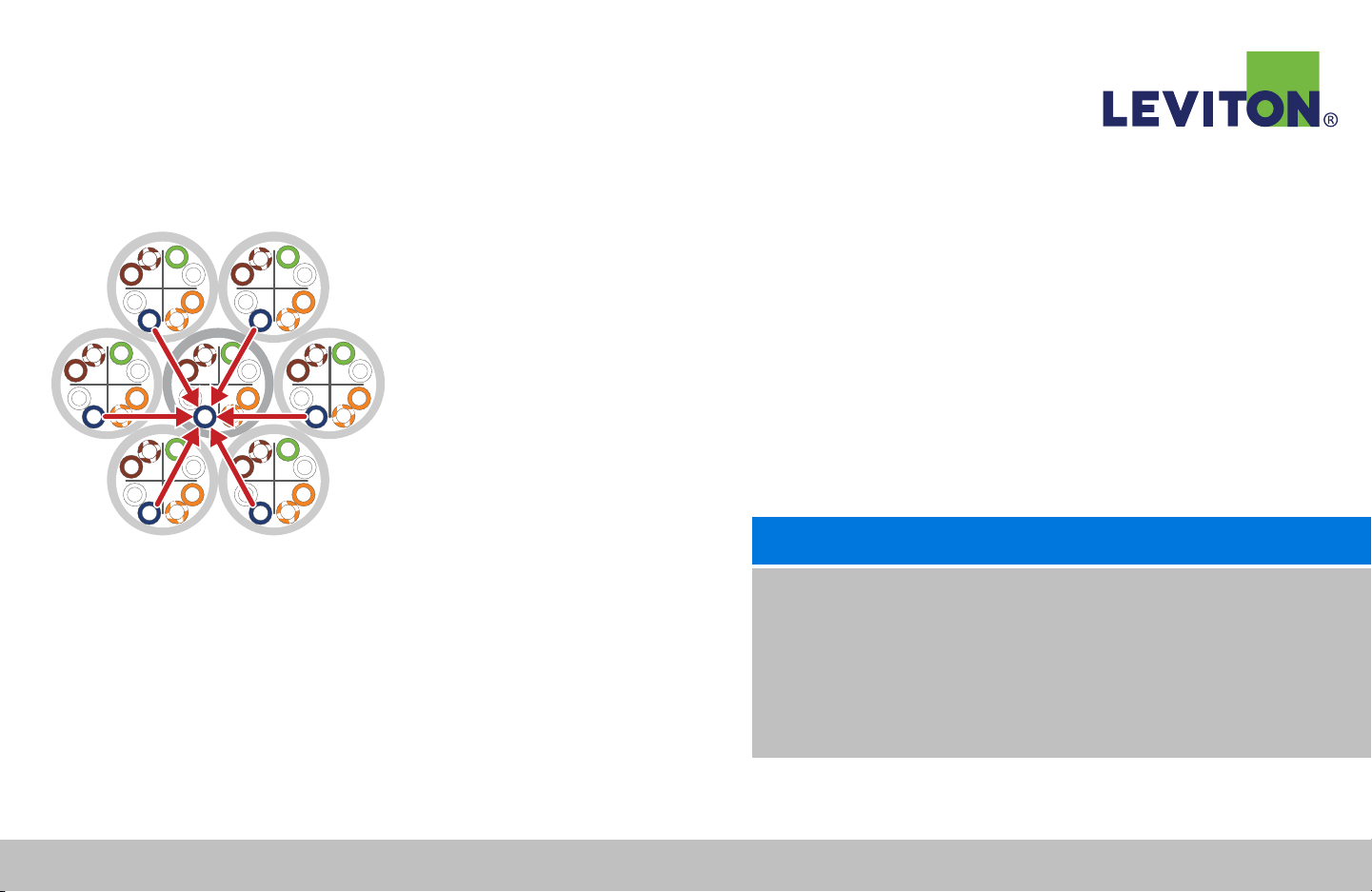

Alien crosstalk (AXT) can have a serious impact on Cat 6A cabling system performance. Choose Leviton and get excellent AXT suppression. Independent third-party and Leviton tests have proven that properly installed Leviton Cat 6A solutions have signiﬁcant AXT headroom over the standard’s requirements, even for permanent links as short as 10 feet (3.048 m). As a result, properly installed Leviton systems with approved cable do not require ﬁeld alien crosstalk testing. In addition, Leviton pre-terminated, pre-tested trunk cables do not require any ﬁeld testing.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 52

Page 53

AXT Testing Preparation

Testing >

Cat 6A Testing Preparation

Product Overview

Termination

Cat 6A

Testing

Glossary and References

Installation

Applications

AXT testing measures the unwanted noise coupled to the cable being tested (called the “Victim” or “Disturbed”) by surrounding cables (called “Disturbers”). Two tests need to be performed: the Power Sum Alien Near-end Crosstalk (PSANEXT) test and the Power Sum Alien Attenuation-to-Crosstalk Ratio, Far-end (PSAACRF) test. Results for the remaining AXT tests are taken as part of these two, so although they are not directly provided, a “pass” result for PSANEXT and PSAACRF ensures passing results for AACRF, AFEXT, ANEXT, and PSAFEXT. A 2% sample of the installed cables is typically recommended.

TECH TIP: Is AXT Testing Required?

• AXT tests are time-consuming: budget AXT test time into your bid

• Handheld test instruments (ﬁeld testers) require an additional AXT module

• A laptop computer is also typically used with the ﬁeld tester

• The ﬁeld tester’s AXT application software must be loaded onto the laptop

• Installation personnel will require training prior to performing AXT testing

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 53

Even though Leviton does not require ﬁeld AXT testing for its Cat 6A solutions, you may still be required to perform this testing. Read project speciﬁcations carefully to determine if they call for ﬁeld AXT testing. If they do, ask for a waiver based on the proven performance of Leviton’s Cat 6A solutions. If the customer won’t grant a waiver, you’ll need to perform the testing.

Page 54

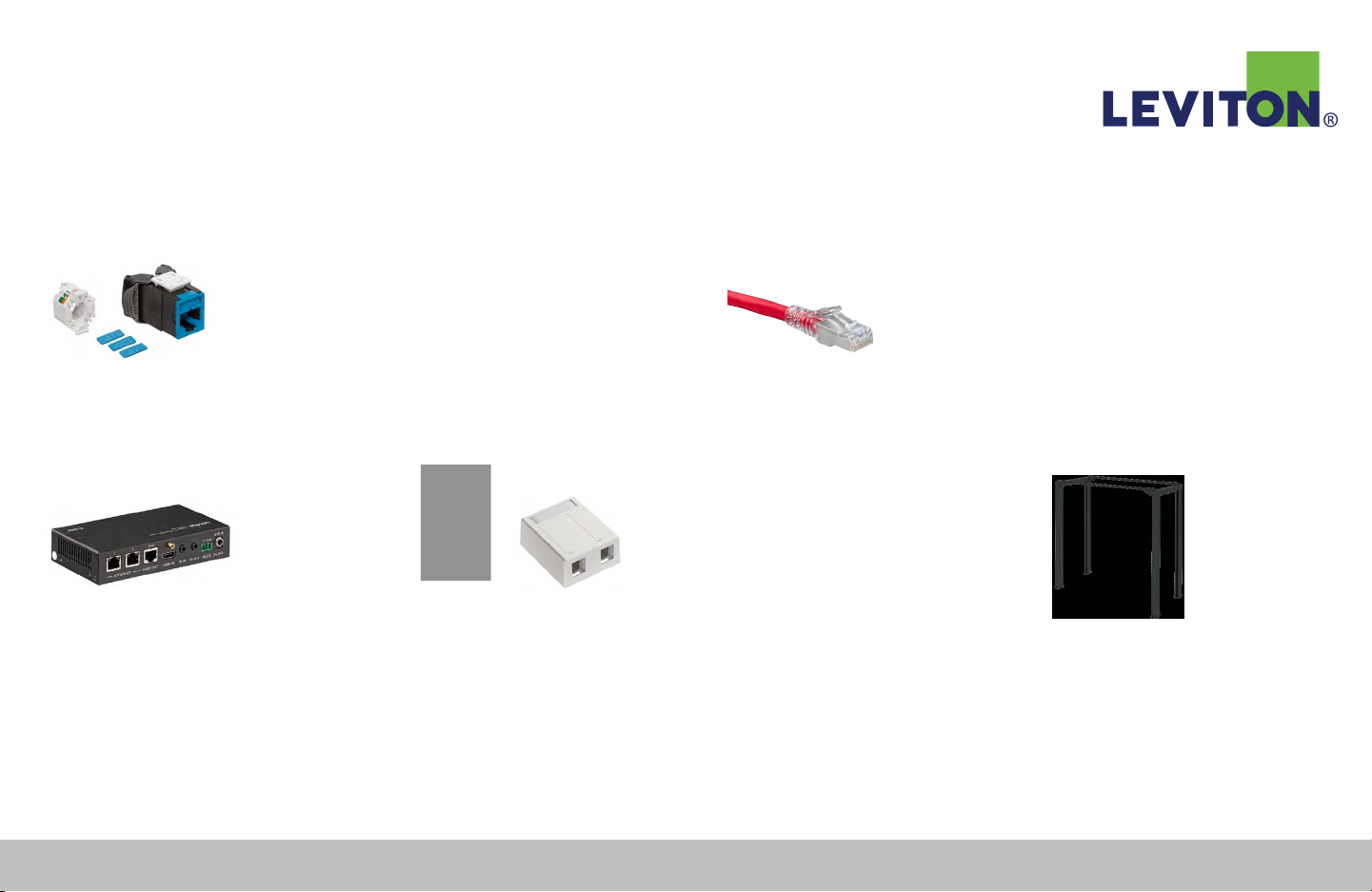

Product Overview

u Pre-Terminated Copper Trunks

u Connectors

u Patch Cords

u Patch Panels

u Signal Extension

u Wallplates and Housings

u QuickPort® Wallplates

u QuickPort Surface-Mount Boxes

u Multimedia Outlet System (MOS)

u In-Ceiling and In-Wall Brackets

u Cable Management

u Versi-Duct

u OIP (Overhead Infrastructure Platform)

u Zone Enclosures

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

Product Overview

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 54

Page 55

Connectors

Product Overview >

Connectors

White (W)Light Almond (T)Ivory ( )Yellow ( Y)Orange (O)Crimson (C )Dark Red (R )Purple (P )Blue (L)Green (V)Grey (G )Black (E )Brown (B)

Shutter

Standard

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

Atlas-X1 UTP

Atlas-X1 Shielded

Atlas-X1™

Atlas-X1 Cat 6A connectors deliver the highest level of verified performance and reliability, and offer simple tool-free terminations. The connectors feature interchangeable icons and optional internal shutters for protection. They have been tested and approved as a plenum-rated in-ceiling solution, and can deliver up to 100-watt Power over Ethernet.

eXtreme

eXtreme Cat 6A connectors pair high quality and performance with a user-friendly design to support fast, easy installations. They are ideal for enterprise or commercial environments where enhanced 10GBASE-T performance is required.

CAT 6A CONNECTOR OPTIONS

DESCRIPTION UTP SHIELDED

Cat 6A QuickPort Connector 6AUJK-R*6 6ASJK-R*6

Cat 6A QuickPort Connector with Shutter 6AUJK-S*6 6ASJK-S*6

Atlas-X1

eXtreme Cat 6A UTP Channel-Rated QuickPort Connector 6110G-R*6 —

* Color: White (W), Light Almond (T), Ivory (I), Yellow (Y), Orange (O), Crimson (C), Dark Red (R), Purple (P), Blue (L),

Green (V), Grey (G), Black (E), Brown (B) All Leviton Category-Rated Connectors are RoHS Compliant.

Bulk Icons, pack of 72 (2-sided icons, 24 of each icon)

Wire Managers, bag of 10 AXUJK-BWM AXSJK-BGM

ICONS-IC* ICONS-IC*

13 Colors and Shutter Options

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 55

Page 56

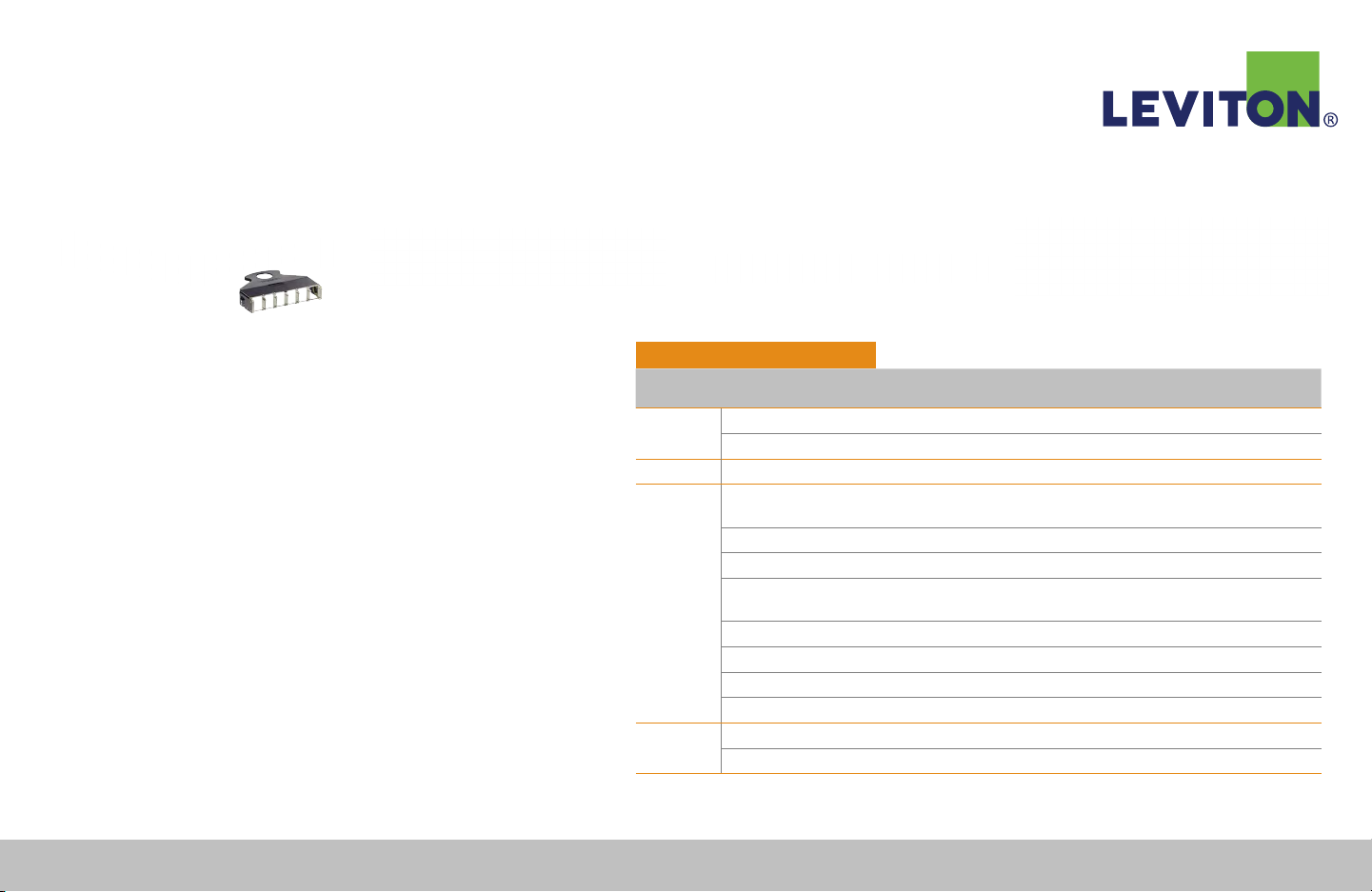

Patch Panels

Product Overview >

Patch Panels

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

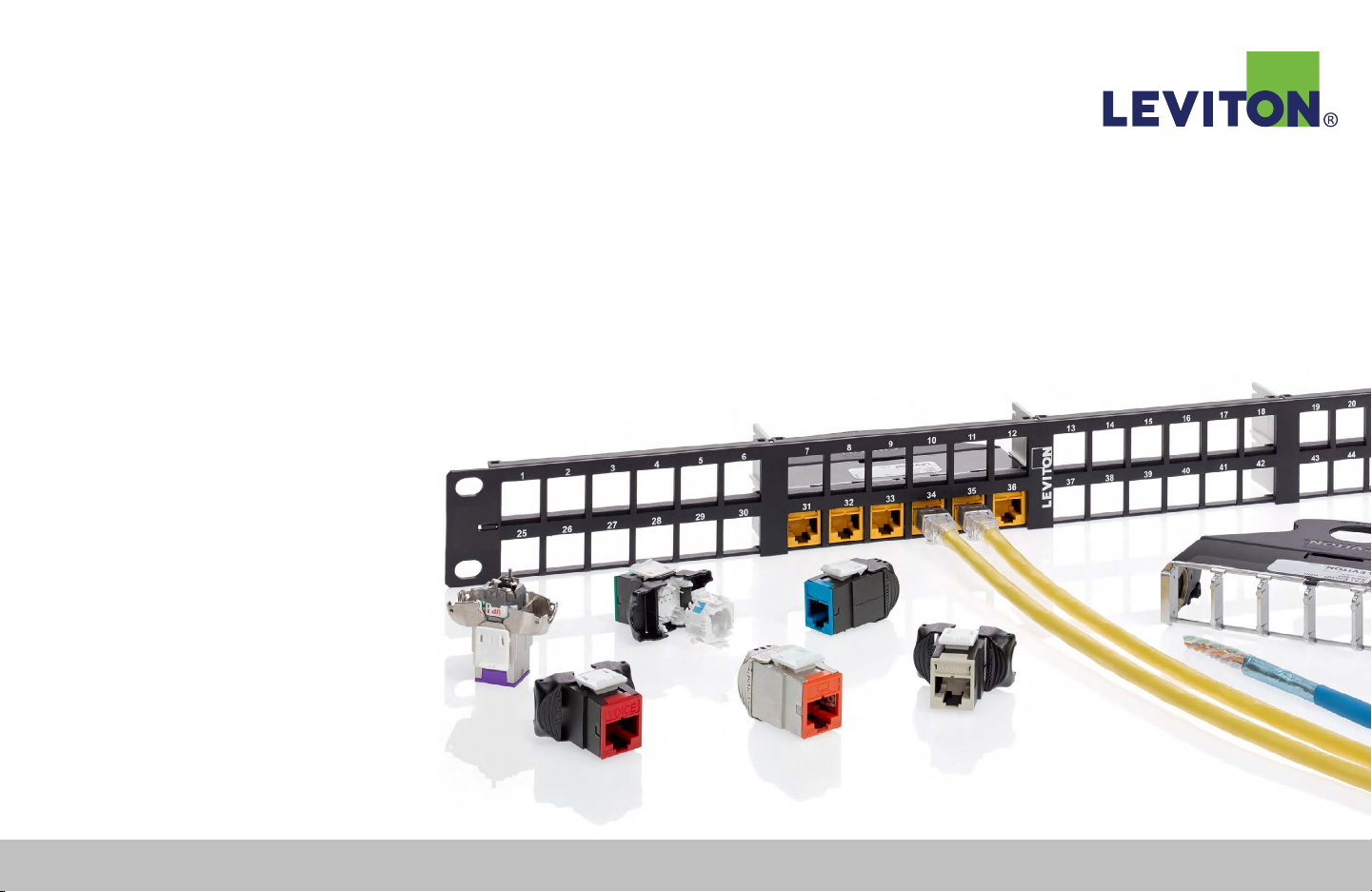

e2XHD Composite QuickPort 110-Style

e2XHD — Simple termination and improved cable routing. Cassettes

quickly snap in and pull out of high-density panels, making installation and maintenance easier than ever. Panel covers and cassette blanks oer extra protection against dust and damage.

Composite — Combines strength and durability with a sleek look.

The unique style and customizable face make it ideal for showcase environments, and provide a uniform appearance when installed with

Versi-duct

Cable Managers. The panel is 100% recyclable and made

in the United States.

QuickPort — Wide selection of panels allows you to create the

perfect mix of voice, data, video, and audio, all in a single panel.

110-Style — Ideal for modular cross connection and available in a

multitude of port densities to meet the needs of high-speed data applications. Craft-friendly 110 punchdowns on the rear of the panel make installations fast and easy.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

PATCH PANEL OPTION

TYPE

e2XHD

Composite Flat* — — C1255-H48 — —

QuickPort

110-Style

* Sold empty, load with any Atlas-X1™ or eXtreme® QuickPort connectors ^ Kitted with eXtreme connectors

leviton.com/ns 56

Flat* — E2X1F-S48 — — E2XHD-BRK

Angled* — E2X1A-S48 — — E2XHD-BRK

Flat, kitted with connectors^

Flat* 49255-H24 49255-Q48 49255-H48 49255-D72 —

Flat, shielded

Flat with magnifying

lens holder*

Angled* 49256-H24 49256-D48 49256-H48 49256-D72 —

Angled, shielded

Recessed-Flat* 49255-R24 — 49255-R48 — —

Recessed-Angled* 4W256-H24 — 4W256-H48 — —

Flat 6A586-U24 — 6A586-U48 — —

Angled 6A587-U24 — 6A587-U48 — —

‡

1RU 24 PORT

6910G-U24 — 6910G-U48 — —

4S255-S24 4S255-D48 4S255-S48 — —

49255-L24 — 49255-L48 — —

4S256-S24 4S256-D48 4S256-S48 — —

‡

Sold empty, load with Atlas-X1 shielded connectors

1RU 48 PORT

2RU 48 PORT

2RU 72 PORT

CASSETTE

Page 57

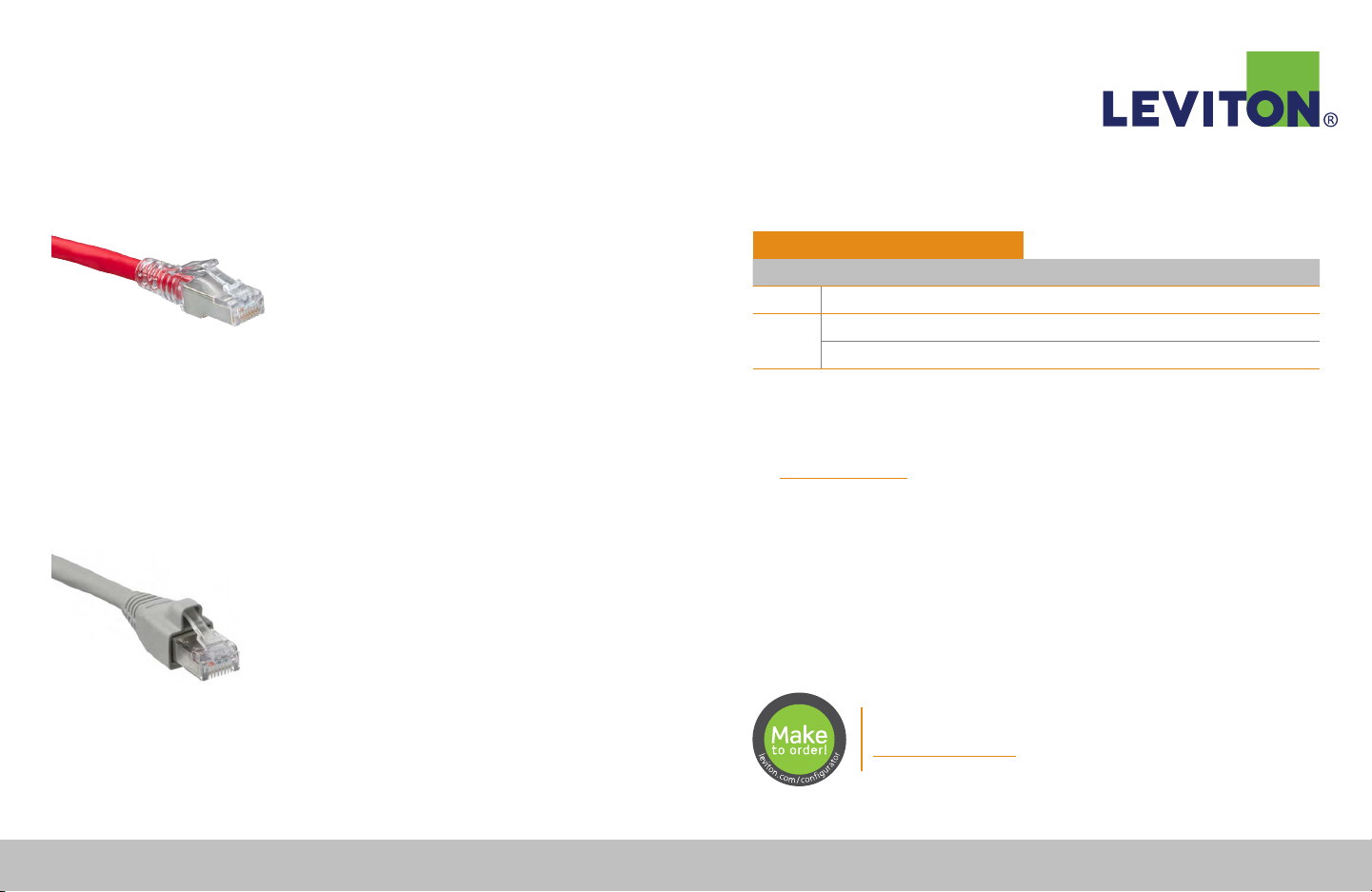

Patch Cords

Product Overview >

Patch Cords

WhiteYellowRedBlueGreenGreyBlack

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

Atlas-X1

Atlas-X1™ Cat 6A SlimLine Boot Patch Cords

These cords deliver premium performance for superior alien crosstalk (AXT) suppression and protection from electromagnetic and radio frequency interference (EMI/RFI). The SlimLine boot features a narrow proﬁle for less congestion in high-density applications.

Cat 6A Standard Patch Cords

eXtreme

eXtreme Cat 6A cords have an F/UTP construction for exceptional AXT suppression. They are ideal for high-bandwidth applications such as 10G gigabit Ethernet.

CAT 6A PATCH CORD OPTIONS

DESCRIPTION

Atlas-X1 Component-Rated SlimLine-Boot Patch Cord, CMR 6AS10-xx*

eXtreme

xx Length in feet * Color: White (W), Yellow (Y), Red (R), Blue (L), Green (G), Grey (S), Black (E) ~ Color: White (W), Red (R), Blue (L), Grey (S) † Color: Yellow (Y), Red (R), Blue (L), Green (G) and Grey (S); also available in White (W), Violet (V), and Black (E) ºº Length in meters All Leviton Cat 6A patch cords are RoHS Compliant.

Plenum-rated solid conductor patch cords are also available. See Leviton.com/plenum for more information

Channel-Rated Standard Patch Cord, snagless boot, CM (PVC) 6210G-xx~

Snagless Channel-Rated Patch Cord, LSZH 6AZ10-†ºº

Color Options

Additional custom lengths available; for assistance please visit

Leviton.com/MTOCords or call Tech Support at (800) 824 3005.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 57

Page 58

Pre-Terminated Copper Trunks

Product Overview >

Pre-Terminated Copper Trunks

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

UTP Connector to Plug

UTP Connector to e2XHD Cassette

PRE-TERMINATED COPPER TRUNK OPTIONS

CABLE TYPE CABLE RATING

Cat 6A UTP CMP, CMR, LSZH

Cat 6A NcHT^ UTP CMP, CMR, LSZH

Cat 6A FTP CMP, CMR 6 Grey Black* Connector, Open

* Additional cable and shielded connector colors are available, but may require additional lead-time. Contact Inside Sales at (800) 722 2082 for more details. ^ Noise-Canceling Technology Available with Atlas-X1 or eXtreme

For assistance customizing your trunks, please visit

Leviton.com/conﬁgurator or call Tech Support at (800) 824 3005.

Leviton Network Solutions

# OF CABLES

6, 8

(800) 722 2082

CABLE LENGTH

10-295 ft (3-90 m)

+1 (425) 486 2222

CABLE COLOR*

Blue

connectors. All trunks utilize solid conductor cable.

INDIVIDUAL CONNECTOR COLOR

White, Light Almond, Ivory, Yellow, Orange, Crimson, Purple, Blue, Green, Grey, Black, Brown

leviton.com/ns 58

TERMINATION OPTIONS

Connector, Plug, Open, e2XHD Loaded Cassette

Leviton makes it easy to conﬁgure your own copper trunks, customized for length, connector type, and more. With factory testing and no need for ﬁeld terminations, you can reduce installation time by up to 75%.

• Built in dedicated make-to-order U.S. facilities with 24/7 production

• 100% factory tested, with test results available for each link

• Available with e2XHD Cassettes, work exclusively with e2XHD Patch Panels

Page 59

Signal Extension

Product Overview >

Signal Extension

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

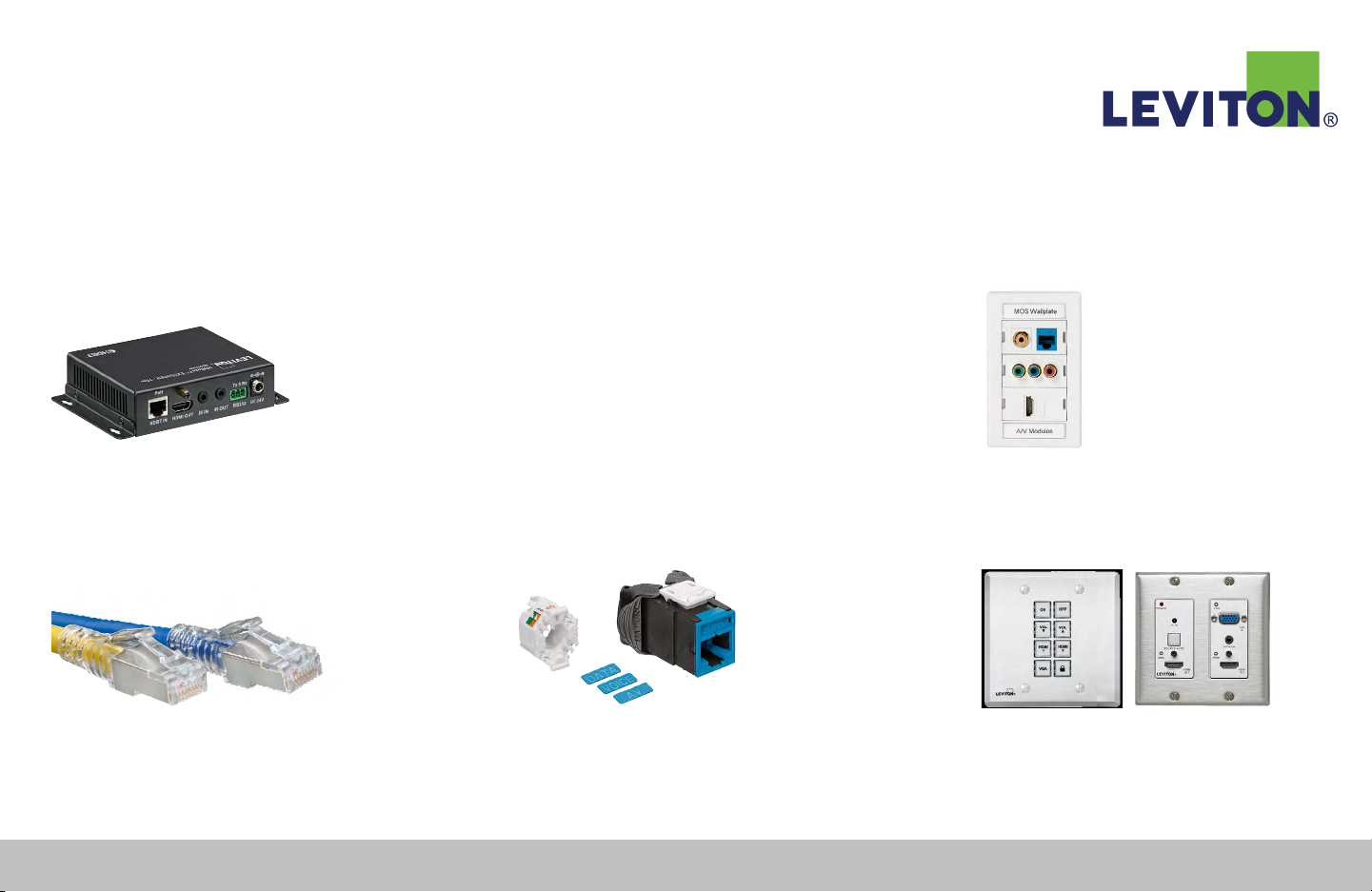

HDBaseT 100 m Extender Transmitter

Autoswitching Wallplate

HDMI Cable

8-Button Control Panel

Extender Transmitter and Receivers

Extend HDMI

, VGA, or USB signals up to 100 meters, all over Cat 6A cabling, with plug-and-play extenders that require no set-up or programming. Extenders with HDBaseT offer full 5Play: Audio, Video, Control Signals (RS-232 and IR), 100BASE-T Ethernet, and Power over HDBaseT (PoH).

EXTENDER OPTIONS

DESCRIPTION 100 M 70 M 40 M

HDBaseT Extender

HDMI Extender

Transmitter and Receiver 41910-HTE 41910-HT0 —

IR Emitter and Receiver Kit 41910-HIR 41910-HIR —

Transmitter and Receiver — — 41910-H00

Control Systems

Use the Autoswitching HDBaseT Extender Wallplate to connect, switch, and extend HDMI and VGA signals — including 1080p and 4K video — to displays or projectors. The optional 8-Button Panel allows you to easily control the Autoswitching Wallplate in classrooms or conference rooms. Pre-configured buttons control display or projector on/o, volume up/down, and source selection.

HDMI Cables

Leviton high-speed HDMI Cables with Ethernet are ideal for supporting in-wall and permanent installations. The cable is CL2-rated for in-wall installations, and it is ﬂexible to accommodate common box depths while maintaining minimum bend radius requirements.

CONTROL SYSTEM OPTIONS

DESCRIPTION

Autoswitching HDBaseT Extender Wallplate 41920-HRC

Receiver (for use with 41920-HRC) 41910-HTR

8-Button Control Panel 41920-CP8

HDMI CABLES

DESCRIPTION

HDMI Cable 41900-xxE

HDMI Cable Lock Kit 41900-LKT

xx Length = 3 ft (03), 6 ft (06), 10 ft (10), 15 ft (15)

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 59

Page 60

Wallplates and Housings

Product Overview >

Wallplates and Housings

u QuickPort® and QuickPlate® Wallplates

u QuickPort Surface-Mount Boxes

u Multimedia Outlet System (MOS)

u In-Ceiling and In-Wall Brackets

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 60

Page 61

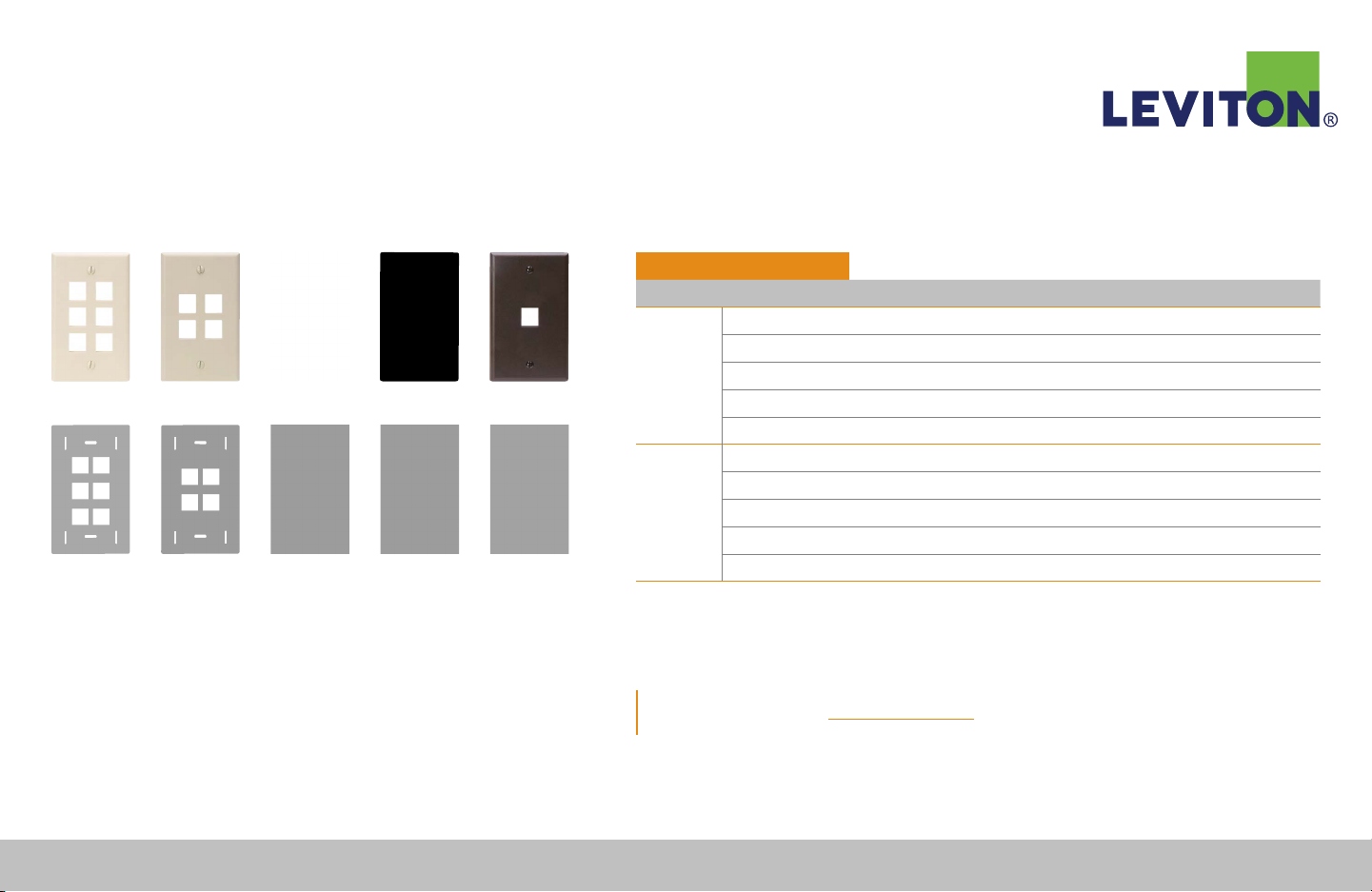

QuickPort® Wallplates

Product Overview >

QuickPort Wallplates

Wallplates and Housings >

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

Single Gang

Single Gang with ID Windows

QuickPort Standard Plastic Wallplates

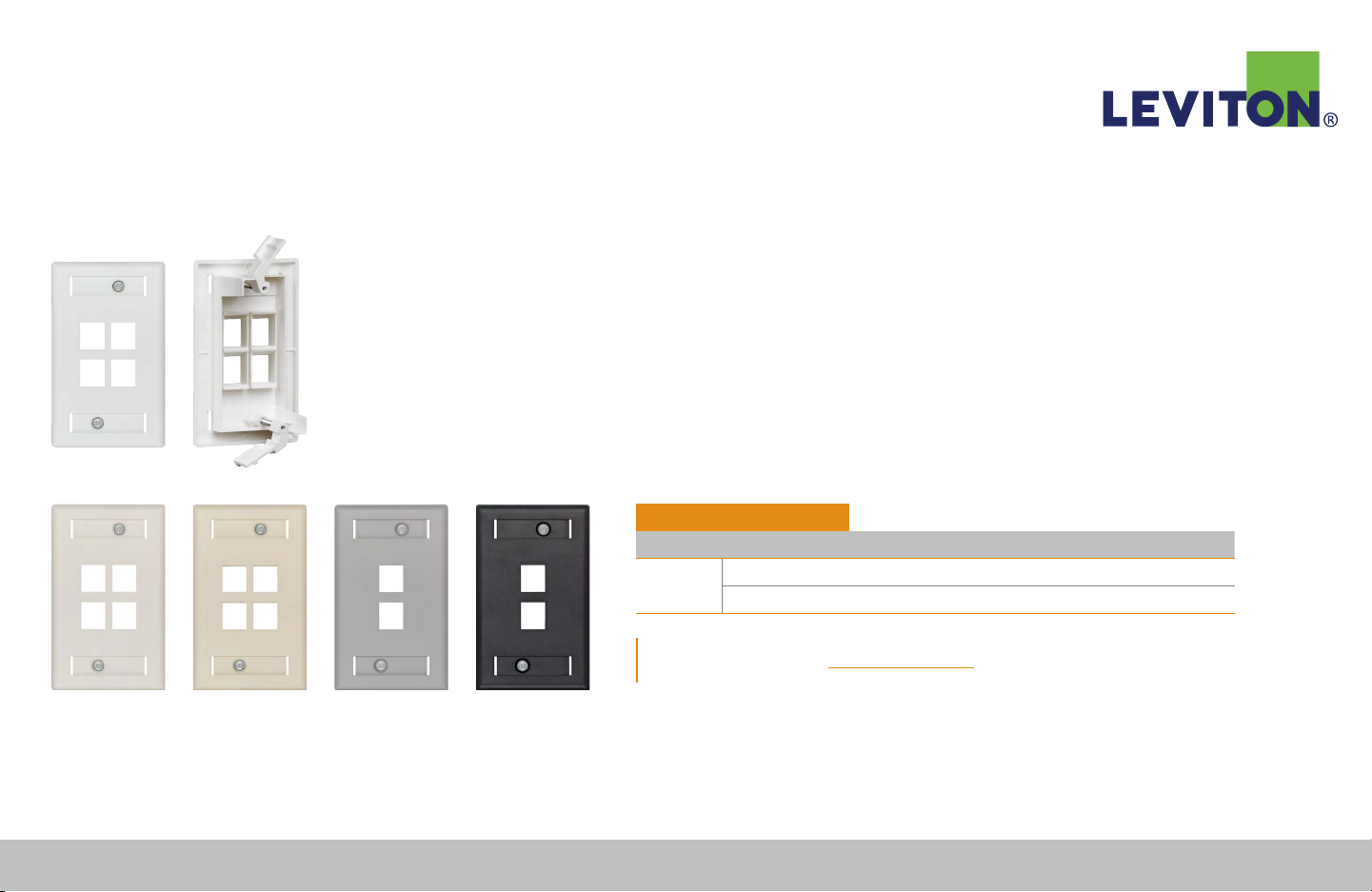

QuickPort flush-mount wallplates accept all QuickPort connectors. They are available in single-gang, dual-gang, with or without designation windows, and more. They are cULus Listed.

WALLPLATE OPTIONS

DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK BROWN

6-Port 41080-6WP 41080-6TP 41080-6IP 41080-6GP 41080-6EP 41080-6BP

4-Port 41080-4WP 41080-4TP 41080-4IP 41080-4GP 41080-4EP 41080-4BP

Single Gang

Single Gang with ID Windows

* Single-gang 1-Port Wallplate has only one ID window on top.

More options available: Visit Leviton.com/wallplates for a full listing.

3-Port 41080-3WP 41080-3TP 41080-3IP 41080-3GP 41080-3EP 41080-3BP

2-Port 41080-2WP 41080-2TP 41080-2IP 41080-2GP 41080-2EP 41080-2BP

1-Port 41080-1WP 41080-1TP 41080-1IP 41080-1GP 41080-1EP 41080-1BP

6-Port 42080-6WS 42080-6TS 42080-6IS 42080-6GS 42080-6ES —

4-Port 42080-4WS 42080-4TS 42080-4IS 42080-4GS 42080-4ES —

3-Port 42080-3WS 42080-3TS 42080-3IS 42080-3GS 42080-3ES —

2-Port 42080-2WS 42080-2TS 42080-2IS 42080-2GS 42080-2ES —

1-Port* 42080-1WS 42080-1TS 42080-1IS 42080-1GS 42080-1ES —

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 61

Page 62

QuickPlate® Wallplates

Product Overview >

QuickPlate Wallplates

Wallplates and Housings >

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

QuickPlate Tempo Wallplates with ID Windows

QuickPlate Tempo wallplates allow for fast, one-piece installations. They feature patented rear wings that tighten the wallplate to wallboard, eliminating the need for a box or mounting brackets.

WALLPLATE OPTIONS

DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK

Single Gang

More options available: Visit Leviton.com/wallplates for a full listing.

4-Port 42090-2WS 42090-2TS 42090-2IS 42090-2GS 42090-2ES

2-Port 42090-4WS 42090-4TS 42090-4IS 42090-4GS 42090-4ES

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 62

Page 63

QuickPort® Surface-Mount Boxes

QuickPort Surface-Mount Boxes

Product Overview >

Wallplates and Housings >

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

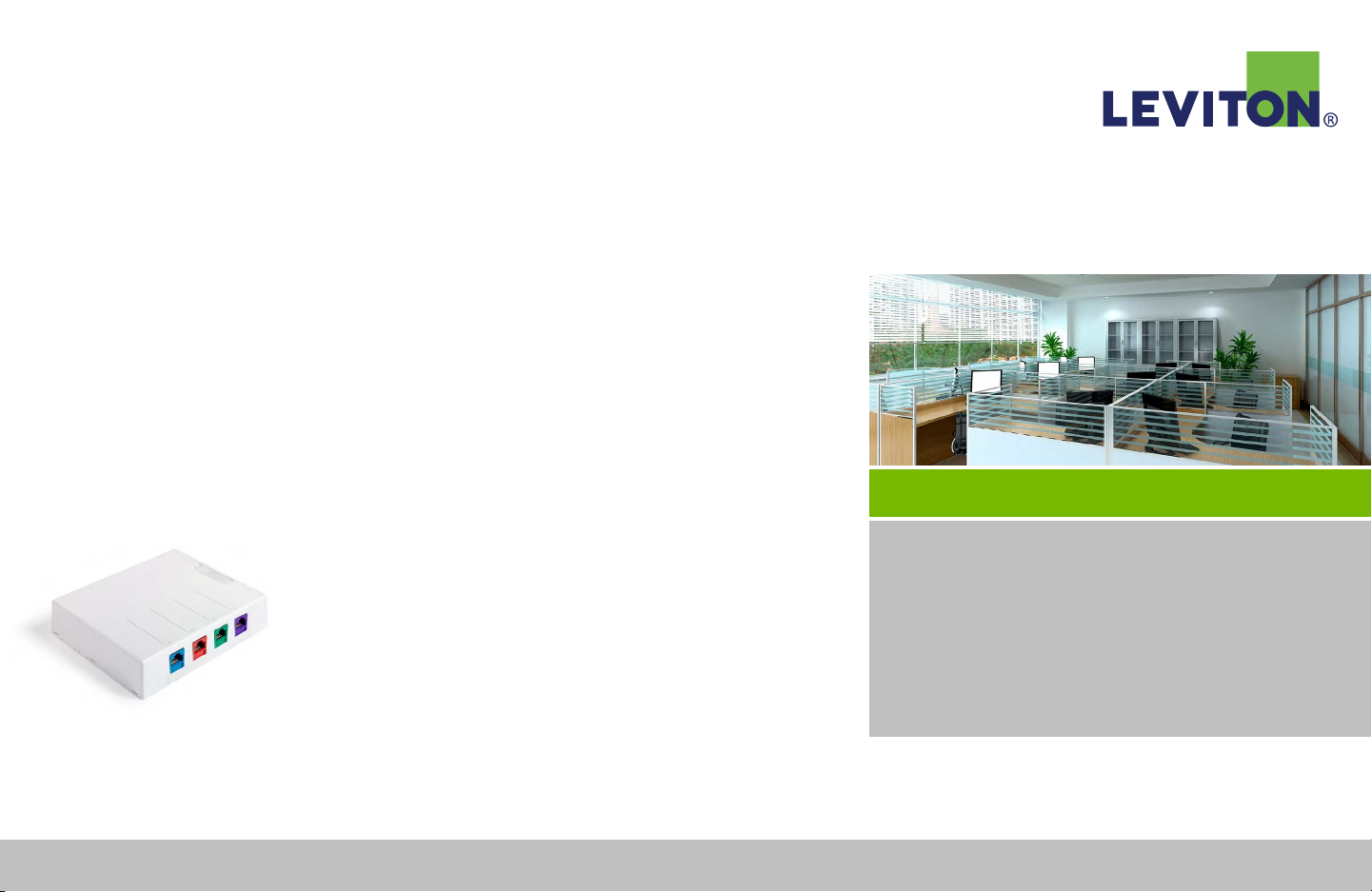

Surface-Mount QuickPort Boxes are easily ﬁeld-conﬁgured with QuickPort Connectors. All boxes can be mounted with screws or adhesive mounting tape (both provided) or with magnets or modular furniture brackets (sold separately). One-, two-, and four-port surface-mount boxes are plenum rated. Extended depth 4S089 boxes are best suited for use with Cat 6A cable.

SURFACE-MOUNT BOX OPTIONS

DESCRIPTION WHITE IVORY

Standard

Plenum Rated

12-Port, 7.60" W x 5.02" D x 1.13" H

(193 mm W x 128 mm D x 29 mm H)

6-Port, 6.38" W x 3.22" D x 1.08" H

(162 mm W x 82 mm D x 27 mm H)

4-Port, 4.77" W x 3.21" D x 1.05" H

(121 mm W x 82 mm D x 27 mm H)

2-Port, 2.52" W x 2.22" D x 1.10" H

(64 mm W x 56 mm D x 28 mm H)

1-Port, 1.42" W x 2.22" D x 1.10" H

(36 mm W x 56 mm D x 28 mm H)

2-Port Extended Depth*,

2.5" W x 3.00" D x 1.22" H

(64 mm W x 76 mm D x 31 mm H)

41089-12W 41089-12I — 41089-12G 41089-12E

41089-6WP 41089-6IP — 41089-6GP 41089-6EP

41089-4WP 41089-4IP — 41089-4GP 41089-4EP

41089-2WP 41089-2IP 41089-2TP 41089-2GP 41089-2EP

41089-1WP 41089-1IP — 41089-1GP 41089-1EP

4S089-2WP 4S089-2IP — — —

4-Port Extended Depth*,

5.6" W x 5.20" D x 1.22" H

(142 mm W x 132 mm D x 31 mm H)

* For shielded connectors and large bend-radius cables.

4S089-4WP 4S089-4IP — — —

LIGHT ALMOND

GREY BLACK

12-Port Standard Surface-Mount Box

7.60" W x 5.02" D x 1.13" H

2-Port Plenum-Rated Surface-Mount Box

2.52" W x 2.22" D x 1.10" H

2-Port Plenum-Rated Surface-Mount Box Extended Depth

2.5" W x 3.00" D x 1.22" H

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 63

Page 64

In-Ceiling and In-Wall Brackets

Product Overview >

Wallplates and Housings >

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

QuickPort® In-Ceiling Bracket

This bracket provides a ﬁxed location for terminating a data connector, creating a more reliable connection than a direct connect plug. It also reduces potential damage during construction. Contractors can perform the initial installation and permanent link testing

and have the ﬂexibility to move the bracket to reﬁne Wi-Fi

coverage or WAN placement

without needing to retest the link.

Wireless Access Point Kit

The QuickPort WAP Kit combines all the pieces necessary to install a testable permanent link for cabling that terminates in plenum spaces. The kit is ideal for Ethernet-enabled devices that mount on or above ceiling tiles, such as WAPs and cameras. It protects installed cabling by providing a stable and reliable termination point.

WIRELESS ACCESS POINT KIT

DESCRIPTION

QuickPort WAP Kit, includes In-Ceiling Bracket (49223-CBC), 2 Cat 6A connectors (6AUJK-RW6), Surface-Mount Box (4S089-2WP), 2 Cat 6A patch cords (AXPPP-10W)

QuickPort WAP Kit, includes In-Ceiling Bracket (49223-CBC), Cat 6A connector (6AUJK-RW6), Surface-Mount Box (4S089-2WP), Cat 6A patch cord (AXPPP-10W)

QuickPort In-Wall Bracket

This bracket creates a testable permanent link for cabling that terminates in the wall without using a traditional wallplate. It is ideal for Ethernet devices that mount to electrical/ low-voltage boxes or directly to the wall, such as WAPs, cameras, or clocks. The bracket provides a stable mounting surface for a connector that is recessed behind the wall.

QUICKPORT IN-CEILING BRACKET OPTIONS

DESCRIPTION

Includes clip for drop wire/rod mounting

No clip 49223-CB0

49223-CBC

49223-W10

49223-W1C

QUICKPORT IN-WALL BRACKET OPTIONS

DESCRIPTION

Set of 5 49223-BA5

Kit; includes bracket and single-gang wallplate mounting bracket

49223-BAK

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 64

Page 65

Multimedia Outlet System (MOS)

Multimedia Outlet Systems (MOS)

Product Overview >

Wallplates and Housings >

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

VGA PC Module HDMI Module

MOS provides a clean and flexible system to integrate data and AV modules into one wallplate or surface-mount box. Changes are made without removing the wallplate from the wall, and all wiring and cabling is done from the front side of the wallplate. The modules are available in 0.5, 1, 1.5 and 2 unit high sizes.

Single-Gang Wallplate

Dual-Gang Wallplate

1-Port QuickPort Module

MOS OPTIONS

DESCRIPTION WHITE LT. ALMOND IVORY GREY BLACK STAINLESS

Single-Gang Wallplate 41290-SMW 41290-SMT 41290-SMI 41290-SMG 41290-SME 41290-SMS

Wallplates

AV Connector Modules

Blank Modules

^ 110-Style VGA modules require both PC and Monitor modules used in pairs to operate.

More options available: Visit Leviton.com/MOS for a full listing.

Leviton Network Solutions

Dual-Gang Wallplate 41290-DMW 41290-DMT 41290-DMI 41290-DMG 41290-DME 41290-DMS

Three-Gang Wallplate — — — — — 41290-TMS

VGA PC Module, 110-style termination, 1 unit high^ 41295-VPW 41295-VPT 41295-VPI 41295-VPG — —

VGA Monitor Module, 110-style termination, 1 unit high^ 41295-VMW 41295-VMT 41295-VMI 41295-VMG — —

HDMI Module, feedthrough, 1 unit high 41290-HDW 41290-HDT 41290-HDI 41290-HDG 41290-HDE —

1-Port QuickPort Module (1 unit high) 41291-1MW 41291-1MT 41291-1MI 41291-1MG 41291-1ME —

2-Port QuickPort Module (1 unit high) 41291-2QW 41291-2QT 41291-2QI 41291-2QG 41291-2QE —

(800) 722 2082

+1 (425) 486 2222

2-Port QuickPort Module

leviton.com/ns 65

Page 66

Cable Management

Product Overview >

Cable Management

u Versi-Duct

u OIP (Overhead Infrastructure Platform)

u Zone Enclosures

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 66

Page 67

Cable Management

Product Overview >

Cable Management >

Versi-Duct

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

8" x 8" Channel (Front, Rear, and Shown with Optional Designer Cover)

5" x 4" Channel (Front Only)

1RU Horizontal

12"

Versi-Duct

Versi-Duct is a versatile cable management solution that ﬁts on any standard equipment rack and includes accessories for a wide range of cable management configurations. The vertical 8-inch and 5-inch managers have large ﬁnger passthrough spaces that align with rack units.

VELCRO

Brand Fasteners

Brand products won’t crush or damage cables like tie wraps can, and are reusable for moves, adds, and changes.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

VERSI-DUCT® CABLE MANAGERS

DESCRIPTION

(2.03 m) Length,

80" standard cover, black

8" x 8" Vertical Channel

5" x 4" Vertical Channel

Horizontal

leviton.com/ns 67

Center-Mount Bracket — 89265-BKT

Slack Loop Organizer — 89265-SL1

Cable Retainer — 89265-WR1

Designer Cover, grey (Set of 2)

(2.032 m) Length,

80" standard cover, black

(1.016 m) Length,

40" standard cover, black

Center-Mount Bracket — 49265-BKT

Designer Cover, grey — 59265-5DC

2RU, black cover 492RU-HFO 492RU-HFR

1RU, black cover 491RU-HFO 491RU-HFR

2RU Designer Cover, grey — 49265-DC2

1RU Designer Cover, grey — 49265-DC1

Cable Retainer — 49265-WR1

FRONT ONLY

8980L-VFO 8980L-VFR

— 89265-8DC

4980L-VFO 4980L-VFR

4940L-VFO 4940L-VFR

FRONT AND REAR

VELCRO® BRAND FASTENERS

DESCRIPTION BLACK

(127 mm) 43105-005 —

Tie

Wrap

Bulk Roll

75' SoftCinch Lite Roll

Leviton offers a wide variety of cable management solutions; for a full list please visit Leviton.com/cablemanagement

(203 mm) 43108-008 —

12"

(305 mm) 43112-012 —

(4.57 m) 43115-015 —

15'

75'

(22.86 m) 43115-075 43115-75P

600'

(182.88 m) 43115-600 —

(22.86 m)

4S115-75E —

MAROON

PLENUM RATED

Page 68

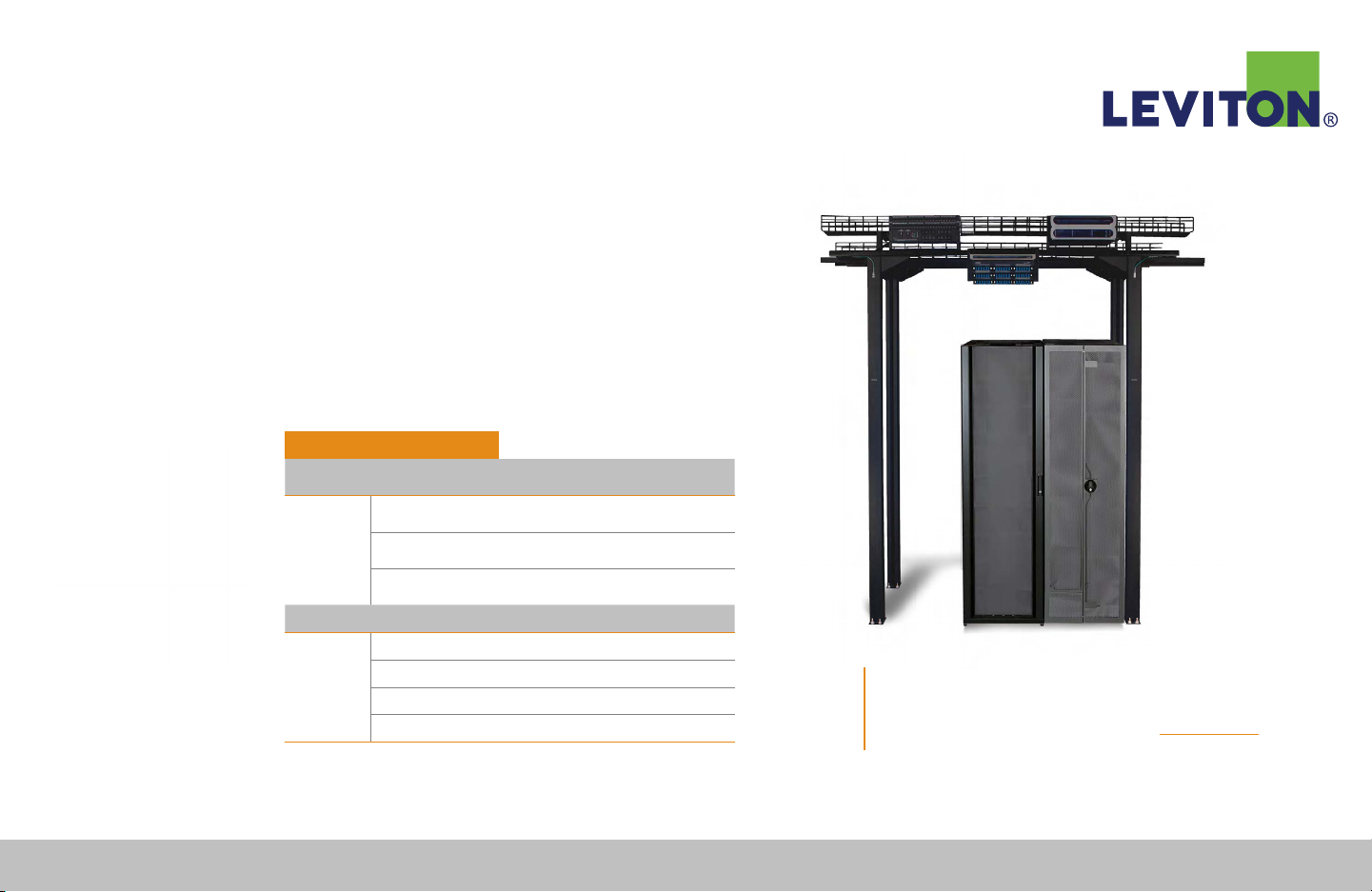

OIP (Overhead Infrastructure Platform)

Product Overview >

Cable Management >

OIP (Overhead Infrastructure Platform)

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

The Overhead Infrastructure Platform provides independent support for cabling pathways, power, lighting, and other infrastructure. Platforms can carry the load of cables and ladder trays while freeing up rack space by adding patching above cabinets or racks. Since cabinets and racks are not attached, power and cabling can be quickly disconnected without removing hardware.

OIP OPTIONS

DESCRIPTION

Frame

96" Tall

(2438 mm)

108" Tall

(2743 mm)

120" Tall

(3048 mm)

36" WIDE

(914 MM)

OIPFR-36A OIPFR-42A OIPFR-48A

OIPFR-36B OIPFR-42B OIPFR-48B

OIPFR-36C OIPFR-42C OIPFR-48C

DESCRIPTION

Channel Attachment Bracket Kit (2 included) OIPFR-CAB

Accessories

Sub-Floor Mounting Kit (2 included) OIPAC-SFM

Patch Panel Bracket OIPAC-PPB

Frame Drill Template OIPDT-xxW

xx 36" Wide (36), 42" Wide (42), 48" Wide (48)

42" WIDE

(1067 MM)

48" WIDE

(1219 MM)

Custom heights and widths available; please contact Inside Sales at 800-722-2082 for more information. For assembly, ﬂoor mounting instructions, VISIO

stencils, and videos go to Leviton.com/OIP.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 68

Page 69

Zone Enclosures

Product Overview >

Zone Enclosures

Testing

Termination

Cat 6A

Product Overview

Glossary and References

Installation

Applications

Zone cabling enclosures are the perfect solution for adding ﬂexibility within an open-oce architecture or data center environment. They are plenum rated with included ﬁre-rated foam sealing kits. Ceiling enclosures are available in active and passive styles.

ZONE ENCLOSURE OPTIONS

DESCRIPTION

Active Ceiling Enclosure, 2' x 2'

Active Ceiling Enclosure, 2' x 4'

Passive Raised-Floor Enclosure, 8"

Passive Ceiling Enclosure, 2' x 2'

(610 x 610 mm), 2RU active and 5RU passive space Z1000-AC2

(610 x 1219 mm), 4RU active and 10RU passive space Z1000-AC4

(203 mm) depth, 8RU passive space Z1000-PF2

(610 x 610 mm), 5RU passive space Z1000-PC2

Active Ceiling Enclosure, 2' x 2'

Passive Raised-Floor Enclosure, 8" depth

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 69

Page 70

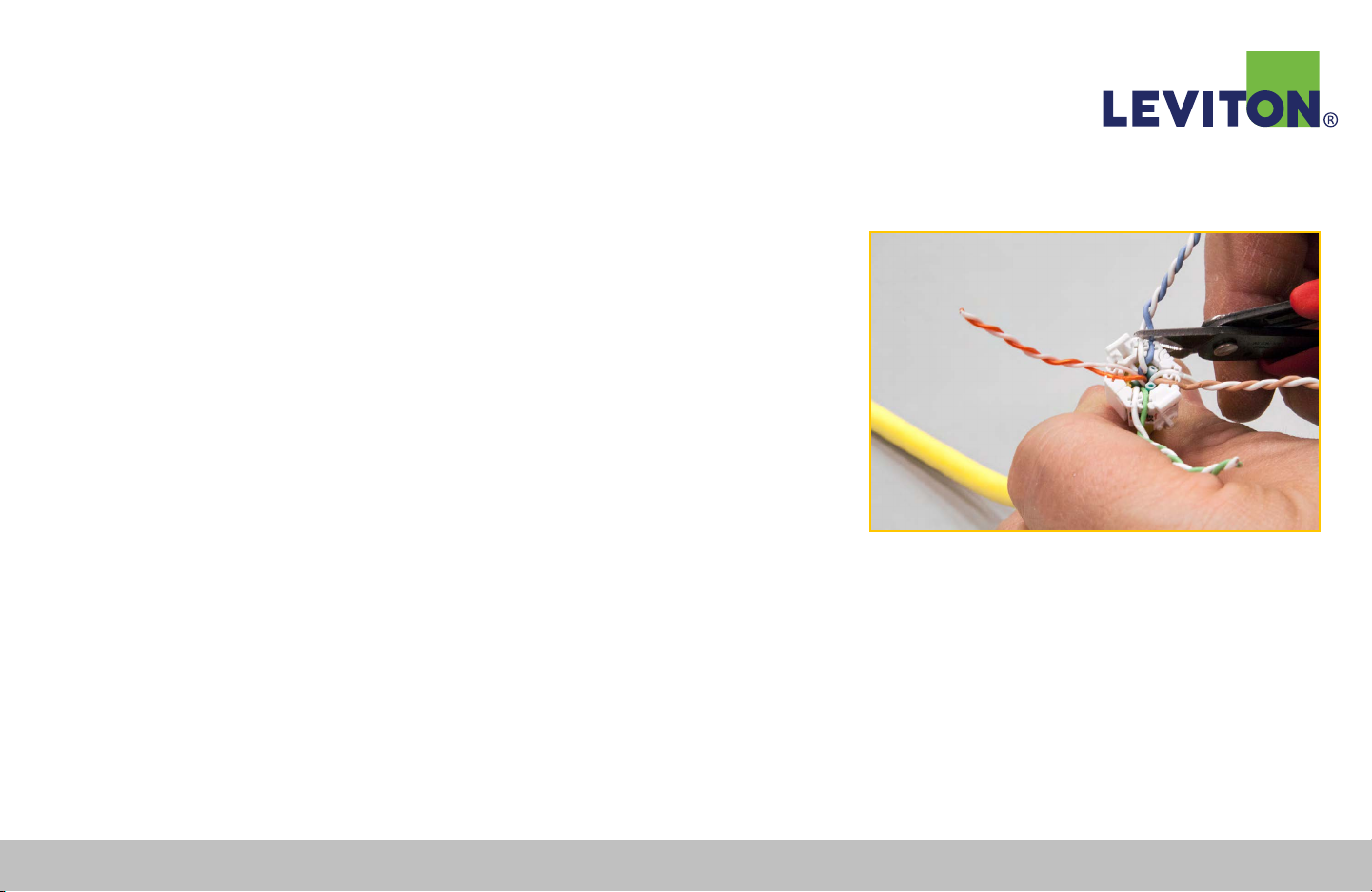

Cat 6A Termination

u 110-Style Patch Panel Termination Instructions

u Atlas-X1™ UTP Connector Termination Instructions

u Termination Tips

u Atlas-X1™ Shielded Connector Termination Instructions

u eXtreme® Connector Termination Instructions

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

Leviton has designed several exclusive features into its new Cat 6A connectors to speed termination. Read on for details of these features, other tips for a seamless installation, and for termination instructions for our 110-style panel, UTP connectors, and shielded connector.

Termination

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 70

Page 71

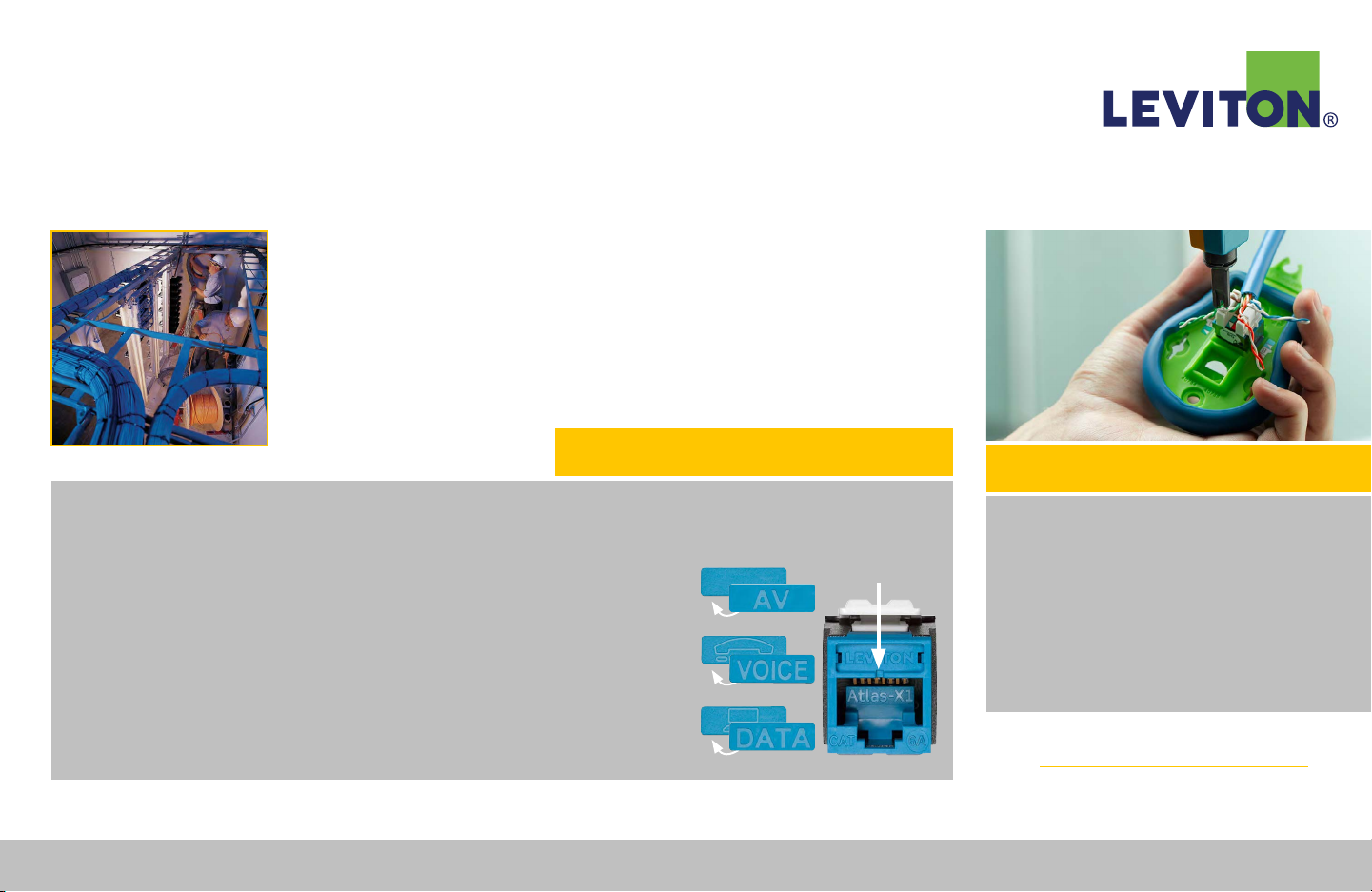

Termination Tips

Termination >

Termination Tips

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

Extra Cable for Re-Terminations

TIA recommends storing 10 feet (3 m) of extra cable in the telecom room and 12-18 inches (3-4.5 m) above work area installations for re-terminations and to accommodate moves, adds, and changes. Use an extended or figure 8 loop conﬁguration to alleviate cable stress. Cable slack in bundled or excessive loops has been shown to degrade cable performance and is associated with return loss failures.

One of the unique beneﬁts of Leviton Atlas-X1™ connectors is the ability to add icons to the front of the connector that designate speciﬁc applications, such as data, voice, and AV. These matching-color icons are provided with each connector.

First, select the desired icon. Then, trim away any residual plastic vestige from the icon packaging, and press the icon securely into the front of the connector.

If you want to remove an icon from the front of a connector, simply unbend a small paper clip, insert the end of the clip into the icon release hole, and gently pry outward.

Bulk orders of 72 icons are also available. They come in 13 colors, and a package includes 24 of each icon. Use part number ICONS-IC* (the asterisk represents the color choice).

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

TECH TIP: Using Icons in Atlas-X1 Connectors

TECH TIP: Leviton Palm Termination Tool

Use Leviton’s Palm Termination Tool to quickly and easily punch down eXtreme

Icon Release Hole

Cat 6A connectors at the jobsite. The Palm Tool oers an ergonomic comfort grip, increased connector stability, and integrated holes that allow rack mounting

for QuickPort

panel terminations.

Videos — get simple termination instructions at the Network Solutions YouTube page.

leviton.com/ns 71

Page 72

110-Style Patch Panel Termination Instructions

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

Mount the Cat 6A 110-Style Patch Panel to a standard 19" equipment

rack or wall-mount bracket, using the provided screws.

Determine which color-coded wiring scheme is desired (T568A or T568B).

Note: The color codes and port numbers are located on the panel labels between termination (IDC) slots.

Remove approximately 3" (76 mm) of the

jacket and center spline/separator from cable.

Route jacketed wire to the termination ﬁeld

so that the jacket is centered near the IDCs

(Figure A).

CAUTION: Use of mass termination impact tool is not

permissible for this product.

Figure A

TECH TIP: Connector Wiring Guide and Color Code Key

100 Ω UTP 4 Pair Twisted Pair Wire

PAIR 4

TIPRING TIPRINGTIPRING

PAIR 3

PAIR 2

TIPRING

PAIR 1

Category Rated / Plug Pinouts

Pair3

Pair1Pair2 Pair4

+ + + +- - - -

T R T R T R T R 1 2 3 4 5 6 7 8

Pair2

Pair1Pair3 Pair4

+ + + +- - - -

T R T R T R T R

1 2 3 4 5 6 7 8

Leviton Network Solutions

(800) 722 2082

Continued...

+1 (425) 486 2222

NOTE: One of these wiring conﬁgurations must be used for an installation to be standard

T568B

compliant. Wiring label on connector shows both wiring standards.

leviton.com/ns 72

T568A

Page 73

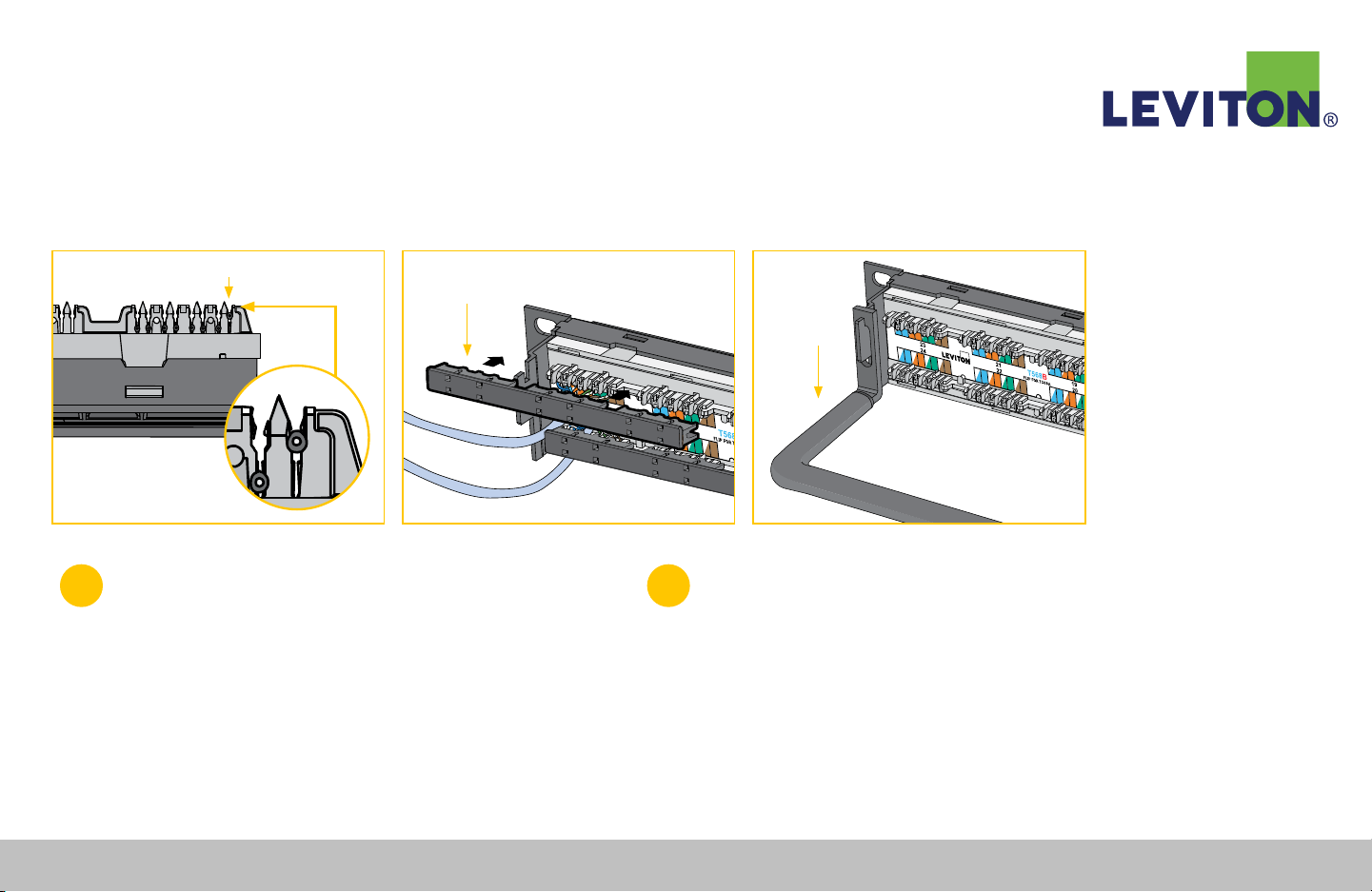

110-Style Patch Panel Termination Instructions Continued

110-Style Patch Panel Termination Instructions

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

Figure B Figure D

Starting with the middle two pairs (orange/white and green/white)

use your ﬁngers to carefully seat and secure the wires into the IDC

slots. Maintain wire pair twisting to within ½" (13 mm) of the IDC

"Bridged" Wire

Figure C

Retention Dust Cap

Cable Management Bar

Once the Cat 6A module has been terminated, snap the 3-port

retention cap to the back of the connector top and bottom sides.

The retention cap can also be broken into single pieces (Figure C). contact. Then position a 110-style impact tool (set to low impact) perpendicular to the IDC slot, seat and trim the cable.

After the panel has been fully terminated, attach the cable

management bar to the back of patch panel (Figure D).

Note: If wires appear to be “bridged” over the IDC, rather than securely seated into the slot, pull out the wires and reseat and repunch them (Figure B).

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 73

Page 74

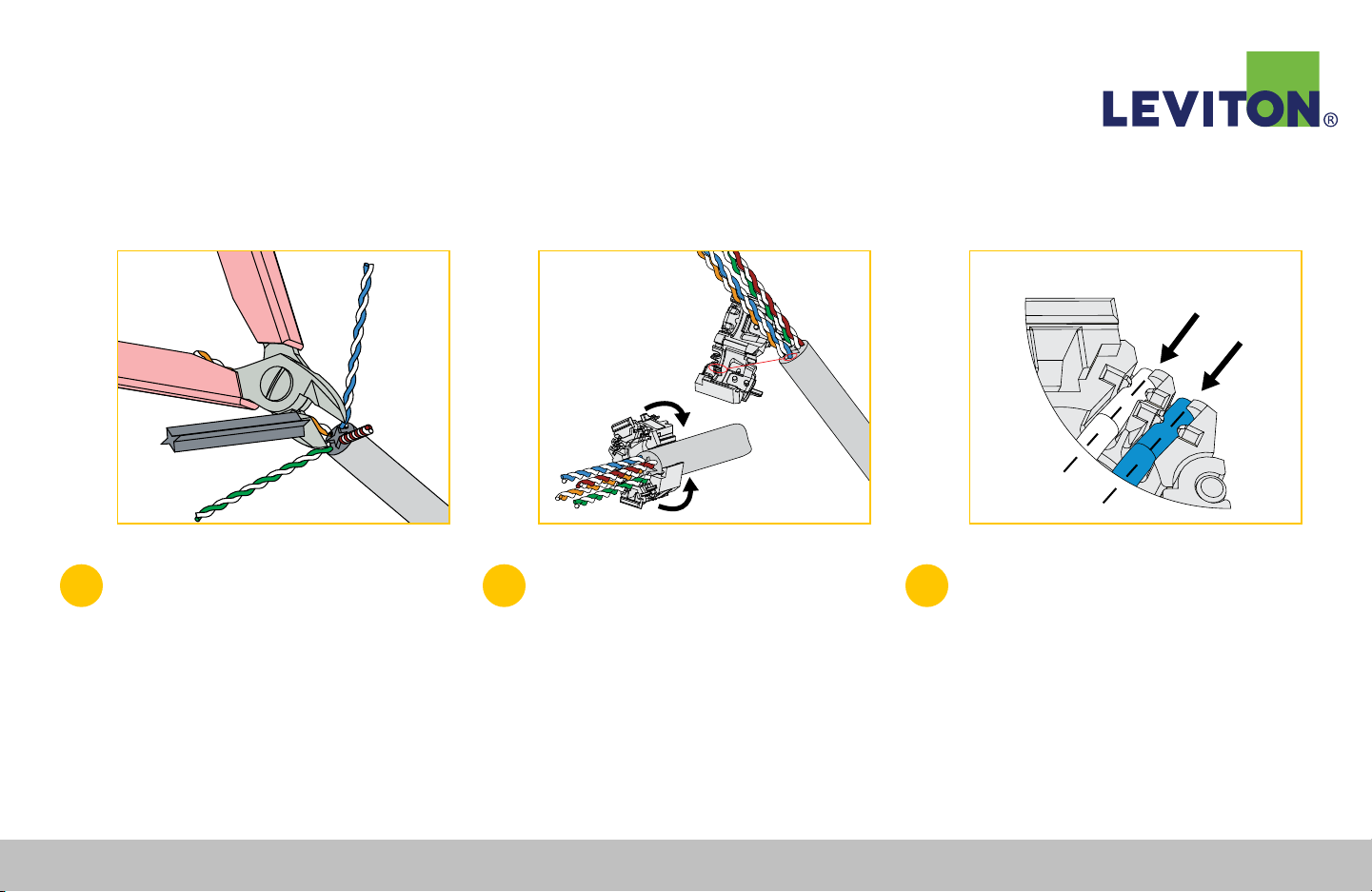

Atlas-X1™ UTP Connector Termination Instructions

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

Figure A Figure B Figure C

Using a cable stripper, remove 1.5 inches

(38 mm) of cable jacket. At the strip point of the cable, use ﬂush cutters to carefully

remove strip string, Mylar

tape, crossshaped pair separator, or any other cable ﬁllers or spacers where applicable. (Figure A).

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Line up the wire manager with the blue pair

indication on the label in line with the blue pair of the cable. Ensure that the end of the cable jacket is at the cable jacket stop inside the wire manager and click the wire

Observing pair polarity and T568A or T568B

wiring pattern, seat the four pairs into the wire manager.

Note: Pairs must be completely and securely seated into wire manager wire channels (Figure C).

manager closed (Figure B).

Continued...

leviton.com/ns 74

Page 75

Atlas-X1™ UTP Connector Termination Instructions Continued

Atlas-X1™ UTP Connector Termination Instructions

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

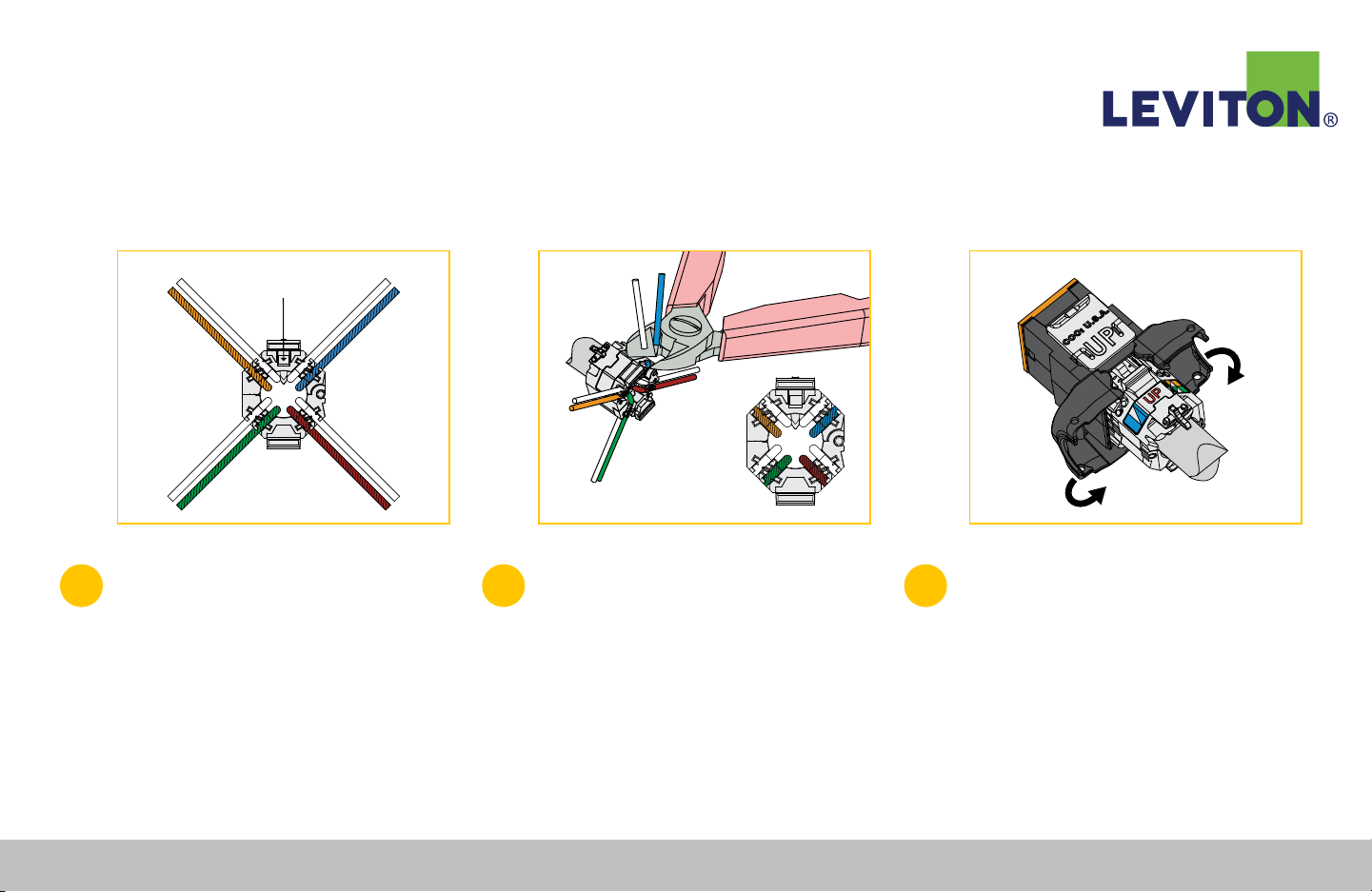

Figure D Figure E Figure F

Guide Pin Hole

Check polarity by making sure the white

wire of each pair will be closest to the guide pinhole in the face of the wire managers (Figure D).

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Using a ﬂush cutter, trim all pairs ﬂush

with sides of wire manager.

Note: Wire ends must be cut ﬂush: use of snips or side cutter is not recommended and may cause test failures (Figure E).

Align the prepared wire manager with

the rear of the connector, matching “UP” on the wiring label to “UP” molded into the connector retaining tab (Figure F). Close connector doors to complete the termination. To rewire, depress the connector door-release tabs simultaneously.

leviton.com/ns 75

Page 76

Atlas-X1™ Shielded Connector Termination Instructions

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

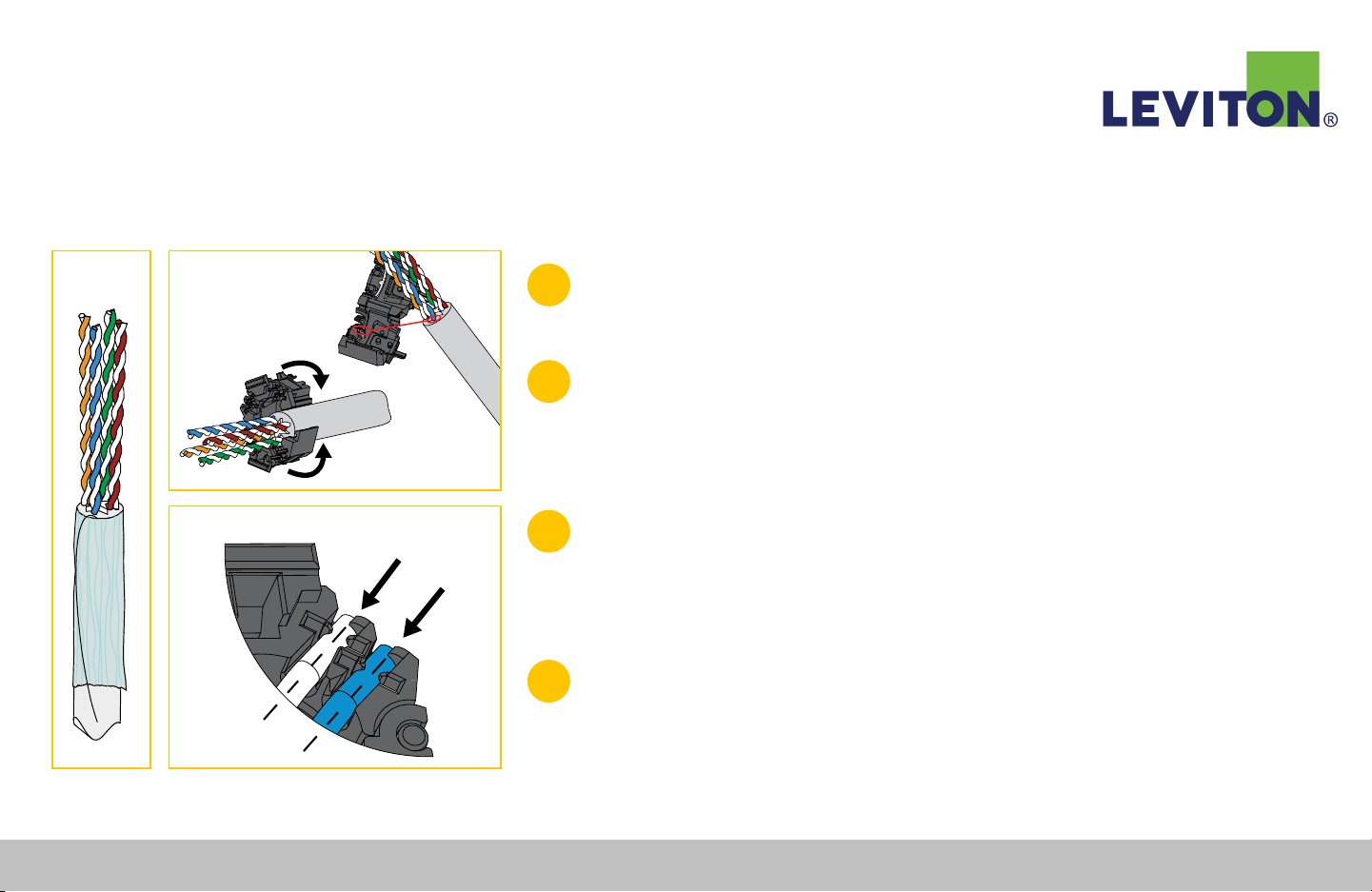

Figure A Figure B

Figure C

Using an appropriate cable stripper, remove about 1.5 inches (38 mm) of cable

jacket. Inspect shield foil and pairs to ensure no foil or insulation damage.

At the strip point of the cable, use ﬂush cutters to carefully remove strip string,

if one is present. Spare back the foil metal side outward. Spare back the drain

wire (Figure A). Use ﬂush cutters to remove Mylar

tape, cross-shaped pair

separator, or any other cable ﬁllers or spacers.

Line up the wire manager with the blue pair indication on the label in line

with the blue pair of the cable. Ensure that the end of the cable jacket is at the cable jacket stop inside the wire manager, and click the wire manager closed (Figure B).

Observing pair polarity and T568A or T568B wiring pattern, seat the four pairs

into the wire manager.

Note: Pairs must be completely and securely seated into wire manager wire channels (Figure C).

Continued...

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 76

Page 77

Atlas-X1™ Shielded Connector Termination Instructions Continued

Atlas-X1™ Shielded Connector Termination Instructions

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

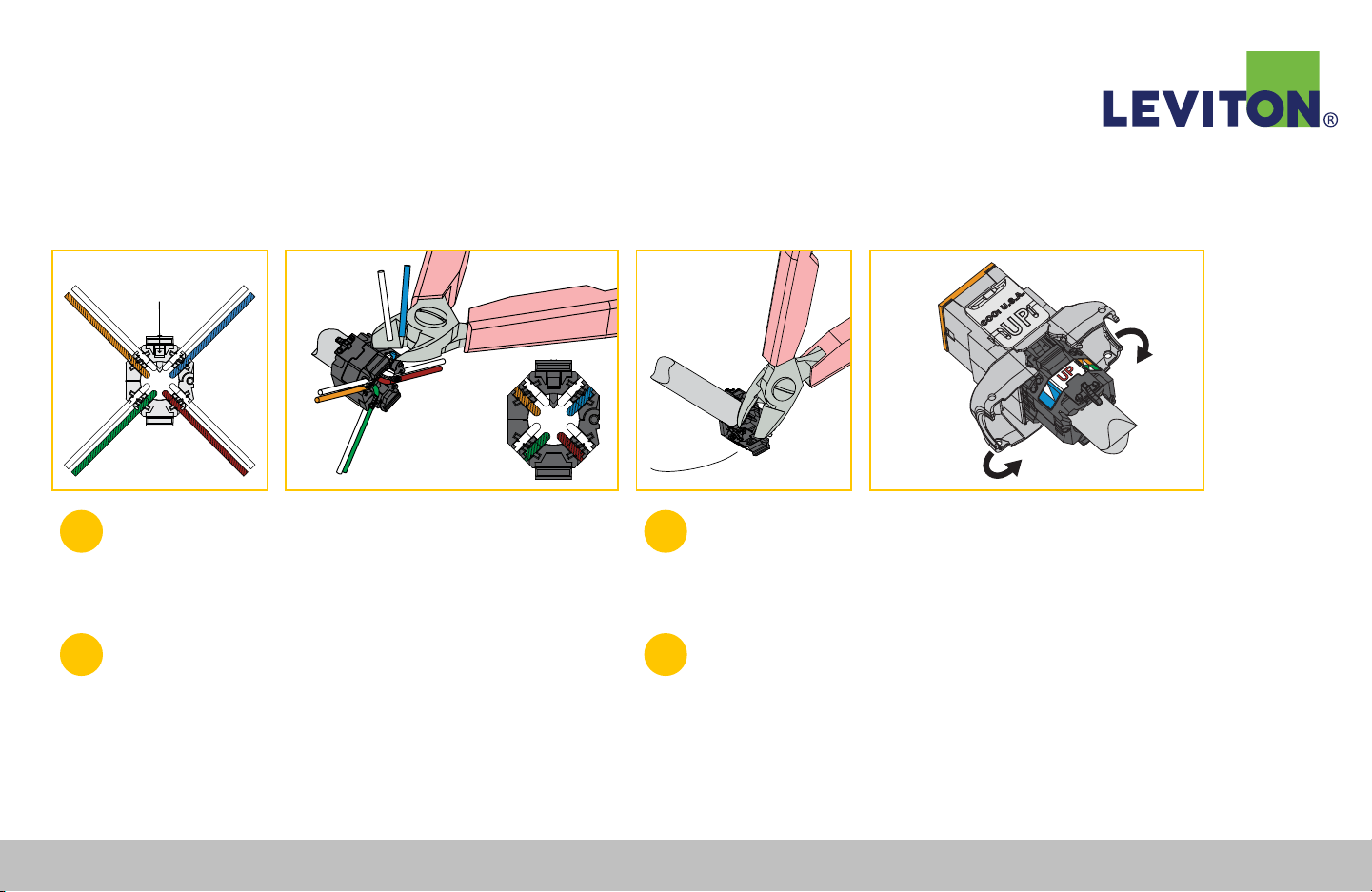

Figure D Figure E Figure F Figure G

Guide Pin Hole

Check polarity by making sure the white wire of each pair

will be closest to the guide pinhole in the face of the wire managers (Figure D).

Using a ﬂush cutter, trim all pairs ﬂush with sides of wire manager.

Note: Wire ends must be cut ﬂush: use of snips or side cutter is not recommended

and may cause test failures (Figure E).

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Pull drain wire into drain wire capture notch and trim ﬂush

with flush cutter. Use flush cutter to nick edge of foil, and tear foil o ﬂush with rear of wire manager (Figure F).

Align the prepared wire manager with the rear of the connector,

matching “UP” on the wiring label to “UP” molded into the connector retaining tab (Figure G). Close connector doors to complete the termination. To rewire, depress the connector door-release tabs simultaneously.

leviton.com/ns 77

Page 78

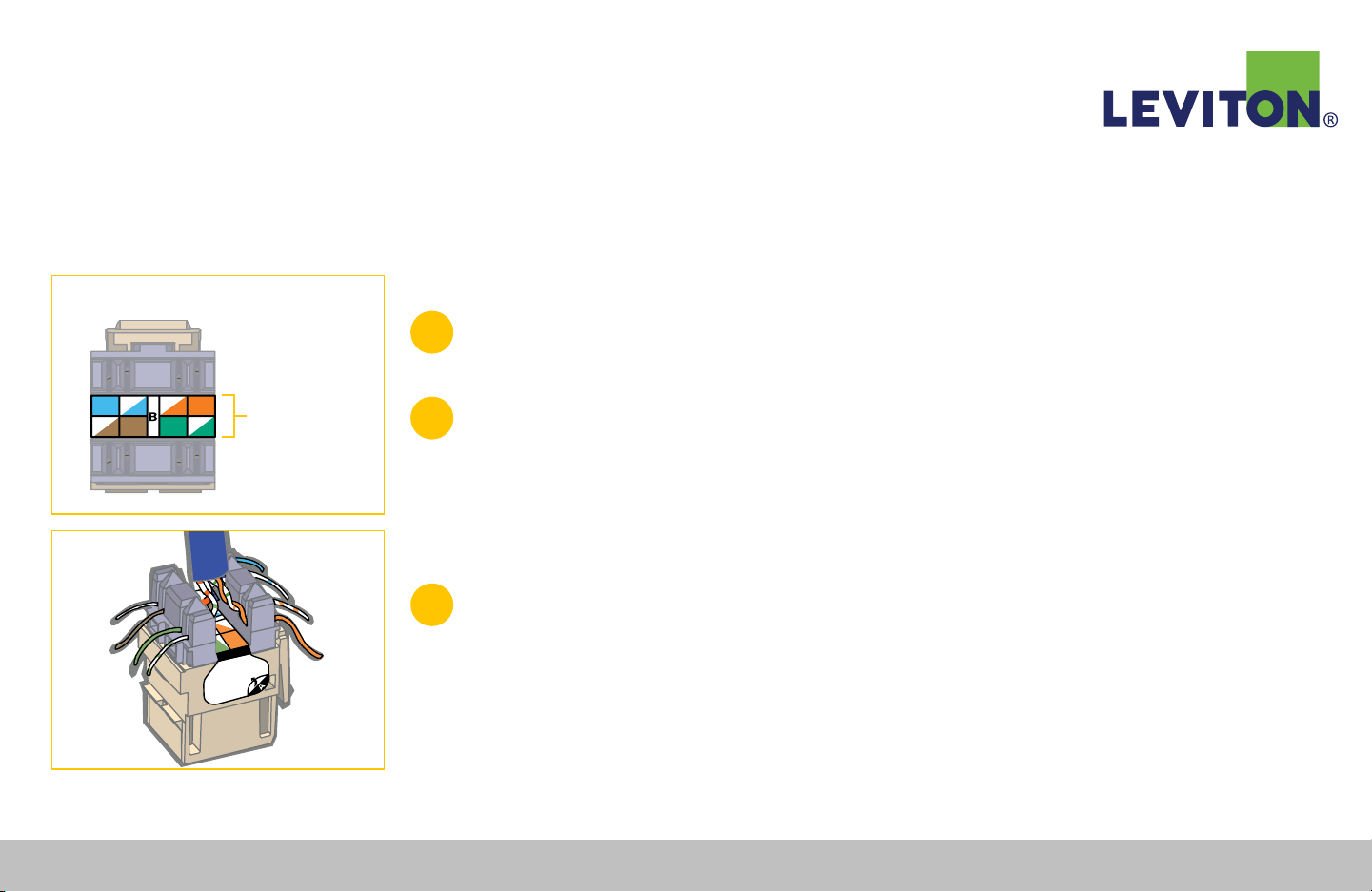

eXtreme® Cat 6A Connector Termination Instructions

eXtreme® Cat 6A Component- and Channel-Rate Connector Termination

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

Figure A

Remove about 3" (76 mm) of cable jacket and center spline

(sti plastic separator inside Cat 6A cable).

T568A or T568B

Determine whether to use wiring scheme T568A or T568B.

Note: the associated color codes and connector pin number on the label located

between the IDC connector slots (Figure A). Peel back label for T568A wiring.

Figure B

Leave the cable jacket within ⅛" (3 mm) of the connector side, then route

the wires for termination using the selected wiring scheme (Figure B).

eXtreme

CAT 6A

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

Route cable perpendicular to the IDC ﬁeld. Ensure there is enough slack in the twisted pairs, and do not place the cable jacket into the termination ﬁeld.

leviton.com/ns 78

Continued...

Page 79

eXtreme® Cat 6A Connector Termination Continued

eXtreme® Cat 6A Component- and Channel-Rate Connector Termination

Termination >

Testing

Product Overview

Cat 6A

Termination

Glossary and References

Installation

Applications

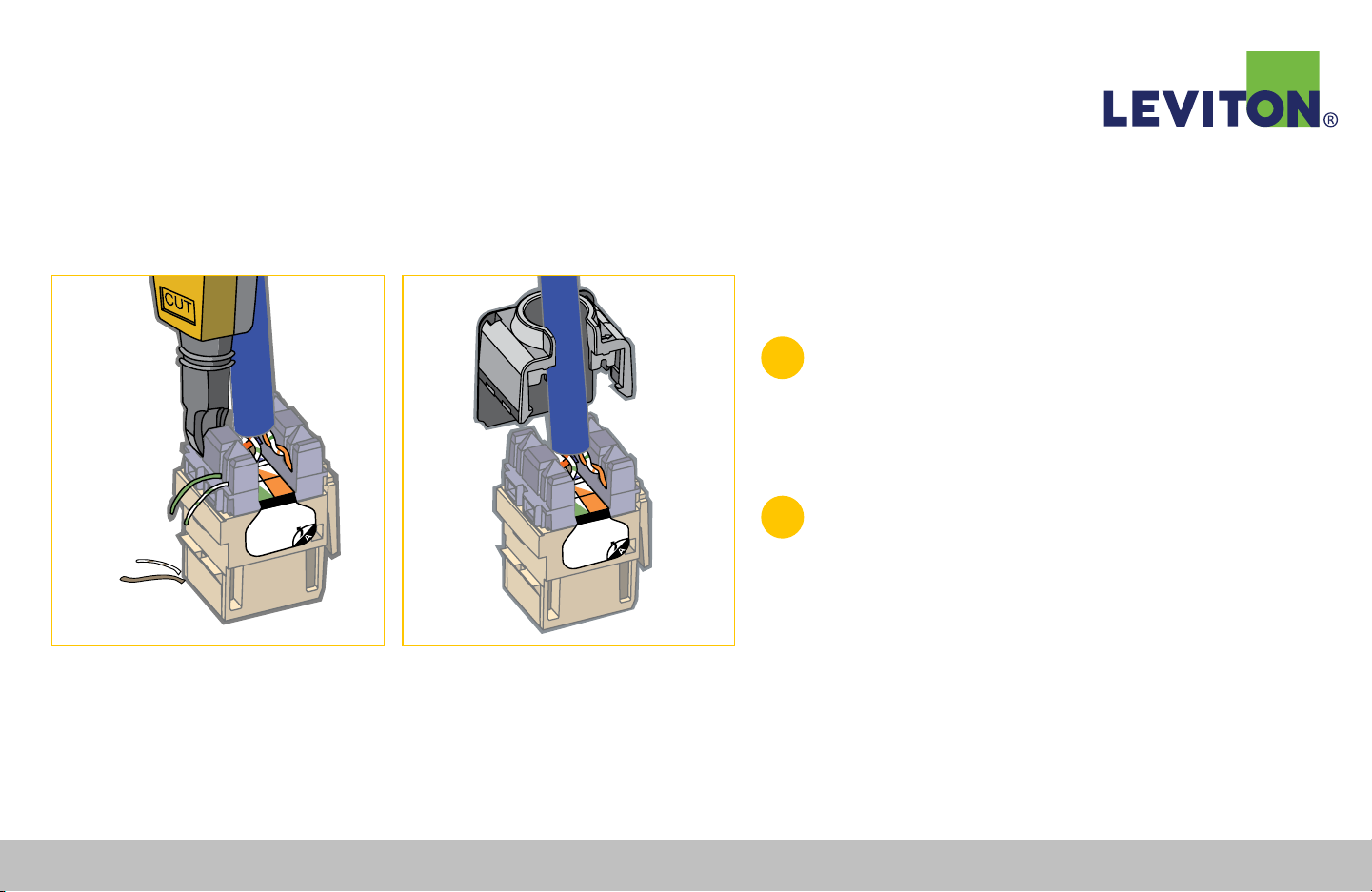

Figure C Figure D

Use your fingers to carefully seat wires into the IDC slots.

Maintain wire pair twisting to within ½" (13 mm) of the IDC. Set a 110-style impact tool to low and position it perpendicular to the connector. Seat and trim the cable one pair at a time to prevent crushing the inside pairs (Figure C).

eXtreme

CAT 6A

Use the punch down puck to terminate the jack ﬁrst, then install into a patch panel or wallplate.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 79

eXtreme

CAT 6A

Place the Cone of Silence® over the terminated wires for secure

connection and exceptional Cat 6A performance (Figure D).

Page 80

Glossary and References

u Glossary

u References

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 80

Page 81

Glossary

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

10GBASE-T (10 Gigabit baseband over twisted

pair) » This IEEE standard, 802.3an, deﬁnes 10 Gigabit Ethernet running 10Gbps over balanced twisted-pair cabling.

ANSI (American National Standards Institute) » ANSI oversees the creation, circulation and use of standards and guidelines that directly impact businesses in various sectors. ANSI is also actively engaged in accrediting programs that assess conformance to standards.

Attenuation » The loss of volume during transmission, or decrease in the power of a signal, light beam, or light wave. Attenuation is the opposite of gain and is measured in decibels (dB).

AWG (American wire gauge) » The standard measuring gauge for nonferrous conductors (i.e., non-iron and non-steel). Gauge measures the diameter of a conductor (thickness of cable).

AXT (alien crosstalk) » Electromagnetic noise that can occur in a cable run alongside other signal-carrying cables. The term “alien” arises from the fact that this form of crosstalk occurs between dierent cables in a group or bundle, rather than between individual wires or circuits within a single cable.

Bandwidth

The dierence between the highest and the lowest frequencies of a transmission channel (path for information transmission). Identiﬁes the amount of data that can be sent through a given channel. Measured in hertz (Hz); higher bandwidth numbers mean higher data capacity.

Bend Radius » The amount of bend that can occur before a cable may sustain damage or increased attenuation.

BICSI (Building Industry Consulting Services International) » A non-proﬁt professional association for the promotion of telecommunications industry standards and installation best practices.

Category 5e (enhanced category 5 or Cat 5e) » A standard for balanced twisted pair cable and components supporting signaling rates up to 100 MHz. Cat 5e is intended to support systems up to 1000BASE-T or Gigabit Ethernet up to distances of 100 m (328 ft).

Category 6 (CAT 6)

A standard for balanced twisted pair cable and components supporting signaling rates up to 250 MHz. Cat 6 is intended to support systems up to 1000BASE-T or Gigabit Ethernet up to distances of 100 m (328 ft).

Category 6A (augmented category 6 or Cat 6A) A standard for balanced twisted pair cable and components supporting signaling rates up to 500 MHz. Cat 6A is designed to support 10GBASE-T or 10 Gigabit Ethernet up to distances of 100 m (328 ft).

Category of Performance » Cabling and cabling component standards adopted by the telecommunications industry.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 81

Page 82

Glossary

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Channel » In the horizontal cabling portion of a structured cabling system, the channel contains all of the elements of the permanent link, plus the equipment cords at the horizontal cross-connect (HC) and the patch cords in the work area.

Channel-rated » Category-rated structured cabling components are said to be channel-rated if, when installed as a system in an industry-deﬁned channel, they meet all of the transmission and noise characteristics deﬁned in the standard. Compare with Component-rated.

Compliance » A wiring device that meets all

characteristics of a standard is said to be in compliance with that standard.

Component-rated » Category-rated structured cabling components are said to be component-rated if they exceed all of the transmission and noise characteristics deﬁned in the standard for an individual structured cabling component. Component speciﬁcations are more stringent than channel speciﬁcations and may provide greater permanent link and channel test margins. Compare with Channel-rated.

Conductor » Any substance, usually a wire or cable, that can carry an electrical current.

Connecting Block » Also called a terminal block, punch-down block, quick-connect block, or crossconnect block, this plastic block contains metal wiring terminals to establish connections from one group of wires to another. Usually each wire can be connected to several other wires in a bus or common arrangement. There are several types of connecting blocks: 66, 110, etc.

Connector » A device that connects wires or fibers in cable to equipment or other wires or fibers. Wire and optical connectors most often join transmission media to equipment or cross connects. Connectors are sometimes referred to as jacks; but although all jacks are connectors, not all connectors are jacks.

Consolidation Point » An optional location between an ER or TR and the workstation for interconnection of horizontal cables.

Data Center (DC) » A data center is a facility used for housing a large amount of electronic equipment, typically servers, computers, data storage devices, and communications equipment. Data centers are designed to assure that the equipment and data housed in them are protected from environmental hazards and security breaches. Data centers can be private, serving a single company, or a public “utility” serving a variety of companies.

dB (decibel) » A dB is a unit of measure of signal strength, usually the relationship between a transmitted signal and a standard signal source. Every 3dB equals 50% of signal strength, so therefore a 6dB loss is a loss of 75% of total signal strength.

EF (entrance facility) » An entrance to a building for both public and private network service cables (including wireless) including the entrance point of the building and continuing to the entrance room or space.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 82

Page 83

Glossary

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Ethernet » Leading local area network (LAN) protocol used for connecting computers, printers, workstations, terminals, etc. within the same building. Ethernet is a physical link and data link protocol that operates over twisted pair wire. See IEEE 802.3x.

ETL (Edison Testing Laboratories) » An independent testing, inspection and certification laboratory owned by Intertek that provides electrical safety, electromagnetic compatibility, benchmark and performance testing. In addition, ETL issues two product safety marks: “listed” and “verified”.

ER (equipment room) » is a centralized space that houses telecommunications equipment. ERs generally serve an entire building or campus, while TRs (telecommunication rooms) serve one ﬂoor of a building or a portion of a ﬂoor. An ER may contain active equipment, cross-connect equipment, and building systems (e.g. life safety, security, electrical and HVAC).

FCC (Federal Communications Commission) » The FCC is an independent United States government agency. It was established by the Communications Act of 1934 and is charged with regulating interstate and international communications by radio, television, wire, satellite and cable. The FCC’s jurisdiction covers the 50 states, the District of Columbia, and U.S. possessions.

FTP (foiled twisted pair) » Balanced twisted pair cable with an overall foil shield and drain wire. Also called screened twisted pair (ScTP) cable.

F/UTP (foiled screened with unshielded twisted pairs) » Overall shielded cable with no shield on individual twisted pairs.

Gain » An increase in signaling power when an electric device boosts the signal; measured in decibels (dB).

Gigabit » When used to describe data transfer rates, Gigabit refers to 10 to the 9th power (1,000,000,000) bits. Gigabit Ethernet, abbreviated GbE, supports data transfer rates of 1 Gigabit (1,000 megabits) per second. The first Gigabit Ethernet standard (802.3z) was ratiﬁed by the IEEE

802.3 Committee in 1998.

HC (horizontal cross-connect) » The HC is a location for the cross-connect of horizontal cabling to other cabling and equipment.

HDBaseT » A standard created by the HDBaseT alliance for delivering video, audio, power, Ethernet, USB and control signals over category-rated twisted pair copper cable.

IC (intermediate cross-connect) » The IC is a cross-connect point located between the MC (main cross-connect) and the HC in interbuilding backbone cabling.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 83

Page 84

Glossary

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

IDC (insulation displacement connection)

An IDC allows the termination of a conductor without stripping the conductor’s insulation. When the conductor is inserted into the contact, the insulation is displaced, creating contact between the conductor and the IDC, producing a gas-tight connection.

IEEE (Institute of Electrical and Electronics Engineers) » A publishing and standards-making body responsible for many standards used in LANs.

IEEE 802.11ac » An IEEE wireless networking

standard providing high-throughput wireless local area networks (WLANs) on the 5 GHz band, with theoretical speeds up to 6.9 Gb/s.

IEEE 802.3 » A collection of IEEE standards deﬁning the physical layer and the media access control (MAC) sublayer of the data link layer of wired Ethernet. This is the most common local area network specification.

IEEE 802.3an » A standard for 10GBASE-T released in 2006 to provide 10 gigabit per second transmission over balanced twisted pair cables up to 100 meters (328 ft).

IEEE 802.3bt » An IEEE standard in development which will deﬁne Power over Ethernet over four pairs and support 10GBASE-T. The standard will deﬁne two new tiers of PoE: Type 3 for up to 60 watts, and Type 4 for up to 100 watts. Publication of 802.3bt is expected in 2018.

Impedance » The total opposition (i.e. resistance and reactance) a circuit offers to the flow of alternating current. It is measured in ohms, and the lower the ohmic value, the better the quality of the conductor.

Insertion Loss (IL) » The dierence in the amount of power received before and after something is inserted into the circuit.

Interconnect » A circuit administration point, other than a cross-connect or an information outlet, that provides capability for routing and rerouting circuits. It does not use patch cords or jumper wires, and typically is a jack-and-plug device used in smaller distribution arrangements or that connects circuits in large cables to those in smaller cables.

ISO (International Standards Organization) » The world’s largest developer and publisher of international standards. It is a non-governmental organization (NGO) network of national standards institutes in 157 countries, based in Geneva, Switzerland.

Jacket (also cable jacket or sheath) » The outer covering applied over internal cable elements for protection.

LAN (local area network) » A LAN is a computer network covering a small physical area, generally a single building or contiguous campus. LANs are characterized by higher data-transfer rates (compared to a WAN or wide area network) and lack of leased telecommunications lines.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 84

Page 85

Glossary

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Mbps (megabits per second) » One million bits per second.

MC (main cross-connect) » The MC is the cross-connect in the ER (equipment room) for connecting entrance cables, backbone cables and equipment cables.

MHz (megahertz) » A unit of frequency denoting one million hertz (1,000,000 cycles per second).

Mud Ring » Industry jargon for a plaster ring/frame mounted in a wall to support a telecommunications outlet such as a faceplate. Essentially, mud rings are backless junction boxes.

NEC (National Electric Code) » The NEC or NFPA 70 (NFPA is the National Fire Protection Association, the organization that publishes the Code) addresses safeguards for people and property from electrical hazards. The NEC also speciﬁes ﬁre resistance and smoke ratings for building materials and is recognized and enforced in the United States. NEC article 800 addresses requirements for communications circuits.

NEXT (near-end crosstalk) » Electrical noise coupled from one pair of wires to another within a multi-pair cable.

Part 68 » Requirements speciﬁcations established by the FCC as the minimum acceptable protection communications equipment must provide the telephone network. Part 68 also identified dimensional and material requirements for modular jacks and plugs, as well as the metallic contacts in these devices. Plug and jack requirements are now governed by ANSI/TIA-1096-A.

Patch Cord » A cord made from 4-pair 100-ohm balanced twisted-pair cable. Patch cords may be shielded or unshielded, depending on the type of system being installed. They are typically wired T568 A or B with an 8-position, 8-conductor (8P8C) plug on each end. Work area and TR patch cords are made from stranded cable, which has better ﬂexibility, durability and longer life than solidconductor cords.

Patching » A means of connecting circuits via cords and connectors that can be easily disconnected and reconnected at another point. May be accomplished by using modular cords connected between jack ﬁelds or by patch cord assemblies that plug onto connecting blocks.

Patch Panel » A piece of connecting hardware designed for use in a standard 19" equipment rack or cabinet. Standard patch panels have modular jack appearances on the front, and 110-style IDC connections on the rear. Field-conﬁgurable patch panels can be loaded with a variety of jacks or other connectors for mixed-media installations, or where the use of various jack colors is desired.

Performance » The totality of a communication transmission’s characteristics, including rate of transfer, barriers to peak transfer rate, and comparison to applicable standards. Compare with Compliance. A device can exhibit performance characteristics without being compliant to an industry standard.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 85

Page 86

Glossary

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Permanent Link » In the horizontal cabling portion of a structured cabling system, the permanent link contains the following: the telecommunications outlet (TO), the cabling between the horizontal crossconnect (HC) and the TO, an optional consolidation point (CP), and the connecting hardware at the HC.

Power over Ethernet (PoE) » PoE technology describes any system capable of transmitting electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. This technology is useful for powering IP telephones, wireless access points, security cameras, and other appliances where it would be inconvenient or infeasible to supply power separately.

Power over HDBaseT (PoH) » PoH provides up to 100 watts of power to devices over HDBaseT technology and twisted pair cabling.

Power Sum » A test method for four-pair cable whereby the mathematical sum of pair-to-pair crosstalk from three pairs to one pair is measured.

Premises » Telephony term for the space occupied by a customer or authorized/joint user in a building(s) on continuous or contiguous property (except railroad rights of way, etc.) not separated by a public road or highway. Frequently used as “premises-based”.

Premises Wiring System » The entire wiring system on the user’s premises, especially the supporting wiring that connects the communications outlets to the network interface jack.

Punchdown » Refers to the use of an impact tool that enables installers to make ecient IDC style connections.

RCDD

(Registered Communications Distribution Designer) » The RCDD title is a professional credential granted by BICSI. RCDDs have demonstrated a superior level of knowledge of Information Transport Systems (ITS) design and associated disciplines.

Return Loss (RL) » A measure of the similarity of the impedance of a transmission line and the impedance at its terminations. It is a ratio, expressed in decibels, of the power of the outgoing signal to the power of the signal reﬂected back.

RJ (registered jack) » RJs are telephone and data jacks registered with the FCC. Speciﬁc RJs, such as RJ-11 and RJ-45, are widely used in the telecommunications industry. A much more accurate way to identify a jack is to specify the number of positions (width of opening) and number of conductors. Example: “8-position, 8-conductor (8P8C) jack” or “6-position, 4-conductor (6P4C) jack”.

RU (rack unit) » A unit of measure of vertical space in an equipment rack or cabinet. One rack unit is equal to 1.75 in (45 mm).

Standards » Agreed-upon principles of performance. Standards are set by committees working under various trade and international organizations.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 86

Page 87

Glossary

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

Structured Cabling System » A structured cabling system (SCS) is deﬁned as the complete collective conﬁguration of cabling and associated hardware that has been installed at a given site to provide a comprehensive telecommunications infrastructure.

TDMM (Telecommunications Distribution Methods Manual) » The TDMM is a publication from BICSI that is based on internationally accepted industry standards, codes and guidelines. The TDMM addresses the newest methodologies and recommends best practices for the design of structured cabling systems.

TE (Telecommunications Enclosure) » Also referred to as a zone enclosure, a TE is a housing for telecommunications equipment, cable terminations, cross-connect cabling, and wireless access points. A TE serves the function of an horizontal crossconnect (HC) for a portion of a building ﬂoor and provides access to the building’s backbone and pathways. A TE should supplement, not replace, the requirement for a TR on a building ﬂoor.

TIA (Telecommunications Industry Association) » The TIA is a trade organization of manufacturers which sets standards for use of its member companies. Formerly fell under the umbrella of EIA. See www.tiaonline.org.

TO (telecommunications outlet) » A connecting device in the work area on which horizontal cable terminates.

TR (telecommunications room) » A TR is an architectural space that provides an environmentally suitable and secure area for housing cables, terminations, cross-connects, hardware and telecommunications equipment.

U/FTP » Also classiﬁed as STP (shielded twisted pair), is twisted pair cable with individually foil-screened twisted pairs, but no overall shield.

UL (Underwriters Laboratories

) » A privately owned product safety certiﬁcation organization. UL also certiﬁes category-rated cable performance and quality.

UTP (unshielded twisted pair) » Also classiﬁed as U/UTP, is overall unshielded twisted pair with unshielded twisted pairs.

Work Area (WA) or workstation » A building space where occupants interact with telecommunications terminal equipment.

WAN (wide area network) » A computer network that covers a broad geographic area. WANs connect LANs and other networks together. Some are private, but many are built by Internet service providers, who provide connection from organizational LANs to the Internet.

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 87

Page 88

References

Glossary and References >

Testing

Product Overview

Termination

Cat 6A

Glossary and References

Installation

Applications

This guide has been developed consistent with all known applicable cabling practices as deﬁned by the following:

ANSI/TIA-607-C

Generic Telecommunications Bonding and Grounding (Earthing) for Customer Premises

ANSI/BICSI 002-2014

Data Center Design and Implementation Best Practices

ANSI/TIA-568.0-D

Generic Telecommunications Cabling for Customer Premises

ANSI/TIA-568.1-D

Commercial Building Telecommunications Cabling Standard

ANSI/TIA-568-C.2

Telecommunications Cabling, Copper Component, and Cabling Speciﬁcations

ANSI/TIA-569-D

Commercial Building Standard for Telecommunications Pathways and Spaces

ANSI/TIA-606-C

Administration Standard for Telecommunications Infrastructure of Commercial Buildings, published June 2012

ANSI/TIA-942-B

Telecommunications Infrastructure Standard for Data Centers

IEEE 802.3

Ethernet-based LANs (Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet)

IEEE 1100

Recommended Practice for Powering and Grounding Electronic Equipment

IEEE 1911.3

Standard for HDBaseT™ 5Play

ISO 11801

Generic Cabling for Customer Premises (multiple standards)

Always follow superseding national, state, and local codes and regulations.

National Electrical Safety Code (NESC)

Published by IEEE

National Electric Code (NEC, NFPA 70)

Published by NFPA

Telecommunications Distribution Methods Manual (TDMM)

Published by BICSI

Underwriters Laboratories (UL)

Applicable listings and ratings

NECA/BICSI 607-2011

Standard for Telecommunications Bonding and Grounding Planning and Installation Methods for Commercial Buildings

Leviton Network Solutions

(800) 722 2082

+1 (425) 486 2222

leviton.com/ns 88

Page 89

We invent and manufacture the industry’s

NETWORK SOLUTIONS DIVISION HEADQUARTERS

2222 - 222nd Street S.E., Bothell, WA 98021 USA

Inside Sales

(800) 722 2082 insidesales@leviton.com

International Inside Sales

+1 (425) 486 2222 intl@leviton.com

leviton.com/ns

Technical Support

(800) 824 3005 / +1 (425) 486 2222 appeng@leviton.com

best cabling and connectivity. We build them

to last. And we stand behind every product

and end-to-end system — delivering the

highest performance and unbeatable service

and support — throughout the life of your

network. Add the peace of mind that comes

from working with a stable, century-old supplier,

and you get the

highest return on

infrastructure investment.

EUROPEAN HEADQUARTERS

Viewfield Industrial Estate, Glenrothes, Fife KY6 2RS, UK brand-rex.com Brand-Rex Limited is a subsidiary of Leviton Mfg. Co., Inc

Customer Service

+44 (0) 1592 772124 customerserviceeu@leviton.com

MIDDLE EAST HEADQUARTERS

Bay Square, Building 3, Oce 205, Business Bay, Dubai - UAE leviton.com/ns/middleeast

Customer Service

+971 (4) 886 4722 / +971 (4) 454 8644 lmeinfo@leviton.com

CORPORATE HEADQUARTERS

201 N. Service Road, Melville, NY 11747 USA leviton.com

Customer Service

(800) 323 8920 / +1 (631) 812 6000 customerservice@leviton.com

ADDITIONAL OFFICES

Africa

+971 (4) 886 4722 lmeinfo@leviton.com

Asia / Paciﬁc

+1 (631) 812 6228 infoasean@leviton.com

Canada

+1 (514) 954 1840 pcservice@leviton.com

Caribbean

+1 (954) 593 1896 infocaribbean@leviton.com

ALL OTHER INTERNATIONAL INQUIRIES

international@leviton.com

China

+852 2774 9876 infochina@leviton.com

Colombia

+57 (1) 743 6045 infocolombia@leviton.com

Latin America & Mexico

+52 (55) 5082 1040 lsamarketing@leviton.com

South Korea

+82 (2) 3273 9963 infokorea@leviton.com

C18 5745
