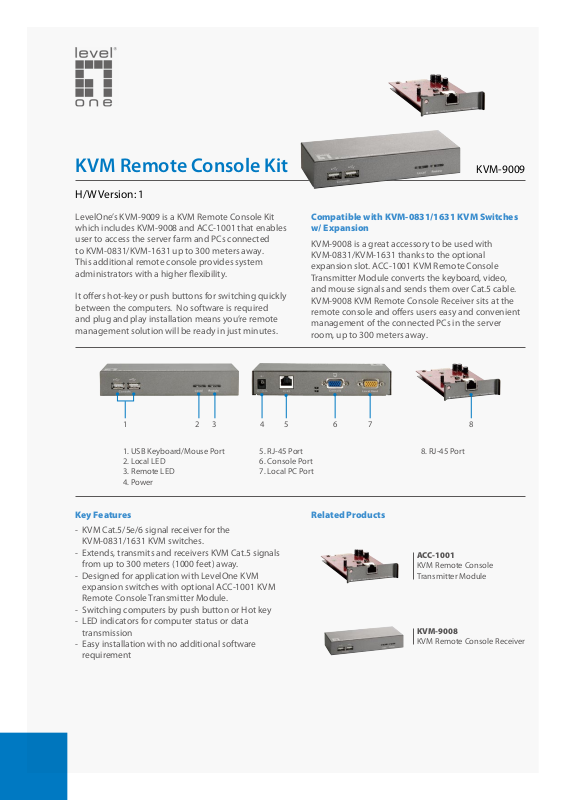

Level One KVM-9009 User Manual

KVM Remote Console Kit

H/W Version: 1

KVM-9009

LevelOne’s KVM-9009 is a KVM Remote Console Kit which includes KVM-9008 and ACC-1001 that enables user to access the server farm and PCs connected to KVM-0831/KVM-1631 up to 300 meters away. This additional remote console provides system administrators with a higher exibility.

It oers hot-key or push buttons for switching quickly between the computers. No software is required and plug and play installation means you’re remote management solution will be ready in just minutes.

1. USB Keyboard/Mouse Port

2. Local LED

3. Remote LED

4. Power

5. RJ-45 Port

6. Console Port

7. Local PC Port

Compatible with KVM-0831/1631 KVM Switches w/ Expansion

KVM-9008 is a great accessory to be used with KVM-0831/KVM-1631 thanks to the optional expansion slot. ACC-1001 KVM Remote Console Transmitter Module converts the keyboard, video, and mouse signals and sends them over Cat.5 cable. KVM-9008 KVM Remote Console Receiver sits at the remote console and oers users easy and convenient management of the connected PCs in the server room, up to 300 meters away.

7654321 8

8. RJ-45 Port

Key Features

- KVM Cat.5/5e/6 signal receiver for the KVM-0831/1631 KVM switches.

- Extends, transmits and receivers KVM Cat.5 signals from up to 300 meters (1000 feet) away.

- Designed for application with LevelOne KVM expansion switches with optional ACC-1001 KVM Remote Console Transmitter Module.

- Switching computers by push button or Hot key

- LED indicators for computer status or data transmission

- Easy installation with no additional software requirement

Related Products

ACC-1001

KVM Remote Console Transmitter Module

KVM-9008

KVM Remote Console Receiver

www.level1.com I one world_one brand_one level_

Technical Specications

KVM Switches/Consoles/Extenders

Keyborad/Mouse

USB

VGA Monitor Port

1 x D89

RJ-45 Port Connector

8P8C

Local Console Port Connector

VGA blue HDDB 15pin, 3 to 1 cable to connect to PC

Resolution (Local Host)

1920 x 1440

Resolution (Remote Host)

1680 x 1050 (500 feet)

1280 x 1024 (1000 feet)

LED

Console port or PC port was selected

Product Diagram

KVM-9008

VGA Tuning

Auto Adjusting

Power Adapter

DC 12V/1A

Dimension (mm)

160 x 72 x 27

Operating Temperature

0°C~50°C

Storage Temperature

-20°C~60°C

Humidity

0%~80%, Non-Condensing

KVM-1631

Local Monitor KeyboardMouse

ACC-1001

16 PCs

Order Information KVM-9009: KVM Remote Console kit

Package Contents KVM-9008 x 1

ACC-1001 x 1

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

V1.0
