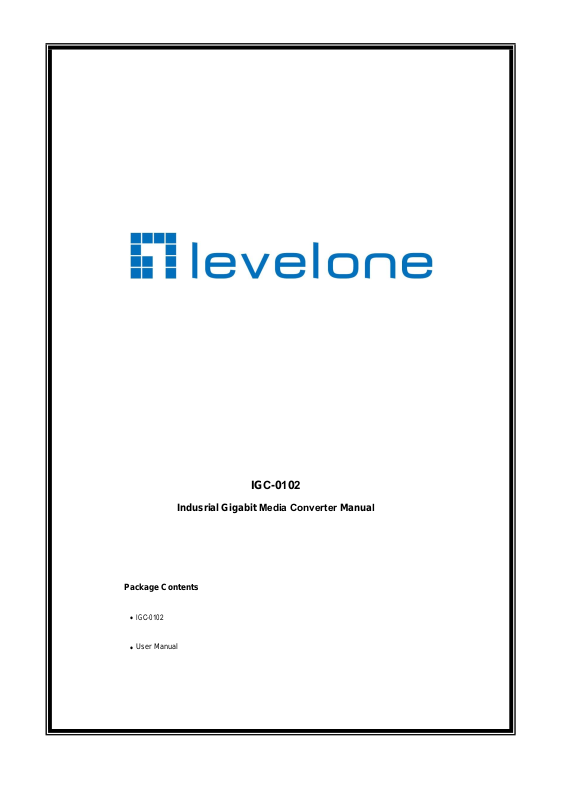

Indusrial Gigabit Media Converter Manual
Package Contents
•
IGC-0102
User Manual
•
IGC-0102
CE Marking Warning
CE marking is a certification mark that indicates conformity with health, safety, and
environmental protection standards for products sold within the European Economic Area
(EEA).The CE marking is also found on products sold outside the EEA that have been
manufactured to EEA standards. This makes the CE marking recognizable worldwide even to
people who are not familiar with the European Economic Area.
WEEE
WEEE is waste electrical and electronic equipment. It is end-of-life electrical and electronic
equipment and covers virtually everything with a plug or battery. ... The EC introduced the
WEEE Directive in 2002 to address the environmental impacts of unwanted electrical and
electronic equipment at end-of-life disposal.
FCC Certifications
This Equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received; including interference that may cause undesired
operation.
RJ45 to SFP Gigabit Industrial Media Converter, -40°C to 75°C
Parameter
Specifications
Power supply
Powered by power adaptor
Range of voltage
DC 12~60V
Consumption
Self consumption<5W
Downlink ports
Ports 1: 10/100/1000Base-T RJ45
Uplink ports
Ports 2: 1000Base-X SFP
Relay alarm
1 channel relay alarm output for power off, ports link down
Cable and distance
Use cat5e/6,100m max
Overview
IGC-0102 is a 2-port industrial full gigabit media converter that supports up to 1 *10/100/100M RJ45 port and 1*1000M
SFP slot. It supports relay alarm for power off, network broken.
It has the characteristics of reliable work, strong and durable, high cost performance and so on. It can be used in security
network video monitoring system, network engineering and other occasions.
❖ Features
With 1*10/100/1000M RJ45 port and 1*1000M SFP port;
Supports relay alarm for power off, network broken;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -40℃～75℃.
❖ Specifications
w w w. l e v e l 1 . c o m
Standard
IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric
4 Gbps
Though put
2.976 Mpps
Buffer
1M
MAC address table
8K
Indicator
Power: 1 *red ;
Downlink 1~2: Yellow LED and green LEDs indicate Link/Act
Protection Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact/8KV: air, standard:IEC61000-4-2
Working temperature -40℃~75℃
Storage temperature
Humidity 0~95%(No condensation)
Dimension(L×W×H) 101mm×65 mm×36mm
Material Metal
Colour Black
Net-weight 300g
-40℃~85℃
❖ Panel diagram
w w w. l e v e l 1 . c o m
❖ Dimensions
Model
Description
IGC-0102
With 1*10/100/1000M RJ45 port and 1*1000M SFP port;
2*DC12-60V power supply(Power adaptor buy extra);
Supports relay alarm function for power off, network broken.
❖ Order information
Specifications are subject to change without notice. No liability or responsibility for any errors or omissions in the content.
Copyright Digital Data Communications GmbH, Germany. All Rights Reserved.
w w w. l e v e l 1 . c o m
