LevelOne
IFE-0501/IFE-0502
4-Port PoE + 1-Port SC
Industrial Fast Ethernet Switch
User Manual
Ver. 1.0.0-0711
1
FCC Warning
This Equipment has been tested and found to comply with the limits for a Class-A
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. It may
cause harmful interference to radio communications if the equipment is not installed
and used in accordance with the instructions. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
2
Content
INTRODUCTION......................................................................................4
FEATURES................................................................................................................. 4
PACKAGE CONTENTS ................................................................................................. 5
HARDWARE DESCRIPTION...................................................................6
PHYSICAL DIMENSION ................................................................................................ 6
FRONT PANEL ........................................................................................................... 6
TOP VIEW ................................................................................................................. 7
LED INDICATORS....................................................................................................... 8
PORTS...................................................................................................................... 9
CABLING ..................................................................................................................11
WIRING THE POWER INPUTS ..................................................................................... 12
WIRING THE FAULT ALARM CONTACT ......................................................................... 13
MOUNTING INSTALLATION.................................................................14
DIN-RAIL MOUNTING ............................................................................................... 14
WALL MOUNT PLATE MOUNTING ............................................................................... 16
HARDWARE INSTALLATION ...............................................................17
INSTALLATION STEPS ............................................................................................... 17
NETWORK APPLICA TION....................................................................18
TROUBLESHOOTING...........................................................................19
TECHNICAL SPECIFICATION ..............................................................20
3
Introduction
The 4-Port PoE + 1-Port SC Industrial Fast Ethernet Switch is a cost-effective solution
and meets the high reliability requirements demanded by industrial applications. Using
fiber port can extend the connection distance that increases the network elasticity and
performance. In addition, the industrial switch provides the PoE function for kinds of
Powered Devices to receive power as well as data over the RJ-45 cable.
Features
System Interface/Performance
y RJ-45 ports support Auto MDI/MDI-X Function
y Embedded 4-port PoE Injection
y Store-and-Forward Switching Architecture
y Back-plane (Switching Fabric): 1.0Gbps
y 1K MAC Address Table
y Fiber cable up to 2km by Full-duplex Multi-mode(IFE-0501)
y Fiber cable up to 30km by Full-duplex Single-mode(IFE-0502)
Power Supply
y DC 48V Redundant Power (Full load with PoE)
y Overload Current Re-settable Fuse Present
Case/Installation
y IP-30 Protection
y DIN Rail and Wall Mount Design
Provides EFT protection 3,000 VDC for power line
Supports 4,000 VDC Ethernet ESD protection
4
Package Contents
Please refer to the package contents list below to verify them against the checklist.
IFE-0501(or IFE-0502)
CD Manual
Pluggable Terminal Block (attached on the switch)
2 wall mount plates with screws
One DIN-Rail (attached on the switch)
Compare the contents of the industrial switch with the standard checklist above. If any
item is damaged or missing, please contact the local dealer for service.
5
Hardware Description
In this paragraph, the Industrial switch’s hardware spec, port, cabling information, and
wiring installation will be described.
Physical Dimension
4-Port PoE + 1-Port SC Industrial Fast Ethernet Switch dimension (W x D x H) is
30mm x 95mm x 140mm
Front Panel
The Front Panel of the 4-Port PoE + 1-Port Multi-mode SC Industrial Fast Ethernet
Switch is shown as below:
Front Panel of the IFE-0501 Industrial Fast Ethernet Switch
6
The Front Panel of the 4-Port PoE + 1-Port Single-mode SC Industrial Fast Ethernet
Switch is shown as below:
Front Panel of the IFE-0502 Industrial Fast Ethernet Switch
Top View
The top view of the 4-Port PoE + 1-Port SC Industrial Fast Ethernet Switch has one
terminal block connector of two DC power inputs.
Top View of the IFE-0501/IFE-0502 Industrial Fast Ethernet Switch
7
LED Indicators
The diagnostic LEDs located on the front panel of the industrial switch provide
real-time information of system and optional status. The following table provides the
description of the LED status and their meanings for the switch.
LED Color Description
P1 Green
P2 Green
Fault Red
Green
(1 ~ 4)
5 LNK/ACT
Green
(fiber port)
Green
(Upper LED)
1 ~ 4
On Power input 1 is active
Off Power input 1 is inactive
On Power input 2 is active
Off Power input 2 is inactive
On Power input 1 or 2 has failed
Off
On
Off
On Connected to network
Flashing Networking is active
Off Not connected to network
On Connected to network
Flashing Networking is active
Off Not connected to network
Power input 1 and 2 are both functional,
or no power inputs
The port is supplying power to the
powered-device FWD
No powered-device attached or power
supplying fails
(RJ-45)
Yellow
On Full-duplex link
Flashing Collision occurs
(Lower LED)
Off Half-duplex link or link down
8
Ports
RJ-45 ports
The UTP (RJ-45) Fast Ethernet ports will auto-sense for 10Base-T or 100Base-TX
connections. Auto MDI/MDIX means that the switch can connect to another switch or
workstation without changing straight through or crossover cabling. See the below
figures for straight through and crossover cable schematic.
RJ-45 Pin Assignments
Pin Number Assignment
1 Tx+
2 Tx-
3 Rx+
6 Rx-
All ports on this industrial switch support automatic MDI/MDI-X operation, user can
use straight-through cables (See figure below) for all network connections to PCs or
servers, or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at
one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other
end of the cable. The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X
port pin outs.
Pin MDI-X Signal Name MDI Signal Name
“+” and “-” signs represent the polarity of the wires that make up
each wire pair.
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
9
Straight Through Cable Schematic
Cross Over Cable Schematic
Fiber Port
The fiber port of SC type connector can work in multi-mode (2Km) or single-mode
(30Km). When you connect the fiber port to another one, please follow the figure
below to connect accordingly. Wrong connection will cause the port cannot work
normally.
ATTENTION
This is a Class 1 Laser/LED product.
Don’t stare into the Laser/LED Beam.
10
Cabling
Twisted-pair segment can be connected with unshielded twisted pair (UTP) or
shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u
100Base TX standard for Category 5. The cable between the converter and the
link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.)
long.
Fiber segment using single-mode connector type must use 9/125µm single-mode
fiber cable.
Fiber segment using multi-mode connector type must use 50 or 62.5/125 µm
multi-mode fiber cable.
11
Wiring the Power Inputs
Please follow the steps below to insert the power wire.
Insert the positive and negative wires into the V+ and V- contacts on the terminal block
connector.
Tighten the wire-clamp screws for preventing the wires from loosing.
12
Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of terminal block connector as the picture
shows below. When the wires are inserted into ports 3 and 4, they automatically
detect the fault status in the event of a power failure by forming an open circuit.
An example for the fault alarm contact is shown as below:
Insert the wires into the fault alarm contact.
The wire gauge for the terminal block should be in the range
between 12 ~ 24 AWG.
13
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is
not screwed on the industrial switch, please see the following pictures to screw the
DIN-Rail on the switch. Follow the steps below to hang the industrial switch.
1. Use the screws to screw the DIN-Rail on the rear side of the industrial switch.
2. To remove the DIN-Rail, reverse the step 1.
3. After the DIN-Rail is screwed on the rear side of the switch, insert the top of
DIN-Rail into the track.
14
4. Then, lightly push the DIN-Rail into the track.
5. Check if the DIN-Rail is tightened on the track or not.
6. To remove the industrial switch from the track, reverse steps above.
15

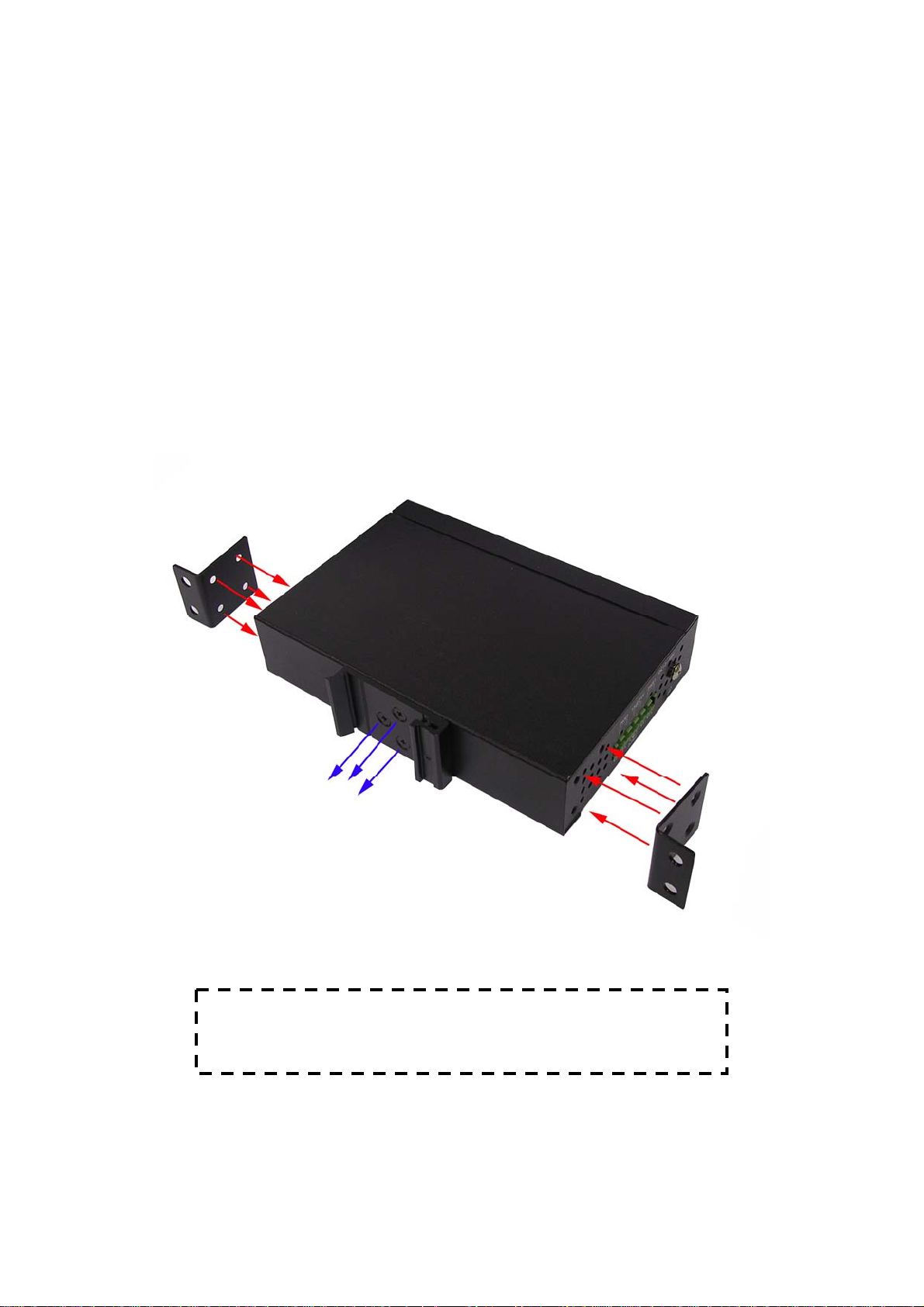

Wall Mount Plate Mounting
1. Follow the steps below to mount the industrial switch with wall mount plate.
2. Remove the DIN-Rail from the industrial switch; loose the screws to remove the
DIN-Rail.
3. Place the wall mount plate on the rear panel of the industrial switch.
4. Use the screws to screw the wall mount plate on the industrial switch.
5. Use the hook holes at the corners of the wall mount plate to hang the industrial
switch on the wall.
6. To remove the wall mount plate, reverse steps above.
Screw the wall mount plates on the Industrial Switch
16
Hardware Installation
In this paragraph, we are going to mention how to install the 4-Port PoE + 1-Port SC
Industrial Fast Ethernet Switch and the installation points to be attended to it.
Installation Steps
1. Unpack the Industrial switch packing.
2. Check if the DIN-Rail is screwed on the Industrial switch or not. If the DIN-Rail is
not screwed on the Industrial switch, please refer to DIN-Rail Mounting section
for DIN-Rail installation. If user want to wall mount the Industrial switch, then
please refer to Wall Mount Plate Mounting section for wall mount plate
installation.
3. To hang the Industrial switch on the DIN-Rail track or wall, please refer to the
Mounting Installation section.
4. Power on the Industrial switch. Please refer to the Wiring the Power Inputs
section for knowing the information about how to wire the power. The power LED
on the Industrial switch will light up. Please refer to the LED Indicators section for
indication of LED lights.
5. Prepare the twisted-pair, straight through Category 5e/above cable for Ethernet
connection.
6. Insert one side of the RJ-45 cable into the Industrial switch Ethernet port and
another side to the network device’s Ethernet port, e.g. Switch, PC or Server. The
UTP/STP port (RJ-45) LED on the Industrial switch will light up when the cable is
connected with the network device. Please refer to the LED Indicators section for
LED light indication.
7. When all connections are set and LED lights all show in normal, the installation is
complete.
17
Network Application
This segment provides the sample to help user have more actual idea of industrial
switch application. For a sample application of the industrial switch, see the figure
below.
18
Troubleshooting
Verify that is using the right power cord/adapter (DC 48V), please don’t use the
power adapter with DC output voltage higher than 48V, or it will burn this
equipment down.
Select the proper UTP/STP cable to construct your network. Please check that is
using the right cable. Use unshielded twisted-pair (UTP) or shield twisted-pair
( STP ) cable for RJ-45 connections: 100Ω Category 3, 4 or 5 cable for 10Mbps
connections, 100Ω Category 5 cable for 100Mbps connections, or 100Ω
Category 5e/above cable for 1000Mbps. Also be sure that the length of any
twisted-pair connection does not exceed 100 meters (328 feet).
Diagnosing LED Indicators: the Switch can be easily monitored through panel
indicators, which describes common problems user may encounter and where
user can find possible solutions, to assist in identifying problems.
If the power indicator does not light on when the power cord is plugged in, user
may have a problem with power cord. Then check for loose power connections,
power losses or surges at power outlet. If you still cannot resolve the problem,
contact the local dealer for assistance.
If the Industrial switch LED indicators are normal and the connected cables are
correct but the packets still cannot transmit. Please check your system’s Ethernet
device’s configuration or status.
19
Technical Specification
The IFE-0501/IFE-0502 4-Port PoE + 1-Port SC Industrial Fast Ethernet Switch
technical specifications are shown as below.
IFE-0501 4-Port PoE + 1-Port Multi-mode SC Industrial Fast Ethernet Switch
IFE-0502 4-Port PoE + 1-Port Single-mode SC Industrial Fast Ethernet Switch
IEEE 802.3 10Base-T Ethernet
Standard
Protocol
Transfer Rate
MAC Address
LED
IEEE 802.3u 100Base-TX/FX Fast Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE802.3af Power over Ethernet
CSMA/CD
14,880 pps for 10Base-T Ethernet port
148,800 pps for 100Base-TX/FX Fast Ethernet port
1K MAC address table
Per unit: Power 1 (Green), Power 2 (Green), Fault(Red)
Fiber: Link/Active(Green)
TX: Link/Active(Green), Full duplex/Collision (Yellow)
PoE: Feeding Power (Green)
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 5e cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/5e cable
EIA/TIA-568 100-ohm (100m)
20
Distance:
Multi mode: 50/125μm ~ 62.5/125μm
Optical cable
Power Supply
Power
Consumption
Installation
Operating Temp.
Operation
Humidity
Single mode: 9/125μm
Available distance: 2km (multi-mode)/30km (single-mode)
Wavelength: 1310nm (Multi-mode/Single-mode)
Redundant power DC 48V with removable terminal block
12VDC (without PoE); 48VDC (Full load with PoE)
4.6Watts (without PoE); 58Watts (Full load with PoE)
DIN rail kit for DIN-type cabinet install and wall-mount ear
for wall mounting
-10℃ to 60℃ (14℉ ~ 140℉)
5% to 95% (Non-condensing)
Storage
Temperature
Case Dimension
EMI
Safety
Stability testing
-40℃ to 85℃
IP-30, 30 mm (W) x 95 mm (D) x 140mm (H)
FCC Class A
CE EN61000-4-2/3/4/5/6/8/11/12
CE EN61000-6-2
CE EN61000-6-4
UL
cUL
CE/EN60950-1
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
21
Loading...
