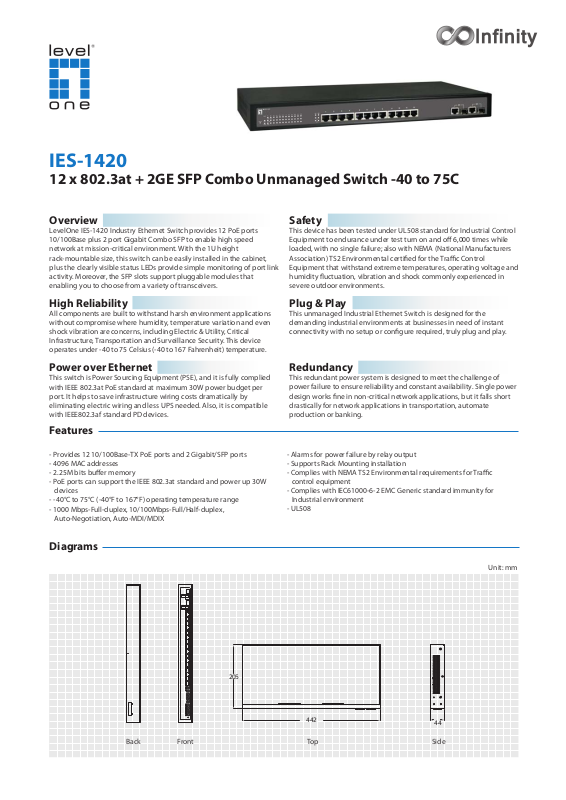

Level One IES-1420 User Manual

IES-1420

12 x 802.3at + 2GE SFP Combo Unmanaged Switch -40 to 75C

Overview

LevelOne IES-1420 Industry Ethernet Switch provides 12 PoE ports 10/100Base plus 2 port Gigabit Combo SFP to enable high speed network at mission-critical environment. With the 1U height rack-mountable size, this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers.

High Reliability

All components are built to withstand harsh environment applications without compromise where humidity, temperature variation and even shock vibration are concerns, including Electric & Utility, Critical Infrastructure, Transportation and Surveillance Security. This device operates under -40 to 75 Celsius (-40 to 167 Fahrenheit) temperature.

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

Features

- Provides 12 10/100Base-TX PoE ports and 2 Gigabit/SFP ports

- 4096 MAC addresses

- 2.25M bits buer memory

- PoE ports can support the IEEE 802.3at standard and power up 30W devices

- -40°C to 75°C (-40°F to 167°F) operating temperature range

- 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX

Safety

This device has been tested under UL508 standard for Industrial Control Equipment to endurance under test turn on and o 6,000 times while loaded, with no single failure; also with NEMA (National Manufacturers Association) TS2 Environmental certied for the Trac Control Equipment that withstand extreme temperatures, operating voltage and humidity uctuation, vibration and shock commonly experienced in severe outdoor environments.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or congure required, truly plug and play.

Redundancy

This redundant power system is designed to meet the challenge of power failure to ensure reliability and constant availability. Single power design works ne in non-critical network applications, but it falls short drastically for network applications in transportation, automate production or banking.

- Alarms for power failure by relay output

- Supports Rack Mounting installation

- Complies with NEMA TS2 Environmental requirements for Trac control equipment

- Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

- UL508

Diagrams

205

442

Unit: mm

SideTopBack Front

Technology

Standards

Forward and Filtering Rate

Packet Buffer Memory

Processing Type

Address Table Size

IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX/SFP,

IEEE802.3x, IEEE802.3ab 1000BASE-T, IEEE802.3af,

IEEE 802.3at, IEEE802.2z 1000BASE-SX/LX

14,880pps for 10Mbps

148,810pps for 100Mbps

1,488,100pps for 1000Mbps

2.25M bits

Store-and-Forward

Half-duplex back-pressure and IEEE802.3x full-duplex

flow control

4096 MAC addresses

Environment

Operating Temperature

Storage Temperature

Ambient Relative Humidity

-40°C to 75°C (-40°F to 167°F)

-40°C to 85°C (-40°F to 185°F)

5% to 95% (non-condensing)

Regulatory Approvals

ISO

Safety

Manufactured in an ISO9001 facility

UL508 (Pending)

Power

Power Input

Power Consumption

PoE Power Output

Supports reverse polarity protection

47 - 57VDC

Device: Max. 15W (without PoE)

PoE power budget (depends on power input):360W Max.

IEEE 802.3at: up to 30W/port, 50 - 57VDC, 600mA Max.

Mechanical

Casing

Dimensions

Weight

Installation

Metal case

Single Power: 442mm (W) x 205mm (D) x 44.2mm (H)

3Kg (6.61lbs.)

Rack Mounting

Interface

Ethernet Port

LED Indicators

10/100 BASE: 12 ports

Gigabit: 2 prots

Per Unit: Power Status: Power 1, 2 (Green), Fault

Per Port: 10/100TX, 100FX: Link/Activity (Green), Speed

(Amber)

Per Port: Gigabit: Link/Activity (Green) , Speed (Amber)

Per PoE: 10/100TX (Amber)

(17.40" (W) x 8.07" (D) x 1.73" (H))

EMI

EMS

Environmental Test Compliance

FCC Part 15, Class A EN61000-6-4

- EN55022

- EN61000-3-2

- EN61000-3-3

EN61000-6-2

- EN61000-4-2 (ESD Standards) Contact: + / - 6KV; Criteria B Air: + / - 8KV; Criteria B

- EN61000-4-3 (Radiated FRI Standards) 10V/m, 80 to 2.7G; 80% AM Criteria A

- EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV; Criteria B D.C. Power Ports: + / - 4KV; Criteria B

- EN61000-4-5 (Surge Standards) Signal Ports: + / - 1KV; Line-to-Line; Criteria B D.C. Power Ports: + / - 0.5KV; Line-to-Earth; Criteria B

- EN61000-4-6 (Induced RFI Standards) Signal Ports: 10V @ 0.15 - 80MHz; Criteria A D.C. Power Ports: 10V @ 0.15 - 80MHz; Criteria A Earth Ground Ports: 10V @ 0.15 - 80MHz; Criteria A

- EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz; Criteria A

IEC60068-2-6 Fc (Vibration Resistance)

5G @ 150Hz; Criterion 3 (Operation/Storage/Transport)

IEC60068-2-27 Ea (Shock)

25G @ 11ms (Half-Sine Shock Pulse; Operation) 50G @ 11ms (Half-Sine Shock Pulse; Storage/Transport)

IEC60068-2-32 Ed (Free Fall)

1M (3.281ft.)

NEMA TS1/2 Environmental requirements for traffic control equipment

Order Information

IES-1420

- 12 x 802.3at + 2GE SFP Combo Unmanaged Switch -40 to 75C

Package Contents

IES-1420 Quick Installation Guide

Optional Accessories

SFP-4200 - 1.25G MMF SFP Transceiver (550m, 850nm, -20 to 85C) SFP-4210 - 1.25G SMF SFP Transceiver (10km, 1310nm, -40 to 85C) SFP-4240 - 1.25G SMF SFP Transceiver (40km, 1310nm, -40 to 85C) SFP-4270 - 1.25G SMF SFP Transceiver (70km, 1550nm, -40 to 85C) SFP-4310 - 1.25G BIDI SMF SFP Transceiver (10km, 1310nm, -40 to 85C) SFP-4320 - 1.25G BIDI SMF SFP Transceiver (10km, 1550nm, -40 to 85C)

SFP-4330 - 1.25G BIDI SMF SFP Transceiver (20km, 1310nm, -40 to 85C) SFP-4340 - 1.25G BIDI SMF SFP Transceiver (20km, 1550nm, -40 to 85C) SFP-4350 - 1.25G BIDI SMF SFP Transceiver (40km, 1310nm, -40 to 85C) SFP-4360 - 1.25G BIDI SMF SFP Transceiver (40km, 1550nm, -40 to 85C) SFP-4370 - 1.25G BIDI SMF SFP Transceiver (60km, 1310nm, -40 to 85C) SFP-4380 - 1.25G BIDI SMF SFP Transceiver (60km, 1550nm, -40 to 85C)
