LevelOne IES-0853 User Manual
IES-0853
4 x 802.3at PoE + 3 FE + 1 MM SC Web Smart Switch -40 to 75C, DIN-rail
User Manual
v1.00 - 1206
Preface
This manual describes how to install and use the Hardened Web-Smart PoE & High Power
PoE Ethernet Switch. This switch introduced here is designed to deliver full scalability with
web-based management functions. Capable of operating at temperature extremes of
-40°C to +75°C, this is the switch of choice for harsh environments constrained by space.
Port 1 to port 4 on this switch supports IEEE802.3af Power over Ethernet (PoE) Power
Sourcing Equipment (PSE) and can detect an IEEE802.3af compliant Powered Device (PD).
Using external 48VDC power inputs through Terminal Block or Power Jack, data and power
can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet cable
through port 1 to port 4 on the switch.
Port 1 to port 4 on this switch also supports High Power PoE Power Sourcing Equipment
(PSE) and can detect a Powered Device (PD). Using external 55VDC power inputs through
Terminal Block or Power Jack, data and power can be transmitted to a Powered Device (PD)
over the same twisted-pair Ethernet cable through port 1 to port 4 on the switch.
To get the most out of this manual, you should have an understanding of Ethernet
networking concepts.
In this manual, you will find:
Features on the Hardened Web-Smart PoE Ethernet Switch
Illustrative LED functions
Installation instructions
Management Configuration
Specifications
IES-0853 User Manual Page 2
Table of Contents
OVERVIEW ........................................................................................................................... 4
HARDENED WEB-SMART POE ETHERNET SWITCH.............................................................................................. 4
FEATURES ............................................................................................................................................................... 5
PACKAGE CONTENTS ............................................................................................................................................. 5
FRONT PANEL DISPLAY ......................................................................................................................................... 6
POWER INPUT ........................................................................................................................................................ 7

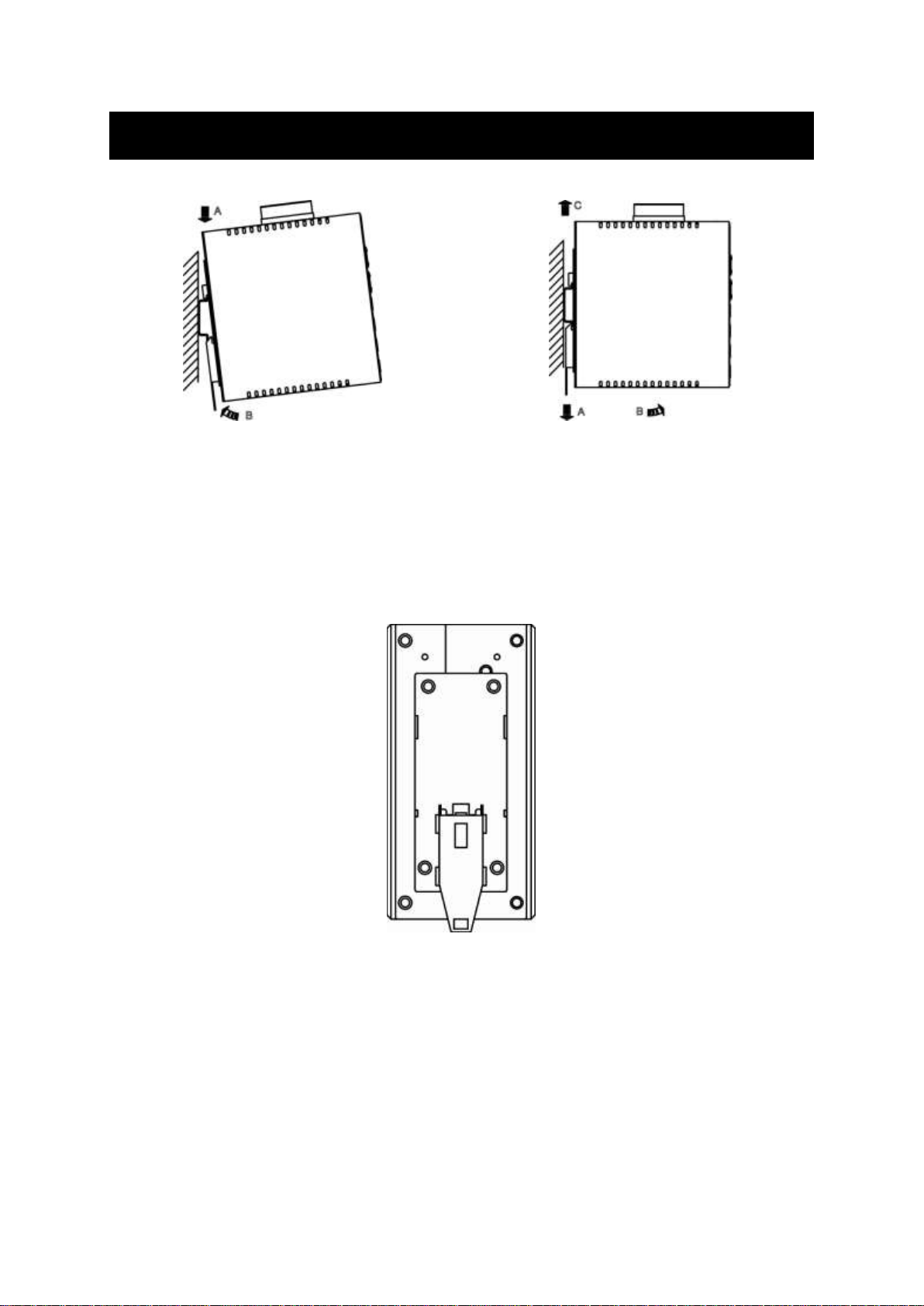

DIN RAIN MOUNT ................................................................................................................................................. 8

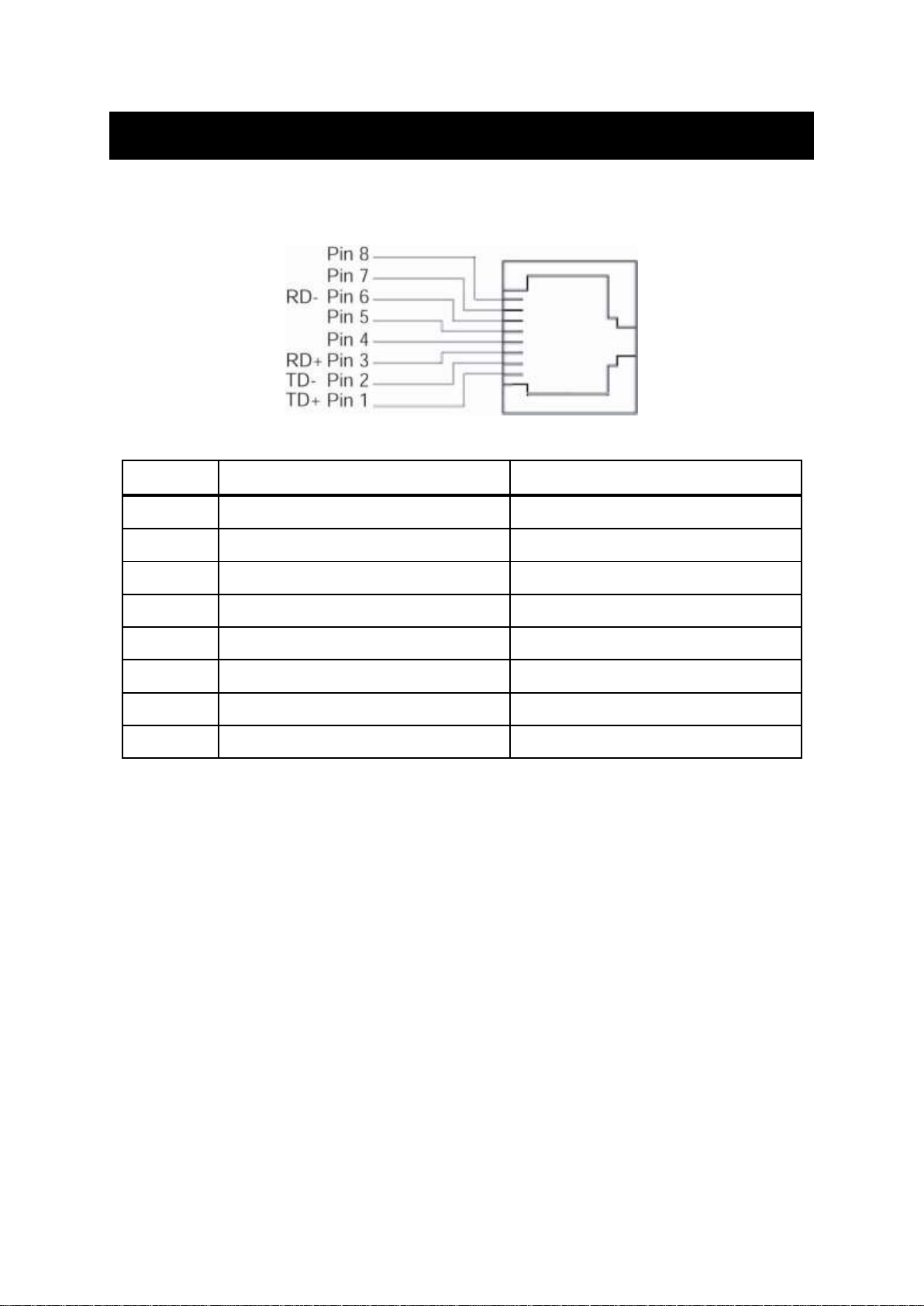

10/100BASE-TX CONNECTOR ............................................................................................................................ 9
CONNECTING TO YOUR NETWORK .................................................................................................................... 10
Cable Type & Length ............................................................................................................................. 10
Cabling ..................................................................................................................................................... 10
WEB MANAGEMENT ......................................................................................................... 11
DEFAULT SETTING .............................................................................................................................................. 11

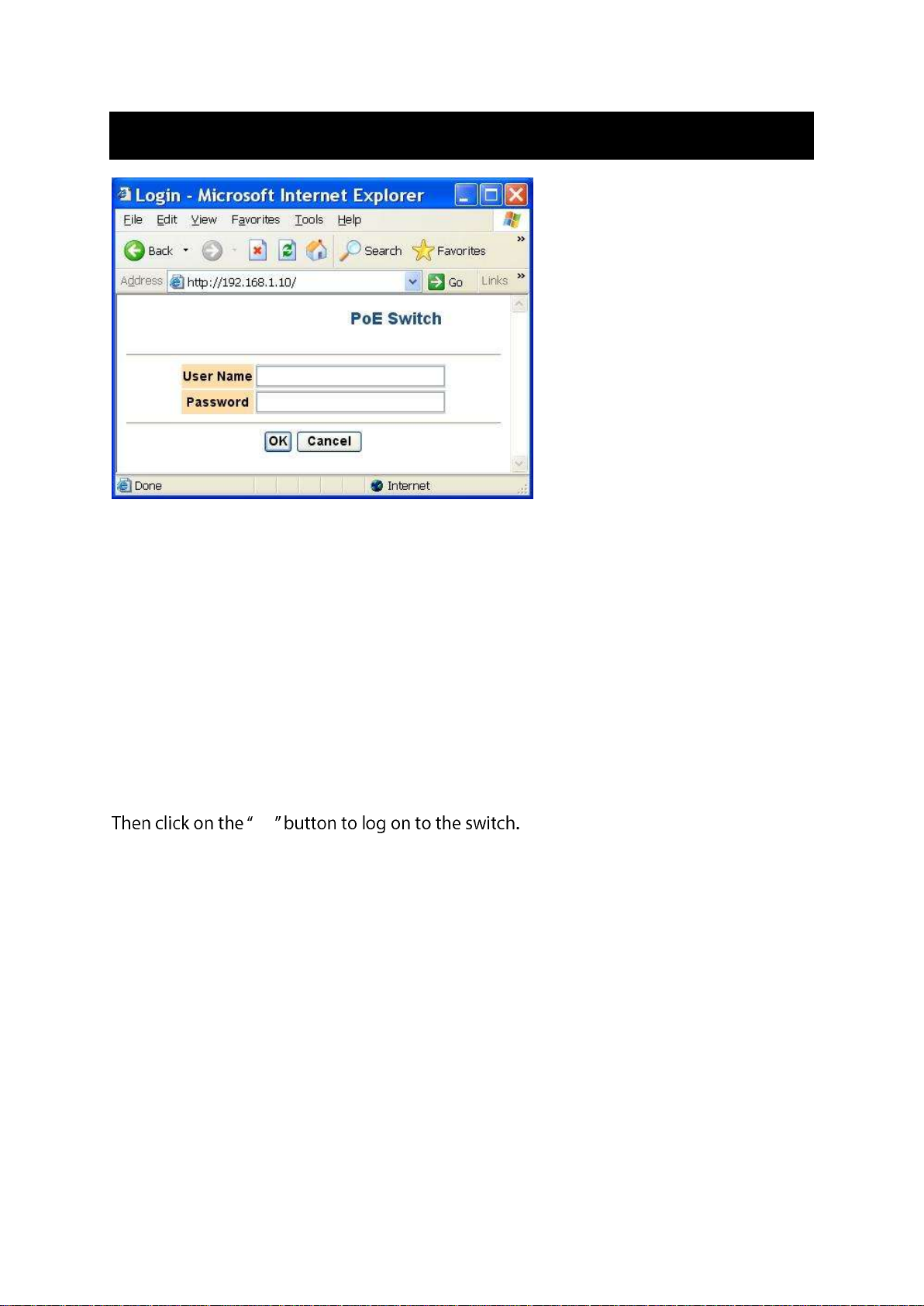

LOGGING ON TO THE SWITCH ............................................................................................................................. 12
BROWSER INTERFACE ......................................................................................................................................... 13

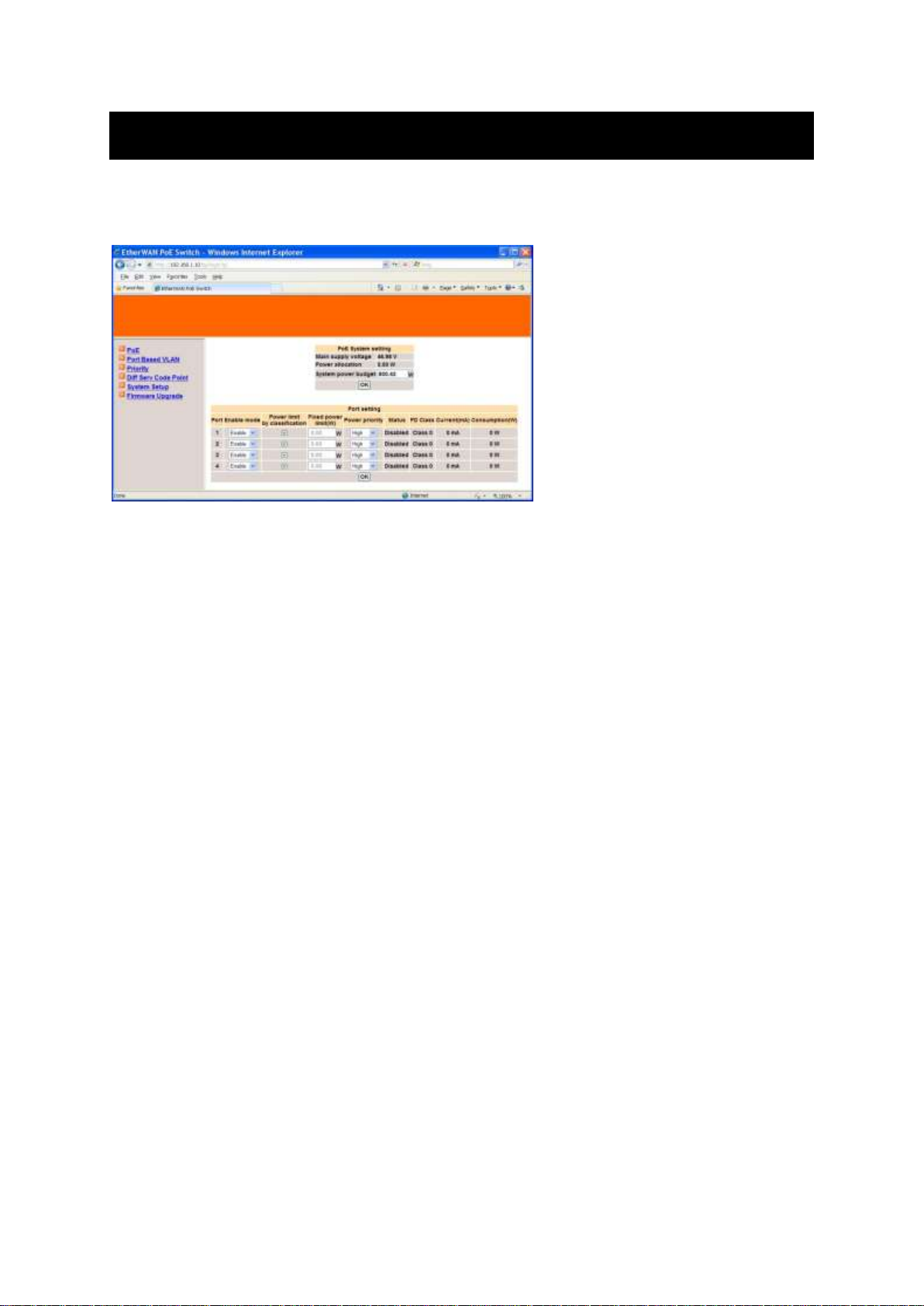

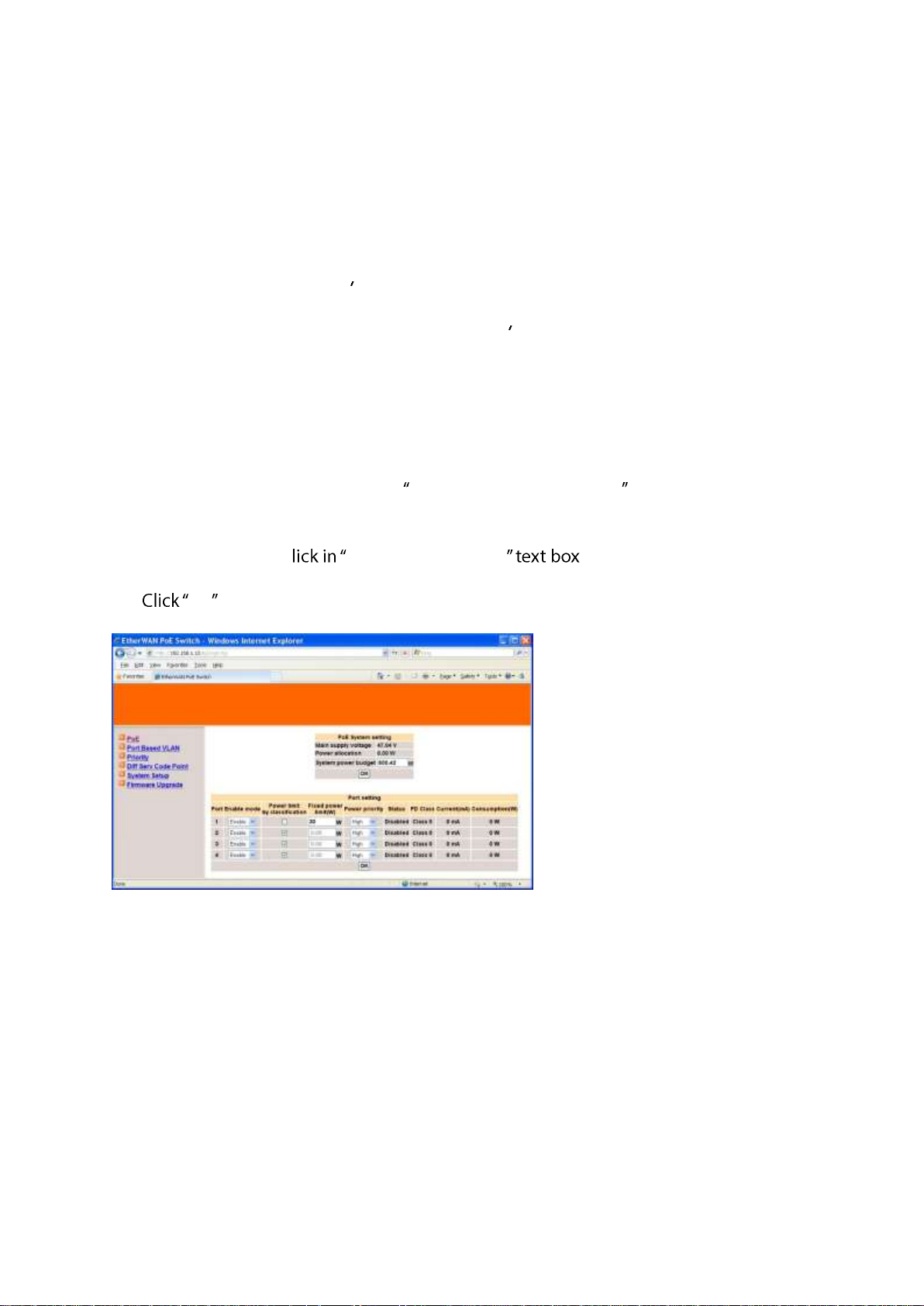

PoE ............................................................................................................................................................ 14

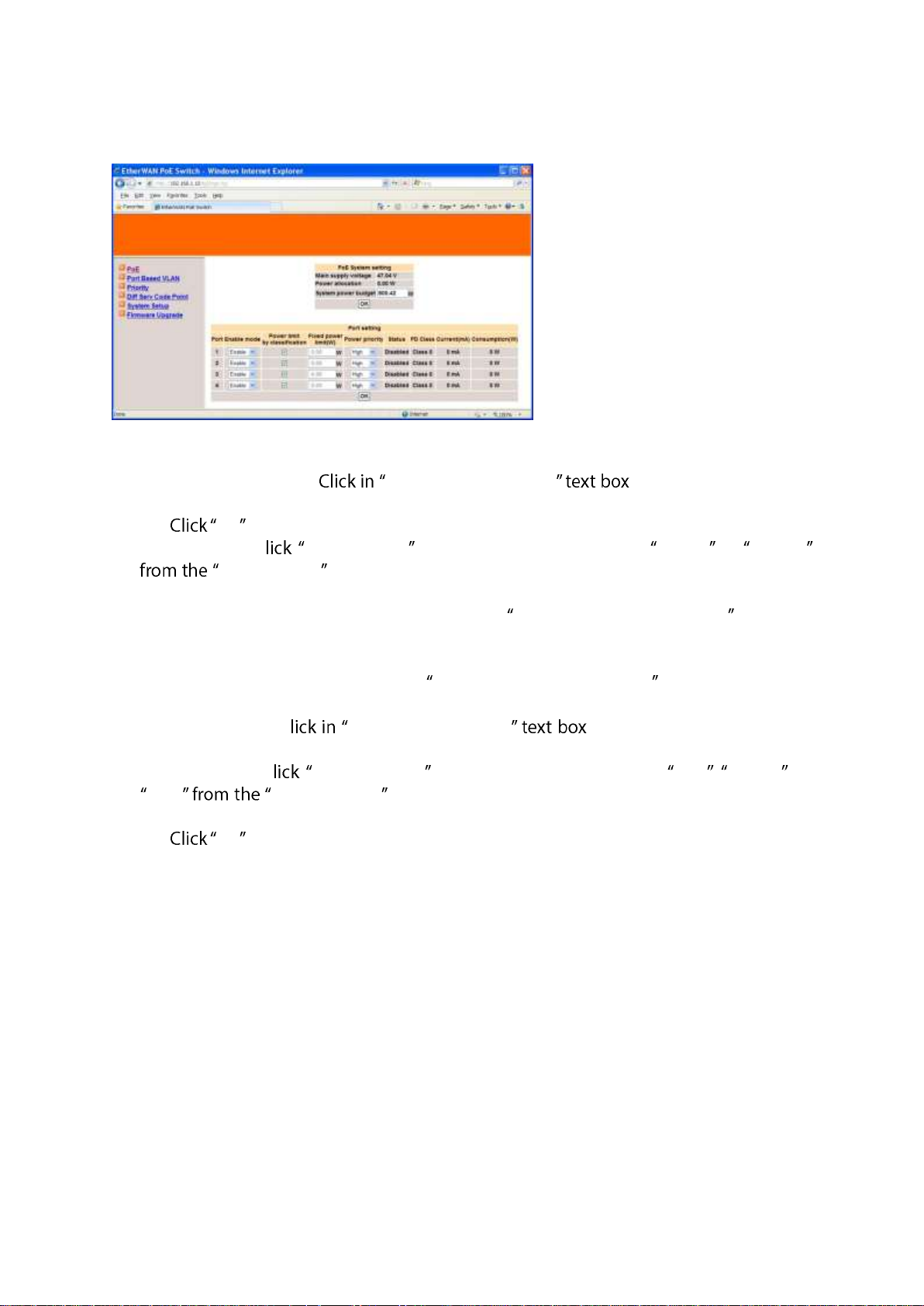

High Power PoE Operation ................................................................................................................. 15

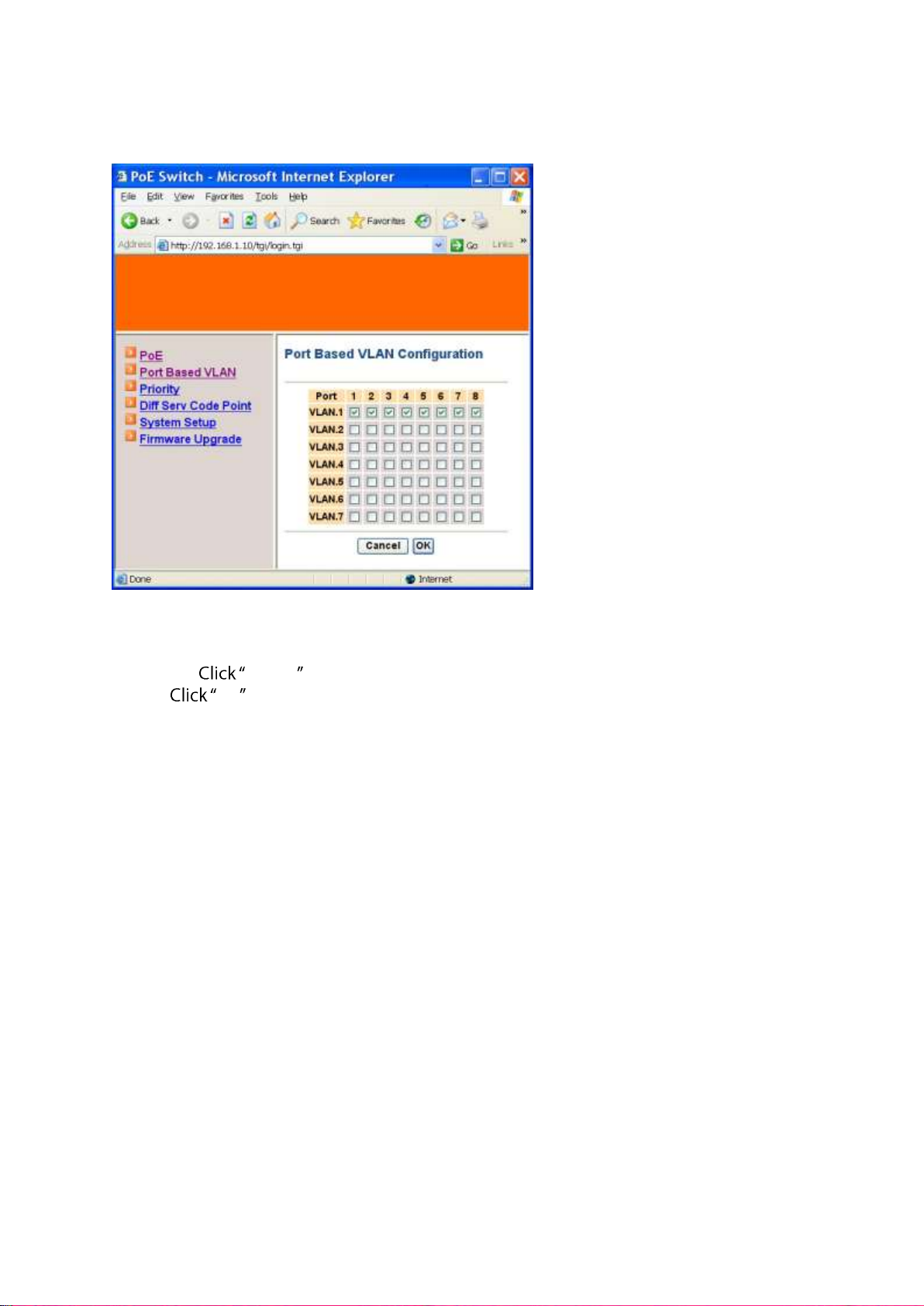

Port Based VLAN .................................................................................................................................... 16

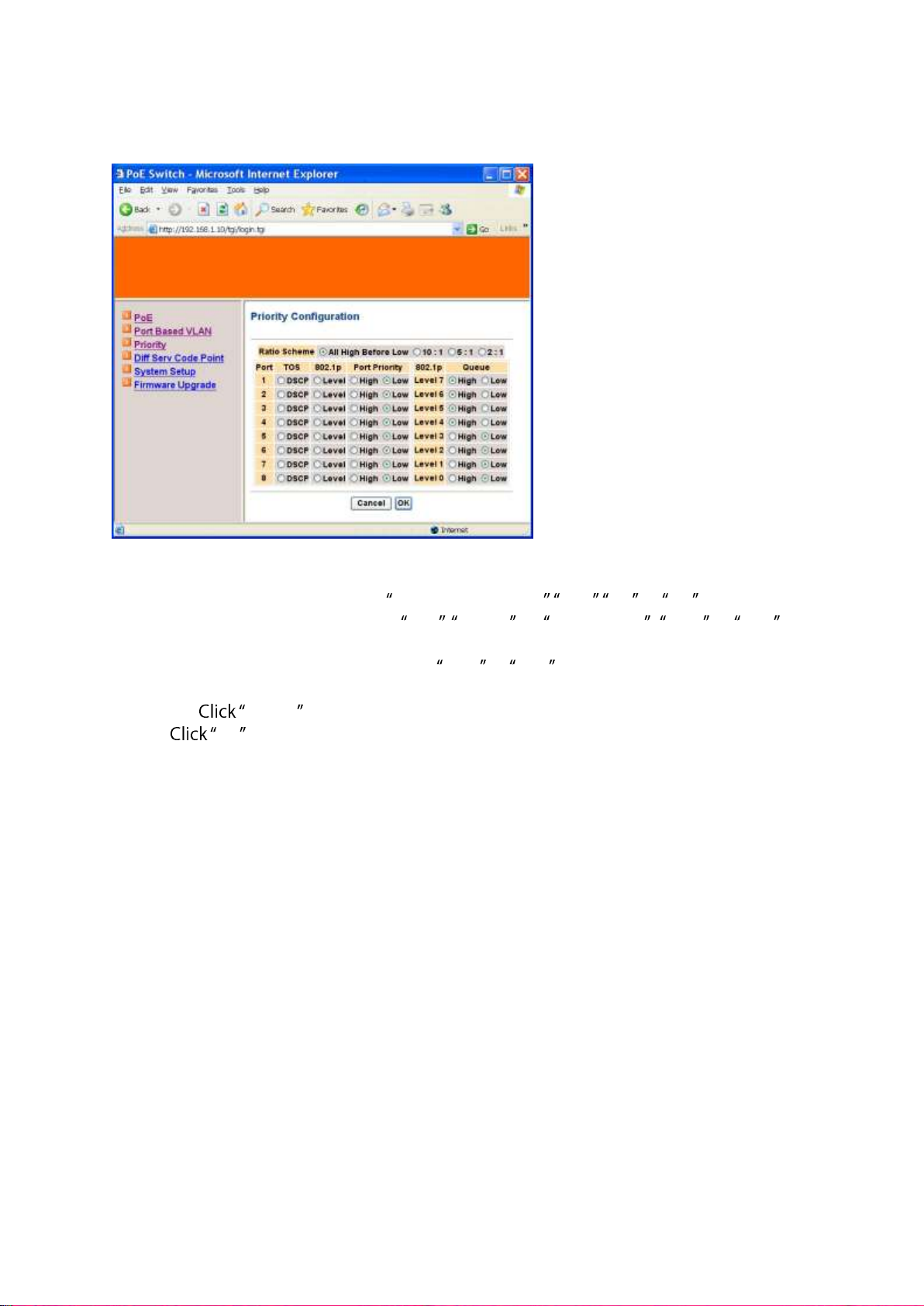

Priority ...................................................................................................................................................... 17

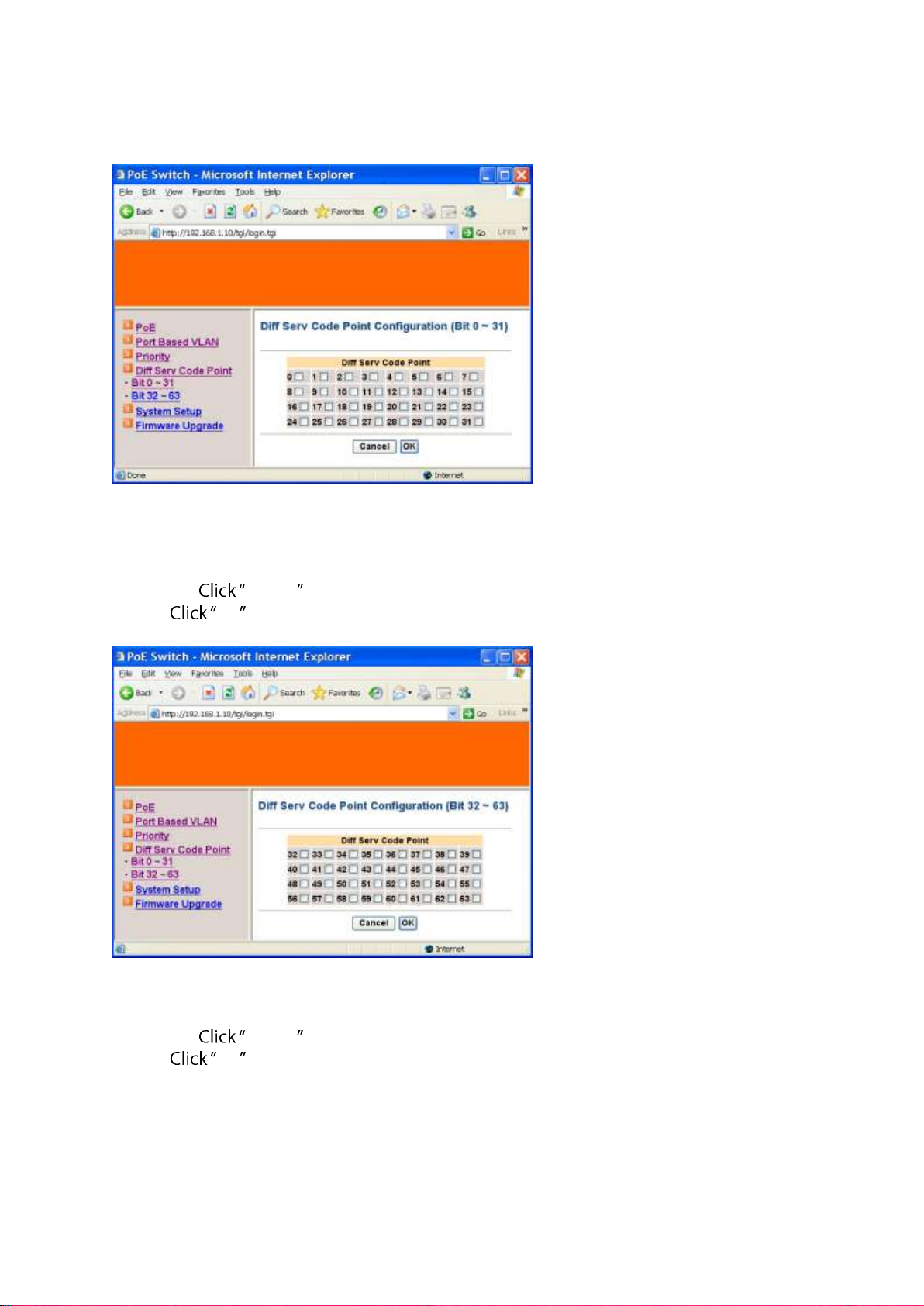

Diff Serv Code Point .............................................................................................................................. 18

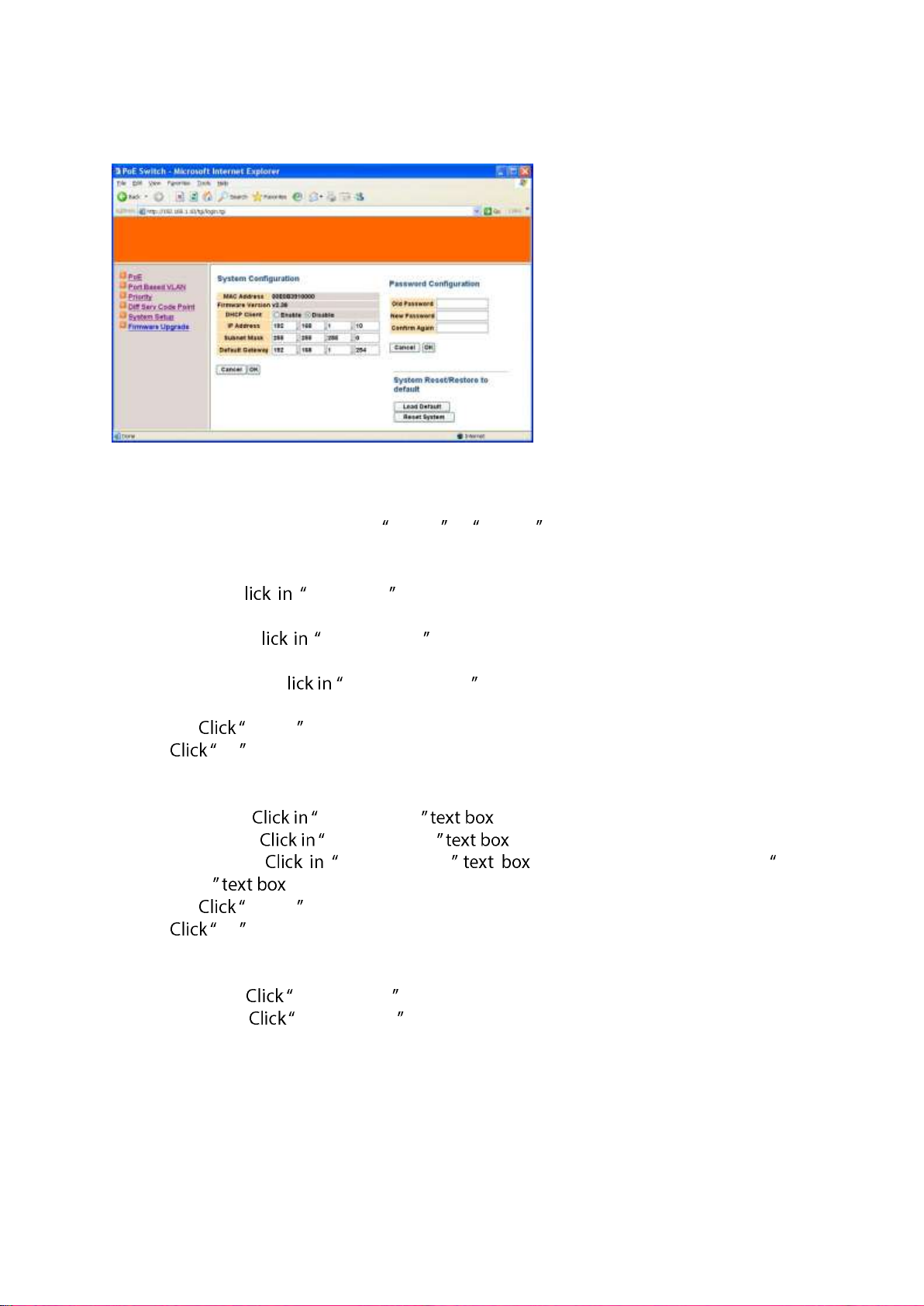

System Setup .......................................................................................................................................... 19

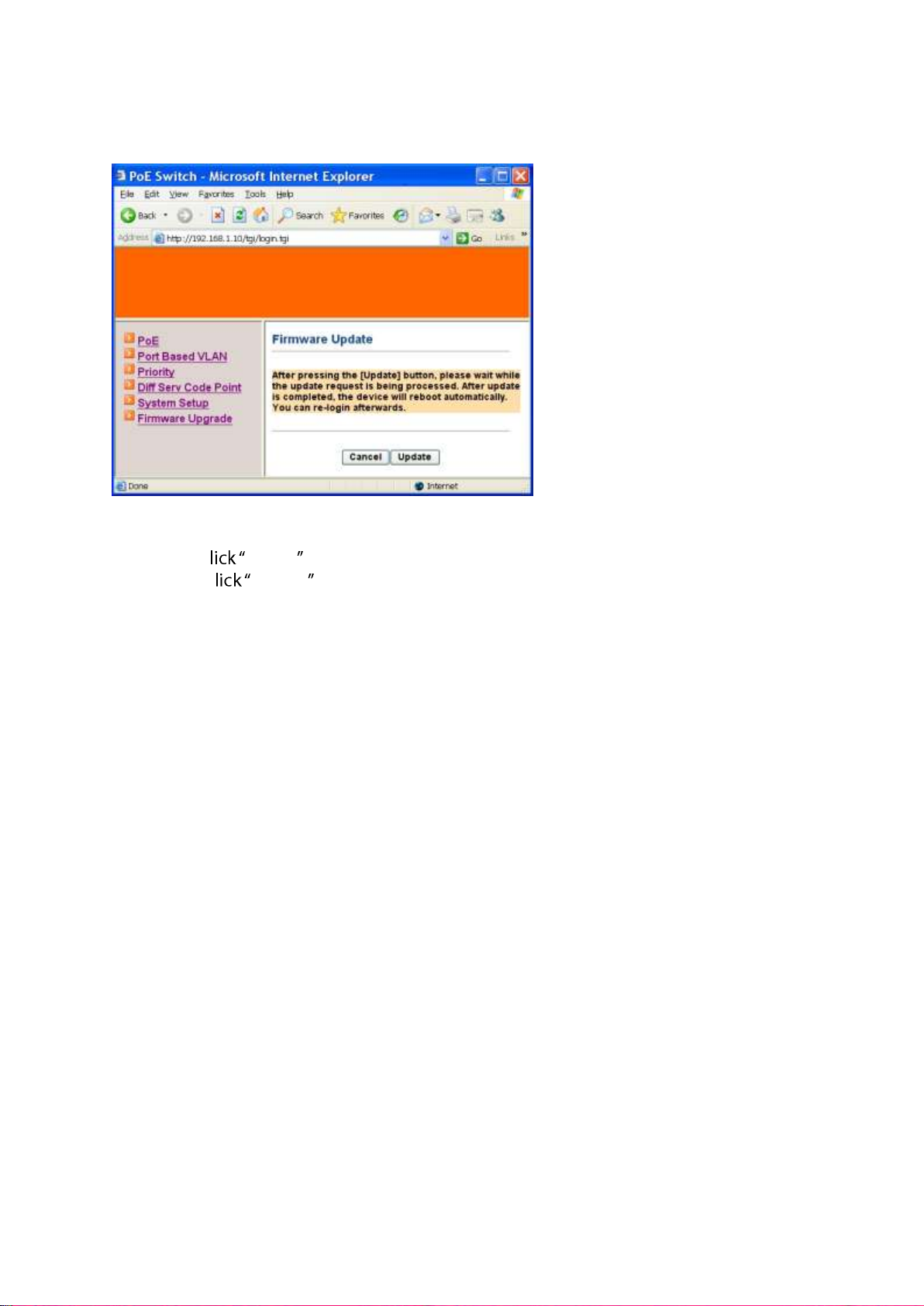

Firmware Upgrade ................................................................................................................................ 20
SPECIFICATIONS ............................................................................................................... 21
IES-0853 User Manual Page 3
Overview
Hardened Web-Smart PoE Ethernet Switch
LevelOne IES-0853 Industry Ethernet Switch provides 4 PoE ports of 10/100Base-TX plus 3
ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high
speed network at mission-critical environment. This device is designed to be mounted on
an industry standard DIN-rail, plus the clearly visible status LEDs provide simple
monitoring of port link activity.
High Reliability
All components are built to withstand harsh environment applications without
compromise where humidity, temperature variation and even shock vibration are
concerns, including Electric & Utility, Critical Infrastructure, Transportation and
Surveillance Security. This device operates under -40 to 75 Celsius (-40 to 167 Fahrenheit)
temperature.
Web Management
Web-based GUI management features implementation of Port-based VLAN, IEEE802.1p
QoS, Prioritised DSCP, set up Admin Password with ease. Plus, the Power over Ethernet
ports can be On / Off and limits the power budget remotely
Power over Ethernet
This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at
PoE standard at maximum 30W power budget per port. It helps to save infrastructure
wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is
compatible with IEEE802.3af standard PD devices.
Safety
This device has been tested under UL508 standard for Industrial Control Equipment to
highly reliability and safety measurement to ensure field hardened, especially for the harsh
environment.
IES-0853 User Manual Page 4
Features
Complies with NEMA TS1/TS2 Environmental requirements such as temperature, shock,
and vibration for traffic control equipment.
Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard immunity for
Industrial environment.
Manageable via Web browser interface.
Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).
High Power PoE design up to 30W (enhancement of IEEE802.3af PoE).
Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps-full/half-duplex;
Auto MDI/MDIX.
100Base-FX: Multi mode SC or ST type, Single mode SC or ST type. 100Base-BX: WDM
Single mode SC type.
Supports 1024 MAC addresses. Provides 1M bits memory buffer.
Store-and-forward mechanism.
Full wire-speed forwarding rate.
Alarms for power and port link failure by relay output.
PoE: Redundant 48VDC Terminal Block power inputs and 48VDC DC JACK power input
for 15.4W per PoE port. Operating voltage and Max. current consumption: 1.5A @
48VDC. Power consumption: 72W Max.
High Power PoE: Redundant 55VDC Terminal Block power inputs and 55VDC DC JACK
power input for 30W per High Power PoE port. Operating voltage and Max. current
consumption: 2.3A @ 55VDC. Power consumption: 130W Max.
-40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for functional
operation @ -40℃ to 85℃ (-40℉ to 185℉). Web-Smart function operating temperature
@ -20℃ to 85℃ (-4℉ to 185℉).
Reset button on front panel.
Front panel port status LEDs.
Hardened aluminum case.
Supports DIN-Rail, Panel, or Rack Mounting installation.
Package Contents
When you unpack the product package, you shall find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately to
your authorized reseller.
IES-0853 Hardened Web-Smart High Power PoE Ethernet Switch
Quick Installation Guide
CD User Manual
IES-0853 User Manual Page 5
Front Panel Display
LED
Status
Description
PW 1,2,3
Steady
Power On
Off
Power Off
10/100Base-TX or 100Base-FX/BX
LNK/ACT
Steady
Network connection is established
Flashing
Transmitting or Receiving data
PoE
(High Power)
Steady
Power Device (PD) is connected
Off
Power Device (PD) is disconnected
IES-0853 User Manual Page 6
Power Input
Terminal Block
PW1
+
48, 55VDC (High Power)
Power Ground
PW2
+
48, 55VDC (High Power)
Power Ground
PW3
DC Jack
48, 55VDC (High Power)
Earth Ground
Relay Output
0.1A @ 24VDC
*Warning signal disable for following:
1. The relay contact closes if Power1 and Power2 are both failed but Power3
on.
2. The relay contact closes if Power3 is failed but Power1 and Power2 are
both on.
DC Jack
PW3
DC Jack
48, 55VDC (High Power)
Special Note:
The relay output is normal open position when there is no power to the switch. Please do
not connect any power source to this terminal to prevent shorting your power supply.
IES-0853 User Manual Page 7
