LevelOne IES-0851 User Manual

IES-0851

4 x 802.3af PoE + 3 FE+ 1 MM SC Web Smart Switch -40 to 75C, DIN-rail

User Manual

v1.00 - 1206

Preface

This manual describes how to install and use the Hardened Web-Smart PoE Ethernet
Switch. This switch introduced here is designed to deliver full scalability with web-based
management functions. Capable of operating at temperature extremes of -40°C to +75°C,
this is the switch of choice for harsh environments constrained by space.

Port 1 to port 4 on this switch supports IEEE802.3af Power over Ethernet (PoE) Power
Sourcing Equipment (PSE) and can detect an IEEE802.3af compliant Powered Device (PD).
Using external 48VDC power inputs through Terminal Block or Power Jack, data and power
can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet cable
through port 1 to port 4 on the switch.

To get the most out of this manual, you should have an understanding of Ethernet
networking concepts.

In this manual, you will find:

 Features on the Hardened Web-Smart PoE Ethernet Switch
 Illustrative LED functions
 Installation instructions
 Management Configuration
 Specifications

IES-0851 User Manual Page 2

Table of Contents

OVERVIEW ........................................................................................................................... 4

HARDENED WEB-SMART POE ETHERNET SWITCH.............................................................................................. 4

FEATURES ............................................................................................................................................................... 5

PACKAGE CONTENTS ............................................................................................................................................. 5

FRONT PANEL DISPLAY ......................................................................................................................................... 6

POWER INPUT ........................................................................................................................................................ 7

DIN RAIN MOUNT ................................................................................................................................................. 8

10/100BASE-TX CONNECTOR ............................................................................................................................ 9

CONNECTING TO YOUR NETWORK .................................................................................................................... 10

Cable Type & Length ............................................................................................................................. 10

Cabling ..................................................................................................................................................... 10

WEB MANAGEMENT ......................................................................................................... 11

DEFAULT SETTING .............................................................................................................................................. 11

LOGGING ON TO THE SWITCH ............................................................................................................................. 12

BROWSER INTERFACE ......................................................................................................................................... 13

PoE ............................................................................................................................................................ 14

Port Based VLAN .................................................................................................................................... 15

Priority ...................................................................................................................................................... 16

Diff Serv Code Point .............................................................................................................................. 17

System Setup .......................................................................................................................................... 18

Firmware Upgrade ................................................................................................................................ 19

SPECIFICATIONS ............................................................................................................... 20

IES-0850 User Manual Page 3

Overview

Hardened Web-Smart PoE Ethernet Switch

LevelOne IES-0851 Industry Ethernet Switch provides 4 PoE ports of 10/100Base-TX plus 3
ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high
speed network at mission-critical environment. This device is designed to be mounted on
an industry standard DIN-rail, plus the clearly visible status LEDs provide simple
monitoring of port link activity.

High Reliability

All components are built to withstand harsh environment applications without
compromise where humidity, temperature variation and even shock vibration are
concerns, including Electric & Utility, Critical Infrastructure, Transportation and
Surveillance Security. This device operates under -40 to 75 Celsius (-40 to 167 Fahrenheit)
temperature.

Web Management

Web-based GUI management features implementation of Port-based VLAN, IEEE802.1p
QoS, Prioritised DSCP, set up Admin Password with ease. Plus, the Power over Ethernet
ports can be On / Off and limits the power budget remotely

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3af
PoE standard at maximum 15.4W power budget per port. It helps to save infrastructure
wiring costs dramatically by eliminating electric wiring and less UPS needed.

Safety

This device has been tested under UL508 standard for Industrial Control Equipment to
highly reliability and safety measurement to ensure field hardened, especially for the harsh

environment.

IES-0851 User Manual Page 4

Features

 Complies with NEMA TS1/TS2 Environmental requirements such as temperature, shock,

and vibration for traffic control equipment.

 Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard immunity for

Industrial environment.

 Manageable via Web browser interface.
 Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).
 Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps-full/half-duplex;

Auto MDI/MDIX.

 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type; WDM Single mode

SC type.

 Supports 1024 MAC addresses. Provides 1M bits memory buffer.
 Store-and-forward mechanism.
 Full wire-speed forwarding rate.
 Alarms for power and port link failure by relay output.
 Power Supply: Redundant 48VDC Terminal Block power inputs and 48VDC DC JACK

with 100-240VAC external power supply.

 Operating voltage and Max. current consumption: 1.5A @ 48VDC. Power consumption:

72W Max.

 -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for functional

operation @ -40℃ to 85℃ (-40℉ to 185℉). Web-Smart function operating temperature
@ -20℃ to 85℃ (-4℉ to 185℉).

 Reset button on front panel.
 Front panel port status LEDs.
 Hardened aluminum case.
 Supports DIN-Rail, Panel, or Rack Mounting installation.

Package Contents

When you unpack the product package, you shall find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately to
your authorized reseller.

 IES-0851 Hardened Web-Smart PoE Ethernet Switch
 Quick Installation Guide
 CD User Manual

IES-0850 User Manual Page 5

Front Panel Display

LED

Status

Description

PW 1,2,3
Steady

Power On

Off

Power Off

10/100Base-TX or 100Base-FX/BX

LNK/ACT
Steady

Network connection is established

Flashing

Transmitting or Receiving data

PoE
Steady

Power Device (PD) is connected

Off

Power Device (PD) is disconnected

IES-0851 User Manual Page 6

Power Input

Terminal Block

PW1

+

48VDC

Power Ground

PW2

+

48VDC

Power Ground

PW3

DC Jack

48VDC

Earth Ground

Relay Output

0.1A @ 24VDC

*Warning signal disable for following:

1. The relay contact closes if Power1 and Power2 are both failed but Power3
on.

2. The relay contact closes if Power3 is failed but Power1 and Power2 are
both on.

Note:

DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power
up this switch. Redundant power supplies function is supported.

IES-0850 User Manual Page 7

DIN rain Mount

 Fix the DIN rail attachment plate to the back panel of the switch.
 Installation: Place the switch on the DIN rail from above using the slot. Push the front of

the switch toward the mounting surface until it audibly snaps into place.

 Removal: Pull out the lower edge and then remove the switch from the DIN rail.

IES-0851 User Manual Page 8

10/100Base-TX Connector

Pin

PoE Port (1 to 4)

Standard Port (5)

1

Output Transmit Data +

Input Receive Data +

2

Output Transmit Data -

Input Receive Data -

3

Input Receive Data +

Output Transmit Data +

4

Positive (VCC+)

NC

5

Positive (VCC+)

NC

6

Input Receive Data -

Output Transmit Data -

7

Negative (VCC-)

NC 8 Negative (VCC-)

NC

The following lists the pin-out of 10/100Base-TX ports.

IES-0850 User Manual Page 9

Connecting to Your Network

Speed

Connector

Port Speed
Half/Full Duplex

Cable

Max.
Distance

10Base-T

RJ-45

10/20 Mbps

2-pair UTP/STP
Cat. 3, 4, 5

100 m

100Base-TX

RJ-45

100/200 Mbps

2-pair UTP/STP
Cat. 5

100 m

100Base-FX

ST, SC

100/200 Mbps

MMF (50 or

2 km

100Base-FX

ST, SC

100/200 Mbps

20, 40, or 75
km

Cable Type & Length

It is necessary to follow the cable specifications below when connecting the switch to your
network. Use appropriate cables that meet your speed and cabling requirements.

Cable Specifications

Cabling

Step 1: First, ensure the power of the switch and end devices are turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Prepare cable with corresponding connectors for each type of port in use.
Step 3: Consult Cable Specifications Table on previous page for cabling requirements

based on connectors and speed.
Step 4: Connect one end of the cable to the switch and the other end to a desired device.
Step 5: Once the connections between two end devices are made successfully, turn on the

power and the switch is operational.

IES-0851 User Manual Page 10

Web Management

The switch provides a browser interface that lets you configure and manage the switch
remotely.

applications directly in your web browser by entering the IP address of the switch. You can
then use your web browser to list and manage switch configuration parameters from one

Web-Based Browser Management

The switch provides a web-based browser interface for configuring and managing the
switch. This interface allows you to access the switch using a preferred web browser.

This chapter describes how to configure the switch using its web-based browser interface.

Default Setting

IP address: 192.168.1.10
User Name: admin
Password: [Blank]

IES-0850 User Manual Page 11

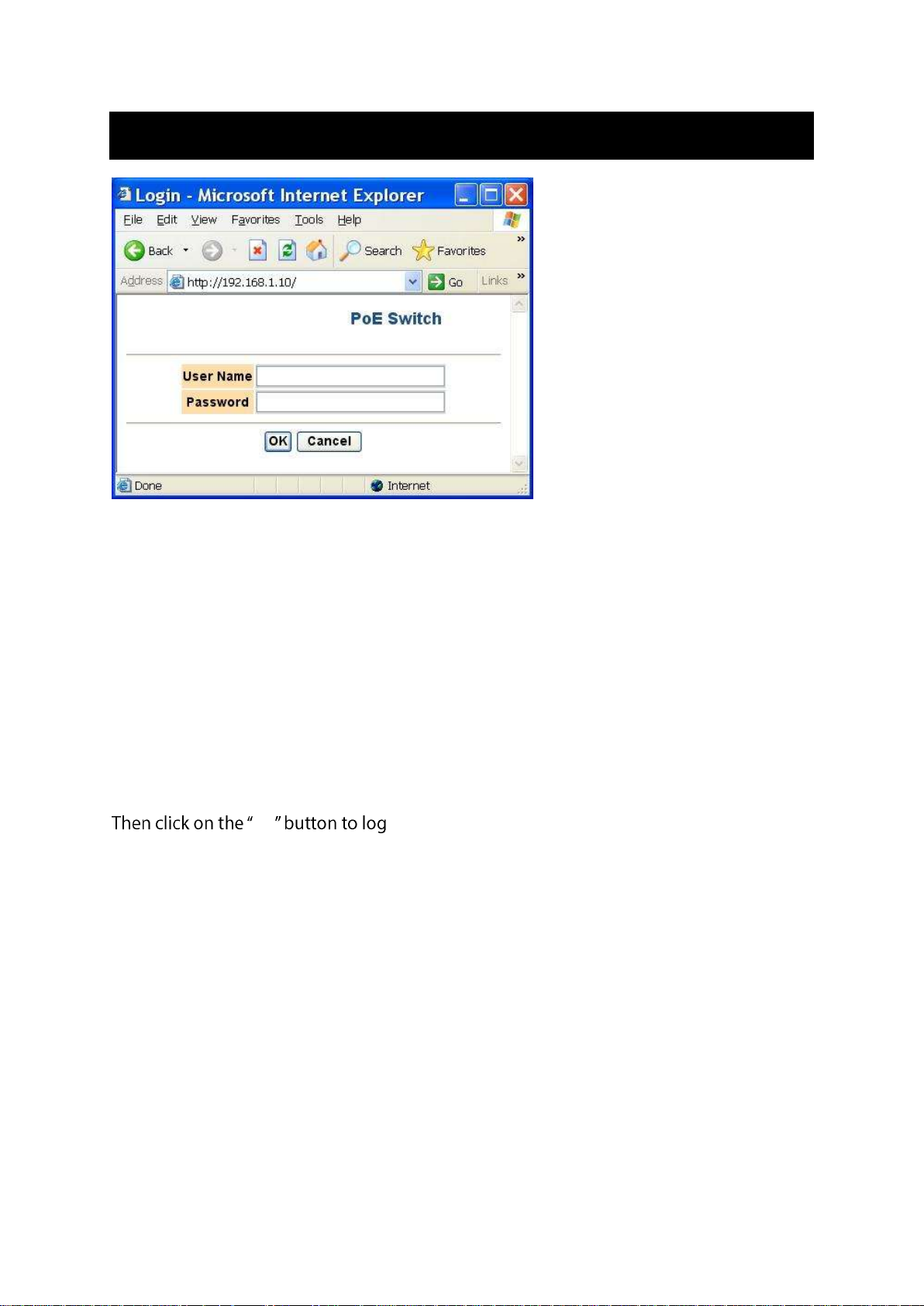

Logging on to the switch

SWITCH IP ADDRESS

In your web browser, specify the IP address of the switch. Default IP address is

192.168.1.10.

USER NAME

Enter the factory default user name: admin.

PASSWORD

Enter the factory default password (no password).

Or enter a user-defined password if you followed the instructions later and changed the
factory default password.

OK on to the switch.

IES-0851 User Manual Page 12

Browser Interface

The web browser interface provides groups of point-and-click buttons at the left field of
the screen for configuring and managing the switch.

PoE
Port Based VLAN
Priority

Diff Serv Code Point

Bit 0 ~ 31, Bit 32 ~ 63

System Setup

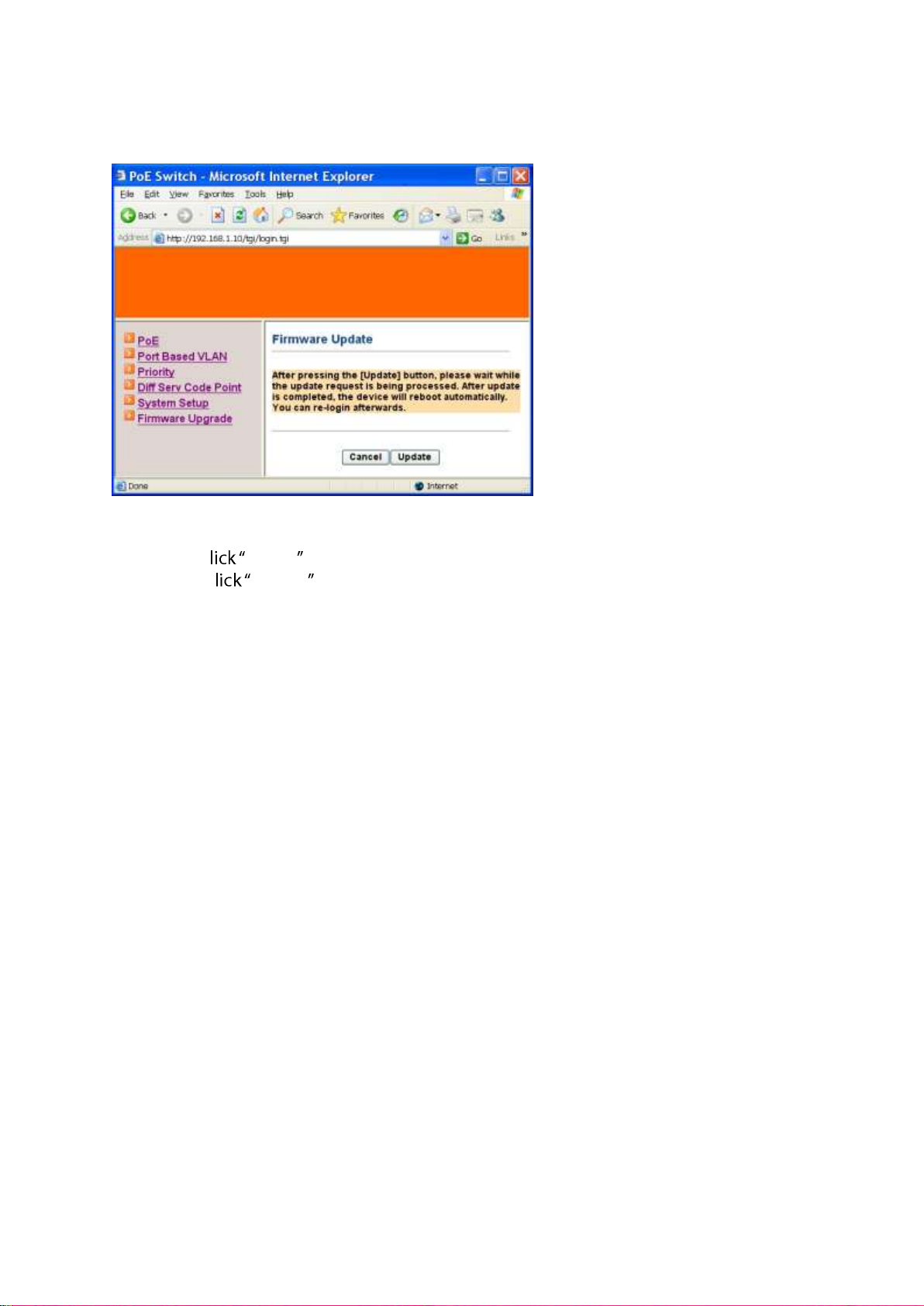

Firmware Upgrade

IES-0850 User Manual Page 13

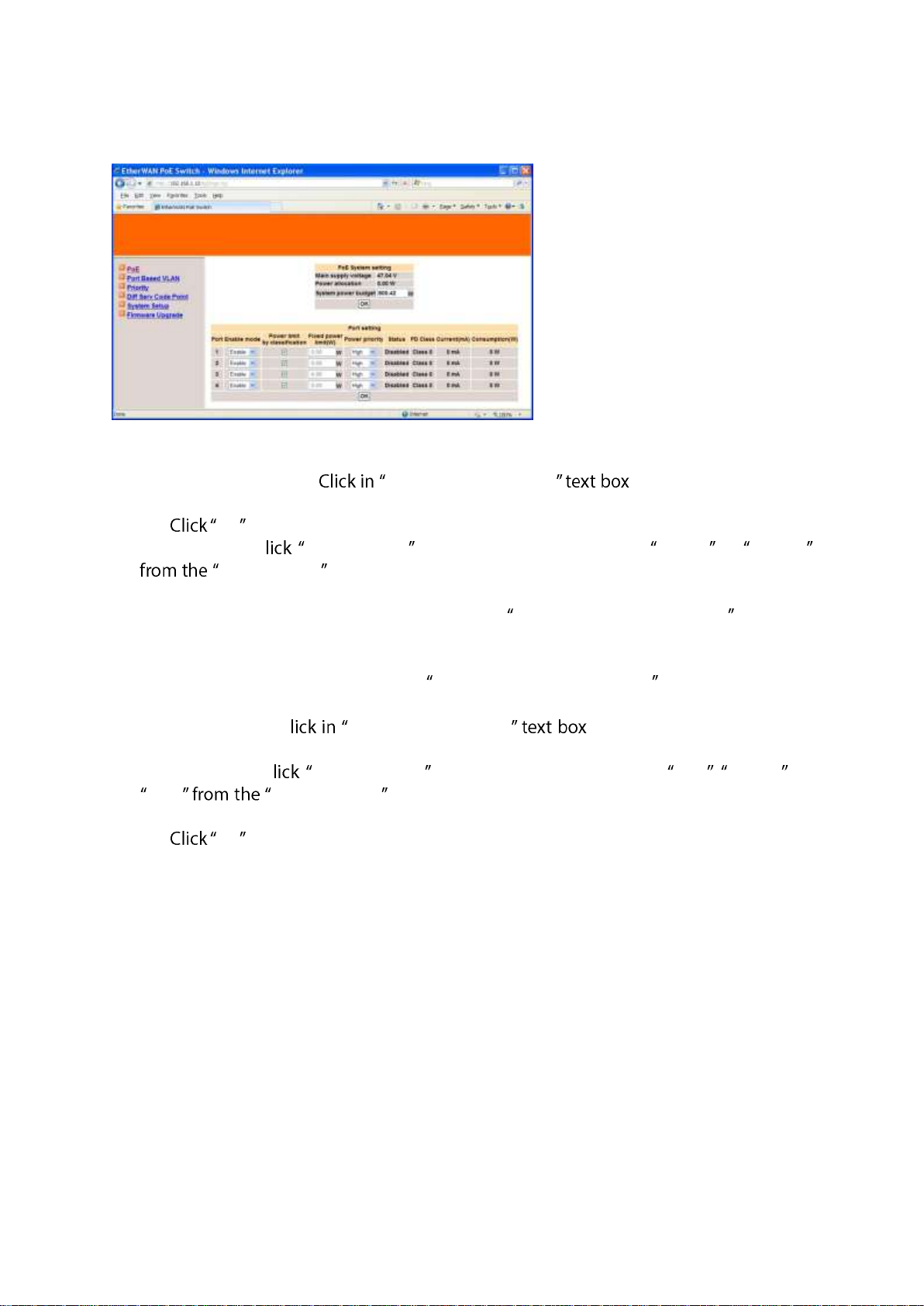

PoE

PoE

1. System power budget: System power budget and type a new system

power budget.

2. OK: OK button to update your settings.

3. Enable mode: C Enable mode drop-down menu to choose Enable or Disable

Enable mode drop-down list to enable or disable Port 1 ~ Port 4 to discover

Powered Device (PD) connected to Port 1 ~ Port 4 of the Switch.

4. Power limit by classification: Check or uncheck Power limit by classification to enable

or disable Port 1 ~ Port 4 to provide power to PD according to classification of
maximum power range used by PD.

5. Fixed power limit(W): First uncheck Power limit by classification to disable Port 1 ~

Port 4 to provide power to PD according to classification of maximum power range
used by PD. Then c Fixed power limit(W) and type a new fixed power
limit for Port 1 ~ Port 4 to provide power to PD.

6. Power priority: C Power priority drop-down menu to choose Low , Middle, or

High Power priority drop-down list to determine power priority of Port 1

~ Port 4.

7. OK: OK button to update your settings.

IES-0851 User Manual Page 14

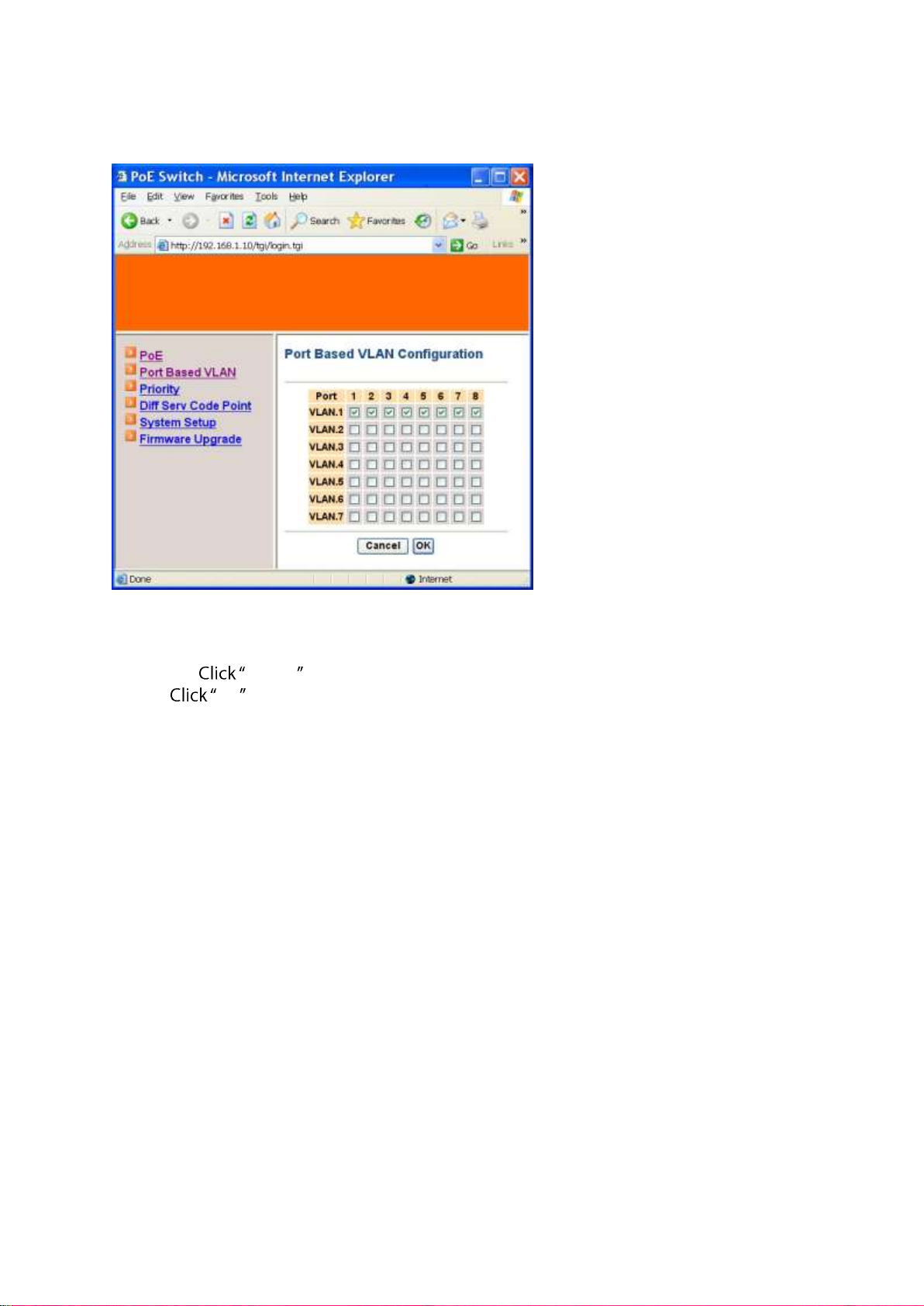

Port Based VLAN

Port Based VLAN

1. VLAN.1 ~ VLAN.7: Click and choose Port 1 ~ Port 8 to be added into VLAN.1 ~ VLAN.7.

2. Cancel: Cancel button to cancel your settings.

3. OK: OK button to update your settings.

IES-0850 User Manual Page 15

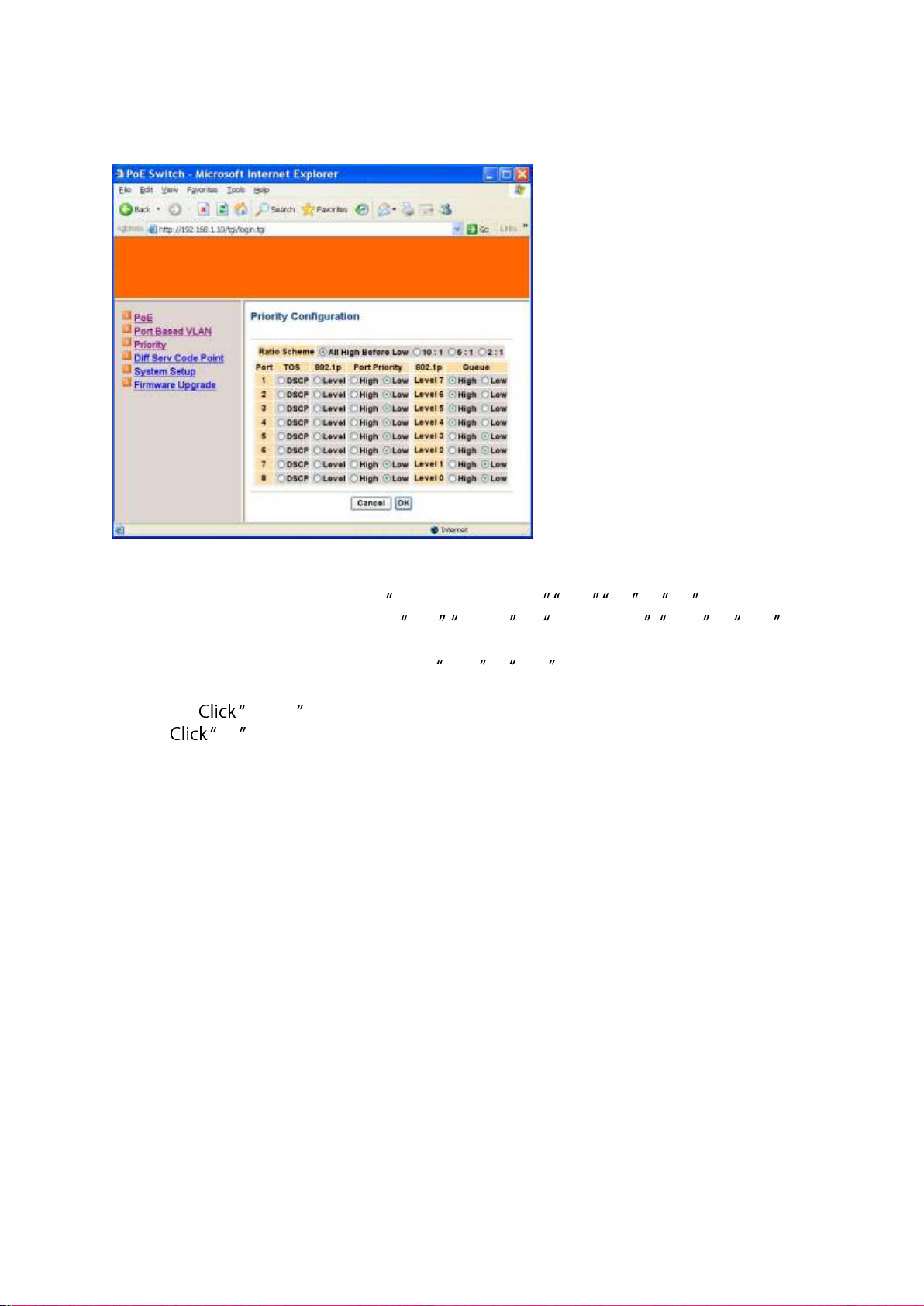

Priority

Priority

1. Ratio Scheme: Click and choose All High Before Low, 10:1 , 5:1 , or 2:1 ratio scheme.

2. Port 1 ~ Port 8: Click and choose TOS, 802.1p, or Port Priority ( High or Low ) for

Port 1 ~ Port 8.

3. 802.1p Level 7 ~ Level 0: Click and set High or Low priority to queue of 802.1p Level

7 ~ Level 0.

4. Cancel: Cancel button to cancel your settings.

5. OK: OK button to update your settings.

IES-0851 User Manual Page 16

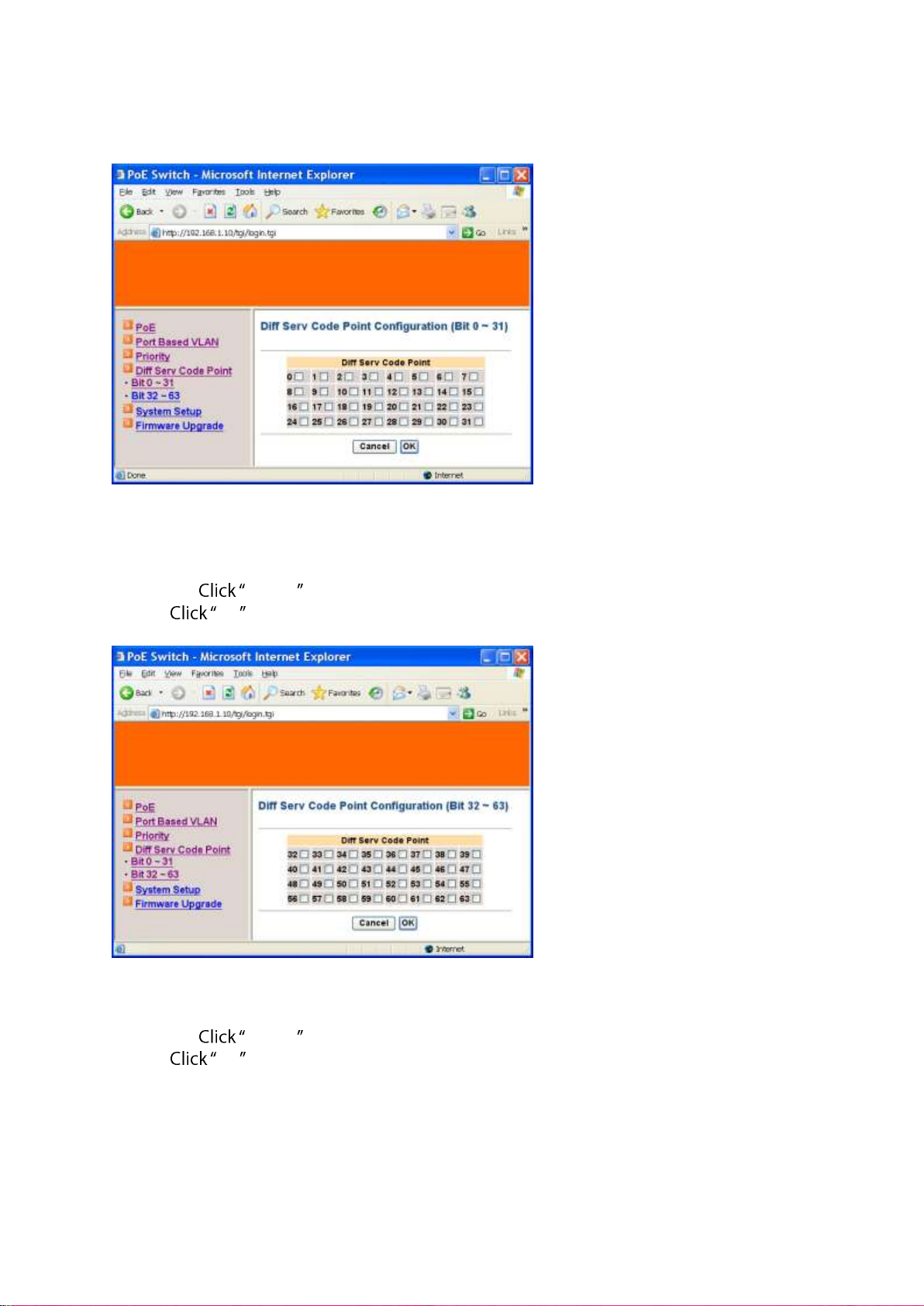

Diff Serv Code Point

Diff Serv Code Point

Bit 0 ~ 31:

1. Diff Serv Code Point: Check and set Bit 0 ~ 31 of Diff Serv Code Point to high priority.

2. Cancel: Cancel button to cancel your settings.

3. OK: OK button to update your settings.

Bit 32 ~ 63:

1. Diff Serv Code Point: Check and set Bit 32 ~ 63 of Diff Serv Code Point to high priority.

2. Cancel: Cancel button to cancel your settings.

3. OK: OK button to update your settings.

IES-0850 User Manual Page 17

System Setup

System Setup

System Configuration:

1. DHCP Client: Click and choose Enable or Disable to enable or disable the Switch as

DHCP client to be automatically supplied an IP address, gateway address, and subnet
mask from DHCP server.

2. IP Address: C IP Address text box and type a new address to change the IP

Address.

3. Subnet Mask: C Subnet Mask text box and type a new address to change the

Subnet Mask.

4. Default Gateway: C Default Gateway text box and type a new address to change

the Default Gateway.

5. Cancel: Cancel button to cancel your settings.

6. OK: OK button to update your settings.
Password Configuration:

1. Old Password: Old Password and type in the old password.

2. New Password: New Password and type in a new password.

3. Confirm Again: Confirm Again . Type the same password in New

Password again to verify it.

4. Cancel: Cancel button to cancel your settings.

5. OK: OK button to update your settings.
System Reset/Restore to default:

1. Load Default: Load Default button to restore the default settings of the Switch.

2. Reset System: Reset System button to restart the Switch.

IES-0851 User Manual Page 18

Firmware Upgrade

Firmware Update

1. Cancel: C Cancel button to cancel firmware update request.

2. Update: C Update button and wait for firmware update request being processed.

IES-0850 User Manual Page 19

Specifications

Applicable Standards

IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX

Switching Method

Store-and-Forward

Forwarding Rate

10Base-T
100Base-TX/FX

10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex

Performance

14,880pps for 10Mbps
148,810pps for 100Mbps

Cable

10Base-T
100Base-TX
100Base-FX:

4-pair UTP/STP Cat. 3, 4, 5 Up to 100m (328ft)
4-pair UTP/STP Cat. 5 Up to 100m (328ft)

LED Indicators

Per unit Power status (Power1, Power2, Power3)
Per port
PoE: PoE, Link/ACT
10/100TX, 100FX: Link/ACT

Dimensions

68mm (W) x 110mm (D) x 135mm (H)
(2.68 (W) x 4.33 5.31

Net Weight

1Kg (2.2lbs.)

Power Input

Terminal Block: 48VDC
DC Jack: 48VDC, External AC/DC required

Operating Voltage &
Max. Current
Consumption

1.5A @ 48VDC

Power Consumption

72W Max.

Operating
Temperature

-40°C to 75℃ (-40℉ to 167℉)
Tested for functional operation @

-40℃ to 85℃ (-40℉ to 185℉)
Web-Smart function operating temperature @

-20℃ to 85℃ (-4℉ to 185℉)

Storage Temperature

-40°C to 85℃ (-40℉ to 185℉)

Humidity

5%-95% non-condensing

EMI

FCC Part 15, Class A
EN61000-6-3: EN55022, EN61000-3-2, EN61000-3-3

EMS

EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)

Environmental Test
Compliance

IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)

NEMA TS1/2 Environmental requirements for traffic control equipment

IES-0851 User Manual Page 20
