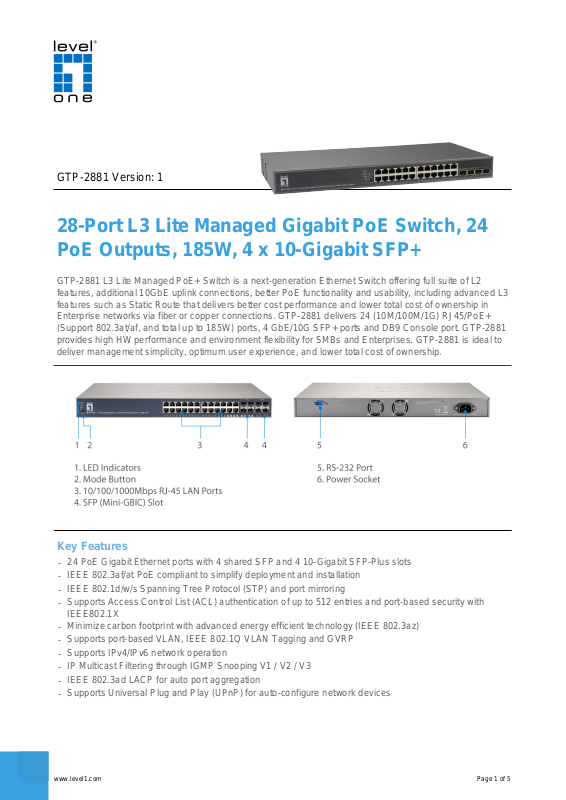

Page 1
GTP-2881 Version: 1
28-Port L3 Lite Managed Gigabit PoE Switch, 24
PoE Outputs, 185W, 4 x 10-Gigabit SFP+
GTP-2881 L3 Lite Managed PoE+ Switch is a next-generation Ethernet Switch offering full suite of L2
features, additional 10GbE uplink connections, better PoE functionality and usability, including advanced L3
features such as Static Route that delivers better cost performance and lower total cost of ownership in
Enterprise networks via fiber or copper connections. GTP-2881 delivers 24 (10M/100M/1G) RJ45/PoE+
(Support 802.3at/af, and total up to 185W) ports, 4 GbE/10G SFP+ ports and DB9 Console port. GTP-2881
provides high HW performance and environment flexibility for SMBs and Enterprises. GTP-2881 is ideal to
deliver management simplicity, optimum user experience, and lower total cost of ownership.
Key Features
24 PoE Gigabit Ethernet ports with 4 shared SFP and 4 10-Gigabit SFP-Plus slots
IEEE 802.3af/at PoE compliant to simplify deployment and installation
IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
Supports Access Control List (ACL) authentication of up to 512 entries and port-based security with
IEEE802.1X
Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Supports port-based VLAN, IEEE 802.1Q VLAN Tagging and GVRP
Supports IPv4/IPv6 network operation
IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
IEEE 802.3ad LACP for auto port aggregation
Supports Universal Plug and Play (UPnP) for auto-configure network devices
-
www.level1.com Page 1 of 5
Page 2
Highlight
IP Clustered Stacking Solution
With the design and implementation of SIP (Single IP Management), network administrators are allowed to
virtually stack up to 32 switches (GEL-1072/GTL-2880/GTP-2880/GTL-5280/GEP-2671/GEP-2672)
together and manage them as one logical unit through a single IP address regardless of geographical
locations of those switches. Comparing to traditional stacking, IP clustering eliminates the use of costly
cables and connectors. Furthermore, it minimizes the impact of any single point of failure.
LevelOne Easy Configuration Port (ECP) Technology
Each switch port can now be fully optimized through a predefined role and settings which are based on the
type of a device such as an IP camera or a VoIP phone to be connected to. For instance, even if a
surveillance system integrator who lacks of IT administration skills, can still easily enables the role and
applies settings like VLAN, QoS, port security and spanning tree to all connected IP cameras on a single
Web UI within a few minutes. Hence, simplifying network deployment and ensuring consistent
configurations across the network.
Specifications
System Specifications
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3z 1000BASE-X,Gigabit Ethernet
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1X Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.1D MAC Bridges
IEEE 802.1d Standard Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy-Efficient Ethernet
Link Layer Discovery Protocol (LLDP)
Memory:
RAM : 128 MB
Flash : 32 MB
Buffer Memory:
4 MB
Connectors and Cabling:
24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 185W) ports, 4 GbE/10G SFP+ ports
and DB9 Console port.
Button/Knob:
Mode / Reset Button
Indicator:
System, Link/Act/Speed, PoE
Transmission Method:
Store-and-Forward
Power Input:
100-240 VAC 50~60 Hz, internal, universal
www.level1.com Page 2 of 5
Page 3
Power Output:
12V
Power Consumption:
16.79 W
Features
General:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3z 1000BASE-X,Gigabit Ethernet
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1X Port-based Network Access Control (PNAC)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.1D MAC Bridges
IEEE 802.1d Standard Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy-Efficient Ethernet
Link Layer Discovery Protocol (LLDP)
VLAN:
Port-based VLAN
802.1Q tag-based VLAN
MAC-based VLAN
Management VLAN
Private VLAN Edge (PVE)
Q-in-Q (double tag) VLAN
Voice VLAN
GARP VLAN Registration Protocol (GVRP)
PoE:
Power Budget: Max. 185W
Power Output: Up to 30W per port
Protection: Circuit protection to prevent power interference between ports
Management: PoE status, PoE on/off scheduling, PoE power delay, PoE live checking, Per port power
priority setting, PD classification identity
Pin Assignment: 1/2(+), 3/6(-)
Security:
ACLs?L2/L3/L4
ACLs?IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection
Management:
Switch Management:
DHCP?Client?Relay?Option 66?Option 67?Option 82
Event/Error Log?Syslog?SMTP (RFC821)
Management Access Filtering?SNMP?Web?Telnet?SSH
www.level1.com Page 3 of 5
PoE Management?Scheduling?Auto-Checking?Power Delay
SNMP (v1, v2c, v3)
Page 4
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP
L3:
Static Route
DHCP Server
Ease of Use:
Firmware and Configuration: Upgrade via HTTP
Performance
Backplane (Gbps):
Switching Bandwidth: 128Gbps
Forwarding Performance : 95.232Mpps
MAC Address Table:
32K
Data Transfer Rate:
10/100/1000Mbps
Packet Forwarding Rate:
95.232Mpps
Jumbo Frame (K):
10k
Environment
Power Saving:
IEEE 802.3az Energy Efficient Ethernet:
- Automatically turns power off on RJ-45 port when detecting link down or Idle of client
- Cable length detection: Adjusts the signal strength based on the cable length
- Reduces the power consumption for cables shorter
Temperature (°C):
Operating: 0°C ~ 450°C
Storage: -20°C ~ 70°C
Humidity (Non-condensing):
Storage: 10% ~ 90%
Operating: 10 ~ 90%
Deployment:
19-inch rack-mountable
Physical Specifications
Dimensions (W x D x H mm):
442 x 211x 44 mm
Weight (g):
3700g
www.level1.com Page 4 of 5
Page 5
Reliability
MTBF:
25’C?463,931(hr)
40’C?305,837(hr)
Approval and Compliance
EMI/EMS:
CE, FCC Part 15 Class A
Safety:
LVD
Others:
DMS
Diagram
Powered by TCPDF (www.tcpdf.org)
Order Information
GTP-2881
Package Contents
GTP-2881
Power Cord
Console Cable
Quick Installation Guide
Resource CD (User Manual)
19" Rackmount Kit
No liability or responsibility for any errors or omissions in the content.
Specifications are subject to change without notice.
All mentioned brand names are registered trademarks and property of their owners.
Copyright © Digital Data Communications GmbH, Germany. All Rights Reserved.
www.level1.com Page 5 of 5
