GSW-2493 4-slot modularized

L2 SNMP Switch

User Guide

Contents

1. INTRODUCTION......................................................................................................1

Features .......................................................................................................................1

Software Features ........................................................................................................2

Package Contents ........................................................................................................4

Ethernet Switching Technology ....................................................................................5

2. HARDWARE DESCRIPTION...................................................................................6

Physical Dimension ......................................................................................................6

Front Panel...................................................................................................................6

LED Indicators..............................................................................................................6

Rear Panel....................................................................................................................7

Desktop Installation ......................................................................................................7

Attaching Rubber Feet...........................................................................................8

Rack-mounted Installation............................................................................................8

Power On......................................................................................................................8

3. NETWORK APPLICATION......................................................................................9

Stacking Workgroup .....................................................................................................9

Connecting to the Switch............................................................................................10

4. CONSOLE MANAGEMENT...................................................................................11

Main Menu..................................................................................................................12

Function Description...................................................................................................14

Status and Counters............................................................................................14

Switch Static Configuration..................................................................................18

Protocol Related Configuration............................................................................39

System Reset Configuration................................................................................54

X-modem Upgrade..............................................................................................58

5. WEB-BASED MANAGEMENT...............................................................................60

About Web-based Management.................................................................................60

Preparing for Web Management.................................................................................60

Online Help.................................................................................................................61

System Login..............................................................................................................61

Port status ..................................................................................................................62

View the Port Information....................................................................................63

Port Statistics..............................................................................................................64

Administrator ..............................................................................................................65

IP Configuration...................................................................................................65

Switch Setting......................................................................................................66

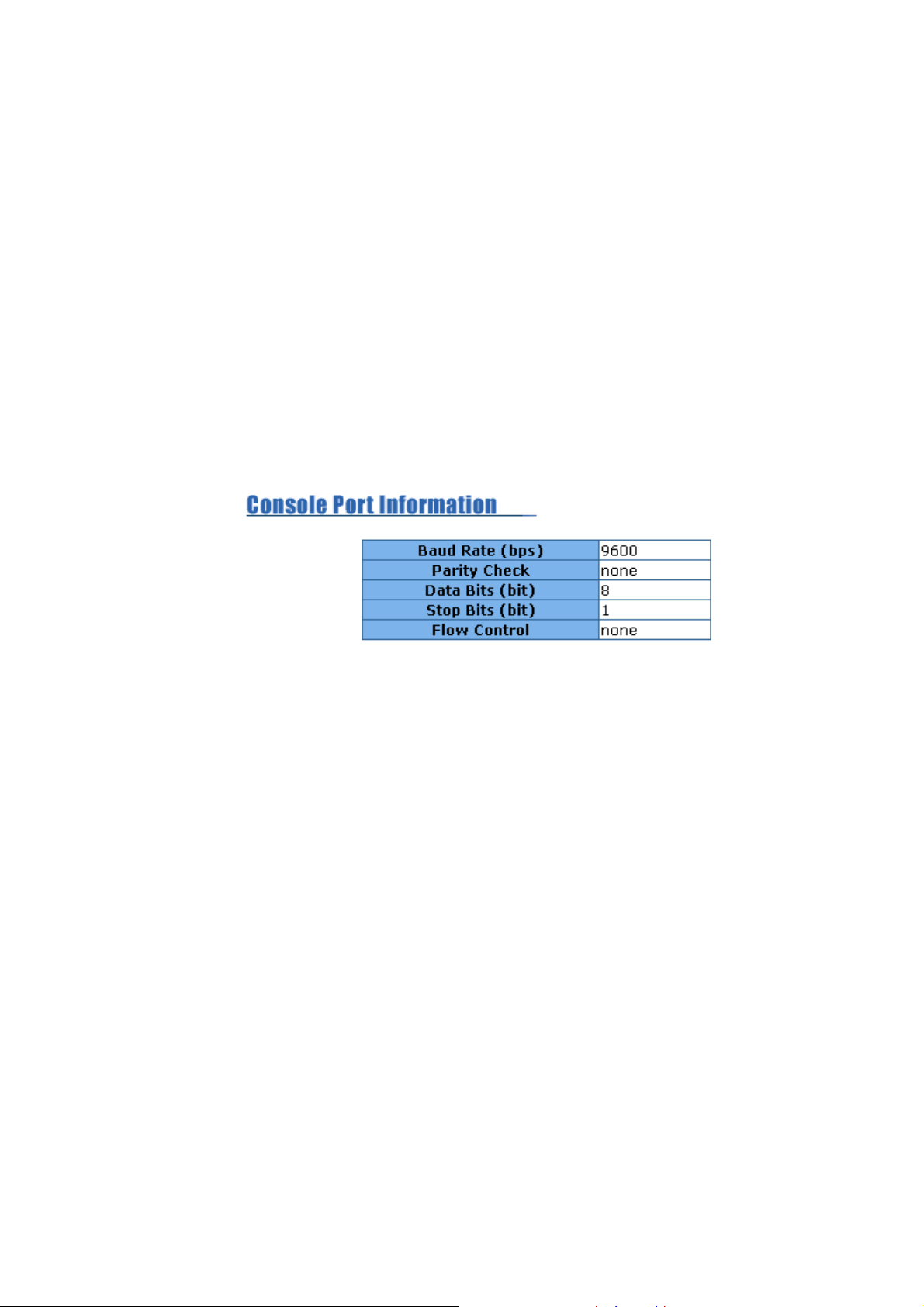

Console Port Information.....................................................................................72

Port Controls........................................................................................................72

Trunking ..............................................................................................................73

Forwarding and Filtering......................................................................................77

VLAN configuration..............................................................................................80

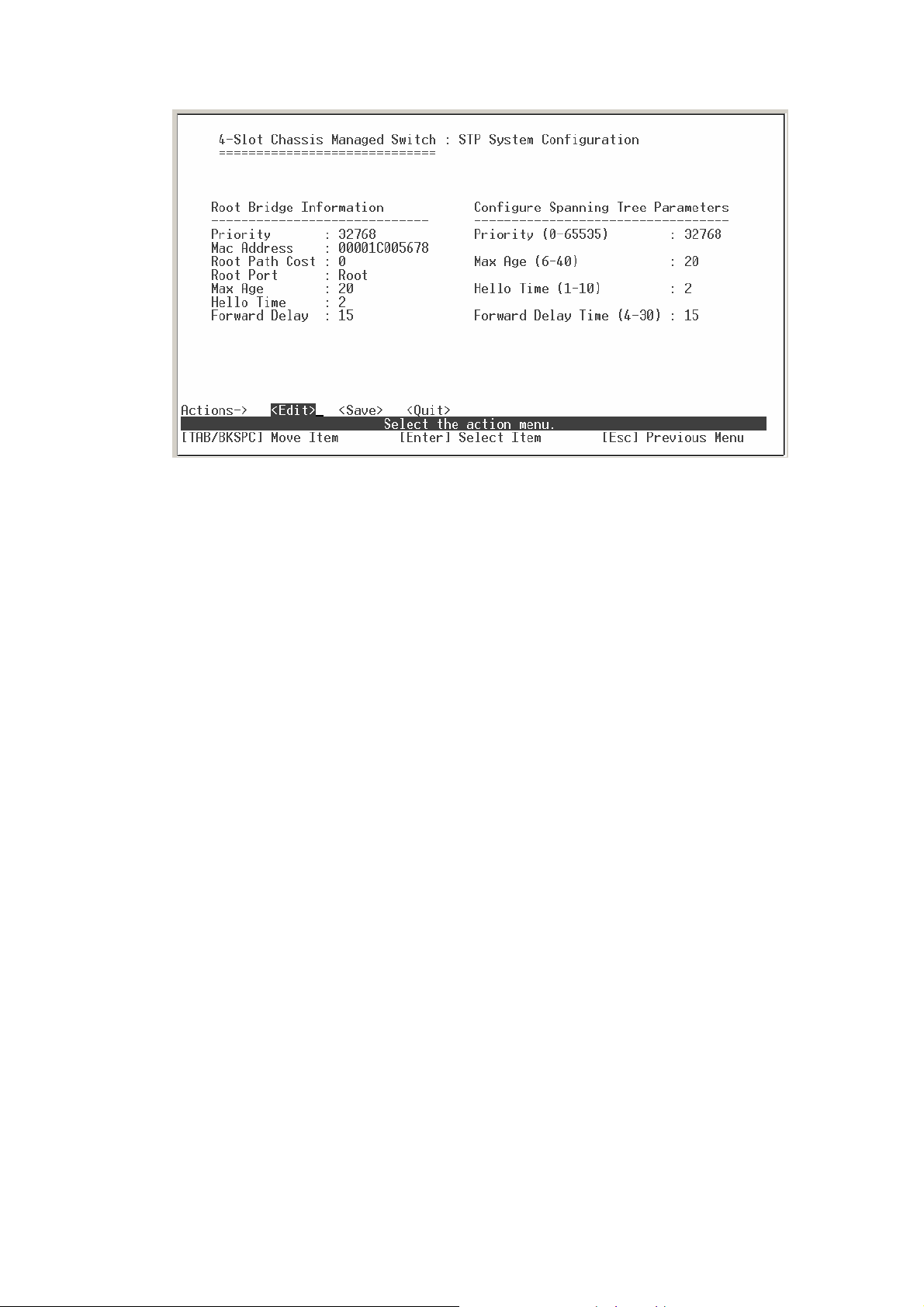

Spanning Tree.....................................................................................................88

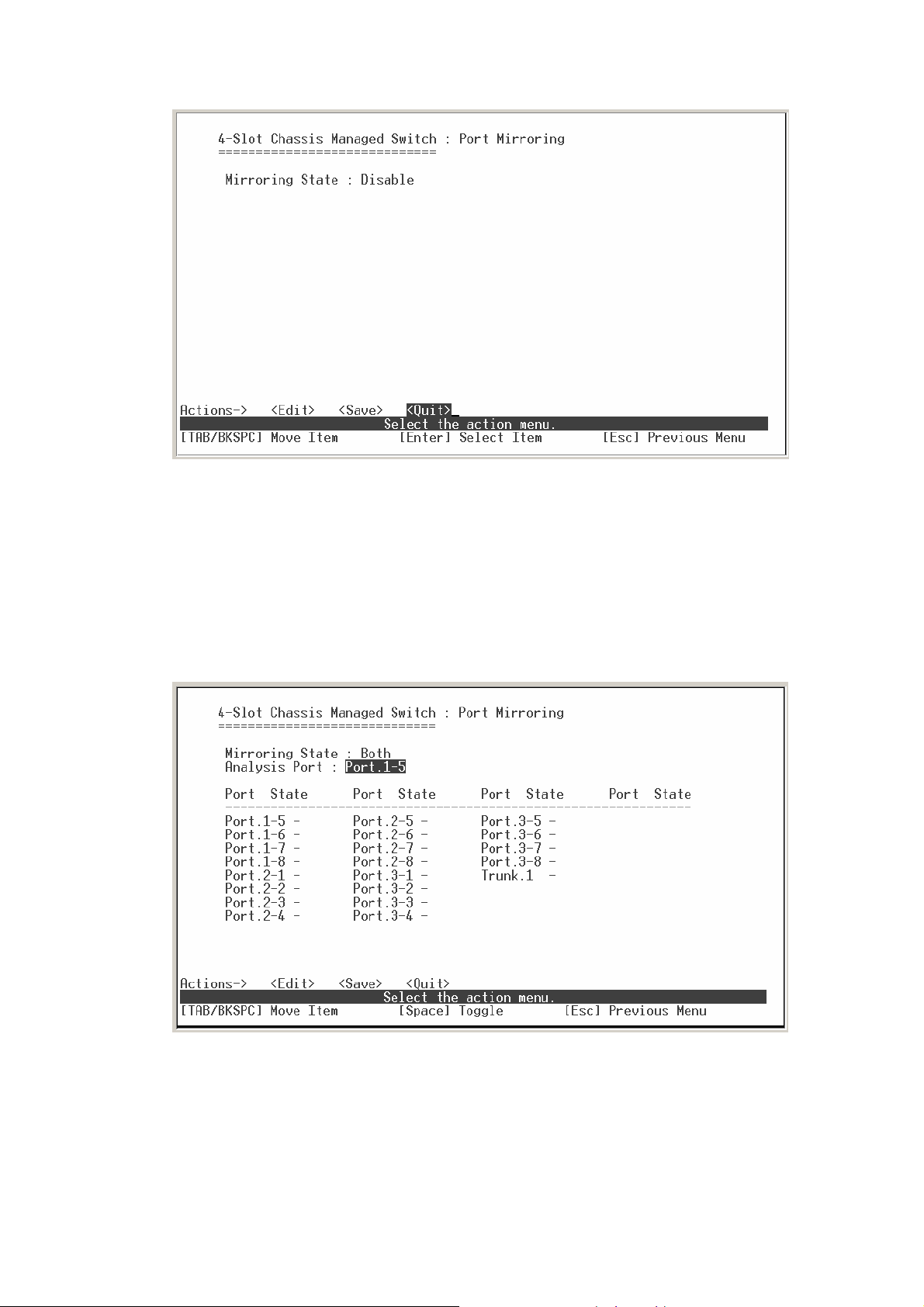

Port Mirroring.......................................................................................................90

SNMP Management............................................................................................91

Security Manager ................................................................................................93

802.1X.................................................................................................................94

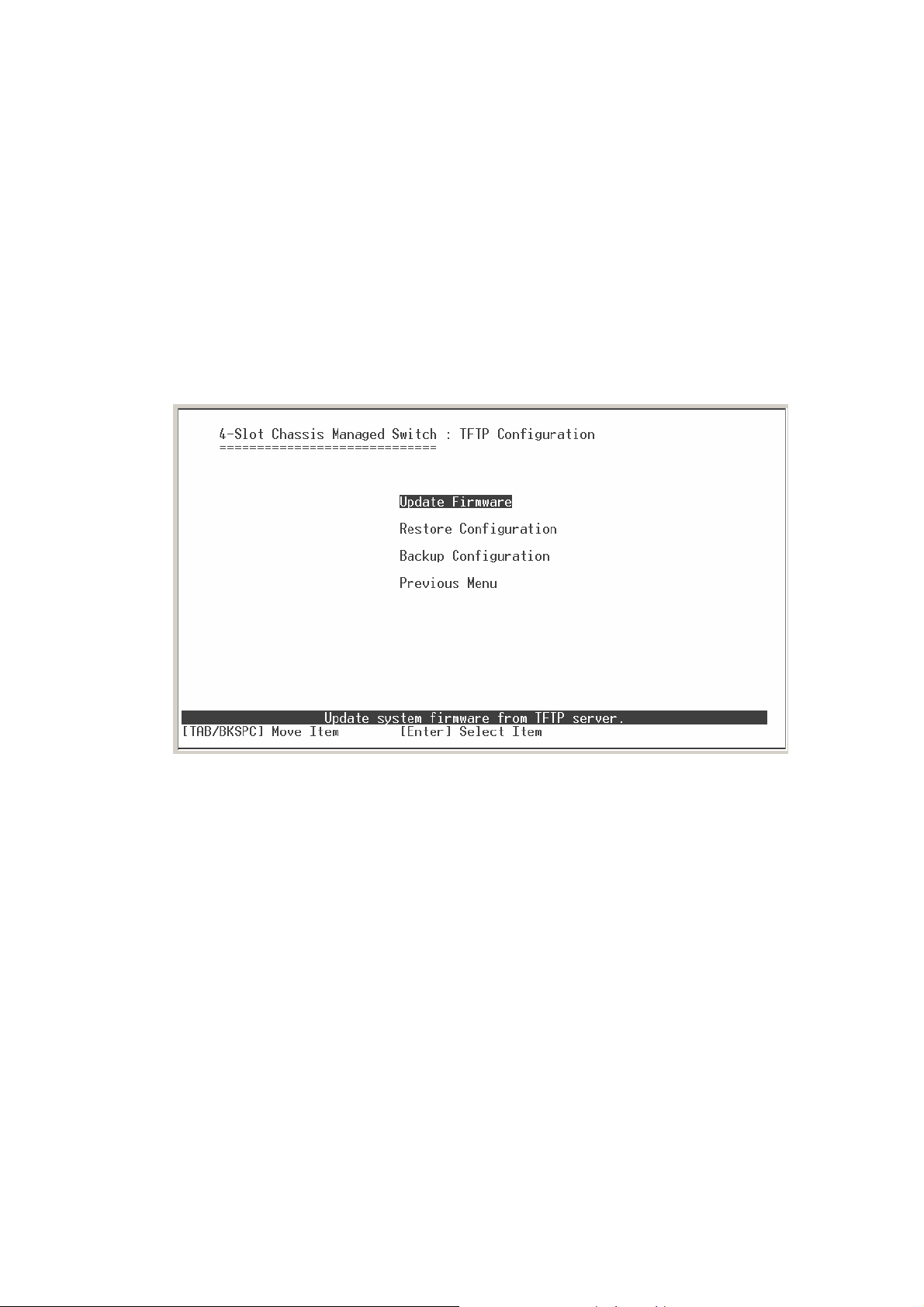

TFTP Update Firmware..............................................................................................96

Configuration Backup .................................................................................................97

TFTP Restore Configuration ................................................................................97

TFTP Backup Configuration ................................................................................98

Factory Default ...........................................................................................................98

System Reboot...........................................................................................................99

Panel List....................................................................................................................99

IP Stacking ...............................................................................................................100

6. TROUBLESHOOTING.........................................................................................104

Incorrect connections................................................................................................104

Faulty or loose cables .........................................................................104

Non-standard cables...........................................................................104

Improper Network Topologies.............................................................104

Diagnosing LED Indicators.......................................................................................105

Cabling................................................................................................105

7. TECHNICAL SPECIFICATION ............................................................................106

1. Introduction

LevelOne GSW-2493, 4-slot intelligent chassis switch, is a modular switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. The Switch is targeted at workgroup, department or backbone computing environment.

The GSW-2493 features a “store-and-forward “ switching scheme. This allows the switch to auto-learn and store source address in an 8K-entry MAC address table.

(Medium Dependent Interface) Port is also called an "uplink port". The MDI port

MDI

does not cross transmit and receive lines, which is done by the regular ports (MDI-X ports) that connect to end stations. In general, or Switch while

MDI/MDIX

changing non-crossover or crossover cabling.

means that you can connect to another Switch or workstation without

MDIX

means connecting to a workstation or PC. Therefore,

means connecting to another Hub

MDI

The GSW-2493 has 4-module slot. User can accord their needs to purchase the modules. This can give elasticity on network application.

Features

Confirms to IEEE802.3u 10BASE-T, 802.3u 100BASE-TX/FX, 802.3ab



1000BASE-T, 802.3z Gigabit fiber

4 slots for 8 ports 10/100TX, 8 port 100FX and Gigabit uplink module



Auto

IEEE802.3x Flow control



Flow control for full duplex

Backpressure for half duplex

High back-plane bandwidth 8.8Gbps



Support IEEE802.3ad Port trunk with LACP



Broadcast storm filter supported



Stack management via one IP address, easy management by Web GUI



IGMP support for Multi Media application



Support IEEE 802.1p class of service



Port security supported



Port bandwidth control supported



Support IEEE 802.1d Spanning tree protocol



Supports GVRP function



PortBase VLAN/802.1Q VLAN supported



IEEE 802.1X user authentication



Support DHCP client



Web/ SNMP / Telnet / CLI management



Option Module for slot:



MDU-2493TX 8 ports 10/100TX module

MDU-2493SXSC 8 ports 100FX module

MDU-0140 2-port 1000T copper module

MDU-0142 2-port miniGBIC module

Software Features

Telnet management, web management, Terminal console

Management

management (RS-232)

Software Upgrade

TFTP and Console firmware upgradeable

RFC 1157 SNMP, RFC 1213 MIB II, RFC 1643 Ethernet

RFC Standard

SNMP Trap

like, RFC 1493 Bridge MIB, RFC 1757 RMON 1, RFC 1215 Trap, RFC 2674 VLAN MIB, private MIB

Cold start, link down, link up, authorization fail, fan fail trap. Trap station up to 3

Port Trunk

Support IEEE802.3ad with LACP function and provide 7-trunk group of 4 member ports within 26 ports

Spanning Tree

VLAN

QOS Policy

Class of Service

IEEE802.1d spanning Tree

Port based VLAN IEEE802.1Q Tag VLAN IEEE802.1v Protocol VLAN (IP, IPX,..) Static VLAN groups up to 256, Dynamic VLAN group up to 2048, VLAN ID from 0 to 4094

Supports 8 priority levels ID for two priority queue

Per port 2 queues, High/ low queue. Service rule: first come first service; all High before Low, WRR for High or low weight

Support 3 settings: “Disable, Low and High priority”. When

Port Based Priority

IGMP

Port Security

Port Mirror

Bandwidth Control

set to “Disable”, the income packet will follow QoS policy; Otherwise, the packet will follow port priority setting to “High/Low” queue

It supports IGMP V1 and V2 snooping. IGMP Snooping for Muti-Media application, IGMP group supports 256 groups

MAC address filter for ingress and egress packet Static MAC address lock for source address

Global system supports 3 mirroring types: “RX, TX and Both packet”. The maximum of port mirror entries is up to 25

Per port support Bandwidth control. Per level 100K

The switch provide Stack Grouping feature and through

Stacking

802.1x

DHCP

Packet filter

master switch interface can manage and stack up to 8 units.

Support IEEE802.1x User-Authentication and can report to RADIUS server.

Reject



Authorize



Disable



DHCP Client

Broadcast storm

Package Contents

Unpack the contents of the below.

GSW-2493



Power Cord



Four Rubber Feet



RS-232 cable



Rack-mounted kit



User Guide



GSW-2493

and verify them against the checklist

GSW-2493

Four Rubber Feet

RS-232 Cable

Rack-mounted Kit Power Cord User Manual

Figure 1-2. Package Contents

Compare the contents of your GSW-2493 package with the standard checklist above. IF any item is missing or damaged, please contact your local dealer for service.

Ethernet Switching Technology

Ethernet Switching Technology dramatically boosted the total bandwidth of a network, eliminated congestion problems inherent with CSMA/CD (Carrier Sense multiple access with Collision Detection) protocol, and greatly reduced unnecessary transmissions.

This revolutionized networking. First, by allowing two-way, simultaneous transmissions over the same port (Full-duplex), which essentially doubled the bandwidth. Second, by reducing the collision domain to a single switch-port, which eliminated the need for carrier sensing. Third, by using the store-and-forward technology’s approach of inspecting each packet to intercept corrupt or redundant data, switching eliminated unnecessary transmission that slow the network. By employing address learning, which replaced the inefficient receiving port.

Auto-negotiation regulates the speed and duplex of each port, based on the capability of both devices. Flow-control allows transmission from a 100Mbps node to a 10Mbps node without loss of data. Auto-negotiation and flow-control may require disablement for some networking operations involves legacy equipment. Disabling the auto-negotiation is accomplished by fixing the speed or duplex of a port.

Ethernet Switching Technology supplied higher performance at costs lower than other solutions. Wider bandwidth, no congestion, and the reduction in traffic is why switching is replacing expensive routers and inefficient hubs as the ultimate networking solution. Switching brought a whole new way of thinking to networking.

2. Hardware Description

This Section mainly describes the hardware of the GSW-2493, and gives a physical and functional overview of the switch.

Physical Dimension

The GSW-2493 physical dimension is

440mm(W) x 280mm(D) x 44mm(H)

Front Panel

The Front Panel of the GSW-2493 consists of 3 module slots. One module slot is located in rear-panel of the switch.

LED Indicators

The LED Indicators gives real-time information of systematic operation status. The LED indicators are located in every module. The LED indicators will be different for different module. The following table provides descriptions of LED status and their meaning.

LED Status Description

Green Power On

Power

Off Power is not connected

Green The port is connecting with the device.

LNK/ACT

FDX/COL

Blinks The port is receiving or transmitting data.

Off No device attached.

Orange The port is operating in Full-duplex mode.

Blinks Collision of Packets occurs in the port.

Off In half-duplex mode

Table 2-1. The Description of LED Indicators

Rear Panel

One module slot, 3-pronged power plug, 2 fans, power switching, and one console port is located at the rear Panel of the GSW-2493 as shown in Figure 2-1. The Switch will work with AC power in the range of 100-240V AC, 50-60Hz.

Figure 2-1. The Rear Panel of the GSW-2493

Desktop Installation

Set the Switch on a sufficiently large flat space with a power outlet nearby. The surface where you put your Switch should be clean, smooth, level and sturdy. Make sure there is enough clearance around the Switch to allow attachment of cables, power cord and allow air circulation.

Attaching Rubber Feet

A. Make sure mounting surface on the bottom of the Switch is grease and dust free. B. Remove adhesive backing from your Rubber Feet. C. Apply the Rubber Feet to each corner on the bottom of the Switch. These footpads

can prevent the Switch from shock/vibration.

Rack-mounted Installation

The GSW-2493 come with a rack-mounted kit and can be mounted in an EIA standard size, 19-inch Rack. The Switch can be placed in a wiring closet with other equipment.

Perform the following steps to rack mount the switch:

A. Position one bracket to align with the holes on one side of the switch and secure it

with the smaller bracket screws. Then attach the remaining bracket to the other

side of the Switch. B. After attached both mounting brackets, position the switch in the rack by lining up

the holes in the brackets with the appropriate holes on the rack. Secure the Switch

to the rack with a screwdriver and the rack-mounting screws.

Note:

the front and 3.4 inches (8 cm) on the back of the Switch. This is especially

important for enclosed rack installation.

For proper ventilation, allow about at least 4 inches (10 cm) of clearance on

Power On

Connect the power cord to the power socket on the rear panel of the Switch. The other side of power cord connects to the power outlet. The internal power supply of the Switch works with voltage range of AC in the 100-240VAC, frequency 50~60Hz. Check the power indicator on the front panel to see if power is properly supplied.

3. Network Application

GSW-2493 is designed as a segment switch. That is, with its large address table (8000 MAC address) and high performance, it is ideal for interconnecting networking segments.

PC, workstations, and servers can communicate each other by directly connecting with GSW-2493. The switch automatically learns nodes address, which are subsequently used to filter and forward all traffic based on the destination address.

By using Gigabit, Gigabit Fiber, or Ethernet Fiber port, the Switch can connect with another switch or hub to interconnect other small-switched workgroups to form a larger switched network. Meanwhile, you can also use Ethernet or Gigabit fiber ports to connect switches.

Stacking Workgroup

With stackable technology can unites up to eight individual stackable switches into a single logical unit, using cables and with stacking software supported. The stack behaves as a single switching unit that is managed by a master switch elected from one of the member switches. The master switch automatically creates and updates all the switching tables. A working stack can accept new members or delete old ones without service interruption

Each switch in the stack has the capability to behave as a master or subordinate in the hierarchy. The master switch is elected and serves as the control center for the stack. The subordinates act as forwarding processors. Each switch is assigned to a one workgroup ID. Up to eight separate switches can be joined together as a workgroup. The stack can have switches added and removed without affecting stack performance.

There are no special tools, extra software, or expensive equipment needed to form a Stacking workgroup. It provides single image management for entire Stack (fewer

devices to manage); management applications represent the Stack as a single device, and simple point and click management. Stackable technology allows you to increase the resiliency and the versatility of your network edge to accommodate evolution for speed and converged applications. Following figures are example of stacking workgroup application.

The stackable switch (Master)

Cable connection

(Cat. 5 cable)

The stackable switch

(Slave 01)

Cable connection

(Cat. 5 cable)

The stackable switch

(Slave 02)

Can units up to 8

The stackable switch

(Slave 08)

Figure 3-2. A stacking workgroup application

stackable switches

Connecting to the Switch

The Console port is a female DB-9 connector that enables a connection to a PC or terminal for monitoring and configuring the Switch. Use the supplied RS-232 cable with a male DB-9 connector to connect a terminal or PC to the Console port.

The Console configuration (out of band) allows you to set Switch for remote terminal as if the console terminal were directly connected to it.

4. Console Management

When the connection between Switch and PC is ready, turn on the PC and run a terminal emulation program or

parameters

Baud Rate: 9600 bps Data Bits: 8 Parity: none Stop Bit: 1 Control flow: None

to match the following default characteristics of the console port:

Figure 4-1. The settings of communication parameters

Hyper Terminal

and configure its

communication

After finished the parameter settings, click “OK“. When the blank screen shows up, press Enter key to bring out the login prompt. Key in the “ both User name and Password (use Main Menu of console management appears. Please see below figure for login screen.

Enter

key to switch), then press Enter key and the

“(default value) for the

root

Console login screen

Main Menu

There are five selections as follow.



Status and Counters:



Switch Static Configuration:



Protocol Related Configuration:



System Reset Configuration:

configuration.



Logout:

Exit the menu line program.

Show the status of the switch.

Configure the switch.

Configure the protocol function.

Restart the system or reset switch to default

Main menu line interface

Control Key description:

The control keys provided in all menus:

Move the vernier to next item.

Tab: Backspace: Enter: Space:

to exit the current action mode.

Esc:

Move the vernier to previous item.

Select item.

Toggle selected item to next configure or change the value.

Function Description

Status and Counters

In Status and Counters, you can view Port status, counters, and configure system parameter. You can press the “ key to select item.

Tab

” or “

Backspace

” to choose item, and press “

Enter

”

Status and Counters interface

Port Status

It displays status of port. Select the And, select the



display the number of port. The first integer is the module slot number. The

Port:

second integer is the port number in the module. For example: Port 1-1, it means

the first port on the first module slot.

Type:

display port statuses link status. When the port is connecting with the device

Link:

and work normally, the link status is “UP”. Opposite is “

Speed Duplex:

State:

display port connection speed.

display port duplex mode.

The port current status.

action to display next page.

action to display previous page.

Down

”.



Negotiation:



display the flow control status is “enable” or “disable”.

FC:

display backpressure status.

BP:

Bandwidth In/Out:

Priority:

display the port priority status.

Security:

display the auto negotiation status.

display bandwidth In/out control status.

display the port security status.

Port status interface

Port Counters

It displays the current port counter information. Select the newest port counter information.

<Clear>

to set all counter value to zero.

action to get

Port counter information interface

System Information

It displays the system parameter.

System Name:

System Location:

System Description:

Firmware Version:

Kernel Version:

Hardware Version:

MAC Address:

Fan State:

Module Information:

the name of device.

where the device is located.

the name of device type.

the switch’s firmware version.

the system kernel software version.

the switch’s Hardware version.

The unique hardware address assigned by manufacturer.

the fan operates status.

display the Module type that user has installed in switch.

System Information interface

Switch Static Configuration

In Switch Static Configuration, it has 8 main functions – Administration, Port, Trunk, Port Mirroring, VLAN, Priority, MAC Address, and Misc Configuration. Under each function, there are more sub-functions. We will describe in following paragraph.

Switch Configuration interface

Administration Configuration

In Administration Configuration, you can configuration system parameter, IP, login username and password.

Administration Configuration main interface

Device Information

You can configure the device information.

1. Select

Name:

Description:

Location:

Contact:

6. Select

<Edit>

assign the name for the switch.

<Save>

action to configure.

a short description for the switch.

the switch location, ex: Taipei.

the contact person or information.

action to save the configuration.

Device Information interface

IP Configuration

You can configure the IP for this switch. The system has the default IP address. You can re-configure or use the default value.

1. Select the

DHCP Client:

IP Address:

Subnet Mask:

Gateway:

6. Select

Note:

<Edit>

disable or enable the DHCP client function.

assign the switch IP address. The default IP is 192.168.16.1.

assign the switch IP subnet mask.

assign the switch gateway. The default value is 192.168.16.254.

<Save>

action to save the configuration.

Always restart the switch after change the IP address.

IP Configuration interface

User Name Configuration

You can change the console and web management login user name.

1. Select the

<Edit>

2. Enter the new user name

3. Select the

<Save>

User Name Configuration interface

Password Configuration

You can change the console and web management login password.

1. Select the

Old Password:

New Password:

Enter Again:

5. Select the

<Edit>

enter the old password.

enter the new password.

reenter the new password for confirmation.

<Save>

Password Configuration interface

Port Configuration

You can set up every port status.

1. Select

2. Use “

State:

<Edit>

Tab

Current port status. The port can be set to disable or enable mode. If the

port setting is disable then will not receive or transmit any packet.

Negotiation:

Speed/Duplex:

enable or disable

FC:

” key to move between items.

set auto negotiation status of port.

set the port link speed and duplex mode.

Flow control

function (Flow control for full duplex link

mode).

10.

11. Select the

enable or disable

BP:

mode).

Bandwidth In/ Out:

100Kbps. It supports individual control method of TX and RX.

Priority:

Security:

set port to high or low priority.

enable or disable port security function.

<Save>

Back Pressure

per port packet transmission rate control. Per level is

function (Backpressure for half duplex

Port Configuration interface

Trunk Configuration

You can configure port trunk group.

1. Select

2. Using “

3. Using “

4. Using

5. Save the configuration by selecting

<Edit> Tab Space

Tab

Static

” key move to the port that want to be added as trunk group.

” key to mark the port.

key move to

Trunk#

(ex. Trunk1, Trunk2…) to change the Trunk# value

<Save>

Trunk Configuration interface

Port Mirroring Configuration

The port mirroring is a method for monitor traffic of switched networks. The specific port can monitor traffic through the mirror ports. The monitored ports in or out traffic will be duplicated into monitoring port.

1. Select the

Mirroring State:

start port mirroring, you must select one of port mirroring mode.



<Edit>

RX packet only

RX:

TX packet only

TX: Both:

RX and TX packet

select the port-mirroring mode. The default value is “

Disable

”. To

Port Mirroring interface

Analysis port:

Set the destination port of mirroring packet. All of the packets of

mirroring port will be duplicated and sent to Analysis port.

Port State:

5. Select the

use “

<Save>

Space

” key to mark the port that wanted to be mirrored.

Port Mirroring interface

VLAN Configuration

You can configure VLAN in VLAN Configuration. There are four functions in VLAN Configuration mode: VLAN Configuration, Create a VLAN Group, Edit/Delete VLAN Group and Group Sorted Node. Follow the below description to configure VLAN.

VLAN Configuration Main interface

VLAN Configure

Before starting to configure VLAN, you must select the VLAN mode in VLAN Configure function. Otherwise, user cannot create any new VLAN.

1. Select the

2. Select the

<Edit>

VLAN mode

PortBase mode and 802.1Q mode.



802.1Q VLAN mode:

Frame Type.

VLAN ID Range:

Ingress Filter:

by using “

Space

” key. There are two VLAN modes:

configuration VLAN ID, Ingress Filter, and Acceptable

Type the PVID. The ID range is from 1~255.

It matches that Ingress Filtering Rule 1 on web. Only forward packets with VID matching this port’s configured VID. Press “

Space

” key to choose forward or drop the frame that VID not matching

this port’s configured VID.

3. Select

Acceptable Frame type:

Drop untagged frame. Press “ untagged frame.

<Save>

to save the configuration.

It matches that Ingress Filtering Rule 2 on web.

Space

” key to select drop or forward the

Create VLAN Group



Create Port-Based VLAN

1. Select

VLAN Name:

Group ID:

Member:

<Edit>.

Type a name for the new VLAN, ex: VLAN01.

Type the VLAN group ID. The group ID rang is from 1 to 4094.

Press ” selected: a.

Member:

NO:

5. Press

6. Select

“ESC”

<Save>

the port is a member port.

it means that port is NOT a member port.

key to go back action menu line.

to save the configuration.

Space

VLAN Configure interface

” key to change the member value. There are two types to

NOTE:

If you had configured the trunk groups, you can see it (ex: Trunk1, Trunk2…) in the port list. You also can configure the trunk group as the VLAN member.

Create VLAN Group: PortBase interface



Create 802.1Q VLAN

Enable security VLAN setting:

select to enable or disable security VLAN group. When you select to enable security VLAN group, only the members in this VLAN group can access to the switch. The steps of setting security VLAN refer to the following step 2~ 8. After you have configured the security VLAN group, you can continue to create other VLAN groups. When you don’t select to configure security VLAN group, then just create VLAN group refer to following step 2 ~ 8.

Note:

There is only one security VLAN group.

Create VLAN Group: 802.1Q interface

2. Select

VLAN Name:

VLAN ID:

<Edit>

Type a name for the new VLAN, ex: VLAN01.

Type a VID (between 1~4094). The default is 1. There are 256 VLAN

groups to provided configure.

Protocol VLAN:

Member:



Untagged:

Press “

Space

this port is the member port of this VLAN group and outgoing

frames are NO VLAN-Tagged frames.



Tagged:

this port is the member port of this VLAN group and outgoing frames

are VLAN-Tagged frames.



7. Press “

8. Select

it means that the port is NOT member of this VLAN group.

NO:

” key to go back action menu line.

ESC

<Save>

to save the configuration.

Space”

key to choose protocols type.

” key to change the member value.

Create VLAN Group: 802.1Q interface

Edit / Delete VLAN Group

User can edit or delete a VLAN group.

1. Select

<Edit>

action.

2. Select the VLAN group that you want to edit or delete, then press enter.

3. In

<Edit>

action, user can modify the member port and remove some member

ports from this VLAN group.

4. After edit or delete the VLAN, select

<Save>

action to save all configures value.

NOTE:

1. The VLAN Name and VLAN ID cannot modify.

2. In 802.1Q VLAN mode, the default VLAN can’t be deleting.

3. In Port Base VLAN mode, there is no default VLAN.

Edit/Delete a VLAN Group interface (802.1Q VLAN group)

Group Sorted Mode

You can select VLAN groups sorted mode: (1)

Name

(2)

VLAN ID

In the Edit/Delete a VLAN group page will display the result.

1. Select

2. Use “

3. Select

<Edit>

Space

<Save>

” key to select the sort mode

Group Sorted Mode interface

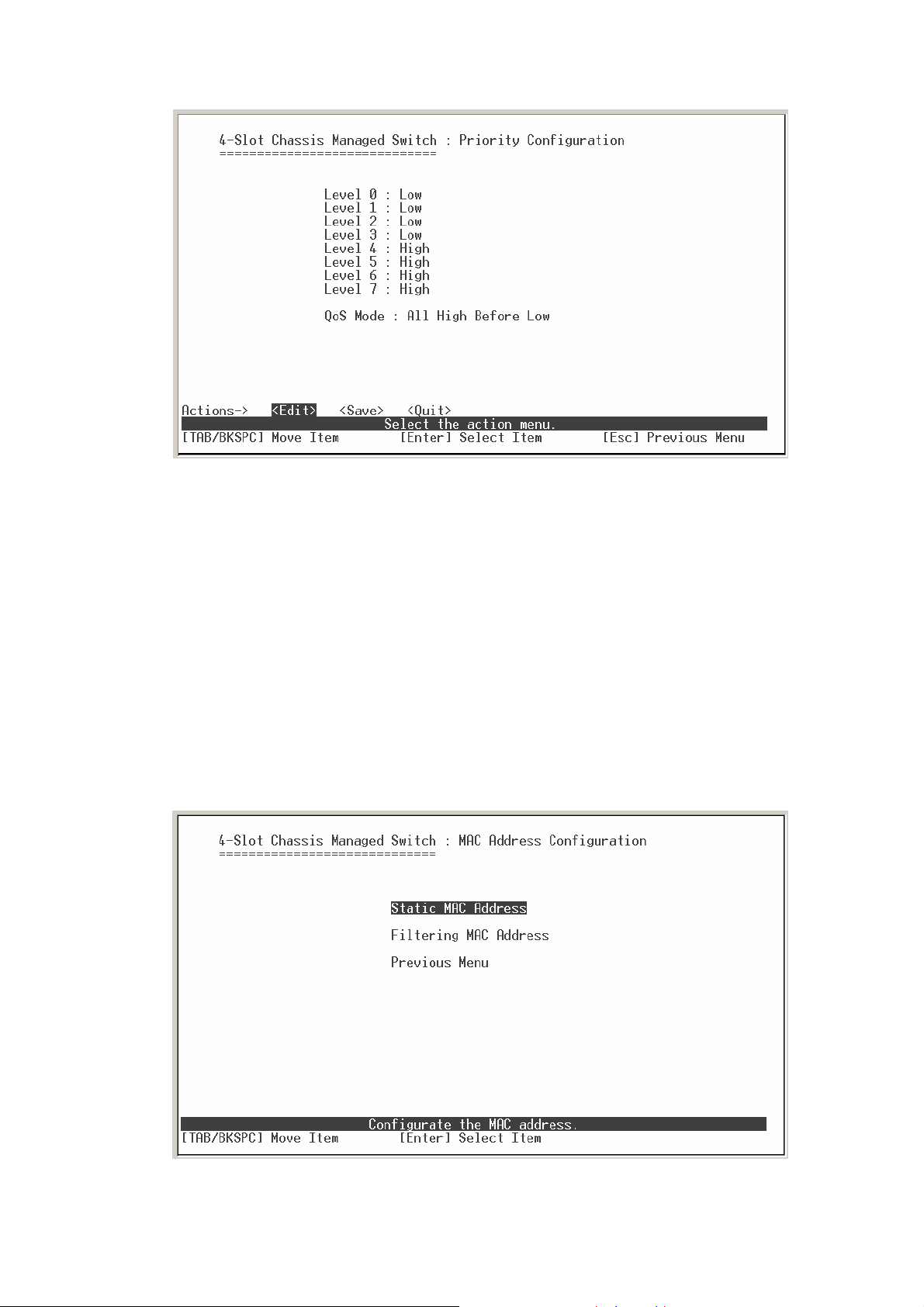

Priority Configuration

You can configure port priority level. There are 0~7-priority level can map to high or low queue.

1. Select

2. Press “

Qos Mode:



<Edit>

Space

First comes first service:

first.



All High Before low:

packet priority is low.



Weight Round Ration 2:1:

the process 1 low priority packet.



Weight Round Ration 3:1:

the process 1 low priority packet.



Weight Round Ration 4:1:

the process 1 low priority packet.



Weight Round Ration 5:1:

the process 1 low priority packet.

. ” key to select the priority level mapping to high or low queue.

select the mode to process incoming packets.

the switch will process the packet that is coming

the packet priority is high will be process before the

the switch will process 2 high priority packet first,

the switch will process 3 high priority packet first,

the switch will process 4 high priority packet first,

the switch will process 5 high priority packet first,



Weight Round Ration 6:1:

the process 1 low priority packet.



Weight Round Ration 7:1:

the process 1 low priority packet.

4. Press “

5. Select

ESC

<Save>

the switch will process 6 high priority packet first,

the switch will process 7 high priority packet first,

” goes back action menu line.

to save all configure value.

Priority Configuration interface

MAC Address Configuration

When you add a static MAC address, it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again. You can add / modify / delete a static MAC address.

MAC Address Configuration interface

Static MAC Address



Add the Static MAC Address

You can add static MAC address in switch MAC table.

1. Select

MAC Address:

Enter the MAC address of the port that should permanently

key to add the static MAC address.

forward traffic, regardless of the device network activity.

Port No.: VLAN ID:

press “

Space”

key to select the port number.

enter the Mac address’ s VLAD ID, if the Mac address belongs to any

VLAN group.

5. Press “

6. Select

ESC”

<Save>

to go back action menu line.

to save all configure value.

Add Static MAC Address interface



Edit static MAC address

1. Select

<Edit>

2. Choose the MAC address that you want to modify and then press “

3. Press

4. Press “

5. Select

<Edit>

ESC

<Save>

key to modify.

” to go back action menu line.

to save all configure value.

Enter

”.



Delete static MAC address

1. Select

key.

2. Choose the MAC address that you want to delete and then press “

3. When pressing “

Enter

” will complete deletion.

Filtering MAC Address

You can add, delete, and edit filtering MAC address.

Enter

”.



Add the Filtering MAC Address

1. Select

MAC Address:

VLAN ID:

Enter the MAC address that you want to filter.

enter the Mac address’ s VLAD ID, if the Mac address belongs to any

VLAN group.

4. Press “

ESC”

to go back action menu line.

Filtering MAC Address interface

key to add the static MAC address.

5. Select

<Save>

to save all configure value.

Add Filtering MAC Address interface



Edit Filtering MAC address

1. Select

<Edit>

key to modify a static Filtering address.

2. Choose the MAC address that you want to modify and then press “

3. Select

4. Press “

5. Select

<Edit>

ESC

<Save>

key to modify.

” to go back action menu line

to save all configure value.



Delete Filtering MAC address

1. Select

2. Choose the MAC address that you want to delete and then press “

3. After delete Filtering MAC address, you have to select deleting operation.

to delete a Filtering MAC address.

<Save>

Enter

”.

to complete the

Misc Configuration

You can configure the switch parameters and stacking function. The stacking function provides you can centralize the control of the switch in the network. For the manager personal, he/she can save the time and easily on switches controlling.



MAC Address Ageing Time:

MAC address table refresh time setting. Type the number of seconds that an inactive MAC address remains in the switch’s address table. The valid range is 0, 300~765 seconds. Default is 300 seconds.



Broadcast Storm Filter mode:

configure the broadcast storm filter mode. The valid threshold values are 5%, 10%, 15%, 20%, 25%, and N/A. The port will be block cause of broadcast packet is over the percentage of traffic.



Max Bridge Transmit Delay Bound:

enable, the packets queued exceed will be drop. Press

Limit the packets queuing time in switch. If

Space

key to set the time.

This valid value are 1sec, 2sec, 4sec and off. Default is off.



Low Queue Delay Bound:

Limit the low priority packets queuing time in switch. If enable, the low priority packet stays in switch exceed Low Queue Max Delay Time, it will be sent. Press



Low Queue Max Delay Time:

Space

key to enable or disable this function.

To set the time that low priority packets queuing in

switch. Default Max Delay Time is 255ms. The valid range is 1~255 ms.

NOTE:

Make sure of “Max bridge transit delay bound control” is enabled before enable Low Queue Delay Bound, because Low Queue Delay Bound must be work under “Max bridge transit delay bound control” is enabled situation.



Collisions Retry Forever:

Disable – In half duplex, if happens collision, the switch will retry 48 times and then drop frame. Enable – In half duplex, if happens collision, the switch will retry forever



Hash Algorithm:

This Hash Algorithm is for hardware maintain on MAC table

calculation. Provide CRC or Direct Map



IFG compensation:



IP Stacking Group ID (0…65535):

Disable or Enable

assign the stacking group ID. The switches

must assigned the same stacking group ID to be stacked as a group.



IP Stacking Mode:

enabling/disabling the stacking function. There are three stacking modes. Any port on the switch can be used to stack. To configure the switch in stacking group, please use the Web GUI configuration interface.

Disable: Master:

The stacking function is not working.

There must have a leader switch to control all other switches in stacking group. You can only assign one switch to be the master switch in one stacking group. When the stacking group is set up, the master switch will control all switches in the stacking group.

Slave:

besides the master switch, rest of the switches are called slave switch

in stacking group. When the stacking group is set up, you can only configure the slave switches through the master switch.

Note:

1. Before configuring the stacking function, make sure all stack switches are in the same network.

2. Configure stacking function; you must configure the master switch first.

3. After you have configured the stacking function, use Cat. 5 cable to connect every switch in the stacking group.

4. To remove the switch from stacking group, you must remove the salve switch first. When all slave switches are removed, you can remove the master switch from stacking group.



IP Stacking System Information:

Shows the current IP stacking status.

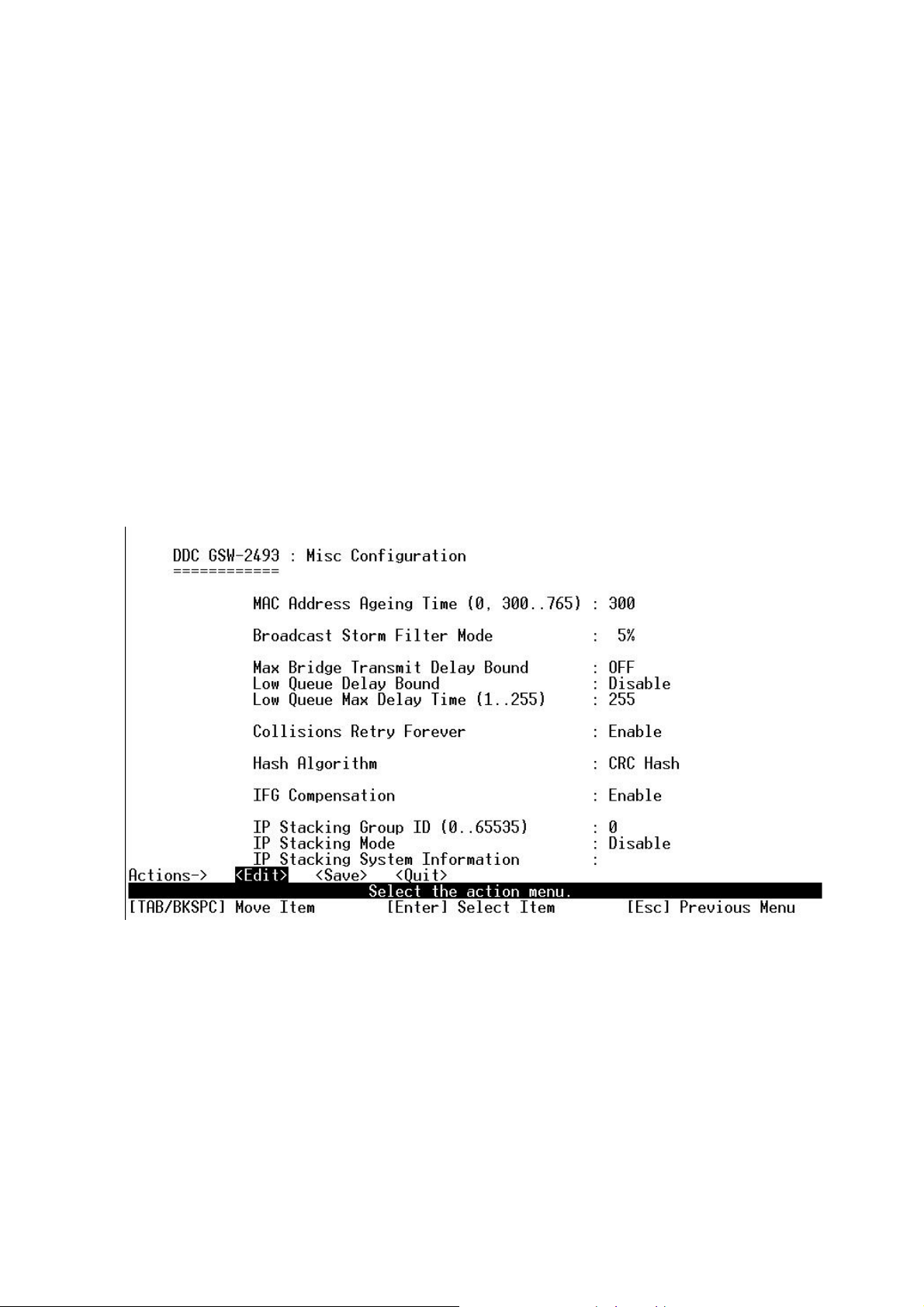

Misc Configuration interface

Protocol Related Configuration

You can configure Spanning Tree Protocol, SNMP, LACP, IGMP/GVRP, and 802.1x in Protocol Relate Configuration section.

Protocol Relate Configuration interface

STP

Spanning tree is a link management protocol that provides path redundancy while preventing undesirable loops in the network.

STP Configuration interface

STP Setup

You must enable Spanning Tree function before configure STP function.

1. Select

2. Use “

3. Select

<Edit>

Space

<Save>

” key to select the option.

STP Setup interface

System Configuration

You can configure the STP system parameter after enable the STP function.

view spanning tree information about the Root Bridge on the left.

1. Select

Priority:

Max Age:

Hello Time:

STP current status.

Forward Delay Time:

6. Select

<Edit>

assign path priority number.

the maximum path age

the time that controls switch sends out the BPDU packet to check

forward delay time.

<Save>

You can

STP System Configuration interface

Per Port Setting

1. Select

Path Cost:

<Edit>

specifies the path cost of the port that switch uses to determine which

port are the forwarding ports.

Priority:

This is mean port priority; you can make it more or less likely to become

the root port.

4. Press “

5. Select

” goes back action menu line.

ESC

<Save>

to save all configure value.

6. On the action menu line you can press press

return to previous page.

to configure port9 ~ port26,

Per Port Setting interface

SNMP

To define management stations as trap managers and to enter SNMP community strings. You can also define a name, location, and contact person for the switch.

SNMP Configuration interface

SNMP System Options

1. Press

Name:

Contact:

Location:

<Edit>

5. Press “

6. Press

<Save>

assign a name for the switch.

Type the name of contact person or organization.

Type the location of the switch.

” goes back action menu line.

ESC

to save configure value.

Community Strings



Add Community Strings

1. Select

2. Select

Community Name:

Write Access:



Read only:

enable the rights is read only or read/write.

Read only, enables requests accompanied by this string to

display MIB-object information.



Read/Write:

display MIB-object information and to set MIB objects.

SNMP System Options interface

type the name of community strings.

Read write, enables requests accompanied by this string to

Add Community Strings interface



Edit Community Name

1. Select

<Edit>

2. Choose the item that you want to modify and then press “

Community Name:

Write Access:

5. Select

<Save>

type the new name.

Press “

Space

” key to change the right.

Enter”.

Edit Community Strings interface



Delete Community Name

1. Select

2. Choose the community name that you want to delete and then press “

3. When pressing “

Enter

” will complete deletion.

Enter

”.

Trap Managers

A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string.



Add the trap manager

1. Select

IP:

Community Name:

4. Press “

5. Select

<Add>

enter the IP address of trap manager.

” go back to actions menu line

ESC

<Save>

Trap Managers interface

<Edit>

to add the trap manager.

enter the community string.

to save all configure.

Add Trap Manager interface



Delete Trap Manager

1. Select

2. Choose the trap manager that you want to delete and then press “

3. When pressing “

Enter

” will complete deletion.

Enter

”.

LACP

The Link Aggregation Control Protocol (LACP) provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner. Link aggregation lets you group up to eight consecutive ports into a single dedicated connection. This feature can expand bandwidth to a device on the network.

operation requires full-duplex mode,

more detail information refers to IEEE 802.3ad.

You can configure and view all the LACP status.

LACP

LACP Configuration interface

Working Ports Setting

1. Select

Group:

LACP:

<Edit>

Press “

Display the trunk group ID.

Space

” key to enable or disable LACP (Link Aggregation Control Protocol) support. When LACP enable, the group is LACP static trunk group. When LACP disable, the group is local static trunk group.

Working Port Num:

The max number of ports can be aggregated at the same time. If LACP static trunk group, the exceed ports is standby and able to aggregate if work ports fail. If it is local static trunk group, the number must be the same as group ports.

5. Select

NOTE:

<Save>

Before set LACP support, you have to set trunk group on the Trunk

Configuration.

LACP State Activity

LACP Working Ports configuration interface

1. Select

2. Use “



Space Active: Passive:

<Edit>

responds only if it receives LACP protocol packets from the opposite device.

3. Select

<Save>

” key to select the Port State Activity. The port automatically sends LACP protocol packets.

The port does not automatically send LACP protocol packets, and

LACP State Activity configuration interface

Group Status

When you setting trunk group, you can see the relation information in here.

LACP Group State interface

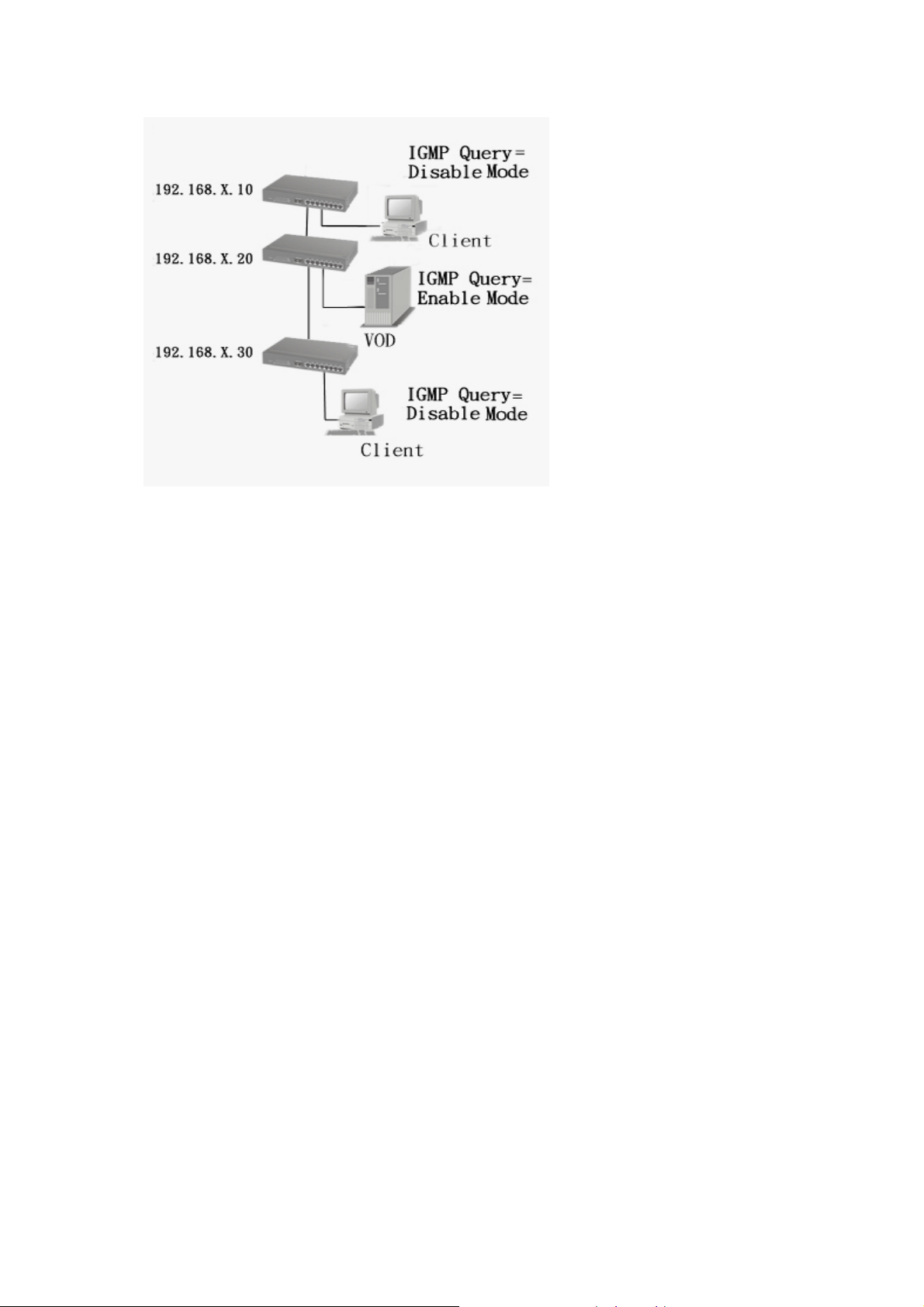

IGMP/GVRP

You can enable or disable the IGMP/GVRP (GARP VLAN Registration Protocol).

1. Select

2. Use “

3. Select

<Edit>

Space

<Save>

” key to change the value

IGMP/GVRP Configuration interface

802.1x

802.1x Setup

1. Select

2. Use “

<Edit>

Space

802.1x Configuration interface

” key to Enable or Disable the 802.1x.

3. Select

<Save>

802.1x Setup interface

System Configuration

After enabling the IEEE 802.1X function, you can configure the parameters of this function.

1. Select

Radius Server IP:

Shared Key:

<Edit>

set the Radius Server IP address.

set an encryption key for using during authentication sessions with the specified radius server. This key must match the encryption key used on the Radius Server.

NAS, Identifier:

Server Port:

set the identifier for the radius client.

set the UDP destination port for authentication requests to the

specified Radius Server.

Accounting Port:

set the UDP destination port for accounting requests to the

specified Radius Server.

7. Select

<Save>

802.1x System Configuration interface

Per Port Configuration

You can configure 802.1x authentication state for each port. The State provides Disable, Accept, Reject and Authorize. Use “

Space”

key change the state value.

802.1x Per Port Setting interface

Misc Configuration

1. Select

Quiet period:

<Edit>

set the period during which the port doesn’t try to acquire a

supplicant.

TX period:

set the period the port wait for retransmit next EAPOL PDU during an

authentication session.

Supplicant timeout:

set the period of time the switch wait for a supplicant

response to an EAP request.

Server Timeout:

set the period of time the switch wait for a server response to an

authentication request.

Reauthorize Maximum:

set the number of authentication that must time-out

before authentication fails and the authentication session ends.

Reauth Period:

set the period of time after which clients connected must be

re-authenticated.

8. Select

<Save>

802.1x Misc Configuration interface

System Reset Configuration

System Reset Configuration interface

Factory Default

Reset switch to default configuration. Press “Y”, switch will load default setting. After finished load default setting, switch will reboot automatically.

Factory Default interface

System Reboot

Reboot the switch in software reset.

TFTP Configuration

It provides user to update firmware or restore EEPROM value or upload current EEPROM value.

TFTP Update Firmware interface

Update Firmware

It provides user uses TFTP to update firmware.

1. Start the TFTP server, and copy firmware update version image file to TFTP server.

2. Select

TFTP Server IP:

<Edit>

type the IP of TFTP server.

Firmware File Name:

5. Press “

6. Select

7. When save successfully, the image file download finished, too.

8. Restart switch.

” goes back to action line.

ESC

<Save>

, it will start to download the image file.

type the image file name.

Update Firmware interface

TFTP Restore Configuration

You can restore EEPROM value, which saved in TFTP server, from TFTP server.

1. Start the TFTP server.

2. Select

TFTP Server IP:

Restore File Name:

5. Press “

6. Select

<Edit>

ESC

<Save>

type the IP of TFTP server.

type the image file name.

” back to action menu line.

, it will start to download the image file.

7. When save successfully, the image file download finished too.

8. Restart switch.

TFTP Restore Configuration interface

TFTP Backup Configuration

You can save current EEPROM value to TFTP server as backup. The backup file can be restore from TFTP server when you need.

1. Start the TFTP server.

2. Select

TFTP Server IP:

Backup File Name:

5. Press “

6. Select

<Edit>

ESC

<Save>

type the IP of TFTP server.

type the image file name.

” back to action line.

key, it will start to upload the image file.

7. When save successfully, the image file upload finished too.

8. Restart switch.

TFTP Backup Configuration interface

X-modem Upgrade

Before using X-modem upgrade, disconnect terminal and modify baud rate to 57600bps, then connect again.

1. Press “X” key to start upgrading from X-modem.

2. You will see the following screen displays.

3. Select “

send file

" under

Transfer

menu from menu bar.

4. Select "

5. Select "

browse 1K X-modem

" button to select the path.

" of protocol and click "

Send

" button.

6. After successfully upgraded the new firmware, please modify baud rate to 9600bps.

5. Web-Based Management

This section introduces the configuration and functions of the Web-Based management.

If your OS is Windows XP with Service Pack 2, please disable the windows firewall before connecting to UI.

About Web-based Management

Inside the CPU board of the switch exists an embedded HTML web site residing in flash memory. It offers advanced management features and allow users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

The Web-Based Management supports Internet Explorer 5.0. It is based on Java Applets with an aim to reduce network bandwidth consumption, enhance access speed and present an easy viewing screen.

Note:

The user has to explicitly modify the browser setting to enable Java Applets to use network ports.

By default, IE5.0 or later version does not allow Java Applets to open sockets.

Preparing for Web Management

Before to use web management, you can use console to login the Switch checking the default IP of the Switch. Please refer to

Console Management

Chapter for console login. If you need change IP address in first time, you can use console mode to modify it. The default value is as below:

IP Address: Subnet Mask: Default Gateway: User Name:

192.168.16.1

255.255.255.0

root

192.168.16.254

Password:

root

Online Help

Help

You can click configuring.

button when you have any configuration question during the

System Login

1. Launch the Internet Explorer.

2. Type http:// and the IP address of the switch. Press “

3. The login screen appears.

Enter

”.

4. Key in the user name and password. The default user name and password is

“

5. Click “

appears.

6. The Panel GUI will show the module GUI, the copper module an d fiber module

GUI display will be different. In the following figure, the slot 1 is copper module and slot 2 is fiber module.

root

”.

Enter

” or ”OK”, then the home screen of the Web-based management

GSW-2493

Port status

In Port status, you can view every port status that depended on user setting and the negotiation result.

display the number of port. The first integer is the module slot number. The

Port:

second integer is the port number in the module. For example: Port 1-1, it means the first port on the first module slot.

Type: Link: State: Auto Negotiation:

“Config” means the value that user configured. “Actual” means the current value of the port.

display port connection speed.

“Down” is “No Link”. “UP” is “Link”.

display port statuses “disable” or “enable”. “Unlink” will be treated as “off ”.

display the auto negotiation mode: auto/force/Nway-force.

Speed Duplex:

configured. “Actual” means the current value of the port.

Flow Control:

mode. “Config” means the value that user configured. “Actual” means the current value of the port.

display port connection speed. “Config” means the value that user

Full: display the flow control status is “enable” or “disable” in full

Back Pressure:

Display the Back Pressure status setting. “Config” means the

value that user configured. “Actual” means the current value of the port.

Bandwidth In/ Out:

10.

Priority:

11.

Port Security:

display the port static priority status is “High” or “Low” or “Disable”.

display the port incoming and outgoing bandwidth.

display the port security is “enable” or “disable”.

Port Status interface

View the Port Information

You can direct click the port on the Switch figure on the top of web page. Then, you will see the port information.

Port information interface

Port Statistics

The following information provides a view of the current port statistic information. Click

Clear

button to clean all counts.

Port Statistics

Administrator

In Administrator function, it provides the following functions:

IP Configuration, Switch Settings, Console Port Information, Port Controls, Trunking, Forwarding and Filtering, VLAN Configuration, Spanning Tree, Port Mirroring, SNMP Management, Security Manager, and 802.1x Configuration.

Administrator interface

IP Configuration

User can configure the IP Settings and DHCP client function, than clicks button. After reset the IP address, you must reboot the switch.

Apply

IP configuration interface

Switch Setting

In Switch setting, it has three parts of setting – Basic, Advance, and Misc Config. We will describe the configure detail in following.

Basic Switch Settings

In Basic Switch Setting, it displays the switch basic information.



System Name:



System Location:



System Description:



Firmware Version:



Kernel Version:



Hardware version:



MAC Address:



Fan 1: Fan 2: Module:

display fan current status.

the module information, if the switch doesn’t install the module, then this

the name of switch.

the switch physical location.

the description of switch.

the switch’s firmware version.

the kernel software version.

the switch hardware version.

the unique hardware address assigned by manufacturer (default)

column will not display any information.

Advanced Setting

Switch basic setting interface

In Advanced setting, it has two sections – MAC Table Address Entry and Priority Queue Service. After the configuration, click

Apply

button to complete the

configuration.



Enable MAC address Aging Out:

When it is disabling, the following configure item will not function.



Age-out Time:

fill in the number of seconds that an inactive MAC address

to enable the MAC address age out function.

remains in the switch's address table. The valid range is 300~765 seconds. Default is 300 seconds.



Max Bridge Transmit Delay Bound Control:

limit the packets queuing time in switch. If enable, the packets queued exceed will be drop. This valid value are 1sec, 2 sec, 4 sec and off.



Enable Low Queue Delay Bound:

limit the low priority packets queuing time in switch. If the low priority packet stays in switch exceed Max Delay Time, it will be sent. The valid range is 1~255 ms.

NOTE:

Make sure of “Max bridge transit delay bound control” is enabled before enable Delay Bound, because Enable Delay Bound must be work under “Max bridge transit delay bound control is enabled” situation.



Broadcast Storm Filter:

configure broadcast storm control. Enable it and set

the upper threshold for individual ports. The threshold is the percentage of the

port's total bandwidth used by broadcast traffic. When broadcast traffic for a port rises above the threshold you set, broadcast storm control becomes active. The valid threshold value are 5%, 10%, 15%, 20%, 25% and off.

Switch Advanced setting interface



802.1p Priority:



First Come First Service:

select the priority queue service type.

order.



All High before Low:

packets.



Weighted Round Ratio:

switch's high-priority queue. These options represent the number of high priority packets sent before one low priority packet is sent. For example, 5 High: 2 Low means that the switch sends 5 high priority packets before sending 2 low priority packet.



Qos Policy: High Priority Levels:

queue.

the sequence of packets sent is depend on arrive

the high priority packets sent before low priority

select the preference given to packets in the

0~7 priority level can map to high or low

Misc Config



Collisions Retry Forever:

times and then drop frame. Enable is in half duplex. If happen collision will retry forever.

disable is in half duplex. If happen collision will retry 48



Hash Algorithm:



IFG Compensation:

CRC Hash or Direct Map for MAC address learning algorithm

Internal Packet Gap time compensation configure. Select to

“Enable” or “Disable”.



802.1x Protocol:



IGMP Query Mode:

enable or disable 802.1x protocol.

recognizes different queries from clients or servers to decide which Query will be the first priority. The modes are: a.

Auto Mode:

chooses the switch that has the smallest IP address to be set for

the IGMP Query mode.

Enable Mode:

Disable Mode:

enables the switch to be the IGMP Querier.

disables all other switches from being the IGMP Querier.

Switch Misc Config setting interface



IGMP Theory of Operation

The following three topologies detail how IGMP Query works and to be configured

within a network:

1. Auto mode needs to be enabled when the router’s IP address is smaller than

2. IGMP needs to be enabled when the router’s IP address is not smaller than other switches in the subnet. This Router supports IGMP protocol, but

other switches in the subnet.

IGMP has to be enabled, and the Router has to be the Querier.

3. The following topology must be set when the IP address of the switch is not the smallest in the subnet. The network will cause a multi-cast storm from the IGMP client report if it is in Auto mode. All switches must be in disable mode when the VOD server is configured for IGMP Querier.

Note:

It is suggested that the VOD server switch have the smallest IP address.

Console Port Information

Console is a standard UART interface to communicate with Serial Port. User can use windows HyperTerminal program to link the switch. Please refer to

Management Æ Console login

Console port information shows as follow:

Bits per seconds: 9600 Data bits: 8 Parity: none Stop Bits: 1 Flow control: none

for detail steps.

Console Port Information interface

Console

Port Controls

You can change the port status.

1. Select the port by scroll the list in

State:

Negotiation:

speed/duplex on this port and enable auto-negotiation), Force of the port.

Speed:

Duplex:

Flows control:

Back Pressure:

Band Width:

For example, assume port 1 is 10Mbps, users can set it’s effective egress rate is

User can disable or enable this port control.

User can set auto negotiation mode is Auto, Nway (specify the

set the speed of each port.

set full-duplex or half-duplex mode of the port.

set flow control function is ON or

set Back Pressure is ON or

The port1 ~ port 24, supports port ingress and egress rate control.

Port

column.

OFF

in Full Duplex mode.

OFF

in Half Duplex mode.

1Mbps, ingress rate is 500Kbps. The switch will perform flow control or Back

Pressure to confine the ingress rate to meet the specified rate.



fill in the port effective ingress rate. The valid range is 0 ~ 1000. The unit is

In:

100K. 0: disable rate control. 1 ~ 1000: valid rate value.



Priority:

fill in the port effective egress rate. The valid range is 0~1000. The unit is

Out:

100K. 0: disable rate control. 1 ~ 1000: valid rate value.

this static priority based on port, if you set the port is high priority, income

frame from this port always high priority frame.

10.

Security:

when the port is in security mode, the port will be “locked” without permission of address learning. Only the incoming packets with SMAC already existing in the address table can be forwarded normally. User can disable the port from learning any new MAC addresses, and then use the static MAC addresses screen to define a list of MAC addresses that can use the secure port.

11. Click

Apply

button to apply all configuration.

12. When you select the port, you can see port current configure shows in below column.

Port Control interface

Trunking

Group, and enable its transmission and reception functions in an orderly manner. Link aggregation lets you group up to eight consecutive ports into a single dedicated connection. This feature can expand bandwidth to a device on the network.

operation requires full-duplex mode,

more detail information refers to IEEE

802.3ad.

Aggregator setting

System Priority:

lowest value has the highest priority and is selected as the active LACP.

Group ID:

Lacp:

Group ID

There are seven trunk groups to provided configure. Choose the

" and click

If enable, the group is LACP static trunk group. If disable, the group is local static trunk group. All ports support LACP dynamic trunking group. If connecting to the device that also supports LACP, the LACP dynamic trunking group will be

a value used to identify the active LACP. The switch with the

Select

LACP

created automatically.

Work Ports:

allow max four ports can be aggregated at the same time. If LACP static trunk group, the exceed ports are standby and able to aggregate if work ports fail. If it is local static trunk group, the number must be as same as the group member ports.

5. Select the ports to join the trunk group. Allow max four ports can be aggregated at the same time. Click

select the port and click

<<Add

button to add the port. To remove unwanted ports,

Remove>>

button.

6. If LACP enable, you can configure LACP Active/Passiv e status in each ports on State Activity page.

7. Click

8. Use

Apply

Delete

button to delete Trunk Group. Select the Group ID and click

Delete

button.

Trunking—Aggregator Setting interface

Aggregator Information

When you had setup the LACP aggregator, you will see relation information in here.

Trunking – Aggregator Information interface

Aggregator Information State Activity

When you had setup the LACP aggregator, you can configure port state activity. You can mark or un-mark the port. When you mark the port and click port state activity will change to

Active: Passive:

The port automatically sends LACP protocol packets.

The port does not automatically send LACP protocol packets, and

Active

. Opposite is

Passive

Apply

button the

responds only if it receives LACP protocol packets from the opposite device.

Note:

1. A link having either two active LACP ports or one active port can perform

dynamic LACP trunking.

2. A link has two passive LACP ports will not perform dynamic LACP trunking

because both ports are waiting for and LACP protocol packet from the opposite device.

3. If you are active LACP’s actor, when you are select trunking port, the active

status will be created automatically.

Trunking – State Activity interface

Forwarding and Filtering

IGMP Snooping

The switch support IP multicast, you can enable IGMP protocol on web management’s switch setting advanced page, then display the IGMP snooping information in this page, you can view difference multicast group VID and member port in here, IP multicast addresses range from 224.0.0.0 through 239.255.255.255.

The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP have three fundamental types of message as follows:

Message Description

Query

Report

Leave Group

When you enable the IGMP Snooping, you will see the relate information show as following figure.

message sent from the querier (IGMP router or switch) asking for a

response from each host belonging to the multicast group.

message sent by a host to the querier to indicate that the host wants to be or is a member of a given group indicated in the report message.

message sent by a host to the querier to indicate that the host has quit to be a member of a specific multicast group.

IGMP Snooping interface

Static MAC Address

1. In

MAC Address

column, enter the MAC address to and from which the port

should permanently forward traffic, regardless of the device network activity.

2. In the

VLAN ID:

Port No.

column, select a port number.

If tag-based (IEEE 802.1Q) VLANs are set up on the switch, static addresses are associated with individual VLANs. Type the VID (tag-based VLANs) to associate with the MAC address.

4. Click

button.

5. Use

Delete

button to delete unwanted MAC address.

Static MAC Address interface

MAC filtering

MAC address filtering allows the switch to drop unwanted traffic. Traffic is filtered based on the destination addresses.

1. In

MAC Address

VLAN ID:

If tag-based (802.1Q) VLAN are set up on the switch, in the VLAN ID

box, enter the MAC address that wants to filter.

box, type the VID to associate with the MAC address.

3. Click

4. Use

Delete

button.

button to delete unwanted MAC address.

MAC Filtering interface

VLAN configuration

A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic so only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch. However, all the network devices are still plug into the same switch physically.

The switch supports port-based, 802.1Q (tagged-based) and protocol-base VLAN in web management page. In the default configuration, VLAN support is “disable”.

VLAN Configuration interface

Port-based VLAN

Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored.

If an end station sends packets to different VLANs, it has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.

VLAN – PortBase interface

1. Click

Add>>

to create a new VLAN group.

2. Enter the VLAN name, group ID and select the members of VLAN group.

3. Click

Apply

Add PortBase VLAN interface

4. You will see the VLAN displays.

PortBase VLAN group list interface

5. If the groups’ list is over one page, you can click

Nex t Page

to view other VLAN

groups.

6. Use

7. Use

Delete

Edit

button to delete unwanted VLAN.

button to modify existing VLAN group.

802.1Q VLAN

Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.

You can create Tag-based VLAN, and enable or disable GVRP protocol. There are 256 VLAN groups to provide configure. Enable 802.1Q VLAN, the all ports on the switch belong to default VLAN, VID is 1. The default VLAN can’t be deleting.

GVRP allows automatic VLAN configuration between the switch and nodes. If the switch is connected to a device with GVRP enabled, you can send a GVRP request using the VID of a VLAN defined on the switch; the switch will automatically add that device to the existing VLAN.

802.1q VLAN interface



Basic

1. Click

Enable GVRP Protocol:

Group Name:

VLAN ID:

Protocol VLAN:

button.

check the check box to enable GVRP protocol.

assign a name for the new VLAN.

fill in a VLAN ID (between 2-4094). The default is 1.

choose the protocol type. Default is NONE.

6. From the Available ports box, select ports to add to the switch and click button. If the trunk groups exist, you can see it in here (ex: TRK1, TRK2…), and

you can configure it is the member of the VLAN or not.

Add>>

7. Click

Add 802.1q VLAN interface -1

. Then you will see the page as follow.

Add 802.1q VLAN interface -1

8. To set the outgoing frames are VLAN-Tagged frames or untagged. Then click

Apply

Tag: outgoing frames with VLAN-Tagged.



Untag: outgoing frames without VLAN-Tagged.



Port VID:

Configure port VID settings

Port VLAN ID:

Ingress Filtering:

enter the port VLAN ID.

Ingress filtering lets frames belonging to a specific VLAN to be

forwarded if the port belongs to that VLAN.



Enable



Disable

Acceptable Frame type:



Tag Only:

: Forward only packets with VID matching this port's configured VID.

: Disable Ingress filter function

Only packet with match VLAN ID can be permission to go through

the port.



VLAN ID Range:

Acceptable all Packet

ALL:

select a range of VLAN ID. There are 16 VLAN ID range. The

ports are assigned to the same VLAN ID will be in the same VLAN group.

5. Click

6. To reset back to default value, click

Apply

Default

button.

802.1q VLAN – Port VLAN ID interface

Spanning Tree

The Spanning-Tree Protocol (STP) is a standardized method (IEEE 802.1d) for avoiding loops in switched networks. When STP enabled, to ensure that only one path at a time is active between any two nodes on the network. We are recommended that you enable STP on all switches ensures a single active path on the network.

Spanning Tree – System Configuration interface

System Configuration

1. You can view spanning tree information about the Root Bridge.

2. You can view spanning tree status about the switch.

3. You can modify STP s t ate. After modification, click



Priority:



Max Age:



Hello Time:

check STP current status.



Forward Delay Time:

assign path priority number.

the maximum path age

the time that controls switch sends out the BPDU packet to

forward delay time.

Apply

button.

Per Port Configuration

You can configure path cost and priority of every port.

1. Select the port in Port column.

2. Assign the Path Cost. The value range is from 1 to 65535.

3. Assign the port priority value. The value range is from 0 to 255. The lowest value has higher priority.

4. Click

Apply

button.

SPT – Per Port Configuration interface

Port Mirroring

The Port mirroring is a method for monitor traffic in switched networks. Traffic through ports can be monitored by one specific port. That is, traffic goes in or out monitored ports will be duplicated into mirror port.

Port Mirroring State:

set mirror mode: Disable, RX, TX, and Both.

Analysis Port:

It’s mean mirror port can be used to see all monitor port traffic.

You can connect mirror port to LAN analyzer or Netxray.

Monitor Port:

the ports you want to monitor. All monitor port traffic will be copied to mirror port. You can select max 25 monitor ports in the switch. User can choose which port want to monitor in only one mirror mode.

Note:

If you want to disable the function, you must select monitor port to none.

SNMP Management

Prot Mirroring interface

The SNMP is a Protocol that governs the transfer of information between management and agent. The switch supports SNMP V1.

You can define management stations as trap managers and to enter SNMP community strings. You also can define a name, location, and contact person for the switch. Fill in the system options data, and then click Apply to update the changes.



System Options

Name:

enter a name for the switch.

Location: Contact:

enter the switch physical location.

enter the name of contact person or organization.

SNMP Management interface



Community strings

Serve as a password between trap manager and switch.

String: RO:

fill the name of string.

Read only. Enables requests accompanied by this string to display

MIB-object information.

Read write. Enables requests accompanied by this string to display

RW:

MIB-object information and to set MIB objects.

4. Click



Trap Manager

IP Address:

Community Strings:

3. Click

fill in the trap device IP.

the trap device community strings.

Security Manager

You can change web management login user name and password.

User name:

Password: Confirm password:

3. Click

type the new user name. The default is “root”

type the new password. The default is “root”

retype the new password.

Apply

Security Manager interface

802.1X

When enabling the IEEE 802.1X function, you can configure the parameters of this function.

System Configuration

Radius Server IP:

Server Port:

set the Radius Server IP address.

set the UDP destination port for authentication requests to the

specified Radius Server.

Accounting Port:

set the UDP destination port for accounting requests to the

specified Radius Server.

Shared Key:

set an encryption key for use during authentication sessions with the specified radius server. This key must match the encryption key used on the Radius Server.

NAS, Identifier:

6. Click

Apply

set the identifier for the radius client.

802.1x Configuration – System Configuration interface

Per port Configuration

1. Select the port in Port column.

2. Select the state of port. There are four states:



Reject:

the specified port is required to be held in the Unauthorized state.

LevelOne GSW-2493 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
