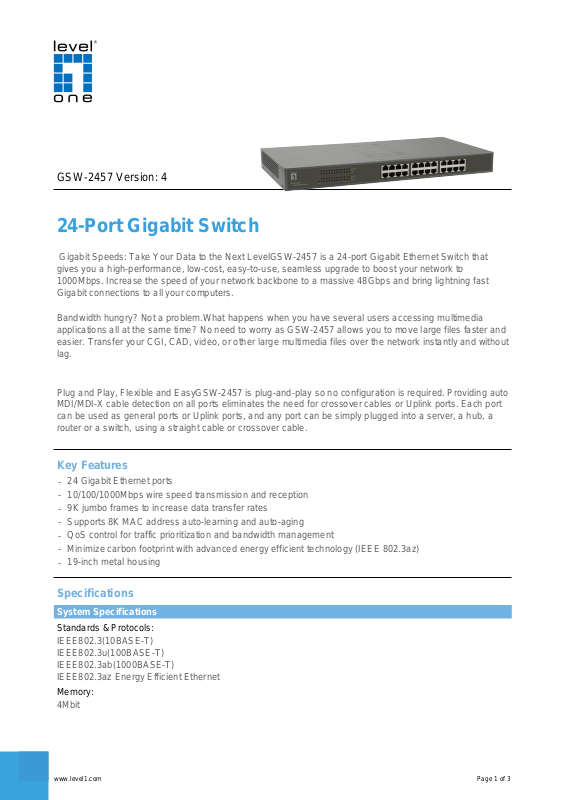

Level One GSW-2457 User Manual

GSW-2457 Version: 4

24-Port Gigabit Switch

Gigabit Speeds: Take Your Data to the Next LevelGSW-2457 is a 24-port Gigabit Ethernet Switch that
gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to
1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast
Gigabit connections to all your computers.

Bandwidth hungry? Not a problem.What happens when you have several users accessing multimedia
applications all at the same time? No need to worry as GSW-2457 allows you to move large files faster and
easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without
lag.

Plug and Play, Flexible and EasyGSW-2457 is plug-and-play so no configuration is required. Providing auto
MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port
can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a
router or a switch, using a straight cable or crossover cable.

Key Features

24 Gigabit Ethernet ports

­10/100/1000Mbps wire speed transmission and reception

­9K jumbo frames to increase data transfer rates

­Supports 8K MAC address auto-learning and auto-aging

­QoS control for traffic prioritization and bandwidth management

­Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

­19-inch metal housing

-

Specifications

System Specifications

Standards & Protocols:

IEEE802.3(10BASE-T)
IEEE802.3u(100BASE-T)
IEEE802.3ab(1000BASE-T)
IEEE802.3az Energy Efficient Ethernet

Memory:

4Mbit

www.level1.com Page 1 of 3

Buffer Memory:

4.1Mbit

Connectors and Cabling:

Full Shielded

Indicator:

Power, LINK/ACT,1000M

Transmission Method:

Store- froward

Power Input:

100-240V/AV 50Hz

Power Output:

12V/2A

Power Consumption:

15W

Features

General:

24 x 10/100/1000Mbps

Performance

Backplane (Gbps):

48Gbps

MAC Address Table:

8K

Packet Forwarding Rate:

1488000pps

Jumbo Frame (K):

9KB

Environment

Power Saving:

IEEE802.3az Energy Efficient Ethernet

Temperature (°C):

0-40°C

Humidity (Non-condensing):

10%~90%

Physical Specifications

Dimensions (W x D x H mm):

440x220x44mm

Weight (g):

2kg
