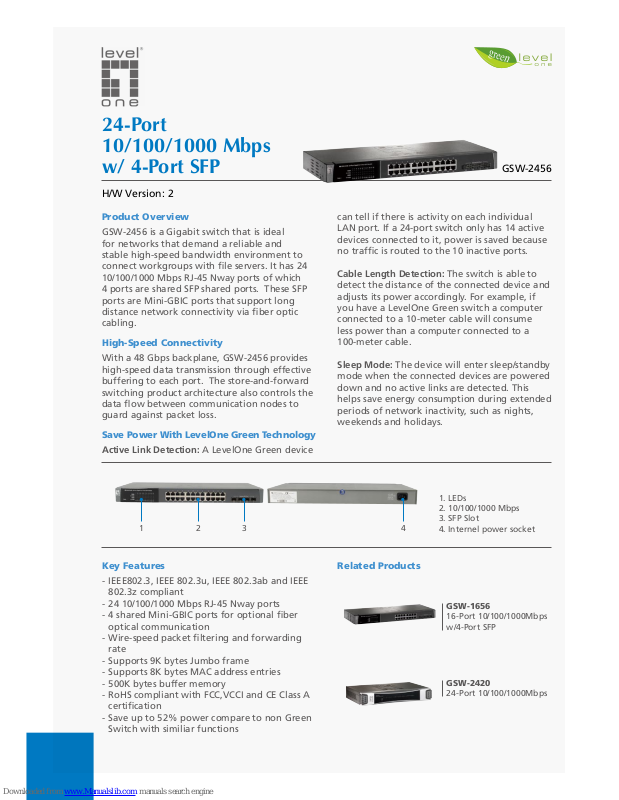

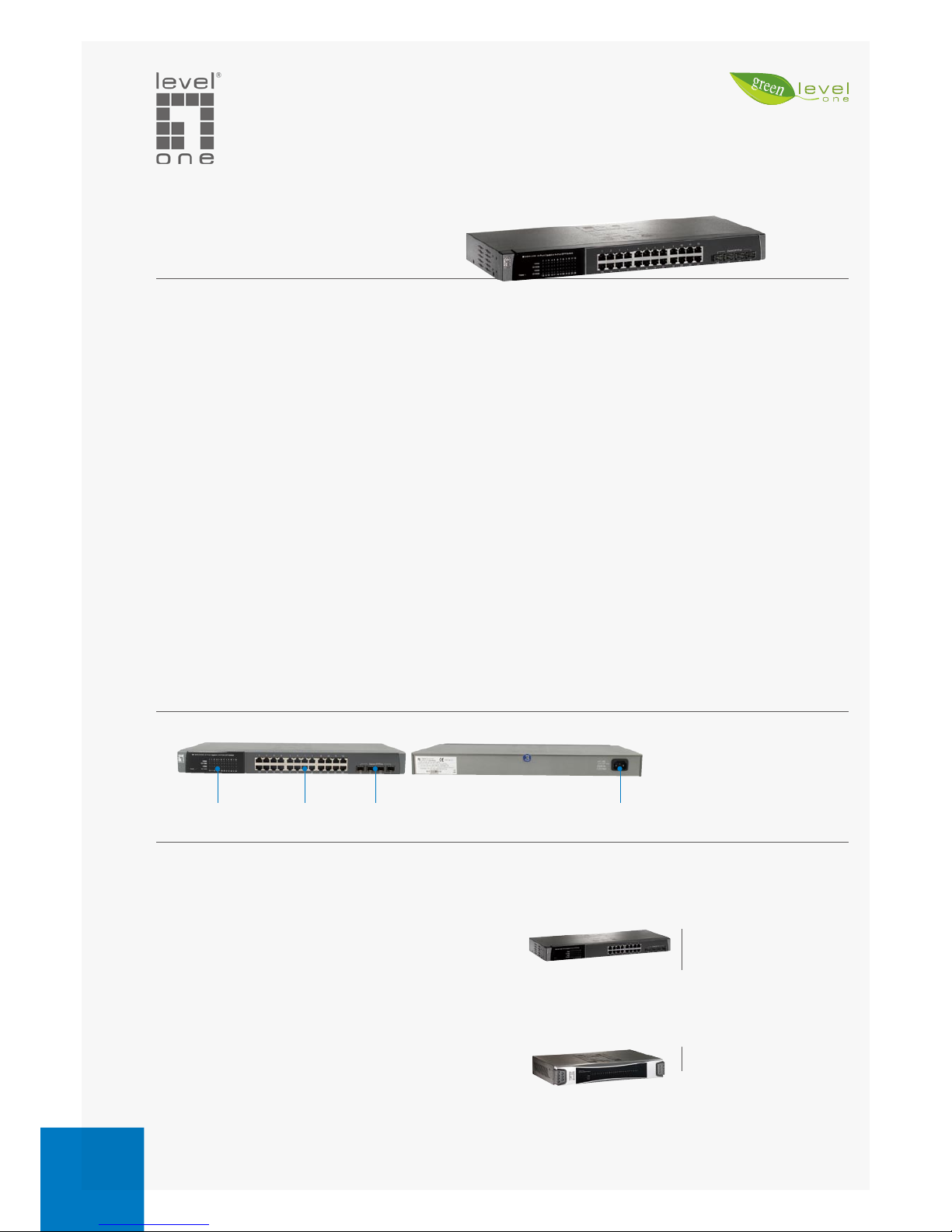

24-Port
10/100/1000 Mbps
w/ 4-Port SFP
GSW-2456
Product Overview
GSW-2456 is a Gigabit switch that is ideal
for networks that demand a reliable and
stable high-speed bandwidth environment to
connect workgroups with le servers. It has 24
10/100/1000 Mbps RJ-45 Nway ports of which
4 ports are shared SFP shared ports. These SFP
ports are Mini-GBIC ports that support long
distance network connectivity via ber optic
cabling.
High-Speed Connectivity
With a 48 Gbps backplane, GSW-2456 provides
high-speed data transmission through effective
buffering to each port. The store-and-forward
switching product architecture also controls the
data ow between communication nodes to
guard against packet loss.
Save Power With LevelOne Green Technology
Active Link Detection: A LevelOne Green device
can tell if there is activity on each individual
LAN port. If a 24-port switch only has 14 active
devices connected to it, power is saved because
no trafc is routed to the 10 inactive ports.
Cable Length Detection: The switch is able to
detect the distance of the connected device and
adjusts its power accordingly. For example, if
you have a LevelOne Green switch a computer
connected to a 10-meter cable will consume
less power than a computer connected to a
100-meter cable.
Sleep Mode: The device will enter sleep/standby
mode when the connected devices are powered
down and no active links are detected. This
helps save energy consumption during extended
periods of network inactivity, such as nights,
weekends and holidays.
Key Features
- IEEE802.3, IEEE 802.3u, IEEE 802.3ab and IEEE
802.3z compliant
- 24 10/100/1000 Mbps RJ-45 Nway ports
- 4 shared Mini-GBIC ports for optional ber
optical communication
- Wire-speed packet ltering and forwarding
rate
- Supports 9K bytes Jumbo frame
- Supports 8K bytes MAC address entries
- 500K bytes buffer memory
- RoHS compliant with FCC,VCCI and CE Class A
certication
- Save up to 52% power compare to non Green
Switch with similiar functions
GSW-1656
16-Port 10/100/1000Mbps
w/4-Port SFP
Related Products
1. LEDs
2. 10/100/1000 Mbps
3. SFP Slot
4. Internel power socket
H/W Version: 2
GSW-2420
24-Port 10/100/1000Mbps
1 3 42
Page 2
www.level1.com I one world_one brand_one level_
Ethernet Switches
Operating Temperature
0°C ~ 40°C (32°F ~ 104°F )
Dimensions
441 x 130 x 44 mm
Power Supply
Internal Power Supply
100~240VAC / 50~60Hz universal input
Certication
FCC Class A, CE, VCCI Class A
Green Power Consumption
Power Consumption with 24 x 100 meters Cable Connected
21.2W
Power Consumption with 24 x 10 meters Cable Connected
19.45W
GSW-2456 Base Power Consumption
(No Cables are Connected)
2.65W
Non Green Switch Base Power Consumption
(No Cables are Connected)
5.55W
Technical Specications
Product Diagram
GSW-2456
Standard Compliance
Compliant
IEEE802.3, IEEE802.3u, IEEE802.3z/ab and IEEE802.3x
standards
Network Interface
Ports
24 10/100/1000 Mbps RJ-45 switching ports
4 Mini-GBIC ports
NWay Protocol Support
Network speed: 1 /100/1000 Mbps
- 10 Mbps: Full/Half duplex
- 100 Mbps: Full/Half duplex
- 1000 Mbps: Full duplex
Backplane Bandwidth
48 Gbps
Mac Address
8K entries
Ram Buffer
500Kbytes
Jumbo Frame Rate
9K byte
Physical Specications
LED Indicators
1 x Power (green)
24 x 10/100M LINK/ACT (green)
24 x 1000M Link/ACT (green)

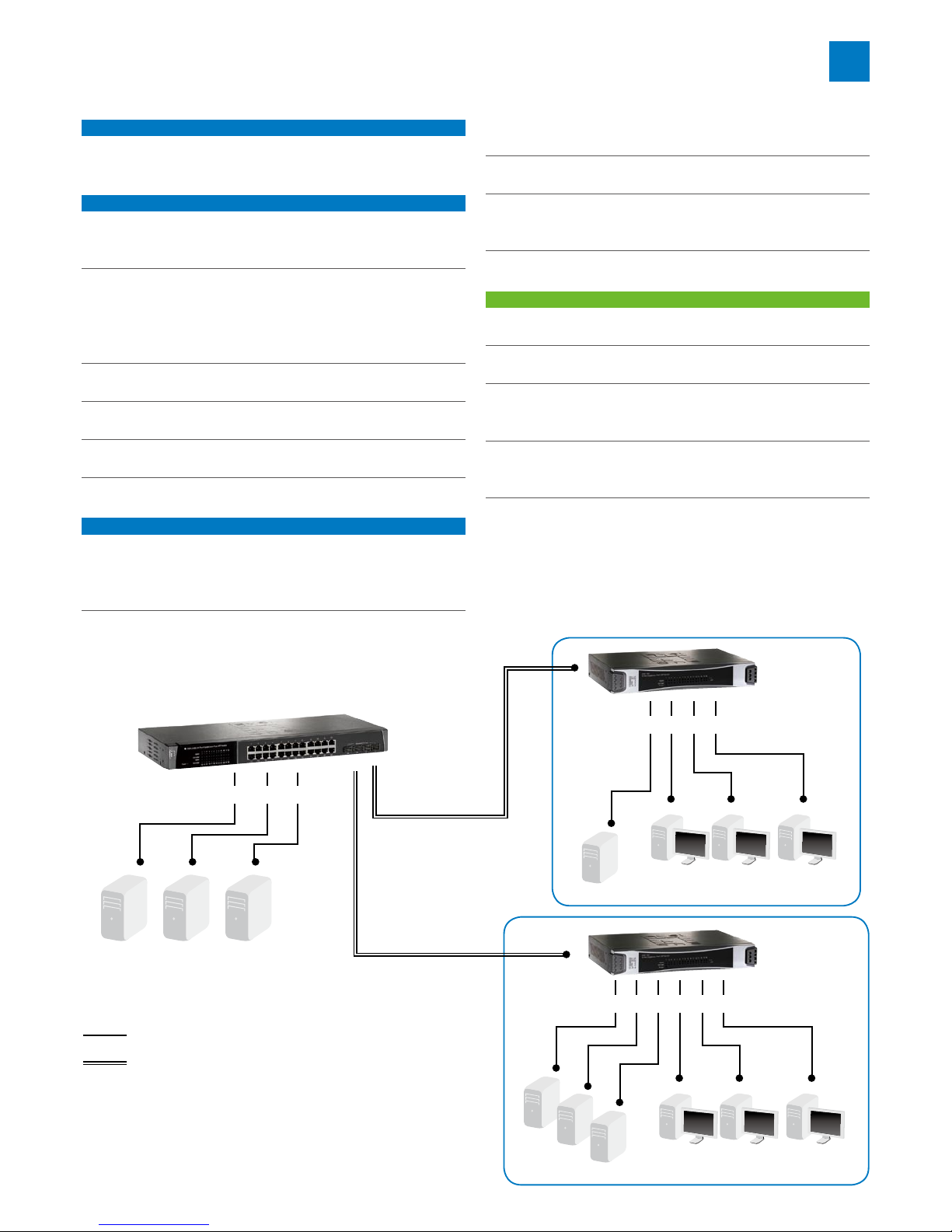

Server
Server
Server
Ethernet Cable (RJ 45)
Fiber
10/100/1000 Mbps
10/100/1000 Mbps
10/100/1000 Mbps
Page 3
Order Information GSW-2456: 24-Port 10/100/1000 Mbps w/ 4-Port SFP
Package Contents
GSW-2456
Power Cord
Rack-Mount Brackets
User Manual
Optional Accessories
V2.0
All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.
© Copyright 2009 Digital Data Communications GmbH. All Rights Reserved.
GVT-0300
Mini GBIC SFP transceiver,
SX Multi-Mode (550m)
GVT-0301
Mini GBIC SFP transceiver,
LX Single-Mode (10km)
GVT-0302
Mini GBIC SFP transceiver,
ZX Single-Mode (80km)

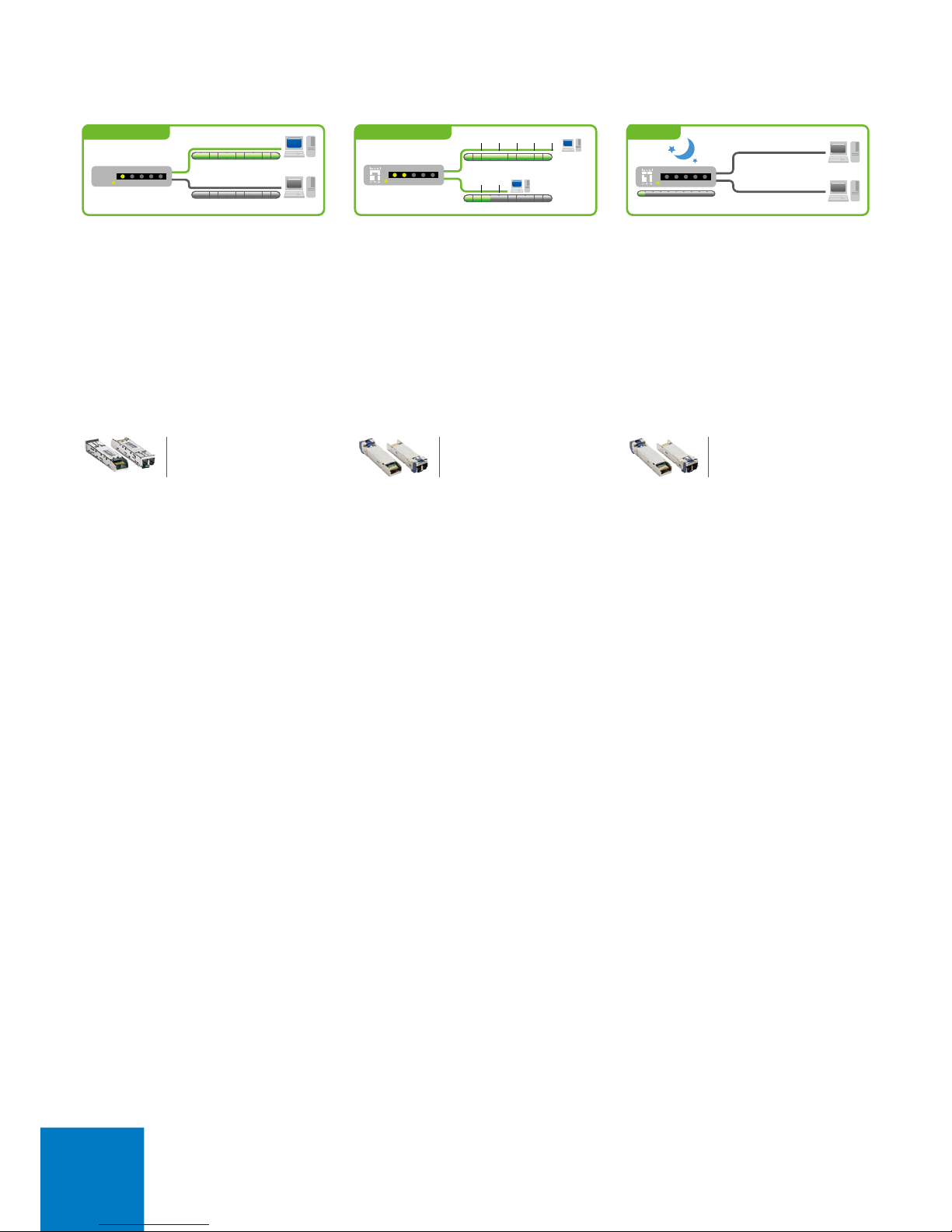

Power Saving by
Active
Power Consumption
Power Consumption
Inactive
PWR
Active Link Detection
PWR
Cable Length Detection
Active
Active
Power Consumption
Power Consumption
20m 40m
20m 40m
60m 80m 100m
PWR
Sleep Mode
Inactive
Inactive
Power Consumption
